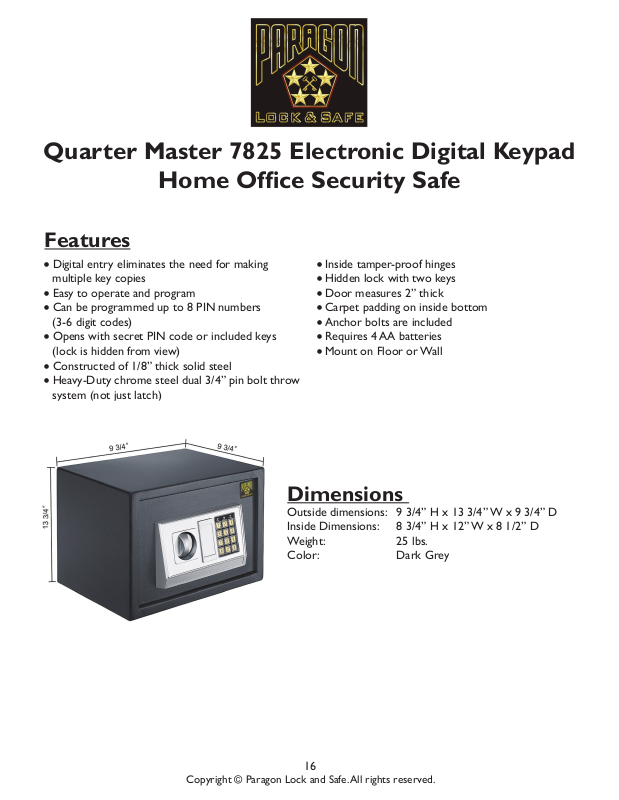

Quarter Master 7825 Electronic Digital Keypad
Home Ofce Security Safe
Features
l
Digital entry eliminates the need for making
multiple key copies
l
Easy to operate and program
l
Can be programmed up to 8 PIN numbers
(3-6 digit codes)
l
Opens with secret PIN code or included keys
(lock is hidden from view)
l
Constructed of 1/8” thick solid steel
l
Heavy-Duty chrome steel dual 3/4” pin bolt throw
system (not just latch)
l
Inside tamper-proof hinges
l
Hidden lock with two keys
l
Door measures 2” thick
l
Carpet padding on inside bottom
l
Anchor bolts are included
l
Requires 4 AA batteries
l
Mount on Floor or Wall
Dimensions
Outside dimensions: 9 3/4” H x 13 3/4” W x 9 3/4” D
Inside Dimensions: 8 3/4” H x 12” W x 8 1/2” D
Weight: 25 lbs.
Color: Dark Grey
16
Copyright © Paragon Lock and Safe. All rights reserved.
Quarter Master 7825
Electronic Digital Keypad
Home Ofce Security Safe
Thank you for choosing the Quarter Master 7825 Electronic Digital Keypad Home Ofce Security Safe
by the Paragon Lock and Safe Co. It is perfect for the home, ofce, or work place. It was designed with the
intent to be compact yet fully functional. The Quarter Master 7825 offers 2 options to open; code or key.
We’re so condent you’ll love your new safe, we’re including a full 10 year warranty! Please take a
moment to read this manual for important use and safety information. Keep this manual in a safe place
for future reference.
DIRECTION FOR USE
INITIAL BATTERY INSTALLATION
1. Remove the key plate cover, insert the key into the keypad and open the door.
2. Remove the battery cover plate located on the inside of the door.
3. Install 4 AA batteries provided and replace the battery cover.
NOTE: If both the red and green lights are on while the safe is open, this indicates that the batteries are low and need
to be changed.
TO SET UP OR CHANGE A USER CODE
1. With the door open, locate the red button on the back of the door near the hinge.
2. Press the red button and listen for the beep.
3. Immediately enter your new passcode (3-6 digits long)
4. Immediately after entering your new passcode, press the “A” or “B” button on the keypad. Your new user passcode is now stored.
NOTE: This safe stores up to 2 passcodes (a user code and a manager code). Entering a third code will erase the
rst passcode entered.
SETTING UP OR CHANGING A MANAGER PASSCODE
1. Open your safe with the passcode you wish to change and leave the door ajar.
2. Press the “0” button on the keypad twice. Press the red button, listen for a beep and then enter your new user passcode.
New user passcodes may be 3-6 digits long.
3. Immediately after entering your new code, press the “A” or “B” button on the keypad. Your user code is now changed.
OPENING THE SAFE
1. Input your code and then press the “B” button, the green light will turn on.
2. Turn the knob clockwise within 5 seconds to open the door.
3. Each key pressed will be accompanied by a buzzer and a yellow ashing light. If the entered code is invalid the yellow light will
ash and the buzzer will quickly sound, this indicates the code needs to be re-entered.
CAUTION: Entering the incorrect passcode 3 times will lock the system for 20 seconds.
CLOSING THE SAFE
1. Turn the knob counter-clockwise, the mechanism will automatically lock the safe.
IMPORTANT! Your safe comes with a set of keys. DO NOT store keys inside of safe!
17
Copyright © Paragon Lock and Safe. All rights reserved.
CUSTOMER SERVICE
Customer service and product support are available online at www.paragonlockandsafe.com
WARRANTY AND RETURN POLICY
Thank you for choosing a Paragon Lock and Safe product. Paragon Lock and Safe (PL&S) warrants the original purchaser of
new equipment manufactured by PL&S to be free from defects in material or workmanship from the date of original purchase for a period of ten years. In the event the safe being replaced is no longer manufactured, PL&S will provide a safe they
deem to be “equivalent”.
The obligation of PL&S under this warranty is limited to the replacement of any parts or components that in the opinion of
PL&S are defective, F.O.B. the factory, or at any other location that PL&S may designate.
In the case of re (for reproof models): PL&S will replace your safe for free. You will provide a police and re report and
we will ship you your safe replacement. In the case of a break-in: PL&S will repair or replace your safe for free. You simply
send your safe back along with a copy of the police report. In the case of problems with locks, bolt work or handle: PL&S will
repair your safe for free. Simply send your safe back. If we cannot x it, we will ship you a safe replacement.
The original purchaser who has provided proper proof of the original retail purchase and all other requested information
is the holder of this warranty. This warranty is non-transferable and covers you as long as you own the safe and have your
original invoice. Make sure you save a copy of your invoice.
All shipping damages must be claimed with the designated shipper. Check the shipping carton for damage before signing the
bill of lading.
If an item is opened and deemed to be defective within 30 days from the date of delivery, please contact us at www.paragonlockandsafe.com for return instructions. A PL&S RMA is required when returning defective merchandise. When returning
your order please include a copy of your order number with date purchased, Your PL&S RMA and the reason for the return.
Any defective component, part or assembly returned to PL&S will be replace by PL&S. PL&S will not be responsible for any
expenses incurred by the customer under the terms of this warranty nor shall it be responsible for any damages consequential, special, contingent or otherwise: or expenses or injury arising directly or indirectly from the use of a PL&S product. Any
component, part or assembly returned to PL&S must be returned at the customers expense along with proof of purchase.
PL&S reserves the right to determine whether the terms of this warranty have been properly complied with. In the event
that the terms are not complied with, PL&S shall be under no obligation to honor this warranty.
IMPLIED WARRANTIES: EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY. PL&S SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. PL&S AND YOUR MAXIMUM LIABILITY TO THE OTHER IS LIMITED TO PURCHASE PRICE YOU PAID FOR PRODUCTS OR SERVICES PLUS INTEREST ALLOWED BY LAW.
DISPUTE RESOLUTION. You and PL&S agree that any dispute between you and PL&S will be resolved exclusively and
nally by arbitration administered by the National Arbitration Forum (NAF) and conducted under its rules, except as otherwise provided below. You and PL&S will agree on another arbitration forum in NAF ceases operations. The arbitration will be
conducted before a single arbitrator, and will be limited solely to the dispute between you and PL&S. Any decision rendered
in such arbitration proceedings will be nal and binding on the parties, and judgment may be entered thereon in any court of
competent jurisdiction. THIS AGREEMENT AND ANY SALES THERE UNDER SHALL BE GOVERNED BY THE LAWS OF
THE STATE OF MICHIGAN, WITHOUT REGARD TO CONFLICTS OF LAW RULES.
Warranty shall not apply to: products which are used for a purpose other than which they were designed for or which have
been altered in any way that would be determined to the performance of life of the product. Misapplication, misuse or negligence will revoke the warranty.
