Paragon TURBO PLUS LPG User Instructions

User's Instructionsl

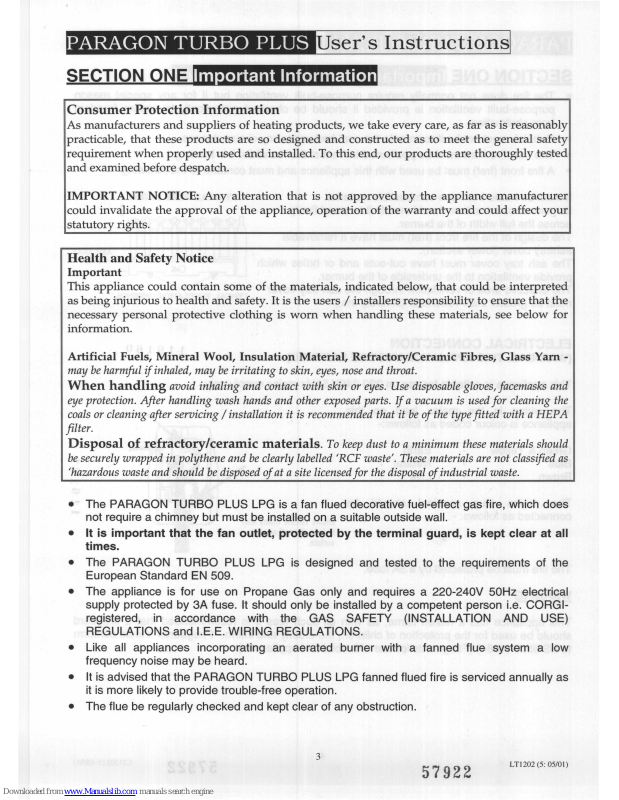

SECTION ONE

Consumer Protection Information

As manufacturers and suppliers of heating products, we take every care, as far as is reasonably
practicable, that these products are so designed and constructed as to meet the general safety
requirement when properly used and installed. To this end, our products are thoroughly tested
and examined before despatch.

IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer
could invalidate the approval of the appliance, operation of the warranty and could affect your
statutory rights.

Health and Safety Notice

Important

This appliance could contain some of the materials, indicated below, that could be interpreted

as being injurious to health and safety. It is the users / installers responsibility to ensure that the
necessary personal protective clothing is worn when handling these materials, see below for
information.

Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yam -

may be harmfulifinhaled, may be irritating to skin, eyes, nose and throat.

When handling

avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and
eye protection. After handling wash hands and other exposed parts. If a vacuum is used for cleaning the
coals or cleaning after servicing / installation it is recommended that it be of the type fitted with a HEP A

filter.

Disposal of refractory/ceramic materials.

To keep dust to a minimum these materials should

be securely wrapped in polythene and be clearly labelled 'RCF waste'. These materials are not classified as

'hazardous waste and should be disposed of at a site licensed for the disposal of industrial waste.

• The PARAGON TURBO PLUS LPG is a fan flued decorative fuel-effect gas fire, which does
not require a chimney but must be installed on a suitable outside wall.

• It is important that the fan outlet, protected by the terminal guard, is kept clear at all
times.

• The PARAGON TURBO PLUS LPG is designed and tested to the requirements of the
European Standard EN 509.

• The appliance is for use on Propane Gas only and requires a 220-240V 50Hz electrical
supply protected by 3A fuse. It should only be installed by a competent person Le. CORGI-
registered, in accordance with the GAS SAFETY (INSTALLATION AND USE)
REGULATIONS and I.E.E. WIRING REGULATIONS.

• Like all appliances incorporating an aerated burner with a fanned flue system a low
frequency noise may be heard.

• It is advised that the PARAGON TURBO PLUS LPG fanned flued fire is serviced annually as
it is more likely to provide trouble-free operation.

• The flue be regularly checked and kept clear of any obstruction.

57922

SECTION ONE

• The fire does not normally require purpose-built ventilation but if for any special reason
purpose-built ventilation is provided it should be checked periodically to ensure freedom
from obstruction.

• Rubbish must not be thrown onto the coal bed under any circumstances.

• The cast fire front must be positioned in front of the fire whilst it is burning.

• A fire front (fret) must be used with this appliance and must conform to the following:

It must be made from non-combustible material.

Its general construction should enable it to stand firmly
across the full width of the burner.
The design of the fire front (fret) must have a removable
ashtray cover (lower section).
The ash tray cover must have cut-outs and or holes which

provide ventilation to the underside of the burner.
The effective area of ventilation through the ash tray cover

must be greater than 1365mm2 (2.12 sq. ins.)

TYPICAL FIRE FRONT

e

ASH TRAY

COVER

ELECTRICAL CONNECTION

(WARNING: THIS APPLIANCE MUST BE EARTHED)

The wiring in the mains lead on this

appliance is colour coded as follows:-

The mains plug terminal should be

connected as follows: -

Ensure electric mains lead
is kept clear of any hot
surface.

Green & Yellow

Blue

Brown

Earth
Neutral
Live

This appliance has a naked flame, as with all such fires it is recommended that a fireguard

should be used for the protection of children, the elderly and infirm. Fireguards should conform

to BS 6539 (1984) (Fireguards for use with solid fuel appliances).
