Paradyne 7510 DSU User Manual

MODEL 7510 DSU

USER’S GUIDE

Document No. 7510-A2-GB20-10

November 1997

Notice

This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Paradyne Corporation, 8545 126th Avenue North, P.O. Box 2826, Largo, Florida 33779-2826.

Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of Paradyne Corporation to notify any person of such revision or changes.

Changes and enhancements to the product and to the information herein will be documented and issued as a new release to this manual.

Trademarks

All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered service marks of their respective owners.

Warranty, Sales, and Service Information

Contact your sales or service representative directly for any help needed. For additional information concerning warranty, service, repair, spare parts, installation, documentation, or training, use one of the following methods:

 Via the Internet: Visit the Paradyne World Wide W eb site at http://www.paradyne.com  Via Telephone: Call our automated call system to receive current information via fax or to speak with a

company representative.

— Within the U.S.A., call 1-800-870-2221 — International, call 727-530-2340

Printed on recycled paper

November 1997

7510-A2-GB20-10

Contents

About This Guide

 Document Purpose and Intended Audience v. . . . . . . . . . . . . . . . . . . . . . . . .

 Document Summary v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Product-Related Documents vi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 About the DSU

 Model 7510 DSU Features 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Typical DSU Configurations 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 User Interface Types 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Panel Interface Connections 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Using the Asynchronous Terminal Interface

 Connecting to the Terminal Port 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Initiating an ATI Session 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Screen Format Types 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What Affects Screen Displays 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen Work Areas 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Navigating the Screens 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Keyboard Keys 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen Function Keys 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Switching to the Screen Function Key Area 2-7. . . . . . . . . . . . . . . . . . . . .

 Ending an ATI Session 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Customizing the DSU

 Identifying the Device and System 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Saving Configuration Options 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Configuring the DSU 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configuration Option Areas 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Accessing and Displaying Configuration Options 3-3. . . . . . . . . . . . . . . .

7510-A2-GB20-10

November 1997

Contents

4 Monitoring the DSU

 What to Monitor 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

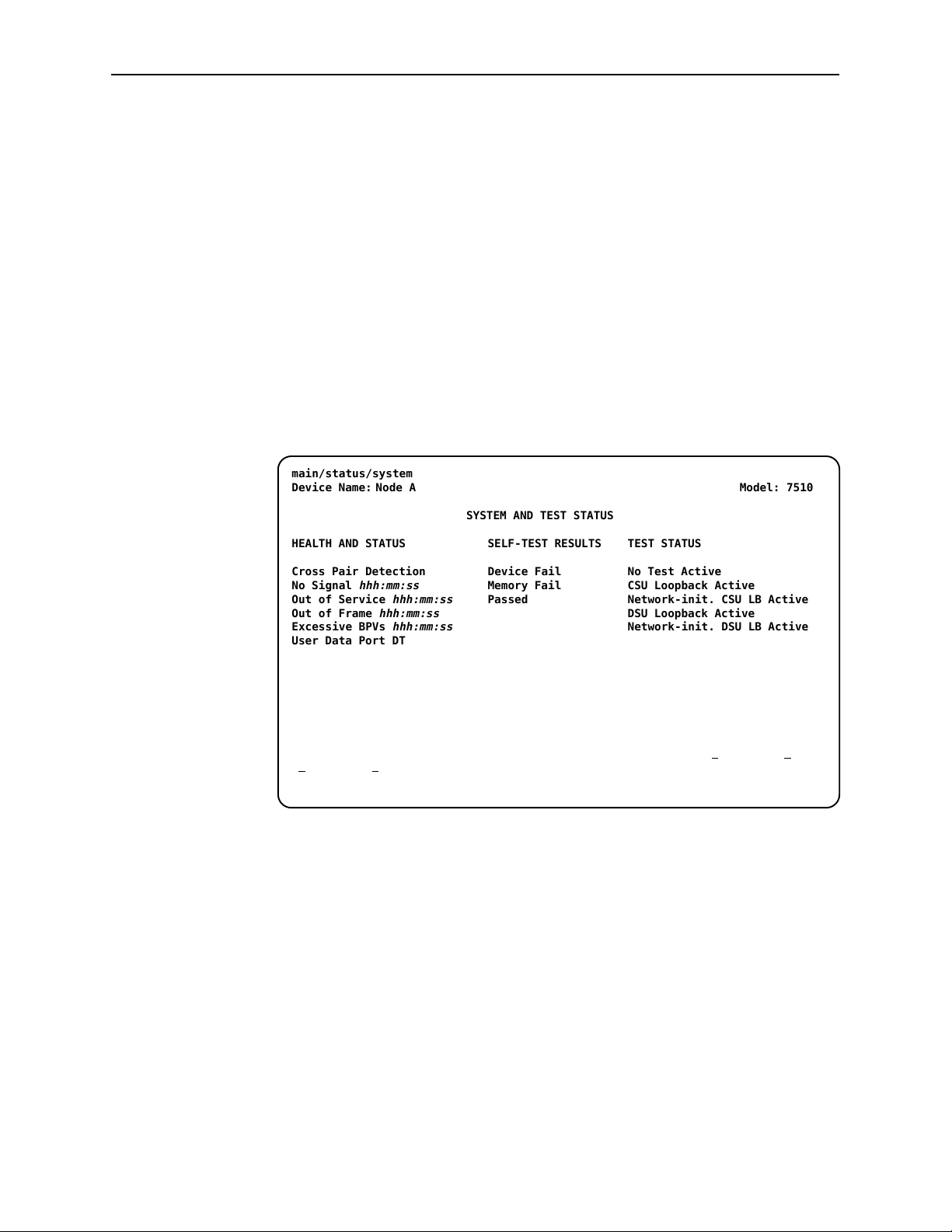

 Viewing System and Test Status 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Health and Status 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Self-Test Results 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Status Messages 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Viewing Network Interface Status 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Viewing Network Performance Statistics 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . .

 Monitoring the LEDs 4-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System LEDs 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Network LEDs 4-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Port LEDs 4-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 T esting

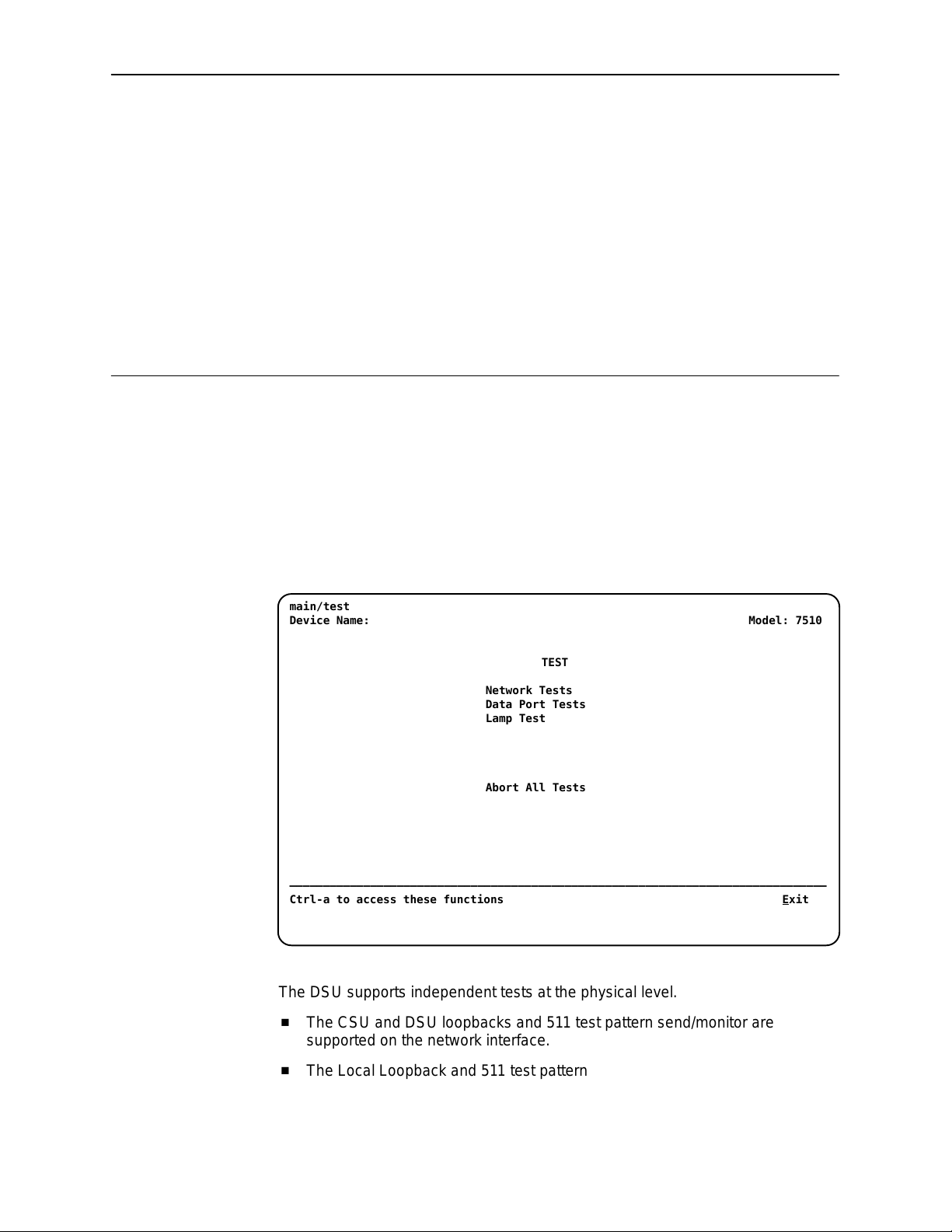

 Accessing the Test Menu 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Running Network Tests 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CSU or External Network Loopback 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DSU or Internal Network Loopback 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Send V.54 Up/Down Sequences 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

511 Test Pattern for the Network 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

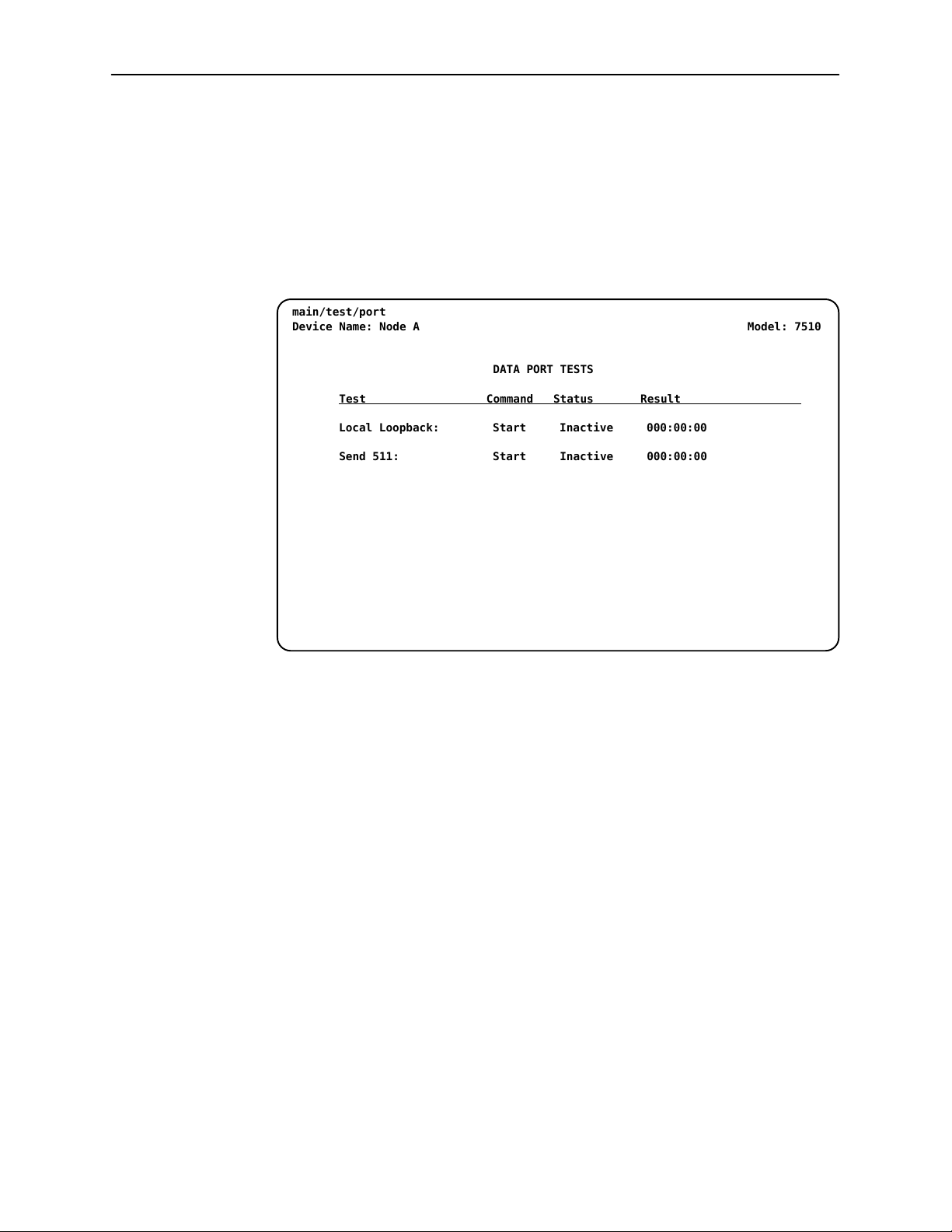

 Running Data Port Tests 5-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Local Loopback 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

511 Test Pattern for the DTE 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Running the Lamp Test 5-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Ending an Active Test 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Messages and Troubleshooting

 Messages and Troubleshooting 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Responding to Device Messages 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Troubleshooting 6-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Resetting the DSU 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Displaying DSU Identity Information 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

November 1997

7510-A2-GB20-10

A Configuration Option Tables

 Overview A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 System Options Menu A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Network Interface Options Menu A-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Data Port Options Menu A-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Terminal Port Options A-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B W orksheets

 Overview B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Configuration Worksheets B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C Cables and Pin Assignments

 Overview C-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Terminal Port EIA-232 Connector C-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 V.35 User Data Port Connector C-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Standard EIA-232-D Crossover Cable C-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 LAN Adapter Converter and Cable C-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Modular RJ48S DDS Network Interface Cable C-5. . . . . . . . . . . . . . . . . . . . . .

Contents

D Technical Specifications

Glossary

Index

7510-A2-GB20-10

November 1997

iii

About This Guide

Document Purpose and Intended Audience

This guide contains information needed to set up, configure, and operate the Model 7510 DSU and is intended for installers and operators.

Document Summary

Section Description

Chapter 1

Chapter 2

Chapter 3

Chapter 4

Chapter 5

Chapter 6

Appendix A

Appendix B

Appendix C

About the DSU.

examples of typical configurations.

Using the Asynchronous Terminal Interface.

instructions for accessing the user interface and navigating the screens.

Customizing the DSU.

the user interface and DSU configuration.

Monitoring the DSU.

LEDs, DSU status, and network statistics.

Testing.

setup.

Messages and Troubleshooting.

device messages and troubleshooting.

Configuration Option Tables.

options, default settings, and possible settings.

Worksheets.

settings, and possible settings to use for planning.

Cables and Pin Assignments.

interface details.

Provides details about available tests and test

Describes the DSU features and shows

Provides

Provides procedures for setting up

Describes monitoring details about the

Provides information on

Contains all configuration

Contains all the configuration options, default

Contains connector and

7510-A2-GB20-10

Appendix D

Technical Specifications.

specifications of the DSU.

November 1997

Contains physical and regulatory

About This Guide

Section Description

Glossary Defines acronyms and terms used in this document. Index Lists key terms, acronyms, concepts, and sections in

Product-Related Documents

Document Number Document Title

alphabetical order.

7510-A2-GN10

To order additional product documentation, refer to

Information

on page A at the beginning of this User’s Guide.

Model 7510 DSU Startup Instructions

Warranty, Sales, and Service

November 1997

7510-A2-GB20-10

About the DSU

Model 7510 DSU Features

The DSU provides an interface between the customer premises equipment (CPE) and a Digital Data Service (DDS) network.

The DSU’s features and capabilities include:

 Easy Installation. Connects to your equipment using standard connectors

and cables.

 Easy Configuration. A compact and well-thought set of configuration options

minimizes your customization effort.

 DDS Operation. Operates at 56 and 64 kbps CC (clear channel).  Local Area Data Set (LADS) Operation. Operates at 56 and 64 kbps

full-duplex as a limited-distance modem.

 Autorating. Automatically adjusts to the detected line rate.  Data Port Rates. Automatically adjusts to the DDS or LADS operating rates.  Asynchronous T erminal Interface (ATI). Provides a menu-driven

VT100-compatible interface for configuring and managing the DSU.

— Local Management. Provides local management using an asynchronous

terminal connection through the Terminal port.

— Remote Management. Provides remote management using an external

modem through the Terminal port.

 Diagnostics. Lets you diagnose device and network problems with digital

loopbacks and pattern tests.

 Device and Test Monitoring. Lets you track and evaluate the unit’s

operation with status and test result information.

7510-A2-GB20-10

November 1997

1-1

About the DSU

Typical DSU Configurations

The following illustration shows a typical LAN/WAN interconnection application for the DSU. The routers connected to the DSU at each location provide the LAN interconnection.

Router

DDS

Network

DSU DSU

Router

97-15084-02

The DSU can also be used in a Frame Relay network.

Frame

Router

DSU DSU

Relay

Network

Router

97-15271-01

Two DSUs can be connected back-to-back to act as Local Area Data Sets (LADS).

1-2

Router

56 kbps

DSU DSU

Router

97-15236-01

Table D-2 in Appendix D shows the maximum distances for LADS applications.

November 1997

7510-A2-GB20-10

User Interfaces

About the DSU

There are two types of user interfaces for the DSU:

 Menu-driven Asynchronous Terminal Interface (ATI) screens (see Chapter 2,

Using the Asynchronous Terminal Interface

 Front panel LED status indicators (see Chapter 4,

56/64K

Rear Panel Interfaces

The following illustration shows the physical interfaces of the DSU. Information about the installation of the DSU is contained in the

Instructions

Terminal

7510 DSU

ALARM

TESTDMOOS

System Network

Monitoring the DSU

OOFNSTXD (103)

RXD (104)

Port

RTS (105)

CTS (106)

DTR (108)

497-15245

Model 7510 DSU Startup

Modem

DTE

7510-A2-GB20-10

POWER

Power

TERMINAL

November 1997

D T E

NETWORK

Network

497-1523

1-3

Using the Asynchronous Terminal Interface

Connecting to the Terminal Port

The device used for the Asynchronous Terminal Interface (ATI) can be a VT100-compatible async terminal, or a PC running emulation software. The terminal or PC can be connected to the Terminal port directly, or through an external modem.

Ensure that the device you connect communicates using these settings:

 Data rate set to 9.6 kbps.  Character length set to 8.  Parity set to None.  Stop Bits set to 1.

Terminal port settings cannot be changed from the ATI.

7510-A2-GB20-10

November 1997

2-1

Using the Asynchronous Terminal Interface

Initiating an ATI Session

The user interface is blank until activated. Press Return to activate the user interface. The first time you do this the Main Menu screen is displayed.

main Device Name: Model: 7510

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Ctrl-a to access these functions E

MAIN MENU

Status Test Configuration Control

xit

Entry to all of the DSU’s tasks begins at the Main Menu screen, which has four menus or branches.

Select . . .

Status View results of diagnostic tests, network status of interfaces, statistics,

Test Select and cancel tests for the DSU’s interfaces. Configuration Display and edit the configuration options. Control Establish identification for the DSU and system, or to initiate a power-up

To . . .

LEDs, and DSU identity information.

reset of the DSU.

2-2

November 1997

7510-A2-GB20-10

Using the Asynchronous Terminal Interface

MAIN MENU Status Test Configuration Control

Load Configuration From...

Status

• System and Test Status

• Network Interface Status

• Network Performance Statistics

• Display LEDs

• Identity

Screen Format Types

Three types of screen formats are available on the ATI.

Use the screen format . . .

Menu selection Display a list of available functions for user selection. Input Add or change information on a screen.

Display Display configuration information and results from

Test

• Network T ests

• Data Port Tests

• Lamp Test

• Abort All Tests

Configuration Edit/Display

• System

• Network

• Data Port

• Terminal Port

Control

• Device Name

• Reset Device

497-15238

To . . .

Input or edit fields that have an Underline or selection. See

performance and DSU-specific tests. Display-only fields that have no underline in the field value.

Screen Work Areas

in the field value

What Affects Screen Displays

What appears on the screens depends on the:

 Current configuration – How the DSU is currently configured.  Data selection criteria – What you entered in previous screens.

7510-A2-GB20-10

November 1997

2-3

Using the Asynchronous Terminal Interface

Screen Work Areas

There are two user work areas:

 Screen area – This is the area above the dotted line that provides the menu

path, menus, and input fields. The menu path appears as the first line on the screen. In this manual, the

menu path is presented as a menu selection sequence with the names of the screens:

Main Menu→Configuration (Load Configuration From)→ Configuration Edit/Display

 Screen function key area – This is the area below the dotted line that lists

function keys specific to the screen, field value choices, and system messages.

Menu Path

main/configuration/edit/port Device Name: Node A Model: 7510

→

Data Port Options

Screen

Function

Keys

Field V alue

Choices

DATA PORT OPTIONS

Invert Transmit Clock: Disable Port (DTE) Initiated Loopbacks: Disable Bilateral Loopback: Disable Carrier Control by RTS: Constant CTS Control: Standard RLSD Control: Standard DSR Control: Standard Monitor DTR: Enable

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Ctrl-a to access these functions, ESC for previous menu M S

ave

Select: Disable, Enable No Signal

Input Fields

ainMenu Exit

System

Messages

2-4

November 1997

7510-A2-GB20-10

Navigating the Screens

You can navigate the screens by:

H Using keyboard keys H Using screen function keys H Switching between the two screen work areas

Keyboard Keys

Use the following keyboard keys to navigate within the screen.

Using the Asynchronous Terminal Interface

To . . .

Move cursor between the screen area and the screen function keys area below the dotted line at the bottom of the screen

Return to the previous screen Esc Move cursor to the next field on the screen Tab Accept entry or display valid options on the last row of the screen

when pressed before entering data or after entering invalid data Move cursor to the previous field Ctrl-k Select the next valid value for the field Spacebar Delete character that the cursor is on Delete (Del) Move cursor up one field within a column on the same screen Up Arrow or Ctrl-u Move cursor down one field within a column on the same screen Down Arrow or Ctrl-d Move cursor one character to the right in a text field Right Arrow or Ctrl-f Move cursor one character to the left in a text field Left Arrow or Ctrl-b Redraw the screen display , clearing information typed in but not

yet entered

Press . . .

Ctrl-a

Return (Enter)

Ctrl-l

7510-A2-GB20-10

" Procedure

To make a menu or field selection:

1. Press the tab key or the right arrow key to position the cursor on a menu or field selection. Each selection is highlighted as you press the key to move the cursor from position to position.

2. Press Return. The selected menu or screen appears.

3. Continue Steps 1 and 2 until you reach the screen you want.

November 1997

2-5

Using the Asynchronous Terminal Interface

The current setting or value appears to the right of the field name. The valid choices for the field are displayed in the screen function area. You can enter information into a selected field by typing in the first letter or letters of a field value or command.

If a field is blank and the Field Values screen area displays valid selections, press the spacebar and the first valid value for the field will appear. Continue pressing the spacebar to scroll through other valid values.

Screen Function Keys

All screen function keys located below the dotted line operate the same way (upper- or lowercase) throughout the screens.

For the screen function . . .

Clear C or c Clear status messages for one-time events. ClrStats C or c Clear network performance statistics and refresh the

Select . . . And press Return to . . .

screen. Exit E or e T erminate the async terminal session. MainMenu M or m Return to the Main Menu screen. PgDn D or d Display the next page. PgUp U or u Display the previous page. Refresh R or r Update screen with current information. ResetMon R or r Reset an active Monitor 511 test counter to zero. Save S or s Save information.

2-6

November 1997

7510-A2-GB20-10

Switching to the Screen Function Key Area

Selecting Ctrl-a allows you to switch between the two screen work areas to perform all screen functions.

 Procedure

To access the screen function area below the dotted line:

1. Press Ctrl-a to switch from the screen area to the screen function key area

below the dotted line. The available selections for the first input field appear on the last line as shown below.

2. Select either the function’s designated (underlined) character or press the tab

key until you reach the desired function key.

Example:

To reset the Monitor 511 error counter to zero, type r or R (ResetMon).

3. Press Return. The function is performed.

4. To return to the screen area above the dotted line, press Ctrl-a again.

Using the Asynchronous Terminal Interface

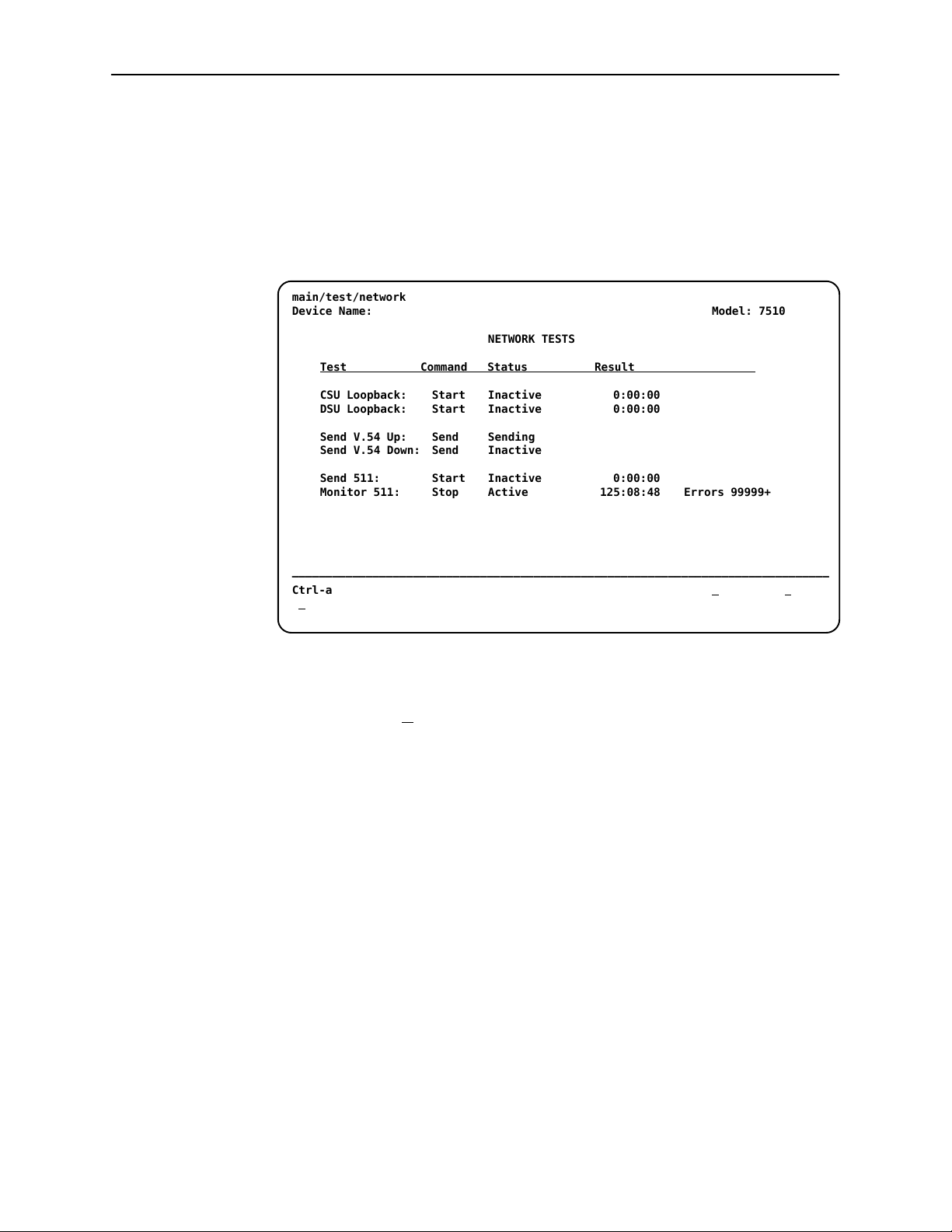

main/test/network Device Name: Model: 7510

NETWORK TESTS

Test Command Status Result

CSU Loopback: Start Inactive 0:00:00 DSU Loopback: Start Inactive 0:00:00

Send V.54 Up: Send Sending Send V.54 Down: Send Inactive

Send 511: Start Inactive 0:00:00 Monitor 511: Stop Active 125:08:48 Errors 99999+

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Ctrl-a to access these functions, ESC for previous menu M R

esetMon

ainMenu Exit

7510-A2-GB20-10

November 1997

2-7

Using the Asynchronous Terminal Interface

Ending an ATI Session

Use the Exit function key from any screen to terminate the session.

 Procedure

To end an ATI session:

1. Press Ctrl-a to go to the screen function key area below the dotted line.

2. Save changes if required. A confirmation message appears if you have made

but not saved changes to your configuration.

3. Tab to E

appears.

xit (or type e or E) and press Return. The User Interface Idle screen

2-8

November 1997

7510-A2-GB20-10

Customizing the DSU

Identifying the Device and System

Use the Device Name screen to determine the name that will be displayed at the top of all ATI screens, and system information that will be displayed on the Identity screen. To access the Device Name screen, follow this menu selection sequence:

Main Menu→Control→Device Name

main/control/device name Device Name: Node A Model: 7510

DEVICE NAME

Device Name: Node A System Name: ________________________________________ Clear System Location: ________________________________________ Clear System Contact: ________________________________________ Clear

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Ctrl-a to access these functions, ESC for previous menu M

ave

Fields on the Device Name screen are null until you enter values. Allowable values are any printable ASCII character. ASCII printable characters include:

 Numeric 0–9  Upper or lower case A–Z  Space  All ASCII symbols

Clear

ainMenu Exit

7510-A2-GB20-10

Use the left and right arrow keys to scroll through the fields. Select Clear to reset a field to a null value.

November 1997

3-1

Customizing the DSU

 Procedure

To enter Device Name screen information:

1. Position the cursor in the Device Name field. Enter a name unique in your

system to identify the unit. The maximum length of Device Name is 20 characters.

2. Position the cursor in the System Name field. Enter a name unique in your

network to identify the system. The maximum length of System Name is 127 characters.

3. Position the cursor in the System Location field. Enter the physical location of

the system. The maximum length of System Location is 127 characters.

4. Position the cursor in the System Contact field. Enter the name and contact

information for the person responsible for the unit. The maximum length of System Contact is 127 characters.

5. Save the Device Name screen information as shown in the next section.

Saving Configuration Options

When changes are made to the configuration options, the changes must be saved to take effect. Use the S

 Procedure

To save configuration options changes:

1. Press Ctrl-a to switch to the screen function key area below the dotted line.

2. Select S

NOTE:

When Exit is selected before Save, a Save Configuration screen appears requiring a Yes or No response.

If you select . . .

Yes The configuration is saved. No The Main Menu appears and changes are not saved.

ave key or Save Configuration screen.

ave and press Return.

Then . . .

3-2

November 1997

7510-A2-GB20-10

Configuring the DSU

Configuration option settings determine how the DSU operates. Use the DSU’s Configuration branch to display or change configuration option settings.

Configuration Option Areas

The DSU is shipped with factory settings in the Default Factory configuration area. You can find default information by:

H Referring to

Worksheets

H Accessing the Configuration branch of the DSU menu.

The DSU has two sets of configuration option settings. The Current Configuration matches the Default Factory Configuration until modified and saved by the user.

Appendix A,

Configuration Option Tables

Customizing the DSU

, or Appendix B,

Configuration Option Area

Current Configuration The DSU’s active set of configuration options. Default Factory Configuration A read-only configuration area containing the factory

If the factory default settings do not support your network’s configuration, customize the configuration options for your application.

Configuration Option Set

default configuration options.

Accessing and Displaying Configuration Options

To display the configuration options, you must first copy one configuration option set into the edit area.

" Procedure

To load a configuration option set into the configuration edit area:

1. Follow this menu selection sequence:

Main Menu→Configuration (Load Configuration From)

2. Select Current Configuration or Default Factory Configuration. Press Return.

The selected configuration option set is loaded and the Configuration Edit/Display menu screen appears.

7510-A2-GB20-10

See Appendix A for a list and explanation of the configuration options available.

November 1997

3-3

+ 48 hidden pages
