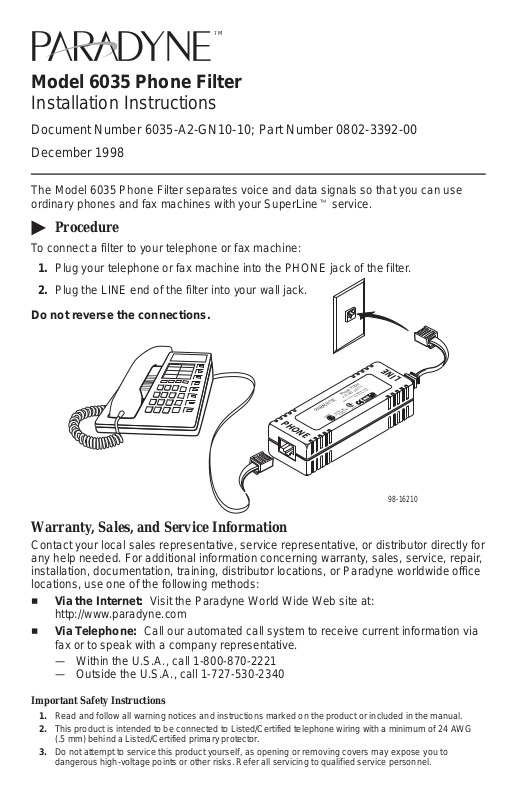

Paradyne 6035 User Manual

Model 6035 Phone Filter

Installation Instructions

Document Number 6035-A2-GN10-10; Part Number 0802-3392-00 December 1998

The Model 6035 Phone Filter separates voice and data signals so that you can use ordinary phones and fax machines with your SuperLine service.

 Procedure

To connect a filter to your telephone or fax machine:

1. Plug your telephone or fax machine into the PHONE jack of the filter.

2. Plug the LINE end of the filter into your wall jack.

Do not reverse the connections.

LINE

Phone Filter

it fte e

g ic S

Bel Fuse Inc. 1198

P/N 0802-3392-00

TUY

PRODUCT SERVICE

Made in China / Fabriquè China

LR92997

ACCESSARY

E100296

PHONE

L.T.E. EQUIPMENT

98-16210

Warranty, Sales, and Service Information

Contact your local sales representative, service representative, or distributor directly for any help needed. For additional information concerning warranty , sales, service, repair, installation, documentation, training, distributor locations, or Paradyne worldwide office locations, use one of the following methods:

 Via the Internet: Visit the Paradyne World Wide Web site at:

http://www.paradyne.com

 Via Telephone: Call our automated call system to receive current information via

fax or to speak with a company representative. — Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A., call 1-727-530-2340

Important Safety Instructions

1. Read and follow all warning notices and instructions marked on the product or included in the manual.

2. This product is intended to be connected to Listed/Certified telephone wiring with a minimum of 24 AWG

(.5 mm) behind a Listed/Certified primary protector.

3. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous high-voltage points or other risks. Refer all servicing to qualified service personnel.

4. When installed in the final configuration, the product must comply with the applicable Safety Standards and regulatory requirements of the country in which it is installed. If necessary, consult with the appropriate regulatory agencies and inspection authorities to ensure compliance.

5. In addition, since the equipment is to be used with telecommunications circuits, take the following precautions:

— Never install telephone wiring during a lightning storm. — Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. — Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface. — Use caution when installing or modifying telephone lines. — Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a

remote risk of electric shock from lightning. — Do not use the telephone to report a gas leak in the vicinity of the leak.

Notice to Users of the United States Telephone Network

This equipment complies with Part 68 of the FCC rules. On the bottom of the equipment’s enclosure is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment is designed to be connected to the telephone network or premises wiring using compatible RJ11C modular plugs and jacks which are Part 68 compliant.

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

If the Phone Filter causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with the T elephone Line Filter, for repair or warranty information, please refer to

Warranty , Sales, and Service Information

No repairs may be performed by the end user. The equipment can not be used on public coin phone service provided by the telephone company. Connection to

party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

Notice to Users of the Canadian Telephone Network

The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate T erminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION:

Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

If your equipment is in need of repair, refer to

Warranty , Sales, and Service Information
