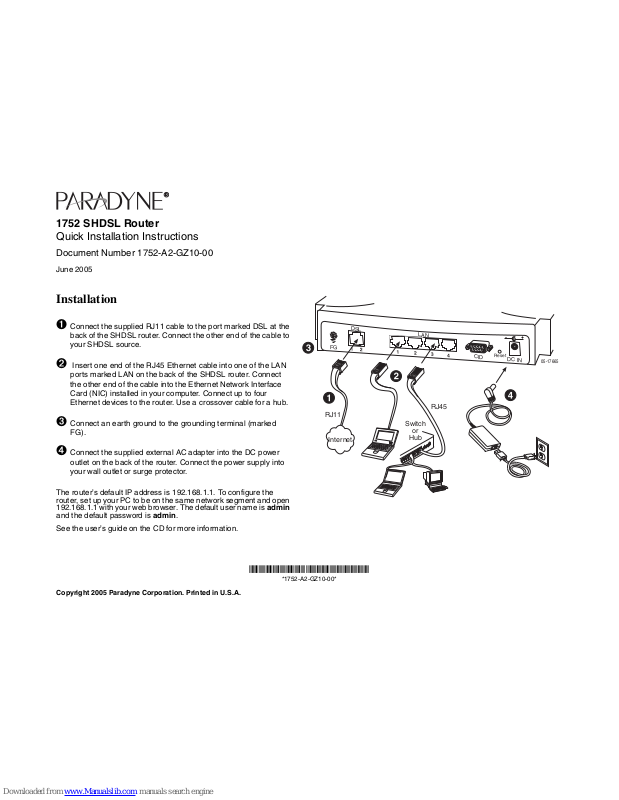

Paradyne 1752 SHDSL, 1752 Quick Installation Instructions

1752 SHDSL Router

Quick Installation Instructions

Document Number 1752-A2-GZ10-00

June 2005

Installation

➊ Connect the supplied RJ11 cable to the port marked DSL at the

back of the SHDSL router. Connect the other end of the cable to
your SHDSL source.

➋ Insert one end of the RJ45 Ethernet cable into one of the LAN

ports marked LAN on the back of the SHDSL router. Connect
the other end of the cable into the Ethernet Network Interface
Card (NIC) installed in your computer. Connect up to four
Ethernet devices to the router. Use a crossover cable for a hub.

➌ Connect an earth ground to the grounding terminal (marked

FG).

➍ Connect the supplied external AC adapter into the DC power

outlet on the back of the router. Connect the power supply into
your wall outlet or surge protector.

The router’s default IP address is 192.168.1.1. To configure the
router, set up your PC to be on the same network segment and open

192.168.1.1 with your web browser. The default user name is admin
and the default password is admin.

See the user’s guide on the CD for more information.

*1752-A2-GZ10-00*

*1752-A2-GZ10-00*

05-17665

FG

DSL

LAN

CID

DC IN

Reset

Internet

RJ11

Switch

or

Hub

RJ45

Copyright 2005 Paradyne Corporation. Printed in U.S.A.
