Paradox Digiplex V2.14, Digiplex V2.2ACC Programming Manual

Digiplex System V2.14 / V2.2ACC

Control Panel

Programming Guide

1

Table of Contents

Getting Started ......................................................................................................................................2

What Do I Do First? ..................................................................................................................................................2

How Do I Program the Control Panel? .....................................................................................................................2

Single Digit Entry Method .........................................................................................................................................2

Multiple Feature Select Programming ......................................................................................................................2

Trouble List ...............................................................................................................................................................3

Serial Number List .................................................................................................................................4

Zone Programming ................................................................................................................................6

Keyswitch Programming ........................................................................................................................9

System Timers ....................................................................................................................................10

Access Control ....................................................................................................................................11

Programmable Outputs .......................................................................................................................12

Other Settings .....................................................................................................................................15

System Options ...................................................................................................................................15

Partition 1: Options ..............................................................................................................................17

Partition 2: Options ..............................................................................................................................18

Partition 3: Options ..............................................................................................................................19

Partition 4: Options ..............................................................................................................................20

Dialer Options ......................................................................................................................................21

Partition 1: Event Call Direction ...........................................................................................................22

Partition 2: Event Call Direction ...........................................................................................................23

Partition 3: Event Call Direction ...........................................................................................................24

Partition 4: Event Call Direction ...........................................................................................................25

System Event Call Direction ................................................................................................................26

Communication Settings .....................................................................................................................27

Report Codes ......................................................................................................................................28

Arming Report Codes .............................................................................................................................................28

Arming Report Codes (con’t) ..................................................................................................................................29

Disarming Report Codes ........................................................................................................................................29

Disarming Report Codes (con’t) .............................................................................................................................30

Alarm Report Codes ...............................................................................................................................................30

Alarm Restore Report Codes ..................................................................................................................................30

Special Alarm Report Codes ..................................................................................................................................31

Zone Tamper Report Codes ...................................................................................................................................31

Zone Tamper Restore Report Codes .....................................................................................................................31

Special Tamper Report Codes ...............................................................................................................................32

System Trouble Report Codes ...............................................................................................................................32

System Trouble Restore Report Codes ..................................................................................................................32

Special Report Codes .............................................................................................................................................32

Automatic Report Code Programming ....................................................................................................................33

Automatic Report Code List ....................................................................................................................................34

Contact ID Report Code List ...................................................................................................................................36

Other Settings and Modes ...................................................................................................................37

Paradox Memory Key .............................................................................................................................................38

Software Reset .......................................................................................................................................................39

Installer Quick Function Keys .................................................................................................................................39

Hardware Connections ........................................................................................................................40

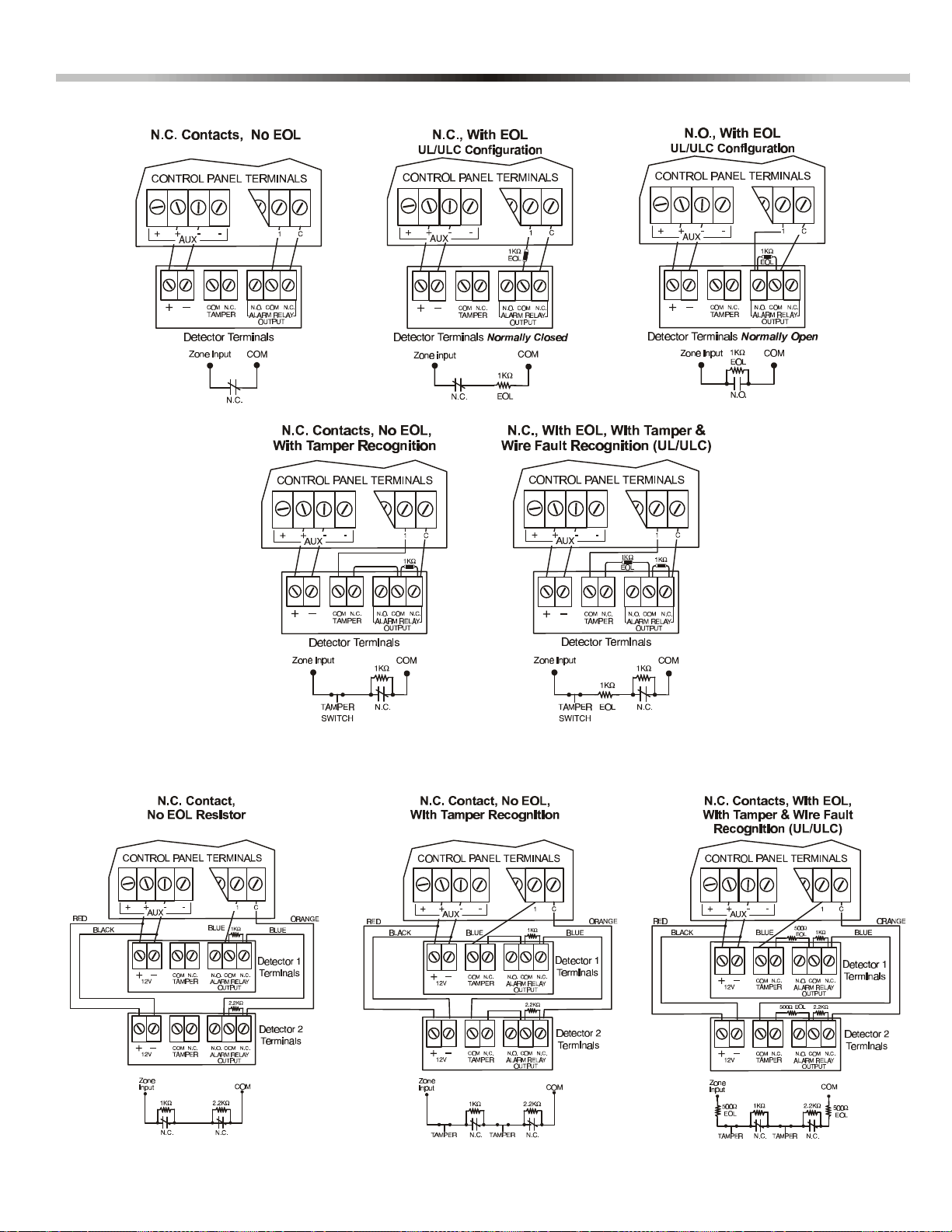

Single Zone Inputs ..................................................................................................................................................40

ATZ - Double Zone Inputs ......................................................................................................................................40

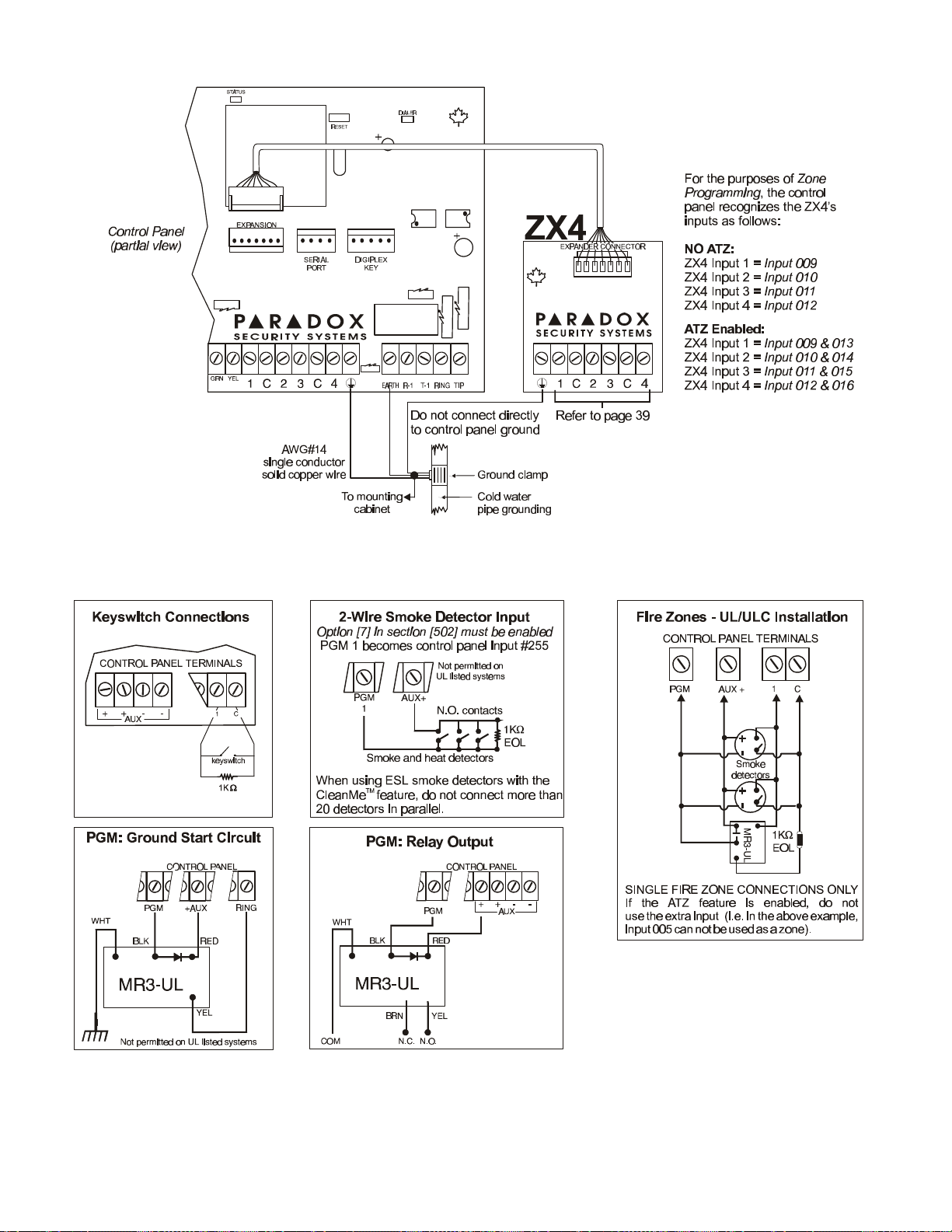

Connecting a ZX4 Expander Module ......................................................................................................................41

Fire Zone, Keyswitch and PGM Connections .........................................................................................................41

Digiplex PCB Layout ...............................................................................................................................................42

Calculating Power Requirements for the System ...................................................................................................43

DIGIPLEX SERIES

2

Getting Started

WHAT DO I DO FIRST?

STEP 1: Collect all the serial number labels from the Digiplex Modules and affix them in the spaces provided in the Serial

Number List on page 4.

STEP 2: In sections [001] to [148] program the required zones.
STEP 3: Program the remaining sections.

HOW DO I PROGRAM THE CONTROL PANEL?

With the WinLoad Upload/Download Software, the Digiplex control panels can be programmed remotely through a modem or
on-site at 19,200 Baud with a 306 Adapter. The Digiplex control panels can also be programmed by using any keypad
connected to the control panel. To program the Digiplex control panel using a keypad, you must enter Programming Mode as
shown below. You can also copy the programmed contents of one Digiplex control panel into the Paradox Memory Key. Then
copy the contents of the Paradox Memory Key into as many Digiplex control panels as you need. Each control panel is
programmed in less than 5 seconds. For more information refer to “Paradox Memory Key” on page38.

Default Installer Code: 000000 (see section [800] on page 37)
Default System Master Code: 123456 (see section [950] on page 37)

To Enter Programming Mode:

STEP 1: Press and hold the [0] key
STEP 2: Enter your [INSTALLER CODE]
STEP 3: Enter 3-digit [SECTION]

Everything in the control panel is programmed into sections [001] to [990].
Enter section [000] to view the keypad’s serial number.

STEP 4: Enter required [DATA]
The type of data required will be detailed in this "Programming Guide" and/or

explained in the appropriate section of the installation manual.

SINGLE DIGIT ENTRY METHOD

Some sections will require that you to enter Decimal values from 000 to 255. Sections requiring Decimal entries will be
clearly indicated in this Programming Guide. Other sections will require that you enter Hexadecimal values from 0 to F.
Some sections may require one hexa-digit and others may require up to 32 hexa-digits. Some sections may not allow the
entry of all hexadecimal values. These sections will clearly indicate which values can be entered. When entering the final digit
in a section, the control panel will automatically save and advance to the next section.

Key Value or Action Key Value or Action

[0] to [9] 0 to 9 (Hexa & Decimal) [BYP] E (Hexa Only)
[STAY] A (Hexa Only) [MEM] F (Hexa Only)
[FORCE] B (Hexa Only) [CLEAR] Exit section without saving (Hexa & Decimal)
[ARM] C (Hexa Only) [ENTER] Save current data and advance to next section (Hexa Only)
[DISARM] D (Hexa Only)

MULTIPLE FEATURE SELECT PROGRAMMING

Some sections will require that you enable or disable from 1 to 8 options in one section, where each number from 1 to 8

PROGRAMMING GUIDE

3

corresponds to a specific feature or option. Set these options by turning the number corresponding to the feature ON or OFF. The
option is considered ON when the number appears within the brackets on the LCD keypad or when the number is illuminated on
an LED Keypad. You turn options ON and OFF by pressing the corresponding buttons on the keypad. Press the keys as many
times as you need until all 8 options in the current section are set. When the options are set, press the [ENTER] or [p] key to save.

TROUBLE LIST

Potential troubles have been sorted into eight groups. To access the Trouble Display mode:
STEP1: Press the [TRBL] key from Normal Mode.

Numbers representing which groups of troubles are occurring will appear.

STEP2: Press the key corresponding to the trouble Group you wish to view.

Numbers corresponding to troubles from the selected trouble group will appear

Trouble Group [1]: System

[1] AC Failure: No AC input has been detected on the control panel.
[2] Battery Trouble: This means the backup battery is disconnected or the battery voltage is less than 10.5V.
[3] Aux. Current Limit: The auxiliary supply outputs have exceeded 1.1A. The auxiliary output will shutdown until the trouble has been rectified.
[4] Bell Current Limit: The control panel has detected that the bell output has exceeded 3A. The bell output will shutdown until the trouble is rectified.
[5] Bell Absent: The control panel has detected that a bell or siren isn’t connected to its bell output terminals. If a bell or siren is connected to

the optional alarm relay output, the trouble will always be on. To avoid this, connect a 1KΩ resistor across the bell output.
The control panel only recognizes bells or siren connected directly to the bell output not those connected through a relay.

[6] ROM check Error: The control panel registers a memory error. Please contact your distributor to obtain a replacement.

Trouble Group [2]: Communicator

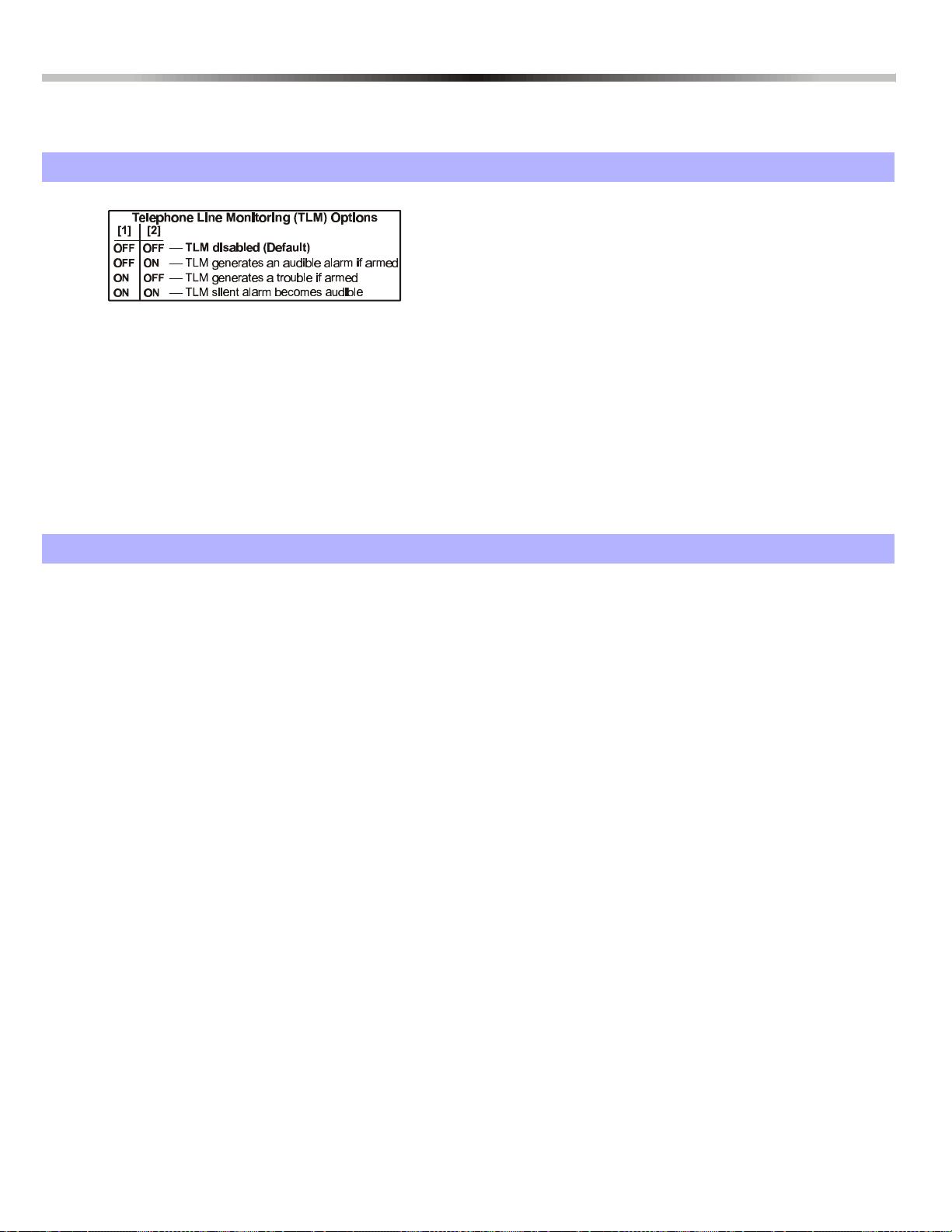

[1] TLM: If the Telephone Line Monitoring (TLM) feature is enabled, this trouble indicates that the control panel has not

detected the presence of a telephone line.

[2] Fail to Communicate 1: The control panel has failed to communicate with central station telephone number 1.
[3] Fail to Communicate 2: The control panel has failed to communicate with central station telephone number 2.
[4] Fail to Communicate 3: The control panel has failed to communicate with central station telephone number 3.
[5] Fail to Communicate 4: The control panel has failed to communicate with central station telephone number 4.
[6] Fail to Communicate PC: The control panel was unable to communicate with the WinLoad Upload/Download software.

Trouble Group [3]: Module Trouble

[1] Module Tamper: The control panel registers that a tamper switch has been triggered on a module.
[2] ROM Check Error: The control panel registers a memory error in a module. Please contact your distributor to obtain a replacement.
[3] TLM Trouble: A module is unable to detect the presence of the telephone line.
[4] Fail to Communicate: A module has failed to communicate with the assigned telephone number.
[5] Printer Trouble: The control panel registers a problem with the printer. Check printer for problems (paper jam, no paper, no power, etc.).
[6] AC Failure: Module power failure.
[7] Battery Failure: Module's battery is disconnected, needs to be recharged, or replaced.
[8] Supply Output: Module has exceeded current limits.

Trouble Group [4]: Bus Troubles

[1] Missing Keypad: A keypad is no longer communicating with the control panel.
[2] Missing Module: A bus module is no longer communicating with the control panel.
[5] Safety Mismatch: When a locked module is installed on the bus and its locking code does not match that of the control panel. During a “Safety

Mismatch” users will not be able to arm. Remove the locked module to clear the trouble (its LED will flash). V2.13 or higher.

[6] General Failure: Complete communication failure between devices and the control panel.
[7] Bus Overload: Too many devices (more than 95) are connected on the Bus.
[8] Bus Com. Error: The Bus is having difficulty communicating between the devices and the control panel.

Trouble Group [5]: Zone Tamper

The zone or zones that have been tampered with will be displayed on the keypad.

Trouble Group [6]: Zone Low Battery

If a wireless device's battery needs to be replaced, the zone that it is assigned to will be displayed on the LCD screen. Also, the light on the device
will flash to indicate this trouble.

Trouble Group [7]: Zone Fault

1) A wireless device is no longer communicating with its receiver. 2) A Fire Loop connection trouble is occurring. 3) The control panel has received
a CleanMeTM signal from one or more ESL series smoke detectors that support the CleanMeTM feature.

Trouble Group [8]: Clock Loss

The time and date have been reset to the default. Press the [8] button to re-program the time.

DIGIPLEX SERIES

4

Serial Number List

All modules connected to the control panel’s communication bus have an 8-digit serial number. Remove the extra serial
number sticker from the modules’ PC board and affix in the appropriate spaces provided below (Max. 95 Bus Modules).

Bus Module Type & Details Serial # Bus Module Type & Details Serial #

1:_________________________ ___________ 24:________________________ ___________
2:_________________________ ___________ 25:________________________ ___________
3:_________________________ ___________ 26:________________________ ___________
4:_________________________ ___________ 27:________________________ ___________
5:_________________________ ___________ 28:________________________ ___________
6:_________________________ ___________ 29:________________________ ___________
7:_________________________ ___________ 30:________________________ ___________
8:_________________________ ___________ 31:________________________ ___________
9:_________________________ ___________ 32:________________________ ___________
10:________________________ ___________ 33:________________________ ___________
11:________________________ ___________ 34:________________________ ___________
12:________________________ ___________ 35:________________________ ___________
13:________________________ ___________ 36:________________________ ___________
14:________________________ ___________ 37:________________________ ___________
15:________________________ ___________ 38:________________________ ___________
16:________________________ ___________ 39:________________________ ___________
17:________________________ ___________ 40:________________________ ___________
18:________________________ ___________ 41:________________________ ___________
19:________________________ ___________ 42:________________________ ___________
20:________________________ ___________ 43:________________________ ___________
21:________________________ ___________ 44:________________________ ___________
22:________________________ ___________ 45:________________________ ___________
23:________________________ ___________ 46:________________________ ___________

PROGRAMMING GUIDE

5

Bus Module Type & Details Serial # Bus Module Type & Details Serial #

47:________________________ ___________ 72:________________________ ___________
48:________________________ ___________ 73:________________________ ___________
49:________________________ ___________ 74:________________________ ___________
50:________________________ ___________ 75:________________________ ___________
51:________________________ ___________ 76:________________________ ___________
52:________________________ ___________ 77:________________________ ___________
53:________________________ ___________ 78:________________________ ___________
54:________________________ ___________ 79:________________________ ___________
55:________________________ ___________ 80:________________________ ___________
56:________________________ ___________ 81:________________________ ___________
57:________________________ ___________ 82:________________________ ___________
58:________________________ ___________ 83:________________________ ___________
59:________________________ ___________ 84:________________________ ___________
60:________________________ ___________ 85:________________________ ___________
61:________________________ ___________ 86:________________________ ___________
62:________________________ ___________ 87:________________________ ___________
63:________________________ ___________ 88:________________________ ___________
64:________________________ ___________ 89:________________________ ___________
65:________________________ ___________ 90:________________________ ___________
66:________________________ ___________ 91:________________________ ___________
67:________________________ ___________ 92:________________________ ___________
68:________________________ ___________ 93:________________________ ___________
69:________________________ ___________ 94:________________________ ___________
70:________________________ ___________ 95:________________________ ___________
71:________________________ ___________

DIGIPLEX SERIES

6

PROGRAMMING GUIDE

Zone Programming

Bus Detector A
SN#: 21000033

Digiplex

Control Panel

SN#:

000000A2

Input Terminals

1 2 3 4

Input 2

Hardwired

Device B

Bus Detector A:
Hardwired Device A:
Hardwired Device B:
Hardwired Device C:

\Zone Description Module Section 8-digit Serial Number Input# Section Def. Ass. Zone Options

SN#: 30000041

1 2 3 4 5 6 7 8

Zone#

1 =
2 =
3 =
4 =

ZX8 Module

Input Terminals

Section#

[001]
[002]
[003]
[004]

Digiplex Keypad

SN#: 110000252

B

US

Input 5

Serial#

21000033
11000252
000000A2
30000041

Keypad Zone

Hardwired

Device C

Input#

N/A
N/A
002
005

Hardwired

Device A

1 ________________ __________ [001] __/__/__/__/__/__/__/__ __/__/__ [101] ___ ___ 1 2 3 4 5 6 7 8
2 ________________ __________ [002] __/__/__/__/__/__/__/__ __/__/__ [102] ___ ___ 1 2 3 4 5 6 7 8
3 ________________ __________ [003] __/__/__/__/__/__/__/__ __/__/__ [103] ___ ___ 1 2 3 4 5 6 7 8
4 ________________ __________ [004] __/__/__/__/__/__/__/__ __/__/__ [104] ___ ___ 1 2 3 4 5 6 7 8
5 ________________ __________ [005] __/__/__/__/__/__/__/__ __/__/__ [105] ___ ___ 1 2 3 4 5 6 7 8
6 ________________ __________ [006] __/__/__/__/__/__/__/__ __/__/__ [106] ___ ___ 1 2 3 4 5 6 7 8
7 ________________ __________ [007] __/__/__/__/__/__/__/__ __/__/__ [107] ___ ___ 1 2 3 4 5 6 7 8
8 ________________ __________ [008] __/__/__/__/__/__/__/__ __/__/__ [108] ___ ___ 1 2 3 4 5 6 7 8
9 ________________ __________ [009] __/__/__/__/__/__/__/__ __/__/__ [109] ___ ___ 1 2 3 4 5 6 7 8

10 ________________ __________ [010] __/__/__/__/__/__/__/__ __/__/__ [110] ___ ___ 1 2 3 4 5 6 7 8

7

\Zone Description Module Section 8-digit Serial Number Input# Section Def. Ass. Zone Options

11 ________________ __________ [011] __/__/__/__/__/__/__/__ __/__/__ [111] ___ ___ 1 2 3 4 5 6 7 8
12 ________________ __________ [012] __/__/__/__/__/__/__/__ __/__/__ [112] ___ ___ 1 2 3 4 5 6 7 8
13 ________________ __________ [013] __/__/__/__/__/__/__/__ __/__/__ [113] ___ ___ 1 2 3 4 5 6 7 8
14 ________________ __________ [014] __/__/__/__/__/__/__/__ __/__/__ [114] ___ ___ 1 2 3 4 5 6 7 8
15 ________________ __________ [015] __/__/__/__/__/__/__/__ __/__/__ [115] ___ ___ 1 2 3 4 5 6 7 8
16 ________________ __________ [016] __/__/__/__/__/__/__/__ __/__/__ [116] ___ ___ 1 2 3 4 5 6 7 8
17 ________________ __________ [017] __/__/__/__/__/__/__/__ __/__/__ [117] ___ ___ 1 2 3 4 5 6 7 8
18 ________________ __________ [018] __/__/__/__/__/__/__/__ __/__/__ [118] ___ ___ 1 2 3 4 5 6 7 8
19 ________________ __________ [019] __/__/__/__/__/__/__/__ __/__/__ [119] ___ ___ 1 2 3 4 5 6 7 8
20 ________________ __________ [020] __/__/__/__/__/__/__/__ __/__/__ [120] ___ ___ 1 2 3 4 5 6 7 8
21 ________________ __________ [021] __/__/__/__/__/__/__/__ __/__/__ [121] ___ ___ 1 2 3 4 5 6 7 8
22 ________________ __________ [022] __/__/__/__/__/__/__/__ __/__/__ [122] ___ ___ 1 2 3 4 5 6 7 8
23 ________________ __________ [023] __/__/__/__/__/__/__/__ __/__/__ [123] ___ ___ 1 2 3 4 5 6 7 8
24 ________________ __________ [024] __/__/__/__/__/__/__/__ __/__/__ [124] ___ ___ 1 2 3 4 5 6 7 8
25 ________________ __________ [025] __/__/__/__/__/__/__/__ __/__/__ [125] ___ ___ 1 2 3 4 5 6 7 8

DIGIPLEX SERIES

26 ________________ __________ [026] __/__/__/__/__/__/__/__ __/__/__ [126] ___ ___ 1 2 3 4 5 6 7 8
27 ________________ __________ [027] __/__/__/__/__/__/__/__ __/__/__ [127] ___ ___ 1 2 3 4 5 6 7 8
28 ________________ __________ [028] __/__/__/__/__/__/__/__ __/__/__ [128] ___ ___ 1 2 3 4 5 6 7 8
29 ________________ __________ [029] __/__/__/__/__/__/__/__ __/__/__ [129] ___ ___ 1 2 3 4 5 6 7 8

8

\Zone Description Module Section 8-digit Serial Number Input# Section Def. Ass. Zone Options

PROGRAMMING GUIDE

30 ________________ __________ [030] __/__/__/__/__/__/__/__ __/__/__ [130] ___ ___ 1 2 3 4 5 6 7 8
31 ________________ __________ [031] __/__/__/__/__/__/__/__ __/__/__ [131] ___ ___ 1 2 3 4 5 6 7 8
32 ________________ __________ [032] __/__/__/__/__/__/__/__ __/__/__ [132] ___ ___ 1 2 3 4 5 6 7 8
33 ________________ __________ [033] __/__/__/__/__/__/__/__ __/__/__ [133] ___ ___ 1 2 3 4 5 6 7 8
34 ________________ __________ [034] __/__/__/__/__/__/__/__ __/__/__ [134] ___ ___ 1 2 3 4 5 6 7 8
35 ________________ __________ [035] __/__/__/__/__/__/__/__ __/__/__ [135] ___ ___ 1 2 3 4 5 6 7 8
36 ________________ __________ [036] __/__/__/__/__/__/__/__ __/__/__ [136] ___ ___ 1 2 3 4 5 6 7 8
37 ________________ __________ [037] __/__/__/__/__/__/__/__ __/__/__ [137] ___ ___ 1 2 3 4 5 6 7 8
38 ________________ __________ [038] __/__/__/__/__/__/__/__ __/__/__ [138] ___ ___ 1 2 3 4 5 6 7 8
39 ________________ __________ [039] __/__/__/__/__/__/__/__ __/__/__ [139] ___ ___ 1 2 3 4 5 6 7 8
40 ________________ __________ [040] __/__/__/__/__/__/__/__ __/__/__ [140] ___ ___ 1 2 3 4 5 6 7 8
41 ________________ __________ [041] __/__/__/__/__/__/__/__ __/__/__ [141] ___ ___ 1 2 3 4 5 6 7 8
42 ________________ __________ [042] __/__/__/__/__/__/__/__ __/__/__ [142] ___ ___ 1 2 3 4 5 6 7 8
43 ________________ __________ [043] __/__/__/__/__/__/__/__ __/__/__ [143] ___ ___ 1 2 3 4 5 6 7 8
44 ________________ __________ [044] __/__/__/__/__/__/__/__ __/__/__ [144] ___ ___ 1 2 3 4 5 6 7 8
45 ________________ __________ [045] __/__/__/__/__/__/__/__ __/__/__ [145] ___ ___ 1 2 3 4 5 6 7 8
46 ________________ __________ [046] __/__/__/__/__/__/__/__ __/__/__ [146] ___ ___ 1 2 3 4 5 6 7 8
47 ________________ __________ [047] __/__/__/__/__/__/__/__ __/__/__ [147] ___ ___ 1 2 3 4 5 6 7 8
48 ________________ __________ [048] __/__/__/__/__/__/__/__ __/__/__ [148] ___ ___ 1 2 3 4 5 6 7 8

9

Keyswitch Programming

Key-

switch

1 ________________ __________ [049] __/__/__/__/__/__/__/__ __/__/__ [149] ___ ___ 1 2 35 6 7 8
2 ________________ __________ [050] __/__/__/__/__/__/__/__ __/__/__ [150] ___ ___ 1 2 35 6 7 8
3 ________________ __________ [051] __/__/__/__/__/__/__/__ __/__/__ [151] ___ ___ 1 2 35 6 7 8
4 ________________ __________ [052] __/__/__/__/__/__/__/__ __/__/__ [152] ___ ___ 1 2 35 6 7 8
5 ________________ __________ [053] __/__/__/__/__/__/__/__ __/__/__ [153] ___ ___ 1 2 35 6 7 8

DIGIPLEX SERIES

6 ________________ __________ [054] __/__/__/__/__/__/__/__ __/__/__ [154] ___ ___ 1 2 35 6 7 8
7 ________________ __________ [055] __/__/__/__/__/__/__/__ __/__/__ [155] ___ ___ 1 2 35 6 7 8
8 ________________ __________ [056] __/__/__/__/__/__/__/__ __/__/__ [156] ___ ___ 1 2 35 6 7 8

Location Module Section 8-digit Serial Number Input# Section Def. Ass. Keyswitch

Options

10

System Timers

Section # Decimal Value (000-255) Description Default Value

[200] ___/___/___ seconds (min. = 10sec.) INTELLIZONE DELAY 10sec.
[201] ___/___/___ x20 msec. INPUT SPEED 001=PANEL TERMINAL 1 600msec.
[202] ___/___/___ x20 msec. INPUT SPEED 002=PANEL TERMINAL 2 600msec.
[203] ___/___/___ x20 msec. INPUT SPEED 003=PANEL TERMINAL 3 600msec.
[204] ___/___/___ x20 msec. INPUT SPEED 004=PANEL TERMINAL 4 600msec.
[205] ___/___/___ x20 msec. INPUT SPEED 005=PANEL DOUBLER 1 600msec.
[206] ___/___/___ x20 msec. INPUT SPEED 006=PANEL DOUBLER 2 600msec.
[207] ___/___/___ x20 msec. INPUT SPEED 007=PANEL DOUBLER 3 600msec.
[208] ___/___/___ x20 msec. INPUT SPEED 008=PANEL DOUBLER 4 600msec.
[209] ___/___/___ x20 msec. INPUT SPEED 009=ZX4 TERMINAL 1 600msec.
[210] ___/___/___ x20 msec. INPUT SPEED 010=ZX4 TERMINAL 2 600msec.
[211] ___/___/___ x20 msec. INPUT SPEED 011=ZX4 TERMINAL 3 600msec.
[212] ___/___/___ x20 msec. INPUT SPEED 012=ZX4 TERMINAL 4 600msec.
[213] ___/___/___ x20 msec. INPUT SPEED 013=ZX4 DOUBLER 1 600msec.
[214] ___/___/___ x20 msec. INPUT SPEED 014=ZX4 DOUBLER 2 600msec.
[215] ___/___/___ x20 msec. INPUT SPEED 015=ZX4 DOUBLER 3 600msec.
[216] ___/___/___ x20 msec. INPUT SPEED 016=ZX4 DOUBLER 4 600msec.
[217] ___/___/___ (max. = 15) AUTO ZONE SHUTDOWN Disabled
[218] ___/___/___ (max. = 15) AUTO TROUBLE SHUTDOWN Disabled
[219] ___/___/___ seconds RECENT CLOSING DELAY Disabled
[220] ___/___/___ tries # OF INVALID CODES BEFORE LOCKOUT Disabled
[221] ___/___/___ minutes (000 = report only)KEYPAD LOCK-OUT DURATION Report Only
[222] ___/___/___ x15 minutes NO MOVEMENT TIMER PARTITION 1 Disabled
[223] ___/___/___ x15 minutes NO MOVEMENT TIMER PARTITION 2 Disabled
[224] ___/___/___ x15 minutes NO MOVEMENT TIMER PARTITION 3 Disabled
[225] ___/___/___ x15 minutes NO MOVEMENT TIMER PARTITION 4 Disabled
[226] ___/___/___ seconds EXIT DELAY PARTITION 1 60 sec.
[227] ___/___/___ seconds EXIT DELAY PARTITION 2 60 sec.
[228] ___/___/___ seconds EXIT DELAY PARTITION 3 60 sec.
[229] ___/___/___ seconds EXIT DELAY PARTITION 4 60 sec.
[230] ___/___/___ seconds ENTRY/STAY DELAY 1 30 sec.
[231] ___/___/___ seconds ENTRY/STAY DELAY 2 60 sec.
[232] ___/___/___ seconds ENTRY/STAY DELAY 3 90 sec.
[233] ___/___/___ seconds ENTRY/STAY DELAY 4 120 sec.
[234] ___/___/___ minutes BELL CUT-OFF TIMER PARTITION 1 4 min.
[235] ___/___/___ minutes BELL CUT-OFF TIMER PARTITION 2 4 min.
[236] ___/___/___ minutes BELL CUT-OFF TIMER PARTITION 3 4 min.
[237] ___/___/___ minutes BELL CUT-OFF TIMER PARTITION 4 4 min.
[238] ___/___/___ zone(s) MAX. BYPASS ENTRIES PARTITION 1 Unlimited
[239] ___/___/___ zone(s) MAX. BYPASS ENTRIES PARTITION 2 Unlimited
[240] ___/___/___ zone(s) MAX. BYPASS ENTRIES PARTITION 3 Unlimited
[241] ___/___/___ zone(s) MAX. BYPASS ENTRIES PARTITION 4 Unlimited
[242] ___/___/___ minutes RECYCLE DELAY FOR PARTITION 1 Disabled
[243] ___/___/___ minutes RECYCLE DELAY FOR PARTITION 2 Disabled
[244] ___/___/___ minutes RECYCLE DELAY FOR PARTITION 3 Disabled
[245] ___/___/___ minutes RECYCLE DELAY FOR PARTITION 4 Disabled

PROGRAMMING GUIDE

11

[246] ___/___/___ recycle(s) # OF RECYCLES IN PARTITION 1 Unlimited
[247] ___/___/___ recycle(s) # OF RECYCLES IN PARTITION 2 Unlimited
[248] ___/___/___ recycle(s) # OF RECYCLES IN PARTITION 3 Unlimited
[249] ___/___/___ recycle(s) # OF RECYCLES IN PARTITION 4 Unlimited
[250] ___/___/___ see section [503] PGM1 DELAY 5 sec.
[251] ___/___/___ see section [503] PGM2 DELAY 5 sec.
[252] ___/___/___ see section [503] PGM3 DELAY 5 sec.
[253] ___/___/___ see section [503] PGM4 DELAY 5 sec.
[254] ___/___/___ see section [503] PGM5 DELAY 5 sec.
[255] ___/___/___ x2 sec.(min. = 32 sec.) TLM FAIL TIMER 32 sec.
[256] ___/___/___ seconds DELAY ALARM TRANSMISSION TIMER Instant
[257] ___/___/___ attempts MAXIMUM DIALING ATTEMPTS 8 attempts
[258] ___/___/___ seconds DELAY BETWEEN DIALING ATTEMPTS 20 sec.
[259] ___/___/___ seconds (max. = 60 sec.) PAGER DELAY BEFORE DATA TRANS. Disabled
[260] ___/___/___ minutes DELAY POWER FAILURE REPORT 30 min.
[261] ___/___/___ days AUTO TEST REPORT Disabled

Section # Hours (00-23) & Minutes (00-59) Description

[270] ___/___:___/___ AUTO TEST REPORT TIME OF DAY
[271] ___/___:___/___ AUTO ARM TIME PARTITION 1
[272] ___/___:___/___ AUTO ARM TIME PARTITION 2
[273] ___/___:___/___ AUTO ARM TIME PARTITION 3
[274] ___/___:___/___ AUTO ARM TIME PARTITION 4

Access Control

Sections [301] to [392] and section [537] are reserved for control panels with the Access Control version (version 2.20ACC).
If you have a control panel with the Access Control version, refer to the DGP-48 Control Panel: Access Control Features

Programming Guide and the Digiplex Access Control for Control Panel DGP-48 and LCD Keypad DGP-641ACC Reference
and Installation Manual.

DIGIPLEX SERIES

12

Programmable Outputs

Second

PGM Disabled

Note1*

alarm/bell cut-off)

alarm/bell cut-off)

Fire Alarm

Note1*

Entry Delay

(armed/not)

Programming

Note1*

Supervision

Please note that options [1] through [5] in section [502] represent PGMs 1 to 5 respectively. The control panel deactivates
an activated PGM one of two ways:

Option OFF = Follow Activation Event:
If the first digit of the PGM Activation Event is set at 1, 2, 3, 4, or 7, the PGM will remain activated until the PGM Activation
Event has ended. It will ignore the PGM Deactivation Event. If the first digit of the PGM Activation Event is set at 8, 9, A, B, C,
D, E, or F, the PGM will remain activated until the PGM Deactivation Event occurs.

Option ON = Follow PGM Delay Timer:

After activating the PGM, the control panel will start the PGM delay timer and the PGM will deactivate only when the PGM
delay timer has elapsed regardless of the PGM Deactivation Event.

Section PGM Event Group

(First Digit)

Event Group

(Second Digit)

Event Selection

(on/off)

[400] PGM1 Activation Event ___ ___ 1 2 3 4 5 6 7 8
[401] PGM1 Deactivation Event ___ ___ 1 2 3 4 5 6 7 8

[402] PGM2 Activation Event ___ ___ 1 2 3 4 5 6 7 8
[403] PGM2 Deactivation Event ___ ___ 1 2 3 4 5 6 7 8

[404] PGM3 Activation Event ___ ___ 1 2 3 4 5 6 7 8
[405] PGM3 Deactivation Event ___ ___ 1 2 3 4 5 6 7 8

[406] PGM4 Activation Event ___ ___ 1 2 3 4 5 6 7 8
[407] PGM4 Deactivation Event ___ ___ 1 2 3 4 5 6 7 8

[408] PGM5 Activation Event ___ ___ 1 2 3 4 5 6 7 8
[409] PGM5 Deactivation Event ___ ___ 1 2 3 4 5 6 7 8

First
Digit

0

Event

Digit

N/A N/A N/A N/A N/A N/A N/A N/A N/A

1 2 3 4 5 6 7 8

Feature Select Programming

NOTE1*:

0 = Occurs in all partitions enabled in the sytstem (see section [500]).
1 = Partition 1 3 = Partition 3
2 = Partition 2 4 = Partition 4
8 = Occurs in at least one partition enabled in the system.

1

2

3

Status 1

Status 2

Status 3

PROGRAMMING GUIDE

Regular

Armed

Ready
Status

Intellizone

Delay

Force

Armed

Exit Delay

Fire Delay Auto Arm Access Tamper Zone Low

Stay

Armed

Instant
Armed

Trouble Alarm

Strobe

(until alarm

cancelled)

Memory

Silent
Alarm

(until cancel

Zones

Bypassed

Battery

Audible

Alarm

(until cancel

User or

Installer

Fire Loop Zone

(until alarm

cancelled or

bell cut-off)

Keypad
Lockout

13

First

Second

Partition 4

Ground Start

Mismatch

Bus Trouble

Battery Fail

ROM Error

Printer Fault

Battery Fail

Missing Any

Selected Time

0-ENTER

Code # 01

Code # 08

Code # 09

Code # 16

Code # 17

Code # 24

Code # 25

Code # 32

Code # 33

Code # 40

Code # 41

Code # 48

Code # 49

Code # 56

Code # 57

Code # 64

Code # 01

Code # 08

Code # 09

Code # 16

Code # 17

Code # 24

Code # 25

Code # 32

Code # 33

Code # 40

Code # 41

Code # 48

Code # 49

Code # 56

Code # 57

Code # 64

Code # 01

Code # 08

Code # 09

Code # 16

Code # 17

Code # 24

Code # 25

Code # 32

Code # 33

Code # 40

Code # 41

Code # 48

Code # 49

Code # 56

Code # 57

Code # 64

Digit

4

Event

Status 4

Digit

0 Chime
1 N/A N/A N/A N/A Smoke
2 System
3 AC Fail

4 TLM Fail to
5 Module

6 Missing

1 2 3 4 5 6 7 8

Partition 1

Trouble

Tamper

Keypad

Chime

Partition 2

Dialer

Trouble

Com1

Module

Module

Chime

Partition 3

Module
Trouble

Aux. Limit Bell Limit No Bell ROM Error N/A N/A

Fail to

Com2

Module

TLM

N/A N/A N/A Global Bus

Chime

Partition 4

Fail to

Com3

Module Fail

to Com

Phone#

Siren

Partition 1

Reset

Fail to
Com4

Feature Select Programming

Siren

Partition 2

N/A N/A N/A Timer

Fail to

ComPC

Module AC

Fail

Failure

Siren

Partition 3

Kissoff Safety

N/A N/A

Module

Bus

Overload

Siren

Loss

Module

Aux. Fail

Module

Bus Com

Fail

7

8

9

At the

Utility Keys 0 Keys 1-2 Keys 4-5 Keys 7-8 CLEAR-0 Keys 2-3 Keys 5-6 Keys 8-9

Access

Granted

User code

Entered

0 00:00 00:15 00:30 00:45 01:00 01:15 01:30 01:45
1 02:00 02:15 02:30 02:45 03:00 03:15 03:30 03:45
2 04:00 04:15 04:30 04:45 05:00 05:15 05:30 05:45
3 06:00 06:15 06:30 06:45 07:00 07:15 07:30 07:45
4 08:00 08:15 08:30 08:45 09:00 09:15 09:30 09:45
5 10:00 10:15 10:30 10:45 11:00 11:15 11:30 11:45
6 12:00 12:15 12:30 12:45 13:00 13:15 13:30 13:45
7 14:00 14:15 14:30 14:45 15:00 15:15 15:30 15:45
8 16:00 16:15 16:30 16:45 17:00 17:15 17:30 17:45
9 18:00 18:15 18:30 18:45 19:00 19:15 19:30 19:45
A 20:00 20:15 20:30 20:45 21:00 21:15 21:30 21:45
B 22:00 22:15 22:30 22:45 23:00 23:15 23:30 23:45

0 Door 01 Door 02 Door 03 Door 04 Door 05 Door 06 Door 07 Door 08
1 Door 09 Door 10 Door 11 Door 12 Door 13 Door 14 Door 15 Door 16
2 Door 17 Door 18 Door 19 Door 20 Door 21 Door 22 Door 23 Door 24
3 Door 25 Door 26 Door 27 Door 28 Door 29 Door 30 Door 31 Door 32

8
9
A

B
C
D
E
F

Code # 02 Code # 03 Code # 04 Code # 05 Code # 06 Code # 07
Code # 10 Code # 11 Code # 12 Code # 13 Code # 14 Code # 15
Code # 18 Code # 19 Code # 20 Code # 21 Code # 22 Code # 23
Code # 26 Code # 27 Code # 28 Code # 29 Code # 30 Code # 31
Code # 34 Code # 35 Code # 36 Code # 37 Code # 38 Code # 39
Code # 42 Code # 43 Code # 44 Code # 45 Code # 46 Code # 47
Code # 50 Code # 51 Code # 52 Code # 53 Code # 54 Code # 55
Code # 58 Code # 59 Code # 60 Code # 61 Code # 62 Code # 63

A

Arming

Disarming

0

1

2

3

4

5

6

7

8

9
A
B
C
D
E
F

Code # 02 Code # 03 Code # 04 Code # 05 Code # 06 Code # 07
Code # 10 Code # 11 Code # 12 Code # 13 Code # 14 Code # 15
Code # 18 Code # 19 Code # 20 Code # 21 Code # 22 Code # 23
Code # 26 Code # 27 Code # 28 Code # 29 Code # 30 Code # 31
Code # 34 Code # 35 Code # 36 Code # 37 Code # 38 Code # 39
Code # 42 Code # 43 Code # 44 Code # 45 Code # 46 Code # 47
Code # 50 Code # 51 Code # 52 Code # 53 Code # 54 Code # 55
Code # 58 Code # 59 Code # 60 Code # 61 Code # 62 Code # 63

Code # 02 Code # 03 Code # 04 Code # 05 Code # 06 Code # 07
Code # 10 Code # 11 Code # 12 Code # 13 Code # 14 Code # 15
Code # 18 Code # 19 Code # 20 Code # 21 Code # 22 Code # 23
Code # 26 Code # 27 Code # 28 Code # 29 Code # 30 Code # 31
Code # 34 Code # 35 Code # 36 Code # 37 Code # 38 Code # 39
Code # 42 Code # 43 Code # 44 Code # 45 Code # 46 Code # 47
Code # 50 Code # 51 Code # 52 Code # 53 Code # 54 Code # 55
Code # 58 Code # 59 Code # 60 Code # 61 Code # 62 Code # 63

DIGIPLEX SERIES
