Page 1
874 MULTI-ANGLE BENCH SYSTEM
CLASS H
PAR T # 7710601
REV . B
USER’S GUIDE
1
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
V ersion: 874109
Revision: 03/15/04
Page 2
j
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Gym Layout.....................4
Parts list..........................5
Assembly Instructions.....5-9
General Maintenance.......10
W arranty Statement..........1 1
Product Services..............12
Insert-Registration Card
IMPORTANT SAFETY INFORMATION
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
NOTE: In a continual effort to improve our products, specifications are subject to change
2004 Life Fitness, a division of Brunswick Corporation. All rights reserved.
©
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Page 3
IMPORTANT NOTES
Please note:
* Thank you for purchasing the ParaBody 874 Multi-Angle Bench System. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
T ools Required for Assembly
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* Adjustable wrench
* T ape measure
Bolt Length Ruler
NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT .
BOLT LENGTH
BOL T LENGTH RULER:
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
3
6

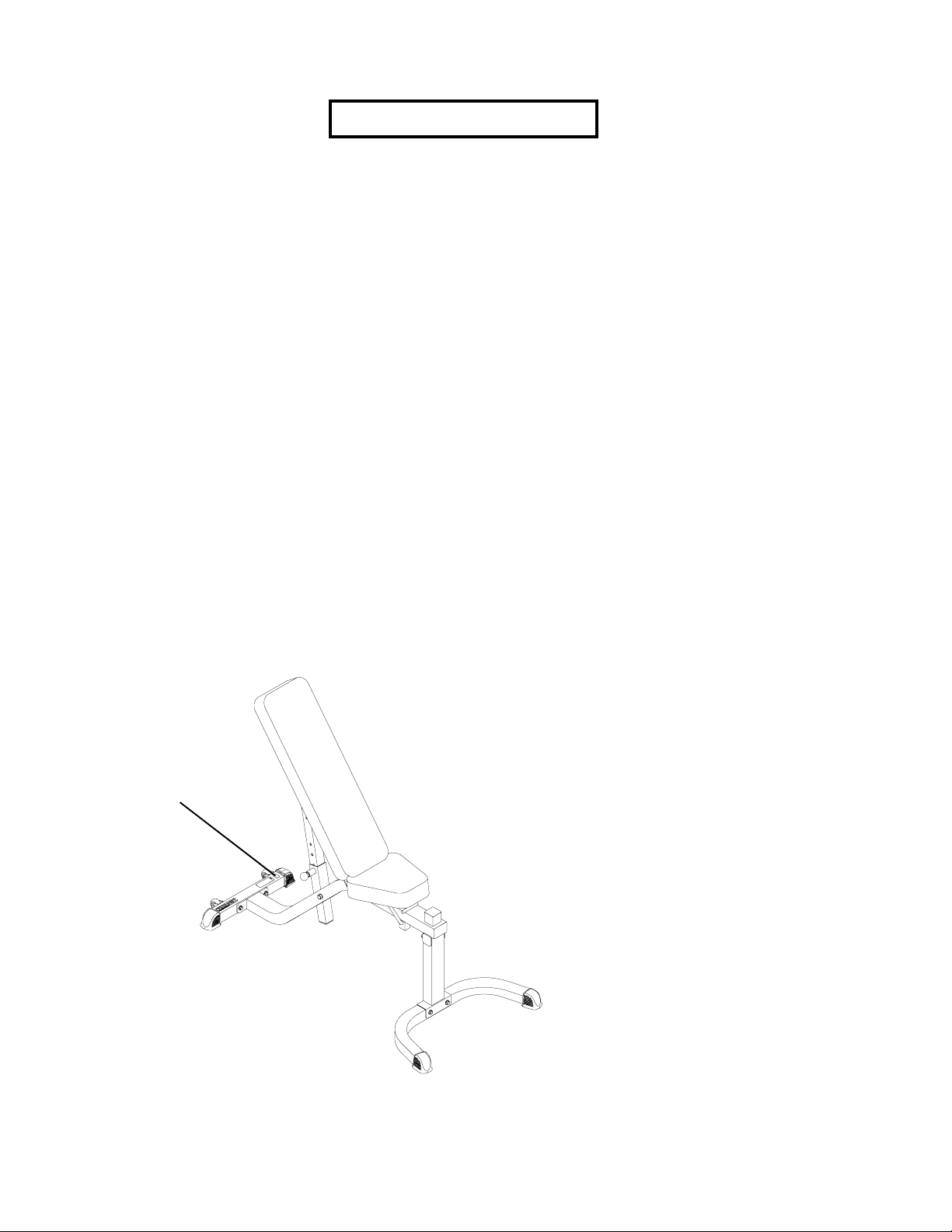

Page 4
1’
2’
3’
1’
2’
3’
4’ 5’
4’
5’
6’
7’
1 Square = 1’ X 1’
4
Page 5
PARTS LIST
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PART #
6650609
6650109
6649309
6624210
6624310
6259109
7710409
6654521
6654421
6406401
6412001
6236701
6692601
6405201
7234801
6145801
DESCRIPTION
BENCH FRAME
ADJUST ABLE SLIDE
ADJUST ABLE SLEEVE
LEFT BACK P AD ANGLE
RIGHT BACK P AD ANGLE
FRONT BASE
REAR BASE
SEA T PAD
BACK P AD
HINGE T AB
SPRING PIN ASSEMBL Y
1-3/4” SQ. END CAP
3 X 2” END CAP
2” SQ. END CAP
2” SQ. COVER CAP
THUMBSCREW
QTY
1
1
1
1
1
1
1
1
1
2
1
1
1
1
4
1
KEY
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
PART #
3235204
3235212
3114403
3114702
3235315
3235322
3235432
3235501
3221705
6417801
6650201
6416601
7339801
7656301
3235207
DESCRIPTION
3/8 X 1” BOL T
3/8 X 3” BOL T
3/8” W ASHER
3/8” LOCK NUT
1/2 X 3-3/4” BOL T
1/2 X 5-1/2” BOL T
1/2 X 8” BOL T
1/2” LOW HEIGHT LOCK NUT
1/2” E-RING
1/2 X 1” SPRING
1/2” FLANGE SP ACER
1-1/2 X 3/4” GLIDE (8 PER)
1/2” DIA U-PIN
WHEEL
3/8 X 1-3/4” BOL T
1
25
QTY
6
4
14
6
1
1
1
3
1
1
2
1
1
2
2
26
29
16

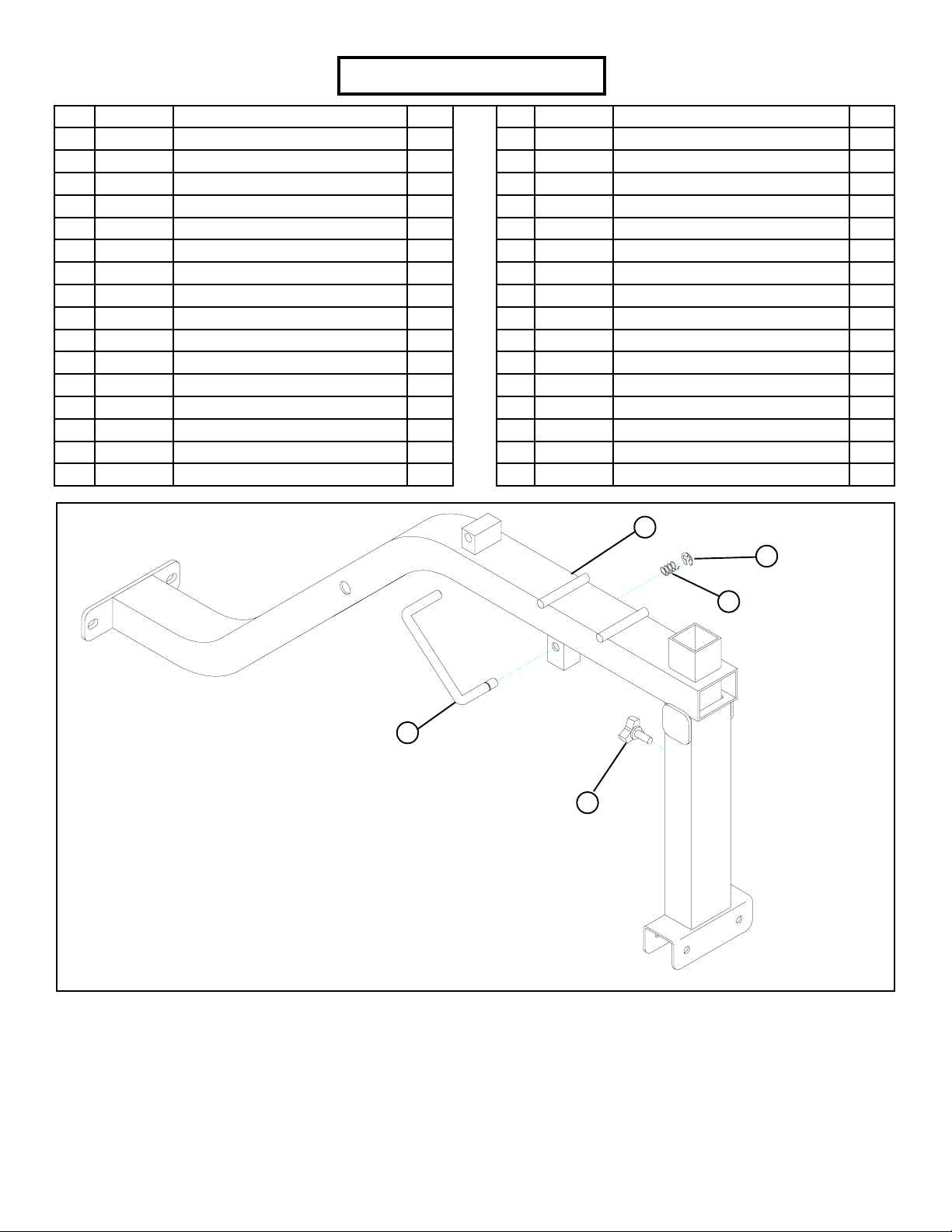

FIGURE 1
STEP 1:
• Assemble the 1/2” DIA. U-PIN (29) to the BENCH FRAME (1) using one 1/2 X 1” SPRING (26), and one 1/2” E-RING (25) as
shown in FIGURE 1.
• Thread one THUMBSCREW (16) into the BENCH FRAME (1) as shown in FIGURE 1. The THUMBSCREW (16) will be used to
tighten down attachments.
5
Page 6
31 3/8 X 1-3/4”
30
20
19
20
7
15
1
19
18 3/8 X 3”
19
20
19
18 3/8 X 3”
6
15

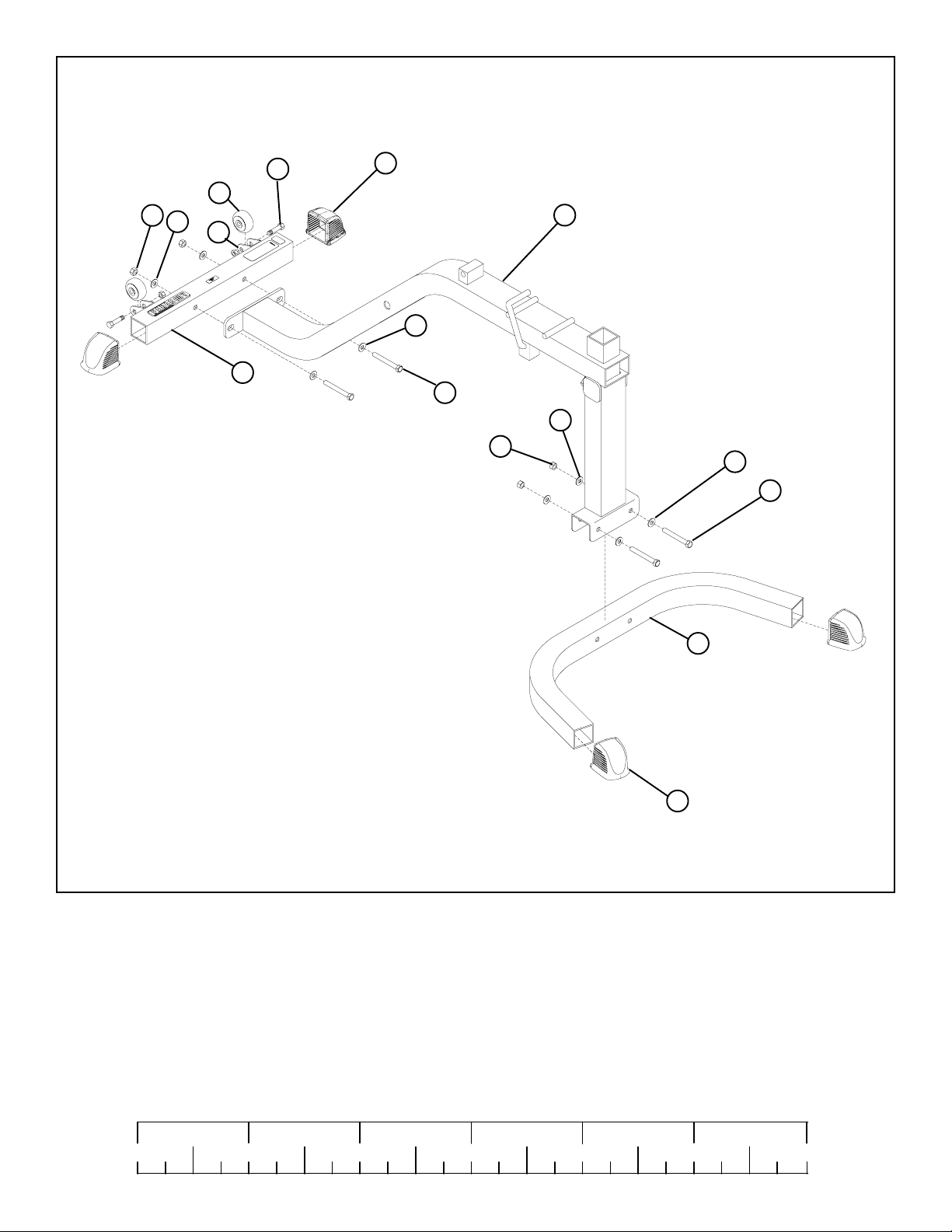

FIGURE 2
STEP 2:
• Slide four 2” SQ. COVER CAPS (15) over the ends of the FRONT & REAR BASE (6 & 7) as shown in FIGURE 2.
• SECUREL Y assemble the FRONT BASE (6) to the BENCH FRAME (1) using two 3/8 X 3” BOL TS (18), four 3/8” W ASHERS (19),
and two 3/8” LOCK NUTS (20). See FIGURE 2.
• SECUREL Y assemble the REAR BASE (7) to the BENCH FRAME (1) using two 3/8 X 3” BOL TS (18), four 3/8” W ASHERS (19), and
two 3/8” LOCK NUTS (20). See FIGURE 2.
• SECURELY assemble two WHEELS (30) to the REAR BASE (7) using two 3/8 X 1-3/4” BOLTS (31) and two 3/8” LOCK NUTS (20) as
shown in FIGURE 2.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
6
6
Page 7
2
28
11
27
1/2 X 3-3/4” 21
3
24 1/2” LOW HEIGHT
27
1
12

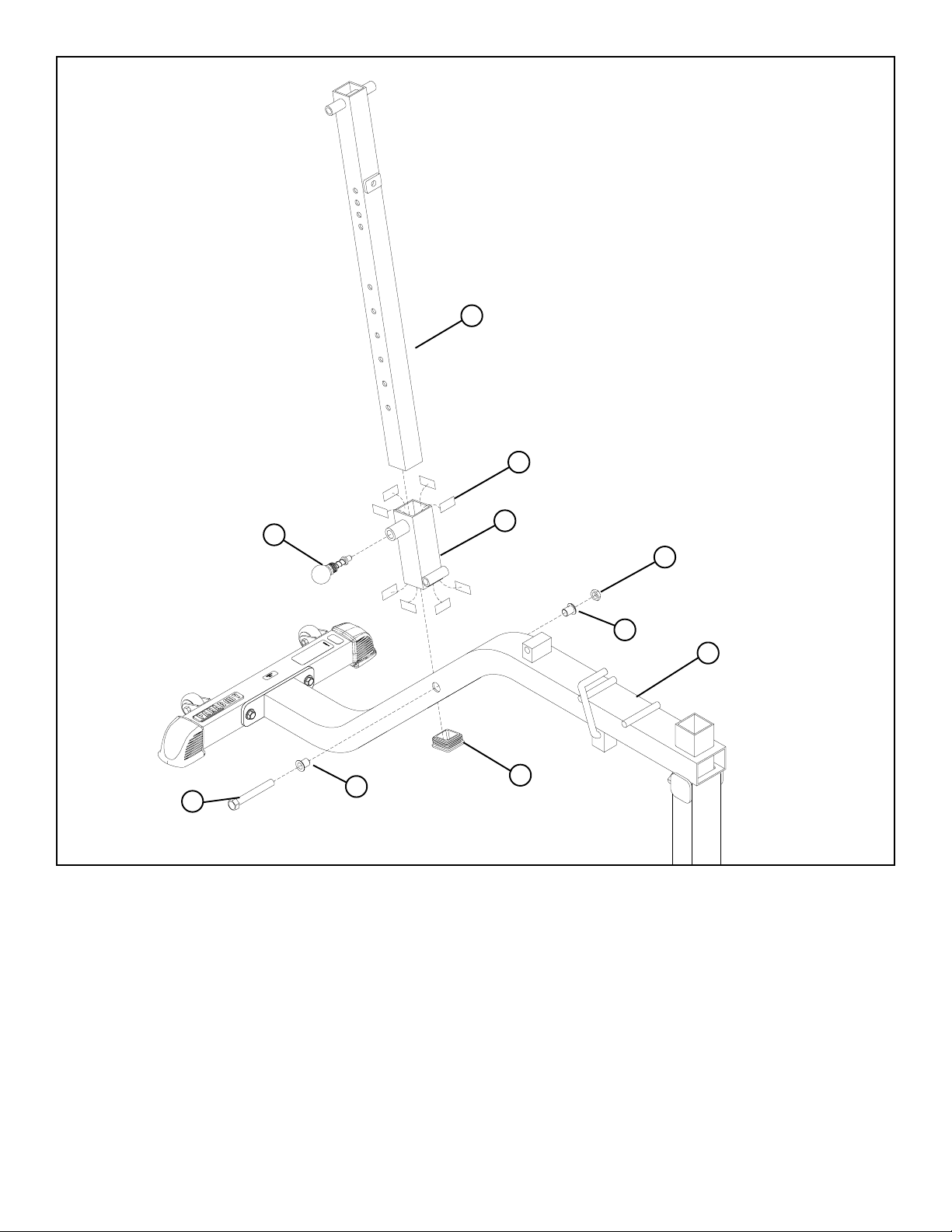

FIGURE 3
STEP 3:
• SECUREL Y assemble one SPRING PIN ASSEMBL Y (11) to the spring pin barrel on the ADJUST ABLE SLEEVE (3). See FIGURE 3.
• Attach eight 3/4 X 1-1/2” GLIDES (28) to the inside of the ADJUSTABLE SLEEVE (3) as shown in FIGURE 3 using the
following steps:
• Thoroughly clean all surfaces where the 3/4 X 1-1/2” GLIDES (28) are to be attached.
• Remove the 3/4 X 1-1/2” GLIDES (28) from the paper backing and firmly apply them to all shown surfaces.
• Assemble the ADUST ABLE SLEEVE (3) to the BENCH FRAME (1) using one 1/2 X 3-3/4” BOL T (21), two 1/2” FLANGE SP ACERS (27),
and one 1/2” LOW HEIGHT LOCK NUT (24) as shown in FIGURE 3.
• Pull back on the SPRING PIN (11) and CAREFULLY insert the ADJUST ABLE SLIDE (2) into the ADJUST ABLE SLEEVE (3) as shown
in FIGURE 3.
• Insert one 1-3/4” END CAP (12) into the end of the ADJUST ABLE SLIDE (2) as shown in FIGURE 3.
7
Page 8
24 1/2” LOW HEIGHT
5
22 1/2 X 5-1/2”
1/2 X 8” 23
4
2
24 1/2” LOW HEIGHT
10
1

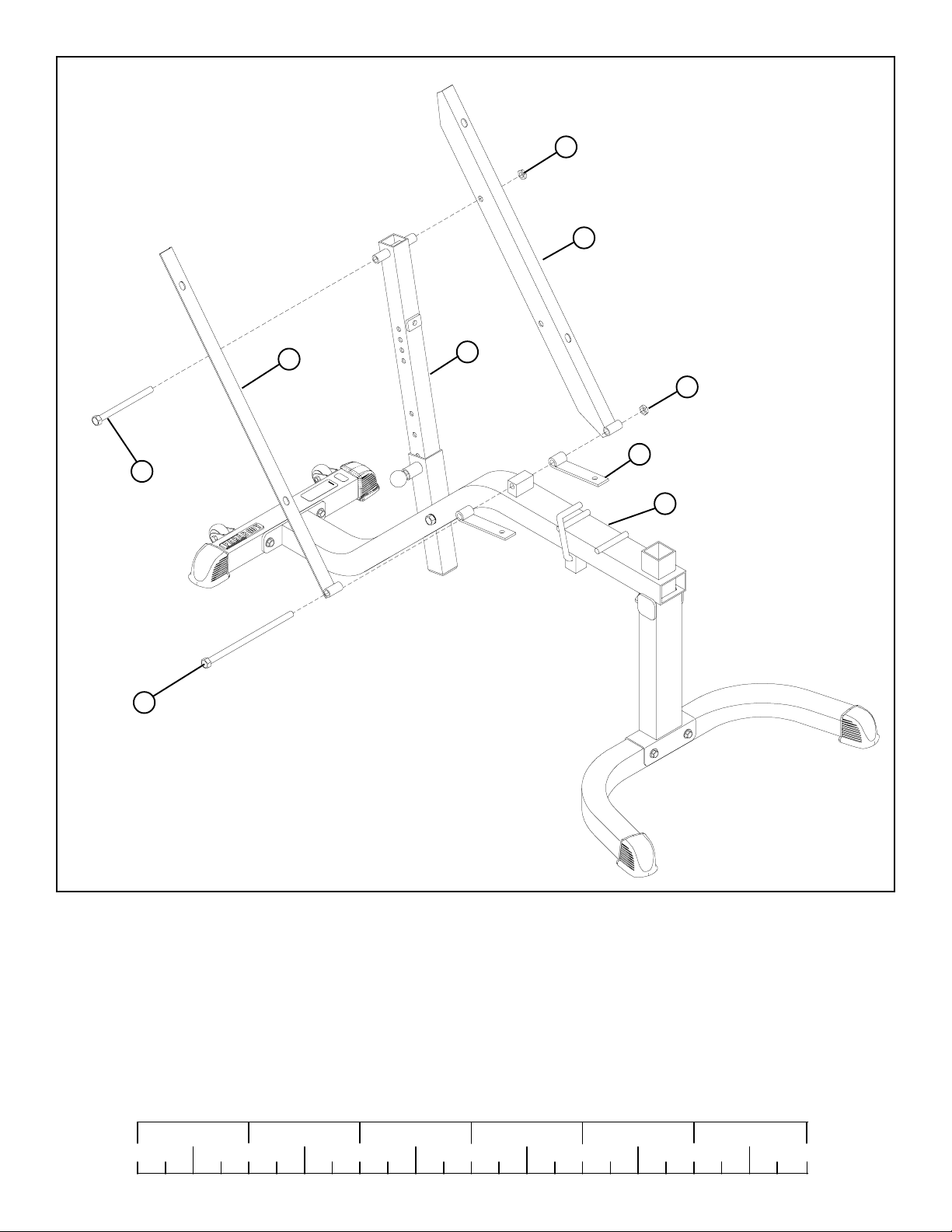

FIGURE 4
STEP 4:
• Assemble the LEFT and RIGHT BACK P AD ANGLE (4 & 5) and two HINGE TABS (10) to the BENCH FRAME (1) using one 1/2 X 8”
BOL T (23) and one 1/2” LOW HEIGHT LOCK NUT (24) as shown in FIGURE 4.
• Assemble the LEFT and RIGHT BACK P AD ANGLE (4 & 5) to the ADJUST ABLE SLIDE (2) using one 1/2 X 5-1/2” BOL T (22) and
one 1/2” LOW HEIGHT LOCK NUT (24) as shown in FIGURE 4.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
8
6
Page 9
9
5
4
19
3/8 X 1” 17
8
10
14
13

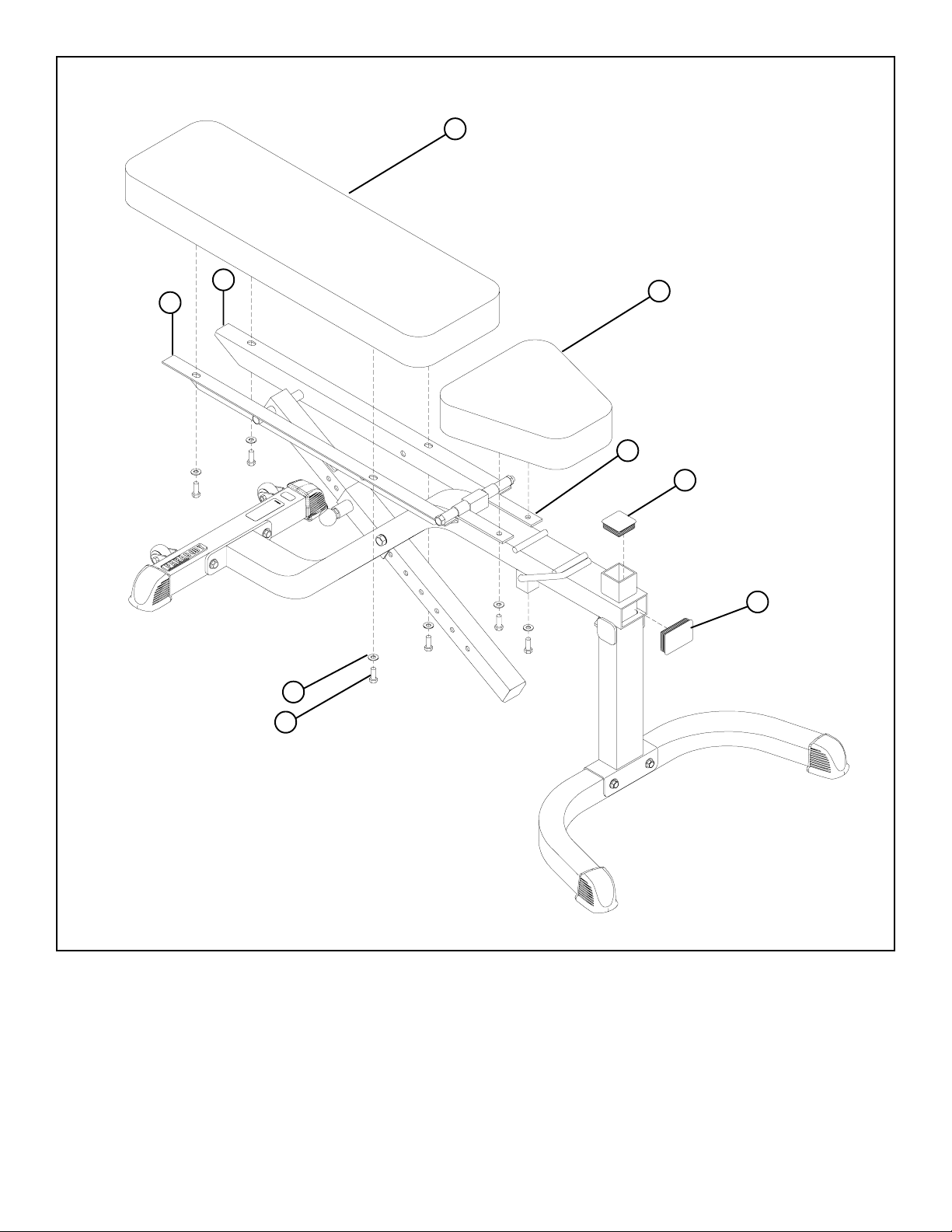

FIGURE 5
STEP 5:
• SECURELY assemble the SEAT PAD (8) to the HINGE TABS (10) using two 3/8 X 1” BOLTS (17) and two 3/8” W ASHERS (19) as shown
in FIGURE 5.
• SECURELY assemble the BACK P AD (9) to the LEFT BACK P AD ANGLE (4) and the RIGHT BACK P AD ANGLE (5) using four 3/8
X 1” BOL TS (17) and four 3/8” WASHERS (19) as shown in FIGURE 5.
• Slide one 2” SQ. END CAP (14) into the top of the BENCH FRAME (1) as shown in FIGURE 5.
• Slide one 3 X 2” END CAP (13) into the front of the BENCH FRAME (1) as shown in FIGURE 5.
Thank you for purchasing the Parabody 874101 MULTI-ANGLE BENCH. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
9
Page 10
MAINTENANCE
Please note:
* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water. Touch-up paint can be purchased from your ParaBody customer service representative
at (800) 328-9714.
* Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury
* PLEASE RECORD THE INFORMATION REQUESTED BELOW . IN THE EVENT
YOU MAY NEED SERVICE YOU WILL BE ASKED FOR THIS INFORMATION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.
SERIAL NUMBER
LOCATION
MODEL #________________________
SERIAL #_________________________
DATE OF PURCHASE: _____________
DEALERS NAME: _________________
DEALERS PHONE #_______________
Thank you for purchasing the ParaBody 874 Multi-Angle Bencb System.
10
Page 11
LIMITED W ARRANTY
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONL Y.
1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired
or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
2. LIMITED WARRANTY ON P ARTS. If the following part s are defective in material or workmanship, ParaBody will supply replacement parts:
all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad
shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger , spring
and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,
ParaBody will repair or replace them, at its option. Terms: Three (3) years.
4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized
ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of
ParaBody will void this Limited Warranty .
5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or rep air under this warranty. The Owner is
responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation
of the ParaBody product or any component part; b. shipping, delivery , handling and administrative charges for returning parts to ParaBody;
and c. all necessary or incidental costs related to installation of the replacement parts.
6. SHIPPING . If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton
or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage
incurred in shipping.
7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service
Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the
dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly
drawing included with your assembly instruction); (iv) a description of the nature of the problem.
8. OWNER’S RIGHT . This Limited W arranty gives you specific legal rights. Y ou may also have other rights, which vary depending on local law .
9. LIMITATION OF IMPLIED WARRANTIES. All implied warranties, except to the extent prohibited by applicable law, shall have no greater
duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty .
Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.
10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or
the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury , loss of use of the ParaBody
product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
NOTES:
11
Page 12
LIFEFITNESS
5100 North River Road. Schiller Park, IL 60176 U.S.A.
T el: 847.288.3300 Fax: 800.216.8893
800.328.9714 (T oll-free within the U.S. and Canada)
www.parabody.com
INTERNATIONAL OFFICES
Life FitnessAtlantic BV
Atlantic Headquarters
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: (180) 646 666
Fax: (180) 646 703
Life Fitness EUROPE GmbH
Siemensstrasse 3
85716 Unterschleissheim
Germany
Phone: (089) 31 77 51-0
Fax: (089) 31 77 51 99
Life Fitness Italia S.R.L.
V ia Elvas 92
39042 Bressanone
Italy
Phone: 39 (472) 835-470
Fax: 39 (472) 833-150
Life Fitness (UK) Ltd.
Queen Adelaide
Ely , Cambs CB7 4UB
United Kingdom
Phone CSS: (01353) 665507
Fax CSS: (01353) 666719
Life Fitness Benelux N.V.
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: 31 (180) 64 66 69
Fax: 31 (180) 64 66 99
Life Fitness Japan
8/F , Nippon Brunswick Building
5-27-7 Sendagaya
Shibuya-Ku, T okyo 151-0051
Japan
Phone: 81 (3) 3359-4309
Fax: 81 (3) 3359-4307
Life Fitness Asia Pacific Limited
Room 2610, Miramar T ower
132 Nathan Road, T simshatsui
Kowloon, Hong Kong
Phone: (852) 2891-6677
Fax: (852) 2575-6001
12
Life Fitness Do Brazil
Al. Rio Negro, 433-Predio 2-Sala 2
º andar (Confab)
3
Aplhaville-Barueri-Sao Paulo
CEP: 06454-904
Brazil
Phone: 55 (11)7295-2217
Fax: 55 (11) 7295-2218
Loading...
