844 LAT OPTION
CLASS H
PART # 7304901
REV . A
USER’S GUIDE
1
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 844108
Revision: 06/19/02
Page 2
j
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Parts list..........................4
Assembly Instructions.....4-14
General Maintenance.......15
W arranty Statement..........16
Product Services..............17
Insert-Registration Card
IMPORTANT SAFETY INFORMATION
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
©
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Page 3
IMPORTANT NOTES
Please note:
* Thank you for purchasing the ParaBody 844 Lat Option. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
T ools Required for Assembly
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* Adjustable wrench
* Tape measure
Bolt Length Ruler
NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
BOLT LENGTH
BOL T LENGTH RULER:
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
3
6
Page 4
PARTS LIST
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
PART #
LEA6608709
LEA6608509
LEA6274410
LEA6275310
LEA6609010
LEA6610410
LEA6546310
LEA6609309
LEA3116101
LEA3116201
LEA6610501
LEA6576201
LEA6176201
LEA6542402
LEA3103102
LEA3235208
LEA3235211
LEA3235212
DESCRIPTION
UPRIGHT
TOP BOOM
LOW ROW BAR
LA T BAR
LOW ROW A TT ACHMENT
KNEE SUPPORT
CARRIAGE
LOW PULLEY HOUSING
4-1/2” PULLEY
3-1/2” PULLEY
LA T CABLE
LOW ROW CABLE
ROLLER P AD
1-3/4” X 5-1/4” PLA TE
1 X 8” GRIP
3/8 X 2” BOL T
3/8 X 2-3/4” BOL T
3/8 X 3” BOL T
QTY
1
1
1
1
1
1
1
1
1
5
1
1
2
2
4
2
5
2
KEY
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
PART #
LEA3235213
LEA3114403
LEA3114702
LEA6480301
LEA3235311
LEA3235312
LEA3114401
LEA3114701
LEA6692601
LEA3119301
LEA6236701
LEA3116001
LEA6140701
LEA6177001
LEA3103801
LEA3108102
LEA6075906
DESCRIPTION
3/8 X 3-1/4” BOL T
3/8” W ASHER
3/8” LOCK NUT
3/8” FLANGE SP ACER
1/2 X 2-3/4” BOL T
1/2 X 3” BOL T
1/2” W ASHER
1/2” LOCK NUT
3 X 2” END CAP
2-1/2” ROUND END CAP
1-3/4” SQ. END CAP
1-1/4” SQ. RUBBER BUMPER
1 X 1” GLIDE
NON-SKID STRIP
5/16” SNAP LINK
1/4” QUICK DISCONNECT LNK
12 LINK CHAIN
QTY
2
10
11
8
1
3
4
2
1
2
1
1
8
2
3
1
1
5
FIGURE 1
32
STEP 1:
• Insert two 2-1/2” ROUND END CAPS (28) to the LOW ROW A TT ACHMENT (5) as shown in FIGURE 1.
• Attach two NON-SKID STRIPS (32) to the LOW ROW ATTACHMENT (5) as shown in FIGURE 1.
28
4
Page 5
POWER RACK
26
8
20
1
1/2 X 3” 24
25
21
20
3/8 X 3-1/4” 19
5

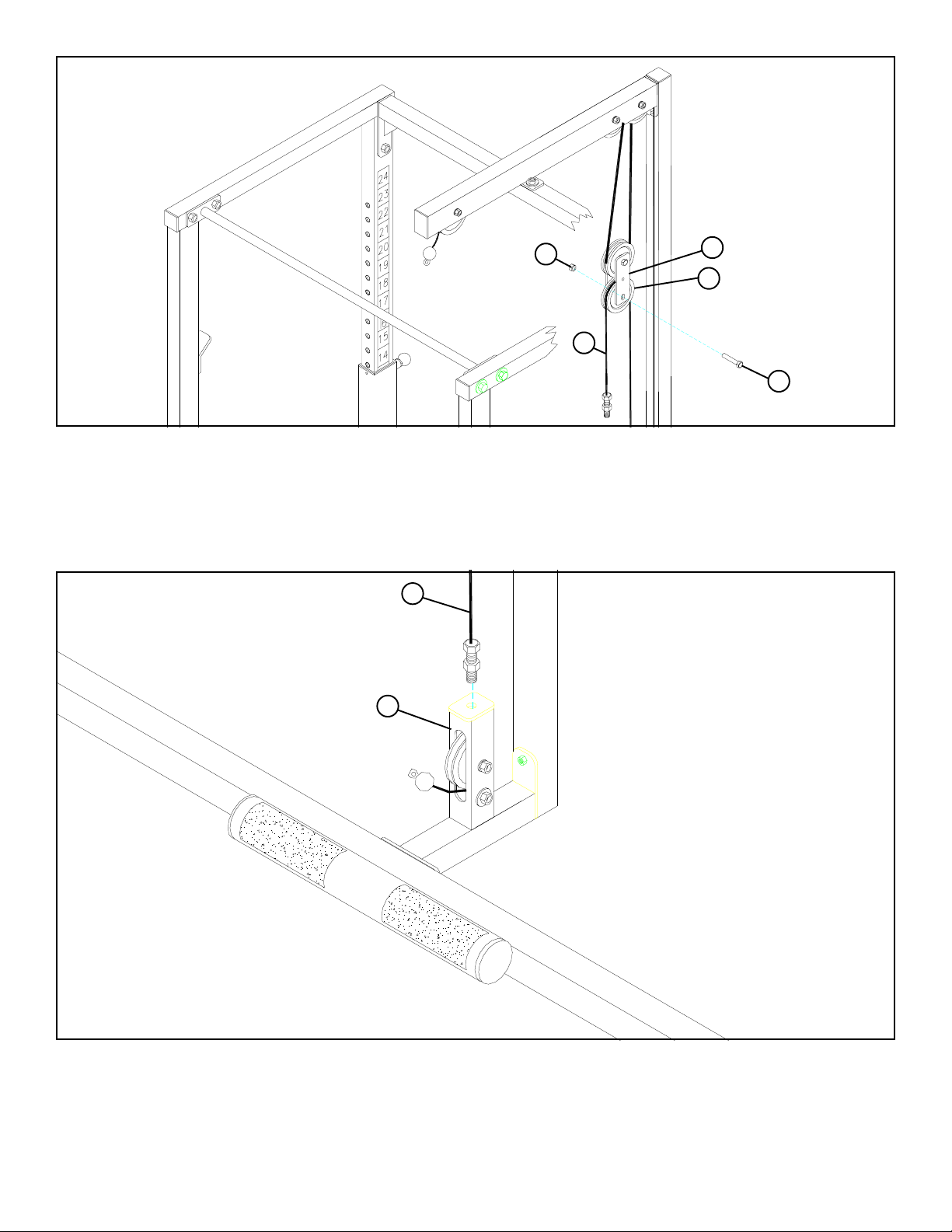

FIGURE 2
STEP 2:
• Assemble the LOW ROW ATTACHMENT (5) and the LOW PULLEY HOUSING (8) to the POWER RACK using two
3/8 X 3-1/4” BOLTS (19), four 3/8” WASHERS (20), and two 3/8” LOCK NUTS (21). See FIGURE 2.
• SECUREL Y assemble the UPRIGHT (1) to the LOW PULLEY HOUSING (8) using two 1/2 X 3” BOLTS (24), two 1/2” WASH-
ERS (25), and one 1/2” LOCK NUTS (26). See FIGURE 2.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
5
6
Page 6
FIGURE 3
STEP 3:
31
7
31
30
• Apply eight 1” SQ. GLIDES (31) to the inside of the CARRIAGE (7) as shown in FIGURE 3.
• Attach one 1-1/4” SQ. RUBBER BUMPER (30) to the bottom of the CARRIAGE (7) as shown in FIGURE 3.
7
1
FIGURE 4
STEP 4:
• CAREFULLY slide the CARRIAGE (7) over the UPRIGHT (1) as shown in FIGURE 4.
6
Page 7

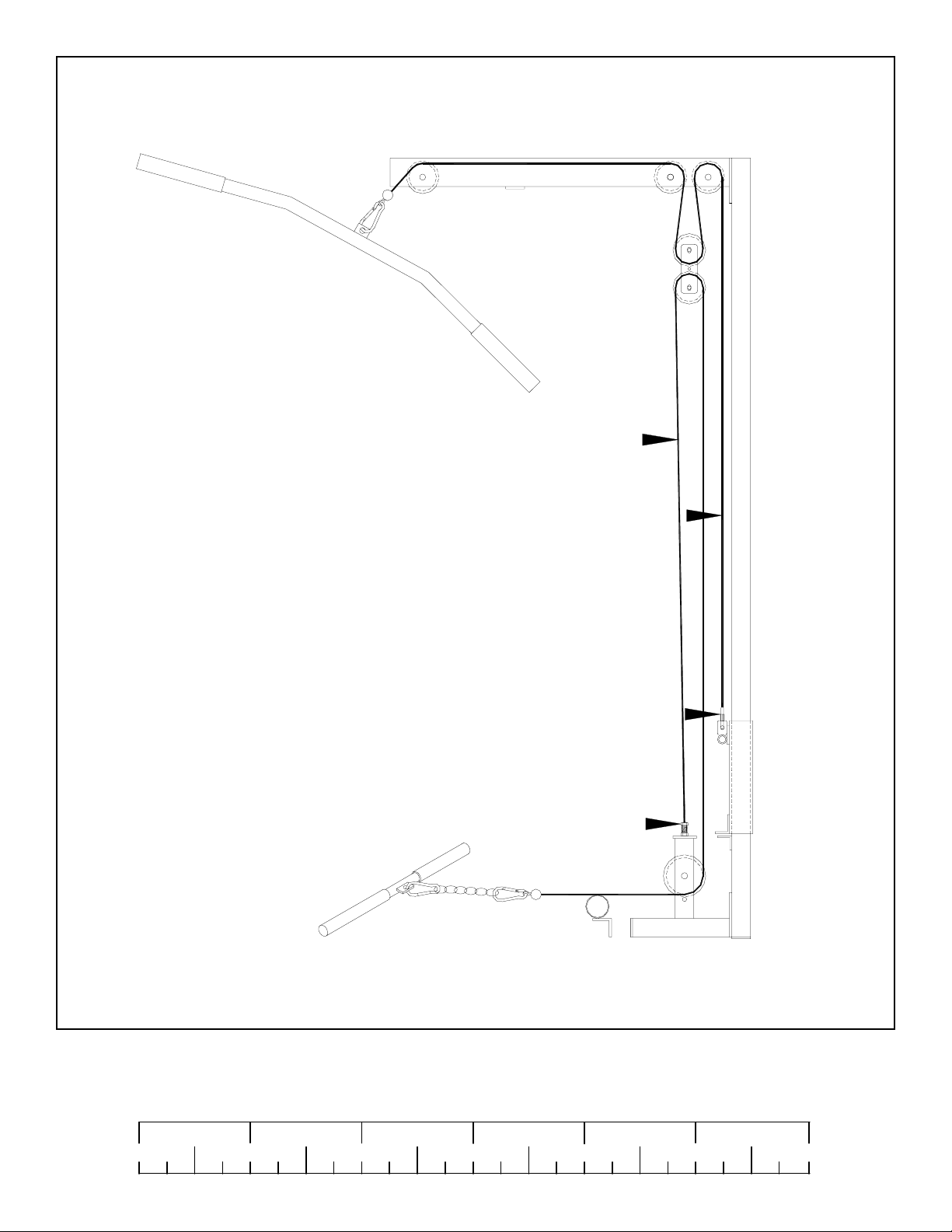

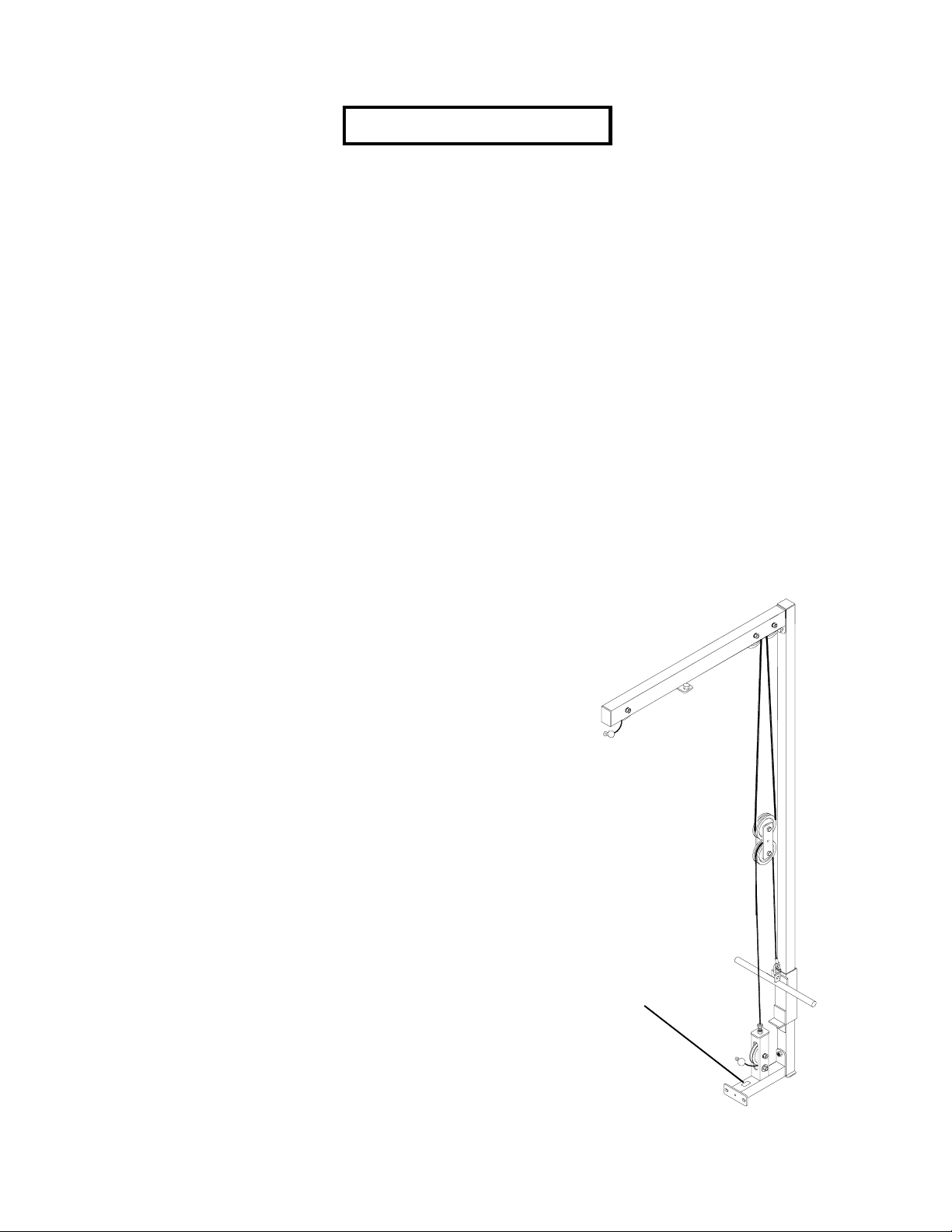

CABLE DIAGRAM
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
7
6
Page 8
17 3/8 X 2-3/4
2
22
22
27
11
21
10

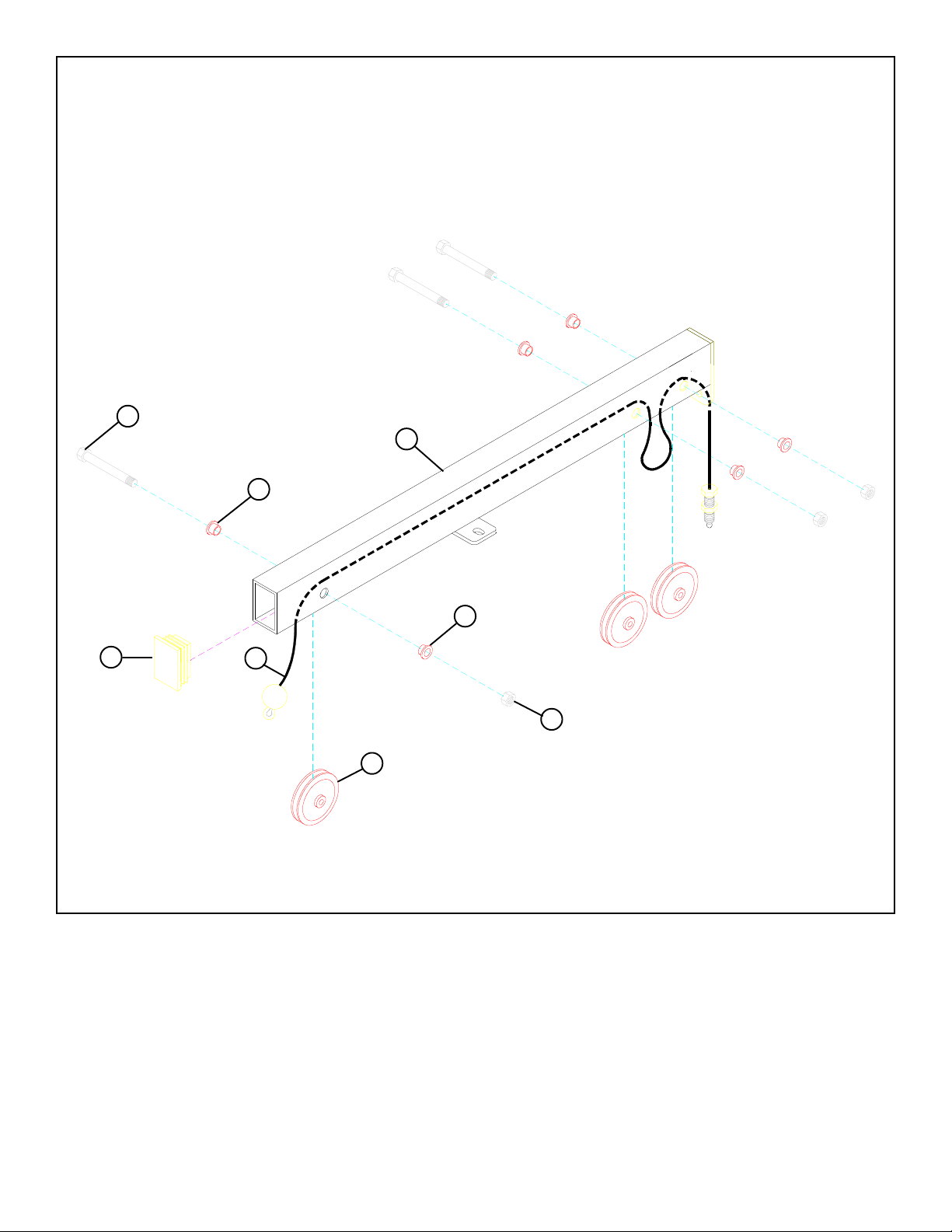

FIGURE 5
STEP 5:
• Insert one 2 X 3” END CAP (27) into the TOP BOOM (2) as shown in FIGURE 5.
• Route threaded end of the LAT CABLE (11) through the TOP BOOM (2) as shown in FIGURE 5.
• SECURELY assemble three 3-1/2” PULLEYS (10) to the TOP BOOM (2) using three 3/8 X 2-3/4” BOLTS (17), six 3/8”
FLANGE SPACERS (22), and three 3/8” LOCK NUTS (21). See FIGURE 5. (NOTE: BEFORE TIGHTENING, MAKE SURE
CABLE (11) IS IN THE GROOVES OF THE PULLEYS.)
8
Page 9

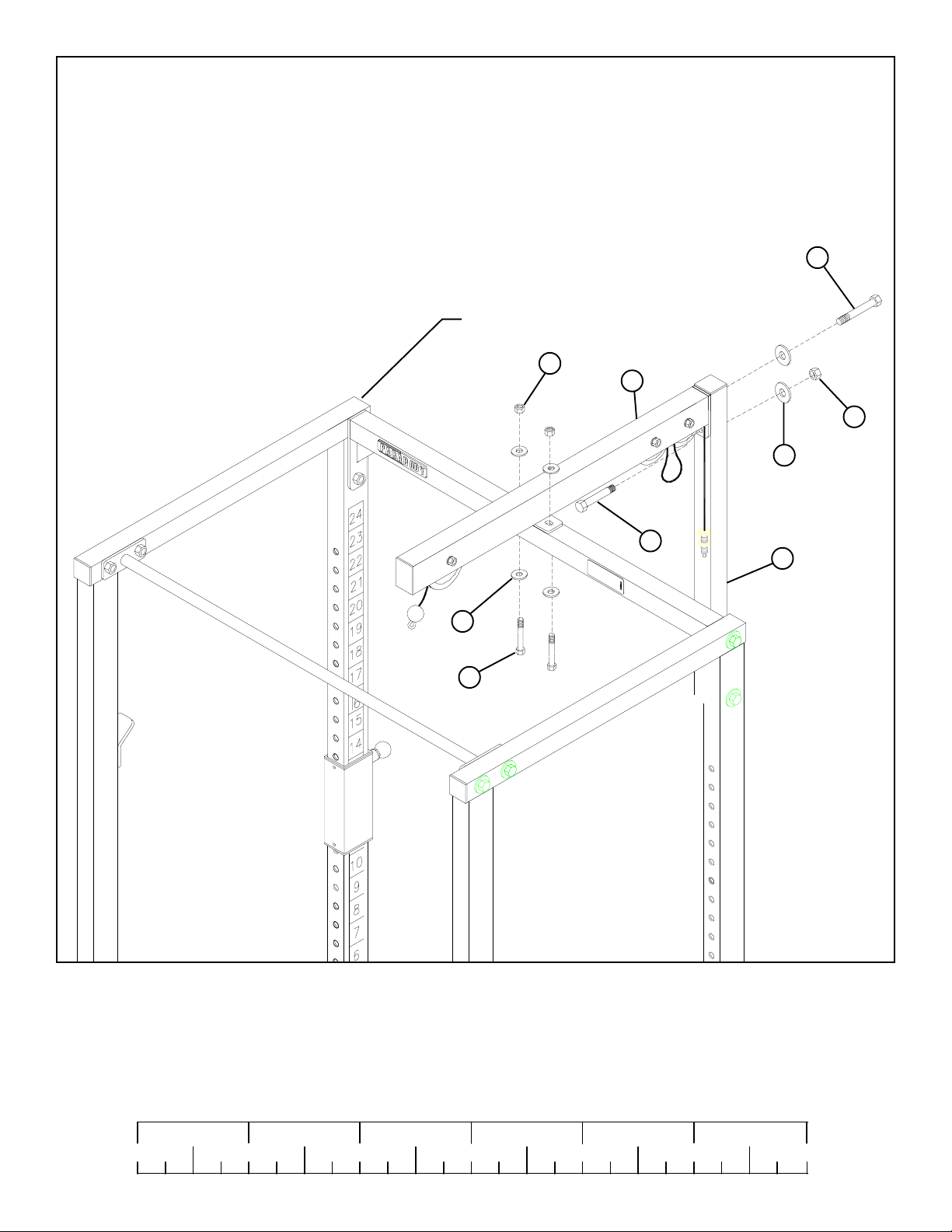

FIGURE 6
23
POWER RACK
21
2
26
25
STEP 6:
24
1
20
18
• SECURELY assemble the TOP BOOM (2) to the UPRIGHT (1) using one 1/2 X 2-3/4” BOLT (23), one 1/2 X 3” BOLT (24), two
1/2” WASHERS (25), and one 1/2” LOCK NUT (26). See FIGURE 6.
• SECURELY assemble the TOP BOOM (2) to the top of the POWER RACK using two 3/8 X 3” BOLTS (18), four 3/8” WASH-
ERS (20), and two 3/8” LOCK NUTS (21). See FIGURE 6.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
9
6
Page 10

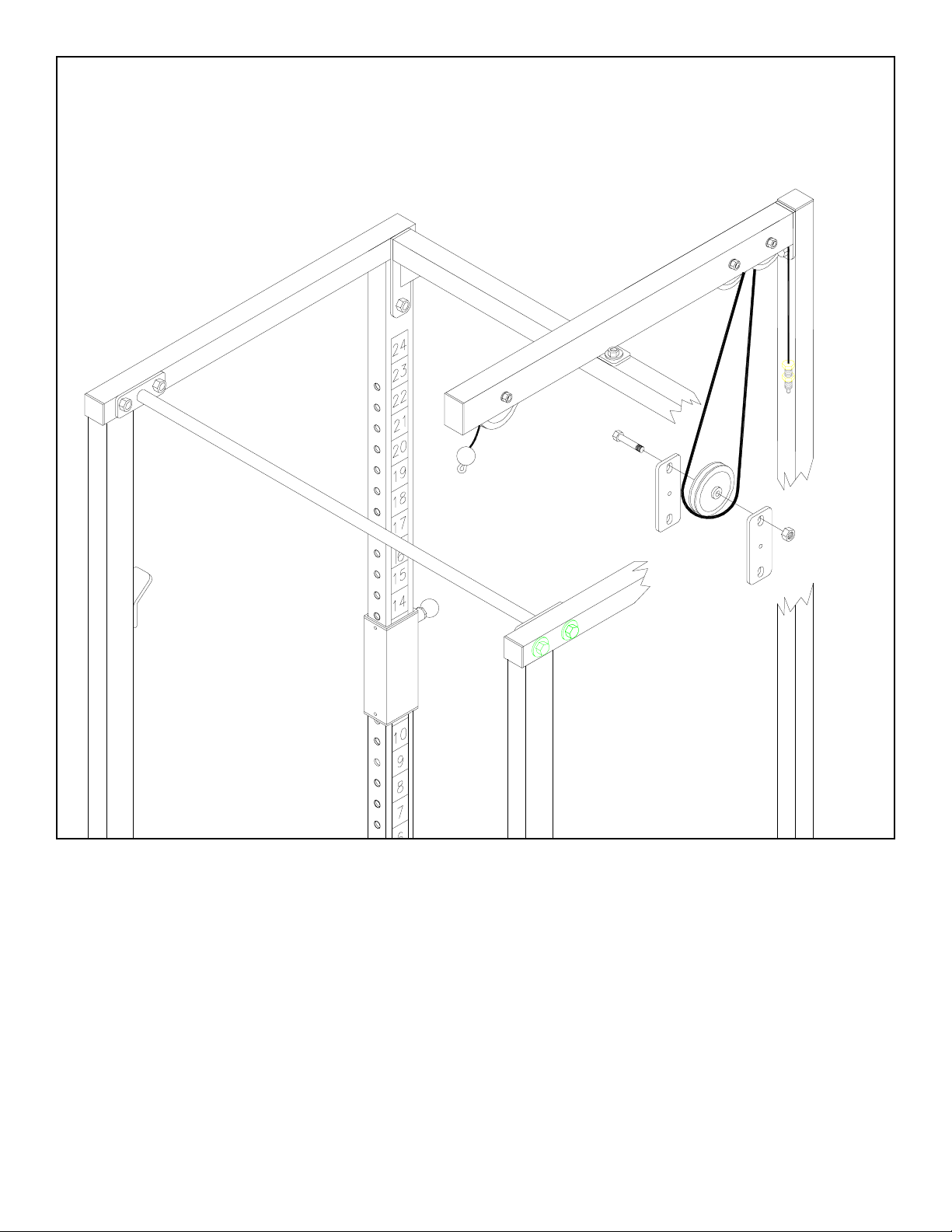

FIGURE 7
STEP 7:
• Loop the LAT CABLE (11) around one 3-1/2” PULLEY (10) as shown in FIGURE 7.
• LOOSELY assemble the 3-1/2” PULLEY (11) to the1-3/4 X 5-1/4” PLATES (14) using one 3/8 X 2” BOLT (16) and one 3/8”
LOCK NUT (21). See FIGURE 7.
10
Page 11
FIGURE 8
34
!IMPORTANT!
SECURELY
TIGHTEN
7
STEP 8:
• Attach the LAT CABLE (11) to the CARRIAGE (7) using one 1/4” QUICK LINK (34) as shown in FIGURE 8. (IMPORTANT!
Securely tighten QUICK LINK.)
3/8 X 2-3/4” 17
9
23
21
8
20

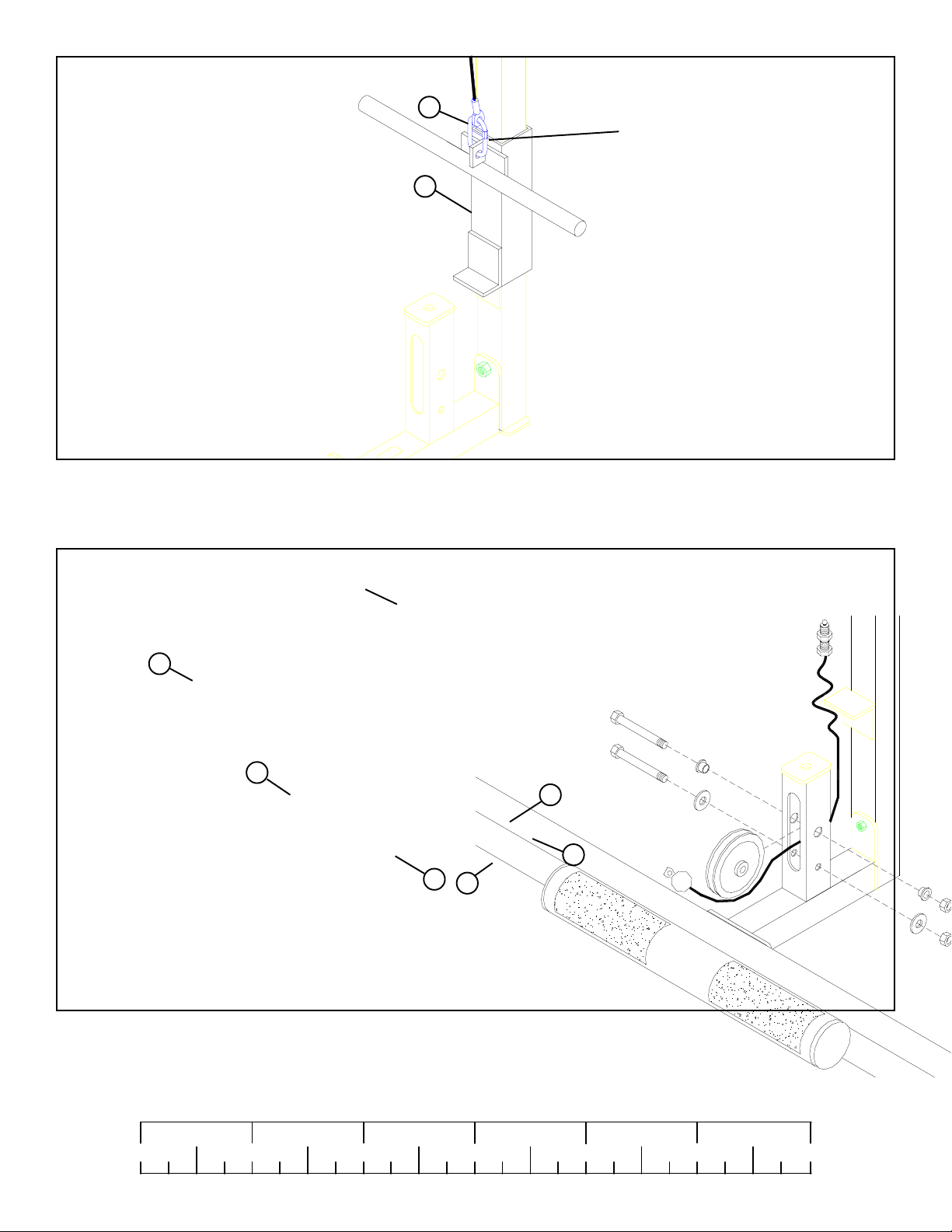

FIGURE 9
STEP 9:
• Loop the ball end of the LOW ROW CABLE (12) around one 4-1/2” PULLEY (9) and SECURELY assemble the 4-1/2” PULLEY
(9) to the LOW PULLEY HOUSING (8) using two 3/8 X 2-3/4” BOLTS (17), two 3/8” FLANGE SP ACERS (22), two 3/8” WASHERS (20), and two 3/8” LOCKNUTS (21). (NOTE: Make sure CABLE is routed between the PULLEY and the retaining bolt
as shown in FIGURE 9.)
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
11
6
Page 12
FIGURE 10
21
12
14
10
16 3/8 X 2”
STEP 10:
• Loop the LOW ROW CABLE (12) around one 3-1/2” PULLEY (10) as shown in FIGURE 10.
• LOOSELY assemble the 3-1/2” PULLEY (10) to the 1-3/4 X 5-1/4” PLATES (14) using one 3/8 X 2” BOLT (16) and one 3/8”
LOCK NUT (21). See FIGURE 10.
• SECURELY tighten the two 3/8 X 2” BOLTS (16) of the 1-3/4 X 5-1/4” PLATES (14).
12
8
FIGURE 11
STEP 11:
• SECURELY thread the end of the LOW ROW CABLE (12) 3/4 of the way into into the threaded housing on the LOW PULLEY
HOUSING (8) and SECURELY tighten jam nut.
12
Page 13
STEP 12:
• Attach the LAT BAR (4) to the ball end of
the LA T CABLE (1 1) using one SNAP LINK
(33) as shown in FIGURE 12..
FIGURE 12
15
33
• Slide two 1 X 8” GRIPS (15) over the ends
of the LAT BAR (4) as shown in FIGURE
12.
STEP 13:
• Attach the LOW ROW BAR (3) to the ball end
of the LOW ROW CABLE (12) using two
SNAP LINKS (33) and one 12 LINK CHAIN
(35) as shown in FIGURE 13.
• Slide two 1 X 8” GRIPS (15) over the ends of the
LOW ROW BAR (3) as shown in FIGURE 13.
11
4
12
STEP 14:
• Slide two ROLLER PADS (13) onto the KNEE
SUPPORT (6), then insert one 1-3/4” SQ. END
CAP (29) into the end of the KNEE SUPPORT (6)
as shown in FIGURE 14.
FIGURE 13
35
33
3
18
6
13
FIGURE 14
13
29
Page 14

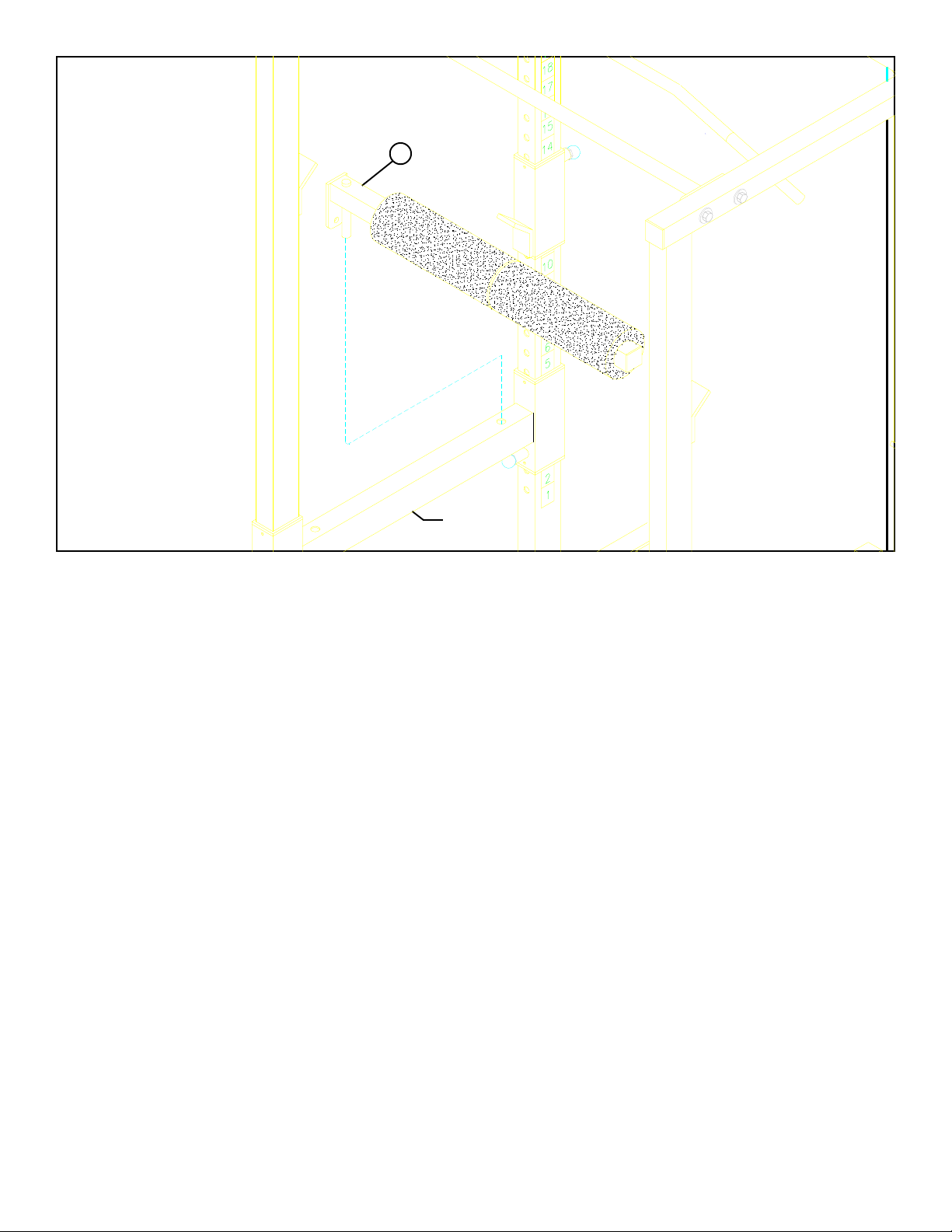

FIGURE 15
6
SAFETY
RAIL
STEP 15:
• When performing the LAT PULL exercise, insert the KNEE SUPPORT (6) into the hole of the SAFETY RAIL as shown in
FIGURE 15 and simply lower the SAFETY RAIL down until roller pads contact knees.
THIS CONCLUDES THE ASSEMBLY OF THE 844 LAT OPTION
14
Page 15
MAINTENANCE
Please note:
* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water . Touch-up paint can be purchased from your ParaBody customer service representative
at (800) 328-9714.
* Inspect equipment daily . Tighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury
* Lubricate guide rods with a teflon based (or equivalent) lubricant on a regular basis
* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT
YOU MAY NEED SERVICE YOU WILL BE ASKED FOR THIS INFORMA TION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.
MODEL #________________________
SERIAL #_________________________
DATE OF PURCHASE: _____________
DEALERS NAME: _________________
DEALERS PHONE #_______________
SERIAL NUMBER LOCATION
Thank you for purchasing the ParaBody 844 Lat Option.
15
Page 16
LIMITED WARRANTY
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONL Y.
1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired
or replaced by ParaBody . Terms: Lifetime – for so long as the Customer owns the ParaBody product.
2. LIMITED WARRANTY ON P ARTS. If the following parts are defective in material or workmanship, ParaBody will supply replacement p arts:
all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad
shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger , spring
and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,
ParaBody will repair or replace them, at its option. Terms: Three (3) years.
4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to rep air by a person other than an authorized
ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of
ParaBody will void this Limited Warranty .
5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or repair under this warranty. The Owner is
responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation
of the ParaBody product or any component part; b. shipping, delivery , handling and administrative charges for returning parts to ParaBody;
and c. all necessary or incidental costs related to installation of the replacement parts.
6. SHIPPING . If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton
or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage
incurred in shipping.
7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service
Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the
dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly
drawing included with your assembly instruction); (iv) a description of the nature of the problem.
8. OWNER’S RIGHT . This Limited Warranty gives you specific legal right s. Y ou may also have other rights, which vary depending on local law .
9. LIMITATION OF IMPLIED WARRANTIES. All implied warranties, except to the extent prohibited by applicable law , shall have no greater
duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty .
Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.
10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or
the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury , loss of use of the ParaBody
product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
NOTES:
16
Page 17
LIFE FITNESS
14150 Sunfish Lake Blvd. Ramsey Minnesota, 55303 U.S.A.
T el: 763.323.4500 Fax: 763.323.4797
800.328.9714 (T oll-free within the U.S. and Canada)
www.parabody.com
INTERNATIONAL OFFICES
Life FitnessAtlantic BV
Atlantic Headquarters
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: (180) 646 666
Fax: (180) 646 703
Life Fitness EUROPE GmbH
Siemensstrasse 3
85716 Unterschleissheim
Germany
Phone: (089) 31 77 51-0
Fax: (089) 31 77 51 99
Life Fitness Italia S.R.L.
V ia Elvas 92
39042 Bressanone
Italy
Phone: 39 (472) 835-470
Fax: 39 (472) 833-150
Life Fitness (UK) Ltd.
Queen Adelaide
Ely , Cambs CB7 4UB
United Kingdom
Phone CSS: (01353) 665507
Fax CSS: (01353) 666719
Life Fitness Benelux N.V.
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: 31 (180) 64 66 69
Fax: 31 (180) 64 66 99
Life Fitness Japan
8/F , Nippon Brunswick Building
5-27-7 Sendagaya
Shibuya-Ku, T okyo 151-0051
Japan
Phone: 81 (3) 3359-4309
Fax: 81 (3) 3359-4307
Life Fitness Asia Pacific Limited
Room 2610, Miramar T ower
132 Nathan Road, T simshatsui
Kowloon, Hong Kong
Phone: (852) 2891-6677
Fax: (852) 2575-6001
17
Life Fitness Do Brazil
Al. Rio Negro, 433-Predio 2-Sala 2
º andar (Confab)
3
Aplhaville-Barueri-Sao Paulo
CEP: 06454-904
Brazil
Phone: 55 (11)7295-2217
Fax: 55 (11) 7295-2218
Loading...
