ParaBody 829 User Manual

829 LEG CURL/EXTENSION

WARNING:

Read and follow all directions
for each step to insure proper
assembly of this product.

PART # 7302401
REV . A

USER’S GUIDE

1CLASS H

Version: 829108

Revision: 06/13/02

j

TABLE OF CONTENTS

Safety Statement.............2

General Notes..................3

Tools Required................3

Gym Layout.....................4

Parts list..........................5

Assembly Instructions.....5-8

General Maintenance.......9

W arranty Statement..........10

Product Services..............11

Insert-Registration Card

IMPORTANT SAFETY INFORMATION

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF

EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!

1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.

2. Obtain a medical exam before beginning any
exercise program.

3. Keep body and clothing free of all moving objects.

4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or

ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.

6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.

7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.

8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.

5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.

9. Children must not be allowed near this machine.
Supervise teenagers.

.

NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.

©

ParaBody is a trademark of Brunswick Corporation

www.parabody.com

2

IMPORTANT NOTES

Please note:

* Thank you for purchasing the ParaBody 829 LEG CURL/EXTENSION. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.

* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.

T ools Required for Assembly

* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* Adjustable wrench
* T ape measure

Bolt Length Ruler

NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.

BOLT LENGTH

BOL T LENGTH RULER:

1/2 1/2 1/2 1/2 1/2 1/2

0

1

2

345

3

6

1’

2’

3’

1’ 2’ 3’

4’

5’

4’

5’

6’

1 Square = 1’ X 1’

4

PARTS LIST

KEY

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

PART #

LEA6259109
LEA6625410
LEA6625510
LEA6216710
LEA6668210
LEA6662010
LEA6661221
LEA6661621
LEA6662209
LEA6662309
LEA6668509
LEA6668809
LEA6125101
LEA6549301
LEA6194601
LEA6628310
LEA6412001
LEA6466901
LEA3235204

DESCRIPTION

FRONT SUPPOR T TUBE

BACK P AD ADJUST TUBE

BACK P AD SUPPOR T TUBE

1-3/4 SQ X 5" TUBE

1-3/4 SQ X 13-1/2" TUBE

LEG CURL/EXTENSION

BACK P AD ASSY

SEA T P AD ASSY

LEG EXT HANDLE RHT

LEG EXT HANDLE LFT

LEG FRAME

REAR BASE LEG

3/4 X 16" TUBE
3/4 X 17" TUBE

4 X 7" ROLLER P AD

1/8 X 2 X 8" PLATE

3/8” DIA SPRING PIN

1/2" DIA SPRING PIN

3/8 X 1" BOL T

QTY

1
1
1
1
1
1
1
1
1
1
1
1
2
1
6
1
2
1
4

KEY

20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

PART #

LEA3235212
LEA3235216
LEA3235316
LEA3235428
LEA3114403
LEA3114702
LEA3235501
LEA3235502
LEA6405201
LEA6692601
LEA3102416
LEA6406401
LEA3104301
LEA6416601
LEA6020601
LEA3105401
LEA3103101
LEA7234801
LEA3108901

DESCRIPTION

3/8 X 3" BOL T
3/8 X 4" BOL T
1/2 X 4" BOL T
1/2 X 7" BOL T

3/8" FLA T W ASHER

3/8" NYLOCK NUT
1/2" LOW HT . NYLOCK NUT
3/8" LOW HT . NYLOCK NUT

2" SQ END CAP
3 X 2" END CAP
2 X 1" END CAP

HINGE T AB

3/4" SQ RUBBER BUMPER

1-1/2 X 3/4" GLIDE (QTY 8)

1/2" FLANGE BEARING

ST ARLOCK COLLAR

1-1/4 X 5" GRIP

2” SQ COVER END CAP

2” O.D. X 3/4” PLASTIC WASHER

QTY

8
2
1
1

20

4
2
2
3
2
4
2
1
2
2
6
4
4
4

LEG CURLLEG EXTENSION

5

36

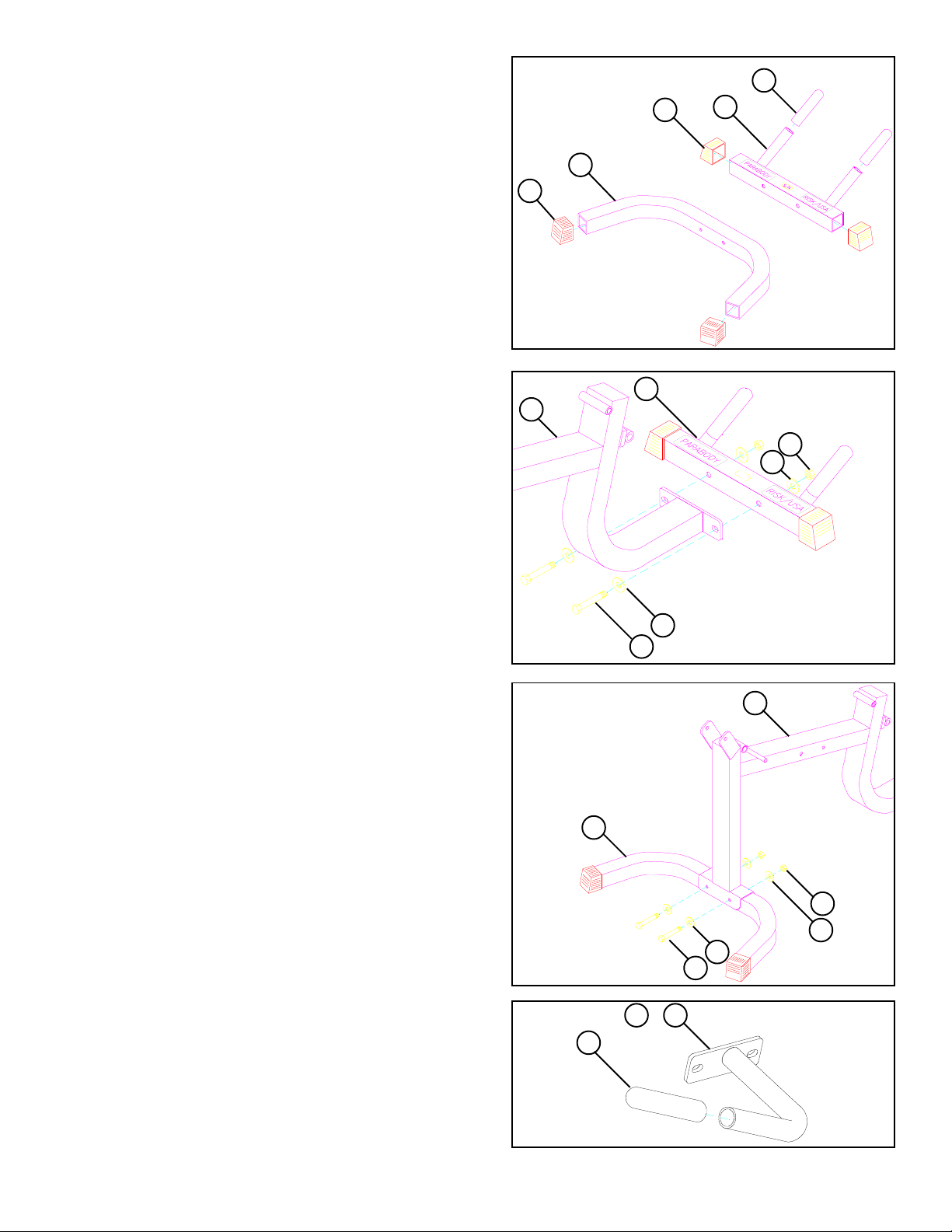

STEP 1:

STEP 2:

STEP 3:

Insert four COVER END CAPS (37) into
the ends of REAR BASE LEG (12) and
FRONT BASE SUPPOR T (1). See FIGURE

1.

Slide two 1-1/4 x 5” GRIPS (36) over tubes
on REAR BASE LEG (12). See FIGURE

1.

Securely assemble REAR BASE LEG (12)
to LEG FRAME (11) using two 3/8 X 3”
BOLTS (20), four 3/8” FLAT WASHERS
(24), and two 3/8” NYLOCK NUTS (25).
See FIGURE 2.

1

37

FIGURE 1

11

12

37

12

25

24

STEP 4:

STEP 5:

Securely assemble FRONT BASE SUP­PORT (1) to LEG FRAME (11) using two
3/8 X 3” BOLTS (20), four 3/8” FLAT
WASHERS (24), and two 3/8” NYLOCK
NUTS (25). See FIGURE 3.

Slide two 1-1/4 X 5" GRIPS (36) over
RIGHT LEG EXT HANDLE (9) & LEFT
LEG EXT HANDLE (10). See FIGURE 4.

FIGURE 2

1

FIGURE 3

36

24

20 3/8 X 3”

3/8 X 3” 20

9

10

&

11

25

24

24

FIGURE 4

6

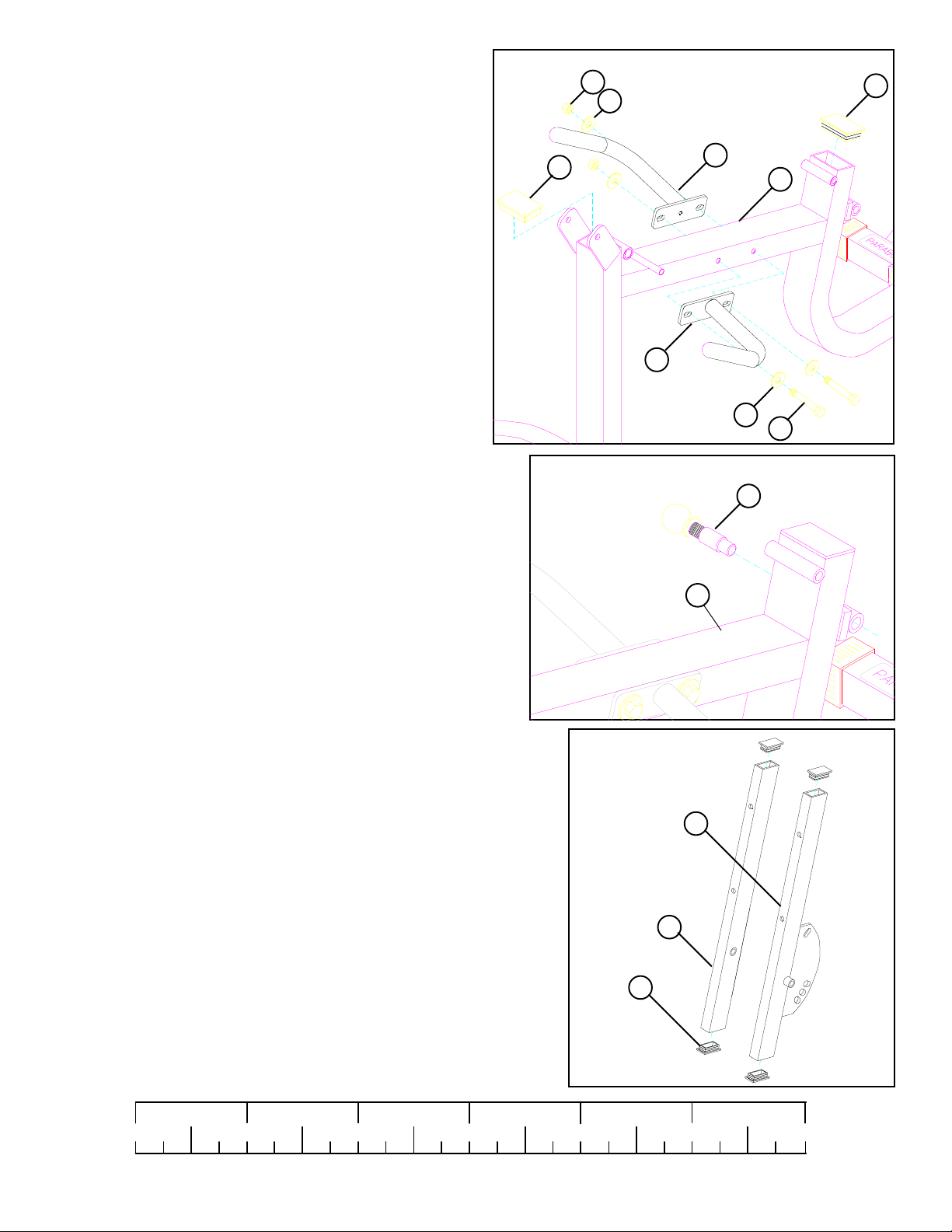

STEP 6:

Securely assemble RIGHT (9) & LEFT (10)
LEG EXT HANDLES to LEG FRAME (11)
using two 3/8 X 4” BOL TS (21), four 3/8”
FLA T W ASHERS (24) , and two 3/8” LOW
HEIGHT NYLOCK NUTS (27). See FIG­URE 5.

FIGURE 5

27 LOW HEIGHT

29

24

29

10

11

STEP 7:

STEP 8

Insert two 3 X 2” END CAPS (29) into
the leg frame as shown in FIGURE 5.

:

Securely assemble one 1/2” SPRING PIN AS­SEMBLY (18) into the spring pin barrel on the
LEG FRAME (11) as shown in FIGURE 6.

9

24

21 3/8 X 4”

FIGURE 6

18

11

FIGURE 7

STEP 9:

Insert four 2 X 1” END CAPS (30) into the ends
of the BACK PAD ADJUST TUBE (2) & BACK
PAD SUPPORT TUBE (3). See FIGURE 7.

1/2 1/2 1/2 1/2 1/2 1/2

0

1

2

345

7

2

3

30

6

FIGURE 8

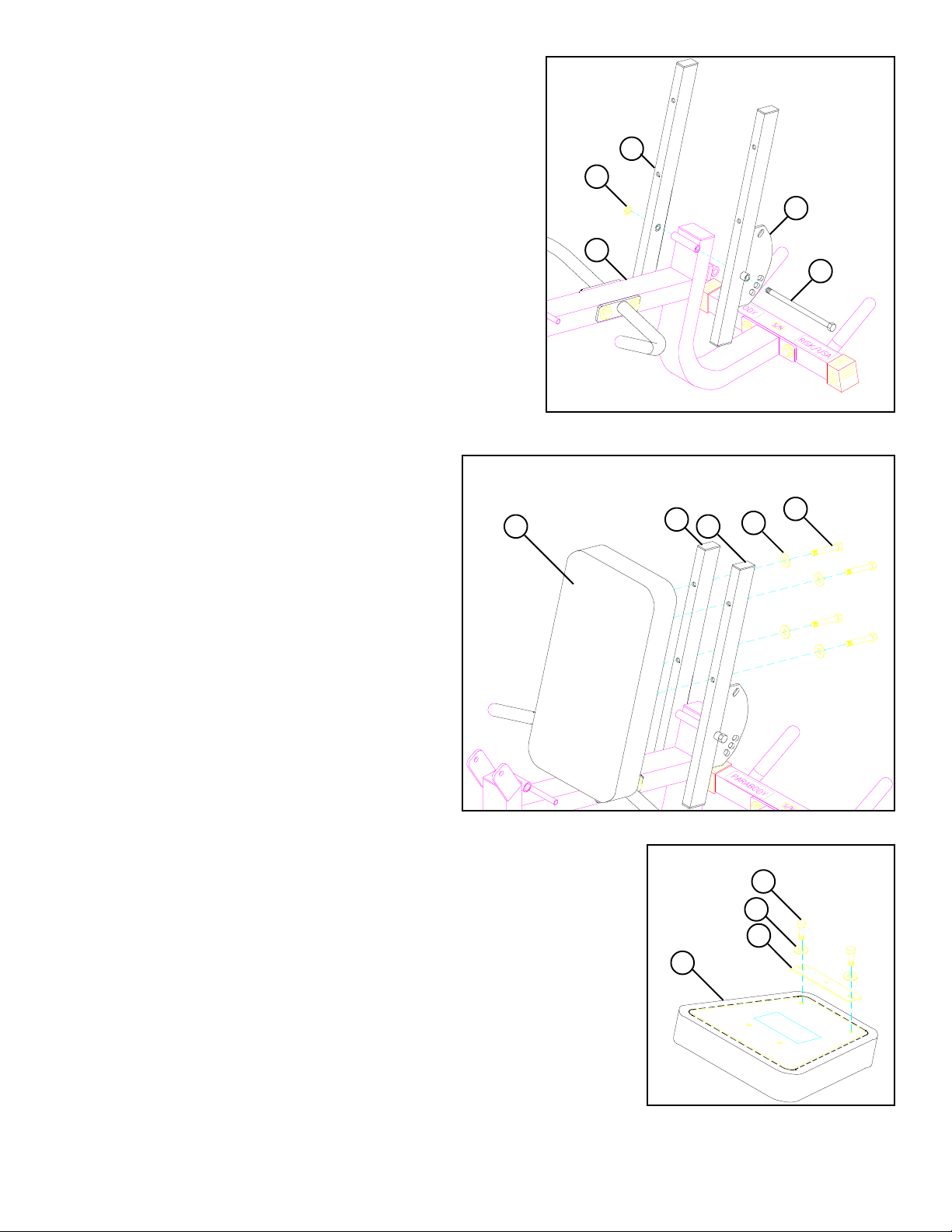

STEP 10:

STEP 11:

Securely assemble BACK PAD ADJUST
TUBE (2) & BACK PAD SUPPORT TUBE
(3) to LEG FRAME (11) using one 1/2 X 7”
BOLT (23) and one 1/2” LOW HEIGHT
NYLOCK NUT (26). (NOTE: SECURELY

TIGHTEN BOLT THEN BACK NUT OFF
1/4 TURN TO ALLOW THE TWO PARTS
TO ROTATE FREELY.) See FIGURE 8.

FIGURE 9

Securely attach the BACK PAD (7)
to the BACK PAD TUBES (2 & 3)

7

using four 3/8 X 3” BOLTS (20)
and four 3/8” FLAT WASHERS
(24). See FIGURE 9.

26

11

3

2

23 1/2 X 7”

3

2

20 3/8 X 3”

24

STEP 12:

Securely fasten 2 X 8” PLATE (16) to bottom of SEAT
PAD (8) using two 3/8 X 1” BOLTS (19) and two 3/8”
FLAT WASHERS (24). See FIGURE 10.

8

FIGURE 10

19 3/8 X 1”

24

16

8

FIGURE 11

31

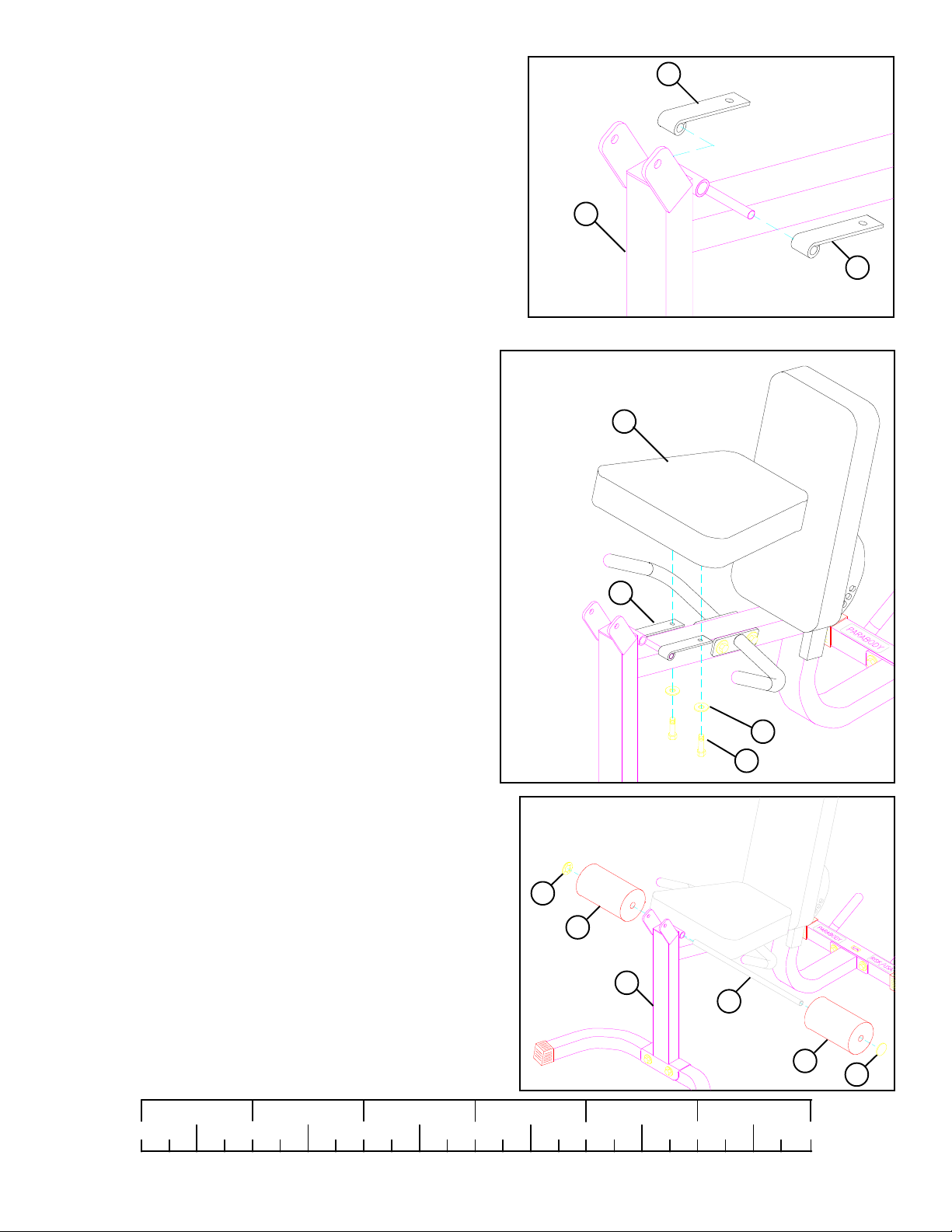

STEP 13:

STEP 14

Slide two HINGE TABS (31) over posts on
LEG FRAME (11). See FIGURE 11.

:

Securely attach the SEAT PAD (8) to the
HINGE TABS (31) using two 3/8 X 1”
BOLTS (19) and two 3/8” FLAT WASH­ERS (24). See FIGURE 12.

11

31

FIGURE 12

8

STEP 15:

Attach two ROLLER PADS (15) to the
LEG FRAME (11) using one 17” ROLLER
PAD SHAFT (14) and two STARLOCK
COLLARS (35). See FIGURE 13.

31

24

19 3/8 X 1”

35

15

11

14

15

FIGURE 13

1/2 1/2 1/2 1/2 1/2 1/2

0

1

2

345

9

35

6

33

4

5

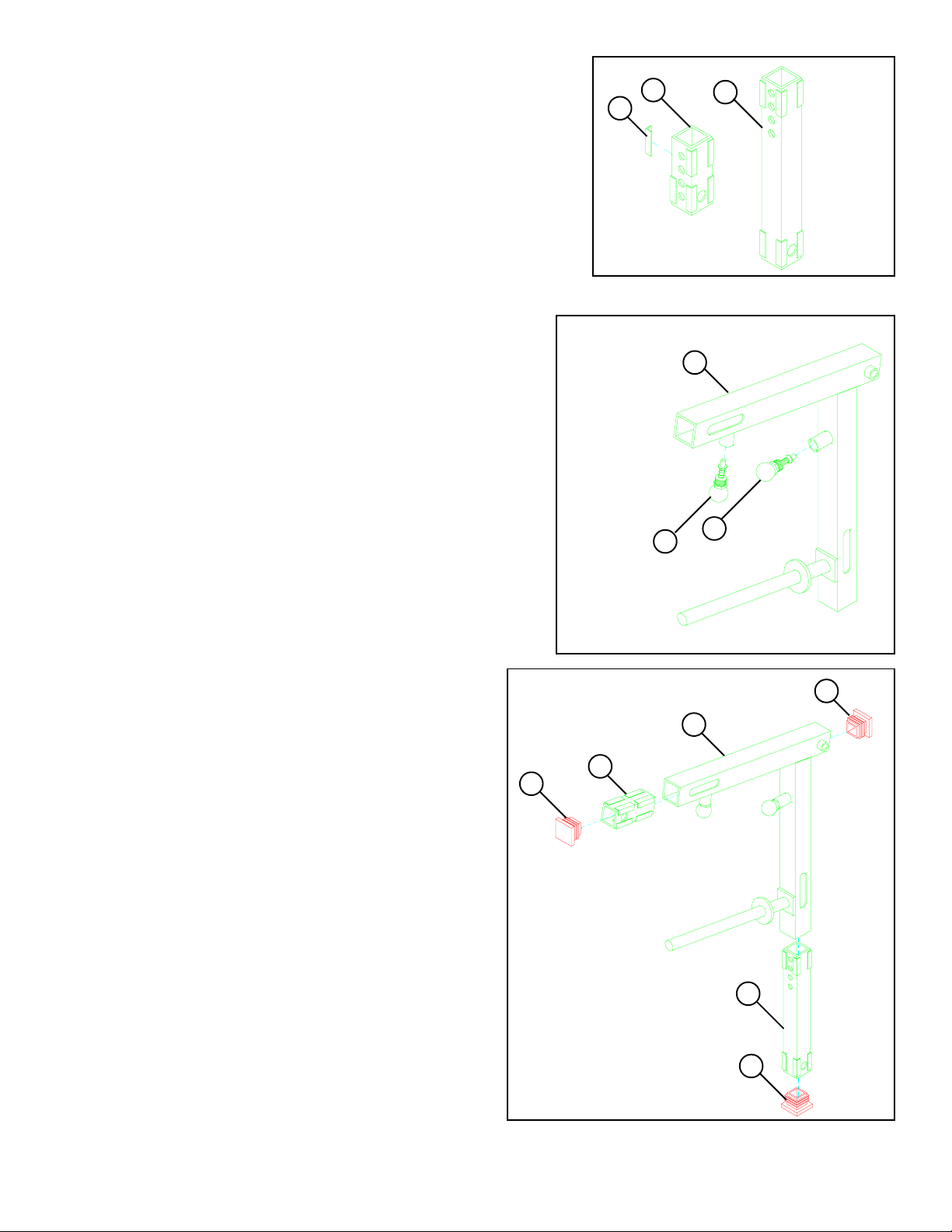

STEP 16:

STEP 17:

Attach eight 1-1/2” X 3/4” GLIDES (33) to 5”
ROLLER PAD ADJUSTER (4) and attach eight
1-1/2” X 3/4” GLIDES (33) to 13-1/2” ROLLER
PAD ADJUSTER (5) as shown in FIGURE 14.

FIGURE 14

6

Securely assemble two 3/8” SPRING PIN AS­SEMBLIES (17) into the spring pin barrels on
the LEG CURL/EXTENSION (6) as shown in
FIGURE 15.

17

17

STEP 18:

STEP 19:

Insert 5” & 13-1/2” ROLLER PAD
ADJUSTERS (4 & 5) in the ends of the
LEG CURL/EXTENSION (6). Pull back
on SPRING PINS until ROLLER PAD
ADJUSTERS (4 & 5) lock in place. See
FIGURE 16.

Insert three 2” SQUARE END CAPS (28)
into the ends of the LEG CURL/EXTEN­SION (6). See FIGURE 16.

FIGURE 15

28

6

4

28

5

28

FIGURE 16

10

STEP 20:

Insert two 1/2” FLANGE BEARINGS
(34) into the LEG CURL/EXTENSION
(6). See FIGURE 17.

26 LOW HEIGHT

STEP 21:

STEP 22

STEP 23:

Securely assemble LEG CURL/EX­TENSION (6) to LEG FRAME (11)
using one 1/2 X 4” BOLT (22) and one

6

1/2” LOW HEIGHT NYLOCK NUT
(26). (NOTE: SECURELY TIGHT-

EN BOLT THEN BACK NUT OFF

34

11

1/4 TURN TO ALLOW THE PART
TO ROTATE FREELY.) See FIG-

32

22 1/2 X 4”

URE 17

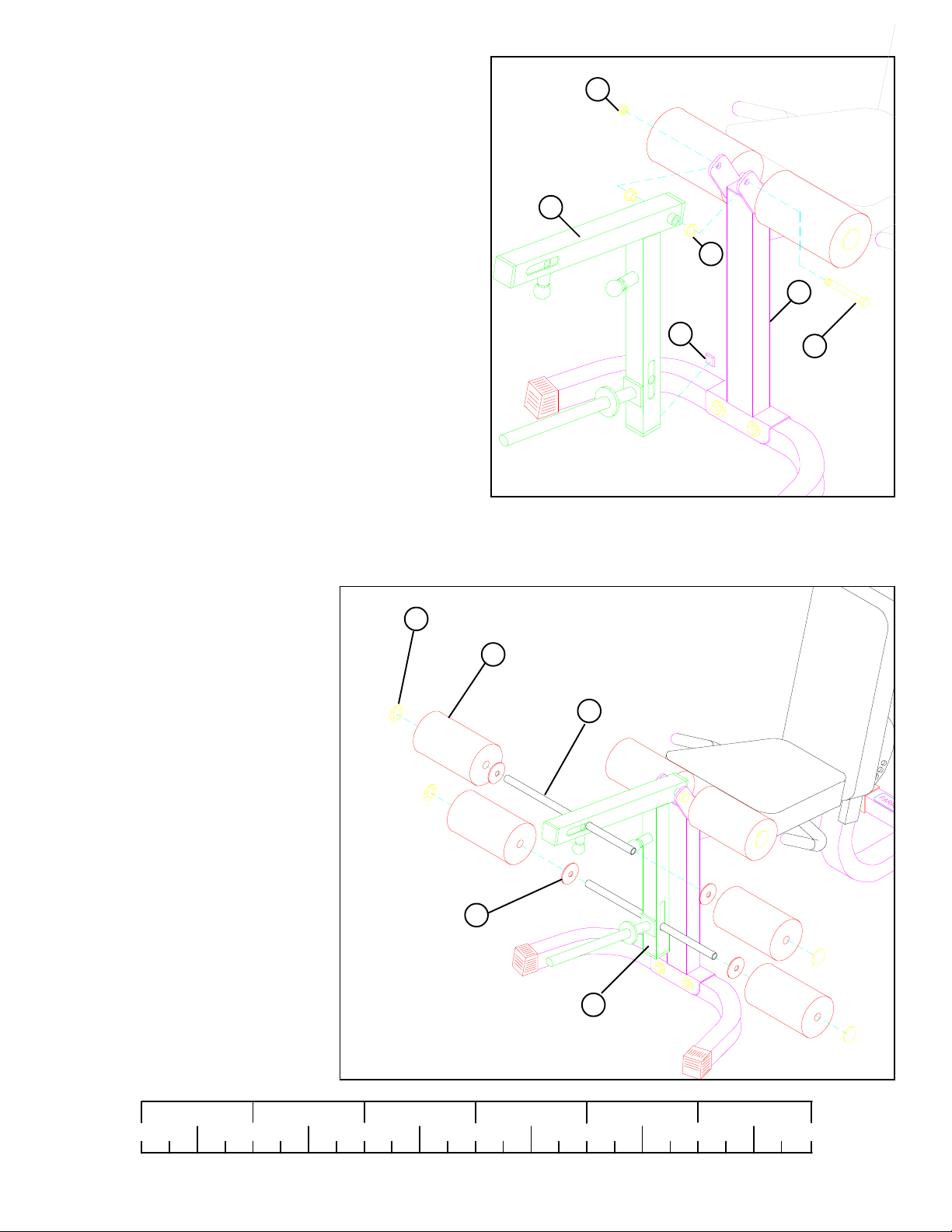

Attach one 3/4” SQUARE RUBBER

:

BUMPER (32) between the contact point
of the LEG CURL/EXTENSION (6) and
the LEG FRAME (11).See FIGURE 17.

FIGURE 17

Attach four ROLLER P ADS (15) and four 2” OD PLASTIC WASHERS (38) to the LEG
CURL/EXTENSION (6) using two 16” ROLLER P AD SHAFTS (13) and four ST AR­LOCK COLLARS (35). See FIGURE 18.

THIS CONCLUDES THE ASSEMBLY

OF THE PARABODY 829

LEG CURL/EXTENSION

35

15

13

38

6

FIGURE 18

1/2 1/2 1/2 1/2 1/2 1/2

0

1

2

345

11

6

MAINTENANCE

Please note:

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water . Touch-up paint can be purchased from your ParaBody customer service representative
at [phone].

* Inspect equipment daily . Tighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury

* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT
YOU MAY NEED SER VICE YOU WILL BE ASKED FOR THIS INFORMATION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.

MODEL #________________________

SERIAL #_________________________

DATE OF PURCHASE: _____________

DEALERS NAME: _________________

DEALERS PHONE #_______________

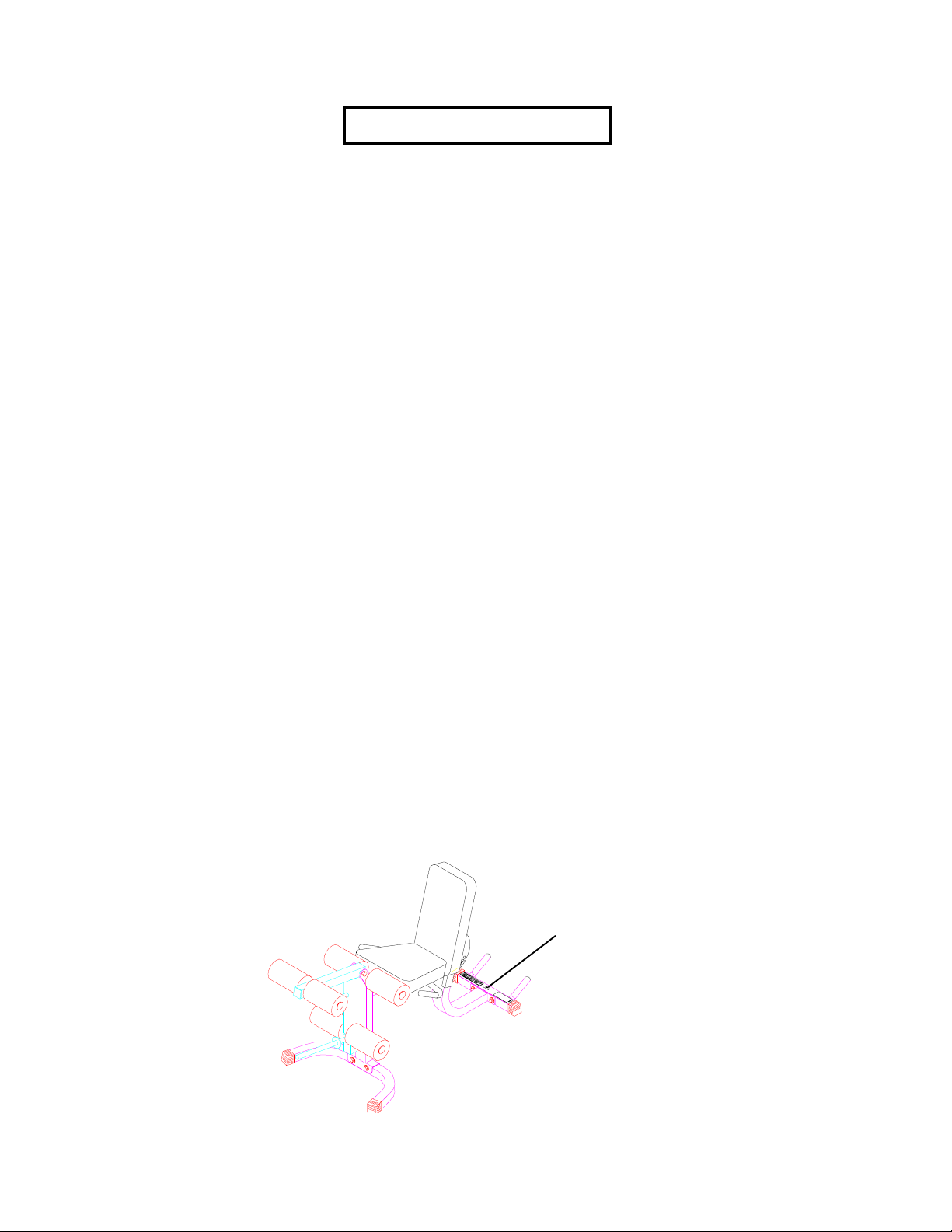

SERIAL NUMBER LOCATION

Thank you for purchasing the ParaBody 829 LEG CURL/EXTENSION.

12

LIMITED W ARRANTY

ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONL Y.

1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired
or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.

2. LIMITED WARRANTY ON P ARTS. If the following part s are defective in material or workmanship, ParaBody will supply replacement parts:
all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad
shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger , spring
and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.

3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,
ParaBody will repair or replace them, at its option. Terms: Three (3) years.

4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized
ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of
ParaBody will void this Limited Warranty .

5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or repair under this warranty. The Owner is
responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation
of the ParaBody product or any component part; b. shipping, delivery, handling and administrative charges for returning part s to ParaBody;
and c. all necessary or incidental costs related to installation of the replacement parts.

6. SHIPPING . If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton
or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage
incurred in shipping.

7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service
Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the
dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly
drawing included with your assembly instruction); (iv) a description of the nature of the problem.

8. OWNER’S RIGHT . This Limited W arranty gives you specific legal rights. Y ou may also have other rights, which vary depending on local law .

9. LIMITATION OF IMPLIED W ARRANTIES. All implied warranties, except to the extent prohibited by applicable law , shall have no greater
duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty .
Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.

10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or
the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury , loss of use of the ParaBody
product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the
above limitation or exclusion may not apply to you.

NOTES:

13

LIFE FITNESS

14150 Sunfish Lake Blvd. Ramsey Minnesota, 55303 U.S.A.

T el: 763.323.4500 Fax: [phone]

800.328.9714 (T oll-free within the U.S. and Canada)
www.parabody.com

INTERNATIONAL OFFICES

Life FitnessAtlantic BV
Atlantic Headquarters
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: [phone]
Fax: [phone]

Life Fitness EUROPE GmbH
Siemensstrasse 3
85716 Unterschleissheim
Germany
Phone: [phone]
Fax: [phone]

Life Fitness Italia S.R.L.
V ia Elvas 92
39042 Bressanone
Italy
Phone: [phone]
Fax: [phone]

Life Fitness (UK) Ltd.
Queen Adelaide
Ely , Cambs CB7 4UB
United Kingdom
Phone CSS: [phone]
Fax CSS: [phone]

Life Fitness Benelux N.V.
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: [phone]
Fax: [phone]

Life Fitness Japan
8/F , Nippon Brunswick Building
5-27-7 Sendagaya
Shibuya-Ku, T okyo 151-0051
Japan
Phone: [phone]
Fax: [phone]

Life Fitness Asia Pacific Limited
Room 2610, Miramar T ower
132 Nathan Road, T simshatsui
Kowloon, Hong Kong
Phone: [phone]
Fax: [phone]

14

Life Fitness Do Brazil
Al. Rio Negro, 433-Predio 2-Sala 2

º andar (Confab)

3
Aplhaville-Barueri-Sao Paulo
CEP: 06454-904
Brazil
Phone: [phone]
Fax: [phone]
