ParaBody 824 User Manual

824 LEG CURL/EXT ATTACHMENT

CLASS H
PART # 7077101
REV . B

USER’S GUIDE

1

WARNING:

Read and follow all directions
for each step to insure proper
assembly of this product.

Version: 824107

Revision: 06/18/01

j

TABLE OF CONTENTS

Safety Statement.............2

General Notes..................3

Tools Required................3

Parts list..........................4

Assembly Instructions.....4

General Operation...........5

General Maintenance.......6

W arranty Statement..........7

Product Services..............8

Insert-Registration Card

IMPORTANT SAFETY INFORMATION

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF

EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!

1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.

2. Obtain a medical exam before beginning any
exercise program.

3. Keep body and clothing free of all moving objects.

4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or

ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.

6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.

7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.

8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.

5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.

9. Children must not be allowed near this machine.
Supervise teenagers.

.

NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.

©

ParaBody is a trademark of Brunswick Corporation

www.parabody.com

2

IMPORTANT NOTES

Please note:

* Thank you for purchasing the ParaBody 824 Gym Attachment. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.

* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.

T ools Required for Assembly

* Ratchet, 3/4 socket or wrench
* Adjustable wrench
* Rubber mallet or hammer

NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.

BOLT LENGTH

BOL T LENGTH RULER:

1/2 1/2 1/2 1/2 1/2 1/2

0

1

2

345

3

6

PARTS LIST

KEY

1
2
3
4
5
6

PART #

6416402
6416302
6125101
6406501
6194601
3102910

DESCRIPTION

LEG EXTENSION

LEG EXTENSION NECK

ROLLER P AD SHAFT

U-PIN

ROLLER P AD

1/2 X 3” BOLT

7

8

2

4

12

QTY

1
1
2
1
6
1

6

9

KEY

7
8

9
10
11
12

PART #

3102502
3102804
6020601
3105401
6236701
3104301

DESCRIPTION QTY

1/2” FLA T WASHER

1/2” LOW HEIGHT LOCK NUT

1/2” FLANGE BEARING

3/4” ST AR LOCK

1-3/4” SQ. END CAP

3/4” SQ. RUBBER BUMPER

1

3

11

2
1
2
6
4
1

10

5

PIN STOP

U-PIN

UPRIGHT TUBE,

FIGURE 1

BENCH FRAME

DET AIL A

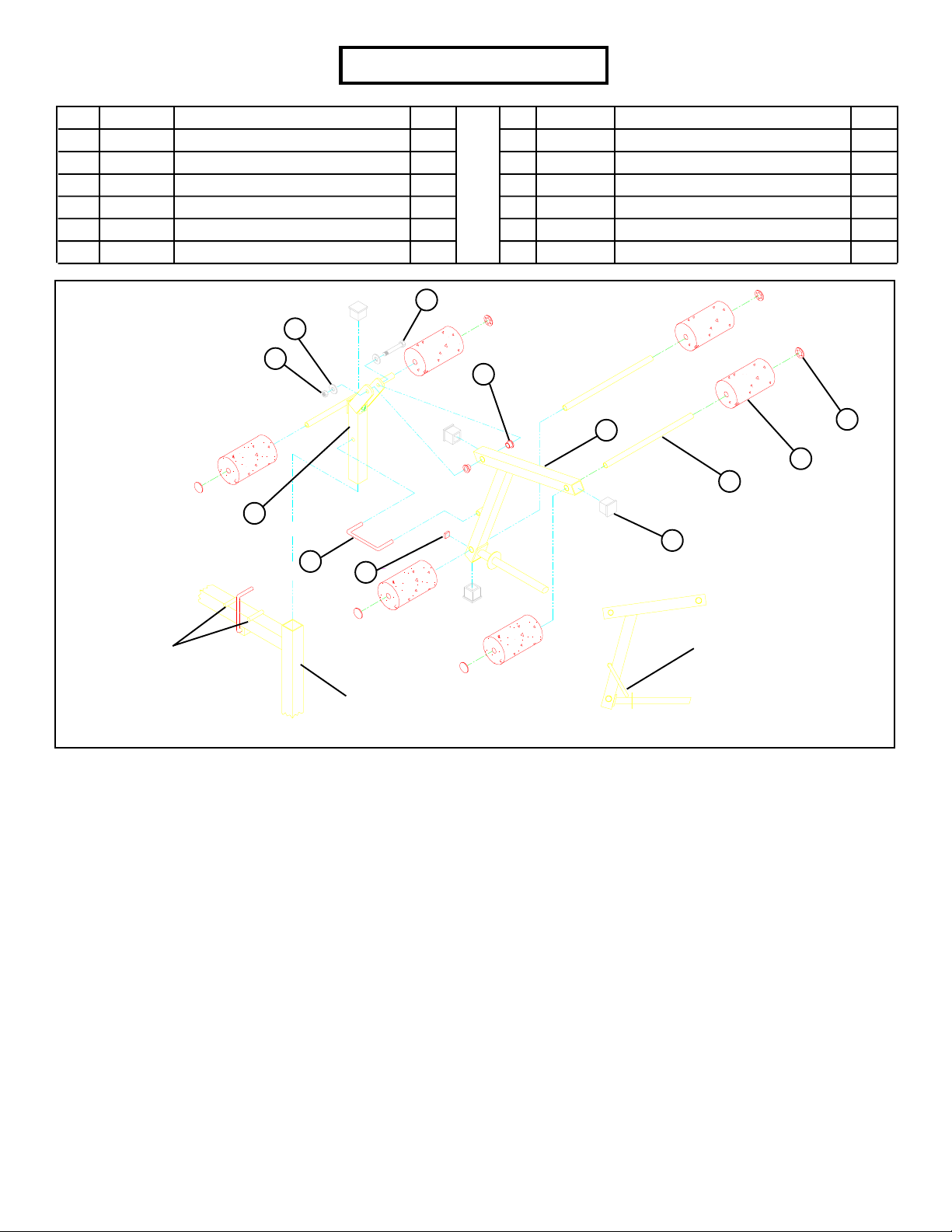

REFER TO FIGURE 1 WHILE READING ASSEMBLY INSTRUCTIONS

* Insert one 1-3/4” END CAP (1 1) into the top of the LET EXTENSION NECK (2).

* Slide two ROLLER P ADS (5) over each end of the shaft on the LEG EXTENSION NECK (2)

and hold in place using two ST ARLOCK COLLARS (10)
* Insert three 1-3/4” END CAP (1 1) into the ends of the LEG EXTENSION (1)

* Insert two 1/2” FLANGE BEARING (9) into the bushing on the LEG EXTENSION (1)

* Assemble the LEG EXTENSION NECK (2) to the LEG EXTENSION (1) using one 1/2 X 3” BOLT (6),
two 1/2” FLAT WASHERS (7) and one 1/2” LOCK NUT (8). (TIGHTEN THE CONNECTION ENOUGH

TO REMOVE THE PLAY, YET ALLOWING THE LEG EXTENSION TO ROT A TE FREELY)

* Assemble four ROLLER PAD (5) to the LET EXTENSION (1) using two ROLLER P AD SHAFT (3) and four
ST ARLOCK COLLAR (10)

* Attach one 3/4” RUBBER BUMPER (12) to the LEG EXTENSION (1) approximately as shown

4

INSTRUCTIONS FOR ATTACHMENT OPERATION

* T o perform LEG CURLS or LEG EXTENSION, insert the LEG EXTENSION ASSEMBL Y into the upright tube
of the BENCH FRAME and tighten in place using the THUMBSCREW . T o adjust the SEAT P AD for the LEG
EXTENSION position, pull out on the U-PIN. Rotate the U-PIN back pass the first PIN STOP. Release the
U-PIN and allow it to rest up against the first PIN STOP.

* T o perform DECLINES or AB CRUNCHES, loosen the thumbscrew and pull up the LEG EXTENSION
ASSEMBL Y until the hole in the LEG EXTENSION NECK is exposed. Insert the U-PIN through the hole
in the NECK and the BUSHING on the LEG EXTENSION (A T THE SAME TIME). Allow the U-PIN
to rest on top of the UPRIGHT TUB. Retighten the THUMBSCREW. To adjust the SEAT P AD for the
DECLINE position, rotate the U-PIN back to the SECOND PIN STOP.

* When U-PIN is not in use, insert it through the BUSHING of the LEG EXTENSION and position it behind the
WASHER on the WEIGHT PEG of the LEG EXTENSION. (SEE DET AIL A).

5

MAINTENANCE

Please note:

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water. Touch-up paint can be purchased from your ParaBody customer service representative
at [phone].

* Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury

* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT
YOU MAY NEED SERVICE YOU WILL BE ASKED FOR THIS INFORMATION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.

MODEL #________________________

SERIAL #_________________________

DATE OF PURCHASE: _____________

DEALERS NAME: _________________

DEALERS PHONE #_______________

Thank you for purchasing the ParaBody 824 Attachment.
