ParaBody 822 User Manual

822 ADJUST ABLE SIT-UP BENCH

CLASS H
PART # 7303801
REV . A

USER’S GUIDE

1

WARNING:

Read and follow all directions
for each step to insure proper
assembly of this product.

Version: 822108

Revision: 06/18/02

j

TABLE OF CONTENTS

Safety Statement.............2

General Notes..................3

Tools Required................3

Parts list..........................5

Assembly Instructions.....4-6

General Maintenance.......7

W arranty Statement..........8

Product Services..............9

Insert-Registration Card

IMPORTANT SAFETY INFORMATION

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF

EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!

1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.

2. Obtain a medical exam before beginning any
exercise program.

3. Keep body and clothing free of all moving objects.

4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or

ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.

6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.

7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.

8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.

5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.

9. Children must not be allowed near this machine.
Supervise teenagers.

.

NOTE: In a continual effort to improve our products, specifications are subject to change
2001 LifeFitness, a division of Brunswick Corporation. All rights reserved.

©

ParaBody is a trademark of Brunswick Corporation

www.parabody.com

2

IMPORTANT NOTES

Please note:

* Thank you for purchasing the ParaBody 822 Adjustable Sit-up Bench. Please read these
instructions thoroughly and keep them for future reference.

* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.

T ools Required for Assembly

* 9/16” wrench
* Ratchet with 9/16” socket
* Adjustable wrench
* T ape measure

Bolt Length Ruler

NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.

BOLT LENGTH

BOL T LENGTH RULER:

1/2 1/2 1/2 1/2 1/2 1/2

0

1

2

345

3

6

PARTS LIST

KEY

1
2
3
4
5
6
7
8
9

LEA
LEA
LEA
LEA

LEA
LEA

LEA
LEA

LEA

PART #

6522110
6666410
6522409
6522609
6666521
6125101
6194601
3114403
3114502

DESCRIPTION

FRONT BASE SUPPOR T

TUBE

MAIN P AD SUPPOR T

BASE

P AD ASSEMBLY

3/4 X 16” TUBE

ROLLER P AD
3/8” WASHER

3/8” LOCK WASHER

QTY

1
1
1
1
1
2
4
6
2

KEY

10
11
12
13
14
15
16
17
18

LEA
LEA

LEA

LEA
LEA

LEA

LEA
LEA

LEA

1

PART #

3114702
3235211
3235212
3105401
6145801
6236701
6405201
6412001
6416601

DESCRIPTION

3/8” LOCK NUT

3/8 X 2-3/4” BOLT

3/8 X 3” BOLT

ST ARLOCK COLLAR

THUMBSCREW

1-3/4” SQ. END CAP

2” SQ. END CAP

SPRING PIN ASSEMBLY

1-1/2 X 3/4” P ARAGLIDE

QTY

2
2
2
4
1
1
5
1

1/PK

10

8

2

3/8 X 3” 12

16

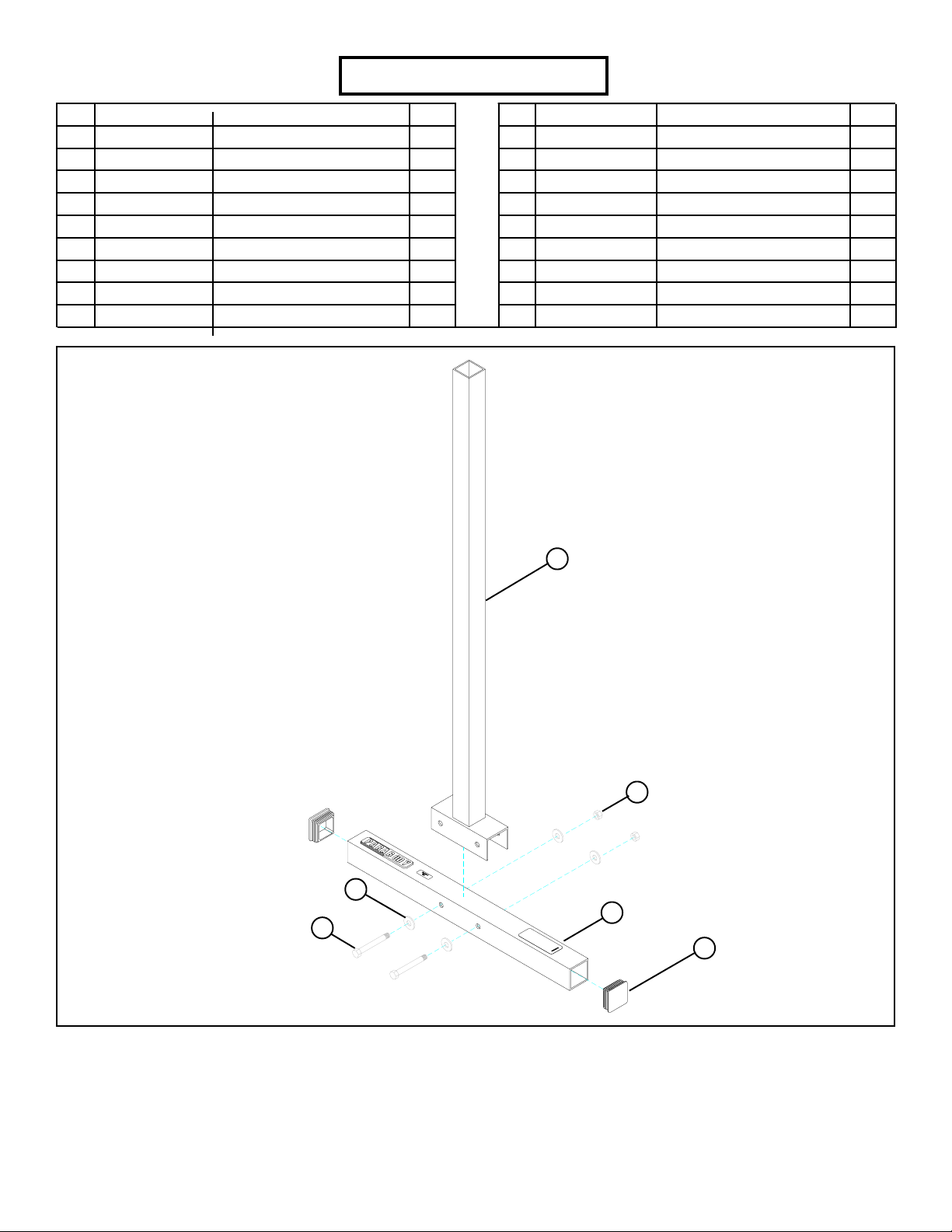

FIGURE 1

STEP 1:

• Insert two 2” SQ. END CAPS (16) into the ends of the TUBE (2) as shown in FIGURE 1.

• SECURELY assemble the TUBE (2) to the FRONT BASE SUPPOR T (1) using two 3/8 X 3” BOLTS (12),

four 3/8” WASHERS (8), and two 3/8” LOCK NUTS (10). See FIGURE 1.

4

5

16

3

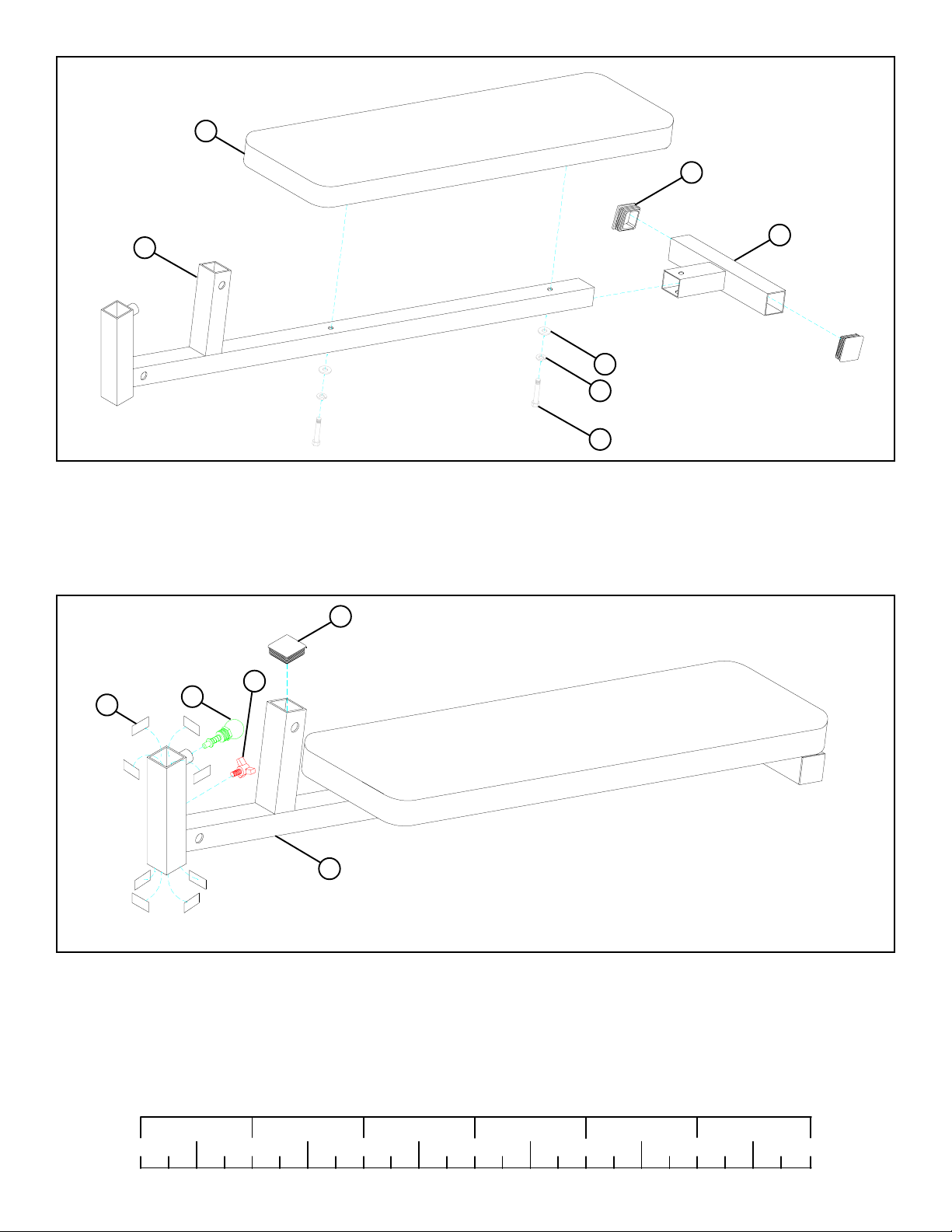

FIGURE 2

8

9

11 3/8 X 2-3/4”

4

STEP 2:

• Insert two 2” SQ. END CAPS (16) into the ends of the BASE (4) as shown in FIGURE 2.

• SECURELY assemble the PAD (5) to the MAIN PAD SUPPORT (3) and BASE (4) using two 3/8” X 2-3/4”

BOL TS (11), two 3/8” LOCK WASHERS (9), two 3/8” WASHERS (8). See FIGURE 2.

14

14

18

17

3

FIGURE 3

STEP 3:

• Apply eight 1-3/4 X 3/4" PARAGLIDES (18) to the INSIDE of the MAIN PAD SUPPORT (3) as shown in

FIGURE 3. (NOTE: Throughly clean the inside surface before attaching P ARAGLIDES.)

• Securely assemb1e one SPRING PIN ASSEMBL Y (17) and one THUMBSCREW (14) to the MAIN P AD
SUPPOR T (3). See FIGURE 3.

• Insert one 2” SQ. END CAP (16) into the end of the tube on the MAIN PAD SUPPORT (3) as shown in FIGURE

3.

0

1/2 1/2 1/2 1/2 1/2 1/2

1

2

345

5

6

6

3

13

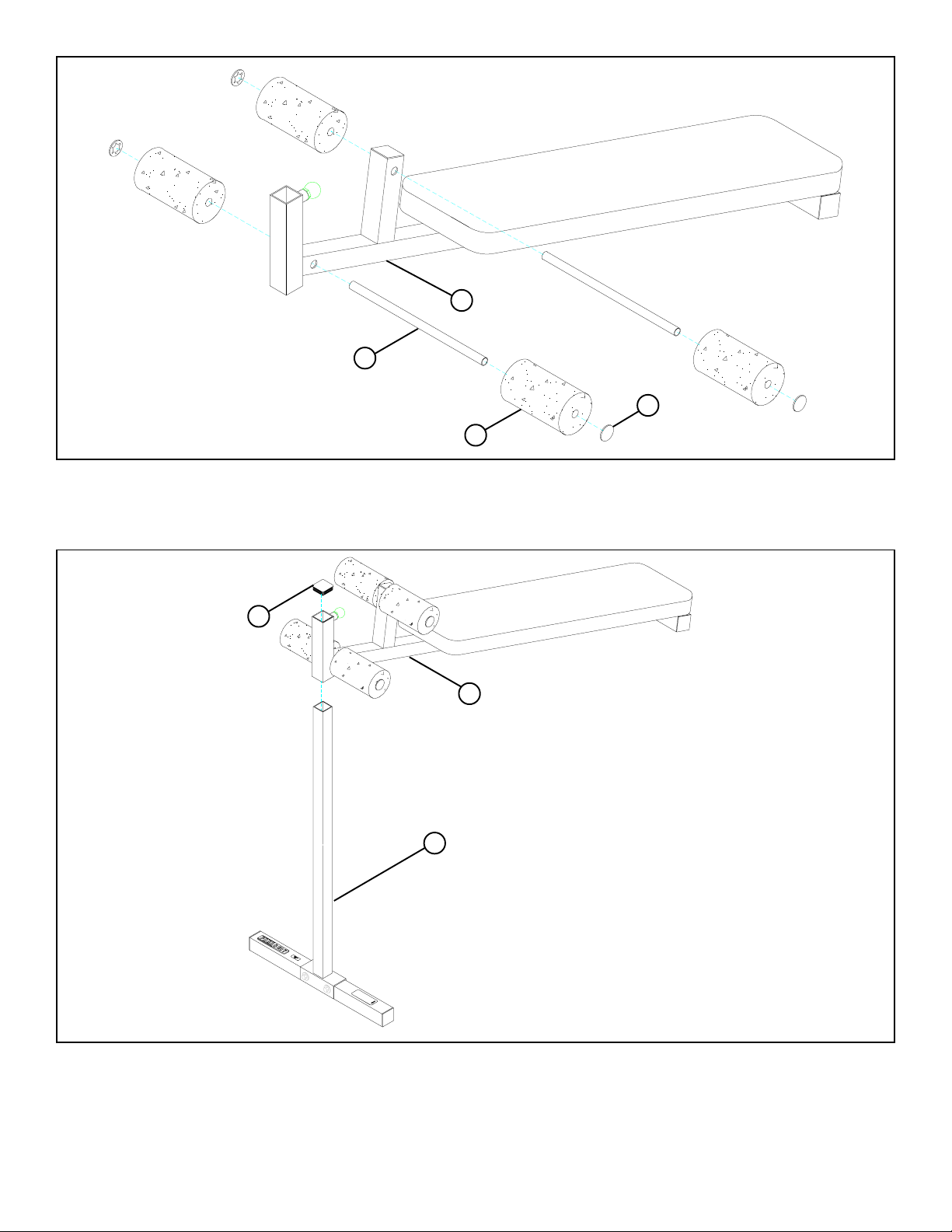

FIGURE 4

7

STEP 4:

• Slide the four ROLLER PADS (7) onto the MAIN PAD SUPPORT (3) using two 3/4 X 16” TUBES (6), and

four ST ARLOCK COLLARS (13) as shown in FIGURE 4.

15

3

1

FIGURE 5

STEP 5:

• Pull back the SPRING PIN and CAREFULLY slide the MAIN PAD SUPPORT (3) over the FRONT BASE

SUPPOR T (1) as shown in FIGURE 5.

• Insert one 1-3/4” SQ. END CAP (15) into the end of the FRONT BASE SUPPORT (1) as shown in FIGURE 5.

6

MAINTENANCE

Please note:

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water. Touch-up paint can be purchased from your ParaBody customer service representative
at [phone].

* Inspect equipment daily. T ighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury

* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT
YOU MAY NEED SER VICE YOU WILL BE ASKED FOR THIS INFORMATION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.

MODEL #________________________

SERIAL #_________________________

DATE OF PURCHASE: _____________

DEALERS NAME: _________________

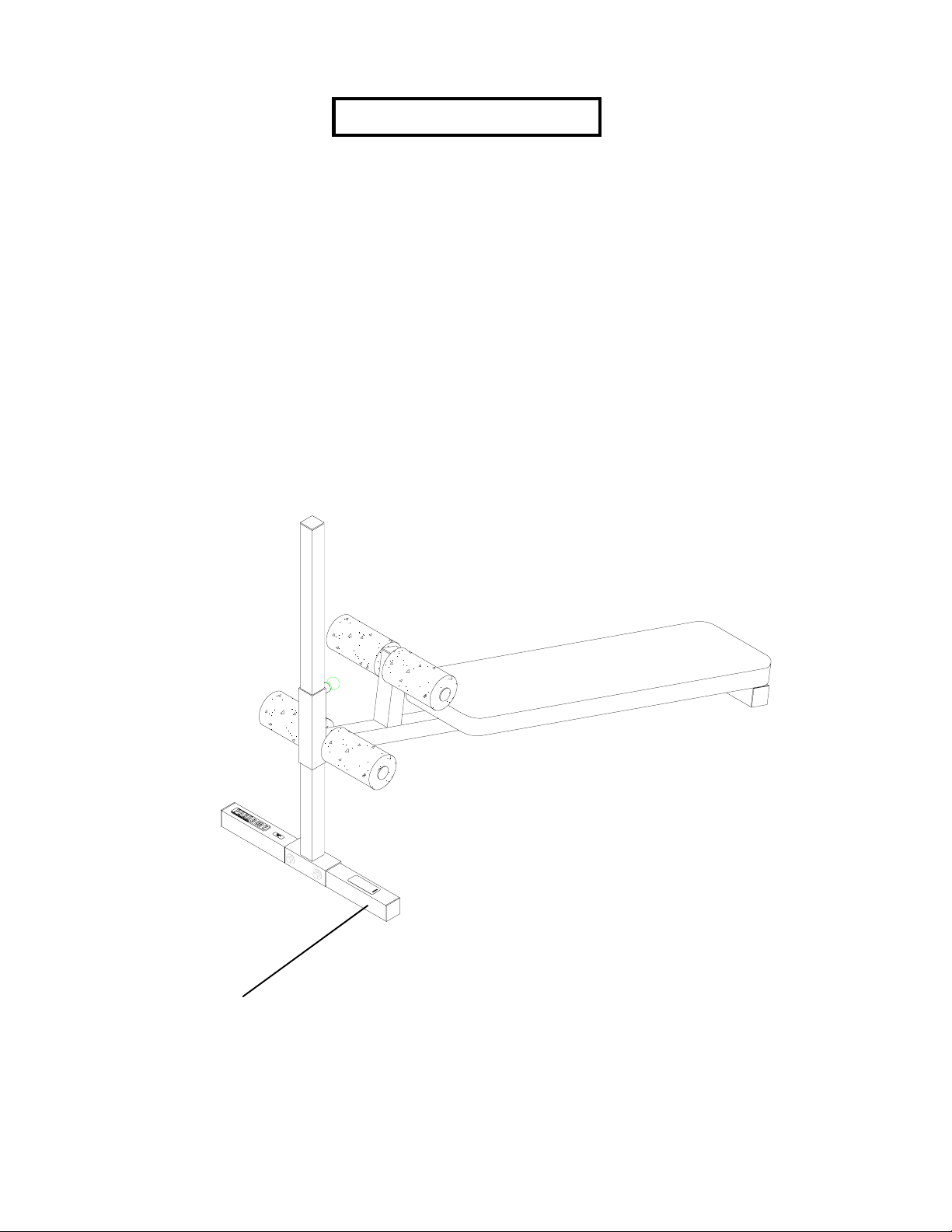

SERIAL NUMBER

DEALERS PHONE #_______________

Thank you for pur chasing the ParaBody 822 Adjustable Sit-up Bench.

7

LIMITED WARRANTY

ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONL Y.

1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired
or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.

2. LIMITED WARRANTY ON P ARTS. If the following part s are defective in material or workmanship, ParaBody will supply replacement parts:
all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad
shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger , spring
and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.

3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,
ParaBody will repair or replace them, at its option. Terms: Three (3) years.

4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized
ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of
ParaBody will void this Limited Warranty .

5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or repair under this warranty. The Owner is
responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation
of the ParaBody product or any component part; b. shipping, delivery, handling and administrative charges for returning part s to ParaBody;
and c. all necessary or incidental costs related to installation of the replacement parts.

6. SHIPPING . If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton
or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage
incurred in shipping.

7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service
Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the
dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly
drawing included with your assembly instruction); (iv) a description of the nature of the problem.

8. OWNER’S RIGHT . This Limited W arranty gives you specific legal rights. Y ou may also have other rights, which vary depending on local law .

9. LIMITATION OF IMPLIED W ARRANTIES. All implied warranties, except to the extent prohibited by applicable law , shall have no greater
duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty .
Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.

10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or
the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury , loss of use of the ParaBody
product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
