ParaBody 813 User Manual

813 VKR/CHIN/DIP GYM SYSTEM
CLASS H PART # 7075701 REV . C
USER’S GUIDE
1
WARNING:
Version: 813107
Revision: 08/06/01
j
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Gym Layout.....................4
Parts list..........................5
Assembly Instructions.....5-10
General Maintenance.......11
W arranty Statement..........12
Product Services..............13
Insert-Registration Card
IMPORTANT SAFETY INFORMATION
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions on the use of this machine. Use only for intended exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it appears damaged. DO NOT attempt to fix a broken or
ammed machine. Notify your authorized ParaBody dealer before use and have repairs made by an authorized service technician.
6. Never pin the weights or prop plate into an elevated position. DO NOT use the machine if found in this condition. DO NOT attempt to fix. Notify your authorized ParaBody dealer.
7. Inspect cables and their connections before using machine. Pay particular attention to the cable ends. DO NOT attempt to fix. Notify your authorized ParaBody dealer before use and have repairs made by an authorized service technician.
8. Make sure all spring loaded pull pins are fully engaged in the adjustment position and fully tighten thumbscrew before use.
5. Be certain that weight pin is completely inserted. Use only the pin provided by the manufacturer. If unsure, call your authorized ParaBody dealer.
9. Children must not be allowed near this machine. Supervise teenagers.
.
NOTE: In a continual effort to improve our products, specifications are subject to change 2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
©
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
IMPORTANT NOTES
Please note:
* Thank you for purchasing the ParaBody 813 Gym System. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function.
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT securely tighten any frame connections until the entire frame has been assembled, unless otherwise stated.
T ools Required for Assembly
* 9/16” wrench * Ratchet with 9/16” socket * Adjustable wrench * Hammer * Tape measure
Bolt Length Ruler
NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
BOLT LENGTH
BOL T LENGTH RULER:
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
3
6
1’
2’
3’
4’
1’ 2’
3’
4’ 5’ 6’ 7’
5’
1 Square = 1’ X 1’
4
PARTS LIST
KEY
1 2 3 4 5 6 7 8
PART #
6102308 6480008 6480508 6480908 6665921 6752721 3102501 3102601
DESCRIPTION
BASE CONNECTOR
CHIN BAR
VKR SIDE
UPPER BACK SUPPORT
BACK P AD
ARM P AD
3/8” FLA T W ASHER
3/8” LOCK W ASHER
QTY
1 1 2 1 1 2
34
6
KEY
9 10 11 12 13 14 15 16
PART #
3102802 3102904 3103101 3103103
6236701 6405201 6467001 7076708
DESCRIPTION
3/8” LOCK NUT
3/8 X 3” BOL T 1-1/4 X 5” GRIP 1-1/4 X 7” GRIP
1-3/4” SQ. END CAP
2” SQ. END CAP
2” SQ. COVER CAP
PTD ASSY, BASE CONNECTOR
QTY
14 20
2 6 1 4 4 1
FIGURE 1
14
3
15
STEP 1:

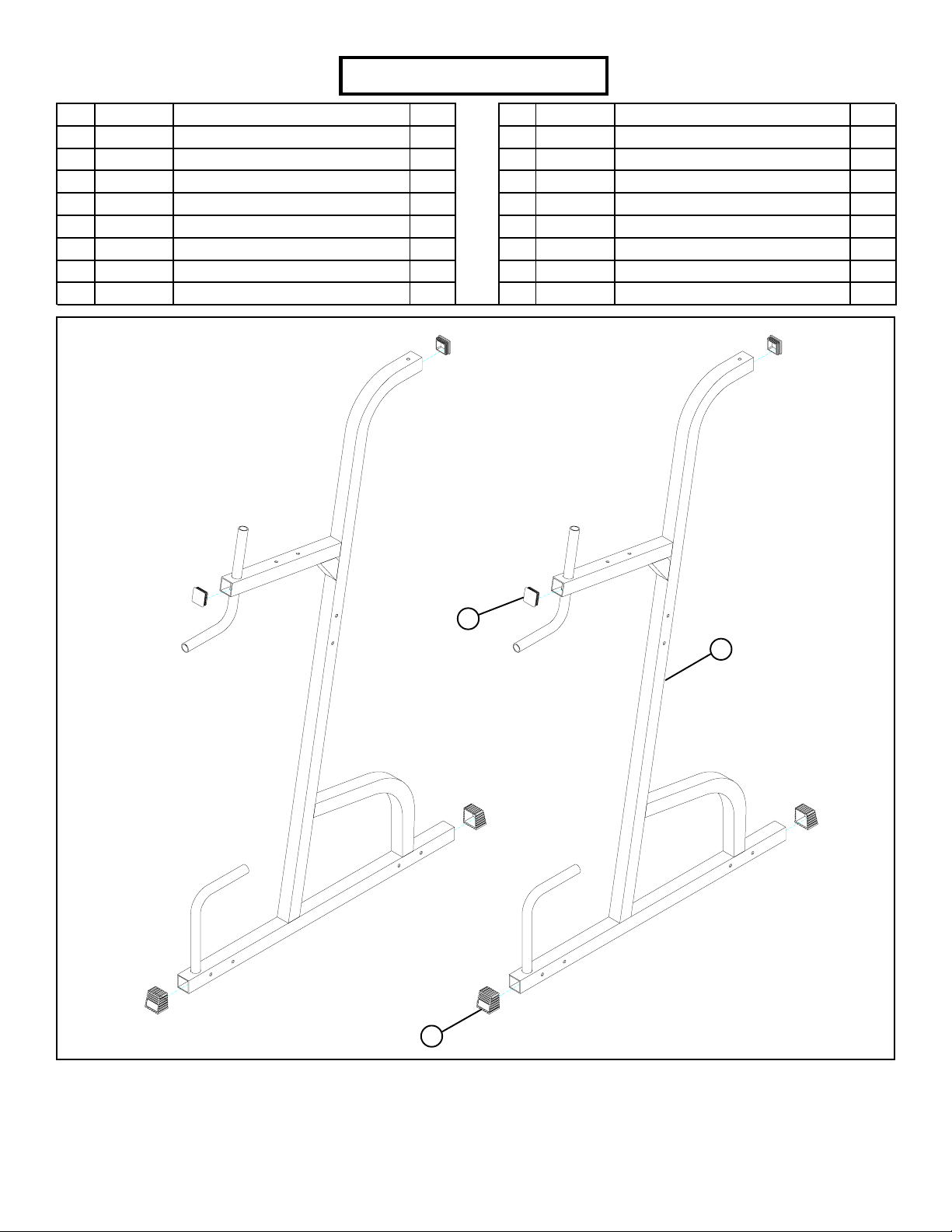

• Insert four 2” SQ. COVER CAPS (15) into the ends of the VKR SIDES (3) as shown in FIGURE 1.
• Insert four 2” SQ. END CAPS (14) into the the ends of the VKR SIDES (3) as shown in FIGURE 1.
5
14
4
9
7
7
10 3/8 X 3”
16
3
9
1
7
10 3/8 X 3”
FIGURE 2
STEP 2:

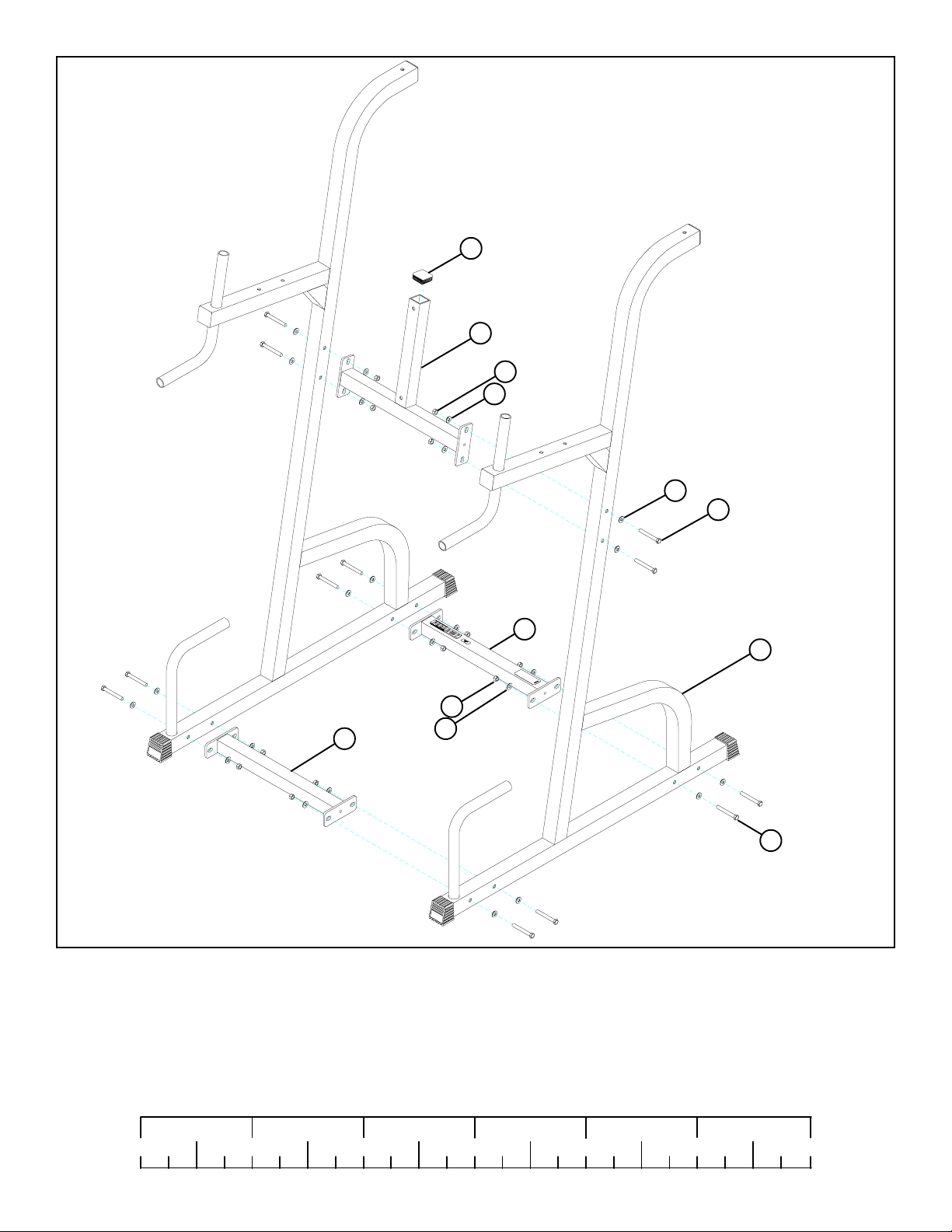

LOOSEL Y assemble the UPPER BACK SUPPOR T (4) to the VKR SIDES (3) using four 3/8 X 3” BOL TS
(10), eight 3/8” FLAT WASHERS (7), and four 3/8” LOCK NUTS (9) as shown in FIGURE 2.
LOOSELY assemble the two BASE CONNECTORS (1) and (16) to the VKR SIDES (3) using eight 3/8 X 3”
BOL TS (10), sixteen 3/8” FLAT WASHERS (7), and eight 3/8” LOCK NUTS (9) as shown in FIGURE 2.
• Insert one 2” SQ. END CAP (14) into the the end of the UPPER BACK SUPPOR T (4) as shown in FIGURE 2.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
6
6
10 3/8 X 3”
7
2
7
3
9
FIGURE 3
STEP 3:

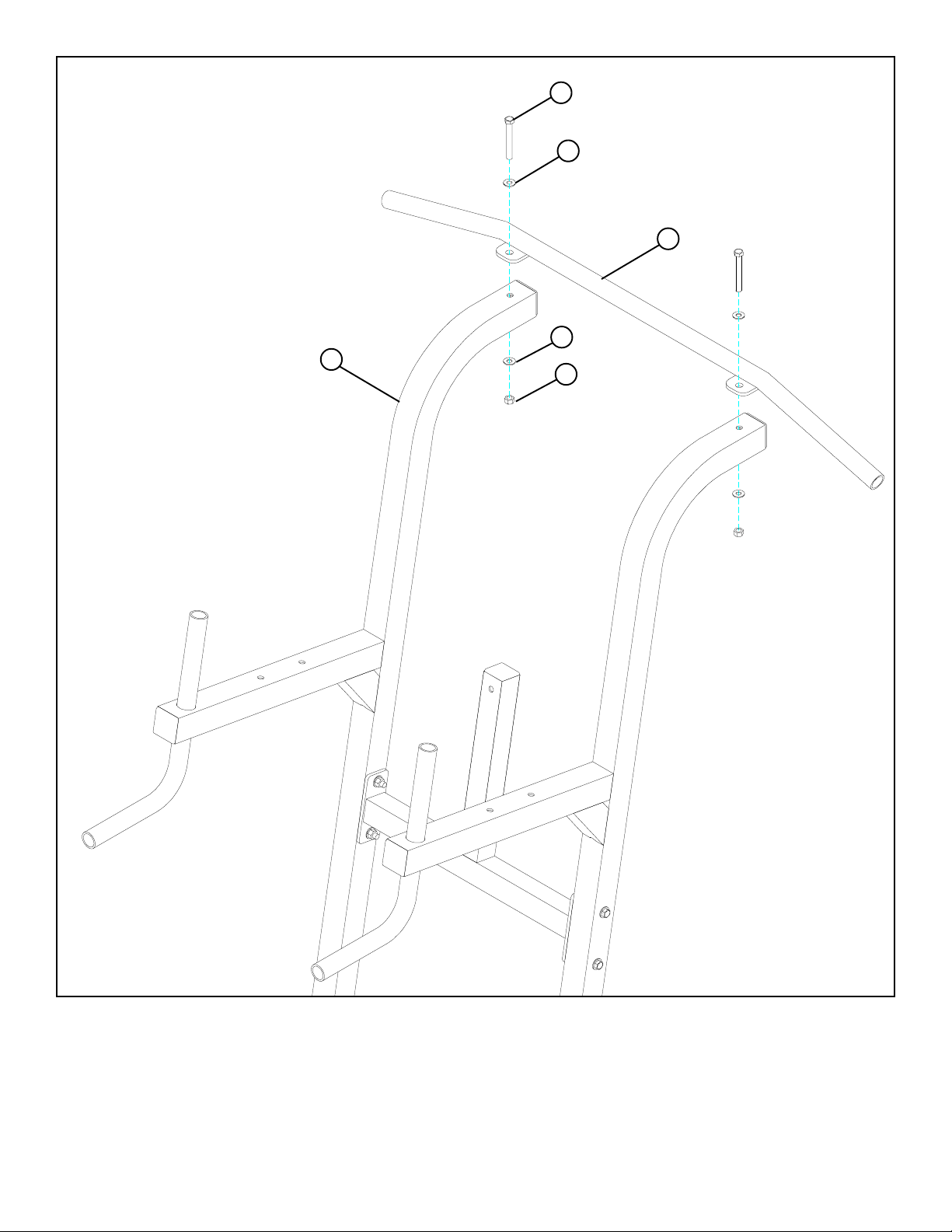

LOOSELY assemble the CHIN BAR (2) to the VKR SIDES (3) using two 3/8 X 3” BOL TS (10), four 3/8” FLAT
WASHERS (7), and two 3/8” LOCK NUTS (9).
SECURELY tigten all connections made up to this point.
7
3
6
7
8
3/8 X 3” 10
FIGURE 4
STEP 4:

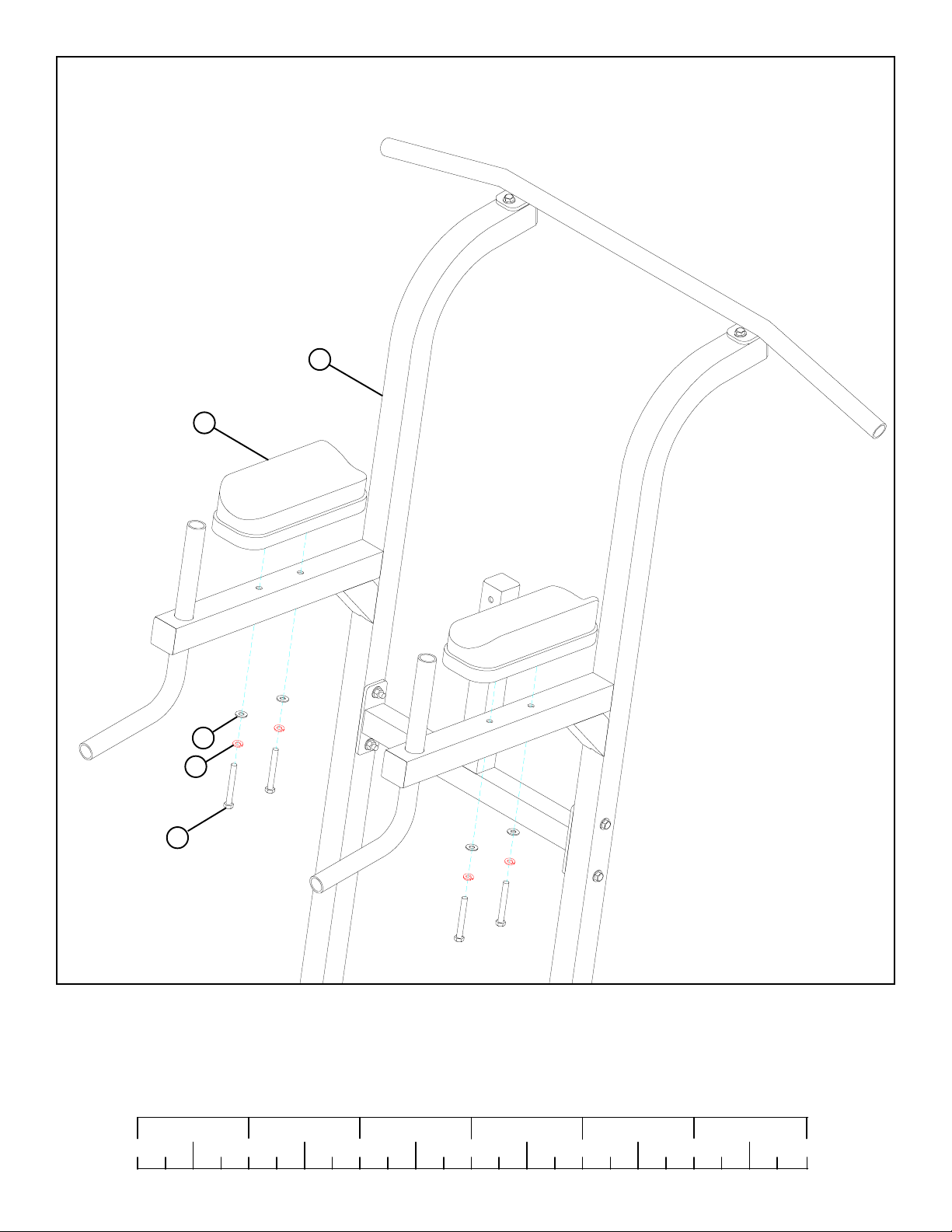

SECURELY attach two ARM P ADS (6) to the VKR SIDES (3) using four 3/8 X 3” BOL TS (10), four 3/8” LOCK W ASHERS (8), and four 3/8” FLAT W ASHERS (7) as shown in FIGURE 4. (NOTE: Place the high side of ARM
P AD toward the outside.)
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
8
6
10
3/8 X 3”
4
5
8
7
FIGURE 5
STEP 5:

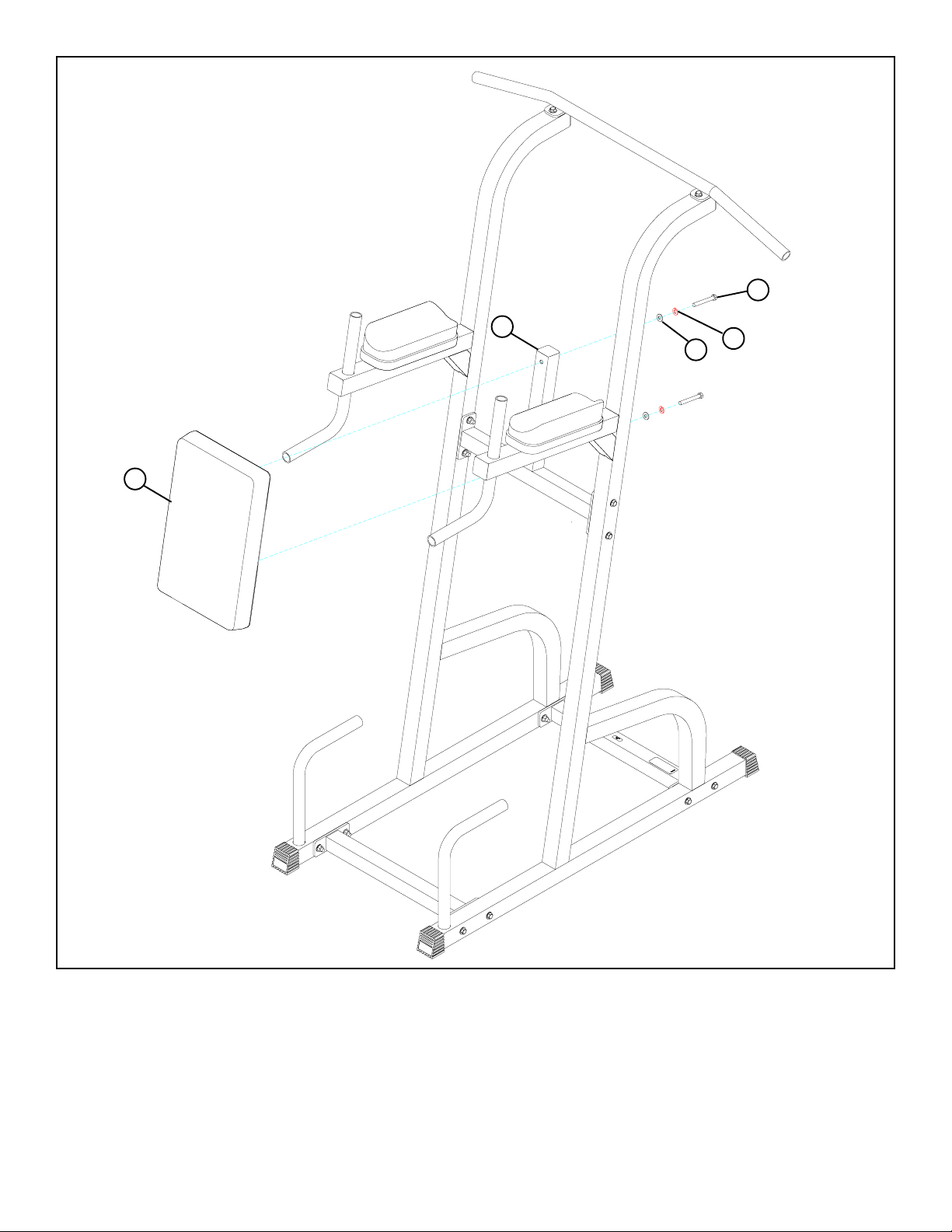

SECURELY assemble the BACK PAD (5) to the UPPER BACK SUPPORT (4) using two 3/8 X 3” BOLTS (10), two 3/8” LOCK W ASHERS (8), two 3/8” FLAT WASHERS (7) as shown in FIGURE 5.
9
11
2
12
12
3
12
FIGURE 6
STEP 6:

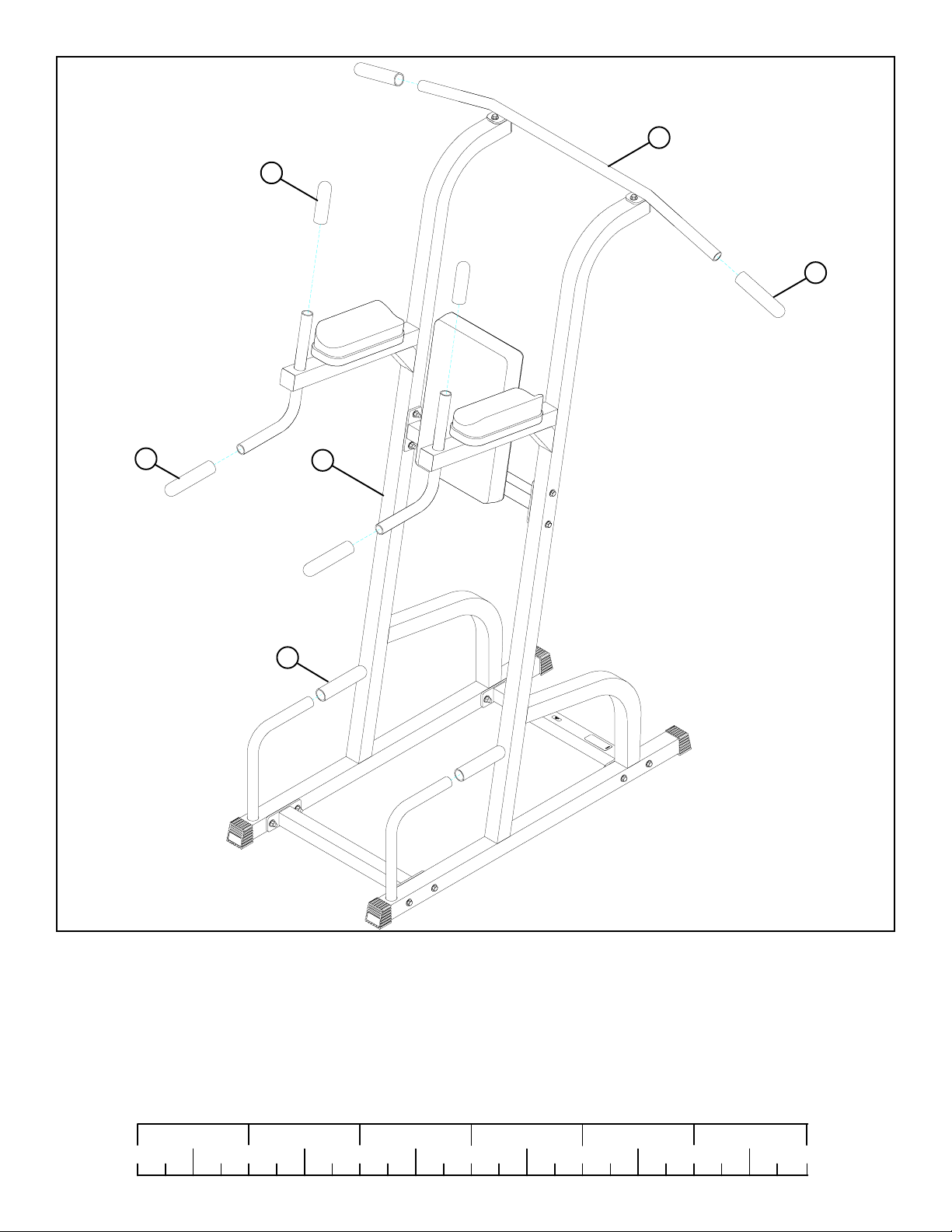

• Slide six 1-1/4 X 7” HANDLES (12) over the HANDLES of the VKR SIDES (3) and the CHIN BAR (2) as shown in FIGURE 6.
• Slide two 1-1/4 X 5” HANDLES (11) over the ARM PAD HANDLES of the VKR SIDES (3) as shown in FIGURE 6. (NOTE: Rubbing alcohol can be used on the inside of the grips to make them slide on easier .)
Thank you for purchasing the Parabody 813102 VKR/CHIN/DIP GYM SYSTEM. If unsure of proper use of
equipment, call your local Parabody distributor or call the Parabody customer service department at
(800) 328-9714.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
10
6
MAINTENANCE
Please note:
* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy water. Touch-up paint can be purchased from your ParaBody customer service representative at (800) 328-9714.
* Inspect equipment daily. T ighten all loose connections are replace worn parts immediately. Failure to do so may result in serious injury
* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT YOU MAY NEED SER VICE YOU WILL BE ASKED FOR THIS INFORMATION. REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND MAIL BACK.
MODEL #________________________
SERIAL #_________________________
DATE OF PURCHASE: _____________
DEALERS NAME: _________________
DEALERS PHONE #_______________
Thank you for pur chasing the ParaBody 813 Gym System.
11
LIMITED W ARRANTY
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONL Y.
1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
2. LIMITED WARRANTY ON P ARTS. If the following part s are defective in material or workmanship, ParaBody will supply replacement parts: all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger , spring and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship, ParaBody will repair or replace them, at its option. Terms: Three (3) years.
4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of ParaBody will void this Limited Warranty .
5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or rep air under this warranty. The Owner is responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation of the ParaBody product or any component part; b. shipping, delivery , handling and administrative charges for returning parts to ParaBody; and c. all necessary or incidental costs related to installation of the replacement parts.
6. SHIPPING . If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage incurred in shipping.
7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly drawing included with your assembly instruction); (iv) a description of the nature of the problem.
8. OWNER’S RIGHT . This Limited W arranty gives you specific legal rights. Y ou may also have other rights, which vary depending on local law .
9. LIMITATION OF IMPLIED W ARRANTIES. All implied warranties, except to the extent prohibited by applicable law , shall have no greater duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty . Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.
10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury , loss of use of the ParaBody product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the above limitation or exclusion may not apply to you.
