Page 1
777101 GYM SYSTEM
PART # 7017401
REV. F
USER’S GUIDE
1
1CLASS H
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 777101
Revision: 06/11/01
Page 2
j
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Gym Layout.....................4
Parts list..........................5
Assembly Instructions.....6-25
General Maintenance.......26
W arranty Statement..........27
Product Services..............28
Insert-Registration Card
IMPORTANT SAFETY INFORMATION
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
©
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Page 3
IMPORTANT NOTES
Please note:
* Thank you for purchasing the ParaBody 777 Gym System. Please read these instructions
thoroughly and keep them for future reference.
* This product must be assembled on a flat, level surface to assure its proper function.
* Do not securely tighten any frame connections until the entire frame have been assembled
unless otherwise specified.
T ools Required for Assembly
* Rubber mallet or hammer
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* 5/32” Allen wrench
* Adjustable wrench
* T ape measure
Bolt Length Ruler
NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
BOLT LENGTH
BOL T LENGTH RULER:
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
3
6
Page 4
1’
2’
3’
4’
5’
6’
9’1’ 2’ 3’ 4’ 5’ 6’ 7’ 8’
7’
8’
9’
1 Square = 1’ X 1’
Minimum Required Usable Space
Length = 90 inches (229 cm) 7’ 6”
Width = 103 inches (262 cm) 8’ 7”
Height = 84 inches (213.5 cm) 7”
Dimensions Including Leg Press (optional)
Length = 90 inches (229 cm) 7’ 6”
Width = 130 inches (330 cm) 10’ 10”
4
Page 5
PARTS LIST
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
PA R T #
70077
70076
70058
70014
70015
70017
70019
70056
70067
69408
69885
69954
69957
70082
70083
69947
6194601
6816501
7016902
7016901
6939202
6382301
69537
3221702
6978101
7095701
6972201
3108002
6987801
6987901
6988001
6988101
7012102
DESCRIPTION
BASE
UPRIGHT
SEA T ADJUST
RIGHT ARM SUPPORT
LEFT ARM SUPPORT
RIGHT ARM
LEFT ARM
LEG PEDEST AL
PULLEY BRACKET
PULLEY PLATE
BASE PLA TE
V -PULLEY PLATE
BOOM PULLEY PLATE
RIGHT BOOM PLA TE
LEFT BOOM PLATE
PAD
ROLLER P AD
76” GUIDE ROD
14-1/2” SEWN HANDLE
7-1/2” SEWN HANDLE
WEIGHT PLA TE
WEIGHT PLA TE BUSHING 10 CT
HEAD PLA TE
E-RING
WEIGHT ST ACK LABEL
WEIGHT PLA TE SHAFT
WEIGHT ST ACK PIN
WEIGHT ST ACK CUSHION
WEIGHT ST ACK CABLE
LEG CABLE
ARM CABLE
BOOM CABLE
WEIGHT ST ACK SP ACER
QTY
1
1
1
1
1
1
1
1
2
2
2
2
2
1
1
2
6
2
2
2
15
3
1
1
1
1
1
2
1
1
1
1
2
KEY
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
PART #
3102503
6409101
3103302
3116201
3116101
6993701
6412001
3103801
6416601
6145801
3105401
3108901
6866801
6866601
6480301
6480302
6122702
6122701
6549301
3102924
3102807
3102922
3221902
3102905
3102917
6075906
3102906
3102930
3102804
3102802
3102501
6020601
70718
3102904
DESCRIPTION
3/4” FLA T WASHER
ANKLE STRAP
SHAFT COLLAR
3-1/2” PULLEY
4-1/2” PULLEY
4-1/2” V -GROOVE PULLEY
SPRING PIN ASSEMBLY
SNAP LINK
P ARAGLIDE (QTY 8)
3 PRONG KNOB
ST ARLOCK
PLASTIC W ASHER
1/2” RH WASHER
RH CAP
3/8” X 9/16” FLANGE SPACER
3/8 X 1-1/16” FLANGE SPACER
3/8 X 1/2” SPACER
3/8” X 1” SPACER
3/4 X 17” TUBE
3/8 X 1-3/4” BOLT
3/8 LOW HEIGHT LOCK NUT
3/8 X 2-3/4” BOLT
2” NYLON SP ACER
3/8 X 3-3/4” BOLT
1/2 X 4” BOLT
12 LINK CHAIN
3/8 X 4” BOLT
3/8 X 7” BOLT
1/2” LOW HEIGHT LOCK NUT
3/8” LOCK NUT
3/8” FLA T WASHER
1/2” FLANGE BEARING
FOOT PLA TE
3/8 X 3” BOLT
QTY
2
1
2
15
2
4
1
6
1
1
6
2
2
2
2
2
6
11
3
4
2
16
4
19
1
1
2
1
1
36
14
2
1
2
KEY
68
69
70
71
PART #
7051908
7052008
7114908
7115008
0
The following parts are included with the 220 SHROUD OPTION
DESCRIPTION
LEFT SHROUD
RIGHT SHROUD
TOP SHROUD BRACKET
BOTTOM SHROUD BRACKET
1/2 1/2 1/2 1/2 1/2 1/2
1
2
QTY
1
1
1
1
KEY
345
3
5
72
73
74
75
PART #
3202401
3228501
3102903
3102802
DESCRIPTION
3/8 X 1” BUTTON HEAD BOL T
3/8” BLACK SAE WASHER
3/8 X 2-1/2” BOLT
3/8” LOCK NUT
QTY
8
8
2
2
6
Page 6
57 3/8 X 3-3/4”
3/8 X 3” 67
2
48
1
11
63
63
66
FIGURE 1
STEP 1:
• LOOSELY assemble two BASE PLATES (1 1) to the BASE (1) and the UPRIGHT (2) using four 3/8 X 3-3/4” BOLTS (57) and four
3/8” LOCK NUTS (63). See FIGURE 1.
• Insert two two 3/8 X 9/16” FLANGE SPACERS (48) into the upper hole of the FRAME (2) as shown.
• LOOSELY assemble the FOOTPLATE (66) to the FRAME (2) using one 3/8 X 3” BOLT (67) and one 3/8” LOCK NUT (63) as
shown in FIGURE 1.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
6
6
Page 7
22
21
FIGURE 2
STEP 2:
• Insert two WEIGHT PLATE BUSHINGS (22) into each of the fifteen WEIGHT PLATES (21) as shown in FIGURE 2.
24
26
23
FIGURE 3
STEP 3:
• Slide the WEIGHT PLATE SHAFT (26) thru the hole in the HEAD PLATE(23), and lock in place using one E-RING (24) as shown
in FIGURE 3.
7
Page 8
36
18
23
21
28
34
33
71
777 SHROUD
OPTION ONL Y!
1
FIGURE 4
STEP 4:
• Insert two GUIDE RODS (18) into the BASE (1) as shown on FIGURE 4. (NOTE: If the 777 SHROUD OPTION was pur-
chased, place the GUIDE RODS (18) through the BOTTOM SHROUD BRACKET (71) and into the BASE (1) as shown
in FIGURE 4.
• (NOTE: Lubricate GUIDE RODS (18) with silicon or teflon spray available at most hardware stores.)
• Slide two WEIGHT STACK SPACERS (33), two 3/4” FLAT WASHERS (34), and two WEIGHT STACK CUSHIONS (28) down
over the GUIDE RODS (18).
• Using EXTREME CARE slide all fifteen WEIGHT PLATES (21) down over the GUIDE RODS (18) on to the WEIGHT STACK
CUSHIONS (28). Make sure that the WEIGHT PLATES (21) are all facing as shown.
• Slide the head plate assembly down over the GUIDE RODS (18) onto the weight stack.
• Slide two SHAFT COLLARS (36) over the GUIDE RODS (18) as shown in FIGURE 4.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
6
8
Page 9
14
36
TIGHTEN!
63
15
18
3/8 X 3-3/4” 57
2
FIGURE 5
STEP 5:
• Swing the GUIDE RODS (18) into the guide rod bushings in each of the RIGHT and LEFT UPRIGHT PLATES (14 & 15) as shown
in FIGURE 5.
• LOOSELY assemble the RIGHT and LEFT UPRIGHT PLATES (14 & 15) to the UPRIGHT (2) using three 3/8 X 3-3/4” BOLTS (57)
and three 3/8” LOCK NUTS (63). See FIGURE 5.
• Slide the SHAFT COLLARS (36) to the top of the GUIDE RODS (18) and tighten set screws as shown in FIGURE 5.
FIGURE 6
4
25
5
63
1
64
3/8 X 3-3/4” 57
STEP 6:
• LOOSELY assemble the RIGHT and LEFT ARM SUPPORTS (4 & 5) to the BASE (1) using four 3/8 X 3-3/4” BOLTS (56), four
3/8” FLAT WASHERS (64), and four 3/8” LOCK NUTS (63). See FIGURE 6.
• Apply WEIGHT STACK LABELS (25) to the WEIGHT PLATES (21) as shown in FIGURE 6.
9
Page 10
3/8 X 4” 60
4
6
7
64
54
5
FIGURE 7
STEP 7:
• LOOSELY assemble the RIGHT and LEFT ARMS (6 & 7) to the UPRIGHT (2) and the RIGHT and LEFT ARM SUPPOR TS (4
& 5) using two 3/8 X 4” BOLTS (60), four 3/8” FLAT WASHERS (64), and two 3/8” LOW HEIGHT LOCK NUTS (54). See
FIGURE 7.
16
3
64
3/8 X 2-3/4” 55

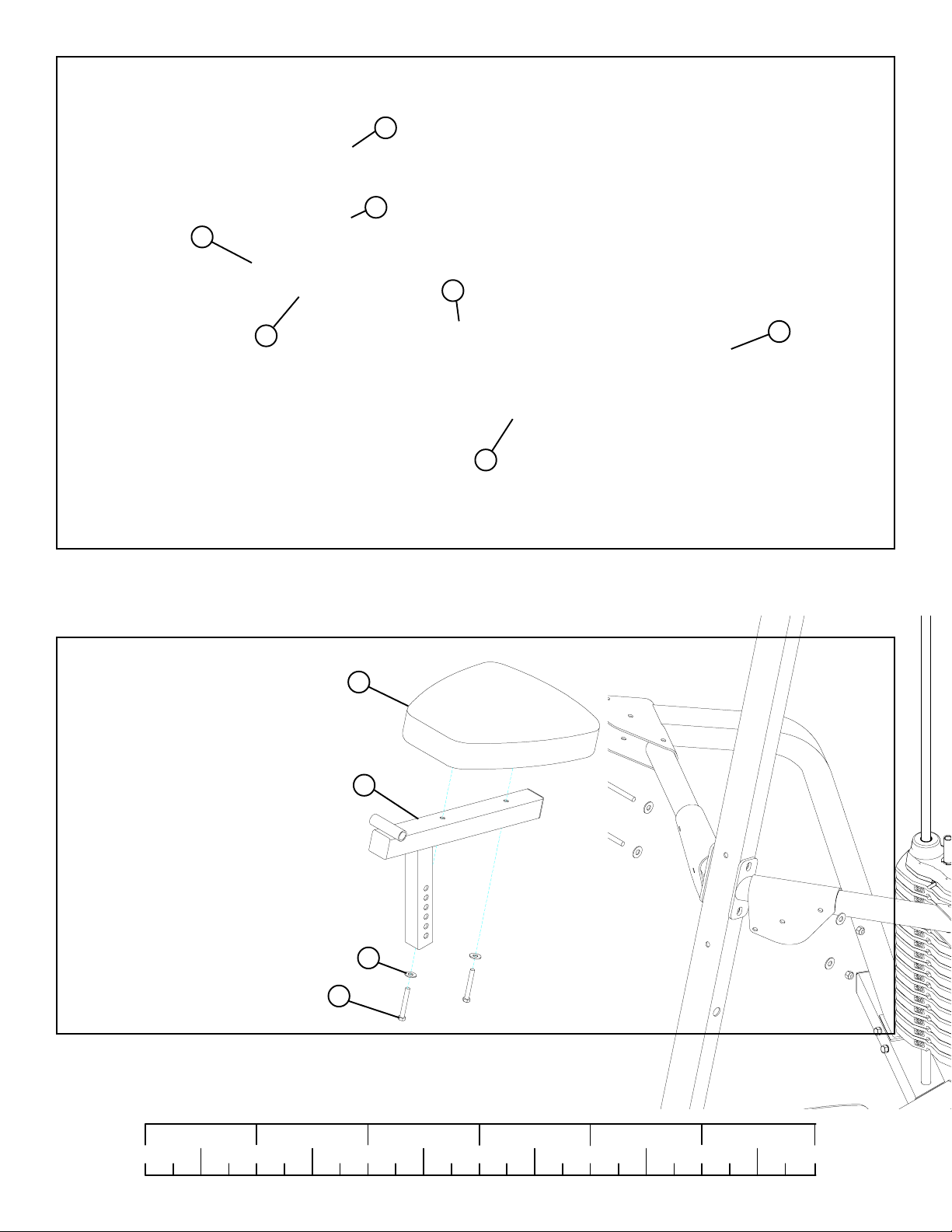

FIGURE 8
STEP 8:
• SECURELY assemble one SEAT PAD (16) to the SEAT ADJUST (3) using two 3/8 X 2-3/4” BOLTS (55) and two 3/8” W ASHERS
(64). See FIGURE 8.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
10
6
Page 11
43
3
42
2
FIGURE 9
STEP 9:
• Securely assemble one SPRING PIN ASSEMBLY (40) and one 3 PRONG KNOB (43) to the FRONT UPRIGHT (2) as shown.
• Apply eight PARAGLIDES (42) to the INSIDE of the tube on the UPRIGHT (2) and on the OUTSIDE of the SEAT ADJUST (3)
as shown.
• CAREFULLY insert the SEAT ADJUST ASSEMBLY into the UPRIGHT (2) as shown. The SEAT height can be adjusted using the
SPRING PIN (40) and can be secured with the 3 PRONG KNOB (43).
47
46
1/2 X 4” 58
8
65
2
40
63
FIGURE 10
STEP 10:
• Insert two 1/2” FLANGE BEARINGS (65) into the the LEG PEDESTAL (8) as shown in FIGURE 10.
• Assemble the LEG PEDESTAL (8) to the UPRIGHT (2) using two RH CAPS (47), one 1/2 X 4” BOLT (58), two 1/2” RH
WASHERS (46), and one 1/2” LOW HEIGHT LOCK NUT (62). (Note: Tighten this connection enough to remove excess
play yet allow the LEG PEDESTAL to rotate freely.)
11
Page 12
3/8 X 2-3/4” 55
12
39
2
FIGURE 11
STEP 11:
• Assemble two V-PULLEY PLATES (12) and two 4-1/2” V-GROOVE PULLEYS (39) to the UPRIGHT (2) using two 3/8 X 2-3/4”
BOLTS (55) . See FIGURE 11.
3/8 X 7” 61
FIGURE 12
STEP 12:
51
13
37
50
63
15
• Assemble two BOOM PULLEY PLATES (13) and three 3-1/2” PULLEYS (37) to the BOOM PLATES (14 & 15) using one 3/8 X
7” BOLT (61), two 3/8 X 1/2” SPACERS (50), two 3/8 X 1” SPACERS (51) and one 3/8” LOCK NUT (63) . See FIGURE 12.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
12
6
Page 13
37
3/8 X 3-3/4” 57
15
51
63
FIGURE 13
STEP 13:
• Assemble one 3-1/2” PULLEY (37) to the BOOM PLATES (14 & 15) using one 3/8 X 3-3/4” BOLT (57), two 3/8 X 1” SPACERS
(51) and one 3/8” LOCK NUT (63). See FIGURE 13.

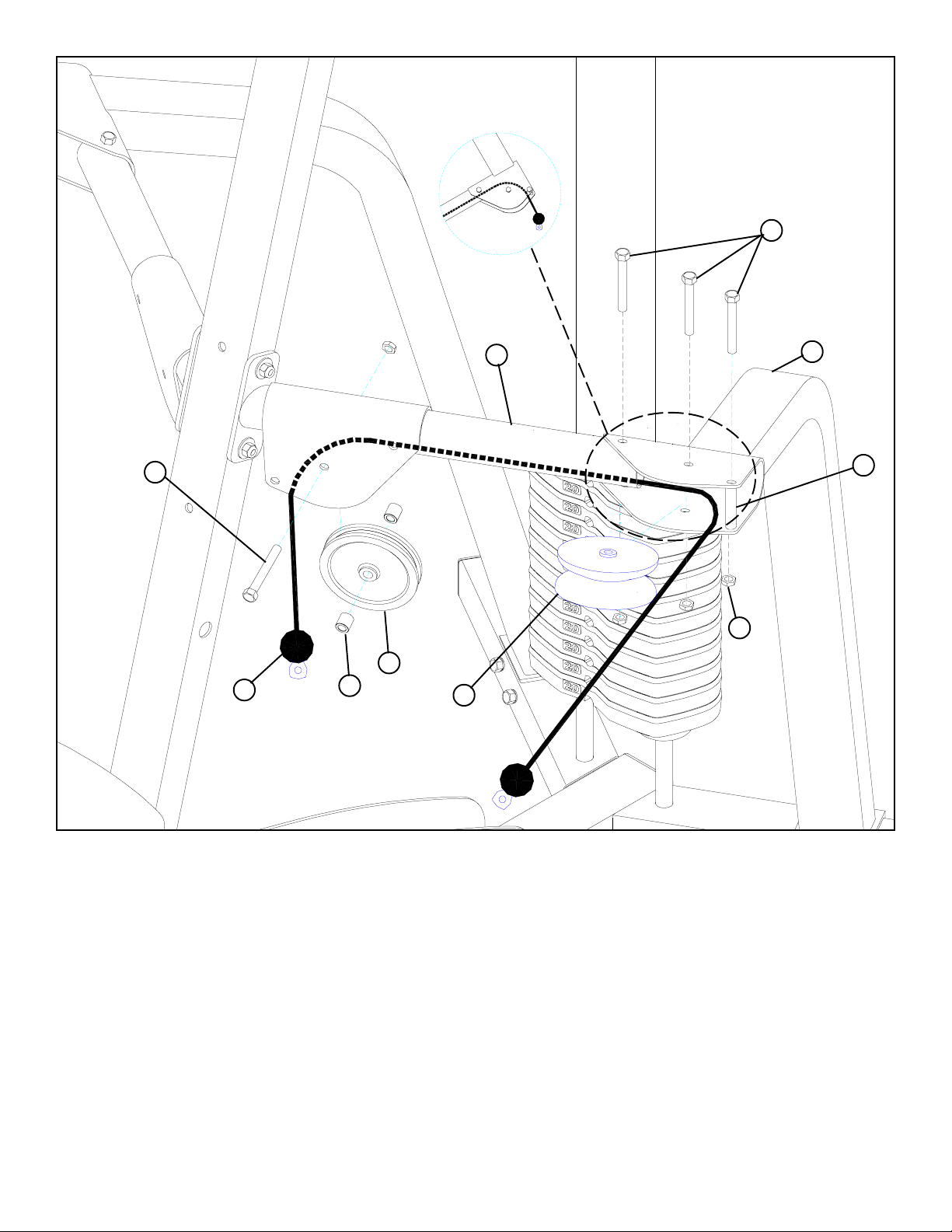

STEP 14:
• Assemble the WEIGHT STACK PIN (27) to the
WEIGHT ST ACK SHAFT (26) as shown in
FIGURE 14.
• Screw the long threaded end of the WEIGHT
STACK CABLE (29) into the end of the WEIGHT
PLATE SHAFT (26) .See FIGURE 14.
• Route the WEIGHT STACK CABLE (29) around
the pulleys in the BOOM PLATES (14 & 15) as
shown in FIGURE 14. (NOTE: Make sure the
cable runs in the grooves of the pulleys.)
• Assemble two PULLEY PLATES (10) around one
3-1/2” PULLEY (37) using one 3/8 X 1-3/4”
BOLT (53) and one 3/8” LOCK NUT (63) as
shown in FIGURE 14. (Note: Loop the CABLE
around the PULLEY prior to assembling the
PULLEY PLA TES.)
FIGURE 14
3/8 X 1-3/4” 53
37
29
63
10
26
13
27
Page 14
3/8 X 3-3/4” 57
29
2
9
37
51
63
FIGURE 15
STEP 15:
• Assemble one 3-1/2” PULLEY (37) to the BOOM PLATES (14 & 15) using one 3/8 X 3-3/4” BOLT (57), two 3/8 X 1” SPACERS
(51) and one 3/8” LOCK NUT (63). See FIGURE 15.(Note: Loop the WEIGHT STACK CABLE around the PULLEY prior to
assembling to the BOOM PLATES.)
• Screw the short threaded end of the WEIGHT STACK CABLE (29) into the end of the PULLEY BRACKET (9) .See FIGURE 15.
3/8 X 2-3/4” 55
12
14
56
63
3/8 X 1-3/4” 53
15
32
63
37
9
FIGURE 16
STEP 16:
• Route the BOOM CABLE (32) over the V-GROOVE PULLEY (39) and the 3-1/2” PULLEY (37) on the LEFT BOOM PLATE
(15) and over the 3-1/2” PULLEY (37) on the RIGHT BOOM PLATE (14) and over the V-GROOVE PULLEY (39) as shown in
STEP 16.
• SECURELY assemble two 2” NYLON SPACERS (56) to the V-PULLEY PLATES (12) and the BOOM PLATES (14 & 15) using
two 3/8 X 2-3/4” BOLTS (55) and two 3/8” LOCK NUTS (63). See FIGURE 15.
• Assemble one 3-1/2” PULLEY (37) to the PULLEY BRACKET (9) using one 3/8 X 1-3/4” BOLT (53) and one 3/8” LOCK
NUT (63) (Note: Loop the BOOM CABLE around the PULLEY prior to assembling the PULLEY BRACKET.)
14
Page 15
FIGURE 17
3/8 X 3” 67
8
3/8 X 3-3/4” 57
2
51
37
11
3/8 X 3-3/4” 57
64
37
STEP 17:
• Securely assemble the ball end of the LEG CABLE (30) and one 3-1/2” PULLEY (37) to the LEG PEDESTAL (8) using two 3/8 X
3-3/4” BOLTS (57), two 3/8” X 1-1/16” FLANGE SPACERS (49), two 3/8” WASHERS (64), and two 3/8” LOCKNUTS (63).
(NOTE: The LEG CABLE (91) must be routed over the retaining bolt as shown in FIGURE 17.)
• Securely assemble one 3-1/2” PULLEY (37) to the UPRIGHT (2) using one 3/8 X 3” BOLT (67) and one 3/8” LOCKNUT (63).
(NOTE: The LEG CABLE (91) must be routed over the retaining bolt as shown in FIGURE 17.)
• Assemble one 3-1/2” PULLEY (37) to the BASE PLATES (11) using one 3/8 X 3-3/4” BOLT (57), two 3/8 X 1” SPACERS (51) and
one 3/8” LOCK NUT (63). See FIGURE 17.(Note: Loop the LEG CABLE (30) around the PULLEY prior to assembling the
PULLEY to the BASE PLATES.)
49
30
63
15

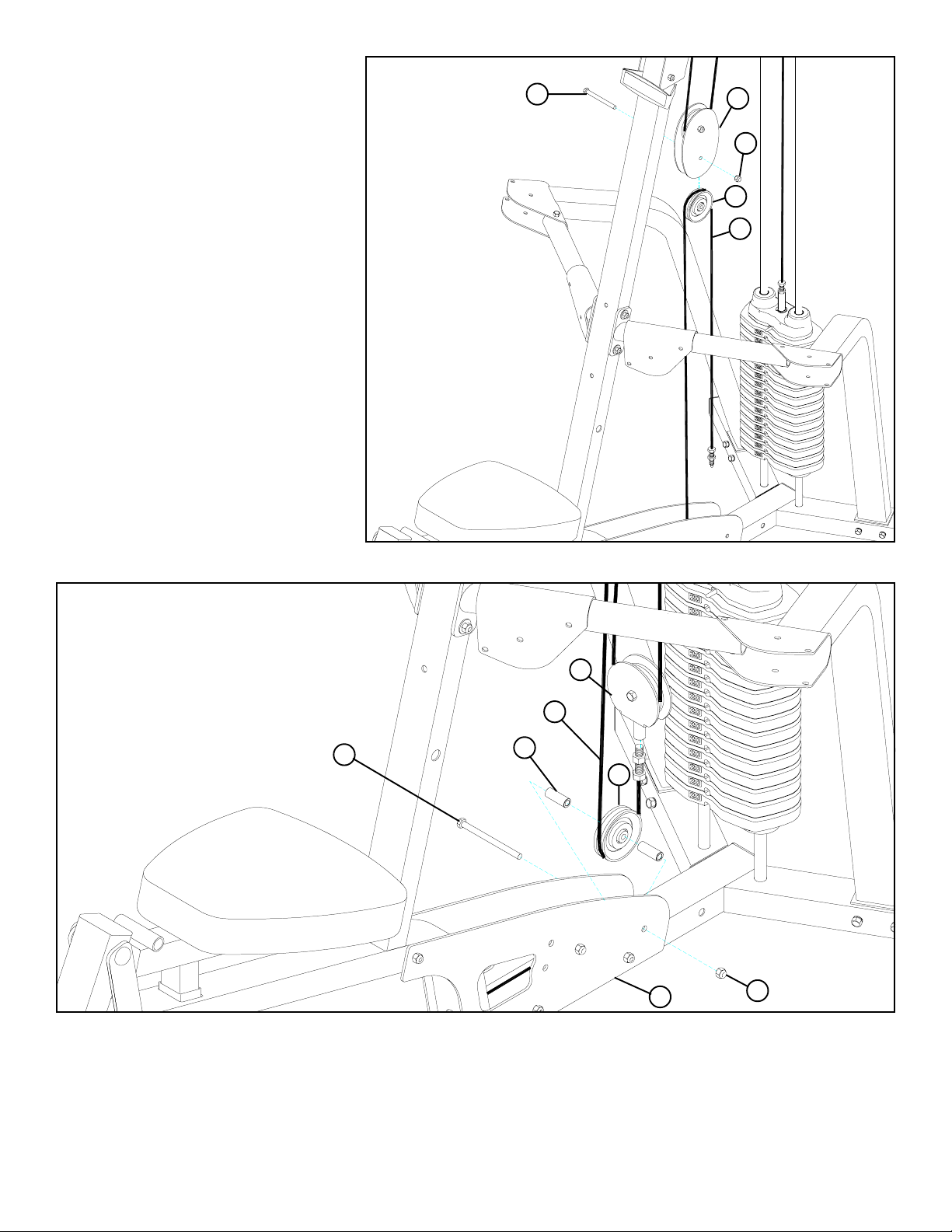

Page 16
STEP 18:
• Assemble one 3-1/2” PULLEY (37) to the
PULLEY PLATES (10) using one 3/8 X 13/4” BOLT (53) and one 3/8” LOCK NUT
(63) as shown in FIGURE 18. (Note:
Loop the CABLE around the PULLEY
prior to assembling the PULLEY
PLATES.)
FIGURE 18
3/8 X 1-3/4” 53
10
63
37
30
FIGURE 19
9
30
3/8 X 3-3/4” 57
STEP 19:
• Assemble one 3-1/2” PULLEY (37) to the BASE PLATES (11) using one 3/8 X 3-3/4” BOLT (57), two 3/8 X 1” SPACERS (51) and
one 3/8” LOCK NUT (63). See FIGURE 19.(Note: Loop the LEG CABLE (30) around the PULLEY prior to assembling the
BASE PLA TES.)
51
37
11
63
• Screw the threaded end of the LEG CABLE (30) into the end of the PULLEY BRACKET (9). See FIGURE 19.
16
Page 17
FIGURE 20
55 3/8 X 2-3/4”
3/8 X 2-3/4” 55
31
50
38
39
7
5
56
63
STEP 20:
• Route the ARM CABLE (31) through the LEFT ARM (7) as shown in FIGURE 20.
• Assemble one V-PULLEY (39) to the LEFT ARM SUPPORT (5) using one 3/8 X 2-3/4” BOLT (55) and one 3/8” LOCK NUT (63).
See FIGURE 20. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the LEFT ARM SUPPORT.)
• SECURELY assemble one 2” NYLON SPACER (56) to the LEFT ARM SUPPORT (5) using one 3/8 X 2-3/4” BOLT (55) and
one 3/8” LOCK NUT (63). See FIGURE 20.
• Assemble the LEFT ARM (7) to the LEFT ARM SUPPORT (5) using one 3/8 X 2-3/4” BOLT (55) and one 3/8” LOCK NUT (63).
See FIGURE 20. (Note: Make sure the ARM CABLE runs in FRONT of the bolt as shown!.)
• Assemble one 4-1/2” PULLEY (38) to the LEFT ARM (7) using one 3/8 X 2-3/4” BOLT (55), two 3/8 X 1/2” SPACERS (50) and one
3/8” LOCK NUT (63). See FIGURE 20. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the LEFT
ARM.)
17

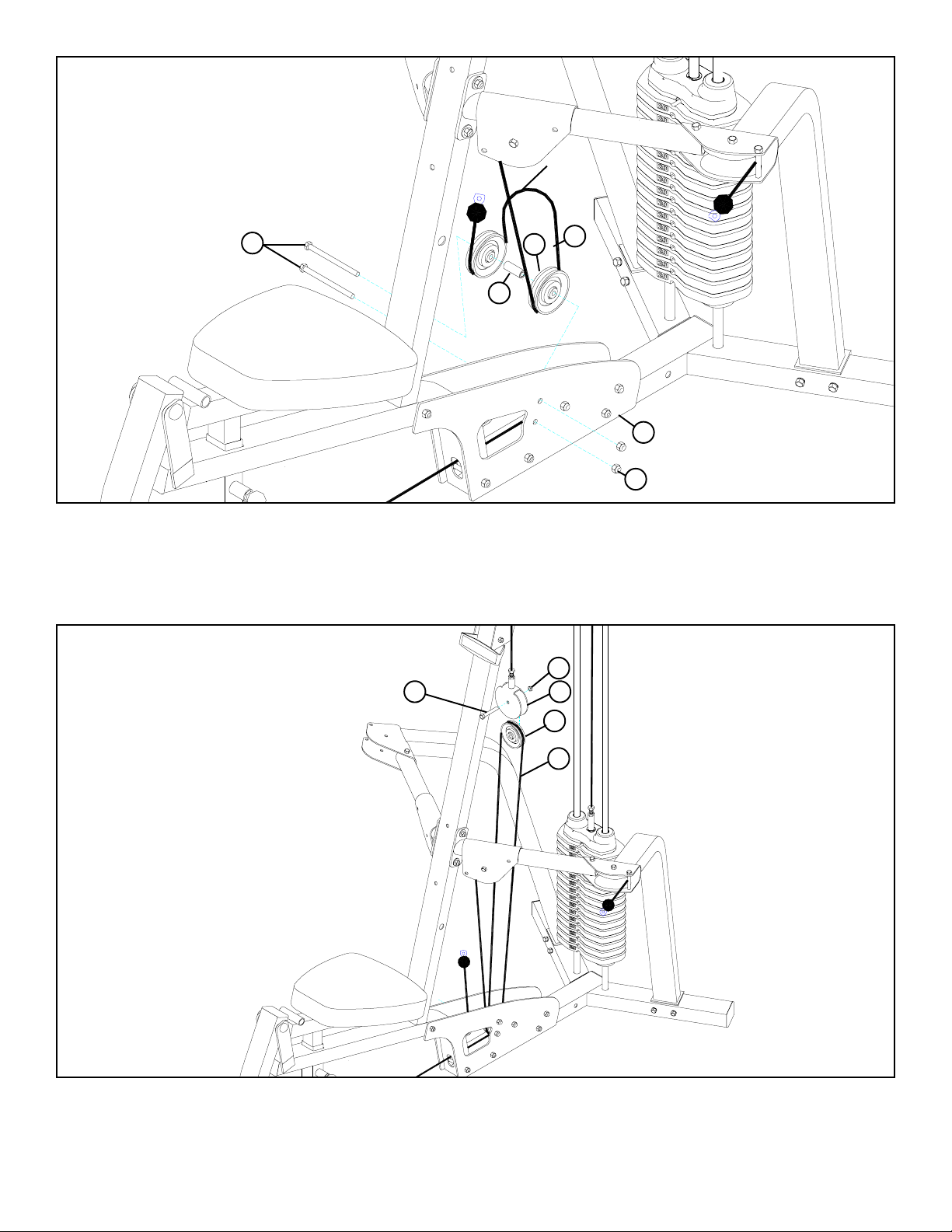

Page 18
FIGURE 21
LOOP
CABLE
3/8 X 3-3/4” 57
51
STEP 21:
• Assemble two 3-1/2” PULLEYS (37) to the BASE PLATES (11) using two 3/8 X 3-3/4” BOLTS (58), one 3/8 X 1” SPACER (51)
and two 3/8” LOCK NUTS (63). See FIGURE 21.(Note: Loop the ARM CABLE (31) around the PULLEYS prior to assem-
bling the PULLEYS. Leave a loop in the ARM CURL as shown!)
37
31
11
63
FIGURE 22
63
3/8 X 1-3/4” 53
9
37
31
STEP 22:
• Assembly one 3-1/2” PULLEY (37) to the PULLEY BRACKET (9) using one 3/8 X 1-3/4” BOLT (53) and one 3/8” LOCK
NUT (63) (Note: Loop the ARM CABLE (31) around the PULLEY prior to assembling the PULLEY BRACKET.)
18
Page 19
FIGURE 23
3/8 X 2-3/4” 55
56
31
63
3/8 X 2-3/4” 55
4
6
39
50
38
STEP 23:
• Route the ARM CABLE (31) through the RIGHT ARM (6) as shown in FIGURE 23.
• Assemble one 4-1/2” PULLEY (38) to the RIGHT ARM (6) using one 3/8 X 2-3/4” BOLT (55), two 3/8 X 1/2” SPACERS (50) and
one 3/8” LOCK NUT (63). See FIGURE 23. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the
RIGHT ARM.)
• Assemble one V-PULLEY (39) to the RIGHT ARM SUPPORT (4) using using one 3/8 X 2-3/4” BOLT (55) and one 3/8” LOCK
NUT (63). See FIGURE 23. (Note: Loop the ARM CABLE around the PULLEY prior to assembling the RIGHT ARM
SUPPORT.)
• SECURELY assemble one 2” NYLON SPACER (56) to the RIGHT ARM SUPPORT (4) using one 3/8 X 2-3/4” BOLT (55) and
one 3/8” LOCK NUT (63). See FIGURE 23.
• Assemble the RIGHT ARM (6) to the RIGHT ARM SUPPORT (4) using one 3/8 X 2-3/4” BOLT (55) and one 3/8” LOCK NUT
(63). See FIGURE 20. (Note: Make sure the ARM CABLE runs in FRONT of the bolt as shown!.)
19
Page 20
TIGHTEN!
TIGHTEN!
TIGHTEN!
TIGHTEN!
FIGURE 24
STEP 24:
• SECURELY tighten all loose frame connections as shown in FIGURE 24!
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
20
TIGHTEN!
TIGHTEN!
6
Page 21

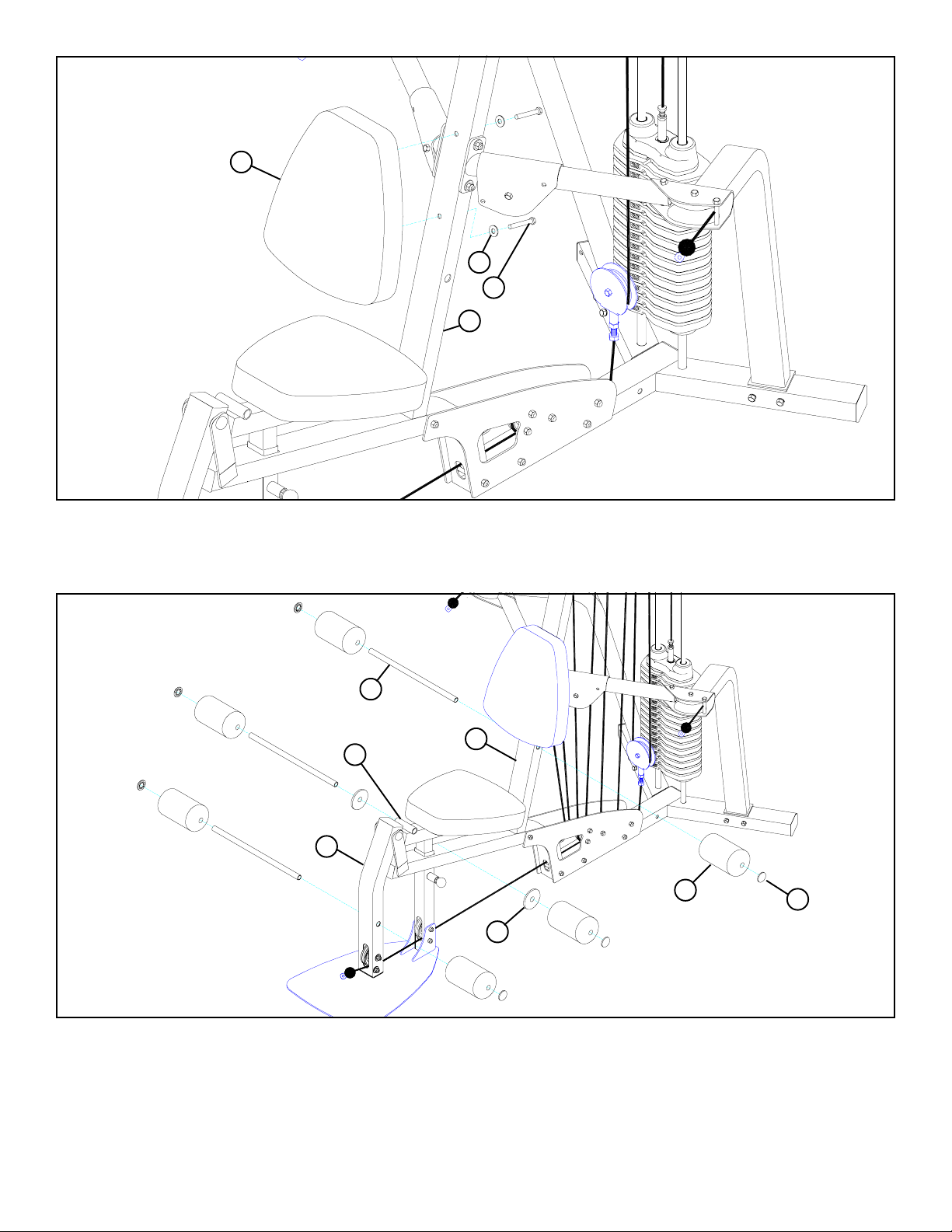

FIGURE 25
STEP 25:
16
64
55 3/8 X 2-3/4”
2
• SECURELY assemble one SEAT PAD (16) to the UPRIGHT (2) using two 3/8 X 2-3/4” BOLTS (55) and two 3/8” WASHERS (64).
See FIGURE 25.
FIGURE 26
52
2
3
8
17
45
44
STEP 26:
• Assemble two ROLLER PADS (17) to the LEG PEDESTAL (8) using one 3/4 X 17” TUBE (52) and two 3/4” STARLOCK
COLLARS (44) as shown in FIGURE 26.
• Assemble two ROLLER PADS (17) to the SEAT ADJUST (3) using one 3/4 X 1” TUBE (52), two PLASTIC WASHERS (45) and
two 3/4” ST ARLOCK COLLARS (44) as shown in FIGURE 26.
• Assemble two ROLLER PADS (17) to the UPRIGHT (2) using one 3/4 X 17” TUBE (52) and two 3/4” STARLOCK
COLLARS (44) as shown in FIGURE 26.
21
Page 22

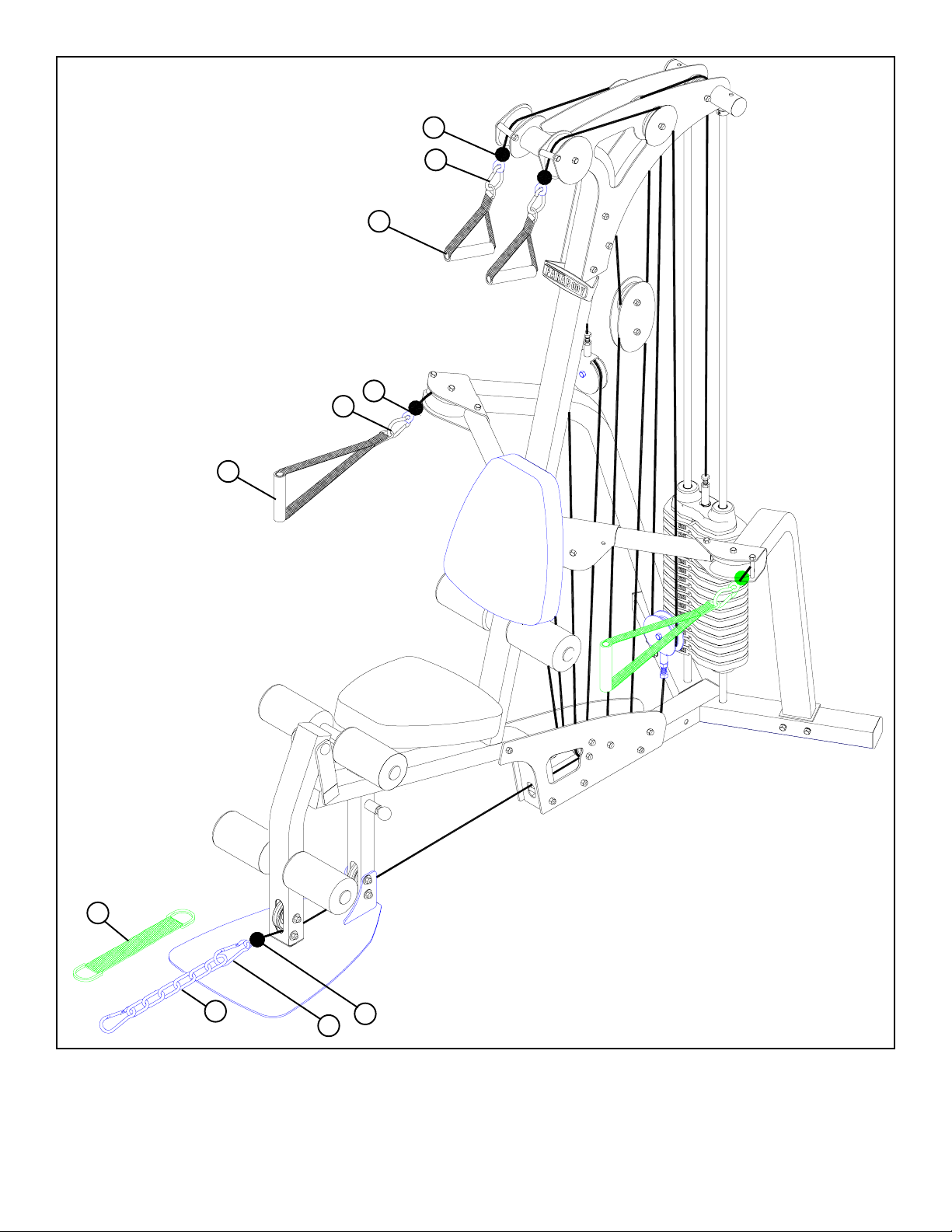

FIGURE 27
32
41
20
31
41
19
35
59
STEP 27:
• Assemble two 14-1/2” SEWN HANDLES (19) to the ARM CABLE (31) using two SNAP LINKS (41) as shown in FIGURE 27.
• Assemble two 7-1/2” SEWN HANDLES (20) to the BOOM CABLE (32) using two SNAP LINKS (41) as shown in FIGURE 27.
• Assemble the ANKLE STRAP (35) to the LEG CABLE (30) using two SNAP LINKS (41) and one 12-LINK CHAIN (59) as
shown in FIGURE 27.
41
30
22
Page 23
ADJUSTMENT
9
23
ADJUSTMENT
9
ADJUSTMENT
FIGURE 28
STEP 28:
• Adjustments can be made in the above locations to set the correct amount of tension in the cables.
• If upon completion of assembly, the HEAD PLATE (23) does not sit on top of the first WEIGHT PLATE (21), push the HEAD
PLATE (23) down, insert the WEIGHT STACK PIN (27) and perform several repetitions. This will relax the cable system and
prevent the HEAD PLATE (23) from lifting up. See FIGURE 28
• If after completing the previous step, the HEAD PLATE (23) still does not sit on top of the first WEIGHT PLATE (21) or if
there is excess slack in the cable system, adjust the threaded ends of the CABLES attached to the PULLEY BRACKETS (9)
accordingly and retighten the jam nuts. See figure 28.
• For maximum performance, the HEAD PLATE (23) should just barely sit on the top WEIGHT PLATE (21)
• NOTE: After making adjustments make sure all jam nuts are SECURELY TIGHTENED!
• This completes the assembly of the 777 Gym System. If the 777 SHROUD OPTION was purchased proceed to STEP 29.
Thank you for purchasing the ParaBody 777101 Gym System. If unsure of proper use of equipment, call
your local ParaBody distributor or call the ParaBody customer service department at (800) 328-9714
23
Page 24
FIGURE 29
74 3/8 X 2-1/2”
15
14
70
75
STEP 29:
• SECURELY assemble the T OP SHROUD BRACKET (70) to the RIGHT and LEFT UPRIGHT PLATES (14 & 15) using two 3/8
X 2-1/2” BOLTS (74) and two 3/8” LOCK NUTS (75) as shown in FIGURE 29.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
24
6
Page 25
FIGURE 30
68
72 3/8 X 1”
BUTTON
HEAD
73
69
STEP 30:
• SECURELY assemble the LEFT SHROUD (68) and RIGHT SHROUD (69) to the TOP (70) and BOTTOM (71) SHROUD
BRACKETS using eight 3/8 X 1” BUTTON HEAD BOLTS (72) and eight 3/8” BLACK SAE WASHERS (73) as shown in
FIGURE 30.
• This completes the assembly of the 777 SHROUD OPTION.
25
Page 26
MAINTENANCE
Please note:
* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water. Touch-up paint can be purchased from your ParaBody customer service representative
at (800) 328-9714.
* Inspect equipment daily. T ighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury
* Lubricate guide rods with a teflon based (or equivalent) lubricant on a regular basis
* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT
YOU MAY NEED SER VICE YOU WILL BE ASKED FOR THIS INFORMATION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.
MODEL #________________________
SERIAL #_________________________
DATE OF PURCHASE: _____________
DEALERS NAME: _________________
DEALERS PHONE #_______________
Thank you for pur chasing the ParaBody 777 Gym System.
26
Page 27
LIMITED W ARRANTY
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONL Y.
1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired
or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
2. LIMITED WARRANTY ON P ARTS. If the following part s are defective in material or workmanship, ParaBody will supply replacement parts:
all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad
shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger , spring
and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,
ParaBody will repair or replace them, at its option. Terms: Three (3) years.
4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized
ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of
ParaBody will void this Limited Warranty .
5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or rep air under this warranty. The Owner is
responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation
of the ParaBody product or any component part; b. shipping, delivery , handling and administrative charges for returning parts to ParaBody;
and c. all necessary or incidental costs related to installation of the replacement parts.
6. SHIPPING . If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton
or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage
incurred in shipping.
7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service
Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the
dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly
drawing included with your assembly instruction); (iv) a description of the nature of the problem.
8. OWNER’S RIGHT . This Limited W arranty gives you specific legal rights. Y ou may also have other rights, which vary depending on local law .
9. LIMITATION OF IMPLIED W ARRANTIES. All implied warranties, except to the extent prohibited by applicable law , shall have no greater
duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty .
Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.
10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or
the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury , loss of use of the ParaBody
product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
NOTES:
27
Page 28
LIFE FITNESS CONSUMER DIVISION
14150 Sunfish Lake Blvd. Ramsey Minnesota, 55303 U.S.A.
T el: 763.323.4500 Fax: 763.323.4797
800.328.9714 (T oll-free within the U.S. and Canada)
www.parabody.com
INTERNATIONAL OFFICES
Life Fitness Atlantic BV
Atlantic Headquarters
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: (180) 646 666
Fax: (180) 646 703
Life Fitness EUROPE GmbH
Siemensstrasse 3
85716 Unterschleissheim
Germany
Phone: (089) 31 77 51-0
Fax: (089) 31 77 51 99
Life Fitness Italia S.R.L.
V ia Elvas 92
39042 Bressanone
Italy
Phone: 39 (472) 835-470
Fax: 39 (472) 833-150
Life Fitness (UK) Ltd.
Queen Adelaide
Ely , Cambs CB7 4UB
United Kingdom
Phone CSS: (01353) 665507
Fax CSS: (01353) 666719
Life Fitness Benelux N.V.
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: 31 (180) 64 66 69
Fax: 31 (180) 64 66 99
Life Fitness Japan
8/F , Nippon Brunswick Building
5-27-7 Sendagaya
Shibuya-Ku, T okyo 151-0051
Japan
Phone: 81 (3) 3359-4309
Fax: 81 (3) 3359-4307
Life Fitness Asia Pacific Limited
Room 2610, Miramar T ower
132 Nathan Road, T simshatsui
Kowloon, Hong Kong
Phone: (852) 2891-6677
Fax: (852) 2575-6001
28
Life Fitness Do Brazil
Al. Rio Negro, 433-Predio 2-Sala 2
º andar (Confab)
3
Aplhaville-Barueri-Sao Paulo
CEP: 06454-904
Brazil
Phone: 55 (11)7295-2217
Fax: 55 (11) 7295-2218
Loading...
