P9020 USER MANUAL

1

FCC Regulations:

This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or

for compliance could void the user„s authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.

RF Exposure Information (SAR)

This model phone meets the government‟s requirements for exposure to
radio waves.
This phone is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.

The exposure standard for wireless devices employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the
FCC is 1.6W/kg. Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at its highest

more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible

certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to
use only the poser required to reach the network. In general, the closer you
are to a wireless base station antenna, the lower the power output.

The highest SAR value for the model phone as reported to the FCC when
tested for use at the ear is 0.591 W/g for GSM850 / 0.89 W/g for PCS1900 /

0.458 W/g for WCDMA Band V / 1.24 W/g for WCDMA Band II and when
worn on the body, as described in this user guide, is 1.4 W/g for GSM850 /

0.975 W/g for PCS1900/ 0.638 W/g for WCDMA Band V / 0.707 W/g for
WCDMA Band II (Body-worn measurements differ among phone models,
depending upon available accessories and FCC requirements.)

While there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirement.

The FCC has granted an Equipment Authorization for this model phone with
all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: JYCP9020.

This device is compliance with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in

when the phone is switched on.

accordance with the measurement methods and procedures specified in
OET Bulletin 65 Supplement C.

For body worn operation, this phone has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and the positions the handset a minimum of 1.5 cm from the body. Use of
other accessories may not ensure compliance with FCC RF exposure
guidelines. If you do not use a body-worn accessory and are not holding the
phone at the ear, position the handset a minimum of 1.5 cm from your body

Thank you for choosing the Pantech P9020, our latest EDGE mobile phone.

The Pantech P9020 has many features designed to enhance your mobile
experience. From its unique, stylish design and QWERTY keypad, we know
you will enjoy the entire P9020 experience.

This User Guide contains important and useful information that will
maximize your familiarity with all that the Pantech P9020 has to offer.

Battery Type

Capacity

Standby Time

Talk Time

Standard

Lithium-Ion

(Li-ion)

Up to

1000 mAh

Up to

11days(290hrs)

Up to

4.5(4.8)hours

Specifications

Design

Touch QWERTY Slider

Displays

 262k colors TFT LCD with 2.8” display
 320*240 resolution

Melodies

MP3, MIDI, iMelody, MMF, WAV, SMAF, AAC+

Camera

Integrated 2M CMOS Camera

 Resolution up to 1280 x 1024 (1,310,720 pixels)
 Mpeg4 Video recording/playing up to 15f/s(QVGA size)
 Self-timer function (5 seconds or 10 seconds)

Power Management (Performance)

Operating Frequency

 GSM 850Mhz, GSM 900Mhz, GSM 1800Mhz, GSM 1900Mhz, UMTS

850Mhz, UMTS 1900 Mhz, and UMTS 2100Mhz networks in North

America, South America, Europe, Africa, and Asia-Pacific where these
networks are supported.

 Automatic band switching.

 Photo album and video album

Dimensions & Weight

 Weight: 130g/4.58oz (with standard battery)
 Dimensions: 93.4 mm x 64.0mm x 14.1 mm

3.67“ x 2.51“ x 0.58“

Menu exit key / End key

Exit menus and end calls

Clear key

Return to previous screen

Receiver

Display

Send key

CAPS key

To type a single uppercase letter,

Tap this key then a letter

Function key

To enter a number or a symbol, Tap

the function key, and Tap the

corresponding key

Space key

Tap to enter a space

Enter key

Tap to create new line while writing a message

Delete key

Tap to delete a number or letter

Vibrate key

Symbol key

Tap to enter a symbol

Phone overview

Camera

Camera key

Speaker

NOTE: Holding the device by the internal antenna area might affect the quality of all calls.

Charger slot / Ear mic

Left Side key

Volume up and down

microSD Slot

Power On/Off/Lock key

Shake key
Internal antenna

Menu overview

1 AT&T Music

1. Music Player

2. Shop Music

3. MusicID

4. AT&T Radio

5. Music Videos

6. Make-UR-Tones

7. Community

8. Music Apps

2 AT&T GPS

1. AT&T Navigator

2. Where

7. Voice Mail

8. Settings

9. Templates

10. Used Space

4 Address Book

1. My Settings

2. All Contacts

3. Favorites

4. Groups

5 AppCenter
6 Mobile Web
7 YPmobile
8 My Stuff

1. Applications

2. Audio

3. AllSport GPS

3 Messaging

1. Conversation

2. Create Message

3. Mobile Email

4. IM

5. Outbox

6. Drafts

3. Games

4. Online Locker

5. Picture

6. Video

7. Tools

8. Other Files

9. Used Space

9 Settings

1. Profiles

2. Display

3. Call

4. Phone

5. Touch

6. Connectivity

7. Security*

8. AT&T Software Update

9. Reset

10. TTY

11. Phone information

* SIM dependent
** Network dependent

Quick & Easy

Keys

Functions

Turn on or off the phone if pressed and held

Quickly lock or unlock the screen

Delete characters from the display, or return to previous
menu.

Access Recent Calls or dailed the last number if taped
and pressed

Complete the current call. Turn on/off the phone if
taped and held.
Cancel user input and return to main screen while in
Menu mode.

Quickly connect to the voice mail server if Taped and
held in standby mode.

~

Enter numbers, letters or special characters. Go to the
dial screen if Taped in standby mode.

Enter or exit from vibrate mode if Taped and held in
standby mode.
Show the symbol input screen if Taped in text input
mode.

Enter an international dialing prefix if Taped and held in
standby mode.
Enter the space character in text input mode.

Change various text input modes if Taped at the text­editing screen.

Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent
all mode in standby.
Mute the ringtone of an incoming call.

Quickly acess the multy task or acess for Call,
Messeging or Music Player if pressed and shake the
phone.

Turn camera capture mode on.
Work as a camera shutter in capture mode.

Contents

Call settings ..............................................................................................25

Checking all calls ......................................................................................25

Specifications .......................................................... 5

Phone overview ....................................................... 6

Menu overview ......................................................... 8

Quick & Easy ......................................................... 10

1. Getting Started ................................................... 14

SIM card and battery ............................................................................... 15

Turn phone on/off ..................................................................................... 16

Screen unlock .......................................................................................... 16

Essential display indications .................................................................... 16

Memory card ............................................................................................ 17

Assigning the menu ................................................................................. 18

Updating software .................................................................................... 18

Using the QWERTY key pad ................................................................... 18

Speed dialing ............................................................................................26

Using the address book ............................................................................26

Address book settings ..............................................................................27

Caller identification ...................................................................................28

Using your headset ..................................................................................28

Service numbers and fixed dialing ...........................................................28

3. Messaging .......................................................... 29

Entering text .............................................................................................30

Messaging ................................................................................................31

Receiving messages ................................................................................32

Creating and sending text messages .......................................................32

Creating multimedia messages ................................................................33

Message templates ..................................................................................35

Using the multitask menu ........................................................................ 18

2. Calls and address book .................................... 20

Make, receive and end calls ................................................................... 21

Using video share .................................................................................... 22

Options during a call ................................................................................ 23

Message settings .....................................................................................35

Voice message settings ............................................................................36

Default Edit Mode settings .......................................................................36

Auto Delete Old Message settings ...........................................................36

Email .........................................................................................................37

Using instant messenger ......................................................................... 37

4. Multimedia .......................................................... 38

Camera .................................................................................................... 39

Photo album ............................................................................................. 41

Video album ............................................................................................. 42

Audio album ............................................................................................. 43

Music Player ............................................................................................ 43

Music player settings ............................................................................... 46

Media player ............................................................................................ 47

Other files ................................................................................................. 48

Managing memory ................................................................................... 48

Playing games ......................................................................................... 48

5. Useful Features ................................................. 49

Memory information ..................................................................................53

6. Connectivity ....................................................... 54

Bluetooth ..................................................................................................55

Using the Mobile Web ..............................................................................56

Using the browser ....................................................................................56

Profile settings ..........................................................................................57

7. Settings ............................................................... 58

Language .................................................................................................59

Time and date ...........................................................................................59

Ring tones ................................................................................................59

Decorating the display ..............................................................................59

Locks ........................................................................................................60

Security .....................................................................................................61

Alarm ........................................................................................................ 50

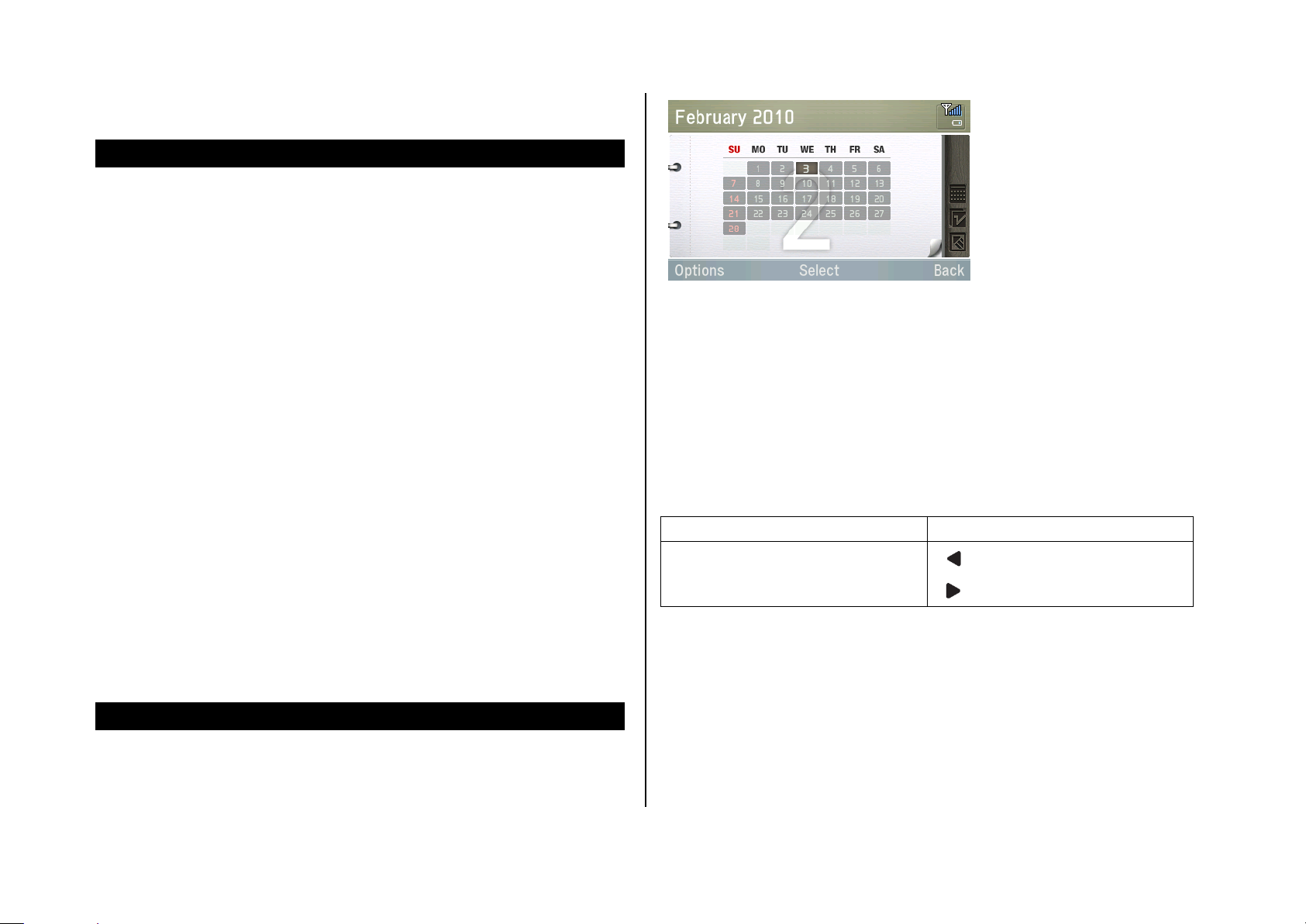

Calendar .................................................................................................. 50

Notepad and voice memo ........................................................................ 51

World time ................................................................................................ 51

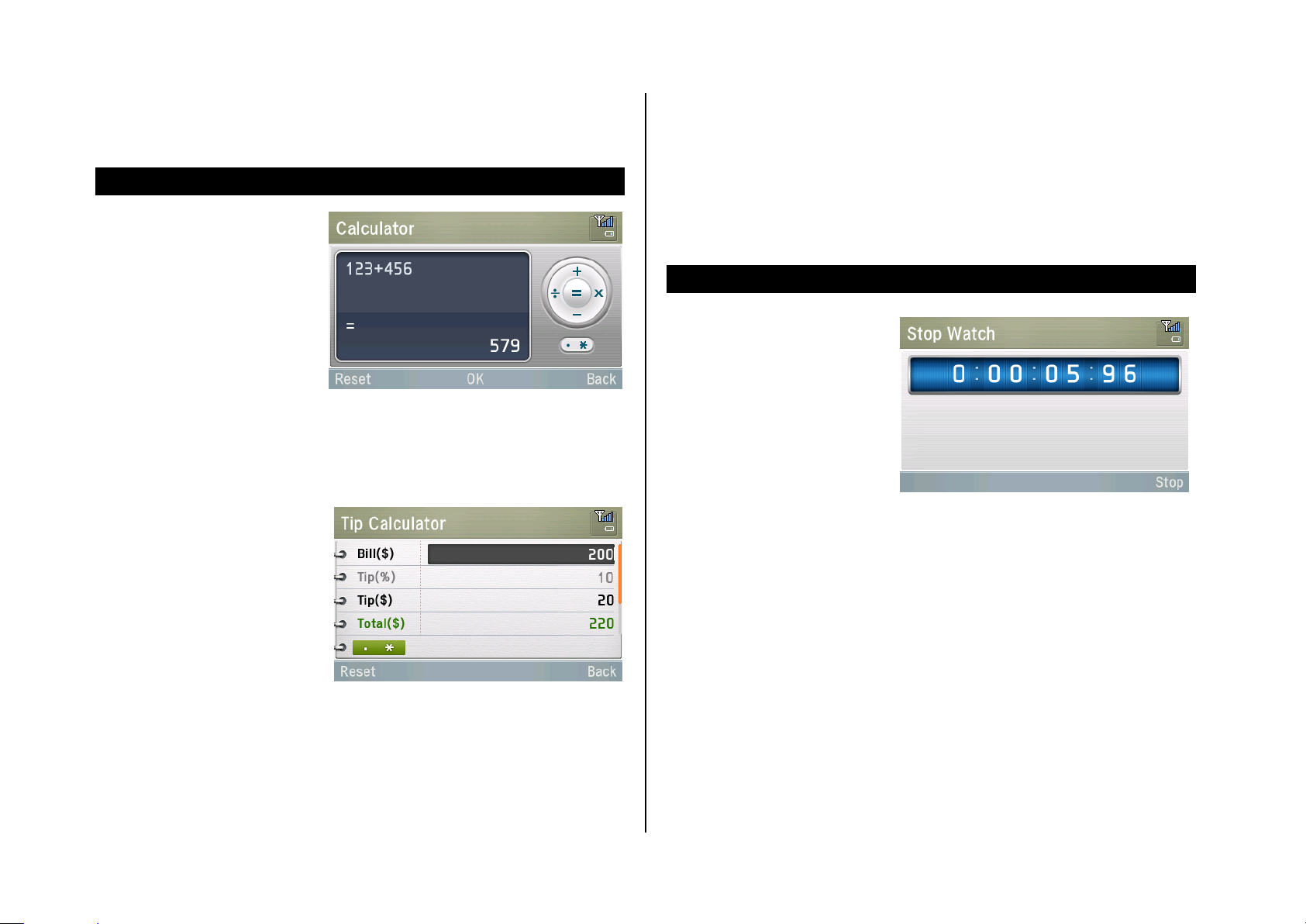

Calculator, tip calculator and converter ................................................... 52

Stop watch and timer ............................................................................... 52

Business card .......................................................................................... 53

Reset ........................................................................................................61

TTY ...........................................................................................................61

8. Appendix ............................................................. 62

Alert message ..........................................................................................63

Troubleshooting checklist .........................................................................63

Safety information ....................................................................................64

Safety precautions ....................................................................................65

About the battery usage ........................................................................... 65

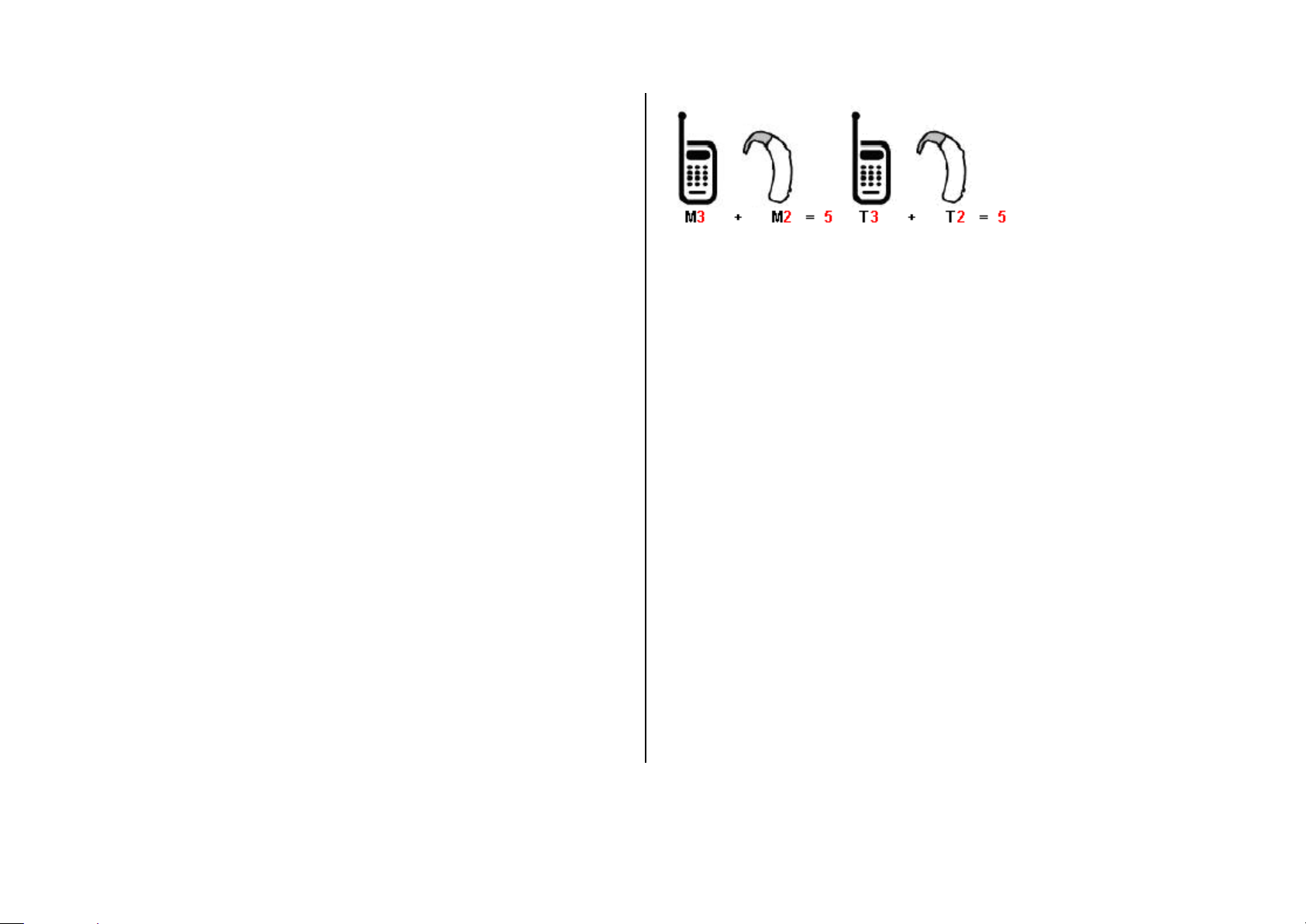

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices66

FCC Regulatory Compliance ................................................................... 68

Warranty ................................................................................................... 69

1. Getting Started

SIM card and battery
Turn phone on/off
Keypad lock
Essential display indications
Memory card
Assigning the menu
Updating software
Using the QWERTY key pad

1

2 1 1 1 1 2 2

1

2

1

2

2

SIM card and battery

About your SIM card

When you subscribe to your network operator, you receive a SIM
(Subscriber Identity Module) card containing your registration information,
PIN code, etc.
Like a credit card, it should be kept secure and handled carefully. Do not
bend, scratch or expose it to moisture. Avoid static electricity.

To avoid corrupting your SIM card‟s memory, always switch off your phone

before removing or inserting your SIM card.

About your battery

Your phone uses a Li-Ion battery. Make sure to use an authorized battery
and charger only. For more details, please inquire at your nearest dealer.
NOTE: Your phone is powered by a Lithium Ion (Li-Ion) battery. Unlike other
forms of battery technology, you can recharge your battery while some
charge remains without reducing your phone‟s autonomy due to the “battery
memory effect” inherent in those technologies.

3. Insert the SIM card into the slot. The gold contacts of
the SIM card should go against the metal contacts of
the phone. Put the contacts of the battery into the hole
located at the bottom of the unit insert and Tap the
upper side of the battery until you hear the “click”.

4. To remove the battery push the bottom of the battery
to upwards (1) and remove (2) the battery. Push the
SIM card in the direction of the arrow as shown.

To charge your battery

1. To charge, open the protective cover on the top

right side and connect the charger adapter.
Make sure you align the connector as the image.
If not, it will damage the charging connector on
the phone and will not charge.

Installing/removing SIM card and battery

1. Remove the battery cover from the unit.

2. To fit the battery cover, put it on the
guide rail and push up.

2. To remove the adapter connection Tap the
adapter‟s side buttons(1) and pull the adapter
away(2).

Turn phone on/off

Signal strength. The greater the number of bars, the stronger
the signal. When network is in searching mode is

displayed

A call is being made. When you are in no service area is
displayed

Call forwarding* is active

Incoming calls set to ring only (Normal)

Incoming calls set to Vibrate and Ring

Incoming calls set to Vibrate Only

Incoming calls set to Silent

Flight Mode is active

Received one or more text messages

Received one or more multimedia messages

Received one or more WAP push messages

Received one or more configuration messages

Received one or more voice messages

A message is being sent

A message is being received

An alarm is set

Schedule Alarm is set

Browser is Active, Secured and being downloaded

Bluetooth is active

Bluetooth is transferring

Bluetooth headset is connected

Headset is connected

USB is connected

TTY is active

A GPRS signal is available. It is displayed when there is an
active GPRS session

An EDGE signal is available. It is displayed when there is an
active EDGE session

microSD card is insert

Battery strength. When the battery charge is low, is
displayed

Available, Away, Invisible Status of AIM

Online, Away, Busy, Offline Status of MSN

Available, Busy, Invisible Status of YAHOO

You have received one or more IM messages

BGM is play, pause and being stopped

To turn on

1. Press and hold [ ].

To turn off

1. Press and hold [ ].

Screen unlock

Unlocking the keypad

1. Press [ ] to unlock.

Essential display indications

* Network dependent

Memory card

You can use microSD card as a memory card.
It gives you more space to save pictures,
videos, music, etc.

Inserting and removing the memory
card

1. Open the memory card slot.

2. Insert the card. The [ ] icon will be display.

3. Press the card to remove.

Using memory card

You can save, move and delete the files between your phone and external
memory card. You can also move and copy the files to computer from your
phone.

To copy the file to the card

1. Select the file > Options > Copy to External Memory.

2. To copy the file back to phone, tap Options > Copy to Phone.

To move the file to the card

1. Select the file > Options > Move to External Memory.

2. To move the file back to phone, tap Options > Move to Phone.

To delete the file from the card

1. Select the file from the card > Options > Delete.

To move the file from the card to the computer

1. Connect the data cable with mobile and the computer.

2. Tap Menu > Settings > Connectivity.

3. Tap Select USB Mode.

Resetting the card

1. Tap Menu > Settings > Reset.

2. Enter the password > External Memory Reset.
Note: The default password is „1234‟.

4. Select Music Player, Mass Storage or Ask on Connection.

5. Follow the instruction on your computer screen.
Note: Select Music Player when you want to add music to the playlist in
your device. When you select Ask on Connection, it will ask you to select
either the Music Player or Mass Storage every time you connect your device
with your computer.

Key

Function

Tap to change ab Ab AB at the text editing screen

 (all small caps / first letter

caps / all caps)

Tap to type a special character or number, at the
applicable key pad. To enter symbols and numbers
continually, Tap until displays

Enter the space character in text input mode

Insert a carriage return in text input mode

Delete a character to the left of the text cursor in text
editing screen

Tap to type a special character that is not placed on
the keypad

Assigning the menu

You can set the most commonly used menu in Options in standby mode.

1. Tap Shortcuts in standby mode > select Unassigned.

2. Tap Add.

3. Select the menu and sub menu.

Updating software

You can update your software without visiting your nearest dealer.

To update the software

1. Tap Menu > Settings > Software > Software Update.

2. Tap Check for Update > Yes to check whether or not you need to
update the software.

NOTE: After downloading the software, the device will ask you whether to
update the software now or later. If you choose to update the software now,
it will restart the handset. If you postpone updating the software, you can

Using the QWERTY key pad

Your phone has QWERTY keypad which provides a superior typing
experience on a small handheld for easy and comforTaple texting. You can
use all of the phone functions with the QWERTY keypad opened.

Using the multitask menu

select between 30 mins, 1 hour or 4 hours in the Options. After selecting
the updating time, you will be sent back to standby mode. If you go to

Software Update while you are in postponing, Tap Continue Update.

To view the version of software

1. Tap Menu > Settings > Software.

2. Tap Phone Information and scroll down to Software Version.

Tap and hold ( ) to launch the Multitask menu that can be activated from
within any active window or page on the phone. There is no need to stop
what you are doing, if you quickly want to jump out and activate another
common feature. The idea is to allow you to temporarily exit from your
current location to access a group of common functions such as: Call,
Messaging, Mobil Web, Music player and Games & Apps. This key keeps
you from having to completely exit from your current task or window,

whether that be a text message, a web page, or an active call, quickly do
something else.

Multitask functions

To using multitask function, Tap and hold the side up key [ ]. You can
choose from one of the following function:

• Call: Make a voice call while using the handset for other tasks. If Music

Player is active, it is muted during the call.

• Messaging: Send a text or multimedia message while using the handset

for other tasks.

• Mobile Web: Launch the browser while using the handset for other tasks.

• Music Player: Launch the Music Player while using the handset for other

tasks. If an incoming call is received or you want to make a call, the Music
Player is muted.

• Games & Apps: Access Games and Applications while using the handset

for other tasks.

2. Calls and address book

Make, receive and end calls
Using video share
Options during a call
Call settings
Checking all calls
Speed dialing
Using the address book
Caller identification
Using your headset
Service numbers and fixed dialing

Make, receive and end calls

Making a call

1. Enter the area code and phone number.

2. Tap [ ] key.

Answering a call

1. Tap [ ].

Ending a call

1. Tap [ ].

Once the call is complete, a call summary is displayed.

Rejecting a call

1. Tap [ ] or Ignore.

Making a call during a call

1. Enter the phone number or look it up in Address Book.

2. Tap [ ] to dial the second call. The first call is automatically put on
hold.

Switching between two calls

1. Tap Swap.

Making an international call

1. Press [ ] key for the international prefix until the „+‟ character appears.

2. Type the country code, area code, and phone number.

3. Tap [ ].

Making an emergency call

You can make emergency calls even if your phone does not have a SIM
card.

Making a call using call list

Your phone logs up to 20 dialed, received and missed call numbers.

1. Tap [ ] to display the Recent Calls list.

2. Tap to select All Calls, Missed Calls, Received Calls, or Dialed Calls

3. Select a number.

4. Tap [ ] to dial the selected number.
NOTE: To redial the last number in the Recent Calls list, tap [ ].

1. Tap Emergency Number, or Tap SOS if your phone does not have a SIM
card.

2. Tap [ ].

Replying to a missed call

1. Tap View to display the list of missed calls.

2. Select a number to call by scrolling the screen.

3. Tap [ ].

Answering a second call**

1. Tap [ ]. The first call is automatically put on hold.

2. Tap [ ] to end the second call.
The call on hold is automatically reconnected.

Using video share

You can share live or recorded video while on a call. You can send or
receive video.
NOTE: Video Share is not available in all markets. Both parties must be in a
3G service area–a 3G icon must appear by the signal bars prior to a call
being placed, and both parties must remain in the 3G coverage area for the
duration of the Video Share.

<Call mode>

<Video Share Mode>

Making video share call

1. Enter the area code and phone number > [ ].

2. Tap Options > Video Share.

3. Select Live or Recorded.

Note: To use video share in the Recent Calls, tap Options > Video Share.

Turning off the speakerphone

1. Tap Options > Speakerphone Off during video share mode.

2. Tap Options > Mute to mute the sound.

Increasing or decreasing the brightness

1. Tap Options > Brightness.

2. Adjust the brightness by scrolling left or right.
