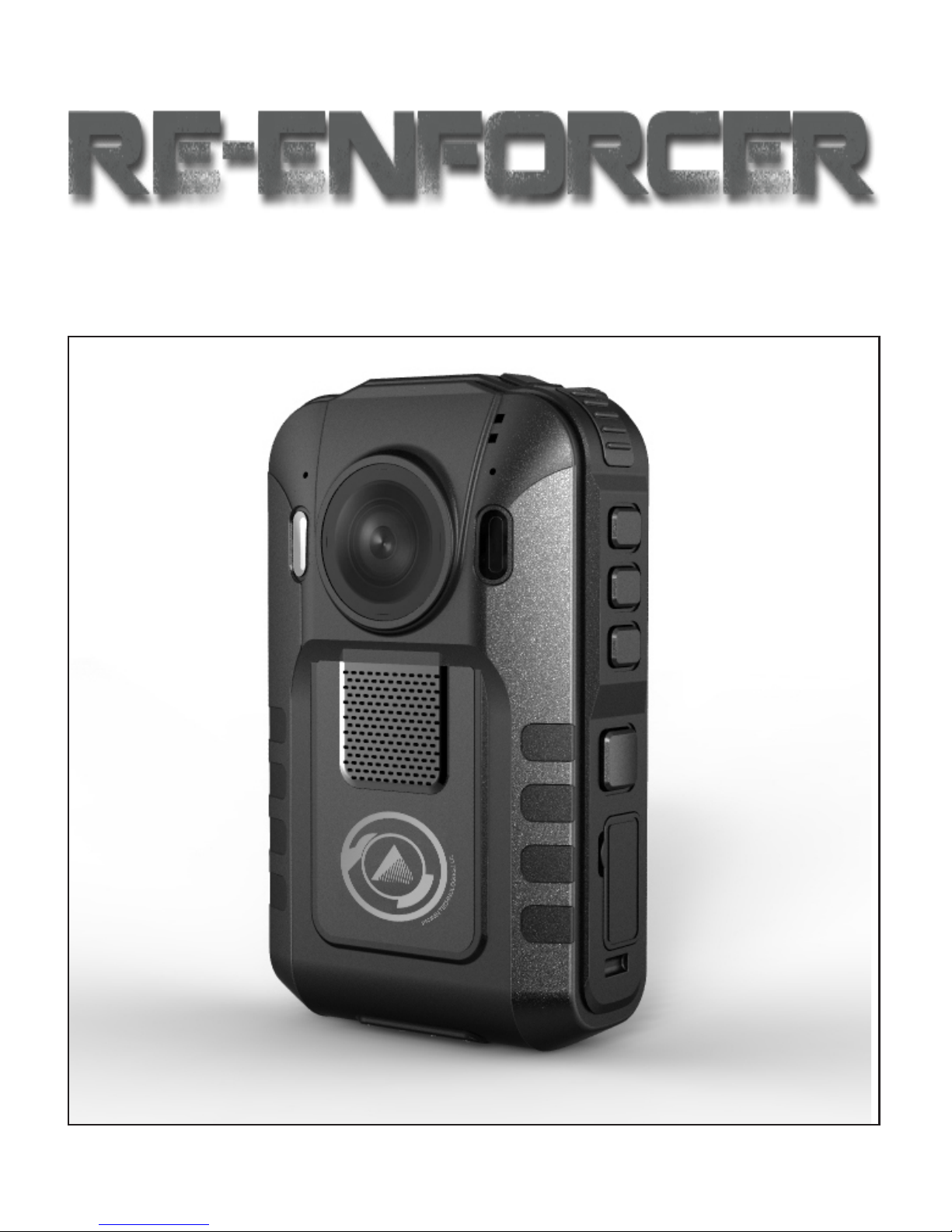

BODY CAMERA
User Manual
1- RE-ENFORCER OVERVIEW
2
- UNIT DESCRIPTION & OPERATION
2.1- POWER ON & OFF the RE-ENFORCER
2.1.1- “Power on and record” hotkey
2.4- RESET THE RE-ENFORCER
2.5- VIDEO RECORDING
2.6- VOICE RECORDING
2.7- PHOTO CAPTURING
2.8- INFRARED LIGHT SETTINGS
2.9- MICROPHONE SETTINGS
2.10- LCD DISPLAY SETTINGS
2.11- SOS BUTTON FUNCTIONS
2.12- PLAYBACK
2.13- PTT FUNCTION FOR TWO WAY RADIO
2.14- ADDITIONAL CAMERAS
2.15- MENU SETTINGS
2.15.1- Resolution
2.15.2- Photo Size
2.15.3- Record File Size
2.15.4- InfraRed Cut
2.15.5- Flicker
2.15.6- Motion Detection
2.15.7- G-Sensor Set
2.15.8- Over Speed Recording
2.15.9- Pre-Record
2.15.10 Post Record
2.15.11- Car Mode
2.15.13- Auto LCD O
2.15.14- Auto Power O
2.15.15- Mic Auto Resume
2.15.16- Date Format
2.15.17- GPS Auto Update Time
2.15.18- GMT Setup
2.15.19- DST Setup
2.15.20- Language
2.15.21- Volume
2.15.22- Indicator
2.15.23- RF Switch Setup
2.15.24- RF Recode
2.15.25- Auto MSC
2.15.26- Free Space
2.15.27- Ocer ID
2.15.28- Firmware Version
2.15.29- Default Setting
2.16- GPS FUNCTION
2.16.1- GPS On
2.16.2- GPS Playback
3- TROUBLESHOOTING
2- RE-ENFORCER OVERVIEW
RE-ENFORCER is a multi function compact DVR, designed by
our engineers to meet and exceed the actual needs of the police ocers,
law enforcement personnel and all other occupations where an actual
footage of the action would be required or helpful. It is life-proof design
makes it withstand and function in extreme conditions, day and night.
RE-ENFORCER streamlines the entire process of law enforcement data collection and evidence gathering by providing crucial data
synchronized with video, audio, and photo evidence while keeping the
data encrypted to prevent tempering.
IMPORTANT: RE-ENFORCER Should be fully charged for at
least 6 hours prior to the rst use. Red indicator LED on the front side
of the RE-ENFORCER will turn on while charging and will turn green
when the battery is fully charged. Green LED indicator on the opposite
side will turn on when the device is on and will ash while recording.
Press and hold the Record Button for 3 seconds. RE-ENFORCER
will automatically turn on and start recording.
To ensure rapid charging select charge on the menu when connected to
5V DC USB power supply.

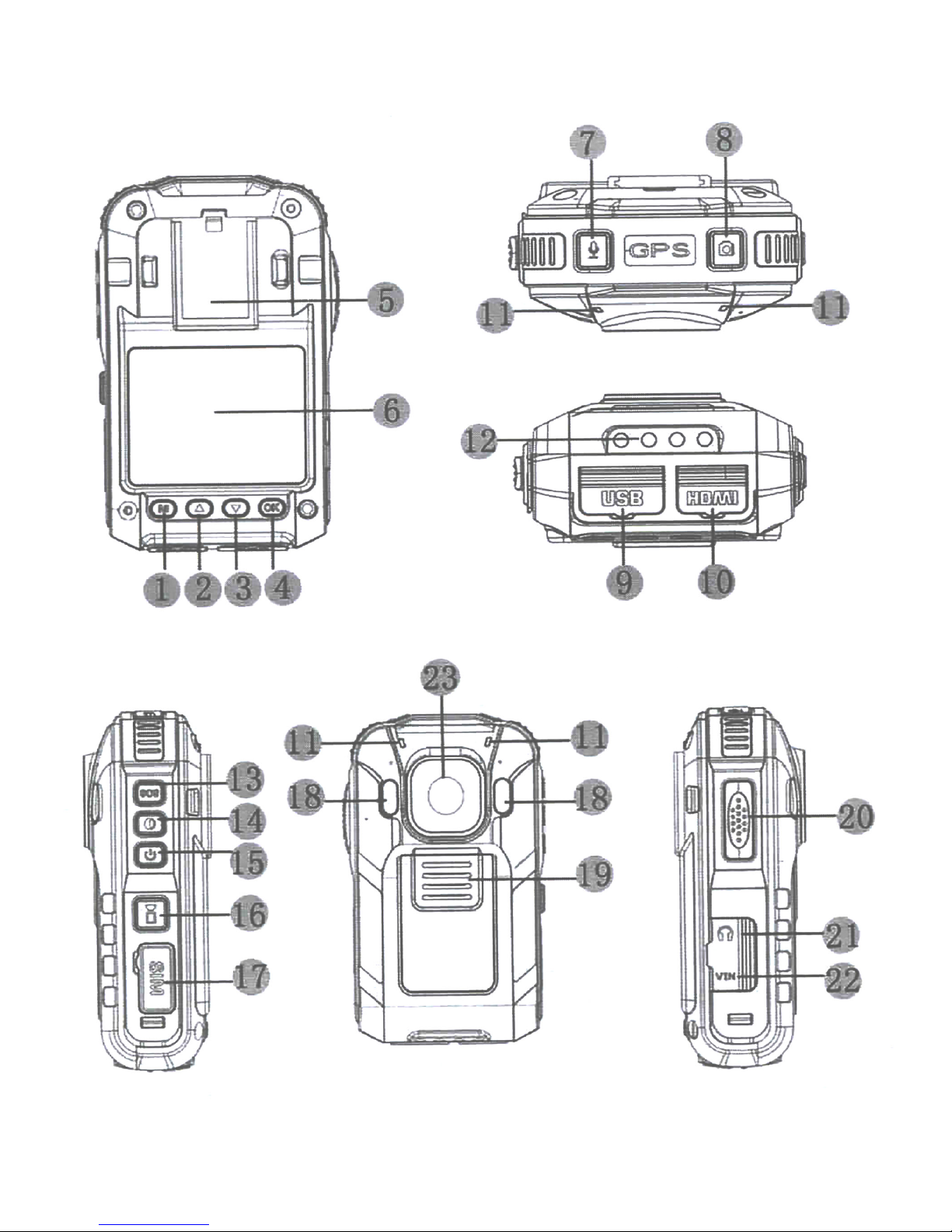

2- UNIT DESCRIPTION & OPERATION
1- Menu Button
2- Up Button
3- Down Button
4- OK Button
5- Clip Rail
6- LCD Screen
7- Audio Record Button
8- Photo Capture Button
9- USB Port
10- HDMI Port
11- LED Indicators
12- Charger Input
13- SOS Button
14- InfraRed Light On-O Button
15- Power Button
16- Power On & Record Hotkey
17- Reset Switch & Sim Card Slot
18- InfraRed Light
19- Speaker
20- Push To Talk Button
21- Headphone Input
22- Additional Camera Input
23- Camera Lens
2.1- Power On & O the RE-ENFORCER
To Power On: Press and hold the power button (*15) for 2 seconds. Aer
you hear the sound, RE-ENFORCER goes into home screen.
To Power O: Press and hold the power button (*15) for 2 seconds and
the device will turn o.
2.1.1- “Power On and Record” Hotkey
Press and hold the Power On & Record Hotkey (*16) for 3 seconds.
RE-ENFORCER will automatically turn on and start recording.
2.4- Reset the RE-ENFORCER
If RE-ENFORCER fails to power on or o the system or doesn’t function correctly you can use the reset switch (*17) by pressing it with a
thin object such as a paper clip to reset the RE-ENFORCER. Please be
cautious and use rigid objects, material broken in the reset switch opening
can jam the button access.
2.5- Video Recording
Aer the system start-up, on the home screen press the Power On &
Record Hotkey (*16) to start recording. You will see the record (camera) icon on the LCD screen turn red and hear a brief sound. Also, LED
indicator on the front side will ash green while recording. e data will
be saved to the internal memory as .MOV les. To stop recording press
the Power On & Record Hotkey (*16) again for 3 seconds. Recording
will stop along with a brief sound.
2.6 Voice Recording
On the home screen, press the Audio Record (*7) Button to start voice
recording. You will hear a brief sound when RE-ENFORCER starts
recording audio. To stop recording, press the Audio Record (*7) Button
again and you will hear another brief sound which indicates the voice
recording has stopped. Your audio les will be saved as .WAV les.
2.7 Photo Capturing
On the home screen, press the Photo Capture Button (*8) to switch the
RE-ENFORCER to photo mode and take pictures. Device will automatically switch back to video mode aer the picture is captured.
You will hear the shutter sound indicating that you just took a picture.
You can repeat the steps to take another picture. Your pictures will be
saved as .JPG les.
2.8 InfraRed Light Settings
You can record videos where there are no external light is available,
with the InfraRed function.
Turn on & o the InfraRed function: on the home screen, press the
InfraRed Light On-O Button (*14) for 1.5 seconds. is process will
turn on & o the InfraRed light and the RE-ENFORCER will automatically activate & deactivate the InfraRed Filter. IR symbol on top of the
screen will turn green from white when the InfraRed function is activated and it will turn back to white when de-activated.
Important: InfraRed Light On-O Button will be disabled unless the
“InfraRed CUT” setting in the menu is set to manual.
2.9 Microphone Settings
While Recording video, press the Audio Record Button (*7) to turn the
microphone on & o. Microphone icon on the screen will appear with
a red line on it to indicate audio recording has stopped. Red line will
disappear when the audio recording is back on.
2.10
LCD Display Settings
you can press the up button (*2) to turn on & o the LCD screen while
recording or in stand by mode.
2.11- S.O.S. Button Functions (Car Kit Support)
Press and hold the S.O.S. Button (*13) for 2 seconds. RE-ENFORCER
will automatically send a signal to the Multipurpose dock to activate
the SOS output wire. is is a 12V DC output that can be used to trigger the emergency feature on the radio or any other user dened input.
2.12- Playback
Recorded videos can be seen as thumbnails by pressing the menu
button (*1) on the home screen. You can choose the videos to play
by clicking the OK button (*4). On the media gallery, up and down
buttons (*2,3) will categorize the items in your device by type. While
watching a video, up and down buttons (*2,3) will change the video
speed to fast-forward & slow-motion.
2.13 Push To Talk Function For Two Way Radio
If the RE-ENFORCER is connected to a two way radio, it can be used
as a Push To Talk device. You can use this function by pressing the
Push To Talk button (*20).
2.14 Additional Camera
Additional camera is supported by RE-ENFORCER. You can simply
plug in your additional camera to AV port to record from the additional camera.
Using an additional camera will disable the RE-ENFORCER main camera. To enable it back, RE-ENFORCER should be restarted aer removing the additional device.
2.15- Menu Settings
On the home screen, press the Menu button (*1) twice to access the
RE-ENFORCER menu.
Pressing the menu button once will take you to the media gallery. Pressing
it again will take you to the main menu. Pressing once more will take you
back to the home screen.

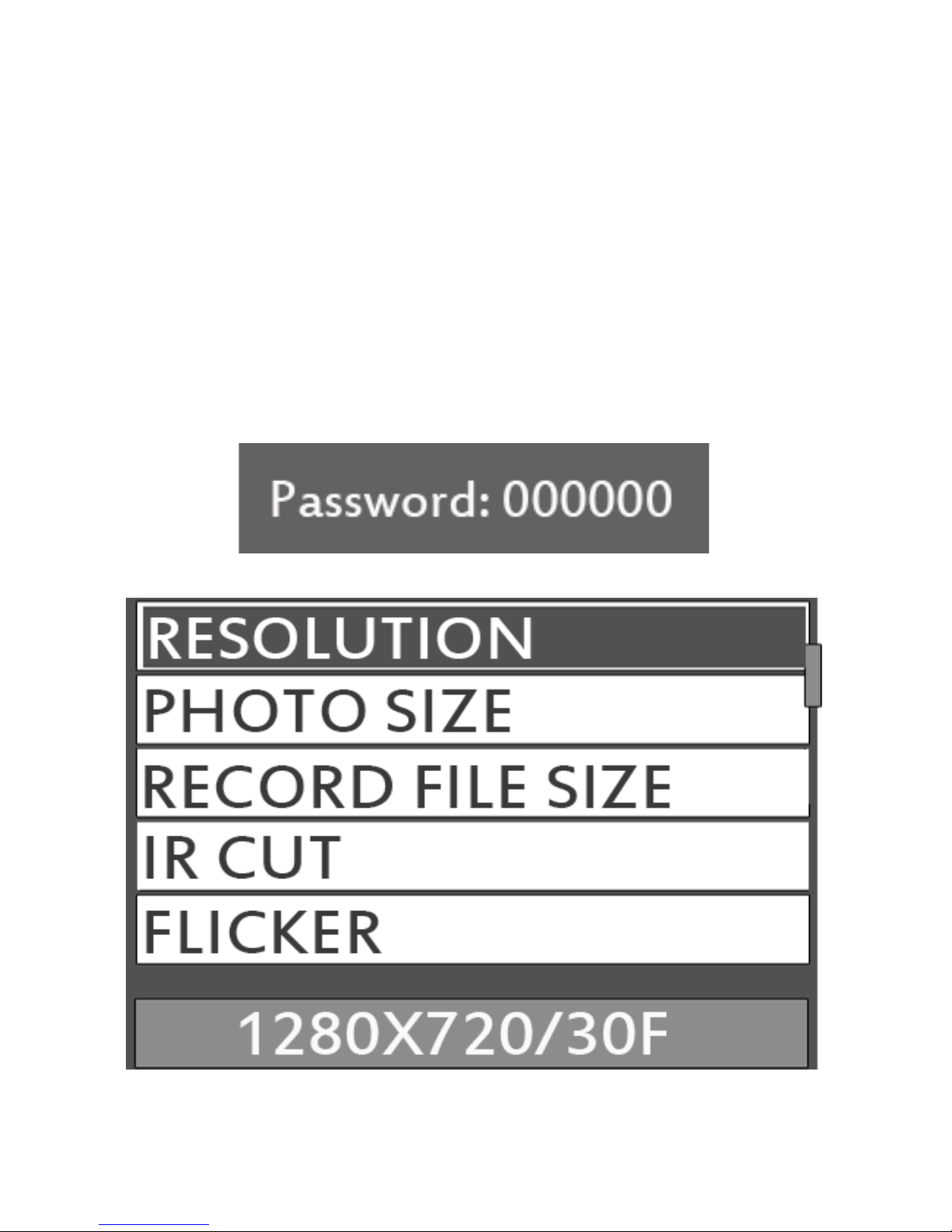

Important: e default password to change the settings is: 000000
2.15.1- Resolution
By clicking the OK button (*4) when the “resolution” is highlighted on
the menu, you can select the desired video resolution. Options are from
highest quality to normal quality: (2304x1296/30F), (1920x1080/30F),
(1280x720/30f) and (848x480/30F)
2.15.2- Photo Size
By clicking the OK button (*4) when the “photo size” is highlighted on
the menu, you can choose the desired photo size from the options. 16
Mega-pixels (16M as shown on the menu) will be the largest picture
size-while 2 Mega-pixels (2M as shown on the menu) is the smallest
picture size available on your device.
2.15.3- Record File Size
You can choose to record videos from 5 minute sections to 30 minute
sections. When the memory is full, RE-ENFORCER will start replacing the video les with the new ones, starting from the oldest available
le. You can also chose to record without sections by choosing the “NO
LIMIT” option when the “RECORD FILE SIZE” is highlighted by clicking the OK button (*4).
2.15.4- IR CUT
You can choose to enable/disable InfraRed option manually by selecting
“IR CUT” option to “manual” to use the InfraRed Light On-O Button
(*14) for switching night view mode manually.
if you select IR CUT to manual your camera will not turn the InfraRed
function automatically.
2.15.5 Flicker
You can change the display refresh rate to 50Hz, 60Hz and to Auto to
avoid screen ickering.
2.15.6- Motion Detection
Motion Detection option can be enabled to trigger the video recording
when the camera detects motion in the view angle.
2.15.7- G-Sensor Set
G-sensor measures the movement of your vehicle through 3 axis; up
and down, le and right, forwards and backwards. RE-ENFORCER
will use the G-sensor option to detect and record signicant or sudden
movements. You can choose the sensor sensitivity from High to Low or
turn the sensor o.
2.15.8- Over Speed Recording
Over speed recording can be set from 30Mph to 160Mph or it can be
turned o. is option works as a video correction to prevent undesired
changes such as rolling or lining of the video due to the high speed
movement.
2.15.9- Pre Record
Pre record option is available with or without audio. If Pre Record option is enabled, RE-ENFORCER starts recording before the record button is pressed.
2.15.10- Post Record
Post record option is available from 3 seconds to 15 seconds to continue capturing video aer the recording has stopped by the user.
2.15.11- Car Mode
Car mode option is to trigger the device to start recording when it’s
docked in the car if enabled.
2.15.12- Video Rotation
Video Rotation option is allowing the user to rotate or dock the camera
upside down and keep the video in the correct rotation. It can be set to
180 degrees or auto to RE-ENFORCER to detect automatically.
2.15.13- Auto LCD O
is option will set the LCD Screen timeout duration. IT can be set
from 30 seconds to 3 minutes or the timeout can be turned o by selecting “OFF”.
2.15.14-Auto Power O
Auto power o function will set the time duration for the device to
power o to save energy. It can be selected from 3 minutes to 10 hours.
Auto power o function will not interrupt the video recording as it’s intended to power o the idle device.
2.15.15- Mic Auto Resume
Mic auto resume option will set the time duration until the microphone starts back to recording audio aer it’s muted by the user.
2.15.16- Date Format
is option is to set the date display format for the device. Day/Month/
Year orientation can be sorted into a desired format.
2.15.17- GPS Auto Update Time
If GPS auto update time option is enabled, RE-ENFORCER will be receiving the correct date and time information from the GPS satellites.
2.15.18- GMT Setup
GMT setup allows users to change the time zone.
2.15.19- DST Setup
DST (Daylight Saving Time) setup can be turned on to adjust the device time automatically for the daylight saving time changes.
2.15.20- Language
Device language can be set to other languages by using this function.
2.15.21- Volume
is option controls the device volume. It can be set from Low to High
or can be turned o.
2.15.22- Indicator
You can turn the LED Indicator on the front side of the camera on or
o by using this function.
2.15.23- RF Switch Setup
Radio Frequency Switch can be set on or o. is option gives the
device to communicate with the dock installed in the car remotely if
enabled.
2.15.24-RF Recode
is option renews the radio frequency code for accessing the dock
remotely.
2.15.25- Auto MSC
When a Mass Storage Class compatible camera is connected to a computer, the operating system will recognize it as a removable drive and
reveal the le and folder structure.
2.15.26- Free Space
When highlighted, this option allows users to monitor the memory
usage of the device.
2.15.27- Ocer ID
Ocer ID can be set by your system administrator. is option is inaccessible directly from the device.
2.15.28- Firmware Version
is option will allow users to display the current rmware version.
2.15.29- Default Settings
You can select “yes” in this option to revert settings back to default.
2.16- GPS Function
With the GPS function enabled, RE-ENFORCER allows users to track
down the location of the camera and embed the location coordinates to
the video. With GPS, users can simultaneously watch the recorded videos while tracking down the location on the Google Maps application.
2.16.1- GPS On
With the GPS on, the GPS logo on the screen turns green as soon as the
device connects with the GPS satelites.
Important: Like as any other GPS device, RE-ENFORCER will not be able
to connect to the satellites when located inside the buildings.
2.16.2- GPS Playback
With the special player you have been provided with the RE-ENFORCER, you will be able to trace the location simultaneously while watching
the videos recorded.
3- TROUBLESHOOTING
1- Cannot Power On the RE-ENFORCER
tip: Check if the battery is charged. If the battery is charged use the reset
button to reset the device.
2- Video Colors Are Set To Black And White
tip: Check if the InfraRed is turned on.
3- No GPS Signal
tip: GPS functions are location dependent. GPS connection can’t be
made from inside the buildings.
4- Device Frozen or Unresponsive
tip: Reset the RE-ENFORCER by using the reset switch located under
the dust cover on the side of the device. (Unit Description *17)
4- DEFAULT SETTINGS OVERVIEW
By default the device setup is shown below
RESOLUTION....................................................................... 848X480/30F
PHOTO SIZE....................................................................................... 16M
RECORD FILE SIZE....................................................................... 15MIN
IR CUT................................................................................. AUTOMATIC
FLICKER.......................................................................................... AUTO
MOTION DETECTION...................................................................... OFF
G_SENSOR SET.......................................................................... MEDIUM
OVER-SPEED RECORDING.............................................................. OFF
POST RECORD................................................................................... OFF
CAR MODE......................................................................................... OFF
VIDEO ROTATION......................................................................... AUTO
AUTO LCD OFF............................................................................... 30SEC
AUTO POWER OFF.......................................................................... 3MIN
MIC AUTO RESUME........................................................................15SEC
DATE FORMAT................................................................. MM-DD-YYYY
GPS TIME SYNC.................................................................................. ON
GMT SETUP........................................................................ -11~ +12( +4 )
DST SETUP.......................................................................................... OFF
LANGUAGE............................................................................... ENGLISH
VOLUME...........................................................................................HIGH
INDICATOR......................................................................................... ON
RF SWITCH SETUP.............................................................................. ON
RF SYNC.............................................................................................. OFF
AUTO MSC.......................................................................................... OFF
FREE SPACE..................................................................... 14470MB/16GB
OFFICER ID.......................................................................... #######
FIRMWARE VERSION............................. Firmware version display
DEFAULT SETTING.................................................................... NO
Loading...
