For Use Mounted Separately or With
P
ANDUIT PANDUCT Types D, F, FS, G,
PANDUCT PANELMAX
Noise Shield
Part Numbers: SD2EMI, SD3EMI, SD4EMI
© Panduit Corp. 2009
SD2EMI, SD3EM1, SD4EMI
H, HN, and HS Wiring Duct
INSTALLATION INSTRUCTIONS
Sizing Noise Shield
ANTI-OXIDIZING COMPOUND
(supplied in Kit)
- or -
Note: #10-32x1/2” (or sheet metal
screw equivalent) to be supplied
by the installer/end user
and - or -
Option 1 - Noise Shield Mounted Seperately
1
2
Installer/end user
supplied hardware
2” MAX
-2
Panel surface must be prepared prior
to mounting Noise Shield to achieve
electrical bond (see back page)
Note: #10 Flat Washer and
#10 Lock Washer to be supplied
by the installer/end user
For Technical Assistance, Call: 800-777-3300
SD2EMI, SD3EM1, SD4EMI
ANTI-OXIDIZING COMPOUND
(supplied in Kit)
INSTALLATION INSTRUCTIONS

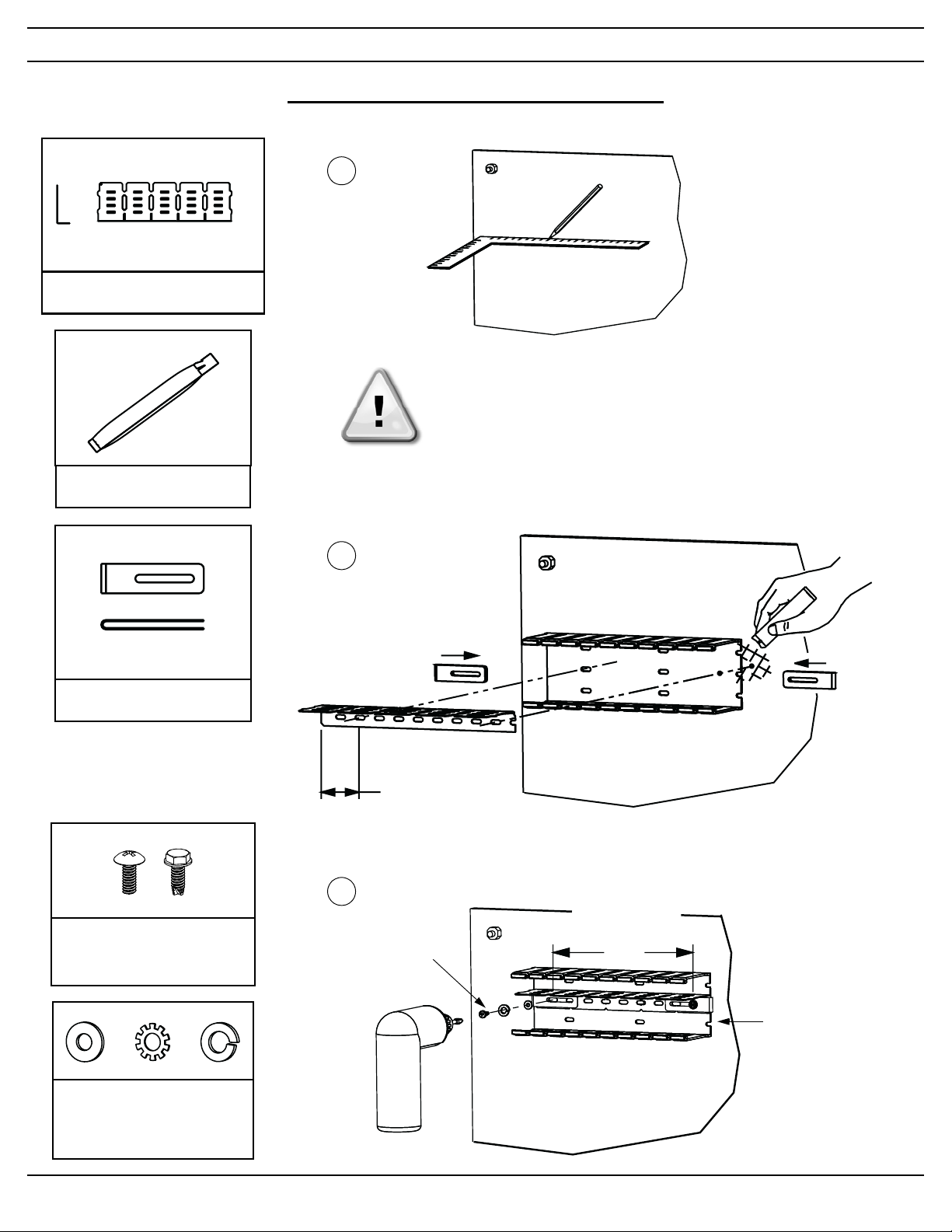

Option 2 - Noise Shield Mounted with Duct
1
Panel surface must be prepared prior
to mounting Noise Shield to achieve
electrical bond (see back page)
BONDING CLIP
(supplied in Kit)
- or -
Note: #10-32x1/2” (or sheet metal
screw equivalent) to be supplied
by the installer/end user
2
2” MAX
-2
3
Installer/end user
supplied hardware
Maximum
Hole Spacing
12
and - or -
Note: #10 Flat Washer and
#10 Lock Washer to be supplied
by the installer/end user
Duct installed with
Installer/end user
supplied hardware
Screws or NR1-C Rivets
For Technical Assistance, Call: 800-777-3300
OPTIONAL: GROMMET EDGE
(SOLD SEPARATELY)
R
ECOMMENDED:
GEE36-F
GEE36FA-C
INSTALLATION INSTRUCTIONS
Recommended Wiring and Labeling Practices
Option for Additional Abrasion Protection
CABLE TIES USED TO RETAIN CABLES
(SOLD SEPARATELY)
ECOMMENDED:
R
ELASTOMERIC: ERT 2/3/4.5M
TAK TY: HLT2I
TAK TAPE: TTS
OOK AND LOOP STRIPS:
H
PLASTIC: PLT- M, -I, OR -S
BARB TY: BT-M, -I, OR -S
HLS
AND UCT
CBR
Do not use excessive tension when fastening cable ties.
Apply cable ties loosely to Ethernet Cabling.
Option for Identifying the Noise Shield and Location/Side of Noise.
Applied to Noise Shield or Panel Surface.
NOISE SHIELD PANEL IDENTIFICATION
LABEL (SUPPLIED IN KIT)
For Technical Assistance, Call: 800-777-3300
INSTALLATION INSTRUCTIONS

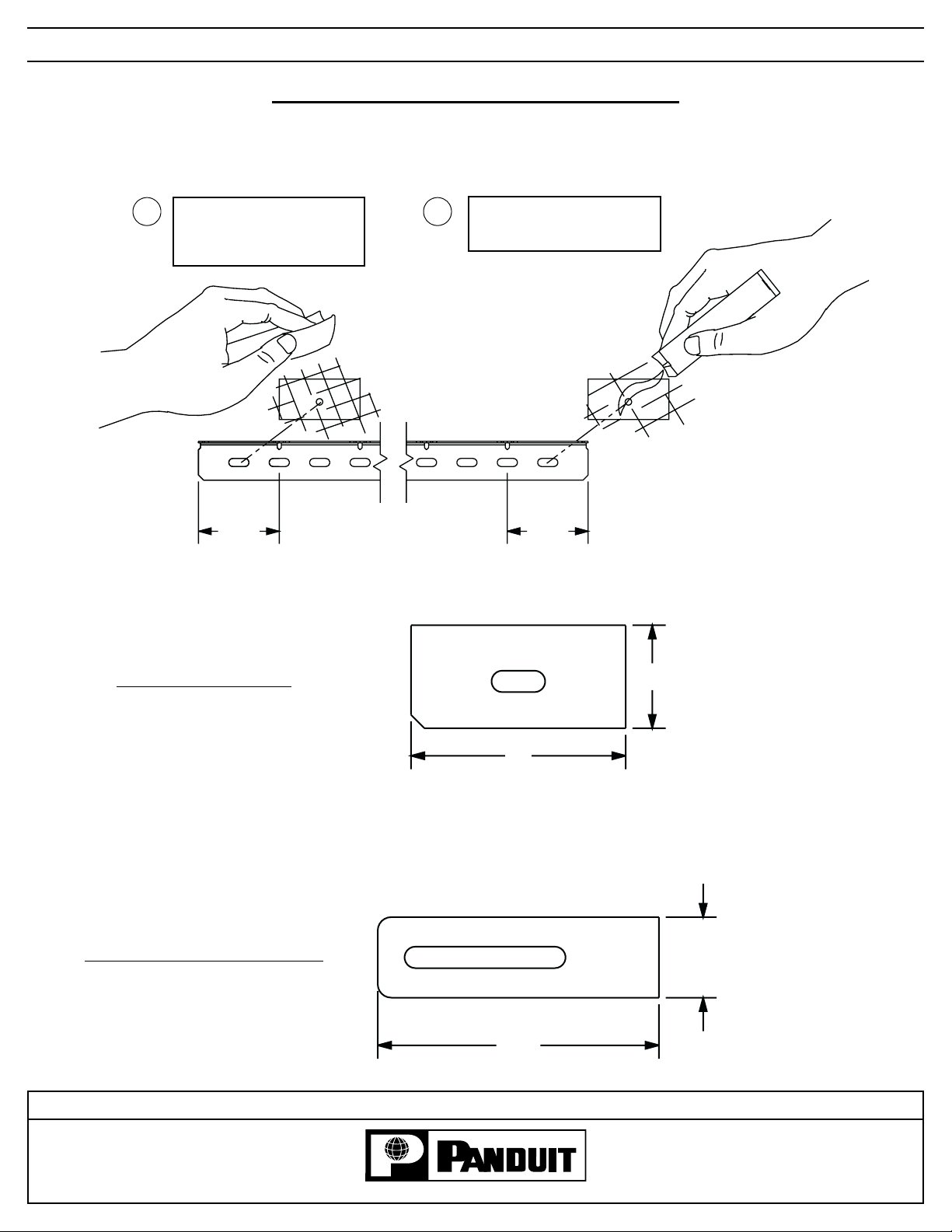

Surface Preperation For Good Electrical Bond
Location of Bonds should be within 2” of Both Shield Ends
1 2
Remove paint or Oxidation
to bare metal.
80 to 150 grit sandpaper,
recommended (User Supplied)
2”
MAX
Cover Sanded Area with
Anti-Oxidizing Compound
(supplied in kit)
2”
MAX
Noise Shield Sanding Template
Noise Shield within Duct Sanding Template
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
1
2
3/4
2-5/8
Instruction Sheet RW260
17301 Ridgeland Avenue Fax: 708-532-1811
Tinley Park, IL 60477-3901 Technical Support: 800-777-3300
Web Site: www.panduit.com
