SmartZone™ Gateway E24
User Manual
Release 1.0
Issue 2
SmartZone Gateway E24 User Manual
Copyright © 2014 Panduit Corp. All rights reserved. No part of this book shallbe reproduced, stored in a retr ieval system, or transmitted
by any means, electronic, mechanical, photocopying, recording or otherwise, without written permission from Panduit. No patent liability
is assumed with respect to the use of the information contained herein.
Although every precaution has been taken in the preparation of this book, Panduit assumes no responsibility for errors or omissions.
Neither is any liabilityassumed for damages resulting from the use of the information contained herein.
- 2 -
SmartZone Gateway E24 User Manual
Table of Contents
Introduction 6
Overview 6
Safety and Installation Statement 6
Grounding 6
Servicing 6
Waste Electrical and Electronic Equipment (WEEE) Statements 7
Disposal of Waste Equipment by Users in Private Household in the European
Union 7
SmartZone Gateway Applications 9
Remote Temperature and Humidity Sensing 9
Power Monitoring 9
E24 Package 9
LEDs 9
Buttons 10
Rear of E24 10
Port Information 11
Installation Requirements 12
Rack – Mounting 12
Additional Equipment Required 12
Before You Begin 12
Installation Warning Statements 12
Rack-Mount the E24 13
Initial Setup 14
Default Settings 14
Connecting to the Web Management Interface 14
Changing your PC's IP Address 14
Initial Network Setup 19
Entering NMS Details 19
Entering Trap Receiver Details 20
Adding Users 20
Web Management Interface 22
Network Setup - Overview 22
Setup - IP Configuration 23
System Name 23
System Location 23
Contact Name 24
IP Address 24
Subnet Mask 24
Gateway 24
Setup - HTTP 25
Setup – LDAP Servers 26
- 3 -
SmartZone Gateway E24 User Manual
Disabled 26
Primary 26
Secondary 26
Both 27
Credential Cache 27
Display Name 27
IP Address 27
Unit Base DN 27
Users Base DN 1 27
Users Base DN 2 27
Setup - SNMP NMS 28
IP Address 28
Community String 28
NMS Access 28
Setup - SNMP Trap Receivers 29
IP Address 29
Community String 29
Receive Traps 29
Setup - Modbus 30

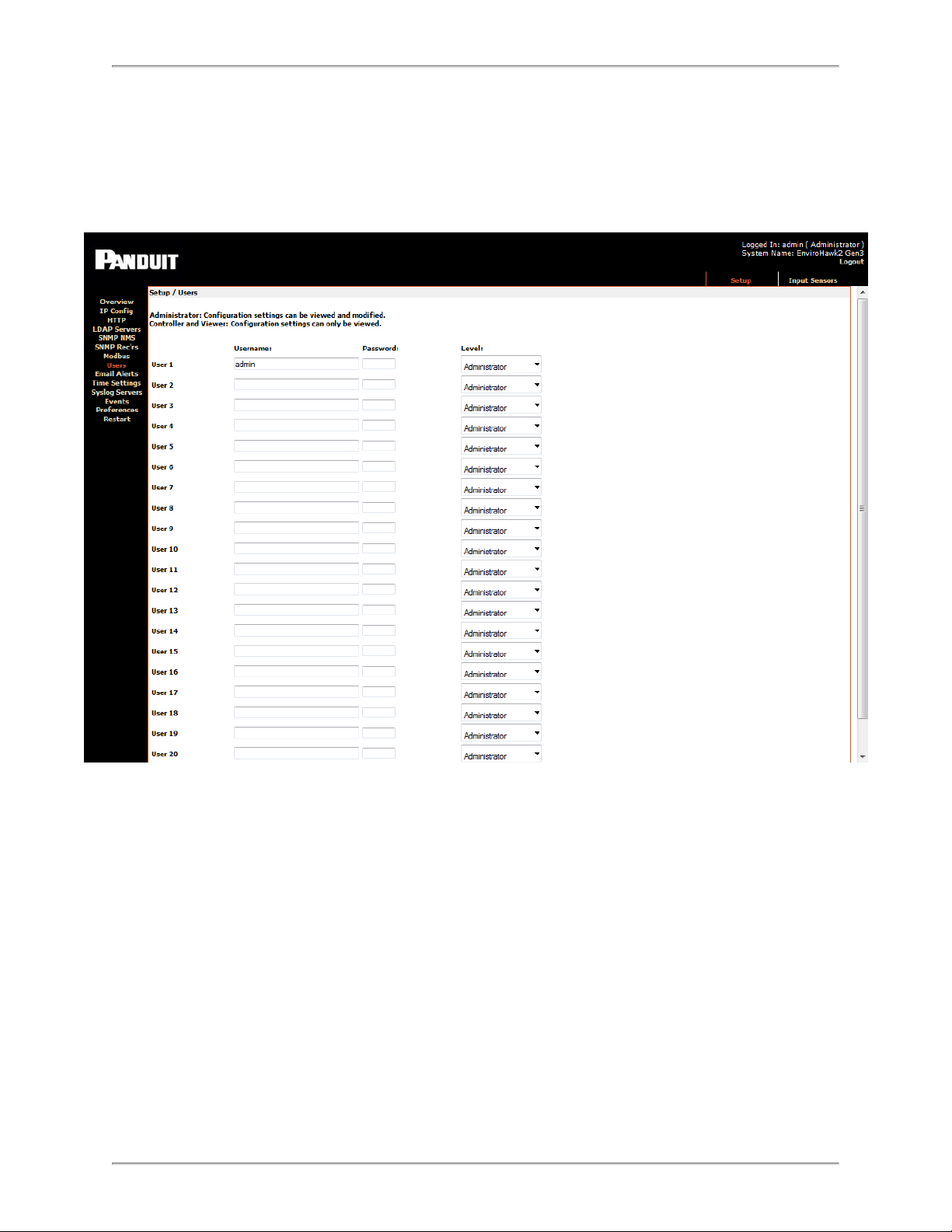

Setup - Users 31
Username 31
Password 31
Level 31
Setup - Email Alerts 32
Setup - Time Settings 33
Time Adjustments 33
Setup - Syslog Servers 34
Setup - Events 35
Setup - Preferences 35
Setup – Restart 36
Restart Unit 37
Restart Now 37
Reset to Factory Defaults 37
Sensor Inputs – Configuration and Status 38
Status 38
Status Indicators 38
Input Sensors – Defaults 39
Calibration Offset 39
Hysteresis Value 40
Limits and Traps 40
Repeat Timer 40
Normal State 41
Trigger Type 41
Level 41
- 4 -
SmartZone Gateway E24 User Manual
Normal to Non-Normal (Positive Edge) 42
Non-Normal to Normal (Negative Edge) 42

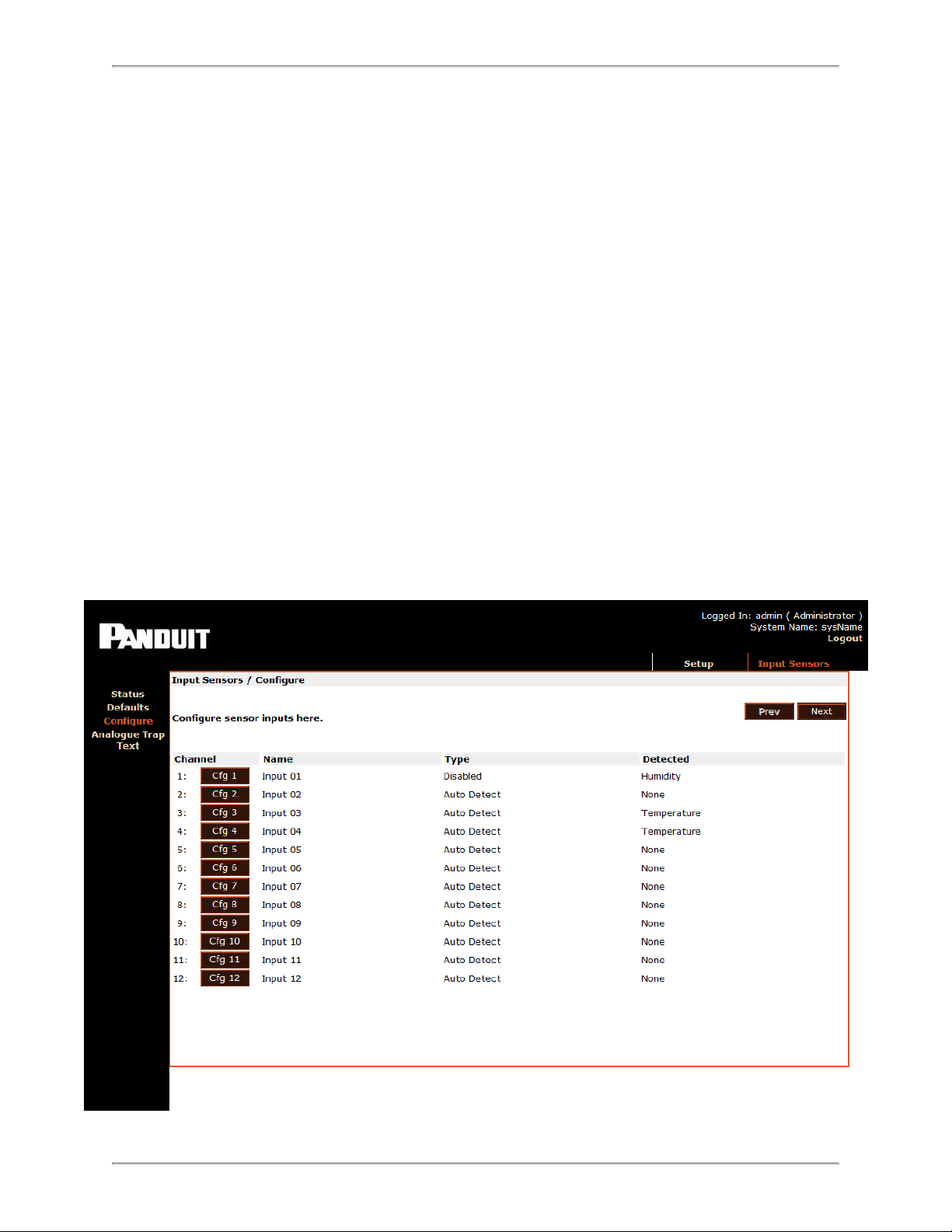

Input Sensors - Configure 42
Name 43
Type 43
LDAP 43
E24 LDAP Overview 43
E24 LDAP Structure 43
Group Membership and Access Level 45
E24 Unit Configuration 46
Temperature Sensor Adapter Installation 48
New Installations 48
Existing Installations. 49
Fitting the Adapter In-line. 49
Troubleshooting 51
Resetting the SmartZone Gateway to Factory Default Settings 51
Problem: The NMS Cannot Poll the SmartZone Gateway Unit 51
Technical Support 52
Appendix A: Technical Details 53
Factory Default Settings 53
Operating Information 53
Unit Dimensions 53
Appendix B: Hysteresis Demystified 54
Appendix C: Encryption and Security 56
- 5 -
SmartZone Gateway E24 User Manual
Introduction
Overview
The SmartZone™ Gateway E24 is a compact device used to monitor up to twenty four
input sensors (Temperature, Humidity, Digital or Analog voltage).
The unit comprises both an SNMP interface and a secure web-based interface for monitoring and management.
Some of the main features of the E24 unit are:
l Secure web management and configuration interface.
l SNMP enabled.
l Twenty Four sensor channels.
l Optional LCD Status module.
Safety and Installation Statement
Grounding
This is a Class II product that uses double insulation to provide electrical safety of the
product from the main power source.
To ensure correct operation, compliance with Class A and Class B electromagnetic emission standards, and optimal safety, connect the 4mm grounding stud (labeled “Earth” on
rear face of unit) to an electrical ground.
If the network covers an area served by more than one PDU, be sure their electrical
safety grounds are securely interconnected.
Network cabling may occasionally be subject to hazardous transient voltages (such as
lightning or disturbances in the electrical utilities power grid). Handle exposed metal
components of the installation with caution.
Servicing
There are no user-serviceable parts inside these products. Any maintenance or repair
must be performed by approved service-trained personnel.
- 6 -
SmartZone Gateway E24 User Manual
This product does not have a power switch; it is powered on when the adapter’s power
cord is plugged in.
Waste Electrical and Electronic Equipment (WEEE) Statements
Disposal of Waste Equipment by Users in Private Household in the European Union
This product must not be disposed of with your other household waste. It is your responsibility to dispose of your WEEE equipment by handing it over to a designated collection
point for the recycling of waste electrical and electronic equipment.
For more information about where you can drop off your waste equipment for recycling,
please contact your local city or council office, your household waste disposal service or
the organisation where you purchased the product.
EC Declaration of Conformity
In accordance with EN ISO 17050-1:2005
In accordance with the following Directives:
l 2006/95/ECThe Low Voltage Directive
l 2004/108/ECThe Electromagnetic Compatibility Directive
l 2002/95/EC The Restriction of the Use of certain Hazardous Substances in Elec-
trical and Electronic Equipment (RoHS)
l 1907/2006/ECThe Registration, Evaluation, Authorisation & Restriction of Chem-
icals. (REACH)
The equipment:E24
Model Numbers:ZAEH2-01
Is in conformity with the applicable requirements of the following documents:
- 7 -
SmartZone Gateway E24 User Manual
Reference No. Title
Information technology equipment. Radio disturbance
BS EN 55022:1998
characteristics. Limits and methods of measurement.
Class A.
BS EN
55024:1998+A2:2003
BS EN 60950-1:2006
Information technology equipment. Immunity characteristics. Limits and methods of measurement.
Information technology equipment. Safety. General
requirements
- 8 -
SmartZone Gateway E24 User Manual
SmartZone Gateway Applications
Remote Temperature and Humidity Sensing
The SmartZone Gateway monitors temperature and humidity and raises alarms or takes
action if a user-configured threshold is crossed.
Power Monitoring
This equipment allows around-the-clock monitoring of the electrical power environment
of the rack.
E24 Package
The standard E24 package contains a E24 unit with supporting hardware:
l E24 l Unit
l Mains voltage cable
l Rack mounting kit
l Supporting CD-ROM including MIB file and manuals

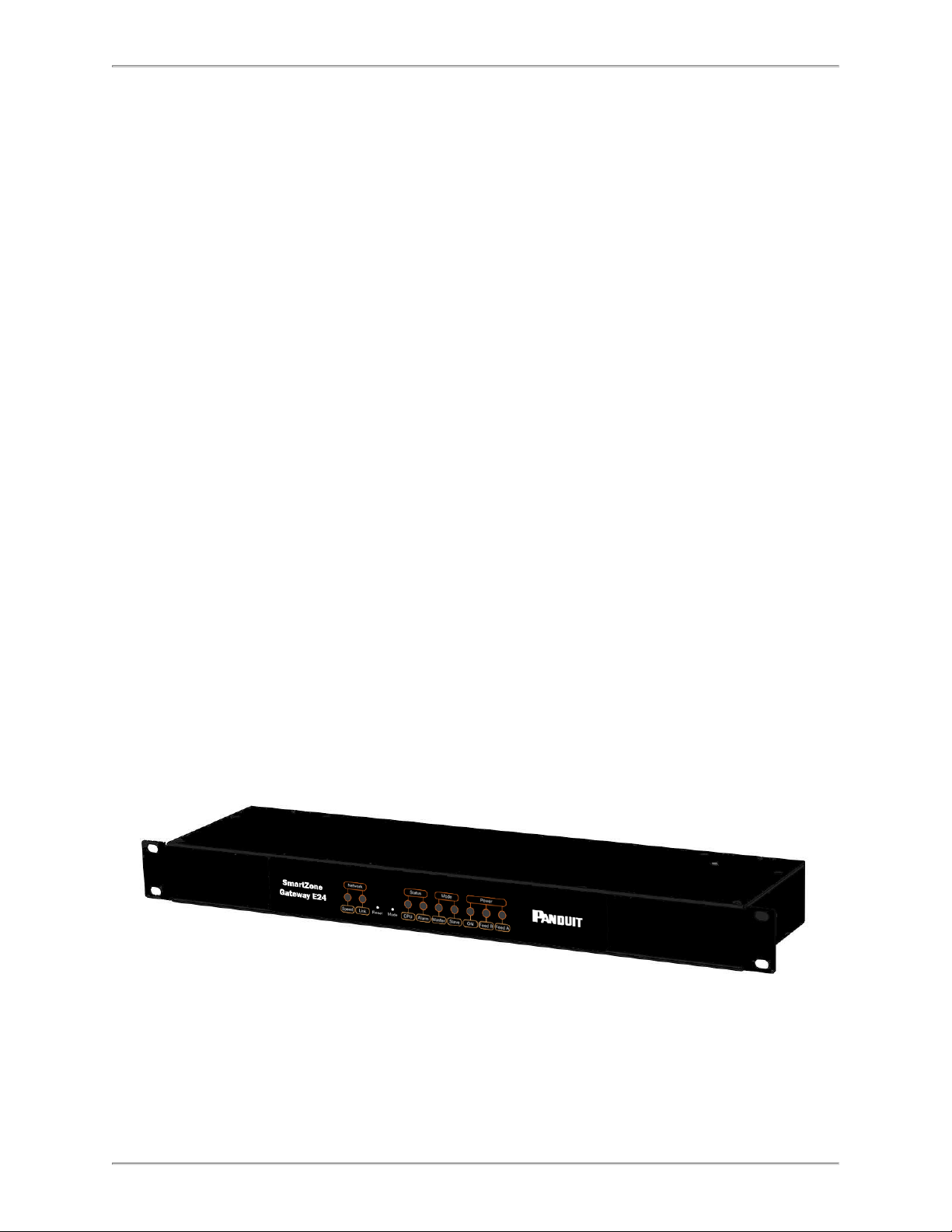

LEDs
Nine LEDs can be found on the front of the E24. Their purpose is described below the
illustration of the unit below:
Network
- 9 -
SmartZone Gateway E24 User Manual
l Speed: Illuminates when 100Mb/s network connected
l Link: lluminates when a network connection is present
Status
l CPU : Flashes when the unit is running normally
l Alarm: Illuminates when an alarm is present on the unit
Mode
l Reserved for future use
Power
l ON: Illuminates when unit is powered.
l Feed A: Illuminates when Power is connected to Feed A
l Feed B: Illuminates when Power is connected to Feed B
Buttons
l Reset: Allows the user to reboot the unit.
l Mode: The mode select switch is used to reset the unit to factory defaults. See the
Troubleshooting section for details.
Rear of E24
The following image show the rear panel of the E24 unit:
- 10 -
SmartZone Gateway E24 User Manual
Port Information
l Power Feed B:Redundant mains or -48v DC voltage power feed.
l Earth: Grounding stud.
l Auto-Detect Sensor Ports 1 through 24:Connect up to 24 sensors (such as Tem-
perature, Humidity, Water, Door Contacts, and More).
l Expansion Ports:Daisy Chain E24 Gateway to Other E24 Gateways for Addi-
tional Sensor Ports.
l Serial Port: Attach optional devices (such as LCD Status Monitor Unit).
l Network Port: An RJ-45 port to connect the Gateway to LAN/Network.
l Notifications: Reset/Mode/Power/Status/Alarm notifications duplicated from the
Front Panel.
l Power Feed A: Mains or -48v DC voltage power feed.
- 11 -
SmartZone Gateway E24 User Manual
Installation Requirements
l E24 unit.
l Mains power cables (supplied)
l 10/100 base T network connection.
l Network connected computer system to setup the E24 .
l 1 x network crossover cable
l Screwdrivers
Rack – Mounting
This section covers the basic rack-mounting of the E24.
Additional Equipment Required
You need to supply a number-2 Phillips screwdriver to rack-mount the E24.
Before You Begin
When determining where to install the E24, please verify that these guidelines are met:
l Airflow around the E24 is unrestricted.
l Clearance to the front and rear panels meet these conditions:
l Front-panel LEDs can be easily read.
l Access to ports is sufficient for unrestricted cabling.
l AC power cords can reach the E24.
l The 10/100 network cabling does not exceed 100 meters from the E24 to the
Network switch.
l Temperature around the E24 does not exceed 40 deg.C
l Humidity around the E24 does not exceed 90 percent.
Installation Warning Statements
This section includes the basic warning statements.
l Only trained and qualified personnel should be allowed to install, replace, or ser-
vice this equipment.
- 12 -
SmartZone Gateway E24 User Manual
l To prevent the E24 from overheating, do not operate in an area that exceeds the
maximum recommended ambient temperature of 40° C.
l Installation of the E24 must comply with local and national electrical codes.
l To prevent personal injury when mounting or servicing the E24, you must take care
to ensure the system remains stable.
l The rack or cabinet should be adequately secured to prevent it from becoming
unstable and/or falling over.
l Circuit Overloading - Consideration should be given to the connection of the equip-
ment to the supply circuit and the effect that overloading of circuits might have on
over current protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
l Reliable earthing of rack mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to
the branch circuit (use of a PDU, etc.)
Rack-Mount the E24
Hold the E24 and attach the bracket to rack using two 12-24 screws.
- 13 -
SmartZone Gateway E24 User Manual
Initial Setup
Default Settings
The SmartZone Gateway unit in factory default condition has the following network configuration. Advanced users may wish to make use of these settings to access the Gateway unit's Web Management Interface immediately and proceed with configuration.
Users who do not know how to do this should proceed through this section for information on how to configure the Gateway unit.
IP Address 192.168.0.253
Subnet Mask 255.255.255.0
Default Gateway 192.168.0.1
Web Management Address http://192.168.0.253/
Default username admin
Default password admin
Note: Password entries are case-sensitive.
Connecting to the Web Management Interface
The SmartZone Gateway monitoring solution can be configured entirely using the builtin Web Management Interface.
You may need to change the IP address of the PC to connect to the Web Management
Interface for the first time. The following section details how to change the IP address
and connect to the Web Management Interface.
Changing your PC's IP Address
Note: Instructions refer specifically to Windows 7. Please refer to your operating system
documentation if you are not using Windows 7.
1. Click the Windows button and select Control Panel.
- 14 -
SmartZone Gateway E24 User Manual
2. In the Control Panel window, select View network status and tasks under the Network and Internet heading.
- 15 -
SmartZone Gateway E24 User Manual
3. Select Change adapter settings from the menu on the left.
- 16 -
SmartZone Gateway E24 User Manual
4. Select Local Area Connection.
5. Select Internet Protocol (TCP/IP) Version 4 (you may need to scroll down). Then
click the Properties button.
6. Select the Use the following IP address radio button.The Use the following
DNS server addresses radio button then selects automatically.
- 17 -
SmartZone Gateway E24 User Manual
Enter the following details into the appropriate boxes.
l IP address: 192.168.0.10
l Subnet mask: 255.255.255.0
l Default Gateway: 192.168.0.1
l Preferred DNS server: 192.168.0.1
7. Click OK to accept the entries.
- 18 -
SmartZone Gateway E24 User Manual
8. On the Local Area Connection Properties, click OK to return to the desktop.
Initial Network Setup
This section provides details on preparing the unit for network access and allowing
SNMP network management.
Connection to the Web Management Interface is required.
Entering NMS Details
1. Click the Network Setup tab on the top menu bar then select the SNMP NMS link
on the left menu bar.
2. Enter the IP address, chosen community string, and required NMS access permissions of the Network Management Stations to be used.
3. Click Save to confirm the changes.
- 19 -
SmartZone Gateway E24 User Manual
4. To disable an NMS, select the Disabled option from the NMS Access drop-down
list.
Entering Trap Receiver Details
1. Click the Network Setup tab on the top menu bar.
2. Select the SNMP Rec’rs link on the left menu bar.
3. Enter the IP address, chosen community string, and required trap types for the Network Management Stations to be used.
4. Click Save to confirm the changes.
Adding Users
1. Click the Setup tab on the top menu bar.
2. Select the Userslink on the left menu bar.
3. You can set usernames, passwords, and access levels here. Unique usernames
can be set for individuals who require web management access to the Gateway
unit.
- 20 -
4. Click Save to confirm the changes.
SmartZone Gateway E24 User Manual
- 21 -
SmartZone Gateway E24 User Manual
Web Management Interface
The SmartZone Gateway unit has a built-in Web Management Interface that can be
accessed securely. The interface permits complete configuration and monitoring of the
Gateway unit.
Windows where changes can be made have a Save button in the lower right-hand area.
Click Save to activate and save any changes made.
Network Setup - Overview
The Overview page is the first page displayed and provides the user with an overview of
the Gateway unit’s current status.
System name, MAC address, serial number, firmware version, and other system details
can be found here.
- 22 -
SmartZone Gateway E24 User Manual
Setup - IP Configuration
The IP Config page allows you to set the SmartZone Gateway unit's own management
IP address.
System Name
You can specify the system name here. This is normally the Fully Qualified Domain
Name (FQDN) of the device, but this is not enforced.
You can retrieve the value specified here by querying the ‘sysName’ node via SNMP.
This allows SNMP management platforms to obtain unique names for units where specified.
The system name has no effect on network communications, and the unit will function
correctly with or without a value.
System Location
You can specify the system location here.
- 23 -
SmartZone Gateway E24 User Manual
You can retrieve the value specified here by querying the ‘sysLocation’ node via SNMP.
This allows SNMP management platforms to obtain location names for units where specified.
The system location has no effect on network communications, and the unit will function
correctly with or without a value.
Contact Name
You can retrieve the unit support contact name by querying the ‘sysContact’ node via
SNMP. The contact name has no effect on network communications and the unit will
function correctly with or without a value.
IP Address
You can enter a standard IP address here. The address is entered in decimal format (for
example: 192.168.0.44 or 22.10.45.33).
The address entered here will be the address by which the Gateway unit is accessed
and managed.
Subnet Mask
The subnet mask is used to determine what part of the IP address is the network portion
and what part is the host portion.
It is often 255.255.0.0 or 255.255.255.0. The correct setting is essential for correct operation.
The subnet mask is entered in decimal format (for example: 255.255.255.0 or
255.255.224.0).
Gateway
The Gateway setting specifies the IP address of the machine/router that the Gateway
unit uses to communicate with different networks.
The Gateway address is entered in dotted decimal format (for example: 192.168.0.1 or
11.2.24.103).
Most networks have a Gateway. Correct setting is important for correct network communications.
Note: Once you enter the IP Configuration options and click Save, the changes take
- 24 -
SmartZone Gateway E24 User Manual
effect. If incorrect entries are made, this may result in loss of communication.
If this happens, reset the Gateway unit's network configuration. Details of how to do this
can be found in the Troubleshooting section.
Setup - HTTP
Select the access method for the Web Management Interface here. Both HTTP and
HTTPS access modes are available by default. Selecting the HTTPS radio button will
allow only HTTPS configuration.
Use of HTTPS is recommended for security, because the connections will be encrypted.
Additionally, you can specify the TCP port for connection to the Web Management Interface here. If you have specific requirements for default ports, these can be left at their
default settings (for example, port 80 for HTTP and port 443 for HTTPS).
Note: Selecting HTTP or HTTPS requires a reboot for the selection to take effect.
- 25 -
SmartZone Gateway E24 User Manual
Setup – LDAP Servers
Lightweight Directory Access Protocol (LDAP) configuration options are specified here.
Configuration options for a Primary and Secondary server are provided with identical
configuration choices.
Disabled
No LDAP servers will be queried to verify user login credentials access and privileges.
Only internal users will be able to log in.
Primary
Only the Primary LDAP Server specified will be queried to verify user login credentials'
access and privileges.
Secondary
Only the Secondary LDAP Server specified will be queried to verify user login credentials' access and privileges.
- 26 -
SmartZone Gateway E24 User Manual
Both
Both LDAP Servers specified will be queried (with priority given to the Primary) to verify
user login credentials' access and privileges.
Credential Cache
This configuration option specifies how long (in minutes) users successfully authenticated via LDAP will be allowed to access the unit without re-authenticating against
LDAP.
Display Name
You can create a display name for the specified LDAP server here. The Display Name is
for reference and logging purposes and has no direct effect on LDAP functionality.
IP Address
Specify the IP address of the LDAP server here.
Unit Base DN
You must provide the Distinguished Name (DN) of the directory object containing the
SmartZone Gateway LDAP authentication structure here. This field is required for LDAP
function.
See LDAP for configuration details.
Users Base DN 1
Provide the Distinguished Name (DN) of the directory object containing directory users
for authentication here. This field is required for LDAP function.
See LDAP for configuration details.
Users Base DN 2
You can specify the Distinguished Name (DN) of the directory object containing directory
users for authentication here. This field is optional for LDAP function providing Users
Base DN 1 has been specified.
- 27 -
SmartZone Gateway E24 User Manual
Setup - SNMP NMS
Specify the IP address, community string, and access permissions for up to five Network
Management Stations here.
Any machine that needs to access the unit’s SNMP functions must be entered here.
IP Address
Enter the IP address of the NMS machine here.
Community String
You must enter the required community string here. The default for many devices is public. It is recommended that the community string be changed, because it serves as an
access password.
NMS Access
Read-only access permits the NMS to use only GET commands.
Read/Write access permits the NMS to use both GET and SET commands.
- 28 -
SmartZone Gateway E24 User Manual
Setup - SNMP Trap Receivers
Specify the IP address, community string, and access permissions for up to five Network
Management Stations here.
IP Address
You must enter any machine that is required to receive SNMP traps sent from this unit
here. Usually any SNMP NMS entries should also be entered here.
Community String
The required community string must be entered here. The default for many devices is
public. The community string should be changed, because it serves as an access password.
Receive Traps
The Receive Traps Enabled setting allows the specified NMS to receive the unit's standard range of traps. Receive Traps Enabled (incl Auth fails) will cause the unit to issue
traps if an unauthorized IP address attempts to access the unit's SNMP functions.
- 29 -
SmartZone Gateway E24 User Manual
Receive Traps Disabled prevents traps from being sent to the specified NMS IP
address.
Setup - Modbus
You can enable a Modbus communications protocol, specify the Modbus port number,
and enable relays control at this window.
- 30 -
SmartZone Gateway E24 User Manual
Setup - Users
You can add users with permission to access the Web Management Interface here.
Access passwords are also specified along with users' access permissions.
Username
Enter the required username here. This is the username that will be required to login to
the Web Management Interface.
Password
Enter access passwords on a per-user basis here.
Level
Three user levels are available for assignment.
- 31 -
SmartZone Gateway E24 User Manual
l Administrator : Administrators have full control of SmartZone Gateway con-
figuration settings.
l Controller : Controllers can view configuration settings.
l Viewer : Viewers can view configuration settings.
Warning: User 1 / admin is the master administrator. It is possible to remove administrator rights from the admin user. Doing this is not recommended as it may result in no
one having administrator access. If this happens, resetting to factory defaults is the only
solution. Details on how to do this can be found in the Troubleshooting section.
Setup - Email Alerts
On this page, you can edit email alert settings for traps. You may set up to 10 email
receivers.
Email Alerts
SMTP Relay Server The IP Address of the SMTP Server
From Address Address from which the alert emails are sent
Reply-To Address Address to which the email receivers can reply
Destination Address Address that will receive the email alerts
Enabled Toggle the check box to enable or disable alerts to each address
Repeat Timer Number of minutes after which the email alert will repeat
- 32 -
SmartZone Gateway E24 User Manual
Setup - Time Settings
The Time Settings page allows you to view or edit the current date and time.
Select the correct day, month, and year from the dropdown menus, and verify the local
time. If you want to change the time, you must check the Update time checkbox.
Time Adjustments
Select the correct time zone from the drop-down menu.
l Daylight Saving can be enabled or disabled by clicking the check box. If Daylight
Saving is enabled, select start/stop dates from the subsequent drop-down menus.
l Date Format allows the administrator to choose whether the date is displayed with
the day or month first. For example, the date August 20, 2013 can be displayed in
one of two ways:
20/08/2013 (DD / MM / YYYY)
or
08/20/2013 (MM / DD / YYYY)
Select the desired format from the dropdown menu.
- 33 -
SmartZone Gateway E24 User Manual
l SNTP Servers - Simple Network Time Protocol synchronizes the clocks of com-
puter systems over a network. Enter the IP address of an SNTP server, and specify
(in hours) how often the time should be updated.
Setup - Syslog Servers
This page allows you to view or edit information about the Syslog Servers currently
being used.
From the Enabled drop-down menu, you can choose which syslog servers are enabled.
Fill in the following fields for each Syslog server.
Syslog Server Setup
Display Name The name of the Syslog server
IP Address The IP address of the Syslog server
Port The number of the port being used
Log Event Types Click the check boxes to choose which events to log
- 34 -
SmartZone Gateway E24 User Manual
Setup - Events
The Events page shows a history of events that have occurred, along with specific
details about each event.
To specify a range of events to view, select the desired year and month from the dropdown menus, then click Show.
Date/Time, Type, User, and Event Data for each event are displayed.
Events can be ordered Latest First or Earliest First by clicking the corresponding radio
button.
Setup - Preferences
The Preferences page allows you to edit system preferences.
- 35 -
SmartZone Gateway E24 User Manual
Preferences
From the dropdown menu, select the first page you want to open
Default Page
when a user logs in. The preset default page is the Overview
page.
Choose from the dropdown menu where the timestamp will be
found on traps. There are three options:
Time stamp Traps
l Prefix – timestamp at the beginning
l Append – timestamp at the end
l None – no timestamp
User Session
Timeout
Enter a number of minutes, after which a session will be timed
out if the user is inactive.
Temperature Scale Select Celsius, Fahrenheit, or Kelvin from the drop-down menu.
Page Refresh Period
Enter a number of seconds, after which the page will auto matically refresh. If 0 is entered, the page will not refresh automatically.
Setup – Restart
A unit may be rebooted or reset to factory defaults here.
- 36 -
SmartZone Gateway E24 User Manual
Restart Unit
Restart Now
Selecting ‘Restart Now’ commands the unit to reboot. Rebooting the unit will cause any
outstanding configuration changes to take effect.
Reset to Factory Defaults
Selecting ‘Reset to Factory Defaults’ instructs the unit to restore factory default settings. See the Troubleshooting section for details.
- 37 -
SmartZone Gateway E24 User Manual
Sensor Inputs – Configuration and Status
Status
The Input Sensors status page presents an overview of the input ports. This page displays the input channel number, name, type of input sensor, status, current readings, and
thresholds.
Status Indicators
Three status indicators are displayed next to input channels to allow quick determination
of normal, warning, and critical alarm statuses:
Channel reading currently within threshold limits.
Upper or lower Warning limit reached or exceeded.
Upper or lower Critical limit reached or exceeded.
- 38 -
SmartZone Gateway E24 User Manual
Input Sensors – Defaults
The Input Sensor Defaults menu allows configuration parameters for input sensors of
specific types to be defined and applied to all inputs of that type.
The types of input sensors are:
l Temperature
l Humidity
l Analog (Voltage)
l Open/Close Contacts (digital inputs)
The configurable defaults are described below.
Calibration Offset
The value entered here alters the actual reading of a sensor by the amount specified.
- 39 -
SmartZone Gateway E24 User Manual
For example, if a Calibration offset of 6 was used and a sensor's true reading was 36,
the indicated reading used for display and alarm purposes would be 42. This works the
same way for both temperature and humidity sensors.
Hysteresis Value
The hysteresis default value to be applied to sensors is specified here. The value specified is an offset from a sensor's threshold values.
For example, a hysteresis value of 5 would mean that, in the case of an Upper Control
Limits alarm, the alarm value would have to reduce to 5 below the threshold value before
another alarm is issued.
Please see Appendix B: Hysteresis Demystified for detailed information.
Limits and Traps
You can set default values for sensor alarm thresholds here. You also can set the default
settings for alarm threshold traps here.
The following thresholds can be set:
l Upper Control Limit
l Upper Warning Limit
l Lower Control Limit
l Lower Warning Limit
You can apply default trap settings for all of these thresholds. With the trap box deselected, no SNMP alarm traps will be generated, even when an alarm condition exists for
that threshold.
Repeat Timer
The repeat timer causes alarm traps to be reissued after a specified amount of time if the
alarm condition persists.
Setting the repeat timer to 0 will disable the repeat traps.
- 40 -
SmartZone Gateway E24 User Manual
The defaults that can be set for Open/Close contacts differ from the Temperature and
Humidity settings.
Normal State
Normal state specifies the condition in which a contact is considered to be in a Normal,
Non-alarmed state.
Devices such as smoke alarms and air conditioning units often have normally open contacts. To receive alarm indications from these types of units would cause alarms to be
issued when a monitored contact closes.
Setting normally closed in the case of a rack or cabinet door would cause an alarm condition when the door was opened.
Trigger Type
The trigger type defaults for Open/Close sensors are specified here.
The three available options for trigger types are:
Level
Level triggering is the default mode. When an input physically transitions from a Normal
to Non-Normal state, an alarm is triggered. However, the alarm persists only while the
input remains in a Non-Normal state. When the input returns to a normal state, the alarm
is cleared.
- 41 -
SmartZone Gateway E24 User Manual
Normal to Non-Normal (Positive Edge)
This type of triggering may be used in situations where a momentary type input (for
example,: a shock sensor or PIR) is used. Since these types of inputs are momentary,
any alarm condition that occurs will persist until manually cleared.
Positive Edge triggering is used when an alarm is required to persist after an input
changes from the Normal state to the Non-Normal state.
Non-Normal to Normal (Negative Edge)
This type of triggering may be used in situations where a momentary type input (for
example, a shock sensor or PIR) is used. Since these types of inputs are momentary,
any alarm condition that occurs will persist until manually cleared.
Negative Edge triggering is used when an alarm is required to persist after an input
changes from the Non-Normal to the Normal state.
Input Sensors - Configure
You can configure the individual sensor channels in this window.
- 42 -
SmartZone Gateway E24 User Manual
Select the Config option to open a detailed configuration page for the selected sensor.
The difference between the menus presented here and the menus presented on the
Defaults page is that settings are applied to individual channels.
The submenus contain all the options in the Defaults menu, plus two additional options:
Name
Sensor channels can be assigned names for ease of identification (for example, “Server
Room Sensor” or “UPS Battery Fail”).
Type
The type of connected sensor is specified here. The sensor channels can be set to auto
detect, temperature, humidity, contact, or disabled.
Note: Occasionally, clear traps will be sent to the NMS trap receivers while a sensor is
being connected to a device. This is considered normal behavior, because some voltage
surges may be produced when input sensors are physically connected to the gateway.
In normal operation, the sensors will always be connected to the device and the sensor
voltages will stay within normal expected values
LDAP
E24 LDAP Overview
The E24 implements a Lightweight Directory Access Protocol (LDAP) client.
This allows the E24 unit to authenticate user logins to the Web Management Interface
(WMI) using an LDAP Directory.
If LDAP is used for authentication it is first consulted when a user attempts a login. If the
user is not found or access is denied by LDAP then the credentials are checked against
the E24 internal user list.
Note!Configuration of LDAP is an advanced topic and requires existing knowledge of
LDAP function and setup (or access to personnel who do).
E24 LDAP Structure
In order for a E24 unit to successfully authenticate a user for WMI login it needs to be
‘pointed’ to a specific structure within a directory.
A unit is ‘pointed’ to this structure within a directory by specifying the Unit Base DN on
the Network Setup – LDAP page.
The following Organisational Units will need to be created:
- 43 -
SmartZone Gateway E24 User Manual
l E24 (this can be named anything)
l E24Administrators
l E24Controllers
l E24Viewers
The following Groups will need to be created:
l E24AdminUsers
l E24ControlUsers
l E24ViewUsers
Note: Groups referred to are groups as found in Active Directory schema. However any
implementation which provides a group with a ‘members’ attribute may function.
The following figure depicts the E24 LDAP authentication structure:
- 44 -
SmartZone Gateway E24 User Manual
Once the required LDAP structure has been created the Distinguished Name (DN) of
users should be added to either:
l E24AdminUsers
l E24ControlUsers
l E24ViewUsers
Group Membership and Access Level
Membership of these groups grants the following permissions on E24 units:
- 45 -
SmartZone Gateway E24 User Manual
l E24AdminUsers: Users placed into this group will have Admin privileges on E24
units.
l E24ControlUsers: Users placed into this group will have Controller privileges on
E24 units.
l E24ViewUsers: Users placed into this group will have View privileges on E24
units.
E24 Unit Configuration
For LDAP authentication to function, each E24 unit requires certain configuration values
to be provided.
1. If one LDAP server is to be used select Enabled – Primary.
2. Enter a descriptive name, E.g: AD_Server_1 into Display Name.
3. Enter the complete DN of the top level OU as seen in LDAPLDAP.
4. Enter the DN of where users that are members of E24 access groups can be found
in the Directory. These DNs can be entered into User Base DN 1 and User Base
DN 2.
- 46 -
5. Click Save to bring any changes into effect.
SmartZone Gateway E24 User Manual
- 47 -
SmartZone Gateway E24 User Manual
Temperature Sensor Adapter Installation
Follow the instructions below to install the ZAHTLADT-02 v1.01.01 temperature sensor
adapter module. This adapter allows legacy sensors to provide more accurate temperature readings.
Note: This adapter does not work with the ZETHL-14 temperature sensor.
New Installations
Follow these instructions when you are installing a standard temperature sensor, but the
upgraded sensor input is required.
1. Plug the adapter directly into the back of the gateway, at the sensor port to be used
for temperature.
2. Plug the temperature sensor connector into the adapter.
3. Update the gateway firmware to the latest release.
- 48 -
SmartZone Gateway E24 User Manual
Existing Installations.
Follow these instructions when the sensor is already installed along with the gateway.
1. Unplug the current temperature sensor from the gateway, noting the location where
it resided.
2. Insert the adapter into that location.
3. Plug the sensor into the end of the adapter.
4. Perform these steps for all other temperature sensors to be changed.
5. The gateway firmware must be updated to the latest firmware.
Before the adapter is fitted:
After the adapter is fitted:
Fitting the Adapter In-line.
This procedure is not recommended, but it may be the only solution in some cases.
- 49 -
SmartZone Gateway E24 User Manual
1. Using a patch lead from the gateway and an RJ45 Jack to Jack through connector
on its non-gateway end, plug the adapter RJ45 Plug into the through connector.
2. Plug either the RJ45 plug of a temperature sensor into the jack on the adapter or a
patch lead with the temperature sensor on the end.
- 50 -
SmartZone Gateway E24 User Manual
Troubleshooting
Resetting the SmartZone Gateway to Factory Default Settings
To reset the Gateway unit to factory defaults, perform the following steps:
1. Press and release the Reset button on the front of the unit. The Alarm LED will
flash twice (off/on, off/on).
2. Immediately press and hold the Mode button until the alarm LED goes off.
3. Immediately press and release the Reset button.
NOTE: The unit will now restart. The Status LED will start flashing after around 1 minute.
The reset process is complete, and the IP address is set to the default 192.168.0.253.
Problem: The NMS Cannot Poll the SmartZone Gateway Unit
l Solution:Make sure the network is properly connected to the Gateway unit.
l Solution:Make sure the cable is in good condition.
l Solution:Try pinging the Gateway unit from another computer on the same net-
work segment as the Gateway unit.
l Solution:Ensure that the NMS IP Address is in the NMS table of the Gateway unit.
l Solution:Ensure that the community string has been set for the NMS via the Web
Management Interface.
- 51 -
SmartZone Gateway E24 User Manual
Technical Support
For technical support for the SmartZone Gateway system, please contact Panduit Technical Support using one of the following methods:
l 1-866-721-5302 (toll-free)
l Orland Park, USA: 6:30 a.m. – 8:00 p.m. CST
l Mumbai, India: 6:30 a.m. – 5:00 p.m. IST (8:00 p.m. – 6:30 a.m. CST)
l On Call Support on Weekends
l systemsupport@panduit.com
- 52 -
SmartZone Gateway E24 User Manual
Appendix A: Technical Details
Factory Default Settings
IP Address: 192.168.0.253
Subnet Mask: 255.255.255.0 (/24)
Default Gateway: 192.168.0.1
Web Management Address: http://192.168.0.253/
Default username: admin
Default password admin
Operating Information
Input Power: 100 ~ 240VAC 50Hz / 60 Hz 0.5 Amp Maximum
Operating Temperature: 0OC to 40OC
Storage Temeperature: -10OC to 70OC
Operating Humidity: 5% to 90% RH
Storage Humidity: 5% to 100% RH
Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
Unit Dimensions
Heigth: 44mm(1U)[1.73” ]
Width: 483mm[19” ]
Depth: 114.4mm[4.5” ]
Unit net weight: 2.08kg [73.36 oz]
- 53 -
SmartZone Gateway E24 User Manual
Appendix B: Hysteresis Demystified
When a temperature or humidity limit is reached and the relevant limit has its OFF to ON
Trap enabled, an alarm trap is issued by the SmartZone Gateway unit.
With a zero hysteresis setting, the traps will continue to be generated each time the limit
is reached.
This may be undesirable in a situation where the temperature or humidity level measure
has reduced by only a small amount before rising again and triggering further traps.
The hysteresis function is provided to prevent further alarm traps from being generated
until the measured value has fallen to a satisfactory level.
As shown in image above, the humidity first rises past its upper warning threshold, which
generates an alarm trap.
The humidity then reduces slightly but does not reduce to the hysteresis level, which is
1.5% relative humidity lower than the alarm setting (1.5% relative humidity lower as an
absolute measured value, rather than 1.5% of currently measured value).
Humidity then increases and decreases again. However, on the second decrease of
humidity the level drops below the hysteresis level. The Humidity falling below the hysteresis level re-enables alarm traps for the next alarm event. An upper limit of 25 and a
hysteresis threshold of 1.5 yield a threshold limit of 23.5.
The humidity level again begins to rise and again exceeds the upper limit, however this
time an alarm trap is generated again.
- 54 -
SmartZone Gateway E24 User Manual
The Hysteresis feature acts on the following Temperature and Humidity thresholds:
l Upper Control Limit (UCL)
l Lower Control Limit (LCL)
l Upper Warning Limit (UWL)
l Lower Warning Limit (LWL)
The inverse of the above description is true when applied to Temperature and Humidity
lower control and warning limits.
You can configure the hysteresis threshold by using the menu options.
- 55 -
SmartZone Gateway E24 User Manual
Appendix C: Encryption and Security
The Gateways support HTTPSencryption, and they support the following cipher configurations.
l TLS_RSA_WITH_3DES_EDE_CBC_SHA
l TLS_RSA_WITH_DES_CBC_SHA
l TLS_RSA_WITH_AES_128_CBC_SHA
l TLS_RSA_WITH_AES_256_CBC_SHA
- 56 -
Loading...
