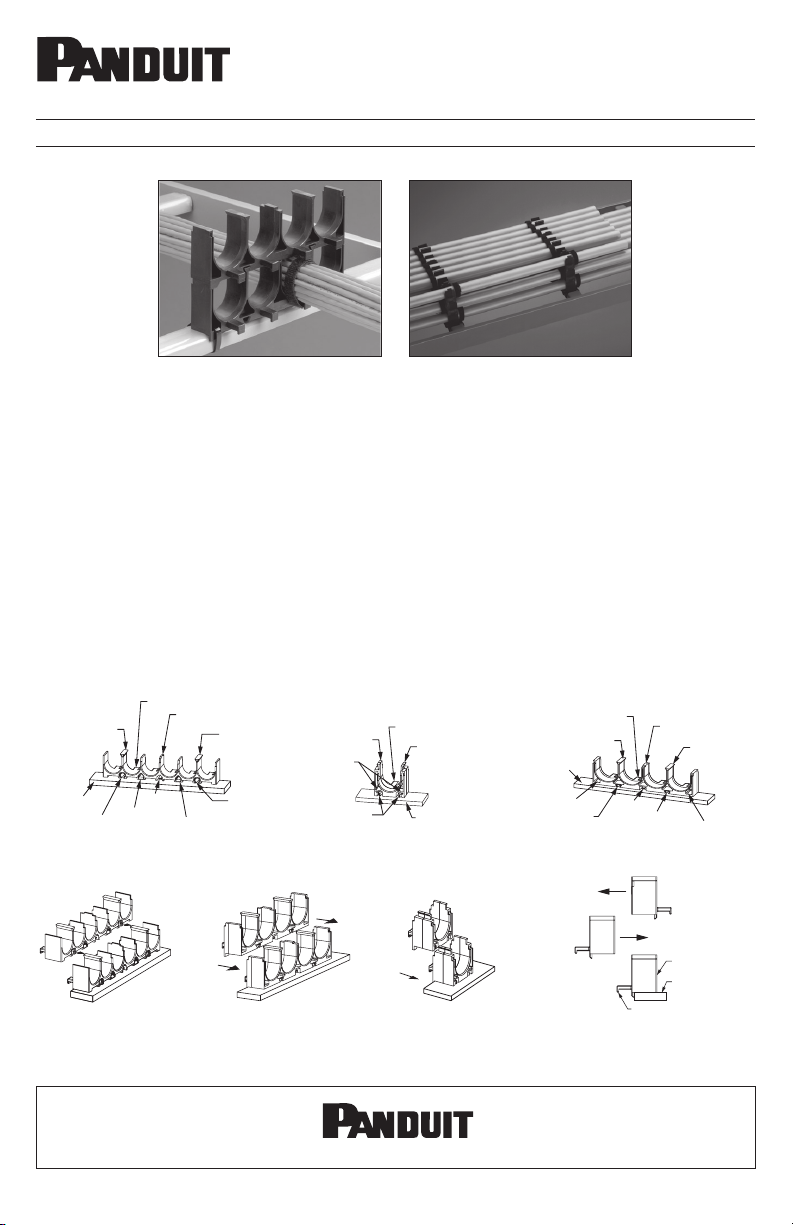

Stackable Cable Rack Spacers
Part Numbers: CRS1-X, CRS1-125-X, CRS4-125-X, CRS6-X
© Panduit Corp. 2014
INSTALLATION INSTRUCTIONS CRS-INST
1) Secure bottom level of Stackable Cable Rack Spacer to the application surface, i.e. ladder rack
rung with two standard cross-section Panduit Pan-Ty Cable Ties (Figures 1, 2, and 3).
2) Install cable or cable bundles into each of the cable retaining areas.
3) Secure cable to the cable retaining post with Panduit Pan-Ty Cable Ties, Belt-Ty In-Line
Cable Ties, or Tak-Ty Hook and Loop Cable Ties up to 0.33" in width.
4) Installation of the next level of Stackable Cable Rack Spacers is accomplished by sliding the
male dovetail into the female dovetail slot (Figures 4, 5, and 6). The latch(s) will lock the parts
into position. To unlock these parts, use a screwdriver or a small tool to release latch(s) and
slide in opposite direction.
5) Repeat steps 2, 3, and 4 until a maximum stack height is achieved. Panduit recommends a
maximum stack height of five for the CRS6-X and CRS1-X. A maximum stack height of four is
recommended for the CRS1-125-X and CRS4-125-X. Stackable Cable Rack Spacers are
reversible to allow cable retaining posts to be alternated (Figure 7).
CABLE RETAINING POST
MALE DOVETAIL
APPLICATION
SURFACE
DOVETAIL SLOT
FEMALE
LATCH
CABLE TIE SLOT
Figure 1
FACE
CABLE TIE SLOT
MALE DOVETAIL
FEMALE
DOVETAIL SLOT
MALE DOVETAIL
CABLE TIE
SLOT(S)
FEMALE
DOVETAIL(S) &
LATCH(S)
CABLE RETAINING
POST
MALE
DOVETAIL
APPLICATION SURFACE
LADDER RACK RUNG
Figure 2 Figure 3
LATCH RETAINING
Figure 4 Figure 5 Figure 6 Figure 7
CABLE RETAINING
MALE DOVETAIL
APPLICATION
SURFACE
CABLE TIE SLOT
FEMALE
DOVETAIL SLOT
DIRECTION OF
MOTION FOR
OPPOSITE
ORIENTATION OF
CABLE RETAINING
POSTS
LEVEL 1
POST
LATCH RETAINING
LATCH
FEMALE
DOVETAIL SLOT
LEVEL 2
DIRECTION OF MOTION FOR
SAME ORIENTATION OF
CABLE RETAINING POSTS
CABLE RETAINING POST
FACE
MALE
DOVETAIL
CABLE TIE SLOT
BASE LEVEL
CABLE RACK SPACER
APPLICATION SURFACELADDER RACK RUNG
For instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
www.panduit.com
E-mail:
techsupport@panduit.com
Phone:
866-405-6654
Rev. 04Page 1 of 1
