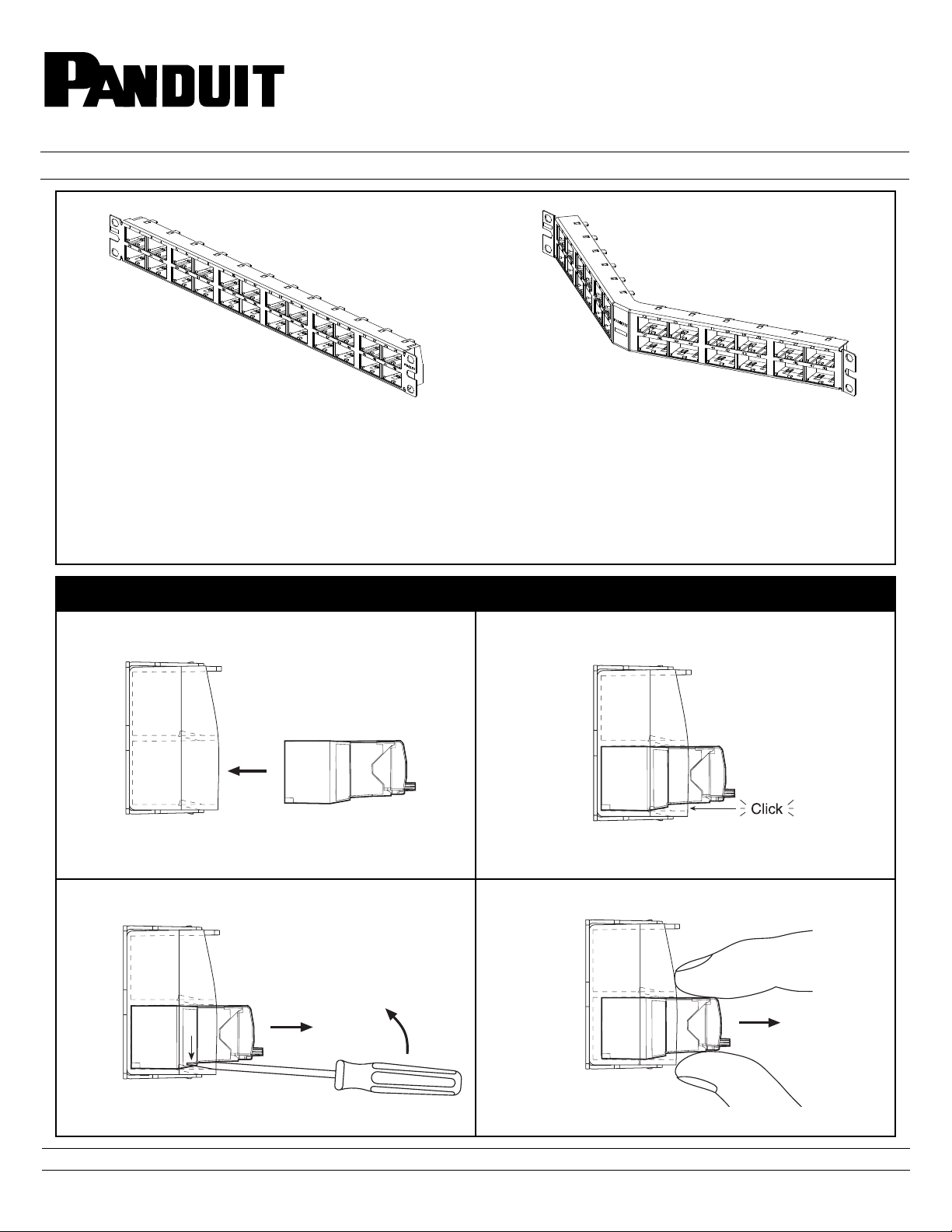

Mini-Com 48-Port High Density
Modular Patch Panel
Part Numbers: CPP48HDWBLY, CPPA48HDWBLY, CPP48HDEWBL,
CPPA48HDEWBL, CPP48HDVNSWBL, CPPA48HDVNSWBL
© Panduit Corp. 2010
CPP48HDWBLY / *CPP48HDEWBL /
CPP48HDVNSWBL
Note: Rear mounted faceplates are not intended for removal.
* The enhance label versions of this panel will only accept Mini-Com RJ45 Copper Connectors. Fiber and AV modules will not fit correctly to accept
their mating plug.
INSTALLATION INSTRUCTIONS
CPPA48HDWBLY / *CPPA48HDEWBL /
CPPA48HDVNSWBL
Module Installation / Removal - (screwdriver required)
PN326E
1. 2.
Straight-in mounting style
IMPORTANT: Module must be oriented properly.
3. 4.
Straight pull removal of module
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 1 of 2
© Panduit Corp. 2010
INSTALLATION INSTRUCTIONS
All cables should flow directly into vertical cable managers
on the corresponding side of the Angled Panel.
PN326E
Recommended cable routing for terminated modules.
Recommended cable routing for patch cords.
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
www.panduit.com
Page 2 of 2
