Panduit CFPWR4 Installation Instructions Manual

Mini-Com Water Resistant Faceplate

3.

4.

1.

2.

Module Installation

Rotate module downward.

Snap into place. Repeat for all openings.

Align notch on module with tab on faceplate.

Place 1/8" back seal gasket on the back
of the faceplate as shown above.

#6 - 32 x 1"

screws (2 included)

CFPWR4**

combination head

#6 - 32 x 1.25"

screws (2 included)

combination head

cover gasket

base gasket

back seal

gasket

faceplate

(cover / base)

#6 - 32 x 1.25"

screws (2 included)

hexagon button head

Part Number: CFPWR4**

© Panduit Corp. 2011

INSTALLATION INSTRUCTIONS

PN282D

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 2

© Panduit Corp. 2011

7.

8.

5.

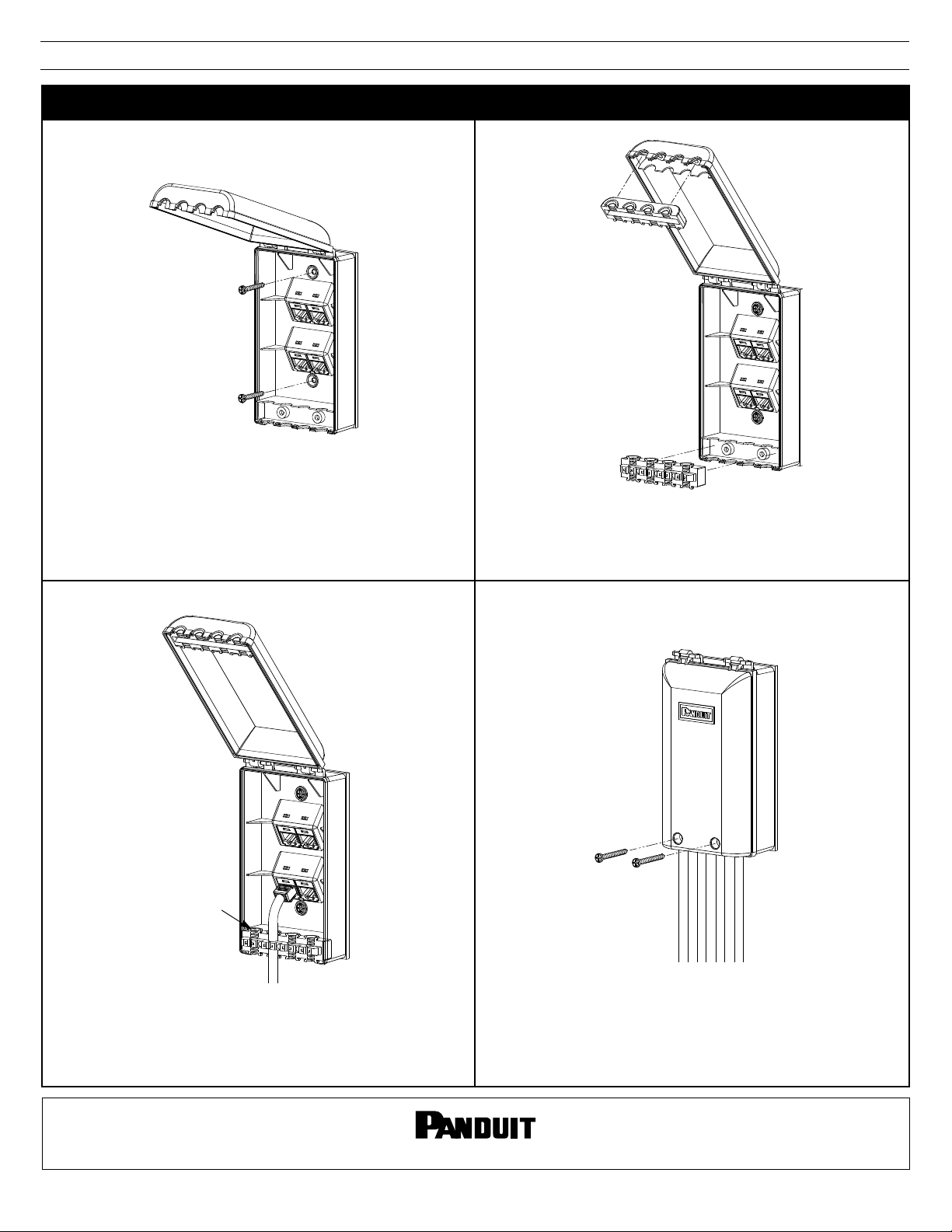

Faceplate Installation

After cables have been aligned, close cover and secure with
#6-32 x 1.25" combination head screws or #6-32 x 1.25"
hexagon button head screws at a max torque of 14 in-lbs.
For hexagon button head screws use a 5/64" hex key tool.

channel

Insert compatible plugs into modules. Align cables
1 per channel on the base gasket as shown above.

After modules have been installed, align #6-32 x 1"
combination head screws with holes as shown above
to mount faceplate. When inserting screws make sure
back seal gasket is properly aligned behind the base.

Press the cover gasket (A) into the cover and the
base gasket (B) into the base as indicated above.

6.

A

B

INSTALLATION INSTRUCTIONS

PN282D

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp
