Panduit Non-Metallic Surface Raceway - Quick Reference Guide
Pan-Way® LD Series
Example part: LD3IW6-A
Colors: IW, EI, IG, WH
Pan-Way® LDPH Series
Example part: LDPH3IW8-A
Colors: IW, EI, IG, WH
Pan-Way® LDS Series
• One-piece single channel latching design
• Pre-applied adhesive backed tape
0.77" x 0.46"
2
A=0.21 in
LD3 Series
LD5 Series
• Two-piece single channel latching design
• Pre-applied adhesive backed tape with screw
mountable option
0.75" x 0.41"
2
A=0.17 in
LDPH3 Series
LDPH5 Series
• One-piece single channel tamper resistant
design
• Bendable in low voltage applications to route
over obstructions
Spec Sheet: SRSP21
• For routing data and low voltage cabling only
(50V or less)
• Available lengths – 6' , 8' , 10'
1.01" x 0.58"
2
A=0.38 in
LD10 Series
Spec Sheet: SRSP30
1.51" x 0.94"
2
A=1.00 in
• For routing cables up to 600V
• Available lengths – 8' , 10'
1.02" x 0.55"
2
A=0.33 in
LDPH10 Series
Spec Sheet: SRSP25
1.52" x 0.86"
2
A=0.89 in
• Pre-applied adhesive backed tape
• For routing cables up to 600V
• Available lengths – 10'
Example part: LDS3IW10-A
Colors: IW, EI, IG, WH
Pan-Way® LD2P Series
Example part: LD2P10IW8-A
Colors: IW, EI, IG, WH
Pan-Way® T-45 Series
Example part: T45BIW8-A
Colors: IW, EI, WH
0.77" x 0.41"
2
A=0.21 in
LDS3 Series
LDS5 Series
• One-piece dual channel latching design
• Pre-applied adhesive backed tape
Left Right
LD2P10 Series
1.51" x 0.86"
A=0.43 in2 (Left channel)
A=0.50 in2 (Right channel)
• Two-piece single channel with snap-in divider
design
2.38" x 1.25"
2
A=2.12 in
T45 Series
1.01" x 0.55"
2
A=0.38 in
Spec Sheet: SRSP29
• Routes power and data cables together
• Available lengths – 8' , 10'
Spec Sheet: SRSP24
• Multi-directional cover hinge allows cable
installation from either side
• Available with/without adhesive backed tape
• Available lengths – 8' , 10'
EI IGIW
WH
Note: Colors shown may differ slightly from actual raceway colors.
IW=Off white, EI=Electric Ivory, IG=International Gray, WH=White.

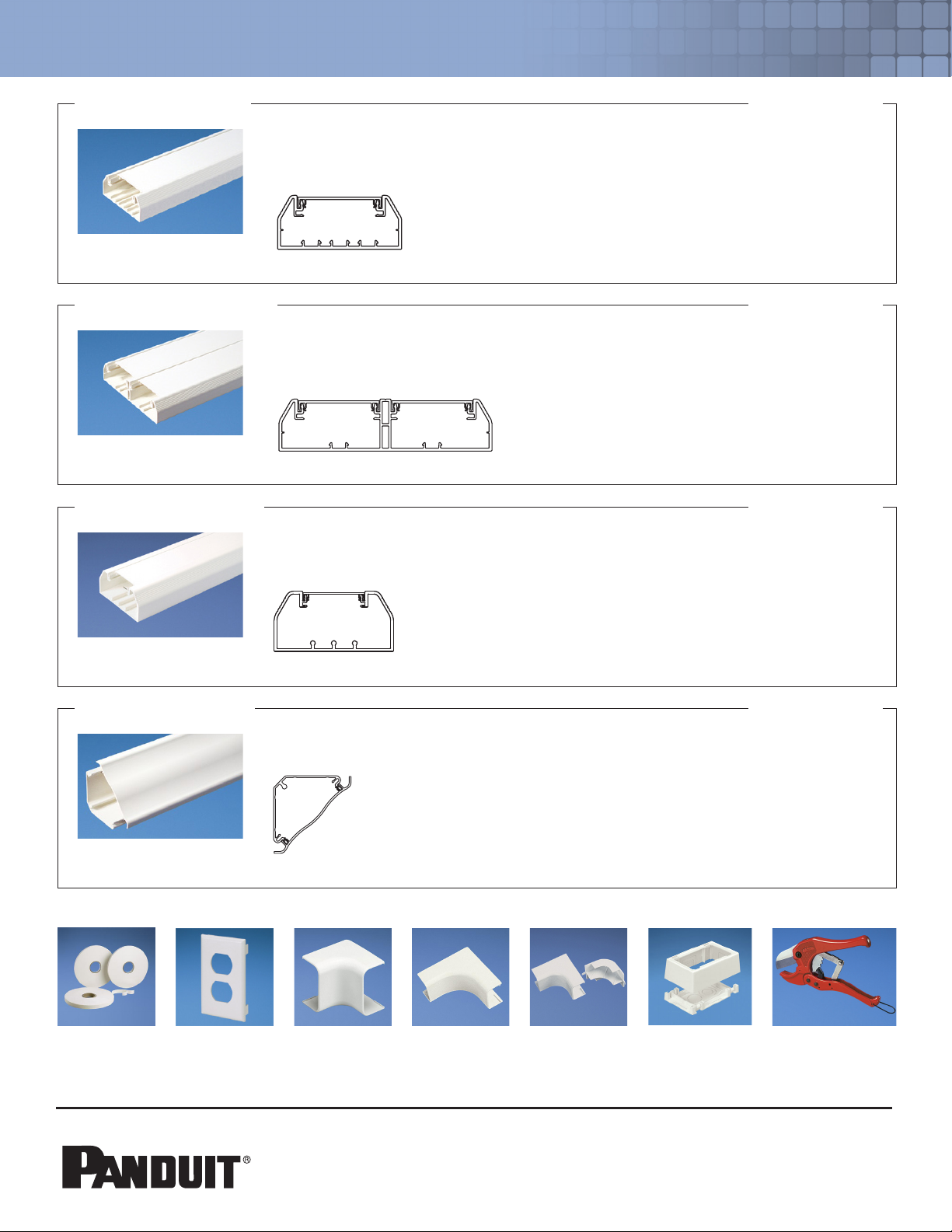

Panduit Non-Metallic Surface Raceway - Quick Reference Guide
Pan-Way® T-70 Series
Example part: T70BIW8
Colors: IW, EI, WH, IG
Pan-Way® Twin-70 Series
Example part: T702BIW8
Colors: IW, EI, WH
Pan-Way® TG-70 Series
• Two-piece single channel with snap-in divider
design
4.07" x 1.77"
2
A=5.15 in
T-70 Series
• Two-piece multi-channel with snap-in divider
design
Left
Twin-70 Series
Right
7.23" x 1.77"
A=4.59 in2 (Left side)
A=4.59 in2 (Right side)
• Two-piece single channel with snap-in divider
design
Spec Sheet: SRSP22
• Transitions to T-45 and LD profile raceways
• Available lengths – 8' , 10'
Spec Sheet: SRSP28
• Separate channels allow independent access
to power and data cabling
• Available lengths – 8' , 10'
Spec Sheet: SRSP31
• Transitions to T-45 and LD profile raceways
• Available lengths – 8' , 10'
5.32" x 2.68"
2
Example part: TG70IW8
Colors: IW, EI, IG
TG-70 Series
A=10.85 in
Pan-Way® Cove Series
Example part: WCM35BIW8
Colors: IW
• Two-piece single channel with snap-in divider
design
3.5" x 3.5"
2
A=5.40 in
Cove Series
• Transitions to T-70, T-45 and LD profile
raceways
• Used for mounting in between ceiling and
wall or between walls
• Available lengths – 8'
Accessories
Foam Tape
1
Office raceway also available in addition to raceway styles listed. For a complete part listing, visit www.panduit.com for our online catalog.
2
Color availability varies among styles, and certain colors may be limited to specific lengths.
Pan-Way
Faceplates
®
Low Voltage
Fittings
One-inch Bend
Radius Fittings
Power Rated
Fittings
Pan-Way
Junction Boxes
Spec Sheet: SRSP26
®
Pan-Way® Surface
Raceway Cutting Tool
For more information
Visit us at www.panduit.com
Contact Customer Service by email: cs@panduit.com
or by phone: 800-777-3300
