Product Specification
Preliminary Specification
AU OPTRONICS CORPORATION
( )
(V ) Final Specification
Module 27” Color TFT-LCD
Model Name M270HTN01.1 open cell
M270HTN01.1
Customer Date
Approved by
Approved by Date
Howard Lee
Prepared by Date
EvelynPH Sung
Oct 5, 2013
Oct 5, 2013
Note: This Specification is subject to
change without notice.
document version 1.0 1
AU Optronics corporation
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
Contents
1 Handling Precautions................................................................4
2 General Description ..................................................................5
2.1 Display Characteristics....................................................................................................... 5
2.2 Absolute Maximum Rating of Environment ........................................................................ 6
2.3 Optical Characteristics ....................................................................................................... 7
3 TFT-LCD Module ......................................................................10
3.1 Block Diagram.................................................................................................................. 10
3.2 Interface Connection........................................................................................................ 11
3.2.1 Connector Type.......................................................................................................... 11
3.2.2 Connector Pin Assignment......................................................................................... 11
3.3 Electrical Characteristics.................................................................................................. 13
3.3.1 Absolute Maximum Rating ......................................................................................... 13
3.3.2 Recommended Operating Condition.......................................................................... 13
3.4 Signal Characteristics ...................................................................................................... 14
3.4.1 LCD Pixel Format....................................................................................................... 14
3.4.2 LVDS Data Format..................................................................................................... 14
3.4.3 Color versus Input Data ............................................................................................. 15
3.4.4 LVDS Specification..................................................................................................... 16
3.4.5 Input Timing Specification .......................................................................................... 18
3.4.6 Input Timing Diagram................................................................................................. 19
3.5 Power ON/OFF Sequence ............................................................................................... 20
4 Reliability Test........................................................................21
5 Shipping Label ........................................................................22
6 Mechanical Characteristic .......................................................23
document version 1.0 2
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
Record of Revision
Version
0.0 2013/10/5
Date Page Old description New Description Remark
All First version release -
document version 1.0 3
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
3) When the cell surface is soiled, wipe it with absorbent cotton or other soft cloth.
4) Since the cell is made of glass, it may break or crack if dropped or bumped on hard surface.
5) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
6) Do not press or pat the panel surface by fingers, hand or tooling.
7) Please handle TFT cell with care. The FPCs can only sustain for quite limited stress.
8) The cell package tray is packed in clean room. Please do pack & unpack it in clean room.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT cell.
10) Pls avoid touching COF position while you are doing mechanical design.
11) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5℃ and 35℃ at normal humidity.
document version 1.0 4
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
2 General Description
This specification applies to the 27 inch wide Color a-Si TFT-LCD Module M270HTN01.1. The
display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits +
Hi-FRC data). The input interface is Dual channel LVDS.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 685.65(27”)
Active Area [mm] 597.6 (H) x 336.15 (V)
Pixels H x V - 1920(x3) x 1080
Pixel Pitch [um] 311.25 (per one triad) ×311.25
Pixel Arrangement - R.G.B. Vertical Stripe
Display Mode - TN Mode, Normally White
Response Time [msec] 5ms (Typ., on/off)
Power Consumption [Watt] PDD (Typ.)=5.5 @ Black pattern,Fv=75Hz
Weight [Grams] 768
Electrical Interface - Two channel LVDS
Support Color - 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment - Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
[oC]
Cell transmittance [%]
0 to +50
-20 to +60
5.3 (Typ.)
4.7 (Min.)
Base on AUO LED Backlight
Cell thickness [mm] 2.0 (Thickness of polarizer film: 0.31 mm each side)
document version 1.0 5
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
2.2 Absolute Maximum Rating of Environment
Permanent damage may occur if exceeding the following maximum rating.
Symbol Description Min. Max. Unit Remark
TOP Operating Temperature 0 +50 [oC] Note 2-1
TGS
Glass surface temperature
(operation)
0 +65 [oC]
Function judged only
HOP Operation Humidity 5 90 [%RH]
TST Storage Temperature -20 +60 [oC]
HST Storage Humidity
5 90
[%RH]
Note 2-1: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39℃)
2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)
3. No condensation
Note 2-1
Note 2-1
Operating Range Storage Range
document version 1.0 6
Product Specification
AU OPTRONICS CORPORATION
2.3 Optical Characteristics
The optical characteristics are measured on the following test condition.
Test Condition:
1. Equipment setup: Please refer to Note 2-2.
2. Panel Lighting time: 30 minutes
3. VDD=5.0V, Fv=60Hz,Is=65mA,Ta=25℃
M270HTN01.1
Symbol Description Min. Typ. Max. Unit Remark
TR
TF
Response Time
-
CT
FdB
Flicker (Center of screen) - -
Note 2-2: Equipment setup :
Rising Time - 3.8
Falling Time -
Rising + Falling
Crosstalk - -
1.2 2.5
-
Photo detector (SR-3, TRD-100)
5.5
5 8
1.5
-20
[msec]
[%]
[dB]
Note 2-3
By TRD-100
Note 2-4
By SR-3
Note 2-5
By SR-3
Measured distance (50cm)
Center of the screen
document version 1.0 7
Product Specification
100
90
W hite
100
White
Black
Black
1 Frame
1 Frame
AU OPTRONICS CORPORATION

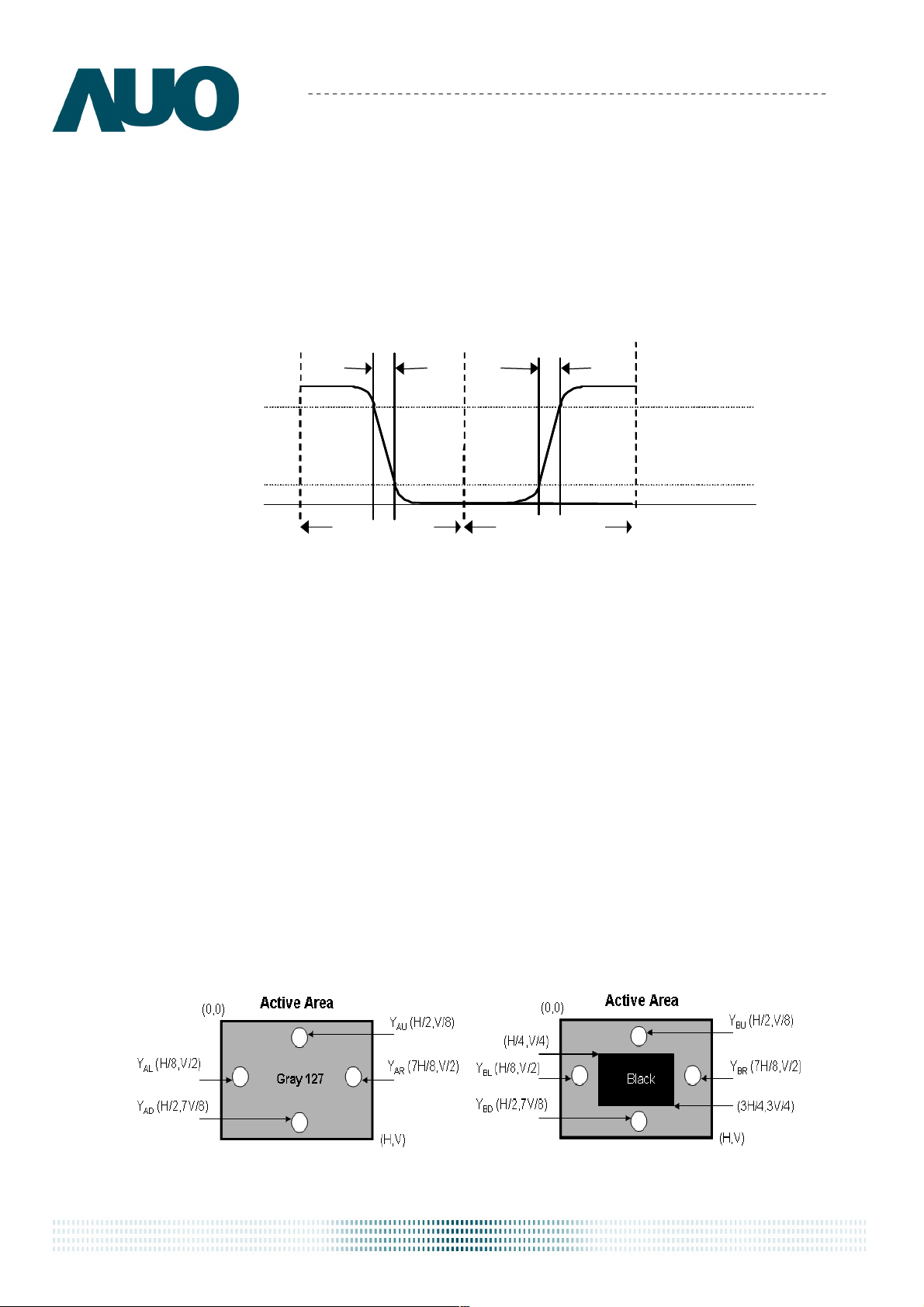

Note 2-3: Response time measurement
The output signals of photo detector are measured when the input signals are changed
from “Black” to “White” (rising time, TR), and from “White” to “Black” (falling time, TF),
respectively. The response time is interval between the 10% and 90% of optical
response. (Black & White color definition: Please refer section 3.4.3)
Optical
Optical
respon se
respon se
10
10
%
%
0
0
T
M270HTN01.1
T
F
R
Note 2-4: Crosstalk measurement
Definition:
CT = Max. (CTH,CTV);
Where
a.Maximum Horizontal Crosstalk :
CTH = Max. (| YBL – YAL | / YAL × 100 %, | YBR – YAR | / YAR × 100 %);
Maximum Vertical Crosstalk:
CTV = Max. (| YBU – YAU | / YAU × 100 %, | YBD – YAD | / YAD × 100 %);
b. YAU, YAD, YAL, YAR = Luminance of measured location without Black pattern
YBU, YBD, YBL, YBR = Luminance of measured location with Black pattern
document version 1.0 8
Note 2-5: Flicker measurement
a. Test pattern: It is listed as following.
Product Specification
AU OPTRONICS CORPORATION
Gray level = L0
Gray level = L127
M270HTN01.1
R: Red, G: Green, B:Blue
b. Measured position: Center of screen & perpendicular to the screen
document version 1.0 9
Product Specification
VDD
Connector
G1080
D5760
AU OPTRONICS CORPORATION
3 TFT-LCD Module

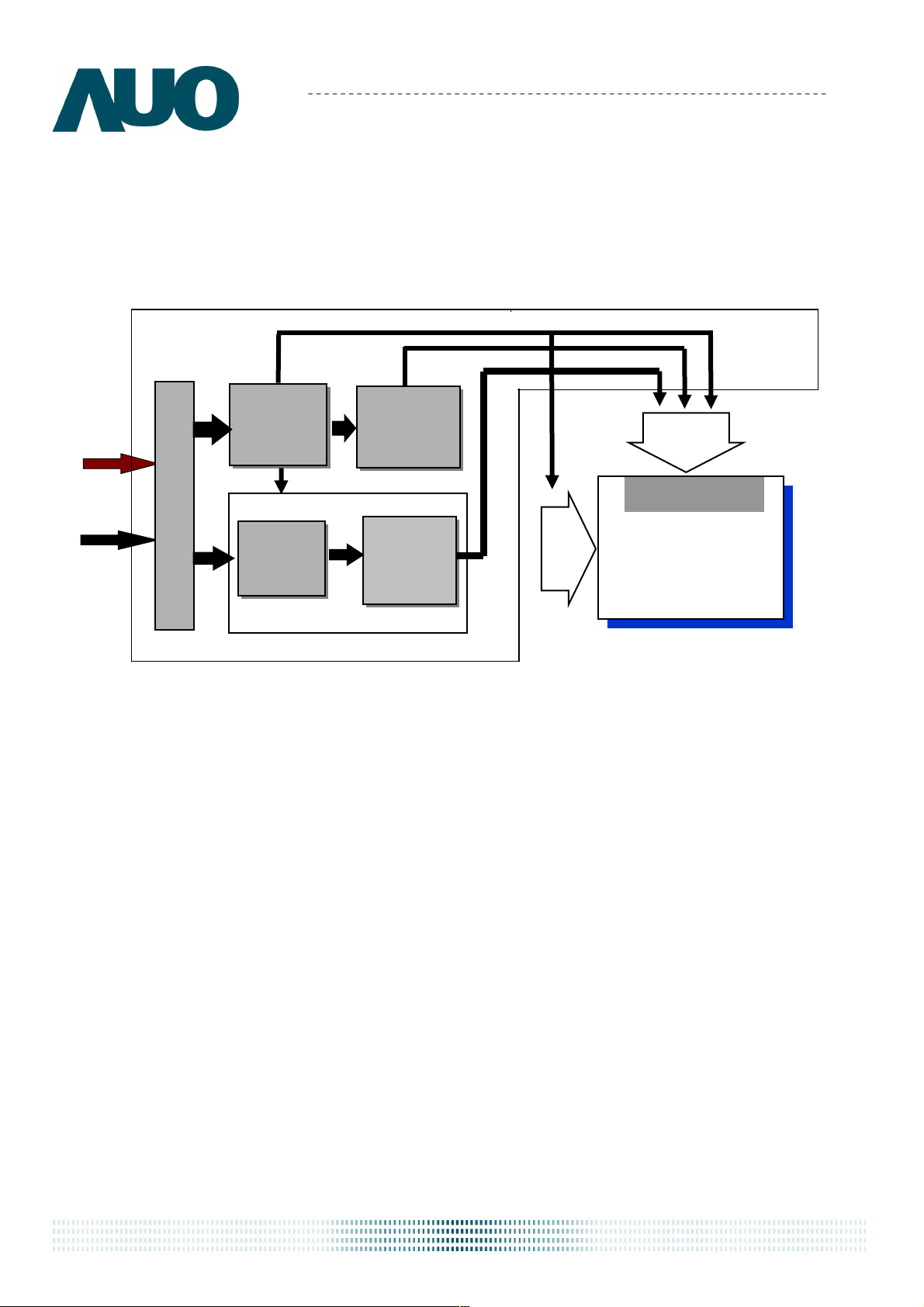

3.1 Block Diagram
The following shows the block diagram of the 27 inch Color TFT-LCD Module.
M270HTN01.1
LVDS
Signal
DC/DC
Converter
Receiver
LVDS
Control Board
ASIC
Gamma
Correction
Timing
Controller
Mini LVDS
Transmitter
D1
G1
TFT-LCD
1920(x3) x 1080
Pixels
document version 1.0 10
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
3.2 Interface Connection
3.2.1 Connector Type
Manufacturer P-Two STM
TFT-LCD Connector
Part Number
AL230F-A0G1D-P
MSCKT2407P30HB
Manufacturer JAE
Mating Connector
Part Number FI-X30HL (Locked Type)
3.2.2 Connector Pin Assignment
PIN # Symbol Description Remark
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 GND Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
document version 1.0 11
Product Specification
M270HTN01.1
AU OPTRONICS CORPORATION
28 VDD Power Supply Input Voltage
29 VDD Power Supply Input Voltage
30 VDD Power Supply Input Voltage
document version 1.0 12
Product Specification
AU OPTRONICS CORPORATION
3.3 Electrical Characteristics
3.3.1 Absolute Maximum Rating
Permanent damage may occur if exceeding the following maximum rating.
M270HTN01.1
Symbol
VDD
Description Min Max Unit
Power Supply
Input Voltage
GND-0.3 6.0 [Volt]
3.3.2 Recommended Operating Condition
Symbol
VDD
IDD
PDD
IRush Inrush Current
VDDrp
Description Min Typ Max Unit
Power supply
Input voltage
Power supply
Input Current
(RMS)
VDD Power
Consumption
Allowable VDD
Ripple Voltage
4.5 5.0 5.5 [Volt]
- 0.9 1.1
1.1 1.3
- 4.5 5.5
5.5 6.5
-
-
- 3.0 [A]
- 500 [mV]
[A]
[A]
[Watt]
[Watt]
Remark
Ta=25℃
Remark
VDD= 5.0V, Black Pattern, Fv=60Hz
VDD= 5.0V, Black Pattern, Fv=75Hz
VDD= 5.0V, Black Pattern, Fv=60Hz
VDD= 5.0V, Black Pattern, Fv=75Hz
Note 3-1
VDD= 5.0V, Black Pattern, Fv=75Hz
Note 3-1: Inrush Current measurement:
Test circuit:
The duration of VDD rising time: 470us.
document version 1.0 13
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
919 1
920
1st Line
1080
Line
3.4 Signal Characteristics
3.4.1 LCD Pixel Format
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
3.4.2 LVDS Data Format
Note 3-2:
a. O = “Odd Pixel Data” E = “Even Pixel Data”
b. Refer to 3.4.1 LCD pixel format, the 1st data is 1 (Odd Pixel Data), the 2nd data is 2 (Even Pixel Data) and
the last data is 1920 (Even Pixel Data).
document version 1.0 14
Product Specification
M270HTN01.1
AU OPTRONICS CORPORATION

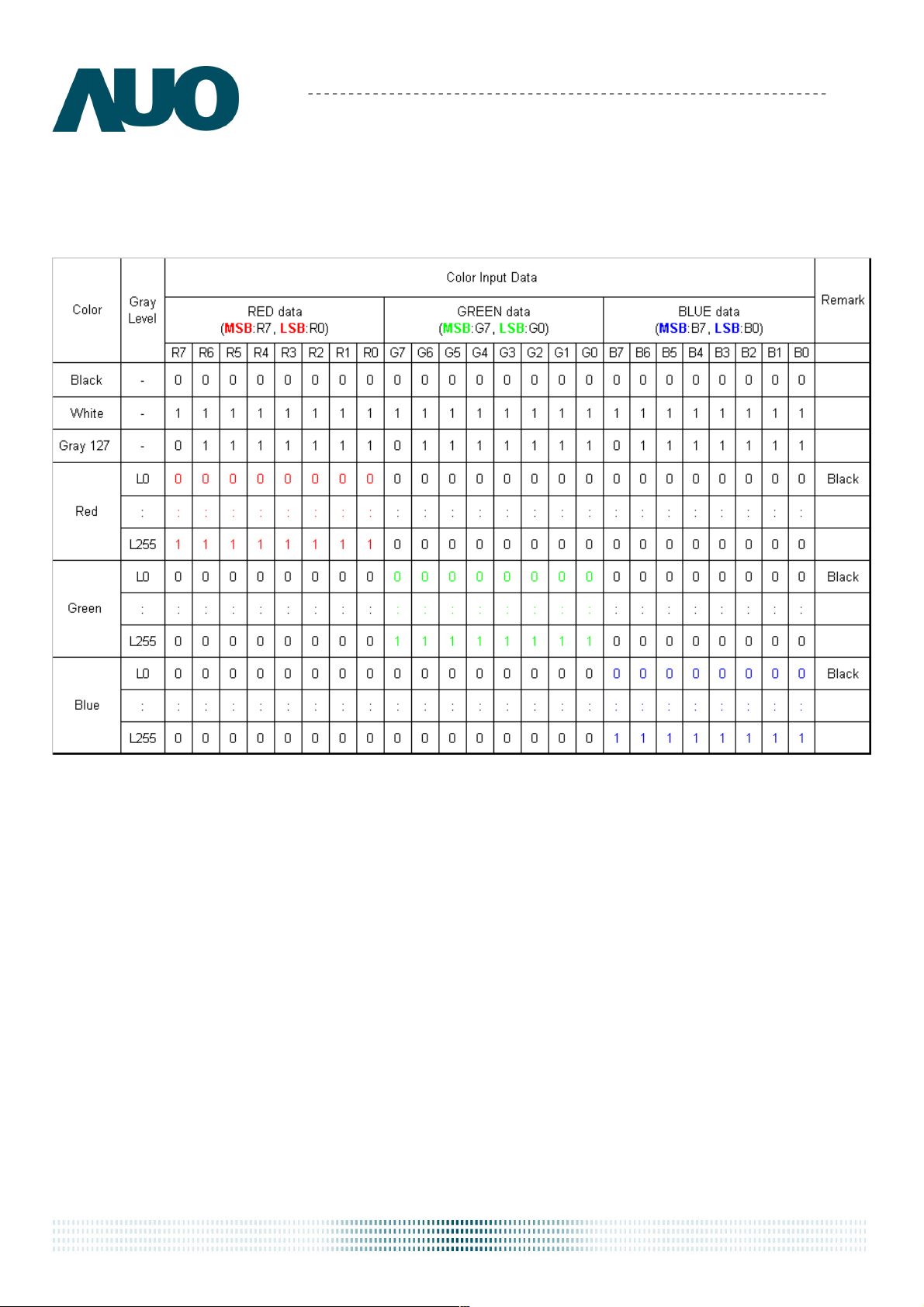

3.4.3 Color versus Input Data
The following table is for color versus input data (8bit). The higher the gray level, the brighter
the color.
document version 1.0 15

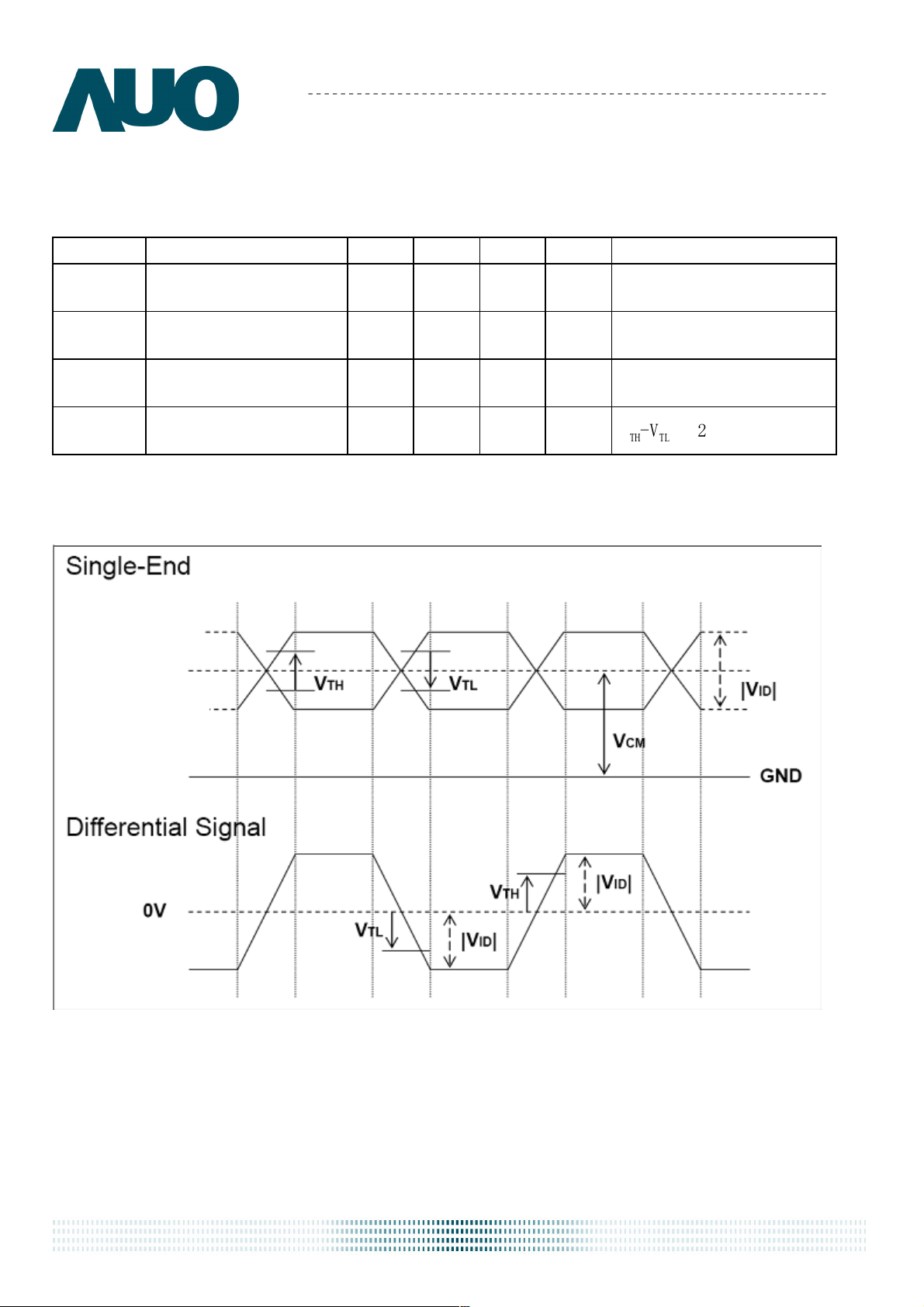

3.4.4 LVDS Specification
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
a. DC Characteristics:
Symbol
VTH
VTL
│VID│
VCM
Description Min Typ Max Units
LVDS Differential
Input High Threshold
LVDS Differential
Input Low Threshold
LVDS Differential
Input Voltage
LVDS Common Mode
Voltage
-100
100 - 600 [mV]
+1.0 +1.2 +1.5 [V] VTH-VTL = 200mV
LVDS Signal Waveform:
Use RxOCLK- & RxOCLK+ as example.
RxOCLK-
Condition
- - +100 [mV] VCM = 1.2V
- - [mV] VCM = 1.2V
RxOCLK+
document version 1.0 16
Product Specification
Freq
F
max
F
clk
F
min
F
clk
* F
DEV

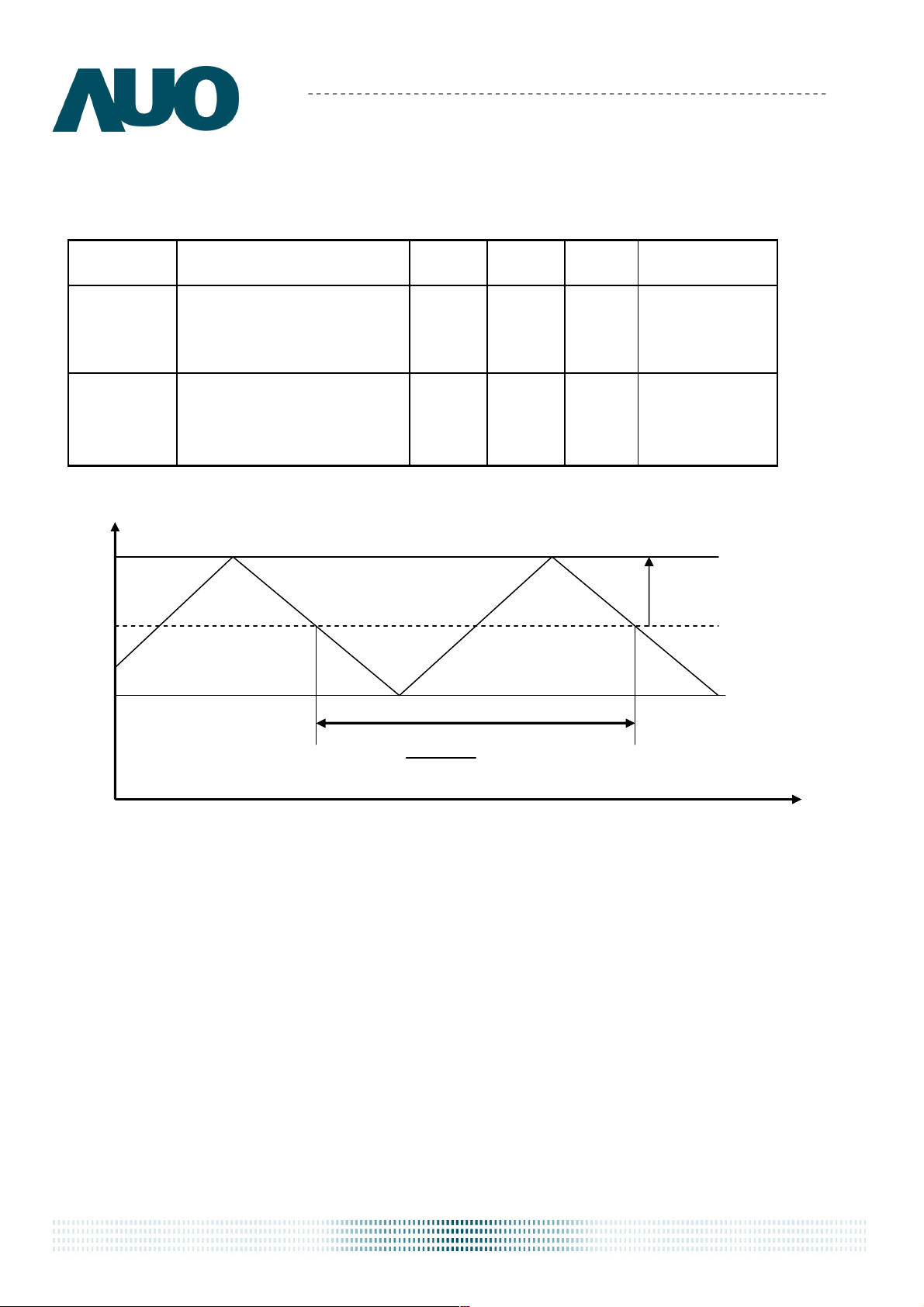

< Spread Spectrum>
T
ime
AU OPTRONICS CORPORATION
b. AC Characteristics:
Symbol Description Min Max Unit Remark
Maximum deviation of
F
DEV
input clock frequency
during Spread Spectrum
Maximum modulation
F
MOD
frequency of input clock
during Spread Spectrum
- ± 3 %
- 200 KHz
M270HTN01.1
Fclk: LVDS Clock Frequency
F
1
MOD
document version 1.0 17
Product Specification
AU OPTRONICS CORPORATION
3.4.5 Input Timing Specification
It only support DE mode, and the input timing are shown as the following table.
M270HTN01.1
Symbol Description Min. Typ. Max. Unit
Tv Period
Tdisp (v) Active
Vertical Section
Tblk (v) Blanking
Fv
Frequency
Th Period
Tdisp (h) Active
Horizontal Section
Tblk (h) Blanking
Fh
Frequency 55 68 91 KHz
Tclk Period
LVDS Clock
Fclk
Frequency
1092 1130 1818
1080 1080 1080
12 50 738
50 60 76
1034 1050 1100
960 960 960
74 90 140
10.6 14.0 17.7
56.5 71.2 94.0
Th
Th
Th
Hz
Tclk
Tclk
Tclk
ns 1/Fclk
MHz
Remark
Note 3-3
Note 3-4
Note 3-3: The equation is listed as following. Please don’t exceed the above recommended value.
Fh (Min.) = Fclk (Min.) / Th (Min.);
Fh (Typ.) = Fclk (Typ.) / Th (Typ.);
Fh (Max.)= Fclk (Max.) / Th (Min.);
Note 3-4: The equation is listed as following. Please don’t exceed the above recommended value.
Fclk (Min.) = Fv (Min.) x Th (Min.) x Tv (Min.);
Fclk (Typ.) = Fv (Typ.) x Th (Typ.) x Tv (Typ.);
Fclk (Max.) = Fv (Max.) x Th (Typ.) x Tv (Typ.);
document version 1.0 18
3.4.6 Input Timing Diagram
DE
RGB Data
CLK
DE
RGB Data
(Odd)
RGB Data
(Even)
N
Line
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Tblk(v)
Invalid Data
Tclk
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
32
LineLine
Th
Tdisp(h)
Pixel
Pixel
10
4
LineLine
Pixel
Pixel
119
Pixel
12
1
Pixel
1
Pixel Pixel
2
Pixel
Pixel
3
4
Pixel
7
5
Pixel
Pixel
6 M-2
8 M
N
Line
M-5
M-4
Pixel
M-3
Pixel
Pixel
M-1
PixelPixel
M270HTN01.1
M pixel
Y
N Line
Invalid Data
Tblk(h)
Invalid Data
Invalid Data
X
Pixel
1
Pixel
2M-4
Pixel
3
Pixel
4
document version 1.0 19
Product Specification
10%
90%
10%
90%
AU OPTRONICS CORPORATION
M270HTN01.1
3.5 Power ON/OFF Sequence
VDD power,LVDS signal and backlight on/off sequence are as following. LVDS signals
from any system shall be Hi-Z state when VDD is off.
T1
VDD
LVDS Signal
Backlight Enable
Signal (system)
Symbol
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T2
T3
Backlight Off
Power Sequence Timing
Backlight On
Value Remark
Min. Typ. Max.
VALID
T5
T4
Backlight Off
Unit
T6
T7
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 50 [ms]
T6 0 - 100 [ms]
T7 1000 - - [ms]
Note 3-5
Note 3-6
Note 3-6
Note 3-5 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note 3-6 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
document version 1.0 20
KV, 150pF(330Ω ) 1sec,
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
4 Reliability Test
Product Specification
AU OPTRONICS CORPORATION
M270HTN01.1
AUO reliability test items are listed as following table. (Bare Panel only)
Items Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Thermal Shock Test (TST)
Ta= 50℃, 80%RH, 300hours
Ta= 50℃, 50%RH, 300hours
Ta= 0℃, 300hours
Ta= 60℃, 300hours
Ta= -20℃, 300hours
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
-20℃/30min, 60℃/30min, 100 cycles
Remark
Note 4-1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 15
8 points, 25 times/ point.
ESD (Electro Static Discharge)
Note 4-2
8 points, 25 times/ point.
Altitude Test
Operation:18,000 ft
Non-Operation:40,000 ft
Note 4-1: a. A cycle of rapid temperature change consists of varying the temperature from -20 to ℃
60 , and back again. Power is not applied during the test. ℃
b. After finish temperature cycling, the unit is placed in normal room ambient for at least
4 hours before power on.
Note 4-2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 1.0 21
Product Specification
AU OPTRONICS CORPORATION
5 Shipping Label
5.1 Small Shipping Label
The label is on the PCBA as shown below :
XXXXXXXXXXXX–XXXXXX XXXX M270HTN01.X
5.2 Run Card Label
The label is on the panel as shown below :
M270HTN01.1
M270HTN01-x/xx xx:xxxxxxxxxx Remark : X
0
S/N xxxxxxxxxxxx (xxxxx)
xxxxx xxxxx xxxxx
xxxxx xxxxx xxxxx
xxxxx xxxxx xxxxx
xxxxx xxxxx xxxxx
Z P N V
SKD
document version 1.0 22
6 Mechanical Characteristic
Ver 1.0
Loading...
