PANDA LC185TT1A Specification

TO ：

规格书编号

File No.

PN-RD-0008A

作成日 Issue Date：
改订日 Revision Date：

2012 年(Y)07 月(M)16 日(D)
2012 年(Y)07 月(M)24 日(D)

《新规 · 变更》

New Revision

产 品 规 格 书

Product Specification

产品名

Product

TFT-LCD OPEN CELL

机种名

Model

LC185TT1A

【接收印栏】

※ 本基准书由封面、附件等全 18 页构成。

如果对该规格书有异议，请在下订单前提出。

※ This Product Specification have 18 pages including the coversheet and Appendices. Please negotiate the

objection point before purchase order.

中电熊猫集团

南京中电熊猫液晶显示科技有限公司

研发中心 设计整合部

CEC PANDA GROUP

NANJING CEC PANDA LCD TECHNOLOGY CO., LTD.

R&D CENTER, DESIGN INTEGRATION SECTION.

1

PANDA

LC185TT1A Specification Version1.1

- CONTENTS -

REVISION HISTORY -------------------------------------------------------------------------------------------------------3

1. GENERAL DESCRIPTION --------------------------------------------------------------------------------------------4

1.1 OVERVIEW----------------------------------------------------------------------------------------------------------------------------------- 4

1.2 CHARACTERISTICS --------------------------------------------------------------------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ----------------------------------------------------------------------------------4

2.1 ABSOLUTE RATINGS OF ENVIRONMENT ----------------------------------------------------------------------------------------- 4

3. ELECTRICAL CHARACTERISTICS -------------------------------------------------------------------------------5

3.1 ABSOLUTE MAXIMUM RATING -------------------------------------------------------------------------------------------------------------- 5

3.2 CONTROL CIRCUIT DRIVING ----------------------------------------------------------------------------------------------------------------- 5

4. INTERFACE PIN CONNECTION ------------------------------------------------------------------------------------7

4.1 TFT LCD OPEN CELL--------------------------------------------------------------------------------------------------------------------- 7

4.2 BLOCK DIAGRAM (OPEN-CELL) ----------------------------------------------------------------------------------------------------- 9

4.3 LVDS INTERFACE ------------------------------------------------------------------------------------------------------------------------- 9

4.4 COLOR DATA INPUT ASSIGNMENT ------------------------------------------------------------------------------------------------ 10

5. INTERFACE TIMING-------------------------------------------------------------------------------------------------- 11

5.1 INPUT SIGNAL TIMING SPECIFICATIONS ---------------------------------------------------------------------------------------- 11

6. OPTICAL CHARACTERISTICS -----------------------------------------------------------------------------------12

6.1 OPTICAL SPECIFICATION ------------------------------------------------------------------------------------------------------------- 12

7. DEFINITION OF LABELS ------------------------------------------------------------------------------------------- 14

7.1 OPEN CELL LABEL ---------------------------------------------------------------------------------------------------------------------- 14

7.2 CELL BOX LABEL ------------------------------------------------------------------------------------------------------------------------ 14

8. PACKING----------------------------------------------------------------------------------------------------------------- 15

8.1 PACKING SPECIFICATIONS ----------------------------------------------------------------------------------------------------------15

8.2 PACKING METHOD -------------------------------- -------------------------------------------------------------------------------------- 15

9. PRECAUTIONS --------------------------------------------------------------------------------------------------------16

10. RELIABILITY TEST ITEMS ---------------------------------------------------------------------------------------17

11. MECHANICAL DRAWING -----------------------------------------------------------------------------------------17

2

PANDA

DATE

NO.

REVISED No.

PAGE

SUMMARY

NOTE

2012/07/16

PN-RD-0008A

V1.018First Edition.

Final

2012/07/24

PN-RD-0008A

V1.1

5

P5.Modify the Spec. of t5.

Final

LC185TT1A Specification Version1.1

REVISION HISTORY

MODEL NO: LC185TT1A

3

PANDA

CHARACTERISTICS ITEMS

SPECIFICATIONS

Screen Diagonal [in]

18.5”

Pixels [lines]

1366×768

Active Area [mm]

409.8 (H) x 230.4 (V)

Pixel Pitch [mm]

0.300 (H) x 0.300 (V)

Pixel Arrangement

RGB vertical stripe

Weight [g] (With the protection film)

435g

Physical Size(COF/PWB included) [mm]

421.45 (W) x 294.20 (H) x 2.80 (D) Typ.

TFT glass Size [mm]

421.45 (W) x 242.50 (H) x 1.83 (D) Typ

Display Mode

Normally White

Surface treatment
（Without the protection film）

Anti-glare,3H

Item

Symbol

Value

Unit

Note

Min.

Max.

Storage Temperature

TST-20

+60

ºC

[Note 1,3]

Operating Ambient Temperature

TOP0

50

ºC

[Note 1,2,3]

Altitude Operating

AOP0

5000

M

[Note 3]

Altitude Storage

AST0

12000

M

[Note 3]

LC185TT1A Specification Version1.1

1. GENERAL DESCRIPTION

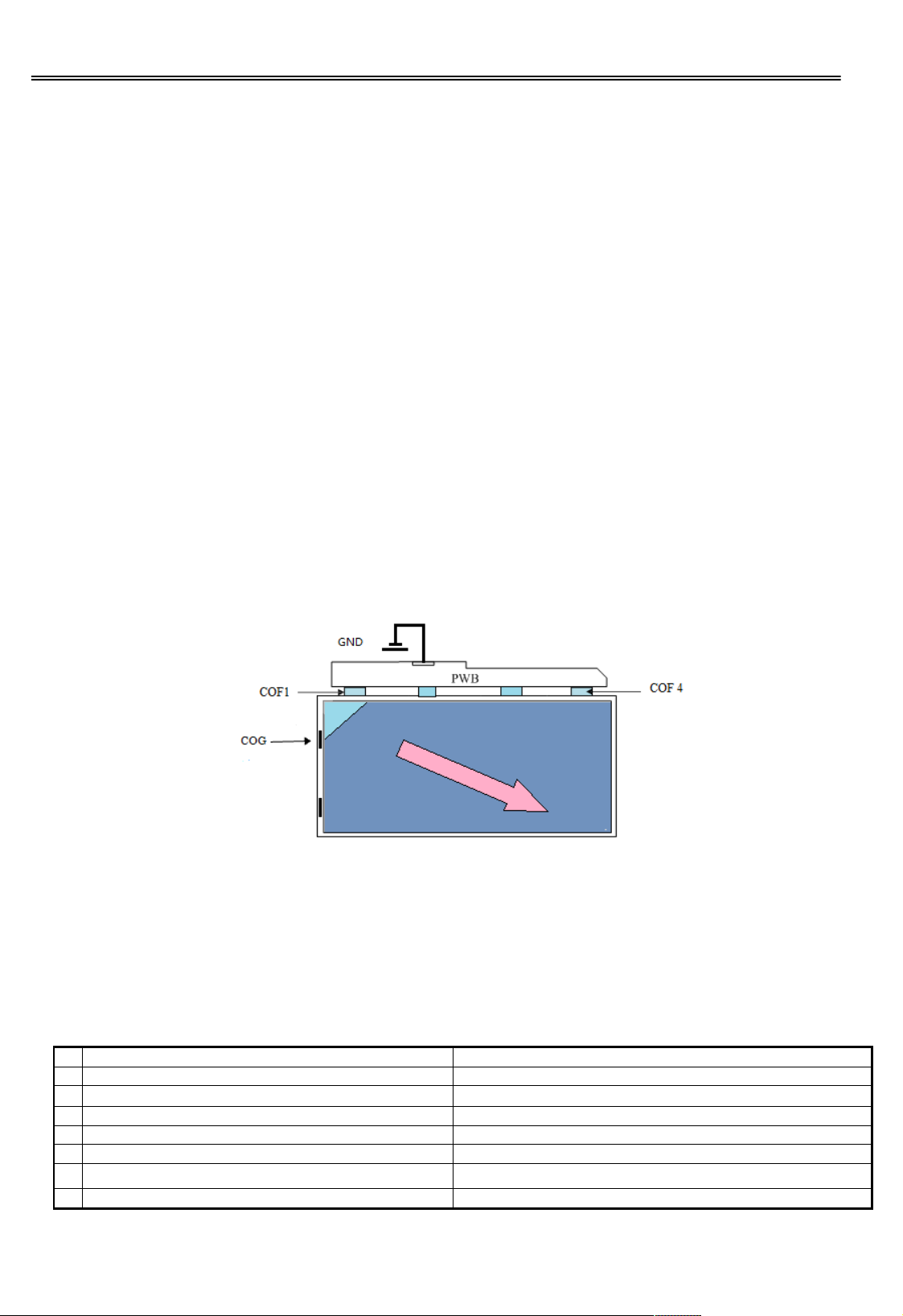

1.1 OVERVIEW

This module is color active matrix LCD Open-cell incorporating amorphous silicon TFT (Thin Film

Transistor). It is composed of a color TFT-LCD panel, driver ICs, PWB. Graphics and texts can be displayed

on a 1366×RGB×768 dots panel with about 16.7M colors (R/G/B 6bits+Hi FRC data in each color) by using

LVDS(Low Voltage Differential Signaling) to interface, +5V of DC supply voltage.

1.2 CHARACTERISTICS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Storage Condition: With shipping package.

Shelf life: one year

[Note 1] Temperature and relative humidity range is shown in the figure below.

*1) 8 ≦0 %RH Max. (Ta 40 ºC).

*2) Wet-bulb temperature should be 40 ºC Max. (Ta > 40 ºC).

*3) No condensation.

4

PANDA

Parameter

Symbol

Condition

Ratings

Unit

Remark

+5V supply voltage

V

CC

Ta=25℃

-0.3～+6

V

Storage temperature

T

stg

-

-20～+60

℃

Operation temperature

T

opa

-

0～+50

℃

Parameter

Symbol

Min

Typ

Max

Unit

Remark

+5V supply
voltage

Supply voltage

VCC

4.5

5.0

5.5V[Note 1]

Current
dissipation

ICC—580

900

mA

VCC=5.0V,60Hz
Black Pattern

IRush

—

—

3A[Note 2]

Permissible input ripple voltage

VRP

—

—

300

mVp-p

VCC=5.0V

Differential Input
Threshold Voltage

High

VTH

—

—

100

mV

VCM=1.2V
[Note 3]

Low

VTL

-100

—

—

mV

Input Differential Voltage

∣

VID

∣

100—600

mV

Differential Input Common Mode
Voltage

VCM

1.0

1.2

1.5

V

Power consumption

P—3

4.5

W

[Note 2] The maximum operating temperature is based on the test condition that the surface temperature of

display area is less than or equal to 50ºC with LCD module alone in a temperature controlled

chamber. Thermal management should be considered in your product design to prevent the surface

temperature of display area from being over 60ºC. The range of operating temperature may degrade

in case of improper thermal management in your product design.

[Note 3] The rating of environment is base on LCD module. Leave LCD cell alone, this environment condition

can’t be guaranteed. Except LCD cell, the customer has to consider the ability of other parts of LCD

module and LCD module process.

LC185TT1A Specification Version1.1

3. ELECTRICAL CHARACTERISTICS

3.1 Absolute Maximum Rating

3.2 Control circuit driving

[VCM]: Common mode voltage of LVDS driver
[Note1] Power, data sequence

0.50ms≦t1≦10ms t4≧1 sec

0.01ms＜t2≦50ms t5≧500ms

0.01ms＜t3≦50ms t6≧200ms

5

PANDA

data

t1t2t3

4.5

V

4.5

V

0.5

V

VCC=5.0V

0.5

V

0.5V

t

4

LCD

Power Supply

Logic Signal

t5t6

Backlight Power Supply

VL

Data: RGB DATA, DCLK, DENA

,

※Data: CLKIN±,RIN0±,RIN1±, RIN2±, RIN3±

LC185TT1A Specification Version1.1

※ About the relation between data input and back light lighting, please base on the above-mentioned input

sequence.

※

When back light is switched on before panel operation or after a panel operation stop, it may not display
normally. But this phenomenon is not based on change of an incoming signal, and does not give damage
to a liquid crystal display.

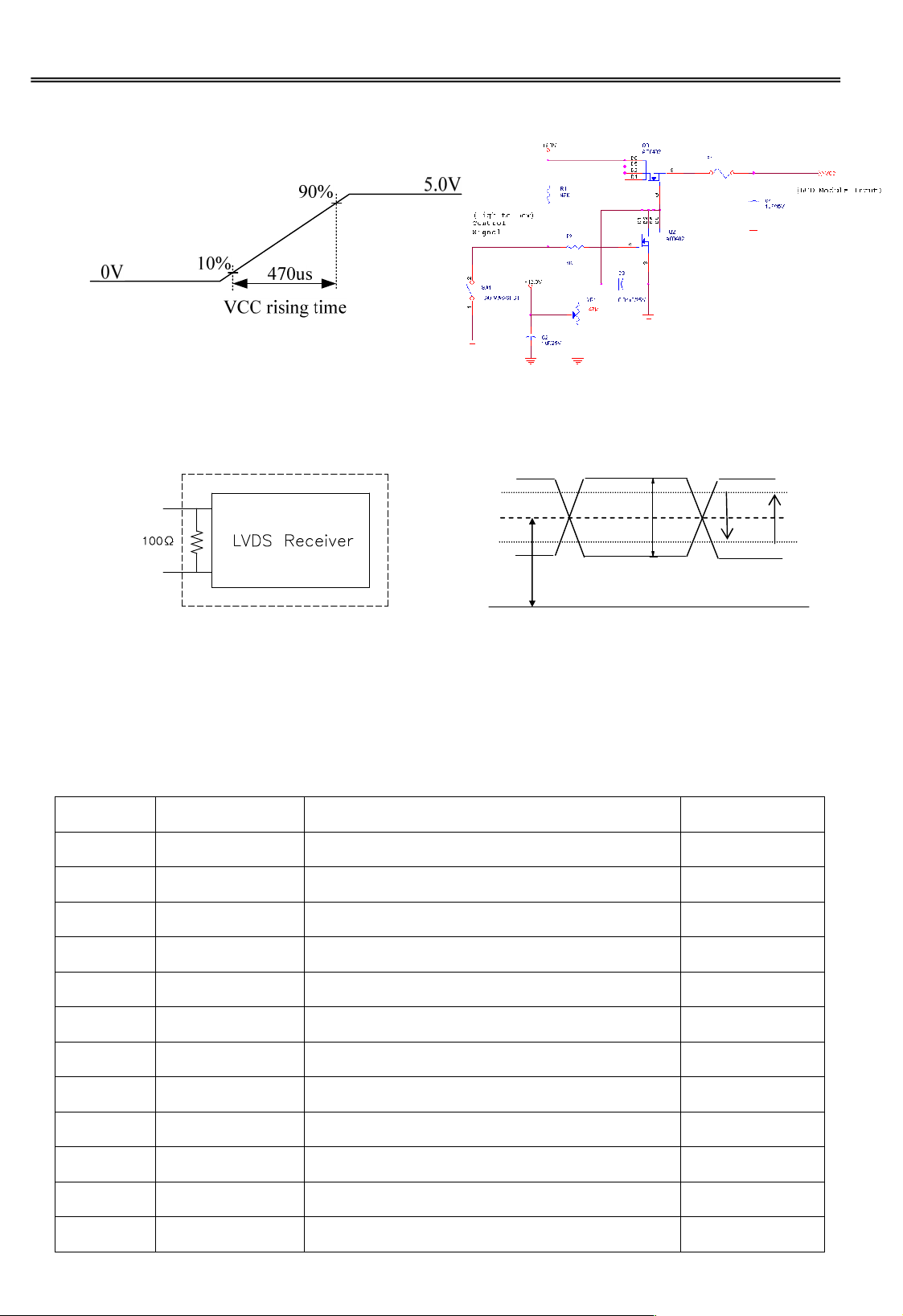

※ VCC-dip conditions:

(1) When 3.6V≦VCC(min)<4.5V, td≦10 ms
(2) When VCC <3.6 V, VCC-dip conditions should also follow the VCC-turn-on conditions.

[Note2]
IRush Measurement Condition:
The duration of rising time of power input is 470us.

6

PANDA

Pin No.

Symbol

Function

Remark

1

NC

Not connection, this pin should be open.

2

NC

Not connection, this pin should be open.

3

NC

Not connection, this pin should be open.

4

GND

Ground

5

RIN0-

Negative LVDS differential data input. Channel 0

LVDS

6

RIN0+

Positive LVDS differential data input. Channel 0

LVDS

7

GND

Ground

8

RIN1-

Negative LVDS differential data input. Channel 1

LVDS

9

RIN1+

Positive LVDS differential data input. Channel 1

LVDS

10

GND

Ground

11

RIN2-

Negative LVDS differential data input. Channel 2

LVDS

12

RIN2+

Positive LVDS differential data input. Channel 2

LVDS

RIN＋

RIN－

V

TL

V

TH

｜VID｜

RIN＋

RIN－

GND

VCM

[Note3]
RIN+: Positive differential DATA & CLK Input
RIN -: Negative differential DATA & CLK Input

LC185TT1A Specification Version1.1

4. INTERFACE PIN CONNECTION

4.1 TFT LCD OPEN CELL

CN1 (Interface signals and +5V DC power supply) Shown on the next table.
Using connector: FI-XB30SSRLA-HF-16(JAE) or compatible
Matching connector:FI-X30HL(JAE) or compatible

7

PANDA

13

GND

Ground

14

RINCLK-

Negative LVDS differential clock input.

LVDS

15

RINCLK+

Positive LVDS differential clock input.

LVDS

16

GND

Ground

17

RIN3-

Negative LVDS differential data input. Channel 3

LVDS

18

RIN3+

Positive LVDS differential data input. Channel 3

LVDS

19

GND

Ground

20

NC

Not connection, this pin should be open.

21

NC

Not connection, this pin should be open.

[Note 1]

22

NC

Not connection, this pin should be open.

23

GND

Ground

24

GND

Ground

25

GND

Ground

26

VCC

+5.0V power supply

27

VCC

+5.0V power supply

28

VCC

+5.0V power supply

29

VCC

+5.0V power supply

30

VCC

+5.0V power supply

LC185TT1A Specification Version1.1

[Note 1] Built-in Self Test (BIST)

*1) PIN21=NC: Disable BIST function.

Available LVDS Signal input : Display LVDS input Pattern.
No LVDS Signal or unavailable LVDS Signal input : Display Black Pattern.

*2)PIN21=High (3.0V~3.6V) : Enable BIST function.

Available LVDS Signal input : Display LVDS input Pattern.
No LVDS Signal or unavailable LVDS Signal input : Display BIST Pattern.

8

PANDA

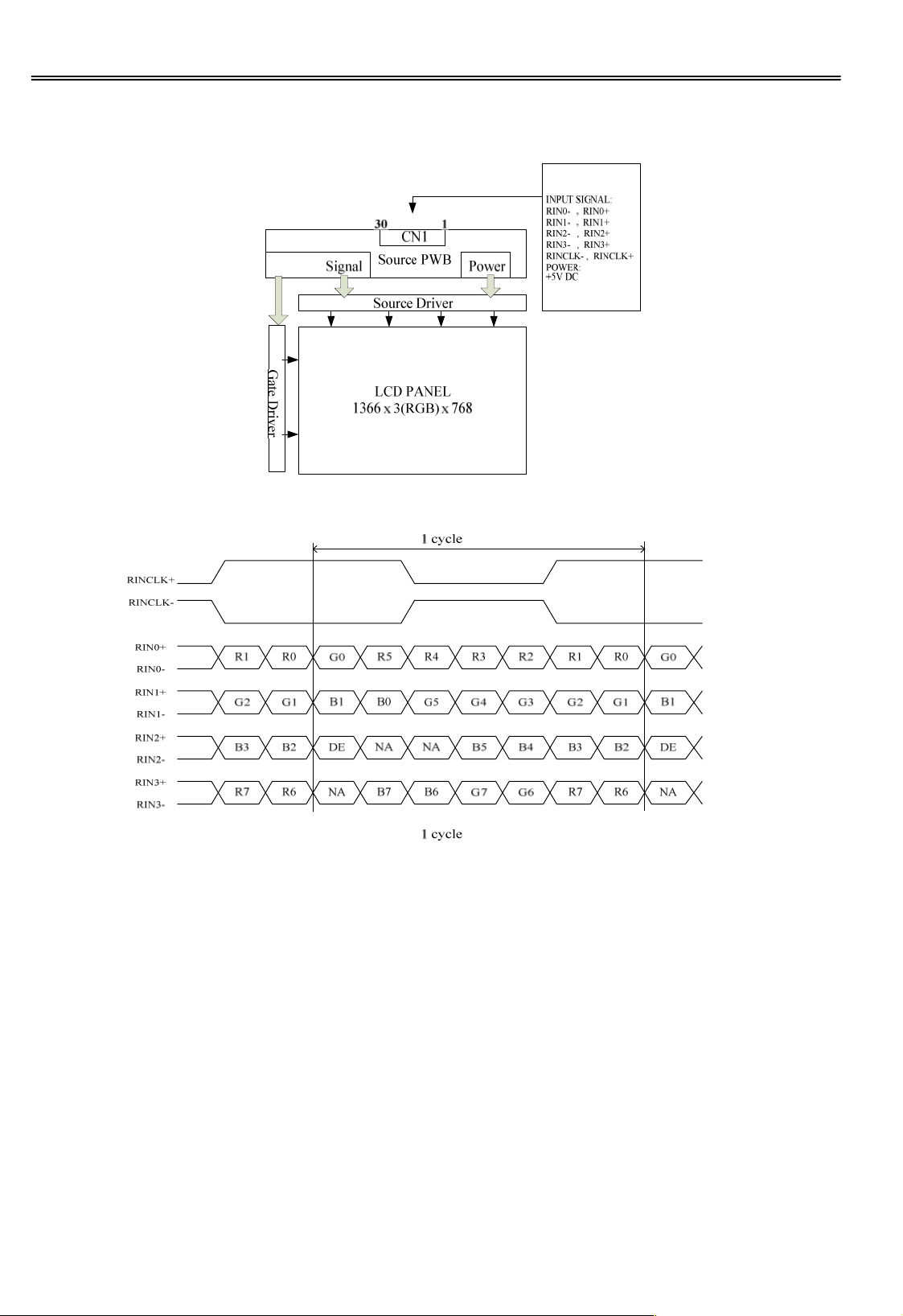

4.2 BLOCK DIAGRAM (OPEN-CELL)

4.3 LVDS INTERFACE

LC185TT1A Specification Version1.1

DE: Display Enable
NA: Not Available (Fixed Low)

R/G/B Data 7:MSB , R/G/B Data 0:LSB ,

9

PANDA

4.4 COLOR DATA INPUT ASSIGNMENT

LC185TT1A Specification Version1.1

0: Low level voltage,
1: High level voltage.

Each basic color can be displayed in 256 gray scales from 8 bit data signals. According to the combination of
total 24 bit data signals, the 16,7M colors display can be achieved on the screen.

10

PANDA

Item

Symbol

Min

Typ.

Max.

Unit

LCD
Timing

DCLK

Freq.

fCLK

507695

MHz

Cycle

tCLK

10.5

13.220ns

DE

Horizontal
Horizontal effective time

tHA

1366

1366

1366

tCLK

Horizontal blank time

tHB80200

570

tCLK

Horizontal total time

tH

1446

1560

1936

tCLK

Vertical
Vertical frame Rate

Fr506075Hz

Vertical total time

tV

778

806

888

tH

Vertical effective time

tVA

768

768

768

tH

Vertical blank time

tVB1038

120

tH

LC185TT1A Specification Version1.1

5. INTERFACE TIMING

5.1 INPUT SIGNAL TIMING SPECIFICATIONS

(a) The input signal timing specifications are shown as the following table and timing diagram.

[Note]
*1) DE (data enable) usually is positive
*2) DCLK still inputs during blanking
*3) DE mode only
*4) It maybe cause flicker at Fr=50Hz.

(b) Timing Chart

11

PANDA

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing

angle range

Horizontal

θ

21+θ22

CR>10

160

170

-

Deg.

[Note1,4]

Vertical

θ

11+θ12

150

160

-

Deg.

Contrast ratio

CR

 =0 deg.

700

1000--

[Note2,4]

Response time

Tr+Tf-5-ms

[Note3,4]

Chromaticity of white

x

0.283

0.313

0.343

-

[Note 4]

y

0.299

0.329

0.359

-

Chromaticity of red

x

0.614

0.644

0.674

-

y

0.317

0.347

0.377

-

Chromaticity of green

x

0.285

0.315

0.345

-

y

0.606

0.636

0.666

-

Chromaticity of blue

x

0.126

0.156

0.186

-

y

0.032

0.062

0.092

-

Measurement of viewing angle range, Response time.

Measurement of Contrast, Luminance, Chromaticity.

Middle of the screen (＝0)

TFT-LCD Module

Middle of the screen (＝0)

TFT-LCD Module

500mm

Field=2

Detector（SR-3）

Detector（EZ-CONTRAST/Photodiode）

6. OPTICAL CHARACTERISTICS

6.1 OPTICAL SPECIFICATION

LC185TT1A Specification Version1.1

Ta=25C

*The measurement shall be executed 30 minutes after lighting at rating.
*These values are measured with CPL standard back light unit.
* The optical characteristics are measured using the following equipment.

12

PANDA

Normal line



21



11



12



22

6 o’clock direction

Contrast Ratio =

Luminance (Brightness) with black screen

Luminance (Brightness) with white screen

[Note 1] Definitions of viewing angle range:

LC185TT1A Specification Version1.1

Viewing angle

[Note 2] Definition of contrast ratio:

The contrast ratio is defined as the following.

[Note 3] Definition of response time

The output signals of photo detector are measured when the input signals are changed from “Full White” to
“Full Black” (rising time, Tr), and from “Full Black” to “Full Black” (falling time, Tf), respectively. The response
time is interval between the 10% and 90% (1 frame at 60 Hz) of amplitudes.

[Note 4] This shall be measured at center of the screen.

Response time=Tr+ Tf

13

PANDA

PANDA

QUANTITY : XX

RoHS

DATE:YYYY/MM/DD
MADE IN CHINA

Production date (YYYY/MM/DD)

Model No.

Barcode

Box ID

Quantity

Model No.

Serial number

Production date (YYYY/MM/DD)

Barcode

7. DEFINITION OF LABELS

7.1 OPEN CELL LABEL

The label of displays, product model (LC185TT1A), and product label is stuck on the front side of the Open-cell.

7.2 CELL BOX LABEL

LC185TT1A Specification Version1.1

14

PANDA

（a）Piling number of EPS BOX

: 24PCS

（b）Packing quantity in one ESP BOX

: 20PCS

（c）EPS BOX size

: 594×405×143

（d）Pallet size

: 1214×845×150

（e）Total mass of one EPS BOX filled with full Panel

: 9.95KG

Cover Sheet Kraft

Opencell/Multicell20

Packing Band PP2

Corner Attachment LDPE-2

EPS Box Body

Protection Sheet21

EPS Box Cover

Pallet Wood
1214×845×150

Stretching Film

Corner Attachment LDPE-2

Packing Band PP2

Cover Sheet Kraft

Corner Protector Kraft

Corner Protector Kraft

Corner Protector Kraft

8. PACKING

8.1 PACKING SPECIFICATIONS

8.2 PACKING METHOD

LC185TT1A Specification Version1.1

15

PANDA

item

Management standard value and performance standard

1

Anti-static mat(shelf)

1to50 [Mega ohm]

2

Anti-static mat(floor, desk)

1to100 [Mega ohm]

3

Ionizer

Attenuate from ±1000V to ±100V within two seconds.

4

Anti-static wrist band

0.8 to 10 [Mega ohm]

5

Anti-static wrist band entry and ground resistance

Below 1000 [ohm]

6

Temperature

22 to 26 [℃ ]

7

Humidity

60 to 70 [%]

LC185TT1A Specification Version1.1

9. PRECAUTIONS

（a）Because the Open-Cell is too weak to destroy by static electricity, please don’t touch the terminal with bare

hands.

（b）Front polarizer can easily be damaged. Pay attention on it.
（c）Since long contact with drops of water may cause discoloration or spots, please wipe off them as soon as

possible.

（d）When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
（e）The Panel will be broken or chipped when it is dropped or bumped against a hard substance.
（f）Precautions of peeling off the Protection Film:

*1) Be sure to peel off slowly (recommended more than 7 sec.) and constant speed.
*2) Peeling direction shown in the next Fig.
*3) Be sure to ground person with adequate methods such as the anti-static wrist band.
*4) Be sure to connect PWB to GND while peeling off the protection film.
*5) Ionized air should be blown to the surface while peeling off the protection film.
*6) The protection film must not touch drivers and PWB.

After the protection film has been peeled off, some adhesive may be remained on the polarizer. Please
use isopropyl-alcohol to remove it.

（g）Since the Open-cell consists of TFT and electronic circuits with CMOS-ICs, which are very weak to

electrostatic discharge, persons who are handling an Open-Cell should be grounded though adequate
methods such as an anti-static wrist band. Connector pins should not be touched directly with bare hands.

（h）Avoiding COF damage, do not bend PWB to display side when handling the open cell, recommend coating

silicon or tuffy on front and back side of COF.
Reference: Process control standard of CPL.

16

PANDA

Test item

Condition

High temperature storage test

Ta= 60C, 240h

Low temperature storage test

Ta=-20C, 240h

High temperature and high humidity
storage test

Ta= 50C, 80%RH, 240h
(No condensation)

High temperature operation test

Ta= 50C, 240h

Low temperature operation test

Ta= 0C, 240h

ESD(no operation)

Contact discharge on LVDS connector

±200V（200PF,0Ω）

（i）Since the Open-cell has a PWB, please take care to keep it off any stress or pressure when handling or

installing the Open-cell, otherwise some of electronic parts on them may be damaged.

（j）Be sure to turn off the power supply when inserting or disconnecting the cable.
（k）Be sure to design the module and cabinet so that the Open-cell van is installed without any extra stress such

as warp or twist.

（l）When handling and assembling Open-Cell into module, please be noted that long-term storage in the

environment of oxidization or deoxidization gas and the use of materials such as reagent, solvent, adhesive,
resin… etc, which generate these gasses, may cause corrosion and discoloration of the Open-Cell.

（m）Applying too much force and stress to PWB and drivers may cause a malfunction electrically and

mechanically.

（n）The Open-cell has high frequency circuits. Sufficient suppression to EMI should be done by system

manufactures.

（o）Please be careful since image retention may occur when a fixed pattern is displayed for a long time.
（p）The chemical compound, which causes the destruction of ozone layer, is not being used.

LC185TT1A Specification Version1.1

（q）This Open-Cell module is corresponded to RoHS.
（r）When any question or issue occurs, it shall be solved by mutual discussion.

10. Reliability test items

[Result evaluation criteria]
Under the display quality test condition with normal operation state, there shall be no change, which may affect
practical display function.

11. Mechanical Drawing

17

PANDA

LC185TT1A Specification Version1.1

18
