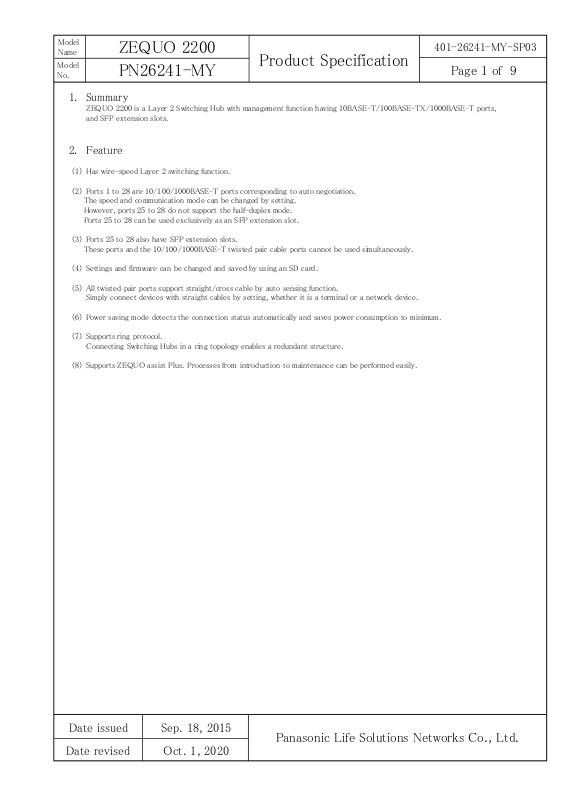

Page 1
Model
Name
Model
No.
ZEQUO 2200
Product Specification
PN26241-MY
1. Summary
ZEQUO 2200 is a Layer 2 Switching Hub with management function having 10BASE-T/100BASE-TX/1000BASE-T ports,
and SFP extension slots.
2. Feature
（1） Has wire-speed Layer 2 switching function.
（2） Ports 1 to 28 are 10/100/1000BASE-T ports corresponding to auto negotiation.
The speed and communication mode can be changed by setting.
However, ports 25 to 28 do not support the half-duplex mode.
Ports 25 to 28 can be used exclusively as an SFP extension slot.
（3） Ports 25 to 28 also have SFP extension slots.
These ports and the 10/100/1000BASE-T twisted pair cable ports cannot be used simultaneously.
（4） Settings and firmware can be changed and saved by using an SD card.
（5） All twisted pair ports support straight/cross cable by auto sensing function.
Simply connect devices with straight cables by setting, whether it is a terminal or a network device.
（6） Power saving mode detects the connection status automatically and saves power consumption to minimum.
401-26241-MY-SP03
Page 1 of 9
（7） Supports ring protocol.
Connecting Switching Hubs in a ring topology enables a redundant structure.
（8） Supports ZEQUO assist Plus. Processes from introduction to maintenance can be performed easily.
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 2
Model
Name
Model
No.
ZEQUO 2200
PN26241-MY
3. Rated/Environmental Conditions
3－1. Power supply
3－2. Power consumption
3－3. Operating environment
3－4. Storage environment
3－5. EMC compliance
3－6. Safety compliance IEC 60950-1
3－7. Environment compliance
401-26241-MY-SP03
Product Specification
Page 2 of 9
AC100-240V, 50/60Hz, 2.0A （with a built-in power supply）
Normally, Max.23.7W, Min.12.4W
Temperature: 0 - 50℃
Humidity: 20 - 80%RH （no condensation）
Temperature: -20 - 70℃
Humidity: 10 - 90%RH （no condensation）
CISPR 32 Class A
EN 55032 Class A
AS/NZS CISPR22 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
CISPR 24
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
EN 60950-1
RoHS compliant
4. Form
4－1. Form and materials/colors
4－2. Mass（Weight） 3,800 g
Dimensions : 44mm（Height）×440mm（Width）×312mm（Depth）
（Excluding protruding sections）
Case material : Main unit: SECC, Front face: PC/ABS, Face plate: PC
Color : Main unit: Green 03, Front face: Black 02,
Face plate label: Black 01
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 3
Model
Name
Model
No.
ZEQUO 2200
PN26241-MY
5. Hardware Specifications
5－1. Interface Twisted pair port 1-24 : RJ45 connector
401-26241-MY-SP03
Product Specification
Page 3 of 9
Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Transmission speed : 10/100/1000Mbps, full/half duplex
1000Mbps full duplex.
Compatible cable : Twisted pair cable
（At least equivalent to EIA/TIA568 category 5e）
Maximum transmission distance : 100m
Auto-Negotiation : Communication speed and full/half duplex are
automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps,
or 1000Mbps and full duplex or half duplex.
Power saving mode ： Detects the connection status automatically
and saves power consumption to minimum.
Energy Efficient Ethernet (EEE) conforming to IEEE802.3az (LPI)：
When there is no data transmission at link up,
the energy-saving state automatically starts
so that power consumption can be reduced
on each port.
5－2. Switching mode
Twisted pair port 25-28 : RJ45 connector
Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Transmission speed : 10/100/1000Mbps, full/half duplex
1000Mbps full duplex.
Compatible cable : Twisted pair cable
（At least equivalent to EIA/TIA568 category 5e）
Maximum transmission distance : 100m
Auto-Negotiation : Communication speed and full/half duplex are
automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps,
or 1000Mbps and full duplex or half duplex.
Power saving mode ： Detects the connection status automatically
and saves power consumption to minimum.
Energy Efficient Ethernet (EEE) conforming to IEEE802.3az (LPI)：
When there is no data transmission at link up,
the energy-saving state automatically starts
so that power consumption can be reduced
SFP+ extension slot 25-28
SFF-8472（DMI：Diagnostic Monitoring Interface）
* Select either of RJ45 or SFP for use
Optional Accessories: 1000BASE-SX SFP Module(PN54021K-ID)
Switching method : Store and Forward
Switching capacity : 56Gbps
Packet transfer capability : Non-blocking
MAC Address table : Max 16K entry/unit
Buffer memory : 1.5M Bytes/unit
Flow control : half-duplex Back pressure
Aging timeout : 10 to 1,000,000 sec. (Default: 300 sec.)
Jumbo frame : 9KB
on each port.
1000BASE-LX SFP Module(PN54023K-ID)
Max 1,488,000pps/port（1000Mbps）
Max 148,800pps/port（100Mbps）
Max 14,880pps/port（10Mbps）
full-duplex IEEE802.3x
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 4
Model
Name
Model
No.
ZEQUO 2200
PN26241-MY
5. Hardware Specifications
401-26241-MY-SP03
Product Specification
Page 4 of 9
5－3. Terminal emulator
connection
5－4. SD card slot
5－5. LED display
Console port : RJ45 connector 1 port
Transmission mode : RS-232C（ITU-TS V.24）
Emulation mode : VT100
Communication configuration : 9,600bps, 8bit, None Parity control,
Stop bit 1 bit
SD card slot : 1
Standard : SD/SDHC
Class : 2/4/6/10
Size : 128MBytes to 32GBytes
（1）POWER LED
Green Light ：Power is ON
Off ：Power is OFF.
（2）STATUS LED
Green Light ：The system is normally operating.
Orange Light ：Starting.
Orange Blink ：Malfunction（Contact the seller）.
Off：Power is OFF.
（3）SD CARD LED
Green Light : SD card inserted
Green Blink : Reading / writing data
Orange Blink : SD card error
Off : No SD card
（4）Port LED
LINK/ACT. （Port 1-28）
Green Light : Link is established at 1000 Mbps duplex mode.
Green Blink : Transmitting and receiving data at 1000 Mbps duplex mode.
Orange Light : Link is established at 100 Mbps or 10 Mbps.
Orange Blink : Transmitting and receiving data at 100 Mbps or 10 Mbps.
Off : No devices is connected.
LINK/ACT. （Port 25-28）
Green Light : Link is established at 1000 Mbps duplex mode.
Green Blink :
Off : No devices is connected.
Transmitting and receiving data at 1000 Mbps duplex mode.
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 5
Model
Name
Model
No.
ZEQUO 2200
PN26241-MY
6. Software Specifications
6－1. Configuration Control parameters can be set by the following procedures:
6－2. Switching Hub Control
6－3. Rebooting
6－4. Supported Agent
6－5. Support MIB
6－6. System log
6－7. Others
401-26241-MY-SP03
Product Specification
Page 5 of 9
（1） Configuration from an asynchronous terminal connected to the console port.
（2） Configuration from a remote terminal connected via TELNET and SSH.
Switching Hub can be controlled by the following procedures:
（1） Control from an asynchronous terminal connected to the console port.
（2） Control from a remote terminal using SSH/TELNET and TCP/IP network
connection.
（3） Control using SNMP Manager
The switching Hub operation status can be checked using the following functions.
（1） Fan sensor function
（2） Internal temperature sensor function
（3） Function to display the CPU usage and memory ufage
（4） SFP module status checking function (DDM:Digital Diagnostic Monitoring)
The system can be reset from the software in the following three modes:
(1) Warm start.
(2) Reset to factory default
Management protocol : SNMP v1/v2c/v3 （RFC 1157, RFC 1901, RFC 1908,
RFC 2570, RFC 2575）
TELNET （RFC 854）
SSH v2 （RFC 4251, RFC 4252, RFC4253,
RFC 4254、RFC4716
Data transfer protocol : TFTP （RFC 783）
RFC1213-MIB（MIBⅡ） （RFC 1213）
BRIDGE- MIB （RFC 4188）
SNMPv2-MIB （RFC 1907）
RMON-MIB （RFC 1757,RFC 2819）
RMON2-MIB （RFC 2021）
EtherLike-MIB （RFC 1643,RFC2358,RFC2665）
MAU-MIB （RFC 4836）
P-BRIDGE-MIB （RFC 4363）
IF-MIB （RFC 2233, RFC2863）
RADIUS-AUTH-CLIENT-MIB （RFC 2618)
RADIUS-ACC-CLIENT-MIB （RFC 2620)
DISMAN-PING-MIB （RFC 2925)
DISMAN-TRACEROUTE-MIB （RFC 2925)
IPV6-MIB （RFC 2465)
Maximum number to be kept: 9,000
system logs transfer（IPv4 / IPv6）
Syslog Client (Transfers system logs to the Syslog server.)
TFTP Client (Upgrades the software and saves/loads configuration information.)
TELNET Client
DHCP Client
SNTP
LLDP
LLDP-MED
DNS relay
DNS Resolver
DHCP Snooping
ZEQUO assist Plus
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 6
Model
Name
Model
No.
ZEQUO 2200
PN26241-MY
7. Layer 2 Switching Functions
7－1. Spanning Tree
7－2. VLAN
7－3. Trunking
7－4. Port Monitoring
7－5. Multicast
401-26241-MY-SP03
Product Specification
Page 6 of 9
IEEE 802.1D Spanning Tree Protocol, Rapid Spanning Tree Protocol
IEEE 802.1Q Multiple Spanning Tree Protocol
IEEE802.1Q
Private VLAN
Guest VLAN
MAC-based VLAN
Subnet based VLAN
Number of VLAN registrations: 4,094 (including default)
Asymmetric VLAN
Voice VLAN
Link Aggregation function （LACP/Manual)
Up to 14 groups can be created (up to 8 ports per group).
Traffic of the target port can be copied to the specified port and transmitted.
(Two or more target ports can be specified.)
RSPAN
IGMP Snooping（IGMP v1/v2/v3） function
（Maximum group number ：512, Number of Static registrations：64）
MLD snooping（MLDv2）function
（Maximum group number ：512, Number of Static registrations：64）
7－6. QoS
7－7. Authentication Function
7－8. Access Control
7－9. Access Control
IEEE802.1p 8 levels of Priority Queue supported
Scheduling Method：
Priority Queuing （PQ：Strict priority queuing ）
Weighted Round Robin （WRR：Weighted round robin scheduling ）
Web-based authentication
IEEE802.1X Port-based authentication
Web-based authentication, Mac-based authentication using IEEE 802.1X
Web-based authentication, Dynamic VLAN function using IEEE 802.1X
Guest VLAN using IEEE 802.1X
（EAP-MD5/TLS/PEAP authentication method）
Access control can be controlled by the following parameters:
（1）IP address （Source or Destination）
（2）MAC address （Source or Destination）
（3）TCP/UDP port number （Source or Destination）
（4）VLAN ID
（5）IEEE 802.1p Priority
（6）DSCP
（7）Protocol
（8）ICMP type
（9）TCP SYN Flag.
Redundancy is enabled by ring topology. (Up to 8 group can be registered.)
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 7
Model
Name
Model
No.
ZEQUO 2200
PN26241-MY
8. Connector Pin Arrangement
8－1. Port 1 - 28
Status
MDI-X
8－2. Console port
MDI
Pin No.
Signal
Signal
12364 587
BI_DB+
BI_DA+
BI_DB-
BI_DA-
BI_DA+
BI_DB+
Product Specification
BI_DA- BI_DD+
BI_DB- BI_DC+
BI_DD-
BI_DC-
BI_DC+
BI_DD+
BI_DC-
BI_DD-
401-26241-MY-SP03
Page 7 of 9
Pin No.
1 2 3 4 5 6 7 8
Pin No.
1
2
3
4
Signal
NC
NC
TXD
GND
Pin No.
5
6
7
8
9. Installation Procedures and Accessories
10－1． Installation Procedures Mounting to rack
10－2． Accessories
（1） Installation Guide : 1
（2） CD-ROM （*1） : 1
（3） Rubber foot : 4
（4） Mounting bracket （for 19-inch rack） : 2
（5） Screw（for 19-inch rack） : 4
（6） Screw (for fixing the main unit and the mounting bracket) : 8
（7） Dummy SD card : 1
（8） Power cord （CEE7/7）（*2） : 1
*1 We discontinued the CD-ROM from October 2020's production lots.
*2 The attached power cord is dedicated for AC 100 - 240 V use.
10. Optional Accessories
10－1. 1000BASE-SX
SFP Module
（Model No. ：PN54021K-ID）
10－2. 1000BASE-LX
SFP Module
（Model No.：PN54023K-ID）
Fiber optic port connector type : LC connector （Duplex）
Standards : IEEE802.3ｚ 1000BASE-SX
Transmission speed : 1000Mbps, full duplex
Compatible cable : Fiber cable
Maximum transmission distance : 550 m at 50/125 μm
Fiber optic port connector type : LC connector （Duplex）
Standards : IEEE802.3ｚ 1000BASE-LX
Transmission speed : 1000Mbps, full duplex
Compatible cable : Fiber cable
Maximum transmission distance : 10 km when Single Mode Fiber is used
Signal
GND
RXD
NC
NC
Pin No.
50/125μm Multi Mode Fiber
62.5/125μm Multi Mode Fiber
220 m at 62.5/125 μm
10/125μm Single Mode Fiber
50/125μm Multi Mode Fiber
62.5/125μm Multi Mode Fiber
550 m when Multi Mode Fiber is used
1 2 3 4 5 6 7 8
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Page 8
Model
Name
Model
No.
ZEQUO 2200
Product Specification
PN26241-MY
11. Prohibitions when Using the Product to Guarantee Safety
The manufacturer assumes no responsibility for any problems occurring when the following conditions are not satisfied.
Observe the following items when using the product.
（1） Do not use power supply other than AC 100 - 240 V.
Deviation could lead to fire, electric shock, and/or equipment failure.
（2） Do not handle the power cord with wet hand.
Deviation could lead to electric shock, and/or equipment failure.
（3） Do not handle this Switching Hub and connection cables during a thunderstorm.
Deviation could lead to electric shock.
（4） Do not disassemble and/or modify this Switching Hub.
Deviation could lead to fire, electric shock, and/or equipment failure.
（5） Do not damage the power cord. Do not bend too tightly, stretch, twist, bundle with other cord, pinch, put under a heavy
object and/or heat it.
Damaged power cord could lead to fire, short, and/or electric shock.
（6） Do not put foreign objects (such as metal and combustible) into the opening (such as twisted pair port, console port),
and/or do not drop them into the inside of the Switching Hub.
Deviation could lead to fire, electric shock, and/or equipment failure.
401-26241-MY-SP03
Page 8 of 9
（7） Do not connect equipments other than 10BASE-T/100BASE-TX/1000BASE-T to twisted pair port.
Deviation could lead to fire, electric shock, and/or equipment failure.
（8） Do not place this Switching Hub in harsh environment (such as near water, high humid, and/or high dust).
Deviation could lead to fire, electric shock, and/or equipment failure.
（9） Do not place this Switching Hub under direct sunlight and/or high temperature.
Deviation could lead to high internal temperature and fire.
（10） Do not insert any modules other than the optional SFP modules (PN54021K-ID/PN54023K-ID) into the SFP extension slot.
Deviation could lead to fire, electric shock, and/or equipment failure.
For the latest information about compatible modules, check our website.
（11） Do not install this Switching Hub at the location with continuous vibration or strong shock, or at the unstable location.
Deviation could lead to injury and/or equipment failure.
（12） Do not put this Switching Hub into fire.
Deviation could lead to explosion and/or fire.
（13） Do not use the supplied power cord for anything other than this product.
Deviation could lead to fire, electric shock, and/or equipment failure.
(14） Unplug the power cord in case of equipment failure.
Deviation, such as keeping connected for a long time, could lead to fire.
（15） Connect this Switching Hub to ground.
Deviation could lead to electric shock, malfunction, and/or equipment failure.
（16） Connect the power cord firmly to the power port.
Deviation could lead to electric fire, shock, and/or malfunction.
（17）Unplug the power cord if the STATUS/ECO LED blinks in orange (system fault).
Deviation, such as keeping connected for a long time, could lead to fire.
（18） Handle the Switching Hub carefully so that fingers or hands may not be damaged by twisted pair port, console port,
or power cord hook block.
Date issued
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Date revised
Oct. 1, 2020
Page 9
Model
Name
Model
No.
ZEQUO 2200
Product Specification
PN26241-MY
12. Basic Instructions for the Use of This Product
（1） For inspection and/or repair, consult the retailer.
（2） Use commercial power supply from a wall socket, which is close and easily accessible to this Switching Hub.
（3） Unplug the power cord when installing or moving this Switching Hub.
（4） Unplug the power cord when cleaning this Switching Hub.
（5） Use this Switching Hub within the specifications. Deviation could lead to malfunction.
（6） Do not touch the metal terminal of the RJ45 connector, the modular plug of connected twisted pair cable, or the metal
terminal of the SFP extension slot. Do not place charged objects in the proximity of them. Static electricity could lead to
equipment failure.
（7） Do not put the modular plug of the connected twisted pair cable on objects that can carry static charge, such as carpet.
Do not place it in the proximity. Static electricity could lead to equipment failure.
（8） Do not put a strong shock, including dropping, to this Switching Hub. Deviation could lead to equipment failure.
（9） Before connecting a console cable to the console port, discharge static electricity, for example by touching metal
appliance （do not discharge by touching this Switching Hub）.
401-26241-MY-SP03
Page 9 of 9
（10） Do not store and/or use this Switching Hub in the environment with the characteristics listed below.
（Store and/or use this Switching Hub in the environment in accordance with the specification.）
- High humidity. Possible spilled liquid （water）.
- Dusty. Possible static charge （such as carpet）.
- Under direct sunlight.
- Possible condensation. High/low temperature exceeding the specifications environment.
- Strong vibration and/or strong shock.
（11） Please use this Switching Hub in place where ambient temperature is from 0 to 50℃.
Failure to satisfy the conditions above may result in a fire, electric shock, equipment failure, and/or malfunction.
Such events are not covered by the warranty. Do not block the ventilator of the Switching Hub.
Blocked ventilator induces the heat accumulation inside, causing equipment failure and/or malfunction.
（12） When using two Switching Hubs, do not stack them. When you place them side by side, allow for a space of 20 mm or
more between them. This space is not necessary if you use supplied connection brackets.
（13） Do not insert any modules other than the optional SFP modules (PN54021K-MY/PN54023K-MY) into the SFP extension slot.
Deviation could lead to fire, electric shock, and/or equipment failure.
For the latest information about compatible modules, check our website.
（14） Please note that operation will not be guaranteed if any SD card other than
the separately sold Panasonic SD card is installed into the SD card slot. Format the card with this Switching Hub.
Date issued
Date revised
Sep. 18, 2015
Panasonic Life Solutions Networks Co., Ltd.
Oct. 1, 2020
Loading...
