Panasonic XT-G5776 User Manual

TG577x_QG(e).fm Page 1 Monday, February 20, 2006 3:22 PM

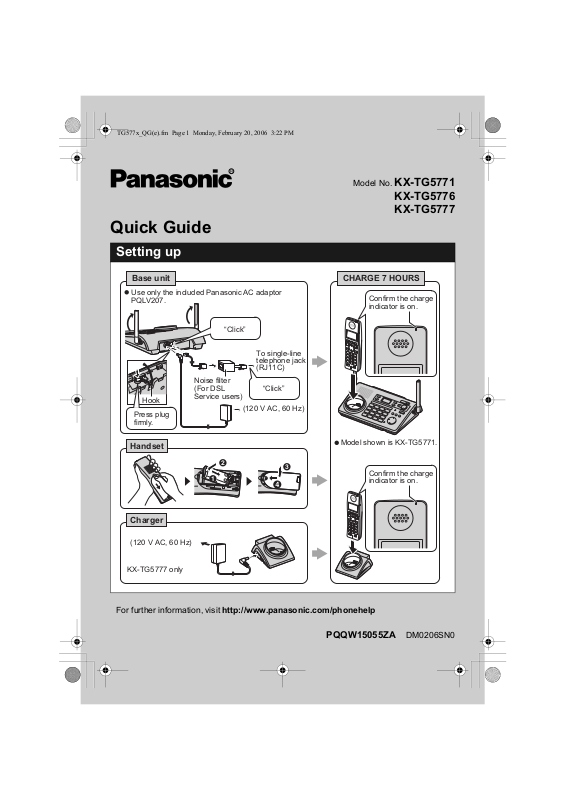

Model No. KX-TG5771

Quick Guide

Setting up

Base unit CHARGE 7 HOURS

Use only the included Panasonic AC adaptor
PQLV207.

“Click”

To single-line
telephone jack
(RJ11C)

Hook

Press plug
firmly.

Noise filter
(For DSL
Service users)

“Click”

(120 V AC, 60 Hz)

Confirm the charge
indicator is on.

KX-TG5776
KX-TG5777

Handset

A

B

C

D

Model shown is KX-TG5771.

Charger

(120 V AC, 60 Hz)

KX-TG5777 only

For further information, visit http://www.panasonic.com/phonehelp

PQQW15055ZA DM0206SN0

Confirm the charge
indicator is on.

TG577x_QG(e).fm Page 2 Monday, February 20, 2006 3:22 PM

Operating tips for KX-TG5771

{ }: indicates button names/soft key names.

Using the navigator key

Press {^}, {V}, {<}, or {>} to navigate through
menus and to select items shown on the display.

Adjusting audio volume

Press {^} or {V} repeatedly while talking.

{<}

{^}

{>}

{V}

Handset soft keys

The handset features 3 soft keys. By pressing a soft
key, you can select the feature shown directly above
it on the display.

{

SELECT}, {SAVE}, {OK} and additional other

functions are assigned to soft keys. Pay attention to
soft keys to find functions you need during handset
operation.

For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.

– 2 –

TG577x_QG(e).fm Page 3 Monday, February 20, 2006 3:22 PM

Operating tips for KX-TG5776/KX-TG5777

{ }: indicates button names/soft key names.

Using the joystick

The handset joystick can be used to navigate through
menus and to select items shown on the display, by
pushing it up {^}, down {V}, left {<}, or right {>}.

Adjusting audio volume

Push the joystick up {^} or down {V} repeatedly while
talking.

Handset soft keys

The handset features 2 soft keys and joystick (middle
soft key). By pressing a soft key, you can select the
feature shown directly above it on the display.

Middle soft key:

The joystick can be used to select the center soft key
icon, by pushing down on the center of the joystick.

{

SELECT}, {SAVE}, {OK} and additional other

functions are assigned to soft keys. Pay attention to
soft keys to find functions you need during handset
operation.

Middle
soft key

For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.

– 3 –
