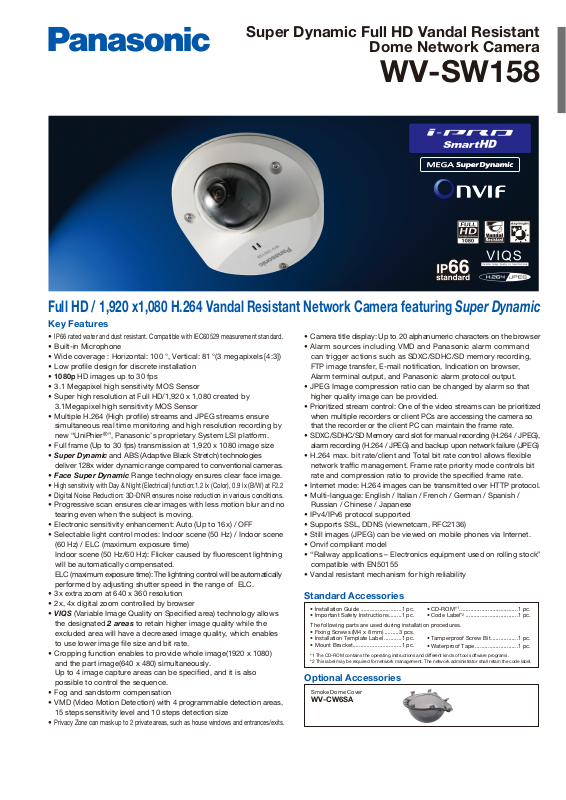

Panasonic WV-SW158 Specification

Super Dynamic Full HD Vandal Resistant

Dome Network Camera

WV-SW158

Full HD / 1,920 x1,080 H.264 Vandal Resistant Network Camera featuring Super Dynamic

Key Features

•

IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.

• Built-in Microphone

• Wide coverage : Horizontal: 100 °, Vertical: 81 °(3 megapixels [4:3])

• Low proﬁle design for discrete installation

•

1080p

HD images up to 30 fps

• 3.1 Megapixel high sensitivity MOS Sensor

• Super high resolution at Full HD/1,920 x 1,080 created by

3.1Megapixel high sensitivity MOS Sensor

• Multiple H.264 (High proﬁle) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by new “UniPhier®”, Panasonic’s proprietary System LSI platform.

• Full frame (Up to 30 fps) transmission at 1,920 x 1080 image size

•

Super Dynamic

deliver 128x wider dynamic range compared to conventional cameras.

• Face Super Dynamic Range technology ensures clear face image.

•

High sensitivity with Day & Night (Electrical) function:1.2 lx (Color), 0.9 lx (B/W) at F2.2

•

Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

• Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.

• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

• Selectable light control modes: Indoor scene (50 Hz) / Indoor scene (60 Hz) / ELC (maximum exposure time)

Indoor scene (50 Hz/60 Hz): Flicker caused by ﬂuorescent lightning

will be automatically compensated.

ELC (maximum exposure time): The lightning control will be automatically

performed by adjusting shutter speed in the range of ELC.

• 3x extra zoom at 640 x 360 resolution

• 2x, 4x digital zoom controlled by browser

•

VIQS

(Variable Image Quality on Speciﬁed area) technology allows the designated 2 areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image ﬁle size and bit rate.

• Cropping function enables to provide whole image(1920 x 1080) and the part image(640 x 480) simultaneously.

Up to 4 image capture areas can be speciﬁed, and it is also

possible to control the sequence.

• Fog and sandstorm compensation

• VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

•

and ABS (Adaptive Black Stretch) technologies

• Camera title display: Up to 20 alphanumeric characters on the browser

• Alarm sources including VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notiﬁcation, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output.

• JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.

• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

• SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)

• H.264 max. bit rate/client and Total bit rate control allows ﬂexible network trafﬁc management. Frame rate priority mode controls bit rate and compression ratio to provide the speciﬁed frame rate.

• Internet mode: H.264 images can be transmitted over HTTP protocol.

• Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

• IPv4/IPv6 protocol supported

• Supports SSL, DDNS (viewnetcam, RFC2136)

• Still images (JPEG) can be viewed on mobile phones via Internet.

• Onvif compliant model

•

“Railway applications – Electronics equipment used on rolling stock” compatible with EN50155

• Vandal resistant mechanism for high reliability

Standard Accessories

• Installation Guide ..........................1 pc.

• Important Safety Instructions ........1 pc.

The following parts are used during installation procedures.

• Fixing Screws (M4 x 8 mm) .........3 pcs.

• Installation Template Label ...........1 pc.

• Mount Bracket ...............................1 pc.

*1 The CD-ROM contains the operating instructions and different kinds of tool software programs. *2 This label may be required for network management. The network administrator shall retain the code label.

• CD-ROM*

• Code Label*

• Tamperproof Screw Bit .................1 pc.

• Waterproof Tape ...........................1 pc.

.....................................1 pc.

.................................1 pc.

Optional Accessories

Smoke Dome Cover

WV-CW6SA

Speciﬁcations

Camera

Image Sensor Effective Pixels Scanning Mode Scanning Area Minimum Illumination

White Balance Light Control Mode

Shutter Speed

Super Dynamic Face Super Dynamic Adaptive Black Stretch Fog compensation AGC Electronic Sensitivity UP Day & Night (electrical) Digital Noise Reduction Video Motion Detection Privacy Zone VIQS Camera Title (OSD) Mirror Upside down Lens Distortion Conpensation Focal Length

Lens

Zoom Ratio Angular Field of View

Maximum Aperture Ratio Focusing Range Aperture Range

Adjusting Angle

Camera Control

Browser

Display Mode

GUI

Digital Zoom Camera Title Clock Display Alarm Control One Shot Capture Audio SD Memory Data Download GUI/Setup Menu Language System Log

Supported OS

Supported Browser

Network IF

Network

Image Capture Mode:


2 mega pixel [16:9]

Resolution

Image Capture Mode:

1.3 mega pixel [16:9] Image Capture Mode:

1.3 mega pixel [4:3] Image Capture Mode: 3 mega pixel [4:3]

Transmission Mode

H.264

Frame Rate Bit Rate/Client

Image Quality Refresh Interval Transmission Type Image Quality

JPEG

Refresh Interval Transmission Type

Cropping

1/3 type MOS Sensor Approx. 3.1 megapixels Progressive scan

4.51 mm(H) x 3.38 mm(V) Color: 1.2 lx, BW: 0.9 lx (F2.2, Auto slow shutter: Off (1/30s), Gain:On(High) Color: 0.075 lx, BW 0.056 lx (F2.2, Auto slow shutter: Max. 16/30s, Gain:On(High)) AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K) Outdoor scene: Automatic integration Indoor scene [50 Hz]: Automatic integration (up to 1/100 s) Indoor scene [60 Hz]: Automatic integration (up to 1/120 s) ELC: (up to 1/10,000 sec.) Max shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000(only at Super Dynamic OFF) ON / OFF ON / OFF (Only at Super Dynamic: ON) ON / OFF (Only at Super Dynamic: OFF) ON / OFF ON (LOW, MID, HIGH) / OFF OFF / Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s) OFF / Auto High / Low ON / OFF, 4 areas available ON / OFF (up to 2 zones available) ON / OFF (up to 2 zones available) Up to 20 characters (alphanumeric characters, marks), ON / OFF ON / OFF 256 steps

1.95 mm {5/64 inches} 1x / Extra Zoom 3x (2 megapixels at 640 x 360 resolution) Horizontal: 100° Vertical: 81° (3 megapixels [4:3]) Horizontal: 95° Vertical: 62° (2/1.3 megapixels [16:9]) Horizontal: 84° Vertical: 68° (1.3 megapixels [4:3]) 1 : 2.2

0.5 m ~ ∞ F2.2

• Ceiling installation

Horizontal: -20° to +20° Vertical: -20° to +90°

• Wall installation

Horizontal: -80° to +80° Vertical: -90° to +20° Brightness Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. 1x, 2x, 4x controlled by browser GUI Up to 20 alphanumeric characters Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) Reset A still picture will be displayed on a newly opened window. Mic Input: ON / OFF Volume adjustment: Low / Middle / High, Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. English, Italian, French, German, Spanish, Russian, Chinese, Japanese Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs

*2 *3

Microsoft

Windows® 8, Microsoft® Windows® 7,

Microsoft

Windows Vista®,Microsoft® Windows® XP SP3 Windows® Internet Explorer® 10.0 (32 bit), Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit),Windows® Internet Explorer® 7.0 (32 bit)

10Base-T / 100Base-TX, RJ-45 connector H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps H.264: 1,280 x 960, up to 15 fps JPEG (MJPEG): 2,048 x1,536, up to 15 fps Constant bitrate / Frame rate priority / Best effort /Advanced VBR 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps Constant bit rate/Best effort: 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 / 8,192 / 10,240 / 12,288 / 14,336 kbps LOW / NORMAL / FINE

0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s UNICAST / MULTICAST 10 steps

0.1 fps ~ 30 fps PULL / PUSH 2 megapixels [16:9] H.264 640×360/ 320×180, Max. 30 fps MJPEG 640×360/ 320×180, Max. 30 fps

1.3 megapixels [16:9] H.264 640×360/ 320×180, Max. 30 fps MJPEG 640×360/ 320×180, Max. 30 fps

1.3 megapixels [4:3] H.264 VGA (640×480)/ QVGA (320×240), Max. 30 fps MJPEG VGA (640×480)/ QVGA (320×240), Max. 30 fps

{11/64 inches

(H)

x 9/64 inches (V)}

}

Audio Compression

Network

Audio Mode Authentication for Audio Total Bit Rate Supported Protocol

FTP Client

No. of Simultaneous Users SDXC/SDHC/SD Memory Card (Option)

Cellular Phone Compatibility Mobile Terminal Compatibility Alarm Source

Alarm

Alarm Actions

Alarm Log Schedule Microphone

Input/ Output

Safety/EMC Standard

General

Power Source and Power Consumption Ambient Operating Temperature Ambient Operating Humidity Water and Dust Resistance Shock Resistance Railway Application Dimensions

Mass (approx.) Finish

*1 Converted value *2 Refer to "Notes on Windows Vista further information about system requirements for a PC and precautions when using Microsoft

Windows *3 When using IPv6 for communication, use Microsoft Microsoft *4 Transmission for 2 streams can be individually set in the same compression method.

8 or Microsoft® Windows® 7 or Microsoft® Windows Vista®.

Windows Vista®.

G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps for transmitting, AAC for audio recording and sound detection OFF / Mic input Level 1 only / Level 2 higher / All users 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available. ) Up to 14 users (Depends on network conditions) H.264 recording (Audio recording is enable): Manual REC / Alarm REC (Pre/Post) / Schedule REC JPEG recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) JPEG image

iPad, iPhone, iPod touch (iOS 4.2.1 or later), AndroidTM mobile terminals VMD, Command alarm, Sound detection SDXC/SDHC/SD memory recording, E-mail notication, Indication on browser, FTP image transfer, Panasonic protocol output With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs Alarm / VMD / Access permission / H.264 recording / Sound detection Built-in microphone <Safety> UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 <EMC> FCC Part15 Class A, ICES-003 Class A, EN55022 Class B, EN55024 PoE (IEEE802.3af compliant) / PoE 48 V: 110 mA (Class 2 device)

-30 °C to +50 °C {-22 °F to 122 °F} Less than 90 % (no condensation) IP66, IEC60529 measuring standard compatible Compliant with 50 J IEC60068-2-75 EN50155, EN50121 ø109 mm x 47 (H) mm {ø4-9/32 inches x 1-27/32 inches (H)} With Mount Bracket: ø109 mm x 70 mm (H) (ø4-9/32" x 2-3/4" (H)) Approx. 350 g { 0.77 lbs} Main body: Aluminum die cast, light gray Dome cover: Clear polycarbonate resin

/ Windows® 7 / Windows® 8" on the provided CD-ROM for

Windows® 8 or Microsoft® Windows® 7 or

Part Names and Functions

Front View

Rear View

Enclosure Dome Cover SD Memory Card Slot Network Cable Lens Initial Set Button SD Memory Card Error Indicator (lit when data cannot be saved) Access Indicator (lit when accessing) Link Indicator (lit when linking)

Appearance

109 (4-9/32")

(2-3/4")

Trademarks and registered trademarks

Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– – iPad, iPhone and iPod touch are registered trademarks of Apple Inc. – ONVIF and the ONVIF logo are trademarks of ONVIF Inc.

"MEGA Super Dynamic", and "i-PRO SmartHD" logos are trademarks or registered trademarks of Panasonic Corporation.

–

Important

Safety Precaution: Carefully read the operating instructions and installation manual before using this product.

– –

Panasonic cannot be responsible for the performance of the network and/or other manufacturers'

products used on the network.

• Masses and dimensions are approximate.

• Speciﬁcations are subject to change without notice.

(1-27/32")

• These products may be subject to

export control regulations.

Unit: mm (inches)
