Panasonic VBD User Manual

Panasonic

DECT

Digital Cordless Telephone System

Operating

Instructions

Before operating this system, please read these instructions completely.

THIS EQUIPMENT IS NOT DESIGNED FOR MAKING EMERGENCY TELEPHONY CALLS WHEN THE POWER FAILS. ALTERNATIVE ARRANGEMENTS SHOULD BE MADE FOR ACCESS TO EMERGENCY SERVICES.

CONTENTS

CHAPTER 1. Introduction..............................................................3

1. Overview ........................................................................... 3

2. Safety Information............................................................ 4

CHAPTER 2. Getting Started.........................................................5

1. Installing the battery pack ............................................... 5

2. Charging the PS ............................................................... 6

3. Turning the power ON/OFF.............................................. 8

3.1 Turning the power ON..................................................................8

3.2 Turning the power OFF ................................................................8

4. Adjusting the Volume....................................................... 8

4.1 Adjusting the volume of the ringing tone ......................................8

4.2 Adjusting the volume of conversations.........................................9

4.3 Changing the Ringing Tone .........................................................9

CHAPTER 3. Names and Functions ...........................................11

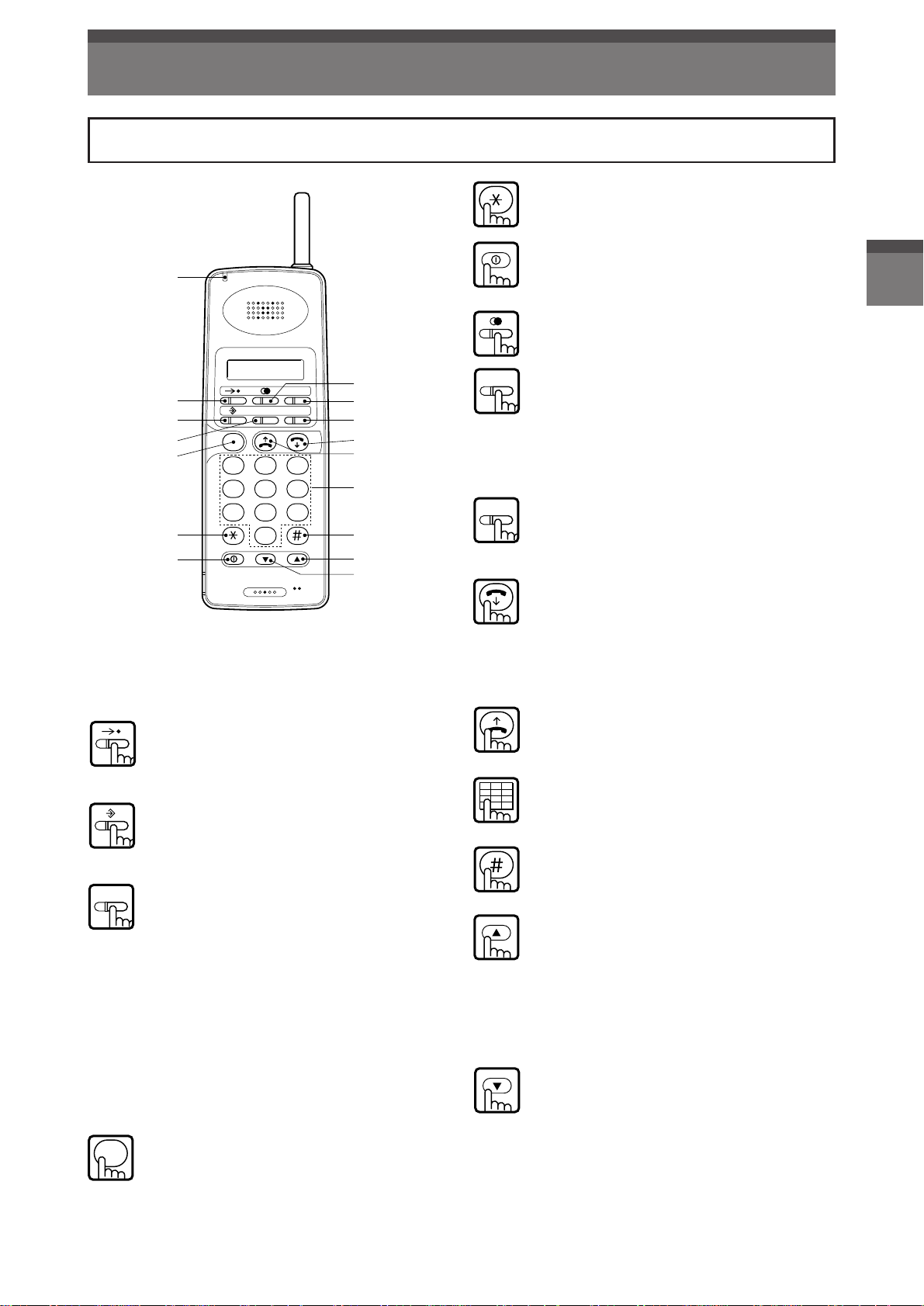

1. VB-D3811EX Personal Station (PS) .............................. 11

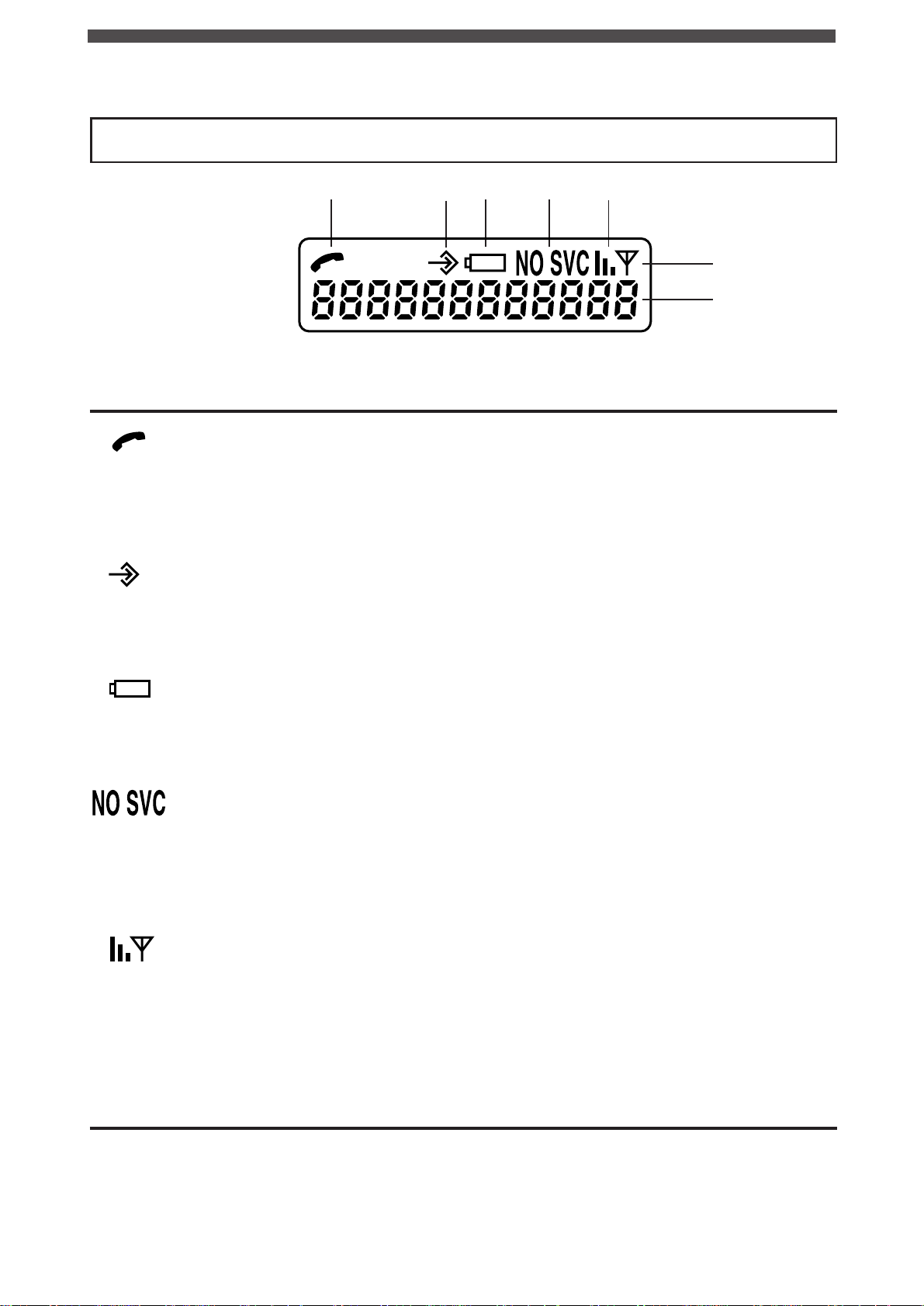

2. Display............................................................................. 12

2.1 1st line........................................................................................12

2.2 2nd line.......................................................................................12

CHAPTER 4. Basic Operation .....................................................13

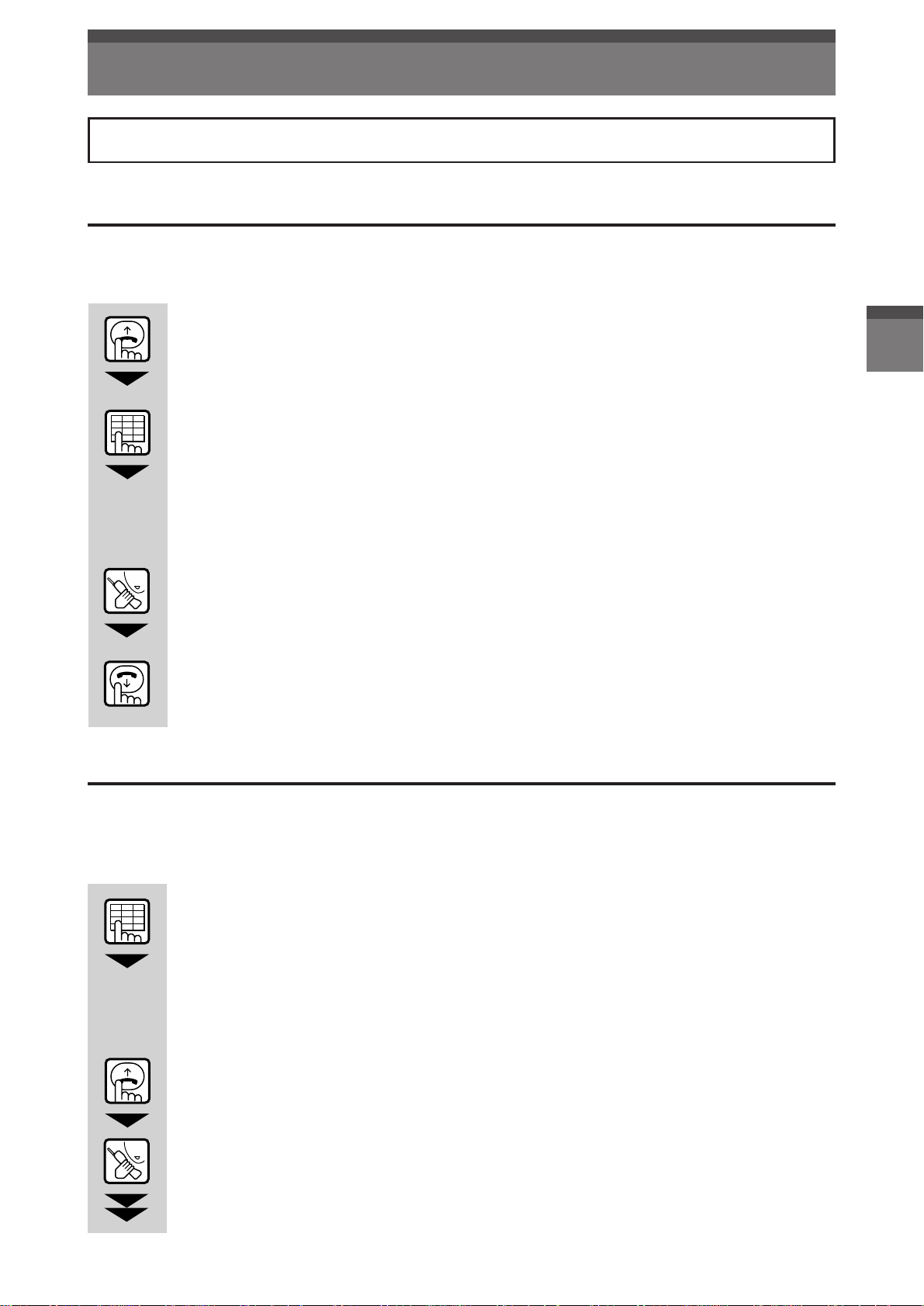

1. Making an Exchange Line Call...................................... 13

1.1 Making a call after hearing the outside dial tone........................13

1.2 Making a call using en-block dialling..........................................13

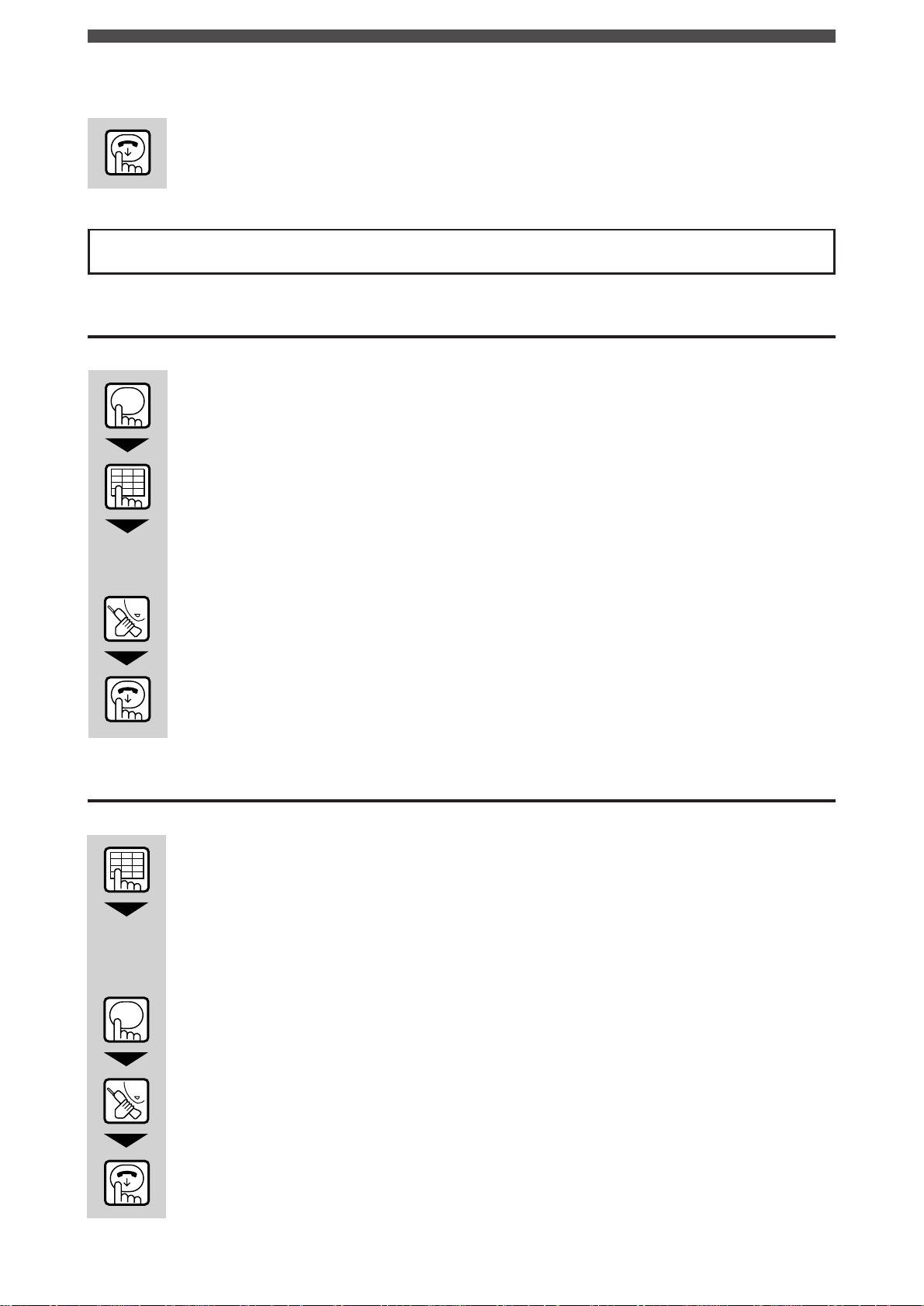

2. Making an Internal Call .................................................. 14

2.1 Making a call after hearing the Intercom dial tone .....................14

2.2 Making a call using en-block dialling..........................................14

3. Receiving Calls............................................................... 15

4. Plasing a call on hold (Mute Function)......................... 15

CHAPTER 5. Applied Operation..................................................16

1. Speed Dial ....................................................................... 16

1.1 Storing/Checking Speed Dialling Nos. .......................................16

1.2 Changing and Deleting Speed Dialling Nos. ..............................17

1.3 Making a call using a speed dial No...........................................18

2. Redial............................................................................... 19

2.1 Last Number Redial. ..................................................................19

2.2 Selection dialling. .......................................................................19

3. Recall (Send earth recall or timed break signal

to PBX) ............................................................................ 20

4. Changing from Pulse to Tone........................................ 21

5. Any Key Answer ............................................................. 21

6. Checking the Charge counter ....................................... 22

CHAPTER 6. Alarm Function.......................................................23

1. Error Alarm Function ..................................................... 23

CHAPTER 7. Subscription Registration.....................................24

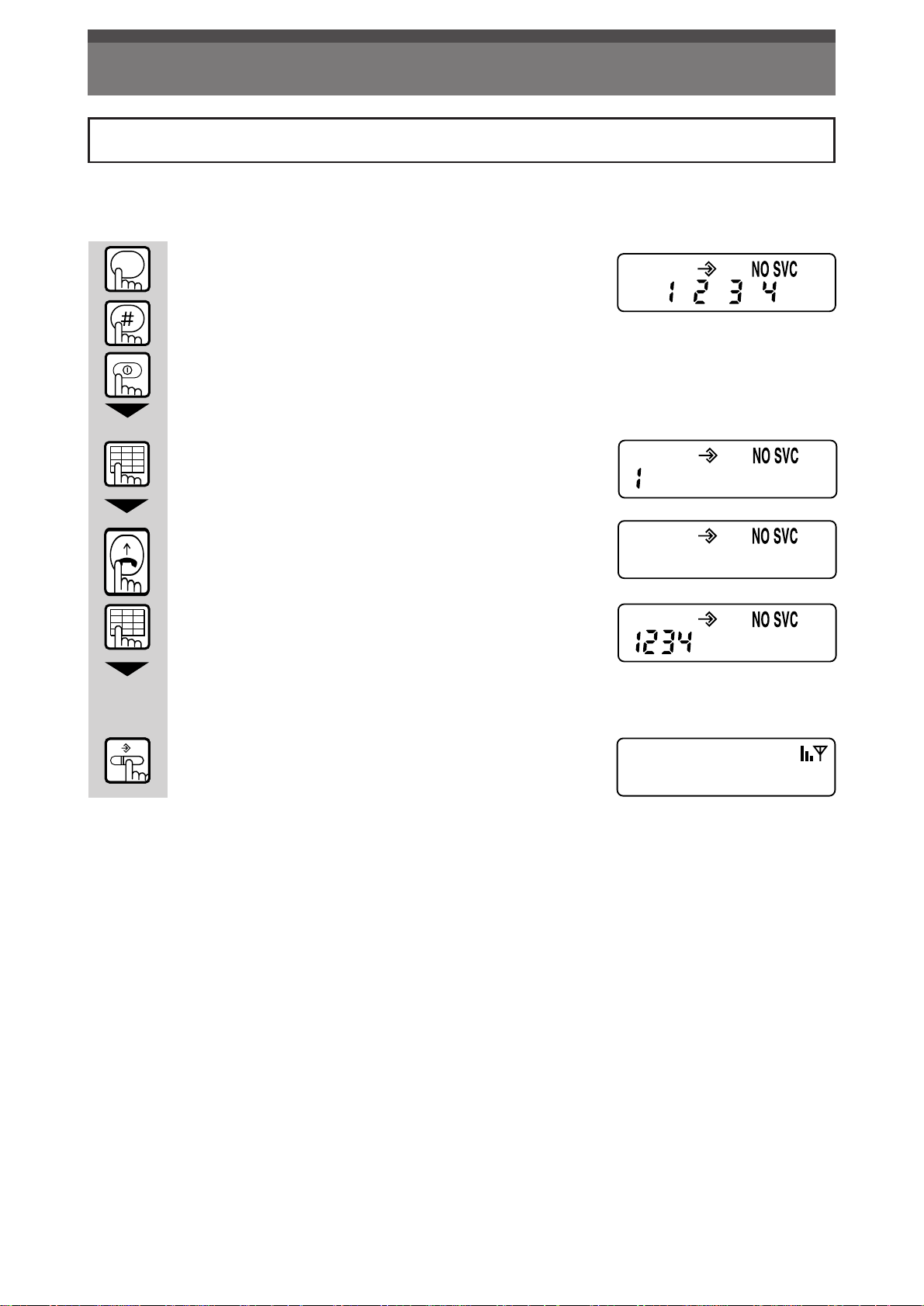

1. Subscription Registration ............................................. 24

2. PS-ID display .................................................................. 25

CHAPTER 8. Other Information ..................................................26

1. Care and Maintenance ................................................... 26

2. Trouble Shooting............................................................ 27

Introduction

1. Overview

Panasonic’s modern technology produced a digital cordless telephone system using the DECT technology. This system is either installed behind an existing customer’s PBX/Key system or installed directly to public telephone lines. It provides a cordless communication facility to the users. Extension telephones of customer may be replaced by a cordless handset, or user may have a cordless handset in addition to an existing wired telephone.

The Panasonic Cordless System consists of a Radio Exchange (RE), a Cell Station (CS), and a personal handy terminal (PS).

Up to 24 telephone lines or PBX/Key system extensions can be connected to the radio Exchange (RE) and up to 24 portable handsets are used in the system. Each portable handset have own telephone number or extension number in the PBX/Key system, and can receive and originate a call.

Thanks to the digital technology, a user of this cordless telephone system enjoys a clear speech with lesser noise as well as a protection from tapping.

Note: To assure the safe use of your telephone, please observe the following guidelines for installation and use.

1) Do not use the telephone near sources of electric ‘noise’ such as fluorescent lamps, air conditioner, washing machine, TV sets or radios.

2) The telephone should not be exposed to heat sources, direct sunlight, extreme temperatures, moisture, strong vibrations, greasy or dusty environments. Operating temperature: 0°C to 40°C Operating humidity: 0% to 60%

3) Never attempt to insert wires, pins, or similar objects in the vents or openings of the telephone set.

4) Never clean the telephone with benzene, paint thinner or other solvent materials. Wipe with a soft cloth.

5) Do not change the unit installation location without consulting your dealer/installer.

6) Installation of telephone system close to welding equipment, or broadcasting aerial may cause radio interference to speech.

IMPORTANT

1) This apparatus must be installed in accordance with BS6701 and general approval NS/G/ 23/L/100005. This is a condition of the approval and any installation which does not comply with the above will invalidate the approval status of that particular installation.

2) This equipment requires a maintenance contract issued by a maintainer holding BSI approval. This is a statutory requirement.

IMPORTANT NOTICE FOR U.K.

1) Please ensure that the apparatus is not connected in parallel to any other equipment that is intended for connection to the PSTN.

2) Although Radio Exchange can use either loop disconnect or DTMF signalling. Only the performance of the DTMF signalling is subject to regulatory requirements for correct operation. It is therefore strongly recommended that the equipment is set to use DTMF signalling for access to public or private emergency services. DTMF signalling also provides faster call set up.

2. Safety Information

This equipment is intended for use when supplied with power from the charger through the AC Adaptor. Other usage will invalidate any approval given to this apparatus and may be dangerous.

Switch off your DECT telephone when in an aircraft. The use of telephones in an aircraft may be dangerous to the operation of the aircraft.

You are advised not to use the equipment at a refuelling point. You are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress.

You MUST exercise proper control of your vehicle at all times. Do not use a hand-held telephone or microphone while you are driving. Find a safe place to stop first. Do not speak into a hands-free microphone if it will take your mind off the road. You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an emergency.

Care must be taken when using the telephone in close proximity to personal medical devices, such as pacemakers and hearing aids. Avoid contact between the antenna and face (especially eyes) during a call. Take care when using a telephone in crowded places.

Getting Started

This chapter describes preparations and other items you must be aware of before starting operation.

Prepare your PS for use as follows:

• Install the battery pack.

• Charge your PS.

These preparations are described in detail below.

1. Installing the battery pack

The PS is operated by voltage supplied from the battery pack. Follow the procedure below to install the battery pack.

(1) Slide the battery cover in the direction of the arrow to remove it.

(2) Securely insert the battery pack connector into the connector in the PS.

(3) Install the battery pack.

Notes: Press the battery pack cord into the slot in the side of the battery pack. If you do not do so, you may not be able to replace the cover.

IMPORTANT

• If the PS is not used more than two weeks, please put off the battery pack to keep the battery life and recharge it before using the PS again.

Getting Started

(4) Slide the battery cover in the direction of the arrow until you hear it click into

position.

2. Charging the PS

(1) Plug the AC adaptor into the charger.

(2) Plug the AC adaptor into a power outlet.

Power Outlet

(3) Place the PS with its battery pack in the charger.

The charge lamp on the charger lights. While the PS is placed on.

Getting Started

Notes:

• The first time you charge your battery pack, charge it for more than 15 hours.

• If you replace the battery pack, or it has not been used for a long time, or if it goes flat while you are using the PS, charge the battery pack for more than 15 hours.

• If the “Low Voltage” icon is displayed even after charging the battery pack for at least 10 hours and the charge counter shows fully charged, please install a new battery pack because of the battery's life.

• Once the battery pack is charged, you can make calls lasting about 4.5 hours in total or keep the PS in a standby state for about 40 hours.

Getting Started

3. Turning the power ON/OFF

3.1 Turning the power ON

When the power is turned ON, the PS can be operated.

1. Hold the [Power] key down for at least one second.

All icons are displayed on the display for about one second. Then, the display changes as follows depending on the state of the PS.

When the RSSI icon is displayed The PS is in range and can receive signals.

When the Out of range icon is displayed The PS is out of range and cannot receive signals. Bring the PS near to the CS until the Out of range icon disappears. You can hold a conversation when this icon disappears.

3.2 Turning the power OFF

When the power is turned OFF, the PS can no longer be operated.

1. Hold the [Power] key down for at least one second.

All icons disappear from the display.

4. Adjusting the volume

You can adjust the volume of the ringing tone and conversations.

When Error is displayed Either the battery is low, or something else is preventing the PS from being used. Remedy this error referring to Chapter 6, 1. Error Alarm Function.

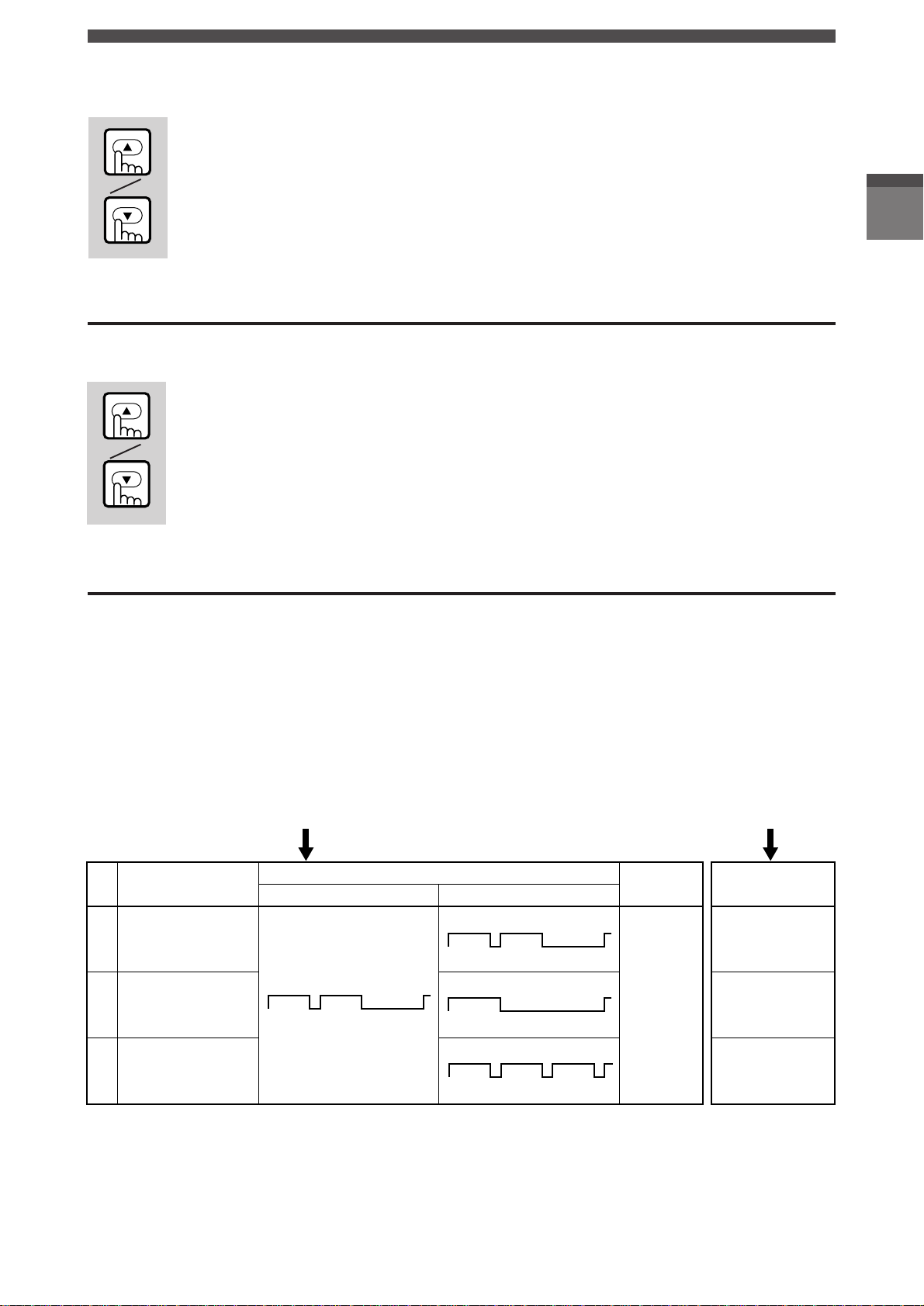

4.1 Adjusting the volume of the ringing tone

The volume of ringing tones can be adjusted in four stages (No Ringing Tone→Low→Middle→ High).
