Operating Instructions
Plasma Television
M odel No.
TX-PF42ST30
TX-PF46ST30
TX-PF50ST30
T hank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
T he images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
TQB0E2077U
Page 2
Experience an amazing level of multimedia
excitement
Enjoy rich multimedia

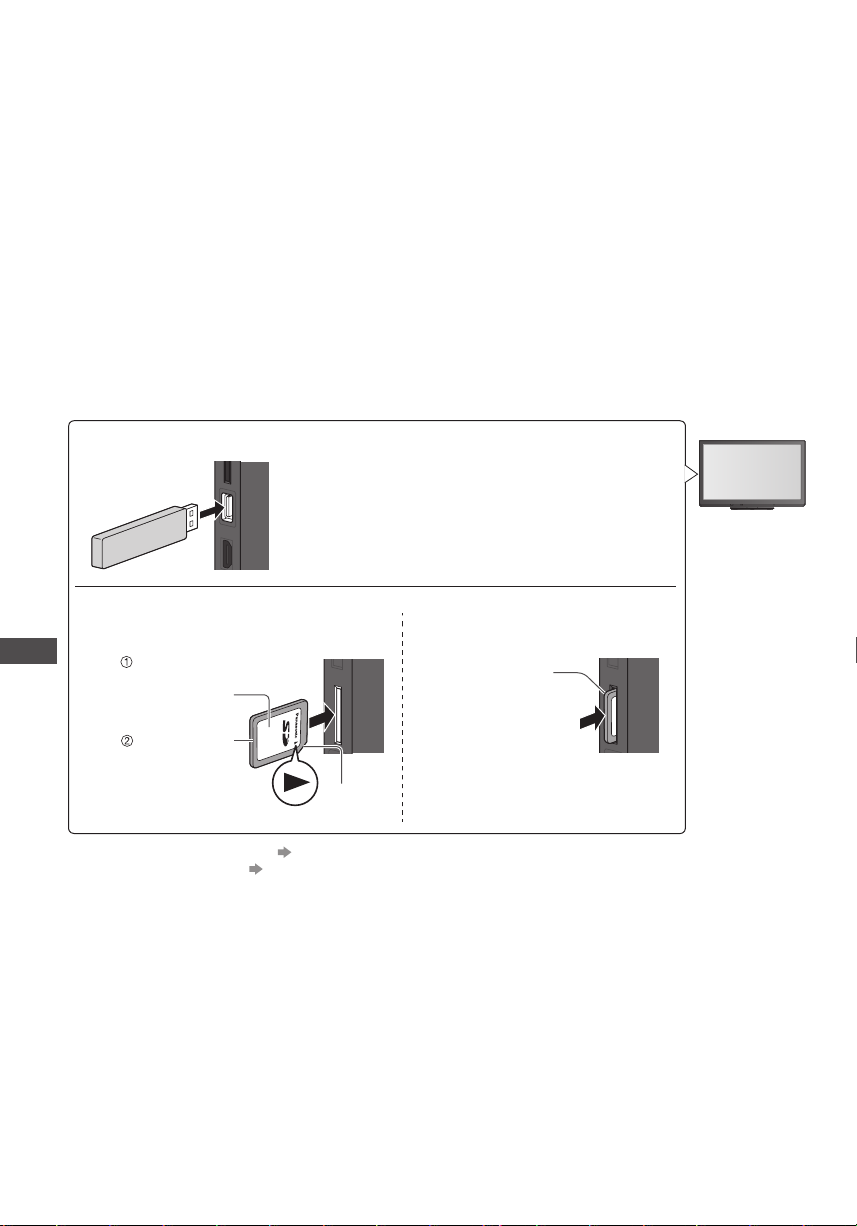

SD Card
N etwork
Amplifier with
Speaker system
DVD Recorder
VCR
Notice for DVB / Data broadcasting / IPTV functions
T his TV is designed to meet the standards (as of August, 2009) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial
•
services and DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services.
C onsult your local dealer for availability of DVB-T services
C onsult your cable service provider for availability of DVB-C services with this TV.
T his TV may not work correctly with the signal which does not meet the standards of DVB-T or DVB-C.
•
N ot all the features are available depending on the country, area, broadcaster and service provider.
•
N ot all CI modules work properly with this TV. Consult your service provider about the available CI module.
•
T his TV may not work correctly with CI module that is not approved by the service provider.
•
Additional fees may be charged depending on the service provider.
•
T he compatibility with future services is not guaranteed.
•
C heck the latest information on the available services at the following website. (English only)
•
http://panasonic.jp/support/global/cs/tv/
in your area.
DVD Player
Blu-ray Disc Player
U SB device
2
C amcorder
Set top box
Page 3
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image
retention”). This is not considered a malfunction and is not
covered by the warranty.
Typical still images
Channel number and other logos
•
Image displayed in 4:3 mode
•
Video game
•
Computer image
•
To prevent image retention, contrast is lowered automatically
after a few minutes if no signals are sent or no operations are
performed. (p.99)
Panasonic does not guarantee operation and performance
of peripheral devices made by other manufacturers; and we
disclaim any liability or damage arising from operation and/
or performance from usage of such other maker’s peripheral
devices.
This product is licensed under the AVC patent portfolio license
for the personal and non-commercial use of a consumer to (i)
encode video in compliance with the AVC Standard (“AVC Video”)
and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC Video.
No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT
IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM
SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS
REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Contents
Be Sure to Read
Safety Precautions····································································4
Maintenance ··············································································5
Quick Start Guide
Accessories / Options ······························································6
Identifying Controls ·································································9
Basic Connection ··································································· 11
Auto Setup ··············································································· 13
Enjoy your TV!
Basic Features
Using “VIERA Connect” ························································17
Watching TV ············································································18
Using TV Guide ······································································· 22
Viewing Teletex t ····································································· 25
Watching External Inputs ··················································· 27

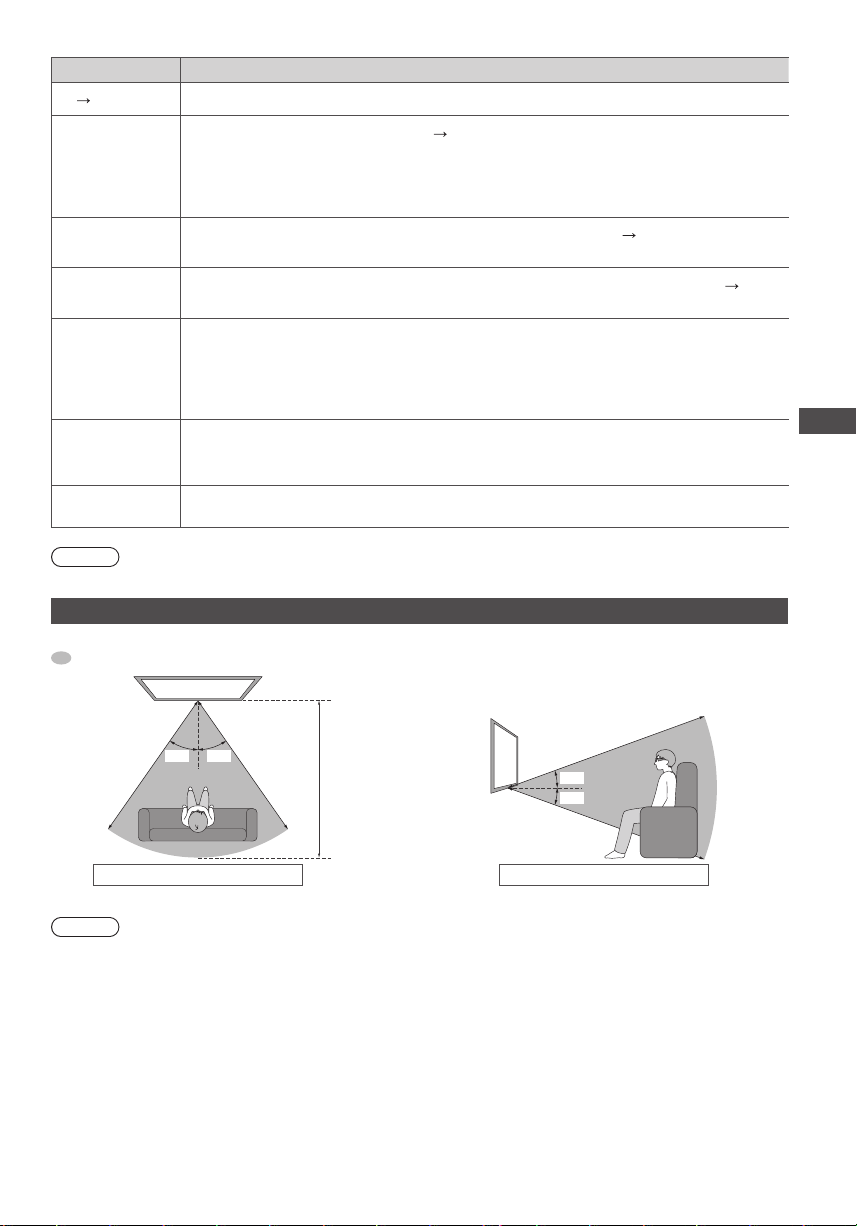

Viewing 3D images ······························································· 29
How to Use VIERA TOOLS ···················································34

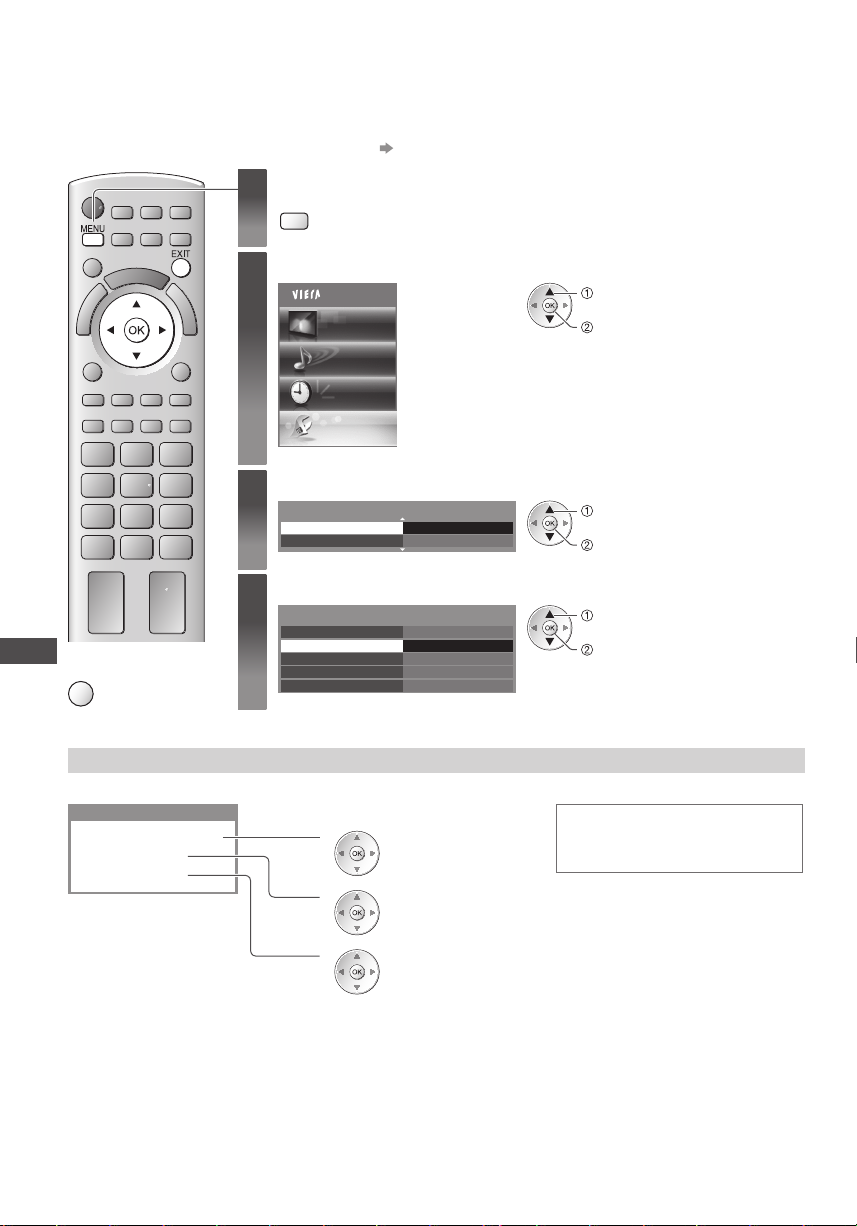

How to Use Menu Functions ············································· 35
Advanced Features
Retuning from Setup Menu ··············································· 45
Tuning and Editing Channels (DVB) ·······························47
Tuning and Editing Channels (Analogue)·····················51
Timer Programming ····························································· 53
Child Lock ················································································· 56
Input Labels ············································································· 58
Using Common Interface ···················································59
Shipping Condition ······························································ 60
Updating the TV Software ·················································· 61

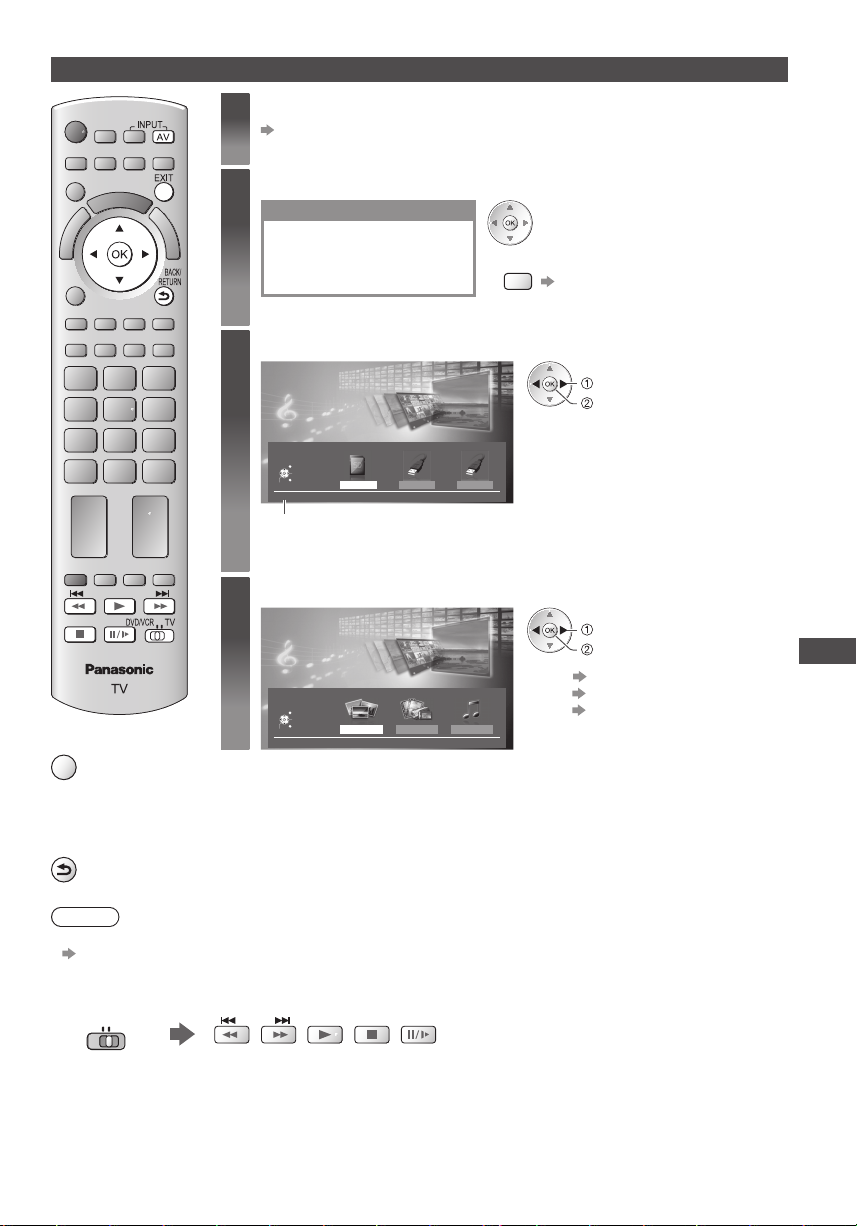

Using Media Player ·······························································62
Using Network Services
Link Functions (Q-Link / VIERALink) ······························· 80
External Equipment ······························································ 89
························································ 73
FAQs, etc.
Technical Information ·························································· 92
FAQs ··························································································· 99
Specifications ········································································102
Licence ····················································································103
3
Page 4
Safety Precautions
Warning
Safety Precautions
Handling the mains plug and lead
I nsert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)
•
E nsure that the mains plug is easily accessible.
•
E nsure the earth pin on the mains plug is securely connected to prevent electrical shock.
•
•
A n apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing
connection.
D o not touch the mains plug with a wet hand. (This may cause electrical shock.)
•
D o not damage the mains lead. (A damaged lead may cause fire or electrical shock.)
•
•
D o not move the TV with the lead plugged in the socket outlet.
•
D o not place a
•
D o not twist the lead, bend it excessively, or stretch it.
•
D o not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•
D o not use a damaged mains plug or socket outlet.
heavy object on the lead or place the lead near a high-temperature object.
If you find any abnormality,
remove the mains plug
immediately!
Power source
T his TV is designed to operate on AC 220-240 V, 50/60 Hz.
•
Do not remove covers and NEVER modify
the TV yourself
D o not remove the rear cover as live parts are accessible
•
when it is removed. There are no user serviceable parts
inside. (High-voltage components may cause serious
electrical shock.)
H ave the TV checked, adjusted, or repaired at your local
•
Panasonic dealer.
Do not expose to direct sunlight and other
sources of heat
Avoid exposing the TV to direct sunlight and other sources
•
of heat.
To prevent the spread
of fire, keep candles or
other open flames away
from this product at all
times
AC 220-240 V
50 / 60 Hz
Do not expose to rain or excessive moisture
T o prevent damage which might result in electric shock
•
or fire, do not expose this TV to rain or excessive moisture.
This TV must not be exposed to dripping or splashing
water and objects filled with liquid, such as vases, must
not be placed on top of or above the TV.
Do not insert foreign objects into the TV
D o not allow any objects to drop into the TV through the
•
air vents. (Fire or electrical shock may result.)
Do not place the TV on sloped or unstable
surfaces, and ensure that the TV does not
hang over the edge of the base
T he TV may fall off or tip over.
•
Use only the dedicated pedestals /
mounting equipment
U sing an unapproved pedestal or other fixtures may make
•
the TV unstable, risking injury. Be sure to ask your local
Panasonic dealer to perform setup.
U se approved pedestals (p.7) / wall-hanging brackets
•
(p.6).
Do not allow children to handle SD Card
A s with any small object, SD Cards can be swallowed by
•
young children. Please remove SD Card immediately after
use and store out of reach of children.
4
Page 5
Caution
When cleaning the TV, remove the mains
plug
Cleaning an energized TV may cause electrical shock.
•
When the TV is not going to be used for a
long period of time, remove the mains plug
T his TV will still consume some power even in the Off mode,
•
as long as the mains plug is still connected to a live socket
outlet.
Transport only in upright position
Transporting the TV with its display panel facing upward or
•
downward may cause damage to the internal circuitry.
Allow sufficient space around the TV for
radiated heat
M inimum distance
10
10
10
When using the
•
pedestal, keep the space
between the bottom of
the TV and the surface
7
where the TV is set.
I n case of using
•
Wall-hanging bracket,
(cm)
follow the manual of it.
Do not block the rear air vents
Blocked ventilation by newspapers, table cloths, curtains,
•
etc. may cause overheating, fire or electrical shock.
Do not expose your ears to excessive
volume from the headphones
Irreversible damage can be caused.
•
Do not apply strong force or impact to the
display panel
T his may cause damage resulting in injury.
•
The TV is heavy. Handle the TV by 2 or more
people. Support as shown to avoid injury by
the TV tipping or falling.
Maintenance
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
Regular care :
G ently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to clean the dirt or
fingerprints.
Caution
D o not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
•
T ake care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.
•
T ake care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade
•
surface quality or cause peeling of the paint.
T he surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface
•
with your fingernail or other hard objects.
D o not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade
•
surface quality.
For stubborn dirt :
D ampen a soft cloth with clean water or diluted neutral detergent
(1 pa
rt detergent to 100 parts water). Then wring the cloth and
wipe the surface. Finally, wipe away all the moisture.
Safety Precautions | Maintenance
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
5
Page 6
Accessories / Options
Standard accessories
Remote Control Batteries for the
N2QAYB000572
•
Quick Start Guide
Operating Instructions Pan European Guarantee Card
Accessories may not be placed all together. Take care not to throw them away unintentionally.
•
T his product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young
•
children accidentally. Keep these parts out of reach of young children.
Accessories / Options
Remote Control (2)
R6
•
(p.7)
Pedestal
(p.7)
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please
refer to the manual of the optional accessories.
3D Eyewear set
(Battery type) (Rechargeable type)
TY-EW3D10E
•
Wireless LAN Adaptor
DY-WL10E-K
•
Communication Camera
TY-CC10W
•
Wall-hanging bracket
TY-WK4P1RW
•
TY-EW3D2LE
•
TY-EW3D2ME
•
TY-EW3D2SE
•
Caution
T o use the Wireless LAN Adaptor, an access point needs to be obtained.
•
I t is recommended to use the Wireless LAN Adaptor with the extension cable.
•
T o avoid malfunctions caused by radio wave interference, keep the TV away from the devices such
•
as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when
using the Wireless LAN Adaptor.
D epending on the area, this optional accessory may not be available.
•
Additional information for Wireless LAN Adaptor and access point may be on the following website.
•
(English only)
http://panasonic.jp/support/global/cs/tv/
Caution
T his camera can be used on VIERA Connect (p. 17, 79).
•
Please also read the manual of the camera.
•
D epending on the area, this optional accessory may not be available.
•
F or details, consult your local Panasonic dealer.
T he angle of wall-hanging bracket can be adjusted in “zero tilting (vertical)” and “15-degree tilting” for
•
this TV.
R ear of the TV
400 mm
H oles for wall-hanging bracket installation
If you need 3D Eyewears additionally, please purchase this optional accessory.
•
F or more information (English only) :
•
http://panasonic.net/avc/viera/3d/eu.html
Depth of screw : minimum 17 mm,
Diameter : M8
300 mm
(View from the side)
Screw for fixing the TV onto the wall-hanging bracket
( not supplied with the TV)

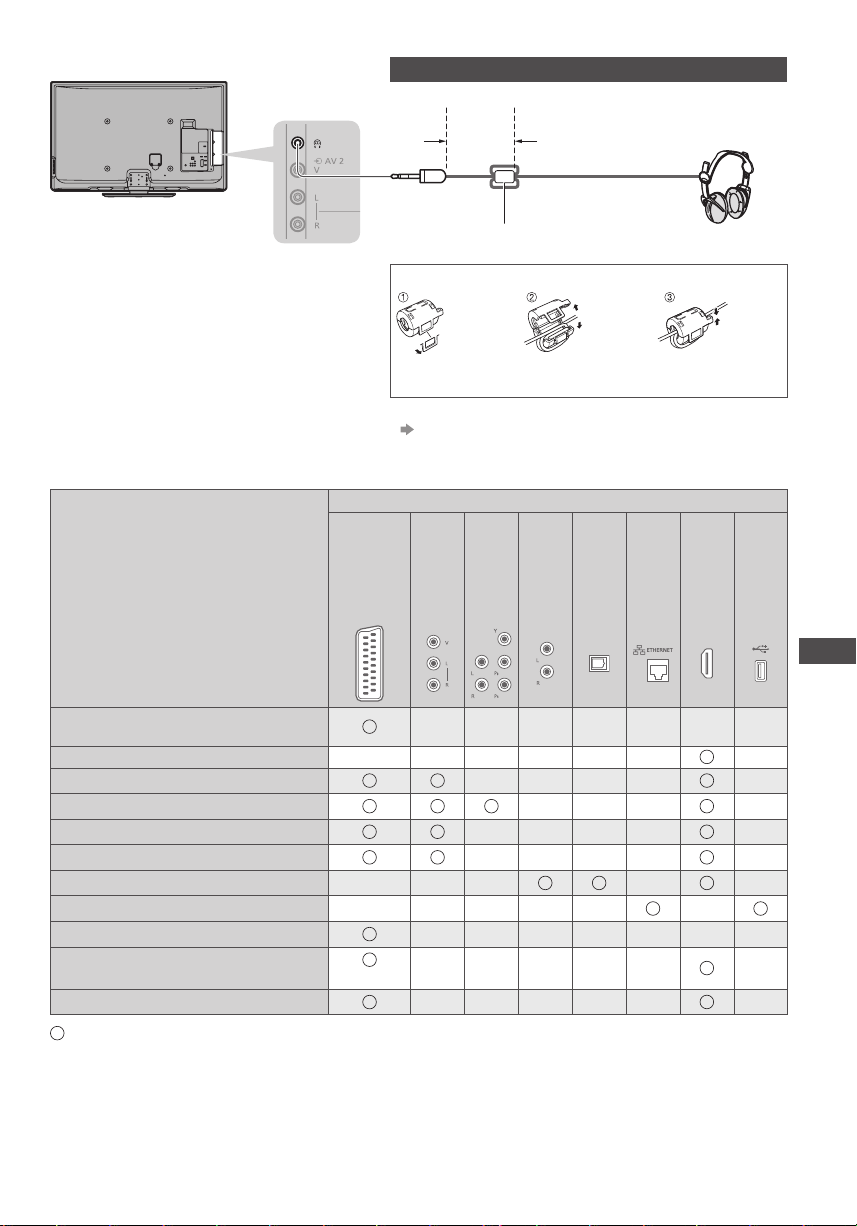

Ferrite core (2)
(Large size)
(p. 12, 90)
U se the Ferrite cores to comply
with the EMC standard.
maximum 22 mm
Ferrite core
( Small size)
(p. 91)
(TX-PF42ST30)
6
Page 7
Warning
U sing other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and
•
product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed
contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your
warranty.
C arefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV
•
from falling off.
H andle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
•
T ake care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before
•
hanging bracket.
T o prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
•
Installing / removing remote’s batteries
Quick Start Guide
1
Pull open
2
Attaching the pedestal
Warning
Do not disassemble or modify the pedestal.
O therwise the TV may fall over and become damaged, and personal injury may result.
•
Caution
Do not use any pedestal other than the one provided with this TV.
O therwise the TV may fall over and become damaged, and personal injury may result.
•
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer
•
immediately.
During set-up, make sure that all screws are securely tightened.
If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough
•
to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may
•
result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
•
When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified
procedure. (p. 8)
O therwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.
•
H ook
Close
N ote the correct
polarity (+ or -)
Caution
I ncorrect installation may cause battery leakage and corrosion, resulting
•
in damage to the remote control.
D o not mix old and new batteries.
•
D o not mix different battery types (such as alkaline and manganese
•
batteries).
D o not use rechargeable (Ni-Cd) batteries.
•
D o not burn or breakup batteries.
•
B atteries must not be exposed to excessive heat such as sunshine, fire or
the like.
D o not disassemble or modify the remote control.
•
Accessories / Options
7
Page 8
Assembly screw (4)
A
( silver)
M5 × 20
B
Assembly screw (4)
( black)
Quick Start Guide
C
1
Accessories / Options
M5 × 25
Assembly screw
( black)
M4 × 8
Assembling the pedestal
U se the assembly screws
the base E securely.
M ake sure that the screws are securely tightened.
•
F orcing the assembly screws the wrong way will
•
strip the threads.
A
E
A ttach the cover F with assembly screw C
F
D
Pole
TBL5ZA3055
•
(TX-PF42ST30)
TBL5ZA3065
•
()
A
to fasten the pole D to
D
Front
C
TX-PF46ST30
TX-PF50ST30
E
Base
TBL5ZX0065
•
(TX-PF42ST30)
TBL5ZX0069
•
TX-PF46ST30
()
TX-PF50ST30
Securing the TV
2
U se the assembly screws
T ighten the four assembly screws loosely at first, then
•
tighten them firmly to fix securely.
C arry out the work on a horizontal and level surface.
•
B
F
Cover
TBL5ZB3045-1
•
(TX-PF42ST30)
TBL5ZB3054-1
•
TX-PF46ST30
()
TX-PF50ST30
B
to fasten securely.
Arrow mark
H ole for pedestal
installation
E
(View from the bottom)
Removing the pedestal from the TV
B e sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws
2 Pull out the pedestal from the TV.
3 Remove the assembly screw
4 Pull out the cover.
5 Remove the assembly screws
Adjusting the panel to your desired angle
D o not place any objects within the full rotation range.
•
B
from the TV.
C
from the cover.
A
from the pole.
(View from the top)
: 15°
(TX-PF42ST30)
: 10°
(TX-PF46ST30, TX-PF50ST30)
8
Page 9
Identifying Controls
Remote Control
k
n
i
ghi
ASPECT
A
R
E
I
V
STTL
REC
TV
INPUT
AVTV
DIRECT TV REC
EXIT
T
O
O
L
S
G
INDEX HOLD
abc def
jkl
tuvpqrs
LAST VIEW
PROGRAMME
DVD/VCR
U
I
D
E
BACK/
RETURN
mno
wxyz
TV
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
MENU
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
L
A
R
E
I
V
OPTION
TEXT
Standby On / Off switch
Switches TV On or Off standby
•
3D button (p.31)
Switches to the viewing mode between 2D and 3D
•
[Main Menu] (p.35)
Press to access Picture, Sound, Timer and Setup
•
Menus
Aspect (p.21)
C hanges aspect ratio
•
Information (p.19)
D isplays channel and programme information
•

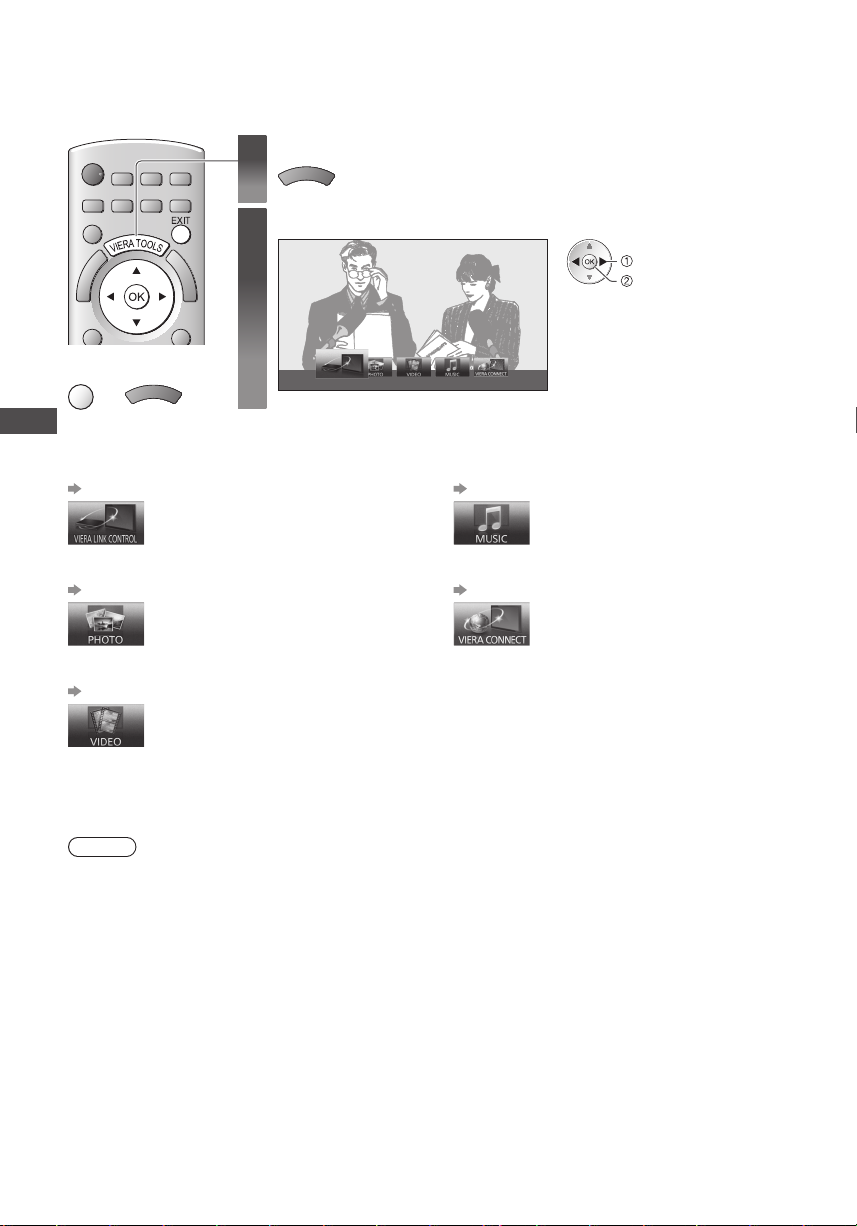

VIERATOOLS (p.34)
D isplays some special feature icons and accesses
•
easily
[VIERA Link Menu] (p.84)
OK
8
C onfirms selections and choices
•
Press after selecting channel positions to quickly
•
change channel
D isplays the Channel List
•
[Option Menu] (p.20)
9
E asy optional setting for viewing, sound, etc.
•
Teletext (p.25)
10
Switches to teletext mode
•
Subtitles (p.19)
11
D isplays subtitles
•
Numeric buttons
12
C hanges channel and teletext pages
•
Sets characters
•
When in Standby mode, switches TV On (Press for
•
about 1 second)
Sound Mute
13
Switches sound mute On or Off
•
Volume Up / Down
14
Input mode selection
15
TV - switches DVB-C / DVB-T / Analogue mode
•
(p.18)
AV - switches to AV input mode from Input Selection
•
list (p.27)
Direct TV Recording (p.82,84)
16
R ecords programme immediately in DVD Recorder /
•
VCR with Q-Link or VIERA Link connection
[VIERA Connect] (p.17, 79)
17
D isplays VIERAConnect home screen
•
Exit
18
R eturns to the normal viewing screen
•
TV Guide (p.22)
19
Cursor buttons
20
M akes selections and adjustments
•
Return
21
R eturns to the previous menu / page
•
Coloured buttons
22
(red-green-yellow-blue)
U sed for the selection, navigation and operation of
•
various functions
Hold
23
Freeze / unfreeze picture (p.20)
•
H olds the current teletext page (teletext mode)
•
(p.25)
Index (p.25)
24
R eturns to the teletext index page (teletext mode)
•
Last view (p.21)
25
Switches to previously viewed channel or input mode
•
Channel Up / Down
26
Connected equipment operations
27
(p.28, 63, 87)
Quick Start Guide
Identifying Controls
9
Page 10
Quick Start Guide
Identifying Controls
T V
1
2
3
4
5
6
CI slot (p.59)
1
SD Card slot (p.62)
2
USB 2 port (p.91)
3
HDMI 4 terminal (p.91)
4
Headphones jack (p. 91)
5
AV2 terminals (p. 91)
6
Function select
7
[Volume] / [Contrast] / [Brightness] / [Colour] /
•
[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ /
[Balance] / [Auto Setup] (p.45 - 46)
∗ [Music] or [Speech] mode in the Sound Menu
14
11 12 13 10
C hannel Up / Down, Value change (when using the F
8
7
8
9
button), Switching the TV On (press either button for
about 1 second when in Standby mode)
Changes the input mode
9
Mains power On / Off switch
10
U se to switch the mains power.
•
If you turned the TV Off during Standby mode by the
remote control last time, the TV will be in Standby
mode when you turn the TV On with Mains power On
itch.
/ Off sw
Remote control signal receiver
11
D o not place any objects between the TV remote
•
control signal receiver and remote control.
C.A.T.S. (Contrast Automatic Tracking System)
12
sensor
Senses brightness to adjust picture quality when [Eco
•
Mode] in the Picture Menu is set to [On] (p.36)
Power and Timer LED
13
Red : Standby
•
Green : On
Orange : T imer Programming On
Orange (flash) :
R ecording of Timer Programming or
DirectTVRecording in progress
Red with orange flash :
Standby with Timer Programming On or Direct
TV Recording
T he LED blinks when the TV receives a command
•
from the remote control.
Infrared transmitter for 3D Eyewear
14
D o not place any objects between the transmitter
•
and 3D Eyewear.
Using the On Screen Displays - Operation guide
M any features available on this TV can be accessed via the On Screen Display menu.
Operation guide
O peration guide will help you to operate by using the
remote control.
Example : [Sound Menu]
Main Menu
C hange
M ode Music
B ass
Treble
Sound
B alance
H eadphone Volume
Timer
Surround
Auto Gain Control
Setup
V olume Correction
Speaker Distance to Wall
Select
Selects the basic sound mode.
EXIT
RETURN
O peration guide
Off
Off
Over 30cm
P age up
P age down
How to use remote control
MENU
O pen the main menu
1/2
0
0
0
11
0
M ove the cursor / select the menu item / select from a
range of options
M ove the cursor / adjust levels / select from a range of
options
Access the menu / store settings after adjustments have
been made or options have been set
BACK/
R eturn to the
RETURN
previous menu
Auto power standby function
T he TV will automatically go to Standby mode in the following conditions :
•
no signal is received and no operation is performed for 30 minutes in Analogue TV mode
•
[Off Timer] is activ
•
no operation is performed for the period selected in [Auto Standby] (p.40)
T his function does not affect the recording of Timer Programming and Direct TV Recording.
•
10
e in the Timer Menu (p.20)
Exit the menu system
EXIT
and return to the normal
viewing screen
Page 11
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
T here are some restrictions on placement for viewing 3D images. For details (p. 29, 33)
Example 1
Connecting aerial
TV only
R ear of the TV
Terrestrial aerial
Example 2
Connecting DVD Recorder /
VCR and Player
TV, DVD Recorder / VCR and Player
R ear of the TV
Quick Start Guide
Terrestrial aerial
AC 220-240 V
50/60 Hz
M ains lead
Cable
RF cable
AC 220-240 V
50/60 Hz
M ains lead
RF cable
DVD Recorder or
VCR
RF OUT
Fully wired
SCART cable
Cable
Basic Connection
Fully wired
HDMI
compliant
cable
Player /
3D-compatible
player
RF IN
Note
T o watch 3D contents (p. 29)
•
C onnect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.82).
•
F or HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI
•
cable (p.89).
Q-Link and VIERA Link connection (p. 80, 81)
•
P l ease also read the manual of the equipment being connected.
•
K eep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
•
distortion of image / sound may occur or operation of other equip
ment may be interfered.
RF cable
11
Page 12
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
R ear of the TV
Terrestrial aerial
Quick Start Guide
AC 220-240 V
50/60 Hz
Basic Connection
Fully wired HDMI
compliant cable
M ains lead
Set top box
Fully wired
SCART cable
DVD Recorder or
VCR
RF cable

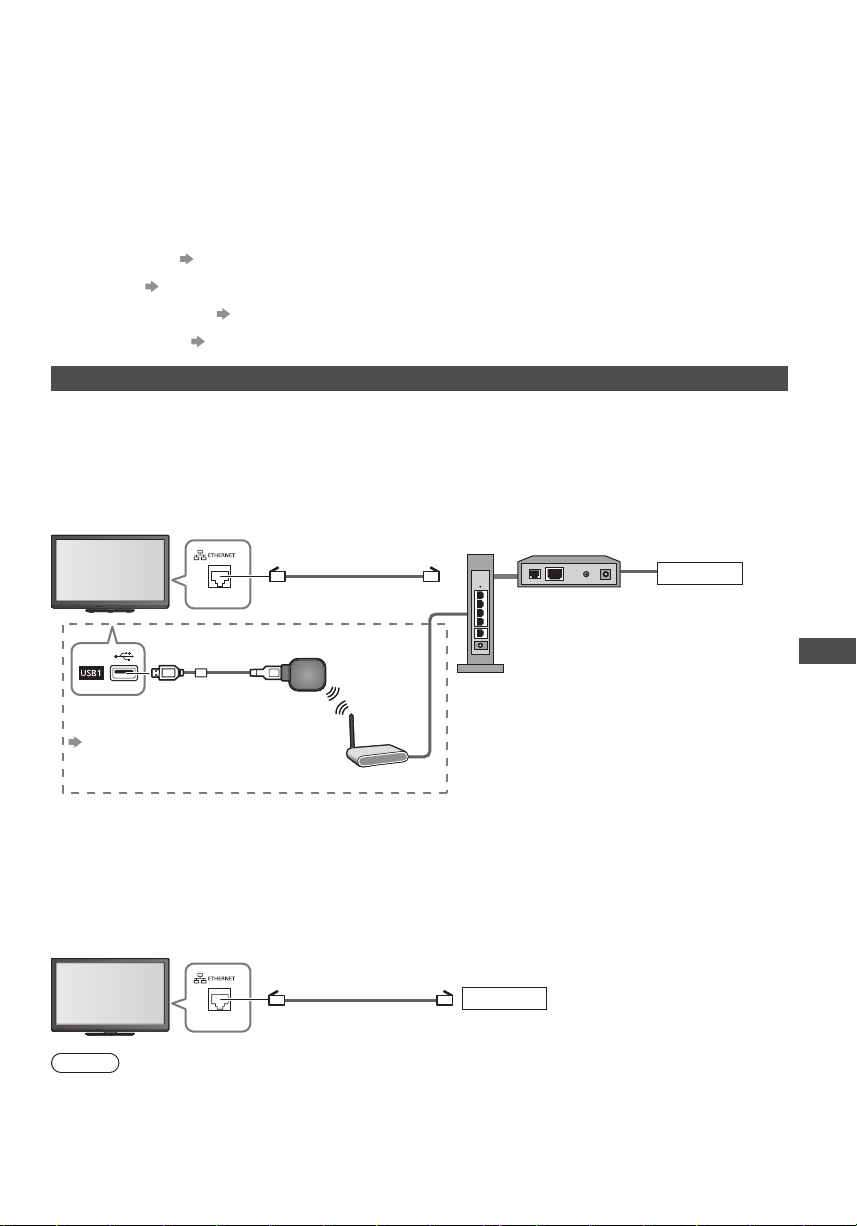

■ Connecting to the network environment (Network connections)
T o enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network
environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
C onnect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
•
Setup of the network connection will start after the tuning (when first using the TV) (p. 14 - 16)
•
R ear of the TV
Wireless connection
Cable
RF cable
Fully wired
SCART cable
RF IN
RF OUT
I nternet
environment
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
C onnect to the USB 1 or 2 port.
LAN cable
•
L ess
than
10cm
Wired connection
L ess
than
10cm
Note
F or more information of the network connections (p. 73)
•
12
I nternet
environment
Ferrite core - Large size (supplied)
Installing the Ferrite core
Pull back the tabs
(in two places)
Wind the cable
twice
Access point
Press the cable
through and close
Page 13
Auto Setup
Search and store TV channels automatically.
T hese steps are not necessary if the setup has been completed by your local dealer.
•
Please complete connections (p.11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup.
•
For details of settings for the connected equipment, read the manual of the equipment.
Plug the TV into mains socket and switch On
1
2
3
4
5
T akes a few seconds to be displayed
•
If the red LED shows on the TV, press the Standby On / Off switch on the remote
•
control for about 1 second.
Select the language
Menüsprache
Deutsch D anskPolskiSrpyski
E nglish Svenska č eština Hrvatski
Français Norsk Magyar Slovenščina
Italiano Suomi Slovenčina Latviešu
E spañol Türkçe Български eesti keel
P ortuguês Еλληνικά RomânăLietuvių
N ederlands
select
set
Select your country
Country
G ermany D enmark Poland
Austria Sweden Czech
France Norway Hungary
I taly Finland Slovakia
Spain Luxembourg Slovenia
P ortugal Belgium Croatia
Switzerland Netherlands E stonia
M alta Turk ey Lithuania
dorra Greece O thers
A n
select
•
set
D epending on the country you select,
select your Region or store the Child LockPIN number (“0000” cannot be stored) by
following the on screen instructions.
Select the mode you want to tune
TV Signal Selection
DVB-C
DVB-T
Analogue
Start Auto Setup
select
tune / skip tuning
: tune (search for the available channels)
: skip tuning
Select [Start Auto Setup]
TV Signal Selection
DVB-C
DVB-T
Analogue
Auto Setup will start to search for TV channels and store them.
•
T he stored channels and sorted channel order vary depending on the country, area,
broadcasting system and conditions of signal reception.
Auto Setup screen varies depending on the country you select.
Start Auto Setup
select
access
Quick Start Guide
Auto Setup
13
Page 14
1 [DVB-C Network Settings]
5
Depending on the country you select, select your cable provider beforehand by following the on screen instructions.
•
DVB-C Network Settings
Frequency Auto
Network ID
Start Auto Setup
Auto
select
[Start Auto Setup]
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Normally set [Frequency] and [Network ID] to [Auto].
If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with
numeric buttons.
Quick Start Guide
Auto Setup
2 [DVB-C Auto Setup] 3 [DVB-T Auto Setup]
DVB-C Auto Setup
Progress
This will take about 3 minutes.
No. Channel Name Type
CBBC Channel
1
BBC Radio Wales
2
E4
3
F
ree T V: 3 Pay TV: 0 Radio: 0
0% 100%
Free TV
F
Free TV
Searching
ree T V
Quality
100
100
100
DVB-T Auto Setup
Progress
This will take about 3 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 100Cartoon Nwk
F
ree T V: 4
Depending on the country you select, the channel selection screen will
•
be displayed after DVB-T Auto Setup if multiple channels have the same
CH 5 69
Free TV
F
ree T V
Free TV
Pay TV: 0
Free TV
Searching
Radio: 0
Quality
100
100
100
logical channel number. Select your preferred channel or exit the screen
for automatic selections.
4 [Analogue Auto Setup] 5 Preset Download
Analogue Auto Setup
Scan
This will take about 3 minutes.
CH Channel Name
CH 29
CH 33 BBC1
Analogue: 2
Setup the network connection
6
Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p.17, 73).
To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required.
•
Please note that this TV does not support wireless public access points.
Ensure the network connections (p. 12) and network environment are completed before starting setup.
•
Select the network type
Network Setup
Selec t Wired or Wireless
Wired Wireless Set later
CH 2 78 41CC 1
Searching
If Q-Link, VIERALink or similar technology (p.82, 83) compatible
recorder is connected, channel, language, country / region settings are
automatically downloaded to the recorder.
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
If downloading has failed, you can download later through the Setup
•
Menu.
[Download] (p.41)
[Wired] “Wired connection” (p. 12)
[Wireless] “Wireless connection” (p. 12)
To setup later on or skip this step
select
access
•
Select [Set later] or
■ [Wired]
1. Select [Auto]
Acquire IP Address
Auto Manual
select
access
2. Go to the next step
(Press twice)
Automatically setup is done and the test of the network
connection starts.
To set manually, select [Manual] and set each item. For
7
•
details (p.75)
Connection Test
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
EXIT
: succeeded
The test is successful
and the TV is
connected to the
network.
: failed
Check the settings
and connections. And
then select [Retry].
14
Page 15

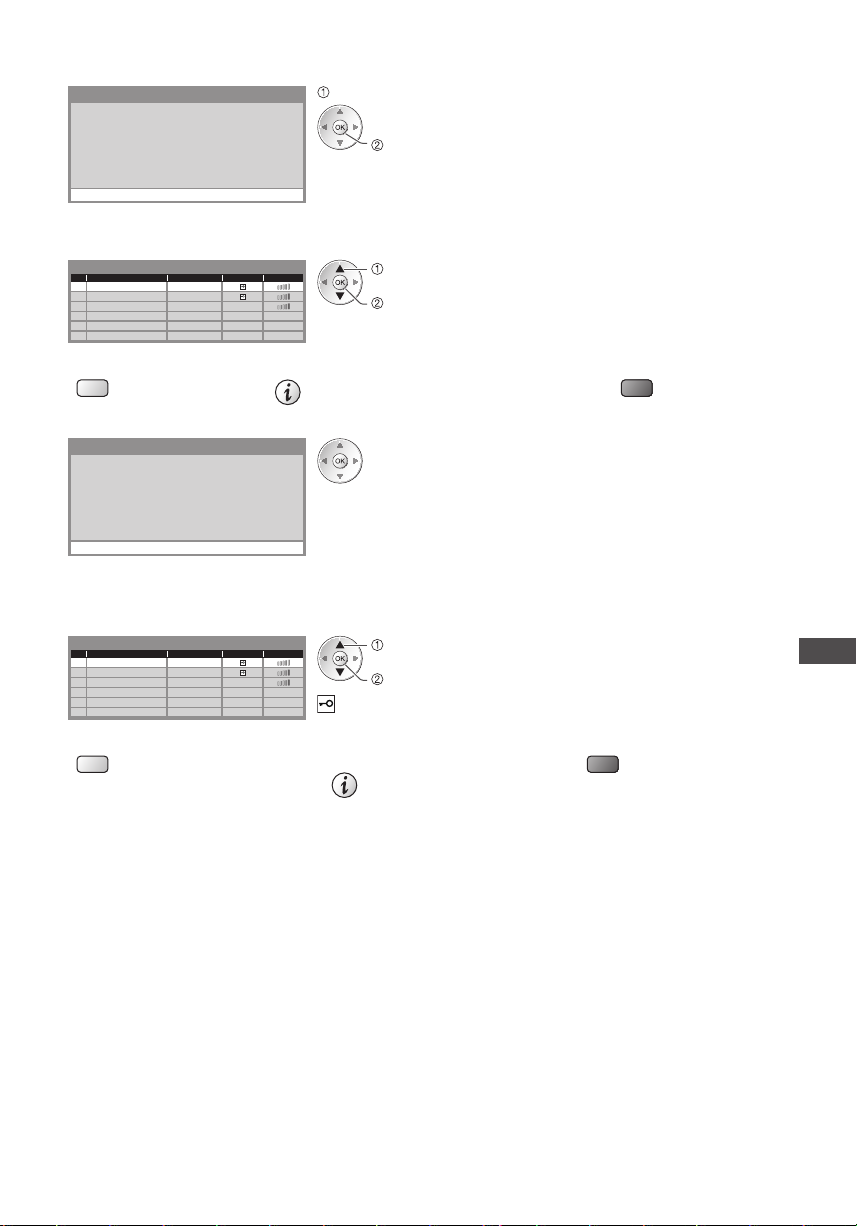

■ [Wireless]
6
Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button)
access
[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
Available Access Points
No. Wireless t ype Encr ypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
To search access points again
•
(yellow)
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
: Encrypted access point
For the information of the
•
highlighted access point
2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
If the selected access point is not encrypted, the confirmation screen
•
will be displayed. It is recommended to select the encrypted access
point.
3. Enter the encryption key of the access point
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
4. Select [Yes]
Access Point Settings
Encryption key is set to: XXXXXXXX
Select 'Yes' to confirm.
Select 'No' to change.
Yes
No
Set characters
You can set characters by using numeric buttons.
•
To re-enter the encryption key, select [No].
•
If the connection has failed, check the encryption key, settings
•
and positions of your access point. And then, follow the on screen
instructions.
5. After the access point setting is finished, perform the connection test
Connection Test
Check access point connection.
6. Go to the next step
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
7
(Press twice)
select
select
access
To set manually (p.78)
•
(red)
selec t
set
select
set
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections. And then select
[Retry].
To set manually, select [Manual] and set each item.
•
For details (p.75)
Quick Start Guide
Auto Setup
Store
BACK/
RETURN
15
Page 16
[WPS(Push button)]
6
Quick Start Guide
Auto Setup
Select [Home]
7
Select [Home] viewing environment to use in your home environment.
1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light ashes.
2) When the light is ashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
3. After the access point setting is finished, perform the connection test
4. Go to the next step
Please select your viewing environment.
Home Shop
Connect
Connection Test
(Press twice)
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
7
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
If the connection has failed, check the settings and positions of your
•
access point. And then, follow the on screen instructions.
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections. And then select
[Retr
y].
To set manually, select [Manual] and set each item.
•
For details (p.75)
select
set
■ [Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic
•
Demo Off / On selection screen.
1 Return to viewing environment selection
screen
Shop
You have selected shop mode
Automatic Demo
Off On
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition](p.60)
2 Select [Home]
Please select your viewing environment.
Home Shop
BACK/
RETURN
select
set
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.
Note
To check channel list at-a-glance “Using TV Guide” (p.22)
•
To edit or hide (skip) channels “Tuning and Editing Channels” (p.47 - 52)
•
To retune all channels [Auto Setup](p.45, 46)
•
To add the available T V mode later [Add TV Signal] (p.41, 42)
•
To initialise all settings [Shipping Condition](p.60)
•
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be
displayed for the setup.
To setup the wireless connection (p.76 - 78)
•
16
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to
set it up?
No - Exit
Current network type : Wireless
Yes
No
Page 17
Using “VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy
photos, videos, games, etc. from VIERA Connect home screen.
T his TV has no full browser function and all features of websites may not be available.
•
Turn power on
1
Press for about 1 second
•
M ains power On / Off switch should be On. (p.10)
•
internet contents such as
■
To exit from
VIERA Connect
EXIT
T o set the VIERA
•
Connect instruction
banner display off
[VIERA Connect
Banner] (p. 43)
Enjoy selected internet content with VIERA Connect.
Simply press the OK / INTERNET button
Access VIERA Connect
2
While the banner is displayed
Example :
Welcome to VIERA Connect™
VIERA Connect™ home screen is subject to change without notice.
The services through VIERA Connect™ are operated by their respective service providers, and service may
be discontinued either temporarily or permanently without notice. Therefore,
warranty for the content or the continuity of the services.
All features of websites or content of the service may not be available.
Don’t show this message again
Some content may only be available for specic countries and may be presented in specic languages.
Example : VIERAConnect home screen
ENTER
Some content may be inappropriate for some viewers.
Every time you turn on the TV, VIERA Connect introduction
banner appears. The banner is subject to change.
T he button design varies
•
depending on the remote
control.
T o go to the next level
•
[MORE]
T o back to the previous level
•
[BACK]
Panasonic will make no
MORE
INTERNET
or
D epending on the usage conditions, it may take a
•
while to read all the data.
M essages might be displayed before VIERAConnect
•
home screen.
Please read these instructions carefully and follow the
on screen instructions.
BACK
■ How to operate VIERAConnect (current as of January, 2011)
T o move the cursor / select the item
•
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
V ideo communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
•
“Optional accessories” (p.6)
F or details, read the manual of the Communication Camera.

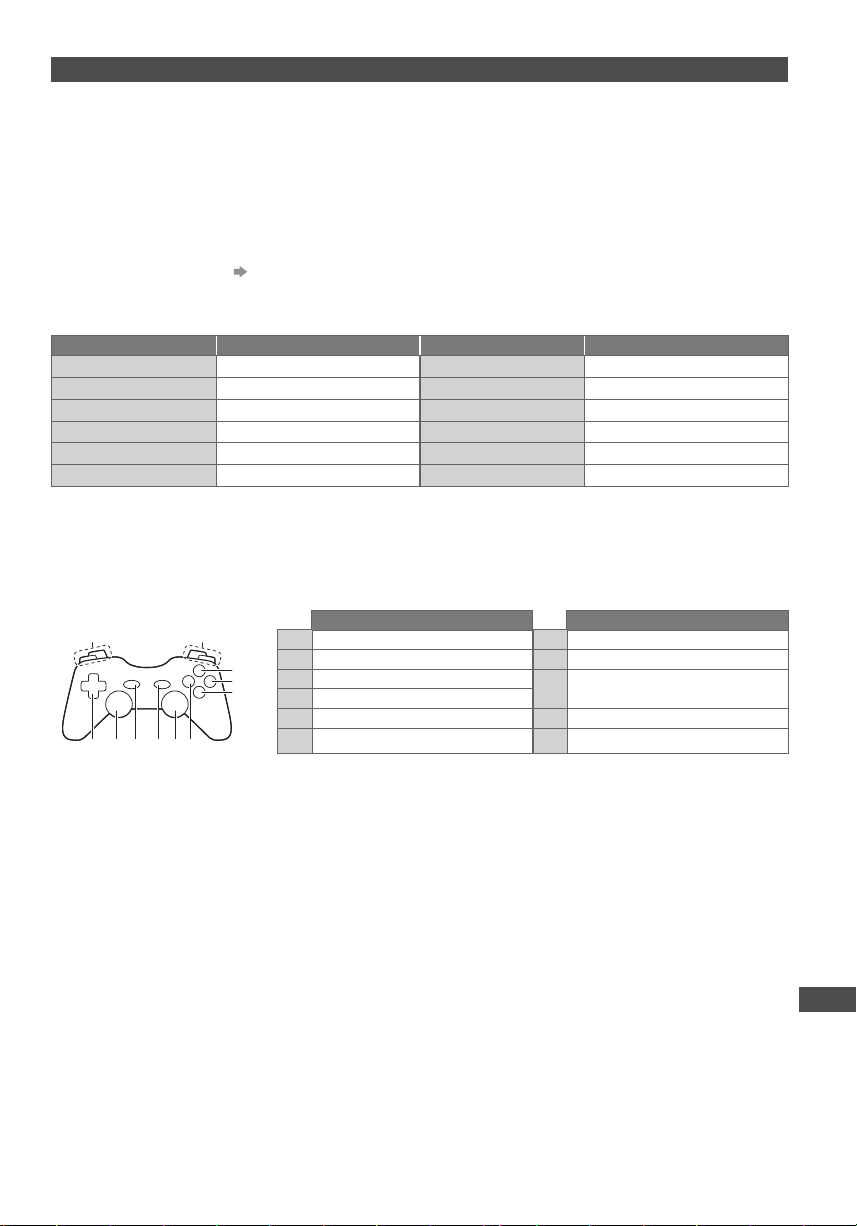

Y ou can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.
•
Y ou can also operate the TV with a keyboard or a gamepad other than VIERA Connect feat
For more information
“USB connection” (p. 97)
Note
If you cannot access VIERA Connect, check the network connections (p. 12) and settings (p. 14 - 16).
•
F or more information of VIERA Connect (p. 79)
•
T o access
•
When options with
•
numbers are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
T o return to the previous screen
•
BACK/
RETURN
T o return to VIERA Connect home
•
screen
INTERNET
ures.
Using “VIERA Connect”
17
Page 18
Watching TV
Watching TV
Turn power on
1
■ VIERA Connect introduction banner appears
Y ou can access to VIERA Connect and enjoy the various contents.
(p.17)
T o remove this banner, l eave for about 5 seconds or press any buttons
•
(except the buttons to access VIERA Connect).
T o set this banner display off [ VIERA Connect Banner] (p. 43)
•
Select the mode
2
TV
TV Selection
DVB-C
DVB-T
Analogue
Press for about 1 second
•
M ains power On / Off switch should be On.
•
(p.10)
T he selectable modes vary depending on the
•
stored channels (p.13).
select
access
Also possible to select the mode pressing the TV
•
button repeatedly on the remote control or side
panel of the TV (p.10).
If [TV Selection] menu is not displayed, press the
•
TV button to switch the mode.
or
All DVB-T Channels
Change category
20:35
I nformation banner (p.19)
abc def
T o select a more than two-digit channel position
•
jkl
ghi
mno
number, e.g. 399
tuvpqrs
wxyz
def
wxyz
wxyz
V olume
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Select a channel
3
Now I nfo
u p
d own
■ To select from the Channel List
All DVB-T Channels
6Cartoon Nwk
7 BBC Radio Wales
8 BBC Radio Cymru
1 BBC ONE Wales
2 BBC THREE
3 BBCi
4 CBBC Channel
Sorting 123...
select channel
w atch
T o sort channel names in
•
alphabetical order
(red)
T o change the category
•
(blue)
■ Select a channel using Information banner (p.19)
1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel
select channel
w atch
■ Select a channel using TV Guide (p.22)
1 Display TV Guide
G
U
I
D
E
T he postcode entry or update may be required depending on the country you select (p.13). Follow the on screen
•
instructions.
Note
T o watch pay-TV “Using Common Interface” (p.59)
•
18
2 Select the current
programme or channel
select
access
3 Select [ View] (DVB mode)
Das Erste
19:30- 20:00
V iew T imer Programming
select
w atch
Page 19
Other useful functions
Display Information banner
Display Information banner
Features available / Message meanings
Also appears when changing a channel
•
1
Example : DVB
1
ZDF
C hannel position and name
1
C hannel type ([Radio], [Data], [HDTV], etc.) /
2
Encrypted channel ( ) /
TV mode (
Programme
3
Current time
4
, , )
HDTV
2 3 6 7 4 5
Coronation Street
20:00 - 20:55
Now
D olby D+ B ad signal
All DVB-T Channels
C hange category I nfo
Programme Start/Finish time (DVB)
5
C hannel number, etc. (Analogue)
Progress time indicator of the selected programme
6
(DVB)
C ategory
7
T o change the category (DVB)
•
(blue)
20:35
45
select
set
Watching TV
Sound mute On
[Bad signal]
P oor T V signal quality
[Dolby D+], [Dolby D], [HE-AAC]
D olby Digital Plus, Dolby Digital or
HE-AAC audio track
Subtitle service available
T o confirm another tuned channel
•
name
T o hide
•
EXIT
Extra information (DVB)
•
(Press again to hide the banner)
T eletext service available
Multiple audio available
Multiple video available
T o watch the channel listed in the
•
banner
Multiple audio and video available
[Stereo], [Mono]
Audio mode
1 - 90
Off Timer remaining time
F or settings (p.20)
•
I nformation on the next programme
•
(DVB)
T o set display timeout
•
[Banner Display Timeout] (p.43)
Display subtitles
Display / hide subtitles (if available)
STTL
•
•
T o change the language for DVB (if available)
•
[Preferred Subtitles] (p.42)
Note
If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page (p.25). Press the
EXIT button to return to TV mode.
Subtitles may not be displayed properly in 3D images.
19
Page 20
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION
[Multi Video] (DVB mode)
Allows you to select from a group of
multiple videos (if available)
•
[Multi Audio] (DVB mode)
Watching TV
Allows you to select between
alternative language for sound tracks
(if available)
•
T o change
•
T his setting is not memorized and it
will return to the default setting once
you exit the current programme.
T his setting is not memorized and it
will return to the default setting once
you exit the current programme.
select
access
[Dual Audio] (DVB mode)
Allows you to select stereo / monaural
(if available)
[Sub Channel] (DVB mode)
Allows you to select the multifeed
programme - sub channel (if available)
[Subtitle Language] (DVB mode)
Allows you to select the language
in which subtitles should appear (if
available)
[Teletext Character Set]
Sets the teletext language font
[Setup Menu] (p.43)

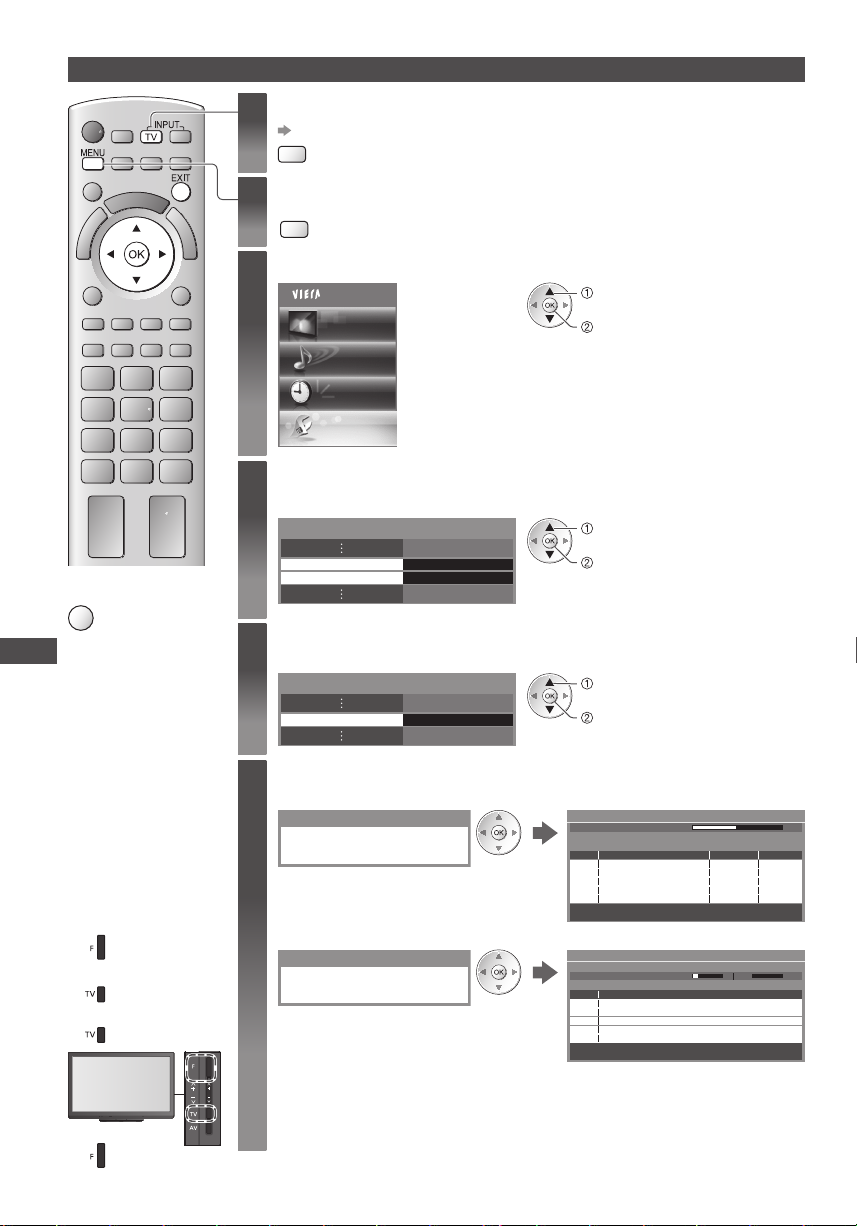

Off Timer
Turn the TV to Standby mode automatically after a fixed period
1 Display the menu
MENU
2 Select [ Timer]
Main Menu
Sound
select
access
select / change
store
[Teletext Language] (DVB mode)
Allows you to select between alternative
language for teletext (if available)
[MPX] (Analogue mode)
Selects multiplex sound mode (if
available)
[Sound Menu] (p.39)
[Volume Correction]
Adjusts volume of individual channel or
input mode
Timer
Setup
3 Select [Off Timer] and set the time
T imer Programming
Off Timer
Auto Standby
Off
15
30
45
60
75
90
m inutes
m inutes
m inutes
m inutes
m inutes
m inutes
20
select [Off Timer]
access
T o cancel Set to [Off ] or turn the TV off.
•
T o confirm the remaining time “Display Information banner” (p.19)
•
When the remaining time is within 3 minutes, the remaining time will flash on the
•
screen.
select the time
store
Page 21

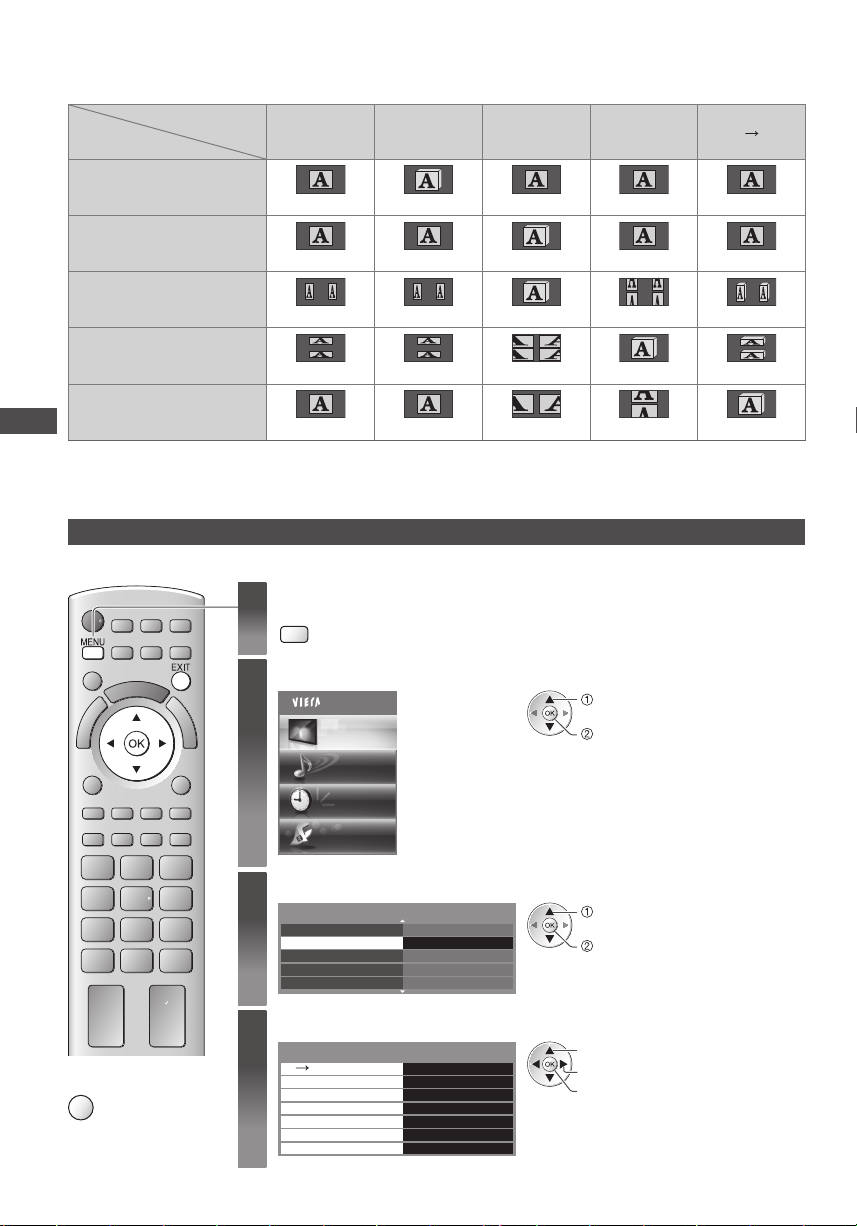

A s p e c t
Change the aspect ratio (image size)
E njoy viewing the image at its optimum size and aspect.
ASPECT
Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect
ratio automatically according to the “Aspect Control Signal” (p.92).
■ If you would like to change the aspect ratio manually
1 Display Aspect Selection list 2 While the list is displayed,
ASPECT
[Auto]
[16:9] [4:3 Full]
[14:9] [Zoom1]
[Just] [Zoom2]
[4:3] [Zoom3]
T he best ratio is chosen and the image expanded to fill the screen.
F or details (p.92)
D irectly displays the image at 16:9
without distortion (anamorphic).
D isplays the image at the standard 14:9
without distortion.
D isplays a 4:3 image full-screen.
Stretching is only noticeable at the left
and right edges.
D isplays the image at the standard 4:3
without distortion.
Aspect Selection
Auto
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select
EXIT
Change
RETURN
A spect Selection list
select the mode
select
store
Note
A spect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•
A spect cannot be changed in teletext service and 3D mode (except for [2D 3D] mode in [3D Mode Selection] (p.31)).
•
A spect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
•
Y ou can also change the mode only
•
using the ASPECT button.
ASPECT
(Press repeatedly until you reach
the desired mode)
D isplays a 4:3 image enlarged
horizontally to fit the screen.
HD signal only
•
D isplays a 16:9 letterbox or 4:3 image
without distortion.
D isplays a 16:9 letterbox (anamorphic)
image full-screen without distortion.
D isplays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At 16:9, displays the image at its
maximum (with slight enlargement).
Watching TV
Last view
Switch to previously viewed channel or input mode easily
LAST VIEW
•
•
Press again to return to the present view.
•
Note
Switching channel is not available while the recording of Timer Programming or Direct TV Recording is in progress.
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
21
Page 22
Using TV Guide
TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the
forthcoming broadcasts over the next seven days (depending on
T his function varies depending on the country you select (p.13).
•
T he postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.
•
“View advertisement” (p.23)
DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] means DVB-T channel and [A] means Analogue
•
channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV
•
Guide is completely shown.
Select the mode
1
(p.18)
TV
View TV Guide
Using TV Guide
2
G
Press again to change the layout ([Landscape] / [Portrait]).
•
U
I
D
V iew [Landscape] to see many channels.
E
V iew [Portrait] to see one channel at a time.
Example :
[Landscape] (Displays by channel)
Wed 27.10.2010
1
10:46
3
5
7
Timer Programming
Wed 27.10.2010 All Types All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
BBC ONE
1
D
BBC THREE
7
D
E4
14
D
BBC FOUR
70
D
BBC 2W
72
105
D
BBCi
105
D
BBC Radi
Select channel
-24 hours +24 hours Prog.Ty pe C ategory
Example :
[Portrait] (Displays by time)
■
To return to TV
EXIT
Wed 27.10.2010
10:46
Timer Programming
Wed 27.10.2010 All Types All Channels
D BBC ONE1 D BBC THREE7DE414 D BBC FOUR70
19:30-20:00
20:00-20:30
20:30-21:00
21:00-22:00
22:00-23:00
23:00-23:30
23:30-00:00
Select programme
the broadcasters).
TV Guide: Landscape
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS The Bill Red Cap
Hot Wars Holiday Program
Coronation Street
Emmerdal.
10 O’ clock News BBC
EXIT
Select programme
RETURN
TV Guide: Portrait
Das Erste
DIY SOS
The Bill
Red Cap
Live junction
POP 100
Rugby
EXIT
Select channel
RETURN
+24 hours Prog.Type C ategory
ity
Info
GUIDE
Change display mode
OPTION
Select Advert
Info
GUIDE
Change display mode
OPTION
Select Advert
Pepsi Char.
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebr
The Bill15 To 1Rugby
Page down
Page down
Current date and time
1
TV Guide date
2
2
TV Guide time
3
4
Programme
4
Advertisement
5
C hannel position and
6
6
Page up
7
name
[D] : DVB-T
[A] : Analogue
Depending on the country
you select, you can select the
TV Guide type
[Default Guide] in [Display
Settings] (p.43)
If you select [Channel List], the
channel list will appear when
the GUIDE button is pressed.
Page up
■ To watch the programme
1 Select the current programme or
channel
select
access
22
2 Select [ View] (DVB mode)
Das Erste
19:30- 20:00
V iew T imer Programming
select
w atch
T o use Timer Programming (p.24)
•
Page 23
■ To the previous day (DVB mode)
(red)
■ To view a channel list of the selected type
(DVB mode)
(yellow)
All Types
Movie
News
Prog.Type
All Types
(Type list)
select type
v iew
■ To the next day (DVB mode)
(green)
■ To view a channel list of the selectedcategory
(blue)
(Category list)
Category
All Channels
All Channels
All DVB-T Channels
All Analogue Channels
Free T V
Pay TV
HDTV
Free Radio
Pay Radio
Favourites1
Favourites2
Favourites3
Favourites4
O nly Analogue channels are listed
•
select category
v iew
T o list favourite channels (p.47)
Other useful functions
View details of the programme (DVB mode)
1 Select the programme 2 View details
select
Press again to return to TV Guide.
•
View advertisement
Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or Analogue mode
T he postcode entry or update is required. Follow the on screen instructions.
Also possible to setup manually from the Setup Menu
•
[Update] / [Postcode] in [GUIDE Plus+ Settings] (p.44)
E nter your postcode when using this function for the first time. If you enter an incorrect postcode for your area, or no
•
postcode is entered, advertisements may not be displayed correctly.
Using TV Guide
Display advertisement information
OPTION
T o display the latest advertisement
•
[Update] in [GUIDE Plus+ Settings] (p.44)
■ To change advertisements ■ To return to TV Guide
or
BACK/
RETURN
OPTION
Note
T o update the information continuously, the TV must be left in Standby mode.
•
23
Page 24
T i mer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder.
1 Select the forthcoming programme
selec t
set
LED will turn to orange if
Timer Programming is set.
(Orange LED will flash if the recording of
Timer Programming is in progress.)
LED
Using TV Guide
■ To check / change / cancel a timer
programming event
“ Ti mer Programming” (p.53 - 55)
2 Select the function ([Ext Rec.] or [Reminder])
select
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
<TIMER>
--- --/-- --:-- --:-----
--- --/-- --:--
---
--- --/-- --:-- --:-----
--- --/-- --:-- --:-----
Select timer
EXIT
Edit timer
RETURN
Delete
09
Wed 27.10.2010 10:46
Wed 27.10.2010
Info
20:00D 12 BBC ONE
20:30
(30 min.)
(--- min.)
--:--
(--- min.)
(--- min.)
(--- min.)
1/1
Page up
Page down
store
[Ext Rec.] :
to record the programme to the external recorder
When the start time comes, the channel will be switched automatically and the
video and audio signals will be output. 2 minutes before the starting time, a
reminder message appears if you are watching TV.
[Reminder] :
to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minutes before the
start time. Press the OK button to switch to the programmed channel.
■ To return to TV Guide
BACK/
RETURN
■ If you select the current programme
A confirmation screen asking whether you wish to watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] to record from the time you finish the timer programming event setting.
Das Erste
19:30- 20:00
View Timer Programming
Note
This function is not available in Analogue mode.
•
Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service
•
provider.
No other channel can be selected while the recording of Timer Programming is in progress.
•
When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the
•
TV.
If a compatible recorder with Q-Link, VIERALink or similar technologies is connected to the TV (p.82, 83) and the [Link
Settings] (p.40) are completed, no setting of the recorder is required. Also read the manual of the recorder.
select
access
24
Page 25
Viewing Teletext
T eletext services are the text information provided by the broadcasters.
T he features may vary depending on the broadcasters.
What is FLOF (FASTEXT) mode?
I n FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about
one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects
shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effe
F ast overview of the teletext information available
•
E asy to use step-by-step selection of the topical subject
•
P age status information at the bottom of the screen
•
Available page up / down
(red) (green)
What is List mode?
I n List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be
altered and stored in the TV’s memory.
■ To change mode
[Teletext] (p.43)
1
To select among subject blocks
(blue)
“Store frequently viewed pages” (p.26)
Switch to Teletext
TEXT
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
T ime / date
T o select next subject within the subject
block
(After the last subject, it moves to the next
subject block.)
(yellow)
D isplays the index page (content varies
•
depending on the broadcasters)
TELETEXT
INFORMATION
C olour bar
Current page number
ctive guide.
Viewing Teletext
Select the page
2
abc def
jkl
ghi
mno
or
tuvpqrs
wxyz
■
To return to TV
EXIT
■ To adjust contrast
MENU
(Press three times)
Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU
(red)
Press again to rehide.
•
HOLD
Stop automatic updating
(If you wish to hold the current page without updating)
Press again to resume.
HOLD
•
u p
d own
or
A s the blue bar is displayed
C oloured button
(Corresponds to the colour bar)
INDEX
Return to the main index page
INDEX
Call up a favourite page
View a favourite page stored
C all up the page stored on the blue button (List mode).
F actory setting is “P103”.
STTL
•
25
Page 26
FULL / TOP / BOTTOM
MENU
(TOP) (BOTTOM) Normal (FULL)
(green)
(Expand the TOP half )
(Expand the BOTTOM half)
View in multi window
Watch TV and Teletext in two windows at once
MENU
(Press twice)
O perations can be made only in teletext screen.
•
Store frequently viewed pages
Viewing Teletext
Store frequently viewed pages in the colour bar (List mode only)
A s page is displayed
(Corresponding
coloured button)
Select Picture and text On or Off
press and hold
■ To change stored pages
C oloured button you
want to change
View sub page
View sub page (Only when Teletext is more than one page)
E nter new page number
abc def
jkl
ghi
mno
tuvpqrs
wxyz
A ppears at top of the screen
■ To view specific sub page
MENU
(blue)
T he number of sub pages varies depending on the
•
broadcasters (up to 79 pages).
I t may take some time for searching, during which time
•
you can watch TV.
E nter the 4-digit number
Example : P6
T he number changes to white.
press and hold
mno
Watch TV while waiting for update
View the TV picture while searching for a teletext page
T eletext automatically updates itself when new information becomes available.
MENU
T he news page provides a function that indicates arrival of latest news (“News Flash”).
•
(yellow)
C hanges to TV screen temporarily
P108
(You cannot change the channel.)
26
A ppears when updating
is completed
V iew the updated
page
(yellow)
Page 27
Watching External Inputs
C onnect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.
T o connect the equipment (p.11, 12, 89 - 91)
•
T he remote control is capable of operating some functions of selected external equipment.
“Operating the equipment with the TV remote control” (p. 28)
Turn the TV on
1
When connecting with SCART as example 2 or 3 (p.11, 12)
R eceives input signals automatically when playback starts
I nput signals are automatically identified by the SCART (pin 8) terminal.
•
T his function is also available for HDMI connections (p.89).
•
If input mode is not switched automatically
P erform 2 and
C heck the setup of the equipment.
•
Display the input selection menu
2
AV
Select the input mode connected to the equipment
3
Input Selection
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
TV
SD Card/USB
Y ou can also select the input using the AV button on the remote control or the side panel
•
of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
[ SD Card/USB] : Switches to Media Player “Using Media Player” (p.62)
•
Y ou can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.58)
•
Skipped inputs will not be displayed when the AV button is pressed.
3
select
watch
Watching External Inputs
■
To return to TV
TV
View
4
AV1
D isplays the selected mode
Note
If the external equipment has an aspect adjustment function, set it to “16:9”.
•
F or details, see the manual of the equipment or ask your local dealer.
•
27
Page 28
Operating the equipment with the TV remote control
T he equipment connected to the TV can be directly operated with the below buttons of this TV remote control.
Selection Switch for operating the connected equipment
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc
DVD/VCR
Watching External Inputs
TV
PROGRAMME
REC
theatre or VCR
“How to change the code for the type of the equipment” (see below)
Select “TV” to use in Media Player or VIERA Link
“Media Player” (p. 63)
“VIERA Link Control” (p.87)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
R ewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
F ast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
P ause / Resume
DVD : Press and hold to play at slow speed
Channel Up / Down
Select channel
Record
Start recording
How to change the code for the type of the equipment
E ach type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
DVD/VCR
TV
2 Press and hold during the following operations
E nter the appropriate code, see
table below
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Type of the equipment C ode
Player theatre, Blu-ray Disc theatre 71
VCR 72
Press
Note
C onfirm if the remote control works correctly after changing the code.
•
T he codes may be reset to default values if batteries are replaced.
•
Some operations may not be possible on some equipment models.
•
28
Page 29
Viewing 3D images
Y ou can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear.
“Optional accessories” (p. 6)
T his TV supports [Frame Sequential]
∗
1 : The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately
played back
∗
2, ∗3 : Other available 3D fo
H ow to view the 3D images (p.30)
•
Caution
To enjoy 3D images safely and comfortably, please read these instructions fully.
Viewing 3D Content
D o not use the 3D Eyewear if you have a history of over-
•
sensitivity to light, heart problems, or have any other
existing medical conditions.
Please stop using the 3D Eyewear immediately, if you
•
feel tired, are not feeling well or experience any other
uncomfortable sensation.
When you set the effect by using [3D Adjustment], take
•
into account that the vision of 3D images varies among
different individuals.
T ake an appropriate break after viewing a 3D movie.
•
T ake a break of between 30 - 60 minutes after viewing
•
3D content on interactive devices such as 3D games or
computers.
B e careful not to strike the TV screen or other people
•
unintentionally. When using the 3D Eyewear the distance
between the user and screen can be misjudged.
T he 3D Eyewear must only be worn when viewing 3D
•
content.
If you do not look toward the TV screen for a while when
•
viewing 3D images, the 3D Eyewear may be turned off
automatically.
If you suffer from any eyesight problems (short /
•
far-sighted, astigmatism, eyesight differences in left and
right), please ensure to correct your vision before using the
3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double
•
images when viewing 3D content.
D o not use the 3D Eyewear at a distance less than the
•
recommended distance.
T he recommended viewing distance is at least 3 times of
image height.
TX-PF42ST30 : 1.6 m or more
TX-PF46ST30 : 1.7 m or more
TX-PF50ST30 : 1.9 m or more
When the top and bottom area of the screen is blackened,
such as movies, view the screen at a distance at least 3
times further than the height of the actual image. (That
makes the distance closer than above recommended
figure.)
rmats
1
∗
, [Side by Side]
2
∗
and [Top and Bottom]
3D Eyewear Use
P ay special attention when children are using the 3D
•
Eyewear.
3D Eyewear should not be used by children younger than
about 5 - 6 years old, as a guideline. All children must be
fully supervised by parents or guard
their safety and health throughout the using 3D Eyewear.
B efore using the 3D Eyewear, ensure no breakable objects
•
surrounding the user to avoid any accidental damage or
injury.
R emove the 3D Eyewear before moving around to avoid
•
falling or accidental injury.
Always store the 3D Eyewear in the case supplied with the
•
3D Eyewear when not in use.
U se the 3D Eyewear only for the intended purpose and
•
nothing else.
D o not use 3D Eyewear in the condition of high
•
temperature.
D o not use if the 3D Eyewear is physically damaged.
•
D o not use any devices that emit the infrared signals near
•
the 3D Eyewear, as this may cause the 3D Eyewear false
operations.
D o not use devices (such as mobile phones or personal
•
transceivers) that emit strong electromagnetic waves
near the 3D Eyewear as this may cause the 3D Eyewear to
malfunction.
D o not expose the infra-red receiver section to bright light
•
such as direct sunshine and fluorescent light. The 3D image
may not be displayed correctly.
Stop using the 3D Eyewear immediately if a malfunction or
•
fault occurs.
Stop using the 3D Eyewear immediately if you experience
•
any redness, pain, or skin irritation around the nose or
temples.
I n rare cases, the materials used in the 3D Eyewear may
•
cause an allergic reaction.
3
∗
3D formats.
ians who must ensure
Viewing 3D images
29
Page 30
To view the 3D images
Y ou can enjoy the 3D images in a variety of ways.
(Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)
■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)
C onnect the 3D-compatible player via a fully wired HDMI compliant cable.
•
If input mode is not switched automatically, select the input mode connected to the player. (p.27)
•
If you use the non 3D-compatible player, the images will be displayed on 2D mode.
•
■ 3D-supported broadcast
Please consult the suppliers of contents or programmes for availability of this service.
•
■ 3D photos and 3D videos taken by 3D-compatible Panasonic products
Available in Media Player (p. 64 - 66, 69)
•
■ 2D images converted to 3D
Set to [2D 3D] mode in [3D Mode Selection] (p. 31)
Turn the 3D Eyewear on
1
Viewing 3D images
Put on the 3D Eyewear
2
Watch the 3D images
3
Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D
•
images.
If you select [Yes], this message will be displayed again
turned On. Select [No] if you do not wish to display this message again.
Example :
Safety Precautions
To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.
Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or
experience any other uncomfortable sensation.
Always put the 3D Eyewear in the case provided after use.
Would you like to display this message again later?
Turn off the 3D Eyewear after using it
4
Yes No
in the same condition after Mains power On / Off switch is next
Note
3D Eyewear is not included. Please purchase as necessary. (p.6)
•
F or more detail about using and wearing the 3D Eyewear, please refer to the manual of the 3D Eyewear.
•
T he 3D image or 3D effect may not be available while VIERAConnect home screen (p.79) is displayed or Ext Rec. of Timer
•
Programming (p.53) / Direct TV Recording (p.82,84) is in progress. As for the contents of the Frame Sequential format and
Side by Side (Full), no images will be displayed in these conditions.
If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D Eyewear, switch off the
•
fluorescent light or set [3D Refresh Rate] to [100Hz] (p. 37).
3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
•
D o not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer
•
screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.
D o not use the 3D Eyewear as sunglasses.
•
3D effects may be perceived differently depending on the person.
•
30
Page 31
Changing 2D - 3D mode
Y ou can easily change the viewing mode between 2D and 3D using the 3D button.
Select the mode
3D Mode Selection
2D3D3D
2D
select
set
I tems of [3D Mode Selection] vary
•
depending on the condition.
[3D] / [2D] / [2D
D isplays the appropriate image that you desire without selecting 3D format
T his mode may not work properly depending on the source image format. In this case, select the appropriate 3D format
•
manually.
3D] :
■ To change 3D format manually
When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.
During the above operation Select the mode
(red)
[Original] :
D isplays the source image as it is
U se to identify the format type of the source image.
•
“Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format” (p.32)
[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] /
[Top and Bottom - 3D] / [Top and Bottom - 2D] :
D isplays the mode you select
N ot valid on Analogue and AV mode
•
3D] :
[2D
C onverts 2D images into 3D
F or DVB, Analogue, AV, Component, HDMI, Media Player and VIERA Connect.
•
O n-screen displays are also seen in 3D in this mode.
•
Please note the 3D images appear slightly different from the originals.
•
U sing this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as
•
shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.
3D Mode Selection (Manual)
Original
Frame Sequential - 3D
Frame Sequential - 2D
Side by Side - 3D
Side by Side - 2D
T op and Bottom - 3D
T op and Bottom - 2D
2D 3D
select
set
Viewing 3D images
31
Page 32
Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format
If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.
Source
image format
[3D Mode Selection]
[Original]
[Frame
Sequential
- 3D]
[Side by Side
- 3D]
[Top and
Bottom - 3D]
[2D
3D]
Frame Sequential
Side by Side (Full)
Side by Side
Top and Bottom
Normal format (2D)
Viewing 3D images
∗
1 : When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed without
3D effect.
D epending on the player or broadcasts, the image may be different from the above illustrations.
•
N ormal 3D
1
∗
1
N ormal 3D
N ormal 3D
∗
1
∗
1
N ormal 3D
∗
3D Settings
If the 3D images are not displayed correctly or seem unusual, please adjust and setup the 3D settings.
Display the menu
1
MENU
Select [Picture]
2
Main Menu
Sound
select
access
N ormal 3D
32
■
To return to TV
EXIT
Timer
Select [3D Settings]
3
P-NR Off
3D Settings
Screen Display
Advanced Settings
R eset to Defaults
Select one of the following functions and set
4
3D Settings
2D 3D Depth
3D Adjustment
P icture Sequence
Edge Smoother
3D Detection
3D Signal Message
Safety Precautions
Setup
Access
O n
M id
Access
N ormal
Off
O n
O n
Access
2/2
select
access
select
adjust
access / store
Page 33
Item Adjustments / Configurations (alternatives)
2D 3D Depth
3D Adjustment
Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]
Adjustment of the 3D effect (except in [2D
Set to [On] to enable [Effect] setting.
•
When setting to [On], a safety precaution message will appear. Read it carefully and then press the
•
BACK/RETURN button to go to [Effect] setting.
[Effect] : Adjust the 3D depth according to the contents or to your preference.
3D] mode) [Off] / [On]
Picture Sequence
Edge Smoother
3D Detection
3D Signal
Message
Safety
Precautions
Note
[3D Adjustment] and [Picture Sequence] will not be memorized when changing the input mode or channel.
•
Select [Reverse] if you feel that the sense of depth is unusual (except in [2D
[Normal] / [Reverse]
Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D
mode) [Off] / [On]
Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]
[On (Advance)] : Detects all the 3D format signals and displays the 3D image automatically.
[On] : Detects the par ticular 3D format signals (Fr
automatically.
T o view 3D images without any notifications and operations, set to [On (Advance)].
•
Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]
F or DVB, Component and HDMI
•
T his function is not available when [3D Detection] is set to [On (Advance)].
•
D isplays the precautions for viewing 3D images
ame Sequential, etc.) and displays the 3D image
3D] mode)
3D]
Available range for the 3D Eyewear
If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.
: Coverage area for using the 3D Eyewear
A pprox.
3 .2 m
A pprox.
35°35°
3 .2 m
A pprox.
3 .2 m
A pprox. 3.2 m
20°
20°
Viewing 3D images
Note
Y ou cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving infrared signals
•
from the TV.
T he range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the
•
dirt on the infrared sensors or the surrounding environment.
If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically
•
even if in the coverage area.
View from the top
View from the side
33
Page 34
How to Use VIERA TOOLS
Y ou can access some special features easily by using the VIERATOOLS function.
Display icons of the feature
1
2
■
To return to TV
EXIT
How to Use VIERA TOOLS
■ Follow the operations of each feature
[VIERA Link Control]
“VIERA Link Control” (p.86)
[Photo]
“Photo mode” (p.64)
[ Video]
“Video mode” (p.69)
or
T
O
A
O
R
L
E
S
I
V
When two or more compatible equipment are
connected, a selection screen will be displayed.
Please select the correct description and access.
∗
∗
T
O
A
O
R
L
E
S
I
V
Select a feature
VIERA Link Control
∗
[Music]
“Music mode” (p.71)
[VIERA Connect]
“VIERA Connect” (p.17, 79)
select
access
∗
When two or more available devices are connected, a selection screen will be displayed.
Please select the correct description and access.
Note
If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to
•
view the demonstration after selecting the unavailable
feature.
34
Page 35

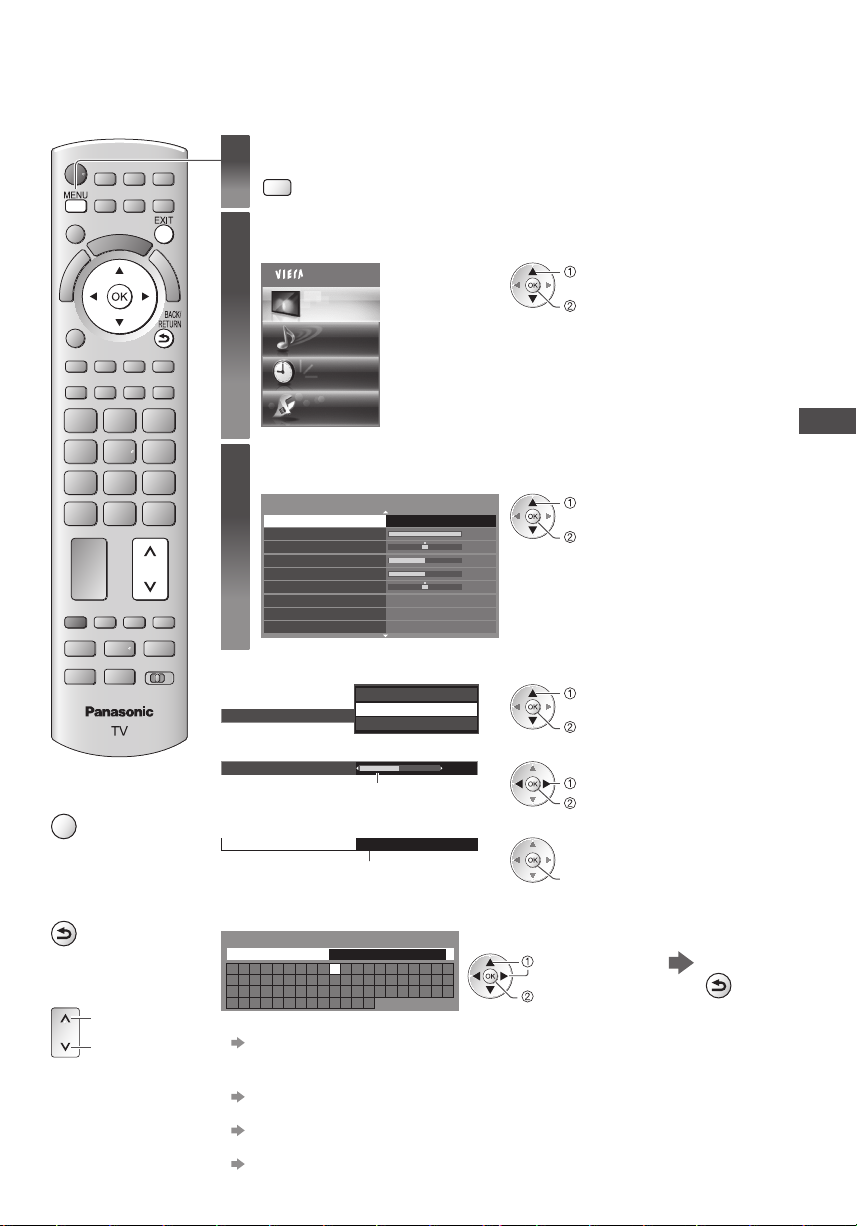

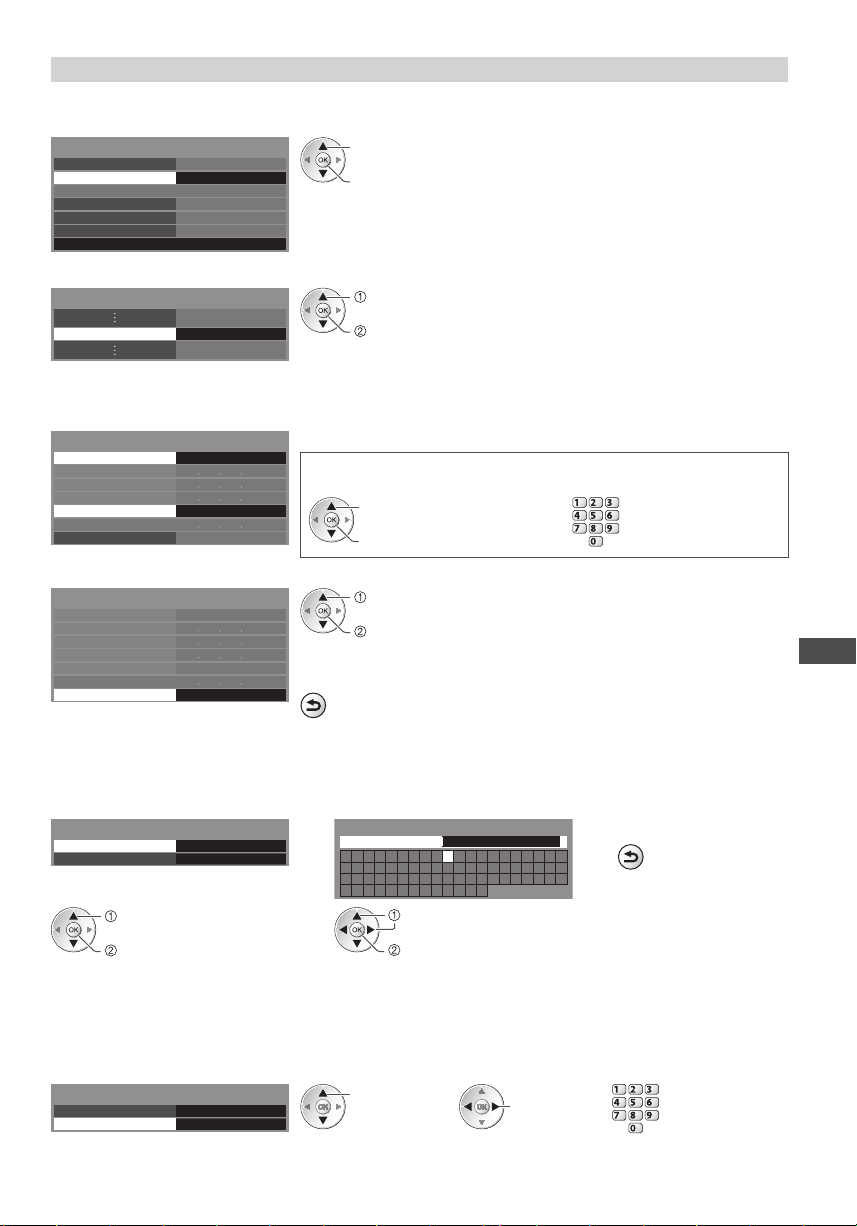

How to Use Menu Functions
V arious menus allow you to make settings for the picture, sound, and other functions.
Display the menu
1
MENU
Select the menu
2
Example : [Picture Menu]
D isplays the functions that can be set (varies according to the input signal)
•
Main Menu
Sound
Timer
select
access
■
To return to T V at any
time
EXIT
■
To return to the
previous screen
BACK/
RETURN
■
To change menu
pages
u p
d own
Select the item
3
Example : [Picture Menu]
V iewing Mode Dynamic
C ontrast
Brightness
C olour
Sharpness
T int
C olour Balance
V ivid Colour
Eco Mode Off
Setup
Warm
Off
1/2
60
0
30
5
0
■ Choose from among alternatives
C ool
C olour Balance
N ormal
Warm
■ Adjust using the slide bar
Sharpness
M oved
5
■ Go to the next screen
C hild Lock Access
D isplays the next screen
■ Enter characters by free input menu
Y ou can enter names or numbers freely for some items.
User input
N ame
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
Y ou can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p.98)
Set characters one by one
select
■ To reset the settings
T o reset the picture settings only
•
[Reset to Defaults] in the Picture Menu (p.38)
T o reset the sound settings only
•
[Reset to Defaults] in the Sound Menu (p.40)
T o initialise all settings
•
[Shipping Condition] in the Setup Menu (p.44)
set
select
access
select
store
change
store
access
How to Use Menu Functions
Store
BACK/
RETURN
35
Page 36
How to Use Menu Functions
Menu list
Menu
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Item Adjustments / Configurations (alternatives)
B asic picture mode
[Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo]
I n each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint],
[Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted
and stored to suit
Set for each input signal.
•
[Dynamic] :
Provides enhanced picture contrast and sharpness when viewing in a bright room.
[Normal] :
R ecommended for viewing under normal ambient room lighting conditions.
[Cinema] :
F or watching movies in a darkened room with the improved performance of contrast,
black and colour reproduction
[True Cinema] :
Precisely reproduces the original quality of the image without any revision.
[Game] :
F ast response signal specifically to provide suitable images for playing games
N ot valid on TV mode
•
A continuous record of time spent using Game mode can be displayed in the top
•
right of the screen. [Playing Time Display](p.43)
[Photo] :
Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos
F or HDMI input, Media Player and VIERA Connect
•
I ncreases or decreases the levels of these options according to your personal
preference
your particular viewing requirement.
Tint
Colour Balance
Vivid Colour Automatically adjusts colours to vivid ones [Off] / [On]
Colour Remaster
Reversal Film Effect
Eco Mode
With an NTSC signal source connected to the TV, the picture
suit your taste
F or NTSC signal reception only
•
Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]
N ot valid when [Viewing Mode] is set to [True Cinema].
•
D isplays the vivid images with the expanded colour gamut [Off] / [On] / [Auto]
F or HDMI input mode or video contents in Media Player (p. 69)
•
N ot valid when [Viewing Mode] is set to [True Cinema] or [Photo].
•
Set to [Auto] to use this function effectively.
•
Provides the picture effect such as the reversal film [Off] / [On]
T his function is available when [Viewing Mode] is set to [Photo].
•
Automatic Brightness Control function
Adjusts picture settings automatically dependent on ambient lighting conditions
[Off] / [On]
hue can be adjusted to
36
Page 37
Menu
Item Adjustments / Configurations (alternatives)
P-NR
3D-COMB
3D Settings Adjusts and sets to view 3D images (p.32)
Screen Display
Intelligent Frame
Creation
24p Smooth Film
Advanced Settings
P icture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts
of a picture [Off] / [Min] / [Mid] / [Max]
M akes still or slow moving pictures look more vivid [Off] / [On]
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be
•
seen. Set to [On] to display sharper and more accurate colours.
F or PAL or NTSC signal reception only
•
N ot valid on 3D, RGB, Component, HDMI and Media Player
•
Turns the screen off when you select [Off ]
[Off] / [On]
T he sound is active even if the screen turns off.
•
Press any buttons (except Standby) to turn the screen on.
•
T his function is effective in reducing power consumption when listening to the sound
•
without watching the TV screen.
Automatically compensates the picture frame rate and removes juddering movements
to make the images smooth [Off] / [Mid] / [Max]
D epending on the contents, images may be noisy. To prevent the noise, change the
•
setting.
T his function is not available for selection (default to [Off]) when [Viewing Mode] is
•
set to [Game] or in the mode of VIERA Connect.
Automatically compensates the picture frame rate to make
images smooth [Off] / [Mid] / [Max]
T his is available only for 24p signal input and displayed instead of [Intelligent Frame
•
Creation].
T his function is not available for selection (default to [Off]) when [Viewing Mode] is
•
set to [Game] or in the mode of VIERA Connect.
How to Use Menu Functions
the 24p source movie
Film Cadence
Detection
3D Refresh Rate
Resolution Enhancer
Side Panel
Automatically makes the film source movie images clear [Off] / [On]
T his function is available for the interlaced signal (except when [Viewing Mode] is set
•
to [Game]).
R educes juddering and flicker noises of the 3D images [Auto] / [100Hz]
If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker
•
when using the 3D Eyewear, set to [100Hz].
E nhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]
T his function is available for SD (Standard definition) signal.
•
A s for HD (High definition) signal, this function is available when aspect mode is set
•
to [16:9] ([16:9 Overscan] is set to [On]), [4:3 Full] or [Zoom].
N ot valid on Media Player and VIERA Connect
•
I ncreases the brightness of the side panel [Off] / [Low] / [Mid] / [High]
T he recommended setting is [High] to prevent panel “image retention”.
•
37
Page 38
Menu
Item Adjustments / Configurations (alternatives)
Selects the screen area displaying the image [Off] / [On]
[On] :
E nlarged the image to hide the edge of the image.
[Off] :
16:9 Overscan
D isplayed the image in the original size.
Set to [On] if noise is generated on the edge of the screen.
•
T his function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].
•
T his function can be memorized separately for SD (Standard definition) and HD (High
•
definition) signals.
N ot valid on VIERA Connect
•
How to Use Menu Functions
Advanced Settings
Reset to Defaults
Mode
Sound
AV Colour System
DVI Input Setting
Pixel Orbiter
Scrolling Bar
Selects optional colour system based on video signals in AV mode
[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]
C hanges the black level in the image for HDMI input mode with DVI input signal
lly [Normal] / [Full]
manua
When the DVI input signal from the external equipment, especially from PC, is
•
displayed, the black level may not be suitable. In this case, select [Full].
T he black level for HDMI input signal will be adjusted automatically.
•
F or HDMI input mode with DVI input signal only
•
Selects the mode for wobbling of the image to prevent panel “image retention”
[Auto] / [On]
[Auto] :
Automatically works only for the appropriate images
wobbling.
Scrolls the vertical bar to prevent panel “image retention”
Press the OK button to start scrolling and press any buttons (except Standby) to exit
•
this mode.
Press the OK button to reset the present Picture Viewing Mode of the selected input to
the default settings
Selects the basic sound mode [Music] / [Speech] / [User]
T he selected mode affects all input signals.
•
[Music] :
Improves sound quality for watching music videos, etc.
[Speech] :
Improves sound quality for watching news, drama, etc.
I n Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those
•
settings will be stored for each mode.
[User] :
Adjusts the sounds manually by using the equaliser to suit your favourite sound
quality.
F or the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and
•
[Treble]. Select the [Equaliser] and adjust the frequency. [Equaliser] (p. 39)
and you rarely recognise the
38
Bass I ncreases or decreases level to enhance or minimise lower, deeper sound output
Treble I ncreases or decreases level to enhance or minimise sharper, higher sound output
Page 39
Menu
Equaliser
Balance Adjusts volume level of right and left speakers
Headphone Volume Adjusts the volume of the headphones
Surround
Item Adjustments / Configurations (alternatives)
Adjusts the frequency level to suit your favourite sound quality
T his function is available when [Mode] is set to [User].
•
Select the frequency and change the frequency level by using the cursor button.
•
If you want to enhance the bass sound, raise the level of the lower frequency. If you
•
want to enhance the treble sound, raise the level of the higher frequency.
T o reset the levels of each frequency to the default settings, select the [Reset to
•
Defaults] by using the cursor button, and then press the OK button.
Surround sound settings [Off] / [V-Audio] / [V-Audio Surround]
[V-Audio] :
Provides a dynamic enhancer of width to simulate improved spatial effects
[V-Audio Surround] :
Provides a dyna
mic enhancer of width and depth to simulate improved spatial effects
Auto Gain Control
Volume Correction Adjusts the volume of individual channel or input mode
Sound
Speaker Distance to Wall
MPX
Audio Preference
Adjusts the current volume level if it is extremely different from the previous viewed
channel or input mod
Adjusts the low frequency sound [Over 30cm] / [Up to 30cm]
If the back space between the TV and wall is over 30 cm, [Over 30cm] is
•
recommended.
If the back space between the TV and wall is within 30 cm, [Up to 30cm] is
•
recommended.
Selects multiplex sound mode (if available)
[Stereo] : Use this normally
[Mono] : When stereo signal cannot be received
[M1] / [M2] : Available while mono signal is transmitted
A nalogue mode only
•
Selects the initial setting for audio tracks [Auto] / [Multichannel] / [Stereo] / [MPEG]
Selectable options vary depending on the country you select.
•
[Auto] : Automatically selects the audio tracks if programme has more than two tracks.
The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby
Digital, MPEG.
[Multichannel] : T he priority is given to multi-channel audio track.
[Stereo] : T he priority is given to stereo (2ch) audio track.
[MPEG] : T he priority is given to MPEG.
D olby Digital Plus and Dolby Digital are the methods of coding digital signals
•
developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be
multi-channel aud
HE-AAC is a perceptual coding method used to compress digital audio for efficient
•
storage and transmission.
MPEG is an audio compression method that compresses audio to the smaller size
•
without any considerable loss of audio quality.
D olby Digital Plus and HE-AAC are the technologies for HD (High definition)
•
programmes.
DVB mode only
•
e [Off] / [On]
io.
How to Use Menu Functions
39
Page 40
Menu
SPDIF Selection
Sound
HDMI1 / 2 / 3 / 4 Input
Item Adjustments / Configurations (alternatives)
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : D olby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channe
as Dolby Digital Bitstream.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
F or DVB mode, VIERA Connect (p. 17, 79) or Video mode of Media Player (p.69)
•
ARC (Audio Return Channel) : A function of digital audio output using HDMI cable
•
Select to fit the input signal [Digital] / [Analogue] (p.96)
[Digital] : HDMI cable connection
[Analogue] : HDMI-DVI adaptor cable connection
HDMI input mode only
•
l are output
How to Use Menu Functions
SPDIF Delay
Reset to Defaults
Timer Programming
Off Timer
Timer
Auto Standby
Eco Navigation
VIERA Link Sets to use VIERA Link functions [Off ] / [On] (p.83)
Setup
HDMI Content Type
Link Settings
Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC
function) terminals if the sound does not synchronize the image
DVB mode only
•
Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume]
and [Surround] to the default settings
Sets a timer to remind watching or record forthcoming programmes (p.53)
DVB mode only
•
Sets the time until the TV automatically goes to Standby mode
[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p.20)
Sets the time the TV automatically goes to Standby mode when no operation is
performed for the selec
Starting Timer Programming automatically does not affect this function.
•
Automatic input switching with the connected equipment affects this function and
•
time-count will be reset.
T he notification message will appear 3 minutes before going to Standby mode.
•
Automatically sets the TV to the most suitable energy-saving mode
If you press the OK button, the following items are set as below :
•
[Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save]
[Intelligent Auto Standby]
[Auto Standby] [2 hours]
Adjusts the picture settings according to the content type signal from the connected
equipment via HDMI cable [Off] / [Auto]
T his function is available if the connected equipment supports HDMI Content Type.
•
T he content type information will be displayed for several seconds when this function
•
works.
ted times [Off] / [2] / [4] (hours)
[On]
[On (No reminder)]
40
AV1 out
Power on Link Sets to use Power on Link function [Off ] / [On] (p.82,83)
Power off Link Sets to use Power off Link function [Off] / [On] (p.82,83)
C hooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor]
[Monitor] : Image displayed on screen
C omponent and HDMI signals cannot be output.
•
Page 41
Menu
Item Adjustments / Configurations (alternatives)
Standby Power Save
Link Settings
Intelligent Auto
Standby
C ontrols the power consumption in Standby mode of the connected equipment to
reduce the consumption [Off] / [On] (p.84)
T his function is available when [VIERA Link] is set to [On] and [Power off Link] is set
•
to [On].
M akes non-watched or non-used connected equipment go into Standby mode to
reduce the powe
[Off] / [On (With reminder)] / [On (No reminder)] (p.84)
T his function is available when [VIERA Link] is set to [On].
•
r consumption
Download
Child Lock L ocks a channel / AV input to prevent access to it (p.56)
Favourites Edit Creates list of favourite DVB-C channels (p.47)
Channel List Skips the unwanted DVB-C channels or edits DVB-C channels (p.48)
D ownloads channel, language, country / region settings to a Q-Link or VIERALink
compatible equipment connected to the TV
DVB-C channel settings cannot be downloaded.
•
Setup
Auto Setup Automatically sets the DVB-C channels supplied (p.45)
Manual Tuning Sets the DVB-C channels manually (p.49)
Update Channel List U pdates DVB-C Channel List while keepin
DVB-C Tuning Menu
Favourite Network Selects your favourite network for each broadcasters (only available in some countries)
New Channel
Message
Service Replacement
Signal Condition C hecks the DVB-C signal condition (p.50)
Attenuator Autom
Add TV Signal
Selects whether to give a notification message when a new DVB-C channel
[Off] / [On] (p.50)
Set to [On] to enable a message to switch to the available service (only available in
some countries) [Off] / [On]
atically reduces the DVB-C signal to avoid the interference [Off] / [On] (p.50)
Adds the TV mode
T his function is available if you skip any modes to tune in [Auto Setup] for first using
•
the TV.
T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).
•
How to Use Menu Functions
g your settings (p.50)
is found
41
Page 42
Menu
Item Adjustments / Configurations (alternatives)
Favourites Edit Creates list of favourite DVB-T channels (p.47)
Channel List Skips the unwanted DVB-T channels or edits DVB-T channels (p.48)
Auto Setup Automatically sets the DVB-T channels received in the area (p.46)
Manual Tuning Sets the DVB-T channels manually (p.49)
DVB-T Tuning Menu
Update Channel List U pdates DVB-T Channe
Favourite Network Selects your favourite network for each broadcasters (only available in some countries)
l List while keeping your settings (p.50)
How to Use Menu Functions
Setup
New Channel
Message
Signal Condition C hecks the DVB-T signal condition (p.50)
Add TV Signal
Channel List Skips the unwanted Analogue channels or edits Analogue channels (p.51)
Analogue Tuning Menu
Auto Setup Automatically sets the Analogue channels received in the area (p.46)
Manual Tuning Sets the Analogue channels manually (p.52)
Add TV Signal
OSD Language C hanges language for on screen displays
Preferred Audio 1 / 2
Language
Preferred Subtitles
1 / 2
Selects whether to give a notification message w
[Off] / [On] (p.50)
Adds the TV mode
T his function is available if you skip any modes to tune in [Auto Setup] for first using
•
the TV.
T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).
•
Adds
the TV mode
T his function is available if you skip any modes to tune in [Auto Setup] for first using
•
the TV.
T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).
•
Selects the first and second preferred language for DVB multi audio (depending on the
broadcaster)
Selects the first and secon
broadcaster)
T o display subtitles (p.19)
•
d preferred language for DVB subtitles (depending on the
hen a new DVB-T channel is found
42
Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster)
Page 43
Menu
Item Adjustments / Configurations (alternatives)
Setup
Preferred Subtitle
Typ e
Teletext T eletext display mode [TOP (FLOF)] / [List] (p.25)
Teletext Character
Set
Default Guide
Display Settings
Input Labels L abels or skips each input terminal (p.58)
Banner Display
Timeout
VIERA Connect
Banner
Playing Time Display
Selects the preferred subtitle type [Standard] / [Hard of Hearing]
[Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles
•
(depending on the broadcaster).
[Preferred Subtitles 1 / 2] in [Language] are given priority.
•
Selects teletext language font [West] / [East1] / [East2]
[West] : English, French, German, Greek, Italian
[East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
[East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Selects the default TV Guide type when the GUIDE button is pressed (on
some countries) [TV Guide] / [Channel List]
[TV Guide] :
Electronic Programme Guide (EPG) is available.
T o use EPG (p.22)
•
[Channel List] :
EPG is not available and the channel list will appear instead of it.
Sets how long the Information banner (p.19) stays on screen
[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)
Sets the VIERA Conne
Set to [On] to display a continuous record of time spent using Game mode every 30
minutes [Off] / [On]
T his function is available when [Game] is selected in [Viewing Mode] (p.36)
•
ct introduction banner display [Off] / [On] (p. 17, 18)
, Spanish, Swedish, Turkish, etc.
ly available in
How to Use Menu Functions
Sets the timer for turning off the screen automatically when a radio channel is selected
[Off] / [5] / [10] / [15] / [20] (seconds)
T he sound is active even if the screen turns off.
•
Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to
Radio Mode
Common Interface U ses include to watch encrypted channels (p.59)
Network Setup Sets the net work setting to use in your network environment (p.74)
DivX® VOD D isplays DivX VOD registration code (p.94)
•
turn the screen on.
T his function is effective in reducing power consumption when listening to a radio
•
channel.
DVB mode only
•
43
Page 44
Menu
Item Adjustments / Configurations (alternatives)
How to Use Menu Functions
Setup
USB Keyboard
Layout
System Menu
Shipping Condition R esets all settings, for example, when moving house (p.60)
System Update D ownloads new software to this TV (p.61)
Software Licence D isplays the software licence information
System Information D isplays the s
GUIDE Plus+ Settings
Update
Postcode Sets your postcode to display advertisements in the GUIDE Plus+ system (p.23)
System
Information
Other Settings
Power on Preference
USB Charge in
Standby
Selects the language that your USB Keyboard supports
F or the information of using USB Keyboard (p.97)
•
ystem information of this TV
P erforms the update of the GUIDE Plus+ schedule and advertising information for the
GUIDE Plus+ system (p.23)
D isplays the
Automatically selects the input when the TV is turned on [TV] / [AV]
Set to [TV] to view picture from TV tuner.
Set to [AV] to view input from an external equip
terminal, e.g. set top box.
T he external equipment must be switched on and sending a control signal for
•
automatic switching at power on to occur.
Enables to supply the power from the USB terminal in
Available for charging 3D Eyewear (optional)
•
T his function is available when in Standby mode.
•
system information of the GUIDE Plus+ system
ment connected to the AV1 or HDMI1
Standby mode [Off] / [On]
Power Save R educes brightness of picture to economise on power consumption [Off] / [On]
Time Zone
A different menu will be displayed in the mode of Media Player (p. 63 - 72) or VIERA Connect (p. 17,79).
•
O nly available items can be selected.
•
Adjusts the time data
T he time data will be corrected based on GMT.
•
Set to [Auto] to adjust the time automatically according to your area.
•
44
Page 45

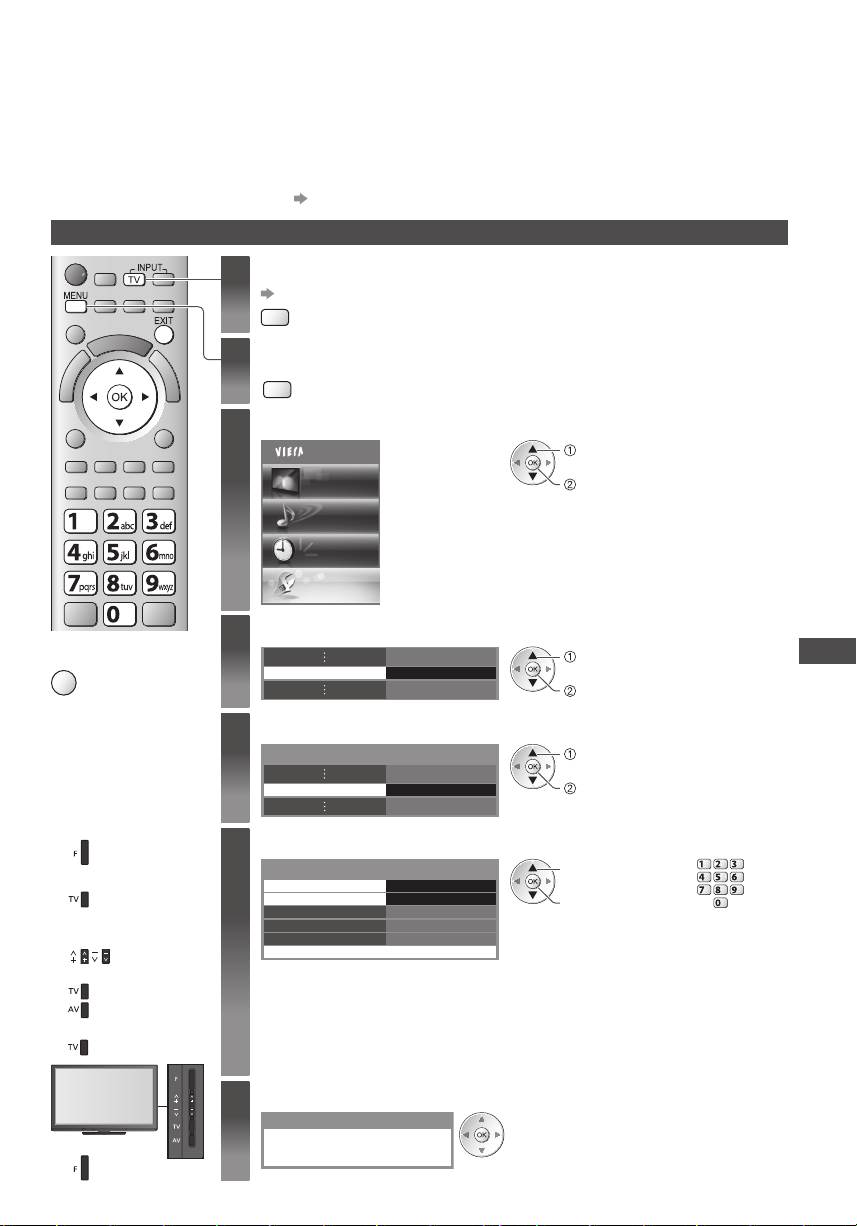

Retuning from Setup Menu
Automatically retune the channels received in the area.
T his function is available if channel tuning is already performed.
•
O nly the selected mode is retuned.
•
All the previous tuning settings are erased.
•
If Child Lock PIN number (p. 56) has been set, the PIN number is required.
•
If tuning has not been done completely [Manual Tuning] (p. 49, 52)
•
DVB-C channels
Select DVB-C
1
(p.18)
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
Timer
select
access
■
To return to TV
EXIT
For Auto Setup, using
the buttons on the side
panel of the TV (p. 10)
1 Press repeatedly until
[Auto Setup] appears
2 Access [Auto Setup]
3 Set the search mode
and scan mode
( select the item)
(set)
(store)
4 Start [Auto Setup]
To return to TV
•
Select [DVB-C Tuning Menu]
4
DVB-C Tuning Menu Access
Select [Auto Setup]
5
DVB-C Tuning Menu
Auto Setup Access
Set the Auto Setup settings
6
DVB-C Auto Setup Settings
Search Mode Free Channels
Scan Mode
Frequency
Symbol Rate
N etwork ID
[ Scan Mode]
•
[Full] : scans the whole frequency range
[Quick] : scans the suitable frequency in your country
N ormally set [Frequency], [Symbol Rate] and [Network ID] to [Auto].
•
If [Auto] is not displayed or if necessary, enter [Frequency], [Symbol Rate] and [Network
ID] specified by your cable provider with numeric buttons.
Start Auto Setup (Settings are made automatically)
7
DVB-C Auto Setup
Setup
Quick
Auto
Auto
Auto
Start scan
All DVB-C tuning data will be erased
select
access
select
access
select
access / store
After settings, select [Start scan].
•
When the operation is completed, the
channel at the lowest position will be
displayed.
Retuning from Setup Menu
abc def
jkl
ghi
mno
tuvpqrs
wxyz
45
Page 46
DVB-T or Analogue channels
Select DVB-T or Analogue
1
(p.18)
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
Timer
select
access
■
To return to TV
EXIT
Retuning from Setup Menu
For Auto Setup, using
the buttons on the side
panel of the TV (p.10)
1 Press repeatedly until
[Auto Setup] appears
2 Access [Auto Setup]
3 Start [Auto Setup]
T o return to TV
•
46
Select [DVB-T Tuning Menu] or [Analogue Tuning
4
Setup
Menu]
select
DVB-T Tuning Menu Access
A nalogue Tuning Menu Access
Select [Auto Setup]
5
Example :
DVB-T Tuning Menu
Auto Setup Access
Start Auto Setup (Settings are made automatically)
6
DVB-T :
DVB-T Auto Setup
All DVB-T tuning data will be erased
A nalogue :
Analogue Auto Setup
All analogue tuning data will be erased
T he channel, language, country / region settings are downloaded to a Q-Link or
•
VIERALink compatible equipment connected to the TV.
When the operation is completed, the channel at the lowest position will be
displayed.
access
T he displayed item depends on the selected
•
mode.
select
access
DVB-T Auto Setup
Progress
T his will take about 3 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 100Cartoon Nwk
Free TV: 4
Analogue Auto Setup
Scan
T his will take about 3 minutes.
CH Channel Name
CH 29
CH 33 BBC1
A nalogue: 2
Pay T V: 0
Searching
Searching
CH 5 69
Quality
100
Free TV
100
Free TV
100
Free TV
Free TV
R adio: 0
CH 2 78 41CC 1
Page 47

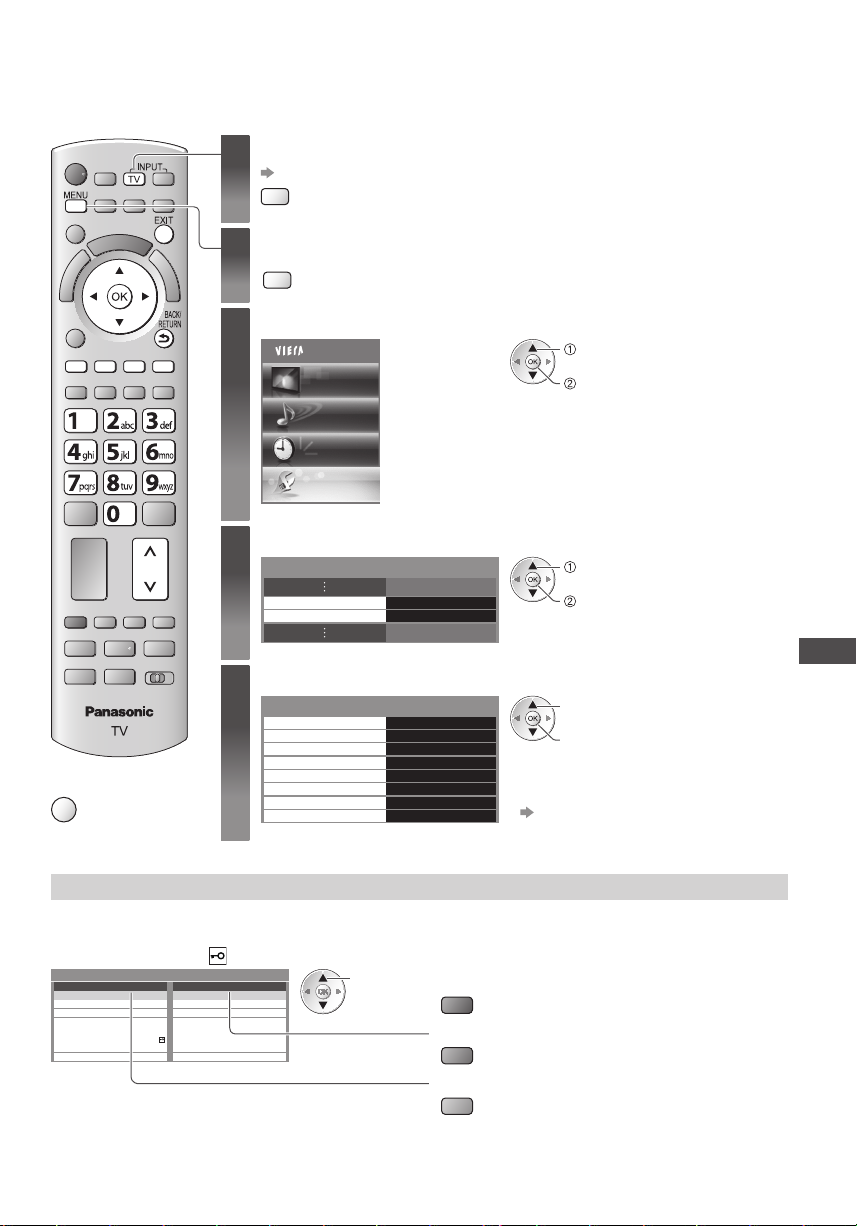

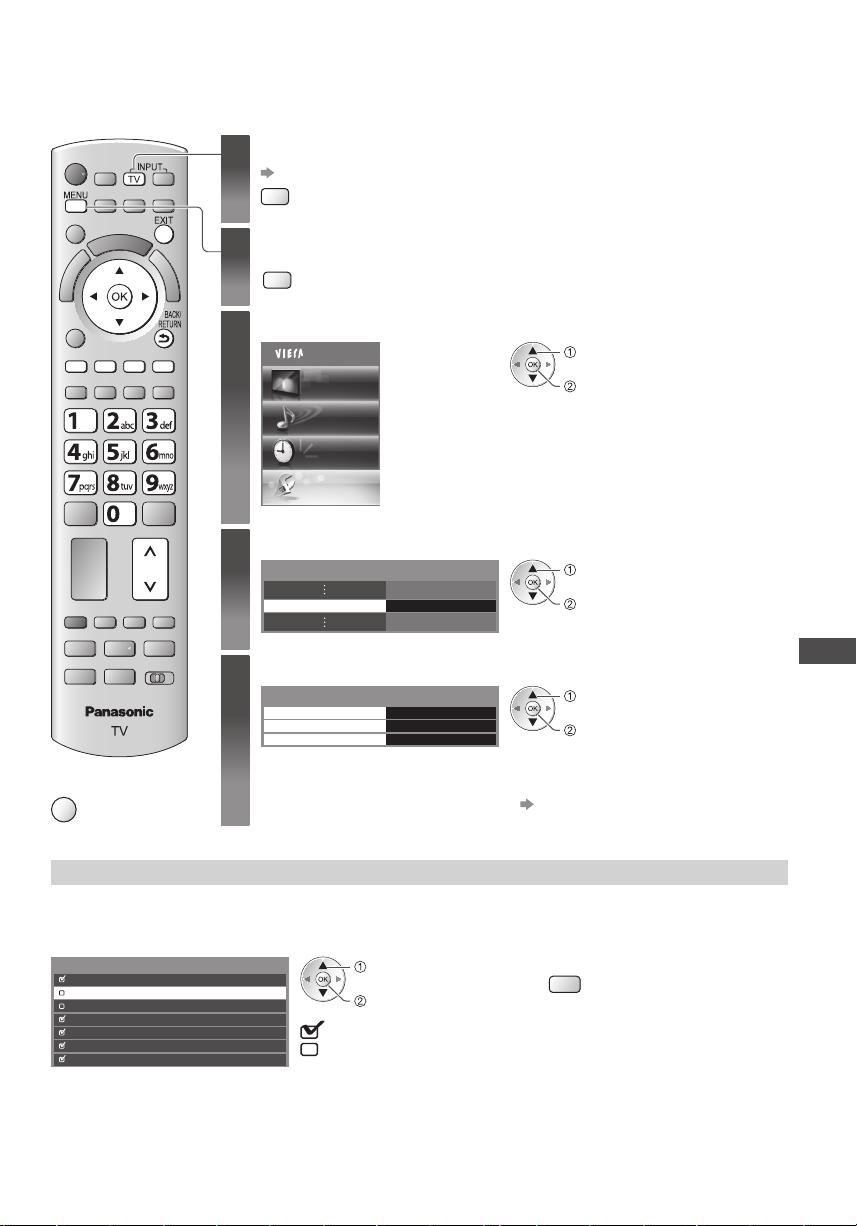

Tuning and Editing Channels (DVB)
You can retune channels or make your favourite channel lists, skip unwanted channels, etc.
Select DVB-C or DVB-T
1
(p.18)
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
Timer
select
access
Setup
Access
Access
Access
Access
Access
Access
Access
O n
Access
select
access
T he displayed item depends on the selected
•
mode.
select
access / store
T he function items vary depending on the
•
country you select (p.13).
[Auto Setup]
•
“Retuning from Setup Menu” (p.45 -46)
■
To return to TV
EXIT
Select [DVB-C Tuning Menu] or [DVB-T Tuning Menu]
4
DVB-C Tuning Menu
DVB-T Tuning Menu
Select one of the following functions
5
DVB-C Tuning Menu
F avourites Edit
C hannel List
Auto Setup
M anual Tuning
U pdate Channel List
N ew Channel Message
Signal Condition
A ttenuator Off
List favourite DVB channels [Favourites Edit]
Create your favourite channel lists from various broadcasters (up to 4 : [Favourites]1 to 4).
T he DVB Favourites lists are available from “Category” in the Information banner (p.19) and the T V Guide screen (p.22).
1 Select a channel to list ( : Encrypted channel)
DVB-C Favourites Editor
All DVB-C Channels F avourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
Sorting 123...
select
T o sort channel names in alphabetical order
•
(red)
T o display other Favourites
•
(green)
T o change the category
•
(blue)
Tuning and Editing Channels (DVB)
47
Page 48

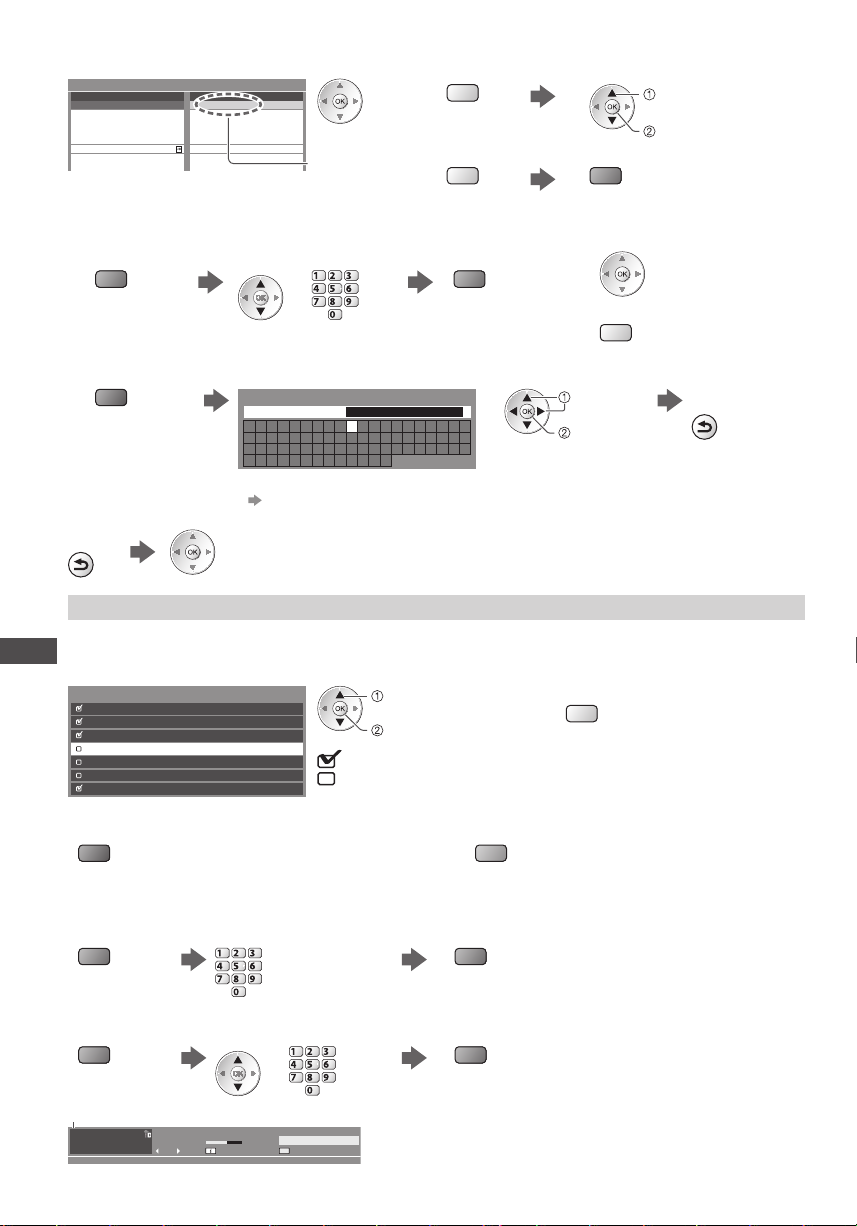

2 Add it to the Favourites list
DVB-C Favourites Editor
All DVB-C Channels F avourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
1 BBC One Wales
Sorting 123...
A channel is added
T o add continuous block of channels to the list at once
•
(yellow)
T o add all channels to the list
•
(yellow) (green)
■ To edit Favourites list
While the cursor is in the Favourites field to edit
T o move the channel
•
Select the new position Store
(green)
or
abc def
jkl
ghi
mno
tuvpqrs
wxyz
(green)
T o delete the channel
•
T o delete all channels
•
T o name the Favourites
•
Set characters (maximum : ten characters) Store
3 Store
BACK/
RETURN
(red)
User input
N ame
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
T o use numeric buttons
•
“Characters table for numeric buttons” (p.98)
select
set
Skip unwanted DVB channels, Edit DVB Channels [Channel List]
Y ou can hide unwanted DVB channels.
T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and reveal / hide
Tuning and Editing Channels (DVB)
All DVB-C Channels
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
Sorting 123...
: [Reveal]
: [Hide] (skip)
select
[R eveal] / [Hide]
T o reveal all channels
•
(yellow)
■ To sort channel list
T o sort channel names in alphabetical order
•
(red)
T o change the category
•
(blue)
■ To edit channels
Y ou can also edit each channel in Channel List.
T o swap the channel position (if available)
•
Enter the new position number Store
(green)
T o move the channel position (if available)
•
Select the new position Store
(green)
abc def
jkl
ghi
mno
tuvpqrs
wxyz
or
(green)
abc def
jkl
ghi
mno
tuvpqrs
wxyz
(green)
make the block
add
(yellow)
BACK/
RETURN
C hannel position
1
BBC ONE WALES
48
Coronation Street
20:00 - 20:55
Now I nfo
All DVB-T Channels
C hange category
20:35
Page 49

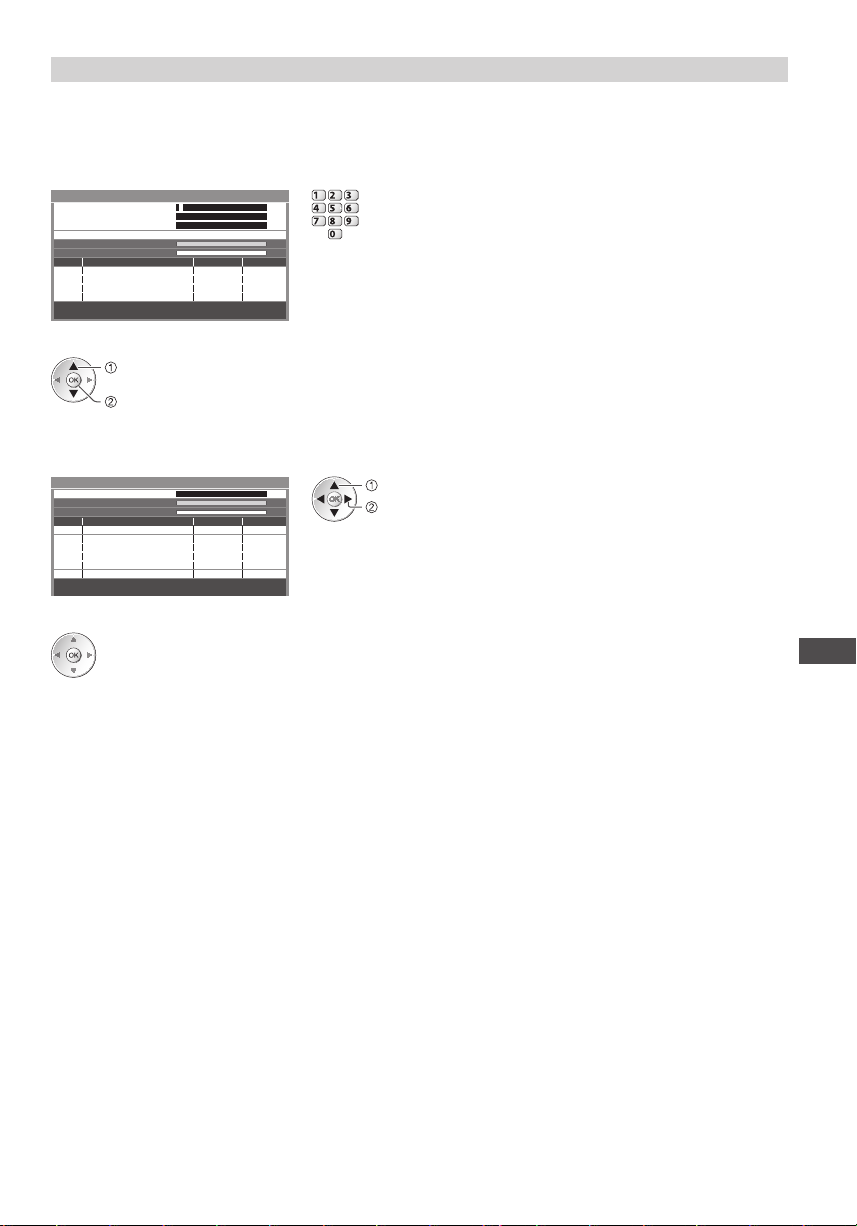

Set DVB channel manually [Manual Tuning]
N ormally use [Auto Setup] or [Update Channel List] to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
All channels found will be added to the Channel List.
•
DVB-C :
1 Enter the frequency
DVB-C Manual Tuning
Frequency
Service ID
Signal Quality
Signal Strength
N o. C hannel Name Type N ew
Start scan
74,00 MHz4
Auto Symbol Rate
Auto
100 %
100 %
abc def
jkl
ghi
mno
tuvpqrs
wxyz
N ormally set [Symbol Rate] and [Service ID] to [Auto].
•
Free TV: 0 Pay TV: 0 Radio: 0
Stopped
2 Select [Star t scan]
select
access
DVB-T :
1 Adjust frequency for each channel
DVB-T Manual Tuning
Frequency
Signal Quality
Signal Strength
N o. C hannel Name
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
Stopped
[CH21]
Type
474,00 MHz
N ew
2 Search
select channel
100
100 %
%
adjust frequency
Set where the level of [Signal Quality] becomes the maximum.
•
Tuning and Editing Channels (DVB)
49
Page 50
Update DVB channel automatically [Update Channel List]
Y ou can add new channels, delete removed channels, update channel name and position automatically to Channel List.
DVB-T Update Channel List
Progress
T his will take about 3 minutes.
CH Channel Name Type Quality
CH 5 69
C hannel List is updated while keeping your settings in [Favourites Edit],
•
[Channel List], [Child Lock], etc.
D epending on the signal condition, the update may not work properly.
•
Free TV: 0 Pay TV: 0 Radio: 0
Searching
Display a notification message [New Channel Message]
Selects whether to give a notification message when a new DVB channel is found. [Off] / [On]
New channel s foun d!
Press OK to upd ate channel list.
Press EXIT to ignore.
Selecting OK will perform [Update Channel List].
•
Check DVB signal [Signal Condition]
Selects a channel and checks the DVB signal condition.
A good Signal Strength is not an indication of suitable signal for DVB reception.
Please use the Signal Quality indicator as follows :
[Signal Quality] :
Green bar Good
•
Y ellow bar Poor
•
R ed bar Bad (Check the Terrestrial aerial or cable)
•
Example :
DVB-C Signal Condition
C hannel Name
Signal Quality
Signal Strength
B it Error Rate
N etwork Name
Parameter
Tuning and Editing Channels (DVB)
70 CBBC Channel
0.00E+00
Wenvoe
802,00 MHz, 64 QAM, 6940 kS/s
9080%
T hese bars show the maximum signal value of the selected channel.
%
T o change the channel
•
Reduce the DVB-C signal [Attenuator]
If the DVB-C signal is too strong, the interference may occur. In this case set to [On] to reduce the signal automatically.
T his function is available only for DVB-C signal.
•
50
Page 51
Tuning and Editing Channels (Analogue)
Y ou can retune channels or skip unwanted channels, edit channels etc.
Select Analogue
1
(p.18)
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
Timer
select
access
Setup
Access
Access
Access
select
access
select
access
T he function items vary depending on the
•
country you select (p.13).
[Auto Setup]
•
“Retuning from Setup Menu” (p.46)
■
To return to TV
EXIT
Select [Analogue Tuning Menu]
4
A nalogue Tuning Menu Access
Select one of the following functions
5
Analogue Tuning Menu
C hannel List
Auto Setup
M anual Tuning
Skip unwanted Analogue channels, Edit Analogue channels [Channel List]
Y ou can hide unwanted Analogue channels.
T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and reveal / hide
Analogue Channel List
1 BBC1
2 *****
3 *****
4 *****
5 *****
6 *****
7 *****
: [Reveal]
: [Hide] (skip)
select
[R eveal] / [Hide]
T o reveal all channels
•
(yellow)
Tuning and Editing Channels (Analogue)
51
Page 52

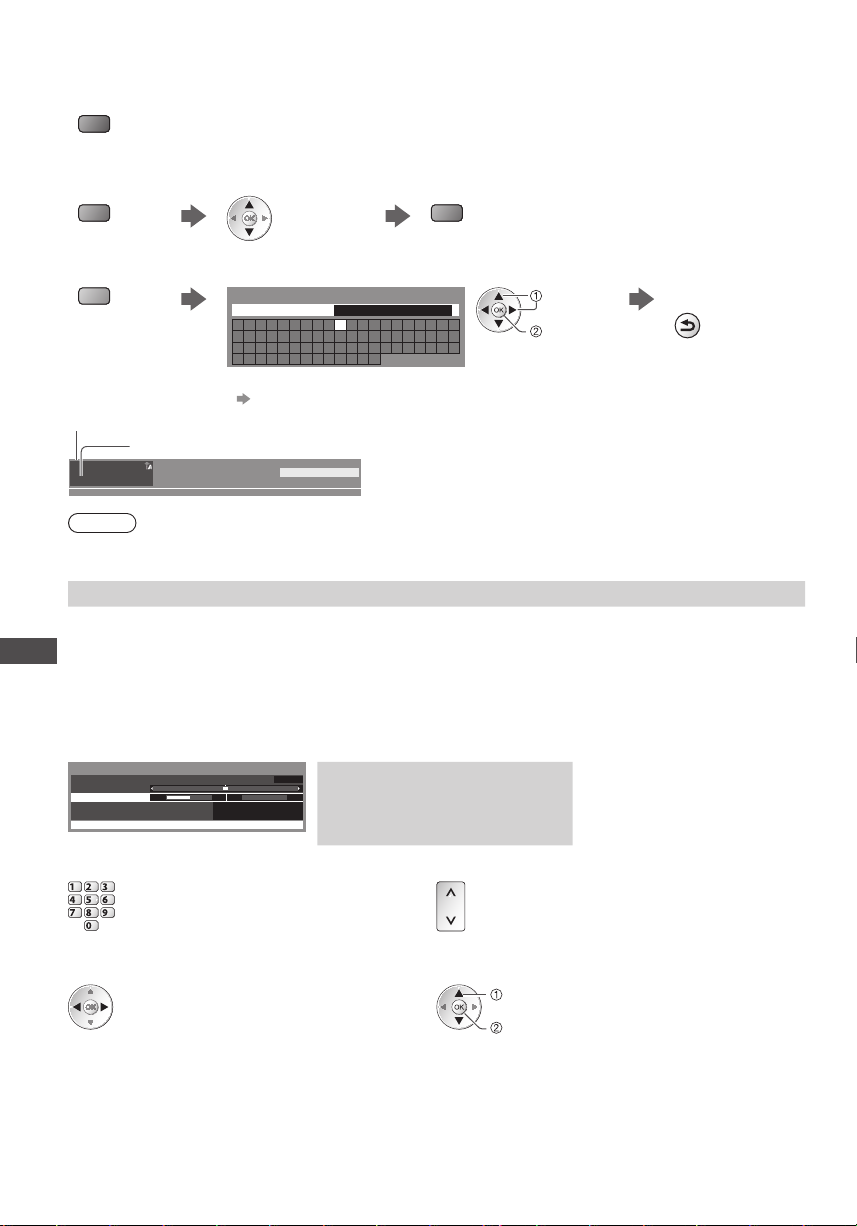

■ To edit channels
Y ou can also edit each channel in Channel List.
T o retune each channel ([Manual Tuning])
•
(red)
( see below)
T o move the channel position
•
Select the new position Store
(green)
T o rename the channel name
•
Set characters (maximum : five characters) Store
(blue)
Edit channel name
N ame
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
T o use numeric buttons
•
“Characters table for numeric buttons” (p.98)
C hannel position
C hannel name
1
ITV
CH23 SC1
All Analogue Channels
23:35
Note
If a VCR is connected only with the RF cable, edit [VCR].
•
Set Analogue channel manually [Manual Tuning]
[Fine Tuning]
U se to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)
Tuning and Editing Channels (Analogue)
[Manual Tuning]
Set Analogue channel manually after Auto Setup.
Set [Sound System] and [Colour System], and then perform this function.
•
N ormally set [Colour System] [Auto].
If a VCR is connected only with the RF cable, select channel position [0].
•
Analogue Manual Tuning
Fine Tu ning
M anual Tuning
Sound System
C olour System
278 411
SC1
Auto
Store
CH331 BBC1
SC1 : PAL B, G, H / SECAM B, G
SC2 : PAL I
SC3 : PAL D, K / SECAM D, K
F : SECAM L, L’
(green)
select
set
BACK/
RETURN
1 Select the channel position 2 Select the channel
abc def
jkl
ghi
mno
tuvpqrs
wxyz
3 Search 4 Select [Store]
52
select
store
Page 53

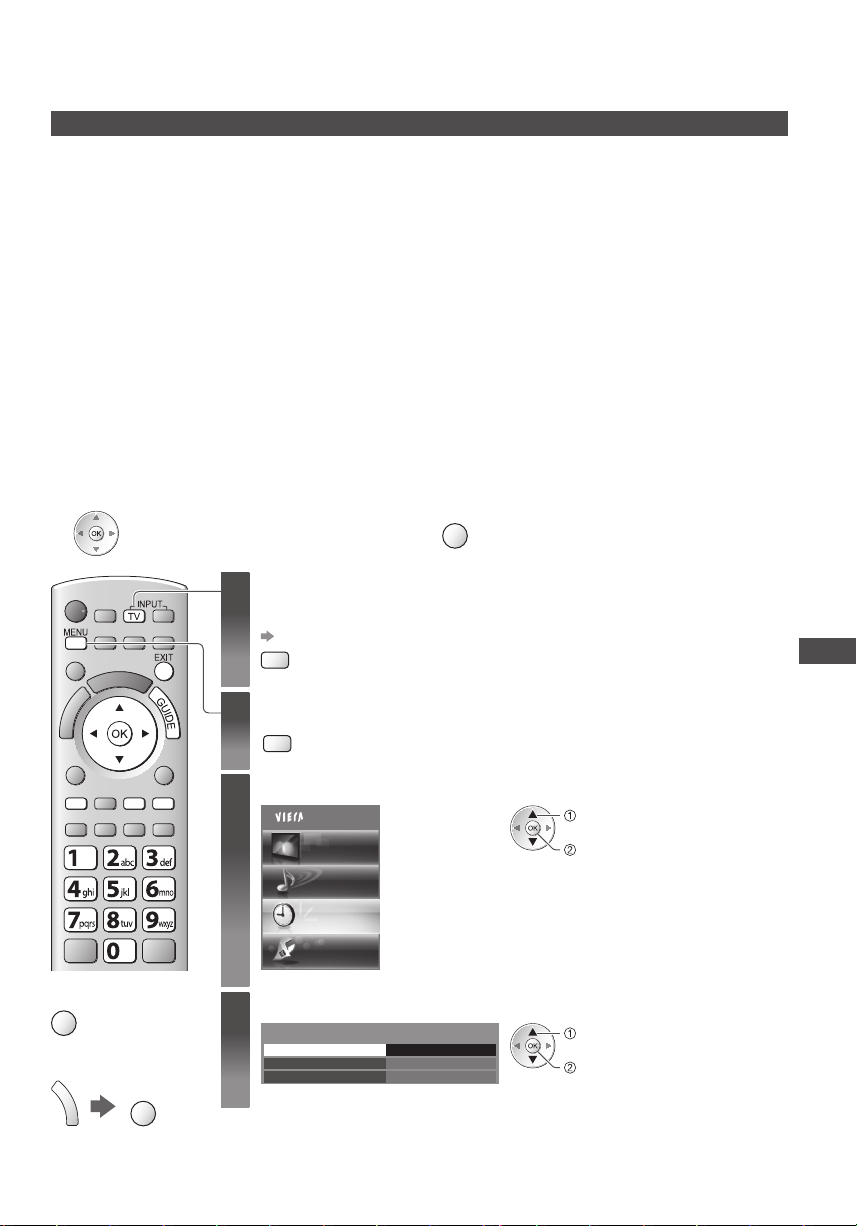

Timer Programming
Timer Programming from Menu
T he Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external
recorder. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.
TV Guide may also be used to set timer programming event (p.24).
T his function is not available in Analogue mode.
•
T imer Programming can store up to 15 events.
•
T imer Programming only works reliably if correct time information is received via the signal from the broadcaster or service
•
provider.
F or recording using Timer Programming, the T V must be either On or in standby. For reminders to be displayed, the TV must
•
be On.
N o other channel can be selected while the recording of Timer Programming is in progress.
•
I t may not be possible to record an encrypted programme (which is copy-protected).
•
When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the
•
TV.
If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p.82,83) and the [Link
Settings] (p.40) are completed, no setting of the recorder is required. Also read the manual of the recorder.
If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder.
•
For preparations of a recorder, read the manual of the recorder.
R ecordings to the external recorders are always in standard definition composite video via SCART, even if the original
•
programme is in high definition.
2 minutes before the starting time, a reminder message appears if you are watching TV.
•
•
T o remove the message and start the programming
Select the mode you want to set
1
(DVB-C or DVB-T)
(p.18)
TV
Display the menu
2
MENU
•
T o cancel the programming
EXIT
Timer Programming
■
To return to TV
EXIT
■
To unlock the tuner
and stop recording
G
U
I
D
E
EXIT
Select [Timer]
3
Main Menu
Sound
Timer
Select [Timer Programming]
4
Off Timer
Auto Standby
Setup
Access T imer Programming
Off
Off
select
access
select
access
53
Page 54

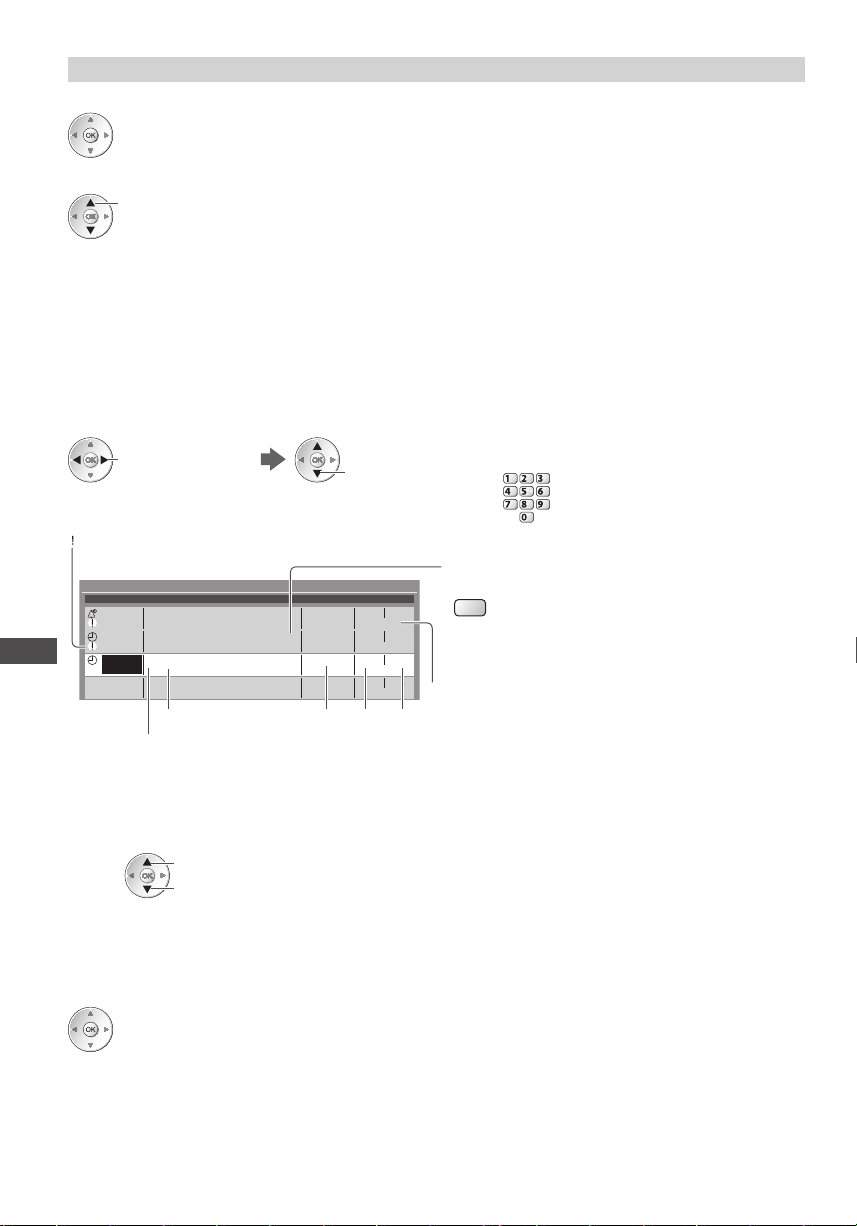

Set timer programming event details [Timer Programming]
1 Start making the settings
2 Select the function ([Ext Rec.] or [Reminder])
select
[Ext Rec.] :
to record the programme to the external recorder
When the start time comes, the channel will be switched automatically and the video and audio signals will be outpu
minutes before the starting time, a reminder message appears if you are watching TV.
[Reminder] :
to remind you to watch the programme
When you are watching TV, a reminder message
appears 2 minutes before the start time.
Press the OK button to switch to the programmed channel.
3 Set the channel, date and time (repeat the operations as below)
Set items in the order of 1 to 4.
select the item
: Displayed if the timer programming events are overlapped
Timer Programming
Function No. Date Start End Channel Name
Reminder
D 7 BBC7 17:00 18:30
<TIMER>
D 1 BBC1 STTL 18:00 20:00
<TIMER>
C 3 ITV1
<TIMER>
------
Timer Programming
Ext Rec.
Ext Rec.
1
[C] : DVB-C
[D] : DVB-T
Y ou cannot change the mode within the menu.
•
Channel number
1
Date
2
one day ahead
d aily or weekly (press repeatedly)
[Daily Sun-Sat] : Sunday to Saturday
•
[Daily Mon-Sat] : Monday to Saturday
•
[Daily Mon-Fri] : Monday to Friday
•
[ Wee kly Sat/Fri/Thu/Wed/Tue/Mon/Sun] : Same time on the same day every week
•
set
R ecords with subtitles (if available)
•
(Press again to remove subtitles)
Duration (automatic display)
Wed 27.10.2010
Wed 27.10.2010
Thu 28.10.2010
Wed 27.10.2010 10:46
(90 min.)
(120 min.)
21:30 22:30
(60 min.)
--:----:-- --:--
1 , 3 and 4 can also be entered with numeric
•
buttons.
abc def
jkl
ghi
mno
tuvpqrs
wxyz
T o indicate this
(yellow)
2 3 4
Starting time
3
Ending time
4
4 Store
t. 2
54
Page 55
■ To change a timer programming event
Select the programme to be changed
select
access
C orrect as necessary (p.54)
■ To cancel a timer programming event
Select the programme to be deleted
(red)
Note
C heck that the LED is orange. If not, timer programmes are not active or not stored.
•
T imer Programming reminder messages will remain displayed until one of the following occurs :
•
•
Y ou press the OK button to view the programme or the EXIT button to cancel the reminder.
•
T he timer programming event that the reminder is set for ends.
“!” identifies that any timer programming events have overlapped. [Ext Rec.] is given priority over [Reminder]. As for the
•
overlapped two or more [Ext Rec.], the first timer programming event starts and finishes as programmed. The next timer
programming event can then start.
T he recording of Timer Programming will automatically change to the programmed channel 10 seconds before the start
•
time.
T o stop recording the timer programming event directly prior to the start time, it may be necessary to stop the recorder
•
manually.
T he recording of Timer Programming will be performed even if the TV is in Pause Live TV recording (p.85). In this case, Pause
•
Live TV recording will be cancelled.
■ To record with subtitles (if available)
Select the programme to record with subtitles
(yellow)
E ach time pressed :
•
auto
off
■ To cancel a timer programming event
temporarily
Select the programme to be cancelled
(blue)
E ach time pressed :
•
c ancel
stop cancelling
Timer Programming
55
Page 56

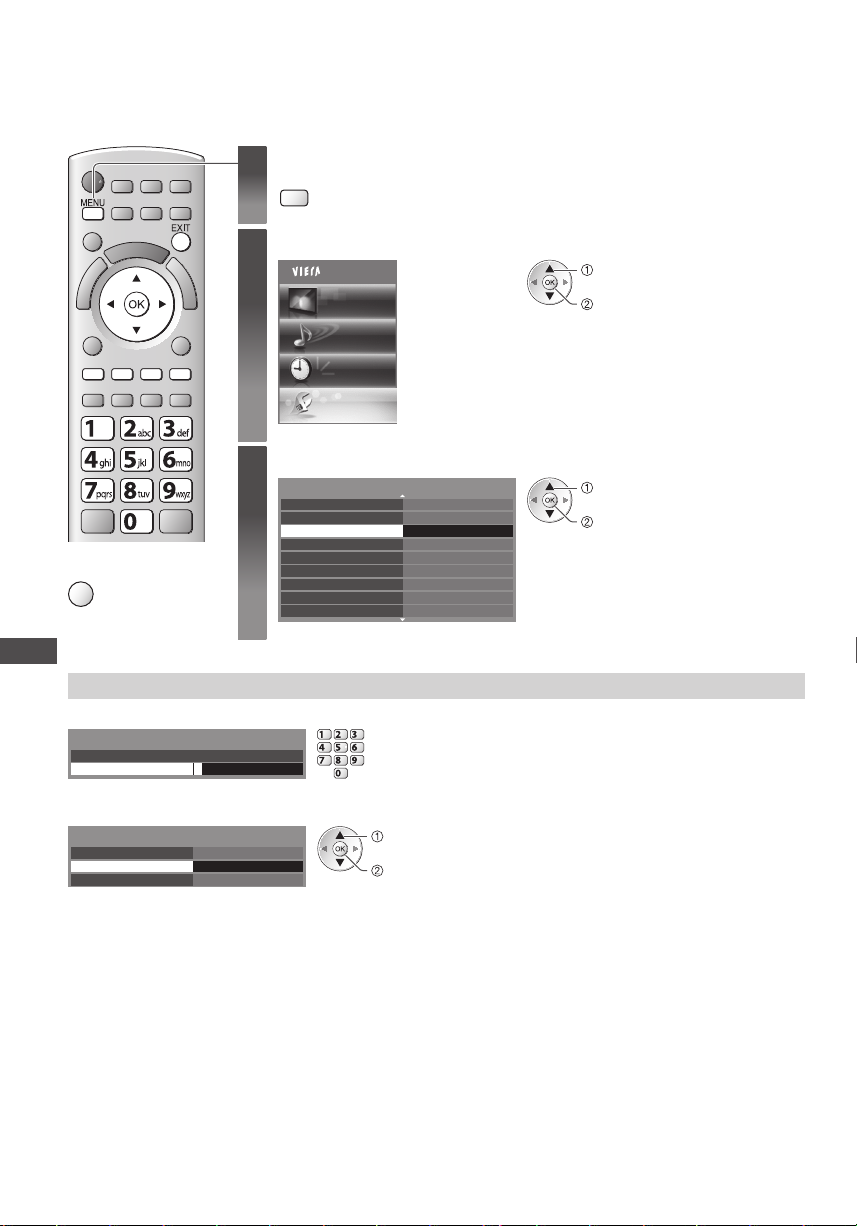

Child Lock
Y ou can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, y ou can watch it.
Display the menu
1
MENU
Select [Setup]
2
Main Menu
Sound
Timer
select
access
3
■
To return to TV
EXIT
Child Lock
Control channel audience [Child Lock]
1 Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
2 Select [Child Lock List]
Child Lock
C hange PIN
C hild Lock List
P arental Rating
* * * *
Access
N o limit
Setup
Select [Child Lock]
Eco Navigation
L ink Settings
C hild Lock
DVB-C Tuning Menu
L anguage
D isplay Settings
C ommon Interface
N etwork Setup
D ivX® VOD
abc def
jkl
ghi
tuvpqrs
Access
E nter the PIN number twice at first setting.
•
mno
M ake a note of the PIN number in case you forget it.
•
wxyz
“0000” may be stored as the default PIN number which depends on
•
the country you select (p.13).
select
access
1/2
select
access
56
Page 57

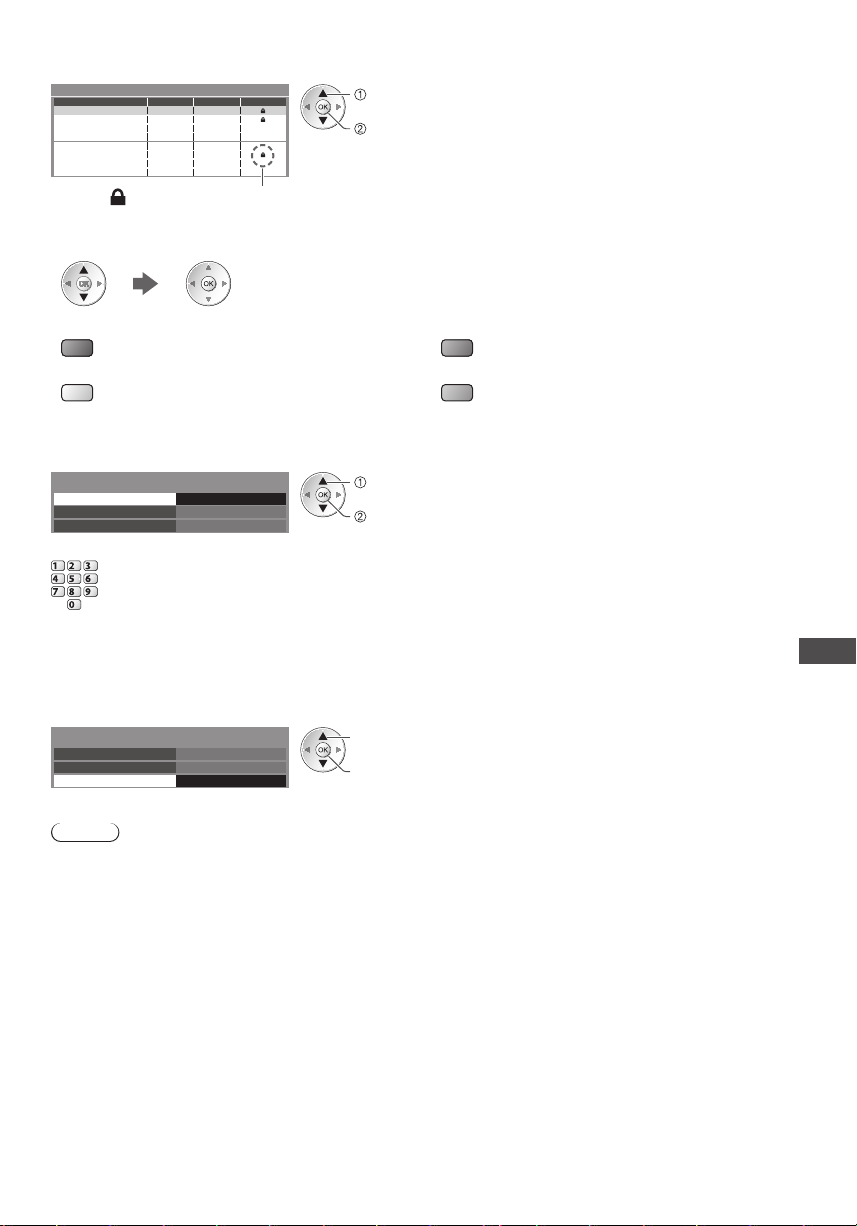

3 Select the channel / input to be locked
Child Lock List - TV and AV Sorting 123...
N ame I nput
101 BBC 1 Wales
7 BBC THREE
14 E4C
VCR
1 BBC1
2 *****
AV1
AV2
: Appears when the channel / input is locked
T o cancel
•
Select the locked channel / input
DVB-C
DVB-T
DVB-T
A nalogue
A nalogue
A nalogue
External
External
Type
Free TV
Free TV
Free TV
A nalogue
A nalogue
A nalogue
AV
AV
L ock
select
l ock
T o sort channel names in alphabetical order
•
T o cancel all locks
•
T o lock all
•
(red) (green)
T o jump to the top of the next input
•
(yellow) (blue)
■ To change the PIN number
1 . Select [Change PIN]
Child Lock
C hange PIN
C hild Lock List
P arental Rating
Access
N o limit
select
access
2 . Enter a new PIN number twice
abc def
jkl
ghi
mno
tuvpqrs
wxyz
■ To set Parental Rating
T he availability of this function depends on the country you select (p.13).
•
If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to w
(depending on the broadcaster).
Select [Parental Rating] and set an age for the restriction of programmes.
Child Lock
C hange PIN
C hild Lock List
P arental Rating
N o limit
Note
Setting [Shipping Condition] (p.60) erases the PIN number and all settings.
•
select
access / store
atch
Child Lock
57
Page 58

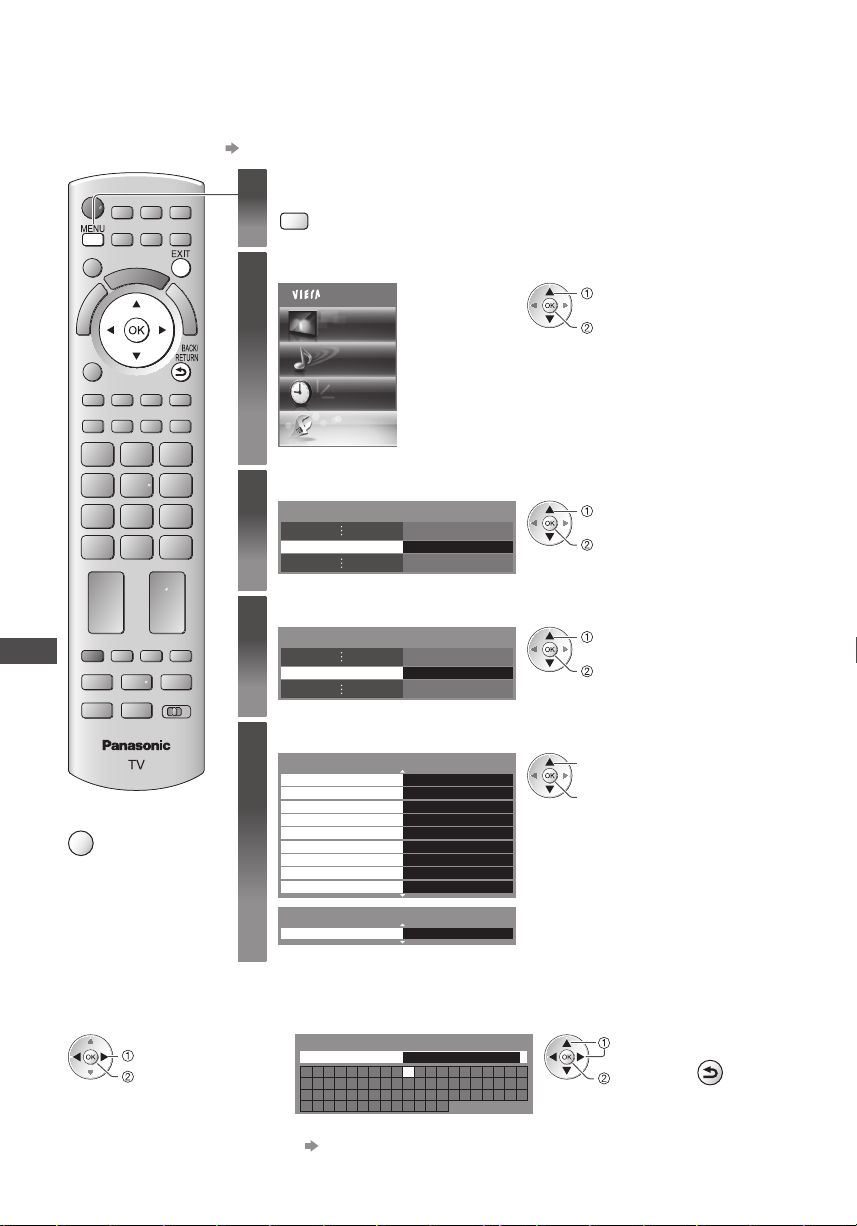

Input Labels
F or easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected
to any equipment.
T o select the input mode (p.27)
•
Display the menu
1
MENU
Select [Setup]
2
Main Menu
Sound
Timer
select
access
Setup
Access D isplay Settings
DVD
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
DVB-C
A nalogue
select
access
select
access
1/2
2/2
select
access / store
T he labels you set will be displayed in [Input
Selection] menu (p.27), [T V Selection] menu
(p.18) or banner.
If [Skip] is selected, you cannot select the
•
mode.
Input Labels
■
To return to TV
EXIT
Select [Display Settings]
3
Select [Input Labels]
4
Display Settings
I nput Labels Access
Select an input terminal
5
Input Labels
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
DVB-C
DVB-T DVB-T
Input Labels
A nalogue
■ User input
Y ou can name each input mode freely.
1 Select [User input] 2 Set characters (maximum : ten characters) 3 Store
select
access
User input
N ame
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
T o use numeric buttons
•
“Characters table for numeric buttons” (p.98)
select
set
BACK/
RETURN
58
Page 59

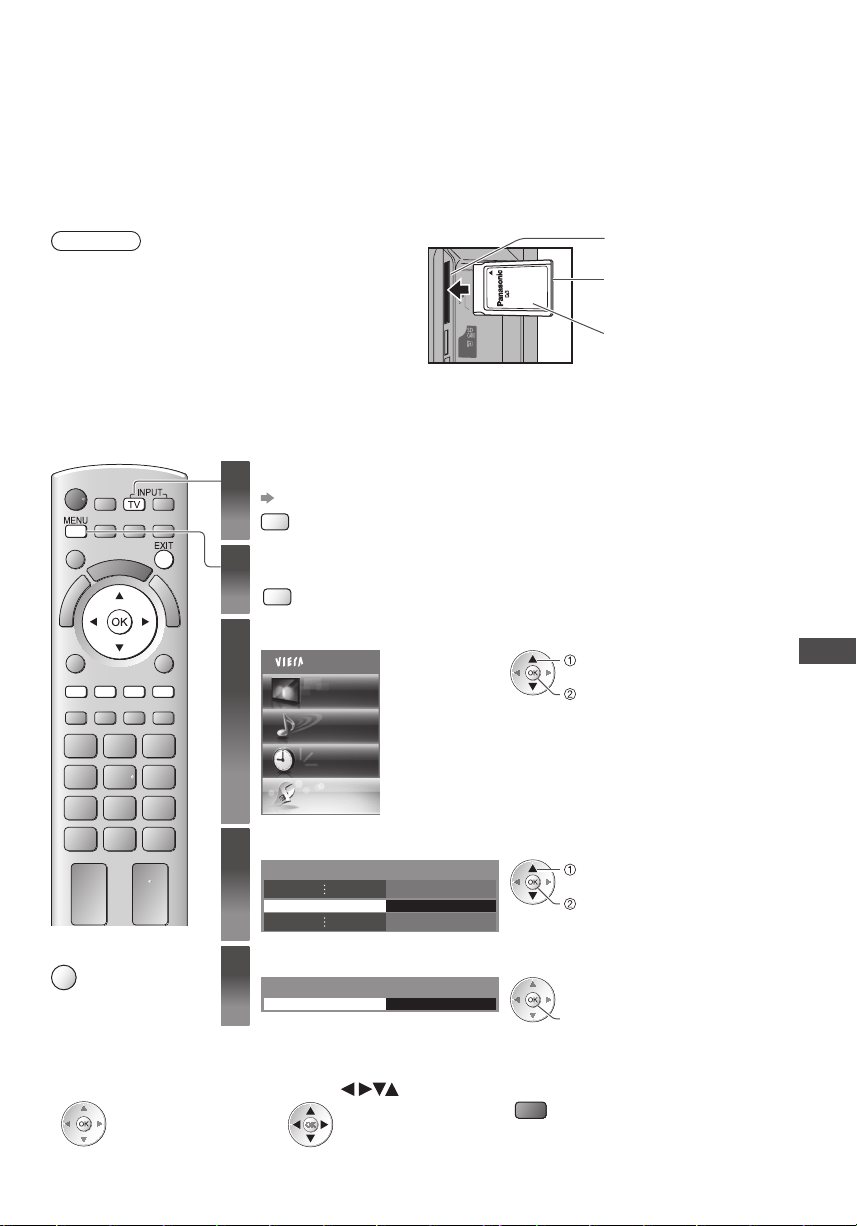

Using Common Interface
T he Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.
T his function may not be available in some countries or regions.
•
V ideo and audio signals may not be output depending on broadcasts or services.
•
Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV
channels).
Please use only the approved CI module by the broadcaster.
C onsult your local Panasonic dealer or broadcasters for more information and conditions of the services.
Caution
Turn Off Mains power On / Off switch whenever inserting or
•
removing the CI module.
If a view card and a card reader come as a set, first insert the
•
card reader, then insert the view card into the card reader.
I nsert the module in the correct direction.
•
Insert the CI module (optional)
T he features that appear on screen are dependent on the contents of the selected CI module.
•
N ormally encrypted channels will appear. Follow the on screen operation guide.
•
If encrypted channel does not appear, perform below.
F or more details, see the manual of the CI module, or check with the broadcaster.
•
Select DVB-C or DVB-T
1
(p.18)
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
CI slot
I nsert or remove straightly
and completely
CI module
Side of the TV
select
access
Using Common Interface
Timer
Setup
M odule inserted
■
To return to TV
EXIT
Select [Common Interface]
4
C ommon Interface Access
Access Common Interface
5
Common Interface
Slot 1:
■ How to operate services by following the on screen operation guide
Example :
Select, go
•
O n screen operation guide may not correspond to the remote control buttons.
•
Symbol :
•
select
access
access
C oloured characters
•
Coloured button
59
Page 60
Shipping Condition
R esets the TV to its original condition, i.e. no channels tuned in.
All settings are reset (channels, picture, sound settings, etc.).
T o retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p.45 - 46)
•
Display the menu
1
MENU
Select [Setup]
2
Main Menu
Sound
Timer
select
access
Setup
Access
E nglish(UK)
Access
2/2
select
access
select
access
■
Shipping Condition
EXIT
To return to TV
Select [System Menu]
3
System Menu
O ther Settings
Select [Shipping Condition]
4
System Menu
U SB Keyboard Layout
Shipping Condition
System Update
Software Licence
System Information
Restore Settings [Shipping Condition]
1 Check the message and initialise 2 Follow the on screen instructions
Shipping Condition
All tuning data will be erased
Are you sure ?
Are you sure ?
1
(Confirm)
2
(Confirm)
3
(Start [Shipping Condition])
Reset to Factory Shipping Condition
[Auto Setup] will automatically start
•
when Mains power On / Off switch is
next turned On. (p.13)
Completed.
Please switch o TV.
60
Page 61

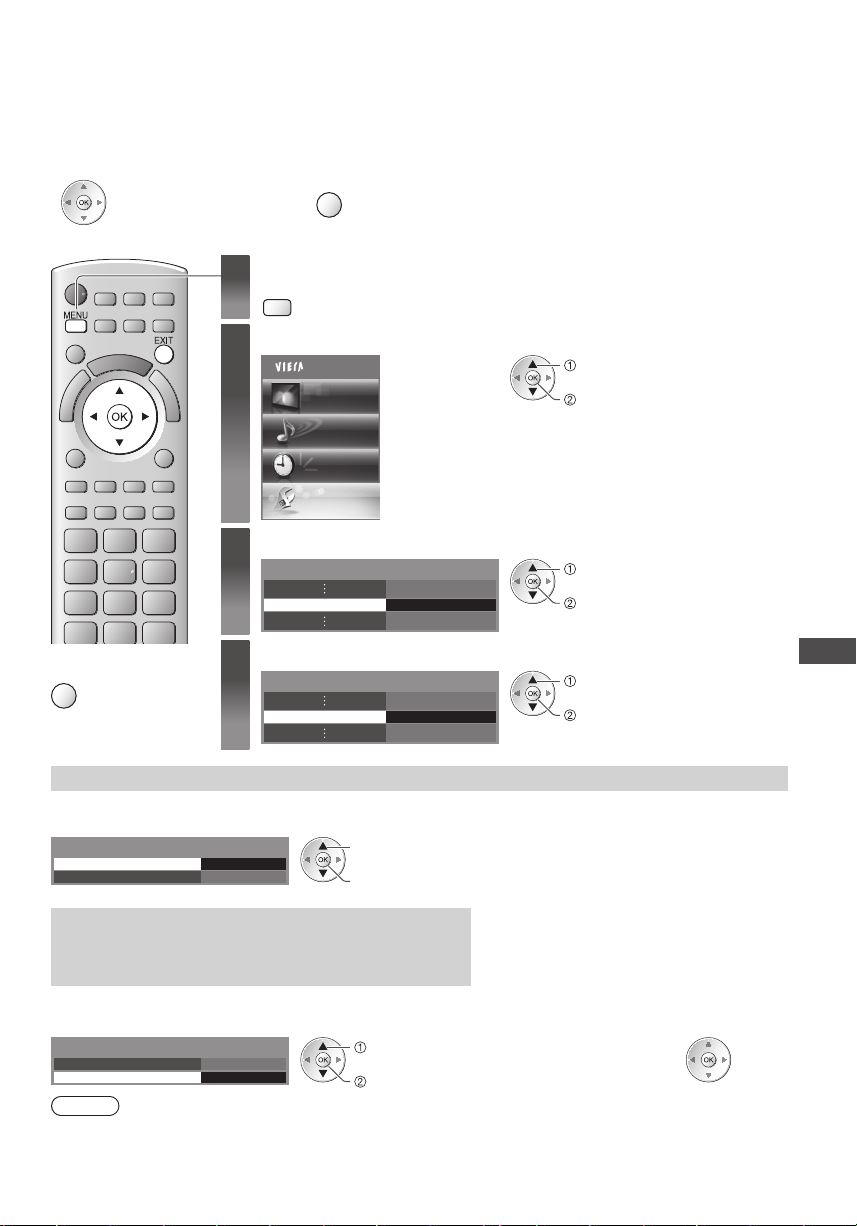

Updating the TV Software
From time to time, a new version of software may become available for download to enhance the performance or operations
of the TV.
If there is an update available, a notification banner is displayed when the channel has the update information.
T o download
•
Y ou can update any new software automatically or update manually.
1
2
If you choose not to download
•
EXIT
Display the menu
MENU
Select [Setup]
Main Menu
Sound
Timer
select
access
Setup
select
access
select
access
■
To return to TV
EXIT
Select [System Menu]
3
System Menu Access
Select [System Update]
4
System Menu
System Update Access
Update TV’s software system [System Update]
■ To update automatically
Select [Auto Update Search in Standby]
System Update
Auto Update Search in Standby
System Update Search Now
If System Update is performed, the software will be updated (it
may change TV functions).
If you do not wish to do so, set [Auto Update Search in Standby]
to [Off].
Off
select
access / store
Every time you set, the TV automatically performs a
•
search in standby and downloads an update, if any
software updates are available.
T he automatic updating is performed under the
•
following conditions :
•
Standby (TV turned Off with the remote control)
•
R ecording of Timer Programming or Direct TV
Recording is not in progress.
■ To update immediately
1 Select [System Update Search Now] 2 Searches for an update (for
System Update
Auto Update Search in Standby
System Update Search Now
Off
Access
select
access
Note
D ownload may take for about 60 minutes.
•
During software download and update, DO NOT switch Off the TV.
•
T he message might be the notification beforehand. In this case, the schedule information (the date that the new version can
•
be used) will appear. You can set the reservation for update. T he update will not start when the TV is set to Off.
several minutes) and displays a
corresponding message if any
3 Download
Updating the TV Software
61
Page 62
Using Media Player
M edia Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory.
VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an
simply inserting into the SD Card slot.
P hoto mode : Still pictures recorded by digital cameras will be displayed.
V ideo mode : M oving pictures record
Music mode : D igital music data will be played back.
During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.
•
But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup
HDMI2 with ARC function, connect an amplifier that has ARC function (p. 81) and set to use theatre speakers (p. 88).
[Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is
•
shown “**/**/****”.
T he picture may not appear correctly on this TV depending on the recording equipment used.
•
D isplay may take some time when there are many files and folders.
•
P artly degraded files might be displayed at a reduced resolution.
•
P icture setting may not work depending on the conditions.
•
T he folder and file names may be different depending on the digital camera or digital video camera used.
•
To insert or remove the SD Card / USB Flash Memory
ed by digital video cameras will be played back.
■ USB Flash Memory
I nsert or remove straightly and completely.
•
C onnect to the USB 1 or 2 port.
•
■ SD Card
To insert the SD Card To remove the SD Card
SD Card on the TV screen by
Menu (p.40). To use
Using Media Player
Gently insert the
SD Card label surface
facing front.
Push until a click
F or the information of the devices “Devices for recording or playing back” (p.95)
•
F or the supported file format “Supported file format in Media Player” (p. 93, 94)
•
is heard
Cutout
Push the centre of
62
the card
Page 63
Starting Media Player
■
To return to TV
EXIT
Insert the SD Card or USB Flash Memory to the TV
1
(p. 62)
Start Media Player
2
Media Player
Signal output from all AV terminals will be
disabled during Media Player view.
Press OK to proceed.
Press EXIT to return to TV viewing.
Select the device you want to access to
3
M edia Player
Drive Select
EXIT
Select
RETURN
SD Card
Access
SD Card
Selected device name
Select the content
4
M edia Player
C ontents Select
EXIT
Select
RETURN
Access
SD Card
USB Drive... USB Flash...
P hoto V ideo Music
Also possible by pressing following button.
•
AV “Watching External Inputs” (p.27)
select
access
If two or more devices are not connected,
•
this step will be skipped.
select
access
[Photo] “Photo mode” (p.64)
[Video] “Video mode” (p.69)
“Music mode” (p.71)
[Music]
Using Media Player
■
To return to the
previous screen
BACK/
RETURN
Note
Y ou can also access each mode directly by using VIERA TOOLS.
•
“How to Use VIERA TOOLS” (p. 34)
Select the appropriate device and content for playing back each file.
•
Y ou can use the following buttons during playback.
•
Set the position to “TV”
DVD/VCR
TV
63
Page 64

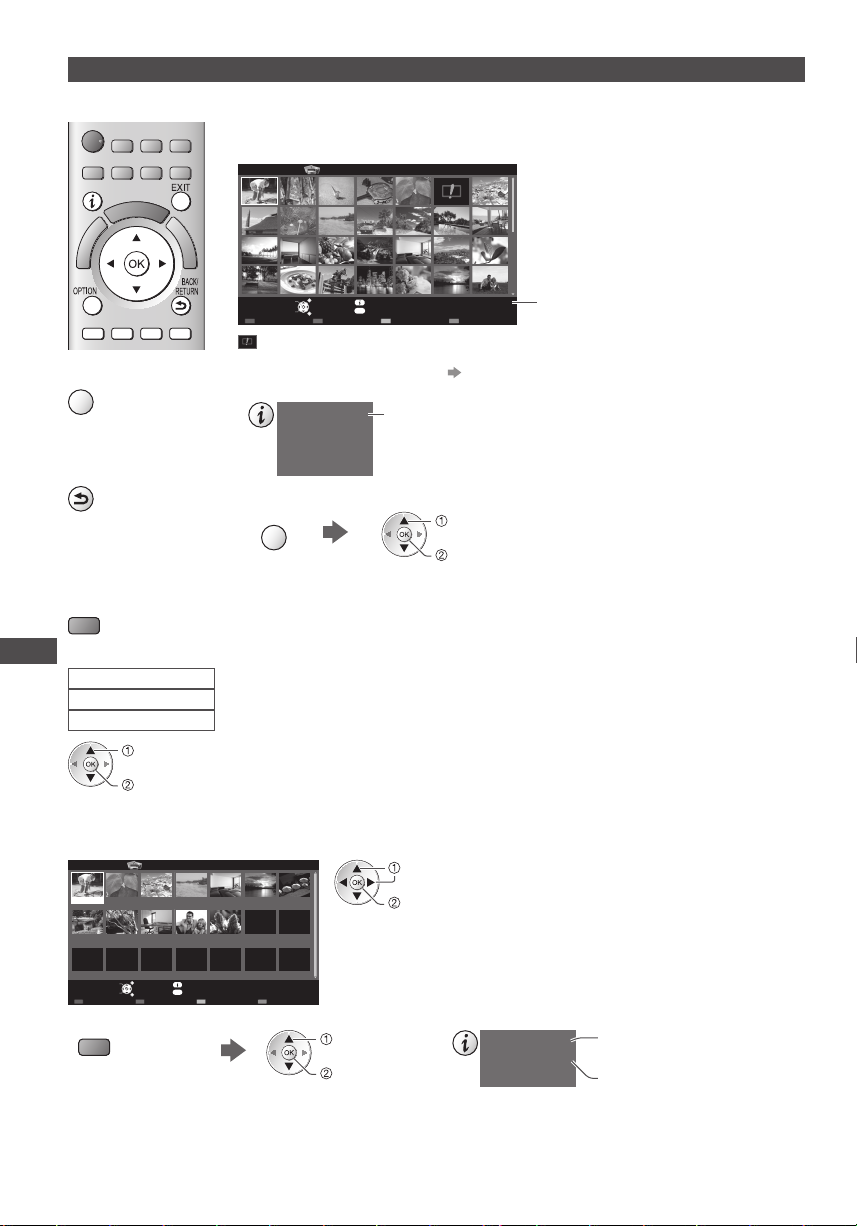

Photo mode
P hoto mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory.
T he thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [All photos]
Media Player Photo
All photos
SD Card
select [Change Size]
change
■
To return to TV
EXIT
■
To return to the
previous screen
BACK/
RETURN
V iew
Select
Slideshow View Select Drive Select C ontents Select
: Error display
T o change the back ground music “Photo Settings” (p.66)
•
T o display the information of the highlighted photo
•
F ile name
D ate
P ixel
T o change the size of photos on a thumbnail screen
•
OPTION
EXIT
RETURN
23/10/2010
1600X1200
I nfo
OPTION
O ption Menu
1/48
F ile number / Total file number
■ To sort by folder, recorded date or recorded month
1 Display the view selection
(green)
2 Select the sor t type
Using Media Player
F older view
Sort by Date
Sort by Month
select
access
3 Select one of the sor ted groups to display the thumbnail of the selected group
Media Player Photo
23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010
24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010
[Folder view] :
D isplays the thumbnail grouped by folder
T he files which are not into a folder will be collected to the folder named “/”.
•
[Sort by Date] :
D isplays the thumbnail grouped by the same date
T he group of the photos without recorded date is shown as [Unknown].
•
[Sort by Month] :
D isplays the thumbnail grouped by the same month
T he group of the photos without recorded date is shown as [Unknown].
•
Sor t by Date
select
thumbnail of the selected group
Selected device name
Access
Select RETURN
Slideshow View Select Contents Select
T o return to the thumbnail of all photos
•
(green)
I nfo
EXIT
OPTION
O ption Menu
64
Drive Select
SD Card
T o display the information of the highlighted group
select
[All photos]
access
F older name
Number of files
23/10/2010
•
Group number /
1/12
Total group number
3
F older name, date or month
Page 65

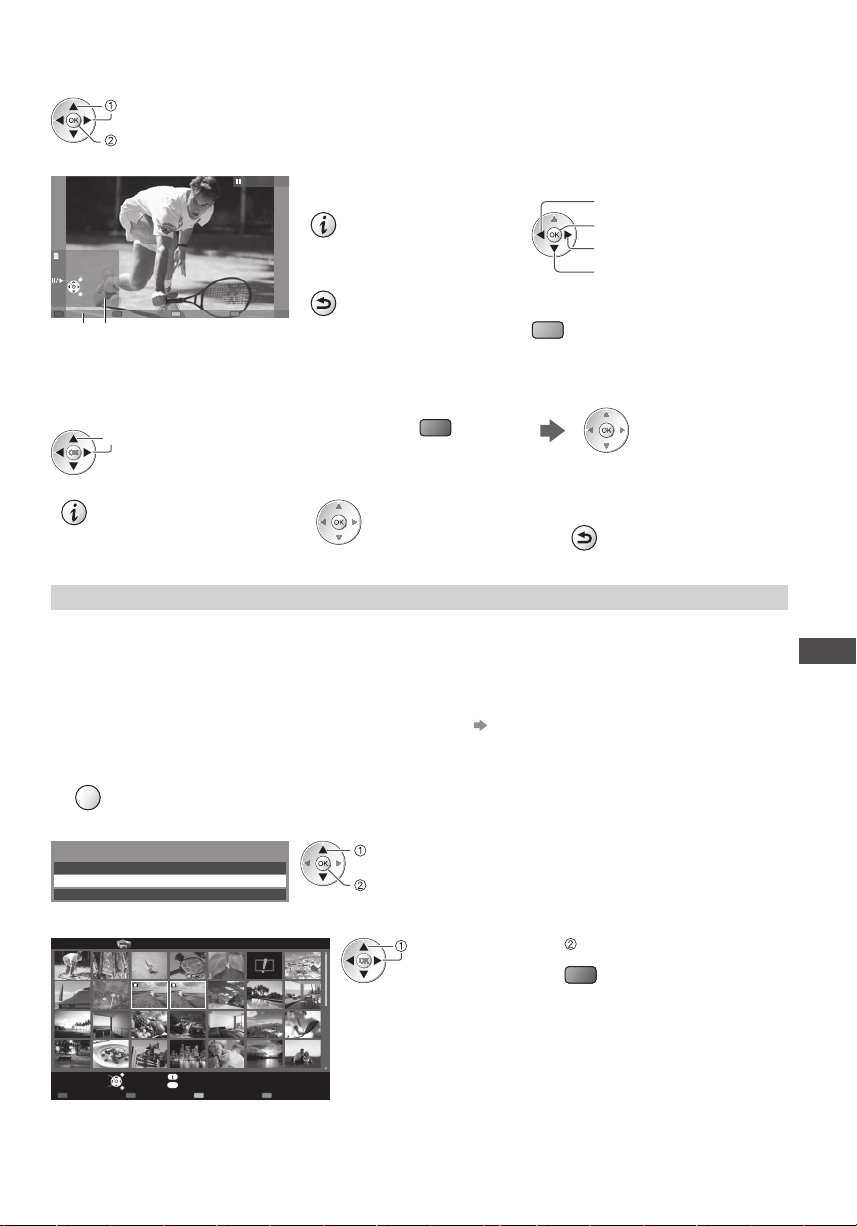

[Single view] - Photos are displayed one at a time.
Select the file from the thumbnail of photos to be viewed
select
access
Example :
Single view
EXIT
Select
RETURN
Stop
O peration guide
Single view
R otate
T o display / hide the operation
•
guide
T o return to thumbnail
•
BACK/
RETURN
T o operate Single view
•
T o rotate 90°
•
T o the previous photo
Slideshow
T o the next photo
Stop
(return to thumbnail)
(blue)
[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.
1 Select the file from the thumbnail of photos
for the first view
select
T o display / hide the operation guide
•
T o pause (return to Single view)
•
2 Start Slideshow
(red)
T o return to thumbnail
•
BACK/
RETURN
Multi Shot 3D
T his TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.
T his TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.
•
T his function is available with photos recorded by digital cameras.
•
D epending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not be
•
possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take another
photo (for R).
T o view the created 3D photo with 3D effect, you need the 3D Eyewear “Optional accessories” (p.6)
•
1 Display the option menu in the thumbnail view
OPTION
2 Select [Multi Shot 3D]
select
Option Menu
Slideshow Settings
Multi Shot 3D
C hange Size
access
3 Select two photos for L (left) and R (right)
Media Player Photo
L R
Multi Shot 3D
All photos
select
Y ou can only select photos of the same recorded date and same pixels.
•
Y ou may not be able to view the created 3D photo properly if you select
•
the photos for L and R oppositely.
set
(red)
Using Media Player
V iew
Select
Select
EXIT
RETURN
I nfo
OPTION
O ption Menu
SD Card
65
Page 66

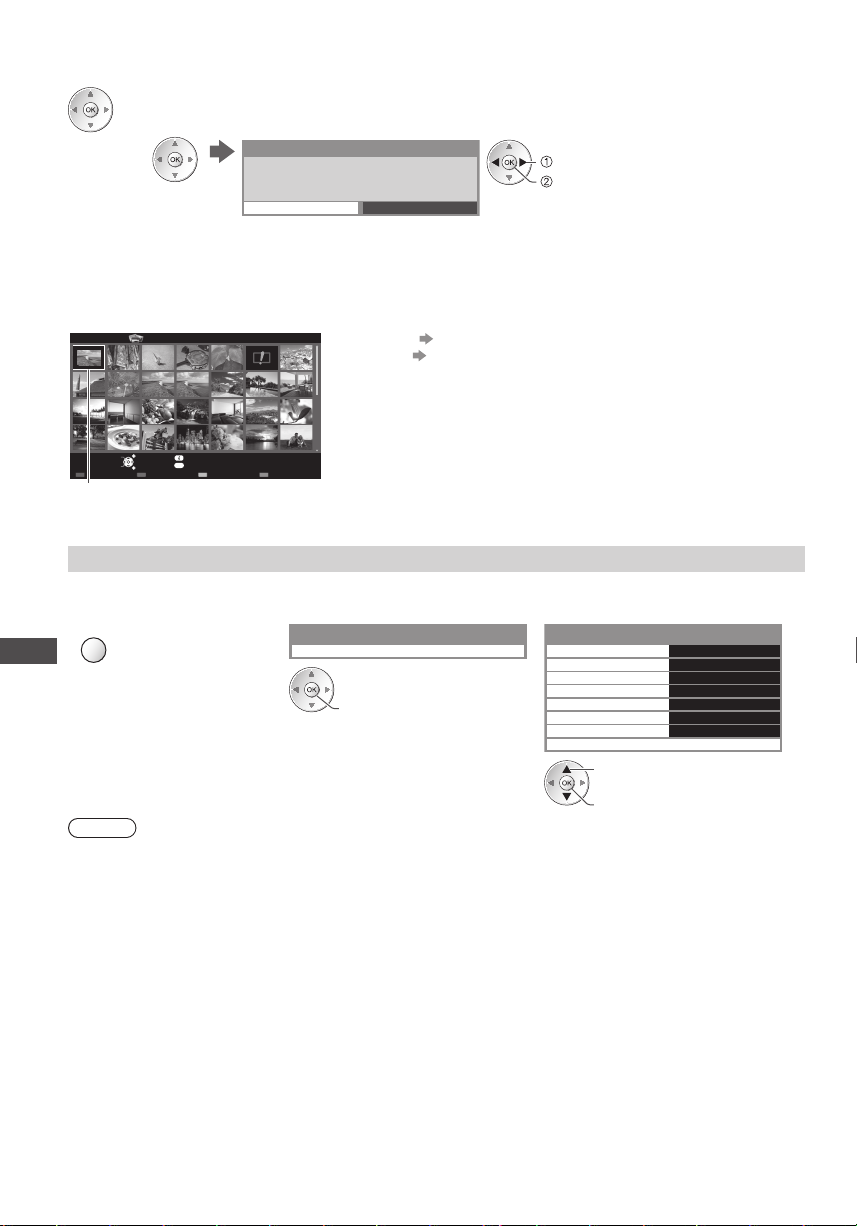

4 Create the 3D photo
If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to
•
the photo selection screen (step 3).
T o save the 3D photo in the SD Card
•
The 3D image will be saved onto your media.
Y es
After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to
create another 3D photo or exit from [Multi Shot 3D] mode.
■ To enjoy the saved 3D photos
Y ou can enjoy viewing the saved 3D photos.
Example : Thumbnail
Media Player Photo
3D
All photos
Continue?
N o
Single view (p.65)
•
Slideshow (p.65)
•
select [Yes]
save
Access
Select RETURN
Slideshow View Select Contents Select
I nfo
EXIT
OPTION
O ption Menu
Drive Select
SD Card
Saved 3D photo
Photo Settings
Setup the settings for Photo mode.
1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set
OPTION
Using Media Player
Note
P icture quality may become lower depending on the slideshow settings.
•
P icture setting may not work depending on the slideshow settings.
•
Option Menu
Slideshow Settings
access
Slideshow Settings
Frame Off
C olour Effect
Transition Effect
Screen Mode
Burst Playback
I nterval
R epeat
B ack Ground Music
select
access / store
Off
F ade
N ormal
Off
5 seconds
O n
66
Page 67
Menu
Frame
Colour Effect
Slideshow Settings
Transition Effect
Screen Mode
Burst Playback
Interval
Repeat Slideshow repeat [Off] / [On]
Item Adjustments / Configurations (alternatives)
Selects the frame type of the slideshow
[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] /
[Gallery] / [Cinema]
[Multi] :
9 photos are displayed orderly at once.
[Collage] :
E ach photo is displayed at a random position and random scale.
[Drift (+ calendar)] / [Drift] :
P hotos are displayed like flow images.
Y ou can select to display the calendar or not. The month of calendar is turned by
•
pressing left or right cursor button.
[Gallery (+ calendar)] / [Gallery] :
T he various sizes of photos in the frame are displa
Y ou can select to display the calendar or not. The month of calendar is turned by
•
pressing left or right cursor button.
[Cinema] :
P hotos are displayed like old films (sepia tone)
Selects the colour effect of photos on Single view and Slideshow
[Off] / [Sepia] / [Gray scale]
T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
•
Selects the transition effect for switching the photo during the slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : T he next photo fades
[Slide] : T he next photo slides and appears from the left side.
[Dissolve] : E ach photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or
[Random] : Each transition is selected at random.
T his function is available when [Frame] is set to [Off].
•
Selects whether enlarged or normal viewing on Single view and Slideshow
[Normal] / [Zoom]
T his function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or
•
[Cinema].
T his function is not available when [Transition Effect] is set to [Motion].
•
D epending on the photo size, it may not be fully enlarged to fill the screen, e.g.
•
portrait style picture.
Selects whether to display burst photos in a fast-paced slideshow mode
[Off] / [On]
T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
•
T his function is not available when [Transition Effect] is set to [Motion].
•
Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)
T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
•
T his function is not available when [Transition Effect] is set to [Motion].
•
yed.
in gradually.
moving down.
Using Media Player
67
Page 68

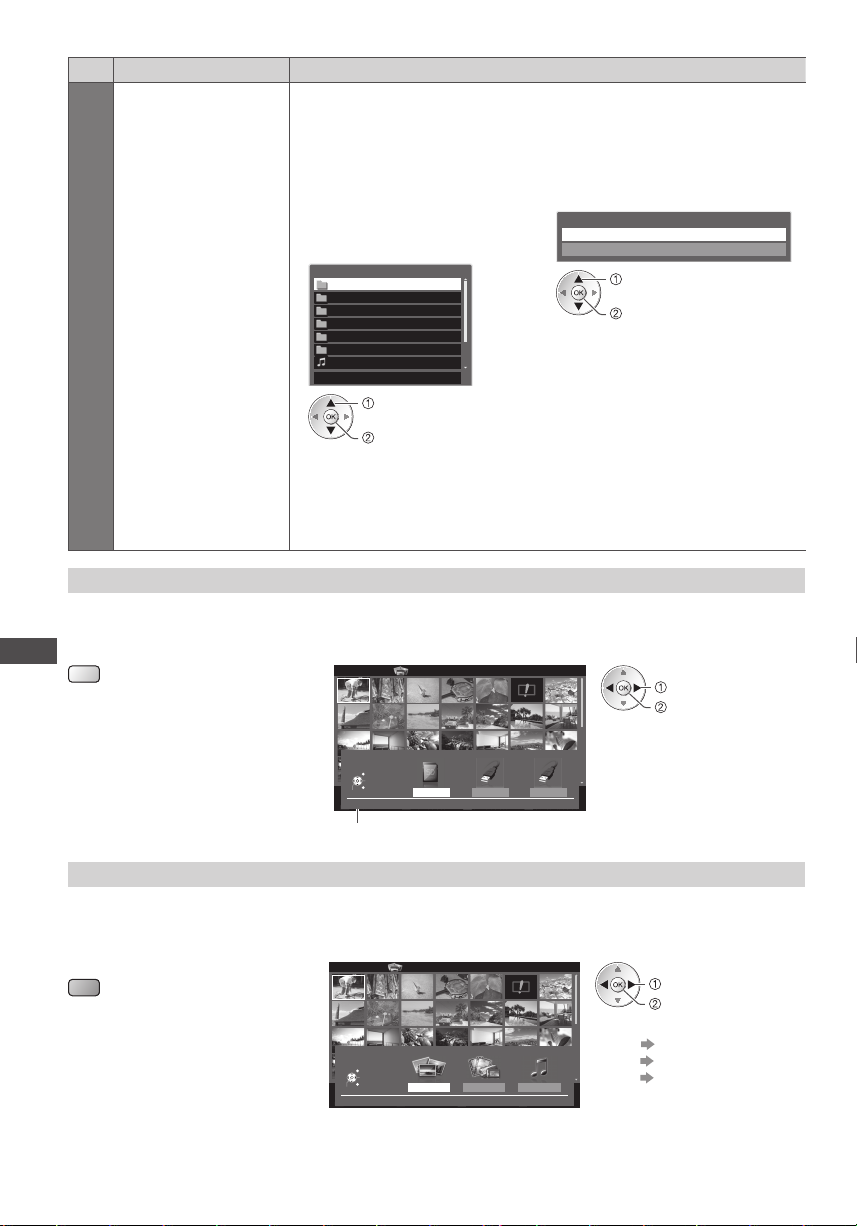

Menu
Item Adjustments / Configurations (alternatives)
Selects the back ground music during Photo mode
[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]
[Type1], [ Type2] and [ Type3] are the fixed music each installed in this TV.
•
[User] : Music data in the device registered by yourself will be played back.
To register the music
1. Select the music file 2. Select [File] or [Folder]
Slideshow Settings
Back Ground Music
D epending on the condition of the
device, select folders until you reach the
desired music file.
Back Ground Music
PRIVATE
DCIM
MISC
001photo
002photo
003music
01 song.mp3
Type1
select
access
If no music has been registered or the device which has the registered music is
•
removed, no sound will be produced.
[Auto] : Music data stored in the root folder of the current device wi
randomly.
If there is no available music data, no sound will be produced.
•
Register Slideshow BGM?
F ile
F older
[File] : The selected music file will be
[Folder] : All the music in the folder which
Change the device
Y ou can change to the other device directly in the same mode if two or more devices are connected.
1 While the thumbnail is displayed,
display the device selection
Using Media Player
(yellow)
2 Select the device you want to access to
Media Player Photo
All photos
select
set
registered as back ground music.
contains the selected music file
will be registered as back ground
music.
ll be played back
select
access
Drive Select
EXIT
Select
RETURN
V iew
EXIT
Select RETURN
SD Card
Access
SD Card
Slideshow View Select Drive Select C ontents Select
Selected device name
Change the contents
Y ou can switch to the other mode of Media Player from the thumbnail view.
T he mode can be switched in the current device.
•
1 While the thumbnail is displayed,
display the contents selection
(blue)
2 Select the contents
Media Player Photo
C ontents Select
EXIT
Select
RETURN
V iew
EXIT
Select RETURN
P hoto V ideo Music
Access
SD Card
Slideshow View Select Drive Select C ontents Select
68
I nfo
OPTION
I nfo
OPTION
USB Drive... USB Flash...
All photos
SD Card
select
access
[Photo] “Photo mode” (p.64)
[Video] “Video mode” (p.69)
“Music mode” (p.71)
[Music]
SD Card
Page 69

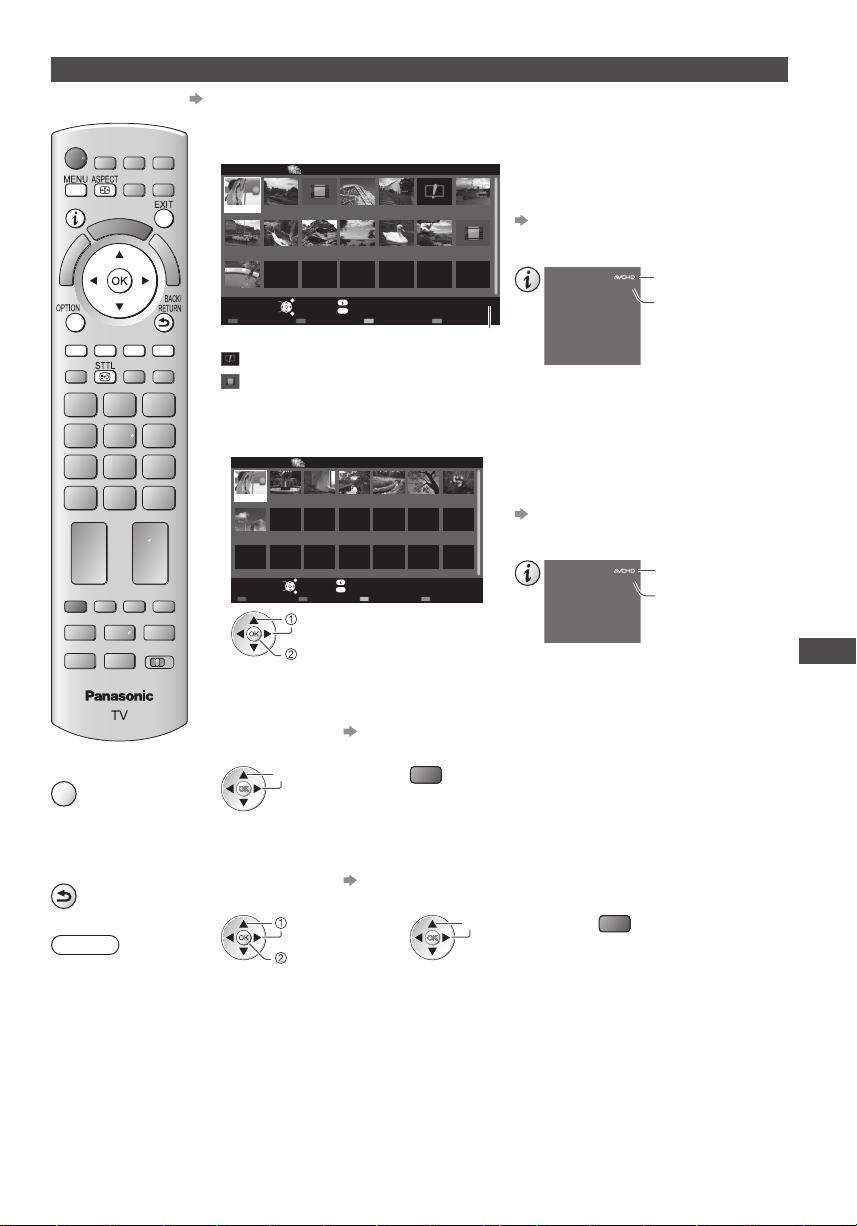

Video mode
Supported file format (p.93)
•
■
To return to TV
EXIT
■
To return to the
previous screen
BACK/
RETURN
Note
T he structure of titles
•
and scenes may vary
depending on the digital
video camera used.
T he thumbnail of video titles in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Title view]
Media Player Video
Title view
T he preview will start when the title is
highlighted if it supports a preview.
Trip1 Trip2Trip3Trip4Trip5RoomNature1
Nature3Nature4Nature5Nature6
2010_9
Access
Select
Play Contents Select
EXIT
RETURN
I nfo
OPTIONOPTION
O ption Menu
: Error display
: T he file does not support thumbnail view.
T o view the scenes of the title
•
Select the title
Example : Thumbnail - [Scene view]
Media Player Video
Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7
Trip1_8
Play
Select RETURN
Play
I nfo
EXIT
OPTION
O ption Menu
2010_4 2010_7Nature2
Drive Select
Selected device name
Title view > Trip1
SD Card
Drive Select
C ontents Select
select
access
T o turn off the preview
•
“Video Setup” (p.70)
T o display the information of the highlighted
•
title
F ile format
SD Card
T itle
D ate & Time
Number of scenes
Duration
Trip1
19/02/2010 11:21
00h15m39s
1/15
T itle number /
Total title number
8
T he preview will start when the scene is
highlighted if it supports a preview.
T o turn off the preview
•
“Video Setup” (p.70)
T o display the information of the highlighted
•
scene
F ile format
Scene
D ate & Time
Duration
Trip1_1
19/02/2010 11:21
00h04m12s
1/8
Scene number /
Total scene number
■ Playback from Title view
Playback of the selected title will start.
T o repeat playback “Video Setup” (p.70)
•
1 Select the title 2 Start playback
select
(red)
■ Playback from the selected scene in the title (SD-Video or AVCHD)
Playback will start from the selected scene to the end of the title.
T o repeat playback “Video Setup” (p.70)
•
1 Select the title 2 Select the scene 3 Start playback
select
access
select
(red)
Using Media Player
69

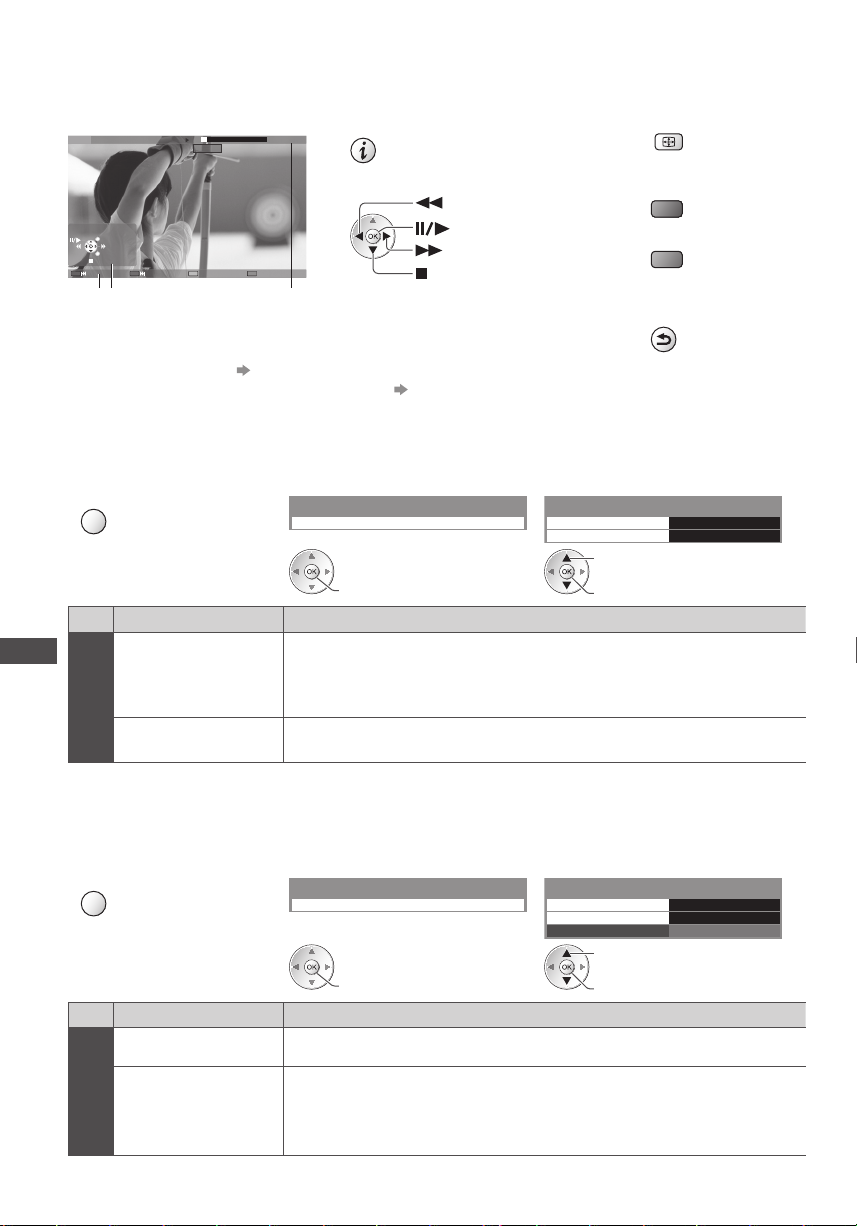

Page 70
■ How to operate in the playback
Example : Playback
SD 19/02/2010 11:21 00:15:39
EXIT
RETURN
O peration guide
00:02:05
I nformation banner
T o display / hide the operation guide and
•
information banner
T o operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
■ To change the device “Change the device” (p.68)
■ To change the content in the current device “Change the contents” (p.68)
■ Video Setup
Setup the settings for Video mode.
1 Display the option menu
in the thumbnail view
OPTION
Menu
Video Setup
Using Media Player
Video Preview
Item Adjustments / Configurations (alternatives)
2 Select [ Video Setup] 3 Selec t the items and set
Option Menu
V ideo Setup
access
Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]
Image may not be displayed for an instant in the thumbnail view. Set the preview [Off]
•
to resolve this.
T o change aspect
•
ASPECT
T o the previous title /
•
scene
T o the next title / scene
•
T o return to thumbnail
•
RETURN
Video Setup Menu
V ideo Preview O n
R epeat
select
access / store
(red)
(green)
BACK/
Off
Repeat Playback repeat within the title or selected file (depending on the content) [Off] / [On]
■ Confirm or change the current status
Y ou can confirm or change the current status of the content.
M enu items and selectable options vary depending on the content.
•
1 Display the option menu
during playback
OPTION
Menu
Video Setup
Multi Audio
Aspect Change
70
Item Adjustments / Configurations (alternatives)
2 Select [ Video Setup] 3 Selec t the items and set
Option Menu
V ideo Setup
access
Allows you to select between selectable sound tracks (if available)
I t may take several seconds to change the sound.
•
[Aspect1] : Displays the content enlarged without distortion
[Aspect2] : D isplays the content full-screen
[Original] : Displays the content original size
Y ou can also change the aspect using the ASPECT button.
•
A spect change may not work depending on the content.
•
Video Setup Menu
Multi Audio Stereo
A spect Change
R epeat
select
access / store
A spect1
Off
Page 71

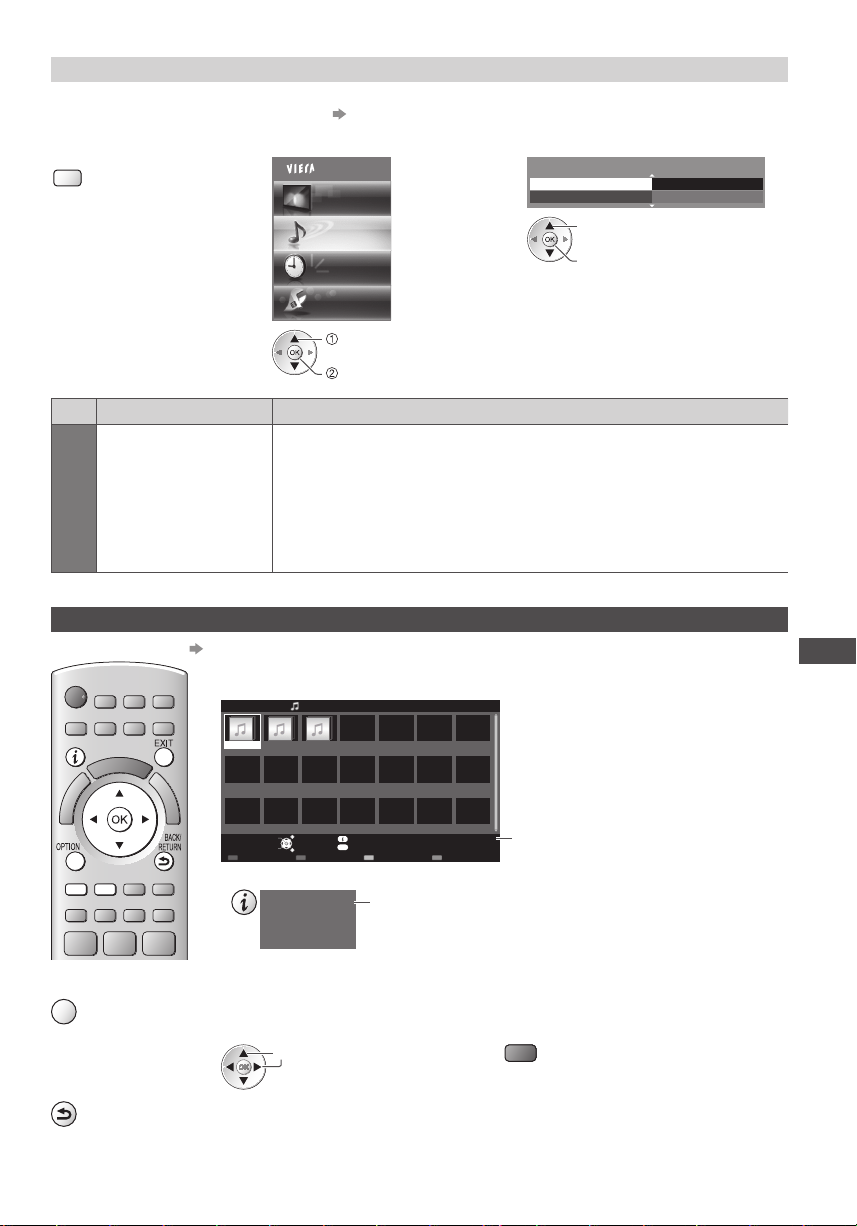

Audio output Settings
Y ou can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.
T o confirm or change the current sound status “Confirm or change the current status” (p.70)
•
1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set
MENU
Main Menu
Sound
Timer
SPDIF Selection
R eset to Defaults
select
access / store
Auto
R eset
2/2
Menu
Item Adjustments / Configurations (alternatives)
Sound
SPDIF Selection
Music mode
Supported file format (p.93)
•
■
To return to TV
EXIT
■
To return to the
previous screen
BACK/
RETURN
Setup
select
access
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channe
as Dolby Digital Bitstream.
DTS is output as DTS.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
T he thumbnail of music folders in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Folder view]
Media Player Music
My Music_1 My Music_2 My Music_3
Access
Select
Play Folder Contents Select
T o display the information of the highlighted folder
•
F older name
Number of files
EXIT
RETURN
My Music_1
I nfo
OPTION
O ption Menu
Drive Select
1/3
F older number / Total folder number
11
Folder view
SD Card
Selected device name
■ Playback from Folder view
All the files in the selected folder will be played back.
1 Select the folder 2 Start playback
select
(red)
l are output
Using Media Player
71
Page 72

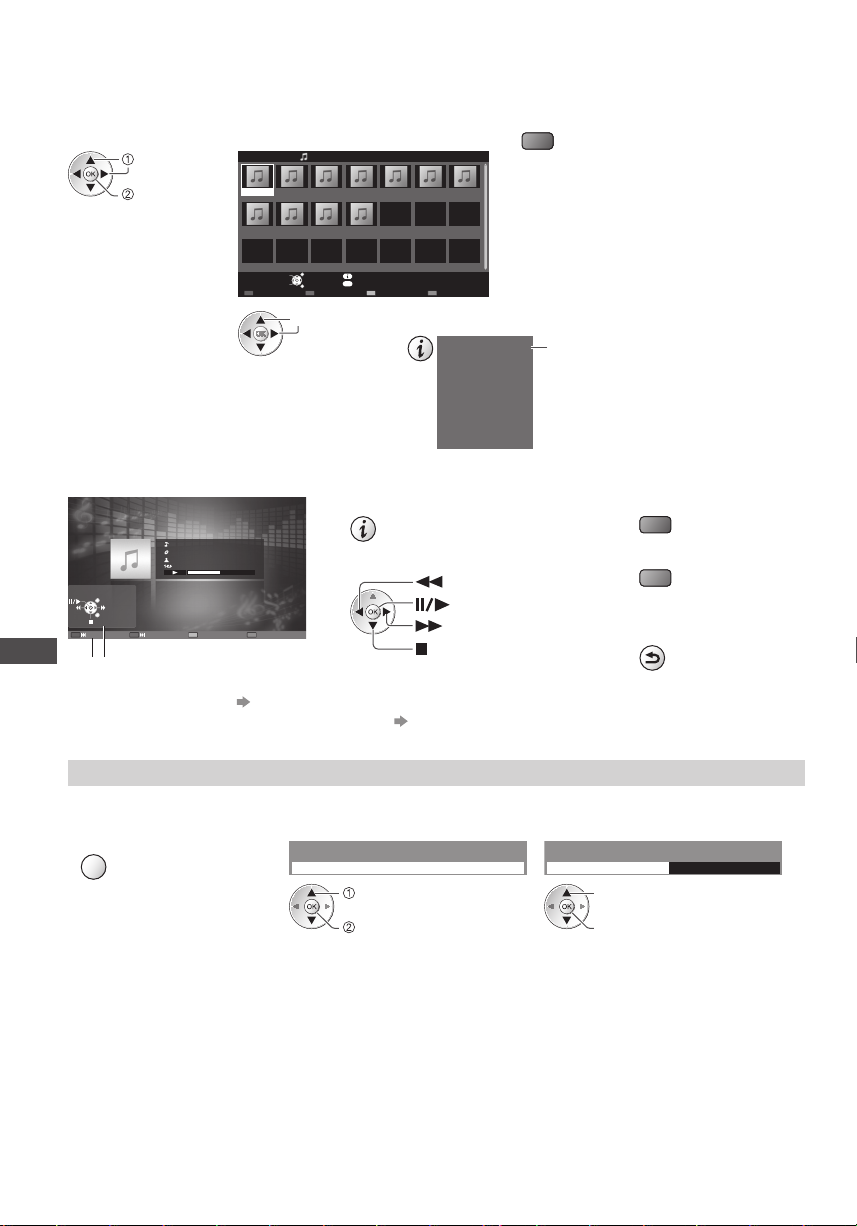

■ Playback from File view
Selected file will be played back.
1 Select the folder 2 Select the file 3 Start playback
Example : Thumbnail - File view
select
access
Media Player Music
My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7
My Song_9 My Song_10 My Song_11My Song_8
Folder view > My Music_1
(red)
Play
Select RETURN
Play Folder
EXIT
select
I nfo
OPTION
O ption Menu
Drive Select
•
SD Card
C ontents Select
T o display the information of the highlighted file
T itle
My Song_1
Album
My Music_1
Artist
My Favourite
Track No.
Duration
00h03m29s
■ How to operate in the playback
Example : Playback
O peration guide
Using Media Player
EXIT
RETURN
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
T o display / hide the operation guide
•
T o operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
■ To change the device “Change the device” (p.68)
■ To change the content in the current device “Change the contents” (p.68)
Music Setup
Setup the setting for Music mode (only available in the thumbnail view).
1 Display the option menu 2 Select [Music Setup] 3 Set
OPTION
Option Menu
Music Setup
select
1/11
F ile number / Total file number
1
•
•
•
Music Setup Menu
R epeat O ne
select
T o the previous track
(red)
T o the next track
(green)
T o return to thumbnail
BACK/
RETURN
72
access
access / store
[Folder] : Playback repeat within the
selected folder
[One] : Playback repeat of the selected
one file
Page 73
Using Network Services
VIERA Connect
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
Network Link
Enables to control the TV from the network equipment (Smartphone, etc.)
Network connection
Network setup
VIERA Connect operations
Network Link Settings
Network connections
To use VIERA Connect features, you need a broadband network environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on
•
this TV. Read the manual of the equipment.
Required speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is
•
not enough, contents may not be played back properly.
Example 1
(See below)
(p. 74 - 78)
(p. 17, 79)
(p. 74)
Wireless connection
Wired connection
LAN cable
Internet
Modem
Hub or Router
Using Network Services
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
Connect to the USB 1 or 2 port.
•
Ensure to use a LAN straight cable for this connection.
•
If your modem has no broadband router functions, use a broadband router.
•
If your modem has broadband router functions but there are no vacant ports, use a hub.
•
Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
•
If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.
•
Access point
Example 2
You can connect the TV and the telecommunication equipment directly to use VIERA Connect features.
Note
Contact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network
•
equipment.
Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company.
•
Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.
LAN cable
Internet
73
Page 74

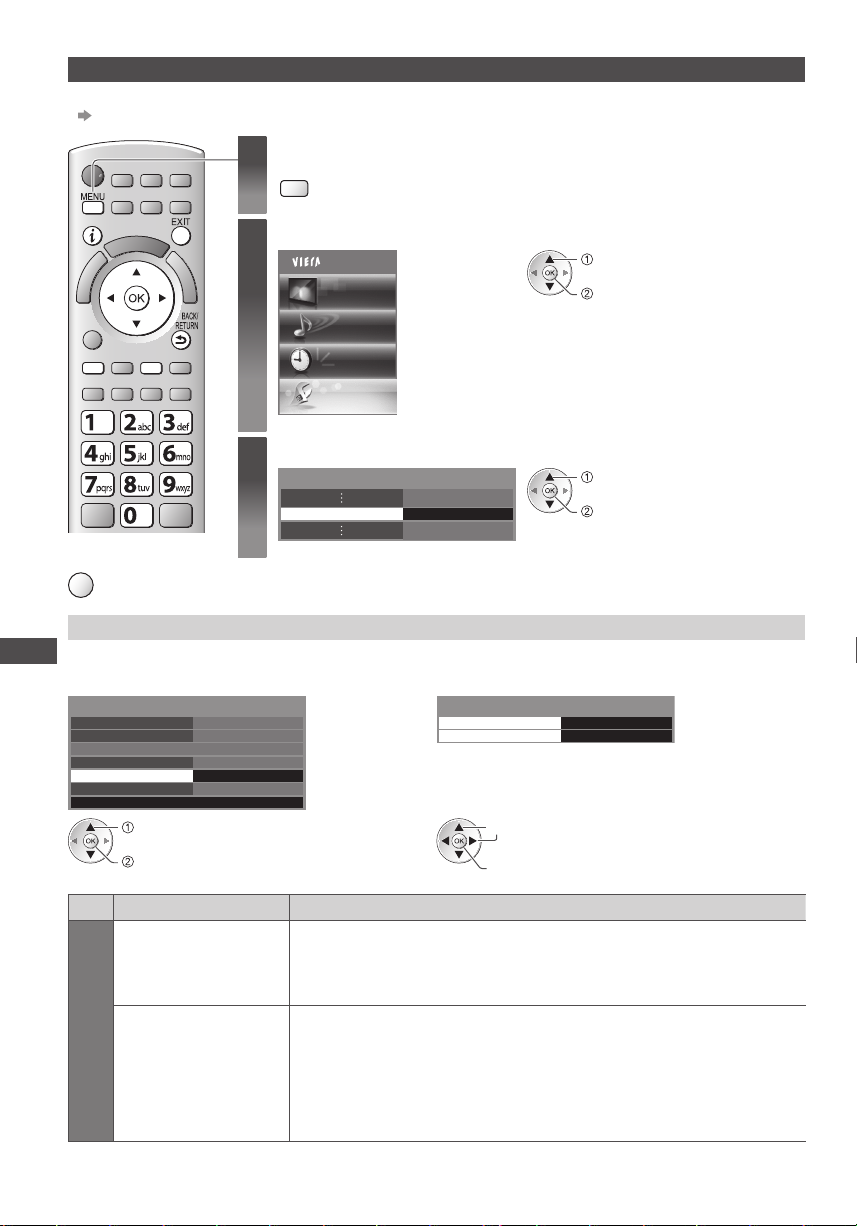

Network Setup
Ensure the connections are completed before starting Network Setup.
•
“Network connections” (p.73)
Display the menu
1
MENU
Select [Setup]
2
Main Menu
Sound
Timer
select
access
Setup
■
To return to TV
EXIT
Select [Network Setup]
3
Network Setup Access
Network Link settings
Sets the link settings to control this TV from the network equipment via the network.
Using Network Services
1 Select [Network Link Settings] 2 Select the items and set
Network Setup
Connection Test
Network Type Wired
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
select
access
Menu
Item Adjustments / Configurations (alternatives)
Network Link Settings
VIERA Name
Access
ab-cd-ef-gh-ij-kl
Sets your favourite name for this TV
This name will be used as the name of this TV on the screen of the other network
•
equipment.
Network Link Settings
VIERA Name
Network Remote Control On
select
access / store
select
access
VIERA
74
Network Remote Control
Enables to control the TV from the network equipment (Smartphone, etc.) [Off] / [On]
Depending on the area, this function may not be available. For details, consult your
•
local Panasonic dealer.
For more information of this function, visit the following website. (English only)
•
http://panasonic.jp/support/global/cs/tv/
Page 75
Wired connection settings
This setting is for the network connection by using the LAN cable.
1 Select [Network Type] and set to [Wired]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS
Settings
Network Link Settings
Software Update
MAC Address
Wired
ab-cd-ef-gh-ij-kl
select
access / store
2 Select [IP/DNS Settings] and set the items
Network Setup
select
IP/DNS Settings Access
access
■ [Acquire IP Address] / [Acquire DNS Address]
Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS].
Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)
The available settings are displayed automatically.
IP/DNS Settings
Acquire IP Address Auto
IP Address
Subnet Mask
Gateway
Acquire DNS Address
DNS Address
P
roxy Settings
Auto
•
Manual settings
([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])
select
access / store
abc def
jkl
ghi
mno
tuvpqrs
wxyz
3 Select [Proxy Settings] and set the items
IP/DNS Settings
Acquire IP Address
IP Address
Subnet Mask
Gateway
Acquire DNS Address
DNS Address
Proxy Settings
Auto
Auto
Access
•
select
access
After settings, return to [Network Setup] screen
BACK/
RETURN
■ [Proxy]
Sets Proxy address.
This is the address of the relay server that is connected to the target server instead of the browser and sends data to the
•
browser. Setting is required if specified by the provider.
1. Select [Proxy] 2. Enter the address 3. Store
Proxy Settings
Proxy
Proxy Por t
0
select
Proxy
Host
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
selec t
BACK/
RETURN
Using Network Services
access
•
set
You can set characters by using numeric
buttons.
■ [Proxy Port]
Sets Proxy port number.
This number is also specified by the provider with the Proxy address.
•
1. Select [Proxy Port] 2. Move the cursor and enter the number
Proxy Settings
Proxy
Proxy Por t
0
select
move
abc def
jkl
ghi
mno
tuvpqrs
wxyz
75
Page 76
4 Select [Connection Test] and access to test
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Connection Test
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
Access
Wired
ab-cd-ef-gh-ij-kl
•
: succeeded
select
access
Performs automatic testing of the network connection for the TV. (It takes a while
to test.)
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this function again.
Wireless connection settings
This setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)
Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of
•
the access point.
1 Select [Network Type] and set to [Wireless]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS
Settings
Network Link Settings
Software Update
MAC Address
Wireless
ab-cd-ef-gh-ij-kl
select
access / store
2 Select [Access Point Settings]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Using Network Services
Network Link Settings
Software Update
MAC Address
Wireless
Access
ab-cd-ef-gh-ij-kl
select
access
When the access point is already set,
•
[Current Settings] screen will be displayed.
To change the settings, select [No] on this
screen and go to the next step.
3 Select the connection type and set
Connection Type
Please select network connection type.
WPS(Push button)
WPS(PIN)
Search for access point
Manual
select
access
For details of each connection type (p.77,78)
•
After settings, return to [Network Setup] screen
•
4 Select [Connection Test] and access to test
Network Setup
Connection Test Access
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
Wireless
ab-cd-ef-gh-ij-kl
76
select
access
Performs automatic testing of the network connection for the TV. (It takes a while
to test.)
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this function again.
If you continue to have difficulty, please contact your internet service provider.
Page 77
■ [WPS(Push button)]
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light ashes.
2) When the light is ashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
press the WPS button on the access point until the light flashes
•
•
connect the Wireless LAN Adaptor and the access point
Ensure that your access point supports WPS for this setup.
WPS : Wi-Fi Protected Setup™
■ [WPS(PIN)]
1 Select your desired access point
Available Access Points
No. Wireless t ype Encr ypt Reception
1
2
3
SSID
Access Point A
Access Point B
Access Point C
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
To search access points again
•
(yellow)
•
For the information of the highlighted access point
select
access
Ensure that your access point supports WPS for this setup.
•
2 Enter the PIN code to the access point, and then select [Connect]
WPS(PIN)
Please register the following PIN codes on the
access point.
PIN code : 12345678
Select ‘Connect’ after entering and saving the
settings on the access point.
Connect
■ [Search for access point]
Access points found automatically are listed.
1 Select your desired access point
Available Access Points
No. Wireless t ype Encr ypt Reception
1
2
3
SSID
Access Point A
Access Point B
Access Point C
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
To search access points again
•
(yellow)
: Encrypted access point
select
access
For the information of the highlighted
•
access point
To set manually
•
To set manually
•
(red)
(red)
Using Network Services
77
Page 78
2 Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
If the selected access point is not encrypted, the confirmation screen will be
•
displayed. It is recommended to select the encrypted access point.
3 Enter the encryption key of the access point (Set characters one by one)
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
selec t
•
set
You can set characters by using numeric
buttons.
Store
BACK/
RETURN
4 Select [ Yes]
Access Point Settings
Encryption key is set to: XXXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes
No
select
confirm
To re-enter the encryption key, select [No].
•
■ [Manual]
You can setup SSID, authentication type, encryption type, and encryption key manually.
Follow the on screen instructions and set manually.
When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES]
•
for the encryption type.
Access Point Settings
Please input the SSID.
SSID XXXXXXX
Using Network Services
SSID Setting
SSID is set to: XXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes
No
Authentication Type Settings
Connection will be made with the following
settings: SSID : XXXXXXX
Please select the authentication type.
WPA2-PSK
WPA-PSK
Shar
ed key
Open
Update TV’s software
Accesses the specific website to update TV’s software and search if any software updates are available.
Select [Software Update]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wired
Access
ab-cd-ef-gh-ij-kl
•
select
access
Follow the on screen instructions
Note
Network Setup
MAC Address
ab-cd-ef-gh-ij-kl
[MAC Address]
MAC address is a unique address that identifies hardware in the network.
•
(for information only)
78
Page 79
VIERA Connect
You can access VIERA Connect and enjoy various network contents.
VIERAConnect requires a broadband internet connection. Dial-up internet connections cannot be used.
•
Ensure the network connections and network settings are completed.
•
“Network connections” (p.73), [Network Setup] (p.74-78)
For details about VIERA Connect operation “Using “VIERA Connect”” (p. 17)
•
Setup menu (Items in [Setup] may change without notice.)
•
Customize HomeScreen Changes the position of each services on VIERAConnect home screen
My Account Confirms or removes the account information of the TV you entered on VIERA Connect
Lock Sets to restrict access to some services
Beep Sets beep sound On or Off when operating VIERAConnect
Notices Displays the information of VIERAConnect
Note
Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated,
•
you will not be able to use VIERAConnect.
You can update the software later manually [Software Update] in [Network Setup] (p.78)
VIERAConnect home screen is subject to change without notice.
•
The services through VIERAConnect are operated by their respective service providers, and service may be discontinued
•
either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the
continuity of the services.
Some content may be inappropriate for some viewers.
•
Some content may only be available for specific countries and may be presented in specific languages.
•
Depending on the connection environment, the internet connection may be slow or may not be successful.
•
During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.
•
But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.40). To use
HDMI2 with ARC function, connect an amplifier that has ARC function (p. 81) and set to use theatre speakers (p. 88).
You can restrict access to VIERAConnect [Child Lock] (p.56)
•
Turn the TV off, and then on again when changing or reconnecting the network connection.
•
Using Network Services
79
Page 80

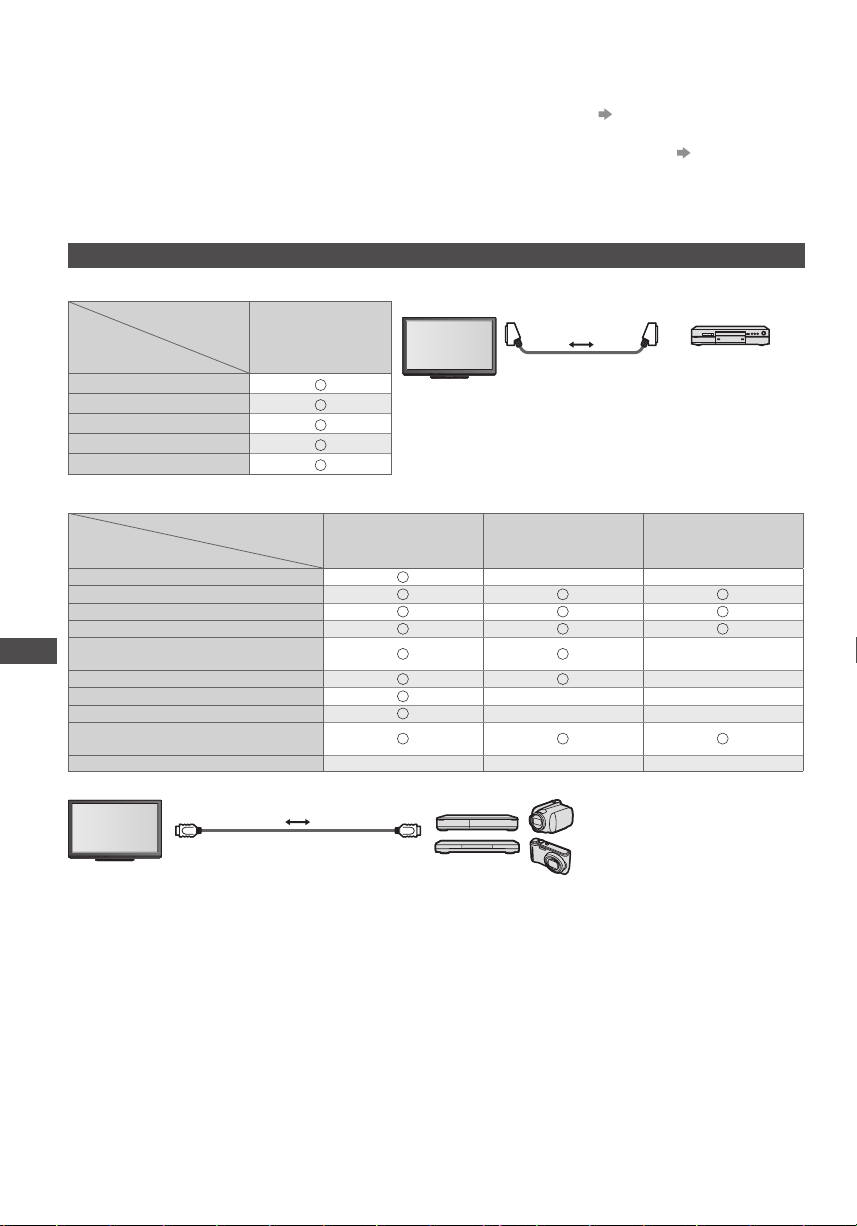

Link Functions (Q-Link / VIERALink)
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p.82)
VIERALink (HDAVI Control™) connects the TV and the equipment with VIERALink function, and enables easy control,
convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting.
Y ou can use Q-Link and VIERALink functions together.
T his TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of
•
HDAVI Control. Please refer to the manual of the equipment to confirm the version.
VIERALink features may be available even with other manufacturers’ equipment supporting HDMI CEC.
•
Summary of Q-Link and VIERA Link features
Q-Link (SCART connection)
C onnected equipment
F eatures
Preset download
E asy playback
P ower on link
P ower off link
D irect TV Recording
DVD Recorder / VCR
with Q-Linkfunction
Connection
SCART cable
U se fully wired SCART cable.
•
C onnect the DVD Recorder / VCR supporting Q-Link to the TV’s AV1
•
terminal via a SCART cable.
VIERA Link (HDMI connection)
F eatures
Preset download
E asy playback
P ower on link
P ower off link
R educe unnecessary power consumption
in standby
Link Functions (Q-Link / VIERALink)
Auto standby for unnecessary equipment
P ause Live TV programme
D irect TV Recording
C ontrol the menu of the connected
equipment by VIERA remote control
Speaker control – – –
Connection
C onnected equipment
HDMI cable
DIGA Recorder with
VIERALink function
5
∗2 ∗
3
∗
3
∗
4
∗2 ∗
2
∗
1
∗
DVD Player / Blu-ray Disc
Player with VIERALink
function
– –
3
∗
3
∗
– –
– –
1
∗
DIGA Recorder / DVD Player /
Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function
(p.83 - 88)
DVD Recorder / VCR
with Q-Link function
HD Video Camera/
LUMIXCamera with
VIERALink function
–
–
1
∗
U se fully wired HDMI compliant cable.
•
C onnect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.
•
A bout HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.
•
80

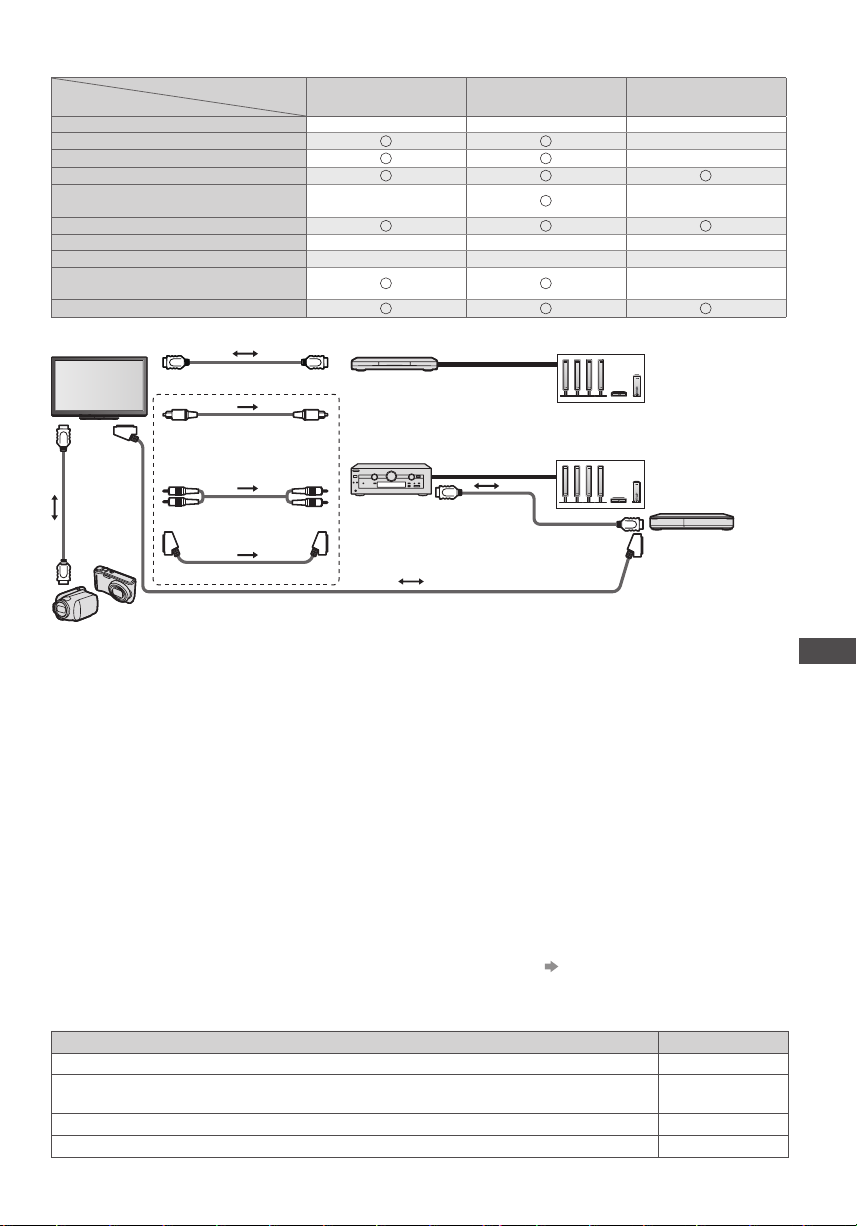

Page 81
VIERA Link (HDMI and Audio out connections)
F eatures
Preset download – – –
E asy playback
P ower on link
P ower off link
R educe unnecessary power consumption
in standby
Auto standby for unnecessary equipment
P ause Live TV programme – – –
D irect TV Recording – – –
C ontrol the menu of the connected
equipment by VIERA remote control
Speaker control
Connection
HDMI
cable
HD Video Camera / LUMIXC
U se fully wired HDMI compliant cable.
•
C onnect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.
•
U se fully wired SCART cable.
•
If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set
•
[AV1 out] to [Monitor] in the Setup Menu (p.40).
U se the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.
•
∗
1 : Available with the equipment which has “HDAVI Control 2 or
later” function.
∗
2 : Available with the equipment which has “HDAVI Control 3 or
later” function.
∗
3 : Available with the equipment which has “HDAVI Control 4 or
later” function.
∗
4 : Available with DIGA Recorder which has HDD.
∗
5 : This function is available regardless of the version of HDAVI
Control when the recorder supports Q-Link and is connected
via SCART cable.
C onnected equipment
HDMI cable
O ptical digital
audiocable
or
RCA cable
or
SCART cable
amera with VIERALink function
Player theatre with
VIERALink function
6
∗
–
7
∗3 ∗
1
∗
T o use Player theatre / Blu-ray Disc theatre :
•
Player theatre / Blu-ray Disc
theatre with VIERALink function
T o use Amplifier :
•
Amplifier with
VIERALink function
8
∗
SCART cable
Blu-ray Disc theatre with
VIERALink function
6
∗
3
∗
7
∗3 ∗
1
∗
HDMI cable
∗
6 : While playing a disc
∗
7 : Except for watching a disc
∗
8 : If the connected equipment has “HDAVI Control 5”
function, you do not have to use this audio cable
(Optical digital audio cable, RCA cable or SCART
cable). In this case, connect the equipment to the TV’s
HDMI2 terminal via an HDMI cable.
Amplifier with VIERALink
function
–
–
–
3
∗
–
Speaker system
Speaker system
DIGARecorder with
VIERALink function
Link Functions (Q-Link / VIERALink)
VIERA Link Control of compatible equipment ([VIERA Link Control] p.86)
T able below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.
•
T his includes connections to equipment already connected to the TV.
F or example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.
Type of the equipment M aximum number
R ecorder (DIGA Recorder, etc.) 3
Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player
theatre, Blu-ray Disc theatre, etc.
Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1
Tuner (Set top box, etc.) 4
)
3
81
Page 82

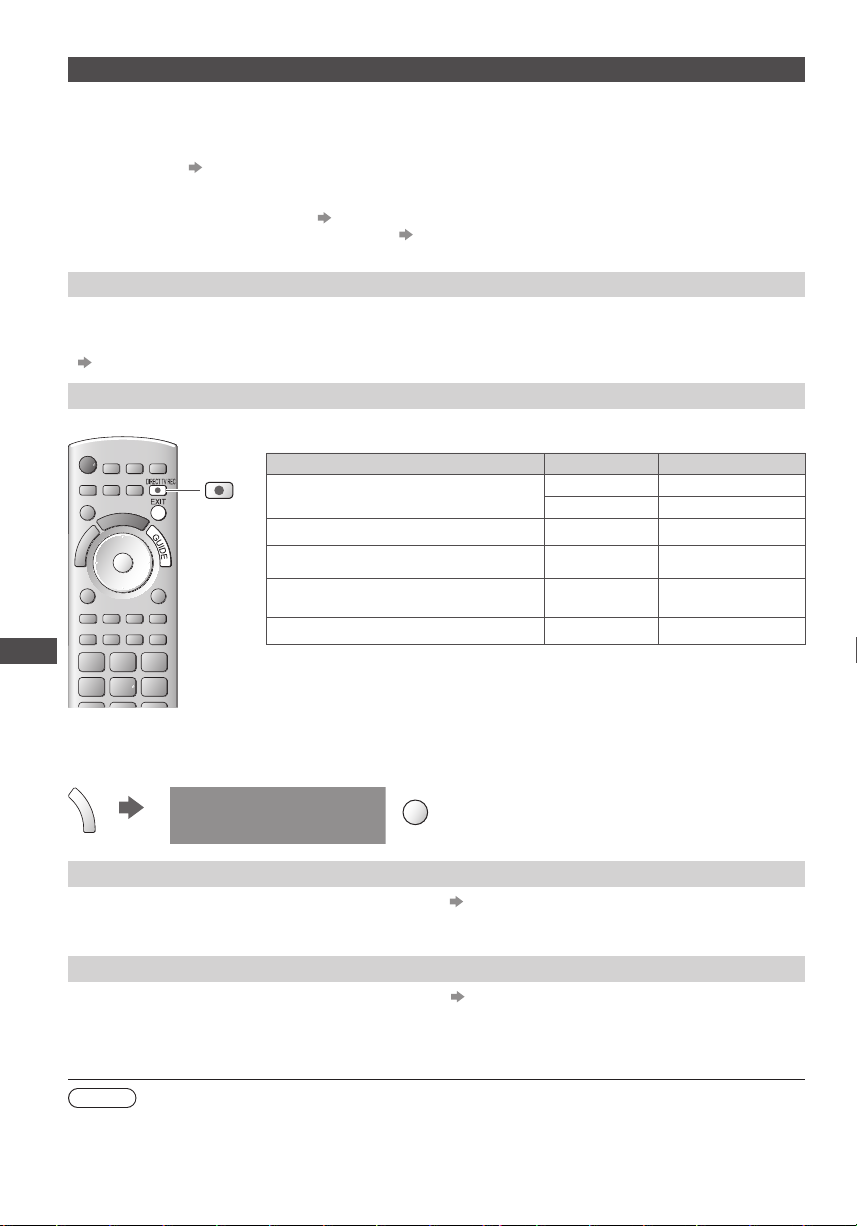

Q-Link
Preparations
C onnect the DVD Recorder / VCR with the following logos :
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”,
“Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)”
Q-Link connection (p.80)
•
U se fully wired SCART cable.
•
Set up the DVD Recorder / VCR. Read the manual of the recorder.
•
Q-Link terminal setup in the Setup Menu [AV1 out] (p.40)
•
D ownload preset - channel, language, country settings “Preset download” (see below)
•
Features available
Preset download
C hannel, language, country settings can be downloaded to the recorder.
DVB-C channel settings cannot be downloaded.
•
T o download settings
•
[Download] (p.41) or [Auto Setup] (p.46) or “Auto Setup” - when first using the TV (p.13,14)
Direct TV Recording - What you see is What you record
R ecording the current programme in DVD Recorder / VCR immediately.
DIRECT TV REC
Link Functions (Q-Link / VIERALink)
Available conditions :
•
P icture source M ode R ecording from
A nalogue
DVB TV TV monitor out
AV (watching recorder’s tuner) AV Recorder’s tuner
AV (watching recorder’s externa
AV (watching TV ’s external input) AV TV monitor out
When Direct TV Recording is performed, the recorder is automatically turned on if it is in
•
Standby mode.
C hanging channel or turning off the TV is available while the recorder is recording from its
•
own tuner.
C hanging channel is not available while the recorder is recording from the TV tuner.
•
l input) AV
TV TV monitor out
AV Recorder’s tuner
externalinput
■ To stop recording
Unlock the tuner
G
U
I
D
E
Press EXIT to unlock and stop recording
Tuner Locked
EXIT
R ecorder’s
Power on link and Easy playback
Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p.40)
When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned
on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)
Power off link
Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p.40)
When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not
active.)
T his function will work even if the TV enters Standby mode automatically by auto power standby function.
•
Note
Some recorders are not applicable. Read the manual of the recorder.
•
82
Page 83
VIERA Link “ ”
∗
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
T his TV supports “HDAVI Control 5” function.
C onnections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables
allow you to interface them automatically (
T hese features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the connected
•
equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI
•
CEC (Consumer Electronics Control), is a unique function that we have developed and adde
A s such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
•
A bout applicable Panasonic equipment, consult your local Panasonic dealer.
•
∗
p.80,81).
d.
Preparations
C onnect the equipment supporting VIERA Link.
•
VIERA Link connection (p.80,81)
•
U se fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.
•
R ecommended Panasonic’s HDMI cable part number :
•
RP-CDHS15 (1.5 m)
U se fully wired SCART cable.
•
Set up the connected equipment. Read the manual of the equipment.
•
F or optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.
•
D ownload preset - channel, language, country / region settings “Preset download” (see below)
•
Set [VIERA Link] [On] in the Setup Menu [VIERA Link] (p.40)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p.27), and make sure that an image is displayed
correctly.
T his setup should be done each time when the following conditions occur :
•
f or the first time
•
w hen adding or reconnecting equipment
•
w hen changing setup
•
RP-CDHS30 (3.0 m)
•
RP-CDHS50 (5.0 m)
Features available
Preset download
C hannel, language, country / region settings can be downloaded to the recorder.
DVB-C channel settings cannot be downloaded.
•
T o download settings
•
[Download] (p.41) or [Auto Setup] (p.46) or “Auto Setup” - when first using the TV (p.13,14)
Easy playback
Automatic input switching - When the connected equipment is operated, input mode is switched automatically. When it is
stopped operating, input mode is returned.
Power on link
Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p.40)
When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is
automatically turned on. (Only when the TV is in Standby mode.)
Power off link
Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p.40)
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
T his function will work even if the TV enters Standby mode automatically by auto power standby function.
•
Link Functions (Q-Link / VIERALink)
83

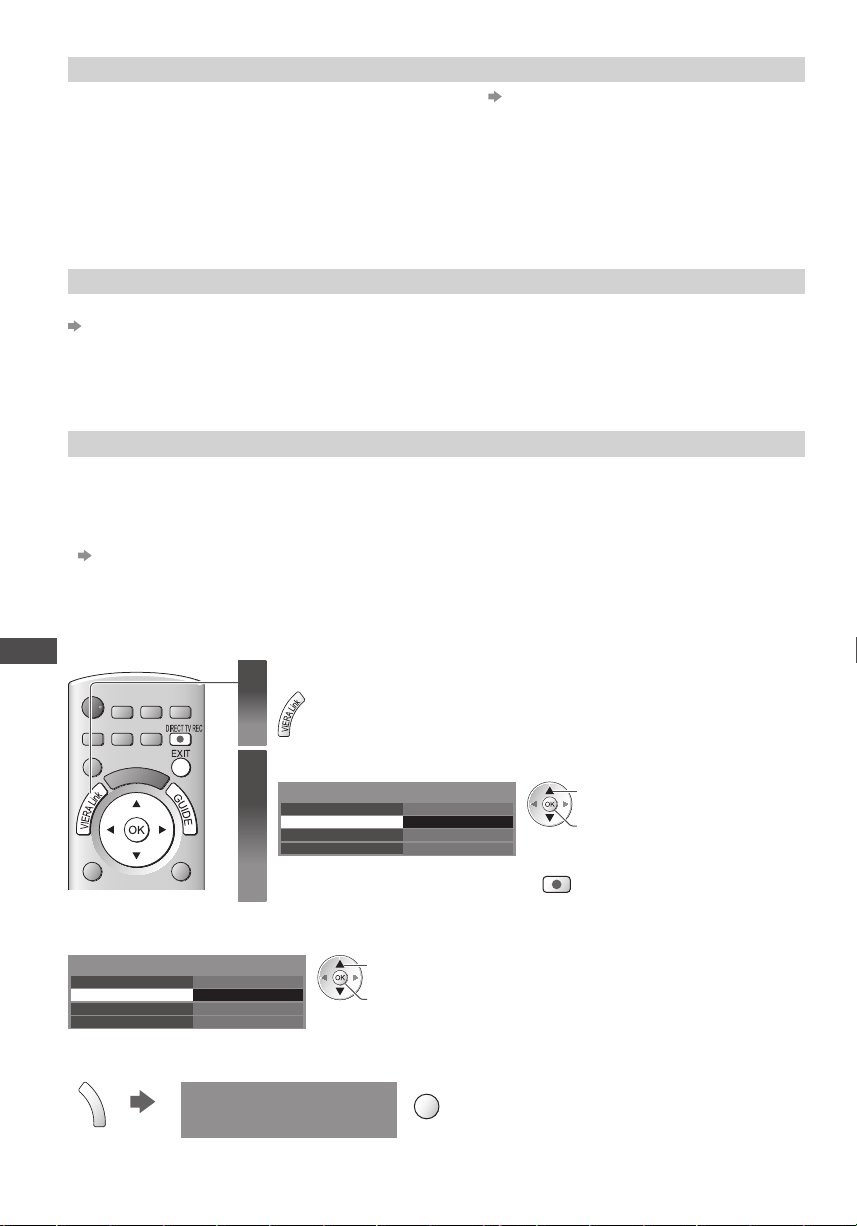

Page 84
Reduce unnecessary power consumption in standby [Standby Power Save]
Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p.41)
T he power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with
the TV On / Off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in
Standby mode of the connected equipment is automatically minimised.
When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make
startup time early.
T his function is effective if the connected equipment can change the power consumption in Standby mode and is set to
•
higher consumption.
T his function will work when [Power off Link] is set to [On].
•
Auto standby for unnecessary equipment [Intelligent Auto Standby]
Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function
[Intelligent Auto Standby] (p.41)
When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the
power consumption. For example, when the input mode is switched from HDMI, when
(except for watching a disc).
If you select [On (With reminder)], the on screen message will be displayed to be noticed before working this function.
•
T his function may not work properly depending on the connected equipment. If required, set to [Off ].
•
Speaker Selection is changed to [TV]
Direct TV Recording - What you see is What you record [Direct TV Rec]
R ecording the current programme in DIGA Recorder immediately.
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect DIGA
•
Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case
connect DIGA Recorder to HDMI1.
If you cannot operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)
If you wish to record the programme which DIGA Recorder does not support, SCART connection is required and the
•
programme is recorded by Q-Link function (p.82).
D epending on the programme, SCART connection may be required to record.
•
C hanging channel or turning off the TV is available while the recorder is recording from its own tuner.
•
C hanging channel is not available while the recorder is recording from the TV tuner.
•
Link Functions (Q-Link / VIERALink)
Display [VIERA Link Menu]
1
■ To stop recording
Select [Stop] in [Direct TV Rec]
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
Y ou can also stop recording directly.
•
Unlock the tuner
G
U
I
D
E
84
Select [Direct TV Rec] and start recording
2
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
Start
Stop
R ecorder
H ome Cinema
Tuner Locked
Press EXIT to unlock and stop recording
Start
Start
R ecorder
H ome Cinema
select
access / stop
EXIT
select
access / start
Y ou can also start recording directly.
•
DIRECT TV REC
Page 85

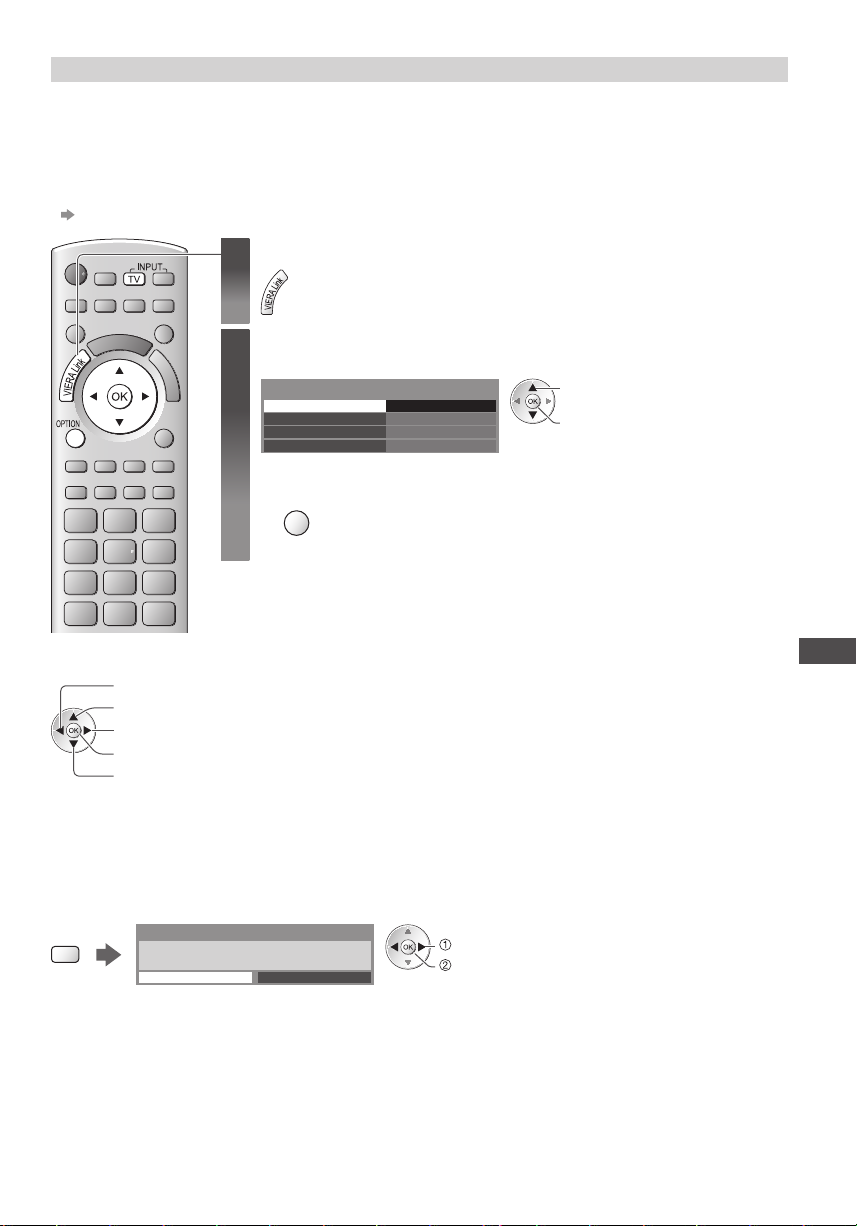

Pause Live TV programme [Pause Live TV]
Y ou can pause the live TV programme and resume later.
L ive TV programme will be recorded on HDD of the connected DIGA Recorder.
T his function is available with DIGA Recorder which has HDD.
•
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect DIGA
•
Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two
recorders, in this case connect DIGA Recorder which has HDD to HDMI1.
If you cannot operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)
Display [VIERA Link Menu]
1
Select [Pause Live TV] and pause
2
T he TV picture will be paused.
select
access / pause
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
L ive TV programme is recorded on HDD from where it was paused.
•
If the paused TV picture disappears after a few minutes.
•
OPTION
(The paused picture will be restored)
F ollow the operation guide to operate Pause Live TV function.
•
Start
Start
R ecorder
H ome Cinema
■ To operate Pause Live TV
search backward
pause
search forward
playback
stop
If you stop playback, the recorded
•
programme will be deleted from
HDD.
O perations may be different depending on the recorder. In this case,
•
follow the operation guide or read the manual of the recorder.
Link Functions (Q-Link / VIERALink)
■ To return to Live TV
( Stop playback of Pause Live TV / cancel pause)
Select [Yes]
Pause Live TV
TV
If you stop playback or cancel pause, the recorded programme will be deleted from HDD.
•
Stop Pause Live TV?
Y es
N o
select
stop
85
Page 86

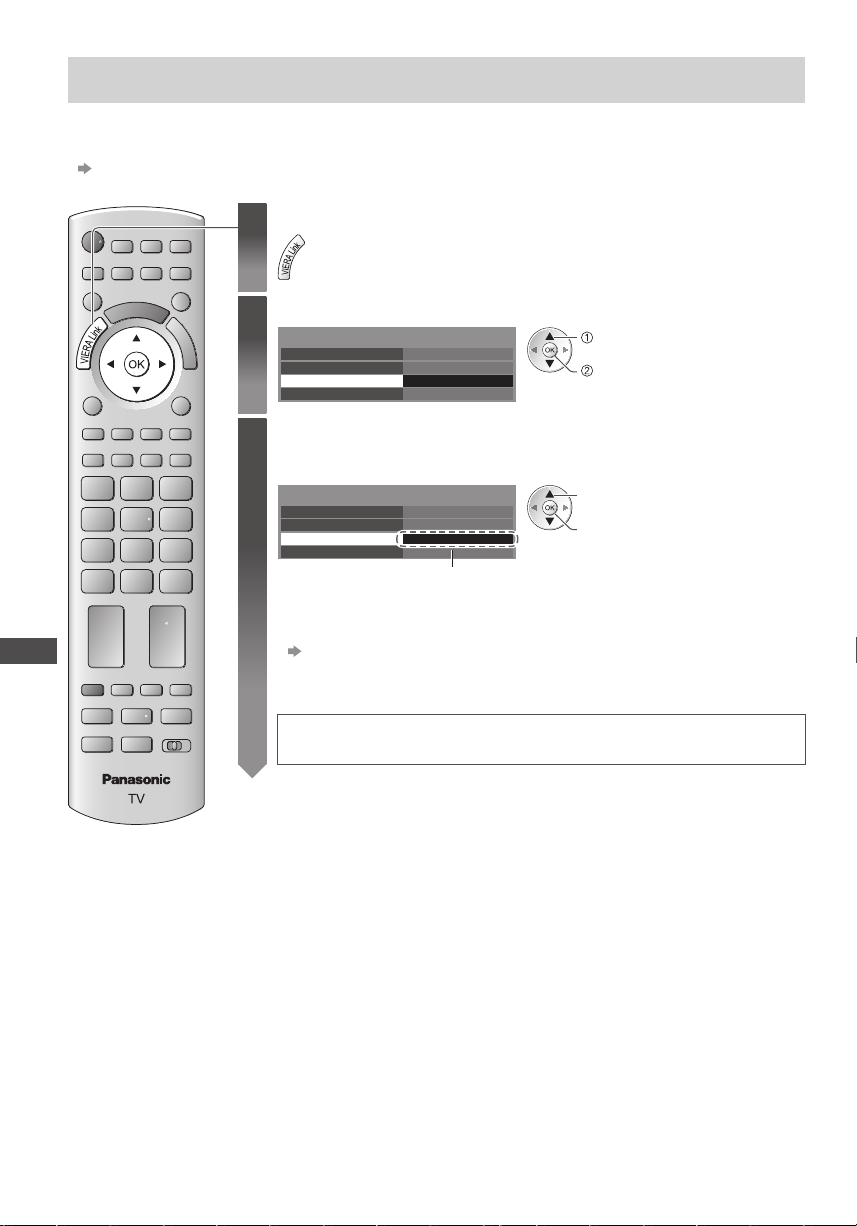

Control the menu of the connected equipment by VIERA remote control
[VIERA Link Control]
Y ou can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s
signal receiver).
If you cannot operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)
F or details of the operations for the connected equipment, read the manual of the equipment.
•
Display [VIERA Link Menu]
1
Select [VIERA Link Control]
2
Link Functions (Q-Link / VIERALink)
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
Select the equipment you want to access
3
T he type of the connected equipment is displayed.
Select the type of the equipment and access.
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [Digital Camera] /
[Other]
Y ou can also access directly by using VIERATOOLS
•
“How to Use VIERA TOOLS” (p.34)
T he displayed item may vary depending on the connected equipment.
•
[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.
•
[Other] means Tuner set top box.
•
The menu of the accessed equipment
(Input mode will be changed automatically)
Start
Start
R ecorder
H ome Cinema
Start
Start
R ecorder
H ome Cinema
select
access
select
access / store
86
Page 87

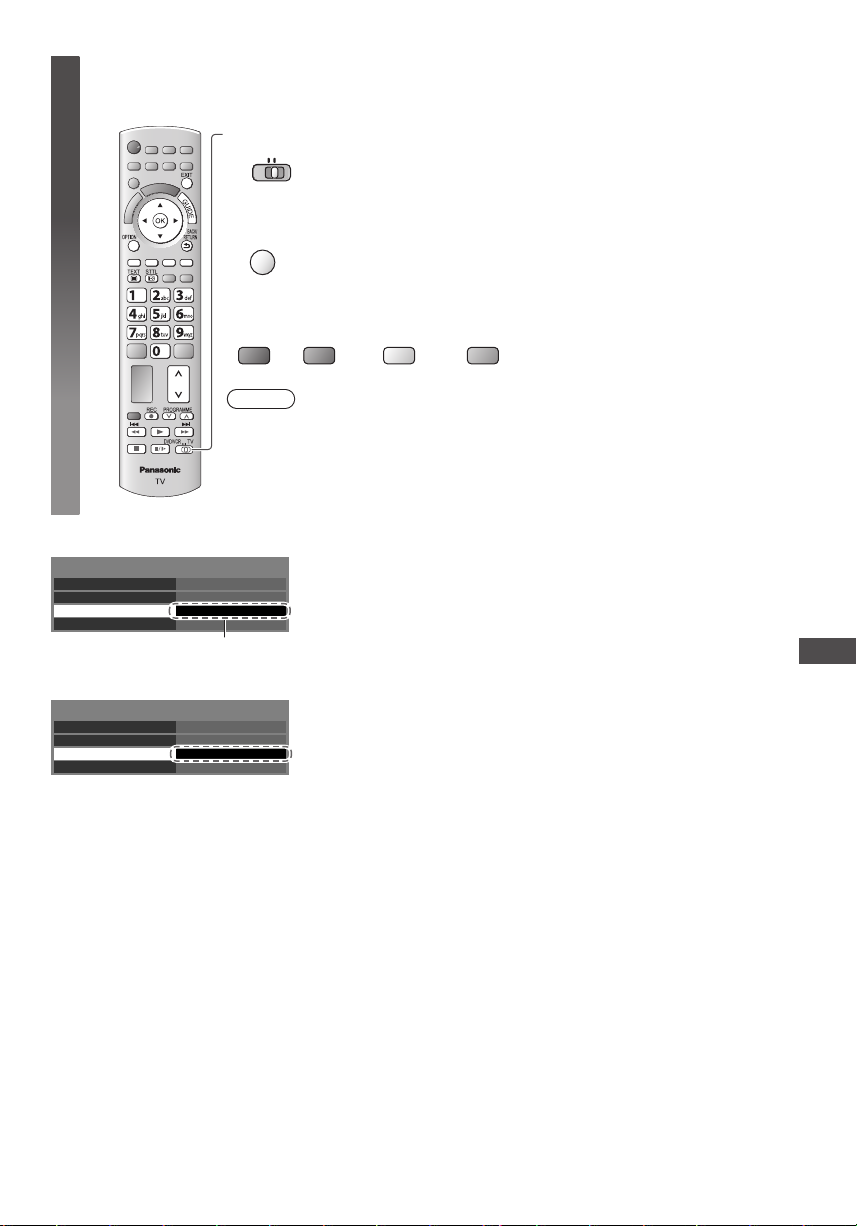

Operate the menu of the equipment
4
Available VIERA remote control buttons :
(Depending on the connected equipment)
1 Set the position to “TV”
DVD/VCR
TV
2 Follow the operation guide
T o display the operation guide
•
OPTION
If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be
displayed.
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Note
Some operations may not be available depending on the equipment. In this case use its own
•
remote control to operate the equipment.
■ If multiple recorders or players are connected
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
Start
Start
R ecorder2
H ome Cinema
[Recorder1-3 / Player1-3]
T he number is given from the TV’s lower HDMI terminal number connected to the
same type equipment. For example, two recorders to HDMI2 and HDMI3, in this
case the r
connected to HDMI3 is displayed as [Recorder2].
■ If you access non-VIERALink equipment
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
Start
Start
R ecorder
H ome Cinema
T he type of the connected equipment is displayed.
Y ou can access the menu of the equipment. But you cannot operate it. Use its own
remote control to operate the equipment.
ecorder connected to HDMI2 is displayed as [Recorder1], and the recorder
Link Functions (Q-Link / VIERALink)
87
Page 88

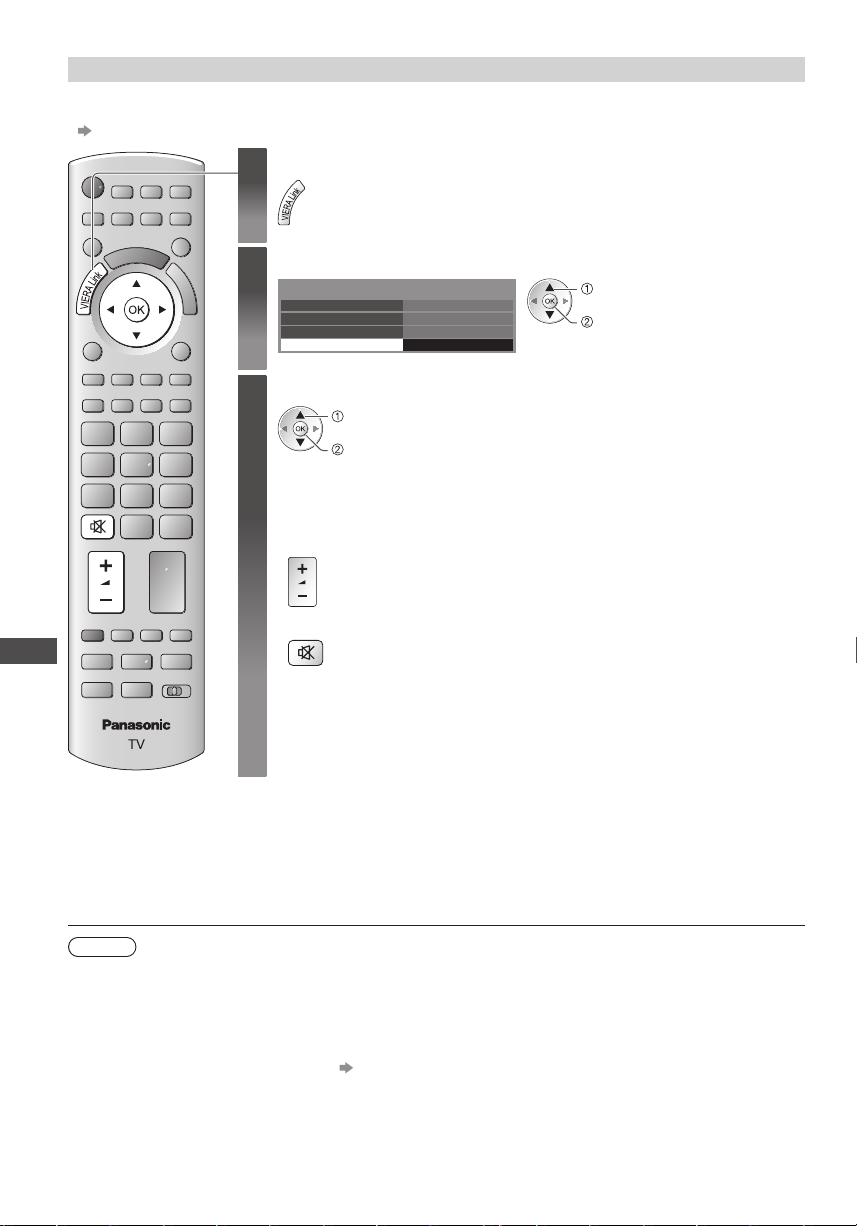

Speaker control [Speaker Selection]
Y ou can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver).
If you cannot operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)
Display [VIERA Link Menu]
1
Select [Speaker Selection]
2
Link Functions (Q-Link / VIERALink)
VIERA Link Menu
P ause Live TV
D irect TV Rec
VIERA Link Control
Speaker Selection
Set to [Home Cinema] or [TV]
3
select
store
Start
Start
R ecorder
H ome Cinema
[Home Cinema]
Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in
Standby mode and the sound is from theatre speakers connected to the equipment.
V olume up / down
•
Mute
•
T he sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers will be active.
•
[TV]
TV speakers are active.
select
access
Multi-channel sound
If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect
with HDMI cable and Optical digital audio cable (p.81), and then select [Home Cinema]. If your
Am
plifier has “HDAVIControl 5” function, you can connect only with HDMI cable. In this case,
connect your Amplifier to the TV’s HDMI2 terminal.
T o enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from
the DIGA Recorder to the Amplifier (p.81).
Note
T hese functions may not work properly depending on the connected equipment.
•
Image or sound may not be available for the first few seconds when input mode is switched.
•
E asy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. Read the
•
manual of the equipment.
“HDAVI Control 5” is the newest standard (current as of December, 2010) for HDAVI Control compatible equipment. This
•
standard is compatible with conventional HDAVI equipment.
T o confirm this TV’s version of HDAVI Control [System Information] (p.44)
•
88
Page 89

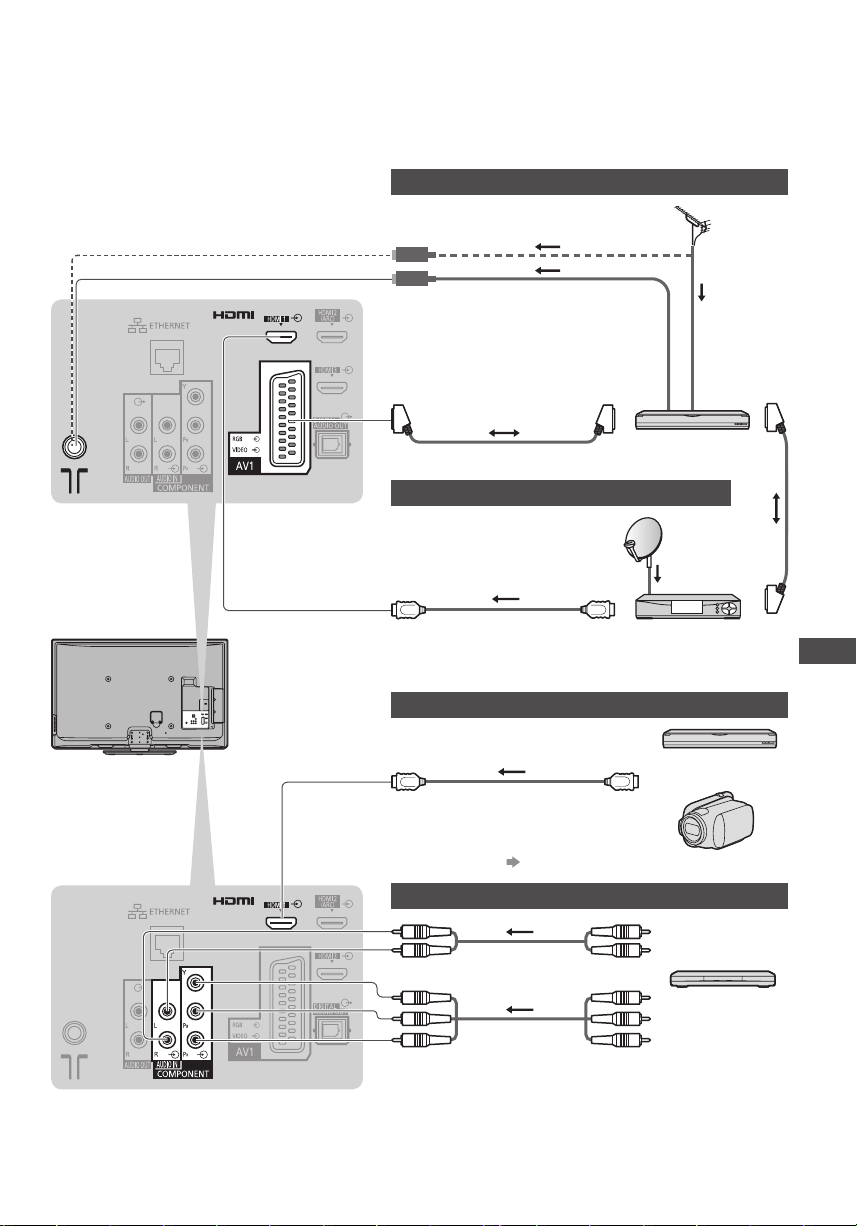

External Equipment
T hese diagrams show our recommendations for connection of your TV to various pieces of equipment.
F or other connections, consult the instructions for each piece of equipment, the table below, and the
103).
To record / playback
T errestrial aerial
specifications (p.102,
or
RF cable
R ear of the TV
Fully wired SCART cable
DVD Recorder / VCR
To watch satellite broadcasts
Fully wired HDMI
compliant cable
Set top box
HDMI equipment
Recorder / Player
Fully wired HDMI
compliant cable
HDMI connection (p.96)
•
Camcorder
To watch DVDs
(Listening)
DVD Player
(Viewing)
Fully wired
SCART cable
External Equipment
89
Page 90

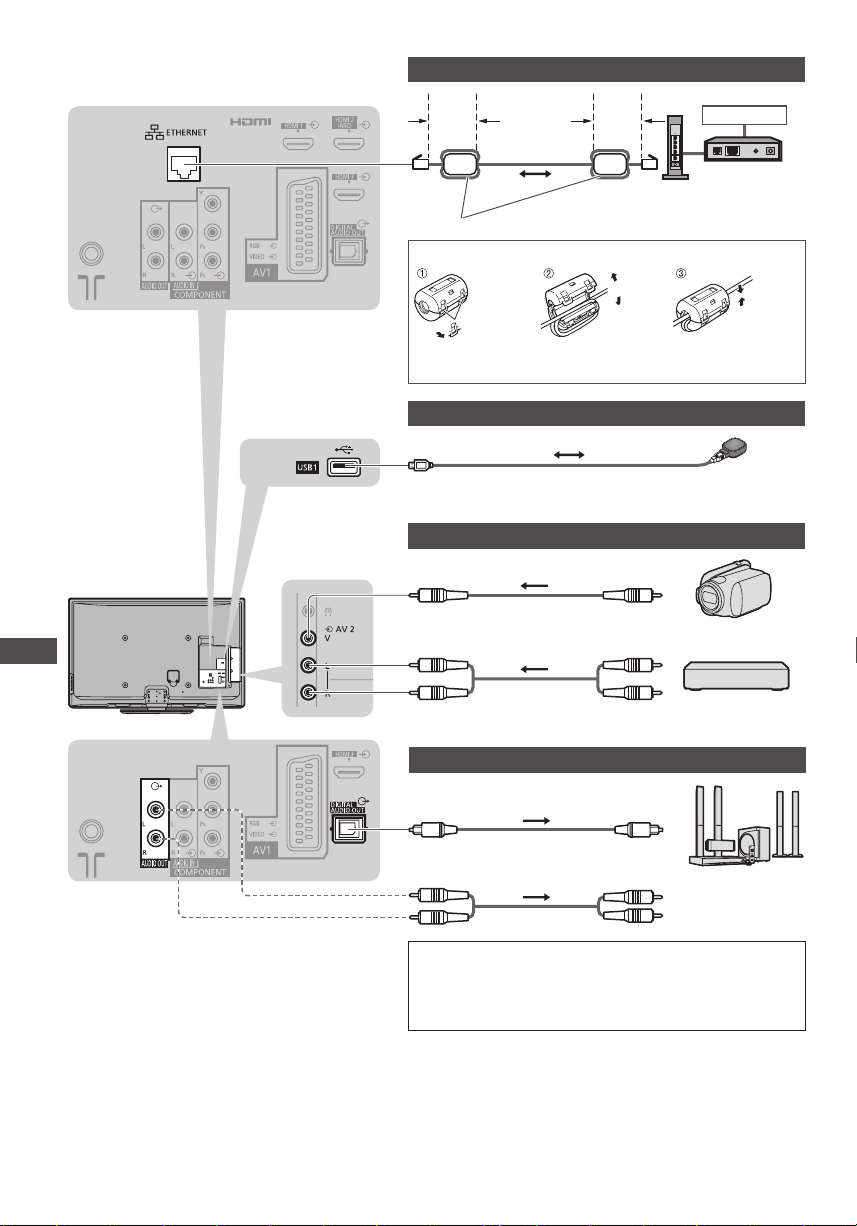

Network (wired)
L ess
than
10cm
F errite core - Large size (supplied)
LAN cable
L ess
than
10cm
Hub or Router
Installing the Ferrite core
Pull back the tabs
(in two places)
Wind the cable
twice
USB devices
Wireless LAN Adaptor
Internet
Modem
Press the cable
through and close
R ear of the TV
External Equipment
Side panel of
the TV
Camcorder / Game equipment
(Viewing)
Camcorder
(Listening)
Game equipment
To listen with speakers
O ptical digital audio cable
T o enjoy the sound from the external equipment in
multi-channel sound (e.g. Dolby Digital 5.1ch), connect the
equipment to the ampl
F or the connections, read the manuals of the equipment and
amplifier.
RCA cable
ifier.
or
Amplifier with
speaker system
90
Page 91
R ear of the TV
Side panel of
the TV
Headphones
L ess than
10 cm
(M3 stereo
mini plug)
F errite core - Small size (supplied)
(TX-PF42ST30)
Installing the Ferrite core
O pen
Pull back the tab Wind the cable
twice
Press the cable
through and close
T o adjust volume
[Headphone Volume] (p.39)
Types of connectable equipment to each terminal
Terminal
COMPONENT
AUDIO OUT
AUDIO OUT
AV1
AV2
Recording/ Playback
(equipment)
T o record / playback videocassettes/ DVDs
(VCR / DVD Recorder)
T o watch 3D contents (Blu-ray Disc Player)
T o watch satellite broadcasts (Set top box)
T o watch DVDs (DVD Player)
T o watch camcorder images (Video camera)
T o play games (Game equipment)
T o use amplifier with speaker system
T o use network services
Q-Link
VIERA Link
(with HDMI)
D irect TV Recording
: Recommended Connection
∗
1 : Use HDMI1 for automatic input switching.
∗
2 : Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return
Channel) function.
ETHERNET
DIGITAL
HDMI 1 - 4
1
∗
2
∗
USB 1 - 2
External Equipment
91
Page 92
Technical Information
A u t o A s p e c t
T he optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p.21)
Aspect Control Signal
[ WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal
is found.
T he aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
T his function will work in any aspect mode.
Aspect Control Signal
Control signal
through SCART (pin8) /
HDMI terminal
Technical Information
Input terminal Input signal format
DVB-C
DVB-T
PAL B, G, H, I
PAL D, K
SECAM B, G
C able
RF
AV1 / AV2
(Composite)
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
SECAM L, L’
SECAM D, K
PAL 525/60 6.5 MHz –
PAL 525/60 6.0 MHz –
PAL 525/60 5.5 MHz –
M .NTSC 6.5 MHz –
M .NTSC 6.0 MHz –
M .NTSC 5.5 MHz –
PAL
SECAM
PAL 525/60 –
M .NTSC –
NTSC –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p –
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
1,125 (1,080) / 60p, 50p, 24p –
Widescreen signal
(WSS)
Auto mode
Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal
through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen) to determ
T his process may take several minutes, depending on the darkness of the image.
L etterbox detection :
If black bands at the top and bottom of the screen are detected, Auto mode chooses
fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.
Note
T he ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top and bottom
•
of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the
•
VCR. Read the manual of the VCR.
ine.
the best ratio and expands the image to
92
Page 93
Supported file format in Media Player
■ Photo
Format File extension
JPEG
∗
1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology
Industries Association (JEITA)
∗
2 : Exchangeabl
.jpg
.mpo
e Image File - image file format used by digital cameras
Image resolution
(pixel)
8 × 8
to
30,719 × 17,279
Details / Restrictions
1
∗
and EXIF
DCF
Sub-sampling : 4:4:4, 4:2:2, 4:2:0
Progressive JPEG is not supported.
•
2
∗
standards
■ Video
Container File extension Video codec Audio codec Details / Restrictions
SD-Video .mod
AVCHD .mts H .264 Dolby Digital
AVI
MKV .mkv H.264 BP / MP / HP
A SF
MP4 .mp4 H.264 BP / MP / HP
MOV .mov
P S
∗
3 : Some products of before the year 2004 may not be available. The compatibility with future products is not guaranteed.
.avi
.divx
.asf
.wmv
.mpg
.mpeg
MPEG1
MPEG2
DIV3 DIV4
DIVX DX50
DIV6 XviD
MPEG4 SP / ASP
Windows Media
Video Ver. 9
VC-1
M otionJPEG
H .264 BP / MP / HP
MPEG1
MPEG2
MPEG
D olby Digital
MPEG
MP3
D olby Digital
MPEG
MP3
D olby Digital
DTS core
WMA
AAC
MP3
D olby Digital
L inear PCM
(RAW / TWOS /
SOWT)
AAC
MP3
D olby Digital
MPEG
MP3
L inear PCM
SD-Video Standard Ver. 1.3
(Entertainment Video Profile)
T he data may not be available if a folder
•
structure on the device is modified.
AVCHD Standard
(including 3D videos recorded by the
3D-compatible Video
T he data may not be available if a folder
•
structure on the device is modified.
C ertified to play DivX Plus HD video file in
•
Media Player
F or details of DivX “DivX” (p. 94)
C opy-protected files cannot be played
•
back.
WMA Pro and WMA Lossless are not
•
supported.
T his TV supports this container recorded
•
by Panasonic products.
F or details, read the manual of the
products.
T his TV supports Motion JPEG recorded by
•
Panasonic LUMIX Camera
–
Camera)
∗
3
.
Technical Information
93
Page 94
■ Music
Codec File extension Restrictions
MP3 .mp3 –
AAC .m4a
WMA .wma
Note
Some files may not be played back even if they fulfill these conditions.
•
D o not use two-byte characters or other special codes for data.
•
T he device may become unusable with this TV if the file or folder names are changed.
•
DivX
D ivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content.
ABOUT DIVX VIDEO :
D ivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video.
V isit divx.com for more information and software tools to convert your files into DivX video.
Subtitle text file of DivX
Subtitles format - MicroDVD, SubRip, TMPlayer
T he DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file
•
extensions.
If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority :
•
“.srt”, “.sub”, “ .txt”.
T o confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option
•
Menu.
D epending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or
•
the subtitles may not be displayed at all.
Note
D epending on how you make SD Card or USB Flash Memory, files and folders may not be displayed in the order you
•
numbered.
D epending on how you create the files and the structure of folders, the files and folders may not be displayed.
•
When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.
•
ABOUT DIVX VIDEO-ON-DEMAND :
T his DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more info
complete your registration.
To show DivX VOD registration code
[DivX® VOD] in the Setup Menu (p.43)
If you want to generate the new registration code, you have to deregister the present registration code.
Technical Information
•
After playing DivX VOD content once, the confirmation screen to deregister will be displayed
Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be
able to play any contents that you purchased using the
Y ou will obtain the new registration code by pressing the OK button on the deregistration code screen.
If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able to play this
•
content. ([Your device is not authorized to play this DivX protected vi
Regarding DivX content that can only be played a set number of times
Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of
remaining plays is zero. ([This DivX rental has expired.] is displayed.)
When playing this content, the number of remaining plays is reduced by one in the following conditions :
•
•
If you exit the current application.
•
If you play the other content.
•
If you go to the next or previous content.
C opy-protected files cannot be played back.
•
C opy-protected files cannot be played back.
•
WMA Pro and WMA Lossless are not supported.
•
present registration code.
deo.] is displayed.)
rmation on how to
in [DivX® VOD] in the Setup
94
Page 95

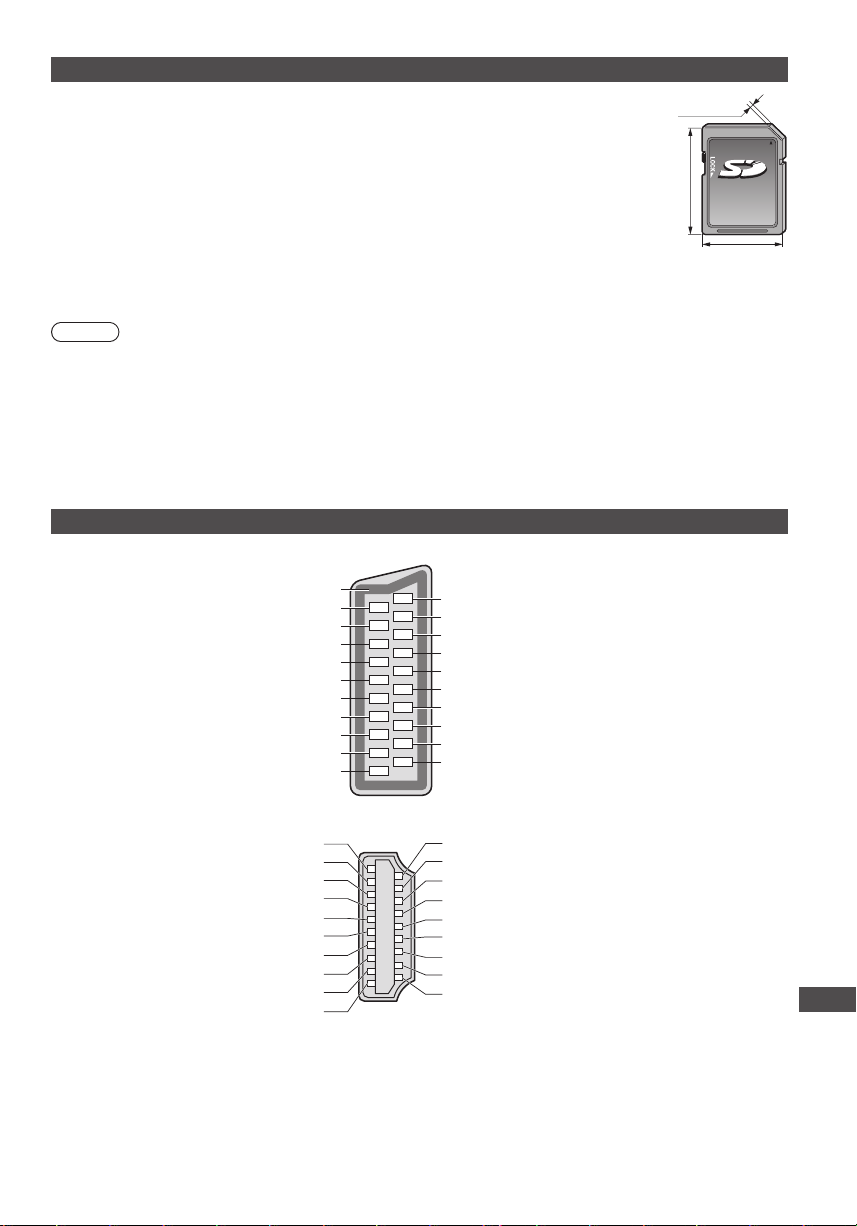

Devices for recording or playing back
■ SD Card (for playing back in Media Player)
C ard format : SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32
C ompliant card type (maximum capacity) : SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB),
If miniSD Card is used, insert / remove it together with the adaptor.
•
C heck the latest information on the card type at the following website. (English only)
•
http://panasonic.jp/support/global/cs/tv/
U se an SD Card which meets SD standards. If not, it may cause the TV to malfunction.
•
miniSD Card (2 GB) (requiring miniSD adaptor)
■ USB Flash Memory (for playing back in Media Player)
U SB Flash Memory format : FAT16, FAT32 or exFAT
A USB HDD formatted by PC is not supported in Media Player.
•
Note
D ata modified with a PC may not be displayed.
•
D o not remove the device while the TV is accessing data (this can damage device or TV).
•
D o not touch the pins on the device.
•
D o not subject the device to a high pressure or impact.
•
I nsert the device in the correct direction (otherwise, device or TV may be damaged).
•
Electrical interference, static electricity, or erroneous operation may damage the data or device.
•
B ack up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV.
•
(Panasonic is not liable for any deterioration or damage of recorde
d data.)
2 .1 mm
32 mm
SCART and HDMI terminal information
AV1 SCART terminal (RGB, VIDEO, Q-Link)
R ed in 15
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 - 10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
R ed earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
HDMI terminal
H ot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield 11
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1
18 +5V Power
16 SDA
14 Utility
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
24 mm
Technical Information
95
Page 96
HDMI connection
HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a noncompression standard.
HDMI allows you to enjoy high-definition di
HDMI-compatible equipment
equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
A bout connections, see “External Equipment” ( p.89).
1
∗
with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game
gital images and high-quality sound by connecting the TV and the equipment.
Applicable HDMI features
I nput audio signal :
•
2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
I nput video signal :
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p.98)
M atch the output setting of the digital equipment.
I nput PC signal :
•
“Input signal that can be displayed” (p.98)
M atch the output setting of the PC.
VIERA Link (HDAVI Control 5)
•
[VIERA Link] (p.83)
3D
•
C ontent Type
•
D eep Colour
•
x .v.Colour™
•
Audio Return Channel
•
(HDMI2 terminal only)
2
∗
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable
DVI to HDMI adaptor cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 / 3 : use AUDIO IN terminals
/ HDMI4 : use AV2 audio terminals).
Note
Audio settings can be made on the [HDMI1 / 2 / 3 / 4 Input] in the Sound Menu. (p.40)
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
T hese HDMI connectors are “type A”.
•
T hese HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
•
Equipment having no digital output terminal may be connected to the input terminal of “COMPONENT” or “VIDEO” to receive
•
analogue signals.
T his TV incorporates HDMI™ technology.
•
∗1 : The HDMI logo is displayed on HDMI-compliant equipment.
∗2 : Audio Return Channel (ARC) is a function to be able to send digital sound signals via an
∗3 : Enquire at your local digital equipment retailer shop.
Technical Information
HDMI cable.
3
∗
. When the
96
Page 97
USB connection
I t is recommended to connect the USB Flash Memory directly to the TV’s USB ports.
•
Some USB devices or USB HUB may not be used with this TV.
•
Y ou cannot connect any devices by using USB card reader.
•
Y ou cannot use two or more same kind of USB devices simultaneously except USB Flash Memory.
•
Additional information for USB devices may be on the following website. (English only)
•
http://panasonic.jp/support/global/cs/tv/
USB Keyboard
T he USB Keyboard which requires the driver is not supported.
•
T o change the language type [USB Keyboard Layout] (p.44)
•
C haracters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout
•
setting.
Some of the keys of USB keyboards may correspond to the operation of the remote control.
•
USB Keyboard Remote Control USB Keyboard Remote Control
↑ / ↓ / ← / →
E nter OK F3 MENU
B ackspace BACK/RETURN F4 INPUT (AV)
E sc EXIT F5 / F6 Channel Down / Up
0 - 9 / Character Numeric buttons F7 / F8 Volume Down / Up
F1 GUIDE F9 / F10 / F11 / F12 Coloured buttons
Cursor buttons F2 VIERA TOOLS
Gamepad
C heck the gamepads that have been tested for the performance with this TV at the following website. (English only)
•
http://panasonic.jp/support/global/cs/tv/
Some of the keys of gamepads correspond to the operation of the remote control.
•
Example :
1
Select Start
1011
2
7 69 8
Remote Control Remote Control
1 Volume Up / Down 7 VIERA TOOLS
2 Channel Up / Down 8 EXIT
3
3 GUIDE
4
5
4 OK
5 BACK/RETURN 10 MENU
6 VIERA Connect 11 Cursor buttons
INPUT
9
(AV)
Technical Information
97
Page 98
Characters table for numeric buttons
Y ou can enter characters by using numeric buttons for free input items.
User input
N ame
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
C haracters table :
Numeric
buttons
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
1234567 891011
. 1!: #+- *_ ( )
abc2ABC
d e f3DEF
g hi4GHI
jkl5JKL
m no6MNO
p qr s 7PQRS
t uv8TUV
wx y z 9W XYZ
Space 0
abc def
Press the numeric button repeatedly until you reach the
jkl
ghi
mno
desired character.
tuvpqrs
wxyz
T he character is set automatically if you leave for 1 second.
•
Y ou can also set the character by pressing the OK button or other
•
numeric buttons within 1 second.
The number of times to press
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1,125 (1,080) / 60i, 50i
1,125 (1,080) / 60p, 50p, 24p
Signal name COMPONENT HDMI
Mark : Applicable input signal
PC (from HDMI terminal)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Technical Information
Note
Signals other than above may not be displayed properly.
•
T he above signals are reformatted for optimal viewing on your display.
•
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
•
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
A pplicable input signal for PC is basically compatible to HDMI standard timing.
98
Page 99
FA Q s
B efore requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in
Analogue mode/ Some channels cannot be tuned
C heck the position, direction and connection of the aerial.
•
C heck [Signal Condition](p.50). If [Signal Quality] is displayed in red, the DVB signal is weak.
•
Weather conditions will affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during
•
good weather, the high pressure can cause poor reception of some channels.
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases,
•
despite good reception of analogue channels.
Turn the TV off with the Mains power On / Off switch, and then on again.
•
If problem persists, consult your local dealer or service provider for the availability of services.
•
No programmes shown on TV Guide
C heck the digital transmitter.
•
Adjust the direction of the aerial to another transmitter installed nearby.
•
C heck the analogue broadcast. If the image quality is poor, check the aerial and consult your local dealer.
•
Neither image nor sound is produced
I s the TV in AV mode?
•
C heck the correct input mode is selected.
•
C heck the mains lead is plugged into the socket outlet and the TV is turned on.
•
C heck the Picture Menu (p.36 - 38) and volume.
•
C heck all required cables and connections are firmly in place.
•
Auto aspect
Auto aspect is designed to provide you with the best ratio to fill the screen. (p.92)
•
Press the ASPECT button if you would like to change the aspect ratio manually. (p.21)
•
Black and white picture
C heck that the output of the external equipment matches the input of the TV.
•
When connecting with SCART, ensure the output setting of the external equipment is not S-Video.
Input mode, i.e. EC/AV1 remains on the screen
Press the button to clear these.
•
Press again to redisplay.
Q-Link function does not work
C onfirm SCART cable and connection.
•
Also set [AV1 out] in the Setup Menu. (p.40)
[VIERA Link] function does not work and an error message appears
C onfirm the connection. (p.80,81)
•
Turn the connected equipment on and then switch the TV on. (p.83)
•
Recording does not start immediately
C heck the settings of the recorder. For details, read the manual of the recorder.
•
Contrast is reduced
C ontrast is lowered in the following conditions without any user operation for a few minutes :
•
•
no signal in DVB or AV mode
•
selected locked channel
•
selected invalid channel
•
selected radio channel
•
d isplayed menu
•
thumbnail or still picture in Media Player
Frequently Asked Questions
99
Page 100
Chaotic image, noisy
Screen
No image can be displayed
Blurry or distorted image
( no sound or low volume)
Unusual image is displayed
No sound is produced
Sound
Sound level is low or sound
is distorted
Unusual sound from the TV
Cannot see 3D images
3D
3D Eyewear is turned off
automatically
There is something wrong
Frequently Asked Questions
with the 3D images
The indicator lamp does
not light when pressing the
power button on the 3D
Eyewear
Sound is unusual
HDMI
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
Problem Actions
Set [P-NR] in the Picture Menu (to remove noise). (p.37)
•
C heck nearby electrical products (car, m otorcycle, fluorescent lamp).
•
I s [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum?
•
(p.36)
R eset channels. (p.45 - 46)
•
Turn the TV Off with Mains power On / Off switch, then turn it On again.
•
If the problem persists, initialise all settings [Shipping Condition] (p.60)
•
I s “Sound mute” active? (p.9)
•
I s the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set [MPX] (p.39) in the Sound Menu to [Mono]. (Analogue only)
•
When power is on, whirring sound of cooling fan or drive noise may be heard from
•
inside the TV (not a sign of faulty operation).
H as the 3D Eyewear been switched On?
•
E nsure that [3D Mode Selection] is set to [3D]. (p.31)
•
Some 3D image signals may not be automatically recognised as 3D images. Set [3D
•
Mode Selection (Manual)] to match the picture format. (p.31)
C heck that there are no obstacles between the infrared sensors on the TV and the 3D
•
Eyewear. If the 3D Eyewear stops receiving the infrared signal for about 5 minutes,
the 3D Eyewear will be turned o
C heck the available area to use the 3D Eyewear. (p.33)
•
D epending on the person, the 3D images may be difficult to see, or cannot be seen,
•
especially in users that have a different level of eyesight between the left and right
eyes.
e the necessary steps (wearing glasses etc.) to correct your eyesight before use.
T ak
C heck that there are no obstacles between the infrared sensors on the TV and the
•
3D Eyewear or that the 3D Eyewear is placed inside the coverage area (p.33). If the
3D Eyewear stops receiving the infrared signal for about 5 minutes, the 3D Eyewear
will be turned off automatically.
C heck the setting of [Picture Sequence] or [Edge Smoother]. (p.33)
•
T he battery may be running low or flat. Replace it.
•
Set the sound setting of the connected equipment to “2ch L.PCM”.
•
C heck the [HDMI1 / 2 / 3 / 4 Input] setting in the Sound Menu. (p.40)
•
If digital sound connection has a problem, select analogue sound connection.
•
(p.96)
C heck the HDMI cable is connected properly. (p.89)
•
Turn the TV and equipment Off, then turn them On again.
•
C heck an input signal from the equipment. (p.98)
•
U se equipment compliant with EIA/CEA-861/861D.
•
ff automatically.
100
Loading...
