Panasonic Viera TX-P42V20B, Viera TX-P50V20B, TXP42V20BA, TXP50V20BA, Viera TX-L37V20B Operating Instructions Manual

TQB0E0942-1

English

Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
“B” model no. suffix denotes UK model.

U.K. Standard

Operating Instructions

Plasma Television

Model No.

TX-P42V20B
TX-P50V20B

2

Features

freesat HD tuner built-in ■

Receives freesat - free digital satellite broadcasts in the UK

This TV has a built-in freesat HD tuner.
freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with

crystal clear reception.

You can enjoy sharp pictures, vivid colours, multi-channel sound, and various services with the interactive content.

DVB-T / DVB-T2 tuner built-in ■

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts

DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

GUIDE Plus+ ■ (p. 21)

This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection ■ (p. 99)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

This TV supports HDMI (Version 1.4 with Content Type, Audio Return Channel), Deep Colour, x.v.Colour™.

●

Using USB devices ■

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 64 and p. 73)
Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 68)
Wireless LAN Adaptor for the network connection. (p. 6 and p. 13)
Entering characters with the USB Keyboard in VIERA CAST. (p. 85)

Timer Programming ■ (p. 22 and p. 52)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external

recorder / registered USB HDD.

VIERA IMAGE VIEWER - SD Card viewer in Media Player ■ (p. 68 - 72)

Enjoy your photos or videos recorded on an SD Card on the TV screen.

SDXC Card ■

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

AVCHD ■

It is possible to play moving pictures recorded on an SD Card or a USB Flash Memory in AVCHD format.

AVCHD is a high definition video recording format. (p. 68)

DivX ■

Offers good compatibility when going from PC to TV, etc. for easy enjoyment of moving pictures. DivX is a video codec that

was developed by DivX, Inc. (p. 97)

DLNA ■

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you

can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 82)

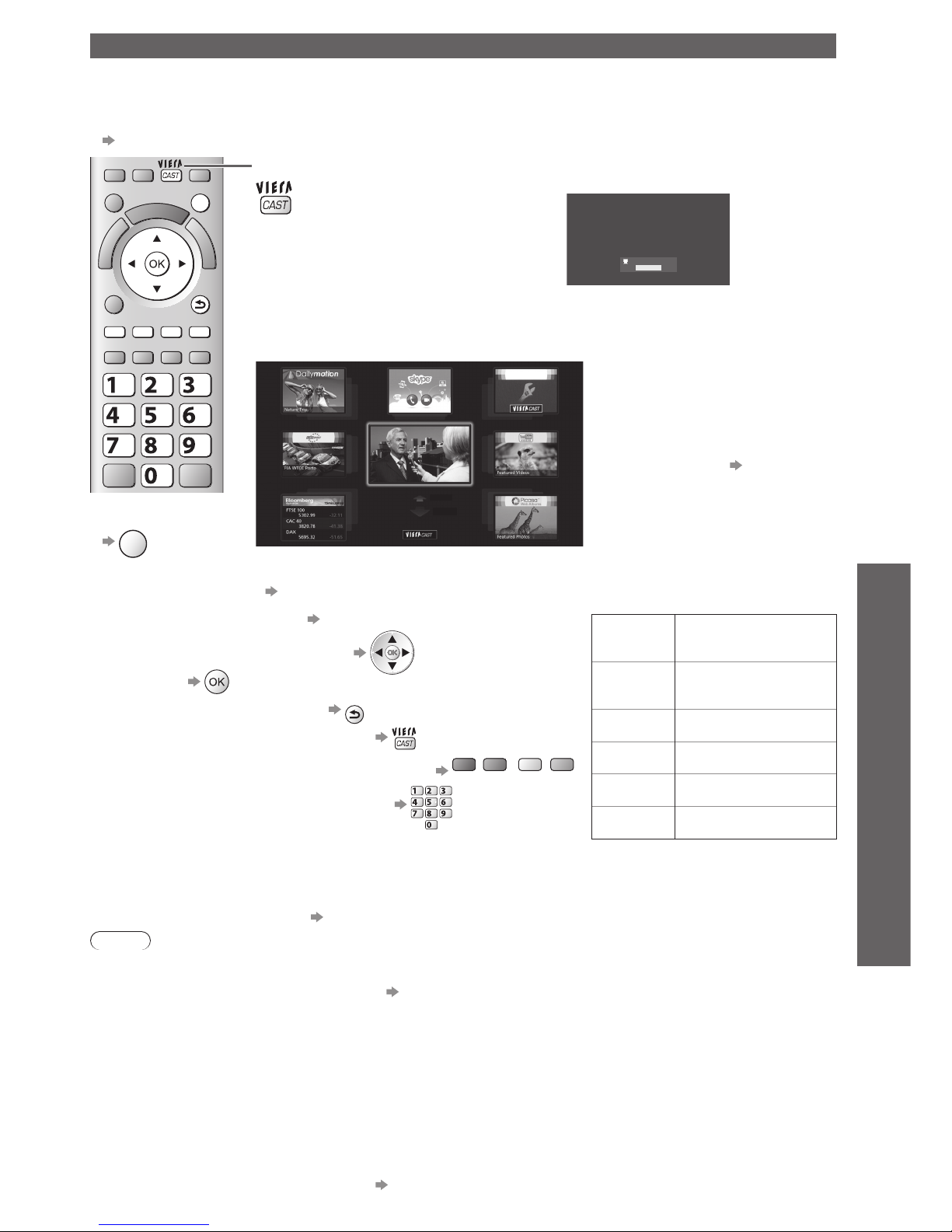

VIERA CAST - Enjoy great web entertainment ■ (p. 85)

Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an

easy-to-use web interface that is built into the TV.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” ■ (p. 86 - 93)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility ■ (p. 30)

Special features (such as VIERA Link, Media Player and DLNA operations) can be accessed easily by using the VIERA

TOOLS button.

Owner ID ■ (p. 57)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to

determine the owner in the case of theft.

Supports Audio Description signal ■ (p. 17 and p. 33)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids

understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of
the main volume.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and
some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are
permanently turned off, it will not be possible to recover them.

To retune your TV ● “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 41)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their
aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some

●

cases, despite good reception of analogue channels.

3

FULL HD ■

This TV uses a high definition panel to produce high definition

pictures close to their original resolution.

HD TV 1080p ■

This TV supports high definition TV signals.

Dolby Digital Plus decoder ■

It is possible to decode Dolby Digital Plus audio track (multi-

channel sound) and output as a Dolby Digital multi-channel
sound signal from the DIGITAL AUDIO OUT terminal.

CONEQ ■ (p. 33)

CONEQ is a technology to transduce the sound from speakers.

You can enjoy sophisticated sound true to the original one.

Neo PDP

Realizes high picture quality and energy efficient panel.

Intelligent Frame Creation

This increases the frame count and removes juddering
movements, for smooth and flicker-less motion
images with high resolution.

INFINITE BLACK PRO

A wide contrast ratio will deliver pictures with a deep,
rich black level and a brighter white level for greater
image depth.

THX Certified Display

Faithfully reproduces the image quality of THX movies
that the filmmakers intended.

24p Smooth Film

This item is displayed instead of “Intelligent Frame
Creation” when 24p signal input, and produces
smoother playback of 24p source movies.

WiFi Ready

Using the Wireless LAN Adaptor (supplied) lets you
connect to the network anywhere in the house over a
wireless network.

digital tick

The digital tick logo indicates that a digital tuner
is built-in.

Freeview HD

Freeview HD is the way to enjoy high definition
digital TV for free.

Contents

Be Sure to Read

Safety Precautions (Warning / Caution) ● ················· 4

Quick Start Guide

Accessories / Options ● ·······························6
Identifying Controls

●

···································8

Basic Connection

●

···································· 10

Auto Setup

●

··············································12

Quick Start

Guide

Enjoy your TV!

Basic Features

Watching TV ● ························································· 16
Using TV Guide ● ···················································· 20
Viewing Teletext

●

···················································· 25

Watching External inputs

●

······································ 28
How to Use VIERA TOOLS ● ·································· 30

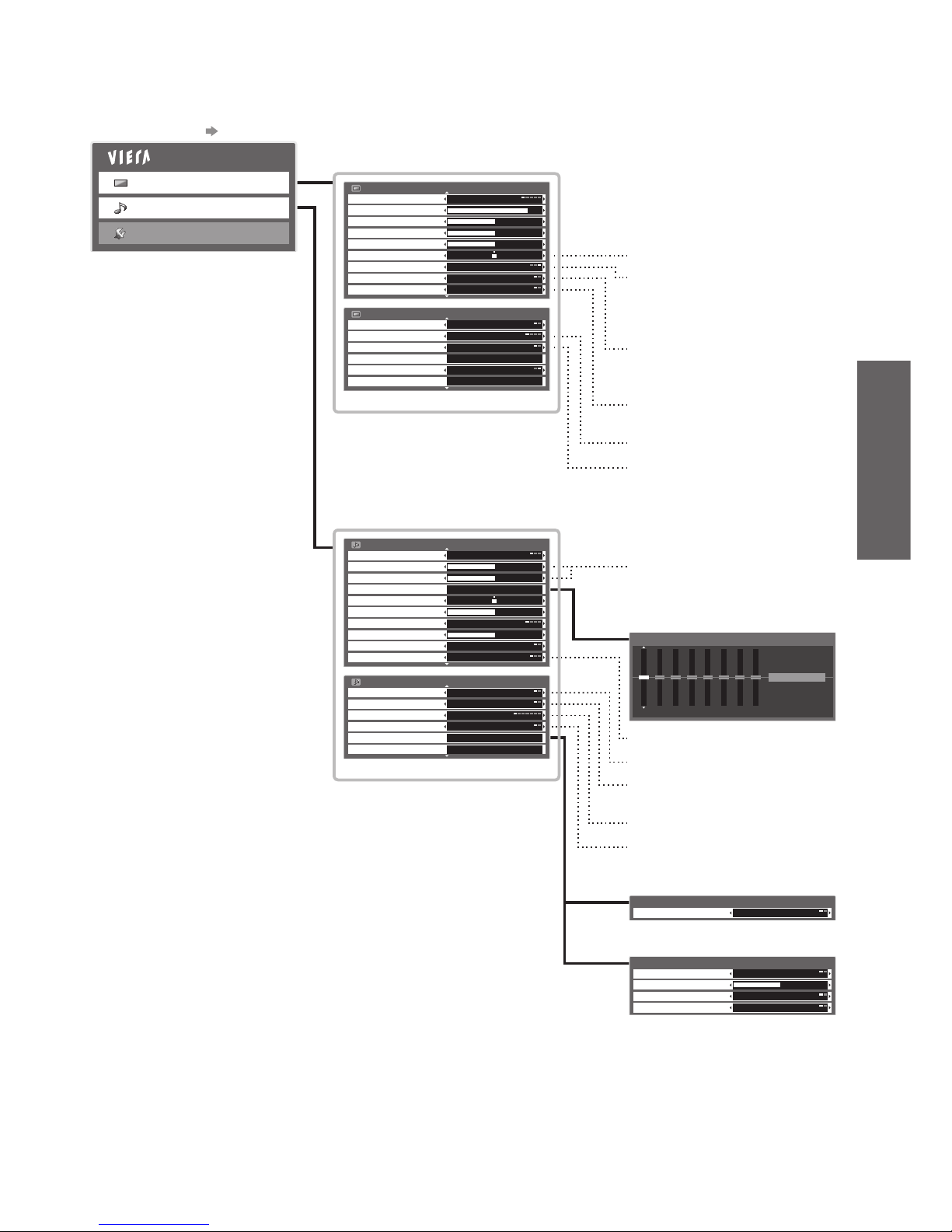

How to Use Menu Functions ● ································ 31

Basic

Advanced Features

Retuning from Setup Menu ● ·································· 40
Tuning and Editing Channels ● ······························· 42
Shipping Condition ● ··············································· 51
Timer Programming ● ·············································· 52
Child Lock ● ····························································· 54
Input Labels ● ·························································· 56
Owner ID ● ······························································ 57
Using Common Interface ● ······································ 58
Updating the TV Software ● ···································· 59
Multi Window

●

························································ 60

Displaying PC Screen on TV

●

································ 61
Advanced Picture Settings ● ··································· 62
USB HDD Recording ● ············································ 64
Using Media Player ● ·············································· 68
Using Network Services ● ······································· 76

(DLNA / VIERA CAST / freesat)
Link Functions ● ····················································· 86

(Q-Link / VIERA Link)
External Equipment ● ·············································· 94

Advanced

FAQs, etc.

Technical Information ● ··········································· 96
FAQs

●

·································································· 101

On screen messages

●

········································· 104
Maintenance ● ······················································· 107
Glossary ● ····························································· 107
Licence ● ······························································· 108
Index ● ··································································· 109
Specifications

●

······················································110

FAQs, etc.

Do not display a still picture for a long time

■

This causes the image to remain on the plasma screen
(“image retention”).
This is not considered a malfunction and is not covered
by the warranty.

Typical still images

Chann ● el number and other logos
Image displayed in 4:3 mode ●
Video game ●
Compu ● ter image

To prevent image retention, contrast is lowered
automatically after a few minutes if no signals are sent
or no operations are performed. (p. 101)

Keep the TV away from these types of ■

equipment

Electronic equipment ●
Do not place video equipment too close to the TV,
electromagnetic interference may distort pictures / sound.
Equipment with an infrared sensor ●
This TV emits infrared rays which may interfere with
the operation of other equipment.

4

Safety Precautions

Warning

Mains plug and lead■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V, ●
50 / 60 Hz.
Insert the mains plug fully into the socket outlet. ●
Ensure that the mains plug is easily accessible. ●
Remove the mains plug when cleaning the TV. ●

Do not touch the mains plug with a wet hand. ●

Do not damage the mains lead. ●

Do not place a heavy •
object on the lead.

Do not place the lead •
near a high temperature
object.

Do not pull on the lead. •
Hold onto the mains plug
body when disconnecting
the plug.
Do not move the TV with the lead plugged into a •
socket outlet.
Do not twist the lead, bend it excessively or •
stretch it.
Do not use a damaged mains plug or socket outlet.•
Ensure the TV does not crush the mains lead.•

If you detect anything unusual, immediately
switch off the mains supply switch and
remove the mains plug.

AC 220-240 V
50 / 60 Hz

Do not use any mains lead other than that provided with this TV. ●
Ensure the earth pin on the mains plug is securely connected to prevent electrical shock. ●

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective •
earthing connection.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is

fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a
rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark

ASA

or the BSI mark on the body of the fuse.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.

Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for
your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING: – THIS TV MUST BE EARTHED.

How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.

5

Warning

Take care■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the TV yourself as live parts are accessible when they are ●
removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed ●
to dripping or splashing water and objects filled with liquid, such as vases, must
not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire ●
never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces.●

Do not insert foreign objects into the TV through the air vents.●
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to ●
perform the setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.●

To prevent the spread of fire, keep candles or other open
flames away from this product at all times

Small object■

This product contains possibly dangerous parts that can be breathed in or swallowed by young
children accidentally.

Keep the dangerous parts out of reach of young children.●
Do not allow children to handle SD Card. As with any small object, the SD Card could be ●
swallowed by young children. Please remove SD Card immediately after use and store out of
reach of young children.

Caution

Ventilation■

Allow sufficient space around the TV in order to help prevent excessive
heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering the ●
ventilation openings with items such as newspapers,
tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents in the ●
bottom of the TV are not blocked and there is sufficient space to enable
adequate ventilation.

Minimum distance

10

10

10 7

(cm)

Moving the TV■

Before moving the TV, disconnect all cables.

The TV is heavy. Move the TV with at least two people. Support as shown to ●
avoid injury by the TV tipping or falling.
Transport only in upright position. Transporting the TV with its display panel ●
facing upward or downward may cause damage to the internal circuitry.

When not in use for a long time■

This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.●

Excessive volume■

Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.

6

Accessories / Options

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended
optional accessories. For additional details, please refer to the manual of the
optional accessories.

Communication Camera □

TY-CC10W●

Caution

This camera can be used on VIERA CAST (p. 85).●
Please also read the manual of the camera.●
Depending on the area, this optional accessory may not be available. ●
For details, consult your local Panasonic dealer.

Wall-hanging bracket □

TY-WK4P1RW●

(View from the side)

Rear of the TV

Holes for wall-hanging
bracket installation

400 mm

Depth of screw:
minimum 15 mm, maximum 30 mm

Diameter: M8

300 mm

Screw for fixing the TV onto the wall-hanging bracket
(not supplied with the TV)

Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of ●
personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely
sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused
by installing without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to ●
prevent the TV from falling off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product ●
damage which will void your warranty.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes ●
in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an ●
extended period of time.

Accessories may not be placed all together. Take care not to throw them away unintentionally.●

Standard accessories Check that you have the accessories and items shown

Remote Control □

N2QAYB000504●

Batteries for the □

Remote Control (2)

R6 ●

p. 8

Clamper □

TMME289 ●

p. 10

Mains Lead □

K2CT3YY00021 ●

p. 10

Wireless LAN Adaptor □

and Extension cable

C5ZZZ0000049 ●
K2KYYYY00064●

p. 13 and p. 77

Operating Instructions □
Product Registration Leaflet □

Ferrite core (2) □

J0KG00000014●

p. 95

Use the Ferrite cores to
comply with the EMC
standard.

Pedestal □

TX-P42V20B:

TBLX0151●
TXFBL01LGUU●

TX-P50V20B:

TBLX0152●
TXFBL01LPUU●

p. 7

Accessories / Options ●

Quick Start

Guide

7

Attaching / removing the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and
cautions below:

Warning

Do not disassemble or modify the pedestal. ●

Caution

Do not use with any other TVs or displays. ●
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest ●
Panasonic dealer immediately.
During setup, make sure that all screws are securely tightened. ●
Ensure that the TV does not suffer any impact during installation of the pedestal. ●
Ensure that children do not climb onto the pedestal. ●
Install or remove the TV from the pedestal with at least two people. ●

Assembly screw (3)

(silver)

XYN5+F18FN●

Assembly screw (4)

(black)

THEL080N●
(TX-P42V20B)
THEL079N●
(TX-P50V20B)

Pole

TBLA3828 ●
(TX-P42V20B)
TBLA3834 ●
(TX-P50V20B)

Base

TBLX0151●
(TX-P42V20B)
TBLX0152●
(TX-P50V20B)

M5 × 18 M5 × 30

Assembling the pedestal■

Use the assembly screws to fasten the pole to
the base securely.

Make sure that the screws are securely tightened.●
Forcing the assembly screws the wrong way will strip ●
the threads.

D

A

Front

Securing the TV■

Use the assembly screws to fasten the pedestal
securely to the TV.

Make sure that the screws are securely tightened.●
Carry out the work on a horizontal and level surface.●

To remove the pedestal

When removing the pedestal from the TV, remove the
assembly screws first, and then, pull out the TV
from the pedestal.

Caution

Do not remove the assembly screws ● before
removing the pedestal from the TV to prevent falling
over.

D

B

(View from the bottom)

Hole for pedestal

installation

Arrow mark

EXIT

OPTION

TEXT

REC

PROGRAMME

STTL

INDEX HOLD

BACK/

RETURN

ASPECT

INPUT

LAST VIEW

TV

G

U

I

D

E

V

I

E

R

A

T

O

O

L

S

V

I

E

R

A

L

i

n

k

DVD/VCR

TV

AVTV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

DIRECT TV REC

MENU

SD CARD

8

Identifying Controls

Installing / removing remote’s batteries■

1

Pull
open

Hook

2

Note the correct
polarity (+ or -)

Close

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.●
Do not mix old and new batteries.●
Do not mix different battery types (such as alkaline and manganese batteries).●
Do not use rechargeable (Ni-Cd) batteries.●
Do not burn or break up batteries.●
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
Do not disassemble or modify the remote control.●

Remote Control

Cursor buttons

Makes selections and adjustments●

Standby On / Off switch

Switches TV On or Off standby●

Sound Mute

Switches sound mute On or Off●

Aspect (p. 18)

Channel Up / Down

Selects channel in sequence●

Connected equipment operations

(p. 29, 66 and p. 92)

Teletext (p. 25)

Switches to teletext mode / interactive

●

services

OK

Confirms selections and choices●
Press after entering channel position by ●
using numeric buttons to change a channel
quickly

Volume Up / Down

Channel / Programme Information (p. 17)

Displays channel and programme

●

information

Index (p. 27)

Returns to the teletext index page ●
(teletext mode)

Coloured buttons
(red-green-yellow-blue)

Used for the selection, navigation and ●
operation of various functions

Exit

Returns to the normal viewing screen●

Numeric buttons

Changes channel and teletext pages●
Sets characters●
When in Standby mode, switches TV On ●
(Press for about 1 second)

VIERA Link Menu (p. 90)

Accesses VIERA Link Menu

●

TV Guide (p. 20)

Displays TV Guide

●

Option Menu (p. 19)

Easy optional setting for viewing, sound, etc.

●

Main Menu (p. 31)

Press to access the Picture, Sound and

●

Setup Menus

Subtitles (p. 18)

Displays subtitles

●

Input mode selection

TV - switches freesat / DVB / Analogue / ●

Other Sat. mode (p. 16)

AV - switches to AV input mode from Input

●

Selection list (p. 28)

Media Player (p. 68)

Switches to SD Card and USB device

●

viewing / listening mode

Return

Returns to the previous menu / page●

Hold

Freeze / unfreeze picture (p. 17)●
Holds the current teletext page (teletext ●
mode) (p. 26)

VIERA CAST (p. 85)

Displays VIERA CAST home screen

●

Direct TV Recording (p. 88 and p. 90)

Records programme immediately in

●

DVD Recorder / VCR with Q-Link or
VIERA Link connection

Last view (p. 19)

Switches to previously viewed channel or

●

input mode

VIERA TOOLS (p. 30)

Easily accesses special features such

●

as VIERA Link, Media Player and DLNA
operations

Identifying Controls ●

Quick Start

Guide

Common Interface

HDMI 4

AV 3

V

L

R

F

2

1

TV

AV

9

Auto power standby function ■

The TV will automatically go to Standby mode in the following conditions: ●

no signal is received and no operation is performed for 30 minutes in Analogue TV mode•
“Off Timer” is active in the Setup Menu (p. 19)•
no operation is performed for the period selected in “Auto Standby” (p. 36)•

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch ●
Recording.

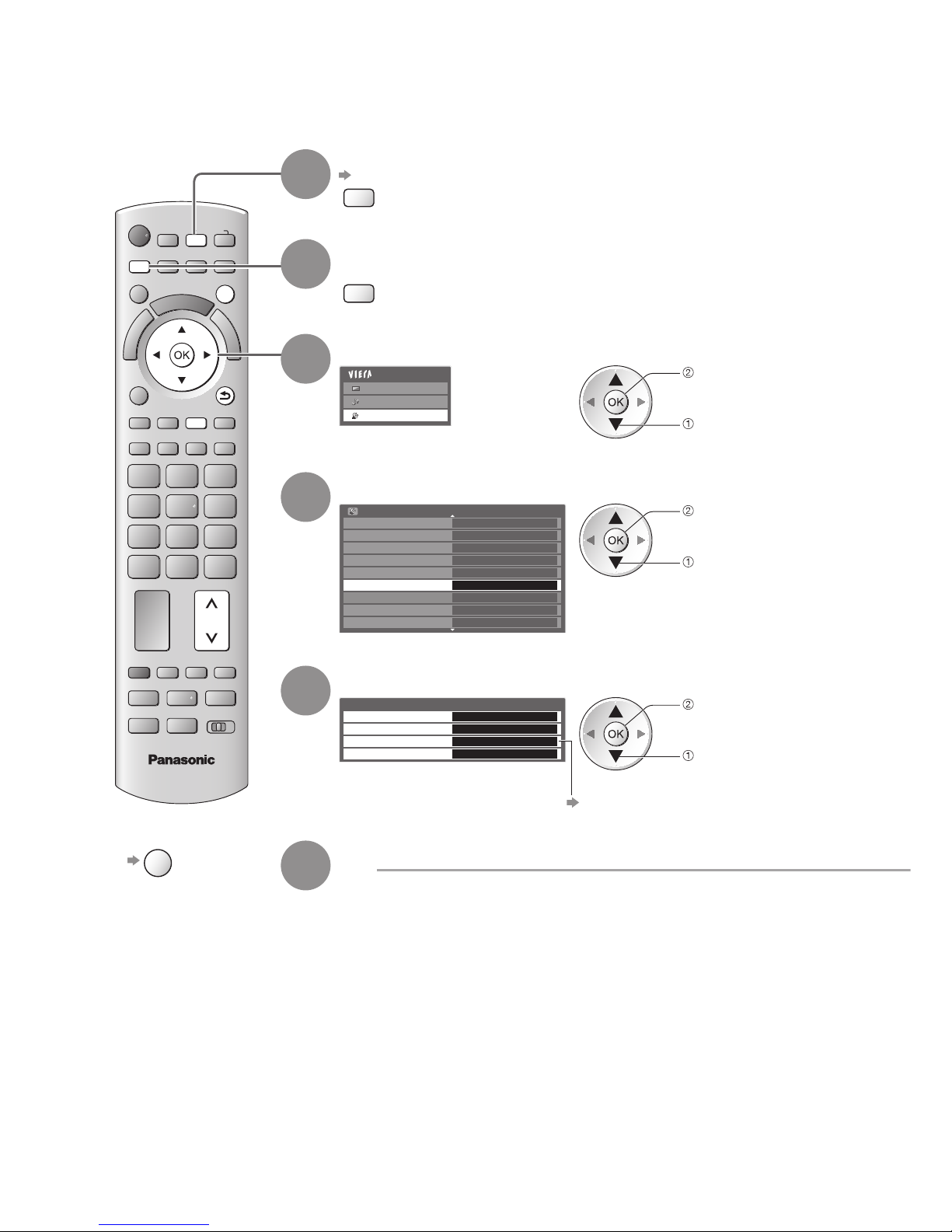

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

How to use remote control

■

MENU

Open the main menu

EXIT

Exit the menu system and return to the
normal viewing screen

Move the cursor / select the menu item

Move the cursor / adjust levels / select from
a range of options

Access the menu / store settings after
adjustments have been made or options
have been set

BACK/

RETURN

Return to the previous menu

ON SCREEN HELP Instructions box - Operation guide■

Example (Owner ID):

EXIT

RETURN

PIN entry

0 9

Please enter new PIN
PIN

Owner ID

* * * *

Operation guide will help you.

TV

SD Card slot (p. 68)

CI slot (p. 58)

HDMI4 terminal (p. 95)

AV3 terminals (p. 95)

Headphones jack (p. 95)

Remote control signal receiver

Do not place any objects between the TV remote control signal ●
receiver and remote control.

Function select

Volume / Contrast / Brightness / Colour / Sharpness / ●
Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the
Sound Menu) / Treble (“Music” or “Speech” mode in the
Sound Menu) / Balance / Auto Setup (p. 40 and p. 41)

USB 1 / 2 ports (p. 13, 64, 68 and p. 77)

Power and Timer LED

Red● : Standby
Green: On
Orange: Timer Programming On
Orange (flash)

: Recording of Timer Programming,

Direct TV Recording or
One Touch Recording
is in progress

Red with
orange flash: Standby with Timer Programming

On, Direct TV Recording or
One Touch Recording

The LED blinks when the TV receives a command

●

from the remote control.

Changes the input mode

C.A.T.S. (Contrast Automatic Tracking System) sensor

Senses brightness to adjust picture quality when “C.A.T.S.” ●
in the Picture Menu is set to “On” (p. 32)

Mains power On / Off switch

Use to switch mains power On / Off. ●
If the TV was switched off whilst in Standby
mode, using the Mains Power On / Off
switch, then it will be in Standby mode when
switched back on using the same switch.

For changing TV channel up or down.
When a function is selected by the F button, press to increase or
decrease the setting of the selected function.
When in Standby mode, press either button for about 1 second to
switch the TV On.

Adjusting the panel to your desired angle

Do not place any objects within the full rotation range.●

(View from the top)

: 15°

(TX-P42V20B)

: 10°

(TX-P50V20B)

AV1 AV2

COMPONENT

AUDIO

IN

DIGITAL

AUDIO

OUT

RGB

S VIDEO

VIDEO

RGB
VIDEO

Y

PR

PB

RLR

L

HDMI 2

(ARC)

HDMI

1

HDMI

3

AUDIO

OUT

PC

10

Basic Connection

External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any
leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet
first.

Example 1
Connecting dish or aerial

TV only

Mains lead
(supplied)

RF cable

Terrestrial

aerial

Rear of the TV

AC 220-240 V
50 / 60 Hz

To remove from the TV:●

Push until both side
tabs click

Press both tabs and pull on
mains connector to release

tabs

Make sure that
the mains lead is
securely fixed.

snaps

To loosen:●

Keep pushing

both side snaps

Set the tip

in the hooks

Insert the clamper
in a hole

Attach the clamper

Clamper■

Mains Lead■

Bundle the cables

Do not bundle the Satellite cable, RF cable and

●

mains lead together (could cause distorted image).
Fix cables with clampers as necessary.●
When using the optional accessory, follow the ●
option’s assembly manual to fix cables.

Keep pushing

the knob

knob

hooks

To remove from the TV:

●

hole

The freesat channel uses Astra 2 at 28.2° East, and Eurobird 1 ●
at 28.5° East satellites. To ensure your satellite dish is correctly
installed please consult your freesat registered dealer.

For digital terrestrial ●
and analogue
broadcasts

Satellite

dish

Satellite cable

For freesat or other ●
satellite broadcasts

Aerial input terminal

Basic Connection ●

Quick Start

Guide

AV1 AV2

COMPONENT

AUDIO

IN

DIGITAL

AUDIO

OUT

RGB

S VIDEO

VIDEO

RGB
VIDEO

Y

PR

PB

RLR

L

HDMI 2

(ARC)

HDMI

1

HDMI

3

AUDIO

OUT

PC

AV 2 AV 1

HDMI

TV/AV

Recorder/AV

HDMI

RF OUT

RF IN

RF OUT

RF IN

AV1 AV2

COMPONENT

AUDIO

IN

DIGITAL

AUDIO

OUT

RGB

S VIDEO

VIDEO

RGB
VIDEO

Y

PR

PB

RLR

L

HDMI 2

(ARC)

HDMI

1

HDMI

3

AUDIO

OUT

PC

RF OUT

RF IN

HDMI AV

11

Cable

Mains lead
(supplied)

Terrestrial

aerial

AC 220-240 V
50 / 60 Hz

Rear of the TV

Example 3
Connecting DVD Recorder / VCR
and Cable TV box

TV, DVD Recorder / VCR and Cable

Note

Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 88).●
Connect to the TV’s AV1 for a Cable TV box.●
For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) ●
by using HDMI cable (p. 94).
Network connection ● p. 13 and p. 77
Q-Link connection ● p. 86
VIERA Link connection ● p. 86 and p. 87
Please also read the manual of the equipment being connected.●

DVD Recorder or VCR

Cable TV box

Fully wired

SCART cable

RF cable

RF

cable

RF cable

Aerial input

terminal

Fully wired HDMI

compliant cable

Mains lead
(supplied)

Fully wired
SCART cable

Fully wired HDMI
compliant cable

DVD Recorder or VCR

Terrestrial

aerial

Rear of the TV

RF cable

AC 220-240 V
50 / 60 Hz

RF cable

Example 2
Connecting DVD Recorder / VCR

TV, DVD Recorder or VCR

Aerial input

terminal

EXIT

BACK/

RETURN

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

12

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.●
Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before ●
starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

1

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

If the red LED shows on the TV, press the ●
Standby On / Off switch on the remote
control for at least 1 second to turn the TV
On.

Auto Setup will start to search for TV
channels and store them in the numbered
order as specified by the broadcasters.

(freesat tuning)

freesat Auto Setup

Signal Quality 0 10
Signal Strength 0 10
TV Channels Found 8
Radio Channels Found 2
Data Channels Found 1

Searching

Channels found, creating channel list

If “freesat Auto Setup” cannot be done ●
completely

“FAQs” (p. 101)

(DVB and Analogue tuning)

Auto Setup - DVB and Analogue

Analogue Scan

This will take about 6 minutes.

CH 21 68

DVB Scan CH 21 68

62

CH Channel Name Type Quality

CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
29 Analogue

-

33

Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

Searching

BBC1 Analogue

-

Actual number of channels may differ due ●
to channel duplication.

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

If Q-Link, or similar technology (p. 88),
compatible recorder with analogue tuner
is connected, analogue channel setting is
automatically downloaded to the recorder.
(Digital channel setting is not downloaded.)

If downloading has failed, you can download

●

later through the Setup Menu.

“Q-Link Download” (p. 34)

2

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

O P Q R S T

7 8 9

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

Your postcode is required to receive local ●
services and sort the channel order.
Please ensure to include a space when
entering your postcode.
If you skip this step, the default postcode ●
(central London) will be set.

How to enter the postcode■

Set characters one by one

select

set

You can set characters by using numeric ●
buttons.

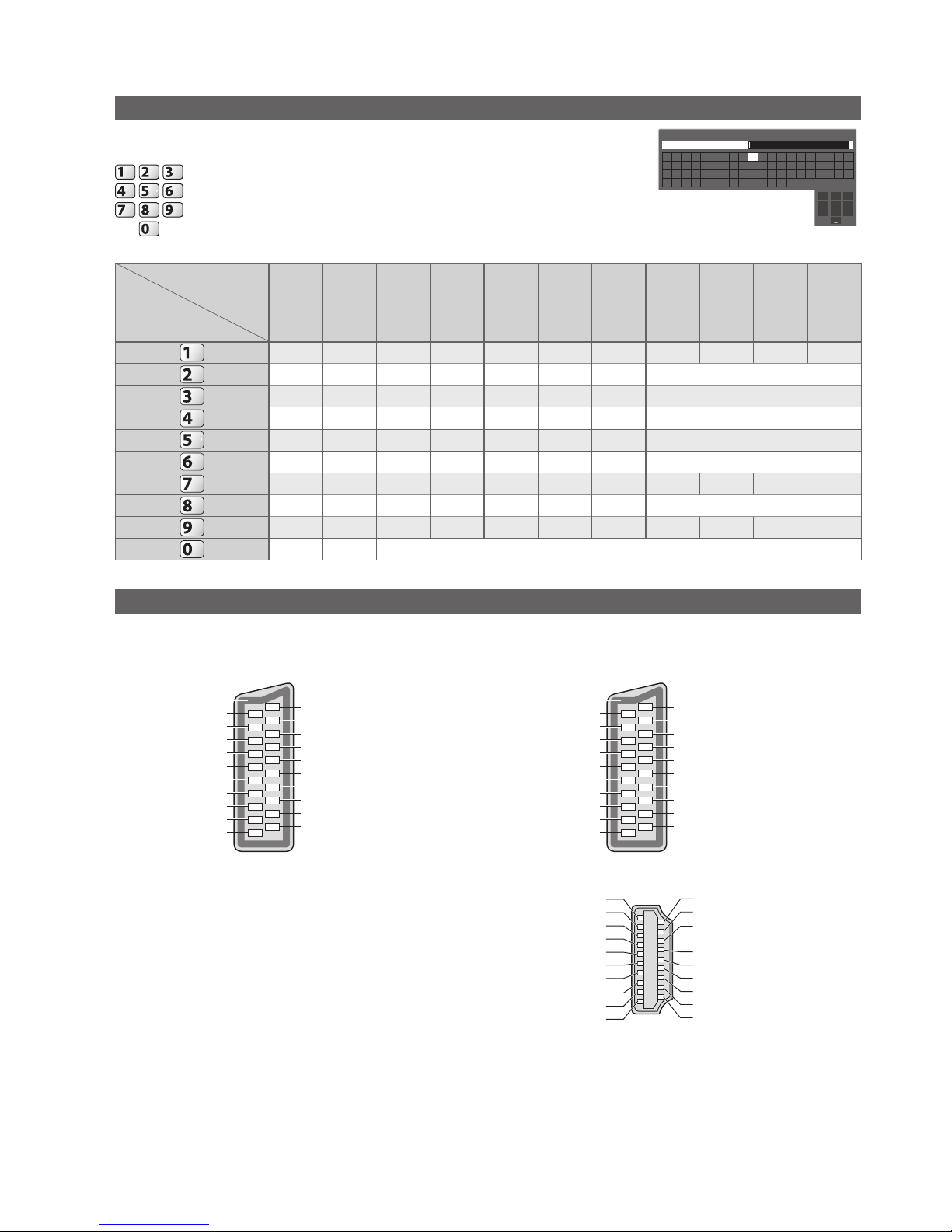

“Characters table for numeric buttons”

(p. 98)

Exit to go to next step

green

(continued to the next page)

Auto Setup ●

Quick Start

Guide

13

(continued to the next page)

3

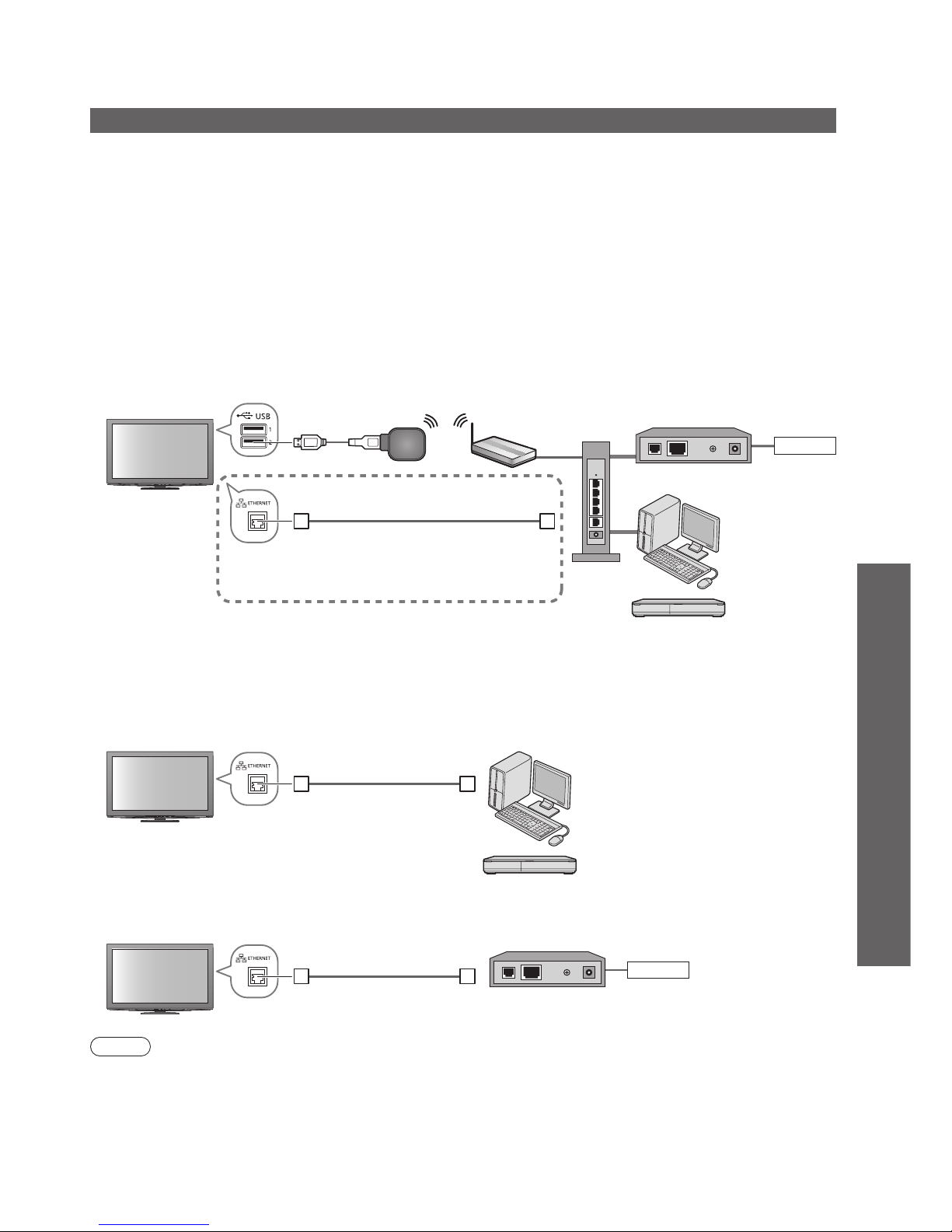

Setup the wireless LAN connection

Setup the wireless LAN connection to enable the network service functions (p. 76).
(If you do not wish to use wireless LAN connection or the network service functions, skip this step.)

To setup the wireless LAN connection, use the Wireless LAN Adaptor (supplied). For the information ●
about the Wireless LAN Adaptor “Wireless LAN Adaptor” (p. 15)
Confirm the encryption key, settings and positions of your access point before starting setup. For details, ●
read the manual of the access point.
Please note that this TV does not support wireless public access points.●
To use a LAN cable instead of the Wireless LAN Adaptor ● p. 79

Start wireless LAN connection setup?

Please connect the wireless LAN adaptor (DY-WL10) to a
USB terminal.

Yes No

connect the Wireless LAN Adaptor to the USB 1 or 2 port

Wireless LAN Adaptor
(optional accessory)

Access point

Internet

environment

access

select “Yes”

You can setup the wireless LAN connection later

“Network Setup” (p. 80)
To skip this step ●

EXIT

or select “No”

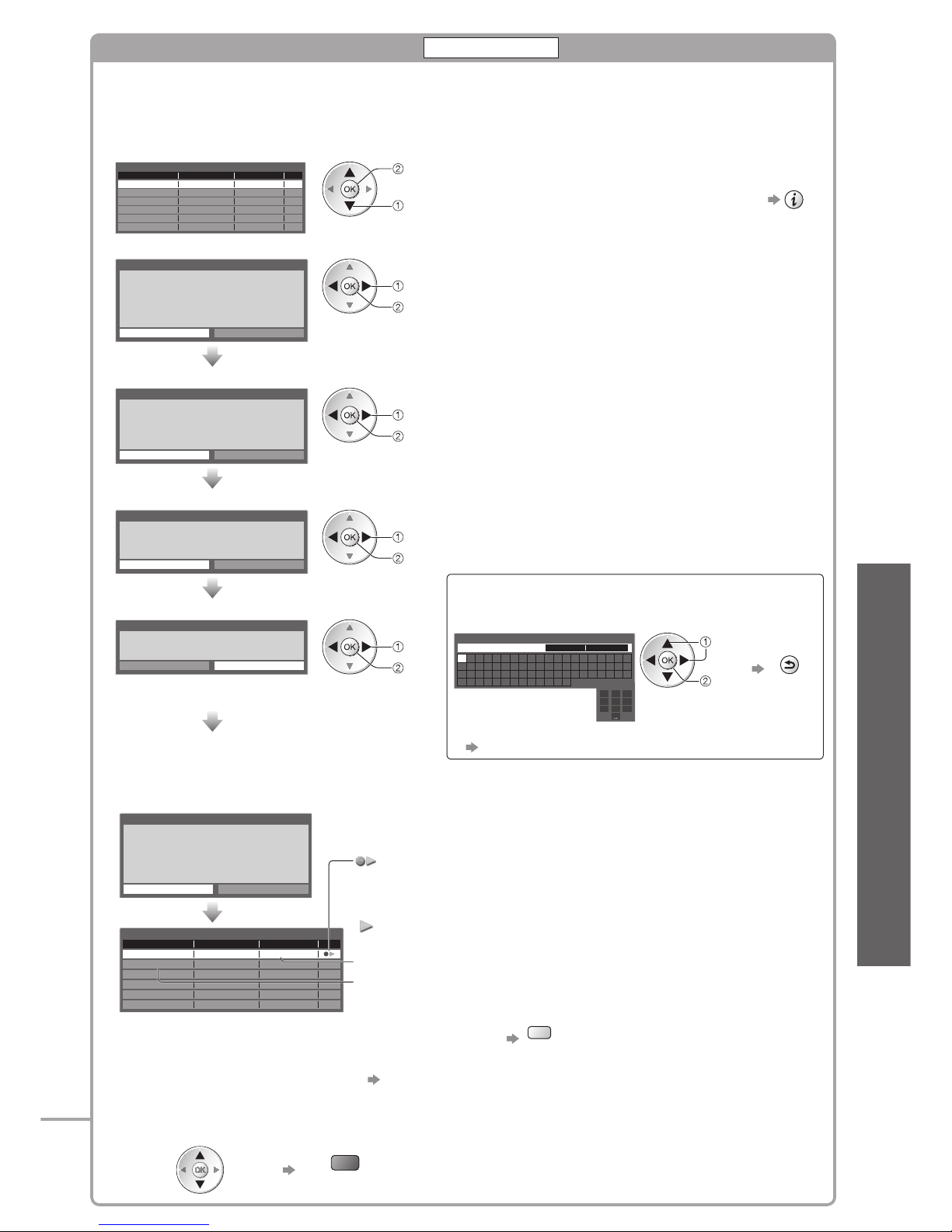

Wireless LAN connection setup starts

Connection Type

Please select network connection type.

WPS(Push button)

Search for access point

Select the connection type

select

access

If your access point supports WPS ●
(Push button), then select this option.
If not, select “Search for access point”.

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ button on the access
point until its light flashes.

2) When the light is flashing select ‘Connect’ on
TV.

If you are unsure, please check the instruction
manual of the access point.

Connect

Press the WPS button on the access point until the light flashes.
And then, press the OK button to connect the Wireless LAN Adaptor and
the access point.

Ensure that your access point supports WPS for this setup.●
WPS: Wi-Fi Protected Setup●

Search for access point■

Access points found automatically are listed.

Available Access Points

Access Point A 11n(2.4GHz)

11n(5GHz)

SSIDNo. Wireless type Encrypt Reception

Access Point B

Access Point C 11n(5GHz)

1

2

3

Select your desired access point

select

access

: Encrypted access point

To search access points again ●

yellow

For the information of the ●
highlighted access point

To set manually (p. 81) ●

red

Encryption Key Setting

Connection will be made with the following settings:­SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP

Please input the encryption key.

Encryption key

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will ●
be displayed. It is recommended to select the encrypted access point.

Access Point Settings

Encryption key

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

Enter the encryption key of the access point
Set characters one by one Store

select

set

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

Access Point Settings

Encryption key is set to:­XXXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Yes No

Select “Yes”

select
set

To re-enter the encryption key, select “No”.●

If the connection has failed, check the encryption key, settings and positions of your access point. And ●
then, follow the on screen instructions.
If connection to the access point is successful, we recommend you perform the “Connection Test” to ●
confirm connection to the internet has been made. The “Connection Test” can be found in the Network
Setup menu (p. 80).

Exit to go to the next step

14

Auto Setup

4

Input Owner ID

Owner ID

Please enter new PIN

PIN * * * *

Please enter your own choice of PIN number, name, etc. to help the police
to crack crime.

Make a note of the PIN number in case you forget it. The PIN number ●
cannot be reset.
You can input or change the Owner ID later. ● “Owner ID” (p. 57)

To skip this step ●

EXIT

This step will be skipped in the Auto Setup after “Shipping Condition” ●
(p. 51) is performed.

How to input Owner ID■

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first ●
setting.

Enter your name, house number, and postcode, in that order

Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

PIN



HOUSE NO
POSTCODE

NAME

access

select

Set characters one by one

User input

NAME

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

select

set

You can set characters by using numeric ●
buttons.

“Characters table for numeric buttons”

(p. 98)

Return to select other items

BACK/

RETURN

Select the next item and repeat the ●
operations.

Exit to go to next step

EXIT

(continued to the next page)

Auto Setup ●

Quick Start

Guide

15

5

Select “Home”

Select “Home” viewing environment (highlight “Home” in yellow) to use in your home
environment.

Please select your viewing environment.

Home Shop

set

select

“Shop” viewing environment ■
(for shop display only)

“Shop” viewing environment is the demonstration
mode to explain main features of this TV.

Select “Home” viewing environment to use in
your home environment.

You can return to viewing environment selection ●
screen at the stage of Shop confirmation screen
and Automatic Demo Off / On selection screen.

Return to viewing environment selection

screen

Shop

You have selected shop mode

BACK/

RETURN

Automatic Demo

Off On

Select “Home”

Please select your viewing environment.

Home Shop

select
set

Auto Setup is complete

To change viewing environment later on, you ●
will need to initialise all settings by accessing
Shipping Condition.

“Shipping Condition” (p. 51)

Auto Setup is now complete and
your TV is ready for viewing.

To check channel list at-a-glance ●

“Using TV Guide” (p. 20)

To edit or hide (skip) channels ●

“Tuning and Editing Channels” (p. 42 - 47)

If tuning has failed, check the connection of the

●

Satellite cable, RF cable, and then, follow the on
screen instructions.

Note

If tuning has failed or to retune all channels ● “Auto Setup” (p. 40 and p. 41)
If you wish to tune in other satellite channels

● “Auto Setup” in “Other Sat. Tuning Menu” (p. 49)

To re-initialise all settings ● “Shipping Condition” (p. 51)
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On

●

with Mains power On / Off switch.

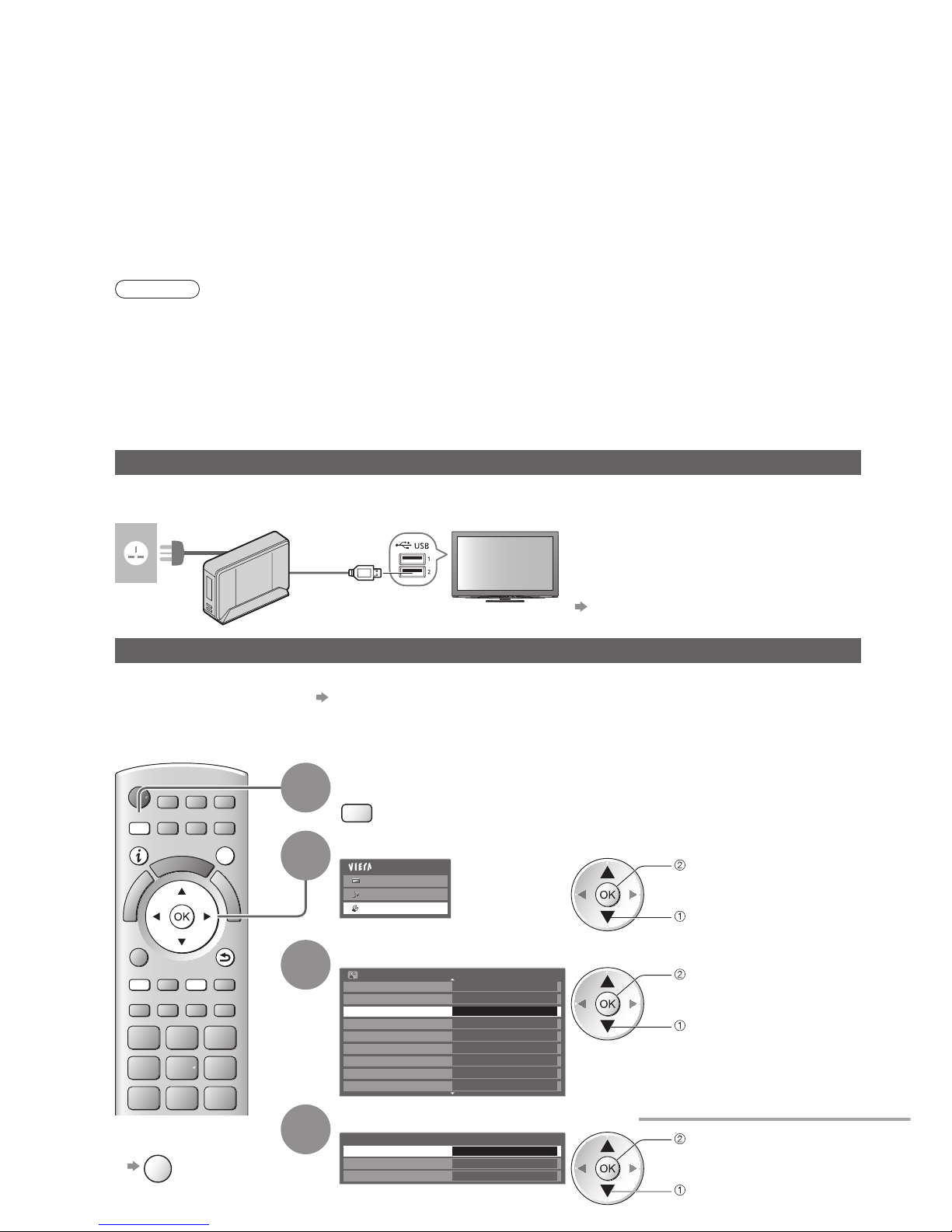

Wireless LAN Adaptor■

Caution

Be aware of the following limits before using the Wireless LAN Adaptor (DY-WL10).

To use the Wireless LAN Adaptor, an access point needs to be obtained.●
It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.●
Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID●

∗

) for which you do not have
usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as
illegal access.

∗

SSID is a name for identifying a particular wireless network for transmission.

Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture.●
Do not bend, or subject the Wireless LAN Adaptor to strong impacts.●
Do not disassemble or alter the Wireless LAN Adaptor in any way.●
Do not attempt to install the Wireless LAN Adaptor in any incompatible device.●
Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations.●
Data transmitted and received over radio waves may be intercepted and monitored.●
To avoid malfunctions caused by radio wave interface, keep the TV away from the devices such as other ●
wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the
Wireless LAN Adaptor.
When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the ●
devices. In this case, turn the TV Off with Mains power On / Off switch, then turn it On again.
Additional information for Wireless LAN Adaptor and access point may be on the following web site. ●
(English only)
http://panasonic.jp/support/global/cs/tv/

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the
setup.

To setup the Wireless LAN connection ● p. 80 and p. 81

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to
set it up?
No - Exit

Current network type : Wireless

Yes No

EXIT

OPTION

STTL

HOLD

ASPECT

INPUT

LAST VIEW

TV

G

U

I

D

E

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

16

Watching TV

1

Turn power on

(Press for about 1 second)

Mains power On / Off switch should be On. (p. 9)●

2

Select the mode (freesat, DVB, Analogue or
Other Sat.)

TV Selection

freesat

DVB

Analogue

Other Sat.

Displayed if Other Satellite
channels are tuned (p. 49)

watch

select

TV

Also possible by pressing the TV button repeatedly on the remote control or ●
side panel of the TV. (p. 9)

103 ITV Wales

19:35

Coronation Street

Now

For info press

freesat Channel List

19:30 - 20:00

Information banner appears whenever you select a
channel

For details ● p. 17

3

Select a channel

up

down

or

abc def

jkl

ghi

mno

tuvpqrs

wxyz

freesat channel position numbers run in the
ranges 100 - 999 and 0100 - 0999.

To select a three-digit channel position ●
number, e.g. 133

def

def

To select a four-digit channel position ●
number, e.g. 0246

abc

ghi

mno

DVB and Other Sat. channel position
numbers run from 1 onwards.
Analogue channel position numbers run in
the ranges 0 - 99.

To select a two or three-digit channel

●

position number, e.g. 39

def

wxyz

Note

To watch pay-TV ●

“Using Common Interface”

(p. 58)

Select a channel using Information banner ■ (p. 17)

It is possible to confirm the channel name and programme information by using the Information banner before changing
channels.

Display Information banner if it is
not displayed

While the banner is displayed,
select the channel

select channel

watch

Possible to set display timeout in ●
“Banner Display Timeout” (p. 35).

Select a channel using TV Guide ■ (p. 20)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

Display
TV Guide

Select a current
programme or channel

Select “View”
(DVB mode)

G

U

I

D

E

select

access

View

Eastender
19:30- 20:00

Timer Programming

To use Timer Programming ● p. 22

select

watch

Volume

Watching TV ●

Basic

17

Hold

Freeze / unfreeze picture

HOLD

Display Information banner

19:30 - 20:00

103 ITV Wales

19:35

Radio

Coronation Street Also in

Mute Encrypted

Now

For info press

freesat Channel List

STTLAD TEXT Multi Audio 45

Channel type

(

if it is HDTV, Radio
or Data channel

)

Same programme available as HD broadcast

For details, display the extra information ●

Channel position
and name

Programme

Example (freesat):

Programme Start /
Finish time

Features available / Message meanings

TV mode

All DVB Channels

Select favourites

19:30 - 20:00

19:35

Radio

Coronation Street

Mute Encrypted

Now

For info press

STTLAD TEXT Multi Audio 45

Also in

103 ITV Wales

D

Example (DVB):

S

19:30 - 20:00

103 ITV Wales

19:35

Radio

Coronation Street

Mute Encrypted

Now

For info press

STTL TEXT Multi Audio 45

Select favourites

All Other Sat. Channels

Example (Other Sat.):

“All DVB Channels” or “Favourites1-4” (p. 45)

To switch ●

blue

“All Other Sat. Channels” or “Favourites1-4” (p. 50)

To switch ●

blue

Mute

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

AD

Audio Description service available

This function can aid visually-impaired viewers by ●
adding an additional audio track to describe events
on-screen.
For settings ● p. 33

STTL

Subtitle service available

TEXT

Teletext service available

Multi Audio

Multiple audio available

Stereo, Mono, NICAM

Audio mode

1 - 90

Off Timer remaining time

For settings ● p. 19

Encrypted

SubtitlesAD

Radio

For info press

19:35

itv1

All Analogue Channels

CH23

NICAMTEXT 45

Mute

3 ITV

A

Example (Analogue):

Channel number

Current time

Display Information banner

Also appears when changing a channel●

Progress time indicator of the selected programme

To confirm another tuned ●
channel name

To watch the channel listed in the banner ●

To hide ●

EXIT

To set display timeout ●

“Banner Display Timeout” (p. 35)

Information on the next programme ●

(freesat, DVB, Other sat.)

Extra information ● (press again to hide the banner)
(freesat, DVB, Other sat.)

“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as

●

available on particular programmes, but may not be available for all
individual programmes being broadcast.
Display the extra information to confirm availability of these functions.

AD

[AD]

19:35

Coronation Street

Now

Exit info

freesat Channel List

103 ITV Wales

19:30 - 20:00

Example:

Other useful functions

■

18

Watching TV

Display subtitles

freesat, DVB or Other Sat. mode■

Display / hide subtitles (if available)

To change the language for DVB (if available)●

“Preferred Subtitles” (p. 35)

STTL

Analogue mode■

Display subtitles

To hide subtitles ●

EXIT

STTL

Note

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 27)●
You cannot change the channel when this function is active.●

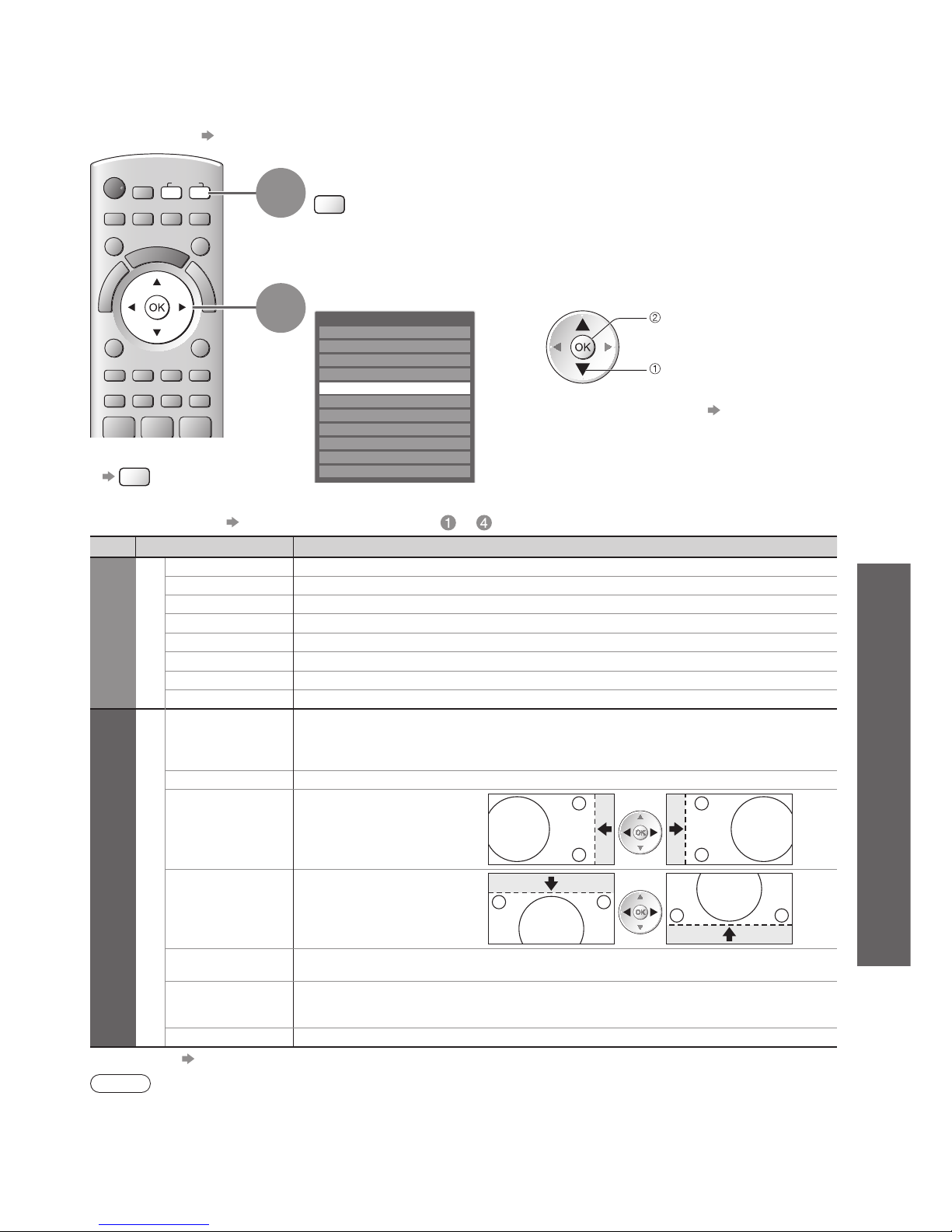

Aspect

Change the aspect ratio (image size)

ASPECT

Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the
aspect ratio automatically according to the Aspect Control Signal (p. 96).

If you would like to change the aspect ratio manually■

Display Aspect Selection list While the list is displayed, select the mode

ASPECT

Select

Change

EXIT

RETURN

Aspect Selection

Auto

16:9
14:9
4:3
Zoom1
Zoom2
Zoom3

Aspect Selection list

store

select

To change the mode using the ASPECT button only ●

ASPECT

(Press repeatedly until you reach the desired mode)

Auto

The best ratio is chosen and the image expanded to fill the screen.
For details

p. 96

16:9 Zoom1

Directly displays the image at 16:9
without distortion (anamorphic).

Displays a 16:9 letterbox or 4:3 image
without distortion.

14:9 Zoom2

Displays the image at the standard 14:9
without distortion.

Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.

4:3 Zoom3

Displays the image at the standard 4:3
without distortion.

Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At 16:9, displays the image at its maximum
(with slight enlargement).

Note

Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.●
Only “16:9” and “4:3” are available in PC input mode.●
Not available in teletext service.●
Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.●

Other useful functions

■

Watching TV ●

Basic

19

Other useful functions

■

Display the selectable settings for the current status

Check or change the current
status instantly

OPTION

To change ●

change
select

Multi Audio / AD (freesat mode)
Allows you to select between alternative language
or Audio Description for sound tracks (if available)

Set Audio Description “Auto” in the Sound Menu ●
(p. 33) to select the audio description sound track.
In freesat mode, Audio Description cannot be
controlled separately from the audio description
sound track.
This setting is not memorized and it will return to the ●
default setting once you exit the current programme.

Multi Audio (DVB or Other Sat. mode)
Allows you to select between alternative language
for sound tracks (if available)

This setting is not memorized and it will return to the ●
default setting once you exit the current programme.

Monaural Audio (DVB mode)
Allows you to select stereo / monaural (if available)

This setting is not memorized and it will return to the ●
default setting once you exit the current programme.

Subtitle Language
(freesat, DVB or Other Sat. mode)
Allows you to select the language in which subtitles
should appear (if available)

This setting is not memorized and it will return to the ●
default setting once you exit the current programme.

NICAM (Analogue mode)
Switches NICAM sound (if available)

Sound Menu (p. 33)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode)
Set to “Auto” if the programme has Audio Description
service, then you will hear an additional audio track to
describe events on screen

To adjust the volume for Audio Description ●

“Audio Description Menu” (p. 33)

Safely remove USB

Takes this operation to remove the connected USB
device safely from the TV

Last view

Switch to previously viewed
channel or input mode easily

LAST VIEW

Press again to return to the present view.●

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or ●
One Touch Recording is in progress.
Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.●

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Display the menu Select “Setup” Select “Off Timer” and set the time

MENU

Main Menu


Sound

Setup

access

select

Setup Menu

1/2

Off Timer Off

Link Settings
Child Lock
freesat Tuning Menu
Other Sat. Tuning Menu
Display Settings
Network Setup

USB HDD Setup

Timer Programming

set
select

To cancel ● Set to “Off” or turn the TV off.
To display the remaining time● Information banner (p. 17)

Note

When the remaining time is within 3 minutes, the remaining time will flash on the screen.●

EXIT

BACK/

RETURN

INPUT

G

U

I

D

E

TV

20

Using TV Guide

TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently
broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time ●
before the TV Guide is completely shown.

freesat mode

1

Select freesat

p. 16

TV

2

Display the Channel
Genre selection list

G

U

I

D

E

3

Select the genre and view TV Guide

Channel Genre Selection

All Channels

Children

Entertainment
News & Sport

Movies

Lifestyle

Music

Special Interest

Favourites

Radio

Shopping

Gaming & Dating

Interactive

Regional

Example:

select

view

View / Timer Prog.

Select channel

Select programme
RETURN

Page up

Page down

Wed 28 Oct

1 BBC ONE Also in
20:00 - 20:30 DIY SOS : We open in the Battersbys

-24 hours +24 hours Search Channel Genre

EXIT

BBC ONE

Eastender DIY SOS The Bill Red Cap

19:30 20:00 20:30 21:3021:00

BBC 2W Hot Wars Holiday Program

BBC NEWS Emmerdal. Coronation Street The Bill

BBCi 10 O’ clock News BBC Pepsi Char. Good bye

BBC THRE Panorama Spring watch Coast

BBC FOUR I’m A Celebrity Pop Idol News

Cinema

Drama

Shop

BBC Radio

101
102

103

104

105

106

107

D
D

D

D

D

D

D Rugby 15 To 1 The Bill Sports

Info

RETURN

GUIDE

Search All Channels

TV Guide Wed 28 Oct 2009 10:46

Time:

Programme

Some programmes may also be broadcast in HD

You can select HD or SD broadcast before viewing or setting Timer Programming.●

Current date and time

TV Guide time

Channel position

and name

TV Guide date

Example:

There might be some ●
programmes displayed as
greyed-out in TV Guide.
These are the Off-Air
programmes (non-running
programmes).

To return to TV ■

EXIT

or

G

U

I

D

E

To watch the programme■

Select a current
programme or channel

Select “View” If a programme exists in both HD and SD ●

broadcasts, the “View Options” screen will
be displayed to select HD or SD broadcast.

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

View Options

DIY SOS

select

watch

select

access

View

Eastender
19:30- 20:00

Timer Programming

To use Timer Programming ● p. 22

select

watch

To view a channel list ■
of the selected genre

blue

Favourites

All Channels

Entertainment

News & Sport

.
.
.

Channel Genre

All Channels

To list favourite channels ● p. 43

(Channel Genre list)

To the previous day ■

red

select genre

view

To search ■
programme types
and view a channel
list of the searched
programmes

yellow

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

.
.
.

Search

(Search list)

To the next day ■

green

select type

view

To search ■
programme titles
and view a list
of the searched
programmes

yellow

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

.
.
.
.

Search

(Search list)

Set characters one by one
(maximum: 19 characters)

Search

select

“Search
Titles...”

access

select

set

green

You can set characters by using numeric
buttons.

“Characters table for numeric buttons” (p. 98)

All the programme titles including the word you set will be listed.●
Searching without any characters will list all programmes including current programmes. ●

Using TV Guide ●

Basic

EXIT

OPTION

BACK/

RETURN

INPUT

G

U

I

D

E

TV

21

DVB or Analogue mode

This TV supports the GUIDE Plus+ system.●
The Gemstar branding partner will supply the rating informations in the programme information and the ●
recommended group in the Search list.
DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” ●
means Analogue channel. There will be no programme listings for Analogue channels.

1

Select DVB or Analogue

p. 16

TV

2

View TV Guide

G

U

I

D

E

Wed 28 Oct 2009
10:46

Search All Channels

Page up

Page down

Wed 28 Oct

1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys

-24 hours +24 hours Search Category

Eastender

19:30

Time: 20:00 20:30 21:00

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

10 O’ clock News BBC Pepsi Char. Good bye

Panorama Spring watch Coast

I’m A Celebrity Pop Idol News

D
D

D

D

D

D

D Rugby 15 To 1 Sports

TV Guide

DIY SOS Holiday News

Timer Programming

Select channel

Select programme
RETURN

EXIT

Info

RETURN

Select Advert

GUIDE

OPTION

1
7

14

70

72

105

719

BBC ONE
BBC THREE

E4

BBC FOUR

BBC 2W

BBCi

BBC Radi

Also in

Current date and time

Programme

TV Guide time

D: DVB
A: Analogue

Channel position and name

Some programmes may
also be broadcast in HD

You can select HD or ●
SD broadcast before
viewing or setting
Timer Programming.

Advertisement

TV Guide date

Example:

Logo of the
Gemstar branding partner

To return to TV ■

EXIT

or

G

U

I

D

E

To watch the programme■

Select a current
programme or channel

Select “View”
(DVB mode)

If a programme exists in both HD and SD ●
broadcasts, the “View Options” screen will
be displayed to select HD or SD broadcast.
(DVB mode)

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

View Options

DIY SOS

select

watch

select

access

View

Eastender
19:30- 20:00

Timer Programming

To use Timer Programming ● p. 22

select

watch

To view a ■
channel list of the
selected category

blue

All Channels

Free DVB Channels

All DVB Channels

All Analogue Channels

Favourites1

Favourites2

Favourites3

Favourites4

Category

All Channels

TV/Data DVB Channels

To list favourite channels ● p. 45

Only Analogue
channels are listed

(Category list)

To the previous day ■

(DVB mode)

red

select

category

view

To search programme

■

types and view a
channel list of the
searched programmes

(DVB mode)

yellow

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

.
.
.

Search

(Search list)

To the next day ■

(DVB mode)

green

select type

view

To search ■
programme titles
and view a list
of the searched
programmes

(DVB mode)

yellow

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

.
.
.
.

Search

(Search list)

Set characters one by one
(maximum: 19 characters)

Search

select

“Search
Titles...”

access

select

set

green

You can set characters by using numeric
buttons.

“Characters table for numeric buttons” (p. 98)

All the programme titles including the word you set will be listed.

●

Searching without any characters will list all programmes including current programmes. ●

22

Other useful functions

■

Timer Programming (freesat or DVB mode)

Timer Programming can remind you to watch a programme or record one on an external recorder or
a USB HDD.

Select the
forthcoming
programme

select

set

Select the function
(Ext Rec., USB HDD Rec. or Reminder)

LED

LED will turn to orange if
Timer Programming is set.
(Orange LED will flash if the recording
of Timer Programming is in progress.)

Guide

Guide

Timer Programming Wed 28 Oct 2009 10:46

1D BBC ONE

DIY SOS

Wed 28 Oct 20:00 20:30

Date Start End

--- --/-- --:-- --:--

--/-- --:-- --:--

--- --/-- --:-- --:--

--- --/-- --:-- --:--

--/-- --:-- --:--

(30 min.)

(--- min.)

(--- min.)

(--- min.)

(--- min.)

---

Ext Rec.

---

---

---

---

Channel NameFunction No.

(Timer Programming screen)

select

store

Ext Rec. /
USB HDD Rec.

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.)
When the start time comes, the channel will be switched automatically
and the video and audio signals will be output. 2 mins. before the starting
time, a reminder message appears if you are watching TV.

Reminder : to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before
the start time. Press the OK button to switch to the programmed channel.

To check / change / cancel a timer programming event■ “Timer Programming” (p. 53)

To return to TV Guide ■

BACK/

RETURN

If you select a current programme■

A confirmation screen asking whether you wish to watch or record the programme will appear.
Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to record from the time you finish
programming the timer event setting.

View

Eastender
19:30- 20:00

Timer Programming

select
access

If a programme exists in both HD and SD broadcasts■

The “Timer Options” screen will be displayed to select HD or SD broadcast.

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

Timer Options

DIY SOS

select

set

Guide

Guide

Timer Programming Wed 28 Oct 2009 10:46

1D BBC ONE

DIY SOS

Wed 28 Oct 20:00 20:30

Date Start End

--- --/-- --:-- --:--

--/-- --:-- --:--

--- --/-- --:-- --:--

--- --/-- --:-- --:--

--/-- --:-- --:--

(30 min.)

(--- min.)

(--- min.)

(--- min.)

(--- min.)

---

Ext Rec.

---

---

---

---

Channel NameFunction No.

(Timer Programming screen)

“

” will be displayed if HD broadcast is set.

Note

This function is not available in Analogue mode.●
Timer Programming can store up to 15 events.●
Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.•
The timer programming event that the reminder is set for ends.•

No other channel can be selected while the recording of Timer Programming is in progress.

●

When recording programmes, be sure to make the proper settings on the recorder connected to the TV.●
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 88) and the “Link
Settings” (p. 34) are completed, no setting of the recorder is required. Also read the manual of the recorder.
When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in

●

the “USB HDD Setup” (p. 64).

Using TV Guide

Using TV Guide ●

Basic

23

View details of the programme (freesat or DVB mode)

Select the programme View details

Wed 28 Oct 2009
10:46

Wed 28 Oct 2009
DIY SOS
BBC ONE
20:00 - 20:30, 30 min.

TV Guide

Return to list

Timer Programming

RETURN

EXIT

Details

select

Press again to return to TV Guide.●

View advertisement (DVB or Analogue mode)

Enter your postcode when using this function for the first time

“Postcode” in “GUIDE Plus+ Settings” (p. 36)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to
enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be
displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement, you will need to update the information.●
To update the information continuously, the TV must be left in Standby mode at night.

To change advertisements■

To return to TV Guide■

OPTION

or

BACK/

RETURN

Note

Some advertisements are for future programmes. ●

In this case it is possible to use the Guide link programming function (above).

The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot ●

be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if
programme start and end times are changed by the broadcaster, the timer programming event will follow the
change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other
programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct
information is received from broadcasters.

Guide

Guide

Guide

Wed 28 Oct 21:00 22:30

Date Start End

Wed 28 Oct 22:45 23:00

--/-- --:-- --:--

Thu 29 Oct 10:30 11:30

(90 min.)

(15 min.)

(--- min.)

(60 min.)

Reminder

Ext Rec.

---

1

Timer Programming

Ext Rec.

Function Channel Name

14DE4

The Bill

72 BBC 2W

<TIMER>

D BBC ONE

Red Cap

---

No.

Wed 28 Oct 2009 10:46

1D Wed 28 Oct 20:00 20:30

(30 min.)

Ext Rec.

BBC ONE
DIY SOS

S/P

“Guide” is displayed if
the timer is set from the
TV Guide
(Guide link programming)

(Timer Programming screen)

“S/P” is displayed if the timer
is set from the TV Guide
and the programme is a
Split Programme

Wed 28 Oct 2009
10:46

TV Guide

Wed 28 Oct

Eastender DIY SOS Holiday News

Time:

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

10 O’ clock News BBC Pepsi Char. Good bye

Panorama Spring watch Coast

I’m A Celebrity Pop Idol News

D
D

D

D

D

D

D Rugby 15 To 1 Sports

Search All Channels

19:30 20:00 20:30 21:00

1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys

1
7

14

70

72

105

719

BBC ONE
BBC THREE

E4

BBC FOUR

BBC 2W

BBCi

BBC Radi

“ ” or “ ” will be displayed in the TV Guide if Timer
Programming is set as the Guide link programming.

Note

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no ●
longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
Whilst making the Split Programme programming event for Ext Rec. or USB HDD Rec., you cannot record ●
any channels between the interrupted programmes.
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.

●

The Split Programme programming event for Reminder will switch to the programmed channel by pressing ●
the OK button even if it is between the interrupted programmes.
The Split Programme programming does not work if the separated parts are broadcast on different channels.●

EXIT

INPUT

TV

G

U

I

D

E

TV

24

Using TV Guide

Other Sat. mode

In Other Sat. mode, TV Guide is not available. In stead, Channel List will appear.

To tune in Other Sat. Channels ● p. 49

1

Select Other Sat.

p. 16

TV

2

Display the Channel List

G

U

I

D

E

All Other Sat. Channels

2
3
4

5

6
7
8

freesatHome
freesatSSU
Brit Shorts

HINRG LOWNRG

WELL Class
GROOVE

-

3

Select the channel

select

watch

To return to TV ■

EXIT

or

G

U

I

D

E

Viewing Teletext ●

Using TV Guide ●

Basic

BACK/

RETURN

INPUT

TV

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

TEXT

25

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

The availability of teletext services for a programme is indicated by “TEXT” in the information banner.●

1 BBC ONE Wales

20:35

Coronation Street

TEXT

Now

For info press

Select favourites

All DVB Channels

D

19:30 - 20:00

Displayed if programme has teletext service

Information banner (p. 17)

Digital teletext (MHEG)

Digital teletext services

Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and
controlled in a manner decided by the broadcaster.

1

Select freesat or DVB

p. 16

TV

freesat and DVB programmes have digital teletext services ●
(MHEG).

2

Switch to Teletext

TEXT

17:51 28 Feb

3

How to use

In all cases, it is possible to navigate the pages using buttons on the
remote control, but because the commands available must apply to all
manufacturers of digital equipment, some on screen commands may
not correspond exactly to the remote control buttons.

For example:

When “select” or “go” is displayed ●

When “◄”, “►”, “▲”, “▼” symbol is displayed ●

When “back key” is displayed ●

BACK/

RETURN

When the key words are displayed on colour bar ●

red green yellow blue

When options with numbers are displayed ●

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To return to TV ■

TEXT

Note

As soon as you switch to a digital channel with links to a teletext service, ●
software is downloaded in the background to enable the teletext function.
This means that when switching to a digital channel, you should wait for
approximately 5 seconds before pressing the TEXT button - this will allow
the software to download. If you press the TEXT button before download is
complete, it will be ignored and you will have to press the TEXT button again
when the download is complete.
While navigating digital teletext, you will find there is a short delay when ●
moving between pages while the page downloads. There is often a prompt
shown somewhere on the page (for example “Loading”) to let you know that
this is happening.

EXIT

TEXT STTL

INDEX HOLD

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

INPUT

TV

26

Viewing Teletext

Analogue teletext

Analogue teletext services

Analogue teletext services are the text information provided by the broadcasters.

The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more

information about one of these subjects, press the appropriately coloured button. This facility enables fast access to

information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these

numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 27)

To change mode ■ “Teletext” in the Setup Menu (p. 35)

1

Select Analogue or Other Sat.

p. 16

TV

Other Sat. programmes are digital broadcasts. The operations ●
of the teletext services, however, are equal to Analogue teletext
service.

2

Switch to Teletext

<< 01 02 03 04 05 06 07 >>

TELETEXT

INFORMATION

17:51 28 Feb

Time / date

Sub page number

Colour bar

Current
page
number

TEXT

Displays the ●
index page
(content varies
depending on the
broadcasters)

3

Select the page

abc def

jkl

ghi

mno

tuvpqrs

wxyz

or

up

down

or

(Corresponds to the colour bar)

red

green

yellow blue

To adjust contrast ■

MENU

(press twice)

As the blue bar is displayed

To return to TV ■

EXIT

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU

red

To rehide ●

red

FULL / TOP / BOTTOM

(TOP) (BOTTOM) Normal (FULL)

MENU

green

(Expand the TOP half) (Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD

To resume ●

HOLD

Viewing Teletext ●

Basic

27

INDEX

Return to the main index page

INDEX

Subtitles

View a favourite page stored

STTL

Factory setting is “P888” (subtitle service) on the blue button (List mode).●

View in multi window

Watch TV and Teletext in two windows at once

TEXT

Operations can be made only in Teletext screen.●
Each time pressed: Teletext ● TV and Teletext

TV

Store frequently viewed pages

Store frequently viewed pages in the colour bar

(List mode only)

As page is
displayed

Corresponding
coloured button

press
and
hold

The number changes to white.

If you wish to use Subtitles, ●
do not change number on
blue button.

To change stored pages■

Coloured button

you want to change

Enter new page number

press
and
hold

abc def

jkl

ghi

mno

tuvpqrs

wxyz

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of
the screen

To view specific sub page■

MENU

blue

Enter the
4-digit number

example: P6

mno

Sub pages: ●

The number of sub pages varies depending on the broadcasters (up to 79 pages).

It may take some time for searching, during which time you can watch TV.

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily

View the updated page

MENU

yellow

P108

Appears when
updating is
completed

yellow

(You cannot change the channel.)

The news page provides a function that indicates arrival of latest news (“News Flash”).●

REC

PROGRAMME

INPUT

TV

DVD/VCR

TV

AVTV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

28

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.

To connect the equipment ● p. 11 and p. 94

The Remote Control is capable of operating some functions of selected external equipment.

Watching External inputs

1

Turn the TV on

When connecting with SCART as example 2 or 3 ■ (p. 11)

Receives input signals automatically when playback starts

Input signals are automatically identified by the SCART (pin 8) terminal.●
This function is also available for HDMI connections (p. 94).●

If input mode is not switched automatically■

Perform and

Check the setup of the equipment.●

2

Display the Input select menu

AV

3

Select the input mode connected to the equipment

Input Selection

AV1

AV2/S

AV3
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV
Media Server

select

watch

You can also select the input using the AV button on the remote ●
control or the side panel of the TV.
Press the button repeatedly until the desired input is selected.
You cannot select “Media Server” using the AV button on the side panel of ●
the TV.
In order to switch between AV2 and AV2S, move the indicator by pressing ●
left and right cursor button.
You can label or skip each input mode ● “Input Labels” (p. 56)
Skipped inputs will not be displayed when the AV button is pressed.

4

View

Displays the selected mode

Note

If the external equipment has an aspect adjustment function, set it to “16:9”.●
For details, see the manual of the equipment or ask your local dealer.●

To return to TV ■

TV

Watching External inputs ●

Basic

29

Screen display

Terminal

AV1 AV 2 AV3

COMPONENT PC

HDMI1 HDMI2 HDMI3 HDMI4

Manual input

(

default setting
in “Input Labels”

)

AV1

AV1-RGB

AV2

AV2-S-Video

AV2-RGB

AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4

Auto input

(

EC mode or
VIERA Link

)

EC/AV1

EC/AV1-RGB

EC/AV2

EC/AV2-S-Video

EC/AV2-RGB

―――

EC/HDMI1

Applicable for

●

EC mode and
VIERA Link

EC/HDMI2

Applicable ●
for
VIERA Link

EC/HDMI3

Applicable ●
for
VIERA Link

EC/HDMI4

Applicable ●
for
VIERA Link

If the above information is permanently displayed on the top left of the screen, press the ● button to clear.

Operating the equipment with the TV remote control

The Panasonic equipment connected to the TV can be directly operated with the below buttons of
this TV remote control.

DVD/VCR

TV

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player
theatre, Blu-ray Disc theatre or VCR

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 66)
“Media Player” (p. 72)
“VIERA Link Control” (p. 92)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse
DVD / video content: Skip to the previous track or title

(not available for the operation of USB HDD Recording)
Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward
DVD / video content: Skip to the next track or title

(not available for the operation of USB HDD Recording)
Press and hold to search forward

Pause

Pause / Resume
DVD: Press and hold to play at slow speed

PROGRAMME

Channel Up / Down

Select channel

REC

Record

Start recording

How to change the code for the type of the equipment

■

Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.

Set the position to “DVD/VCR”

DVD/VCR

TV

Press and hold during the following operations

Enter the appropriate code,
see table below

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Press

Type of the equipment Code

DVD Recorder, DVD Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

Note

Confirm if the remote control works correctly after changing the code.●
The codes may be reset to default values if batteries are replaced.●
Some operations may not be possible on some equipment models.●

EXIT

TV

V

I

E

R

A

T

O

O

L

S

30

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings ●
are completed.

“Summary of Q-Link and VIERA Link features” (p. 86 and p. 87), “Preparations” (p. 89)

After connection, turn the equipment on and then switch the TV on.

For “Photo”, “Video” and “Music” functions to operate correctly, ensure the device has photo or video data on it ●
and insert it into the SD Card slot or USB port properly.

”Using Media Player” (p. 68)

1

Display icons of the feature

V

I

E

R

A

T

O

O

L

S

2

Select a feature

VIERA Link Control

access

select

3

Follow the operations of each feature

VIERA Link Control● “VIERA Link Control” (p. 92)

When two or more compatible equipment are connected, a selection screen
will be displayed.
Please select the correct description and access.

Pause Live TV● “Pause Live TV” (p. 91)

Photo● “Photo mode” (p. 70)

When two or more available devices are connected, a selection screen will be
displayed.
Please select the correct description and access.

Video● “Video mode” (p. 72)

When two or more available devices are connected, a selection screen will be
displayed.
Please select the correct description and access.

Music● “Music mode” (p. 75)

When two or more available devices are connected, a selection screen will be
displayed.
Please select the correct description and access.

Media Server● “Using DLNA® features” (p. 82)

Note

If the selected feature is not available, the demonstration to explain how to use it ●
can be displayed. Press the OK button to view the demonstration after selecting the
unavailable feature.

To return to TV■

EXIT

or

V

I

E

R

A

T

O

O

L

S

How to Use Menu Functions ●

How to Use VIERA TOOLS ●

Basic

EXIT

BACK/

RETURN

TV

MENU

31

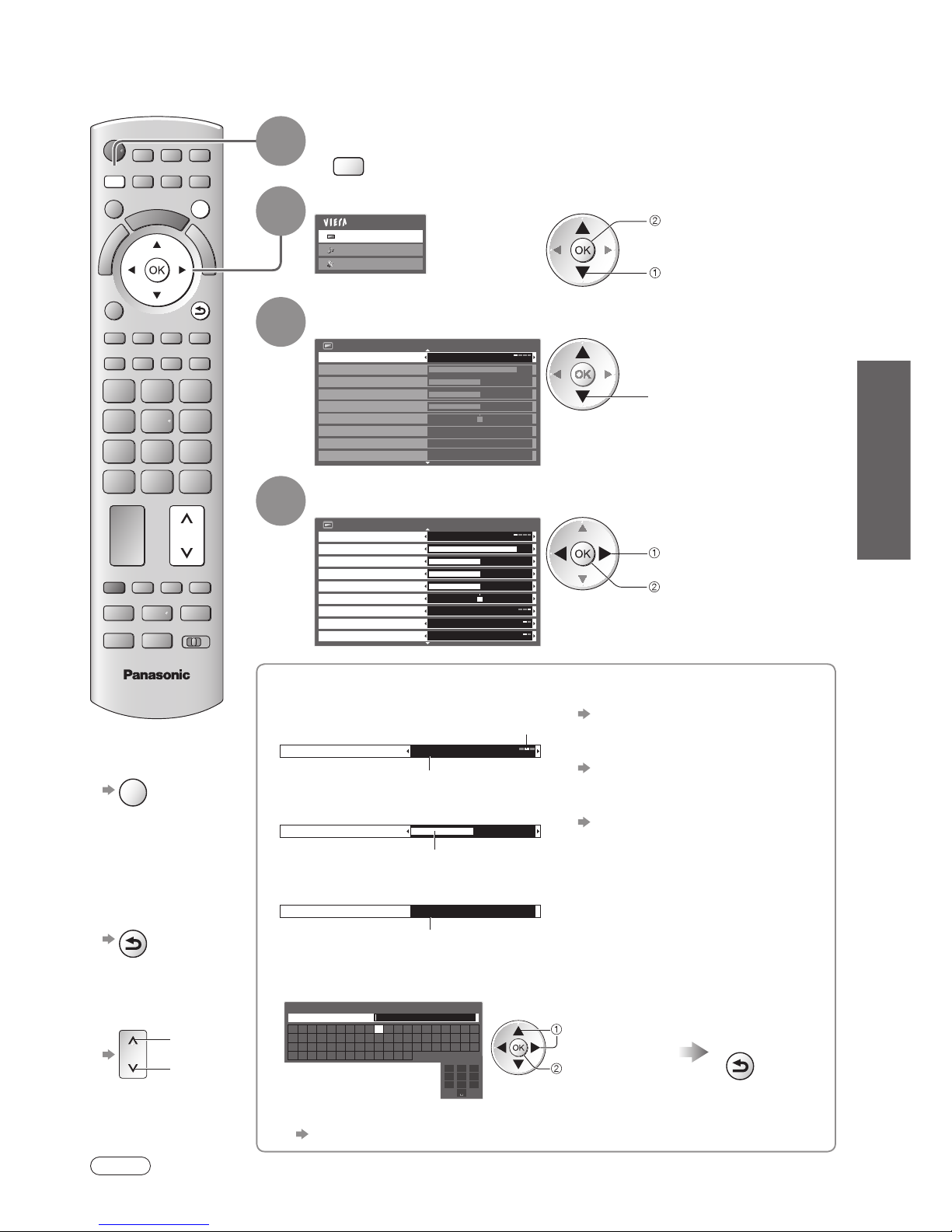

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

1

Display the menu

MENU

Displays the functions that can be set ●
(varies according to the input signal)

2

Select the menu

Main Menu


Sound

Setup

access

select

3

Select the item

Example (Picture Menu):

Picture Menu

1/2

Viewing Mode Dynamic

Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour

Warm
Off

C.A.T.S. Off

select

4

Adjust or select

Example (Picture Menu):

Picture Menu

1/2

Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour

Warm
Off
OffC.A.T.S.

change

store or access

( Required by

some functions)

Choose from among ■
alternatives

To reset the settings

■

To reset the picture settings only●

“Reset to Defaults” in the

Picture Menu (p. 32)

To reset the sound settings only●

“Reset to Defaults” in the

Sound Menu (p. 33)

To initialize all settings●

“Shipping Condition” in the

Setup Menu (p. 51)

Colour Balance

Normal

Changed

Number and positions of alternatives

Adjust using the slide bar■

Sharpness

Moved

Go to the next screen■

Child Lock Access

Displays the next screen

Enter characters by free input menu■

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

Set characters one by one Store

set

select

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

To return to TV ■
at any time

EXIT

To return to ■
the previous
screen

BACK/

RETURN

To change ■
menu pages

up

down

Note

If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment. ●
To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 51)

32

How to Use Menu Functions

Menu list■

Menu

Item Adjustments / Configurations (alternatives)


Viewing Mode

Basic picture mode (Dynamic / Normal / Cinema / THX (True Cinema) / Game / Photo
/ Professional1 / Professional2)

In each Viewing Mode, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance,
Vivid Colour, C.A.T.S., P-NR and 3D-COMB can be adjusted and stored to suit your
particular viewing requirement.

Set for each input signal.

●

Dynamic : Provides enhanced picture contrast and sharpness when viewing in a

bright room.

Normal : Recommended for viewing under normal ambient room lighting

conditions.

Cinema : For watching movies in a darkened room with the improved performance

of contrast, black and colour reproduction
THX
(True Cinema)

:

Precisely reproduces the original quality of the image without any revision.

Recommended for playback of THX disc (disc with “THX” logo)

THX mode is used to mirror the picture settings used by professional

filmmakers, faithfully reproducing the image quality of THX Certified movies.

THX Certified movies have the “THX” logo on a disc.●
“True Cinema” is displayed instead of “THX” in the mode of PC input, ●
Media Player and Network service operations.

Game : Fast response signal specifically to provide suitable images for playing

games

Not valid on TV mode

●

A continuous record of time spent using Game mode can be displayed ●
in the top right of the screen.

“Playing Time Display” (p. 35)

Photo : Set “Reversal Film Effect” to “On” to provide the suitable image quality for

photos

For HDMI input, Media Player and Network service operations

●

Professional
1 / 2

: Allows you to set the professional picture settings in “Advanced Settings”,

“Lock Settings” and “Copy Adjustment”

p. 62

This mode is available only when “Advance(isfccc)” in the Setup Menu

●

is set to “On”.
Not valid on VIERA CAST

●

If the certified professional dealer sets these modes, “Professional1” ●
and “Professional2” may be displayed as “isf Day” and “isf Night”.

Contrast, Brightness,
Colour, Sharpness

Increases or decreases the levels of these options according to your personal preference

Tint

With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste

For NTSC signal reception only

●

Colour Balance

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Not valid when “Viewing Mode” is set to “THX (True Cinema)”, “Professional1” or

●

“Professional2”.

Vivid Colour

Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal.

●

Not valid when “Viewing Mode” is set to “Professional1” or “Professional2”.●

Reversal Film Effect

Provides the picture effect such as the reversal film (Off / On)

This function is available when “Viewing Mode” is set to “Photo”.

●

C.A.T.S.

Contrast Automatic Tracking System (Automatic Brightness Control function)
Adjusts picture settings automatically dependent on ambient lighting conditions

(Off / On)

P-NR

Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts of
a picture (Off / Min / Mid / Max)

Not valid on PC signal.

●

3D-COMB

Makes still or slow moving pictures look more vivid (Off / On)

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.

●

Set to “On” to display sharper and more accurate colours.
Not valid on RGB, S-Video, Component, PC, HDMI and Media Player

●

Picture in Picture

Displays two windows at once (p. 60)

Picture Display

Turns the screen off when you select “Off” (Off / On)

The sound is active even if the screen turns off.●
Press any button (except Standby) to turn the screen on.●
This function is effective in reducing power consumption when listening to the sound ●
without watching the TV screen.

Reset to Defaults

Press the OK button to reset the present Picture Viewing Mode to the default settings

How to Use Menu Functions ●

Basic

33

Menu

Item Adjustments / Configurations (alternatives)

Sound

Mode

Selects the basic sound mode (Music / Speech / User)

The selected mode affects all input signals.

●

Music: Improves sound quality for watching music videos, etc.
Speech: Improves sound quality for watching news, drama, etc.

Music and Speech modes use CONEQ™ brand equalization technology to improve

●

sound quality. CONEQ equalizes acoustic power frequency response and corrects
time and phase alignment errors of a speaker system. Speakers with CONEQ perform
as near-perfect electro-acoustic transducers providing true to the original sound with
the highest musically and intelligibility.

In Music and Speech modes, you can adjust “Bass” and “Treble” settings, and those

●

settings will be stored for each mode.

User: Adjusts the sounds manually by using the equalizer to suit your favourite sound quality.

For the User mode, “Equalizer” will appear on the Sound Menu instead of “Bass” and ●

“Treble”. Select the “Equalizer” and adjust the frequency. “Equalizer” (below)

Bass

Increases or decreases level to enhance or minimise lower, deeper sound output

Treble

Increases or decreases level to enhance or minimise sharper, higher sound output

Equalizer

Adjusts the frequency level to suit your favourite sound quality

This function is available when “Mode” is set to “User”.

●

Select the frequency and change the frequency level by using the cursor button.●
If you want to enhance the bass sound, raise the level of the lower frequency. If you ●

want to enhance the treble sound, raise the level of the higher frequency.

To reset the levels of each frequency to the default settings, select the “Reset to

●

Defaults” by using cursor button, and then press the OK button.

Balance

Adjusts volume level of right and left speakers

Headphone Volume

Adjusts the volume of the headphones

Surround

Surround sound settings (Off / V-Audio / V-Audio Surround / V-Audio ProSurround)
V-Audio: Provides a dynamic enhancer of width to simulate improved spatial effects
V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate

improved spatial effects

V-Audio ProSurround: Provides a more progressive enhancer and reverberation to

simulate improved spatial effects

Volume Correction

Adjusts the volume of individual channel or input mode

Speaker Distance to
Wall

Adjusts the low frequency sound (Over 30cm / Up to 30cm)

If the gap between the TV and wall is over 30 cm, “Over 30cm” is recommended.

●

If the gap between the TV and wall is within 30 cm, “Up to 30cm” is recommended.●

Preferred Multi Audio

Selects the preferred language for digital channel multi audio (depending on the
broadcaster) (English / Welsh / Gaelic)

NICAM

Near Instantaneous Companded Audio Multiplex
Reproduces NICAM stereo sound (Off / On)

Off if reception is poor (FM monaural sound)

●

Analogue mode only●

SPDIF Selection

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream.

MPEG is output as PCM.

PCM : Digital output signal is fixed to PCM.

For freesat, DVB, Other Sat., Network video contents (p. 83) or Video mode (p. 72)

●

MPEG Optical Level

Adjusts the audio level of MPEG output from DIGITAL AUDIO OUT terminal as the initial
setting (0 / -2 / -4 / -6 / -8 / -10 / -12dB)

Normally, MPEG sound is larger comparing with the other types of audio track.

●

For freesat, DVB or Other Sat. mode●

HDMI1 / 2 / 3 / 4 Input

Select to fit the input signal (Digital / Analogue) (p. 99)
Digital : When sound is carried via the HDMI cable connection
Analogue : When sound is not carried via the HDMI cable connection

HDMI input mode only

●

Audio Description Menu

Audio Description

Useful for visually-impaired viewers(Off / Auto)
Set to “Auto” to activate the description sound track if available

The availability of audio description sound track is indicated by “AD” in the information

●

banner (p. 17).

For freesat or DVB mode

●

Volume

Adjusts the volume for Audio Description

DVB mode only

●

Speakers

Set to “On” to activate the description sound track from TV speakers (Off / On)

DVB mode only

●

Headphones

Set to “On” to activate the description sound track from headphones (Off / On)

DVB mode only

●

Reset to Defaults

Press the OK button to reset the present Sound Mode, Balance, Headphone Volume
and Surround to the default settings

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ●
input, Media Player or Network service operations. (p. 61 - 63, 69 - 75 and p. 84)
Only available items can be selected.●

34

How to Use Menu Functions

Menu

Item Adjustments / Configurations (alternatives)

Setup

Timer Programming

Sets a timer to remind watching or record forthcoming programmes (p. 52)

Off Timer

Sets the time until the TV automatically goes to Standby mode

(Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 19)

USB HDD Setup

Register the connected USB HDD and makes the settings for the recording (p. 64)

Link Settings

VIERA Link

Sets to use VIERA Link functions (Off / On) (p. 89)

HDMI Content
Detection

Adjusts the picture settings according to the content type signal from the connected
equipment via HDMI cable (Off / Auto)

This function is available if the connected equipment supports HDMI Content Type.

●

The content type information will be displayed for several seconds when this function ●
works.

Q-Link

Selects which AV terminal is to be used for data communication between this TV and a
compatible recorder (AV1 / AV2) (p. 88)

Select the connected terminal to the recorder even it is not compatible with Q-Link.

●

AV1 / AV2 out

Chooses the signal to be transmitted from the TV to Q-Link

(TV / AV1 / AV2 / AV3 / Monitor)

Monitor: Image displayed on screen

●

Component, PC and HDMI signals cannot be outputted.●

Standby Power
Save

Controls the power consumption in Standby mode of the connected equipment to
reduce the consumption (Off / On) (p. 90)

This function is available when “VIERA Link” is set to “On”.

●

Intelligent Auto
Standby

Makes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 90)

This function is available when “VIERA Link” is set to “On”.

●

Q-Link Download

Downloads analogue channel information to a Q-Link compatible equipment
connected to the TV

Child Lock

Locks a channel / AV input to prevent access to it (p. 54)

freesat Tuning Menu

Favourites Edit

Creates a list of favourite freesat channels (p. 43)

Channel List

Skips the unwanted freesat channels (p. 43)

Auto Setup

Automatically sets the freesat channels received in the area (p. 40)

Signal Condition

Checks the freesat signal condition (p. 43)

DVB Tuning Menu

Favourites Edit

Creates a list of favourite DVB channels (p. 45)

Channel List

Skips the unwanted DVB channels or edits DVB channels (p. 45)

Auto Setup

Automatically sets the DVB channels received in the area (p. 41)

Channel Sorting
by Region

Automatically sorts tuned channels according to the available region (p. 44)

Manual Tuning

Sets the DVB channels manually (p. 44)

Update Channel
List

Updates DVB Channel List while keeping your settings (p. 46)

New Channel
Message

Selects whether to give a notification message when a new DVB channel is found

(Off / On) (p. 46)

Signal Condition

Checks the DVB signal condition (p. 46)

How to Use Menu Functions ●

Basic

35

Menu

Item Adjustments / Configurations (alternatives)

Setup

Analogue Tuning Menu

Channel List

Skips the unwanted Analogue channels or edits Analogue channels (p. 47)

Auto Setup

Automatically sets the Analogue channels received in the area (p. 41)

Manual Tuning

Sets the Analogue channels manually (p. 47)

Other Sat. Tuning Menu

Favourites Edit

Creates a list of favourite Other Satellite channels (p. 50)

Channel List

Skips the unwanted Other Satellite channels or edits Other Satellite channels
(p. 50)

Auto Setup

Automatically sets the Other Satellite channels received in the area (p. 49)

Manual Tuning

Sets the Other Satellite channels manually (p. 48)

Please consult the received satellite broadcasting companies for the setting.

●

Add New Channels

Adds new Other Satellite channels to Channel List (p. 49)

Signal Condition

Checks the condition of Other Satellite signals (p. 48)

Display Settings

Teletext

Analogue teletext display mode (FASTEXT / List) (p. 26)

Preferred Subtitles

Selects the preferred language for digital channel subtitles (depending on the
broadcaster) (English / Welsh / Gaelic)

To display subtitles

● p. 17

Side Panel

Increases the brightness of the side panel (Off / Low / Mid / High)

The recommended setting is “High” to prevent panel “image retention”.

●

Input Labels

Labels or skips each input terminal (p. 56)

Banner Display
Timeout

Sets how long the Information banner (p. 17) stays on screen

(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)

Playing Time Display

Set to “On” to display a continuous record of time spent using Game mode every
30 mins (Off / On)

This function is available when “Game” is selected in “Viewing Mode” (p. 32).

●

Radio Mode

Sets the timer for turning off the screen automatically when a radio channel is
selected (Off / 5 / 10 / 15 / 20 seconds)

The sound is active even if the screen turns off.

●

Press any buttons except Volume Up / Down and Sound Mute buttons to turn ●

the screen on.

This function is effective in reducing power consumption when listening to a

●

radio channel.

Network Setup

Sets the network setting to use in your network environment (p. 78)

DivX® VOD

Displays DivX VOD registration code (p. 97)

Advance(isfccc)

Enables the advanced picture settings (Off / On)

Set to “On” to enable the mode of “Professional1” and “Professional2” in

●

“Viewing Mode”.

Set to “On” to display the advanced items in the Picture Menu - “Advanced

●

Settings”, “Lock Settings” and “Copy Adjustment”. “Copy Adjustment” will be
displayed when “Viewing Mode” is set to “Professional1” or “Professional2”.

“isfccc” is the picture setting for the certified professional dealer. For details,

●

consult your local dealer.

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ●
input, Media Player or Network service operations. (p. 61 - 63, 69 - 75 and p. 84)
Only available items can be selected.●

36

Menu

Item Adjustments / Configurations (alternatives)

Setup

System Menu

USB Keyboard
Layout

Selects the language that your USB Keyboard supports

Use a USB Keyboard to enter characters in VIERA CAST (p. 85).●
Characters may not be displayed correctly on the TV screen depending on the ●
connected keyboard or the keyboard layout setting.

Shipping Condition

Resets all settings, for example, when moving house (p. 51)

Owner ID

Inputs the owner ID (p. 57)

Common Interface

Uses include to watch pay-TV (p. 58)

System Update

Downloads new software to TV (p. 59)

Software Licence

Displays the software licence information

System Information

Displays the system information of this TV

Other Settings

GUIDE Plus+

Settings

Postcode

Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 23)

System
Information

Displays the system information of the GUIDE Plus+ system

Intelligent Frame
Creation

Automatically compensates the picture frame rate and removes juddering
movements to make the images smooth and clear (Off / On)

This function is not available for selection (default to “Off”) when “Viewing Mode”

●

is set to “Game” or in the mode of PC input, photo or Network service operations.

24p Smooth Film

Automatically compensates the picture frame rate to make the 24p source movie
images smooth (Off / On)

This is available only for 24p signal input and displayed instead of

●

“Intelligent Frame Creation”.
This function is not available for selection (default to “Off”) when “Viewing Mode”

●

is set to “Game” or in the mode of PC input, photo or Network service operations.

Resolution Enhancer

Enhances the picture resolution to make the image sharper (Off / Mid / Max)

This function is available for SD (Standard definition) signal.

●

As for HD (High definition) signal, this function is available when aspect mode is ●
set to 16:9 (16:9 Overscan is set to “On”) or Zoom.
Not valid on PC, VIERA CAST and Media Player

●

Power on Preference

Automatically selects the input when the TV is turned on (TV / AV)
Set to “TV” to view picture from TV tuner.
Set to “AV” to view input from an external equipment connected to a SCART
terminal, e.g. cable TV box.

The external equipment must be switched on and sending a control signal for

●

automatic switching at power on to occur.

Power on Channel
List

Automatically selects All Channels or Favourites list in the Information banner
(p. 17) when the TV is turned on (All Channel List / Last)
Set to “All Channel List” to display all the channels.
Set to “Last” to display the one you selected last time.

Not available on freesat or analogue mode

●

Auto Standby

Sets the time the TV automatically goes to Standby mode when no operation is
performed for the selected times (Off / 2 / 4 hours)

Starting Timer Programming automatically does not affect this function.

●

Automatic input switching with the connected equipment affects this function and ●
time-count will be reset.
The notification message will appear 3 minutes before going to Standby mode.

●

Power Save

Reduces brightness of picture to economise on power consumption (Off / On)

16:9 Overscan

Selects the screen area displaying the image (Off / On)
On : Enlarges the image to hide the edge of the image.
Off : Displays the image in the original size.

Set to “On” if noise is generated on the edge of the screen.

●

This function is available when aspect is set to Auto (16:9 signal only) or 16:9.●
This function can be memorized separately for SD (Standard definition) and HD ●
(High definition) signals.

SD Card LED

Lights blue LED while SD Card is inserted (Off / On) (p. 68)

DVI Input Setting

Changes the black level in the image for HDMI input mode with DVI input signal
manually (Normal / Full)

When the DVI input signal from the external equipment, especially from PC, is

●

displayed, the black level may not be suitable. In this case, select “Full”.
The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal only●

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ●
input, Media Player or Network service operations. (p. 61 - 63, 69 - 75 and p. 84)
Only available items can be selected.

●

How to Use Menu Functions

How to Use Menu Functions ●

Basic

37

How to operate ● p. 31

Overview ■ (Picture, Sound)

Main Menu


Sound

Setup

Available in Analogue

Available in digital

Available when “Mode” is set to
“Music” or “Speech”

Available in HDMI

Not available when
“Viewing Mode” is set to
“THX (True Cinema)” or
“Professional1 / 2”

Available in NTSC

Available in NTSC / PAL

Picture Menu

1/2

Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
Reversal Film Effect

Warm
Off
Off

C.A.T.S. Off

Picture Menu

2/2

P-NR

Off

3D-COMB

Off

Picture Display

On

Reset to Defaults

Reset

Picture in Picture

Access

(p. 32)

Sound Menu

1/2

Mode Music
Bass
Treble

Balance

Equalizer

Access

Headphone Volume

OffSurround

Volume Correction
Speaker Distance to Wall Over 30cm
Preferred Multi Audio

English

Sound Menu

2/2

NICAM Off

HDMI1 Input
Audio Description
Reset to Defaults

Digital

MPEG Optical Level 0

SPDIF Selection Auto

Access

Reset

(p. 33)

Available in freesat or DVB

freesat:

Audio Description Menu

Audio Description Off

(p. 33)

DVB:

Audio Description Menu

Audio Description Off
Volume
Speakers Off
Headphones Off

(p. 33)

Available when “Mode” is set to
“User”

Equalizer

150 250 500 1k 2k 4k 8k 12k Hz

Reset to Defaults

Not available in PC or when
“Viewing Mode” is set to
“Professional1 / 2”

Available when “Viewing Mode”
is set to “Photo”

Not available in PC

Available in digital, Network
video contents or Video mode

Available in digital

38

Overview ■ (Setup)

Main Menu


Sound

Setup

Setup Menu

1/2

Off Timer Off

Link Settings
Child Lock

DVB Tuning Menu
Analogue Tuning Menu

Display Settings

Access

USB HDD Setup Access

Timer Programming Access

Access

Access

freesat Tuning Menu Access

Access

Access

Other Sat. Tuning Menu Access

Network Setup Access

Setup Menu

2/2

System Menu
Other Settings

Advance(isfccc) Off

Access

DivX® VOD Access

Access

(p. 34 - 36)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

(p. 54)

DVB Update Channel List

CH Channel Name Type Quality

Searching

Analogue Scan 21 68

Progress CH 21 68

This will take about 3 minutes.

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

(p. 46)

DVB Tuning Menu

Favourites Edit Access
Channel List
Auto Setup

Manual Tuning
Update Channel List
New Channel Message
Signal Condition

Access
Access

Channel Sorting by Region

Access
Access
Access
On
Access

(p. 41 and p. 44)

freesat Tuning Menu

Signal Condition

Channel List
Auto Setup Access

Favourites Edit Access

Access

Access

(p. 40 and p. 42)

Analogue Tuning Menu

Channel List
Auto Setup
Manual Tuning

Access

Access

Access

(p. 41 and p. 46)

Other Satellite Tuning Menu

Favourites Edit Access
Channel List
Auto Setup
Manual Tuning
Add New Channels
Signal Condition

Access
Access
Access
Access
Access

(p. 48)

System Menu

Shipping Condition Access

System Update
Software Licence
System Information

Owner ID Access
Common Interface Access

Access
Access
Access

USB Keyboard Layout English(UK)

(p. 36)

How to Use Menu Functions

How to operate ● p. 31

Available in DVB

Available in freesat

Available in Analogue

Available in Other Sat.

Guide

STTL

Wed 28 Oct 21 :00 22:00

Date Start End

Wed 28 Oct 22 :45 23:00

--/-- --:-- --:--

Thu 29 Oct 10:3 0 11:30

(60 min.)

(15 min.)

(--- min.)

(60 min.)

Reminder

Ext Rec.

---

1

Ext Rec.

Function Channel Name

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE
<TIMER>

---

No.

72 Wed 28 Oct 20:00 21:30

(90 min.)

Ext Rec.

BBC 2W
<TIMER>

Timer Programming USB HDD Remaining Capacity 500GB (50%) Wed 28.10.2009 10:46

S/P

(p. 52)

USB HDD Setup

Device Setup

Access

One Touch Recording
Rewind LIVE TV On

180 minutes

(p. 64)

Other Settings

GUIDE Plus+ Settings

24p Smooth Film

Power on Channel List

Power Save
16:9 Overscan

Access

Off

Last

Off
On

Intelligent Frame Creation

Off

Power on Preference TV

Auto Standby Off

Resolution Enhancer Off

SD Card LED On
DVI Input Setting Normal

(p. 36)

Guide Plus+ Settings Menu

Postcode
System Information

Access
Access

(p. 36)

Enter Postcode

Postcode

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

O P Q R S T
7 8 9

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

(p. 36)

Available in
DVB or Other Sat.

Available in HDMI
with DVI input signal

Display Settings

Teletext
Preferred Subtitles
Side Panel
Input Labels
Banner Display Timeout
Playing Time Display

FASTEXT
English
Off
Access
3 seconds
On

Radio Mode Off

(p. 35)

Available in freesat,
DVB or Other Sat.

Available in Analogue

Input Labels

AV1 DVD
AV2/S
AV3
COMPONENT

HDMI1
HDMI2
HDMI3

AV2/S
AV3
COMPONENT

HDMI1

PC PC

HDMI2
HDMI3

HDMI4 HDMI4

1/2

Input Labels

freesat freesat

2/2

DVB DVB

Other Sat. Other Sat.

Analogue Analogue

(p. 56)

How to Use Menu Functions ●

Basic

39

Link Settings

VIERA Link On

Q-Link
AV2 out
Standby Power Save
Intelligent Auto Standby
Q-Link Download

AV2
TV
On
On (No reminder)
Access

HDMI Content Detection Off

1/2

(p. 34)

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

(p. 34)

Child Lock

Change PIN Access
Child Lock List Access

(p. 54)

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales Free TV
BBC THREE DVB LockFree TV
E4 DVB LockFree TV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue
***** Analogue LockAnalogue
AV1 External LockAV
AV2/ S

7

14

4

1
2

External LockAV

DVB

(p. 54)

DVB Favourites Editor

BBC One Wales

All DVB Channels

1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

(p. 45)

Channel Sorting by Region

GBR>
Best signal quality (All Regions)

England Regions>

Region choice available

(p. 44)

DVB Auto Setup

This will take about 3 minutes.

Progress CH 21 68

62

CH Channel Name Type Quality

CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0 Data: 0

Searching

(p. 41)

All DVB Channels

70

72
105

719

720

1
7

CBBC Channel
Cartoon Nwk
BBCi

BBC Radio Wales

BBC Radio Cymru
BBC ONE Wales
BBC THREE

(p. 45)

DVB Manual Tuning

Analogue Scan 21 68

Frequency

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

Signal Strength 010

Signal Quality 0 10

MHz

474[CH21]

(p. 44)

freesat Channel List

101
102
103
104

108

109
110

BBC 1 Scotland
BBC 2 Scotland
stv
stv

BBC THREE

BBC FOUR
BBC HD

(p. 43)

freesat Favourites Editor

BBC 1 Wales

All freesat Channels

101

BBC 2 Wales102

ITV1 WALES103

BBC THREE108

BBC FOUR109

BBC HD110

ITV211 2

ITV2+1113

Favourites

(p. 43)

freesat Auto Setup

Signal Quality 0 10
Signal Strength 0 10
TV Channels Found 8
Radio Channels Found 2
Data Channels Found 1

Searching

Channels found, creating channel list

(p. 40)

Analogue Channel List

1

2

3
4
5
6
7

BBC1

*****

*****

(p. 46)

Analogue Auto Setup

29

CH Channel Name

30

Analogue: 2

Searching

This will take about 3 minutes.

Scan CH 21 68

(p. 41)

1 BBC1 CH33

Analogue Manual Tuning

Manual Tuning 21 68

(p. 46)

Other Satellite Auto Setup

Analogue Scan 21 68

Satellite

No. Channel Name Type Quality

Free TV: 4 Pay TV: 0 Radio: 0

Searching

This may take up to 20 minutes.

Progress 0% 100%

Astra 2/Eurobird

1 BBC 1 East (W) Free TV 10
2 BBC 1 Cl Free TV 10
3 BBC HD Free TV 10
4 6945 Free TV 10

(p. 49)

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

(p. 49)

Search Mode

Free Channels All Channels

(p. 49)

System Update

Auto Update Search in Standby

On

System Update Search Now Access

(p. 59)

Owner ID

Please enter PIN for access

PIN * * * *

(p. 57)

Available in DVB or Other Sat.

Common Interface

Slot 1:

Module inserted

(p. 58)

All tuning data will be erased

Are you sure?
Are you sure?

Shipping Condition

(p. 51)

For Auto Setup, using ■
the buttons on the side
panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

F

Access “Auto Setup”

TV

Start “Auto Setup”

TV

F

TV

AV

To return to TV ●

F

Note

You cannot set the postcode ●
in this operation.
The previous postcode
setting is not erased.

EXIT

INPUT

TV

MENU

40

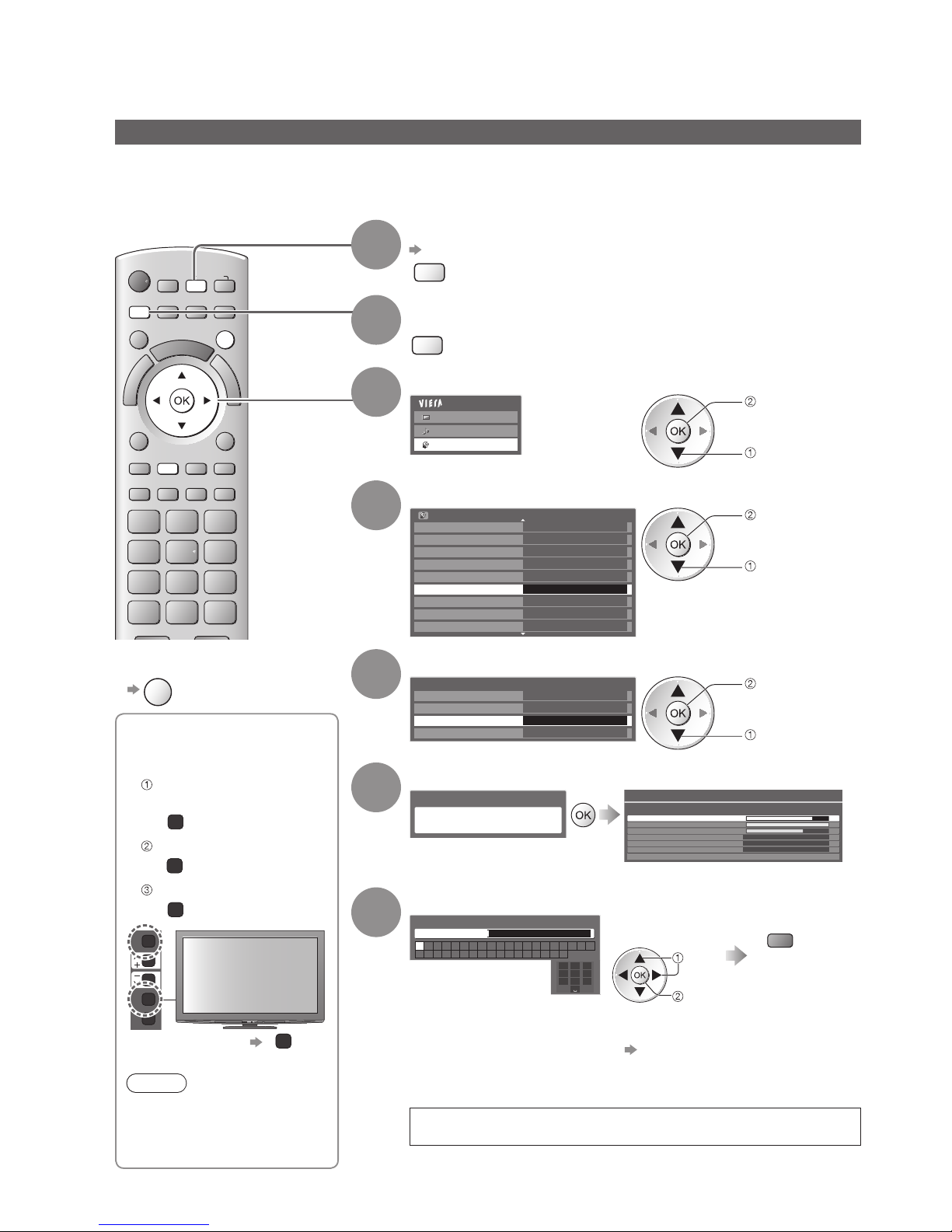

Retuning from Setup Menu

1

Select freesat

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “freesat Tuning Menu”

Setup Menu

1/2

Off Timer Off

Link Settings
Child Lock

freesat Tuning Menu

Access

Other Sat. Tuning Menu
Display Settings

Timer Programming

USB HDD Setup

Network Setup

access

select

5

Select “Auto Setup”

freesat Tuning Menu

Favourites Edit

Signal Condition

Channel List

Auto Setup Access

access

select

6

Start Auto Setup

All freesat tuning data will be erased

freesat Auto Setup

freesat Auto Setup

Signal Quality 0 10
Signal Strength 0 10
TV Channels Found 8
Radio Channels Found 2
Data Channels Found 1

Searching

Channels found, creating channel list

Settings are made automatically

7

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

O P Q R S T
7 8 9

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

Your postcode is required to
receive local services and
sort the channel order.
Please ensure to include a
space when entering your
postcode.

Set characters
one by one

Store

green

set

select

You can set characters by using ●
numeric buttons.

“Characters table for numeric

buttons” (p. 98)

When the operation is completed, the channel at the lowest
position will be displayed.

Auto Setup retunes all channels automatically.

freesat channels

Automatically retune all the freesat channels received in the area.

Only freesat channels are retuned.

●

All the previous tuning settings (Favourites Edit and Channel List, etc.) are erased.●
If a Child Lock PIN number (p. 54) has been set, it must be entered.●

To return to TV■

EXIT

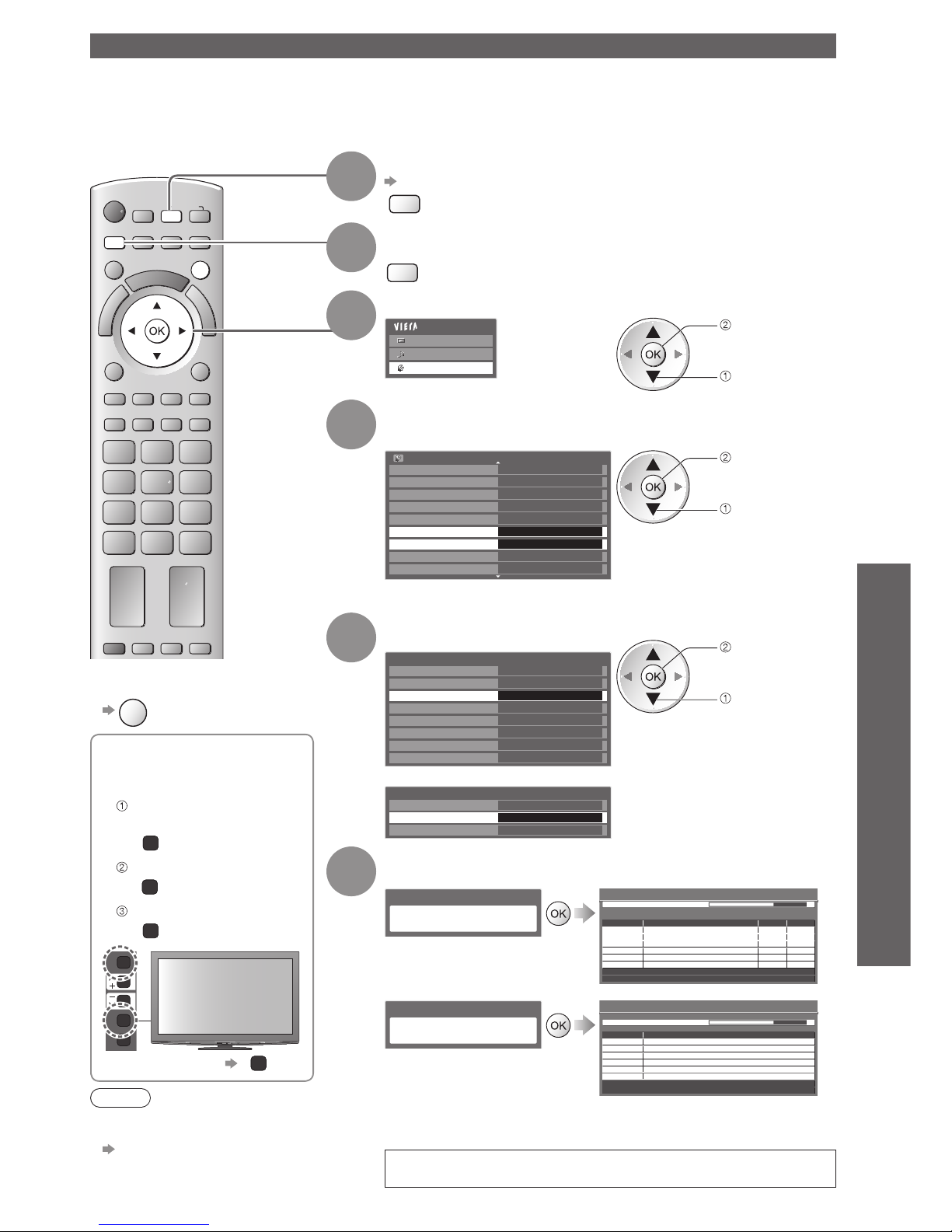

Retuning from Setup Menu ●

Advanced

For Auto Setup, using ■
the buttons on the side
panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

F

Access “Auto Setup”

TV

Start “Auto Setup”

TV

F

TV

AV

To return to TV ●

F

EXIT

INPUT

TV

MENU

41

1

Select DVB or Analogue

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “DVB Tuning Menu” or
“Analogue Tuning Menu”

Setup Menu

1/2

Off Timer Off

Link Settings

USB HDD Setup

Child Lock

DVB Tuning Menu

Access

Analogue Tuning Menu

Access

Display Settings
Network Setup

Timer Programming

access

select

“DVB Tuning Menu” is available ●
in DVB mode only.
“Analogue Tuning Menu” is ●
available in Analogue mode
only.

5

Select “Auto Setup”

DVB:

access

select

DVB Tuning Menu

Favourites Edit

Channel Sorting by Region
Manual Tuning
Update Channel List

Channel List

Auto Setup Access

OnNew Channel Message

Signal Condition

Analogue:

Analogue Tuning Menu

Manual Tuning

Channel List

Auto Setup Access

6

Start Auto Setup

All DVB tuning data will be erased

DVB Auto Setup

DVB:

DVB Auto Setup

This will take about 3 minutes.

Progress CH 21 68

62

CH Channel Name Type Quality

CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0 Data: 0

Searching

All analogue tuning data will be erased

Analogue Auto Setup

Analogue:

Analogue Auto Setup

29

CH Channel Name

30

Analogue: 2

Searching

This will take about 3 minutes.

Scan CH 21 68

Settings are made automatically

The analogue settings are downloaded to a Q-Link compatible ●
equipment connected to the TV in Analogue mode.

When the operation is completed, the channel at channel
position “1” will be displayed.

DVB or Analogue channels

Automatically retune all DVB or Analogue channels received in the area.

Only DVB channels are retuned in DVB mode.●
Only Analogue channels are retuned in Analogue mode.●
All the previous tuning settings (Channel List, etc.) are erased.●
If a Child Lock PIN number (p. 54) has been set, it must be entered.●

To return to TV■

EXIT

Note

If tuning has not been done ●
completely

“Manual Tuning”

(p. 44 and p. 47)

EXIT

INPUT

TV

TV

MENU

BACK/

RETURN

42

1

Select freesat

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “freesat Tuning Menu”

Setup Menu

1/2

Off Timer Off

Link Settings

USB HDD Setup

Child Lock

freesat Tuning Menu

Access

Other Sat. Tuning Menu
Display Settings
Network Setup

Timer Programming

access

select

5

Select one of the following functions

freesat Tuning Menu

Signal Condition

Channel List
Auto Setup Access

Favourites Edit Access

Access

Access

“Retuning from Setup Menu” (p. 40)

access

select

6

Set

You can retune channels or make your favourite channel list, skip unwanted channels, etc.

To return to TV■

EXIT

Tuning and Editing Channels

(freesat)

Tuning and Editing Channels ●

Advanced

43

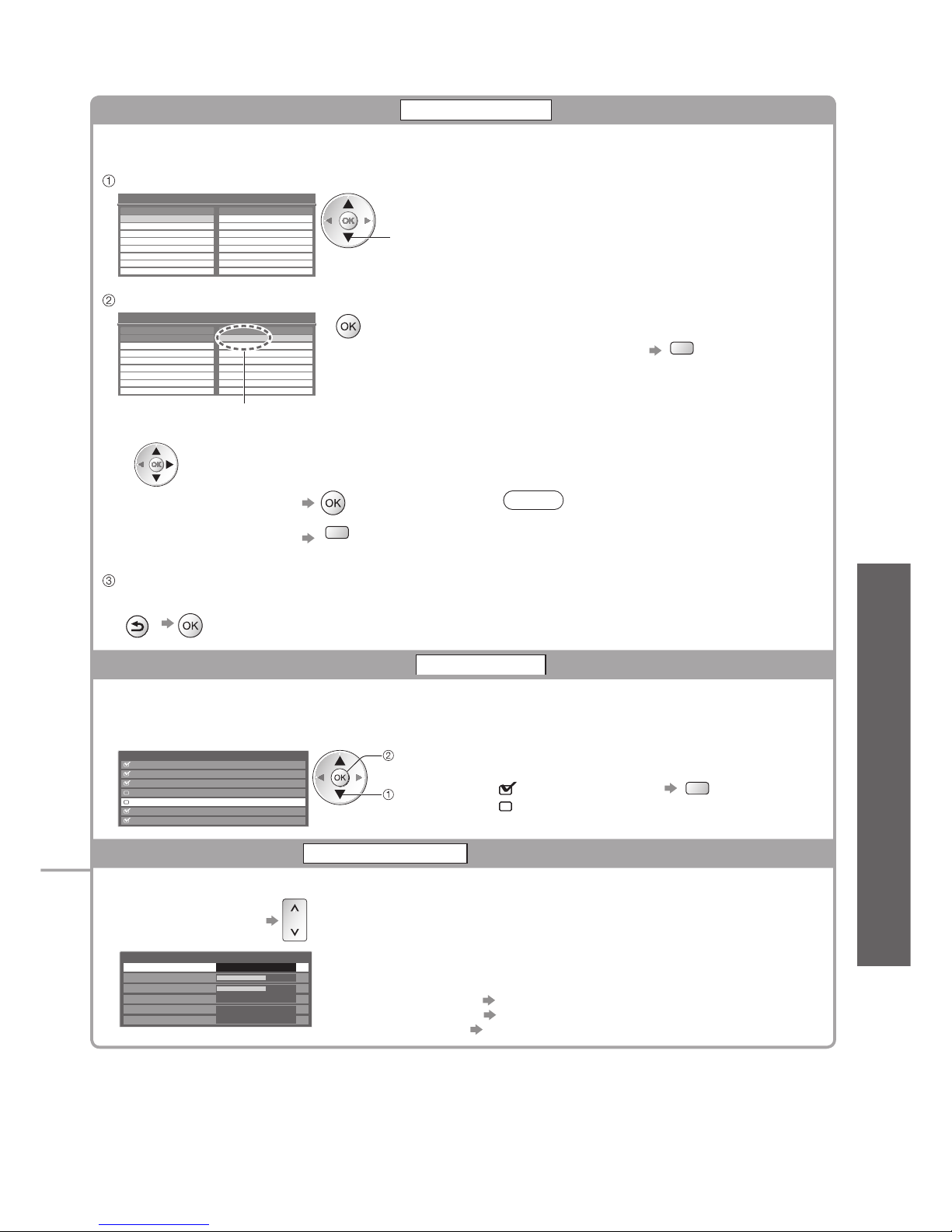

List favourite freesat channels

Favourites Edit

Create your favourite channel list from various broadcasters.
The freesat Favourites list is available from “Channel Genre” in the TV Guide (p. 20).

Select a channel to list

freesat Favourites Editor

BBC 1 Wales

All freesat Channels

101

BBC 2 Wales102

ITV1 WALES103

BBC THREE108

BBC FOUR109

BBC HD110

ITV2112

ITV2+1113

Favourites

select

Add it to the Favourites list

freesat Favourites Editor

BBC 1 Wales

All freesat Channels

101

BBC 2 Wales102

ITV1 WALES103

BBC THREE108

BBC FOUR109

BBC HD110

ITV2112

ITV2+1113

Favourites

BBC 1 Wales101

A channel is added

To add all channels to the list ●

yellow

To edit Favourites list■

Select the field of Favourites to edit and:

To delete the channel●

Note

Channel position numbers (known as logical ●
channel numbers) cannot be changed, due to
broadcast restrictions.

To delete all channels●

yellow

Store

BACK/

RETURN

Skip unwanted freesat channels

Channel List

You can hide unwanted freesat channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

freesat Channel List

101
102
103
104

108

109
110

BBC 1 Scotland
BBC 2 Scotland
stv
stv

BBC THREE

BBC FOUR
BBC HD

reveal / hide

select

: reveal
: hide (skip)

To reveal all channels

●

yellow

Check freesat signal

Signal Condition

Selects a channel and checks the freesat signal condition.

To change the channel ●

freesat Signal Condition

Signal Quality

Channel Name 101 BBC 1 Wales

10
10

0
0Signal Strength

Bit Error Rate

0.00E+00

Satellite

Astra 28.2° E

Parameter

10847MHz, V, 22000kS/s

A good Signal Strength is not an indication of best signal for freesat
reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

● Good

Yellow bar

● Poor

Red bar

● Bad (Check the Satellite dish)

EXIT

BACK/

RETURN

INPUT

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

44

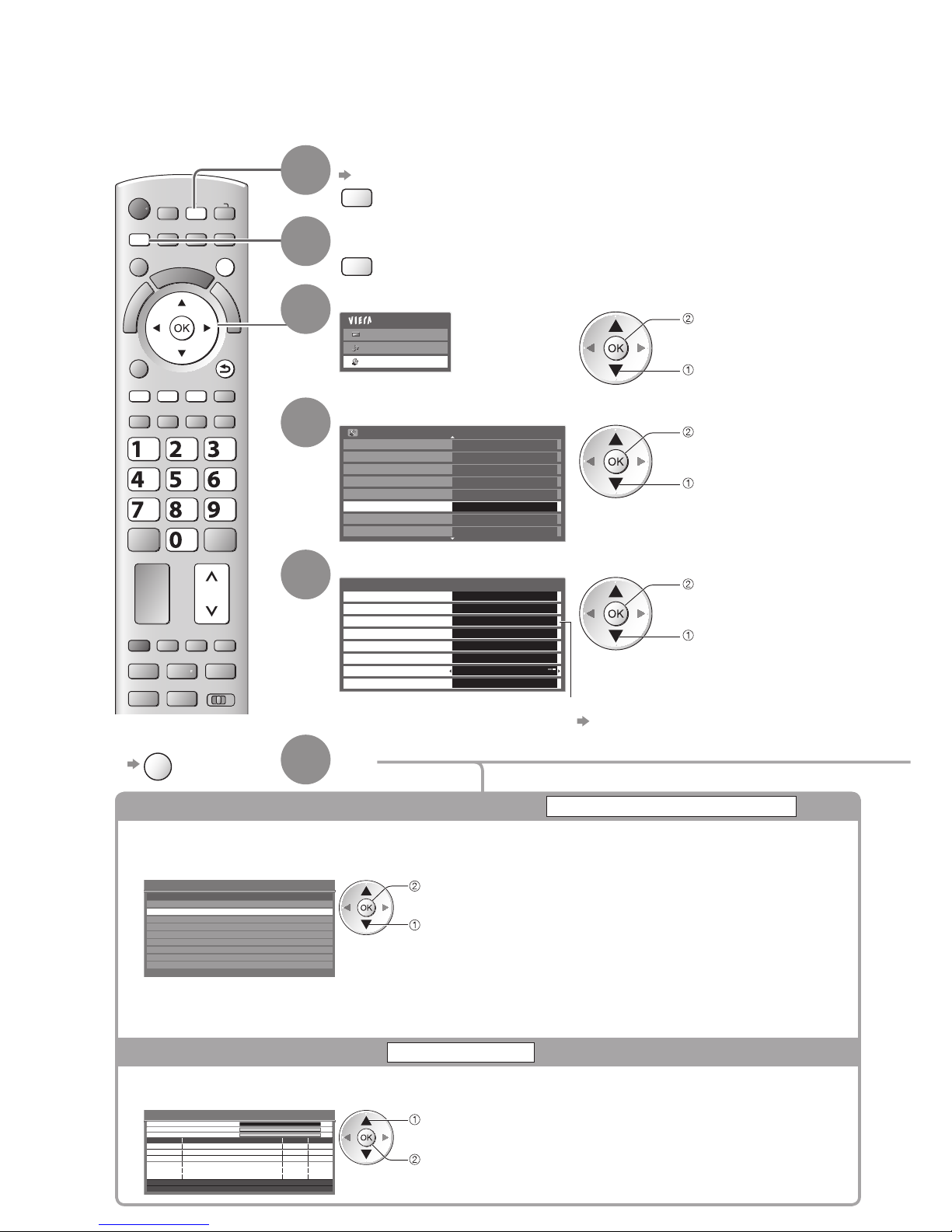

1

Select DVB

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “DVB Tuning Menu”

Setup Menu

1/2

Off Timer Off

Access

Link Settings
Child Lock

DVB Tuning Menu

Display Settings
Network Setup

USB HDD Setup

Timer Programming

access

select

5

Select one of the following functions

DVB Tuning Menu

Favourites Edit Access
Channel List
Auto Setup

Manual Tuning
Update Channel List
New Channel Message
Signal Condition

Access
Access

Channel Sorting by Region

Access
Access
Access
On
Access

Auto Setup ●

“Retuning from Setup Menu” (p. 41)

access

select

6

Set

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

To return to TV

■

EXIT

Tuning and Editing Channels

(DVB)

Sort DVB channels according to the region

Channel Sorting by Region

You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear
nearer the top of your Channel List.
Normally, you should select “Best signal quality (All Regions)”.

Channel Sorting by Region

GBR>
Best signal quality (All Regions)

England Regions>

Region choice available

select region

access

(select repeatedly until you reach the available region)

If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the

●

top of your Channel List. If you have any image or sound problems, select “Best signal quality (All Regions)”
instead.

Set DVB channel manually

Manual Tuning

Normally use “Auto Setup” or “Update Channel List” to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

DVB Manual Tuning

Analogue Scan 21 68

Frequency

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

Signal Strength 010

Signal Quality 0 10

MHz

474[CH21]

select frequency

search

All channels found will be added to the Channel List.●

Tuning and Editing Channels ●

Advanced

45

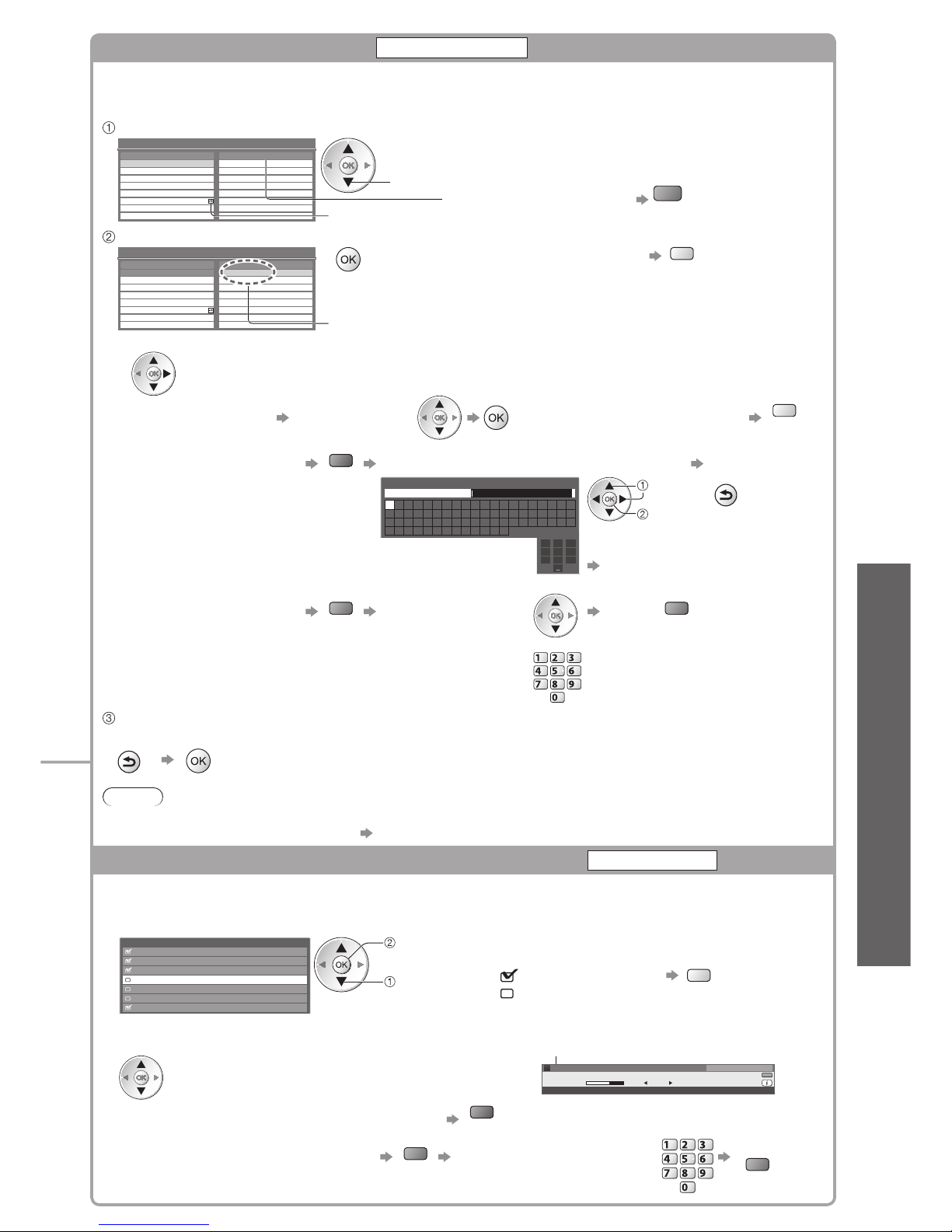

List favourite DVB channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4).
The DVB Favourites lists are available for switching in the Information banner (p. 17) and from “Category” in the
TV Guide (p. 21).

Select a channel to list

DVB Favourites Editor

BBC One Wales

All DVB Channels

1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

To display other Favourites ●

green

Encrypted channel

select

Add it to the Favourites list

DVB Favourites Editor

BBC One Wales

All DVB Channels

1 BBC One Wales1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

A channel is added

To add all channels to the list ●

yellow

To edit Favourites list■

Select the field of Favourites to edit and:

To delete a channel● Select the channel To delete all channels●

yellow

To name the Favourites●

red

Set characters one by one Store
(maximum: ten characters)

User input

Name

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

set

select

BACK/

RETURN

You can set characters by using
numeric buttons.

“Characters table for numeric

buttons” (p. 98)

To move the channel●

green

Select the new position Confirm

green

or

Select the turn

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Store

BACK/

RETURN

Note

Channel position numbers (known as logical channel numbers) can be swapped in Channel List. ●
To swap the channel position number “Channel List” (below)

Skip unwanted DVB channels, Edit DVB Channels

Channel List

You can hide unwanted DVB channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB Channels

70

72
105

719

720

1
7

CBBC Channel
Cartoon Nwk
BBCi

BBC Radio Wales

BBC Radio Cymru
BBC ONE Wales
BBC THREE

reveal / hide

select

: reveal
: hide (skip)

To reveal all channels●

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

19:30 - 20:00

Coronation Street

Now

For info press

Select favourites

1 BBC ONE Wales

19:35

Radio

All DVB Channels

D

Channel position number

To retune each channel - Manual Tuning (p. 44)●
(only for the revealed channels)

red

To swap the channel position number ●
(logical channel number)

green

Enter the new position number

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Store

green

EXIT

BACK/

RETURN

INPUT

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

46

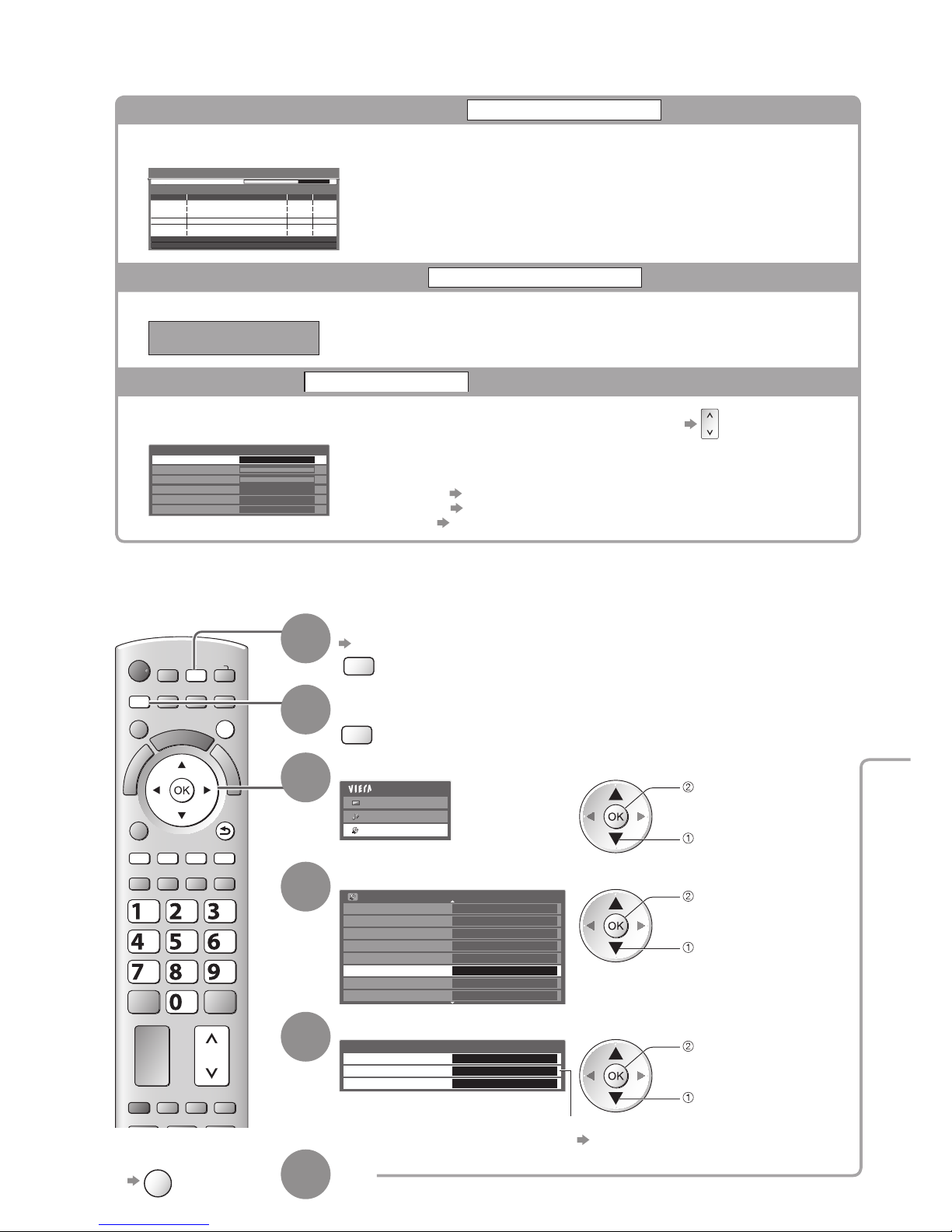

1

Select Analogue

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “Analogue Tuning Menu”

Setup Menu

1/2

Off Timer Off

Link Settings
Child Lock

Analogue Tuning Menu

Display Settings
Network Setup

USB HDD Setup

Timer Programming

Access

access

select

5

Select one of the following functions

Analogue Tuning Menu

Channel List
Auto Setup
Manual Tuning

Access

Access

Access

Auto Setup ●

“Retuning from Setup Menu” (p. 41)

access

select

6

Set

You can retune channels or skip unwanted channels, edit channels etc.

To return to TV

■

EXIT

(Analogue)

Update DVB channel automatically

Update Channel List

You can add new channels, delete removed channels, update channel name and position automatically to
Channel List.

DVB Update Channel List

CH Channel Name Type Quality

Searching

Analogue Scan 21 68

Progress CH 21 68

This will take about 3 minutes.

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Channel List is updated while keeping your settings in Favourites Edit, ●
Channel List, Child Lock, Timer Programming, etc.

Display a notification message

New Channel Message

Selects whether to give a notification message when a new DVB channel is found. (Off / On)

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Selecting OK will perform “Update Channel List”.●

Check DVB signal

Signal Condition

Selects a channel and checks the DVB signal condition.

To change the channel ●

DVB Signal Condition

Channel Name 70 CBBC Channel

Signal Quality
Signal Strength

Network Name

0 10
010

Wenvoe

Bit Error Rate 0.00E+00

Parameter [CH62] 802 MHz

A good Signal Strength is not an indication of best signal for DVB reception.
Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

● Good

Yellow bar

● Poor

Red bar

● Bad (Check the Terrestrial aerial)

Tuning and Editing Channels

Tuning and Editing Channels ●

Advanced

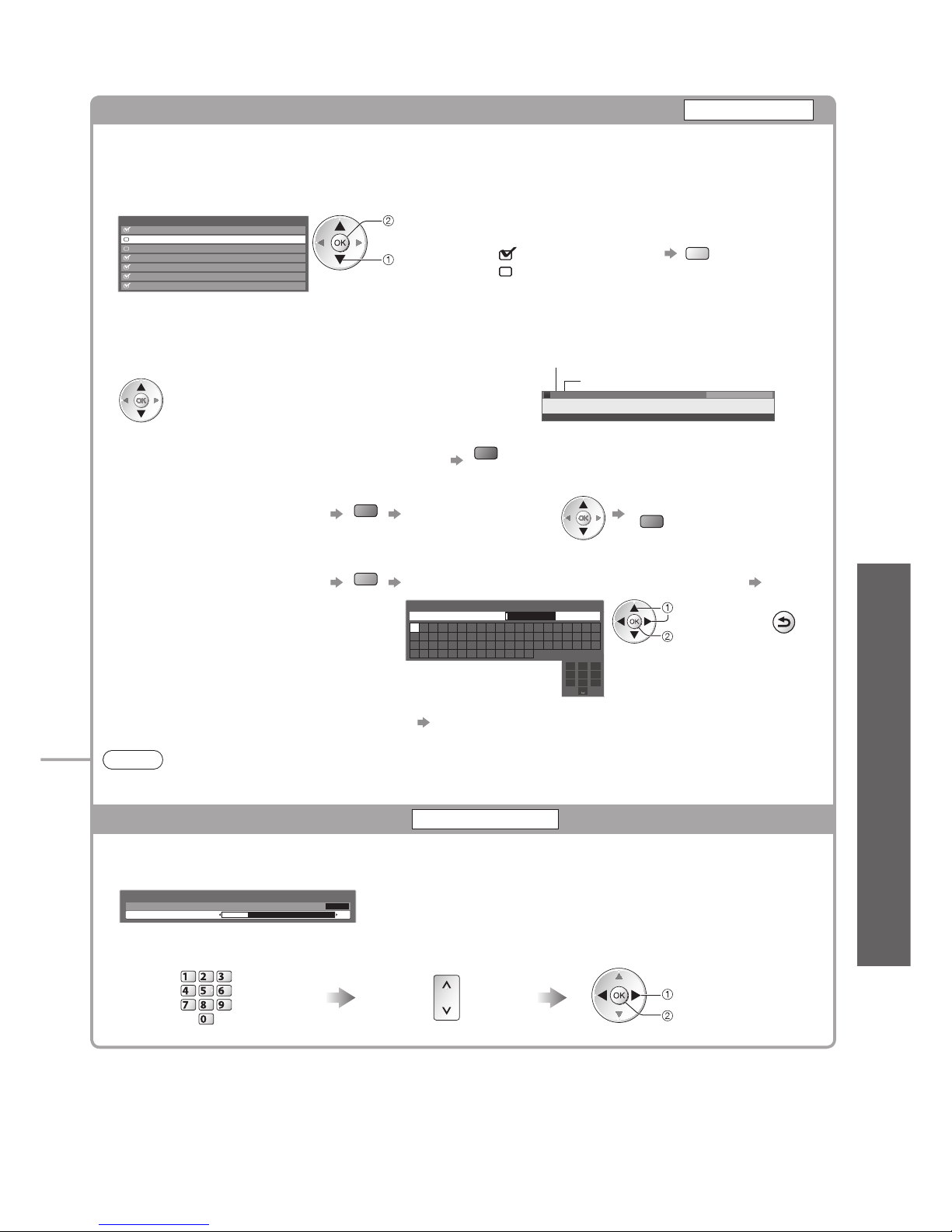

Skip unwanted Analogue channels, Edit Analogue channels

Channel List

You can hide unwanted Analogue channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

1

2

3
4
5
6
7

BBC1

*****

*****

reveal / hide

select

: reveal
: hide (skip)

To reveal all channels●

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

Mute Encrypted

SubtitlesAD TXT

Radio

For info press

45Multi Audio

3 ITV

23:35

itv

All Analogue Channels

CH23

A

Channel position

Channel name

To retune each channel - Manual Tuning (below)●

red

To move the channel position●

green

Select the new position

Store

green

To rename the channel name●

blue

Set characters one by one
(maximum: five characters)

Store

BACK/

RETURN

Edit channel name

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

set

select

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

Note

If a VCR is connected only with the RF cable, edit “VCR”.●

Set Analogue channel manually

Manual Tuning

Set Analogue channel manually after Auto Setup.

If a VCR is connected only with the RF cable, it is recommended to select channel position “0”.●

1 BBC1 CH33

Analogue Manual Tuning

Manual Tuning 21 68

Select the channel position Select the channel Search and store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

store

search

47

EXIT

INPUT

TV

MENU

BACK/

RETURN

abc def

jkl

ghi

mno

tuvpqrs

wxyz

48

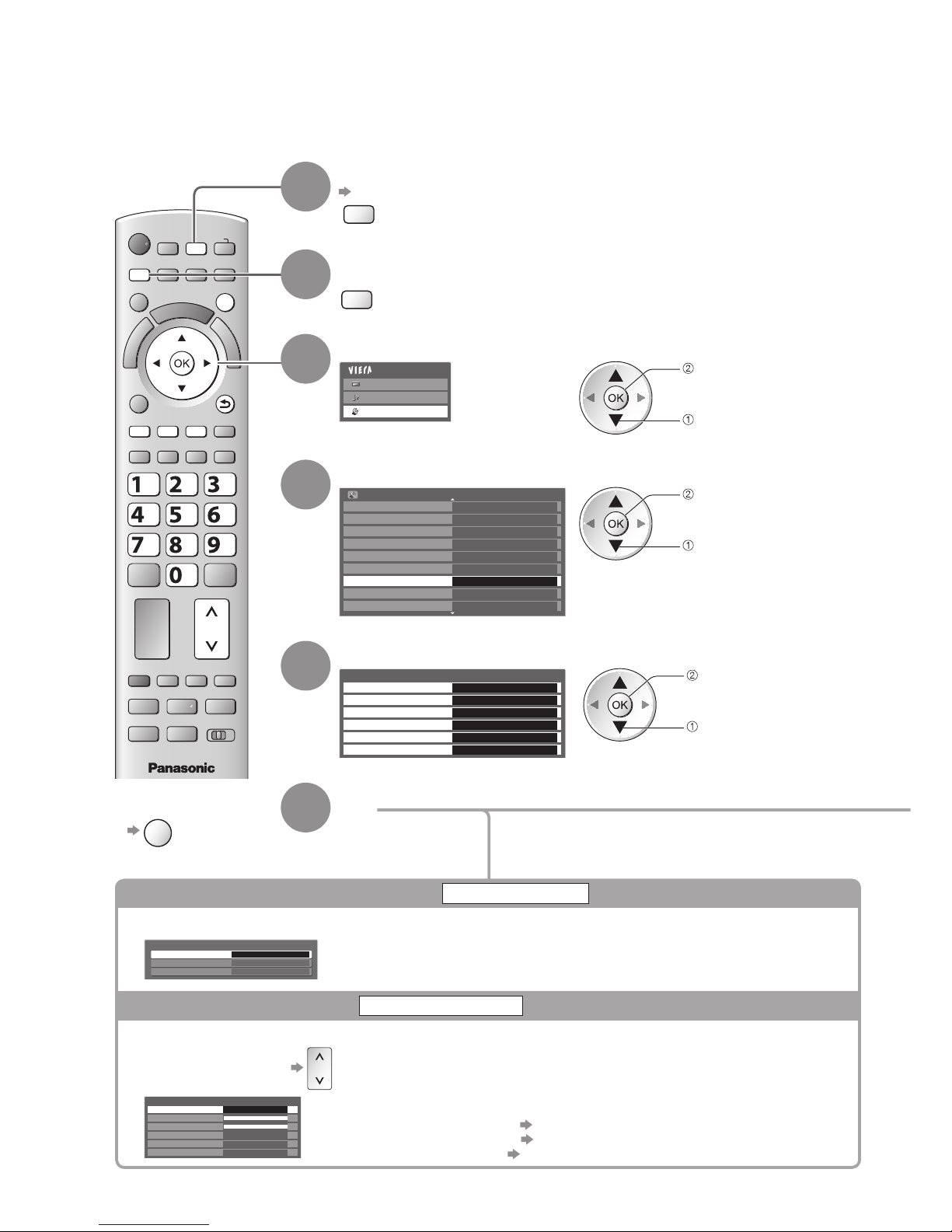

You can tune all receivable digital satellite channels or skip unwanted channels, etc.

Some of Other Sat. functions may work to differing specifications (depending on the broadcasters).●

1

Select freesat or Other Sat.

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “Other Sat. Tuning Menu”

Setup Menu

1/2

Off Timer Off

Access

Link Settings
Child Lock
freesat Tuning Menu

Other Sat. Tuning Menu

Display Settings
Network Setup

USB HDD Setup

Timer Programming

access

select

5

Select one of the following functions

Other Satellite Tuning Menu

Favourites Edit Access
Channel List
Auto Setup
Manual Tuning
Add New Channels
Signal Condition

Access
Access
Access
Access
Access

access

select

6

Set

To return to TV■

EXIT

Tuning and Editing Channels

(Other Sat.)

Set Other Sat. channel manually

Manual Tuning

Normally use “Auto Setup” or “Add New Channels” to tune Other Sat. channels.

Other Satellite Manual Tuning

Transponder Frequency 10773

Polarisation Horizontal
Symbol Rate (Ksym/s) Auto

Set tuning parameters for the required satellite, details can usually be found in ●
a satellite TV magazine.

Check Other Sat. signal

Signal Condition

Selects a channel and checks the Other Sat. signal condition.

To change the channel ●

A good Signal Strength is not an indication of best signal for
Other Sat. reception. Please use the Signal Quality indicator as
follows:

Signal Quality:

Green bar

● Good

Yellow bar

● Poor

Red bar

● Bad (Check the Satellite dish)

Other Satellite Signal Condition

Signal Quality

Channel Name 1 BBC 1 East (W)

10
10

0
0Signal Strength

Bit Error Rate

0.00E+00

Satellite

Astra 28.2° E

Parameter

10847MHz, V, 22000kS/s

Tuning and Editing Channels ●

Advanced

49

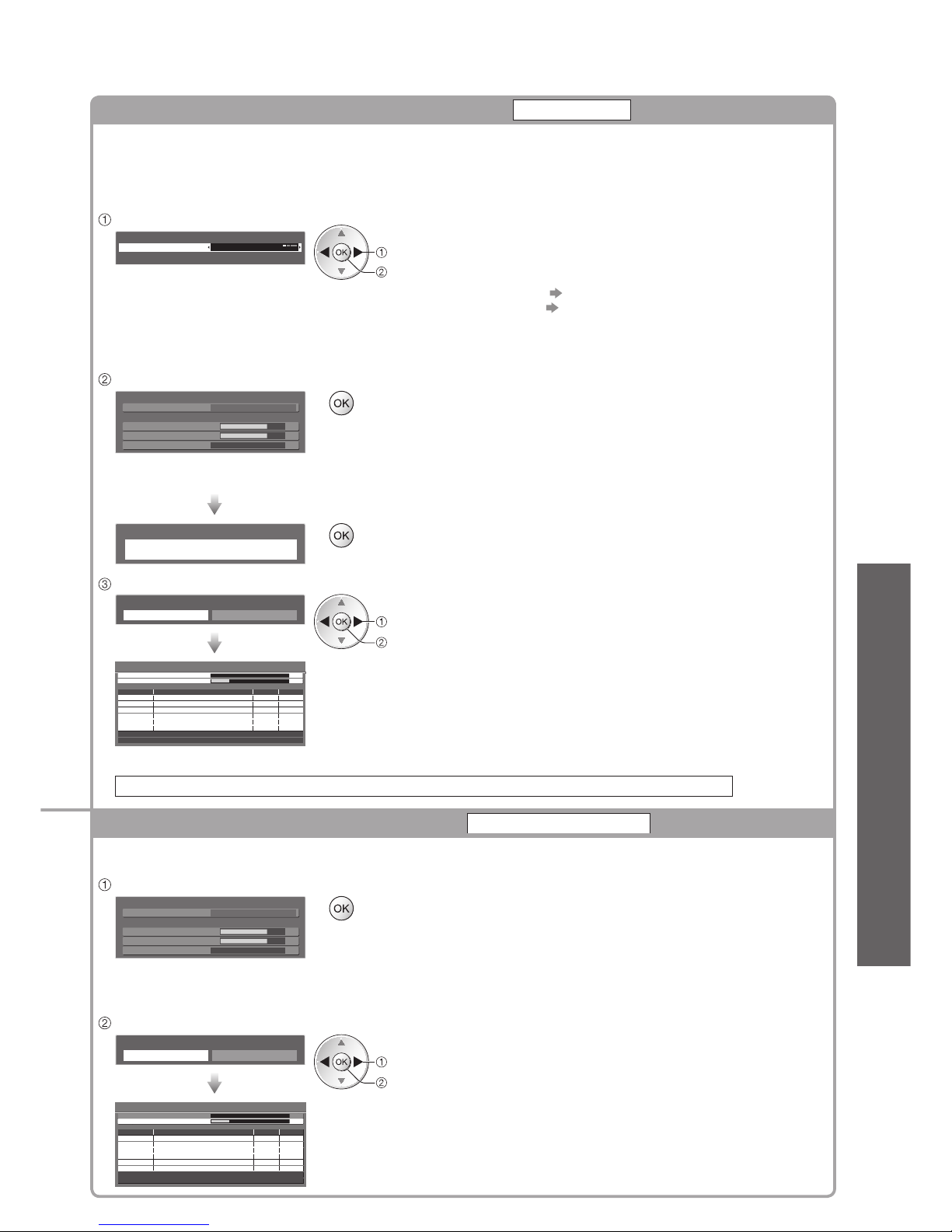

Set all receivable digital satellite channels

Auto Setup

Any receivable digital compliant satellite channels can be tuned.

Only Other Sat. channels are retuned.

●

All the previous tuning settings are erased.●
If a Child Lock PIN number (p. 54) has been set, it must be entered.●

Select the satellite

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

set

select

Selectable satellites are Astra2/Eurobird, Astra1 and ●
Hotbird.
Check the dish alignment for the satellite you want to
select

Astra2/Eurobird • p. 10
Astra1, Hotbird • Please consult the received satellite

broadcasting companies.

If you want to tune from all available satellites, select “Any ●
Satellite”.

Check the signal condition and the message

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

Signal Quality

0

Signal Strength 0

10

10

Signal Lock

Locked

It takes a while to check the connection for your selected ●
satellite.
Ensure that the Signal Lock status is shown as “Locked”. ●
If it is not locked, the search cannot be executed.
If the status is shown as “Not locked” and Signal Quality / ●
Signal Strength have no indications, please check the dish
alignment.
If the status is shown as “Not locked” but there are some
levels of Signal Quality / Signal Strength indicated, select
“Any Satellite” in Satellite Selection and try again.

If you select “Any Satellite”,
this step is skipped.

Other Satellite Auto Setup

All Other Satellite tuning data will be erased

Set the search mode and start Auto Setup

Search Mode

Free Channels All Channels

start

set

Other Satellite Auto Setup

Analogue Scan 21 68

Satellite

No. Channel Name Type Quality

Free TV: 4 Pay TV: 0 Radio: 0

Searching

This may take up to 20 minutes.

Progress 0% 100%

Astra 2/Eurobird

1 BBC 1 East (W) Free TV 10
2 BBC 1 Cl Free TV 10
3 BBC HD Free TV 10
4 6945 Free TV 10

If you select “Astra2/Eurobird” or “Any Satellite”, freesat ●
channels will also be searched. But the channels which
have already been tuned in freesat will not be duplicated.

Settings are made automatically

When the operation is completed, the channel at channel position “1” will be displayed.

Add Other Sat. channel automatically

Add New Channels

You can add any new channels found automatically to Channel List.

Check the signal condition

Other Satellite Add New Channels - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

Signal Quality

0

Signal Strength 0

10

10

Signal Lock

Locked

It takes a while to check the connection for your selected ●
satellite.
Ensure that the Signal Lock status is shown as “Locked”. ●
If it is not locked, the search cannot be executed.
If the status is shown as “Not locked” and Signal Quality ●
/ Signal Strength have no indications, please check the
dish alignment.

If you selected “Any Satellite” in Auto Setup,
this step is skipped.

Set the search mode and start Add New Channels

Search Mode

Free Channels All Channels

start

set

No. Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0

Searching

This may take up to 20 minutes.

Other Satellite Add New Channels

68

Satellite

Analogue Scan 21

Astra2/Eurobird

68

Progress 0% 100%

New channels can only be added to the existing Channel ●
List from the same satellite.

50

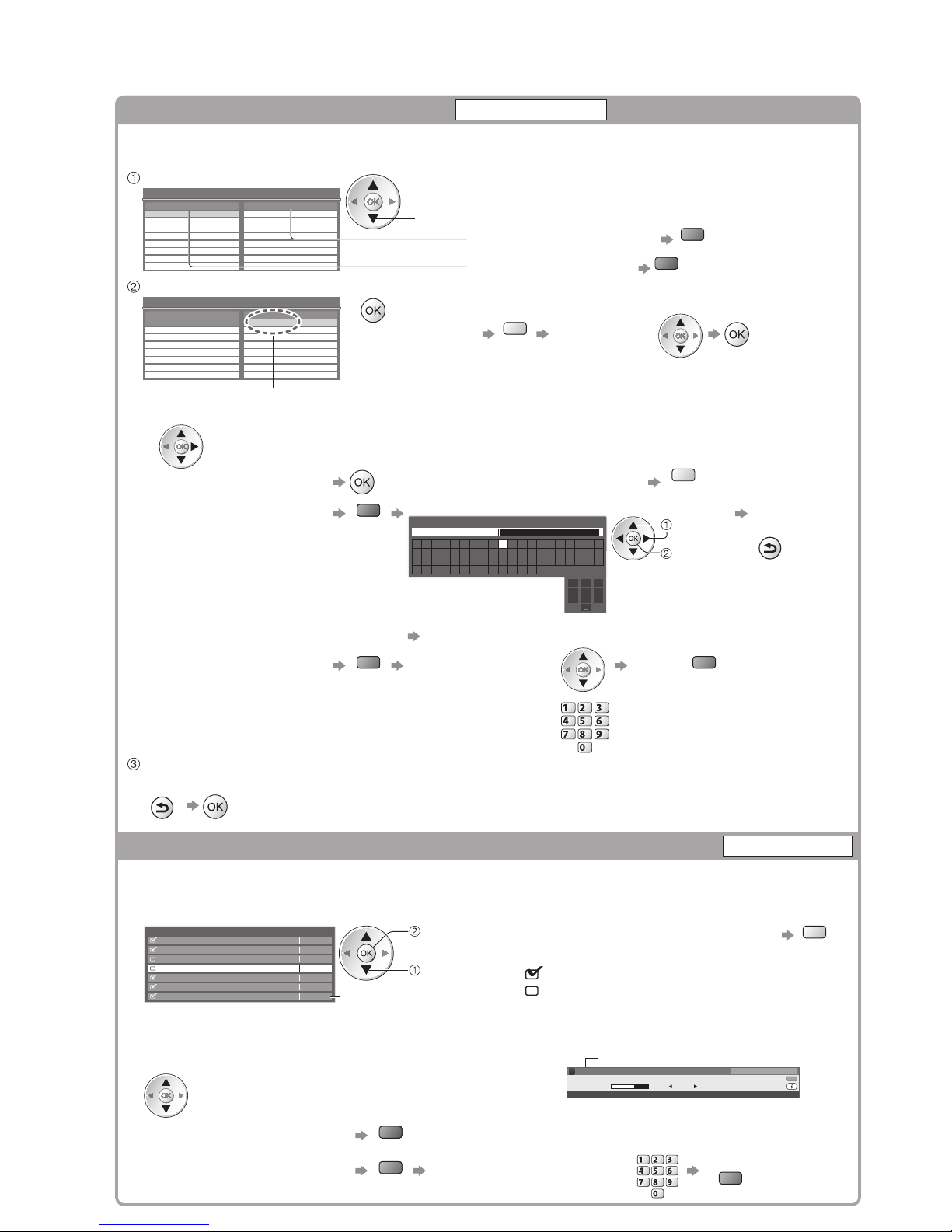

Tuning and Editing Channels

List favourite Other Sat. channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4).
The Other Sat. Favourites lists are available for switching in the Information banner (p. 17).

Select a channel to list

Other Sat. Favourites Editor

BBC One Wales

All Other Sat. Channels

1

BBC THREE2

E43

CBBC Channel4

Cartoon Nwk5

BBCi6

BBC Radio Wales7

BBC Radio Cymru8

Favourites1

To change the category ●

red

To display other Favourites ●

green

select

Add it to the Favourites list

Other Sat. Favourites Editor

BBC One Wales

All Other Sat. Channels

BBC One Wales1

BBC THREE

E4

CBBC Channel

Cartoon Nwk

BBCi

BBC Radio Wales

BBC Radio Cymru

Favourites1

1

2

3

4

5

6

7

8

A channel is added

To add continuous block of channels to the list at once ●

yellow

Make the block

To edit Favourites list■

Select the field of Favourites to edit and:

To delete the channel● To delete all channels●

yellow

To name the Favourites●

red

Set characters one by one Store

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

set

select

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 98)

BACK/

RETURN

To move the channel●

green

Select the new position Confirm

green

or

Select the turn

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Store

BACK/

RETURN

Skip unwanted Other Sat. channels, Edit Other Sat. Channels

Channel List

You can hide unwanted Other Sat. channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Other Sat. Channel List

2
3
4

5

6
7
8

freesatHome
freesatSSU
Brit Shorts

HINRG LOWNRG

WELL Class
GROOVE

-

Free TV
Free TV
Free TV

Free TV

Free TV
Free TV
Unknown

A channel that cannot
be identified is shown
as “Unknown”

reveal / hide

select

: reveal
: hide (skip)

To reveal all channels ●

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

103 ITV Wales

S

All Other Sat. Channels

Select favourites

19:30 - 20:00

19:35

Radio

Coronation Street

Now

For info press

Channel position

To delete the channel●

red

To swap the channel position●

green

Enter the new position number

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Store

green

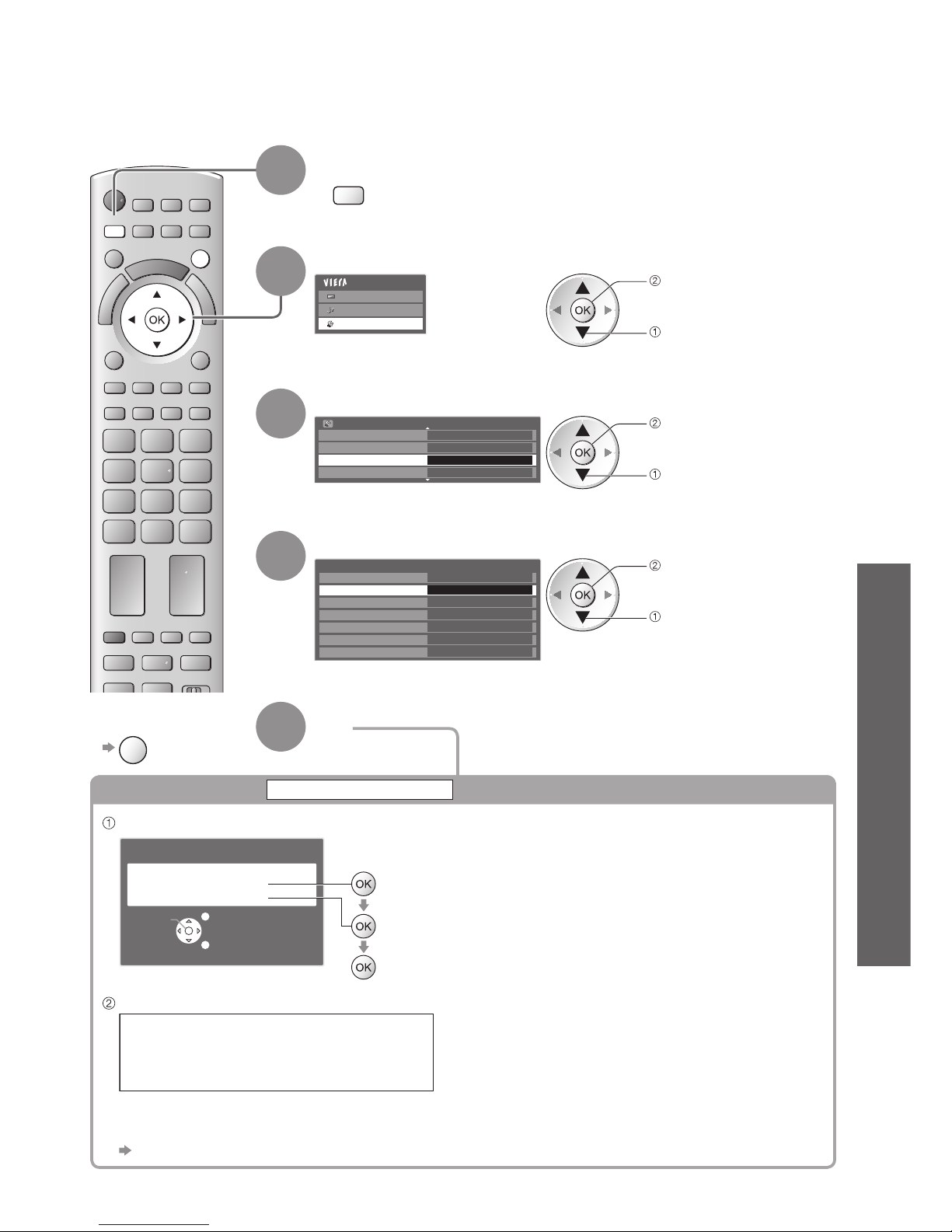

Shipping Condition ●

Tuning and Editing Channels ●

Advanced

EXIT

MENU

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select ”System Menu”

Setup Menu

2/2

DivX® VOD

Off
Access

Advance(isfccc)

Other Settings

System Menu

access

select

4

Select “Shipping Condition”

System Menu

Shipping Condition Access

Owner ID
Common Interface
System Update

USB Keyboard Layout English(UK)

Software Licence
System Information

access

select

5

Set

51

Shipping Condition

Resets the TV to its original condition with no channels tuned in.
All settings other than “Owner ID” and “USB HDD registration” are reset (channels, picture, sound
settings, etc.).

To return to TV

■

EXIT

Restore Settings

Shipping Condition

Check the message and initialise

EXIT

RETURN

Confirm

All tuning data will be erased

Are you sure?
Are you sure?

Shipping Condition

(confirm)

(confirm)

(start Shipping Condition)

Follow the on screen instructions

Reset to Factory Shipping Condition

Completed.

Please switch off TV.

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)●

To retune TV channels only, e.g. after moving house■

“Retuning from Setup Menu” (p. 40 and p. 41)

Note

Check that the LED is orange. If not, timer programmes are not active or not stored.●
Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.•
The timer programming event that the reminder is set for ends.•

“!” identifies that any timer programming events have overlapped. “Ext Rec.” and “USB HDD Rec.” are given ●
priority over “Reminder”. When two or more “Ext Rec.” / “USB HDD Rec.” overlap, the first timer programming
event starts and finishes as programmed. The next timer programming event will then start.
2 mins. before the starting time, a reminder message appears if you are watching TV.●

To remove the message and start the programme •

To cancel the Timer Programming •

EXIT

The recording of Timer Programming will automatically change to the programmed channel 10 seconds before ●
the start time.
To stop recording of the timer programming event, it may be necessary to stop the recorder manually.●
The recording of Timer Programming will be performed even if the TV is in Rewind LIVE TV recording (p. 67) and ●
Pause Live TV recording (p. 91). In this case, these recordings will be cancelled.

EXIT

INPUT

G

U

I

D

E

TV

MENU

52

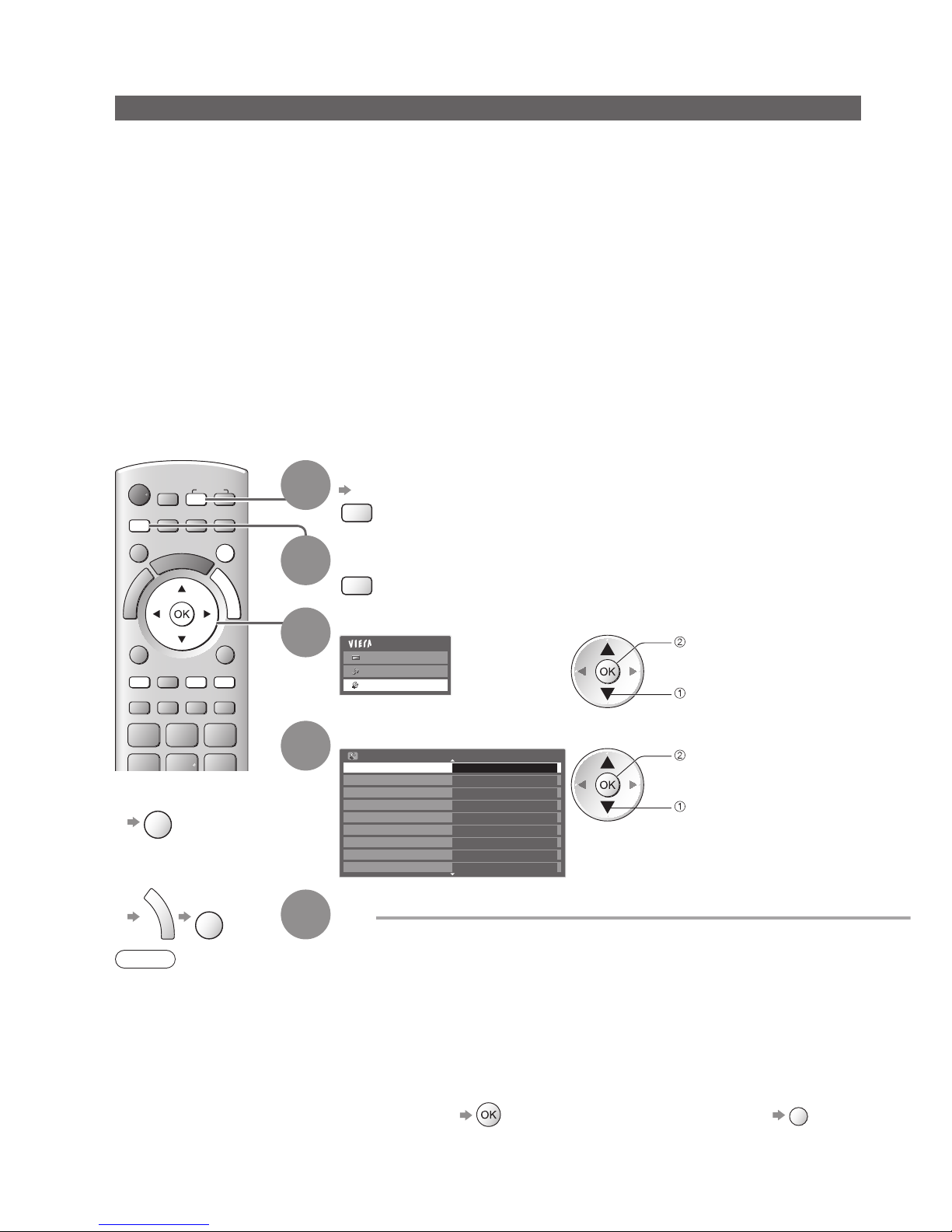

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching
or record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct
channel automatically to record even if the TV is in Standby mode.
TV Guide may also be used to set timer programming event (p. 22).

Timer Programming can store up to 15 events.●
For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, ●
the TV must be On.
No other channel can be selected while the recording of Timer Programming is in progress.●
It may not be possible to record an encrypted programme (which is copy-protected).●
When recording programmes to the external recorder, be sure to make the proper settings on the recorder ●
connected to the TV.
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 88) and the “Link Settings”
(p. 34) are correct, no setting of the recorder is required. Also read the manual of the recorder.
If the recorder is not compatible with Q-Link or similar technologies, set “Q-Link” in the Setup Menu (p. 34) to the ●
connected terminal (AV1 or AV2), and set the timer of the recorder in addition to the Timer Programming on the
TV. For preparations of a recorder, read the manual of the recorder.
When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in the ●
“USB HDD Setup” (p. 64).
Recordings are always in standard definition composite video via SCART, even if the original programme is in ●
high definition.

1

Select the tuner you want to use

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select “Timer Programming”

Setup Menu

1/2

Child Lock
freesat Tuning Menu
Other Sat. Tuning Menu
Display Settings
Network Setup

Access

Off
USB HDD Setup
Link Settings

Off Timer

Timer Programming

access

select

5

Set

To return to TV■

EXIT

To unlock the tuner ■
(stop recording)

G

U

I

D

E

EXIT

Timer Programming ●

Advanced

53

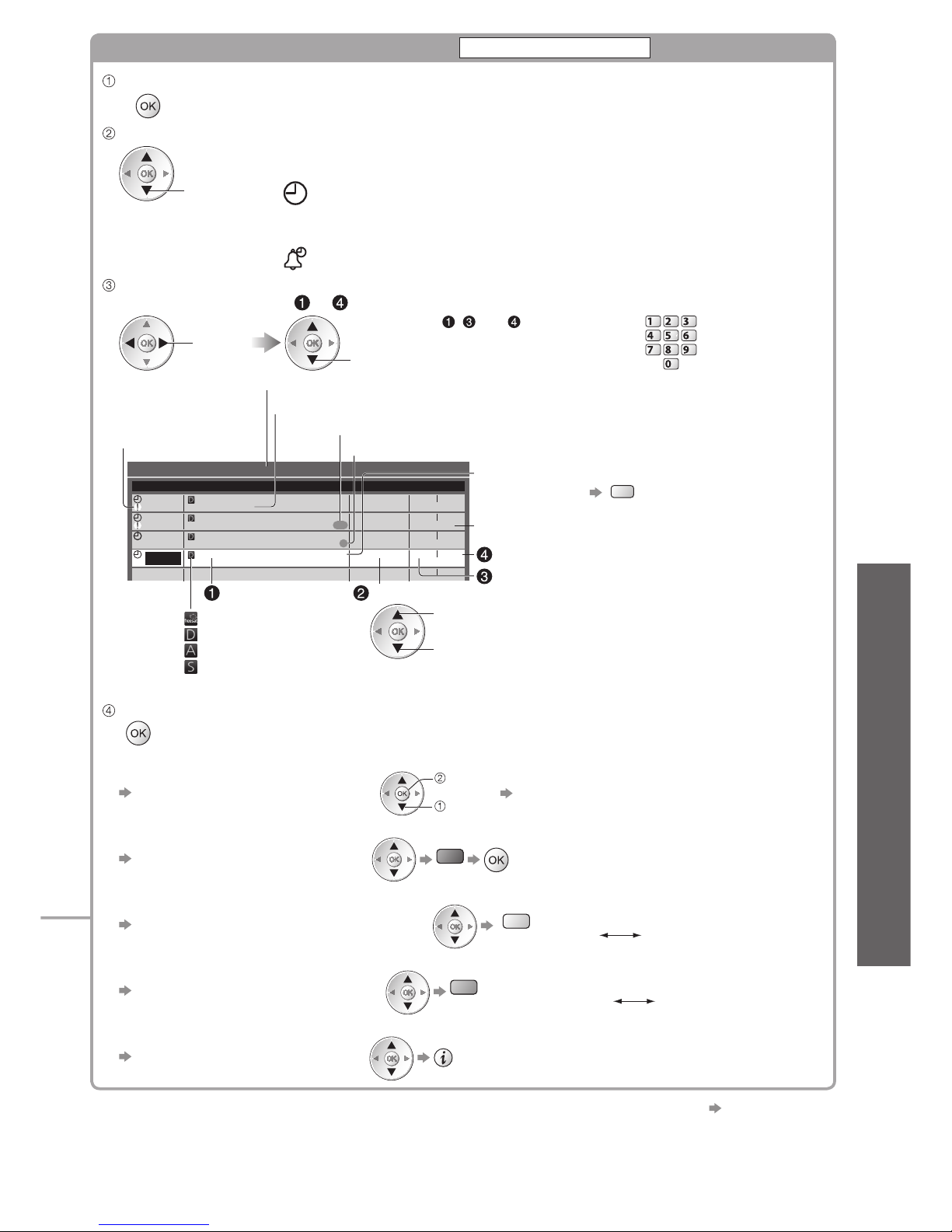

Set timer programming event details

Timer Programming

Start making the settings

Select the function (Ext Rec., USB HDD Rec. or Reminder)

select

Ext Rec. /
USB HDD Rec.

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.)
When the start time comes, the channel will be switched automatically
and the video and audio signals will be output. 2 mins. before the starting
time, a reminder message appears if you are watching TV.

Reminder : to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before
the start time. Press the OK button to switch to the programmed channel.

Set the channel, date and time (repeat the operations as below)

Set items in the order of

to .

select
the item

set

● , and can also be

entered with numeric buttons.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Guide

STTL

Wed 28 Oct 21:00 2 2:00

Date Start End

Wed 28 Oct 22:45 2 3:00

--/-- --:-- --:--

Thu 29 Oct 10 :30 11 :30

(60 min.)

(15 min.)

(60 min.)

Reminder

Ext Rec.

---

1

Ext Rec.

Function Channel Name

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE
<TIMER>

---

No.

72 Wed 28 Oct 20:00 21:30

(90 min.)

Ext Rec.

BBC 2W
<TIMER>

Timer Programming USB HDD Remaining Capacity 500GB (50%) Wed 28.10.2009 10:46

S/P

Channel number

Date

Starting time

Records with subtitles (if available)

To indicate this ●

yellow

( press again to

remove subtitles)

Ending time

one day ahead

daily or weekly
(press repeatedly)

Duration (automatic display)

Daily Sun-Sat: Sunday to Saturday●
Daily Mon-Sat: Monday to Saturday●
Daily Mon-Fri: Monday to Friday●
Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun:●
Same time on the same day every week

Displayed if the
timer programming
events are overlapped

: freesat
: DVB
: Analogue
: Other Sat.
You can

● not change the

mode within the menu.

Guide: Guide link programming - Programmes according to the TV Guide signal (p. 23)

Timer programming - Programmes according to the time setting

Information of the USB HDD (if available)

S/P: Split Programme programming (p. 23)

Store

To change a timer programming event■

Select the programme to be changed

access

select

Correct as necessary

(as above)

To cancel a timer programming event■

Select the programme to be deleted

red

To record with subtitles ■ (if available)

Select the programme to record with subtitles

yellow

Each time pressed:●
auto off

To cancel a timer programming event temporarily■

Select the programme to be cancelled

blue

Each time pressed:●
cancel stop cancelling

To view details of the programming ■ (only for Guide link programming)

Select the programme to be viewed

Press again to return to ●
Timer Programming menu.

Guide link programming (Timer Programming from the TV Guide signal) ■ p. 23

This function is not available in Analogue or Other Sat. mode.

●

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if
programme start and end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct
information is received from broadcasters.

EXIT

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

54

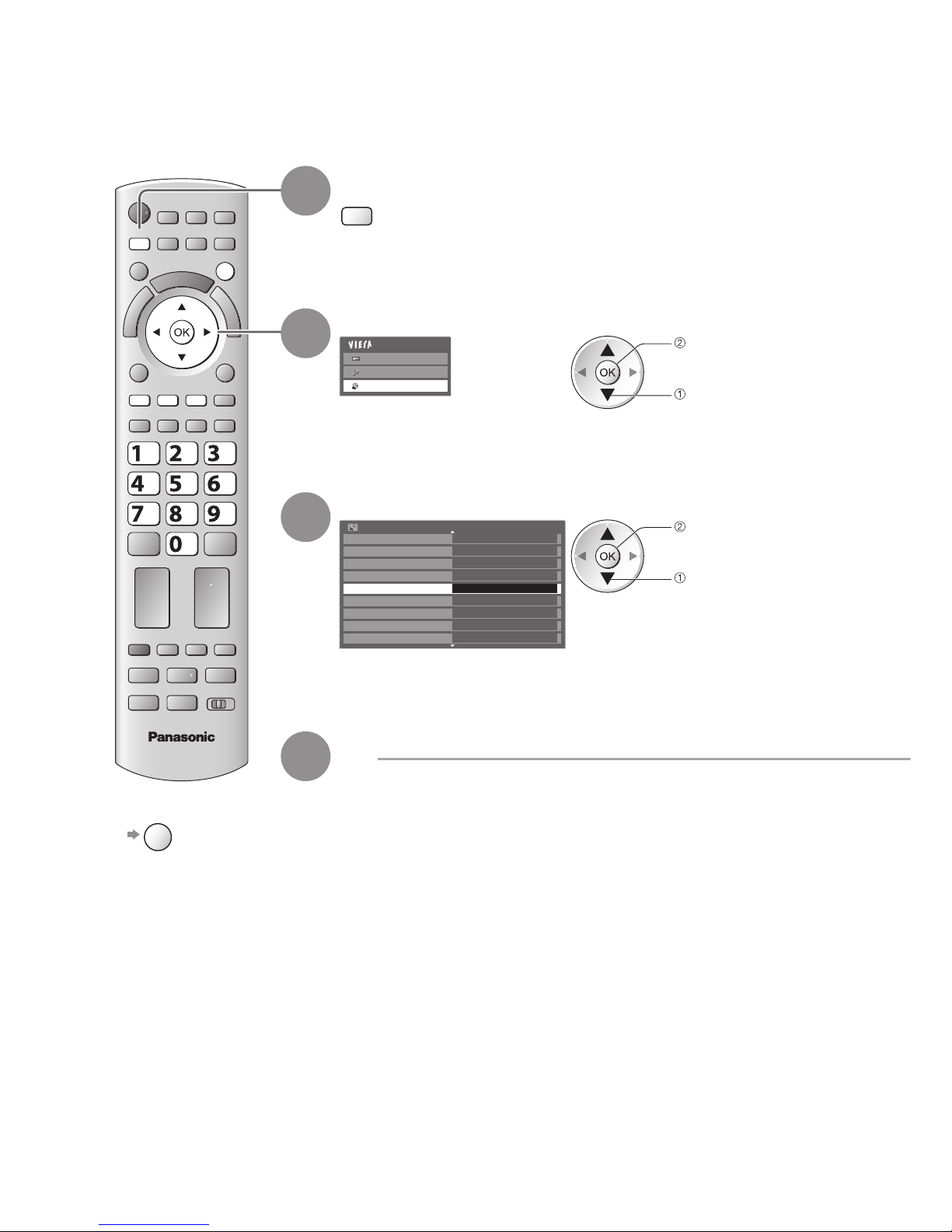

Child Lock

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “Child Lock”

Setup Menu

1/2

Off Timer Off

Access

Link Settings

USB HDD Setup

Child Lock

freesat Tuning Menu
Other Sat. Tuning Menu
Display Settings
Network Setup

Timer Programming

access

select

4

Set

You can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can
watch it.

To return to TV■

EXIT

Child Lock ●

Advanced

55

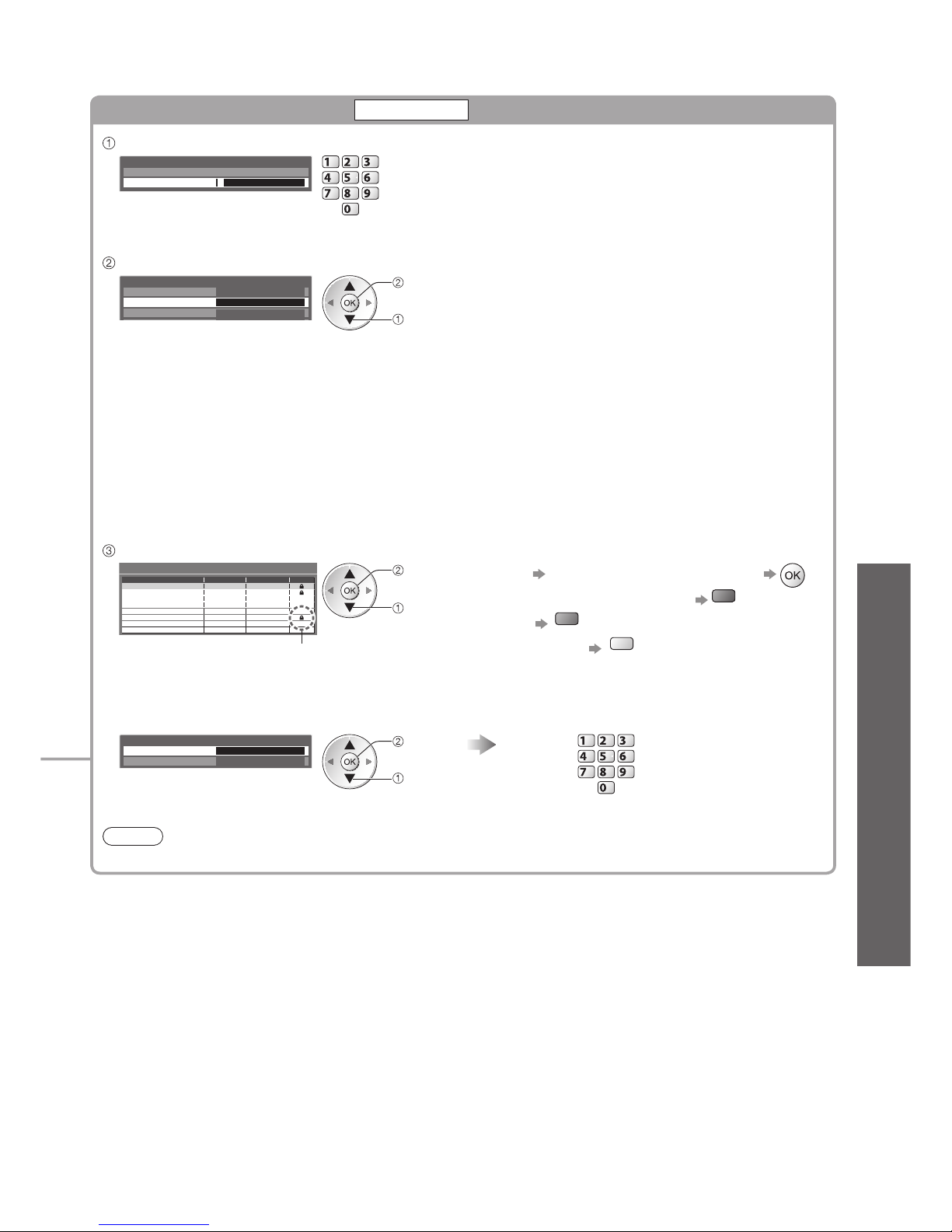

Control channel audience

Child Lock

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.●
Make a note of the PIN number in case you forget it.●

Select “Child Lock List”

Child Lock

Change PIN

freesat Adult Channels

Child Lock List Access

Don’t hide

select

access

In freesat mode, additional lock items will appear.●
freesat Adult Channels: Select “Hide” to hide channels of the adult genre in TV Guide and Channel List.

All the Timer Programming events of the adult genre will be cancelled.

freesat Players: Locks freesat content supplied through the internet.
Unlock: With this setting selected, you will not be required to enter your 4 digit child lock PIN when viewing

freesat Player content. This is the default setting.

Lock Guidance Content: With this setting selected, you will be asked to enter your 4 digit child lock

PIN whenever you wish to watch freesat Player content which is signalled as
“Guidance” (i.e. originally broadcast post watershed).

Lock All Content: With this setting selected, you will be required to enter your 4 digit child lock PIN every

time you wish to watch freesat Player content.

Select the channel / input to be locked

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales Free TV
BBC THREE DVB LockFree TV
E4 DVB LockFree TV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue
***** Analogue LockAnalogue
AV1 External LockAV
AV2/ S

7

14

4

1
2

External LockAV

DVB

select

lock

To cancel ● Select the locked channel / input
To jump to the top of the next input ●

red

To lock all ●

green

To cancel all locks ●

yellow

Appears when the channel / input is locked

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Child Lock

Change PIN Access

Child Lock List

select

access

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Note

Setting “Shipping Condition” (p. 51) erases the PIN number and all settings.●

EXIT

BACK/

RETURN

TV

MENU

56

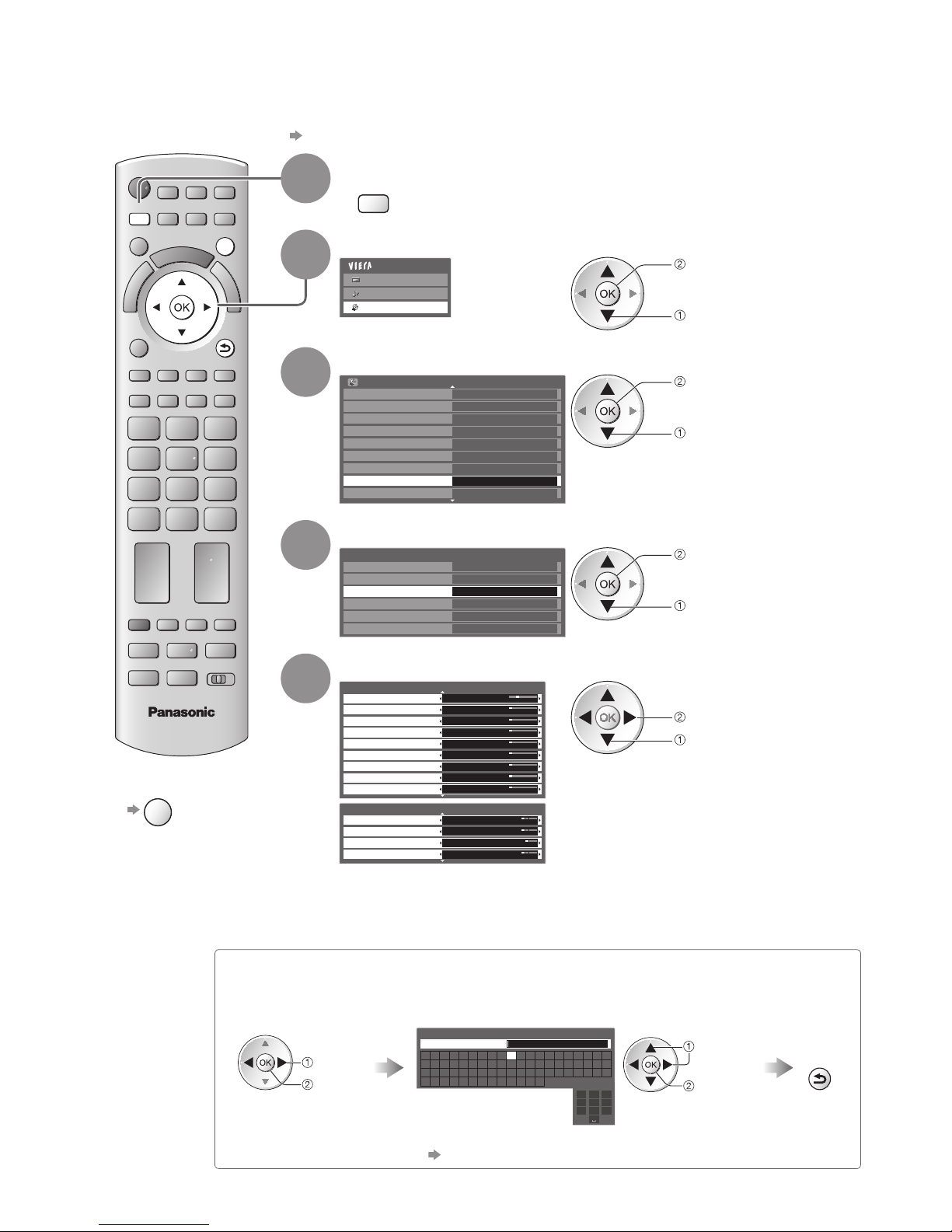

Input Labels

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “Display Settings”

Setup Menu

1/2

Off Timer Off

Access

Link Settings

USB HDD Setup

Child Lock

Othe Sat. Tuning Menu

freesat Tuning Menu

Display Settings

Network Setup

Timer Programming

access

select

4

Select “Input Labels”

Display Settings

Preferred Subtitle Type English
Side Panel

Input Labels

Banner Display Timeout
Playing Time Display
Radio Mode

Off

Access

3 seconds

On

Off

access

select

5

Select a input terminal and set

Input Labels

AV1 DVD
AV2/S
AV3
COMPONENT

HDMI1
HDMI2
HDMI3

AV2/S
AV3
COMPONENT

HDMI1

PC PC

HDMI2
HDMI3

HDMI4 HDMI4

1/2

set

select

Input Labels

freesat freesat

2/2

DVB DVB

Other Sat. Other Sat.

Analogue Analogue

The labels you set will be displayed in the “Input Selection” menu (p. 28),
“TV Selection” menu (p. 16) or banner.

If “Skip” is selected, the input will not be displayed in the “Input Selection” ●
menu and you cannot select the mode.

For easier identification and selection of the input mode, you can label each input mode or skip terminals
that are not connected to any equipment.

To select the input mode ● p. 28

User input■

You can name each input mode yourself.

Select “User input” Set characters one by one Store

access

select

(maximum: ten characters)

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

set

select

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

To return to TV■

EXIT

Owner ID ●

Input Labels ●

Advanced

EXIT

MENU

BACK/

RETURN

abc def

jkl

ghi

mno

tuvpqrs

wxyz

57

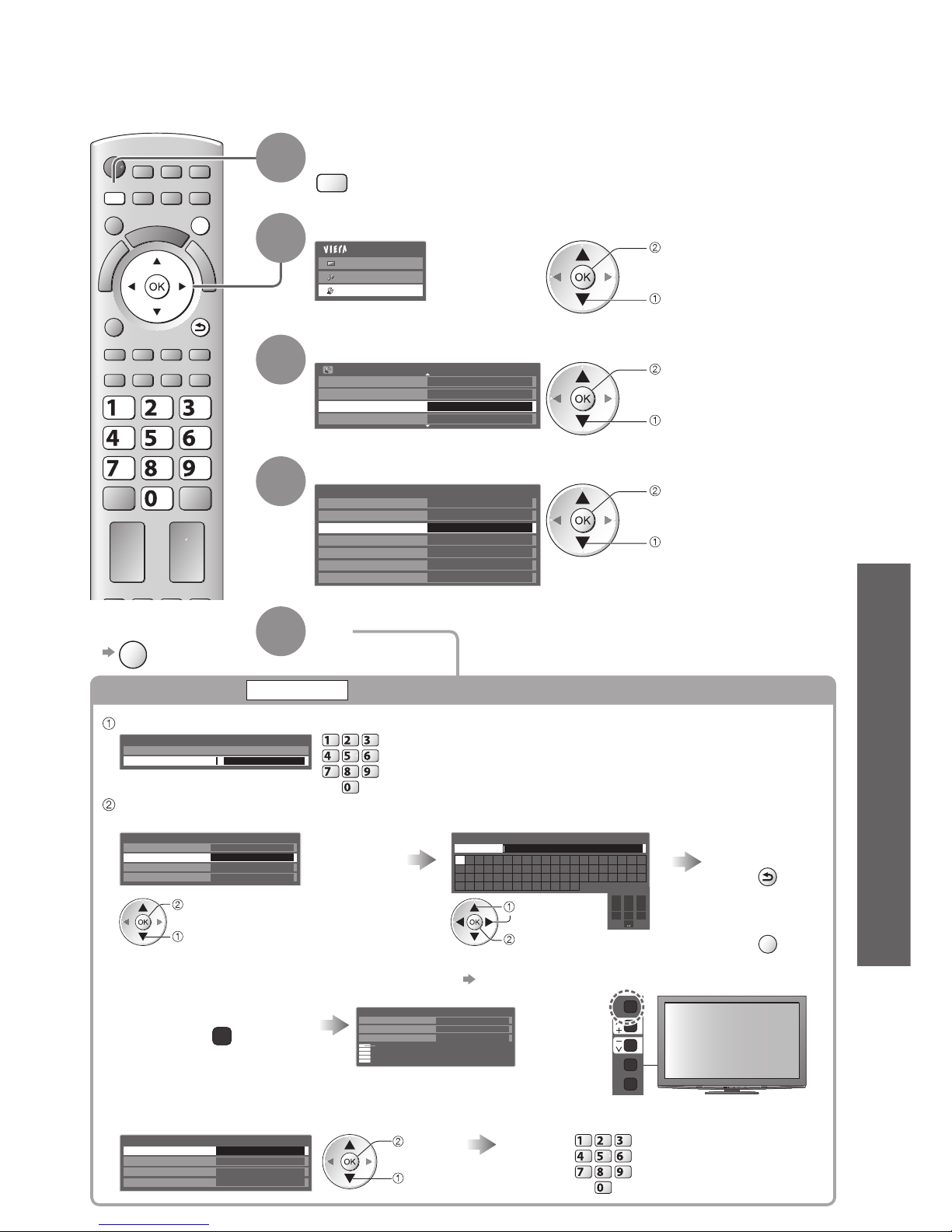

Owner ID

Input owner ID

Owner ID

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.●
Make a note of the PIN number in case you forget it. ●
The PIN number cannot be reset.

Enter your name, house number, and postcode, in that order

Select NAME / HOUSE NO / POSTCODE Set characters one by one Return to select

other items

BACK/

RETURN

or

Exit the menu

EXIT

Owner ID-Data Entry

PIN



HOUSE NO
POSTCODE

NAME

User input

NAME

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

access

select

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

To check the personal information stored■

F

TV

AV

Hold down for about 6 sec.

F

Owner ID

NAME





HOUSE NO
POSTCODE

EXIT

The PIN number is not displayed.●

To change the PIN number■

Select “PIN” Enter a new PIN number twice

Owner ID-Data Entry

PIN



HOUSE NO
POSTCODE

NAME

select

access

abc def

jkl

ghi

mno

tuvpqrs

wxyz

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “System Menu”

Setup Menu

2/2

DivX® VOD

Off
Access

Advance(isfccc)

Other Settings

System Menu

access

select

4

Select “Owner ID”

System Menu

Shipping Condition

System Update
Software Licence
System Information

USB Keyboard Layout English(UK)

Common Interface

Owner ID Access

access

select

5

Set

Entry of the PIN number and personal information (your name, address and postcode).
In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.

To return to TV■

EXIT

EXIT

INPUT

TV

TV

MENU

58

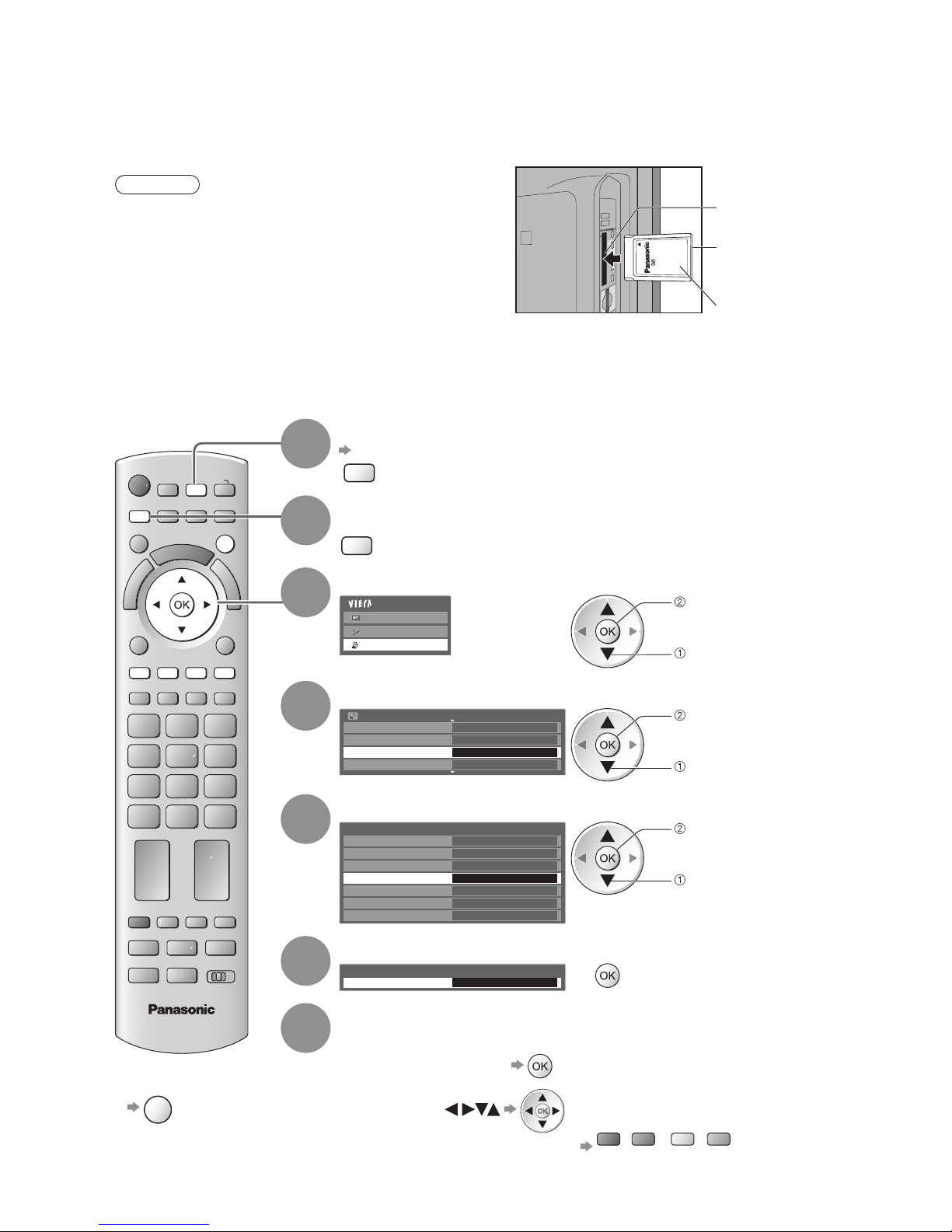

Using Common Interface

1

Select DVB or Other Sat.

p. 16

TV

2

Display the menu

MENU

3

Select “Setup”

Main Menu


Sound

Setup

access

select

4

Select ”System Menu”

Setup Menu

2/2

DivX® VOD

Off

Access

Advance(isfccc)

Other Settings

System Menu

access

select

5

Select “Common Interface”

System Menu

Shipping Condition

USB Keyboard Layout English(UK)

Owner ID

System Update
Software Licence
System Information

Common Interface Access

access

select

6

Access Common Interface

Common Interface

Slot 1:

Module inserted

7

Follow the on screen operation guide
(Check the instructions provided with the CI module)

For example: select, go

Coloured characters

red green yellow blue

On screen operation guide may not correspond to the remote control ●
buttons.

The Common Interface Module menu provides access to software contained on Common Interface (CI)
Modules.
This TV works only Pay TV modules complying with CI standard.

This function is not available for BSkyB’s Sky channels.●

Caution

Turn Off Mains power On / Off switch whenever inserting ●
or removing the CI module.
If a viewing card and a card reader come as a set, first ●
insert the card reader, then insert the viewing card into the
card reader.
Insert the module in the correct direction.●

Insert or remove
straightly and completely

CI module

Side of the TV

CI slot

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI module.●
Follow the instructions that came with the viewing card to tune in the pay-TV channels. If pay-TV channels do not ●
appear, perform the below to verify the card is recognized by the TV.
For more details, see the manual of the CI module, or check with the broadcaster.●

To return to TV■

EXIT

Updating the TV Software ●

Using Common Interface ●

Advanced

EXIT

MENU

59

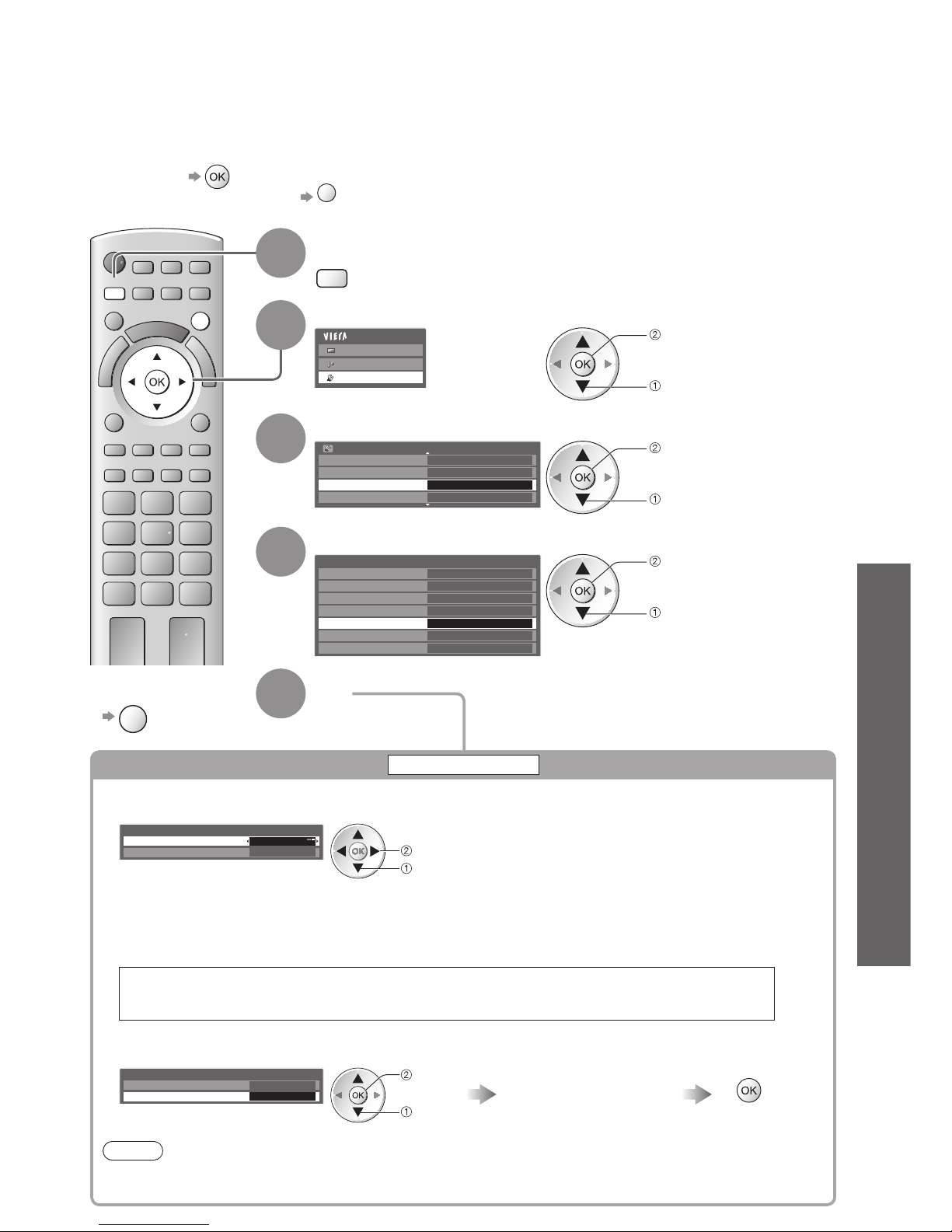

Updating the TV Software

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “System Menu”

Setup Menu

2/2

DivX® VOD

Off
Access

Advance(isfccc)

Other Settings

System Menu

access

select

4

Select “System Update”

System Menu

Shipping Condition

USB Keyboard Layout English(UK)

System Update

Software Licence
System Information

Access

Owner ID
Common Interface

access

select

5

Set

From time to time, a new version of software may become available for download to enhance the
performance or operations of the TV.
In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new
available software is found.

To download ●
If you choose not to download ●

EXIT

You can update any new software automatically, or manually.

To return to TV

■

EXIT

Update TV’s software system

System Update

To update automatically■

Select “Auto Update Search in Standby” and set to “On”

System Update

Auto Update Search in Standby

On

System Update Search Now

set
select

Automatically performs a search in standby and ●
downloads an update, if any software updates are
available.
The automatic updating is performed at night under ●
the following conditions:

Standby (TV turned Off with the remote control)•
Recording of Timer Programming, Direct TV •
Recording or One Touch Recording is not in
progress.

If System Update is performed, the software will be updated (it may change TV functions).
If you do not wish to do so, set “Auto Update Search in Standby” to “Off”. The notification
banner will keep appearing during the period of new software availability, usually 2 to 3 days.

To update immediately■

Select “System Update Search Now” Download

System Update

Auto Update Search in Standby

Off

System Update Search Now Access

access

select

Searches for an update
(for several mins.) and
displays a corresponding
message if any

Note

Download may take up to 60 mins.●
During software download and update, DO NOT perform any operations on the TV or switch Off the TV.●

TV

MENU

60

Note

Each input mode can only be displayed either on main screen or sub screen.●
The sound comes from only the main screen in multi window.●
You cannot change the aspect ratio in multi window.●
This function cannot be used with PC, Media Player or Network services.●
HDMI is available only for main screen.●
Some signals are reformatted for suitable viewing on your display.●
If main screen has digital teletext signals, some key words may appear on the colour bar. In this case the ●
operations can be performed by using colour buttons on the remote control except when the colour bar is
displayed by pressing the button.

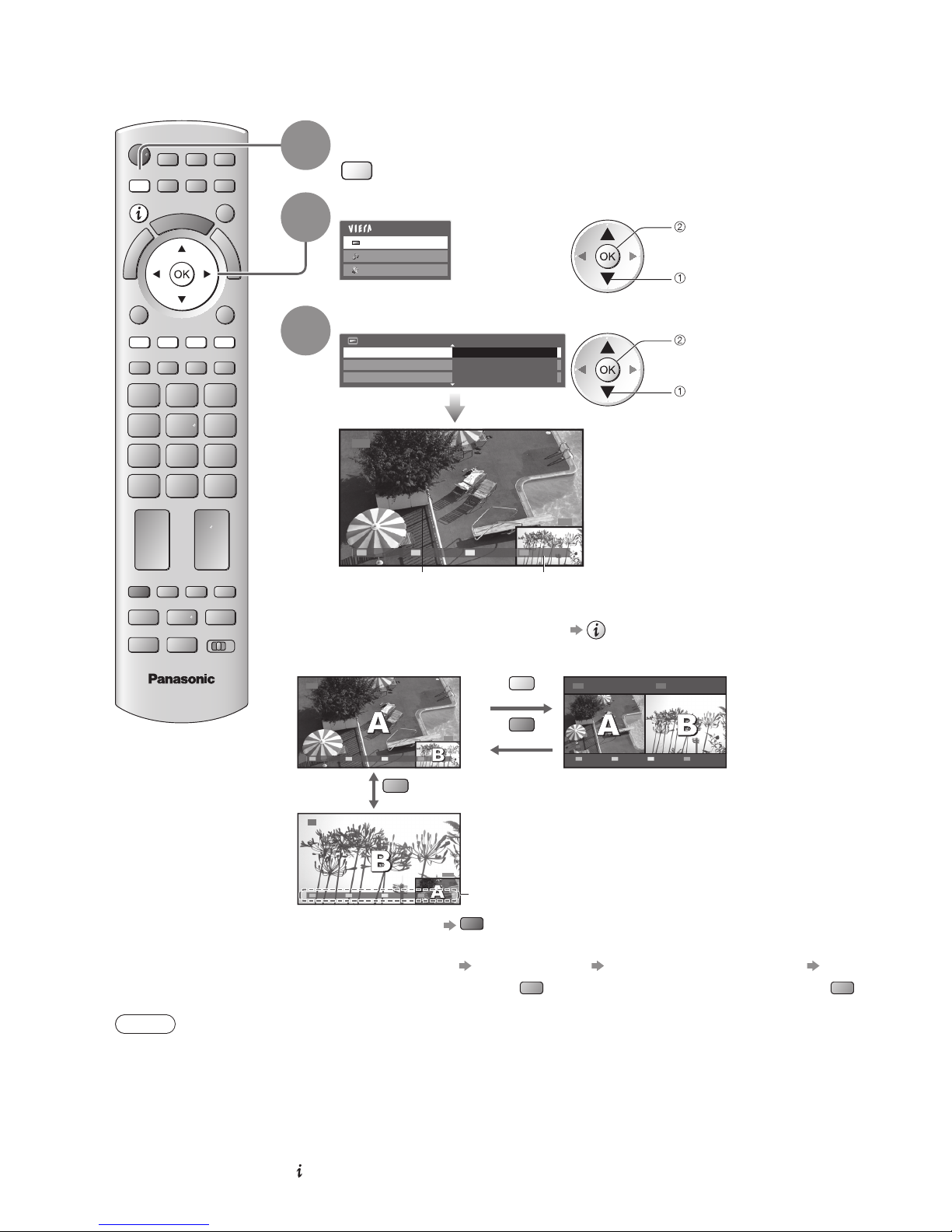

Multi Window

1

Display the menu

MENU

2

Select “Picture”

Main Menu


Sound

Setup

access

select

3

Select “Picture in Picture”

Picture Menu

2/2

Picture in Picture

Access

Picture Display
Reset to Defaults

On

Reset

access

select

1 DVB

EXIT PandP Swap

AV1

Main screen Sub screen

Remote control operations apply to ●
the main screen.

How to operate in multi window■

Display the colour bar if it is not displayed

Picture-in-Picture mode
(PinP)

Picture-and-Picture mode
(PandP)

1 DVB

EXIT PandP Swap

AV1

yellow

green

1 DVB AV1

EXIT PinP Swap

blue

AV1

EXIT PandP Swap

1 DVB

Colour bar

To exit multi window ●

red

To change the ●
input mode or
channel of sub screen

Swap sub screen
for main screen

blue

Change the input mode or
channel by the remote control
(p. 16 or p. 28)

Swap
again

blue

Enjoy viewing the digital TV programme and external input (AV, COMPONENT or HDMI) at once.

Displaying PC Screen on TV ●

Multi Window ●

Advanced

INPUT

AVTV

61

Displaying PC Screen on TV

1

Select the external input

AV

2

Select “PC”

Input Selection

AV1
AV2/S
AV3
COMPONENT

PC

HDMI1
HDMI2
HDMI3
HDMI4
TV
Media Server

access

select

Corresponding signals ● p. 100
If “H-freq.” or “V-freq.” is shown in red, ●
the signals may not be supported.

The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.

To connect PC ● p. 94

To return to TV■

TV

PC menu setting■

To make settings ● “How to Use Menu Functions” to (p. 31)

Menu Item Adjustments / Configurations (options)


Advanced Settings

R-Gain

Adjusts the white balance of bright red area

G-Gain

Adjusts the white balance of bright green area

B-Gain

Adjusts the white balance of bright blue area

R-Cutoff

Adjusts the white balance of dark red area

G-Cutoff

Adjusts the white balance of dark green area

B-Cutoff

Adjusts the white balance of dark blue area

Gamma

Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Reset to Defaults

Press the OK button to reset to the default Advanced Settings

Setup

PC Setup

Input Resolution

Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels),

●

XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)
Options change depending on signals

●

Clock

Set to the minimum level if noise occurs

H-pos

Adjusts horizontal position

V-pos

Adjusts vertical position

Clock Phase

Eliminates flicker and distortion

Adjust after Clock adjustment

● Set to the minimum level if noise occurs●

Sync

Chooses another synchronous signal if the image is distorted (H & V / On Green)

H & V : by the horizontal and vertical signals from your PC

●

On Green : by the green signal from your PC (if available)

Reset to Defaults

Press the OK button to reset to the default PC Setup settings

Other items ● p. 32 - 36

Note

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using ●
HDMI cable (p. 99).

EXIT

INPUT

AVTV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

62

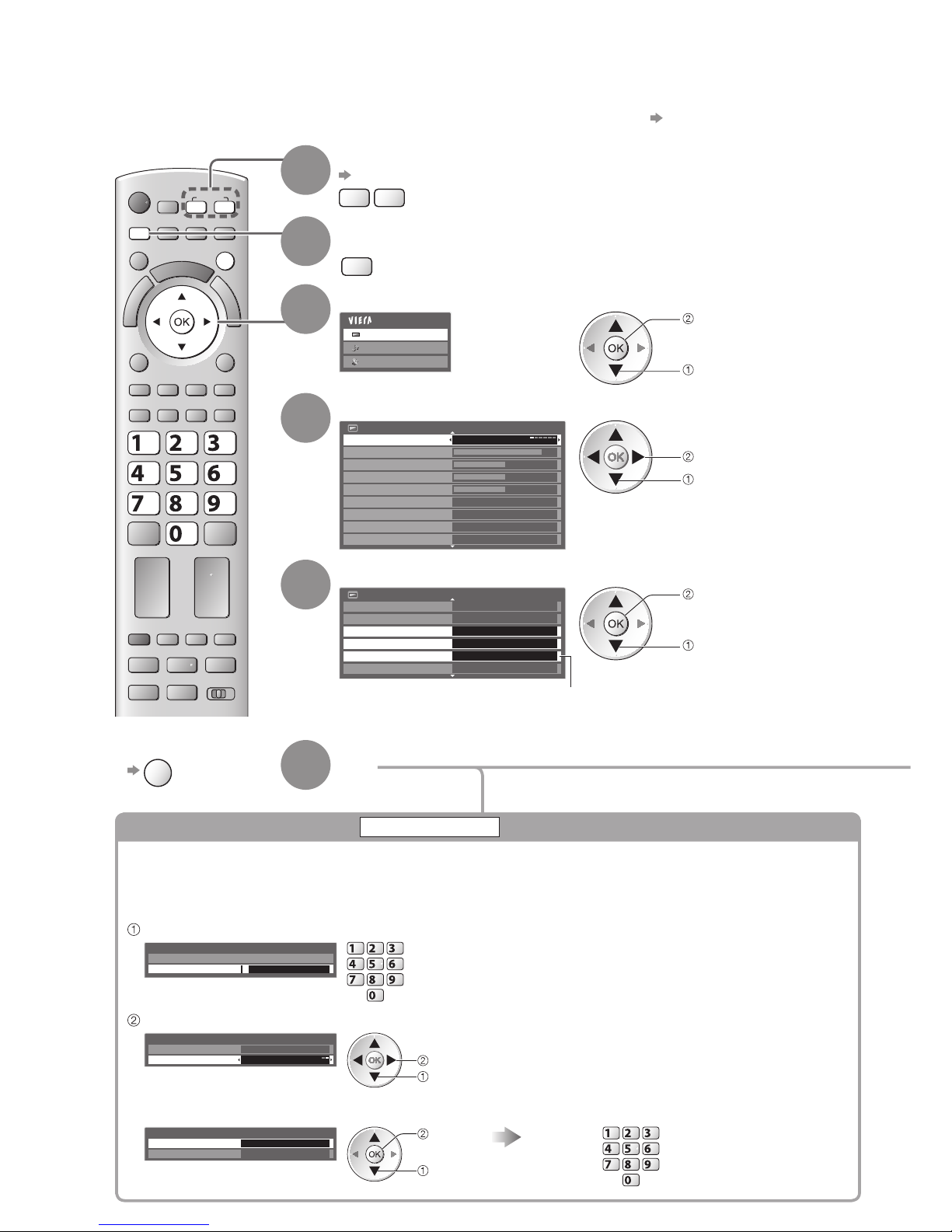

Advanced Picture Settings

1

Select the input mode to adjust and setup

p. 16 and p. 28

TV AV

2

Display the menu

MENU

3

Select “Picture”

Main Menu


Sound

Setup

access

select

4

Select “Viewing Mode” and set the mode

Picture Menu

1/2

Viewing Mode Dynamic

Contrast
Brightness
Colour
Sharpness
Colour Balance
Vivid Colour
C.A.T.S.

Warm
Off
Off

P-NR Off

set

select

5

Select one of the following functions

Picture Menu

2/2

Picture Display On

Picture in Picture

Advanced Settings

Access
Access

Lock Settings

Reset to Defaults

Reset

Copy Adjustment

Access

“Copy Adjustment” is available when ●
“Viewing Mode” in the Picture Menu is set
to “Professional1” or “Professional2”.

access

select

6

Set

You can adjust and setup the detailed picture settings for each Viewing Mode.

To use this function completely, set “Advance(isfccc)” to “On” in the Setup Menu. ● p. 35
For PC input mode, some functions are available without setting “Advance(isfccc)”.●

To return to TV■

EXIT

Lock the picture setting

Lock Settings

Advanced Settings can be locked for each Viewing Mode.
Additionally, Contrast, Brightness, Colour, Sharpness, Tint and Reset to Defaults in the Picture Menu can be
locked for “Professional1” and “Professional2”.
“Professional1” and “Professional2” can be locked for each input.

Enter the PIN number (4 digits)

Lock Settings-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.●
Make a note of the PIN number in case you forget it.●

Select “Adjustment Lock” and set to “On”

Lock Settings

Change PIN

Adjustment Lock On

select

set

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Lock Settings

Change PIN Access

Adjustment Lock On

select

access

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Advanced Picture Settings ●

Advanced

63

Adjust the detailed picture settings

Advanced Settings

To make settings ● “How to Use Menu Functions” to (p. 31)

R-Gain
G-Gain
B-Gain
R-Cutoff
G-Cutoff
B-Cutoff
Gamma
Reset to Defaults

2.2
Reset

Advanced Settings

Menu Item Adjustments / Configurations (alternatives)


Advanced Settings

R-Gain

Adjusts the white balance of bright red area

G-Gain

Adjusts the white balance of bright green area

B-Gain

Adjusts the white balance of bright blue area

R-Cutoff

Adjusts the white balance of dark red area

G-Cutoff

Adjusts the white balance of dark green area

B-Cutoff

Adjusts the white balance of dark blue area

Gamma

Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Reset to Defaults

Press the OK button to reset to the default Advanced Settings

For the mode of “Professional1” or “Professional2” in “Viewing Mode”■

“Professional1” and “Professional2” can be adjusted and set for each input.●

White Balance● Colour Management● Gamma●

White Balance
Colour Management
Gamma Access

Access

Access

Advanced Settings

R-Gain
G-Gain
B-Gain
R-Cutoff
G-Cutoff
B-Cutoff
Reset to Defaults Reset

White Balance

R-Hue
G-Hue
B-Hue
R-Saturation
G-Saturation
B-Saturation
Reset to Defaults Reset

Colour Management

Gamma
Reset to Defaults Reset

2.2

Gamma

Menu Item Adjustments / Configurations (alternatives)


Advanced Settings

White Balance

R-Gain

Adjusts the white balance of bright red area

G-Gain

Adjusts the white balance of bright green area

B-Gain

Adjusts the white balance of bright blue area

R-Cutoff

Adjusts the white balance of dark red area

G-Cutoff

Adjusts the white balance of dark green area

B-Cutoff

Adjusts the white balance of dark blue area

Reset to Defaults

Press the OK button to reset to the default White Balance

Colour Management

R-Hue

Adjusts the picture hue of red area

G-Hue

Adjusts the picture hue of green area

B-Hue

Adjusts the picture hue of blue area

R-Saturation

Adjusts the saturation of red area

G-Saturation

Adjusts the saturation of green area

B-Saturation

Adjusts the saturation of blue area

Reset to Defaults

Press the OK button to reset to the default Colour Management

Gamma

Gamma

Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Reset to Defaults

Press the OK button to reset to the default Gamma

Copy the settings to the other input

Copy Adjustment

You can copy the selected “Professional1” or “Professional2” settings to that of the other input.
The settings of Contrast, Brightness, Colour, Sharpness, Tint and Advanced Settings will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

copy

select

You cannot copy to the locked mode.●

EXIT

BACK/

RETURN

MENU

64

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various
ways.

Analogue TV programme cannot be recorded to the USB HDD.●
The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.●
Not all the programmes can be recorded depending on the broadcaster and service provider.●
This TV supports USB HDD with capacity from 160 GB up to 2 TB.●
If the remaining capacity of the USB HDD is run out, the recording cannot be done.●
Regarding the performance, not all USB HDDs are guaranteed.●
Check the USB HDDs that have been tested for the performance with this TV at the following website. (English
only)
http://panasonic.jp/support/global/cs/tv/

Caution

Register the USB HDD with this TV in order to use it for recording. Please note that USB HDD will be formatted ●
and all data (including the data from your PC, etc.) in it will be erased when you register it.
In order to use the USB HDD with your PC after you use it with this TV for recording, format the drive on your ●
PC. To format, refer to the manual of the PC. Please note that all data in the USB HDD will be erased when it is
formatted.
The data recorded to the USB HDD with this TV can only be played back on this TV. You cannot playback its ●
contents with another TV (including the TV of the same model number) or any PCs.
If your TV is repaired due to a malfunction, the registered USB HDD may not be available with your repaired TV. ●
Register this USB HDD again to use it with your repaired TV. (All data in it will be erased.)

USB HDD connection

Connect the USB HDD to the USB 1 or 2 port.

USB

cable

USB HDD

socket outlet

Be sure to connect the USB HDD to the ●

socket outlet.

Do not turn off or disconnect the USB HDD ●

during operation. It may cause malfunction
of the drive or damage the recorded data.

To remove the USB HDD safely from the TV ●

p. 65 and p. 69

Setting for USB HDD

Register and setup the USB HDD with this TV in order to use it for recording. Connect the USB HDD
before starting this settings.

“USB HDD connection” (above)

Before the settings, be sure to turn on the USB HDD.●
You cannot change the settings for the USB HDD while recording is in progress.●
Please note that USB HDD will be formatted and all data in it will be erased when you register it.●

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “USB HDD Setup”

Setup Menu

1/2

Child Lock
freesat Tuning Menu
Other Sat. Tuning Menu
Display Settings
Network Setup

Access

Off

USB HDD Setup

Link Settings

Off Timer

Timer Programming

access

select

4

Select “Device Setup” and set

USB HDD Setup

Device Setup

Access
One Touch Recording
Rewind LIVE TV Off

180 minutes

access

select

USB HDD Recording

To return to TV■

EXIT

USB HDD Recording ●

Advanced

65

Register and setup the USB HDD

Device Setup

All the USB devices recognized as a mass storage device will be listed. You can only register USB HDDs.

Up to 8 USB HDDs can be registered with this TV. However you can only choose one USB HDD for recording ●
at a time.
Some USB HDD may not be registered.●

Select the USB HDD for recording and start registration / setup

USB HDD Device Setup

ProductConnect Name Mode

USB Drive A

USB Flash Disk

Yes

Yes

select

access

For the information of the highlighted device ●

Caution of USB HDD recording and playing back●

USB HDD Registration and formatting

Once the USB HDD has been registered, any data

recorded to it from this TV can only be played back on

this TV. If your TV is repaired due to malfunction, any

registered USB HDD may not be recognised.

Would you like to continue?

Yes No

select “Yes”

set

Confirmation of USB HDD registration●

USB HDD Registration and formatting

To use this device for recording, it must be registered

and formatted.

All previous data will be lost.

Would you like to continue?

Yes No

select “Yes”

set

Confirmation of USB HDD format●

USB HDD Registration and formatting

This device will be formatted and

all contents deleted.

Are you sure?

Yes No

select “Yes”

set

Confirmation of USB HDD name●

The name for the registered USB HDD is created
automatically. If you want to edit the name, select “Yes”.

Set characters one by one

Store

USB HDD

Name USB HDD 1

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

set

select

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

USB HDD Registration and formatting

Yes No

Name : USB HDD 1

Edit name?

select

set

Confirmation to enable USB HDD for recording●
If the registered USB HDD for recording already exists, this confirmation screen
will be displayed to switch to enable this USB HDD for recording.

USB HDD Registration and formatting

Yes No

Do you want to enable this device for recording?

When disconnecting any USB device,

always use the “Safely Remove USB” function

in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

USB HDD 1

USB HDD Device Setup

ProductConnect Name

USB Drive A

USB Flash Disk

Yes

Yes

Mode

: The USB HDD is registered and available for recording / playing

back if the connection status is “Yes”.
Only one registered USB HDD on the list can be available for
recording.

: The USB HDD is registered and available for playing back if the

connection status is “Yes”.
Name is displayed if the registration is completed
Connection status (Yes: connected / No: not connected)

To remove the USB HDD safely from the TV, ensure the status is
“No” before removing.

To change the status ●

yellow

You can also remove the USB HDD safely from Media Player ●

“Remove the USB devices safely” (p. 69)

To unregister the registered USB HDD■

Once you unregister the USB HDD, it will not be possible to playback any of the recorded content on any TV.

●

Select the USB HDD Unregister

red

The confirmation screen will be displayed twice. ●
Select “Yes” to unregister.

EXIT

REC

TV

G

U

I

D

E

DVD/VCR

TV

MENU

66

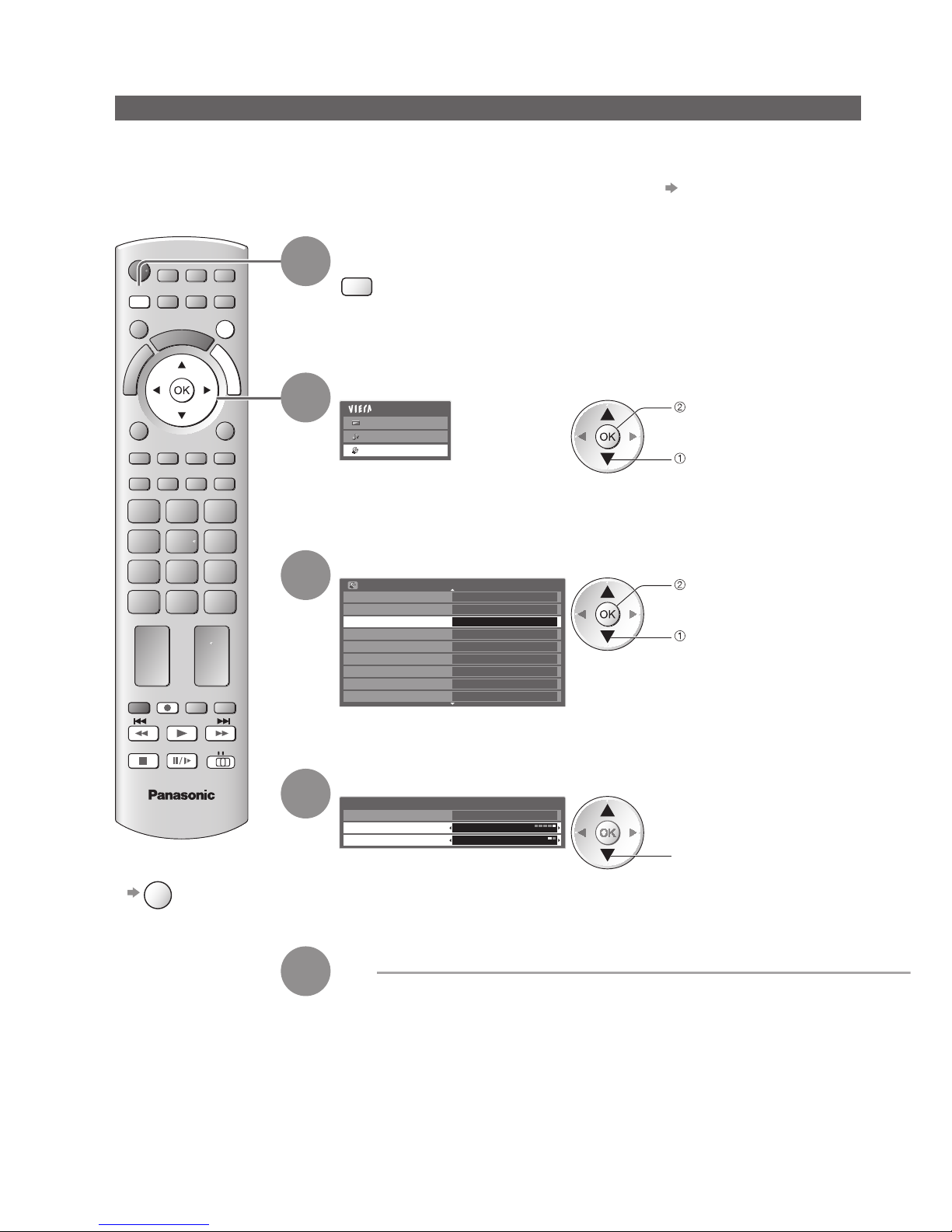

Recording the TV programme to USB HDD

You can record the current programme immediately by using “One Touch Recording”.
You can also record the current programme constantly for the selected period by using “Rewind LIVE
TV” so that you can go back or pause the current programme.

Ensure the connection, registration and setup are completed before start recording ● p. 64 and p. 65
Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may ●
not work properly.

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “USB HDD Setup”

Setup Menu

1/2

Child Lock
freesat Tuning Menu
Other Sat. Tuning Menu
Display Settings
Network Setup

Access

Off

USB HDD Setup

Link Settings

Off Timer

Timer Programming

access

select

4

Select “One Touch Recording” or “Rewind LIVE TV”

USB HDD Setup

Device Setup

One Touch Recording
Rewind LIVE TV Off

180 minutes

select

5

Set

USB HDD Recording

To return to TV■

EXIT

USB HDD Recording ●

Advanced

67

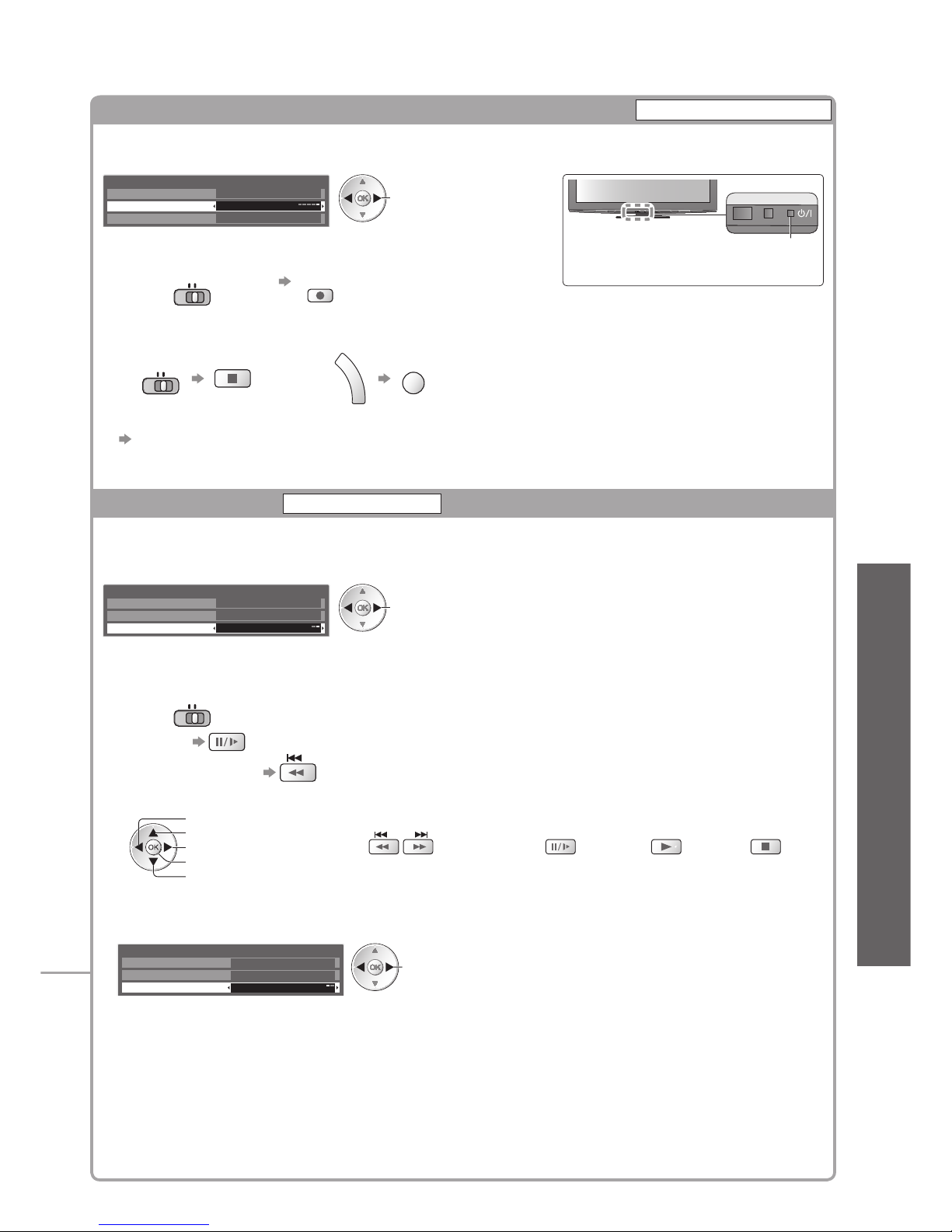

One touch direct TV recording - What you see is What you record

One Touch Recording

Recording the current programme in the USB HDD immediately.

Select the maximum recording time (30 / 60 / 90 / 120 / 180 minutes)

USB HDD Setup

Device Setup

One Touch Recording

Rewind LIVE TV Off

180 minutes

select

LED

LED will turn to orange (flash) while
One Touch Recording is in progress.

To start One Touch Recording■

Set the position to “TV” Start

DVD/VCR

TV

REC

No other channel can be selected while the recording is in progress.●

To stop recording on the way■

DVD/VCR

TV

or

G

U

I

D

E

EXIT

To playback or delete the recorded contents■

“Using Media Player” (p. 73) or “Video” in VIERA TOOLS (p. 30)
Even if One Touch Recording is in progress, you can playback all the contents. ●
However, the recording may not work properly while playback.

Record constantly

Rewind LIVE TV

Recording the current programme constantly.

This function will not work on MHEG Linked services, i.e. ITV HD and BBC Multiscreen.●

Select “On” to start Rewind LIVE TV

USB HDD Setup

Device Setup
One Touch Recording

Rewind LIVE TV On

180 minutes

select

When you select “On”, the recording will start automatically.●

To operate the Rewind LIVE TV■

Set the position to “TV”

DVD/VCR

TV

To pause ●

To search backward ● (press and hold for about a second)

After pausing or searching backward, the following buttons are available to operate.●

search backward
pause
search forward
playback
stop (stops the current
operation and goes
back to live TV)

search backward / forward pause / playback playback stop

(

press and hold for
about a second

)

(

stops the current
operation and
goes back to
live TV

)

To stop the Rewind LIVE TV■

USB HDD Setup

Device Setup
One Touch Recording

Rewind LIVE TV Off

180 minutes

select “Off”

If you stop the Rewind LIVE TV, the recorded content for the Rewind ●
LIVE TV will be deleted.

Rewind LIVE TV will be stopped and the recorded content deleted automatically in the following conditions:●
(Even if Rewind LIVE TV stops for the following conditions, as long as the setting is “On”, the new recording
will start automatically in a condition that makes the recording available.)

selected other channels•
selected locked channel•
selected invalid channel•
no TV signal•
when the other recording starts•
when the TV is turned off or standby•

68

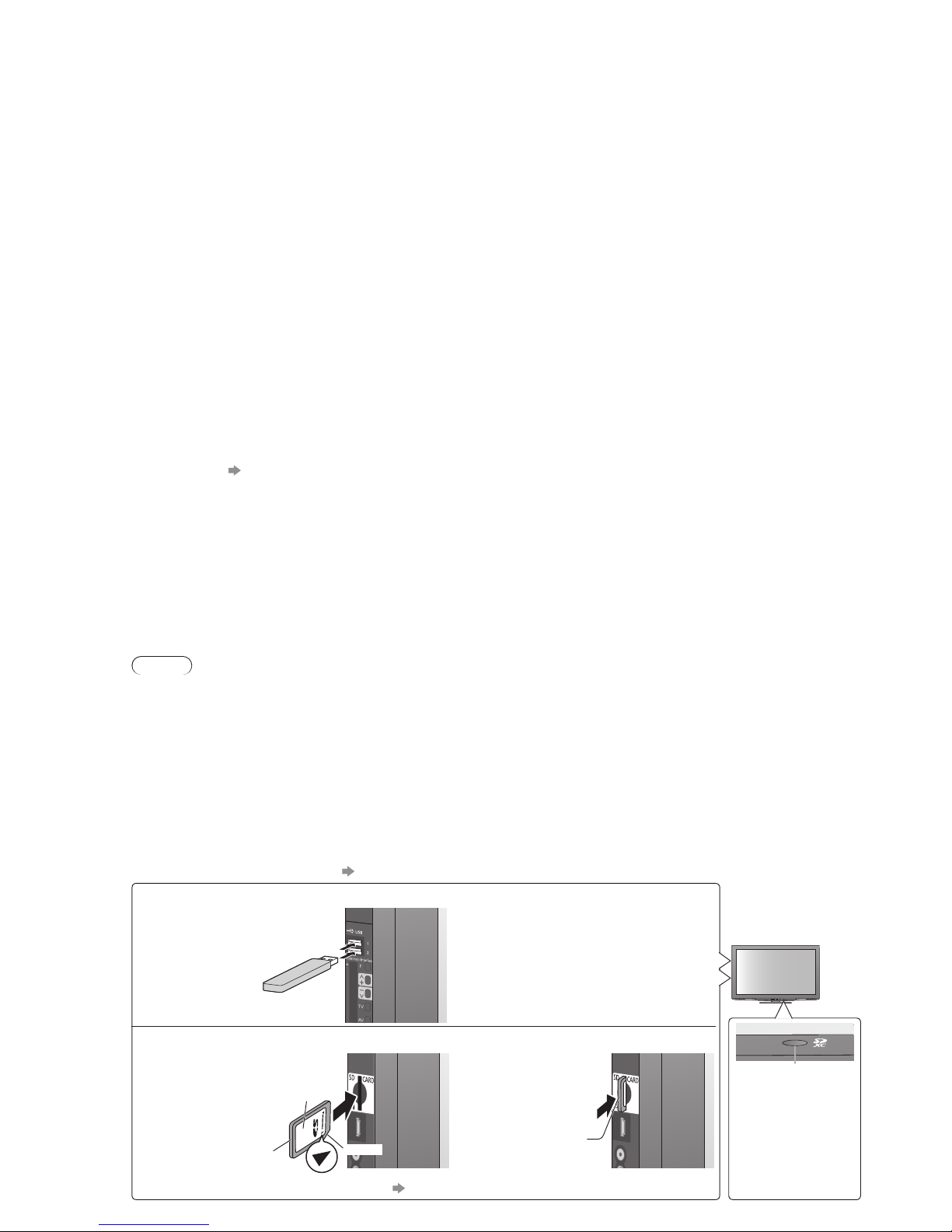

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash
Memory, and recorded contents on the registered USB HDD.
VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card
on the TV screen by simply inserting into the SD Card slot.

Photo mode : Still pictures recorded by digital cameras will be displayed.
Video mode : (For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be

played back.
(For registered USB HDD) TV programmes recorded in USB HDD registered to this TV will be played
back.

Music mode : Digital music data will be played back.

During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals, ●
but no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the
Setup Menu (p. 34).
“Date” shows the date on which the recording was made by the recording equipment. The file without record of ●
the date is shown “**/**/****”.

Data format for SD Card / USB Flash Memory browsing■

Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF●

∗

and EXIF standards
Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)
Image resolution - 8 × 8 to 30,719 × 17,279 pixels

Video : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio ●

format that is either MPEG-1/Layer-2 format or Dolby Digital format
(A modified data with a PC may not be displayed correctly.)
DivX p. 97

Music : Data format - MP3 and AAC (Copy-protected files cannot be played back.)●
SD Card format : SDXC Card - exFAT●

SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), ●
miniSD Card (2 GB) (requiring miniSD adapter)
If miniSD Card is used, insert / remove it together with the adapter.●
Check the latest information on the card type at the following website. (English only)●
http://panasonic.jp/support/global/cs/tv/
USB Flash Memory format : FAT16, FAT32 or exFAT●

(A USB HDD formatted by PC is not surpported in Media Player.)

∗

DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

Note

Format the device with the recording equipment.●
The picture may not appear correctly on this TV depending on the recording equipment used.●
Display may take some time when there are many files and folders.●
This function cannot display Motion JPEG or still images that are not JPEG format (i.e. TIFF, BMP).●
Data modified with a PC may not be displayed.●
Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.●
Partly degraded files might be displayed at a reduced resolution.●
The folder and file names may be different depending on the digital camera or digital video camera used.●
Do not use two-byte characters or other special codes.●
The device may become unusable with this TV if the file or folder names are changed.●

To insert or remove the SD Card / USB Flash Memory ■

For the USB HDD Connection ● p. 64

USB Flash Memory

Insert or remove straightly and ●
completely.
Before removing the USB Flash ●
Memory, ensure to perform
“Remove the USB devices safely”
(p. 69)

SD Card

Label
surface

Cutout

Push until a

click is heard

To insert the ●
SD Card

Gently insert the
SD Card label
surface facing front.

To remove the ●
SD Card

Push the centre of

the card

For more information of the SD Card ● p. 96

Blue LED

Blue LED lights ●
while SD Card
is inserted if
“SD Card LED”
is set to “On” in
the Setup Menu
(p. 36).

Using Media Player ●

Advanced

EXIT

BACK/

RETURN

MENU

SD CARD

69

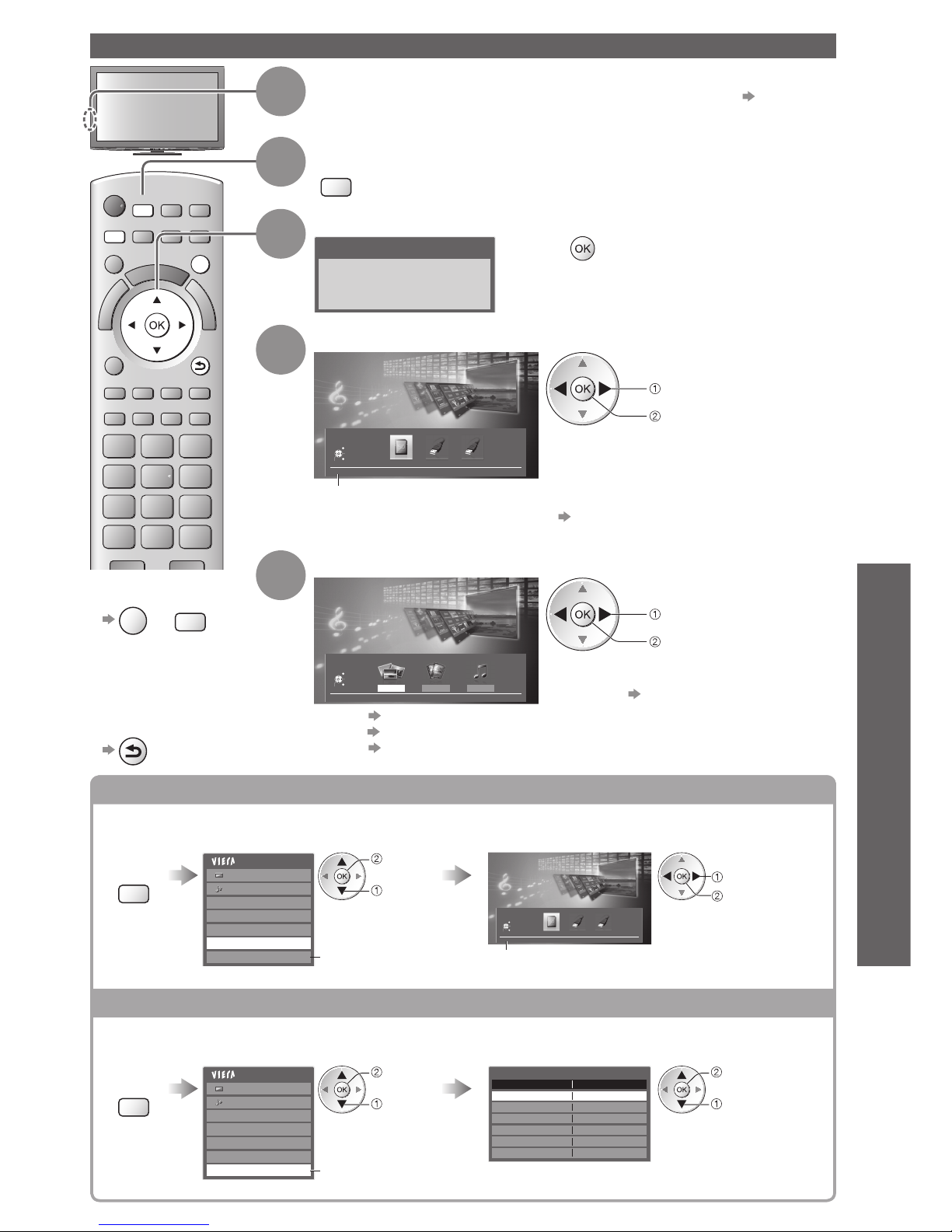

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.
Display

the menu

MENU

Select “Drive Select” Select the icon you want to access to

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

Safely remove USB

Appears if the USB device
is connected to the TV.

select

access

Media Player

SD Card

Drive Select

EXIT

RETURN

Select

Access

selected device name

access

select

Remove the USB devices safely

Before remove the USB devices, please take the following steps in order to protect the devices.
Display

the menu

MENU

Select “Safely remove USB”

Select the USB Flash Memory or USB HDD to remove

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

Safely remove USB

Appears if the USB device
is connected to the TV.

select

access

Safely remove USB

NameProduct

USB Flash Disk

select

set

Starting Media Player

To return to TV■

EXIT

or

SD CARD

To return to ■
the previous
screen

BACK/

RETURN

1

Insert the SD Card or USB Flash Memory

For registered USB HDD, ensure the connection status is “Yes”. ● p. 65

2

Switch to Media Player

SD CARD

When SD Card is inserted, switching will be done automatically.●

3

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

4

Select the icon you want to access to

Media Player

SD Card

Drive Select

EXIT

RETURN

Select

Access

selected device name

access

select

If two or more devices are not connected, ●
this step will be skipped.
For the registered USB HDD, all the USB ●
HDD of which the connection status is
“Yes” is available.

“Register and setup the USB HDD”

(p. 65)

5

Select the content

Media Player

Photo Video Music

SD Card

Contents Select

EXIT

RETURN

Select

Access

access

select

For registered USB HDD, this step will be ●
skipped and recorded contents list will be
displayed. p. 73

Photo ● “Photo mode” (p. 70)
Video ● “Video mode” (p. 72)
Music ● “Music mode” (p. 75)

EXIT

BACK/

RETURN

TV

MENU

SD CARD

70

To return to TV■

EXIT

or

SD CARD

To return to ■
the previous
screen

BACK/

RETURN

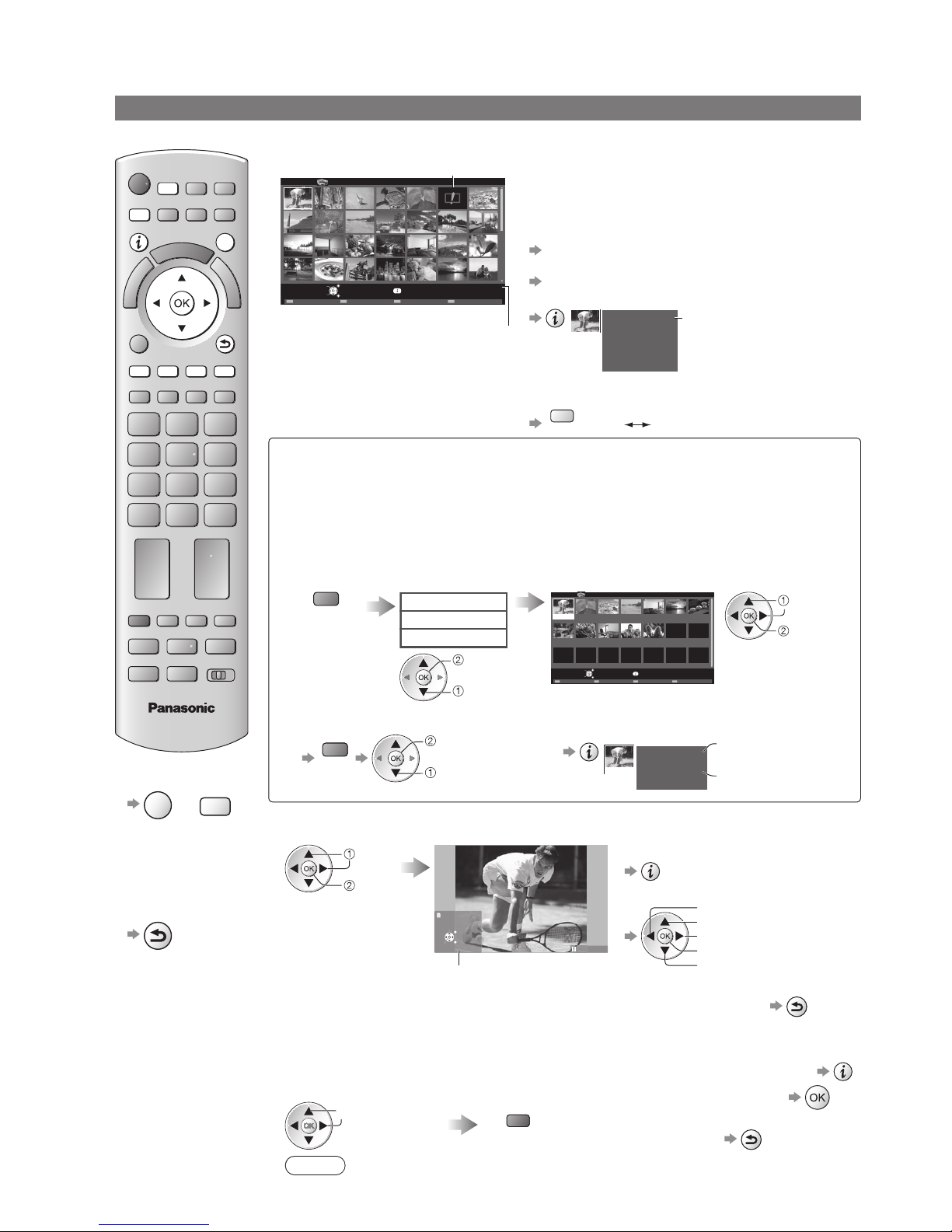

Photo mode

Photo mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.

Using Media Player

Media Player Photo All photos

Slideshow Contents Select

Info

SD Card

EXIT

View

RETURN

View Select Change Size

Select

(Thumbnail - All photos)

Error display
(images that could not be loaded, etc.)

selected device name

The thumbnail of all the photos on the SD Card or
USB Flash Memory will be displayed.

You can also access Photo mode directly by using ●
VIERA TOOLS.

“How to Use VIERA TOOLS” (p. 30)

To change the background music ●

“Photo Setup” (p. 71)

To display the information of the highlighted photo ●

1/48

File name


Date

23/10/2009

Size

1600X1200

file number /
total file number

To change the number of photos on a thumbnail ●
screen at a time

yellow

(7 × 4 10 × 6)

To sort by folder, recorded date or recorded month■

Folder view : Displays the thumbnail grouped by folder

The files which are not into a folder will be collected to the folder named “/”.●

Sort by Date : Displays the thumbnail grouped by the same date

The group of the photos without recorded date is shown as “Unknown”.●

Sort by Month : Displays the thumbnail grouped by the same month

The group of the photos without recorded date is shown as “Unknown”.●

Display the
view selection

Select the
sort type

Select one of the sorted group to display the
thumbnail of the selected group

green

Folder view

Sort by Date

Sort by Month

select

access

Sort by Date

Slideshow Contents Select

Info

EXIT

Access

Select

RETURN

View Select

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

Media Player Photo

SD Card

select

thumbnail
of the
selected
group

To return to the thumbnail ●
of all photos

green

select
“All photos”

access

To display the information of the ●
highlighted group

1/12

Folder name

23/10/2009

Number of files

3

23/10/2009

folder name,
date or month

group number /
total group number

Single view■ - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

access

select

(Single view)

Rotate

Slideshow

Select

Single view

Single view

EXIT

RETURN

Operation guide

To display / hide the operation guide ●

To operate Single view●

To the previous photo
Rotate 90˚ (anti-clockwise)
To the next photo
Slideshow
Rotate 90˚ (clockwise)

To return to thumbnail ●

BACK/

RETURN

Slideshow■ - Slideshow will complete when all photos have been viewed within the present

thumbnail.

Select the file from the
thumbnail of photos
for the first view

Start
Slideshow

To display / hide the operation guide

●

To pause (return to Single view) ●

To return to thumbnail ●

BACK/

RETURN

select

red

Note

Picture quality may become lower depending on the slideshow settings.●
Picture setting may not work depending on the slideshow settings.●

Using Media Player ●

Advanced

71

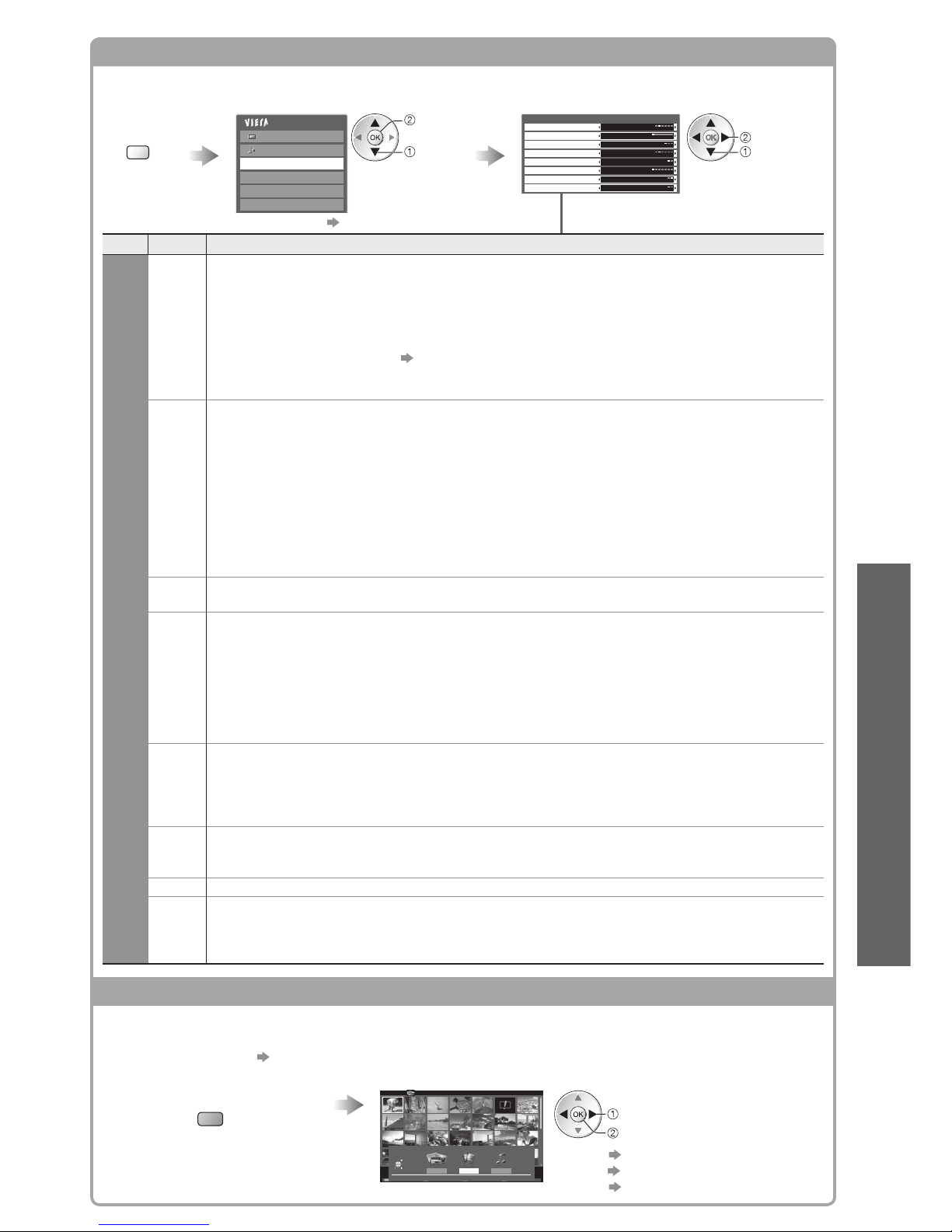

Photo Setup

Choose the settings for Photo mode.

Display
the menu

MENU

Select “Photo Setup” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

select

access

Photo Setup Menu

Back Ground Music Type1

Colour Effect
Transition Effect
Aspect

Off
Fade
Original

Frame Off

Interval 5 seconds
Repeat On
Burst Playback Off

select

set

Other items ● p. 32, 33, 69, 74 and p. 75

Menu Item Adjustments / Configurations (alternatives)

Photo Setup

Back
Ground
Music

Selects the back ground music during the Photo mode

(Off / Type1 / Type2 / Type3 / Auto / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.●

Auto : Music data stored in the root folder of the SD Card will be played back randomly.

If there is no available music data, no sound will be produced.●

User :

Music data in the current device registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 75)
If no music has been registered or the registered music device are removed, no sound ●
will be produced.

Frame

Selects the frame type of the slideshow

(Off / Multi / Collage / Drift (+ calendar) / Drift / Gallery (+ calendar) / Gallery / Cinema)

Multi : 9 photos are displayed orderly at once.
Collage : Each photo is displayed at a random position and random scale.
Drift (+ calendar) / Drift : Photos are displayed like flow images.

You can select to display the calendar or not. The month of ●
calendar is turned by pressing up or down cursor button.

Gallery (+ calendar) / Gallery : The various size of photos in the frame are displayed.

You can select to display the calendar or not. The month of ●
calendar is turned by pressing up or down cursor button.

Cinema : Photos are displayed like old films (sepia tone)

Colour
Effect

Selects the colour effect of photos on Single view and Slideshow (Off / Sepia / Gray scale)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●

Transition
Effect

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually.
Slide : The next photo slides and appears from the left side.
Dissolve

: Each photo is dissolved when switching to the next photo.

Motion :

Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.

Random

: Each transition is selected at random.

This function is available when “Frame” is set to “Off”.●

Aspect

Selects whether enlarged or original viewing on Single view and Slideshow (Original / Zoom)

This function is not available when “Frame” is set to “Collage”, “Drift”, “Gallery” or “Cinema”.

●

This function is not available when “Transition Effect” is set to “Motion”.●
Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style ●
picture.

Interval

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●
This function is not available when “Transition Effect” is set to “Motion”.●

Repeat Slideshow repeat (Off / On)

Burst
Playback

Selects whether the continuous shots are displayed in rapid interval during the slideshow

(Off / On)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●
This function is not available when “Transition Effect” is set to “Motion”.●

Change the contents

You can switch to the other mode of the Media Player from the thumbnail view.

The mode can be switched in the current device.●
To change the device ● “Change the device” (p. 69)

While the thumbnail is displayed,
display the contents selection

blue

Select the contents

Media Player Photo All photos

Slideshow Contents Select

Info

SD Card

EXIT

View

RETURN

View Select Change Size

Select

Photo Video Music

SD Card

Contents Select

EXIT

RETURN

Select

Access

select
access

Photo ● “Photo mode” (p. 70)
Video ● “Video mode” (p. 72)
Music ● “Music mode” (p. 75)

EXIT

OPTION

STTL

BACK/

RETURN

ASPECT

TV

DVD/VCR

TV

MENU

SD CARD

72

To return to TV■

EXIT

or

SD CARD

To return to the ■
previous screen

BACK/

RETURN

Note

The structure of ●
titles and scenes
may vary depending
on the digital video
camera used.

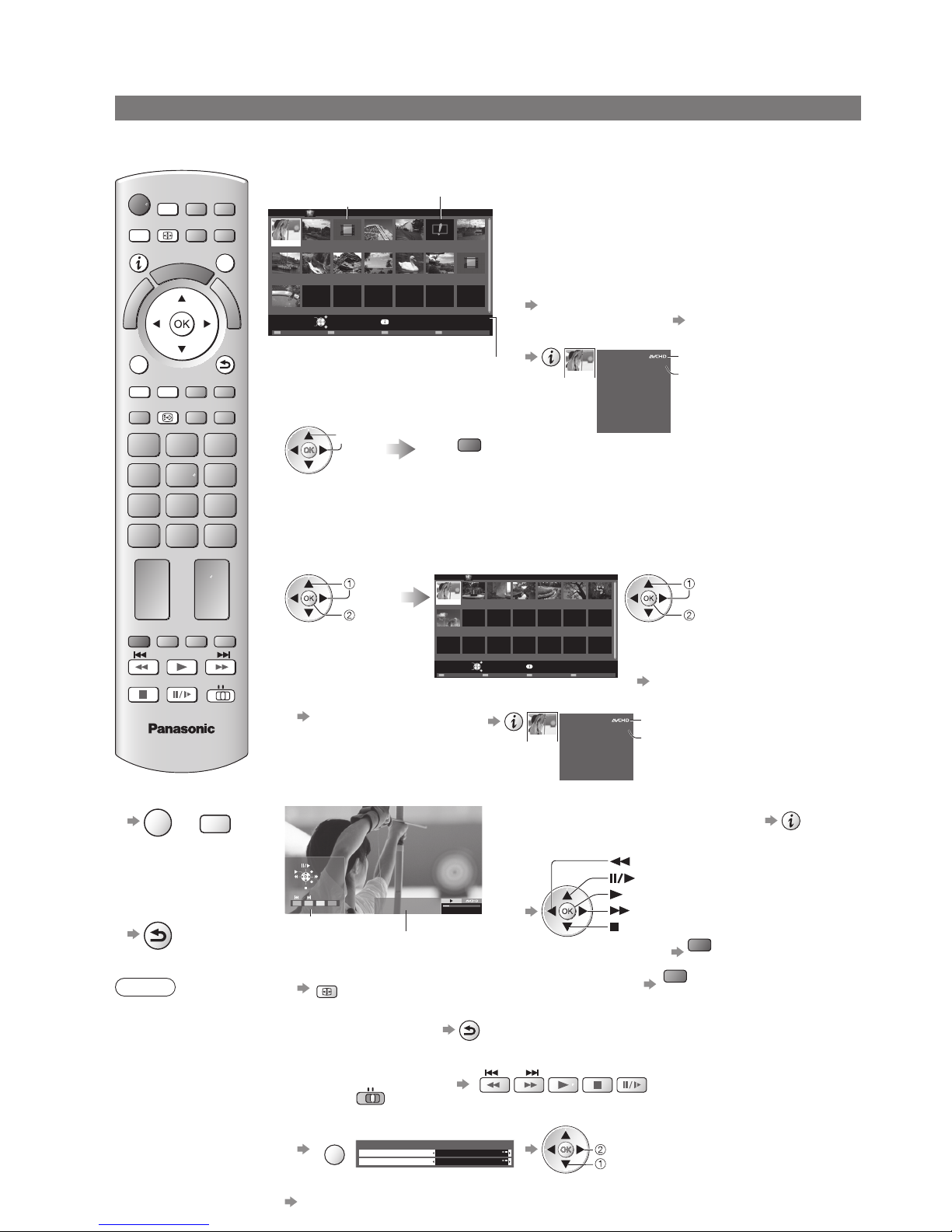

Video mode

Media Player Video Title view

Play Contents Select

Info

EXIT

Access

RETURN

2009_9

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Select

SD Card

(Thumbnail - Title view)

Error display
(images that could not be loaded, etc.)

Film icon will be displayed
if the file does not support
thumbnail view.

selected device name

The thumbnail of video titles on the SD Card or USB
Flash Memory will be displayed.
The preview will start when the title is highlighted if it
supports a preview.

You can also access Video mode directly by using ●
VIERA TOOLS

“How to Use VIERA TOOLS” (p. 30)

To turn off the preview ● “Video Setup” (p. 74)
To display the information of the highlighted title●

1/15

Title

Trip1

Date & Time

19/02/2009 11:21

Number of scenes

8

Duration

00h15m39s

Trip1

title number /
total title number

file format

Playback from Title view■

Playback of the selected title will start.

Select the title Start playback

select

red

DivX contents cannot be played back from Title view. Select DivX ●
folder and press the OK button to display DivX files, and then
select one of the file to be played back.

Playback from the selected scene in the title (AVCHD or MPEG2)■

Playback will start from the selected scene to the end of the title.

Select the title Select the scene to start playback

access

select

Title view > Trip1

Contents Select

Info

EXIT

Play

RETURN

Trip1_8

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Media Player Video

Select

SD Card

(Thumbnail - Scene view)

playback

select

The preview will start when the scene
is highlighted if it supports a preview.

To turn off the preview ●

“Video Setup” (p. 74)

To repeat playback

●

“Video Setup” (p. 74)

To display the information of the highlighted scene●

1/8

Scene

Trip1_1

Date & Time

19/02/2009 11:21

Duration

00h04m12s

Trip1

scene number / total scene number

file format

How to operate in the playback■

(Playback)

Title
Date & Time

Trip1
19/02/2009 11:21

00:02.05 / 00:15.39

EXIT

RETURN

Operation guide

Information banner

To display / hide the operation guide ●
and information banner
To operate the playback●

Rewind

Pause / Playback

Playback

Fast forward

Stop

To the previous scene ●

red

To the next scene ●

green

To change aspect ●
(only for the 4:3 video content)

A

SPECT

To return to thumbnail ●

BACK/

RETURN

You can also use the following buttons. (p. 29)●

Set the position to “TV”

DVD/VCR

TV

To confirm or change the current status (if available)●

OPTION

Example:

select

change

Option Menu

Multi Audio Audio1
DivX Subtitle Subtitle1

To change the content in the current device■

“Change the contents” (p. 71)

For SD Card or USB Flash Memory

Video mode supports AVCHD, MPEG2 and DivX® file formats.

Using Media Player

Using Media Player ●

Advanced

73

G

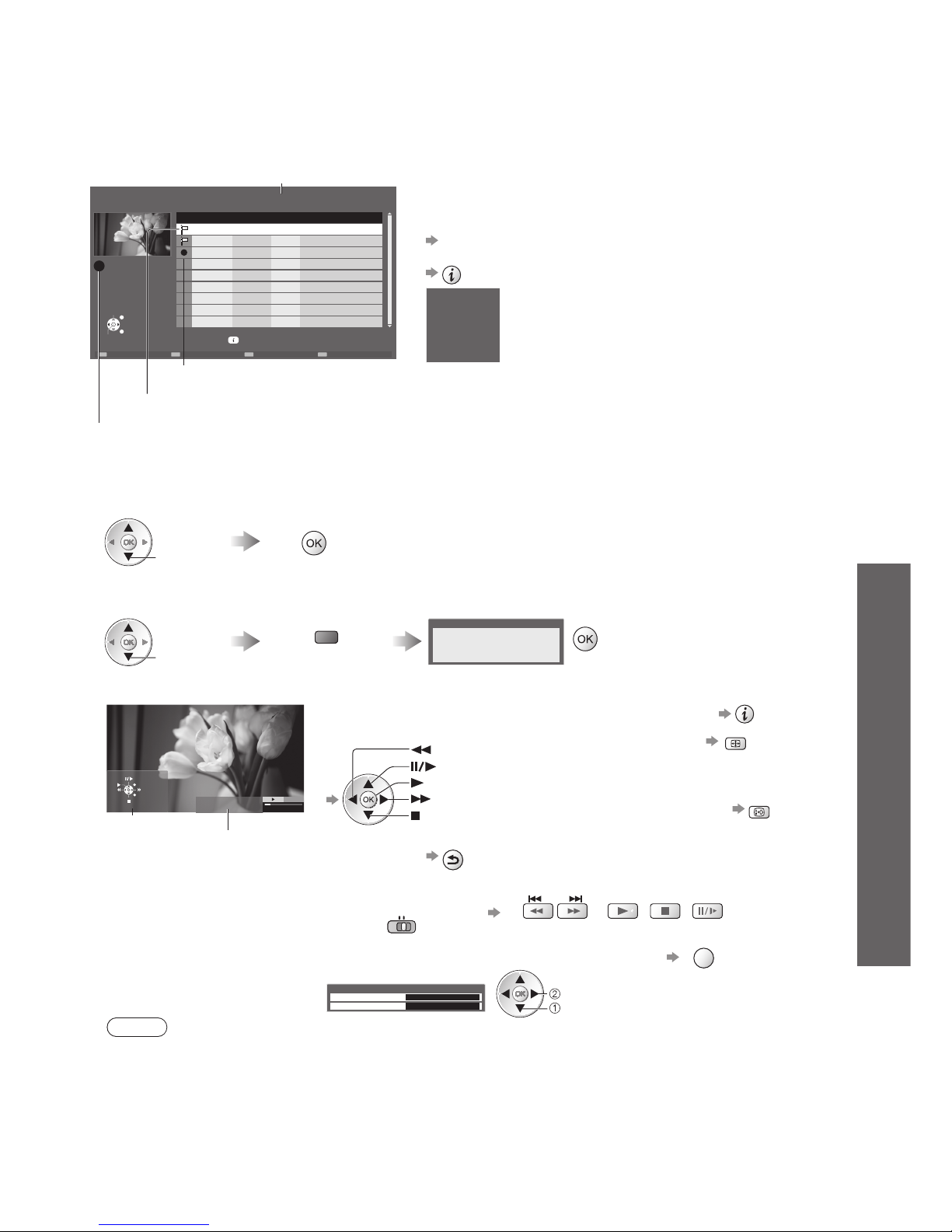

Media Player USB HDD recordings Remaining Capacity 500GB (50%)

EXIT

RETURN

BBC 1

ITV

BBC 2

Wed 28/10

Channel

Eastender

News

Cinema

TitleDate

Sun 10/01

Fri 15/01

12:00

Time

13:30

13:50

Delete

USB HDD 1

Info

Select

Play

Content under recording

You can playback this content even if under recording.●

Remaining capacity of the HDD

This value may not be accurate depending on the condition.●

Content not played back

Once you playback the content, this icon will disappear.●

Appears when the recorded content has the guidance information
(parental rating, etc.) or the channel of the content is restricted by Child Lock.
This content requires entering PIN number to playback.

Contents list of the registered USB HDD will be displayed.

You can also access the contents list directly by using

●

VIERA TOOLS.

“How to use VIERA TOOLS” (p. 30)

To display the information of the highlighted content ●

Channel :

DVB, BBC 1

Title :

Eastender

Date & Time :

Wed 28/10/2009 12:00

Duration :

00:20

Playback the content from the list■

Select the content Start playback

select

Delete the selected content■

Select the content Delete the content Confirm

select

red

Delete

DVB, BBC 1

Eastender

Wed 28/10/2009 12:00

00:20

How to operate in the playback■

(Playback)

Title
Date & Time

Eastender
28/10/2009 19:35

00:02.05 / 00:15.39

EXIT

RETURN

Operation guide

Information banner

To display / hide the operation guide and information banner ●
To operate the playback●

Rewind

Pause / Playback

Playback

Fast forward

Stop

To change aspect ●

ASPECT

To display the subtitle ●
(if available)

STTL

To return to list ●

BACK/

RETURN

You can also use the following buttons. (p. 29)●
Set the position to “TV”

(press and hold)

DVD/VCR

TV

To confirm or change the current status (if available) ●

OPTION

Example:

select

change

Option Menu

Multi Audio eng
Monaural Audio eng

Note

Depending on the recorded programmes, some playback operations may not work properly.●

For registered USB HDD

74

Using Media Player

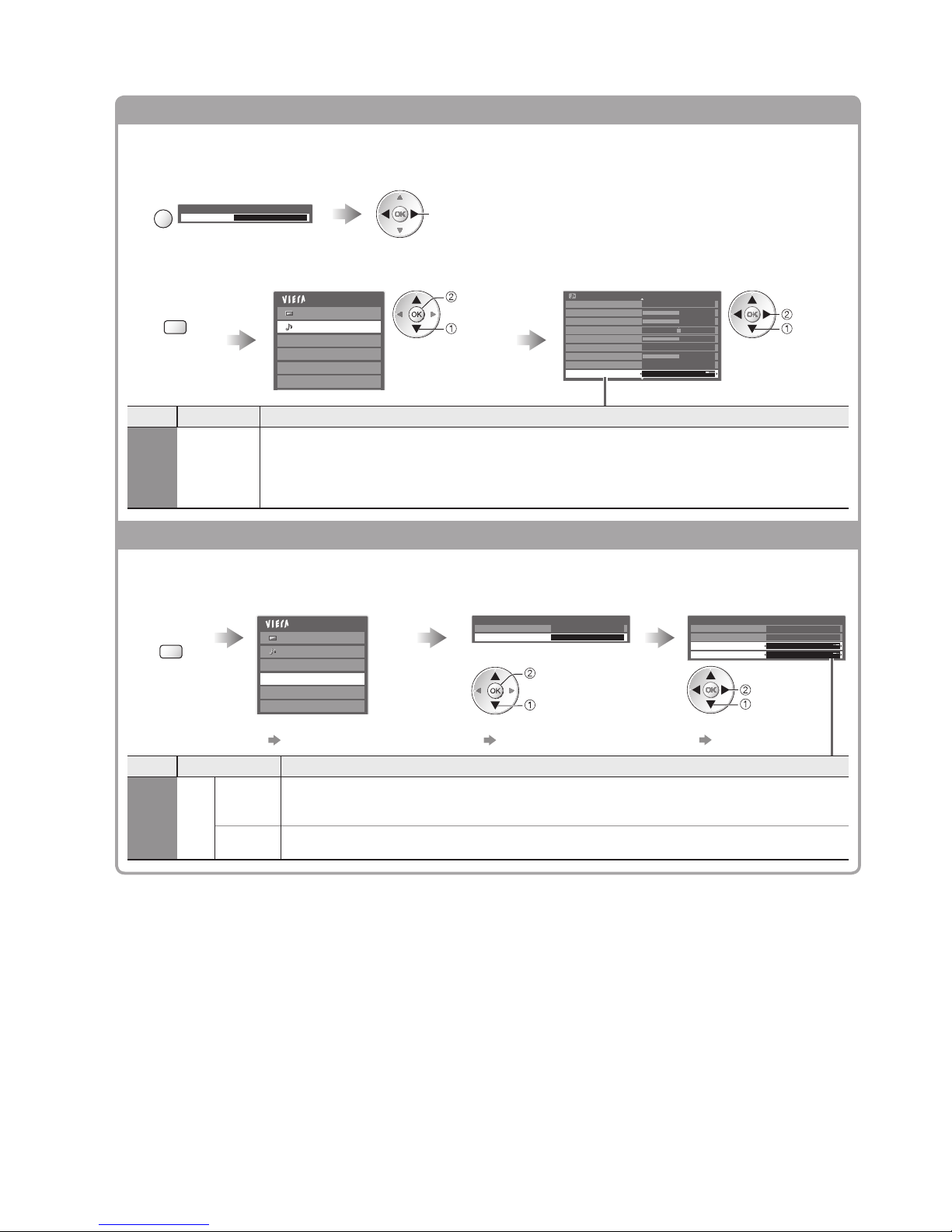

Sound Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

■ (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

OPTION

Example:

change

It may take several seconds to change the sound.●

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display
the menu

MENU

Select “Sound” Select “SPDIF Selection” and set

Sound

Main Menu


Photo Setup

Video Setup

Music Setup

Drive Select

select

access

Sound Menu

1/2
Mode Music
Bass
Treble
Balance
Headphone Volume

OffSurround
Volume Correction
Speaker Distance to Wall Over 30cm

SPDIF Selection

Auto

select

set

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF
Selection

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM

: Digital output signal is fixed to PCM.

Video Setup

Choose the settings for Video mode.

These settings are not available for the registered USB HDD.●
Display

the menu

MENU

Select “Video Setup” Select “Other Settings” Select the items and set

Sound

Main Menu


Photo Setup

Video Setup

Music Setup

Drive Select

Video Setup Menu

Display Settings

Other Settings Access

select

access

Other Settings

16:9 Overscan On

Intelligent Frame Creation Off

Video Preview On
Repeat Off

select

set

Other items ●

p. 36

Other items ●

p. 32, 33, 69, 71 and p. 75

Display Settings ●

p. 35

Menu Item Adjustments / Configurations (alternatives)

Video

Setup

Other

Settings

Video
Preview

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the preview ●
“Off” to resolve this.

Repeat

Playback repeat within the title (Off / On)

Only the selected file will be repeated for DivX contents.●

Using Media Player ●

Advanced

EXIT

BACK/

RETURN

MENU

SD CARD

75

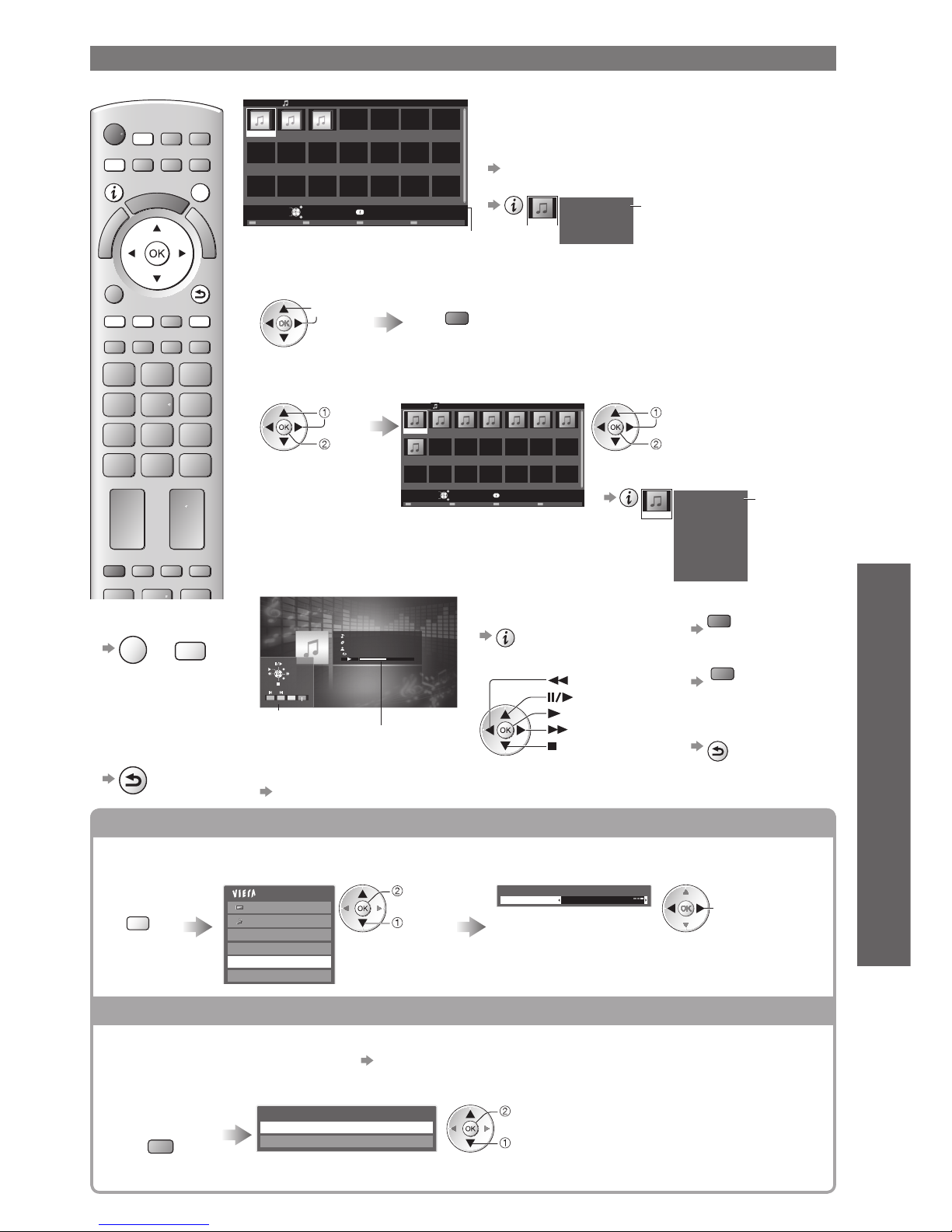

Music Setup

Setup the setting for Music mode.

Display
the menu

MENU

Select “Music Setup” Set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

select

access

Music Setup Menu

Repeat One

set

Folder : Playback repeat within the selected folder
One : Playback repeat of the selected one file

Set background music for Photo mode

You can register your favourite music as background music for Photo mode.

Select “User” in “Back Ground Music” ● “Photo Setup” (p. 71)
If you remove the device in which the registered music is stored, the setting of “User” will be reset.●

While playing
music, display the
selection screen

blue

Select “File” or “Folder” and set

Register Slideshow BGM?

File

Folder

select

set

File : The current music will be

registered as back ground music.

Folder : All the music in the current folder

will be registered as back ground
music.

To return to TV■

EXIT

or

SD CARD

To return to ■
the previous
screen

BACK/

RETURN

Music mode

Folder view

Contents SelectPlay Folder

Info

EXIT

Access

RETURN

My Music_1 My Music_2 My Music_3

Media Player Music

Select

SD Card

selected device name

The thumbnail of music folders in the SD Card or USB
Flash Memory will be displayed.

You can also access Music mode directly by using ●
VIERA TOOLS

“How to use “VIERA TOOLS” (p. 30)

To display the information of the highlighted title●

1/3

Folder name

My Music_1

Number of files

11

My Music_1

folder number /
total folder number

Playback from Folder view■

Playback all the files in the selected folder will start.

Select the folder Start playback

select

red

Playback from File view■

Playback of the selected file will start.

Select the folder Select the file to start playback

access

select

Media Player Music Folder view > My Music_1

Contents Select

Info

EXIT

Play

RETURN

My Song_8 My Song_9 My Song_10 My Song_11

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

Select

SD Card

playback

select

To display the information of the ●

highlighted title

1/11

Title

My Song_1

Album

My Music_1

Artist

My Favorite

Track No.

1

Duration

00h03m29s

My Song_1

file number /
total file number

How to operate in the playback■

My Song_9

My Music_1

My Favourite

00:02.43 / 00:05.44

1

EXIT

RETURN

User BGM

Operation guide (Playback)

Information banner

To display / hide the operation ●
guide and information banner

To operate the playback●

Rewind

Pause / Playback

Playback

Fast forward

Stop

To the previous track ●

red

To the next track ●

green

To return to thumbnail ●

BACK/

RETURN

To change the content in the current device■

“Change the contents” (p. 71)

Music mode supports MP3 and AAC file format.

76

Using Network Services

(DLNA / VIERA CAST / freesat)

DLNA

®

This TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier
and more convenient to use on a home network. To learn more, visit www.dlna.org.
It allows you to share photos and videos stored in the DLNA Certified media server (for example, PC with
windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy watching them on
the TV screen.

Applicable data format

■

Photo : JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)

Image resolution - 8 × 8 to 30,719 × 17,279 pixels

MOTION JPEG and Progressive JPEG are not supported.●

Video : MPEG-2 (PS format and TS format)

AVCHD and DivX files are not supported by DLNA, but can be played by Media Player (p. 72).●

Music files are not supported by DLNA, but MP3 and AAC files can be played back by Media Player (p. 75).●

Media server■

Ensure the connected equipment has a DLNA Certified media server.
To use the PC, install the server software on the PC for obtaining a media server.
Store photos or videos into the media server, and then you can watch them on the TV.
“TwonkyMedia server 5.1.x” and “Windows 7” are the server software that has been tested for the performance
with this TV (current as of January, 2010).
For installing, read the manual of the server software.

The DLNA control function of Windows 7 is not supported with this TV.●
When a server software for the media server is installed on the PC, the data may be at risk of being accessed ●
by other people. Please take care of the settings and connections under the network circumstances at the

office, hotel or even at home when not using a router.
By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of
the media servers.

For details, read the manual of the DIGA Recorder.●

Network connection■

Example 1 or Example 2 in “Network connections” (p. 77)

Network setup■

p. 78 - 81

DLNA operations■

p. 82 - 84

VIERA CAST™

VIERA CAST is a gateway to the internet services unique to Panasonic.
By connecting the TV to the internet environment, VIERA CAST allows you to enjoy internet content on
the TV screen such as photos, videos, weather, etc. from VIERA CAST home screen.
You can access VIERA CAST home screen directly by pressing the VIERA CAST button on the remote
control.

Network connection

■

Example 1 or Example 3 in “Network connections” (p. 77)

Network setup■

p. 78 - 81

VIERA CAST operations■

p. 85

freesat

freesat will give you access to the great interactive services and features through an internet connection.

Please contact broadcasters for availability of services.●

Using Network Services ●

(DLNA / VIERA CAST / freesat)

Advanced

77

Network connections

To use only DLNA features, you can operate the features without Broadband network environment.
To use VIERA CAST features or freesat interactive services, you need a Broadband network
environment.

If you do not have any Broadband network services, please consult your retailer for assistance.●
Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications ●
company.
Set up and connect any equipment required for the network environment.●
Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the ●
transfer speed is not enough, contents may not be played back properly.
Read the manual of the network equipment, too.●

Example 1■

LAN cable

Modem

Hub, Router

or

Access point

DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)

Wired LAN connection■

You can also connect to the network directly by
using a LAN cable.

Wireless LAN connection■

You can connect to the network by using a Wireless LAN Adaptor (supplied) and an
access point.

It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.●

Internet

Ensure to use a LAN straight cable for this connection.●
If your modem has no broadband router functions, use a broadband router.●
If your modem has broadband router functions but there are no vacant ports, use a hub.●
Ensure that the Broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.●
If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.●

Example 2■

You can connect the TV and the equipment directly to use DLNA features.

LAN cable

DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)

Ensure to use a LAN cross cable for this connection.●

Example 3■

You can connect the TV and the telecommunication equipment directly to use VIERA CAST features.

LAN cable

Modem

Internet

Note

Depending on the ISP or telecommunications company, the required equipment and the internet connection ●
procedure are different. Ensure that you use the network equipment that are authorized by your ISP and
telecommunications company.
You cannot make settings for the network equipment on this TV. You may be required to make settings on your ●
computer.
Depending on the terms and conditions of the contracts with your ISP or telecommunications company, additional ●
fees may be charged or multiple connections to the internet may be impossible.
Please contact your ISP or telecommunications company if you require further assistance regarding the network ●
equipment.

EXIT

BACK/

RETURN

abc def

jkl

ghi

mno

tuvpqrs

wxyz

MENU

78

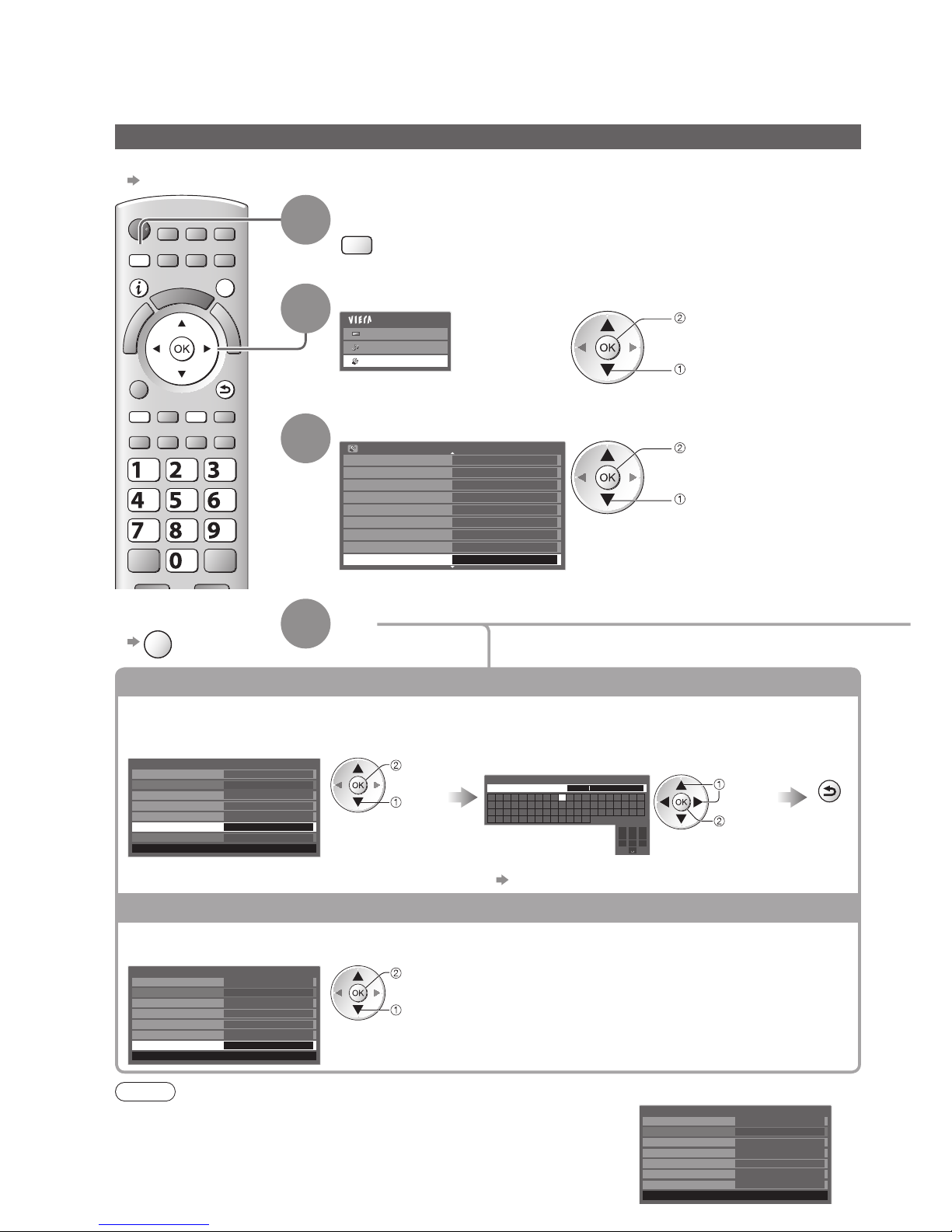

Using Network Services

(DLNA / VIERA CAST / freesat)

1

Display the menu

MENU

2

Select “Setup”

Main Menu


Sound

Setup

access

select

3

Select “Network Setup”

Setup Menu

1/2

Child Lock
freesat Tuning Menu
Other Sat. Tuning Menu
Display Settings

Network Setup Access

Off
USB HDD Setup
Link Settings

Off Timer

Timer Programming

access

select

4

Set

Network Setup

Ensure the connections are completed before starting Network Setup.●

“Network connections” (p. 77)

To return to TV■

EXIT

Edit the name of this TV

You can set your favourite name for this TV. This name will be used to display the name of this TV on the
screen of the other DLNA compatible equipment.

Select “VIERA Name” Edit the name

Store

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings

---

Connection Test

VIERA Name VIERA

Software Update
MAC Address ab-cd-ef-gh-ij-kl

access

select

Set characters one by one

BACK/

RETURN

VIERA Name

Name VIERA

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

Update TV’s software

Accesses the specific web site to update TV’s software and search if any software updates are available.

Select “Software Update”

Network Setup

Network Type Wired

IP/DNS Settings
Proxy Settings

---

Connection Test
VIERA Name

VIERA

Software Update

Access

MAC Address ab-cd-ef-gh-ij-kl

Access Point Settings

access

select

Follow the on screen instructions●

Note

MAC Address

MAC address is a unique address that identifies hardware in the network. ●
(for information only)

Network Setup

Network Type Wired

IP/DNS Settings
Proxy Settings

---

Connection Test
VIERA Name VIERA

MAC Address ab-cd-ef-gh-ij-kl

Access Point Settings

Software Update

Using Network Services ●

(DLNA / VIERA CAST / freesat)

Advanced

79

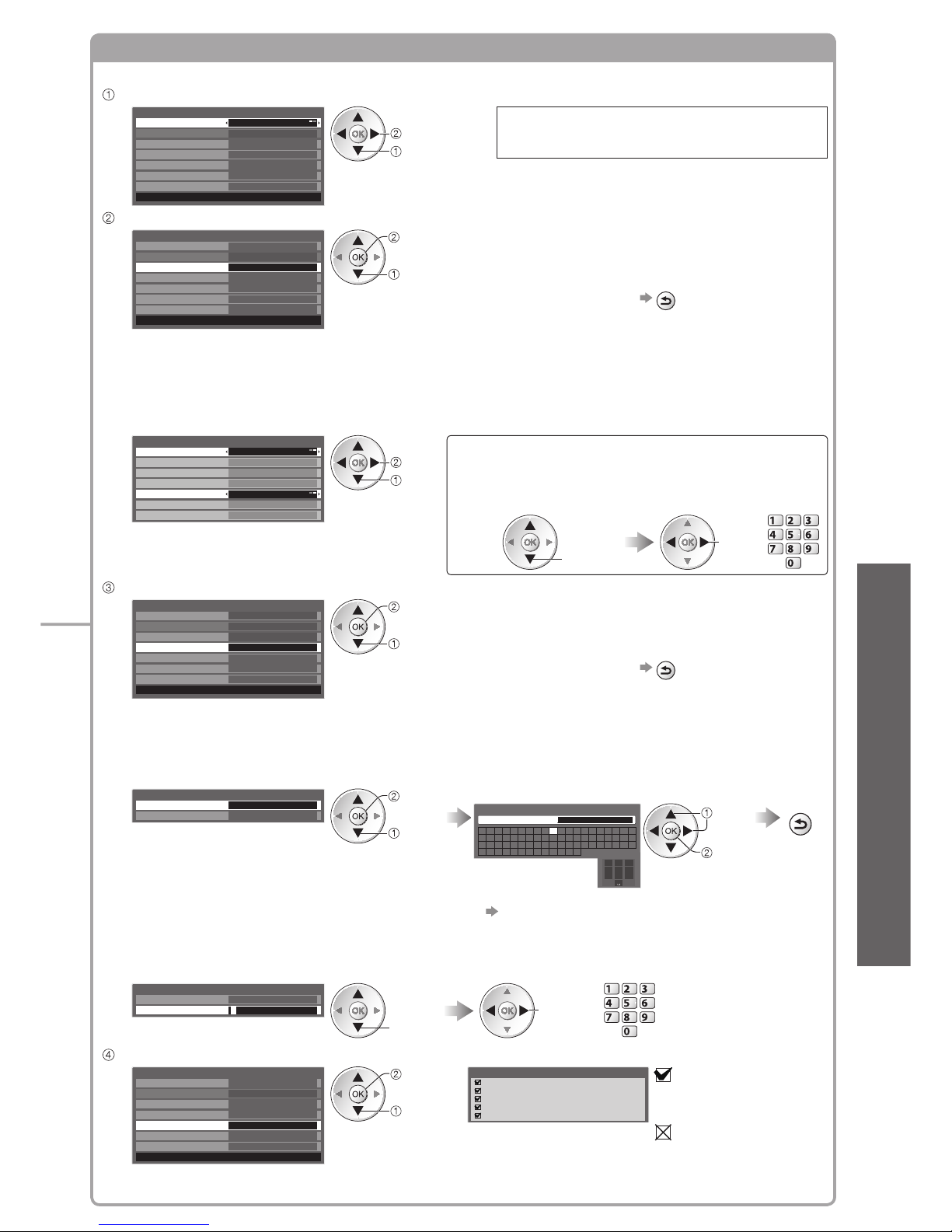

Network settings for the LAN Cable connection

This setting is for the network connection by using the LAN cable.

Select “Network Type” and set to “Wired”

Network Setup

Network Type Wired

IP/DNS Settings
Proxy Settings

---

Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

Access Point Settings

set
select

If you make the network connection like
“Example2” (p. 77), you do not have to set
“Acquire DNS Address”, “Proxy” and “Proxy Port”.

Select “IP/DNS Settings” and set the items

Network Setup

Network Type Wired

IP/DNS Settings

Proxy Settings

---

Connection Test
VIERA Name VIERA

Access

Software Update
MAC Address ab-cd-ef-gh-ij-kl

Access Point Settings

access

select

After settings, return to “Network Setup” screen

BACK/

RETURN

Acquire IP Address■
Acquire DNS Address■

Sets IP Address, Subnet Mask, Gateway, Primary DNS and Secondary DNS.
For most users, the recommended method of connection to your network is by using Auto feature.

Select “Acquire IP Address” and then set to “Auto”
Select “Acquire DNS Address” and then set to “Auto”

IP/DNS Settings

Acquire IP Address

IP Address
Subnet Mask

Auto
. . .

. . .
Gateway . . .

Acquire DNS Address Auto

Primary DNS . . .
Secondary DNS . . .

set
select

Manual settings

If you wish to set these functions manually, select “Manual”.
Select “IP Address”, “Subnet

Mask”, “Gateway”, “Primary
DNS” or “Secondary DNS”

Move the cursor and
enter the number

select

move

abc def

jkl

ghi

mno

tuvpqrs

wxyz

The available settings are ●
displayed automatically.

Select “Proxy Settings” and set the items

Network Setup

Network Type Wired

IP/DNS Settings

Proxy Settings

---

Connection Test
VIERA Name VIERA

Access

Software Update
MAC Address ab-cd-ef-gh-ij-kl

Access Point Settings

access

select

After settings, return to “Network Setup” screen

BACK/

RETURN

Proxy■

Sets Proxy address.

This is the address of the relay server that is connected to the target server instead of the browser and ●
sends data to the browser. Setting is required if specified by the provider.

Select “Proxy” Enter the address Store

Proxy Settings

Proxy

Proxy Port 0

access

select

Set characters one by one

BACK/

RETURN

Proxy

Host http://

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

set

select

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

Proxy Port■

Sets Proxy port number.

This number is also specified by the provider with the Proxy address.●

Select “Proxy Port” Move the cursor and enter the number

Proxy Settings

Proxy

Proxy Port 0

select

move

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Select “Connection Test” and access to test

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings

---

Connection Test

VIERA Name VIERA

Access

Software Update
MAC Address ab-cd-ef-gh-ij-kl

access

select

Connection Test

Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA CAST.

:

succeeded

The test is successful
and the TV is connected
to the network.

:

failed

Check the settings and
connections, and then
perform this function
again.

Performs automatic testing of the network
connection for the TV. (It takes a while to test.)

80

Using Network Services

(DLNA / VIERA CAST / freesat)

Network settings for the Wireless LAN connection

This setting is for the network connection by using Wireless LAN Adaptor. (Wireless LAN connection)

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read ●
the manual of the access point.

Select “Network Type” and set to “Wireless”

Network Setup

Network Type Wireless

Access Point Settings
IP/DNS Settings
Proxy Settings

No settings

Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

set
select

Select “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings
Proxy Settings

No settings

Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

access

select

Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

Search for access point

Manual

access

select

For details of each connection type ● p. 81

After settings, return to “Network Setup” screen

Confirm the connection status of “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings
Proxy Settings

Connected

Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

- - - : “Wired” is selected in “Network Type”.
No adaptor : Wireless LAN Adaptor is not connected.
No settings : Setting for connecting to the access point has not been set.
Connecting... : Connecting to the access point in progress.
Connected : Wireless LAN connection to the access point succeeded.

To display the current access point settings, press the ●
OK button.
To change the settings, select “No” on this screen.
Some access points do not allow access to the internet. ●
Perform “Connection Test” (below) to check if internet

connection is available.
USB
overcurrent : Overcurrent error p. 103

Select “Connection Test” and access to test

Network Setup

Network Type Wireless
Access Point Settings
IP/DNS Settings
Proxy Settings

Connected

Connection Test

VIERA Name VIERA

Access

Software Update
MAC Address ab-cd-ef-gh-ij-kl

access

select

Connection Test

Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA CAST.

:

succeeded

The test is successful and the TV is connected to the
network.

:

failed

Check the settings and connections, and then perform
this function again.
If you continue to have difficulty, please contact your
internet service provider.

Performs automatic testing of the network
connection for the TV. (This may take some time.)

Using Network Services ●

(DLNA / VIERA CAST / freesat)

Advanced

81

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ button on the access
point until its light flashes.

2) When the light is flashing select ‘Connect’ on
TV.

If you are unsure, please check the instruction
manual of the access point.

Connect

Press the WPS button on the access point until the light flashes.
And then, press the OK button to connect the Wireless LAN Adaptor and the
access point.

Ensure that your access point supports WPS for this setup.●
WPS: Wi-Fi Protected Setup●

Search for access point■

Access points found automatically are listed.

Available Access Points

Access Point A 11n(2.4GHz)

11n(5GHz)

SSIDNo. Wireless type Encrypt Reception

Access Point B

Access Point C 11n(5GHz)

1

2

3

Select your desired access point

select

access

: Encrypted access point

To search access points again ●

yellow

For the information of the ●
highlighted access point

To set manually ●

red

Encryption Key Setting

Connection will be made with the following settings:­SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP

Please input the encryption key.

Encryption key

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will be ●
displayed. It is recommended to select the encrypted access point.

Access Point Settings

Encryption key

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

Enter the encryption key of the access point
Set characters one by one Store

select

set

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 98)

Access Point Settings

Encryption key is set to:­XXXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Yes No

Select “Yes”

select
confirm

To re-enter the encryption key, select “No”.●

WPS(PIN)■

Available Access Points

Access Point A 11n(2.4GHz)

11n(5GHz)

SSIDNo. Wireless type Encrypt Reception

Access Point B

Access Point C 11n(5GHz)

1

2

3

Select your desired access point

select

access

Ensure that your access point ●
supports WPS for this setup.
To search access points again ●

yellow

For the information of the ●
highlighted access point

To set manually ●

red

WPS(PIN)

Please register the following PIN codes on the
access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the
settings on the access point.

Connect

Enter the PIN code to the
access point, and then select
“Connect”

Manual■

You can setup SSID, authentication type,
encryption type, and encryption key manually.
Follow the on screen instructions and set
manually.

When you use 11n (5GHz) for the wireless ●

system between the Wireless LAN Adaptor
and access point, please select “AES” for
the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:­XXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Yes No

Authentication Type Settings

WPA2-PSK

WPA-PSK

Shared key

Open

Connection will be made with the following settings:­SSID : XXXXXXX

Please select the authentication type.

EXIT

OPTION

BACK/

RETURN

ASPECT

INPUT

TV

AV

MENU

82

Using Network Services

(DLNA / VIERA CAST / freesat)

1

Display the Input select menu

AV

2

Select “Media Server”

Input Selection

AV1
AV2/S
AV3
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV

Media Server

access

select

You can also access directly by using ●
VIERA TOOLS

“How to Use VIERA TOOLS” (p. 30)

3

Select one of the media servers you want to access

Media Server

Info

Select

EXIT

RETURN

Access

SERVER1

A
5
g

SERVER2
SERVER3
DIGA

4

(Media server list)

Available media servers

Total listed number

access

select

To display the information of the highlighted ●
media server

or

blue

4

Select the file (photo or video) to be viewed

Pixel

Format

3648x2736

JPEG

Media Server

SERVER1

Slideshow Info

Select

EXIT

RETURN

View

P000102 2008-10-05 09:54
P000135 2008-11-20 13:18
P000180 2008-12-07 11:31
P000214 2008-12-10 15:20
P000251 2008-12-19 12:39
P000276 2008-12-25 14:06
P000293 2009-01-06 13:52
M10025 2009-01-12 15:56
M10042 2009-01-20 10:08
M10054 2009-01-28 14:48
M10078 2009-02-09 19:58

28

(File list)

access

select

Depending on the conditions of media ●
server, you may need to select the folder
before selecting the file.
To display the information of the highlighted ●

file

or

blue

To return to TV■

EXIT

To return to ■
the previous
screen

BACK/

RETURN

Using DLNA® features

Ensure the preparation of media server, network connections and network settings are completed.●

“Media server” (p. 76), “Network connections” (p. 77), “Network Setup” (p. 78 - 81)

Using Network Services ●

(DLNA / VIERA CAST / freesat)

Advanced

83

For photo file

Single view■ - Photos are displayed one at a time.

(Single view)

Rotate

Slideshow

Select

Single view

Single view

EXIT

RETURN

Operation guide

To display / hide the operation guide ●
To operate Single view●

To the previous photo
Rotate 90˚ (anti-clockwise)
To the next photo
Slideshow
Rotate 90˚ (clockwise)

To return to list ●

BACK/

RETURN

Slideshow■ - Slideshow will be started from the selected photo file and completed within the list.

Start Slideshow

To display / hide the operation guide

●

To pause (return to Single view) ●

To return to list ●

BACK/

RETURN

red

For video file

Playback ■ - Playback will start.

(Playback)

Title
Date & Time

Trip1
19/02/2009 11:21

00:02.05 / 00:15.39

EXIT

RETURN

Operation guide

Information banner

To display / hide the operation guide and information banner ●
To operate the playback●

Rewind

Pause / Playback

Playback

Fast forward

Stop

To the previous scene ●

red

To the next scene ●

green

To change aspect ●
(only for the 4:3 video content)

ASPECT

To return to list ●

BACK/

RETURN

For DIGA Recorder

Control the DIGA Recorder■

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with
this TV remote control according to the operation guide.

Before operating, register this TV on the DIGA Recorder.●
For details, read the manual of the DIGA Recorder.●

Example:

Delete TitleSelect

Liberty TV FR Journal Télévisé / Météo

WDR aktuell

WDR aktuell

19.08(Wed)

AV1

Bibel TV Bibel TV das Gespräch

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

WDR Aachen

WDR Wuppertal

18.08(Tue)

18.08(Tue)

Page 005/005

DIRECT NAVIGATOR (Grouped Titles)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

HDD

All

Time Remaining 36:17 (DR)

OK
RETURN

OPTION

Note

You may select and playback the music file.●
Non-playable files are also listed but cannot be selected.●
Turn the TV off, and then on again when changing or reconnecting the network connection.●

84

Photo Setup (for photo contents) and Video Setup (for video contents)

Choose the settings for Photo and Video file operations.

Display
the
menu

MENU

Select “Photo Setup” or
“Video Setup”

Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

select

access

Photo Setup Menu

Back Ground Music Type1
Transition Effect Fade
Interval 5 seconds
Repeat On

Select “Other Settings” Select the items and set

Video Setup Menu

Display Settings

Other Settings Access

Other Settings

16:9 Overscan On

Intelligent Frame Creation Off

Video Preview On
Repeat Off

Other items ●

p. 32, 33, 35, 36 and p. 75

Menu Item Adjustments / Configurations (alternatives)

Photo Setup

Back Ground
Music

Selects the back ground music while photo (Off / Type1 / Type2 / Type3 / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.●

User : Music data registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 75)
Only available music files can be registered.●
If no music has been registered, or you change to the other media server, no ●
sound will be produced.

Transition Effect

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually.
Slide : The next photo slides and appears from the left side.
Dissolve : Each photo is dissolved when switching to the next photo.
Motion : Each photo is displayed with an effect of enlarging, reducing, moving up

or moving down.

Random : Each transition is selected at random.

Interval

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Transition Effect” is set to “Motion”.●

Repeat Slideshow repeat (Off / On)

Video

Setup

Other

Settings

Video
Preview

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the

●

preview “Off” to resolve this.

Repeat Playback repeat within the title (Off / On)

Sound Settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

■ (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

OPTION

Example:

change

It may take several seconds to change the sound.●

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display
the menu

MENU

Select “Sound” Select “SPDIF Selection” and set

Sound

Main Menu


Photo Setup

Video Setup

Music Setup

select

access

Sound Menu

1/2
Mode Music
Bass
Treble
Balance
Headphone Volume

OffSurround
Volume Correction
Speaker Distance to Wall Over 30cm

SPDIF Selection

Auto

select

set

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF
Selection

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM

: Digital output signal is fixed to PCM.

Using Network Services

(DLNA / VIERA CAST / freesat)

Using Network Services ●

(DLNA / VIERA CAST / freesat)

Advanced

85

VIERA CAST™

You can access a selection of internet services from VIERA CAST home screen. For example, YouTube,
Picasa Web Albums (current as of March, 2010).

VIERA CAST requires a broadband internet connection. Dial-up internet connections cannot be used.●
Ensure the network connections and network settings are completed.●

“Network connections” (p. 77), “Network Setup” (p. 78 - 81)

EXIT

BACK/

RETURN

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To return to TV■

EXIT

Access VIERA CAST

Depending on the usage conditions, ●
it may take a while to read all the
data.

Welcome to VIERA CAST™

VIERA CAST™ home screen is subject to change without notice.

The services through VIERA CAST™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Some content may be inappropriate for some viewers.

Some content may only be available for specific countries and may be presented in specific languages.

ENTER

Don’t show this message again

Example:

Messages might be displayed before ●
VIERA CAST home screen.
Please read these instructions carefully
and follow the on screen instructions.

MORE

BACK

Setup & Help

VIERA CAST home screen

Example:

Video communication ●
(ex. Skype™) requires an exclusive
Communication Camera TY-CC10W
(optional accessory p. 6).
For details, read the manual of the
Communication Camera.

Note

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is ●
not updated, you will not be able to use VIERA CAST.
You can update the software later manually

“Software Update” in the Network Setup Menu (p. 78)

VIERA CAST™ home screen is subject to change without notice.

●

The services through VIERA CAST™ are operated by their respective service providers, and service may be ●
discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the
content or the continuity of the services.
All features of websites or content of the service may not be available.

●

Some content may be inappropriate for some viewers.●
Some content may only be available for specific countries and may be presented in specific languages.●
Depending on the connection environment, the internet connection may be slow or may not be successful.●
During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals. ●
But no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the
Setup Menu (p. 34).
You can set to restrict using VIERA CAST

● “Child Lock” (p. 54)

Turn the TV off, and then on again when changing or reconnecting the network connection.

●

How to operate VIERA CAST ■ (current as of March, 2010)

Setup & Help menu●
(Items in the “Setup & Help” may
change without notice.)

Customize
HomeScreen

Changes the position
of each services on
VIERA CAST home screen

My Account

Confirms or removes the
account information of the TV
you entered on VIERA CAST

Lock

Sets to restrict access to
some services

Beep

Sets beep sound On or Off
when operating VIERA CAST

Notices

Displays the information of
VIERA CAST

Help

Explains the setup items and
operations in VIERA CAST

To go to the next level ● Select “MORE”
To back to the previous level ● Select “BACK”

To move the cursor / select the item ●
To access ●
To return to the previous screen ●

BACK/

RETURN

To return to VIERA CAST home screen ●

When the key words are displayed on colour bar ●

red green yellow blue

When options with numbers are displayed ●

abc def

jkl

ghi

mno

tuvpqrs

wxyz

USB Keyboard■

You can input characters on VIERA CAST screen by using the USB Keyboard connected to the USB port.

You cannot use two or more keyboards simultaneously.

●

The USB Keyboard which requires the driver is not supported.

●

To change the language type

●

“USB Keyboard Layout” (p. 36)

86

Link Functions

(

Q-Link
VIERA Link

)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 88)
VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and
enables easy control, convenient recording, playback, energy saving, creation of a home theatre, etc.,
without complicated setting. (p. 89 - 93)
You can use Q-Link and VIERA Link functions together.

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s ●
version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.
VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.●

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection only)■

Connected equipment

Features

DVD Recorder / VCR
with Q-Link function

Analogue channel download

Easy playback

Power on link

Power off link

Direct TV Recording

Connection

SCART cable

DVD Recorder / VCR
with Q-Link function

Use a fully wired SCART cable.●
Connect the DVD Recorder / VCR supporting Q-Link ●
to the TV’s AV1 or AV2 terminal via a SCART cable.

VIERA Link (HDMI connection only)■

Connected equipment

Features

DIGA Recorder with

VIERA Link function

DVD Player /

Blu-ray Disc Player with

VIERA Link function

HD Video Camera /

LUMIX Camera with

VIERA Link function

Analogue channel download

–––

Easy playback
Power on link
Power off link
Reduce unnecessary power consumption

in standby

∗

3

∗

3

–

Auto standby for unnecessary equipment

∗

3

∗

3

–

Pause Live TV programme

∗

3

∗

4

––

Direct TV Recording

∗

3

––

Control the menu of the connected
equipment by VIERA remote control

∗

1

∗

1

∗

1

Speaker control

–––

Connection

HDMI cable

DIGA Recorder / DVD Player / Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function

Use a fully wired HDMI compliant cable.●
Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an ●
HDMI cable.
For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read ●
the manual of the equipment.

VIERA Link (HDMI and SCART connections)■

Connected equipment

Features

DIGA Recorder with

VIERA Link function

Analogue channel download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption

in standby

∗

3

Auto standby for unnecessary equipment

∗

3

Pause Live TV programme

∗

2

∗

4

Direct TV Recording

∗

2

Control the menu of the connected
equipment by VIERA remote control

∗

1

Speaker control

–

Connection

HDMI cable

SCART cable

DIGA Recorder
with VIERA Link
function

Use a fully wired HDMI compliant cable.●
Connect the equipment supporting VIERA Link ●
to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4
terminal via an HDMI cable.
Use a fully wired SCART cable.●
Connect the equipment supporting VIERA Link to ●
the TV’s AV1 or AV2 terminal via a SCART cable.

Link Functions ●

(Q-Link / VIERA Link)

Advanced

87

VIERA Link (HDMI and Audio out connections)■

Connected equipment

Features

Player theatre with

VIERA Link function

Blu-ray Disc theatre with

VIERA Link function

Amplifier with

VIERA Link function

Analogue channel download

–––

Easy playback

∗

5

∗

5

–

Power on link

–

Power off link
Reduce unnecessary power consumption

in standby

–

∗

3

–

Auto standby for unnecessary equipment

∗

3

∗

6

∗

3

∗

6

∗

3

Pause Live TV programme –––
Direct TV Recording –––
Control the menu of the connected

equipment by VIERA remote control

∗

1

∗

1

–

Speaker control

Connection

HDMI cable

Optical digital

audio cable

or

RCA cable

or

SCART cable

Player theatre /
Blu-ray Disc theatre
with VIERA Link
function

Speaker system

∗

7

To use Player theatre / ●
Blu-ray Disc theatre:

HDMI cable

Optical digital

audio cable

or

RCA cable

or

SCART cable

SCART cable

HDMI
cable

HDMI
cable

Amplifier with
VIERA Link
function

DIGA Recorder with
VIERA Link function

HD Video Camera /
LUMIX Camera with
VIERA Link function

Speaker system

∗

7

To use Amplifier:●

Use a fully wired HDMI compliant cable.●
Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI ●
cable.
Use a fully wired SCART cable.●
If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 or ●
AV2 terminal and set “AV1 / AV2 out” to “Monitor” in the Setup Menu (p. 34).
Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV.●

∗

1: Available with the equipment which has “HDAVI Control 2 or later” function.

∗

2: Available with the equipment which has “HDAVI Control 3 or later” function.

∗

3: Available with the equipment which has “HDAVI Control 4 or later” function.

∗

4: Available with DIGA Recorder which has HDD.

∗

5: while playingback a disc

∗

6: except for watching a disc

∗

7: If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical

digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2
terminal via an HDMI cable.

VIERA Link Control of compatible equipment ■ (VIERA Link Control p. 92)

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. ●
This includes connections to equipment already connected to the TV.
For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number
Recorder (DIGA Recorder, etc.) 3
Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,

Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)

3

Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1
Tuner (Set top box, etc.) 4

88

Q-Link

Preparations■

Connect the DVD Recorder / VCR with the following logos:●
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
Q-Link connection ● p. 86
Use fully wired SCART cable.●
Set up the DVD Recorder / VCR. Read the manual of the recorder.●
Q-Link terminal setup in the Setup Menu ● “Q-Link” (p. 34), “AV1 / AV2 out” (p. 34)
Download Analogue channel setting ● “Analogue channel download” (see below)

Features available■

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue
is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings ●

“Q-Link Download” (p. 34) or “Auto Setup” in Analogue mode
(p. 41) or “Auto Setup” - when first using the TV (p. 12)

Direct TV Recording - What you see is What you record

Recording the current programme on a DVD Recorder / VCR immediately.

EXIT

G

U

I

D

E

DIRECT TV REC

DIRECT TV REC

Available conditions:●

Picture source Mode Recording from

Analogue

TV TV monitor out

AV Recorder’s tuner
freesat, DVB, Other Sat. TV TV monitor out
AV
( watching recorder’s tuner)

AV Recorder’s tuner

AV
( watching recorder’s external input)

AV

Recorder’s

external input
AV
( watching TV’s external input)

AV TV monitor out

When Direct TV Recording is performed, the recorder is automatically ●
turned on if it is in Standby mode.
Changing channel or turning off the TV is available while the recorder is ●
recording from its own tuner.
Changing channel is not available while the recorder is recording from ●
the TV tuner.

To stop recording ■

Unlock the tuner

G

U

I

D

E

Unlock

Continue

Tuner Locked

Press EXIT to unlock and stop recording

EXIT

Power on link and Easy playback

When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the
equipment is activated, the TV is turned on and the input mode is switched automatically so that you
can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when
the videocassette or disc is not active.)

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

“DATA LOGIC” (a trademark of Metz Corporation)•
“Easy Link” (a trademark of Philips Corporation)•

“Megalogic” (a trademark of Grundig Corporation)•
“SMARTLINK” (a trademark of Sony Corporation)•

Note

Some recorders are not compatible. Read the manual of the recorder.●

Link Functions

(

Q-Link
VIERA Link

)

Link Functions ●

(Q-Link / VIERA Link)

Advanced

89

VIERA Link “ Control™”

∗

∗Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 5” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically (p. 86 and p. 87).
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the ●
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard ●
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function. ●
For information about applicable Panasonic equipment, consult your local Panasonic dealer ●
or refer to www.panasonic.co.uk

Preparations■

Connect the equipment that supports VIERA Link.●
VIERA Link connection ● p. 86 and p. 87
Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized. ●
Recommended Panasonic HDMI cables’ part numbers:

RP-CDHS15 (1.5 m)• RP-CDHS30 (3.0 m)• RP-CDHS50 (5.0 m)•

Use a fully wired SCART cable.

●

Set up the connected equipment. Read the manual of the equipment.●
For optimal recording, the settings of the recorder may need to be changed. For details, read the manual ●
of the recorder.
Download Analogue channel setting ● “Analogue channel download” (see below)
Set VIERA Link On in the Setup Menu ● “VIERA Link” (p. 34)
Set up the TV●

After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 28), and make sure that an image is
displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time•
when adding or reconnecting equipment•
when changing setup•

Features available■

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue
is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings ●

“Q-Link Download” (p. 34) or “Auto Setup” in Analogue mode
(p. 41) or “Auto Setup” - when first using the TV (p. 12)

Easy playback

Automatic Input switching - When the connected equipment is operated (during playback or menu
operations, etc.), the input mode is switched automatically. When playback is stopped or menus are
exited, the input mode returns to the original setting.

Power on link

When the connected equipment starts playback or the direct navigator / function menu for
the equipment is activated, the TV is automatically turned on and the input mode is switched
automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

90

Link Functions

(

Q-Link
VIERA Link

)

Direct TV Recording - What you see is What you record

Direct TV Rec

Recording the current programme on a DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ●
connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and
HDMI2 for two recorders, connect the DIGA Recorder to HDMI1.
If Direct TV Recording does not operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 86 and p. 87), “Preparations” (p. 89)

If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is required

●

and the programme is recorded by Q-Link function (p. 88).
Depending on the programme, a SCART connection may be required to record.●
Changing channel or turning off the TV is available while the recorder is recording from its own tuner.●
Changing channel is not available while the recorder is recording from the TV tuner.●

EXIT

G

U

I

D

E

DIRECT TV REC

1

Display “VIERA Link Menu”

2

Select “Direct TV Rec” and start recording

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control
Speaker Selection

Start
Recorder
Home Cinema

select

start

You can also start recording directly ●

DIRECT TV REC

To stop recording■

Select “Stop” in “Direct TV Rec” and access

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control
Speaker Selection

Stop
Recorder
Home Cinema

select

stop

You can also stop recording directly.●

Unlock the tuner

G

U

I

D

E

Unlock

Continue

Tuner Locked

Press EXIT to unlock and stop recording

EXIT

Features available ■ (Using VIERA Link Menu)

Features available■

Reduce unnecessary power consumption in standby

Standby Power Save

Set Standby Power Save “On” in the Setup Menu to use this function

“Standby Power Save” (p. 34)

The power consumption in Standby mode of the connected equipment is controlled in synchronization with the
TV On / Off state.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power
consumption in Standby mode of the connected equipment is automatically minimized.
When the TV is turned on and the connected equipment is still in Standby mode, the power consumption of the
connected equipment is increased to reduce the startup time.

This function is effective if the connected equipment can change the power consumption in Standby mode

●

and is set to higher consumption.

Auto standby for unnecessary equipment

Intelligent Auto Standby

Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to
use this function

“Intelligent Auto Standby” (p. 34)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically
to reduce power consumption. For example, when the input mode is switched from HDMI, the connected
equipment will go into Standby mode / when Speaker Selection is changed to “TV”, the Player theatre will go
into Standby mode (except when watching a disc).

If you select “On (With reminder)”, the on screen message will be displayed before the connected equipment ●
turns to Standby.
This function may not work properly depending on the connected equipment. If required, set to “Off”.●

Link Functions ●

(Q-Link / VIERA Link)

Advanced

91

Pause Live TV programme

Pause Live TV

You can pause the live TV programme and resume the programme later.
The live TV programme will be recorded on HDD of the connected DIGA Recorder.

This function is available with a DIGA Recorder which has HDD.●
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ●
connect the DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use
HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1.
If Pause Live TV does not operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 86 and p. 87), “Preparations” (p. 89)

Access and pause the live TV programme

INPUT

TV

TV

OPTION

1

Display “VIERA Link Menu”

2

Select “Pause Live TV” and pause

VIERA Link Menu

Pause Live TV Start

Direct TV Rec
VIERA Link Control
Speaker Selection

Start
Recorder
Home Cinema

select

pause

The TV picture will be paused.

You can also pause directly by using VIERA TOOLS ●

“How to Use VIERA TOOLS” (p. 30)

Live TV programme is recorded on HDD from where it was paused.●
If the paused TV picture disappears after a few minutes●

OPTION

(the paused picture will be restored)

Follow the operation guide to operate Pause Live TV function.

●

To operate Pause Live TV■

search backward
pause
search forward
playback
stop

If you stop playback, the recorded programme ●
will be deleted from HDD.

Operations may be different ●
depending on the recorder. In this
case, follow the operation guide or
read the manual of the recorder.

To return to Live TV ■

(stop playback of Pause Live TV / cancel pause)

Select “Yes”

TV

Pause Live TV

Stop Pause Live TV?

Yes No

select

stop

If you stop playback or cancel pause, the recorded programme will be ●
deleted from HDD.

Features available ■ (Using VIERA Link Menu)

92

Link Functions

(

Q-Link
VIERA Link

)

Features available ■ (Using VIERA Link Menu)

Control the menu of the connected equipment by VIERA remote control

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control (point the
remote control at the TV’s signal receiver).

If you cannot operate the menu of the connected equipment, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 86 and p. 87), “Preparations” (p. 89)

For details of the operations for the connected equipment, read the manual of the equipment.●

Access and operate the menu of the equipment

If multiple recorders or ■
players are connected

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder2
Home Cinema

Recorder1-3 / Player1-3

The number is given from
the TV’s lower HDMI terminal
number connected to the same
type equipment. For example,
two recorders to HDMI2
and HDMI3, in this case the
recorder connected to HDMI2
is displayed as “Recorder1”,
and the recorder connected
to HDMI3 is displayed as
“Recorder2”.

If you access ■
non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder
Home Cinema

The type of the connected
equipment is displayed.
You can access the menu
of the equipment. But you
cannot operate it. Use its own
remote control to operate the
equipment.

1

Display “VIERA Link Menu”

2

Select “VIERA Link Control”

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder
Home Cinema

select

3

Select the equipment you want to access

The type of the connected equipment is displayed.
Select the type of the equipment and access.

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder
Home Cinema

access

select

Recorder / Player / Home Cinema / Video Camera / LUMIX /
Digital Camera / Other

You can also access directly by using VIERA TOOLS ●

“How to Use VIERA TOOLS” (p. 30)

The displayed item may vary depending on the connected ●
equipment.
“Home Cinema” means Player theatre, Blu-ray Disc theatre or ●
Recorder theatre.
“Other” means Tuner set top box.●

The menu of the accessed equipment

(Input mode will be changed automatically)

4

Operate the menu of the equipment

Available VIERA remote control buttons:
(depending on the connected equipment)

EXIT

OPTION

TEXT

REC

PROGRAMME

STTL

BACK/

RETURN

G

U

I

D
E

DVD/VCR

TV

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Set the position to “TV”

DVD/VCR

TV

Follow the operation guide

To display the operation guide ●

OPTION

If other manufacturers’ equipment is
accessed, Setup / Contents Selection
menu may be displayed.

When the key words are displayed on ●

colour bar

red green yellow blue

Note

Some operations may not be available ●
depending on the equipment. In this case
use its own remote control to operate the
equipment.

Link Functions ●

(Q-Link / VIERA Link)

Advanced

93

Features available ■ (Using VIERA Link Menu)

Note

These functions may not work properly depending on the connected equipment.●
Image or sound may not be available for the first few seconds when Input mode is switched.●
Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. ●
Read the manual of the equipment.
“HDAVI Control 5” is the newest standard (current as of December, 2009) for HDAVI Control compatible ●
equipment. This standard is compatible with conventional HDAVI equipment.
To confirm this TV’s version of HDAVI Control ● “System Information” (p. 36)

Speaker control

Speaker Selection

You can control the home theatre speakers with this TV remote control (point the remote control at
the TV’s signal receiver).

If you cannot control the home theatre speakers with this remote control, check the settings and the ●
equipment

“Summary of Q-Link and VIERA Link features” (p. 86 and p. 87), “Preparations” (p. 89)

Access and control the speaker volume

TV

1

Display “VIERA Link Menu”

2

Select “Speaker Selection”

VIERA Link Menu

Pause Live TV Start
Direct TV Rec
VIERA Link Control

Speaker Selection

Start
Recorder
Home Cinema

select

3

Set to “Home Cinema” or “TV”

set

Home Cinema■

The Player theatre, Blu-ray Disc theatre or Amplifier will be

automatically turned on if it is in Standby mode and the sound
will be output from theatre speakers connected to the equipment.

Volume up / down ●

Mute ●

The sound of the TV speakers is muted.●
When the equipment is turned off, the TV speakers will be activated.●

TV■

TV speakers are active.

Note

If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an ●
Amplifier, connect the Amplifier to the TV with an HDMI cable and an Optical
digital audio cable (p. 87), and then select “Home Cinema”. If your Amplifier has
“HDAVI Control 5” function, you only need to connect with an HDMI cable. In this
case, connect your Amplifier to the TV’s HDMI2 terminal.
To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an
HDMI cable from the DIGA Recorder to the Amplifier (p. 87).

AV1 AV2

COMPONENT

AUDIO

IN

DIGITAL

AUDIO

OUT

RGB

S VIDEO

VIDEO

RGB
VIDEO

Y

P

R

P

B

RLR

L

HDMI 2

(ARC)

HDMI

1

HDMI

3

AUDIO

OUT

PC

94

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifications (p. 110).

or

Optical digital
audio cable

Recorder / Player

HDMI equipment

Terrestrial
aerial

RF
cable

DVD Recorder / VCR

To record /

playback

To watch DVDs

(Viewing)

RCA cable

(Listening)

Fully wired

SCART cable

DVD Player

To listen with speakers

“HDMI connection” (p. 99)

or

Amplifier with
speaker system

To enjoy the sound from the external
equipment in multi-channel sound
(e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier.
For the connections, read the manuals
of the equipment and amplifier.

Types of connectable equipment to each terminal■

Terminal

Recording / Playback
(equipment)

AV1 AV2 AV3

(

Side panel

of the TV

)

V

L

R

To record / playback videocassettes / DVDs (VCR / DVD Recorder)
To watch DVDs (DVD Player)
To watch camcorder images (Video camera)
To watch cable broadcasts (Set top box)
To play games (Game equipment)
To use amplifier with speaker system
To use Network services
USB HDD Recording
Q-Link

VIERA Link

(with HDMI) (with HDMI)

Direct TV Recording

: Recommended Connection

∗

1 : applicable if your amplifier has ARC (Audio Return Channel) function

Fully wired HDMI
compliant cable

Conversion adapter
(if necessary)

Computer

PC

(Viewing)

(Listening)

Satellite

dish

Satellite cable

External Equipment ●

Advanced

2

1

Service

Port

HDMI 4

AV 3

V

L

R

95

Fully wired HDMI
compliant cable

To watch

cable broadcasts

Fully wired SCART cable

Fully wired HDMI
compliant cable

Cable TV box

Cable

Rear of the TV

COMPONENT

P

B

Y

P

R

R

L

AUDIO OUT

R

L

DIGITAL AUDIO OUT ETHERNET

USB

2

1

12341 2

∗

1

Headphones

Camcorder /

Game equipment

To adjust volume●

“Headphone Volume” in the

Sound Menu (p. 33)

Camcorder /

HDMI equipment

(M3 stereo mini plug)

(Viewing)

(Listening)

Installing the Ferrite core

Pull back the tabs
(in two places)

Wind the cable
twice

Open

Press the cable
through and close

USB cable

This terminal is for special
applications used by
authorized service dealers.

Modem

USB devices

Internet

Network

Hub or Router

LAN cable

Ferrite core (supplied)

Less than
10 cm

Less than
10 cm

96

Technical Information

Auto Aspect

The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 18)

Aspect Control Signal■

“WIDE” will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART /
HDMI terminal is found.
The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
This function will work in any aspect mode.

Input terminal Input signal format

Aspect Control Signal

Widescreen signal
(WSS)

Control signal
through SCART (pin8) / HDMI terminal

RF

DVB
PAL I
PAL 525/60 6.0 MHz –
M.NTSC 6.0 MHz –

Satellite freesat, Other Sat.

AV1 (Composite)
AV2 (Composite or S-Video)
AV3

PAL
PAL 525/60 –
M.NTSC –
NTSC –

COMPONENT

525 (480) / 60i –
525 (480) / 60p –
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p –
750 (720) / 50p –
1,125 (1,080) / 60i –
1,125 (1,080) / 50i –

HDMI1
HDMI2
HDMI3
HDMI4

525 (480) / 60i –
525 (480) / 60p –
625 (576) / 50i –
625 (576) / 50p –
750 (720) / 60p –
750 (720) / 50p –
1,125 (1,080) / 60i –
1,125 (1,080) / 50i –
1,125 (1,080) / 60p –
1,125 (1,080) / 50p –
1,125 (1,080) / 24p –

Auto mode■

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS,
Control signal through SCART / HDMI terminal, Letterbox detection, or Justify to fill the screen).
This process may take several minutes, depending on the darkness of the image.
Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the
best ratio and expands the image to fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top ●
and bottom of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the ●
tracking of the VCR. Read the manual of the VCR.

SD Card

If the SD Card does not meet SD standards, it may cause the TV to malfunction.●
Do not remove the card while the TV is accessing data (this can damage card or TV).●
Do not touch the pins on the back of the card.●
Do not subject the card to a high pressure or impact.●
Insert the card in the correct direction (otherwise the card or TV may be damaged).●
Electrical interference, static electricity, or erroneous operation may damage the data or ●
card.
Back up the recorded data at regular intervals in case of deteriorated or damaged data ●
or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of
recorded data.)

24 mm

32 mm

2.1 mm

Technical Information ●

FAQs, etc.

97

DivX

ABOUT DIVX VIDEO:
DivX

®

is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your files into DivX video.

DivX video file■

DivX Certified to play DivX video up to HD 1080p, including premium content.
Extension - “.divx” or “.avi”
Image resolution - Up to 1,920 × 1,080 pixels

Video

Number of stream: Up to 1•
Codec: DIV3, DIV4, DIVX, DX50, DIV6•
FPS (Frame Per Second): Up to 60 fps•

Audio

Number of stream: Up to 8•
Format: MP3, MPEG, AC3•
Multi channel: AC3 is possible. MPEG multi is 2 ch conversion.•

GMC (Global Motion Compensation) is not supported.●

Subtitle text file of DivX■

Subtitles format - MicroDVD, SubRip, TMPlayer

The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for ●
the file extensions.
If there are more than one subtitles text files inside the same folder, they are displayed in the following order of ●
priority: “.srt”, “.sub”, “.txt”.
To confirm or change the current subtitle status while playing DivX content, press the OPTION button to ●
display Option Menu.
Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be ●
displayed, or the subtitles may not be displayed at all.

Note

Depending on how you make SD Card or USB Flash Memory, files and folders may not be displayed in the order ●
you numbered.
Depending on the software you use to create DivX files, the files may not play.●
Depending on how you create the files and the structure of folders, the files and folders may not be displayed.●
When there are many files and folders, operation may take time to complete or some files may not be displayed ●
or playable.

ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified

®

device must be registered in order to play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com with this
code to complete the registration process and learn more about DivX VOD.

To show DivX VOD registration code■

“DivX® VOD” in the Setup Menu (p. 35)
If you want to generate the new registration code, you have to deregister the present registration code.

●

After playing DivX VOD content once, the confirmation screen to deregister will be displayed in “DivX® VOD”
in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be
generated and you will not be able to play any contents that you purchased using the present registration
code.
You will obtain the new registration code by pressing the OK button on the deregistration code screen.
If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able

●

to play this content. (“Your device is not authorized to play this DivX protected video.” is displayed.)

Regarding DivX content that can only be played a set number of times■

Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content when the
number of remaining plays is zero. (“This DivX rental has expired.” is displayed.)

When playing this content, the number of remaining plays is reduced by one in the following conditions:●

If you exit the current application.•
If you play the other content.•
If you go to the next or previous content.•

98

Technical Information

Characters table for numeric buttons

You can enter characters by using numeric buttons for free input items.
Press the numeric button repeatedly until you reach the desired character.

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

1

.!:#2abc3def

4

ghi5jkl6mno

7

pqrs8tuv9wxyz

0

abc def

jkl

ghi

mno

tuvpqrs

wxyz

The character is set automatically if you do not press the button for ●
one second.
You can also set the character by pressing the OK button or ●
other numeric buttons within one second.

Characters table:

The number of

times to press

Numeric
buttons

1234567891011

.1! :#+-*_()

abc

abc2ABC

def

def3DEF

ghi

gh i 4GHI

jkl

jkl5JKL

mno

mn o 6MNO

pqrs

pqr s7PQRS

tuv

tuv8TUV

wxyz

wxyz9WXYZ

Space 0

SCART and HDMI terminal information

AV1 ■ SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

AV2 ■ SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO
switching.

Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1

20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -­10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)

Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in, S.C. - in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1

20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -­10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)

HDMI ■ terminal

Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield 11
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1

18 +5V Power
16 SDA
14 Reserved

(in cable but N.C. on device)

12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield

Technical Information ●

FAQs, etc.

99

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying
with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the
equipment.
HDMI-compatible equipment

(∗1)

with an HDMI or DVI output terminal, such as a DVD player, a set top box or a
game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
For information about connections, see “External Equipment” (p. 94).

Applicable HDMI features■

Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)●
Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p●

“Input signal that can be displayed” (p. 100)

Match the output setting of the digital equipment.

Input PC signal : ● “Input signal that can be displayed” (p. 100)

Match the output setting of the PC.

VIERA Link (HDAVI Control 5) : ● “VIERA Link” (p. 89)
Content Type●
Digital Cinema Colour (also Media Player from SD Card or USB Flash Memory)●
Deep Colour●
x.v.Colour™●
Audio Return Channel●

(∗3)

(HDMI2 terminal only)

DVI connection■

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable

(∗2)

.
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 / 3:
use COMPONENT-AUDIO terminals / HDMI4: use AV3 audio terminals).

Note

Audio settings can be made on the “HDMI1 / 2 / 3 / 4 Input” in the Sound Menu. (p. 33)●
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.●
These HDMI connectors are “type A”.●
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright ●
protection.
Equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”, ●
S-VIDEO”, or “VIDEO” to receive analogue signals.
This TV incorporates HDMI™ technology. ●

(∗1): The HDMI logo is displayed on HDMI-compliant equipment.
(∗2): Enquire at your local digital equipment retailer shop.
(∗3): Audio Return Channel (ARC) is a function to be able to

send digital sound signals via an HDMI cable.

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency ●
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.●

Note

Some PC models cannot be connected to this TV.●
When using PC, set the colour display quality of PC to the highest position.●
For details of the applicable PC signals●

“Input signal that can be displayed” (p. 100)

Max. display resolution●

Aspect

4:3

1,440 × 1,080 pixels

16:9

1,920 × 1,080 pixels

D-sub 15-pin connector signal●

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC (not connected)

100

Technical Information

USB connection

It is recommended to connect the USB HDD or USB Flash Memory directly to the TV’s USB ports.●
Some USB devices or USB HUB may not be used with this TV.●
You cannot connect any devices by using USB card reader.●

The combination of USB devices that have been tested for each TV’s USB port.■

Combination of USB port 1 + port 2 (and vice versa):

USB HDD + USB Flash Memory•
USB HDD + Wireless LAN Adaptor•
USB HDD + USB Keyboard•
USB Flash Memory + Wireless LAN Adaptor•
USB Flash Memory + USB Keyboard•
Wireless LAN Adaptor + USB Keyboard•

Note

Additional information for USB devices may be on the following web site. (English only)●
http://panasonic.jp/support/global/cs/tv/

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI

∗ Mark: Applicable input signal

Signal name COMPONENT HDMI

525 (480) / 60i

∗∗

525 (480) / 60p

∗∗

625 (576) / 50i

∗∗

625 (576) / 50p

∗∗

750 (720) / 60p

∗∗

750 (720) / 50p

∗∗

1,125 (1,080) / 60i

∗∗

1,125 (1,080) / 50i

∗∗

1,125 (1,080) / 60p

∗

1,125 (1,080) / 50p

∗

1,125 (1,080) / 24p

∗

PC (from D-sub 15P) Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 768 @60 Hz 47.70 60.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06

PC (from HDMI terminal) Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00

Note

Signals other than above may not be displayed properly.●
The above signals are reformatted for optimal viewing on your display.●
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient ●
clarity.
