Panasonic TXP46VT20B Operating Instructions

Page 1

Operating Instructions

Plasma Television

Model No.

TX-P42VT20B TX-P46VT20B

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. “B” model no. suffix denotes UK model.

English

U.K. Standard

TQB0E2042-1

Page 2

Features

3D technology - ■

Viewing 3D images on the Full HD panel

You can enjoy viewing 3D images on this TV by wearing the 3D Eyewear.

FULL HD 3D ■

FULL HD 3D is the technology for viewing 3D images on the Full HD panel.

You can experience the ultimate of 3D images with realistic ambience and powerful depth.

RealD 3D ■

This TV and 3D Eyewear use the 3D technology of RealD. RealD is one of the inventors in 3D technology.

freesat HD tuner built-in ■

Receives freesat - free digital satellite broadcasts in the UK

This TV has a built-in freesat HD tuner. freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with

crystal clear reception.

You can enjoy sharp pictures, vivid colours, multi-channel sound, and various services with the interactive content.

DVB-T / DVB-T2 tuner built-in ■

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts

DVB-T2 is an advanced digital terrestrial system for more efficient transmission. Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

GUIDE Plus+ ■ (p. 21)

This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection ■ (p. 104)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

This TV supports HDMI (Version 1.4 with 3D, Content Type, Audio Return Channel), Deep Colour, x.v.Colour™.

●

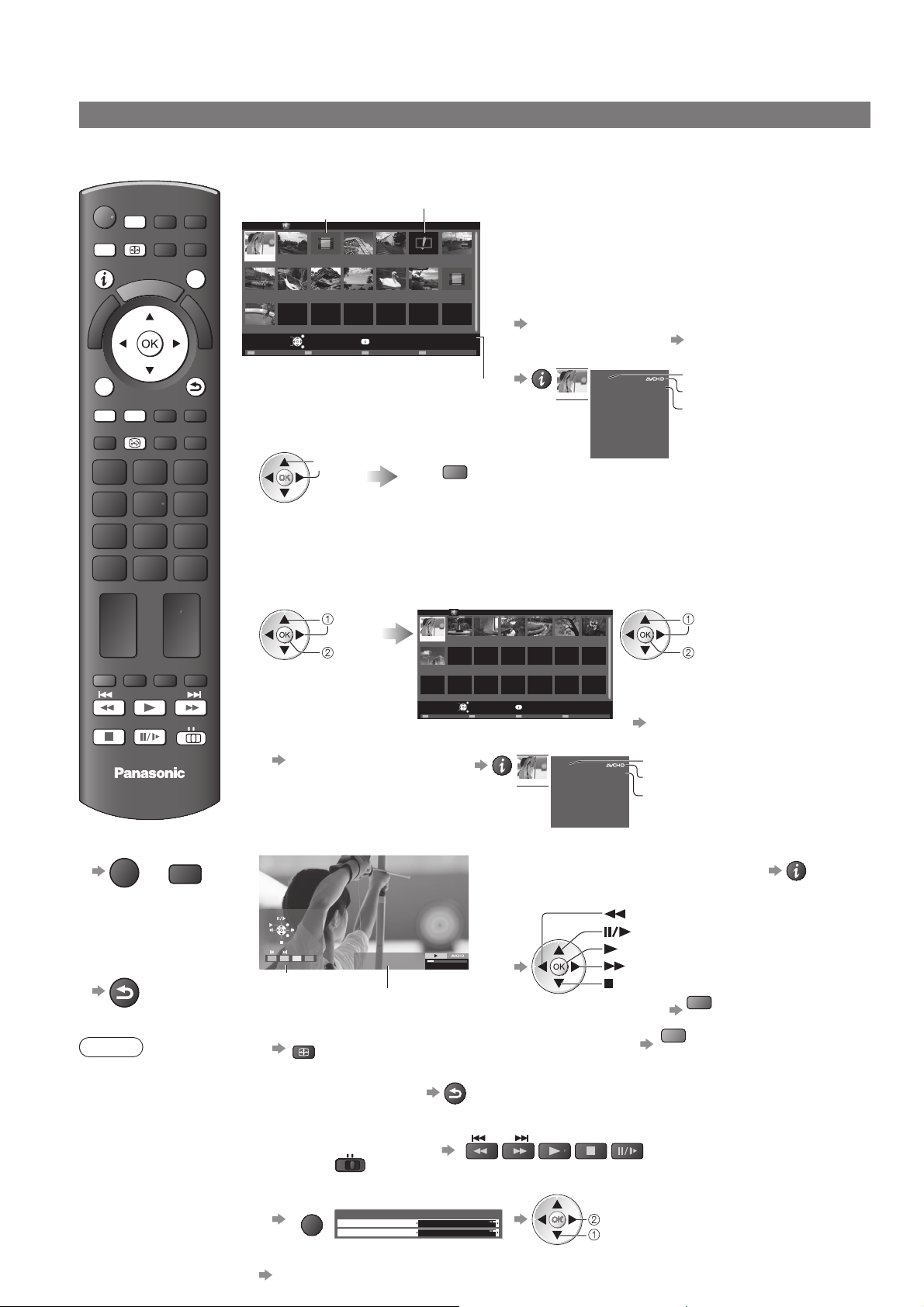

Using USB devices ■

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 70 and p. 79) Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 74) Wireless LAN Adaptor for the network connection. (p. 6 and p. 13) Entering characters with the USB Keyboard in VIERA CAST. (p. 91)

Timer Programming ■ (p. 22 and p. 58)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external

recorder / registered USB HDD.

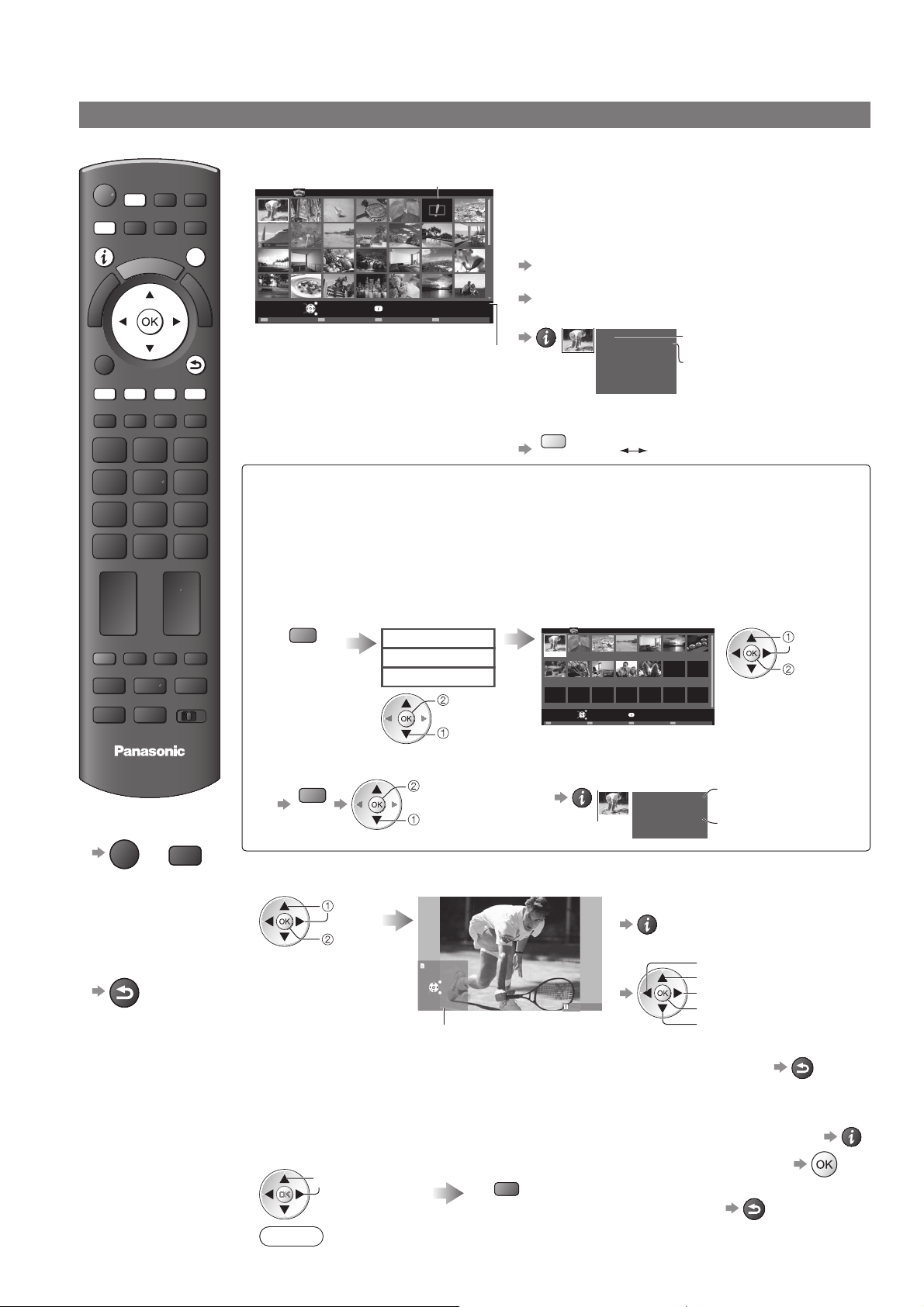

VIERA IMAGE VIEWER - SD Card viewer in Media Player ■ (p. 74 - 78)

Enjoy your photos or videos recorded on an SD Card on the TV screen.

SDXC Card ■

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

AVCHD ■

It is possible to play moving pictures recorded on an SD Card or a USB Flash Memory in AVCHD format.

AVCHD is a high definition video recording format. (p. 74)

DivX ■

Offers good compatibility when going from PC to TV, etc. for easy enjoyment of moving pictures. DivX is a video codec that

was developed by DivX, Inc. (p. 103)

DLNA ■

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you

can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 88)

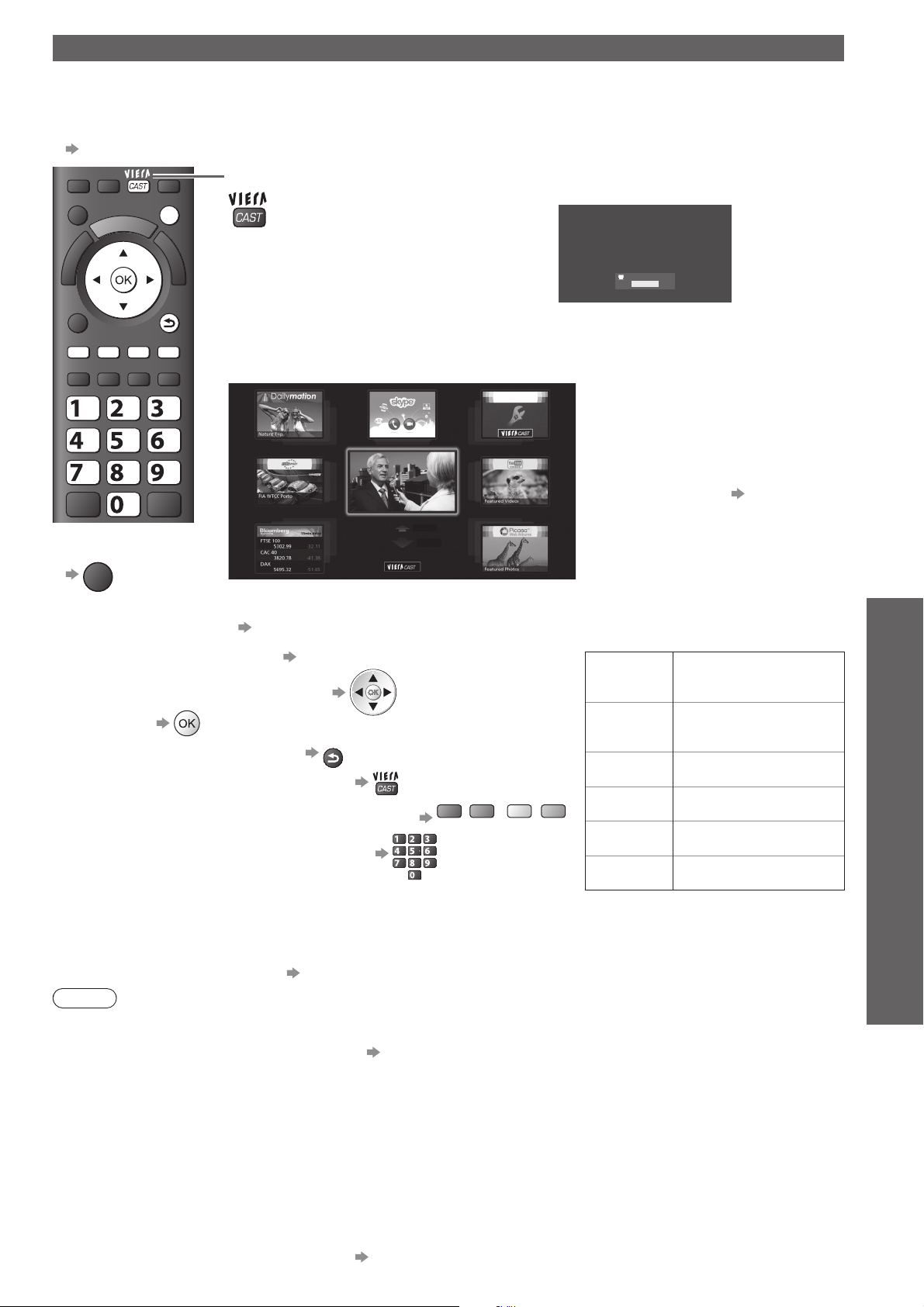

VIERA CAST - Enjoy great web entertainment ■ (p. 91)

Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an

easy-to-use web interface that is built into the TV.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” ■ (p. 92 - 99)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility ■ (p. 36)

Special features (such as VIERA Link, Media Player and DLNA operations) can be accessed easily by using the VIERA

TOOLS button.

CONEQ ■ (p. 39)

CONEQ is a technology to transduce the sound from speakers. You can enjoy sophisticated sound true to the original one.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

To retune your TV ● “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 47)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some ● cases, despite good reception of analogue channels.

Page 3

FULL HD ■

This TV uses a high definition panel to produce high definition

pictures close to their original resolution.

HD TV 1080p ■

This TV supports high definition TV signals.

Dolby Digital Plus decoder ■

It is possible to decode Dolby Digital Plus audio track

(multi-channel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.

Owner ID ■ (p. 63)

Owner ID is an anti-theft function. Entering the PIN number and

owner’s personal information will help the Police to determine the owner in the case of theft.

Supports Audio Description signal ■ (p. 17 and p. 39)

Audio Description (when broadcast) adds an additional

soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers. You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.

Neo PDP

Realizes high picture quality and energy efficient panel.

Intelligent Frame Creation

This increases the frame count and removes juddering movements, for smooth and flicker-less motion images with high resolution.

INFINITE BLACK PRO

A wide contrast ratio will deliver pictures with a deep, rich black level and a brighter white level for greater image depth.

THX Certified Display

Faithfully reproduces the image quality of THX movies that the filmmakers intended.

24p Smooth Film

This item is displayed instead of “Intelligent Frame Creation” when 24p signal input, and produces smoother playback of 24p source movies.

WiFi Ready

Using the Wireless LAN Adaptor (supplied) lets you connect to the network anywhere in the house over a wireless network.

digital tick

The digital tick logo indicates that a digital tuner is built-in.

Freeview HD

Freeview HD is the way to enjoy high definition digital TV for free.

Do not display a still picture for a long time

■

This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

Chann ● el number and other logos Image displayed in 4:3 mode ● Video game ● Compu ● ter image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 107)

Keep the TV away from these types of ■

equipment

Electronic equipment ● Do not place video equipment too close to the TV, electromagnetic interference may distort pictures / sound. Equipment with an infrared sensor ● This TV emits infrared rays which may interfere with the operation of other equipment.

Contents

Be Sure to Read

Safety Precautions (Warning / Caution) ● ················· 4

Quick Start Guide

Accessories / Options ● ·······························6

●

Identifying Controls

●

Basic Connection

●

Auto Setup

··············································12

Enjoy your TV!

Basic Features

Watching TV ● ························································· 16

●

Using TV Guide Viewing Teletext ● ···················································· 25 Watching External inputs ● ······································ 28 Viewing 3D images ● ··············································· 30 How to Use VIERA TOOLS ● ·································· 36 How to Use Menu Functions ● ································ 37

···················································· 20

Advanced Features

Retuning from Setup Menu ● ·································· 46 Tuning and Editing Channels ● ······························· 48 Shipping Condition ● ··············································· 57 Timer Programming ● ·············································· 58 Child Lock ● ····························································· 60 Input Labels ● ·························································· 62 Owner ID ● ······························································ 63 Using Common Interface ● ······································ 64 Updating the TV Software ● ···································· 65

●

Multi Window

●

Displaying PC Screen on TV Advanced Picture Settings ● ··································· 68 USB HDD Recording ● ············································ 70 Using Media Player ● ·············································· 74 Using Network Services ● ······································· 82

(DLNA / VIERA CAST / freesat) Link Functions ● ····················································· 92

(Q-Link / VIERA Link) External Equipment ● ············································ 100

························································ 66

FAQs, etc.

Technical Information ● ········································· 102

●

FAQs

·································································· 107

●

On screen messages Maintenance ● ························································114 Glossary ● ······························································115 Licence ● ································································116 Index ● ····································································117

●

Specifications

······················································118

···································8

···································· 10

································ 67

··········································111

Quick Start

Guide

Basic

Advanced

FAQs, etc.

Page 4

Safety Precautions

Warning

Mains plug and lead■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V, ● 50 / 60 Hz. Insert the mains plug fully into the socket outlet. ● Ensure that the mains plug is easily accessible. ● Remove the mains plug when cleaning the TV. ●

Do not touch the mains plug with a wet hand. ●

Do not damage the mains lead. ●

Do not place a heavy • object on the lead.

Do not place the lead • near a high temperature object.

Do not pull on the lead. • Hold onto the mains plug body when disconnecting the plug. Do not move the TV with the lead plugged into a • socket outlet. Do not twist the lead, bend it excessively or • stretch it. Do not use a damaged mains plug or socket outlet.• Ensure the TV does not crush the mains lead.•

Do not use any mains lead other than that provided with this TV. ● Ensure the earth pin on the mains plug is securely connected to prevent electrical shock. ●

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective • earthing connection.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V 50 / 60 Hz

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is

fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer.

Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this TV. The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety. If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING: – THIS TV MUST BE EARTHED.

How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

or the BSI mark on the body of the fuse.

ASA

Page 5

Warning

Take care■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the TV yourself as live parts are accessible when they are ● removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed ● to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire ● never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces.●

Do not insert foreign objects into the TV through the air vents.● Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to ● perform the setup or installation of approved wall-hanging brackets. Do not apply strong force or impact to the display panel.●

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Small object■

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

Keep the dangerous parts out of reach of young children.● Do not allow children to handle SD Card. As with any small object, the SD Card could be ● swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

Ventilation■

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering the ● ventilation openings with items such as newspapers, tablecloths and curtains. Whether you are using the pedestal or not, always ensure the vents in the ● bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV■

Before moving the TV, disconnect all cables.

The TV is heavy. Move the TV with at least two people. Support as shown to ● avoid injury by the TV tipping or falling. Transport only in upright position. Transporting the TV with its display panel ● facing upward or downward may cause damage to the internal circuitry.

Minimum distance

10 7

(cm)

When not in use for a long time■

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.●

Excessive volume■

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

Page 6

Accessories / Options

Standard accessories Check that you have the accessories and items shown

Remote Control □

N2QAYB000489●

Batteries for the □

Remote Control (2)

R6 ●

p. 8

Clamper □

TMME289 ●

p. 10

Mains Lead □

K2CT3YY00021 ●

p. 10

Wireless LAN Adaptor □

and Extension cable

C5ZZZ0000049 ● K2KYYYY00064●

p. 13 and p. 83

Operating Instructions □ Product Registration Leaflet □

Accessories may not be placed all together. Take care not to throw them away unintentionally.●

Optional accessories

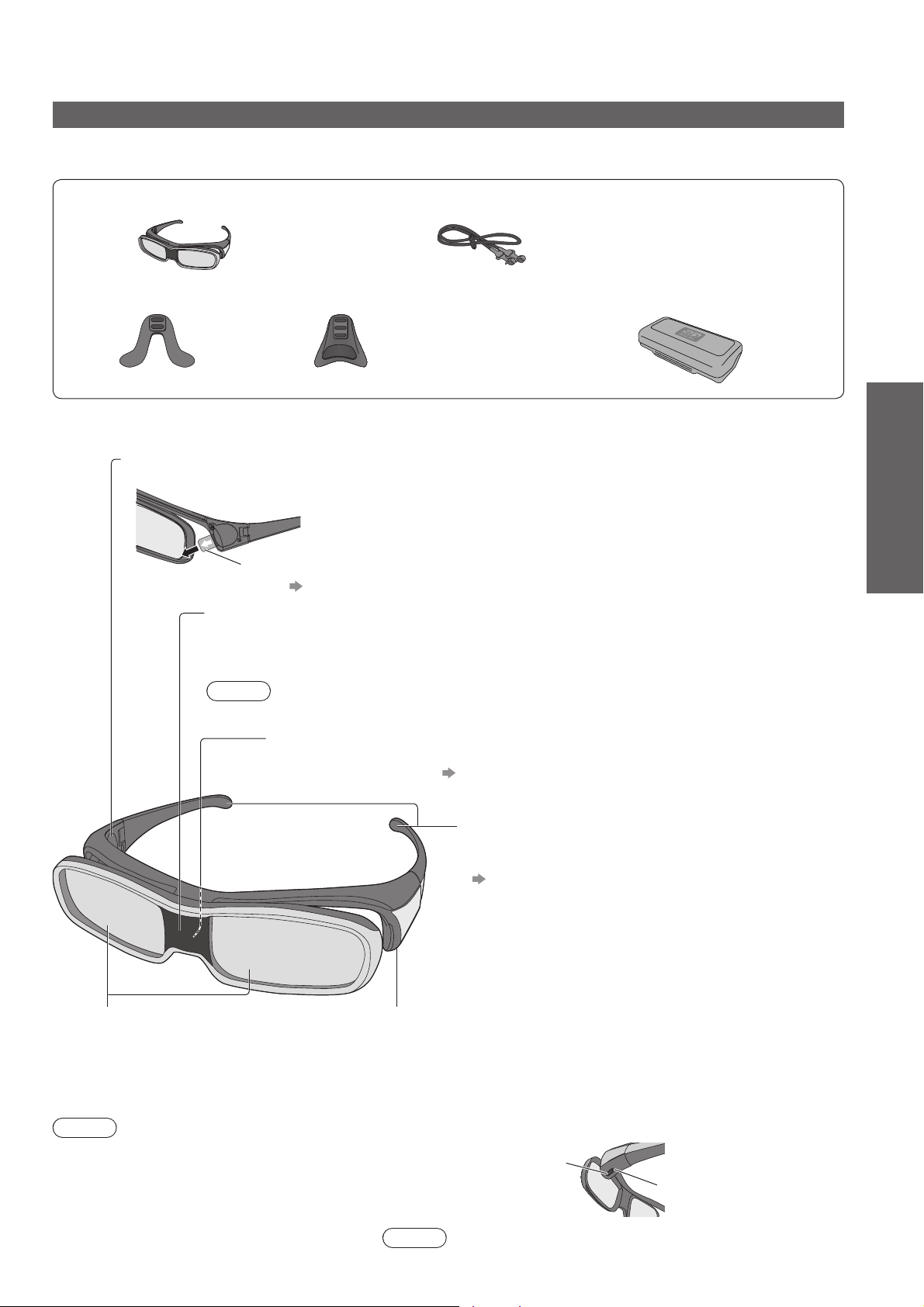

3D Eyewear set □

(Battery type)

TY-EW3D10E●

Communication Camera □

TY-CC10W●

Wall-hanging bracket □

TY-WK4P1RW●

(Rechargeable type, available in 3 sizes from autumn 2010)

TY-EW3D2LE (Large)● TY-EW3D2ME (Medium)● TY-EW3D2SE (Small)●

Pedestal □

TX-P42VT20B:

TBLX0184● TXFBL01LGUU●

p. 7

TX-P46VT20B:

TBLX0155● TXFBL01LPUU●

3D Eyewear set (2) □

TY-EW3D10E ●

p. 31

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

To purchase 3D Eyewears, please contact your ● Panasonic dealer.

Ferrite core (2) □

J0KG00000014●

p. 101

Use the Ferrite cores to comply with the EMC standard.

Screwdriver □

for replacing the battery

(

of the 3D Eyewear

+ (#0) ● p. 32

)

Caution

This camera can be used on VIERA CAST (p. 91).● Please also read the manual of the camera.● Depending on the area, this optional accessory may not be available. ● For details, consult your local Panasonic dealer.

Rear of the TV

400 mm

300 mm

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Depth of screw: minimum 15 mm, maximum 30 mm

Diameter: M8

Holes for wall-hanging bracket installation

(View from the side)

Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of ● personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to ● prevent the TV from falling off. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product ● damage which will void your warranty. Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes ● in the wall before hanging bracket. To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an ● extended period of time.

Page 7

Attaching / removing the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

Do not disassemble or modify the pedestal. ●

Caution

Do not use with any other TVs or displays. ● Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest ● Panasonic dealer immediately. During setup, make sure that all screws are securely tightened. ● Ensure that the TV does not suffer any impact during installation of the pedestal. ● Ensure that children do not climb onto the pedestal. ● Install or remove the TV from the pedestal with at least two people. ●

Quick Start

Guide

Assembly screw (3)

(silver)

XYN5+F18FN ●

Assembly screw (4)

(black)

THEL080N ● (TX-P42VT20B) THEL079N ● (TX-P46VT20B)

M5 × 18 M5 × 30

Assembling the pedestal■

Use the assembly screws to fasten the pole to the base securely.

Make sure that the screws are securely tightened.● Forcing the assembly screws the wrong way will strip ● the threads.

Securing the TV■

Use the assembly screws to fasten the pedestal securely to the TV.

Tighten the four assembly screws loosely at first, ● then tighten them firmly to fix securely. Carry out the work on a horizontal and level surface.●

Pole

TBLA3828 ● (TX-P42VT20B) TBLA3834 ● (TX-P46VT20B)

Base

TBLX0184● (TX-P42VT20B) TBLX0155● (TX-P46VT20B)

Arrow mark

Front

Accessories / Options ●

To remove the pedestal

When removing the pedestal from the TV, remove the assembly screws first, and then, pull out the TV from the pedestal.

Caution

Do not remove the assembly screws ● before removing the pedestal from the TV to prevent falling over.

Hole for pedestal

installation

(View from the bottom)

Page 8

Identifying Controls

Remote Control

Installing / removing remote’s batteries■

Pull

Hook

open

Note the correct polarity (+ or -)

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.● Do not mix old and new batteries.● Do not mix different battery types (such as alkaline and manganese batteries).● Do not use rechargeable (Ni-Cd) batteries.● Do not burn or break up batteries.● Batteries must not be exposed to excessive heat such as sunshine, fire, etc. Do not disassemble or modify the remote control.●

Media Player (p. 74)

Switches to SD Card and USB device

●

viewing / listening mode

Standby On / Off switch

Switches TV On or Off standby●

Main Menu (p. 37)

Press to access the Picture, Sound and

●

Setup Menus

Aspect (p. 18)

Channel / Programme Information (p. 17)

Displays channel and programme

●

information

VIERA Link Menu (p. 96)

Accesses VIERA Link Menu

●

Confirms selections and choices● Press after entering channel position by ● using numeric buttons to change a channel quickly

Option Menu (p. 19)

Easy optional setting for viewing, sound, etc.

●

Coloured buttons (red-green-yellow-blue)

Used for the selection, navigation and ● operation of various functions

Teletext (p. 25)

Switches to teletext mode / interactive

●

services

Subtitles (p. 18)

Displays subtitles

●

Numeric buttons

Changes channel and teletext pages● Sets characters● When in Standby mode, switches TV On ● (Press for about 1 second)

Sound Mute

Switches sound mute On or Off●

Volume Up / Down

OPTION

TEXT

SD CARD

ASPECT

ghi

STTL

REC

INPUT

AVTV

DIRECT TV REC

EXIT

RETURN

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

BACK/

Input mode selection

TV - switches freesat / DVB / Analogue / ●

Other Sat. mode (p. 16)

AV - switches to AV input mode from Input

●

Selection list (p. 28)

Direct TV Recording (p. 94 and p. 96)

Records programme immediately in

●

DVD Recorder / VCR with Q-Link or VIERA Link connection

VIERA CAST (p. 91)

Displays VIERA CAST home screen

●

Exit

Returns to the normal viewing screen●

VIERA TOOLS (p. 36)

Easily accesses special features such

●

as VIERA Link, Media Player and DLNA operations

TV Guide (p. 20)

Displays TV Guide

●

Cursor buttons

Makes selections and adjustments●

Return

Returns to the previous menu / page●

Hold

Freeze / unfreeze picture (p. 17)● Holds the current teletext page (teletext ●

mode) (p. 26)

Index (p. 27)

Returns to the teletext index page ●

(teletext mode)

Last view (p. 19)

Switches to previously viewed channel or

●

input mode

Channel Up / Down

Selects channel in sequence●

Connected equipment operations

(p. 29, 72 and p. 98)

Page 9

Common Interface

HDMI 4

AV 3

Infrared transmitter for 3D Eyewear

Do not place any objects between the ●

CI slot (p. 64)

USB 1 / 2 ports (p. 13, 70, 74 and p. 83)

Function select

Volume / Contrast / Brightness / Colour / Sharpness / ● Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the Sound Menu) / Treble (“Music” or “Speech” mode in the Sound Menu) / Balance / Auto Setup (p. 46 and p. 47)

Changes the input mode

SD Card slot (p. 74)

HDMI4 terminal (p. 101)

Headphones jack (p. 101)

AV3 terminals (p. 101)

Mains power On / Off switch

Use to switch mains power On / Off. ● If the TV was switched off whilst in Standby mode, using the Mains Power On / Off switch, then it will be in Standby mode when switched back on using the same switch.

transmitter and 3D Eyewear.

For changing TV channel up or down. When a function is selected by the F button, press to increase or decrease the setting of the selected function. When in Standby mode, press either button for about 1 second to switch the TV On.

Remote control signal receiver

Do not place any objects between the TV remote control signal ● receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System) sensor

Senses brightness to adjust picture quality when “C.A.T.S.” ● in the Picture Menu is set to “On” (p. 38)

Power and Timer LED

Red● : Standby Green: On Orange: Timer Programming On Orange (flash)

Red with orange flash: Standby with Timer Programming

The LED blinks when the TV receives a command

●

from the remote control.

: Recording of Timer Programming,

Direct TV Recording or One Touch Recording is in progress

On, Direct TV Recording or One Touch Recording

Adjusting the panel to your desired angle

Do not place any objects within the full rotation range.●

(View from the top)

: 15°

(TX-P42VT20B)

: 10°

(TX-P46VT20B)

Quick Start

Guide

Identifying Controls ●

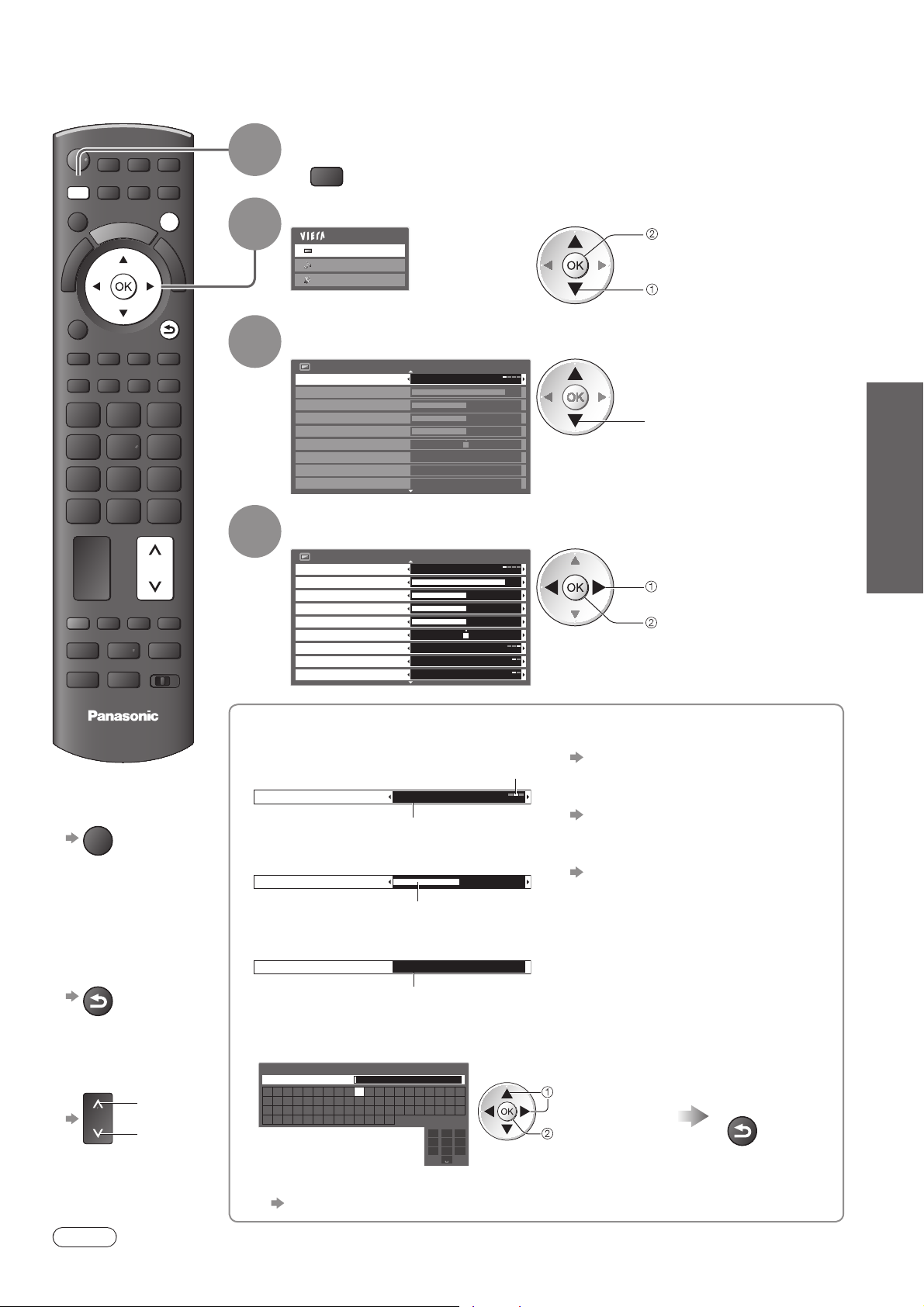

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

How to use remote control

■

Open the main menu

Move the cursor / select the menu item

Access the menu / store settings after adjustments have been made or options have been set

ON SCREEN HELP Instructions box - Operation guide■

Example (Owner ID):

Owner ID

Please enter new PIN PIN

EXIT

RETURN

0 9

* * * *

PIN entry

Operation guide will help you.

Auto power standby function ■

The TV will automatically go to Standby mode in the following conditions: ●

no signal is received and no operation is performed for 30 minutes in Analogue TV mode• “Off Timer” is active in the Setup Menu (p. 19)• no operation is performed for the period selected in “Auto Standby” (p. 42)•

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

●

EXIT

BACK/

RETURN

Exit the menu system and return to the normal viewing screen

Move the cursor / adjust levels / select from a range of options

Return to the previous menu

Page 10

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first. There are some restrictions on placement for viewing 3D images. For details

Example 1 Connecting dish or aerial

p. 30 and p. 33

TV only

AC 220-240 V 50 / 60 Hz

Mains lead (supplied)

Clamper■

Attach the clamper

Insert the clamper in a hole

To remove from the TV:●

Rear of the TV

hole

The freesat channel uses Astra 2 at 28.2° East, and Eurobird 1 ● at 28.5° East satellites. To ensure your satellite dish is correctly installed please consult your freesat registered dealer.

Satellite dish

For freesat or other ● satellite broadcasts

Satellite cable

Mains Lead■

Make sure that

Push until both side tabs click

To remove from the TV:●

the mains lead is securely fixed.

snaps

Keep pushing

both side snaps

Bundle the cables

Set the tip

hooks

in the hooks

To loosen:●

knob

Keep pushing

the knob

Do not bundle the Satellite cable, RF cable and mains ● lead together (could cause distorted image). Fix cables with clampers as necessary.● When using the optional accessory, follow the option’s ● assembly manual to fix cables.

DIGITAL

AUDIO

OUT

AUDIO

OUT

RLR

Aerial input terminal

COMPONENT

AUDIO

RGB

VIDEO

AV1 AV2

RGB VIDEO S VIDEO

tabs

Press both tabs and pull on mains connector to release

For digital terrestrial ● and analogue broadcasts

HDMI

HDMI 2

(ARC)

HDMI

Terrestrial

aerial

RF cable

Page 11

Example 2 Connecting DVD Recorder / VCR and Player

Example 3 Connecting DVD Recorder / VCR and Cable TV box

TV, DVD Recorder / VCR and Player

Rear of the TV

AC 220-240 V 50 / 60 Hz

DIGITAL

AUDIO

OUT

AUDIO

RLR

Mains lead (supplied)

COMPONENT

AUDIO

OUT

RGB VIDEO

AV1 AV2

RGB VIDEO S VIDEO

Aerial input

terminal

RF cable

HDMI

HDMI 2

(ARC)

HDMI

Terrestrial

aerial

TV, DVD Recorder / VCR and Cable

Rear of the TV

AC 220-240 V 50 / 60 Hz

Aerial input

Mains lead (supplied)

AUDIO

OUT

DIGITAL

AUDIO

OUT

RLR

COMPONENT

AUDIO

Fully wired HDMI

compliant cable

RGB

VIDEO

AV1 AV2

S VIDEO

terminal

HDMI

HDMI 2

(ARC)

HDMI

Terrestrial

aerial

Quick Start

Guide

Basic Connection ●

Fully wired HDMI compliant cable

Fully wired SCART cable

RF cable

HDMI

Player / 3D-compatible player

DVD Recorder or VCR

Note

To watch 3D contents ● p. 30 Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 94).● Connect to the TV’s AV1 for a Cable TV box.● For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) ● by using HDMI cable (p. 100). Network connection ● p. 13 and p. 83 Q-Link connection ● p. 92 VIERA Link connection ● p. 92 and p. 93 Please also read the manual of the equipment being connected.●

RF OUT

RF IN

HDMI

TV/AV

Cable TV box

RF OUT

RF IN

Fully wired

SCART cable

Recorder/AV

DVD Recorder or VCR

Cable

RF cable

AV 2 AV 1

cable

HDMI

RF OUT

RF IN

Page 12

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.● Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before ● starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

If the red LED shows on the TV, press the ● Standby On / Off switch on the remote control for at least 1 second to turn the TV On.

Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.

freesat Auto Setup

Searching

Signal Quality 0 10 Signal Strength 0 10 TV Channels Found 8 Radio Channels Found 2 Data Channels Found 1

Auto Setup - DVB and Analogue

DVB Scan CH 21 68 Analogue Scan

This will take about 6 minutes.

CH Channel Name Type Quality

62 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10 29 Analogue 33

Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

Channels found, creating channel list

CH 21 68

CBBC Channel Free TV 10

BBC1 Analogue

Searching

If “freesat Auto Setup” cannot be done ● completely

“FAQs” (p. 107)

(freesat tuning)

Actual number of channels may differ due ● to channel duplication.

(DVB and Analogue tuning)

ASPECT

OPTION

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

TEXT

ghi

STTL

REC

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

PROGRAMME

DVD/VCR

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

How to enter the postcode■

Set characters one by one

select

set

O P Q R S T

7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

If Q-Link, or similar technology (p. 94), compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)

If downloading has failed, you can download

●

later through the Setup Menu.

“Q-Link Download” (p. 40)

Your postcode is required to receive local ● services and sort the channel order. Please ensure to include a space when entering your postcode. If you skip this step, the default postcode ● (central London) will be set.

You can set characters by using numeric ● buttons.

“Characters table for numeric buttons”

(p. 103)

Exit to go to next step

green

(continued to the next page)

Page 13

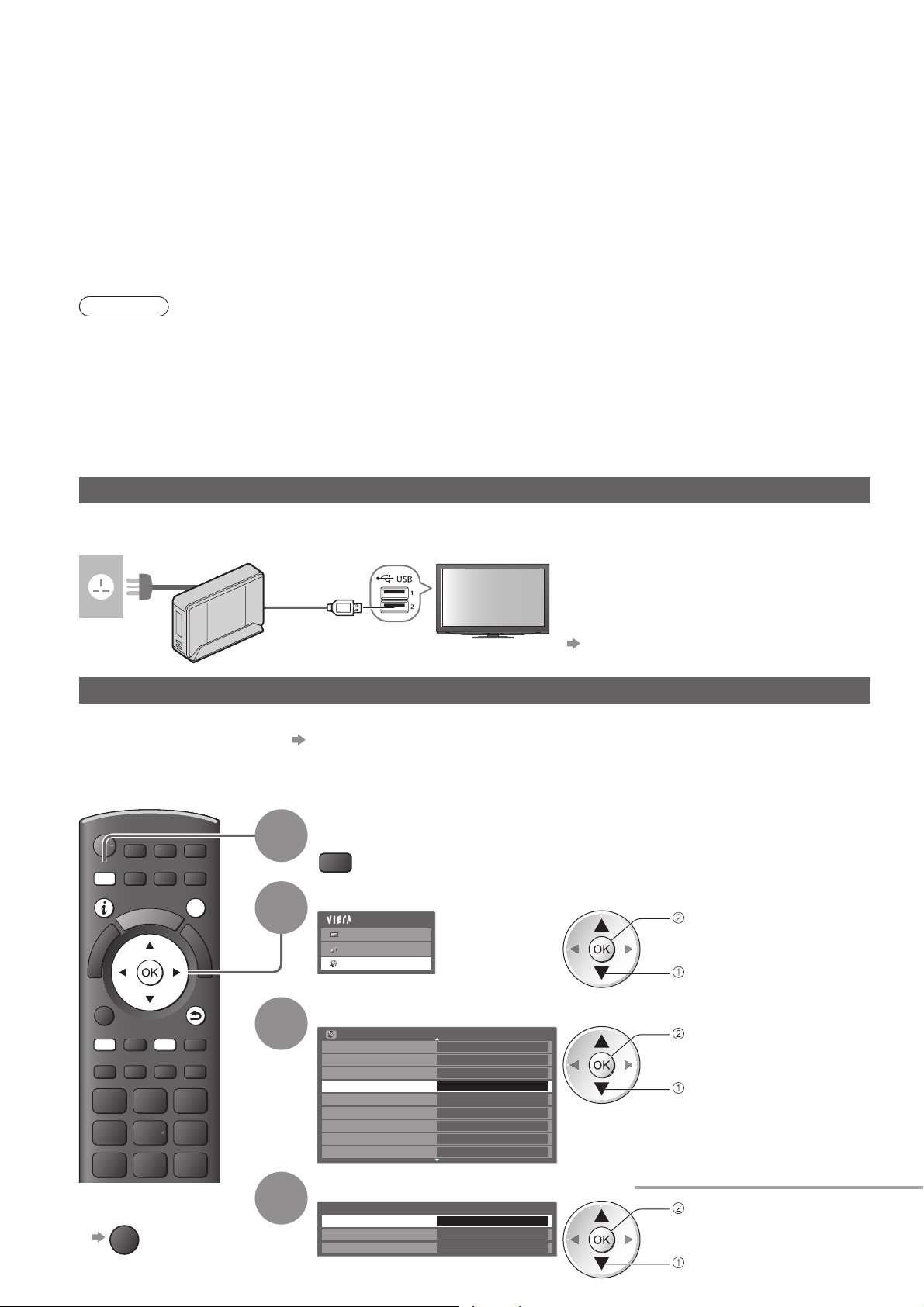

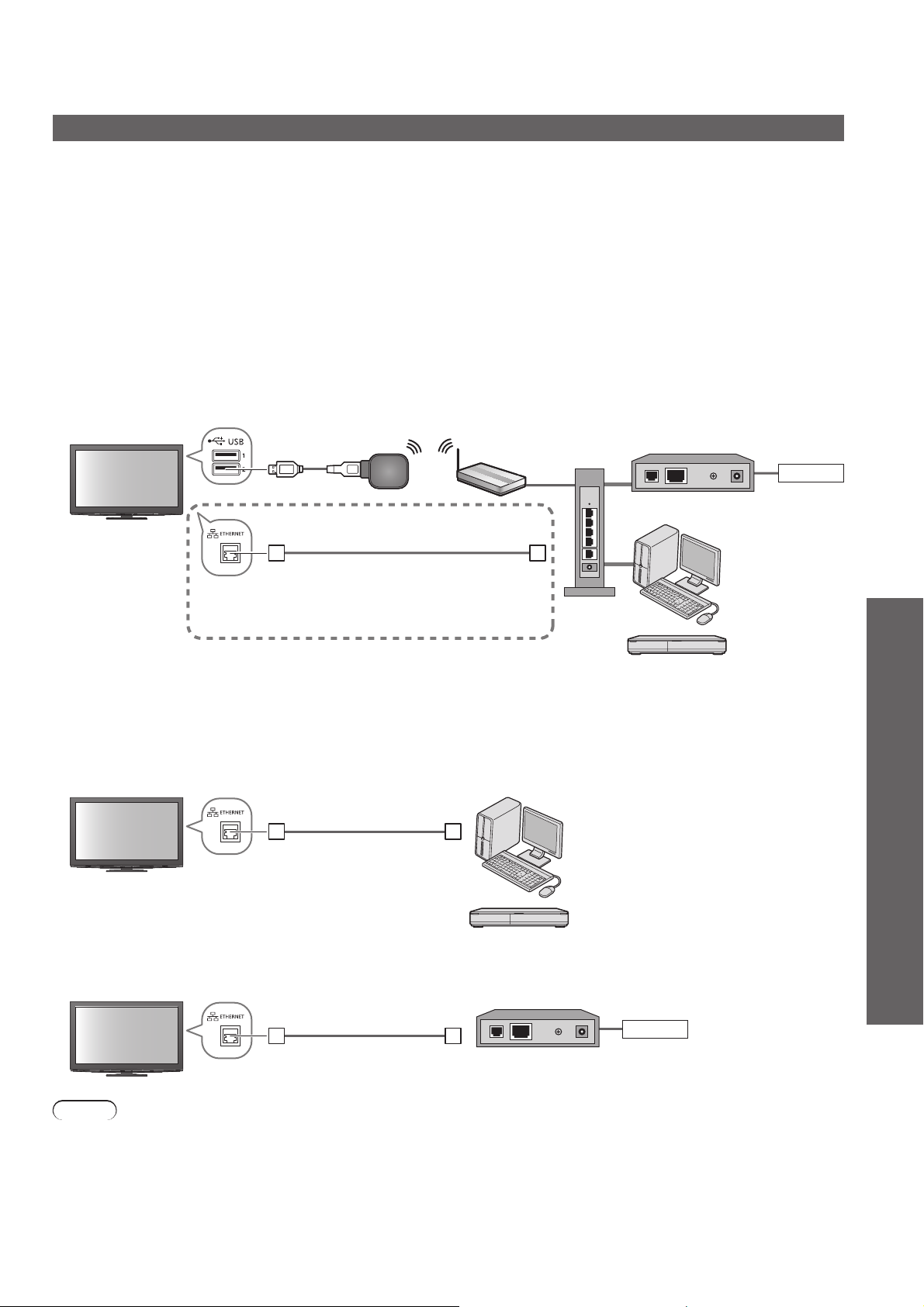

Setup the wireless LAN connection

Setup the wireless LAN connection to enable the network service functions (p. 82). (If you do not wish to use wireless LAN connection or the network service functions, skip this step.)

To setup the wireless LAN connection, use the Wireless LAN Adaptor (supplied). For the information ● about the Wireless LAN Adaptor “Wireless LAN Adaptor” (p. 15) Confirm the encryption key, settings and positions of your access point before starting setup. For details, ● read the manual of the access point. Please note that this TV does not support wireless public access points.● To use a LAN cable instead of the Wireless LAN Adaptor ● p. 85

Start wireless LAN connection setup?

Yes No

Please connect the wireless LAN adaptor (DY-WL10) to a USB terminal.

connect the Wireless LAN Adaptor to the USB 1 or 2 port

Internet

environment

Wireless LAN Adaptor (supplied)

Access point

You can setup the wireless LAN connection later

select “Yes”

access

“Network Setup” (p. 86) To skip this step ●

EXIT

or select “No”

Wireless LAN connection setup starts

Connection Type

Please select network connection type.

WPS(Push button)

Search for access point

Select the connection type

access

select

If your access point supports WPS ● (Push button), then select this option. If not, select “Search for access point”.

Quick Start

Guide

Auto Setup ●

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

Press the WPS button on the access point until the light flashes. And then, press the OK button to connect the Wireless LAN Adaptor and the access point.

Ensure that your access point supports WPS for this setup.● WPS: Wi-Fi Protected Setup™●

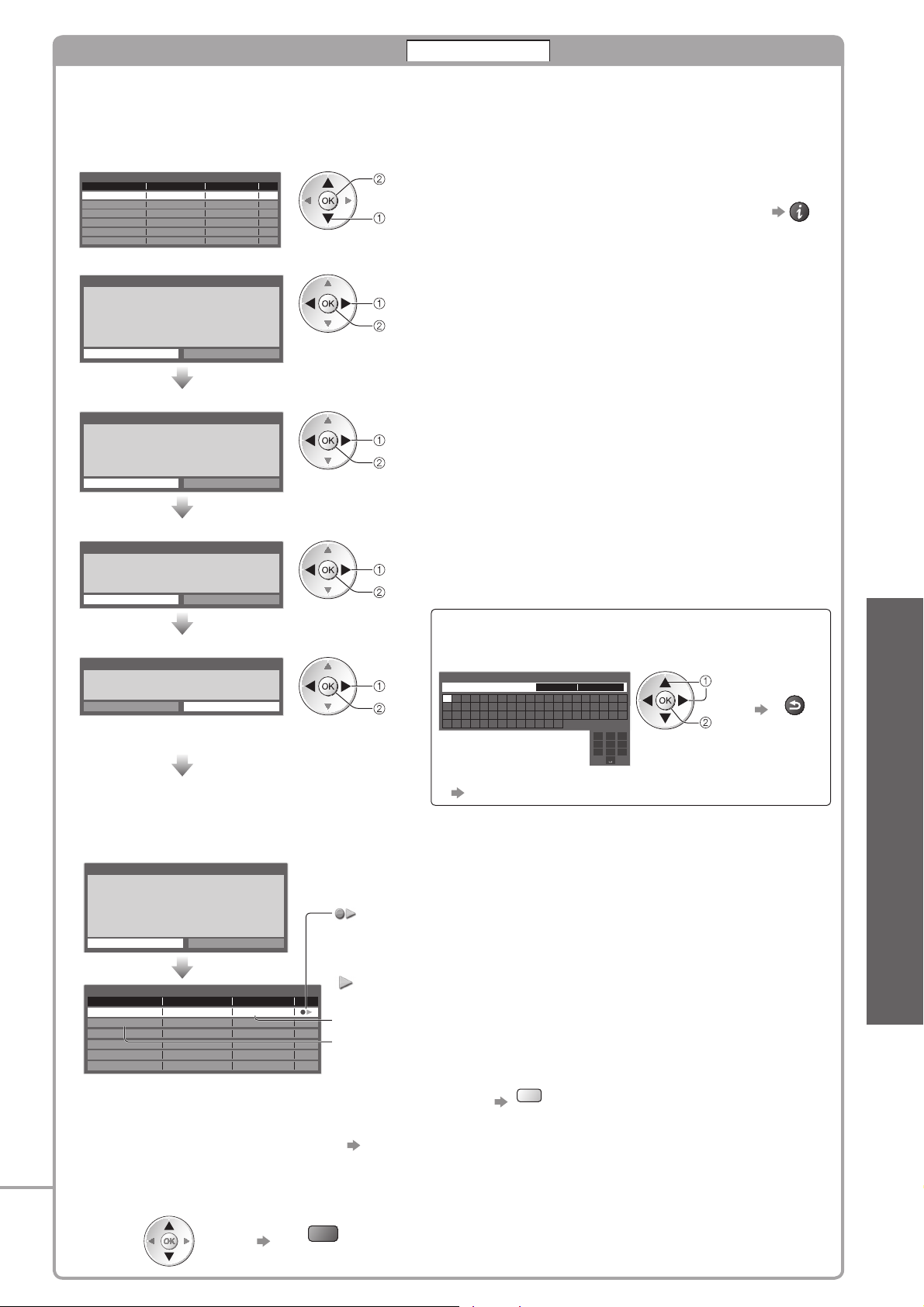

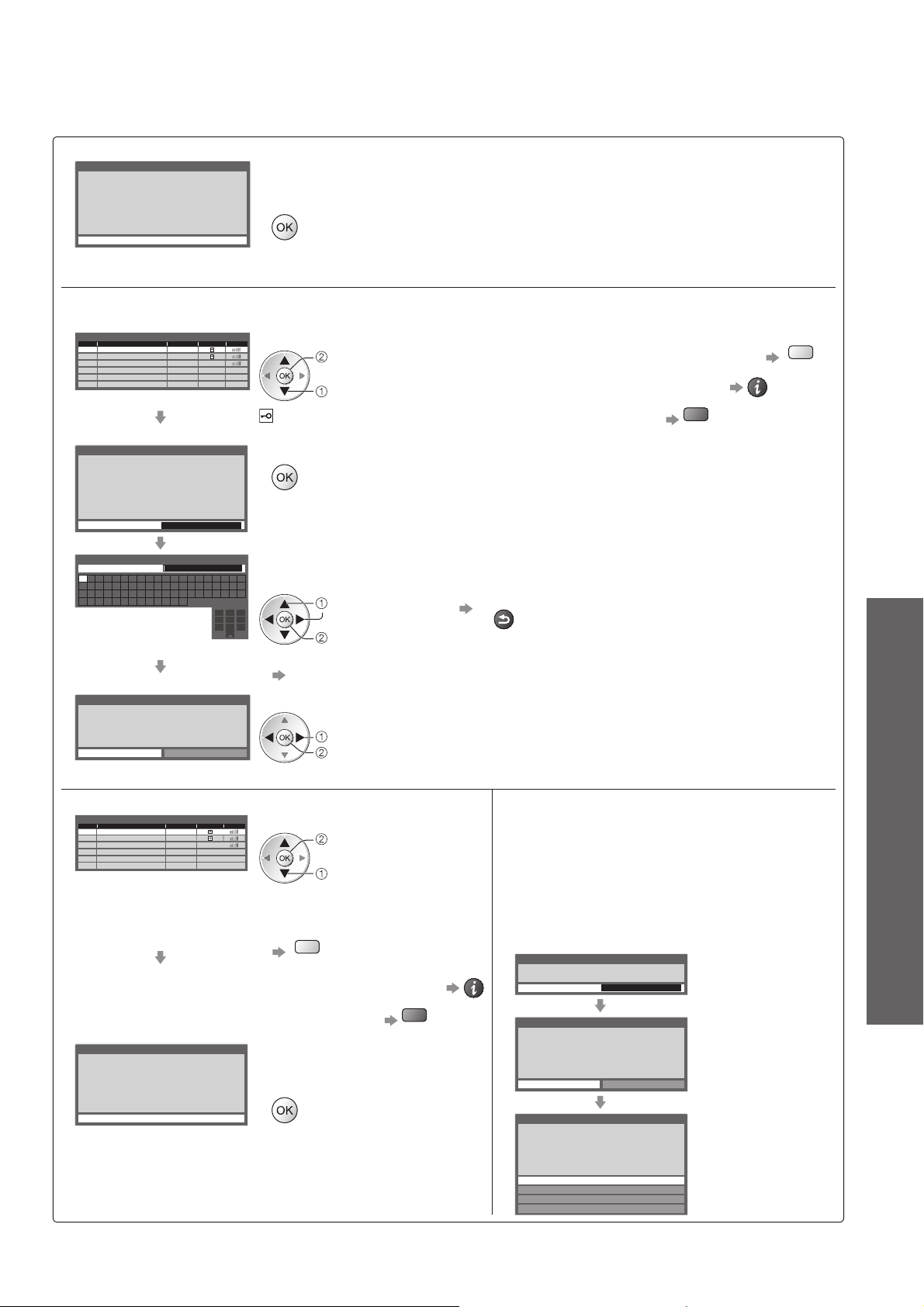

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

Access Point Settings

Encryption key

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

Access Point Settings

Encryption key is set to:XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes No

11n(5GHz)

O P Q R S T 7 8 9 ! : # o p q r s t

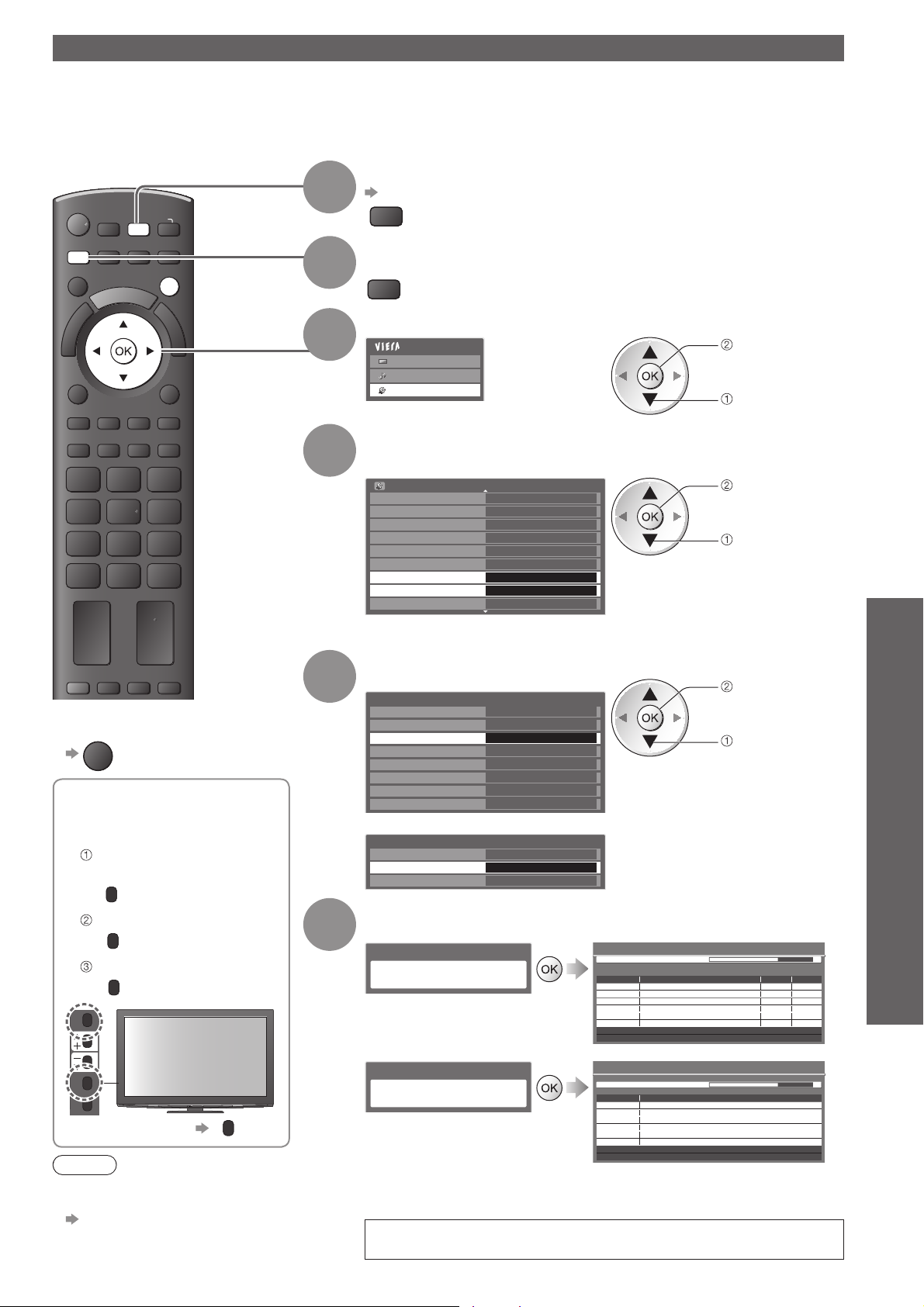

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will ● be displayed. It is recommended to select the encrypted access point.

Enter the encryption key of the access point Set characters one by one Store

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Select “Yes”

select set

To re-enter the encryption key, select “No”.●

To search access points again ● For the information of the ●

highlighted access point To set manually (p. 87) ●

BACK/

RETURN

red

yellow

If the connection has failed, check the encryption key, settings and positions of your access point. And ● then, follow the on screen instructions. If connection to the access point is successful, we recommend you perform the “Connection Test” to ● confirm connection to the internet has been made. The “Connection Test” can be found in the Network Setup menu (p. 86).

Exit to go to the next step

(continued to the next page)

Page 14

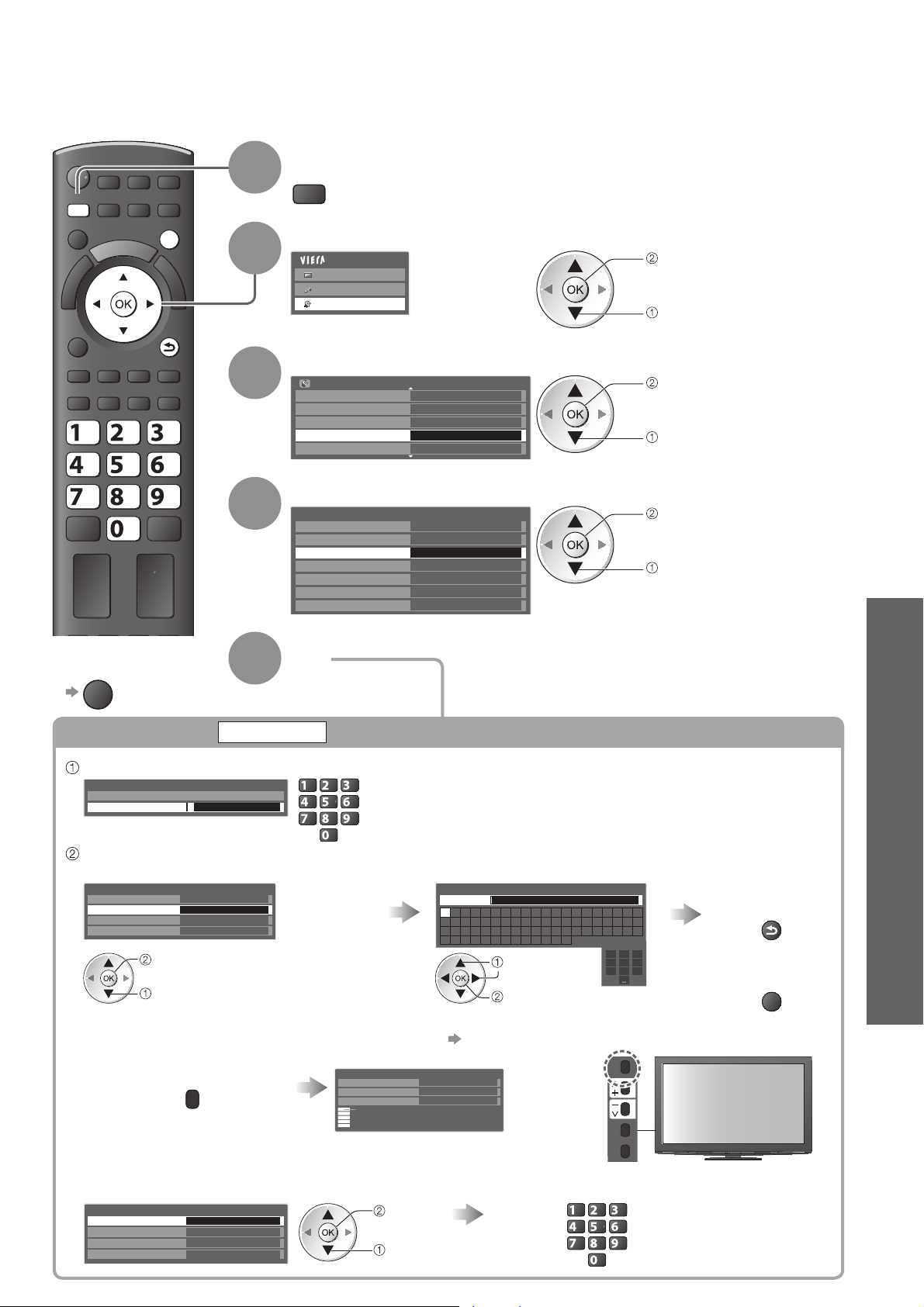

Auto Setup

Input Owner ID

Owner ID

Please enter new PIN

PIN * * * *

How to input Owner ID■

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

Enter your name, house number, and postcode, in that order

Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE



Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

Make a note of the PIN number in case you forget it. The PIN number ● cannot be reset. You can input or change the Owner ID later. ● “Owner ID” (p. 63)

To skip this step ●

EXIT

This step will be skipped in the Auto Setup after “Shipping Condition” ● (p. 57) is performed.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

access

select

Enter the PIN number twice at first ● setting.

Set characters one by one

User input

NAME

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Return to select other items

Exit to go to next step

EXIT

select

You can set characters by using numeric ● buttons.

set

“Characters table for numeric buttons”

(p. 103)

BACK/

RETURN

Select the next item and repeat the ● operations.

(continued to the next page)

Page 15

Select “Home”

Note

If tuning has failed or to retune all channels ● “Auto Setup” (p. 46 and p. 47)

● “Auto Setup” in “Other Sat. Tuning Menu” (p. 55)

If you wish to tune in other satellite channels To re-initialise all settings ● “Shipping Condition” (p. 57) If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On

●

with Mains power On / Off switch.

Select “Home” viewing environment (highlight “Home” in yellow) to use in your home environment.

Please select your viewing environment.

Home Shop

Auto Setup is now complete and your TV is ready for viewing.

select

set

“Shop” viewing environment ■ (for shop display only)

“Shop” viewing environment is the demonstration mode to explain main features of this TV.

Select “Home” viewing environment to use in your home environment.

You can return to viewing environment selection ● screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

Return to viewing environment selection

screen

To check channel list at-a-glance ●

“Using TV Guide” (p. 20)

To edit or hide (skip) channels ●

“Tuning and Editing Channels” (p. 48 - 53)

●

If tuning has failed, check the connection of the Satellite cable, RF cable, and then, follow the on screen instructions.

Shop

You have selected shop mode

Automatic Demo

Off On

Select “Home”

Please select your viewing environment.

Home Shop

Auto Setup is complete

To change viewing environment later on, you ● will need to initialise all settings by accessing Shipping Condition.

“Shipping Condition” (p. 57)

BACK/

RETURN

select set

Quick Start

Guide

Auto Setup ●

Wireless LAN Adaptor■

Caution

Be aware of the following limits before using the Wireless LAN Adaptor (DY-WL10).

To use the Wireless LAN Adaptor, an access point needs to be obtained.● It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.● Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID● usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.

∗

SSID is a name for identifying a particular wireless network for transmission.

Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture.● Do not bend, or subject the Wireless LAN Adaptor to strong impacts.● Do not disassemble or alter the Wireless LAN Adaptor in any way.● Do not attempt to install the Wireless LAN Adaptor in any incompatible device.● Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations.● Data transmitted and received over radio waves may be intercepted and monitored.● To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other ● wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor. When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the ● devices. In this case, turn the TV Off with Mains power On / Off switch, then turn it On again. Additional information for Wireless LAN Adaptor and access point may be on the following web site. ● (English only) http://panasonic.jp/support/global/cs/tv/

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

To setup the Wireless LAN connection ● p. 86 and p. 87

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up? No - Exit

Current network type : Wireless

Yes No

∗

) for which you do not have

Page 16

Watching TV

Turn power on

(Press for about 1 second)

Select the mode (freesat, DVB, Analogue or Other Sat.)

Also possible by pressing the TV button repeatedly on the remote control or ● side panel of the TV. (p. 9)

OPTION

TEXT

ASPECT

STTL

INDEX

INPUT

EXIT

BACK/

RETURN

HOLD

Mains power On / Off switch should be On. (p. 9)●

TV Selection

freesat

DVB

Analogue

Other Sat.

watch

select

Displayed if Other Satellite channels are tuned (p. 55)

abc def

jkl

ghi

REC

mno

tuvpqrs

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

Volume

Note

To watch pay-TV ●

“Using Common Interface”

(p. 64)

freesat Channel List

103 ITV Wales

Coronation Street 19:30 - 20:00

19:35

For info press

Now

Select a channel

ghi

down

Information banner appears whenever you select a channel

For details ● p. 17

abc def

jkl

tuvpqrs

mno

wxyz

freesat channel position numbers run in the ranges 100 - 999 and 0100 - 0999.

To select a three-digit channel position ● number, e.g. 133

def

To select a four-digit channel position ● number, e.g. 0246

mno

abc

ghi

DVB and Other Sat. channel position numbers run from 1 onwards. Analogue channel position numbers run in the ranges 0 - 99.

To select a two or three-digit channel

●

position number, e.g. 39

wxyz

def

Select a channel using Information banner ■ (p. 17)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

Display Information banner if it is not displayed

While the banner is displayed, select the channel

select channel

watch

Possible to set display timeout in ● “Banner Display Timeout” (p. 41).

Select a channel using TV Guide ■ (p. 20)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

Display TV Guide

Select a current programme or channel

select

access

Select “View” (DVB mode)

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 22

select

watch

Page 17

Other useful functions

■

Hold

Freeze / unfreeze picture

HOLD

Display Information banner

Also appears when changing a channel●

Channel position

TV mode

Programme

Programme Start / Finish time

“All DVB Channels” or “Favourites1-4” (p. 51)

To switch ●

Example (DVB):

103 ITV Wales

Coronation Street 19:30 - 20:00

Mute Encrypted

Example (Analogue):

3 ITV

itv1 CH23

Mute

Encrypted

Channel number

“All Other Sat. Channels” or “Favourites1-4” (p. 56)

To switch ●

Example (Other Sat.):

103 ITV Wales

Coronation Street 19:30 - 20:00

Mute Encrypted

blue

To confirm another tuned ● channel name

and name

Example (freesat):

103 ITV Wales

Coronation Street Also in 19:30 - 20:00

Mute Encrypted

Progress time indicator of the selected programme

blue

Radio

Now

Radio

Now

19:35

Also in

STTLAD TEXT Multi Audio 45

19:35

SubtitlesAD

19:35

STTL TEXT Multi Audio 45

All DVB Channels

Select favourites

For info press

All Analogue Channels

For info press

NICAMTEXT 45

All Other Sat. Channels

Select favourites

For info press

Same programme available as HD broadcast

For details, display the extra information ●

Channel type

if it is HDTV, Radio

(

or Data channel

Radio

Now

)

Current time

19:35

freesat Channel List

For info press

STTLAD TEXT Multi Audio 45

Features available / Message meanings

Mute

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

Audio Description service available

This function can aid visually-impaired viewers by ● adding an additional audio track to describe events on-screen. For settings ● p. 39

STTL

Subtitle service available

TEXT

Teletext service available

Multi Audio

Multiple audio available

Stereo, Mono, NICAM

Audio mode

1 - 90

Off Timer remaining time

For settings ● p. 19

To watch the channel listed in the banner ●

EXIT

To hide ●

Basic

Watching TV ●

Information on the next programme ●

(freesat, DVB, Other sat.)

To set display timeout ●

Extra information ● (press again to hide the banner) (freesat, DVB, Other sat.)

“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as

●

available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.

“Banner Display Timeout” (p. 41)

Example:

103 ITV Wales

Coronation Street 19:30 - 20:00

[AD]

19:35

Now

freesat Channel List

Exit info

Page 18

Watching TV

Other useful functions

■

Display subtitles

Subtitles may not be displayed properly in 3D images.●

freesat, DVB or Other Sat. mode■

Display / hide subtitles (if available)

To change the language for DVB (if available)●

“Preferred Subtitles” (p. 41)

Analogue mode■

Display subtitles

To hide subtitles ●

Note

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 27)● You cannot change the channel when this function is active.●

Aspect

EXIT

STTL

Change the aspect ratio (image size)

ASPECT

Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 102).

If you would like to change the aspect ratio manually■

Display Aspect Selection list While the list is displayed, select the mode

ASPECT

Aspect Selection list

To change the mode using the ASPECT button only ●

ASPECT

(Press repeatedly until you reach the desired mode)

Auto

16:9 Zoom1

The best ratio is chosen and the image expanded to fill the screen. For details

Directly displays the image at 16:9 without distortion (anamorphic).

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Select

Change

EXIT

RETURN

p. 102

store

select

Displays a 16:9 letterbox or 4:3 image without distortion.

14:9 Zoom2

Displays the image at the standard 14:9 without distortion.

4:3 Zoom3

Displays the image at the standard 4:3 without distortion.

Note

Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.● Only “16:9” and “4:3” are available in PC input mode.● Aspect cannot be changed in teletext service and 3D mode (aspect is fixed to “16:9” when “Signal Format” is ● set to “2D→3D”). Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.●

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Page 19

Other useful functions

■

Display the selectable settings for the current status

Check or change the current

OPTION

status instantly

Multi Audio / AD (freesat mode)

Allows you to select between alternative language or Audio Description for sound tracks (if available)

Set Audio Description “Auto” in the Sound Menu ● (p. 39) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track. This setting is not memorized and it will return to the ● default setting once you exit the current programme.

Multi Audio (DVB or Other Sat. mode) Allows you to select between alternative language for sound tracks (if available)

This setting is not memorized and it will return to the ● default setting once you exit the current programme.

Monaural Audio (DVB mode) Allows you to select stereo / monaural (if available)

This setting is not memorized and it will return to the ● default setting once you exit the current programme.

To change ●

change select

Subtitle Language (freesat, DVB or Other Sat. mode) Allows you to select the language in which subtitles should appear (if available)

This setting is not memorized and it will return to the ● default setting once you exit the current programme.

NICAM (Analogue mode) Switches NICAM sound (if available)

Sound Menu (p. 39)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode) Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

To adjust the volume for Audio Description ●

“Audio Description Menu” (p. 39)

Safely remove USB

Takes this operation to remove the connected USB device safely from the TV

Basic

Watching TV ●

Last view

Switch to previously viewed channel or input mode easily

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or ● One Touch Recording is in progress. Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.●

LAST VIEW

Press again to return to the present view.●

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Display the menu Select “Setup” Select “Off Timer” and set the time

Main Menu


Sound

Setup

access

select

To cancel ● Set to “Off” or turn the TV off. To display the remaining time● Information banner (p. 17)

Note

When the remaining time is within 3 minutes, the remaining time will flash on the screen.●

Setup Menu

3D Settings Timer Programming

Off Timer Off

USB HDD Setup Link Settings Child Lock freesat Tuning Menu Other Sat. Tuning Menu Display Settings

1/2

set select

Page 20

Using TV Guide

TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time ● before the TV Guide is completely shown.

freesat mode

INPUT

DIRECT TV REC

EXIT

BACK/

RETURN

INDEX HOLD

ASPECT

OPTION

TEXT STTL

To return to TV ■

EXIT

To watch the programme■

Select a current programme or channel

select

access

To view a channel list ■ of the selected genre

blue

Select freesat

p. 16

Display the Channel

Genre selection list

Select the genre and view TV Guide

TV Guide date

TV Guide time

Channel position

Example:

Channel Genre Selection

and name

All Channels

Entertainment News & Sport

Movies

Lifestyle

Music

Children

Example:

Wed 28 Oct

1 BBC ONE Also in 20:00 - 20:30 DIY SOS : We open in the Battersbys

Time:

101

BBC ONE

BBC 2W Hot Wars Holiday Program

102

BBC NEWS Emmerdal. Coronation Street The Bill

103

BBCi 10 O’ clock News BBC Pepsi Char. Good bye

104

BBC THRE Panorama Spring watch Coast

105

BBC FOUR I’m A Celebrity Pop Idol News

106

BBC Radio

107

D Rugby 15 To 1 The Bill Sports

Select channel

View / Timer Prog.

-24 hours +24 hours Search Channel Genre

Special Interest

Radio

Shopping

Gaming & Dating

Interactive

Regional

Favourites

Programme

19:30 20:00 20:30 21:3021:00

Eastender DIY SOS The Bill Red Cap

EXIT Select programme RETURN

Some programmes may also be broadcast in HD

You can select HD or SD broadcast before viewing or setting Timer Programming.●

Select “View” If a programme exists in both HD and SD ●

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 22

Channel Genre

All Channels

Entertainment

News & Sport

Favourites

. . .

(Channel Genre list)

select genre

view

To list favourite channels ● p. 49

Current date and time

TV Guide Wed 28 Oct 2009 10:46

Search All Channels

Drama

Cinema

Shop

GUIDE

Info

RETURN

Page up

Page down

broadcasts, the “View Options” screen will be displayed to select HD or SD broadcast.

select

watch

DIY SOS

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

To the previous day ■

red

select

view

There might be some ● programmes displayed as greyed-out in TV Guide. These are the Off-Air programmes (non-running programmes).

View Options

watch

select

To search ■ programme types and view a channel list of the searched programmes

yellow

To search ■ programme titles and view a list of the searched programmes

yellow

All the programme titles including the word you set will be listed.● Searching without any characters will list all programmes including current programmes. ●

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

. . .

. . . .

(Search list)

select type

view

select

“Search Titles...”

access

To the next day ■

green

Set characters one by one (maximum: 19 characters)

select

set

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 103)

green

Page 21

DVB or Analogue mode

This TV supports the GUIDE Plus+ system.● The Gemstar branding partner will supply the rating informations in the programme information and the ● recommended group in the Search list. DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” ● means Analogue channel. There will be no programme listings for Analogue channels.

INPUT

DIRECT TV REC

INDEX HOLD

EXIT

BACK/

RETURN

ASPECT

OPTION

TEXT STTL

To return to TV ■

EXIT

To watch the programme■

Select a current programme or channel

select

access

Select DVB or Analogue

p. 16

View TV Guide

Select “View” (DVB mode)

Example:

Wed 28 Oct 2009 10:46

TV Guide time

D: DVB A: Analogue

Timer Programming

-24 hours +24 hours Search Category

Channel position and name

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 22

Current date and time

TV Guide date

Wed 28 Oct

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

Time: 20:00 20:30 21:00

19:30

105

719

D Rugby 15 To 1 Sports

Select channel

Eastender

BBC ONE BBC THREE

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

BBC FOUR

10 O’ clock News BBC Pepsi Char. Good bye

BBC 2W

Panorama Spring watch Coast

BBCi

I’m A Celebrity Pop Idol News

BBC Radi

EXIT Select programme RETURN

Programme

TV Guide

Search All Channels

DIY SOS Holiday News

Info

GUIDE

RETURN

OPTION

Select Advert

If a programme exists in both HD and SD ● broadcasts, the “View Options” screen will be displayed to select HD or SD broadcast.

select

watch

(DVB mode)

DIY SOS

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

View Options

Logo of the Gemstar branding partner

Also in

Some programmes may also be broadcast in HD

You can select HD or ● SD broadcast before

Page up

Page down

viewing or setting Timer Programming.

Basic

Using TV Guide ●

watch

select

To view a ■ channel list of the selected category

blue

To search programme

■

types and view a channel list of the searched programmes

(DVB mode)

yellow

To search ■ programme titles and view a list of the searched programmes

(DVB mode)

yellow

category

view

To list favourite channels ● p. 51

(Search list)

select type

view

(Search list)

select

“Search Titles...”

access

Set characters one by one (maximum: 19 characters)

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 103)

To the previous day ■

(DVB mode)

red

To the next day ■

(DVB mode)

green

select

green

set

All the programme titles including the word you set will be listed.● Searching without any characters will list all programmes including current programmes. ●

Page 22

Using TV Guide

Other useful functions

■

Timer Programming (freesat or DVB mode)

Timer Programming can remind you to watch a programme or record one on an external recorder or a USB HDD.

Select the forthcoming programme

select

set

Select the function (Ext Rec., USB HDD Rec. or Reminder)

Timer Programming Wed 28 Oct 2009 10:46

Channel NameFunction No.

1D BBC ONE

Ext Rec.

DIY SOS

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

Date Start End

Wed 28 Oct 20: 00 2 0:30

Guide

--/-- --:-- --:--

(30 min.)

(--- min.)

(Timer Programming screen)

store

select

LED will turn to orange if

LED

Timer Programming is set. (Orange LED will flash if the recording of Timer Programming is in progress.)

Ext Rec. / USB HDD Rec.

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.) When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 mins. before the starting time, a reminder message appears if you are watching TV.

Reminder : to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

To check / change / cancel a timer programming event■ “Timer Programming” (p. 59)

BACK/

To return to TV Guide ■

RETURN

If you select a current programme■

A confirmation screen asking whether you wish to watch or record the programme will appear. Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to record from the time you finish programming the timer event setting.

Eastender 19:30- 20:00

View

Timer Programming

select access

If a programme exists in both HD and SD broadcasts■

The “Timer Options” screen will be displayed to select HD or SD broadcast.

DIY SOS

Timer Options

101 BBC ONE 19:30-20:00 Wed 28 Oct 2009

119 BBC HD 19:30-20:00 Wed 28 Oct 2009

set

select

Timer Programming Wed 28 Oct 2009 10:46

Ext Rec.

Channel NameFunction No.

1D BBC ONE

DIY SOS

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

Date Start End

Wed 28 Oct 20:00 20:30

Guide

--/-- --:-- --:--

(30 min.)

(--- min.)

(Timer Programming screen)

“

” will be displayed if HD broadcast is set.

Note

This function is not available in Analogue mode.● Timer Programming can store up to 15 events.● Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.• The timer programming event that the reminder is set for ends.•

No other channel can be selected while the recording of Timer Programming is in progress.● When recording programmes, be sure to make the proper settings on the recorder connected to the TV.● If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 94) and the “Link Settings” (p. 40) are completed, no setting of the recorder is required. Also read the manual of the recorder. When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in ● the “USB HDD Setup” (p. 70).

Page 23

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Function Channel Name

Ext Rec.

Reminder

Ext Rec.

---

No.

1D Wed 28 Oct 20:00 20:30

BBC ONE DIY SOS

14DE4

The Bill

72 BBC 2W

<TIMER>

D BBC ONE

Red Cap

---

Wed 28 Oct 2009 10:46

Date Start End

Guide

Wed 28 Oct 21:00 22:30

Guide

Wed 28 Oct 22:45 23:00

Thu 29 Oct 10:30 11:30

S/P

(30 min.)

(90 min.)

(15 min.)

(60 min.)

--/-- --:-- --:-(--- min.)

(Timer Programming screen)

“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

Note

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no ● longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed. Whilst making the Split Programme programming event for Ext Rec. or USB HDD Rec., you cannot record ● any channels between the interrupted programmes. The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.

●

The Split Programme programming event for Reminder will switch to the programmed channel by pressing ● the OK button even if it is between the interrupted programmes. The Split Programme programming does not work if the separated parts are broadcast on different channels.●

“ ” or “ ” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

Wed 28 Oct 2009 10:46

Wed 28 Oct

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

BBC ONE

BBC THREE

BBC FOUR

BBC 2W

105

BBCi

719

BBC Radi

D Rugby 15 To 1 Sports

TV Guide

Search All Channels

Time:

19:30 20:00 20:30 21:00

Eastender DIY SOS Holiday News

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

10 O’ clock News BBC Pepsi Char. Good bye

Panorama Spring watch Coast

I’m A Celebrity Pop Idol News

Basic

View details of the programme (freesat or DVB mode)

Select the programme View details

select

Press again to return to TV Guide.●

Wed 28 Oct 2009 10:46

Timer Programming

Wed 28 Oct 2009 DIY SOS BBC ONE 20:00 - 20:30, 30 min.

EXIT

RETURN

TV Guide

Details

Return to list

View advertisement (DVB or Analogue mode)

Enter your postcode when using this function for the first time

“Postcode” in “GUIDE Plus+ Settings” (p. 42) If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter it again. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement, you will need to update the information.● To update the information continuously, the TV must be left in Standby mode at night.

To change advertisements■

Using TV Guide ●

BACK/

RETURN

To return to TV Guide■

OPTION

Note

Some advertisements are for future programmes. ●

In this case it is possible to use the Guide link programming function (above).

The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot ●

be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

Page 24

Using TV Guide

Other Sat. mode

In Other Sat. mode, TV Guide is not available. In stead, Channel List will appear.

To tune in Other Sat. Channels ● p. 55

Select Other Sat.

p. 16

Display the Channel List

All Other Sat. Channels

freesatHome

freesatSSU

Brit Shorts

HINRG LOWNRG

WELL Class

GROOVE

ASPECT

OPTION

TEXT STTL

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

To return to TV ■

EXIT

REC

PROGRAMME

DVD/VCR

Select the channel

watch

select

Page 25

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

The availability of teletext services for a programme is indicated by “TEXT” in the information banner.●

1 BBC ONE Wales

Coronation Street 19:30 - 20:00

All DVB Channels

20:35

Select favourites

TEXT

For info press

Now

Information banner (p. 17)

Displayed if programme has teletext service

Digital teletext (MHEG)

Digital teletext services

Digital teletext services differ greatly from analogue teletext. When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

Select freesat or DVB

p. 16

freesat and DVB programmes have digital teletext services ● (MHEG).

Switch to Teletext

TEXT

17:51 28 Feb

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on screen commands may not correspond exactly to the remote control buttons.

For example:

When “select” or “go” is displayed ●

ASPECT

OPTION

TEXT

ghi

INPUT

DIRECT TV REC

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

Basic

Viewing Teletext ●

Using TV Guide ●

REC

PROGRAMME

DVD/VCR

When “◄”, “►”, “▲”, “▼” symbol is displayed ●

BACK/

When “back key” is displayed ●

When the key words are displayed on colour bar ●

When options with numbers are displayed ●

RETURN

red green yellow blue

abc def

jkl

ghi

mno

tuvpqrs

wxyz

TEXT

To return to TV ■

Note

As soon as you switch to a digital channel with links to a teletext service, ● software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete. While navigating digital teletext, you will find there is a short delay when ● moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

Page 26

Viewing Teletext

Analogue teletext

Analogue teletext services

Analogue teletext services are the text information provided by the broadcasters.

The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more

information about one of these subjects, press the appropriately coloured button. This facility enables fast access to

information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these

numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 27)

To change mode ■ “Teletext” in the Setup Menu (p. 41)

Select Analogue or Other Sat.

p. 16

Other Sat. programmes are digital broadcasts. The operations ● of the teletext services, however, are equal to Analogue teletext service.

Switch to Teletext

TEXT

Displays the ● index page (content varies depending on the broadcasters)

Current page number

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Time / date

ASPECT

OPTION

INPUT

DIRECT TV REC

EXIT

BACK/

RETURN

TEXT STTL

INDEX HOLD

Select the page

abc def

jkl

ghi

tuvpqrs

To adjust contrast ■

To return to TV ■

ghi

abc def

jkl

mno

tuvpqrs

wxyz

Reveal hidden data

Reveal hidden words e.g. quiz page answers

red

To rehide ●

FULL / TOP / BOTTOM

green

Colour bar

mno

wxyz

down

green

red

(Corresponds to the colour bar)

yellow blue

As the blue bar is displayed

(press twice)

EXIT

red

(TOP) (BOTTOM) Normal (FULL)

(Expand the TOP half) (Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD

To resume ●

HOLD

Page 27

INDEX

Return to the main index page

INDEX

Subtitles

View a favourite page stored

STTL

Factory setting is “P888” (subtitle service) on the blue button (List mode).●

View in multi window

Watch TV and Teletext in two windows at once

TEXT

Operations can be made only in Teletext screen.● Each time pressed: Teletext ● TV and Teletext

Store frequently viewed pages

Basic

Store frequently viewed pages in the colour bar

As page is displayed

To change stored pages■

Coloured button

you want to change

Corresponding coloured button

Enter new page number

press and hold

The number changes to white.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

press and hold

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of the screen

To view specific sub page■

Enter the

blue

Sub pages: ●

The number of sub pages varies depending on the broadcasters (up to 79 pages).

It may take some time for searching, during which time you can watch TV.

4-digit number

example: P6

mno

(List mode only)

If you wish to use Subtitles, ● do not change number on blue button.

Viewing Teletext ●

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

The news page provides a function that indicates arrival of latest news (“News Flash”).●

yellow

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

yellow

Page 28

Watching External inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.

To connect the equipment ● p. 11 and p. 100

The Remote Control is capable of operating some functions of selected external equipment.

Turn the TV on

When connecting with SCART as example 2 or 3 ■ (p. 11)

Receives input signals automatically when playback starts

Input signals are automatically identified by the SCART (pin 8) terminal.● This function is also available for HDMI connections (p. 100).●

If input mode is not switched automatically■

Perform and

Check the setup of the equipment.●

Display the Input select menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2/S

AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV Media Server

You can also select the input using the AV button on the remote ● control or the side panel of the TV. Press the button repeatedly until the desired input is selected. You cannot select “Media Server” using the AV button on the side panel of ● the TV. In order to switch between AV2 and AV2S, move the indicator by pressing ● left and right cursor button. You can label or skip each input mode ● “Input Labels” (p. 62) Skipped inputs will not be displayed when the AV button is pressed.

select

watch

ASPECT

OPTION

TEXT STTL

ghi

REC

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

PROGRAMME

DVD/VCR

View

Displays the selected mode

Note

To return to TV ■

If the external equipment has an aspect adjustment function, set it to “16:9”.● For details, see the manual of the equipment or ask your local dealer.●

Page 29

Screen display

Terminal

Manual input

default setting

(

in “Input Labels”

Auto input

EC mode or

(

VIERA Link

)

If the above information is permanently displayed on the top left of the screen, press the ● button to clear.

AV1 AV 2 AV3

AV1

AV1-RGB

)

EC/AV1

EC/AV1-RGB

AV2

AV2-S-Video

AV2-RGB

EC/AV2

EC/AV2-S-Video

EC/AV2-RGB

COMPONENT PC

AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4

―――

HDMI1 HDMI2 HDMI3 HDMI4

EC/HDMI1

Applicable for

●

EC mode and VIERA Link

EC/HDMI2

Applicable ● for VIERA Link

EC/HDMI3

Applicable ● for VIERA Link

Operating the equipment with the TV remote control

The Panasonic equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR

DVD/VCR

■

How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

Set the position to “DVD/VCR”

PROGRAMME

REC

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 72) “Media Player” (p. 78) “VIERA Link Control” (p. 98)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD / video content: Skip to the previous track or title

(not available for the operation of USB HDD Recording) Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD / video content: Skip to the next track or title

(not available for the operation of USB HDD Recording) Press and hold to search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

DVD/VCR

EC/HDMI4

Applicable ● for VIERA Link

Basic

Watching External inputs ●

Press and hold during the following operations

abc def

jkl

ghi

Enter the appropriate code, see table below

mno

tuvpqrs

wxyz

Press

Type of the equipment Code

DVD Recorder, DVD Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

Note

Confirm if the remote control works correctly after changing the code.● The codes may be reset to default values if batteries are replaced.● Some operations may not be possible on some equipment models.●

Page 30

Viewing 3D images

To view 3D contents or programmes in 3D effect (3 Dimensional) you must wear the supplied 3D Eyewear.

This TV supports “Frame Sequential

∗

1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately played

back

∗

2, ∗3: Other available 3D formats

How to use the 3D Eyewear ● p. 31 and p. 32 How to view the 3D images ● p. 33

∗

”, “Side by Side

∗

” and “Top and Bottom

∗

” 3D formats.

To enjoy 3D images safely and comfortably, please read these instructions fully.

Warning

Take care■

To help avoid risk of fire, damage, injury or discomfort, please follow the warnings below:

Do not disassemble or modify the 3D Eyewear.● Incorrect replacement of battery may cause the danger of explosion, leakage and corrosion of battery.● Battery must not be exposed to excessive heat such as sunshine, fire, etc.● Pay special attention when children are using the 3D Eyewear. ● The 3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians to ensure their safety and health while using the 3D Eyewear. Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other ● existing medical conditions.

Small object■

The 3D Eyewear contains possibly dangerous parts that can be breathed in or swallowed by young

children accidentally.

Keep the small parts (battery and support band, etc.) out of reach of young children.●

Caution

Placement and conditions for viewing 3D images

■

Do not use the 3D Eyewear near the devices or objects that emit infrared (ex. remote control, fireplace, stove, ● etc.), as this may cause the 3D Eyewear to mis-operate. Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves ● near the 3D Eyewear as this may cause the 3D Eyewear to malfunction. Do not use the 3D Eyewear at a distance less than the recommended distance.● The recommended viewing distance is 3 times of image height. TX-P42VT20B: 1.6 m or more / TX-P46VT20B: 1.7 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance 3 times further than the height of the actual image. (That makes the distance closer than above recommended figure.) Do not use the 3D Eyewear in the condition of high temperature.●

Handling the 3D Eyewear■

Do not drop, exert pressure on, or step on the 3D Eyewear.● Be careful of the tips of the frame when putting on the 3D Eyewear.● Be careful not to trap a finger in the hinge section of the 3D Eyewear.● Do not use the 3D Eyewear if it is physically damaged.● The 3D Eyewear must only be worn when viewing 3D content.●

Viewing 3D Content■

Ensure no breakable objects are nearby to avoid any accidental damage or injury.● Be careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance ● between the user and screen can be misjudged.

●

Remove the 3D Eyewear before moving around to avoid falling or accidental injury.

If having eyestrain or discomfort, etc.■

Stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any discomfort.● Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.● After viewing 3D contents or playing 3D games, take a short break to readjust your senses.●

Stopping the usage of the 3D Eyewear■

Stop using the 3D Eyewear immediately if a malfunction or fault occurs, or if you experience any redness, pain, ● or skin irritation around the nose or temples.

●

In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

Note

Do not use the 3D Eyewear as sunglasses.● The 3D Eyewear will not work correctly if worn upside down or back-to-front.● If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), ● please ensure to correct your vision before using the 3D Eyewear.

●

If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically. 3D effects may be perceived differently depending on the person.

●

Always store the 3D Eyewear in the case provided when not in use.●

Page 31

3D Eyewear

3D Eyewear set (2)

TY-EW3D10E●

3D Eyewear Support band

BK103839●

Nose pad A

NPA103821●

Use either nose pad A or B for your preference.●

3D Eyewear can be worn over vision correction glasses.●

Part names and functions■

Battery cover

Nose pad B

NPB103834●

When using for the first time, remove the insulating sheet.●

Pull the insulating sheet

Insulating sheet

To replace the battery ● “Replacing the battery” (p. 32)

Infrared receiver

Receives infrared signals from the TV.

3D Eyewear is controlled by receiving infrared signals from the TV, ● which allows you to view 3D images.

Note

Do not soil the infrared receiver section or attach stickers etc. to it.●

3D Eyewear case

Basic

Viewing 3D images ●

Nose pad installation section

If required, attach the nose pad.

To attach the nose pad ● “Attaching the nose pad” (p. 32)

Lenses - Liquid Crystal Shutter

Controls the images for 3D viewing.

●

The left and right liquid crystal shutters are alternately opened and closed in time with the images on the TV screen to achieve the 3D effect.

Note

Do not apply pressure to or scratch ● the surface of the liquid crystal shutter.

Support band attaching parts

If required, attach the support band.

To attach the band ●

“Attaching the support band” (p. 32)

Power button of the 3D Eyewear

(bottom side of the 3D Eyewear)

Switches the 3D Eyewear on or off.

Press the button for about 1 second to turn the power on. The ● indicator lamp lights for about 2 seconds and then goes off. To turn the power off, press the button for about 1 second again. ● The indicator lamp flashes 3 times, then the 3D Eyewear turns off.

Power button

Indicator lamp

Note

If the 3D Eyewear does not receive any signals from the TV for ● about 5 minutes, the 3D Eyewear will be turned off automatically.

Page 32

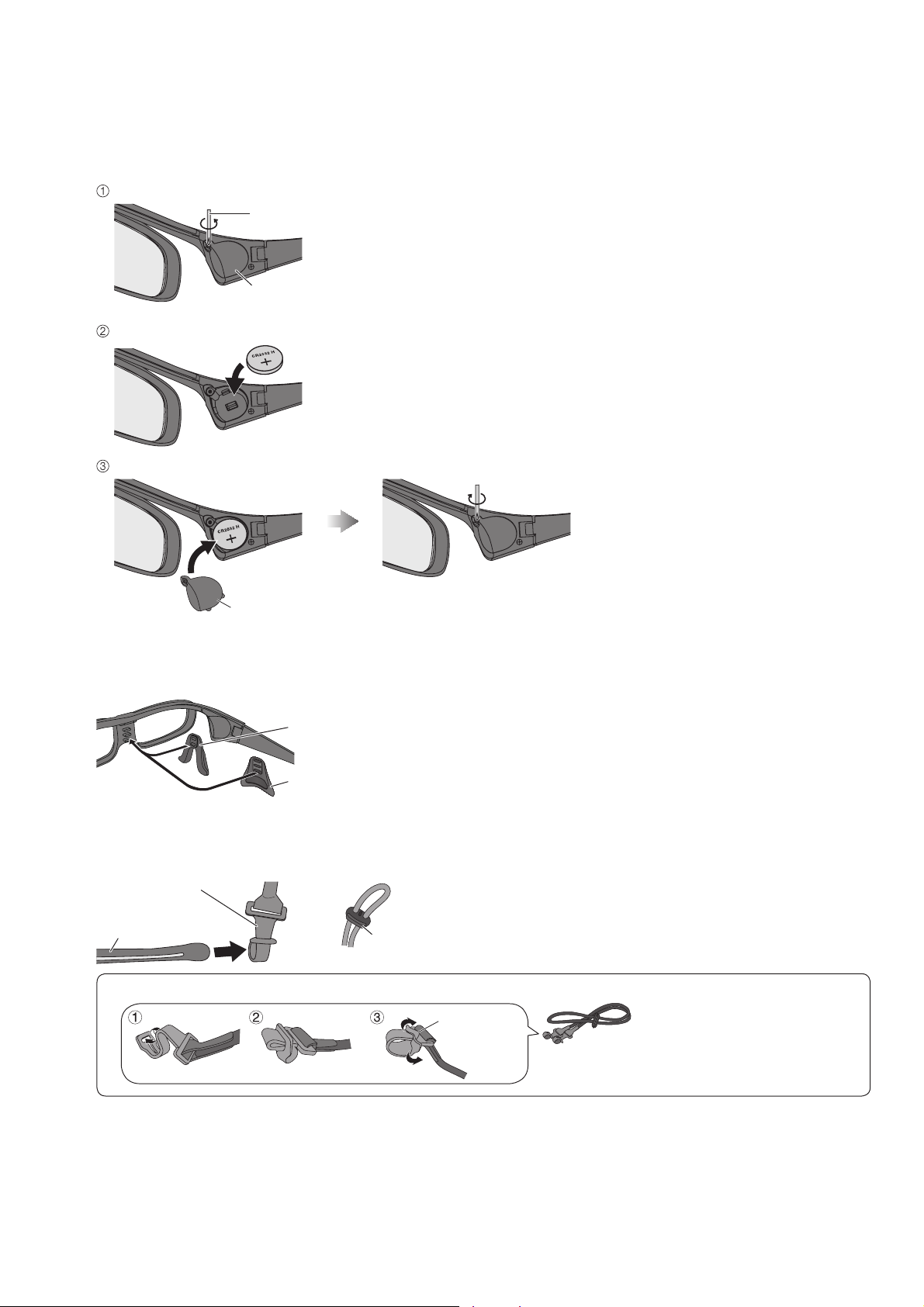

Viewing 3D images

Replacing the battery■

When the battery is running low, the indicator lamp flashes 5 times when turning the 3D Eyewear on. In this case, early battery replacement is recommended.

Dispose of the old batteries in accordance with the waste disposal regulations in your local area.

●

Loosen the screw and remove the battery cover using the supplied screwdriver

Screwdriver (supplied)

Battery cover

Replace the battery

Use the specified type of battery (coin-shaped lithium battery CR2032).● Note the correct polarity (+ or -).●

Replace and fasten the battery cover

Battery cover

Make sure that the screw is tightened.●

Attaching the nose pad■

Use either nose pad A or B for your comfort.

If you put the 3D Eyewear on vision correction glasses, the nose pad is recommended to be removed.●

You can select the positions of the nose pad A from the 2 levels ●

Nose pad A

Nose pad B

of height. Use upper 2 protrusions or lower 2 protrusions on the 3D Eyewear to attach the nose pad A. Use all 3 protrusions on the 3D Eyewear to attach the nose pad B.●

Attaching the support band■

If the 3D Eyewear slips out of place, use the supplied support band to hold it in place.

Attach the band to the left and right tips of the frame, and adjust the length.●

Support band

Frame

When the end of the support band is straightened, form a loop at the end of the band, and fix the twisted part.

Push to adjust the length of the band

Fix the twisted part

Treat the rubber part carefully not to break it.●

Storing the 3D Eyewear■

Use the supplied 3D Eyewear case to store the 3D Eyewear.● Avoid storing the 3D Eyewear in hot or highly humid locations.●

Page 33

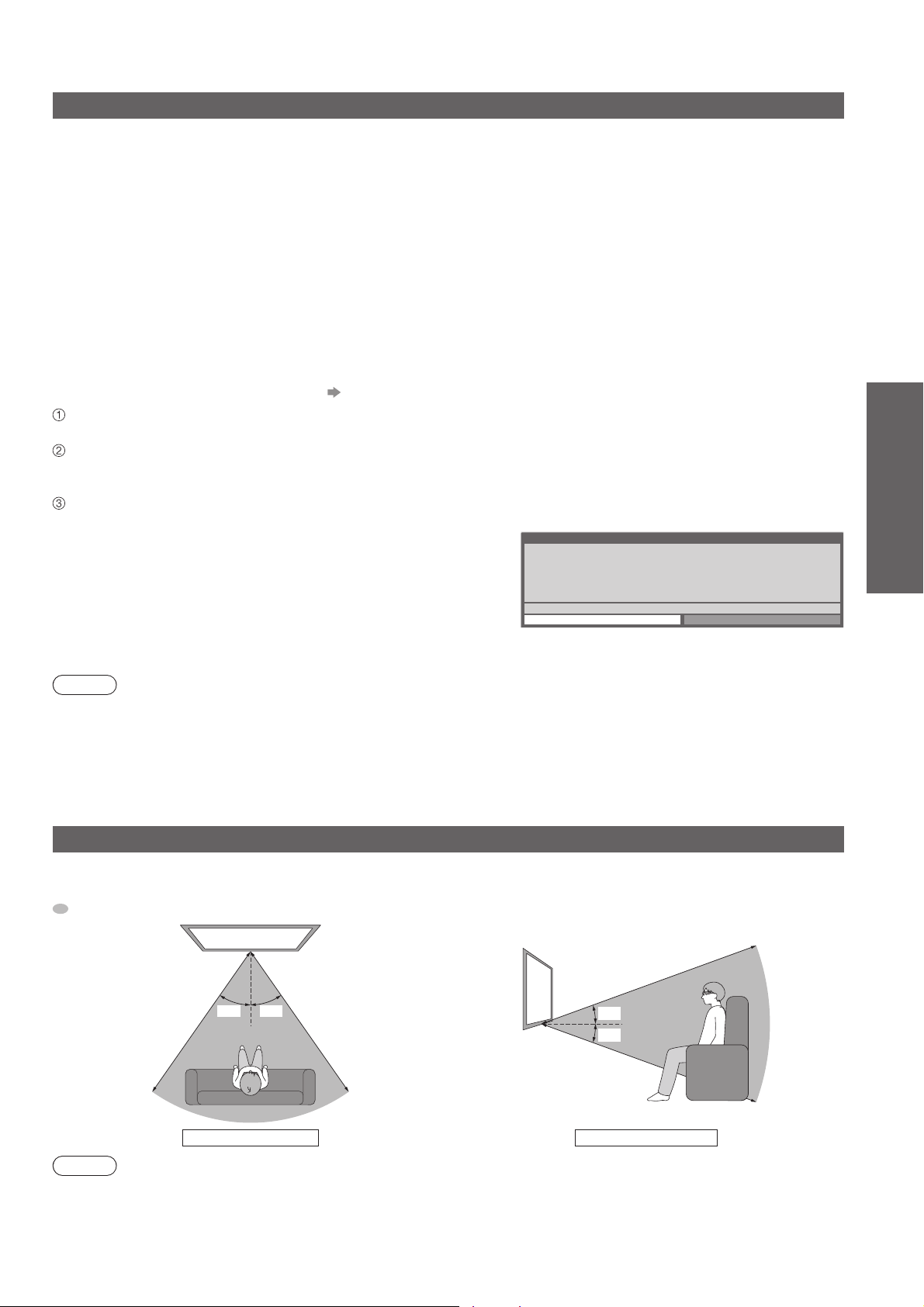

To view the 3D images

To view the contents of the Frame Sequential format (ex. 3D-compatible Blu-ray Disc, etc.) with 3D effect

Connect the 3D-compatible player via an HDMI cable (p. 11 and p. 100) and playback the contents.

Use fully wired HDMI compliant cable.● For the settings of the player, read the manual of the player.● If input mode is not switched automatically, select the input mode connected to the player (p. 28).● If you use the non 3D-compatible player, the images will be displayed without 3D effect.●

To view the contents or programmes of 3D formats other than Frame Sequential with 3D effect.

Select suitable signal format in “Signal Format” (p. 35) before viewing.

You can view “Side by Side” and “Top and Bottom” with 3D effect even if you use the non 3D-compatible player.● Please consult the suppliers of contents or programmes for availability of this service.● You can also view 3D images in photo / video mode in Media player (p. 76 and p. 78 - 79) and video mode in ● DLNA (p. 81).

To view 2D images with 3D effect

Use a 2D-to-3D conversion function

Turn the 3D Eyewear on

Press the power button on the 3D Eyewear for about 1 second. (p. 31)●

Supporting the 3D Eyewear

If the 3D Eyewear slips out of place, hold it in place using the support band, and adjust the length of the band. ● (p. 32)

View the 3D images

Safety precautions will be displayed when you first watch the

●

3D image. Select “Yes” or “No” to continue to view 3D images. If you select “Yes”, this message will be displayed again in the same condition after Mains power On / Off switch is next turned On. Select “No” if you do not wish to display this message again.

To turn the 3D Eyewear off■

After using the 3D Eyewear, press the power button on the 3D Eyewear for about 1 second to turn it off. (p. 31)

Note

The 3D image or 3D effect may not be available while multi window (p. 66) is active, VIERA CAST home screen ● (p. 91) is displayed or Ext Rec. of Timer Programming (p. 58) / Direct TV Recording (p. 94 and p. 96) is in progress. As for the contents of the Frame Sequential format, no images will be displayed in these conditions. If the room is lit by using fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D ● Eyewear, switch off or dim the light. Liquid crystal displays (such as computer screens, digital clocks or calculators, etc.) may be difficult to see while ● wearing the 3D Eyewear.

“2D→3D” mode in “Signal Format” (p. 35)

Example:

Safety Precautions

To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation.

Always put the 3D Eyewear in the case provided after use.

Would you like to display this message again later?

Yes No

Basic

Viewing 3D images ●

Coverage area / range for 3D viewing

If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.

: Coverage area for using the 3D Eyewear

35°35°

View from the top View from the side

Note

You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving ● infrared signals from the TV.

●

The range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the dirt on the infrared sensors or the surrounding environment. If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off

●

automatically even if in the coverage area.

20°

Page 34

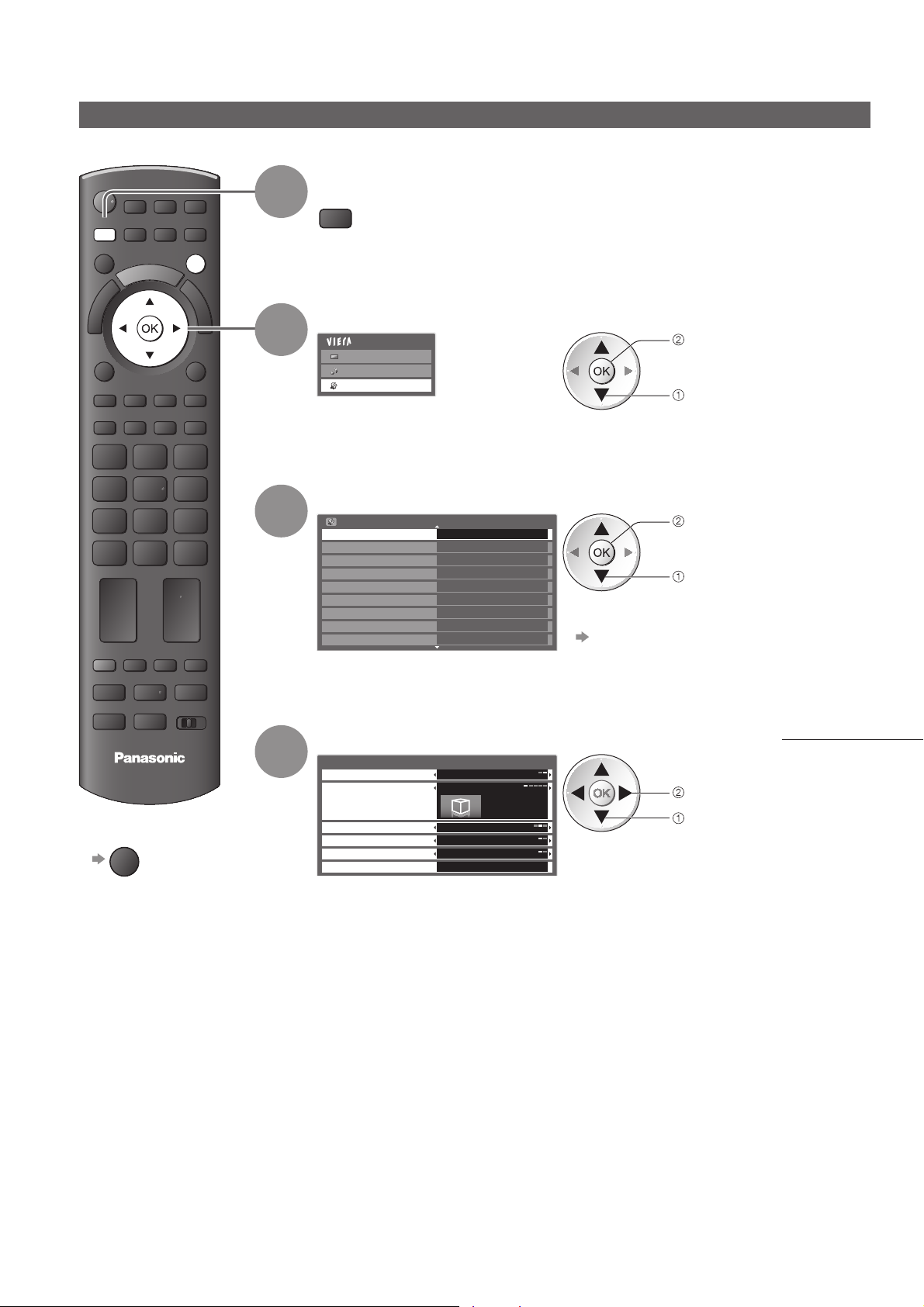

Viewing 3D images

3D Settings

Change the 3D settings in the Setup Menu if 3D images are not displayed correctly.

ASPECT

OPTION

TEXT STTL

ghi

INDEX HOLD

abc def

jkl

tuvpqrs

REC

INPUT

AVTV

DIRECT TV REC

EXIT

mno

wxyz

PROGRAMME

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “3D Settings”

Setup Menu

3D Settings

Off Timer Off USB HDD Setup Link Settings Child Lock Display Settings Network Setup DivX® VOD Advance(isfccc)

Access

Off

access

select

1/2

access

select

You can also access 3D Settings menu ● directly by using VIERA TOOLS.

“How to use VIERA TOOLS” (p. 36)

To return to TV■

EXIT

DVD/VCR

Select one of the following functions and set

3D Settings

Picture Display 3D Signal Format Auto

2D→3D Depth Mid Picture Sequence Normal Edge Smoother Off Safety Precautions Access

set

select

Page 35

Picture Display (2D / 3D)■

Sets the TV to 3D or 2D mode

Select “2D” to view 3D picture in 2 dimensional without wearing the 3D Eyewear.●

Signal Format (Auto / Side by Side / Top and Bottom / 2D→3D / Original)■

Selects Signal format to suit the format of the source image

Depending on the format of the source image, the 3D images will be displayed correctly regardless of the ● setting of “Signal Format” (when “Picture Display” is set to “3D”) : for example, when receiving the Frame Sequential format (ex. playback of the 3D-compatible Blu-ray Disc with the 3D-compatible player) via an HDMI cable.

Auto (default) : 3D images are automatically displayed according to the image.

This mode may not work properly depending on the source image format. In this case, ● select the appropriate picture format.

Side by Side / Top and Bottom : One of the formats of the 3D standard

●

Select these formats as necessary. Not valid on Analogue and AV mode●

2D→3D : Converts 2D images into 3D

Picture aspect is fixed to 16:9 regardless of the original aspect.● For freesat, DVB, Other Sat., Analogue, AV, Component, HDMI, Media Player (photo and ● video) and Media Server (video). On-screen displays are also seen in 3D in this mode.● Please note the 3D images appear slightly different from the originals.● Using this function for profit-making purposes, or publically showing images converted ● from 2D to 3D in places such as shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.

Original : Displays the source image as it is.

Use to identify the format type of the source image.●

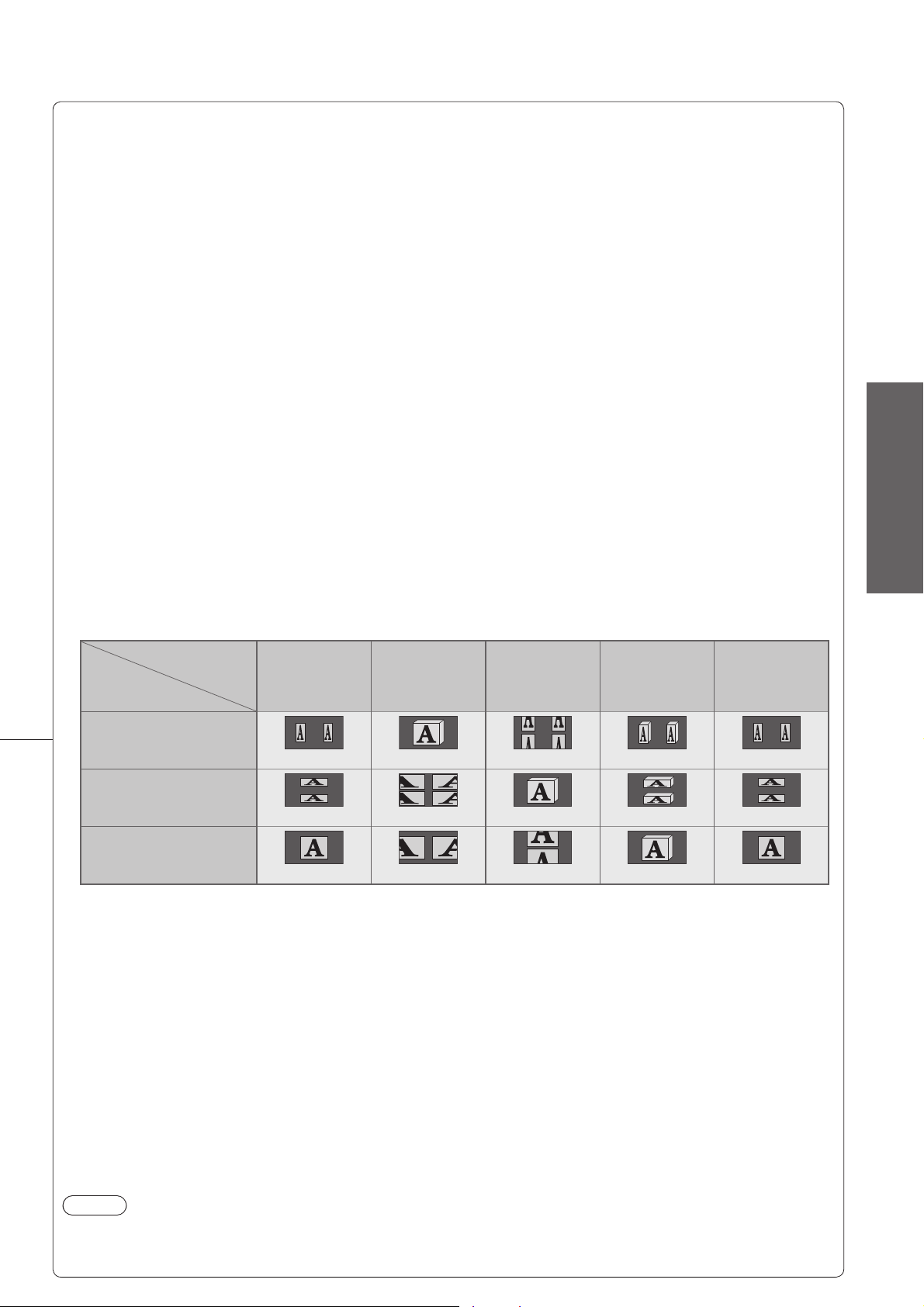

Table of images that can be seen for each Signal Format and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct signal format setting.

Signal Format

Source image format

Auto Side by Side Top and Bottom 2D→3D Original

Basic

Viewing 3D images ●

Side by side

Top and bottom

Normal format

(2D)

∗

when the source image is not recognized correctly

∗

When “Picture Display” is set to “3D”, the images will be displayed with 3D effect. When set to “2D”, displayed without 3D effect.

∗

Normal Normal

Normal

∗

Normal

∗

Normal

Depending on the player or broadcasts, the image may be different from the above illustrations.●

2D→3D Depth (Min / Mid / Max)■

Select a level of 3D-image depth for viewing converted 2D images.

This function is available when “Signal Format” is set to “2D→3D”.●

Picture Sequence (Normal / Reverse)■

Select “Reverse” if you feel that the sense of depth is unusual.

Not valid on Analogue or AV mode, or when “Signal Format” is set to “2D→3D”.●

Edge Smoother (Off / On)■

Select “On” if you feel the contoured parts of an image are not smooth enough. (for “Side by Side” or “Top and Bottom” format)

Not valid on Analogue or AV mode, or when “Signal Format” is set to “2D→3D”.

●

Safety Precautions■

Displays the precautions for viewing 3D images.

Note

These settings will not be memorized when changing the input mode or channel.● When viewing the 3D-compatible 24p source movie, you can reduce juddering noises by setting “3D 24p Film ● Display” in “Other Settings” (p. 42).

Page 36

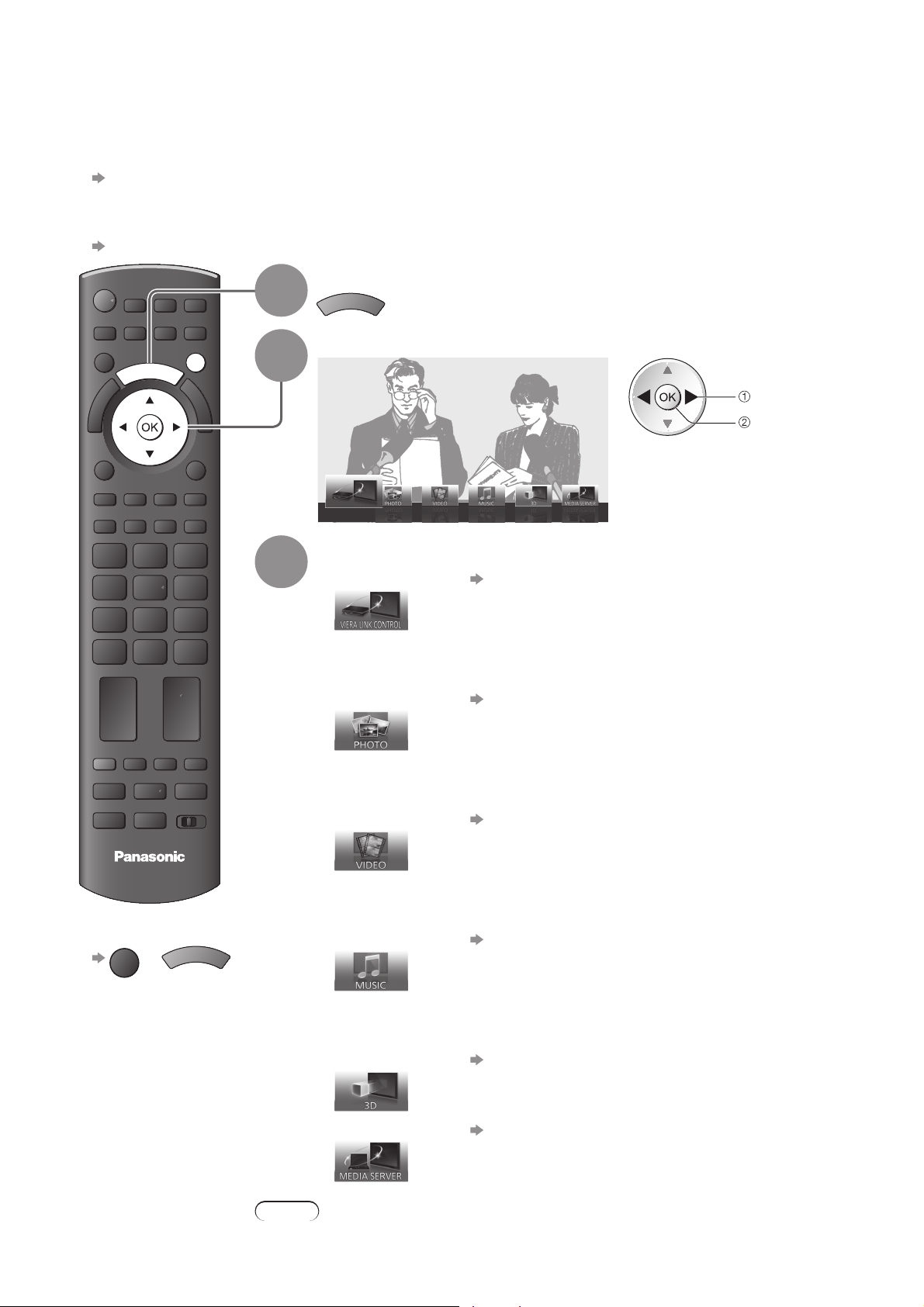

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings ● are completed.

“Summary of Q-Link and VIERA Link features” (p. 92 and p. 93), “Preparations” (p. 95)

After connection, turn the equipment on and then switch the TV on.

For “Photo”, “Video” and “Music” functions to operate correctly, ensure the device has photo or video data on it ● and insert it into the SD Card slot or USB port properly.

”Using Media Player” (p. 74)

Display icons of the feature

EXIT

Select a feature

select

access

VIERA Link Control

Follow the operations of each feature

VIERA Link Control● “VIERA Link Control” (p. 98)

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

Photo● “Photo mode” (p. 76)

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

Video● “Video mode” (p. 78)

To return to TV■

EXIT

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

Music● “Music mode” (p. 81)

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

3D● “3D Settings” (p. 34)

Media Server● “Using DLNA

features” (p. 88)

Note

If the selected feature is not available, the demonstration to explain how to use it ● can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

Page 37

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

ASPECT

OPTION

TEXT STTL

ghi

INDEX HOLD

abc def

jkl

tuvpqrs

REC

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

mno

wxyz

PROGRAMME

DVD/VCR

Display the menu

Displays the functions that can be set ● (varies according to the input signal)

Select the menu

Main Menu


Sound

Setup

Select the item

Example (Picture Menu):

Picture Menu

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S.

Warm Off Off

Adjust or select

Example (Picture Menu):

Picture Menu

Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour

Warm Off OffC.A.T.S.

1/2

access

select

change

store or access

( Required by

some functions)

Basic

How to Use Menu Functions ●

How to Use VIERA TOOLS ●

To return to TV ■ at any time

EXIT

To return to ■ the previous screen

BACK/

RETURN

To change ■ menu pages

down

Choose from among ■ alternatives

■

To reset the settings

To reset the picture settings only●

“Reset to Defaults” in the

Number and positions of alternatives

Colour Balance

Normal

Changed

Adjust using the slide bar■

Sharpness

Picture Menu (p. 38)

To reset the sound settings only●

“Reset to Defaults” in the

Sound Menu (p. 39)

To initialize all settings●

“Shipping Condition” in the

Setup Menu (p. 57)

Moved

Go to the next screen■

Child Lock Access

Displays the next screen

Enter characters by free input menu■

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

pqrs8tuv9wxyz

Set characters one by one Store

select

.!:#2abc3def

ghi5jkl6mno

set

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Note

If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment. ● To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 57)

Page 38

How to Use Menu Functions

Menu list■


Item Adjustments / Configurations (alternatives)

Viewing Mode

Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance

Vivid Colour

Reversal Film Effect

C.A.T.S.

P-NR

3D-COMB

Picture in Picture

Picture Display

Reset to Defaults

Basic picture mode (Dynamic / Normal / Cinema / THX (True Cinema) / Game / Photo / Professional1 / Professional2)

In each Viewing Mode, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance, Vivid Colour, C.A.T.S., P-NR and 3D-COMB can be adjusted and stored to suit your particular viewing requirement.

Set for each input signal.

●

Dynamic : Provides enhanced picture contrast and sharpness when viewing in a

Normal : Recommended for viewing under normal ambient room lighting

Cinema : For watching movies in a darkened room with the improved performance

THX (True Cinema)

Game : Fast response signal specifically to provide suitable images for playing

Photo : Set “Reversal Film Effect” to “On” to provide the suitable image quality for

Professional 1 / 2

Increases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

For NTSC signal reception only

●

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Not valid when “Viewing Mode” is set to “THX (True Cinema)”, “Professional1” or ● “Professional2”.

Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal.

●

Not valid when “Viewing Mode” is set to “Professional1” or “Professional2”.●

Provides the picture effect such as the reversal film (Off / On)

This function is available when “Viewing Mode” is set to “Photo”.

●

Contrast Automatic Tracking System (Automatic Brightness Control function) Adjusts picture settings automatically dependent on ambient lighting conditions

(Off / On)

Picture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture (Off / Min / Mid / Max)

Not valid on PC signal.

●

Makes still or slow moving pictures look more vivid (Off / On)

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.

●

Set to “On” to display sharper and more accurate colours. Not valid on RGB, S-Video, Component, PC, HDMI and Media Player

●

Displays two windows at once (p. 66)

Turns the screen off when you select “Off” (Off / On)

The sound is active even if the screen turns off.

●

Press any button (except Standby) to turn the screen on.● This function is effective in reducing power consumption when listening to the sound ● without watching the TV screen.

Press the OK button to reset the present Picture Viewing Mode to the default settings

bright room.

conditions.

of contrast, black and colour reproduction

Precisely reproduces the original quality of the image without any revision. Recommended for playback of THX disc (disc with “THX” logo) THX mode is used to mirror the picture settings used by professional filmmakers, faithfully reproducing the image quality of THX Certified movies.

THX Certified movies have the “THX” logo on a disc.● “True Cinema” is displayed instead of “THX” in the mode of 3D, ● PC input, Media Player and Network service operations.

games

Not valid on TV mode

●

A continuous record of time spent using Game mode can be displayed ● in the top right of the screen.

“Playing Time Display” (p. 41)

photos

For HDMI input, Media Player and Network service operations

●

: Allows you to set the professional picture settings in “Advanced Settings”,

“Lock Settings” and “Copy Adjustment”

p. 68

This mode is available only when “Advance(isfccc)” in the Setup Menu

●

is set to “On”. Not valid on VIERA CAST

●

If the certified professional dealer sets these modes, “Professional1” ● and “Professional2” may be displayed as “isf Day” and “isf Night”.

Page 39

Sound

Item Adjustments / Configurations (alternatives)

Mode

Bass Treble

Equalizer

Balance Headphone Volume

Surround

Volume Correction

Speaker Distance to Wall

Preferred Multi Audio

NICAM

SPDIF Selection

MPEG Optical Level

HDMI1 / 2 / 3 / 4 Input

Audio Description Menu

Audio Description

Volume

Speakers

Headphones

Reset to Defaults

Selects the basic sound mode (Music / Speech / User)

The selected mode affects all input signals.

●

Music: Improves sound quality for watching music videos, etc. Speech: Improves sound quality for watching news, drama, etc.

Music and Speech modes use CONEQ™ brand equalization technology to improve

●

sound quality. CONEQ equalizes acoustic power frequency response and corrects time and phase alignment errors of a speaker system. Speakers with CONEQ perform as near-perfect electro-acoustic transducers providing true to the original sound with the highest musically and intelligibility.

In Music and Speech modes, you can adjust “Bass” and “Treble” settings, and those

●

settings will be stored for each mode.

User: Adjusts the sounds manually by using the equalizer to suit your favourite sound quality.

For the User mode, “Equalizer” will appear on the Sound Menu instead of “Bass” and ●

“Treble”. Select the “Equalizer” and adjust the frequency. “Equalizer” (below) Increases or decreases level to enhance or minimise lower, deeper sound output

Increases or decreases level to enhance or minimise sharper, higher sound output Adjusts the frequency level to suit your favourite sound quality

This function is available when “Mode” is set to “User”.

●

Select the frequency and change the frequency level by using the cursor button.● If you want to enhance the bass sound, raise the level of the lower frequency. If you ●

want to enhance the treble sound, raise the level of the higher frequency.

To reset the levels of each frequency to the default settings, select the “Reset to

●

Defaults” by using cursor button, and then press the OK button. Adjusts volume level of right and left speakers

Adjusts the volume of the headphones Surround sound settings (Off / V-Audio / V-Audio Surround / V-Audio ProSurround)

V-Audio: Provides a dynamic enhancer of width to simulate improved spatial effects V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate

V-Audio ProSurround: Provides a more progressive enhancer and reverberation to

Adjusts the volume of individual channel or input mode Adjusts the low frequency sound (Over 30cm / Up to 30cm)

If the gap between the TV and wall is over 30 cm, “Over 30cm” is recommended.

●

If the gap between the TV and wall is within 30 cm, “Up to 30cm” is recommended.●

Selects the preferred language for digital channel multi audio (depending on the broadcaster) (English / Welsh / Gaelic)

Near Instantaneous Companded Audio Multiplex Reproduces NICAM stereo sound (Off / On)

Off if reception is poor (FM monaural sound)

●

Analogue mode only●

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream.

MPEG is output as PCM.

PCM : Digital output signal is fixed to PCM.

For freesat, DVB, Other Sat., Network video contents (p. 89) or Video mode (p. 78)

●

Adjusts the audio level of MPEG output from DIGITAL AUDIO OUT terminal as the initial setting (0 / -2 / -4 / -6 / -8 / -10 / -12dB)

Normally, MPEG sound is larger comparing with the other types of audio track.

●

For freesat, DVB or Other Sat. mode●

Select to fit the input signal (Digital / Analogue) (p. 104) Digital : When sound is carried via the HDMI cable connection Analogue : When sound is not carried via the HDMI cable connection

HDMI input mode only

●

Useful for visually-impaired viewers (Off / Auto) Set to “Auto” to activate the description sound track if available

The availability of audio description sound track is indicated by “AD” in the information

●

banner (p. 17).

For freesat or DVB mode

●

Adjusts the volume for Audio Description

DVB mode only●

Set to “On” to activate the description sound track from TV speakers (Off / On)

DVB mode only

●

Set to “On” to activate the description sound track from headphones (Off / On)

DVB mode only●

Press the OK button to reset the present Sound Mode, Balance, Headphone Volume and Surround to the default settings

improved spatial effects

simulate improved spatial effects

Basic

How to Use Menu Functions ●

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ● input, Media Player or Network service operations. (p. 67 - 69, 75 - 81 and p. 90) Only available items can be selected.

●

Page 40

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

3D Settings

Timer Programming

Off Timer

USB HDD Setup

VIERA Link

HDMI Content Detection

Q-Link

Link Settings

AV1 / AV2 out

Adjusts and sets to view 3D images (p. 34)

Sets a timer to remind watching or record forthcoming programmes (p. 58)

Sets the time until the TV automatically goes to Standby mode (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 19)

Registers the connected USB HDD and makes the settings for the recording (p. 70)

Sets to use VIERA Link functions (Off / On) (p. 95)

Adjusts the picture settings according to the content type signal from the connected equipment via HDMI cable (Off / Auto)

This function is available if the connected equipment supports HDMI Content Type.

●

The content type information will be displayed for several seconds when this function ● works.

Selects which AV terminal is to be used for data communication between this TV and a compatible recorder (AV1 / AV2) (p. 94)

Select the connected terminal to the recorder even it is not compatible with Q-Link.

●

Chooses the signal to be transmitted from the TV to Q-Link

(TV / AV1 / AV2 / AV3 / Monitor)

Monitor: Image displayed on screen

●

Component, PC and HDMI signals cannot be outputted.●

Setup

Child Lock

freesat Tuning Menu

DVB Tuning Menu

Standby Power Save

Intelligent Auto Standby

Q-Link Download

Favourites Edit

Channel List

Auto Setup

Signal Condition

Favourites Edit

Channel List

Auto Setup

Controls the power consumption in Standby mode of the connected equipment to reduce the consumption (Off / On) (p. 96)

This function is available when “VIERA Link” is set to “On”.

●

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 96)

This function is available when “VIERA Link” is set to “On”.

●

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Locks a channel / AV input to prevent access to it (p. 60)

Creates a list of favourite freesat channels (p. 49)

Skips the unwanted freesat channels (p. 49)

Automatically sets the freesat channels received in the area (p. 46)

Checks the freesat signal condition (p. 49)

Creates a list of favourite DVB channels (p. 51)

Skips the unwanted DVB channels or edits DVB channels (p. 51)

Automatically sets the DVB channels received in the area (p. 47)

Channel Sorting by Region

Manual Tuning

Update Channel List

New Channel Message

Signal Condition

Automatically sorts tuned channels according to the available region (p. 50)

Sets the DVB channels manually (p. 50)

Updates DVB Channel List while keeping your settings (p. 52)

Selects whether to give a notification message when a new DVB channel is found (Off / On) (p. 52)

Checks the DVB signal condition (p. 52)

Page 41

Analogue Tuning Menu

Item Adjustments / Configurations (alternatives)

Other Sat. Tuning Menu

Setup

Channel List

Auto Setup

Manual Tuning

Favourites Edit

Channel List

Auto Setup

Manual Tuning

Add New Channels

Signal Condition

Teletext

Preferred Subtitles

Skips the unwanted Analogue channels or edits Analogue channels (p. 53)

Automatically sets the Analogue channels received in the area (p. 47)

Sets the Analogue channels manually (p. 53)

Creates a list of favourite Other Satellite channels (p. 56)

Skips the unwanted Other Satellite channels or edits Other Satellite channels (p. 56)

Automatically sets the Other Satellite channels received in the area (p. 55)

Sets the Other Satellite channels manually (p. 54)

Please consult the received satellite broadcasting companies for the setting.

●

Adds new Other Satellite channels to Channel List (p. 55)

Checks the condition of Other Satellite signals (p. 54)

Analogue teletext display mode (FASTEXT / List) (p. 26)

Selects the preferred language for digital channel subtitles (depending on the broadcaster) (English / Welsh / Gaelic)

To display subtitles

● p. 17

Basic

How to Use Menu Functions ●

Side Panel

Display Settings

Input Labels

Banner Display Timeout

Playing Time Display

Radio Mode

Network Setup

DivX® VOD

Advance(isfccc)

Increases the brightness of the side panel (Off / Low / Mid / High)

The recommended setting is “High” to prevent panel “image retention”.

●

Labels or skips each input terminal (p. 62)

Sets how long the Information banner (p. 17) stays on screen

(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)

Set to “On” to display a continuous record of time spent using Game mode every 30 mins (Off / On)

This function is available when “Game” is selected in “Viewing Mode” (p. 38).

●

Sets the timer for turning off the screen automatically when a radio channel is selected (Off / 5 / 10 / 15 / 20 seconds)

The sound is active even if the screen turns off.

●

Press any buttons except Volume Up / Down and Sound Mute buttons to turn ●

the screen on.

This function is effective in reducing power consumption when listening to a

●

radio channel.

Sets the network setting to use in your network environment (p. 84)

Displays DivX VOD registration code (p. 103)

Enables the advanced picture settings (Off / On)

Set to “On” to enable the mode of “Professional1” and “Professional2” in

●

“Viewing Mode”.

Set to “On” to display the advanced items in the Picture Menu - “Advanced

●

Settings”, “Lock Settings” and “Copy Adjustment”. “Copy Adjustment” will be displayed when “Viewing Mode” is set to “Professional1” or “Professional2”.

“isfccc” is the picture setting for the certified professional dealer. For details,

●

consult your local dealer.

Page 42

How to Use Menu Functions

USB Keyboard

System Menu

Layout

Shipping Condition Owner ID Common Interface System Update Software Licence System Information

Settings

Intelligent Frame Creation

24p Smooth Film

3D 24p Film Display

Setup

Resolution Enhancer

Other Settings

Power on Preference

Power on Channel List

Auto Standby

Power Save

16:9 Overscan

SD Card LED

DVI Input Setting

Item Adjustments / Configurations (alternatives)

Selects the language that your USB Keyboard supports

●

Use a USB Keyboard to enter characters in VIERA CAST (p. 91). Characters may not be displayed correctly on the TV screen depending on the ● connected keyboard or the keyboard layout setting.

Resets all settings, for example, when moving house (p. 57)

Inputs the owner ID (p. 63)

Uses include to watch pay-TV (p. 64)

Downloads new software to TV (p. 65)

Displays the software licence information

GUIDE Plus+

Postcode

System Information

Displays the system information of this TV

Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 23)

Displays the system information of the GUIDE Plus+ system

Automatically compensates the picture frame rate and removes juddering movements to make the images smooth and clear (Off / On)

This function is not available for selection (default to “Off”) when “Viewing Mode” is

●

set to “Game” or in the mode of 3D, PC input, photo or Network service operations.

Automatically compensates the picture frame rate to make the 24p source movie images smooth (Off / On)

This is available only for 24p signal input and displayed instead of

●

“Intelligent Frame Creation”. This function is not available for selection (default to “Off”) when “Viewing Mode”

●

is set to “Game”, when “Signal Format” is set to “2D→3D” in “3D Settings” or in the mode of PC input, photo or Network service operations.

Reduces juddering noises of the 3D images (Off / On)

Set to “On” for the cinema-like images.

●

This function is available for the 3D-compatible 24p source movie.●

Enhances the picture resolution to make the image sharper (Off / Mid / Max)

This function is available for SD (Standard definition) signal.

●

As for HD (High definition) signal, this function is available when aspect mode is ● set to 16:9 (16:9 Overscan is set to “On”) or Zoom. Not valid on 3D, PC, VIERA CAST and Media Player

●

Automatically selects the input when the TV is turned on (TV / AV) Set to “TV” to view picture from TV tuner. Set to “AV” to view input from an external equipment connected to a SCART terminal, e.g. cable TV box.

The external equipment must be switched on and sending a control signal for

●

automatic switching at power on to occur.

Automatically selects All Channels or Favourites list in the Information banner (p. 17) when the TV is turned on (All Channel List / Last) Set to “All Channel List” to display all the channels. Set to “Last” to display the one you selected last time.

Not available on freesat or analogue mode

●

Sets the time the TV automatically goes to Standby mode when no operation is performed for the selected times (Off / 2 / 4 hours)

Starting Timer Programming automatically does not affect this function.

●

Automatic input switching with the connected equipment affects this function and ● time-count will be reset. The notification message will appear 3 minutes before going to Standby mode.

●

Reduces brightness of picture to economise on power consumption (Off / On) Selects the screen area displaying the image (Off / On)

On : Enlarges the image to hide the edge of the image. Off : Displays the image in the original size.

Set to “On” if noise is generated on the edge of the screen.

●

This function is available when aspect is set to Auto (16:9 signal only) or 16:9.● This function can be memorized separately for SD (Standard definition) and HD ● (High definition) signals.

Lights blue LED while SD Card is inserted (Off / On) (p. 74) Changes the black level in the image for HDMI input mode with DVI input signal

manually (Normal / Full)

When the DVI input signal from the external equipment, especially from PC, is

●

displayed, the black level may not be suitable. In this case, select “Full”. The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal only●

Page 43

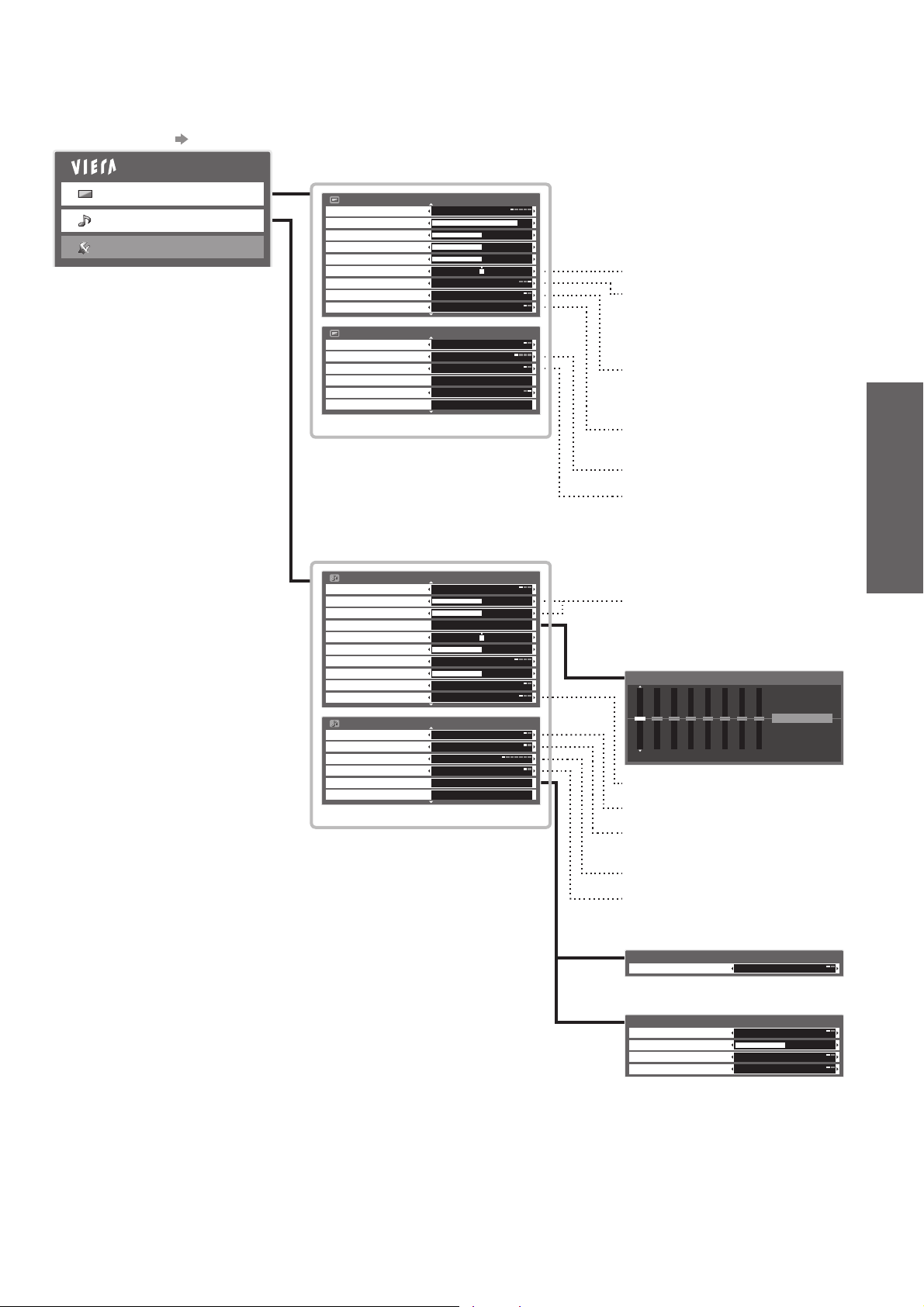

Overview ■ (Picture, Sound)

How to operate ● p. 37

Main Menu


Sound

Setup

Picture Menu

Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour Reversal Film Effect

Picture Menu

C.A.T.S. Off P-NR 3D-COMB Picture in Picture Picture Display Reset to Defaults

Sound Menu

Mode Music Bass Treble Equalizer Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm Preferred Multi Audio

Sound Menu

NICAM Off SPDIF Selection Auto MPEG Optical Level 0 HDMI1 Input Audio Description Reset to Defaults

Warm Off Off

Off Off Access On Reset

Access

OffSurround

English

Digital Access Reset

1/2

2/2

(p. 38)

1/2

2/2

(p. 39)

Available in NTSC

Not available when “Viewing Mode” is set to “THX (True Cinema)” or “Professional1 / 2”

Not available in PC or when “Viewing Mode” is set to “Professional1 / 2”

Available when “Viewing Mode” is set to “Photo”

Not available in PC

Available in NTSC / PAL

Available when “Mode” is set to “Music” or “Speech”

Available when “Mode” is set to “User”

Equalizer

Reset to Defaults

150 250 500 1k 2k 4k 8k 12k Hz

Available in digital

Available in Analogue

Available in digital, Network video contents or Video mode

Available in digital

Available in HDMI

Basic

How to Use Menu Functions ●

Available in freesat or DVB

freesat:

Audio Description Menu

Audio Description Off

(p. 39)

DVB:

Audio Description Menu

Audio Description Off Volume Speakers Off Headphones Off

(p. 39)

Page 44

How to Use Menu Functions

Overview ■ (Setup)

How to operate ● p. 37

Main Menu


Sound

Setup

USB HDD Setup

Device Setup One Touch Recording Rewind LIVE TV On

Other Settings

GUIDE Plus+ Settings Intelligent Frame Creation 24p Smooth Film 3D 24p Film Display Off Resolution Enhancer Off Power on Preference TV Power on Channel List Auto Standby Off Power Save 16:9 Overscan SD Card LED On DVI Input Setting Normal

Access 180 minutes

Access Off Off

Last

Off On

3D Settings

Picture Display 3D Signal Format Auto

2D→3D Depth Mid Picture Sequence Normal Edge Smoother Off Safety Precautions Access

3D Settings Access Timer Programming Access Off Timer Off USB HDD Setup Access Link Settings Child Lock freesat Tuning Menu Access

(p. 70)

DVB Tuning Menu Analogue Tuning Menu Other Sat. Tuning Menu Access Display Settings

Network Setup Access DivX® VOD Access Advance(isfccc) Off System Menu Other Settings

(p. 42)

Available in HDMI with DVI input signal

Guide Plus+ Settings Menu

Postcode System Information

Enter Postcode

Postcode

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

Setup Menu

Access Access

Access

Setup Menu

Access Access

Available in DVB or Other Sat.

Access Access

(p. 34)

(p. 40 - 42)

(p. 42)

O P Q R S T 7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

(p. 42)

1/2

2/2

Timer Programming USB HDD Remaining Capacity 500GB (50%) Wed 28.10.2009 10:46

No.

Function Channel Name

72 Wed 28 Oct 20:00 21:30

Ext Rec.

BBC 2W <TIMER>

Reminder

14 E4

The Bill

1 BBC ONE

Ext Rec.

DIY SOS

BBC ONE

Ext Rec.

<TIMER>

---

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

Date Start End

Wed 28 Oct 21:00 22:00

Guide

Wed 28 Oct 22:45 23:00

S/P

Thu 29 Oct 10:3 0 11 :30

STTL

--/-- --:-- --:--

Available in freesat

freesat Tuning Menu

Favourites Edit Access Channel List Auto Setup Access Signal Condition

Access

(p. 46 and p. 48)

Available in DVB

DVB Tuning Menu

Favourites Edit Access Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access Access Access Access Access On Access

(p. 47 and p. 50)

DVB Update Channel List

Progress CH 21 68

Analogue Scan 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Searching

Available in Analogue

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

Access Access Access

(p. 47 and p. 52)

(90 min.)

(60 min.)

(15 min.)

(60 min.)

(--- min.)

(p. 58)

(p. 60)

(p. 52)

Display Settings

Teletext Preferred Subtitles Side Panel Input Labels Banner Display Timeout Playing Time Display Radio Mode Off

FASTEXT English Off Access 3 seconds On

(p. 41)

Available in Analogue

Available in freesat, DVB or Other Sat.

Input Labels

AV1 DVD AV2/S AV3 COMPONENT PC PC HDMI1 HDMI2 HDMI3 HDMI4 HDMI4

Input Labels

freesat freesat DVB DVB Analogue Analogue Other Sat. Other Sat.

AV2/S AV3 COMPONENT

HDMI1 HDMI2 HDMI3

1/2

2/2

(p. 62)

Available in Other Sat.

Other Satellite Tuning Menu

Favourites Edit Access Channel List Auto Setup Manual Tuning Add New Channels Signal Condition

System Menu

USB Keyboard Layout English(UK) Shipping Condition Access Owner ID Access Common Interface Access System Update Software Licence System Information

Access Access Access Access Access

Access Access Access

(p. 54)

(p. 42)

Page 45

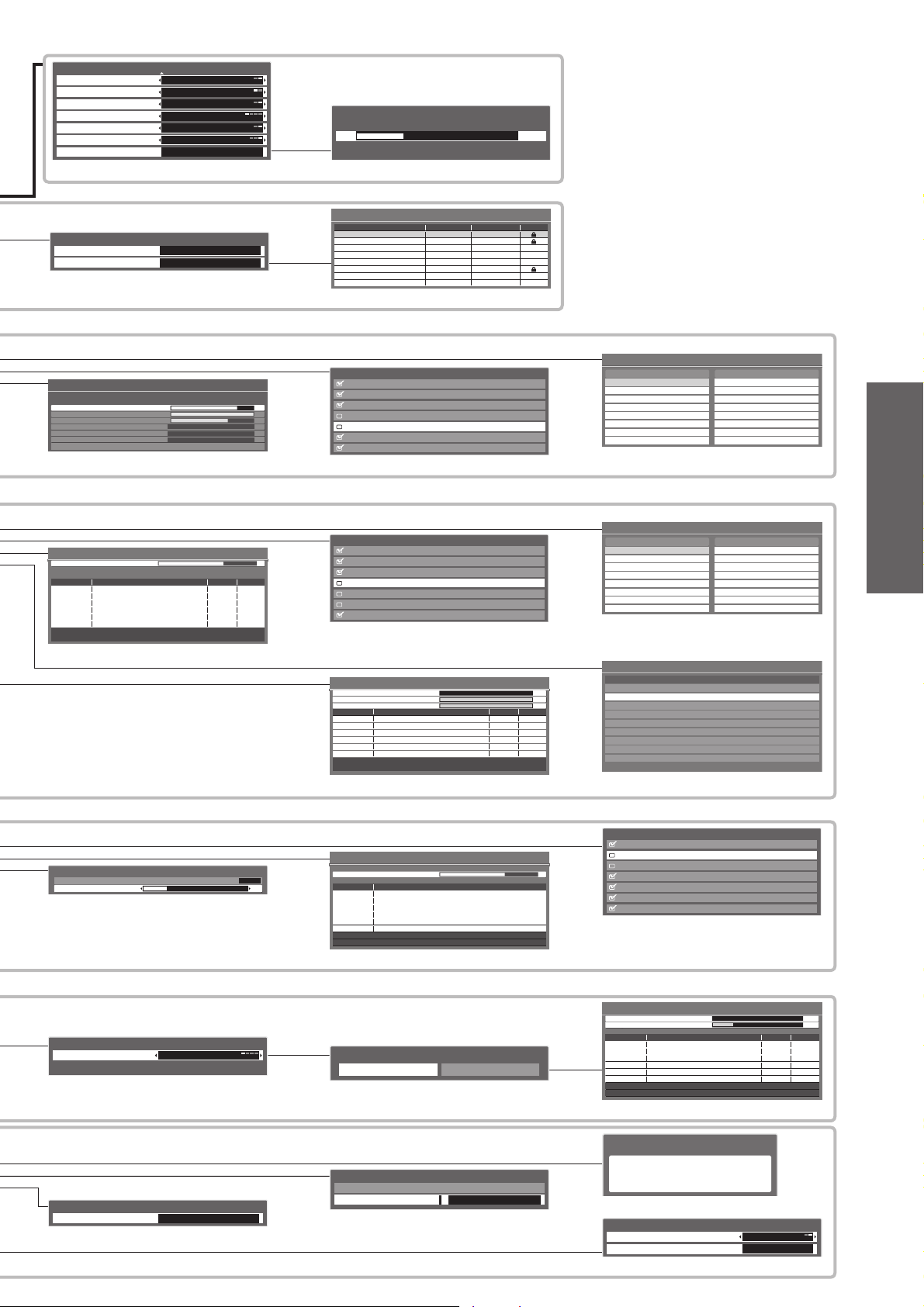

Link Settings

VIERA Link On HDMI Content Detection Off Q-Link AV2 out Standby Power Save Intelligent Auto Standby Q-Link Download

Child Lock

Change PIN Access Child Lock List Access

AV2 TV On On (No reminder) Access

1/2

(p. 40)

(p. 60)

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

(p. 40)

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales Free TV

BBC THREE DVB LockFree TV

E4 DVB LockFree TV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue

***** Analogue LockAnalogue AV1 External LockAV AV2/ S

DVB

External LockAV

(p. 60)

freesat Auto Setup

Searching

Signal Quality 0 10 Signal Strength 0 10 TV Channels Found 8 Radio Channels Found 2 Data Channels Found 1

Channels found, creating channel list

(p. 46)

DVB Auto Setup

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0 Data: 0

Searching

(p. 47)

freesat Channel List

BBC 1 Scotland

101

BBC 2 Scotland

102

stv

103

stv

104

BBC THREE

108

BBC FOUR

109

BBC HD

110

freesat Favourites Editor

101

(p. 49)

All DVB Channels

CBBC Channel

Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

BBC THREE

DVB Favourites Editor

(p. 51)

Channel Sorting by Region

DVB Manual Tuning

Frequency Signal Quality 0 10

Analogue Scan 21 68 Signal Strength 010

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

474[CH21]

MHz

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

(p. 50)

All freesat Channels

BBC 1 Wales

BBC 2 Wales102

ITV1 WALES103

BBC THREE108

BBC FOUR109

BBC HD110

ITV211 2

ITV2+1113

All DVB Channels

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites

Favourites1

(p. 49)

(p. 51)

(p. 50)

Basic

How to Use Menu Functions ●

Analogue Manual Tuning

1 BBC1 CH33

Manual Tuning 21 68

(p. 52)

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

(p. 55)

Available in DVB or Other Sat.

Common Interface

Slot 1:

Module inserted

(p. 64)

Analogue Auto Setup

Scan CH 21 68

This will take about 3 minutes.

CH Channel Name

29 30

Analogue: 2

Searching

(p. 47)

Search Mode

Free Channels All Channels

(p. 55)

Owner ID

Please enter PIN for access

PIN * * * *

(p. 63)

Analogue Channel List

BBC1

*****

3 4 5 6 7

(p. 52)

Other Satellite Auto Setup

Satellite Progress 0% 100%

Analogue Scan 21 68

This may take up to 20 minutes.

No. Channel Name Type Quality

1 BBC 1 East (W) Free TV 10 2 BBC 1 Cl Free TV 10 3 BBC HD Free TV 10 4 6945 Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0

Astra 2/Eurobird

Searching

(p. 55)

Shipping Condition

All tuning data will be erased

Are you sure? Are you sure?

(p. 57)

System Update

Auto Update Search in Standby System Update Search Now Access

(p. 65)

Page 46

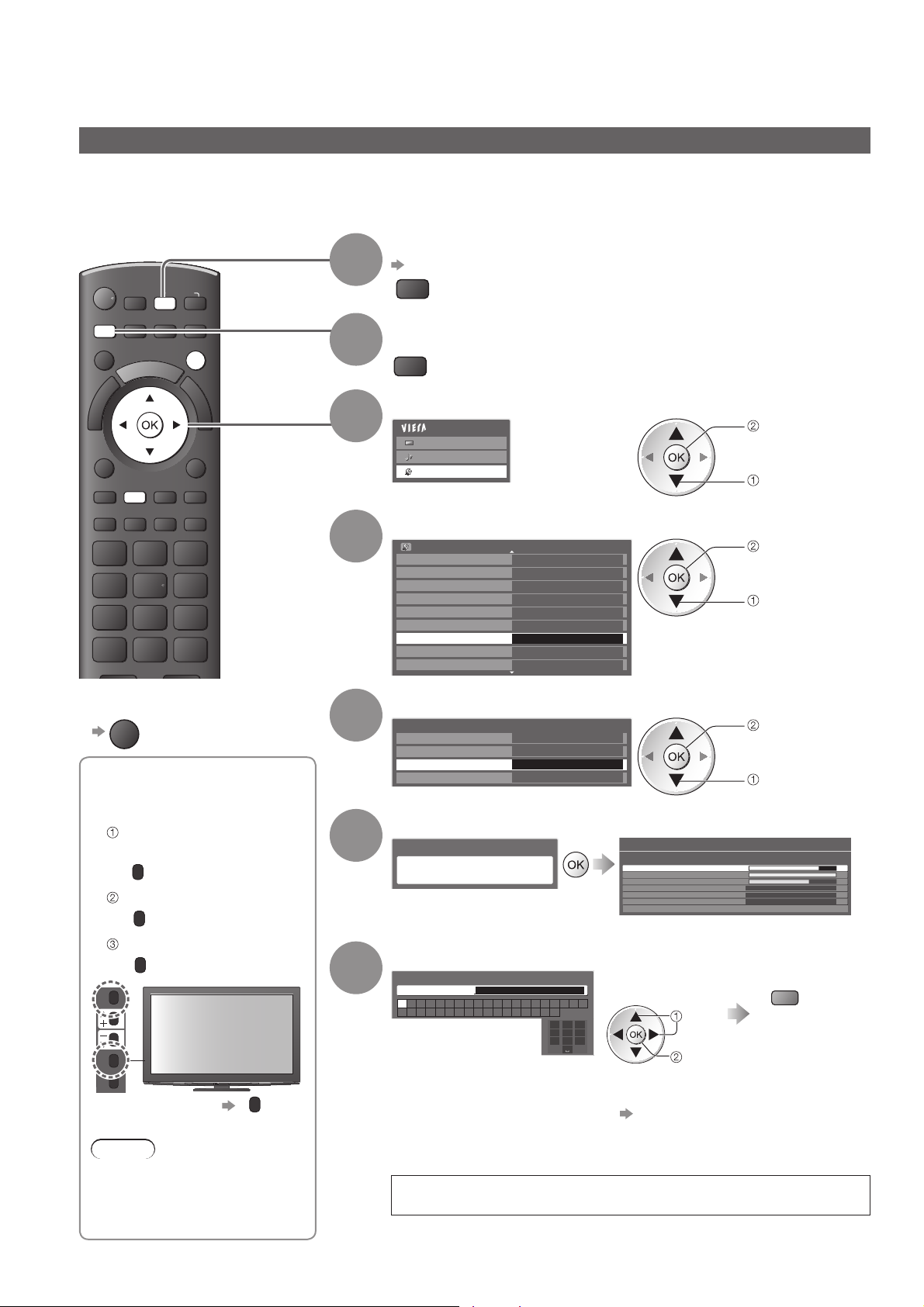

Retuning from Setup Menu

Auto Setup retunes all channels automatically.

freesat channels

Automatically retune all the freesat channels received in the area.

Only freesat channels are retuned.

●

All the previous tuning settings (Favourites Edit and Channel List, etc.) are erased.● If a Child Lock PIN number (p. 60) has been set, it must be entered.●

Select freesat

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

ASPECT

OPTION

INPUT

DIRECT TV REC

EXIT

BACK/

RETURN

TEXT STTL

INDEX HOLD

To return to TV■

EXIT

For Auto Setup, using ■ the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Start “Auto Setup”

To return to TV ●

Note

You cannot set the postcode ● in this operation. The previous postcode setting is not erased.

Select “freesat Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

freesat Tuning Menu

Other Sat. Tuning Menu Display Settings

1/2

Access

access

select

Select “Auto Setup”

freesat Tuning Menu

Favourites Edit Channel List

Auto Setup Access

Signal Condition

access

select

Start Auto Setup

freesat Auto Setup

All freesat tuning data will be erased

freesat Auto Setup

Searching

Signal Quality 0 10 Signal Strength 0 10 TV Channels Found 8 Radio Channels Found 2 Data Channels Found 1

Channels found, creating channel list

Settings are made automatically

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

O P Q R S T

7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Your postcode is required to receive local services and sort the channel order. Please ensure to include a space when entering your

Set characters one by one

select

set

You can set characters by using ● numeric buttons.

“Characters table for numeric

buttons” (p. 103)

postcode.

When the operation is completed, the channel at the lowest position will be displayed.

Store

green

Page 47

DVB or Analogue channels

Automatically retune all DVB or Analogue channels received in the area.

Only DVB channels are retuned in DVB mode.● Only Analogue channels are retuned in Analogue mode.● All the previous tuning settings (Channel List, etc.) are erased.● If a Child Lock PIN number (p. 60) has been set, it must be entered.●

Select DVB or Analogue

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

ASPECT

OPTION

INPUT

DIRECT TV REC

EXIT

BACK/

RETURN

access

select

Retuning from Setup Menu ●

TEXT STTL

INDEX HOLD

REC

PROGRAMME

To return to TV■

EXIT

For Auto Setup, using ■ the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Start “Auto Setup”

To return to TV ●

Note

If tuning has not been done ● completely

“Manual Tuning”

(p. 50 and p. 53)

Select “DVB Tuning Menu” or “Analogue Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

DVB Tuning Menu Analogue Tuning Menu

Display Settings

Access Access

1/2

“DVB Tuning Menu” is available ● in DVB mode only. “Analogue Tuning Menu” is ● available in Analogue mode only.

access

select

Select “Auto Setup”

DVB:

DVB Tuning Menu

Favourites Edit Channel List

Auto Setup Access

Channel Sorting by Region Manual Tuning Update Channel List

OnNew Channel Message

Signal Condition

Analogue:

Analogue Tuning Menu

Channel List

Auto Setup Access

Manual Tuning

access

select

Start Auto Setup

DVB:

DVB Auto Setup

All DVB tuning data will be erased

Analogue:

Analogue Auto Setup

All analogue tuning data will be erased

The analogue settings are downloaded to a Q-Link compatible ● equipment connected to the TV in Analogue mode.

When the operation is completed, the channel at channel position “1” will be displayed.

DVB Auto Setup

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0 Data: 0

Analogue Auto Setup

Scan CH 21 68

This will take about 3 minutes.

CH Channel Name

29 30

Analogue: 2

Searching

Settings are made automatically

Advanced

Page 48

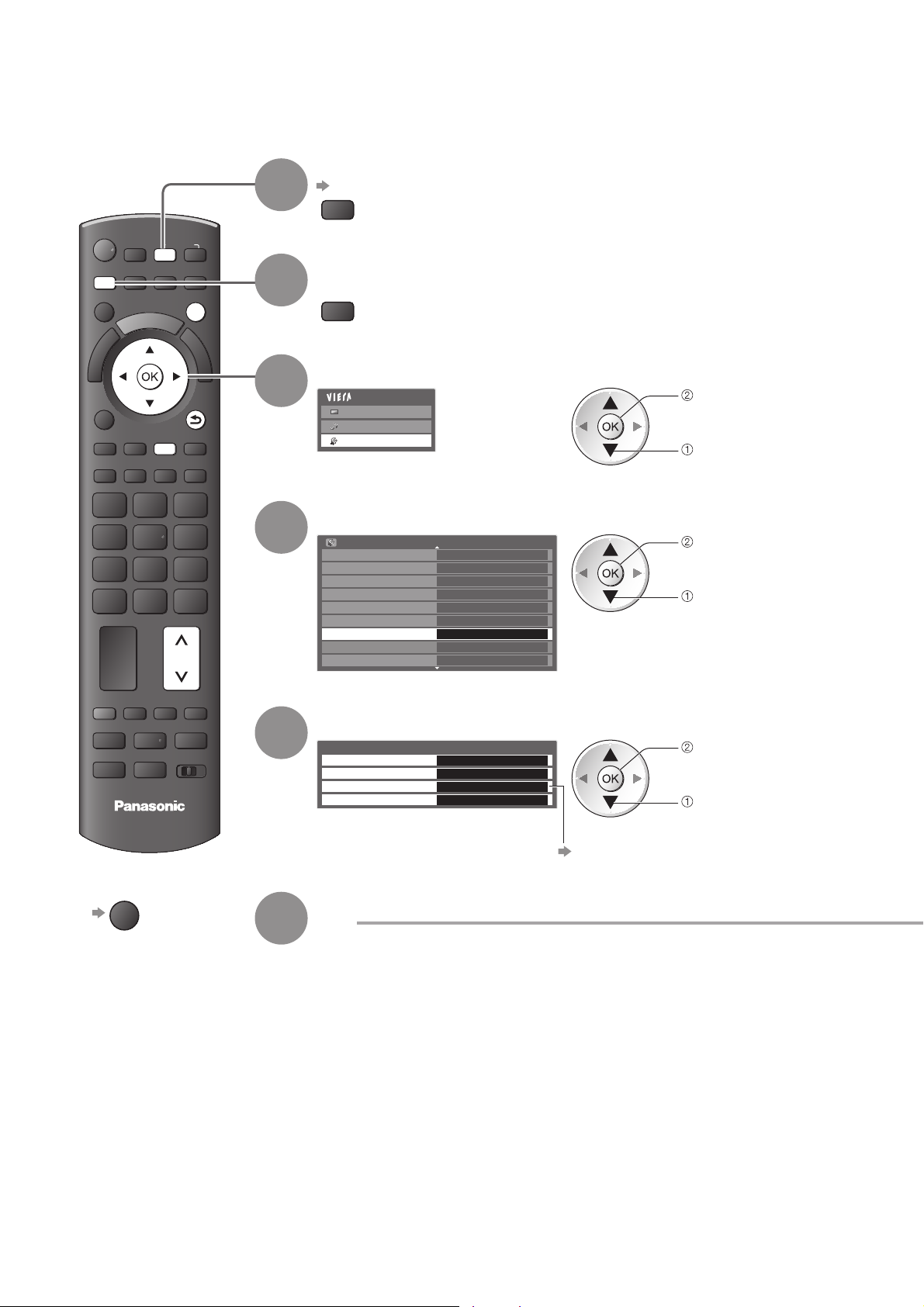

Tuning and Editing Channels

(freesat)

You can retune channels or make your favourite channel list, skip unwanted channels, etc.

Select freesat

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “freesat Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

freesat Tuning Menu

Other Sat. Tuning Menu Display Settings

Access

1/2

access

select

access

select

INPUT

EXIT

BACK/

RETURN

To return to TV■

EXIT

Select one of the following functions

freesat Tuning Menu

Favourites Edit Access Channel List Auto Setup Access Signal Condition

Access

“Retuning from Setup Menu” (p. 46)

Set

access

select

Page 49

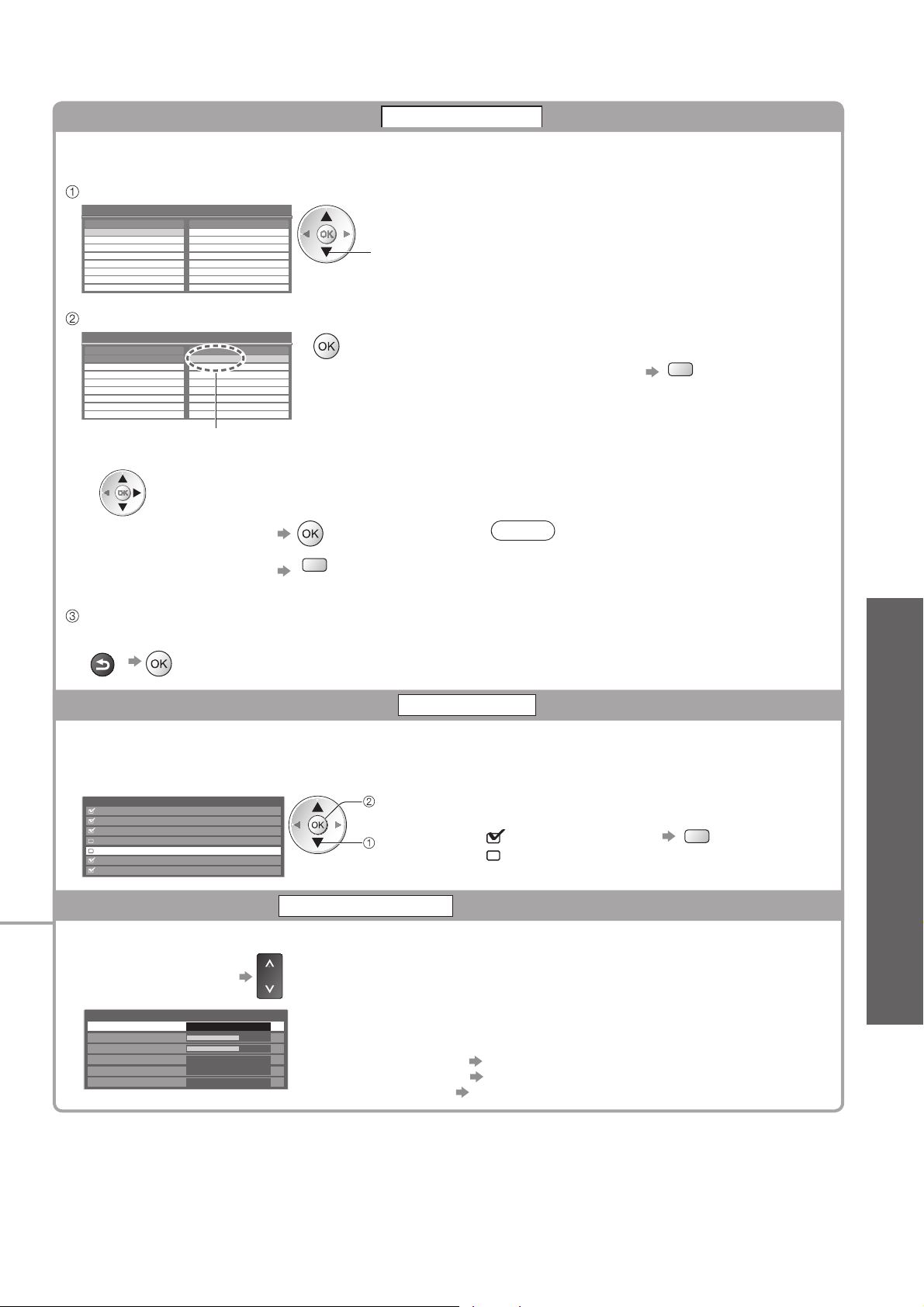

List favourite freesat channels

Favourites Edit

Create your favourite channel list from various broadcasters. The freesat Favourites list is available from “Channel Genre” in the TV Guide (p. 20).

Select a channel to list

freesat Favourites Editor

All freesat Channels

BBC 1 Wales

101

BBC 2 Wales102

ITV1 WALES103

BBC THREE108

BBC FOUR109

BBC HD110

ITV2112

ITV2+1113

Favourites

select

Add it to the Favourites list

freesat Favourites Editor

All freesat Channels

BBC 1 Wales

101

BBC 2 Wales102

ITV1 WALES103

BBC THREE108

BBC FOUR109

BBC HD110

ITV2112

ITV2+1113

A channel is added

Favourites

BBC 1 Wales101

To add all channels to the list ●

yellow

To edit Favourites list■

Select the field of Favourites to edit and:

To delete the channel●

Note

Channel position numbers (known as logical ●

To delete all channels●

yellow

channel numbers) cannot be changed, due to broadcast restrictions.

Store

BACK/

RETURN

Skip unwanted freesat channels

Channel List

You can hide unwanted freesat channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

freesat Channel List

BBC 1 Scotland

101

BBC 2 Scotland

102

stv

103

stv

104

BBC THREE

108

BBC FOUR

109

BBC HD

110

reveal / hide

select

: reveal : hide (skip)

●

To reveal all channels

yellow

Tuning and Editing Channels ●

Advanced

Check freesat signal

Signal Condition

Selects a channel and checks the freesat signal condition.

To change the channel ●

freesat Signal Condition

Channel Name 101 BBC 1 Wales

Signal Quality

Bit Error Rate Satellite Parameter

0 0Signal Strength

0.00E+00 Astra 28.2° E 10847MHz, V, 22000kS/s

10 10

A good Signal Strength is not an indication of best signal for freesat reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

● Good

Yellow bar

● Poor

Red bar

● Bad (Check the Satellite dish)

Page 50

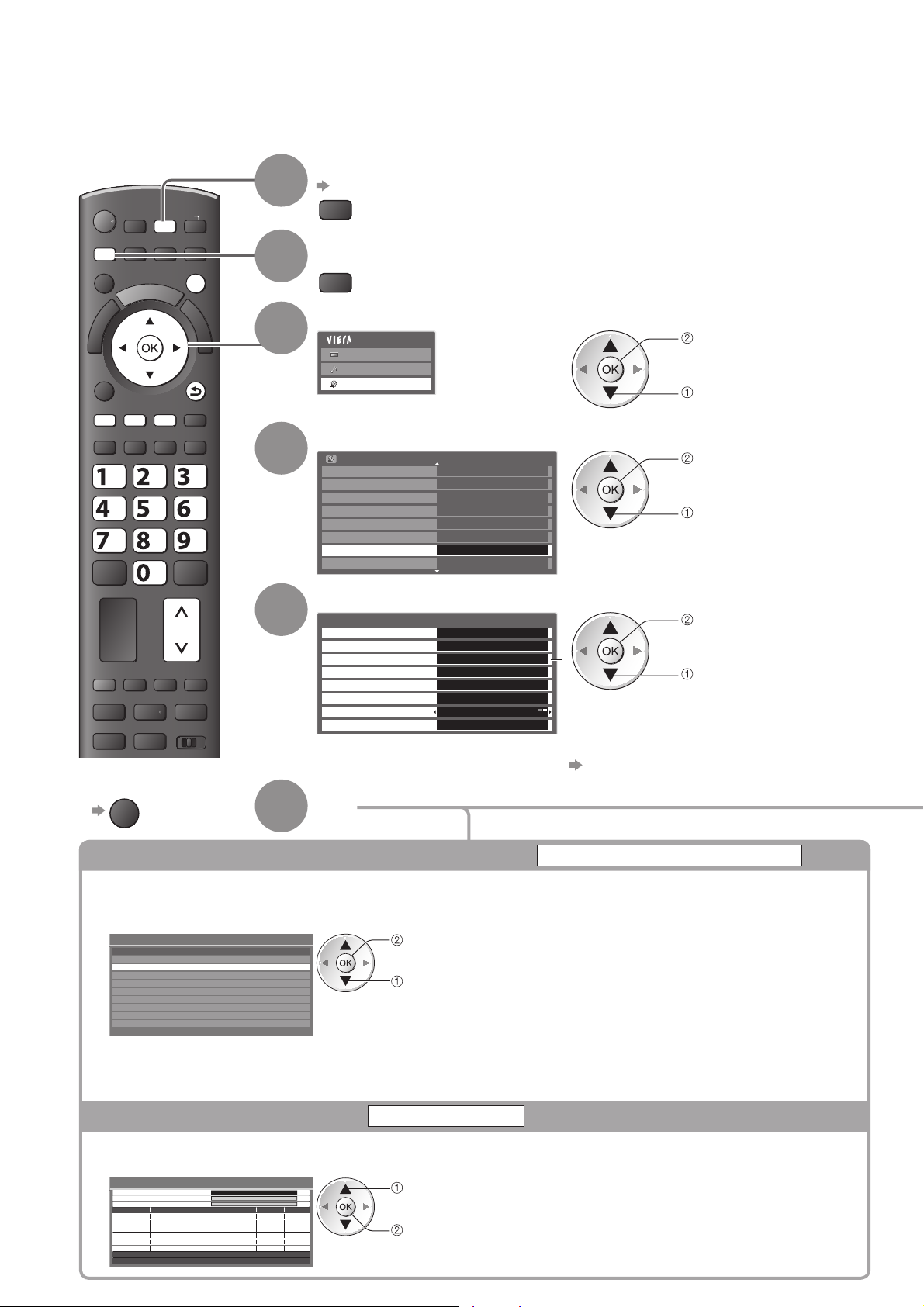

Tuning and Editing Channels

(DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “DVB Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

DVB Tuning Menu

Display Settings

Access

1/2

access

select

access

select

ghi

INPUT

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

Select one of the following functions

DVB Tuning Menu

Favourites Edit Access Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access Access Access Access Access On Access

Auto Setup ●

To return to TV

■

“Retuning from Setup Menu” (p. 47)

EXIT

Sort DVB channels according to the region

Set

Channel Sorting by Region

You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear nearer the top of your Channel List. Normally, you should select “Best signal quality (All Regions)”.

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

access

select region

(select repeatedly until you reach the available region)

Region choice available

If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the

●

top of your Channel List. If you have any image or sound problems, select “Best signal quality (All Regions)” instead.

access

select

Set DVB channel manually

Manual Tuning

Normally use “Auto Setup” or “Update Channel List” to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

DVB Manual Tuning

Frequency Signal Quality 0 10

Analogue Scan 21 68 Signal Strength 010

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

474[CH21]

MHz

select frequency

All channels found will be added to the Channel List.●

Page 51

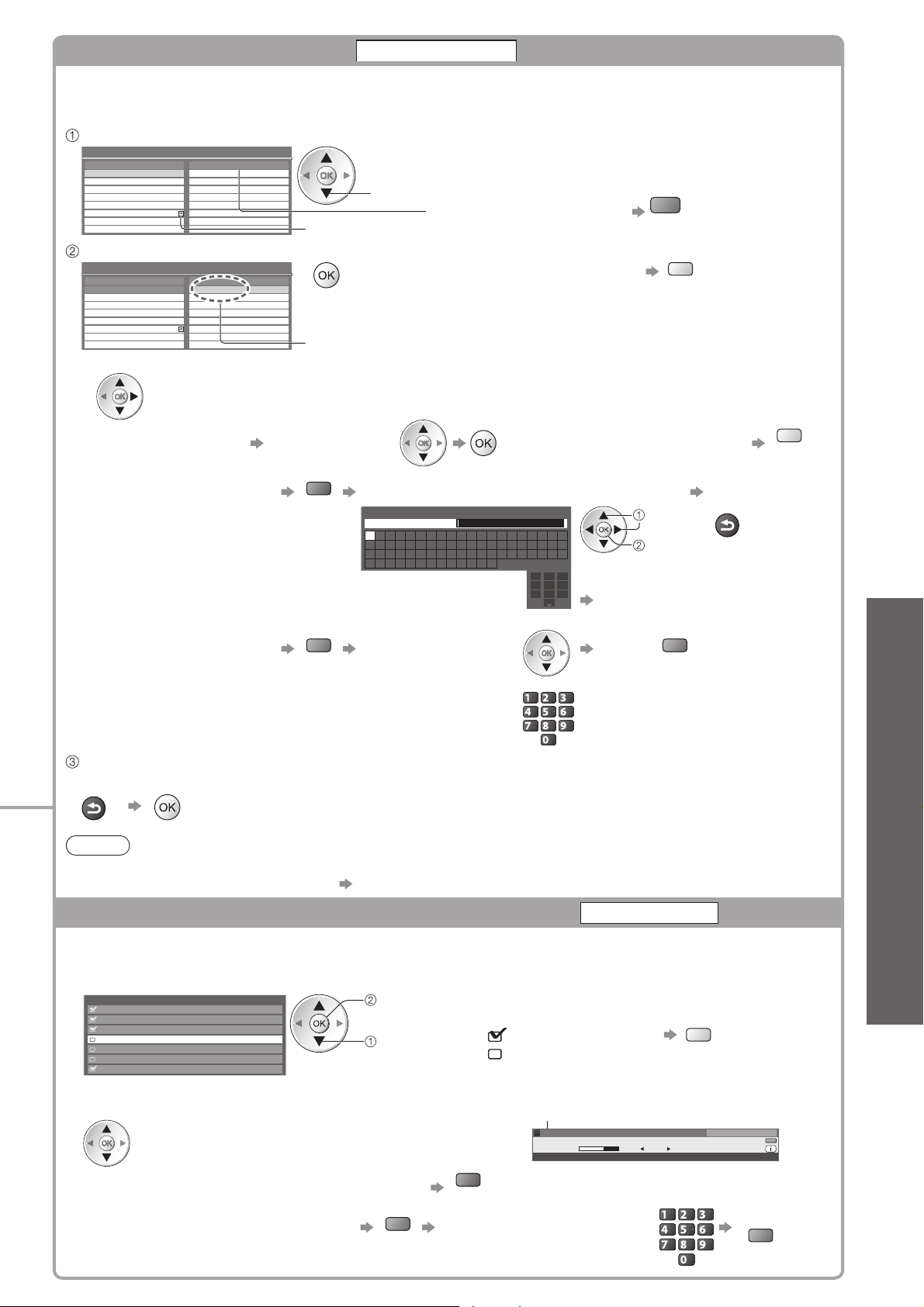

List favourite DVB channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4). The DVB Favourites lists are available for switching in the Information banner (p. 17) and from “Category” in the TV Guide (p. 21).

Select a channel to list

DVB Favourites Editor

All DVB Channels

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

select

Encrypted channel

To display other Favourites ●

green

Add it to the Favourites list

DVB Favourites Editor

All DVB Channels

BBC One Wales

1 BBC One Wales1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

A channel is added

To add all channels to the list ●

yellow

To edit Favourites list■

Select the field of Favourites to edit and:

Tuning and Editing Channels ●

To delete a channel● Select the channel To delete all channels●

Set characters one by one Store

To name the Favourites●

To move the channel●

red

green

(maximum: ten characters)

User input

Name

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

Select the new position Confirm

Select the turn

Store

BACK/

RETURN

Note

Channel position numbers (known as logical channel numbers) can be swapped in Channel List. ● To swap the channel position number “Channel List” (below)

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

abc def

jkl

ghi

tuvpqrs

BACK/

select

RETURN

set

You can set characters by using numeric buttons.

“Characters table for numeric

buttons” (p. 103)

green

mno

wxyz

yellow

Advanced

Skip unwanted DVB channels, Edit DVB Channels

Channel List

You can hide unwanted DVB channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB Channels

CBBC Channel

Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

BBC THREE

reveal / hide

select

: reveal : hide (skip)

To reveal all channels●

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

To retune each channel - Manual Tuning (p. 50)● (only for the revealed channels)

To swap the channel position number ● (logical channel number)

green

red

Enter the new position number

Channel position number

1 BBC ONE Wales

Coronation Street 19:30 - 20:00

Radio

19:35

Now

abc def

jkl

ghi

tuvpqrs

All DVB Channels

Select favourites

For info press

mno

wxyz

Store

green

Page 52

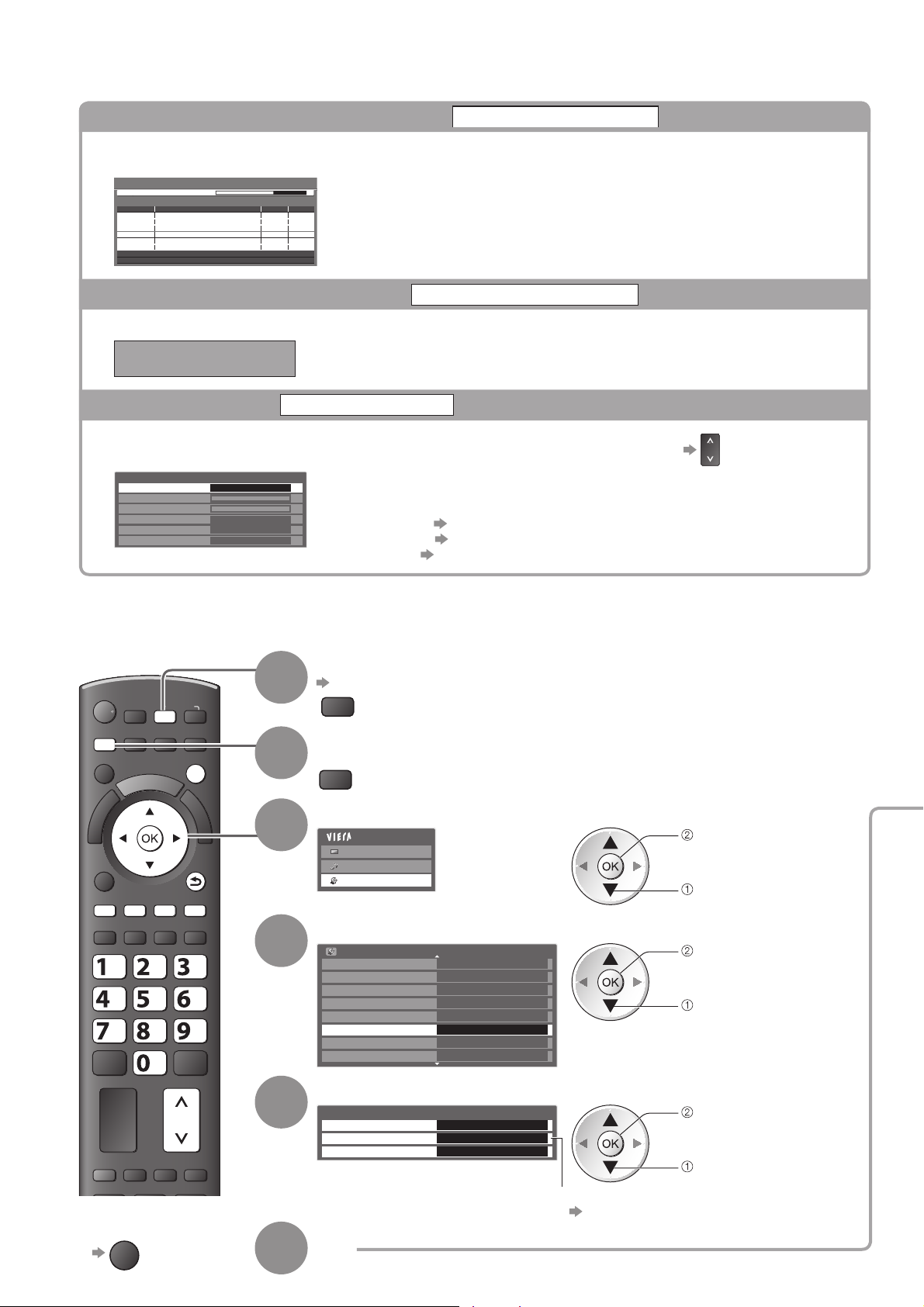

Tuning and Editing Channels

Update DVB channel automatically

Update Channel List

You can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB Update Channel List

Progress CH 21 68

Analogue Scan 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Searching

Display a notification message

Channel List is updated while keeping your settings in Favourites Edit, ● Channel List, Child Lock, Timer Programming, etc.

New Channel Message

Selects whether to give a notification message when a new DVB channel is found. (Off / On)

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Check DVB signal

Signal Condition

Selects a channel and checks the DVB signal condition.

DVB Signal Condition

Channel Name 70 CBBC Channel

Signal Quality Signal Strength Bit Error Rate 0.00E+00 Network Name Parameter [CH62] 802 MHz

0 10 010

Wenvoe

Selecting OK will perform “Update Channel List”.●

To change the channel ●

A good Signal Strength is not an indication of best signal for DVB reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

● Good

Yellow bar

● Poor

Red bar

● Bad (Check the Terrestrial aerial)

(Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Analogue Tuning Menu”

Setup Menu

Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

Analogue Tuning Menu

Display Settings Network Setup

Access

1/2

ghi

INPUT

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

access

select

access

select

■

To return to TV

EXIT

Select one of the following functions

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

Access Access Access

Auto Setup ●

“Retuning from Setup Menu” (p. 47)

Set

access

select

Page 53

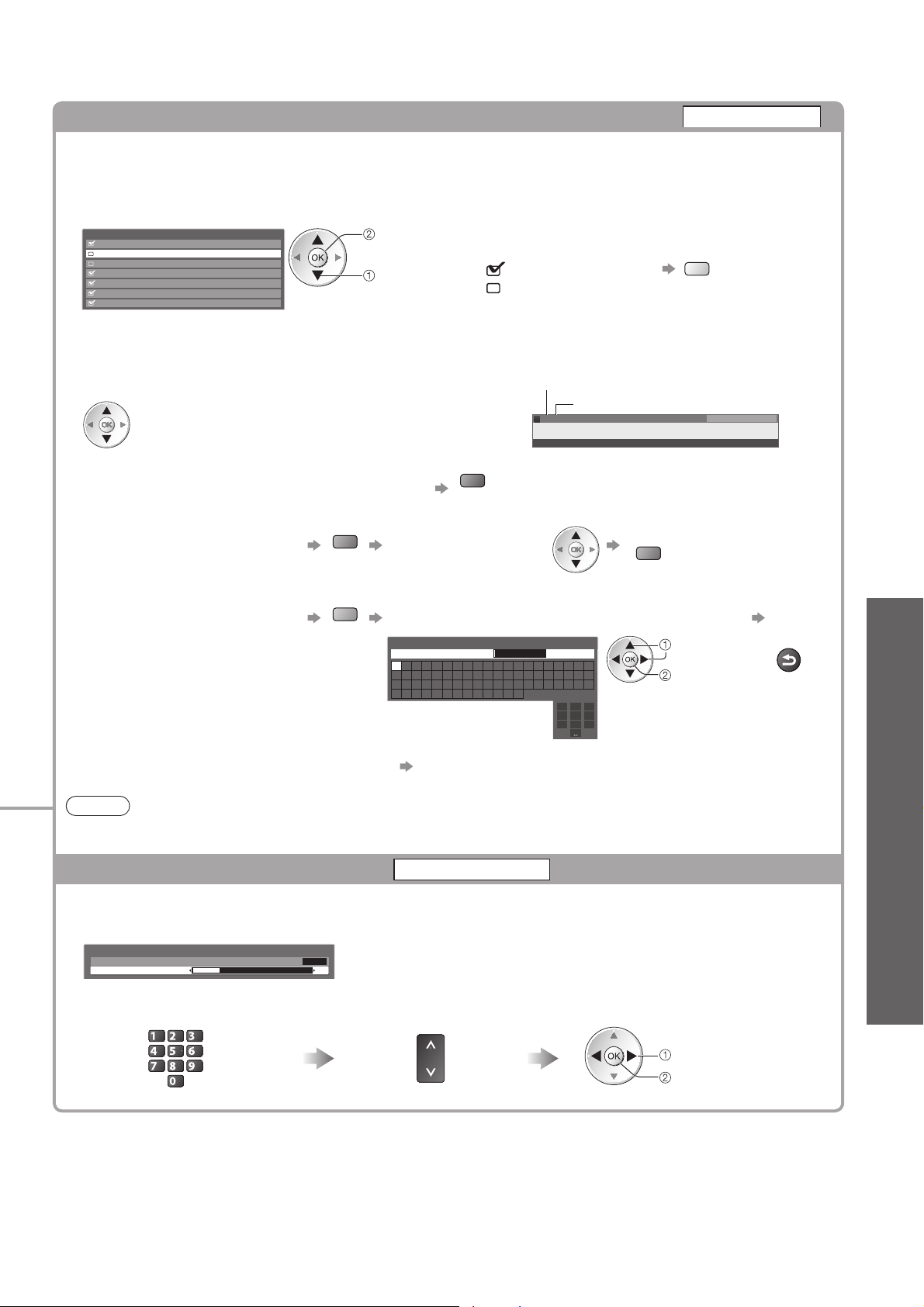

Skip unwanted Analogue channels, Edit Analogue channels

Channel List

You can hide unwanted Analogue channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

BBC1

*****

3 4 5 6 7

reveal / hide

select

: reveal : hide (skip)

To reveal all channels●

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

Channel position

Channel name

3 ITV

itv CH23

Mute Encrypted

Radio

23:35

SubtitlesAD TXT

All Analogue Channels

For info press

45Multi Audio

Tuning and Editing Channels ●

To retune each channel - Manual Tuning (below)●

To move the channel position●

To rename the channel name●

green

blue

Note

If a VCR is connected only with the RF cable, edit “VCR”.●

Set Analogue channel manually

Set Analogue channel manually after Auto Setup.

If a VCR is connected only with the RF cable, it is recommended to select channel position “0”.●

Analogue Manual Tuning

1 BBC1 CH33

Manual Tuning 21 68

red

Select the new position

Store

green

Set characters one by one (maximum: five characters)

Edit channel name

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Manual Tuning

Store

BACK/

RETURN

Advanced

Select the channel position Select the channel Search and store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

store

Page 54

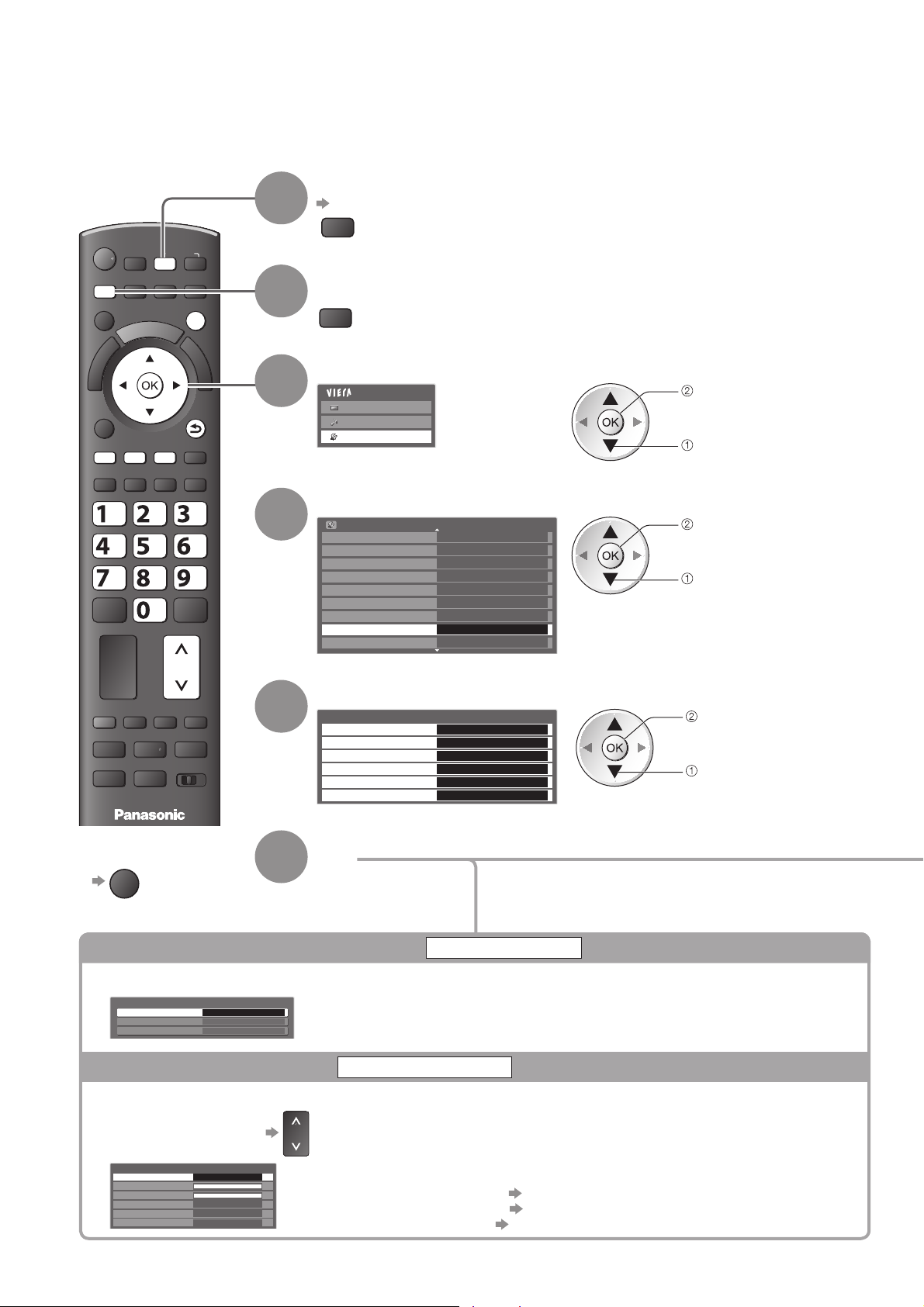

Tuning and Editing Channels

(Other Sat.)

You can tune all receivable digital satellite channels or skip unwanted channels, etc.

Some of Other Sat. functions may work to differing specifications (depending on the broadcasters).●

Select freesat or Other Sat.

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

INPUT

EXIT

BACK/

RETURN

Select “Other Sat. Tuning Menu”

ghi

abc def

jkl

mno

tuvpqrs

wxyz

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock freesat Tuning Menu

Other Sat. Tuning Menu

Display Settings

Select one of the following functions

Other Satellite Tuning Menu

Favourites Edit Access Channel List Auto Setup Manual Tuning Add New Channels Signal Condition

Set

To return to TV■

EXIT

Set Other Sat. channel manually

1/2

Access

Access Access Access Access Access

Manual Tuning

access

select

access

select

Normally use “Auto Setup” or “Add New Channels” to tune Other Sat. channels.

Other Satellite Manual Tuning

Transponder Frequency 10773

Polarisation Horizontal Symbol Rate (Ksym/s) Auto

Check Other Sat. signal

Set tuning parameters for the required satellite, details can usually be found in ● a satellite TV magazine.

Signal Condition

Selects a channel and checks the Other Sat. signal condition.

To change the channel ●

Other Satellite Signal Condition

Channel Name 1 BBC 1 East (W)

Signal Quality

Bit Error Rate Satellite Parameter

0 0Signal Strength

0.00E+00 Astra 28.2° E 10847MHz, V, 22000kS/s

10 10

A good Signal Strength is not an indication of best signal for Other Sat. reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

● Good

Yellow bar

● Poor

Red bar

● Bad (Check the Satellite dish)

Page 55

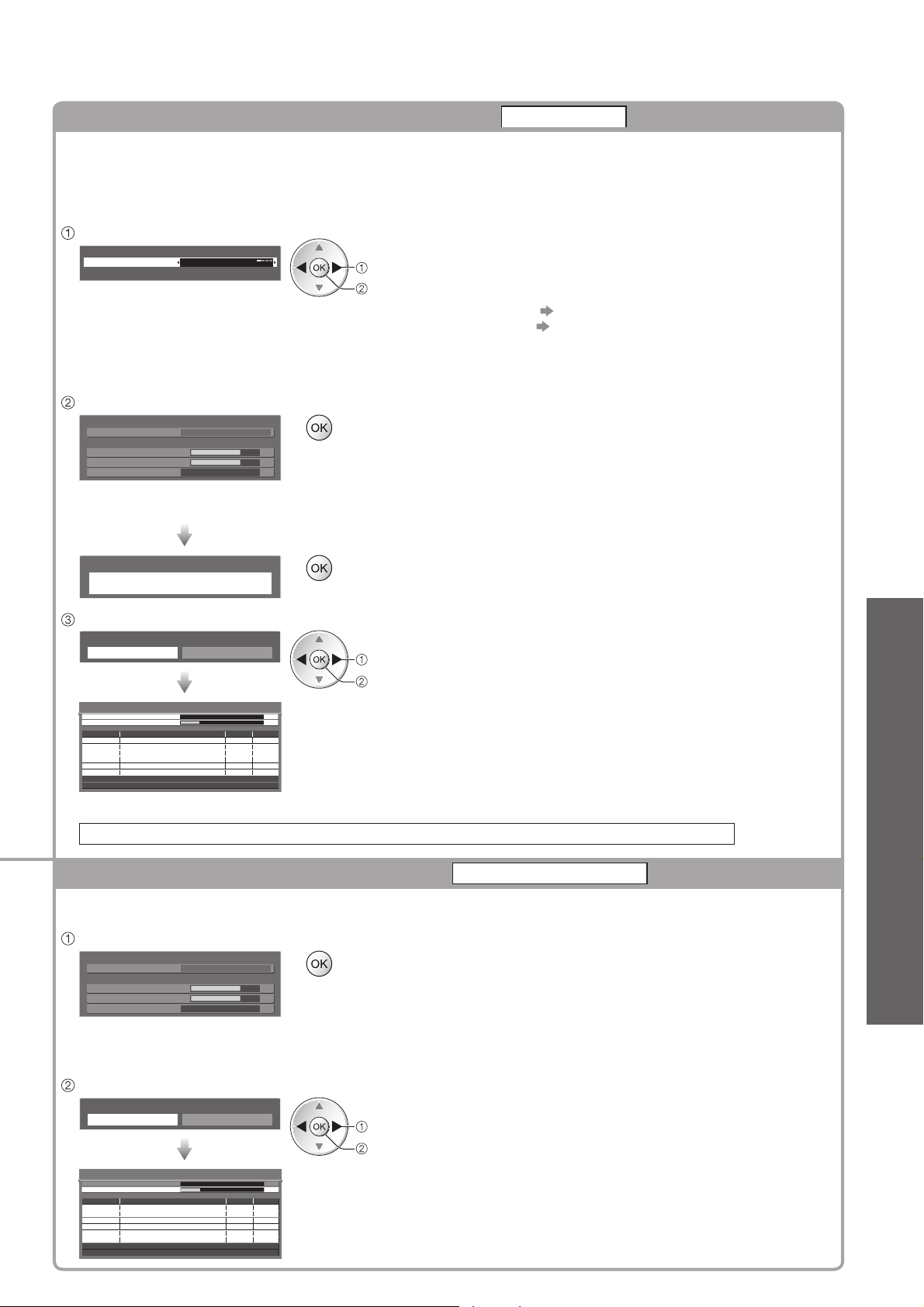

Set all receivable digital satellite channels

Any receivable digital compliant satellite channels can be tuned.

Only Other Sat. channels are retuned.

●

All the previous tuning settings are erased.● If a Child Lock PIN number (p. 60) has been set, it must be entered.●

Auto Setup

Select the satellite

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

select set

Check the signal condition and the message

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

Signal Quality

Signal Strength 0

Signal Lock

Locked

If you select “Any Satellite”, this step is skipped.

Other Satellite Auto Setup

All Other Satellite tuning data will be erased

Set the search mode and start Auto Setup

Search Mode

Free Channels All Channels

Other Satellite Auto Setup

Satellite Progress 0% 100%

Analogue Scan 21 68

This may take up to 20 minutes.

No. Channel Name Type Quality

1 BBC 1 East (W) Free TV 10 2 BBC 1 Cl Free TV 10 3 BBC HD Free TV 10 4 6945 Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0

Astra 2/Eurobird

Searching

Settings are made automatically

set

start

Selectable satellites are Astra2/Eurobird, Astra1 and ● Hotbird. Check the dish alignment for the satellite you want to select

Astra2/Eurobird • p. 10 Astra1, Hotbird • Please consult the received satellite

broadcasting companies.

If you want to tune from all available satellites, select “Any ● Satellite”.

It takes a while to check the connection for your selected ● satellite. Ensure that the Signal Lock status is shown as “Locked”. ● If it is not locked, the search cannot be executed. If the status is shown as “Not locked” and Signal Quality / ● Signal Strength have no indications, please check the dish alignment. If the status is shown as “Not locked” but there are some levels of Signal Quality / Signal Strength indicated, select “Any Satellite” in Satellite Selection and try again.

If you select “Astra2/Eurobird” or “Any Satellite”, freesat ● channels will also be searched. But the channels which have already been tuned in freesat will not be duplicated.

Tuning and Editing Channels ●

Advanced

When the operation is completed, the channel at channel position “1” will be displayed.

Add Other Sat. channel automatically

Add New Channels

You can add any new channels found automatically to Channel List.

Check the signal condition

Other Satellite Add New Channels - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

Signal Quality

Signal Strength 0

Signal Lock

Locked

If you selected “Any Satellite” in Auto Setup, this step is skipped.

Set the search mode and start Add New Channels

Search Mode

Free Channels All Channels

Other Satellite Add New Channels

Satellite

Progress 0% 100%

Analogue Scan 21

This may take up to 20 minutes.

No. Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0

Astra2/Eurobird

Searching

68 68

set

start

New channels can only be added to the existing Channel ● List from the same satellite.

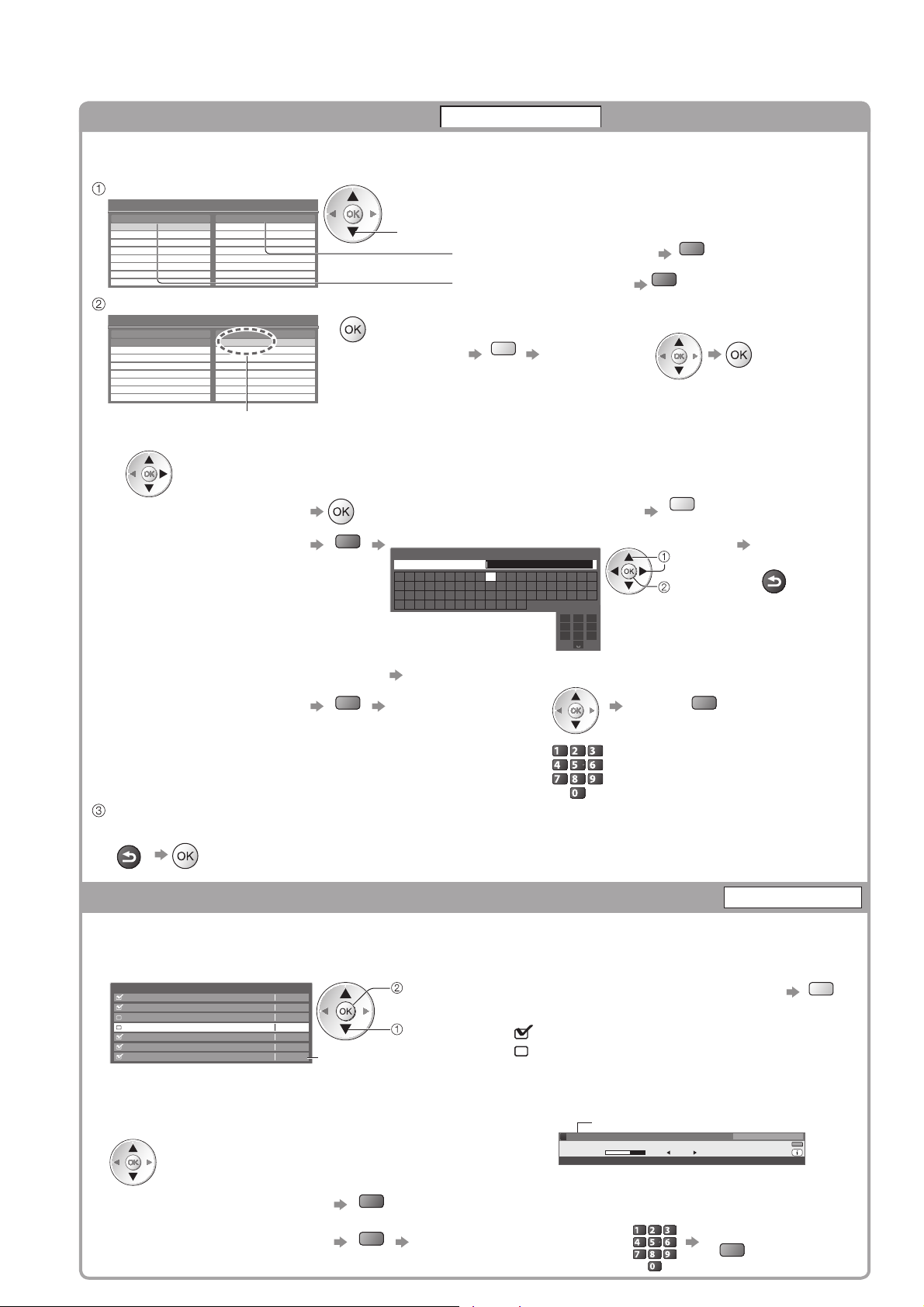

Page 56

Tuning and Editing Channels

List favourite Other Sat. channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4). The Other Sat. Favourites lists are available for switching in the Information banner (p. 17).

Select a channel to list

Other Sat. Favourites Editor

All Other Sat. Channels

BBC One Wales

BBC THREE2

E43

CBBC Channel4

Cartoon Nwk5

BBCi6

BBC Radio Wales7

BBC Radio Cymru8

Favourites1

select

To display other Favourites ● To change the category ●

red

green

Add it to the Favourites list

Other Sat. Favourites Editor

All Other Sat. Channels

BBC One Wales

BBC THREE

CBBC Channel

Cartoon Nwk

BBCi

BBC Radio Wales

BBC Radio Cymru

Favourites1

BBC One Wales1

A channel is added

To add continuous block of channels to the list at once ●

yellow

Make the block

To edit Favourites list■

Select the field of Favourites to edit and:

To delete the channel● To delete all channels●

To name the Favourites●

red

Set characters one by one Store

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 103)

O P Q R S T

7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

yellow

select

set

BACK/

RETURN

To move the channel●

green

Select the new position Confirm

Select the turn

abc def

jkl

ghi

mno

tuvpqrs

wxyz

green

Store

BACK/

RETURN

Skip unwanted Other Sat. channels, Edit Other Sat. Channels

Channel List

You can hide unwanted Other Sat. channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Other Sat. Channel List

freesatHome

freesatSSU

Brit Shorts

HINRG LOWNRG

WELL Class

GROOVE

Free TV Free TV Free TV

Free TV

Free TV Free TV Unknown

A channel that cannot be identified is shown as “Unknown”

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

reveal / hide

select

: reveal : hide (skip)

Channel position

103 ITV Wales

Coronation Street 19:30 - 20:00

To reveal all channels ●

All Other Sat. Channels

19:35

Radio

Now

Select favourites

For info press

yellow

To delete the channel●

To swap the channel position●

red

green

Enter the new position number

abc def

jkl

ghi

tuvpqrs

Store

mno

wxyz

green

Page 57

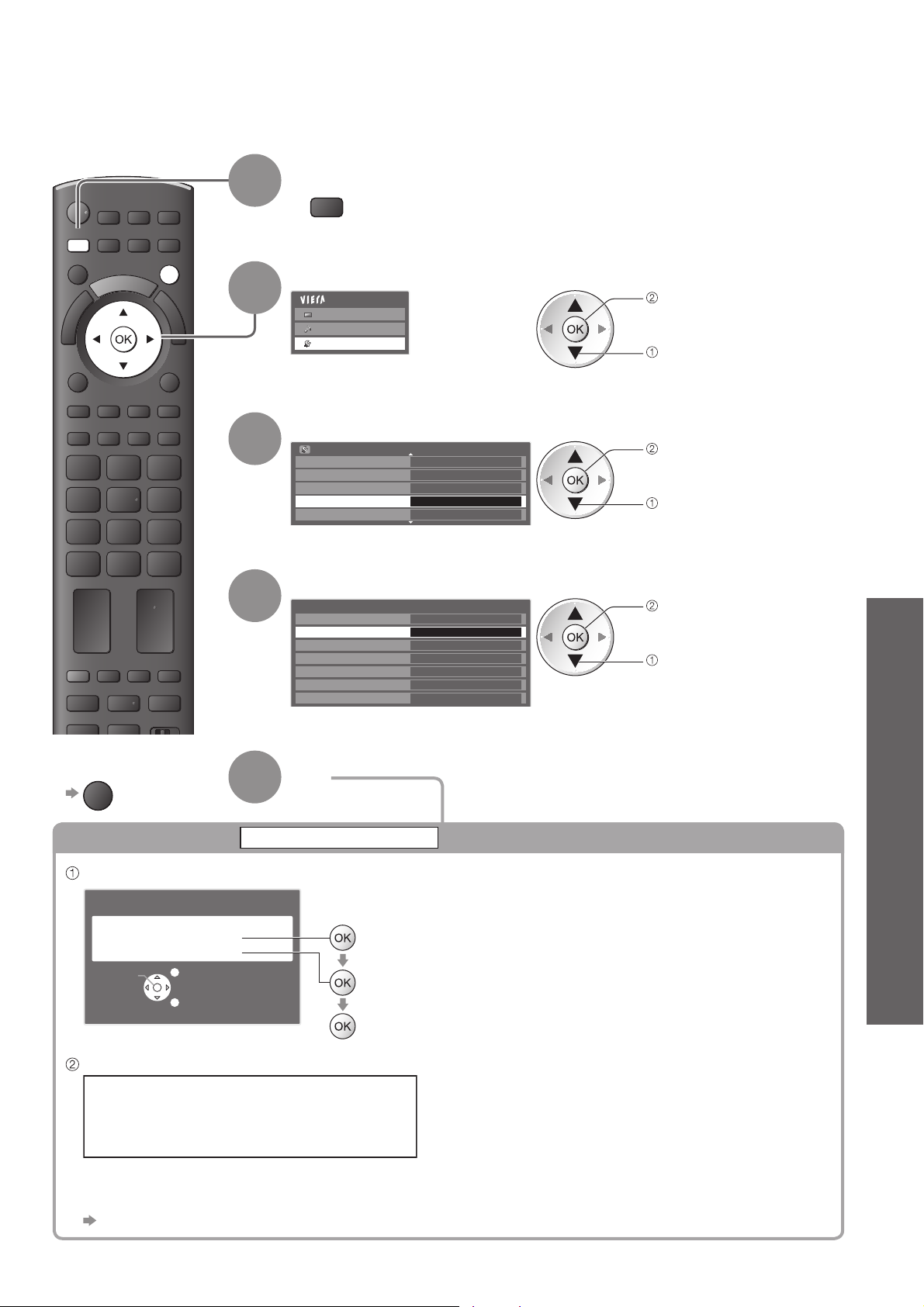

Shipping Condition

Resets the TV to its original condition with no channels tuned in. All settings other than “Owner ID” and “USB HDD registration” are reset (channels, picture, sound settings, etc.).

Display the menu

EXIT

Select “Setup”

Main Menu


Sound

Setup

access

select

Tuning and Editing Channels ●

■

To return to TV

EXIT

Restore Settings

Select ”System Menu”

Setup Menu

Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

Select “Shipping Condition”

System Menu

USB Keyboard Layout English(UK)

Shipping Condition Access

Owner ID Common Interface System Update Software Licence System Information

Set

Shipping Condition

Off Access

2/2

Shipping Condition ●

access

select

access

select

Advanced

Check the message and initialise

Shipping Condition

All tuning data will be erased

Confirm

Follow the on screen instructions

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)●

To retune TV channels only, e.g. after moving house■

“Retuning from Setup Menu” (p. 46 and p. 47)

Are you sure? Are you sure?

EXIT

RETURN

Reset to Factory Shipping Condition

Completed.

Please switch off TV.

(confirm)

(start Shipping Condition)

Page 58

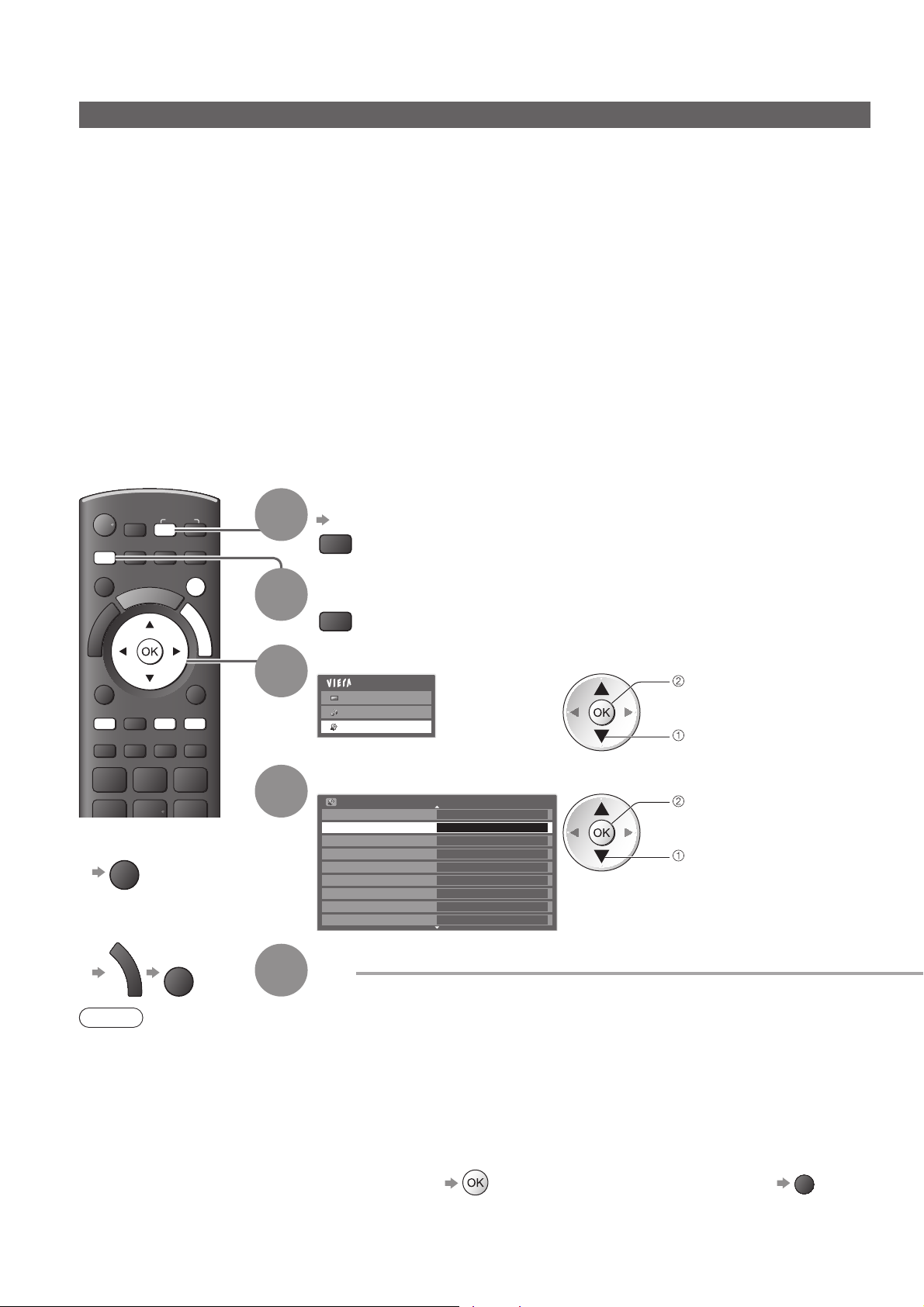

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct channel automatically to record even if the TV is in Standby mode. TV Guide may also be used to set timer programming event (p. 22).

Timer Programming can store up to 15 events.● For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, ● the TV must be On. No other channel can be selected while the recording of Timer Programming is in progress.● It may not be possible to record an encrypted programme (which is copy-protected).● When recording programmes to the external recorder, be sure to make the proper settings on the recorder ● connected to the TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 94) and the “Link Settings” (p. 40) are correct, no setting of the recorder is required. Also read the manual of the recorder. If the recorder is not compatible with Q-Link or similar technologies, set “Q-Link” in the Setup Menu (p. 40) to the ● connected terminal (AV1 or AV2), and set the timer of the recorder in addition to the Timer Programming on the TV. For preparations of a recorder, read the manual of the recorder. When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in the ● “USB HDD Setup” (p. 70). Recordings are always in standard definition composite video via SCART, even if the original programme is in ● high definition.

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

RETURN

ASPECT

OPTION

TEXT STTL

To return to TV■

EXIT

To unlock the tuner ■ (stop recording)

EXIT

BACK/

Select the tuner you want to use

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Timer Programming”

Setup Menu

3D Settings

Timer Programming

Off Timer USB HDD Setup Link Settings Child Lock freesat Tuning Menu Other Sat. Tuning Menu Display Settings

Access Off

1/2

Set

access

select

access

select

Note

Check that the LED is orange. If not, timer programmes are not active or not stored.● Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.• The timer programming event that the reminder is set for ends.•

“!” identifies that any timer programming events have overlapped. “Ext Rec.” and “USB HDD Rec.” are given ● priority over “Reminder”. When two or more “Ext Rec.” / “USB HDD Rec.” overlap, the first timer programming event starts and finishes as programmed. The next timer programming event will then start. 2 mins. before the starting time, a reminder message appears if you are watching TV.●

To remove the message and start the programme •

To cancel the Timer Programming •

The recording of Timer Programming will automatically change to the programmed channel 10 seconds before ● the start time. To stop recording of the timer programming event, it may be necessary to stop the recorder manually.● The recording of Timer Programming will be performed even if the TV is in Rewind LIVE TV recording (p. 73) and ● Pause Live TV recording (p. 97). In this case, these recordings will be cancelled.

EXIT

Page 59

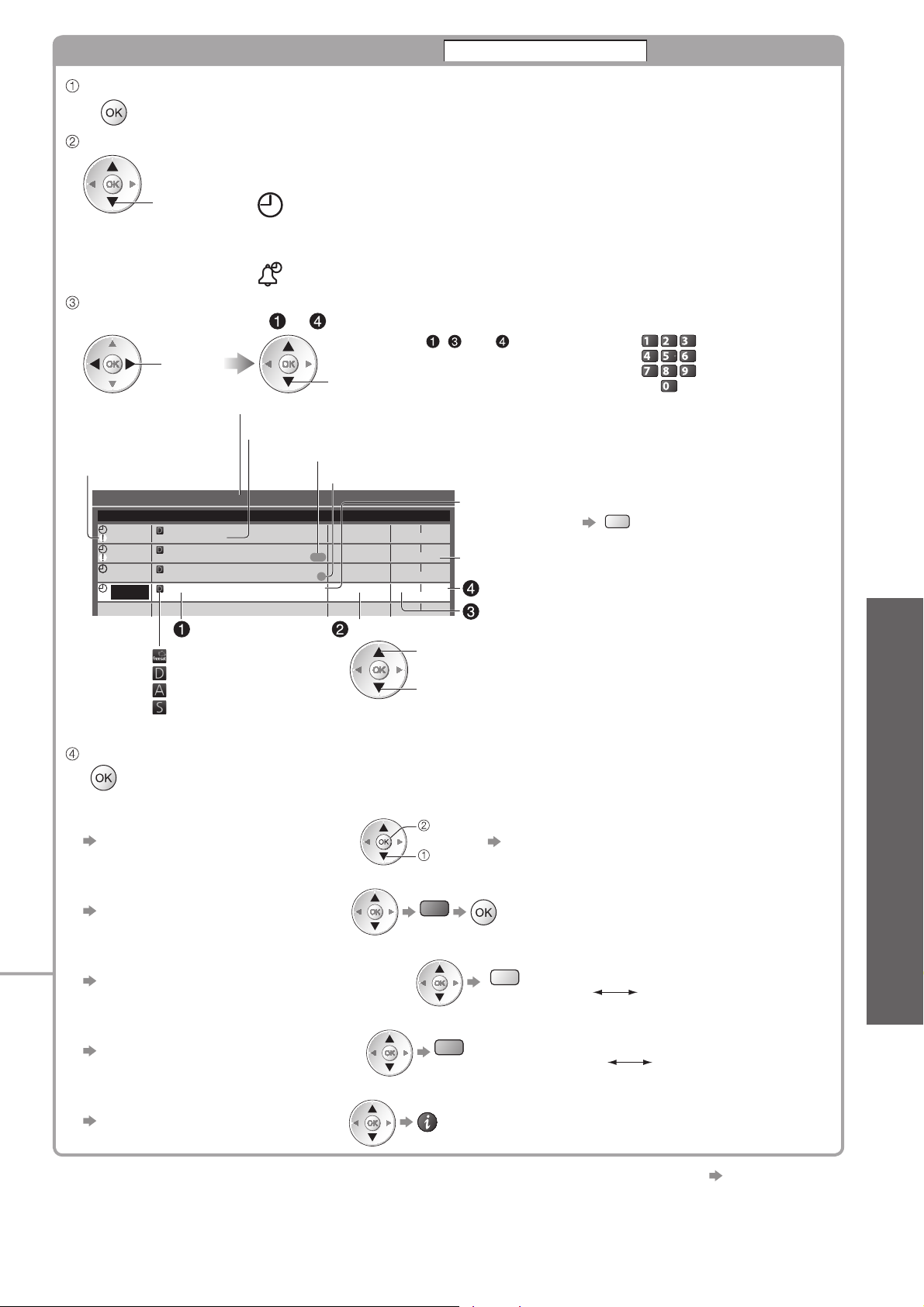

Set timer programming event details

Timer Programming

Start making the settings

Select the function (Ext Rec., USB HDD Rec. or Reminder)

Ext Rec. / USB HDD Rec.

select

Reminder : to remind you to watch the programme

: to record the programme to the external recorder (Ext Rec.) or the

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

Set the channel, date and time (repeat the operations as below)

Set items in the order of

to .

● , and can also be

select the item

set

Information of the USB HDD (if available)

Displayed if the timer programming events are overlapped

Timer Programming USB HDD Remaining Capacity 500GB (50%) Wed 28.10.2009 10:46

Function Channel Name

Ext Rec.

Reminder

Ext Rec.

No.

72 Wed 28 Oct 20:00 21:30

BBC 2W <TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

---

Channel number

Timer programming - Programmes according to the time setting

Guide: Guide link programming - Programmes according to the TV Guide signal (p. 23)

S/P: Split Programme programming (p. 23)

Date Start End

Wed 28 Oct 21:00 22: 00

Guide

Wed 28 Oct 22:45 23: 00

S/P

Thu 29 Oct 10 :30 11:3 0

STTL

--/-- --:-- --:--

Date

: freesat : DVB : Analogue : Other Sat.

● not change the

You can mode within the menu.

Store

entered with numeric buttons.

Records with subtitles (if available)

(90 min.)

(60 min.)

(15 min.)

(60 min.)

To indicate this ●

Duration (automatic display)

Ending time Starting time

one day ahead

daily or weekly (press repeatedly)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

( press again to

yellow

remove subtitles)

Daily Sun-Sat: Sunday to Saturday● Daily Mon-Sat: Monday to Saturday● Daily Mon-Fri: Monday to Friday● Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun:● Same time on the same day every week

Timer Programming ●

Advanced

To change a timer programming event■

access

Select the programme to be changed

select

Correct as necessary

(as above)

To cancel a timer programming event■

Select the programme to be deleted

red

To record with subtitles ■ (if available)

Select the programme to record with subtitles

yellow

Each time pressed:● auto off

To cancel a timer programming event temporarily■

Select the programme to be cancelled

blue

Each time pressed:● cancel stop cancelling

To view details of the programming ■ (only for Guide link programming)

Select the programme to be viewed

Press again to return to ● Timer Programming menu.

Guide link programming (Timer Programming from the TV Guide signal) ■ p. 23

●

This function is not available in Analogue or Other Sat. mode. Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Page 60

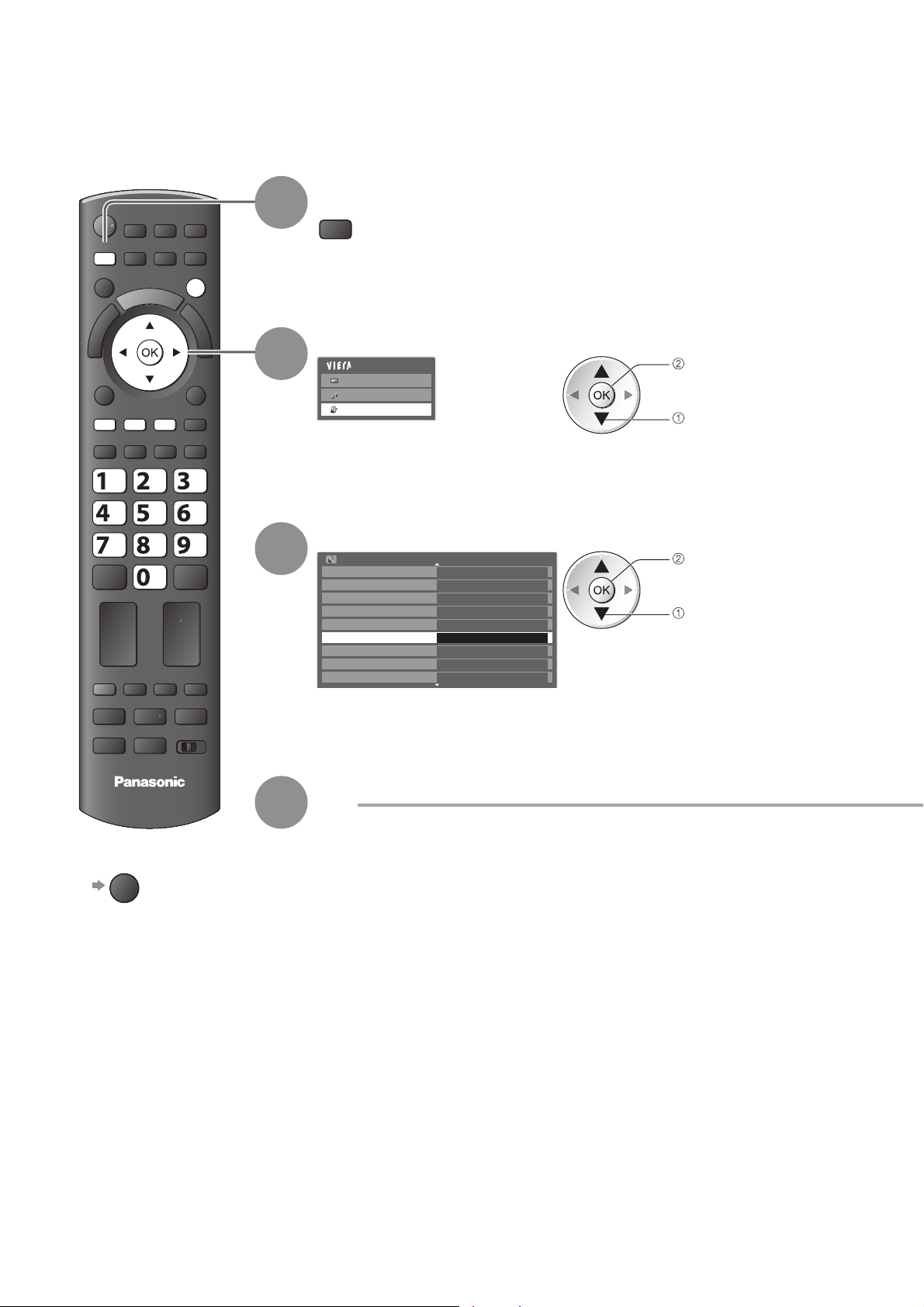

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Child Lock”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings

Child Lock

freesat Tuning Menu Other Sat. Tuning Menu Display Settings

Access

1/2

access

select

access

select

ghi

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

To return to TV■

EXIT

Set

Page 61

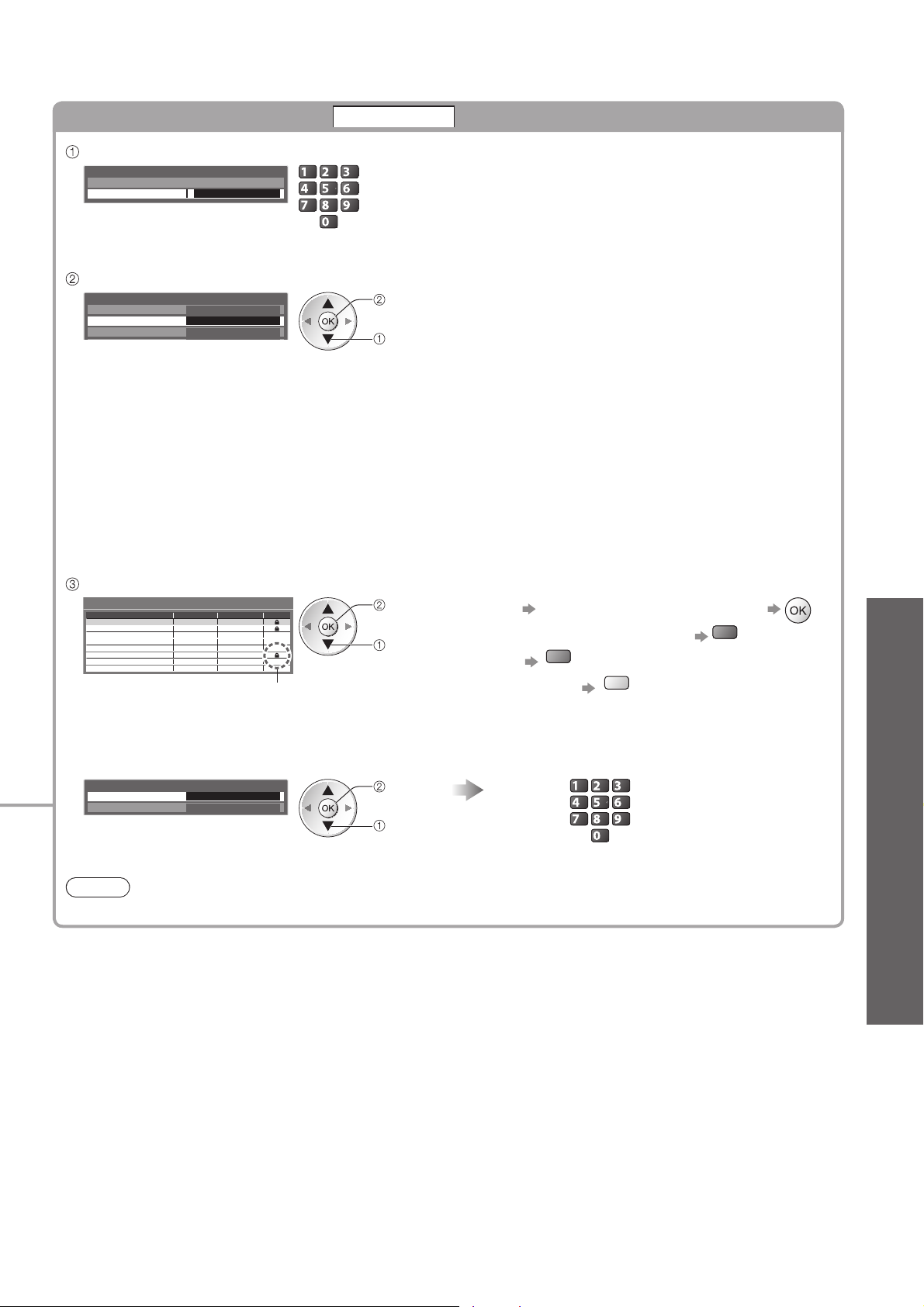

Control channel audience

Child Lock

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.● Make a note of the PIN number in case you forget it.●

Select “Child Lock List”

Child Lock

Change PIN

Child Lock List Access

freesat Adult Channels

Don’t hide

In freesat mode, additional lock items will appear.● freesat Adult Channels: Select “Hide” to hide channels of the adult genre in TV Guide and Channel List.

All the Timer Programming events of the adult genre will be cancelled.

freesat Players: Locks freesat content supplied through the internet. Unlock: With this setting selected, you will not be required to enter your 4 digit child lock PIN when viewing

freesat Player content. This is the default setting.

Lock Guidance Content: With this setting selected, you will be asked to enter your 4 digit child lock

PIN whenever you wish to watch freesat Player content which is signalled as “Guidance” (i.e. originally broadcast post watershed).

Lock All Content: With this setting selected, you will be required to enter your 4 digit child lock PIN every

time you wish to watch freesat Player content.

access

select

Child Lock ●

Select the channel / input to be locked

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales Free TV BBC THREE DVB LockFree TV

E4 DVB LockFree TV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue

***** Analogue LockAnalogue AV1 External LockAV AV2/ S

DVB

External LockAV

Appears when the channel / input is locked

lock

select

To cancel ● Select the locked channel / input To jump to the top of the next input ● To lock all ● To cancel all locks ●

green

yellow

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Child Lock

Change PIN Access

Child Lock List

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Note

Setting “Shipping Condition” (p. 57) erases the PIN number and all settings.●

red

Advanced

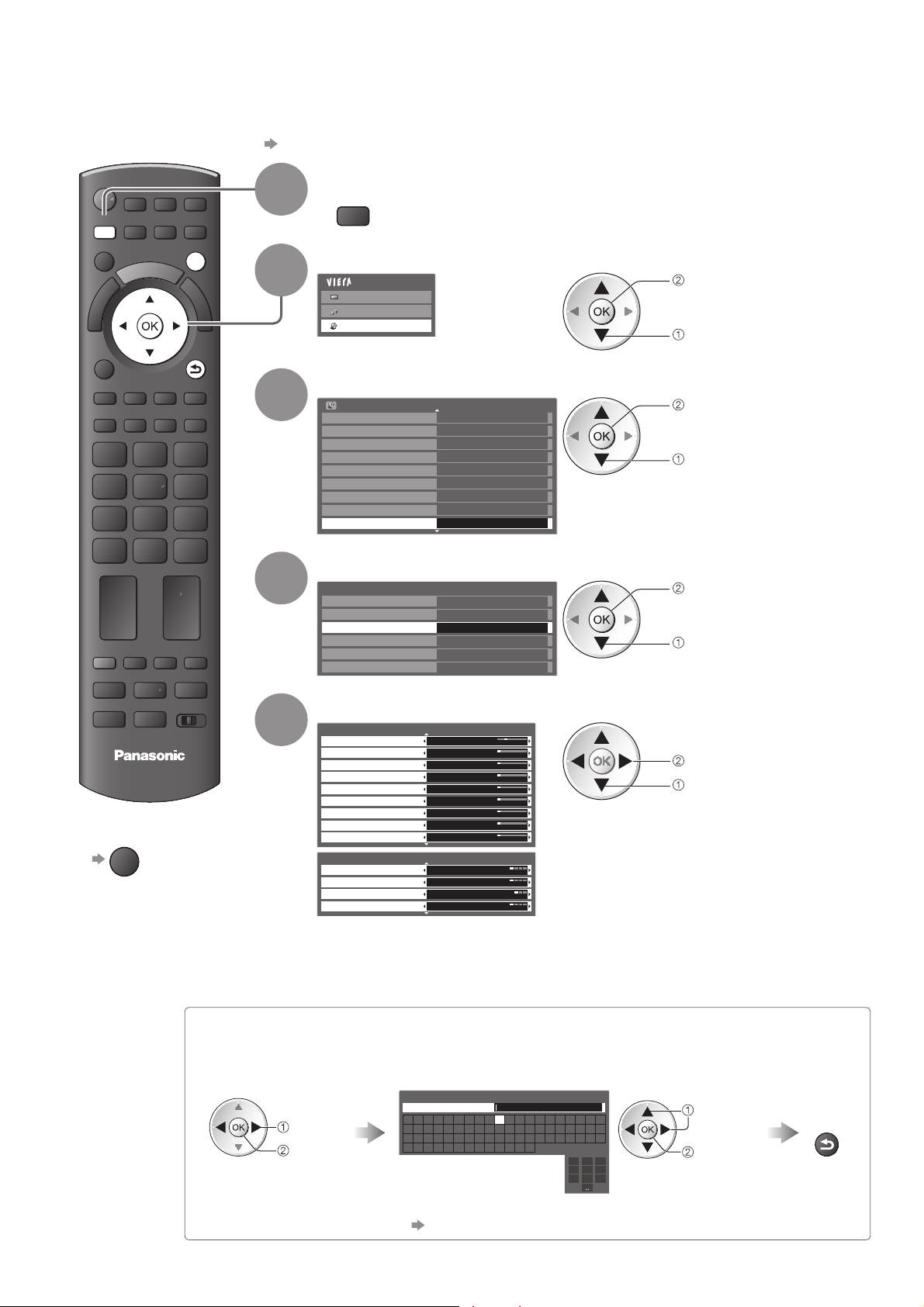

Page 62

Input Labels

For easier identification and selection of the input mode, you can label each input mode or skip terminals that are not connected to any equipment.

To select the input mode ● p. 28

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Display Settings”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock freesat Tuning Menu Othe Sat. Tuning Menu

Display Settings

Access

1/2

access

select

access

select

EXIT

BACK/

RETURN

To return to TV■

EXIT

Select “Input Labels”

Display Settings

Preferred Subtitle Type English Side Panel

Input Labels

Banner Display Timeout Playing Time Display Radio Mode

Off Access 3 seconds On Off

access

select

Select a input terminal and set

Input Labels

AV1 DVD AV2/S AV3 COMPONENT PC PC HDMI1 HDMI2 HDMI3 HDMI4 HDMI4

Input Labels

freesat freesat DVB DVB Analogue Analogue Other Sat. Other Sat.

AV2/S AV3 COMPONENT

HDMI1 HDMI2 HDMI3

The labels you set will be displayed in the “Input Selection” menu (p. 28), “TV Selection” menu (p. 16) or banner.

If “Skip” is selected, the input will not be displayed in the “Input Selection” ● menu and you cannot select the mode.

1/2

set

select

2/2

User input■

You can name each input mode yourself.

Select “User input” Set characters one by one Store

(maximum: ten characters)

User input

select

access

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

select

set

BACK/

RETURN

Page 63

Owner ID

Entry of the PIN number and personal information (your name, address and postcode). In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

Off Access

Select “Owner ID”

System Menu

USB Keyboard Layout English(UK) Shipping Condition

Owner ID Access

Common Interface System Update Software Licence System Information

2/2

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

access

select

access

select

access

select

Input Labels ●

Owner ID ●

To return to TV■

EXIT

Set

Input owner ID

Owner ID

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.● Make a note of the PIN number in case you forget it. ● The PIN number cannot be reset.

Enter your name, house number, and postcode, in that order

Select NAME / HOUSE NO / POSTCODE Set characters one by one Return to select

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE



access

select

To check the personal information stored■

Hold down for about 6 sec.

Owner ID

NAME HOUSE NO POSTCODE

EXIT

The PIN number is not displayed.●

User input

NAME

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

select

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

  

other items

BACK/

RETURN

Exit the menu

EXIT

Advanced

To change the PIN number■

Select “PIN” Enter a new PIN number twice

Owner ID-Data Entry

NAME HOUSE NO POSTCODE



access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Page 64

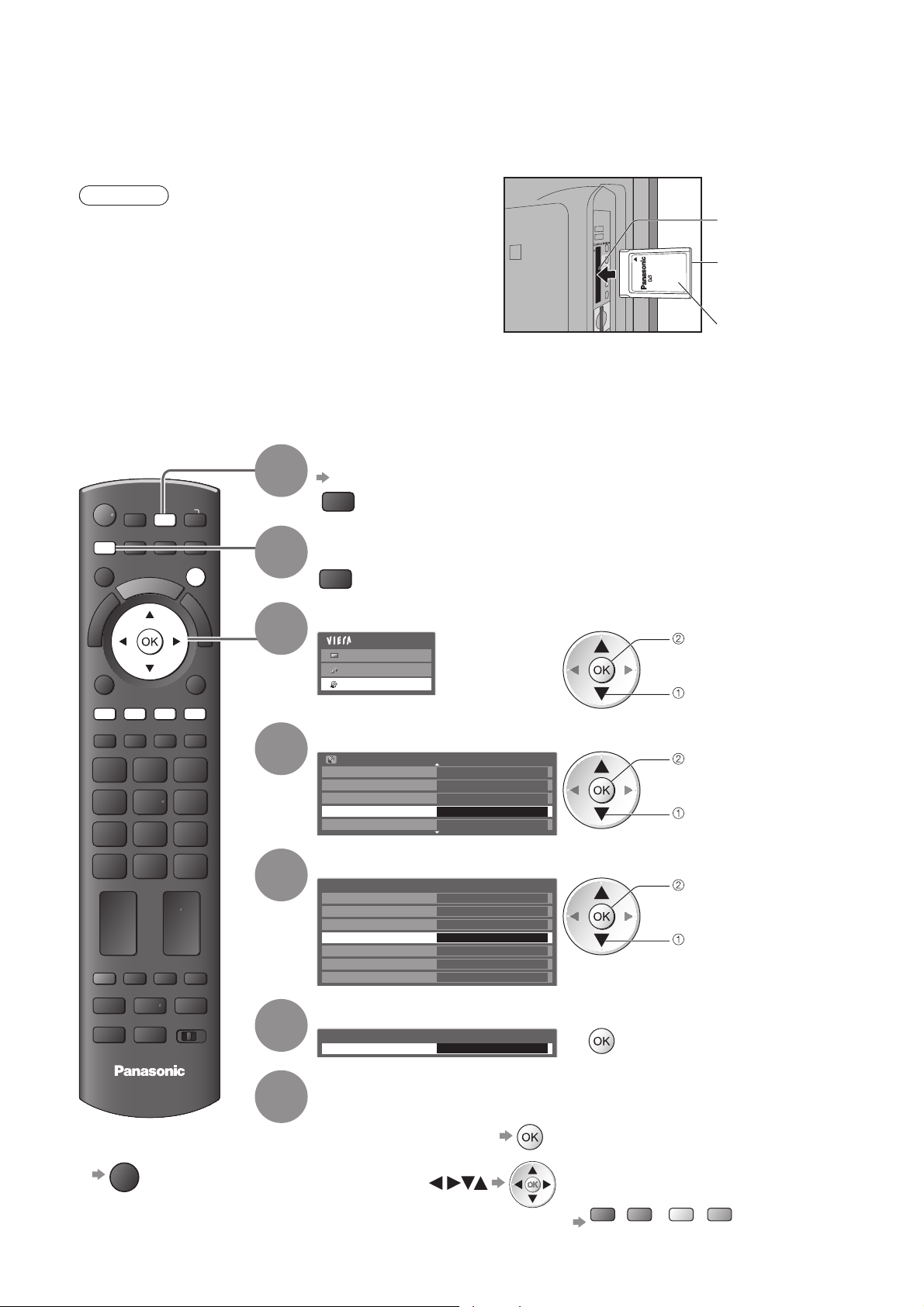

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV works only Pay TV modules complying with CI standard.

This function is not available for BSkyB’s Sky channels.●

Caution

Turn Off Mains power On / Off switch whenever inserting ● or removing the CI module. If a viewing card and a card reader come as a set, first ● insert the card reader, then insert the viewing card into the card reader. Insert the module in the correct direction.●

Side of the TV

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI module.● Follow the instructions that came with the viewing card to tune in the pay-TV channels. If pay-TV channels do not ● appear, perform the below to verify the card is recognized by the TV. For more details, see the manual of the CI module, or check with the broadcaster.●

Select DVB or Other Sat.

p. 16

Display the menu

INPUT

EXIT

CI slot

Insert or remove straightly and completely

CI module

Select “Setup”

Main Menu


Sound

Setup

Select ”System Menu”

Setup Menu

Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

Off Access

2/2

Select “Common Interface”

System Menu

USB Keyboard Layout English(UK) Shipping Condition Owner ID

Common Interface Access

System Update Software Licence System Information

Access Common Interface

Common Interface

Slot 1:

Module inserted

access

select

access

select

access

select

To return to TV■

EXIT

Follow the on screen operation guide (Check the instructions provided with the CI module)

For example: select, go

Coloured characters

On screen operation guide may not correspond to the remote control ● buttons.

red green yellow blue

Page 65

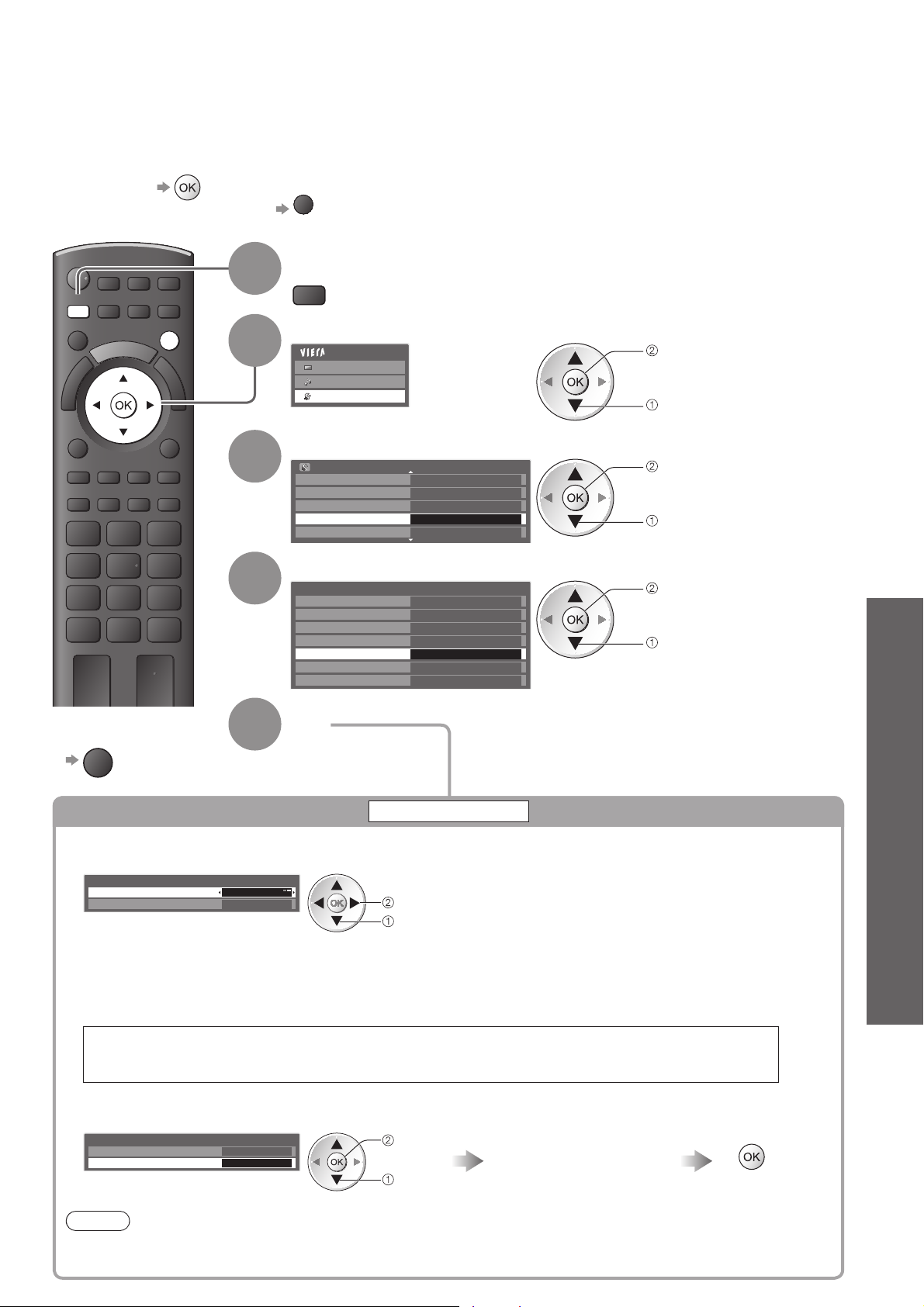

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV. In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.

To download ● If you choose not to download ●

You can update any new software automatically, or manually.

EXIT

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

Off Access

2/2

access

select

access

select

Using Common Interface ●

Updating the TV Software ●

Select “System Update”

■

To return to TV

EXIT

Update TV’s software system

System Menu

USB Keyboard Layout English(UK) Shipping Condition Owner ID Common Interface

System Update

Software Licence System Information

Access

Set

System Update

To update automatically■

Select “Auto Update Search in Standby” and set to “On”

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set “Auto Update Search in Standby” to “Off”. The notification banner will keep appearing during the period of new software availability, usually 2 to 3 days.

set select

Automatically performs a search in standby and ●

downloads an update, if any software updates are available.

The automatic updating is performed at night under ●

the following conditions:

Standby (TV turned Off with the remote control)• Recording of Timer Programming, Direct TV • Recording or One Touch Recording is not in progress.

access

select

Advanced

To update immediately■

Select “System Update Search Now” Download

System Update

Auto Update Search in Standby

System Update Search Now Access

Off

access

select

Searches for an update (for several mins.) and displays a corresponding message if any

Note

Download may take up to 60 mins.● During software download and update, DO NOT perform any operations on the TV or switch Off the TV.●

Page 66

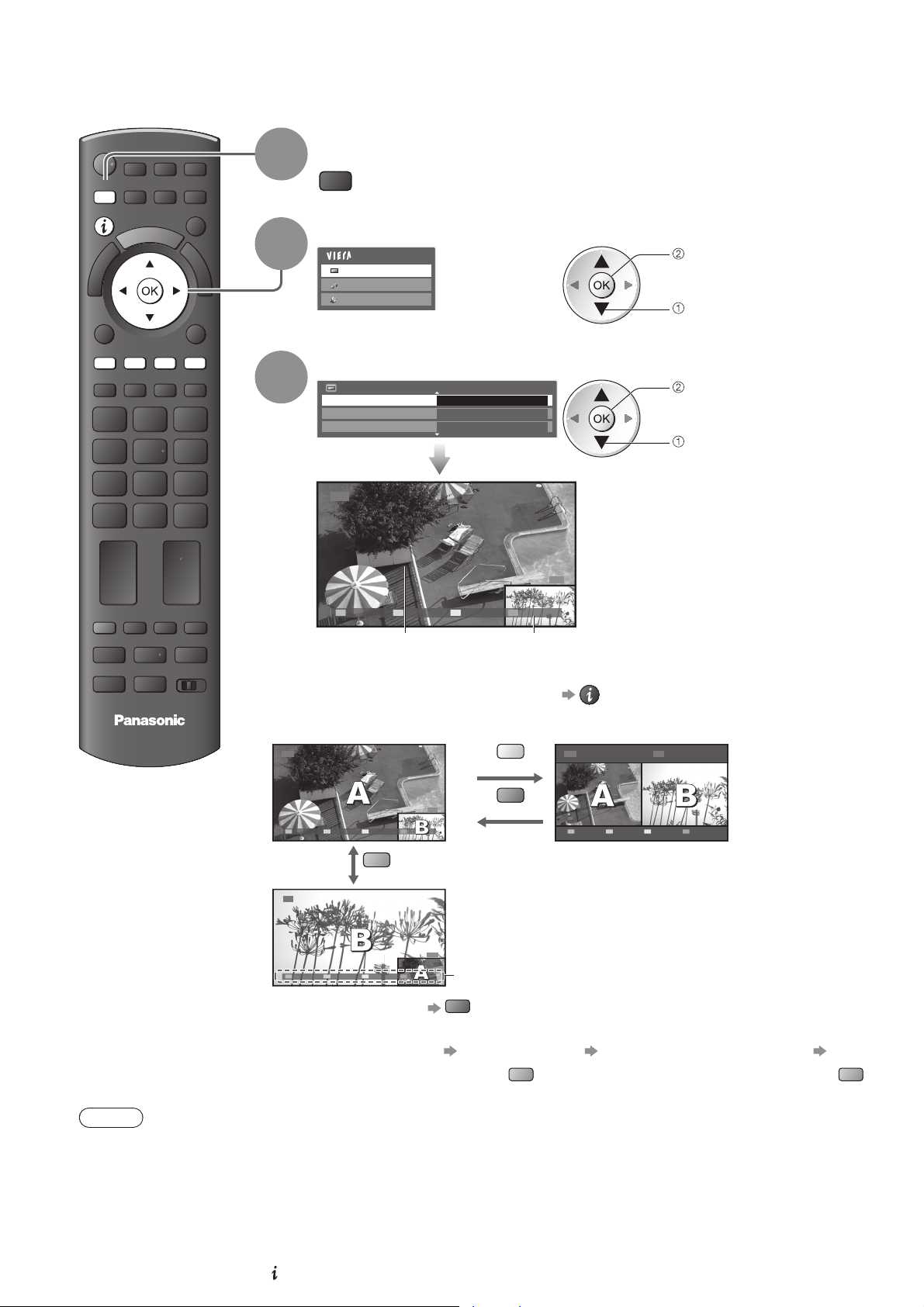

Multi Window

Enjoy viewing the digital TV programme and external input (AV, COMPONENT or HDMI) at once.

Display the menu

Select “Picture”

Main Menu


Sound

Setup

Select “Picture in Picture”

Picture Menu

Picture in Picture

Picture Display Reset to Defaults

Access On Reset

2/2

access

select

access

select

1 DVB

AV1

EXIT PandP Swap

Main screen Sub screen

How to operate in multi window■

Display the colour bar if it is not displayed

Picture-in-Picture mode (PinP)

1 DVB

AV1

EXIT PandP Swap

blue

AV1

yellow

green

Picture-and-Picture mode (PandP)

Remote control operations apply to ● the main screen.

1 DVB AV1

EXIT PinP Swap

1 DVB

EXIT PandP Swap

To exit multi window ● To change the ●

input mode or channel of sub screen

Colour bar

red

Swap sub screen for main screen

blue

Change the input mode or channel by the remote control (p. 16 or p. 28)

Note

Each input mode can only be displayed either on main screen or sub screen.● The sound comes from only the main screen in multi window.● You cannot change the aspect ratio in multi window.● This function cannot be used with PC, Media Player or Network services.● HDMI is available only for main screen.● Some signals are reformatted for suitable viewing on your display.● If main screen has digital teletext signals, some key words may appear on the colour bar. In this case the ● operations can be performed by using colour buttons on the remote control except when the colour bar is displayed by pressing the

button.

Swap again

blue

Page 67

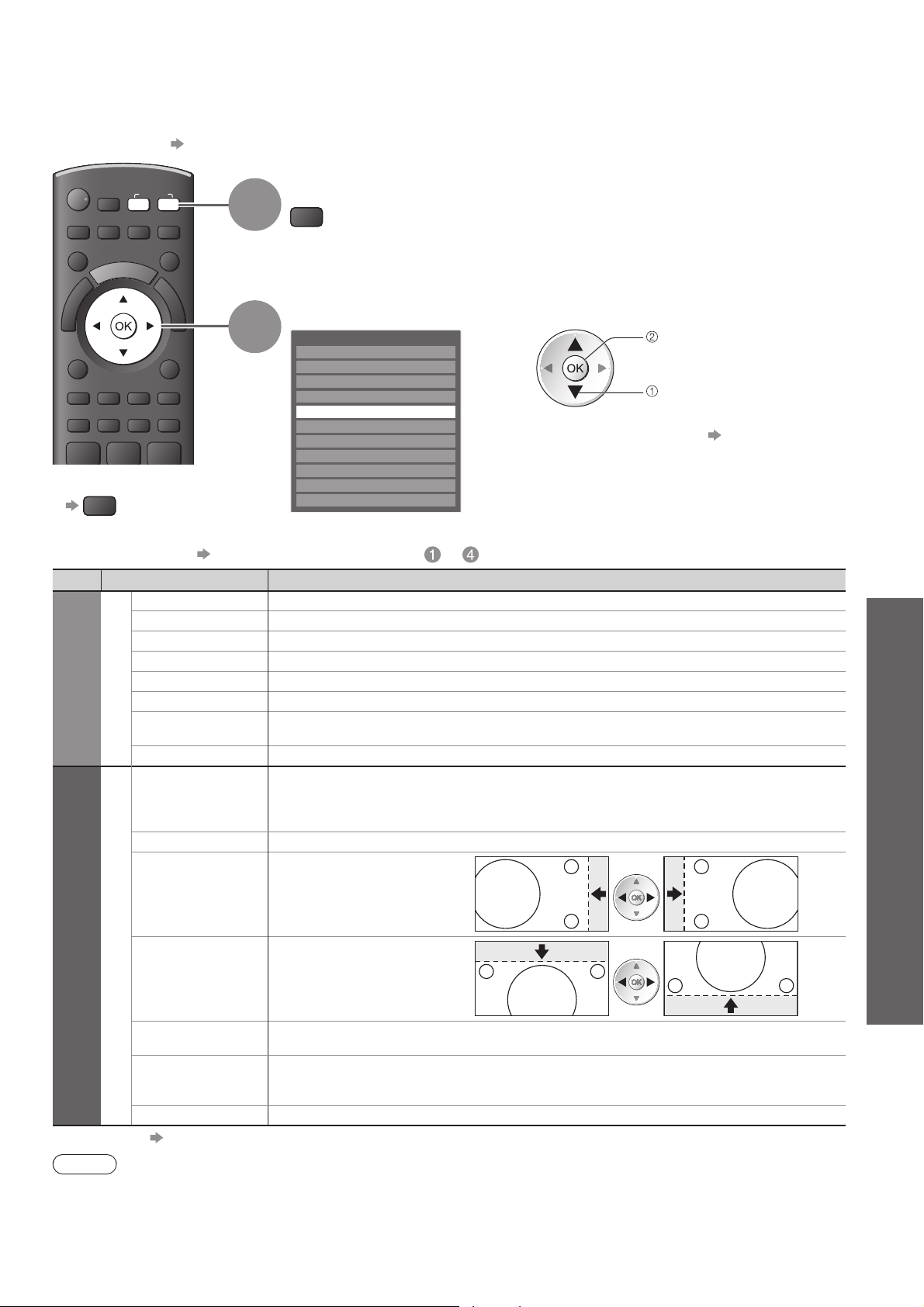

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

To connect PC ● p. 100

ASPECT

OPTION

TEXT STTL

To return to TV■

INPUT

INDEX HOLD

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

Select the external input

Select “PC”

Input Selection

AV1 AV2/S AV3 COMPONENT

HDMI1 HDMI2 HDMI3 HDMI4 TV Media Server

access

select

Corresponding signals ● p. 106 If “H-freq.” or “V-freq.” is shown in red, ● the signals may not be supported.

PC menu setting■

To make settings ● “How to Use Menu Functions” to (p. 37)

Menu Item Adjustments / Configurations (options)

R-Gain

Advanced Settings

G-Gain


B-Gain R-Cutoff G-Cutoff B-Cutoff

Gamma

Reset to Defaults

Input Resolution

Clock

Adjusts the white balance of bright red area Adjusts the white balance of bright green area Adjusts the white balance of bright blue area Adjusts the white balance of dark red area Adjusts the white balance of dark green area Adjusts the white balance of dark blue area Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Please note the numerical values are reference for the adjustment.

●

Press the OK button to reset to the default Advanced Settings Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels),

●

XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels) Options change depending on signals

●

Set to the minimum level if noise occurs Adjusts horizontal position

Displaying PC Screen on TV ●

Multi Window ●

Advanced

H-pos

PC Setup

Setup

V-pos

Clock Phase

Sync

Reset to Defaults

Other items ● p. 38 - 42

Note

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using ● HDMI cable (p. 104).

Adjusts vertical position

Eliminates flicker and distortion

Adjust after Clock adjustment

● Set to the minimum level if noise occurs●

Chooses another synchronous signal if the image is distorted (H & V / On Green)

H & V : by the horizontal and vertical signals from your PC

●

On Green : by the green signal from your PC (if available)

Press the OK button to reset to the default PC Setup settings

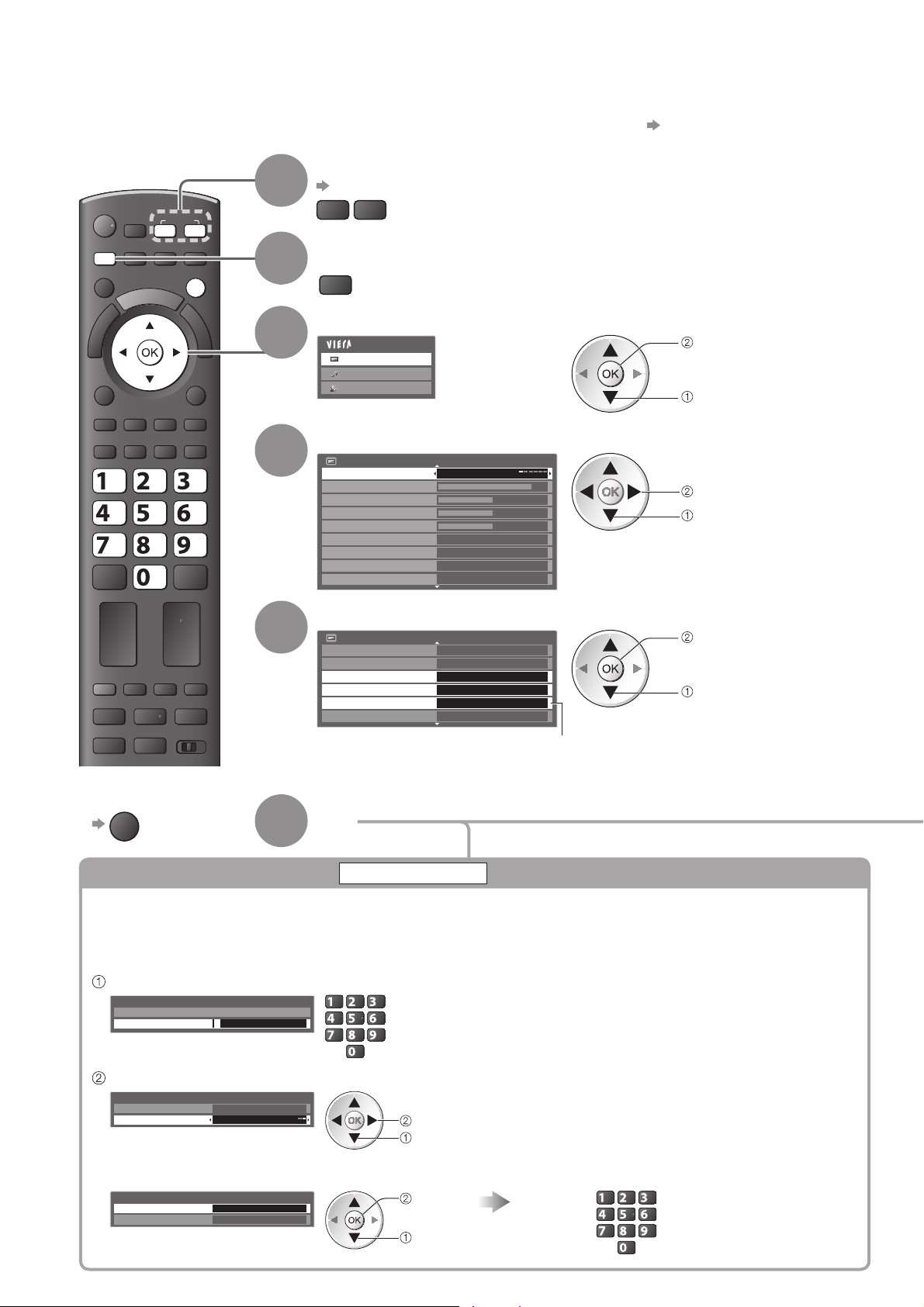

Page 68

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each Viewing Mode.

To use this function completely, set “Advance(isfccc)” to “On” in the Setup Menu. ● p. 41 For PC input mode, some functions are available without setting “Advance(isfccc)”.●

Select the input mode to adjust and setup

p. 16 and p. 28

TV AV

Display the menu

Select “Picture”

Main Menu


Sound

Setup

access

select

Select “Viewing Mode” and set the mode

Picture Menu

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness Colour Balance Vivid Colour C.A.T.S. P-NR Off

Warm Off Off

1/2

set

select

ghi

INPUT

AVTV

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

Select one of the following functions

Picture Menu

Picture in Picture Picture Display On

Advanced Settings Lock Settings Copy Adjustment

Reset to Defaults

Access Access Access Reset

2/2

“Copy Adjustment” is available when ● “Viewing Mode” in the Picture Menu is set

To return to TV■

to “Professional1” or “Professional2”.

EXIT

Lock the picture setting

Set

Lock Settings

Advanced Settings can be locked for each Viewing Mode. Additionally, Contrast, Brightness, Colour, Sharpness, Tint and Reset to Defaults in the Picture Menu can be locked for “Professional1” and “Professional2”. “Professional1” and “Professional2” can be locked for each input.

Enter the PIN number (4 digits)

Lock Settings-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.● Make a note of the PIN number in case you forget it.●

access

select

Select “Adjustment Lock” and set to “On”

Lock Settings

Change PIN

Adjustment Lock On

set select

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Lock Settings

Change PIN Access

Adjustment Lock On

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Page 69

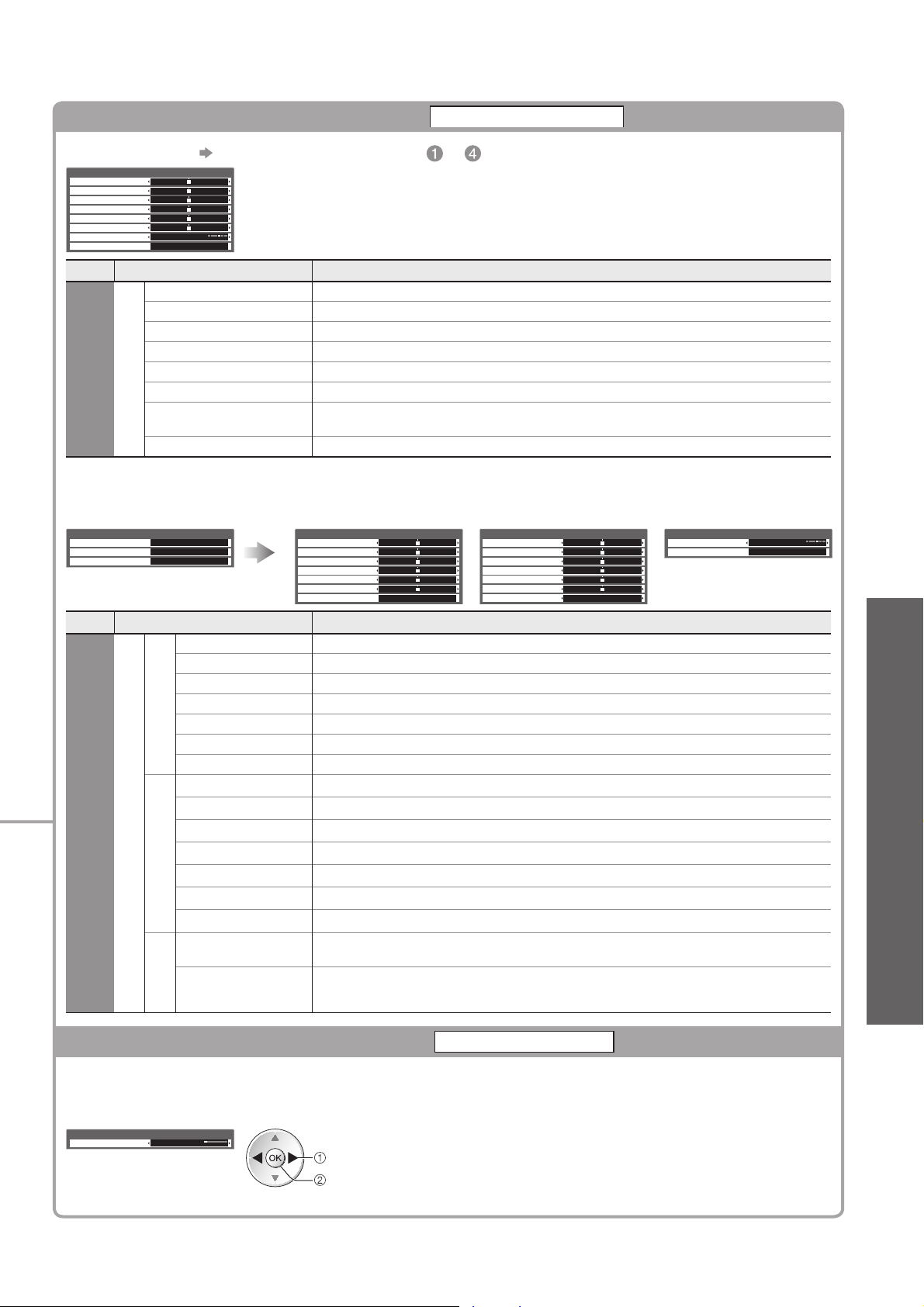

Adjust the detailed picture settings

Advanced Settings

To make settings ● “How to Use Menu Functions” to (p. 37)

Advanced Settings

R-Gain G-Gain B-Gain R-Cutoff G-Cutoff B-Cutoff Gamma Reset to Defaults

2.2 Reset

Menu Item Adjustments / Configurations (alternatives)

R-Gain

Advanced Settings

G-Gain


B-Gain R-Cutoff G-Cutoff B-Cutoff

Gamma

Reset to Defaults

Please note the numerical values are reference for the adjustment.

●

Press the OK button to reset to the default Advanced Settings

For the mode of “Professional1” or “Professional2” in “Viewing Mode”■

“Professional1” and “Professional2” can be adjusted and set for each input.●

White Balance● Colour Management● Gamma●

Advanced Settings

White Balance Colour Management Gamma Access

Access Access

White Balance

R-Gain G-Gain B-Gain R-Cutoff G-Cutoff B-Cutoff Reset to Defaults Reset

Colour Management

R-Hue G-Hue B-Hue R-Saturation G-Saturation B-Saturation Reset to Defaults Reset

Gamma

Gamma Reset to Defaults Reset

Advanced Picture Settings ●

2.2

Menu Item Adjustments / Configurations (alternatives)

R-Gain

White Balance

G-Gain B-Gain R-Cutoff G-Cutoff

Advanced Settings


B-Cutoff Reset to Defaults

Colour Management

R-Hue G-Hue B-Hue R-Saturation G-Saturation B-Saturation Reset to Defaults

Gamma

Reset to Defaults

Copy the settings to the other input

Adjusts the white balance of bright red area Adjusts the white balance of bright green area Adjusts the white balance of bright blue area Adjusts the white balance of dark red area Adjusts the white balance of dark green area Adjusts the white balance of dark blue area Press the OK button to reset to the default White Balance

Adjusts the picture hue of red area

Adjusts the picture hue of green area

Adjusts the picture hue of blue area

Adjusts the saturation of red area

Adjusts the saturation of green area

Adjusts the saturation of blue area

Press the OK button to reset to the default Colour Management

Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Please note the numerical values are reference for the adjustment.

●

Press the OK button to reset to the default Gamma

Copy Adjustment

Advanced

You can copy the selected “Professional1” or “Professional2” settings to that of the other input. The settings of Contrast, Brightness, Colour, Sharpness, Tint and Advanced Settings will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

select

copy

You cannot copy to the locked mode.●

Page 70

USB HDD Recording

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

Analogue TV programme cannot be recorded to the USB HDD.● The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.● Not all the programmes can be recorded depending on the broadcaster and service provider.● This TV supports USB HDD with capacity from 160 GB up to 2 TB.● If the remaining capacity of the USB HDD is run out, the recording cannot be done.● Regarding the performance, not all USB HDDs are guaranteed.● Check the USB HDDs that have been tested for the performance with this TV at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Caution

Register the USB HDD with this TV in order to use it for recording. Please note that USB HDD will be formatted ● and all data (including the data from your PC, etc.) in it will be erased when you register it. In order to use the USB HDD with your PC after you use it with this TV for recording, format the drive on your ● PC. To format, refer to the manual of the PC. Please note that all data in the USB HDD will be erased when it is formatted. The data recorded to the USB HDD with this TV can only be played back on this TV. You cannot playback its ● contents with another TV (including the TV of the same model number) or any PCs. If your TV is repaired due to a malfunction, the registered USB HDD may not be available with your repaired TV. ● Register this USB HDD again to use it with your repaired TV. (All data in it will be erased.)

USB HDD connection

Connect the USB HDD to the USB 1 or 2 port.

socket outlet

USB

cable

USB HDD

Be sure to connect the USB HDD to the ●

socket outlet.

Do not turn off or disconnect the USB HDD ●

during operation. It may cause malfunction of the drive or damage the recorded data.

To remove the USB HDD safely from the TV ●

p. 71 and p. 75

Setting for USB HDD

Register and setup the USB HDD with this TV in order to use it for recording. Connect the USB HDD before starting this settings.

Before the settings, be sure to turn on the USB HDD.● You cannot change the settings for the USB HDD while recording is in progress.● Please note that USB HDD will be formatted and all data in it will be erased when you register it.●

EXIT

BACK/

RETURN

“USB HDD connection” (above)

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “USB HDD Setup”

Setup Menu

3D Settings Timer Programming Off Timer

USB HDD Setup

Link Settings Child Lock freesat Tuning Menu Other Sat. Tuning Menu Display Settings

Off Access

1/2

access

select

access

select

To return to TV■

EXIT

Select “Device Setup” and set

USB HDD Setup

Device Setup

One Touch Recording Rewind LIVE TV Off

Access 180 minutes

access

select

Page 71

Device Setup

All the USB devices recognized as a mass storage device will be listed. You can only register USB HDDs.

Up to 8 USB HDDs can be registered with this TV. However you can only choose one USB HDD for recording ● at a time. Some USB HDD may not be registered.●

Select the USB HDD for recording and start registration / setup

USB HDD Device Setup

Yes

ProductConnect Name Mode

USB Drive A

USB Flash Disk

Caution of USB HDD recording and playing back●

USB HDD Registration and formatting

Once the USB HDD has been registered, any data

recorded to it from this TV can only be played back on

this TV. If your TV is repaired due to malfunction, any

registered USB HDD may not be recognised.

Would you like to continue?

Yes No

access

select

select “Yes”

set

For the information of the highlighted device ●

Confirmation of USB HDD registration●

USB HDD Registration and formatting

To use this device for recording, it must be registered

and formatted.

All previous data will be lost.

Would you like to continue?

Yes No

select “Yes”

set

Confirmation of USB HDD format●

USB HDD Registration and formatting

This device will be formatted and

all contents deleted.

Are you sure?

Yes No

select “Yes”

set

The name for the registered USB HDD is created

Confirmation of USB HDD name●

USB HDD Registration and formatting

Name : USB HDD 1

Edit name?

Yes No

select

set

automatically. If you want to edit the name, select “Yes”. Set characters one by one

USB HDD

Name USB HDD 1

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

Store

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Confirmation to enable USB HDD for recording● If the registered USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Registration and formatting

Do you want to enable this device for recording?

When disconnecting any USB device,

always use the “Safely Remove USB” function

in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

Yes No

: The USB HDD is registered and available for recording / playing

back if the connection status is “Yes”. Only one registered USB HDD on the list can be available for recording.

USB HDD Device Setup

Yes

ProductConnect Name

USB Drive A

USB Flash Disk

USB HDD 1

Mode

: The USB HDD is registered and available for playing back if the

connection status is “Yes”. Name is displayed if the registration is completed Connection status (Yes: connected / No: not connected)

To remove the USB HDD safely from the TV, ensure the status is “No” before removing.

To change the status ●

yellow

You can also remove the USB HDD safely from Media Player ●

“Remove the USB devices safely” (p. 75)

To unregister the registered USB HDD■

Once you unregister the USB HDD, it will not be possible to playback any of the recorded content on any TV.

●

Select the USB HDD Unregister

BACK/

RETURN

USB HDD Recording ●

Advanced

red

The confirmation screen will be displayed twice. ● Select “Yes” to unregister.

Page 72

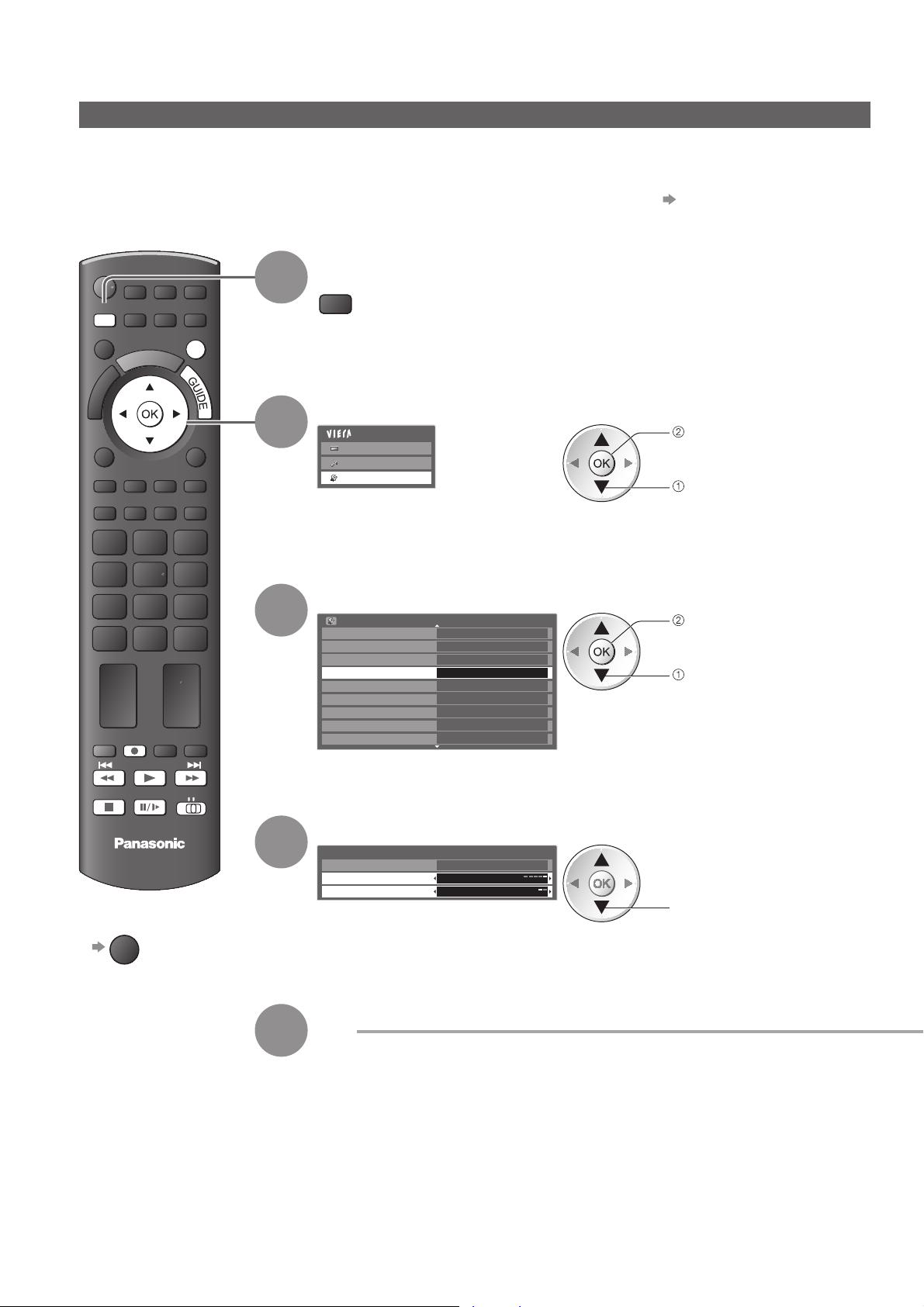

USB HDD Recording

Recording the TV programme to USB HDD

You can record the current programme immediately by using “One Touch Recording”. You can also record the current programme constantly for the selected period by using “Rewind LIVE TV” so that you can go back or pause the current programme.

Ensure the connection, registration and setup are completed before start recording ● p. 70 and p. 71 Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may ● not work properly.

Display the menu

EXIT

Select “Setup”

Main Menu


Sound

Setup

access

select

To return to TV■

EXIT

REC

DVD/VCR

Select “USB HDD Setup”

Setup Menu

3D Settings Timer Programming Off Timer

USB HDD Setup

Link Settings Child Lock freesat Tuning Menu Other Sat. Tuning Menu Display Settings

1/2

Off Access

access

select

Select “One Touch Recording” or “Rewind LIVE TV”

USB HDD Setup

Device Setup

One Touch Recording Rewind LIVE TV Off

180 minutes

select

Set

Page 73

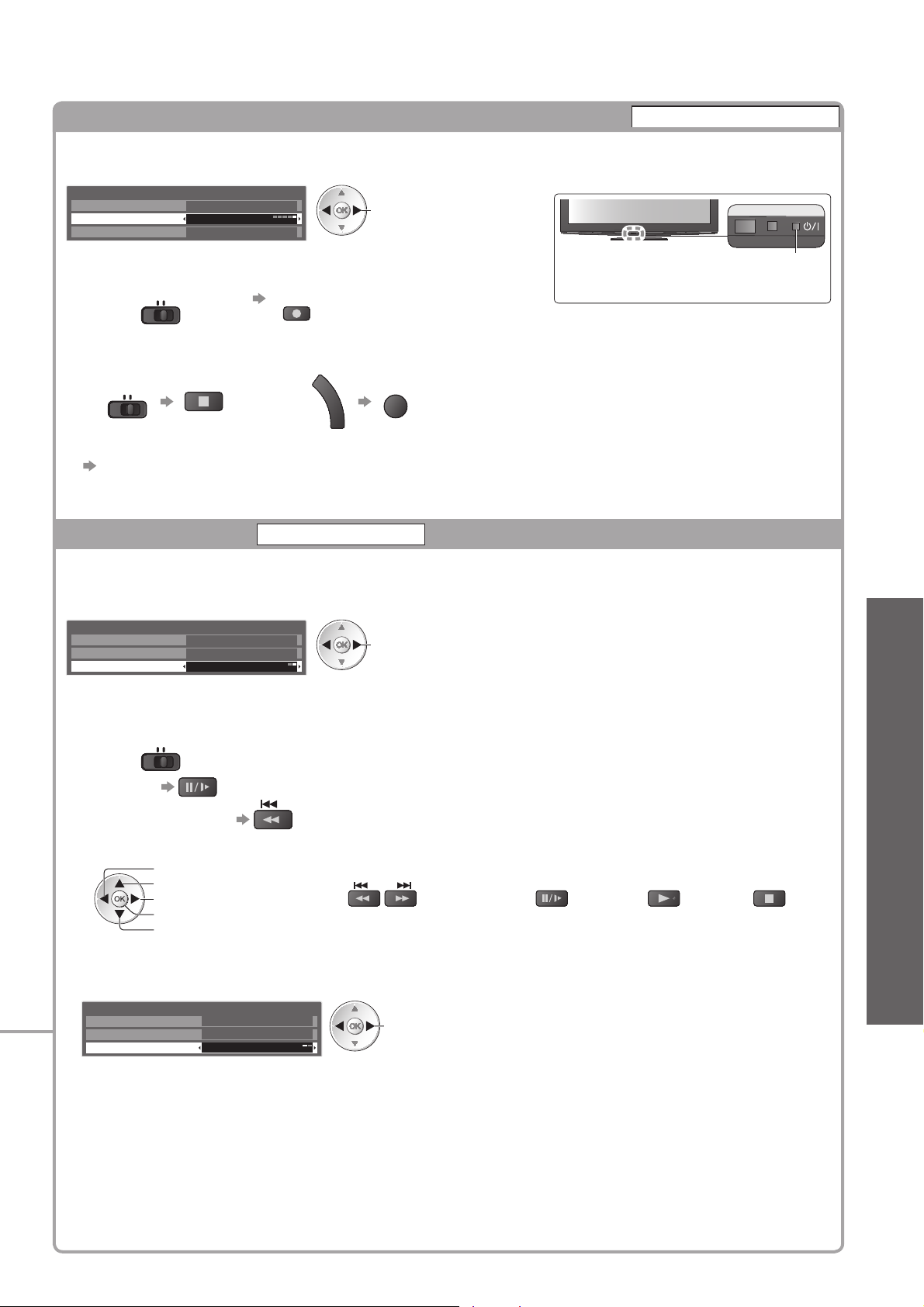

One touch direct TV recording - What you see is What you record

Recording the current programme in the USB HDD immediately.

Select the maximum recording time (30 / 60 / 90 / 120 / 180 minutes)

USB HDD Setup

Device Setup

One Touch Recording

Rewind LIVE TV Off

180 minutes

select

One Touch Recording

To start One Touch Recording■

Set the position to “TV” Start

DVD/VCR

No other channel can be selected while the recording is in progress.●

REC

To stop recording on the way■

DVD/VCR

EXIT

To playback or delete the recorded contents■

“Using Media Player” (p. 79) or “Video” in VIERA TOOLS (p. 36) Even if One Touch Recording is in progress, you can playback all the contents. ● However, the recording may not work properly while playback.

Record constantly

Rewind LIVE TV

Recording the current programme constantly.

This function will not work on MHEG Linked services, i.e. ITV HD and BBC Multiscreen.●

Select “On” to start Rewind LIVE TV

USB HDD Setup

Device Setup One Touch Recording

Rewind LIVE TV On

180 minutes

select

When you select “On”, the recording will start automatically.●

To operate the Rewind LIVE TV■

Set the position to “TV”

DVD/VCR

LED

LED will turn to orange (flash) while One Touch Recording is in progress.

USB HDD Recording ●

Advanced

To pause ●

To search backward ● (press and hold for about a second)

After pausing or searching backward, the following buttons are available to operate.●

search backward pause search forward playback stop (stops the current operation and goes back to live TV)

search backward / forward pause / playback playback stop

press and hold for

(

about a second

)

stops the current operation and goes back to

(

live TV

To stop the Rewind LIVE TV■

USB HDD Setup

Device Setup One Touch Recording

Rewind LIVE TV Off

Rewind LIVE TV will be stopped and the recorded content deleted automatically in the following conditions:● (Even if Rewind LIVE TV stops for the following conditions, as long as the setting is “On”, the new recording will start automatically in a condition that makes the recording available.)

selected other channels• selected locked channel• selected invalid channel• no TV signal• when the other recording starts• when the TV is turned off or standby•

180 minutes

select “Off”

If you stop the Rewind LIVE TV, the recorded content for the Rewind ● LIVE TV will be deleted.

)

Page 74

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and recorded contents on the registered USB HDD. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

Photo mode : Still pictures recorded by digital cameras will be displayed. Video mode :

Music mode : Digital music data will be played back.

During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals, ● but no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the Setup Menu (p. 40). “Date” shows the date on which the recording was made by the recording equipment. The file without record of ● the date is shown “**/**/****”.

(For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be played back. (For registered USB HDD) TV programmes recorded in USB HDD registered to this TV will be played back.

Data format for SD Card / USB Flash Memory browsing■

Photo : Still images taken by digital still cameras, recorded in JPEG files of DCF●

Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0) MPF (3D) : Multi Picture Format for 3D still image (Extension - “.mpo”) Image resolution - 8 × 8 to 30,719 × 17,279 pixels

Video : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD●

audio format that is either MPEG-1/Layer-2 format or Dolby Digital format (A modified data with a PC may not be displayed correctly.) DivX p. 103 MKV (Matroska Video) file

Music : Data format - MP3 and AAC (Copy-protected files cannot be played back.)● SD Card format : SDXC Card - exFAT●

SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), ●

miniSD Card (2 GB) (requiring miniSD adapter)

If miniSD Card is used, insert / remove it together with the adapter.● Check the latest information on the card type at the following website. (English only)●

http://panasonic.jp/support/global/cs/tv/

USB Flash Memory format : FAT16, FAT32 or exFAT●

∗

1: DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

∗

2: Including 3D videos in Side by Side mode.

(A USB HDD formatted by PC is not surpported in Media Player.)

∗

Standard compatible files with an

∗

and EXIF standards.

Note

Format the device with the recording equipment.● The picture may not appear correctly on this TV depending on the recording equipment used.● Display may take some time when there are many files and folders.● This function cannot display Motion JPEG or still images that are not JPEG format (i.e. TIFF, BMP).● Data modified with a PC may not be displayed.● Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.● Partly degraded files might be displayed at a reduced resolution.● The folder and file names may be different depending on the digital camera or digital video camera used.● Do not use two-byte characters or other special codes.● The device may become unusable with this TV if the file or folder names are changed.●

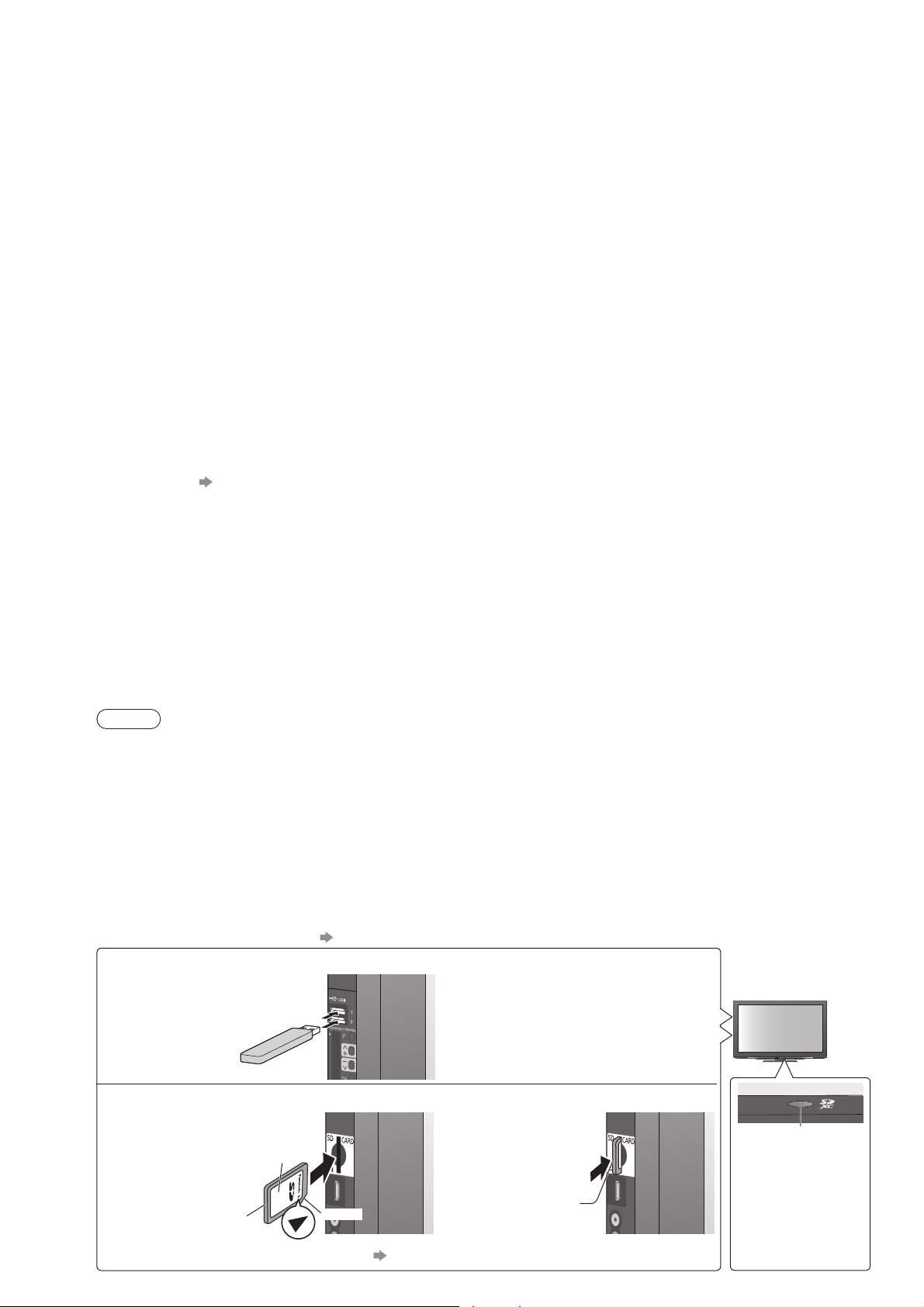

To insert or remove the SD Card / USB Flash Memory ■

For the USB HDD Connection ● p. 70

USB Flash Memory

SD Card

To insert the ● SD Card

Gently insert the SD Card label surface facing front.

Push until a

click is heard

For more information of the SD Card ● p. 102

Label surface

Cutout

Insert or remove straightly and ● completely. Before removing the USB Flash

●

Memory, ensure to perform “Remove the USB devices safely” (p. 75)

To remove the ● SD Card

Push the centre of

the card

Blue LED

Blue LED lights ● while SD Card is inserted if “SD Card LED” is set to “On” in the Setup Menu (p. 42).

Page 75

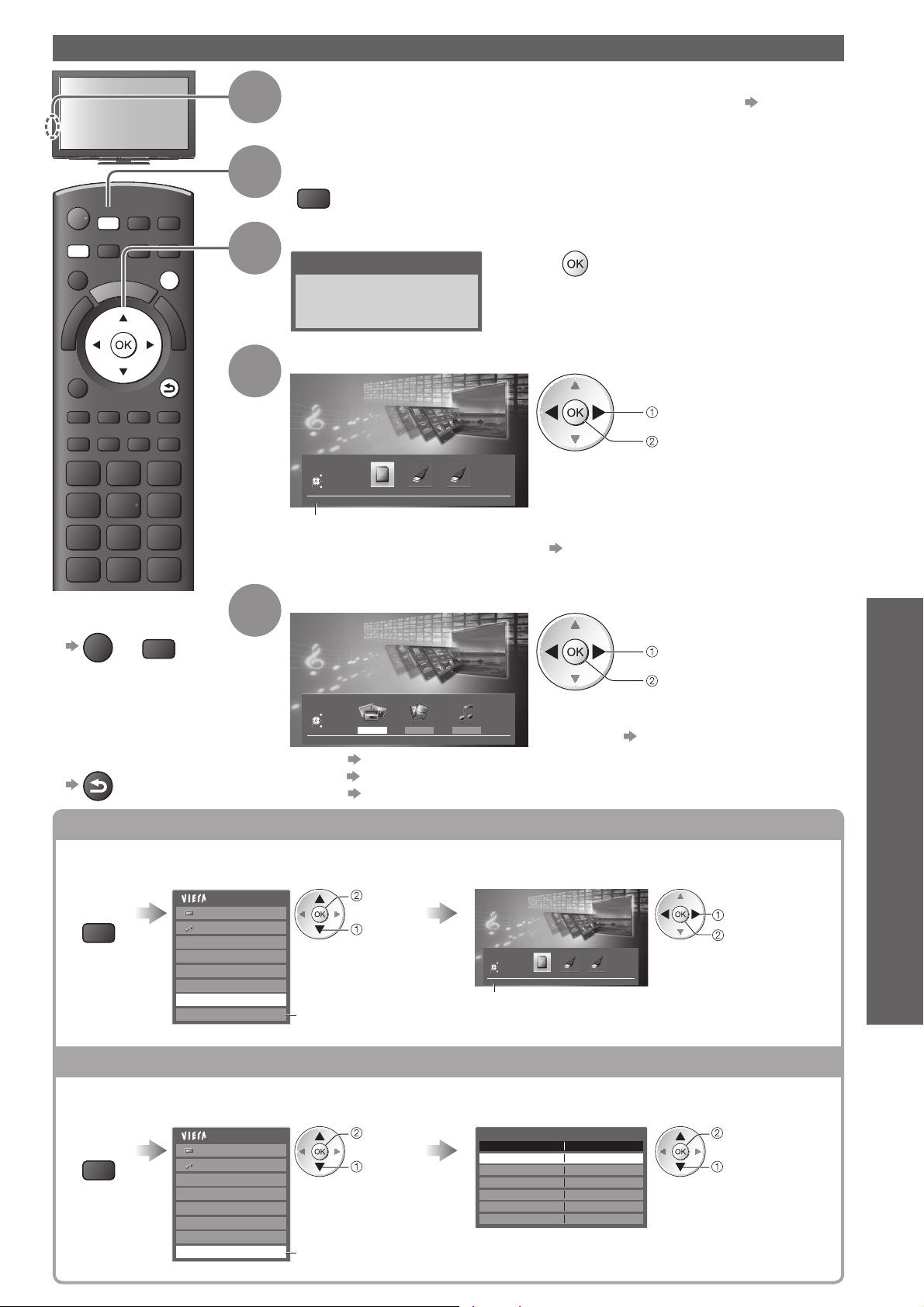

ASPECT

SD CARD

INPUT

TV AV

DIRECT TV REC

EXIT

Starting Media Player

Insert the SD Card or USB Flash Memory

For registered USB HDD, ensure the connection status is “Yes”. ● p. 71

Switch to Media Player

SD CARD

When SD Card is inserted, switching will be done automatically.●

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

TEXT STTL

INDEX HOLD

To return to TV■

EXIT

SD CARD

To return to ■ the previous screen

BACK/

RETURN

BACK/

RETURN

Select the icon you want to access to

Media Player

select

access

Drive Select

EXIT

Select

RETURN

Access

SD Card

selected device name

If two or more devices are not connected, ● this step will be skipped. For the registered USB HDD, all the USB ● HDD of which the connection status is “Yes” is available.

“Register and setup the USB HDD”

(p. 71)

Select the content

Media Player

select

access

Contents Select

EXIT

Select

RETURN

Access

SD Card

Photo Video Music

Photo ● “Photo mode” (p. 76) Video ● “Video mode” (p. 78) Music ● “Music mode” (p. 81)

For registered USB HDD, this step will be ● skipped and recorded contents list will be displayed. p. 79

Using Media Player ●

Advanced

Change the device

You can change to the other device directly in the same mode if two or more devices are connected. Display

the menu

Select “Drive Select” Select the icon you want to access to

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

Drive Select

Safely remove USB

access

select

Appears if the USB device is connected to the TV.

Media Player

Drive Select

EXIT

Select

RETURN

Access

SD Card

selected device name

select access

Remove the USB devices safely

Before remove the USB devices, please take the following steps in order to protect the devices. Display

the menu

Select “Safely remove USB”

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

Drive Select

Safely remove USB

Appears if the USB device is connected to the TV.

access

select

Select the USB Flash Memory or USB HDD to remove

Safely remove USB

USB Flash Disk

NameProduct

set

select

Page 76

Using Media Player

Photo mode

Photo mode reads all “.jpg” extension files and supports MPF (3D) files in the SD Card or USB Flash Memory.

Error display (images that could not be loaded, etc.)

The thumbnail of all the photos on the SD Card or USB Flash Memory will be displayed.

You can also access Photo mode directly by using ● VIERA TOOLS.

“How to Use VIERA TOOLS” (p. 36)

To change the background music ●

Info

SD Card

“Photo Setup” (p. 77)

To display the information of the highlighted photo ●

selected device name

To change the number of photos on a thumbnail ● screen at a time

yellow

The files which are not into a folder will be collected to the folder named “/”.●

The group of the photos without recorded date is shown as “Unknown”.●

Select the sort type

Folder view

Sort by Date

Sort by Month

Select one of the sorted group to display the thumbnail of the selected group

Media Player Photo

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

access

select

Slideshow Contents Select

access

select “All photos”

Single view

Rotate

EXIT Select RETURN

Slideshow

Operation guide

(Single view)

Start Slideshow

red

File name

Date

Pixel


displayed for MPF (3D) file

1/48

file number /

23/10/2009

total file number

1600X1200

(7 × 4 10 × 6)

Sort by Date

Access

EXIT

Select

RETURN

View Select

Info

SD Card

select

thumbnail of the selected group

To display the information of the ● highlighted group

group number /

23/10/2009

Folder name

Number of files

1/12

23/10/2009

total group number

folder name,

date or month

To display / hide the operation guide ●

To operate Single view●

To the previous photo Rotate 90˚ (anti-clockwise)

Single view

To the next photo Slideshow Rotate 90˚ (clockwise)

BACK/

RETURN

To return to thumbnail ●

●

To display / hide the operation guide To pause (return to Single view) ●

BACK/

RETURN

To return to thumbnail ●

STTL

REC

INPUT

TV AV

INDEX HOLD

PROGRAMME

DVD/VCR

ASPECT

TEXT

SD CARD

To return to TV■

EXIT

SD CARD

To return to ■ the previous screen

BACK/

RETURN

DIRECT TV REC

EXIT

BACK/

RETURN

Media Player Photo All photos

View

EXIT

Select

RETURN

Slideshow Contents Select

View Select Change Size

(Thumbnail - All photos)

To sort by folder, recorded date or recorded month■

Folder view : Displays the thumbnail grouped by folder

Sort by Date : Displays the thumbnail grouped by the same date

Sort by Month : Displays the thumbnail grouped by the same month

Display the view selection

green

To return to the thumbnail ● of all photos

green

Single view■ - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Slideshow■ - Slideshow will complete when all photos have been viewed within the present

thumbnail.

Select the file from the thumbnail of photos for the first view

select

Note

Picture quality may become lower depending on the slideshow settings.● Picture setting may not work depending on the slideshow settings.●

Page 77

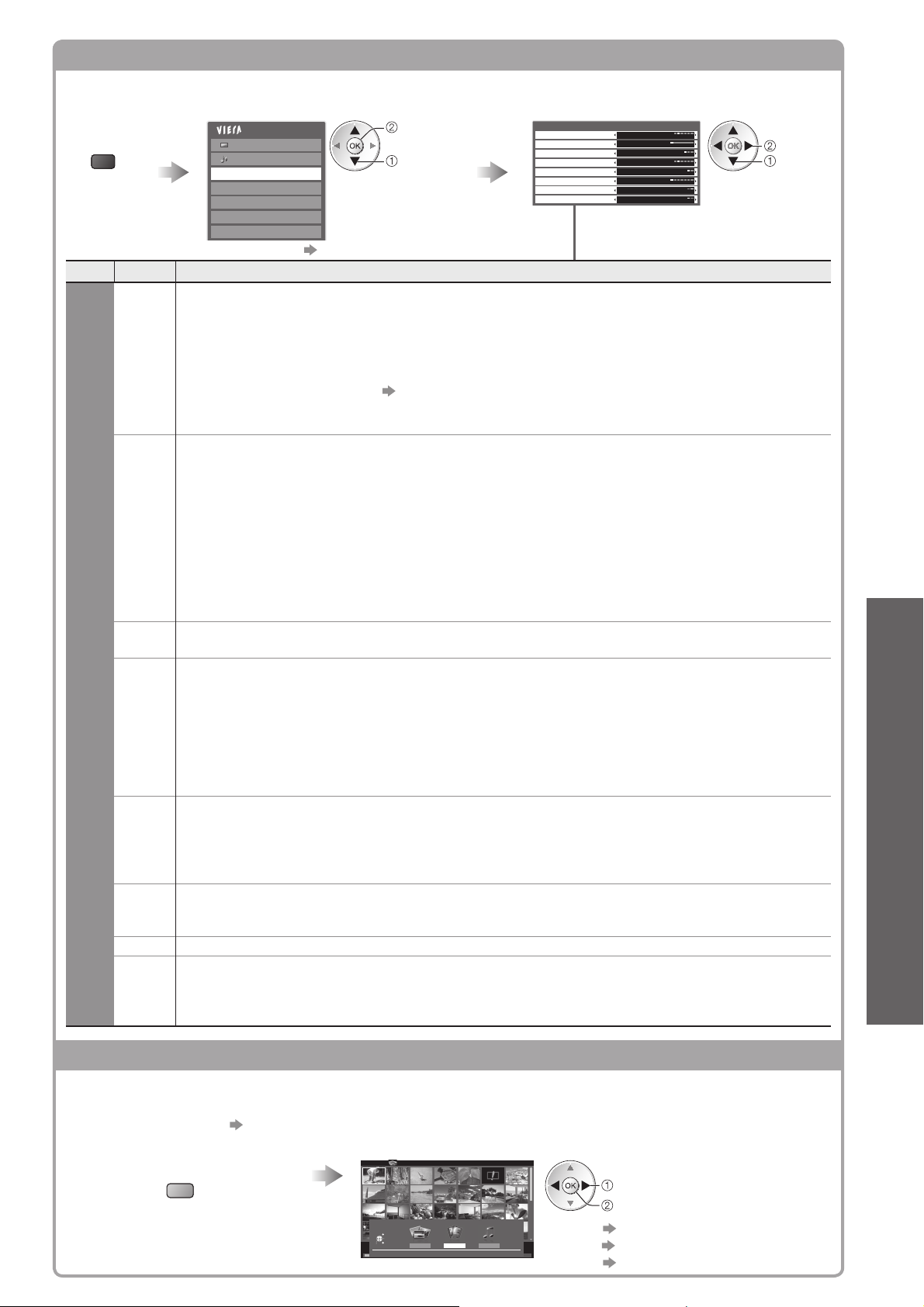

Photo Setup

Choose the settings for Photo mode.

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Back Ground Music

Frame

Photo Setup

Colour Effect

Transition Effect

Aspect

Interval

Repeat

Burst Playback

Select “Photo Setup” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

Drive Select

access

select

Photo Setup Menu

Back Ground Music Type1 Frame Off Colour Effect Transition Effect Aspect Interval 5 seconds Repeat On Burst Playback Off

Off Fade Original

Other items ● p. 35, 38, 39, 75, 80 and p. 81

Selects the back ground music during the Photo mode

(Off / Type1 / Type2 / Type3 / Auto / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.●

Auto : Music data stored in the root folder of the current device will be played back randomly.

●

If there is no available music data, no sound will be produced.

User :

Music data in the current device registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 81) If no music has been registered or the registered music device are removed, no sound ● will be produced.

Selects the frame type of the slideshow

(Off / Multi / Collage / Drift (+ calendar) / Drift / Gallery (+ calendar) / Gallery / Cinema)

Multi : 9 photos are displayed orderly at once. Collage : Each photo is displayed at a random position and random scale. Drift (+ calendar) / Drift : Photos are displayed like flow images.

You can select to display the calendar or not. The month of ● calendar is turned by pressing up or down cursor button.

Gallery (+ calendar) / Gallery : The various size of photos in the frame are displayed.

You can select to display the calendar or not. The month of ● calendar is turned by pressing up or down cursor button.

Cinema : Photos are displayed like old films (sepia tone) Selects the colour effect of photos on Single view and Slideshow (Off / Sepia / Gray scale)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually. Slide : The next photo slides and appears from the left side. Dissolve Motion : Random

●

: Each photo is dissolved when switching to the next photo.

Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.

: Each transition is selected at random.

This function is available when “Frame” is set to “Off”.

Selects whether enlarged or original viewing on Single view and Slideshow (Original / Zoom)

This function is not available when “Frame” is set to “Collage”, “Drift”, “Gallery” or “Cinema”.

●

This function is not available when “Transition Effect” is set to “Motion”.● Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style ● picture.

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.● This function is not available when “Transition Effect” is set to “Motion”.●

Slideshow repeat (Off / On) Selects whether the continuous shots are displayed in rapid interval during the slideshow

(Off / On)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.● This function is not available when “Transition Effect” is set to “Motion”.●

set select

Using Media Player ●

Advanced

Change the contents

You can switch to the other mode of the Media Player from the thumbnail view.

The mode can be switched in the current device.● To change the device ● “Change the device” (p. 75)

While the thumbnail is displayed, display the contents selection

blue

Select the contents

Media Player Photo All photos

Contents Select

EXIT

Select

RETURN

View

EXIT

Photo Video Music

Access

Select

RETURN

SD Card

Slideshow Contents Select

Info

View Select Change Size

select access

Photo ● “Photo mode” (p. 76)

SD Card

Video ● “Video mode” (p. 78) Music ● “Music mode” (p. 81)

Page 78

Using Media Player

Video mode

For SD Card or USB Flash Memory

Video mode supports AVCHD, MPEG2, DivX® and MKV (Matroska Video) file formats.

Error display (images that could not be loaded, etc.)

The thumbnail of video titles on the SD Card or USB Flash Memory will be displayed. The preview will start when the title is highlighted if it supports a preview.

You can also access Video mode directly by using ● VIERA TOOLS

SD Card

“How to Use VIERA TOOLS” (p. 36)

To turn off the preview ● “Video Setup” (p. 80) To display the information of the highlighted title●

Trip1

Title

Date & Time

19/02/2009 11:21

Number of scenes

Duration

00h15m39s

1/15

Trip1

red

DivX and MKV contents cannot be played back from Title view.

●

Select DivX or MKV folder and press the OK button to display DivX or MKV files, and then select one of the file to be played back.

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Play

EXIT

Select

RETURN

Info

(Thumbnail - Scene view)

Title view > Trip1

Contents Select

The preview will start when the scene is highlighted if it supports a preview.

SD Card

To turn off the preview ●

“Video Setup” (p. 80)

To display the information of the highlighted scene●

Scene

Trip1

Date & Time

19/02/2009 11:21

Duration

00h04m12s

displayed for 3D video file

1/8

file format

Trip1_1

scene number / total scene number

To display / hide the operation guide ● and information banner To operate the playback●

Rewind

Pause / Playback

Trip1 19/02/2009 11:21

00:02.05 / 00:15.39

(Playback)

Playback

Fast forward

Stop

To the previous scene ●

To the next scene ●

BACK/

RETURN

ASPECT

STTL

REC

INPUT

TV AV

DIRECT TV REC

EXIT

BACK/

RETURN

INDEX HOLD

PROGRAMME

DVD/VCR

SD CARD

OPTION

TEXT

To return to TV■

EXIT

SD CARD

To return to the ■ previous screen

BACK/

RETURN

Note

The structure of ● titles and scenes may vary depending on the digital video camera used.

Film icon will be displayed if the file does not support thumbnail view.

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

Access

EXIT

Select

Play Contents Select

RETURN

Info

(Thumbnail - Title view)

selected device name

Playback from Title view■

Playback of the selected title will start.

Select the title Start playback

select

Playback from the selected scene in the title (AVCHD or MPEG2)■

Playback will start from the selected scene to the end of the title.

Select the title Select the scene to start playback

select

access

●

To repeat playback

“Video Setup” (p. 80)

How to operate in the playback■

EXIT

RETURN

Title

DVD/VCR

Date & Time

Information banner

Operation guide

To change aspect ● (only for the 4:3 video content)

SPECT

To return to thumbnail ● You can also use the following buttons. (p. 29)●

Set the position to “TV”

displayed for 3D video file file format title number /

total title number

select

playback

red

green

To confirm or change the current status (if available)●

Example:

OPTION

Option Menu

Multi Audio Audio1 DivX Subtitle Subtitle1

To change the content in the current device■

“Change the contents” (p. 77)

change select

Page 79

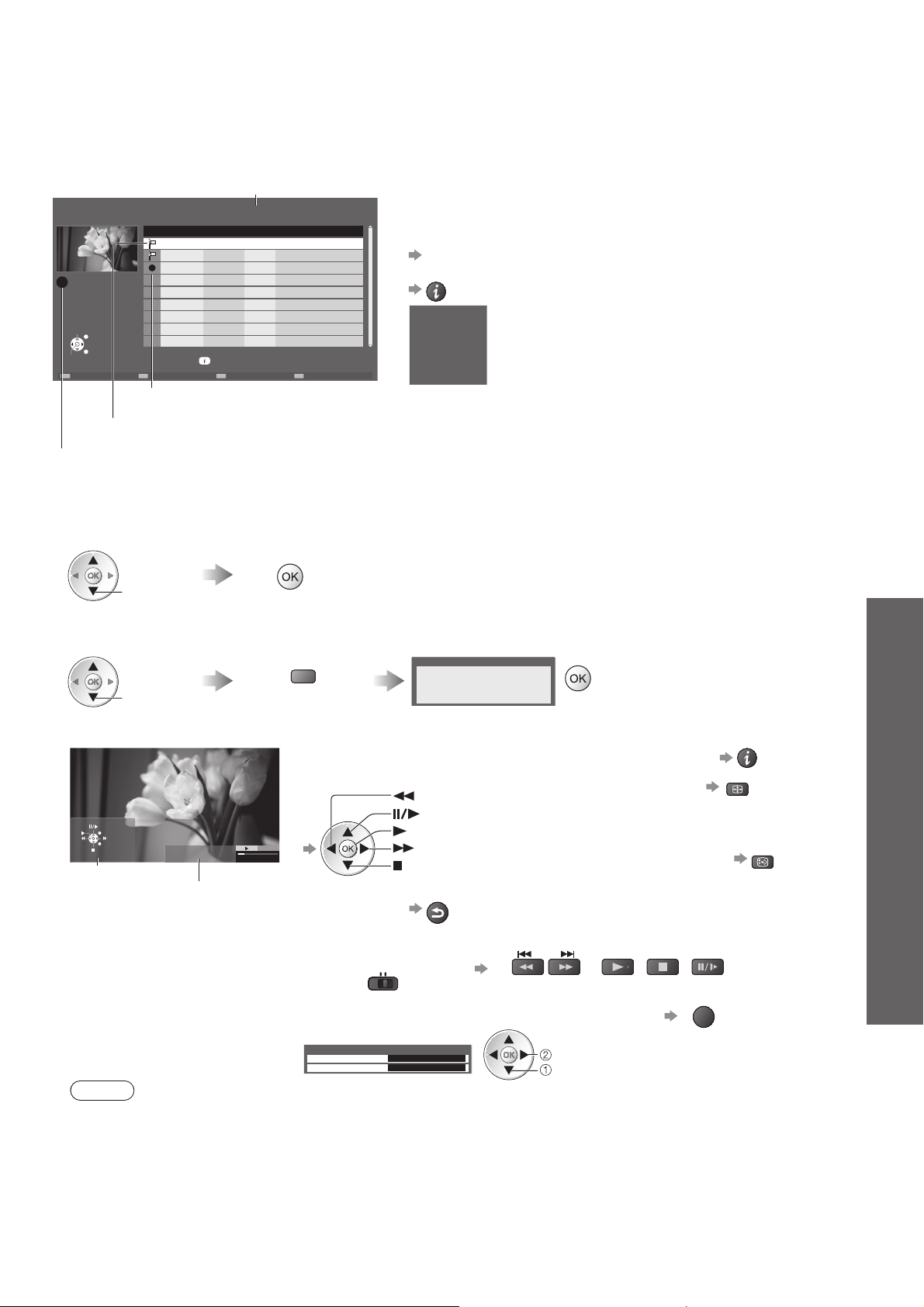

For registered USB HDD

Remaining capacity of the HDD

This value may not be accurate depending on the condition.●

Media Player USB HDD recordings Remaining Capacity 500GB (50%)

TitleDate

Wed 28/10

Sun 10/01

Fri 15/01

Time

12:00

13:30

13:50

Eastender

News

Cinema

Channel

BBC 1

ITV

BBC 2

Select

EXIT

Play

Delete

RETURN

Info

USB HDD 1

Content under recording

You can playback this content even if under recording.●

Content not played back

Once you playback the content, this icon will disappear.●

Appears when the recorded content has the guidance information (parental rating, etc.) or the channel of the content is restricted by Child Lock. This content requires entering PIN number to playback.

Playback the content from the list■

Select the content Start playback

select

Contents list of the registered USB HDD will be displayed.

You can also access the contents list directly by using

●

VIERA TOOLS.

“How to use VIERA TOOLS” (p. 36)

To display the information of the highlighted content ●

Channel :

DVB, BBC 1

Title :

Eastender

Date & Time :

Wed 28/10/2009 12:00

Duration :

00:20

Using Media Player ●

Delete the selected content■

Select the content Delete the content Confirm

select

red

Delete

How to operate in the playback■

To display / hide the operation guide and information banner ● To operate the playback●

Rewind

Pause / Playback

EXIT

RETURN

Operation guide

Title

Eastender

Date & Time

28/10/2009 19:35

00:02.05 / 00:15.39

(Playback)

Information banner

Playback

Fast forward

Stop

BACK/

RETURN

To return to list ● You can also use the following buttons. (p. 29)●

Set the position to “TV”

DVD/VCR

To confirm or change the current status (if available) ●

Example:

Option Menu

Multi Audio eng Monaural Audio eng

Note

Depending on the recorded programmes, some playback operations may not work properly.●

DVB, BBC 1

Eastender

Wed 28/10/2009 12:00

00:20

To change aspect ●

To display the subtitle ● (if available)

(press and hold)

change select

Advanced

ASPECT

STTL

OPTION

Page 80

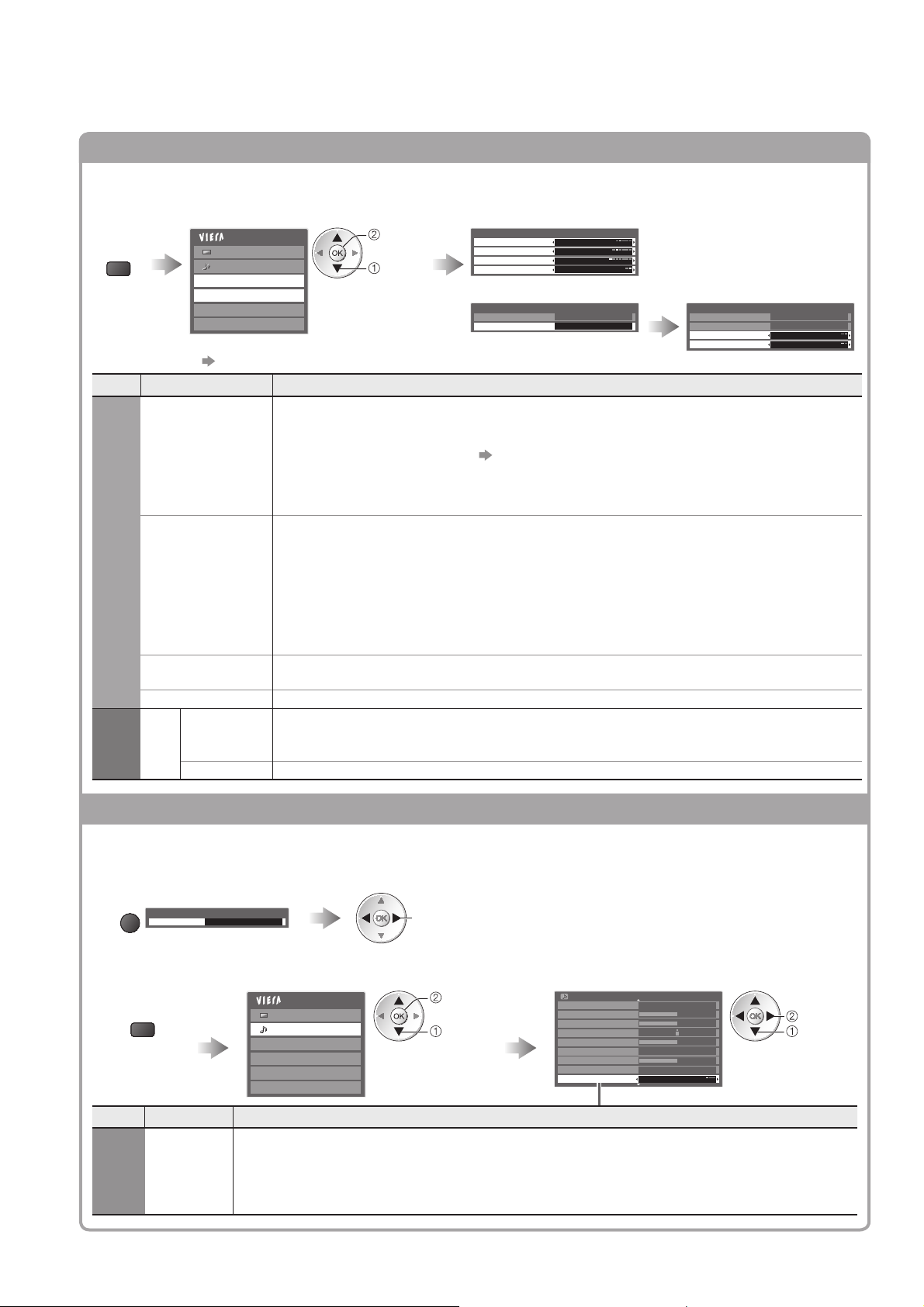

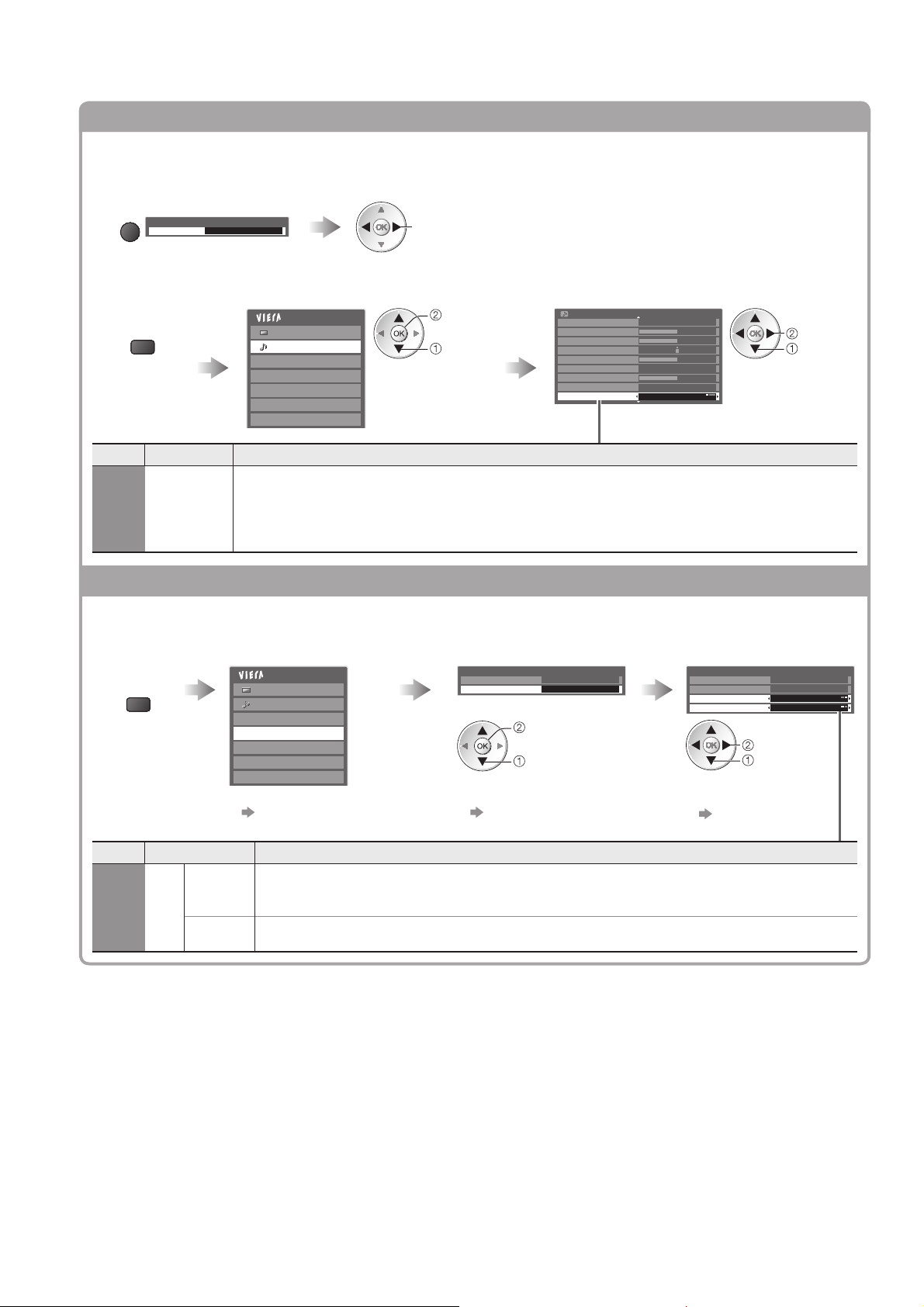

Using Media Player

Sound Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

■ (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

Example:

OPTION

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

Drive Select

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM

: Digital output signal is fixed to PCM.

change

access

select

It may take several seconds to change the sound.●

Sound Menu

Mode Music Bass Treble Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

set select

Video Setup

Choose the settings for Video mode.

These settings are not available for the registered USB HDD.● Display

the menu

Menu Item Adjustments / Configurations (alternatives)

Setup

Settings

Video

Other

Select “Video Setup” Select “Other Settings” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

Drive Select

Other items ●

p. 35, 38, 39, 75, 77 and

Video Setup Menu

Display Settings

Other Settings Access

access

select

Display Settings ●

p. 41

p. 81

Video Preview

Repeat

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the preview ● “Off” to resolve this.

Playback repeat within the title (Off / On)

Only the selected file will be repeated for DivX and MKV (Matroska Video) contents.

●

Other Settings

Intelligent Frame Creation Off 16:9 Overscan On

Video Preview On Repeat Off

set select

Other items ●

p. 42

Page 81

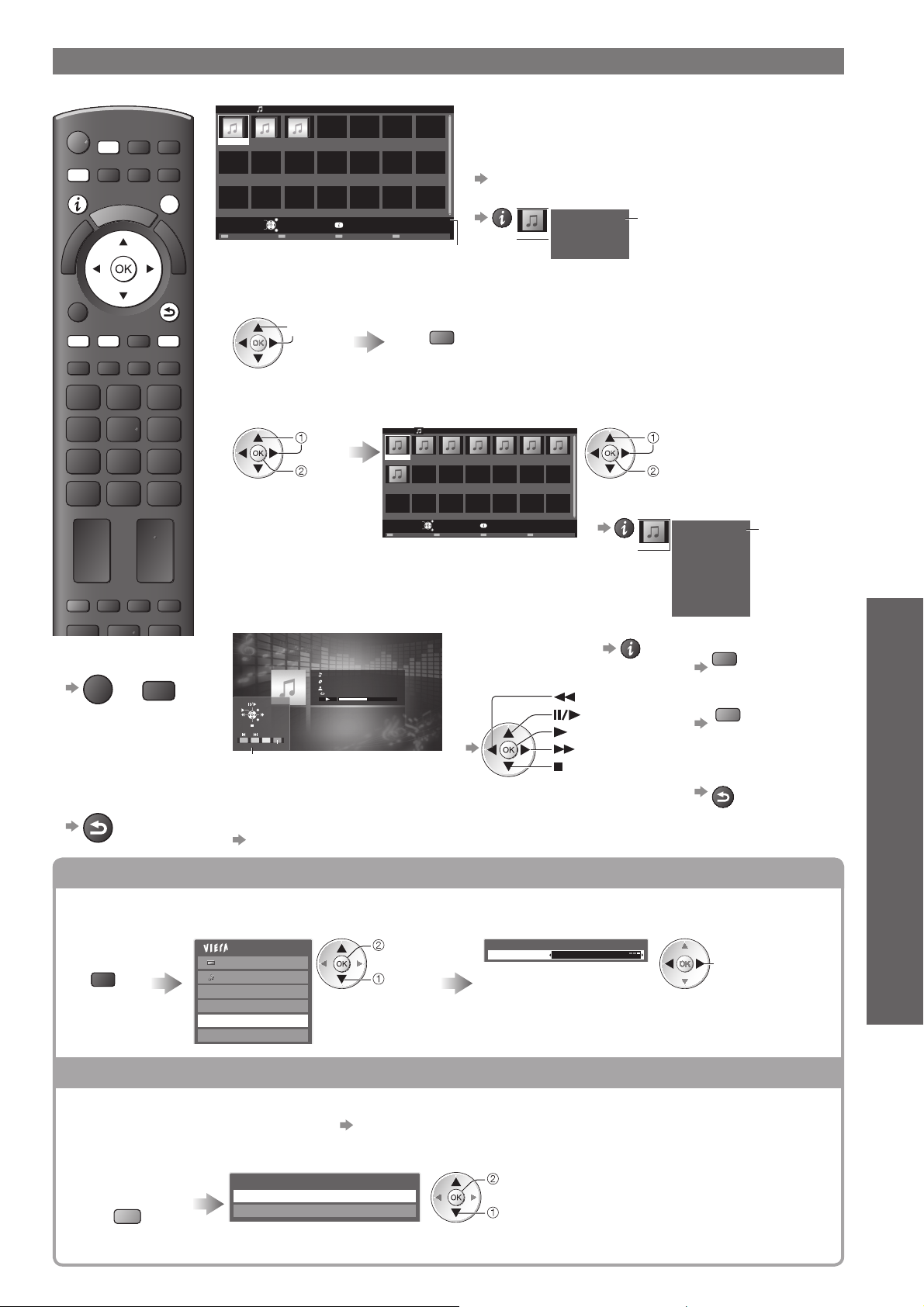

Music mode supports MP3 and AAC file format.

Media Player Music

SD CARD

INPUT

TV AV

DIRECT TV REC

EXIT

My Music_1 My Music_2 My Music_3

Access

EXIT

Select

RETURN

Info

selected device name

Playback from Folder view■

BACK/

RETURN

Playback all the files in the selected folder will start.

Select the folder Start playback

select

TEXT

STTL

INDEX HOLD

Playback from File view■

Playback of the selected file will start.

Select the folder Select the file to start playback

select

access

PROGRAMME

REC

How to operate in the playback■

To return to TV■

EXIT

SD CARD

EXIT

RETURN

My Song_9

My Favourite My Music_1

00:02.43 / 00:05.44

To return to ■ the previous screen

BACK/

RETURN

User BGM

Operation guide (Playback)

To change the content in the current device■

“Change the contents” (p. 77)

Music mode

Folder view

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed.

You can also access Music mode directly by using ● VIERA TOOLS

“How to use “VIERA TOOLS” (p. 36)

To display the information of the highlighted title●

SD Card

Contents SelectPlay Folder

red

Media Player Music Folder view > My Music_1

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_8 My Song_9 My Song_10 My Song_11

Play

EXIT

Select

RETURN

My Music_1

Info

Contents Select

To display / hide ●

the operation guide

To operate the playback●

Folder name

Number of files

1/3

My Music_1

To display the information of the ● highlighted title

SD Card

Stop

Rewind

Pause / Playback

Playback

Fast forward

folder number / total folder number

select

playback

Title

Album

Artist

Track No.

Duration

My Song_1

My Music_1

My Favorite

00h03m29s

My Song_1

To the previous track ●

red

To the next track ●

green

To return to thumbnail ●

BACK/

RETURN

1/11

file number / total file number

Using Media Player ●

Advanced

Music Setup

Setup the setting for Music mode.

Display the menu

Select “Music Setup” Set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

access

select

Music Setup Menu

Repeat One

Folder : Playback repeat within the selected folder One : Playback repeat of the selected one file

Set background music for Photo mode

You can register your favourite music as background music for Photo mode.

Select “User” in “Back Ground Music” ● “Photo Setup” (p. 77) If you remove the device in which the registered music is stored, the setting of “User” will be reset.●

While playing music, display the selection screen

blue

Select “File” or “Folder” and set

File

Folder

set

select

File : The current music will be

registered as back ground music.

Folder : All the music in the current folder

will be registered as back ground music.

set

Page 82

Using Network Services

(DLNA / VIERA CAST / freesat)

DLNA

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. It allows you to share photos and videos (including 3D images) stored in the DLNA Certified media server (for example, PC with windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy watching them on the TV screen.

Applicable data format

■

Photo : JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)

Video : MPEG2 (PS format and TS format)

Media server■

Store photos or videos into the media server, and then you can watch them on the TV.

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “Windows 7” and “TwonkyMedia server 5.1.x (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server software that has been tested for compatibility with this TV (current as of January, 2010). Any other server software have not been tested with this TV, therefore compatibility and performance cannot be assured.

●

To use a DLNA compatible DIGA Recorder as a media server

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.

Network connection■

Image resolution - 8 × 8 to 30,719 × 17,279 pixels

Motion JPEG and Progressive JPEG are not supported.●

Image resolution - Up to 1,920 × 1,080 pixels FPS (Frame Per Second) - 24 / 25 / 30 fps

●

PS (Program Stream) format : used for DVD recording, etc. TS (Transport Stream) format : used for digital broadcasts, internet, etc.● Depending on the network environment, including lack of transfer speed, contents may not be played ● back properly. AVCHD, DivX and MKV (Matroska Video) files are not supported by DLNA, but can be played by ● Media Player (p. 78).

Music files are not supported by DLNA functions of this TV, but MP3 and AAC files can be played back by ●

Media Player (p. 81).

Windows 7●

The setup for homegroup settings of Windows 7 is required.•

“How to use Windows 7 as a media server” (p. 105)

This TV does not support DLNA control functions from Windows 7.•

TwonkyMedia server●

“TwonkyMedia server” is the product of PacketVideo Corporation.• To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia.

• Additional fees may be charged to obtain server software.•

Note

For more information about the server software, please consult each software company.● Software which has the file sharing feature may be available with this TV. But, all the features may not be used. When server software for the media server is installed on the PC, the data may be at risk of being accessed by ●

other people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router.

Please refer to the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.●

Example 1 or Example 2

in “Network connections” (p. 83)

Network setup■

p. 84 - 87

DLNA operations■

p. 88 - 90

VIERA CAST™

VIERA CAST is a gateway to the internet services unique to Panasonic. By connecting the TV to the internet environment, VIERA CAST allows you to enjoy internet content on the TV screen such as photos, videos, weather, etc. from VIERA CAST home screen. You can access VIERA CAST home screen directly by pressing the VIERA CAST button on the remote control.

■

Network connection

Example 1 or Example 3

in “Network connections” (p. 83)

Network setup■

p. 84 - 87

VIERA CAST operations■

p. 91

freesat

freesat will give you access to the great interactive services and features through an internet connection.

Please contact broadcasters for availability of services.●

Page 83

Network connections

To use only DLNA features, you can operate the features without Broadband network environment. To use VIERA CAST features or freesat interactive services, you need a Broadband network environment.

If you do not have any Broadband network services, please consult your retailer for assistance.● Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications ● company. Set up and connect any equipment required for the network environment.● Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the ● transfer speed is not enough, contents may not be played back properly. Read the manual of the network equipment, too.●

Example 1■

Wireless LAN connection■

You can connect to the network by using a Wireless LAN Adaptor (supplied) and an access point.

It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.●

Internet

Modem

LAN cable

(DLNA / VIERA CAST / freesat)

Using Network Services ●

Wired LAN connection■

You can also connect to the network directly by using a LAN cable.

Ensure to use a LAN straight cable for this connection.● If your modem has no broadband router functions, use a broadband router.● If your modem has broadband router functions but there are no vacant ports, use a hub.● Ensure that the Broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.● If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.●

Hub, Router

Access point

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Example 2■

You can connect the TV and the equipment directly to use DLNA features.

LAN cable

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Ensure to use a LAN cross cable for this connection.●

Example 3■

You can connect the TV and the telecommunication equipment directly to use VIERA CAST features.

LAN cable

Modem

Internet

Advanced

Note

Depending on the ISP or telecommunications company, the required equipment and the internet connection ● procedure are different. Ensure that you use the network equipment that are authorized by your ISP and telecommunications company. You cannot make settings for the network equipment on this TV. You may be required to make settings on your ● computer. Depending on the terms and conditions of the contracts with your ISP or telecommunications company, additional ● fees may be charged or multiple connections to the internet may be impossible. Please contact your ISP or telecommunications company if you require further assistance regarding the network ● equipment.

Page 84

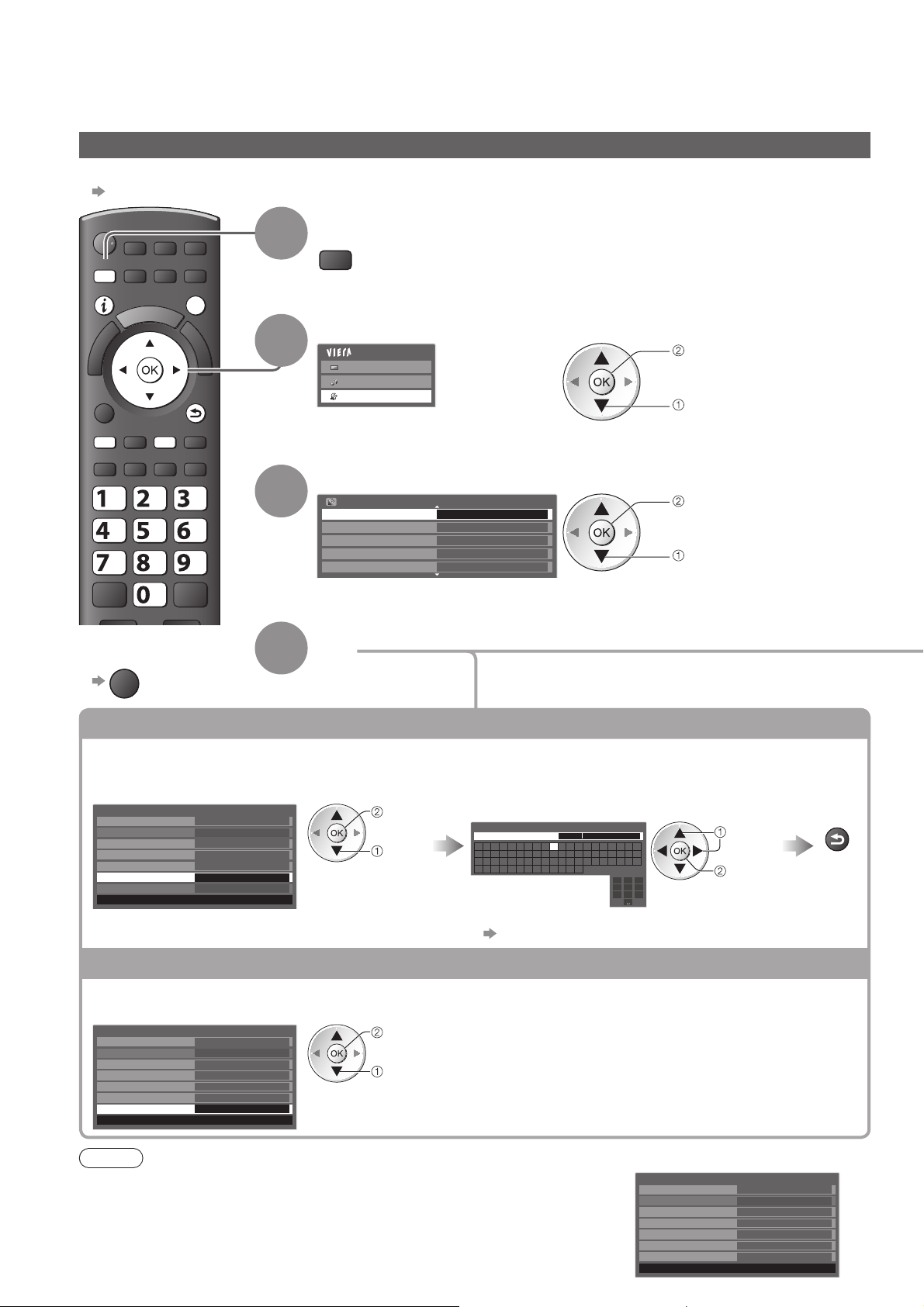

Using Network Services

(DLNA / VIERA CAST / freesat)

Network Setup

Ensure the connections are completed before starting Network Setup.●

“Network connections” (p. 83)

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Network Setup”

Setup Menu

Network Setup

DivX® VOD Advance(isfccc) System Menu Other Settings

Access

Off

2/2

access

select

access

select

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

To return to TV■

EXIT

Set

Edit the name of this TV

You can set your favourite name for this TV. This name will be used to display the name of this TV on the screen of the other DLNA compatible equipment.

Select “VIERA Name” Edit the name

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test

VIERA Name VIERA

Software Update MAC Address ab-cd-ef-gh-ij-kl

---

access

select

Set characters one by one

VIERA Name

Name VIERA

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Update TV’s software

Accesses the specific web site to update TV’s software and search if any software updates are available.

Select “Software Update”

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name

Software Update

MAC Address ab-cd-ef-gh-ij-kl

---

VIERA Access

Follow the on screen instructions●

access

select

Store

BACK/

RETURN

Note

MAC Address

MAC address is a unique address that identifies hardware in the network. ● (for information only)

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Page 85

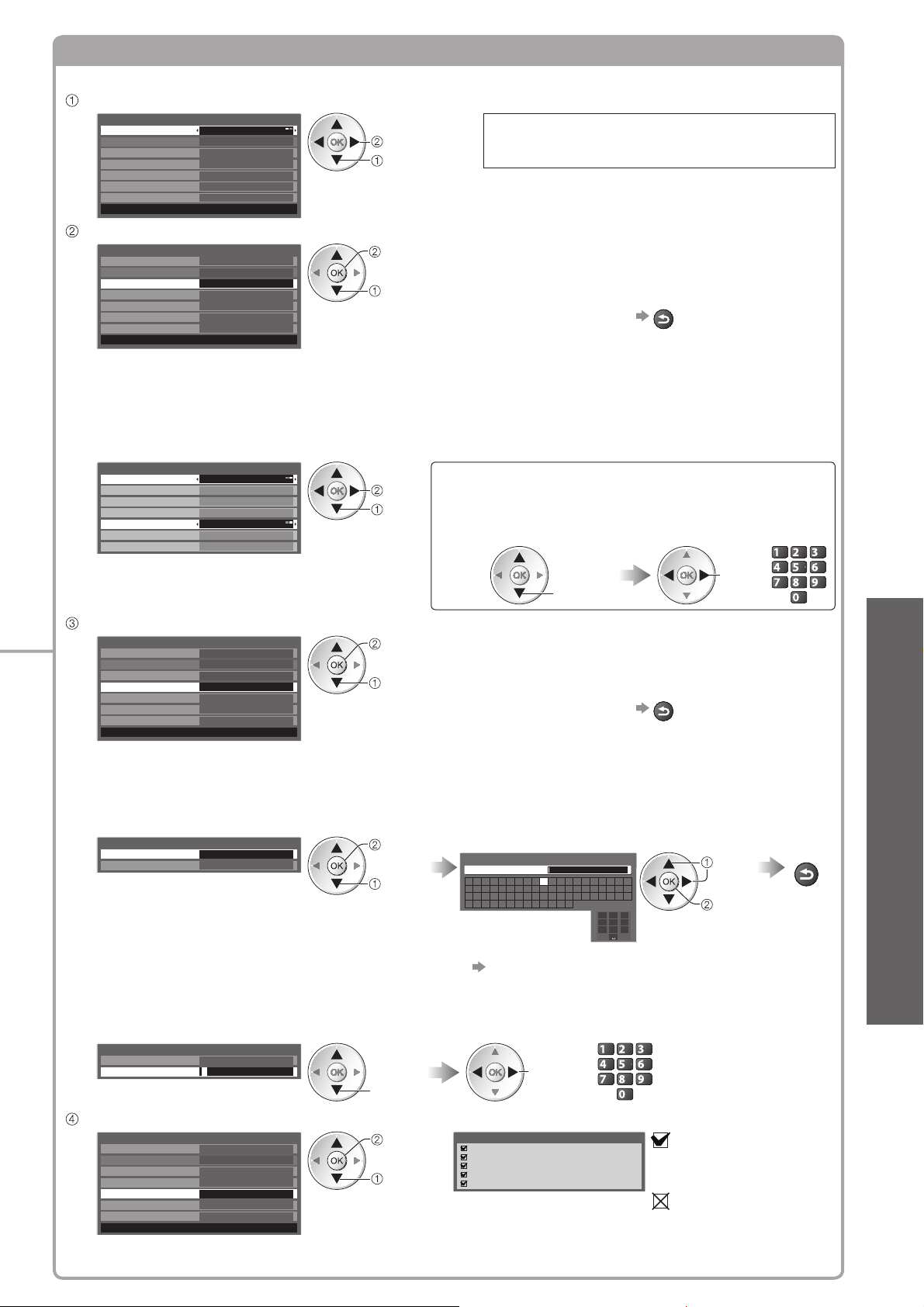

Network settings for the LAN Cable connection

This setting is for the network connection by using the LAN cable.

Select “Network Type” and set to “Wired”

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

set select

Select “IP/DNS Settings” and set the items

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings

Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Access

After settings, return to “Network Setup” screen

access

select

Acquire IP Address■ Acquire DNS Address■

Sets IP Address, Subnet Mask, Gateway, Primary DNS and Secondary DNS. For most users, the recommended method of connection to your network is by using Auto feature.

Select “Acquire IP Address” and then set to “Auto” Select “Acquire DNS Address” and then set to “Auto”

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask Gateway . . .

Acquire DNS Address Auto

Primary DNS . . . Secondary DNS . . .

Auto . . . . . .

The available settings are ● displayed automatically.

set select

Manual settings

If you wish to set these functions manually, select “Manual”. Select “IP Address”, “Subnet

Mask”, “Gateway”, “Primary DNS” or “Secondary DNS”

If you make the network connection like “Example2” (p. 83), you do not have to set “Acquire DNS Address”, “Proxy” and “Proxy Port”.

BACK/

RETURN

Move the cursor and enter the number

select

move

(DLNA / VIERA CAST / freesat)

Using Network Services ●

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Select “Proxy Settings” and set the items

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings

Proxy Settings

Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Access

After settings, return to “Network Setup” screen

access

select

BACK/

RETURN

Proxy■

Sets Proxy address.

This is the address of the relay server that is connected to the target server instead of the browser and ●

sends data to the browser. Setting is required if specified by the provider.

Select “Proxy” Enter the address Store

Proxy Settings

Proxy

Proxy Port 0

access

select

Set characters one by one

Proxy

Host http://

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Proxy Port■

Sets Proxy port number.

This number is also specified by the provider with the Proxy address.●

Select “Proxy Port” Move the cursor and enter the number

Proxy Settings

Proxy

Proxy Port 0

move

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

BACK/

RETURN

Advanced

Select “Connection Test” and access to test

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings

Connection Test

VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Access

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

access

select

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA CAST.

succeeded

The test is successful and the TV is connected to the network.

failed

Check the settings and connections, and then perform this function again.

Page 86

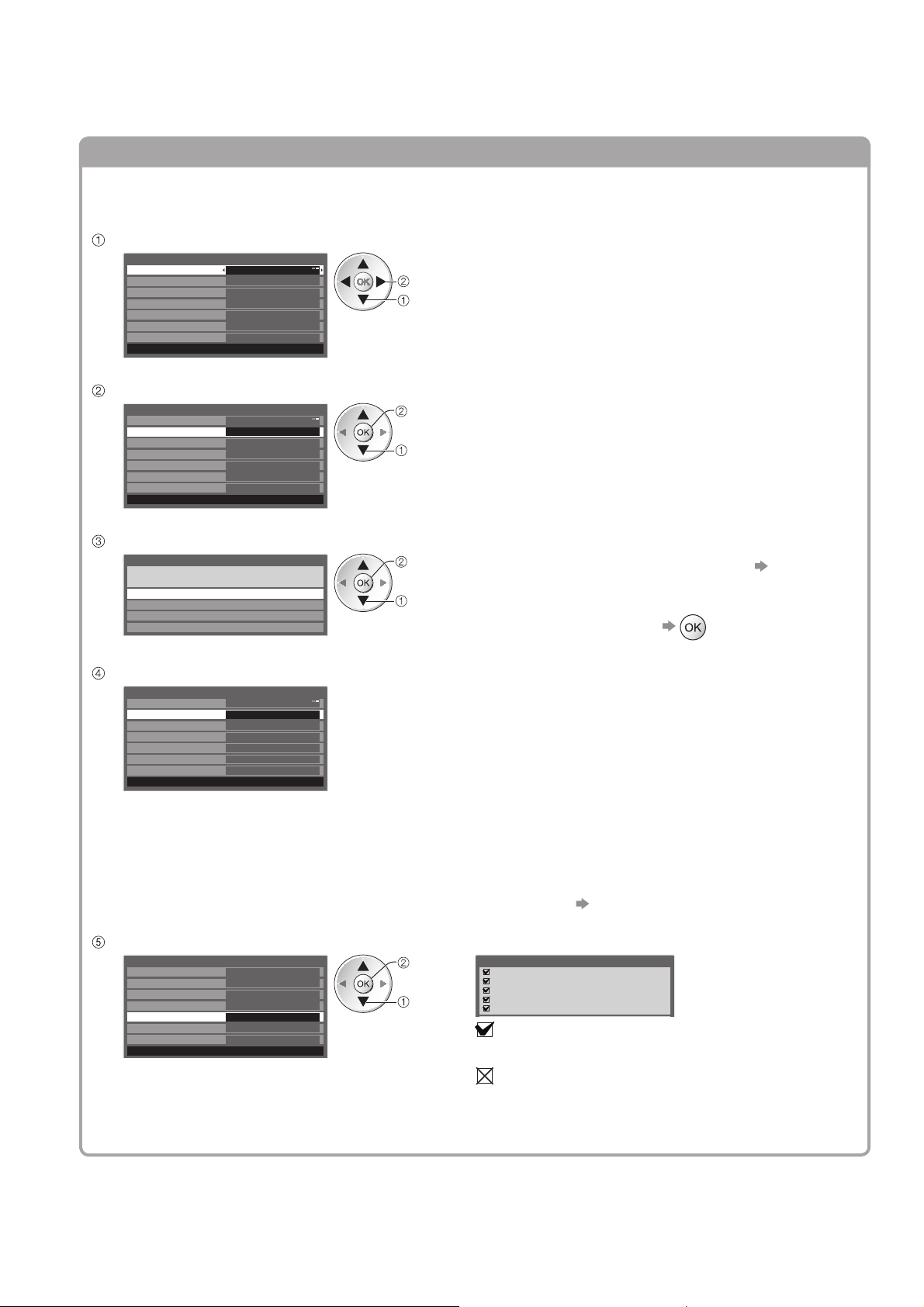

Using Network Services

(DLNA / VIERA CAST / freesat)

Network settings for the Wireless LAN connection

This setting is for the network connection by using Wireless LAN Adaptor. (Wireless LAN connection)

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read ● the manual of the access point.

Select “Network Type” and set to “Wireless”

Network Setup

Network Type Wireless

Access Point Settings IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

Select “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

No settings

set select

access

select

Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

Search for access point

Manual

After settings, return to “Network Setup” screen

access

select

For details of each connection type ● p. 87

Confirm the connection status of “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

Connected

- - - : “Wired” is selected in “Network Type”. No adaptor : Wireless LAN Adaptor is not connected. No settings : Setting for connecting to the access point has not been set. Connecting... : Connecting to the access point in progress. Connected : Wireless LAN connection to the access point succeeded.

To display the current access point settings, press the ●

OK button. To change the settings, select “No” on this screen.

Some access points do not allow access to the internet. ●

Perform “Connection Test” (below) to check if internet

connection is available. USB overcurrent : Overcurrent error p. 110

Select “Connection Test” and access to test

Network Setup

Network Type Wireless Access Point Settings IP/DNS Settings Proxy Settings

Connection Test

VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

Connected

Access

access

select

Performs automatic testing of the network connection for the TV. (This may take some time.)

Connection Test

Check access point connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA CAST.

succeeded

The test is successful and the TV is connected to the network.

failed

Check the settings and connections, and then perform this function again. If you continue to have difficulty, please contact your internet service provider.

Page 87

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

Press the WPS button on the access point until the light flashes. And then, press the OK button to connect the Wireless LAN Adaptor and the access point.

Ensure that your access point supports WPS for this setup.● WPS: Wi-Fi Protected Setup™●

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

Access Point Settings

Encryption key

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

Access Point Settings

Encryption key is set to:XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes No

11n(5GHz)

O P Q R S T

7 8 9 ! : # o p q r s t

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will be ● displayed. It is recommended to select the encrypted access point.

Enter the encryption key of the access point Set characters one by one Store

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 103)

Select “Yes”

select confirm

To re-enter the encryption key, select “No”.●

BACK/

RETURN

To search access points again ● For the information of the ●

highlighted access point To set manually ●

red

yellow

(DLNA / VIERA CAST / freesat)

Using Network Services ●

Advanced

WPS(PIN)■

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

WPS(PIN)

Please register the following PIN codes on the access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the access point.

11n(5GHz)

Connect

Select your desired access point

access

select

Ensure that your access point ● supports WPS for this setup. To search access points again ●

yellow

For the information of the ● highlighted access point

To set manually ●

red

Enter the PIN code to the access point, and then select “Connect”

Manual■

You can setup SSID, authentication type, encryption type, and encryption key manually. Follow the on screen instructions and set manually.

When you use 11n (5GHz) for the wireless ● system between the Wireless LAN Adaptor and access point, please select “AES” for the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:XXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes No

Authentication Type Settings

Connection will be made with the following settings:SSID : XXXXXXX

Please select the authentication type.

WPA2-PSK

WPA-PSK

Shared key

Open

Page 88

Using Network Services

(DLNA / VIERA CAST / freesat)

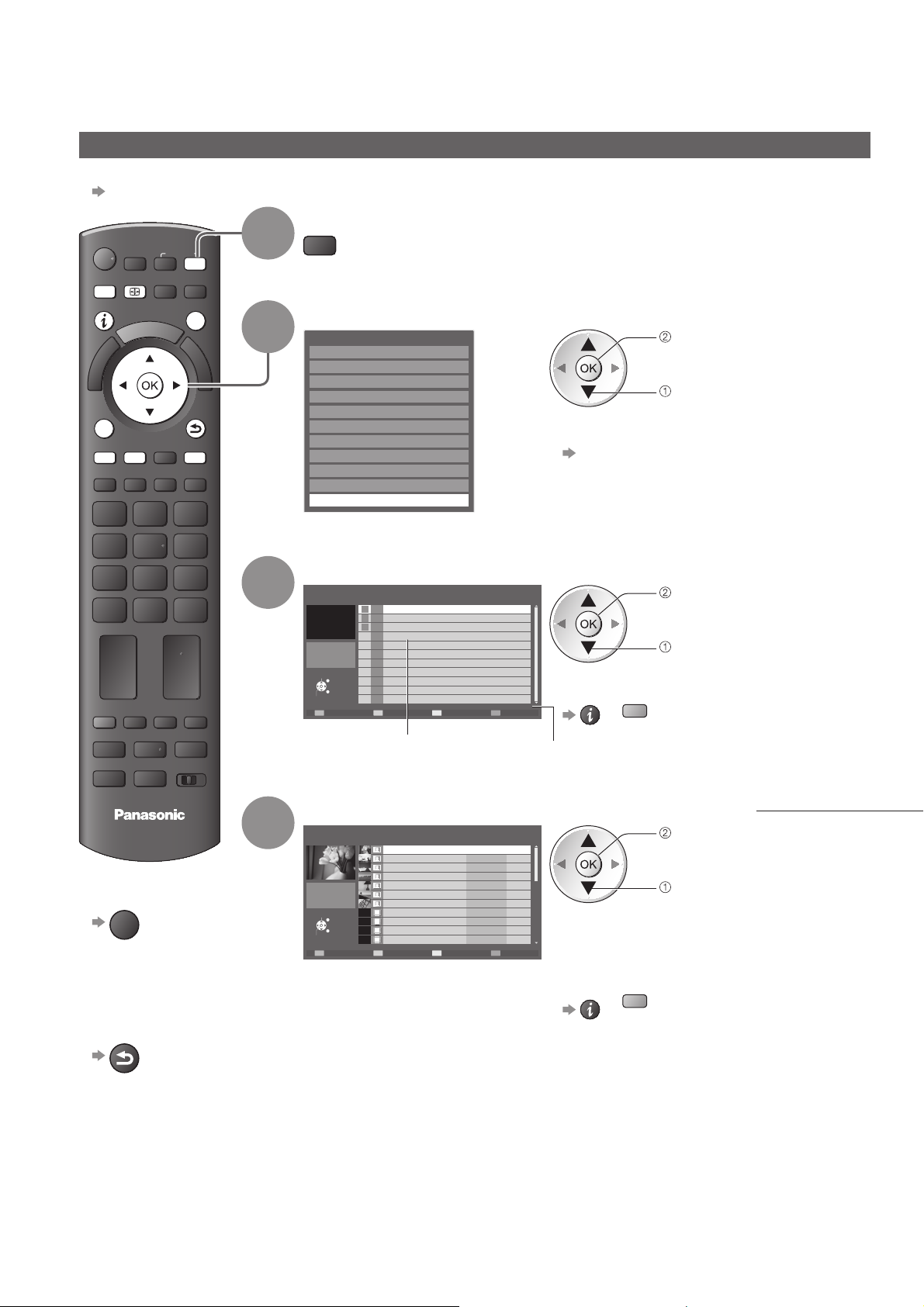

Using DLNA® features

Ensure the preparation of media server, network connections and network settings are completed.●

“Media server” (p. 82), “Network connections” (p. 83), “Network Setup” (p. 84 - 87)

Display the Input select menu

OPTION

ASPECT

INPUT

EXIT

BACK/

RETURN

Select “Media Server”

Input Selection

AV1 AV2/S AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV

Media Server

access

select

You can also access directly by using ● VIERA TOOLS

“How to Use VIERA TOOLS” (p. 36)

To return to TV■

EXIT

To return to ■ the previous screen

BACK/

RETURN

Select one of the media servers you want to access

Media Server

SERVER1

SERVER2

SERVER3 DIGA

Select

EXIT

RETURN

Access

Available media servers

Info

(Media server list)

To display the information of the highlighted ● media server

Total listed number

blue

access

select

Select the file (photo or video) to be viewed

Media Server

SERVER1

P000102 2008-10-05 09:54 P000135 2008-11-20 13:18 P000180 2008-12-07 11:31 P000214 2008-12-10 15:20

Pixel

3648x2736

Format

JPEG

Select

EXIT

RETURN

View

Slideshow Info

P000251 2008-12-19 12:39 P000276 2008-12-25 14:06 P000293 2009-01-06 13:52 M10025 2009-01-12 15:56 M10042 2009-01-20 10:08 M10054 2009-01-28 14:48 M10078 2009-02-09 19:58

(File list)

Depending on the conditions of media ● server, you may need to select the folder before selecting the file. To display the information of the highlighted ●

file

blue

access

select

Page 89

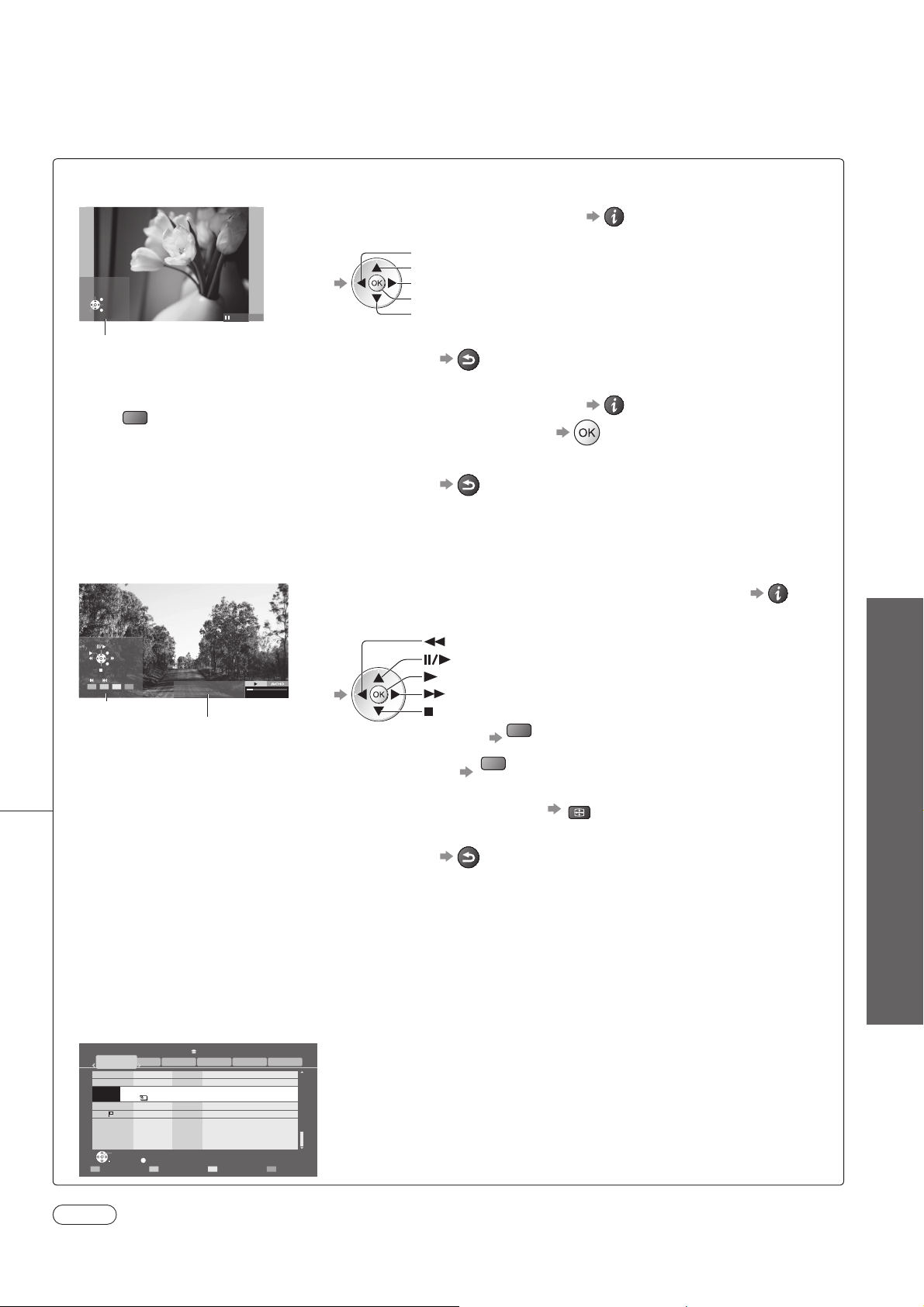

For photo file

Single view■ - Photos are displayed one at a time.

To display / hide the operation guide ● To operate Single view●

To the previous photo

Single view

Rotate

EXIT Select RETURN

Slideshow

Operation guide

Single view

(Single view)

Rotate 90˚ (anti-clockwise) To the next photo Slideshow Rotate 90˚ (clockwise)

BACK/

RETURN

To return to list ●

Slideshow■ - Slideshow will be started from the selected photo file and completed within the list.

Start Slideshow

red

●

To display / hide the operation guide To pause (return to Single view) ●

BACK/

RETURN

To return to list ●

For video file

Playback ■ - Playback will start.

To display / hide the operation guide and information banner ● To operate the playback●

EXIT

RETURN

Operation guide

Title

Trip1

Date & Time

19/02/2009 11:21

00:02.05 / 00:15.39

(Playback)

Information banner

To the previous scene ●

To the next scene ● To change aspect ●

(only for the 4:3 video content)

To return to list ●

Rewind

Pause / Playback

Playback

Fast forward

Stop

green

BACK/

RETURN

red

ASPECT

(DLNA / VIERA CAST / freesat)

Using Network Services ●

Advanced

For DIGA Recorder

Control the DIGA Recorder■

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide.

Before operating, register this TV on the DIGA Recorder.● For details, read the manual of the DIGA Recorder.●

Example:

DIRECT NAVIGATOR (Grouped Titles)

All

Bibel TV Bibel TV das Gespräch

OK RETURN

Note

You may select and playback the music file.● Non-playable files are also listed but cannot be selected.● Turn the TV off, and then on again when changing or reconnecting the network connection.●

Liberty TV FR Journal Télévisé / Météo

AV1

WDR Aachen

WDR Wuppertal

OPTION

HDD

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

WDR aktuell

18.08(Tue)

WDR aktuell

Time Remaining 36:17 (DR)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Page 005/005

Delete TitleSelect

Page 90

Using Network Services

(DLNA / VIERA CAST / freesat)

Photo Setup (for photo contents) and Video Setup (for video contents)

Choose the settings for Photo and Video file operations.

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Photo Setup

Setup

Video

Select “Photo Setup” or “Video Setup”

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

access

select

Other items ●

p. 35, 38, 39, 41, 42 and p. 81

Selects the back ground music while photo (Off / Type1 / Type2 / Type3 / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.●

Back Ground Music

User : Music data registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 81) Only available music files can be registered.● If no music has been registered, or you change to the other media server, no ● sound will be produced.

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually.

Transition Effect

Slide : The next photo slides and appears from the left side. Dissolve : Each photo is dissolved when switching to the next photo. Motion : Each photo is displayed with an effect of enlarging, reducing, moving up

or moving down.

Random : Each transition is selected at random.

Interval

Repeat Slideshow repeat (Off / On)

Settings

Other

Video Preview

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Transition Effect” is set to “Motion”.●

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the

●

preview “Off” to resolve this.

Repeat Playback repeat within the title (Off / On)

Select the items and set

Photo Setup Menu

Back Ground Music Type1 Transition Effect Fade Interval 5 seconds Repeat On

Select “Other Settings” Select the items and set

Video Setup Menu

Display Settings

Other Settings Access

Other Settings

Intelligent Frame Creation Off 16:9 Overscan On

Video Preview On Repeat Off

Sound Settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

■ (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

Example:

OPTION

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM

: Digital output signal is fixed to PCM.

change

access

select

It may take several seconds to change the sound.●

Sound Menu

Mode Music Bass Treble Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

set select

Page 91

VIERA CAST™

You can access a selection of internet services from VIERA CAST home screen. For example, YouTube, Picasa Web Albums (current as of March, 2010).

VIERA CAST requires a broadband internet connection. Dial-up internet connections cannot be used.● Ensure the network connections and network settings are completed.●

“Network connections” (p. 83), “Network Setup” (p. 84 - 87)

Access VIERA CAST

EXIT

Depending on the usage conditions, ● it may take a while to read all the data.

BACK/

RETURN

Example:

Setup & Help

abc def

jkl

ghi

To return to TV■

mno

tuvpqrs

wxyz

BACK

EXIT

VIERA CAST home screen

How to operate VIERA CAST ■ (current as of March, 2010)

To go to the next level ● Select “MORE” To back to the previous level ● Select “BACK”

To move the cursor / select the item ● To access ● To return to the previous screen ●

BACK/

RETURN

To return to VIERA CAST home screen ●

When the key words are displayed on colour bar ●

When options with numbers are displayed ●

red green yellow blue

abc def

jkl

ghi

mno

tuvpqrs

wxyz

USB Keyboard■

You can input characters on VIERA CAST screen by using the USB Keyboard connected to the USB port.

●

You cannot use two or more keyboards simultaneously.

●

The USB Keyboard which requires the driver is not supported.

●

To change the language type

“USB Keyboard Layout” (p. 42)

Note

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is ● not updated, you will not be able to use VIERA CAST. You can update the software later manually

●

VIERA CAST™ home screen is subject to change without notice. The services through VIERA CAST™ are operated by their respective service providers, and service may be ● discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

●

All features of websites or content of the service may not be available. Some content may be inappropriate for some viewers.● Some content may only be available for specific countries and may be presented in specific languages.● Depending on the connection environment, the internet connection may be slow or may not be successful.● During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals. ● But no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the Setup Menu (p. 40). You can set to restrict using VIERA CAST

● “Child Lock” (p. 60)

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

“Software Update” in the Network Setup Menu (p. 84)

Example:

Welcome to VIERA CAST™

VIERA CAST™ home screen is subject to change without notice.

The services through VIERA CAST™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

ENTER

Some content may be inappropriate for some viewers.

Some content may only be available for specific countries and may be presented in specific languages.

Messages might be displayed before ● VIERA CAST home screen. Please read these instructions carefully and follow the on screen instructions.

Video communication ● (ex. Skype™) requires an exclusive Communication Camera TY-CC10W (optional accessory p. 6). For details, read the manual of the Communication Camera.

Setup & Help menu● (Items in the “Setup & Help” may

change without notice.)

Customize HomeScreen

My Account

Lock

Beep

Notices

Help

Changes the position of each services on VIERA CAST home screen

Confirms or removes the account information of the TV you entered on VIERA CAST

Sets to restrict access to some services

Sets beep sound On or Off when operating VIERA CAST

Displays the information of VIERA CAST

Explains the setup items and operations in VIERA CAST

(DLNA / VIERA CAST / freesat)

Using Network Services ●

Advanced

Page 92

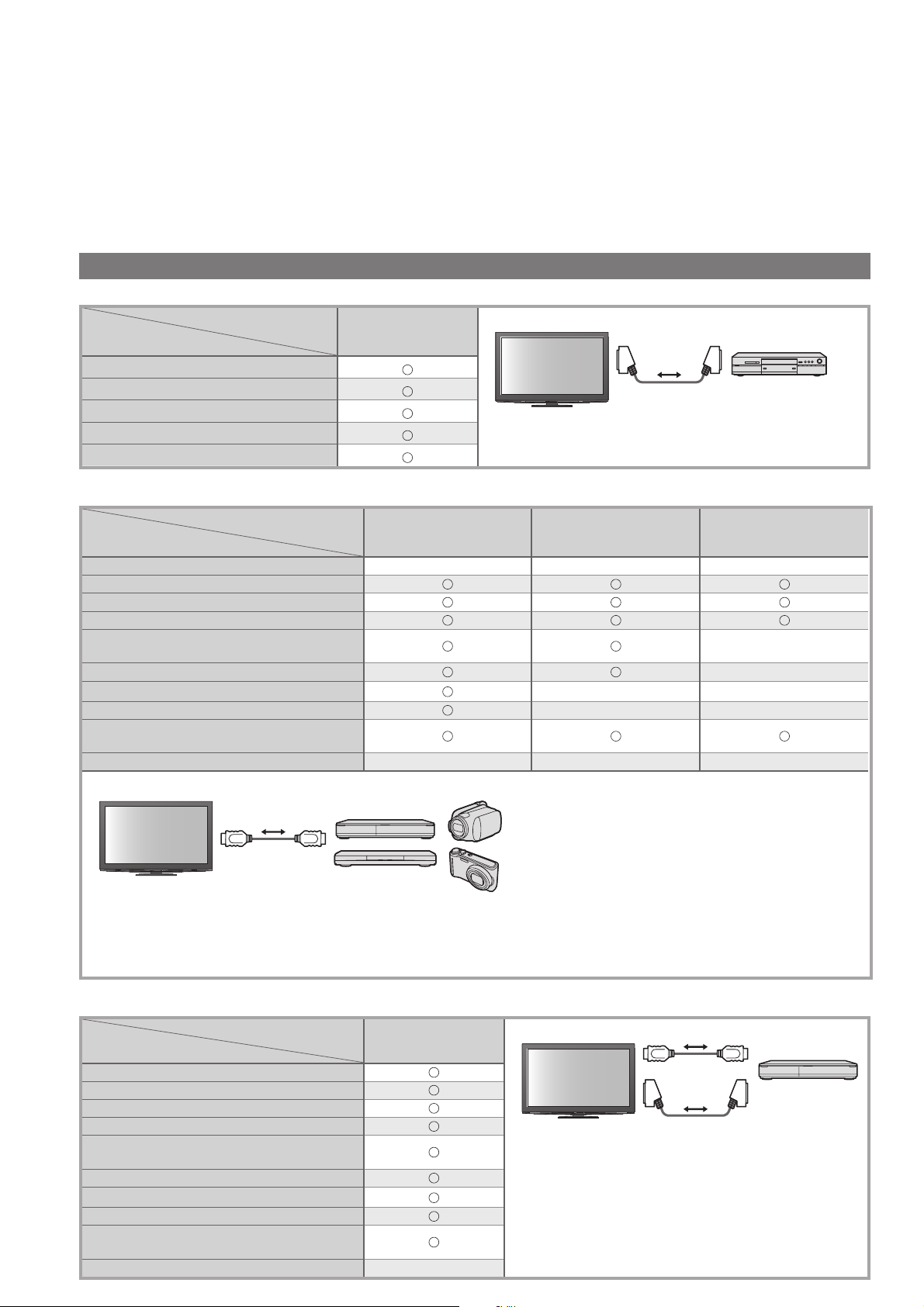

Q-Link

Link Functions

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 94) VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, energy saving, creation of a home theatre, etc., without complicated setting. (p. 95 - 99) You can use Q-Link and VIERA Link functions together.

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s ● version of HDAVI Control. Please refer to the manual of the equipment to confirm the version. VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.●

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection only)■

Connected equipment

Features

Analogue channel download

Easy playback

Power on link

Power off link

Direct TV Recording

VIERA Link (HDMI connection only)■

Connected equipment

Features

Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

Connection

DVD Recorder / VCR with Q-Link function

DIGA Recorder with

VIERA Link function

–––

(

VIERA Link

)

Connection

SCART cable

DVD Recorder / VCR with Q-Link function

Use a fully wired SCART cable.● Connect the DVD Recorder / VCR supporting Q-Link ● to the TV’s AV1 or AV2 terminal via a SCART cable.

DVD Player /

Blu-ray Disc Player with

VIERA Link function

∗

–– ––

∗

HD Video Camera /

LUMIX Camera with

VIERA Link function

–

∗

HDMI cable

Use a fully wired HDMI compliant cable.● Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an ● HDMI cable. For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read ● the manual of the equipment.

VIERA Link (HDMI and SCART connections)■

Connected equipment

Features Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

DIGA Recorder with

VIERA Link function

∗

–

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

Connection

HDMI cable

DIGA Recorder with VIERA Link

SCART cable

function

Use a fully wired HDMI compliant cable.● Connect the equipment supporting VIERA Link ● to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable. Use a fully wired SCART cable.● Connect the equipment supporting VIERA Link to ● the TV’s AV1 or AV2 terminal via a SCART cable.

Page 93

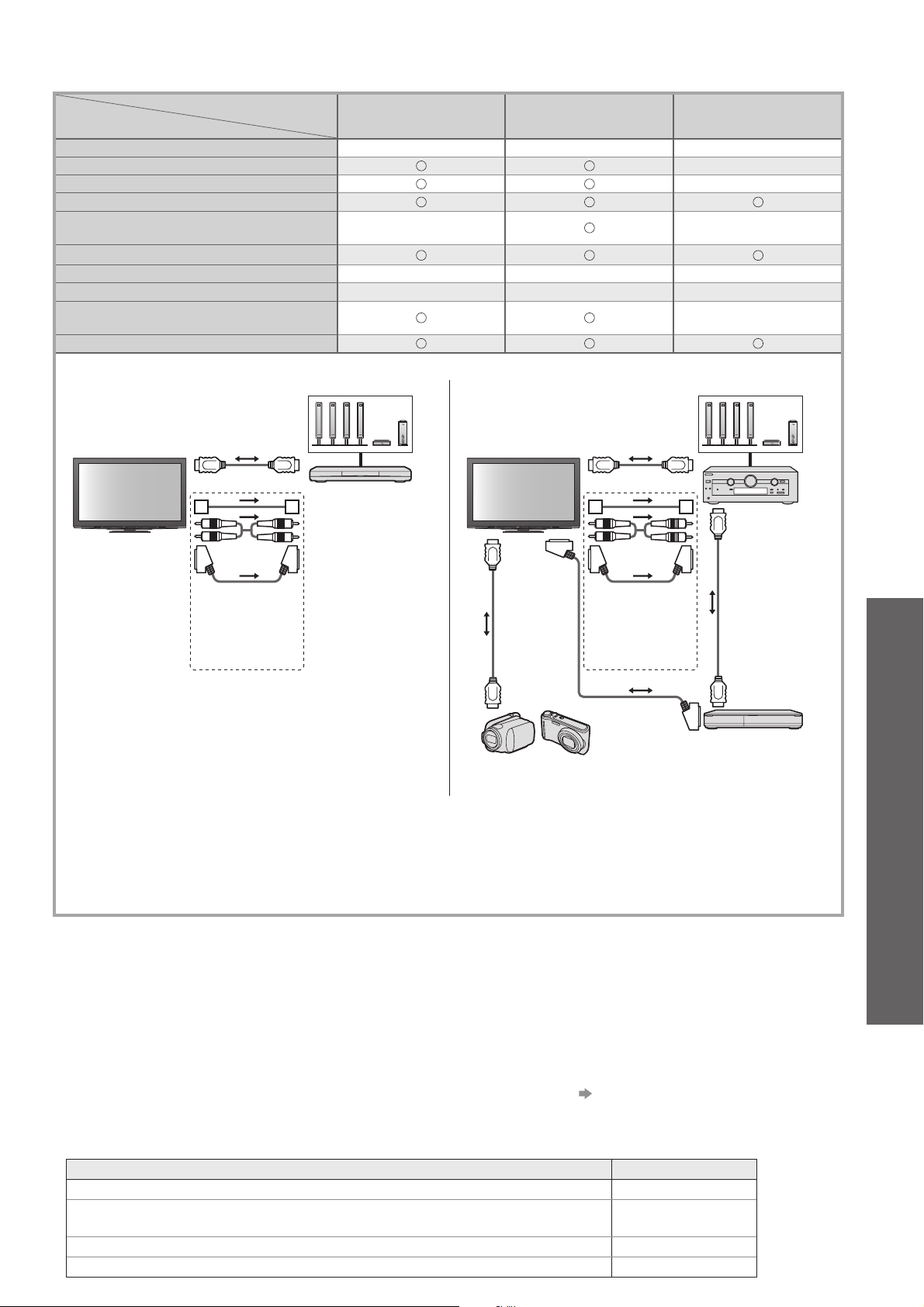

VIERA Link (HDMI and Audio out connections)■

Connected equipment

Features Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme ––– Direct TV Recording ––– Control the menu of the connected

equipment by VIERA remote control Speaker control

Connection

To use Player theatre / ●

Speaker system

Blu-ray Disc theatre:

Player theatre with

VIERA Link function

–––

∗

–

∗

To use Amplifier:●

Blu-ray Disc theatre with

VIERA Link function

∗

Amplifier with

VIERA Link function

– –

–

∗

–

Speaker system

(Q-Link / VIERA Link)

Link Functions ●

HDMI cable

Player theatre / Blu-ray Disc theatre with VIERA Link function

HDMI cable

Amplifier with VIERA Link function

Optical digital

audio cable

RCA cable

SCART cable

∗

Use a fully wired HDMI compliant cable.●

HDMI cable

HD Video Camera / LUMIX Camera with VIERA Link function

Optical digital

audio cable

RCA cable

SCART cable

HDMI cable

∗

DIGA Recorder with VIERA Link function

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI ● cable. Use a fully wired SCART cable.● If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 or ● AV2 terminal and set “AV1 / AV2 out” to “Monitor” in the Setup Menu (p. 40). Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV.●

∗

1: Available with the equipment which has “HDAVI Control 2 or later” function.

∗

2: Available with the equipment which has “HDAVI Control 3 or later” function.

∗

3: Available with the equipment which has “HDAVI Control 4 or later” function.

∗

4: Available with DIGA Recorder which has HDD.

∗

5: while playing a disc

∗

6: except for watching a disc

∗

7: If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical

digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

VIERA Link Control of compatible equipment ■ (VIERA Link Control p. 98)

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. ● This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number Recorder (DIGA Recorder, etc.) 3 Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,

Digital Camera, Player theatre, Blu-ray Disc theatre, etc.) Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1 Tuner (Set top box, etc.) 4

Advanced

Page 94

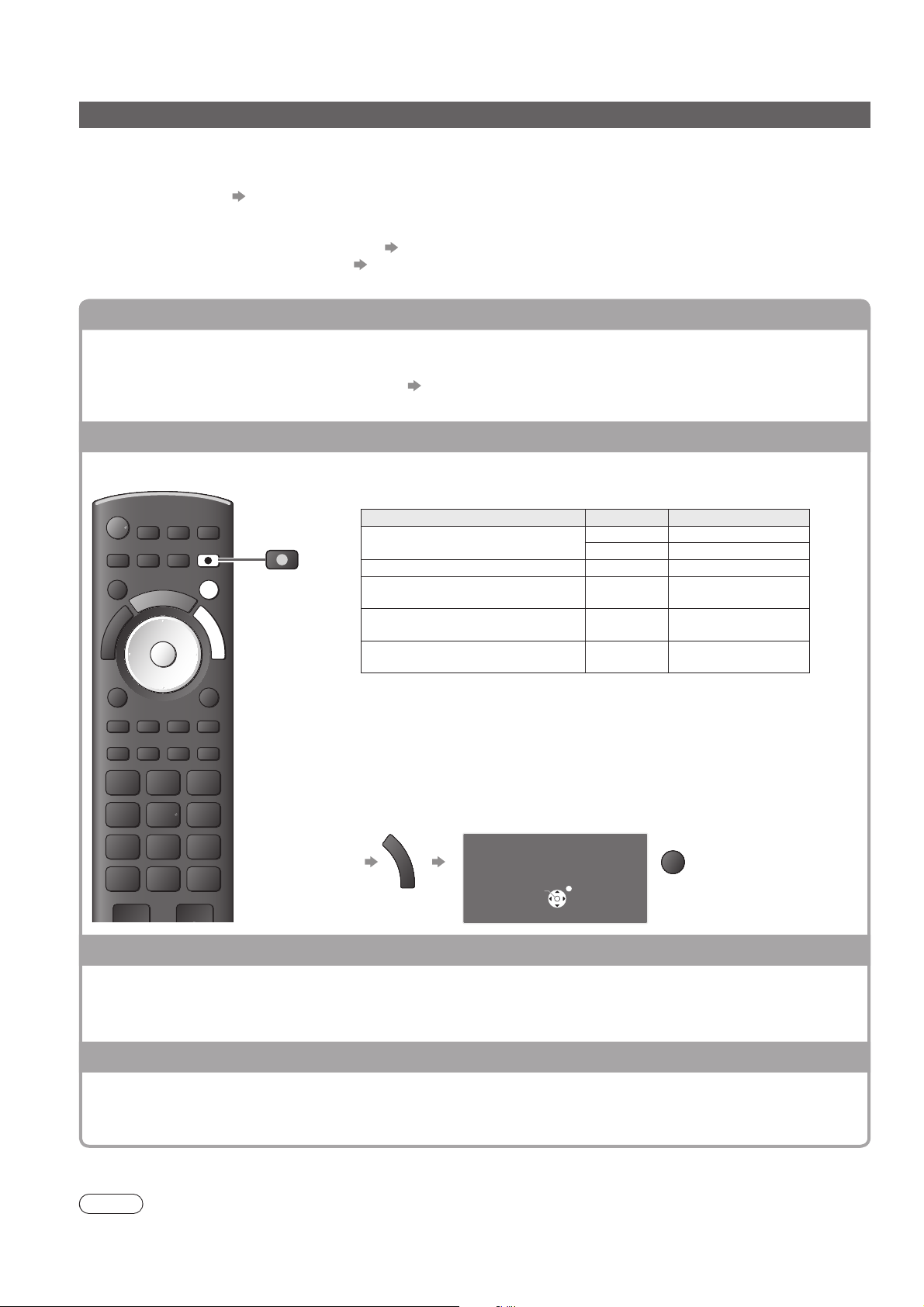

Q-Link

Link Functions

Q-Link

Preparations■

Connect the DVD Recorder / VCR with the following logos:● “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” Q-Link connection ● p. 92 Use fully wired SCART cable.● Set up the DVD Recorder / VCR. Read the manual of the recorder.● Q-Link terminal setup in the Setup Menu ● “Q-Link” (p. 40), “AV1 / AV2 out” (p. 40) Download Analogue channel setting ● “Analogue channel download” (see below)

Features available■

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings ●

Direct TV Recording - What you see is What you record

Recording the current programme on a DVD Recorder / VCR immediately.

Available conditions:●

DIRECT TV REC

EXIT

DIRECT TV REC

Analogue

freesat, DVB, Other Sat. TV TV monitor out AV ( watching recorder’s tuner) AV ( watching recorder’s external input) AV ( watching TV’s external input)

When Direct TV Recording is performed, the recorder is automatically ● turned on if it is in Standby mode. Changing channel or turning off the TV is available while the recorder is ● recording from its own tuner. Changing channel is not available while the recorder is recording from ● the TV tuner.

“Q-Link Download” (p. 40) or “Auto Setup” in Analogue mode (p. 47) or “Auto Setup” - when first using the TV (p. 12)

Picture source Mode Recording from

(

VIERA Link

TV TV monitor out AV Recorder’s tuner

AV Recorder’s tuner

AV TV monitor out

)

Recorder’s

external input

To stop recording ■

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

Continue

Unlock

EXIT

Power on link and Easy playback

When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the equipment is activated, the TV is turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

“DATA LOGIC” (a trademark of Metz Corporation)• “Easy Link” (a trademark of Philips Corporation)•

Note

Some recorders are not compatible. Read the manual of the recorder.●

“Megalogic” (a trademark of Grundig Corporation)• “SMARTLINK” (a trademark of Sony Corporation)•

Page 95

VIERA Link “ Control™”

∗Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 92 and p. 93). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the ● connected equipment’s version of HDAVI Control. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard ● known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function. ● For information about applicable Panasonic equipment, consult your local Panasonic dealer ● or refer to www.panasonic.co.uk

∗

Preparations■

Connect the equipment that supports VIERA Link.● VIERA Link connection ● p. 92 and p. 93 Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized. ● Recommended Panasonic HDMI cables’ part numbers:

RP-CDHS15 (1.5 m)• RP-CDHS30 (3.0 m)• RP-CDHS50 (5.0 m)•

Use a fully wired SCART cable.

●

Set up the connected equipment. Read the manual of the equipment.● For optimal recording, the settings of the recorder may need to be changed. For details, read the manual ● of the recorder. Download Analogue channel setting ● “Analogue channel download” (see below) Set VIERA Link On in the Setup Menu ● “VIERA Link” (p. 40) Set up the TV●

After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 28), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time• when adding or reconnecting equipment• when changing setup•

Features available■

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings ●

“Q-Link Download” (p. 40) or “Auto Setup” in Analogue mode (p. 47) or “Auto Setup” - when first using the TV (p. 12)

(Q-Link / VIERA Link)

Link Functions ●

Advanced

Easy playback

Automatic Input switching - When the connected equipment is operated (during playback or menu operations, etc.), the input mode is switched automatically. When playback is stopped or menus are exited, the input mode returns to the original setting.

Power on link

When the connected equipment starts playback or the direct navigator / function menu for the equipment is activated, the TV is automatically turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

Page 96

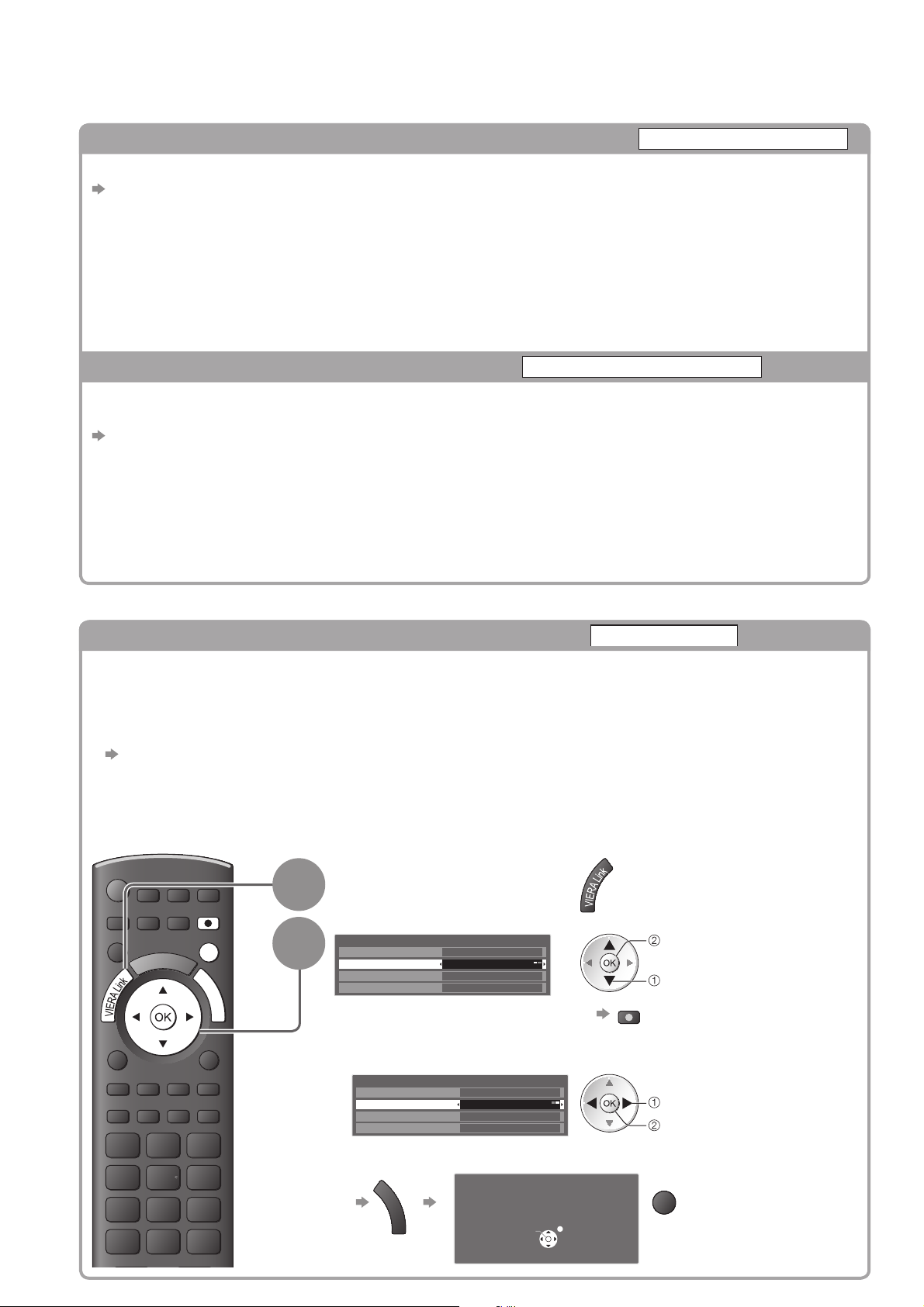

Link Functions

Features available■

Q-Link

(

VIERA Link

)

Reduce unnecessary power consumption in standby

Standby Power Save

Set Standby Power Save “On” in the Setup Menu to use this function

“Standby Power Save” (p. 40)

The power consumption in Standby mode of the connected equipment is controlled in synchronization with the TV On / Off state. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimized. When the TV is turned on and the connected equipment is still in Standby mode, the power consumption of the connected equipment is increased to reduce the startup time.

●

This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.

Auto standby for unnecessary equipment

Intelligent Auto Standby

Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to use this function

“Intelligent Auto Standby” (p. 40)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce power consumption. For example, when the input mode is switched from HDMI, the connected equipment will go into Standby mode / when Speaker Selection is changed to “TV”, the Player theatre will go into Standby mode (except when watching a disc).

If you select “On (With reminder)”, the on screen message will be displayed before the connected equipment ● turns to Standby. This function may not work properly depending on the connected equipment. If required, set to “Off”.●

Features available ■ (Using VIERA Link Menu)

Direct TV Recording - What you see is What you record

Direct TV Rec

Recording the current programme on a DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ● connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1. If Direct TV Recording does not operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 92 and p. 93), “Preparations” (p. 95)

If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is required

●

and the programme is recorded by Q-Link function (p. 94). Depending on the programme, a SCART connection may be required to record.● Changing channel or turning off the TV is available while the recorder is recording from its own tuner.● Changing channel is not available while the recorder is recording from the TV tuner.●

Display “VIERA Link Menu”

DIRECT TV REC

EXIT

Select “Direct TV Rec” and start recording

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control Speaker Selection

You can also start recording directly ●

Start Recorder Home Cinema

start

select

DIRECT TV REC

To stop recording■

Select “Stop” in “Direct TV Rec” and access

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control Speaker Selection

You can also stop recording directly.●

Unlock the tuner

Stop Recorder Home Cinema

Press EXIT to unlock and stop recording

Tuner Locked

Continue

Unlock

select

stop

EXIT

Page 97

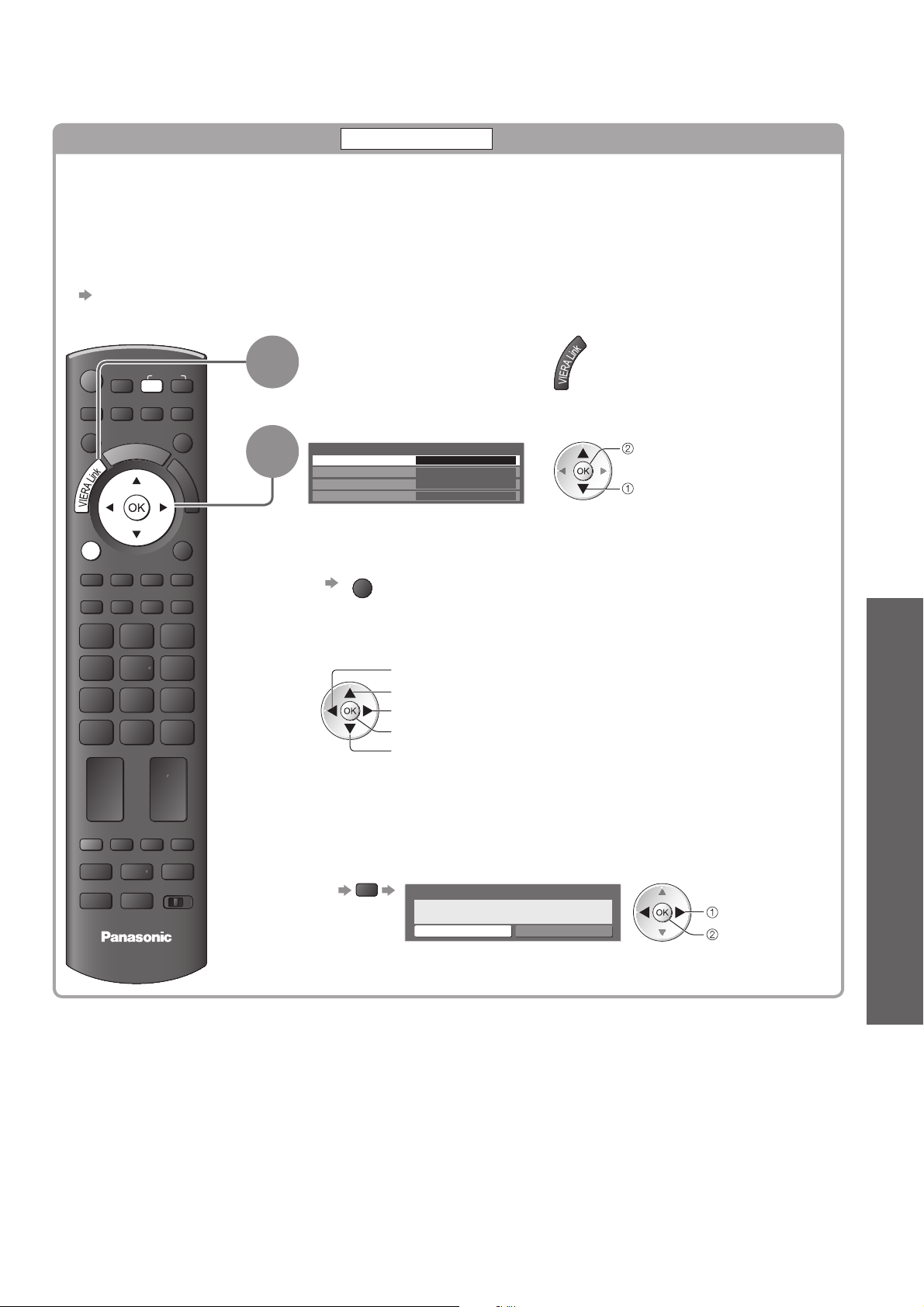

Features available ■ (Using VIERA Link Menu)

Pause Live TV programme

Pause Live TV

You can pause the live TV programme and resume the programme later. The live TV programme will be recorded on HDD of the connected DIGA Recorder.

This function is available with a DIGA Recorder which has HDD.● If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ● connect the DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1. If Pause Live TV does not operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 92 and p. 93), “Preparations” (p. 95)

Access and pause the live TV programme

Display “VIERA Link Menu”

INPUT

Select “Pause Live TV” and pause

pause

select

OPTION

VIERA Link Menu

Pause Live TV Start

Direct TV Rec VIERA Link Control Speaker Selection

Start Recorder Home Cinema

The TV picture will be paused.

Live TV programme is recorded on HDD from where it was paused.● If the paused TV picture disappears after a few minutes●

OPTION

Follow the operation guide to operate Pause Live TV function.

●

(the paused picture will be restored)

(Q-Link / VIERA Link)

Link Functions ●

To operate Pause Live TV■

search backward pause search forward playback stop

If you stop playback, the recorded programme ● will be deleted from HDD.

Operations may be different ● depending on the recorder. In this case, follow the operation guide or read the manual of the recorder.

To return to Live TV ■

(stop playback of Pause Live TV / cancel pause)

Select “Yes”

If you stop playback or cancel pause, the recorded programme will be ● deleted from HDD.

Pause Live TV

Stop Pause Live TV?

Yes No

Advanced

select

stop

Page 98

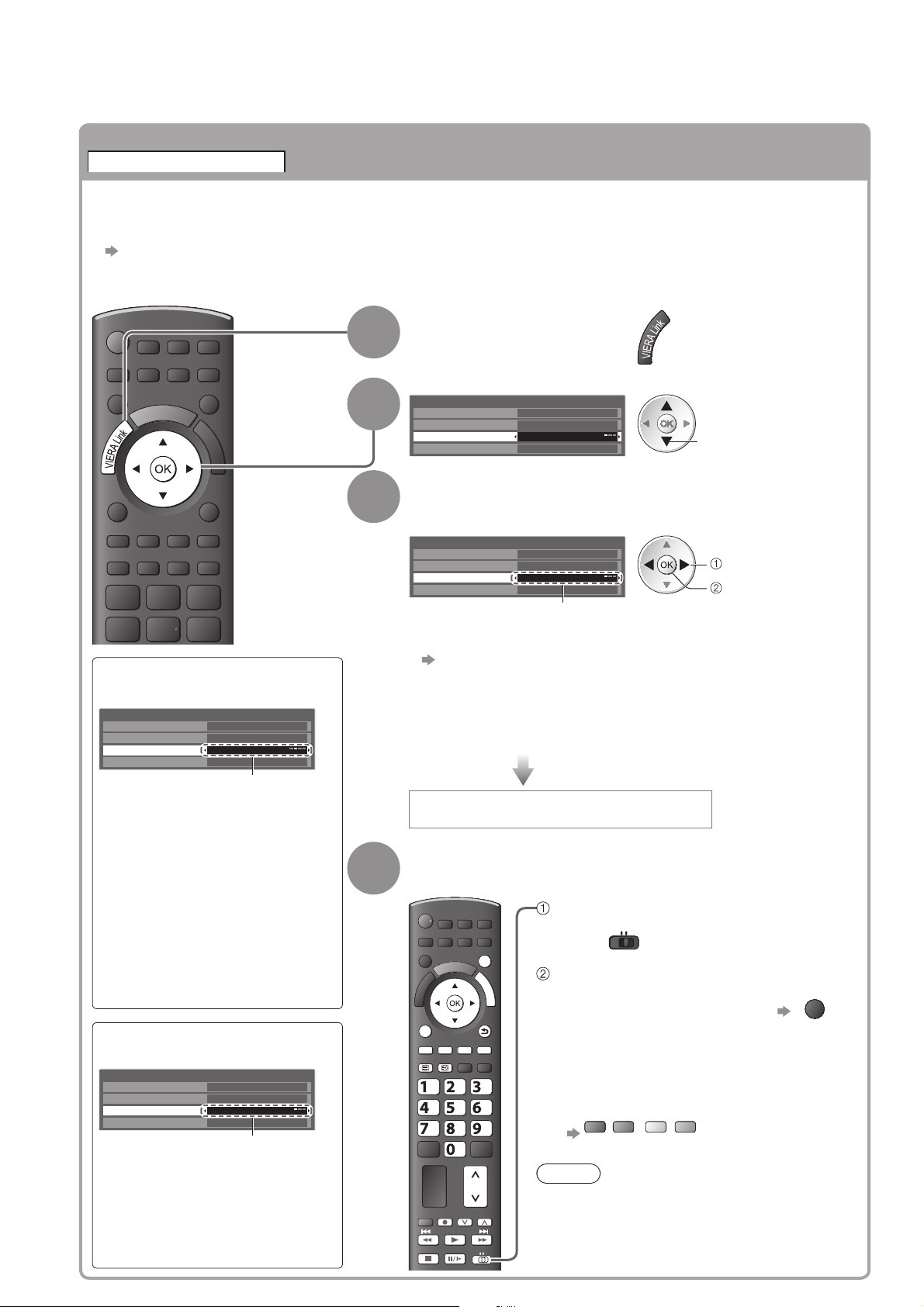

Q-Link

Link Functions

Features available ■ (Using VIERA Link Menu)

Control the menu of the connected equipment by VIERA remote control

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate the menu of the connected equipment, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 92 and p. 93), “Preparations” (p. 95)

For details of the operations for the connected equipment, read the manual of the equipment.●

Access and operate the menu of the equipment

Display “VIERA Link Menu”

(

VIERA Link

)

Select “VIERA Link Control”

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder Home Cinema

select

Select the equipment you want to access

The type of the connected equipment is displayed. Select the type of the equipment and access.

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera / LUMIX / Digital Camera / Other

Start Recorder Home Cinema

select

access

You can also access directly by using VIERA TOOLS ●

“How to Use VIERA TOOLS” (p. 36)

The displayed item may vary depending on the connected ● equipment. “Home Cinema” means Player theatre, Blu-ray Disc theatre or ● Recorder theatre. “Other” means Tuner set top box.●

The menu of the accessed equipment

(Input mode will be changed automatically)

Operate the menu of the equipment

Available VIERA remote control buttons: (depending on the connected equipment)

Set the position to “TV”

DVD/VCR

EXIT

Follow the operation guide

To display the operation guide ●

If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be displayed.

When the key words are displayed on ●

colour bar

red green yellow blue

OPTION

TEXT

D E

BACK/

RETURN

STTL

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Note

Some operations may not be available ●

REC

PROGRAMME

DVD/VCR

depending on the equipment. In this case use its own remote control to operate the equipment.

OPTION

If multiple recorders or ■ players are connected

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder2 Home Cinema

Recorder1-3 / Player1-3

The number is given from the TV’s lower HDMI terminal number connected to the same type equipment. For example, two recorders to HDMI2 and HDMI3, in this case the recorder connected to HDMI2 is displayed as “Recorder1”, and the recorder connected to HDMI3 is displayed as “Recorder2”.

If you access ■ non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder Home Cinema

The type of the connected equipment is displayed. You can access the menu of the equipment. But you cannot operate it. Use its own remote control to operate the equipment.

Page 99

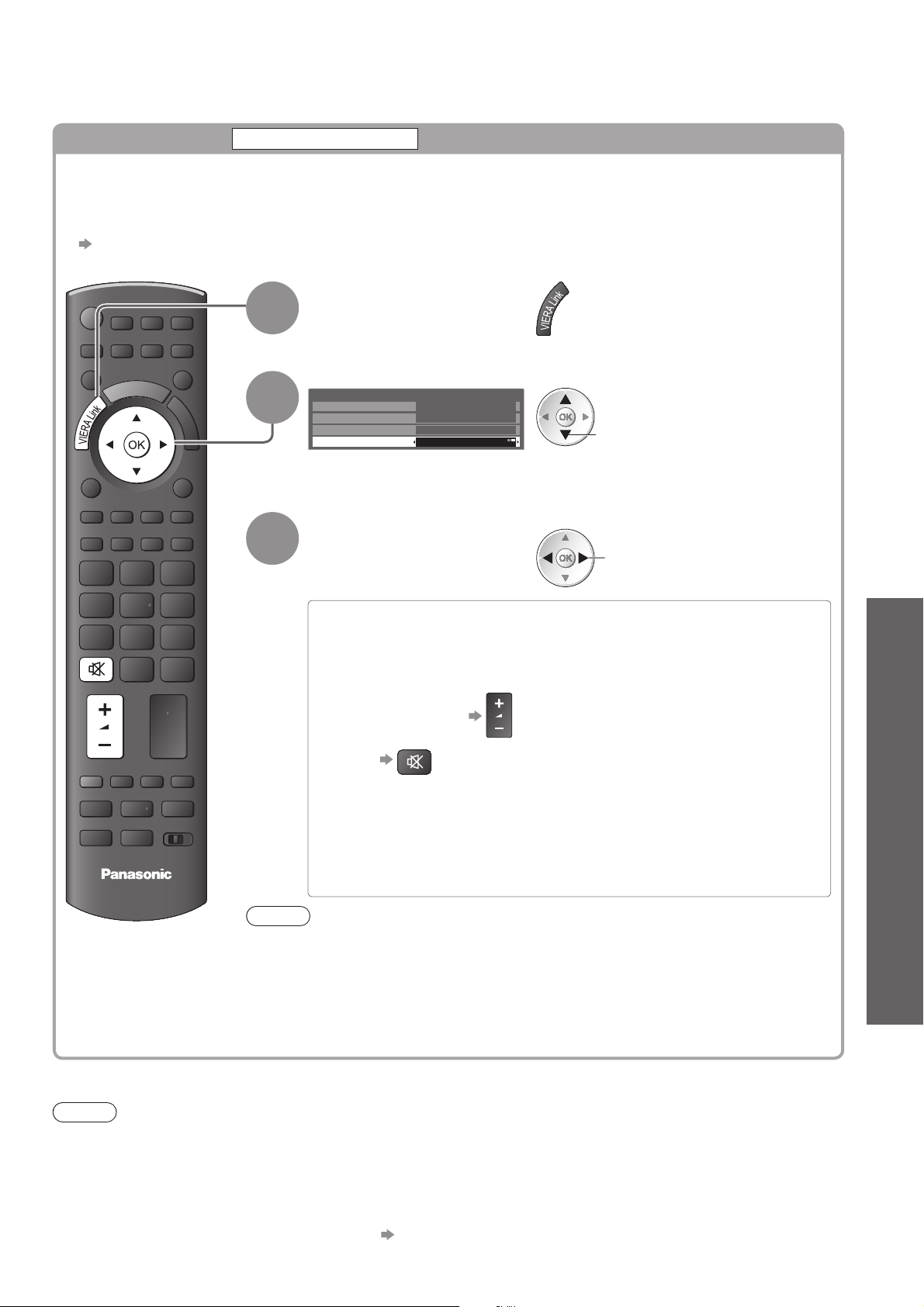

Features available ■ (Using VIERA Link Menu)

Speaker control

You can control the home theatre speakers with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot control the home theatre speakers with this remote control, check the settings and the ● equipment

“Summary of Q-Link and VIERA Link features” (p. 92 and p. 93), “Preparations” (p. 95)

Access and control the speaker volume

Speaker Selection

Display “VIERA Link Menu”

Select “Speaker Selection”

VIERA Link Menu

Pause Live TV Start Direct TV Rec VIERA Link Control

Speaker Selection

Set to “Home Cinema” or “TV”

Start Recorder Home Cinema

select

set

(Q-Link / VIERA Link)

Link Functions ●

Home Cinema■

The Player theatre, Blu-ray Disc theatre or Amplifier will be

automatically turned on if it is in Standby mode and the sound will be output from theatre speakers connected to the equipment.

Volume up / down ●

Mute ●

The sound of the TV speakers is muted.● When the equipment is turned off, the TV speakers will be activated.●

TV■

TV speakers are active.

Note

If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an ● Amplifier, connect the Amplifier to the TV with an HDMI cable and an Optical digital audio cable (p. 93), and then select “Home Cinema”. If your Amplifier has “HDAVI Control 5” function, you only need to connect with an HDMI cable. In this case, connect your Amplifier to the TV’s HDMI2 terminal. To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 93).

Advanced

Note

These functions may not work properly depending on the connected equipment.● Image or sound may not be available for the first few seconds when Input mode is switched.● Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. ● Read the manual of the equipment. “HDAVI Control 5” is the newest standard (current as of December, 2009) for HDAVI Control compatible ● equipment. This standard is compatible with conventional HDAVI equipment. To confirm this TV’s version of HDAVI Control ● “System Information” (p. 42)

Page 100

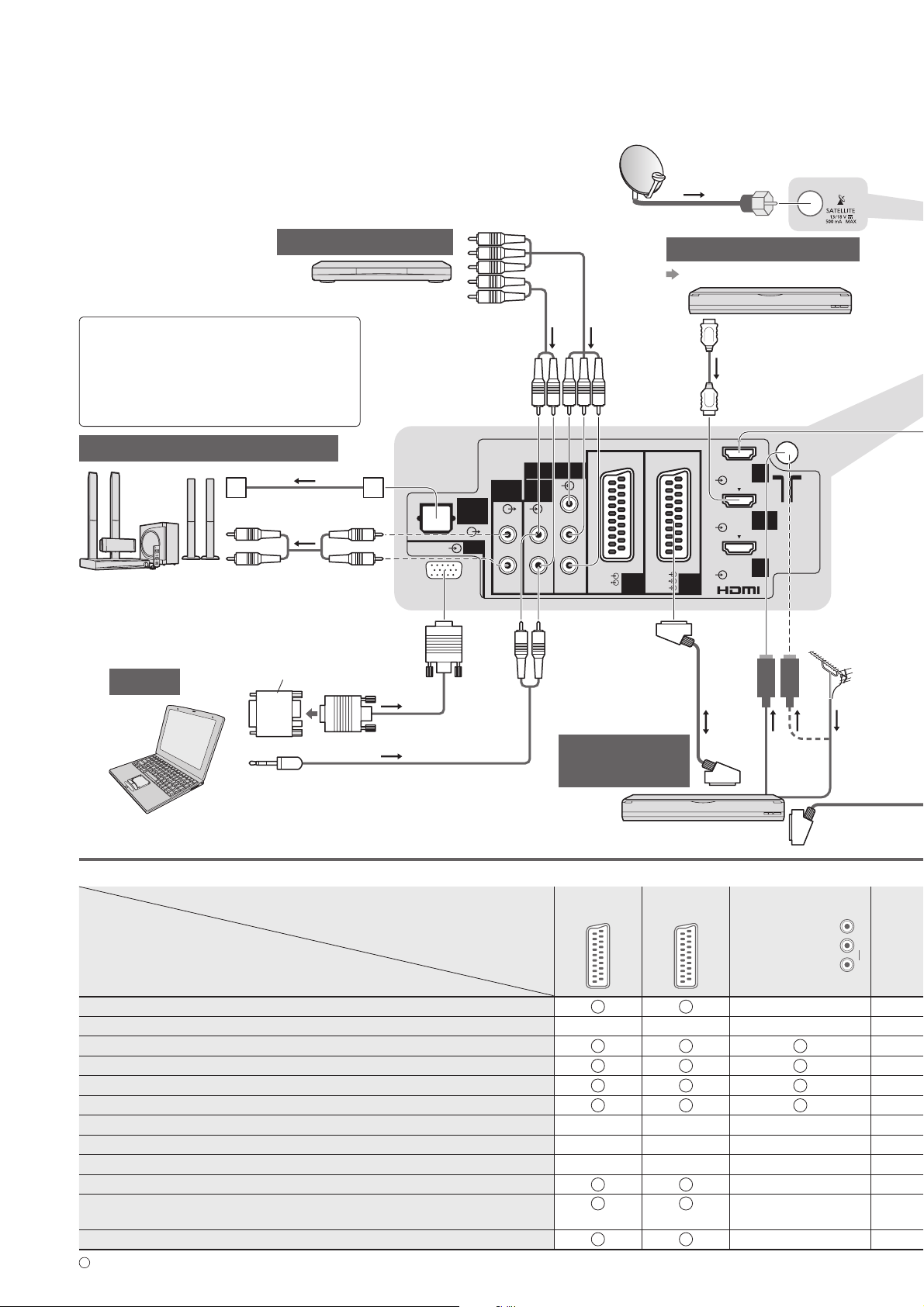

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 118).

Satellite

dish

To watch DVDs

DVD Player

To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

To listen with speakers

Optical digital audio cable

Amplifier with

RCA cable

speaker system

Conversion adapter (if necessary)

(Viewing)

(Listening)

AUDIO

OUT

DIGITAL

AUDIO

OUT

RLR

COMPONENT

AUDIO

RGB VIDEO

SCART cable

AV1 AV2

Satellite cable

HDMI equipment

“HDMI connection” (p. 104)

RGB VIDEO S VIDEO

Fully wired

Recorder / Player

Fully wired HDMI compliant cable

HDMI

HDMI 2

(ARC)

HDMI

Terrestrial aerial

(Viewing)

(Listening)

Computer

Types of connectable equipment to each terminal■

Terminal

Recording / Playback (equipment)

To record / playback videocassettes / DVDs (VCR / DVD Recorder) To watch 3D contents (Blu-ray Disc Player) To watch DVDs (DVD Player) To watch camcorder images (Video camera) To watch cable broadcasts (Set top box) To play games (Game equipment) To use amplifier with speaker system To use Network services USB HDD Recording Q-Link

To record /

playback

DVD Recorder / VCR

AV1 AV2 AV3

Side panel

(

of the TV

RF cable

)

100

VIERA Link

Direct TV Recording

: Recommended Connection

∗

1 : applicable if your amplifier has ARC (Audio Return Channel) function

(with HDMI) (with HDMI)
