ORDER NO. PCZ0902012CE

Plasma Television

Model N o. TX-P42X10B

TX-P42X10E

GPH12DE Chassis

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following leakage current checks to prevent the customer fro m being exposed to shock hazard s.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer fro m being exposed to shock hazard s.

1.2. Touc h-Current Check

1. Plug the AC cord directly int o the AC outlet. Do not use an isolation transformer for this check.

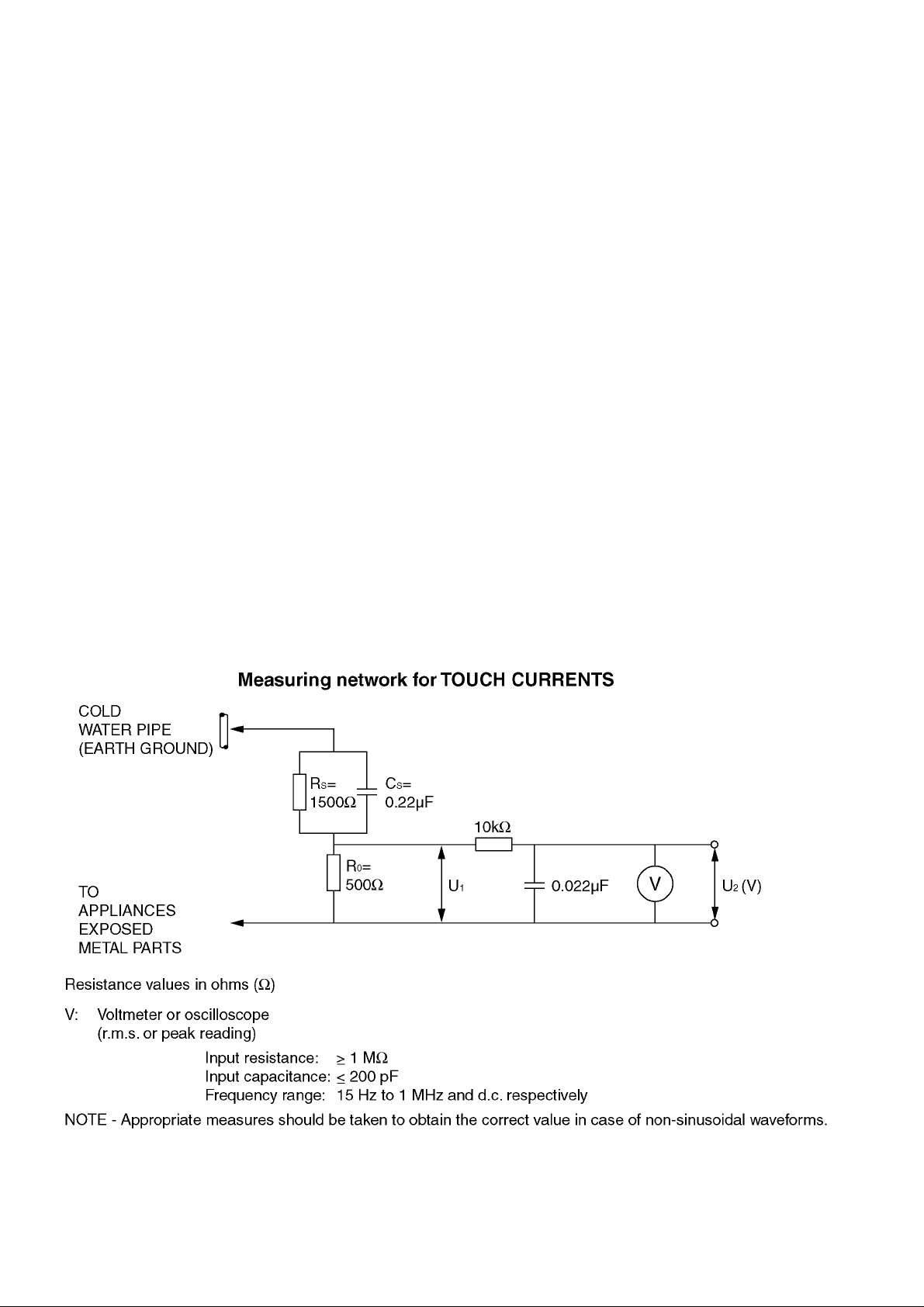

2. Connect a measuring network for touch currents between each exposed metallic part on th e set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across th e mea suring network.

4. Check each exposed metallic part, and measu re the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUGH CURRENT) expressed as voltage U For a. c.: U For d. c.: U

Note:

The limit value of U mA d. c.

The limit value U

7. In case a m easur ement is out of the l imits sp ecified , there is a po ssib ility of a shock hazar d, and the equipment should be repa i r ed and re check ed befo r e i t i s re turned to th e c ustome r.

= 35 V (peak) and U2 = 0.35 V (peak);

1

= 1.0 V ,

1

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 m A (peak) a. c. and 2.0

2

= 35 V (peak) for a. c. correspond to the val ue 70 m A (peak) a. c. for fr equencies greater than 100 kHz.

1

and U2, does not exceed the following values:

1

Figure 1

2

2Warning

2.1. Pr evention of Electrostat ic Discharge (ESD) to Electrostatical ly Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easi ly by static el ectricity. Such components comm only are called El ectrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostat ic discharge (ESD).

1. Immediately bef ore handling any semiconductor component or semiconductor-equipped assembl y, drain off any ESD on your body by touching a known earth ground. Alter natively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed f or potential shock rea sons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent el ectrostati c charge buildup or exposure of the assembly.

3. Use only a grounded-t ip sol dering iron to solder or uns older ES devices.

4. Use only an anti- static solder removal device. Som e solder removal devices not classif ied as [anti-static (ESD protected)] can generate elect ri cal charge suffi cient to damage ES devices.

5. Do not use freon-propelled chemicals. These can gene rat e electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES devi ce from its protective package until immediately before you are ready to i nstall it. (Most replacement ES devi ces are packaged with leads elec trically shorted t ogether by conduct ive foam, aluminum foil or comparable conductive material).

7. Immediately bef ore removing the protective material fr om the l eads of a replacement ES device, touch the protecti ve m aterial to the chassis or circuit assembly into which the device will be inst alled.

Caution

Be sure no power is applied to th e chassis or circuit, and observe all other safety precautions.

8. Minimize bodily moti ons when handli ng unp ackaged repl ac ement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabr ic or the lifti ng of your foot fro m a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

3

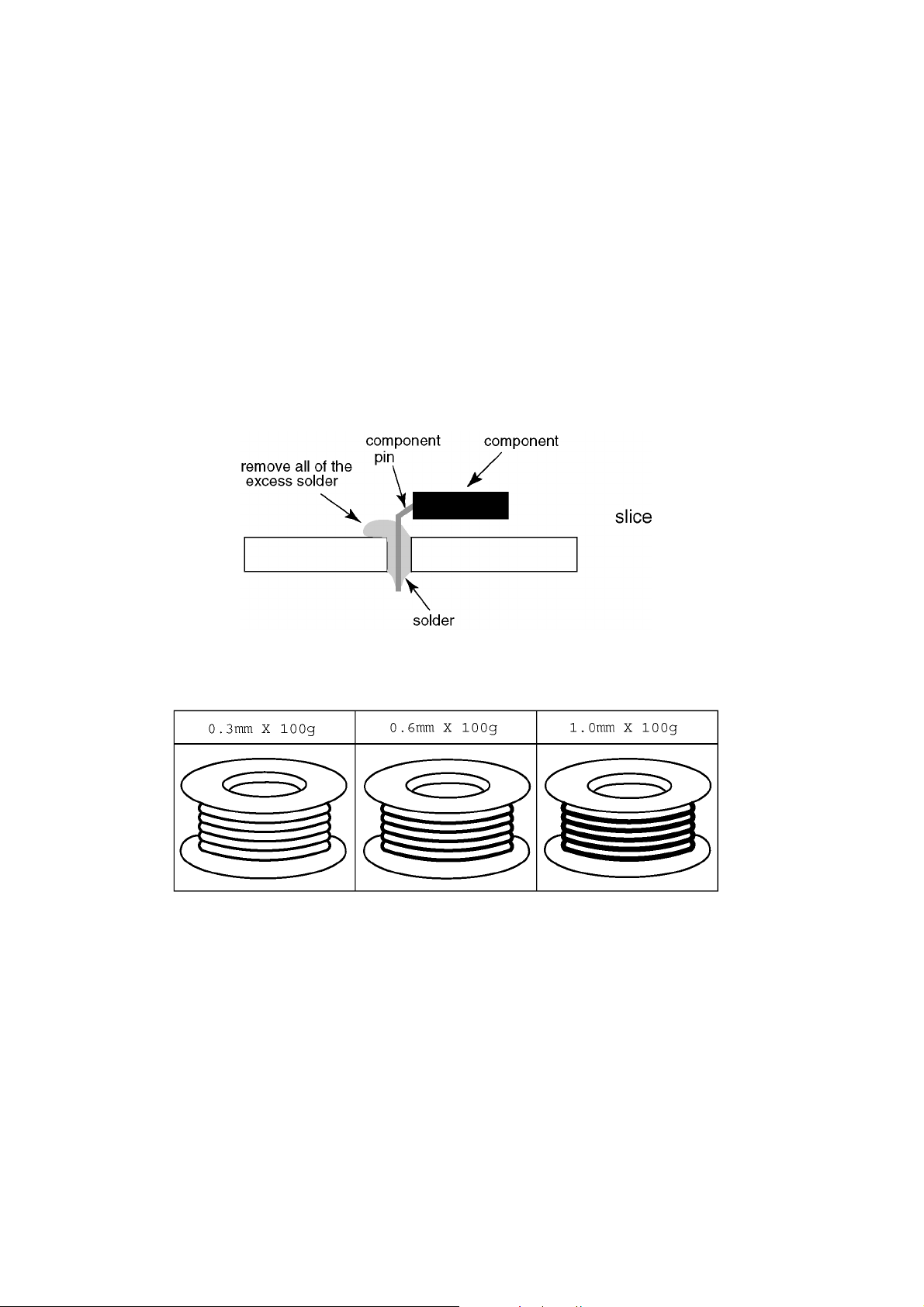

2.2. About lea d fr ee so lder (Pb F)

Note: Lead is listed as (Pb) in the per iodi c table of elements. In the inf o rmation below, Pb will re fe r to Lead solder, and P bF w il l re fe r to L e ad F ree Solder. The Lead Free Solder used in our manufacturing process and discuss ed below is (Sn+Ag+Cu). That is Tin (Sn), Sil ver ( A g) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb sol der may be used.

PCBs manufactured usi ng lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting poi nt than standa rd sol der. Typically the melting poi nt is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperatur e soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solde r until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component s ide for excess solder which may flo w onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

4

3 Service Na viga tion

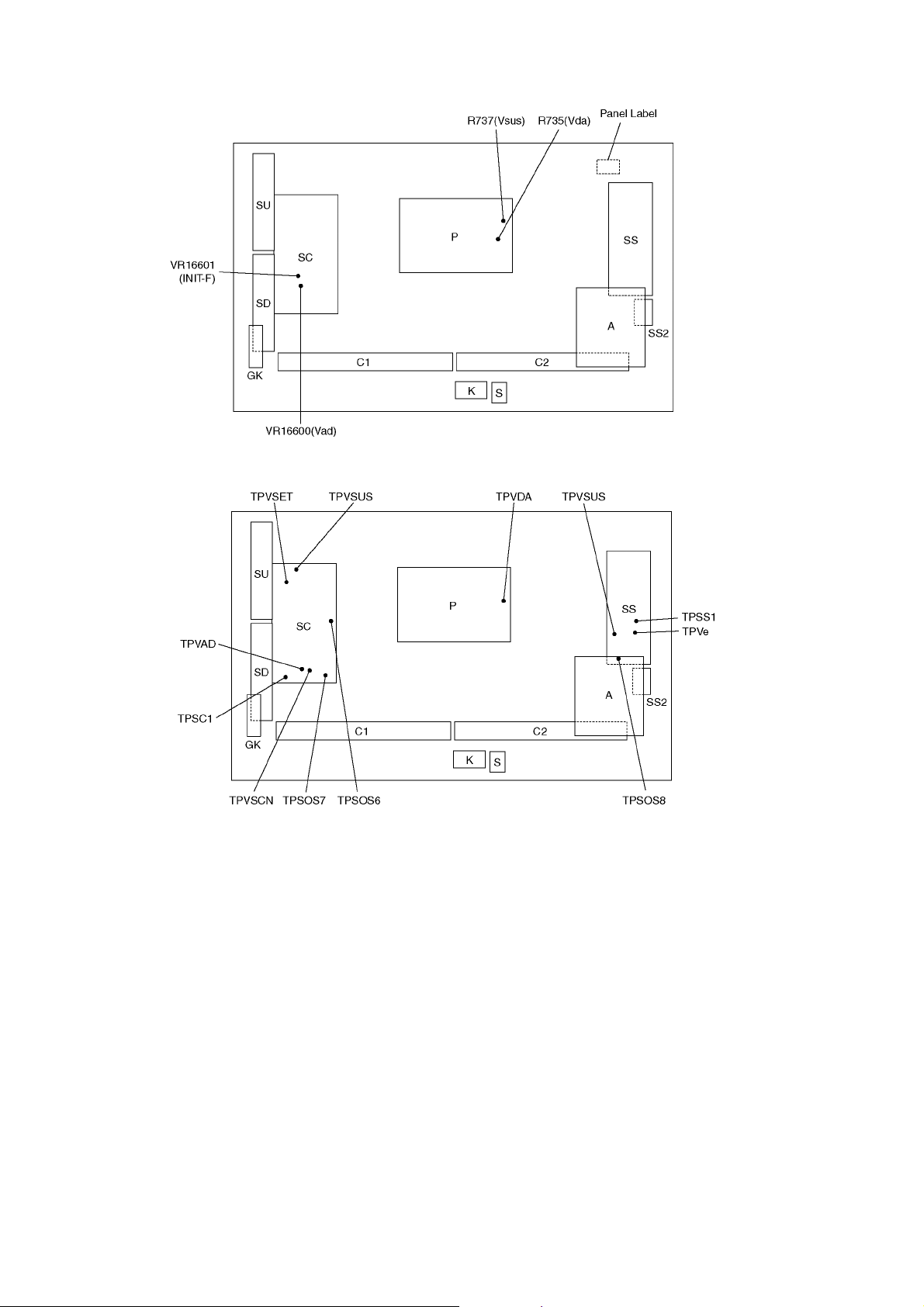

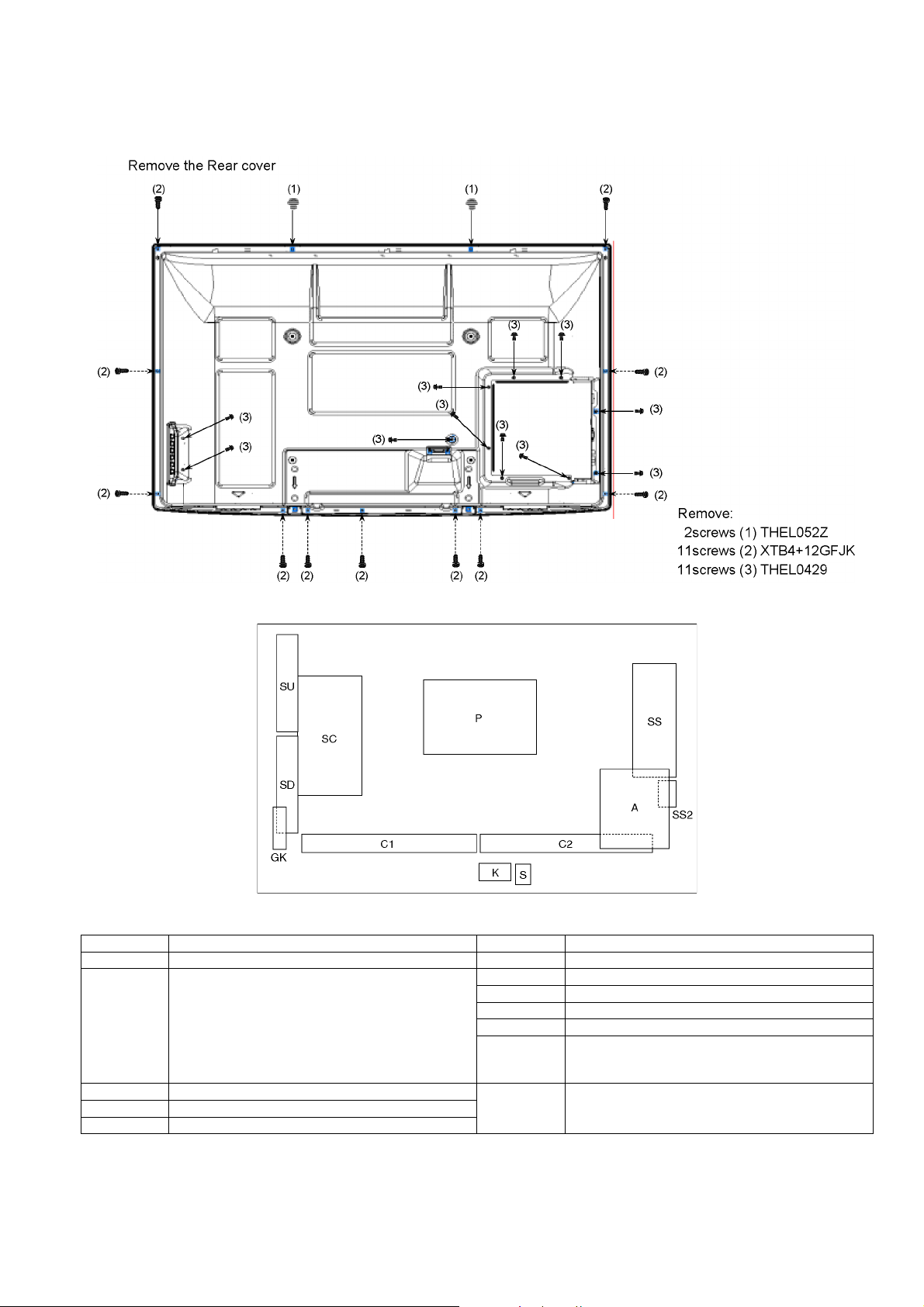

3.1. Service Hint

Board Name Function Board Name Function

P Powe r Supply C1 Data Driv er (Lo w er R ig ht) A DC-DC Converter, T uner

Speaker out, AV Terminal, AV Switch Digital Signal Processor, SYSTEM MPU, HDMI Switch Peaks lite 2p Format Converter, Plasma AI, Sub-Field Processor

K Remote receiver, Power LED, C.A.T.S. sensor SD Scan out (Lower) SPower Switch

GK Key Switch

C2 Data Driver (Lower Left) SC Scan Drive SS Sustain Drive

SS2 Sustain out (Lower)

SU Scan out (Upper)

None serviceable. SU-Boar d should be exchanged for service.

None serviceable. SD-Boar d should be exchanged for service.

5

3.2. Applicable signals

COMPONENT (Y, PB, PR), HDMI

* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

Signal name COMPONENT HDMI 525 (480) / 60i * * 525 (480) / 60p * * 625 (576) / 50i * * 625 (576) / 50p * * 750 (720) / 60p * * 750 (720) / 50p * * 1,12 5 (1,080) / 60i * * 1,12 5 (1,080) / 50i * * 1,12 5 (1,080) / 60p * 1,12 5 (1,080) / 50p * 1,12 5 (1,080) / 24p *

PC (from D-sub 15P)

Applicable input signal for PC is basically comp atible to VESA standard ti m ing.

Signal name Horiz ontal frequency (k Hz) Vertical frequency (Hz) 640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 H z 48.36 60.00 1,024 × 768 @70 H z 56.48 70.07 1,024 × 768 @75 H z 60.02 75.03 1,024 × 768 @85 H z 68.68 85.00 1,280 × 768 @60 H z 47.70 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,366 × 768 @60 H z 48.39 60.04 Macint os h13 inch (640 × 480) 35.00 66.67 Macint os h16 inch (832 × 624) 49.73 74.55 Macint os h21 inch (1, 15 2 × 870) 68.68 75.0 6

PC (from HDMI terminal)

Applicable input signal for PC is basically comp atible to HDMI standa rd tim ing.

Signal name Horiz ontal frequency (k Hz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,12 5 (1,080) / 60p 67.50 60.00

Note

• Signals other than above may not be displayed proper ly.

• The above signals are reformatted for optimal vi ewing on your display.

• PC signal is magnified or compressed for display, so that it may not be possible t o show fine detail with sufficient clarity.

6

4 Specifications

Power Source AC 220-2 40 V, 50 / 60 Hz Power Cons umption 245 W Power Cons umption in Standby mode 0.7 W (Without monitor out recording)

15 W (With monitor out recording)

Display panel

Aspect Ratio 16:9 Visible screen size 106 cm (diagona l) 922 mm (W ) × 518 mm (H) Number of pixels 786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]

Sound

Speaker 160 mm × 40 mm × 2 pcs, 6 Ω Audio Output 20 W ( 10 W + 10 W ), 10 % THD Headphones M3 (3.5 mm) stereo mini Jack × 1

PC signals VGA, SVGA, WVGA, XGA

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

Receiving Systems / Band name (B only)

PAL I : UHF E21-68 PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR)

or NTSC di sc playback from DVD player a nd recorder.

DVB-T : Digital terrestrial services via UHF aerial input. M.NTSC : Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) : Playback from NTSC Video recorders (VCR).

Receiving Systems / Band name (E only)

PAL B, G, H, I, SECAM B, G, SECAM L, L’

VHF E2 - E12 VHF H1 - H2 (IT ALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)

PAL D, K, SECAM D, K

VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69

PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) DVB-T Digital terrestrial services M.NTSC Playback from M. NT SC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR)

O TV signals may not be received in some areas.

Aerial - Rear UHF (B), VHF / UHF (E) Operating C ond itio ns

Temperature: 0 °C - 35 °C Humidity: 20 % - 80 % RH (non- c ondensing)

Conne ction Terminals

AV1 (Scart termi n a l) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link) AV2 (Scart termi n a l) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link) AV3

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω) S-VIDEO Mini DIN 4-pin Y:1.0 V [p-p] (75 Ω) C:0.286 V [p-p] (75 Ω) AUDIO L - R RCA PIN Type × 2 0.5 V [rms ]

COMPONENT

VIDEO Y 1.0 V [p-p] (including synchronization)

P

, P

B

R

AUDIO L - R RCA PIN Type × 2 0.5 V [rms]

Others

HDMI1 / 2 / 3 TYPE A Connectors HDMI™ (Version 1.3a with x.v.Colour™)

O This TV supports [HD AVI Control 4] func tio n.

PC HIGH-DENSITY D-SUB 15PIN R, G, B/ 0.7 V [p-p] (75 Ω)

Card slot SD Card slot × 1

Output

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance)

Dimensions (W × H × D) 1,029 mm × 704 mm × 334 mm (With Pedestal)

1,029 mm × 661 mm × 105 mm (TV only)

Mass 28.0 kg Net ( Wi t h Ped es tal)

26.0 kg Net (TV only)

± 0.35 V [p-p]

HD, VD/TTL Level 2. 0 - 5.0 V [p-p] (high impedance)

7

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approxim ate.

• Thi s eq ui pm en t co mp li es wi th t he EMC standards lis t e d be lo w. EN55013, EN61000-3-2, EN 61000-3-3, EN55020, EN55022, E N55024.

• Pedestal: ST-42CF2WG / ST-50CF2WG (For safety approval)

8

5 Serv ice Mod e

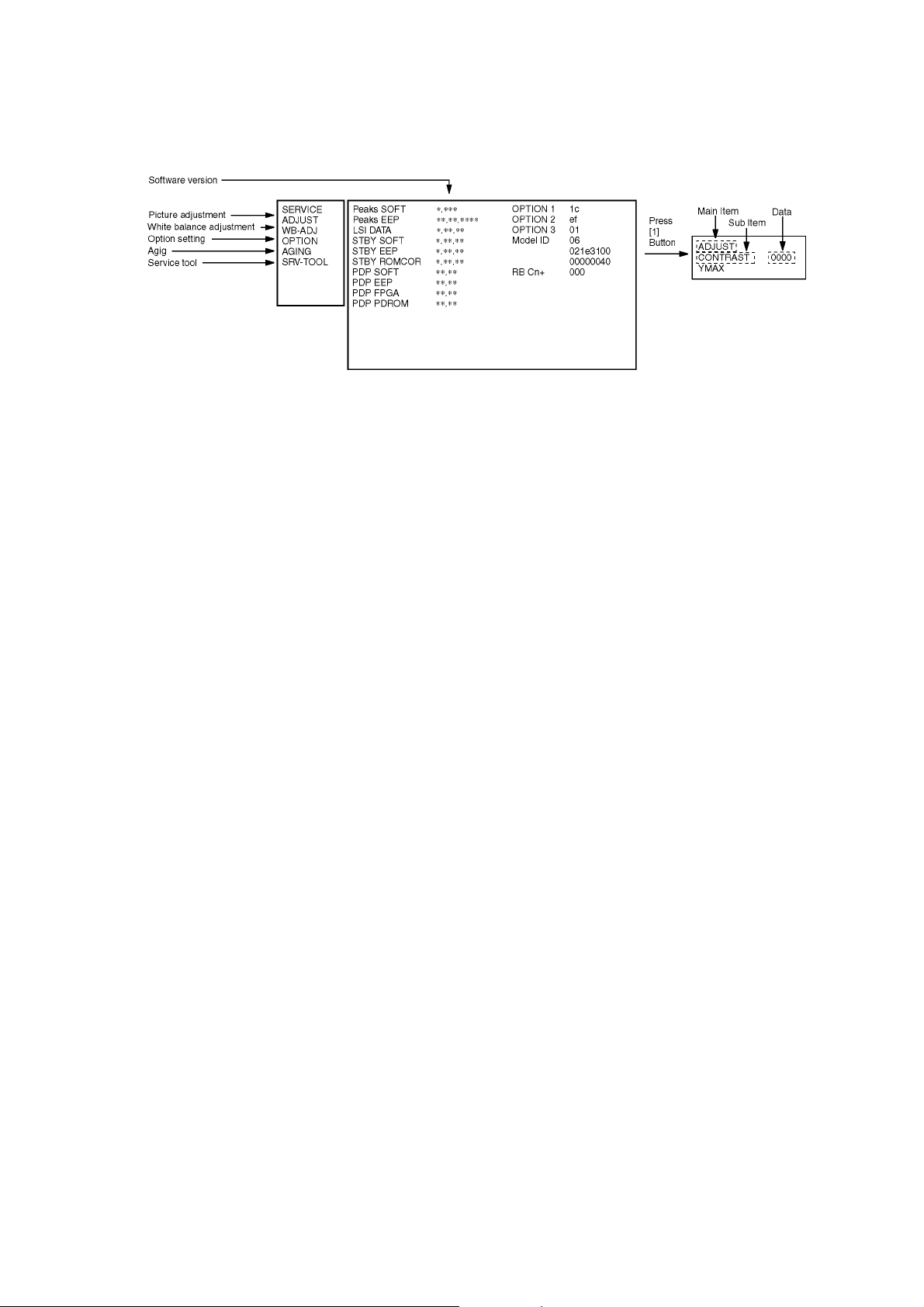

5.1. How to enter into Service Mode

While pressi ng [VOLUM E ( - )] butt on of the main unit, press [0] button of the remote control thr ee times within 2 seconds.

5.1.1. Key command

[1] button... Ma in i tems Selection in forward direction [2] button...Main items Selection in re verse direction [3] button... S ub it em s Selection in forward dire ction [4] button... S ub it em s Selection in reverse dire ction [RED] button...All Sub items Selection in forward direction [GREEN] button...Al l Sub items Selection in rever se direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

9

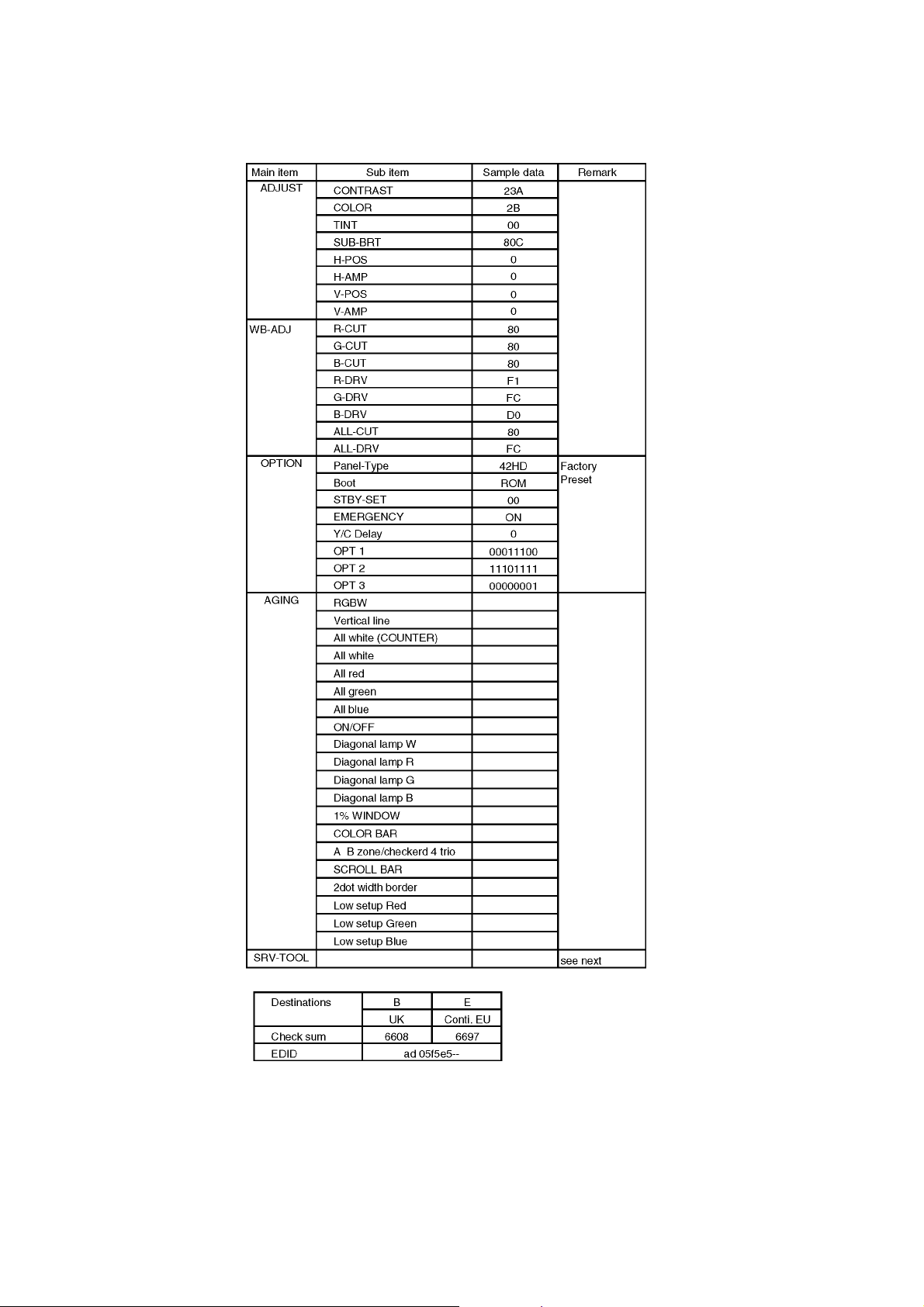

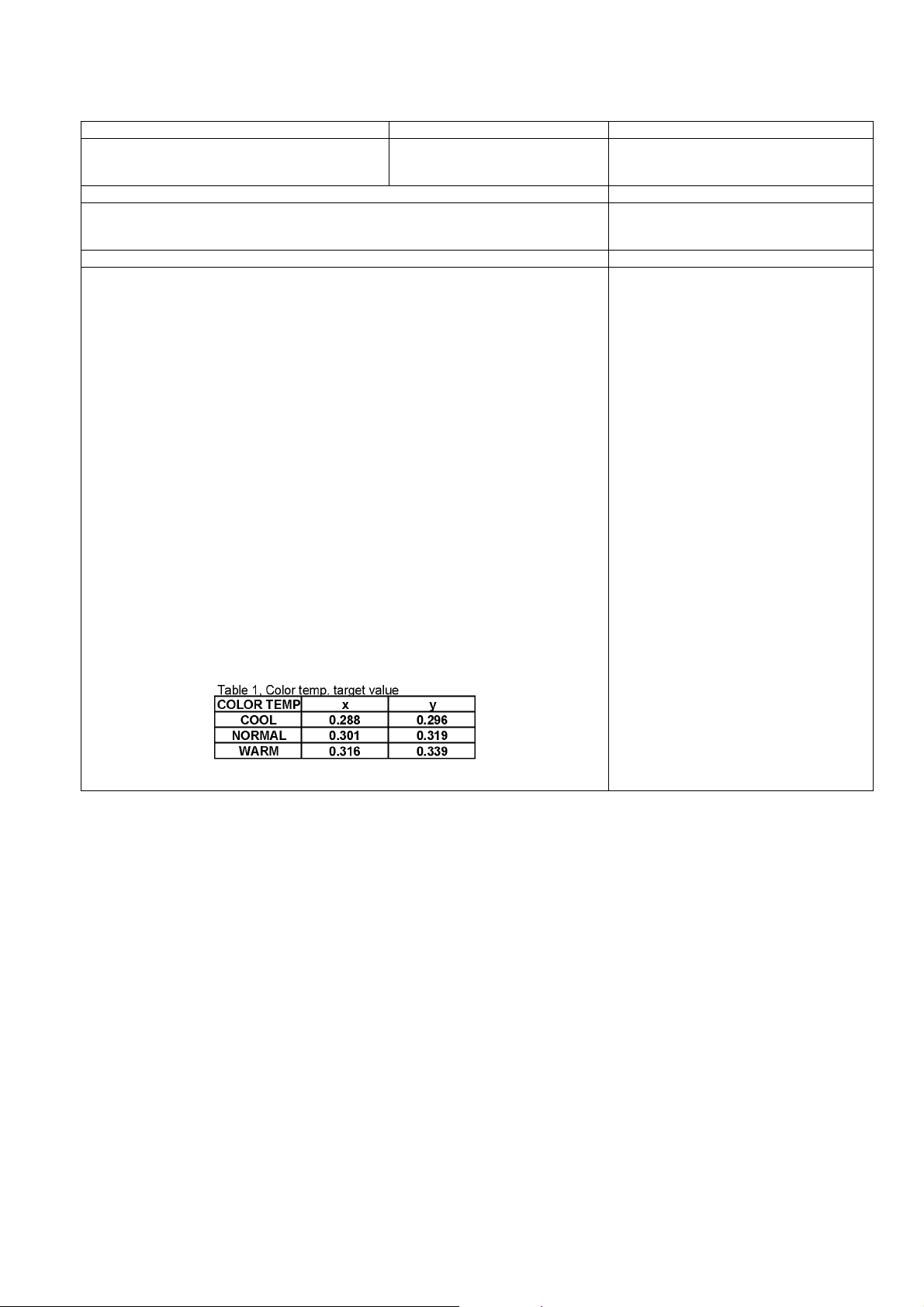

5.1.2. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, ta ke note of the value in each item before starting adjustment.

5.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

10

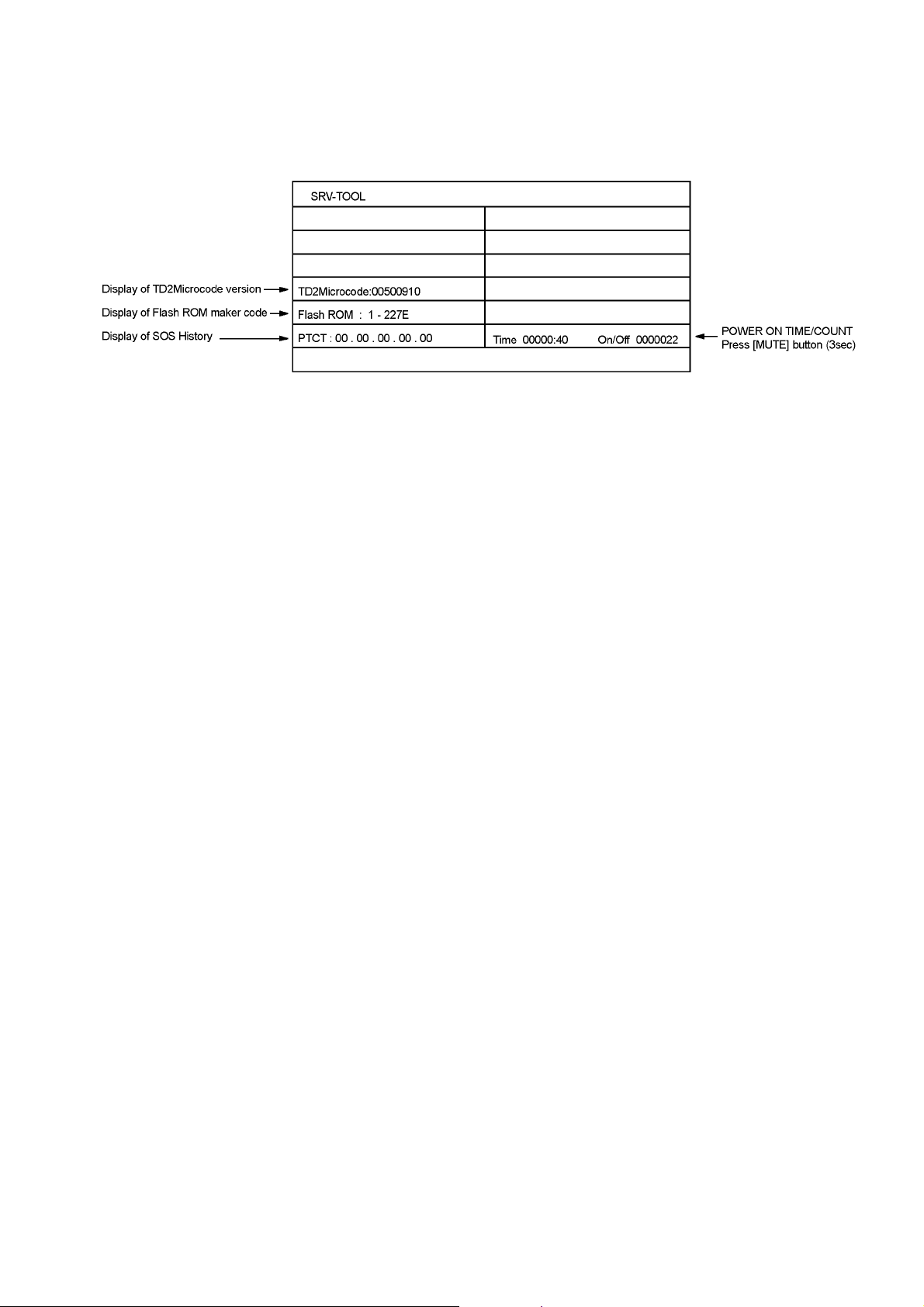

5.2. Service tool mode

5.2.1. How to access

1. Sele c t [S RV-TOOL ] in Ser vi ce M ode .

2. Press [OK] button on the remote control.

5.2.2. Display of SOS History

SOS History (Number of LED bli nking) indication. From left si de; Last SOS, before Last, three occurrence before, 2nd occurrence aft er shipment, 1st occur rence after shipment. This indication will be cleared by [Sel f-check indication and forced to factory sh ipment setting].

5.2.3. POWER ON Time, On/Off

Note : To display TIME/COUNT menu, highlight po sition, then press MUTE for 3sec. Time : Cumulative power on time, indicated hour : minute by decimal On/Off : Number of On/O ff switching by dec imal Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

1. Disconnect the AC cord from wal l out let or switch off the power wit h [ Power ] button on the main unit.

11

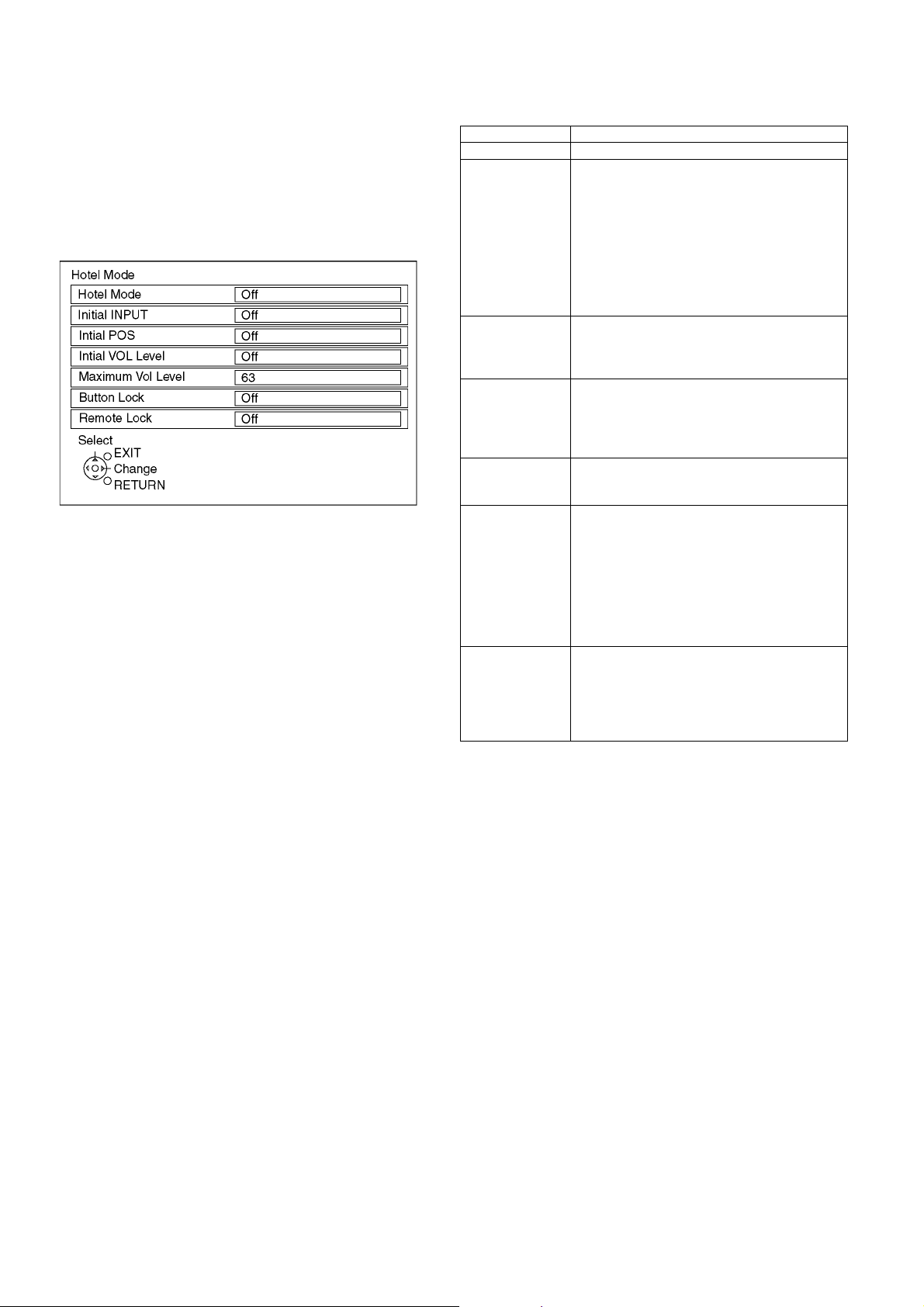

5.3. Hotel mode

1. Purpose Restrict a functi on for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu, please enter the following command ( within 2 second). [TV] : Vol. [Down] + [REM OTE] : AV (3 times)

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

item Function Hotel Mode Select hotel mode ON/OFF Initial INPUT Select input signal modes.

Set the input, when each time power is switched on. Selection : Off/Analog/DVB-T/AV1/A V2/AV2S/AV3/AV3S/ COMPONENT/PC/HDMI1/HDMI2/HDMI3

• Off: give priority to a las t memory. However, Euro model is compulsorily set to TV.

• AVnS/AVnC: only Euro model selectable

• PC: selectable with VGA option

Initial POS Select programme number.

Selection : Off/0 to 99

• Off: give priority to a last memory

Initial VOL level Adjust the volume when each time power is

switched on. Selec tion/Range : Off/0 to 63

• Off: give priority to a last memory

Maximum VOL level

Button lock Select local key conditions.

Remote lock Select remote control key conditions.

Adjust maximum volume. Range : 0 to 63

Selection : Off/SETUP/MENU/ALL

• Off: altog et he r valid

• SETUP: only F-key is invalid (Tuning guide(menu) can not be selected.)

• MENU: only F-key is invalid (only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection : Off/SETUP/MENU

• Off: altog et he r valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

12

6 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lin es

2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only: Produce TV reception scr een, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more t han 3 seconds. Self-check indi cation and forced to factory shipment setting: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con-

trol for more than 3 seconds.

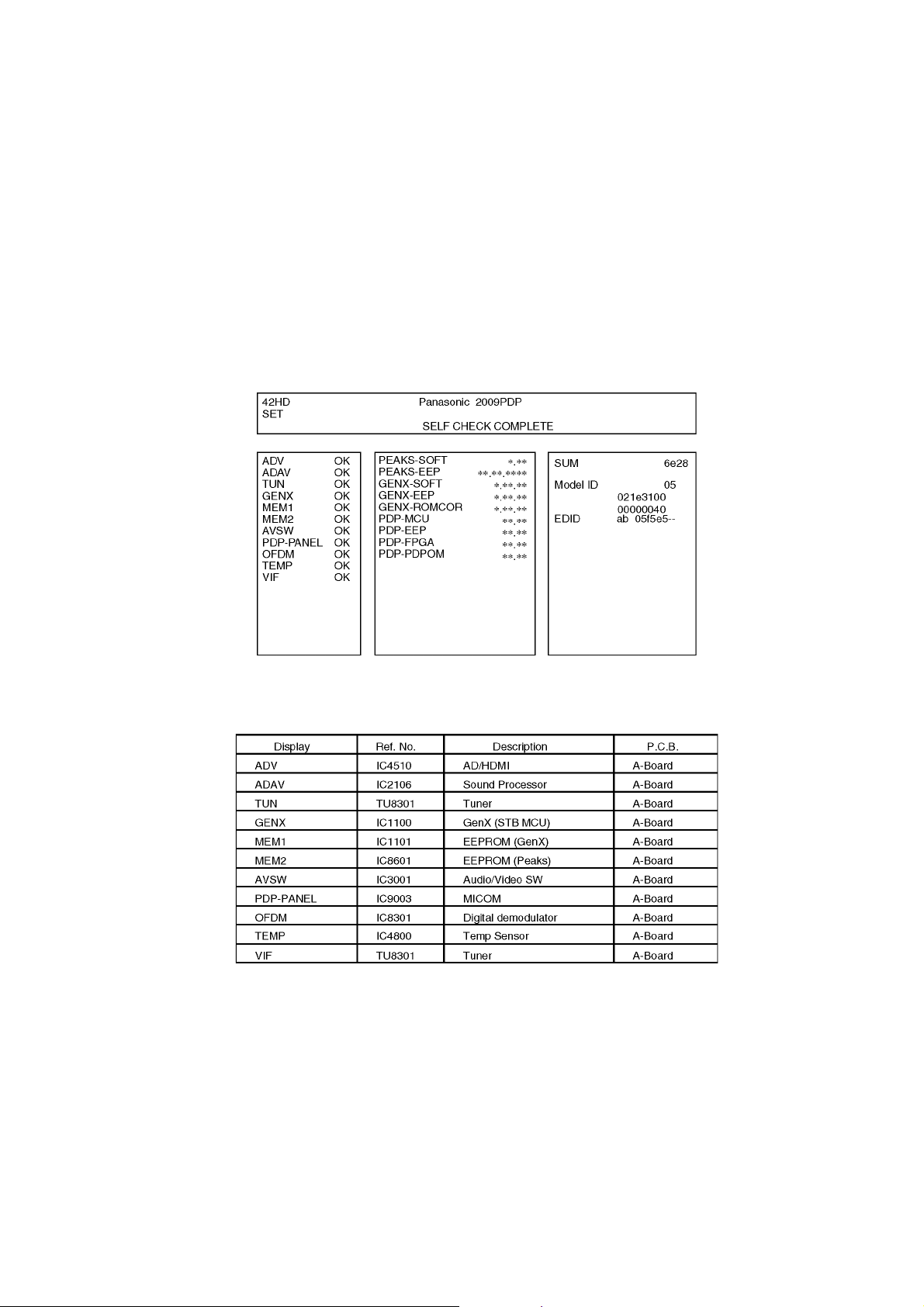

6.1.2. Screen display

6.1.3. Check Point

Confirm the following parts if NG was display ed.

6.1.4. Exit

Disconnect the AC cord fr om wall outl et or switch off the power with [ Power ] button on the main unit.

13

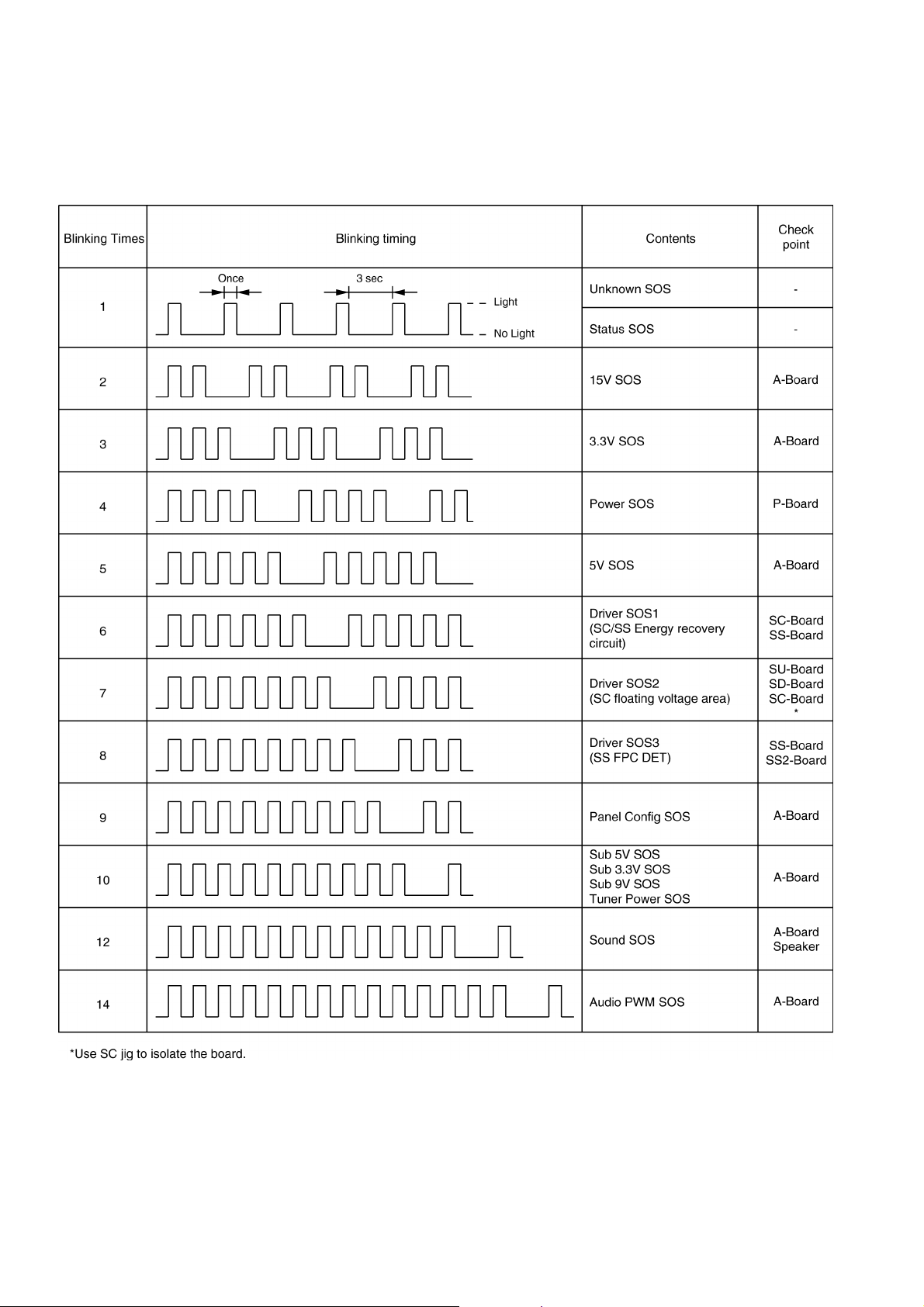

6.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of t he unit.

14

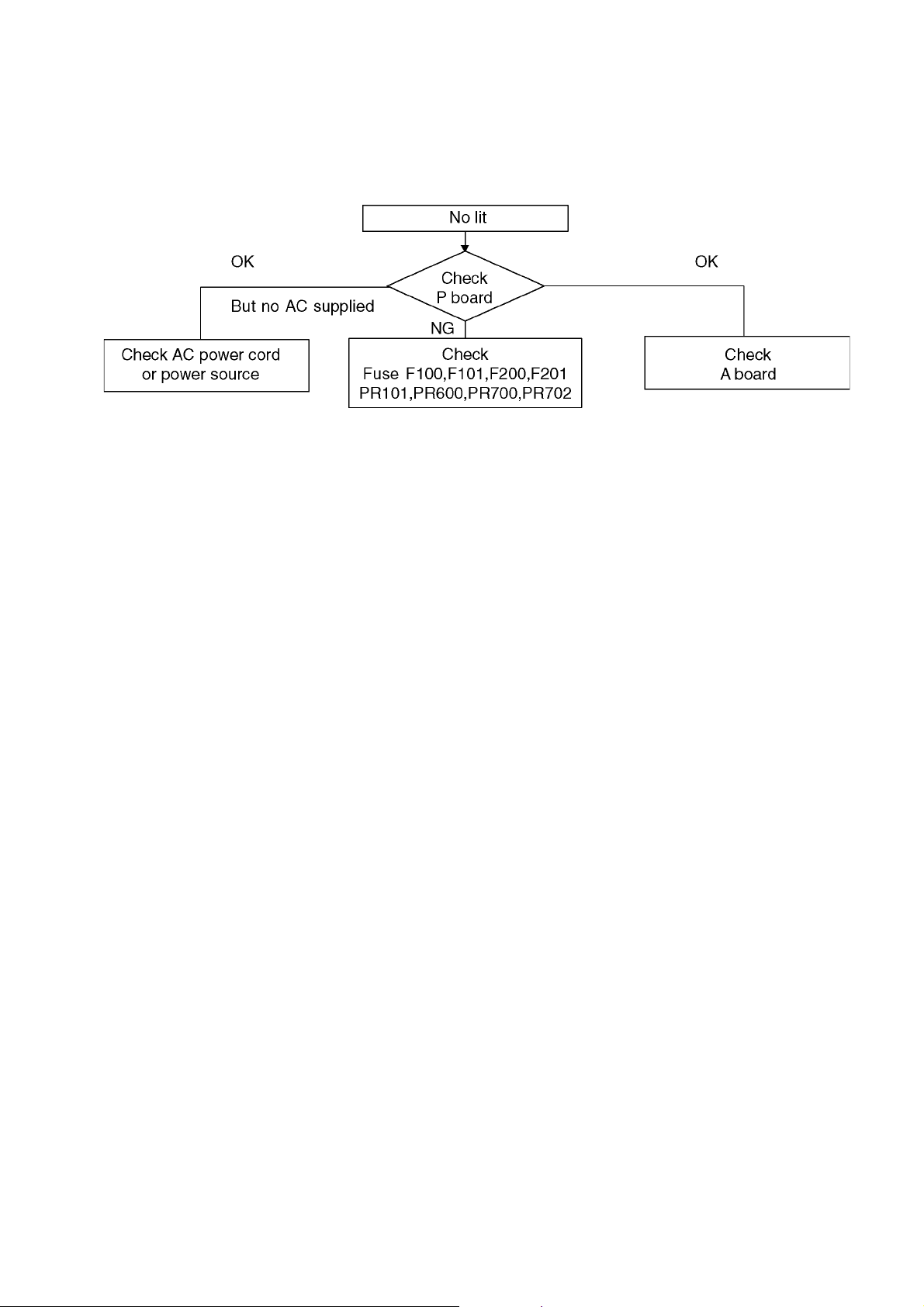

6.3. No Power

First check point There are followi ng 2 states of No Power indicati on by power LED.

1. No lit

2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

15

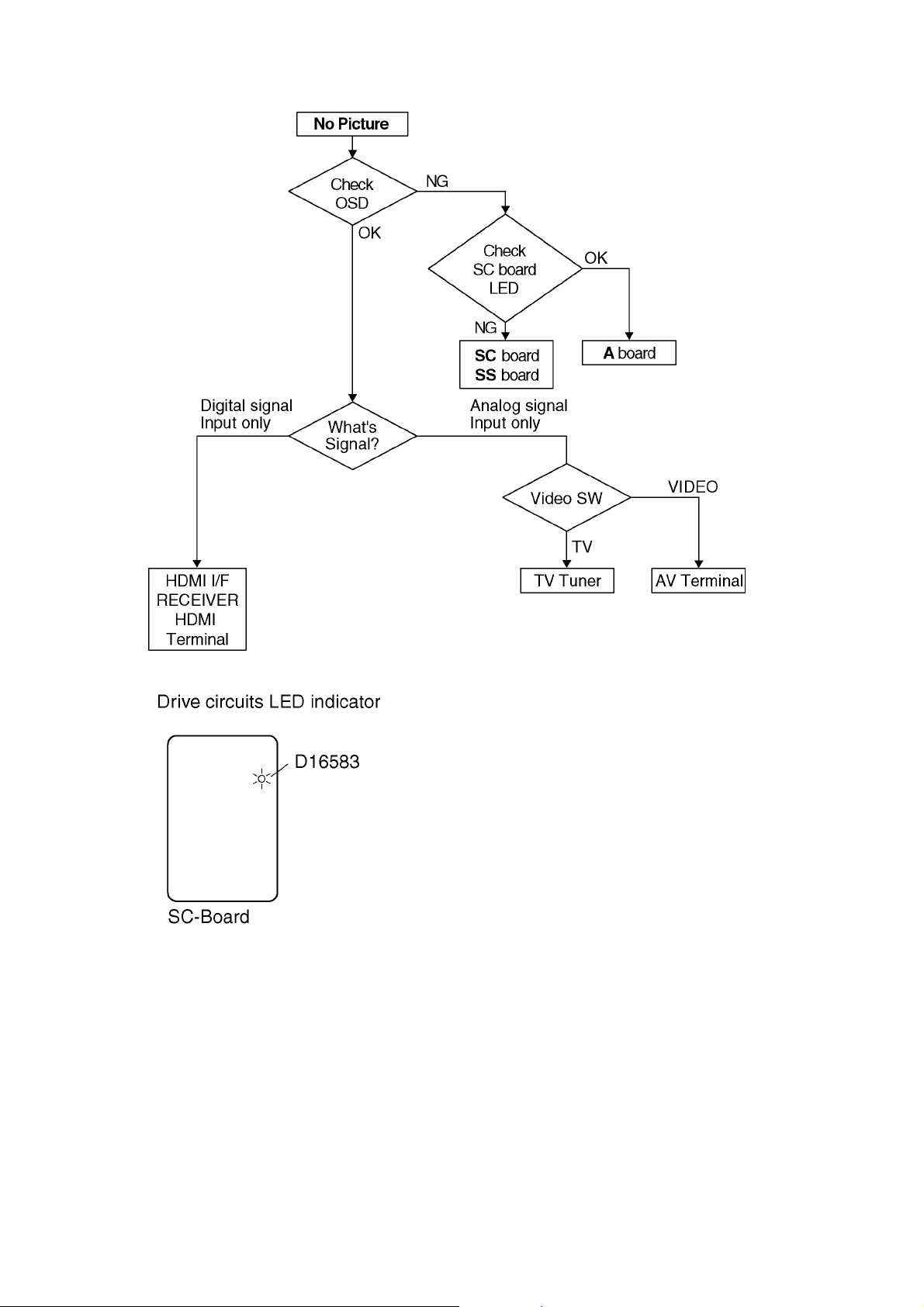

6.4. No Picture

16

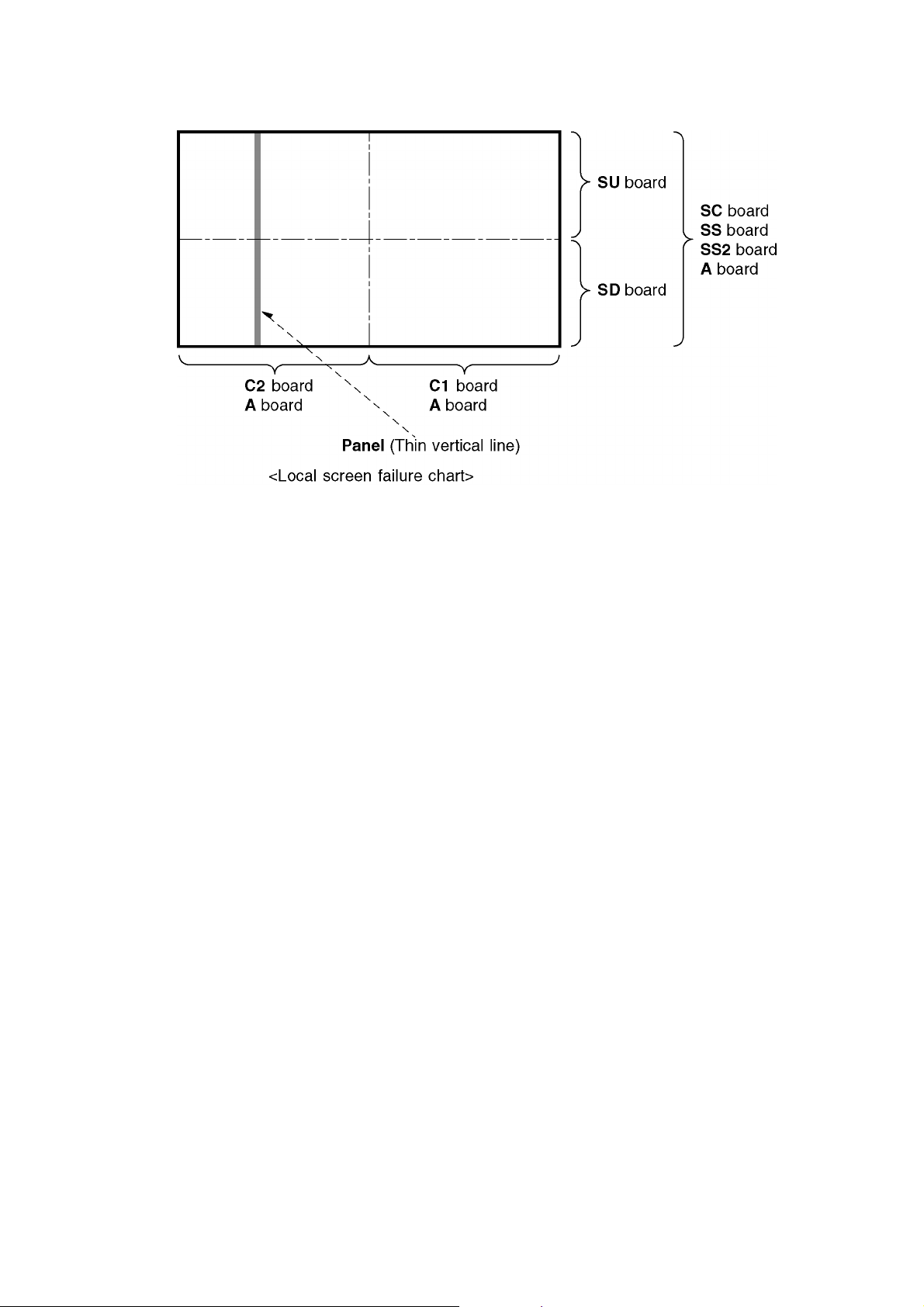

6.5. Local screen fai lure

Plasma display may hav e local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

17

7 Service Fixture & Tools

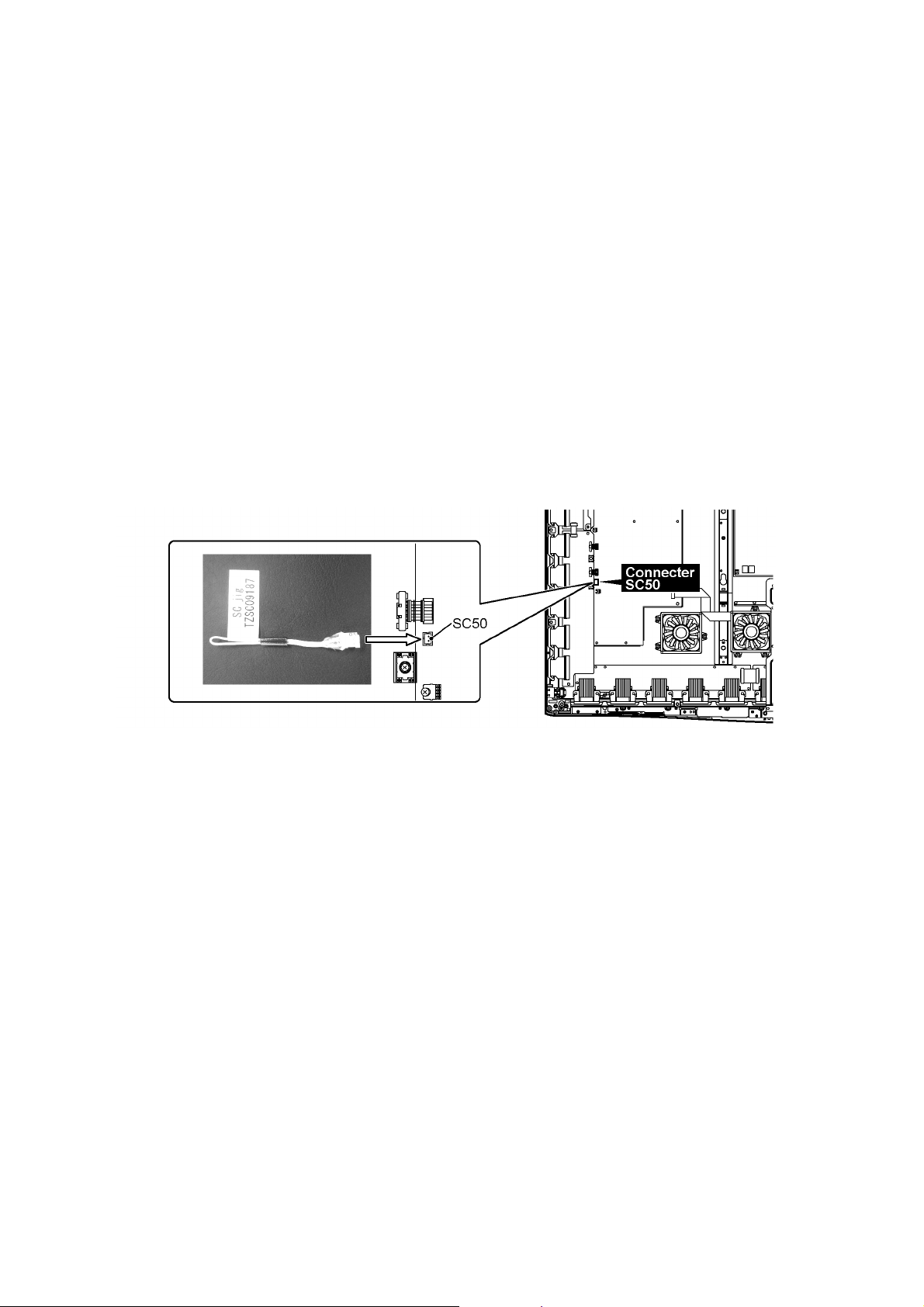

7.1. SC jig

Purpose:

To find the failure board (SC or SU/SD) when the power LED is blinking 7 ti me s.

SC jig:

Jumper connector to connect to SC50 connector on SC board

Part number:

TZSC09187

How to use: Caution: Remove SC jig from SC board after inspection.

1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically. Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU board and stay connecting with SD board. The board will be damaged.)

2. Connect SC jig to connector SC50 at lef t bottom side of SC board

3. Turn of the TV/Display Unit and confirm the power LED blinking. LED blinking: Possibl e cause of failure is in SC board No LED blinking (Lighting or no l ighting): Possible cause of failure is in SU or SD board

4. After inspection, turn off the TV/Di splay Unit and wait a few minutes to discharge.

5. Remove SC jig from SC board.

Remark: This SC jig can be used for all 2009 Plasma TV and Plasma Display.

18

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

1. See Service Hint (Section 3)

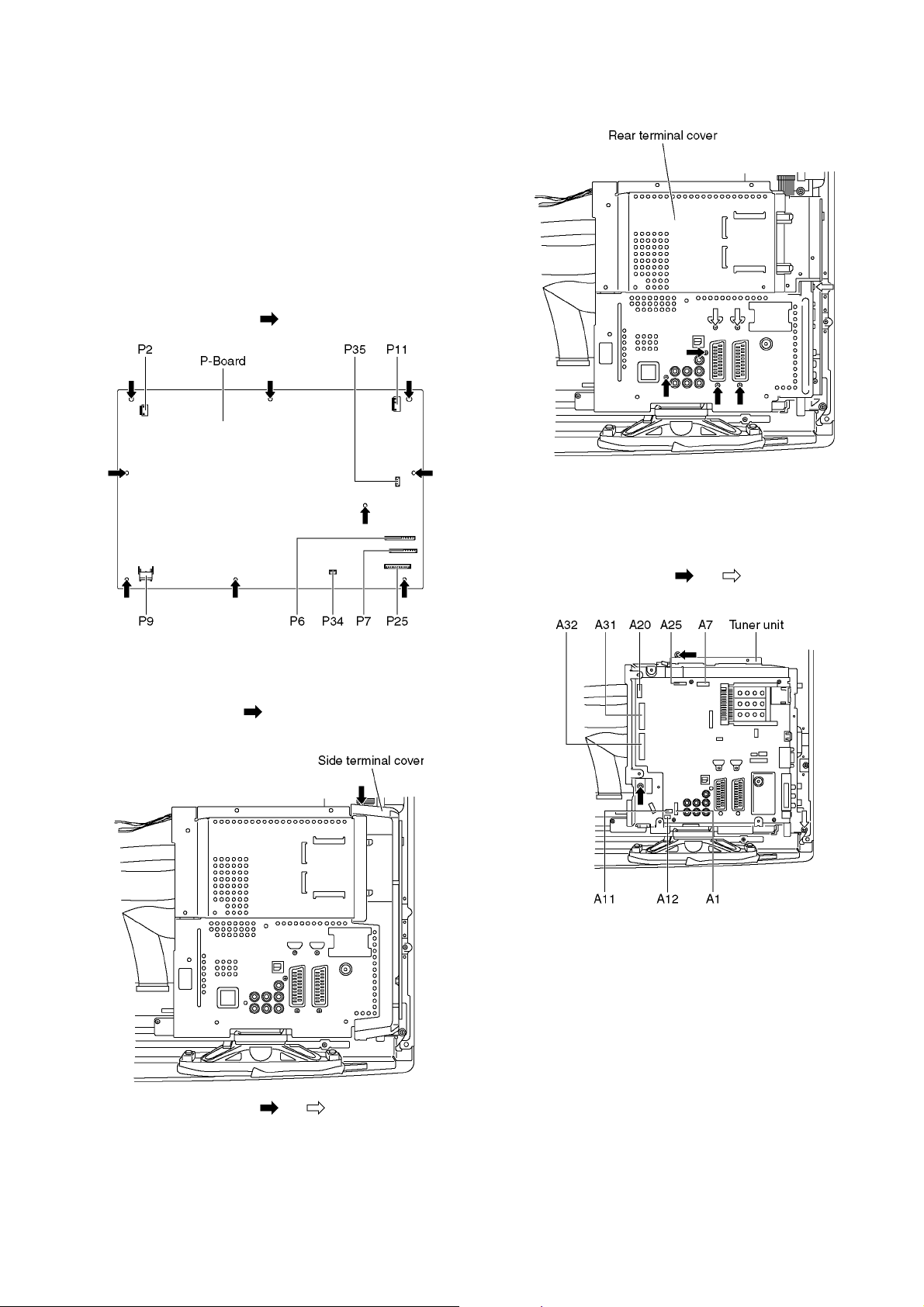

8.2. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from elec trolysis capaci tors.

1. Unlock the cable clam pers to free the cable

2. Disconnect the connectors (P2, P6, P7, P9, P11, P25, P34 and P35).

3. Remove the screws (×9 ) and remove the P-Board.

8.4. Remove the Tuner unit

1. Unlock the cable clamp ers to free the cable.

2. Disconnect the conne ctors (A1, A7, A1 1, A12 and A25).

3. Disconnect the flexible cables (A20, A31 and A32).

4. Remove the screws (×2 , ×1 ) and remove the Tuner unit.

8.3. Remove the Side terminal cover and Rear terminal cover

1. Remove the claw (×1 ).

2. Remove the Side terminal cover.

3. Remove the screws (×4 , ×3 ).

4. Remove the Rear terminal cover.

19

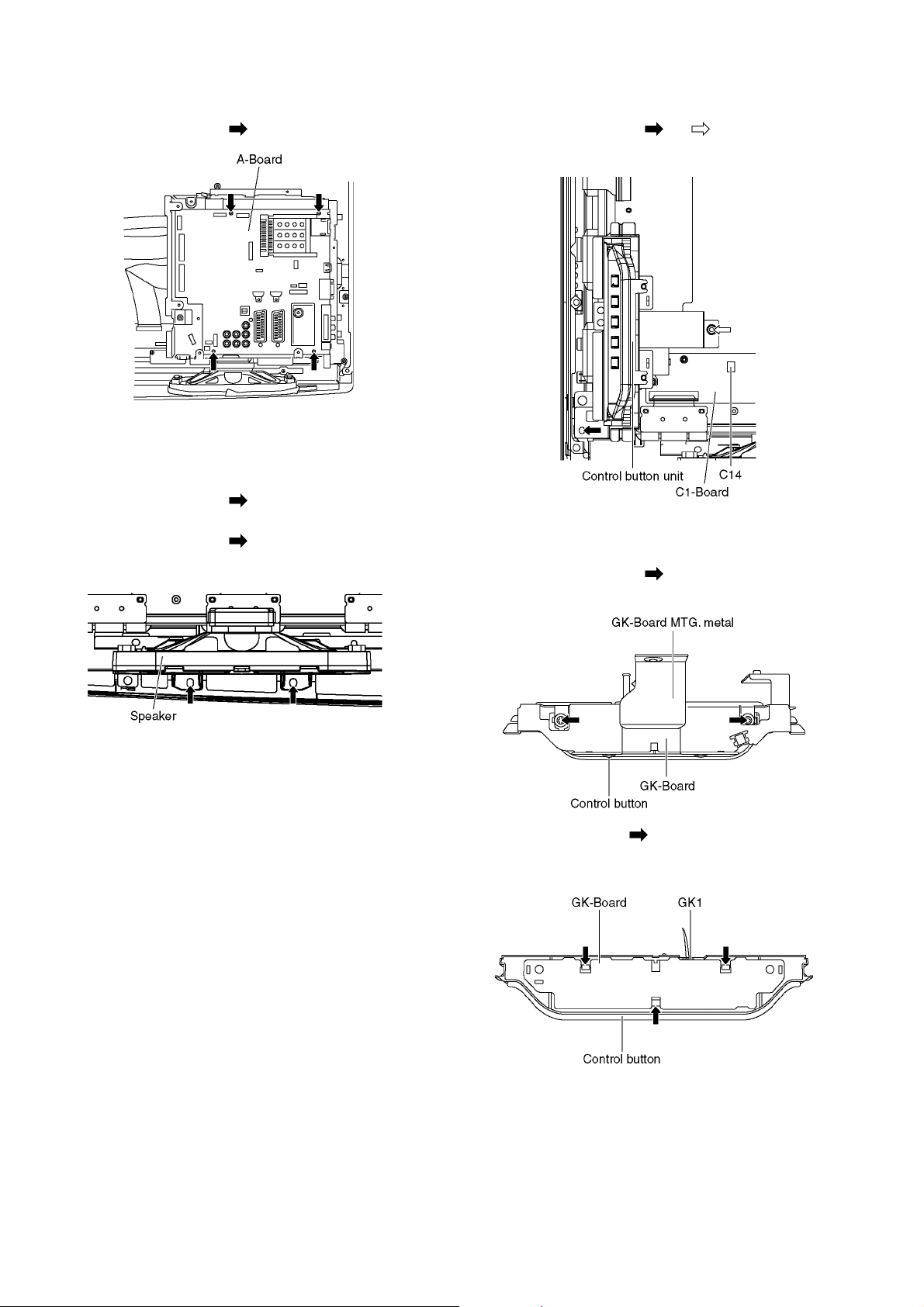

8.5. Remove the A-Board

1. Remove the Tuner unit. (See section 8.4.)

2. Remove the screws (×4 ) and remove the A-Board.

8.6. Remove the Speakers

1. Unlock the cable clampers to free the cable.

2. Disconnect the relay connector.

3. Remove the screws (×2 ) and remove the Speaker R.

4. Disconnect the conne ctor (A12). (See section 8.4.)

5. Remove the screws (×2 ) and remove the Speaker L.

8.7. Remove the Control button unit

1. Disconnect th e connector (C14).

2. Remove the screws (×1 , ×1 ).

3. Remove the Control button unit.

8.8. Remove the GK-Board

1. Remove the Control button unit. (See section 8. 7.)

2. Remove the screws (×2 ).

3. Remove the GK-Board MTG. metal.

4. Remove the claw (×3 ).

5. Disconnect th e connector (GK1).

6. Remove the GK-Board from Control button.

20

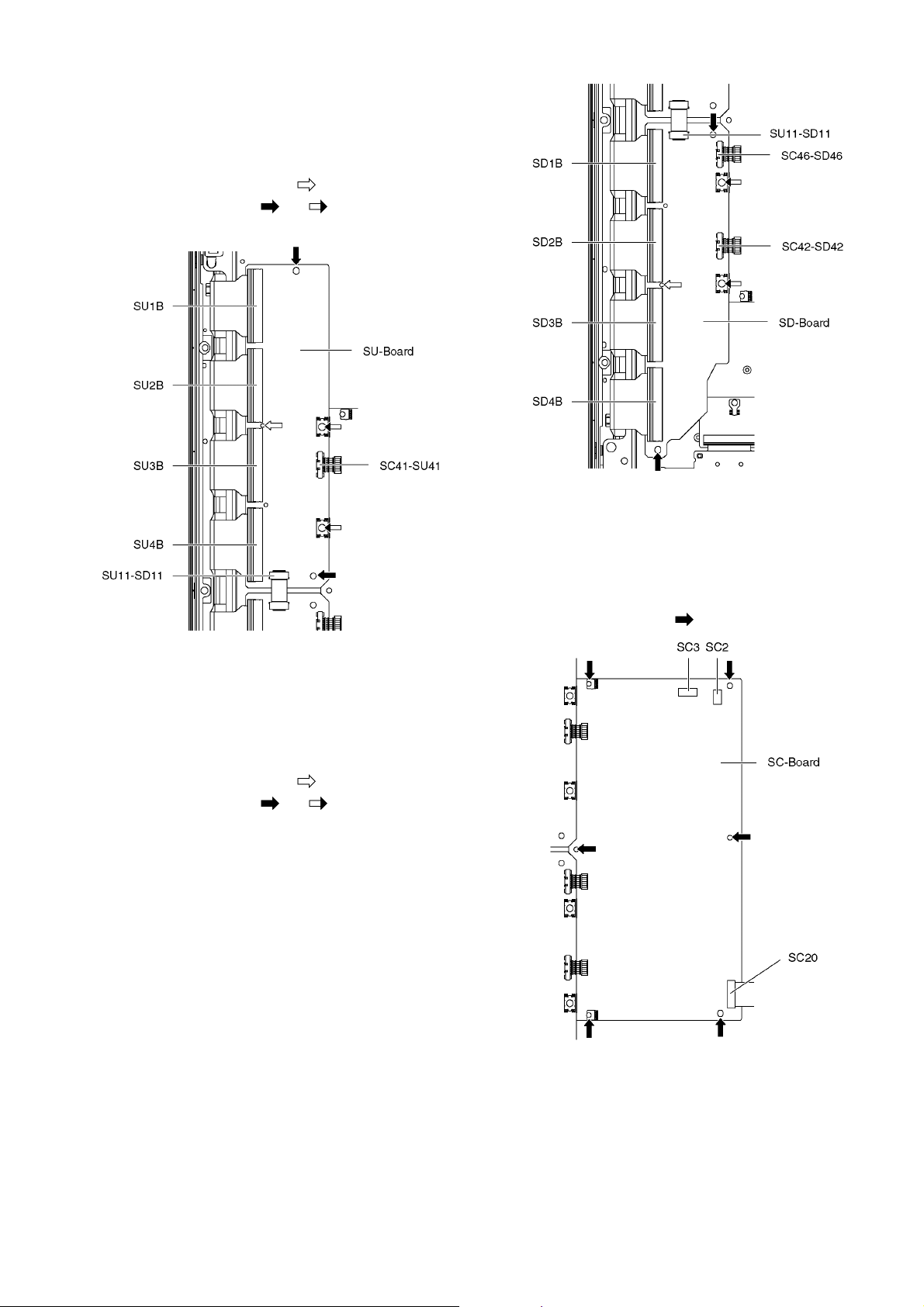

8.9. Remove the SU-Board

1. Remove the flexible cables (SU1B, SU2B, SU3B and SU4B) connected to the SU-Board.

2. Remove the flexible cable (SU11-SD11) and the bridge connector (SC41-SU41).

3. Remove the molding prop (×1 ).

4. Remove the screws (×2 , ×2 ) and remove the SU- Board.

8.11. Remove the SC-Board

1. Remove the SU-Board and SD-Board. (See section 8.9. and 8.10.)

2. Unlock the cable clamp ers to free the cable.

3. Disconnect the connectors (SC2 and SC3).

4. Disconnect the flexi ble cable (SC20).

5. Remove the screws (×6 ) and remove the SC-Board.

8.10. Remove the SD-Board

1. Remove the Control but ton uni t. (See section 8.7.)

2. Remove the flexible cables (SD1B, SD2B, SD3B and SD4B) connected to the SD-Board.

3. Remove the flexible cable (SU11-SD11) and the bridge connectors (SC42- SD42 and SC46-SD46).

4. Remove the molding prop (×1 ).

5. Remove the screws (×2 , ×2 ) and remove the SD- Board.

21

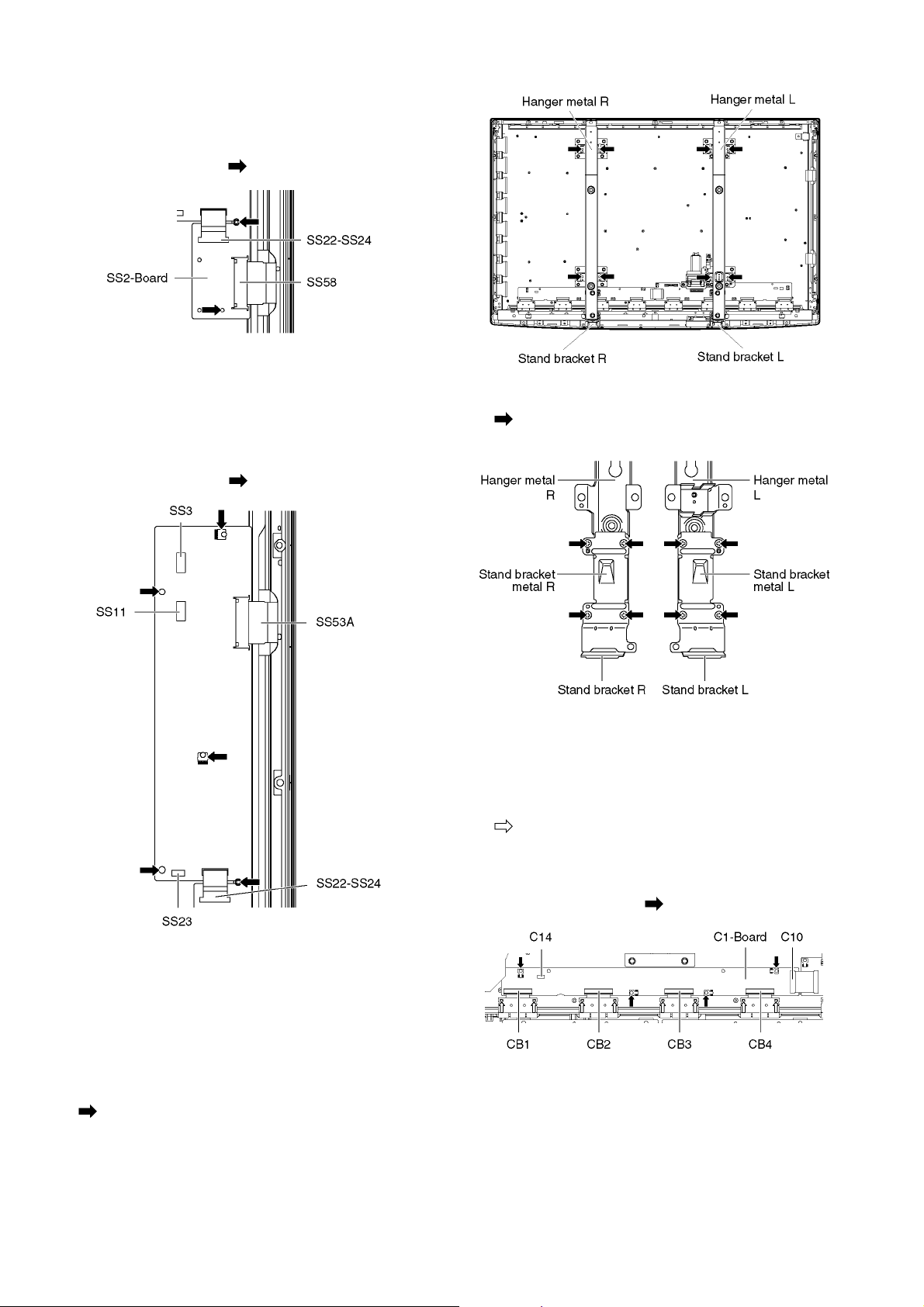

8.12 . Remove the SS2-Board

1. Remove the Tuner unit. (See section 8.4.)

2. Disconnect the bridge connector (SS22-SS24) and disconnect the flexible cable (SS58).

3. Remove the screws (×2 ) and remove the SS2-Board.

8.13. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.4.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the conne ctors (SS3, SS11 and SS23).

4. Disconnect the flexi ble cable (SS53A).

5. Disconnect the bridge connector (SS22-SS24).

6. Remove the screws (×5 ) and remove the SS-Board.

3. Remove the Stand br ackets (L, R) fastening screws (×4 each) and remove the Stand bracket metals (L, R)

and the Stand brackets (L, R).

8.14 . Remove the Hanger metals and the Stand brackets

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Remove the Hanger metals (L, R) fastening screws (×4

each) and remove the Hanger metals (L, R).

8.15. Remove the C1-Board

1. Remove the Control button unit. (See section 8. 7.)

2. Remove the Hanger metal R and the Stand bracket R. (See section 8. 14.)

3. Remove t he flexi ble cables holder fas tening sc rews (×8

).

4. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).

5. Disconnect th e connector (C14).

6. Disconnect the flexible cable (C10).

7. Remove the screws (×4 ) and remove the C1-Board.

22

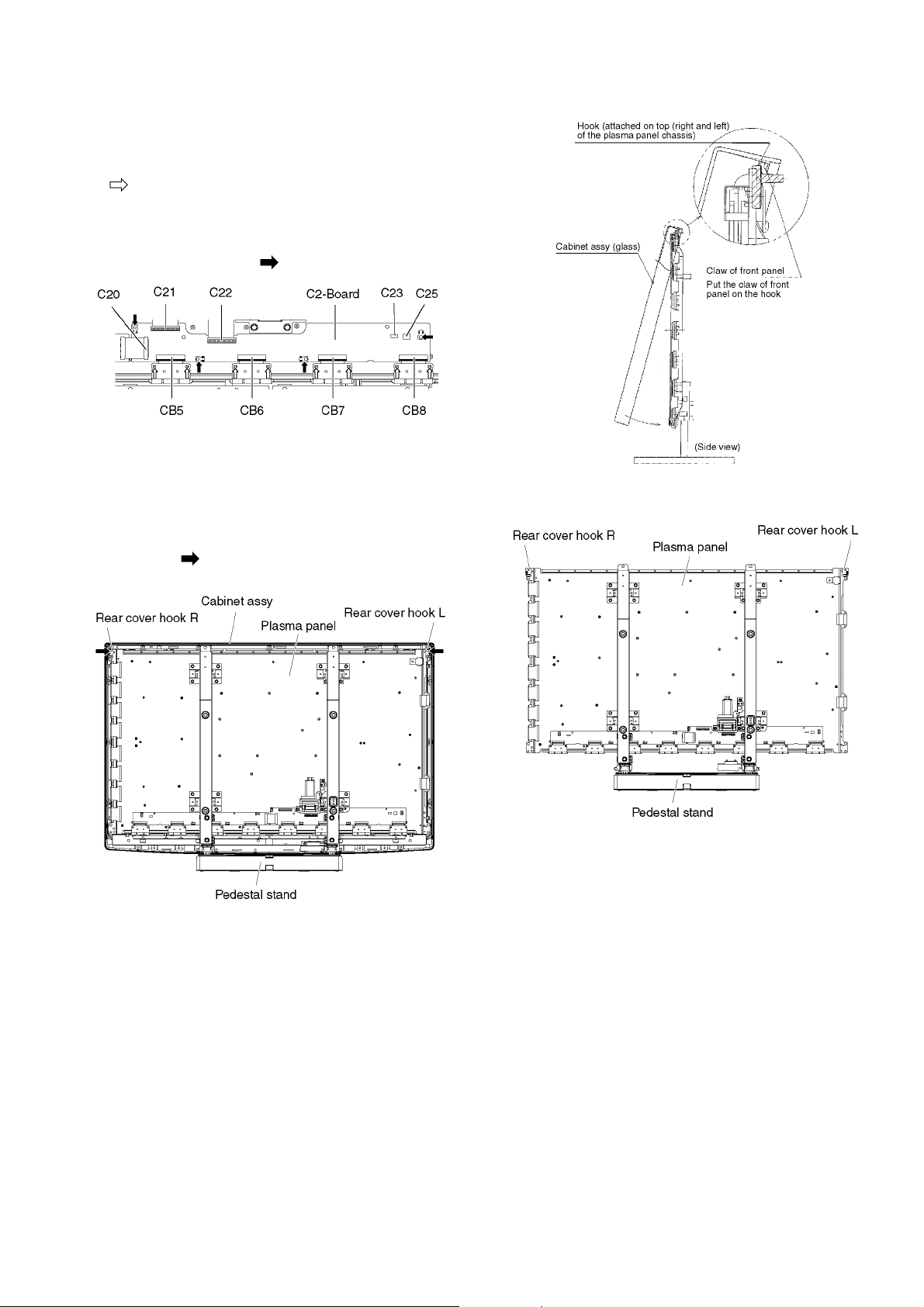

8.16. Remove the C2-Board

1. Remove the Tuner unit. (See section 8. 4.)

2. Remove the Hanger metal L and the Stand bracket L. (See section 8.14.)

3. Remove the flexible cables holder fastening screws (×8

).

4. Disconnect th e flexible cables (CB5, CB6, CB7 an d CB8).

5. Disconnect the flexible cables (C20, C21 and C22).

6. Disconnect the conn ectors (C23 and C25).

7. Remove the screws (×4 ) and remove the C2-Board.

8.17. Remove the Plasma panel sec-

2. For leaving the plasma panel from the front frame, pul l the bottom of the cabinet assy forward, lif t, and remove.

tion from the Cabinet assy (glass)

1. Remove the cabinet assy and the plasma panel fastening screws (×2 ).

3. Remove the Rear cover hooks (L, R).

23

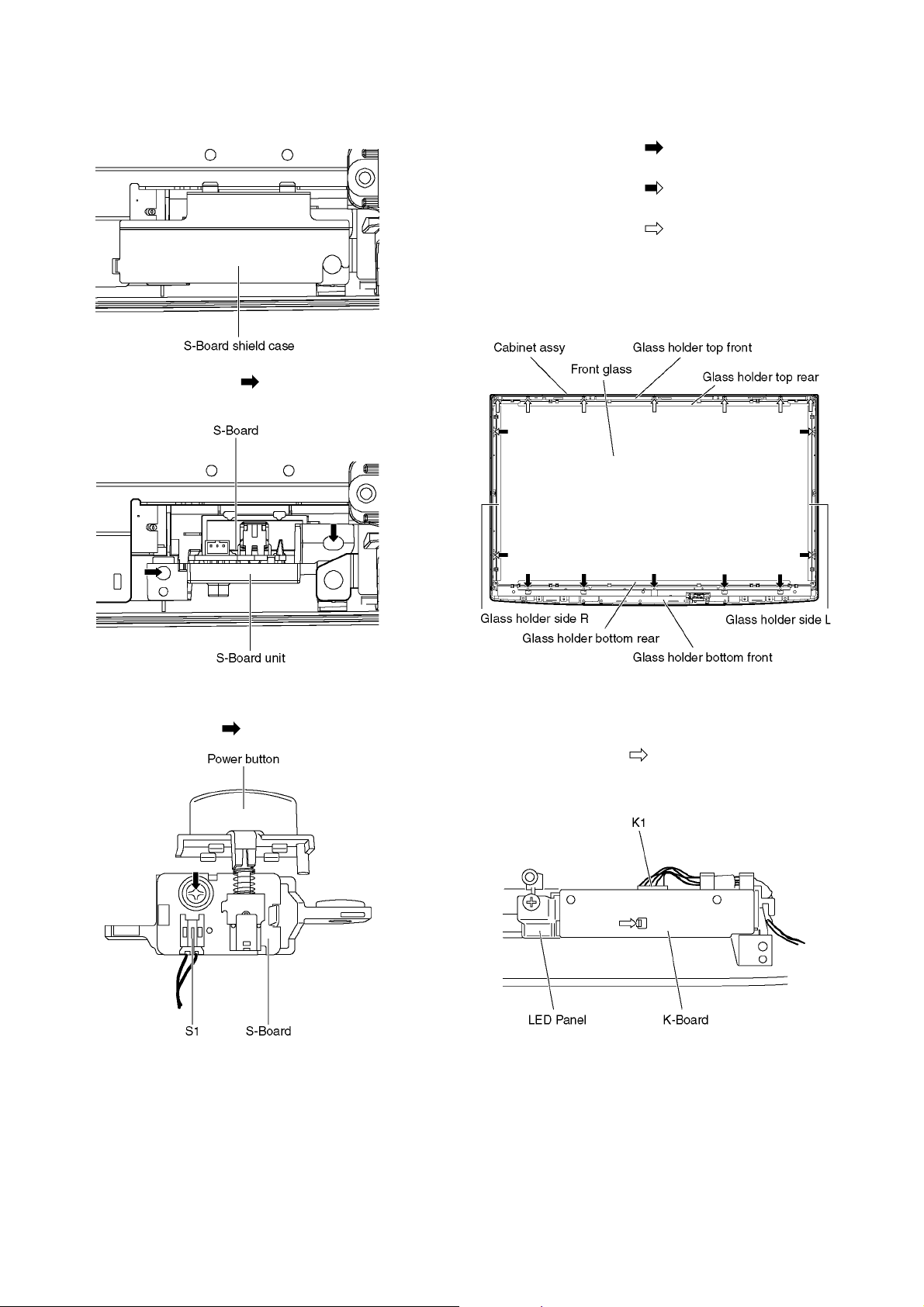

8.18. Remove t h e S-Board

1. Remove the Cabinet assy. (See section 8.17.)

2. Remove the S-Board shield case.

3. Remove the screws (×2 ) and remove the S-Board unit.

8.19. Remove the Front glass

1. Remove the Cabinet assy. (See section 8.17.)

2. Remove the S-Board. (See section 8.18.)

3. Remove the screws (×5 ).

4. Remove the Glass holder bottom rear.

5. Remove the screws (×4 ).

6. Remove the Glass holder side (L, R).

7. Remove the screws (×7 ).

8. Remove the Glass holder top rear.

9. Remove the Front glass.

10. Remove the Glass holder bottom front and Glass holder top front.

4. Disconnect the conne ctor (S1).

5. Remove the Power button.

6. Remove the screw (×1 ) and remove the S-Board.

8.20. Remove the K-Board

1. Remove the Front glass. (See section 8.19)

2. Remove the claw (×1 ).

3. Disconnect the connector (K1) and remove the K-Board from LED Panel.

24

8.21. Replace the plasma panel

Caution:

A new plasma panel itself without Hanger metals is fragile. To avoid the damage t o new plasma panel, carry a new plasma panel taking hold of the Hanger metals after assembling the Hanger m etals and the Stand brackets.

1. Place a carton box pack ed a new plasma panel on the flat surface of the work bench.

2. Open a box and without tak ing a new plasma panel; Attach the C1-Board and the C2-Board, connect the fl exible cables from the plasma panel to the C1-Board and the C2-Board, and fit the f lexible cable holders.

3. Attach the Hanger metals and the Stand br ackets to the new plasma panel.

4. Place the plasma panel on the servicing stand taking hold of the Hanger metals.

5. Attach the cabinet assy and each P.C.Board and so on , to the new plasma panel.

*When fitting the cabi n et assy, be careful not to allow any debris, dust or handli ng residue to remain between the front glass and plasma panel.

25

9 Measurements and Adjustments

9.1. Adjustment Procedure

9.1.1. Driver Set-up

9.1.1.1. Item / Preparation

1. Input a white signal to plasm a video input.

2. Set the picture contr ols as follows. Picture menu: Dynamic PNR: Min Aspect: 16:9

Caution

1. First perform Vsus adjustment.

2. The Vscn voltages are measured from the Vad (Vad_base), but may be measured from the GND (GND_base) in an unavoidable case.

9.1.1.2. Adjustments

Adjust driver section voltages referring the panel data on the panel data l abel. Check or adjust the fol lowi ng voltages with the multi m eter.

Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) Vsus ± 2V R737 (P ) * Ve TPVE (SS) Ve ± 2.5V Fixed * Vset TPVSET (SC) 290V ± 9 V Fixed Vad TPVAD (SC) -180V ± 2V VR16600 (SC) Vscn TPVSCN (SC) Vad_base : + 145V ± 4V

GND_base : - 35V ± 6V

Vda TPVDA (P) 60V + 1V, - 2V Fixed

Fixed

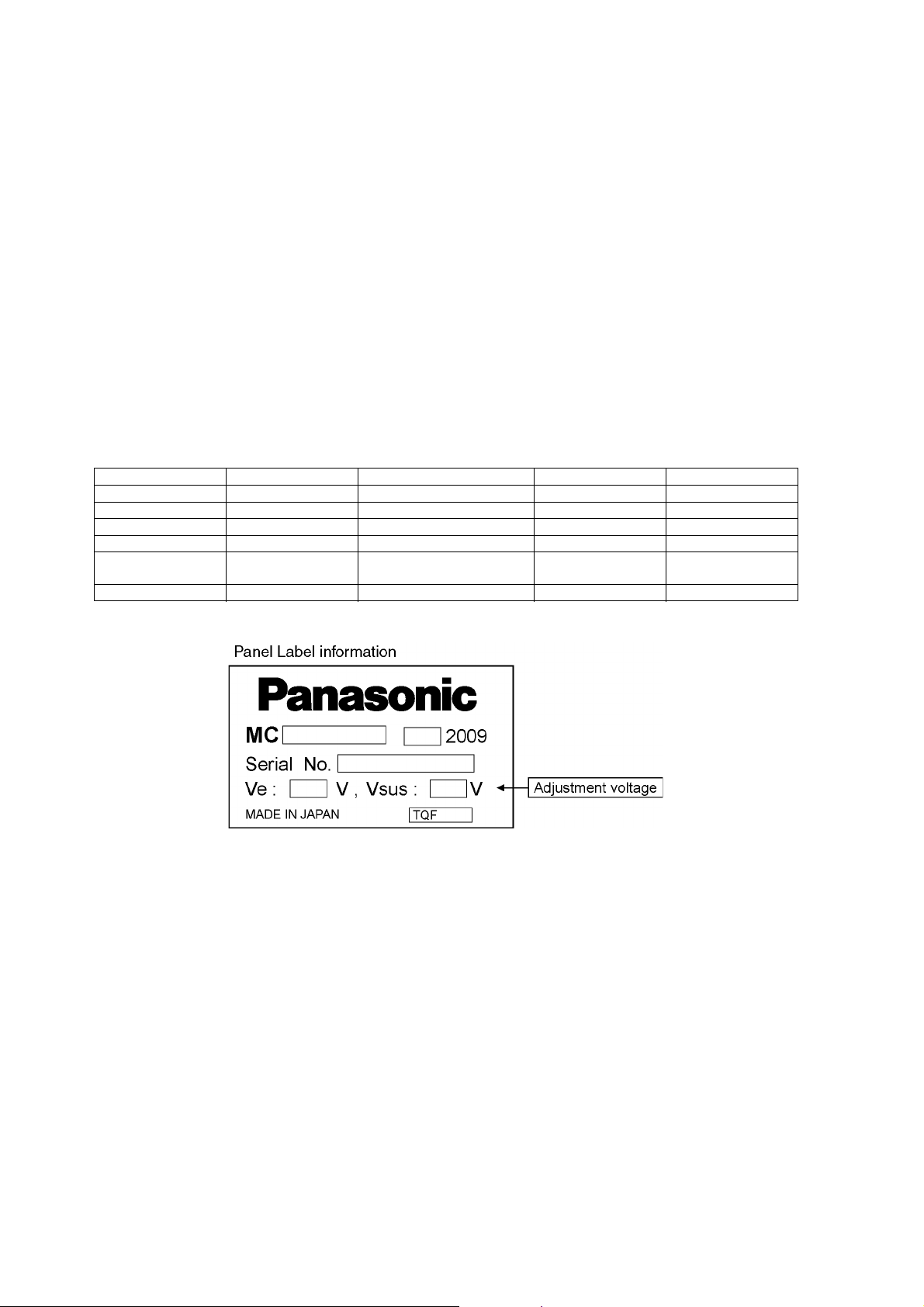

*See the Panel label.

26

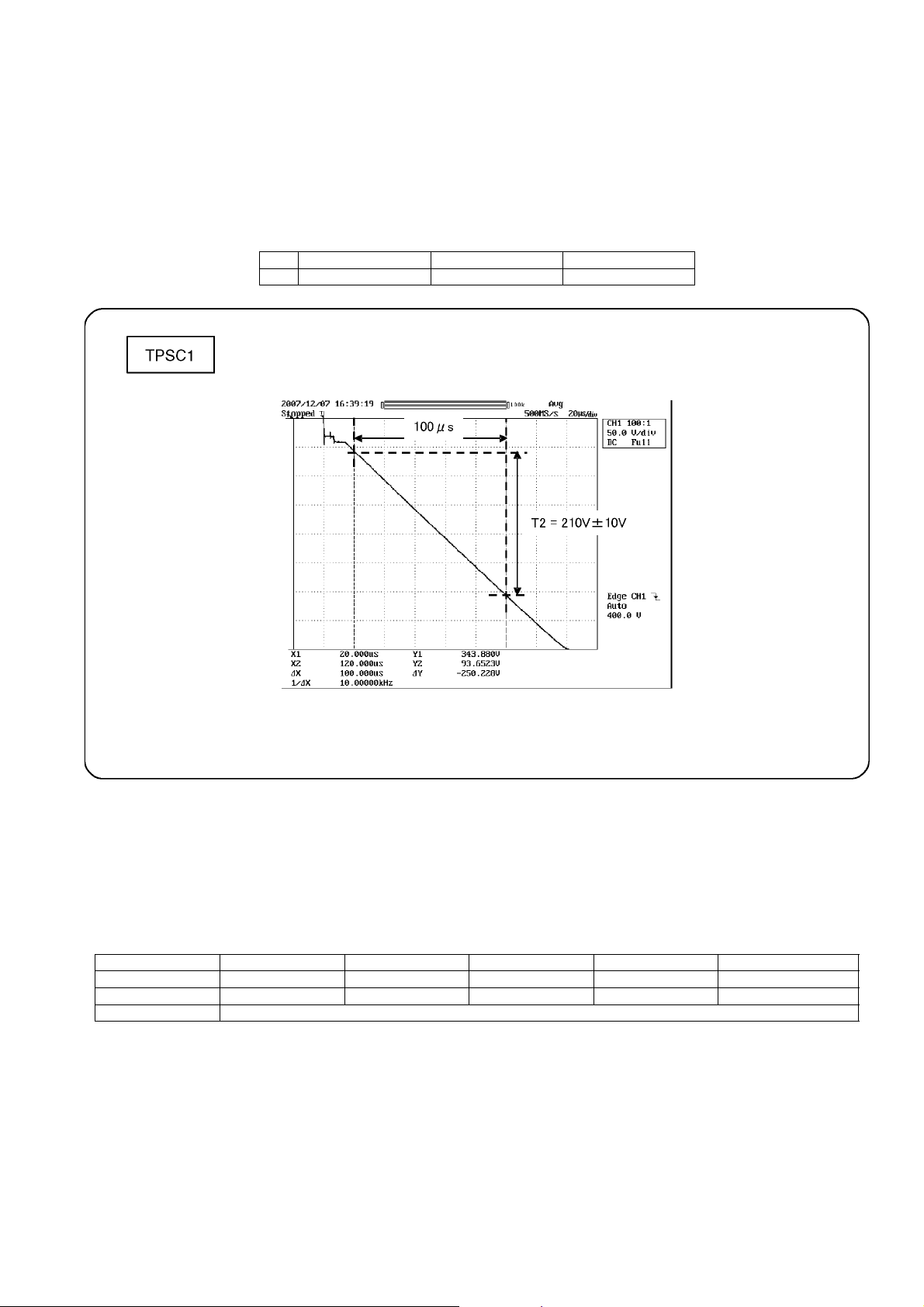

9.1.2. Initialization Pulse Adjust

1. Input the White signal to plasma video input .

2. Set the picture controls as follows. Picture menu : Dynamic PNR : Min Aspect : 16:9

3. Connect Oscilloscope to TPSC1 (SC). Check the voltage (T2) at 100μs period on the down slop.

Test point Volume Level

T2 TPSC1 (SC) VR16601 (SC) 210 V ± 10 V

9.1.3. P.C.B. (Printed Circuit Board) exchan ge

9.1.3.1. Caution

1. To remove P.C.B., wait 1 minute after power was off for di scharge from electrol ysis capacitors.

9.1.3.2. Quick adjustment after P.C.B. exchange

Adjust the foll owing voltages with the multimeter.

P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) Vsus ± 2V R737 (P) * SC Boa rd Vad TPVAD (SC) -180V ± 2V VR16600 (SC) A Board White balance and Sub brightness for RF and 1080i signals

*See the Panel label.

Caution:

Absolutely do not red uce Vsus below Ve not to damage the P.C.B.

27

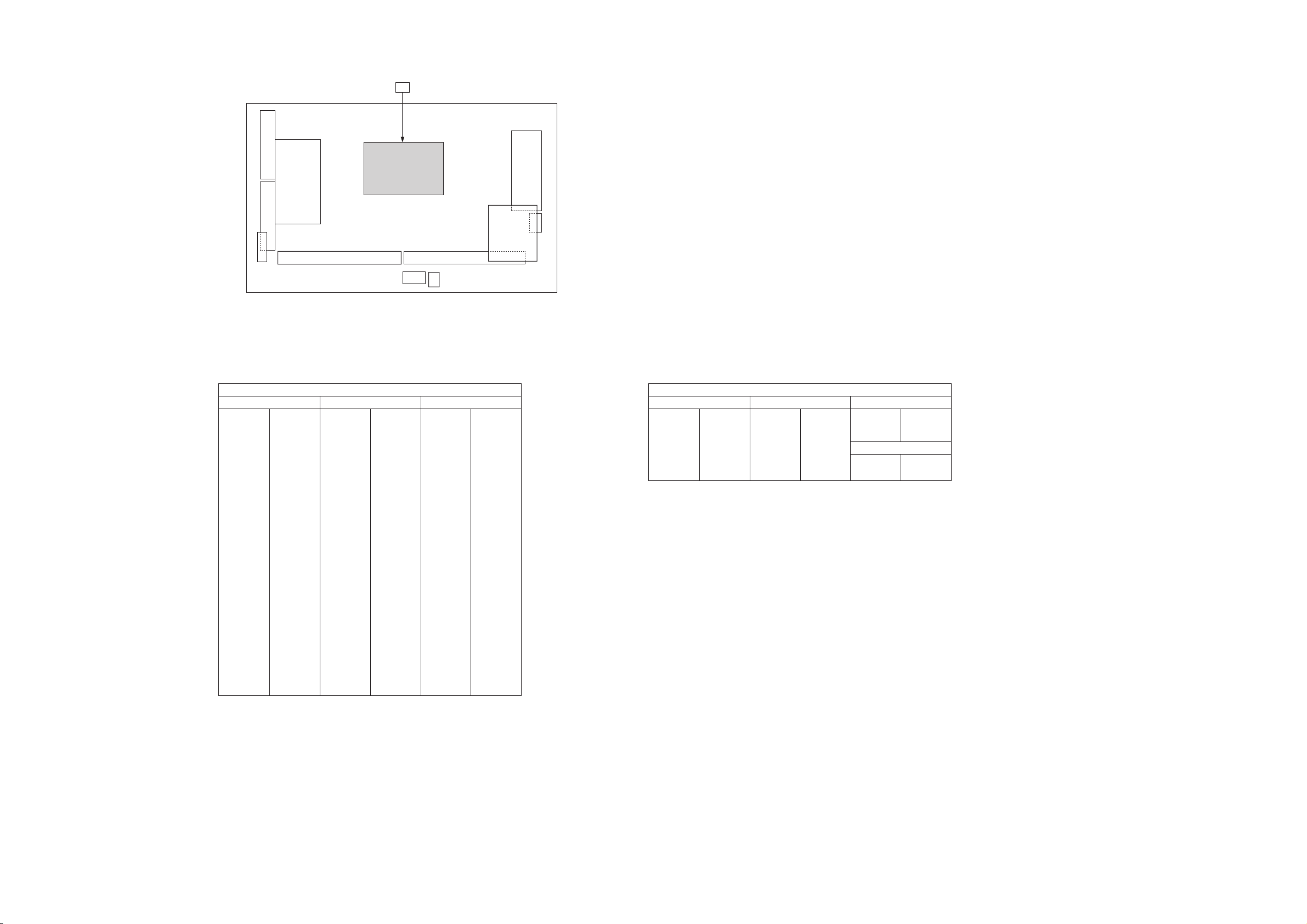

9.1.4. Adjustme nt Volume Location

9.1.5. Test Point Location

28

9.2. Adjustment

9.2.1. Sub-Contrast adjustment

Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator

Steps Remarks

Adjustment of TV (RF system)

Note:

In adjustment, you must setting to modulation of signal at 85%.

Ref.:

RF signal modulation spec. UK models: 80% Other models: 90 %

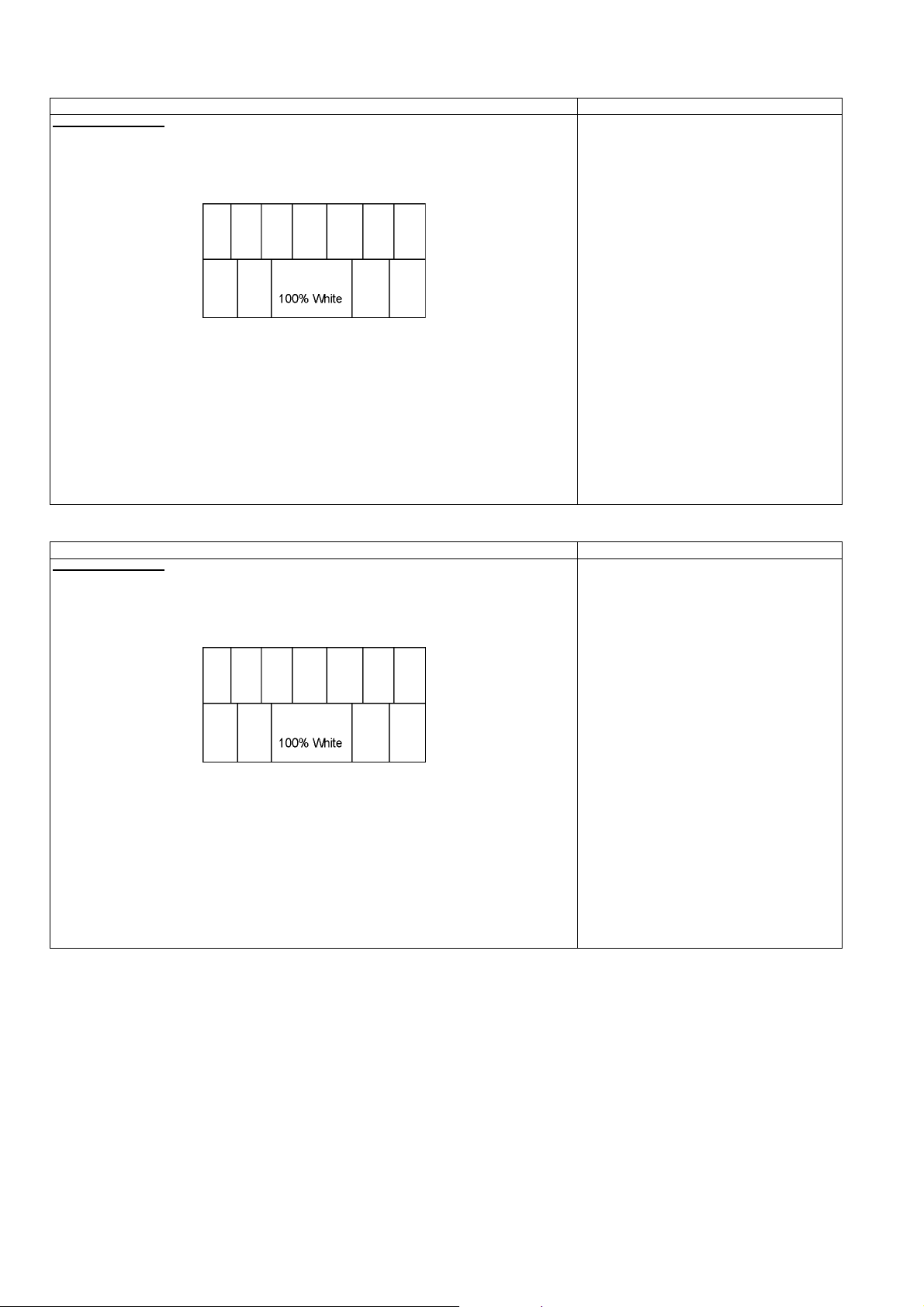

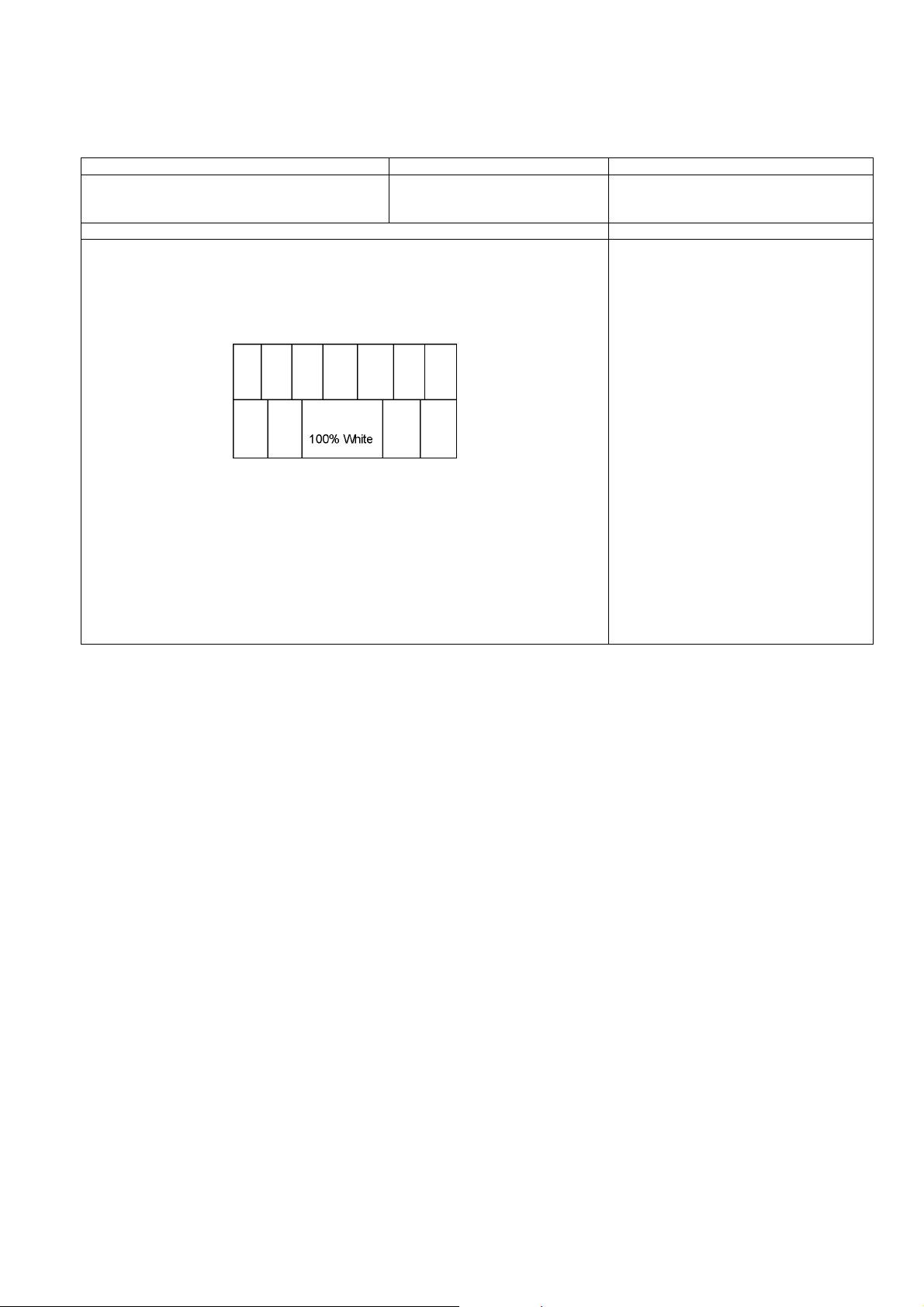

1. Receive a RF PAL 100% Full White or Split Colour bar shown as below .

2. Goes into service adjustment mode.

3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Adjustment

1. The colour key yellow button of r emote control is pushed.

2. Th e O SD character of sub-contrast becom es red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black.

4. End.

Note:

Sub-c ontrast adjustment is unadjusted for AV/ HD input. But, when needing the adjustment chosen manually, please refer to [ alternative method ].

29

Steps Remarks

Another procedur e

Adjustment of AV system

1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.

2. Goes into service adjustment mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The O SD character of sub-contrast becomes red. (Inside under automati c adjustment)

3. The O SD character of sub-contrast r eturns to black.

4. End.

Steps Remarks

Another procedur e

Adjustment of HD syst em

1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.

2. Goes into service adjustment mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The O SD character of sub-contrast becomes red. (Inside under automati c adjustment)

3. The O SD character of sub-contrast r eturns to black.

4. End.

30

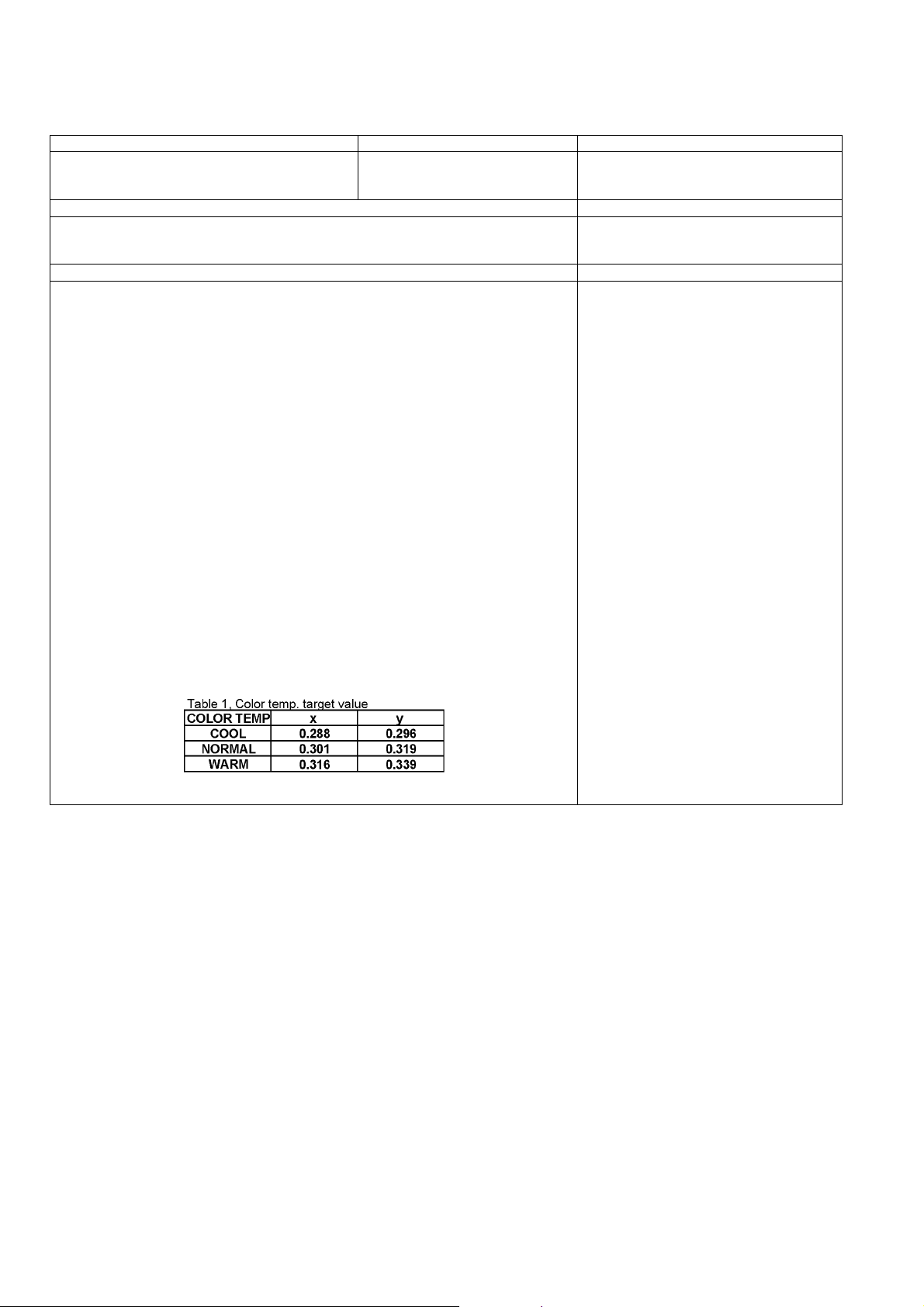

9.2.2. RF white balance adjustmen t

Name of measuring instrument Connection Remarks W/ B pattern Color a nalyzer (Minolta CA-100 or equivalent )

Steps Remarks

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation. Adjustment Remarks

1. Displ ay the w hi te balance patt er n .

2. Enter the service adjustment mode.

3. A number key [ 1 ] or [ 2 ] are operated and [ WB-AD J ] is displayed. Check that the color balance is [ COOL ].

4. Select [ G-CUTOFF ] item, using the number-key [ 3 ] or [ 4 ], and set to [ 80 ], using the volume-key [ + ] or [ - ]. Also, [ B-CUTOFF ] and [ R-CUTOFF ] set to [ 80 ]

5. Set [ G-DRIVE ] at [ E0 ](37 inch / 42 inch), [ D0 ](50 inch).

6. T ouch the signal receiver of color analyzer to the highlight window's center, and adjust B drive and R drive so x, y become the [ COLOR TEMP COOL ] in the below table.

7. All RGB drive increase so that the maximu m drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)

8. Set colorbalance to [ NORMAL ] using [ 7 ] key.

9. Fix G-CUTOFF , B-CUTOFF and R-CUTOFF at [ 80 ].

10. Fix G drive at [ E0 ] (37 inch / 42inch), [ D0 ] (50 inch).

11. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [COLOR TEMP NORMAL ] in the below table.

12. All RGB drive increase so that the maximu m drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)

13. Set colorbalance to [ WARM ] using [ 7 ] key.

14. Fix G-CUTOFF , B-CUTOFF and R-CUTOFF at [ 80 ].

15. Fix G drive at [ E0 ] (37 inch / 42 inch), [ D0 ] (50 inch).

16. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP WARM ] in the below table.

17. All RGB drive increase so that the maximu m drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)

RF input Panel surface

Picture menu : Dynamic ASPECT : 16:9

Highlight section Signal amplitude 75% Value is Hex.

31

9.2.3. 1080i white balance adjustment

Name of measuring instrument Connect ion Remarks 1080i W/ B patte rn Color an alyzer (Minolta CA-100 or equivalent)

Steps Remarks

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation. Adjustment Remarks

1. Display the white bal ance pattern.

2. Enter the service adjustment mode.

3. A number key [ 1 ] or [ 2 ] are operated and [ WB-ADJ ] is displayed. Check that the color balance is [ COOL ].

4. Select [ G-CUTOFF ] item, using the number-key [ 3 ] or [ 4 ], and set to [ 80 ], using the volume-key [ + ] or [ - ]. Also, [ B-CUTOFF ] and [ R-CUTOFF ] set to [ 80 ]

5. Set [ G-DRIVE ] at [ E0 ](37 inch / 42 inch), [ D0 ](50 inch).

6. Touch the signal receiver of color analyzer to the highlight window's center, and adjust B drive and R driv e so x, y become the [ COLOR TEMP COOL ] in the b elow table.

7. All R GB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)

8. Set colorbalance to [ NORMAL ] using [ 7 ] key.

9. Fix G-CUTOFF , B-CUTOFF and R-CUTOFF at [ 80 ].

10. Fix G drive at [ E0 ] (37 inch / 42inch), [ D0 ] (50 inch).

11. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [COLOR TEMP NORMAL ] in the below table.

12. All R GB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)

13. Set colorbalance to [ WARM ] using [ 7 ] key.

14. Fix G-CUTOFF , B-CUTOFF and R-CUTOFF at [ 80 ].

15. Fix G drive at [ E0 ] (37 inch / 42 inch), [ D0 ] (50 inch).

16. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP WARM ] in the below table.

17. All R GB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)

Component input Panel surface

Pictur e menu : Dynamic ASPECT : 16:9

Highlight section Signal amplitude 75% Value is Hex.

32

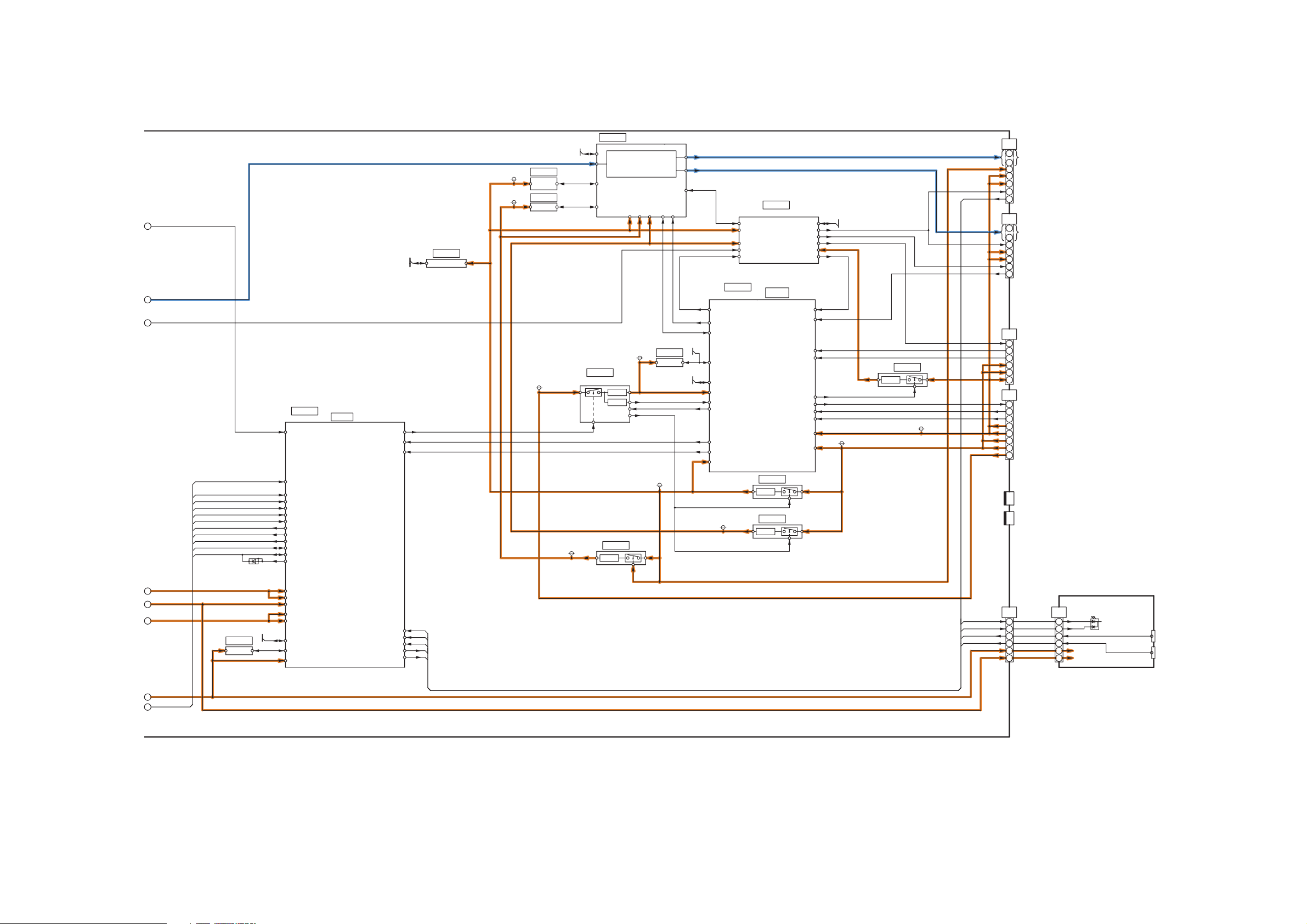

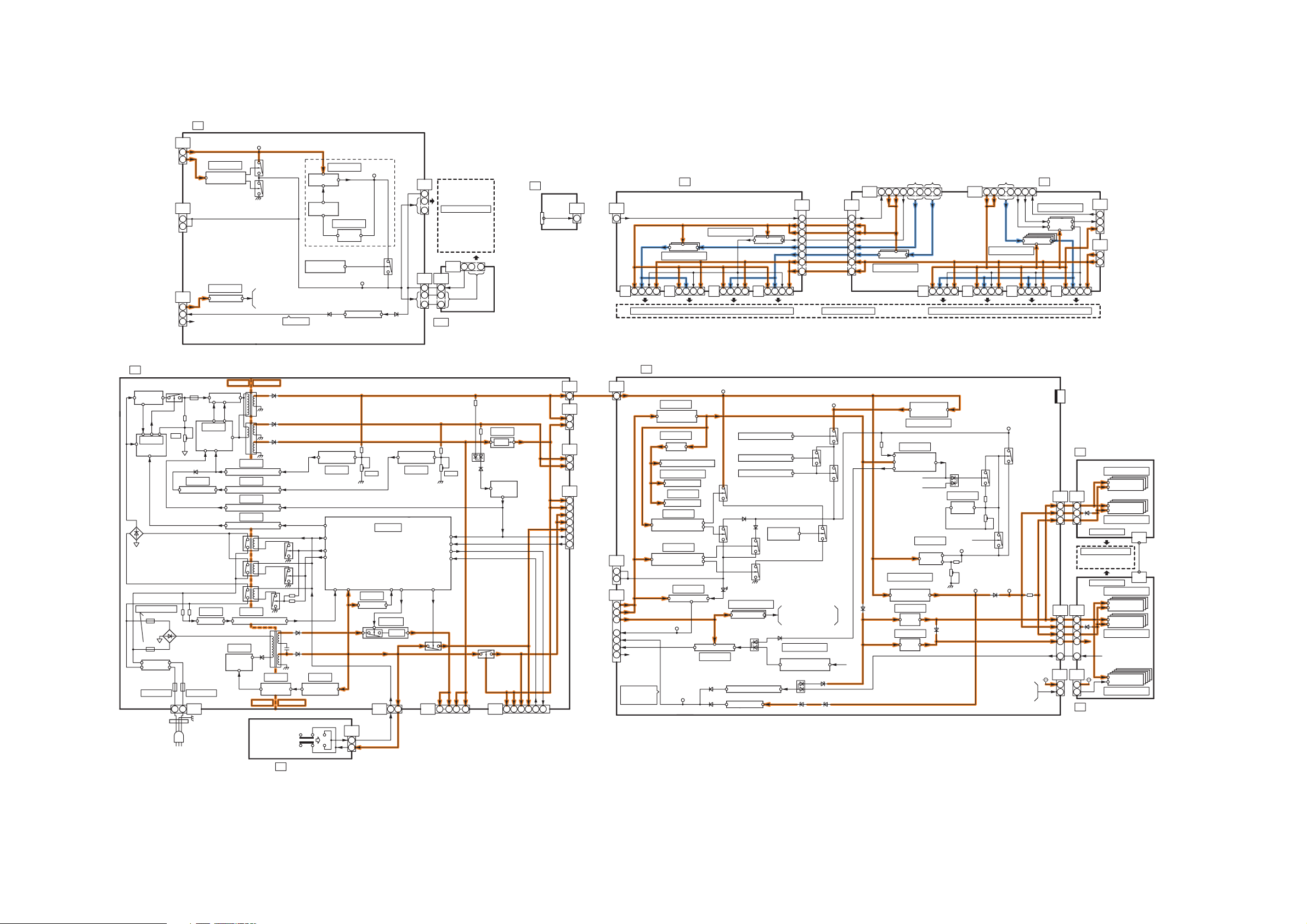

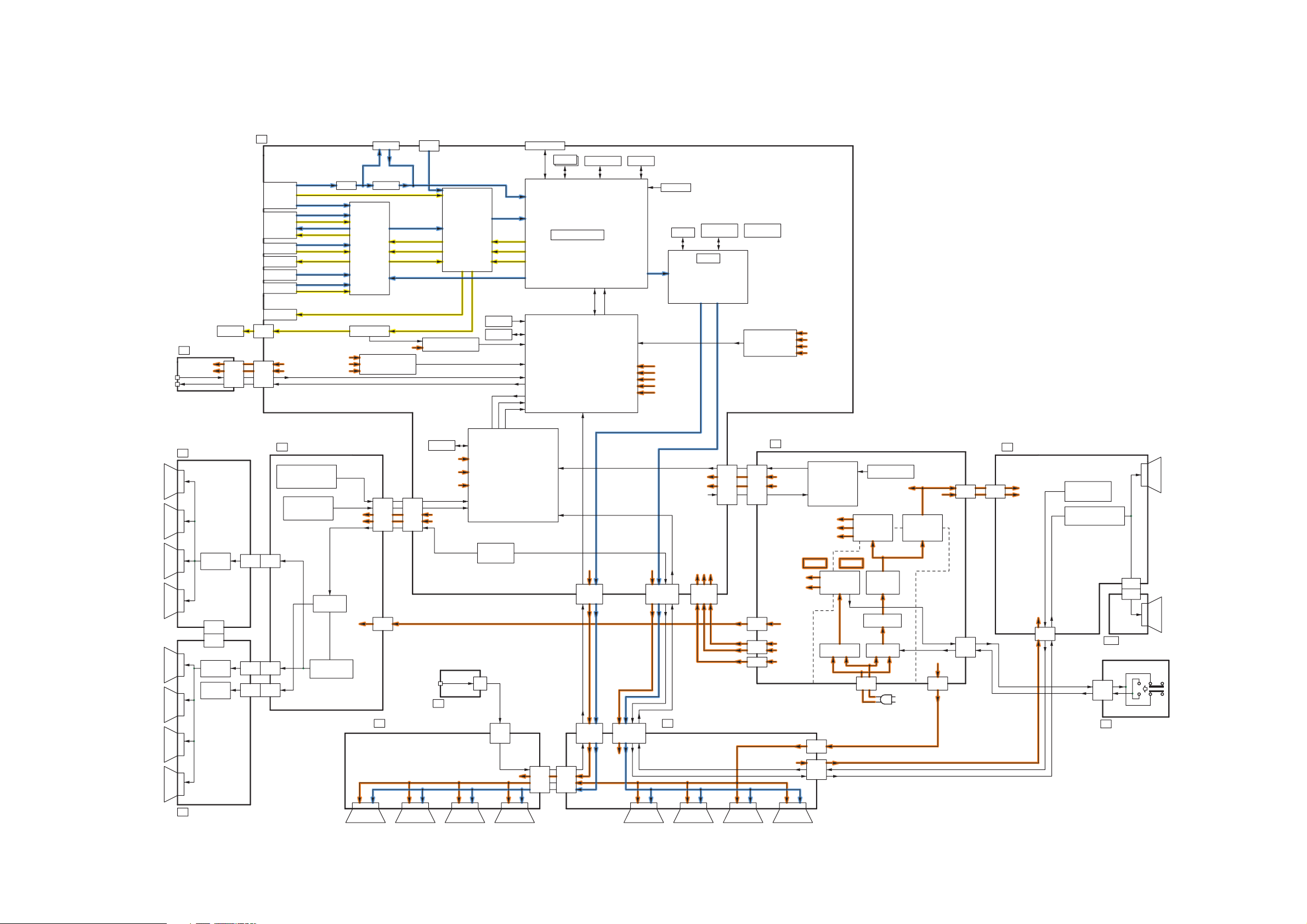

10 Block Diagram

DATA DRIVER

P11

VSUS

SC20

MAIN SW2

+5V(P)

PROCESS VOLTAGE RECTIFIER

+5V(P)

MAIN SW1

DATA DRIVER (RIGHT)

SOS8_SS

+15V(P)

S

POWER SW

SS-BOARD SOS DETECT

P35

SU11

VSUS

ON/OFF CONTROL

POWER SWITCH

SC-BOARD FLOTING PART SOS DETECT

SD46

Vda

VSUS

SCAN OUT (LOWER)

SOS7_SC2

VIDEO DATA

SUSTAIN VOLTAGE RECTIFIER

DATA DRIVER

GK

SS11

C2

SOS8_SS

KEY SWITCH

(LOWER)

+15V(P)

C21

SU41

SD11

SC41

A32

VE GEN.

+5V(P)

A20

DATA DRIVER (LEFT)

SOS8_SS

DATA DRIVER

VIDEO DATA

SU

P6

SUSTAIN CONTROL

SD

KEYSCAN1

+15V(P)

STANBY VOLTAGE RECTIFIER

STB5V

SUSTAIN DRIVE

P34

P-BOARD SOS DETECT

SOUND15V

VSET GEN.

SUSTAIN CONTROL

SCAN DRIVER

RELAY

P7

STB5V

VSUS

SOS8_SS

S34

SOS6_SC1

+15V(P)

A7

DATA DRIVER

+5V(P)

F15V

VIDEO DATA

SD42

P9

CONNECTOR

DATA DRIVER

A25

SCAN CONTROL

SCAN OUT (UPPER)

SS

POWER SUPPLY

CONTROL PULSE

SC-BOARD ENEGRY RECOVERY SOS DETECT

SS23

C23

+15V(P)

VSCAN GEN.

PS SOS4

+5V(P)

MAIN SW2

BUFFER

C14

C25

ON

MAIN SW1

RECTIFIER

P

Vda

C22

KEYSCAN1

SUSTAIN CONTROL

SC46

GK1

ENERGY RECOVERY

A31

P2

C1

SS24

SS22

KEYSCAN1

Vda

POWER MICOM

SC

VAD GEN.

RECTIFIER

+5V(P)

SCAN DRIVER

VSUS

Vda

SS2

SC2

SC42

C20

SUSTAIN

+5V(P)

SCAN DRIVE

DATA DRIVER

VSUS GEN.

AC CORD

SUSTAIN CONTROL

KEY SWITCH

C10

POWER FACTOR CONTROL

F15V

P25

+5V(P)

Y,C,V

VIDEO PROCESSOR HDMI Rx AUDIO PROCESSOR

SBO2 SBI2

IIC1

MONITOR L,R

KEY1

AV L,R

+5V(P) DET

Y,PB,PR

+15V(P)

SPEAKER (L,R)

L,R

RESET

SOS8_SS

SERIAL

L,R

SD CARD

MAIN+9V SENSE

EEPROM

A11 A12

CLOCK GEN

+3.3V(STB)

SD BOOT

LED/RMT

MAIN Y/U/V

HSDIN TS Parallel

OFDM

XRST

EEPROM

+5V(P)

Sub Filed Processor

COMP

PWM

DDR2

SOS7_SC2

A1

L,R

LVDS Rx

+3.3V(M)

Thermal sensor

PANEL_STB_ON

REMOTE

+5V(S)

DDR

SUB+5V SENSE

DTV+9V SENSE

IFD1/2

+15V(P)

POWER_SOS

+3.3V(S)

+5V(S)

LVDS

(MAIN MPU+VIDEO PROCESSOR)

+3.3V(P)

TV L,R

SOUND SOS DET

+5V(S)

+15V(P) DET

MONITOR L,R

K

R,G,B

MAIN+3.3V SENSE

SOUND+15V

SUB+5V SENSE

SOUND SOS

DAUDIO

BUFFER

+9V(S)

SD CARD I/F

MAIN ON/OFF

HDMI 1,2,3

CI SLOT

+9V(M)

H/V Sync Control

DMIX0

RESET

DVB CVBS

REMOTE

PC

Digital Video in

SOS6_SC1

EEPROM

Plasma AI

+3.3V(P) DET

+5V(P)

STANDBY MPU

AV3

IECOUT

CVBS OUT

AUDIO AMP

PANEL SIDE SOS

PANEL_STATUS

AV1 AV2

PANEL MPU

RESET

CPG with SS

+5V(S)

Dig/Ana Tuner

Peaks Lite2+

SOS

SIF,AM

A

DIGITAL SIGNAL PROCESSOR

+9V(S)

L,R OUT

K1

POWER SOS

+30V(BT)

HP L/R

HEADPHONE

PD2-M

R/G_LED_ON

FLASH MEMORY

SHORT SOS DET

LED

VIDEO AUDIO SWITCH

AUDIO OUT

RF

+3.3V(STB)

+5V(P)

+15V(P)

+5V(P)

SOS8_SS

SUSTAIN CONTROL

DISCHARGE CONTROL

SCAN CONTROL

TUNER SOS

BT30V

SUB5V

SUB9V

TUNER SOS

TUNER SOS DET CIRCUIT

F15V

+15V(F)

+15V(SOUND)

+5V(STB)

(LED:7TIMES)

COLD

(LED:8TIME)

(LED:4TIME)

(LED:6TIMES)

HOT

(LED:4 TIMES)

(LED:12 TIMES)

(LED:5 TIMES)

(LED:10 TIMES)

(LED:7 TIMES)

(LED:2 TIMES)

(LED:3 TIMES)

(LED:6 TIMES)

(LED:8 TIMES)

(LED:10TIMES)

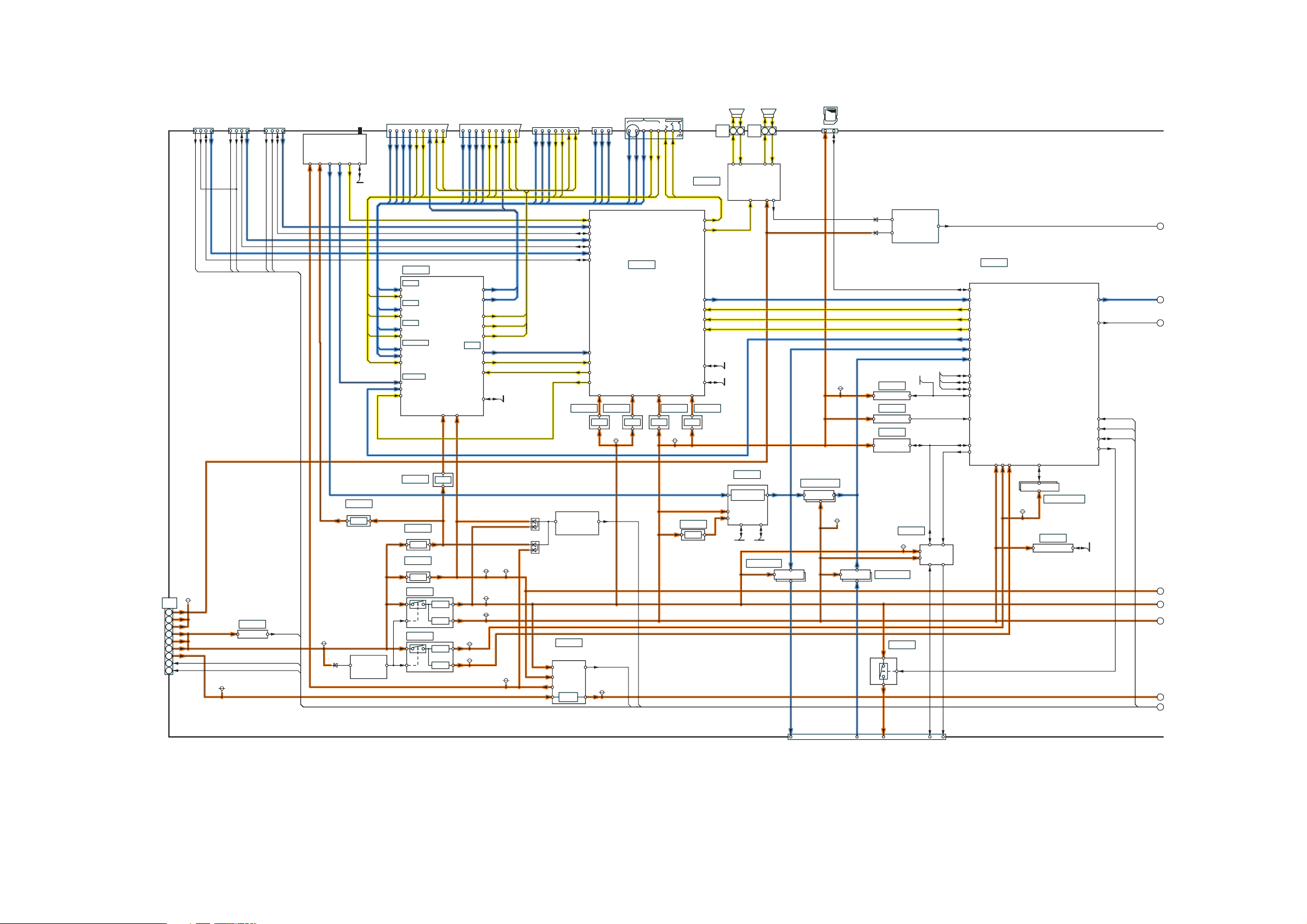

10.1. Main Block Diagram

33

10.2. Block (1/3) Diagram

D2014

SUB3.3V

D2017

SUB5V

F15V

MAIN9V

D5621

SUB5V

SUB3.3V

SUB1.8V

S_15V

BT30V

SUB5V

SUB3.3V

D5622

STB3.3V

SUB1.8V

SUB1.2V

SUB3.3V

D5612

SUB9V

STB5V

F+15V

IC5600

14

HDMI2

SPDIN IN

LVDS OUT

AV3

A12

IIC1

STB +3.3V

HDMI1

AV1_V

+3.3V

IC5401

Q5606,07

3

10

DDC IIC

TUNER_SUB_ON

PB

L,R(MONITOR)

DIGITAL DEMODULATOR

AV2_RIN

SHORT SOS DET

BUFFER

L,ROUT

AV1

SOS:Low

SOUND SOS

AV1

JK3107A

HDMI2

12

TEMP SENSOR

STB5V

JK4500

DDC IIC

AV1_ROUT

JK3002

HDMI3 5V DET

TU2901

SIF,AM

+5V

SPEAKER L

FLASH MEMORY

RESET

TV/DVB

ADDR

AV1_LOUT

+1.8V

AV2_LOUT

ROUT

JK4502

IC4512

AV2_BLUE

CEC

1

IC5470

L,R(AV)

OVER CURRENT PROTECT

IC1000

+3.3V

IIC2

IC8004

IC4510

TUNER SERIAL TS

15

STB3.3V

+9V

HDMI2 5V DET

CEC

AV2_ROUT

CI 5V

IIC2

IC8001

JK4501

SD BOOT

+1.2V

AV2

Dig/Ana Tuner

IC8301

DAUDIO

IC8410,11

+15V_S

V,Y,C

RF

B

+1.2V

AV3_R

DDCB IIC

AV1_BLUE

JK8401

SUB+9V

AV1_VOUT

SUB+6V

Peaks-lite2+

R

IC2960

XRST

IC4513

R(+)

IC8002,03

IC8401

DMIX0

R(-)

+1.8V

F+15V

HDMI3

IIC3

L(-)

AV3_Y

CEC

DDCC IIC

TMDS

IIC1

EEPROM

DATA

CI SLOT

IIC2

R,G,B

L,R

XRST

+15V_S

CI PARALLEL TS

IC8408,9

+3.3V

Y,PB,PR

HP_R

+1.8V

17

+9V

AV1_RED

LIN

MAIN

IIC_TUNER

2

DDC IIC

AV2_RED_C

IIC1

ECO_ON

JK3100A

STB_RESET

AUDIO IN/OUT

IC2008

BT+30V

STB RST

SBI2,SBO2

MAIN Y/U/V

AV2

V,Y,C,R,G,B

G

VIDEO PROCESSOR/ HDMI Rx/AUDIO PROCESSOR

IIC2

AV1_RIN

L,R(TV)

DIGTAL VIDEO OUT

AV2_V_Y

JK8302

V,R,G,B

+3.3V

AV1_VOUT

RIN

CLOCK GEN

AV3_L

+15V

HEADPHONE

TMDS

+1.8V

IC2301

HDMI3

L,R

SUB+5V

A7

AV3_V

3

ADDR

Q5608

DDCD IIC

DTV+9V

MONITOR L,R

1

3.3V

IC5480

13

STB_RST

+5V

DDR2 SDRAM

+6V

TUNER+5V

COMP/PC

DATA

IC2801

1

AV3_C

DVB_CVBS

F+15V

AUDIO AMP

SOS

(MAIN MPU+VIDEO SIGNAL PROCESSOR)

AV SW

IC8302

+5V

SD CARD I/F

L(+)

AV2_LIN

CI POWER ON

JK3001

+3.3V

P6,P7

CLOCK

5

AV2_VOUT

IC5601

A11

CI ASIC

BT+30V

BUFFER

+1.8V

AV1_GREEN

HDMI1

+3.3V

+5V

IC3001

IIC0

HP OUT

OFDM

IC8403

Q2022

IC8404,5

YPBPR

+1.8V

SPEAKER R

AV2_VOUT

SP OUT

SUB+5V

DISPEN

L,R(AV IN)

IC8601

SD CARD SLOT

L,R

JK3003

RF

AV1_L,ROUT

+15V_S

IIC_TUNER

IFD1/2

L,R

HP_L

SDIN2

SUB+6V

AV2_GREEN

IC3003

HDMI1 5V DET

IC4511

LOUT

AV2_L,ROUT

AVSW+5V

1.8V

SOS DET

AV1_LIN

BUFFER

Y

PR

L,R(TV OUT)

PC IN

SIF,AM

TMDS

CVBS/S/YUV /RGB(PC)

SDIN0

DVB_CVBS

+1.8V

AV3

IECOUT

IC8554

7

1

5

3

8

2

4

6

(+5.6V)

(LED:10 TIMES)

(LED:12 TIMES)

34

10.3. Block (2/3) Diagram

G

R

P5V

STB_D3.3V

D2520

P3.3V

P2.5V

P3.3V

STB5V_M

D1107

P2.5V

P1.2V

P15V

STB+3.3V

IIC

1

K1

+2.5V

68

IC9303

A20

+5V(P)

GenX6

Config(DONE)

IC9901

SC20

SOS7_SC2

DDR

IC1101

FOR FACTORY USE

IIC1

+15V(P)

G_LED_ON

CONTROL DATA

OSD I/F

R_LED_ON

VDATA_DET

DISCHARGE CONTROL

+2.5V

VIDEO DATA

+2.5V

STANDBY_MPU

AUX_ON/OFF

+5V(P)

A32

ADDR/DATA

C22

9

DISPEN

STB+3.3V/RESET

PANEL MAIN ON

KEYSCAN

POWER ON/OFF

XRST

IIC2

HDMI_CEC

+15V

G_LED_ON

SCAN CONTROL

5

IC9002

DRVRST FPGARST XRST

HDMI_CEC_PU_ON

1

58

SOS4_PS

FOR FACTORY USE

IC9808

Config(CCLK,DDTATA,PROGB), FPCLK,FPDATA[1:0],FVSEL

IC9001

+15V(P) DET

PC2511

HDMI2 5V DET

VIDEO DATA

SD BOOT

2

RM2501

SOS7_SC2

IIC1

SUB3.3V_SENSE

STB+3.3V

PANEL STATUS

HDMI2 5V DET

FLASH MEMORY

AI_SENSOR

ECO_ON

IC9003

SOS8_SS

1

9

IC9805

REMOTE

SUB+5V

POWER SOS

+1.2V

1

*PLASMA AI *CPG with SS *H/V Sync Control *Sub Filed Processor *Plasma AI

13

2

PANEL MICOM

3

VDATA_DET

PANEL_MAIN_ON

SBI2,SBO2

5

POWER LED

GenX8

+5V(P) DET

STB_RST

2

VIDEO DATA

+3.3V(P)

A31

6

DDR I/F

PANEL SOS

29

+3.3V(P) DET

P25

KEYSCAN

DTV_9V_SENSE

RESET

SOS

EEPROM

IC1100

EEPROM

A25

4

+3.3V

C21

3

SUSTAIN CONTROL

11

6

PD2-M

AI SENSOR

9

+1.2V

PANEL SOS (ARARM)

CONTROL DATA

14

MAIN3.3V_SENSE

HDMI1 5V DET

SOS6_SC1

IC9004

RMIN

CONTROL DATA

TUNER_SUB_ON

+3.3V

IC9900

+2.5V

XRST, XRSTSYS

STBY5V

+5V

PANEL STB_ON

11

+5V(P)

SCAN CONTROL

TEMP SENSOR

IC9806

1

+5V(P)

11

30

IIC2

+15V

AI_SENSOR

+15V(P)

RMIN

+5V

MAIN9V_SENSE

IIC2

+5V(P)

+3.3V(STB)

2

VIDEO DATA

IIC3

SOS6_SC1

+3.3V

IIC3

+3.3V

12

SUB5V_SENSE

OSD I/F

15

CN0101

A1

IIC3

4

SUSTAIN CONTROL

FLASH I/F

R_LED_ON

PANEL STATUS (READY)

CN0100

2

SOS8_SS

+1.2V

IC9807

IC9500

57

RESET

14

SOUND_SOS

IIC2

7

4

5

8

6

1

2

3

(LED:2 TIMES)

(LED:4 TIMES)

(LED:6 TIMES)

(LED:12 TIMES)

(LED:10 TIMES)

(LED:5 TIMES)

(LED:7 TIMES)

(LED:3 TIMES)

(LED:8 TIMES)

35

10.4. Block (3/3) Diagram

3

MAIN SW1

S

POWER SWITCH

ON

1

MAIN SW2

S1

SW2500

TPSS1

TPVSUS

5V

D16282

D16280

D16821

D16583

D16481

TPSC1

D16721

TPVSCN

5V

TPVSET

D16480

D16820

TPSOS7

D16725

D16461

TPSOS6

TPVSUS

D16473

D16791

TPVE

D16901

VR16600

VR16601

D16493

TPVAD

D16920

VF_GND

F100F101

D501

F200

D706

D705

D502

D700

D302

D711

D712

D204

PR101

SD

11

IC14961-65

4

2

8

5

SD 46

Q16021,2

+5V(P)

PC16192

SD 42

IPD CIRCUIT

IC16304

8

13

9

SS

23

IC16131

1

UEH

SU 41

1

Q16001,2

SS

11

SS 53A

1

15

2

PLASMA PANEL

IC14901-03

SOS8_SS

4

+15V(P)

SU

11

IC16241

Vsus

SS

22

IC14951-53

UML

UMH

IC14954-56

C23

IC14904-06

5

1

3

P11

14

Q16102

SUSTAIN CONTROL

DRIVER

VSUS Gen.

BUFFER

VE Gen.

ERROR DET

SUSTAIN CONTROL

PANEL SUSTAIN ELECTRODE

DRIVER

SCAN

DRIVER

SCAN

DRIVER

SCAN

DRIVER

PLASMA PANEL

PANEL SCAN ELECTRODES

SCAN DATA

SCAN DRIVE

SUSTAIN DRIVE

SC

SS

SCAN OUT (UPPER)SU

SCAN OUT (LOWER)SD

Q16280

SU1B-SU4B

SD1B-SD4B

PC16191

Q16101

UMH

UEH

UML

OC1

IC16581

8

CML

CPH1

F_5V_A

3

+5V

9

Vfo

D16860

IC16791

IC16771

D16871

Q16421

5

Q16401

CSL

PC16684

Vscn

IC16464,65

Q16604

CONVERTER

Vfo

30

INVERTER

PC16685

F_5V_B

CSH/CMH GATE DRIVE CIRCUIT

CSL/CML GATE DRIVE CIRCUIT

GEN.

Q16451

IC16501

16

16V-F

Q16441

Q16601

2

SC 46

VSCN-F

SC2

8

(SC1)

CIS

PC16480

Q16876

2

IC16521

Q16422

1

CLK

D16859

SC 20

+5V

IC16561,62

DC/DC

IC16724

PC16461

Q16622

4

IC16725

LED(G)

IC16788,89

VSCN GEN.

+5V

1

IC16786,87

(SC2)

IC16784

Q16402

SIU

VAD

17

1

OC2

SC

41

SC

42

Q16621

(15V_F)

SOS7_SC2

A20

+15V(P)

+5V(P)

SOS6_SC1

PHOTO COUPLER

BUFFER


PHOTO COUPLER

ERROR DET

DROP ERROR DET

VOLTAGE

SCAN CONTROL

PHOTO COUPLER

SHUNT REG

VSET GEN.

2

SCNR_PRO

2

VSCN

MAIN_STOP

15V_F

C10

DATA DRIVER (RIGHT)

VIDEO DATA

C2

CONTROL DATA

DATA DRIVER (LEFT)

VIDEO DATA

+5V(P)

C1

CB7

55

+5V(P)

CB1

1

SOS8_SS

PANEL DRIVER

25

PANEL DRIVER PLASMA PANEL

SS23

CB2

46

+5V(P)

12

VIDEO DATA

28

KEYSCAN1

C21

4

2

CONTROL DATA

55

Vda

54

SUSTAIN CONTROL

52

C20

63

KEYSCAN1

BUFFER

IC17101,02

SUSTAIN CONTROL

51 5

VIDEO DATA

1

5

IC17103,04

2

C25

CB6

P35

BUFFER

IC17205-08

A32

C22

65 6768

1

C23

CB3 CB5

IC17201,02

Vda

BUFFER

67

CB4

68

CB8

A31

+5V(P)

BUFFER

30

Vda

VIDEO DATA

CONTROL DATA

1

+5V(P)

Vda

IC16312

5V(P)

1

PHOTO COUPLER

CERS

PC16603

PHOTO COUPLER

CPH2

PC16601

Q16607

CRC1

Q16672

Q16818

CEL

Q16661

COUPLER

SHUNT

REG.

IC16692

SEPA PROTECT

IC16661

NOR GATE

IC16563

UHZ

14

3

5

SC3

IPD CIRCUIT

(VAD)

IPD CIRCUIT

IC16490,91

Q16490

CIRCUIT

CERS

(INIT-F)

COMPARATOR

IPD CIRCUIT

SHUNT REG

UHZ

VOH

VOL

2

SS

58

1

14

15

SS 24

13

PHOTO COUPLER

SHUNT

REG.

VE GEN.

1

GK1

KEYSCAN1

C14

KEY SWITCH

1

GK KEY SWITCH

IC17211,12

BUFFER

SS3

MID

SCNR_PRO

15V_F

MID

SC35SS3

MID

3

FPC DET

SC50

FOR FACTORY USE

CRC2

INVERTER

IC16773

(LOWER)

SS2

CONNECTOR

SUSTAIN

PFC

Q504

RL102

A6

+5V(P)

A25

Vda

10

L100,L101

1

FSTB+15V

+5V(STB)

2

+15V(SND)

6

1

IC301

1

9

STB5V_

ON/OFF

RESONANCE

Vsus

C25

Vda

Q505

Vsus

P35

2

TV SUB ON

4

IC603

+15V(P)

STB

RL100

2

3

TV SUB ON

1

P7

2

P6

Vsus

T200

+15V(P)

1

P2

+15V(P)

RESET

+5V

T8AH 250V

RUSH RELAY_ON

PFC_ON/OFF

POWER SOS

5

LIVE

1

NEUTRAL

11

+5V(P)

12

RESET

+15V(P)

A6

OVER VOLTAGE DET

+5V(P)

MAIN RELAY_ON

+15V(P)

7

Q704

FSTB+15V

6

+5V(P)

P9

T301

CONTROL

+5V(STB)

F_15_ON

ALL_OFF

+5V(STB)

5

+15V(SND)

Vda

1

RL101

P25

9

P11

ALL_OFF

SS11

T100

PFC CONTROL

T630mAL 250V

8

SIU

CMH

CPH1

CRC2

CERS

CRC1

CPH2

CSL

CML

CEL

OC1

CLK

CSH CIS OC2

15V

IC702

PHOTO COUPLER

IC303

D100

RECTIFIER

T300

Q600

D200

Q609

Q602

D506

IC100

PFC

R141

Q304,Q305

POWER CONTROL

IC701

Vda ERROR DET

R735

Vda

R737

Vsus ERROR DET

Vsus

IC700

IC304

PHOTO COUPLER

IC601

COMPARATOR

IC300

Q302,Q303

13

P34

+15V

IC602

+15V(P)

IC502

T8AH 250V

IC600

PHOTO COUPLER

STB ERROR DET

IC500

AC DET

IC200

AC DET

PHOTO COUPLER

IC202

IC201

FSTB+15V

+15V(SND)

IC302

PHOTO COUPLER

POWER SOS

NEUTRAL

LIVE

MAIN SW_ON

Q104

POWER SUPPLYP

FILTER

RECTIFIER

POWER MICOM

SOS4_PS PANEL_

MAIN_ON

PANEL_MAIN_ON

AC CORD

(LED:7TIMES)

(LED:6TIMES)

(LED:8TIMES)

COLD

(LED:4TIMES)

HOT

COLDHOT

LOGIC IC

CMH

CSH

F201

36

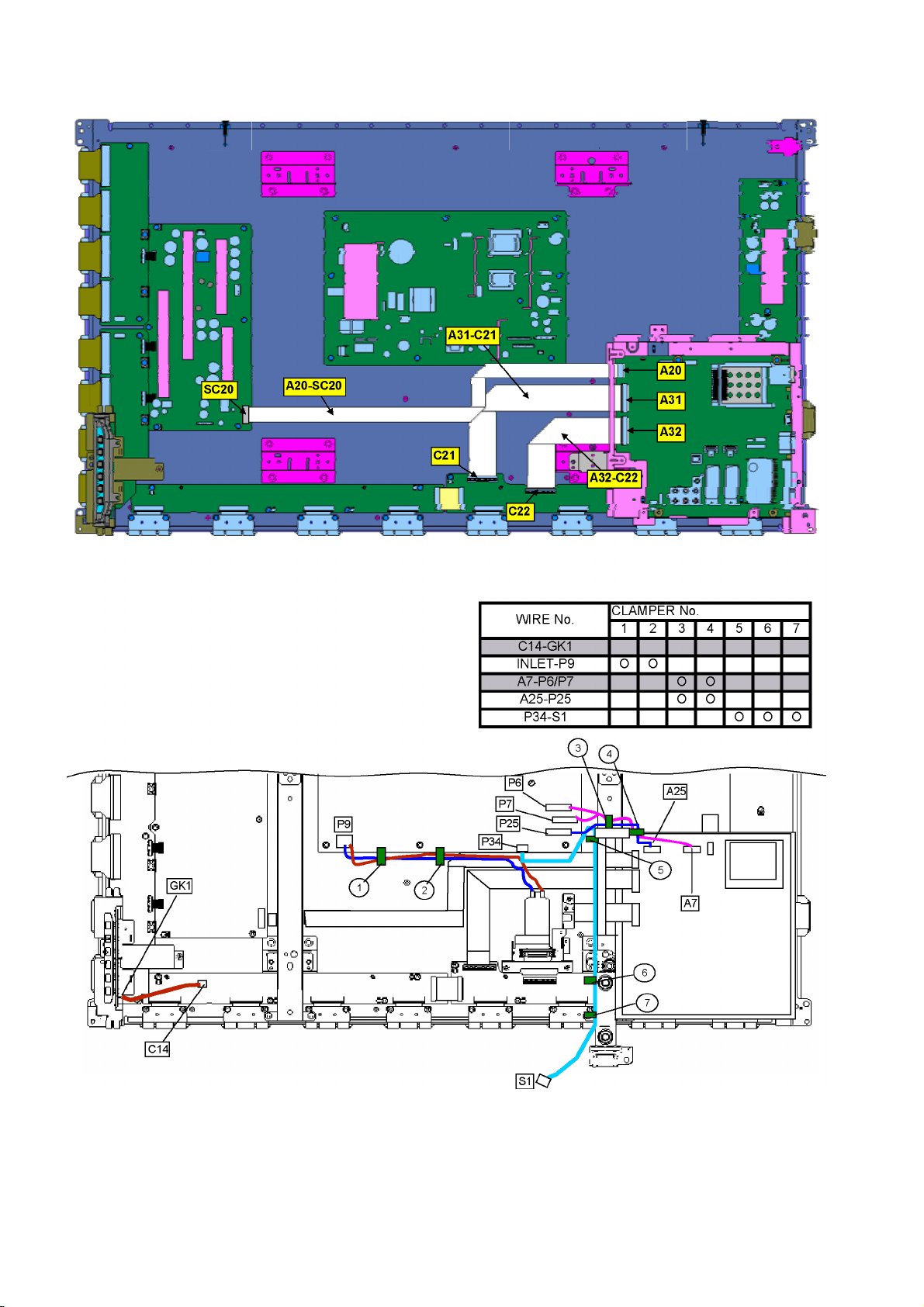

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled corr ectly. Also make sure that t hey are locked in the connectors. Verify by giving the flexible cables a very sl ight pull.

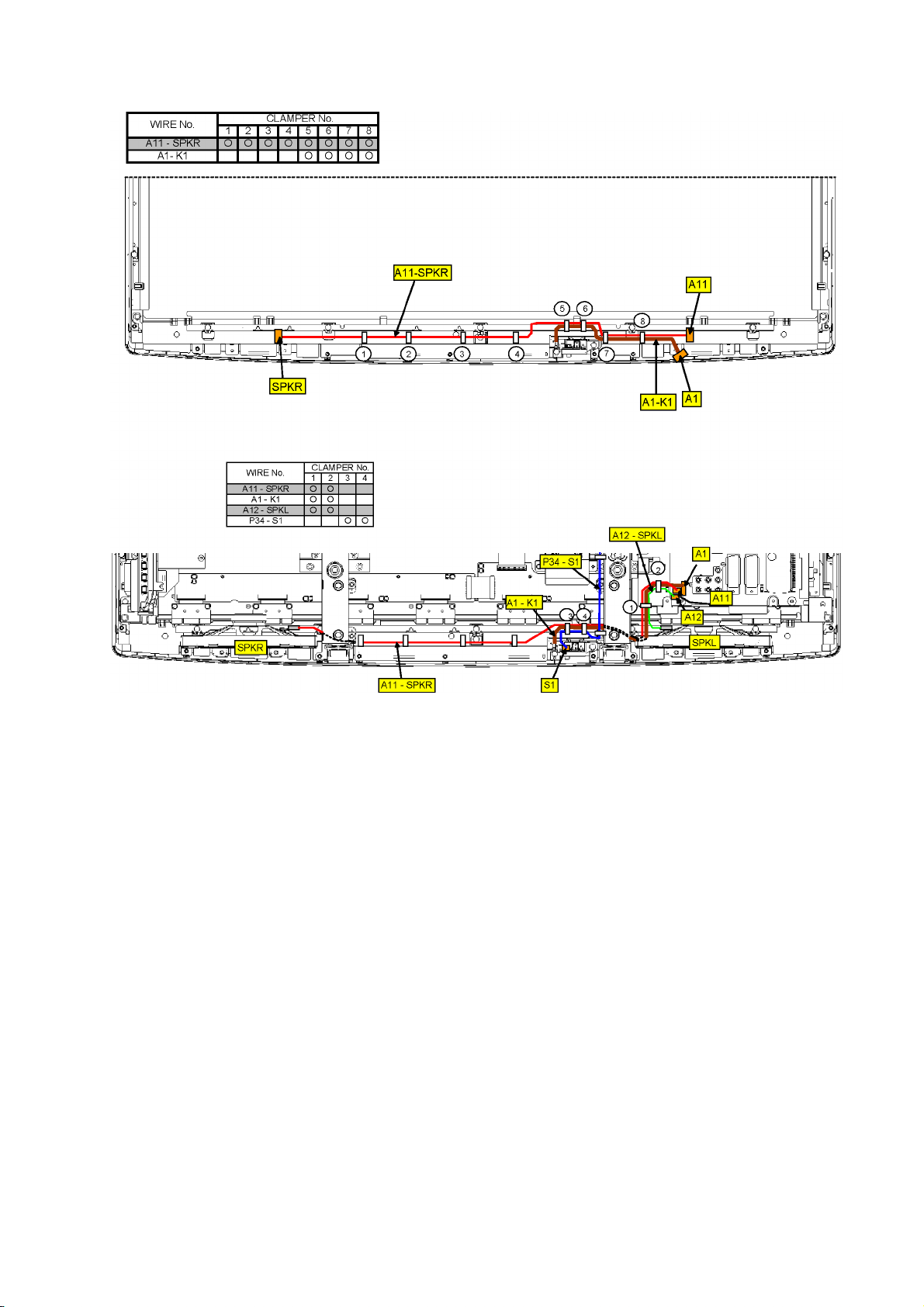

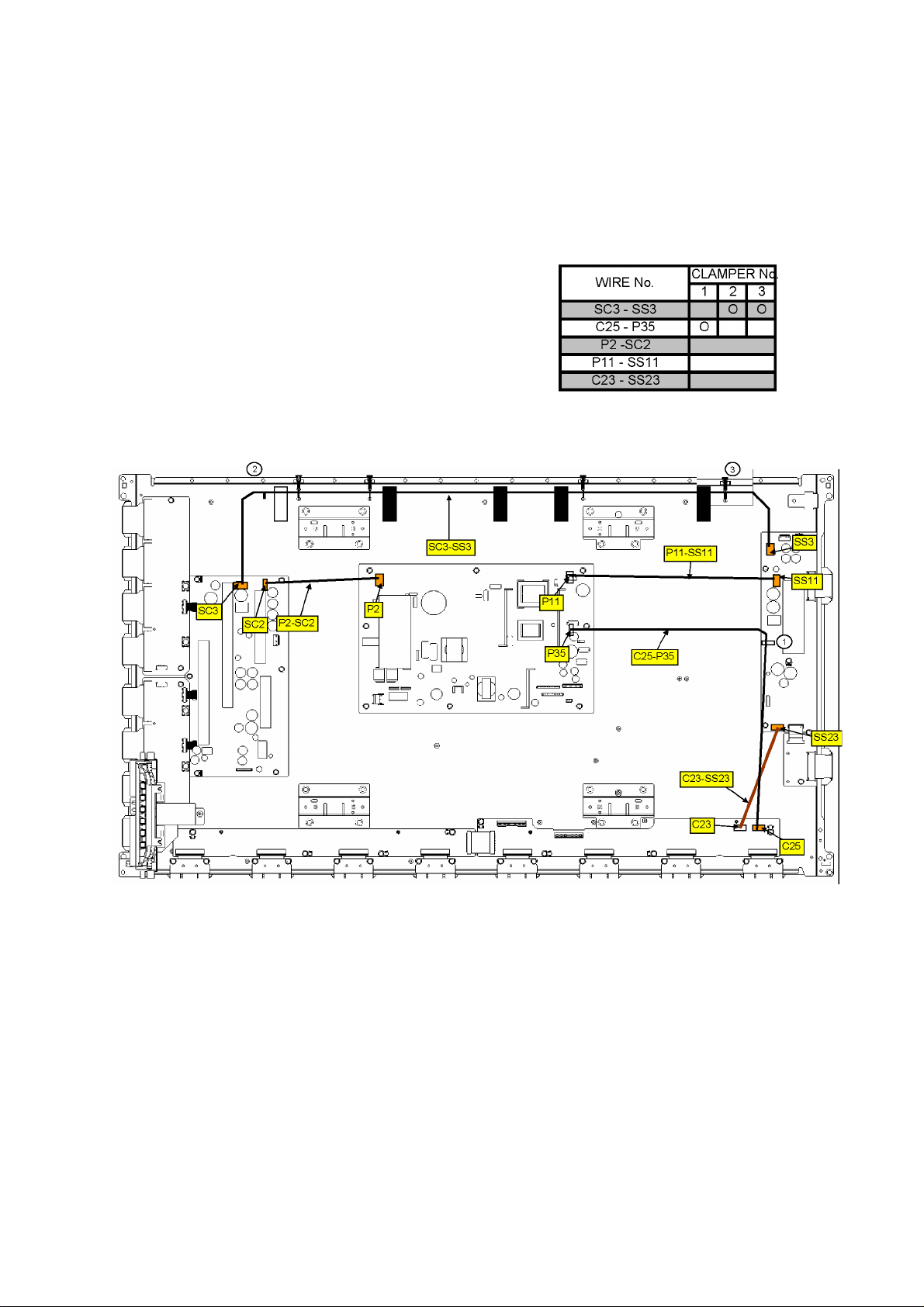

11.2. Wiring (1)

37

11.3. Wiring (2)

38

11.4. Wiring (3)

39

40

12 Schematic Diagram

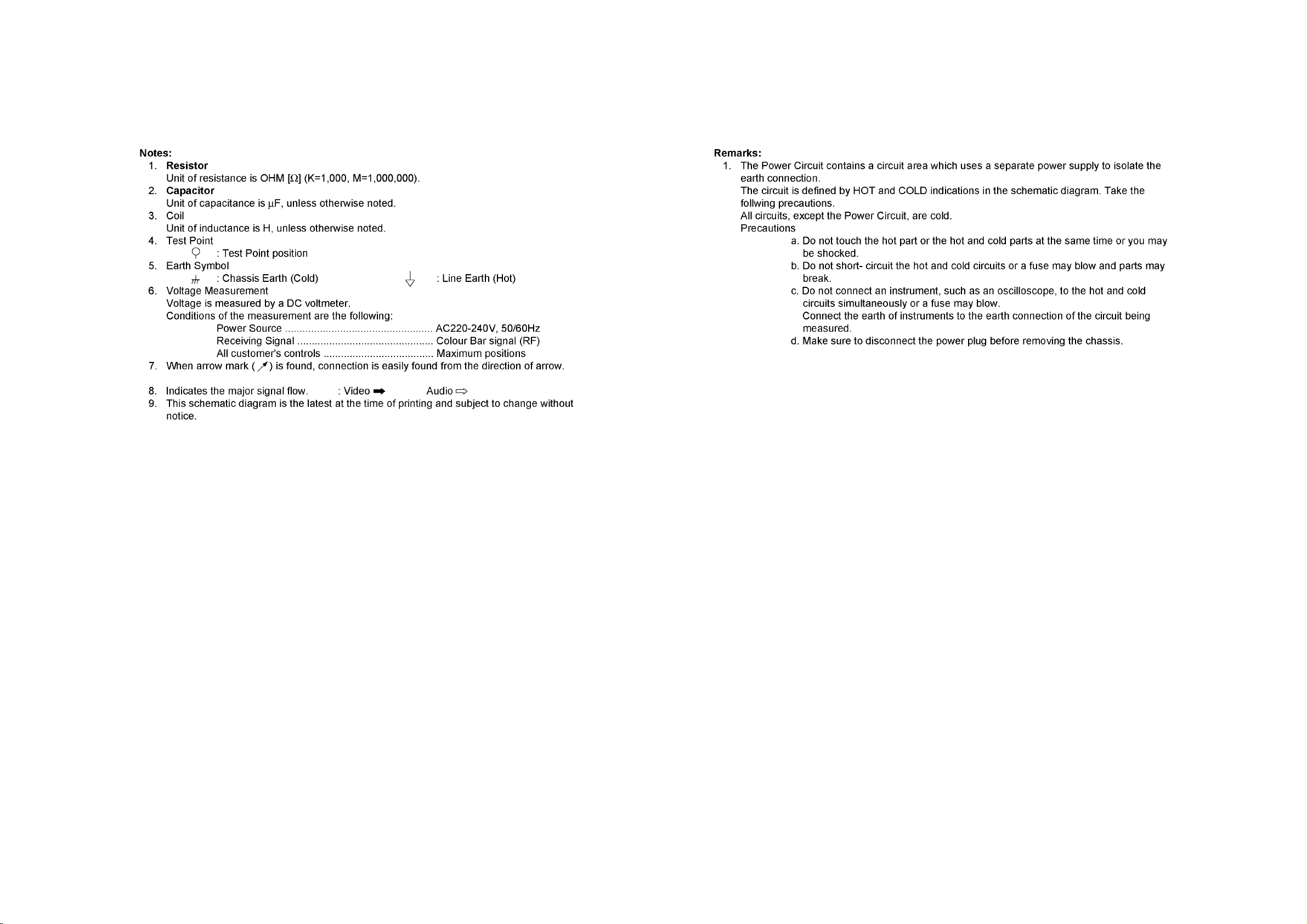

12.1. Schematic Diagram Note

41

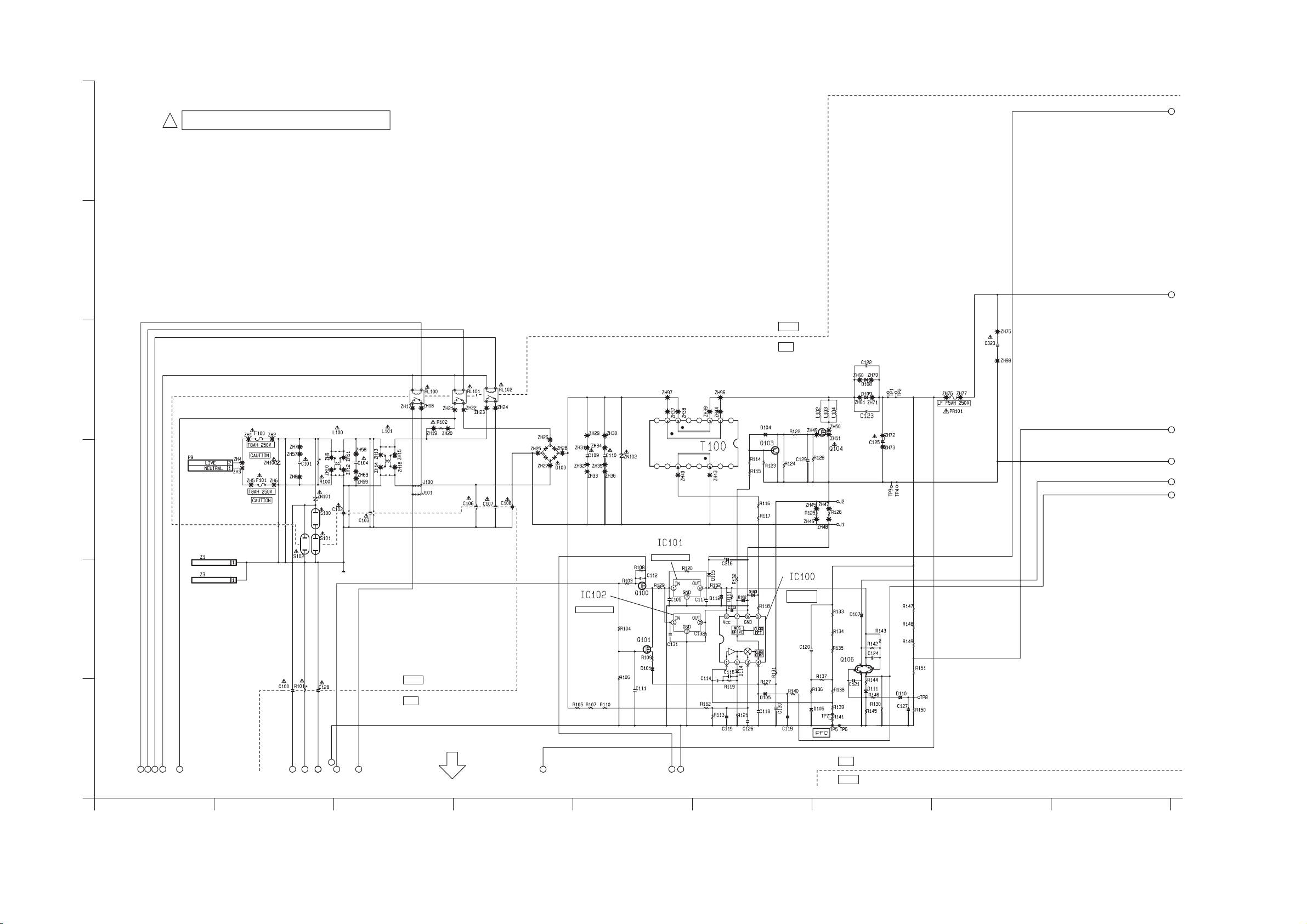

12.2. P-Board (1/4) Schematic Diagram

582 71

F

3

D

B

C

4

E

A

96

COLD

HOT

COLD

HOT

COLD

HOT

AA AB AC AD AE AF AG AHAHAIAJ AK AL AM AN

4

3

2

1

6

5

PFC CONTROL

C0DBZZZ00084

C0DAGKC00001

C0DAGKC00002

REGULATOR

TO AC CORD

TO P-BOARD (3/4)

P-BOARD LSEP1279BEHB (1/4)

!

42

12.3. P-Board (2/4) Schematic Diagram

13 1812 1710 15 161411

COLD

HOT

COLD

HOT

BA BB BC BD BE BF BG BH BI

4

3

2

1

6

5


COUPLER


COUPLER

+15(P)


COUPLER

POWER

CONTROL

Vsus ERROR DET

Vda ERROR DET

COMPARATOR

B3PBA0000508

C0DABYY00019

C0ABBA000168

C0DBZMC00006

C0DAAZH00027

TO A-BOARD (A25)

TO C2-BOARD (C25)

TO SC-BOARD (SC2)

TO SS-BOARD (SS11)

TO P-BOARD (4/4)

P-BOARD LSEP1279BEHB (2/4)

!

*****

43

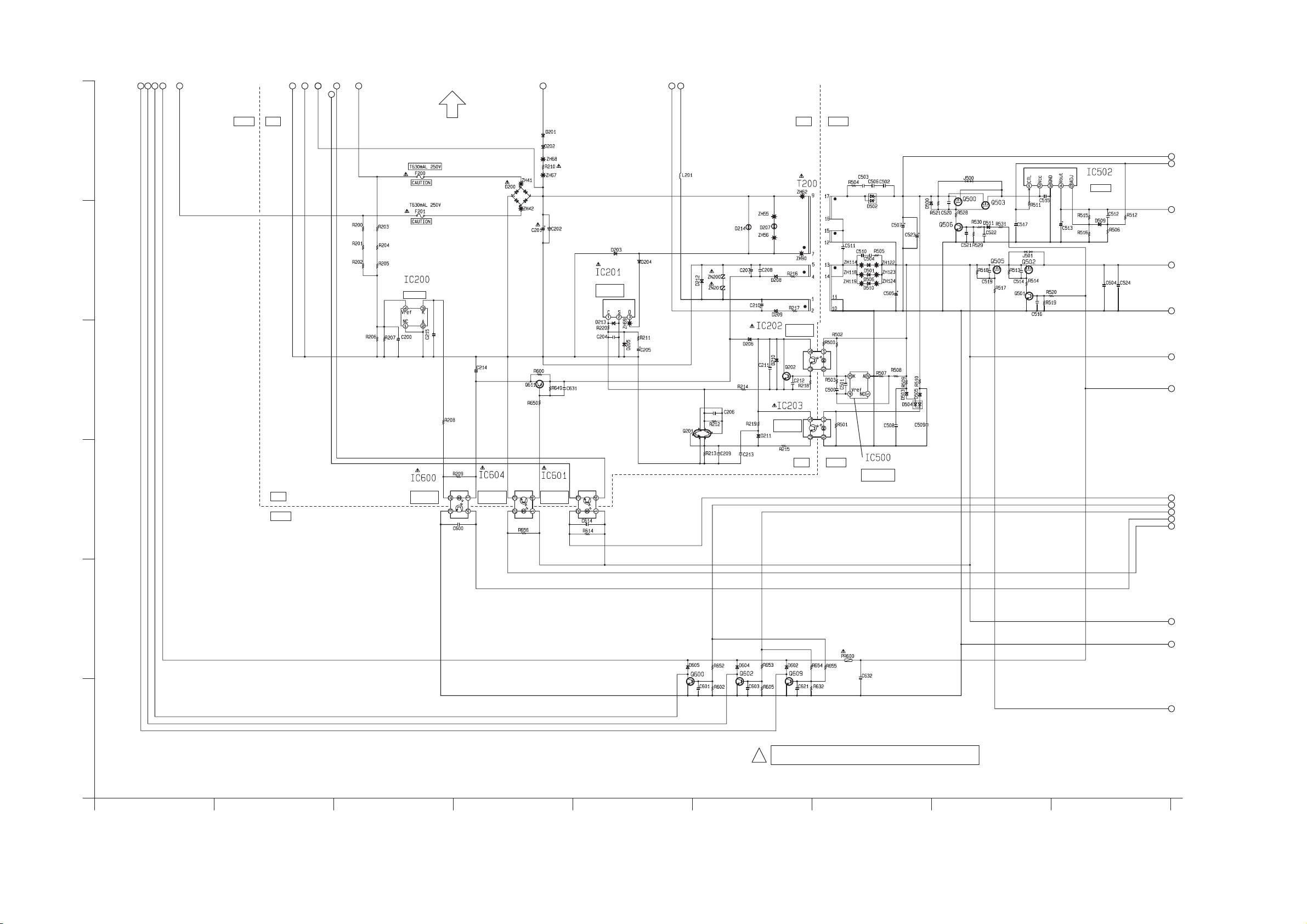

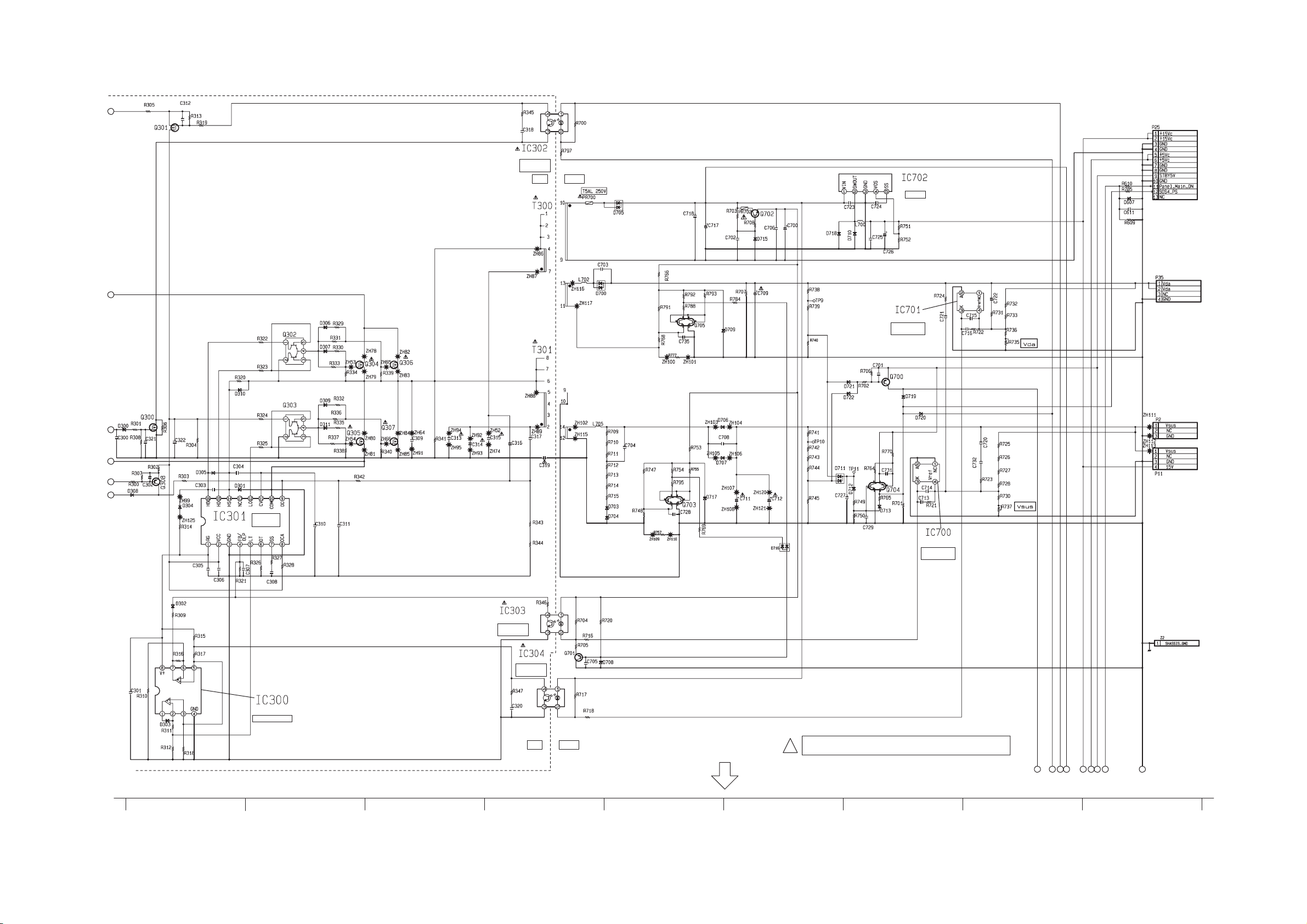

12.4. P-Board (3/4) Schematic Diagram

582 71

F

3

D

B

C

4

E

A

96

COLD

HOT

COLD

HOT

COLD

HOT

COLD

HOT

AA AB AC AD AE AF AG AHAHAIAJ AK AL AM AN

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25


COUPLER


COUPLER


COUPLER

AC DET

STB CONTROL


COUPLER

STB ERROR DET


COUPLER

+15(P)

B3PBA0000508

C0DBZMC00006

*********

CNC1S171R

********

MIP3E40MY

C0DBZMC00006

C0CAAJG00015

TO P-BOARD (1/4)

P-BOARD LSEP1279BEHB (3/4)

!

44

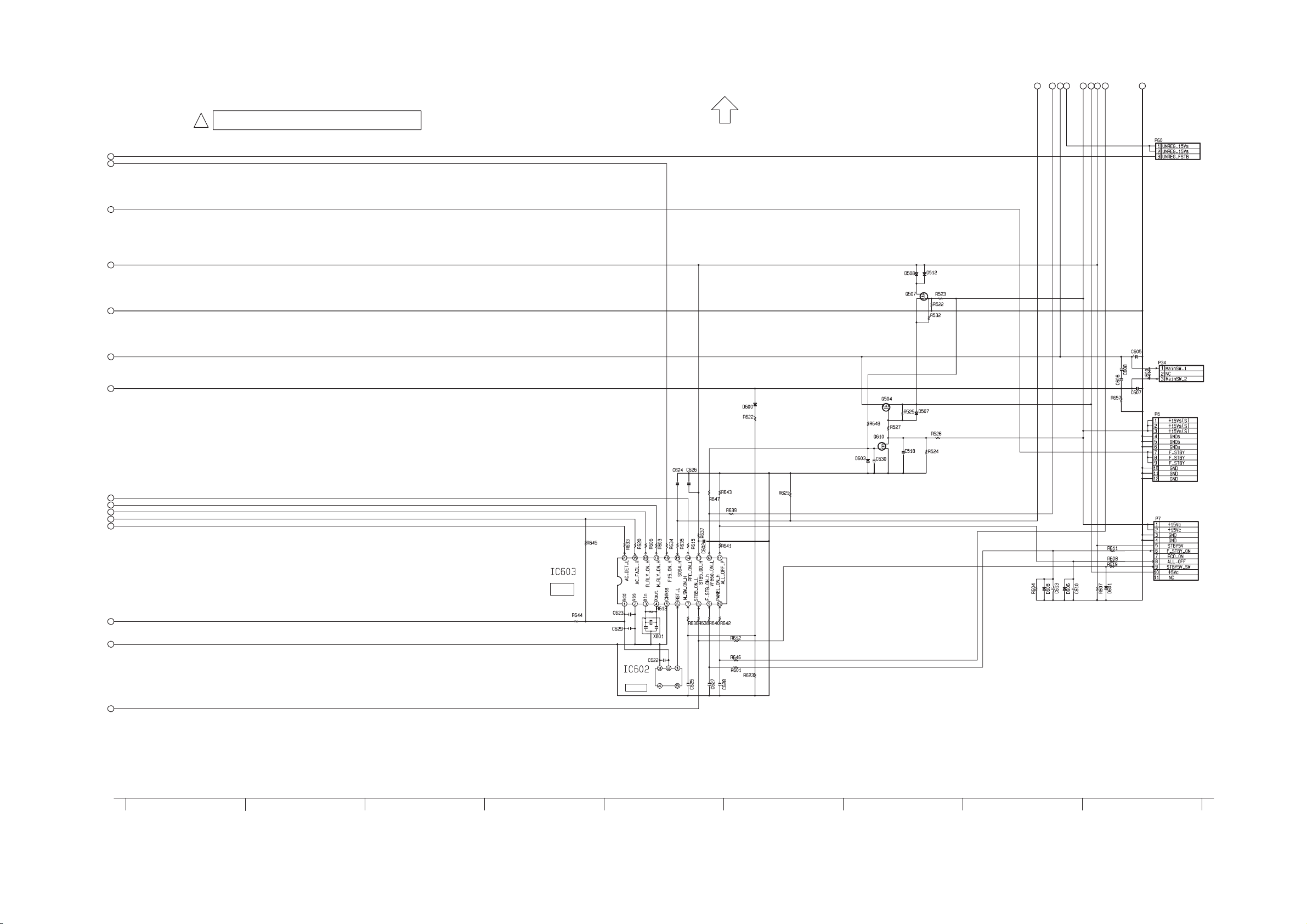

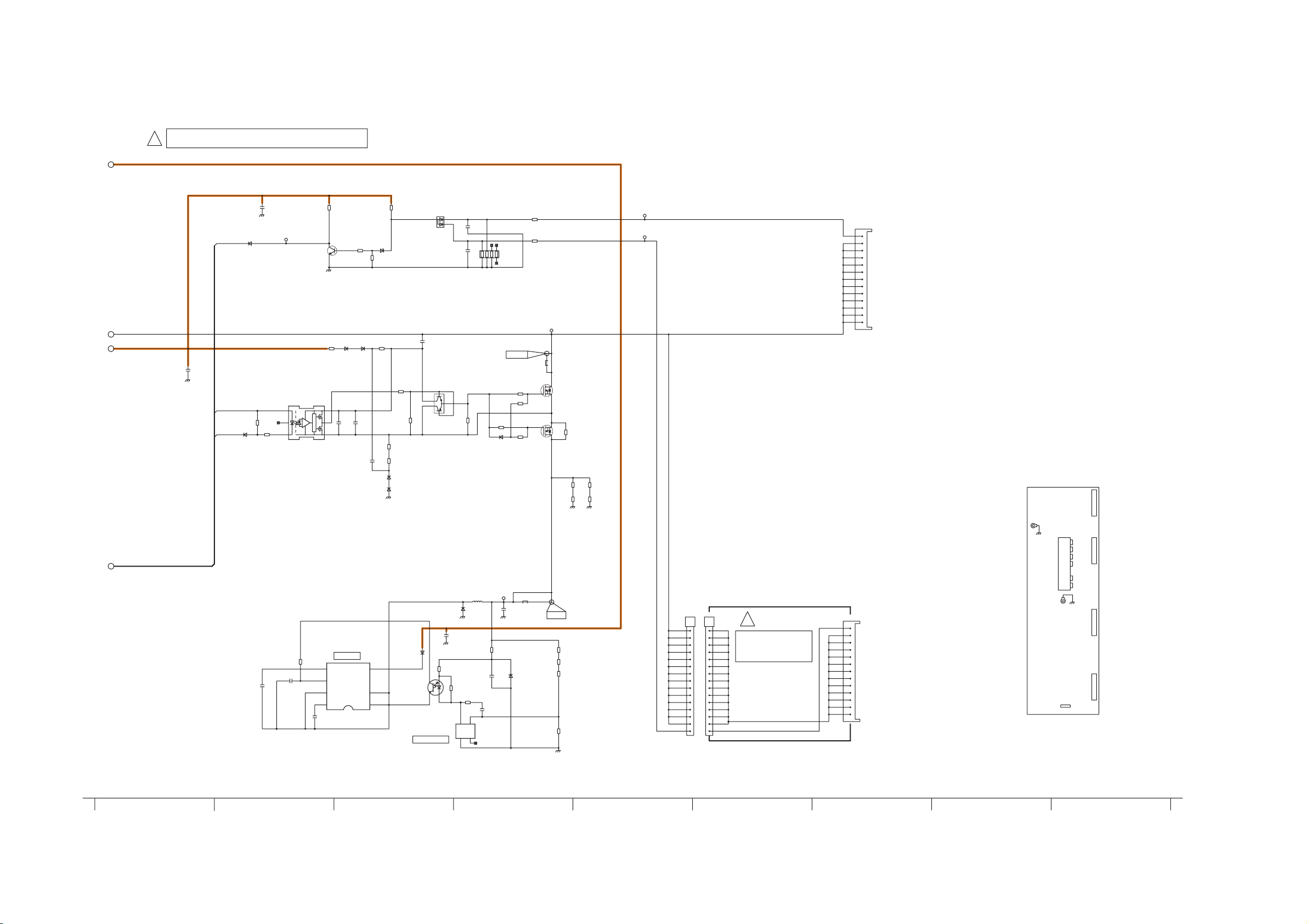

12.5. P-Board (4/4) Schematic Diagram

13 1812 1710 15 161411

BA BB BC BD BE BF BG BH BI

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

POWER MICOM

RESET

C2ABDB000122

C0EBH0000447

TO A-BOARD (A6)

TO S-BOARD (S1)

TO A-BOARD (A6)

NO USE

TO P-BOARD (2/4)

P-BOARD LSEP1279BEHB (4/4)

!

45

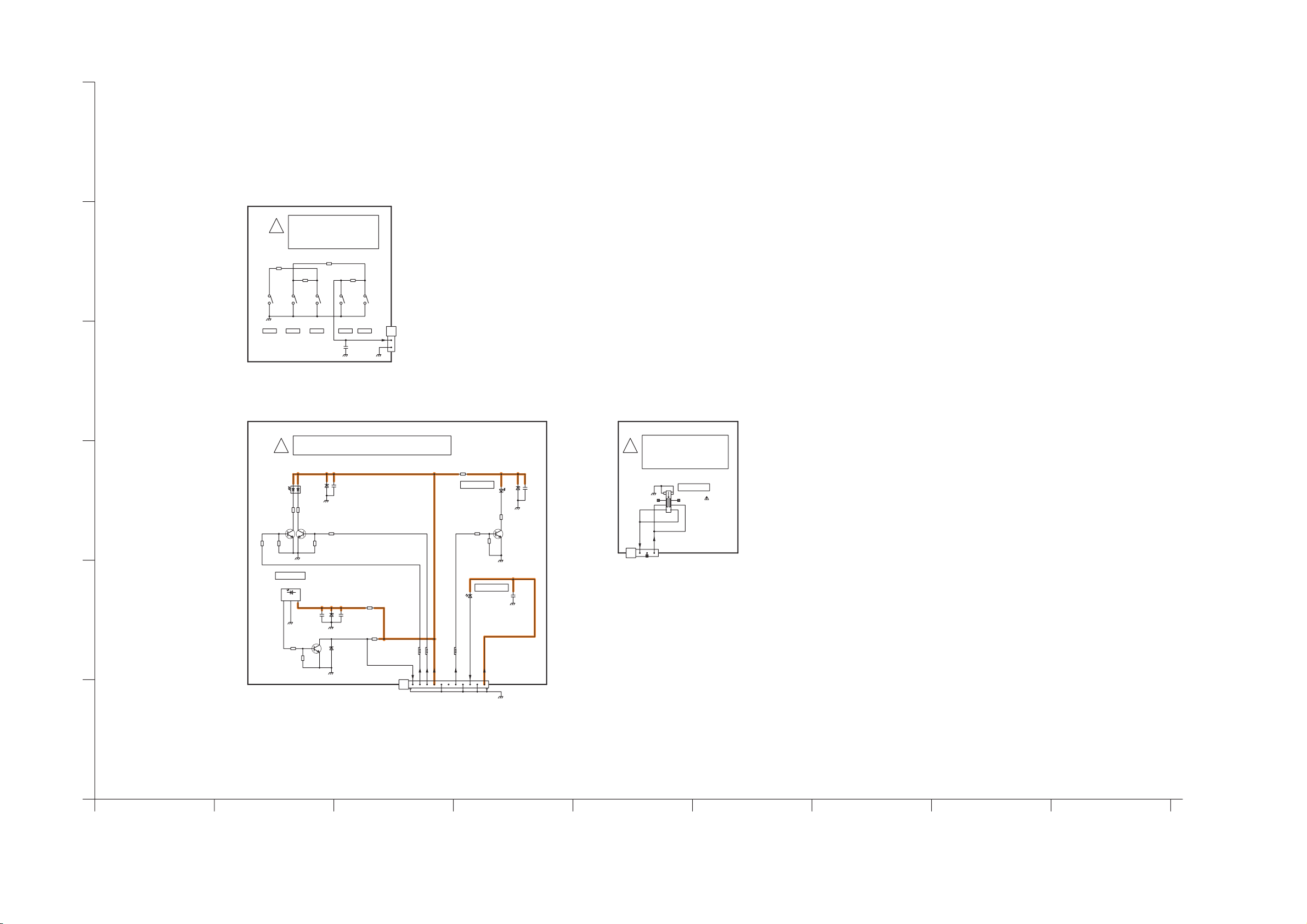

12.6. GK, K and S-Board Schematic Diagram

VCC

GND

OUT

S

G

R

PUSH

*C2517

50V

0.01u

C2521

0.01u

50V

C2511

16V

0.1u

C2515 50V

0.01u

C2512

10V 10u

*D2526

MAZ80560ML

D2512

MAZ80560ML

D2524

MAZ80560ML

D2530

MAZ80560ML

PC2511

B3JB00000046

RM2501

B3RAD0000160

123

Q2513

2SD0601A0L

*Q2519

2SD0601A0L

Q2510

2SD0601A0L

Q2511

2SD0601A0L

1%

*R2531

270

*R2524

22k

1%

*R2525

750

*R2562

47k

R2556 10k

R2516

22k

*R2561

22k

R2542

47k

1%

*R2565

1k

R2517

47

R2530 47k

R2520

220k

R2557

22k

*R2581

0

K1

123456789

10

11

VJ1

VJ2

VJ3

*D2520

B3AGB0000057

*D2525

B3ACB0000225

C3752

1000p

50V

SW3762

EVQ11G05R

SW3760

EVQ11G05R

1%

R3771

6.65k

1%

R3772

1.74k

SW3761

EVQ11G05R

SW3759

EVQ11G05R

GK1

1

2

SW3763

EVQ11G05R

1%

R3775

7.15k

1%

R3770

14.3k

*S1B

123

SW2500

K0F162B00002

<

STBY3.3V

GND

AI_SENSOR

G_LED_ON

REMOCON

Modem_LED

PSM_LEDR

GND

SUB5V

R_LED_ON

GND(D_PCB_MODE)

AI_SENSOR

REMOCON

Modem_LED

+/ TV AV-/

F

KEYSCAN

STB_PS

POWER SW

12V

KEYSCAN

TO A-BOARD (A1)

TO C1-BOARD (C14)

TO P-BOARD (P34)

K-BOARD TXN/K1EQUE

!

GK-BOARD TXN/GK1EQUE

!

S-BOARD TXN/S1EQUE

!

E

932 68

F

5

C

4

D

B

1 7

A

46

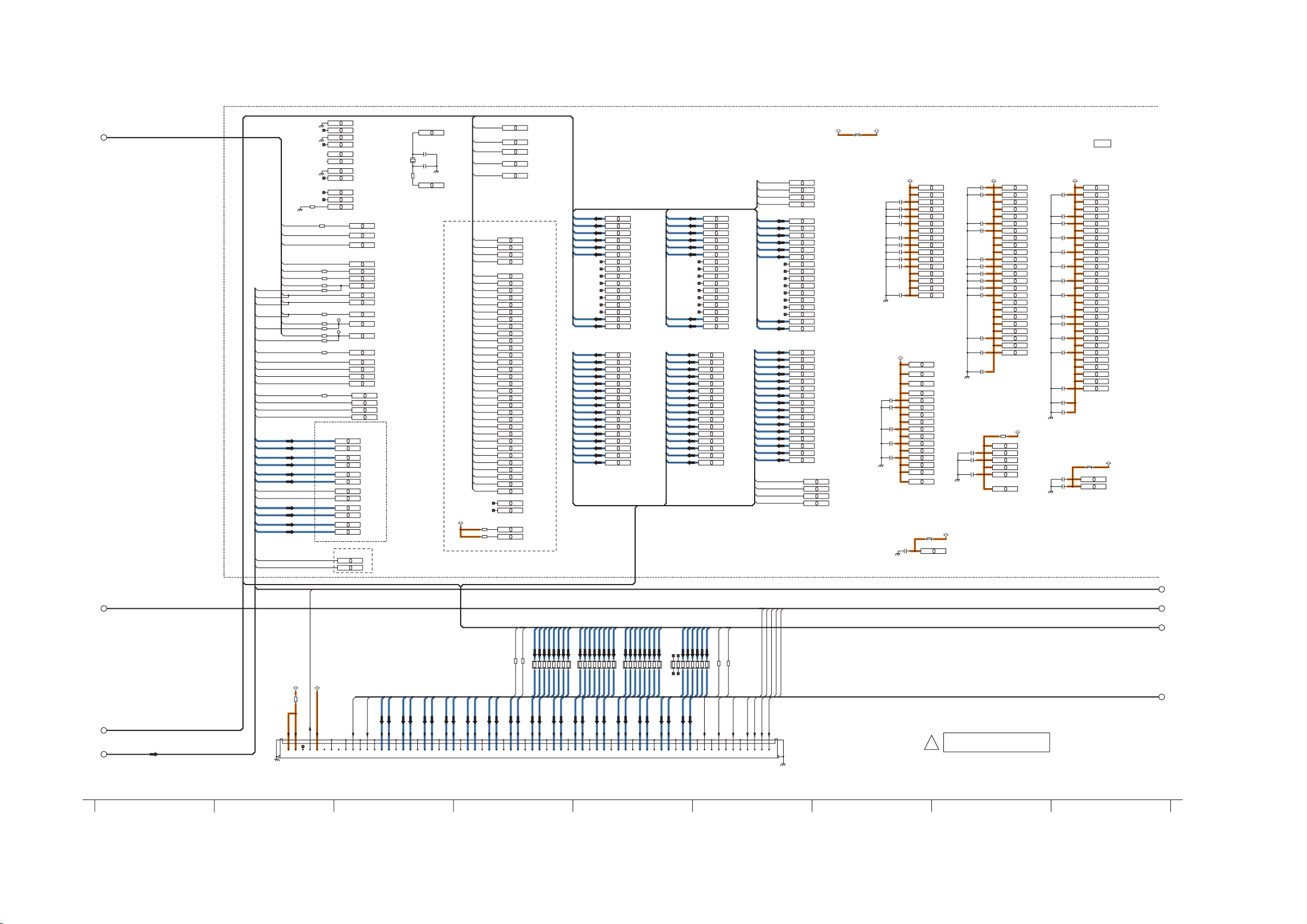

12.7. A-Board (1/21) Schematic Diagram

PEAKS_SDA3

PEAKS_SCL3

PEAKS_SDA2

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2

SUB3.3V

STB3.3V

SUB3.3V

SUB5V

STB3.3V

TP0903

TP0902

TP0900

TP0904

SCL0

SBT2

XECS5

SCL1

G-PANEL_STBY_ON/PANEL_VCC_ON

GENX-EEP_SCL

GENX_SCL0

AV-SW_SDA

FE-OUT_SCL

GENX_SDA1

ADAV_SDA

GENX-EEP_SDA

TUNER_SDA

FE_SCL

PEAKS_SCL2

PEAKS_SDA1

FE_SDA

ADJ_GENX_SDA

TMP-SENS_SDA

PEAKS_SDA3

PEAKS_SCL3

PEAKS_SDA0

TMP-SENS_SCL

LITE2-EEP_SDA

ADJ-GENX_SCL

FE-OUT_SDA

TDI

TMS

LITE2-EEP_SCL

ADV_SDA

TDO

PEAKS_SDA2

ADV_SCL

ADAV_SCL

AV-SW_SCL

TUNER_SCL

XECS3

SBT0

SDA0

SDA1

GENX_SCL1

TRST

TCK

GENX_SDA0

PEAKS_SCL1

PEAKS_SCL0

Q0903

2SD0601ASL

Q0904

2SD0601ASL

Q0905

2SD0601ASL

R0901

EXB28V680JX

R0958

4.7k

R0916

4.7k

R0917

22

R0934 0

R0907

10k

R0953

68

*R0927

22

*R0920

22

*R0919

R0905 10k

R0909

22

R0900

68

*R0928

22

R0976

10k

R0933

0

R0972

10k

*R0939

22

*R0952

68

R0913

22

R0956

4.7k

R0906

10k

R0910

22

R0918

22

*R0937

4.7k

R0911

22

R0902

1k

R0949

68

R0962

4.7k

R0955

4.7k

*R0941

0

*R0960

4.7k

R0945

22

*R0951

68

R0948

68

*R0959

4.7k

R0912

22

R0961

4.7k

*R0940

22

R0946

22

*R0938

4.7k

R0957

4.7k

*R0929

22

R0975 47k

R0977

10k

*R0942

0

R0915

4.7k

R0947

68

*R0930

22

R0914

22

R0954

68

R0950

68

R0974 47k

IC1101

GenX EEP 8k

Peaks EEP 16k

IC1100

GenX8

IC4510

IC1000

TEMP SENSOR

Development Connector

CN0100

CN0101

IC8601

IC3001

AV-SW

Adjustment Connector

IC8301

TU2901

TUNER

JTAG

SDA2

SCL2

SDA3

SCL3

(ADV)

TO 2,13/21

FE

TDI

TCK

TMS

TRST

REF No. 0900-0999

IIC

TO 10/21

TO 17/21

TO 11,17/21

TO 11/21

4

C

12

F

5

A

B

E

96873

D

TO 18/21

TO 2/21

TO 21/21

TO 19/21

TO 9/21TO 3/21TO 3/21

TO 1/21

A-BOARD (1/21)

!

47

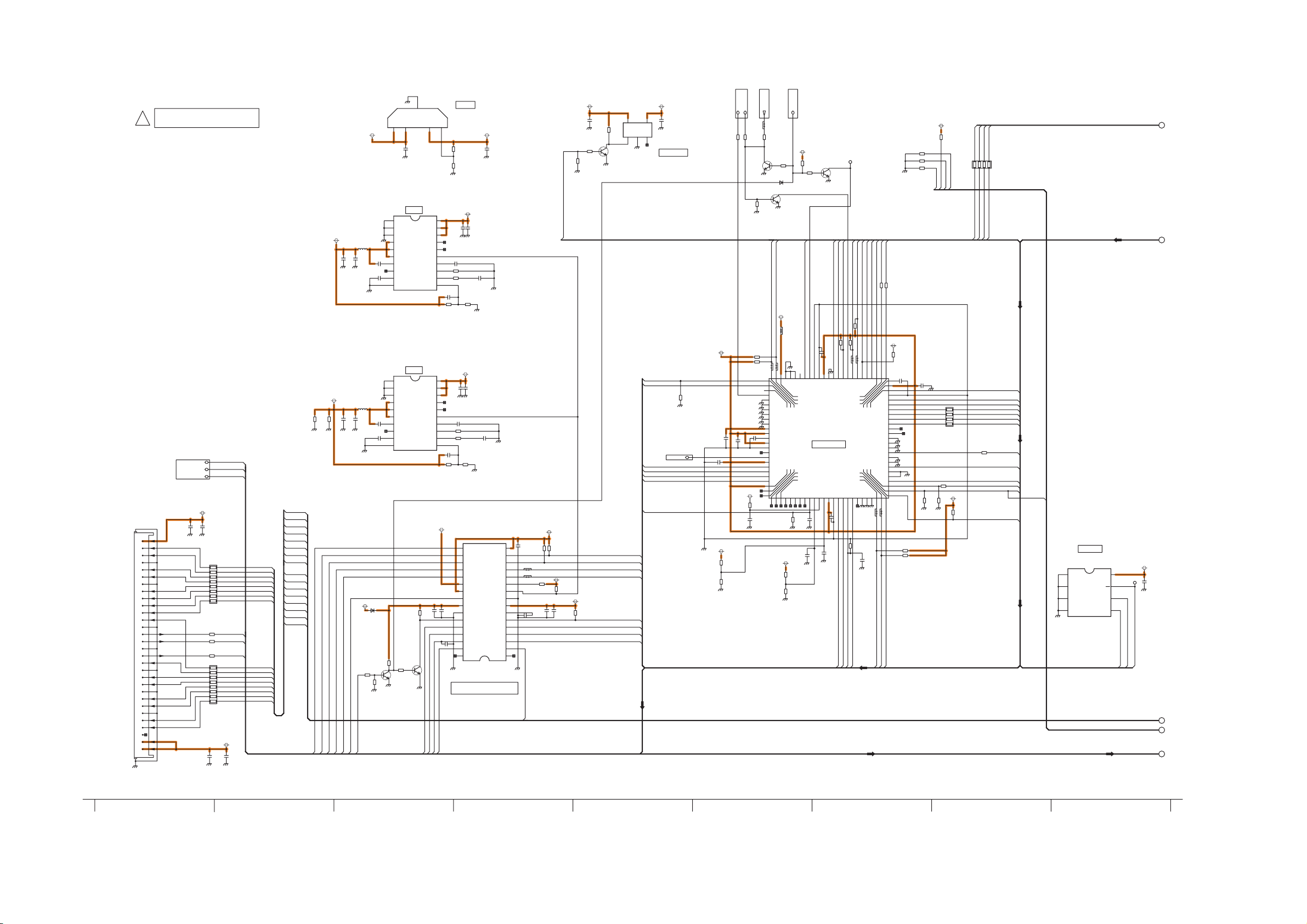

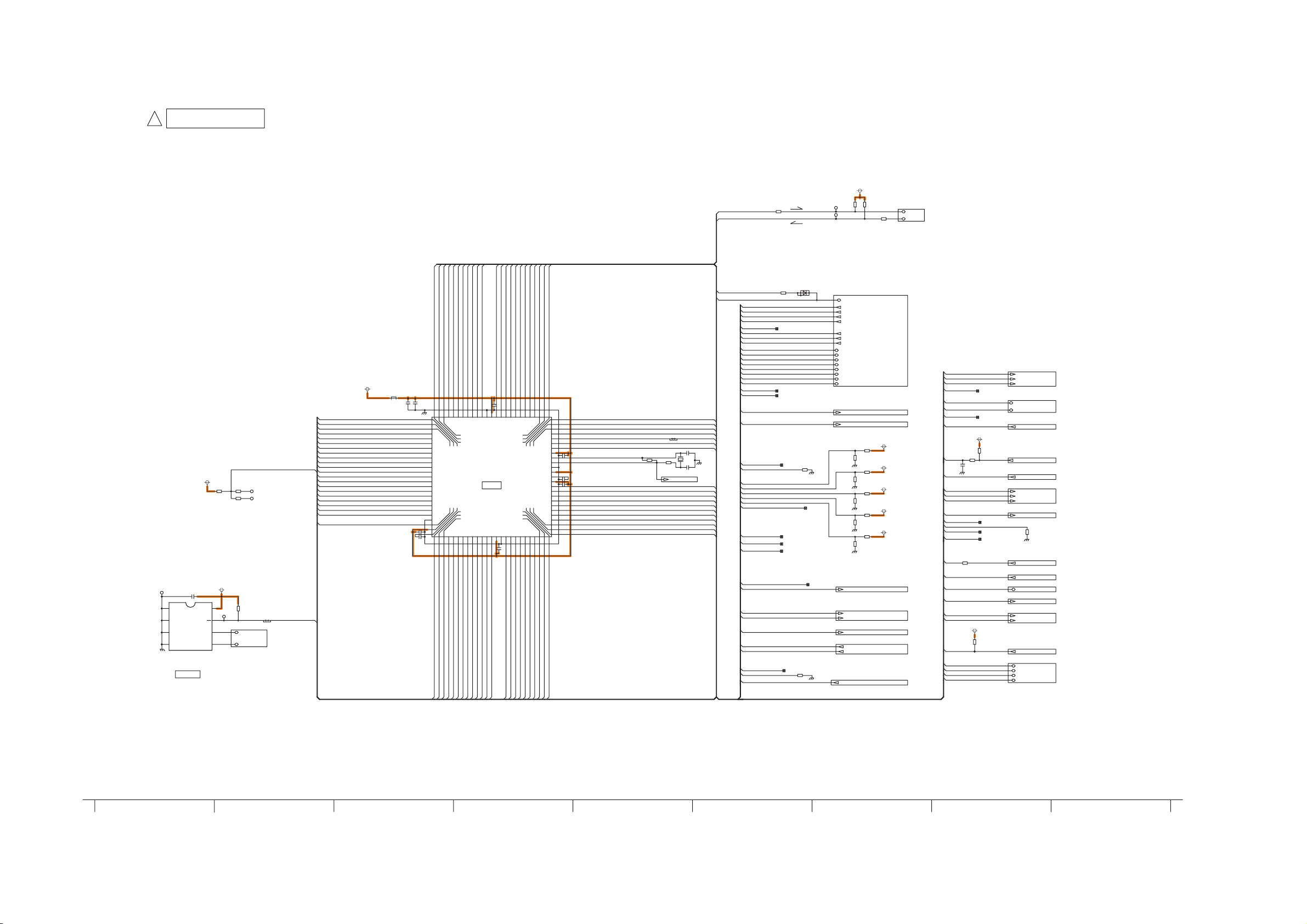

12.8. A-Board (2/21) Schematic Diagram

S

G-SOUND_SOS

G-FACT

G-DTV_VOUTENB

G-HQ_XRST

G-MAIN9V_SENSE

G-ACTIVE_ANTENNA_DET

G-PANEL_STBY_ON/PANEL_VCC_ON

G-ACTIVE_STBY_LED_ON

G-RMIN

G-DDCSDA3

G-SP_HP_MUTE

G-HDMI_CEC_PU_ON

G-FAN_MAX

G-DDCSDA2

G-SOUND_SOS

G-ACTIVE_ANTENNA_DET

G-GENX-EEP_WP

G-FAN_MAX

G-PEAKS_SERIAL_SBI

G-SD_BOOT_STS

G-SD_PWR_CTRL

G-HPD0

G-DDCSCL0

G-RF_AFT2

G-HDMI_REP_EN

G-SP_HP_MUTE

G-DDCSDA1

G-INV_PSU_ON

GENX_SDA1

G-PANEL_ALARM/INVERTER_SOS

G-FAN_SOS

G-GRAB_MODULE_IIC/PWM_POW_ON

G-HDMI_CEC_PU_ON

G-HPD2

GENX_SCL1

G-AUDIO_XRST

G-HPD0

G-SD_LED_ON

G-SOURCE_XRST/PANEL_TEST_ON

GENX-KEY1

G-GRAB_MODULE_IIC/PWM_POW_ON

G-BACK_VOUTENB

G-EDID_WP

G-NRST

G-CLK74SEL

G-TV_SUB_ON

G-QLINK2

G-ECO_ON/INVERTER_ON

G-TRCD2

G-TRCD0

G-DDCSDA1

G-SRQ_GENX

G-NRST

G-HDMI_5V_DET0

G-SUB5V_SENSE

G-HDMI_CEC

G-HPD1

G-RMIN

G-SOS

G-TRCST

G-HDMI_5V_DET3

G-TV_SUB_ON

G-PANEL_READY

G-MAIN3.3V_SENSE

G-PEAKS_SERIAL_SBO

G-QLINK1

G-HPD1

G-SD_BOOT_STS

G-CLK74SEL

G-TV_MAIN_ON

G-SD_PWR_CTRL

G-PEAKS_SERIAL_SBI

G-GENX-EEP_WP

G-SDATA

G-HQ_XRST

G-SIF_FIL_ON

G-DTV_XRST

G-DTV9V_SENSE

G-HDMI_5V_DET1

G-FACT

G-HDMI_5V_DET1

G-PANEL_ALARM/INVERTER_SOS

G-HDMI_REP_EN

G-AI_SENSOR

G-DDCSCL1

GENX_SCL1

G-DDCSDA3

G-MON_MUTE

G-RF_AFT1

G-SW_OFF_DET

G-SOS

G-SUB3.3V_SENSE

G-SOURCE_XRST/PANEL_TEST_ON

G-MON_MUTE

G-G_LED_ON

G-ACTIVE_ANTENNA_ON

G-AUDIO_XRST

G-EDID_WP

G-RF_AFT1

G-DDCSCL3

GENX_SCL0

G-SIF_FIL_ON

G-HPD2

GENX-KEY1

G-DDCSDA2

G-EXTRG0

G-DDCSDA0

G-SRQ_GENX

G-R_LED_ON

GENX_SDA1

G-FAN_SOS

G-ACTIVE_STBY_LED_ON

G-SD_LED_ON

G-HDMI_5V_DET0

G-PANEL_STBY_ON/PANEL_VCC_ON

G-DDCSCL2

G-DTV_VOUTENB

GENX_SCL0

G-MAIN_FAN_ON

G-BACK_VOUTENB

G-ADV_XRST

G-HDMI_5V_DET2

G-R_LED_ON

G-DDCSCL2

G-SW_OFF_DET

G-AI_SENSOR

G-TRCD1

G-HPD3

G-DDCSDA0

G-SCLOCK

GENX_SDA0

G-G_LED_ON

G-DTV_XRST

GENX_SDA0

G-TRCD3

G-ADV_XRST

G-HDMI_5V_DET2

G-MID_VOUTENB

G-RF_AFT2

G-DDCSCL1

G-DDCSCL3

G-TV_MAIN_ON

G-TRCCLK

G-PEAKS_SERIAL_SBO

G-ACTIVE_ANTENNA_ON

G-SRQ_GENX

G-MID_VOUTENB

G-ECO_ON/INVERTER_ON

G-PANEL_READY

G-DDCSCL0

G-HPD3

G-HDMI_CEC

G-HDMI_5V_DET3

G-SUB3.3V_SENSE

G-MAIN_FAN_ON

G-QLINK1

G-QLINK2

G-INV_PSU_ON

G-MAIN9V_SENSE

G-DTV9V_SENSE

G-SUB5V_SENSE

G-MAIN3.3V_SENSE

C1117

16V

0.1u

C1102

10u

10V

C1109 1u 10V

C1108

16V

0.1u

C1112

16V

0.1u

C1107

50V 22p

C1114

16V

0.1u

C1103

16V

0.1u

C1106

50V

27p

C1104

16V

0.1u

C1122

25V

0.01u

C1123 1u 10V

C1111

1u

10V

D1107

MA3X704A0L

*IC1101

TVRQ387

1

NC

2

NC

3

E2

4

VSS

5

SDA

6

SCL

7

WC

8

VCC

L1100

J0JYC0000068

SUB3.3V

STB3.3V

SUB3.3V

SUB5V

STB3.3V

SUB9V

STB3.3V

SUB9V

SUB3.3V

R1197

R1207

TP1108

TP1102

TP1107

TP1104

TP1105

TP1103

G-HDMI_5V_DET0

G-PANEL_READY

G-PANEL_ALARM/INVERTER_SOS

G-HDMI_5V_DET3

G-HPD1

G-SOUND_SOS

G-RF_AFT1

G-HDMI_5V_DET2

G-HDMI_5V_DET1

G-SRQ_GENX

G-HPD2

G-SOS

G-KEY1

G-RMIN

G-HPD3

STB_RST

G-CLK74SEL

G-GRAB_MODULE_IIC/PWM_POW_ON

G-DTV_VOUTENB

G-G_LED_ON

G-MON_MUTE

G-TV_SUB_ON

G-ECO_ON/INVERTER_ON

G-PANEL_STBY_ON/PANEL_VCC_ON

G-ACTIVE_STBY_LED_ON

G-R_LED_ON

G-SD_BOOT_STS

G-DTV_XRST

G-SD_LED_ON

G-ADV_XRST

GENX_CLK_OUT

G-SP_HP_MUTE

G-AUDIO_XRST

GENX-EEP_SCL

GENX_SDA1

SBO2

G-QLINK1

G-DDCSDA0

G-HDMI_CEC

G-DDCSCL3

GENX_SDA0

GENX_SCL1

G-SW_OFF_DET

SBI2

G-DDCSCL0

G-DDCSCL1

G-DDCSDA3

GENX_SCL0

GENX-EEP_SDA

G-QLINK2

G-DDCSDA1

G-DDCSDA2

G-DDCSCL2

R1402 68k

R1209

4.7k

R1401 100k

R1262

47k

R1236

47k

R1181

0

R1237

1k

R1255

1k

R1403 33k

R1171

68k

R1146

0

R1172

33k

R1179

0

R1407

47k

R1153

680

R1406

68k

R1400

10k

R1411

100k

R1163

1M

R1225

10k

R1221

7.15k

1%

R1243

47k

R1224

10k

R1182

27k

R1203

47k

R1410

10k

X1100

H0J100500035

R0605

47k

R2930

15k

MNZSFH9GP83

IC1100

1

P41_TMIO12P42_TMIO23P43_TMIO3

4

P44_TMIO4

5

P00

6

P01

7

PF3

8

P03_SBT0B

9

P04_SBO0B

10

PD0_DDCSDA0

11

PD1_DDCSCL0

12

PD2_DDCSDA1

13

PD3_DDCSCL1

14

PF1

15

PD4_DDCSDA2

16

PD5_DDCSCL2

17

P65_USBO2

18

P66_USBI2

19

P26

20

P70_SDA0

21

P71_SCL0

22

VSS

23

PF224IVDD25VDD

26

P60_SBO0A

27

P61_SBT0A

28

P62_SBI0A

29

P05_IRQ630P06_IRQ731P07_IRQ832P50_RMIN_IRQ033P20_IRQ134P21_IRQ235P22_IRQ336P23_IRQ437P24_IRQ538P2539IVDD40VSS41P1042P1143P1244P1345P1446P1547P16

48

P17

49

P72_SDA1

50

P73_SCL1

51

P3052P3153P32

54

P33

55

P34

56

P35

57

P36

58

P37

59

PE0

60

PE3

61

PE4_VPPEX

62

IVDD

63

VDD

64

NTEST

65

VSS

66

OSCXO

67

OSCXI

68

IVDD

69

PE1

70

PE2

71

NBOOT

72

NRST

73

P02

74

SCLOCK

75

SDATA

76

EXTRG0

77

TRCCLK

78

TRCST

79

TRCD080TRCD181TRCD282TRCD3

83

P40_TMIO0_SYSCLK

84

P80_ADIN085P81_ADIN186P82_ADIN287P83_ADIN3

88

IVDD

89

VSS

90

P84_ADIN491P85_ADIN5

92

P74_CECAVL1B

93

P75_CECAVL1A

94

PF0

95

P76_CEC0

96

PD6_DDCSDA3

97

PD7_DDCSCL3

98

P63_SBO1

99

P64_SBI1

100

PF4

=

GenX8

P83,ADIN3

P10

P02

PE2

VDD

VSS

P20,IRQ1

P76,CEC0

PF3

P31

P40,TMIO0,SYSCLK

SCLOCK / (UND)

VDD

PF2

TRCD2 / (NC)P14

P42.TMIO2

NBOOT / (N.C.)

TRCD3 / (UND)

P01

P13

P72,SDA1

P06,IRQ7

PD5,DDCSCL2

P65,USBO2

PE3

P50,RMIN,IRQ0

PE4,VPPEX / (PE4)

NTEST

PD7,DDCSCL3

P85,ADIN5

P35

10MHz

P74,CECAVL1B

P70,SDA0

TRCD1 / (NC)

P71,SCL0

PF0

PD6,DDCSDA3

P04,SBO0B

IVDD

P84,ADIN4

IVDD

P05,IRQ6

P37

OSCXO

PD1,DDCSCL0

PD0,DDCSDA0

P11

P30

P66,USBI2

VSS

P17

IVDD

P61,SBT0A

PF1

NRST

VSS

P62,SBI0A

P75,CECAVL1A

EXTRG0 / (UND)

P80,ADIN0

IVDD

P12

TRCCLK / (N.C.)

PF4

P03,SBT0B

P60,SBO0A

PD4,DDCSDA2

P43,TMIO3

P34

TRCD0 / (NC)

VSS

P73,SCL1

PE1

P63,SBO1

P24,IRQ5

P21,IRQ2

P44,TMIO4

P36

P22,IRQ3

P26

P23,IRQ4

IVDD

P64,SBI1

PD2,DDCSDA1

P00

P82,ADIN2

TRCST / (N.C.)

PE0

P32

PD3,DDCSCL1

P41.TMIO1

P15

SDATA / (UND)

P81,ADIN1

P25

P33

OSCXI

P16

P07,IRQ8

REF No. 1100-1499

GenX

EEPROM

TO 10/21

TO 17/21

TO 12,17/21

TO 17/21

TO 16/21

TO 17/21

TO 11/21

TO 13/21

TO 1,13/21

1611 1513 14 17 181210

TO 1/21

TO 6/21

TO 7/21

TO 3,9/21

TO 4/21

TO 11/21

TO 21/21

TO 18/21

A-BOARD (2/21)

!

48

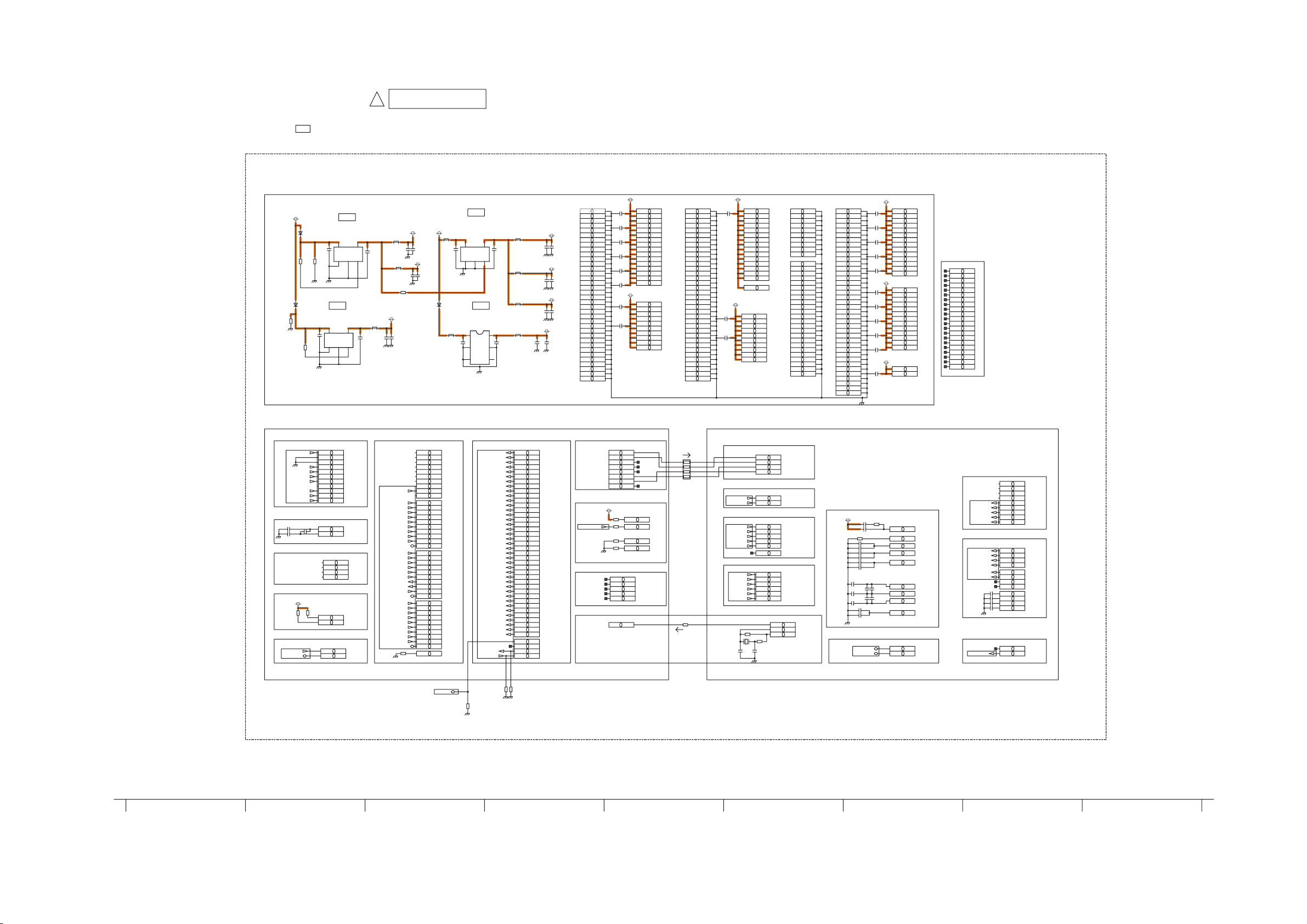

12.9. A-Board (3/21) Schematic Diagram

C2056

15p

50V

C2127

16V

0.01u

C4634

0.1u

16V

C4645

16V

0.1u

C2124

0.1u

16V

C2125

16V

0.01u

C2216

0.1u

16V

C2117

0.1u

16V

C2105

0.1u

16V

C2136

16V 0.01u

C2110

0.1u

16V

C4575

0.1u

16V

C2109

0.1u

16V

C2244

0.1u

16V

C2049

0.1u

16V

C4640

0.1u

16V

C2113

10u

10V

C2055

15p

50V

C2107

10u

10V

C4638

0.1u

16V

C4643

16V

0.1u

C4630

16V

0.1u

C2137

10u

10V

C4632

0.1u

16V

C2114

0.1u

16V

C4642

0.1u

16V

C2115

0.1u

16V

C2050

0.1u

16V

C2112

10u

10V

C2059

10u

10V

C4626

16V

0.1u

C4585

0.1u

16V

C4580

16V

0.1u

C4636

0.1u

16V

C4629

16V

0.1u

C4555

10V

10u

C4547

16V

0.1u

C2135

16V

0.01u

C4574

16V

0.1u

C2058

0.1u

16V

C2251

10u

10V

C2106

0.1u

16V

C4550

16V

0.1u

C2023

0.1u

16V

C4644 16V

0.1u

C2245 1000p

50V

C2108

10u

10V

C4628

16V

0.1u

C4607

4.7u

10V

C4616

4.7u

10V

C4631 10V 10u

C4601

10u

10V

C4602

16V

0.1u

C4608

16V

0.1u

C4606

4.7u

10V

C4599

10u

10V

C2102

0.1u

16V

C4598

10u

10V

C4600

16V

0.1u

C2118

4.7u

10V

C4635

10V 10u

C4617

4.7u

10V

C4613

1u

6.3V

C4633

10V 10u

C4637

16V

0.1u

C4603

4.7u

10V

C2192

10u

10V

C2111

4.7u

10V

C4595

16V

0.1u

C4605

4.7u

10V

D4583

B0HCMM000014

D4577

B0HCMM000014

D4576

B0HCMM000014

IC4510

C1AB00003045

A1DGND

IC4510 AB2 P0

IC4510A9AGND

IC4510 U21 LRCLK2/SPDIF_IN5

IC4510 U4 DDCD_SDA

IC4510 Y2 DE

IC4510 R12 DVDD

IC4510 F1 RXB_1-

IC4510 R1 RXD_0-

IC4510 P20 BCLK0/SPDIF_IN2

IC4510 AB9 P12

IC4510 U15 DVDDIO

IC4510L13DGND

IC4510 U11 DVDDIO

IC4510 P10 DVDD

IC4510 U12 DVDDIO

IC4510T11DGND

IC4510R8DGND

IC4510N17DGND

IC4510 Y22 NC

IC4510 AA19 NC

IC4510 N2 TVDD

IC4510Y12DGND

IC4510 A11 AIN7

IC4510 C2 TVDD

IC4510T13DGND

IC4510N11DGND

IC4510D20AGND

IC4510 U2 RXD_2+

IC4510T14DGND

IC4510 B7 TEST0

IC4510J11DGND

IC4510 G20 AAVDD

IC4510 U20 BCLK2/SPDIF_IN6

IC4510H8AGND

IC4510 AC4 P5

IC4510 J23 AAVDD

IC4510 F4 DDCA_SDA

IC4510AA8CLK_24.576

IC4510 P21 LRCLK0/SPDIF_IN1

IC4510L21AGND

IC4510 AB23 P35

IC4510N9DGND

IC4510K16DGND

IC4510 C21 AAVDD

IC4510L20AGND

IC4510 G17 AAVDD

IC4510L3DGND

IC4510 Y13 INT

IC4510 C23 AUXOUT2R

IC4510 R21 SDIN2

IC4510 T4 DDCD_SCL

IC4510 AA4 EP_MOSI

IC4510 G13 VAVDD

IC4510 R13 DVDD

IC4510H12AGND

IC4510 P16 DVDD

IC4510 AA5 EP_CS

IC4510 K8 CVDD

IC4510Y7DGND

IC4510G14AGND

IC4510 AC10 P15

IC4510 N23 PWM3A

IC4510R3DGND

IC4510 D1 RXB_C-

IC4510 G7 PVDD

IC4510Y8LRCLK

IC4510L22AGND

IC4510 E22 AUXOUT4L

IC4510 B19 SIF_REFP

IC4510 AC22 P33

IC4510 V23 XIN

IC4510P3DGND IC4510 B14 VAVDD

IC4510 L4 RTERM

IC4510AB7DGND

IC4510 B21 AUXIN1L

IC4510 AA6 EP_SCK

IC4510 J9 CVDD

IC4510 AA2 VS_FIELD

IC4510 AC14 P20

IC4510 C22 AUXOUT2L

IC4510K17DGND

IC4510AA11I2S0

IC4510M16DGND

IC4510 L7 CVDD

IC4510 L1 RXC_1-

IC4510 E2 RXB_0+

IC4510 AA1 HS

IC4510 H21 AAVDD

IC4510 C13 AVLINK

IC4510H15AGND

IC4510T8DGNDIC4510 R16 DVDD

IC4510 G22 HPOUT2L

IC4510K3DGND

IC4510 B20 FILTA

IC4510K21AGND

IC4510 C11 VAVDD

IC4510 AA18 DCLKIN

IC4510 H4 DDCB_SCL

IC4510A6DGND

IC4510 K23 PLL_LF

IC4510E4DGND

IC4510 G23 HPOUT2R

IC4510 P13 DVDD

IC4510 H22 HPOUT1L

IC4510N12DGND

IC4510 T20 SDIN1

IC4510 W1 RXA_5V

IC4510 H1 TVDD

IC4510 T23 PWM_READY

IC4510 AC13 P18

IC4510Y11I2S1

IC4510 P11 DVDD

IC4510AB1DGND

IC4510 AC18 P27

IC4510 B22 AUXIN2L

IC4510P7DGND

IC4510H20AGND

IC4510 Y15 NC

IC4510 J21 AAVDD

IC4510J3DGND

IC4510 D14 VAVDD

IC4510 H23 HPOUT1R

IC4510 C8 NC

IC4510AB17DGND

IC4510AC17DGND

IC4510 D7 NC

IC4510 AB10 P14

IC4510 Y20 NC

IC4510 J8 CVDD

IC4510 Y3 NC

IC4510 B2 RXA_2+

IC4510N7DGND

IC4510C17AGND

IC4510 Y6 EP_MISO

IC4510 AB8 P10

IC4510N15DGND

IC4510 AC9 P13

IC4510G15AGND

IC4510M13DGND

IC4510K11DGND

IC4510 A20 VREF_AUDIO

IC4510 A8 REFP

IC4510 A10 AIN8

IC4510 G8 PVDD

IC4510 B23 FILTD

IC4510K12DGND

IC4510N16DGND

IC4510H13AGND

IC4510 G12 VAVDD

IC4510 AA13 SDATA

IC4510 U10 DVDDIO

IC4510 AA23 SHARED_EDID

IC4510 AB20 P30

IC4510D18AGND

IC4510 U13 DVDDIO

IC4510 V3 TVDD

IC4510 A22 AUXIN2R

IC4510W22DGND

IC4510 AC20 P29

IC4510 A18 SIF_IN1

IC4510B9AGND

IC4510 V20 AUDIO_SCL

IC4510Y17DGND

IC4510C1DGND

IC4510 A13 AIN5

IC4510J13DGND

IC4510C15VCLKIN

IC4510J14DGND

IC4510 AC19 LLC/BLC

IC4510L14DGND

IC4510 D11 FB

IC4510 R11 DVDD

IC4510 P12 DVDD

IC4510 G4 DDCA_SCL

IC4510D5DGND

IC4510AA10I2S2

IC4510 W4 NC

IC4510 T1 RXD_1-

IC4510 A14 AIN4

IC4510 D21 AAVDD

IC4510 G2 RXB_2+

IC4510 D15 MCLK_OUT

IC4510H10AGND

IC4510M14DGND

IC4510AC23DGND

IC4510M11DGND

IC4510 N21 LRCLK1/SPDIF_IN3

IC4510L23AGND

IC4510AA7DGND

IC4510 N20 BCLK1/SPDIF_IN4

IC4510 E23 AUXOUT4R

IC4510 E21 AAVDD

IC4510 AB11 P16

IC4510 B10 AIN9

IC4510 T22 SDO0

IC4510B15AGND

IC4510 W3 RXC_5V IC4510 AC16 P24

IC4510R9DGND

IC4510 G21 AAVDD

IC4510 M23 PWM4A

IC4510 F21 AAVDD

IC4510M9DGND

IC4510 R15 DVDD

IC4510A16AGND IC4510 B13 VAVDD

IC4510 B5 RXA_C+

IC4510 V22 XOUT

IC4510 AB3 P2

IC4510W23DGND

IC4510 AB18 P26

IC4510 K1 RXC_0-

IC4510 M21 ARESETB

IC4510H11AGND

IC4510 L2 RXC_1+

IC4510L10DGND

IC4510P9DGND

IC4510 AB19 P28

IC4510J16DGND

IC4510A23AGND

IC4510AA9SPDIF

IC4510 U16 DVDDIO

IC4510 AC6 P9

IC4510AC12DGND

IC4510 A21 AUXIN1R

IC4510 A2 RXA_2-

IC4510 J7 CVDD

IC4510 B1 TVDD

IC4510 R4 DDCC_SDA

IC4510 Y14 SYNC_OUT/INT2

IC4510 Y1 RXD_5V

IC4510 G11 VAVDD

IC4510V1DGND

IC4510 A15 SYNC2

IC4510 B6 TVDD

IC4510H16

AGND

IC4510D16AGND

IC4510 V2 TVDD

IC4510 A12 AIN6

IC4510 Y19 NC

IC4510 L8 CVDD

IC4510K13DGND

IC4510H9AGND

IC4510C3DGND

IC4510 R22 PWM1B

IC4510 M7 CVDD

IC4510K20AGND

IC4510 Y23 NC

IC4510 AC5 P7

IC4510 AA14 SCL

IC4510 D2 RXB_C+

IC4510 C14 VAVDD

IC4510 B17 SIF_PGA_REF

IC4510N8DGND

IC4510 AB6 P8

IC4510 G9 VAVDD

IC4510 B12 VAVDD

IC4510 M22 PWM4B

IC4510 G1 RXB_2-

IC4510 H2 TVDD

IC4510W21DGND

IC4510 U9 DVDDIO

IC4510K14DGND

IC4510W20DGND

IC4510H17AGND

IC4510 D12 VS_IN1

IC4510 P14 DVDD

IC4510 P2 RXD_C+

IC4510 R2 RXD_0+

IC4510H7AGND

IC4510C18AGND

IC4510Y9SCLK

IC4510Y10I2S3

IC4510T12DGND

IC4510 Y18 NC

IC4510 A3 RXA_1-

IC4510 H3 TVDD

IC4510 V21 AUDIO_SDA

IC4510 AA16 DVDDIO

IC4510 U14 DVDDIO

IC4510 AC2 P1

IC4510 AB22 P34

IC4510 P17 DVDD

IC4510 U23 MUTEB

IC4510 B3 RXA_1+

IC4510 P23 PWM2A

IC4510 R14 DVDD

IC4510 Y16 DVDDIO

IC4510T9DGND

IC4510AC1DGND

IC4510 AC11 P17

IC4510 J2 RXC_C+

IC4510 G10 VAVDD

IC4510M17DGND

IC4510 R20 SDIN3/SPDIF_IN0

IC4510 N22 PWM3B

IC4510 U1 RXD_2-

IC4510K15DGND

IC4510U17DGND

IC4510 AA3 PWRDNB

IC4510F3DGND

IC4510 E20 ISET

IC4510 T2 RXD_1+

IC4510 C12 VAVDD

IC4510 N3 TVDD

IC4510 K4 NC

IC4510 D22 AUXOUT1L

IC4510J15DGND

IC4510C20AGND

IC4510D9AGND

IC4510 D10 VAVDD

IC4510 AA15 NC

IC4510AA12DGND

IC4510 M20 SPDIF_OUT

IC4510E3DGND

IC4510 AB16 P25

IC4510 R23 PWM1A

IC4510C19AGND

IC4510 Y5 NC

IC4510 Y4 NC

IC4510 AB13 P19

IC4510 AA22 RESETB

IC4510 C10 VAVDD

IC4510B16AGND

IC4510 W2 RXB_5V

IC4510 K7 CVDD

IC4510 A19 SIF_REFCM

IC4510AB12DGND

IC4510 F2 RXB_1+

IC4510C5DGND

IC4510L15DGND

IC4510 M1 RXC_2-

IC4510C4DGND

IC4510 AB21 P32

IC4510 P22 PWM2B

IC4510N1DGND

IC4510 F20 AAVDD

IC4510 F23 AUXOUT3R

IC4510 M3 TVDD

IC4510J12DGND

IC4510T16DGND

IC4510AC7DGND

IC4510T10DGNDIC4510L17DGND

IC4510 D6 TVDD

IC4510 D23 AUXOUT1R

IC4510R7DGND

IC4510T7DGND

IC4510M4DGND

IC4510 A5 RXA_C-

IC4510 A4 RXA_0-

IC4510 D3 TVDD

IC4510J20AGND

IC4510M12DGND

IC4510 P1 RXD_C-

IC4510N14DGND

IC4510 B4 RXA_0+

IC4510T15DGND

IC4510 T21 SDIN0

IC4510 AC8 P11

IC4510 AB14 P21

IC4510K10DGND

IC4510J10DGND

IC4510 K9 CVDD

IC4510 AC3 P3

IC4510H14AGND

IC4510 J22 AAVDD

IC4510L9DGND

IC4510 U3 TVDD

IC4510M15DGND

IC4510T17DGND

IC4510L11DGND

IC4510 D8 NC

IC4510 J1 RXC_C-

IC4510 B8 REFN

IC4510 A17 SIF_IN2

IC4510 V4 CEC

IC4510L16DGND IC4510D17AGND

IC4510 F22 AUXOUT3L

IC4510 AB5 P6

IC4510 P4 DDCC_SCL

IC4510 P15 DVDD

IC4510N13DGND

IC4510P8DGND

IC4510 K2 RXC_0+

IC4510 G16 AAVDD

IC4510D4DGND

IC4510K22AGND

IC4510U8DGND

IC4510 B11 SYNC3

IC4510U7DGND

IC4510J17DGND

IC4510 R17 DVDD

IC4510 M2 RXC_2+

IC4510 AA20 NC

IC4510C9AGND

IC4510D19AGND

IC4510 J4 DDCB_SDA

IC4510 G3 TVDD

IC4510T3DGND

IC4510 Y21 NC

IC4510 R10 DVDD

IC4510 M8 CVDD

IC4510C16AGND

IC4510 AB4 P4

IC4510 C6 TVDD

IC4510

M10DGND

IC4510 AC21 P31

IC4510 E1 RXB_0-

IC4510 B18 SIF_REFN

IC4510 AB15 P23

IC4510 N4 NC

IC4510L12DGND

IC4510 D13 HS_IN1

IC4510AA17DGND

IC4510 C7 NC

IC4510 A7 TEST1

IC4510U22DGND

IC4510N10DGND

IC4510 AA21 NC

IC4510 AC15 P22

C0DBGYY00578

IC2008

1

ON/OFF

2

VSS

3

NC

5

VOUT

4

VIN

C0DBGYY00578

IC4511

1

ON/OFF

2

VSS

3

NC

5

VOUT

4

VIN

C0DBGYY00618

IC4513

1

ON/OFF

2

VSS

3

NC

5

VOUT

4

VIN

IC4512

C0CBCAG00039

1

VOUT

2

VSS

3

ON/OFF

4

NC

5

VSS

6

VIN

L4517

J0JYC0000068

L4512

J0JCC0000059

L4516

J0JYC0000068

L4515

J0JYC0000068

L4519

J0JYC0000068

L2032

J0JYC0000068

L4513

J0JCC0000059

L4518

J0JYC0000068

L4514

J0JYC0000068

DVDDIO_3.3V

TVDD_3.3V

DVDD_1.8V

DVDDIO_3.3V

VAVDD_1.8V

CVDD_1.8V

SUB3.3V

PVDD_1.8V

DVDD_1.8V

DVDDIO_3.3V

PVDD_1.8V

AAVDD_3.3V

VAVDD_1.8V

TVDD_3.3V

DVDDIO_3.3V

AAVDD_3.3V

SUB5V

CVDD_1.8V

ADV_SCL

RXB_CP

ADV-DDCD_SCL

RXB_2P

RXD_CN

RXD_1P

AUXIN2L

RXD_2N

G-ADV_XRST

SIF_IN1

AH_DAUDIO

RXC_0P

AH_SRCK0

RXC_CP

RXC_CN

SOY

RXB_1N

ADV-DDCC_SCL

AIN4

RXC_1N

RXC_1P

RXD_0N

VSIN

AUXIN1R

RXB_CN

AIN5

RXB_0P

MUTEB

AIN6

RXB_1P

AH_LRCK0

ARESETB

RXB_0N

RXD_CP

RXD_1N

ADV-DDCA_SCL

RXB_2N

FBIN

SIF_IN2

ADV_CLKOA

AUXIN1L

HSIN

RXC_0N

ADV-DDCB_SCL

AH_IECOUT0

RXD_2P

RXD_0P

AH_DMIX0

AIN9

AUXIN2R

ADV_P27

ADV_VS_FIELD

ADV_P25

ADV_P26

ADV_P3

ADV_P32

HPOUT1R

ADV_P2

ADV_P5

ADV_P30

ADV_P24

ADV_P10

ADV_P4

ADV_HS

ADV_P1

ADV_P33

AUDIOOUT_R

ADV_P31

ADV_P15

ADV_P20

ADV_P7

ADV_P19

PWM3B

AUDIOOUT_L

ADV_P17

ADV_LLC

ADV_P18

RXC_2P

ADV_P14

PWM4B

TV_L

ADV_P35

PWM3A

ADV_P21

ADV_P13

ADV_P29

ADV_P16

TV_R

ADV_P28

SPDIF_OUT

ADV_P23

ADV_P11

HPOUT1L

ADV_DE

ADV_P8

ADV_P0

ADV_P34

PWM4A

ADV_P22

ADV_P6

RXC_2N

PWM_READY

ADV_P9

ADV_P12

ADAV_SCL

ADV-DDCC_SDA

XIRQ3

ADAV_SDA

ADV-DDCD_SDA

ADV-DDCB_SDA

ADV_SDA

R4648

EXB28V330JX

470

R2002

2k

1%

R2020

R4699 100k

R4677

10k

R4623

0

R4674

10k

1%

R4631

499

R4652

47k

R4624 10k

68

R2172

R2190

4.7k

R4698

100k

R4656

2.2k

R4666

47k

R4665

47k

R4620

47k

R4642

47k

R4707

47k

20k

1%

R2019

1M

R2003

H0J245500089

X2010

Digital Sound OUT

ADV_INT

System Clock

EEPROM

Sound Control

Filter

Video Control

Analog Input

HP DET

HDMI Sound OUT

Analog Sound IN

HDMI IN

HDMI Sound Input

CEC

IIC2

AD ref

NC

PowerSupply

Analog Sound OUT

PWM OUT

IIC2

DTV Sound Input

Digital Video OUT

REF No. 4500-4799

ADV

3.3V

1.8V

ADV7496

ADAV4622

ADV

IC4510

222119 20 2524 2623 27

TO 1/21

TO 7/21

TO 6/21

TO 21/21

TO 6/21

TO 2,9/21

TO 4/21

TO 7/21

TO 5/21

TO 18/21

A-BOARD (3/21)

!

49

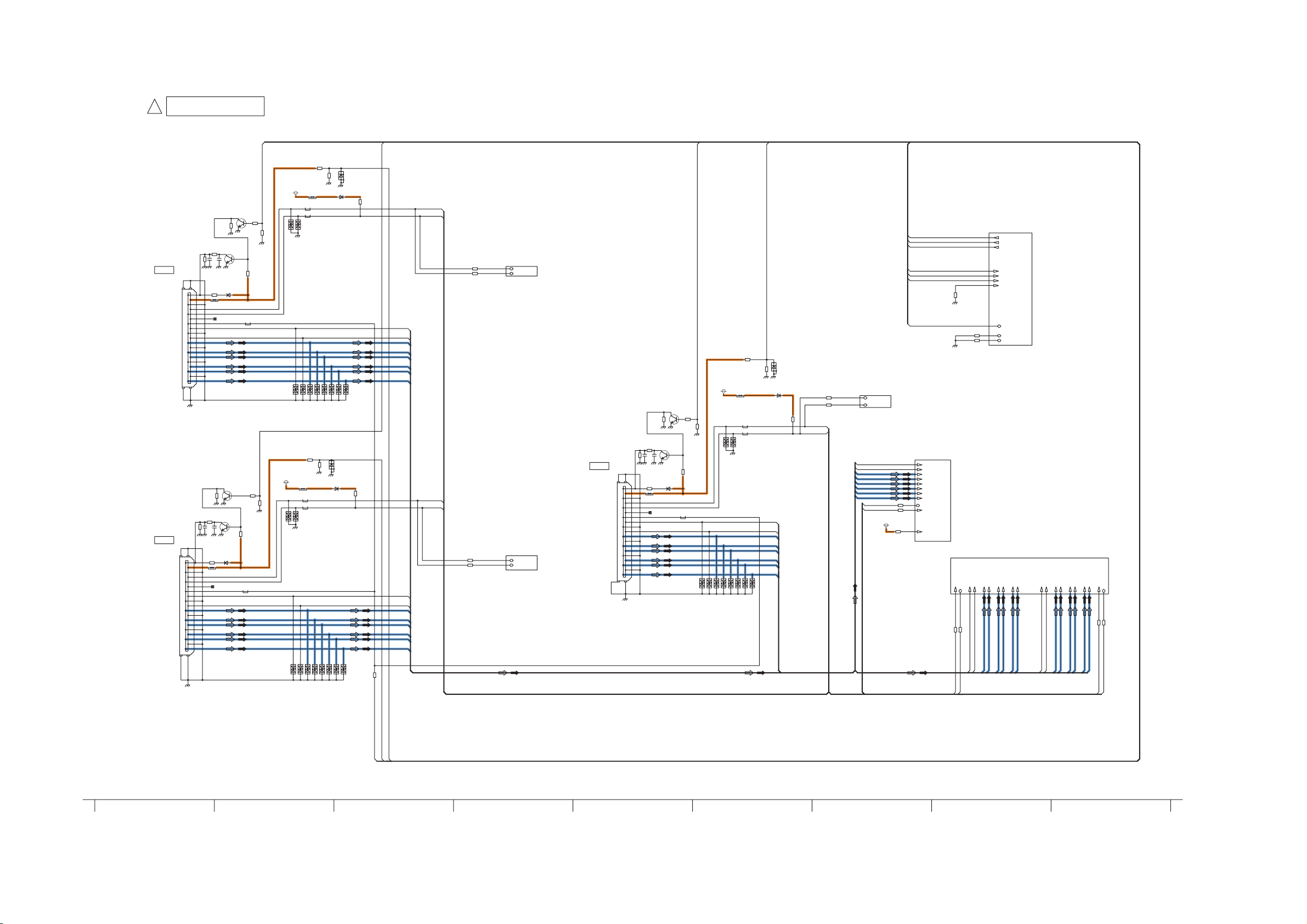

12.10. A-Board (4/21) Schematic Diagram

P

DDCC_SCL

DDCC_SDA

RXC_0P

DDCD_SDA

DDCB_SDA

RXC_0N

RXD_0N

RXD_1P

RXB_CN

RXB_2N

G-HDMI_CEC

RXD_0P

RXB_2P

G-HDMI_5V_DET2

RXD_CP

G-HDMI_5V_DET1

DDCC_SDA

RXD_2P

RXC_2N

RXC_CN

RXB_1N

RXB_CP

DDCB_SCL

RXB_0N

RXD_1N

RXB_0P

RXD_2N

RXB_1P

RXC_CP

DDCB_SDA

RXC_1N

DDCD_SDA

DDCB_SCL

RXC_2P

DDCC_SCL

DDCD_SCL

RXC_1P

RXD_CN

G-HDMI_CEC

G-HPD1

G-HPD3

G-HPD2

G-HPD1

G-HPD3

RXC_CN

RXC_1N

RXC_2N

RXD_CN

RXD_CP

RXD_0N

RXD_0P

RXD_1N

RXD_1P

RXD_2N

RXD_2P

G-HDMI_5V_DET3

G-HDMI_5V_DET1

G-HDMI_5V_DET2

G-HDMI_5V_DET3

RXC_CP

RXC_0N

RXC_0P

RXC_1P

RXC_2P

RXB_CN

RXB_CP

RXB_0N

RXB_0P

RXB_1N

RXB_1P

RXB_2N

RXB_2P

C4503

0.1u

16V

C4500

0.1u

16V

C4502

0.1u

16V

*C4703

0.1u

16V

*C4702

0.1u

16V

C4501

0.1u

16V

*D4615

MA2J11100L

*D4575

MA2J11100L

D4525

MA2J11100L

D4542

MA2J11100L

D4526

MA2J11100L

D4541

MA2J11100L

D4512

EZAEG2A50AX

*D4511

EZAEG2A50AX

*D4505

EZAEG2A50AX

D4593

EZAEG2A50AX

D4591

EZAEG2A50AX

D4592

EZAEG2A50AX

D4587

EZAEG2A50AX

*D4574

EZAEG2A50AX

D4589

EZAEG2A50AX

D4588

EZAEG2A50AX

D4599

EZAEG2A50AX

D4598

EZAEG2A50AX

D4602

EZAEG2A50AX

D4595

EZAEG2A50AX

D4596

EZAEG2A50AX

D4601

EZAEG2A50AX

D4597

EZAEG2A50AX

D4600

EZAEG2A50AX

D4518

EZAEG2A50AX

*D4509

EZAEG2A50AX

*D4573

EZAEG2A50AX

D4517

EZAEG2A50AX

*D4503

EZAEG2A50AX

D4520

EZAEG2A50AX

*D4516

EZAEG2A50AX

*D4523

EZAEG2A50AX

*D4507

EZAEG2A50AX

D4590

EZAEG2A50AX

*D4521

EZAEG2A50AX

D4594

EZAEG2A50AX

*D4617

B0BC5R6A0275

D4513

B0BC5R6A0275

D4611 B0BC5R6A0275

JK4500

K1FY119D0006

1

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

*JK4502

K1FY119E0005

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

JK4501

K1FY119D0006

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

*L4523

J0JYC0000068

L4507 J0JYC0000068

*L4521

J0JYC0000068

L4502

J0JYC0000068

L4504

J0JYC0000068

L4503

J0JYC0000068

L4506

J0JYC0000068

L4505

J0JYC0000068

*L4522

J0JYC0000068

STB5V

DVDDIO_3.3V

STB5V

R4671

*R4746

VJUMP1608-P

*L4524

VJUMP1608-P

R4667

L4500

VJUMP1608-P

L4501

VJUMP1608-P

G-HPD2

G-HPD1

G-HPD3

RXC_1N

RXB_CN

RXD_1N

ADV-DDCA_SCL

RXD_1P

ADV-DDCC_SCL

ADV-DDCD_SCL

G-HDMI_5V_DET1

RXB_CP

RXC_2P

G-HDMI_5V_DET2

RXD_2P

RXC_0N

RXC_CN

RXB_2P

RXC_1P

RXC_2N

ADV-DDCB_SCL

RXD_0N

RXD_CN

RXB_2N

RXB_0N

RXB_1N

G-HDMI_5V_DET3

RXB_1P

RXC_0P

RXB_0P

RXD_2N

RXC_CP

G-HDMI_5V_DET0

RXD_CP

RXD_0P

G-HDMI_CEC

ADV-DDCB_SDA

G-DDCSCL0

G-DDCSCL3

ADV-DDCC_SDA

G-DDCSCL1

G-DDCSCL2

ADV-DDCD_SDA

G-DDCSDA3

G-DDCSDA1

G-DDCSDA0

G-DDCSDA2

*Q4520

B1ABCF000231

Q4501

B1ABCF000231

Q4500

B1ABCF000231

*Q4535

B1ABCF000231

Q4534

B1ABCF000231

Q4533

B1ABCF000231

R4524

10k

*R4728

10k

*R4739

10k

*R4729

33

R4504

1k

R4531

10k

R4641

47k

*R4740

47k

R4538

47k

*R4733

10k

R4533

47k

R4502

33

R4616

0

R4505

1k

R4532

47k

*R4742

0

R4543

0

R4613

0

R4539

0

R4614

0

*R4735

10k

*R4734

1k

R4541

0

R4542

0

R4528

10k

*R4738

47k

R4305

47k

R4507

47k

*R4732

47k

R4700

47k

R4540

47k

R4530

10k

R4503

33

*R4604

0

R4525

10k

R4501

10k

R4534

47k

R4552

22

R4306

47k

R4529 10k

*R4736

47k

R4500

10k

R4672

47k

R4615

0

*R4743

0

R4506

47k

R4607

0

D1G

D2G

CEC

CLK+

D2-

D1G

D0-

SDA

D0G

+5V

N.C.

D2+

D1-

N.C.

DDCG

SDA

D1+

D0+

CLK-

CLKG

CLK-

D0-

D0+

DDCG

SDA

DDCG

SCL

+5V

D1+

N.C.

D1G

D2-

SCL

CEC

CLK+

HDMI3

D2G

D2-

D2+

HDMI1

CEC

D1-

HPDT

D1+

D0+

D1-

D0-

D0G

HDMI2

HPDT

CLKG

D2+

CLK+

+5V

HPDT

CLK-

D0G

30 31 32 36

28

33 34 3529

TO 3/21

TO 2/21

A-BOARD (4/21)

!

REF No. 4500-4799

ADV_V

50

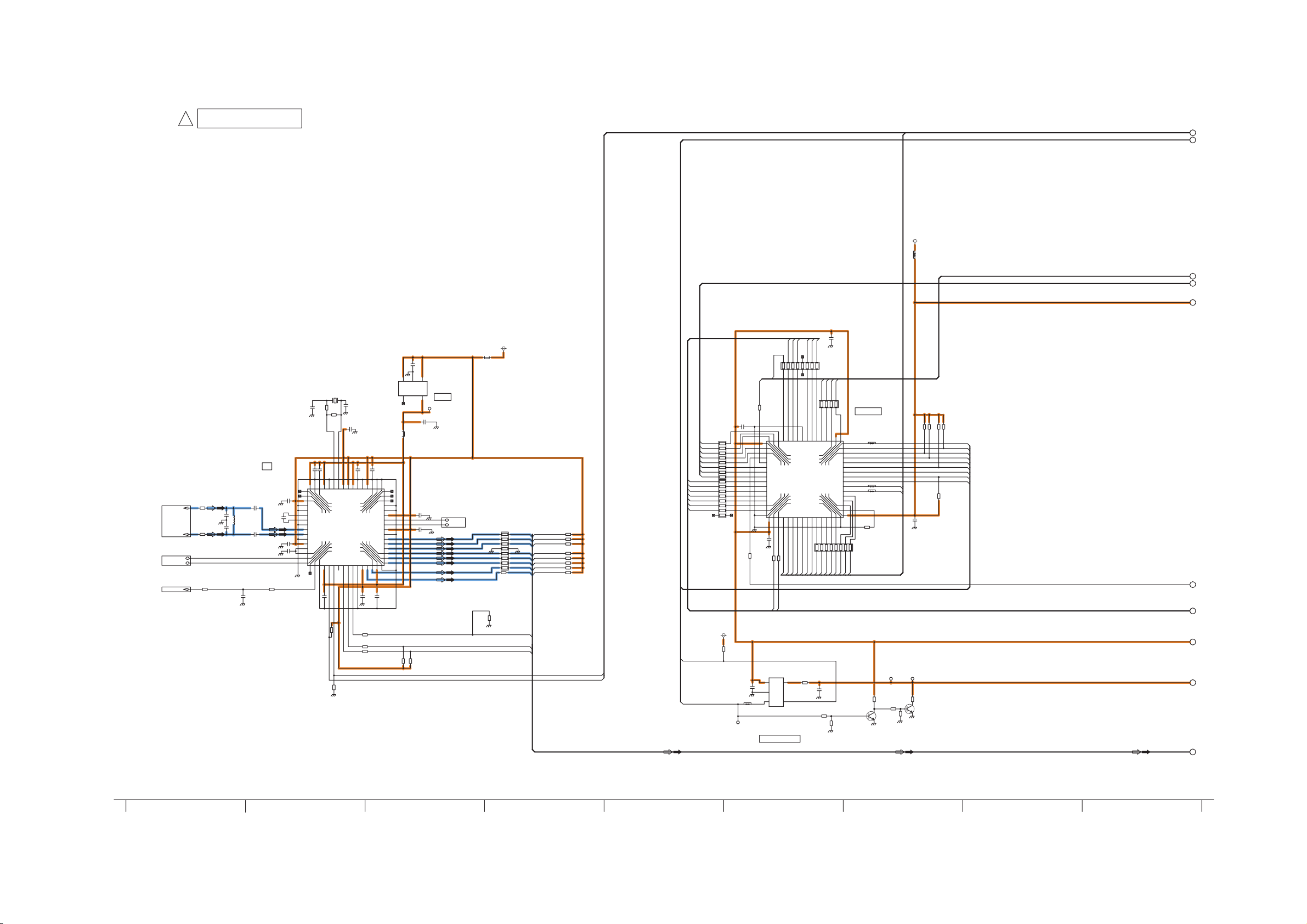

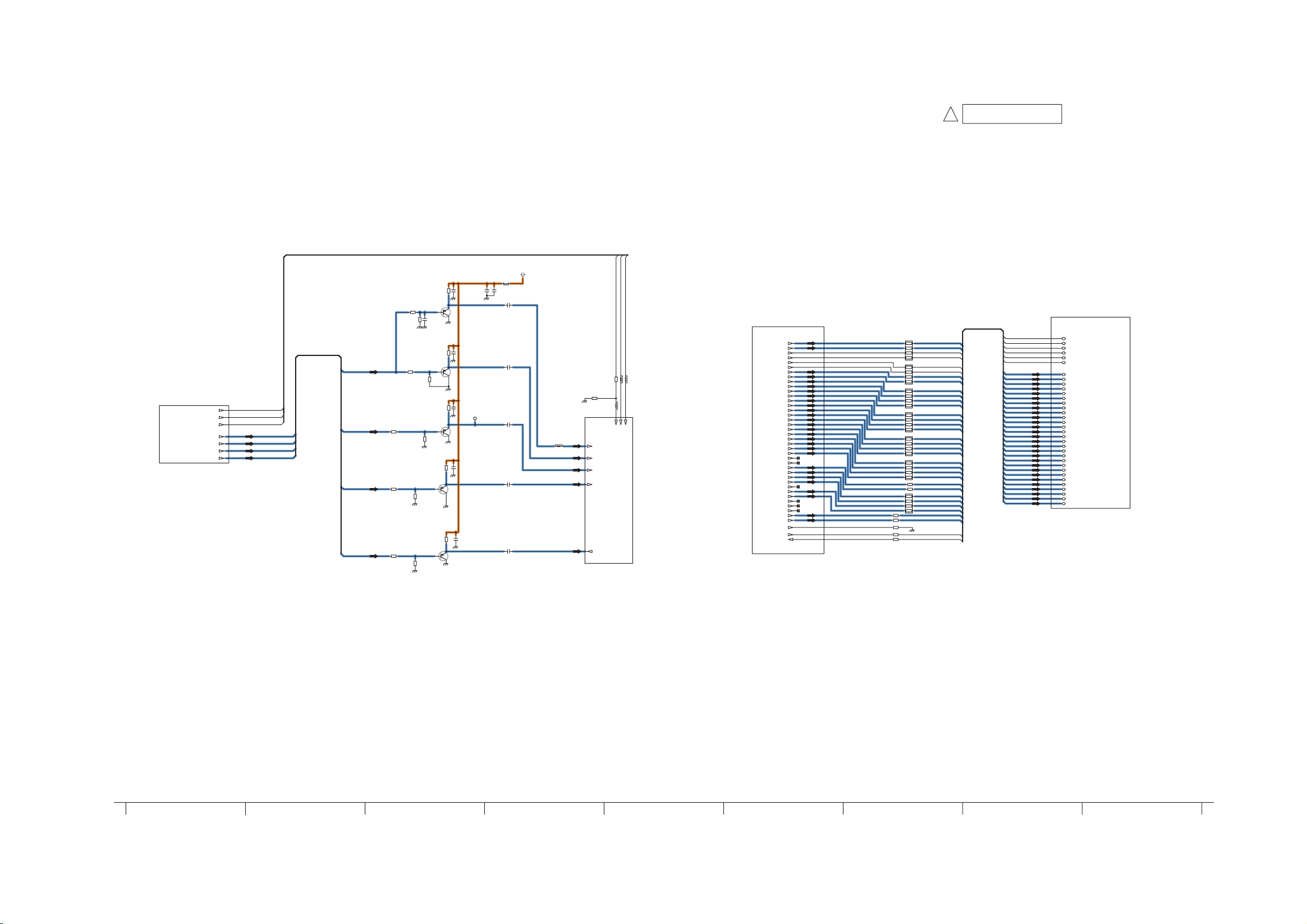

12.11. A-Boar d (5/21) Schematic Diagram

+

S

RGB_CVBS

PC_VS

AVSW_R027PIN_FBOUT/TDET10

PC_HS

MAIN_PB/C

MAIN_PR

RGB_CVBS

MAIN_PB/C

MAIN_Y/CVBS

MAIN_PR

AVSW_R027PIN_FBOUT/TDET10

VI1HSYNC

VI1P29

VI1P3

VI1P26

VI1P9

VI1P24

VI1P19

VI1P0

VI1VSYNC

VI1P15

VI1P26

VI1P25

VI1P28

VI1P4

VI1P16

VI1P21

VI1P6

VI1CKOUT

VI1P5

VI1ENB

VI1P19

VI1CLK

VI1P17

VI1P10

VI1P18

VI1CLK2

VI1P16

VI1P17

VI1P11

VI1P8

VI1P28

VI1P7

VI1P18

VI1P24

VI1P10

ADV_P4

VI1P27

VI1P11

VI1P15

VI1P9

VI1P25

VI1P29

VI1P27

VI1P8

VI1CLKVI1CLK2

VI1P13

VI1P22

VI1VSYNC

VI1P6

VI1P14

VI1ENB

VI1P12

VI1HSYNC

VI1P2

VI1P3

VI1P5

VI1P7

VI1P13

VI1P22

VI1P2

VI1P12

VI1P23

VI1P14

VI1P4

PC_HS

PC_VS

VI1P23

VI1P21

VI1P0

VI1CKOUT

ADV_P5

*C4567

16V

0.1u

C4552

16V

0.1u

C4553

50V

1000p

*C4537

16V

0.1u

C4551

16V

0.1u

C4535 16V

0.1u

C4625

16V

0.1u

C4549

16V

0.1u

C4548

16V

0.1u

C4533

50V 68p

C4624

16V

0.1u

C4534

16V

0.1u

C4554 16V 47u

L4511

J0JYC0000068

SUB9V

R4610

R4673

R4629

R4628

TP4512

ADV_P3

AVSW_R027PIN_FBOUT/TDET10

ADV_P25

ADV_P28

ADV_P10

ADV_P33

MAIN_PB/C

ADV_P1

ADV_P4

ADV_DE

ADV_P9

ADV_P7

ADV_P18

ADV_P12

PC_HS

ADV_P32

ADV_P19

ADV_VS_FIELD

ADV_P34

ADV_P35

ADV_P23

ADV_P11

ADV_P31

PC_VS

ADV_P16

ADV_P20

ADV_P30

ADV_P8

RGB_CVBS ADV_P24

MAIN_PR

AIN5

ADV_P15

ADV_P0

ADV_HS

ADV_P14

ADV_P26

ADV_P5

ADV_P27

MAIN_Y/CVBS

ADV_P21

ADV_P13

ADV_P6

ADV_P2

ADV_LLC

ADV_P22

ADV_P17

ADV_P29

FBIN

VSIN

AIN4

AIN6

SOY

ADV_CLKOA

HSIN

AIN9

VI1CKOUT

VI1VSYNC

VI1P13

VI1P24

VI1P28

VI1P25

VI1HSYNC

VI1P10

VI1P29

VI1P16

VI1P23

VI1P26

VI1P15

VI1P7

VI1P4

VI1P6

VI1P2

VI1P17

VI1P27

VI1ENB

VI1P5

VI1P14

VI1P22

VI1P11

VI1P19

VI1P21

VI1CLK

VI1P18

VI1P9

VI1P0

VI1P3

VI1P8

VI1P12

VI1CLK2

Q4517

2SB0709ASL

*Q4519

2SB0709ASL

Q4516

2SB0709ASL

Q4515

2SB0709ASL

Q4514

2SB0709ASL

R4640

68

EXB28V680JX

R4639

68

EXB28V680JX

R4678

68

EXB28V680JX

R4679

68

EXB28V680JX

R4635

68

EXB28V680JX

R4649

68

EXB28V680JX

R4799

68

EXB28V680JX

1%

R4634

220

1%

*R4605

2.2k

1%

R4588

806

1%

R4627

220

1%

R4592

806

R4646

68

R4601

1k

1%

R4626

220

R4609

1.2k

1%

R4587 604

1%

R4589

806

R4636

68

R4637

47k

R4651

68

R4638

68

R4597

1k

R4650

68

1%

*R4593

2.2k

*R4608

1k

R4645

68

R4622

1k

R4596

1k

1%

*R4664

604

R4598

1k

PR

PB/C

YIN

PR

RGB_CVBS

YIN

Y

SOY

PB/C

FOR ADV7470

to AVC(PL2P)

From ADV747

REF No. 4500-4799

ADV_V

RGB_FB

4438 39 40 41 4537 4342

TO 3/21

TO 18/21

TO 9/21

A-BOARD (5/21)

!

51

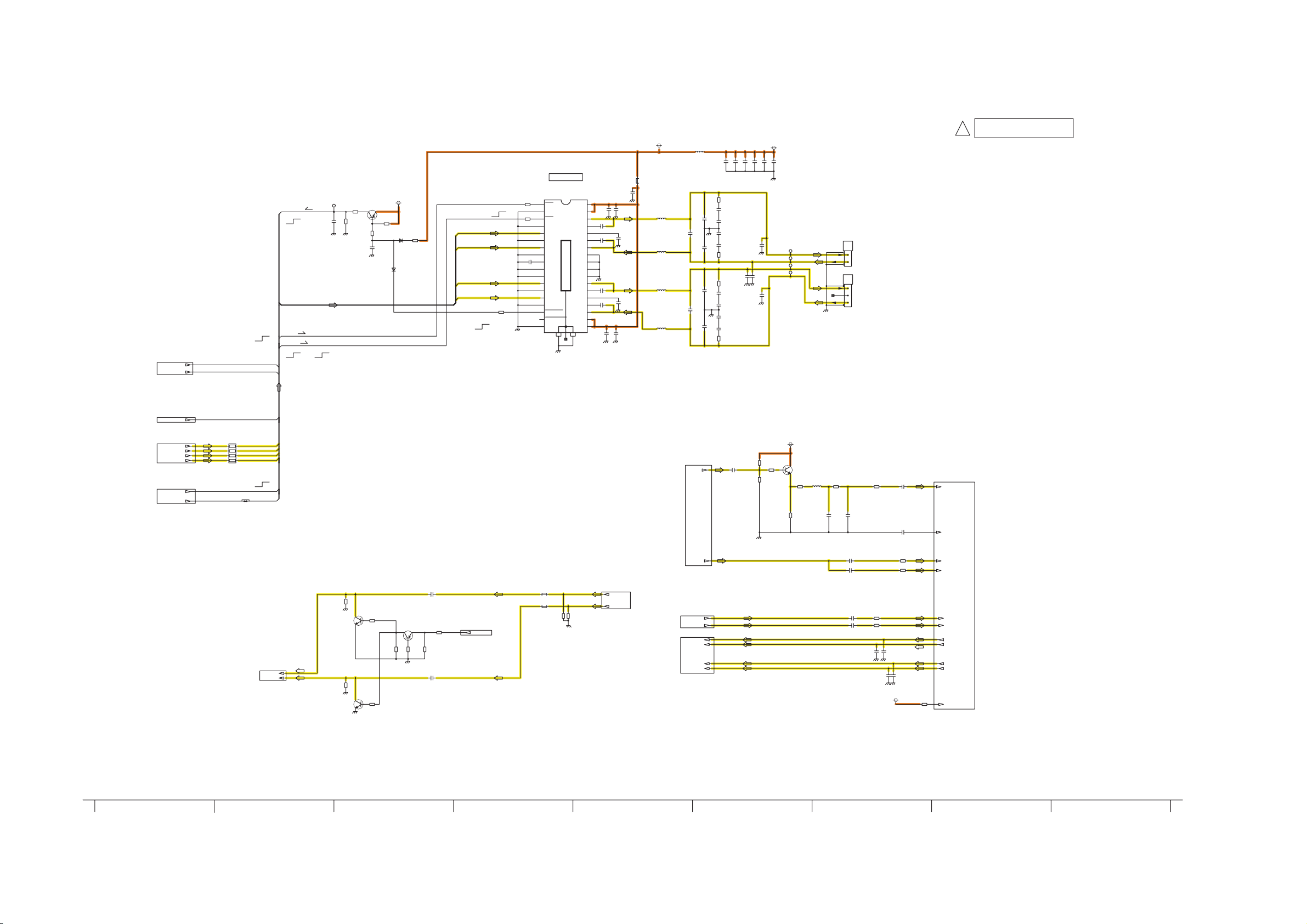

12.12. A-Board (6/21) Schematic Diagram

+

Thermal Pad

S

PWM_WO_R-

PWM_WO_L+

AMP_MUTE

PWM_READY

PWM_WO_R+

PWM_WO_L-

G-SOUND_SOS

PWM_WO_R+

PWM_WO_L+

PWM_WO_L-

G-AUDIO_XRST

G-SOUND_SOS

G-AUDIO_XRST

PWM_READY

PWM_WO_R-

C2092

50V 22p

C2091

50V 10p

C2263 10u

10V

C2128

16V

0.01u

C2122

16V

0.01u

*C2261

10u

10V

C2120

56p

50V

*C2262 10u

10V

C2129

16V

0.01u

C2264 10u

10V

C2123 16V

0.01u

C2096

16V

0.1u

C2121

56p

50V

C2359

50V

1000p

C2385

50V

1000p

C2319

0.1u

50V

C2321

0.1u

50V

C2325

50V

0.47u

C2381 50V

0.022u

C2390

25V 1u

C2375

50V

0.022u

C2377

50V

0.022u

C2309

25V 1u

C2305 25V 1u

C2333

25V

0.1u

C2389

50V

1000p

C2302

16V

0.1u

C2331

50V

0.47u

C2345 50V

0.022u

C2347 50V

0.022u

C2379 50V

0.022u

C2387 50V 1000p

C2353

50V

1000p

C2323

0.1u

50V

C2337 50V

0.022u

C2383

50V

1000p

C2339 50V

0.022u

C2343

25V

0.1u

C2341

25V

0.1u

C2313

1u

10V

C2303

25V

1u

C2317

0.1u

50V

C2301

16V

0.1u

C2335 25V

0.1u

C2407 25V

10u

C2412

25V 1u

C2409

50V

1000p

C2408

25V 1u

C2411

25V

1u

C2410

25V 1u

C2098

6.3V

220u

C2361

25V

470u

C2099

6.3V

220u

D2014

MA2J11100L

D2017

MA2J11100L

C1AB00002875

IC2301

1

STBY

2

NC1

3

MUTE

4

NC2

5

PWM_A1

6

NC3

7

PWM_B1

8

NC4

9

VREG5

10

GND

11

NC5

12

PWM_B2

13

NC6

14

PWM_A2

15

NC7

16

NOD_THERM

17

NOD_OUTSHDN

18

NC8

19

PVD2

20

PVD2

21

OUT_CH2_P

22

BOOT_CH2_P

23

VDDA2

24

BOOT_CH2_N

25

OUT_CH2_N

26

PGND2

27

PGND2

28

PGND1

29

PGND1

30

OUT_CH1_N

31

BOOT_CH1_N

32

VDDA1

33

BOOT_CH1_P

34

OUT_CH1_P

35

PVD1

36

PVD1

A12

1

2

A11

1

2

3

L2018

J0JHC0000042

R2063

J0JCC0000287

R2064

J0JCC0000287

L2023

G1C3R0ZA0156

L2014

G1C220MA0291

L2001

G1C150KA0038

L2012

G1C220MA0291

L2010

G1C220MA0291

L2016

G1C220MA0291

SOUND15V

DVDDIO_3.3V

S_15V

SUB5V

SUB9V

R2126

TP2017

TP2010

TP2014

TP2012

TP2008

TV_R

AMP_MUTE

TV_L

PWM3B

AV_L

HPOUT1R

G-SOUND_SOS

PWM3A

AUDIOOUT_R

ARESETB

SIF

PWM_READY

HPOUT1L

AUDIOOUT_L

HP_MUTE

AM

G-AUDIO_XRST

AV_R

PWM4B

PWM4A

HP_ROUT

MUTEB

AUXIN1R

SIF_IN1

AUXIN2L

AUXIN1L

TV_R

SIF_IN2

TV_L

HP_LOUT

AUDIOOUT_L

AUDIOOUT_R

AUXIN2R

Q2063

2SD0601ASL

Q2064

2SD0601ASL

Q2001

B1ABCF000231

Q2065

2SB0709ASL

Q2022

B1ADCE000022

R2316

22

EXB28V220JX

R2115

2.2k

R2127

3.3

R2018

10k

R2123

3.3

R2006

470

R2325

0

R2121

3.3

R2114

2.2k

R2122

100

R2142

2.2k

R2111

100

R2124

10k

R2093

10k

R2015

10k

28k

1%

R2048

R2125

3.3

R2092

10k

R2016

10k

R2141 1k

28k

1%

R2050

R2017

10k

R2008

470

28k

1%

R2051

R2119

1M

R2110

100

10k

R2023

28k

1%

R2047

R2007

220

R2132

470

R2129

10

R2118

470

R2120 47k

R2137

10

R2032

560

<< TV L

<< Monitor R

TO 7/21

>> MainHP R

<< Monitor L

>> MainHP L

<< TV R

OPERATE

RESET

OPERATE

MUTE

SOS

PWM_READY

MUTE

PWM_READY

L-

R+

To SOS

L+

RESET

OPERATE

PWM_READY

SOS

OPERATE

MUTE

R-

ADV_A

REF No. 2000-2499

NC

TO 10/21

TO 11/21

49 5448 51 5347 50 5246

TO 3/21

TO 9/21

TO 8/21

TO 6/21

TO 2/21

TO 11/21

AUDIO AMP

TO SPEAKER

!

A-BOARD (6/21)

52

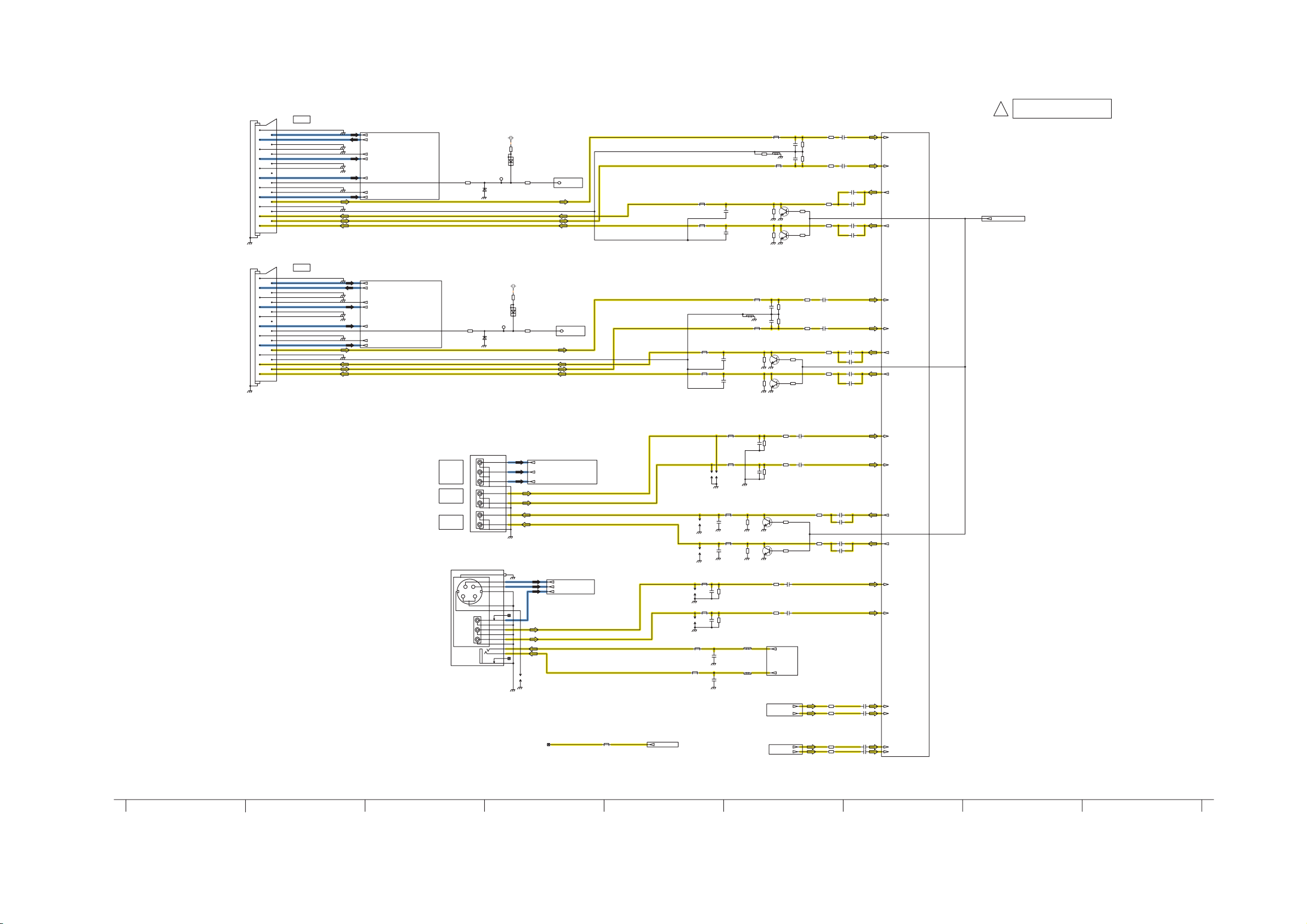

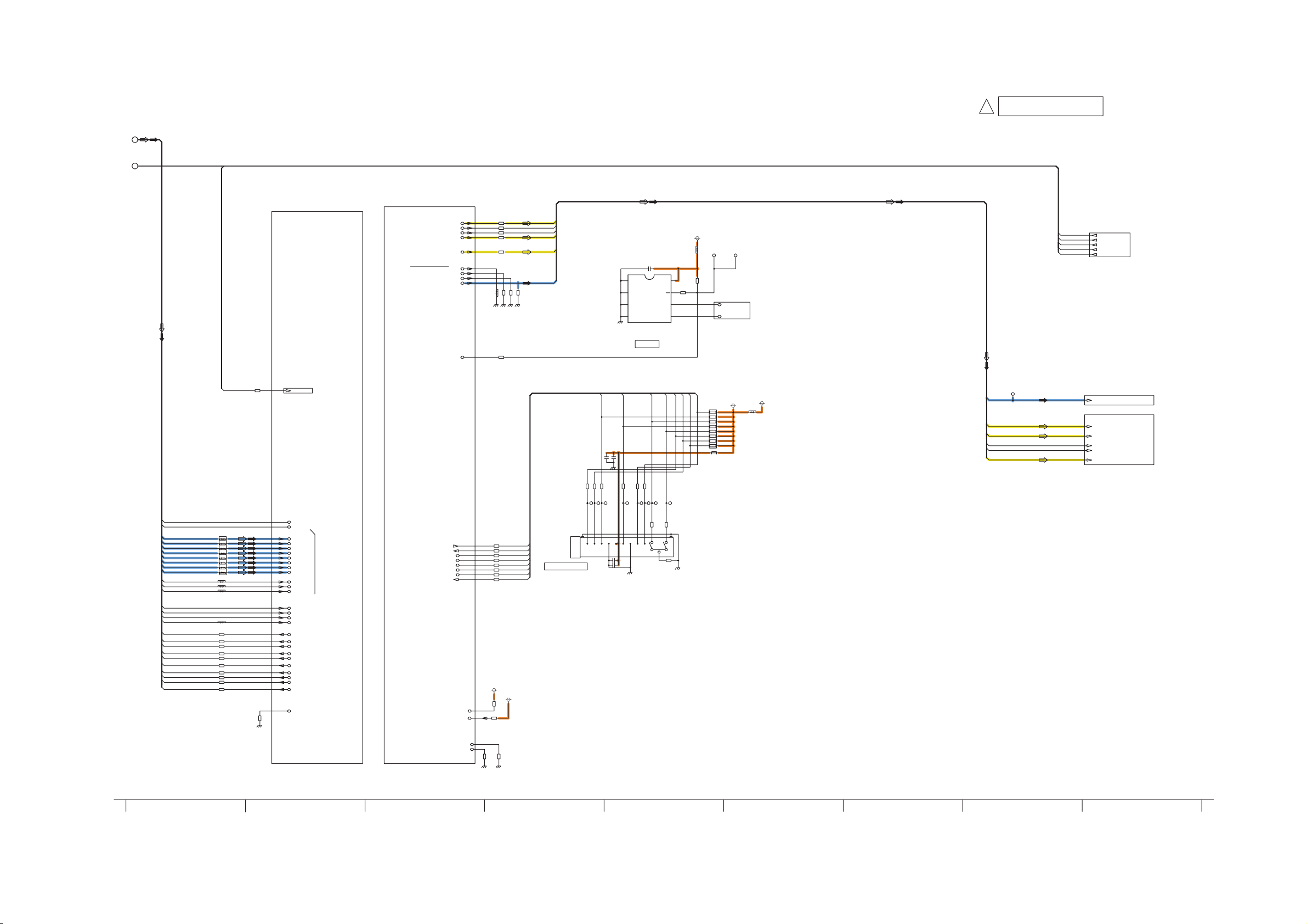

12.13.A-Board (7/21) Schematic Diagram

AUDIO OUT

AUDIO IN

L

R

PR

L

R

Y

PB

SHIELD

YC

V

R

L

S

HP_ROUT

HP_LOUT

C3099

560p

50V

C3007

50V

560p

*C3030

10u

10V

C3116

10u

10V

C3048

10V

1u

C3014

50V

560p

C3043

10V

1u

C3024

10V 1u

C3041 10V

1u

*C3009

50V

560p

C3022

10V 1u

*C3012

50V 560p

*C3020

10u

10V

C3257

560p

50V

C3114

10u

10V

C3115

10u

10V

C3047

10V

1u

*C3028

10u

10V

*C3027

10u

10V

C3010

50V

560p

C3011

50V

560p

*C3005

50V 560p

*C3025

10V

1u

C3117

10u

10V

*C3029

10u

10V

*C3019

10u

10V

C3013

50V 560p

C3002

50V 560p

C3049

10V

1u

C3044

10V

1u

*C3018

10u

10V

*C3026

10V

1u

C3003 50V 560p

C3046

10V

1u

*C3004

50V 560p

C3008

50V

560p

C3039 10V

1u

*C3021

10u

10V

*D3339

MA3X704A0L

*D3048

MA3X704A0L

*D3014

MAZ81400ML

*D3013

MAZ81400ML

*JK3100A

K2HA7YYA0004

Y

PB

G

L

R

G

R

G

L

PR

*JK3107A K4AK17B00004

1

2

3

4

C

Y

G

CY-G

G

V-SW

V

V-G

L

L-G

R

R-G

*L3004

J0JCC0000287

*L3010

J0JCC0000287

L3007

J0JCC0000287

L3003

J0JCC0000287

L3035

J0JCC0000364

L3002

J0JCC0000287

L3014

J0JCC0000287

L3015

J0JCC0000287

*L3005

J0JCC0000287

*L3009

J0JCC0000287

L3030

J0JCC0000287

L3006

J0JCC0000287

*L3011

J0JCC0000287

*L3008

J0JCC0000287

L3029

J0JCC0000287

L3034

J0JCC0000364

R3030

J0JCC0000287

STB5V

JS3001

R3107

JS3000

R3105

TP3014

TP3015

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

MONITOROUT_MUTE

E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV1_VOUT(19P)/A_VOUT__TERMINAL

E_YPBPR_Y/A_AV1C_Y__TERMINAL

SPDIF_OUT

E_AV1_SLOW(_8P)_TERMINAL

E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL

E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL

AVSW_R054PIN_L2OUT

E_AV2_BLUE(_7PIN)_TERMINAL

AVSW_R056PIN_L1OUT

E_YPBPR_PB/A_AV1C_PB__TERMINAL

SIDE_Y_TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

AVSW_R051PIN_R3OUT

HP_LOUT

E_AV2_SLOW(_8P)_TERMINAL

SIDE_VIN_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV1_FB(16P)_TERMINAL

AUDIOOUT_R

HP_ROUT

AVSW_R055PIN_R1OUT

E_AV2_FB(16P)_TERMINAL

SIDE_C_TERMINAL

AUDIOOUT_L

TV_L

E_AV1_VIN(20P)/A_AV2_V__TERMINAL

AVSW_R053PIN_R2OUT

E_AV2_RED/C(15PIN)_TERMINAL

AVSW_R052PIN_L3OUT

TV_R

E_AV2_VOUT(19P)_TERMINAL

AVSW_R061PIN_R2IN

AVSW_R062PIN_L3IN

AVSW_R071PIN_R7IN

AVSW_R060PIN_L2IN

AVSW_R070PIN_L7IN

AVSW_R069PIN_R6IN

AVSW_R063PIN_R3IN

AVSW_R058PIN_L1IN

AVSW_R064PIN_L4IN

AVSW_R059PIN_R1IN

AVSW_R068PIN_L6IN

AVSW_R065PIN_R4IN

G-QLINK1

G-QLINK2

*Q3002

B1ABCF000231

*Q3005

B1ABCF000231

Q3001

B1ABCF000231

*Q3003

B1ABCF000231

*Q3004

B1ABCF000231

Q3000

B1ABCF000231

*R3029

330

R3050

220

*R3009

2.2k

*R3042

330

R3045

220

R3047

220

R3001 22k

R3034

220

*R3207

22

*R3108

27k

R3256

0

R3051

220

R3003

22k

*R3007

100k

R3120

330

R3308 22k

R3052

220

*R3011

100k

*R3106

27k

R3019

2.2k

R3048

220

R3024

100k

R3033

220

R3004 22k

R3049

220

R3002

22k

*R3038

220

R3000

22k

R3043

220

R3021

2.2k

*R3010

100k

*R3041

330

*R3037

220

R3005

22k

R3309 22k

*R3013

2.2k

*R3006

100k

R3025

100k

*R3028

330

*R3008

2.2k

R3146

330

*R3012

2.2k

*R3089

68

*R3153

68

*R3206

22

*JK3003A

K1FY121A0008

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

*JK3002A

K1FY121A0008

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

C3056

25V

0.033u

C3057

25V

0.033u

<

QLINK_AV2

QLINK_AV1

L IN

AUDIOOUT_R

R IN

AUDIOOUT_L

TV R OUT

R IN

TV VIDEO OUT

GND(FB)

VIDEO IN

AV2

FB IN

IN

GND(PLUG)

YPBPR

FB IN

GND(VIDEO)

GREEN IN

GND(BLUE)

GREEN IN

AV2 SLOW

VIDEO OUT

GND(AUDIO)

GND(BLUE)

AUDIO

Chroma/RED in

GND(AUDIO)

BLUE IN

TV L OUT

AV1

R IN

GND(FB)

NC

AV1 SLOW

NC

AUDIO

L IN

TV L OUT

GND(VIDEO IN)

OUT

VIDEO IN

GND(GREEN)

GND(RED/C)

GND(RED)

L IN

RED IN

GND(VIDEO IN)

GND(GREEN)

GND(PLUG)

TV R OUT

Q-LINK

BLUE IN

AVSW

REF No. 3000-3399

TO 11/21

6357 60 6256 59 6155 58

TO 3/21

TO 6/21

TO 9/21

TO 2/21

TO 8/21

!

A-BOARD (7/21)

TO 8/21

53

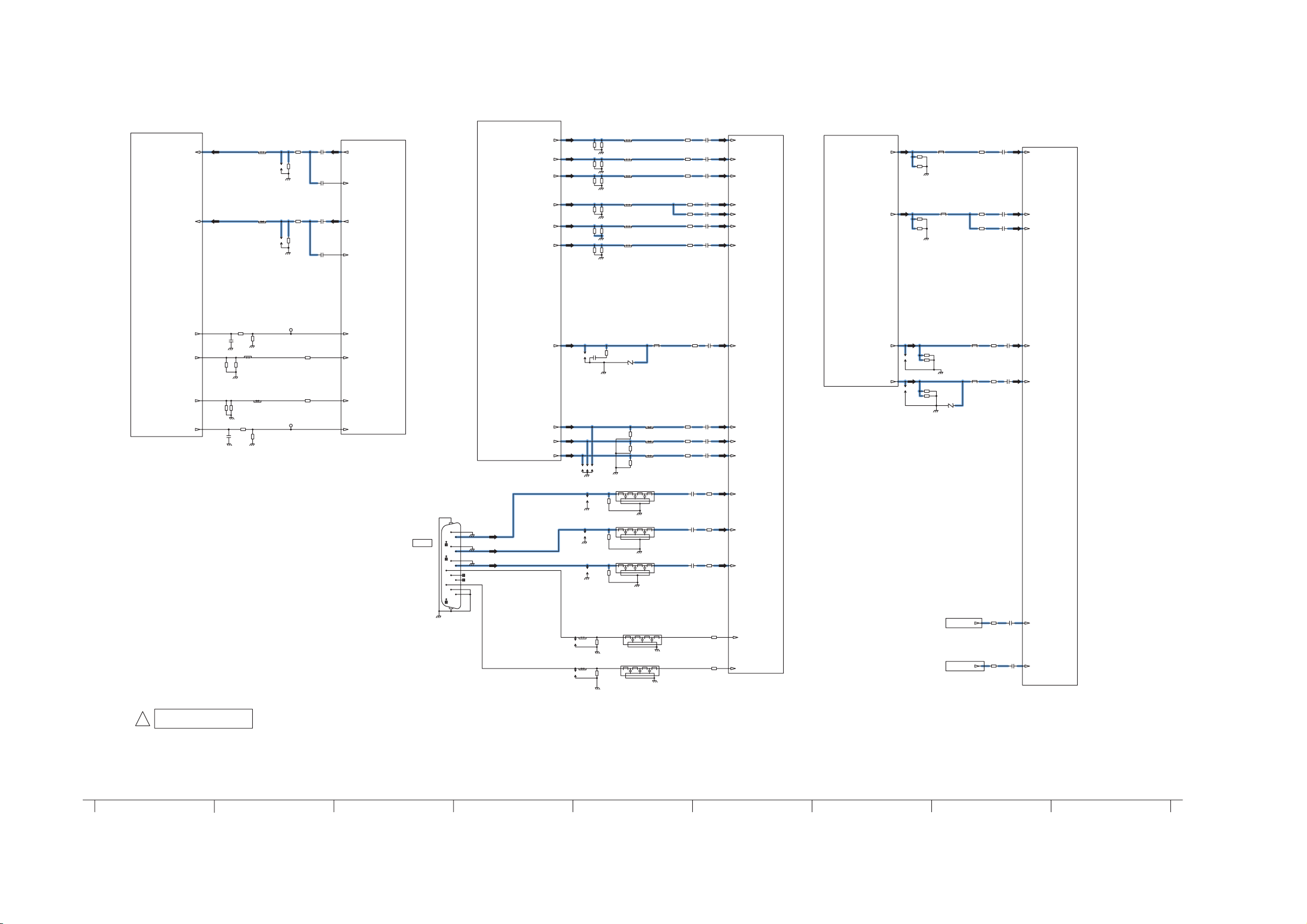

12.14. A-Board (8/21) Schematic Diagram

+

S

E_AV1_FB

E_AV2_FB

C3071

10V

10u

*C3107 10V

10u

*C3109 10V

10u

C3072

16V

0.1u

C3144

10V

10u

*C3065

50V

1000p

*C3085

10V

10u

*C3070

10V

10u

*C3075

10V 1u

*C3074

10V

10u

*C3077 16V

0.1u

*C3084

10V

10u

C3091

10V

10u

C3073

10V

10u

C3092

10V

10u

*C3078

10V

10u

C3083

10V 10u

*C3087

10V

10u

*C3089

10V

10u

*C3108 10V

10u

*C3086

10V

10u

C3090

10V

10u

*C3064

50V

1000p

*C3088

10V

10u

*C3102

100u

10V

*C3097

10V

100u

C3095

10V 100u

C3103

100u

10V

*D3054

EZJP0V080GA

*D3201

EZJP0V080GA

*FL3003

J0HABB000004

1

2

3

4

*FL3004

J0HABB000004

1

2

3

4

*FL3002 J0HABB000003

1

2

3

4

*FL3005

J0HABB000004

1

2

3

4

*FL3001 J0HABB000003

1

2

3

4

*JK3001

K1FY115B0021

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

L3017

J0JCC0000287

*L3027

J0JCC0000287

L3018

J0JCC0000287

*L3026

J0JCC0000287

L3028

J0JCC0000287

JS3010

JS3011

JS3007

JS3008

JS3018

JS3015

JS3016

R3228

JS3012

JS3020

JS3014

R3229

JS3019

JS3009

JS3013

TP3023

TP3022

SIDE_C_TERMINAL

E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL

E_AV1_VIN(20P)/A_AV2_V__TERMINAL

MVDACO3

E_AV2_FB(16P)_TERMINAL

E_AV1_SLOW(_8P)_TERMINAL

E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_AV2_RED/C(15PIN)_TERMINAL

AVSW_R038PIN_Y/Y+C/CVBSOUT4

E_AV2_SLOW(_8P)_TERMINAL

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

E_AV2_BLUE(_7PIN)_TERMINAL

SIDE_Y_TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV1_FB(16P)_TERMINAL

AVSW_R044PIN_CVBS/Y+COUT3

E_YPBPR_Y/A_AV1C_Y__TERMINAL

SIDE_VIN_TERMINAL

MAIN_RF_CVBS

AVSW_R078PIN_FBIN2/O2

AVSW_R005PIN_CVBSIN4

AVSW_R087PIN_PBIN2/B3

E_AV2_VOUT(19P)_TERMINAL

AVSW_R003PIN_RIN

AVSW_R013PIN_G2/YIN2

AVSW_R001PIN_GIN

AVSW_R002PIN_HDIN

AVSW_R037PIN_SAGCVBSOUT4

AVSW_R014PIN_S2DET2

AVSW_R081PIN_CVBSIN5

AVSW_R020PIN_S2DET1

AVSW_R021PIN_B1/CIN1

AVSW_R095PIN_CYIN1

E_AV1_VOUT(19P)/A_VOUT__TERMINAL AVSW_R079PIN_CVBSIN6

AVSW_R093PIN_PBIN1

AVSW_R083PIN_YIN4

AVSW_R043PIN_SAGCVBSOUT3

AVSW_R015PIN_B2/CIN2

AVSW_R017PIN_CVBSIN1

AVSW_R091PIN_PRIN2/R3

AVSW_R023PIN_CVBSIN2

AVSW_R085PIN_CIN4

AVSW_R100PIN_VDIN

AVSW_R089PIN_CYIN2/G3

AVSW_R076PIN_FBIN/O1

AVSW_R019PIN_G1/YIN1

AVSW_R099PIN_BIN

AVSW_R011PIN_R2/CIN3

AVSW_R097PIN_PRIN1

*R3133

82

1%

*R3083

150

1%

*R3198

150

*R3174

100k

*R3123

220

*R3245

220

1%

*R3213

150

*R3225

68

R3128

220

1%

*R3102

150

1%

*R3205

150

1%

*R3172

75

1%

*R3232

75

*R3132

82

*R3189

68

1%

*R3230

75

*R3140

220

*R3139

220

*R3138

220

1%

*R3187

150

1%

*R3186

150

1%

*R3077

150

1%

*R3204

150

*R3143

68

1%

*R3075

150

1%

*R3076

150

1%

*R3182

13k

1%

*R3094

13k

1%

*R3086

75

1%

*R3085

75

1%

*R3212

150

*R3134

82

1%

*R3073

150

1%

*R3098

150

1%

*R3072

150

*R3136

220

*R3190

68

1%

*R3234

75

R3116

220

1%

*R3091

21.5k

*R3119

220

*R3150

68

*R3121

75

1%

*R3074

150

1%

*R3087

150

*R3191

68

1%

*R3081

150

R3169

100k

*R3137

220

*R3223

68

1%

*R3104

150

R3118

220

*R3115

220

1%

*R3082

150

1%

R3084

75

1%

*R3097

150

R3240

220

1%

R3167

75

1%

*R3079

150

1%

*R3092

21.5k

1%

*R3193

150

*R3135

220

R3117

220

1%

*R3188

150

E_YPbPr

*R3226

4.7k

*R3227

4.7k

E_AV1_VOUT

E_AV3

E_AV1

B

E_AV3

E_AV2_VOUT

G

E_AV2

E_AV1

E_AV2

R

E_AV2

E_AV2_SLOW

E_AV2

DVB_CVBS

TO 10/21

7266 69 7165 68 7064 67

TO 7/21

TO 9/21

TO 7/21

TO 21/21

PC IN

TO 9/21

A-BOARD (8/21)

!

AVSW

REF No. 3000-3399

54

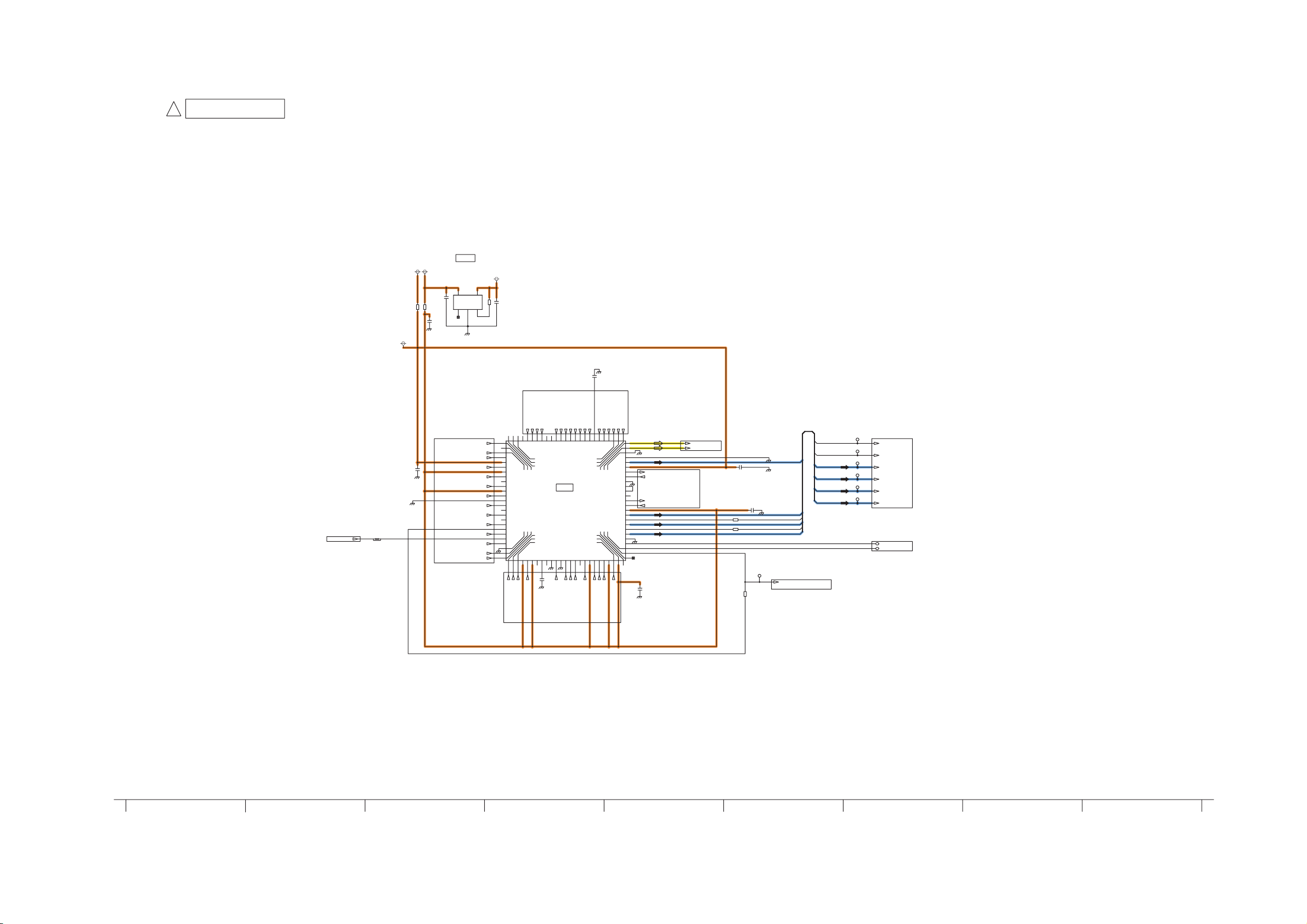

12.15.A-Board (9/21) Schematic Diagram

S

PC_VS

AV-SW_SDA

MAIN_Y/CVBS

PC_VS

MAIN_PR

RGB_CVBS

MAIN_PR

MAIN_PB/C

AV-SW_SCL

PC_HS

RGB_CVBS

MAIN_Y/CVBS

C3141

16V 0.1u

C3139

16V

0.1u

C3140

16V

0.1u

C3146

10u

10V

C3147

10u

10V

C3145

16V

0.1u

C1AB00002855

IC3001

1

Gin

2

HDin

3

Rin

4

T DET55CVBSin46T DET47CVBSin38BG9Yin310S2 DET311R2/Cin312GND13G2/Yin214S2 DET215B2/Cin216T DET317CVBSin118T DET219G1/Yin120S2 DET121B1/Cin122T DET1

23

CVBSin2

24

VCC5V

25

R1

26

State out27FBout/T DET1028SDA

29

SCL

30

GND

31

G/CY/CVBSout1

32

HD out1

33

B/PB/Cout1

34

VD out1

35

R/Prout1

36

VCC5V

37

SAG CVBSout4

38

Y/Y+C/CVBSout4

39

S2out

40

SAG CVBSout5

41

C/Y+C/CVBSout5

42

GND

43

SAG CVBSout3

44

CVBS/Y+Cout3

45

VCC9V

46

G/CY/Y/CVBSout7

47

O3

48

AU_GND

49

R4out50L4out

51

R3out

52

L3out

53

R2out

54

L2out55R1out56L1out

57

AU1/2Vcc

58

L1in59R1in60L2in61R2in62L3in63R3in64L4in65R4in66L5in67R5in68L6in69R6in70L7in71R7in72L8in

73

R8in

74

L9in

75

R9in

76

FBin1/O1

77

CVBSin7

78

FBin2/O2

79

CVBSin6

80

VCC9V

81

CVBSin5

82

T DET9

83

Yin4

84

T DET8

85

Cin4

86

VCC5V

87

PBin2/B3

88

L3 DET2

89

CYin2/G3

90

T DET7

91

PRin2/R3

92

T DET6

93

PBin1

94

L3 DET1

95

CYin1

96

HD VD/FBKMUTE

97

PRin1

98

GND99Bin

100

VDin

SUB9V_VIDEO

SUB9V

R3239

TP3006

TP3021

TP3005

TP3007

TP3009

TP3008

TP3004

AVSW_R051PIN_R3OUT

AVSW_R063PIN_R3IN

AVSW_R065PIN_R4IN

AVSW_R058PIN_L1IN

AVSW_R011PIN_R2/CIN3

AVSW_R043PIN_SAGCVBSOUT3

AVSW_R021PIN_B1/CIN1

AVSW_R087PIN_PBIN2/B3

AVSW_R081PIN_CVBSIN5

AVSW_R055PIN_R1OUT

AVSW_R020PIN_S2DET1

AVSW_R097PIN_PRIN1

AVSW_R015PIN_B2/CIN2

AVSW_R068PIN_L6IN

AVSW_R002PIN_HDIN

AVSW_R062PIN_L3IN

AVSW_R019PIN_G1/YIN1

AVSW_R100PIN_VDIN

AVSW_R099PIN_BIN

AVSW_R017PIN_CVBSIN1

AVSW_R060PIN_L2IN

AVSW_R069PIN_R6IN

AVSW_R070PIN_L7IN

AVSW_R014PIN_S2DET2

G-ADV_XRST

AVSW_R091PIN_PRIN2/R3

AVSW_R023PIN_CVBSIN2

AVSW_R001PIN_GIN

AVSW_R085PIN_CIN4

AVSW_R093PIN_PBIN1

AVSW_R052PIN_L3OUT

AVSW_R078PIN_FBIN2/O2

AVSW_R083PIN_YIN4

AVSW_R003PIN_RIN

AVSW_R064PIN_L4IN

AVSW_R071PIN_R7IN

AVSW_R053PIN_R2OUT

AVSW_R037PIN_SAGCVBSOUT4

AVSW_R095PIN_CYIN1

AVSW_R061PIN_R2IN

AVSW_R054PIN_L2OUT

AVSW_R056PIN_L1OUT

AVSW_R076PIN_FBIN/O1

AVSW_R013PIN_G2/YIN2

AVSW_R059PIN_R1IN

AVSW_R089PIN_CYIN2/G3

AVSW_R005PIN_CVBSIN4

AVSW_R079PIN_CVBSIN6

AVSW_R044PIN_CVBS/Y+COUT3

AV_R

AVSW_R038PIN_Y/Y+C/CVBSOUT4

MAIN_PB/C

MAIN_Y/CVBS

MAIN_PR

PC_VS

PC_HS

AV_L

RGB_CVBS

AVSW_R027PIN_FBOUT/TDET10

AV-SW_SDA

AV-SW_SCL

R3112

0

*R3100

100k

R3237

68

R3236

68

R3113

0

SUB5V

C3118

1u

10V

R3014

10k

SUB6V

C0DBGYY00281

IC3003

1NC2

VSS

3

CE

5

VOUT4VIN

C3119

1u

10V

C3143

16V

0.1u

AVSW

MAIN_PR/R

RGB_CVBS

MAIN_PB/C/B

MAIN_Y/CVBS/G

RGB_FB

76 8175 78 8074 77 7973

TO 1/21

TO 6/21

TO 2,3/21

TO 5/21

TO 8/21

TO 7/21

TO 8/21

A-BOARD (9/21)

!

AVSW

REF No. 3000-3399

SUB5V

55

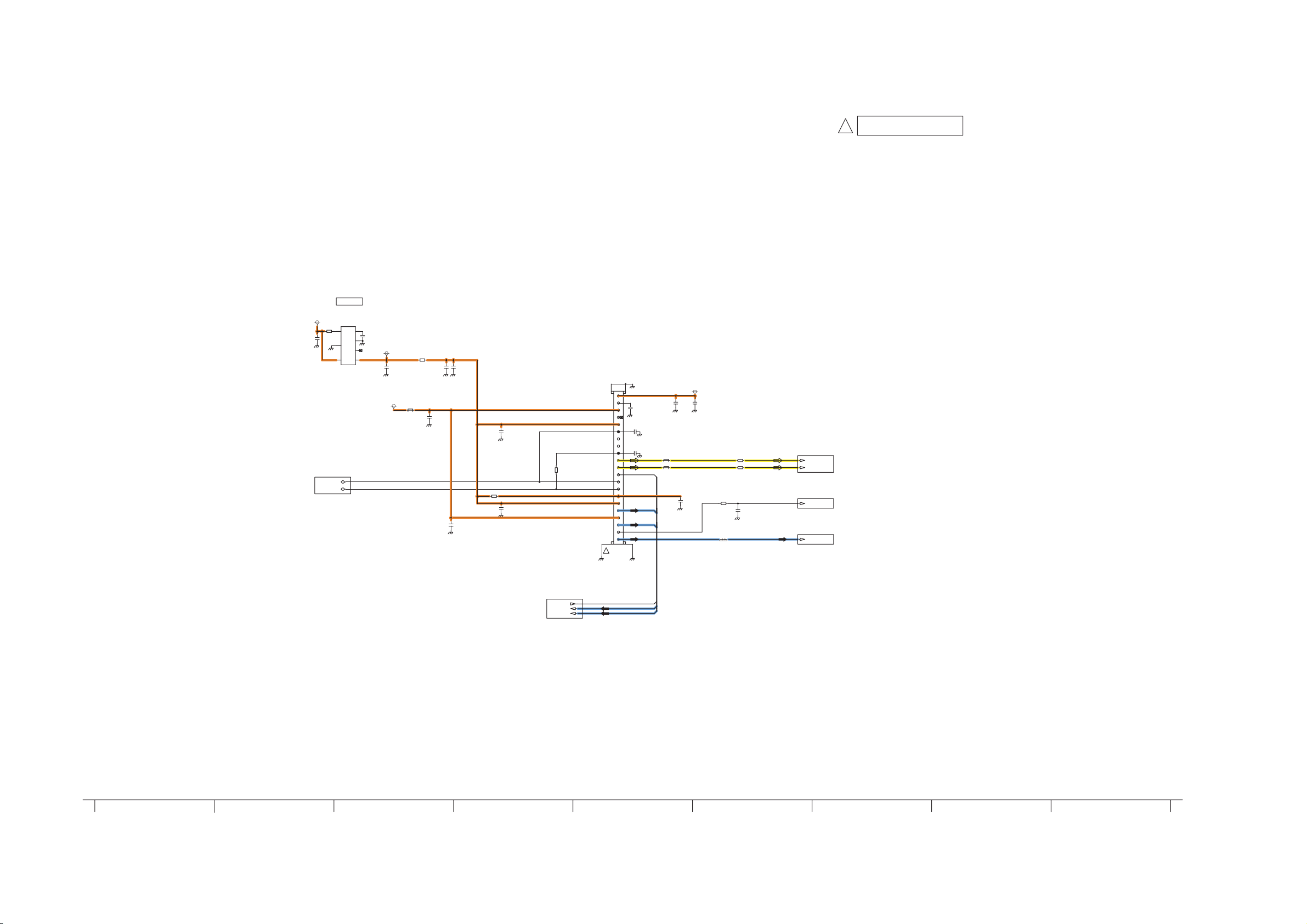

12.16.A-Board (10/21) Schematic Diagram

+

S

+

IFD1

IFD2

IFAGC

IFD2

IFD1

IFAGC

*C2923

50V

0.1u

C2922

16V

0.1u

C2907

16V

0.1u

C2920

50V

0.01u

C2914 50V

0.1u

C2906

16V

0.1u

C2940 50V

0.1u

C2962

6.3V 1u

C2960

6.3V 1u

C2916

16V

0.1u

C2961

470p

50V

C2912

6.3V

100u

C0DBGHF00001

IC2960

1

Vo

2

NC

3

GND

4

CnCont

5

Sub

6

Vin

7

L2904

J0JCC0000269

*L2902

J0JCC0000269

L2901

J0JCC0000278

TUNER5V

BT30V

ACT5V

SUB6V

IFAGC

G-RF_AFT1

IFD1

AM

IFD2

SIF

MAIN_RF_CVBS

TUNER_SDA

TUNER_SCL

R2915 220

R2905

0

*R2941

0

R2960

10k

*R2942 0

*R2909

0

R2916

0

*TU2901

ENG37E18KF

+B_active_ANT

1

AGC_Monitor

2

BTL

3

BT_Monitor

4

BB

5

SCL

6

NC

7

NC

8

SDA

9

Audio-out

10

SIF-out

11

IF-AGC

12

NC

13

NC

14

+B

15

VB

16

IFD-out1

17

NC

18

IFD-out2

19

AFT-out

20

Video-out

21

R2927

*C2927

50V

100p

*C2928

50V

100p

*C2925

16V

0.1u

*C2901

100u

10V

<

TUNER5V

TUNER

REF No. 2900-2999

TO 6/21

TO 2/21

TO 8/21

TO 1/21

TO 19/21

84 86 8887 9082 8983 85

!

A-BOARD (10/21)

56

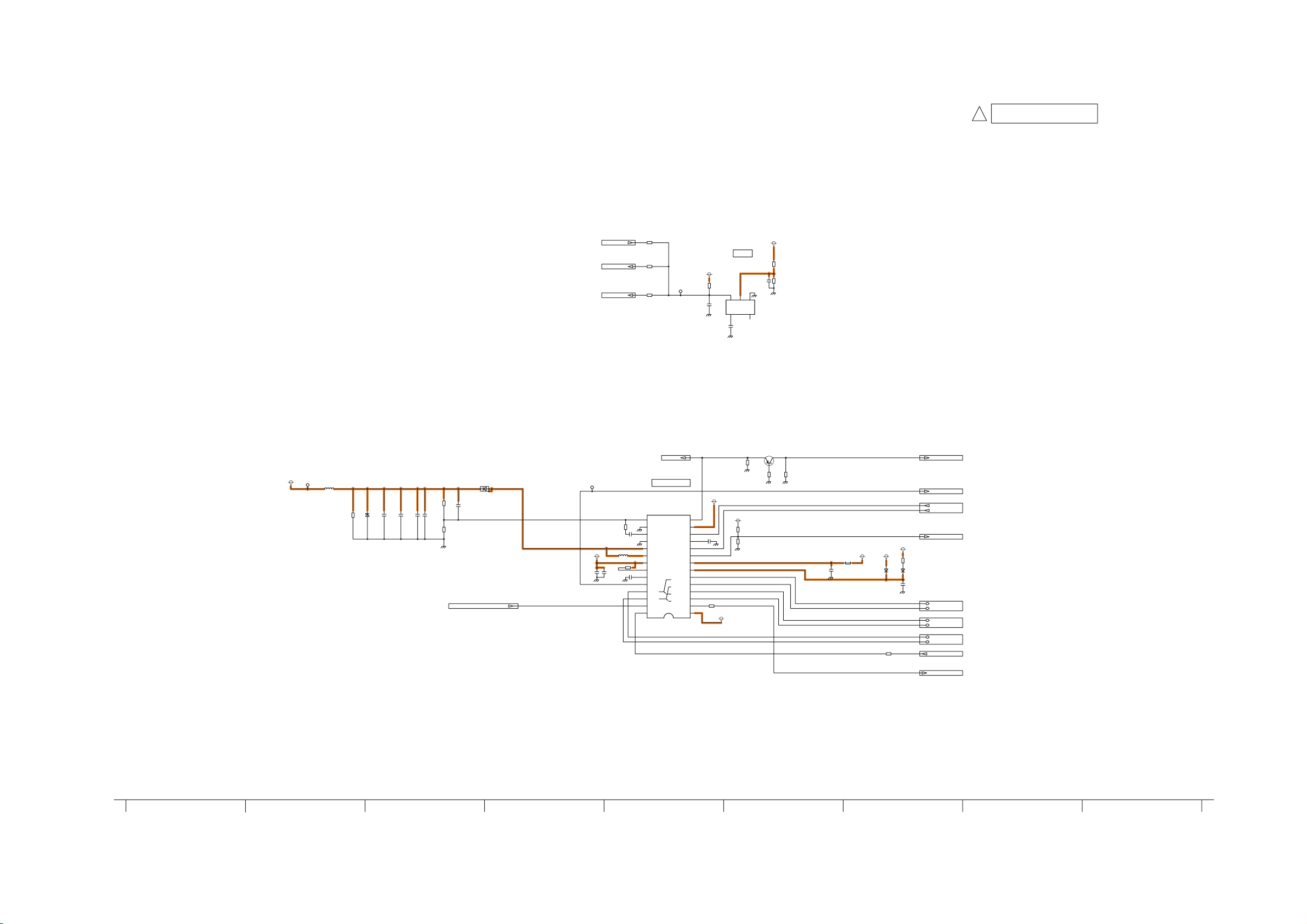

12.17.A-Board (11/21) Schematic Diagram

+

STB_RST

C5485

16V

0.1u

C5487

6.3V

1u

C5486

25V

3900p

C5488

6.3V

1u

C5483

10u

10V

C5473

25V

0.01u

C5471

10V

0.047u

C5470

0.01u

16V

C5482

10V

220u

C5484

6.3V

47u

D5481

B0HCMM000014

D5482

B0HCMM000014

IC5470

C0EBM0000026

1

OUT

2

Vdd

3

GND

5Cd4

NC

C1ZBZ0003972

IC5480

1

EN_CLKBF

2

CLKOUT

3

SDA1

4

SCL1

5

SDA0

6

SCL0

7

STB5V

8

STB3.3V

9

AMUTE

10

SP_MUTE

11

MUTE_VCC

12

AUDIO_MUTE_IN

13

DTB9V

14

MONITOR_MUTE

15

FB

16

GND

17

FC

18

PGND

19

DRV

20

DTV5VOUT

21

DTV5VIN

22

EN_DCDC

23

CD

24

STB_RST

25

SCL

26

SDA

27

SEL

28

CLKIN

L5480

J0JYC0000068

L5544

G1C470MA0291

SUB9V

STB5V

SUB5V

STB_D3.3V

F15V

SUB5V

SUB3.3V

SUB9V

STB3.3V

TP5401

TP5660

G-SP_HP_MUTE

G-DTV_XRST

G-GRAB_MODULE_IIC/PWM_POW_ON

G-MON_MUTE

GENX_CLK_OUT

CLK_GENX

STB_RST

XRST_2

XRST

AMP_MUTE

MONITOROUT_MUTEHP_MUTE

PEAKS_SCL0

GENX7_SCL

GENX7_SDA

ADJ-GENX_SCL

PEAKS_SDA0

ADJ_GENX_SDA

Q5480

B1ADCE000022

R5475

12k

R5470

2.2k

R5494

10k

R5474

10k

R5490

47k

R5489

33

R5496 68

1%

R5484

39k

R5492

1M

R5472

47

R5493

20k

R5471

100

R5473 47k

R5491

47k

R5482

15

R5488

0

1%

R5542

3.4k

D5483

MA3X78900L

BT30V

R5543

15k

C5496

50V

1000p

D5485

B0BC03900015

1%

R5541

100k

C5490

0.47u

50V

C5494

82p

50V

L5481

G1C100MA0072

C5495

35V 22u

TP5452

C5491

0.47u

50V

Analog ASIC

STB-RESET

REF No. 5400-5499

SEL=L

SEL=HPANEL

Peaks

TV-GenX

TO 17/21

RESET

TO 1,17/21

TO 13,17/21

TO 2/21

TO 12/21

TO 6/21

TO 2/21

TO 7/21

TO 2/21

TO 20/21

TO 18/21

9493 9891 95 979692 99

TO 6/21

!

A-BOARD (11/21)

57

12.18.A-Board (12/21) Schematic Diagram

(FIN)

TERM

SIDE

S

P

S

OSD_B

DRVRST

STB_SCL01

SFRST

D_XRST

FP_CEL

OSD_CLKIN

STB_SCL02

P_ON/OFF

FP_CRC1

FP_CPH2

RXD_PC

FP_OC1

FP_CSH

FP_CRC2

FP_OC2

STB_SDA02

OSD_G

FVSEL

AR_RXD_PC

SOS4_PS

OSD_R

FP_CSL

FP_SIU

AR_STB_SCL02

AR_STB_SDA02

FPGANRST

FP_CPH1

SOS7

TXD_PC

SOS8

EEP_WR_CTL

OSD_VIN

MCCLK

AR_IIC_CONT

PANEL_MAIN_ON

RXD_PC

OSD_HIN

TXD_PC

D_IIC_SW

STB_SDA02

SOS7_SC2

FP_FPGANRST

FP_CLK

STB_SCL02

FP_SCSU

STB_SDA01

NRST

FP_CMH

FP_CML

AR_TXD_PC

VDATA_DET

READY

AR_IIC_CONT

OSD_YS

SOS6_SC1

FP_CERS

XI_DONE

SC_UHZ

FP_OC1

FP_CLK

FP_CERS

FP_CRC2

FP_OC2

FP_CRC1

FP_FPGANRST

ALARM

SIN

FP_SIU

FP_CML

FP_CMH

FP_CPH1

FP_CSL

FP_CSH

FP_CEL

FP_CPH2

FP_SCSU

STB_SCL01

STB_SDA01

P3V_SCL01

P3V_SDA01

STB_SDA02

STB_SCL02

D_IIC_SW

P_ON/OFF

P3V_SCL02

P3V_SDA02

SC_UHZ

FP_UHZ

SOS8_SS

SOS7_SC2

SOS6_SC1

SOS6

SOS8

SOS7

SOS6

AUX_ON/OFF

PANEL_MAIN_ON

VDATA_DET

SOS4_PS

D_TRST

D_TDI

D_TMS

D_TCK

REM_IN

PANEL_STBY_ON

P3V_SDA03

P3V_SCL03

SFVRST

PROG_M

NRST

XRST_SYS

STB_SDA02

STB_SCL02

EEP_WR_CTL

C9071

0.1u

25V

C9062

4.7u10V

C9064

16V

0.1u

C9065

16V

0.1u

C9048

16V

0.1u

C9045

16V

0.1u

C9040

16V

0.1u

C9061

16V

0.1u

C9840

25V

0.01u

C9057

16V

0.1u

C9053

16V

0.1u

C9832

10u

10V

C9859 25V

0.01u

C9044

10V4.7u

C9052

16V

0.1u

C9063

16V

0.1u

C9047

16V

0.1u

C9858

10u

25V

C9046

16V

0.1u

C9926

10u

10V

C9892

10u

10V

C9897

10u

10V

C9074

2200p

50V

C9899

10u

10V

C9078

10u

25V

C9072

22u

6.3V

C9073

22u

6.3V

C9080

200p

50V

C9079

22p

50V

C9077

10u

25V

C9076

0.022u

16V

C9069

2200p

50V

C9882

200p

50V

C9869

10u

25V

C9872

10u

25V

C9068

22u

6.3V

C9067

22u

6.3V

C9066

0.1u

25V

C9874

100p

50V

C9049

16V 0.1u

C9036

10V

10u

C9033

16V

0.1u

C9037

0.01u

25V

C9035

10V 10u

C9034

16V

0.1u

C9055

16V

0.1u

C9863

4700p

25V

D9110

B0JCGD000002

D9000

B0JCCE000008

C0CBCAC00365

IC9808

1

ON/OFF

2

VSS

3

NC

5

VIN4VOUT

*IC9001

TVRQ454

1

E0

2

E1

3

E2

4

VSS

5

SDA

6

SCL

7

WC

8

VCC

C0DBAYY00477

IC9806

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C0DBAYY00477

IC9805

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C1ZBZ0003983

IC9004

1

Y5

2

Y4

3

Y3

4

Y2

5

Y1

6

RESET

7

CD_OUT

8

STB33V

9

GND

10

DCDC_OE

11

VIN_OR

12

P_SDA1

13

P_SCL1

14

P_SDA2

15

P_SCL2

16

P33V_IN

17

IIC_SW

18

S_SCL2

19

S_SDA2

20

S_SCL1

21

S_SDA1

22

STB33VIN

23

P33V

24

P_ON_OFF

25

STB5V_IN

26

GND

27

CE

28

A1

29

A2

30

A3

31

A4

32

A5

C0DBEHG00006

IC9807

1

CTL2Vcc4OUT5ADJ

3

GND(FIN)

A20

K1MN30BA0255

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

L9802

G1C6R8Z00008

L9001

G1C3R3Z00004

P15V

STB_D3.3V

P5V

P3.3V

STB_D3.3V

P15V

P3.3V

STB_D3.3V

P5V

P3.3V

P5V

STB_D3.3V

P3.3V

STB_D3.3V

P15V

P2.5V_FP

STB5V_M

P2.5V

P3.3V

STB_D3.3V

P15V

P1.2V

P3.3V

R9200

R9185

R9186

R9213

R9201

R9150

R9151

R9212

R9012

TP9079

TP9000

VDATA_DET

PANEL_MAIN_ON

LED_R

CLK_GENX

SOS4_PS

REMOCON

D_PCB_MODE

Q9003

B1ABCF000231

Q9004

B1ABCF000231

Q9001

B1ABCF000231

Q9807

2SD0601A0L

Q9000

B1ABCF000231

Q9002

B1ABCF000231

R9119

EXB38V470JV

R9839

EXB38V101JV

R9849

EXB2HV470JV

R9848

EXB2HV470JV

R9081

47k

1%

R9207

24k

R9871

10k

R9068

10k

R9166

10k

R9206

56k

R9099

100

R9154

2.7k

R9215

100k

R9868 100k

R9070

10k

R9896

47k

1%

R9101

33k

R9102

100

R9149

4.7k

R9071

22k

R9104

4.7k

R9106

100k

R9203

22k

R9202 100

R9205

33k

R9109

10k

R9072

1k

R9155

2.7k

R9118

10k

R9114

4.7k

R9112

10k

R9897

10k

R9895 110k

1%

R9187

2.7k

R9121 100k

R9899

10k

R9129

68k

R9124 47

R9130 47

R9225

2.7k

R9223

2.7k

R9073

4.7k

R9110 100

R9189

10k

R9894

20k

1%

R9079 27k

1%

R9117

10k

R9900

12

1/2W

R9078 43k

1%

R9164

10k

R9077

13k

1%

R9893 27k

1%

R9873

12

1/2W

R9113

100k

R9105 10k

R9100

47k

R9214

2.7k

R9211

2.7k

R9210

47k

R9142 100

R9872

10k

1%

R9188

2.7k

R9107

3.3k

R9080

15k

1%

R9898

10k

R9108

10k

G-RMIN

R4825

MNZSFH8KPH2

IC9003

1

P60_SBO0A

2

P61_SBT0A

3

P62_SBI0A

4

P05_IRQ65P06_IRQ76P07_IRQ87P70_SDA08P71_SCL0

9

P50_RMIN_IRQ0

10

P2011P2112P2213P23

14

IVDD

15

VSS16P1017P1118P1219P1320P1421P1522P16

23

EXCLKSEL

24

P72_SDA1

25

P73_SCL1

26

P65_SBT227P66_SBI2

28

P30

29

P31

30

P32

31

P33

32

P34

33

P35

34

P36

35

P37

36

VPPEX_(N.C.)

37

IVDD

38

VDD

39

RONA

40

VSS

41

OSCXO

42

OSCXI

43

IVDD

44

P64_SBI1

45

P63_SBT1

46

NBOOT_(N.C.)

47

NRST

48

NTEST49SCLOCK_(UND)50SDATA_(UND)

51

ENTRG0_(UND)

52

ENTRG1_(UND)

53

TRCCLK_(UND)

54

TRCST_(UND)55TRCD0_(UND)56TRCD1_(UND)57TRCD2_(UND)58TRCD3_(UND)59P80_ADIN060P81_ADIN161P82_ADIN262P83_ADIN363IVDD64VSS65P84_ADIN466P85_ADIN567P86_ADIN668P87_ADIN769P90_ADIN870P91_ADIN971P92_ADIN1072P93_ADIN11

73

P74_SDA2

74

P75_SCL2

75

P40_TM0IO

76

P41_TM1IO77P42_TM2IO78P43_TM3IO

79

P44_TM4IO_SYSCLK

80

P00

81

P01

82

P02

83

P03_SBT0B

84

P04_SBO0B

85

P51_IRQ2

86

P52_IRQ3

87

P53_IRQ4

88

P54_IRQ5

89

PA7_VCLKOUT

90

PA6_HOUT

91

PA5_YSOUT

92

PA4_B00

93

PA3_G00

94

PA2_R00

95

PA1_VSYNC_IRQ1

96

PA0_HSYNC

97

VSS

98

OSDXI

99

IVDD

100

VDD

P5V

SIU

CLK

GND

SC_FPGANRST

GND

UHZ

CSH

CPH1

CERS

CRC2

OC2

CRC1

OC1

SCSU

SOS6_SC1

SOS7_SC2

GND

CPH2

GND

CEL

GND

CSL

GND

CMH

CML

+15V

NC

NCS_ASIC

SCLK

SOUT

1.2V

3.3V

P2.5V

FPGA2.5V

STB3.3V/RESET /IIC SW/LEVEL SHIFT

EEPROM

EXCLKSEL

TO 11/21

TO 17/21

TO 3,17/21

104 108107102 103 106101100 105

PANEL MPU

!

A-BOARD (12/21)

2

5

3

1

4

TO SC-BOARD (SC20)

58

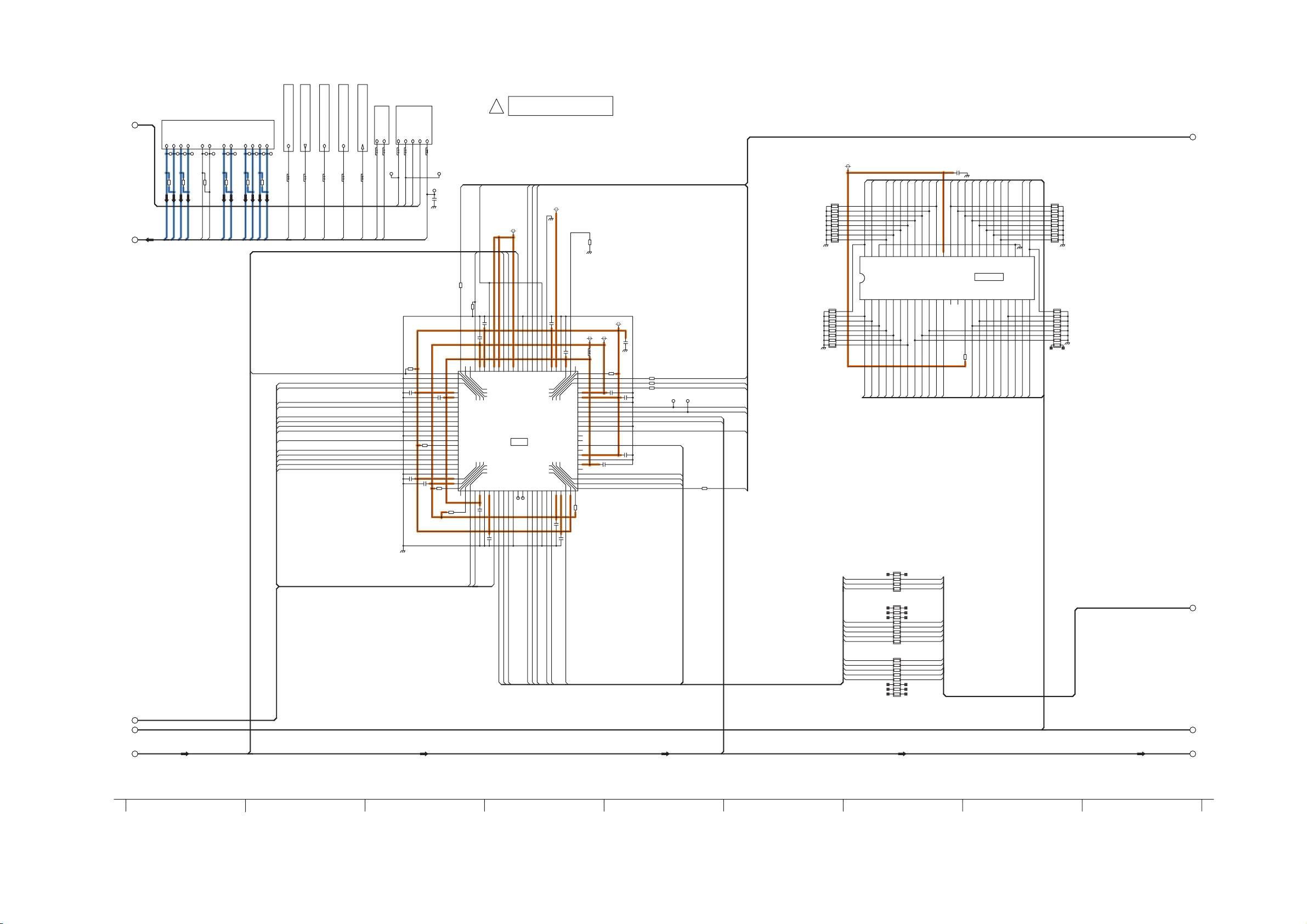

12.19.A-Board (13/21) Schematic Diagram

P

S

SSS

S

D-PCD4

L8R_DIO14

FP_UML

L8R_FCCLK

D-LED2

L8R_FPDAT0

L8R_DIO11

L8R_DIO26

DD_PCD2

L8R_DIO00

D_XRST

L8R_DIO02

FP_OC1

DD_PCD2

L8R_DIO20

SFLATCH

L8R_DIO30

XI_DONE

DD_PCD3

FP_CSL

DD_PCD1

SFRST

L8R_ROMOE

P3V_SDA02

L8R_DIO29

FP_UML

DD_ODED2

UML_C2

FVSEL

L8R_DIO18

UMH_C2

FP_CSH

L8R_DIO09

L8R_UB15

D-PCD1

L8R_UC15

SFVRST

FP_UEH

L8R_DIO24

L8R_UA14

L8R_DIO08

L8R_PROG

0V

FP_CRC2

DD_LED2

L8R_DIO10

P3V_SCL02

FP_FPGANRST

FP_UMH

DD_CLRD1

L8R_ROMCE

DD_ODED1

FP_CMH

FP_CERS

FP_UMH

D-LED1

L8R_DIO25

FP_VD

FP_CPH1

FP_CEL

L8R_DIO13

DD_PCD4

L8R_DIO06

L8R_DIO28

FP_CLK

D_XRST

L8R_UA15

L8R_UC14

DD_PCD3

DD_CLRD2

DD_ODED2

D-PCD3

L8R_DIO17

L8R_DIO12

D-PCD2

L8R_DIO05

DD_PCD1

DD_CLRD2

L8R_DIO27

DD_LED1

DD_CLRD1

L8R_DIO03

DD_ODED1

DD_LED1

FP_SIU

FP_HD

FP_OC2

L8R_CLKMO

L8R_DIO23

DD_PCD4

FP_CML

L8R_DIO01

L8R_FPDAT1

FPGANRST

FP_CRC1

L8R_DIO22

L8R_DIO16

D-CLRD1

L8R_UB14

L8R_FPCLK

L8R_ROMWE

L8R_ROMRST

L8R_DIO21

DRVRST

D-ODED2

L8R_DIO15

DD_LED2

D-CLRD2

D-ODED1

DRVMUTE

L8R_DIO07

L8R_DIO04

L8R_DIO19

FP_SCSU

FP_CPH2

FP_UHZ

AR_RXD_PC

AR_TXD_PC

FP_UEH UEH_C2

RB-

DRVMUTE

RB+

RA+

RA-

RC+

RC-

RCLK+

RCLK-

RD-

RD+

RE-

RE+

ALARM

PANEL_STBY_ON

READY

KEY_SCAN

P3V_SDA01

P3V_SCL01

AR_STB_SDA02

AR_IIC_CONT

AR_STB_SCL02

C9889

10V 10u

C9825

50V 100p

C9469

16V

0.1u

C9548

16V

0.1u

C9539

16V

0.1u

C9541

16V0.1u

C9549

16V

0.1u

C9543

16V0.1u

C9540

16V0.1u

C9547

16V0.1u

C9544

16V0.1u

C9535

16V 0.1u

C9537

16V0.1u

C9538

16V

0.1u

C9545

16V0.1u

C9536

16V0.1u

C9550

16V0.1u

C9542

16V0.1u

C9546

16V0.1u

TVRQ381

*IC9303

1

A152A143A134A125A116A107A98A89A1910NC11WE#12RESET#13NC14NC15RY/BY#16A1817A1718A719A620A521A422A323A224A1

25A026

CE#27VSS28OE#29DQ030DQ831DQ132DQ933DQ2

34

DQ10

35

DQ3

36

DQ11

37

VCC38DQ4

39

DQ12

40

DQ5

41

DQ13

42

DQ6

43

DQ14

44

DQ7

45

DQ15/A-1

46

VSS

47

BYTE#

48

A16

C1ZBZ0003760

IC9500

1

PROG_B2IO_L01P_33IO_L01N_3

4

IO_L02P_3

5

IO_L02N_3/VREF_3

6

VCCINT

7

GND

8

VCCO_3

9

IO_L03P_3/LHCLK0

10

IO_L03N_3/LHCLK1

11

IO_L04P_3/LHCLK2

12

IO_L04N_3/LHCLK3

13

IP

14

GND

15

IO_L05P_3/LHCLK4

16

IO_L05N_3/LHCLK5

17

IO_L06P_3/LHCLK6

18

IO_L06N_3/LHCLK7

19

GND

20

VCCO_3

21

VCCAUX

22

IO_L07P_3

23

IO_L07N_3

24

IO_L01P_2/CSO_B

25

IO_L01N_2/INIT_B

26

IO_L02P_2/DOUT/BUSY

27

IO_L02N_2/MOSI/CSI_B

28

VCCINT

29

GND

30

IP/VREF_2

31

VCCO_2

32

IO_L03P_2/D7/GCLK12

33

IO_L03N_2/D6/GCLK13

34

IO/D5

35

IO_L04P_2/D4/GCLK14

36

IO_L04N_2/D3/GCLK15

37

GND

38

IP_L05P_2/RDWR_B/GCLK0

39

IP_L05N_2/M2/GCLK1

40

IO_L06P_2/D2/GCLK2

41

IO_L06N_2/D1/GCLK3

42

IO/M1

43

IO_L07P_2/M0

44

IO_L07N_2/DIN/D0

45

VCCO_246VCCAUX

47

IO_L08P_2/VS2

48

IO_L08N_2/VS1

49

IO_L09P_2/VS0

50

IO_L09N_2/CCLK

51

DONE

52

GND

53

IO_L01P_1

54

IO_L01N_1

55

VCCO_1

56

VCCINT

57

IO_L02P_1

58

IO_L02N_1

59

GND

60

IO_L03P_1/RHCLK0

61

IO_L03N_1/RHCLK1

62

IO_L04P_1/RHCLK2

63

IO_L04N_1/RHCLK3

64

GND

65

IO_L05P_1/RHCLK4

66

IO_L05N_1/RHCLK5

67

IO_L06P_1/RHCLK6

68

IO_L06N_1/RHCLK7

69

IP/VREF_1

70

IO_L07P_1

71

IO_L07N_1

72

GND

73

VCCO_174VCCAUX75TMS

76

TDO

77

TCK

78

IO_L01P_0

79

IO_L01N_080VCCINT81GND82VCCO_083IO_L02P_0/GCLK484IO_L02N_0/GCLK585IO_L03P_0/GCLK686IO_L03N_0/GCLK787GND88IP_L04P_0/GCLK889IP_L04N_0/GCLK990IO_L05P_0/GCLK1091IO_L05N_0/GCLK1192IO93GND94IO_L06P_095IO_L06N_0/VREF_096VCCAUX97VCCO_0

98

IO_L07P_0

99

IO_L07N_0/HSWAP

100

TDI

P3.3V

P1.2V

P3.3V

P2.5V_FP

R9111

TP9011

TP9872 TP9871

TP9312

VIN

TP9311

HIN

AR_TXD_PC

AR_RXD_PC

R9609

EXB28V470JX

R9608

EXB2HV470JV

R9610

EXB2HV470JV

R9403

EXB2HV103JV

R9404

EXB2HV103JV

R9406

EXB2HV103JV

R9405

EXB2HV103JV

R9578

4.7k

R9123

4.7k

R9586 47

R9062

100

R9064

100

R9587 47

R9616

47

R9063

100

R9067

100

R9618

330

R9402

47

R9098

4.7k

R9594

10k

R9122

4.7k

R9065

100

R9604

10k

R9611

68

R9066

100

R9385

4.7k

R9592 10k

TP4231

RB+

RA+

TP4227

TP4229

VI2P20

TP4223

RB-

TP4230

TP4228

TP4224

RE+

R4824

RCLK+

RA-

RE-

RCLK-

TP4221

TP4225

RD-

RC-

TP4222

TP4226

RC+

TP4232

RD+

R4258

G-KEY1

GENX7_SDA

R4254

PANEL_SDA2

IIC_CONT/C_SEL

G-PANEL_READY

R4253

PANEL_SCL2

R4256

G-PANEL_STBY_ON/PANEL_VCC_ON

R4332

R4251

R4255

R4250

R4252

G-PANEL_ALARM/INVERTER_SOS

GENX7_SCL

RD-

RD+

RC+

RC-

RCLK+

RCLK-

RA-(MSB)

SS_PULSE

SC_PULSE

RB-

IIC_CLK2

IIC_CONT

RA+(MSB)

RXD

TXD

PANEL_STBY_ON

ALARM

IIC_DATA2

IIC_CLK1

IIC_DATA1

READY

FPGA

DISPEN

RE+(LSB)

RE-(LSB)

RB+

to PD2/FPGA

DATA_DRIVER

to ucom/FPGA/PD2

FPDAT0

DIN

SASEL

HFSEL

MODEL

PD2M_ROM

TO 17/21

TO 11,17/21

TO 18/21

TO 2/21

TO 1,2/21

117116111110 115109 112 113 114

!

A-BOARD (13/21)

5

3

4

2

1

14

13

11

12

59

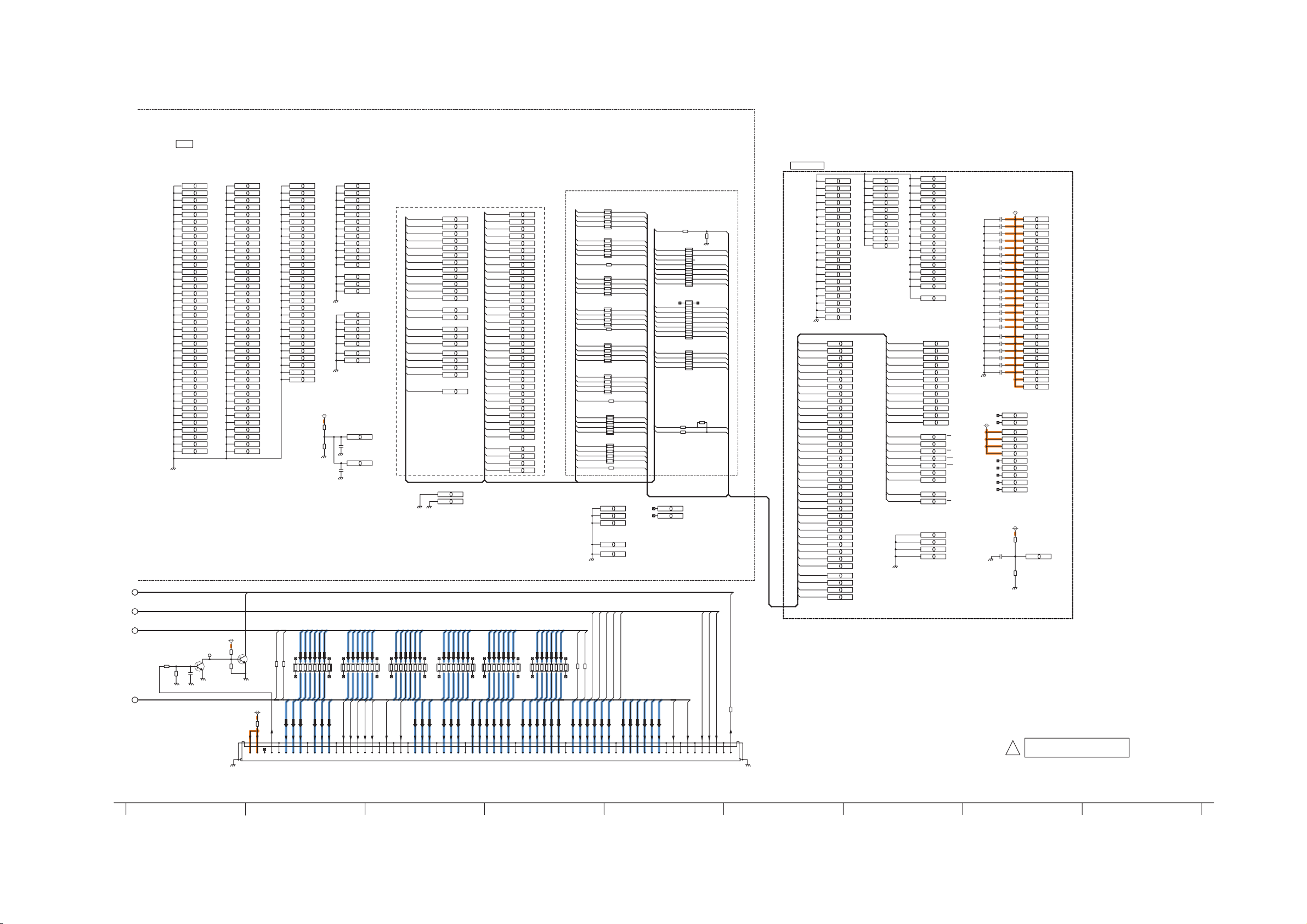

12.20.A-Board (14/21) Schematic Diagram

TERM

SIDE

L8R_DA14

DDC17

L8R_DA00

L8R_DB00

L8R_DC06

L8R_DC07

L8R_DB10

DDA21

L8R_FCCLK

OSD_YS

L8R_DIO28

L8R_DA09

P3V_SDA02

DDC14

L8R_ROMRST

L8R_DB05

DDA16

L8R_DC03

L8R_DB08

L8R_DC07

L8R_DC00

MCCLK

L8R_DA07

L8R_DA08

DDC16

D-ODED1

SFVRST

L8R_DRVCLKD3

L8R_DC13

L8R_DB07

DDC18

L8R_DC05

L8R_DC03

L8R_DC02

DDA18

L8R_DB13

FP_HD

D-PCD2

DDC20

L8R_DC11

L8R_DRVCLKD0

DDB21

L8R_DB04

OSD_CLKIN

L8R_UC05

L8R_DB15

D-PCD1

SFRST

L8R_DC10

L8R_DC00

L8R_DB12

L8R_DC15

L8R_DB07

L8R_DC08

L8R_UA15

L8R_DA05

L8R_DB01

L8R_DA01

L8R_DIO04

L8R_UB03

PROG_M

L8R_DC04

DDB15

DDB14

FVSEL

L8R_DIO03

L8R_FPDAT0

L8R_UB02

CLKD_1N

DDB18

L8R_DC02

L8R_ROMCE

L8R_DIO02

L8R_UB01

DDC15

L8R_UA05

D-CLRD1

L8R_ROMWE

L8R_DIO01

DDB19

L8R_DA15

L8R_DA08

SFLATCH

L8R_ROMOE

RCLK-

DDB16

L8R_FPDAT1

D_TMS

L8R_DA11

DDA13

L8R_DB04

L8R_DIO08

L8R_UB05

L8R_DIO16

L8R_DA06

RCLK+

D-LED1

L8R_DA03

P3V_SCL02

L8R_DC01

L8R_FPCLK

L8R_DRVCLKD1

L8R_DIO07

L8R_DA04

L8R_UB15

D_TRST

DDA19

L8R_DIO15

L8R_DB08

RC-

L8R_DA03

L8R_UC14

L8R_DRVCLKD2

CLKD_2P

RE+

L8R_DC05

L8R_DIO06

L8R_PROG

L8R_DA07

L8R_UB14

L8R_DIO14

DDB20

L8R_DB11

RC+

L8R_UA14

OSD_VIN

RA+

L8R_DIO05

L8R_DB02

L8R_UB00

L8R_DA13

L8R_DB06

L8R_DIO00

L8R_DIO13

L8R_DB06

L8R_DA02

L8R_DRVCLKD2

CLKD_3N

RD-

L8R_UA04

DDC21

L8R_DC06

RB-

L8R_DRVCLKD1

L8R_DIO12

L8R_DB03

L8R_DA02

L8R_DA06

L8R_UA01

RD+

L8R_UC15

L8R_UC01

L8R_DIO11

RB+

L8R_DB14

L8R_UA00

L8R_DA12

FP_VD

L8R_DC09

L8R_DRVCLKD0

L8R_UC00

OSD_HIN

L8R_DIO10

L8R_DB00

RA-

L8R_UA02

L8R_DIO20

OSD_G

DDB12

L8R_DIO09

L8R_DIO27

D_TCK

L8R_DB03

L8R_UA03

L8R_DIO19

OSD_B

DDB13

L8R_DIO26

DDA14

L8R_UC02

D_TDI

L8R_DRVCLKD3

L8R_DIO18

OSD_R

DDB17

L8R_DIO25

L8R_UC03

L8R_DC09

CLKD_0P

L8R_DRVCLKU2

L8R_DC08

SIN

L8R_DIO24

L8R_CLKMO

L8R_DIO17

L8R_DC04

DDA17

L8R_DA09

L8R_DRVCLKU3

L8R_DB02

L8R_UC04

DDC12

DDA12

L8R_DRVCLKU1

L8R_DIO23

L8R_DC01

L8R_DA10

DDA20

L8R_UB04

XRST_SYS

L8R_DC12

L8R_DB05

L8R_DIO30

L8R_DB01

L8R_DB09

L8R_DRVCLKU0

L8R_DIO22

L8R_DA05

DDC19

L8R_DA01

L8R_DC14

DDA15

L8R_DA04

RE-

L8R_DIO29

DDC13

L8R_DIO21

L8R_DB09

D_TDO

KEY_SCAN

D-CLRD1

D-ODED1

D-PCD2

D-PCD1

D-LED1

CLKD_3N

CLKD_2P

DDA13

DDB13

DDC13

DDA12

DDB12

DDC12

DDA15

DDB15

DDC15

DDA14

DDB14

DDC14

DDA17

DDB17

DDC17

DDA16

DDB16

DDC16

DDA19

DDB19

CLKD_1N

CLKD_0P

DDC20

DDB20

DDA20

DDC21

DDB21

DDA21

DDC18

DDB18

DDA18

DDC19

D_XRST

C9980

0.1u

16V

C9979

0.1u

16V

C9978

0.1u

16V

C9977

0.1u

16V

C9976

0.1u

16V

C9975 0.1u

16V

C9974 0.1u

16V

C9973 0.1u

16V

C9970

16V

0.1u

C9966

10V

10u

C9965 0.1u

16V

C9923 0.1u

16V

C9913

0.1u

16V

C9924 0.1u

16V

C9950

16V

0.1u

C9915

0.1u

16V

C9914

0.1u

16V

C9925 0.1u

16V

C9902 0.1u

16V

C9967 0.1u

16V

C9956 0.1u

16V

C9908

0.1u

16V

C9959

0.1u

16V

C9962

10V

10u

C9921

0.1u

16V

C9949

16V

0.1u

C9910

0.1u

16V

C9903 0.1u

16V

C9968

0.1u

16V

C9912

0.1u

16V

C9920

0.1u

16V

C9907

0.1u

16V

C9961

10V

10u

C9906

0.1u

16V

C9905 0.1u

16V

C9904 0.1u

16V

C9919

0.1u

16V

C9916

0.1u

16V

C9909

0.1u

16V

C9955

0.1u

16V

C9918

0.1u

16V

C9917

0.1u

16V

C9958 0.1u

16V

C9911

0.1u

16V

C9900 0.1u

16V

C9922 0.1u

16V

C9957

0.1u

16V

C9901 0.1u

16V

C9971

50V

18p

C9972

50V 18p

C9954 0.1u

16V

IC9900 C19 DOUTUB06

IC9900 C20 DOUTUB05

IC9900 C21 DOUTUC04

IC9900 C22 DOUTUA02

IC9900 C23 DOUTUC01

IC9900 C25 VDD33

IC9900 D1 VDD12

IC9900 AC2 MCCLK

IC9900 AA25 TMS

IC9900 D4 VIO

IC9900 D5 SLVDOUTUB14

IC9900 D6 DIO5

IC9900 D7 DIO11

IC9900 D8 DIO16

IC9900 D9 DIO21

IC9900 D10 DIO23

IC9900 D11 DIO29

IC9900 AB26 TCK

IC9900 C1 VDD12

IC9900 D12 DOUTUC15

IC9900 D13 DOUTUB14

IC9900 D14 DOUTUA13

IC9900 D15 DOUTUB11

IC9900 D16 DOUTUA10

IC9900 D17 DOUTUA08

IC9900 D18 DOUTUC07

IC9900 D19 DOUTUC06

IC9900 D21 DOUTUA03

IC9900 D23 DOUTDB15

IC9900 D24 VDD33

IC9900 D26 DOUTDB14

IC9900 E1 ROMRESET

IC9900 E3 VDD12

IC9900 E5 IOSW

IC9900 E6 DIO4

IC9900 E8 DIO14

IC9900 E9 VDD12

IC9900 E10 VDD12

IC9900 Y26 DOUTDC01

IC9900 AB16 AVDD_Q25

IC9900 Y3 SDA

IC9900 W26 DOUTDC02

IC9900 B23 DOUTUA01

IC9900 AE26 VDD33

IC9900 AF1 VDD25

IC9900 W5 OSDHO

IC9900 AC4 VDD25

IC9900 V26 DOUTDC03

IC9900 V25 DOUTDA02

IC9900 C10 DIO25

IC9900 V22 DOUTDC00

IC9900 V5 AVDD_PI33

IC9900 V4 OSDGI

IC9900 V3 OSDBI

IC9900 V2 OSDRI

IC9900 U26 DOUTDC04

IC9900 U25 DOUTDB03

IC9900 U23 DOUTDB02

IC9900 U22 VDD33

IC9900 B22 DOUTUC03

IC9900 C6 DIO10

IC9900 U11 VDD25

IC9900 U5 AVDD_L33

IC9900 U4 AVDD_L33

IC9900 AB7 AVDD_D25

IC9900 A22 DOUTUB03

IC9900 T25 DOUTDB04

IC9900 T24 VDD33

IC9900 AB13 AVDD_D25

IC9900 AB15 VDD25

IC9900 C16 DOUTUB10

IC9900 T13 VDD25

IC9900 T12 VDD25

IC9900 D22 DOUTUB01

IC9900 B20 DOUTUA05

IC9900 AB23 VDD33

IC9900 T2 RXEP

IC9900 T1 RXEN

IC9900 R26 DOUTDA05

IC9900 R25 DOUTDC05

IC9900 D2 VDD12

IC9900 R23 DOUTDB05

IC9900 R16 VDD33

IC9900 R11 VDD12

IC9900 R10 VDD12

IC9900 R5 AVDD_L33

IC9900 R4 AVDD_L33

IC9900 AC1 XOUT

IC9900 R2 RXDP

IC9900 R1 RXDN

IC9900 P26 DOUTDA06 IC9900 P25 DOUTDB06

IC9900 P24 VDD33

IC9900 P22 DOUTDC06

IC9900 P5 AVDD_L33

IC9900 P4 AVDD_L33

IC9900 P2 RXCLKP

IC9900 P1 RXCLKN

IC9900 N26 DOUTDC07

IC9900 N25 DOUTDA07 IC9900 N23 DOUTDB07

IC9900 N22 VDD33

IC9900 N10 AVDD_L12

IC9900 N5 AVDD_L33

IC9900 N4 AVDD_L33

IC9900 N2 RXCP

IC9900 N1 RXCN

IC9900 M26 DOUTDB08IC9900 M25 DOUTDA08

IC9900 AA1 XI

IC9900 M22 DOUTDC08

IC9900 C11 ROMOE

IC9900 M16 VDD33

IC9900 B17 DOUTUA09

IC9900 M13 VDD12

IC9900 M11 VDD12

IC9900 AB5 VDD25

IC9900 M5 AVDD_L33

IC9900 M4 AVDD_L33

IC9900 M2 RXBP

IC9900 M1 RXBN

IC9900 L26 DOUTDC09

IC9900 L25 DOUTDB09IC9900 L23 DOUTDA09

IC9900 L17 VDD33

IC9900 C4 ACTV

IC9900 L13 VDD12

IC9900 L12 VDD12

IC9900 AD25 VDD33

IC9900 L10 VDD12

IC9900 C8 DIO17

IC9900 L4 AVDD_L33

IC9900 L2 RXAP

IC9900 L1 RXAN

IC9900 K26 DRVCLKD3

IC9900 C13 DOUTUC14

IC9900 K24 VDD33

IC9900 K13 VDD12

IC9900 K12 VDD12

IC9900 K11 VDD12

IC9900 K5 AVDD_PO33

IC9900 J26 DRVCLKD1

IC9900 J25 DRVCLKD0

IC9900 J23 DOUTDC11

IC9900 J22 VDD33

IC9900 J5 AVDD_L12

IC9900 J4 OCK

IC9900 J3 SFRST

IC9900 H24 VDD33

IC9900 H23 DOUTDA11

IC9900 H22 DOUTDB13

IC9900 B21 DOUTUA04

IC9900 H4 FULL1

IC9900 H3 FPDAT0

IC9900 H2 SFLATCH

IC9900 H1 SFVRST

IC9900 B26 VDD33

IC9900 G25 DOUTDC12

IC9900 G23 DOUTDC14

IC9900 G5 VDD12

IC9900 G4 VDD12

IC9900 G2 FPDAT1

IC9900 G1 FPCLK

IC9900 F26 DOUTDB12IC9900 F25 DOUTDA12

IC9900 F22 VDD33

IC9900 F4 VDD12

IC9900 C17 DOUTUC09

IC9900 F2 FULL0

IC9900 F1 CLKMO

IC9900 E26 DOUTDC13

IC9900 E25 DOUTDA13

IC9900 E23 VDD33

IC9900 E22 DOUTUC00

IC9900 E21 DOUTUC02

IC9900 E15 DOUTUC12

IC9900 E19 DOUTUB07

IC9900 E18 VDD33

IC9900 E17 VDD33

IC9900 E16 DOUTUB09

IC9900 E12 DIO30

IC9900 AA22 VDD33

IC9900 AA5 PROG

IC9900 V24 VDD33

IC9900 AA2 XO

IC9900 A21 DOUTUC05

IC9900 A20 CKSO

IC9900 A19 CKSI

IC9900 A18 DOUTUB08

IC9900 A26 VDD33

IC9900 A25 DOUTDA15

IC9900 A24 DOUTUA00

IC9900 A23 DOUTUB02

IC9900 B16 DOUTUC11

IC9900 A3 DIO1

IC9900 A4 DIO6

IC9900 A5 CKMI

IC9900 A6 CKMO

IC9900 A7 DIO15

IC9900 A8 DIO19

IC9900 A9 DIO24

IC9900 A10 DIO28

IC9900 A11 DOUTUA15

IC9900 A12 DOUTUA14

IC9900 A13 DRVCLKU3

IC9900 A14 DRVCLKU1

IC9900 A15 DOUTUC13

IC9900 A16 DOUTUA11

IC9900 A17 DOUTUC10

IC9900 T10 VDD12

IC9900 C12 ROMWE

IC9900 AA26 DOUTDB00

IC9900 M17 VDD33

IC9900 D20 DOUTUB04

IC9900 W25 DOUTDB01

IC9900 AB17 AVDD_D25

IC9900 E7 DIO8

IC9900 B9 DIO22

IC9900 T17 VDD33

IC9900 E11 DIO27

IC9900 Y25 DOUTDA00

IC9900 M10 VDD12

IC9900 T5 AVDD_L33

IC9900 Y4 PRCKO

IC9900 C18 DOUTUA07

IC9900 C24 OCKOUT

IC9900 AB25 TDO

IC9900 W23 TRST

IC9900 W3 SCL

IC9900 W2 OSDVO

IC9900 T26 DOUTDA04

IC9900 W1 OSDYSI

IC9900 AB14 AVDD_D25

IC9900 T22 DOUTDA03

IC9900 W24 TDI

IC9900 AA24 VDD33

IC9900 T4 AVDD_L33

IC9900 C5 DIO3

IC9900 Y5 OSDCKO

IC9900 V23 DOUTDA01

IC9900 AB8 AVDD_D25

IC9900 AE2 VDD25

IC9900 AB10 VDD25

IC9900 AB19 VDD25

IC9900 AD1 PROG_M

IC9900 AB21 AVDD_PD33

IC9900 AD6 VDD25

IC9900 AC24 VDD33

IC9900 AB20 VDD25

IC9900 M24 VDD33

IC9900 AB4 XRST

IC9900 AD3 VDD25

IC9900 AD2 XRSTSYS

IC9900 R17 VDD33

IC9900 AB3 FVSEL

IC9900 K22 DOUTDC10

IC9900 B15 DOUTUA12

IC9900 B14 DRVCLKU0

IC9900 B13 DRVCLKU2

IC9900 B12 DOUTUB15

IC9900 B11 ROMCE

IC9900 B10 DIO26

IC9900 B8 DIO18

IC9900 B7 DIO13

IC9900 B6 DIO9

IC9900 B5 DIO7

IC9900 B4 DIO2

IC9900 B3 HIO

IC9900 B19 DOUTUA06

IC9900 H5 VDD12

IC9900 B18 DOUTUC08

IC9900 A2 DIO0

IC9900 B24 DOUTUB00

IC9900 B25 DOUTDC15

IC9900 G26 DOUTDB11

IC9900 AB9 VDD25

IC9900 U13 VDD25

IC9900 C7 DIO12

IC9900 G3 FCCLK

IC9900 E2 VDD12

IC9900 F24 DOUTDA14

IC9900 C9 DIO20

IC9900 L5 AVDD_PM33

IC9900 U12 VDD25

IC9900 C15 DOUTUB12

IC9900 F3 VDD12

IC9900 C14 DOUTUB13

IC9900 K25 DRVCLKD2

A31

K1MY68BA0345

123456789

1011121314151617181920212223242526272829303132

3334353637383940414243444546474849505152535455575859606162636465666768

56

L9903

J0JHC0000117

L9901

J0JHC0000117

L9900

J0JHC0000117

P1.2V

P3.3V

P1.2V

L8RAVDD3.3V

P3.3V

P2.5V

P3.3V

P5V

P2.5V

TP9076

TP9077

R9352

EXB2HV220JV

R9348

EXB2HV220JV

R9353

EXB2HV220JV

R9347

EXB2HV220JV

R9351 47

R9969 47

R9966

470

R9989

47

R9987

47

R9983

47

R9317

1k

R9967

47

R9397 47

R9988 47

R9407

0

R9977 47

R9396 47

R9968 47

R9975 47

R9972

10k

R9970 47

R9401

1k

R9598

47

R9350 47

R9902

0

X9900

H0J200500076

R9990

100

LVDS_INPUT

IIC

rromdata[14]

rromadrs[00]

rromdata[06]

rromdata[09]

rromdata[12]

rromadrs[11]

rromadrs[14]

rromdata[15]

rromadrs[01]

rromadrs[04]

rromadrs[17]

rromadrs[20]

rromadrs[07]

rromadrs[10]

rromadrs[13]

rromadrs[16]

rromdata[00]

rromdata[01]

rromdata[02]

rromadrs[19]

rromadrs[03]

rromdata[03]

rromdata[04]

rromdata[07]

rromdata[10]

rromadrs[06]

rromadrs[09]

rromdata[13]

rromadrs[12]

rromdata[05]

rromadrs[15]

rromadrs[18]

rromadrs[02]

rromadrs[05]

rromadrs[08]

rromdata[08]

rromdata[11]

RC-

RB-

RB+

RC+

RCLK-

RCLK+

RD+

RA-(MSB)

RA+(MSB)

RD-

RE-(LSB)

to FLASH

for LVDS_TX

20MHz(SS)

CCLK for FPGA

CDAT for FPGA

SOUT for ucom

SIN for ucom

NCS for ucom

Low Active

RE+(LSB)

DOUTDB[20]

DOUTDC[15]

GND

DOUTDA[17]

DOUTDC[21]

P5V

DOUTDB[15]

GND

CLK0P_C1

GND

DOUTDB[19]

DOUTDC[18]

DOUTDA[12]

CLR_C1

GND

DOUTDC[20]

LE_C1

DOUTDA[21]

PC1_C1

GND

DOUTDB[18]

DOUTDB[12]

DOUTDA[15]

CLK3N_C1

GND

DOUTDB[14]

CLK2P_C1

KEY_SCAN

DOUTDC[12]

DOUTDA[18]

CLK1N_C1

GND

DOUTDC[17]

DOUTDB[16]

DOUTDC[19]

DOUTDA[19]

DOUTDA[20]

DOUTDC[13]

DOUTDB[17]

DOUTDB[21]

GND

DOWN_LEFT

NC

GND

DOUTDA[13]

DOUTDA[16]

GND

PC2_C1

DOUTDC[14]

GND

DOUTDA[14]

GND

DOUTDC[16]

SCL

P5V

P3.3V

GND

ODE_C1

DOUTDB[13]

SDA

GND

119 124 125 126123122121120118

TO C2-BOARD (C21)

!

A-BOARD (14/21)

13

12

14

11

24

23

22

21

MN84526

PD2M

IC9900

60

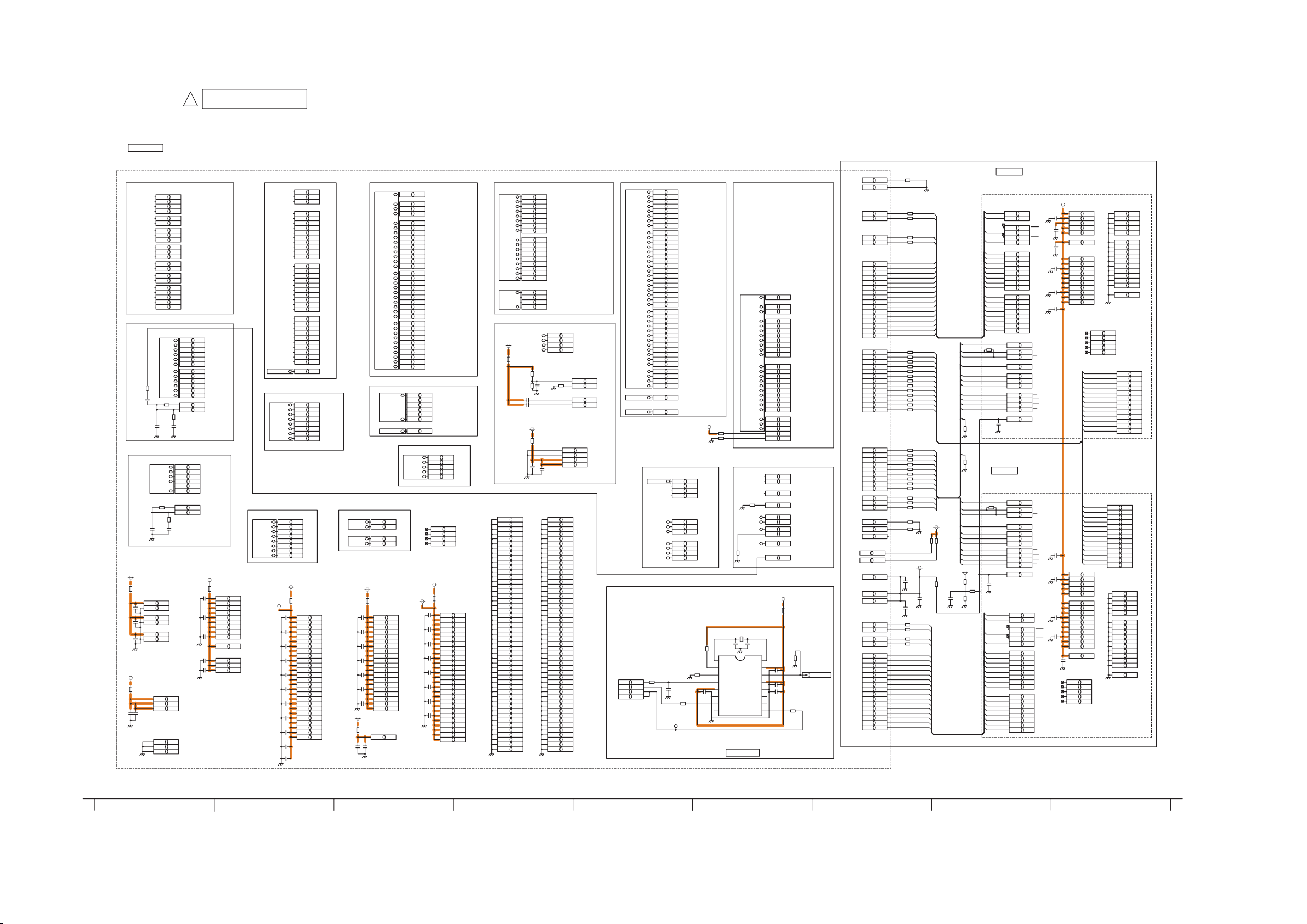

12.21.A-Board (15/21) Schematic Diagram

TERM

SIDE

L8R_DQ29

L8R_DQ10

DDB03

L8DR_DQ17

L8R_UC02

L8DR_DQ14

L8DR_A0

L8R_DQ31

L8DR_DQ3

L8DR_DQ2

L8R_DQ19

L8DR_DQ28

L8DR_DQ30

DDA01

L8DR_DQ9

L8DR_DQ0

L8DR_DQ23

L8DR_A2

L8R_DB12

L8R_DQ13

L8DR_DQ5

L8R_DQ0

L8DR_A6

D-LED2

L8R_DQ17

L8R_DQ7

L8DR_DQS1

DDC00

L8R_UB01

L8R_DQ25

L8R_DA14

L8R_DQ30

DDA09

L8DR_A10

L8DR_DQ3

L8DR_DQ10

L8DR_DQ14

L8R_A5

L8R_RAS

L8R_A10

L8R_A6

L8DR_NCLK

L8DR_A11

L8R_DQ5

L8R_DQ23

DDB01

L8R_A7

L8R_DQ26

L8DR_DQ21

L8DR_DQ1

L8R_A1

DDB09

L8DR_NRAS

L8R_A4

L8R_DQS3

L8DR_DQ19

L8R_DQ16

L8R_UC05

L8DR_DQ20

L8R_DQ28

L8DR_DQ12

L8DR_DQ7

L8R_DB14

L8DR_DQ31

L8R_DQ25

L8R_DQ27

L8DR_NCS

L8DR_A8

L8R_DQ7

L8R_A8

L8R_DQ14

L8R_DQS2

L8DR_A4

L8DR_DQ29

L8DR_DQ7

L8R_DC14

L8DR_DQ25

L8DR_NCLK

L8R_DQ12

DDC07

L8R_DQ11

L8R_DQ22

L8DR_A9

L8R_DQ5

L8R_DB11

L8R_DQ14

L8R_DQ22

L8R_BA0

L8R_DQ24

L8R_DQ1

L8R_UA04

L8DR_DQ6

L8R_SDCLKO

L8R_UC03

L8R_DA13

L8R_DQ28

DDA00

D-ODED2

L8DR_A11

L8R_DQ6

DDC02

DDC05

L8R_A3

L8DR_DQS2

L8R_A9

L8R_SDCKE

L8R_DQ8

L8DR_DQ10

L8R_A11

D-PCD3

L8R_DQS0

L8DR_A0

D-CLRD2

L8R_UB05

DDC03

DDC11

L8DR_DQ24

L8R_A6

L8R_DQ4

L8R_DQ21

L8DR_DQ13

L8R_UA02

L8R_DA10

L8DR_DQ22

L8R_DQ9

L8R_DC10

L8R_DQ2

L8R_A4

D-PCD4

DDA05

DDA04

L8R_A5

L8DR_DQ15

L8R_DQ3

L8DR_DQS0

L8DR_CKE

DDB00

L8R_DA15

L8DR_A1

L8DR_DQS3

DDA06

L8DR_A4

L8R_UC01

L8R_DQS0

L8DR_DQ24

L8DR_DQ6

L8R_SDCKE

L8DR_DQ15

L8DR_DQ16

L8DR_DQ12

L8DR_A6

L8R_DC11

L8DR_NWE

L8R_DA12

L8DR_DQ25

L8DR_CLK

L8R_RAS

DDB05

L8R_DB15

L8DR_DQ8

L8R_UA00

L8R_DQ10

L8R_DC15

L8DR_DQ4

L8R_UB00

L8DR_A3

L8R_MONOUT

L8R_DRVCLKU0

L8DR_DQ29

L8DR_DQ20

CLKU_1N

CLKU_2P

L8DR_NCAS

L8DR_DQ26

L8DR_DQ13

L8R_CS

DDC08

DDB06

L8R_DQ3

L8DR_DQ18

L8R_CAS

L8R_DC12

L8DR_CLK

L8DR_A9

L8DR_DQ27

L8R_BA0

DDB02

L8R_UB03

CLKU_3N

L8DR_DQS0

L8DR_DQ30

L8R_UC00

L8R_DQ1

L8R_DRVCLKU1

L8R_DQ31

L8DR_DQ1

DDB10

L8R_DQ18

L8R_DQ19

L8R_CAS

L8R_DQ24

DDA10

DDA02

L8R_MONOUT

L8DR_DQ22

L8R_DQ9

L8R_A2

L8R_DA11

L8R_DQS2

L8R_DQ18

DDB07

L8DR_DQ18

0V

L8R_WE

L8DR_DQ11

DDB08

L8DR_DQ23

L8DR_A7

L8R_DQ27

DDA11

L8R_A0

L8DR_A5

L8DR_DQ28

L8DR_DQ5

L8R_DQ4

L8R_UB04

L8DR_DQ21

DDC09

L8R_DQ16

CLKU_0P

DDA07

L8R_DQ15

L8DR_BA1

L8DR_DQ11

L8DR_BA1

L8DR_NWE

DDA08

L8R_WE

L8R_UC04

L8R_DQS3

L8DR_BA0

L8R_BA1

L8DR_BA0

L8R_DQ29

L8R_A10

L8R_DB10

L8R_DQ23

L8R_DB13

L8R_DQ30

L8R_CS

L8R_UA01

L8DR_NCS

L8R_A7

L8DR_A3

DDC10

L8R_UA03

L8R_NSDCLKO

L8DR_NRAS

L8R_NSDCLKO

L8R_A3

L8R_A2

L8DR_DQ8

DDB04

L8R_DQ12

L8R_DC13

L8R_DQ0

L8DR_DQ17

DDA03

L8DR_A1

DDB11

L8R_DQ20

L8DR_NCAS

L8R_DQ17

L8DR_A2

L8DR_DQ19

L8R_DRVCLKU2

L8DR_DQ0

L8R_BA1

L8DR_DQS3

L8R_A1

DDC04

L8R_DQS1

L8DR_A5

SOS8_SS

L8DR_DQ16

L8DR_DQ9

L8DR_DQ31

L8DR_DQ4

L8DR_DQS2

L8R_UA05

L8R_DQ11

L8R_DQ20

L8R_A9

L8DR_DQ26

L8R_A11

L8R_UB02

L8DR_A10

L8R_DQ15

L8R_DQ13

L8DR_A8

L8R_A8

L8R_SDCLKO

L8DR_A7

DDC01

L8R_DQ8

L8R_DQ21

L8R_DQ6

L8R_A0

L8DR_DQ2

L8DR_DQ27

L8DR_DQS1

L8R_DQ26

L8R_DQ2

DDC06

L8R_DQS1

L8R_DRVCLKU3

DRVRST

DDC10

DDB10

DDA10

DDC11

DDB11

DDA11

D-LED2

D-PCD4

D-PCD3

D-ODED2

CLKU_2P

CLKU_3N

DDC04

DDB04

DDA04

DDC05

DDB05

DDA05

DDC02

DDB02

DDA02

DDC03

DDB03

DDA03

DDC00

DDB00

DDA00

DDC01

DDB01

DDA01

DDC06

DDB06

DDA06

DDC07

DDB07

DDA07

CLKU_0P

D-CLRD2

CLKU_1N

DDB08

DDA08

DDB09

DDA09

DDC09

DDC08

UMH_C2

UML_C2

UEH_C2

L8DR_CKE

C9953

0.1u

16V

C9952

0.1u

16V

C9927

16V

0.1u

C9948

16V

0.1u

C9944

16V

0.1u

C9935

16V

0.1u

C9951

16V

0.1u

C9947

16V

0.1u

C9929

16V

0.1u

C9941

16V

0.1u

C9937

16V

0.1u

C9946

16V

0.1u

C9945

16V

0.1u

C9933

16V

0.1u

C9939

16V

0.1u

C9934

16V

0.1u

C9943

16V

0.1u

C9940

16V

0.1u

C9468

25V

0.01u

C9938

16V

0.1u

C9932

16V

0.1u

C9936

16V

0.1u

C9942

16V

0.1u

C9928

16V

0.1u

C9930

16V

0.1u

C9931

16V

0.1u

IC9900 A1 VSS

IC9901

C3ABQY000032

B2 DQS0

IC9900 AE12 DQS3

IC9900 AC22 AVSS_PD

IC9900 C26 VSS

IC9901 J4 VDDQ

IC9901 J3 DQ20

IC9901 N3 NC

IC9901 K11 VDDQ

IC9901 B8 DQ31

IC9901 G11 VDDQ

IC9901 D12 DQ26

IC9901 N10 A7

IC9901 M10 RFU

IC9901 C5 VDDQ

IC9901 G8 VSS_Thermal

IC9901 N9 A6

IC9900 AC7 VREF1 IC9901 L3 WE

IC9901 H8 VSS_Thermal

IC9901 E13 DQ24

IC9901 H12 DM1

IC9901 G5 VSSQ

IC9900 AC9 DQ5

IC9901 B9 DQ29

IC9901 K10 VSSQ

IC9901 M9 A5

IC9901 E12 VDDQ

IC9901 E3 VDDQ

IC9901 C3 VDDQ

IC9901 B10 DQ28

IC9901 J10 VSSQ

IC9901 D5 VSSQ

IC9901 C13 DQ27

IC9901 F8 VSS_Thermal

IC9901 D9 VSSQ

IC9901 E4 VDD

IC9901 L7 VDD

IC9901 H9 VSS_Thermal

IC9901 C11 NC

IC9901 K7 VSS

IC9900 AE9 DQ1

IC9900 AE10 DQ31

IC9901 B11 VSSQ

IC9901 D10 VSSQ

IC9901 J13 DQ10

IC9901 J7 VSS_Thermal

IC9900 D25 VSS

IC9901 B7 DQ0

IC9900 AC11 DQ25

IC9900 AE22 A1

IC9900 E4 VSS

IC9901 L9 NC

IC9900 AE5 DQ20

IC9901 D8 VDD

IC9900 AE6 DQS2

IC9901 M7 A11

IC9901 D6 VSSQ

IC9901 K9 VSS

IC9901 J2 DQ21

IC9900 E13 VSS

IC9900 AE13 VSS

IC9900 AE14 DQS1

IC9900 AE15 DQ15

IC9900 Y23 TEST

IC9900 Y22 TEST0

IC9900 AE20 BA0

IC9900 Y2 VSS

IC9900 Y1 VSS

IC9900 AF14 AVSS_D

IC9900 AD19 NWE

IC9900 AF7 VSS

IC9900 AC3 VSS

IC9900 AF10 DQ29

IC9900 V1 AVSS_PI

IC9900 U24 VSS

IC9900 U17 VSS

IC9900 U16 VSS

IC9900 U15 VSS

IC9900 U14 VSS

IC9900 U10 VSS

IC9900 U3 AVSS_L

IC9900 U1 AVSS_L

IC9900 T23 VSS

IC9900 T16 VSS

IC9900 T14 VSS

IC9900 T11 VSS

IC9900 T3 AVSS_L

IC9900 R22 VSS

IC9900 AC26 MONOUT

IC9900 R15 VSS

IC9900 R14 VSS

IC9900 R13 VSS

IC9900 R12 VSS

IC9900 P23 VSS

IC9900 P17 VSS

IC9900 P16 VSS

IC9900 P15 VSS

IC9900 P14 VSS

IC9900 P13 VSS

IC9900 P12 VSS

IC9900 P11 VSS

IC9900 P10 VSS

IC9900 P3 AVSS_L

IC9900 AC21 A7

IC9900 N17 VSS

IC9900 N16 VSS

IC9900 N15 VSS

IC9900 N14 VSS

IC9900 N13 VSS

IC9900 N12 VSS

IC9900 N11 VSS

IC9900 N3 AVSS_L

IC9901 D4 VSSQ

IC9900 M14 VSS

IC9900 M12 VSS

IC9900 AE21 A0

IC9900 L24 VSS

IC9900 L22 VSS

IC9900 L16 VSS

IC9900 L15 VSS

IC9900 L3 AVSS_L

IC9900 K23 VSS

IC9900 AD21 A5

IC9900 K17 VSS

IC9900 K16 VSS

IC9900 K15 VSS

IC9900 K14 VSS

IC9900 K10 VSS

IC9900 K4 AVSS_PM

IC9900 K3 AVSS_L

IC9900 K2 AVSS_L

IC9900 K1 AVSS_L

IC9900 J24 VSS

IC9900 J2 AVSS_PO

IC9900 J1 TCPOUT

IC9900 G24 VSS

IC9900 G22 VSS

IC9900 C2 VSS

IC9900 AB12 VSS

IC9900 F23 VSS

IC9900 F6 VSS

IC9900 F5 VSS

IC9900 E24 VSS

IC9900 E20 VSS

IC9901 K8 VSS

IC9901 N12 CKE

IC9901 K4 VDDQ

IC9901 M5 BA1

IC9901 M12 CK

IC9901 J8 VSS_Thermal

IC9901 M13 NC

IC9901 N2 CS

IC9901 M11 CK

IC9901 E5 VSS

IC9901 F10 VSSQ

IC9901 C12 VDDQ

IC9901 B3 DM0

IC9901 F4 VDDQ

IC9901 L12 NC

IC9901 F13 DQ14

IC9901 N5 A0

IC9901 H11 NC

IC9901 M8 A9

IC9901 L8 VDD

IC9901 F9 VSS_Thermal

IC9901

N13 VREF

IC9901 G12 DQ13

IC9900 AC25 V_TEST

IC9901 F5 VSSQ

IC9901 L6 A10

IC9901 L13 NC

IC9901 J6 VSS_Thermal

IC9901 M4 NC

IC9901 H5 VSSQ

IC9901 K5 VSSQ

IC9900 AD26 TEST1

IC9901 G9 VSS_Thermal

IC9901 B4 VSSQ

IC9901 M6 A2

IC9901 D3 DQ5

IC9901 G3 DQ18

IC9901 H3 DM2

IC9901 J5 VSSQ

IC9901 K12 DQ9

IC9901 C4 NC

IC9901 J9 VSS_Thermal

IC9901 G10 VSSQ

IC9901 C7 VDDQ

IC9901 N4 BA0

IC9901 F7 VSS_Thermal

IC9901 H13 DQS1

IC9901 D11 VSSQ

IC9901 B12 DM3

IC9901 E10 VSS

IC9901 E9 VSSQ

IC9901 F11 VDDQ

IC9901 F6 VSS_Thermal

IC9901 N7 A3

IC9901 B13 DQS3

IC9901 C2 DQ4

IC9901 G13 DQ12

IC9901 J12 DQ11

IC9901 B6 DQ2

IC9901 G2 DQ19

IC9901 H2 DQS2

IC9901 E7 VSS

IC9901 E11 VDD

IC9901 C9 DQ30

IC9901 L4 VDD

IC9901 G6 VSS_Thermal

IC9901 K13 DQ8

IC9901 L5 VSS

IC9901 F3 DQ16

IC9901 J11 VDDQ

IC9901 M2 RAS

IC9901 N11 A8/AP

IC9901 H7 VSS_Thermal

IC9901 G7 VSS_Thermal

IC9901 K2 DQ22

IC9901 G4 VDDQ

IC9901 D2 DQ6

IC9901 H10 VSSQ

IC9901 C8 VDDQ

IC9901 B5 DQ3

IC9901 H6 VSS_Thermal

IC9901 H4 NC

IC9901 F2 DQ17

IC9901 E2 DQ7

IC9901 K6 VSS

IC9901 C10 VDDQ

IC9901 E8 VSS

IC9901 L2 CAS

IC9901 L11 VDD

IC9901 M3 NC

IC9900 AF19 NRAS

IC9900 AA23 ID1

IC9900 AA4 VSS

IC9900 AA3 VSS

IC9901 D13 DQ25

IC9901 K3 DQ23

IC9901 N6 A1

IC9900 U2 AVSS_L

IC9900 AB6 VSS

IC9900 E14 VSS

IC9900 Y24 VSS

IC9900 AE1 VSS

IC9900 AF2 VSS

IC9900 AF6 VSS

IC9900 D3 VSS

IC9900 R24 VSS

IC9900 W4 VSS

IC9900 AB24 ID2

IC9900 W22 VSS

IC9900 T15 VSS

IC9901 N8 A4

IC9900 AE4 DQ23

IC9900 AE3 DQ19

IC9900 AC12 VSS

IC9900 N24 VSS

IC9901 C6 DQ1

IC9900 AC18 VSS

IC9900 AC19 CKE

IC9900 AC20 A6

IC9900 AC5 DQ17

IC9901 D7 VDD

IC9900 AC8 DQ7

IC9900 AC10 DQ27

IC9900 AC13 VSS

IC9900 AC14 VREF0

IC9901 E6 VSSQ

IC9900 AC16 VSS IC9900 AD8 DQ6

IC9900 AD9 DQ4

IC9900 AD10 DQ26

IC9900 AD11 DQ24

IC9900 AD12 VSS

IC9900 AC23 VSS

IC9900 AD4 DQ18

IC9900 M23 VSS

IC9900 L11 VSS

IC9900 AD22 A8

IC9900 AD5 DQ16

IC9900 AE7 DQS0

IC9900 AE8 DQ3

IC9900 AD18 NCAS

IC9900 AD17 AVSS_Q

IC9901 F12 DQ15

IC9900 AB22 VSS

IC9900 AE11 DQ30

IC9900 AE19 NCS

IC9900 AD7 AVSS_D

IC9900 AE18 AVSS_D IC9900 AE17 NCK

IC9900 AE16 DQ9

IC9900 M3 AVSS_L

IC9900 R3 AVSS_L

IC9900 AB11 VSS

IC9901 L10 VSS

IC9900 AF13 VSS

IC9900 AF12 VSS

IC9900 AF11 DQ28

IC9900 AD24 VSS

IC9900 AF9 DQ0

IC9900 AF8 DQ2

IC9900 AE25 VSS

IC9900 AD20 A9

IC9900 AF5 VSS

IC9900 AF4 DQ21

IC9900 AD16 DQ12

IC9900 AD15 DQ14

IC9900 AC17 VSS

IC9900 AD13 AVSS_D

IC9900 AE23 A3

IC9900 AE24 TCPOUT_D

IC9900 AF16 DQ10

IC9900 AF17 DQ8

IC9900 AF15 DQ11

IC9900 AF3 DQ22

IC9900 AD23 ID0

IC9900 B2 VSS

IC9900 B1 VSS

IC9900 AF26 VSS

IC9900 AF25 A4

IC9900 AF24 A11

IC9900 AF23 A10

IC9900 AF22 A2

IC9900 AF21 BA1

IC9900 AF20 VSS

IC9900 AC15 DQ13

IC9900 AF18 CK

IC9900 M15 VSS

IC9900 AB2 VSS

IC9900 C3 VSS

IC9900 AC6 AVSS_D

IC9900 L14 VSS

IC9900 AD14 VSS

IC9900 AB18 VSS

IC9900 AB1 VSS

A32

K1MY68BA0345

123456789

1011121314151617181920212223242526272829303132

3334353637383940414243444546474849505152535455575859606162636465666768

56

P2.5V

P5V

P3.3V

P2.5V

TP9010

Q9301

2SD0601A0L

Q9302

2SD0601A0L

R9949

47

EXB38V470JV

R9944

47

EXB38V470JV

R9948

47

EXB38V470JV

R9951

47

EXB38V470JV

R9946

47

EXB38V470JV

R9906

47

EXB38V470JV

R9945

47

EXB38V470JV

R9947

47

EXB38V470JV

R9950

47

EXB38V470JV

R9354

EXB2HV220JV

R9943

EXB2HV470JV 47

R9355

EXB2HV220JV

R9356

EXB2HV220JV

R9359

EXB2HV330JV

R9358

EXB2HV330JV

R9903

EXB2HV470JV

47

R9357

EXB2HV220JV

R9370

10k

R9907

150

R9939

1k

1%

R9361 47

R9936

1k

1%

R9391

100k

R9399 47

R9369

4.7k

R9940

33

R9954

47

R9938

1k

1%

R9905

33

R9398 47

R9363

10k

R9360

3.3k

R9955

47

R9953

47

R9362

47

R9408

0

R9937

1k

1%

R9116

100

R9371

100k

R9952

47

DOWN_RIGHT

DDR-Terminate

to DDR

DDR-SDRAM

PC4_C2

GND

DOUTDB[4]

GND

DOUTDC[9]

DOUTDB[3]

UMH

DOUTDB[5]

GND

DOUTDC[6]

DOUTDC[10]

DOUTDA[1]

DOUTDA[0]

GND

DOUTDA[8]

DOUTDB[1]

UML

NC

GND

PC3_C2

DOUTDC[0]

GND

DOUTDC[4]

DOUTDB[8]

CLK2P_C2

DOUTDA[6]

CLR

P5V

GND

DOUTDC[11]

GND

DOUTDC[8]

CLK0P_C2

DOUTDC[3]

GND

DOUTDB[11]

UEH

DOUTDA[2]

DOUTDA[9]

GND

DOUTDB[0]

DOUTDA[3]

DOUTDA[4]

DOUTDB[9]

DOUTDA[11]

SOS8_SS

DOUTDA[5]

DOUTDA[10]

C_5V_DET

DOUTDC[7]

GND

DOUTDB[6]

P5V

CLK3N_C2

DOUTDC[2]

ODE

LE_C2

GND

DOUTDC[1]

DOUTDC[5]

DOUTDA[7]

DOUTDB[10]

GND

DOUTDB[2]

GND

CLK1N_C2

DOUTDB[7]

130 133129128 134132127 131 135

TO C2-BOARD (C22)

!

A-BOARD (15/21)

MN84526

PD2M

IC9900

IC9901

21

24

23

22

61

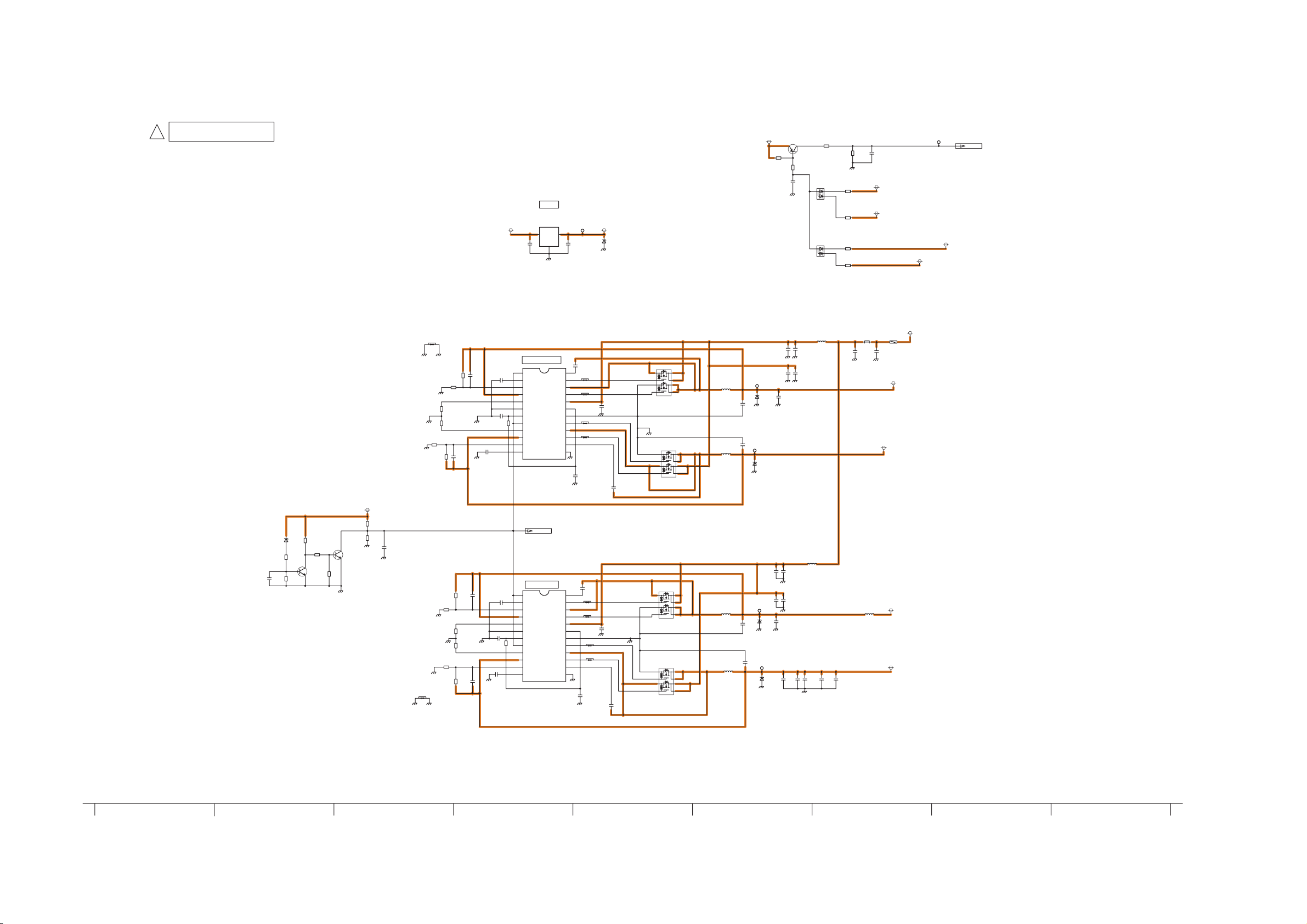

12.22.A-Board (16/21) Schematic Diagram

+

+ +

+

P

SUB5V

C5658

0.01u

25V

C5657

2.2u

10V

C5600

0.1u

16V

C5649

0.1u

16V

C5606

6800p

25V

C5640

0.1u

16V

C5646

25V

10u

C5607

220p

50V

C5608

0.1u

16V

C5636

0.1u

16V

C5638

0.1u

16V

C5637

0.1u

16V

C5615

25V 10u

C5639

0.1u

16V

C5605

4.7u

10V

C5604

0.01u

25V

C5625

0.027u

16V

C5697

1u

25V

C5643

0.1u

25V

C5616

0.01u

25V

C5611

25V 10u

C5641

0.1u

16V

C5603

1u

16V

C5601

220p

50V

C5645

10u

25V

C5642

10u

25V

C5624

470p

50V

C5620

0.1u

25V

C5627

0.1u

16V

C5621

1u16V

C5623

220p

50V

C5622

4.7u

10V

C5700

25V

10u

C5699

25V

10u

C5626

0.1u

16V

C5612

25V 10u

C5696

25V

47u

C5628

68u

2.5V

C5629

68u

2.5V

C5648

100u

6.3V

C5602

100u

6.3V

D5600

B0BC4R700007

D5608

B0BC4R700007

D5607

B0BC4R700007

D5603

B0BC6R600005

D5612

MAZ80560LL

C0DBAYY00480

IC5600

1

CTL1

2

CS1

3

FB1

4

VO1

5

ILIM1

6

GND

7

CVBLPF

8

CTL2

9

ILIM2

10

VO2

11

FB2

12

CS2

13

TEST

14

CB2

15

DRVH2

16

LX2

17

DRVL2

18

PGND

19

VB

20

VCC

21

DRVL1

22

LX1

23

DRVH1

24

CB1

C0DBAYY00480

IC5601

1

CTL1

2

CS1

3

FB1

4

VO1

5

ILIM1

6

GND

7

CVBLPF

8

CTL2

9

ILIM2

10

VO2

11

FB2

12

CS2

13

TEST

14

CB2

15

DRVH2

16

LX2

17

DRVL2

18

PGND

19

VB

20

VCC

21

DRVL1

22

LX1

23

DRVH1

24

CB1

L5605

J0JHC0000075

L5602

G1C4R7Z00014

L5600

2.2u

G1C2R2Z00007

L5603

6.8u

G1C6R8Z00008

L5604

G1C100MA0203

L5601

3.3u

G1C3R3Z00004

L5606

G1C100MA0203

F15V

SUB1.8V

F15V

SUB1.2V

SUB3.3V

VJ5603

VJ5601

VJ5600

VJ5602

VJ5629

VJ5625

VJ5627

VJ5628

VJ5605

VJ5626

PA5600

K5H5022A0031

TP5600

TP5601

TP5700

TP5602

DCDC_ON

Q5601

B1MBDDA00003

S1G1S2G2

D2 D2 D1 D1

Q5603

B1MBDDA00003

S1G1S2G2

D2 D2 D1 D1

Q5600

B1MBDDA00003

S1G1S2G2

D2 D2 D1 D1

Q5602

B1MBDDA00003

S1G1S2G2

D2 D2 D1 D1

Q5606

2SD0601A0L

Q5607

2SD0601A0L

R5612

20k

1%

R5646

10k

R5657

2.2k

R5659

10k

R5611

12k

1%

R5636

68k

R5604

51k

1%

R5658

47k

R5635

22k

R5647

47k

R5600

47.5k

1%

R5629

27k

1%

R5605

8.2k

1%

R5633

12k

1%

R5622

5.6

R5632

30k

1%

R5631

51k

1%

R5630

24k

1%

R5610

27k

1%

R5634

16k

1%

R5613

5.6

SUB9V

D5620

B0BC01100001

C5723

1u

16V

F15V

C0CBZZE00001

IC5401

OUTPUT 3

2

COMMON

INPUT

1

C5722

1u

25V

TP5800

R5670

1k

C5727 16V

0.1u

D5621

MA3X152D0L

TP5604

R5678

470

C5728 16V

0.1u

D5622

MA3X152D0L

STB3.3V

G-SOS

R5668

2.2k

R5676

220

R5669

3.3k

SUB9V

SUB5V

Q5608

2SB0709A0L

SUB6V

BT30V

R5674

470

R5671

10k

R5672

220

L5614

G1C100MA0203

SUB3.3V_5V

SUB1.2V_1.8V

SUB9V

TO 17/21

TO 2/21

137 138 143142140 141 144136 139

!

A-BOARD (16/21)

62

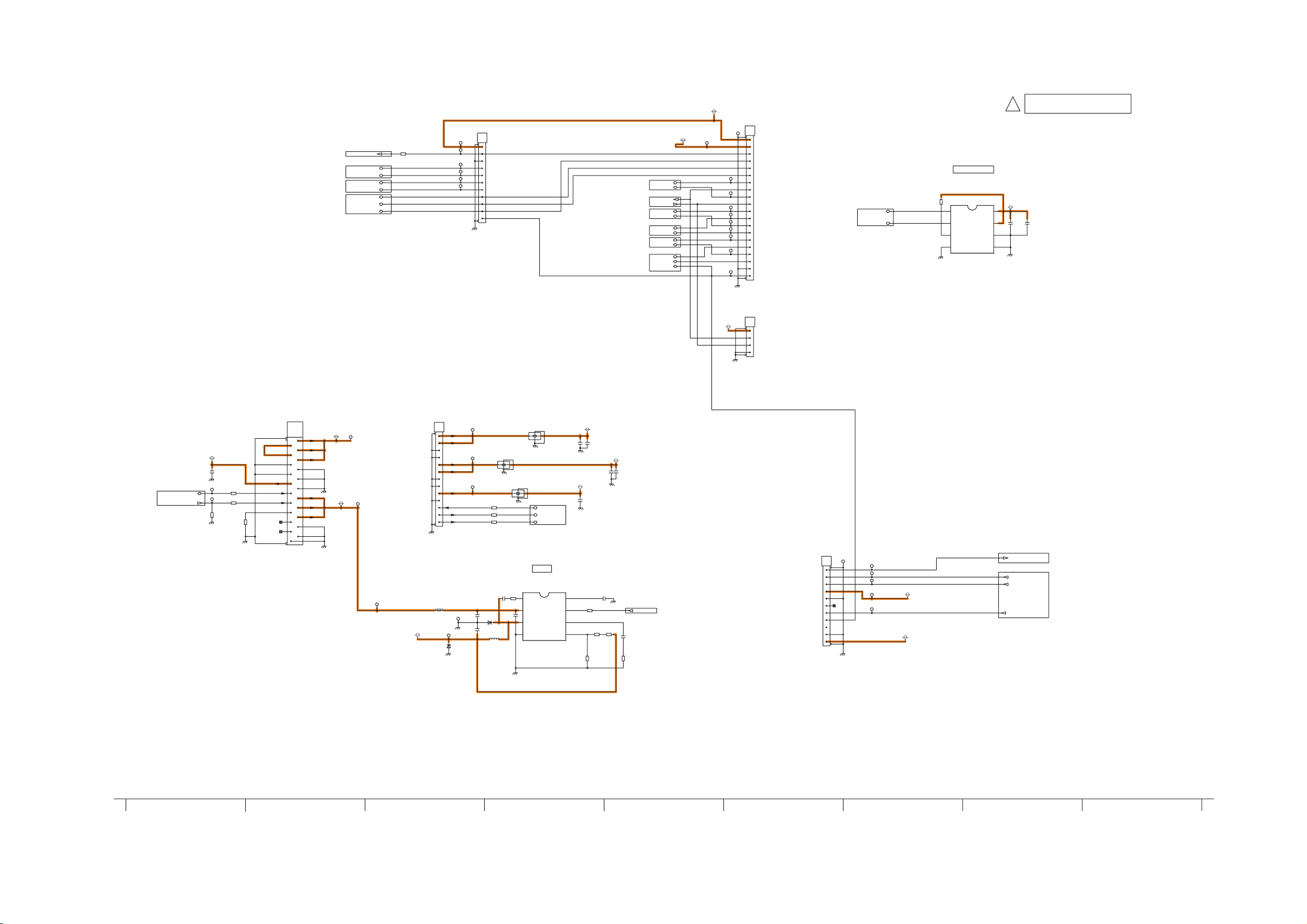

12.23.A-Board (17/21) Schematic Diagram

+

G

P

C1010 25V 1u

C1009 16V

0.1u

C9837

10u

10V

C9823

10u

25V

C9844

25V

0.01u

C9845

16V

0.1u

C9846

16V

0.1u

C2871

10u

25V

C2873

0.1u

25V

C2878

50V

4700p

C2872

25V

0.01u

C2874

100u

10V

C5520

16V

10u

D2870

B0JCME000037

D2871

MAZ81200ML

0.1u

F1J1E104A148

FL9803

0.1u

F1J1E104A148

FL9805

0.1u

F1J1E104A148

FL9806

IC1000

C1ZBZ0003775

1

SDA

2

SCL

3

ALERT

4

GND

5

A2

6

A1

7

A0

8

V+

IC2801

C0DBAYY00462

1

BOOT

2

VIN

3

SW

4

GND

5

FB

6

COMP

7

EN

8

SS

CN0102

1

2

3

4

CN0100

1

2

3

4

5

6

7

8

9

10

11

A1

1

2

3

4

5

6

7

8

9

10

11

A25

1

2

3

4

5

6

7

8

9

10

11

12

13

CN0101

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

A7

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

L2870

G1C101M00029

SUB6V

SUB3.3V

F15V

SUB5V

S_15V

STB5V

SUB5V

STB3.3V

P15V

STB5V

P5V

STB3.3V

STB5V_M

VJ2870

TP631

TPS15V

TP1054

TP627

TP1057

TP1062

TP628

TP0105

TP0107

TP1052

TP0155

TP0154

TP1056

TP0106

TP5400

TP629

TP1058

TP0153

TPEC0

TP9862

TP626

TP630

TP2871

TP0101

TP2870

TPS0N

TP9006

TP9196

TP0102

TP2872

TP1053

TP0104

TP1055

G-G_LED_ON

G-R_LED_ON

G-ECO_ON/INVERTER_ON

G-ACTIVE_STBY_LED_ON

DCDC_ON

AD_SBO0

AD_SBI0

G-SRQ_GENX

G-RMIN

PEAKS_SDA3

TMP-SENS_SCL

ADJ_GENX_SDA

LED_R

PEAKS_SDA2

AR_TXD_PC

PANEL_MAIN_ON

G-TV_SUB_ON

AR_RXD_PC

D_PCB_MODE

GENX7_SCL

GENX7_SDA

SOS4_PS

IIC_CONT/C_SEL

REMOCON

PEAKS_SDA1

VDATA_DET

PEAKS_SCL1

PANEL_SDA2

PANEL_SCL2

ADJ-GENX_SCL

PEAKS_SCL2

PEAKS_SCL3

TMP-SENS_SDA

R28730R2872

68k

R2874

10k

R2757

100

R9120

100

R9115

100

R1010

10k

R2756

100

R2875

20k

R2871

10k

R2870

39

R5581

47k

R5582

47k

R9145

100

R0180

100

C2875

0.022u

50V

S_GND

F+15V

+15V_S

GND

F+15V

GND

+15V_S

S_GND

GND

ECO_ON

+15Vc_FAN

GND

+15Vc_FAN

TUNER_SUB_ON

ALL_OFF

F+15V

+15V_S

STB5V

G_LED_ON

AI_SENSOR

SUB5V

RMIN

ACTIVE_STBY_LED_ON

GND

STB3.3V

R_LED_ON

GND

NC

TO K-BOARD (K1)

PEAKS_SBI0 (Diag)

Panel_TXD

(GenX8 Loarder/E2PROM)

Panel_SCL

PEAKS_SCL2

(Device Control)

(Panel Dpr.E2PROM)Panel_SDA

(Panel Dpr.E2PROM)Panel_SCL

TEMP SENSOR

IIC_CONT/SRQ

PEAKS_SDA3

GenX8_SDA

PEAKS_SBO0 (Diag)

PEAKS_SDA2

LED_R

(GenX8 Loarder/E2PROM)

GND

GenX8_SCL

SRQ

PEAKS_SCL0

PEAKS_SCL3

D_PCB_MODE

IIC_CONT

PEAKS_SDA1

PEAKS_SDA0

(Device Control)

(PEAKS E2PROM)

STB5V

(Device Control)

(PEAKS E2PROM)

(Panel Dpr.E2PROM)

IIC_CONT

(Device Control)

REMOCON

Panel_SDA

GND

(Panel Dpr.E2PROM)

STB3.3V

STB5V

Panel_RXD

(Device Control)

PEAKS_SCL1

Set

REF No. 2750-2899

SBO0

SBI0

+5V

GND

VDATA_DET

+5V

GND

STBY5V

+15V

GND

PANEL_MAIN_ON

+5V

GND

SOS4_PS

(Genx7_SRQ)

D_PCB_MODE

NC

SUB6V

TO 2/21

TO 12/21

TO P-BOARD (P25)

TO P-BOARD (P6, P7)

FOR FACTORY USE

TO 1/21

TO 12/21

TO 2/21

TO 2,12/21

TO 16/21

TO 2/21

TO 13/21

TO 1/21

TO 20/21

TO 1/21

TO 1,11/21

TO 11,13/21

147 151146 152150 153148 149145

!

A-BOARD (17/21)

63

12.24.A-Board (18/21) Schematic Diagram

+

CH0DQ3

CH0DQ15

CH0A3

CH0DQ29

CH0DM2

CH0A5

CH0DQ13

CH0CK

CH0ODT

CH0A7

CH0A1

CH0XCK

CH0A8

CH0DM3

CH0XCS0

CH0DQS0

CH0DQ21

CH0DQ18

CH0DQ20

CH0DQ12

CH0ODT

CH0A2

CH0DQ5 CH0DQ4

CH0DQ8

CH0A9

CH0DQ4

CH0A6

CH0DQ0

CH0DQS2

CH0A6

CH0A3

CH0DQS3

CH0DM0

CH0XCS1

CH0XCS0

CH0A3

CH0XRAS

CH0A0

CH0XCK

CH0A1

CH0A4

CH0A5

CH0DQ19

CH0XWE

CH0A11

CH0A12

CH0DQ9

CH0XCS1

CH0DQS1

CH0DQ21

CH0A7

CH0DQS0

CH0DQ30

CH0A7

CH0DQ9

CH0CKE

CH0DM3

CH0BA0

CH0CKE

CH0A10

CH0DQ11

CH0DQ10

CH0DQ25

CH0BA2

CH0XRAS

CH0XCAS

CH0A11

CH0DQ14

CH0XRAS

CH0A9

CH0DM1

CH0DQ15

CH0XCK

CH0DQ13

CH0XCAS

CH0DQS3

CH0A10

CH0DQ7

CH0DQ1

CH0BA1

CH0DQ18

CH0DQ2

CH0XWE

CH0DQ17

CH0A2

CH0BA1

CH0DQ28

CH0A8

CH0DQ22

CH0A1

CH0DQ11

CH0DQ16

CH0DQ2

CH0DQ27

CH0A8

CH0CK

CH0DQ29

CH0DQ31

CH0DQS2

CH0DQ14

CH0DM0

CH0DQ3

CH0BA0

CH0DQ23

CH0A9

CH0DQ6

CH0DQ8

CH0DQ19

CH0DQ24

CH0DQ26

CH0A6

CH0DQ31

CH0DQ12

CH0DQ22

CH0A0

CH0A12

CH0DQ25

CH0DM1

CH0A4

CH0ODT

CH0DQS1

CH0BA1

CH0DQ0

CH0DQ7

CH0A11

CH0DQ23

CH0DQ24

CH0A12

CH0DQ1

CH0DQ16

CH0CKE

CH0BA2

CH0DQ17

CH0BA2

CH0DQ26

CH0A4

CH0CK

CH0DQ5

CH0A2

CH0DQ28

CH0A0

CH0XWE

CH0A5

CH0DQ6

CH0DQ10

CH0A10

CH0DQ20

CH0DQ27

CH0DM2

CH0DQ30

CH0XCAS

CH0CKE

CH0ODT

C8041

16V

0.1u

C8010

10u

10V

C8070

16V

0.1u

C8024

10u

10V

C8022

6.3V

1u

C8046

16V

0.1u

C8057

16V

0.1u

C8040

16V

0.1u

C8071

16V

0.1u

C8047

16V

0.1u

C8052

6.3V 1u

C8011

16V

0.1u

C8008

16V

0.1u

C8068

16V

0.1u

C8043

16V

0.1u

C8045

16V

0.1u

C8076

16V

0.1u

C8077

16V

0.1u

C8053

25V

0.01u

C8072

16V

0.1u

C8074

16V

0.1u

C8003

1u

6.3V

C8012

16V

0.1u

C8078

16V

0.1u

C8009

10u

10V

C8004

1u6.3V

C8031

6.3V

1u

C8023

10u

10V

C8035

10u

10V

C8073

16V

0.1u

C8029

16V

0.1u

C8058

10u

10V

C8056 16V

0.1u

C8021

16V

0.1u

C8080

16V

0.1u

C8069

50V

82p

C8018

16V

0.1u

C8038

16V

0.1u

C8025

16V

0.1u

C8049

16V

0.1u

C8039

16V

0.1u

C8013

16V

0.1u

C8016

6.3V 1u

C8079

16V

0.1u

C8015

6.3V 1u

C8048

16V

0.1u

C8051

16V

0.1u

C8020

16V

0.1u

C8026

16V

0.1u

C8075 4V 22u

C8007

16V

0.1u

C8001

16V

0.1u

C8037 16V

0.1u

C8050

16V

0.1u

C8044

16V

0.1u

C8032

10u 10V

C8034

16V

0.1u

C8033

16V

0.1u

C8006

16V

0.1u

C8030

6.3V

1u

C8019

16V

0.1u

C8067

25V

0.01u

C8028

16V

0.1u

C8014

16V

0.1u

C8005

1u6.3V

C8036

10u

10V

C8027

16V

0.1u

C8002

6.3V

1u

C8017

10u

10V

C8055 50V

0.5p

C8054

50V

15p

C8042

68u

4V

IC8003

C3ABRY000038

A1 VDD

IC8001

MN2WS0047

A1 VSS

IC8002

C3ABRY000038

A1 VDD

IC8001 A5 VI1P8

IC8001 F4 VI2P9

IC8001 E11 VI1CVBS3

IC8001 AC4 XECS5

IC8001 W1 ED5

IC8001 AF14 VDD12

IC8001 AB25 VDDIO

IC8001 U4 EA4

IC8001AA16MMDQ29

IC8001 Y5 XEDK

IC8001 E9 VI1CVBS0

IC8001 K11 VSS

IC8001 F10 VI1CVBS1

IC8001 D3 VI2P8

IC8001P22MMDQ13

IC8001 B8 VI1P24

IC8001 AA13 SDDAT3

IC8001 AF23 BOOTSWAP

IC8001AF16MMDQ31

IC8001 B13 SRCK0

IC8001R23MMCKE

IC8001 AB11 SMTSEL0

IC8001Y26MMA6

IC8001 A20 VOP17

IC8001 T2 EA1

IC8001 M2 SCL0

IC8001 L14 VSS

IC8001 Y2 ED11

IC8001 P13 VSS

IC8001J26MMDQ6

IC8001 AF2 XNFWP

IC8001 K2 VI2P22

IC8001 AA7 VSS

IC8001 D22 VDD33

IC8001 C18 VOP12

IC8001 U16 VDDR

IC8001 C26 TB1P

IC8001 T25 VDDIO

IC8001AF17MMDQ27

IC8001AE26MMRODT

IC8001 AC11 VDD33

IC8001 AF20 VDDIO

IC8001 AE25 VSS

IC8001 N5 SCL1

IC8001 P3 AGAVDD

IC8001 H6 VI1P20

IC8001 P2 AGAVSS

IC8001 P14 VSS

IC8001 B5 VI1P9

IC8001 L6 VI2P21IC8001 AE24 DTCPOUT

IC8001 R12 VDD12

IC8001U22MMA5

IC8001AD18MMDQS3

IC8001 R6 TCK

IC8001 B25 TA1N

IC8001 E26 TCLK1P

IC8001 B18 VOP28

IC8001 L2 VI2P26

IC8001 P5 AVCOIN

IC8001 F5 VI2P6

IC8001 L15 VSS

IC8001W25MMXRAS

IC8001 H23 VSS

IC8001 E8 VI1CK208F

IC8001 AB10 SMTSEL1

IC8001 E4 VI2P7

IC8001 T6 EA2

IC8001 G4 VDD33

IC8001 AC5 XNFCE

IC8001M26MMDM1

IC8001 U14 N.C.(DPAVDD12)

IC8001 A22 VOP7

IC8001 E15 SLRCK

IC8001 M25 VSS

IC8001 T11 VDD12

IC8001AD21MMDQ23

IC8001 AA21 VDDIO

IC8001 A16 VOP10

IC8001 K16 VSS

IC8001 J2 VI2P19

IC8001 M1 SDA0

IC8001 L12 VSS

IC8001K22MMDQ4

IC8001 R16 N.C.(DPAVSS)

IC8001P24MMDQ14

IC8001 AC6 NANDRYBY

IC8001 G21 LVVSS

IC8001 C17 VOP25

IC8001 R13 VDD12

IC8001 W26 VDDIO

IC8001 AB3 XEWE1

IC8001 E14 DACVDD2

IC8001 AD10 CH1CLK

IC8001 R10 VDD12

IC8001 U11 VDD12

IC8001 F18 VOP15

IC8001V26MMA1

IC8001N23MMDQ9

IC8001 L22 VSS

IC8001 D5 VI2P5

IC8001 AB1 ECLK

IC8001 M21 VDDIO

IC8001L21MMDQ1

IC8001 E13 VSS

IC8001U21MMXCAS

IC8001L23MMDQ0

IC8001 N16 VSS

IC8001 AD13 SDCD

IC8001 K6 VDD33

IC8001 W24 VSS

IC8001 U3 EA7

IC8001 P15 VSS

IC8001 AF21 VSS

IC8001 K26 VDDIO

IC8001 V3 ED4

IC8001 F2 VI1P21

IC8001 A26 VDD33

IC8001 AB17 VSS

IC8001 AE9 SMTRST0

IC8001 T22 VSS

IC8001 AB21 VSS

IC8001 C16 VOP1

IC8001 C11 DACVSS1

IC8001AD16MMDQ30

IC8001 D19 VSS

IC8001J23MMDQ5

IC8001 R24 VSS

IC8001 W4 ED9

IC8001T21MMA3

IC8001AE19MMDM2

IC8001 U15 VDDA

IC8001 Y3 ED13

IC8001 H1 VI2P15

IC8001 G1 VI2P10

IC8001 A2 VI1P16

IC8001 AF12 CH0CLK

IC8001 G26 TE1P

IC8001 AA10 SMTRST1

IC8001 L1 VI2P28

IC8001 B2 VSS

IC8001W22MMXCS1

IC8001 AD11 CH0PSYNC

IC8001 T5 TDI

IC8001 Y22 VDDIOCK

IC8001AC17MMDQ25

IC8001 AB2 ERXW

IC8001 A25 VDD33

IC8001 AE6 XRTS0

IC8001 AE21 VDDIO

IC8001T23MMBA0

IC8001 R4 VDD33

IC8001 AD8 SMTCLK1

IC8001 AB15 VDDR

IC8001 R3 TDO

IC8001 E22 LVVDD

IC8001 J21 MVAVSS

IC8001 T14 VSS

IC8001 N6 VDD33

IC8001 AD3 XNFWE

IC8001 K14 VSS

IC8001U23MMA12

IC8001 J1 VI2CLK2

IC8001 W5 ED12

IC8001 AC18 VDDIO

IC8001 G3 VI2ENB

IC8001 M14 VSS

IC8001 C12 DACVDD1

IC8001 AE3 NFALE

IC8001 A14 ADIN

IC8001 AA25 VSS

IC8001 A4 VI1P29

IC8001 A3 VI1P14

IC8001 K1 VI2P24

IC8001 F15 USBVDD

IC8001 N11 VSS

IC8001 P6 VDD33

IC8001 A6 VI1P6

IC8001 R14 VSS

IC8001 AE2 XEXDMR0

IC8001 C5 VI1P28

IC8001 V6 ED7

IC8001 R17 VDDR

IC8001 M13 VSS

IC8001 N24 VDDIO

IC8001 A23 MVCLK

IC8001 G23 LPFIN

IC8001AA26MMA2

IC8001 A11 SVCOMP

IC8001 P11 VSS

IC8001 P16 DPAVDD

IC8001AB16MMDQ28

IC8001 B10 VI1P2

IC8001 AC23 VDDIO

IC8001 AB4 XECS2

IC8001 V1 ED1

IC8001 R5 ATCPOUT

IC8001 AA22 VSS

IC8001 A21 VOP3

IC8001 C10 VI1P3

IC8001 C3 VSS

IC8001N21MMDQ8

IC8001 AD25 VDDIO

IC8001N26MMDQ11

IC8001V24MMBA1

IC8001 AD4 XNFRE

IC8001 B9 VI1P23

IC8001AE17MMDQ26

IC8001 K17 LVVDD12

IC8001 C4 VI1P13

IC8001 U17 VSS

IC8001 B6 VI1P7

IC8001K25MMDQ2

IC8001 F20 VDD33

IC8001 F6 VSS

IC8001 M5 RMCO

IC8001 F11 VDD33

IC8001 C7 VI1P5

IC8001 AE22 VSS

IC8001 K15 VSS

IC8001 A9 VI1P22

IC8001 L5 VI2P23

IC8001 E25 TCLK1N

IC8001J24MMDQ7

IC8001 R1 TMS

IC8001 AB12 SDDAT0

IC8001 AD14 VDD12

IC8001 D7 VDD33

IC8001 D26 TC1P IC8001

U26MMA7

IC8001 C24 SBI0

IC8001 C21 VOP6

IC8001H25CLK74

IC8001K21CK27

IC8001AB18MMVREF1

IC8001 AF5 IS1DATA

IC8001 AA11 SMTD0

IC8001 B26 TA1P

IC8001 W2 ED6

IC8001 AC13 VSS

IC8001 G5 VI1P1

IC8001AC26MMCK

IC8001 AD5 IS1CLK

IC8001T26MMA10

IC8001 AB5 XEXDMK0

IC8001 P4 GTCPOUT

IC8001P21MMDQ12

IC8001 K5 VI2P16

IC8001 N1 XIRQ2

IC8001K24MMDQ3

IC8001 U12 VDD12

IC8001 AA5 XECS0

IC8001 AA4 ESZ0

IC8001 B17 VOP24 IC8001L26MMDQS0

IC8001 A10 IECOUT0

IC8001 D11 MVCOMP

IC8001 D12 MVDACO3

IC8001 F1 VI2HSYNCIC8001 B3 VI1P15

IC8001 C19 VOP16

IC8001 F16 VOP11

IC8001 AD26 VSS

IC8001 AD7 XCTS0

IC8001 P23 VSS

IC8001 G7 VSS

IC8001 M17 VDDA

IC8001 AE13 SDDAT1

IC8001 AF9 SMTCMD0

IC8001 AE15 VDDR

IC8001AA24MMODT

IC8001 T16 VSS

IC8001N25MMDQ10

IC8001 L24 VSS

IC8001 L13 VSS

IC8001 AE14 VDD12

IC8001 AD22 VDDIO

IC8001 AE1 XECS7

IC8001 AD6 SBT2

IC8001 AB7 IS0VAL

IC8001 D15 DAUDIO

IC8001AF18MMDM3

IC8001 U10 VDD12

IC8001 F8 VI2P0

IC8001 G22 LPFOUT

IC8001 AF4 IS0DATA

IC8001 U13 VDD12

IC8001AA23MMMONB

IC8001 U6 VDD33

IC8001 J25 VSS

IC8001 D9 VSS

IC8001 B11 MVIREF

IC8001 AD1 XECS3

IC8001 T13 VDD12

IC8001 AB6 NFCLE

IC8001 F9 VI1CK204F

IC8001 C1 VI1P19

IC8001 AE16 VDDIO

IC8001 AE18 VSS

IC8001 H3 VI2P12

IC8001 AC3 XECS4

IC8001 A19 VOP13

IC8001 B14 ADCCK

IC8001 B21 VOP4

IC8001 E16 VOP20

IC8001 Y4 XERE

IC8001 F12 VDD33

IC8001 L11 VSS

IC8001 AC7 IS1PSYNC

IC8001 C20 VOP2

IC8001 R2 TRST

IC8001 AA3 XEWE0

IC8001 P10 VDD12

IC8001 F14 LRCK0

IC8001 V2 ED2

IC8001 Y23 VSS

IC8001 AF26 VDDIO

IC8001 A17 VOP23

IC8001 H22 TCPOUT

IC8001 B20 VOP19

IC8001 B12 MVDACO1

IC8001 N14 VSS

IC8001 AB19 VDDIO

IC8001 A24 SBI2

IC8001 M3 VI2P29

IC8001 AA14 VDD12

IC8001 R21 VDDIO

IC8001 F26 TD1P

IC8001 U1 EA5

IC8001 AF3 IS0CLK

IC8001 D10 VSS

IC8001 P17 VSS

IC8001 M4 VSS

IC8001 AC1 ESZ1

IC8001 P25 VDDIO

IC8001 E20 MVSYNC

IC8001 AC12 VSS

IC8001 AF1 VSS

IC8001 E10 VI1CVBS2

IC8001 A15 LCSCK

IC8001AE23MCLK

IC8001 K3 VI2P20

IC8001 M23 VDDIO

IC8001 F19 VOP5

IC8001 H4 VDD33

IC8001 B24 VDD33

IC8001 E24 VSS

IC8001 AD17 VDDIO

IC8001 E18 VOP29

IC8001AA17MMDQ24

IC8001 N2 XNMIRQ

IC8001 AC16 VSS

IC8001 C9 VI1CLK

IC8001 AD19 VSS

IC8001 N17 VDDR

IC8001 M15 VSS

IC8001 L10 VSS

IC8001 G25 TE1N

IC8001 W3 ED8

IC8001 M6 VI2P27

IC8001 C14 DSRCK

IC8001 AB13 SDDAT2

IC8001AB20MMDQ16

IC8001Y25MMA8

IC8001 N10 VDD12

IC8001 B7 VI1P4

IC8001 AE8 SMTD1

IC8001M22MMVREF0

IC8001 C15 VOP21

IC8001 AF11 CH0DATA

IC8001 F7 VI2P2

IC8001 H2 VI2P14

IC8001AA20MMDQ21

IC8001 T10 VDD12

IC8001 D23 SBO0

IC8001 K13 VSS

IC8001 V25 VSS

IC8001 T1 EA0

IC8001 E5 VSS

IC8001 E3 VI1ENB

IC8001 Y1 ED10

IC8001 V4 VSS

IC8001AC21TSTSEL

IC8001 K10 VSS

IC8001 J5 VI2P11

IC8001 A18 VOP26

IC8001 D14 USBDM

IC8001R22MMXCS0

IC8001AA19

MMDQ20

IC8001 M11 VSS

IC8001 B1 VI1P17

IC8001 AE7 TXD0

IC8001 D2 VI1VSYNC

IC8001 E12 VVREF

IC8001 AF24 VSS

IC8001 E1 VI1P11

IC8001 E6 VI2P4

IC8001 H5 VI2VSYNC

IC8001 D6 VI2P3

IC8001 D8 VDD33

IC8001 AA1 ED14

IC8001 AC22 VSS

IC8001M24MMDQS1

IC8001 AC2 XECS1

IC8001 E19 VOP18

IC8001 C6 VI1P27

IC8001 AA15 VSS

IC8001AF19MMDQS2

IC8001T24MMBA2

IC8001 F23 LVVSS

IC8001 M10 VSS

IC8001 E17 VOP22

IC8001 AA18 VSS

IC8001 Y24 VDDIO

IC8001 L4 VSS

IC8001W23MMA0

IC8001 E2 VI1CLK2

IC8001 D17 VDD33

IC8001 E23 LVVDD

IC8001 F25 TD1N

IC8001 D13 USBDP

IC8001 R26 VSS

IC8001 K4 VI2P18

IC8001 AB9 XDCD0

IC8001 K23 VDDIO

IC8001R25MMXWE

IC8001 AF8 SMTCMD1

IC8001 C23 VDD33

IC8001 N15 VSS

IC8001 AA9 VDD33

IC8001 M12 VSS

IC8001 B15 LCSID

IC8001 D20 VOP8

IC8001 Y6 VSS

IC8001 K12 VSS

IC8001 G6 VI1P0

IC8001AB26MMXCK

IC8001 AE4 IS0PSYNC

IC8001 AD2 XECS6

IC8001 C22 MHSYNC

IC8001 A13 DMIX0

IC8001 AE11 CH0VAL

IC8001 AF13 SDCLK

IC8001 A12 DACVSS2

IC8001 B22 VOP9

IC8001 G24 VSS

IC8001 J3 VI2P17

IC8001 C13 DACCK0

IC8001 AC8 XDTR0

IC8001 R15 VSS

IC8001 AB8 SBT0

IC8001 AB22 VDDIO

IC8001 C25 TB1N

IC8001AB24MMMONA

IC8001 A8 VI1CKOUT

IC8001 AA6 VSS

IC8001 T3 EA3

IC8001V21MMA4

IC8001P26MMDQ15

IC8001 F24 VSS

IC8001 H21 MVAVDD

IC8001 AD9 SMTCLK0

IC8001 AA8 VDD33

IC8001 AE5 IS1VAL

IC8001 P1 XIRQ3

IC8001 AF10 CH1DATA

IC8001 T15 VDDR

IC8001 T4 VDD33

IC8001 N13 VSS

IC8001 L3 VI2P25

IC8001 AD15 VDDR

IC8001 AF7 RXD0

IC8001 AC14 VDD12

IC8001 T17 VDDA

IC8001 J4 VI2P13

IC8001 V5 ED3

IC8001AD20MMDQ19

IC8001 E7 VI2P1

IC8001 F17 VOP27

IC8001 D24 TSTAIO

IC8001 AF6 XDSR0

IC8001L25MMDM0

IC8001AF22MMDQ22

IC8001Y21MMVCAL

IC8001 AC20 VSS

IC8001 B4 VI1P12

IC8002=F2 VSSQ

IC8002=K3 WE

IC8002=C3 VDDQ

IC8002=R2 A12

IC8002=R3 NC

IC8002=B1 DQ14

IC8002=M9 VDD

IC8002=C1 VDDQ

IC8002=G3 VDDQ

IC8002=R8 NC

IC8002=N1 VSS

IC8002=K9 ODT

IC8002=D1 DQ12

IC8002=D2 VSSQ

IC8002=C7 VDDQ

IC8002=F1 DQ6

IC8002=K2 CKE

IC8001 AA12 CH1VAL

IC8001 R11 VDD12

IC8001 D4 VSS

IC8002=R1 VDD

IC8002=R7 NC

IC8001 AC9 XRI0

IC8001 B19 VOP14

IC8002=J3 VSS

IC8002=H1 DQ4

IC8002=F7 LDQS

IC8002=B3 UDM

IC8002=H8 VSSQ

IC8002

=

A3 VSS

IC8002=N3 A5

IC8002=L8 CS

IC8002=B8 VSSQ

IC8002=J1 VDDL

IC8002=B7 UDQS

IC8002=J9 VDD

IC8002=A2 NC

IC8002=G8 DQ0

IC8002=A8 UDQS

IC8002=P8 A8

IC8002=P9 VSS

IC8002=B9 DQ15

IC8002=H2 VSSQ

IC8002=L1 NC

IC8002=B2 VSSQ

IC8002=P3 A9

IC8002=E9 VDDQ

IC8002=G2 DQ1

IC8002=A9 VDDQ

IC8002=N7 A6

IC8002=E2 NC

IC8002=N2 A3

IC8002=G7 VDDQ

IC8002=C8 DQ8

IC8002=E7 VSSQ

IC8002=P2 A7

IC8002=L7 CAS

IC8002=F8 VSSQ

IC8002=K8 CK

IC8002=L2 BA0

IC8002=C9 VDDQ

IC8002=E1 VDD

IC8002=J2 VREF

IC8002

=

M3 A1

IC8002=H3 DQ3

IC8002=E8 LDQS

IC8002=M7 A2

IC8002=H7 DQ2

IC8002=K7 RAS

IC8002=L3 BA1

IC8002=F3 LDM

IC8002=H9 DQ5

IC8002=G1 VDDQ

IC8002=C2 DQ9

IC8002=D3 DQ11

IC8002=F9 DQ7

IC8002=N8 A4

IC8002=M8 A0

IC8002=E3 VSS

IC8002=D9 DQ13

IC8002=G9 VDDQ

IC8002=D8 VSSQ

IC8001J22VC27

IC8002=D7 DQ10

IC8001AD24CK27D

IC8001 D16 VDD33

IC8001 AC10 VDD33

IC8001 N22 VSS

IC8001 AA2 ED15

IC8001 L16 VSS

IC8003=N8 A4

IC8003=L7 CAS

IC8003=C9 VDDQ

IC8003=C8 DQ8

IC8003=J8 CK

IC8003=F3 LDM

IC8003=A8 UDQS

IC8003=D2 VSSQ

IC8003=R7 NC

IC8003=E9 VDDQ

IC8003

=

C1 VDDQ

IC8003=B1 DQ14

IC8003=B8 VSSQ

IC8003=C2 DQ9

IC8003=L3 BA1

IC8003=C7 VDDQ

IC8003=H9 DQ5

IC8003=F2 VSSQ

IC8003=D1 DQ12

IC8003=L1 NC

IC8003=R3 NC

IC8003=J1 VDDL

IC8003=F1 DQ6

IC8003=E3 VSS

IC8003=K2 CKE

IC8003=J3 VSS

IC8003=M8 A0

IC8003=P3 A9

IC8003=N3 A5

IC8003=H1 DQ4

IC8003=G1 VDDQ

IC8003=H8 VSSQ

IC8003=B2 VSSQ

IC8003=H2 VSSQ

IC8003=F8 VSSQ

IC8003=G7 VDDQ

IC8003=G9 VDDQ

IC8003=K8 CK

IC8003=G8 DQ0

IC8003=N2 A3

IC8003=F7 LDQS

IC8003=R2 A12

IC8003=D9 DQ13

IC8003

=

E8 LDQS

IC8003=G3 VDDQ

IC8003=B3 UDM

IC8003=L8 CS

IC8003=J7 VSSDL

IC8003=K9 ODT

IC8003=E2 NC

IC8003=P2 A7

IC8003=D8 VSSQ

IC8003=B9 DQ15

IC8003=J9 VDD

IC8003=A3 VSS

IC8003=P8 A8

IC8003=C3 VDDQ

IC8003=M7 A2

IC8003=F9 DQ7

IC8003=G2 DQ1

IC8003=P9 VSS

IC8003=M9 VDD

IC8003=M3 A1

IC8003=N1 VSS

IC8003=H7 DQ2

IC8003=B7 UDQS

IC8003=A9 VDDQ

IC8003=R1 VDD

IC8003=D7 DQ10

IC8003=A2 NC

IC8003=K3 WE

IC8003=E7 VSSQ

IC8003=J2 VREF

IC8003=E1 VDD

IC8003=N7 A6

IC8003=M2 A10IC8003=K7 RAS

IC8003

=

L2 BA0

IC8003=H3 DQ3

IC8003=D3 DQ11

IC8003=A7 VSSQ

IC8003=P7 A11

IC8003=R8 NC

IC8001 D21 XRST

IC8001 E21 VDD33

IC8001 D25 TC1N

IC8001 N4 XIRQ1

IC8001 A7 VI1P26

IC8001AF25MMRDRV

IC8001 H26 VOUTENB

IC8001 V22 VDDIO

IC8001AC24MMPCLKEXT

IC8001 P12 VSS

IC8001 N12 VSS

IC8001 C2 VI1P18

IC8001 AB23 VSSIC8001 L17 VSS

IC8001 W6 VSS

IC8001AE20MMDQ18

IC8001 B23 SBO2

IC8001 D18 VSS

IC8001 W21 VSS

IC8001 M16 VSS

IC8001 F21 LVVDD

IC8001 T12 VDD12

IC8001 AC25 VSS

IC8001 AC15 VDDR

IC8001 U5 ED0

IC8001 U24 VDDIO

IC8001 AB14 VDD12

IC8001U25MMA9

IC8001 F22 LVVSS

IC8001 AF15 VDDR

IC8001 C8 VI1P25

IC8001 AE10 CH1PSYNC

IC8001 H24 AUDCLK

IC8001 B16 VOP0

IC8001 U2 EA6

IC8001V23MMA11

IC8001 D1 VI1HSYNC

IC8001 AD12 SDCMD

IC8001 J6 VDD33

IC8001 G2 VI2CLK

IC8001 AD23 VSS

IC8001 AE12 SDWP

IC8001AC19MMDQ17

IC8002=M2 A10

IC8001 N3 SDA1

IC8002=P7 A11

IC8002=J8 CK

IC8001 F13 MVDACO2

IC8001 F3 VI1P10

IC8002=A7 VSSQ

IC8002=J7 VSSDL

C0ZBZ0001567

IC8004

1

X1

2

S0

3

S1

4

VIN

5

VDD1

6

GND1

7

CLK1

8

CLK2

9

REFOUT

10

CLK3

11

CLK4

12

GND2

13

VDD2

14

S2

15

VDD3

16

X2

L8008

J0JHC0000045

L8004

J0JHC0000045

L8005

J0JHC0000045

L8003

J0JHC0000045

L8007 J0JHC0000045

L8001

J0JHC0000045

L8009

J0JHC0000045

L8002

J0JHC0000045

L8010

J0JHC0000045

SUB1.8V

VDD3.3V

SUB3.3V

1.8V_DDRI/F

SUB3.3V

VREF

SUB1.2V

VDD3.3V

SUB1.2V

1.8V_DDRI/F

SUB3.3V

1.8V_DDRI/F

SUB3.3V

TP8037

CLKGEN_S2

EA4

SMTSEL0

SMTCMD1

ESZ1

XIRQ3

TRST

VI2ENB

VI1P4

VI2P22

RB+

SBT0

SMTRST1

RCLK+

XECS1

VI1P10

VI2P11

SDDAT3

EA0

SMTSEL1

SDCD

VI1P9

EA6

VI2P13

VI1P19

RC-

XERE

XNFCE

ED10

XCTS0

RE-

VI1P2

VI2P18

VI1P5

SMTCLK0

VI2P26

ED1

IS0VAL

ED13

ED0

SMTD0

VI2P24

SDCLK

XEXDMK0

VI1P17

SDA0

VI1VSYNC

RD-

ED3

RA+

VI1P15

EA3

XDCD0

RCLK-

VI2P23

IS1DATA

TCK

ED5

EA2

VI2CLK2

IS0DATA

RB-

XNMIRQ

XEWE1

NANDRYBY

ED7

VI1P24

IS0CLK

ED12

XEDK

VI1P22

SDDAT0

VI2P17

ED11

SBO0

SDWP

SDCMD

SMTRST0

XECS0

VI2P27

LRCK0

VI1CKOUT

CH0CLK

TXD0

XDTR0

VI1P0

XRST

VI2P15

CH1VAL

VI2P29

SBT2

IECOUT0

VI2P19

ED4

RD+

VI1P16

VI1CLK

CH1DATA

VI1P8

SBO2

XECS2

VI1P3

ED6

EA1

XNFWP

XEXDMR0

VI1P12

VI1P27

SCL0

EA5

SRCK0

IS1PSYNC

RA-

XEWE0

VI1P6

ED8

MVDACO0

TMS

VI2P28

IS1CLK

VI2P20

VI1P26

TDO

RE+

ESZ0

VI2P14

IS0PSYNC

SDDAT2

VI1P18

MVDACO3

XECS4

IS1VAL

MVDACO2

BOOTSWAP

VI2P10

XIRQ1

VI2P12

XECS5

VI1P21

VI2CLK

VI1P25

ED14

TDI

XIRQ2

ED9

SDDAT1

XRTS0

XDSR0

VI2P16

MVDACO1

VI2P4

XECS6

ECLK

RC+

RXD0

VI1P28

SMTCMD0

XECS3

SBI2

VI1P29

VI1P23

VI2P25

ERXW

SBI0

VI1P7

VI1CLK2

ED15

SCL1

VI1ENB

XRI0

VOUTENB

VI1HSYNC

SMTCLK1

VI1P14

DAUDIO

SDA1

ED2

EA7

VI1P11

VI1P13

DMIX0

SMTD1

R8063

47

R8083

300

R8062

47

R8059

47

1%

R8005

10k

1%

R8004

24k

R8074

220

R8036

0

R8071

47

R8025

0

R8027

0

R8075

47

R8024

0

R8069

47

R8108

22k

R8039

0

R8081

10k

R8087

10k

1%

R8082

75

R8095

10k

R8097

220

R8073

47

R8065

47

1%

R8032

270

R8072

47

R8001

220

R8099

10k

R8060

47

R8090

10k

R8100

47

R8093

47

1%

R8006

6.8k

R8023

0

R8066

47

R8057

47

1%

R8031

270

R8098

10k

R8030

100

R8070

47

R8091

100

R8035

0

R8079

0

R8002

56

R8067

47

R8077

47

R8078

47

R8080

0

R8084

0

R8056

47

R8061

47

R8107

100

R8058

47

R8076

47

R8064

47

R8106

2k

R8029

0

R8101

10k

R8086

100k

R8068

47

R8026

0

R8028

0

X8001

H0J270500120

R4330 10k

R4363

10k

R4364

10k

SUB3.3V

R4365

10k

=

DDR2_0

DDR2_1

XPDIOWR

HDMI_IRQ

SCL3

POWER_DET

EA10

EA23

LOSDOUT_CLK_I

XPDWE

HSBCLKIN

LOSDOUT14

HSSYNIN

GC6_IRQ

POD,CI I/F

TO 13/21

XPDCE2

XEAB

EA24

EA22

LOSDOUT_YS

SCARD_IRQ

HSDIN7

CI_RESET

LOSDOUT5

ETHER_XRST

LOSDOUT_H_O

DISPEN

OSD_FLAG

LOSDOUT7

XEDBA

XPDCD1

EA20

LOSDOUT0

XPDCD2

VI1P20

LOSDOUT3

VI1P1

/PWM3

VI1P11

CRNo.8000-8299

EA19

VI1P10

VI1P21

B

HSDIN5

Y

EA11

EA15

EA17

CLOCK GEN

VI1P0

PWM1

SCL2

EA25

LOSDOUT11

PWM2

LOSDOUT8

LOSDOUT6

CH,IS IF

LOSDOUT_V_I

LOSD OUT (for HQ1)

VI1VSYNC

CPU BUS I/F

VI1HSYNC

LOSDOUT12

XPDIORD

COMMON PORT .etc

LOSDOUT10

EA12

EA08

XPDOE

Cmp

CI_IREQ

LOSDOUT_H_I

ETHER_IRQ

NAND I/F

EEPROM_WP

XETS

G9/Y9

R9

B9/CbCr9

HSDIN3

HSDIN0

HSDIN1

Y

JTAG

SERIAL I/F

IIC I/F

LOSDOUT4

SDA3

HSDIN2

SDA2

LOSDOUT_CLK_O

LOSDOUT1

CI_POWER_ON

FOR HQ1L VIDEO

HSDIN6

LOSDOUT2

HSVALIN

U

EA09

SCARD_NMIRQ

Analog Video I/F

EA13

EA14

HSDIN4

EA21

LVDS I/F

C

B PORT (Sub Video Input or Address)

Cmp

FE_IRQ

SDBOOT

AUDIO IF

G

EA16

LOSDOUT9

EA18

SD CARD I/F

Cmp

XPDWT

Peaks-Lite2+/DDR2

FOR ADV7493

LOSDOUT15

FE_SW

FE_XRST

CLOCK GEN

IC8001

Peaks-Lite2+

IC8002

IC8003

TO 21/21

TO 11/21

156154 158 162160155 159157 161

TO 1/21

TO 21/21

TO 5/21

TO 21/21

TO 20/21

TO 3/21

TO 21/21 TO 20/21

TO 2/21

TO 20/21

!

A-BOARD (18/21)

64

12.25.A-Board (19/21) Schematic Diagram

S

P

AS_OE-

MDO3

AA_ED0

AC_XEAB

AU_DA0

AY_EAA6

AS_WE-

AA_ED7

AA_EA7

AY_EAA9

AA_XEAS

MDO1

AA_EA4

AA_ED4

AU_DA2

AU_DA3

AY_EAA3

AY_EAA1

AY_EAA2

AY_EAA11

AA_ED2

AY_EAA4

AC_REG

AU_DA1

AY_EAA15

MDO5

AU_DA4

AY_EAA5

AA_EA5

AS_IOWR-

MDO6

AA_ED1

AU_DA6

MDO4

AY_EAA12AA_EA3

AU_DA5

AC_CI_RESET

MDO2

AY_EAA7

AA_ERXW

AA_EA1

AS_CE1-

AS_IORD-

SMTCLK0

AS_REG-

AC_XEDBA

AA_EA2

AA_ED3

AU_DA7

AA_ED6

AY_EAA10

AA_EA6

AA_ED5

AY_EAA14

AY_EAA8

AY_EAA13

IS1CLK

AC_XPDWE

AC_XPDOE

AC_IORD

AC_IOWR

AA_FE_XRST

CH0PSYNC1

CH0VAL1

MDO0

MDO7 MDO7

MDO0

MDO1

MDO2

MDO3

MDO4

MDO5

MDO6

AA_XIRQ2

CI_CH0CLK

*C8330

16V

0.1u

*C8327

10V

2.2u

*C8335

16V

0.1u

*C8329

16V

0.1u

*C8306

10V

0.47u

*C8334

16V

0.1u

*C8333

16V

0.1u

*C8336

16V

0.1u

*C8307

16V

0.1u

*C8314

16V

0.1u

*C8309

16V

0.1u

*C8311

50V

12p

*C8312

50V 12p

*C8320

16V

0.1u

*C8343

16V

0.1u

*C8313

16V

0.1u

*C8332

16V

0.1u

*C8345

16V

0.1u

*C8331

16V

0.1u

*C8328

10V

1u

*C8344

16V

0.1u

*C8321

16V 0.1u

*C8408

16V

0.1u

*C8340

16V

0.1u

*C8346

16V

0.1u

*C8410

16V

0.1u

*C8319

16V

0.1u

*C8317

16V270p

*C8316

16V270p

C0DBFYY00028

*IC8302

1

VIN

2

VSS

3

CE

5

VOUT

4

NC

C0ZBZ0001584

*IC8403

1

VIN

2

GND

3

EN

5

VOUT

4

/OC

*IC8401

C1AB00002913

1

NWE5V/EA11

2

VDDADR

3

NOE5V/EA10

4

NIORD5V/EA95NIOWR5V/EA8

6

EA5VOUT157EA5VOUT14

8

EA5VOUT9

9

GND

10

EA5VOUT1011EA5VOUT1212EA5VOUT11

13

NCE5VOUT

14

ED5VIO7

15

ED5VIO6

16

ED5VIO5

17

VDD5V1

18

ED5VIO419ED5VIO3

20

CI_RESET_5VOUT

21

NREG5VOUT

22

ED5VIO2

23

ED5VIO1

24

ED5VIO0

25

EA5VOUT1

26

EA5VOUT2

27

EA5VOUT3

28

EA5VOUT4

29

EA5VOUT5

30

EA5VOUT631EA5VOUT732GND

33

VDD5V2

34

EA5VOUT8

35

EA5VOUT13

36

EA3VIN137EA3VIN238EA3VIN339EA3VIN440EA3VIN541EA3VIN642EA3VIN743ED3VIO044ED3VIO145ED3VIO2

46

ED3VIO3

47

ED3VIO4

48

GND

49

VDD3V50MODE51ED3VIO5

52

ED3VIO6

53

ED3VIO7

54

RNW

55

LE

56

CI_RESET_3VIN

57

NOE_DAT

58

NCE3VIN

59

NWE3V/EA15

60

NOE3V/EA14

61

NIORD3V/EA13

62

NIOWR3V/EA12

63

NREG3VIN

64

NOE_ADR

*IC8301

C1AB00003049

1

RF_IFAGC_Q_GPIO1

2

IFAGC_I

3

CVSS

4

CVDD5INTRPTN6RESETN7TSERR_GPIO28TSSYNC9TSVALID10TSCLK11DVSS12DVDD13TSDATA0

14

TSDATA1

15

CVDD

16

CVSS

17

TSDATA218TSDATA319TSDATA4

20

TSDATA5

21

TSDATA6

22

TSDATA7

23

DVSS

24

DVDD

25

SCL

26

SDA

27

CVDD

28

CVSS

29

TCK

30

TDO31TDI32TMS

33

TESTMODE

34

TRSTN

35A036

DVDD37DVSS38CVSS39CVDD

40

OSCEN

41

XVDD

42

XTALI43XTALO

44

XVSS

45

DIVDD

46

DIVSS

47

PADVSS

48

PADVDD

49

AINP_Q50AINM_Q51AVDD_Q

52

AVSS_Q

53

GUARD_Q

54

DAREFP

55

DAREFM

56

GUARD_I

57

AINM_I

58

AINP_I

59

AVSS_I

60

AVDD_I

61

REFIN

62

REFOUT63TUNERDAT64TUNERCLK

*L8301

J0JHC0000045

*L8304

J0JHC0000045

*L8303

G1CR15JA0020

SUB3.3V

*R8343

*R8403

*R8342

*R8346

*R8402

TP8401TP8403

TP8404

TP8301

IFD2

IFD1

IFAGC

FE_SCL

FE-OUT_SCL

FE-OUT_SDA

FE_SDA

*Q8401

2SD0601A0L

*Q8402

2SD0601A0L

*R8337

EXB28V680JX

*R8333

EXB2HV101JV

*R8332

EXB2HV101JV

*R8335

EXB2HV680JV

*R8301

EXB2HV220JV

*R8336

EXB2HV680JV

*R8417

100k

*R8416

22k

*R8305

1k

*R8567

10k

*R8313

2.2M

*R8407

47k

*R8476

10k

*R8406

0.1

*R8404

10k

*R8479

10k

*R8340

0

*R8405

10k

*R8439 68

*R8326

68

*R8338

68

R8471

10k

*R8308

68

*R8418

680

*R8356

0

*R8353

150

*R8327

68

*R8345

10k

*R8442

68

*R8339

68

*R8477

10k

*R8328

10k

*R8321 10k

*R8354

150

*R8312

1k

*R8395

10k

*X8301

H0J300500027

R8323

2.2k

R8324

2.2k

R8325

33

*R8671

2.2k

*R8670

2.2k

*R8322

2.2k

*R8679

2.2k

*R8681

2.2k

*R8678

2.2k

*R8675

2.2k

*R8680

2.2k

30.0MHz

CI_OCP

TS

CI_POWER_ON

1.8V

FE

CI ASIC

CI POWER SW

TO 10/21

163 167 171165 170164 166 169168

TO 1/21

!

A-BOARD (19/21)

DTV CRNo.8300-8999

39

40

38

37

31

36

32

35

33

34

65

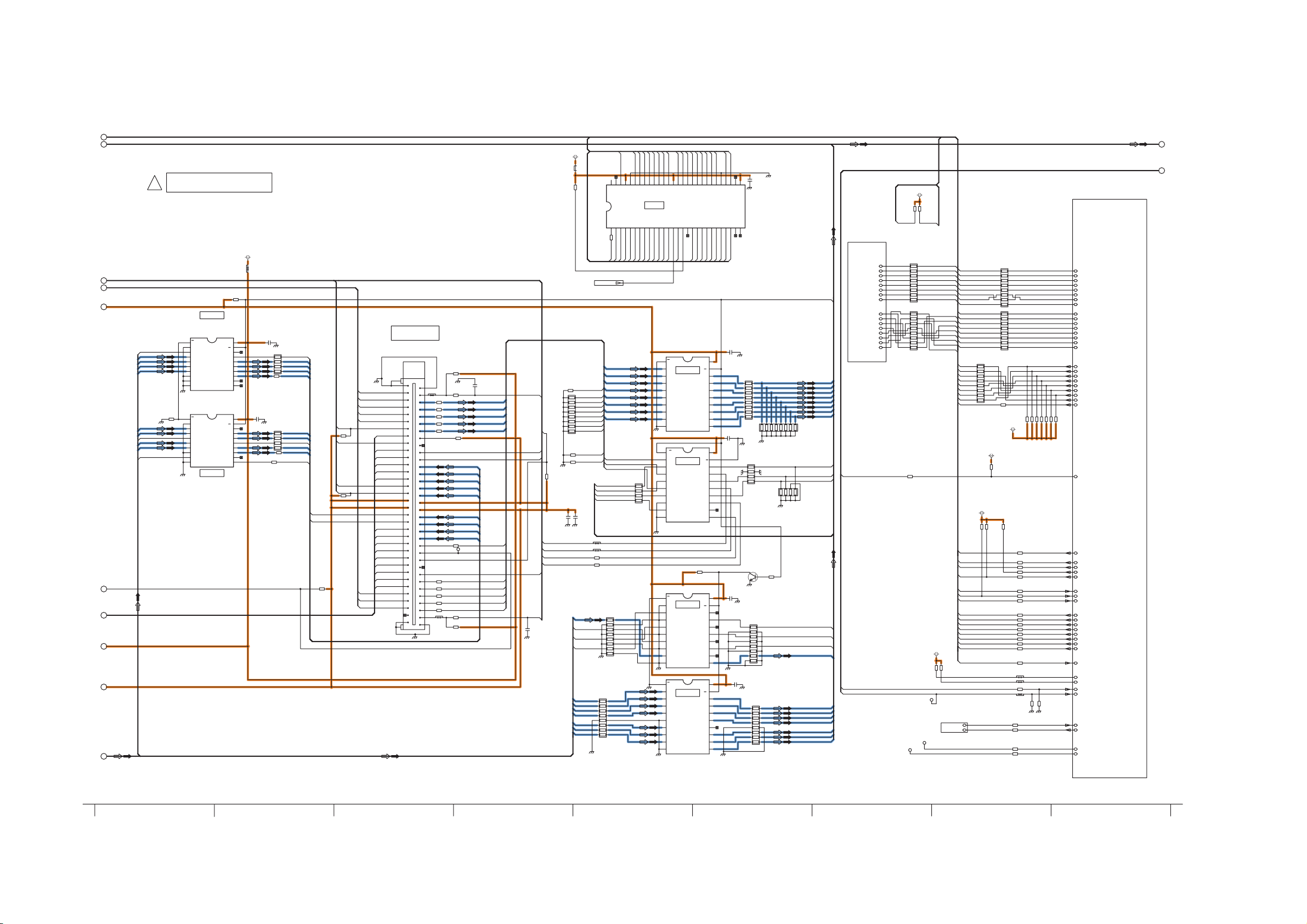

12.26.A-Board (20/21) Schematic Diagram

+

PC-CARD

S

P

AQ_DATAOUTA4

AA_ED1

AQ_DATAOUTA6

AA_EA17

AQ_DATAOUTA3

AY_EAA14

AR_DATAINA7

AA_EA11

AA_ED2

AC_CHDI1

AQ_DATAOUTA3

AA_EA23

AQ_DATAOUTA2

AQ_ENOUTA

AS_CD1-

AY_EAA2

AA_EA21

AQ_DATAOUTA1

AR_DATAINA3

AY_EAA15

AR_DATAINA5

AA_EA15

AA_ESZ0

AA_EA14

AA_ED7

AY_EAA5

AQ_DATAOUTA7

AA_ED3

AA_ED5

AA_ED13

AA_EA24

AA_ED6

AU_DA3

AA_ECLK

AY_EAA13

AS_WAIT-

AQ_DATAOUTA3

AY_EAA12

AY_EAA9

AR_DATAINA3

AQ_DATAOUTA2

AC_CHDI3

AQ_DATAOUTA0

AY_EAA6

AQ_ENOUTA

AA_EA2

AQ_DATAOUTA0

AR_ENINA

AA_EA24

AY_EAA7

G-SD_BOOT_STS

AR_ENINA

AA_EA0

AR_DATAINA0

AQ_PKTSTOUTA

AS_OE-

AR_DATAINA4

AA_ED8

AR_DATAINA1

AQ_DATAOUTA5

AR_PKTSTINA

AQ_DATAOUTA4

AA_EA7

AY_EAA1

AA_ED4

AY_EAA11

AS_REG-

AR_DATAINA2

AA_XERE

AR_DATAINA2

CH0VAL1

AC_CHDI6

AR_DATAINA5

AA_ED0

AC_CHDI7

AQ_DATAOUTA4

AA_EA6

AR_DATAINA6

AQ_DATAOUTA0

AU_DA4

AQ_DATAOUTA1

AA_EA20

CI_CH0CLK

AS_IORD-

AA_ED10

AQ_DATAOUTA2

AA_ED0

AA_XIRQ1

AA_ED7

AA_EA4

AA_EA6

AA_ESZ1

AA_EA3

AA_EA5

AR_DATAINA0

AA_XEWE0

AA_EA12

AC_CHDI2

AA_EA16

AA_XNMIRQ

AU_DA5

AA_ED9

AA_ED12

AA_ESZ1

AU_DA2

AA_ED4

AS_WAIT-

AA_EA13

AR_CLKINA

AA_ED11

G-DTV_VOUTENB

AC_CHDI0

AY_EAA3

AA_XEWE1

AQ_PKTSTOUTA

AA_EA5

AA_EA1

AU_DA7

AQ_DATAOUTA5

AA_XECS1

AQ_CLKOUTA

AA_EA19

AQ_DATAOUTA1

AR_DATAINA4

AU_DA6

AS_CD2-

AA_ED14

AA_XEWE0

AS_IREQ-

AU_DA1

AY_EAA8

AS_WE-

AA_EA7

AA_XECS0

AA_EA18

AC_CHDI5

AC_CHDI4

AA_XEDK

AA_EA9

AQ_DATAOUTA7

AA_ED15

AU_DA0

AA_XIRQ2

AQ_CLKOUTA

AS_CD1-

AQ_DATAOUTA6

AR_DATAINA1

AA_EA1

AR_DATAINA7

AA_XERE

AR_DATAINA6

AS_IOWR-

AY_EAA4

AA_EA8

AR_CLKINA

AR_PKTSTINA

AQ_DATAOUTA7

AA_ED3

AQ_DATAOUTA5

AA_ESZ0

AA_FE_XRST

AA_XEAS

AA_EA22

AS_CD2-

AY_EAA10

AA_XECS0

AA_EA10

CH0PSYNC1

MDO2

MDO3

MDO7

MDO6

MDO4

MDO5

MDO0

MDO1

AA_ED13

AA_ED14

AA_ED15

AA_ED11

AA_ED8

AA_ED9

AA_EA4

AA_EA3

AC_CHVAL

AC_CHSYNC

AC_CHCLK

AQ_PKTSTOUTA

AQ_ENOUTA

CH1VAL

AC_XPDWT

SMTSEL0

SMTCMD0

AC_XETS

AC_CHCLK

AC_CHVAL

AC_CHSYNC

AC_CHDI0

AC_CHDI1

AC_CHDI2

AC_CHDI3

AC_CHDI4

AC_CHDI5

AC_CHDI6

AC_CHDI7

CI_CH0CLK

CH0VAL1

CH0PSYNC1

MDO0

MDO1

MDO2

MDO3

MDO4

MDO5

MDO6

MDO7

AA_EA2

AA_ED10

AA_ED12

AA_EA21

AA_EA22

AA_EA16

AA_ED5

AA_ED6

AA_ED1

AA_ED2

AA_EA17

AA_EA20

AA_EA23

AA_EA19

AA_EA18

AA_EA8

AA_EA9

AA_EA10

AA_EA11

AA_EA12

AA_EA13

AA_EA14

AA_EA15

AA_BOOTSWAP

G-SW_OFF_DET

AS_CE1-

AS_IREQ-

C8555

16V

0.1u

*C8416

25V

0.01u

*C8409

16V

0.1u

*C8415

16V

0.1u

*C8412

16V

0.1u

*C8413

16V

0.1u

*C8414

16V

0.1u

*C8405

16V

0.1u

*C8418

16V

0.1u

*C8417

25V

0.01u

*C8411

10V

100u

C0JBAU000025

*IC8411

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAU000025

*IC8410

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAZ002811

*IC8409

1G

1

2

1A1

3

2Y4

4

1A2

5

2Y3

6

1A3

7

2Y2

8

1A4

9

2Y1

10

GND

11

2A1

12

1Y4

13

2A2

14

1Y3

15

2A3

16

1Y2

17

2A4

18

1Y1

19

2G

20

VCC

C0JBAU000025

*IC8408

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAZ002692

*IC8405

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAZ002692

*IC8404

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

TVRQ369

*IC8554

1

A232A223A154A145A136A127A118A109A910A811A1912A2013WE#14RESET#15A2116WP#/ACC17RY/BY#18A1819A1720A721A622A523A424A325A226A127RFU28RFU

29

Vio30RFU

31A032

CE#33Vss34OE#35DQ036DQ837DQ138DQ939DQ2

40

DQ10

41

DQ3

42

DQ11

43

Vcc44DQ4

45

DQ12

46

DQ5

47

DQ13

48

DQ6

49

DQ14

50

DQ7

51

DQ15/A-1

52

Vss

53

BYTE#

54

A1655A2556A24

*JK8401

K1NA68B00051

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

L8551

J0JHC0000075

SUB5V

SUB3.3V

*R8447

*R8462

R8895

R8956

*R8409

R8897

*R8448

*R8401

TP8851

TP8402

AD_SBI0

ESZ0

XIRQ1

XECS4

ED1

XIRQ2

VI2P29

ED0

VI2P11

EA2

VI2P25

VI2P4

ED15

XERE

ED7

EA0

VI2P18

XEWE0

ED5

VI2P15

VI2P26

VI2P12

VI2P24

VI2P22

XEDK

VI2P16

VI2P28

VI2P14

VI2P13

VOUTENB

EA4

ED12

IS1PSYNC

XECS2

ESZ1

VI2ENB

ED14

VI2P23

XNFWP

SBI0

ED2

XNMIRQ

VI2P17

IS1VAL

EA7

ED9

ED11

AD_SBO0

XEWE1

IS0CLK

IS0VAL

BOOTSWAP

ED4

EA3

EA6

ED3

VI2P19

ED10

SBO0

EA5

ERXW

ED6

ECLK

VI2P27

EA1

XECS1

XECS0

ED8

ED13

*Q8200

2SD0601A0L

R8474

EXB28V103JX

*R8488

EXB28V680JX

*R8463

EXB28V151JX

*R8454

EXB28V151JX

*R8487

EXB28V680JX

*R8426

EXB2HV680JV

*R8428

EXB2HV680JV

R8953

EXB2HV680JV

*R8455

EXB2HV680JV

*R8453

EXB2HV680JV

R8866

EXB2HV680JV

R8865

EXB2HV680JV

R8952

EXB2HV680JV

R8472

EXB2HV103JV

*R8441

EXB2HV680JV

R8867

EXB2HV680JV

*R8437

EXB2HV104JV

R8896

0

*R8245

10k

*R8410

22k

R8910

10k

R8712

10k

*R8456

68

*R8411

22k

*R8461

68

R8882

68

R8907

10k

*R8445

100k

R8885

68

R8901

68

R8959

68

R8904

10k

*R8512

10k

*R8450

10k

*R8449

68

*R8432

150

R8879

68

R8873 10k

*R8438

100k

R8884

68

R8891

68

*R8424

68

*R8460

68

*R8422

68

*R8421

68

R8883

68

*R8440

100k

*R8244

10k

*R8433

22k

*R8347

0

R8905

10k

R8960

68

*R8423

68

*R8446

68

R8890

68

R8566

0

*R8431

150

*R8435

10k

R8957

10k

*R8458

68

*R8425

68

R8908

10k

R8886

68

*R8466

10k

R8909

10k

*R8465

10k

R8877

68

R8888

68

R8900

68

R8958

10k

R8868

68

R8892

68

R8935

10k

R8880

68

R8710

68

R8963

10k

R8564

10k

*R8457

68

*R8436

10k

R8898

10k

R8887

68

R8889

68

R8711

10k

R8871

10k

R8906

10k

R8875

10k

R8894

68

R8878

68

*R8434

47k

*R8430

100

R8947

68

*R8459

68

XRST_2

TP1042

TP1043

REG#

/EA22

/EA9

GND

RESET

XCIETS

/EA23

CE2#

VPP1

VPP2

CE1#

A7

POWER_DET

/EA21

XCI_IREQ

MDI6

FLASH

A4

/EA12

MDI7

MCLKI

A10

/EA20

GND

VCC

OE#

/EA16

WE#

/EA13

/EA18

SDBOOT

/EA10

A14

IOIS16#

/EA17

VS1#

A6

XPDCD1

A5

INPACK#

A11

A8

A13

WAIT#

/EA19

/EA15

A0

A_MON_MUTE

A3

A1

MIVAL

LiteII

/EA14

BUFFER

IREQ#

VCC

/EA11

A12

XPDCD2

A9

/EA8

JTAG

A2

MCLKO

MDI4

MDI5

(VIO)

CI SLOT

EA19

EA20

EA13

EA22

EA15

EA16

EA10

EA21

EA12

EA09

EA18

EA17

EA11

EA23

EA08

EA14

ExBUS

LiteII

FE_XRST

AUDIO_MUTE

SBO1

SBI1

XPDWT

BUFFER

SBI1

SBO1

TO 17/21

TO 11/21

172 176 180174 179173 175 178177

TO 18/21

!

A-BOARD (20/21)

DTV

CRNo.8300-8999

40

38

36

37

39

32

34

31

35

33

41

42

66

12.27.A-Board (21/21) Schematic Diagram

+

D.SW

W.P.

S

P

AC_REG

AH_DAUDIO

AC_CHDI2

AC_IORD

AH_LRCK0

MVDACO3

G-DTV_VOUTENB

AC_XEAB

AC_IOWR

AC_XPDWT

AC_CHDI0

SMTCMD0

AH_IECOUT0

AC_CHCLK

AC_CHVAL

AH_LRCK0

AC_CHDI3

AH_IECOUT0

AH_DAUDIO

AH_DMIX0

AH_SRCK0

AC_CI_RESET

AC_XPDWE

AC_CHSYNC

AC_XPDOE

AH_DMIX0

AC_XPDCE2

AH_SRCK0

AC_CHDI7

SMTCLK0

AC_CHDI6

AC_XETS

G-CLK74SEL

CH1VAL

G-CLK74SEL

G-SW_OFF_DET

IS1CLK

AC_CHDI1

G-SD_BOOT_STS

AC_CHDI4

AC_XEDBA

SMTSEL0

AC_CHDI5

G-SD_LED_ON

AD_SDWP

AD_SDCD

AD_SDCMD

AD_SDDAT3

AD_SDDAT0

AD_SDCLK

AD_SDDAT1

AD_SDDAT2

AD_SDCMD

AD_SDDAT1

AD_SDDAT0

AD_SDDAT3

AD_SDDAT2

AD_SDWP

AD_SDCLK

AD_SDCD

MVDACO3

C8601

16V

0.1u

C8535

16V

0.01u

C8544

22u

4V

C8533

16V

0.1u

C8532

16V

47u

*IC8601

TVRQ397

1

NC

2

NC

3

NC

4

VSS

5

SDA

6

SCL

7

WC

8

VCC

JK8302

K1NA09E00080

1234567

8

9

101112

L8501

J0JHC0000045

SUB3.3V

SD_SUB3.3V

SUB3.3V

R8507

R8854

R8853

R8851

R8852

R8801

R8604

R8929

VARAY805

TP8553

TP8555

TP8501

TP8549

TP8551

TP8550

TP8552

TP8548

TP8554

G-SD_LED_ON

G-CLK74SEL

G-SW_OFF_DET

G-SD_BOOT_STS

G-DTV_VOUTENB

SDCLK

AH_SRCK0

CLKGEN_S2

AH_LRCK0

SDWP

AH_IECOUT0

AH_DMIX0

SDCD

AH_DAUDIO

MVDACO3

XDSR0

SMTCLK1

LITE2-EEP_SCL

DAUDIO

XRTS0

SDDAT2

SMTD0

SMTCMD0

XEXDMK0

MVDACO2

SMTCMD1

SDDAT1

SMTRST1

SMTRST0

IECOUT0

SRCK0

VI2CLK2

LITE2-EEP_SDA

IS1CLK

CH1DATA

IS0DATA

XNFCE

SMTSEL0

IS0PSYNC

DMIX0

SDDAT3

VI2P10

VI2CLK

IS1DATA

TXD0

SDCMD

MVDACO0

SDDAT0

XDCD0

RXD0

XCTS0

XECS6

XRI0

SMTD1

XEXDMR0

SMTSEL1

NANDRYBY

CH0CLK

MVDACO3

SMTCLK0

CH1VAL

XDTR0

LRCK0

MVDACO1

R8674

EXB2HV103JV

R8858

68

R8615

68

R8703

68

R8802 68

R8864

68

R8614

68

R8610

68

R8857

68

R8605

68

R8806 68

R8863

68

R8859

68

R8751

10k

R8613

68

R8954

68

R8657 10k

1%

R8508

91

R8503

330

R8927

0

R8617

68

R8861

10k

R8556

10k

R8612

68

R8803 68

R8501

100

R8611

68

R8805 68

R8808

68

R8862

68

R8807

68

R8603

4.7k

1%

R8509

91

R8616

68

R8502

330

1%

R8510

91

R8856

68

R8658

22

R8504

330

R8506

330

R8804 68

R8660

0

R8855

68

R8412

10k

R8860

68

TP4840TP4835

CRNo.8300-8999

DTV

MAIN AUDIO DATA

SD_CARD

DIGITAL AUDIO

COMMON LR/SR CLK

Comp. Comp. Comp.

CI I/F

CI_OCP

CI PARALLEL TS

XPDCD2

C U B

with AUDIO DESCRIPTION DATA

DVB_CVBS

LiteII

EEPROM_WP

XCI_IREQ

XPDCD1

Y Y G

YC YUV RGB

TUNER SERIAL TS

- V R

for PHOTO OUT

CI_POWER_ON

Comp.

CI_RESET

REG

XETS

CI_OCP

CI_POWER_ON

CI_XIREQ

XEAB

SDCLK

SDDAT1

SD CARD SLOT

SDDAT0

GND

SDCMD

3.3V

GND

SDDAT2

SDDAT3

EEPROM

TO 18/21

181 185 189183 188182 184 187186

TO 1/21

TO 8/21

TO 3/21

TO 18/21

TO 2/21

!

A-BOARD (21/21)

42

41

67

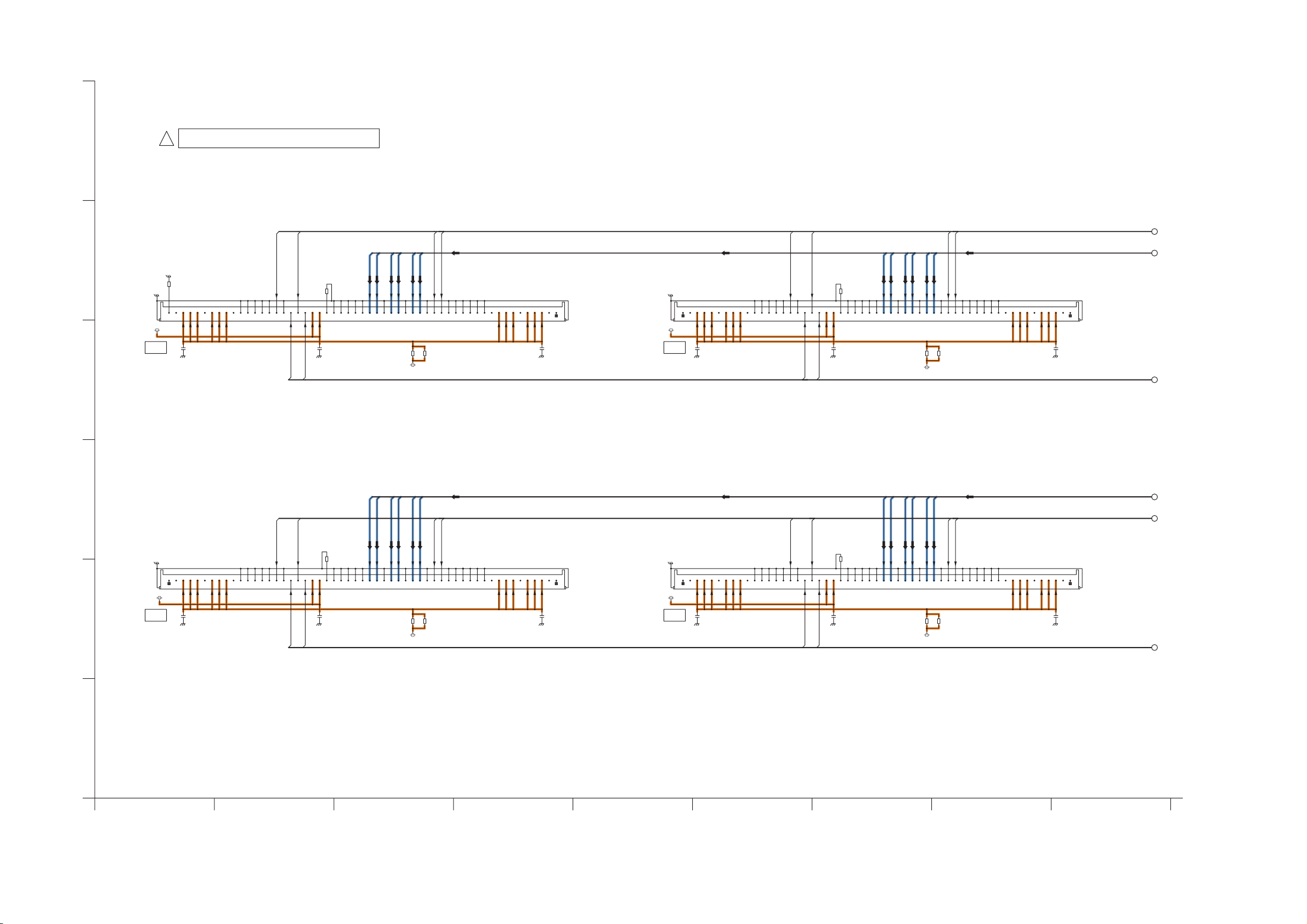

12.28. C1-Board (1/2) Schematic Diagram

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

LE_C1LE_C1

ODE_C1

CLR_C1

ODE_C1

LE_C1

CLR_C1

ODE_C1

CLR_C1

LE_C1

ODE_C1

CLR_C1

CLKD_0P1

AB_DDB19

CLKD_1N1

AB_DDC18

AB_DDB18

AB_DDA18

PC1_C1PC1_C1

CLKD_0P2

AB_DDA16

AB_DDB16

AB_DDC16

CLKD_1N2

AB_DDB17

PC2_C1

CLKD_2P3

AB_DDA14

AB_DDB14

AB_DDC14

CLKD_3N3

AB_DDB15

PC2_C1

CLKD_2P4

AB_DDC12

AB_DDB12

AB_DDA12

CLKD_3N4

AB_DDB13

AB_DDC19

AB_DDA19

AB_DDC15

AB_DDA15

AB_DDC13

AB_DDA13

AB_DDC17

AB_DDA17

C17141

10V 1u

C17143

250V

0.15u

C17134

250V

0.15u

C17153

250V

0.15u

C17131

10V

1u

C17144

250V

0.15u

C17151

10V 1u

C17124

250V

0.15u

C17121

10V

1u

C17133

250V

0.15u

C17154

250V

0.15u

C17123

250V

0.15u

1345789

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

55

1345789

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

55

1345789

11121314151617181920212223242526272829303132333435363738394041424344454748

4951525355

1345789

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

55

C1_5V

VDA

C1_5V

VDA

VDAVDA

C1_5V

R17145

0

R17135

0

R17125

0

R17115

0

R17156

6.8

R17127

6.8

R17157

6.8

R17146

6.8

R17136

6.8

R17191

4.7k

R17147

6.8

R17137

6.8

R17126

6.8

GND1

GND

FX1(CLK1)

VDD2

GND

VDD2

NC

A3

VDD2

GND

VDD2

ODE

BLK

A2

GND

GND1

VDD1

VDD2

GND

NC

VDD2

GND1

NC

GND1

GND

VDD2

GND

A4

GND

VDD2

NC

GND

GND1

DM

DSEL

VDD1

A5

LE

NC

GND

FX2(CLK2)

A6

GND

DM

NC

A1

CLR

VDD2

GND1

VDD2

GND

GND1

GND

A4

VDD2

VDD2DMVDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

VDD2

GND

GND1

GND

A4

VDD2

VDD2DMVDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

VDD2

GND

GND1

GND

A4

VDD2

VDD2DMVDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

4

A

5

F

1

D

73 896

B

E

2

C

TO

DRIVER

PANEL DATA

CB1

CB2

PANEL DATA

TO

DRIVER

CB3

PANEL DATA

TO

DRIVER

CB4

DRIVER

TO PANEL DATA

1

2

3

4

5

6

C1-BOARD TNPA4892 (1/2)

!

68

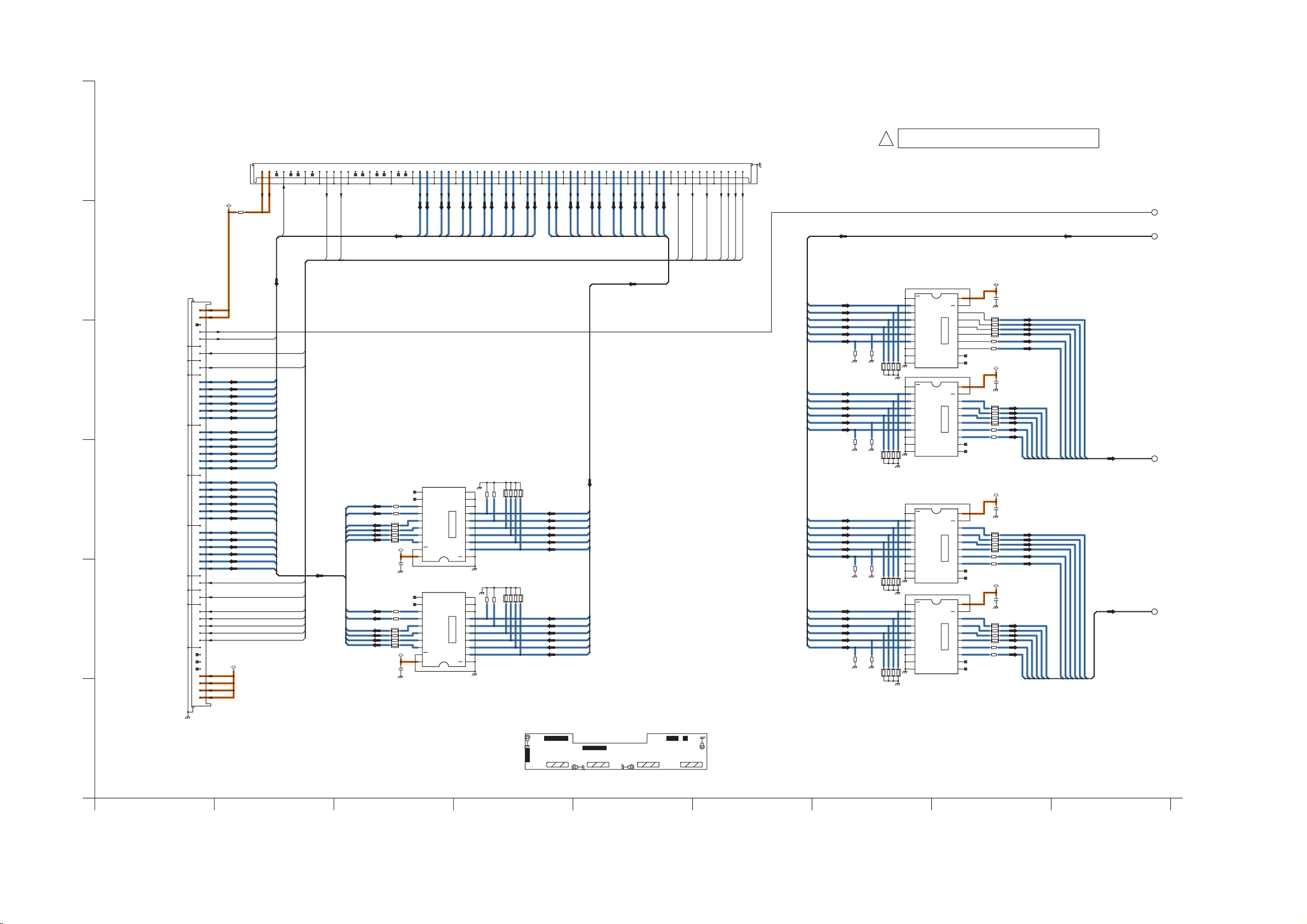

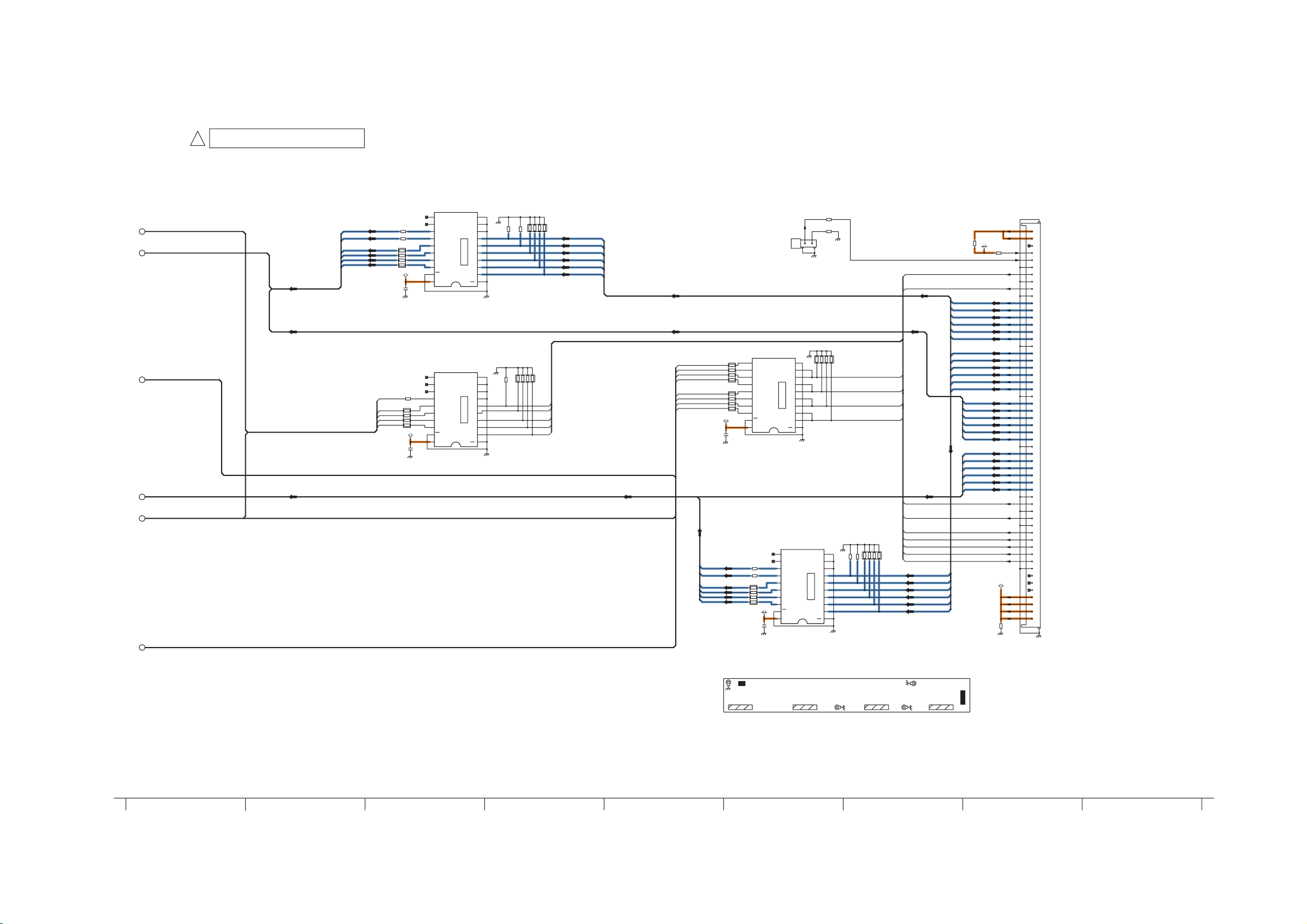

12.29. C1-Board (2/2) Schematic Diagram

TERM

SIDE

AB_DDA13

CLKD_2P

CLKD_3N

AA_DDC19

AA_DDB19

AA_DDB18

AB_DDB13

CLKD_0P

AB_DDB12

AA_DDC17

AB_DDA14

AA_DDA16

AA_DDC16

AA_DDA18

AB_DDB15

AA_DDA17

AA_DDB17

AA_DDC18

AB_DDC12

AB_DDC15

AB_DDC13

AA_DDB16

AB_DDA12

CLKD_1N

AB_DDB14

AB_DDA15

AB_DDC14

AA_DDA19

PC1_C1

ODE_C1

CLR_C1

PC2_C1

LE_C1

CLKD_0P2

CLKD_3N

CLKD_2P4

CLKD_2P

CLKD_1N

CLKD_0P1

CLKD_1N1

CLKD_1N2

CLKD_2P3

CLKD_3N4

CLKD_3N3

CLR_C1A

ODE_C1A

PC2_C1A

PC1_C1A

LE_C1A

CLKD_0P

CLR_C1A

ODE_C1A

PC2_C1A

PC1_C1A

LE_C1A

AB_DDC18

AB_DDC19

AB_DDB18

AB_DDA19

AA_DDB18

AA_DDB19

AA_DDA19

AA_DDC19

AA_DDC18

AA_DDA18

AB_DDC16

AB_DDC17

AA_DDA16

AB_DDA17

AA_DDB17

AA_DDA17

AA_DDB16

AA_DDC17

AB_DDB16 AA_DDC16

AB_DDB17

AB_DDA16

AB_DDB19

AB_DDA18

C17130

16V

0.1u

C17148

16V

0.1u

C17161

16V

0.1u

C17162

16V

0.1u

C0JBAZ002914

IC17102

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17101

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17103

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17104

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C10

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

C14

1

2

VDA

C1_5V

ZA17101

K4CD01000013

ZA17103

K4CD01000013

ZA17102

K4CD01000013

ZA17104

K4CD01000013

R17177

EXB38V102JV

R17103

EXB38V471JV

R17184

EXB38V470JV

R17159

EXB38V470JV

R17119

EXB38V470JV

R17155

EXB38V102JV

R17101

EXB38V470JV

R17107

EXB38V470JV

R17109

EXB38V471JV

R17185

1k

R17180

47

R17192

220k

R17112 470

R17111 47

R17110 470

R17108 47

R17196

1k

R17105 47

R17102 47

R17195

0

R17106

470

R17194

0

R17104

470

R17161

D0GDR00Z0002

C10

155551551551551

CB1 CB4CB3CB2

1

C14

2

DOUTDA[17]

DOUTDC[19]

DOUTDC[14]

DOUTDB[12]

CLR_C1

CLK0P_C1

NC

P5V

GND

5V_DET

DOUTDC[18]

DOUTDA[18]

GND

DOUTDB[15]

NC

CLK1N_C1

DOUTDC[12]

Vda

GND

DOUTDC[13]

DOUTDA[13]

DOUTDA[15]

DOUTDA[12]

CLK2P_C1

DOUTDB[17]

DOUTDA[19]

ODE_C1

DOUTDB[19]

CLK3N_C1

DOUTDB[14]

Vda

GND

DOUTDA[16]

KEY_SCAN

GND

DOUTDA[14]

DOUTDB[16]

P5V

Vda

DOUTDC[17]

DOUTDB[13]

GND

DOUTDB[18]

DOUTDC[15]

DOUTDC[16]

GND

LE_C1

PC1_C1

GND

PC2_C1

Vda

NC

16 171410 12 15 181311

BUFFERBUFFER

BUFFER

TO C2-BOARD (C20)

3

4

5

6

1

2

C1-BOARD TNPA4892 (2/2)

!

TO GK-BOARD (GK1)

69

12.30. C2-Board (1/2) Schematic Diagram

TERM

SIDE

TERM

SIDE

AA_DDA14

AA_DDB16

AA_DDA12

AA_DDC17

AA_DDC13

ODE_C1A

AA_DDC19

CLKD_3N

AA_DDC15

AA_DDC12

CLKD_2P

AA_DDC18

AA_DDB17

AA_DDA17

AA_DDB12

PC2_C1A

LE_C1A

CLKD_0P

AA_DDB13

AA_DDB18

CLR_C1A

AA_DDB15

AA_DDB19

AA_DDA18

AA_DDC16

AA_DDC14

PC1_C1A

AA_DDA19

AA_DDB14

AA_DDA15

AA_DDA16

CLKD_1N

AA_DDA13

AB_DDC10

AB_DDB10

AB_DDA10

AB_DDB11

AB_DDA11

AB_DDC6

AB_DDB6

AB_DDA6

AB_DDB7

AB_DDA7

AB_DDC8

AB_DDB8

AB_DDA8

AB_DDB9

AB_DDA9

AB_DDC4

AB_DDB4

AB_DDA4

AB_DDB5

AB_DDA5

AB_DDA13

AA_DDA16

AA_DDC19

AB_DDC13

AB_DDA15

AA_DDA18

AA_DDC17

AB_DDB14

AA_DDB19

AB_DDA12

AA_DDA19

AA_DDA17

AA_DDB16

AB_DDB15

AA_DDB17

AB_DDC14

AA_DDC16

AA_DDC18

AA_DDB18

AB_DDC12

AB_DDB13

AB_DDC15

AB_DDA14

AB_DDB12

CONP_KEY

CLKD_2P

CLKD_3N

ODE_C1A

PC1_C1A

CLR_C1A

LE_C1A

PC2_C1A

CONP_KEY

CLKD_1N

CLKD_0PCLKD_0P

AA_DDC6

AA_DDB6

AA_DDA6

AA_DDC7

AA_DDB7

AA_DDA7

AA_DDC10

AA_DDB10

AA_DDA10

AA_DDC11

AA_DDB11

AA_DDA11

AA_DDC4

AA_DDB4

AA_DDA4

AA_DDC5

AA_DDB5

AA_DDA5

AA_DDC8

AA_DDB8

AA_DDA8

AA_DDC9

AA_DDB9

AA_DDA9

AB_DDC14

AB_DDB14

AA_DDA15

AB_DDA15

AA_DDC15

AA_DDB15

AB_DDC15

AA_DDA13

AA_DDC13

AB_DDB12

AA_DDB13

AB_DDA13

AB_DDC13

AA_DDB12

AB_DDC12

AA_DDB14

AA_DDC14AA_DDC14

AA_DDA14

AA_DDA12

AA_DDC12

AB_DDB15

AB_DDA14

AB_DDA12

AB_DDB13

AB_DDC9

AB_DDC5

AB_DDC11

AB_DDC7

C17273

16V

0.1u

C17277

16V

0.1u

C17272

16V

0.1u

C17271

16V

0.1u

C17278

16V

0.1u

C17270

16V

0.1u

C0JBAZ002914

IC17206

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17205

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17211

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17208

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17207

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17212

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C20

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

C21

123456789

10111213141516171819202122232425262728293031323334353637383940414243444546

47

48495051525354

55

5758596061626364656667

68

56

VDA

C1_5V

C2_5V

ZA17203

K4CD01000013

ZA17204

K4CD01000013

ZA17201

K4CD01000013

ZA17202

K4CD01000013

R17293

EXB38V470JV

R17240

EXB38V470JV

R17242

EXB38V471JV

R17225

EXB38V470JV

R17229

EXB38V471JV

R17294

EXB38V471JV

R17298

EXB38V471JV

R17201

EXB38V470JV

R17297

EXB38V470JV

R17207

EXB38V470JV

R17203

EXB38V471JV

R17209

EXB38V471JV

R17205 47

R17215 47

R17300 470

R17202 47

R17204

470

R17299 47

R17220

470

R17302 470

R17303 47

R17206

470

R17210

470

R17228 47

R17235 47

R17239

470

R17230

470

R17241 47

R17248 47

R17251

470

R17296 470

R17295 47

R17246

470

R17253

0

R17301 470

R17208 47

R17304 47

168

55155 1 551551

C21

C20

1

55 CB5 CB6 CB7 CB8

16

C234C25

1

DOUTDC[19]

DOUTDC[13]

DOUTDA[16]

DOUTDC[20]

DOUTDA[20]

DOUTDC[17]

CLK0P_C1

DOUTDC[15]

PC2_C1

CLR_C1

DOUTDC[14]

CLK1N_C1

PC1_C1

KEY_SCAN

NC

DOUTDA[12]

DOUTDA[21]

DOUTDB[17]

DOUTDC[12]

DOUTDB[21]

DOUTDC[16]

LE_C1

P5V

CLK2P_C1

DOUTDB[18]

DOUTDA[18]

DOUTDC[21]

DOUTDB[15]

DOUTDB[19]

CLK3N_C1

P5V

DOUTDC[18]

SCL

DOUTDA[17]

DOUTDB[12]

DOUTDB[20]

DOUTDB[14]

DOUTDA[15]

DOUTDA[19]

DOUTDB[13]

DOUTDA[14]

DOUTDA[13]

DOUTDB[16]

ODE_C1

5V_DET

DOUTDA[12]

CLK2P_C1

Vda

NC

GND

DOUTDC[15]

Vda

DOUTDC[16]

DOUTDC[17]

GND

DOUTDB[13]

GND

LE

DOUTDB[18]

PC1_C1

Vda

GND

DOUTDA[16]

P5V

DOUTDC[14]

DOUTDC[19]

DOUTDB[15]

NC

CLK1N_C1

NC

DOUTDB[19]

CLK3N_C1

DOUTDB[14]

CLK0P_C1

DOUTDB[17]

DOUTDA[19]

ODE_C1

CLR_C1

DOUTDC[12]

Vda

GND

DOUTDC[13]

DOUTDB[12]

DOUTDC[18]

KEY_SCAN

DOUTDA[17]

DOUTDA[18]

GND

DOUTDA[14]

DOUTDB[16]

P5V

PC2_C1

DOUTDA[13]

GND

DOUTDA[15]

P3.3V

SDA

GND

168 C22

1

D

873 9652

F

1

C

E

A

B

4

BUFFERBUFFERBUFFERBUFFER

BUFFERBUFFER

TO C1-BOARD (C10)

TO A-BOARD (A31)

1

2

3

4

C2-BOARD TNPA4893 (1/2)

!

70

12.31. C2-Board (2/2) Schematic Diagram

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

CLR_C2

AA_DDB10

CLR_C2

AA_DDA5

AA_DDC9

LE_C2

AA_DDB4

AA_DDA8

ODE_C2

CLR_C2

AA_DDB7

AA_DDC7

ODE_C2

AA_DDB5

AA_DDC11

AA_DDB8

AA_DDB6

AA_DDA9

AA_DDB9

CLKU_3N

LE_C2

AA_DDA4

CLKU_1N

AA_DDC10

AA_DDA11

AA_DDB11

AA_DDC6

CLKU_2P

AA_DDA6

ODE_C2

AA_DDC8

AA_DDC4

CLR_C2

AA_DDA10

LE_C2

AA_DDC5

AA_DDA7

CLKU_0P

LE_C2

PC3_C2

CLKU_0P5

AB_DDC10

AB_DDB10

AB_DDA10

CLKU_1N5

AB_DDB11

PC3_C2

AB_DDC8

AB_DDB8

AB_DDA8

CLKU_0P6

CLKU_1N6

AB_DDB9

PC4_C2

AB_DDA6

AB_DDB6

AB_DDC6

CLKU_2P7

CLKU_3N7

AB_DDB7

PC4_C2

AB_DDC4

AB_DDB4

AB_DDA4

CLKU_2P8

CLKU_3N8

AB_DDB5

AB_DDC9

AB_DDA9

AB_DDC5

AB_DDA5

AB_DDC7

AB_DDA7

AB_DDC11

AB_DDA11

BA_UEH

BA_UML

BA_UMH

SOS8_SS

CLKU_1N

CLKU_3N8

CLKU_2P

BA_UMH

CLKU_2P7

BA_UML

CLKU_1N6

PC4_C2

CLKU_1N5

ODE_C2

CLKU_2P8

CLKU_0P6

CLKU_3N7

CLR_C2

CLKU_0P5

CLKU_0P

CLKU_3N

BA_UEH

CLR_C2A

ODE_C2A

PC4_C2A

PC3_C2A

LE_C2A

5V_DET

UMH

UML

UEH

UMH

CLR_C2A

ODE_C2A

PC4_C2A

PC3_C2A

LE_C2

PC3_C2

UML

LE_C2A

UEH

C17221

10V

1u

C17234

250V

0.15u

C17215

250V

0.15u

C17223

250V

0.15u

C17233

250V

0.15u

C17212

250V

0.15u

C17241

250V

0.15u

C17211

10V

1u

C17230

100V

1u

C17213

250V

0.15u

C17231

10V

1u

C17224

250V

0.15u

C17214

10V

1u

C17244

16V

0.1u

C17229

16V

0.1u

C0JBAZ002914

IC17202

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C0JBAZ002914

IC17201

OE0

1

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE1

20

VCC

C22

123456789

10111213141516171819202122232425262728293031323334353637383940414243444546

47

48495051525354

55

5758596061626364656667

68

56

1345789

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

55

1345789

111213141516171819

202122232425262728293031323334353637383940414243444547484951525355

1345789

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

55

1345789

1112131415161718192021222324252627282930313233

34

3536373839404142434445474849515253

55

C25

123

4

C23

12345

6

C2_5V

VDA

C2_5V

VDA

C2_5V

VDA

C2_5V

VDA

C2_5V

R17250

EXB38V470JV

R17285

EXB38V470JV

R17290

EXB38V470JV

R17258

EXB38V102JV

R17288

EXB38V222JV

R17249

EXB38V470JV

R17245

EXB38V102JV

R17272

0

R17282

0

R17219

220k

R17269

4.7k

R17237

6.8

R17227

6.8

R17261

0

R17226

6.8

R17216

6.8

R17217

6.8

R17262

0

R17224

6.8

R17223

6.8

R17236

6.8

R17280

1k

R17257

47

R17252

0

DOUTDB[10]

ODE_C2

GND

CLK0P_C2

UML

SOS8_SS

DOUTDB[4]

DOUTDB[2]

GND

DOUTDC[7]

GND

DOUTDA[3]

DOUTDC[4]

DOUTDC[11]

UML

SOS8_SS

CLK1N_C2

DOUTDC[10]

DOUTDA[1]

DOUTDB[6]

DOUTDC[9]

DOUTDA[10]

DOUTDB[5]

DOUTDA[5]

DOUTDA[9]

GND

DOUTDC[2]

GND

DOUTDA[11]

GND

LE_C2

UEH

Vda

DOUTDB[11]

CLR_C2

DOUTDB[7]

DOUTDC[8]

5V

DOUTDA[2]

DOUTDB[8]

DOUTDA[4]

PC3_C2

DOUTDA[0]

Vda

P5V

DOUTDB[1]

CLK2P_C2

GND

UEH

DOUTDB[9]

GND

PC4_C2

UMH

CLK3N_C2

DOUTDC[6]

DOUTDB[0]

DOUTDA[6]

DOUTDA[8]

P5V

DOUTDC[3]

GND

DOUTDC[0]

DOUTDA[7]

DOUTDB[3]

DOUTDC[5]

DOUTDC[1]

UMH

VDD2

GND

GND1

GND

A4

VDD2

DM

VDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

VDD2

GND

GND1

GND

A4

VDD2

DM

VDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

VDD2

GND

GND1

GND

A4

VDD2

DM

VDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

VDD2

GND

GND1

GND

A4

VDD2

DM

VDD2

GND1

NC

DSEL

NC

FX2(CLK2)

NC

VDD2

GND

BLK

VDD2

ODE

A2

GND

FX1(CLK1)

VDD1

GND

VDD2

NC

CLR

VDD2DMVDD2

GND

VDD2

LE

GND

GND1

A5

GND

VDD1

VDD2

GND

NC

A6

A1

GND1

A3

VDD2

GND

GND1

GND

NC

GND

NC

GND

NC

5V_DET

GND

1610 12 1813 1511 1714

BUFFER

DRIVER

TO PANEL DATA

CB8

CB7

PANEL DATA

TO

DRIVER

CB6

PANEL DATA

TO

DRIVER

CB5

PANEL DATA

TO

DRIVER

TO A-BOARD (A32)

2

3

1

4

C2-BOARD TNPA4893 (2/2)

!

TO P-BOARD (P35)

TO SS-BOARD (SS23)

71

12.32.SC-Board (1/3) Schematic Diagram

+

TERM

SIDE

AA_CSL

AA_CML2

AA_CML

AA_CSH

AA_CMH

AA_CSL

AA_CSH

AA_CPH2

AA_OC1

MAIN_STOP0

AA_CML2

AA_SC_FPGANRST

AA_OC2

AA_CERS

AA_CLK

AA_SIU

AA_CIS

AA_UHZ

AA_CPH1

AA_CMH

AA_CML

AA_CRC1

AA_CRC2

AA_CEL

MID

VAD

C16471

630V

1000p

C16421

630V

5600p

C16491

630V

1000p

C16501

25V

1u

C16593

50V

1000p

C16771

16V 1u

C16401

5600p

630V

C16581

25V

1u

C16505

25V 1u

C16536

50V

0.1u

C16535

50V

0.1u

C16533

50V

0.1u

C16566

50V

0.01u

C16582

25V

4.7u

C16565

50V

0.01u

C16772

25V

4.7u

C16522

25V

4.7u

C16502

25V

4.7u

C16504

25V

4.7u

C16524

25V

4.7u

C16525

25V

4.7u

C16527

25V

4.7u

C16521

25V

1u

*C16412

2.2u

250V

C16523

25V

470u

C16503

25V

470u

C16796

25V

470u

D16411

MA2J11100L

D16534

B0ECKP000047

D16536

B0HCKS000002

D16503

B0HCKS000002

D16875

MA2J11100L

D16441

B0ECHR000001

D16620

B0ECKP000047

D16451

B0ECKP000047

D16522

B0ECKP000047

D16480

MA2J11100L

D16524

B0ECKP000047

D16820

MA3X152E0L

*D16724

B0FBCN000008

*D16722

MA3DF30000LW

*D16481 B0FACQ000002

*D16461

MA3DF46000LW

*D16421

MA3DF40000LW

*D16401

B0FACQ000001

D16583

B3ABB0000210

D16874

MAZ80510LL

D16821

MAZ83600ML

D16871

MAZ82000ML

C0JBAB000715

IC16464

1

NC

2

IN_A

3

GND

5

VCC

4

OUT_Y

C0JBAB000715

IC16465

1

NC

2

IN_A

3

GND

5

VCC

4

OUT_Y

IC16581

C0BBBA000024

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

5

B_+INPUT

6

B_-INPUT

7

B_OUTPUT

8

VCC

C0ZBZ0001324

IC16501

1

LO

2

Vcom

3

VCC2

4

NC

5

NC

6

VS

7

VB

8

HO

9

NC

10

NC

11

VCC

12

HIN

13

NC

14

LIN

15

GND

16

NC

C0ZBZ0001324

IC16521

1

LO

2

Vcom

3

VCC2

4

NC

5

NC

6

VS

7

VB

8

HO

9

NC

10

NC

11

VCC

12

HIN

13

NC

14

LIN

15

GND

16

NC

IC16771

C0CBADC00072

VIN 3

2

COM

VOUT

1

SC3

1

3

5

SC2

1

3

*L16413

G0C2R5KA0147

*L16404

G0C2R5KA0147

*L16411

G0C2R5KA0147

*L16412

G0C2R5KA0147

*L16401

G0C2R5KA0147

*L16402

G0C2R5KA0147

*L16414

G0C2R5KA0147

*L16403

G0C2R5KA0147

VAD

VSUS

5V

VSUS

SOS7_SC2

15V

16V_F

VSCN

VSUS

15V

SOS7_SC2

15V

VSUS

5V

15V

PC16461

B3PBA0000457

1

2

3

45

6

7

8

TP21

TP5

TP92

TP82

TP13

TP23

TP3

TP71

TP33

TP26

TP30

TP6

TP25

TP91TP90

TP35

TP70

TP36

TP28

TP52

TP20

TP1

TP4

TP72

TP31

TP74

TP38

TP40

TP37

TP46

TP7

TP27

TP2

TP9

TP18

TP14

TP10

TP19

TP32

TP8

TP100

TP12

TP22

TP73

TP15

TP39

TP11

TP93

TP34

TP99

TP24

TP29

Q16674

B1CBGD000001

Q16673

B1CBGD000001

Q16876

B1ABCF000231

Q16581

B1ABCF000231

*Q16401

2PG0090000RP

*Q16402

2PG0090000RP

*Q16441

B1JAEP000006

*Q16422

B1JAEP000004

*Q16421

B1JAEP000004

*Q16451

B1JADP000003

Q16531

B1HFPFA00001

Q16521

B1HFPFA00001

Q16551

B1HFPFA00001

Q16501

B1HFPFA00001

R16565

EXB38V472JV

R16568

EXB38V472JV

R16562

EXB38V470JV

R16561

EXB38V470JV

R16564

EXB38V470JV

R16591

EXB38V472JV

R16563

EXB38V470JV

R16566

EXB38V472JV

R16567

EXB38V472JV

R16582

39k

R16775

4.7k

R16783

150k

R16589

10k

R16521

100

R16511

47k

R16517

47k

R16422

7.5

R16502

100

R16421

7.5

R16415

330

R16551

10

R16533

47k

R16516

47k

R16751

150k

R16512

47k

R16585

1k

R16402

7.5

R16532

47k

R16522

100

R16552

47k

R16752

4.7k

R16755

12k

R16593

1.33k

75

R16523

R16750

12k

R16588

10k

R16587

2.2k

R16553

47k

R16410

390

R16441

5.6

R16411

270

R16534

1

R16592

4.7k

R16586

1.69k

R16583

39k

R16584

6.81k

R16580

2.2k

R16531

10

R16401

7.5

R16501

100

R16510

1

R16451

5.6

75

R16504

R16579

47

R16570

4.7k

R16753

220k

R16506

10

R16503

10

R16476

4.7k

R16590

220

R16416

10k

R16774

27k

R16756

12k

75

R16524

R16619

1

R16414

330

R16536

1

C0JBAZ002692

IC16562

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C16563

10V

100u

C16564

16V 1u

C0JBAZ002692

IC16561

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

TP16

5V

R16675

4.7k

C16562

16V

1u

TP17

SC20

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

C0JBAC000363

IC16563

1

IN_B

2

IN_A

3

GND

5

VCC

4

OUT

R16673

4.7k

*

GND

Vsus

TPVSUS

CRC1

OC1

UHZ

GND

CERS

OC2

P5V

CRC1

GND

SIU

GND

CIS

CLK

GND

CPH2

SIU

CEL

CRC2

CERS

CSH

CML

CMH

P15V

SC_FPGANRST

NC

CEL

GND

OC1

GND

CLK

P15V

TPSOS7

CMH

SC_FPGANRST

CML

CPH1

CIS

CSL

CPH1

CSL

OC2

CSH

SOS6

P5V

CPH2

SOS7

GND

CRC2

D

3

B

7

C

A

E

2 91 6845

F

TPSOS6

FET DRIVER

CSH/CMH GATE DRIVE CIRCUIT

FET DRIVER

CSL/CML GATE DRIVE CIRCUIT

+5V

INVERTER

BUFFER

NOR GATE

TO A-BOARD (A20)

TO P-BOARD (P2)

TO SS-BOARD (SS3)

ERROR DET

(GREEN LED)

1

2

3

4

5

!

SC-BOARD TXNSC1EQUE (1/3)

6

VOLTAGE ERROR DET(C16582) OPERATES AT 11.8V OR MORE AND 5.2V OR LESS

VSCN ERROR DET OPERATES AT 165V OR MORE AND 124V OR LESS

VAD ERROR DET OPERATES AT -160V OR MORE AND -200V OR LESS

VSUS:187V

72

12.33. SC-Board (2/3) Schematic Diagram

AA_CIS

AA_CPH1

AA_CPH2

AA_CEL

AA_CRC1

AA_CERS

AA_CRC2

AA_CERS

AA_UHZ

VOH

VAD

VOL

C16603

630V

1000p

C16891

25V 1u

C16664

50V 68p

C16685

50V

0.1u

C16684

50V

0.1u

C16641

3300p

630V

C16604

630V

1000p

C16773

25V

4.7u

C16707

50V 22p

C16665

50V 68p

C16642

3300p

630V

C16708

50V

0.1u

C16602

50V 22p

C16666

50V 68p

C16755

25V

4.7u

C16756

25V

4.7u

C16754

25V

4.7u

C16608

50V 220p

C16662

630V 1000p

C16753

25V

4.7u

C16661

630V 1000p

C16675

50V 390p

C16490

16V

1u

D16606

B0ECKM000038

D16610

MA2J11100L

D16671

MA2J11100L

D16619

B0ECKP000047

D16702

MA2J11100L

D16865

B0ECKP000047

D16679

B0ECKP000047

D16765

B0HCKS000002

D16607

MA2J11100L

D16624

B0ECKP000047

D16615

MA2J11100L

D16618

B0ECKP000047

D16490

B0ECKP000047

D16407

MA22D3900L

D16672

B0ECHR000001

D16670

B0ECHR000001

D16491

MA2J11100L

D16493

MA3X152E0L

D16901

MA3X152E0L

D16616

MA3X152E0L

D16604

MA3X152E0L

D16920

MA3X152E0L

*D16621

MA3DF25000RP

*D16642

B0FBCN000006

*D16622

MA3DF25000RP

*D16641

B0FBCN000006

D16602

MAZ81500ML

D16492

MAZ80470ML

D16664

MAZ83300ML

D16663

MAZ83300ML

D16662

MAZ83300ML

D16625

MAZ82000ML

D16608

MAZ81200ML

D16605

MAZ80510LL

D16678

MAZ81500ML

C0DBZMC00006

IC16692

4

REFERENCE

3

CATHODE

1

NC

2

ANODE

C0DBZMC00006

IC16490

4

REFERENCE

3

CATHODE

1NC2

ANODE

C0BBAA000008

IC16491

1

-INPUT

2

GND

3

+INPUT

5

VCC

4

OUTPUT

C0JBAB000715

IC16773

1

NC

2

IN_A

3

GND

5

VCC

4

OUT_Y

IC16661

C0BBBA000024

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

5

B_+INPUT

6

B_-INPUT

7

B_OUTPUT

8

VCC

16V_F

VSET

16V_F

VSUS

5V

16V_F

5V

16V_F

PC16603

B3PBA0000223

12

3

4

PC16601

B3PBA0000223

12

3

4

PC16685

B3PBA0000496

1

2

34

5

6

PC16684

B3PBA0000496

1

2

34

5

6

TP66TP65

TP67 TP68

Q16818

B1CBGD000001

Q16672

B1CBGD000001

Q16490

B1CBGD000001

Q16607

B1CBGD000001

*Q16601

B1CERR000025

G

D

S

Q16604

B1CHPM000001

G

D

S

Q16676

B1ABCF000231

Q16920

B1ABCN000007

Q16606

2SD0601AQL

Q16702

B1ABCF000231

Q16662

2SD0601AQL

Q16671

B1ABCF000231

Q16602

2SD0601AQL

*Q16661

B1JAER000003

*Q16621

B1JADN000004

*Q16622

B1JADN000004

Q16603

2SB0709ASL

Q16701

B1ADCN000007

Q16624

2SB0709ASL

Q16663

2SB0709ASL

Q16675

B1ADCN000007

Q16670

B1ADCN000007

Q16762

B1HFPFA00001

R16869

47k

R16617

2.2k

R16707

3.9k

R16663

5.23k

R16615

1.13k

R16610

100k

R16628

47k

R16633

22k

R16608

1k

R16604

330

R16897

2.74k

R16631

10k

R16769

75

R16605

1.8k

R16695

1.5k

R16699

10k

R16658

8.66k

R16763

47k

R16634

470

R16665

33

R16622

220

R16894

47k

R16899

1.47k

R16896

33k

0

R16766

R16891

47k

R16895

47k

R16892

47k

R16621

220

R16496

47

R16607

6.65k

R16606

10k

R16674

1k

R16684

220

R16685

220

R16493

4.22k

R16491

110k

R16492

120k

R16490

100k

R16661

1.2k

R16776

47

R16920

10k

R16922

3k

R16921

1.74k

R16609

1k

R16926

2.2k

R16679

10k

R16692

1.5k

R16681

10

R16762

47k

R16664

1k

R16717

1k

R16691

56k

R16666

10k

R16686

10k

R16613

47k

R16923

10k

R16712

1k

R16927

22k

R16680

7.5k

1

R16765

R16498

10k

R16497

47k

R16893

47k

R16627

22

R16711

4.7k

R16682

10

R16904

22k

R16694

56k

R16761

10

R16614

68k

R16611

68k

R16495

390

R16494

2k

R16612

47

R16777

10k

R16602

1k

VR16601

5k

1

2

3

INIT-F

17161513 141210 1811

CIRCUIT

SEPA PROTECT

COMPARATOR

INVERTER

SHUNT REG

11

12

13

14

15

16

SC-BOARD TXNSC1EQUE (2/3)

!

6

SHUNT REG

1

2

3

4

5

73

12.34.SC-Board (3/3) Schematic Diagram

+

AA_SIU

AA_OC2

AA_CLK

AA_OC1

AA_SC_FPGANRST

MAIN_STOP0

VAD

VFG

C16812

25V

4.7u

C16863

50V

0.1u

C16861

0.1u

16V

C16821

0.1u

50V

C16472

25V

1u

C16869

50V

0.1u

*C16460

630V

1500p

*C16461

630V

1800p

C16858

0.1u

16V

C16823

5600p

630V

C16867

1u

10V

C16843

50V

0.1u

C16856

1u

10V

C16862

1u

10V

C16868

1u

10V

C16857

4700p

50V

C16844

50V

0.1u

C16860

1u

10V

C16866

1u

10V

C16864

0.1u

50V

C16723

25V

4.7u

C16725

25V

4.7u

C16724

25V

4.7u

C16842

160V 100u

C16822

400V

47u

C16813

220V 220u

*C16414

220V 300u

C16795

25V

470u

C16721

50V

100u

C16791

25V

220u

*C16413

220V 300u

C16691

160V 100u

D16711

B0ECHR000001

D16713

B0ECHR000001

D16721

B0HCKS000002

D16715

B0ECHR000001

D16860

B0HCKS000002

D16859

B0HCKS000002

D16719

B0ECKP000047

D16720

B0ECKP000047

D16725

MA2J11100L

D16478

B0HCKS000002

D16476

MA2J11100L

D16474

MA2J11100L

D16473

MA3X152D0L

D16816

MAZ81200ML

D16791

MAZ82000ML

D16817

MAZ81200ML

D16712

MAZ815000L

D16710

MAZ815000L

D16475

MAZ80510LL

D16717

MAZ83300ML

D16714

MAZ815000L

D16824

MAZ83300ML

D16825

MAZ83300ML

C0DBZMC00006

IC16787

4

REFERENCE

3

CATHODE

1NC2

ANODE

C0DBZMC00006

IC16789

4

REFERENCE

3

CATHODE

1NC2

ANODE

C0DBEKA00003

IC16471

1

NC

2

A

3

K

5

A

4

REF

IC16786

MIP3900MSSCF

1

VDD

2

CL

3

FB

4

LS

5

DRAIN

7

SOURCE

8

SOURCE

IC16788

MIP3900MSSCF

1

VDD

2

CL

3

FB

4

LS

5

DRAIN

7

SOURCE

8

SOURCE

MIP9L02MBS

IC16784

1

SOURCE2BY3FB5VCC

6

GND7V01

8

VOUT

10

DRAIN

EHMDD9920

IC16791

1

GND2GND3N.C.4Vin5Vin6N.C.

9

COM10COM11Vo-F16V12Vo-F32V

IC16724

C0CBADC00072

VIN 3

2

COM

VOUT

1

IC16725

C0CBADC00072

VIN 3

2

COM

VOUT

1

SC50

1

2

*SC46

1

2

3

4

5

6

7

8

9

*SC41

1

2

3

4

5

6

7

8

9

*SC42

1

2

3

4

5

6

7

8

9

L16851

G0ZZ00002183

L16472

G0ZZ00002183

L16697

G0C102KA0187

L16698

680u

L16699

G0C471KA0167

VSCN_F

CHA

5V

15V

SCNR_PRO

VSCN

5V_F_B

VSCN_F

5V_F_A

16V_F

VSET

VSET2_O

5V_F_A

CHA

VAD

VSCN_F

VSET2_O

SCNR_PRO

5V_F_B

VSCN

15V_F

5V_F_A

ZA16421 TUXJ490

ZA16411 TUXJ490

ZA16403

K4CD01000011

ZA16422 TUXJ490

ZA16412 TUXJ490

ZA16401

K4CD01000011

ZA16402

K4CD01000011

PC16896

B3PBA0000223

12

34

PC16480

B3PBA0000223

12

34

PC16723

B3PBA0000223

12

34

PC16722

B3PBA0000223

12

34

TP42

TP43

TP64

TP78

TP80

TP53

TP44

TP63

TP95

TP62

TP79

TP59

TP96

TP61

TP60

TP94

TP51

TP81

TP41

Q16874

B1CBGD000001

Q16817

B1CBGD000001

Q16471

B1ABCF000231

Q16816

2SD0601AQL

Q16815

B1ABCN000007

Q16875

B1ABCF000231

Q16884

2SD0601A0L

Q16882

B1ABCF000231

Q16667

2SB0709A0L

R16860

8.2

R16888 220k

R16887 220k

R16479

10k

R16831

71.5k

R16870

68k

R16822

82k

R16789

10k

R16478

5.6k

R16472

2.2k

R16735

187k

R16475

4.7k

R16825

150k

R16723

22

R16480

4.7k

R16722

22

R16731

100k

R16829

1k

R16471

3.9k

R16838

56k

R16773

1k

R16796

56k

R16474

1k

R16715

10k

R16473

560

R16734

4.99k

R16848

4.7k

R16844

1.24k

R16851

470k

R16785

100k

R16786

100k

R16787

33k

R16744

127k

R16733

470k

R16845

71.5k

R16847

4.7k

R16736

187k

R16833

10k

R16877

680

R16749

10k

R16806

1k

R16794

200k

R16886 220k

22

R16772

4.7k

R16714

47k

R16811

1.5k

R16696

2.2

R16823

82k

R16824

33k

R16713

100k

R16795

200k

R16873

2.49k

R16826

10k

R16832

71.5k

R16791

1k

R16841

56k

R16720

22

R16737

205k

R16846

82k

VR16600

50k

1

2

3

*

TPSC1

TPVSCN

SC41SC46SC42

TPVAD

SC2

SC3

SC30

SC20

TPVSET

SC46

27222119 2624 252320

5V_F_A

5V_F_B

VAD GEN.

SHUNT REG

VSCN GEN.

SHUNT REG

VSET GEN.

DC/DC CONVERTER

SHUNT REG

(SU41)

SU-BOARD

TO

TO SD-BOARD (SD42)

(SD46)

SD-BOARD

TO

16

13

15

14

12

11

!

SC-BOARD TXNSC1EQUE (3/3)

FOR

USE

FACTORY

VAD

VAD:-180V

VSET:290V

74

12.35.SS-Board (1/2) Schematic Diagram

+

AAA_UEH

AA_UMH

AA_UML

AA_SOS8

AA_UMH

AA_UML

C16131

25V

4.7u

C16242

16V

1u

C16135

25V

1u

C16133

25V

4.7u

C16243

50V

0.01u

C16022

630V

5600p

C16002

630V 5600p

C16103

25V 47p

C16104

25V 47p

*C16012

220V 300u

C16241

10V

100u

C16272

25V 470u

*C16013

2.2u

250V

D16131

B0ECKP000047

*D16021

B0FBCN000008

*D16001

B0FBCN000005

D16281

MAZ80510LL

C0ZBZ0000895

IC16131

1

LO

2

GND

3

VCC

4

NC

5

NC

6

VS

7

VB

8

HO

9

NC

10

NC

11

NC

12

HIN

13

NC

14

LIN

15

GND

16

NC

C0JBAZ002811

IC16241

1G

1

2

1A1

3

2Y4

4

1A2

5

2Y3

6

1A3

7

2Y2

8

1A4

9

2Y1

10

GND

11

2A1

12

1Y4

13

2A2

14

1Y3

15

2A3

16

1Y2

17

2A4

18

1Y1

19

2G

20

VCC

SS11

1

3

4

*SS3

1

3

5

SS23

1

2

3

4

5

6

L16271

G0ZZ00002183

*L16011

G0C2R5KA0147

*L16013

G0C2R5KA0147

*L16012

G0C2R5KA0147

*L16014

G0C2R5KA0147

5V

TP16

TP7

TP1

TP8

TP2

TP37

TP22

TP14

TP13

TP64

TP61

TP65

TP62TP63

TP66TP67

TP70TP69 TP71

TP18

TP17

TP60

TP68

*Q16021

B1JAEN000004

*Q16022

B1JAEN000004

*Q16001

B1JAEN000005

*Q16002

B1JAEN000005

Q16141

B1HFPFA00001

Q16161

B1HFPFA00001

R16241

EXB38V470JV

R16242

EXB38V472JV

R16131

100

R16161

10

R16002

7.5

R16163

47k

R16022

7.5

R16143

47k

R16162

47k

R16132

100

R16141

10

R16001

7.5

R16280

2.2k

R16021

7.5

R16137

1

R16142

47k

75

R16134

TPVSUS

VSUS

GND

TPSOS8

P5V

AAA_UEH

UML

UMH

SOS8_SS

GND

15V

B

E

96873

D

4

C

12

F

5

A

BUFFER

TO C2-BOARD (C23)

TO P-BOARD (P11)

TO SC-BOARD (SC3)

DRIVER

VSUS Gen.

FET DRIVER

3

2

1

4

SS-BOARD TXNSS1EQUE (1/2)

!

VSUS:187V

75

12.36. SS-Board (2/2) and SS2-Board Schematic Diagram

+

TERM

SIDE

TERM

SIDE

AA_SOS8

AAA_UEH

AA_UML

C16280

25V 1u

C16195

25V

4.7u

C16198

630V

1000p

C16317

1u

10V

C16315

1u

10V

C16192

25V

0.1u

C16319

50V

0.1u

C16318

0.1u

50V

C16191

25V

4.7u

C16316

0.1u

16V

C16287

0.1u

50V

C16286

0.1u

50V

C16328

200u

200V

*C16310

220V 300u

C16193

25V 47u

D16191

B0ECKP000047

D16193

B0ECKP000047

D16280

MA2J11100L

D16192

MA2J11100L

D16101

MA22D3900L

D16195

B0ECKP000047

D16194

B0ECKP000047

D16316

B0ECKP000047

D16317

B0ECKP000047

D16285

MA3X152D0L

D16315

MAZ81500ML

D16282

MAZ80680ML

C0DBZMC00006

IC16312

4

REFERENCE

3

CATHODE

1NC2

ANODE

IC16304

MIP3900MSSCF

1

VDD

2

CL

3

FB

4

LS

5

DRAIN

7

SOURCE

8

SOURCE

*SS53A

1

2

3

4

5

6

7

8

9

10

11

12

13

SS22

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

L16103

G0ZZ00002183

L16222

G0ZZ00002183

L16303

G0C471KA0167

ZA002

K4CD01000011

ZA001

K4AZ01D00004

PC16192

B3PBA0000223

12

34

PC16191

B3PBA0000496

1

2

34

5

6

TP56

TP51

TP43

TP36

TP42

Q16102

2SK399500L

G

D

S

Q16101

2SK417300L

G

D

S

Q16280

2SD0601A0L

Q16191

B1HFPFA00001

R16285

62k

R16332

470k

R16104

10

R16103

10

R16105

470k

R16281

10k

R16307

51k

R16195

1

R16334

4.7k

R16110

47k

R16318

43k

R16192

10k

R16282

220

R16116

47k

R16101

220

R16335

1k

R16102

220

R16317

24k

R16330

1k

R16320

68k

R16194

7.5

R16109

10

R16290

330k

R16284

220k

R16310

33k

R16196

7.5

R16283

47k

R16289

330k

R16193

75

R16319

2.4k

R16311

33k

R16302

33k

R16191

150

R16309

33k

SS58

1

2

3

4

5

6

7

8

9

10

11

12

13

SS24

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

TPSS1

TPVe

SS55

D6001

Q6021

Q6001

SS52

D6021

SS54

Q6022

Q6002

SS53

SS22

14 181210 1611 1513 17

ELECTRODE

SUSTAIN

PANEL

SHUNT REG.

VE GEN.

1

2

3

4

SS2-BOARD

!

TNPA4807

SS-BOARD TXNSS1EQUE (2/2)

!

FPC DET

Ve:125V

PANEL

ELECTRODE

SUSTAIN

76

13 Printed Circuit Board

ABCDEFGH I

1

2

3

4

5

6

P-BOARD (FOIL SIDE) LSEP1279BEHB

13.1. P-Board

77

Parts Location

P-BOARD (FOIL SIDE)

IC100 F-4 IC101 E-4 IC102 F-4 IC200 F-2 IC201 E-2 IC202 D-3 IC203 D-2 IC300 E-4 IC301 E-5 IC302 C-2 IC303 C-3 IC304 C-3 IC500 D-2 IC502 C-1 IC600 D-2 IC601 D-3 IC602 B-2 IC603 B-2 IC604 D-2 IC700 B-4 IC701 B-3 IC702 B-3

IC

Q100 E-3 Q101 F-3 Q103 G-5 Q104 G-4 Q106 E-4 Q201 D-3 Q202 D-3 Q300 D-3 Q301 D-3 Q302 D-5 Q303 D-4 Q304 D-5 Q305 D-4 Q306 D-5 Q307 D-4 Q500 D-1 Q502 C-2 Q503 D-1 Q504 C-2 Q505 C-2 Q506 D-1 Q507 C-1 Q600 H-5 Q602 H-5 Q609 I-5 Q610 C-2 Q611 D-3 Q700 A-3 Q701 C-3 Q702 B-3 Q703 C-5 Q704 B-4 Q705 C-3

TRANSISTOR

R141 F-4 R735 A-3 R737 A-5

VOLUME

Parts Location

IC101 D-4 IC102 D-4 IC201 D-2 IC301 E-4 IC502 F-1 IC502 F-1 IC702 H-3

IC

Q103 C-5 Q104 C-4 Q105 F-4 Q205 F-4 Q304 F-5 Q404 F-4

TRANSISTOR

R141 D-4 R735 H-3 R737 I-5

TPVDA I-3 TPVSUS H-5

VOLUME

TEST POINT

P-BOARD (COMPONENT SIDE)

P

78

ABCDEFGH I

1

2

3

4

5

6

P-BOARD (COMPONENT SIDE) LSEP1279BEHB

79

13.2. GK, K, S and SS2-Board

ABCDEFGH I

1

2

3

4

5

6

SS24

1

TNPA4807

SS2MM2

SS2MM1

SS2

DIP

SS58

PbF

15

1

2

14

ORDER

NO.

131113

SS24

TNPA4807

1

SS2

SS58

SS2MM4

SS2MM3

PbF

15

1

2

14

SEE REVERSE FOR ORDER NO.

1131

13

C3752

C3753

C3754

SW3759

SW3760

SW3761

SW3762

SW3763

R3770

R3771

R3772

R3775

GK1

ZA3702

ZA3701

PbF

TNPA4875

1

GK

SEE REVERSE FOR ORDER NO.

1

2

SW3759

SW3760

SW3761

SW3762

SW3763

GK1

ZA3702

ZA3701

F

-/

AV

TNPA4875

GK1

+/

TV

ORDER

NO.

1

2

SW2500

S1

ORDER NO.

131

3

1

S

TNPA4858

PbF

SW2500

S1

SEE REVERSE

FOR ORDERNO.

1331

PbF

1

S

TNPA4858

GK-BOARD (COMPONENT SIDE) TXNGK1EQUE

GK-BOARD (FOIL SIDE) TXNGK1EQUE

SS2-BOARD (COMPONENT SIDE) TNPA4807

SS2-BOARD (FOIL SIDE) TNPA4807

K-BOARD (COMPONENT SIDE) TXN/K1EQUE

K-BOARD (FOIL SIDE) TXN/K1EQUE

S-BOARD (COMPONENT SIDE) TXN/S1EQUE

S-BOARD (FOIL SIDE) TXN/S1EQUE

C2510

C2511

C2515

C2526

C2527

D2520

D2524

R2524

D2528

R2525

RM2501

PC2511

K1

D2582

D2525

Q2511

PbF

1

K

TNPA4857

ORDER

NO.

1

11

C2512

Q2510

Q2513

C2517

Q2519

C2521

C2522

C2523

C2524

C2525

Q2522

D2512

R2516

R2517

R2520

D2526

D2530

R2530

R2531

R2542

R2556

R2557

R2561

R2562

R2565

R2569

R2570

R2571

R2581

R2582

VJ1

VJ2

VJ3

R2563

PbF

TNPA4857

K

1

SEE REVERSE FOR ORDER NO.

SS2

GK

SK

80

13.3. A-Board

ABCDEFGH I

1

2

3

4

5

6

IC1100

Q8851

Q8852

IC9001

JK3100

JK3107

Q2901

Q2902

Q2903

Q2904

TU2901

IC2901

IC5600

IC5601

IC8301

IC8302

Q4500

Q4501

IC8554

IC5480

IC9500

Q2001

JK3001

JK3002

JK3003

JK8401

Q4533

Q4534

IC4511

IC4512

Q2022

IC4513

Q2023

IC2008

IC2801

Q3001

Q3002

Q3003

Q8401

Q8402

Q0900

Q0901

Q0903

Q0904

Q0905

IC8004

JK3100A

IC3003

IC8401

IC8403

IC8404

IC8405

D3015

IC8408

IC8601

Q9000

Q9001

Q9002

Q9003

Q9004

TNPH0782

2

A

PbF

1

26

51

76

100

1

4

5

8

SEE REVERSE FOR ORDER NO.

SW1

SW2

+B

SCL

SDA

BTL

RFAGCMONITOR

+BACTIVEANT

AGCMONITOR

BTL BTMONITOR

BB

SCL

SDA

AUDIOOUT

SIFOUT

+B

VB

AFTOUT

VIDEOOUT

IFAGC

IFDOUT1

IFDOUT2

BTMONITOR

IFMONITOR

1

3

5

4

1

12

13

24

1

12

13

24

V

R

L

1

17

33

49

64

1

3

4

5

1

28

29

56

14

15

28

1

26

51

76

100

15

10

5

11

6

1

21

20

2

1

21 1

20

2

33

68

1

2

35

36

34

67

1

3

4

5

1

3

4

6

1

3

4

5

1

3

4

5

1

4

5

8

1

8

9

16

1

3

4

5

1

17

33

49

64

1

3

4

5

1

10

11

20

1

10

11

20

1

10

11

20

1

4

5

8

EU_AV3_S A_AV4_S

EU_AV3

A_AV3_S

EU_AV2

EU_AV1

A_AV3 A_AV2_COMPONENT A_AV2

A_AV1_COMPONENT

(A_AV1)

(A_MONITOR OUT)

A_AV1

EU_MONITOR OUT(-)

EU_AUDIO OUTEU_AUDIO IN

EU_COMPONENT

PC

TNPH0782 B

C9979

TP630

R4527

Q2022

Q2904

R8474

C4605

CL9244

C8016

TP9010

C9547

R9115

R3106

R4276

R2906

CL9263

R8044

R3220

IC8405

D4577

C8413

C9548

R5632

R4290

R4281

R2127

C2337

R8896

R3239

R0920

CL9252

C3021

R9969

R9185

IC2008

C9932

R4293

L2033

R8897

Q9001

CL9234

R4743

R4538

C9948

C9939

TP1103

TP0153

TP3023

R3314

CL9904

R0603

R4280

L4519

C4643

R8296

C9065

R0957

TP5800

R8617

CL9233

R9592

CL9018

C4575

C4549

R4501

C9916

C9906

R8903

C3139

TPS15V

R8301

L4518

C4640

R9618

R9402

CL9063

C8068

C8028

C9977

C2432

R4506

R8942

TP1058

C608

R2871

CL9235

CL9611

C9976

C9961

R4505

R1411

TP3015

R3288

R9610

C4600

CL9265

C8077

TP5400

VJ5626

C9959

R4706

C9925

R8340

C3112

C5624

JS3018

R4628

CL9056

C2872

D4563

C2056

R3188

R1236

D1006

R8901

R5612

R4659

C9093

C2901

R8477

R0940

C8060

R8020

C3028

R9586

R1203

R2194

R2757

C8331

R2916

R4648

C5603

R4623

C8031

CL9197

D5483

C5492

R2193

R5636

R5629

TP8548

CL9011

C8004

C9953

R8938

IC2901

C9468

C2121

R0960

C4607

L8303

C8052

C8006

R9351

R3174

C9910

D603

R2115

R9604

R8855

C4608

CL9267

CL8874

CL9203

R4683

D4617

R8471

R3037

C2092

C4598

R3172

R9108

C5636

C9845

R3077

R8853

C1112

R8025

C8041

VJ5603

C8011

TP1105

C9909

R5475

C9070

R9405

CL9278

IC1100

CL9841

CL9250

VJ5629

R8019

C8410

TP4227

R8962

R9113R9104

R8908

R3289

L5480

R0945

R0939

CL9842

R4598

R9987

CL9226

R9578

C2059

R2019

C9945

TP9006

D5485

CL9179

TP0107

R9895

CL8958

TP2012

L4522

C2124

C9064

R8655

C8070

CL9059

C8059

D4583

C8025

TP4224

R9165

R2008

R8395

CL9584

R9100

R8343

R8703

C8334

C2906

C4632

CL9867

D3038

R8403

C8035

C4535

L8010

C5643

C3117

C2339

JS3013

CL9847

CL9256

D3030

R9394

CL9020

C8017

C8001

R4529

C9930

TP3005

C1401

D3101

R4637

R8441

R3030

R8034

R9967

C9940

R9907

R9122

R5489

R5631

R5622

R2126

L4511

C4606

R8447

R9154

IC4512

C9545

R8944

C4501

R2904

X8001

C9825

R8611

C8046

C3024

D4574

C5698

R8106

C8309

TP8551

C4613

CL9269

C2878

IC8408

TP9079

R9397

CL008

R2937

C3118

R4613

R8851

R0949

CL9268

C8073

R8037

Q8401

R4530

R2191

R5610

R5600

C3103

L9901

C4628

R8612

C8039

C3009

C2245

C9537

CL9193

CL9185

C5490

R8312

R2922

CL9114

R8898

C2320

C2122

R8098

R3073

R8660

R8078

R3042

L8304

TP2903

C8047

C3027

CL9219

TP9011

C9913

C9903

C3142

C5651

R3100

C8315

C2923

R4622

R8680

C8048

C9943

C5484

R9893

TP1054

TP8549

C8061

R4596

IC8401

R9946

C9957

CL0900

R3146

C5486

TP0105

C8326

R5604

C5605

C9855

C2112

C2103

C4602

CL9850

C8023

R9949

C2406

D1008

R4666

D5600

C2904

C2114

L8551

R0950

R8035

R8604

C8045

C4596

Q3003

R9124

R3153

R2168

CL9121

C9074

C4619

CL9292

CL9859

R8440

TP4835

L2904

C3119

R2909

TP8745

C9053

C3097

C9037

CL9845

CL9839

CL9246

R8605

C8038

R4306

CL9192

C4504

TP3007

CL9160

R4277

R2139

JS3014

L9900

R4615

R0962

CL9294

R0953

R8012

TP4232

C8007

R2015

D4500

C9911

Q4501

C8555

C2387

R4288

C8120

L4515

R4621

TP8553

C9061

R3074

R8661

CL8884

D3010

C8424

C8032

R2003

R8564

CL9174

R8324

L8007

C3129

C8317

R9081

C2918

D4611

R3218

R0907

R9983

D3003

R9149

CL8002

CL9187

L3017

R8322

C2389

R2930

R2915

C2916

R8873

C4629

CL9057

CL9240

C8022

C4574

CL8601

R4500

TP0900

C3147

R2928

C8310

C5606

C9094

C9858

C9837

R8091

R5542

R8417

VJ5625

C8408

R4533

C9935

R4673

R4665

L2023

L4521

C2333

C2902

R8486

R8061

R8040

R0901

TP9076

C8013

D4542

R5487

CL9180

CL9925

R8879

C9046

C4601

IC9001

TP8501

R8056

Q9002

R9989

CL9229

C8027

C2251

R2020

C9541

R9111

R8906

R8068

R2870

TP5600

TP5401

R9988

CL9019

C9973

TP628

R2007

D4518

TP2872

C9907

R8353

R8342

R8904

R2172

TP2014

R4258

C4631

R8431

R8048

Q9000

R8418

VJ5627

TP4222

C9946

R4707

TPS0N

TP0901

R8328

C8535

R4296

C2375

C3113

R9077

Q2901

C9079

R4608

X2010

R9407

R8656

R0923

C1114

CL9236

R3006

R9970

R9968

R4363

R9362

C4552

L3021

R8909

R8305

JS3012

C2109

CL9061

L8501

CL9237

CL8867

R2059

C8003

TP3006

R5634

R4292

R9873

C2915

C4646

C8852

CL9062

R8033

R8001

CL9008

R4526

R9145

TP1108

IC5480

R9105

R8510

R2141

R2132

C8855

CL9261

Q0903

R4735

C4551

R1243

R9116

C4502

R8512

C5627

C8306

R8060

CL9264

CL9060

C8020

Q4534

C9923

CL9177

R8902

R4672

C5622

C9863

C2326

C9057

R9207

R8030

TP4221

R4534

C9936

TP2870

R8327

C8328

C9896

TP2008

C2328

R4607

C2105

R8074

R0941

CL9248

R8406

R8008

C9941

CL9172

TP0101

L8004

TP1052

R9072

C2322

C4633

R8015

D4576

CL9199

C9905

D1004

C8533

C2925

C2324

C4635

D3027

C4585

R9943

C9955

C4505

CL9171

R8313

R2924

R4660

C2933

C2123

R8099

R0961

R0912

R0905

TP4231

R4738

C9952

R8956

R8946

Q4500

D5603

C2931

C9080

C4616

CL9863

R606

R0911

CL9239

C8030

TP4230

R8955

L8001

R2921

C9075

CL9877

R8083

R9203

R8059

C8074

CL9245

R4590

C2091

R8007

CL9588

C4503

R8910

C2930

C2120

C9052

TP5452

C8080

CL9838

CL9050

R4362

TP631

R9155

D4520

R9106

C8346

R4682

C8313

C9882

R4642

R8475

R8077

R8053

CL9254

CL9243

CL9212

TP4229

C9964

R9347

IC4511

C9919

R8750

R8704

C5649

C5625

C5616

TP8301

R3007

R2058

R8004

C4580

C9967

C9931

X1100

R9071

TP5604

IC8004

C9966

TP9000

R8345

TP9196

R8707

C3116

C2920

R8671

R8045

CL9058

C8058

R8023

D4551

R4535

D4525

C9937

TP3022

R2941

C8329

C9897

C4630

TP5660

C9047

R8049

CL9257

R8024

TP4223

R9164

R9150

C9927

TP0903

R8710

R3113

R4297

C2377

IC5600

R9078

R8871

R4604

R8463

C8071

C9929

TP4512

C2107

CL9280

R8067

R0938

Q9004

CL9612

Q0901

C9963

R8963

C2929

R8454

CL9266

TPEC0

C8054

R8407

D4575

C9942

C9904

L3018

C3143

L8005

IC8301

L2010

C2917

JS3007

R8874

R8039

C8055

C3029

C9944

R3169

TP3021

TP0104

R9894

R3102

C5604

R5541

Q8402

R9369

R2016

Q4533

D1005

C5639

TP2010

C9889

R8485

R9206

C8062

C2873

D3012

C9924

TP0106

R5613

R9225

X9900

CL9275

R3009

L2903

CL9600

C9980

Q2001

CL9184

R8335

R3108

C5635

C8308

R8852

R0934

CL9068

L5614

CL9238

C3030

R9972

R9186

C8320

R2907

R3097

R8081

CL9837

R8613

C3026

CL9206

R4531

R8507

D8301

R4278

D604

L4505

R8497

R8675

R8086

R8079

D3047

CL9053

R8029

L2905

C8405

D4534

C9920

CL9194

R8108

C8314

TP1062

R4616

C4617

CL9295

R0954

CL9843

R3207

FL2000

Q3001

C2050

C9933

R8347

R8332

R8321

C8330

C5633

L4503

TP9872

CL9251

R0902

C8043

C3004

R4542

C4553

R4700

TP8401

CL9148

C8512

C5600

C4625

CL9846

C1107

R9348

R9906

IC8554

R4681

R4275

L2018

R4641

R9609

Q8852

R8439

C1106

C8029

C8014

C4567

R4332

C9544

R9121

R5488

CL9181

R5630

C2100

Q8851

C8079

IC8404

C8026

C9975

R9937

TP1104

R5474

R1153

R8862

R0958

R0942

D9000

C8067

FL601

C8012

C2049

R8961

R8941

R8356

R8907

TP1057

R4610

R8659

C9039

R8069

C8854

R3041

CL9260

C8064

C1104

TP626

R2006

D4517

TP2871

R5471

L8009

CL9903

R4667

C9095

C9069

R8678

CL9259

R2093

CL9242

VJ5628

C8040

C8010

R4539

R9151

C2217

C9928

R9120

R1410

TP0904

R4680

IC5601

Q2903

C2117

C2305

R9215

C8072

R8430

CL9247

C3025

C8005

C9954

C9538

TP3008

R4287

R9098

L4504

R8674

R8084

R9400

R2872

R0906

CL9012

FL9300

D4535

C9921

C9902

TP3009

R2192

C2934

R8889

R3072

R607

C8050

C8036

R8005

R9123

CL9907

R8104

R4652

R4612

R8089

C9049

R3014

R8405

CL9220

CL9218

CL9204

R4305

R2908

R4614

R8472

CL9293

R2874

CL8886

C1103

C2096

C8409

C2058

C2405

CL010

D1007

R8326

R5605

R2910

L4517

C2327

R8090

C4603

R8615

C8056

D4562

D4536

C4537

C5495

R8325

R4671

R4255

C2325

R8476

CL9249

R3019

R8408

D3005

R9587

C9915

CL9189

C8340

CL9902

D5607

JS3008

IC3003

D3004

R2002

C9914

R3158

R8323

C8532

C8316

CL8350

C9853

R8681

R0919

R8032

CL9228

CL8435

R4330

C2216

C9540

C9908

R8344

C5640

C4644

R9210

R8432

R3034

R8016

C8024

R2032

R9357

R8566

R8556

R8341

L3004

R9896

C9898

R4629

C2115

C2110

D3039

R3033

TP5602

TP4226

R9102

C2927

C4638

C2108

R0959

CL9281

D3014

C8428

CL8656

R9371

C9960

R4504

R8940

R9101

R8712

TP1056

R8877

R8093

R8658

C9038

CL9277

C8076

C9978

R4525

R4507

R8950

R9114

C8335

C8311

R9079

R9608

R8075

R8002

C8015

R4528

R3193

C9546

TP0155

CL9182

CL9906

R2142

CL8349

C8856

D2871

R4736

R1262

C4534

R5633

C5641

R9872

C9874

C2914

L4512

C2129

R2875

CL9255

CL9253

R3008

R9396

C8019

C2244

TP8851

R5635

D8500

R8031

IC8403

R9593

VJ5600

R4742

TP627

D4526

C9938

TP1102

C9917

TP0902

D1009

C8544

R2942

C8333

R4676

R8100

C5607

C2335

C2905

TP8555

R0925

R3029

C2875

C8601

TP629

D4528

IC9500

C2912

C2128

CL8313

R9404

R2094

C1111

R0900

R9594

VJ5602

R9936

R9900

R5484

TP3014

R8905

L2012

R3287

CL9276

C8853

CL9840

CL9069

Q9003

R4746

C9962

R9902

C2928

R8670

R9205

CL9858

CL9213

IC2801

R9361

Q2023

R8951

CL9191

C8336

C8312

R2905

R8052

TP4228

TP1107

CL9190

C4500

C5658

CL9905

R2911

R2902

C2137

CL9878

D2870

R9598

L609

CL9215

C9968

TP8403

CL9900

TP2017

L2001

L4513

R0937

R0922

C8069

R3206

C8034

Q0904

C8018

C9950

TP8402

TP5700

R4291

R8103

R8442

TP9871

R8038

R9977

C8008

C9956

R8949

CL9186

D3339

C5650

L2039

C9891

C5620

R4825

C2318

R8662

R8036

R4591

R8011

C5701

R9350

R8957

R9109

TP8404

C2192

C2932

L4514

R4620

TP8552

CL3100

C4614

CL9288

L8301

R8954

C3130

C8321

R3098

CL9876

R8082

R0928

R8610

R8404

L2902

C4595

R9187

C5634

R8859

CL9844

R8416

D3011

C2055

R4532

D4513

D4501

C3145

R4289

C5621

R2121

JS3009

R3089

C2102

CL9282

R8616

R4597

C8021

CL0901

R1237

CL9178

C3146

R2927

C8319

C5623

C2113

C9058

D3028

R9990

R3167

CL9173

C5483

R2756

R8509

CL9901

R4279

TP1053

R9073

L9903

C4634

R9616

IC8601

C8049

C8033

C4548

CL9175

C5485

R8900

L8008

IC8302

TP1055

R4624

CL8317

R8041

TP9077

CL8470

C5520

C8002

C9549

CL2026

L2032

C4645

R0921

R8603

C8044

L2901

C3019

X8301

D4512

C3141

R8308

C2922

C5601

R1163

C4626

VJ5605

R9950

C2433

C9949

C2023

C9543

TP0154

C2390

R4298

R4274

C2907

R0180

C2877

R9197

C9965

R1260

IC4513

CL9586

C8345

C5626

JS3011

R3079

CL9262

D3009

Q0900

R4552

D4541

C9542

R9112

C4624

R8071

CL9279

CL9849

C8078

TP5601

CL8870

TP4225

L1100

D2902

C4637

C2106

R0946

CL9848

C8075

C8065

VJ5601

C9974

R9359

R4524

R4503

C9918

R5483

R8354

TP3004

L3005

R3104

C3124

R8101

C5608

C2911

Q2902

R8872

R8679

R0926 R0924

CL9241

D3013

CL9227

R9385

D4552

R9358

C9947

C9550

R4502

TP8037

R3112

L4523

R8891

C4642

R4609

R8484

R8080

R2095

CL9258

R3198

R3159

C5494

R4698

R2940

C8332

C9894

D2901

R4254

C9854

C4636

R8483

CL9048

C2093

CL9224

C4599

D1003 TP0102

R9080

C2118

C8057

C9970 C9958

C5487

C8327

R4633

C1102

CL9207

C8009

R9353

C9934

C9922

CL9176

R4699

D5608

C2919

L4516

R4625

C2111

R9223

C3022

Q0905

Q3002

CL9587

CL9183

R8333

R2167

C8307

R3075

C3095

R2873

R0927

R8028

C8037

D4573

R9188

C9535

C9900

R2938

R2138

TP8550

R3076

C4612

D3048

R3038

TP9862

C8051

R9975

D4533

C9901

R8348

R2190

L8002

R8107

C9890

C3102

R4824

C9076

R0963

R8854

C9040

C8053

CL9223

R9945

R9352

C9912

R5611

C2935

R4631

TP8554

C2301

C9051

R8856

R0933

JK3002AJK3002

JK8401

JK3003

TU2901A

JK3107

JK3100B

JK3003A

JK3001

TU2901B

JK3100

JK3107AJK3107C

JK3100A

TU2901

D3015

JK3107B

A-BOARD (FOIL SIDE) A-P42X10B A-P42X10E

81

Parts Location

A-BOARD (FOIL SIDE)

Q0900 D-1 Q0901 D-1 Q0903 C-5 Q0904 C-5 Q0905 C-5 Q2001 C-2 Q2022 G-2 Q2023 D-3 Q2901 C-2 Q2902 D-2 Q2903 C-1 Q2904 C-3 Q3001 G-2 Q3002 F-2 Q3303 F-2 Q4500 F-3 Q4501 E-3 Q4533 E-4 Q4534 F-4 Q8401 D-6 Q8402 D-6 Q8851 F-4 Q8852 E-4 Q9000 H-5 Q9001 H-5 Q9002 G-6 Q9003 G-1 Q9004 G-6

TRANSISTOR

IC1100 E-4 IC2008 E-4 IC2801 D-6 IC2901 C-3 IC3003 F-2 IC4511 F-4 IC4512 E-3 IC4513 E-4 IC5480 C-5 IC5600 C-5 IC5601 D-5 IC8004 G-4 IC8301 D-2 IC8302 D-2 IC8401 F-6 IC8403 E-5 IC8404 E-5 IC8405 E-5 IC8408 D-5 IC8554 F-5 IC8601 F-6 IC9001 G-6 IC9500 H-6

ICIC

Parts Location

Q2063 E-1 Q2064 D-1 Q2065 D-1 Q2066 D-1 Q2067 D-1 Q3000 D-2 Q3004 E-1 Q3005 E-1 Q4514 D-3 Q4515 D-3 Q4516 D-3 Q4517 D-3 Q4519 D-3 Q4520 G-4 Q4535 G-4 Q5480 E-1 Q5565 E-4 Q5600 G-5 Q5601 F-5 Q5602 F-5 Q5603 G-5 Q5606 F-5 Q5607 F-5 Q5608 E-5 Q8200 E-5 Q8850 D-5 Q8853 D-5 Q9301 B-5 Q9302 B-6 Q9807 C-3

TRANSISTOR

IC1000 G-4 IC1101 F-4 IC2301 C-2 IC2960 G-3 IC3001 C-3 IC4510 D-4 IC5401 F-6 IC5470 E-4 IC8001 C-5 IC8002 C-5 IC8003 C-5 IC8409 E-6 IC8410 F-5 IC8411 F-6 IC9003 C-6 IC9004 B-5 IC9303 C-3 IC9805 C-3 IC9806 D-4 IC9807 B-5 IC9808 C-3 IC9900 B-4 IC9901 C-4

ICIC

A-BOARD (COMPONENT SIDE)

A

82

ABCDEFGH I

1

2

3

4

5

6

A31

A32

Q8850

IC1101

Q8853

IC9003

IC9004

Q9807

JK8302

JK3100

JK3107

IC9805

A1

IC9806

IC9807

IC9808

A7

IC2301

Q5600

Q5601

Q5602

Q5603

Q5606

Q5607

Q5608

TU2901

CN8701

IC5401

JK4500

JK4501

JK4502

Q5480

Q9301

Q9302

IC2960

IC1000

IC5470

IC9303

Q4514

Q4515

Q4516

Q4517

Q4519

Q4520

JK3001

JK3002

JK3003

JK8401

IC9900

IC9901

Q4535

IC4510

CN0100

CN0101

CN0102

Q8200

Q3000

Q2063

Q3004

Q2064

Q3005

Q2065

Q2066

Q2067

IC8001

IC8002

IC8003

JK3100A

IC3001

CN1101

CN1102

D3015

IC8409

A11

A12

IC8410

IC8411

A20

Q5565

A25

TNPH0782

2

A

2

PbF

1

68

1

68

1

4

5

8

26

76

51

100

1

16

17

32

8

1

9

10

11

10

20

1

11

10

20

1

5

13

4

5

1

2

22

21

ORDER

NO.

1

36

19

18

10

9

28

27

1

37

38

74

+

V

R

L

19

1

19

1

19 1

1

4

5

7

1

4

5

8

1

3

4

5

1

24

25

48

11

6

1

10

5

15

2

20

1

21

2

20

1

21

67

68

33

34

2

1

36

35

1

A

B

A

1

11

20

19

2

1

4

1

A

1

A

1

A

+

1

26

51

76

100

41

20

19

2

1

10

11

20

1

3

1

2

1

10

11

20

1

10

11

20

1

30

1

13

EU_AV3 /A_AV4

A_AV3_S

EU_AV2

A_AV3

EU_AV1

A_AV2_COMPONENT

EU_AUDIO IN

A_MONITOR

OUT(-)

A_AV1 (A_M-out)

(A_AV1)

OPT

PC

A_AV1_COMPONENT

A_AV2

EU_AUDIO OUT

TNPH0782 A

R3213

R9966

C3065

R8446

IC5401

C8529

R3309

R3151

C4704

R5495

R9905

C5727

C2435

Q5606

S3027

D5582

FL3011

R3116

C5696

R5496

R9349

C8042

C3003

R4541

R8884

R9611

L3009

D3334

CN0101

D3017

D4587

R4737

R4645

C9869

R8886

R8046

R3047

R0972

IC8003-A

C3152

R8801

R2063

C2265

R9848

C2136

R3229

R9408

R9897

R5657

R5473

IC8410

R9847

TP9311

R8488

R3228

FL3002

FL9806

VJ2870

R3149

D4516

R4729

C3039

R8401

D4615

C3064

R3049

R8451

IC9004

C3085

R9406

C1400

R1403

R8426

C5723

R1108

S3030

R0947

C3091

R3123

R5543

C2263

C9971

C9068

D3052

R3051

C3088

R8479

JK4500

L3003

R5470

Q5601

IC9806

S3028

CL9283

R4664

C5496

R2017

C2870

R3091

R0976

S3134

R5490

C2412

R3024

D4597

C8423

C5602

C9062

C5629

CL8960

D4521

R8806

R8411

R9399

R2114

R8867

D3046

R8087

D5612

R8506

L3014

L3024

R9117

R9127

CL8475

D4561

C9469

C2317

R8868

C5628

C5638

L8003

C5481

D3338

C5699

C1108

D4588

CL8472

C8416

C2353

R8058

R8455

FL3005

L3010

R1407

R8953

C1109

IC8409

CL8474

C3008

C3101

R8435

R3045

D3301

R8337

R4730

R8437

R8453

R8458

R8094

L3007

R4732

R8244

S3034

R8459

R9212

R8423

R8890

IC9808

R8047

R8466

D5622

IC2960

Q4515

C4529

C2098

R2124

R4635

R8883

A1

A32

R9214

R9871

R4677

CL9921

R5677

D4507

R8042

R8027

CL9021

R9955

R4543

R2129

L4502

R3082

C3151

D3336

D2014

D4591

FL602

C2343

R9066

R8095

R8102

R8706

C3002

JK3002A

R4651

R3232

S3055

R1406

CN0100

C3047

CL8466

R9951

C2434

R8894

R8245

S3026

D5581

R8501

C1009

CL005

D3019

Q3004

R0929

C3083

S3053

C3131

CL2017

R9126

R8006

R1197

R5591

CL2014

C5697

R8412

D3001

C5702

C9077

R8057

R8460

C3099

C9050

C2962

D1010

R5671

R9118

R9128

CL8875

R8338

D2017

R4252

C9832

R3133

R1202

R8614

IC8002-A

R3000

IC8002

R9074

L4507

R1146

C9893

C5645

C1010

R8927

R5674

Q4514

Q2067

C3105

C9028

JK3002

R0917

C3044

R8022

R1182

D1112

R8066

R4674

R3313

D3340

JK8401

R9355

CL9607

R8433

R8334

R8805

A11

C8418

Q2064

C2385

R5670

C9536

R9189

C5700

R3083

R3236

R8505

C4555

R8807

R4592

C3104

R3043

R9401

C5491

C3041

L9904

C9063

Q5480

D5484

R8009

C2347

L4506

L3026

CN1102

S3029

R3245

CL9284

FL9805

R3138

R4728

R9947

R3050

R8073

R8478

L3002

R3137

R3147

JK3003

R9965

R2325

R8438

R0948

R8864

R9903

CL8352

R3094

C3257

R3048

S3033

C3084

R9211

R8863

R1401

R8017

R1179

TP9312

R8882

R0978

R3067

CL9290

C3123

C5647

R5493

R3002

R2048

A31

CL2021

R5492

CL011

R9356

Q5607

TP1043

JS3001

R1105

R4282

R3117

IC9900

C8414

R4364

TU2901A

R8865

R3129

D4511

C4554

R9360

R2319

R2110

C3089

R3078

R3105

CL9585

C3048

R9953

R8895

CL9287

FL3012

R8503

R8952

C2410

R0916

C3043

R8409

R1181

C9066

C8858

C3078

C9895

CL9167

R4727

C8063

L5602

R2047

Q5602

R2118

R8062

C5488

D1400

R4593

R0975

C2361

D5620

D1002

R5672

S3142

R5540

R0909

L5600

JS3020

JK3107

D5621

R3310

L3028

C4547

A12

C8421

C2331

C2321

R3237

CL9289

R8088

R8339

R1224

Q4520

R8010

R3099

R0973

C3098

R4286

C2961

CL2018

R3140

D4589

R9398

R8336

S3130

C3023

C3007

D5579

R8105

R8504

CL8467

R1171

Q8853

R1221

CL006

C4533

C2341

C3072

R0951

S3054

L3035

C4530

D3031

D4592

C2345

R9067

R3225

R1106

D4601

R4283

C5642

C1404

R8346

R9158

R8026

JK3100B

R2050

R9954

R9070

C8851

C2379

CN0102

D3006

C3010

R2123

R4634

C9859

R8880

R8462

C5646

R3120

R3139

R1209

Q4516

D4505

C1110

IC8411

D3007

C3011

R9062

C2127

CL9064

C9048

CL2023

S3137

R8567

C2408

C8066

D4590

R8018

C3013

JK3003A

R9938

C9840

C1122

R1100

CL2903

C9045

C5472

R5669

L2870

L5605

R4360

C9072

R3230

R8445

S3032

R9012

C3092

D4600

R3125

L3034

C4703

R8014

C2302

C2362

R3143

CL9198

R4588

IC8003

C5611

R3092

R3087

FL9803

L3019

L5544

C2871

CL9231

C3074

R8063

JK8302

R3311

L3029

JK3001

C2262

R4740

C3108

R2122

R4627

R8487

C9029

CL2020

R8350

Q4535

CL8430

D3025

TP4840

C9844

S3036

S3052

C1117

C8415

D1107

R9201

S3051

R3107

R5647

R9107

R9317

CL8876

R9944

S3050

R2961

R8349

R8939

R9119

R8958

R4739

IC2301

R8888

R0974

D3302

CL2019

R1200

D5481

R8043

CL8471

R2051

TU2901B

R4639

R8866

R8637

CL8811

L608

C5728

Q5608

L4501

R3031

R4679

C3150

C8412

R4361

R4540

R9065

R8076

R3115

R8935

Q4519

C4542

R2125

JS3010

CL9285

C3109

C2381

R3191

R8425

R3004

C5612

R8436

R0930

IC9003

R8070

L3006

R5678

C2099

C3014

C9034

JK3100

C8426

C2264

C9972

Q5603

C2135 C2125

R0956

R9213

CL8959

C3148

C5489

R5676

CL002

R4799

C3012

R4640

TP1042

L4500

C9044

R4678

R3308

C5471

R5658

D4595

Q3005

R4656

JS3015

C9846

C3132

L3015

S3131

R8947

R0913

C8422

R9839

C9078

R3085

R5581

R8858

R9099

JK3107A

C8530

R1225

C3057

R0910

FL604

R4365

CL9067

R1103

D5578

CL2013

R8936

C3049

R8434

R8456

C2960

CL2016

L3038

R2316

C9067

R8449

CL9851

JK3107C

R3148

R2018

R3201

FL9301

C2359

JS3016

R4605

R3240

C3077

R8072

C2364

CL9166

R8959

R4649

R2120

R8875

C2303

C3144

Q9301

R1010

D4523

R8808

D4598

IC8001

R4253

R8482

R3134

C5493

L5604

C2266

Q8200

L4524

R4636

R9063

A7

C611

CL9291

C9899

C8528

R9898

R3121

R5668

R5494

R3028

C2874

L5603

R2119

C2319

R5582

C3093

JK4501

R3103

D1402

C9926

C2407

L9802

R3205

R3005

CL8463

R9939

C1123

R8055

Q8850

R8450

D5577

C5473

R5679

D4509

A25

R3234

C3070

C9033

R8802

CL8465

R4733

L2016

R9064

R8051

R1109

C8344

IC5470

IC4510

R4734

R4650

R2111

CL9286

C9055

R9899

R8428

R3012

R8402

C3020

C3018

Q3000

C609

C1403

R5659

D4593

CL8469

R4646

R4251

R9068

R8887

R8097

R3226

R1107

C3153

R3187

R0918

C2309

C610

R3227

CL9866

FL3003

R5482

R3204

C8427

R9370

PA5600

R8892

IC9805

R2096

R5588

C3115

D3100

C5648

C5657

C3149

IC1000

L3030

R9110

R9130

R9142

CL9005

R8452

S3037

C3090

R8861

R3011

JK3100A

CL8464

C9071

R8050

R1101

C3071

S3031

FL3001

R3124

C4702

R8803

C9872

R3256

CL9879

R8511

R3152

C4532

C4550

R3212

C8411

R2023

R9849

S3025

D5580

CL004

R3190

CL8809

C3056

R3013

C3005

D4602

R3119

CL2012

R3186

CL8810

FL603

R9363

TU2901

R4250

R8885

L5481

R3118

IC9901

D4596

C9982

R4601

R0955

R5590

R3132

R9129

C9981

D1106

R8857

R9868

C5637

R2960

D4594

IC3001

CL8473

C8417

Q2063

C3100

R1104

R9202

L3011

R8937

R8410

R2137

C9073

R2097

S3035

R5589

C2383

C3154

L3037

CL007

R8421

C9983

D3050

CL8754

Q9302

R8929

R4589

R9948

R9846

C9856

D3051

R8065

Q9807

R1003

R9354

R4587

R8013

R9391

R5673

R1255

R0915

C8425

Q5600

R0977

C2940

R5675

R5491

L5606

CL8468

R4638

R1172

S3022

R3081

R0605

C3140

R3128

R1263

D3032

R9940

R1173

R2092

S3023

C8513

R5646

L3023

C9951

C3046

C5615

C1124

IC1101

C9823

R3150

R8943

R9952

C3073

R0952

R8502

L3036

R8751

R3182

D3015

L2014

R8878

D3045

R9200

R8465

L3008

R1402

R2064

C5722

R9166

R8054

R3052

R8457

R3068

R8711

R1400

R8960

C1105

R3010

R3003

JS3000

R8657

FL3004

C8343

C2409

R8424

JS3019

R9403

C3114

JK4502

C8527

C5470

CL2022

R5472

Q4517

R3025

D4599

R8021

R3001

L607

R3135

L9001

R0914

C2323

R3086

C9892

R3101

C8531

L3027

D9110

CL8003

C2411

R8422

CN1101

C2261

C3107

R4256

R4626

IC9807

C3075

D3054

C3087

R8860

C2365

R3312

R1207

D4503

R3189

Q5565

L5601

CN8701

R8448

R8064

C3086

JK3107B

R3136

R3223

R8804

CL9044

CL8868

C2313

C9035

R4284

R3021

D3201

C9036

R4285

CL2015

Q2065

C9969

R3084

R1102

IC9303

A20

Q2066

R8461

R8508

C5482

IC1101-A

D5482

C9539

A-BOARD (COMPONENT SIDE) A-P42X10B A-P42X10E

83

13.4. C1-Board

ABCDEFGH I

1

2

3

4

5

6

IC101

IC102

IC103

IC104

C121

C123

C124

C125

C127

FL101

FL102

C130

C131

C133

C134

C135

C137

C139

ZA101

ZA102

ZA103

ZA104

C141

C143

C144

C145

C147

C148

C151

C153

C154

C155

C157

C161

C162

D121 D131 D141

R101

R102

R103

R104

R105

R106

R107

R108

R109

R110

D151

R111

R112

R115

R119

R121 R122

R123

R124

R125

R126

R127

R131 R132

R133

R134

R135

R136

R137

R141

R142

R143

R144

R145

R146

R147

R151 R152

R153

R154

R155

R156

R157

R159

R161

R177

CB1

CB2

CB3

CB4

R180

R184

R185

R191

R192

R194

R195

R196

C10

C14

TNPA4892

1

C1

CRNO.17

PbF

1

10

11

20

1

10

11

20

1

10

11

20

1

10

11

20

1

55 1

55

ORDER

NO.

1

55

1

55

1

55

1

55 1

55

1

55

1

55

1

55

21

TNPA4892

1

C1

12 3

PbF

SEE REVERSE FOR ORDER NO.

C1-BOARD (COMPONENT SIDE) TNPA4892

C1-BOARD (FOIL SIDE) TNPA4892

Parts Location

C1-BOARD

IC17101 H-2 IC17102 G-2 IC17103 H-2 IC17104 H-2

ICIC

C1

84

13.5. C2-Board

ABCDEFGH I

1

2

3

4

5

6

C20

C21

C22

C23

C25

R272

R278 R279

R280

R282

R285

R288

R290

R291

R292

R293

R294

R295

R296

R297

R298

R299

IC210

R300

IC211

R301

IC212

R302

R303

R304

CB5

IC201

CB6

IC202

CB7

CB8

IC205

IC206

IC207

IC208

C211

C212

C213

C214

C215

C217

C218

C221

C223

C224

C225

C227

C229

FL201

FL202

C230

C231

C233

C234

C235

C237

ZA201

ZA202

ZA203

ZA204

C241

C242

C244

D204

D206

D211

C267

D221

C270

C271

C272

C273

C274

C275

C276

C277

C278

R201

R202

R203

R204

R205

R206

R207

R208

R209

R210

R211

R212

R213

R214

R215

R216

R217

R218

R219

R220

R221 R222

R223

R224

R225

R226

R227

R228

R229

R230

R231R232

R233

R234

R235

R236

R237

R238

R239

R240

R241

R242

R243

R244

R245

R246

R248

R249

R250

R251

R252

R253

R257

R258

R261

R262

R269

CR NO.17

1

C2

TNPA4893

PbF

1

55

1

68

1

68

1

6

1

4

1

68

1

55

1

55

ORDER

NO.

1

3

4

6

1

10

11

20

1

10

11

20

1

55

1

10

11

20

1

55

1

10

11

20

1

55

15 5

1

10

11

20

1

10

11

20

10

11

20

1

11

20

10

1

55

1

68

1

55 15 5

3

1

TNPA4893

C2

2

1

PbF

SEE REVERSE FOR ORDER NO.

C2-BOARD (COMPONENT SIDE) TNPA4893

C2-BOARD (FOIL SIDE) TNPA4893

Parts Location

C2-BOARD

IC17201 D-2 IC17202 D-2 IC17205 C-2 IC17206 C-1

IC17208 E-2 IC17210 A-2 IC17211 A-2 IC17212 B-2

ICIC

C2

85

13.6. SC-Board

ABCDEFGH I

1

2

3

4

5

6

SC41

SC42

TP90

TP91

TP92 TP93

TP94

TP95

TP96

TP99

L697

L698

SC50

L699

C563

D722

D724

TP100

IC784

IC786

IC788

C791

C795

C796

R713

R731

ZA421

ZA422

ZA411

ZA412

VR600

VR601

C410

C411

C412

C413

C414

R774

C806

C813

C822

Q401

Q402

D401

Q601

C641

D402

C642

C842

C460

C461

Q421

C462

Q422

Q621

D421

Q622

D621

D622

Q441

Q442

Q451

D641

D642

C691

TP1

TP2

TP4

TP5

TP6

TP7

TP8

D461

TP9

Q661

L401 L402

L403 L404

L411

L412

SC2

SC3

L413

L414

D481

TP10 TP11

TP12

TP13

TP14

TP15

TP16

TP17

TP18

TP19

TP20

TP21

TP22

TP23

TP24

TP25

TP26

TP27

TP28

TP29

TP30

TP31

TP32

TP33

TP34

TP35

TP36 TP37

TP38

TP39

TP40

TP41

TP42

C503

TP43

R860

TP44

TP51

TP52

TP53

TP59TP60

TP61

L851

TP62

C523

TP63

TP64

IC791

TP65

TP67

L472

C721

R696

TP70

TP73

TP74

TP78

TP79

TP80

TP81

TNPA4773

CRNo.16

3

2

1

SC

1

SC46

C463

PbF

1

28

9

1

2

8

9

12

A

K

A

K

5

610

1

8

5

4

1

8

5

4

1

C

G

E

1

12

SEE REVERSE FOR ORDER NO.

G

E

C

G

C

E

A

K

G

D

S

A

K

G

C

E

G

C

E

G

C

E

A

K

G

C

E

A

K

A

K

G

C

EG

C

E

G

C

E

A

K

A

K

AA

K

G

C

E

1

3

1

5

A

K

1

12

1

28

9

SC-BOARD (FOIL SIDE) TXNSC1EQUE

86

Parts Location

SC-BOARD (FOIL SIDE)

IC16784 G-3 IC16786 H-3 IC16788 A-4 IC16791 H-2

Q16401 C-4 Q16402 D-4 Q16421 F-4 Q16422 F-4 Q16441 D-2 Q16442 D-2 Q16451 F-2 Q16601 D-5 Q16621 E-5 Q16622 D-5 Q16661 G-5

IC

TRANSISTOR

TP1 A-2 TP2 A-2 TP4 A-2 TP5 A-2 TP6 I-2 TP7 I-2 TP8 I-1 TP9 I-2 TP10 F-2 TP11 F-2 TP12 G-1 TP13 G-2 TP14 F-2 TP15 F-2 TP16 H-2 TP17 H-2 TP18 F-2 TP19 F-2 TP20 I-3 TP21 F-2 TP22 F-2 TP23 H-2 TP24 H-2 TP25 I-2 TP26 F-2 TP27 F-2 TP28 F-2 TP29 F-2 TP30 F-2 TP31 F-2 TP32 F-2 TP33 F-2 TP34 F-2 TP35 F-2 TP36 F-2 TP37 F-2 TP38 F-2 TP39 F-2 TP40 F-2

TEST POINT

VOLUME

Parts Location

SC-BOARD (COMPONENT SIDE)

IC16464 F-2 IC16465 F-2 IC16471 A-4 IC16490 G-5 IC16491 H-5 IC16501 G-3 IC16521 D-3 IC16561 B-2 IC16562 B-1 IC16563 A-4 IC16581 E-1 IC16661 B-4 IC16692 C-4 IC16724 B-4 IC16725 B-4 IC16771 F-3 IC16773 C-5 IC16784 C-3 IC16786 B-3 IC16787 A-2 IC16788 I-4 IC16789 H-5 IC16791 B-2

IC

PC16461 F-3 PC16480 A-4 PC16601 F-4 PC16603 G-5 PC16684 G-5 PC16685 E-4 PC16722 B-2 PC16723 B-2 PC16896 D-2

Q16401 G-4 Q16402 F-4 Q16421 D-4 Q16422 D-4 Q16441 F-2 Q16442 F-2 Q16451 D-1 Q16471 A-4 Q16490 G-5 Q16501 G-3 Q16521 D-3 Q16531 G-3 Q16551 D-2 Q16581 E-2 Q16601 F-5 Q16602 G-5 Q16603 F-5 Q16604 F-4 Q16606 F-5 Q16607 G-5 Q16621 E-5 Q16622 F-5 Q16624 G-4

PHOTO COUPLER

TRANSISTOR

TP3 C-2 TP46 C-2 TP66 F-4 TP68 G-5 TP82 A-2 TPSC1 A-5 TPSOS6 E-2 TPSOS7 A-2 TPVAD B-3 TPVSCN B-3 TPVSET H-5 TPVSUS I-4

TEST POINT

VR16600 C-4 VR16601 D-4

VOLUME

TP41 F-5 TP42 F-5 TP43 F-5 TP44 F-5 TP51 G-5 TP52 F-2 TP53 I-4 TP59 G-5 TP60 G-5 TP61 G-5 TP62 G-5 TP63 G-5 TP64 B-4 TP65 D-4 TP67 C-5 TP70 F-2 TP73 H-2 TP74 I-2 TP78 G-5 TP79 G-5 TP80 G-5 TP81 G-5 TP90 C-2 TP91 C-2 TP92 E-2 TP93 E-2 TP94 H-4 TP95 I-3 TP96 H-5 TP99 D-1 TP100 D-1

VR16600 G-4 VR16601 F-4

Q16661 C-5 Q16662 C-4 Q16663 C-4 Q16667 H-5 Q16670 B-3 Q16671 C-4 Q16672 C-4 Q16673 A-3 Q16674 A-3 Q16675 A-3 Q16676 A-3 Q16701 B-4 Q16702 C-5 Q16762 E-4 Q16815 B-2 Q16816 D-3 Q16817 B-2 Q16818 C-4 Q16874 I-5 Q16875 H-5 Q16876 C-1 Q16882 H-4 Q16884 I-5 Q16920 B-3

SC

87

ABCDEFGH I

1

2

3

4

5

6

SC41

Q701

SC42

Q702

D503

D701

D702

L697

L698

SC50

L699

C753

C754

C755

Q521

C756

C562

C563

C564

C565

D901

C566

D710

D711

IC561

IC562

D712

IC563

D713

D714

D715

D522

D717

D523

D524

Q531

D719

D720

Q920

D721

D722

D723

D724

C771

D725

C772

C773

D534

C581

D536

C582

D920

IC771

D921

IC773

IC581

R501 R502

R503

R504

Q551

R506

C593

R509

IC784

IC786

IC787

R510

IC788

R511

IC789

C791

R512

R707

C795

C796

R516

R517

R904

R711

R712

R713

R714

R715

R521

Q762

R522

R523

R717

R524

R720

R721

R722

R723

R531

D765

R532

R533

R534

Q581

R536

R920

R921

R922

R923

R731

R926

R927

R733

R734

R735

ZA421

R736

ZA422

D583

R737

R744

ZA411

R551

ZA412

R552

R553

R749

R750

R751

D791

R752

R753

R754

R755

R561

R756

R562

R563

VR600

R564

VR601

R565

R566

R567

R568

C401

R761

R762

R763

R570

R765

R766

R769

C602

C603

C410

C604

C411

R579

C412

C413

C414

C608

R772

R773

IC490

R774

R580

IC491

R775

R582

R776

R583

R777

R584

R585

R586

C806

R587

R588

R589

C421

IC692

R783

R590

R591

R785

C812

R592

R786

C813

R593

R787

R789

R791

R794

R795

C821

ZA401

C822

R796

ZA402

C823

ZA403

PC601

PC603

C827

C441

Q401

C442

Q402

D401

Q601

C641

D402

Q602

C642

Q603

Q604

C451

Q606

Q607

D407

D602

C842

C843

C844

D604

D411

D605

D606

D607

D608

C460

C461

Q421

C462

Q422

D610

IC464

IC465

C855

D615

Q621

D421

C661

Q815

C856

Q816

Q622

C662

D616

C857

Q817

C858

D618

Q624

C664

Q818

C471

D619

C665

C666

C472

IC661

C860

D620

IC471

D621

C861

D816

C862

D622

D817

C863

D624

C864

D625

PC896

C866

C867

C868

C869

Q441

C675

Q442

D820

D821

D824

C871

D825

R401

D441

R402

C684

C490

PC461

C685

Q451

C491

D641

R602

D642

R410

R604

R411

R605

C691

D451

R606

R607

R414

R608

R415

R609

R416

TP3

R610

R611

C891

IC521

R806

R612

R613

R614

D461

R615

R421

Q661

Q662

R422

R617

Q663

PC480

R619

Q471

D466

Q667

R811

IC724

L401

IC725

R621

L402

D662

R622

L403

D663

L404

D664

Q670

Q671

D859

Q672

R627

D667

Q673

D473

R628

PC684

D474

Q674

PC685

D475

Q675

D476

Q676

D860

D478

R822

R823

D670

R824

R825

L411

D865

R631

D671

L412

SC2

D672

R826

SC3

R633

L413

Q874

R634

L414

D480

R441

Q875

R829

D481

R442

Q876

Q490

D678

D679

D871

R831

R832

R833

D874

D875

Q882

R837

R838

Q884

D490

R451

D491

D492

PC722

PC723

D493

R841

R844

R845R846

R847

R848

R658

R465

R466

R467

R468

R851

R661

R663

R664

R665

R471

R666

R472

R473

R474

C501

R475

C502

R476

C503

C504

R860

R478

C505

R479

TP46

IC501

R673

R480

R674

R869

R675

R679

C707

C708

R870

R873

R680

R681

R682

R877

R684

R490

R685

R491

R686

R492

R493

R494

R495

L851

C521

C522

R496

C523

R497

C524

R498

C525

IC791

TP66

C527

TP68

R691

R886

L472

R692

R887

R888

SC20

R694

R695

C721

R696

C723

C724

R699

C725

TPSOS6

TPSOS7

C727

C533

C535

R891

C536

R892

R893

R894

R895

R896

R897

R899

Q501

TP82

CRNo.16

H.V. DANGER

TPVSUS

H.V. DANGER

TPVSCN

Discharge

TPSC1

TPVAD

TPVSET

37’

42’

SC

1

TNPA4773

INIT-F

VAD

42’

37’

SC46

C463

C464

PbF

1

8

9

2

1

28

9

12

1

10

11

20

1

10

11

20 AA

K

A

K

1

3

4

5

1

4

5

8

15

610

1

4

5

8

1

4

5

8

EG

C

ORDER

NO.

12

1

13

4

5

1

2

3

4

1

2

3

4

C

GE

C

G

E

AA

K

D

G

S

AA

K

G

D

S

C

GECG

E

134513

4

5

C

GE

AA

K

C

GE

14

5

8

1

3

4

5

A

K

AA

A

K

1

2

3

4

C

GE

C

GE

C

G

E

AA

K

AA

K

1

8

9

16

AA

K

C

GE

1

2

34

1

3

1

5

A

K

1

8

9

16

1

2

3

4

12

34

1

89

16

1

89

16

1

12

1

30

1

28

9

SC-BOARD (COMPONENT SIDE) TXNSC1EQUE

88

13.7. SS-Board

ABCDEFGH I

1

2

3

4

5

6

C193

SS11

SS22

L103

SS3A

L303

SS52

SS53

SS55

SS3

VR001

C011

C012

C013

C018

Q001

Q002

D001

C241

Q021

Q022

D021

D022

C272

TPVSUS

TP2

TP7

TP8

L011

L012

L013

L014

L222

TP13

TP14

TP16

TP17

TP18

TPSOS8

TP24

TP25

TP26

TP27

TP28

TP29

SS53A

TP30

TP31

TP36

IC304

TPVe

TPSS1

C310

TP51

TP54 TP56

C328

L271

TP60

TP61

TP62TP63

TP64

TP65

TP66TP67

TP68

TP69

TP70

TP71

PbF

12 3

CR No.16

1

TNPA4774 SS

1

4

1

214

15

1

5

113 113

SEE REVERSE FOR ORDER NO.

113

1

5

C

G

E

C

G

E

A

K

113 113 113

GCE

G

C

E

A

AK

A

AK

113

8

54

1

113

SS-BOARD (FOIL SIDE) TXNSS1EQUE

Parts Location

SS-BOARD (FOIL SIDE)

IC

Q16001 E-2 Q16002 E-2 Q16021 C-2 Q16022 C-2

IC16304 H-3

TP36 I-3 TP51 B-2 TP54 I-2 TP56 I-2 TP60 E-2 TP61 E-2 TP62 E-2 TP63 E-2 TP64 E-2 TP65 E-2 TP66 E-2 TP67 E-2 TP68 D-2 TP69 D-2 TP70 D-2 TP71 D-2

TPSOS8 I-3 TPSS1 G-2 TPVe G-2 TPVSUS C-3

TP2 C-3 TP7 B-3 TP8 B-3 TP13 H-3 TP14 I-3 TP16 I-3 TP17 I-3 TP18 I-3 TP24 I-3 TP25 E-3 TP26 A-2 TP27 I-3 TP28 G-2 TP29 A-3 TP30 C-3 TP31 C-2

TEST POINT

TRANSISTOR

VR16001 G-3

VOLUME

SS

89

ABCDEFGH I

1

2

3

4

5

6

D315

D316

D317

D131

Q141

R101

R102

R103

R104

C191

R105

C192

C193

SS11

R109

C195

C198

R302

R110

R307

R309

Q161

R116

SS22

SS23

R310 R311

R317

R318

R319

R320

ZA001

ZA002

L103

R131

R132

R134

R135R136

R137

SS3A

L303

R330

IC241

R332

R334

R335

R141

R142

R143

Q191

SS52

SS53

SS55

D191

D192

D193D194

D195

SS3

VR001

R161

R162

R163

C001

C002

C011

C012

C013

C018

C021

C022

R191R192

R193

R194

R195

R196

Q001

Q002

D001

C241

C242

C243

Q021Q022

D021

D022

C272

C280

R001

C281

R002

C285 C286 C287

IC312

R021

R022

IC131

L011

L012

L013

L014

Q280

D280

R241

D281

R242

D282

D285

D286

L222

C101

C102

C103

C104

SS53A

TP37

IC304

R280

R281

R282

R283

C310

R284

R285

R288 R289

C315

C316

C317

C318

C319

R290

C131

C133

C328

C135

L271

Q101

Q102

D101

PC191

PC192

TPVe

TPSS1

TPSOS8

SSMM1

TPVSUS

VE

PbF

DIP

CR No.16

1TNPA4774

Discharge

SS

50’’

42’’

37’’

4

1

214

15

1

6

1

5

11

10

1

20

13113111 3

ORDER

NO.

1

5

G

C

E

C

G

E

K

A

11 31

13

11 3

E

G

C

E

G

C

A

K

A

K

16

9

8

1

13

1

4

58

S

G

D

S

G

D

11 3

1

2

3

4

3

1

5

1

4

6

12

2

52

1

4

45

4

SS3A

SS53A

SS-BOARD (COMPONENT SIDE) TXNSS1EQUE

Parts Location

SS-BOARD (COMPONENT SIDE)

IC

IC16131 D-3 IC16241 B-3 IC16304 B-3 IC16312 C-3

PC16191 B-2 PC16192 C-3

Q16001 E-2 Q16002 E-2 Q16021 G-2 Q16022 G-2 Q16101 C-2 Q16102 C-3 Q16141 E-3 Q16161 E-3 Q16191 B-2 Q16280 A-2

TRANSISTOR

TP37 A-3 TPSOS8 A-3 TPSS1 D-2 TPVe C-2 TPVSUS C-3

TRANSISTORTEST POINT

VR16001 C-3

VOLUME

PHOTO COUPLER

SS

90

14 Exploded View and Replacement Parts List

14.1. Exploded View and Mechanical Replacement Parts List

14.1.1. Exploded View

91

14.1.2. Packing 1

92

14.1.3. Packing 2

93

14.1.4. Mechanical Replacement Parts List

94

Safety

Ref.

No.

1 K2CN3YY00004 AC CORD 1 PAVCCZ E

1 K2CT3YY00016 AC CORD 1 PAVCCZ B

2 MD42H12A2J PLASMA DISPLAY PANEL 1 PAVCCZ

3 N2QAYB000328 REMOTE CONTROL 1 PAVCCZ

4 TBLA3685 STAND POLE R 1 PAVCCZ

5 TBLA3686 STAND POLE L 1 PAVCCZ

6 TBLX0093 PEDESTAL STAND 1 PAVCCZ

7 TBMA282 PANASONIC BADGE 1

8 TBX0E86400 CONTROL BUTTON 1 PAVCCZ

9 TBX3EA00101 POWER BUTTON 1 PAVCCZ

10 THEL060N SCREW (STAND-TV) 4

11 TKGA5541 FRONT GLASS 1 PAVCCZ

12 TKK3EC5001 LED PANEL 1 PAVCCZ

13 TKK3EL5001 ADJUSTMENT COVER 1 PAVCCZ

14 TKKL5472 M8 CAP 4

15 TKR0E1901 REAR COVER HANDLE L 1 PAVCCZ

16 TKR0E2001 REAR COVER HANDLE R 1 PAVCCZ

17 TMK0EG010 SPONGE(LEFT/RIGHT) 2 PAVCCZ

18 TMK0EG011 SPONGE(UPPER/BOTTOM) 2 PAVCCZ

19 TMMD014-1 REAR COVER HOOK L 1

20 TMMD015-1 REAR COVER HOOK R 1

21 TMW3EC001 POWER BUTTON BRACKET 1 PAVCCZ

22 TMXX055 AC CORD CLAMPER 2

23 TMZ0E9911 STAND BRACKET-L 1 PAVCCZ

24 TMZ0E9912 STAND BRACKET-R 1 PAVCCZ

25 TMZX5167 STAND BRACKET METAL-L 1

26 TMZX5168 STAND BRACKET METAL-R 1

Part No.

THEJ016J SCREW(AC INRET:2) 2

THEL0429 SCREW 11

THEL052Z SCREW (BC TOP:4) 2

THEL069J SCREW 31 PAVCCZ

THTF013J SCREW 2

TMM23417 CLAMPER 2

TMME061 CLAMPER 1

TMME224 CLAMPER 4

TMME287 CLAMPER 2

TMME292 CLAMPER 2

TMME308 CLAMPER 1

TMME331 CLAMPER 2

TMME332 CLAMPER 6

TMME341 CLAMPER 2

TMME345 SPACER 1

TMXX062 AC CORD HOLDER 1 PAVCCZ

Part Name & Description Q'ty Remarks

95

Safety

Ref.

No.

27 TPC0E53400 CARTON BOX TOP 1 PAVCCZ

28 TPC0E53500 CARTON BOX BOTTOM 1 PAVCCZ

29 TPD0E1078 TOP CUSHION 1 PAVCCZ

30 TPD0E2059 BOTTOM CUSHION 1 PAVCCZ

31 TPD0E2060 PEDESTAL CUSHION 1 PAVCCZ

32 TPD0E9137 ACCESSORIES PAD 1 PAVCCZ

33 TPD0E9157 TOP PAD 1 PAVCCZ

34 TPD169487 JOINT 4

35 TPE0E4010 PROTECT COVER 1 PAVCCZ

36 TPE0E4041 PROTECT SHEET 2 PAVCCZ

37 TPE0E9002 ACCESSORIES BAG 1 PAVCCZ

38 TPE0E9003 BAG FOR AC CORD 1 PAVCCZ

39 TPEB336 BAG (STAND POLE R) 1

40 TPEB338 BAG (STAND ACCESSORY) 1 PAVCCZ

41 TQB0E0790 INSTRUCTION BOOK(ENGLISH) 1 PAVCCZ B

41 TQB0E0791A INSTRUCTION BOOK(GERMAN) 1 PAVCCZ E

41 TQB0E0791B INSTRUCTION BOOK(DUTCH) 1 PAVCCZ E

41 TQB0E0791C INSTRUCTION BOOK(ITALIAN) 1 PAVCCZ E

41 TQB0E0791D INSTRUCTION BOOK(FRENCH) 1 PAVCCZ E

41 TQB0E0791E INSTRUCTION BOOK(SPANISH) 1 PAVCCZ E

41 TQB0E0791F INSTRUCTION BOOK(SWEDISH) 1 PAVCCZ E

41 TQB0E0791G INSTRUCTION BOOK(NORWEGIAN) 1 PAVCCZ E

41 TQB0E0791H INSTRUCTION BOOK(FINNISH) 1 PAVCCZ E

41 TQB0E0791I INSTRUCTION BOOK(LITHUANIAN) 1 PAVCCZ E

41 TQB0E0791J INSTRUCTION BOOK(PORTUGUESE) 1 PAVCCZ E

41 TQB0E0791K INSTRUCTION BOOK(DANISH) 1 PAVCCZ E

41 TQB0E0791M INSTRUCTION BOOK(BULGARIAN) 1 PAVCCZ E

41 TQB0E0791N INSTRUCTION BOOK(ROMANIAN) 1 PAVCCZ E

41 TQB0E0791O INSTRUCTION BOOK(LATVIAN) 1 PAVCCZ E

41 TQB0E0791P INSTRUCTION BOOK(POLISH) 1 PAVCCZ E

41 TQB0E0791Q INSTRUCTION BOOK(HUNGARIAN) 1 PAVCCZ E

41 TQB0E0791R INSTRUCTION BOOK(CZECH) 1 PAVCCZ E

41 TQB0E0791S INSTRUCTION BOOK(GREEK) 1 PAVCCZ E

41 TQB0E0791T INSTRUCTION BOOK(TURKISH) 1 PAVCCZ E

41 TQB0E0791U INSTRUCTION BOOK(ENGLISH) 1 PAVCCZ E

41 TQB0E0791W INSTRUCTION BOOK(SLOVAKIAN) 1 PAVCCZ E

41 TQB0E0791X INSTRUCTION BOOK(CD-ROM) 1 PAVCCZ E

41 TQB0E0791Z INSTRUCTION BOOK(ESTONIAN) 1 PAVCCZ E

42 TQZJ060 SCREW USE HANDBILL 1 PAVCCZ

Part No.

TPG0E9310 PAPER CAP 0.25 PAVCCZ

TSXL519 CABLE (SU11-SD11) 1

TSXL733 CABLE (A20-SC20) 1 PAVCCZ

TSXL737 CABLE (C10-C20) 1

Part Name & Description Q'ty Remarks

96

Safety

Ref.

No.

43 TTU0E0471 REAR COVER 1 PAVCCZ E

43 TTU0E0494 REAR COVER 1 PAVCCZ B

44 TXAJS01EQUE AC INLET ASSY 1 PAVCCZ

45 TXFEA01EQUE SPEAKER L ASSY 1 PAVCCZ

46 TXFEA02EQUE SPEAKER R ASSY 1 PAVCCZ

47 TXFKP01EQUE SIDE TERMINAL COVER ASSY 1 PAVCCZ

48 TXFKY01EQUR CABINET ASSY 1 PAVCCZ

49 TXFPE01RLTB CLEANING CLOTH ASSY 1 PAVCCZ

50 XYN5+F18FN SCREW (STAND POLE) 4

51 XZB9X18C05 BAG (STAND POLE L) 1

52 XZBT6506 POLY BAG (INSTRUCTION BOOK) 1

Part No.

TSXL757 CABLE (C21-A31) 1 PAVCCZ

TSXL760 CABLE (C22-A32) 1 PAVCCZ

TXJA11EQUE-1 SPEAKER LEAD (A11-SPR) 1 PAVCCZ

TXJA12EQUE SPEAKER LEAD (A12-SPL) 1 PAVCCZ

XSB3+6FJ SCREW 2

XTB4+10JFJ SCREW (STAND BRACKET) 8

XTB4+12GFJ SCREW 21

XTB4+12GFJK SCREW 13

XTW3+10TFJ SCREW 1

XTWT4+Z15DFJ SCREW(SP BOX) 4

XYN3+F8FJ SCREW 1

XYN3+J12FJ SCREW 26

XYN4+E8FJ SCREW 1

XYN4+F10FJ SCREW 22

Part Name & Description Q'ty Remarks

97

14.2. Ele ctr ic al R ep lac em ent P ar ts List

14.2.1. Replacement Parts List Notes

98

14.2.2. Electrical Replac eme nt Parts List

Safety Re f. No. Part No. Part Name &

A1 K1KA11A00178 11P CONNE CTOR 1

A7 K1KY22A00003 22P CONNE CTOR 1

A11 K1KA03AA07 28 3P CONNEC TOR 1

A12 K1KA02AA07 28 2P CONNEC TOR 1 A20 K1MN30BA02 55 30P CON NECTOR 1

A25 K1KA13A001 52 13P CON NECTOR 1

A31 K1MY68BA03 45 68P CON NECTOR 1

A32 K1MY68BA03 45 68P CON NECTOR 1

C10 K1MY55BA03 45 55P CON NECTOR 1 PAVCCZ C14 K1KA02A007 87 2P CONNEC TOR 1

C20 K1MY55BA03 45 55P CON NECTOR 1 PAVCCZ

C21 K1MY68BA03 45 68P CON NECTOR 1

C22 K1MY68BA03 45 68P CON NECTOR 1

C23 K1KA06B002 20 6P CONNEC TOR 1 PA VCCZ

C25 K1KA04BA01 07 4P CONNEC TOR 1 C608 F1G1E103A1 23 C 0.010 UF, K,

C609 F2G0J470A0 19 E 47UF 6.3V 1 C1009 F1H1C104A143 C 0.1UF , K, 16V 1

C1010 F1J1E105A171 C 1 UF 25V 1

C1102 F1J1A106A043 C 0.010 UF, K,

C1103 F1G1C104A116 C 0.10U F, K, 16V 1

C1104 F1G1C104A116 C 0.10U F, K, 16V 1

C1106 F1H1H270A971 C 27UF, 50V 1

C1107 F1G1H220A731 C 22UF, 50V 1

C1108 F1G1C104A116 C 0.10U F, K, 16V 1 C1109 F1H1A1050032 C 10UF, 50V 1

C1111 F1H1A1050032 C 10UF, 50V 1

C1112 F1G1C104A116 C 0.10U F, K, 16V 1

C1114 F1G1C104A116 C 0.10U F, K, 16V 1

C1117 F1G1C104A116 C 0.10U F, K, 16V 1

C1122 F1G1E103A123 C 0.010 UF, K,

C1123 F1H1A1050032 C 10UF, 50V 1

C2023 F1G1C104A116 C 0.10U F, K, 16V 1 C2049 F1G1C104A116 C 0.10U F, K, 16V 1

C2050 F1G1C104A116 C 0.10U F, K, 16V 1

C2055 F1G1H150A731 C 15UF, 50V 1

C2056 F1G1H150A731 C 15UF, 50V 1

C2058 F1G1C104A116 C 0.10U F, K, 16V 1

C2059 F1J1A106A043 C 0.010 UF, K,

C2091 F1G1H100A731 C 10PF, K, 50V 1

C2092 F1G1H220A731 C 22UF, 50V 1 C2096 F1G1C104A116 C 0.10U F, K, 16V 1

C2098 EEEHB0J221UP C 220PF , J, 6.3V 1

C2099 EEEHB0J221UP C 220PF , J, 6.3V 1

C2102 F1G1C104A116 C 0.10U F, K, 16V 1

C2105 F1G1C104A116 C 0.10U F, K, 16V 1

C2106 F1G1C104A116 C 0.10U F, K, 16V 1 C2107 F1J1A106A043 C 0.010 UF, K,

C2108 F1J1A106A043 C 0.010 UF, K,

C2109 F1G1C104A116 C 0.10U F, K, 16V 1

C2110 F1G1C104A116 C 0.10U F, K, 16V 1 C2111 F1J1A475A039 C 4.7UF , K, 10V 1

C2112 F1J1A106A043 C 0.010 UF, K,

C2113 F1J1A106A043 C 0.010 UF, K,

C2114 F1G1C104A116 C 0.10U F, K, 16V 1

Description

25V

10V

25V

10V

Pcs Remarks

1

Safety Ref. No. P art No. Part Name &

C2115 F1G1C104A116 C 0.10UF, K, 16 V 1

C2117 F1G1C104A116 C 0.10UF, K, 16 V 1 C2118 F1J1A475A039 C 4.7UF, K, 10V 1

C2120 F1G1H560A731 C 56UF, 50V 1

C2121 F1G1H560A731 C 56UF, 50V 1

C2122 F1G1C103A116 C 0.010UF, K,

C2123 F1G1C103A116 C 0.010UF, K,

C2124 F1G1C104A116 C 0.10UF, K, 16 V 1

C2125 F1G1C103A116 C 0.010UF, K,

C2127 F1G1C103A116 C 0.010UF, K,

C2128 F1G1C103A116 C 0.010UF, K,

C2129 F1G1C103A116 C 0.010UF, K,

C2135 F1G1C103A116 C 0.010UF, K,

C2136 F1G1C103A116 C 0.010UF, K,

C2137 F1J1A106A043 C 0.010UF, K,

C2192 F1J1A106A043 C 0.010UF, K,

C2216 F1G1C104A116 C 0.10UF, K, 16 V 1

C2244 F1G1C104A116 C 0.10UF, K, 16 V 1

C2245 F1G1H102A730 C 1000UF, 50V 1

C2251 F1J1A106A043 C 0.010UF, K,

C2261 F1J1A106A043 C 0.010UF, K,

C2262 F1J1A106A043 C 0.010UF, K,

C2263 F1J1A106A043 C 0.010UF, K,

C2264 F1J1A106A043 C 0.010UF, K,

C2301 F1G1C104A116 C 0.10UF, K, 16 V 1

C2302 F1G1C104A116 C 0.10UF, K, 16 V 1 C2303 F1J1E105A171 C 1 UF 25V 1

C2305 F1J1E105A171 C 1 UF 25V 1

C2309 F1J1E105A171 C 1 UF 25V 1

C2313 F1H1A1050032 C 10UF, 50V 1

C2317 F1H1H104A970 C 0.1UF, K, 50V 1

C2319 F1H1H104A970 C 0.1UF, K, 50V 1 C2321 F1H1H104A970 C 0.1UF, K, 50V 1

C2323 F1H1H104A970 C 0.1UF, K, 50V 1

C2325 F1J1H474A757 C 0.47UF, 50V 1

C2331 F1J1H474A757 C 0.47UF, 50V 1

C2333 F1H1E104A129 C 0.1UF, 25V 1

C2335 F1H1E104A129 C 0.1UF, 25V 1 C2337 F1H1H223A970 C 0.22UF, K, 50 V 1

C2339 F1H1H223A970 C 0.22UF, K, 50 V 1

C2341 F1H1E104A129 C 0.1UF, 25V 1

C2343 F1H1E104A129 C 0.1UF, 25V 1

C2345 F1H1H223A970 C 0.22UF, K, 50 V 1

C2347 F1H1H223A970 C 0.22UF, K, 50 V 1 C2353 F1G1H102A730 C 1000UF, 50V 1

C2359 F1G1H102A730 C 1000UF, 50V 1

C2361 F2G1E4710007 E 470UF, 25V 1

C2375 F1H1H223A970 C 0.22UF, K, 50 V 1

C2377 F1H1H223A970 C 0.22UF, K, 50 V 1

C2379 F1H1H223A970 C 0.22UF, K, 50 V 1 C2381 F1H1H223A970 C 0.22UF, K, 50 V 1

C2383 F1G1H102A730 C 1000UF, 50V 1

C2385 F1G1H102A730 C 1000UF, 50V 1

Description

16V

10V

Pcs Remarks

1

99

Safety Ref. No. Part No. Part N ame &

C2387 F1G1H102A730 C 1000UF, 50V 1

C2389 F1G1H102A730 C 1000UF, 50V 1

C2390 F1J1E105A171 C 1 UF 25V 1

C2407 F1K1E106A136 C 10UF, Z, 25V 1

C2408 F1J1E105A171 C 1 UF 25V 1 C2409 F1G1H102A730 C 1000UF, 50V 1

C2410 F1J1E105A171 C 1 UF 25V 1

C2411 F1J1E105A171 C 1 UF 25V 1

C2412 F1J1E105A171 C 1 UF 25V 1

C2511 F1H1C104A143 C 0.1UF, K, 16V 1

C2512 F1J1A106A043 C 0.010UF, K,

C2515 F1H1H103A970 C 0.001UF, K,

C2517 F1H1H103A970 C 0.001UF, K,

C2521 F1H1H103A970 C 0.001UF, K,

C2871 F1K1E106A136 C 10UF, Z, 25V 1

C2872 F1G1E103A123 C 0.010UF, K,

C2873 F1H1E104A129 C 0.1UF, 25V 1

C2874 F2G1A101A019 E 100UF, 10V 1

C2875 F1H1H223A970 C 0.22UF, K, 50 V 1

C2878 F1H1H472A970 C 4700PF, K, 50 V 1

C2901 F2G1A101A019 E 100UF, 10V 1 C2906 F1H1C104A143 C 0.1UF, K, 16V 1

C2907 F1H1C104A143 C 0.1UF, K, 16V 1

C2912 F2G0J101A019 E 100UF 6.3V 1

C2914 F1H1H104A970 C 0.1UF, K, 50V 1

C2916 F1H1C104A143 C 0.1UF, K, 16V 1

C2920 F1H1H103A970 C 0.001UF, K,

C2922 F1H1C104A143 C 0.1UF, K, 16V 1

C2923 F1H1H104A970 C 0.1UF, K, 50V 1 C2925 F1G1C104A116 C 0.10UF, K, 16 V 1

C2927 F1G1H101A731 C 100PF, K, 50V 1

C2928 F1G1H101A731 C 100PF, K, 50V 1

C2940 F1H1H104A970 C 0.1UF, K, 50V 1

C2960 F1H0J1050012 C 1UF, K , 16V 1

C2961 F1G1H471A731 C 470UF, 50V 1 C2962 F1H0J1050012 C 1UF, K , 16V 1

C3002 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3003 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3004 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3005 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3007 F1G1H561A730 C 56UF, 50V 1 PAVCCZ C3008 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3009 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3010 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3011 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3012 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3013 F1G1H561A730 C 56UF, 50V 1 PAVCCZ C3014 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3018 F1J1A106A043 C 0.010UF, K,

C3019 F1J1A106A043 C 0.010UF, K,

C3020 F1J1A106A043 C 0.010UF, K,

C3021 F1J1A106A043 C 0.010UF, K,

C3022 F1H1A1050032 C 10UF, 50V 1

C3024 F1H1A1050032 C 10UF, 50V 1

C3025 F1H1A1050032 C 10UF, 50V 1 C3026 F1H1A1050032 C 10UF, 50V 1

C3027 F1J1A106A043 C 0.010UF, K,

C3028 F1J1A106A043 C 0.010UF, K,

C3029 F1J1A106A043 C 0.010UF, K,

C3030 F1J1A106A043 C 0.010UF, K,

C3039 F1H1A1050032 C 10UF, 50V 1

C3041 F1H1A1050032 C 10UF, 50V 1

Description

10V

50V

25V

50V

10V

Pcs Remarks

1

Safety Ref. No. Par t No. Pa rt Name &

C3043 F1H1A1050032 C 10UF, 50V 1

C3044 F1H1A1050032 C 10UF, 50V 1

C3046 F1H1A1050032 C 10UF, 50V 1

C3047 F1H1A1050032 C 10UF, 50V 1

C3048 F1H1A1050032 C 10UF, 50V 1 C3049 F1H1A1050032 C 10UF, 50V 1

C3056 F1G1E333A091 C 0.033UF, K,

C3057 F1G1E333A091 C 0.033UF, K,

C3064 F1G1H102A730 C 1000UF, 50 V 1 C3065 F1G1H102A730 C 1000UF, 50 V 1

C3070 F1J1A106A043 C 0.010UF, K,

C3071 F1J1A106A043 C 0.010UF, K,

C3072 F1G1C104A116 C 0.10UF, K, 16V 1 C3073 F1J1A106A043 C 0.010UF, K,

C3074 F1J1A106A043 C 0.010UF, K,

C3075 F1H1A1050032 C 10UF, 50V 1

C3077 F1G1C104A116 C 0.10UF, K, 16V 1 C3078 F1J1A106A043 C 0.010UF, K,

C3083 F1J1A106A043 C 0.010UF, K,

C3084 F1J1A106A043 C 0.010UF, K,

C3085 F1J1A106A043 C 0.010UF, K,

C3086 F1J1A106A043 C 0.010UF, K,

C3087 F1J1A106A043 C 0.010UF, K,

C3088 F1J1A106A043 C 0.010UF, K,

C3089 F1J1A106A043 C 0.010UF, K,

C3090 F1J1A106A043 C 0.010UF, K,

C3091 F1J1A106A043 C 0.010UF, K,

C3092 F1J1A106A043 C 0.010UF, K,

C3095 F2G1A101A019 E 100UF, 10V 1

C3097 F2G1A101A019 E 100UF, 10V 1

C3099 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

C3102 F2G1A101A019 E 100UF, 10V 1

C3103 F2G1A101A019 E 100UF, 10V 1 C3107 F1J1A106A043 C 0.010UF, K,

C3108 F1J1A106A043 C 0.010UF, K,

C3109 F1J1A106A043 C 0.010UF, K,

C3114 F1J1A106A043 C 0.010UF, K,

C3115 F1J1A106A043 C 0.010UF, K,

C3116 F1J1A106A043 C 0.010UF, K,

C3117 F1J1A106A043 C 0.010UF, K,

C3118 F1H1A1050032 C 10UF, 50V 1 C3119 F1H1A1050032 C 10UF, 50V 1

C3139 F1G1C104A116 C 0.10UF, K, 16V 1

C3140 F1G1C104A116 C 0.10UF, K, 16V 1

C3141 F1G1C104A116 C 0.10UF, K, 16V 1

C3143 F1G1C104A116 C 0.10UF, K, 16V 1

C3144 F1J1A106A043 C 0.010UF, K,

C3145 F1G1C104A116 C 0.10UF, K, 16V 1

C3146 F1J1A106A043 C 0.010UF, K,

C3147 F1J1A106A043 C 0.010UF, K,

C3257 F1G1H561A730 C 56UF, 50V 1 PAVCCZ

Description

25V

10V

Pcs Remarks

1 PAVCCZ

1

100
