Panasonic TX-L32DT30B, TX-L37DT30B Operating Instructions

Page 1

Operating Instructions

LCD Television

Model No.

TX-L32DT30B TX-L37DT30B

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

English

UK and Ireland model

QB0E2109

Page 2

Features

3D technology -

Viewing 3D images on the Full HD panel You can enjoy viewing 3D images on this TV by wearing the 3D Eyewear.

RealD 3D

This TV and 3D Eyewear use the 3D technology of RealD. RealD is one of the inventors in 3D technology.

freesat HD tuner built-in

This TV has a built-in freesat HD tuner. freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with crystal clear reception.

DVB-T tuner built-in

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.

DVB-T2 tuner built-in

DVB-T2 is an advanced digital terrestrial system for more efficient transmission. Available DVB-T2 broadcasts will be tuned automatically when you per form DVB Auto Setup.

GUIDE Plus+ (p. 22)

This TV supports the TV Guide services sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection (p. 111)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

This TV supports HDMI (Version 1.4 with 3D, Content Type, Audio Return Channel), Deep Colour.

•

Using USB devices

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 69, 81) Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 73) Wireless LAN Adaptor for the network connection. (p. 6, 11, 13) USB keyboard, gamepad, etc. are available. (p. 112)

Timer Programming (p. 23, 58)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder / formatted USB HDD.

SDXC Card

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

DLNA

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 92)

VIERA Connect - Enjoy great web entertainment (p. 16, 95)

VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 96)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility (p. 36)

Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.

Dolby Digital Plus / Dolby Pulse decoders

It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby Digital Bitstream (multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.

Owner ID (p. 63)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.

Supports Audio Description signal (p. 18, 40)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

To retune your TV [Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 49)

•

Users of cable or satellite boxes should still retune the T V to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite

•

good reception of analogue channels.

Page 3

Transport only in upright position

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEGLA, LLC. See http://www.mpegla.com.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/ OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/

Contents

Be Sure to Read

Safety Precautions····································································4

Quick Start Guide

Accessories / Options ······························································6

Identifying Controls ·································································8

Basic Connection ··································································· 10

Auto Setup ··············································································· 12

Enjoy your TV!

Basic Features

Using “VIERA Connect” ························································16

Watching TV ············································································ 17

Using TV Guide ······································································· 21

Viewing Teletext ·····································································26

Watching External Inputs ··················································· 29

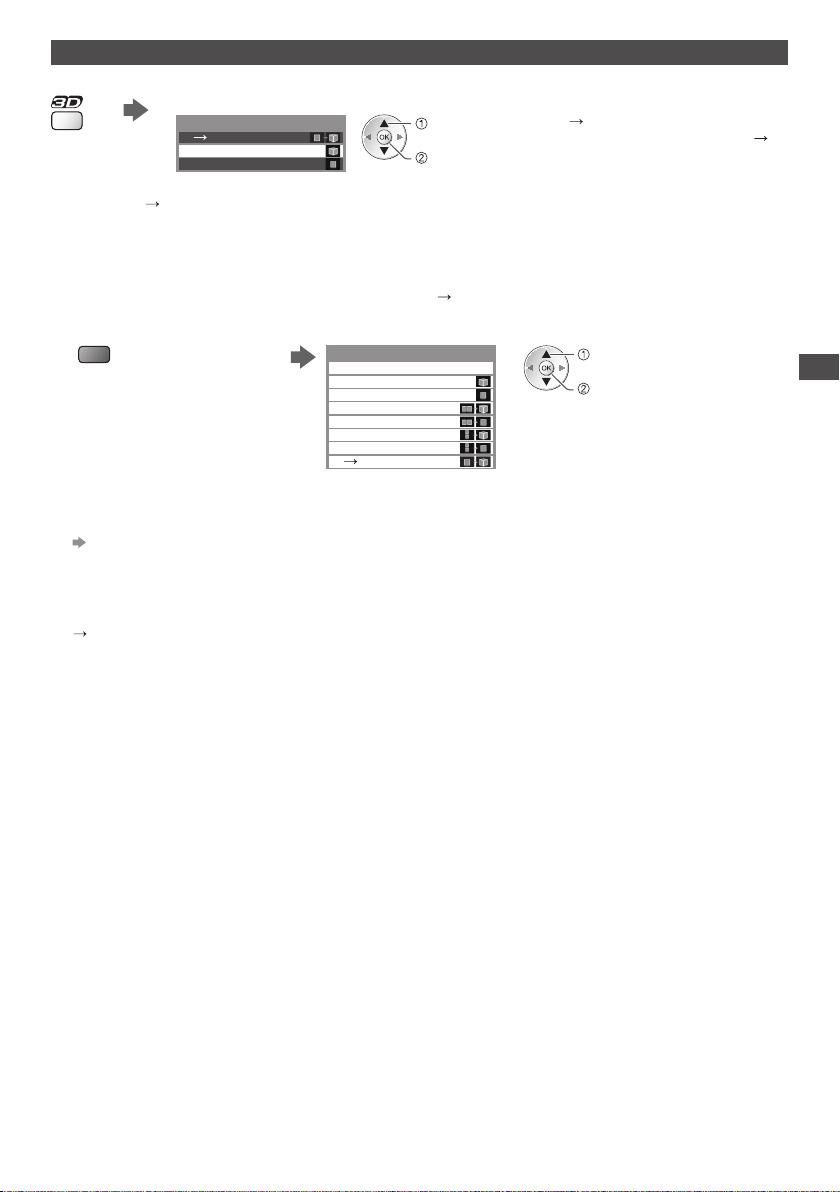

Viewing 3D images ······························································· 31

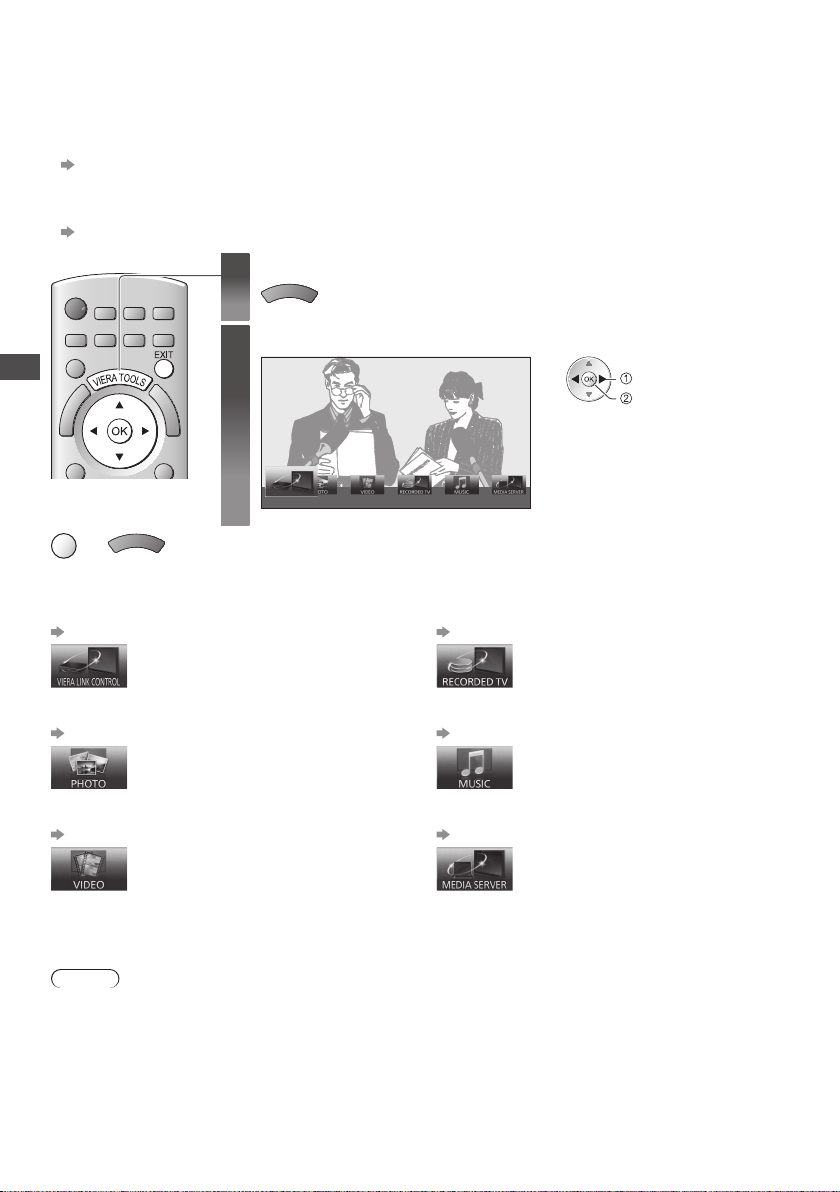

How to Use VIERA TOOLS ··················································· 36

How to Use Menu Functions ············································· 37

Advanced Features

Retuning from Setup Menu ··············································· 48

Tuning and Editing Channels ············································50

Timer Programming ····························································· 58

Child Lock ················································································· 60

Input Labels ············································································· 61

Shipping Condition ······························································62

Owner ID··················································································· 63

Using Common Interface ···················································64

Updating the TV Software ·················································· 65

Displaying PC Screen on TV ··············································· 66

Advanced Picture Settings ················································· 67

USB HDD Recording ·····························································69

Using Media Player ·······························································73

Using Network Services (DLNA / VIERA Connect / freesat)

Link Functions (Q-Link / VIERALink) ·······························96

External Equipment ····························································104

··· 85

Notice for DVB / Data broadcasting / IPTV functions

This TV is designed to meet the standards (as of August, 2009) of digital services.

The compatibility with future services is not guaranteed.

•

Check the latest information on the available services at the

•

following website.

http://panasonic.jp/support/global/cs/tv/

FAQs, etc.

Technical Information ························································107

FAQs ·························································································115

On screen messages ···························································117

Maintenance ·········································································120

Licence ····················································································120

Index ························································································121

Glossary···················································································122

Specifications ········································································122

Page 4

Safety Precautions

Warning

Safety Precautions

■ Mains plug and lead

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.

•

Insert the mains plug fully into the socket outlet.

•

Ensure that the mains plug is easily accessible.

•

Remove the mains plug when cleaning the TV.

•

Do not touch the mains plug with a wet hand.

•

Do not damage the mains lead.

•

• Do not place a heavy object on the lead.

• Do not place the lead near a high temperature object.

• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.

• Do not move the TV with the lead plugged into a socket outlet.

• Do not twist the lead, bend it excessively or stretch it.

• Do not use a damaged mains plug or socket outlet.

• Ensure the TV does not crush the mains lead.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer. Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this TV. The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety. If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

or the BSI mark on the body of the fuse.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V 50 / 60 Hz

Example 1

Example 2

Page 5

Warning

■ Take ca re

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the T V yourself as live parts are accessible when they are

•

removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed to

•

dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire

•

never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not

•

hang over the edge of the base.

Do not insert foreign objects into the TV through the air vents.

•

Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the

•

setup or installation of approved wall-hanging brackets. Do not apply strong force or impact to the display panel.

•

This TV is designed for Table-top use.

•

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■ Small object

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

Keep the dangerous parts out of reach of young children.

•

Do not allow children to handle SD Card. As with any small object, the SD Card could be

•

swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Safety Precautions

Caution

■ Ventilation

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering

•

the ventilation openings with items such as newspapers, tablecloths and curtains.

Whether you are using the pedestal or not, always ensure the vents in the bottom of the

•

TV are not blocked and there is sufficient space to enable adequate ventilation.

Minimum distance

■ Moving the TV

Before moving the TV, disconnect all cables.

■ When not in use for a long time

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

•

■ Excessive volume

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

(cm)

Page 6

Accessories / Options

Standard accessories

Remote Control Batteries for the

N2QAYB000572

•

Quick Start Guide

Accessories may not be placed all together. Take care not to throw them away unintentionally.

•

Optional accessories

Accessories / Options

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

3D Eyewear set

(Battery type) (Rechargeable type)

TY-EW3D10E

•

Wireless LAN Adaptor

DY-WL10E-K

•

Communication Camera

TY-CC10W

•

Wall-hanging bracket

TY-WK3L2RW

•

The angle of wall-hanging bracket can be adjusted in “zero tilting (vertical)” and “10-degree tilting” for this TV.

Remote Control (2)

•

(p.8)

TY-EW3D2LE

•

TY-EW3D2ME

•

TY-EW3D2SE

•

Caution

To use the Wireless LAN Adaptor, an access point needs to be obtained.

•

It is recommended to use the Wireless LAN Adaptor with the extension cable.

•

To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such

•

as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor. Depending on the area, this optional accessory may not be available.

•

Additional information for Wireless LAN Adaptor and access point may be on the following website.

•

http://panasonic.jp/support/global/cs/tv/

Caution

This camera can be used on VIERA Connect (p. 16, 95).

•

Please also read the manual of the camera.

•

Depending on the area, this optional accessory may not be available.

•

For details, consult your local Panasonic dealer.

Pedestal

(p.7)

TBL5ZX0160

•

TXFPE01NUUE

•

TXFBL5Z0031

•

TBL5ZX0105 (TX-L32DT30B)

•

TBL5ZX0107 (TX-L37DT30B)

•

If you need 3D Eyewears additionally, please purchase this optional accessory.

•

For more information :

•

http://panasonic.net/avc/viera/3d/eu.html

Rear of the TV

200 mm

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Operating Instructions

Product Registration Leaflet

Depth of screw : minimum 4 mm, maximum 11 mm Diameter : M6

(View from the side)

Holes for wall-hanging bracket installation

Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal injury and product

•

damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling off.

•

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will

•

void your warranty. Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat.

•

Doing so may warp or damage plastic cabinet parts. Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal within the wall.

•

Always ensure that there are no electrical cables or pipes in the wall before hanging bracket. To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.

•

Page 7

Attaching / removing the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

Do not disassemble or modify the pedestal.

•

Caution

Do not use any pedestal other than the one provided with this TV.

•

Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer

•

immediately. During setup, make sure that all screws are securely tightened.

•

Ensure that the TV does not suffer any impact during installation of the pedestal.

•

Ensure that children do not climb onto the pedestal.

•

Install or remove the TV from the pedestal with at least two people.

•

Quick Start Guide

Assembly screw (4)

XSS5+15FNK

•

M5 × 15

Assembly screw (4)

XYN4+F30FJK

•

M4 × 30

Assembling the pedestal

Use the assembly screws A to fasten the bracket C to the base D securely.

Make sure that the screws are securely tightened.

•

Forcing the assembly screws the wrong way will strip the

•

threads.

Front Front

Securing the TV

Use the assembly screws B to fasten securely.

Tighten the four assembly screws loosely at first, then tighten them

•

firmly to fix securely. Carry out the work on a horizontal and level surface.

•

Bracket

TBL5ZA3119

•

Hold the bracket not to fall over

Base

TBL5ZX0105 (TX-L32DT30B)

•

TBL5ZX0107 (TX-L37DT30B)

•

Attach the cover

Place the cover E so that it covers up the screws A .

Insert the protrusions of the cover into the holes of the

•

bracket. The cover has a nick on the back.

•

Attach the cover so that the nick fits underneath the bracket.

Adjusting the panel to your desired angle

Do not place any objects within the full

•

rotation range.

Back of the TV

Cover

TBL5ZB3087-1

•

Nick on the back of the cover

Accessories / Options

Foam mat or thick soft cloth

15°

(View from the top)

Page 8

Identifying Controls

Remote Control

7 8

14 15

Quick Start Guide

Identifying Controls

10 11

1 2

3 4

5 6

OPTION

TEXT

ASPECT

STTL

ghi

REC

INDEX HOLD

abc def

jkl

tuvpqrs

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

mno

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

15 16

17 18

23 24

Installing / removing remote’s batteries

Standby On / Off switch

Switches TV On or Off standby

•

3D button (p.33)

Switches to the viewing mode

•

between 2D and 3D

[Main Menu] (p.37)

Press to access Picture, Sound,

•

Timer and Setup Menus

Aspect (p.20)

Changes aspect ratio

•

Information (p.17)

Displays channel and

•

programme information

VIERATOOLS (p.36)

Displays some special feature

•

icons and accesses easily

[VIERA Link Menu] (p.100) OK

Confirms selections and choices

•

Press after selecting channel

•

positions to quickly change channel Displays the Channel List

•

[Option Menu] (p.19)

Easy optional setting for viewing,

•

sound, etc.

Teletext (p.26)

Switches to teletext mode

•

Subtitles (p.20)

Displays subtitles

•

Numeric buttons

Changes channel and teletext

•

pages Sets characters

•

When in Standby mode, switches

•

TV On (Press for about 1 second)

Sound Mute

Switches sound mute On or Off

•

Volume Up / Down Input mode selection

TV - switches freesat / DVB /

•

Analogue / Other Sat. / Satellite mode (p.17) AV - switches to AV input

•

mode from Input Selection list

(p.29)

Direct TV Recording (p.98, 100)

Records programme

•

immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection

[VIERA Connect] (p.16, 95)

Displays VIERAConnect home

•

screen

Exit

Returns to the normal viewing

•

screen

TV Guide (p.21)

Cursor buttons

Makes selections and

•

adjustments

Return

Returns to the previous menu

•

/ page

Coloured buttons

(red-green-yellow-blue)

Used for the selection,

•

navigation and operation of various functions

Hold

Freeze / unfreeze picture

•

(p.19)

Holds the current teletext page

•

(teletext mode) (p.27)

Index (p.28)

Returns to the teletext index

•

page (teletext mode)

Last view (p.18)

Switches to previously viewed

•

channel or input mode

Channel Up / Down

Connected equipment

operations

(p.30, 72, 80, 82, 102)

Pull open

Hook

Note the correct

polarity (+ or -)

Caution

Incorrect installation may cause battery leakage and corrosion, resulting

•

in damage to the remote control. Do not mix old and new batteries.

•

Replace only with same or equivalent type. Do not mix different battery

•

types (such as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd) batteries.

•

Do not burn or break up batteries.

•

Batteries must not be exposed to excessive heat such as sunshine, fire, etc. Make sure you dispose of batteries correctly.

•

Ensure batteries are replaced correctly, there is danger of explosion and

•

fire if battery is reversed. Do not disassemble or modify the remote control.

•

Page 9

T V

Changes the input mode

Remote control signal receiver

9 10 11

CI slot (p.64)

HDMI4 terminal (p.106)

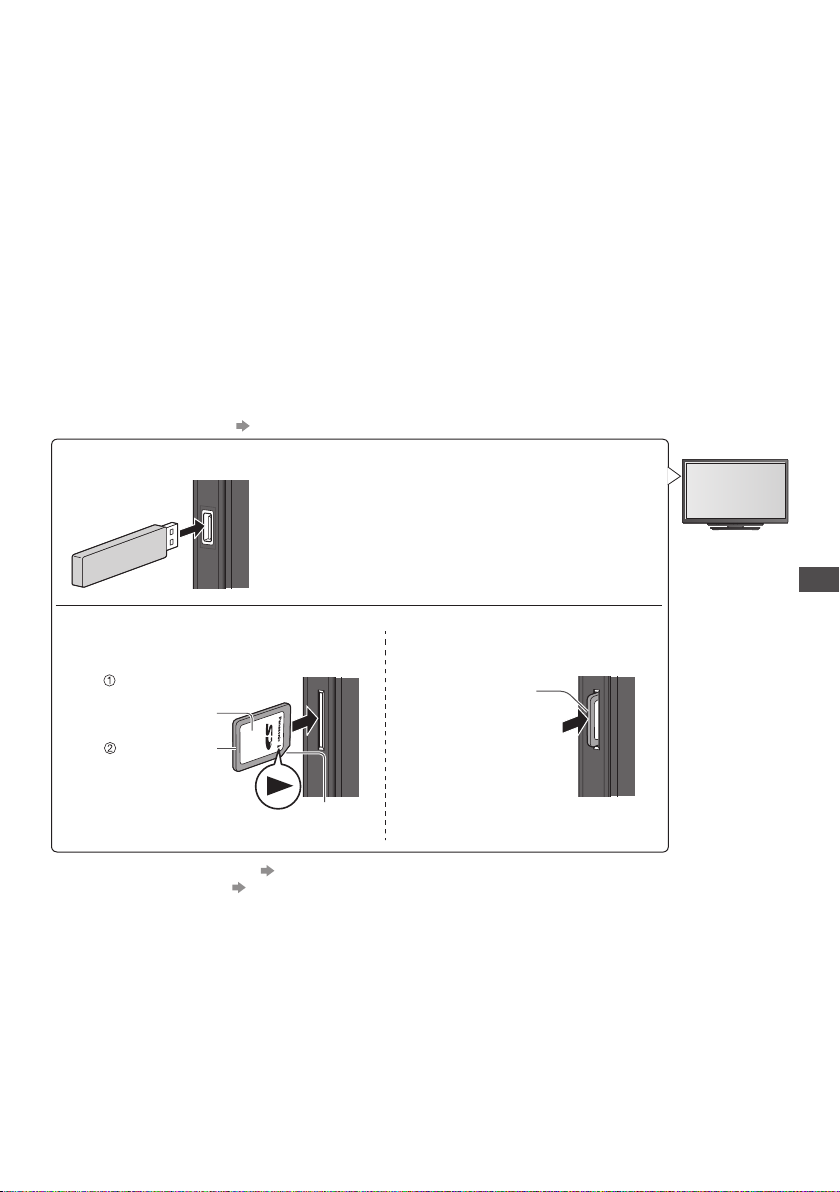

SD Card slot (p.73)

USB 3 port (p.106)

Headphones jack (p.106)

Function select

[Volume] / [Contrast] / [Brightness] / [Colour] /

•

[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ / [Balance] / [Auto Setup] (p.48, 49) ∗ [Music] or [Speech] mode in the Sound Menu

Channel Up / Down, Value change (when using the F

button), Switching the TV On (press either button for about 1 second when in Standby mode)

Do not place any objects between the TV remote

•

control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System)

sensor

Senses brightness to adjust picture quality when

•

[C.A.T.S.] in the Picture Menu is set to [On] (p.38)

Power and Timer LED

Red : Standby

•

Green : On Orange : Timer Programming On Orange (flash) :

Recording of Timer Programming, Direct TV Recording or One Touch Recording in progress

Red with orange flash :

Standby with Timer Programming On, Direct TV Recording or One Touch Recording

The LED blinks when the TV receives a command

•

from the remote control.

Mains power On / Off switch

Use to switch the mains power.

•

If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

Infrared transmitter for 3D Eyewear

Do not place any objects between the transmitter

•

and 3D Eyewear.

Using the On Screen Displays - Operation guide

Many features available on this TV can be accessed via the On Screen Display menu.

Operation guide

Operation guide will help you to operate by using the remote control.

Example : [Owner ID]

Owner ID

Please enter new PIN

EXIT

Operation guide

* * * *

PIN entry

How to use remote control

Open the main menu

Move the cursor / select the menu item / select from a range of options

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

BACK/

Return to the

RETURN

previous menu

Exit the menu system

EXIT

and return to the normal viewing screen

Quick Start Guide

Identifying Controls

Auto power standby function

The TV will automatically go to Standby mode in the following conditions:

• no signal is received and no operation is performed for 30 minutes in Analogue TV mode

• [Off Timer] is active in the Timer Menu (p. 19)

• no operation is performed for the period selected in [Auto Standby] (p. 41)

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

•

Page 10

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details (p. 31, 35)

Example 1 Example 2 Connecting dish or aerial

Quick Start Guide

TV only TV, DVD Recorder / VCR and Player

To ensure your satellite dish is correctly installed, please

•

consult a dish installer. The freesat channel uses Astra 2 at 28.2° East, and Eurobird

•

1 at 28.5° East satellites. To ensure your satellite dish is correctly installed please consult your freesat registered

Basic Connection

dealer.

Terrestrial aerial

Satellite dish

Connecting DVD Recorder / VCR and Player

Rear of the TV

Terrestrial aerial

AC 220-240 V 50/60 Hz

Mains lead

Aerial input terminal

Fully wired HDMI compliant cable

DVD Recorder or VCR

HDMI

Player / 3D-compatible player

Do not bundle the Satellite cable, RF cable and mains lead

•

together (could cause distorted image). Fix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s

•

assembly manual to fix cables.

Fully wired SCART cable

RF OUT

RF IN

RF cable

Rear of the TV

Aerial input terminal

For digital terrestrial and

•

analogue broadcasts

For digital satellite broadcasts

•

Satellite cable

■ How to use the clamper

bundling the mains lead

To loosen :

AC 220-240 V 50/60 Hz

Mains lead

Note

To watch 3D contents (p. 31)

•

Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.98).

•

For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI

•

cable (p.104). Q-Link and VIERA Link connection (p. 96, 97)

•

Please also read the manual of the equipment being connected.

•

Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,

•

distortion of image / sound may occur or operation of other equipment may be interfered.

knob

Bundle the cables

hooks

To remove from the TV:

Keep pushing the knob

Set the tip in the hooks

snaps

Keep pushing both side snaps

RF cable

Page 11

Example 3 Connecting DVD Recorder / VCR and Cable TV box

TV, DVD Recorder / VCR and Cable

Rear of the TV

Fully wired HDMI

compliant cable

Terrestrial aerial

RF cable

Quick Start Guide

Cable

Aerial input terminal

Fully wired HDMI

compliant cable

HDMI AV 2 AV 1 HDMIRecorder/AV

Cable TV box

RF OUT

RF IN

Fully wired SCART cable

DVD Recorder or VCR

RF cable

RF OUT

RF IN

AC 220-240 V 50/60 Hz

Mains lead

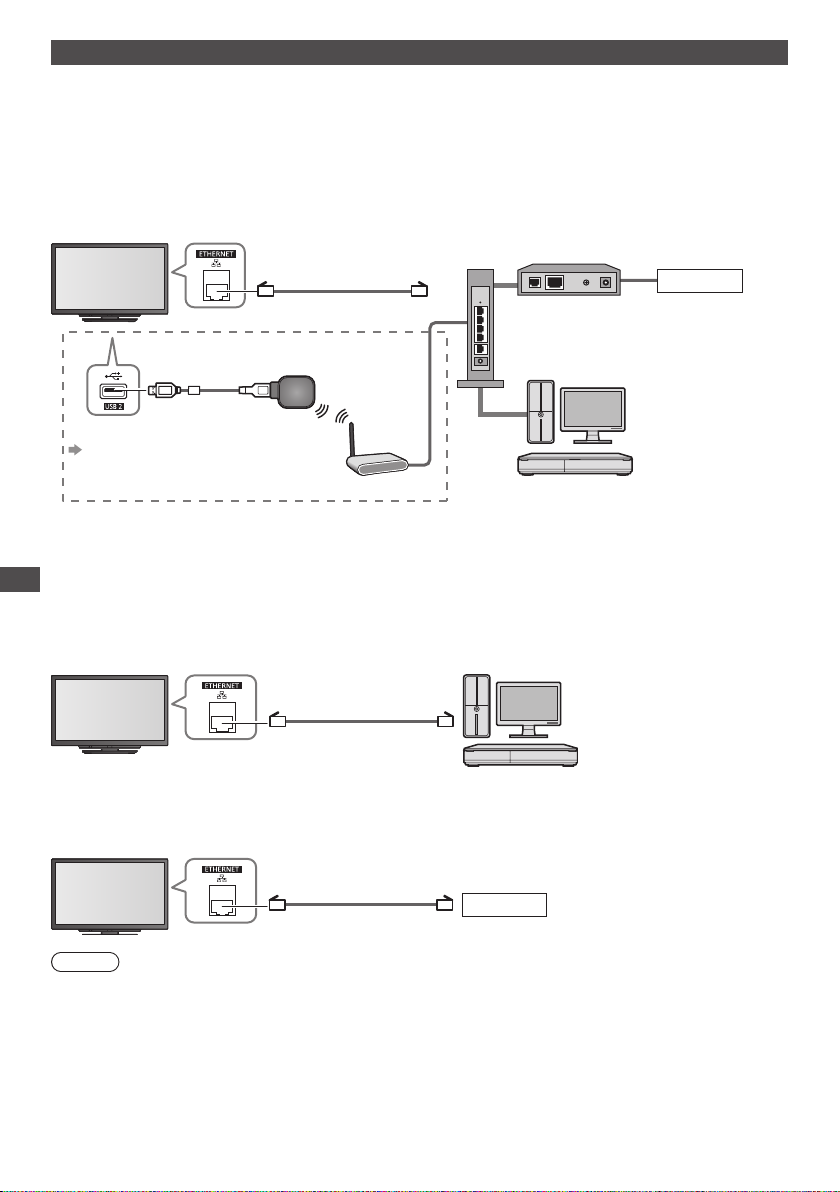

■ Connecting to the network environment (Network connections)

To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).

•

Setup of the network connection will start after the tuning (when first using the TV) (p. 13 - 15)

•

Rear of the TV

Wired connection

LAN cable (Shielded)

Use the Shielded Twist Pair (STP) LAN cable.

•

environment

Basic Connection

Internet

Wireless connection

Wireless LAN Adaptor and Extension cable

“Optional accessories” (p. 6)

Connect to the USB 1, 2 or 3 port.

•

Note

For more information of the network connections (p. 86)

•

Internet

environment

Access point

Page 12

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.

•

Please complete connections (p.10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup.

•

For details of settings for the connected equipment, read the appropriate manual.

Quick Start Guide

Auto Setup

Plug the TV into mains socket and switch On

Select your country

Country Selection

United Kingdom Ireland

Takes a few seconds to be displayed.

•

If the red LED shows on the TV, press the Standby On / Off switch on

•

the remote control for at least 1 second to turn the T V On.

select set

Example : Example :

freesat Auto Setup

Searching

Signal Quality Signal Strength TV Channels Found Radio Channels Found Data Channels Found

Auto Setup - DVB and Analogue

DVB Scan Analogue Scan This will take about 6 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk 29 33 -BBC1

Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

0 0

8 2

Channels found, creating channel list.

CH 21 68 CH 21 68

Free TV Free TV Free TV Free TV Analogue Analogue

Searching

Auto Setup will start to search for TV channels and store them.

Actual number of channels may differ

•

due to channel duplication.

Quality

10 10 10

Search Mode

10 10

Free Channels All Channels

select start

Satellite Auto Setup

Satellite Progress This will take up to 5 minutes.

Satellite Auto Setup

Satellite Progress This will take up to 30 minutes.

No. Channel Name Type

ETV

BBC TES 2

BBC TES 3

910BBC FOUR 10 10CBBC Channel 11 10CBeebies

Free TV: 11 Pay TV: 0 Radio: 0

Auto Setup - DVB and Analogue

DVB Scan Analogue Scan This will take about 6 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

CH29 CH33 -BBC1

Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2

Checking Satellite

0% 100%

Astra1

0% 100%

Free TV

Free TV Free TV Free TV Free TV

Searching

CH 5 69 CH 1 99 41H: 21

Free TV

Free TV Free TV Analogue Analogue

Searching

Quality

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

If Q-Link or similar technology (p. 98) compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)

If downloading has failed, you can download later through the Setup Menu.

•

“Q-Link Download” (p. 41)

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Your postcode is required to receive

•

local services and sort the channel order. Please ensure to include a space when entering your postcode. If you skip this step, the default

•

postcode (central London) will be set.

■ How to enter the postcode

Set characters Exit to go to next step

select

(green)

set

You can set characters by using

•

numeric buttons.

 “Characters table for numeric buttons” (p.111)

Page 13

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p.16, 95).

To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required.

•

Please note that this TV does not support wireless public access points. Ensure the network connections (p. 11) and network environment are completed before starting setup.

•

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Set later

[Wired] “Wired connection” (p. 11) [Wireless] “Wireless connection” (p. 11)

To setup later on or skip this step

select access

•

Select [Set later] or

■ [Wired]

Quick Start Guide

EXIT

1. Select [Auto]

Acquire IP Address

Auto Manual

select access

2. Go to the next step

(Press twice)

Automatically setup is done and the test of the network connection starts.

To set manually, select [Manual] and set each item. For

•

details (p.88)

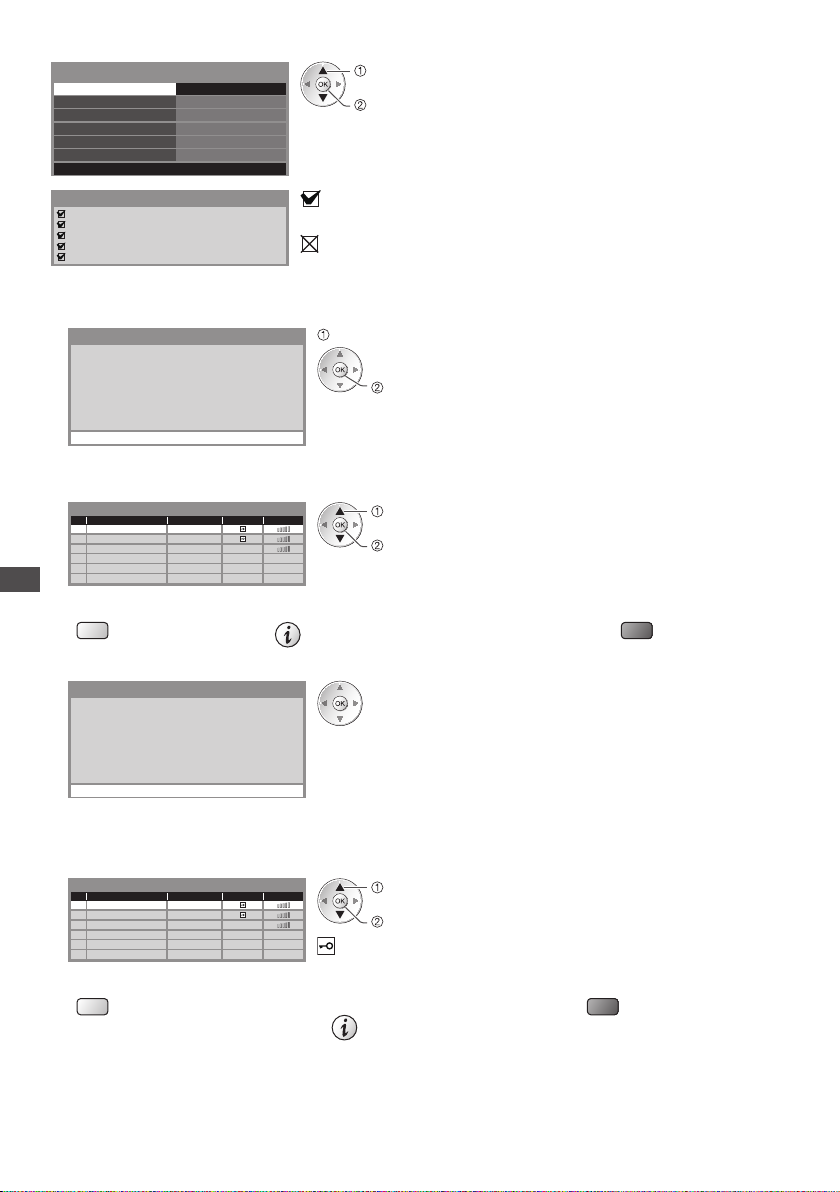

■ [Wireless]

Select the connection type

Connection Type

Please select network connection type.

Search for access point

WPS(Push button)

[Search for access point]

Access points found automatically are listed.

1. Select your desired access point

Available Access Points

No. Wireless type Encrypt Reception

SSID

Access Point A Access Point B

Access Point C

To search access points again

•

2. Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

3. Enter the encryption key of the access point

Access Point Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections, and then select [Retry].

select

access

select

access

: Encrypted access point

For the information of the

•

highlighted access point

If the selected access point is not encrypted, the confirmation screen

•

will be displayed. It is recommended to select the encrypted access

To set manually (p.91)

•

(red)

point.

Set characters Store

select

set

You can set characters by using

•

numeric buttons.

“Characters table for numeric

buttons” (p.111)

BACK/

RETURN

Auto Setup

Page 14

Quick Start Guide

Auto Setup

4. Select [Yes]

Access Point Settings

Encryption key is set to:XXXXXXXX

Select 'Yes' to confirm. Select 'No' to change.

Yes

5. After the access point setting is finished, perform the connection test

Connection Test

Check access point connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

6. Go to the next step

(Press twice)

[WPS(Push button)]

1. Press the WPS button on the access point until the light flashes

2. Connect the Wireless LAN Adaptor and the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light ashes.

2) When the light is ashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

3. After the access point setting is finished, perform the connection test

4. Go to the next step

Connect

Connection Test

(Press twice)

Check access point connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

To re-enter the encryption key, select [No].

•

If the connection has failed, check the encryption key, settings

•

and positions of your access point. And then, follow the on screen instructions.

Ensure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

If the connection has failed, check the settings and positions of your

•

access point. And then, follow the on screen instructions.

select set

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections, and then select [Retry].

To set manually, select [Manual] and set each item. For

•

details (p.88)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections, and then select [Retry].

To set manually, select [Manual] and set each item. For

•

details (p.88)

Input Owner ID

Owner ID

Please enter new PIN

Make a note of the PIN number in case you forget it. The PIN number cannot be reset.

•

You can input or change the Owner ID later. [Owner ID] (p. 63)

•

To skip this step

•

EXIT

This step will be skipped in the Auto Setup after [Shipping Condition] (p.62) is performed.

•

* * * *

Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

Page 15

■ How to input Owner ID

1 Enter the PIN number (4digits)

Owner ID

Please enter new PIN

* * * *

abc def

Enter the PIN number twice at first setting.

•

jkl

ghi

mno

tuvpqrs

wxyz

2 Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE

* * * *

select

access

3 Enter your name, house number and postcode

Set characters

User input

NAME

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using

•

numeric buttons.

 “Characters table for numeric

buttons” (p.111)

Return to select other items

BACK/

RETURN

Select the next item and repeat

•

the operations.

4 Exit to go to next step

EXIT

Select [Home]

Select [Home] viewing environment (highlight [Home] in yellow) to useinyour home environment.

Please select your viewing environment.

Home Shop

select set

■ [Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this T V.

Select [Home] viewing environment to use in your home environment.

You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic

•

Demo Off / On selection screen.

1 Return to viewing environment selection

screen

Shop

You have selected shop mode

Automatic Demo

Off

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

[Shipping Condition](p.62)

2 Select [Home]

Please select your viewing environment.

Home Shop

BACK/

RETURN

Quick Start Guide

Auto Setup

select set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the Satellite cable, RF cable, and then, follow the on screen instructions.

To check channel list at-a-glance “Using TV Guide” (p. 21)

•

To edit or hide (skip) channels “Tuning and Editing Channels” (p. 50 - 57)

•

To retune all channels [Auto Setup](p.48, 49, 56)

•

If you wish to tune in other satellite channels [Auto Setup] in [Other Sat. / Satellite Tuning Menu] (p. 56)

•

To initialise all settings [Shipping Condition] (p.62)

•

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

To setup the wireless connection (p.89 - 91)

•

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up? No - Exit

Current network type : Wireless

Yes

Page 16

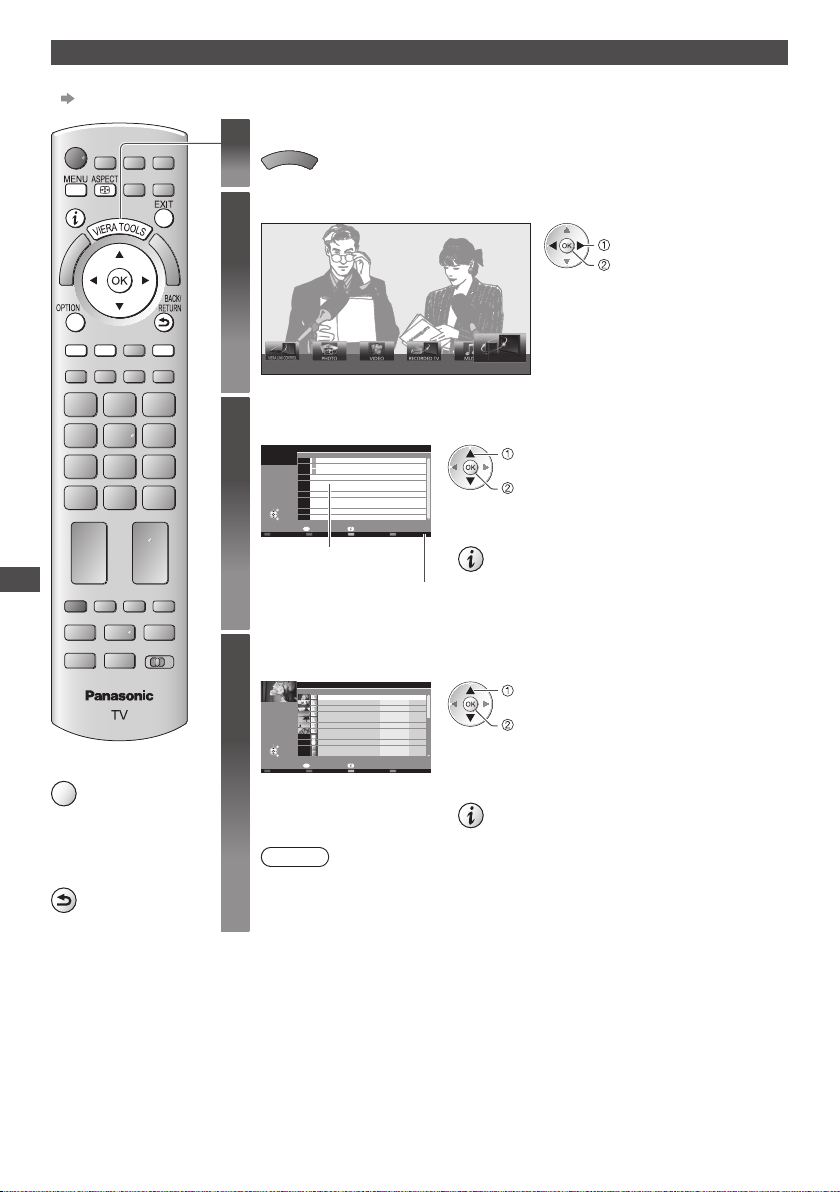

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.

This TV has no full browser function and all features of websites may not be available.

•

Turn power on

Press for about 1 second

•

Mains power On / Off switch should be On. (p.9)

•

Using “VIERA Connect”

■

To exit from VIERA Connect

EXIT

To set the VIERA

•

Connect instruction banner display off

 [VIERA Connect

Banner] (p. 43)

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed

Example :

Welcome to VIERA Connect™

VIERA Connect™ home screen is subject to change without notice.

The services through VIERA Connect™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

ENTER

Some content may be inappropriate for some viewers.

Some content may only be available for specic countries and may be presented in specic languages.

Example : VIERAConnect home screen

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

The button design varies

•

depending on the remote control.

To go to the next level

•

[MORE]

To back to the previous level

•

[BACK]

INTERNET

Depending on the usage conditions, it may take a

•

while to read all the data. Messages might be displayed before VIERAConnect

•

home screen. Please read these instructions carefully and follow the on screen instructions.

BACK

■ How to operate VIERAConnect (current as of January, 2011)

To move the cursor / select the item

•

When the key words are displayed on colour bar

•

(red) (green) (yellow) (blue)

Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.

•

“Optional accessories” (p.6)

For details, read the manual of the Communication Camera. You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.

•

You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information

“USB connection” (p. 112)

Note

If you cannot access VIERA Connect, check the network connections (p. 11) and settings (p. 13, 14).

•

For more information of VIERA Connect (p. 95)

•

To access

•

When options with

•

numbers are displayed

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To return to the previous screen

•

BACK/

RETURN

To return to VIERA Connect home

•

screen

INTERNET

Page 17

Watching TV

Turn power on

Select the mode (freesat, DVB, Analogue , Other Sat. or Satellite)

Press for about 1 second

•

Mains power On / Off switch should be On. (p.9)

•

■ VIERA Connect introduction banner appears

You can access to VIERA Connect and enjoy the various contents. (p.16)

To remove this banner, leave for about 5 seconds or press any buttons

•

(except the buttons to access VIERA Connect). To set this banner display off [VIERA Connect Banner] (p. 43)

•

TV Selection

freesat

DVB Analogue Other Sat. Satellite

The selectable modes vary depending on the stored channels

•

(p.13).

Displayed if [Other Satellite Auto Setup] (p. 56) is completed.

select

access

Watching TV

20:35

All DVB Channels

Select favourites

abc def

jkl

ghi

tuvpqrs

Information banner (p. 18)

freesat channel position numbers run in the ranges 100 -

mno

999 and 0100 - 0999.

wxyz

To select a three or four-digit channel position number,

•

e.g. 0246

DVB and Other Sat. / Satellite channel position numbers run from 1 onwards. Analogue channel position numbers run in the ranges 0 - 99.

To select a two or three-digit channel position number,

•

e.g. 399

wxyz

def

mno

wxyz

Volume

Coronation Street

20:00 - 20:55

BBC ONE WALES

Now Info

Select a channel

down

■ Select a channel using Information banner (p. 18)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel

select channel

watch

■ Select a channel using TV Guide (p. 21)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

1 Display TV Guide 2

Note

To watch pay-TV “Using Common Interface” (p. 64)

•

Select a current programme or channel

select

access

3 Select [View] (DVB mode)

Eastender 19:30- 20:00

View Timer Programming

select watch

Page 18

Other useful functions

Display Information banner

Watching TV

Features available / Message meanings

•

Also appears when changing a channel

•

All DVB Channels

Select favouritesInfo

20:35

[TEXT]

Teletext service available

[Multi Audio]

Multiple audio available

[Stereo], [Mono], [NICAM]

Audio mode

1 - 90

Off Timer remaining time

For settings (p.19)

•

(except Analogue)

HDTV

23 6 745

Coronation Street 20:00 - 20:55

Now

Programme Start/Finish time (except Analogue)

Channel number, etc. (Analogue) Progress time indicator of the selected programme (except Analogue)

[All DVB Channels] , [freesat Channel List], [All Other Sat.

Channels], [All Satellite Channels] or [Favourites1-4] (p. 53)

To switch (DVB or Other Sat. / Satellite)

•

[AD]

Audio Description service available

This function can aid visually-

•

impaired viewers by adding an additional audio track to describe events

on screen.

For settings (p. 40)

•

[STLL]

Subtitle service available

(blue)

Example : DVB

ZDF

Mute STTLAD TEXT Multi Audio

Bad signal

Channel position and name

Channel type ([Radio], [Data], [HDTV], etc.) /

Encrypted channel ( ) / TV mode ( , , , )

Programme

Current time

[Mute]

Sound mute On

[Bad signal]

Poor TV signal quality

[Also in

Same programme available as HD broadcast

•

To confirm another tuned channel name• To watch the channel listed in the banner• Information on the next programme

]

To display the extra information for details

To hide

•

EXIT

[AD], [STTL], [TEXT ], [Multi Audio] indications are displayed as available on par ticular programmes, but may not be available for all

•

individual programmes being broadcast. Display the extra information to confirm availability of these functions. Example :

BBC ONE WALES

Coronation Street 20:00 - 20:55

Now

[AD]

Extra information (except Analogue)• To set display timeout

•

(Press again to hide the banner)

20:35

All DVB Channels

Select favourites

[Banner Display Timeout] (p.43)

Last view

Switch to previously viewed channel or input mode easily

Press again to return to the present view.

•

LAST VIEW

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is

•

in progress. Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

•

Page 19

Hold

Freeze / unfreeze picture

HOLD

Display the selectable settings for the current status

Check or change the current status instantly

OPTION

[Multi Audio / AD]

(freesat mode) Allows you to select between alternative language or Audio Description for sound tracks (if available)

Set Audio Description [Auto] in the

•

Sound Menu (p. 40) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track. This setting is not memorized and it

•

will return to the default setting once you exit the current programme.

[Audio Description] (DVB mode) Set to [Auto] if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

To adjust the volume for Audio Description

•

[Audio Description Menu] (p.40)

To change

•

select

access

select / change

store

[Multi Audio]

(DVB, Other Sat. Allows you to select between alternative language for sound tracks (if available)

This setting is not memorized and it will

•

return to the default setting once you exit the current programme.

[Monaural Audio]

(except Analogue mode) Allows you to select stereo / monaural (if available)

This setting is not memorized and it will

•

return to the default setting once you exit the current programme.

[Sub Channel]

(Other Sat. Allows you to select the multifeed programme - sub channel (if available)

[Subtitle Language]

(except Analogue mode) Allows you to select the language in which subtitles should appear (if available)

This setting is not memorized and it will

•

return to the default setting once you exit the current programme.

or Satellite

[Teletext Character Set]

mode)

Sets the teletext language font

[Setup Menu] (p.42)

[Teletext Language]

(DVB or Satellite mode) Allows you to select between alternative language for teletext (if available)

[NICAM]

(Analogue mode) Switches NICAM sound (if available)

[Sound Menu] (p. 40)

[Volume Correction]

Adjusts volume of individual channel

mode)

or input mode

[Safely remove USB]

Takes this operation to remove the connected USB device safely from the TV

Watching TV

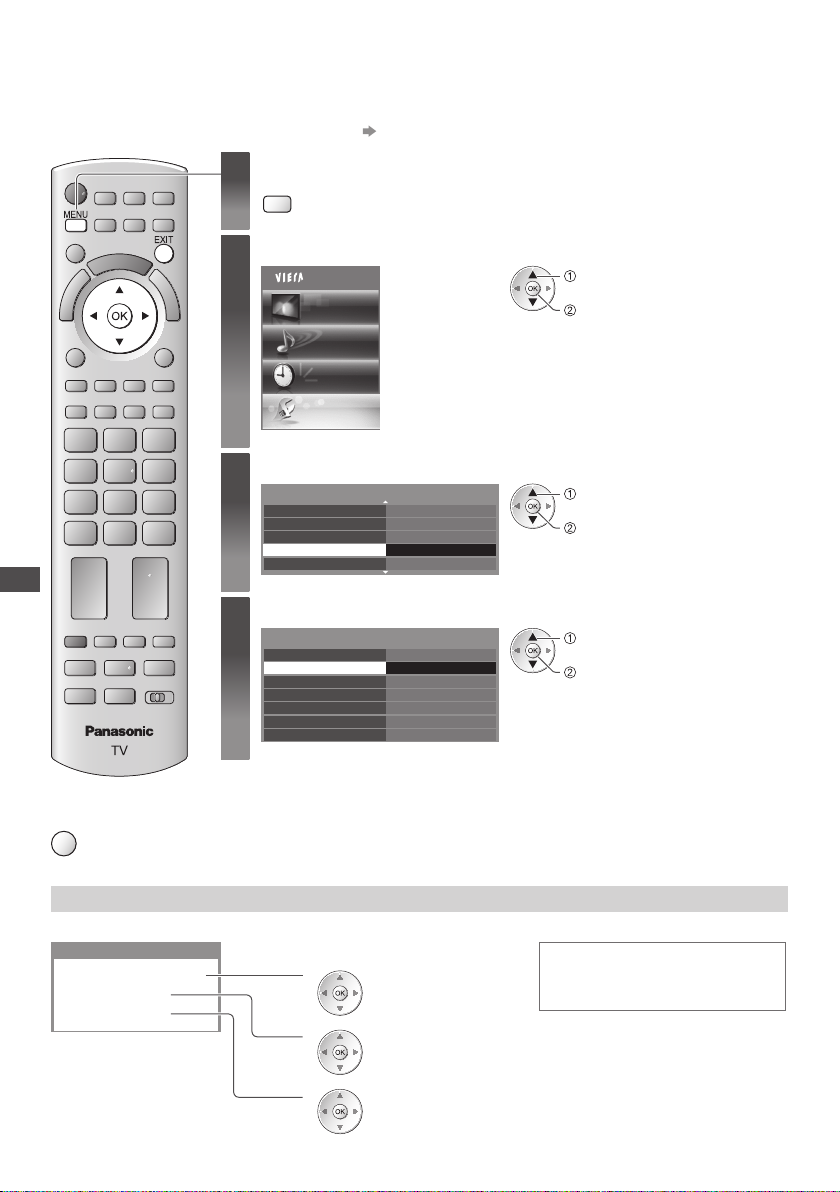

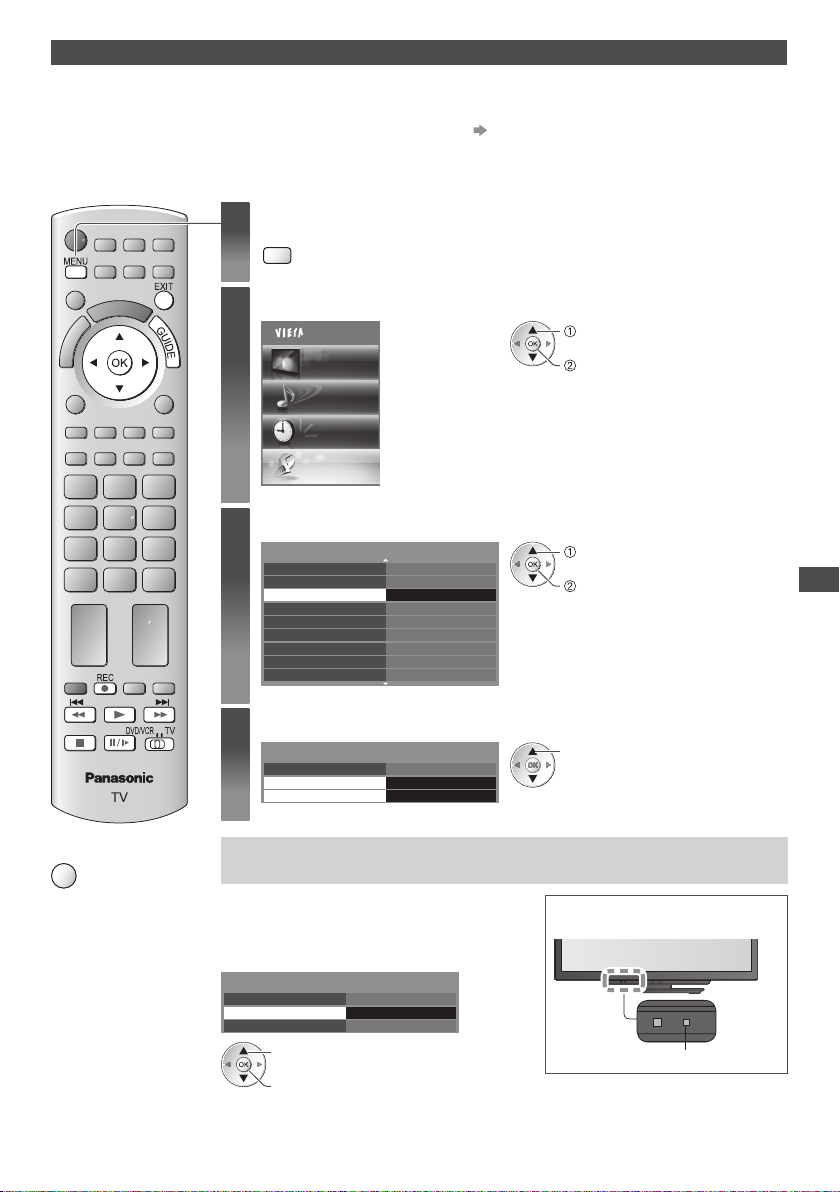

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

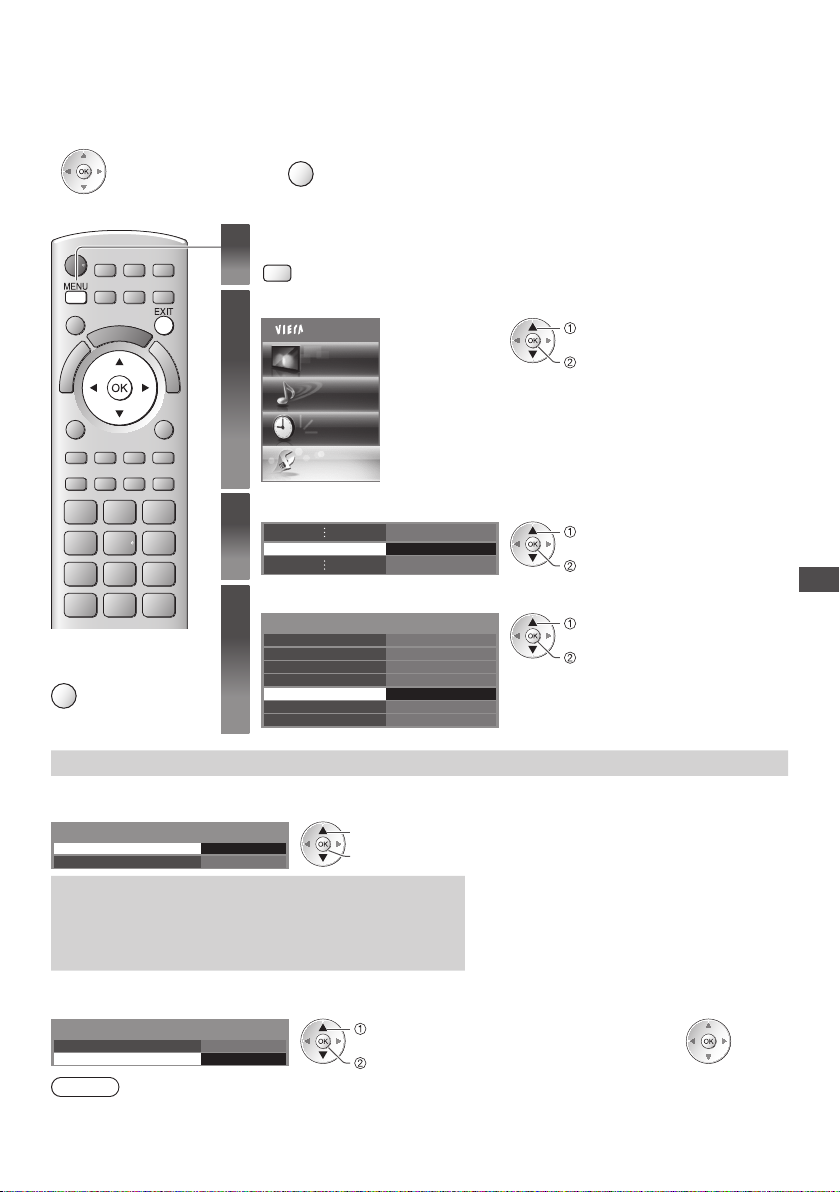

1 Display the menu 2 Select [Timer]

Main Menu


Sound

Timer

Setup

select

access

3 Select [Off Timer] and set the time

Timer Programming

Off Timer

Auto Standby

Off

30 45 60 75 90

minutes minutes minutes minutes minutes minutes

•

select [O ff Timer]

access

To cancel Set to [Off] or turn the TV off. To display the remaining time “Display Information banner” (p.18) When the remaining time is within 3 minutes, the remaining time will flash on the screen.

select the time

store

Page 20

Aspect

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect.

ASPECT

Programmes usually contain an “Aspect Control Signal” ( Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p.107).

■ If you would like to change the aspect ratio manually

1 Display Aspect Selection list 2 While the list is displayed,

ASPECT

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Select

EXIT

Change

RETURN

Aspect Selection list

select the mode

select

store

You can also change the mode only

•

using the ASPECT button.

ASPECT

(Press repeatedly until you reach

the desired mode)

Watching TV

[Auto]

[16:9] [Zoom1]

[14:9] [Zoom2]

[4:3] [Zoom3]

The best ratio is chosen and the image expanded to fill the screen. For details (p.107)

Directly displays the image at 16:9 without distortion (anamorphic).

Displays the image at the standard 14:9 without distortion.

Displays the image at the standard 4:3 without distortion.

Displays a 16:9 letterbox or 4:3 image without distortion.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At16:9, displays the image at its maximum (with slight enlargement).

Note

Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.

•

Only [16:9] and [4:3] are available in PC input mode.

•

Aspect cannot be changed in teletext service and 3D mode (except for [2D 3D] mode in [3D Mode Selection] (p. 34)).

•

Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

•

Display subtitles

Subtitles may not be displayed properly in 3D images.

•

■ freesat, DVB or Other Sat. / Satellite mode

Display / hide subtitles (if available)

STTL

To change the language for DVB (if available)

•

[Preferred Subtitles] (p.42)

■ Analogue mode

Display subtitles Hide subtitles

STTL

Note

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 28)

•

You cannot change the channel when this function is active.

•

EXIT

Page 21

Using TV Guide

TV Guide−Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.

•

(freesat)

Select freesat

Display the Channel Genre selection list

D E

Select the genre and view TV Guide

Example :

Channel Genre Selection

■

To return to TV

EXIT

All Channels

Entertainment News & Sport

Movies

Lifestyle

Music

Children

Example :

Wed 27 Oct 2010 Search All Channels

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

There might be some programmes displayed as greyed-out in T V Guide. These are the

•

Off-Air programmes (non-running programmes).

Time: BBC ONE101

BBC 2W

102

BBC NEWS

103

BBCi

104

BBC THRE

105

BBC FOUR

106

BBC Radio

107

View / Timer Prog.

-24 hours +24 hours Search Channel Genre

56 1

19:30 20:00 20:30 21:00 21:30

Eastender DIY SOS The Bill

Hot Wars Holiday Program

Emmerdal.

10 O’ clock News BBC

Select channel

EXIT Select programme

RETURN

Special Interest

Radio

Shopping

Gaming & Dating

Interactive

Regional

Favourites

TV Guide Wed 27 Oct 2010 10:46

Red Cap

Pepsi Char.

GUIDE

Info

RETURN

The Bill

Good bye

CoastSpring watchPanorama

NewsPop IdolI’m A Celebrity

The Bill

Enter Channel

Coronation Street

Drama

Cinema

Shop

Sports15 To 1Rugby

Also in

Page up

Page down

■ To change the layout of TV Guide [TV Guide View] (p. 41)

■ To watch the programme

1 Select a current

programme or channel

select

access

abc def

jkl

ghi

mno

tuvpqrs

wxyz

2 Select [View]

Eastender 19:30- 20:00

View

To use TimerProgramming (p.23)

•

Timer Programming

select watch

If a programme exists in both HD and SD broadcasts,

•

the [View Options] screen will be displayed to select HD or SD broadcast.

DIY SOS

View Options

101 BBC ONE 19:30-20:00 Wed 27 Oct 2010

119 BBC HD 19:30-20:00 Wed 27 Oct 2010

■ To the previous day ■ To view a channel list of the selected genre

(red) (blue)

■ To the next day

(green)

Channel Genre

All Channels

Entertainment News & Sport

■ View details of the programme

1 Select the programme 2 View details

select

Press again to return

•

to TV Guide.

Favourites

select

view

Current date and time

TV Guide time

Channel position and name

TV Guide date

Some programmes may also

be broadcast in HD

You can select HD or SD

•

broadcast before viewing or setting Timer Programming.

Programme

(Channel Genre list)

To list favourite channels

•

(p.50)

select

watch

Using TV Guide

Page 22

■

To search programme types and view a channel list of the searched programmes

(yellow)

(Search list)

select type

view

Search Titles...

Movie

News and Factual

■ To search programme titles and view a list of the searched programmes

(yellow)

All the programme titles

•

including the word you set will be listed. Searching without any

•

characters will list all programmes including current programmes.

Using TV Guide

Search Titles...

Movie

News and Factual

(Search list)

1 Select

[Search Titles...]

select

access

2 Set characters

(maximum: 19 characters)

select

set

To use numeric buttons

•

 “Characters table for

3 Start [Search]

(green)

numeric buttons” (p. 111)

(DVB or Analogue)

This TV supports the GUIDE Plus+ system.

•

The Rovi branding partner will supply the rating information in the programme information and the recommended group in

•

the Search list. DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue

•

channel. There will be no programme listings for Analogue channels.

Select DVB or Analogue

View TV Guide

Example :

D E

Wed 27 Oct 2010

10:46

4 5

Timer Programming

■

To return to TV

EXIT

-24 hours +24 hours Search Category

Some programmes may also be broadcast in HD

You can select HD or SD broadcast before viewing or setting Timer Programming.

•

Programme

Logo of the Rovi branding partner

■ To change the layout of TV Guide [TV Guide View] (p. 41)

■ To watch the programme

1 Select a current

programme or channel

abc def

jkl

ghi

mno

tuvpqrs

wxyz

select

access

2 Select [View] (DVB mode)

Eastender 19:30- 20:00

View Timer Programming

select watch

To use TimerProgramming (p.23)

•

678 9

TV Guide

Wed 27 Oct Search All Channels

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

Select channel

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS Holiday News

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal.

10 O’ clock News BBC

BBC FOUR

BBC 2W

105

BBCi

719

BBC Radi

EXIT Select programme

RETURN

•

Coronation Street

Enter Channel

Info

GUIDE

RETURN

OPTION

Select Advert

If a programme exists in both HD and SD broadcasts, the [View Options] screen will be displayed to select HD or

SD broadcast. (DVB mode)

DIY SOS

101 BBC ONE 19:30-20:00 Wed 27 Oct 2010

119 BBC HD 19:30-20:00 Wed 27 Oct 2010

Pepsi Char.

View Options

Also in

The Bill

Good bye

CoastSpring watchPanorama

NewsPop IdolI’m A Celebrity

Sports15 To 1Rugby

Page up

Page down

Current date and time

TV Guide time

[D] : DVB

[A] : Analogue Channel position and

name TV Guide date

select

watch

Page 23

■ To the previous day (DVB mode) ■ To view a channel list of the selected category

(red) (blue)

■ To the next day (DVB mode)

(green)

■ View details of the programme (DVB mode)

1 Select the programme 2 View details

select

■

To search programme types and view a channel list of the searched programmes (DVB mode)

(yellow)

(Search list)

Search Titles...

Movie

News and Factual

Press again to return to TV

•

Guide.

(Type list)

Prog.Type

All Types

Movie News

(Category list)

Category

All Channels

All DVB Channels All HD Channels All Analogue Channels Free DVB Channels TV/Data DVB Channels Favourites1 Favourites2 Favourites3 Favourites4

select type

view

Only Analogue channels are listed

To list favourite channels

•

(p.53)

Using TV Guide

■ To search programme titles and view a list of the searched programmes

(DVB mode)

(yellow)

Search Titles...

Movie

News and Factual

(Search list)

1 Select

[Search Titles...]

select

access

2 Set characters

(maximum: 19 characters)

select

set

To use numeric buttons

•

 “Characters table for

3 Start [Search]

(green)

All the programme titles

•

including the word you set will be listed. Searching without any

•

characters will list all programmes including current programmes.

numeric buttons” (p.111)

Timer Programming (freesat or DVB mode)

Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.

1 Select the forthcoming programme 2 Select the function ([Ext Rec.],[USB HDD Rec.] or [Reminder])

select

set

LED will turn to orange if Timer Programming is set. (Orange LED will flash if the recording of Timer Programming is in progress.)

LED

(Timer Programming screen)

Timer Programming

Function No. Channel Name Date Start End

Ext Rec.

DIY SOS

--- --/-- --:-- --:-----

[Ext Rec.] / [USB HDD Rec.]

Wed 27.10.2010 10:46

Wed 27 Oct

19:30119 BBC HD 20:00

(30 min.)

(--- min.)

to record the programme to the external recorder or the USB HDD When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.

[Reminder]

to remind you to watch the programme When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.

select

store

Page 24

■ To check / change / cancel a timer

programming event

“Timer Programming” (p. 58, 59)

■ To return to TV Guide

BACK/

RETURN

■ If you select a current programme ■

A confirmation screen asking whether you wish to watch or record the programme will appear. Select [Timer Programming] and set [Ext Rec.] or [USB HDD Rec.] to record from the time you finish the timer programming event setting.

Eastender 19:30- 20:00

View

Note

Using TV Guide

This function is not available in Analogue mode.

•

Timer Programming reminder messages will remain displayed until one of the following occurs:

•

• You press the OK button to view the programme or the EXIT button to cancel the reminder.

Timer Programming

select access

If a programme exists in both HD and SD broadcasts

The [Timer Options] screen will be displayed to select HD or SD broadcast.

DIY SOS

Timer Programming

Function No. Channel Name Date Start End

Ext Rec.

Timer Options

101 BBC ONE 19:30-20:00 Wed 27 Oct 2010

119 BBC HD 19:30-20:00 Wed 27 Oct 2010

(Timer Programming screen)

DIY SOS

--- --/-- --:-- --:-----

Wed 27.10.2010 10:46

Wed 27 Oct

19:30119 BBC HD 20:00

(30 min.)

(--- min.)

will be displayed if

HD broadcast is set.

• The timer programming event that the reminder is set for ends.

No other channel can be selected while the recording of Timer Programming is in progress.

•

When recording programmes, be sure to make the proper settings on the recorder connected to the TV. (p. 58)

•

When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording

•

Setup] (p.69).

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Function No. Date Start EndChannel Name

Ext Rec. Wed 27 Oct

Reminder

Ext Rec.

---

Ext Rec.

Change function

EXIT

Store timer

Select RETURN

(Timer Programming screen)

7 BBC ONE

DIY SOS

14 E4 21:00 22:30

The Bill

72 BBC 2W

<TIMER>

BBC ONE1 Red Cap

------

Remaining Capacity:

500GB (50%)

Guide

S/P

Wed 27 Oct 2010 10:46

Wed 27 Oct

Thu 28 Oct

20:00 20:30

(30 min.)

(90 min.)

22:45 23:00

(15 min.)

10:30 11:30

(60 min.)

--:----:-- --:--

(--- min.)

1/1

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)

Note

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow

•

the broadcaster’s changes to the start or end time. The start and end times will become fixed. Whilst making the Split Programme programming event for [Ext Rec.] or [USB HDD Rec.], you cannot record any channels

•

between the interrupted programmes. The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.

•

The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button

•

even if it is between the interrupted programmes. The Split Programme programming does not work if the separated parts are broadcast on different channels.

•

Example :

Wed 27 Oct 2010 10:46

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

105

719

TV Guide

Wed 27 Oct Search All Channels

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS Holiday News

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal.

10 O’ clock News BBC

Coronation Street

Pepsi Char.

BBC FOUR

BBC 2W

BBCi

BBC Radi

Good bye

CoastSpring watchPanorama

NewsPop IdolI’m A Celebrity

Sports15 To 1Rugby

“ ” or “ ” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

The Bill

select

set

Page 25

View advertisement (DVB or Analogue mode)

Enter your postcode when using this function for the first time

[Guide Plus+ Postcode] in [TV Guide Settings] (p.41)

If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12 - 15), you do not have to enter it again. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement, you will need to update the information.

•

To update the information continuously, the TV must be left in Standby mode.

■ To change advertisements ■ To return to TV Guide

BACK/

RETURN

OPTION

Note

Some advertisements are for future programmes.

•

In this case it is possible to use the Guide link programming function. The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot be deleted

•

manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

(Other Sat. / Satellite )

In Other Sat. or Satellite mode, TV Guide is not available. In stead, Channel List will appear.

To tune in Other Sat. / Satellite Channels (p. 56)

•

Select Other Sat.

(p.17)

Display the Channel List

D E

Using TV Guide

■

To return to TV

EXIT

Example :

All Other Sat. Channels

2 freesatHome 3 freesatSSU 4 Brit Shorts

5 HINRG LOWNRG

6 WELL Class 7 GROOVE 8-

Select the channel

select

watch

Example :

Satellite Channel List

2 freesatHome 3 freesatSSU 4 Brit Shorts

5 HINRG LOWNRG

6 WELL Class 7 GROOVE 8-

Page 26

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

The availability of teletext services for a programme is indicated by [TEXT] in the information banner.

•

Information banner

Coronation Street

20:00 - 20:55

BBC ONE WALES

Now

Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the teletext services may be the same as the analogue teletext services (p. 27).

TEXT

All DVB Channels

Select favourites

20:35

Displayed if programme has teletext service

(p. 18)

Digital teletext (MHEG)

Viewing Teletext

Digital teletext services differ greatly from analogue teletext. When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

Select freesat or DVB

Switch to Teletext

TEXT

freesat and DVB programmes have digital

•

teletext services (MHEG).

Example :

17:51 28 Feb

■ How to operate services

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on screen commands may not correspond exactly to the remote control buttons.

■

To return to TV

TEXT

Select, go

•

Back key

•

BACK/

RETURN

Symbol :

•

Coloured characters

•

Coloured button

When options with numbers are

•

displayed

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Note

As soon as you switch to a digital channel with links to a teletext service, software is downloaded

•

in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete. While navigating digital teletext, you will find there is a short delay when moving between pages while

•

the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

Page 27

Analogue teletext

Analogue teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FASTEXT (FLOF) mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

■ To change mode

[Teletext] (p.42)

“Store frequently viewed pages” (p.28)

Select Analogue

Switch to Teletext

TEXT

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

Time / date

Displays the index page (content varies

•

depending on the broadcasters)

TELETEXT

INFORMATION

Colour bar

Current page number

Select the page

■

To return to TV

EXIT

abc def

jkl

ghi

mno

tuvpqrs

wxyz

■ To adjust contrast

(Press twice)

down

Coloured button (Corresponds to the colour bar)

As the blue bar is displayed

Viewing Teletext

FULL / TOP / BOTTOM

(green)

(TOP) (BOTTOM) Normal (FULL)

(Expand the TOP half) (Expand the BOTTOM half)

Reveal hidden data HOLD

Reveal hidden words e.g. quiz page answers Stop automatic updating

(red)

Press again to rehide (If you wish to hold the current page without updating)

•

HOLD

Press again to resume

•

Page 28

INDEX Subtitles

Return to the main index page View a favourite page stored

INDEX

STTL

View in multi window

Watch TV and Teletext in two windows at once

TEXT

Operations can be made only in Teletext screen.

•

Each time pressed: Teletext TV and Teletext

•

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

As page is displayed

Viewing Teletext

(Corresponding coloured button)

press and hold

The number changes to white.

■ To change stored pages

Enter new page number

Coloured button you want to change

abc def

jkl

ghi

mno

tuvpqrs

wxyz

View sub page

View sub page (Only when teletext is more than one page)

The number of sub pages varies depending on the

Appears at top of the screen

•

broadcasters (up to 79 pages). It may take some time for searching, during which time

•

you can watch TV.

■ To view specific sub page

(blue)

Enter the 4-digit number example : P6

mno

Factory setting is “P888”

•

(subtitle service) on the blue button (List mode).

If you wish to use Subtitles,

•

do not change number on blue button.

press and hold

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily

The news page provides a function that indicates arrival of latest news (“News Flash”).

•

(yellow)

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

(yellow)

Page 29

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.

To connect the equipment (p.10, 11, 104 - 106)

•

The Remote Control is capable of operating some functions of selected external equipment.

“Operating the equipment with the T V remote control” (p.30)

Turn the TV on

When connecting with SCART as example 2 or 3 (p.10, 11)

Receives input signals automatically when playback starts

Input signals are automatically identified by the SCART (pin 8) terminal.

•

This function is also available for HDMI connections (p.111).

•

If input mode is not switched automatically

Perform 2 and

Check the setup of the equipment.

•

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

You can also select the input using the AV button on the remote control or the side

•

panel of the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected. [SD Card/USB] : Switches to Media Player [Using Media Player] (p.73)

•

You can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.61)

•

Skipped inputs will not be displayed when the AV button is pressed.

select

watch

Watching External Inputs

View

AV1

■

To return to TV

Terminal

Manual input

(default setting in “InputLabels”)

Auto input

(EC mode or VIERA Link)

If the above information is permanently displayed on the top left of the screen, press the button to clear.

•

Note

If the external equipment has an aspect adjustment function, set it to [16:9].

•

For details, see the manual of the equipment or ask your local dealer.

•

AV1 AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4

AV1

AV1-RGB

EC/AV1

EC/AV1-RGB

AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4

−−−

Displays the selected mode

EC/HDMI1

Applicable for

EC mode and

VIERA Link

EC/HDMI2

Applicable

for

VIERA Link

EC/HDMI3

Applicable

VIERA Link

for

EC/HDMI4 Applicable

for

VIERA Link

Page 30

Operating the equipment with the TV remote control

The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc

DVD/VCR

Watching External Inputs

PROGRAMME

REC

theatre or VCR

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 72) “Media Player” (p. 80, 82) “VIERA Link Control” (p.102)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR :

Rewind, view the picture rapidly in reverse

DVD / video content :

Skip to the previous track, title or chapter Press and hold to search backward

Fast-forward / Skip / Search

VCR :

Fast-forward, view the picture rapidly forward

DVD / video content :

Skip to the next track, title or chapter Press and hold to search forward

Pause

Pause / Resume DVD : Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

1 Set the position to “DVD/VCR”

DVD/VCR

2 Press and hold during the following operations

Enter the appropriate code, see table below

DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)

Note

Confirm if the remote control works correctly after changing the code.

•

The codes may be reset to default values if batteries are replaced.

•

Some operations may not be possible on some equipment models.

•

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Type of the equipment Code

Player theatre, Blu-ray Disc theatre 71

VCR 72

Press

Page 31

Viewing 3D images

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear.

“Optional accessories” (p. 6)

This TV supports [Frame Sequential] ∗1 : The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately

played back

∗2, ∗3 : Other available 3D formats

How to view the 3D images (p.32)

•

Caution

To enjoy 3D images safely and comfortably, please read these instructions fully.

Viewing 3D Content

Do not use the 3D Eyewear if you have a history of over-

•

sensitivity to light, heart problems, or have any other existing medical conditions. Please stop using the 3D Eyewear immediately, if you

•

feel tired, are not feeling well or experience any other uncomfortable sensation. When you set the effect by using [3D Adjustment], take

•

into account that the vision of 3D images varies among different individuals. Take an appropriate break after viewing a 3D movie.

•

Take a break of between 30 - 60 minutes after viewing

•

3D content on interactive devices such as 3D games or computers. Be careful not to strike the TV screen or other people

•

unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged. The 3D Eyewear must only be worn when viewing 3D

•

content. If you do not look toward the TV screen for a while when

•

viewing 3D images, the 3D Eyewear may be turned off automatically. If you suffer from any eyesight problems (short /

•

far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear. Stop using the 3D Eyewear if you can clearly see double

•

images when viewing 3D content. Do not use the 3D Eyewear at a distance less than the

•

recommended distance. The recommended viewing distance is at least 3 times of image height. TX-L32DT30B: 1.2 m or more / TX-L37DT30B: 1.4 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times further than the height of the actual image. (That makes the distance closer than above recommended figure.)

∗

, [Side by Side]

∗

and [Top and Bottom]

3D Eyewear Use

Pay special attention when children are using the 3D

•

Eyewear. 3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear. Before using the 3D Eyewear, ensure no breakable objects

•

surrounding the user to avoid any accidental damage or injury. Remove the 3D Eyewear before moving around to avoid

•

falling or accidental injury. Always store the 3D Eyewear in the case supplied with the

•

3D Eyewear when not in use. Use the 3D Eyewear only for the intended purpose and

•

nothing else. Do not use 3D Eyewear in the condition of high

•

temperature. Do not use if the 3D Eyewear is physically damaged.

•

Do not use any devices that emit the infrared signals near

•

the 3D Eyewear, as this may cause the 3D Eyewear false operations. Do not use devices (such as mobile phones or personal

•

transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to malfunction. Do not expose the infra-red receiver section to bright light

•

such as direct sunshine and fluorescent light. The 3D image may not be displayed correctly. Stop using the 3D Eyewear immediately if a malfunction or

•

fault occurs. Stop using the 3D Eyewear immediately if you experience

•

any redness, pain, or skin irritation around the nose or temples. In rare cases, the materials used in the 3D Eyewear may

•

cause an allergic reaction.

∗

3D formats.

Viewing 3D images

Page 32

To view the 3D images

You can enjoy the 3D images in a variety of ways. (Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)

■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)

Connect the 3D-compatible player via a fully wired HDMI compliant cable.

•

If input mode is not switched automatically, select the input mode connected to the player. (p.29)

•

If you use the non 3D-compatible player, the images will be displayed on 2D mode.

•

■ 3D-supported broadcast

Please consult the suppliers of contents or programmes for availability of this service.

•

■ 3D photos and 3D videos taken by 3D-compatible Panasonic products

Available in Media Player (p. 74 - 76, 79, 80) and Network services (p.93)

•

■ 2D images converted to 3D

Set to [2D 3D] mode in [3D Mode Selection] (p. 33)

Turn the 3D Eyewear on

Viewing 3D images

Put on the 3D Eyewear

Watch the 3D images

Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D

•

images. If you select [Yes], this message will be displayed again in the same condition after Mains power On / Off switch is next turned On. Select [No] if you do not wish to display this message again.

Example :

Safety Precautions

To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation.

Always put the 3D Eyewear in the case provided after use.

Would you like to display this message again later?

Turn off the 3D Eyewear after using it

Yes No

Note

3D Eyewear is not included. Please purchase as necessary. (p.6)

•

For more detail about using and wearing the 3D Eyewear, please refer to the manual of the 3D Eyewear.

•

The 3D image or 3D effect may not be available while VIERAConnect home screen (p.16) is displayed or Ext Rec. of Timer

•

Programming (p.59) / Direct TV Recording (p.98, 100) is in progress. As for the contents of the Frame Sequential format and Side by Side (Full), no images will be displayed in these conditions. If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D Eyewear, switch off the

•

fluorescent light or set [3D Refresh Rate] to [100Hz] (p.39). 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.

•

Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer

•

screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear. Do not use the 3D Eyewear as sunglasses.

•

3D effects may be perceived differently depending on the person.

•

Page 33

Changing 2D - 3D mode

You can easily change the viewing mode between 2D and 3D using 3D button.

Select the mode

3D Mode Selection

2D3D3D

select

set

[2D 3D] mode is displayed when this

•

function is available (see below [2D 3D]).

[3D] / [2D] / [2D

Displays the appropriate image that you desire without selecting 3D format

This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format

•

manually.

3D] :

■ To change 3D format manually

When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.

During the above operation Select the mode

(red)

[Original] :

Displays the source image as it is

Use to identify the format type of the source image.

•

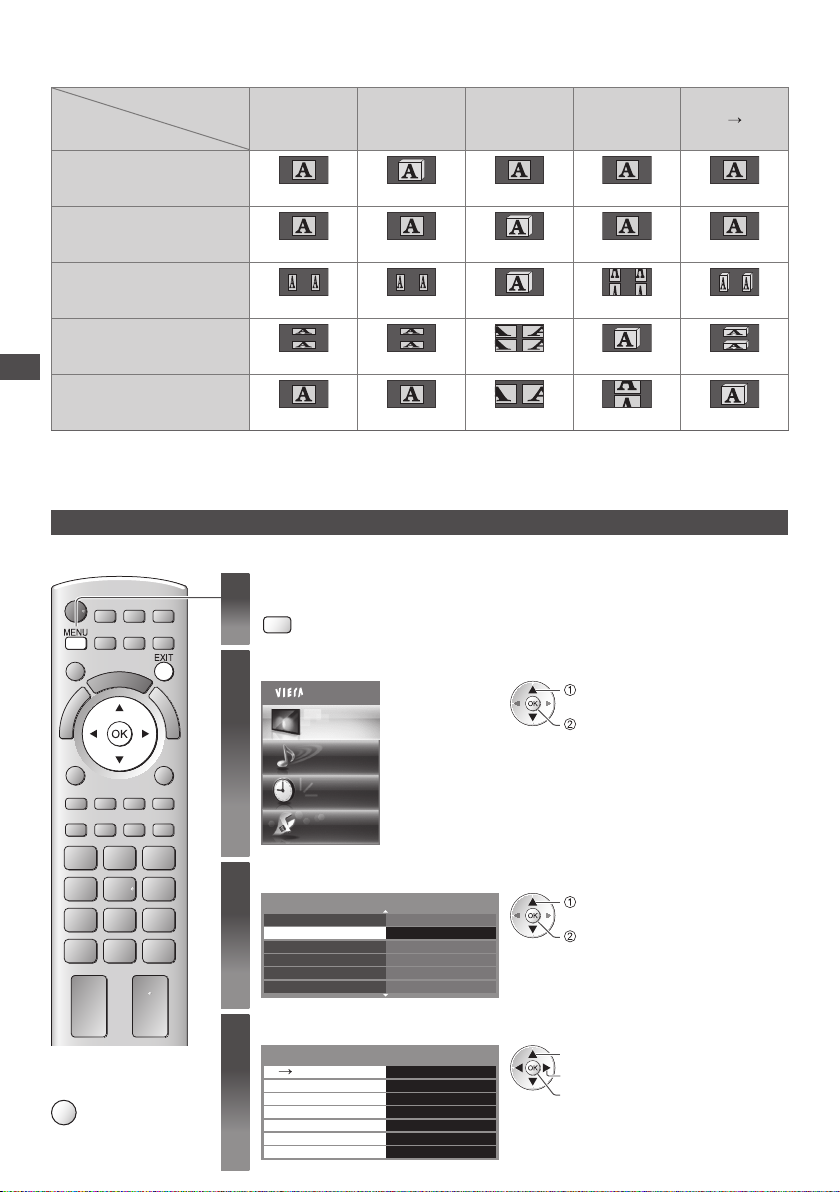

“Table of images that can be seen for each [3D Mode Selec tion (Manual)] and the source image format” (p.34)

[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] / [Top and Bottom - 3D] / [Top and Bottom - 2D] :

Displays the mode you select

Not valid on Analogue and AV mode

•

3D] :

[2D

Converts 2D images into 3D

For DVB, Analogue, AV, Component, HDMI, Media Player and network service operations

•

On-screen displays are also seen in 3D in this mode.

•

Please note the 3D images appear slightly different from the originals.

•

Using this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as

•

shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.

3D Mode Selection (Manual)

Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D Top and Bottom - 3D Top and Bottom - 2D 2D 3D

select

set

Viewing 3D images

Page 34

Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.

Source image format

[3D Mode Selection]

[Original]

[Frame

Sequential

- 3D]

[Side by Side

- 3D]

[Top and

Bottom - 3D]

[2D 3D]

Frame Sequential

Normal 3D

Side by Side (Full)

Side by Side

Top and Bottom

∗

Normal 3D

∗

Normal 3D

∗

Viewing 3D images

Normal format (2D)

∗

1 : When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed without

3D effect.

Depending on the player or broadcasts, the image may be different from the above illustrations.

•

3D Settings

If the 3D images are not displayed correctly or seem unusual, please adjust and setup the 3D settings.

Display the menu

Select [Picture]

Main Menu


select

access

Normal 3D

■

To return to TV

EXIT

Sound

Timer

Setup

Select [3D Settings]

P-NR Off

3D Settings

Screen Display Area Dimmer Control Advanced Settings Reset to Defaults

Select one of the following functions and set

3D Settings

2D 3D Depth 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

Access On On

Mid Access Normal Off On On Access

2/2

select

access

select

adjust access / store

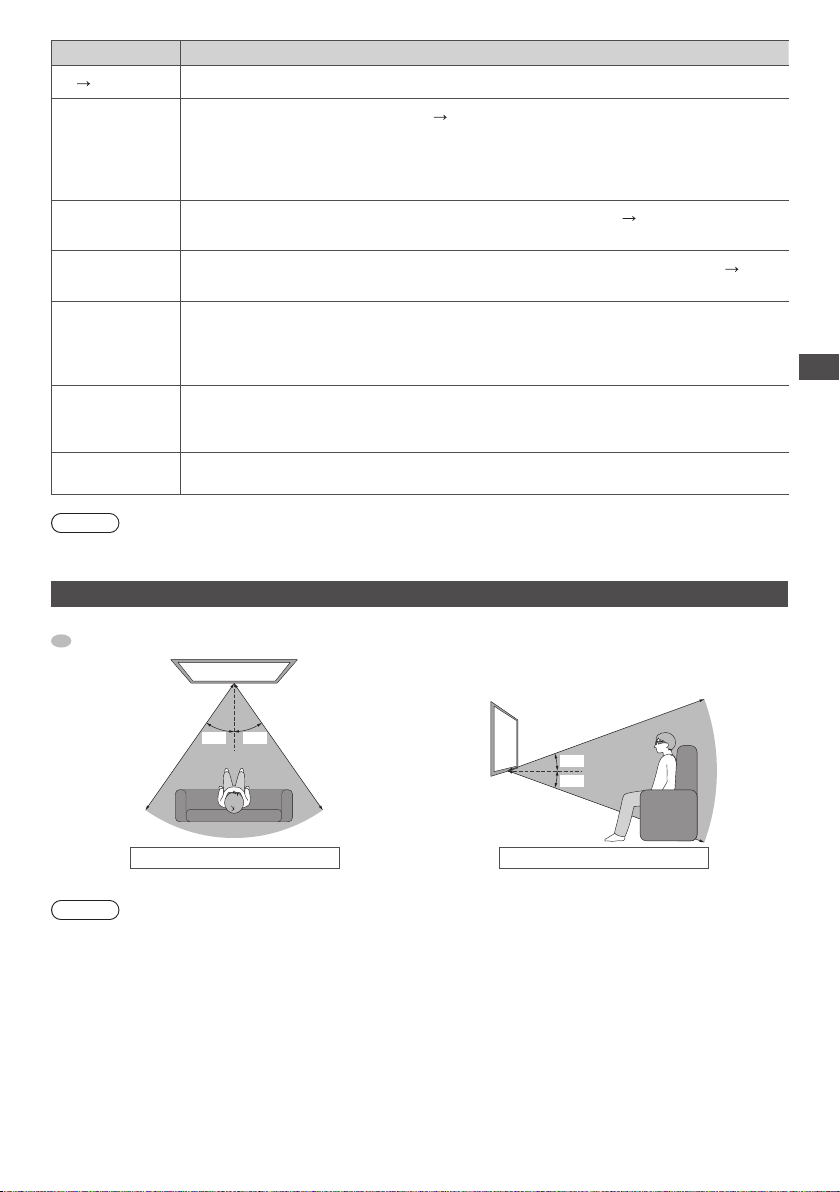

Page 35

Item Adjustments / Configurations (alternatives)

2D 3D Depth

3D Adjustment

Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]

Adjustment of the 3D effect (except in [2D

Set to [On] to enable [Effect] setting.

•

When setting to [On], a safety precaution message will appear. Read it carefully and then press the

•

BACK/RETURN button to go to [Effect] setting.

[Effect] : Adjust the 3D depth according to the contents or to your preference.

3D] mode) [Off] / [On]

Picture Sequence

Edge Smoother

3D Detection

3D Signal Message

Safety Precautions

Note

[3D Adjustment] and [Picture Sequence] will not be memorized when changing the input mode or channel.

•

You can reduce juddering and flicker noises by setting [3D Refresh Rate] in [Advanced Settings] (p.39).

•

Select [Reverse] if you feel that the sense of depth is unusual (except in [2D

[Normal] / [Reverse]

Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D mode) [Off] / [On]

Automatically detects the 3D format signals / the images that can be converted to the 3D and displays the selectable mode [Off] / [On] / [On (Advance)]

[On (Advance)] : Detects the 3D format signals and the images that can be converted to the 3D [On] : Detects the 3D format signals

Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]

For DVB, Component and HDMI

•

This function is not available when [3D Detection] is set to [On (Advance)].

•

Displays the precautions for viewing 3D images.

3D] mode)

3D]

Available range for the 3D Eyewear

If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.

: Coverage area for using the 3D Eyewear

35°35°

20°

Viewing 3D images

View from the top View from the side

Note

You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving infrared signals

•

from the TV. The range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the

•

dirt on the infrared sensors or the surrounding environment. If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically

•

even if in the coverage area.

Page 36

How to Use VIERA TOOLS

You can access some special features easily by using the VIERATOOLS function.

For [VIERA Link Control] and [Pause Live TV] functions to operate correctly, ensure the connections and settings are

•

completed.

 “Summar y of Q-Link and VIERA Link features” (p. 96, 97), “Preparations” (p.99)

After connection, turn the equipment on and then switch the TV on.

For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo or video data on it and insert it

•

into the SD Card slot or USB port properly.

”Using Media Player” (p. 73)

Display icons of the feature

How to Use VIERA TOOLS

Select a feature

select access

■

To return to TV

EXIT

VIERA Link Control

■ Follow the operations of each feature

[VIERA Link Control]

“VIERA Link Control” (p.101)

[Photo]

“Photo mode” (p.74)

[Video]

“Video mode” (p.79)

∗

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

∗

[Recorded TV]

“Recorded TV mode” (p.81)

[Music]

“Music mode” (p. 83)

[Media Server]

“Using DLNA® features” (p.92)

Note

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to

•

view the demonstration after selecting the unavailable feature.

∗

Page 37

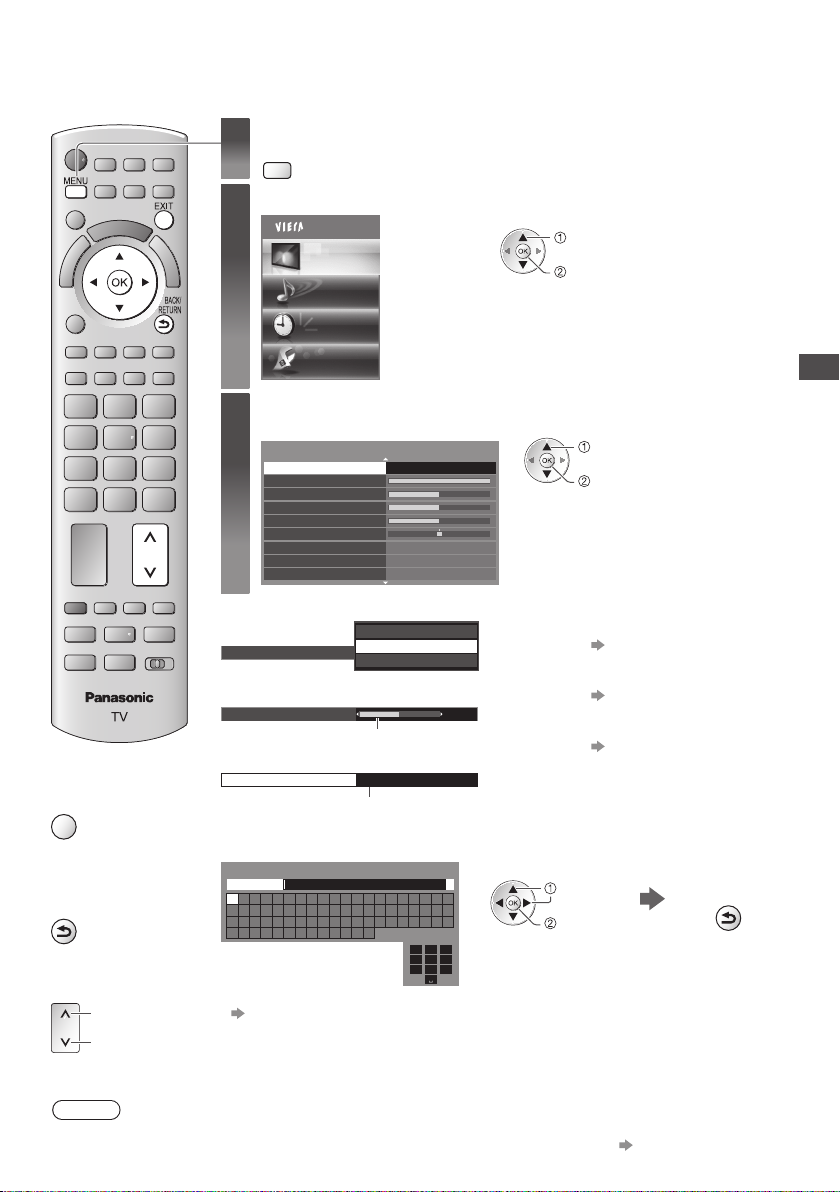

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

Select the menu

Displays the functions that can be set (varies according to the input signal)

•

Main Menu


Sound

Timer

select

access

■

To return to TV at any time

EXIT

■

To return to the previous screen

BACK/

RETURN

■

To change menu pages

down

Setup

Select the item

Example : [Picture Menu]

Viewing Mode D ynamic

Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S. Off

Warm Off

1/2

select

access

■ Choose from among alternatives ■ To reset the settings

Cool

Colour Balance

Normal

Warm

■ Adjust using the slide bar

Sharpness

Moved

■ Go to the next screen

Child Lock

Access

Displays the next screen

To reset the picture settings only

•

 [Reset to Defaults] in the

Picture Menu (p.39)

To reset the sound settings only

•

 [Reset to Defaults] in the

Sound Menu (p.40)

To initialise all settings

•

 [Shipping Condition] in the

Setup Menu (p.62)

■ Enter characters by free input menu

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

You can set characters by using numeric buttons.

•

“Characters table for numeric buttons” (p.111)

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Set characters Store

select

set

BACK/

RETURN

How to Use Menu Functions

Note

If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment.

•

To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 62)

Page 38

How to Use Menu Functions

Menu list

Viewing Mode

Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance


Vivid Colour

Reversal Film Effect

C.A.T.S.

P-NR

3D-COMB

3D Settings

Screen Display

Area Dimmer Control

Item Adjustments / Configurations (alternatives)

Basic picture mode [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo] / [Professional1] / [Professional2]

In each Viewing Mode, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [C.A.T.S.], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.

Set for each input signal.

•

[Dynamic] : [Normal] : Recommended for viewing under normal ambient room lighting conditions. [Cinema] : For watching movies in a darkened room with the improved performance of

contrast, black and colour reproduction

[True Cinema] : Precisely reproduces the original quality of the image without any revision. [Game] : Fast response signal specifically to provide suitable images for playing games

Not valid on TV mode

•

A continuous record of time spent using Game mode can be displayed in the top right of

•

the screen. [Playing Time Display](p.43)

[Professional1 / 2]:

Allows you to set the professional picture settings in [Advanced Settings], [Lock Settings] and [Copy Adjustment] (p.67)

This mode is available only when [Advance(isfccc)] in the Setup Menu is set to [On].

•

Not valid on VIERA Connect

•

If the certified professional dealer sets these modes, [Professional1] and [Professional2]

•

may be displayed as [isf Day] and [isf Night].

Increases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

For NTSC signal reception only

•

Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [ Warm]

Not valid when [Viewing Mode] is set to [True Cinema], [Professional1] or [Professional2].

•

Automatically adjusts colours to vivid ones [Off] / [On]

Not valid on PC signal

•

Not valid when [Viewing Mode] is set to [Professional1] or [Professional2].

•

Provides the picture effect such as the reversal film [Off] / [On]

This function is available when [Viewing Mode] is set to [Photo].

•

Contrast Automatic Tracking System (Automatic Brightness Control function) Adjusts picture settings automatically dependent on ambient lighting conditions [Off] / [On]

Set to [On] to make the suitable contrast setting automatically. The default setting is [On]

•

when [Viewing Mode] is set to [Normal]. Not valid on 3D mode

•

Picture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max]

Not valid on PC signal

•

Makes still or slow moving pictures look more vivid [Off] / [On]

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.

•

Set to [On] to display sharper and more accurate colours. For PAL or NTSC signal reception only

•

Not valid on RGB, Component, HDMI and Media Player

•

Adjusts and sets to view 3D images (p.34)

Turns the screen off when you select [Off] [Off ] / [On]

The sound is active even if the screen turns off.

•

Press any buttons (except Standby) to turn the screen on.

•

This function is effective in reducing power consumption when listening to the sound

•

without watching the TV screen.

Automatically controls dark areas according to the images [Off] / [On]

If the uncomfortable dark images occur, set to [Off].

•

Not valid when [Viewing Mode] is set to [True Cinema], [Game], [Professional1] or

•

[Professional2].

Provides enhanced picture contrast and sharpness when viewing in a bright room.

Page 39

Advanced Settings


Sound

Item Adjustments / Configurations (alternatives)

Automatically compensates the picture frame rate and removes juddering movements

Intelligent Frame Creation

24p Smooth Film

Clear Cinema

3D Refresh Rate

Resolution Enhancer

16:9 Overscan

DVI Input Setting

Reset to Defaults Press the OK button to reset the present Picture Viewing Mode to the default settings

Mode

Bass Increases or decreases level to enhance or minimise lower, deeper sound output

Treble Increases or decreases level to enhance or minimise sharper, higher sound output

Equaliser

to make the images smooth [Off] / [Mid] / [Max]

Depending on the contents, images may be noisy. To prevent the noise, change the

•

setting. This function is not available for selection (default to [Off]) when [ Viewing Mode] is

•

set to [Game] or in the mode of PC input, photo or network service operations.

Automatically compensates the picture frame rate to make the 24p source movie images smooth [Off] / [Mid] / [Max]

This is available only for 24p signal input and displayed instead of [Intelligent Frame

•

Creation]. This function is not available for selection (default to [Off]) when [ Viewing Mode] is

•

set to [Game] or in the mode of PC input, photo or network service operations.

Improves vertical resolution for movie images [Off] / [On]

This function is available for the interlaced signal. (except when [Viewing Mode] is set

•

to [Game])

Reduces juddering and flicker noises of the 3D images [Auto] / [100Hz]

Set to [Auto] for the cinema-like images.

•

Enhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]

This function is available for SD (Standard definition) signal.

•

As for HD (High definition) signal, this function is available when aspect mode is set to

•

[16:9] ([16:9 Overscan] is set to [On]), [4:3 Full] or [Zoom]. Not valid on Media Player and network service operations

•

Selects the screen area displaying the image [Off] / [On]

[On] : Enlarges the image to hide the edge of the image. [Off] : Displays the image in the original size.

Set to [On] if noise is generated on the edge of the screen.

•

This function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].

•

This function can be memorized separately for SD (Standard definition) and HD (High

•

definition) signals. Not valid on PC and VIERA Connect

•

Changes the black level in the image for HDMI input mode with DVI input signal manually

[Normal] / [Full]

When the DVI input signal from the external equipment, especially from PC, is

•

displayed, the black level may not be suitable. In this case, select [Full]. The black level for HDMI input signal will be adjusted automatically.

•

For HDMI input mode with DVI input signal only

•

Selects the basic sound mode [Music] / [Speech] / [User]

The selected mode affects all input signals.

•

[Music] : Improves sound quality for watching music videos, etc. [Speech] : Improves sound quality for watching news, drama, etc.

In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those

•

settings will be stored for each mode.

[User] : Adjusts the sounds manually by using the equaliser to suit your favourite sound quality.

For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and

•

[Treble]. Select the [Equaliser] and adjust the frequency. [Equaliser] (see below)

Adjusts the frequency level to suit your favourite sound quality

This function is available when [Mode] is set to [User].

•

Select the frequency and change the frequency level by using the cursor button.

•

If you want to enhance the bass sound, raise the level of the lower frequency. If you

•

want to enhance the treble sound, raise the level of the higher frequency. To reset the levels of each frequency to the default settings, select the [Reset to

•

Defaults] by using the cursor button, and then press the OK button.

How to Use Menu Functions

Page 40

How to Use Menu Functions

Sound

Item Adjustments / Configurations (alternatives)

Balance Adjusts volume level of right and left speakers

Headphone Volume Adjusts the volume of the headphones

Surround sound settings [Off] / [V-Audio] / [V-Audio Surround] / [V-Audio ProSurround] [V-Audio] : Provides a dynamic enhancer of width to simulate improved spatial effects [V-Audio Surround] :

Surround

Auto Gain Control

Volume Correction Adjusts the volume of individual channel or input mode

Speaker Distance to Wall

Preferred Multi Audio

NICAM

SPDIF Selection

HDMI1 / 2 / 3 / 4 Input

Provides a dynamic enhancer of width and depth to simulate improved spatial effects

[V-Audio ProSurround] :

Provides a more progressive enhancer and reverberation to simulate improved spatial effects

Automatically regulates large sound level differences between channels and inputs

[Off] / [On]

Compensates for the distance between the speakers and the wall

If the distance between the TV and wall is over 30 cm, [Over 30cm] is recommended.

•

If the distance between the TV and wall is within 30 cm, [Up to 30cm] is

•

recommended. [Over 30cm] / [Up to 30cm] If the distance between the TV and wall is over 30 cm, [Over 30cm] is recommended.

•

If the distance between the TV and wall is within 30 cm, [Up to 30cm] is

•

recommended.

Selects the preferred language for digital channel multi audio (depending on the

•

broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]

Near Instantaneous Companded Audio Multiplex Reproduces NICAM stereo sound [Off] / [On]

Off if reception is poor (FM monaural sound)

•

Analogue mode only

•

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream. MPEG is output as PCM.

[PCM] : Digital output signal is fixed to PCM.

For freesat, DVB mode, Other Sat / Satellite, network video contents (p. 93) or Video

•

mode of Media Player (p.79) ARC (Audio Return Channel) : A function of digital audio output using HDMI cable

•

Select to fit the input signal [Digital] / [Analogue] (p.111)

[Digital] : When sound is carried via the HDMI cable connection [Analogue] : When sound is not carried via the HDMI cable connection

HDMI input mode only

•

Audio Description

Audio Description Menu

Volume

Speakers

Headphones

Reset to Defaults

Narration settings for visually impaired users [Off] / [Auto] Set to [Auto] to activate the narration sound track when available on the broadcast

The availability of audio description sound track is indicated by [AD] in the

•

information banner (p. 18). For freesat or DVB mode

•

Adjusts the volume for Audio Description

DVB mode only

•

Set to [On] to activate the description sound track from TV speakers [Off] / [On]

DVB mode only

•

Set to [On] to activate the description sound track from headphones [Off] / [On]

DVB mode only

•

Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings

Page 41

Timer Programming

Off Timer

Timer

Auto Standby

TV Guide Settings

Item Adjustments / Configurations (alternatives)

Sets programme reminders and records forthcoming programmes (p.58)

DVB mode only

•

Sets the time until the TV automatically goes to Standby mode [Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p.19)

Sets the duration of time that the TV will remain On when no operation is received from the user [Off] / [2] / [4] (hours)

Starting Timer Programming automatically does not affect this function.

•

Automatic input switching with the connected equipment affects this function and

•

time-count will be reset. The notification message will appear 3 minutes before going to Standby mode.

•

Changes the layout of TV Guide [Normal] / [Full] / [Info]

TV Guide View

GUIDE Plus+ Postcode

[Normal] : Default TV Guide screen [Full] : Displays channels and programmes full-screen without the operation guide [Info] : Displays details of the selected programme at the bottom without the

operation guide

Sets your postcode to display advertisements in the GUIDE Plus+ system (p.25)

Not valid on freesat mode

•

How to Use Menu Functions

GUIDE Plus+ Information

Eco Navigation

Recording Setup Formats the connected USB HDD and sets the condition (p. 69)

Setup

VIERA Link Settings for VIERA Link functions [Off] / [On] (p.99)

HDMI Content Detection

Link Settings

AV1 out

Standby Power Save

Intelligent Auto Standby

Q-Link Download

Child Lock Applies access control for channels or AV inputs to prevent unwanted access (p.60)

Displays the system information of the GUIDE Plus+ system

Not valid on freesat mode

•

Automatically sets the TV to the most suitable energy-saving mode

If you press the OK button, the following items are set as below :

•

[C.A.T.S.], [VIERA Link], [Standby Power Save], [Power Save] [On] [Intelligent Auto Standby] [On (No reminder)] [Auto Standby] [2 hours]

Automatically adjusts picture according to received HDMI content [Off] / [Auto]

This function is available if the connected equipment supports HDMI Content Type.

•

The content type information will be displayed for several seconds when this function

•

works.

Chooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor] [Monitor] : Image displayed on screen

Component, PC and HDMI signals cannot be output.

•

Controls the connected equipment to reduce power consumption in Standby [Off] / [On] (p.100)

This function is available when [VIERALink] is set to [On].

•

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption [Off] / [On (With reminder)] / [On(Noreminder)] (p.100)

This function is available when [VIERALink] is set to [On].

•

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Page 42

Item Adjustments / Configurations (alternatives)

How to Use Menu Functions

Setup

Favourites Edit

freesat Tuning Menu

Channel List

Regional Channel Edit

Auto Setup

Signal Condition

Favourites Edit Creates a list of favourite DVB channels (p.53)

Channel List Skips the unwanted DVB channels or edits DVB channels (p.54)

DVB Tuning Menu

Auto Setup Automatically searches for the DVB channels received in the area (p.49)

Channel Sorting by Region

Manual Tuning Searches for the DVB channels manually (p.52)

Update Channel List Updates DVB Channel List while keeping your settings (p.54)

New Channel Message

Signal Condition Checks the DVB signal condition (p.53)

Tuning Menu

Analogue

Channel List Skips the unwanted Analogue channels or edits Analogue channels (p.55)

Auto Setup Automatically searches for the Analogue channels received in the area (p.49)

Manual Tuning Searches for the Analogue channels manually (p.55)

Satellite Tuning Menu

Other Sat. Tuning Menu

Favourites Edit Creates a list of favourite Other Satellite channels (p. 57)

Channel List

Auto Setup Automatically searches for the Other Satellite channels received in the area (p. 56)

Manual Tuning

Add New Channels Adds new Other Satellite channels to Channel List (p. 57)

Signal Condition Checks the condition of Other Satellite signals (p. 51)

Creates a list of favourite freesat channels (p. 50)

Skips the unwanted freesat channels (p. 51)

Replace your regional channels with available channels from another region (p. 51)

Automatically searches for the freesat channels received in the area (p. 48)

Checks the freesat signal condition (p. 51)

Automatically sorts tuned channels according to the available region (p. 52)

Searches for whether to give a notification message when a new DVB channel is found [Off] / [On] (p.53)

Skips the unwanted Other Satellite channels or edits Other Satellite channels (p. 57)

Searches for the Other Satellite channels manually (p. 57)

Please consult the received satellite broadcasting companies for the setting.

•

Preferred Teletext

Display Settings

Teletext Analogue teletext display mode [FASTEXT] / [List] (p.26)

Teletext Character Set

Preferred Subtitles

Selects the preferred language for digital channel teletext service (depending on the broadcaster)

[English] / [Welsh] / [Gaelic] / [Irish]

Selects teletext language font [West] / [East1] / [East2] [West] : English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc. [East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. [East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the preferred language for digital channel subtitles (depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish] To display subtitles

provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).

(p. 20)

Page 43

Display Settings

Setup

System Menu

Other Settings

A different menu will be displayed when [Advance(isfccc)] in the Setup Menu is set to [On] or in the mode of PC input, Media

•

Player or network service operations. (p.63, 72 - 83, 91 - 94) Only available items can be selected.

•

Item Adjustments / Configurations (alternatives)

Input Labels Labels or skips each input terminal (p.61)

Banner Display Timeout

VIERA Connect Banner

Playing Time Display

Radio Mode

Network Setup Sets the network setting to use in your network environment (p.87)

DivX® VOD Displays DivX VOD registration code (p.109)

Advance(isfccc)

USB Keyboard Layout

Shipping Condition Resets all settings, for example, when moving house (p.62)

Owner ID Inputs the owner ID (p. 63)

Common Interface Settings for watching encrypted channels (p. 64)

System Update Downloads new software to this TV (p.65)

Software Licence Displays the software licence information

System Information Displays the system information of this TV

Power on Preference

USB Charge in Standby

Power on Channel List

Power Save Reduces brightness of picture to economise on power consumption [Off] / [On]

Sets how long the Information banner (p.18) stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 16, 17)

Set to [On] to display a continuous record of time spent using Game mode every 30 minutes [Off] / [On]

This function is available when [Game] is selected in [Viewing Mode] (p.38)

•

Sets the timer for turning off the screen automatically when a radio channel is selected

[Off] / [5] / [10] / [15] / [20] (seconds)

The sound is active even if the screen turns off.

•

Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to

•

turn the screen on. This function is effective in reducing power consumption when listening to a radio

•

channel.

Enables the advanced picture settings [Off] / [On]

Set to [On] to enable the mode of [Professional1] and [Professional2] in [ Viewing

•

Mode]. Set to [On] to display the advanced items in the Picture Menu - [Advanced Settings],

•

[Lock Settings] and [Copy Adjustment]. [Copy Adjustment] will be displayed when [Viewing Mode] is set to [Professional1] or [Professional2]. [isfccc] is the picture setting for the certified professional dealer. For details, consult

•

your local dealer.

Selects the language that your USB Keyboard supports

For the information of using USB Keyboard (p.112)

•

Automatically selects the input when the TV is turned on [TV] / [AV] Set to [TV ] to view picture from TV tuner. Set to [AV] to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver.

The external equipment must be switched on and sending a control signal for

•

automatic switching at power on to occur.

Enables to supply the power from the USB terminal in Standby mode [Off] / [On]

Available for charging 3D Eyewear (optional)

•

This function is available when in standby mode.

•

Automatically selects All Channels or Favourites list in the Information banner (p.18) when the TV is turned on [All Channel List] / [Last] Set to [All Channel List] to display all the channels. Set to [Last] to display the one you selected last time.

Not available on freesat or analogue mode

•

How to Use Menu Functions

Page 44

Overview (Picture, Sound, Timer, Setup)

How to operate (p. 37)

Main Menu


Sound

Timer

Setup

How to Use Menu Functions

Viewing Mode D ynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour Reversal Film Effect

C.A.T.S. Off P-NR 3D-COMB

Screen Display

Advanced Settings Reset to Defaults

3D Settings

2D 3D Depth 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

Warm Off Off

Off Off Access3D Settings On OnArea Dimmer Control Access Reset

Mid Access Normal Off On On Access

(p. 38, 39)

(p. 38)

1/2

Available in NTSC

Not available when [ViewingMode] is set to [TrueCinema] or [Professional1 / 2]

Not available in PC or when [Viewing Mode] is set to [Professional1 / 2]

Available when [Viewing Mode] is set to

2/2

[Photo]

Not available in PC

Available in NTSC / PAL

Advanced Settings

White Balance Access Colour Management Gamma Intelligent Frame Creation 24p Smooth Film 3D Refresh Rate Film Cadence Detection Resolution Enhancer 16:9 Overscan AV Colour System DVI Input Setting

Access Access Off Off Auto Off Off Off Auto Normal

(p. 39, 67, 68)

Timer Programming

Function No. Date Start EndChannel Name

Ext Rec.

Reminder

Ext Rec.

Change function

EXIT

Store timer

Select RETURN

Mode Music Bass Treble Equaliser Balance Headphone Volume Surround Auto Gain Control Volume Correction Speaker Distance to Wall

Preferred Multi Audio English NICAM SPDIF Selection HDMI1 Input Audio Description Reset to Defaults Reset

Access

Off Off

Over 30cm

Off Auto Digital Access

(p. 39, 40)

Off Timer Auto Standby

AccessTimer Programming Off Off

(p. 41)

Wed 27.10.2010 10:46

72 BBC 2W 20:00 21:30

<TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

------ --:----:-- --:--

Remaining Capacity:

500GB (50%)

Wed 27 Oct

(90 min.)

Wed 27 Oct

21:00 22:00

Wed 27 Oct

Thu 28 Oct

(60 min.)

22:45 23:00

(15 min.)

10:30 11:30

(60 min.)

Guide

S/P

STTL

(p. 58)

1/2

Available when [Mode] is set to [Music] or [Speech]

Equaliser

Reset to Defaults

150 250 500 1k 2k 4k 8k 12k Hz

Available when [Mode] is set to [User]

2/2

Available in DVB

Available in Analogue

Available in DVB, network video contents or Video mode

Available in HDMI input

Available in freesat or DVB freesat :

Audio Description Menu

Audio Description

Off

DVB :

Audio Description Menu

Audio Description Volume Speakers Headphones

Off

Off Off

(p.40)

1/1

Page 45

Main Menu


Sound

Timer

Setup

TV Guide Settings Access Eco Navigation Recording Setup Link Settings Child Lock freesat Tuning Menu DVB Tuning Menu Analogue Tuning Menu Other Sat. Tuning Menu

Child Lock-PIN Entry

Please enter new PIN

Child Lock

Change PIN Child Lock List Parental Rating

* * * *

Access Access No limit

Access Access Access Access Access Access Access Access

(p. 60)

(p. 41 - 43)

(p. 60)

TV Guide Settings Menu

TV Guide View GUIDE Plus+ Postcode GUIDE Plus+ Information

Normal Access Access

(p. 41)

Enter Postcode

Postcode

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9

1/2

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

(p. 41)

Recording Setup

USB HDD Setup One Touch Recording Rewind LIVE TV

Access 180 minutes Off

(p. 69)

How to Use Menu Functions

Link Settings

VIERA Link HDMI Content Detection AV1 out Standby Power Save Intelligent Auto Standby Q-Link Download

On Off TV On On (No reminder) Access

(p. 41)

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

(p. 41)

Child Lock List - TV and AV

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV2

DVB DVB DVB Analogue Analogue Analogue External External

Type

Free TV Free TV Free TV Analogue Analogue Analogue

AV AV

Lock

(p. 60)

Page 46

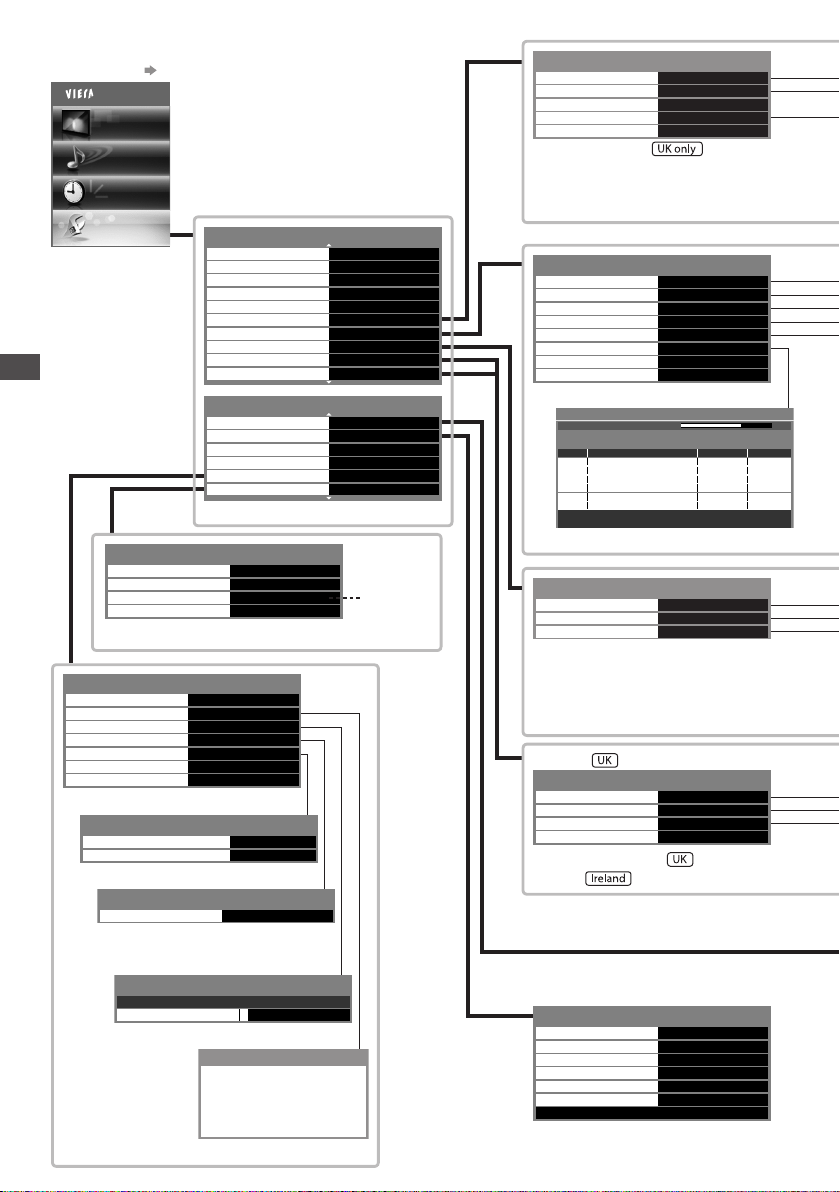

Overview (Setup)

How to operate (p. 37)

Main Menu


Sound

Timer

freesat Tuning Menu

Favourites Edit Channel List Regional Channel Edit Auto Setup

Available in freesat

Access Access Access Access AccessSignal Condition

(p. 48, 50, 51)

How to Use Menu Functions

Setup

TV Guide Settings Access Eco Navigation Recording Setup Link Settings Child Lock freesat Tuning Menu DVB Tuning Menu Analogue Tuning Menu Other Sat. Tuning Menu Satellite Tuning Menu Access

Display Settings Network Setup

DivX® VOD

Advance(isfccc)

Other Settings

Power on Preference USB Charge in Standby Power on Channel List

TV Off Last OffPower Save

System Menu

USB Keyboard Layout Shipping Condition Owner ID Common Interface System Update Software Licence System Information

English(UK) Access Access Access Access Access Access

System Update

Auto Update Search in Standby System Update Search Now

Off Access

Common Interface

Slot 1:

Module inserted

Available in DVB or Other Sat. (p. 64)

(p. 43)

(p. 65)

(p. 43)

Access Access Access Access Access Access Access Access

Access Access Access Off AccessSystem Menu AccessOther Settings

(p. 41 - 43)

Available in DVB or Other Sat.

1/2

DVB Tuning Menu

Favourites Edit Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

2/2

Available in DVB (p. 49, 52 - 54)

DVB Update Channel List

Progress

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Data: 0Radio: 0

Access Access Access Access Access Access On Access

CH 21 68

Searching

(p. 54)

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

Access Access Access

Available in Analogue (p. 49, 54, 55)

Example :

Other Satellite Tuning Menu

Manual Tuning Add New Channels Signal Condition

Available in Other Sat. Satellite

AccessAuto Setup Access Access Access

(p. 56, 57)

Owner ID

Please enter new PIN

* * * *

Shipping Condition

All tuning data will be erased

Are you sure ?

(p. 63)

(p. 62)

Network Setup

Connection Test Network Type Wired Access Point Settings IP/DNS Settings Network Link Settings Software Update

MAC Address

Access

Connected Access Access Access ab-cd-ef-gh-ij-kl

(p. 87)

Page 47

freesat Auto Setup

Searching

Signal Quality Signal Strength TV Channels Found Radio Channels Found Data Channels Found

DVB Manual Tuning

Frequency

Signal Quality Signal Strength

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Data: 0Radio: 0

0 0

8 2

Stopped

[CH21]

474,00 MHz 0 0

Channels found, creating channel list.

10 10

(p. 52)

freesat Channel List

101 BBC 1 Scotland 102 BBC 2 Scotland 103 stv

104 stv

108 BBC THREE

109 BBC FOUR 110 BBC HD

(p. 48)

All DVB Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

(p. 51)

(p. 54)

(p. 52)

freesat Favourites Editor

All freesat Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

DVB Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

Free TV: 4 Pay TV: 0 Data: 0Radio: 0

CH 21 68

Free TV Free TV Free TV Free TV

Searching

(p. 50)

(p. 53)

Quality

10 10 10

(p. 49)

How to Use Menu Functions

Analogue Manual Tuning

Manual Tuning

Other Satellite Add New Channels - Satellite Selection

Satellite Selection

freesat and other channels Signal Quality Signal Strength Signal Lock Locked

21 68

Store

Astra2/Eurobird

Continue

0 0

Display Settings

Preferred Teletext Teletext Teletext Character Set Preferred Subtitles Input Labels Banner Display Timeout

Playing Time Display Radio Mode

Irish FASTEXT West English Access 3 seconds OnVIERA Connect Banner On Off

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

CH331 BBC1

29 30

(p. 55)

Analogue: 2

Other Satellite Manual Tuning

Transponder Frequency

Polarisation Horizontal Symbol Rate (Ksym/s) Auto

10 10

(p. 57)

(p. 42, 43)

CH 21 68

Searching

10773

Start Scan

Available in DVB Available in Analogue

Available in freesat, DVB or Other Sat. / Satellite

Analogue Channel List

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

(p. 49)

Other Satellite Auto Setup

Satellite Progress This may take up to 20 minutes.

No. Channel Name Type

BBC 1 East (W)

BBC 1 Cl

BBC HD

(p. 57)

4106945

Free TV: 4 Pay TV: 0 Radio: 0

Input Labels

AV1 AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 freesat

Input Labels

DVB Analogue Other Sat.

Astra 2/Eurobird

0% 100%

Free TV

Free TV Free TV

Searching

DVD AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 freesat

SatelliteSatellite DVB Analogue Other Sat.

(p. 55)

Quality

(p. 56)

(p. 61)

1/2

2/2

Page 48

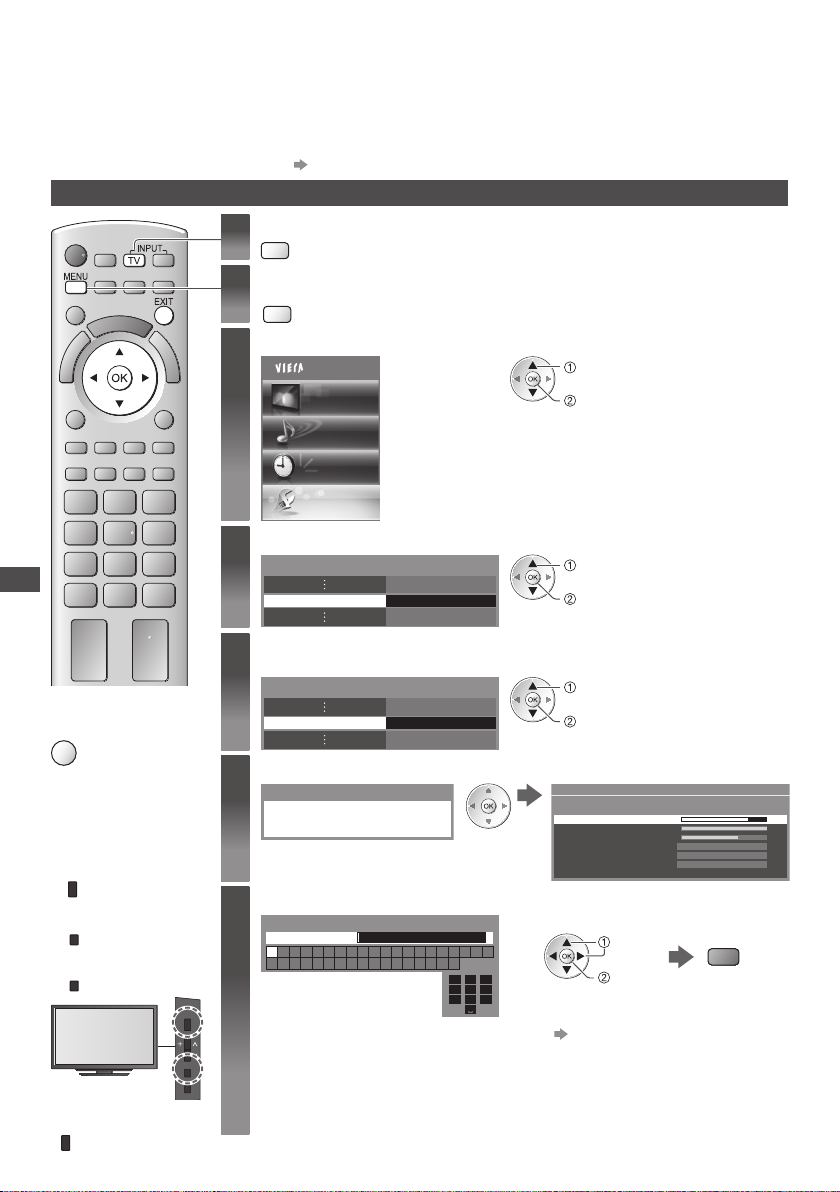

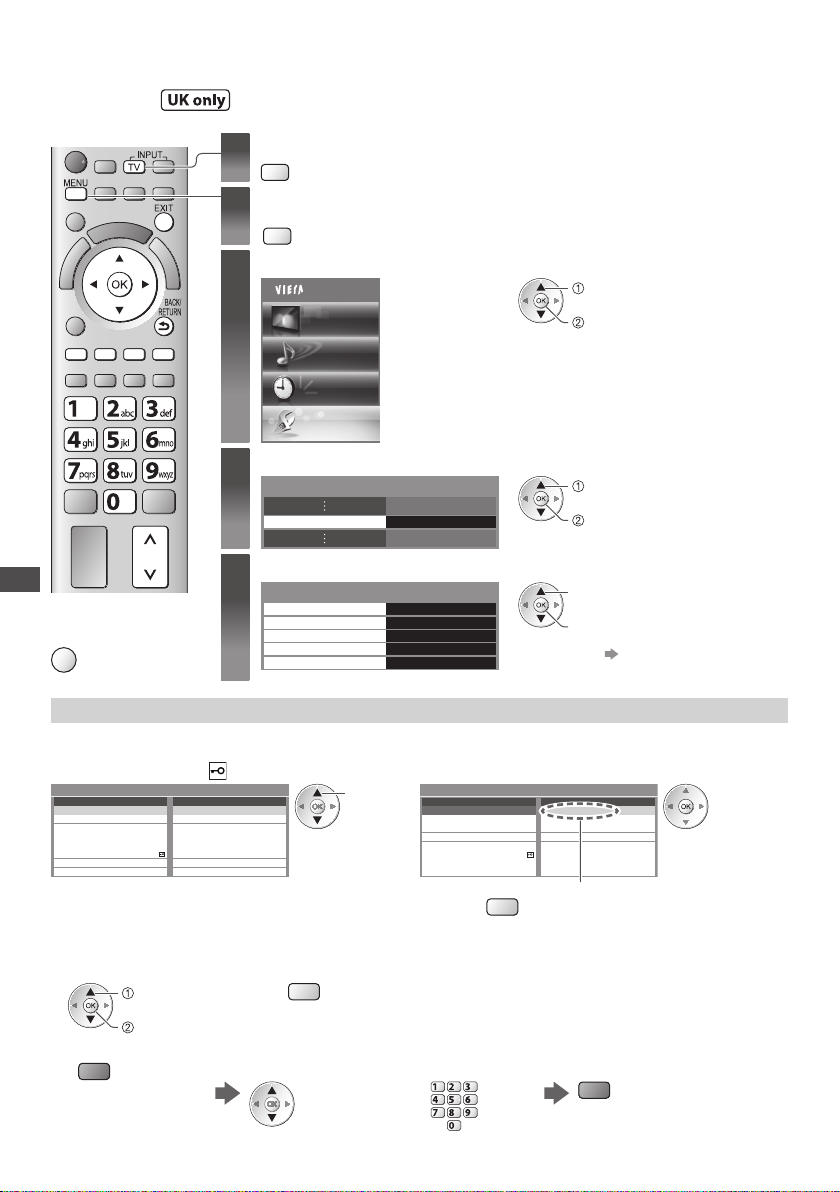

Retuning from Setup Menu

Automatically retune the channels received in the area.

This function is available if channel tuning is already performed.

•

Only the selected mode is retuned. All the previous tuning settings are erased.

•

If Child Lock PIN number (p. 60) has been set, the PIN number is required.

•

If tuning has not been done completely [Manual Tuning] (p. 52, 55)

•

freesat channels

Select freesat

Display the menu

Select [Setup]

Retuning from Setup Menu

■

To return to TV

EXIT

Main Menu


Sound

Timer

Setup

Select [freesat Tuning Menu]

freesat Tuning Menu Access

Select [Auto Setup]

Example :

freesat Tuning Menu

Auto Setup Access

select

access

select

access

The displayed item depends on the selected mode.

•

select

access

For Auto Setup, using the buttons on the side panel of the TV (p.9)

1 Press repeatedly until

[Auto Setup] appears

2 Access [Auto Setup]

3 Start [Auto Setup]

To return to TV

•

Start Auto Setup (Settings are made automatically)

freesat Auto Setup

All freesat tuning data will be erased

Enter your postcode

Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9

Your postcode is required to receive local services and sort the channel order. Please ensure to include a space when entering your postcode.

When the operation is completed, the channel at the lowest position will be displayed.

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

freesat Auto Setup

Searching

Signal Quality Signal Strength TV Channels Found Radio Channels Found Data Channels Found

Set characters

select

set

You can set characters by using numeric

•

buttons.

 “Characters table for numeric

buttons” (p. 111)

0 0

8 2

Channels found, creating channel list

(green)

10 10

Page 49

DVB or Analogue channels

Select DVB or Analogue

Display the menu

Select [Setup]

Select [DVBTuningMenu] or [AnalogueTuningMenu]

Select [Auto Setup]

Example :

Main Menu


Sound

Timer

Setup

DVB Tuning Menu Analogue Tuning Menu

DVB Tuning Menu

Auto Setup Access

Access Access

select

access

select

access

The displayed item depends on the selected

•

mode.

select

access

Retuning from Setup Menu

■

To return to TV

EXIT

For Auto Setup, using the buttons on the side panel of the TV (p.9)

1 Press repeatedly until

[Auto Setup] appears

2 Access [Auto Setup]

3 Start [Auto Setup]

To return to TV

•

Start Auto Setup (Settings are made automatically)

Example : DVB

DVB Auto Setup

All DVB tuning data will be erased

Example : Analogue

Analogue Auto Setup

All analogue tuning data will be erased

The analogue settings are downloaded to a Q-Link compatible equipment connected

•

to the TV in Analogue mode.

When the operation is completed, the channel at the lowest position will be

displayed.

DVB Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

Free TV: 4 Pay TV: 0 Data: 0Radio: 0

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

29 30

Analogue: 2

CH 21 68

Free TV Free TV Free TV Free TV

Searching

CH 21 68

Searching

Quality

10 10 10

Page 50

Tuning and Editing Channels

(freesat)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select freesat

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [freesat Tuning Menu]

select

access

select

freesat Tuning Menu Access

Select one of the following functions

Tuning and Editing Channels

■

To return to TV

EXIT

freesat Tuning Menu

Favourites Edit Channel List Regional Channel Edit Auto Setup

Access Access Access Access AccessSignal Condition

[Auto Setup]  “Retuning from Setup

•

List favourite freesat channels [Favourites Edit]

Create your favourite channel list from various broadcasters. The freesat Favourites list is available for switching from [Channel Genre] in the TV Guide screen (p. 21).

1 Select a channel to list ( : Encrypted channel) 2 Add it to the Favourites list

freesat Favourites Editor

freesat Channels Favourites

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

select

freesat Favourites Editor

freesat Channels Favourites

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

To add all channels to the list

•

(yellow)

1 BBC One Wales

■ To edit Favourites list

While the cursor is in the Favourites field to edit

To delete a channel

•

select

delete

To move the channel

•

(green)

To delete all channels

•

(yellow)

Select the new position Select the turn Store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

access

select

access / store

Menu” (p. 48)

(green)

Page 51

To name the Favourites

•

(red)

Set characters (maximum: ten characters) Store

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

•

select

set

To use numeric buttons

 “Characters table for

numeric buttons” (p. 111)

3 Store

BACK/

RETURN

Skip unwanted freesat channels [Channel List]

You can hide unwanted freesat channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and [reveal] / [hide]

freesat Channel List

101 BBC 1 Scotland 102 BBC 2 Scotland 103 stv 104 stv

108 BBC THREE

109 BBC FOUR 110 BBC HD

select

[reveal] / [hide]

: [reveal] : [hide] (skip)

To reveal all channels

•

(yellow)

Replace the regional channels [Regional Channel Edit]

You can replace some regional channels with the available channels from another region channel. (if available)

1 Select the channel you want to replace

freesat Regional Channels Editor

freesat Regional Channels Alternative Regional Channels

101 BBC 1 London 102 BBC 2 England

101 BBC 1 Scotland 101 BBC 1 Wales 101 BBC 1 East

select

set

BACK/

RETURN

Tuning and Editing Channels

2 Select the channel to be replaced

freesat Regional Channels Editor

freesat Regional Channels Alternative Regional Channels

101 BBC 1 London

102 BBC 2 England

101 BBC 1 Scotland 101 BBC 1 Wales 101 BBC 1 East

select

replace

Check freesat signal [Signal Condition]

Selects a channel and checks the freesat signal condition.

A good Signal Strength is not an indication of best signal for freesat reception. Please use the Signal Quality indicator as follows :

[Signal Quality] :

Green bar Good

•

Yellow bar Poor

•

Red bar Bad (Check the Satellite dish)

•

Example :

freesat Signal Condition

Channel Name Signal Quality Signal Strength Bit Error Rate Network Name Frequency

70 CBBC Channel 0 0

0.00E+00

Wenvoe

802,00 MHz, 64 QAM, 6940 kS/s

9 8

These bars show the maximum signal value of the selected channel.

To change the channel

•

Page 52

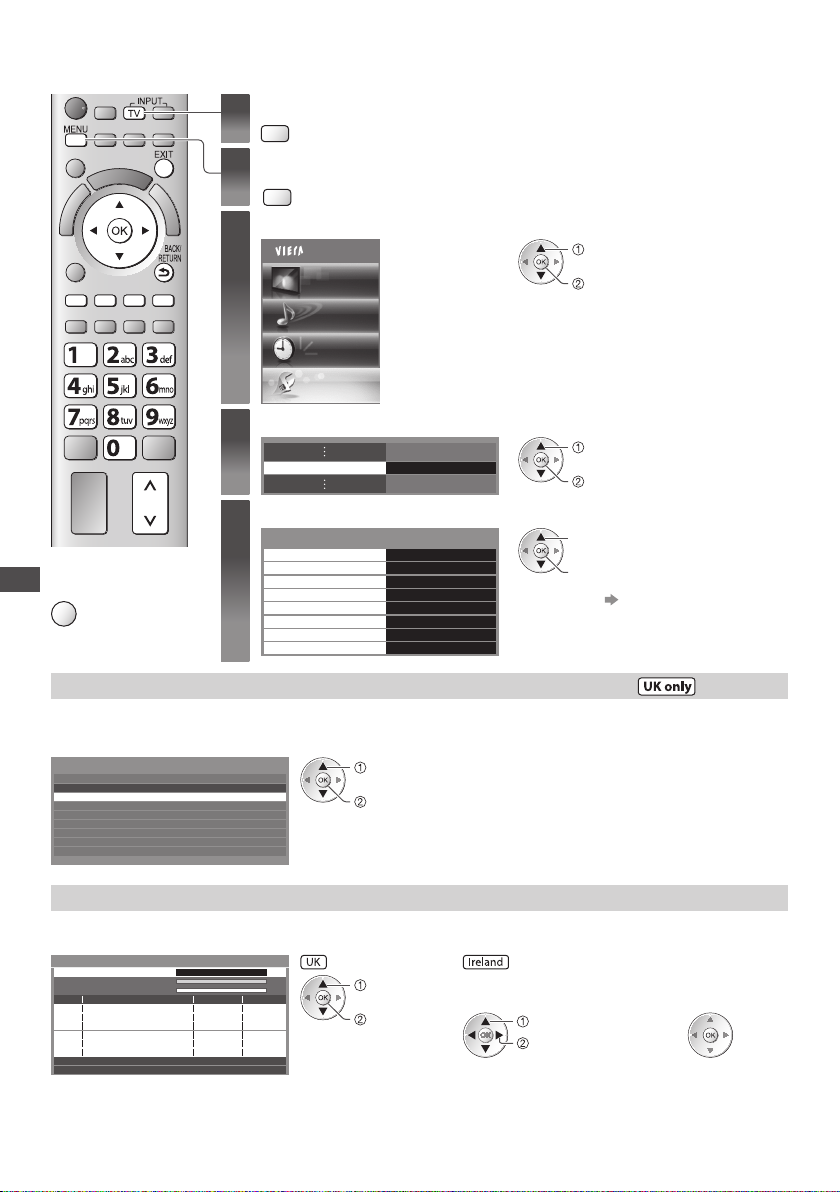

(DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB

Display the menu

Select [Setup]

■

To return to TV

EXIT

Tuning and Editing Channels

Main Menu


Sound

Timer

Setup

Select [DVB Tuning Menu]

DVB Tuning Menu Access

Select one of the following functions

DVB Tuning Menu

Favourites Edit Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access Access Access Access Access Access On Access

select

access

select

access

select

access / store

[Auto Setup]  “Retuning from Setup

•

Menu” (p. 49)

Sort DVB channels according to the region [Channel Sorting by Region]

You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear nearer the top of your Channel List. Normally, you should select [Best signal quality (All Regions)].

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

(select repeatedly until you reach the available region)

•

select region

access

If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the top of your Channel List. If you have any image or sound problems, select [Best signal quality (All Regions)] instead.

Set DVB channel manually [Manual Tuning]

Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

DVB Manual Tuning

Frequency

Signal Quality Signal Strength

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

All channels found will be added to the Channel List.

•

Stopped

[CH21]

474,00 MHz 0 0

10 10

select

frequency

1 Adjust frequency for each

channel

select channel

adjust frequency

Set where the level of [Signal

•

Quality] becomes the maximum.

2 Search

Page 53

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4). The DVB Favourites lists are available for switching in the Information banner (p. 18) and from [Category] in the TV Guide screen (p. 21).

1 Select a channel to list ( : Encrypted channel)

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

select

To display other Favourites

•

(green)

2 Add it to the Favourites list

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

1 BBC One Wales

To add all channels to the list

•

(yellow)

■ To edit Favourites list

While the cursor is in the Favourites field to edit

To delete a channel

•

select

delete

To move the channel

•

(green)

To name the Favourites

•

(red)

3 Store

BACK/

RETURN

To delete all channels

•

(yellow)

Select the new position Select the turn Store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(green)

Set characters (maximum: ten characters) Store

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

•

select

set

To use numeric buttons

 “Characters table for

numeric buttons” (p. 111)

RETURN

BACK/

Tuning and Editing Channels

Note

Channel position numbers (known as logical channel numbers) can be swapped in Channel List.

•

To swap the channel position number [Channel List] (see below)

Check DVB signal [Signal Condition] Display a notification message

Selects a channel and checks the DVB signal condition.

A good Signal Strength is not an indication of best signal for DVB reception. Please use the Signal Quality indicator as follows :

[Signal Quality] :

Green bar Good

•

Yellow bar Poor

•

Red bar Bad (Check the Terrestrial aerial)

•

Example :

DVB Signal Condition

Channel Name Signal Quality Signal Strength Bit Error Rate Network Name Frequency

70 CBBC Channel 0 0

0.00E+00

Wenvoe

802,00 MHz, 64 QAM, 6940 kS/s

To change the channel

•

9 8

These bars show the maximum signal value of the selected channel.

[New Channel Message]

Selects whether to give a notification message when a new DVB channel is found. [Off] / [On]

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Selecting OK will perform [Update Channel List].

•

Page 54

Skip unwanted DVB channels, Edit DVB Channels [Channel List]

You can hide unwanted DVB channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and [reveal] / [hide]

All DVB Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

select

[reveal] / [hide]

: [reveal] : [hide] (skip)

To reveal all channels

•

(yellow)

■ To edit channels

You can also edit each channel in Channel List.

To retune each channel

•

(red)

To swap the channel position number (logical channel number)

•

(green)

[Manual Tuning] (p. 52)

(only for the revealed channels)

Enter the new position number

ghi

abc def

jkl

tuvpqrs

mno

wxyz

Update DVB channel automatically [Update Channel List]

You can add new channels, delete removed channels, update channel name and position automatically to Channel List. Example :

DVB Update Channel List

Progress

This will take about 3 minutes.

CH Channel Name Type Quality

CH 21 68

Channel List is updated while keeping your settings in [Favourites Edit], [Channel

•

List], [Child Lock], [Timer Programming], etc. Depending on the signal condition, the update may not work properly.

•

Channel position number

1 BBC ONE WALES

Store

(green)

Coronation Street 20:00 - 20:55

Now Info

All DVB Channels

Select favourites

20:35

Free TV: 0 Pay TV: 0 Data: 0Radio: 0

Tuning and Editing Channels

(Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

■

To return to TV

EXIT

Searching

Select Analogue

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [Analogue Tuning Menu]

Analogue Tuning Menu Access

Select one of the following functions

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

Access Access Access

select

access

select

access

select

access

[Auto Setup]

•

 “Retuning from

Setup Menu” (p.49)

Page 55

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]

You can hide unwanted Analogue channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and [reveal] / [hide]

Analogue Channel List

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

select

[reveal] / [hide]

: [reveal] : [hide] (skip)

To reveal all channels

•

(yellow)

■ To edit channels

You can also edit each channel in Channel List.

To retune each channel

•

([Manual Tuning]) (see below) Select the new position Store

To rename the channel name

•

(blue)

Set characters (maximum: five characters) Store

Edit channel name

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

Channel position

Channel name

ITV

CH23

To move the channel position

•

(green) (green) (red)

23:35

All Analogue Channels

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

To use numeric buttons

•

 “Characters table for

numeric buttons” (p.111)

BACK/

RETURN

Tuning and Editing Channels

Note

If a VCR is connected only with the RF cable, edit [VCR].

•

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]

Use to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)

[Manual Tuning]

Set Analogue channel manually after Auto Setup.

If a VCR is connected only with the RF cable, it is recommended to select channel position [0].

•

Example :

Analogue Manual Tuning

Fine Tuning Manual Tuning

1 Select the channel position 2 Select the channel 3 Search 4 Select [Store]

abc def

jkl

ghi

mno

tuvpqrs

wxyz

CH 1 99 41H: 21

Store

CH331 BBC1

select

store

Page 56

(Other Sat.) / (Satellite)

You can tune all receivable digital satellite channels and create your channel list, etc.

Some of Other Sat. / Satellite functions may work to differing specifications (depending on the broadcasters).

•

Select freesat or Other Sat.

Select Satellite

Display the menu

Select [Setup]

■

To return to TV

EXIT

Tuning and Editing Channels

Main Menu


Sound

Timer

Setup

Select [Other Sat. Tuning Menu] Select [Satellite Tuning Menu]

Other Sat. Tuning Menu Access

Select one of the following functions

Other Satellite Tuning Menu

Channel List Auto Setup Manual Tuning Add New Channels Signal Condition

AccessFavourites Edit Access Access Access Access Access

select

access

select

access

select

access

Set all receivable digital satellite channels [Auto Setup]

Any receivable digital compliant satellite channels can be tuned.

Only Other Sat. / Satellite channels are tuned or retuned.

•

All the previous tuning settings are erased.

•

If a Child Lock PIN number (p. 60) has been set, it must be entered.

•

1 Select the satellite and then select [Start]

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels

Selectable satellites are Astra2/Eurobird, Astra1 and Hotbird.

•

If you want to tune from all available satellites, select [Any Satellite].

•

Start

Check the dish alignment for the satellite

•

select

you want to select

• Astra2/Eurobird

Start

p. 10

• Astra1, Hotbird Please consult the received satellite

broadcasting companies.

2 Check the signal condition and the message

Other Satellite Add New Channels - Satellite Selection

Satellite Selection

freesat and other channels Signal Quality Signal Strength Signal Lock Locked

If you select [Any Satellite], this step is skipped.

It takes a while to check the connection for your selected satellite.

•

Ensure that the Signal Lock status is shown as “Locked”.

•

If it is not locked, the search cannot be executed. If the status is shown as “Not locked” and Signal Quality / Signal Strength have no indications, please check the dish alignment.

•

If the status is shown as “Not locked” but there are some levels of Signal Quality / Signal Strength indicated, select [Any Satellite] in Satellite Selection and try again.

Continue

Astra2/Eurobird

0 0

10 10

Other Satellite Auto Setup

All Other Satellite tuning data will be erased

Page 57

3 Select the search mode and start Auto Setup

Search Mode

Free Channels All Channels

select start

Other Satellite Auto Setup

Satellite Progress This may take up to 20 minutes.

No. Channel Name Type

BBC 1 East (W)

BBC 1 Cl

BBC HD

3 4106945

Free TV: 4 Pay TV: 0 Radio: 0

Astra 2/Eurobird

0% 100%

Free TV Free TV Free TV Free TV

Searching

Settings are made automatically

When the operation is completed, the channel at the lowest position will be displayed.

If you select [Astra2/Eurobird] or

•

[Any Satellite], freesat channels will also be searched.

Quality

10 10 10

Add Other Sat. / Satellite channels automatically [Add New Channels]

You can add any new channels found automatically to Channel List.

1 Check the signal condition

Other Satellite Add New Channels - Satellite Selection

Satellite Selection

freesat and other channels Signal Quality Signal Strength Signal Lock Locked

Start

Astra2/Eurobird

0 0

10 10

It takes a while to check the connection for your selected satellite.

•

Ensure that the Signal Lock status is shown as “Locked”. If it is not

•

locked, the search cannot be executed. If the status is shown as “Not locked” and Signal Quality / Signal

•

Strength have no indications, please check the dish alignment.

2 Select the search mode and start Add New Channels

Search Mode

Free Channels All Channels

select start

Other Satellite Add New Channels

Satellite

Progress

This may take up to 20 minutes.

No. Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0

Astra2/Eurobird

0% 100%

Searching

New channels can only be

•

added to the existing Channel List from the same satellite.

List favourite Other Sat. / Satellite channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4). The Other Sat. / Satellite Favourites lists are available for switching in the Information banner (p. 18)

To create the Other Sat. / Satellite Favourites list, refer to “List favourite DVB channels” (p. 53)

•

Create the channel list of Other Sat. / Satellite [Channel List]

Create your channel list of Other Sat. / Satellite for viewing from all the found channels to exclude the duplicated channels or to reduce the number of channels. And then you can select your desired channels easily.

1 Select a channel to list in [Channels for Viewing] 2 Add it to the Favourites list

Other Satellite Channel List Editor

Channels Found - All Channels for Viewing

BBC One Wales BBC THREE E4 CBBC Channel Cartoon Nwk BBCi BBC Radio Wales BBC Radio Cymru

To delete the selected

•

channel from the list of [Channels found]

(green)

To change the

•

category

To exclude the selected

•

channel from the list of [Channels for Viewing]

select

(red)

Other Satellite Channel List Editor

Channels Found - All Channels for Viewing

BBC THREE E4 CBBC Channel Cartoon Nwk BBCi BBC Radio Wales BBC Radio Cymru

To add continuous block of channels to the list at once

•

(yellow)

1 BBC One WalesBBC One Wales

A channel is added

make the block

add

To move the selected channel in the list of [Channels for Viewing]

•

Select the new position

(green)

Select the turn

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Store

(green)

Tuning and Editing Channels

Set Other Sat. / Satellite channel manually [Manual Tuning]

Normally use [Auto Setup] or [Add New Channels] to tune Other Sat. /Satellite channels.

Other Satellite Manual Tuning

Transponder Frequency

Polarisation Horizontal Symbol Rate (Ksym/s) Auto

10773

Start Scan

Set tuning parameters for the required satellite, details can usually be found in a

•

satellite TV magazine.

Page 58

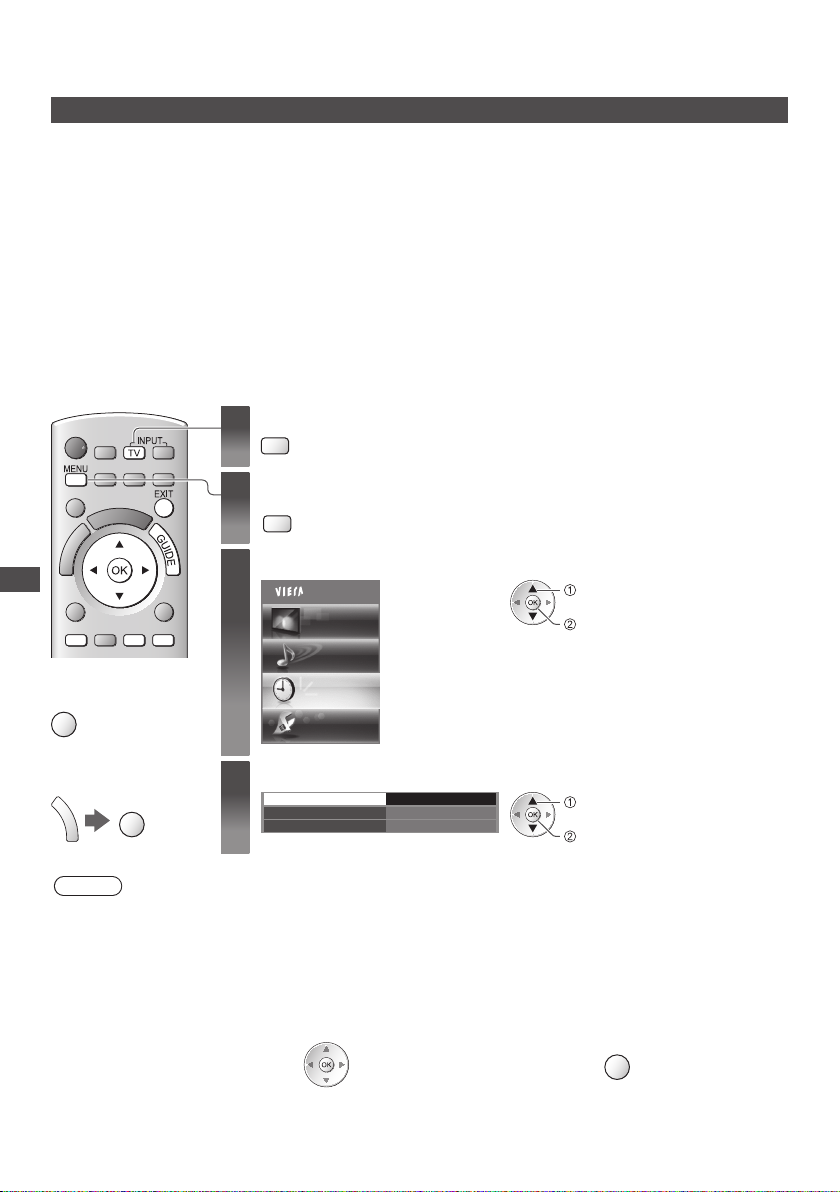

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder or the USB HDD. At the correct time, the T V will tune to the correct channel automatically to record even if the TV is in Standby mode. TV Guide may also be used to set timer programming event (p. 23).

Timer Programming can store up to 15 events.

•

For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, the TV must be On.

•

No other channel can be selected while the recording of Timer Programming is in progress.

•

It may not be possible to record an encrypted programme (which is copy-protected).

•

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV.

•

If a compatible recorder with Q-Link or similar technologies is connected to the TV (p.98) and the [Link Settings] (p.41) are correct, no setting of the recorder is required. Also read the manual of the recorder. If the recorder is not compatible with Q-Link or similar technologies, set the timer of the recorder in addition to the Timer

•

Programming on the TV. For preparations of a recorder, read the manual of the recorder. When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording

•

Setup] (p.69). Recordings to the external recorders are always in standard definition composite video via SCART, even if the original

•

programme is in high definition.

Select the tuner you want to use

Display the menu

Select [Timer]

Timer Programming

Main Menu


select

access

Sound

■

To return to TV

EXIT

■

To unlock the tuner and stop recording

•

EXIT

Note

Check that the LED is orange. If not, timer programmes are not active or not stored. Timer Programming reminder messages will remain displayed until one of the following occurs:

• You press the OK button to view the programme or the EXIT button to cancel the reminder.

• The timer programming event that the reminder is set for ends. “!” identifies that any timer programming events have overlapped. [Ext Rec.] and [USB HDD Rec.] are given priority over [Reminder]. As for the overlapped two or more [Ext Rec.] / [USB HDD Rec.], the first timer programming event starts and finishes as programmed. The next timer programming event can then start. 2 minutes before the starting time, a reminder message appears if you are watching TV.

• To remove the message and start the programme

The recording of Timer Programming will automatically change to the programmed channel 10 seconds before the starttime. To stop recording of the timer programming event, it may be necessary to stop the recorder manually. The recording of Timer Programming will be performed even if the TV is in Rewind LIVE TV recording (p.72) or Pause Live TV recording (p.101). In this case, these recordings will be cancelled.

Select [Timer Programming]

Off Timer Auto Standby

Timer

Setup

AccessTimer Programming Off Off

• To cancel the Timer Programming

select

access

EXIT

Page 59

Set timer programming event details [Timer Programming]

1 Start making the settings

2 Select the function ([Ext Rec.], [USB HDD Rec.] or

select

[Reminder])

[Ext Rec.] / [USB HDD Rec.] :

to record the programme to the external recorder or the USB HDD When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2minutes before the starting time, a reminder message appears if you are watching TV.

[Reminder] : to remind you to watch the programme When you are watching TV, a reminder message appears 2minutes before the start time. Press the OK button to switch to the programmed channel.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.Store

1, 3 and 4 can also be

select the item

•

entered with numeric buttons.

set

: Displayed if the timer programming events are overlapped

Timer programming - Programmes according to the time setting

Timer Programming

Function No. Date Start EndChannel Name

Ext Rec.

Reminder

Ext Rec.

Change function

EXIT

Store timer

Select RETURN

72 BBC 2W 20:00 21:30

<TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

------ --:----:-- --:--

Remaining Capacity:

500GB (50%)

Information of the USB HDD (if available)

1 Channel number

Guide

S/P

STTL

Wed 27 Oct

Wed 27.10.2010 10:46

Thu 28 Oct

(90 min.)

21:00 22:00

(60 min.)

22:45 23:00

(15 min.)

10:30 11:30

(60 min.)

1/1

4 Ending time

3 Starting time

Duration (automatic display) Records with subtitles (if available)

To indicate this

•

2 Date

[Daily Sun-Sat] : Sunday to Saturday

•

[Daily Mon-Sat] : Monday to Saturday

•

[Daily Mon-Fri] : Monday to Friday

•

[Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun] :

•

Sametime on the same day every week

: freesat / D : DVB / A : Analogue / S : Other Sat.

D : DVB / A : Analogue / S : Satellite

You cannot change the mode within the menu.

•

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(yellow)

( Press again to remove subtitles)

one day ahead

daily or weekly (press repeatedly)

Timer Programming

Guide

Guide link programming - Programmes according to the TV Guide signal (p. 24)

S/P

Split Programme programming (p. 24)

These functions are not available in Analogue mode or Other Sat. mode.

•

■ To change a timer programming event ■ To cancel a timer programming event

Select the programme to be changed Select the programme to be deleted

select

access

Correct as necessary (as above)

(red)

■ To record with subtitles (if available) ■ To cancel a timer programming event temporarily

Select the programme to record with subtitles Select the programme to be cancelled

(yellow)

Each time pressed:

•

auto

off cancel stop cancelling

(blue)

Each time pressed:

•

■ To view details of the programming (only for Guide link programming)

Select the programme to be viewed

Press again to return to TimerProgramming menu.

•

Page 60

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.

Display the menu

Select [Setup]

■

To return to TV

EXIT

Main Menu


Sound

Timer

Setup

Select [Child Lock]

AccessChild Lock

Control channel audience [Child Lock]

1 Enter the PIN number (4 digits) 2 Select [Child Lock List]

Child Lock-PIN Entry

Please enter new PIN

Enter the PIN number twice at first setting.

•

Child Lock

Make a note of the PIN number in case you forget it.

•

3 Select the channel / input to be locked

Child Lock List - TV and AV

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV2

: Appears when the channel / input is locked

In freesat mode, additional lock items will appear.

•

[freesat Adult Channels] :

Select “Hide” to hide channels of the adult genre in TV Guide and Channel List. All the Timer Programming events of the adult genre will be cancelled. [freesat Players] : Locks freesat content supplied through the internet.

Unlock : With this setting selected, you will not be required to enter your 4 digit child lock PIN when viewing freesat Player

content. This is the default setting.

Lock Guidance Content :

Lock All Content : With this setting selected, you will be required to enter your 4 digit child lock PIN every time you wish to watch freesat Player content.

* * * *

Type

Free TV Free TV Free TV Analogue Analogue Analogue AV AV

Lock

DVB DVB DVB Analogue Analogue Analogue External External

With this setting selected, you will be asked to enter your 4 digit child lock PIN whenever you wish to

watch freesat Player content which is signalled as “Guidance” (i.e. originally broadcast post watershed).

abc def

jkl

ghi

mno

tuvpqrs

wxyz

select

Child Lock

Change PIN

Child Lock List

To lock all

•

(green)

lock

To cancel

•

Select the locked channel / input

select

access

select

access

Access

To cancel all locks

•

(yellow)

To jump to the top

•

of the next input

select

access

(blue)

■ To change the PIN number

■ To set Parental Rating

1. Select [Change PIN] If the DVB programme has the rated information for over the

Child Lock

Change PIN

Child Lock List

2. Enter a new PIN number twice

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Access

select

access

selected age, you have to enter the PIN number to watch (depending on the broadcaster). Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock

Change PIN Child Lock List

Parental Rating

No limit

Note

Setting [Shipping Condition] (p.62) erases the PIN number and all settings.

•

select

access / store

Page 61

Input Labels

For easier identification and selection of the input mode, you can label each input mode or skip terminals that are not connected to any equipment.

To select the input mode (p.29)

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [Display Settings]

AccessDisplay Settings

Select [Input Labels]

Display Settings

select

access

select

access

select

access

select

access / store

The labels you set will be displayed in the [InputSelection] menu (p.29), [TVSelection] menu (p.17) or banner.

If [Skip] is selected, the input will not

•

be displayed in the [InputSelection] menu and you cannot select the

■

To return to TV

EXIT

Input Labels Access

Select an input terminal

Input Labels

AV1 AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 freesat

DVD AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 freesat

1/2

mode.

Input Labels

DVB Analogue Other Sat.

SatelliteSatellite DVB Analogue Other Sat.

2/2

■ User input

You can name each input mode yourself.

1 Select [User input] 2 Set characters (maximum: ten characters) 3 Store

select

access

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

•

select

set

To use numeric buttons

 “Characters table for numeric

buttons” (p.111)

BACK/

RETURN

Input Labels

Page 62

Shipping Condition

Resets the TV to its original condition with no channels tuned in. All settings other than [Owner ID] and [USB HDD Setup] are reset (channels, picture, sound settings, etc.).

To retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p.48, 49)

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [System Menu]

Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

Off Access

2/2

select

access

select

access

Shipping Condition

■

EXIT

To return to TV

Select [Shipping Condition]

System Menu

USB Keyboard Layout

Shipping Condition

Owner ID Common Interface System Update Software Licence System Information

English(UK) Access

select

access

Restore Settings [Shipping Condition]

1 Check the message and initialise 2 Follow the on screen instructions

Shipping Condition

All tuning data will be erased

Are you sure ?

(Confirm)

(Start [Shipping Condition])

Reset to Factory Shipping Condition

[Auto Setup] will automatically start

•

when Mains power On / Off switch is next turned On. (p.12)

Completed.

Please switch o TV.

Page 63

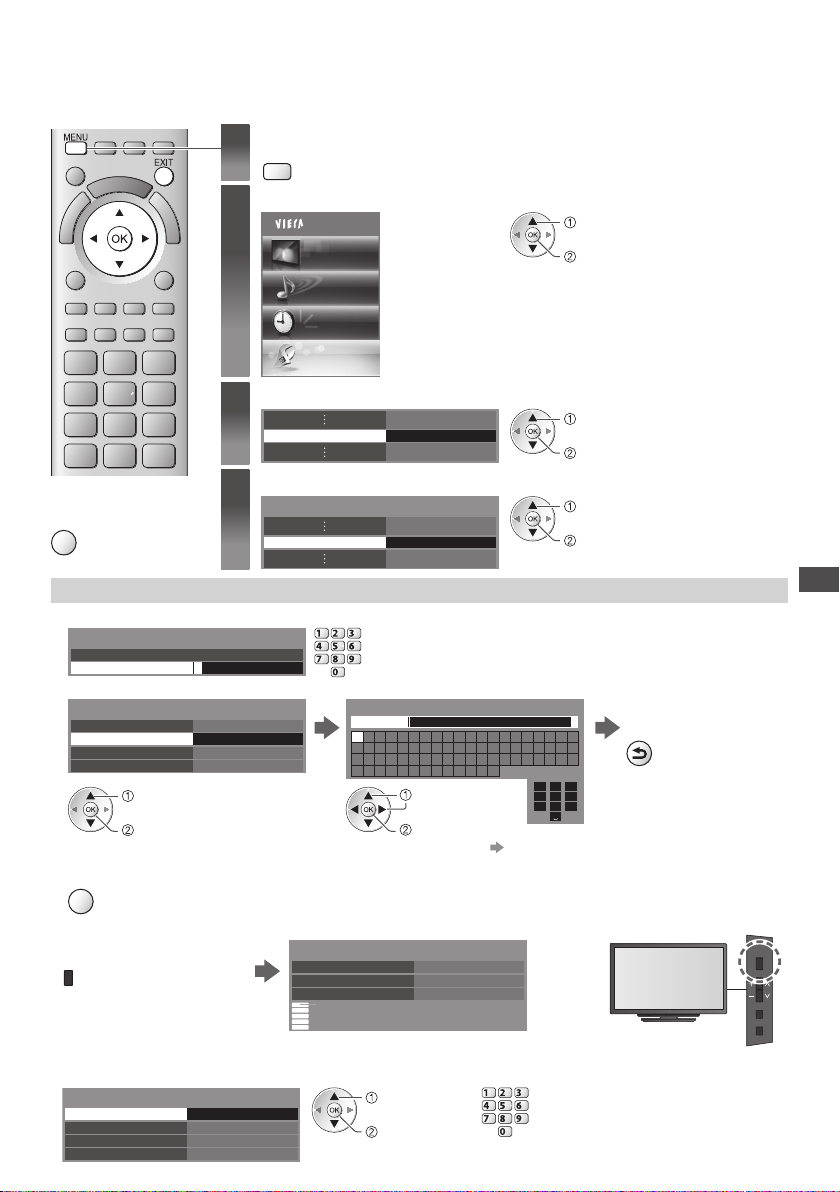

Owner ID

Entry of the PIN number and personal information (your name, address and postcode). In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.

Display the menu

Select [Setup]

■

To return to TV

EXIT

Main Menu


Sound

Timer

Setup

Select [System Menu]

AccessSystem Menu

Select [Owner ID]

System Menu

AccessOwner ID

select

access

select

access

select

access

Input owner ID [Owner ID]

1 Enter the PIN number (4digits)

Owner ID

Please enter new PIN

* * * *

abc def

Enter the PIN number twice at first setting.

•

jkl

ghi

mno

Make a note of the PIN number in case you forget it. The PIN number

•

tuvpqrs

wxyz

cannot be reset.

2 Select the item (NAME / HOUSE NO / POSTCODE) and set characters

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE

select

access

3 Exit the menu

EXIT

* * * *

User input

NAME

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

set

To use numeric buttons  “Characters table for numeric buttons” (p.111)

•

Return to select other items

RETURN

•

■ To check the personal information stored

Hold down for about 5 seconds

■ To change the PIN number

1. Select [PIN] 2. Enter a new PIN number twice

Owner ID-Data Entry

NAME HOUSE NO POSTCODE

* * * *

Owner ID

NAME HOUSE NO POSTCODE

EXIT

The PIN number is not displayed.

•

* * * * * * * * * * * * * * * *

select

access

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Owner ID

BACK/

Select the next item and repeat the operations.

Page 64

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV works only for Pay T V modules complying with CI standard.

This function is not available for BskyB’s Sky channels.

•

Video and audio signals may not be output depending on broadcasts or services.

•

Caution

Turn Off Mains power On / Off switch whenever inserting or

•

removing the CI module. If a viewing card and a card reader come as a set, first insert the

•

card reader, then insert the viewing card into the card reader. Insert the module in the correct direction.

•

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI module.

•

Follow the instructions that came with the viewing card to tune in the encrypted channels. If encrypted channels do not

•

appear, perform the below to verify the card is recognised by the TV. For more details, see the manual of the CI module, or check with the broadcaster.

•

Select DVB

Display the menu

Select [Setup]

Main Menu


CI slot

Remove the cover before

•

using CI slot.

Insert or remove straightly and completely

CI module

select

access

Using Common Interface

■

To return to TV

EXIT

Select [System Menu]

Select [Common Interface]

System Menu

USB Keyboard Layout Shipping Condition Owner ID

Common Interface

System Update Software Licence System Information

Access Common Interface

Common Interface

Slot 1:

Sound

Timer

Setup

AccessSystem Menu

English(UK)

Access

Module inserted

■ How to operate services by following the on screen operation guide

(Check the instructions provided with the CI module.) Example :

Select, go

•

On screen operation guide may not correspond to the remote control buttons.

•

Symbol :

•

select

access

select

access

Coloured characters

•

Coloured button

Page 65

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV. In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.

To download

•

You can update any new software automatically or manually.

■

To return to TV

EXIT

If you choose not to download

•

EXIT

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [System Menu]

AccessSystem Menu

Select [System Update]

System Menu

USB Keyboard Layout Shipping Condition Owner ID Common Interface

System Update

Software Licence System Information

English(UK)

Access

select

access

select

access

select

access

Updating the TV Software

Update TV’s software system [System Update]

■ To update automatically

Select [Auto Update Search in Standby] and set to [On]

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set [Auto Update Search in Standby] to [Off]. The notification banner will keep appearing during the period of new software availability, usually 2 to 3 days.

Off

select

access / store

Automatically performs a search in standby and

•

downloads an update, if any software updates are available. The automatic updating is performed at night

•

under the following conditions:

• Standby (TV turned Off with the remote control)

• Recording of Timer Programming, Direct TV Recording or One Touch Recording is not in progress.

■ To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

System Update Search Now

Off Access

Note

Download may take up to 60 minutes.

•

During software download and update, DO NOT perform any operations on the TV or switch Off the TV.

•

select

access

several minutes) and displays a corresponding message if any

3 Download

Page 66

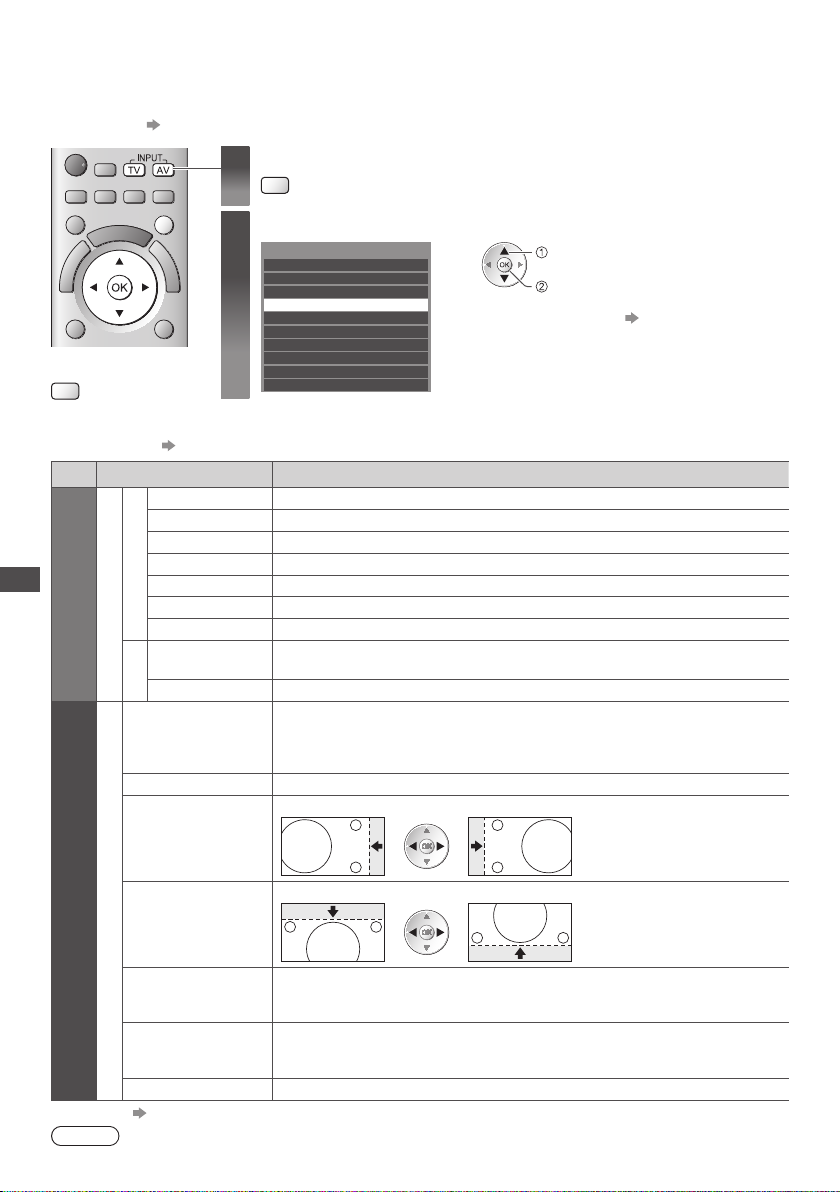

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

To connect PC (p.105)

•

Select the external input

Select [PC]

Input Selection

AV1 AV2 COMPONENT

HDMI1 HDMI2 HDMI3

■

To return to TV

PC menu setting

To make settings “How to Use Menu Functions” (p. 37)

•

Advanced Settings


Displaying PC Screen on TV

PC Setup

Setup

Item Adjustments / Configurations (options)

R-Gain Adjusts the white balance of bright red area

White Balance

G-Gain Adjusts the white balance of bright green area

B-Gain Adjusts the white balance of bright blue area

R-Cutoff Adjusts the white balance of dark red area

G-Cutoff Adjusts the white balance of dark green area

B-Cutoff Adjusts the white balance of dark blue area

Reset to Defaults

Gamma

Reset to Defaults

Input Resolution

Clock Set to the minimum level if noise occurs

H-pos

V-pos

HDMI4 TV SD Card/USB

Press the OK button to reset to the default White Balance

Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

Please note the numerical values are reference for the adjustment.

•

Press the OK button to reset to the default Gamma

Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels), XGA (1,024 × 768 pixels),

•

WXGA (1,280 × 768 pixels, 1,366 × 768 pixels) Options change depending on signals

•

Adjusts horizontal position

Adjusts vertical position

select

access

Corresponding signals (p.113)

•

If [H-freq.] or [V-freq.] is shown in red, the signals

•

may not be supported.

Clock Phase

Sync

Reset to Defaults Press the OK button to reset to the default PC Setup settings

Other items (p.38 - 43)

•

Note

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p.111).

•

Eliminates flicker and distortion

Adjust after Clock adjustment

•

Set to the minimum level if noise occurs

•

Chooses another synchronous signal if the image is distorted [H & V] / [On Green]

[H & V] : by the horizontal and vertical signals from your PC [On Green] : by the green signal from your PC (if available)

Page 67

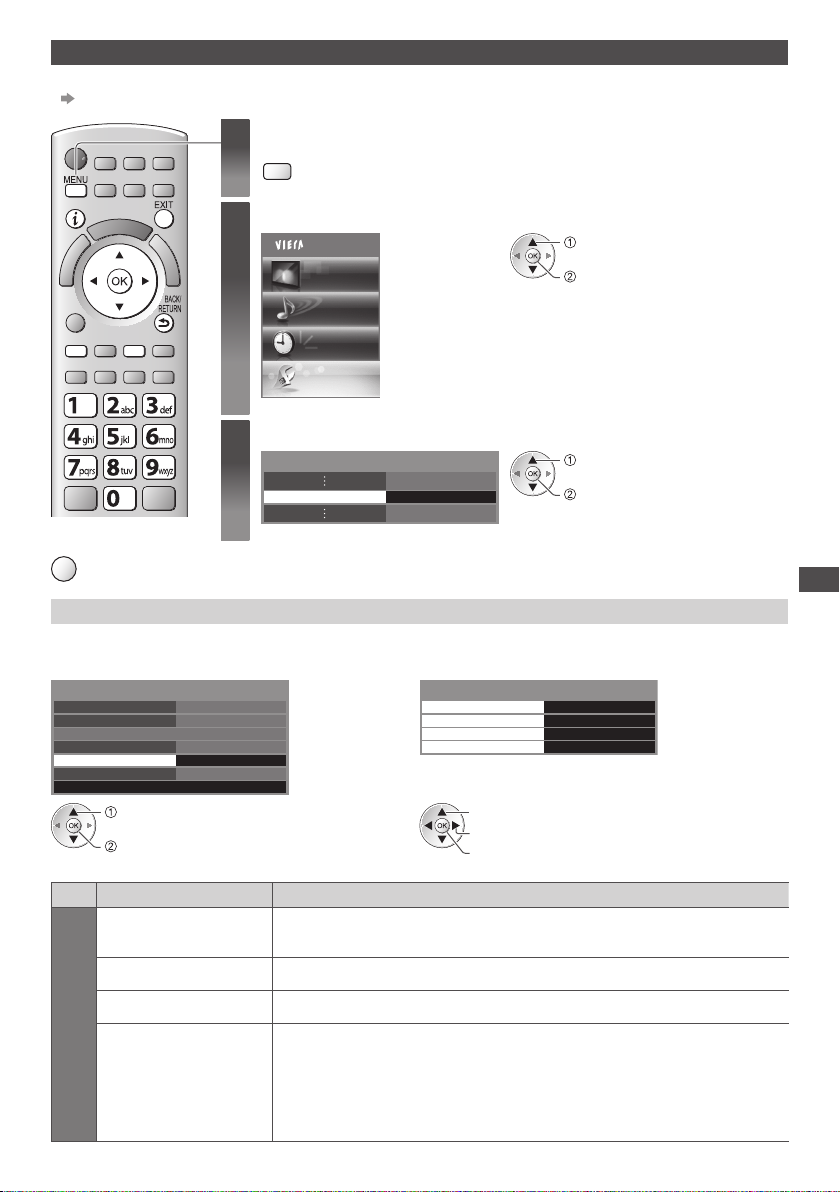

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each input and Viewing Mode.

To use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu. (p.43)

•

For PC input mode, some functions are available without setting [Advance(isfccc)].

•

Select the input mode to adjust and setup

(p.17, 29)

TV AV

Display the menu



Select [Picture]

Main Menu


Sound

Timer

select

access

Setup

Dynamic Normal Cinema True Cinema Professional1 Professional2

Access Access Reset

■

To return to TV

EXIT

Select [Viewing Mode] and set the mode

Viewing Mode

Select one of the following functions

Advanced Settings Access Lock Settings Copy Adjustment

Reset to Defaults

Adjust the detailed picture settings [Advanced Settings]

select

adjust access / store

Advanced Settings

White Balance Access Colour Management Gamma

Access Access

R-Gain Adjusts the white balance of bright red area

Advanced Settings

G-Gain Adjusts the white balance of bright green area


White Balance

B-Gain Adjusts the white balance of bright blue area

R-Cutoff Adjusts the white balance of dark red area

G-Cutoff Adjusts the white balance of dark green area

B-Cutoff Adjusts the white balance of dark blue area

Reset to Defaults Press the OK button to reset to the default White Balance

Item Adjustments / Configurations (alternatives)

select

access / store

2/2

select

access

[Copy Adjustment] is available when

•

[Viewing Mode] in the Picture Menu is set to [Professional1] or [Professional2].

Advanced Picture Settings

Page 68

Item Adjustments / Configurations (alternatives)

R-Hue Adjusts the picture hue of red area

G-Hue Adjusts the picture hue of green area

Colour Management

B-Hue Adjusts the picture hue of blue area

R-Saturation Adjusts the saturation of red area

Advanced Settings


G-Saturation Adjusts the saturation of green area

B-Saturation Adjusts the saturation of blue area

R-Luminance Adjusts the luminance of red area

G-Luminance Adjusts the luminance of green area

B-Luminance Adjusts the luminance of blue area

Reset to Defaults Press the OK button to reset to the default Colour Management

Gamma

Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

Please note the numerical values are reference for the adjustment.

•

Reset to Defaults Press the OK button to reset to the default Gamma

Lock the picture setting [Lock Settings]

Advanced Settings can be locked for each Viewing Mode and input. Additionally, [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Reset to Defaults] in the Picture Menu can be locked for [Professional1] and [Professional2].

1 Enter the PIN number (4 digits)

Lock Settings-PIN Entry

Please enter new PIN

Advanced Picture Settings

2 Select [Adjustment Lock] and set to [On]

Lock Settings

Change PIN

* * * *

On Adjustment Lock

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.

•

Make a note of the PIN number in case you forget it.

•

select

access / store

■ To change the PIN number

1. Select [Change PIN]

Lock Settings

Change PIN

Adjustment Lock

Access On

2. Enter a new PIN number twice

abc def

jkl

ghi

mno

tuvpqrs

wxyz

select

access

Copy the settings to the other input [Copy Adjustment]

You can copy the selected [Professional1] or [Professional2] settings to that of the other input. The settings of [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Advanced Settings] will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

select

access / store

You cannot copy to the locked mode.

•

Page 69

USB HDD Recording

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

Analogue TV programme cannot be recorded to the USB HDD.

•

The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.

•

Not all the programmes can be recorded depending on the broadcaster and service provider.

•

For more information of the USB HDD (p.110)

•

Caution

All data in the USB HDD will be erased in the following cases :

•

• When formatting the USB HDD with the TV “Setting for USB HDD” (see below)

• When formatting the USB HDD to use on PC

When the TV is repaired due to a malfunction, you may have to format the USB HDD again with the T V to use it. (All data will

•

be erased when formatting.) In order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools

•

may be necessary to format on your PC. For details, refer to the manual of the USB HDD.) The data recorded to the USB HDD with this TV can only be played back on this T V. You cannot play back its contents with

•

another TV (including the TV of the same model number) or any PCs.

USB HDD connection

Connect the USB HDD to the USB 1 port.

socket outlet

USB cable

USB HDD

Setting for USB HDD

Format and setup the USB HDD with this TV in order to use it for recording.

Before the settings, connect the USB HDD (see above) and be sure to turn on the USB HDD.

•

You cannot change the settings for the USB HDD while recording is in progress.

•

Please note that USB HDD will be formatted and all data in it will be erased when you format it.

•

Be sure to connect the USB HDD to the socket outlet.

•

Do not turn off or disconnect the USB HDD during

•

operation. It may cause malfunction of the drive or damage the recorded data. To remove the USB HDD safely from the TV (p.19, 70)

•

USB HDD Recording

■

To return to TV

EXIT

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [Recording Setup]

Recording Setup Access

Select [USB HDD Setup] and set

Recording Setup

USB HDD Setup

One Touch Recording Rewind LIVE TV

Access 180 minutes Off

select

access

select

access

select

access

Page 70

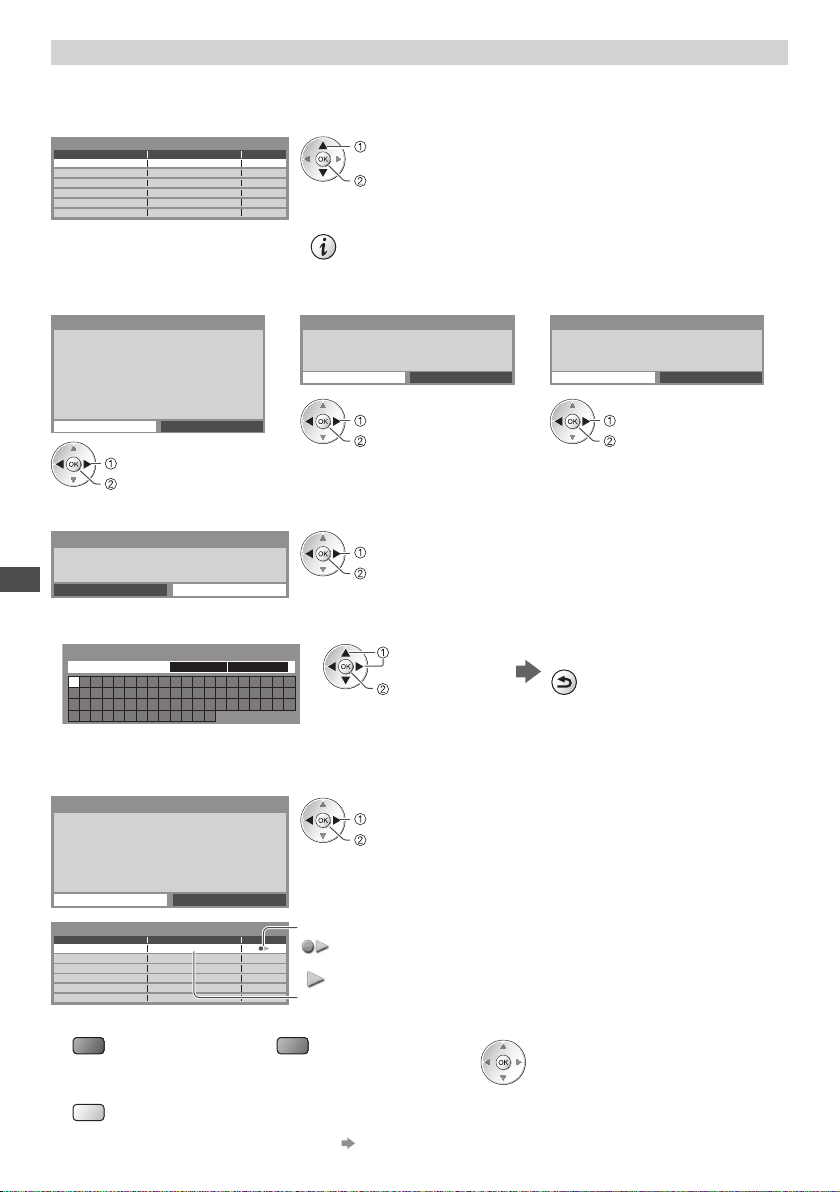

Setup the USB HDD [USB HDD Setup]

All the USB devices recognised as a mass storage device will be listed.

You can only choose one USB HDD for recording at a time.

•

1 Select the USB HDD for recording and start setup

USB HDD Setup

Product Name

USB Drive A

USB Flash Disk

•

select

access

Some USB HDD may not be displayed. For the information of the highlighted device

2 Caution and confirmation of using USB HDD

Select [Yes] to proceed

USB HDD Formatting

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the USB

HDD may not be available with your repaired TV.

Continue?

Yes No

select [ Yes]

set

USB HDD Formatting

To use this device for recording,

it must be formatted rst.

Yes No

select [ Yes]

set

Continue?

USB HDD Formatting

This device will be formatted and

all contents deleted.

Yes No

select [ Yes]

set

Are you sure?

3 Confirmation of USB HDD name

USB HDD Formatting

USB HDD Recording

The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].

Name :

USB Drive A

Edit name?

Yes No

Set characters Store

USB HDD

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

USB HDD 1

select

set

select

BACK/

RETURN

set

You can set characters by using numeric buttons.

•

4 Confirmation to enable USB HDD for recording

If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Formatting

USB HDD Setup

Do you want to enable this

device now for recording?

When disconnecting any USB device,

always use the "Safely Remove USB" function

in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

Yes

USB Drive A

USB Flash Disk

To f orm at

•

Product

Name

USB HDD 1

(red) (green)

Mode

USB HDD name is displayed

To edit USB HDD name

•

select [ Yes]

set

The USB HDD is available for recording / playing back.

Only one USB HDD on the list can be available for recording. The USB HDD is available for playing back.

To change the mode

•

To remove the USB HDD safely from the TV

•

(yellow)

To set “Safely remove USB” in other conditions (p. 19)

•

Page 71

Recording the TV programme to USB HDD

You can record the current programme immediately by using [One Touch Recording]. You can also record the current programme constantly for the selected period by using [Rewind LIVE TV] so that you can go back or pause the current programme.

Ensure the connection and setup are completed before start recording (p. 69, 70)

•

Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may not work

•

properly. If the remaining capacity of the USB HDD is run out, the recording cannot be done.

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [Recording Setup]

TV Guide Settings Eco Navigation

Recording Setup

Link Settings Child Lock DVB Tuning Menu Display Settings Network Setup DivX® VOD

Access

1/2

select

access

select

access

USB HDD Recording

■

To return to TV

EXIT

Select [One Touch Recording] or [Rewind LIVE TV]

Recording Setup

USB HDD Setup

One Touch Recording Rewind LIVE TV

180 minutes Off

select

One touch direct TV recording - What you see is What you record [One Touch Recording]

Recording the current programme in the USB HDD immediately.

Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes)

Recording Setup

USB HDD Setup

One Touch Recording

Rewind LIVE TV

select

access / store

180 minutes Off

LED will turn to orange (flash) while One Touch Recording is in progress.

LED

Page 72

■ To start One Touch Recording

Set the position to “TV” Start

DVD/VCR

No other channel can be selected while the recording is in progress.

•

REC

■ To stop recording on the way

DVD/VCR

EXIT

■ To playback or delete the recorded contents “Recorded TV mode” (p.81)

Even if One Touch Recording is in progress, you can playback all the contents. However, the recording may not work properly

•

while playback.

Record constantly [Rewind LIVE TV]

Recording the currently viewed channel constantly.

Select [Auto] to start Rewind LIVE TV

Recording Setup

USB HDD Setup One Touch Recording

Rewind LIVE TV

180 minutes Auto

select

access / store

When you select [Auto], the recording will start automatically.

•

If the other recording is in progress, TV signal condition is bad or when any images

•

are not displayed, this recording will not start.

■ To operate the Rewind LIVE TV

Set the position to “TV”

DVD/VCR

To pause

•

USB HDD Recording

After pausing or searching backward, the following buttons are available to operate.

•

search backward

playback / pause

search forward

stop (stops the current operation and goes back to live TV)

To search backward (up to 90 minutes)

•

(Press and hold)

search backward /

forward

(Press and hold)

pause /

playback

playback stop

■ To stop the Rewind LIVE TV

Recording Setup

USB HDD Setup One Touch Recording

Rewind LIVE TV

Rewind LIVE TV will be stopped and the recorded content deleted automatically in the following conditions :

•

(Even if Rewind LIVE TV stops for the following conditions, as long as the setting is [Auto], the new recording will start automatically in a condition that makes the recording available.)

• selected other channels

• selected locked channel

• selected invalid channel

• no TV signal

• when the other recording starts

• when the TV is turned off or standby

Off

Auto

select [Off ]

If you stop the Rewind LIVE TV, the recorded content for the Rewind LIVE TV will

•

be deleted.

stops the current

operation and

goes back to

liveTV

Page 73

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and recorded contents on the formatted USB HDD. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

Photo mode : Still pictures recorded by digital cameras will be displayed. Video mode : (For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be played back. Recorded TV mode : (For USB HDD) TV programmes recorded in USB HDD with this TV will be played back. Music mode : Digital music data will be played back.

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.41). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 97) and set to use theatre speakers (p. 103). [Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is

•

shown “**/**/****”. The picture may not appear correctly on this TV depending on the recording equipment used.

•

Display may take some time when there are many files and folders.

•

Partly degraded files might be displayed at a reduced resolution.

•

The folder and file names may be different depending on the digital camera or digital video camera used.

•

To insert or remove the SD Card / USB Flash Memory

For the USB HDD Connection (p.69)

•

■ USB Flash Memory

Insert or remove straightly and completely.

•

Before removing the USB Flash Memory, ensure to perform

•

“Safely remove USB” (p.19). Connect to the USB 1, 2 or 3 port.

•

■ SD Card

To insert the SD Card To remove the SD Card

Gently insert the

SD Card label surface

facing front.

Push until a click

is heard

For the information of the devices “Devices for recording or playing back” (p.110)

•

For the supported file format “Supported file format in Media Player and media servers” (p. 108, 109)

•

Cutout

Push the centre of

the card

Using Media Player

Page 74

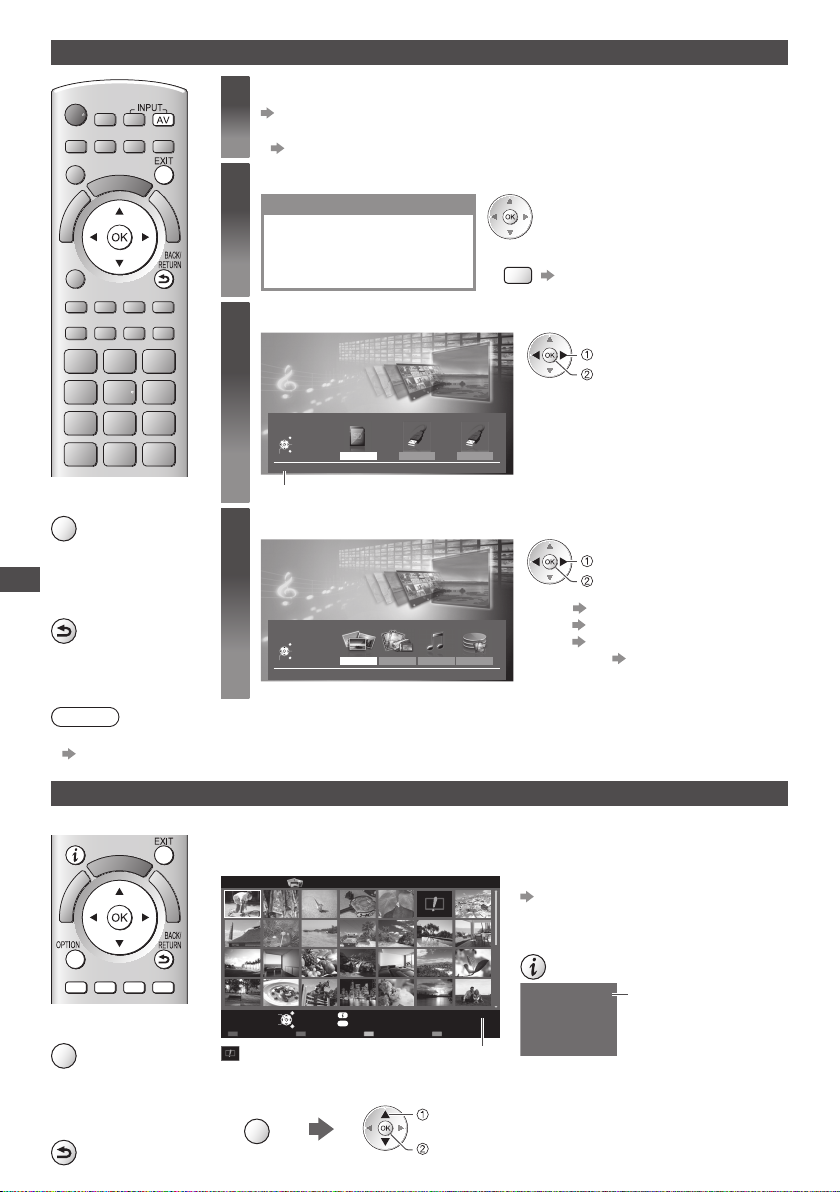

Starting Media Player

■

To return to TV

EXIT

■

To return to the previous screen

Using Media Player

BACK/

RETURN

Insert the SD Card or USB Flash Memory to the TV

(p. 73)

To play back contents in USB HDD, check the connection and settings are completed.

•

(p. 69, 70)

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

Select the device you want to access to

Media Player

Also possible by pressing following buttons.

•

“Watching External Inputs” (p.29)

select access

If two or more devices are not connected,

•

Drive Select

EXIT Select RETURN

Access

SD Card

USB HDD1 USB Flash...

this step will be skipped.

Selected device name

Select the content

Media Player

select access

[Photo]  “Photo mode” (see below)

Contents Select

EXIT Select RETURN

Access

SD Card


Video Music

Recorded TV

[Video]  “Video mode” (p.79) [Music]  “Music mode” (p.83) [Recorded TV]



“Recorded TV mode” (p.81)

Note

You can also access each mode directly by using VIERA TOOLS.

•

“How to Use VIERA TOOLS” (p. 36)

Photo mode

Photo mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [All photos]

Media Player Photo

■

To return to TV

EXIT

■

To return to the previous screen

BACK/

RETURN

View

Select

Slideshow View Select Drive Select Contents Select

: Error display Selected device name

To change the size of photos on a thumbnail screen

•

OPTION

EXIT RETURN

Info

OPTION

Option Menu

select

[Change Size]

change

All photos

SD Card

To change the back ground music

•

“Photo Settings” (p.77, 78)

To display the information of the highlighted

•


1/48

23/10/2010

1600X1200

File number / Total file number

File name

Date

Pixel




Page 75

■ To sort by folder, recorded date or recorded month

1 Display the view selection

(green)

2 Select the sort type

Folder view

Sort by Date

Sort by Month

select

access

3 Select one of the sorted groups to display the thumbnail of the selected group

Media Player Photo

23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010

24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010

[Folder view] : Displays the thumbnail grouped by folder

The files which are not into a folder will be collected to the folder named “/”.

•

[Sort by Date] : Displays the thumbnail grouped by the same date

The group of the photos without recorded date is shown as [Unknown].

•

[Sort by Month] : Displays the thumbnail grouped by the same month

The group of the photos without recorded date is shown as [Unknown].

•

Sort by Date

select

thumbnail of the selected group

Access

Select RETURN

Slideshow View Select Contents Select

To return to the thumbnail of all photos

•

(green)

Info

EXIT

OPTION

Option Menu

Drive Select

SD Card

select [All photos] access

To display the information of the highlighted group

•

Folder name

Number of files

23/10/2010

Group number /

1/12

Total group number

Folder name, date or month

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example :

Single view

EXIT Select RETURN

Stop

Operation guide

Single view

Rotate

To display / hide the operation

•

guide

To return to thumbnail

•

BACK/

RETURN

To operate Single view

•

To rotate 90°

•

To the previous photo

Slideshow

To the next photo

Stop (return to thumbnail)

(blue)

[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.

1 Select the file from the thumbnail of photos

for the first view

select

To display / hide the operation guide

•

To pause (return to Single view)

•

2 Start Slideshow

(red)

To return to thumbnail

•

BACK/

RETURN

Using Media Player

Page 76

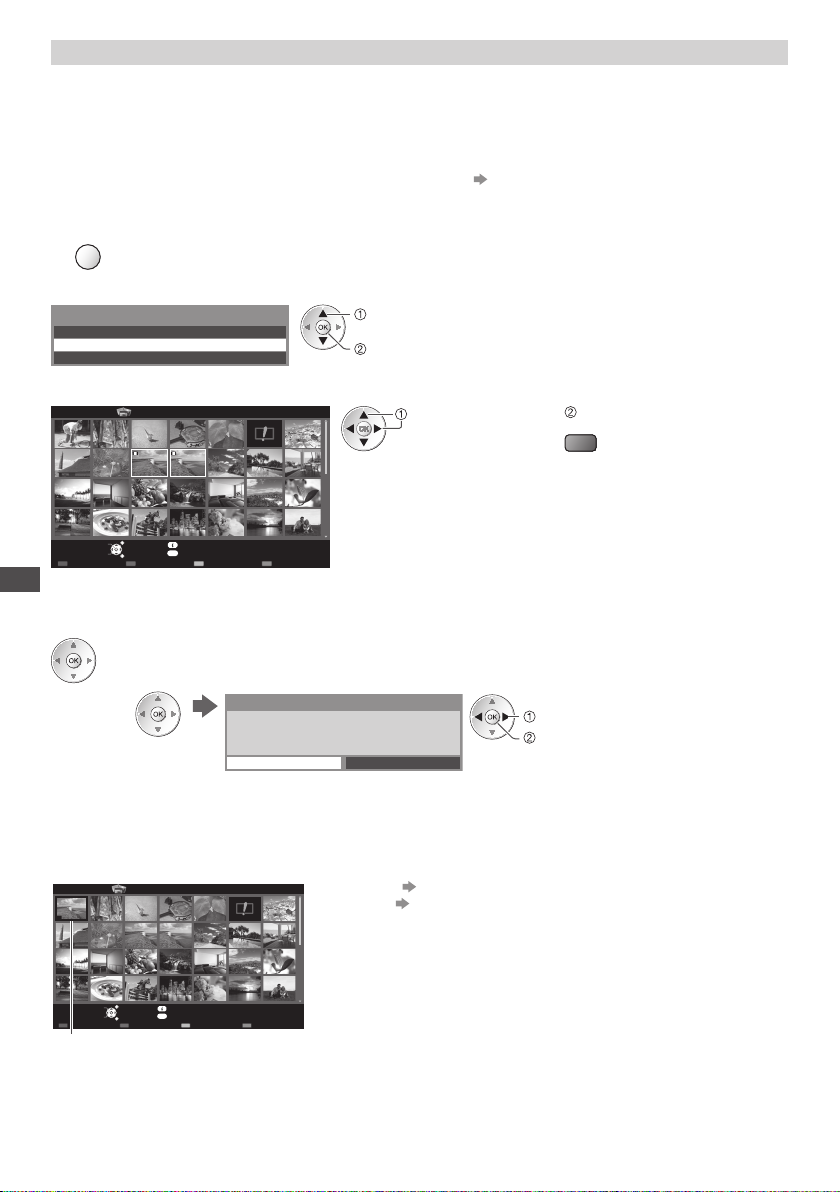

Multi Shot 3D

This TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.

This TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.

•

This function is available with photos recorded by digital cameras.

•

Depending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not be

•

possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take another photo (for R). To view the created 3D photo with 3D effect, you need the 3D Eyewear “Optional accessories” (p.6)

•

1 Display the option menu in the thumbnail view

OPTION

2 Select [Multi Shot 3D]

Option Menu

Slideshow Settings

Multi Shot 3D

Change Size

select

access

3 Select two photos for L (left) and R (right)

Media Player Photo

L R

Multi Shot 3D

All photos

select

You can only select photos of the same recorded date and same pixels.

•

You may not be able to view the created 3D photo properly if you select

•

the photos for L and R oppositely.

set

(red)

View

Select

EXIT RETURN

Info

OPTION

Option Menu

SD Card

Using Media Player

4 Create the 3D photo

If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to

•

the photo selection screen (step 3). To save the 3D photo in the SD Card

•

The 3D image will be saved onto your media.

Yes

Continue?

select [Yes]

save

After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to

create another 3D photo or exit from [Multi Shot 3D] mode.

■ To enjoy the saved 3D photos

You can enjoy viewing the saved 3D photos.

Example : Thumbnail

Media Player Photo

Access

Select RETURN

Slideshow View Select Contents Select

Info

EXIT

OPTION

Option Menu

Drive Select

Saved 3D photo

All photos

SD Card

Single view (p.75)

•

Slideshow (p.75)

•

Page 77

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set

OPTION

Note

Picture quality may become lower depending on the slideshow settings.

•

Picture setting may not work depending on the slideshow settings.

•

Option Menu

Slideshow Settings

access

Slideshow Settings

Frame Off Colour Effect Transition Effect Aspect Burst Playback Interval Repeat Back Ground Music

select

access / store

Off Fade Original Off 5 seconds On

Slideshow Settings

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow

[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi] : 9 photos are displayed orderly at once. [Collage] : Each photo is displayed at a random position and random scale. [Drift (+ calendar)] / [Drift] :

Frame

Colour Effect

Transition Effect

Aspect

Burst Playback

Interval

Repeat Slideshow repeat [Off] / [On]

Photos are displayed like flow images.

You can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Gallery (+ calendar)] / [Gallery] : The various sizes of photos in the frame are

You can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Cinema] : Photos are displayed like old films (sepia tone)

Selects the colour effect of photos on Single view and Slideshow

[Off] / [Sepia] / [Gray scale]

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade] : The next photo fades in gradually. [Slide] : The next photo slides and appears from the left side. [Dissolve] : Each photo is dissolved when switching to the next photo. [Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or

[Random] : Each transition is selected at random.

This function is available when [Frame] is set to [Off].

•

Selects whether enlarged or normal viewing on Single view and Slideshow

[Original] / [Zoom]

This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or

•

[Cinema]. This function is not available when [Transition Effect] is set to [Motion].

•

Depending on the photo size, it may not be fully enlarged to fill the screen, e.g.

•

portrait style picture.

Selects whether to display burst photos in a fast-paced slideshow mode [Off] / [On]

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

This function is not available when [Transition Effect] is set to [Motion].

•

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

This function is not available when [Transition Effect] is set to [Motion].

•

moving down.

displayed.

Using Media Player

Page 78

Item Adjustments / Configurations (alternatives)

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]

[Type1], [Type2] and [Type3] are the fixed music each installed in this TV.

•

[User] : Music data in the device registered by yourself will be played back.

To register the music

1. Select the music file 2. Select [File] or [Folder]

Slideshow Settings

Back Ground Music

Depending on the conditions of the device, select folders until you reach the desired music file.

Back Ground Music

PRIVATE

DCIM MISC 001photo 002photo 003music 01 song.mp3

Type1

File

Folder

[File] : The selected music file will be

[Folder] : All the music in the folder which

select

access

If no music has been registered or the device which has the registered music is

•

removed, no sound will be produced.

[Auto] : Music data stored in the root folder of the current device will be played back

randomly.

If there is no available music data, no sound will be produced.

•

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

Using Media Player

1 While the thumbnail is displayed,

display the device selection

(yellow)

2 Select the device you want to access to

Media Player Photo

All photos

select

set

registered as back ground music.

contains the selected music file will be registered as back ground music.

select access

Drive Select

EXIT Select RETURN

View

EXIT

Select RETURN

SD Card

Access

SD Card

Slideshow View Select Drive Select Contents Select

Selected device name

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.

The mode can be switched in the current device.

•

1 While the thumbnail is displayed,

display the contents selection

2 Select the contents

Media Player Photo

(blue)

Contents Select

EXIT Select RETURN

View

EXIT

Select RETURN

Photo Video Music

Access

SD Card

Slideshow View Select Drive Select Contents Select

Info

OPTION

Info

OPTION

USB HDD1 USB Flash...

All photos

Recorded TV

SD Card

select access

[Photo] “Photo mode” (p.74) [Video]

“Video mode” (p.79) “Music mode” (p.83)

[Music]

SD Card

[Recorded TV]

“Recorded TV mode” (p.81)

Page 79

Video and Recorded TV mode

Supported file format (p.108)

•

Video mode

(For SD Card or USB Flash Memory)

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Title view]

Media Player Video

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature3 Nature4 Nature5 Nature6

2010_9

Access

EXIT RETURN

Select

Play Contents Select

: Error display

: The file does not support thumbnail view.

To view the scenes of the title

•

Select the title

Example : Thumbnail - [Scene view]

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Play

EXIT

Select RETURN

Play

select

access

Info

OPTIONOPTION

Option Menu

Drive Select

Selected device name

Title view > Trip1

Info

OPTION

Option Menu

Drive Select

2010_4 2010_7Nature2

Contents Select

Title view

The preview will start when the title is highlighted if it supports a preview.

To turn off the preview

•

 “Video Setup” (p.80)

To display the information of the highlighted

•

title

SD Card

Title

Date & Time

19/02/2010 11:21

Number of scenes

Duration

00h15m39s

The preview will start when the scene is highlighted if it supports a preview.

To turn off the preview

•

“Video Setup” (p.80)

To display the information of the highlighted

•

scene

SD Card

Scene

Date & Time

Duration

Trip1_1

19/02/2010 11:21

00h04m12s

File format

1/15

Trip1

Title number / Total title number

File format

1/8

Scene number / Total scene number

Using Media Player

■

To return to TV

EXIT

■

To return to the previous screen

BACK/

RETURN

Note

The structure of titles

•

and scenes may vary depending on the digital video camera used.

■ Playback from Title view

Playback of the selected title will start.

To repeat playback “Video Setup” (p.80)

•

1 Select the title 2 Star t playback

select

(red)

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback will start from the selected scene to the end of the title.

To repeat playback “Video Setup” (p.80)

•

1 Select the title 2 Select the scene 3 Start playback

select

access

select

(red)

Page 80

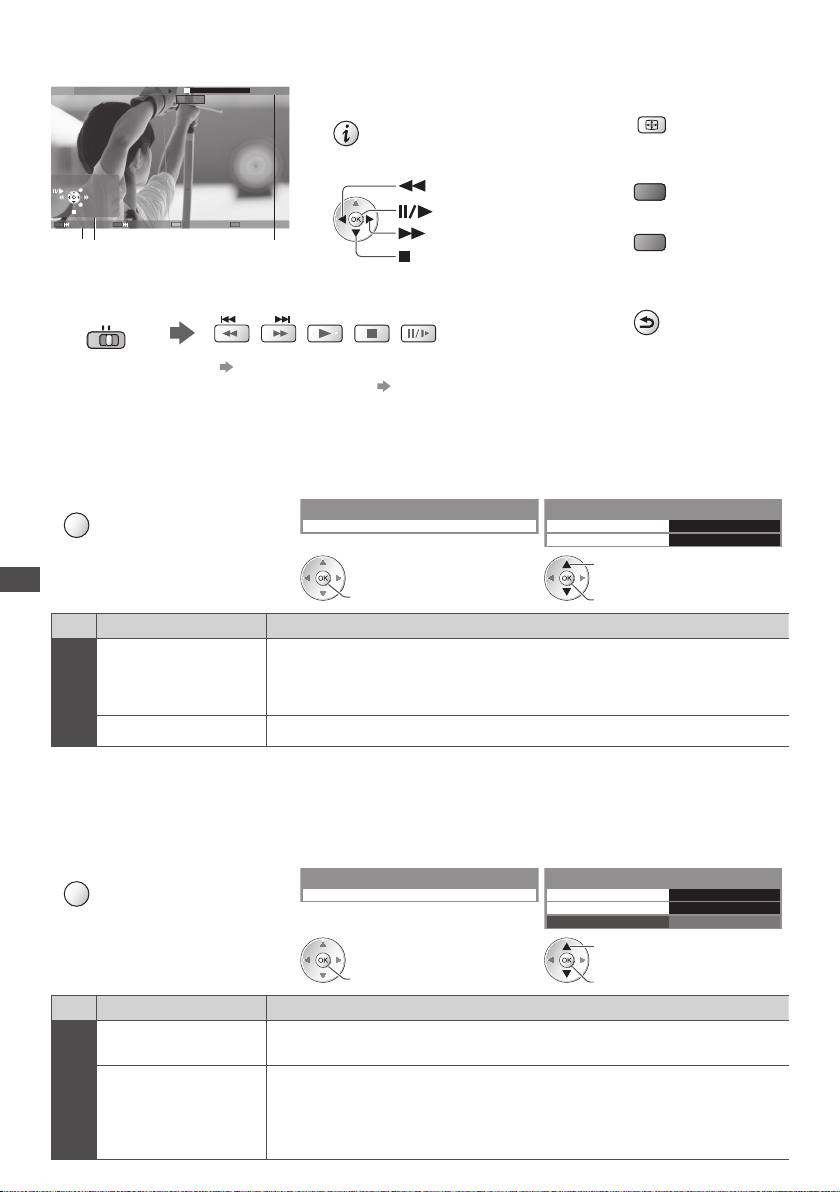

■ How to operate in the playback

Example : Playback

SD 19/02/2010 11:21 00:15:39

EXIT

RETURN

Operation guide

You can also use the following buttons. (p.30)

•

Set the position to “TV”

DVD/VCR

00:02:05

Information banner

To display / hide the operation guide and

•

information banner

To operate the playback

•

Rewind

Pause / Playback

Fast forward

Stop

■ To change the device “Change the device” (p.78)

■ To change the content in the current device “Change the contents” (p.78)

■ Video Setup

Setup the settings for Video mode.

These settings are not available for the formatted USB HDD.

•

1 Display the option menu in the

thumbnail view

OPTION

Using Media Player

Video Setup

Item Adjustments / Configurations (alternatives)

Video Preview

2 Select [Video Setup] 3 Select the items and set

Option Menu

Video Setup

access

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off]

•

to resolve this.

To change aspect

•

ASPECT

To the previous title /

•

scene

(red)

To the next title / scene

•

(green)

To return to thumbnail

•

BACK/

RETURN

Video Setup Menu

Video Preview On Repeat

select

access / store

Off

Repeat Playback repeat within the title or selected file (depending on the content) [Off] / [On]

■ Confirm or change the current status

You can confirm or change the current status of the content.

Menu items and selectable options vary depending on the content.

•

1 Display the option menu during

playback

OPTION

Video Setup

Item Adjustments / Configurations (alternatives)

Multi Audio

Aspect Change

2 Select [Video Setup] 3 Select the items and set

Option Menu

Video Setup

Allows you to select between selectable sound tracks (if available)

It may take several seconds to change the sound.

•

[Aspect1] : Displays the content enlarged without distortion [Aspect2] : Displays the content full-screen [Original] : Displays the content original size

You can also change the aspect using the ASPECT button.

•

Aspect change may not work depending on the content.

•

access

Video Setup Menu

Multi Audio Stereo Aspect Change

Repeat

select

access / store

Aspect1 Off

Page 81

Recorded TV mode

(For USB HDD)

Contents list of the USB HDD will be displayed.

Example : Contents list

Duration

00:00

Not Viewed Recording now Protected Grouped

Select

EXIT

RETURN

Play

OPTION

Option Menu

Delete

Media Player

All

Recorded TV

Not Viewed

Channel TitleDate

BBC 1D

Thu 28/10

Mon 10/1

ITVD

Sat 15/1

BBC 2

Info

Remaining Capacity 500GB (50%)

Das Erste

12:00

News

13:30

Cinema

13:50

Chapter List Select

[All] : All the recorded contents are listed. [Not Viewed] :

USB HDD 1

Remaining capacity of the HDD

This value may not be accurate depending on the condition.

•

You can also access the contents list directly by using VIERA

•

TOOLS.

 “How to Use VIERA TOOLS” (p.36)

To display the information of the highlighted content

•

- Channel DVB-T, BBC 1

- Title Das Erste

- Date & Time Thu 28/10/2010 12:00

- Duration 00:20

Contents not played back are listed.

: Content not played back (Once you playback the content, this icon will disappear.)

: Content under recording (You can playback this content even if under recording.)

: Protected content cannot be deleted.

: Two or more contents are grouped.

■ Playback the content from the list

1 Select the content 2 Start playback

select

If you stopped the last playback on the way, the confirmation

•

screen asking whether you wish to start from the last stopped part or beginning will be displayed. Select your desired option.

■ To edit recording content [Create Group] / [Release Group] / [Change Protect Status]

1 Select and tick the

content to edit

[Create Group] :

Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group]. [Release Group] : Select the created group you want to release, and then select [Release Group]. (To release several groups at once, tick all the desired groups.) [Exclude from Group] : Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the group, select it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.) [Change Protect Status] : Select the content you want to protect to delete, and then select [Change Protect Status]. Perform the same way to cancel the protection. (To change the status of several contents at once, tick all the desired contents.)

2 Display the option menu

OPTION

(blue)

3 Select the item and edit

Option Menu

Create Group Release Group Exclude from Group Change Protect Status

select

edit

■ Delete the selected content

1 Select the content 2 Delete the content 3 Confirm

select

To select two or more

•

contents

(blue)

(red)

Delete

Are you sure you want to delete ?

Yes

select set

Using Media Player

Page 82

■ How to operate in the playback

Example : Playback

Das ErsteUSB 00:15:39

Manual skip

RETURN

Operation guide

To repeat between the starting point “A” and finishing point “B”

•

Set “A” and “B” in order

(blue)

To change aspect

•

ASPECT

You can also use the following buttons. (p.30)

•

Set the position to “TV”

DVD/VCR

To confirm or change the current status (if available) “Display the selectable settings for the current status” (p.19)

•

00:02:05

Chapter List A-B repeat

Information banner

• The points will be reset by pressing this button again or other operations.

To display / hide the operation guide and information banner

•

To operate the playback

•

To display the subtitle (if available)

•

STTL

Rewind

[Manual skip]

Press to skip forward about 30 seconds

•

Press and hold to skip backward about 15 seconds

•

Pause / Playback

Fast forward

Stop

To the previous chapter

•

To the next chapter

•

To return to list

•

RETURN

(red)

(green)

BACK/

Using Media Player

■ Chapter List

You can start playback from the chapter list you select.

A recorded content is automatically divided into five-minute chapters.

•

The chapter list is not displayed while the selected content is being recorded.

•

To play back from the chapter list

(yellow)

select playback

Chapter List

00:00:00 00:05:00

Note

Depending on the recorded programmes, some playback operations may not work properly.

•

■ Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 Display the

option menu

OPTION

2 Select [Drive Select]

Option Menu

Create Group Release Group

Drive Select

Contents Select Change Protect Status

select

access

3 Select the device you want to access to

Drive Select

EXIT Select RETURN

SD Card

Access

USB HDD1

If you select the SD Card or USB Flash Memory, also change the contents to enjoy photo, video or music.

To change the content

•

OPTION

USB HDD1 USB Flash...

select access

select [Contents Select]

access

Page 83

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

To confirm or change the current sound status “Confirm or change the current status” (p.80)

•

1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set

Main Menu


Sound

Timer

Setup

select

access

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Music mode

Supported file format (p.109)

•

■

To return to TV

EXIT

■

To return to the previous screen

BACK/

RETURN

as Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM] : Digital output signal is fixed to PCM.

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Folder view]

Media Player Music

My Music_1 My Music_2 My Music_3

Access

Select

Play Folder Contents Select

To display the information of the highlighted folder

•

Folder name

Number of files

EXIT RETURN

My Music_1

Info

OPTION

Option Menu

Drive Select

1/3

Folder number / Total folder number

Folder view

SD Card

Selected device name

■ Playback from Folder view

All the files in the selected folder will be played back.

1 Select the folder 2 Start playback

select

(red)

Using Media Player

Page 84

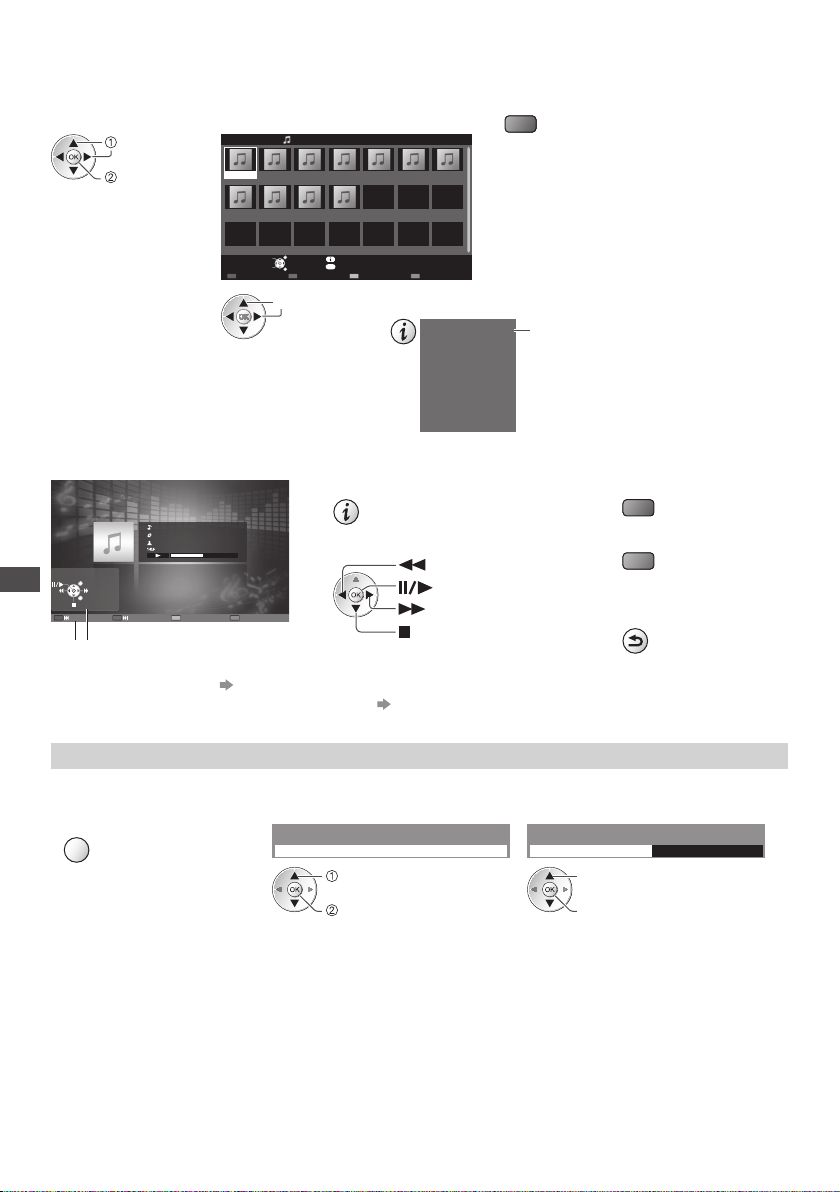

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

select

access

Example : Thumbnail - File view

Media Player Music

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_9 My Song_10 My Song_11My Song_8

Folder view > My Music_1

(red)

Play

Select RETURN

Play Folder

EXIT

select

Info

OPTION

Option Menu

Drive Select

•

SD Card

Contents Select

To display the information of the highlighted file

Title

My Song_1

Album

My Music_1

Artist

My Favourite

Track No.

Duration

00h03m29s

■ How to operate in the playback

Example : Playback

Using Media Player

Operation guide

EXIT

RETURN

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

To display / hide the operation guide

•

To operate the playback

•

Rewind

Pause / Playback

Fast forward

Stop

■ To change the device “Change the device” (p.78)

■ To change the content in the current device “Change the contents” (p.78)

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu 2 Select [Music Setup] 3 Set

OPTION

Option Menu

Music Setup

select

1/11

File number / Total file number

•

Music Setup Menu

Repeat One

select

To the previous track

(red)

To the next track

(green)

To return to thumbnail

BACK/

RETURN

access

access / store

[Folder] : Playback repeat within the

selected folder

[One] : Playback repeat of the selected

one file

Page 85

Using Network Services (DLNA / VIERA Connect / freesat)

DLNA®

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. It allows you to share photos, videos and music stored in the DLNA Certified media server (for example, PC with windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy the contents on the T V screen.

For the supported file format (p. 108, 109)

•

AVCHD and DivX files are not supported by DLNA, but can be played by Media Player (p. 73).

•

■ Media server

Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server software that has been tested for compatibility with this TV (current as of January, 2011). Any other server software have not been tested with this TV, therefore compatibility and per formance cannot be assured.

Windows 7

•

The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7. TwonkyMedia server

•

“TwonkyMedia server” is the product of PacketVideo Corporation. To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia. Additional fees may be charged to obtain server software.

Note

For more information about the server software, please consult each software company.

•

When server software for the media server is installed on the PC, the data may be at risk of being accessed by other

•

people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router.

To use a DLNA compatible DIGA Recorder as a media server

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.

Please refer to the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.

•

■ DLNA Remote Control

This TV supports the DLNA control function.

To use this function, set the [Network Link Settings] (p. 87)

•

“Windows 7” is the OS that has been tested for compatibility of this TV (current as of January, 2011). For the operations,

•

refer to the help functions of Windows 7.

Using Network Services (DLNA / VIERA Connect / freesat)

Network connection

Network setup

DLNA operations

 “Example 1” or “Example 2” in “Network connections” (p. 86)

(p. 87 - 91)

(p. 92 - 95)

VIERA Connect

This TV has no full browser function and all features of websites may not be available.

•

Network connection

Network setup

VIERA Connect operations

 “Example 1” or “Example 3” in “Network connections” (p. 86)

(p. 87 - 91)

(p. 16, 95)

freesat

freesat may give you access to the interactive services and features through an internet connection.

Please contact broadcasters for availability of services.

•

Page 86

Network connections

To use only DLNA features, you can operate the features without broadband network environment. To use VIERA Connect features or freesat interactive services, you need a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on

•

this TV. Read the manual of the equipment. Required speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is

•

not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Wired connection

Internet

LAN cable (Shielded)

Wireless connection

Wireless LAN Adaptor and Extension cable

“Optional accessories” (p. 6)

Connect to the USB 1, 2 or 3 port.

•

Ensure to use a LAN straight cable for this connection.

•

If your modem has no broadband router functions, use a broadband router.

•

If your modem has broadband router functions but there are no vacant ports, use a hub.

•

Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

•

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

•

Using Network Services (DLNA / VIERA Connect / freesat)

Access point

Modem

Hub or Router

DLNA Certified mediaserver (for example, PC, DIGARecorder, etc.)

Example 2

(For DLNA)

You can connect the T V and the equipment directly to use DLNA features.

DLNA Certified mediaserver (for example, PC, DIGARecorder, etc.)

LAN cable (Shielded)

Ensure to use a LAN cross cable for this connection.

•

Example 3

(For VIERA Connect)

You can connect the T V and the telecommunication equipment directly to use VIERA Connect features.

LAN cable (Shielded)

Note

Contact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network

•

equipment. Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications

•

company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.

Internet

Page 87

Network Setup

Ensure the connections are completed before starting Network Setup.

•

“Network connections” (p.86)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [Network Setup]

select

access

select

access

■

To return to TV

EXIT

Network Setup Access

Network Link settings

Settings which allow the TV to be controlled by the equipment connected to the network.

1 Select [Network Link Settings] 2 Select the items and set

Network Setup

Connection Test Network Type Wired

Access Point Settings

IP/DNS Settings

Network Link Settings

Software Update MAC Address

select

access

Network Link Settings

VIERA Name

DLNA Remote Control Enables to control the TV using Windows 7 via the network [Off] / [On]

DLNA Remote Volume Enables to control the volume of the TV using Windows 7 via the network [Off] / [On]

Network Remote Control

---

Access

ab-cd-ef-gh-ij-kl

Item Adjustments / Configurations (alternatives)

Sets your favourite name for this TV and this name will be used to display the name of this TV on the screen of the other DLNA compatible equipment.

Enables to control the TV from the network equipment (Smartphone, etc.)

[Off] / [On]

Depending on the area, this function may not be available. For details, consult your

•

local Panasonic dealer. For more information of this function, visit the following website.

•

http://panasonic.jp/support/global/cs/tv/

Network Link Settings

VIERA Name DLNA Remote Control DLNA Remote Volume Network Remote Control

select

change access / store

VIERA

On On On

Using Network Services (DLNA / VIERA Connect / freesat)

Page 88

Wired connection settings

This setting is for the network connection by using the LAN cable.

1 Select [Network Type] and set to [ Wired]

Network Setup

Connection Test

Network Type

Access Point Settings

IP/DNS Settings Network Link Settings Software Update MAC Address

Wired

---

ab-cd-ef-gh-ij-kl

select

access / store

If you make the network connection like “Example 2” (p.86), you do not have to set [Acquire DNS Address], [Proxy] and [Proxy Port].

2 Select [IP/DNS Settings] and set the items

Network Setup

select

IP/DNS Settings Access

access

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)

The available settings are displayed automatically.

IP/DNS Settings

Acquire IP Address Auto

IP Address Subnet Mask Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto

•

Manual settings ([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])

select

access / store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

3 Select [Proxy Settings] and set the items

Using Network Services (DLNA / VIERA Connect / freesat)

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto

Access

•

select

access

After settings, return to [Network Setup] screen

BACK/

RETURN

■ [Proxy]

Sets Proxy address.

This is the address of the relay server that is connected to the target server instead of the browser and sends data to the

•

browser. Setting is required if specified by the provider.

1. Select [Proxy] 2. Enter the address 3. Store

Proxy Settings

Proxy

Proxy Port

select

Proxy

Host

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

BACK/

RETURN

access

•

set

To use numeric buttons

 “Characters table for numeric buttons”

(p.111)

■ [Proxy Port]

Sets Proxy port number.

This number is also specified by the provider with the Proxy address.

•

1. Select [Proxy Port] 2. Move the cursor and enter the number

select

move

Proxy Settings

Proxy

Proxy Port

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Page 89

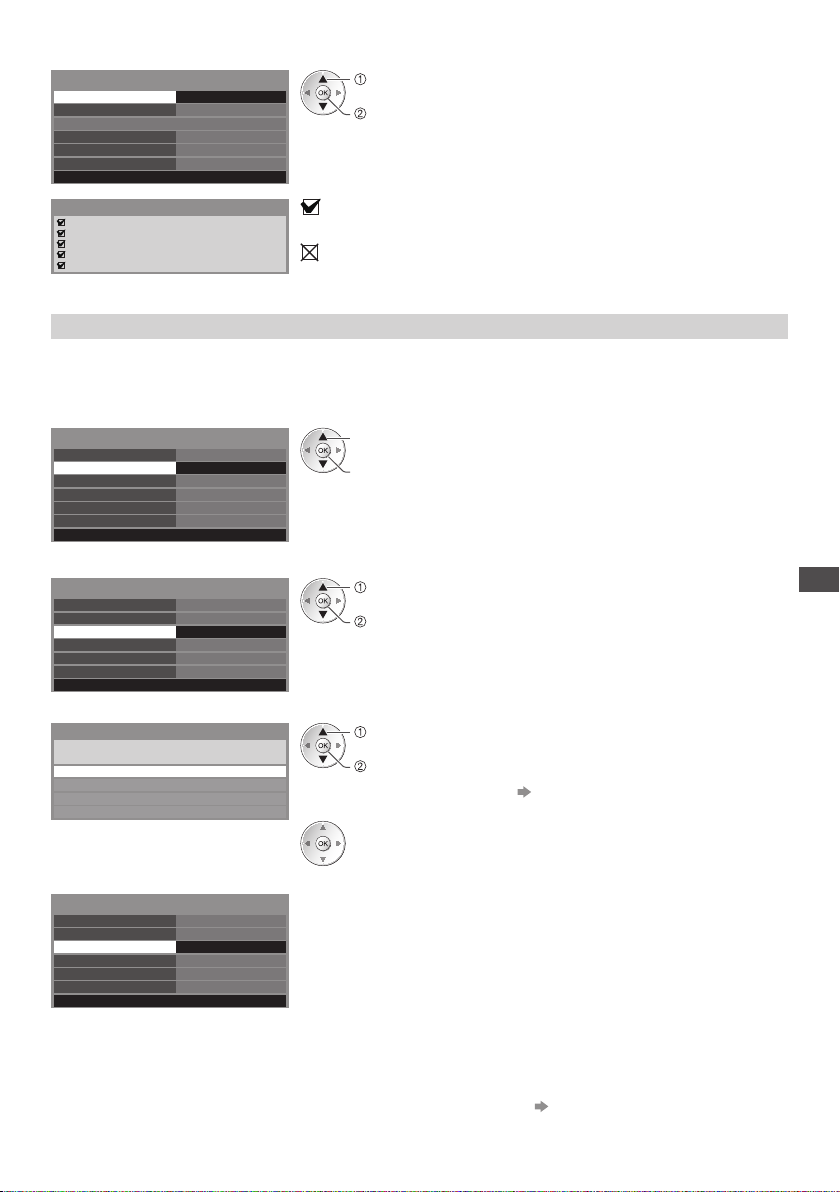

4 Select [Connection Test] and access to test

Network Setup

Connection Test

Network Type

Access Point Settings

IP/DNS Settings Network Link Settings Software Update MAC Address

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

Access Wired

---

ab-cd-ef-gh-ij-kl

•

select

access

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections, and then perform this function again.

Wireless connection settings

This setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of

•

the access point.

1 Select [Network Type] and set to [ Wireless]

Network Setup

Connection Test

Network Type

Access Point Settings IP/DNS Settings Network Link Settings Software Update MAC Address

Wireless No settings

ab-cd-ef-gh-ij-kl

select

access / store

2 Select [Access Point Settings]

Network Setup

Connection Test Network Type

Access Point Settings

IP/DNS Settings Network Link Settings Software Update MAC Address

Wireless No settings

ab-cd-ef-gh-ij-kl

select

access

3 Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

Search for access point

Manual

•

select

access

For details of each connection type (p. 90, 91) After settings, return to [Network Setup] screen

Using Network Services (DLNA / VIERA Connect / freesat)

4 Confirm the connection status of [Access Point Settings]

Network Setup

Connection Test Network Type

Access Point Settings

IP/DNS Settings Network Link Settings Software Update MAC Address

Wireless Connected

ab-cd-ef-gh-ij-kl

[No adaptor] : Wireless LAN Adaptor is not connected. [No settings] : Setting for connecting to the access point has not been set.

[Connecting...] : Connecting to the access point in progress.

[Connected] : Wireless connection to the access point succeeded

[USB overcurrent] : Overcurrent error

- - - : [ Wired] is selected in [Network Type].

To display the current access point settings, press the OK

•

button. To change the settings, select [No] on this screen. Some access points do not allow access to the internet.

•

Perform [Connection Test] (p.90) to check if internet connection is available.

(p.117)

Page 90

5 Select [Connection Test] and access to test

Network Setup

Connection Test Access

Network Type Access Point Settings IP/DNS Settings Network Link Settings Software Update MAC Address

Connection Test

Check access point connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

Wireless Connected

ab-cd-ef-gh-ij-kl

■ [WPS(Push button)]

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light ashes.

2) When the light is ashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

■ [WPS(PIN)]

1 Select your desired access point

Available Access Points

No. Wireless type Encrypt Reception

SSID

Access Point A Access Point B

Access Point C

Using Network Services (DLNA / VIERA Connect / freesat)

To search access points again

•

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

select

access

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections, and then perform this function again. If you continue to have difficulty, please contact your internet service provider.

press the WPS button on the access point until the light flashes

connect the Wireless LAN Adaptor and the access point

Ensure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

select

access

Ensure that your access point supports WPS for this setup.

•

For the information of the highlighted access point

•

To set manually

•

(red)

2 Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the access point.

Connect

■ [Search for access point]

Access points found automatically are listed.

1 Select your desired access point

Available Access Points

No. Wireless type Encrypt Reception

SSID

Access Point A Access Point B

Access Point C

To search access points again

•

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

: Encrypted access point

For the information of the highlighted

•

access point

select

access

To set manually

•

(red)

Page 91

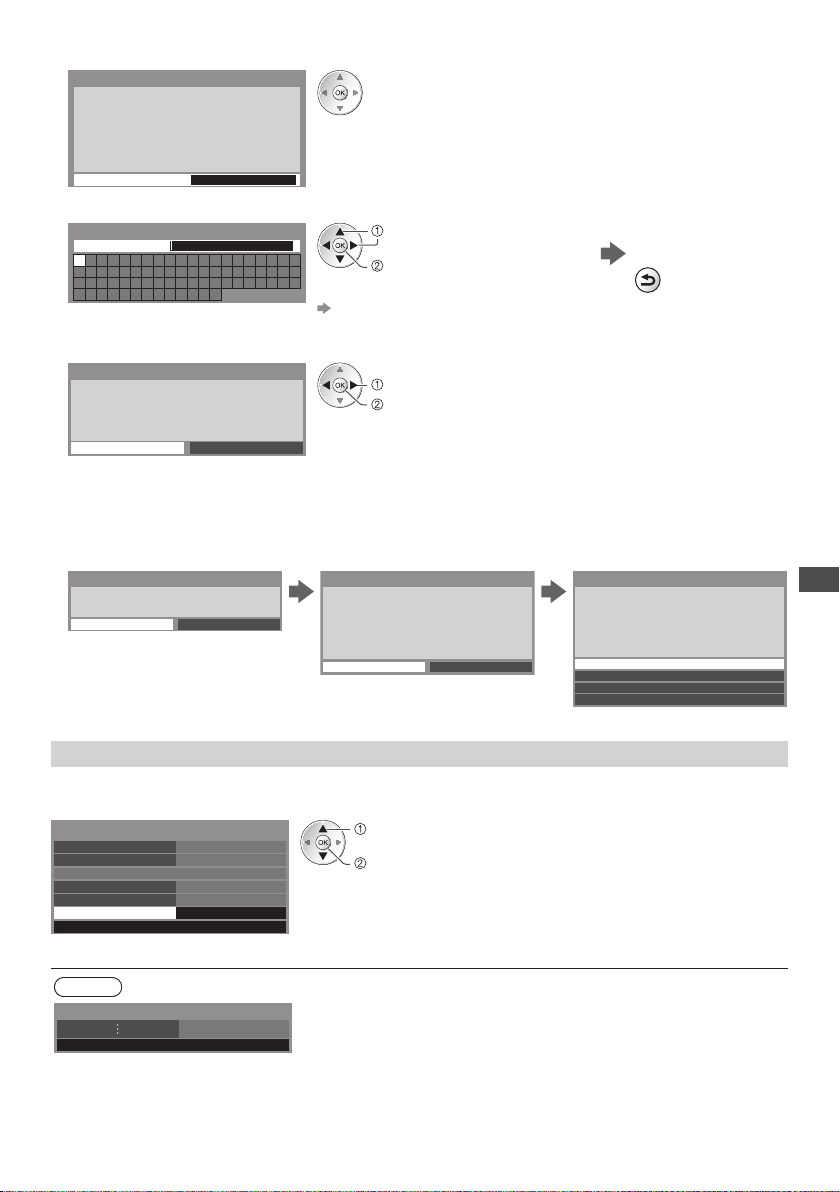

2 Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

If the selected access point is not encrypted, the confirmation screen will be

•

displayed. It is recommended to select the encrypted access point.

3 Enter the encryption key of the access point (Set characters one by one)

Access Point Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

set

To use numeric buttons

•

 “Characters table for numeric buttons”

(p.111)

Store

BACK/

RETURN

4 Select [Yes]

Access Point Settings

Encryption key is set to:XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes

•

select confirm

To re-enter the encryption key, select [No].

■ [Manual]

You can setup SSID, authentication type, encryption type, and encryption key manually. Follow the on screen instructions and set manually.

When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES]

•

for the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:XXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes

Authentication Type Settings

Connection will be made with the following settings:SSID : XXXXXXX

Please select the authentication type.

WPA2-PSK

WPA-PSK

Shared key

Open

Using Network Services (DLNA / VIERA Connect / freesat)

Update TV’s software

Check for available software updates from the Panasonic website.

Select [Software Update]

Network Setup

Connection Test Network Type

Access Point Settings

IP/DNS Settings Network Link Settings

Software Update

MAC Address

Note

Network Setup

MAC Address

Wired

---

Access ab-cd-ef-gh-ij-kl

ab-cd-ef-gh-ij-kl

•

[MAC Address]

•

select

access

Follow the on screen instructions

MAC address is a unique address that identifies hardware in the network. (for information only)

Page 92

Using DLNA® features

Ensure the preparation of media server, network connections and network settings are completed.

•

“Media server” (p.85), “Network connections” (p.86), [Network Setup] (p.87 - 91)

Display icons of the feature

Select [Media Server]

Media Server

Select one of the media servers you want to access

Example : Media server list

Media Server

SERVER1

SERVER2

SERVER3 DIGA

Select

EXIT

RETURN

Access

Info

OPTION

Option Menu

Available media servers

•

select

access

To display the information of the highlighted media server

select access

Using Network Services (DLNA / VIERA Connect / freesat)

EXIT

■

To return to TV

■

To return to the previous screen

BACK/

RETURN

Total listed number

Select the file

Example : File list

Media Server

Pixel

3648x2736

Format

JPEG

Select

EXIT

RETURN

View

Slideshow

SERVER1

P000102 2010-10-05 09:54 P000135 P000180 P000214 P000251 P000276 P000293 V100025 V100042 M10054 M10078

Info

OPTION

Option Menu

2010-11-20 13:18 2010-12-07 11:31 2010-12-10 15:20 2010-12-19 12:39 2010-12-25 14:06 2011-01-06 13:52 2011-01-12 15:56 2011-01-20 10:08 2011-01-28 14:48 2011-02-09 19:58

•

select

access

Depending on the conditions of media server, you may need to select the folder before selecting the file. To display the information of the highlighted file

Note

Non-playable files are also listed but cannot be selected.

•

Turn the TV off, and then on again when changing or reconnecting the network

•

connection.

Page 93

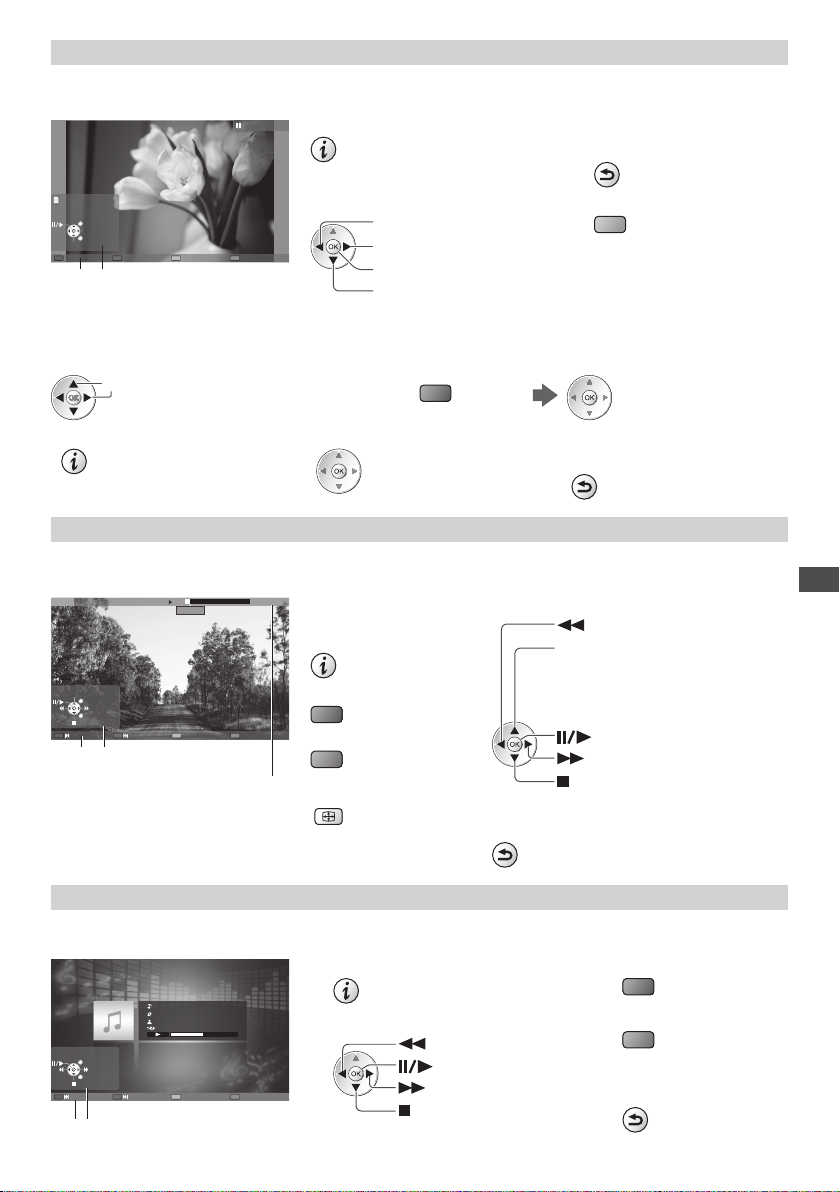

For photo file

[Single view]

Example :

- Photos are displayed one at a time.

Single view

To display / hide the operation guide

•

To return to list

•

BACK/

RETURN

Single view

EXIT Select RETURN

Stop

Operation guide

Rotate

To operate Single view

•

To the previousphoto

To the next photo

Slideshow

Stop (return to list)

[Slideshow] - Slideshow will complete when all photos have been viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow

select

To display / hide the operation guide

•

To pause (return to Single view)

•

(red)

•

For video file

Playback

Example : Playback

MEDIA SERVER

Manual skip

Operation guide

- Playback will start.

19/02/2010 11:21 00:15:39

EXIT

RETURN

00:02:05

Information banner

To display / hide the

•

operation guide and information banner

To the previous content

•

(red)

To the next content

•

(green)

To change aspect

•

ASPECT

To operate the playback

•

[Manual skip]

Press to skip forward about 30

•

seconds Press and hold to skip backward

•

about 15 seconds

Stop

To return to list

•

BACK/

RETURN

To rotate 90°

•

(blue)

To return to list

BACK/

RETURN

Rewind

Pause / Playback

Fast forward

Using Network Services (DLNA / VIERA Connect / freesat)

For music file

Playback

Example : Playback

Operation guide

- Playback will start

EXIT

RETURN

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

To display / hide the operation guide

•

To operate the playback

•

Rewind

Pause / Playback

Fast forward

Stop

To the previous track

•

(red)

To the next track

•

(green)

To return to list

•

BACK/

RETURN

Page 94

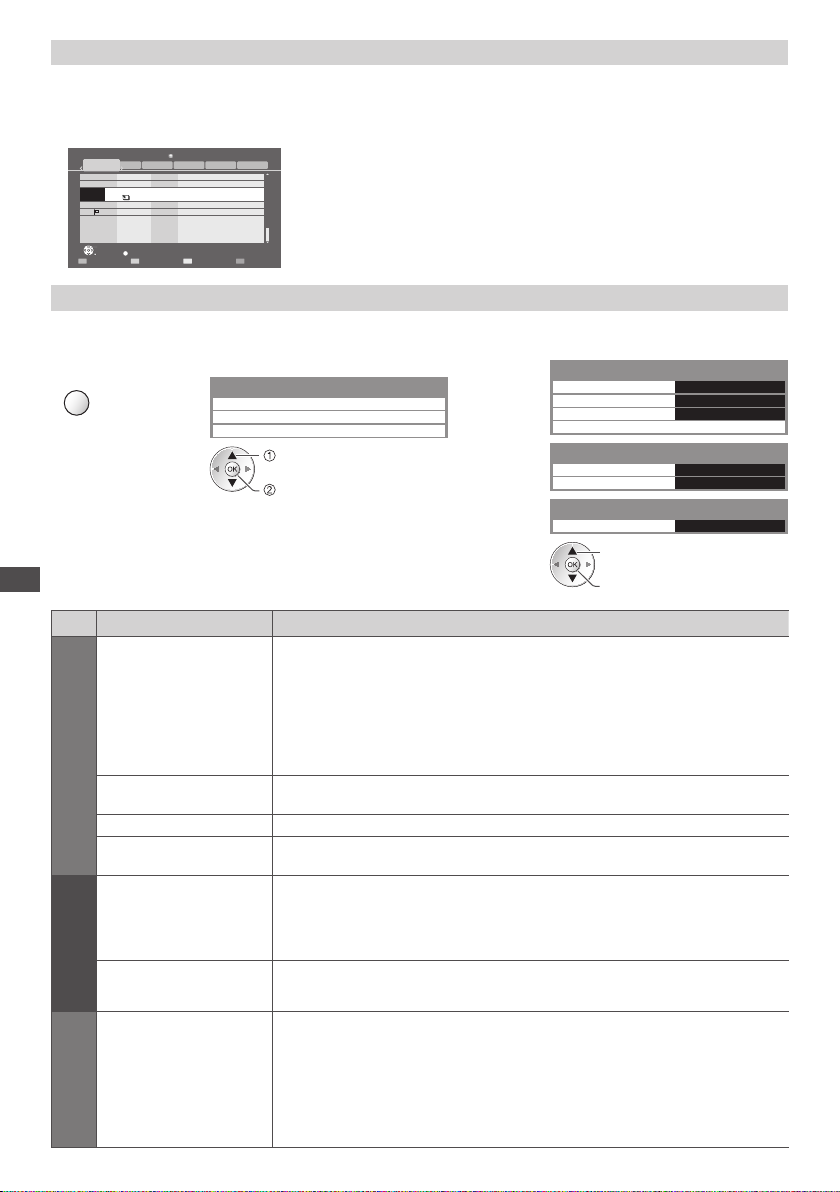

For DIGA Recorder

Control the DIGA Recorder

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide.

Example :

DIRECT NAVIGATOR (Grouped Titles)

All

Bibel TV Bibel TV das Gespräch

HDD

19.08(Wed)

Liberty TV FR Journal Télévisé / Météo

AV1

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

WDR aktuell

WDR Aachen

WDR Wuppertal

Time Remaining 36:17 (DR)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Before operating, register this T V on the DIGA Recorder.

•

For details, read the manual of the DIGA Recorder.

•

OK RETURN

OPTION

Page 005/005

Delete TitleSelect

Option menu for each content

Setup the settings for Photo and Video file operations.

1 Display the option

OPTION

Using Network Services (DLNA / VIERA Connect / freesat)

Slideshow Settings

Transition Effect

Interval

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Video Setup

Video Preview

2 Select [Slideshow Settings], [Video Setup] or

[Music Setup]

Option Menu

Slideshow Settings Video Setup Music Setup

select

access

Item Adjustments / Configurations (alternatives)

Selects the transition effect for switching the photo during the slideshow

[Random] : Each transition is selected at random.

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

•

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3]

Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]

•

3 Select the items and set

Slideshow Settings

Transition Effect Fade Interval 5 seconds Repeat On Back Ground Music

Video Setup Menu

Video Preview On Repeat

Music Setup Menu

Repeat One

select

access / store

moving down.

This function is not available when [Transition Effect] is set to [Motion].

Image may not be displayed for an instant in the thumbnail screen. Set the preview [Off] to resolve this.

Off

Repeat Playback repeat within the selected file [Off] / [On]

Music Setup

Repeat

Playback repeat [Off] / [Folder] / [One] [Folder] : Playback repeat within the selected folder [One] : Playback repeat of the selected one file

Page 95

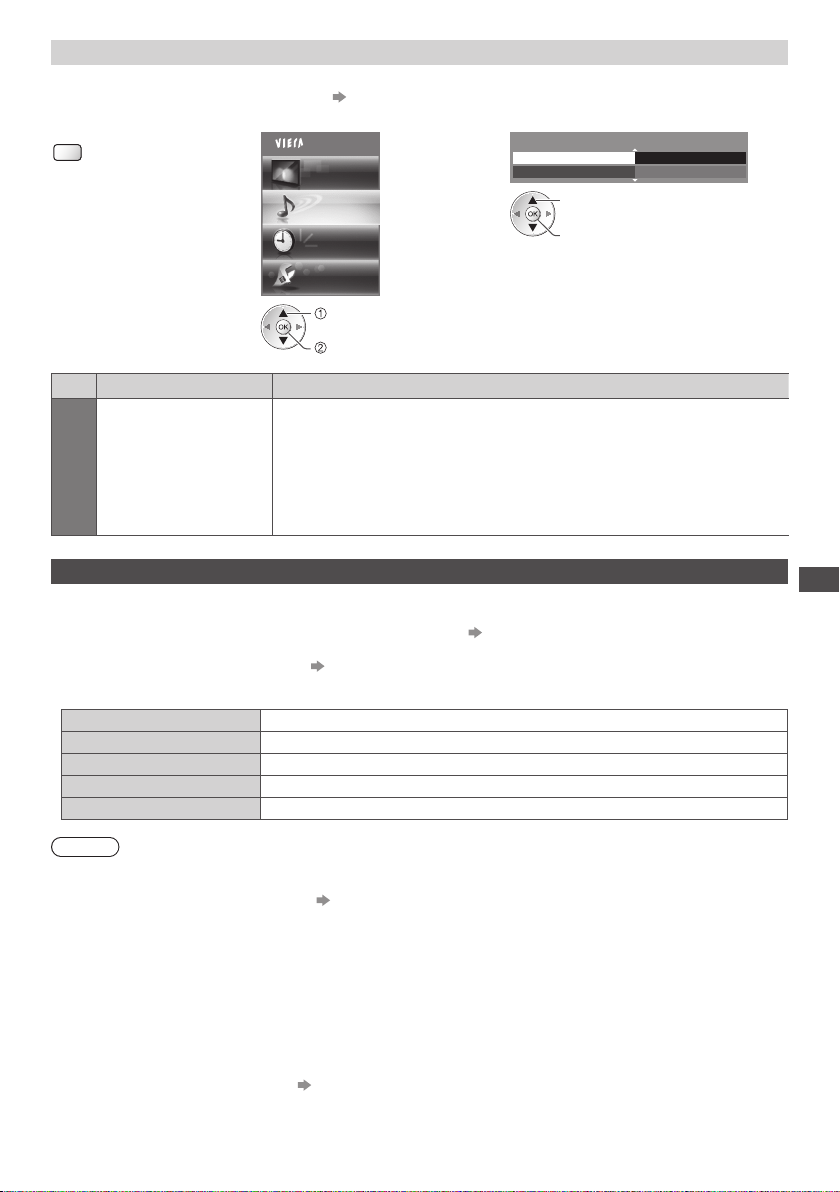

Audio output settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

To confirm or change the current sound status “Confirm or change the current status” (p.80)

•

1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set

Main Menu


Sound

Timer

Setup

select

access

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

Sound

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]

SPDIF Selection

[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream. MPEG is output as PCM.

[PCM] : Digital output signal is fixed to PCM.

VIERA Connect

You can access VIERA Connect and enjoy various network contents.

VIERAConnect requires a broadband internet connection. Dial-up internet connections cannot be used.

•

Ensure the network connections and network settings are completed. “Network connections” (p.86), [Network Setup]

•

(p.87 - 91)

For details about VIERA Connect operation “Using “VIERA Connect”” (p. 16)

•

Setup menu (Items in [Setup] may change without notice.)

•

Customize HomeScreen Changes the position of each services on VIERAConnect home screen

My Account Confirms or removes the account information of the TV you entered on VIERA Connect

Lock Sets to restrict access to some services

Beep Sets beep sound On or Off when operating VIERAConnect

Notices Displays the information of VIERAConnect

Note

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated,

•

you will not be able to use VIERAConnect. You can update the software later manually [Software Update] in [Network Setup] (p.91) VIERAConnect home screen is subject to change without notice.

•

The services through VIERAConnect are operated by their respective service providers, and service may be discontinued

•

either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services. Some content may be inappropriate for some viewers.

•

Some content may only be available for specific countries and may be presented in specific languages.

•

Depending on the connection environment, the internet connection may be slow or may not be successful.

•

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.41). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 97) and set to use theatre speakers (p. 103). You can restrict access to VIERAConnect [Child Lock] (p.60)

•

Turn the TV off, and then on again when changing or reconnecting the network connection.

•

Using Network Services (DLNA / VIERA Connect / freesat)

Page 96

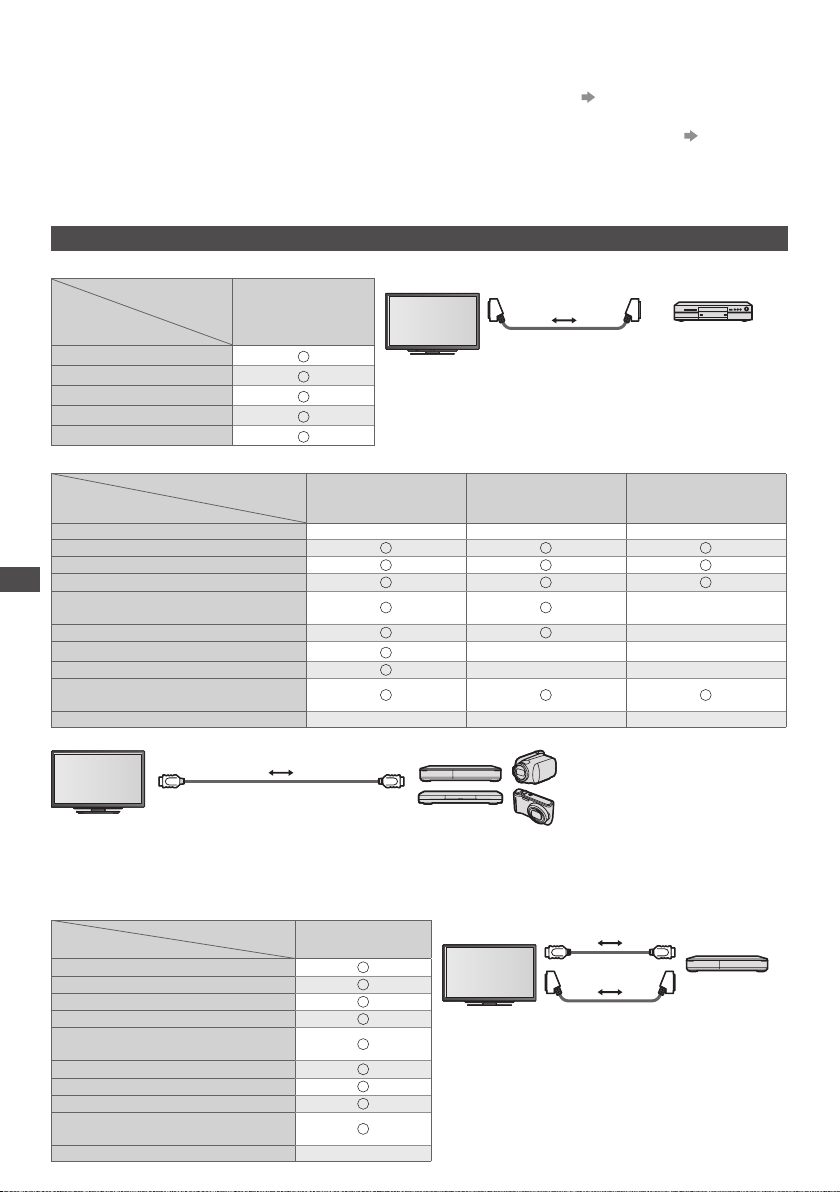

Link Functions (Q-Link / VIERALink)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p.98)

VIERALink (HDAVI Control™) connects the TV and the equipment with VIERALink function, and enables easy control, convenient recording, playback, energy saving, creation of a home theatre, etc., without complicated setting. (p.99 - 103)

You can use Q-Link and VIERALink functions together.

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of

•

HDAVI Control. Please refer to the manual of the equipment to confirm the version. VIERALink features may be available even with other manufacturers’ equipment supporting HDMI CEC.

•

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection only)

Connected equipment

Features Analogue channel download Easy playback Power on link Power off link Direct TV Recording

DVD Recorder / VCR

with Q-Linkfunction

VIERA Link (HDMI connection only)

Connected equipment

Features Analogue channel download – – – Easy playback Power on link Power off link

Link Functions (Q-Link / VIERALink)

Reduce unnecessary power consumption in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control – – –

Connection

HDMI cable

Use a fully wired HDMI compliant cable.

•

Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminal via an HDMI cable.

•

For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of

•

the equipment.

VIERA Link (HDMI and SCART connections)

Features Analogue channel download

Easy playback Power on link Power off link Reduce unnecessary power consumption in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control –

Connected equipment

DIGA Recorder with VIERA Link function

Connection

Use a fully wired SCART cable.

•

Connect the DVD Recorder / VCR supporting Q-Link to the TV’s AV1

•

terminal via a SCART cable.

DIGA Recorder with VIERALink function

∗

∗3 ∗

∗

∗2 ∗

∗

SCART cable

DVD Player / Blu-rayDisc

Player with VIERA Link

function

∗

–– ––

∗

DIGARecorder / DVDPlayer/ Blu-rayDiscPlayer/ HDVideoCamera/ LUMIXCamera with VIERALinkfunction

Connection

HDMI cable

SCART cable

Use a fully wired HDMI compliant cable.

•

Connect the equipment supporting VIERA Link to the TV’s

•

HDMI1 or HDMI2 terminal via an HDMI cable. Use a fully wired SCART cable.

•

Connect the equipment supporting VIERA Link to the TV’s

•

AV1 terminal via a SCART cable.

DVD Recorder / VCR with Q-Link function

HD Video Camera/ LUMIXCamera with VIERALink function

DIGA Recorder with VIERALink function

–

∗

Page 97

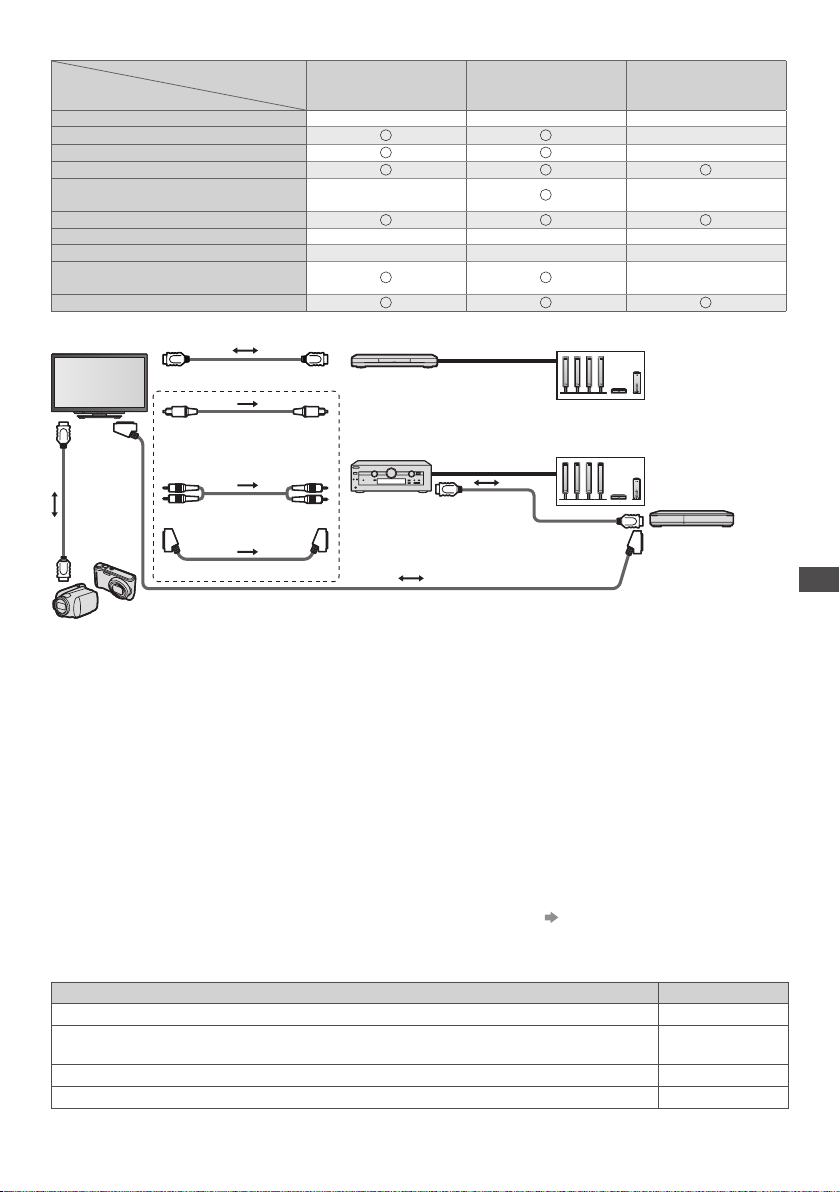

VIERA Link (HDMI and Audio out connections)

Connected equipment

Features Analogue channel download – – – Easy playback Power on link Power off link Reduce unnecessary power consumption in standby Auto standby for unnecessary equipment Pause Live TV programme – – – Direct TV Recording – – – Control the menu of the connected equipment by VIERA remote control Speaker control

Connection

HDMI cable

Optical digital

audiocable

HDMI cable

HD Video Camera / LUMIXCamera with VIERALink function

Use fully wired HDMI compliant cable.

•

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

•

Use fully wired SCART cable.

•

If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set

•

[AV1 out] to [Monitor] in the Setup Menu (p.41). Use the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.

•

∗

1 : Available with the equipment which has “HDAVI Control

2 or later” function.

∗

2 : Available with the equipment which has “HDAVI Control

3 or later” function.

∗

3 : Available with the equipment which has “HDAVI Control

4 or later” function.

∗

4 : Available with DIGA Recorder which has HDD.

RCA cable

SCART cable

Player theatre with

VIERA Link function

∗

–

∗3 ∗

∗

To use Player theatre / Blu-ray Disc theatre :

•

Player theatre / Blu-ray Disc theatre with VIERALink function

To use Amplifier :

•

Amplifier with VIERALink function

∗

SCART cable

Blu-ray Disc theatre with

VIERA Link function

∗

5 : While playing a disc

∗

6 : Except for watching a disc

∗

7 : If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable (Optical digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

∗

∗3 ∗

∗

HDMI cable

Amplifier with VIERALink

function

– –

–

∗

–

Speaker system

DIGARecorder with VIERALink function

VIERA Link Control of compatible equipment ([VIERA Link Control] p.101)

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.

•

This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the T V via an HDMI cable.

Type of the equipment Maximum number

Recorder (DIGA Recorder, etc.) 3

Player (DVD Player, Blu-ray Disc Player, HDVideoCamera, LUMIXCamera, Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)

Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1

Tuner (Set top box, etc.) 4

Link Functions (Q-Link / VIERALink)

Page 98

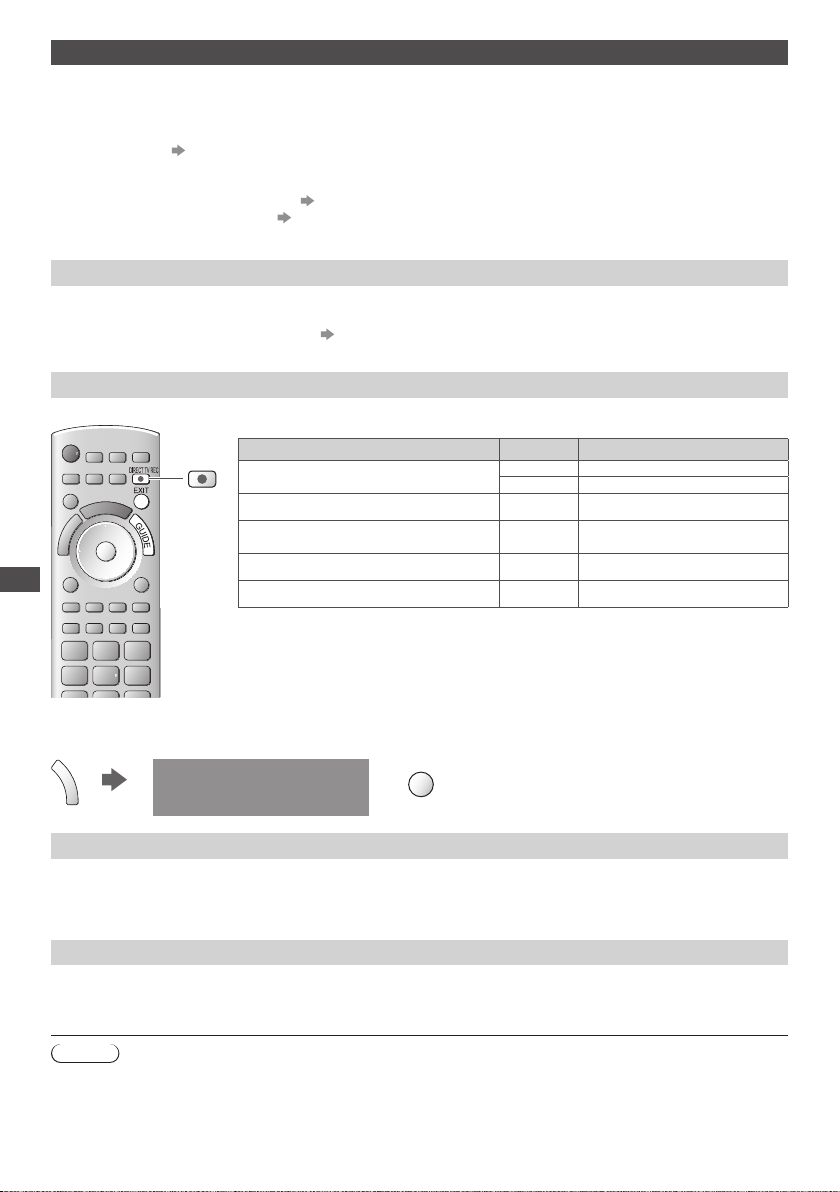

Q-Link

Preparations

Connect the DVD Recorder / VCR with the following logos:

•

“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)” or “SMARTLINK (a trademark of Sony Corporation)” Q-Link connection (p.96)

•

Use fully wired SCART cable.

•

Set up the DVD Recorder / VCR. Read the manual of the recorder.

•

Q-Link terminal setup in the Setup Menu [AV1 out] (p.41)

•

Download Analogue channel setting “Analogue channel download” (see below)

•

Features available

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings  [Q-Link Download] (p.41) or [Auto Setup] in Analogue mode (p.49) or

•

“Auto Setup” - when first using the TV (p.12)

Direct TV Recording - What you see is What you record

Recording the current programme on a DVD Recorder / VCR immediately.

DIRECT TV REC

Link Functions (Q-Link / VIERALink)

Available conditions:

•

Analogue

freesat, DVB, Other Sat. / Satellite TV TV monitor out

AV (watching recorder’s tuner) AV Recorder’s tuner

AV (watching recorder’s external input) AV Recorder’s externalinput

AV (watching T V’s external input) AV TV monitor out

When Direct TV Recording is performed, the recorder is automatically turned on if it is in

•

Standby mode. Changing channel or turning off the TV is available while the recorder is recording from its

•

own tuner. Changing channel is not available while the recorder is recording from the TV tuner.

•

Picture source Mode Recording from

TV TV monitor out AV Recorder’s tuner

■ To stop recording

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

EXIT

Power on link and Easy playback

When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the equipment is activated, the TV is turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

This function will work even if the TV enters Standby mode automatically by auto power standby function.

•

Note

Some recorders are not compatible. Read the manual of the recorder.

•

Page 99

VIERA Link “ Control™”

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p.96, 97). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the connected

•

equipment’s version of HDAVI Control. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI

•

CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

•

For information about applicable Panasonic equipment, consult your local Panasonic dealer

•

or refer to www.panasonic.co.uk

Preparations

Connect the equipment that supports VIERA Link.

•

VIERA Link connection (p.96, 97)

•

Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised. Recommended Panasonic HDMI cables’ part numbers:

• RP-CDHS15 (1.5 m) • RP-CDHS30 (3.0 m) • RP-CDHS50 (5.0 m)

Use a fully wired SCART cable.

•

Set up the connected equipment. Read the manual of the equipment.

•

For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.

•

Download Analogue channel setting “Analogue channel download” (see below)

•

Set [VIERA Link] [On] in the Setup Menu [ VIERA Link] (p.41)

•

Set up the TV

•

 After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p.29), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

• for the first time

• when adding or reconnecting equipment

• when changing setup

Features available

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings  [Q-Link Download] (p.41) or [Auto Setup] in Analogue mode (p.49) or

•

∗

“Auto Setup” - when first using the TV (p.12)

Link Functions (Q-Link / VIERALink)

Easy playback

Automatic Input switching - When the connected equipment is operated (during playback or menu operations, etc.), the input mode is switched automatically. When playback is stopped or menus are exited, the input mode returns to the original setting.

Power on link

When the connected equipment starts playback or the direct navigator / function menu for the equipment is activated, the TV is automatically turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function.

•

Page 100

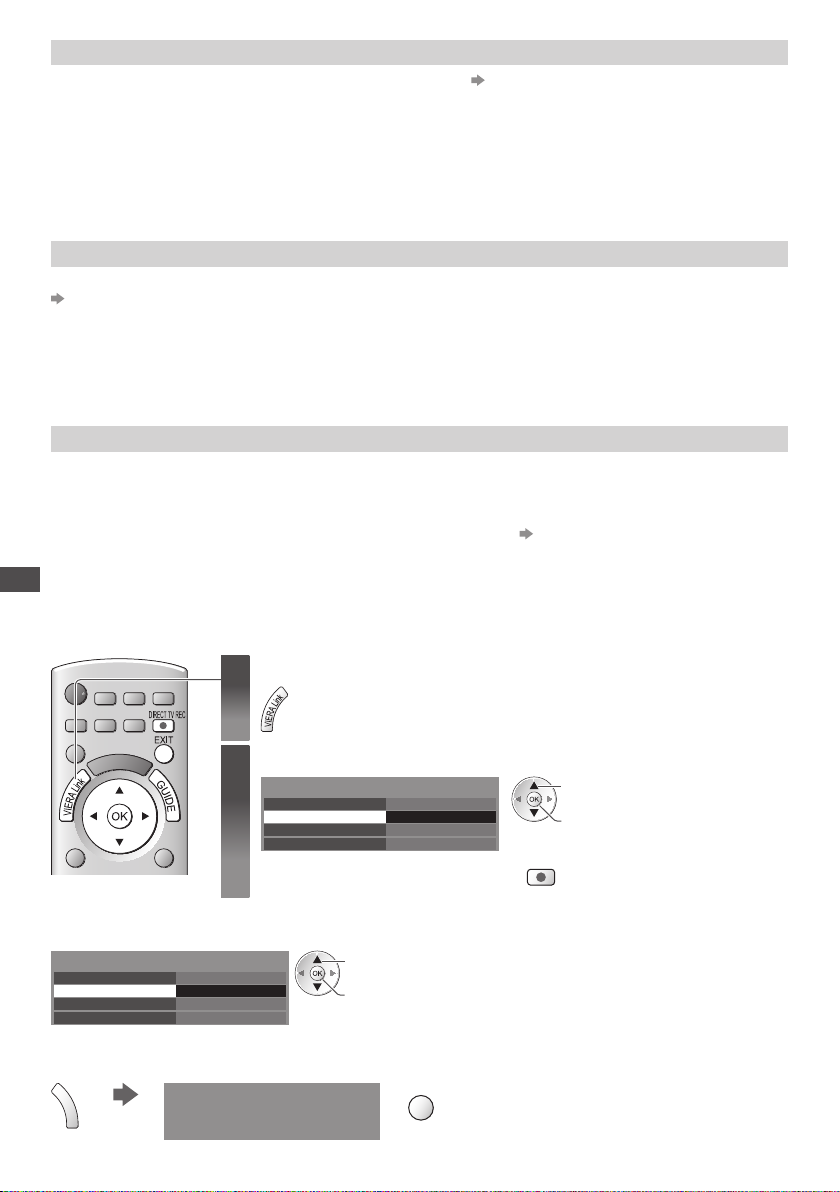

Reduce unnecessary power consumption in standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p.41)

The power consumption in Standby mode of the connected equipment is controlled in synchronization with the T V On/ Off state. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimised. When the TV is turned on and the connected equipment is still in Standby mode, the power consumption of the connected equipment is increased to reduce the startup time.

This function is effective if the connected equipment can change the power consumption in Standby mode and is set to

•

higher consumption.

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function

[Intelligent Auto Standby] (p.41)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce power consumption. For example, when the input mode is switched from HDMI, the connected equipment will go into Standby mode / when Speaker Selection is changed to [TV], the Player theatre will go into Standby mode (except when watching a disc).

If you select [On (With reminder)], the on screen message will be displayed before the connected equipment turns to

•

Standby. This function may not work properly depending on the connected equipment. If required, set to [Off].

•

Direct TV Recording - What you see is What you record [Direct TV Rec]

Recording the current programme on a DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect the DIGA

•

Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1. If Direct TV Recording does not operate, check the settings and the equipment “Summary of Q-Link and VIERA Link

•

features” (p.96, 97), “Preparations” (p.99)

If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is required and the

•

programme is recorded by Q-Link function (p.98).

Link Functions (Q-Link / VIERALink)

Depending on the programme, a SCART connection may be required to record.

•

Changing channel or turning off the TV is available while the recorder is recording from its own tuner.

•

Changing channel is not available while the recorder is recording from the TV tuner.

•

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

You can also stop recording directly.

100

•

Unlock the tuner

Display [VIERA Link Menu]

Select [Direct TV Rec] and start recording

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

Start Stop Recorder Home Cinema

Tuner Locked

Press EXIT to unlock and stop recording

Start Start Recorder Home Cinema

select

access / stop

EXIT

select

access / start

You can also start recording directly.

•

DIRECT TV REC
