Page 1
Operating Instructions
LCD Television
Model No.
TX-D32LF82F
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Page 2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
2
Notice for DVB functions
Any functions related to DVB (Digital Video Broadcasting) will work in areas where
•
DVB-T (MPEG2) digital terrestrial broadcasting are received. Consult your local
Panasonic dealer with coverage areas.
DVB functions may not be available in some countries.
•
Some functions may not be available in some countries.
•
This TV has the capability for DVB speci cations. But future DVB services cannot be
•
guaranteed.
Page 3
media excitement
Enjoy rich multi-media
SD memory Card
Camcorder
Personal
computer
Ampli er with
Speaker system
VCR
DVD Recorder
Set top box
DVD player
Contents
Be Sure to Read
Safety Precautions ······································ 4
•
(Warning / Caution)
Notes ··························································· 5
•
Maintenance················································ 5
•
Quick Start Guide
Accessories / Options ········· 6
•
Identifying Controls ·············· 7
•
Basic Connection ·················· 8
•
Auto Setup ······························ 10
•
Enjoy your TV!
Basic Features
Watching TV ·············································· 12
•
Using Programme Guide··························· 15
•

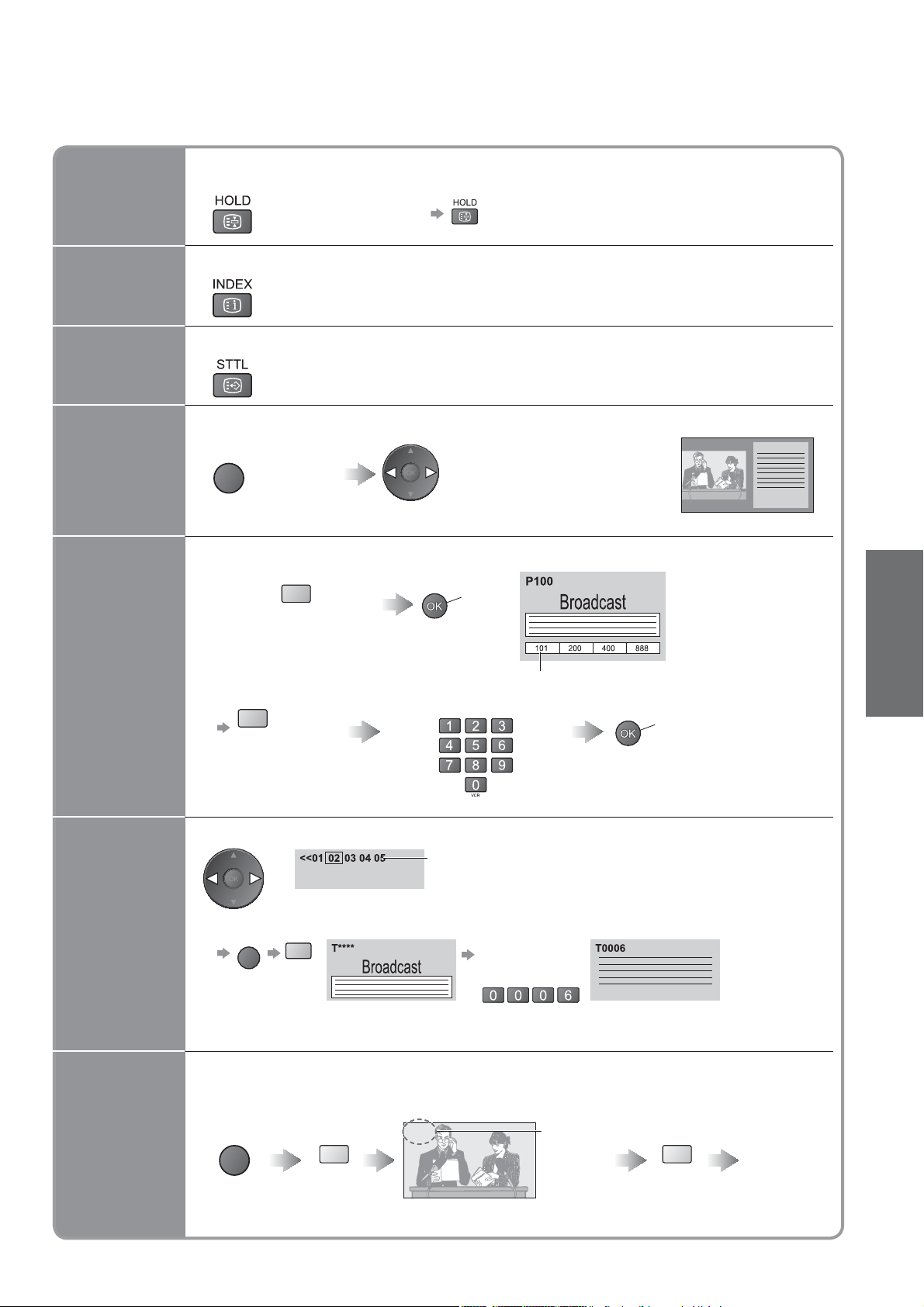

Viewing Teletext ········································16
•
Watching Videos and DVDs ······················ 18
•
Quick Start Guide
Viewing Advanced FAQs, etc.
Advanced Features

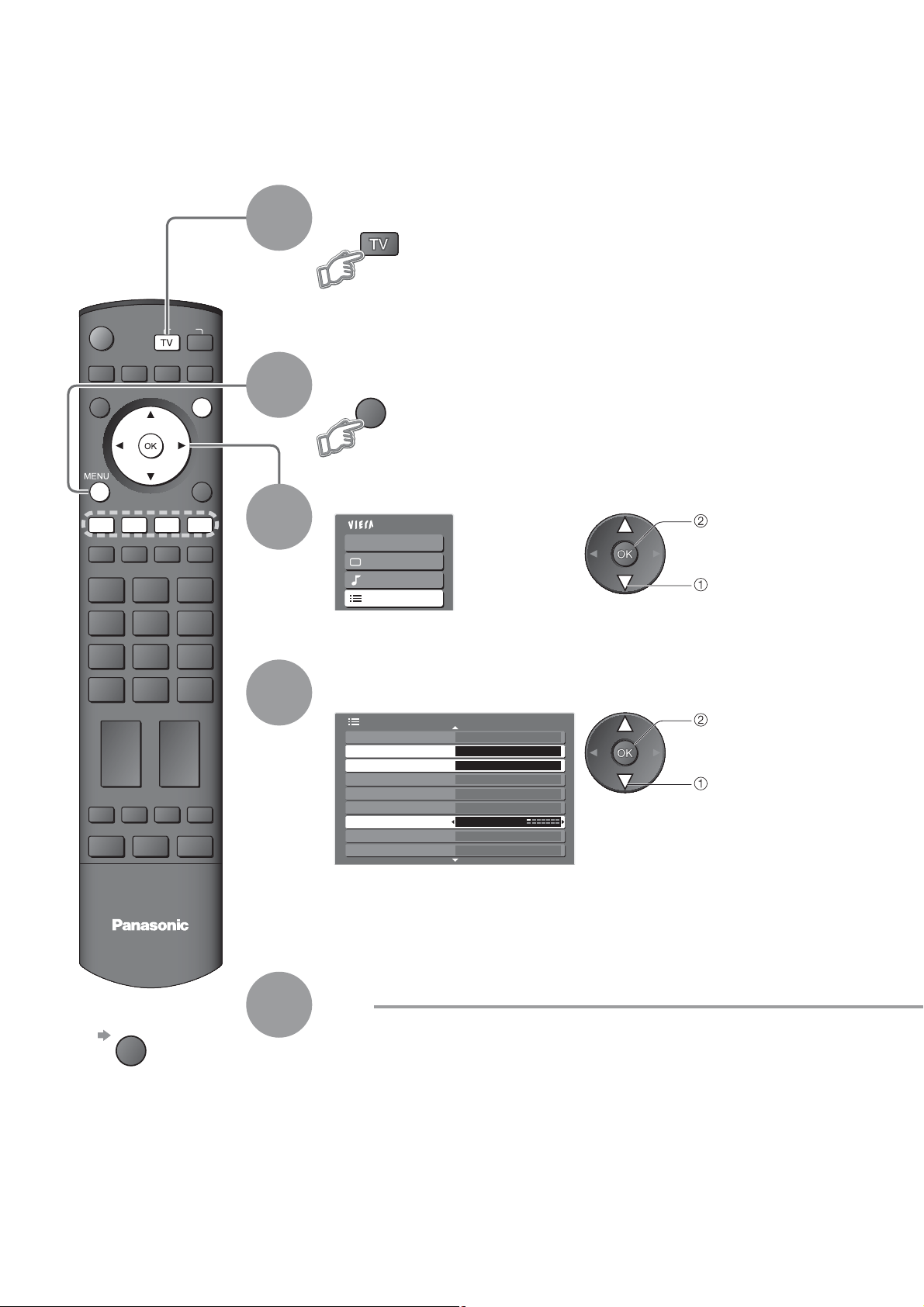

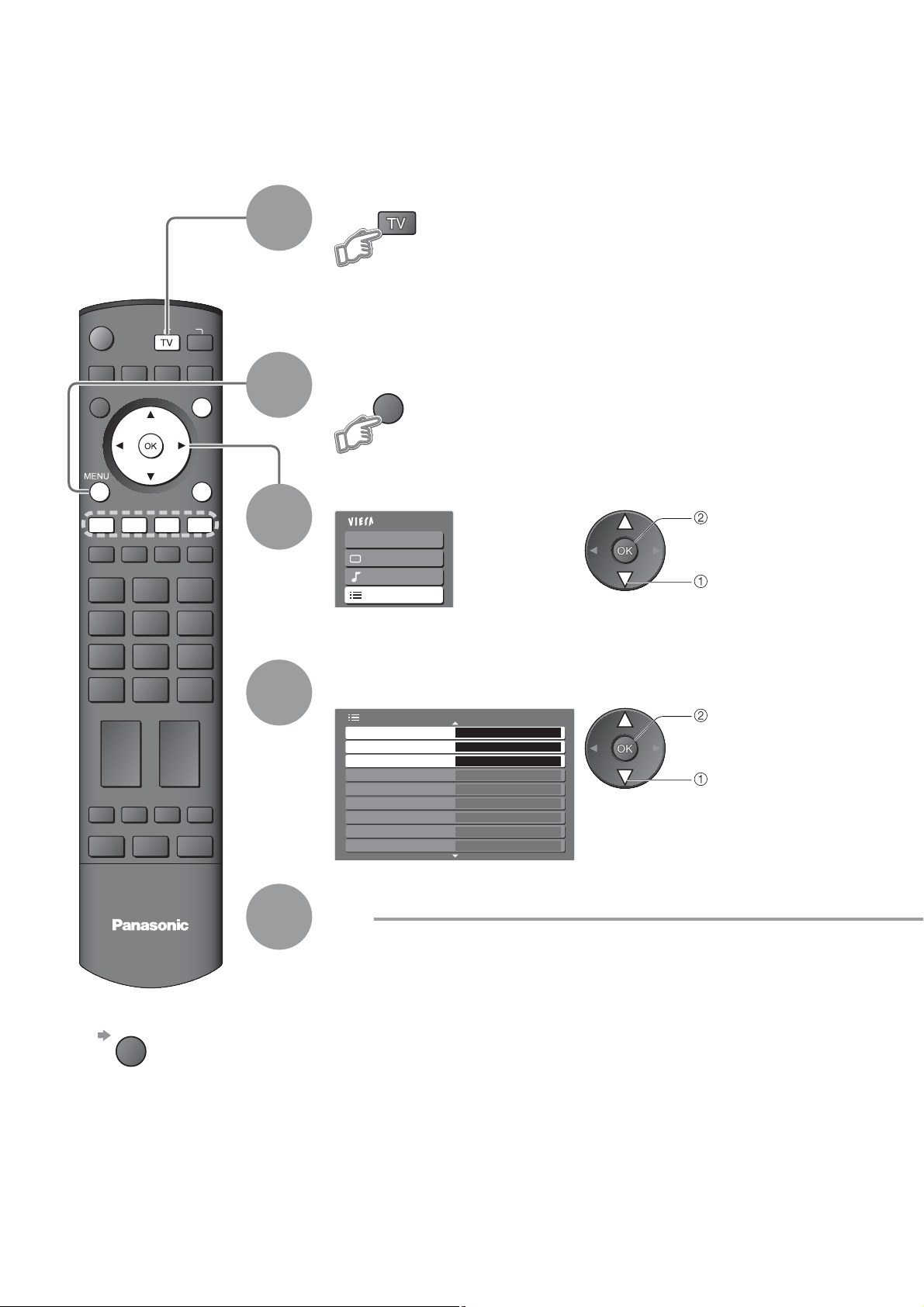

How to Use Menu Functions ····················· 20
•
(picture, sound quality, etc.)
DVB Settings (DVB) ·································· 24
•
(pay-TV, software update, time adjustment)
Editing Programmes·································· 26
•
Tuning Programmes ·································· 28
•
Control Programme Audience ·················· 30
•
Restore Settings ······································· 31
•
Input Labels··············································· 32
•
Displaying PC Screen on TV ····················· 33
•
Viewing from SD Card (Photos) ················ 34
•

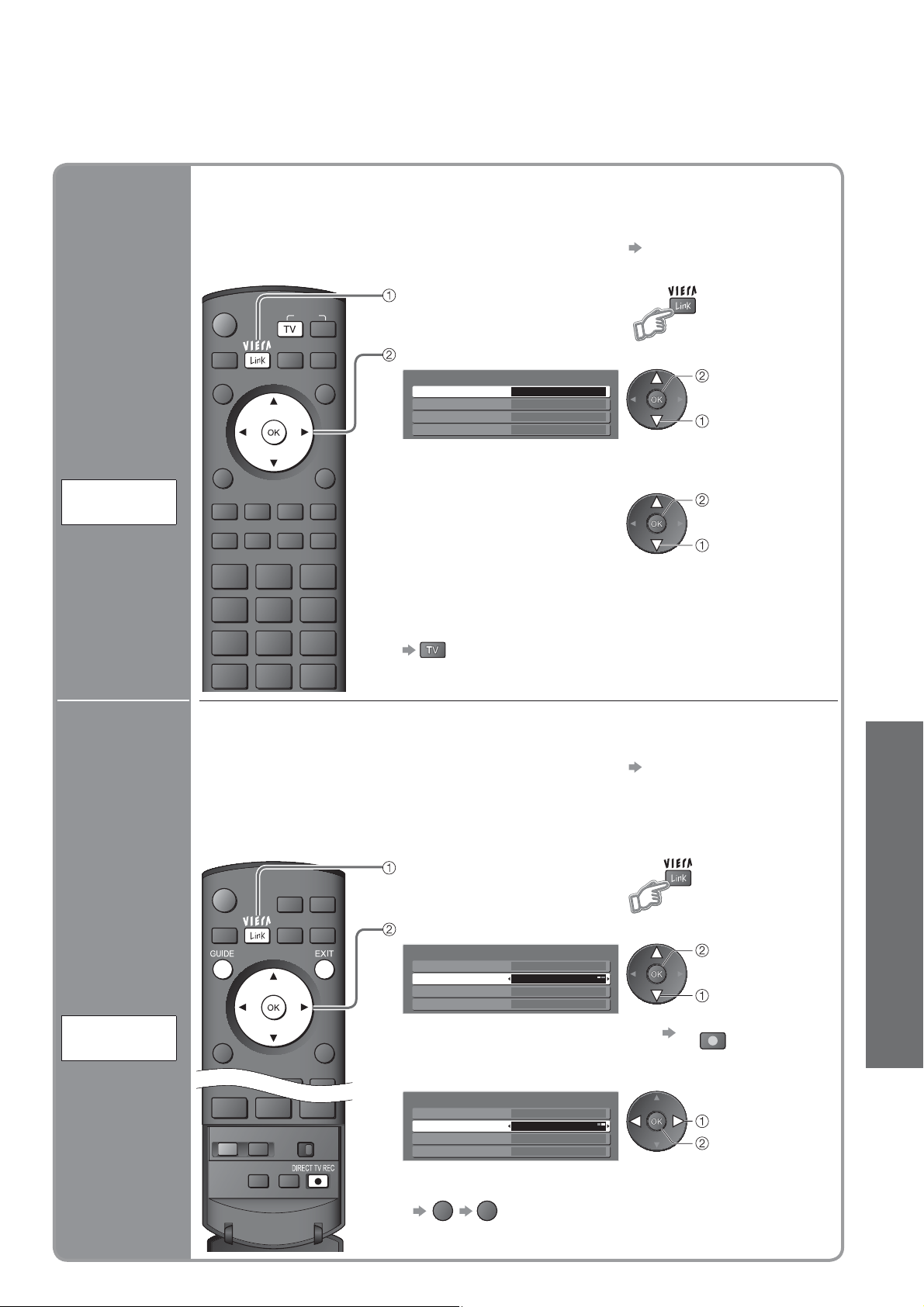

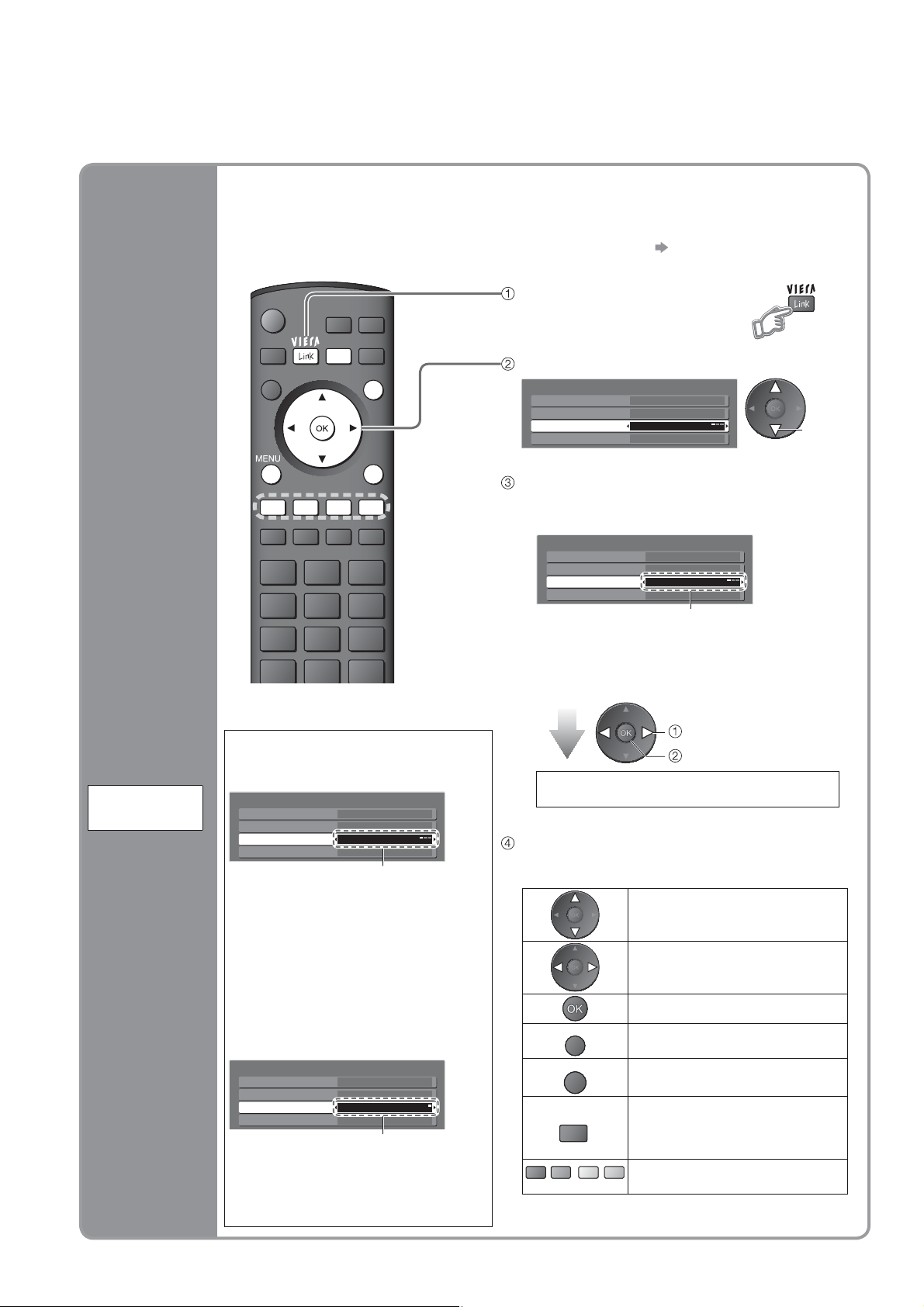

Link Functions ·········································· 36
•
(Q-Link / VIERA Link)
External Equipment ··································· 42
•
FAQs, etc.
Technical Information ································44
•

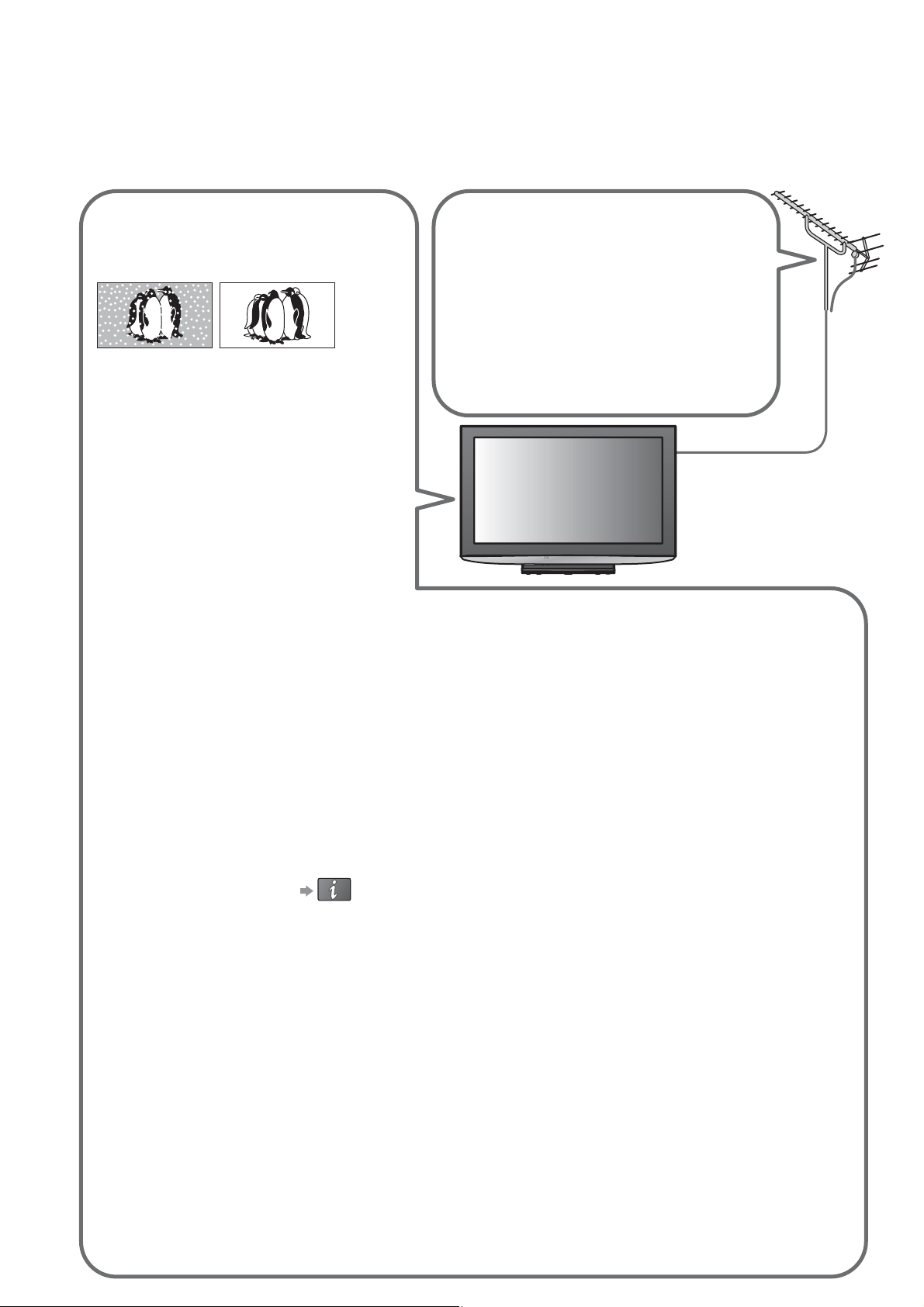

FAQs ·························································48
•
Licence ······················································ 50
•
Speci cations ············································ 51
•
3
Page 4
Safety Precautions
Warning
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause re.)
•
Ensure that the mains plug is easily accessible.
•
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
•
Do not damage the mains lead. (A damaged lead may cause re or electrical shock.)
•
Do not move the TV with the lead plugged in the socket outlet.
•
Do not place a heavy object on the lead or place the lead near a high-temperature object.
•
Do not twist the lead, bend it excessively, or stretch it.
•
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•
Do not use a damaged mains plug or socket outlet.
•
If you nd any
abnormality,
remove the mains plug
immediately!
AC 220-240 V
50 Hz
Power source
This TV is designed to operate on 220-240 V,
•
50 Hz AC.
Do not remove covers
NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock.)
Have the TV checked, adjusted, or repaired at your
•
local Panasonic dealer.
Keep liquids away from the TV
To prevent damage which may result in re or shock hazard,
•
do not expose this appliance to dripping or splashing.
Do not place containers with water ( ower vase, cups,
•
cosmetics, etc.) above the TV. (including on shelves
above, etc.)
Do not place foreign objects
inside the TV
Do not allow any objects to drop into the TV through
•
the air vents ( re or electrical shock may result).
Do not place the TV on sloped or
unstable surfaces
The TV may fall off or tip over.
•
Use only the dedicated pedestals
/ mounting equipment
Using an unapproved pedestal or other xtures may
•
make the TV unstable, risking injury. Be sure to ask
your local Panasonic dealer to perform setup.
Use approved pedestals / mounts (p. 6).
•
Do not expose to direct sunlight
and other sources of heat
Avoid exposing the TV to direct sunlight and other
•
sources of heat. To prevent re never place any type of
candle or naked ame on top or near the TV.
4
Do not allow children to handle
SD Card
As with a small object, SD Card can be swallowed by
•
young children. Please remove SD Card immediately
after use.
Page 5
Notes
Caution
When cleaning the TV, remove the
mains plug
Cleaning an energized TV may cause
•
electrical shock.
When the TV is not going to be used for a
long period of time, remove the mains plug
This TV will still consume some power even in
•
the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Allow suf cient space around the
TV for radiated heat
Minimum distance
10
10
When using the pedestal, keep the space
•
between the bottom of the TV and the oor
surface.
In case of using Wall-hanging bracket, follow
•
the manual of it.
10 10
(cm)
Do not block the rear air vents
Blocked ventilation by newspapers, table
•
cloths, curtains, etc. may cause overheating,
re or electrical shock.
Do not expose your ears to excessive
volume from the headphones
Irreversible damage can be caused.
•
Auto power standby function
If no signal is received and no operation is performed
•
in Analogue TV mode for 30 minutes, the TV will
automatically go to standby mode.
Keep the TV away from these types of equipment
Electronic equipment
•
In particular, do not place video equipment near the TV
(electromagnetic interference may distort images / sound).
Equipment with an infrared sensor
•
This TV also emits infrared rays (this may affect
operation of other equipment).
Transport only in upright position
Adjust the LCD panel to your desired angle
Ensure that the pedestal does not hang over the edge of
•
the base even if the TV swivels to the full rotation range.
Do not place any objects or hands within the full rotation range.
•
Set the mark at the centre as illustrated,
to have the swivel positioned at the
centre of the rotation angle.
b
15°
TX-D32LF82F
•
a: 407 mm / b: 303 mm
a
(View from the top)
15°
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent
(1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may be easily damaged.
•
Do not tap or scratch the surface with your ngernail or other hard object.
Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances
•
(this may degrade surface quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.
Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Take care not to subject the TV's surfaces to detergent.
•
(A liquid inside the TV could lead to product failure.)
Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances
•
(this may deteriorate the surface by peeling the paint).
Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.
•
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to re or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories
Remote Control
N2QAYB000239
•
Operating Instructions
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
•
young children accidentally. Keep these parts out of reach of young children.
Installing remote’s batteries
Check that you have the accessories and items shown
Batteries for the
Remote Control (2)
R6 (UM3)
•
TV
Pan European Guarantee Card
Clamper
Using the clamper
Pull
open
1
Hook
Close
2
Rear of the TV
6
To tighten:
Note the correct
polarity (+ or -)
Caution
Incorrect installation may cause battery
•
leakage and corrosion, resulting in
damage to the remote control.
Do not mix old and new batteries.
•
Do not mix different battery types (such
•
as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to
excessive heat such as sunshine, re or
the like.
Optional accessories
Wall-hanging bracket
TY-WK32LR2W
•
WARNING!
Failure to use a Panasonic bracket or choosing to mount the unit
•
yourself will be done at the risk of the consumer.
Any damage resulting from not having a professional installer mount
your unit will void your warranty.
Always be sure to ask a quali ed technician to carry out set-up.
•
Incorrect tting may cause equipment to fall, resulting in injury and
product damage.
Do not mount the unit directly below ceiling lights (such as spotlights,
•
oodlights or halogen lights) which typically give off high heat. Doing
so may warp or damage plastic cabinet parts.
Take care when xing wall brackets to the wall. Always ensure that there
•
are no electrical cables or pipes in the wall before hanging bracket.
Do not bundle the RF cable and mains lead together (could cause
•
distorted image).
Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s assembly
•
manual to x cables.
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
To loosen:
Keep
the knob
pressed
How to remove the Pedestal
Remove four screws.
TX-D32LF82F
•
Rear of the TV
Page 7
Identifying Controls
TV
Remote control signal receiver
C.A.T.S. (Contrast Automatic Tracking System) sensor
Senses brightness to adjust picture quality in “Eco” mode
•
in Picture Menu (p. 22)
Recording LED
Power LED
Standby: red
•
On: green
When using the remote control, indicates the TV has received a command.
Mains power On / Off switch
•
•
Switch On to turn on the TV or turn the TV to standby mode by the remote control
Standby for Direct TV Recording :orange
•
Function select
Volume / Contrast / Brightness / Colour / Sharpness /
•
Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 28)
SD Card slot (p. 35)
Increases or decreases the programme
position by one. When a function is
already displayed, press to increase or
decrease the selected function. When
in Standby mode, switches TV On.
Remote Control
Standby On / Off switch
Switches TV On or Off standby
•
Aspect (p. 14)
Changes aspect ratio from Aspect Selection list
•
Also possible by pressing this button
•
repeatedly until you reach the desired aspect
VIERA Link Menu (p. 39)
Press to access VIERA Link Menu directly
•
Guide (p. 15)
Displays Programme Guide or Programme List
•
OK
Con rms selections and choices
•
Press after selecting programme positions
•
to quickly change programme
Main Menu (p. 20)
Press to access VIERA Link, Picture,
•
Sound and Setup Menus
Teletext (p. 16)
Switches to teletext mode
•
Subtitles (p. 12)
Displays subtitles
•
Numeric buttons
Changes programme and teletext pages
•
When in Standby mode, switches TV On
•
Programme Information
Displays programme information
•
Programme Up / Down
Selects programme in sequence
•
(p. 13)
INPUT
OPTION
SD CARD
EXIT
RETURN

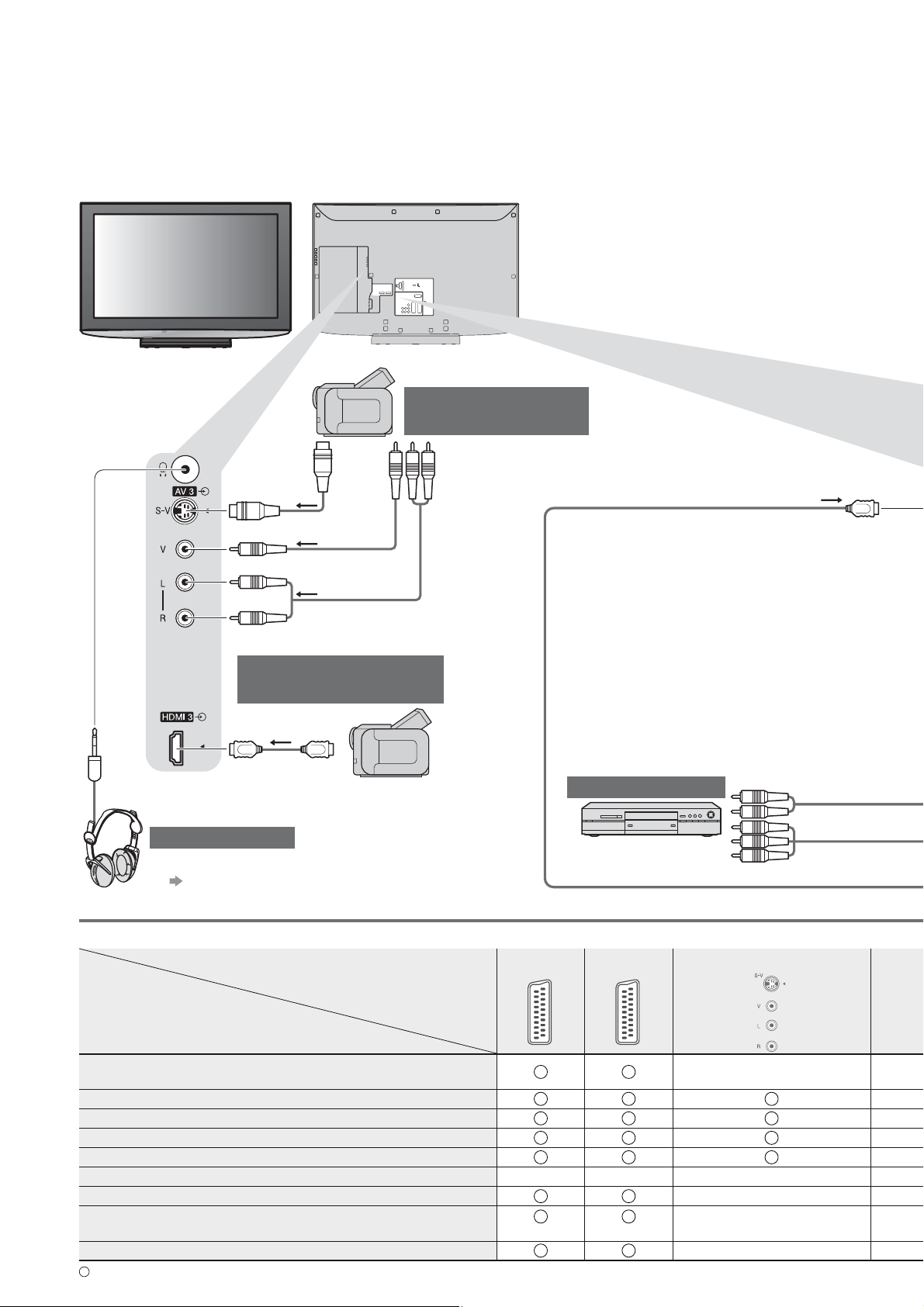

Headphones
jack (p. 42)
Changes the
input mode
HDMI3 terminal
(p. 42)
AV3 terminals
(p. 42)

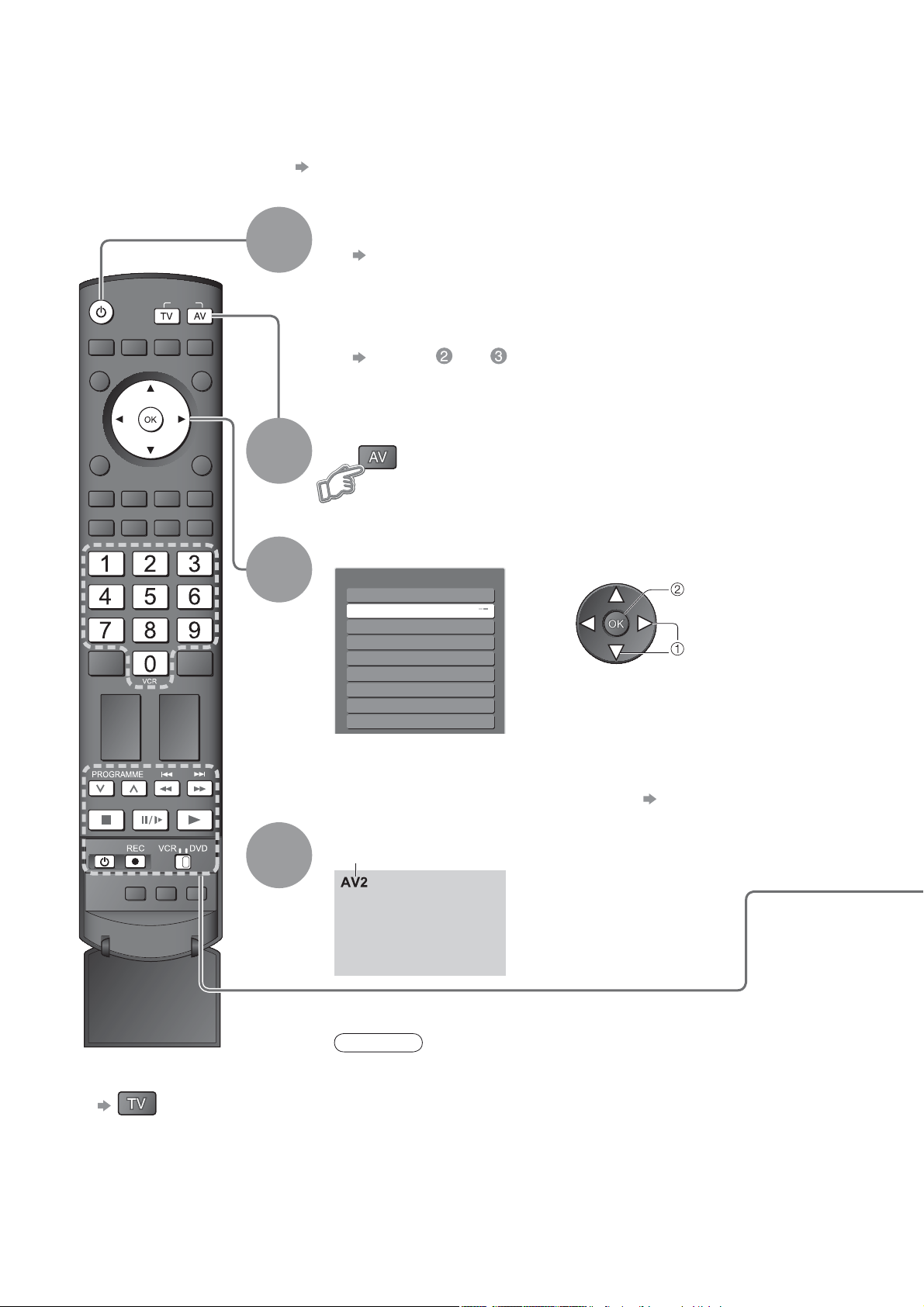

Input mode selection
TV - switches DVB / Analogue mode (p. 12)
•
AV - switches to AV input mode from Input
•
Selection list (p. 18)
SD Card (p. 34)
Switches to SD Card viewing mode
•
Option Menu (p. 13)
Easy setting for viewing and sound options
•
Exit
Returns to the normal viewing screen
•
Cursor buttons
Makes selections and adjustments
•
Return
Returns to the previous menu
•
Coloured buttons
Used for the selection, navigation and
•
operation of various functions
Hold
Freeze / unfreeze picture (p. 12)
•
Holds the current teletext page (teletext
•
mode) (p. 17)
Index (p. 17)
Returns to the teletext index page
•
(teletext mode)
Sound Mute
Switches sound mute On or Off
•
Volume Up / Down
Quick Start Guide
•
•
Identifying Controls
Accessories / Options

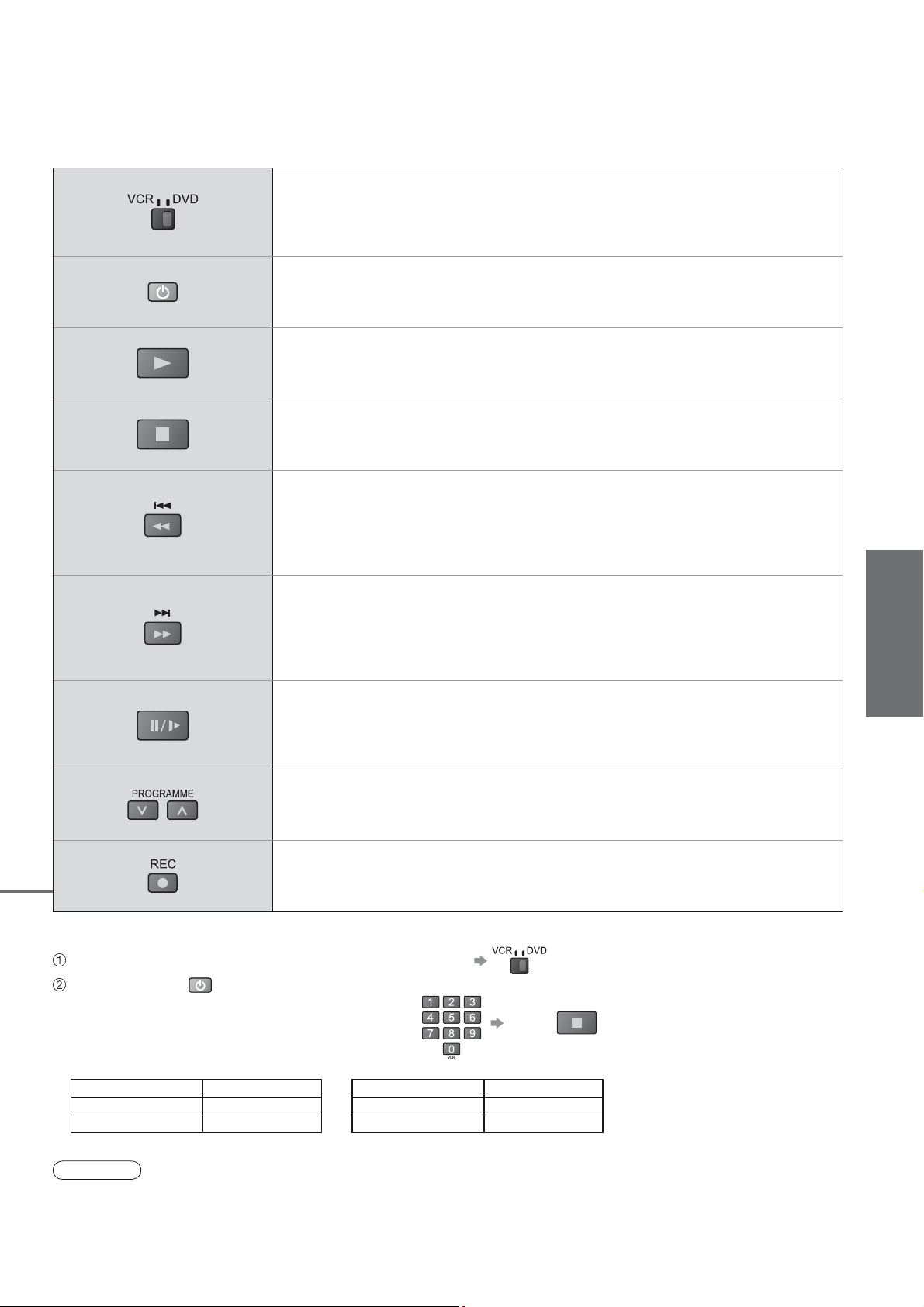

VCR / DVD Panasonic equipment
operations
Normalize (p. 20)
Resets picture and sound settings to their
•
default levels
(p. 19)
MULTI WINDOW
Direct TV Recording (p. 37 and p. 39)
Records programme immediately in
•
DVD Recorder / VCR with Q-Link or
DIRECT TV REC
N
VIERA Link connection
Surround (p. 22)
Switches Surround sound
•
7
Page 8
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Aerial AerialRear of the TV Rear of the TV
AC 220-240 V
50 Hz
AUDIO
OUT
R
COMPONENT
AUDIO
IN
Y
P
B
LRL
P
R
PC
RGB
VIDEO
Mains lead
AV2AV1
RGB
VIDEO
S VIDEO
RF cable
AUDIO
OUT
R
COMPONENT
AUDIO
IN
Y
P
B
LRL
P
R
PC
RGB
VIDEO
Mains lead
AV2AV1
RGB
VIDEO
S VIDEO
AC 220-240 V
50 Hz
8
RF cable
SCART cable
(fully wired)
RF OUT
DVD Recorder or VCR
RF IN
RF cable
Note
Connect to AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 37).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using
•
HDMI cable (p. 42).
Q-Link connection p. 36
•
VIERA Link connection p. 36
•
Read the manual of the equipment too.
•
Page 9
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
Mains lead
COMPONENT
AUDIO
AUDIO
IN
OUT
LRL
R
AC 220-240 V
50 Hz
Aerial
Quick Start Guide
•
Basic Connection
PC
AV2AV1
RGB
RGB
VIDEO
VIDEO
Y
P
B
P
R
S VIDEO
RF cable
Fully wired HDMI
compliant cable
SCART cable
(fully wired)
DVD Recorder
or VCR
SCART cable
(fully wired)
Set top box
RF OUT
RF IN
RF OUT
RF IN
RF IN
RF cable
RF cable
RF cable
9
Page 10
Auto Setup
Search and store TV programmes automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
You can now use the remote
•
control to turn On the TV or turn
the TV to standby mode.
(Power LED: On)
Select the language
Menüsprache
INPUT
OPTION
SD CARD
EXIT
RETURN
2
3
Deutsch
English
Français
Italiano
Español
Português
Nederlands
Dansk
Svenska
Norsk
Suomi
Türkçe
Еλληνικά
Select your country
Country
Germany
Austria
France
Italy
Spain
Portugal
Switzerland
Malta
Andorra Greece
Slovenčina
Български
Românǎ
Denmark
Sweden
Norway
Finland
Luxembourg
Belgium
Netherlands
Turkey
Polski
čeština
Magyar
Srpski
Hrvatski
Slovenščina
Latviešu
eesti keel
Lietuvių
Poland
Czech
Hungary
Slovakia
E.Eu
Depending on the selected
•
countries, you may also be
required to select the region.
select
store
select
Start Auto Setup
4
Auto Setup - Digital and Analogue
Digital Scan 5 69
Analogue Scan 2 78 141
This will take about 6 minutes.
Channel Service Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
29 Analogue
BBC1 Analogue
33
Free TV: 4 Pay TV: - Radio: - Data: - Analogue: 2
EXIT
RETURN
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
Searching
-
-
Select the picture setting
5
TV
Please select your viewing environment.
•
Home Shop
“Shop” and “Home” are equal
to “Dynamic” and “Normal”
respectively - “Viewing Mode” in
“Picture Menu” (p. 22)
Auto Setup will start to search for
•
TV programmes and store them.
The sorted programme order
depends upon the TV signal,
the broadcasting system and
reception conditions.
If Q-Link, VIERA Link or similar
•
technology (p. 36), compatible
recorder is connected, programme,
language, country / region settings
are automatically downloaded to
the recorder.
select
set
10
Auto Setup is now complete and your TV is ready for viewing.
To edit programmes
•
“Editing Programmes” (p. 26)
Page 11
Many features available on this TV can be accessed via the On Screen Display
menu.
How to use remote control
Using the
On Screen
Displays
MENU
RETURN
EXIT
Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options
have been set
Return to the previous menu
Exit the menu system and return to the normal viewing screen
ON SCREEN HELP Instructions box
(example: Sound Menu)
Sound Menu
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
MPX Stereo
Select
EXIT
Change
RETURN
Over 30cm
1/2
Quick Start Guide
•
Auto Setup
On-screen operation
guide will help you.
Note
If tuning has failed “Auto Setup” (p. 29)
•
If downloading has failed “Download” (p. 23)
•
To initialize all settings “Shipping Condition” (p. 31)
•
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
•
with Mains power On / Off switch.
11
Page 12
Watching TV
Turn power on
(Press for about 1 second)
INPUT
OPTION
SD CARD
EXIT
RETURN
1
2
Mains power On / Off switch should be On. (p. 7)
•
Select DVB (Digital Video Broadcasting) or
Analogue mode
Also possible to select the mode using the
•
TV button on the side panel of the TV. (p. 7)
DIRECT TV REC
TV
Note
To watch pay-TV
•
p. 25
Volume
3
1 BBC ONE WALES
Coronation Street
20 : 00 ~ 20 : 55
Now
Select a programme
up
or
down
To select from the Programme List
•
All DVB Services
6
Cartoon Nwk
7
BBC Radio Wales
8
BBC Radio Cymru
1
BBC ONE Wales
BBC THREE
2
3
BBCi
CBBC Channel
4
Select
EXIT
Connect
RETURN
Page up
Page down
Profile 1
23:35
Change category
For info press
•
(in a short time)
Information banner appears
whenever you select a
programme
For details p. 13
•
To select the two or three-digit
programme number, e.g. 39
select
programme
watch
Select a programme using Information banner (p. 13)
Possible to con rm the programme name before selecting programmes.
Display Information banner
if it is not displayed
Possible to set display
•
timeout in “Banner Display
Timeout” (p. 23).
While the banner is displayed,
select the programme
select programme
watch
Select a programme using Programme Guide (p. 15)
Possible to con rm the Programme Guide or Programme List before
selecting programmes.
This function may not be available in some countries.
•
Programme Guide
or Programme List
GUIDE
Select the programmeDisplay
select programme
watch
12
Other useful functions
Hold
Display
subtitles
Freeze / unfreeze picture
Display / hide subtitles (if available)
To change the language for DVB (if available)
•
“Preferred Subtitles” (p. 23)
Page 13
Other useful functions
Display Information banner
Also appears when changing a programme
•
Features available / Message meanings
ProgrammeEvent
Example:
1 ZDF
Coronation Street
20 : 00 ~ 20 : 55
DVB: Event Start / Finish time
Analogue: Programme status
Programme type
(if it is Radio or Data service)
Encrypted
Now
Current time Category
23:35Radio
Change category
For info press
Profile 1
45
Display
Information
banner
Display the
selectable
settings for
the current
programme
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
Subtitle service available
Teletext service available
Multiple audio available
Stereo, Mono
Audio mode
1 - 90
Off Timer remaining time
•
To con rm another tuned
•
programme name
To change the category
•
Information on the next event
•
(DVB mode)
Extra information (press again to hide the banner)
•
(DVB mode)
Check or change the current
programme status instantly
Multi Audio (DVB mode)
Allows you to select between alternative
language for sound tracks (if available)
Subtitle Language (DVB mode)
Allows you to select the language in which
subtitles should appear (if available)
Teletext Character Set
Sets the teletext language
Setup Menu (p. 23)
blue
OPTION
Teletext Language (DVB mode)
Allows you to select between alternative
language for teletext (if available)
MPX (Analogue mode)
Sound Menu (p. 22)
Volume Correction
Adjusts volume of individual programme or
input mode
For settings see below
To watch the programme
•
listed in the banner
EXIT
To hide
•
To set display timeout
•
“Banner Display Timeout” (p. 23)
To change
•
Viewing
•
Watching TV
change
select
Off Timer
Note
Also possible to change the settings in Menu list (p. 22 and p. 23).
•

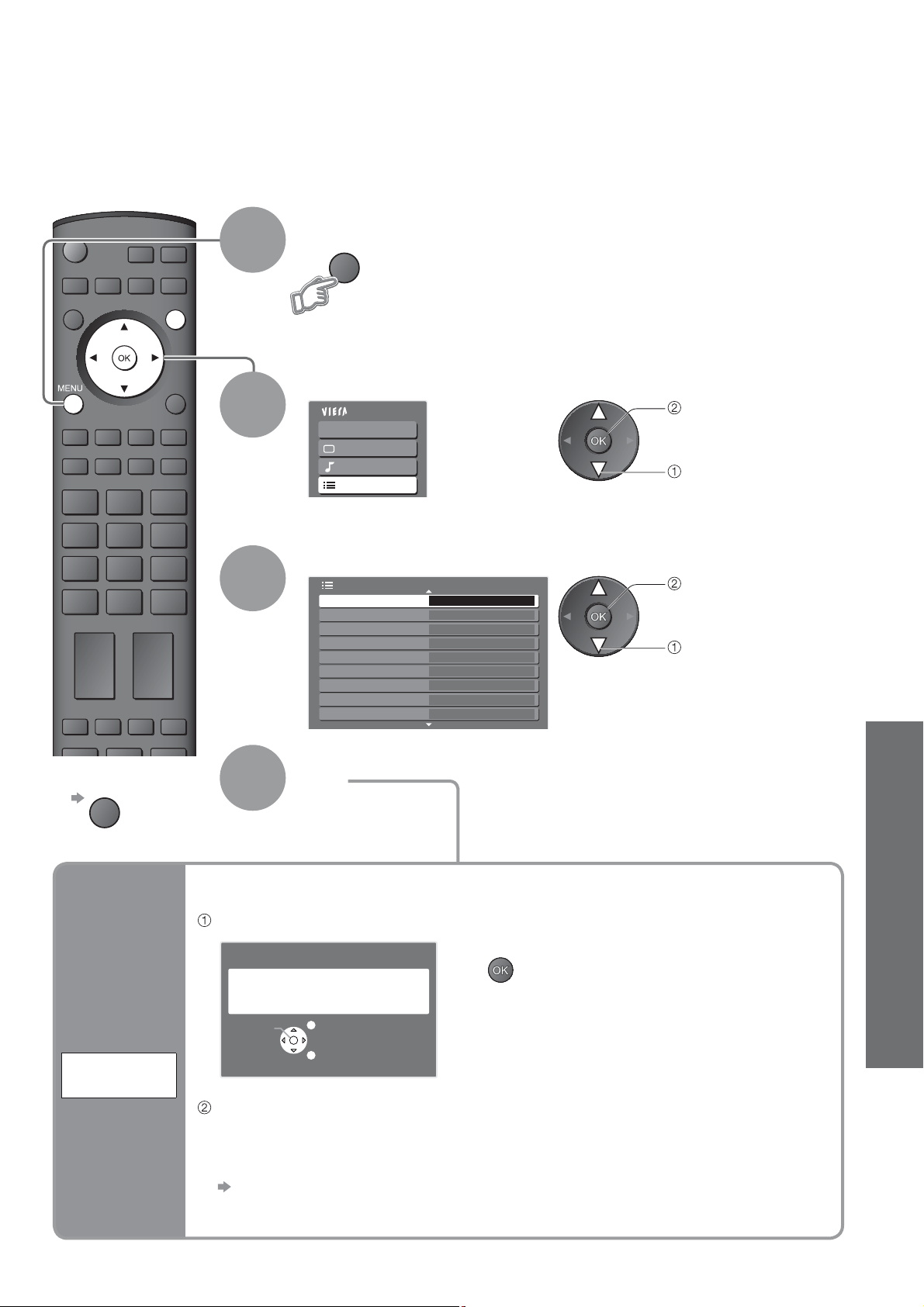

Turn the TV off automatically after a xed period
Display the
menu
MENU
To cancel Set to “Off” or turn the TV off.
•
To display the remaining time Information banner (above)
•
When the remaining time is within 3 minutes, the remaining time will ash on screen.
•
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
Select “Off Timer” and set the time
Setup Menu
DVB Profile Edit
DVB Service List
Link Settings
Child Lock
Tuning Menu
Off Timer
Language
Teletext TOP
Teletext Character Set West
Off
1/2
set
select
13
Page 14
Watching TV
Other useful functions
Change the aspect ratio
Enjoy viewing the picture at its optimum size and aspect.
Display Aspect
Selection list
To change the mode using the ASPECT button only
•
(Press repeatedly until you reach the desired mode)
While the list is displayed,
select the mode
store
select
Aspect selection
Auto
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select
EXIT
Change
RETURN
Aspect
Selection list
Change
aspect
ratio
Auto 16:9
The best ratio is chosen
and the picture expanded
to ll the screen.
For details p. 44
14:9 Just
Displays the
image at the standard
“14:9” without distortion.
4:3 4:3 Full
Displays the image at the
standard “4:3” without
distortion.
Zoom1 Zoom2
Displays a “16:9” letterbox
or “4:3” image without
distortion.
Zoom3
Displays a “2.35:1” letterbox (anamorphic)
image full-screen without distortion. At “16:9”,
displays the image at its maximum
(with slight enlargement).
Directly displays the
image at “16:9” without
distortion (anamorphic).
Displays a 4:3
image full-screen.
Stretching is only
noticeable at the left and
right edges.
Displays a “4:3” image
enlarged horizontally to t
the screen.
HD signal only
•
Displays a “16:9” letterbox
(anamorphic) image
full-screen without
distortion.
14
Note
Only “16:9” and “4:3” are available in PC mode.
•
Not available in teletext mode.
•
Aspect mode can be memorized separately for SD (Standard de nition) and HD (High
•
de nition) signals.
Page 15
Using Programme Guide
Using Programme Guide enables you to select programme easily, view event informations, etc.
Programme GuideElectronic Programme Guide (EPG) provides an on-screen listing of the
programmes currently broadcast and the future broadcasts over the next seven days (depending on the
broadcasters).
This function varies depending on the country you select (p. 10).
•
Analogue programmes will be listed after DVB programmes. “D” means DVB programme and “A” means
•
Analogue programme.
View Programme Guide
Each time pressed, the layout will be changed (Landscape / Portrait).
Depending on the country, the postcode entry or update is required. Follow
•
the message’s instructions.
Also possible to setup manually from Setup Menu
•
“Update” / “Postcode” in “GUIDE Plus+ Settings” (p. 23)
Current date and time
Programme Guide date
Event
INPUT
OPTION
SD CARD
EXIT
GUIDE
Programme
Guide time
Example: Example:
Wed 24.10.2007
10:46
Change display mode
Portrait
Wed, 24.10.2007
D 1 BBC O D 7 BBC T D 14 E4 D 70 CBBC
Eastender
19:30~20:00
DIY SOS
20:00~21:00
The Bill
21:00~22:00
Red Cap
21:00~22:00
Live junction
22:30~23:00
POP 100
23:00~23:30
Rugby
23:00~00:00
Select programme
EXIT
Select channel
View
-24 Hr +24 Hr Prog.Type Category
RETURN
All Types All Services
Info
Select Advert
Portrait (Displays by time)
To view a programme list of the
selected type (DVB mode)
(Type list)
Prog. Type
All Types
All Types
Movie
yellow
News
.
.
.
.
To view a programme list of the
select
type
view
RETURN
To return to TV
EXIT
Wed 24.10.2007
10:46
Change display mode
Advertisement
Landscape
Wed, 24.10.2007
20:00 - 20:30 DIY SOS : We open in the Battersbys
Time: 20:00 20:30 21:00
1
D
7
D
14
D
70
D
72
D
D
105
D Rugby 15 To 1 The Bill
719
Select channel
EXIT
Select programme
View
-24 Hr +24 Hr Prog.Type Category
RETURN
Programme
19:30
BBC ONE Eastender DIY SOS The Bill Red Cap
BBC THR
Hot Wars Horiday Program
E4 Emmerdal. Coronation Street The Bill
CBBC Cha 10 O’ clock News BBC Pepsi Char. Good bye
Cartoon Panorama Sex And The City Terminator
BBCi I’m A Celebrity Pop Idol News
BBC Radi
Landscape (Displays by programme)
To the previous day
(DVB mode)
To the next day
(DVB mode)
green
To watch the programme
Select the event or programme
now on the air
select
All Types All Services
Info
Select Advert
Page up
Page down
red
selected category
watch
To view details of the event (DVB mode)
Select the event
select
Press again to return to
•
Programme Guide.
To view advertisement (Depending on the country)
If you enter an incorrect postcode for your area, or no postcodes
are entered, advertisement may not be displayed correctly.
Press the OPTION or
•
RETURN button to
return to Programme
Guide.
OPTION
select
advertisement
(Category list)
Category
All Services
All Services
All DVB Services
All Analogue Services
Free Services
Pay Services
blue
TV
Radio
Information
Profile 1
Profile 2
Profile 3
Profile 4
To list favourite programmes
p. 27
Only Analogue
TV programmes
are listed
select
category
view
Note
When this TV is turned on for the rst time, or the TV is switched off for more than a week, it may take some time
•
before the Programme Guide is completely shown.
Page up
Page down
Viewing
•
•
Using Programme Guide
Watching TV
Depending on the country you select,
Programme Guide may not be supported
In this case, Programme List will appear.
Programme List
All DVB Services
6
Cartoon Nwk
7
BBC Radio Wales
8
BBC Radio Cymru
1
BBC ONE Wales
BBC THREE
2
3
BBCi
CBBC Channel
4
Select
EXIT
Connect
RETURN
Page up
Page down
select
programme
watch
15
Page 16
Viewing Teletext
You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is
provided by the broadcasters.
What is FLOF (FASTEXT) mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
Fast overview of the teletext information available
•
Easy to use step-by-step selection of the topical subject
•
Page status information at the bottom of the screen
•
Available page up / down
To select among subject blocks
To select next subject within the subject block
(After the last subject, it moves to the next subject block.)
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 17)
To change mode “Teletext” in Setup Menu (p. 23)
OPTION
SD CARD
EXIT
1
red
green
blue
yellow
Sub page number
Switch to Teletext
Displays Index
•
(content varies
depending on the
broadcasters)
Current
page
number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Time / date
RETURN
2
Using teletext conveniently
Reveal
hidden
data
Reveal hidden words e.g. quiz page answers
MENU
Select the page
up
or
down
To adjust contrast
To return to TV
Re-hide
red
red
or
MENU
(Press three times)
Colour bar
green
red
(Corresponds to the colour bar)
yellow
As the blue bar is displayed
blue
16
FULL /
TOP /
BOTTOM
MENU
green
(TOP) (BOTTOM)
(Expand the TOP half)
Normal (FULL)
(Expand the BOTTOM half)
Page 17
HOLD
INDEX
Stop automatic updating
(If you wish to hold the current page without updating)
To resume
Return to the main index page
Call up a
favourite
page
View in
multi
window
Store
frequently
viewed
pages
View a favourite page stored
Call up the page stored in “blue”.
•
Factory setting is “P103”.
•
Watch TV and Teletext in two windows at once
MENU
(Press twice)
Operations can be made only in Teletext screen.
•
Store frequently viewed pages in the colour bar
As page is
displayed
Corresponding
colour button
To change stored pages
Enter new page number
Colour button you
want to change
Select Picture and text
•
On or Off
press
and
hold
The number changes to white.
press
and
hold
(List mode only)
Viewing
•
Viewing Teletext
View sub
page
Watch
TV while
waiting
for update
View sub page (Only when teletext is more than one page)
Appears at top of
the screen
To view speci c sub page
MENU
blue
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
yellow yellow
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
P108
(You cannot change the programme.)
Enter the
4-digit number
example: P6
Appears
when
updating is
completed
View the
updated
page
17
Page 18

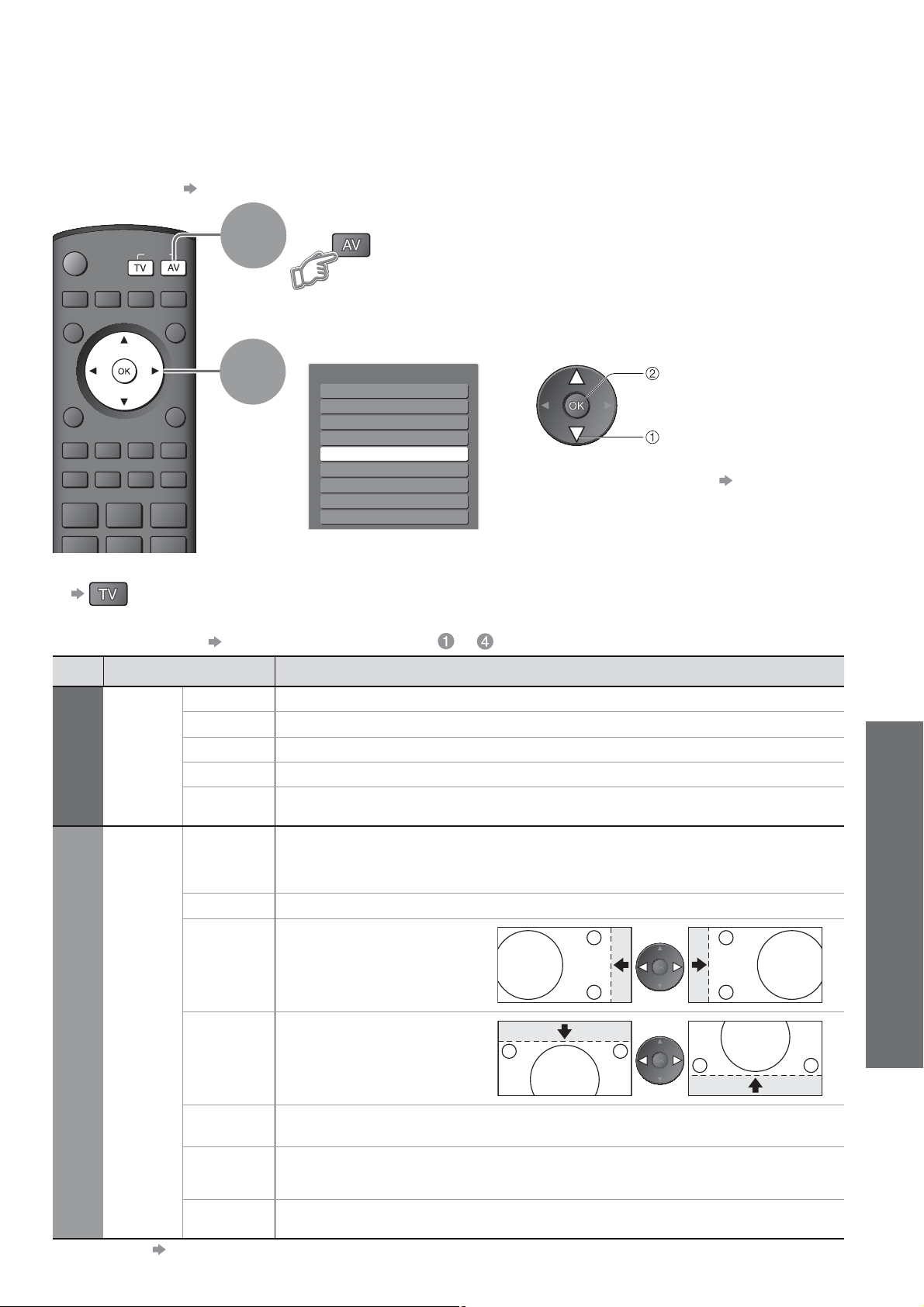

Watching Videos and DVDs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.

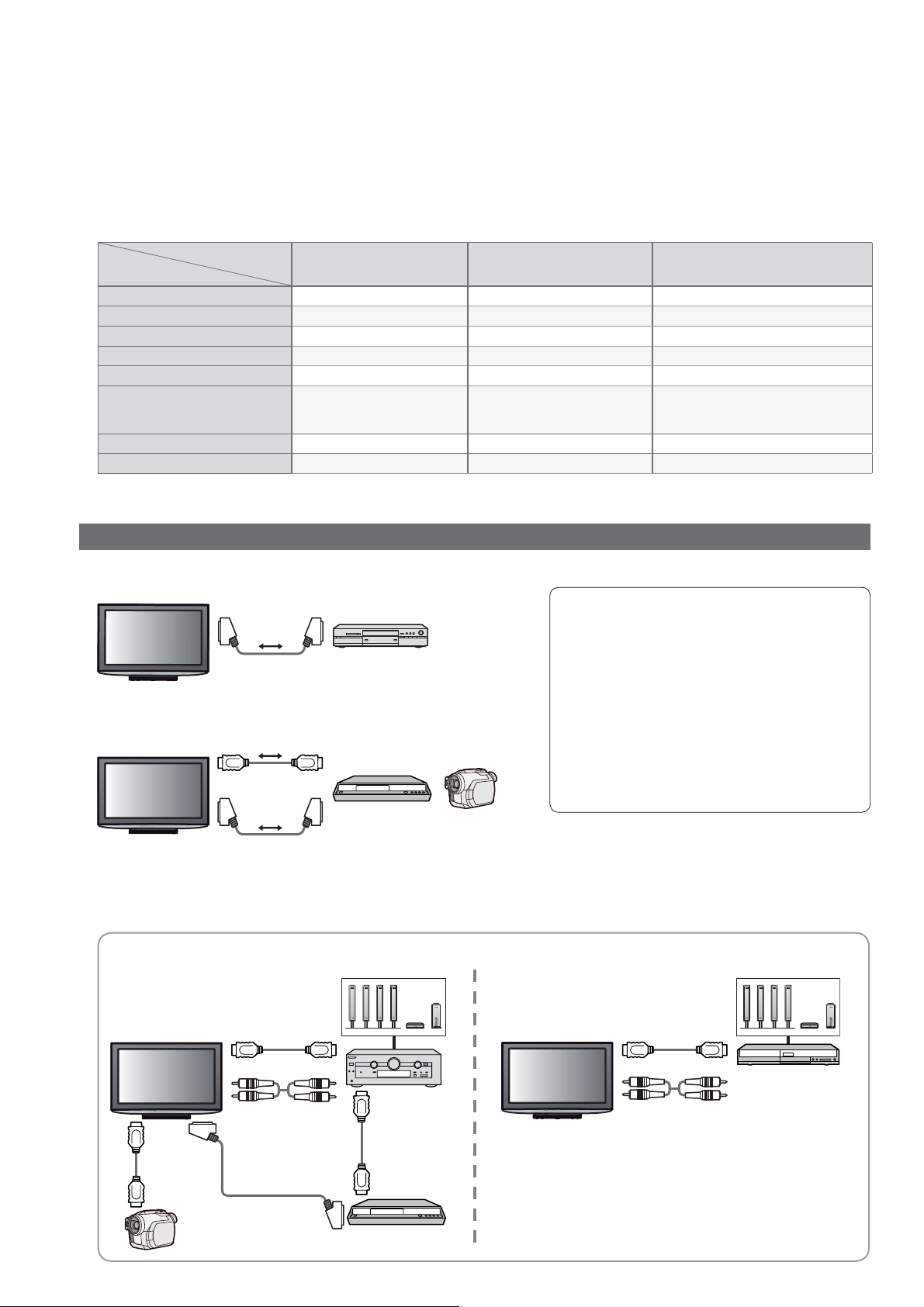

To connect the equipment p. 8 and p. 9
•
The Remote Control is capable of operating some functions of selected Panasonic external equipment.
Turn the TV on
When connecting with SCART as example 2 or 3 (p. 8 and p. 9)
Receives input signals automatically when playback starts
Input signals are automatically identi ed by the SCART (pin 8)
•
terminal.
This function is also available for HDMI connections (p. 42).
•
If input mode is not switched automatically
Perform and
Dependant on the setup of the equipment
•
Display the Input select menu
Select the input mode connected to the equipment
Input Selection
AV1
AV2/S
AV3/S
COMPONENT
PC
HDMI1
HDMI2
HDMI3
TV
watch
select
INPUT
OPTION
1
SD CARD
EXIT
RETURN
2
3
MULTI WINDOW DIRECT TV REC
To return to TV
4
You can also select the input using the AV button on the remote
•
control or the side panel of the TV.
Press the button repeatedly until the desired input is selected.
You can label or skip each input mode “Input Labels” (p. 32)
•
View
Displays the selected mode
Note
If the external equipment has an aspect adjustment function, set to “16:9”.
•
For details, see the manual of the equipment or ask your local dealer.
•
18
Page 19

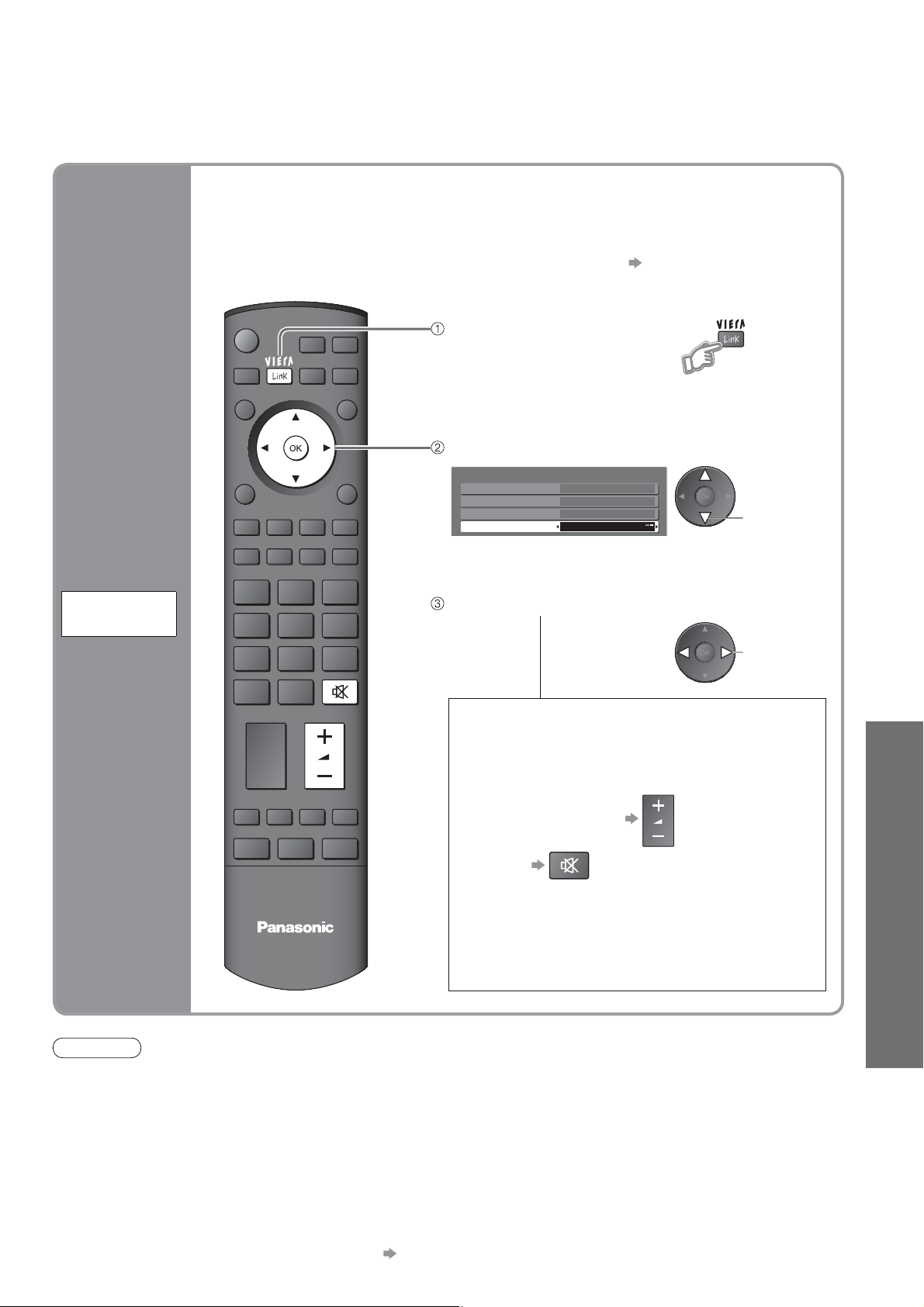

Panasonic equipment connected to the TV can be directly operated with the remote control.
VCR / DVD switch
Select VCR to operate Panasonic VCR or DVD equipment
Select DVD to operate Panasonic DVD equipment or Player home theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
Viewing
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
Programme Up / Down
Select programme
Record
Start recording
Setting your remote control to operate Panasonic VCR, DVD, etc.
Set the VCR / DVD switch to the appropriate position
Press and hold during the following operations
Enter the appropriate code for the equipment
to be controlled, see table below
“VCR” position
Equipment Code
VCR 10 (default)
DVD 11
“DVD” position
Equipment Code
DVD 70 (default)
Player home theatre
Press
71
•
Watching Videos and DVDs
Note
Con rm if the remote control works correctly after changing the code.
•
The codes will be reset to default values if batteries are replaced.
•
“DVD” means DVD player, DVD recorders and Recorder home theatre.
•
Some operations may not be possible on some equipment models.
•
19
Page 20
INPUT
OPTION
SD CARD
MULTI WINDOW DIRECT TV REC
EXIT
RETURN

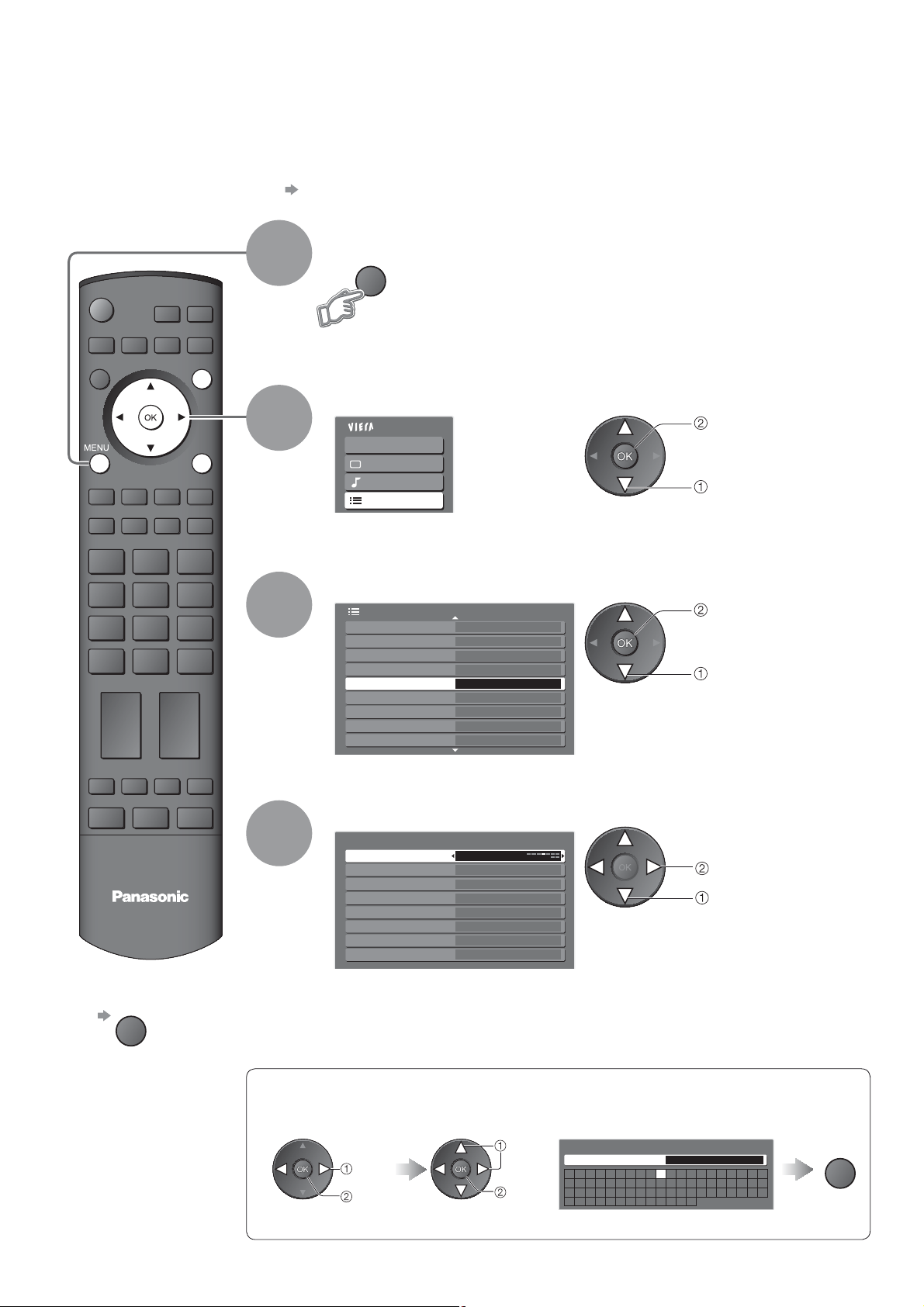

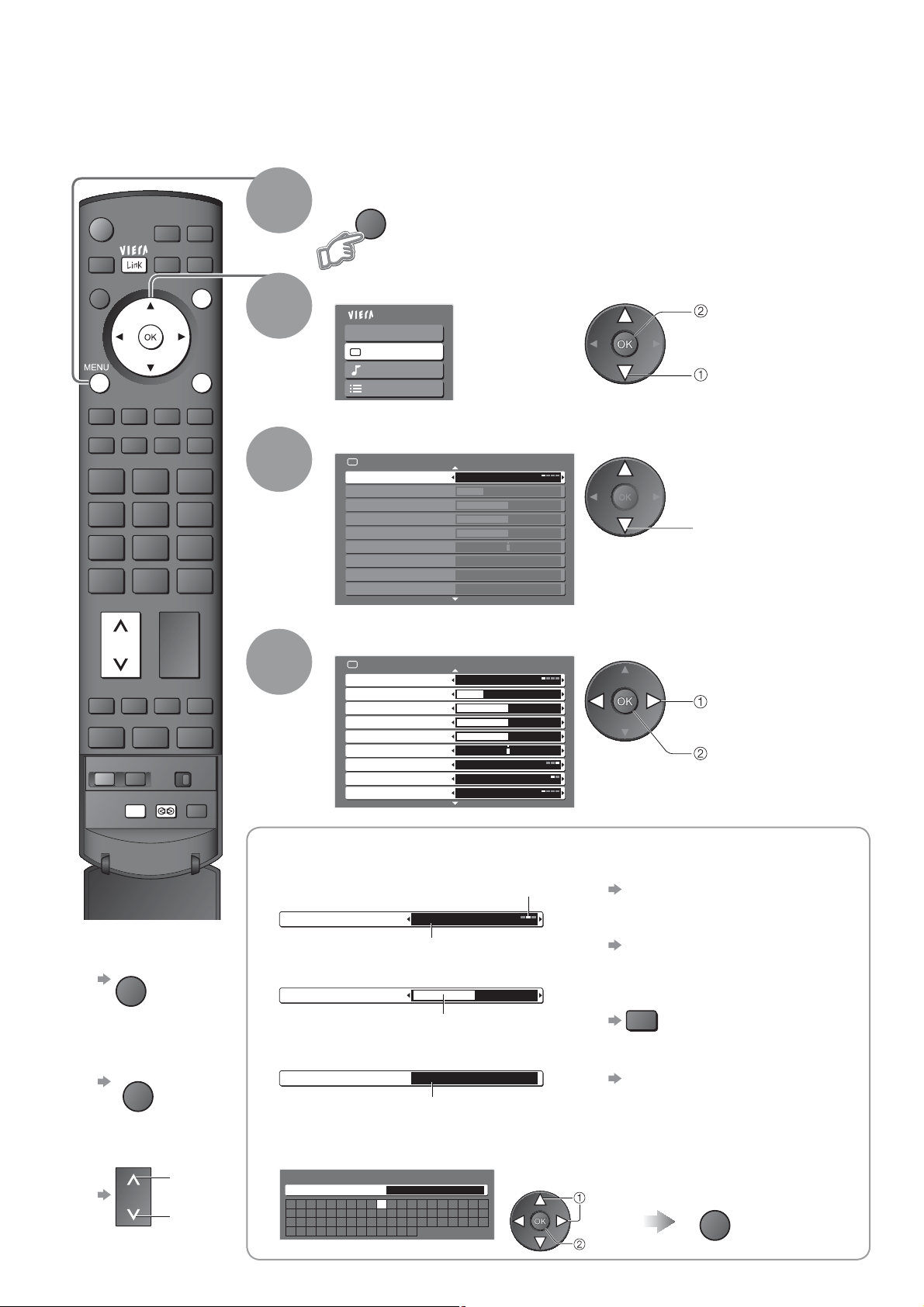

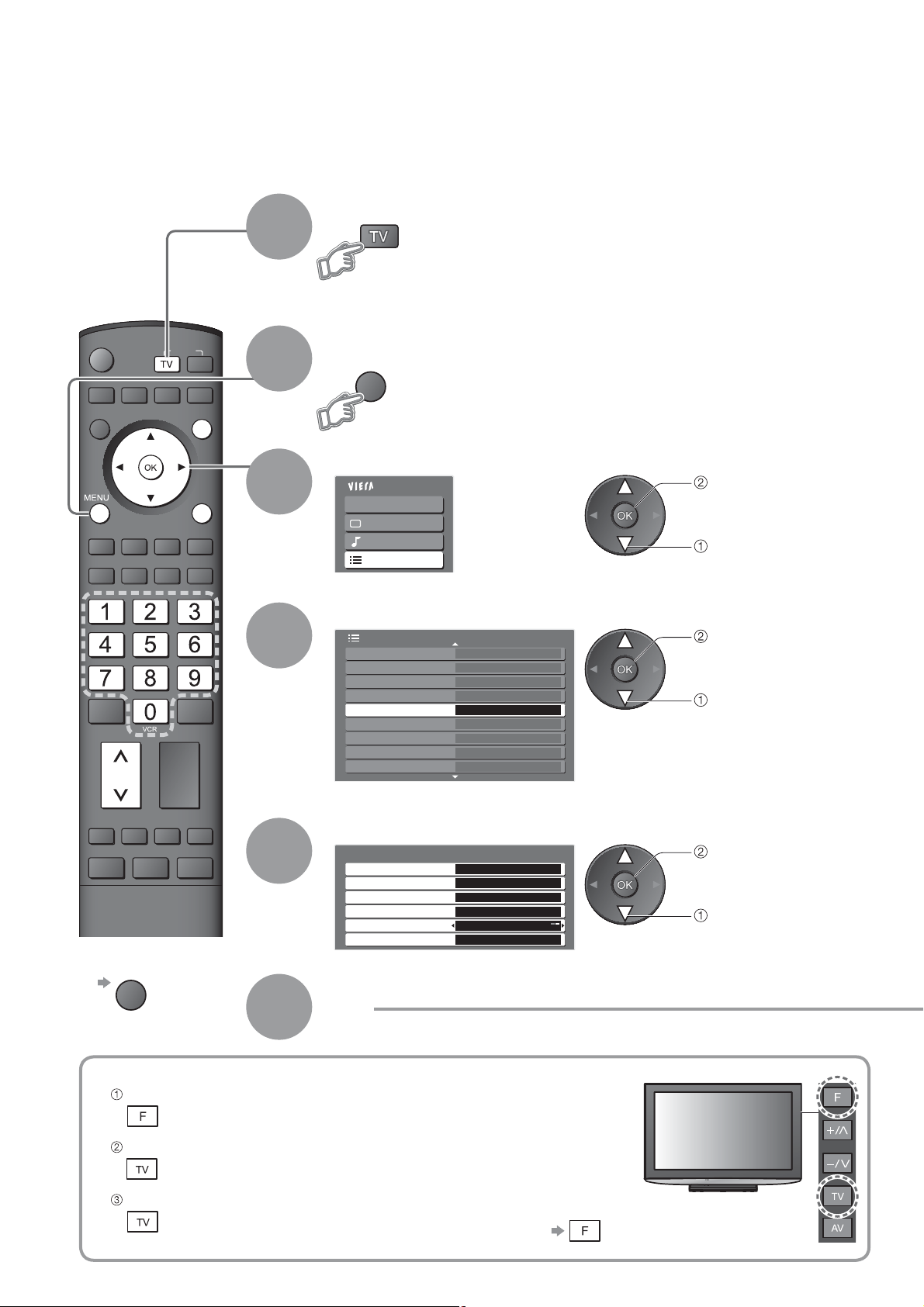

How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
MENU
1
Select the menu
2
3
4
N
VIERA Link
Sound
Setup
(example: Picture Menu)
Select the item
Picture Menu 1/2
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
Adjust or select
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
Displays the functions that can be set
•
(varies according to the input signal)
Main Menu
(example: Picture Menu)
1/2
(example: Picture Menu)
access
select
select
change
store or access
( Required by
some functions)
To return to TV
at any time
EXIT
To return to the
previous screen
RETURN
To change menu
pages
20
up
down
Choose from among
alternatives
Number and positions of alternatives
Colour Balance Normal
Changed
Adjust using the slide bar
Sharpness
Moved
Go to the next screen
Tuning Menu Access
Displays the next screen
To reset the settings
To reset the picture settings only
•
To reset the sound settings only
•
To reset the picture and sound
•
settings together
To initialize all settings
•
Enter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
ABCDEFGHI JKLMN
UVWXYZ 0123456
abcdefghijklmn
uvwxyz ( )+ - . * _
OPQRST
789! : #
opqr s t
Set characters
select
set
“Reset to Default”
in Picture Menu (p. 22)
“Reset to Default”
in Sound Menu (p. 22)
N
Also volume level and
(
aspect mode are reset
“Shipping Condition”
in Setup Menu (p. 31)
Store
RETURN
)
Page 21
Overview
VIERA Link
Sound
Main Menu
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Access
Start
Recorder
Home Cinema
The menu of the accessed
equipment
(p. 39)
Setup
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
Picture Menu
3D-COMB Off
Reset to Default Set
Sound Menu
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
MPX Stereo
Sound Menu
HDMI1 Input Auto
Reset to Default Set
Over 30cm
1/2
2/2
(p. 22)
1/2
2/2
(p. 22)
•
How to Use Menu Functions
(picture, sound quality, etc.)
Only available items can be selected.
•
Setup Menu
AV Colour System
DVB Profile Edit Access
DVB Service List
Analogue Service List Access
Link Settings Access
Child Lock Access
Tuning Menu
GUIDE Plus+ Settings Access
Off Timer Off
Language
Teletext TOP
Setup Menu
Teletext Character Set West
Shipping Condition Access
Common Interface Access
System Update Access
Picture Overscan On
Input Labels
Banner Display Timeout
Time Zone Auto
Software License Access
Setup Menu
System Information Access
Auto
Access
Access
Access
Access
3 seconds
1/3
2/3
3/3
(p. 23)
Link Settings
VIERA Link
Q-Link AV2
AV2 out TV
Power off Link Set
Power on Link Set
Download Access
Tuning Menu
Auto Setup Access
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Condition Access
Language
OSD Language Access
Preferred Audio 1
Preferred Audio 2 English
Preferred Subtitles 1 English
Preferred Subtitles 2
Preferred Teletext English
On
Access
Access
On
English
English
(p. 23)
(p. 28)
(p. 23)
Advanced
21
Page 22
How to Use Menu Functions
Menu list
Menu Item Adjustments / Configurations (alternatives)
VIERA Link
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Tint
Colour Balance
Colour Management
P-NR
3D-COMB
Reset to Default
Controls the connected equipment with VIERA Link function, and enables various
convenient recording, playback, etc. (p. 39 - 41)
You can also access VIERA Link Menu directly using the VIERA Link button on the
•
remote control.
Basic picture mode (Dynamic / Normal / Cinema / Eco)
Dynamic:
Normal: Recommended for viewing under normal ambient room lighting conditions
Cinema: For watching movies in a darkened room producing a cinema-like picture
Eco: Adjusts picture settings automatically dependent on ambient lighting conditions
Set for each input signal
•
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste
For NTSC signal reception only
•
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
Automatically adjusts colours to vivid ones (Off / On)
Not valid on PC signal
•
Picture Noise Reduction
Automatically reduces unwanted picture noise and icker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
Not valid on PC signal
•
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen
Set to “On” to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
•
Not valid on RGB, S-Video, Component, PC, HDMI and SD Card
•
Press the OK button to reset the present Picture Mode to the default settings
Provides enhanced picture contrast and sharpness when viewing in a bright room
22
Mode
Bass
Treble
Balance
Headphone Volume
Surround
Sound
Volume Correction
Speaker Distance
to Wall
MPX
HDMI1 / 3 Input
Reset to Default
Basic sound mode (Music / Speech)
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones
Surround sound settings (Off / Simulated Surround / SRS TruSurround XT)
Simulated Surround: Provides a dynamic enhancer to simulate improved spatial effects
SRS TruSurround XT: SRS TruSurround XT® creates a high quality surround sound
Switching is also possible by the Surround button on the remote control (p. 7).
•
Adjusts volume of individual programme or input mode
Adjusts the low frequency sound (Over 30cm / Up to 30cm)
If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended.
•
If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended.
•
Select stereo / monaural (Mono / Stereo)
Normally: Stereo
•
Stereo signal cannot be received: Mono
•
M1 / M2: Available while mono signal is transmitted
•
Analogue mode only
•
Select to t the input signal (Auto / Digital / Analogue) (p. 45)
Auto: Automatic detection of digital or analogue sound source
Digital: HDMI cable connection
Analogue: HDMI-DVI adapter cable connection
HDMI input mode only
•
HDMI2 terminal is for digital signal only
•
No setting for HDMI2 available
•
Press the OK button to reset the present Sound Mode to the default settings
effect using just two speakers from the source which can output
surround encoded signals
Page 23
Menu list
Menu Item Adjustments / Configurations (alternatives)
AV Colour System
DVB Pro le Edit
DVB Service List
Analogue Service List
VIERA Link
Link Settings
Q-Link
AV1 / AV2 out
Power off Link
Power on Link
Download
Child Lock
Auto Setup
Tuning Menu
DVB Manual Tuning
Analogue
Manual Tuning
Add New DVB
Services
New Service Message
DVB Signal Condition
GUIDE Plus+
Settings
Setup
Update
Postcode
Selects optional colour system based on video signals in AV mode
(Auto / PAL / SECAM / M.NTSC / NTSC)
Creates list of favourite programmes (p. 27)
Skips the unwanted DVB programmes (p. 27)
Skips the unwanted Analogue programmes or edits Analogue programmes (p. 27)
Sets to use VIERA Link functions (Off / On) (p. 38)
Selects which AV terminal is to be used for data communication between this TV and a
compatible recorder (AV1 / AV2) (p. 37)
Select the connected terminal to the recorder even it is not compatible with Q-Link.
•
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
Monitor: Image displayed on screen
•
Component, PC and HDMI signals cannot be outputted.
•
Sets to use Power off Link function (No / Set) (p. 37 and p. 38)
Sets to use Power on Link function (No / Set) (p. 37 and p. 38)
Downloads programme, language, country / region settings to a Q-Link or VIERA Link
compatible equipment connected to the TV
Locks a programme / AV input to prevent access to it (p. 30)
Automatically sets the programmes received in the area (p. 29)
Sets the DVB programmes manually (p. 29)
Sets the Analogue programmes manually (p. 29)
Adds new DVB services (p. 29)
Selects whether to give a noti cation message when a new DVB service is found (p. 29)
Checks the DVB signal condition (p. 29)
Performs the update of the GUIDE Plus+ schedule and advertising informations for
GUIDE Plus+ system
Sets your postcode for using GUIDE Plus+ system (p. 15)
•
How to Use Menu Functions
(picture, sound quality, etc.)
System
Information
Off Timer
Language
OSD Language
Preferred Audio 1 / 2
Preferred Subtitles
1 / 2
Preferred Teletext
Teletext
Teletext Character Set
Shipping Condition
Common Interface
System Update
Picture Overscan
Input Labels
Banner Display Timeout
Time Zone
Software License
System Information
A different menu will be displayed while PC or SD Card is used. (p. 33 and p. 35)
•
Only available items can be selected.
•
Displays the system information of GUIDE Plus+
Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Changes language for on-screen displays
Selects the preferred language for DVB multi audio (depending on the broadcaster)
Selects the preferred language for DVB subtitles (depending on the broadcaster)
To display subtitles p. 12
•
Selects the preferred language for DVB teletext service (depending on the broadcaster)
Teletext display mode (TOP (FLOF) / List) (p. 16)
Selects teletext language (West / East1 / East2)
West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
•
East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
•
East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.
•
Resets all settings, for example, when moving house (p. 31)
Uses include to watch pay-TV (p. 25)
Downloads new software to TV (p. 25)
Selects the screen area displaying the image (Off / On)
On : Enlarged the image to hide the edge of the image.
Off : Displayed the image in the original size.
Set to “On” if noise is generated on the edge of the screen.
•
This function is available when aspect is set to Auto (16:9 signal only) or 16:9.
•
This function can be memorized separately for SD (Standard de nition) and HD (High
•
de nition) signals.
Labels or skips each input terminal (p. 32)
Sets how long the information banner (p. 13) stays on screen
0 (No display) to 10 sec. in 1-sec. increments
•
Adjusts the time data (p. 25)
Displays the software licence information
Displays the system information of this TV
Advanced
23
Page 24
DVB Settings (DVB mode)
DVB Settings provide access to various advanced features.
If in Analogue mode
Select DVB
1
INPUT
OPTION
SD CARD
EXIT
RETURN
2
3
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
TV
To return to TV
EXIT
4
5
Select “Common Interface”, “System Update”
or “Time Zone”
Setup Menu
Shipping Condition
Common Interface Access
System Update Access
Picture Overscan
Input Labels
Banner Display Timeout
Time Zone
Software License
System Information
On
3 seconds
Auto
2/2
access
select
Set
24

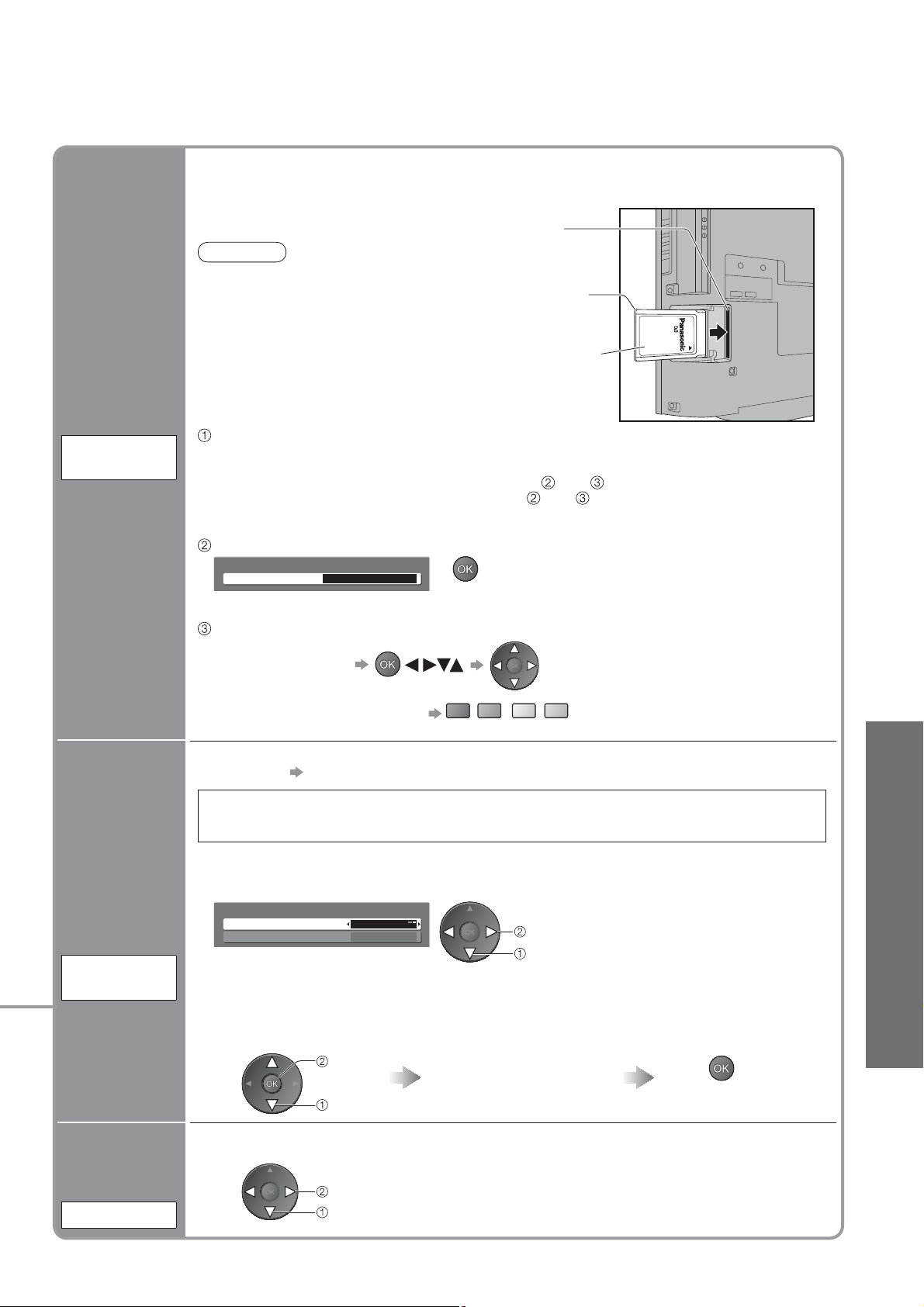

Page 25
Pay-TV
Common
Interface
The Common Interface Module menu provides access to software contained on Common
Interface (CI) Modules.
This TV receiver works only Pay TV modules complying with CI standard.
CI slot
Remove the
•
Caution
Turn Off Mains power On / Off switch
•
whenever inserting or removing the CI
module.
If a view card and a card reader
•
come as a set, rst insert the card
reader, then insert the view card into the
card reader.
Insert the module in the correct direction.
•
Insert the CI module (optional)
The features that appear on screen are dependent on the contents of the selected CI
•
module.
Normally pay-TV services will appear without and .
•
If pay-TV service does not appear, perform and .
For more details, see the manual of the CI module, or check with the broadcaster.
•
Access “Common Interface”
Common Interface
Slot 1:
Module inserted
cover before
using CI slot.
Insert or
remove
straightly and
completely
CI module
Side of the TV
(pay-TV, software update, time adjustment)
•
DVB Settings (DVB)
Update
TV’s
software
system
System
Update
Follow the on-screen instructions
On-screen operation guide
example: select, go
Coloured characters
Download new software to TV.
For details p. 45
•
If System Update is performed, the software will be updated (it may change TV
functions). If you do not wish to do so, set “Auto Update Search in Standby” to Off.
Select “Auto Update Search in Standby” and then set “On” or “Off”
System Update
Auto Update Search in Standby
System Update Search Now
On
red
green
yellow
blue
set
select
•
may not correspond to the
remote control buttons.
On: Automatically performs
•
a search in standby and
downloads an update, if any
software updates are available
To update immediately
Select
“System Update Search Now”
access
select
Searches for an update
(for several mins.) and
displays a corresponding
message if any
Download
Download may take
•
for about 20 mins.
Advanced
Adjust the
time data
automatically
Time Zone
Set the time
set
select
Auto : The time data will be adjusted according to your
Others
area automatically.
: The time data will be corrected based on GMT.
25
Page 26
Editing Programmes
You can make your favourite programme lists and skip unwanted programmes, etc.
Select DVB or Analogue
1
“DVB Pro le Edit” and “DVB Service List” are available in DVB mode only.
•
“Analogue Service List” is available in Analogue mode only.
•
INPUT
OPTION
SD CARD
EXIT
RETURN
2
3
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
TV
To return to TV
EXIT
4
5
Select “DVB Profile Edit”, “DVB Service List” or
“Analogue Service List”
Setup Menu
DVB Profile Edit Access
DVB Service List
Analogue Service List
Link Settings
Child Lock
Tuning Menu
Off Timer
Language
Teletext TOP
Access
Access
Off
1/2
access
select
Set
26

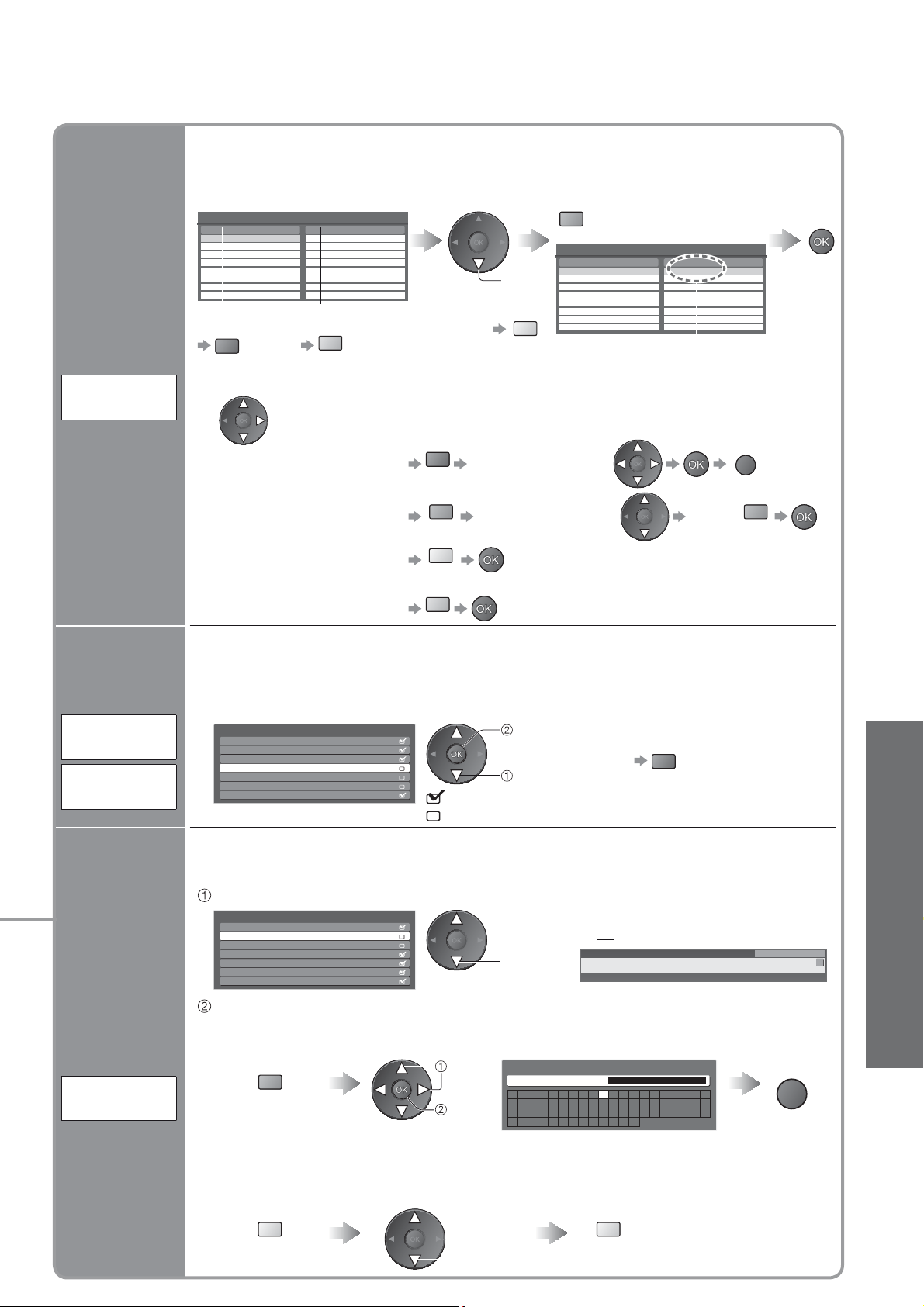

Page 27
List
favourite
programmes
DVB
Profile Edit
(DVB mode)
Create your favourite programme list (Pro le) from various broadcasters (up to 4: Pro le 1 to 4).
The list is added to “Category” in
Programme
Guide (p. 15) and information banner (p. 13)
and then easily accessed.
Select a programme and add it to the list
Profile Editor
All DVB Services
BBC One Wales
1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
To change
the category
red
Profile 1
To display
another Pro le
blue
To add all
•
programmes
to the list
select
yellow
green
Profile Editor
BBC One Wales
1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
All DVB Services
BBC One Wales
1
A programme is added
Profile 1
To edit Pro le
Select the field of Profile to edit and:
RETURN
To name the Pro le
•
Select the character
red
Skip
unwanted
programmes
DVB
Service List
Analogue
Service List
Edit analogue
programmes
(Change
name, Move)
Analogue
Service List
To move the programme
•
To delete the programme
•
•To delete all programmes
green
yellow
blue
Select the new position Con rm
green
You can hide unwanted services. The deleted services cannot be displayed except in this
function. Use this function to skip unwanted programmes.
“DVB Service List” is listed all tuned DVB programmes in DVB mode.
•
“Analogue Service List” is listed all tuned Analogue programmes in Analogue mode.
•
Select a service and add / delete
DVB Service List
CBBC Channel
70
Cartoon Nwk
72
105
BBCi
719
BBC Radio Wales
720
BBC Radio Cymru
BBC ONE Wales
1
BBC THREE
7
:add
:delete (skip)
add / delete
select
To retune each programme
•
(Manual Tuning)
(p. 29)
red
You can change the programme name and programme position for Analogue programmes.
This function is available in Analogue mode.
•
If a VCR is connected only with the RF cable, edit “VCR”.
•
Select the programme to edit
Analogue Service List
BBC1
1
2
*****
*****
3
4
5
6
7
select
Programme position
Name
3 FTP
Coronation Street
CH30
23:35
All Analogue Services
Change category
Edit
To change the name displayed when selecting programmes
Select
“Rename”
green
Set characters
select
set
Edit Service Name
Name
ABCDEFGHI JKLMN
UVWXYZ 0123456
abcdefghijklmn
uvwxyz ( )+ - . * _
OPQRST
789! : #
opqr s t
(maximum: ve characters)
Store
RETURN
•
Editing Programmes
Advanced
To move the programme position
Select new position
yellow
select
Store
yellow
27
Page 28
Tuning Programmes
You can retune all the TV programmes when moving house or search for new services which may have
recently started broadcasting.
Select DVB or Analogue
1
“DVB Manual Tuning”, “Add New DVB Services”, “New Service
•
Message” and “DVB Signal Condition” are available in DVB
mode only.
“Analogue Manual Tuning” is available in Analogue mode only.
•
INPUT
OPTION
SD CARD
EXIT
RETURN
2
3
4
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Tuning Menu”
Setup Menu
DVB Profile Edit
DVB Service List
Link Settings
Child Lock
Tuning Menu
Off Timer Off
Language
Teletext TOP
Teletext Character Set West
Access
1/2
access
select
access
select
28
Select a function
5
Tuning Menu
Auto Setup Access
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Condition Access
Access
Access
On
To return to TV
EXIT
6
Set
For Auto Setup, using the buttons on the side of the TV (p. 7)
Press repeatedly until “Auto Setup” appears
Access “Auto Setup”
Start “Auto Setup”
To return to TV
•
access
select

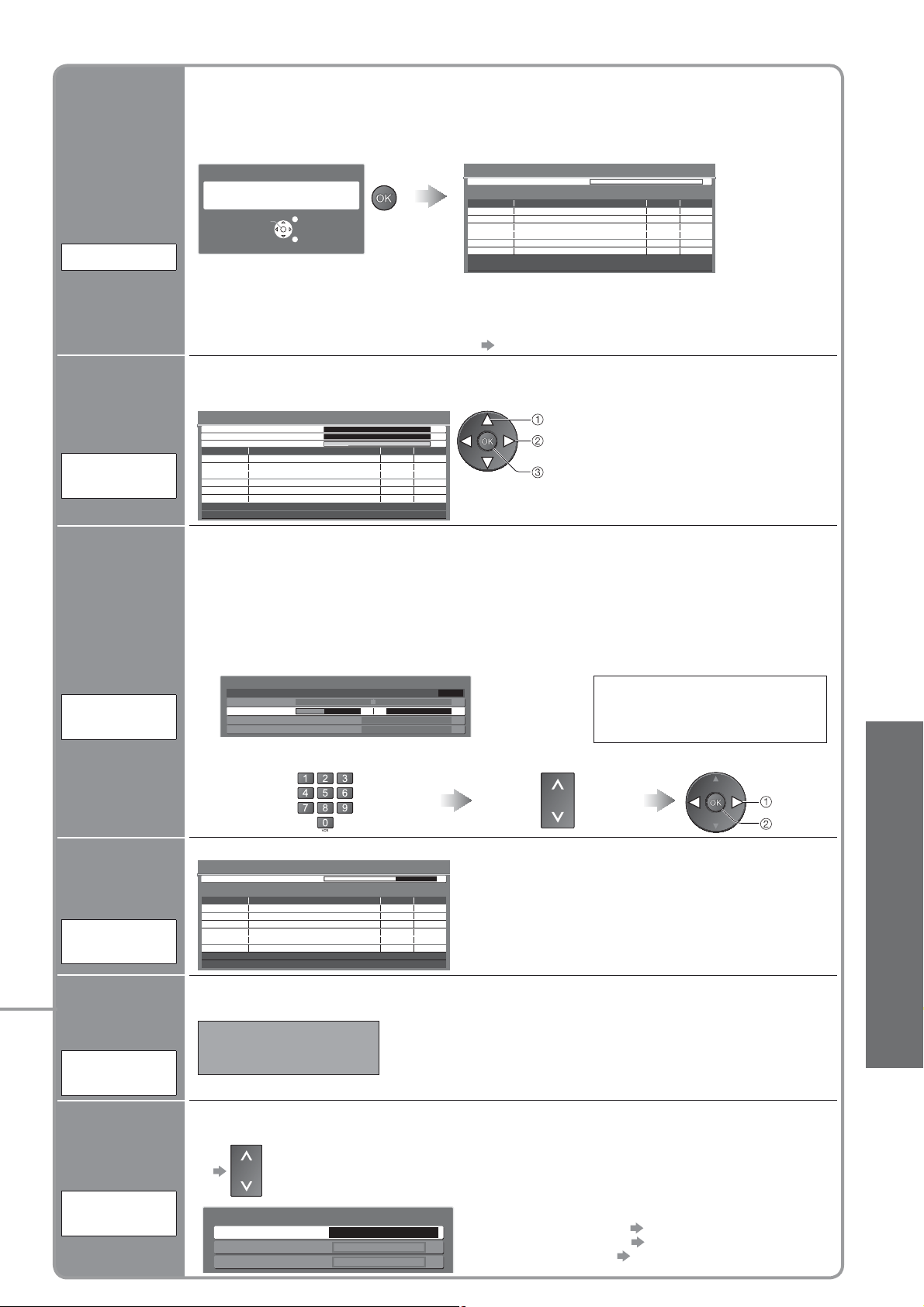

Page 29
Set all DVB
or Analogue
programmes
automatically
Auto Setup
Set DVB
programme
manually
DVB Manual
Tuning
Set Analogue
programme
manually
Analogue
Manual Tuning
Automatically retune all DVB or Analogue programmes received in the area.
Only DVB programmes are retuned in DVB mode.
•
Only Analogue programmes are retuned in Analogue mode.
•
If a Child Lock PIN number (p. 30) has been set, it must be entered.
•
Start Auto Setup Settings are made automatically
Auto Setup
All Digital tuning data will be erased
Start Auto Setup
All the previous tuning settings are erased.
•
The programme, language, country / region settings are downloaded to a Q-Link or
•
VIERA Link compatible equipment connected to the TV.
When the operation is completed, the programme at programme position “1” will be displayed.
•
If tuning has not been done completely “DVB Manual Tuning”, “Analogue Manual Tuning”
•
Normally use “Auto Setup” or “Add New DVB Services” to add DVB programmes to your
service list.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
DVB Manual Tuning
Frequency
Signal Quality 0 10
Analogue Scan 21 68
Signal Strength 0 10
Prog. Service Name Type New
Free TV: - Pay TV: - Radio: - Data: -
EXIT
RETURN
474,00[CH21]
Stopped
Auto Setup - Digital
Scan 5 69
This will take about 3 minutes.
Channel Service Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
Free TV: 4 Pay TV: - Radio: - Data: -
MHz
All services found will be added to the
•
DVB Service List.
Searching
select channel
adjust frequency (set where the level of
“Signal Quality” becomes the maximum)
search
Fine Tuning
Use to make small adjustments to the tuning of an individual programme (affected by
weather conditions, etc.)
Manual Tuning
Set Analogue programme manually after Auto Setup.
Set Sound System and Colour System, and then perform this function.
•
Normally set Colour System “Auto”.
If a VCR is connected only with the RF cable, select programme position “0”.
•
Analogue Manual Tuning
1 BBC1
Fine Tuning
Manual Tuning 2 78 411
Sound System
Colour System Auto
Select the programme position
SC1
CH33
CH33
SC1: PAL B, G, H / SECAM B, G
SC2: PAL I
SC3: PAL D, K / SECAM D, K
F: SECAM L / L’
Search and storeSelect the programme
•
Tuning Programmes
Add DVB
programme
automatically
Add New
DVB Services
Display a
noti cation
message
New Service
Message
Check
DVB signal
DVB Signal
Condition
search
store
Any new services found will be added to the DVB Service List.
Add New DVB Services
Scan 5 69
Analogue Scan 21 68
This will take about 3 minutes.
Channel Service Name Type Quality
Free TV: - Pay TV: - Radio: - Data: -
Selects whether to give a noti cation message when a new DVB service is found. (Off / On)
New DVB service found!
Press OK to add new service.
Press EXIT to lgnore.
Selects a programme and checks the DVB signal condition.
To change the programme
•
DVB Signal Condition
DVB Programme [CH70] CBBC Channel
Signal Quality
Signal Strength
Searching
010
010
The new service is added with the current settings
•
saved as they are.
A good Signal Strength is not an indication of
suitable signal for DVB reception. Please use
the Signal Quality indicator as follows:
Signal Quality:
Green bar Good
•
Yellow bar Poor
•
Red bar Bad (Check the aerial)
•
Advanced
29

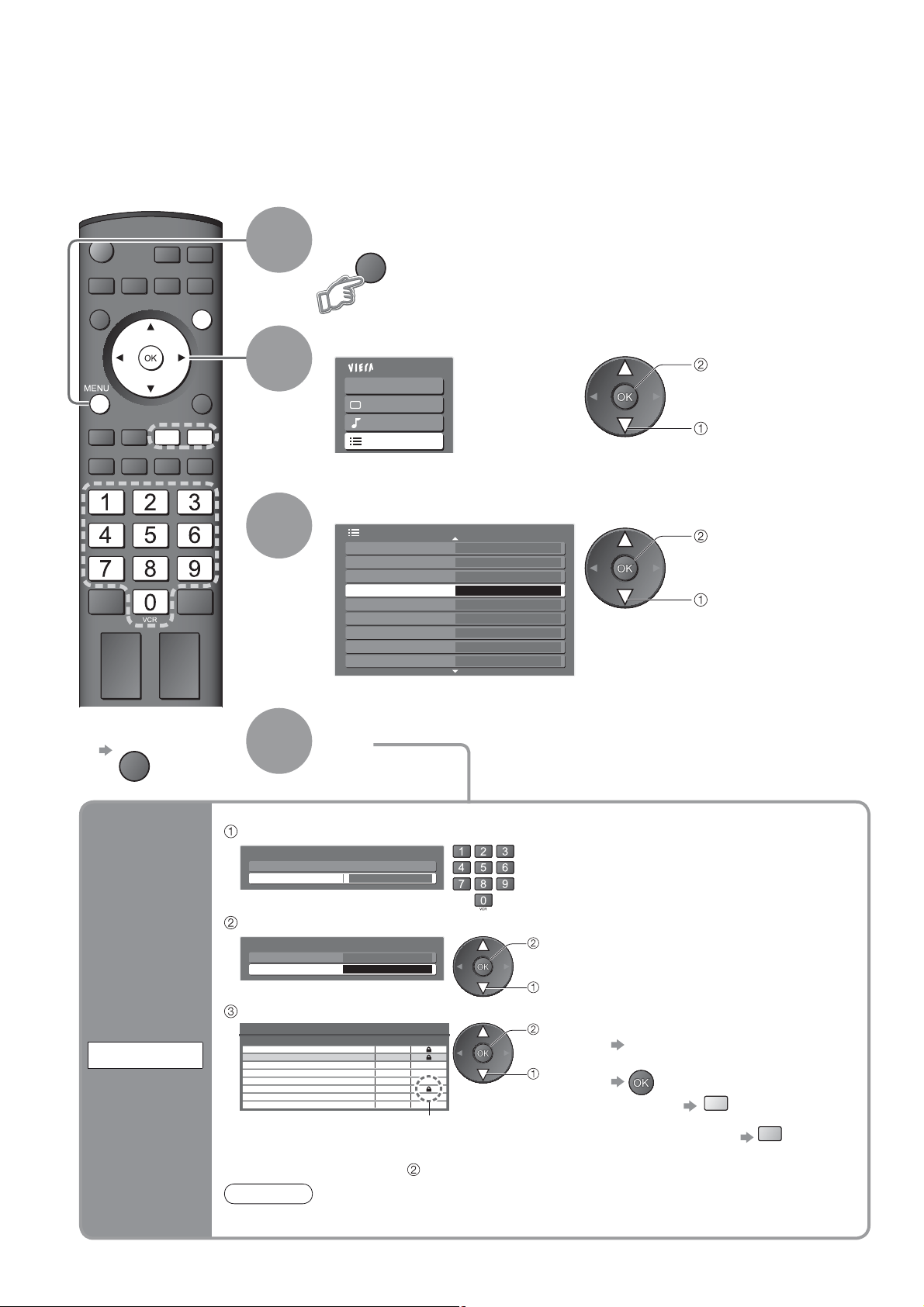

Page 30
Control Programme Audience
You can lock specific programmes / AV input terminals and control who watches them.
(When the locked programme / input is selected, a message appears; by entering the PIN number, you
can watch it.)
Display the menu
INPUT
OPTION
SD CARD
EXIT
RETURN
1
2
3
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Child Lock”
Setup Menu
DVB Profile Edit
DVB Service List
Link Settings
Child Lock
Tuning Menu
Off Timer Off
Language
Teletext TOP
Teletext Character Set West
Access
1/2
access
select
access
select
To return to TV
EXIT
Control
programme
audience
Child Lock
4
Set
Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
Enter the PIN number twice at rst
•
setting.
Make a note of the PIN number in
•
case you forget it.
Select “Child Lock List”
Child Lock
Change PIN
Child Lock List
Access
access
select
Select the programme / input to be locked
Child Lock List - Services and AV
Name
BBC One Wales
1
BBC THREE7
E414
VCR
BBC11
*****2
AV1
AV2/ S
Appears when the programme / input is locked
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
Lock
To change the PIN number
Select “Change PIN” in and enter a new PIN number twice.
set
select
To cancel
•
Select the locked programme /
input
To lock all
•
To cancel all locks
•
yellow
Note
Setting “Shipping Condition” (p. 31) erases the PIN number and all settings.
•
blue
30
Page 31
Restore Settings
Resets the TV to its original condition, i.e. no programmes tuned in.
All settings (programmes, picture, sound quality, etc.) are reset.
Display the menu
INPUT
OPTION
SD CARD
1
EXIT
MENU
RETURN
To return to TV
EXIT
2
3
4
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Shipping Condition”
Setup Menu
Shipping Condition Access
Common Interface
System Update
Picture Overscan
Input Labels
Banner Display Timeout
Time Zone
Software License
System Information
On
3 seconds
Auto
2/2
Set
access
•
Control Programme Audience
select
•
Restore Settings
access
select
Advanced
Restore
Settings
Shipping
Condition
Check the message and initialise
Shipping Condition
All tuning data will be erased
Confirm
Follow the on-screen instructions
“Auto Setup” will automatically start when Mains power On / Off switch is next
•
turned On. (p. 10)
Are you sure?
Are you sure?
EXIT
RETURN
To retune TV programmes only, e.g. after moving house
“Auto Setup” (p. 29)
31
Page 32
Input Labels
For easier identi cation and selection of the input mode, you can label each input terminals or skip
terminal that is not connected to any equipment.
To select the input mode p. 18
•
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
INPUT
OPTION
SD CARD
EXIT
RETURN
1
2
TV
To return to TV
EXIT
3
4
Select “Input Labels”
Setup Menu
Shipping Condition
Common Interface
System Update
Picture Overscan
Input Labels
Banner Display Timeout
Time Zone
Software License
System Information
2/2
On
Access
3 seconds
Auto
access
select
Select a input terminal and set
Input Labels
AV1 DVD
AV2/S AV2/S
AV3/S AV3/S
COMPONENT COMPONENT
PC PC
HDMI1 HDMI1
HDMI2 HDMI2
HDMI3 HDMI3
The labels you set will be displayed in “Input Selection” menu (p. 18) or banner.
If “Skip” is selected, you cannot select the mode.
•
set
select
32
User input
You can name each input terminals freely.
Select “User input”
select
access
Set characters
select
set
User input
Name
ABCDEFGHI JKLMN
UVWXYZ 0123456
abcdefghijklmn
uvwxyz ( )+ - . * _
OPQRST
789! : #
opqr s t
(maximum: ten characters)
Store
RETURN
Page 33
Displaying PC Screen on TV
The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.
To connect PC p. 42
•
Select the external input
INPUT
OPTION
SD CARD
EXIT
1
Select “PC”
RETURN
2
Input Selection
AV1
AV2/S
AV3/S
COMPONENT
PC
HDMI1
HDMI2
HDMI3
TV
Corresponding signals p. 47
•
If “H-freq.” or “V-freq.” is shown in red,
•
the signals may not be supported.
access
select
To return to TV
PC menu setting (changed as desired)
To make settings “How to Use Menu Functions” to (p. 20)
•
Menu Item Adjustments / Configurations (options)
Advanced
PC
Settings
R-Gain Adjusts the white balance for red areas
G-Gain Adjusts the white balance for green areas
B-Gain Adjusts the white balance for blue areas
Gamma (2.0 / 2.2 / 2.5)
Reset to
Default
Input
Resolution
Clock Set to the minimum level if noise occurs
Press the OK button to reset to the default Picture settings
Switches to a wide view
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
•
XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)
Options change depending on signals
•
Adjusts horizontal position
•
Displaying PC Screen on TV
•
Input Labels
Advanced
H-pos
Setup
PC
Setup
Other items p. 22 and p. 23
•
V-pos
Clock Phase
Sync
Reset to
Default
Adjusts vertical position
Eliminates icker and distortion
Adjust after Clock adjustment
•
Chooses another synchronous signal if the image is distorted (H & V / On G)
H & V : by the horizontal and vertical signals from your PC
•
On G : by the green signal from your PC (if available)
Press the OK button to reset to the default Setup settings
Set to the minimum level if noise occurs
•
33
Page 34
Viewing from SD Card
O
Still images recorded by digital cameras will be displayed.
Insert the SD Card
Warning message for output signal is displayed.
•
Enter SD mode (Photo View Mode)
All photos in SD Card are displayed by thumbnail.
•
Select the photo to be viewed
Selected
Error display
(images that could not be loaded, etc.)
INPUT
OPTION
1
2
SD CARD
EXIT
3
RETURN
Photo View Mode
All pictures
1/175
Filename
p1010001
Date
23/10/2007
Pixel
1600 x 1200
Reading
Select
EXIT
Select
RETURN
View
Slide show
Selected photo information is displayed
The maximum number of characters for Filename is 8.
•
The photo without record of the date is shown “**/**/****”.
•
Sort by Month Sort by Date
p1010004p1010003p1010002p1010001
p1010008p1010007p1010006p1010005
p1010012p1010011p1010010p1010009
(Thumbnail)
Slide show
•
p. 35
To sort by date or month recorded
(Sort by Month / Sort by Date)
Display the thumbnail grouped by
the same date or the same month
Note
The group of the photos without record of the date is shown as
•
“Unknown”.
(Sort by Month)
yellow
(Sort by Date)
blue
Select the group to be
viewed
select
view the
thumbnail of the
selected group
select
view
34
TV
To return to TV
EXIT
SD CARD
or
View
PTION
To display the operation guide or
4
Displayed one at a time
Single view
Rotate
EXIT
Select
List
Rotate
Slide show
Operation guide
Caution
During the operation, no signals are output from the monitor output terminals.
•
To return to thumbnail
•
RETURN
To the previous photo
Rotate 90 (anti-clockwise)
To the next photo
Rotate 90 (clockwise)

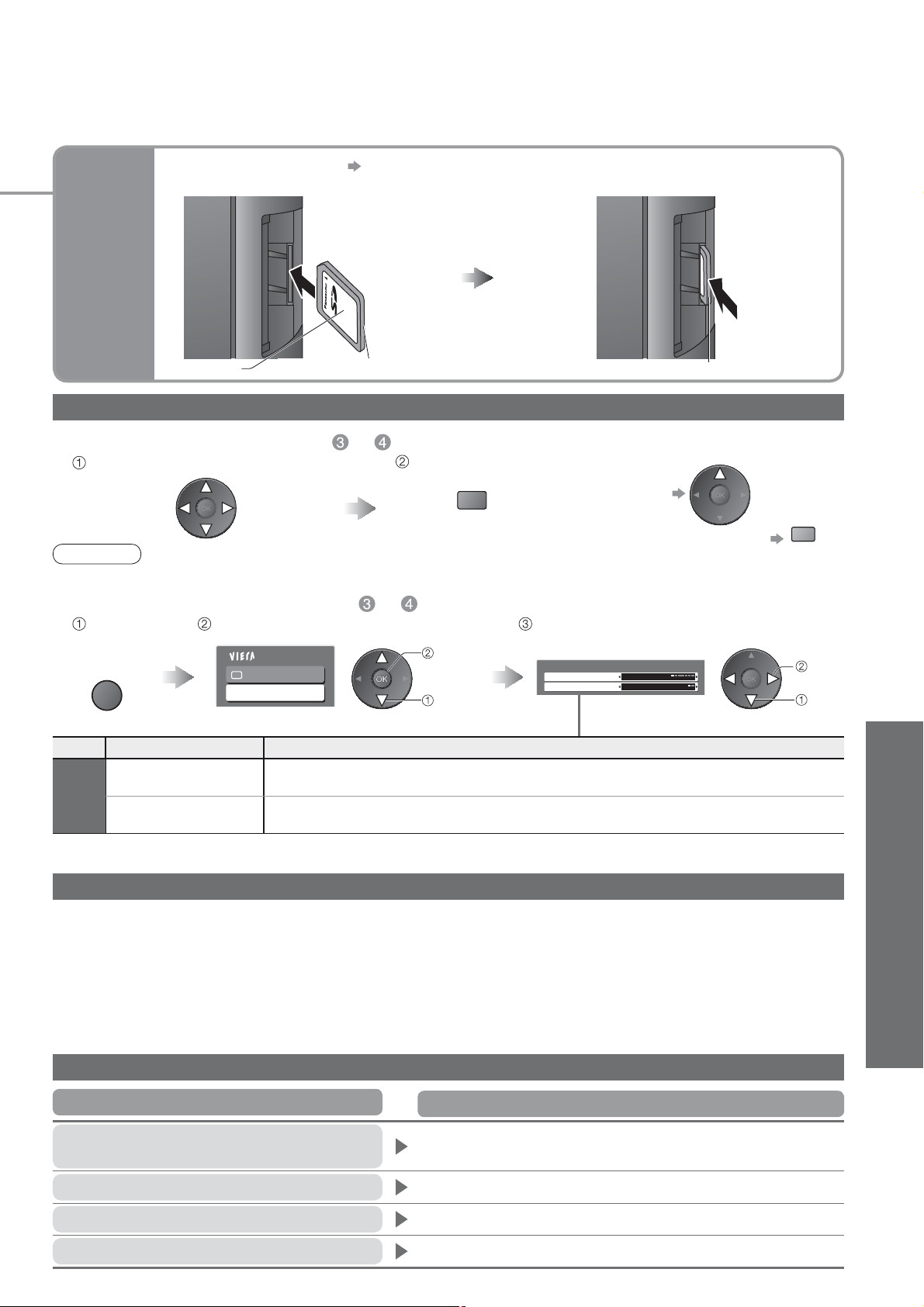

Page 35
(Photos)
•
SD
Card
For details on SD Cards p. 46
To remove To insert
Label surface
Push until a click is heard
Press the centre of the card
Slide show
Start Slide show (operate in step or )
Select the photo for the first view Start Slide show
To pause
•
red
Note
Slide show is done within the same group if started from the view of the group.
•
To return to Single view
•
Slide show settings (operate in step or )
Display the
menu
MENU
Menu Item Adjustments / Configurations (alternatives)
Viewing
Setup
Interval Select slide show interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)
Select “Viewing Setup” Select the items and set
Main Menu
Viewing Setup
“Picture Menu” (p. 22)
•
access
select
Viewing Setup
Interval 5 seconds
Repeat Off
•
Viewing from SD Card
green
(Photos)
set
select
Repeat Slide show repeat (Off / On)
Cautions in handling SD Card
Do not remove the card while the TV is accessing data (this can damage card or TV).
•
Do not touch the pins on the back of the card.
•
Do not subject the card to a high pressure or impact.
•
Insert the card in the correct direction (otherwise, card may be damaged).
•
Electrical interference, static electricity, or erroneous operation may damage the data or card.
•
Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the
•
TV. (Panasonic is not liable for any deterioration or damage of recorded data.)
On screen messages
Message
Cannot read le
Is SD Card in?
No valid le to play
Over 9999 pictures found
The le is broken or unreadable.
•
The TV does not support the format.
•
(For the applicable formats and data, see p. 46.)
Insert a SD Card.
•
The card has no data.
•
Maximum valid number of photos is 9,999.
•
Meaning / Action
Advanced
35
Page 36
Link Functions
Q-Link
(
VIERA Link
)
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 37)
VIERA Link (HDAVI Control
enables easy control, convenient recording, playback, etc. (p. 38 - 41)
You can use Q-Link and VIERA Link functions together.
TM
) connects the TV and the equipment with VIERA Link function, and
Summary of Q-Link and VIERA Link functions
Features
Preset download
Easy playback
Power on link
Power off link
Speaker control
Control the menu of the
connected equipment by
VIERA remote control
Direct TV Recording
Pause Live TV programme
Read the manual of the equipment, too.
:Available with the equipment which has “HDAVI Control 2” or “HDAVI Control 3” function.
:Available with the equipment which has “HDAVI Control 3” function.
Connection
Q-Link
SCART cable
Connect the DVD Recorder / VCR supporting Q-Link to the
•
TV’s AV1 or AV2 terminal via a fully wired SCART cable.
VIERA Link
HDMI cable
SCART cable
Connect the equipment supporting VIERA Link to the TV’s AV1, AV2, HDMI1, HDMI2 or HDMI3 terminals via
•
fully wired SCART and HDMI cables together.
Some functions are available only with HDMI cable connection. But use both HDMI and SCART cables to
•
support many features normally.
Q-Link
(SCART connection)
OO O
OO O
OO O
OO O
-
-
O
--
Connections
DVD Recorder / VCR
with Q-Link function
DIGA Recorder / HD Video Camera
with VIERA Link function
VIERA Link
(HDMI connection only)
OO
O
-
SCART cable
•
Use fully wired SCART cable.
HDMI cable
•
Use fully wired HDMI compliant cable.
Non-HDMI-compliant cables cannot be
utilized.
Recommended Panasonic’s HDMI cable
part number:
• RP-CDHG10 (1.0 m)
• RP-CDHG15 (1.5 m)
• RP-CDHG20 (2.0 m)
• RP-CDHG30 (3.0 m)
• RP-CDHG50 (5.0 m)
(SCART and HDMI connection)
VIERA Link
O
O
O
36
For Speaker control (Home Cinema)
To use Ampli er
•
HDMI cable
Ampli er with
VIERA Link
function
HDMI
cable
DIGA Recorder with
VIERA Link function
HDMI
cable
HD Video Camera with
VIERA Link function
RCA cable
SCART cable
To use Player theatre
•
HDMI cable
RCA cable
Speaker systemSpeaker system
Player theatre with
VIERA Link function
Page 37

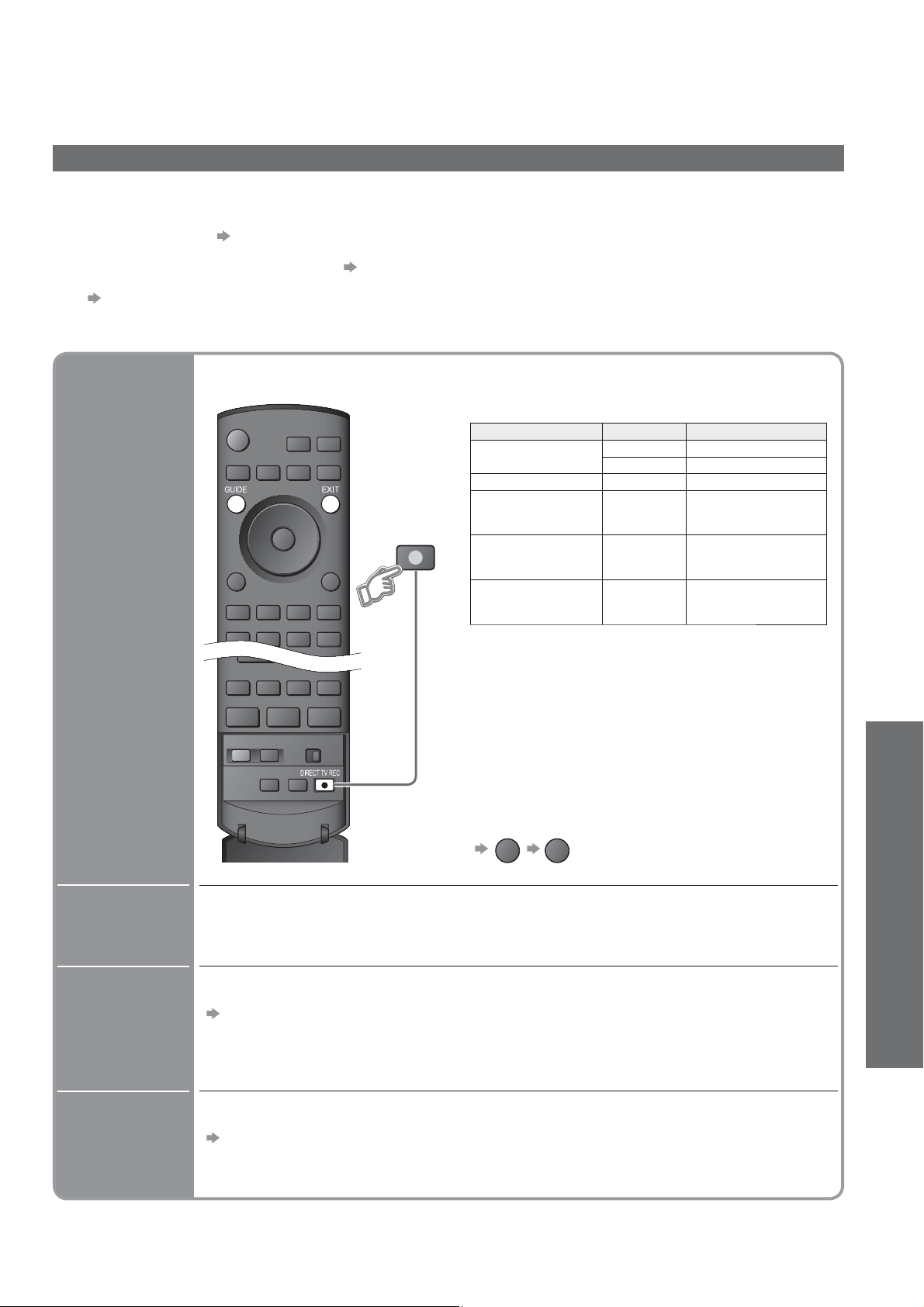

Q-Link
Preparations
Connect the DVD Recorder / VCR with the following logos:
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
Q-Link connection p. 36
•
Set up the DVD Recorder / VCR. Read the manual of the equipment.
•
Q-Link terminal setup in Setup Menu “Q-Link” (p. 23), “AV1 / AV2 out” (p. 23)
•
Download preset - programme, language, country / region setting (Preset download)
•
“Download” (p. 23) or “Auto Setup” (p. 29) or “Auto Setup” - when first using the TV (p. 10)
Features available
Some recorders are not applicable. Read the manual of the recorder.
Recording the current programme in DVD Recorder / VCR immediately.
Available conditions:
•
Current mode Using tuner How to record
Analogue
DVB TV TV monitor out
AV
( watching recorder’s
DIRECT TV REC
Direct TV
Recording -
What you see
is What you
record
tuner)
AV
( watching recorder’s
external input)
AV
( watching TV’s
external input)
When Direct TV Recording is performed, the
•
recorder is automatically turned on if it is in Standby
mode.
Changing programme or turning off the TV is
•
available while the recorder is recording from its
own tuner.
Changing programme is not available while the
•
recorder is recording from the TV tuner.
Turning off the TV will stop the recording if the
•
recording from an AV source connected to the TV.
TV TV monitor out
Recorder Recorder’s tuner
Recorder Recorder’s tuner
-
-
Recorder’s
external input
TV monitor out
(Q-Link / VIERA Link)
•
Link Functions
To stop recording
GUIDE
Information
/ Message
Power
on link
and Easy
playback
Power off
link
• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)
• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)
Recording information or if recording is not possible, a message is displayed.
Set Power on Link “Set” in Setup Menu to use this function
“Power on Link” (p. 23)
When DVD Recorder / VCR starts playback or direct navigator / function menu
for the equipment are activated, the TV is turned on and input mode is switched
automatically so that you can view the content. (Only when TV is in Standby mode.)
Set Power off Link “Set” in Setup Menu to use this function
“Power off Link” (p. 23)
When TV is set to Standby mode, the recorder is also automatically set to
Standby. (Only when the videocassette or DVD is not active.)
EXIT
Advanced
37
Page 38
Link Functions
Q-Link
(
VIERA Link
)
VIERA Link “ ControlTM”
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 3” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically.
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please con rm the
•
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
•
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
About applicable Panasonic equipment, consult your local Panasonic dealer.
Preparations
Connect the equipment supporting VIERA Link.
•
VIERA Link connection p. 36
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder might be required. For details, read the manual of the
•
recorder.
Download preset - programme, language, country / region setting (Preset download)
•
“Download” (p. 23) or “Auto Setup” (p. 29) or “Auto Setup” - when first using the TV (p. 10)
Set VIERA Link On in Setup Menu “VIERA Link” (p. 23)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 18), and make sure that an image is displayed
correctly.
This setup should be done each time when the following conditions occur:
• for the first time
• when adding or reconnecting equipment
• when changing setup
Features available
Easy
playback
Power on
link
Power off
link
Automatic Input switching - When the connected equipment is operated, input mode
is switched automatically. When it is stopped operating, input mode is returned.
Set Power on Link “Set” in Setup Menu to use this function
When the connected equipment starts playback or direct navigator / function menu
for the equipment are activated, the TV is automatically turned on. (Only when TV is
in Standby mode.)
Set Power off Link “Set” in Setup Menu to use this function
When TV is set to Standby mode, the connected equipment is also automatically
set to Standby.
•
“Power on Link” (p. 23)
“Power off Link” (p. 23)
This function will work even if the TV enters standby mode automatically by Off Timer
function or auto power standby function.
38
Page 39
Features available (Using VIERA Link Menu)
You can pause the live TV programme and resume later.
This function is available with DIGA Recorder which has HDD and “HDAVI Control 3”
•
function.
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 38)
•
Access and pause the live TV programme
Display “VIERA Link Menu”
INPUT
SD CARD
Pause
Live TV
OPTION
Select “Pause Live TV” and pause
EXIT
programme
HDAVI Control 3
(
and
Recorder with HDD
Pause Live
TV
)
RETURN
•
To resume (stop pause)
Select “Pause Live TV”
and access
•
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Live TV programme is recorded on HDD from where it was
paused.
About the operations after
resuming, read the manual
of the equipment.
Access
Start
Recorder
Home Cinema
Home Cinema
pause
select
resume
select
(Q-Link / VIERA Link)
•
Link Functions
Direct TV
Recording -
What you see
is What you
record
(HDAVI Control 3)
Direct TV
Rec
To return to Live TV
(cancel pause or resumed playback)
(change the input mode)
If you cancel pause or resumed playback, the recorded
•
programme will be deleted from HDD.
Recording the current programme in DIGA Recorder immediately.
This function is available with DIGA Recorder which has “HDAVI Control 3” function.
•
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 38)
•
Changing programme or turning off the TV is available while the recorder is recording
•
from its own tuner.
Changing programme is not available while the recorder is recording from the TV tuner.
•
Turning off the TV will stop the recording if the recording from an AV source connected to
•
the TV.
Display “VIERA Link Menu”
Select “Direct TV Rec” and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
You can also start recording directly
•
Start
Recorder
Home Cinema
Home Cinema
start
select
DIRECT TV REC
To stop recording
Select “Stop” in “Direct TV Rec” and access
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Stop
Recorder
Home Cinema
Home Cinema
select
stop
Advanced
You can also stop recording directly.
•
GUIDE
EXIT
39
Page 40
Link Functions
Features available (Using VIERA Link Menu)
You can control some functions of the connected equipment with this TV remote
control (point the remote control at the TV’s signal receiver).
This function is available with the equipment which has “HDAVI Control 2” or
•
“HDAVI Control 3” function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 38)
•
Access and operate the menu of the equipment
Display “VIERA Link Menu”
Select “VIERA Link Control”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Select the equipment you want to access
“Home Cinema” means Player theatre,
•
Recorder theatre and Ampli er.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema / Video Camera
The type of the connected equipment is
displayed.
Select the type of the equipment and
access.
The menu of the accessed equipment
(Input mode will be changed automatically)
Operate the menu of the equipment
Available VIERA remote control buttons
•
(depending on the connected equipment):
Control
the menu
of the
connected
equipment
by VIERA
remote
control
HDAVI Control 2
(
HDAVI Control 3
VIERA Link
Control
INPUT
SD CARD
OPTION
EXIT
RETURN
If you access
the invalid equipment
When the equipment with
“HDAVI Control” function is
)
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema /
Video Camera
The type of the connected
equipment is displayed.
But you cannot access it. Use its
own remote control to operate the
equipment.
Start
Recorder
Home Cinema
Home Cinema
Q-Link
(
VIERA Link
Start
Recorder
Home Cinema
Home Cinema
Start
Recorder
Home Cinema
Home Cinema
select
access
Move the cursor / select the menu
Move the cursor / access / adjust
)
select
40
When the equipment of other
types or manufacturers is
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Start
Others
Home Cinema
Home Cinema
Others
“Others” is displayed.
You cannot access it. Use its own
remote control to operate the
equipment.
Store / set / access
RETURN
EXIT
OPTION
red
green
yellow
About the operations for the equipment, read
•
the manual of the equipment.
Return to the previous menu
Exit the menu
Display the operation guide for the
equipment /
The same functions with the
OPTION button of the equipment
Access when the key words are
blue
displayed on colour bar
Page 41
Features available (Using VIERA Link Menu)
You can control the theatre speaker with this TV remote control (point the remote
control at the TV’s signal receiver).
This function is available with the Ampli er or Player theatre which has “HDAVI Control”
•
function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 38)
•
Access and control the speaker volume
Speaker
control
Speaker
Selection
INPUT
OPTION
SD CARD
EXIT
RETURN
Display “VIERA Link Menu”
Select “Speaker Selection”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Set to “Home Cinema” or “TV”
Start
Recorder
Home Cinema
Home Cinema
Home Cinema
Amplifier or Player theatre will be
automatically turned on if it is in Standby
mode and the sound is from theatre
speakers connected to the equipment.
select
set
(Q-Link / VIERA Link)
•
Link Functions
Volume up / down
•
Mute
•
The sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers
•
will be active.
TV
TV
TV speakers are active.
Note
This function may not work properly depending on the connected equipment.
•
Image or sound may not be available for the rst few seconds when the playback starts.
•
Image or sound may not be available for the rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
Easy playback is also available by using the remote control for Ampli er or Player theatre. Read the manual of
•
the equipment.
About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment.
•
If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA
•
Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case
HDMI1.
“HDAVI Control 3” is the newest standard (current as of December, 2007) for HDAVI Control compatible
•
equipment. This standard is compatible with conventional HDAVI equipment.
To con rm this TV’s version of HDAVI Control “System Information” (p. 23)
•
Advanced
41
Page 42
External Equipment
These diagrams show our recommendations for how to connect the TV to your various equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
speci cations (p. 51).
Camcorder /
Game equipment
(S-VIDEO)
or
(VIDEO)
(AUDIO)
Camcorder /
HDMI equipment
Fully wired HDMI
( M3 stereo
mini plug)
compliant cable
Headphones
To adjust volume
“Headphone Volume” in the Sound Menu (p. 22)
Types of connectable equipment to each terminal
Fully wired HDMI compliant cable
To watch DVDs
DVD player
(Listening)
(Viewing)
42
Recording / Playback
(equipment)
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use ampli er with speaker system
Q-Link
VIERA Link
Direct TV Recording
: Recommended Connection
Terminal
AV1 AV2
(with HDMI) (with HDMI)
AV3 (Side of TV)
Page 43
PC
To listen with
speakers
HDMI equipment
DVD
Recorder
Fully wired HDMI
compliant cable
RCA
cable
Computer
AUDIO
OUT
COMPONENT
AUDIO
IN
Y
PC
RGB
VIDEO
(Viewing)(Listening)
AV2AV1
RGB
VIDEO
S VIDEO
Conversion
adapter
(if necessary)
Ampli er with
speaker system
RF cable
•
External Equipment
or
COMPONENT
Y
P
B
L
P
R
R
R
AUDIO OUT
L
R
P
B
LRL
P
R
To record /
playback
SCART cable
To watch satellite
broadcasts
Set top box
DVD Recorder /
VCR
SCART cable
Advanced
123
43
Page 44
Technical Information
Auto Aspect
The optimum size and aspect can be chosen, and you can enjoy ner images. (p. 14)
Auto
Auto aspect determines the best aspect ratio to use to ll your screen. It does this using a four step process to
determine if the picture being viewed is a widescreen picture.
If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto
aspect does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing
pleasure.
The text shown on the screen indicates how Auto aspect determined which ratio to use:
“WIDE” appears in the top left of the screen if a widescreen identi cation signal (WSS) is found or a signal found
through a SCART or HDMI terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This
function will also work in any aspect mode. “Auto” appears in the top left of the screen if black stripes above and
below the picture are detected. Auto aspect chooses the best ratio and expands the picture to ll the screen.
This process can take several minutes, depending on the darkness of the picture.
Aspect Control Signal
Signal name
PAL
PAL 525/60
DVB
M.NTSC
NTSC (AV input only)
525(480)/60i
SD
525(480)/60p
Widescreen signal (WSS)
TV AV1 AV2 AV3 COMPONENT AV1 AV2 HDMI1 HDMI2 HDMI3
OOOO O O
----
O
----
----
--- - -
-
-
Control signal through SCART (pin 8) or HDMI terminal
OO
OO
OO
OOO
OOO
625(576)/50i
625(576)/50p
750(720)/50p
750(720)/60p
1125(1080)/50i
HD
1125(1080)/60i
1125(1080)/50p
1125(1080)/60p
1125(1080)/24p
Note
The ratio varies depending on the programme, etc. If the ratio is greater than the standard “16:9”, black bands
•
may appear at the top and bottom of the screen.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
•
tracking of the VCR. (See the VCR manual.)
O OOO
O OOO
-
-
-
-
-
-
-
OOO
OOO
OOO
OOO
OOO
OOO
OOO
44
Page 45
HDMI connection
HDMI (high-de nition multimedia interface) allows you to enjoy high-de nition digital images and high-quality sound
by connecting the TV and the equipment.
HDMI-compatible equipment (1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can
be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 42).
Note
HDMI is the world’s rst complete digital consumer AV interface complying with a non-compression standard.
•
If the external equipment has only a DVI output, connect to the HDMI1 / 3 terminal via a DVI to HDMI adapter
•
cable (2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use
•
COMPONENT-AUDIO terminals / HDMI3: use AV3 audio terminals).
Audio settings can be made on the “HDMI1 / 3 Input” menu screen. (p. 22)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
HDMI2 terminal is for digital audio signal only.
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
•
protection.
An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
•
“S-VIDEO”, or “VIDEO” to receive analogue signals.
The HDMI input terminal can be used with only the following image signals:
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.
For details of the applicable HDMI signals, see p. 47.
•
This TV incorporates HDMITM (Version 1.3 with x.v.ColorTM) technology.
•
(
(
1): The HDMI logo is displayed on HDMI-compliant equipment.
2): Enquire at your local digital equipment retailer shop.
Updating the software system (DVB mode)
Update system software regularly to ensure that you have latest version software.
If there is an update available, a noti cation banner is displayed when the service has the update information.
To download new software, press “OK” Downloading (approx. 20 mins.)
•
If you choose not to download, press “EXIT”.
To update automatically
Set “Auto Update Search in Standby” to “On” (p. 25)
If there is a new version software being broadcast, the TV will download this automatically.
The automatic updating sequence is carried out at 3:00 AM and 5:00 AM every night under the following conditions.
•
Standby (TV turned Off with the remote control)
Recording is not in progress.
To update manually
Perform “System Update Search Now” (p. 25)
If there is an update available, a noti cation banner is displayed.
To download new software, press “OK” Downloading (approx. 20 mins.)
•
If you choose not to download, press “EXIT”.
Note
During downloading, do not turn Off the TV or touch any buttons.
•
(The TV is automatically activated after downloading is completed.)
The message might be the noti cation beforehand. In this case, the schedule information (the date that the new
•
version can be used) will appear. You can set the reservation for update. The update will not start when the TV is
set to Off.
•
Technical Information
FAQs, etc.
45
Page 46
Technical Information
Data format for Card browsing
Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF and EXIF
Data format : Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)
Max. number of files : 9,999
Image resolution : 160 × 120 to 10,000,000
Compliant card type (maximum capacity): SDHC Card (16 GB), SD Card (2 GB), Multi Media Card (128 MB),
•
miniSD Card (1 GB) (requiring miniSD adapter)
If miniSD Card is used, insert / remove it together with the adapter.
•
Check the latest information on the card type at the following website. (English only)
•
http://panasonic.co.jp/pavc/global/cs/
DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).
standards
Note
A JPEG image modi ed with a PC may not be displayed.
•
Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.
•
Partly degraded les might be displayed at a reduced resolution.
•
Only “.JPG” extension can be read by this TV.
•
The folder and le names may be different depending on the digital camera used.
•
Do not use two-byte characters or other special codes.
•
The card may become unusable with this TV if the le or folder names are changed.
•

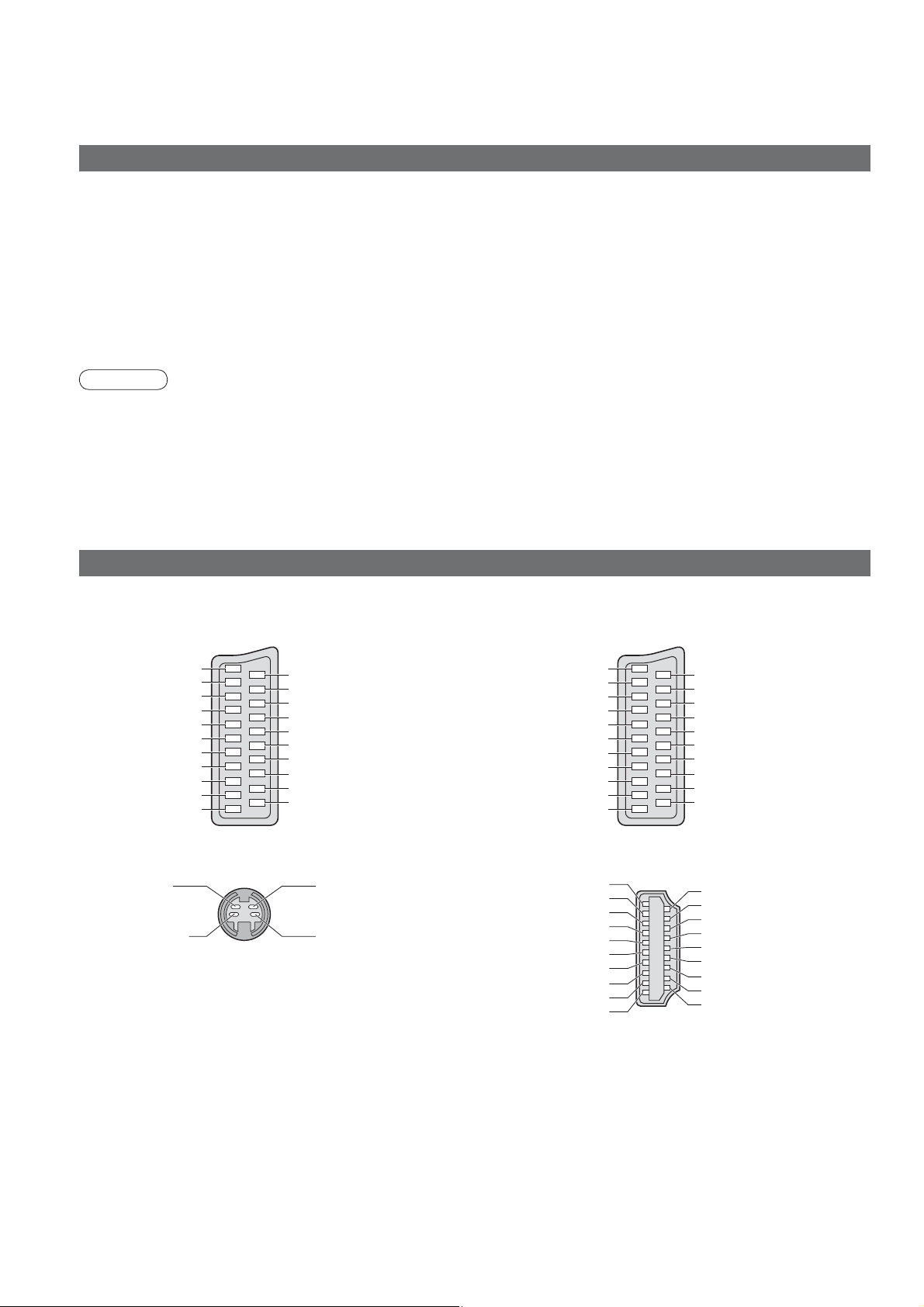

SCART, S-VIDEO and HDMI terminal information
AV1 SCART terminal
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
AV2 SCART terminal
(RGB, VIDEO, S-VIDEO, Q-Link)
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS /
VIDEO switching.
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in, S.C. - in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
46
AV3 S-VIDEO 4 pin terminal HDMI terminal
Chrominance in Luminance in
Chrominance earth Luminance earth
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield
TMDS Data0 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2 3
TMDS Data2+ 1
11
18 +5V Power
16 SDA
Reserved (in cable but N.C. on device)
14
12 TMDS Clock
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1
4 TMDS Data1+
2 TMDS Data2 Shield
Page 47
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency
•
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.
•
Note
Some PC models cannot be connected to this TV.
•
When using PC, set the colour display quality of PC to the highest position.
•
For details of the applicable PC signals, see below.
•
Max. display resolution
•
Aspect
D-sub 15-pin connector signal
•
4:3
16:9
45
10
15 14 13 12 11
1,024 × 768 pixels
1,366 × 768 pixels
1
2
67839
Pin No.
Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
Pin No.
Signal Name
Pin No.
Signal Name
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p
PC (D-sub 15P)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06
•
Technical Information
FAQs, etc.
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
Applicable input signal for PC is basically compatible to VESA standard timing.
•
PC signal is magni ed or compressed for display, so that it may not be possible to show ne detail with suf cient
•
clarity.
47
Page 48
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow
images (noise)
Check the position, direction, and
•
connection of the aerial.
Neither image nor
sound is produced
Is the TV in “AV mode”?
•
Is the mains lead plugged into the socket
•
outlet?
Is the TV turned On?
•
Check Picture Menu (p. 22) and volume.
•
Check all required SCART cables and
•
connections are rmly in place.
Auto aspect
Auto aspect is designed to provide you
•
with the best aspect ratio to use to ll your
screen. For user control please see p. 44.
S-Video / black and
white picture
Using AV button please con rm your
•
selection is S-Video I.e. AV2/S (p. 18).
To customer using indoor
aerial
In order to enjoy a good quality DVB image,
it is important to receive a good quality DVB
signal. For this purpose check “DVB Signal
Condition” in Tuning Menu (p. 29). A level of at
least 5 is required in order to provide a good
picture. It may be necessary to adjust the
position and direction of the aerial to achieve
the best possible result.
Q-Link function does not work
Please con rm SCART cable and connection. Also please set
•
“AV1 / AV2 out” in the Setup Menu (p. 23).
“VIERA Link” function
does not work and an error
message appears
Con rm the connection.
•
Turn the connected equipment on and then switch the TV on.
•
(p. 38)
48
On Screen messages
- I.e. EC/AV1
You can simply clear these
•
Press again to redisplay.
No DVB programmes
shown after Auto Setup
Check the DVB transmitter.
•
Adjust the direction of the aerial to another
•
transmitter installed nearby.
Check the analogue broadcast.
•
If the image quality is poor, check the
aerial and consult your nearest dealer.
An error message
appears
Follow the message’s instructions.
•
If the problem persists, contact the
•
authorized Service Centre.
Recording does not start
immediately
Check the settings of the recorder. For details, read the
•
manual of the recorder.
There may be red spots, blue
spots, green spots and black spots
on the screen
This is a characteristic of liquid crystal panels and is not
•
a problem. The liquid crystal panel is built with very high
precision technology giving you ne picture details.
Occasionally, a few non-active pixels may appear on the
screen as a xed point of red, green, blue or black.
Please note this does not affect the performance of your LCD.
The LCD panel moves slightly
when it is pushed with a finger
Clattered sound might be heard
There are some looseness around the panel to prevent the
•
damage to the panel.
The panel might move slightly when it is pushed with a nger,
and clattered sound might be heard. This is not a malfunction.
Page 49

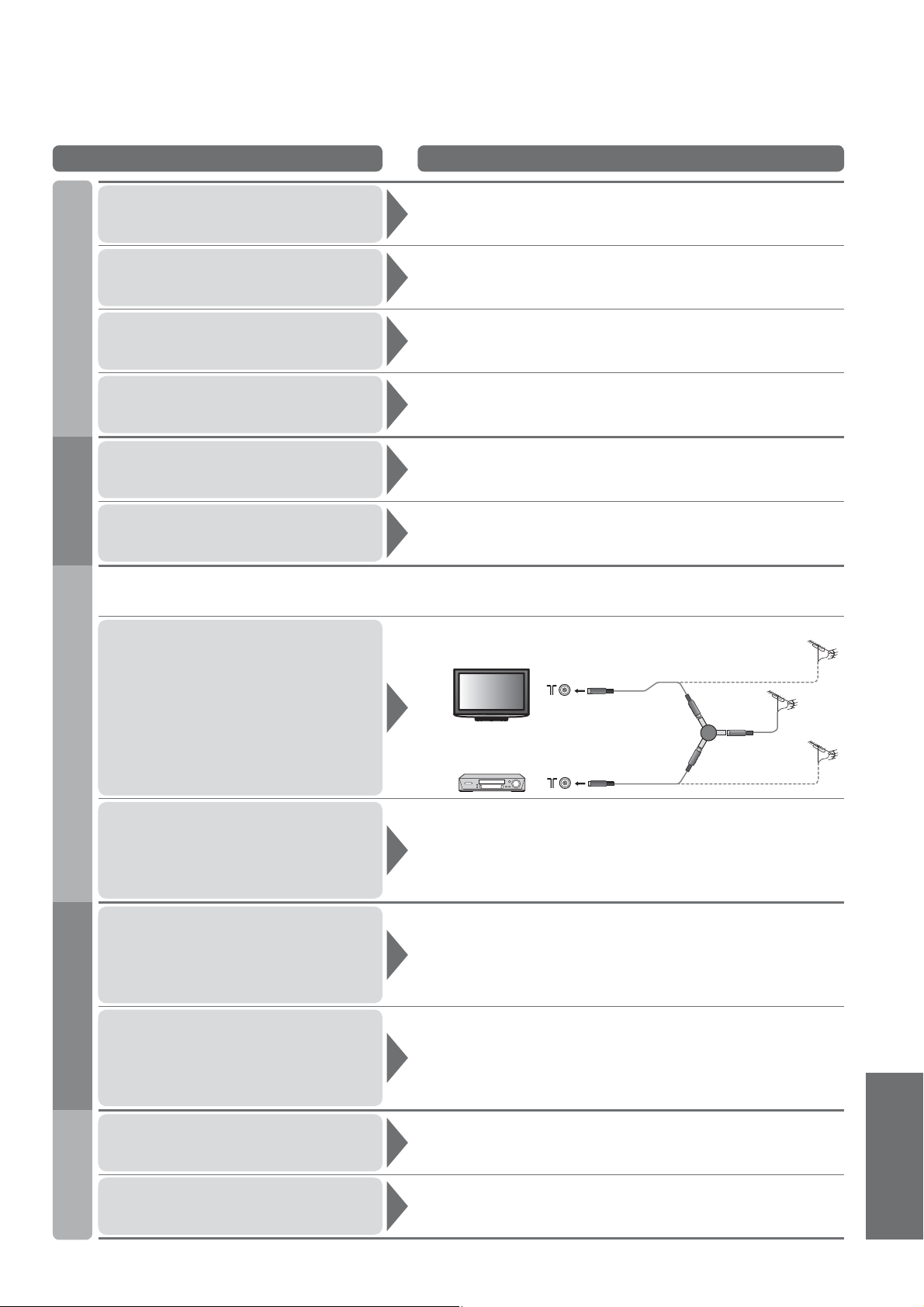

Problem Actions
Chaotic image, noisy
Set “P-NR” in the Picture Menu (to remove noise). (p. 22)
•
Check nearby electrical products
•
(car, motorcycle, uorescent lamp).
Screen Sound HDMI
No image can be
displayed
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
No sound is produced
Sound level is low
or sound is distorted
Due to the digital reception technologies involved, quality of the DTV signals may be relatively low in
•
some cases, despite good reception of analogue programmes.
Unable to receive signals
with a high-performance
aerial
Interference or
frozen / disappearing
image in DVB
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
•
(p. 22)
Check Colour System. (p. 29)
•
Reset programme. (p. 29)
•
Turn off the TV with Mains power On / Off switch, then turn it On
•
again.
Is “Sound mute” active? (p. 7)
•
Is the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set “MPX” (p. 22) in the Sound Menu to “Mono”. (Analogue only)
•
Install an aerial individually for the TV and VCR
•
(or use a splitter).
TV
Aerial
Input
terminal
VCR
Check “DVB Signal Condition”. (p. 29)
•
If “Signal Quality” or “Signal Strength” are displayed in red, check
aerial.
If problem persists, consult your local Panasonic dealer.
Turn the TV off with the Mains power On / Off switch, then turn it
•
On again.
Aerial Output
Aerial Output
(Individual aerial)
Splitter
Aerial Input
(Individual aerial)
•
Frequently Asked Questions
Sound is unusual
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
TV goes into
OtherDVB
“Standby mode”
The remote control
does not work
Set the sound setting of the connected equipment to
•
“2ch L.PCM”.
Check the “HDMI1 / 3 Input” setting in the Sound Menu. (p. 22)
•
If digital sound connection has a problem, select analogue sound
•
connection. (p. 45)
Is the HDMI cable connected properly? (p. 42)
•
Turn Off the TV and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 47)
•
Use an equipment compliant with EIA/CEA-861/861B.
•
Off Timer function is activated.
•
The TV enters “Standby mode” about 30 mins. after analogue
•
broadcasting ends.
Are the batteries installed correctly? (p. 6)
•
Has the TV been switched On?
•
FAQs, etc.
49
Page 50
Licence
DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
•
VGA is a trademark of International Business Machines Corporation.
•
Macintosh is a registered trademark of Apple Inc., USA.
•
S-VGA is a registered trademark of the Video Electronics Standard Association.
•
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
SDHC Logo is a trademark.
•
HDMI, the HDMI Logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI
•
Licensing LLC.
HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
•
TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc.
•
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3)
•
subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide
International, Inc. and/or its related af liates.
GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY
LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE
PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED
AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE
OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)
TX-D32LF82F Declaration of Conformity No. 5429, 31 January 2008
50
Page 51
Speci cations
TX-D32LF82F
Power Source
Power
Consumption
AC 220-240 V, 50 Hz
Average use
Standby condition
Display
panel
Aspect Ratio
Visible screen size
Number of pixels
Sound
Speaker
Audio Output
Headphones
PC signals
Receiving Systems /
Band name
Aerial - Rear
Operating Conditions
Connection Terminals
AV1 (Scart terminal)
AV2 (Scart terminal)
VIDEO
AV3
COMPONENT
Others
Output
Dimensions ( W × H × D )
Mass
S-VIDEO
AUDIO L - R
VIDEO
AUDIO L - R
HDMI1 / 2 / 3
PC
Card slot
AUDIO L - R
140 W
0,4 W (Without monitor out recording)
13 W (With monitor out recording)
16:9
80 cm (diagonal)
697 mm (W) × 392 mm (H)
1,049,088 (1,366 (W) × 768 (H))
160 mm × 42 mm × 2 pcs, 8
20 W (10 W + 10 W), 10% THD
M3 (3.5 mm) stereo mini Jack × 1
VGA, SVGA, XGA
SXGA ······ (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
PAL B, G, H, I, SECAM B, G, SECAM L / L’
VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69
PAL 525/60 Playback of NTSC tape from some PAL Video re cord ers (VCR)
DVB Digital terrestrial services via VHF / UHF aerial input.
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC (AV input only) Playback from NTSC Video recorders (VCR)
TV signals may not be received in some areas.
•
VHF / UHF
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
RCA PIN Type × 1 1.0 V[p-p] (75 :)
Mini DIN 4-pin Y:1.0 V[p-p] (75 :) C:0.286 V[p-p] (75 :)
RCA PIN Type × 2 0.5 V[rms]
Y 1.0 V[p-p] (including synchronization)
P
B, PR ±0.35 V[p-p]
RCA PIN Type × 2 0.5 V[rms]
TYPE A Connectors
HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 :)
HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
SD Card slot × 1
RCA PIN Type × 2 0.5 V[rms] (high impedance)
820 mm × 572 mm × 250 mm (With Pedestal)
820 mm × 534 mm × 119 mm (TV only)
17,0 kg Net (With Pedestal)
14,0 kg Net (TV only)
:
This TV supports “HDAVI Control 3” function.
•
•
Speci cations
•
Licence
FAQs, etc.
Note
Design and Speci cations are subject to change without notice. Mass and Dimensions shown are approximate.
•
This equipment complies with the EMC standards listed below.
•
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.
51
Page 52
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you
may be able to return your products to your local retailer upon the purchase of an equivalent new
product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative
on
effects
waste handling. Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
human health and the environment which could otherwise arise from inappropriate
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of
disposal.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic-europe.com
¤
2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Czech Republic
Loading...
