Panasonic TX-47P950A User Manual

Operating Instructions

Wide Projection Television

Model No.

TX-47P950A

Please read these instructions before operating your
set and retain them for future reference.

TQB0A0132

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from
your new Wide Projection television set.
To obtain maximum benefit from your set, please read these Instructions before making any adjustments,
and retain them for future reference.
Retain your purchase receipt also, and note down the Model Number and Serial Number of your set in the
space provided on the rear cover of these Instructions.

Important Information

(1) The long time (max. 2 hours) use of a TV game on this set is not recommended, since the signal from the TV game may cause

damage to the picture projection tubes of the set.

(2) Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the

Projection TV screen.
Examples of still pictures include logos, video games, computer images and teletext.
If still picture cannot be avoided, reduce the brightness and contrast levels of the picture to minimize any damage that might
occur.

(3) In order to minimize any damage to the projection tubes, this set uses the PICTURE SHIFT function (Refer to page 23) to change

(shift) the entire pictures approximately 2 mm every 15 minutes.

Table of contents

Warnings and Cautions .......................................... 3

Before Operating This Set ...................................... 4

Safety Precaution .......................................................... 4

Securing the casters ...................................................... 4

Connecting the Aerial Cable to the RF in Terminal .................

Connecting Headphones ............................................... 5

Connecting the Plug to the Wall Outlet.......................... 6

How to Turn the Power On ............................................ 6

Battery Installation ......................................................... 6

Battery cautions ............................................................. 6

Location of Controls ............................................... 7

Controls and Terminals on the TV ................................. 7

Connections ............................................................ 8

How to connect the “AV1, 2, 3 or 4” Input Terminals ..... 8

How to connect the DVD Input Terminals ..................... 9

How to connect the AV Monitor Output Terminals to other equipment ....

General Operation ................................................. 10

On-Screen menu Display from Remote Control......

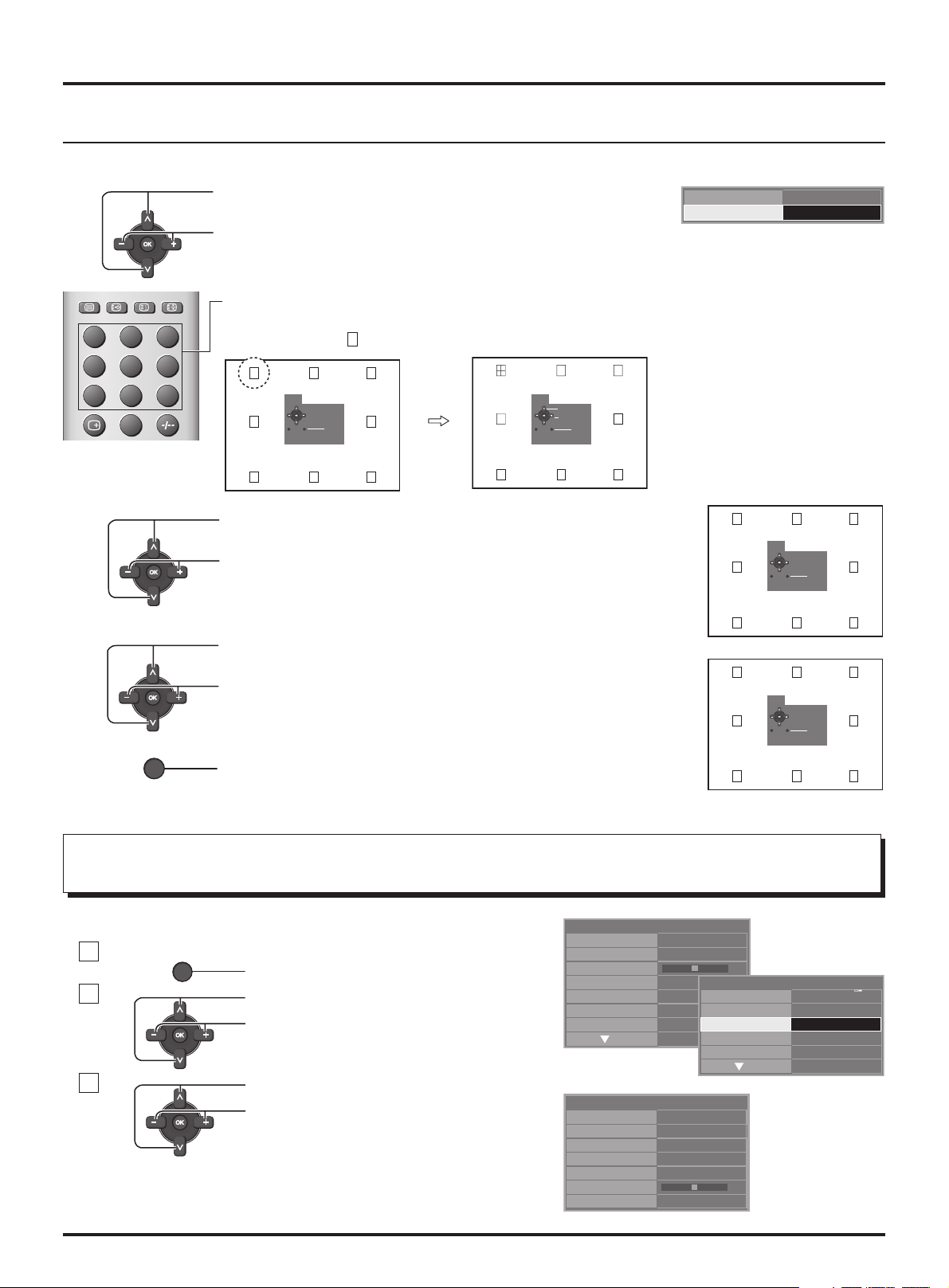

Convergence Adjustment ..................................... 14

Convergence Adjustment mode .................................. 14

Convergence 1 Adjustment for RED, BLUE and GREEN .

Convergence 2 Adjustment for RED and BLUE .......... 15

Tuning Channels ................................................... 15

Channel Selection ....................................................... 16

Channel Allocation ....................................................... 17

Automatic Tune ........................................................... 18

Manual Tune ................................................................ 19

Fine Tuning.................................................................. 20

How to Cancel the Fine Tuning ................................... 20

Programme Number Skip ............................................ 20

How to Cancel the Skip Function ................................ 21

12

14

Sound System Selection (Different region use differing systems) ....

Colour System Selection (Different region use differing systems) ....

21
21

Owner ID ................................................................ 22

Setup Adjustment ................................................. 23

5

9

OFF TIMER ................................................................. 23

CH COLOUR SET ....................................................... 23

CHILD LOCK ............................................................... 23

BLUE BACK ................................................................ 23

ILLUMINATION............................................................ 23

FLICKER REDUCTION ............................................... 23

3D-COMB .................................................................... 23

PICTURE SHIFT ......................................................... 23

COLOUR SYSTEM ..................................................... 23

VCR/GAME ................................................................. 23

COLOUR MATRIX....................................................... 23

Picture Adjustment ............................................... 24

Sound Adjustment ................................................ 26

Aspect Controls .................................................... 28

Multi Screen ........................................................... 29

Multi PIP ...................................................................... 29

Channel Search ........................................................... 30

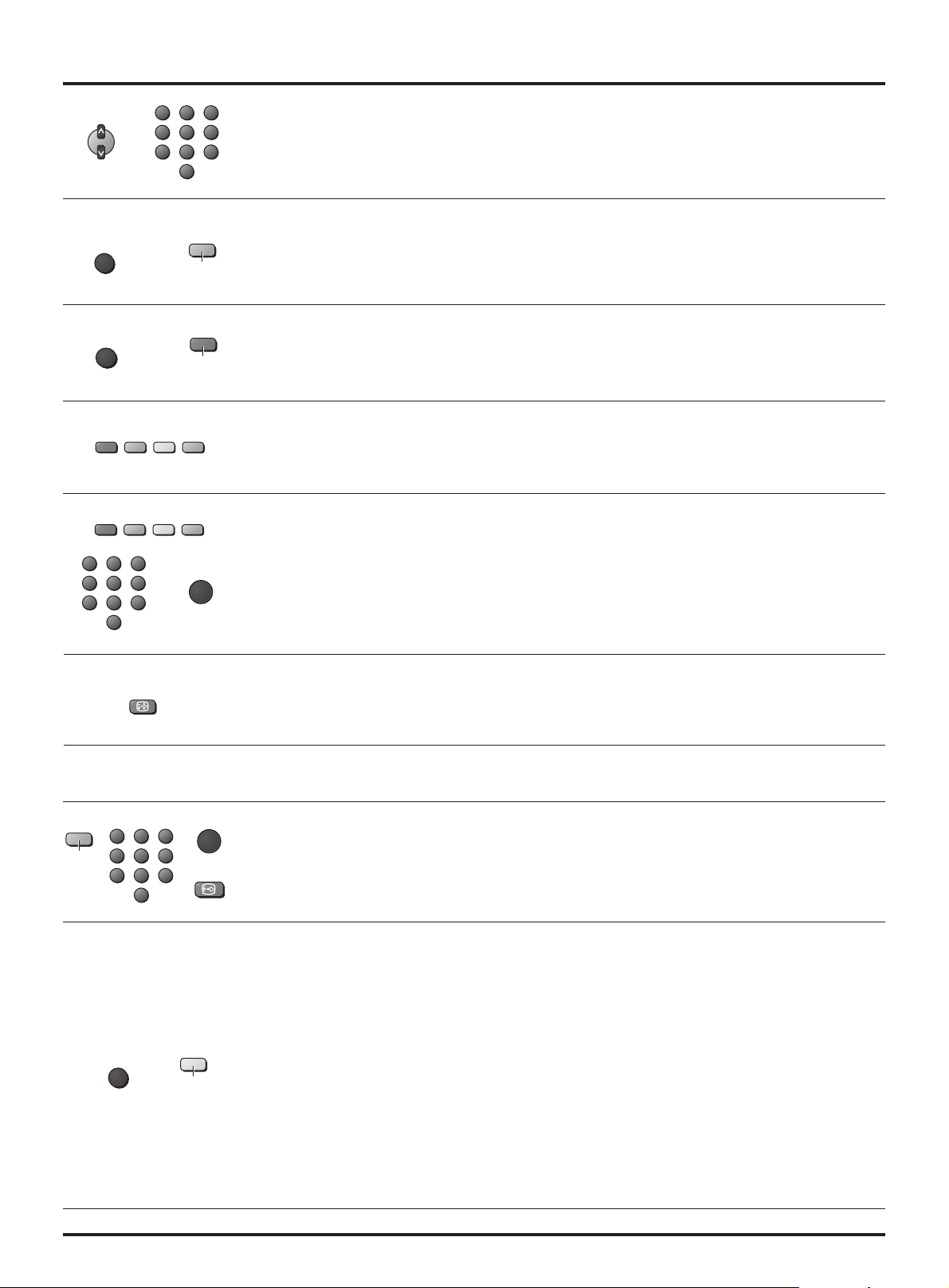

TELETEXT .............................................................. 31

Advanced Remote Control Operation ................. 33

Stereo Bilingual Sound Selection ................................ 34

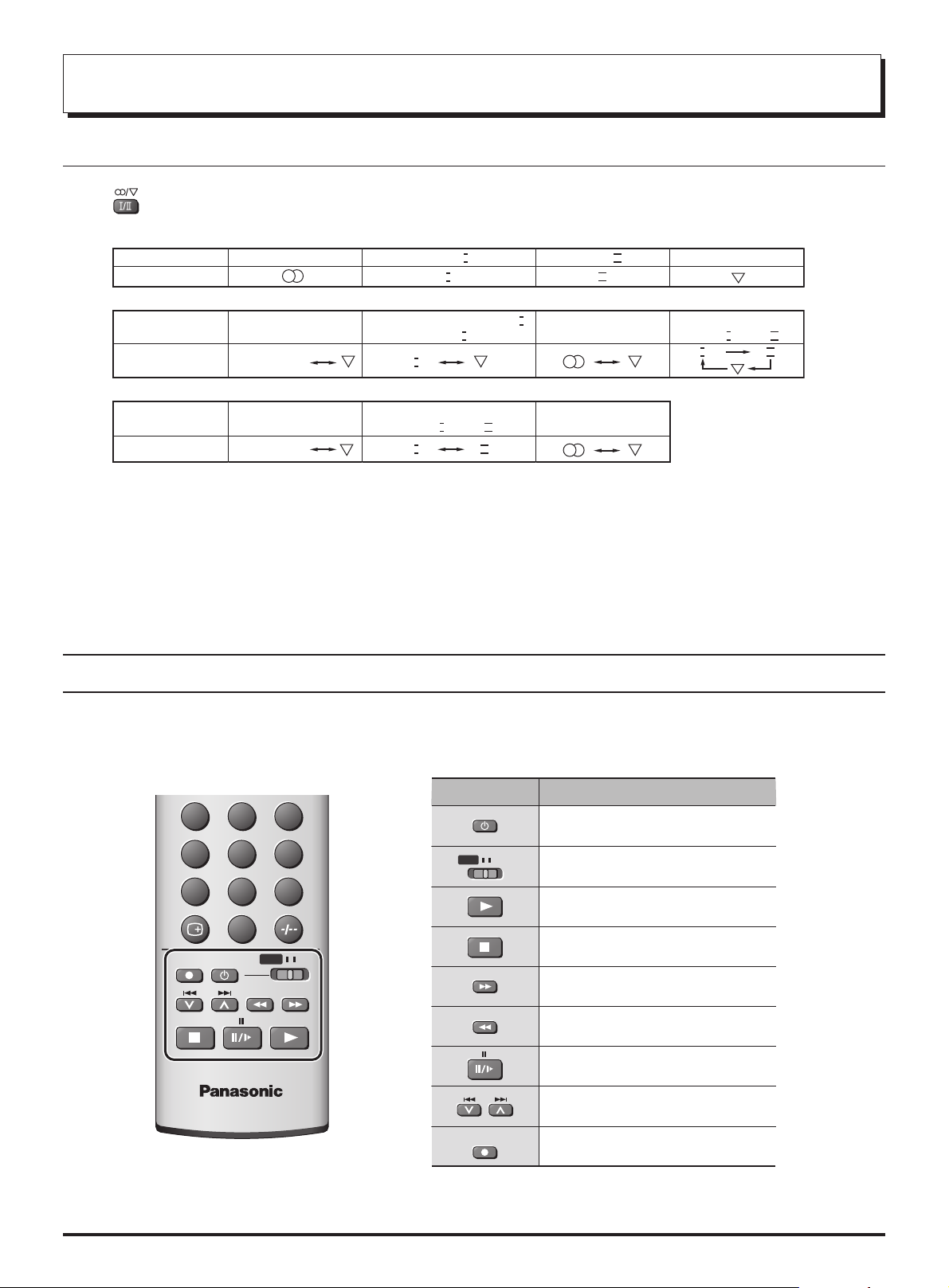

VCR / DVD Control ...................................................... 34

Manufacfurer setting .................................................... 35

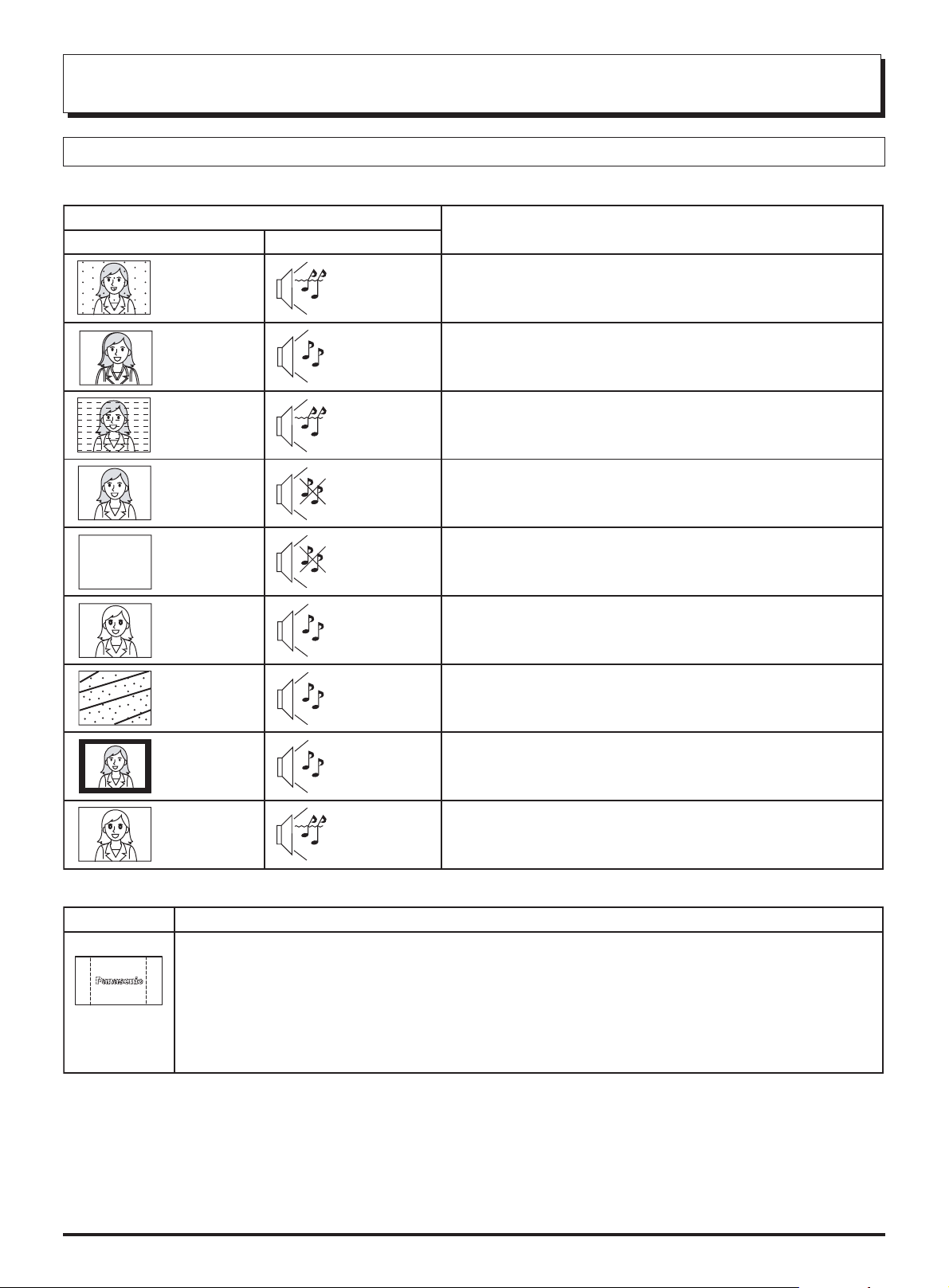

Troubleshooting .................................................... 36

Cleaning ................................................................. 37

Specifications ........................................................ 38

2

Warnings and Cautions

Warnings

Unplug the power cord in the
event of any malfunction (screen
goes blank, no sound, odd
sounds, smoke or unusual odors
coming from the unit). Unplug the
power cord if foreign matter or
water falls into the unit, or if the
unit is dropped or the cabinet is
damaged.

DO NOT place any of the
following on the unit: Flower
vases, flower pots, cups, small
metal objects , or cosmetics
containers , chemicals or
water.

DO NOT insert foreign objects
(metal or easily flammable
objects).

TAKE CARE NOT to damage
the power cord.

DO NOT use this unit near
water. (Near a bathtub, etc.)

DO NOT use if the power cord
or power plug is damaged, or
if the plug does not fit tightly
into the socket.

DO NOT use at a voltage other
than indicated.

DO NOT remove the rear
cover as live parts and High
Voltage components are
accessible when the rear
cover is removed.

Cautions

After-images appear

DO NOT touch the aerial cable
and this unit when there is
lightning.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
after-image to remain on the Wide Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.

Note:

The permanent after-image on the Wide Projection TV screen resulting from fixed image use is
not an operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.

DO NOT place in humid or
dusty location, or areas
exposed to smoke or steam.
DO NOT place in direct
sunlight and other sources of
direct heat.

DO NOT stand, or place heavy
objects on the unit. Particular
care should be taken by
families with small children.

DO NOT touch the power plug
if your hands are wet.

DO NOT place in an unstable
location.

Place in a safe location.

Fix the TV to a wall.
(refer to page 4)

3

Warnings and Cautions

Cautions

When inserting batteries,
ensure that the polarities
(positive and negative) are
correctly aligned. Insert as
shown on remote control. If
inserted incorrectly, battery
fluid may leak, and fire, injury,
or damage to surrounding
components may result.

Adequate ventilation is essential
to prevent failure of electrical
components, we recommend
that a gap of at least 10 cm
( ) is left all around this unit
even when it is placed inside a
cabinet or between shelves.

Before cleaning, unplug the
power plug from the socket.

Unplug the power plug from
the socket if you are not going
to use the unit for an extended
period.

Do not mix new and old bat­teries . Use only the specified
batteries. Failure to follow this
precaution may result in leak­age of battery fluid. Fire, injury,
or damage to surrounding
components may also result.

Turn the power “Off” before
connecting other electrical
equipment.

DO NOT joint the unit.

Ask your sales outlet to install
the aerial.

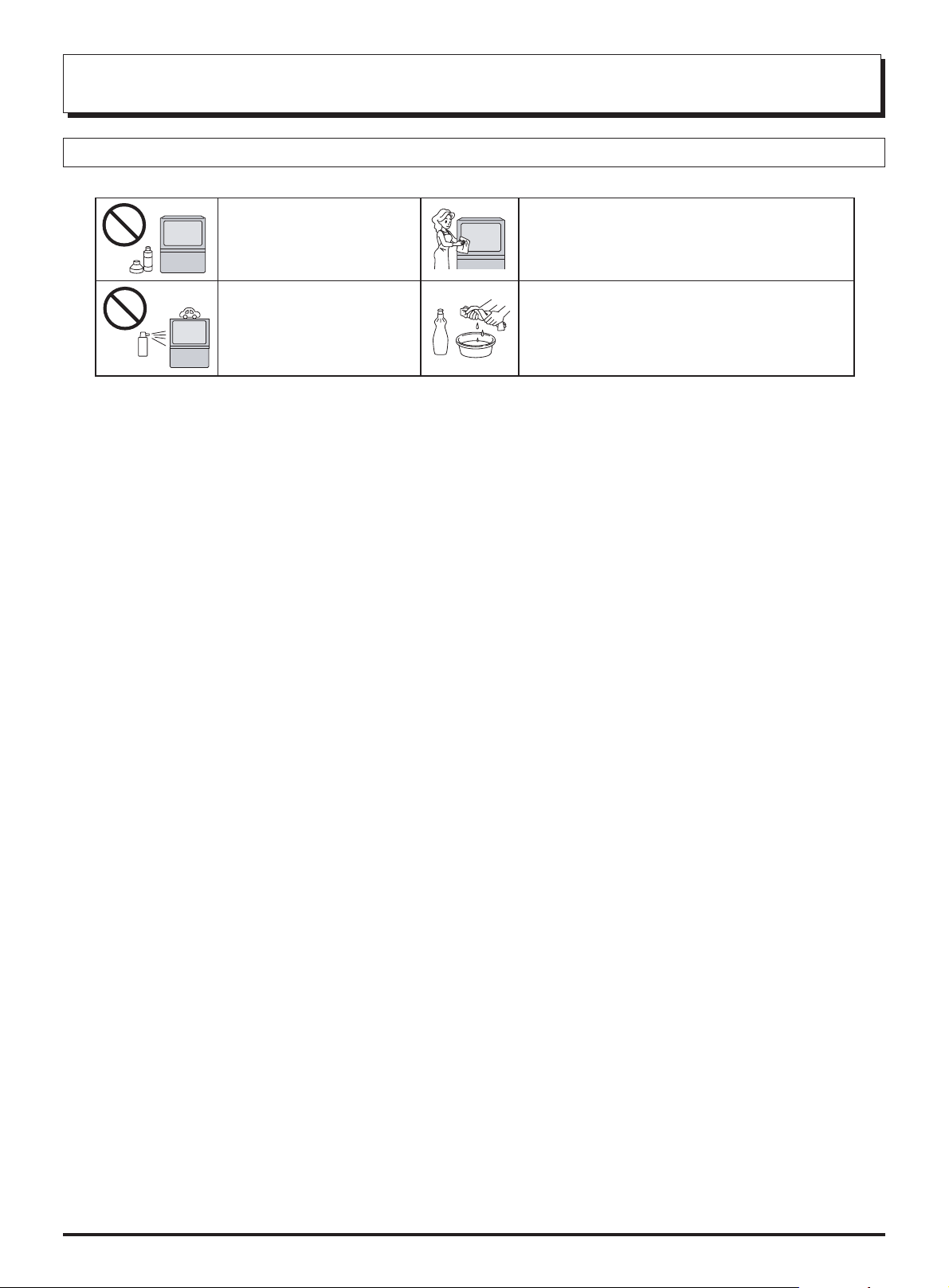

To ensure continued excellent performance by this product, periodic cleaning is recommended. See page 37 for more information.

Before Operating This Set

Safety Precaution

Please take safety precautions to
prevent the unit from falling over.
The unit may fall over during
earthquakes, or if someone stands on
or shakes the TV.

Fixing to a wall

Use a strong rope or a chain to fasten the TV firmly to a strong
support such as a wall or a pillar.

Securing the casters

To prevent the set from tipping forward, turn the two casters
on the front of the TV so they face forward, as shown in the
picture.

4

Before Operating This Set

Connecting the Aerial Cable to the RF in Terminal

VHF Aerial

UHF Aerial

Coaxial aerial plug

RF in
Terminal

Mixer

75 Ohm
Coaxial Cable

RF in Terminal

S-VIDEO

Y

Y

VIDEO

MONO

P

B

MONO

MONO

P

B

L

P

R

P

R

AUDIO

R

MONITOR

AV1

I COMPONENTI COMPONENT

V4 IN

AV2 IN A

OUT

IN

75 Ohm Coaxial Cable

Coaxial Aerial Plug

To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ohm coaxial) and the correct terminating plug are
required.If a communal Aerial system is used, you may require the correct connection cable and plug between the wall Aerial socket
and your set.
Your local Television Service Centre or Dealer may be able to assist you in obtaining the correct Aerial system for your particular area
and accessories required.
Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the
responsibility of you, the Customer.

Connecting Headphones

Connect headphones as follows.

(3.5mm Plug)

(Optional)
(not supplied)

You can listen to sound from the headphones plugs as shown below.

Screen condition

Single
picture/Teletext

Picture in

Picture and

Speaker

Sound

A

A

(Stereo)

(Stereo)

B

BA

(Stereo)A(Stereo)

A

A

A

Headphones

A

(Stereo)

A

(Stereo)

Monitor

Output

A

(Stereo)

A

(Stereo)

A

(Stereo)

Headphones plug:

When a Headphones plug is inserted into the Headphones socket, all
speakers will be automatically disconnected; only the Headphones will
function.
Use Volume Up “+” or Down “-” button to control volume level.

5

Before Operating This Set

Connecting the Plug to the Wall Outlet

Notes:

• Main plug types vary between countries. The main plug shown at left may
therefore not be the type fitted to your set.

• The On/Off switch on this model does not fully disconnect the TV from the
mains supply.

How to Turn the Power On

Power OFF

Power Indicator

Power ON

Power Switch

Notes:

• When in the Stand-by condition (Refer to page 11), it is also possible to turn the TV set on by pressing any of the “Direct
Programme Number Selection buttons” (0 - 9) or “Programme Number Up or Down buttons” on the TV set or on the Remote
Control.

• If the Wall Outlet is switched OFF or the Main Plug is unplugged, when the TV set is again turned ON (by either connecting the
Main Plug to the Wall Outlet or switching the Wall Outlet ON), it will have returned to the original state.

Note: Even when the Power Switch is “OFF”, the TV set will still

consume a small amount of power.

Push the Power switch on Television to turn the set on.

Power Indicator
No light: Power OFF condition

Power Indicator
No light: Normal viewing condition
Red : Stand by

Battery Installation

1 Open the cover.

Pull and hold the hook, then open
the battery cover.

2 Batteries: Use two “R6 (AA)” size batteries.

Insert the batteries ensuring the correct polarities.
This is identifiable by the “+” and “–” symbols on
the batteries and inside the battery compartment.

3 Replace the cover.

Note:

• Do not use rechargeable (Ni-Cd) batteries.

• They are different in shape and performance and may fail to ensure correct operation.

Two “R6 (AA)” size

Battery cautions

The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the batteries to burst.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example:“Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when remote control acts sporadically or stops operating the TV set.

6

Location of Controls

Controls and Terminals on the TV

S-VIDEO

Y

Y

VIDEO

MONO

P

B

MONO

MONO

P

B

L

P

R

P

R

AUDIO

R

MONITOR

AV1

I COMPONENTI COMPONENT

V4 IN

AV2 IN A

OUT

IN

Item

No.

Function Refer to

Page

1 STR 10

2 Function Selection 10

3 Volume Down (-) /

Programme Number Down (

)10

4 Volume Up (+) /

Programme Number Up (

)10

S-VIDEO

VIDEO

L

AUDIO

R

MONITOR

Item

No.

OUT

MONO

AV1

Y

MONO

P

B

MONO

P

R

I COMPONENT I COMPONENT

AV2 IN A

IN

Function Refer to

Y

P

P

V4 IN

B

R

Page

7 AV3 Input Terminals 8

8 Aerial Terminal (RF In Terminal) 5

9 Monitor Output Terminals 9

10

AV1 Input Terminals 8

11 AV2 Input Terminals 8

5 TV/AV Selection 10

6 Headphones Jack 5

12

13

AV4 Input Terminals 8

DVD ( Y. PB. PR ) Input 9

7

Connections

How to connect the “AV1, 2, 3 or 4” Input Terminals

Connect VCRs and other peripheral equipment

(VHS VCR)

Audio

OUT

RL

Video

OUT

(Super-VHS VCR)

Audio

OUT

RL

Video

OUT

S-Video

VIDEO

AUDIO

OUT

MONO

AV1

IN

S-VIDEO

VIDEO

L

AUDIO

R

S-VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

Y

MONO

P

MONO

AV1

IN

B

P

R

I COMPONENT I COMPONENT

AV2 IN A

MONO

Y

P

P

V4 IN

B

R

S-VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

Y

MONO

P

MONO

AV1

IN

B

P

R

I COMPONENT I COMPONENT

AV2 IN A

MONO

Y

P

P

V4 IN

B

R

AUDIO

VIDEO

MONO

AV1

IN

S-VIDEO

VIDEO

L

AUDIO

R

Notes:

• When an S-Video cable is connected to the S Video terminal, the corresponding Video input will be switched off and the signal
from the S-Video input will be used.

• When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “L” (Left) terminal.

• Select the desired AV input position by pressing the TV/AV button. (Refer to page 10)

• Input 3 is located on the front of the unit.

• The AV2 and AV4 audio input terminals serve as the audio input terminal for both the Video input and the DVD input.

8

How to connect the DVD Input Terminals

DVD Player

Connections

Audio

OUT

LR

DVD(

Y-PB-P

R

P

) OUT

R

PBY

S-VIDEO

MONO

L

AUDIO

R

Y

P

B

P

R

VIDEO

L

AUDIO

R

MONITOR

OUT

MONO

AV1

IN

Y

MONO

PB

PR

I COMPONENT I COMPONENT

AV2 IN A

MONO

Y

P

PR

V4 IN

B

Notes:

• The AV4 audio signal is common for both AV4 and DVD input signal terminals.

• The DVD signal input terminal takes priority over the AV4 video signal input terminal.

• Similar connection are available at the COMPONENT VIDEO input 2 terminal.

How to connect the AV Monitor Output Terminals to other equipment

The “Monitor Out” Terminals output the same signals as main picture on the TV screen and sound from the speaker at that time, e.g.
TV programmes or signals from AV1, AV2, AV3 or AV4 input.

Recording Equipment

(VHS VCR)

Notes:

Audio

IN

RL

Video

IN

VIDEO

AUDIO

S-VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

S-VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

Y

MONO

P

MONO

AV1

IN

B

P

R

I COMPONENT I COMPONENT

AV2 IN A

MONO

Y

P

P

V4 IN

B

R

• Never connect the same video recorder with both the VIDEO IN and MONITOR OUT terminals on this TV set, as this could cause
incorrect operation.

• The monitor output emits the main picture normal video and audio signals.

• Teletext display on screen will not be output at the MONITOR OUT terminals.

• Even if the television is in picture-in-picture condition, MONITOR OUT terminals output the same signals as main picture on the

screen and sound from speakers. Sub picture including still, channel search, etc. will not be output at the MONITOR OUT
terminals.

• The DVD signal (Y, P

B, PR) is not output at the MONITOR out terminals.

9

S

e

.

.

g

une

.

t

ess

ease

decrease

.

u

ess

access

END

g

)

r

)

)

)

g

)

g

eca

f

,

,

.

General Operation

STR

F

TV/AV Selection

Press to select TV, AV1, AV2, AV3 and AV4 input

VTV/A

signal modes sequentially.

Volume Up (+) / Programme Number Up (

)

Power switch

STR

Used to store tuning and other
function settings. Also used to
start the menu demonstration.

Function selection

Displays the on screen display functions,
use repeatedly to select from the available
functions.
The following adjustments can be accessed
directly.

VOLUME

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

Notes:

• TINT:
Displayed when receiving NTSC
and YUV625i signals.

• TUNING MODE :
Not displayed during AV mode.

TUNING MODE

BALANCE

TREBLE

BASS

TINT

Volume Down (-) / Programme Number Down (

ound Mut

Press to mute the sound completely the
Press again to restore the previous sound level, and cancel the mute

Stereo/Bilingual Sound Selection

(see pa

R-T

Press to switch to previously viewed channel or input mode

Volume Adjustmen

Pr

Men

Pr
(see pa

Multi Screen functions (see page 29
Teletext functions(see page 31
AV selection (see page 11

TV/TEXT Selection

(see pa

TEXT Favorite Page Selection

(see pa

R

Press to display the current system status,
number
Scan mode, Sound system and colour system

e 34)

to incr

to

e 13, 23-26

oloured buttons used fo

e 31

e 32)

ll

Channel number, Stereo mode, Picture menu, Sound menu

or

thePICTUR

the sound volume level

Mute symbol will appear

andETUP menus.

)

or example, Programme

10

Power (Stand-by) (see page 6)

The TV set must first be plugged into the wall out­let and turned on at the power switch.
Press this button to turn the TV set On from Standby
mode, press it again to turn the TV set OFF to
Standby mode.

Off timer (see page 23)

Multi Screen (see page 29)

General Operation

Note:

• It is also possible to turn the TV set on from STANDBY
mode by pressing the “Direct Programme Number Se­lection” Buttons (0-9) and the “Programme Number Up
or Down” Button, either on the set or on the Remote Con­trol.

5

Aspect (see page 28)

Surround (see page 26, 27)

Normalization

Programme Number Selection

Press to select the next higher
or lower Programme number.

Press to store settings in Tuning
menu.

TEXT hold (see page 32)
/Still (see page 29)

TEXT Index (see page 33)
/Channel Search (see page 30)

(see page 25, 27)

TV/AV Mode Selection

Press to select TV, AV1, AV2, AV3 and
AV4 input signal modes sequentially.

Remote control :

AV1 AV2 AV3 AV4

Press to display AV1 - AV4 at the bot­tom of the screen. Each coloured but­ton corresponds to each input signals.
For example, pressing the Red button
selects AV1.

Direct programme Number

• Direct Programme Number Selection

You can select the number directly by
pressing the corresponding programme
number buttons.

Programme Number 8......

Programme Number 36....

Programme Number 124...

TV/AV

8

3

6

1 2 4

REC

TV

VCR DVD

Note:

• When the Skip setting for Programme
Number 100 through 125 is on, the
channel selection time will be short­ened, and thus you can not input
three digits at a time.

VCR/DVD CONTROL

(see page 34)

11

On Screen menu Display from Remote Control

Many features available on this TV can be accessed via the On Screen Display menu system. Use the remote control as shown
below to access and adjust features as desired.

MULTI PIP

ASPECT

SURROUND

R-TUNE

N

OK

The MENU button is used to open the main menus and also to
return to the previous menu.

MENU

F.P. INDEX

TV/TEXT

CH SEARCH

1 2 3

4 5 6

7 8 9

0

REC

TV

TV/AV

HOLD

STILL

VCR DVD

The up and down cursor buttons are used to move the cursor and
select menus.

The left and right cursor buttons are used to access menus, adjust
levels or to select from a range of options.

The OK button is used with a number of features to store settings after
adjustments have been made or options have been set.

The TV/AV button is used to exit the menu system and return to the
normal viewing screen.

An On Screen Help box is displayed whenever a menu is displayed
on the TV. This Help box indicates which buttons on the remote
control are used to navigate the menu shown, see above for
descriptions of button functions.

Note:

The Help box is not shown in the menu pictures in this instruction
book due to space limitations.

12

ON SCREEN HELP
‘Instructions’ box

SOUND

MENU MUSIC

VOLUME

BASS

TREBLE

BALANCE

SURROUND OFF

SELECT
CHANGE

RETURN EXIT

On Screen menu Display from Remote Control

When the “MAIN MENU” (EXIT) button is pressed at the Main Menu screen, the screen display will return to the normal viewing
condition. When the “MAIN MENU” (EXIT) button is pressed at each MENU screen (Picture, Sound, Setup), the screen display will
return to the Main Menu screen.

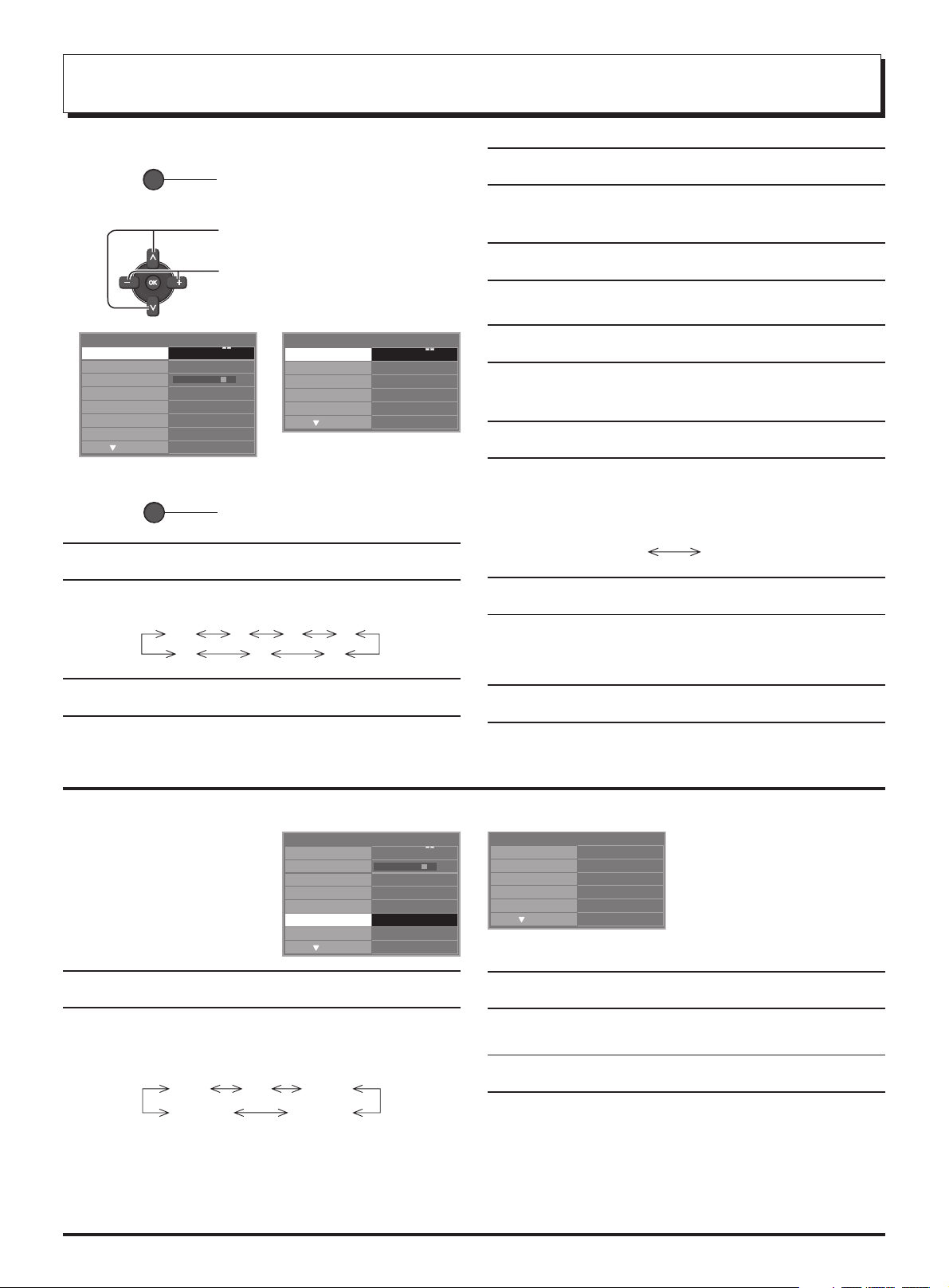

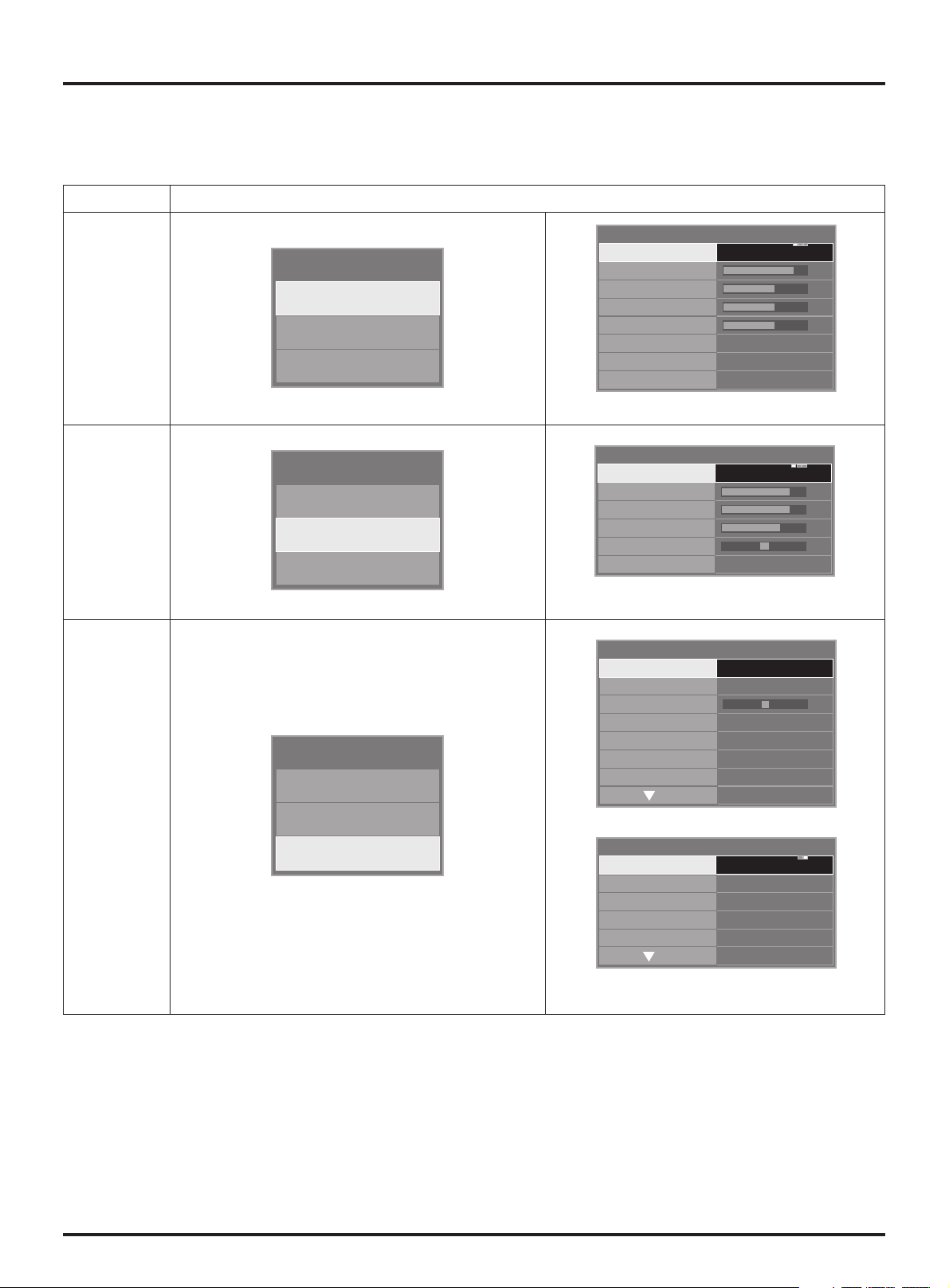

Menu On Screen Indication

Picture menu

MAIN MENU


SOUND

SETUP

Sound menu

MAIN MENU


SOUND

SETUP


MENU

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

C. TEMP

D. PNR

SCAN MODE

(see page 24)

SOUND

MENU

VOLUME

BASS

TREBLE

BALANCE

SURROUND

(see page 26)

CINEMA

STANDARD

AUTO

100Hz

MUSIC

OFF

Setup menu

MAIN MENU


SOUND

SETUP

SETUP

TELETEXT

OFF TIMER

CH COLOUR SET

CHILD LOCK

BLUE BACK

ILLUMINATION

FLICKER REDUC.

SETUP

3D-COMB

PICTURE SHIFT

TUNING MENU

OWNER ID

CONVERGENCE

(see page 23)

TOP

OFF

OFF

ON

ON

ON

ON

ON

13

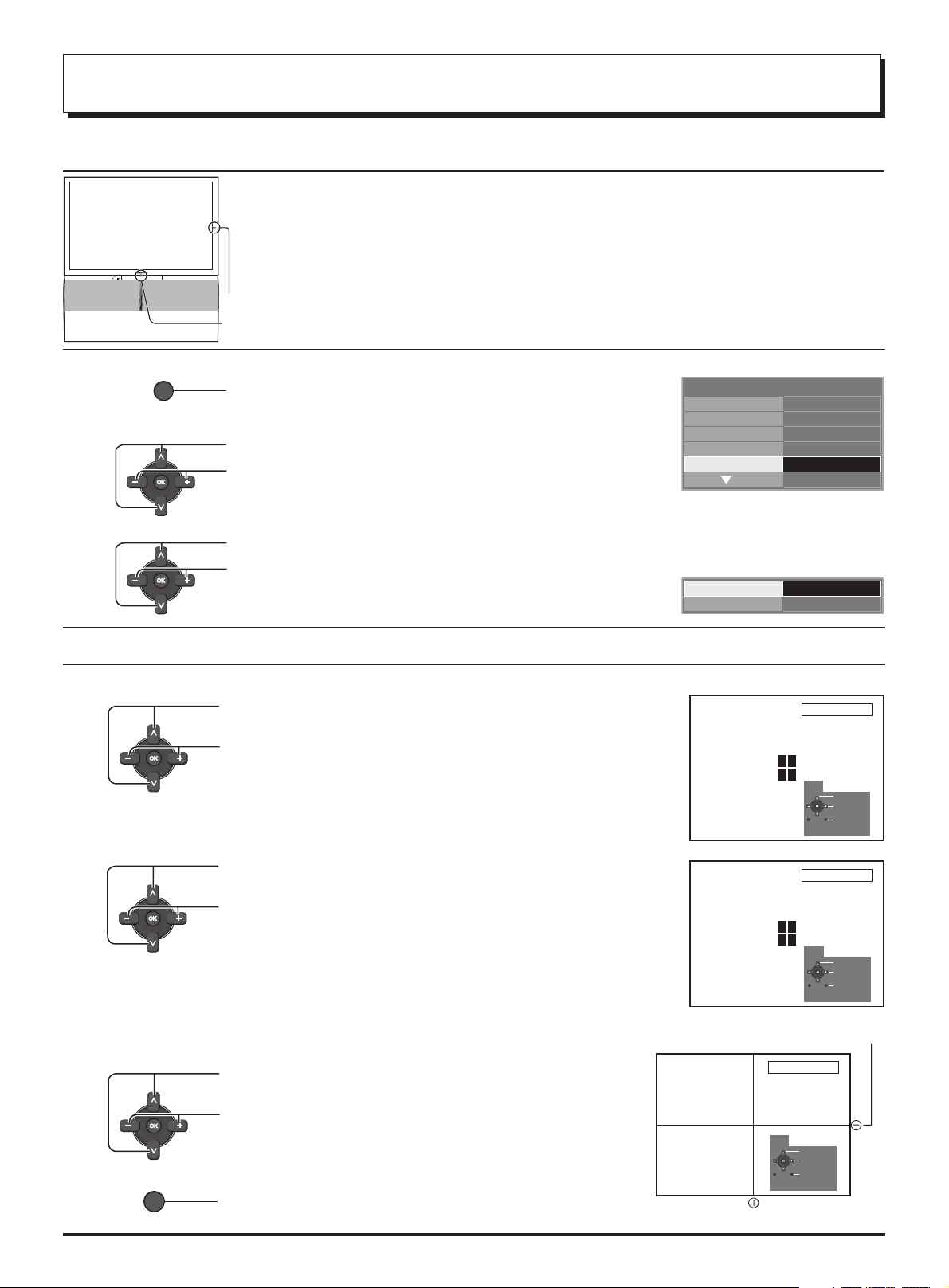

Convergence Adjustment

Convergence Adjustment mode

Prior to adjustment, tune the broadcast signal to the video input signal
and operate the set for more than 60 minutes. If the location or direction
of the set is changed or moved, the display may be out of alignment. If
necessary, carry out the following procedures once with PAL signal and
again with the NTSC signal.

Vertical centre marker

Horizontal centre marker

1

2

3

MENU

Press to display the MAIN MENU,and then to the SETUP menu.

Press to select the “CONVERGENCE”.

Press to access to the “CONVERGENCE” menu.

Press to select the “CONVERGENCE 1” or the “CONVERGENCE 2”.

Press to access to the function.

Example:
CONVERGENCE 1
is selected.

SETUP MENU

3D-COMB ON

PICTURE SHIFT

TUNING MENU

OWNER ID

CONVERGENCE

CONVERGENCE 1

CONVERGENCE 2

Convergence 1 Adjustment for RED, BLUE and GREEN

RED

Press to align the horizontal red line with the horizontal blue line.
(Becomes a white line)

Press to align the vertical red line with the vertical blue line.
(Becomes a white line)

Press “N” button to adjust the blue mode.
(Stores RED)

BLUE

Press to align the horizontal blue line with the horizontal yellow line.
(Becomes a white line)

Press to align the vertical blue line with the vertical yellow line.
(Becomes a white line)

Press “N” button to adjust the green mode.
(Stores BLUE)

Only when you cannot adjust with RED and BLUE proceed to the following GREEN adjustment.

ON

ACCESS

ACCESS

CONVERGENCE

RED

ADJUST

ADJUST

EXIT

N-BLUE

CONVERGENCE

BLUE

ADJUST

ADJUST

EXIT

N-GREEN

GREEN

14

TV/AV

Repeat above adjustment for each position.

Press to align the horizontal green line with the vertical centre maker.

Press to align the vertical green line with the horizontal centre maker.

Press “N” button to adjust the red mode. (Stores GREEN)

Press at any time to return to the normal viewing.

Vertical centre marker

CONVERGENCE

GREEN

ADJUST

ADJUST

EXIT

N-RED

Horizontal centre marker

Convergence Adjustment

CONVERGENCE 1

CONVERGENCE 2

ACCESS

Convergence 2 Adjustment for RED and BLUE

This function adjust the convergence of the side part of the screen.

Press to select the CONVERGENCE 2.

Press to access to the function.

F.P. INDEX

TV/TEXT

1 2 3

CH SEARCH

HOLD

STILL

Press the Number button on the Remote Control to select
the position which you would like to adjust.

(Example) Position 1 is selected.

4 5 6

7 8 9

0

Remote control

RED

N-BLUE

2 3

EXIT

1

4 6

789

4 6

789

2 3

RED

ADJUST
ADJUST

N-BLUE

EXIT

RED

Press to align the horizontal red line with the horizontal blue line.
(Becomes a white line)

Press to align the vertical red line with the vertical blue line.
(Becomes a white line)

1

4 6

2 3

RED

N-BLUE

EXIT

Press “N” button to adjust the blue mode.

BLUE

(Stores RED)

7 89

Press to align the horizontal blue line with the horizontal yellow line.
(Becomes a white line)

1 2 3

Press to align the vertical blue line with the vertical yellow line.
(Becomes a white line)

TV/AV

Press to return to the normal viewing. (Stores BLUE)

BLUE

4 6

789

N-RED

EXIT

Note:

If you wish to view a video with a different colour system (PAL / SECAM, NTSC), repeat the steps above while displaying a picture.

1 Display the TUNING MENU

Tuning Channels

1

2

3

MENU

Press to display the MAIN MENU.

Press to select the SETUP.

Press to access the SETUP.

Press to select the TUNING MENU.

Press to access the TUNING MENU.

SETUP

TELETEXT

OFF TIMER

CH COLOUR SET

CHILD LOCK

BLUE BACK

ILLUMINATION

FLICKER REDUC.

TUNING MENU

SYS SELECT

AUTO TUNE
MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

TOP

OFF

OFF

ON

ON

ON

AUSTRALIA

5.5 MHz

AUTO

OFF

SETUP

3D-COMB

PICTURE SHIFT

TUNING MENU

OWNER ID

CONVERGENCE

ON

ON

ACCESS

15

Tuning Channels

Regional System Selection

Press to select the “SYS SELECT”.

Press to select the appropriate system.

The system select indicator will change as follows.

CHINA HK/UK

JAPAN CATV AMERICA

System Select by Regional

SYSTEM SELECT

CHINA
HK / UK
ASIA/M.EAST

China
Hong Kong, United Kingdom
Malaysia, Singapore, Thailand, Asia countries,

Region

Kuwait, Saudi Arabia, United Arab Emirates,

Middle East countries, etc.
NZ / INDONES
AUSTRALIA

New Zealand, Indonesia, etc.

Australia

Channel Selection

ASIA/M.EAST

NZ/INDONES

SPECL VER

AUSTRALIA

E.EUROPE

SYSTEM SELECT

E.EUROPE
SPECL VER
AMERICA

CIS, Poland, etc.
South Africa
U.S.A., Chile, Mexico, Panama, Peru,

Philippines, Taiwan, Venezuela, etc.
CATV
JAPAN

USA CATV

Japan

TUNING MENU

SYS SELECT

AUTO TUNE
MANUAL TUNE
SOUND SYS
COLOUR SYS

FINE TUNE
SKIP

Region

AUSTRALIA

5.5 MHz
AUTO

OFF

DIRECT SELECT

When the Auto Tune is performed, the unit memories the
programme number which is the same as the channel tuned.
This method allows you to select the desired channel by pushing
the channel display number directly on the remote control to
select the station. The channel display numbers for the broadcast
stations in each region are listed on page 17.

Example

Programme

Number

1
2
3
4
5
6
7
8
9

10

20

Channel

Display

–

2

–

4

–

6

–

8

–

10

20

Received

Channel

–

2

–

4

–

6

–

8

–

10

20

16

Tuning Channels

Channel Allocation

• CATV (USA CATV) channel numbers as recommended by the joint EIA/NCTA Engineering committee and published as EIA
INTERIM STANDARD No.6-CABLE TELEVISION CHANNEL IDENTIFICATION PLAN-MAY 1983.

• The receiving channels are as follows;

SYS SELECT

CH DISPLAY

0
1
2
3
4
5
6
7

11
12
13
14
15
16

19
20

21
22
23
24

28

57
58
59

62
63

69
70

73
74
75
76
77
78
79

80
81

89
90

91
92
93
94
95
96
97
98
99

100

107

117
118

120

125

CHINA HK/UK

–

1
2

12
13

57

–
–
–
–
–
–
–

–
–
–
–
–
–
–
–
–

–

Z1

Z9

Z10
Z11
Z12
Z13
Z14
Z15
Z16
Z17
Z18
Z19

Z20

Z37

–
–
–
–
–

–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–

21

62
63

69

–
–
–

S'1
S'2
S'3

–
–
–

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

ASIA/M.EAST

11
12

21

62
63

69

S'1
S'2
S'3

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

NZ/INDONES

–
–

2

–
–
–
–
–
–
–

–
–
–

–
–
–

–
–

–

1
2

11

–
–
–
–
–
–
–
–

21

62
63

69

–
–
–

S'1
S'2
S'3

–
–
–

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

AUSTRALIA

E.EUROPE

RECEIVE CHANNEL

–

0
1
2
3
4
5

S2

S10

6

9

9A

10
11
12

S11

S44

20
21

69

–
–
–
–
–
–
–

–

1
2

11
12

–
–
–
–
–
–
–

21

62
63

69

–
–
–

S'1

–
–
–
–
–

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

SPECL VER

–

1
2

11
12
13

–
–
–
–
–

21

62
63

69

–
–
–

S'1
S'2
S'3

–
–
–

S1
S2

S10

–
–
–

S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

AMERICA

–
–

2

13
14

62
63

69

–
–
–
–
–
–
–
–
–

–
–
–
–

–
–
–
–
–
–
–
–
–
–

–
–
–
–
–
–
–
–
–
–

CATV JAPAN

–

1
2

62
63

99 C49

100

125

–

1
2

12
13

62

C13

–
–
–
–
–
–
–
–
–
–

17

Tuning Channels

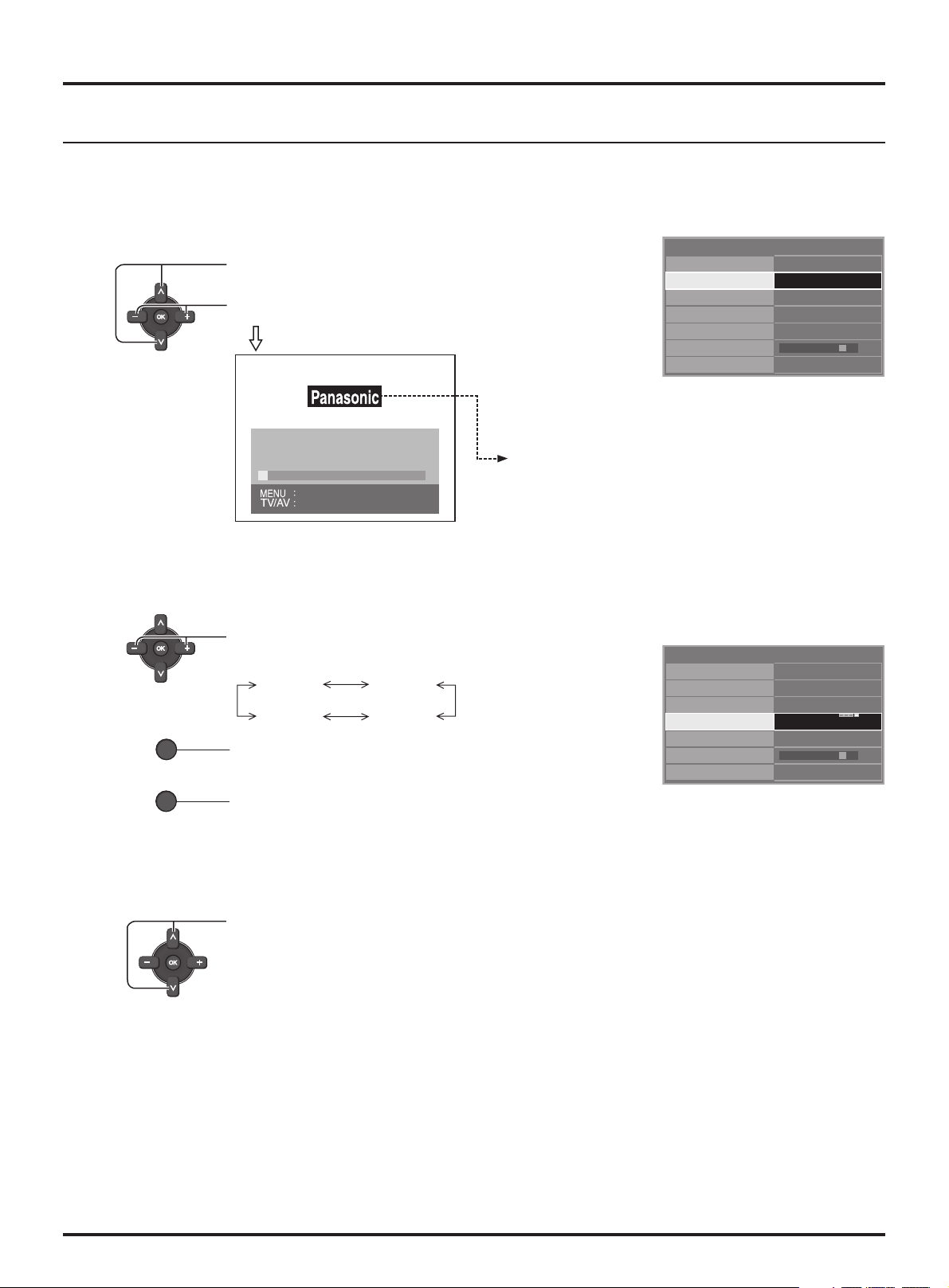

Automatic Tune

This TV uses automatic tuning to determine whether or not the TV can receive a broadcast signal which is being sent, and automatically
prepares so that the channel selection can respond to direct select modes. Before Automatic Tune, Regional System must already
be set (Refer to pages 16).

1 AUTO TUNE

2 SOUND SYS

OK

TV/AV

TUNING MENU

Press to select the “AUTO TUNE”.

Press to access to the “AUTO TUNE”.

Search Start.

AUTO SETUP IN PROGRESS
SEARCHING : PLEASE WAIT

SYS SELECT

AUTO TUNE

MANUAL TUNE
SOUND SYS

COLOUR SYS
FINE TUNE
SKIP

When a station is found.

AUSTRALIA

ACCESS

5.5 MHz
AUTO

OFF

The best tuning position is automatically memorized.

RETURN
TO EXIT

After all stations are tuned, the on-screen display will automatically change from “AUTO TUNE”
to “SOUND SYS” Position.

Press to improve the Sound quality, if the Sound is not clear or
no sound is produced on a programme Number Position.

4.5MHz

6.5MHz

5.5MHz

6.0MHz

Press to store the Sound System.

TUNING MENU
SYS SELECT
AUTO TUNE
MANUAL TUNE

SOUND SYS

COLOUR SYS
FINE TUNE
SKIP

AUSTRALIA

5.5 MHz
AUTO

OFF

Press to exit from the Tuning Menu.
This returns the set to the normal viewing condition.

Note:

When the sound volume is too small to confirm, turn it up by using the sound volume button on the remote control.

3

Under the normal viewing condition press to enter each programme Number.
Confirm the tuning condition.

If necessary, repeat step 2 for each Programme Number.

18

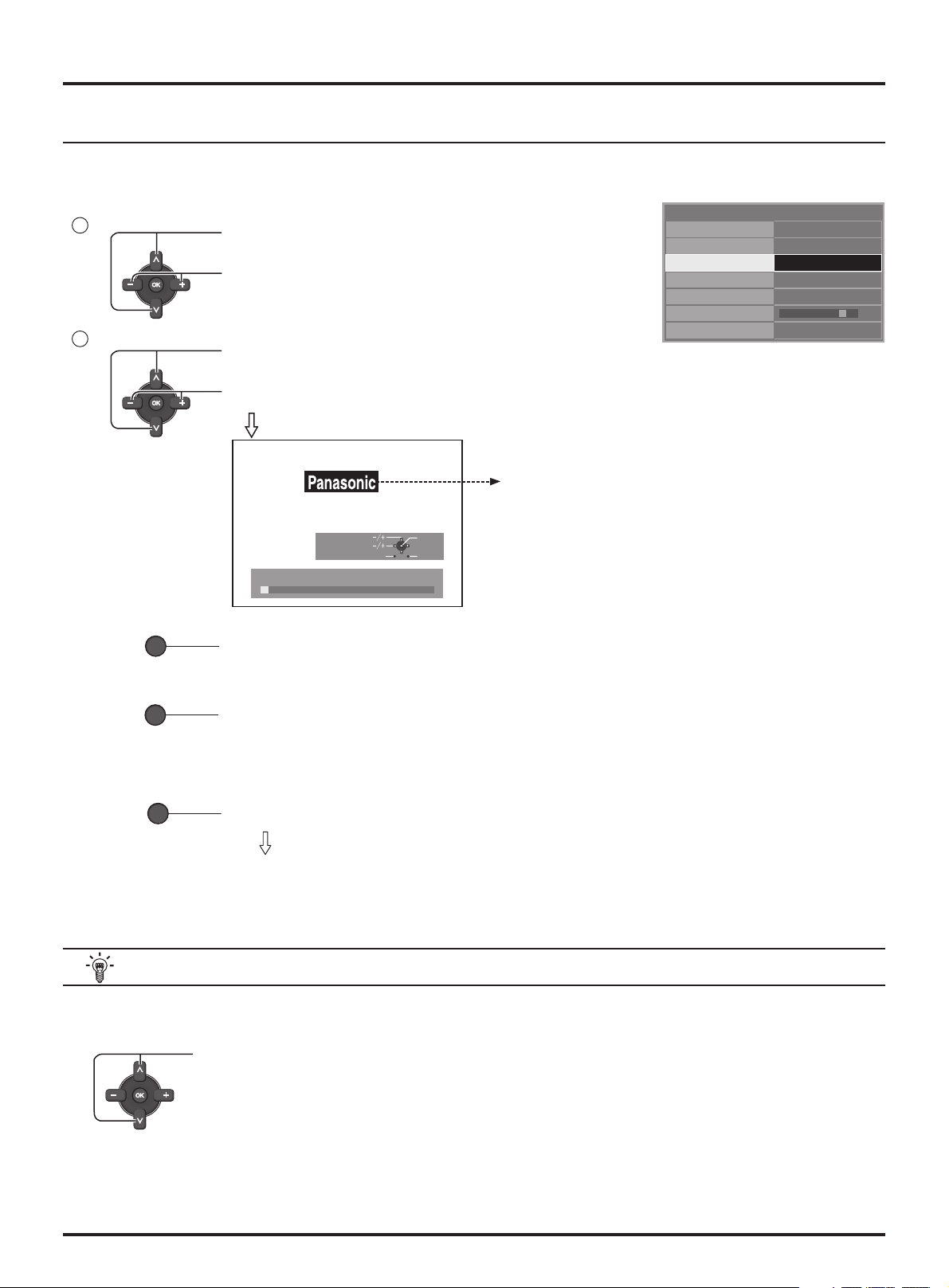

Manual Tune

Before Manual Tune, Regional System must already be set (Refer to page 16).

Tuning Channels

1 MANUAL TUNE

1

2

OK

Press to select the MANUAL TUNE.

Press to access to the MANUAL TUNE.

Press to select the desired Programme Number.

Press to select the higher or lower channel.

Search Start.

When a station is found.

PROGRAMME

SEARCH

RETURN

MANUAL TUNE

When the desired station is found, press to store.
The tuning position is memorized.

STORE

EXIT

TUNING MENU
SYS SELECT
AUTO TUNE

MANUAL TUNE

SOUND SYS
COLOUR SYS
FINE TUNE
SKIP

AUSTRALIA

ACCESS

5.5 MHz
AUTO

OFF

TV/AV

Press to exit from the Tuning Menu.
This returns the set to the normal viewing condition.

2 SOUND SYS

MENU

Press to display the MAIN MENU, and then to the SETUP menu.

Proceed to the TUNING MENU, and then to the SOUND SYS (refer to page 15).

3 Adjust the Sound System (refer to page 18 step 2 to 3).

Helpful Hint

(1) If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, refer to the “Colour System

Selection” operation on page 21.

(2)

(3) When using a VCR without video and audio input/output terminals, it is convenient to connect the aerial cable as indicated in the

instruction manual of VCR and to set the designated channel to programme No. “0”. In that case, perform manual tune after
setting the colour system and sound system in advance. Further, in multi-system VCR, it is more convenient to set the designated
channel to several programme Numbers.

After the Manual tune or the Automatic tune is finished, under the normal viewing condition press this button to
confirm the tuning condition for each Programme Number. If some Programme Numbers are unused (no TV
stations), it is possible to skip such Programme Numbers. Please refer to the Programme Number Skip operation
on page 20.

19

Tuning Channels

Fine Tuning

Under normal reception conditions this function is not required or necessary.
However, in areas of poor reception or constant interference, a slight adjustment of the tuning may improve the picture and sound quality.

1

2

3

OK

TV/AV

Press to select the FINE TUNE.

Press until the clear picture is received.

Press to store the FINE TUNE.

This stores the FINE TUNE to the selected Programme Number.

Press to exit from the FINE TUNE.

This returns the set to the normal viewing condition.

How to Cancel the Fine Tuning

Canceling previously adjusted (manually) fine tuning, means re­activating the AFT (Automatic Fine Tuning). Re-activating the
Automatic Fine Tuning means allowing the set to automatically
tune to the optimum tuning position, for that programme Number.

1

Select the Programme Number
which you would like to return to
Automatic Fine Tuning (cancel the
manual fine tuning).

TUNING MENU
SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS
COLOUR SYS

FINE TUNE

SKIP

AUSTRALIA

5.5 MHz

AUTO

OFF

Programme Number Skip

It is possible to skip Programme Number on which no TV stations are
tuned appearing on the screen. The function is only effective when
selecting Programme Numbers by pressing the Programme Number
Up or Down button either on the TV set or on the Remote control.

1

Under the normal viewing condition
press to select the Programme
Number you would like to skip.

2

3

4

5

MENU

OK

TV/AV

Press to display the MAIN
MENU,and then to the SETUP
menu.

Proceed to the TUNING MENU
(refer to page 15).

Press to select the MANUAL TUNE.

Press to access to MANUAL TUNE.
Press briefly to tune the best
position.

TUNING MENU
SYS SELECT
AUTO TUNE

MANUAL TUNE

SOUND SYS
COLOUR SYS
FINE TUNE
SKIP

Press to store the AFT.
This stores the re-activated AFT.

Press to exit from the MANUAL
TUNE.
This returns the set to the normal
viewing condition.

AUSTRALIA

ACCESS

5.5 MHz

AUTO

OFF

2

3

4

5

MENU

OK

TV/AV

1

4

3

Press to display the MAIN
MENU,and then to the SETUP
menu.

Proceed to the TUNING MENU
(refer to page 15).

Press to select the SKIP.

Press to change the mode to “ON”.

TUNING MENU
SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS
COLOUR SYS
FINE TUNE

SKIP

Press to store the Skip function.

Press to exit from the SKIP.
This returns the set to the normal
viewing condition.

Repeat Step1 to 4 for each

2

Programme Number for which the
Skip function is desired.

AUSTRALIA

5.5 MHz

AUTO

ON

20

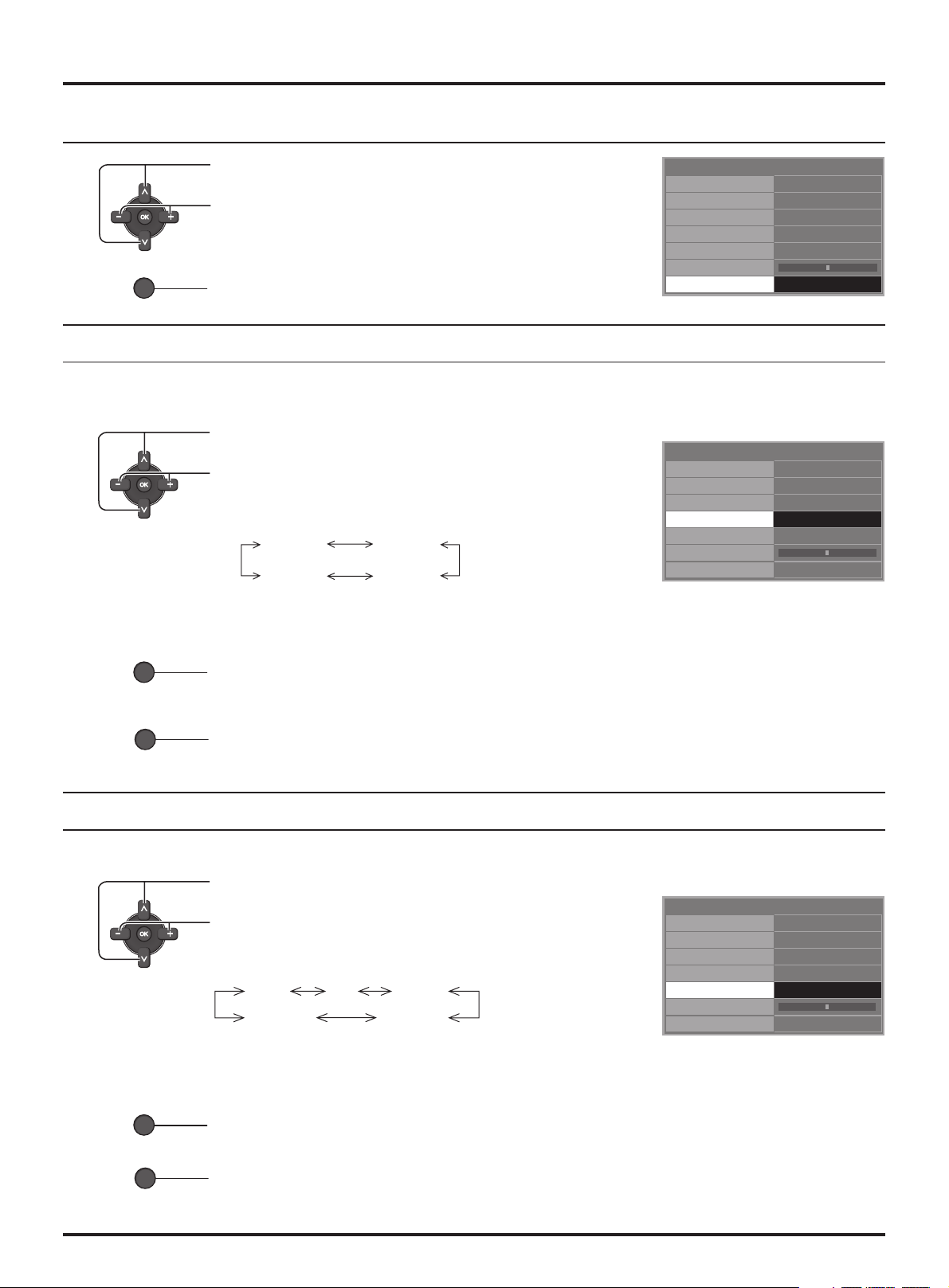

How to Cancel the Skip Function

Tuning Channels

1

2

OK

Press to select the SKIP.

Press to change the mode to “OFF”.

Press to store the Skip function.

TUNING MENU
SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS
COLOUR SYS
FINE TUNE

SKIP

AUSTRALIA

5.5 MHz

AUTO

OFF

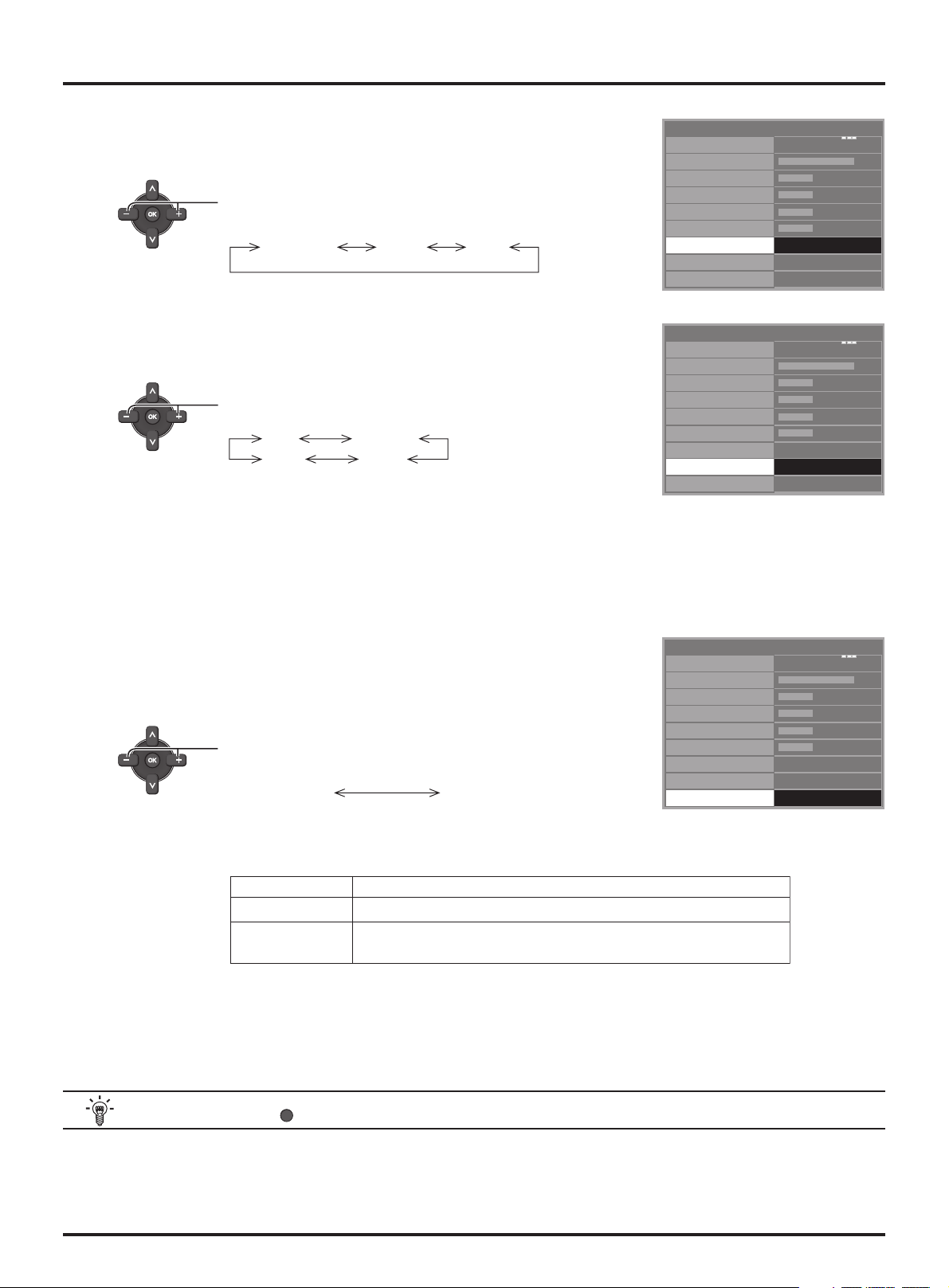

Sound System Selection (Different region use differing systems)

This function is used only in the TV mode when the sound is not clear or no sound is produced on a Programme Number, and is not
applicable in AV mode.

1

Note:

These are different sound broadcast transmission systems applicable to differing countries.

Press to select the “SOUND SYS”.

Press until the optimum sound is obtained.

The sound system will change as shown.

4.5MHz

6.5MHz

5.5MHz

6.0MHz

Sound System
Condition.

TUNING MENU
SYS SELECT
AUTO TUNE
MANUAL TUNE

SOUND SYS

COLOUR SYS
FINE TUNE
SKIP

AUSTRALIA

5.5 MHz

AUTO

OFF

2

OK

TV/AV

Press to store the Sound System.

Press to exit from the “SOUND SYS”.
This returns the set to the normal viewing condition.

Colour System Selection (Different region use differing systems)

If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, this function is used.

1

Note:

PAL, SECAM and NTSC 3.58 are different colour signal broadcast transmission systems applicable to differing countries. NTSC

4.43 is a trick playback mode used in special VCR to playback NTSC recorded video tapes through PAL television equipment.

2

OK

Press to select the “COLOUR SYS”.

Press to produce the optimum image.

The colour system will change as shown.

AUTO PAL

NTSC3.58 NTSC4.43

Press to store the Colour System.

SECAM

Colour System
Condition.

TUNING MENU
SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS

COLOUR SYS

FINE TUNE
SKIP

AUSTRALIA

5.5 MHz

AUTO

OFF

TV/AV

Press to exit from the “COLOUR SYS”.

This returns the set to the normal viewing condition.

21

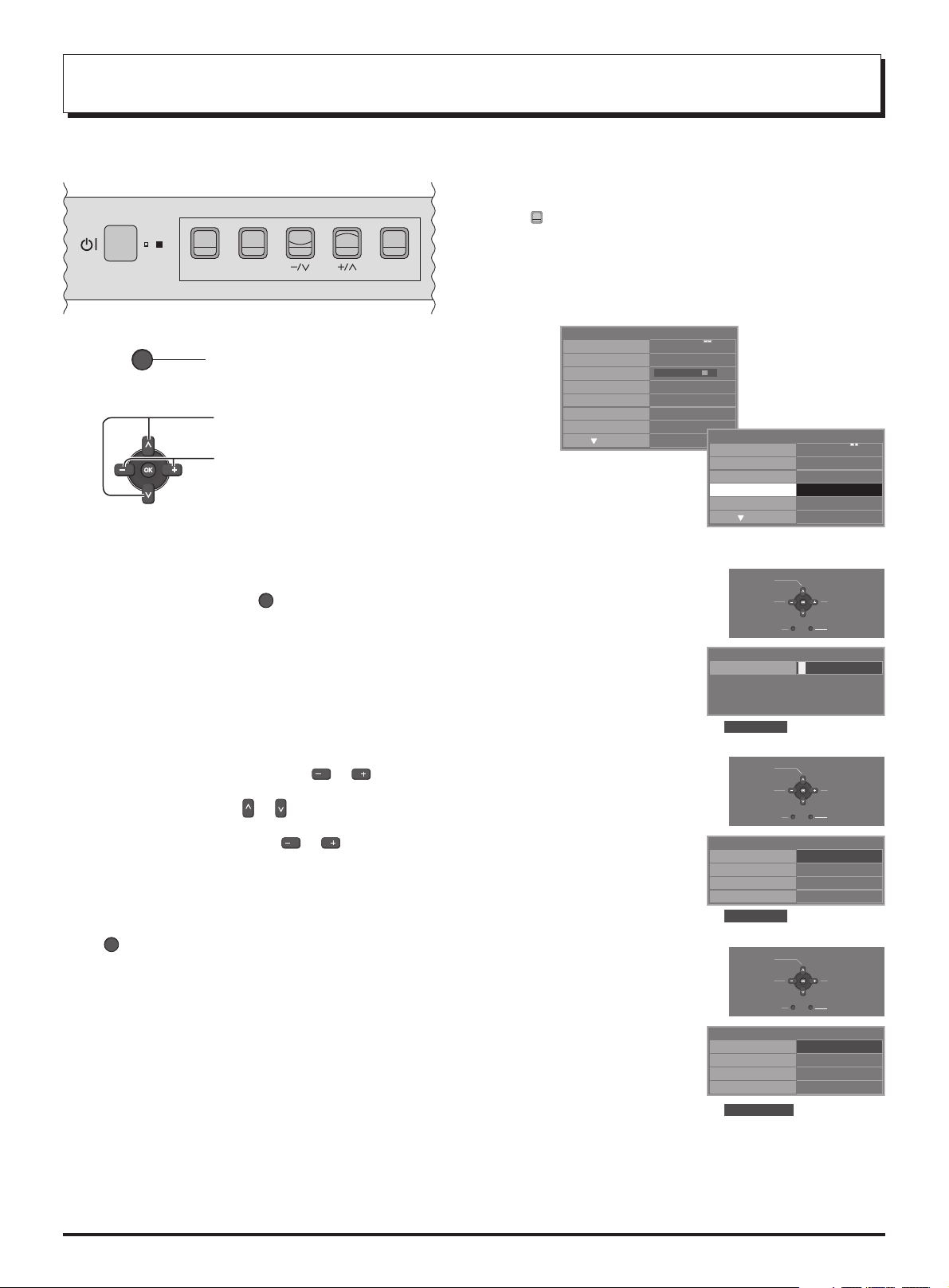

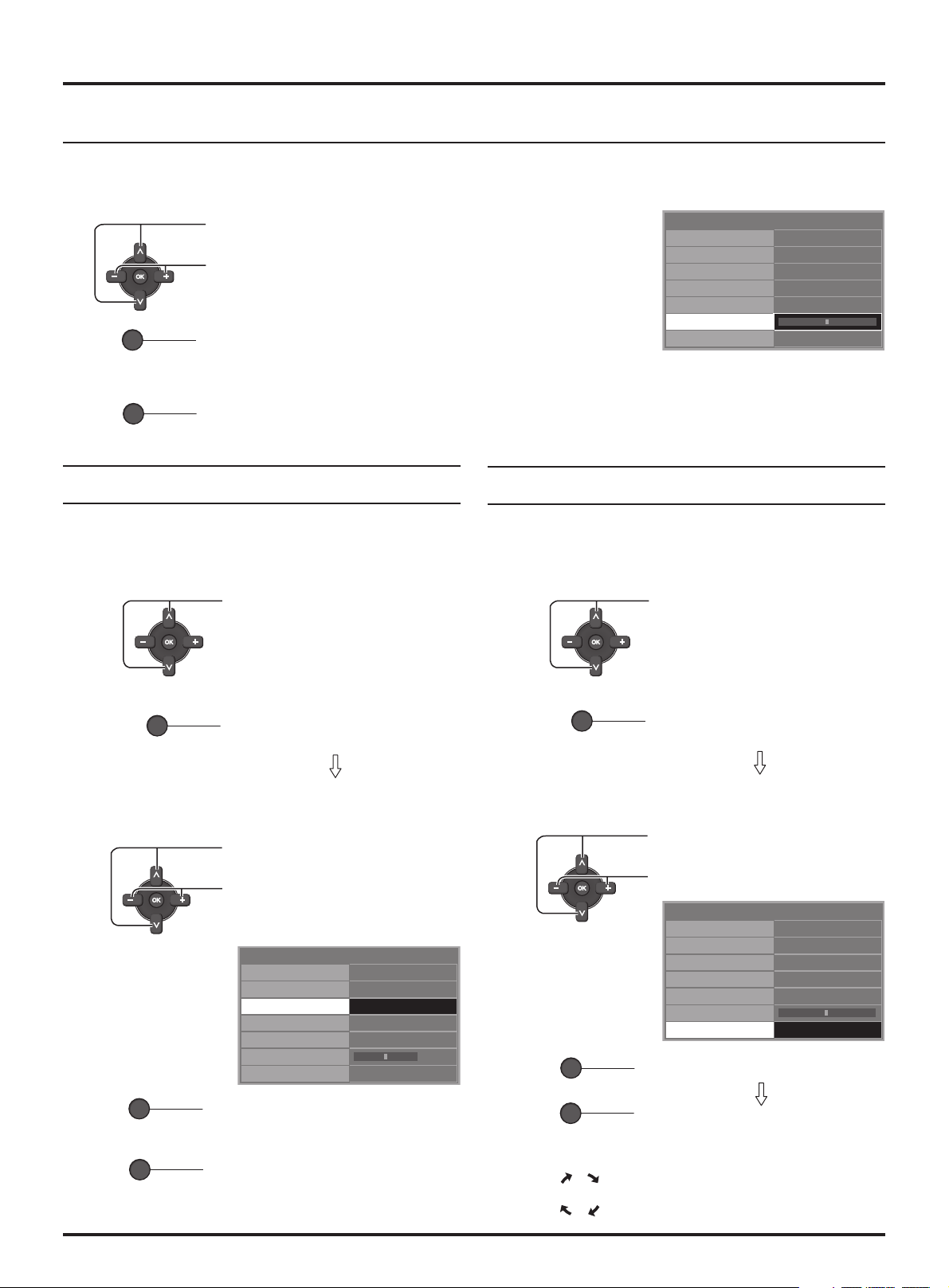

Owner ID

Owner ID allows you to enter a security code (Owner ID) and your personal details into the memory, so that in the unfortunate event

of theft it will help the police to trace the owner.

If you wish to check the personal details already entered into the TV,
press the F
entered are displayed on screen.

(Front panel) and hold for 5 seconds. The details already

STR

F

VTV/A

If Owner ID information was not entered when you switched on your
TV for the first time or it is necessary to alter some of the information,

Owner ID can be re-accessed via the SETUP menu.

1

MENU

Press to display the MAIN MENU,
and then to the SETUP menu.

2

Press to select the “Owner ID”.

SETUP
TELETEXT
OFF TIMER
CH COLOUR SET
CHILD LOCK
BLUE BACK
ILLUMINATION
FLICKER REDUC.

Press to access “Owner ID”.

If the Owner ID has previously been set, enter the PIN NUMBER (using 0 to 9 on
the remote control) followed by OK to proceed, this will take you to the NAME option.

If no Owner ID has previously been set, enter the required 4 digit Owner ID PIN
NUMBER (using 0 to 9 on the remote control).

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the
NAME line.

TOP
OFF

OFF
ON
ON
ON

SETUP
3D-COMB
PICTURE SHIFT
TUNING MENU

OWNER ID

CONVERGENCE

Change
character
Select
character
Return

Owner ID

PIN NUMBER:

0123456789

ON
ON

ACCESS

Store Owner ID

Exit

****

If not, move to the NAME line by using or .

Change character by using or .

Select character position by using or .

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press OK to store the details.
Press again when you are asked, “Are you sure?”

The Owner ID is now stored.

Change
character
Select
character
Return

Owner ID

PIN NUMBER:

HOUSE NO:

POSTCODE:

0123456789

Change
character
Select
character
Return

Owner ID

PIN NUMBER:

HOUSE NO:

POSTCODE:

Are you sure?

****

NAME:

************
*********
*********

****

NAME:

************
*********
*********

Store Owner ID

Exit

Store Owner ID

Exit

22

Setup Adjustment

1

MENU

Press to display the MAIN MENU, and
then to the SETUP menu.

2

Press to select the desired function.

Press to adjust or change the function.

SETUP

TELETEXT

OFF TIMER
CH COLOUR SET

CHILD LOCK
BLUE BACK

ILLUMINATION
FLICKER REDUC.

3

TOP
OFF

OFF
ON
ON

OFF

TV/AV

SETUP

3D-COMB

PICTURE SHIFT
TUNING MENU

OWNER ID
CONVERGENCE

ON
ON

Press to go back to watching TV.

OFF TIMER

Switches the TV off within a preset time which you can choose
from between 0 to 90 minutes in 15 minutes intervals.

OFF

90 75 60

15 30 45

CHILD LOCK

If the Child-Lock function is set ON, picture and sound of the TV/
AV mode being viewed will disappear and a Black screen will appear.

BLUE BACK

You can choose Blue Back display ON or OFF when there is no signal.

ILLUMINATION

Select “ON” to illuminate the ILLUMINATION LIGHT on the front
panel. Otherwise, select “OFF”.

FLICKER REDUCTION

Lets you control any picture movement. Set to ON to activate
motion compensation, to smooth the image and get rid of picture
movement. Set to Off to have no flicker reduction at aIl, occasional
broadcasts may benefit from using this setting.

ON OFF

3D-COMB

You can choose 3D-COMB function ON or OFF. If the 3D-COMB
function is ON, dot interference or cross colour will be reduced.

Note: Not available in component and RGB input.

CH COLOUR SET

Colour density varying between broadcast channels can be
adjusted to three levels for each reception channel.

PICTURE SHIFT

For use as a screen saver, this function changes the entire picture
position (shift) approximately 2 mm every 15 minutes.

During AV mode, the appearance of the SETUP MENU will differ from that of the TV mode, with the following function adjustments
becoming available.

SETUP
OFF TIMER
CH COLOUR SET
CHILD LOCK
BLUE BACK
ILLUMINATION

VCR/GAME

COLOUR SYS

OFF

OFF
ON
ON
OFF
AUTO

COLOUR SYSTEM

During AV mode, COLOUR SYSTEM is displayed.
If a clear picture with current colours cannot be obtained when a

SETUP

COLOUR MATRIX

3D-COMB
PICTURE SHIFT
OWNER ID
CONVERGENCE

SD

ON
ON

VCR/GAME

Reproduction of irregular signals, such as certain TV games and

rental video tapes, may be improved.
Broadcast or AV signal is received, then the colour system will
change as shown.

AUTO PAL SECAM

NTSC3.58

NTSC4.43

PAL, SECAM and NTSC 3.58 are different colour signal
broadcast transmission systems applicable to differing countries.
NTSC 4.43 is a trick playback mode used in special VCR to
playback NTSC recorded video tapes through PAL television
equipment.

COLOUR MATRIX

Displays 480p/575p input signals in a natural colour from digital

equipment adapters connected to COMPONENT VIDEO INPUT

(Y, P

B, PR) terminals. Select HD or SD to automatically adjust

colour parameters for HD (high definition) or SD(standard

definition). SD: When the input signal is a normal TV system

(NTSC). HD: When the input signal is a High-Definition system.

Note: This feature is available only with 525p/625p (480p/575p)

signal and not available with 525i/625i(480i/575i) signal.

23

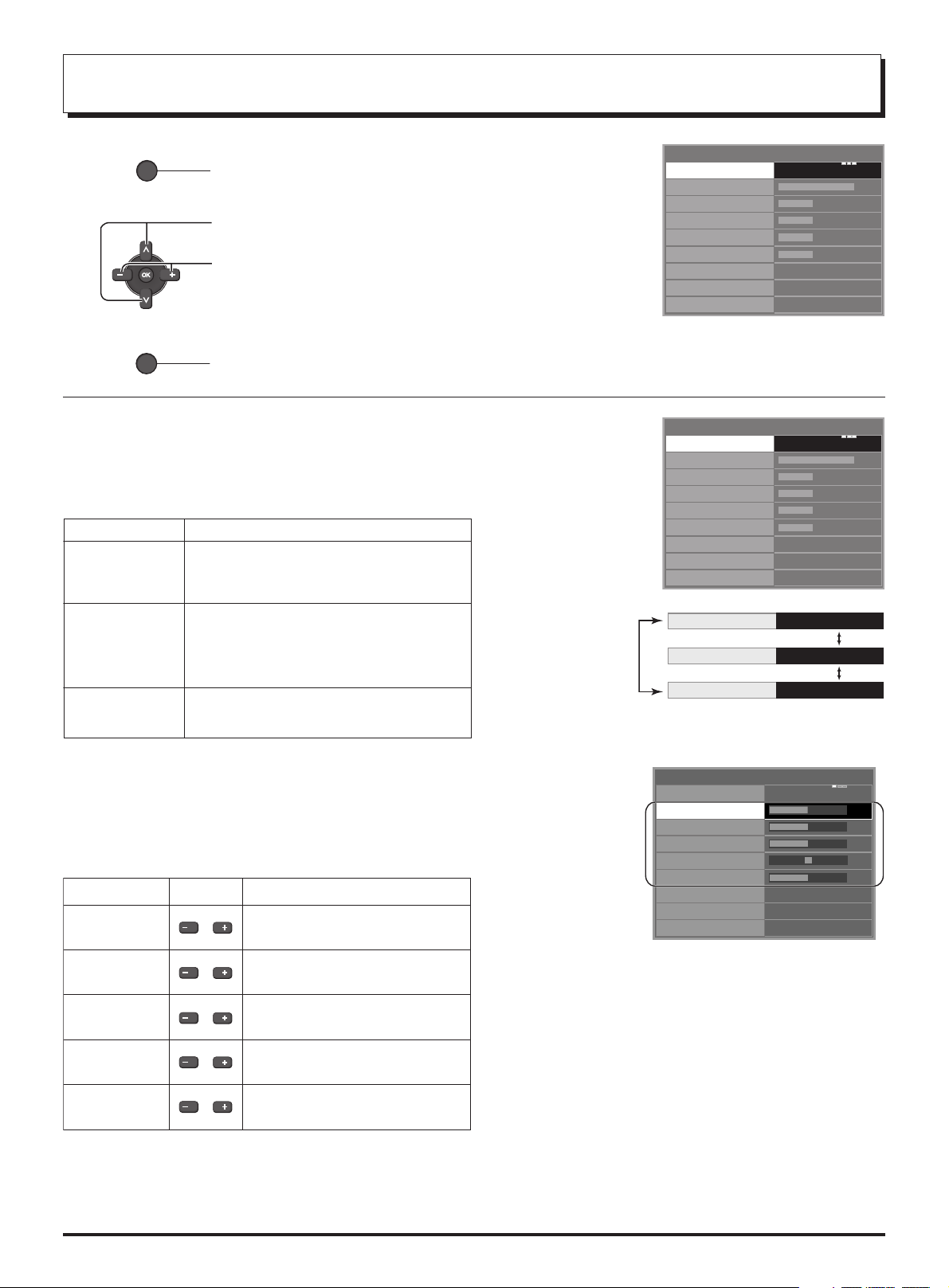

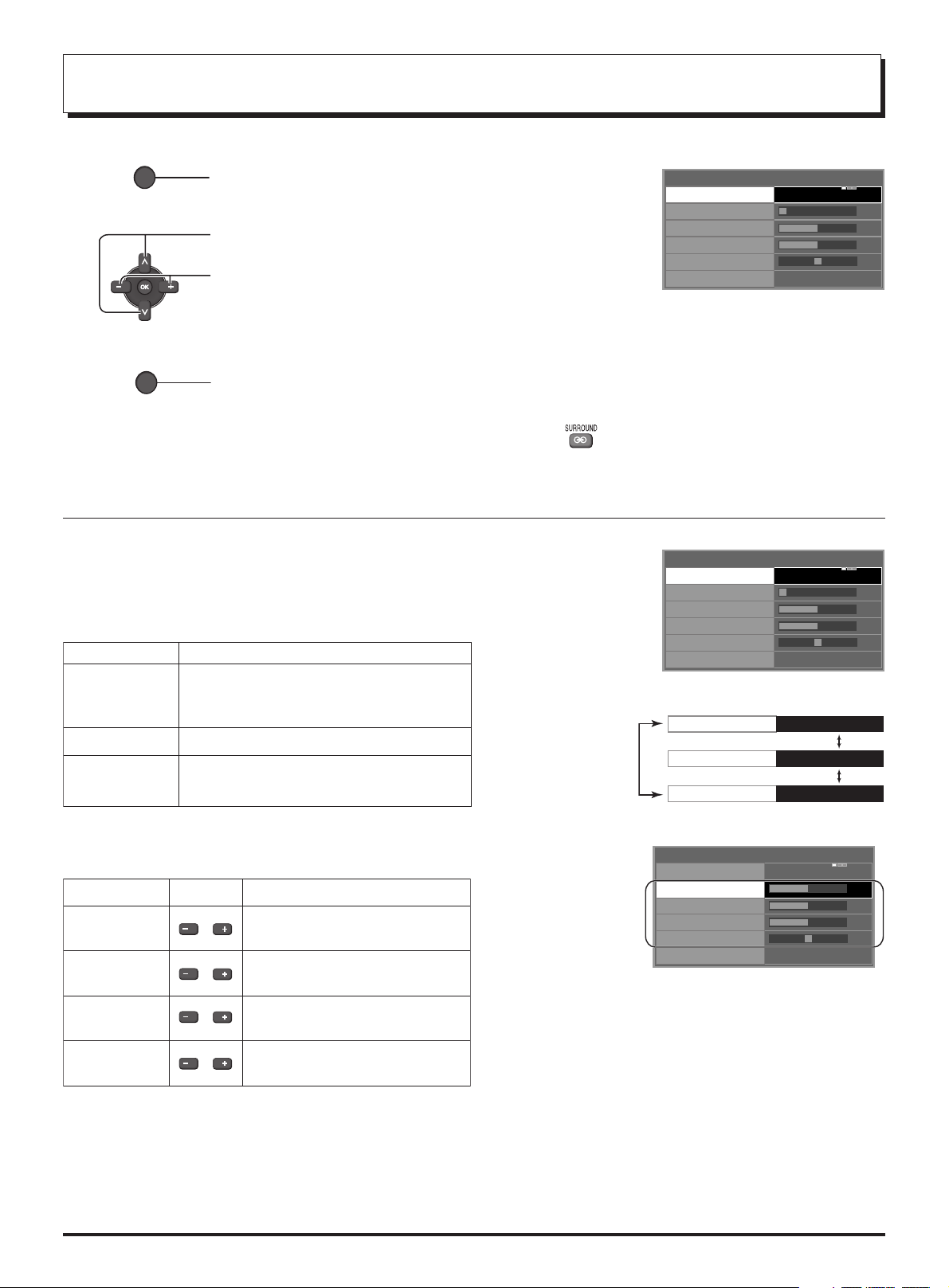

Picture Adjustment

1

MENU

Press to display the MAIN MENU, and then to the PICTURE menu.

2

Press to select the desired function.

Press to adjust or change the function.

3

TV/AV

Press to go back to watching TV.

MENU

Picture menu mode will be memorized for each TV, AV1, AV2, AV3 and AV4 mode.

• You can change the level of each Item (CONTRAST, BRIGHTNESS, COLOUR,

SHARPNESS, NTSC-TINT, C.TEMP and D.PNR for each Picture Menu (DYNAMIC,
STANDARD and CINEMA).

Picture Menu Function

DYNAMIC

For viewing in brighter environments.
This menu selects a higher than normal
levels of Brightness and Contrast.


MENU

CONTRAST
BRIGHTNESS

COLOUR
SHARPNESS

NTSC-TINT
C. TEMP

D. PNR
SCAN MODE


MENU

CONTRAST
BRIGHTNESS

COLOUR
SHARPNESS

NTSC-TINT
C. TEMP

D. PNR
SCAN MODE

CINEMA

STANDARD
AUTO
100Hz

CINEMA

STANDARD
AUTO
100Hz

STANDARD

For viewing in normal (evening lighting)
environments.
This menu selects the normal levels of
Brightness and Contrast.

CINEMA

Ideal for movies.
Can be selected for VIDEO/COMPONENT.

CONTRAST, BRIGHTNESS, COLOUR, SHARPNESS, NTSC-TINT

Increase or decrease the levels of CONTRAST, BRIGHTNESS, COLOUR and
SHARPNESS options according to your personal preference.
With an NTSC-TINT signal source connected to the TV, the picture hue can be adjusted
to suit your taste.

Item Effect Function

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

Less More

Darker Brighter

Less More

Less More

Adjust for contrast.

Adjusts for easier viewing of dark
pictures such as night scenes and hair.

Adjusts slightly to a lighter colour.

Displays a sharp image.

MENU

MENU

MENU

MENU

CONTRAST

BRIGHTNESS
COLOUR

SHARPNESS
NTSC-TINT
C. TEMP

D.PNR
SCAN MODE

DYNAMIC

STANDARD

CINEMA

STANDARD

STANDARD
AUTO
100Hz

NTSC-TINT

Reddish Greenish

Adjust for proper skin colour.

Notes:

• When set to Multi PIP mode, the main and sub pictures are both adjusted simultaneously.

• When the TV is receiving NTSC signals, NTSC-TINT is displayed and level adjustment would be possible.

• Only CONTRAST will be displayed during TEXT mode.

24

Picture Adjustment

C. TEMP (Colour Temperature)

Set the overall colour tone of the picture.

Press to switch between modes.

STANDARD WARM COOL

D.PNR (Digital Picture Noise Reduction)

Automatically reduces undesired picture noise.

Press to switch between modes.

OFF

AUTO

Reduces noise in a channel with many noises.
Remains off when receiving a strong signal.

Off:Recommended mode when receiving a strong signal.
Strong:Applies strong noise reductions regardless of input signals.
Weak:Applies weak noise reductions regardless of input signals.
Auto:Automatically reduces unwanted picture noise.

STRONG

WEAK

MENU
CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT

C. TEMP

D. PNR
SCAN MODE

MENU
CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT
C. TEMP

D. PNR

SCAN MODE

DYNAMIC

STANDARD
AUTO
100Hz

DYNAMIC

STANDARD
AUTO
100Hz

SCAN MODE


When receiving PAL or SECAM Signal, SCAN MODE is
displayed.

Choose the screen refresh method:

Press to switch between modes.

100 Hz MODE

PROGRESSIVE

MENU
CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT
C. TEMP
D. PNR

SCAN MODE

DYNAMIC

STANDARD
AUTO
100Hz

100Hz

When receiving PAL or

SECAM Signal

MODE Function

100Hz MODE

PROGRESSIVE

100Hz will give a steady picture for most signal transmission.

Avoids “snaking/jaggy” effect when viewing TV program with
moving characters.

Note:

When viewing a PAL transmission (other than PAL 60) with Scan mode set to Progressive, the screen
will flicker, this is not a fault.

Helpful Hint (NNormalization)

By pressing the Normal “N” Button on the Remote Control while the Picture menu is displayed, the selected menu will be changed
to the Normal Mode.
Normalization will not occur if the menu is not displayed when the “N” Button is pressed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

25

Sound Adjustment

1

MENU

Press to display the MAIN MENU, and then to the SOUND menu.

2

Press to select the desired function.

Press to adjust or change the function.

3

TV/AV

Press to go back to watching TV.

Note:

Some features are only available with the Surround feature switched off. Press

MENU

Sound menu mode will be memorized for each TV, AV1, AV2, AV3 and AV4 mode.

• You can change the level of each Item (VOLUME, BASS, TREBLE and BALANCE)

for each Sound Menu (MUSIC, CINEMA and NEWS).

Sound Menu

MUSIC

Amplifies the Low frequencies and outputs

Function

optimum sound.
For music programmes for example.

CINEMA

NEWS

For movie and drama programmes.

Human voices (middle pitch sounds) will
sound more clear.

SOUND

MENU

VOLUME
BASS

TREBLE
BALANCE
SURROUND

MUSIC

OFF

to switch between On and Off.

SOUND

MENU

VOLUME
BASS

TREBLE
BALANCE

SURROUND

MENU

MENU

MENU

MUSIC

OFF

NEWS

CINEMA

MUSIC

VOLUME, BASS, TREBLE, BALANCE.

Item Effect Function

VOLUME

BASS

TREBLE

BALANCE

Less More

Less More

Less More

Left SP. Right SP.

Adjusts output volume.

Adjusts low sounds.

Adjusts high sounds.

Adjust left and right volumes.

26

SOUND
MENU

VOLUME

BASS
TREBLE

BALANCE
SURROUND

MUSIC

OFF

Notes:

• When set to Multi PIP mode, the main and sub sound are
both adjusted simultaneously.

• When using one of the double window features, note that
the headphones will relay the soundtrack for the programme
in the main window, not the smaller window.

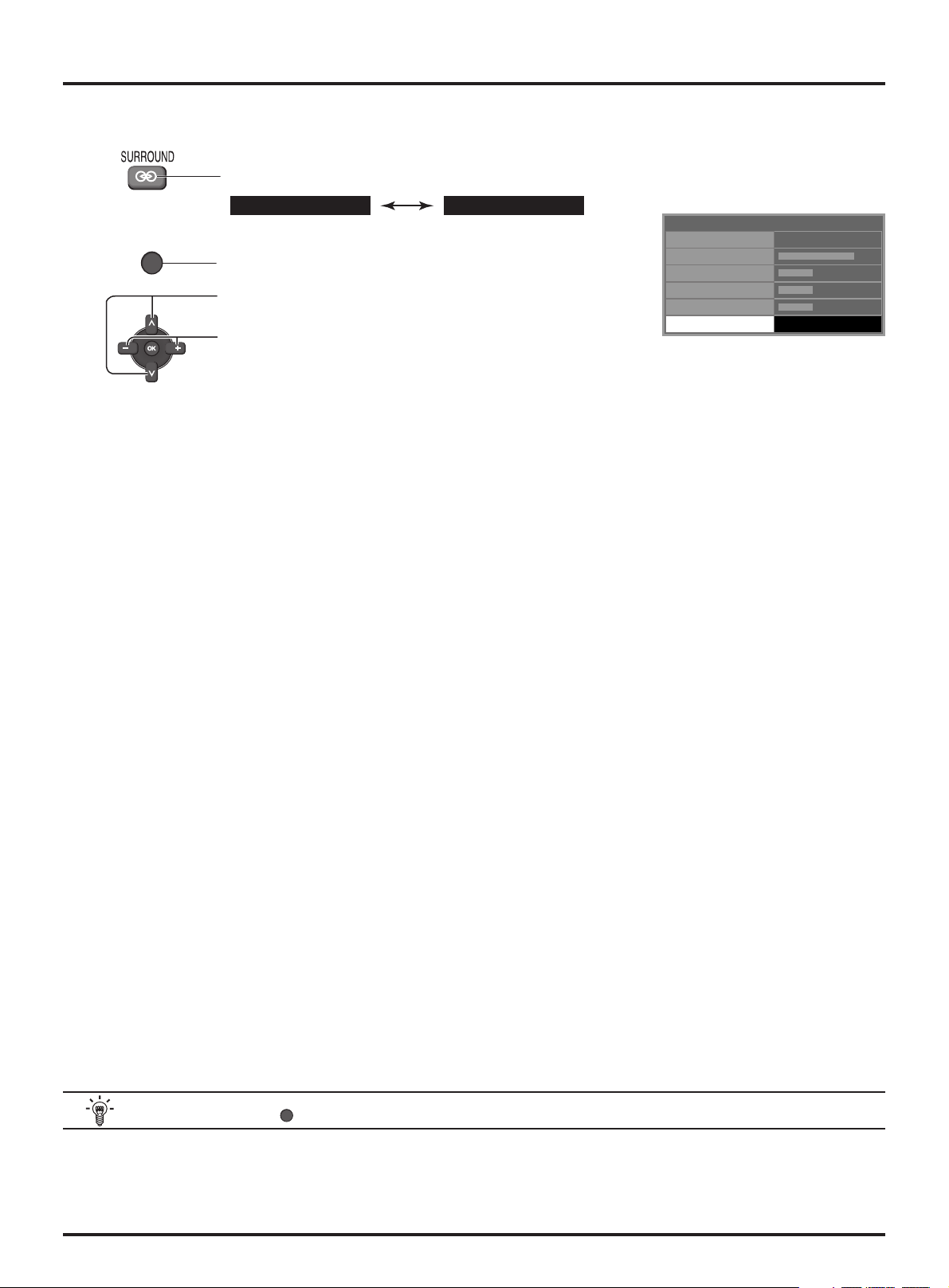

Sound Adjustment

SURROUND MENU

Press to switch between ON and OFF.

SURROUND SURROUNDON OFF

MENU

Press to display the MAIN MENU,and then to the SOUND menu.

Press to select the SURROUND function.

Press to switch between ON and OFF.

The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or
cinema. The surround effect can be obtained without the use of external surround speakers.

OR

SOUND
MENU
VOLUME
BASS
TREBLE
BALANCE

SURROUND

MUSIC

ON

Helpful Hint (NNormalization)

By pressing the Normal “N” Button on the Remote Control while the Sound menu is displayed, the selected menu will be changed to
the Normal Mode.
Normalization will not occur if the menu is not displayed when the “N” Button is pressed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

27

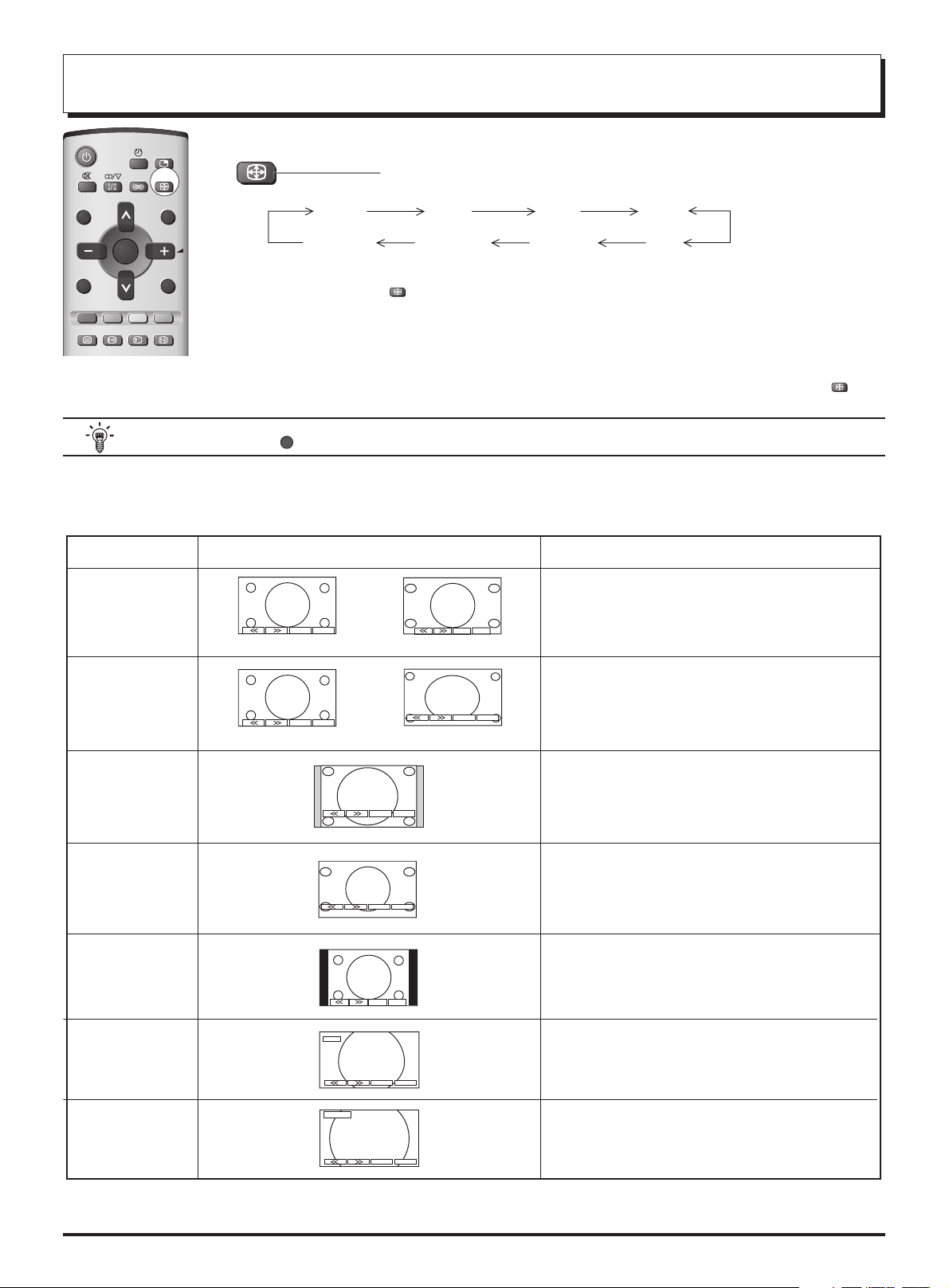

Aspect Controls

CT

MULTI PIP

SURROUND

ASPECT

R-TUNE

OK

MENU TV/AV

N

ASPE

AUTO

ZOOM3

Notes:

• Simply press ASPECT

Press to select the different Aspect options.

16:9 14:9

ZOOM2

ASPECT

to display mode information in the top left of the screen. Whilst the on screen

ZOOM1

JUST

4:3

selector keys are displayed, use the Red or Green buttons to move in either direction through the eight

F.P. INDEX

TV/TEXT

CH SEARCH

HOLD

STILL

The on screen selector keys (corresponding to the four coloured buttons on the remote control) appear for some Aspect functions
and disappear after a few seconds. If you would like to select an operation when the keys are not shown, press ASPECT

aspect options.

• 16:9 picture has been used to illustrate all of the aspect modes described in this section.

ASPECT

once

more and the keys will reappear.

Helpful Hint (NNormalization)

By pressing the Normal “N” Button on the Remote Control while the Aspect menu is displayed, the selected menu will be changed to
the Normal Mode.
Normalization will not occur if the menu is not displayed when the “N” Button is pressed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

ExplanationPictureMode

The AUTO position can be set to 16 : 9. When a

AUTO

wide screen signal is detected at the Video
terminal the TV will select the 16:9 aspect ratio.

16 : 9

14 : 9

JUST

4 : 3

ZOOM1

16:9 Signal

4:3 Signal

16:9 Signal 4:3 Signal

ZOOM1

The 16:9 option will display the picture at its
maximum size. Signals in the 4:3 format will be
stretched to fit the picture.

The 14:9 option will display a 4:3 signal in
simulated wide screen. The picture is slightly
stretched. It is also slightly cropped top and
bottom.

JUST gives you a best fit option when showing
4:3 on wide screen. The centre of the picture is
not affected but there is some stretching at the
edges.

This option will display a standard 4:3 picture
without any stretching or compression. There
will be vertical gray lines down either side of the
picture.

This option allows you to magnify the picture.

ZOOM2

ZOOM2,

ZOOM3

Notes:

• ASPECT operations cannot be made during progressive (Y, P

28

The picture becomes larger and larger when
you change the mode ZOOM2 and ZOOM3.

B, PR) or 1080i signal input.

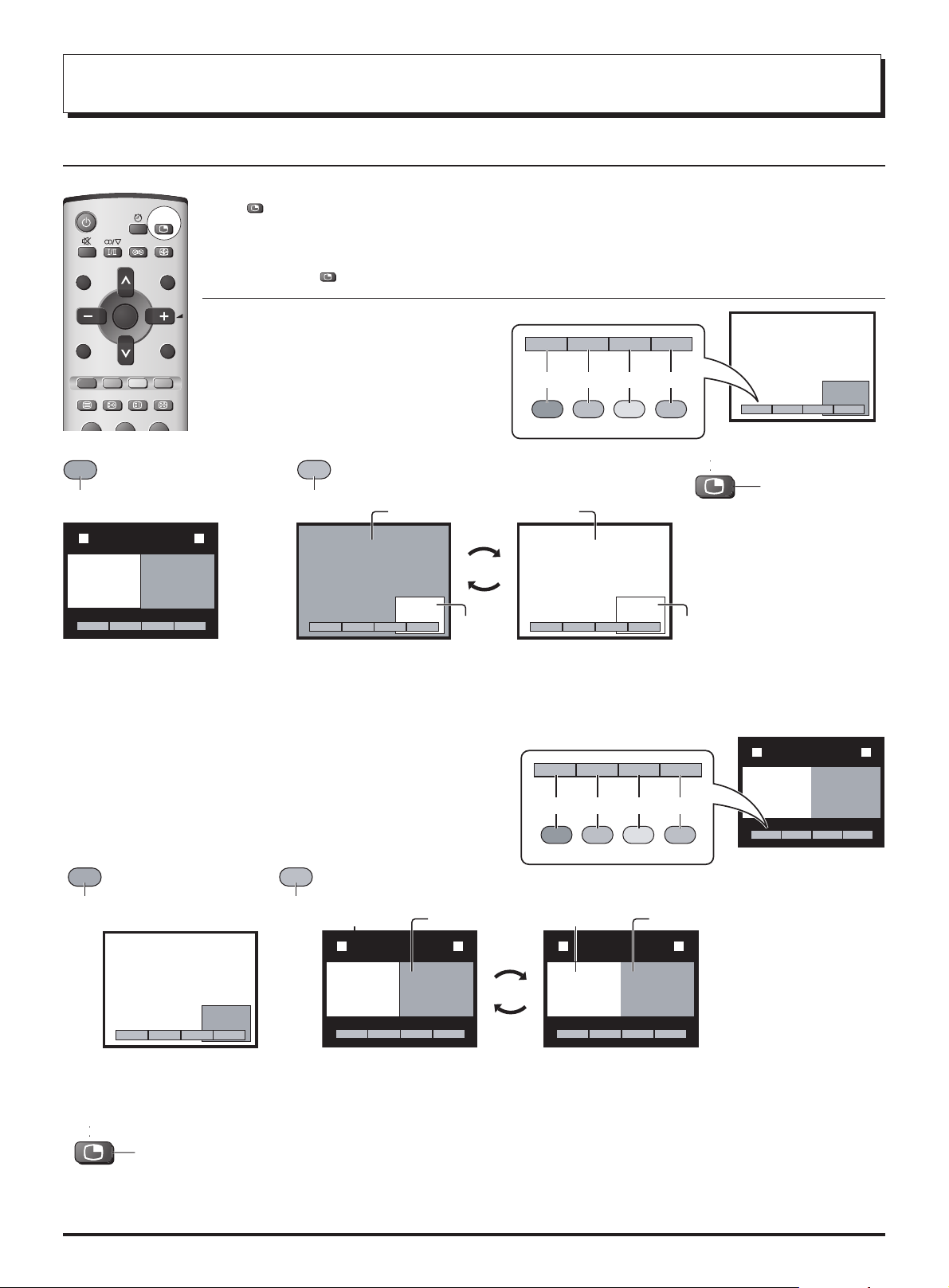

Multi Screen

Multi PIP

MULTI PIP

R-TUNE

SURROUND

MULTI PIP

ASPECT

N

Press

The on screen selector keys for the features (corresponding to the four coloured buttons on the remote
control) appear and disappear after a few seconds. If you would like to select an operation when the keys are
not shown, press

to select the current programme, the picture in picture feature, or the picture and picture feature.

MULTI PIP

once more and the keys will reappear.

OK

MENU TV/AV

F.P. INDEX

TV/TEXT

Press the Red button:

Red

2 4

A AB B

Picture and picture mode Each time the main picture and the sub picture are swapped.

The screen mode is changed to Picture and Picture (PAP) mode.

CH SEARCH

HOLD

STILL

Picture in Picture (PIP)

Allows two pictures to be viewed at the time.
Press the blue button to swap the contents
of the two windows.

Use the remote control to select a TV
channel or an AV source to appear in the
main window.

Press the Blue button:

Blue

Main picture Main picture

CHANGEPIP

PAP CHANGE

PAP CHANGE

Red Green Yellow Blue

AB

BA

Sub picture Sub picture

PAP CHANGE

Picture and Picture (PAP)

Allows two pictures to be viewed at the same time.
Press the blue button to swap the contents of the two windows.
Use the remote control to select a TV channel or an AV source to
appear in the main window.

PIP CHANGE

Red Green Yellow Blue

2 4

PAP CHANGE

T

Press to exit from
the PIP mode.

2 4

A B

CHANGEPIP

Press the Red button: Press the Blue button:

Red

2 4

PAP CHANGE

Picture in picture mode

The screen mode is changed to Picture in Picture (PIP) mode.

T

Press to exit from the PIP mode.

Blue

Main picture

2 4

A B B A

Each time the main picture and the sub picture are swapped.

Sub picture

CHANGEPIP

Note :

MULTI PIP operations cannot be made during progressive signal input (Y,
PB, PR).

A B

Main picture

4 2

Picture and picture

mode

Sub picture

CHANGEPIP

29

T

D

L

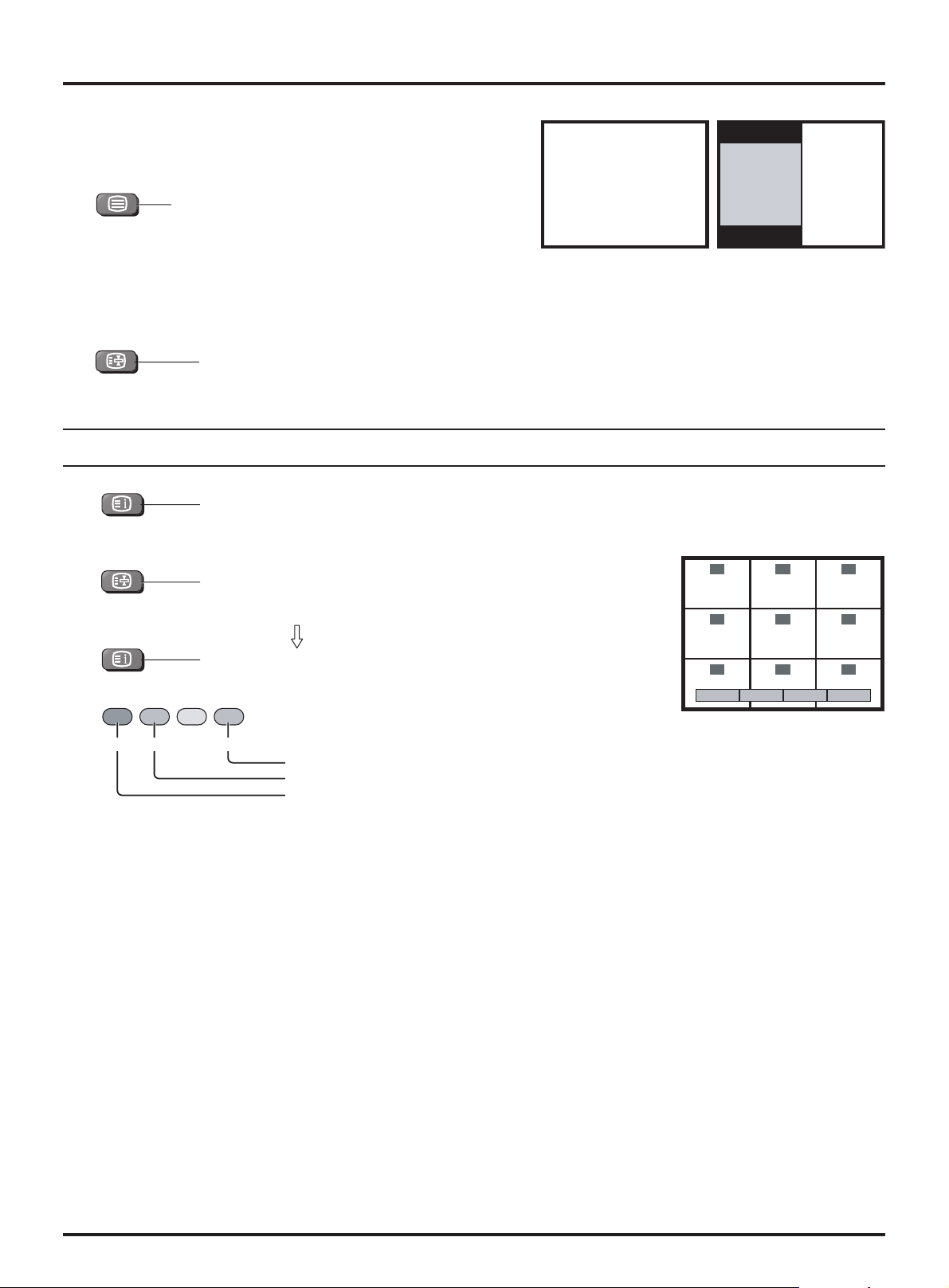

Multi Screen

CH

D

L

CH

Picture and text

Picture and text lets you see the current programme and a page

of teletext side by side.

TV/TEX

Press to select watching the current programme,
the teletext or the picture and text feature.

Note:

The remote control affects the teletext page; so select watching the
current programme before making any changes to the programme.

Still

HOL

Press to freeze the picture, press again to return to watching the current programme.

TIL

Channel Search

Press to show freeze-frames of the programmes being broadcast on all of the stored channels. These

H SEAR

images are displayed in series, starting from the top left.

TELETEXT TELETEXT

TELETEXT mode

Picture and text mode

HOL

Press to pause the search.

TIL

H SEAR

Red Green Yellow Blue

Press again to cancel the pause.

Re-starts the search.
Press to exit from the feature.

1 2 3

4 5 6

7 8 9

SELECT OK EXIT

Channel Search

Press to watch the current programme, exiting the feature.
Press to watch the selected channel, exiting the feature.
Press to select each channel’s playing frame in turn.

30

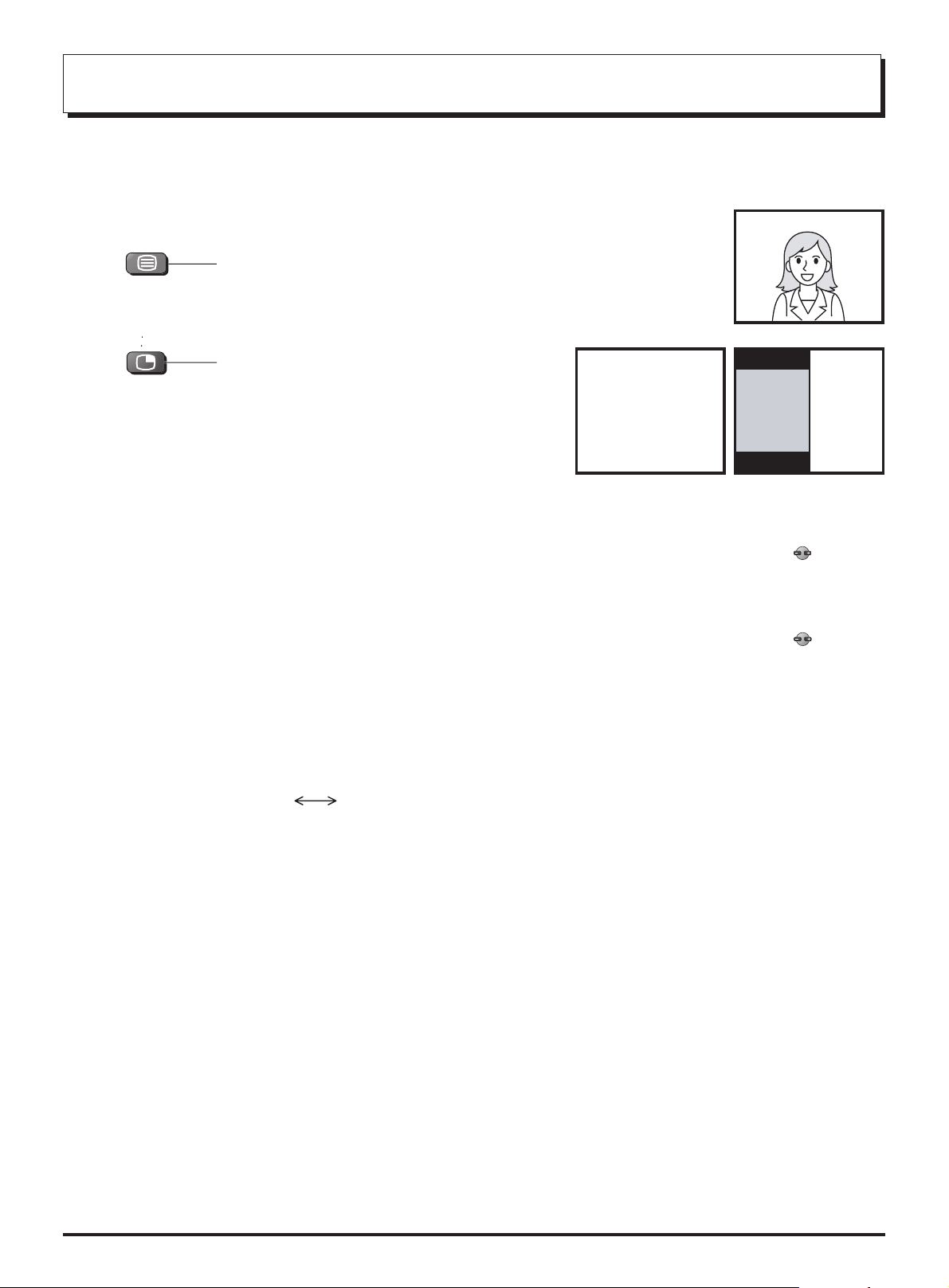

TELETEXT

TELETEXT

Picture and text

TELETEXT TELETEXT

Current programme

T

Teletext features may vary depending on the Broadcasting Companies and are only available when the channel selected transmitting
Teletext.

TV / Teletext mode

TV/TEX

Press to select the current programme, the teletext and the picture or the
teletext feature .

T

During Teletext mode, press to select the teletext
feature or the teletext and the picture feature.

• Pressing the MENU button whilst in Teletext operation will display the contrast function with a cyan bar, press to alter the
setting as required.

• Pressing the MENU button whilst in Teletext operation will display special function options at the bottom of the screen.

• Pressing the MENU button whilst in Teletext operation will display the volume function with a green bar, press to alter the

setting as required.

Note:

If Teletext is in use, the aspect ratio is set to 16:9.

LIST / TOP mode Choose 2 modes.

LIST TOP

LIST mode: Four differently coloured page numbers are situated at the bottom of the screen.

Each of these numbers can be altered and stored in the TV’s memory.

TOP mode: Four differently coloured subjects are situated at the bottom of the display.

To access more information about one of these subjects, press the appropriately coloured button.
This facility enables fast access to information on the subjects shown.

31

TELETEXT

MENU

MENU

1 2 3

4 5 6

7 8 9

0

1 2 3

4 5 6

7 8 9

0

Green

Red

OK

Page Selection

Pages can be selected in two ways :
a. Press the Up / Down buttons to increase or decrease the page number by one.
b. By entering the page number, using 0 - 9 on the remote control.

Full / Top / Bottom

Press the MENU button to display special functions, followed by the Green button.
Press the Green button again to expand the BOTTOM half.
Press again to return to normal (FULL) size.

Reveal

Press the MENU button to display special functions, followed by the Red button to
reveal hidden words e.g., quiz page answers. Press again to hide.

Red / Green / Yellow / Blue buttons

In TOP mode they correspond to the differently coloured subjects.
In List mode they correspond to the differently coloured page numbers.

List Store

In List mode the four page numbers can be altered (programme positions 1 - 25 only).
To do this, press one of the four coloured buttons and enter the new page number.
Press and hold the OK button, the page numbers will change to white indicating that the
page is stored.

HOLD

HOLD

To hold the Teletext page when viewing multi-page information.
Press again to return to automatic page update.

It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.

Favourite Page (F.P.)

Stores a favourite page in memory for instant recall. To store such a page, the TV must be in List mode,

OK

and the programme position must be from 1 - 25.
Press the Blue button, select the page number, then press and hold the OK button. The page number

F. P.

is now stored.
Press F. P. to recall this page.

Blue

1 2 3

4 5 6

7 8 9

0

Update Display

Press the MENU button to display special functions, followed by the Yellow button to view the TV
picture whilst searching for a Teletext page. When found, the screen will display the page number at
the top left. Press the Yellow button to view the page.
Press the TV/TEXT button again to return to normal TV operation.

News Flash

MENU

Yellow

When a news flash page has been selected, press the MENU, Yellow buttons, to view the TV picture.
When an update is received, the page number will be displayed on screen.
Press the Yellow button to display the News Flash.
Press the TV/TEXT button to return to normal TV operation.

Update

Press the MENU, Yellow buttons to see the update of information on certain pages. When an update
is received, the page number will be displayed at the top left of the screen.
Press the Yellow button to view the page.
Press the TV/TEXT button to return to normal TV operation.

32

1 2 3

4 5 6

7 8 9

MENU

TELETEXT

Accessing sub pages

When Teletext information exceeds one page, it may take some time for the automatic changing of the
sub pages to reach the sub page you require. As each sub page is found its number is displayed at the
top of the page so that you may select it; as more sub pages are picked up, the display at the top of the
page changes, so that you are always offered the most recently transmitted selection of sub pages.

In Teletext operation, use the following procedure to access sub pages:

0

Yellow

If the sub page you want to look at is not yet available, press the MENU button (to display special
functions) followed by the Yellow button to view the TV picture whilst waiting for more sub pages to be
found. The sub pages found will be displayed across the top of the screen.

When the sub page you are waiting for is available press the Yellow button to return to viewing the
Teletext pages, then use the left and right cursor buttons to select the sub page of your choice.

Notes:

• If you do not want to display the on screen selector keys on the TV picture whilst waiting for a sub
page to be found, press the MENU button to clear the keys from the screen. Press again to redisplay
the keys.

• If you have cleared the special function keys from the screen and then used the left and right cursor
buttons to select a sub page, whilst still viewing the TV picture, you must press the MENU button
then the Yellow button to display the Teletext page again.

• If the top of the page indicates that sub pages are being transmitted but the page displayed never
changes, then the ‘sub page number’ is there to show the page contents have been updated, there
are no sub pages.

MENU

INDEX

Blue

Alternatively, if you know which sub page you require, press the MENU button (to display special
functions) followed by the Blue button; T**** will be displayed where the page number is normally
found.
Enter desired sub page number before the T**** disappears.
e.g., to select page 6 enter 0, 0, 0 and 6.
Press the Yellow button to view the TV picture whilst waiting for more sub pages to be found. The sub
pages found will be displayed across the top of the screen.
When the page is available, press the Yellow button to view the page. Regardless of how many pages
are found, pressing the Yellow button will take you to the sub page which you requested.

Press the TV/TEXT button to return to normal TV operation.

INDEX
When in TOP operation

Press the INDEX button to return to the main index page.
Depending on the way information is transmitted, this may have to be pressed more than once to
return to the main index page.

33

Advanced Remote Control Operation

Stereo / Bilingual Sound Selection

When you receive the stereo / bilingual sound system, sound output modes can be selected by pressing the
Stereo / Bilingual Sound Selection button.

Audio Signal

Mode Indicator

NICAM .......Used in New Zealand, Singapore, Hong Kong etc.

Type of broadcast

Mode Indicator

A2(German) .......Used in Australia, Malaysia etc.

Type of broadcast

Mode Indicator

Notes:

• If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching occurs, it is
recommended you switch from STEREO to MONO.

• Even when the contents of the receiving signal undergo changes, selection mode is kept intact.

• When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO position, using the stereo /

bilingual sound selection button.

• DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.

STEREO MAIN I SUB II MONO

II

NICAM STEREO

STEREO

Regular broadcast

(Standard Audio)

No Indicator

Regular broadcast

(Standard Audio)

No Indicator

I

Regular + NICAM MONO I

BILINGUAL or DUAL MONO:

(MAIN I )

I

MAIN I / SUB II

I

II

NICAM DUAL MONO

(MAIN I / SUB II )

I

II

VCR / DVD control

The Remote Control is capable of operating some functions of selected VCR and DVD (Digital Versatile Disc) equipment. Some
VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment’s instruction book or
consult your dealer for details.

1 2 3

4 5 6

7 8 9

0

REC

VCR DVD

TV

Button

VCR DVD

REC

Function

Standby

VCR / DVD selection switch

Play

Stop

VCR : Fast Forward / Cue
DVD : Slow / Search

VCR : Rewind / Review
DVD : Slow / Search

Pause / Still

VCR : Programme Number up / down
DVD : Skip

Record

34

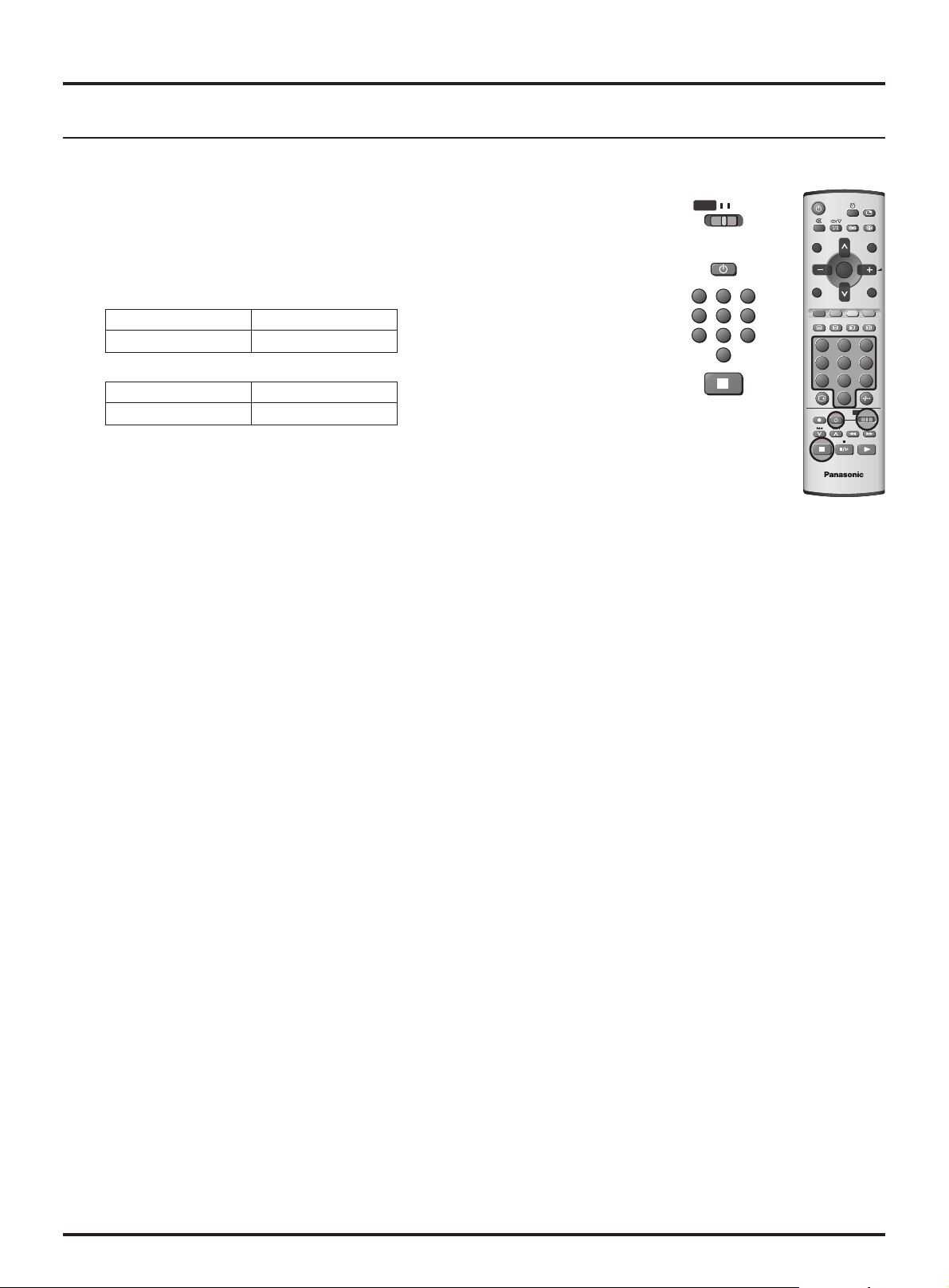

Advanced Remote Control Operation

Manufacfurer setting

Remote Control Operation is possible for the Panasonic VCR’s and DVD’s equipment.
After completion of setting, execute the various operations after pressing the VCR / DVD selection switch.

Switch to select VCR or DVD.

VCR DVD

While pressing the VCR / DVD Power button, press the manufacturer code
(enter the two digit code), and press the VCR / DVD Stop button.

VCR

Manufacturer

Panasonic/ National 10,11,12,13

Code

1 2 3

4 5 6

7 8 9

0

DVD

Manufacturer Code

Panasonic 70, 71

Notes:

• After setting, execute operation confirmation. If there is no operation, set a different code.

• The respective VCR / DVD code is cancelled when battery has been exchanged. Please set it again.

• Depending on the model, operation of VCR’s or DVD’s of the manufacturers listed above may not be possible.

• In some cases, new products may not be operative.

• It will not operate with other than the above manufacturers.

R-TUNE

MENU

F.P. INDEX

TV/TEXT

1 2 3

4 5 6

7 8 9

REC

SURROUND

OK

CH SEARCH

0

TV

MULTI PIP

ASPECT

TV/AV

HOLD

STILL

VCR DVD

N

35

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Snowy Picture

Multiple Image

Interference

Normal

No Picture

No Colour

Noisy Sound

Normal Sound

Noisy Sound

No Sound

No Sound

Normal Sound

Checks

Aerial Location, direction or Connections

Aerial Location, direction or Connections

Electrical Appliances
Cars/Motorcycles
Fluorescent Lamps

Volume (Refer to page 10, 11)
(Check whether the mute function has been activated on
the Remote Control.)

Not plugged into AC outlet
Not switched on
Contrast and Brightness/Volume setting (Check by pressing the
Power Switch or Stand-by Button on the Remote Control.)

Colour Control (Refer to page 24, 25)
Colour System (Refer to page 21)

Scrambled

Coloured
Patches

No Colour

Projection TV screen

Symptoms

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
after-image to remain on the Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in
4:3 mode.

Note:

After-images
appear

The permanent after-image on the Wide Projection TV screen resulting from fixed image use is not an
operating defect and as such is not covered by the Warranty.

This product is not designed to display fixed images for extended periods of time.

Normal or
Weak Sound

Normal Sound

Noisy Sound

Retune Channels (Refer to page 15)

Magnetic interference from unshielded equipment;
TV set moved while "ON"
Turn the TV set off for 30 minutes, using the "Power"
Switch on the TV set.

Sound System (Refer to page 21)
Colour System (Refer to page 21)

Checks

36

Cleaning

To ensure continued excellent performance by this product, periodic cleaning is recommended.

The unit contains many plastic
parts. For this reason DO NOT
use benzine, thinner or other
chemicals to clean the unit.

DO NOT bring into contact with
insecticide or other volatile
substances.
DO NOT allow the unit to come
into contact for extended periods
with rubber or vinyl products.

Dust will accumulate on the picture screen. Please wipe
with a soft cloth from time to time. If you use a
chemically
instructions that come with the cloth.

Remove dirt and soiling by wiping with a light cloth.
Even if the unit is heavily soiled, do not apply cleaner directly
to the unit. Soak a cloth in a solution of neutral cleanser
thinned with water. Then wring out the cloth, wipe the unit
clean, and finish by wiping with a dry cloth
Do not use any type of cleansers on the picture screen.

treated cloth, please be

careful to follow the

.

37

Specifications

Power Source
Power Consumption

Dimensions ( W

××

H D )

Mass (Weight)

Remote control
Transmitter

Receiving System

21 Systems Function

PAL B, G, H

1

PAL I

2

PAL D, K

3

SECAM B, G

4

SECAM D, K

5

SECAM K1

6

NTSC M (NTSC 3.58/4.5 MHz)

7

NTSC 4.43/5.5 MHz

8

NTSC 4.43/6.0 MHz

9

NTSC 4.43/6.5 MHz

10

NTSC 3.58/5.5 MHz

11

NTSC 3.58/6.0 MHz

12

NTSC 3.58/6.5 MHz

13

SECAM I

14

Receiving Channels

Receiving Stereo
System

Tuning System

Audio Output

Speaker System
Headphones

Aerial Impedance

Operating Conditions

AC 220-240 V, 50/60 Hz

Stand-by condition: less than 1 W
Normal viewing 165 W

1095 mm x 1203.5 mm x 538 mm

56 kg (Net)

N2QAJB000109
R6 (AA) Battery × 2

21 Systems Function

15

Reception of broadcast
transmissions and
Playback from Video
Cassette Tape
Recorders.

Playback from Special
VCR's

PAL 60 Hz/5.5 MHz

16

PAL 60 Hz/6.0 MHz

17

PAL 60 Hz/6.5 MHz

18

SECAM 60 Hz/5.5 MHz

19

SECAM 60 Hz/6.0 MHz

20

SECAM 60 Hz/6.5 MHz

21

NTSC 50 Hz/4.5 MHz

Regular TV

VHF BAND

2-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M U.S.A)

UHF BAND

21-69 (PAL G, H, I/SECAM G,
K, K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M U.S.A)

NICAM I , NICAM B/G, NICAM D, A2 (German)

Frequency synthesizer Auto Search Tuning

DIRECT : 125 Position

24 W [ 12 W + 12 W ] ( 10 % THD )

Woofer 2 + Tweeter 2

××

3.5 mm Plug 1

Ω

75 Unbalanced coaxial

Temperature: 0°C - 40°C
Humidity: 20% - 80% RH (non-condensing)

Playback from Special
Disc Players and
Special VCR's

CATV

S1-S20 (OSCAR)
1-125 (U.S.A CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)

Video/Audio/
Component Terminals

AV 1, 2, 3, 4

Monitor Out

S Video In

DVD (Y/P
Video In
Audio In
Video Out
Audio Out

B/PR

)

Y:1 Vp-p, 75 Ω
C:0.3 Vp-p, 75 Ω

1 Vp-p, 75 Ω
Approx. 0.5 V 47 KΩ
1 Vp-p, 75 Ω
Approx. 0.5 V 1 KΩ

AV1 IN (Rear) : S Video, Video, Audio L/R terminals
AV2 IN (Rear) : Video or Y/P

B/PR

, Audio L/R terminals
AV3 IN (Front) : S Video, Video, Audio L/R terminals
AV4 IN (Rear) : Video or Y/P

Applicable signal to AV2, AV4 Y/P

B/PR

, Audio L/R terminals

B/PR

input terminals:

480i(525i), 576i(625i), 480P(525P), 576P(625P) and 1080i (1125i)/50

Note: Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

38

Customer’s Record

The model number and serial number of this product can be found on its cabinet. You should
note this serial number in the space provided below and retain this book plus your purchase
receipt as a permanent record of your purchase to aid in identification in the event of theft or loss
and for Warranty Service purposes.

Model Number TX-47P950A Serial Number

Panasonic AVC Networks Shandong Co., LTD. Shandong China

Made in China

39
