Page 1

Service Manual

Colour Television EURO 2 Chassis

TX-25A1DP TX-29AD1DP

Safety Specifications Block Diagram(Video) Block Diagram(Audio) Block Diagram(Control) Block Diagram (Dolby) Parts List Service Information PCB view(A) PCB view(B) PCB view(E) PCB view(K) PCB view(M)

Adjustments Self Check Service Hints Mechanical View Disassembly Location of Controls Waveforms

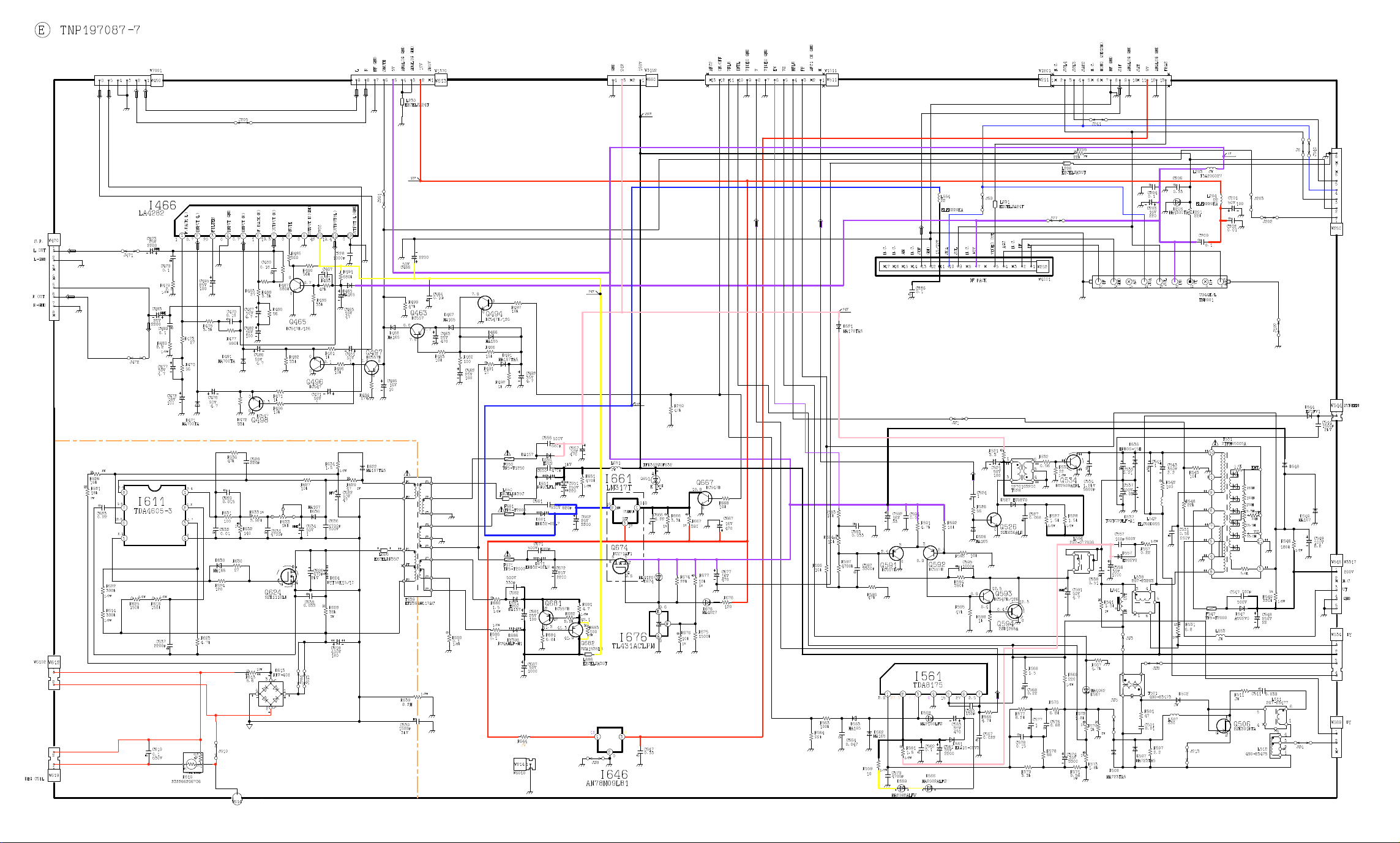

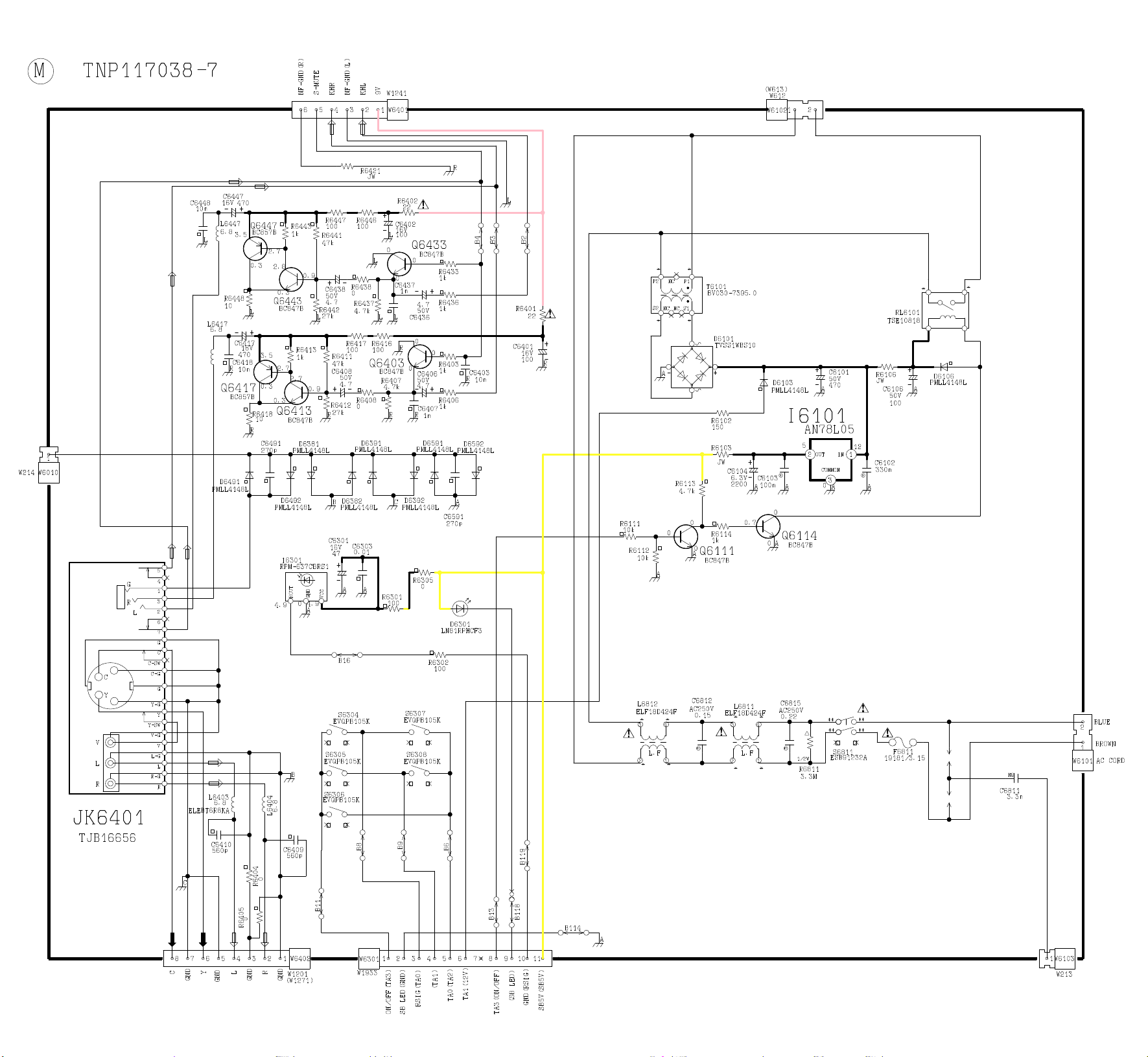

A Schematic B Schematic E Schematic K Schematic M Schematic

Notes

Service Support

About....

GO BACK

EXIT

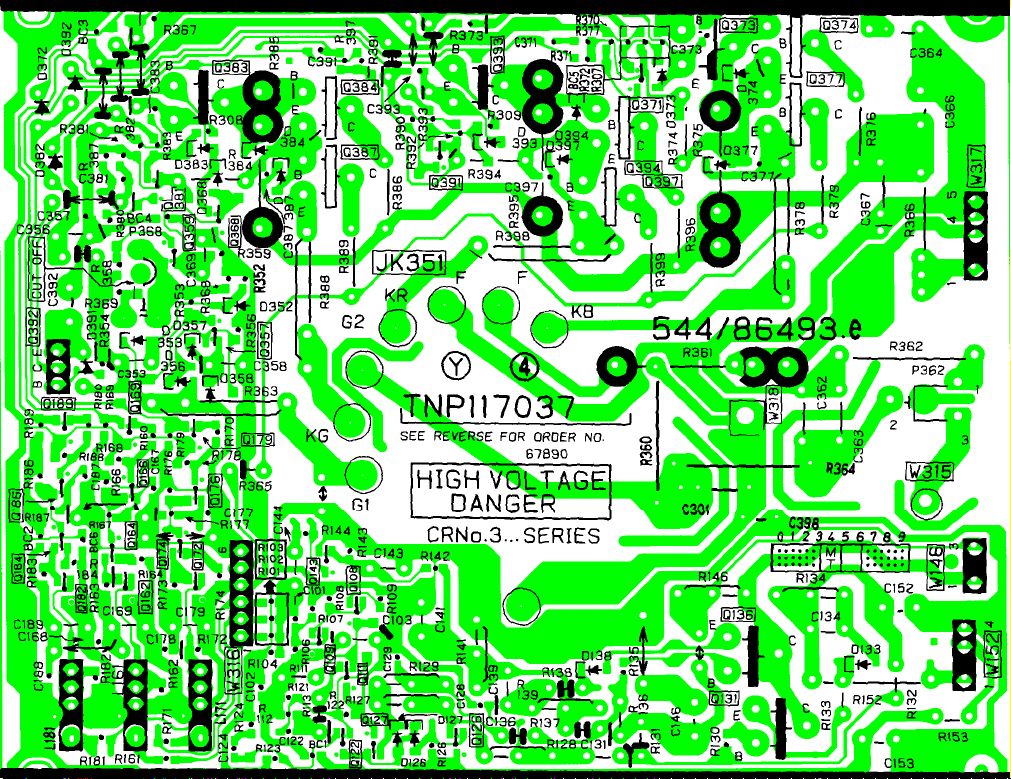

PCB view(Y)

Y Schematic

Page 2

ORDER NO. SM-95011

Service Manual

Colour Television

TX-29AD1DP TX-25AD1DP

EURO-2 Chassis

Specifications

( Information in brackets refer to TX-25AD1DP)

Power Source : 220-240V AC 50Hz Power Consumption : 115W ( 105W ) Aerial Impedance : 75W unbalanced, Coaxial Type Receiving System : PAL- I, PAL 60 Receiving Channels : UHF E21 - E69 Intermediate Frequency : Video 39.5 MHz

Sound 33.5 MHz Colour 35.07 MHz (PAL)

Video / Audio Terminals :

AUDIO MONITOR OUT Audio (RCA x 2) 500mV rms,1kW

AV1 IN Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500mV rms,10kW RGB (21 pin )

AV1 OUT Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500mV rms, 1kW

AV2 IN Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500mV rms,10 kW S-Video IN Y : 1 Vp-p 75W (21 pin ) C : 0.3 Vp-p 75W

AV2 OUT Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500mV rms, 1kW Selectable output (21 pin )

AV3 IN S-Video IN Y : 1 Vp-p 75W

(4-pin ) C : 0.3 Vp-p 75W Audio (RCA x 2) 500mV rms,10kW Video (RCA x 1) 1 Vp-p 75W

High Voltage : 31kV _1kV at zero beam current Picture Tube : 68cmV (59 cmV ) Super Flat FST

110° measured diagonally.

Audio Output :

Internal Speaker 2 x 20 W (Music Power)

8W Impedance

External Speaker 2 x 10W(Front) (Music Power)

2 x 15W(Rear) (Music Power) 2 x 15W(Centre) (Music Power)

8 W Impedance Headphones 1 x 8 W Impedance Accessories supplied : Remote Control

UM3 Battery

TV Stand Dimensions : Height : 551mm (504mm)

Width : 668mm (606mm)

Depth : 467mm (448mm) Net Weight 41kg (30kg)

Specifications are subject to change without notice. Weight and dimensions shown are approximate.

NOTE : This service manual should be used in conjunction with the EURO 2 technical guide.

Panasonic (U.K.) LTD.

WILLOUGHBY ROAD,

BRACKNELL,

BERKS,

RG12 8FT.

Page 3

Contents

Safety Precautions 2 Location of Controls 3 Chassis Service Position 4 Self Check 8 Adjustment Procedure 8 Alignment Procedure 9 Waveform Pattern Table 10 Conductor Views 11 Block Diagrams 18 Schematic Diagrams 23 Exploded Views 29 Parts List 30

Safety Precautions

General Guide Lines

1. It is advisable to insert an isolation transformer in the AC supply before servicing a hot chassis.

2. When servicing, observe the original lead dress in the high voltage circuits. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

3. After servicing, see that all the protective devices such as insulation barriers, insulation papers, shields and isolation RC combinations are correctly installed.

4. When the receiver is not being used for a long period of time, unplug the power cord from the AC outlet.

5. Potentials as high as 32 kV are present when this receiver is in operation. Operation of the receiver without the rear cover involves the danger of a shock hazard from the receiver power supply. Servicing should not be attempted by anyone who is not familiar with the precautions necessary when working on high voltage equipment. Always discharge the anode of the picture to the chassis before handling the tube.

6. After servicing make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. Check each exposed Metallic part and check the voltage at each point.

5. Reverse the AC plug at the outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 1.4 Vrms. In case a measurement is outside the limits specified, there is a possibility of a shock hazard, and the receiver should be repaired and rechecked before it is returned to the customer.

HOT CHECK CIRCUIT

Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two prongs of the plug.

2. Turn on the receiver's power switch.

3. Measure the resistance value with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the receiver, such as screw heads, aerials , connectors, control shafts etc. When the exposed metallic part has a return path to the chassis the reading should be between 4M ohm and 20M ohm. When the exposed metal does not have a return path to the chassis the reading must be infinite.

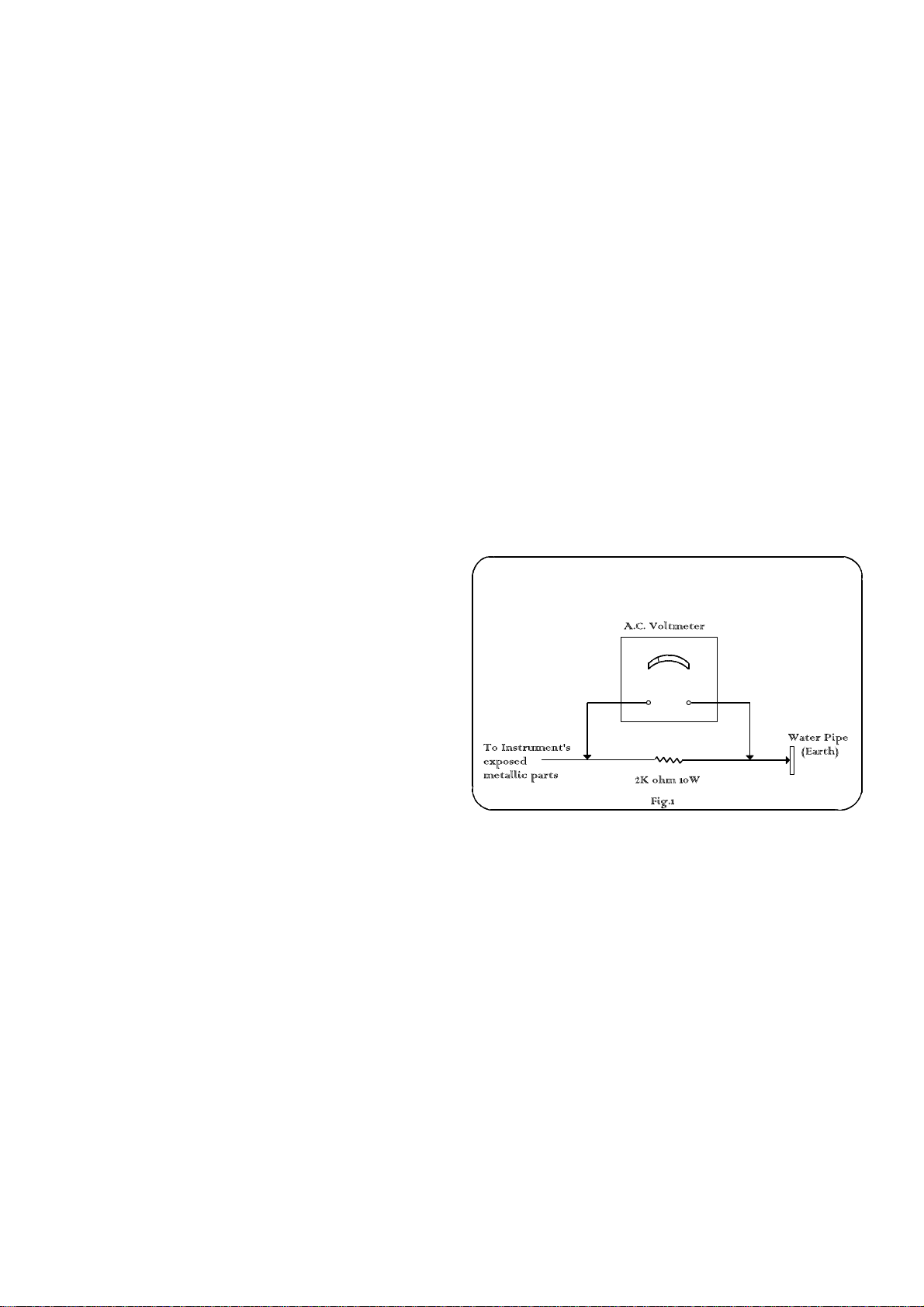

Leakage Current Hot Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a 2k ohm 10W resistor in series with an exposed metallic part on the receiver and an earth such as a water pipe.

3. Use an AC voltmeter with high impedance to measure the potential across the resistor.

X-Radiation Warning

1. The potential sources of X-Radiation in TV sets are the high voltage section and the picture tube.

2. When using a picture tube test jig for service ensure that the jig is capable of handling 32kV without causing X-Radiation.

NOTE : It is important to use an accurate periodically calibrated high voltage meter

1. Set the brightness to minimum.

2. Measure the high voltage. The meter should indicate 31kV _1kV at zero beam current if the meter indication is out of tolerance, immediate service and correction is required to prevent the possibility of premature component failure.

3. To prevent an X-Radiation possibility, it is essential to use the specified tube.

Page 4

Location Of Controls

Service Hints

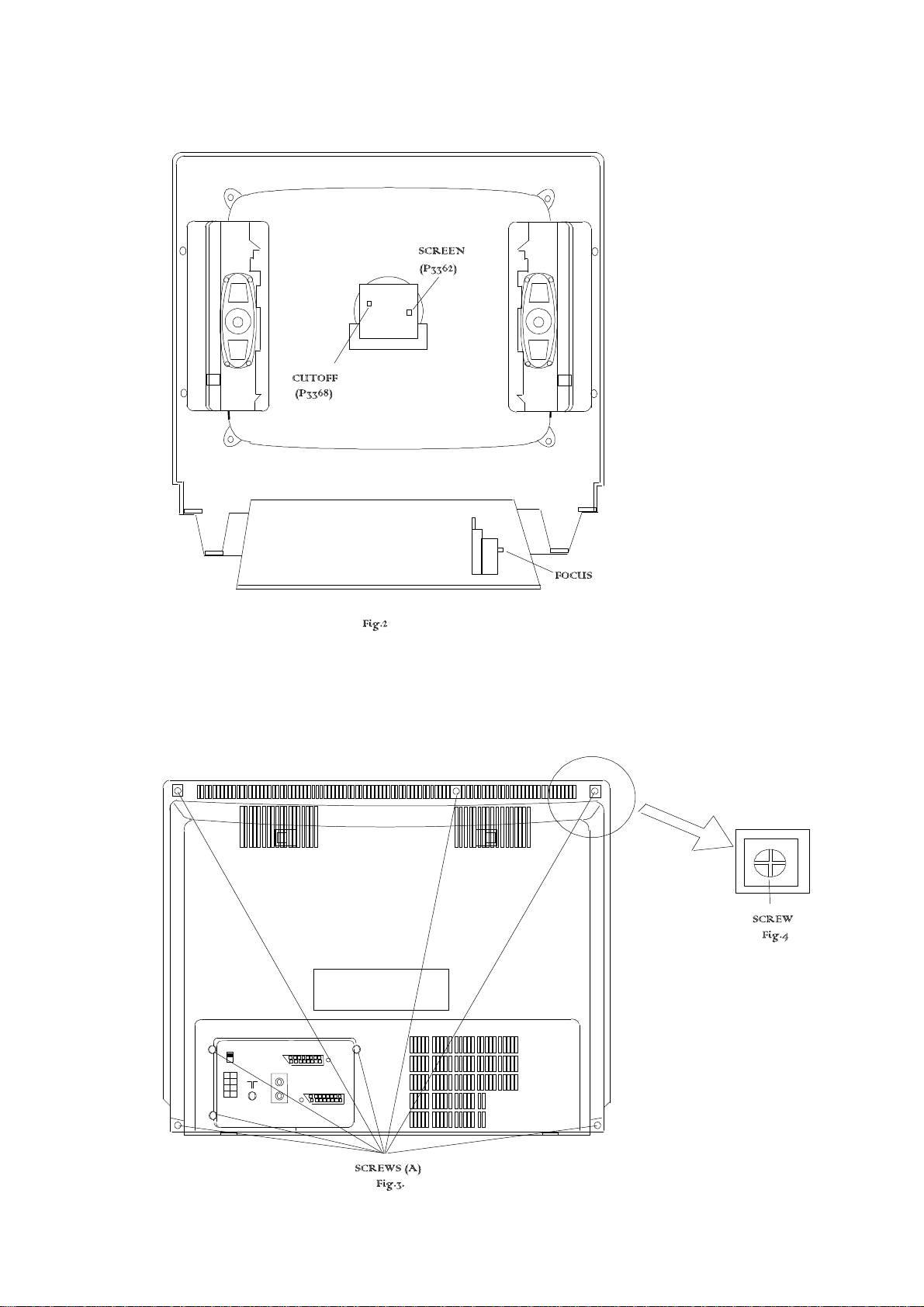

How to remove the rear cover

1. Remove the 8 fixing screws (A) as shown in Fig.3/Fig.4.

Page 5

How to Remove the Control Panel (M-board)

1. Remove the E-board from the cabinet with the M-board attached.

2. Unclip by lifting the front of the M-board vertically.

3. After servicing ensure all wiring is returned to its original position before returning the receiver to the customer.

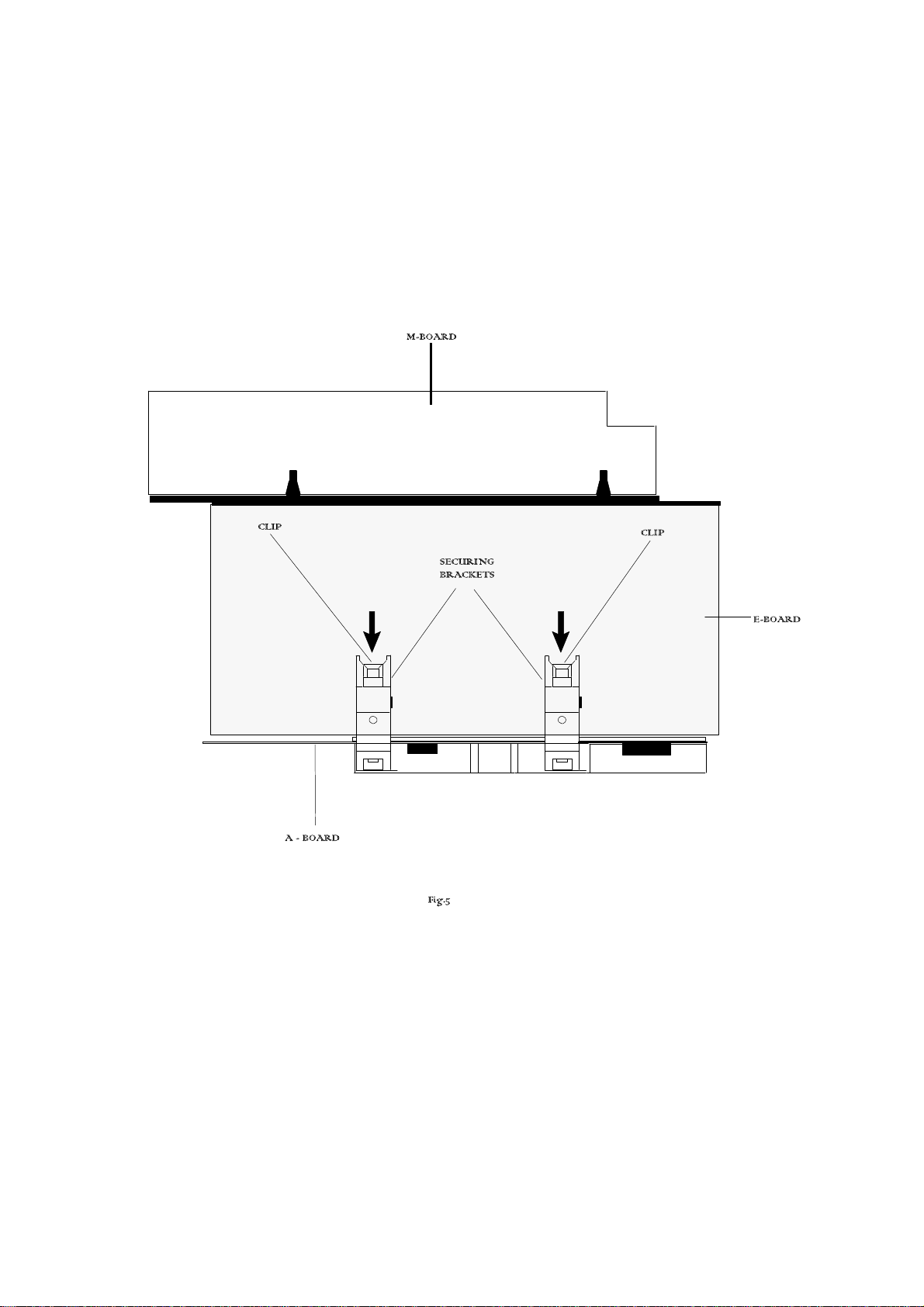

How to Remove the A - Board

1. Disconnect the four leads from the A - board.

2. Release the A board securing brackets by pushing the clips in the direction shown in Fig.5, and remove the A - board by gently lifting vertically.

3. After servicing ensure all wiring is returned to its original position before returning the receiver to the customer.

Page 6

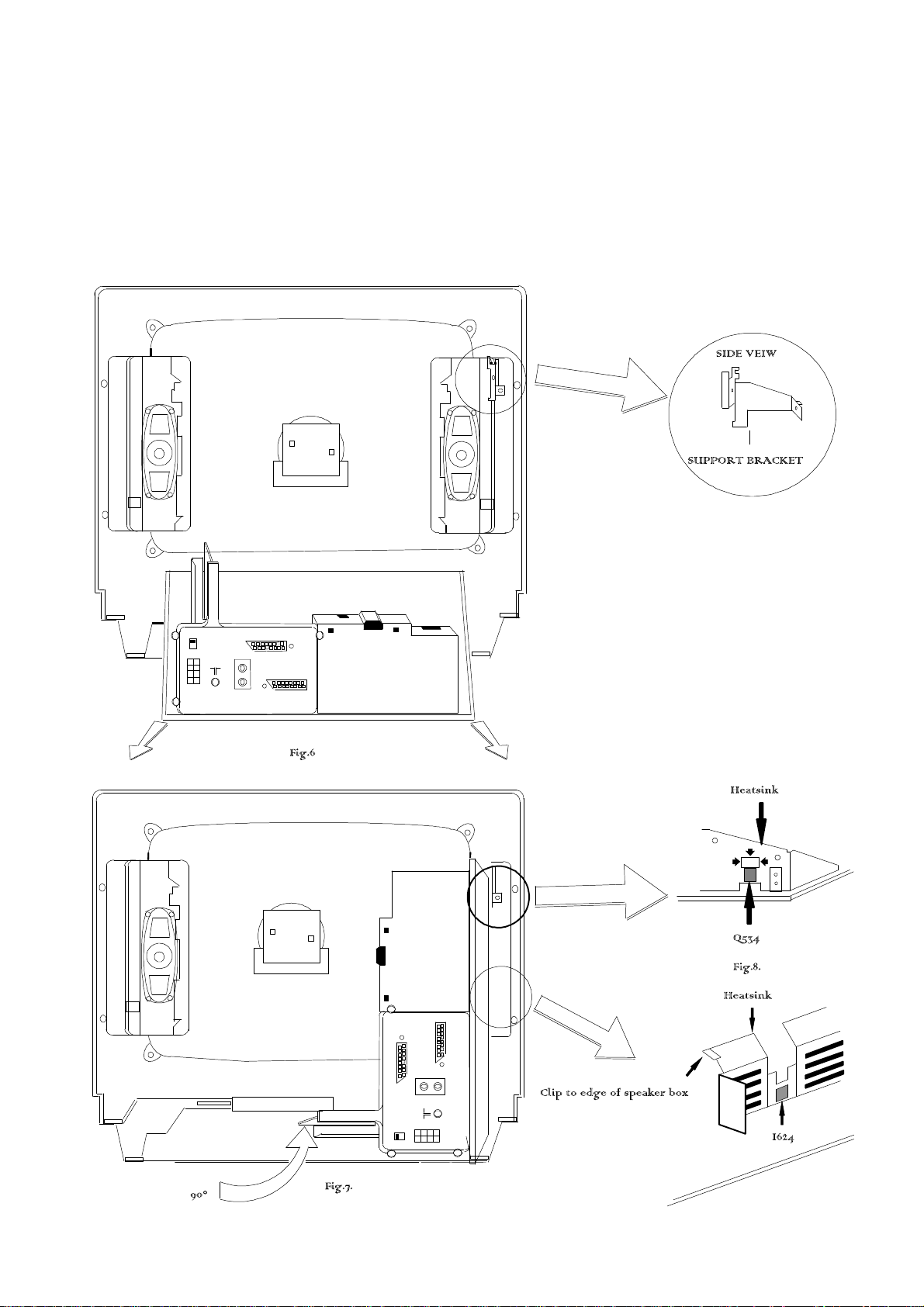

How to move the chassis into the Service position

1. Hold and lift the rear of the E- PCB chassis as shown in fig.6. and gently pull the chassis toward you.

2. Release the respective wiring clips and turn the chassis through 90_, anti-clockwise, as shown in fig.7.

3. Clip the chassis onto the support bracket as shown in fig.7 and fig.8.

4. After servicing ensure all wiring is returned to its original position before returning the receiver to the customer.

Page 7

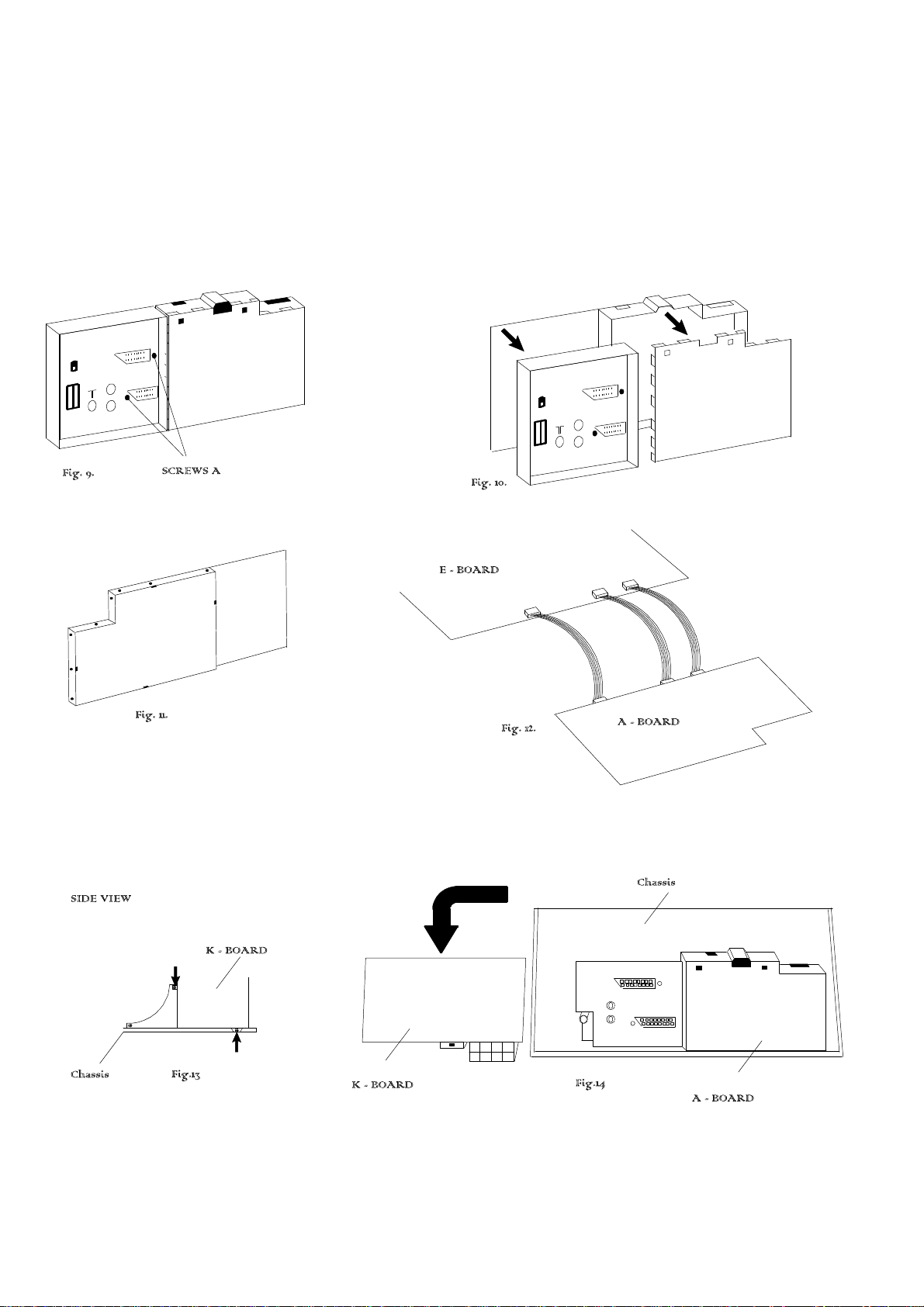

Service position for the A-Board

1. Remove the A-board from the main chassis (E-board), see fig. 5, ensuring all leads are disconnected.

2. Remove the two screws (A) (fig.9) from the plastic AV cover and unclip the AV cover from the A-board.

3. Unclip the front metal cover (Fig10) and remove from the A-board.

4. For ease of servicing remove the rear metal cover by desoldering (Fig.11)

5. Fit the extension leads to the A-board making sure that the A-board does not touch the E-board (fig.12).

6. After servicing ensure all wiring is returned to its original position before returning the receiver to the customer.

Note : The extension lead wire kit is supplied as a service kit. (Part number TZS2EP001).

Service Position for the K-Board

1. Remove the two screws (A) indicated in fig.13 to release K-Board

2. Slide the K-Board out of the chassis holding position and gently release making sure that the K-board does not touch the E-board.

Page 8

Service Mode

The remote control is used for entering and storing adjustments, with the exception of cut-off adjustments which must always be done prior to service adjustment. Perform adjustments in accordance with screen display. The display on the screen also specifies the CCU variants as well as the approx. setting values. The adjustment sequence for the service mode is indicated below.

1. Set the Bass to maximum position, set the Treble to minimum position, press the F button followed by the volume down button on the customer controls at the front of the TV and at the same time press the Reveal button on the remote control, this will place the TV into the Service Mode.

2. Press the RED / GREEN buttons to step down / up through the functions.

NOTE: This TV also has the option of using a Memory Pack which enables you to copy the preset TV channels and analogue levels into the Memory Pack and then upload them onto another EURO-2 TV set.

3. Press the YELLOW / BLUE buttons to alter the function values.

4. Press the STORE button after each adjustment has been made to store the required values.

5. To exit the Service Mode press the Normalisation button.

Using the Memory Pack

TV to Memory Pack process

1. Plug the memory pack into the lower of the two 21 pin terminals at the back of the TV and switch the TV on. If the TV has only one 21 pin connector then this will be able to accept the memory pack.

2. Go into the Service Mode as explained above. The screen will show:-

Program

External>>TV

3. Press the blue button on the remote control. The screen will show:-

Program

TV>>External

Memory Pack to TV Process

2. Go into the Service Mode as explained above. The screen will show:-

3. Press the STORE button on the TV. The screen will show:-

4. Press the STORE button on the TV. The screen will show:-

5. All the tuning information stored inside the TV will now be transferred to the Memory Pack. This process will take 2-3 minutes to complete and when finished the screen will show:-

4. All the tuning information stored inside the Memory Pack will now be transferred to the TV. This process will take 2-3 minutes to complete and when finished the screen will show:-

5. The tuning information from the Memory Pack has now been copied into the TV

6. To exit the Service Mode press the Normalisation button.

7. The process has now been completed and the Memory Pack can now be removed.

Errors

If an error occurs while using the Memory Pack the TV will detect this and the screen will show:-

If this happens then switch off the TV and repeat the process that was being used. If the errors continue to occur then check the connectors between the TV and the memory pack and check the 9V battery inside the memory pack.

Page 9

SELF CHECK

Self check is used to automatically check the Bus lines and Hexadecimal code of the TV set. To enter the Self Check mode press Function down button, on the Preset Panel, at the same time pressing the Status button, on the Remote Control, and the screen will show:-

Adjustment Procedure

Item/Preparation Adjustments

+B SET-UP

1. Operate the TV set

2. Set the controls: Brightness minimum Contrast minimum

RF AGC

1. Receive a test pattern.

2. Connect an oscilloscope between the tuner RF AGC and ground.

3. Set the oscilloscope gain range to 1V/div.

CUT OFF

1. Receive a black and white signal.

2. Degauss the tube externally.

3. Set the TV into Service Mode .

4. Select Ug2 Test.

1. Set the +B voltage up as follows: Adjust P633 so that U147 shows 147V +/- 0.5V

2. Confirm the following voltages.

U5 5 +1/-0.25V U28 28 +/- 1.0V U8 8 +/- 0.5V U40 38.5+1.5/-1.0V U12 12 +/- 0.5V U210 209 +/- 10V U16 16.0 +/- 0.5/-1V U5SB 5.0 +/- 0.25V U25 24.8 +/- 1.0V UM 8 +/- 0.5 KU5 5 +/- 0.25 KU8 8 +/- 0.3 KU12 12 +/- 0.5V KU-12 -12+/- 0.5V KU28 29.5 +/- 2V

1. Check that the noise becomes large when the RF AGC VR P4701 is turned counterclockwise. After the check turn it clockwise.

2. Gradually turn the RF AGC VR anti-clockwise, and set the RF AGC VR to the point where the RF AGC voltage is just falling to a point where this voltage drops by 0.2V from the maximum value.

1. Confirm which colour has the biggest value

2. Turn the screen VR P3368 to minimum.

3. Connect an oscilloscope to the cathode with the biggest value colour.

4. Adjust P3368 to get a low light pulse voltage of 150V +/- 5V (TX-25AD1DP 160V +/- 5V).

5. Adjust P3362 to whichever colour reaches 50 +/- 10 first.

Page 10

Alignment Settings

Alignment Function TX-29AD1DP TX-25AD1DP Settings / Special features

1. Vertical amplitude V-AMP 154

2. Vertical symmetry V-SYM 018

3. Vertical linearity V-LIN 015

4. Vert. D.C. Vert. D.C. 000

5. V-Pos. V. Pos 015

6. Horizontal amplitude H-AMP 055

7. Horizontal position H-POS 002

8. Text Position TEXT POSITON 048

9. EW-amplitude E-W AMP1 106

10. EW-amplitude E-W AMP2 037

11. Trapezium-comp TRAPEZ-1 144

12. Trapezium- comp TRAPEZ-2 034

13. Colour VCO Colour VCO 034

14. Cut-off DC Cut-off DC 028

15. Ug2 Test

Ug 2 Test

040 007 010

16. Cutoff Cutoff

052 061 040

17. White White

205 218 255

V-AMP

150

V-SYM

024

V-LIN

021

Vert.D.C.

000

V. Pos

015

H-AMP

067

H-POS

002

TEXT POSITION

048

E-W AMP1

048

E-W AMP2

044

TRAPEZ-1

060

TRAPEZ

056

Colour VCO

034

Cut-off DC

028

Ug 2 Test

040 007 010

Cutoff

052 061 040

White

205 218 255

Optimum setting

Not to be adjusted

Optimum setting

Pree either Blue or Yellow buttons to effect automatic adjustment

Not to be adjusted.

To adjust the screen settings. Turn P3362 until a colour reaches 25"5, place an oscilloscope probe on the cathode with the highest output and adjust P3368 so the oscilloscope trace reads 150V 0-peak (160V 0-peak TX 25AD1DP), then turn P3362 up so the highest numbered box on the TV screen reads 050 " 010.

Press the GREEN button to step through the settings. Adjust for optimum.

Page 11

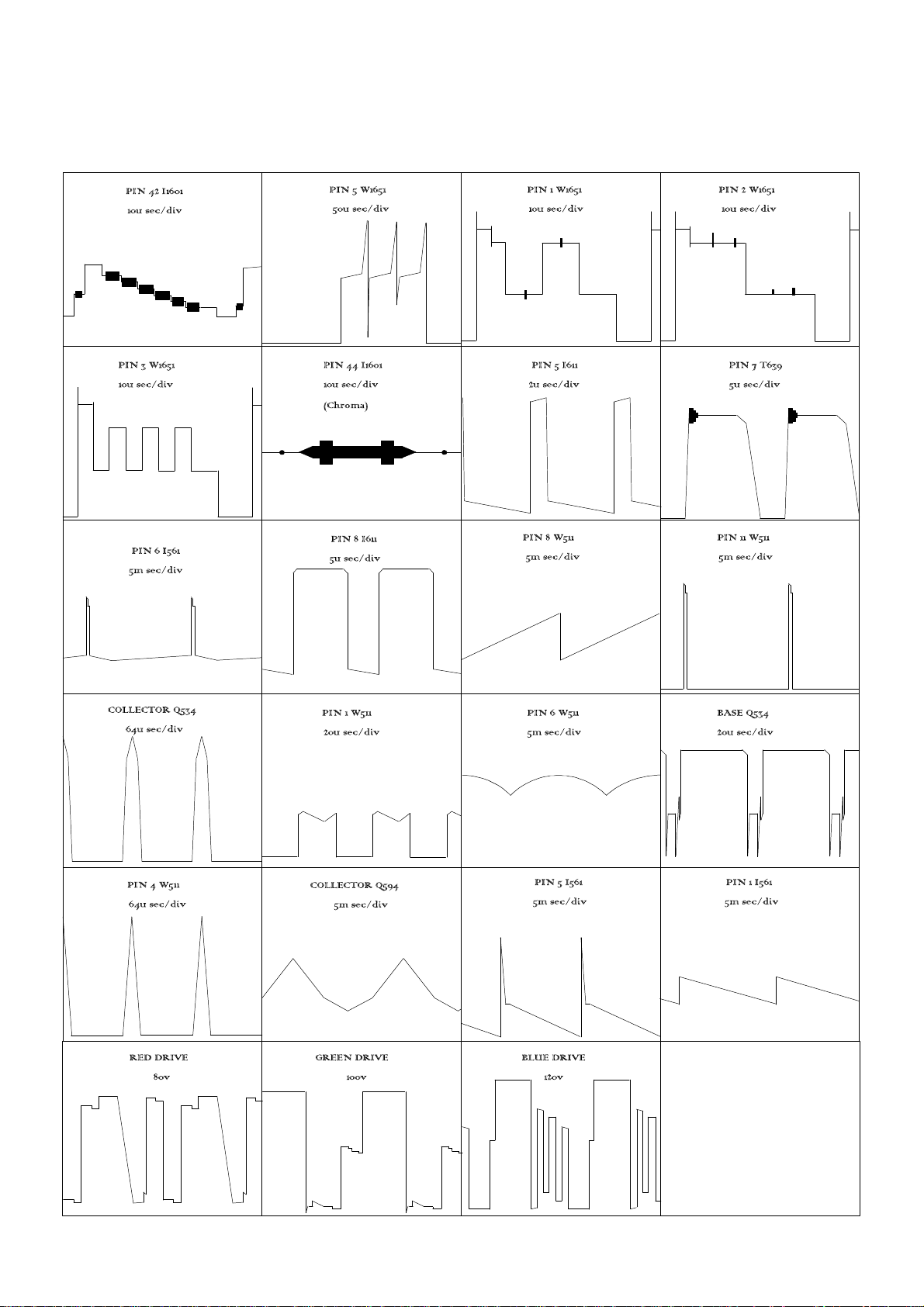

WAVEFORM PATTERN TABLE

Page 12

PCB

POWER SUPPLY AND CONTROL BLOCK DIAGRAM

I2651

COMB FILTER

CONTROL

I2601

COMB FILTER

I561

VERTICAL OUTPUT

I466

AUDIO OUTPUT

27V

D557

200V

FBT

D547

I4071

12V REG

I1871

EPROM

PROGRAMME

MEMORY

SOUND PROCESSOR

IF PROCESSOR

I1301

I4700

MICROPROCESSOR

CONTROL

I1801

I1351

8V REG

I1601

VIDEO PROCESSOR

I661

12V REG

12V

I1941

EEPROM

MEMORY

TUNER

I646

9V REG

HEADPHONE

AMP

I1011

SWITCHING

Q526

DRIVER

150V

PSU

CONTROL

T6101

I611

Q543 LINE

OUTPUT

2 4 V

15V

D6101

20V

Q674

I1601

5V REG

5VSB

CLOCK 4 DATA CLOCK 1

12V

5VSB

9V 15V 5V

15V

I1751

TEXT

MEMORY

I1981

RESET

I1701

TELETEXT

I1111

SWITCHING

Page 13

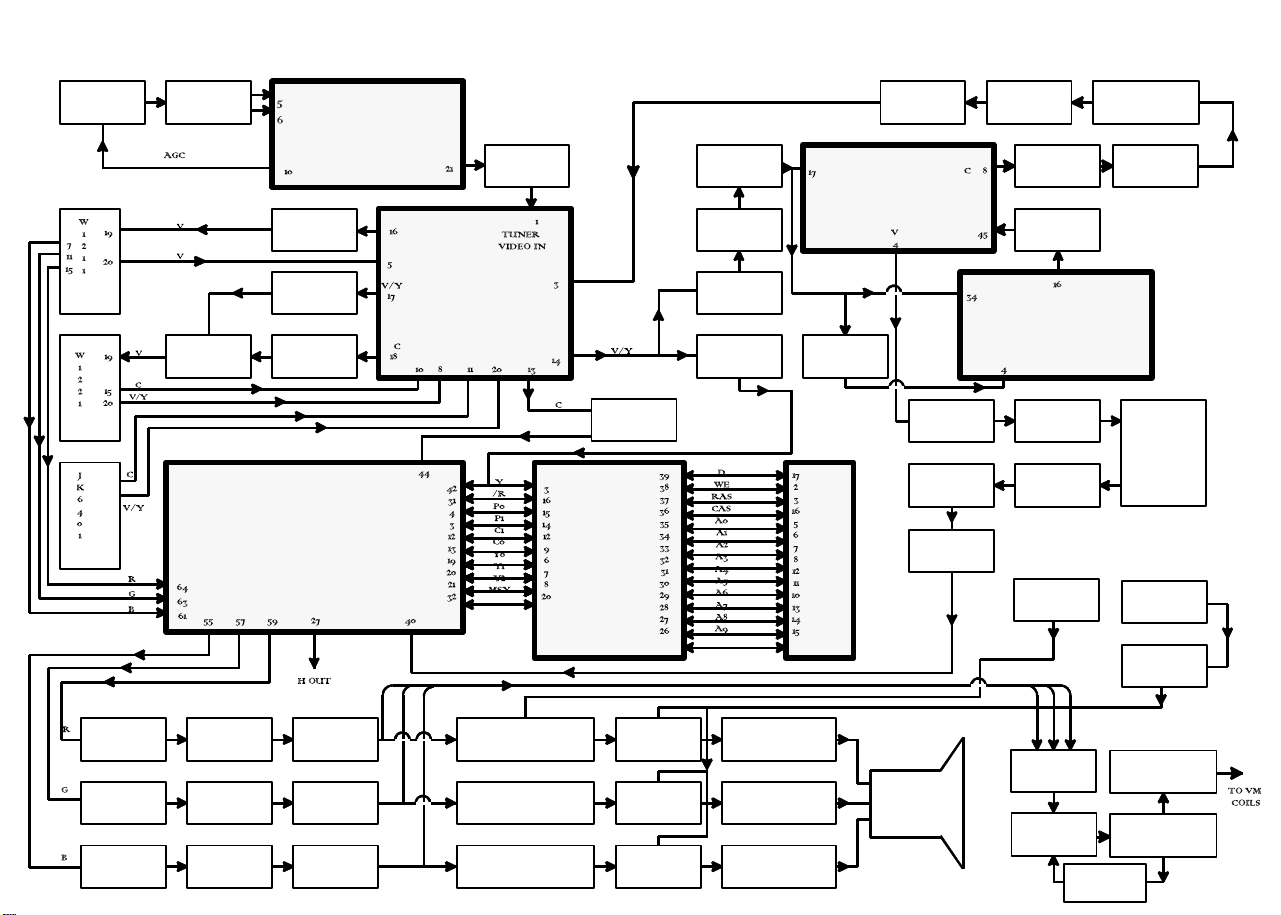

VIDEO BLOCK DIAGRAM

AV1

AV2

AV3

TUNER

X4704

FILTER

Q1172

MIXER

VIDEO DEMODULATOR

Q1123

BUFFER

Q1167

BUFFER

Q1163

BUFFER

I1601

VIDEO PROCESSOR

I4700

I1111

AV SWITCH

Q4701

BUFFER

Q1182

BUFFER

I1701

TELETEXT

Q2613

BUFFER

Q2614

AMP

Q1267

BUFFER

Q1192

BUFFER

Q2651

BUFFER

I 1 7 5

1 M E M O R Y

Q2602

BUFFER

I2601

COMB FILTER

Q2611

BUFFER

FILTER

Q2601

BUFFER

Q2604

BUFFER

SPOT SU

Q2612

BUFFER

Q2653

BUFFER

I2651

Q2609

BUFFER

Q2603

DRIVER

Q3368

PRESS

Q2608 Q2606

AMP

Q2610

BUFFER

Q2607 Q2605

AMP

Q3359

CUTOFF

Q3368

SPOT SU

PRESS

Q1651

AMP

Q1641

AMP

Q1631

AMP

Q1653

BUFFER

Q1643

BUFFER

Q1633

BUFFER

Q1656

AMP

Q1646

AMP

Q1636

AMP

Q3162 Q3164 Q3166

Q3169 Q3391

Q3172 Q3174 Q3176

Q3179 Q3381

Q3182 Q3184 Q3186

Q3189 Q3371

Q3393 DRIVE

Q3383

DRIVE

Q3373

DRIVE

Q3394 Q3397

OUTPUT AMP

Q3384 Q3387

OUTPUT AMP

Q3374 Q3377

OUTPUT AMP

RESISTOR

MATRIX

Q3109 Q3108 Q3111 Q3122

Q3143

AMP

Q3131 Q3136

OUTPUT AMP

Q3126 Q3127

DRIVER

Page 14

AUDIO BLOCK DIAGRAM

TUNER

AV2

X4704

FILTER

Q1091

MUTE

AV SWITCHING

I1011

Q4704

BUFFER

Q1071 MUTE

Q4704

AMP

Q1466

BUFFER

SIF FILTER

Q4702

AMP

I1301

AUDIO

MIXER

DEMODULATOR

VOLUME

BASS

TREBLE

CONTROL

Q1476

BUFFER

I4700

Q4703

BUFFER

Q1486

BUFFER

Q1496

BUFFER

Q6403 MUTE

Q6433 MUTE

AUDIO OUTPUT

Q498

MUTE

Q497

MUTE

I466

AMP

Q496

MUTE

AV1

AV3

Q6413 Q6417

AMP

Q6443 Q6447

AMP

Q1382 MUTE

Q463

MUTE

Q494

MUTE

Q1812

BUFFER

Page 15

Q7004

Q7005

240

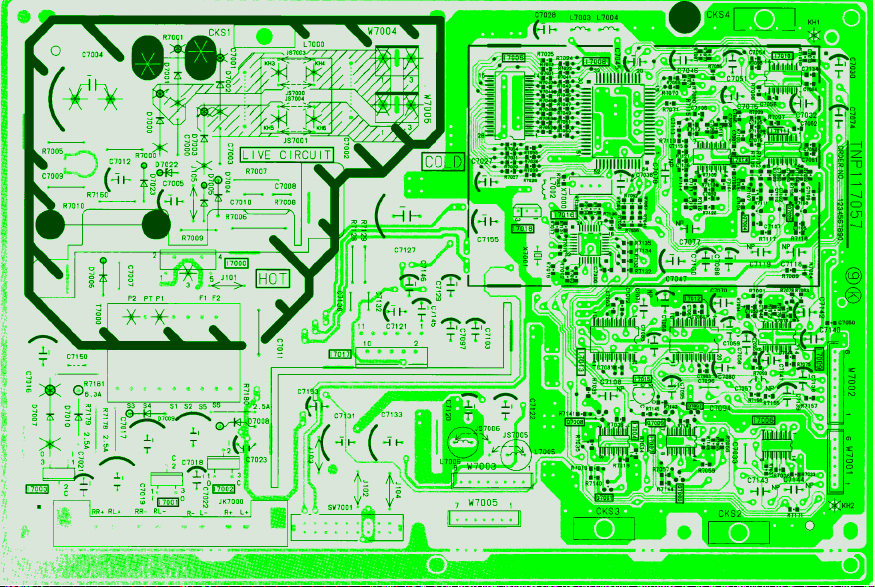

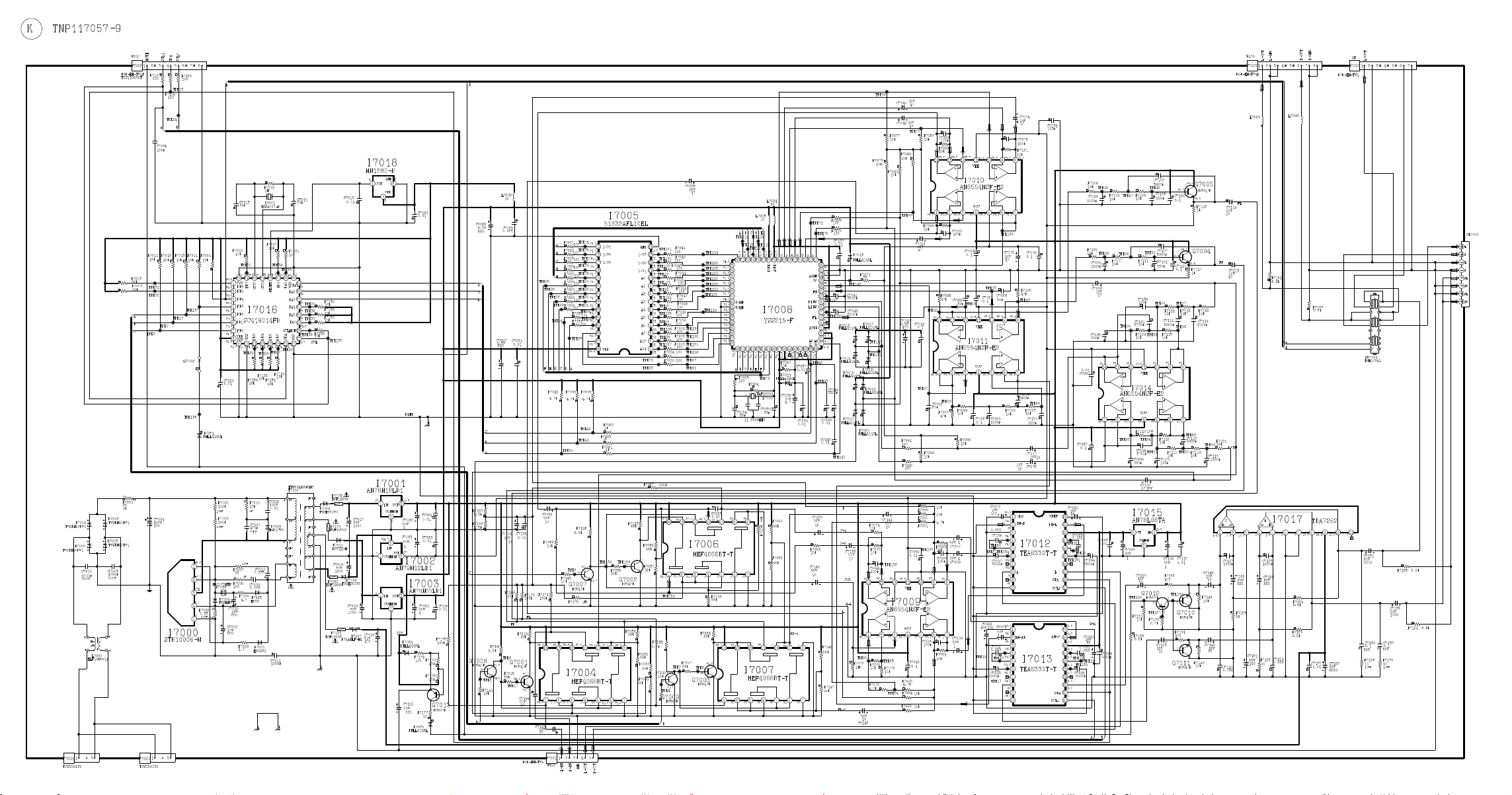

DOLBY BOARD BLOCK

W7004

1 2

W7006

BRIDGE RECT.

T7000

I7000

I7001

1 3

I7003

1 3

12V

SIGNAL LINE

12V LINE

5V LINE

-5V LINE

I7017

Lin

Rin

2 39

I7002

IC7004

-5V

IC7014

IC7008

VOCP VOCM

Linm

VORP

Rinm

VORM

VOLP

VOLM

Lins

Rins

AVSP

IC7010

20 19

IC701

IC7006

IC7009

IC7007

IC7012

Front L

Front R

Centre

IC7013

Surround

Page 16

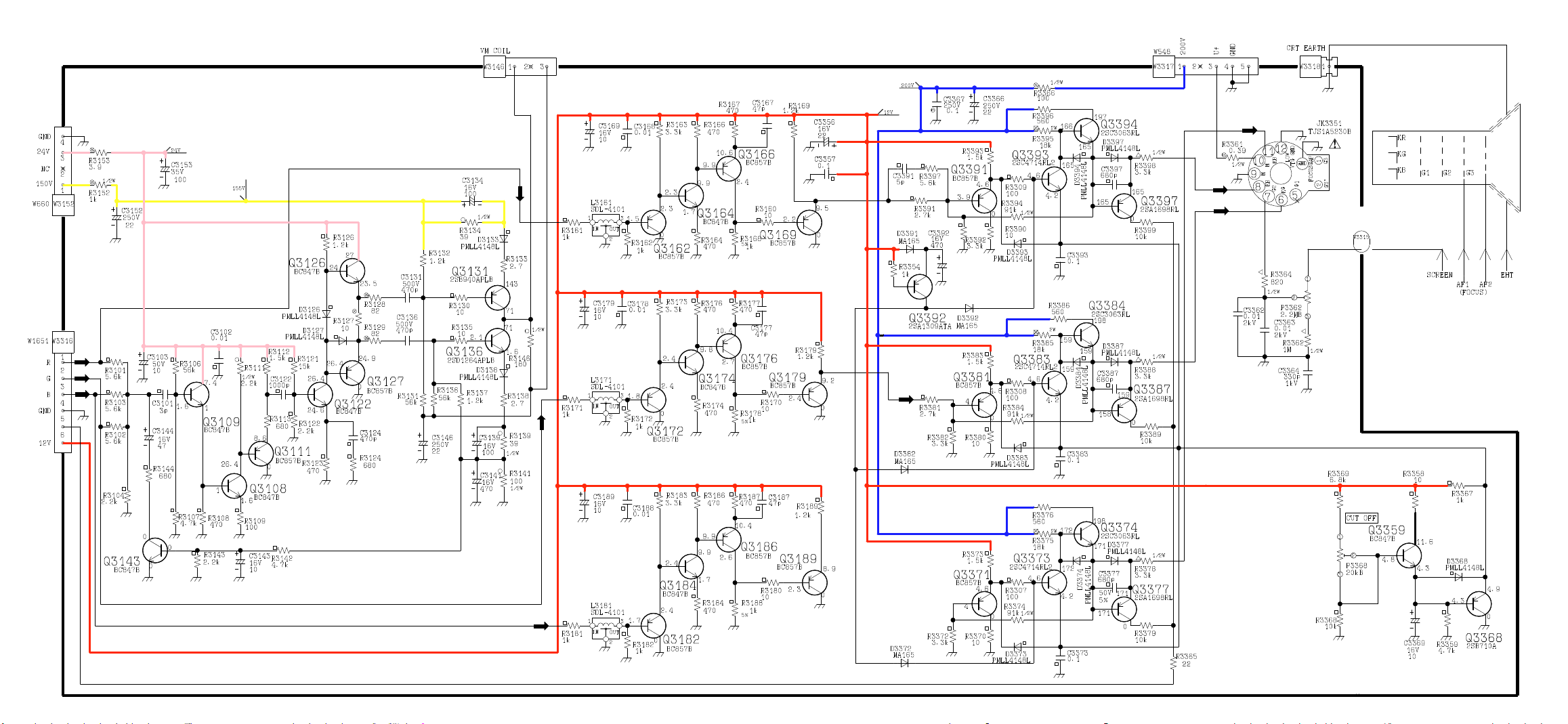

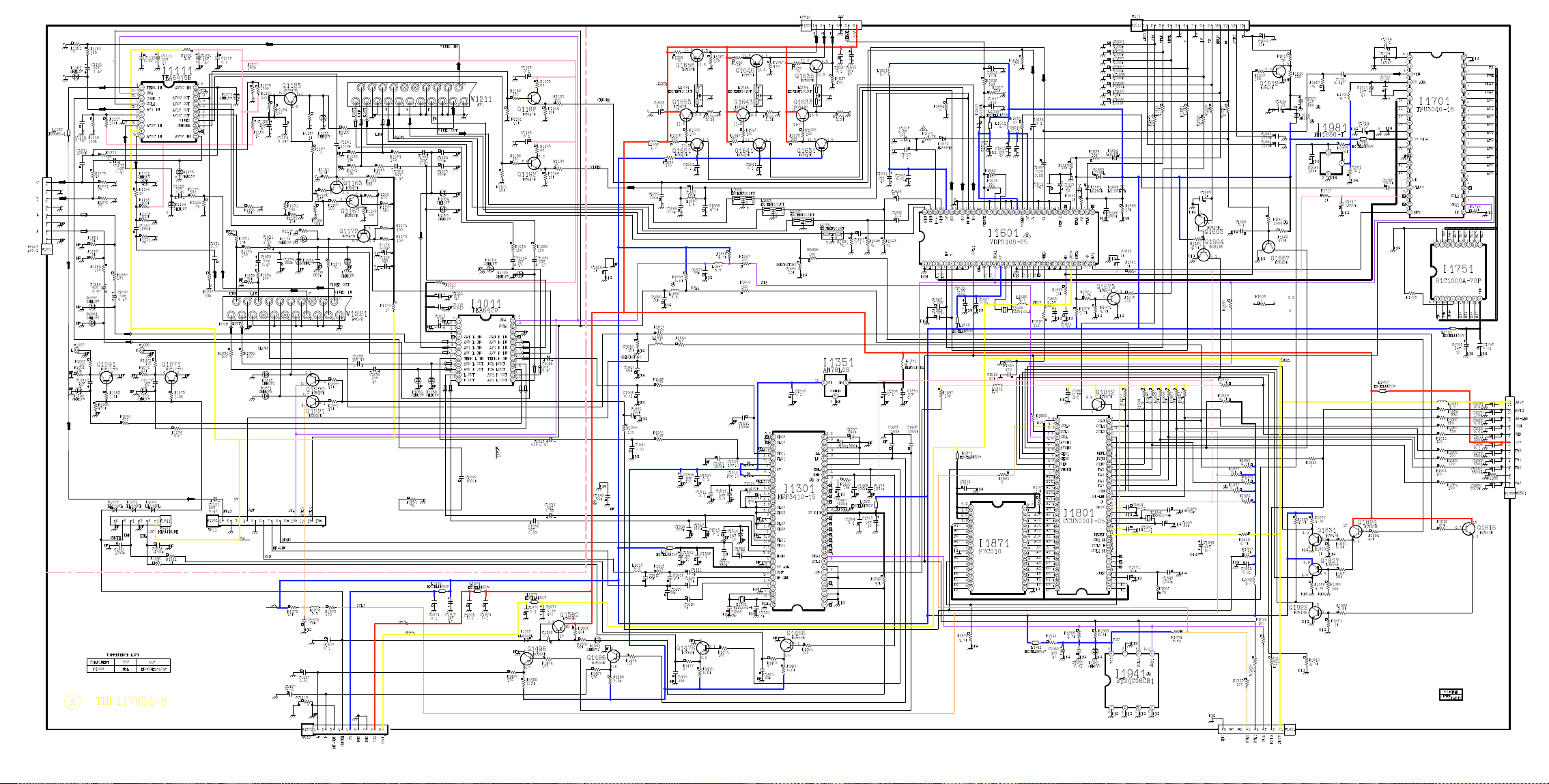

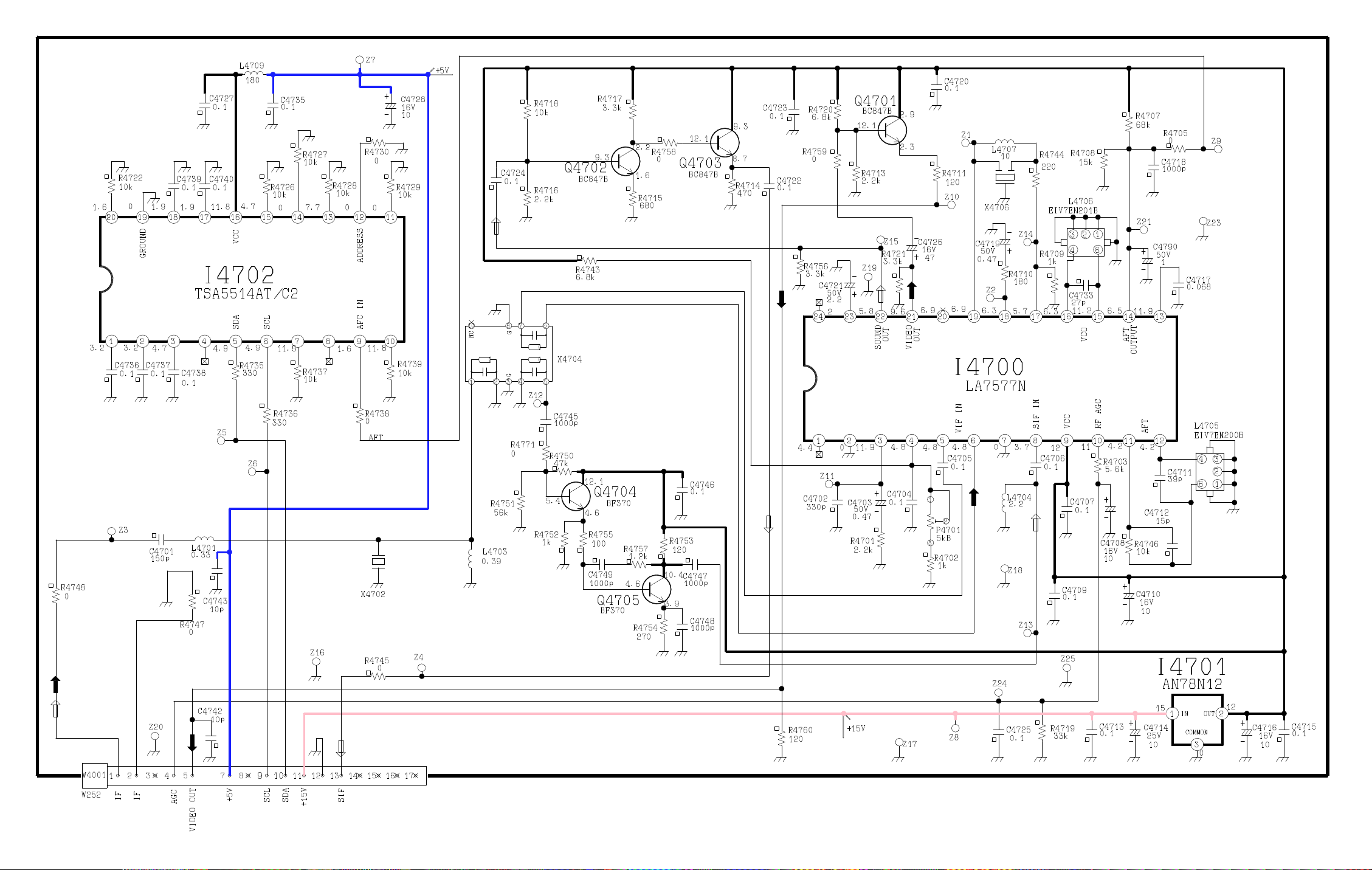

SCHEMATIC DIAGRAM FOR MODELS

TX-29/25AD1DP

(EURO-2S CHASSIS)

Notes

1. RESISTOR All resistors are carbon ¼W resistor, unless marked. Unit of resistance is OHM (W) (K=1,000, M=1,000,000).

2. CAPACITOR All capacitors are ceramic 50V capacitors, unless marked, the unit of capacitance is mF unless otherwise stated.

3. COIL Unit of inductance is mH, unless otherwise stated.

4. TEST POINT

: Test Point position

: Waveform Test Point position

5. EARTH SYMBOL

6. VOLTAGE MEASUREMENT

8. This schematic diagram is the latest at the time of printing and is subject to change without notice.

: Chassis Earth (Cold) : Line Earth (Hot)

Voltage is measured by a DC voltmeter. Measurement conditions are as follows:

Power source AC 220-240V, 50Hz Receiving Signal Colour Bar signal (RF) All customer controls Maximum position

: Indicates the Video signal path : Indicates the Audio signal path : Indicates the Vertical/Horizontal signal path

Precautions

a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard. b. Do not short-circuit the hot and cold circuits as electrical components may be damaged. c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously, as this may cause fuse failure.

Connect the earth of the instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before removing the chassis.

Remarks

1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection. The circuit is defined by HOT and COLD indications in the schematic diagram. All circuits, except the Power Circuit, are COLD.

Page 17

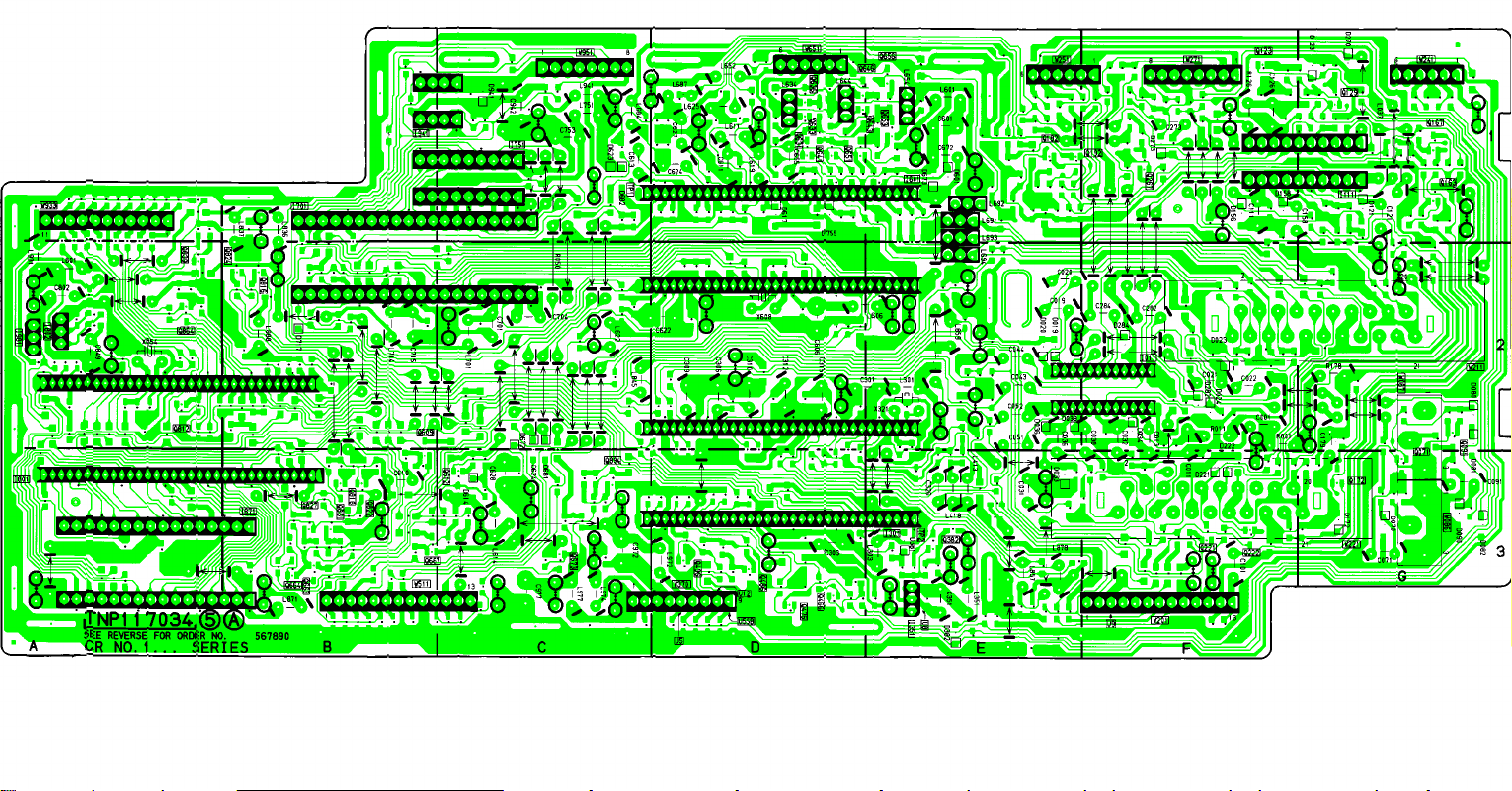

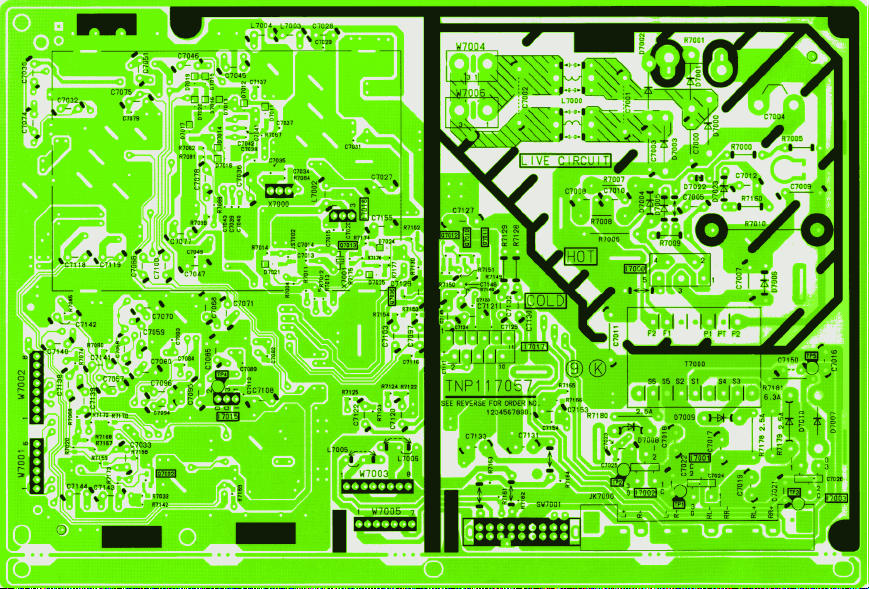

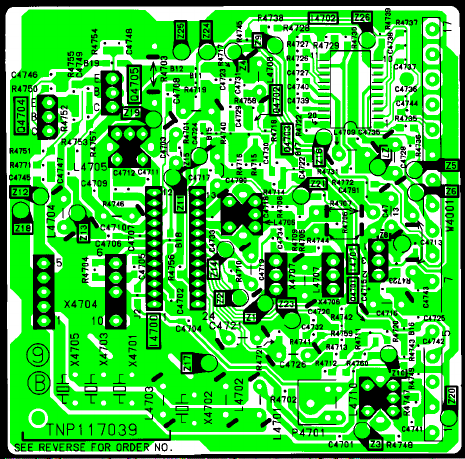

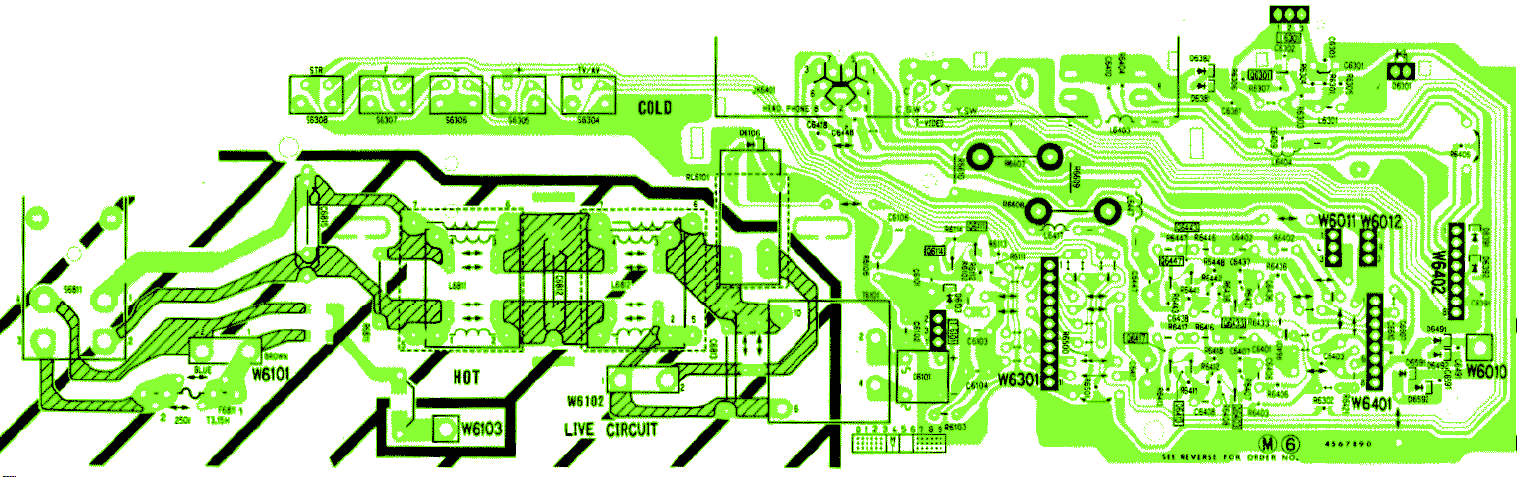

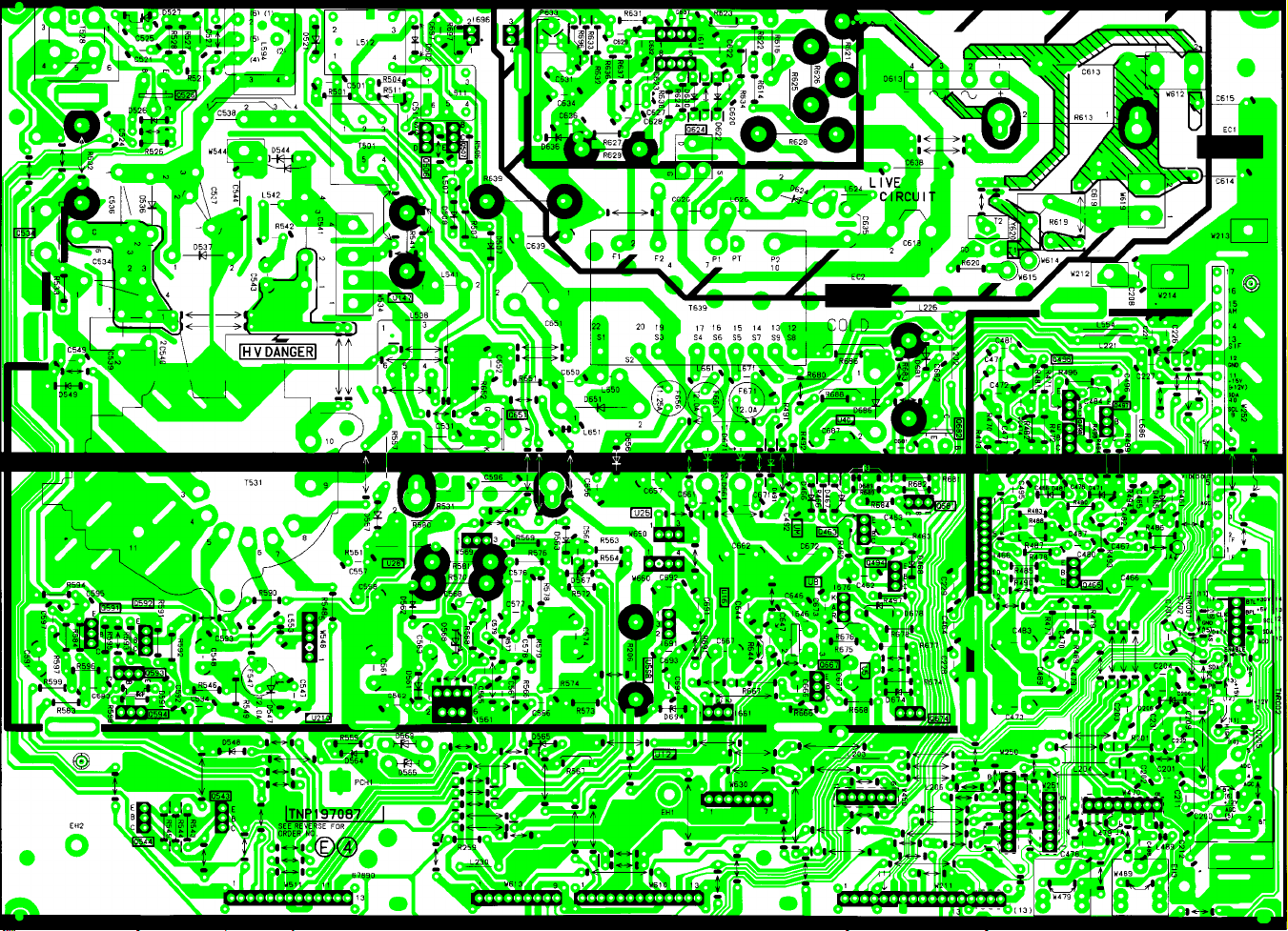

PARTS LOCATION

NOTE :

Page 18

REPLACEMENT PARTS

Important Safety Notice

Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer's specified parts.

PARTS COMMON TO TX - 29AD1DP AND TX - 25AD1DP

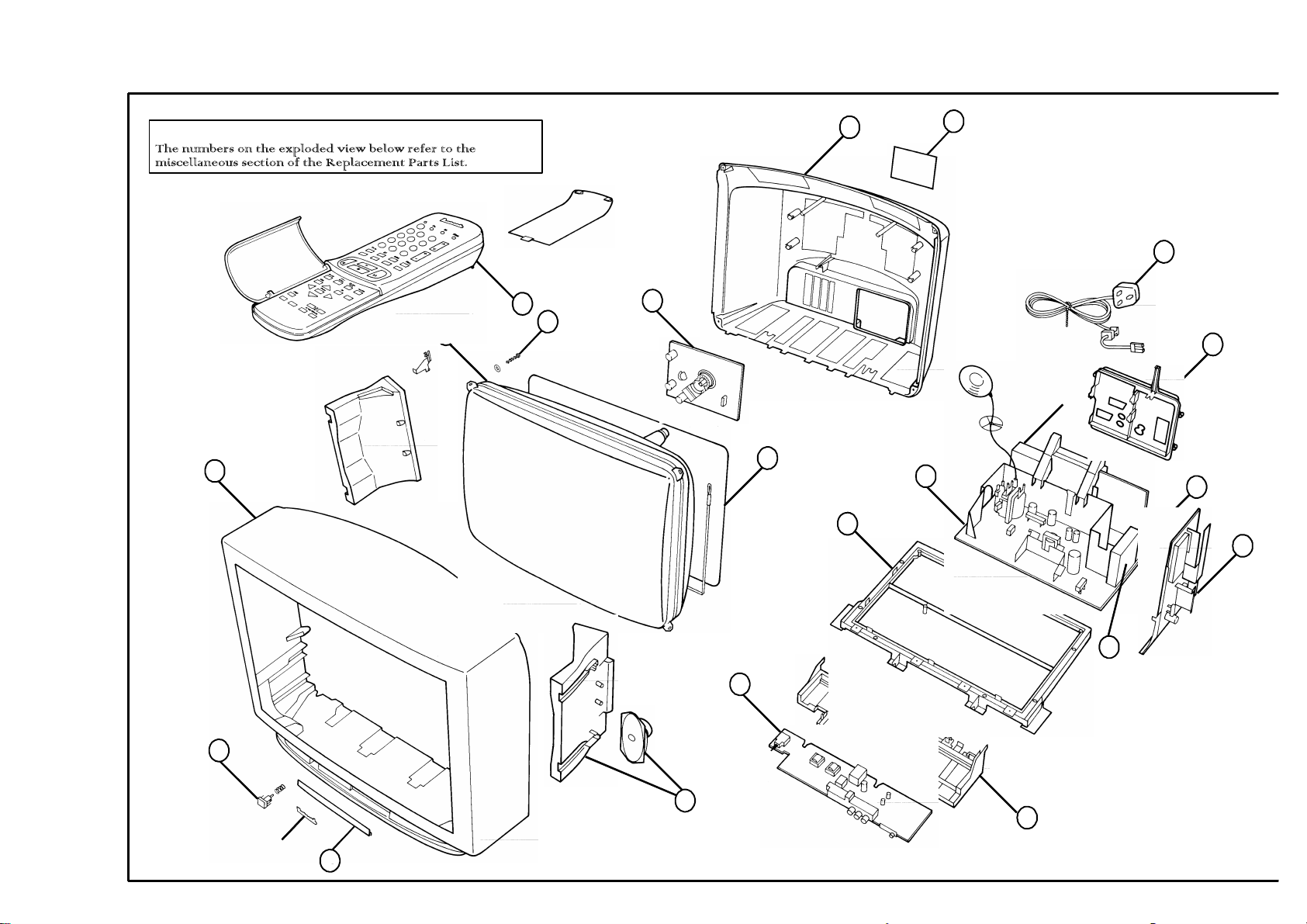

MISCELLANEOUS COMPONENTS

1) EUR51921 REMOTE CONTROL

2) ********** SEE DIFFERENCE LIST

3) ********** SEE DIFFERENCE LIST

4) ********** SEE DIFFERENCE LIST

5) ********** SEE DIFFERENCE LIST

6) ********** SEE DIFFERENCE LIST

7) ********** SEE DIFFERENCE LIST

8) ********** SEE DIFFERENCE LIST

9) ********** SEE DIFFERENCE LIST

10) TNP117038AB M P.C.B.

11) U944E/L TUNER

12) TNP117039AA B P.C.B.

13) ********** SEE DIFFERENCE LIST

14) ********** SEE DIFFERENCE LIST

15) ********** SEE DIFFERENCE LIST

16) ********** SEE DIFFERENCE LIST

17) ********** SEE DIFFERENCE LIST

18) TSX8E0017 POWER CORD

19) ********** SEE DIFFERENCE LIST

20) TBX8E021 POWER BUTTON

21) TBM153022 PANASONIC BADGE

22) TNP117057 K P.C.B.

PK403 TBM8E1359 INDICATION SHEET PK404 TBM8E1360 INDICATION SHEET

CAPACITORS

C202 ECQB1H103J FILM 50V 10nF C203 ECEA1CU221 ELECT 16V 220mF C204 ECQB1H104J FILM 50V 100nF C206 222236516334 FILM 160V 330nF C209 ECQB1H104J FILM 50V 100nF C226 ECQB1H104J FILM 50V 100nF C228 ECKC1H102J CERAMIC 50V 1000pF C462 ECEA1EU101 ELECT 25V 100mF C463 ECEA1EU471 ELECT 25V 470mF C465 ECEA1CU470 ELECT 16V 47mF C466 ECEA1HU222 ELECT 50V 2200mF C467 ECQB1H103J FILM 50V 10nF C470 222236516184 FILM 160V 180nF C471 ECEA1HU010 ELECT 50V 1mF C472 ECEA1CU101 ELECT 16V 100mF C473 ECEA1EGE222 ELECT 25V 2200mF C476 ECEA1HU4R7 ELECT 50V 4.7mF C477 ECEA1HU4R7 ELECT 50V 4.7mF C479 222236576104 FILM 760V 100nF C480 222236516184 FILM 160V 180nF C481 ECEA1HU010 ELECT 50V 1mF C482 ECEA1CU101 ELECT 16V 100mF C483 ECEA1EGE222 ELECT 25V 2200mF C486 ECEA1HU4R7 ELECT 50V 4.7mF C487 ECEA1HU4R7 ELECT 50V 4.7mF C489 222236576104 FILM 760V 100nF C492 ECEA1VU4R7 ELECT 35V 4.7mF C495 ECEA1EU101 ELECT 25V 100mF C496 ECEA1CU100 ELECT 16V 10mF C521 ECEA1HU101 ELECT 50V 100mF C524 222236516105 FILM 160V 1mF C527 ECQM2683JZ FILM 250V 68nF C531 ECQM2564KZ FILM 250V 560nF C536 ECWH12H103J FILM 1250V 10nF C538 ECWF2H514J FILM 500V 510nF C543 ECEA2VU2R2 ELECT 350V 2.2mF C544 ECKC3D152J CERAMIC 2KV 1.5nF C547 ECKC2H101J CERAMIC 500V 100pF C548 ECEA2EU220 ELECT 250V 22mF C549 ECEA2AU2R2 ELECT 100V 2.2mF C557 ECKC2H101J CERAMIC 500V 100pF C558 ECEA1VU102 ELECT 35V 1000mF C561 ECEA1VU222 ELECT 35V 2200mF C562 222236576104 FILM 760V 100nF C563 ECEA1VU471 ELECT 35V 470mF C564 ECQB1H473K FILM 50V 47nF C565 ECKC2H151J CERAMIC 500V 150pF C568 222236516224 FILM 160V 220nF

TBM8E1186 AV BLIND SHEET TBM8E1475 BLIND SHEET THT1009R CRT FIXING SCREW TBX8E022 OPERATE KEY TEK6343 LID DAMPER TEK6940 LID CATCHER TES2249 SPRING FOR POWER BUTTON TES2298 CRT EARTH SPRING TMW8E017 L.E.D. HOLDER TNA10801 VIF PACK TPD8E562 CUSHION TQB8E0910-2 INST BOOK UM-3DEP-2P BATTERY

C574 ECEA1VU332 ELECT 35V 3300mF C577 222236516105 FILM 160V 1mF C579 ECKC1H472J CERAMIC 50V 4.7nF C592 ECEA1CU330 ELECT 16V 33mF C594 ECKC1H103JB CERAMIC 50V 10nF C595 ECQB1H102J FILM 50V 1nF C618 ECOS2GG181NG ELECT 400V 180mF C619 ECQE6104K FILM 600V 100nF C622 ECEA1HFS470 ELECT 50V 47mF C623 222236516224 FILM 160V 220nF C626 ECKC3D471JB CERAMIC 2KV 470pF C628 ECKC1H221J CERAMIC 50V 220pF C629 ECQB1H153K FILM 50V 15nF C631 ECQB1H472J FILM 50V 4.7nF C632 ECQB1H103J FILM 50V 10nF C634 ECEA1HGE010 ELECT 50V 1mF C636 ECKC2H472J CERAMIC 500V 4.7nF C637 ECQB1H222J FILM 50V 2200mF C638 ECQF6333JZH FILM 630V 33nF C639 ECKCWS152MEJ CERAMIC 500V 1500mF C647 222236516334 FILM 160V 330nF C650 ECKC3A471J CERAMIC 1KV 470pF C651 ECOS2EA221AB ELECT 400V 220mF C656 ECKC2H681J CERAMIC 500V 680pF C657 ECEA1HU471 ELECT 50V 470mF C661 ECKC2H821J CERAMIC 500V 820pF C662 ECEA1EU222 ELECT 25V 2200mF C666 222236516224 FILM 160V 220nF C667 ECEA1CU471 ELECT 16V 470mF C671 ECKC2H681J CERAMIC 500V 680pF C672 ECEA1EU222 ELECT 25V 2200mF C677 ECEA1CU471 ELECT 16V 470mF C681 ECEA1EGE101 ELECT 25V 100mF C682 ECKC2H331J CERAMIC 500V 330pF C687 ECEA1HGE102 ELECT 50V 1000mF C1001 ECEA1CU470 ELECT 16V 47mF C1002 ECUV1H104ZFX S.M. CAP 50V 100nF C1011 ECEA1CU470 ELECT 16V 47mF C1012 ECUV1H473ZFX S.M. CAP 50V 47nF C1013 ECEA1CU470 ELECT 16V 47mF C1019 ECEA1CU470 ELECT 16V 47mF C1020 ECEA1CU470 ELECT 16V 47mF C1021 ECEA1HUR47 ELECT 50V 0.47mF C1022 ECEA1HUR47 ELECT 50V 0.47mF C1023 ECUV1H221JCX S.M. CAP 50V 220pF C1024 ECUV1H221JCX S.M. CAP 50V 220pF C1031 ECEA1HNR47 ELECT 50V 0.47mF C1032 ECEA1HUR47 ELECT 50V 0.47mF C1033 ECUV1H221JCX S.M. CAP 50V 220pF C1034 ECUV1H221JCX S.M. CAP 50V 220pF C1036 ECEA1CU470 ELECT 16V 47mF C1038 ECEA1CU470 ELECT 16V 47mF C1041 ECUV1H103KBX S.M. CAP 50V 10nF C1042 ECUV1H103KBX S.M. CAP 50V 10nF C1043 ECEA1HUR47 ELECT 50V 0.47mF C1044 ECEA1HUR47 ELECT 50V 0.47mF C1045 ECUV1H560JCX S.M. CAP 50V 56pF C1051 ECEA1HNR33 ELECT 50V 0.33mF C1052 ECEA1HNR33 ELECT 50V 0.33mF C1071 ECEA1CN470 ELECT 16V 47mF C1091 ECEA1CU470 ELECT 16V 47mF C1101 ECEA1HUR47 ELECT 50V 0.47mF C1111 ECEA1HU470 ELECT 50V 47mF C1112 ECUV1H473ZFX S.M. CAP 50V 47nF C1116 ECUV1H473ZFX S.M. CAP 50V 47nF C1121 ECEA1HUR47 ELECT 50V 0.47mF C1124 ECUV1H473ZFX S.M. CAP 50V 47nF C1126 ECEA1CU470 ELECT 16V 47mF C1151 ECUV1H102KBX S.M. CAP 50V 1nF C1158 ECEA1HUR47 ELECT 50V 0.47mF C1161 ECUV1H102KBX S.M. CAP 50V 1nF C1178 ECUV1H473ZFX S.M. CAP 50V 47nF C1179 ECEA1CU470 ELECT 16V 47mF C1183 ECUV1H104ZFX S.M. CAP 50V 100nF C1193 ECUV1H104ZFX S.M. CAP 50V 100nF C1226 ECUV1H560JCX S.M. CAP 50V 56pF C1231 ECUV1H104ZFX S.M. CAP 50V 100nF C1241 ECUV1H472KBX S.M. CAP 50V 4.7nF C1242 ECUV1H472KBX S.M. CAP 50V 4.7nF C1263 ECUV1H102KBX S.M. CAP 50V 1nF C1271 ECUV1H102KBX S.M. CAP 50V 1nF C1273 ECEA1HUR47 ELECT 50V 0.47mF C1282 ECEA1HUR47 ELECT 50V 0.47mF C1284 ECEA1HUR47 ELECT 50V 0.47mF C1301 ECEA1CU100 ELECT 16V 10mF C1302 ECUV1H104ZFX S.M. CAP 50V 100nF C1303 ECEA1CU100 ELECT 16V 10mF C1304 ECUV1H104ZFX S.M. CAP 50V 100nF C1306 ECEA1CU101 ELECT 16V 100mF

Page 19

C1307 ECUV1H104ZFX S.M. CAP 50V 100nF C1309 ECEA1CU100 ELECT 16V 10mF C1310 ECEA1CU100 ELECT 16V 10mF C1311 ECUV1H104ZFX S.M. CAP 50V 100nF C1312 ECEA50Y3R3 ELECT 50V 3.3mF C1313 ECUV1H471JCX S.M. CAP 50V 470pF C1314 ECUV1H471JCX S.M. CAP 50V 470pF C1315 ECEA1CU100 ELECT 16V 10mF C1316 ECUV1H104ZFX S.M. CAP 50V 100nF C1321 ECUV1H030CCX S.M. CAP 50V 30pF C1322 ECUV1H030CCX S.M. CAP 50V 30pF C1326 ECQM1H334J FILM 50V 330nF C1327 ECUV1H221JCX S.M. CAP 50V 220pF C1331 ECUV1H391JCX S.M. CAP 50V 390pF C1332 ECUV1H391JCX S.M. CAP 50V 390pF C1346 ECUV1H221JCX S.M. CAP 50V 220pF C1347 ECUV1H221JCX S.M. CAP 50V 220pF C1351 ECEA1CU470 ELECT 16V 47mF C1352 ECUV1H104ZFX S.M. CAP 50V 100nF C1353 ECUV1H104ZFX S.M. CAP 50V 100nF C1377 ECUV1H104ZFX S.M. CAP 50V 100nF C1382 ECUV1H104ZFX S.M. CAP 50V 100nF C1409 ECUV1H470JCX S.M. CAP 50V 47pF C1411 ECUV1H070DCX S.M. CAP 50V 7pF C1412 ECUV1H100DCX S.M. CAP 50V 10pF C1413 ECUV1H220JCX S.M. CAP 50V 22pF C1416 ECUV1H070DCX S.M. CAP 50V 7pF C1417 ECUV1H560JCX S.M. CAP 50V 56pF C1444 ECUV1H102KBX S.M. CAP 50V 1nF C1454 ECUV1H102KBX S.M. CAP 50V 1nF C1463 ECUV1H102KBX S.M. CAP 50V 1nF C1465 ECUV1H560JCX S.M. CAP 50V 56pF C1467 ECUV1H102KBX S.M. CAP 50V 1nF C1468 ECUV1H102KBX S.M. CAP 50V 1nF C1473 ECUV1H102KBX S.M. CAP 50V 1nF C1475 ECUV1H560JCX S.M. CAP 50V 56pF C1483 ECUV1H102KBX S.M. CAP 50V 1nF C1487 ECUV1H103KBX S.M. CAP 50V 10nF C1493 ECUV1H102KBX S.M. CAP 50V 1nF C1497 ECUV1H103KBX S.M. CAP 50V 10nF C1601 ECEA1CU470 ELECT 16V 47mF C1602 ECUV1H103KBX S.M. CAP 50V 10nF C1606 ECEA0JU102 ELECT 6.3V 1000mF C1607 ECUV1H103KBX S.M. CAP 50V 10nF C1611 ECEA1CU470 ELECT 16V 47mF C1612 ECUV1H103KBX S.M. CAP 50V 10nF C1613 ECEA1CU100 ELECT 16V 10mF C1614 ECUV1H473ZFX S.M. CAP 50V 47nF C1615 ECUV1H103KBX S.M. CAP 50V 10nF C1616 ECUV1H101JCX S.M. CAP 50V 100pF C1617 ECUV1H470JCX S.M. CAP 50V 47pF C1618 ECUV1H470JCX S.M. CAP 50V 47pF C1619 ECUV1H103KBX S.M. CAP 50V 10nF C1620 ECUV1H102KBX S.M. CAP 50V 1nF C1621 ECUV1H103KBX S.M. CAP 50V 10nF C1622 ECEA1CU100 ELECT 16V 10mF C1625 ECUV1H101JCX S.M. CAP 50V 100pF C1626 ECUV1H104ZFX S.M. CAP 50V 100nF C1627 ECEA1HNR22 ELECT 50V 0.22mF C1641 ECUV1H104ZFX S.M. CAP 50V 100nF C1651 ECUV1H104ZFX S.M. CAP 50V 100nF C1652 ECUV1H104ZFX S.M. CAP 50V 100nF C1653 ECUV1H104ZFX S.M. CAP 50V 100nF C1655 ECEA1CU470 ELECT 16V 47mF C1661 ECUV1H102KBX S.M. CAP 50V 1nF C1662 ECUV1H683ZFX S.M. CAP 50V 68nF C1663 ECUV1H102KBX S.M. CAP 50V 1nF C1666 ECUV1H102KBX S.M. CAP 50V 1nF C1667 ECUV1H683ZFX S.M. CAP 50V 68nF C1668 ECUV1H104ZFX S.M. CAP 50V 100nF C1672 ECEA1CU100 ELECT 16V 10mF C1673 ECUV1H104ZFX S.M. CAP 50V 100nF C1681 ECUV1H102KBX S.M. CAP 50V 1nF C1682 ECUV1H102KBX S.M. CAP 50V 1nF C1685 ECUV1H102KBX S.M. CAP 50V 1nF C1686 ECUV1H271JCX S.M. CAP 50V 270pF C1687 ECUV1H121JCX S.M. CAP 50V 120pF C1688 ECUV1H471JCX S.M. CAP 50V 470pF C1691 ECUV1H104ZFX S.M. CAP 50V 100nF C1692 ECUV1H104ZFX S.M. CAP 50V 100nF C1693 ECUV1H104ZFX S.M. CAP 50V 100nF C1696 ECUV1H102KBX S.M. CAP 50V 1nF C1697 ECUV1H100DCX S.M. CAP 50V 10pF C1698 ECUV1H102KBX S.M. CAP 50V 1nF C1699 ECUV1H100DCX S.M. CAP 50V 10pF C1701 ECEA1CU470 ELECT 16V 47mF C1702 ECUV1H103KBX S.M. CAP 50V 10nF C1704 ECEA1CU470 ELECT 16V 47mF C1706 ECUV1H104ZFX S.M. CAP 50V 100nF C1714 ECUV1H103KBX S.M. CAP 50V 10nF C1717 ECUV1H102KBX S.M. CAP 50V 1nF C1721 ECUV1H473ZFX S.M. CAP 50V 47nF C1722 ECUV1H102KBX S.M. CAP 50V 1nF C1752 ECUV1H103KBX S.M. CAP 50V 10nF C1753 ECEA1CU100 ELECT 16V 10mF C1801 ECUV1H103KBX S.M. CAP 50V 10nF C1802 ECEA1CU470 ELECT 16V 47mF C1804 ECUV1H103KBX S.M. CAP 50V 10nF C1811 ECUV1H332KBX S.M. CAP 50V 3.3nF C1816 ERJ6GEYJ153 S.M.CARB 0.1W5% 15KW C1826 ERJ6GEYJ153 S.M.CARB 0.1W5% 15KW C1836 ECUV1H104ZFX S.M. CAP 50V 100nF C1838 ECUV1H101JCX S.M. CAP 50V 100pF C1843 ECUV1H472KBX S.M. CAP 50V 4.7nF C1845 ECUV1H560JCX S.M. CAP 50V 56pF

C1849 ECEA1HU4R7 ELECT 50V 4.7mF C1851 ECUV1H470JCX S.M. CAP 50V 47pF C1852 ECUV1H390JCX S.M. CAP 50V 39pF C1853 ECUV1H390JCX S.M. CAP 50V 39pF C1857 ECUV1H560JCX S.M. CAP 50V 56pF C1859 ECUV1H560JCX S.M. CAP 50V 56pF C1871 ECUV1H103KBX S.M. CAP 50V 10nF C1879 ECUV1H560JCX S.M. CAP 50V 56pF C1888 ECUV1H103KBX S.M. CAP 50V 10nF C1891 ECUV1H102KBX S.M. CAP 50V 1nF C1893 ECUV1H102KBX S.M. CAP 50V 1nF C1894 ECUV1H102KBX S.M. CAP 50V 1nF C1922 ECUV1H103KBX S.M. CAP 50V 10nF C1925 ECUV1H103KBX S.M. CAP 50V 10nF C1931 ECUV1H103KBX S.M. CAP 50V 10nF C1941 ECUV1H103KBX S.M. CAP 50V 10nF C1942 ECEA1CU470 ELECT 16V 47mF C1961 ECUV1H332KBX S.M. CAP 50V 3.3nF C1962 ECUV1H332KBX S.M. CAP 50V 3.3nF C1963 ECUV1H332KBX S.M. CAP 50V 3.3nF C1964 ECUV1H332KBX S.M. CAP 50V 3.3nF C1971 ECUV1H104ZFX S.M. CAP 50V 100nF C1972 ECEA1CU470 ELECT 16V 47mF C1973 ECUV1H104ZFX S.M. CAP 50V 100nF C1974 ECUV1H104ZFX S.M. CAP 50V 100nF C1976 ECUV1H104ZFX S.M. CAP 50V 100nF C1977 ECEA1CU470 ELECT 16V 47mF C1981 ECUV1H104ZFX S.M. CAP 50V 100nF C1982 ECUV1H101JCX S.M. CAP 50V 100pF C3101 ECUV1H030CCX S.M. CAP 50V 30pF C3102 ECUV1H103ZFX S.M. CAP 50V 10nF C3103 ECEA1HU100 ELECT 50V 10mF C3122 ECUV1H102KBX S.M. CAP 50V 1nF C3124 ECUV1H471JCX S.M. CAP 50V 470pF C3131 ECKC2H471J CERAMIC 500V 470pF C3134 ECEA1CU101 ELECT 16V 100mF C3136 ECKC2H471J CERAMIC 500V 470pF C3139 ECEA1CU101 ELECT 16V 100mF C3141 ECEA1CU471 ELECT 16V 470mF C3143 ECEA1CU100 ELECT 16V 10mF C3144 ECEA1CU470 ELECT 16V 47mF C3146 ECEA2EU220 ELECT 250V 22mF C3152 ECEA2EU220 ELECT 250V 22mF C3153 ECEA1VU101 ELECT 35V 100mF C3168 ECUV1H103ZFX S.M. CAP 50V 10nF C3169 ECEA1CU100 ELECT 16V 10mF C3177 ECUV1H150JCX S.M. CAP 50V 15pF C3178 ECUV1H103ZFX S.M. CAP 50V 10nF C3179 ECEA1CU100 ELECT 16V 10mF C3187 ECUV1H121JCX S.M. CAP 50V 120pF C3188 ECUV1H103ZFX S.M. CAP 50V 10nF C3189 ECEA1CU100 ELECT 16V 10mF C3356 ECEA1CU220 ELECT 16V 22mF C3357 ECUV1H104ZFX S.M. CAP 50V 100nF C3364 ECKC3A331J CERAMIC 1000V 330pF C3366 ECEA2EU220 ELECT 250V 22mF C3367 ECQM2104KZ FILM 250V 100nF C3369 ECEA1CU100 ELECT 16V 10mF C3373 ECUV1H104ZFX S.M. CAP 50V 100nF C3377 ECUV1H681JCX S.M. CAP 50V 680pF C3383 ECUV1H104ZFX S.M. CAP 50V 100nF C3387 ECUV1H681JCX S.M. CAP 50V 680pF C3392 ECEA1CU471 ELECT 16V 470mF C3393 ECUV1H104ZFX S.M. CAP 50V 100nF C3397 ECUV1H681JCX S.M. CAP 50V 680pF C4701 ECUV1H151JCX S.M. CAP 50V 150pF C4702 ECUV1H331JCX S.M. CAP 50V 330pF C4703 ECEA1HKAR47 ELECT 50V 4.7mF C4704 ECUV1H104ZFX S.M. CAP 50V 100nF C4705 ECUV1H104ZFX S.M. CAP 50V 100nF C4706 ECUV1H104ZFX S.M. CAP 50V 100nF C4707 ECUV1H104ZFX S.M. CAP 50V 100nF C4708 ECEA1CKA100 ELECT 16V 10mF C4709 ECUV1H104ZFX S.M. CAP 50V 100nF C4710 ECEA1CKA100 ELECT 16V 10mF C4711 ECUV1H390JPX S.M. CAP 50V 39pF C4712 ECUV1H150JCX S.M. CAP 50V 15pF C4713 ECUV1H104ZFX S.M. CAP 50V 100nF C4714 ECEA1EKA100 ELECT 25V 10mF C4715 ECUV1H104ZFX S.M. CAP 50V 100nF C4716 ECEA1CKA100 ELECT 16V 10mF C4717 ECUV1H683ZFX S.M. CAP 50V 68nF C4718 ECUV1H102KBX S.M. CAP 50V 1nF C4719 ECEA1HKAR47 ELECT 50V 4.7mF C4720 ECUV1H104ZFX S.M. CAP 50V 100nF C4721 ECEA1HKA2R2 ELECT 50V 2.2mF C4722 ECUV1H104ZFX S.M. CAP 50V 100nF C4723 ECUV1H104ZFX S.M. CAP 50V 100nF C4724 ECUV1H104ZFX S.M. CAP 50V 100nF C4725 ECUV1H104ZFX S.M. CAP 50V 100nF C4726 ECEA1CKA470 ELECT 16V 47mF C4727 ECUV1H104ZFX S.M. CAP 50V 100nF C4728 ECEA1CKA100 ELECT 16V 10mF C4733 ECUV1H270JPX S.M. CAP 50V 27pF C4735 ECUV1H104ZFX S.M. CAP 50V 100nF C4736 ECUV1H104ZFX S.M. CAP 50V 100nF C4737 ECUV1H104ZFX S.M. CAP 50V 100nF C4738 ECUV1H104ZFX S.M. CAP 50V 100nF C4739 ECUV1H104ZFX S.M. CAP 50V 100nF C4740 ECUV1H104ZFX S.M. CAP 50V 100nF C4742 ECUV1H100DCX S.M. CAP 50V 10pF C4743 ECUV1H100DCX S.M. CAP 50V 10pF C4745 ECUV1H102KBX S.M. CAP 50V 1nF C4746 ECUV1H104ZFX S.M. CAP 50V 100nF C4747 ECUV1H102KBX S.M. CAP 50V 1nF

Page 20

C4748 ECUV1H102KBX S.M. CAP 50V 1nF C4749 ECUV1H102KBX S.M. CAP 50V 1nF C4790 ECEA1HKA010 ELECT 50V 1mF C6101 ECEA1HU471 ELECT 50V 470mF C6102 ECQM1H334J FILM 50V 330nF C6103 ECQM1H104J FILM 50V 100nF C6104 ECEA1HU101 ELECT 50V 100mF C6106 ECEA1HU101 ELECT 50V 100mF C6301 ECEA1CU470 ELECT 16V 47mF C6303 ECUV1H103ZFX S.M. CAP 50V 10nF C6401 ECEA1CU101 ELECT 16V 100mF C6402 ECEA1CU101 ELECT 16V 100mF C6403 ECUV1H103ZFX S.M. CAP 50V 10nF C6406 ECEA1HU4R7 ELECT 50V 4.7mF C6407 ECUV1H102KBX S.M. CAP 50V 1nF C6408 ECEA1HU4R7 ELECT 50V 4.7mF C6409 ECUV1H561JCX S.M. CAP 50V 560pF C6410 ECUV1H561JCX S.M. CAP 50V 560pF C6417 ECEA1CU471 ELECT 16V 470mF C6418 ECUV1H103ZFX S.M. CAP 50V 10nF C6436 ECEA1HU4R7 ELECT 50V 4.7mF C6437 ECUV1H102KBX S.M. CAP 50V 1nF C6438 ECEA1HU4R7 ELECT 50V 4.7mF C6447 ECEA1CU471 ELECT 16V 470mF C6448 ECUV1H103ZFX S.M. CAP 50V 10nF C6491 ECUV1H271JCX S.M. CAP 50V 270pF C6591 ECUV1H271JCX S.M. CAP 50V 270pF C6811 ECKCNS332J CERAMIC 1.2KV 3.3nF C6812 ECQU2A154MN FILM 250V 150nF C6815 ECQU2A224MN FILM 250V 220nF C7000 ECKC2H472J CERAMIC 500V 4.7nF C7003 ECKC2H472J CERAMIC 500V 4.7nF C7004 ECOS2GA101BB ELECT 400V 100mF C7005 ECEA1CU221 ELECT 16V 220mF C7006 ECUV1H103ZFX S.M. CAP 50V 10nF C7007 ECKC3D471JB CERAMIC 2KV 470pF C7008 ECQM1H683J FILM 50V 68nF C7009 ECKC2H103J CERAMIC 50V 10nF C7010 ECQM1H333J FILM 50V 33nF C7011 ECKCWS471J CERAMIC 50V 470mF C7012 ECEA1CU221 ELECT 16V 220mF C7013 ECUV1H330JCX S.M. CAP 50V 33pF C7014 ECUV1H330JCX S.M. CAP 50V 33pF C7015 ECUV1H103ZFX S.M. CAP 50V 10nF C7016 ECEA1VU471 ELECT 35V 470mF C7017 ECEA1EU102 ELECT 25V 1000mF C7018 ECEA1EU102 ELECT 25V 1000mF C7019 ECEA1EU102 ELECT 25V 1000mF C7020 ECUV1H103ZFX S.M. CAP 50V 10nF C7021 ECEA1HU010 ELECT 50V 1mF C7022 ECEA1HU010 ELECT 50V 1mF C7023 ECEA1HU010 ELECT 50V 1mF C7024 ECUV1H103ZFX S.M. CAP 50V 10nF C7025 ECUV1H103ZFX S.M. CAP 50V 10nF C7026 ECUV1H103ZFX S.M. CAP 50V 10nF C7027 ECEA0JU221 ELECT 6.3V 220mF C7028 ECEA0JU221 ELECT 6.3V 220mF C7029 ECUV1H223KBX S.M. CAP 50V 22nF C7030 ECEA1HU100 ELECT 50V 10mF C7031 ECUV1H103ZFX S.M. CAP 50V 10nF C7032 ECEA1CU470 ELECT 16V 47mF C7033 ECQM1H154J FILM 50V 150nF C7034 ECUV1H330JCX S.M. CAP 50V 33pF C7035 ECUV1H330JCX S.M. CAP 50V 33pF C7036 ECEA1HU4R7 ELECT 50V 4.7mF C7037 ECUV1H103ZFX S.M. CAP 50V 10nF C7038 ECUV1H103ZFX S.M. CAP 50V 10nF C7039 ECUV1H103ZFX S.M. CAP 50V 10nF C7040 ECUV1H332KBX S.M. CAP 50V 3.3nF C7041 ECUV1H332KBX S.M. CAP 50V 3.3nF C7042 ECUV1H332KBX S.M. CAP 50V 3.3nF C7043 ECUV1H103ZFX S.M. CAP 50V 10nF C7044 ECUV1H101JCX S.M. CAP 50V 100pF C7045 ECEA1CU470 ELECT 16V 47mF C7046 ECEA1CU470 ELECT 16V 47mF C7047 ECEA0JU471 ELECT 6.3V 470mF C7048 ECUV1H104ZFX S.M. CAP 50V 100nF C7049 ECUV1H104ZFX S.M. CAP 50V 100nF C7050 ECUV1H103ZFX S.M. CAP 50V 10nF C7051 ECEA1CU470 ELECT 16V 47mF C7052 ECUV1H300JCX S.M. CAP 50V 30pF C7053 ECUV1H101JCX S.M. CAP 50V 100pF C7054 ECUV1H101JCX S.M. CAP 50V 100pF C7055 ECUV1H101JCX S.M. CAP 50V 100pF C7056 ECUV1H101JCX S.M. CAP 50V 100pF C7057 ECEA1HN010 ELECT 50V 1mF C7058 ECEA1HU010 ELECT 50V 1mF C7059 ECEA1HU010 ELECT 50V 1mF C7060 ECUV1H300JCX S.M. CAP 50V 30mF C7061 ECUV1H104ZFX S.M. CAP 50V 100nF C7062 ECUV1H104ZFX S.M. CAP 50V 100nF C7063 ECUV1H562KBX S.M. CAP 50V 5.6pF C7064 ECUV1H104ZFX S.M. CAP 50V 100nF C7065 ECUV1H152KBX S.M. CAP 50V 1.5pF C7066 ECUV1H333KBX S.M. CAP 50V 33pF C7067 ECUV1H562KBX S.M. CAP 50V 5.6pF C7068 ECEA1CU101 ELECT 16V 100mF C7069 ECUV1H300JCX S.M. CAP 50V 30mF C7070 ECEA1CU101 ELECT 16V 100mF C7071 ECEA1HN010 ELECT 50V 1mF C7072 ECUV1H333KBX S.M. CAP 50V 33pF C7073 ECUV1H101JCX S.M. CAP 50V 100pF C7074 ECEA1CU470 ELECT 16V 47mF C7075 ECEA1CU470 ELECT 16V 47mF C7076 ECUV1H392KBX S.M. CAP 50V 3.9nF

C7077 ECEA1CN100 ELECT 16V 10mF C7078 ECEA1CN100 ELECT 16V 10mF C7079 ECUV1H104ZFX S.M. CAP 50V 100nF C7080 ECEA1CU220 ELECT 16V 22mF C7081 ECUV1H333KBX S.M. CAP 50V 33pF C7082 ECUV1H562KBX S.M. CAP 50V 5.6pF C7083 ECUV1H333KBX S.M. CAP 50V 33pF C7084 ECUV1H562KBX S.M. CAP 50V 5.6pF C7085 ECEA1CU220 ELECT 16V 22mF C7086 ECUV1H103ZFX S.M. CAP 50V 10nF C7087 ECUV1H104ZFX S.M. CAP 50V 100nF C7088 ECEA1CU470 ELECT 16V 47mF C7089 ECUV1H562KBX S.M. CAP 50V 5.6pF C7090 ECUV1H152KBX S.M. CAP 50V 1.5pF C7091 ECUV1H152KBX S.M. CAP 50V 1.5pF C7092 ECUV1H561KBX S.M. CAP 50V 560pF C7093 ECUV1H103ZFX S.M. CAP 50V 10nF C7094 ECKC1H101J CERAMIC 50V 100pF C7095 ECEA1HU010 ELECT 50V 1mF C7097 ECEA1CU100 ELECT 16V 10mF C7098 ECUV1H561JCX S.M. CAP 50V 560pF C7099 ECUV1H272KBX S.M. CAP 50V 2.7nF C7100 ECEA1CU470 ELECT 16V 47mF C7101 ECUV1H272JCX S.M. CAP 50V 2.7nF C7102 ECUV1H221JCX S.M. CAP 50V 220pF C7103 ECEA1CU100 ELECT 16V 10mF C7104 ECUV1H221JCX S.M. CAP 50V 220pF C7105 ECUV1H392KBX S.M. CAP 50V 3.9nF C7106 ECUV1H101JCX S.M. CAP 50V 100pF C7107 ECUV1H392KBX S.M. CAP 50V 3.9nF C7108 ECEA1HN010 ELECT 50V 1mF C7109 ECUV1H104ZFX S.M. CAP 50V 100nF C7110 ECUV1H104ZFX S.M. CAP 50V 100nF C7111 ECUV1H392KBX S.M. CAP 50V 3.9nF C7112 ECUV1H103ZFX S.M. CAP 50V 10nF C7113 ECUV1H392KBX S.M. CAP 50V 3.9nF C7114 ECUV1H152JCX S.M. CAP 50V 1.5pF C7115 ECUV1H152JCX S.M. CAP 50V 1.5pF C7116 ECUV1H103KBX S.M. CAP 50V 10nF C7117 ECUV1H102JCX S.M. CAP 50V 1nF C7118 ECEA1CN100 ELECT 16V 10mF C7119 ECEA1CN100 ELECT 16V 10mF C7120 ECEA1EU221 ELECT 25V 220mF C7121 ECEA1EU101 ELECT 25V 100mF C7122 ECEA1EU221 ELECT 25V 220mF C7123 ECUV1H102KBX S.M. CAP 50V 1nF C7124 ECUV1H103KBX S.M. CAP 50V 10nF C7125 ECUV1H103ZFX S.M. CAP 50V 10nF C7127 ECEA1VU222 ELECT 35V 2200mF C7130 ECQM1H104J FILM 50V 100nF C7131 ECEA1EU102 ELECT 25V 1000mF C7132 ECQM1H104J FILM 50V 100nF C7133 ECEA1EU102 ELECT 25V 1000mF C7134 ECUV1H101JCX S.M. CAP 50V 100pF C7135 ECUV1H221JCX S.M. CAP 50V 220pF C7136 ECUV1H101JCX S.M. CAP 50V 100pF C7137 ECUV1H103ZFX S.M. CAP 50V 10nF C7138 ECEA1HU100 ELECT 50V 10mF C7139 ECEA1HU100 ELECT 50V 10mF C7140 ECEA1HU100 ELECT 50V 10mF C7141 ECEA1HU100 ELECT 50V 10mF C7142 ECEA1HU100 ELECT 50V 10mF C7143 ECEA1CN100 ELECT 16V 10mF C7144 ECEA1CN100 ELECT 16V 10mF C7145 ECEA1CU100 ELECT 16V 10mF C7146 ECEA1CU100 ELECT 16V 10mF C7153 ECEA1CU100 ELECT 16V 10mF C7154 ECUV1H103ZFX S.M. CAP 50V 10nF C7155 ECEA1EU221 ELECT 25V 220mF

DIODES

D206 MA4300 DIODE D465 MA165TA5 DIODE D466 MA165TA5 DIODE D467 MA165TA5 DIODE D468 MA165TA5 DIODE D471 MA700TA5 DIODE D481 MA700TA5 DIODE D491 MA167TA5 DIODE D526 MA165TA5 DIODE D527 EU02 DIODE D536 ERB0615 DIODE TYPD0753VAG D537 TVSRU2AM DIODE D544 TVSES1FV1 DIODE D547 AU02V0 DIODE D548 MA165TA5 DIODE D549 MA167TA5 DIODE D557 EU02 DIODE D561 ERA15-02V3 DIODE D562 MA165TA5 DIODE D563 MA165TA5 DIODE D566 MA2082ALFS DIODE D567 MA4062 DIODE D569 MA2082ALFS DIODE D613 RBV4-08 DIODE D622 MA167TA5 DIODE D624 BYT56K15/10 DIODE D630 MA165TA5 DIODE D636 MA167TA5 DIODE D651 RG4CLFL1 DIODE D656 EU02 DIODE D661 ERD32-02L7 DIODE

Page 21

D671 ERD32-02L7 DIODE D674 MA4120 DIODE D678 MA4027 DIODE D681 EU02 DIODE D686 RU4AMLF-M1 DIODE D1019 PMLL5242B DIODE D1020 PMLL5242B DIODE D1023 PMLL5242B DIODE D1024 PMLL5242B DIODE D1033 PMLL5242B DIODE D1034 PMLL5242B DIODE D1036 PMLL5242B DIODE D1038 PMLL5242B DIODE D1070 PMLL5242B DIODE D1080 PMLL4148L DIODE D1081 PMLL4148L DIODE D1082 PMLL4148L DIODE D1090 PMLL5242B DIODE D1121 PMLL5242B DIODE D1123 PMLL5242B DIODE D1156 PMLL5242B DIODE D1158 PMLL5242B DIODE D1172 PMLL5242B DIODE D1221 PMLL5232B DIODE D1222 PMLL5232B DIODE D1270 PMLL5242B DIODE D1273 PMLL5242B DIODE D1282 PMLL5242B DIODE D1284 PMLL5242B DIODE D1381 PMLL5239B DIODE D1382 PMLL4148L DIODE D1617 PMLL4148L DIODE D1623 PMLL4148L DIODE D1624 PMLL4148L DIODE D1681 PMLL4148L DIODE D1682 PMLL4148L DIODE D1941 PMLL5232B DIODE D3126 PMLL4148L DIODE D3127 PMLL4148L DIODE D3133 PMLL4148L DIODE D3138 PMLL4148L DIODE D3368 PMLL4148L DIODE D3372 MA165TA5 DIODE D3373 PMLL4148L DIODE D3374 PMLL4148L DIODE D3377 PMLL4148L DIODE D3382 MA165TA5 DIODE D3383 PMLL4148L DIODE D3384 PMLL4148L DIODE D3387 PMLL4148L DIODE D3391 MA165TA5 DIODE D3392 MA165TA5 DIODE D3393 PMLL4148L DIODE D3394 PMLL4148L DIODE D3397 PMLL4148L DIODE D6101 TVSS1WBS10 DIODE D6103 PMLL4148L DIODE D6106 PMLL4148L DIODE D6301 LN81RPHL DIODE D6381 PMLL4148L DIODE D6382 PMLL4148L DIODE D6391 PMLL4148L DIODE D6392 PMLL4148L DIODE D6491 PMLL4148L DIODE D6492 PMLL4148L DIODE D6591 PMLL4148L DIODE D6592 PMLL4148L DIODE D7000 TVSRM10B DIODE D7001 TVSRM10B DIODE D7002 TVSRM10B DIODE D7003 TVSRM10B DIODE D7004 TVSEH1V1 DIODE D7005 EU02 DIODE D7006 EG01CV0 DIODE D7007 RU4AMLF-M1 DIODE D7008 TVSEU2ZV1 DIODE D7009 TVSEU2ZV1 DIODE D7010 ERD32-02L7 DIODE D7011 PMLL4148L DIODE D7012 PMLL4148L DIODE D7013 PMLL4148L DIODE D7014 PMLL4148L DIODE D7015 PMLL4148L DIODE D7016 PMLL4148L DIODE D7017 PMLL4148L DIODE D7018 PMLL4148L DIODE D7019 PMLL4148L DIODE D7020 PMLL4148L DIODE D7021 PMLL4148L DIODE D7022 MA4075 DIODE D7024 PMLL4148L DIODE D7025 PMLL4148L DIODE

FUSES

F547 TR5-T2000 FUSE F656 TR5-T1250 FUSE F661 TR5-T2000 FUSE F671 TR5-T2000 FUSE F6811 2153.15H FUSE F68111 EYF52BC FUSE HOLDER F68112 EYF52BC FUSE HOLDER

INTEGRATED CIRCUITS

I466 LA4282 AUDIO OUTPUT I561 TDA8175-3 VERTICAL OUTPUT I611 TDA4605-3 SWITCHABLE POWER SUPPLY I646 L78M09MRB 9V REGULATOR I661 LM317T 12V REGULATOR I676 TL431ACLPM COIL I1011 TEA6420/L AUDIO SWITCH I1111 TEA6415B VIDEO SWITCH I1301 MSP3410-15 AUDIO PROCESSOR I1351 AN78L08TA 8V REGULATOR I1751 81C1000A-70P DRAM I1981 MN1280R RESET I4700 LA7577N V.I.F. I4701 AN78N12 12V REGULATOR I4702 TSA5514AT/C2 A.F.C. CONTROL I6101 AN78L05TA 5V REGULATOR I6301 RPM-637CBRS1 LED RECEIVER I7000 STR10006-M SWITCHABLE POWER SUPPLY I7001 L78M12MRB 12V REGULATOR I7002 AN79M12LB1 12V REGULATOR I7003 L78M05MRB 5V REGULATOR I7004 HEF4066BT-T SWITCHING I.C. I7005 51832AFL10EL STATIC RAM I7006 HEF4066BT-T SWITCHING I.C. I7007 HEF4066BT-T SWITCHING I.C. I7008 YSS215-F DOLBY PROCESSOR I7009 AN6554NSF-E2 OPERATIONAL AMPLIFIER I7010 AN6554NSF-E2 OPERATIONAL AMPLIFIER I7011 AN6554NSF-E2 OPERATIONAL AMPLIFIER I7012 TEA6330T VOLUME CONTROL I7013 TEA6330T VOLUME CONTROL I7014 AN6554NSF-E2 OPERATIONAL AMPLIFIER I7015 AN78L08TA 8V REGULATOR I7016 SC419014FB MICRO PROCESSOR I7017 TDA7262 AUDIO OUTPUT I7018 MN1280R RESET

SOCKETS/TERMINALS/LINK WIRES

BC1 ERJ6GEY0R00 WIRE LINK BC2 ERJ6GEY0R00 WIRE LINK BC4 ERJ6GEY0R00 WIRE LINK BC5 ERJ6GEY0R00 WIRE LINK B11 ERJ6GEY0R00 WIRE LINK B12 ERJ6GEY0R00 WIRE LINK B15 ERJ6GEY0R00 WIRE LINK B16 ERJ6GEY0R00 WIRE LINK B17 ERJ6GEY0R00 WIRE LINK B18 ERJ6GEY0R00 WIRE LINK B19 ERJ6GEY0R00 WIRE LINK H1871 832AG11D-ESL I.C. SOCKET JC1001 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1002 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1003 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1004 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1005 ERJ6GEY0R00 WIRE LINK JC1006 ERJ6GEY0R00 WIRE LINK JC1007 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1008 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1009 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1010 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1011 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1012 ERJ6GEY0R00 WIRE LINK JC1013 ERJ6GEY0R00 WIRE LINK JC1014 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1015 ERJ6GEY0R00 WIRE LINK JC1016 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1017 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1018 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1019 ERJ6GEY0R00 WIRE LINK JC1020 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1021 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1022 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1023 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1024 ERJ6GEY0R00 WIRE LINK JC1025 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1026 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1027 ERJ6GEY0R00 WIRE LINK JC1029 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1030 ERJ6GEY0R00 WIRE LINK JC1031 ERJ6GEY0R00 WIRE LINK JC1032 ERJ6GEY0R00 WIRE LINK JC1033 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1034 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1035 ERJ6GEY0R00 WIRE LINK JC1036 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1037 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1040 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1041 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1042 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1043 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1044 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1045 ERJ6GEY0R00 WIRE LINK JC1047 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1048 ERJ6GEY0R00 WIRE LINK JC1049 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1050 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1051 ERJ6GEY0R00 WIRE LINK JC1052 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1053 ERJ8GEY0R00 METAL 0.125W 1% 0W

Page 22

JC1054 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1055 ERJ6GEY0R00 WIRE LINK JC1056 ERJ6GEY0R00 WIRE LINK JC1057 ERJ6GEY0R00 WIRE LINK JC1058 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1059 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1060 ERJ6GEY0R00 WIRE LINK JC1061 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1062 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1064 ERJ6GEY0R00 WIRE LINK JC1065 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1066 ERJ6GEY0R00 WIRE LINK JC1067 ERJ6GEY0R00 WIRE LINK JC1068 ERJ6GEY0R00 WIRE LINK JC1069 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1070 ERJ6GEY0R00 WIRE LINK JC1071 ERJ6GEY0R00 WIRE LINK JC1072 ERJ6GEY0R00 WIRE LINK JC1073 ERJ8GEY0R00 METAL 0.125W 1% 0W

JC1074 ERJ6GEY0R00 WIRE LINK JC1075 ERJ6GEY0R00 WIRE LINK JC1076 ERJ6GEY0R00 WIRE LINK JC1077 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1078 ERJ6GEY0R00 WIRE LINK JC1079 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1080 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1081 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1082 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1083 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1084 ERJ6GEY0R00 WIRE LINK JC1085 ERJ6GEY0R00 WIRE LINK JC1086 ERJ6GEY0R00 WIRE LINK JC1087 ERJ6GEY0R00 WIRE LINK JC1088 ERJ6GEY0R00 WIRE LINK JC1089 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1090 ERJ6GEY0R00 WIRE LINK JC1091 ERJ6GEY0R00 WIRE LINK JC1092 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1093 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1094 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1095 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1096 ERJ6GEY0R00 WIRE LINK JC1097 ERJ6GEY0R00 WIRE LINK JC1098 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1099 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1100 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1101 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1102 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1103 ERJ6GEY0R00 WIRE LINK JC1104 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1105 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1106 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1107 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1108 ERJ8GEY0R00 METAL 0.125W 1% 0W JC1109 ERJ6GEY0R00 WIRE LINK JC1112 ERJ6GEY0R00 WIRE LINK JC1113 ERJ6GEY0R00 WIRE LINK JC1115 ERJ6GEY0R00 WIRE LINK JC1116 ERJ6GEY0R00 WIRE LINK JC1117 ERJ6GEY0R00 WIRE LINK JC1119 ERJ6GEY0R00 WIRE LINK JK6401 TJB16656 A.V. TERMINAL JS7002 ERJ6GEY0R00 WIRE LINK J2 ERJ6GEY0R00 WIRE LINK J12 EXCELSA39V COIL J23 EXCELSA39V COIL W1951 MKS165810808 CONNECTOR

COILS

L204 ELER220KA COIL L206 EXCELSA35T COIL L230 EXCELSA24T COIL L231 EXCELSA24T COIL L538 297-23293 COIL L542 ELC08D055 COIL L554 ELER220KA COIL L626 EXCELDR35C COIL L650 EXCELDR35C COIL L686 EXCELSA35T COIL L1037 TSC925-4 CHOKE L1301 EXCELDR35V COIL L1303 EXCELDR35V COIL L1351 ELEV4R7KA COIL L1413 ELEV6R8KA COIL L1601 ELEV4R7KA COIL L1606 EXCELDR35V COIL L1611 ELEV4R7KA COIL L1614 EXCELDR35V COIL L1619 EXCELDR35V COIL L1622 ELEV4R7KA COIL L1634 EXCEMT101BT COIL L1644 EXCEMT101BT COIL L1652 ELEV4R7KA COIL L1654 EXCEMT101BT COIL L1687 ELEMV1R5MA COIL L1691 EXCEMT101BT COIL L1692 EXCEMT101BT COIL L1693 EXCEMT101BT COIL L1694 EXCEMT101BT COIL L1701 ELEV4R7KA COIL L1714 EXCELDR35V COIL

L1751 EXCELDR35V COIL L1801 ELEV4R7KA COIL L1837 EXCELDR35V COIL L1845 ELEV3R3KA COIL L1857 ELEV3R3KA COIL L1859 ELEV3R3KA COIL L1871 EXCELDR35V COIL L1878 ELEV3R3KA COIL L1888 ELEV4R7KA COIL L1931 ELEV4R7KA COIL L1941 EXCELDR35V COIL L1972 EXCELDR35V COIL L1974 EXCELDR35V COIL L1977 EXCELDR35V COIL L3161 SDL-4101 COIL L3171 SDL-4101 COIL L3181 SDL-4101 COIL L4701 TLTR33K991R COIL L4703 TLTR39K991R COIL L4704 TLT022K991R COIL L4705 EIV7EN200B COIL L4706 EIV7EN201B COIL L4707 TLT100K991R COIL L4709 TLT181K991R COIL L6403 ELEBT6R8KA COIL L6404 ELEBT6R8KA COIL L6417 ELEBT6R8KA COIL L6447 ELEBT6R8KA COIL L6811 ELF18D424F COIL L6812 ELF18D424F COIL L7000 ELF18D281A COIL L7002 ELESN100KA COIL L7003 ELESN100KA COIL L7004 ELESN100KA COIL L7005 5770206400 COIL L7006 5770206400 COIL

CONTROLS

P633 EVMEASA00B52 CONTROL 500W P3362 RH092GDJ6J VARIABLE RESISTOR P3368 EVN65UA00B24 CONTROL 20KW P4701 EVND4AA00B53 CONTROL 5KW

TRANSISTORS

Q463 BC557B TRANSISTOR Q465 BC547B TRANSISTOR Q494 BC547B TRANSISTOR Q496 BC547B TRANSISTOR Q497 BC557B TRANSISTOR Q498 BC547B TRANSISTOR Q526 2SD836-AL TRANSISTOR Q591 BC557B TRANSISTOR Q592 BC557B TRANSISTOR Q593 BC547B TRANSISTOR Q651 TFD312SOF632 DIODE Q667 BC547B TRANSISTOR Q681 BC557B TRANSISTOR Q682 2SA1535LB TRANSISTOR Q1071 BC817-25 TRANSISTOR Q1091 BC817-25 TRANSISTOR Q1123 BC847B TRANSISTOR Q1163 BC847B TRANSISTOR Q1167 BC857B TRANSISTOR Q1172 BC847B TRANSISTOR Q1182 BC847B TRANSISTOR Q1192 BC847B TRANSISTOR Q1221 BC847B TRANSISTOR Q1222 BC847B TRANSISTOR Q1382 BC857B TRANSISTOR Q1466 BC860B TRANSISTOR Q1476 BC860B TRANSISTOR Q1486 BC860B TRANSISTOR Q1496 BC860B TRANSISTOR Q1609 BC847B TRANSISTOR Q1612 BC847B TRANSISTOR Q1631 BC847B TRANSISTOR Q1633 BC847B TRANSISTOR Q1636 BC857B TRANSISTOR Q1641 BC847B TRANSISTOR Q1643 BC847B TRANSISTOR Q1646 BC857B TRANSISTOR Q1651 BC847B TRANSISTOR Q1653 BC847B TRANSISTOR Q1656 BC857B TRANSISTOR Q1663 BC847B TRANSISTOR Q1664 BC847B TRANSISTOR Q1667 BC847B TRANSISTOR Q1673 BC847B TRANSISTOR Q1812 BC847B TRANSISTOR Q1816 BC847B TRANSISTOR Q1822 BC847B TRANSISTOR Q1824 BC847B TRANSISTOR Q1827 BC857B TRANSISTOR Q1831 BC847B TRANSISTOR Q3108 BC847B TRANSISTOR Q3109 BC847B TRANSISTOR Q3111 BC857B TRANSISTOR Q3122 BC847B TRANSISTOR Q3126 BC847B TRANSISTOR

Page 23

Q3127 BC857B TRANSISTOR Q3131 2SB940APLB TRANSISTOR Q3136 2SD1264APLB TRANSISTOR Q3143 BC847B TRANSISTOR Q3162 BC857B TRANSISTOR Q3164 BC847B TRANSISTOR Q3166 BC857B TRANSISTOR Q3169 BC857B TRANSISTOR Q3172 BC857B TRANSISTOR Q3174 BC847B TRANSISTOR Q3176 BC857B TRANSISTOR Q3179 BC857B TRANSISTOR Q3182 BC857B TRANSISTOR Q3184 BC847B TRANSISTOR Q3186 BC857B TRANSISTOR Q3189 BC857B TRANSISTOR Q3359 BC847B TRANSISTOR Q3368 2SB710A-XR TRANSISTOR Q3371 BC857B TRANSISTOR Q3373 2SC4714RL2 TRANSISTOR Q3374 2SC3063RL TRANSISTOR Q3377 2SA1698RL TRANSISTOR Q3381 BC857B TRANSISTOR Q3383 2SC4714RL2 TRANSISTOR Q3384 2SC3063RL TRANSISTOR Q3387 2SA1698RL TRANSISTOR Q3391 BC857B TRANSISTOR Q3392 2SA1309ATA TRANSISTOR Q3393 2SC4714RL2 TRANSISTOR Q3394 2SC3063RL TRANSISTOR Q3397 2SA1698RL TRANSISTOR Q4701 BC847B TRANSISTOR Q4702 BC847B TRANSISTOR Q4703 BC847B TRANSISTOR Q4704 BF370-126 TRANSISTOR Q4705 BF370-126 TRANSISTOR Q6111 BC847B TRANSISTOR Q6114 BC847B TRANSISTOR Q6403 BC847B TRANSISTOR Q6413 BC847B TRANSISTOR Q6417 BC857B TRANSISTOR Q6433 BC847B TRANSISTOR Q6443 BC847B TRANSISTOR Q6447 BC857B TRANSISTOR Q7001 BC847B TRANSISTOR Q7002 BC847B TRANSISTOR Q7003 BC847B TRANSISTOR Q7004 BC847B TRANSISTOR Q7005 BC847B TRANSISTOR Q7007 BC847B TRANSISTOR Q7008 BC847B TRANSISTOR Q7009 BC847B TRANSISTOR Q7010 BC847B TRANSISTOR Q7011 BC847B TRANSISTOR Q7012 BC857B TRANSISTOR Q7013 BC857B TRANSISTOR

RESISTORS

RL6101 TSE10818 RELAY R201 ERD25TJ223 CARBON 0.25W 5% 22KW R206 ERG2ANJ223 METAL 2W 5% 22KW R259 ERD25TJ473 CARBON 0.25W 5% 47KW R462 ERD25TJ101 CARBON 0.25W 5% 100W R463 ERD25TJ103 CARBON 0.25W 5% 10KW R466 ERD25TJ153 CARBON 0.25W 5% 15KW R470 ERD25TJ560 CARBON 0.25W 5% 56W R471 ERD25TJ102 CARBON 0.25W 5% 1KW R472 ERD25TJ333 CARBON 0.25W 5% 33KW R473 ERD25TJ270 CARBON 0.25W 5% 27W R477 ERD25TJ684 CARBON 0.25W 5% 680KW R478 ERD25TJ332 CARBON 0.25W 5% 3K3W R479 ERDS1TJ2R2 CARBON 0.5W 5% 2.2W R480 ERD25TJ560 CARBON 0.25W 5% 56W R481 ERD25TJ102 CARBON 0.25W 5% 1KW R482 ERD25TJ333 CARBON 0.25W 5% 33KW R483 ERD25TJ270 CARBON 0.25W 5% 27W R484 ERD25TJ273 CARBON 0.25W 5% 27KW R485 ERD25TJ561 CARBON 0.25W 5% 560W R486 ERD25TJ333 CARBON 0.25W 5% 33KW R487 ERD25TJ684 CARBON 0.25W 5% 680KW R488 ERD25TJ332 CARBON 0.25W 5% 3K3W R489 ERDS1TJ2R2 CARBON 0.5W 5% 2.2W R490 ERD25TJ563 CARBON 0.25W 5% 56KW R491 ERQ14AJ100 METAL 0.25W 5% 10W R492 ERD25TJ102 CARBON 0.25W 5% 1KW R493 ERD25TJ473 CARBON 0.25W 5% 47KW R494 ERD25TJ684 CARBON 0.25W 5% 680KW R496 ERD25TJ103 CARBON 0.25W 5% 10KW R497 ERD25TJ103 CARBON 0.25W 5% 10KW R498 ERD25TJ103 CARBON 0.25W 5% 10KW R499 ERD25TJ473 CARBON 0.25W 5% 47KW R521 ERQ14AJ3R3 METAL 0.25W 5% 3R3W R526 ERD25TJ560 CARBON 0.25W 5% 56W R527 ERDS1TJ152 CARBON 0.5W 5% 1K5W R528 ERDS1TJ152 CARBON 0.5W 5% 1K5W R531 ERF10ZK6R8 WIRE 10W 5% 6R8W R532 ERW2PKR56 WIRE 2W 10% R56W R533 ERDS1TJ220 CARBON 0.5W 5% 22W R541 ERG1ANJ152 METAL 1W 5% 1K5W R542 ERQ12AJ101 FUSABLE 0.5W 5% 100W R543 ERD25TJ103 CARBON 0.25W 5% 10KW R546 ERDS1TJ184 CARBON 0.5W 5% 180K

R548 ERD25TJ223 CARBON 0.25W 5% 22KW R549 ERDS1TJ224 CARBON 0.5W 5% 220KW R557 ERQ12HKR22 FUSIBLE 0.5W 5% 0R22W R559 ERDS1TJ100 CARBON 0.5W 5% 10W R561 ERQ12HJ1R5 FUSIBLE 0.5W 5% 1R5W R563 ERD25TJ104 CARBON 0.25W 5% 100KW R564 ERD25TJ223 CARBON 0.25W 5% 22KW R566 ERD25TJ472 CARBON 0.25W 5% 4K7W R567 ERD25TJ472 CARBON 0.25W 5% 4K7W R568 ERD25TJ1R5 CARBON 0.25W 5% 1R5W R572 ERO25CKF1801 METAL 0.25W 1% 1K8W R573 ERO25CKF1801 METAL 0.25W 1% 1K8W R592 ERD25TJ103 CARBON 0.25W 5% 10KW R593 ERD25TJ103 CARBON 0.25W 5% 10KW R598 ERD25TJ102 CARBON 0.25W 5% 1KW R613 ERF10ZK5R6 WIRE 10W 5% 5R6W R614 ERDS1TJ394 CARBON 0.5W 5% 390KW R616 ERC12GK154D SOLID 0.5W 5% 150KW R619 232266296706 THERMISTOR R621 ERG2FJ183 METAL 0.5W 5% 18KW R622 ERDS1TJ394 CARBON 0.5W 5% 390KW R623 ERD25TJ472 CARBON 0.25W 5% 4K7W R624 ERD25TJ121 CARBON 0.25W 5% 120W R625 ERC12GK154D SOLID 0.5W 5% 150KW R626 ERG2FJ183 METAL 0.5W 5% 18KW R627 ERD25TJ103 CARBON 0.25W 5% 10KW R628 ERG3FJ393 METAL 0.25W 5% 39KW R629 ERG1ANJ470 METAL 1W 5% 47W R630 ERD25TJ270 CARBON 0.25W 5% 27W R631 ERD25TJ101 CARBON 0.25W 5% 100W R632 ERO25CKF1400 METAL 0.25W 1% 140W R633 ERO25CKF3921 METAL 0.25W 1%3R92KW R634 ERDS1TJ1R5 CARBON 0.5W 5% 1R5W R636 ERD25TJ473 CARBON 0.25W 5% 47KW R651 ERDS1TJ474 CARBON 0.5W 5% 470KW R666 ERO25CKF3301 METAL 0.25W 1% 3K3W R667 ERO25CKF3900 METAL 0.25W 1%3R92KW R668 ERD25TJ103 CARBON 0.25W 5% 10KW R674 ERD25TJ223 CARBON 0.25W 5% 22KW R675 ERD25TJ155 CARBON 0.25W 5% 1M5W R676 ERO25CKF1002 METAL 0.25W 1% 10KW R677 ERO25CKF1002 METAL 0.25W 1% 10KW R678 ERD25TJ121 CARBON 0.25W 5% 120W R680 ERQ12HJ1R5 FUSIBLE 0.5W 5% 1R5W R681 ERDS1TJ4R7 CARBON 0.5W 5% 4R7W R682 ERD25TJ222 CARBON 0.25W 5% 2K2W R683 ERG3FJ101 METAL 3W 5% 100W R684 ERD25TJ682 CARBON 0.25W 5% 6K8W R1001 ERQ14AJ3R3 METAL 0.25W 5% 3R3W R1011 ERQ14AJ100 METAL 0.25W 5% 10W R1019 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1020 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1021 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R1022 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R1023 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1024 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1031 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R1032 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R1033 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1034 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1036 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1038 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1041 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1042 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1050 ERD50TJ102 CARBON 0.5W 5% 1KW R1071 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1072 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1073 ERJ6GEYJ152 S.M.CARB 0.1W 5% 1K5W R1074 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1091 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1092 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1093 ERJ6GEYJ152 S.M.CARB 0.1W 5% 1K5W R1094 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1095 ERJ6GEYJ474 S.M.CARB 0.1W 5% 470KW R1116 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1117 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1120 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1121 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1122 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1123 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1124 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1125 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1126 ERQ14AJ100 METAL 0.25W 5% 10W R1127 ERJ6GEY0R00 WIRE LINK R1131 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1132 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1133 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1151 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1152 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1153 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1156 ERJ6GEYJ470 S.M.CARB 0.1W 5% 47W R1158 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1159 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1161 ERJ6GEYJ682 S.M.CARB 0.1W 5% 6K8W R1162 ERJ6GEYJ333 S.M.CARB 0.1W 5% 33KW R1163 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1166 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1167 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1168 ERJ6GEYJ680 S.M.CARB 0.1W 5% 68W R1169 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1171 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1172 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1173 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1174 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1177 ERJ6GEYJ561 S.M.CARB 0.1W 5% 560W

Page 24

R1178 ERQ14AJ100 METAL 0.25W 5% 10W R1181 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1182 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1183 ERJ6GEYJ680 S.M.CARB 0.1W 5% 68W R1184 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1185 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1191 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1192 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1193 ERJ6GEYJ680 S.M.CARB 0.1W 5% 68W R1194 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1195 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1221 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1222 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1225 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1237 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1241 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1242 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1251 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1270 ERJ6GEYJ470 S.M.CARB 0.1W 5% 47W R1271 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1272 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1273 ERJ6GEYJ470 S.M.CARB 0.1W 5% 47W R1276 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1277 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1281 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R1282 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1283 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R1284 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1349 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1381 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R1382 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1412 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1464 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1465 ERJ6GEYJ183 S.M.CARB 0.1W 5% 18KW R1466 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1467 ERJ6GEY0R00 WIRE LINK R1474 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1476 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1477 ERJ6GEY0R00 WIRE LINK R1484 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1486 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1487 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1494 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1496 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1497 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R1608 ERJ6GEY0R00 WIRE LINK R1609 ERJ8GEYJ273 S.M.CARB 0.125W 5% 27KW R1612 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1613 ERJ6GEYJ560 S.M.CARB 0.1W 5% 56W R1614 ERJ6GEYJ331 S.M.CARB 0.1W 5% 330W R1615 ERJ6GEYJ221 S.M.CARB 0.1W 5% 220W R1616 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1617 ERJ6GEYJ333 S.M.CARB 0.1W 5% 33KW R1618 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1619 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1621 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1622 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1623 ERJ6GEYJ123 S.M.CARB 0.1W 5% 12KW R1624 ERJ6GEYJ333 S.M.CARB 0.1W 5% 33KW R1626 ERJ6GEYJ151 S.M.CARB 0.1W 5% 150W R1627 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1630 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1631 ERJ6GEYJ470 S.M.CARB 0.1W 5% 47W R1632 ERJ6GEYJ391 S.M.CARB 0.1W 5% 390W R1633 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1634 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R1636 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1637 ERJ8GEYJ471 S.M.CAR 0.125W 5% 470W R1641 ERJ6GEYJ821 S.M.CARB 0.1W 5% 820W R1642 ERJ6GEYJ391 S.M.CARB 0.1W 5% 390W R1643 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1644 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R1646 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1647 ERJ8GEYJ471 S.M.CAR 0.125W 5% 470W R1652 ERJ6GEYJ391 S.M.CARB 0.1W 5% 390W R1653 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1654 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R1656 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1657 ERJ8GEYJ471 S.M.CAR 0.125W 5% 470W R1661 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1664 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1666 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1667 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R1669 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1671 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1672 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1673 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1674 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1681 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1682 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1683 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1691 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1692 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1693 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1694 ERJ6GEYJ750 S.M.CARB 0.1W 5% 75W R1696 ERJ8GEYJ103 S.M.CAR 0.125W 5% 10KW R1698 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1717 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1718 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1753 ERJ6GEY0R00 WIRE LINK R1807 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1808 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1809 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1811 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1812 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W

R1815 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1816 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1819 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1821 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1822 ERJ6GEYJ392 S.M.CARB 0.1W 5% 3K9W R1823 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1824 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R1825 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1826 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R1827 ERJ6GEYJ393 S.M.CARB 0.1W 5% 39KW R1828 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1829 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R1831 ERJ6GEYJ392 S.M.CARB 0.1W 5% 3K9W R1832 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1837 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R1838 ERJ6GEYJ331 S.M.CARB 0.1W 5% 330W R1840 ERJ6GEY0R00 WIRE LINK R1842 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1843 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1844 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1845 ERJ6GEYJ470 S.M.CARB 0.1W 5% 47W R1847 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1849 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1851 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1856 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1857 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1858 ERJ8GEYJ562 S.M.CAR 0.125W 5% 5K6W R1859 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1863 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1872 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1873 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1878 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1879 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1882 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1884 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1885 ERJ8GEY0R00 METAL 0.125W 1% 0W R1886 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R1887 ERJ6GEY0R00 WIRE LINK R1888 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1889 ERJ8GEY0R00 METAL 0.125W 1% 0W R1891 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1893 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1897 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1920 ERJ8GEYJ472 S.M.CAR 0.125W 5% 4K7W R1921 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R1922 ERJ6GEYJ821 S.M.CARB 0.1W 5% 820W R1925 ERJ6GEYJ331 S.M.CARB 0.1W 5% 330W R1933 ERJ6GEY0R00 WIRE LINK R1941 ERJ6GEY0R00 WIRE LINK R1953 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1957 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1958 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1959 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1961 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1962 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1963 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1964 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R1983 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R1993 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R3101 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R3102 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R3103 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R3106 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R3107 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R3108 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3109 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R3111 ERDS1FYJ222 CARBON 0.5W 5% 2K2W R3112 ERJ6GEYJ152 S.M.CARB 0.1W 5% 1K5W R3113 ERD25TJ681 CARBON 0.25W 5% 680W R3121 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R3122 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R3123 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3124 ERJ6GEYJ681 S.M.CARB 0.1W 5% 680W R3126 ERJ6GEYJ122 S.M.CARB 0.1W 5% 1K2W R3127 ERQ14AJ100 METAL 0.25W 5% 10W R3128 ERQ14AJ820 METAL 0.25W 5% 82W R3129 ERQ14AJ820 METAL 0.25W 5% 82W R3130 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3131 ERD25TJ563 CARBON 0.25W 5% 56KW R3132 ERD25TJ122 CARBON 0.25W 5% 1K2W R3133 ERD25TJ2R7 CARBON 0.25W 5% 2R7W R3134 ERDS1FVJ390 CARBON 0.5W 5% 39W R3135 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3136 ERD25TJ563 CARBON 0.25W 5% 56KW R3137 ERD25TJ122 CARBON 0.25W 5% 1K2W R3138 ERD25TJ2R7 CARBON 0.25W 5% 2R7W R3139 ERDS1FVJ390 CARBON 0.5W 5% 39W R3141 ERDS1FYJ101 CARBON 0.5W 5% 100W R3142 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R3143 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R3144 ERJ6GEYJ681 S.M.CARB 0.1W 5% 680W R3146 ERDS1FYJ181 CARBON 0.5W 5% 180W R3152 ERQ12HJ102 METAL 0.5W 5% 1KW R3153 ERQ14AJ3R9 FUSIBLE 0.25W 5% 3R9W R3160 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3161 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3162 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3163 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R3164 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3166 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3167 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3168 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3169 ERJ6GEYJ122 S.M.CARB 0.1W 5% 1K2W R3170 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3171 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW

Page 25

R3172 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3173 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R3174 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3176 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3177 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3178 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3179 ERJ6GEYJ122 S.M.CARB 0.1W 5% 1K2W R3180 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3181 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3182 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3183 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R3184 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3186 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3187 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R3188 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3189 ERJ6GEYJ122 S.M.CARB 0.1W 5% 1K2W R3307 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R3308 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R3309 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R3354 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3358 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3359 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R3361 ERQ12HJR39 METAL 0.5W 5% 0R39W R3365 ERD25TJ220 CARBON 0.25W 5% 22W R3366 ERQ12AJ101 FUSABLE 0.5W 5% 100W R3367 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3368 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R3369 ERJ6GEYJ682 S.M.CARB 0.1W 5% 6K8W R3370 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3371 ERJ6GEYJ272 S.M.CARB 0.1W 5% 2K7W R3372 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R3373 ERJ6GEYJ152 S.M.CARB 0.1W 5% 1K5W R3374 ERDS1TJ913 CARBON 0.5W 5% 91KW R3375 ERG2ANJ183 METAL 2W 5% 18KW R3376 ERD25TJ561 CARBON 0.25W 5% 560W R3379 ERD25TJ103 CARBON 0.25W 5% 10KW R3380 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3381 ERJ6GEYJ272 S.M.CARB 0.1W 5% 2K7W R3382 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R3383 ERJ6GEYJ152 S.M.CARB 0.1W 5% 1K5W R3384 ERDS1TJ913 CARBON 0.5W 5% 91KW R3385 ERG2ANJ183 METAL 2W 5% 18KW R3386 ERD25TJ561 CARBON 0.25W 5% 560W R3389 ERD25TJ103 CARBON 0.25W 5% 10KW R3390 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R3391 ERJ6GEYJ272 S.M.CARB 0.1W 5% 2K7W R3392 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R3393 ERJ6GEYJ152 S.M.CARB 0.1W 5% 1K5W R3394 ERDS1TJ913 CARBON 0.5W 5% 91KW R3395 ERG2ANJ183 METAL 2W 5% 18KW R3396 ERD25TJ561 CARBON 0.25W 5% 560W R3397 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R3399 ERD25TJ103 CARBON 0.25W 5% 10KW R4701 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R4702 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R4703 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R4705 ERJ6GEY0R00 WIRE LINK R4707 ERJ6GEYJ683 S.M.CARB 0.1W 5% 68KW R4708 ERJ6GEYJ153 S.M.CARB 0.1W 5% 15KW R4709 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R4710 ERJ6GEYJ181 S.M.CARB 0.1W 5% 180W R4711 ERJ6GEYJ121 S.M.CARB 0.1W 5% 120W R4713 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R4714 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R4715 ERJ6GEYJ681 S.M.CARB 0.1W 5% 680W R4716 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R4717 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R4718 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4719 ERJ6GEYJ333 S.M.CARB 0.1W 5% 33KW R4720 ERJ6GEYJ682 S.M.CARB 0.1W 5% 6K8W R4721 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R4722 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4726 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4727 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4728 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4729 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4730 ERJ6GEY0R00 WIRE LINK R4735 ERJ6GEYJ331 S.M.CARB 0.1W 5% 330W R4736 ERJ6GEYJ331 S.M.CARB 0.1W 5% 330W R4737 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4738 ERJ6GEY0R00 WIRE LINK R4739 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4743 ERJ6GEYJ682 S.M.CARB 0.1W 5% 6K8W R4744 ERJ6GEYJ221 S.M.CARB 0.1W 5% 220W R4745 ERJ6GEY0R00 WIRE LINK R4746 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R4747 ERJ6GEY0R00 WIRE LINK R4748 ERJ6GEY0R00 WIRE LINK R4750 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R4751 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R4752 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R4753 ERJ6GEYJ121 S.M.CARB 0.1W 5% 120W R4754 ERJ6GEYJ271 S.M.CARB 0.1W 5% 270W R4755 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R4756 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R4757 ERJ6GEYJ122 S.M.CARB 0.1W 5% 1K2W R4758 ERJ6GEY0R00 WIRE LINK R4759 ERJ6GEY0R00 WIRE LINK R4760 ERJ6GEYJ121 S.M.CARB 0.1W 5% 120W R4771 ERJ6GEY0R00 WIRE LINK R6102 ERD25TJ151 CARBON 0.25W 5% 150W R6111 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R6112 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R6113 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R6114 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW

R6301 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R6302 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R6305 ERJ6GEY0R00 WIRE LINK R6401 ERD25TJ220 CARBON 0.25W 5% 22W R6402 ERD25TJ220 CARBON 0.25W 5% 22W R6403 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R6404 ERJ6GEY0R00 WIRE LINK R6405 ERJ6GEY0R00 WIRE LINK R6406 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R6407 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R6408 ERJ6GEY0R00 WIRE LINK R6411 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R6412 ERJ6GEYJ273 S.M.CARB 0.1W 5% 27KW R6413 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R6416 ERD25TJ101 CARBON 0.25W 5% 100W R6417 ERD25TJ101 CARBON 0.25W 5% 100W R6418 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R6433 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R6436 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R6437 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R6438 ERJ6GEY0R00 WIRE LINK R6441 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R6442 ERJ6GEYJ273 S.M.CARB 0.1W 5% 27KW R6443 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R6446 ERD25TJ101 CARBON 0.25W 5% 100W R6447 ERD25TJ101 CARBON 0.25W 5% 100W R6448 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R6811 ERC12ZGK335D SOLID 0.5W 10% 3M3W R7000 ERDS1TJ184 CARBON 0.5W 5% 180KW R7001 ERF5ZJ220 WIRE 5W 5% 22W R7002 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7003 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7004 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7005 ERDS1TJ154 CARBON 0.5W 5% 150KW R7006 ERW12PKR33 WOUND 0.5W 10% 0R33W R7007 ERG1SJ330 METAL 1W 5% 33W R7008 ERG1SJ101 METAL 1W 5% 100W R7009 ERD2FCJ4R7 CARBON 2W 2% 4R7W R7010 ERG5SJS473 METAL 5W 5% 47KW R7011 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7012 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7013 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7014 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7015 ERJ6GEYJ105 S.M.CARB 0.1W 5% 1MW R7016 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7017 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7018 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R7019 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R7020 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7021 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7022 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7023 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7024 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7025 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7026 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7027 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7028 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7029 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7030 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7031 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7032 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R7033 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R7034 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7035 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7036 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7037 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7038 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7039 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7040 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R7041 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7042 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7043 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7044 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7045 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7046 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7047 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7048 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7049 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7050 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7051 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7052 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7053 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7054 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7055 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7056 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R7057 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R7058 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R7059 ERJ6GEYJ223 S.M.CARB 0.1W 5% 22KW R7060 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R7061 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R7062 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R7063 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7064 ERJ6GEYJ105 S.M.CARB 0.1W 5% 1MW R7065 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7066 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7067 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7068 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7069 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7070 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7071 ERJ6GEYJ220 S.M.CARB 0.1W 5% 22W R7072 ERJ6GEYJ105 S.M.CARB 0.1W 5% 1MW R7073 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7074 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7075 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7076 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW

Page 26

R7077 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7078 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7079 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R7080 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7081 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7082 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7083 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R7084 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7085 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7086 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7087 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7088 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7089 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7090 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7091 ERJ6GEYJ472 S.M.CARB 0.1W 5% 4K7W R7092 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R7093 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7094 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7095 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7096 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7097 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R7098 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7099 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7100 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7101 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7102 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R7103 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7104 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7105 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7106 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7107 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7108 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7109 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7110 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7111 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7112 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7113 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7114 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7115 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7116 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7117 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R7118 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R7119 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7120 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7121 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7122 ERJ6GEYJ560 S.M.CARB 0.1W 5% 56W R7123 ERJ6GEYJ560 S.M.CARB 0.1W 5% 56W R7124 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7125 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7128 ERDS1TJ100 CARBON 0.5W 5% 10W R7129 ERDS1TJ100 CARBON 0.5W 5% 10W R7131 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7132 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7133 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7134 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7135 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7136 ERJ6GEYJ273 S.M.CARB 0.1W 5% 27KW R7137 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7138 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7139 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7140 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7141 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7142 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7143 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7144 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7145 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7146 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7147 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7148 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW

R7149 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7150 ERJ6GEYJ272 S.M.CARB 0.1W 5% 2K7W R7151 ERJ6GEYJ103 S.M.CARB 0.1W 5% 10KW R7152 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7153 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R7154 ERJ6GEYJ471 S.M.CARB 0.1W 5% 470W R7155 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7156 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7157 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7158 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7159 ERJ6GEYJ563 S.M.CARB 0.1W 5% 56KW R7160 ERD2FCJ4R7 CARBON 2W 2% 4R7W R7161 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7162 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7163 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7164 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R7165 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R7166 ERJ6GEYJ332 S.M.CARB 0.1W 5% 3K3W R7167 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R7169 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R7170 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R7171 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R7172 ERJ6GEYJ105 S.M.CARB 0.1W 5% 1MW R7173 ERJ6GEYJ104 S.M.CARB 0.1W 5% 100KW R7174 ERJ6GEYJ101 S.M.CARB 0.1W 5% 100W R7175 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R7176 ERJ6GEYJ473 S.M.CARB 0.1W 5% 47KW R7177 ERJ6GEYJ100 S.M.CARB 0.1W 5% 10W R7178 TSF19252 FS LINK R7179 TSF19252 FS LINK R7180 TSF19252 FS LINK R7181 TSF19632 FS LINK

SWITCHES

SW7001 TSE10341 SWITCH S6304 EVQPB105K SWITCH S6305 EVQPB105K SWITCH S6306 EVQPB105K SWITCH S6307 EVQPB105K SWITCH S6308 EVQPB105K SWITCH S6811 ESB91232A SWITCH

TRANSFORMERS

T528 5270103200 TRANSFORMER T531 ZTFH65005A TRANFORMER T639 ETS39AH117AC TRANSFORMER T6101 BV030-7395.0 TRANSFORMER T7000 ETS29AD2G7NC TRANSFORMER

FILTERS

X1321 TSS4004-B CRYSTAL X1608 TSS2169-B CRYSTAL X1854 TSS4007-B CRYSTAL X4702 EFCV4155A3 CERAMIC FILTER X4704 J3352K SAW FILTER X4706 EFCS6R0MW5 FILTER X7000 TAF10050 CRYSTAL X7001 TSS4007-B CRYSTAL

PARTS FOR TX-29AD1DP ONLY

MISCELLANEOUS COMPONENTS

2) TKU8E00156 REAR COVER

3) TKY8E031 CABINET

4) A68ESF002X11 CRT

6) TLK8E05116 DEGAUSS COIL

7) TNP117037AC Y P.C.B.

9) TNP197087 E P.C.B.

10) TNP117034AF A P.C.B.

13) TMX8E005 CHASSIS FRAME

15) TKP8E1126 DOLBY PANEL

16) EAGG1201D2 SPEAKER

PK402 TKP8E1111 FRONT PANEL (LEFT)

CAPACITORS

C201 ECA1HFQ101 CAPACITOR C501 ECKC1H103JB CERAMIC 50V 10nF C511 ECQM1H393J FILM 50V 39nF

TPC8E4447 OUTER CARTON TS2760 TV STAND TKP8E1109 A.V. DOOR

C534 ECWH12H562J FILM 1250V 56nF C537 ECQF4273JZH FILM 420V 73nF C541 ECWF2H105J FILM 500V 1000nF C567 ECQB1H223K FILM 50V 22nF C576 ECQM1H684J FILM 50V 680nF C578 222236516154 FILM 160V 150nF C583 ECQB1H333J FILM 50V 33nF C591 ECA1HW4R7UE CAPACITOR C597 ECQB1H332K FILM 50V 3.3nF C3167 ECUV1H100DCX S.M. CAP 50V 10pF C3362 TACA1103P2KV I.C. C3363 TACA1103P2KV I.C. C3371 ECUV1H120JCX S.M. CAP 50V 12pF C3381 ECUV1H080CCX S.M. CAP 50V 80pF C3391 ECUV1H120JCX S.M. CAP 50V 12pF

DIODES

D507 MA723TA5 DIODE D508 MA723TA5 DIODE D568 MA2100LFS DIODE

Page 27

INTEGRATED CIRCUITS

RESISTORS

I1601 VDP3108-25 VIDEO PROCESSOR I1701 TPU3040-18 TEXT PROCESSOR I1801 CCU3000I-05 CENTRAL CONTROL UNIT I1871 27C010-07A EPROM I1941 X24C16P-H1 EAROM

SOCKETS/TERMINALS/LINK WIRES

JC1114 ERJ8GEY0R00 METAL 0.125W 1% 0W

COILS

L507 ELESN331KA COIL L511 297-23477 TRANSFORMER L541 ELH5L7002 COIL L594 297-017696 COIL

TRANSISTORS

Q506 2SK301TA TRANSISTOR

PARTS FOR TX-25AD1DP ONLY

MISCELLANEOUS COMPONENTS

2) TKU8E00157 REAR COVER

3) TKY8E032 CABINET

4) A59EEH048201 C.R.T.

6) TLK8E05115 DEGAUSSING COIL

7) TNP117037AB Y P.C.B.

9) TNP197087AC E P.C.B.

10) TNP117034AV A P.C.B.

16) EAGG1201C2 SPEAKER

PKN1 TMX8E005 CHASSIS FRAME

CAPACITORS

C201 ECEA1CU330 ELECT 16V 33mF C534 ECWH12H392J CAPACITOR C537 ECQF4393JZH CAPACITOR C539 ECKC3D681J CERAMIC 2KV 680pF C541 ECWF2H824J CAPACITOR C567 ECQB1H333J FILM 50V 33nF C578 222236576104 FILM 760V 100nF C591 ECEA1HGE4R7 ELECT 50V 4.7mF C3167 ECUV1H080CCX S.M. CAP 50V 80pF C3391 ECUV1H020CCX S.M. CAP 50V 2pF

INTEGRATED CIRCUITS

I1601 VDP3108 VIDEO PROCESSOR I1701 TPU3040-12 TEXT PROCESSOR I1801 CCU3000I-04 CENTRAL CONTROL UNIT I1871 27C010-07A EPROM I1941 X24C16P-G1 EAROM

SOCKETS/TERMINALS/LINK WIRES

JC1114 ERJ6GEY0R00 WIRE LINK

TMW8E016 CONTROL BRACKET TPC8E4469 OUTER CARTON TS-2770 TV STAND

TKP8E1113 FRONT PANEL (LEFT) TKP8E1125 PANEL

R501 ERD25TJ470 CARBON 0.25W 5% 47W R507 ERD25TJ2R2 CARBON 0.25W 5% 2R2W R569 ERDS1TJ221 CARBON 0.5W 5% 220W R570 ERG2SJ102 METAL 2W 5% 1K0W R574 ERW12PKR56 RESISTOR R576 ERD25TJ682 CARBON 0.25W 5% 6K8W R577 ERD25TJ822 CARBON 0.25W 5% 8K2W R578 ERD25TJ680 CARBON 0.25W 5% 68W R579 ERD25TJ332 CARBON 0.25W 5% 3K3W R583 ERD25TJ103 CARBON 0.25W 5% 10KW R584 ERO25CKF1002 METAL 0.25W 1% 10KW R591 ERD25TJ472 CARBON 0.25W 5% 4K7W R594 ERD25TJ394 CARBON 0.25W 5% 390KW R595 ERD25TJ473 CARBON 0.25W 5% 47KW R596 ERD25TJ473 CARBON 0.25W 5% 47KW R597 ERD25TJ475 CARBON 0.25W 5% 4M7W R599 ERD25TJ103 CARBON 0.25W 5% 10KW R1386 ERJ6GEY0R00 WIRE LINK R3104 ERJ6GEYJ222 S.M.CARB 0.1W 5% 2K2W R3362 ERC12GK105D SOLID 0.5W 10% 1MW R3364 ERC12GK821D SOLID 0.5W 10% 820W R3377 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R3378 ERC12GK332V RESISTOR R3387 ERJ6GEYJ562 S.M.CARB 0.1W 5% 5K6W R3388 ERC12GK332V RESISTOR R3398 ERC12GK332V RESISTOR

COILS

L201 ELER6R8KA COIL L541 ELH5L421 COIL L594 297-23294 COIL

TRANSISTORS

Q534 BU2508AXRL TRANSISTOR Q594 2SD1265A TRANSISTOR Q624 2SK1118LB TRANSISTOR Q674 BUZ71AF1 TRANSISTOR

RESISTORS

R569 ERDS1TJ821 CARBON 0.5W 5% 820$ R574 ERW12PKR82 RESISTOR R576 ERD25TJ183 CARBON 0.25W 5% 18KW R577 ERD25TJ223 CARBON 0.25W 5% 22KW R578 ERD25TJ470 CARBON 0.25W 5% 47W R579 ERD25TJ103 CARBON 0.25W 5% 10KW R580 ERG1SJ561 METAL 1W 5% 560W R581 ERG2FJ221 RESISTOR R583 ERD25TJ472 CARBON 0.25W 5% 4K7W R591 ERD25TJ102 CARBON 0.25W 5% 1KW R594 ERD25TJ104 CARBON 0.25W 5% 100KW R595 ERD25TJ472 CARBON 0.25W 5% 4K7W R596 ERD25TJ563 CARBON 0.25W 5% 56KW R639 ERD75TAJ825 CARBON 0.75W 5% 8M2W R686 NKS2 FUSABLE 0.25W 5% 0.1W R688 NKS2 FUSABLE 0.25W 5% 0.1W R3104 ERJ6GEYJ102 S.M.CARB 0.1W 5% 1KW R3360 ERC12GK225V RESISTOR R3362 ERC12GK824V RESISTOR R3364 ERC12GK105D SOLID 0.5W 10% 1MW R3378 ERC12GK821D SOLID 0.5W 10% 820W R3388 ERC12GK821D SOLID 0.5W 10% 820W R3398 ERC12GK821D SOLID 0.5W 10% 820W

Page 28

Page 29

Page 30

Page 31

Page 32

Page 33

Page 34

Page 35

Page 36

Page 37

Page 38

Page 39

Page 40
