TX---28DK20P
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
nasonic
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
nasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Panasonic
nasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
nasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
Colour television
¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
Operating Instructions
English
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
TQB8E3354U
Page 2
WELCOME
Dear Panasonic Customer,
Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your
new colour television. This is a very advanced television; however, the Quick Start Guide will tell you how to
have the TV operating quickly. You can then read the instructions completely and retain them for future
reference.
CONTENTS
Warnings and Precautions 2.......................
Accessories 3....................................
Quick Start Guide 4...............................
Basic Controls 5..................................
Using the On Screen Displays 6....................
Aspect controls 7.................................
Picture Menu 10..................................

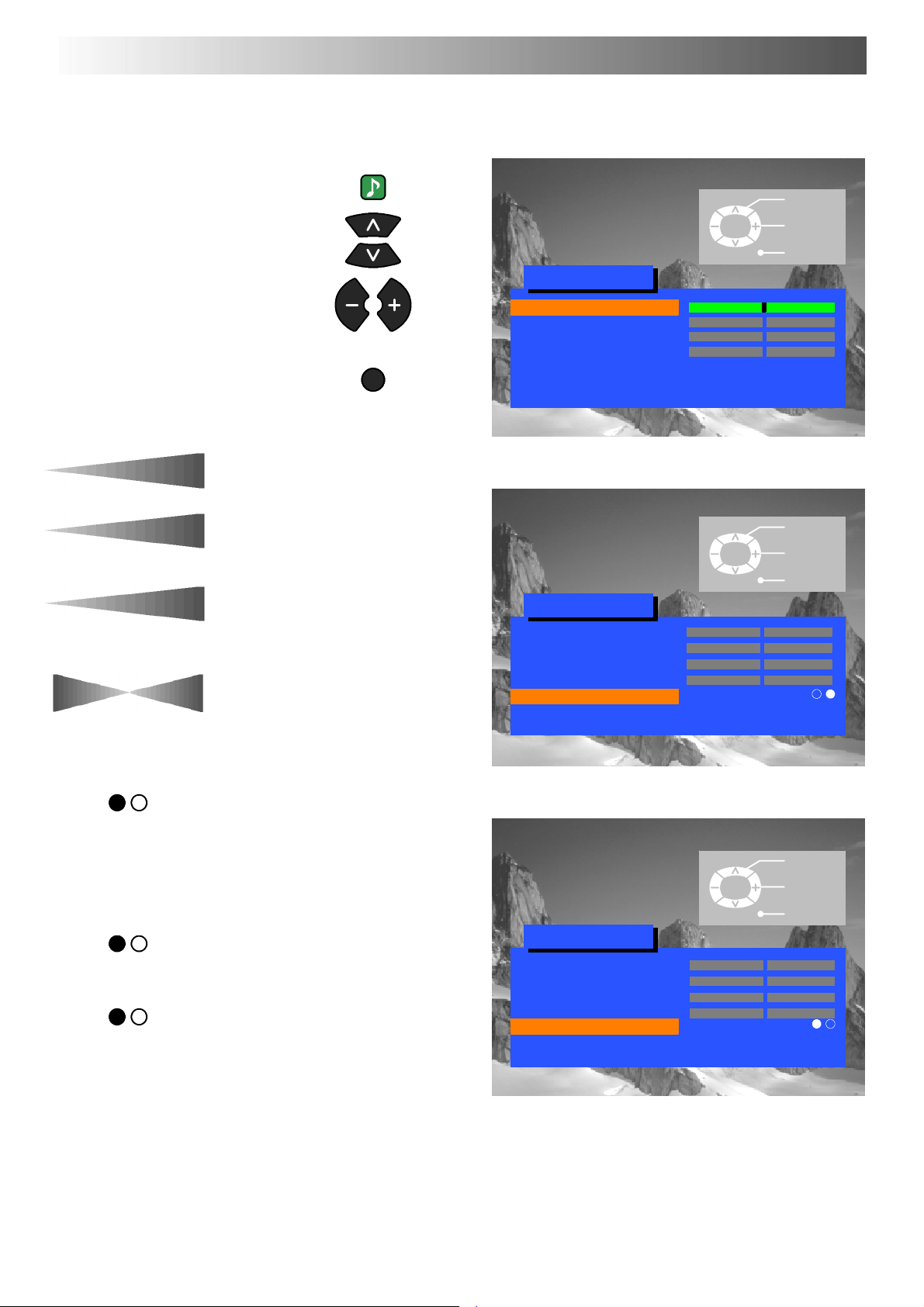

Sound Menu 11...................................
Setup Menu 12...................................
Tuning Menu 13..................................
Tuning Menu -- Programme edit 14.................
Tuning Menu -- Auto Setup 18......................
Tuning Menu -- Manual tuning 19...................
OSD Language 20................................
Q-- Link 21.......................................
AV Select and Setup 22...........................

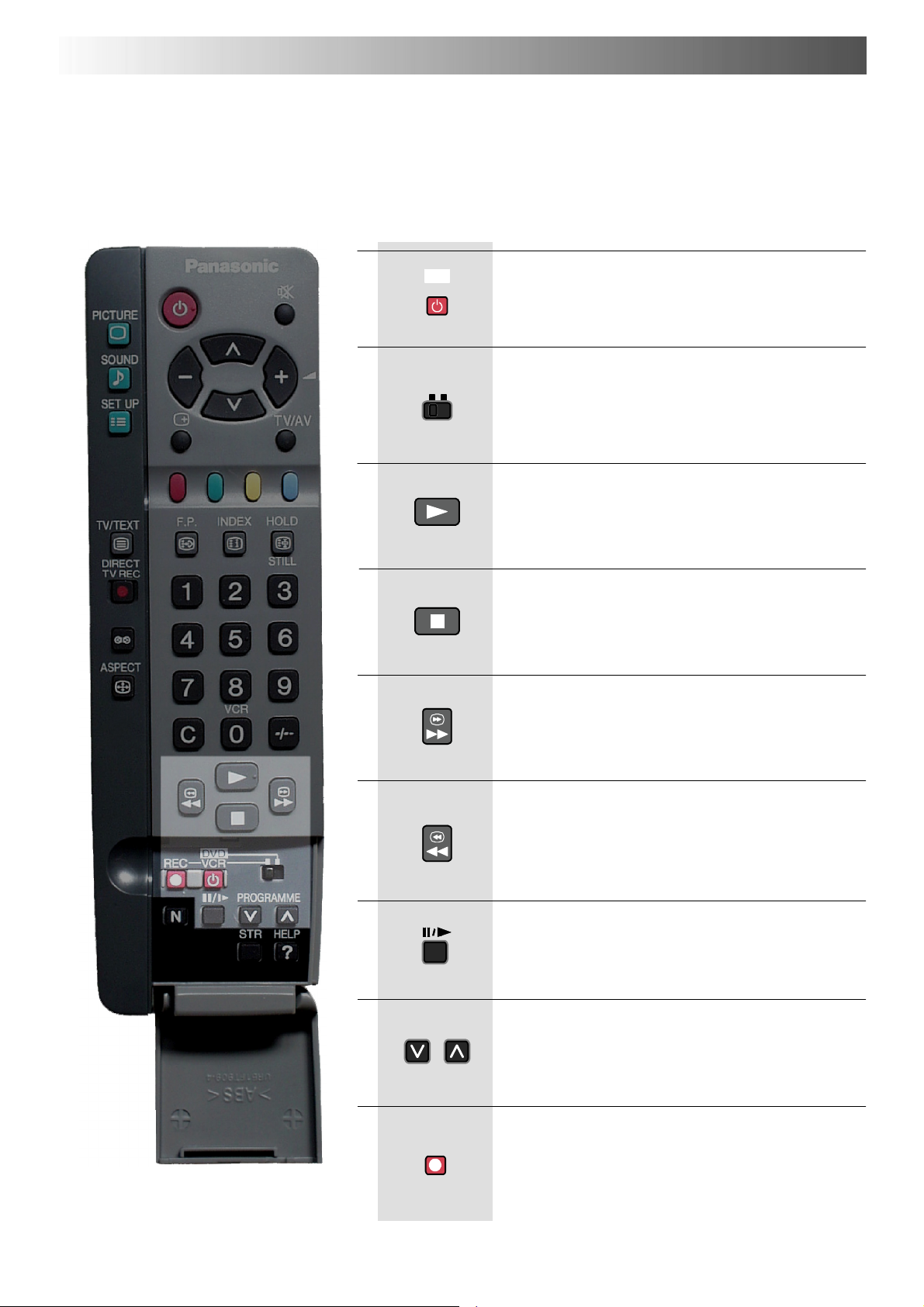

VCR/DVD Operation 23...........................
Te l e t e x t O p e r a t i o n 2 4.............................

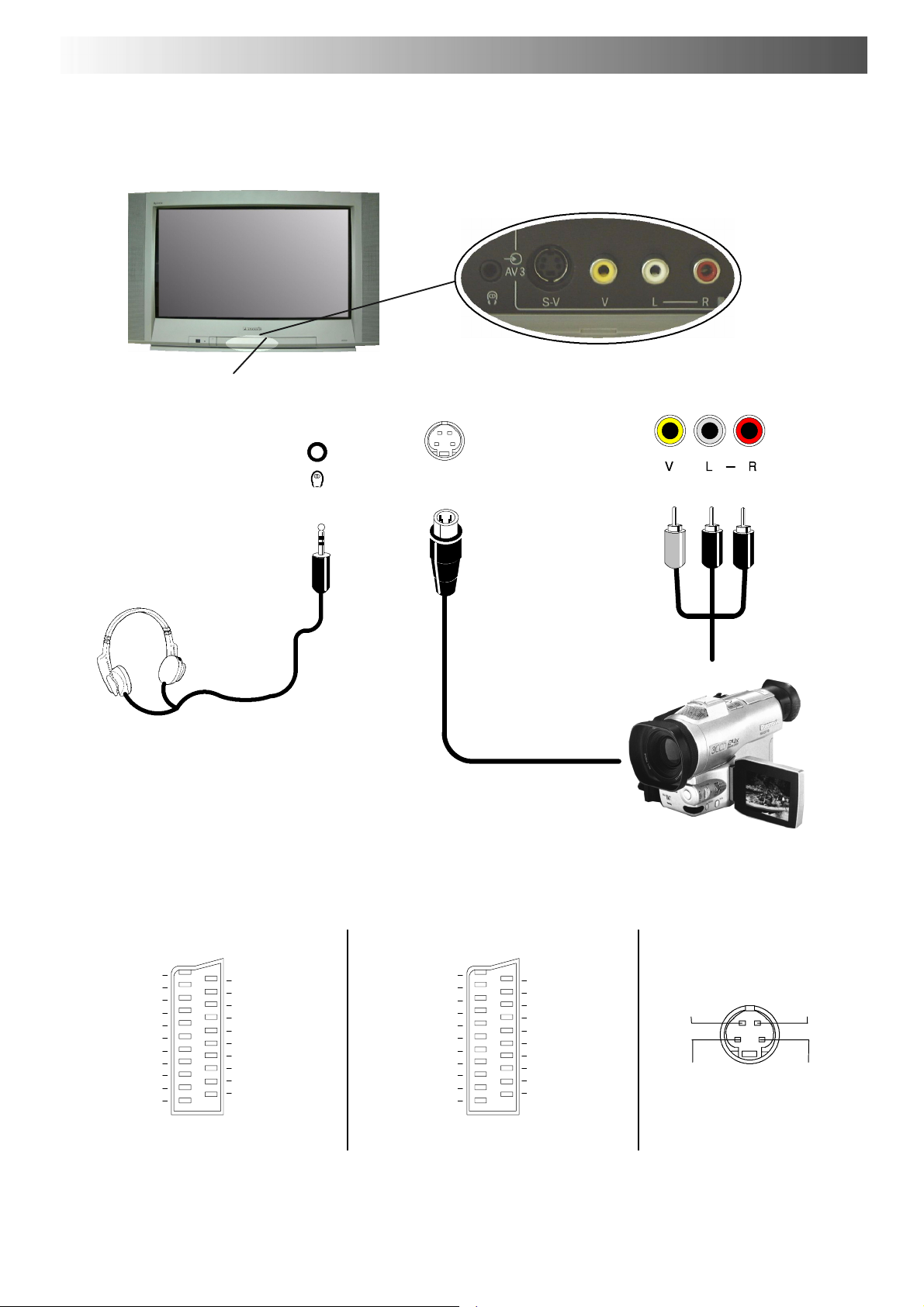

Audio / Video (AV) Connections 26.................
Via the front AV3 Audio / Video (RCA)
and Headphone Sockets 26........................
SCART and S-- Video Terminal Information 26..........
ViatherearAV1/AV221Pin(SCART)
and RCA Audio Out terminals 27.....................

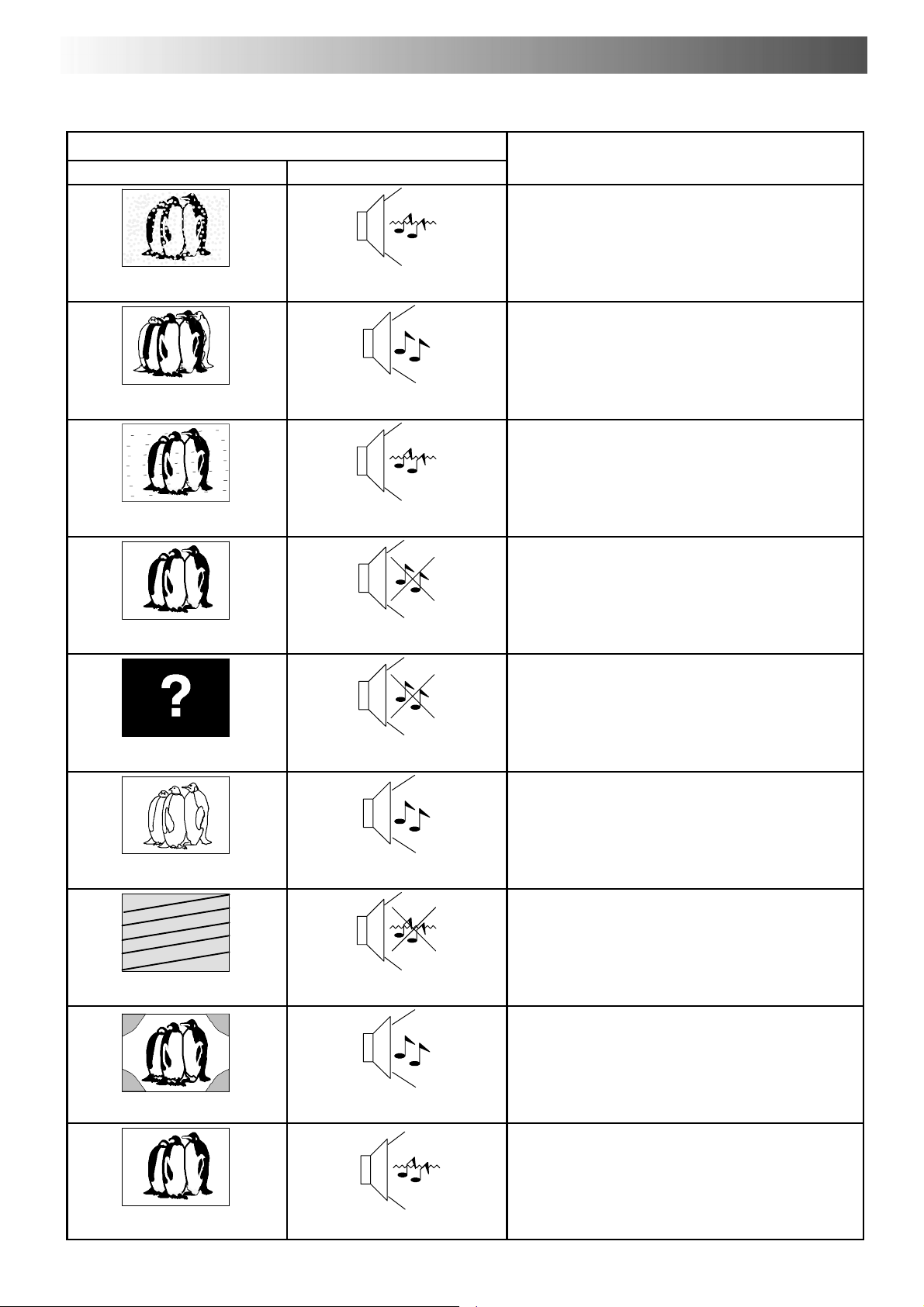

Troubleshooting 28...............................
Foryourguidance 29.............................
Specifications 29.................................
WARNINGS AND PRECAUTIONS
D This TV set is designed to operate on A.C. 220 -- 240V, 50Hz.
D To prevent damage which might result in electric shock or fire,
do not expose this TV set to rain or excessive moisture.
D WARNING : HIGH VOLTAGE !!!
Donotremovetherearcoveraslivepartsareaccessiblewhen
it is removed. There are no user serviceable parts inside.
D Avoid exposing the TV set to direct sunlightand other sources
of heat.
D The On/Off switch on this model does notfully disconnectthe
TV from the mains supply. Remove the mains plug from the
wall socket when the TV set is not used for a prolonged period
of time.
2
D CABINET AND PICTURE TUBE CARE
Remove the mains plug from the wall socket. The cabinet and
picture tube can be cleaned with a soft cloth moistened with
mild detergent and water. Do not use solutions containing
benzol or petroleum. TV sets can produce static electricity,
care must be taken whenever touching the TV screen.
D Adequate ventilation is essential to prevent failure of electrical
components, we recommend that a gap of at least 5cm is left
all around this television receiver even when it is placedinside
a cabinet or between shelves.
Page 3
ACCESSORIES
Check that you have the accessories and items shown
Operating Instruction book
Batteries for the Remote Control
T ransmitter.
(2 x R6 (UM3) size)
n
Remote Control T ransmitter
EUR511211
Remote control batteries
D Make sure that the batteries are fitted
the correct way round.
D Do not mix old batteries with new
batteries. Remove old, exhausted
batteries immediately.
D Do not mixdifferentbattery types,i.e.
Alkaline and Manganese or use
rechargeable (Ni ---Cad) batteries.
3
Page 4
QUICK START GUIDE
Plug in aerial and connect ancillary equipment.
1
AV1
AV2
SATELLITE RECEIVER
OR
VCR
AV1
AV2
3
2
OSD language
English Magyar Hrvatski
Čeština Russkij Bulgarian
Română SlovenskySlovensko
Polski Nemački
Start ATP Manual tune
TV/AV
Select
Select
Exit
Select your country.
First, ensure that the VCR is in Standby mode.
Plug in TV and switch on.
STR
Change
programme
Select
option
Exit
Store
4
Return --
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: -- Off SC2
4: -- Off SC2
5: -- Off SC2
Delete Add Move TV > VCR
TV/AV
Auto setup will begin, your stations will be located and stored.
Use the Programme Edit menu to delete unwanted stations
(see page 14).
Press the TV/AV button to exit.
TV/AV
If you are installing a new Q---Link compatible VCR, you can now
switch it ON. Downloaded tuning data will match the television’s.
If you are installing a new
need to initiate download manually.
See the VCR handbook for details.
Press the red button.
5
CH41
NEXTVIEWLINK compatible VCR, you will
D If the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR’s menu.
D If Q--- Link is not operating correctly, check it is connected to the television’s AV2 socket, the SCART lead is a “full function” type, and
the VCR is compatible with Q---Link,
NEXTVIEWLINK or similar technologies. Ask your dealer for further details.
D For further information on Q ---Link and connecting equipment, see pages 21, 26 and 27.
4
Page 5
BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL
Red light indicates Standby mode.
MAINS Power On/Off switch
STR (Normalisation store)
Used to store tuning and other function settings
F (Function select)
Displays the On Screen Display functions, use repeatedly to
select from the available functions - Volume, Contrast,
Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass,
Treble, Balance and Tuning mode
Standby ON/OFF switch
Switches TV On or Off standby.
Menu buttons
Press to access the Picture, Sound
and Setup menus (see page 6)
Status button
Press to display programme position,
programme name, channel number,
TV system, time stereo mode
and programme table
Teletext buttons (see page 24)
RCA Audio/Video sockets
(page 26)
S --- V H S s o c k e t ( s e e p a g e 2 6 )
Headphonesocket(seepage26)
TV/AV switch (see page 22)
Increases or decreases the programme position by
one. When a function is already displayed, press to
increase or decrease the selected function.
Sound mute On/Off
Cursor b uttons to make selections and
adjustments
Switch between viewing TV or AV input
(see page 22)
Coloured buttons used for
Programme Edit functions (see page 14)
Teletext functions (see page 24)
AV selection (see page 22)
Direct TV Record b utton
(see page 21)
Ambience on/off
Aspect control button (see page 7)
Direct Channel Access
During normal TV viewing or when
in the Tuning, Programme edit or
Manual tuning menus, press and
then enter channel number using
the numeric buttons
The N button will recall settings
stored with STR
STR (Normalisation store)
Programme / channel change
buttons (0- 9) and Teletext page
buttons (see page 24)
Programme position for selection of
two digit programmes (10 - 99) using
numeric buttons
VCR / DVD b uttons
(see page 23)
The Help button provides a
demonstrationofOnScreen
Display menus
5
Page 6
USING THE ON SCREEN DISPLAYS
This TV has a comprehensive system of On Screen Display menus to access
adjustments and options
Menu Title
Picture menu
TV/AV
Select
Change
Exit
Instructions
Sub-- menus
Selection bar
Some selections, for example, Contrast, Brightness, Colour and Sharpness
will allow you to increase or decrease their level.
Some selections, for example, Off timer, allow a choice to be made.
Some selections, for example Tuning menu, will lead to a further menu.
The PICTURE, SOUND and SET UP buttons are
used to open the main menus and also to return to
the previous menu.
The up and down cursor buttons are used to move
the cursor up and down the menus.
Contrast
Brightness
Colour
Sharpness
Colour balance Normal
P-- NR Off
AI On
SOUND SET UP
Indicator for options
The left and right cursor buttons are used to access
menus, adjust levels or to select from a range of
options.
The STR button is used to store settings after
adjustments have been made or options have
been set.
The TV/AV button is used to exit the menu system
and return to the normal viewing screen.
The HELP button will run a demonstration of the
menus available. Press the HELP button and
select one of the options.
If the HELP button is pressed whilst a menu is
displayed, the ’Instructions’ box will be hidden
from view. Press the HELP button again to show
the ’Instructions’ box.
6
STR
TV/AV
HELP
?
Page 7
ASPECT CONTROLS
The widescreen TV will allow you to enjoy viewing the picture at its maximum size, including
widescreen ‘cinema format’ pictures.
Note: Just mode is not available when viewing an RGB source.
Press the ASPECT button to move
through the six aspect options:
Panasonic Auto, 4:3, Zoom,
S --- Z o o m , 1 6 : 9 ( F u l l ) a n d J u s t
Panasonic Auto
Some broadcasts are transmitted
together with a wide screen
identification signal (WSS). If the TV
receives this signal then it will
automatically switch to wide screen
16:9 mode, maximum display.
The automatic widescreen switching
depends upon reception conditions
and the strength of the signal. If the
signal is poor and therefore the WSS is
weak then it is possible that the picture
may not expand to full size and that the
TV will display black areas around the
edges.
If the original source signal was a
standard 4:3 aspect ratio then you
might prefer to view it in its original size;
the red and green keys that appear will
allow you to choose between viewing at
standard 4:3 size or expanded in Just
mode.
ASPECT
Panasonic Auto
4:3 Just
Panasonic Auto
4:3
4:3 will display a 4:3 picture at its
standard 4:3 size and can be selected if
youwishtoviewinthisformat.
Zoom
Zoom mode magnifies the central
section of the picture.
The picture can be moved and
enlarged vertically using the coloured
keys. The former adjustment is useful
for viewing any sub ---titles which may
appear outside the picture.
4:3
4:3
Zoom
VSize-- VSize+ VPos.-- VPos.+
Zoom
7
Page 8
ASPECT CONTROLS
The on screen selectorkeys that appear
for some aspect functions will clear after
a few seconds. If you subsequently
wish to select an operation then press
the Aspect key once more for the keys
to reappear.
The widescreen aspect ratios of different films and programmes
can vary. If these are wider than a standard 16:9 aspect picture
then a black band may be visible at the top and bottom of the
screen.
If, in Panasonic Auto mode, you experience problems with the
screen display size when playing back widescreen format
recordings from your VCR then it is possible that the tracking
control of your VCR requires adjustment (your VCR instruction
book will contain adjustment details).
Zoom
VSize-- VSize+ VPos.-- VPos.+
Blue key has been pressed to move picture upwards
S--Zoom
S --- Z o o m allows increased
magnification and the ability to move
the picture horizontally and vertically.
16:9 (Full)
16:9 (Full) will display the picture at its
maximum size but with slight
elongation.
S--Zoom
HPos.-- HPos.+ VPos.-- VPos.+
Increased magnification with S --- Z o o m
16:9
8
16:9 (Full)
Page 9
ASPECT CONTROLS
Just
Just mode will display a 4:3 picture at
maximum size but with aspect
correction applied to the centre of the
screen so that elongation is only
apparent at the left and right edges of
the screen. The size of the picture will
depend on the original signal.
STILL CONTROL
Just
Just
STILL Control
The STILL key allows you to freeze the
picture at any time.
HOLD
STILL
9
Page 10
PICTURE MENU
This menu allows you to make adjustments to the picture quality
Open the Picture menu
Move to your choice
Increase or decrease levels or
set options
Press the TV/AV button to exit
the Picture menu
TV/AV
TV/AV
Picture menu
Contrast
Brightness
Colour
Sharpness
Colour balance Normal
P-- NR Off
AI On
Select
Adjust
Exit
Contrast
Brightness
Colour
Sharpness
Tint
Colour balance
P-- NR
AI
The Contrast, Brightness, Colour and
Sharpness levels can be adjusted to suit
your own preferences and the viewing
conditions.
The Tint adjustment will only appear as
a menu item if you have an NTSC signal
source connected to the TV and will
allow adjustment of the hue.
The Colourbalance setting allowsyou to
set the overall colour tone of the picture.
P-- NR will automatically reduce
unwanted picture interference.
The AI setting automatically analyses
the incoming picture and processes it to
give improvedcontrast, optimumdepth
of field and vivid colour tones.
TV/AV
Picture menu
Contrast
Brightness
Colour
Sharpness
Colour balance Normal
P-- NR Off
AI On
Sharpness
Select
Adjust
Exit
10
Page 11
SOUND MENU
The Sound menu will allow you to set your personal preferences for all aspects of sound quality
SOUND
Open the Sound menu
Move to your choice
Increase or decrease levels or
set options
Press the TV/AV button to exit
the Sound menu
TV/AV
TV/AV
Sound menu
Volume
Bass
Treble
Balance
MPX Stereo
Mode Music
Ambience Off
Select
Adjust
Exit
Volume
Treb le
Balance
MPX
Bass
The Volume adjustment sets the overall
output volume.
Bass adjustment will emphasise the
lower, deeper frequencies and can be
increased or decreased.
T reble adjustment will emphasise the
sharper, higher frequencies and can be
increased or decreased.
Balance affects the levels of sound
between the left and right speakers.
Adjustment can be made so that the
level from the speakers will suit your
listening position.
MPX will usually be set to Stereo to
provide the best reproduction, however
if reception deteriorates or if the service
is not available then it is advisable to
switch to Mono. Mono (M1) and (M2)
can also be selected if signals are being
transmitted.
TV/AV
Sound menu
Volume
Bass
Treble
Balance
MPX Stereo
Mode Music
Ambience Off
Select
Change
Exit
Select
Change
Mode
Ambience
The sound can be improved during
Music or Speech mode by selecting the
appropriate function.
Ambience provides a dynamic
enhancer to simulate improved spatial
effects.
TV/AV
Sound menu
Volume
Bass
Treble
Balance
MPX Stereo
Mode Music
Ambience Off
Exit
11
Page 12

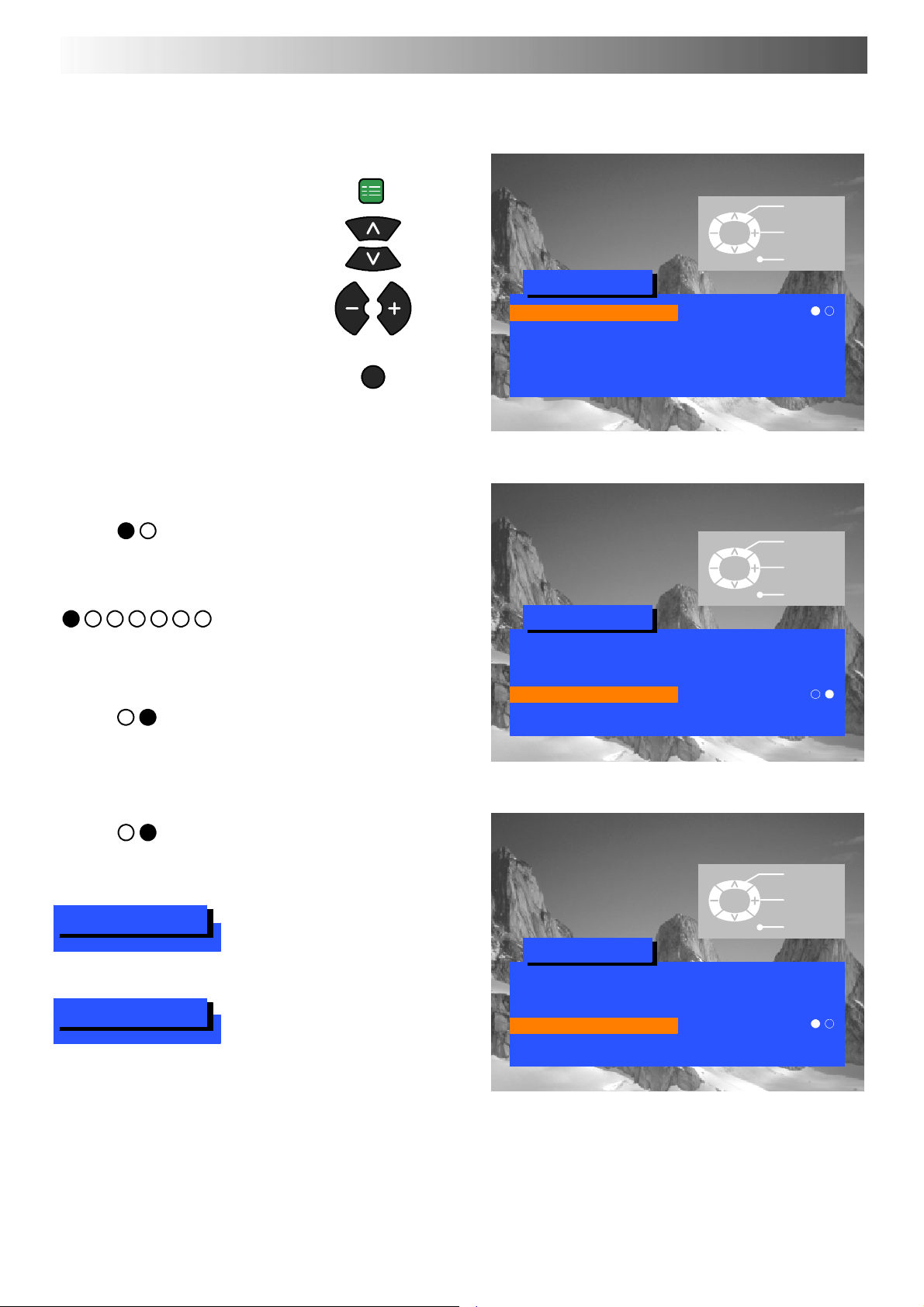

SETUP MENU
The Setup menu provides access to various advanced features and also to the Tuning menu
SET UP
Open the Setup menu
Move to your choice
TV/AV
Increase or decrease levels, set
optionsoraccessfurthermenus
Press the TV/AV button to exit
the Setup menu
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link On
Tuning menu
OSD language
Select
Change
Exit
Te le t e x t
Off timer
Flicker reduction
Q-- Link
Tuning menu
OSD language
The Teletext option allows you tochoose
between FLOF or LIST mode.
Seepage24.
Off timer will switch the TV off within a
preset time which you can choose from
between 0 to 90 minutes in 15 minute
intervals.
You will normally find that Flicker
reduction is best set to On to reduce any
slight picture movement. However, it is
possible that some occasional
broadcastsmay benefit by selecting the
Off position.
Q-- Link allows you to enable or disable
data communication with a compatible
VCR.Seepage21.
The Tuning menu provides an entry to
many other features including
Programme edit, ATP, Fine tuning,
Manual tuning, Colour system and
Volume correction. See page 13.
OSD language allows you to select the
language used for On Screen Displays.
Seepage20.
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link On
Tuning menu
OSD language
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu
OSD language
TV/AV
TV/AV
Select
Change
Exit
Select
Change
Exit
12
Page 13
TUNING MENU
The Tuning menu provides access to manual, automatic and fine tuning menus
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to your choice
Increase or decrease levels, set
optionsoraccessfurthermenus
Press the TV/AV button to exit
SET UP
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu
OSD language
TV/AV
Select
Change
Exit
Programme edit
Auto setup
Manual tuning
Fine tuning
Colour system
Volume correc.
Decoder (AV2)
Accessing the Programme edit menu
will allow stations to be moved, added,
deleted, named or locked and provides
access to the TV -- system.
Seepage14.
The Auto setup menu allows you to
automatically retune the TV.
Seepage18.
The Manual tuning menu allows
individual programme positions to be
tuned manually. See page 19.
Stations can be finely tuned using the
Fine tuning adjustment.
The Colour system menu allows you to
decide the correct choice of
transmission standard.
Volume correction allows you to adjust
thevolumelevelofindividualstations.
This option is used when a decoder is
connected via AV2. Set to On if a
scrambled signal is to be processed by
the decoder. Set to Off after use.
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu Access
OSD language
1
CH41
Return --
Tuning menu
Programme edit Access
Auto setup
Manual tuning
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
TV/AV
TV/AV
’STR’
Select
Access
Exit
Select
Access
Exit
Store
13
Page 14
TUNING MENU -- PROGRAMME EDIT
The Programme edit menu allows you to edit the programme position settings
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to Programme edit menu
Access Programme edit menu
Make required changes
(see sections below)
Press STR button to store
changes
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
SET UP
STR
TV/AV
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu
OSD language
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu Access
OSD language
Select
Change
Exit
Select
Access
Exit

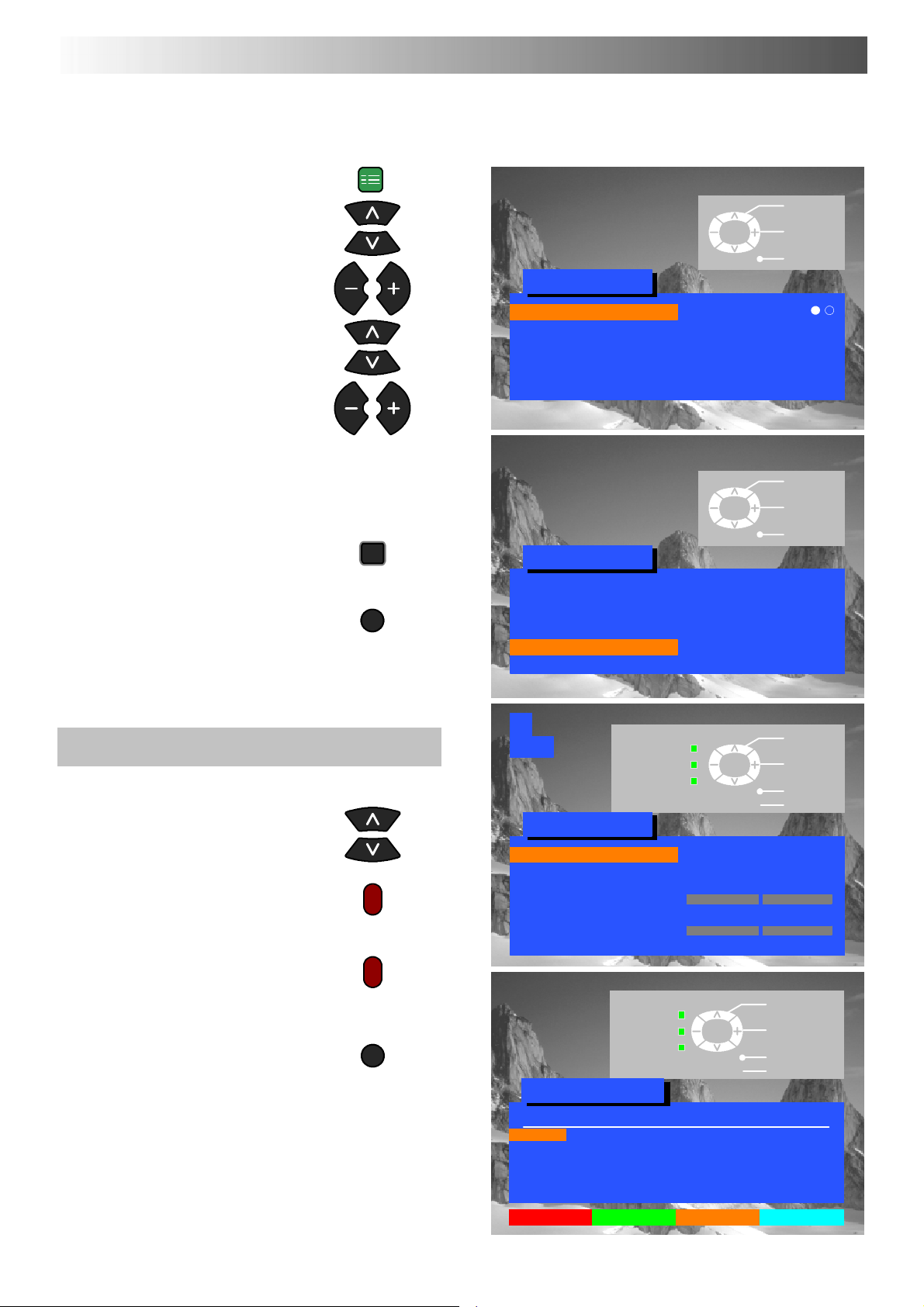

To delete an unwanted programme position
Choose the programme position
PresstheRedbuttononremote
control
Press the Red button again to
confirm
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
1
CH41
Return --
Tuning menu
Programme edit Access
Auto setup
Manual tuning
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
Return --
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: -- Off SC2
4: -- Off SC2
5: -- Off SC2
TV/AV
TV/AV
STR
STR
Change
Select
Exit
Store
Select
Access
Exit
Store
programme
option
14
Delete Add Move TV > VCR
Page 15
TUNING MENU -- PROGRAMME EDIT

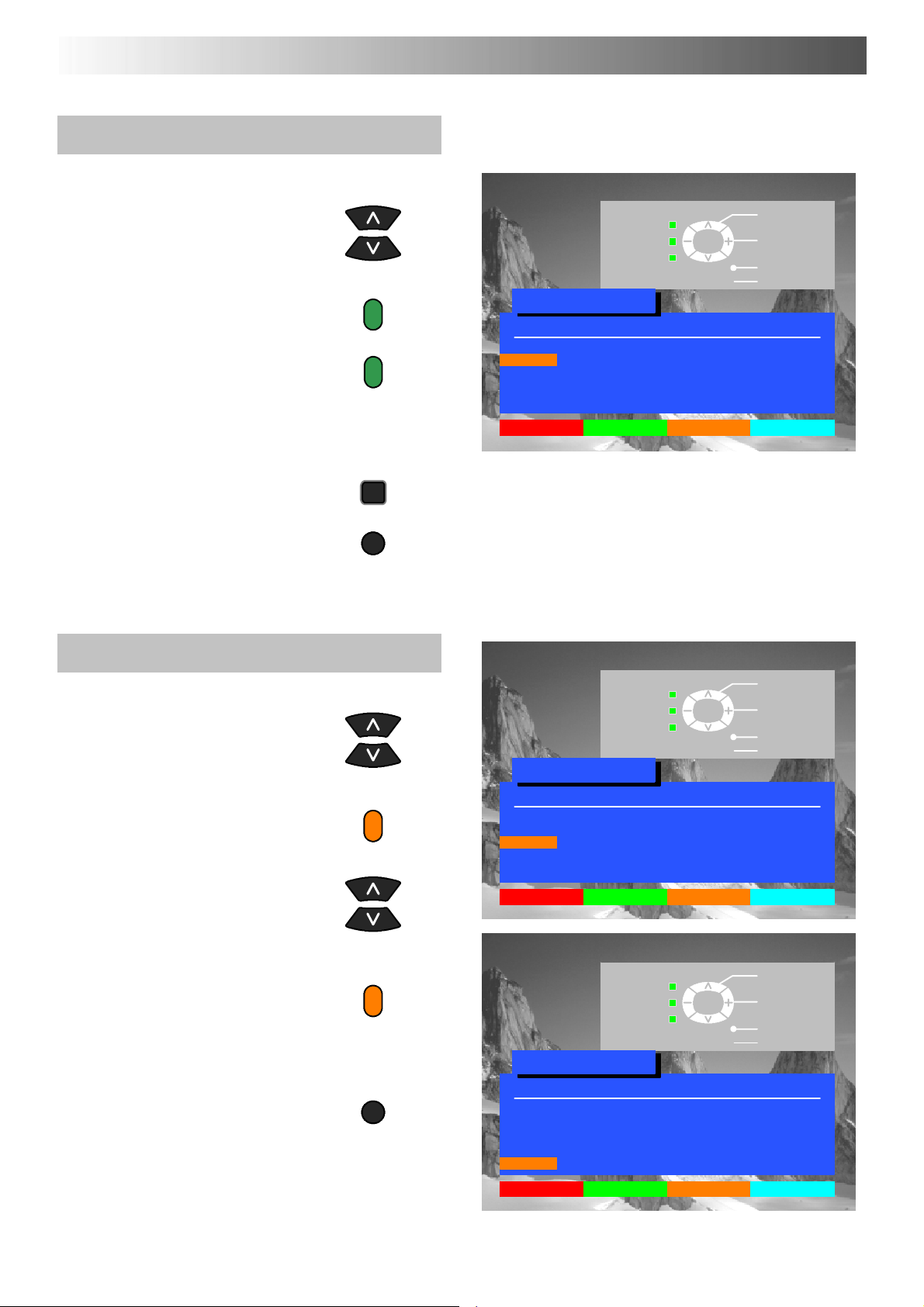

To add a programme position
Choose the programme position
where the new program is to be
inserted
Press the Green button
Press the Green button again to
confirm
Thisblankprogrammecanthenbe
tuned, named, locked and be
allocated your choice of TV-- system
Press STR to store
STR
If you have finished in the
TV/AV
Programme edit menu, press the
TV/AV button to exit
To move a programme to another position
Change
programme
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Delete Add Move TV > VCR
Choose the programme position
to be moved
Press the Yellow button on
remote control
Choose new position
Press the Yellow button again to
confirm
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
Change
programme
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Delete Add Move TV > VCR
Change
programme
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: -- Off SC2
4: -- Off SC2
5: CH44 ZXY Off SC2
Delete Add Move TV > VCR
15
Page 16
TUNING MENU -- PROGRAMME EDIT

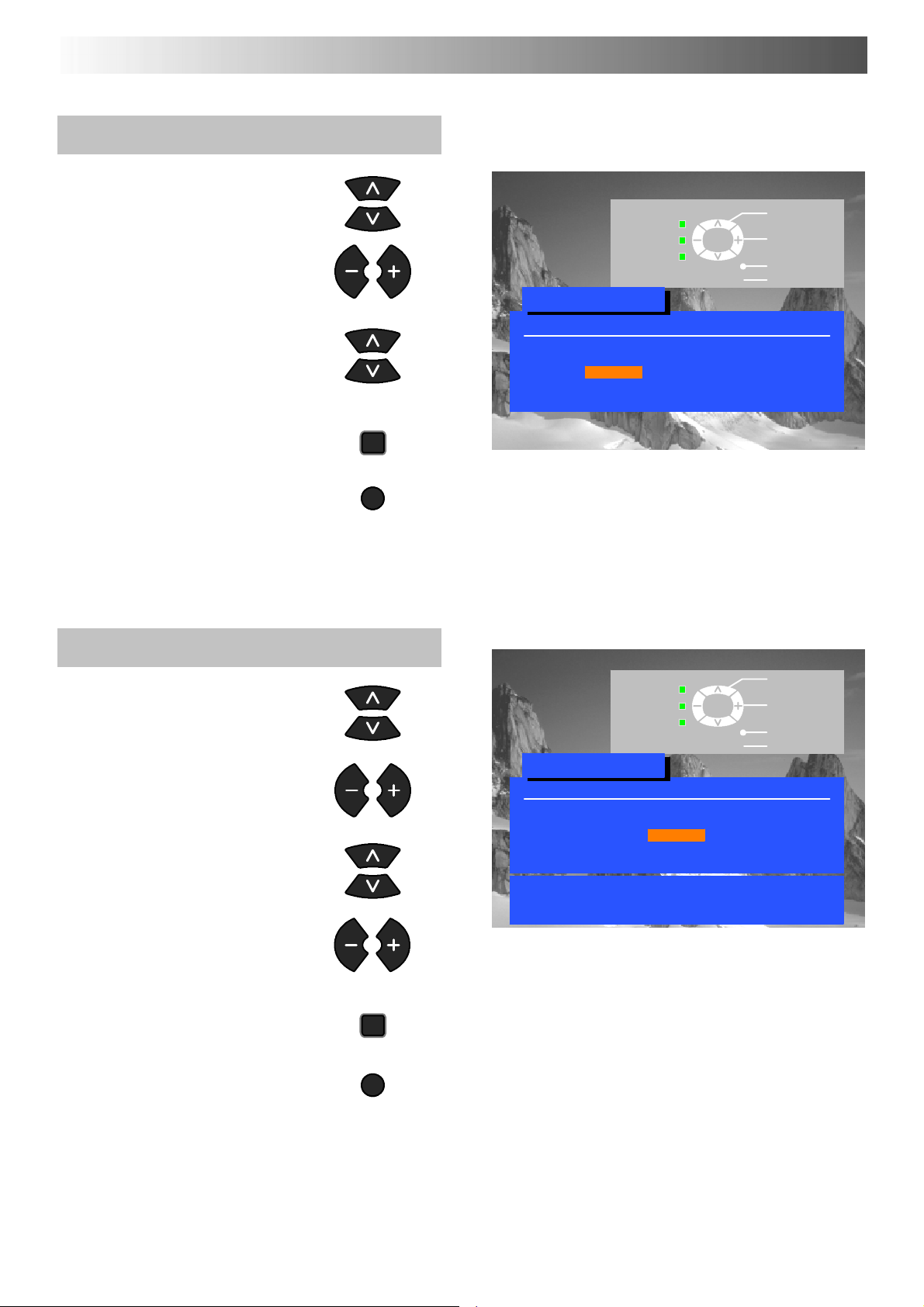

To tune a programme position
Choose the programme position
Move to the channel column
Increase or decrease channel
numberorusethe’C’keyforDirect
Channel Access (see page 5)
Press STR to store
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
To rename a programme position
STR
TV/AV
Change
channel
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Choose the programme position
Move to the Name column
Choose the new character
Move to the next character position
Continue until renaming is done
Press STR to store
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
STR
TV/AV
Change
character
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
ABCDEFGHIJKLMNOPQ
RSTUVWXYZĂĆČĚŁŘŚŠ
ŞŢŽ +--. 0123456789
16
Page 17
TUNING MENU -- PROGRAMME EDIT

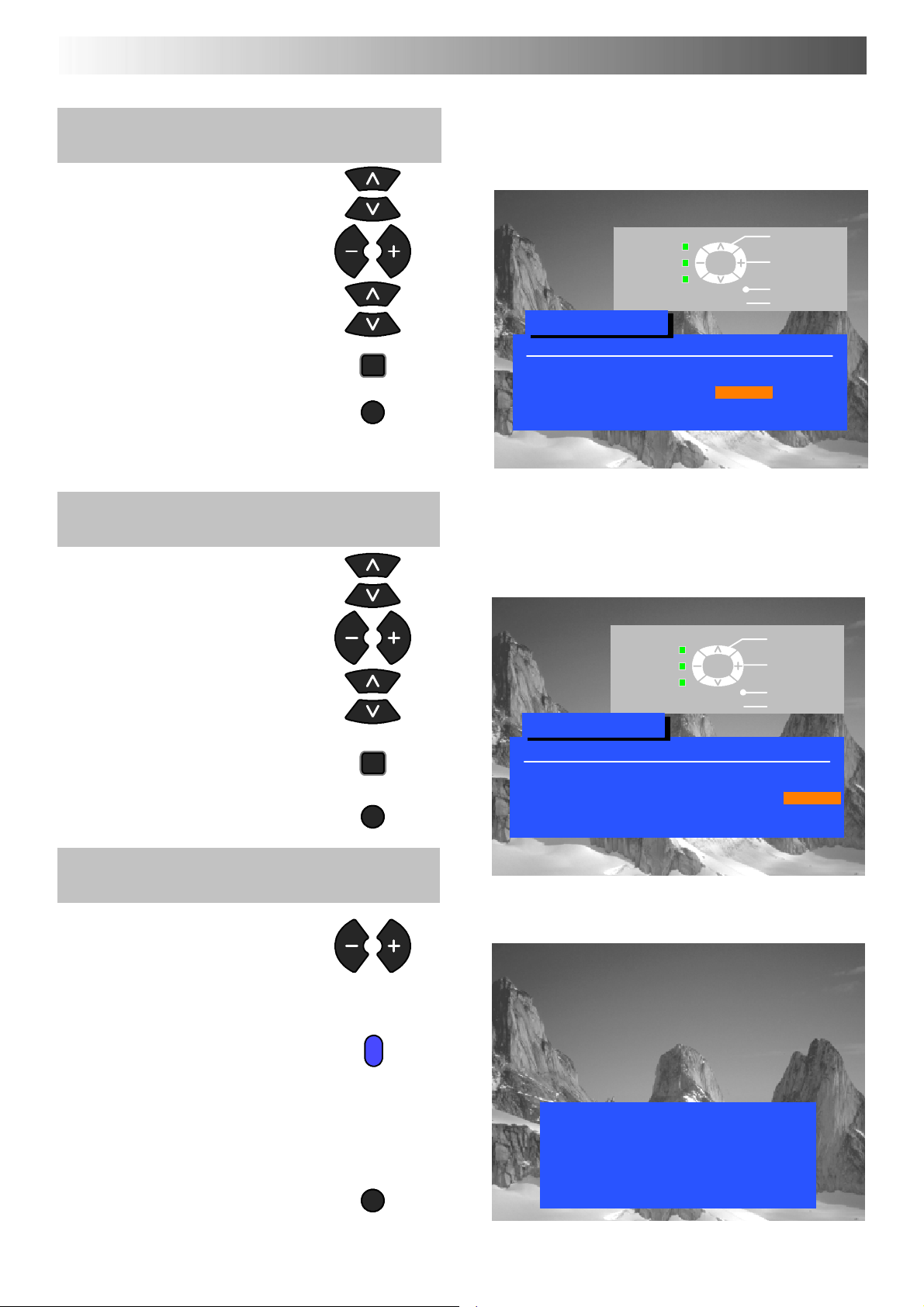

To lock a programme position to prevent
access
Choose the programme position
Move to the lock column
Choose between lock on or lock off
Press STR to store
STR
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
Note :
When a programme position is locked, Direct Channel
Access using the ’C’ and numeric keys on the remote
control is not available.
To c h a n g e t h e TV -- system for a programme
position
Choose the programme position
Move to the Sys column
Choose the required sound system:
SC1 : PAL B/G, H / SECAM B/G
SC2 : PAL D/K / SECAM D/K
STR
Press STR to store
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
Lock
On/Off
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Change
TV system
Adjust
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
To copy programme information to a
compatible VCR connected to AV2
Move to the Prog. column
PresstheBluebuttononthe
remote control.
Programme data will now be sent
to the VCR. This might take a few
seconds, depending on the
number of stations stored. If the
message “Unable to download,
checkyourVCR”appearsonthe
screen, the television is unable to
send the programme information
to the VCR. See the VCR
handbook for further information.
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
TV>VCR DOWNLOAD IN PROGRESS
PLEASE WAIT
Programme : 63
Remote control unavailable
17
Page 18
TUNING MENU -- AUTO SETUP (A TP)
The Auto setup menu will allow you to automatically retune the TV to your local stations.
It is useful if you move to a different region
SET UP
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to Auto setup
Access Auto setup
Press to confirm start
Select your country
Press to start Auto setup (ATP)
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu Access
OSD language
1
CH41
Return --
Tuning menu
Programme edit
Auto setup Access
Manual tuning
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
TV/AV
TV/AV
STR
Select
Access
Exit
Select
Access
Exit
Store
The TV will search for, locate and
sort into order your local stations.
If a compatible VCR is connected
via the AV2 socket, programme
data will be sent to the VCR via
Q-- Link (see page 21).
Once this operation is completed
the TV will display programme
position 1.
WARNING
All current tuning
data will be erased
Start Auto setup
Return --
CH41
AUTO SETUP IN PROGRESS
SEARCHING : PLEASE WAIT
TV/AV
Found : CH41 XYZ
02 99:21 41
SETUP : Return to tuning menu
TV/AV : To exit
Exit
18
Page 19

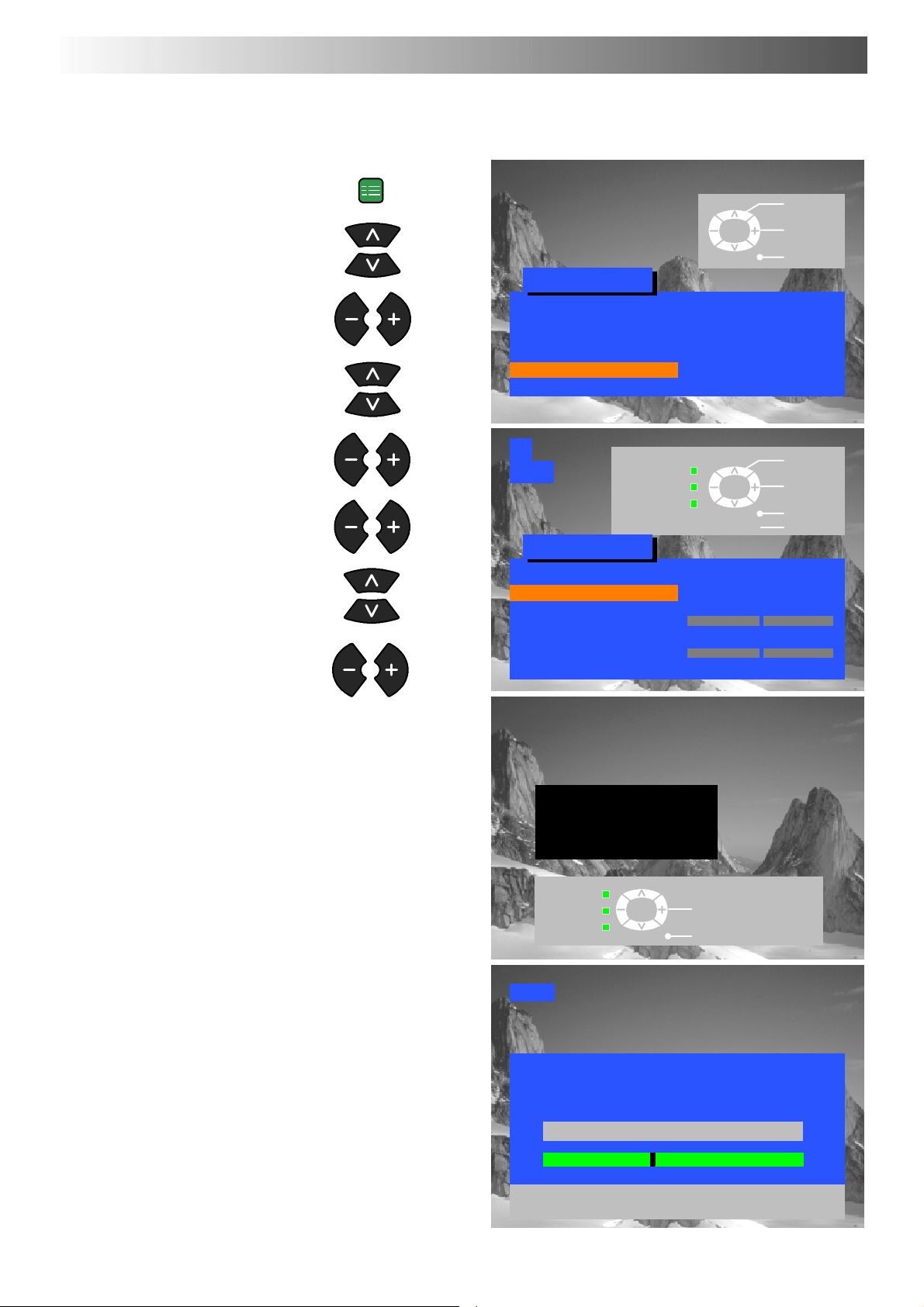

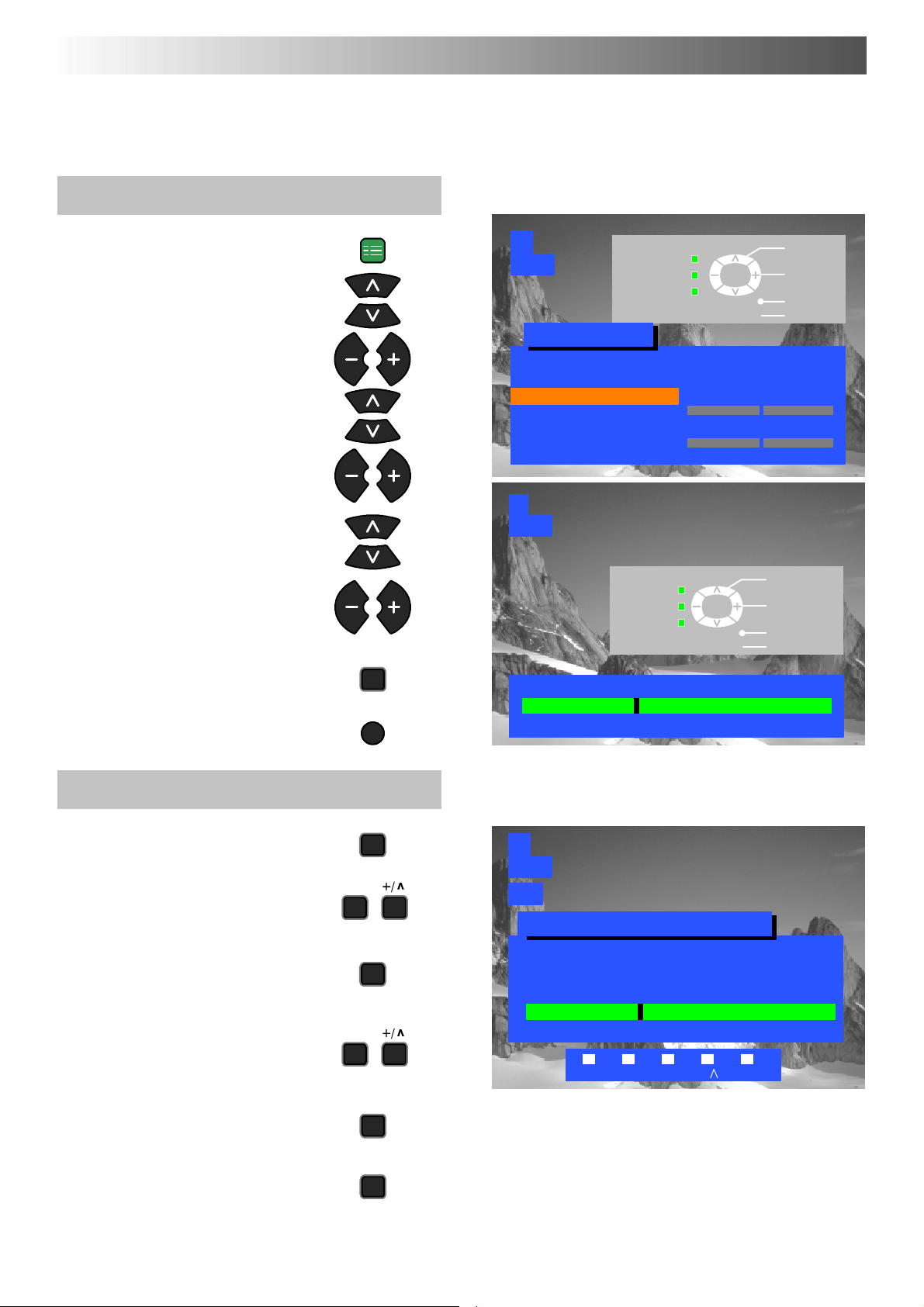

TUNING MENU -- MANUAL TUNING
Manual tuning of the Programme positions is available either from the On Screen Display menu
or from the front panel controls
Manual tuning menu
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to Manual tuning
Access Manual tuning
Select the programme position
to be tuned
Start tuning
When the desired programme is
found, press STR to store
Press the TV/AV button to exit.
SET UP
STR
TV/AV
1
CH41
Return --
’STR’ Button
TV/AV
Select
Access
Exit
Store
Tuning menu
Programme edit
Auto setup
Manual tuning Access
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
1
CH41
Programme
down/up
Search
Return --
’STR’ Button
Manual tuning
02 99:21 41
TV/AV
down/up
Exit
Store
Manual tuning (Front panel)
Press the F button (Front panel)
until “Tuning mode” is reached
Press the -- or + button to access
Tuning mode
Press the TV/AV button to move
between “Change programme”,
“Search” or “Change TV system”
Press the -- or + button to change
programme position, start search,
or alter TV system
When the desired station is found,
press STR to store the changes
Repeat above procedure to tune
additional programmes or press the
F button to exit
-- /v
TV/AV
-- /v
STR
F
1
CH41
SC2
Manual tuning (Front panel)
-- ,+ : Search
TV/AV : Move cursor
STR : To store
F : To exit
02 99:21 41
STR F -- /V +/ TV/AV
F
19
Page 20

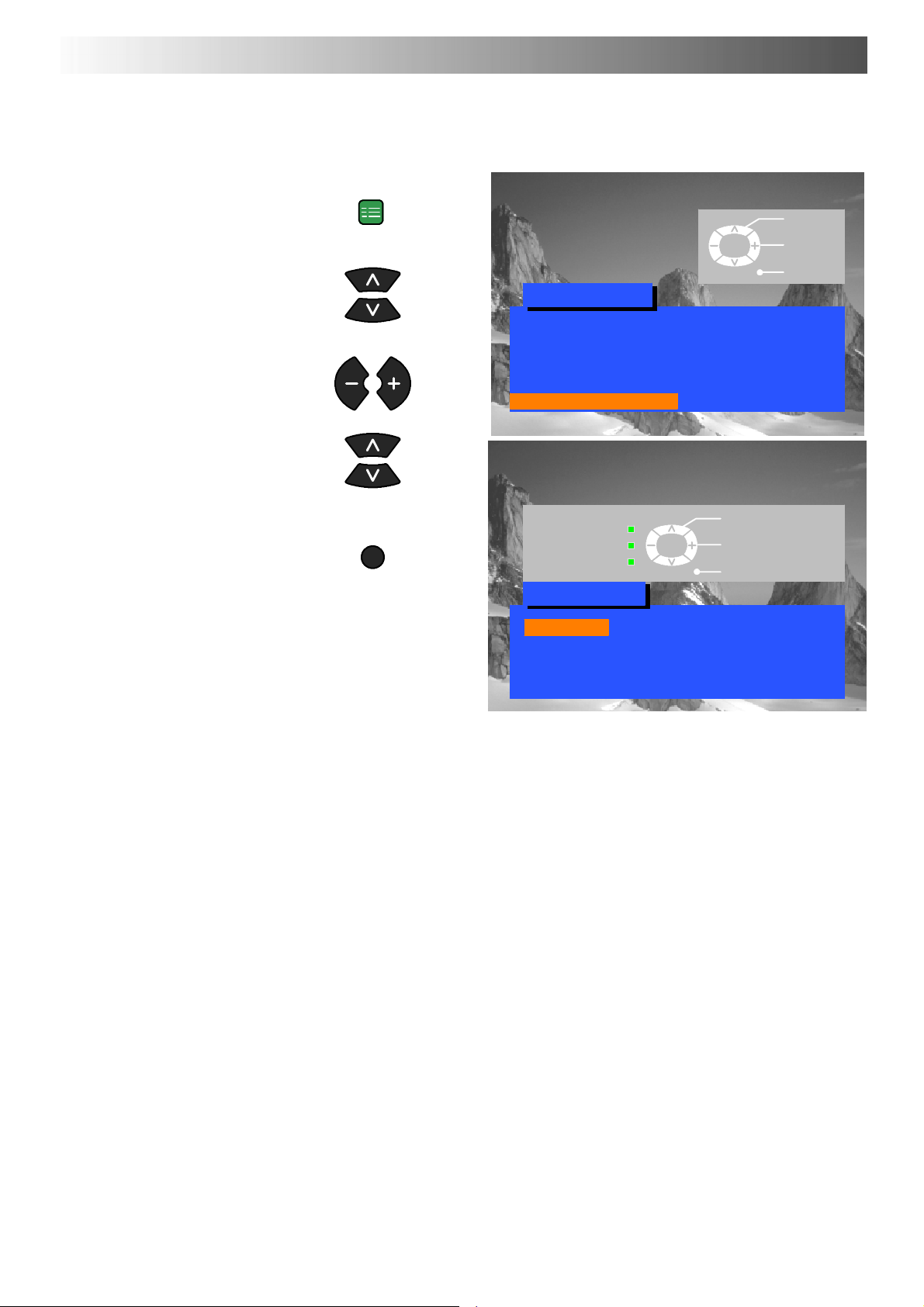

OSD LANGUAGE
When you first installed the TV the On Screen Display language was set according to your choice of
country. If you wish to use a different language then it can be chosen from the OSD language menu
SET UP
Open the Setup menu
Select
Access
Move to the OSD language
menu
Access the OSD language menu
Move to your choice
Press the TV/AV button to select
and exit
TV/AV
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link Off
Tuning menu
OSD language Access
Select
Select
Return --
TV/AV
Exit
OSD language
English Magyar Hrvatski
Čeština Russkij Bulgarian
Română Slovensky Slovensko
Polski Nemački
Exit
20
Page 21

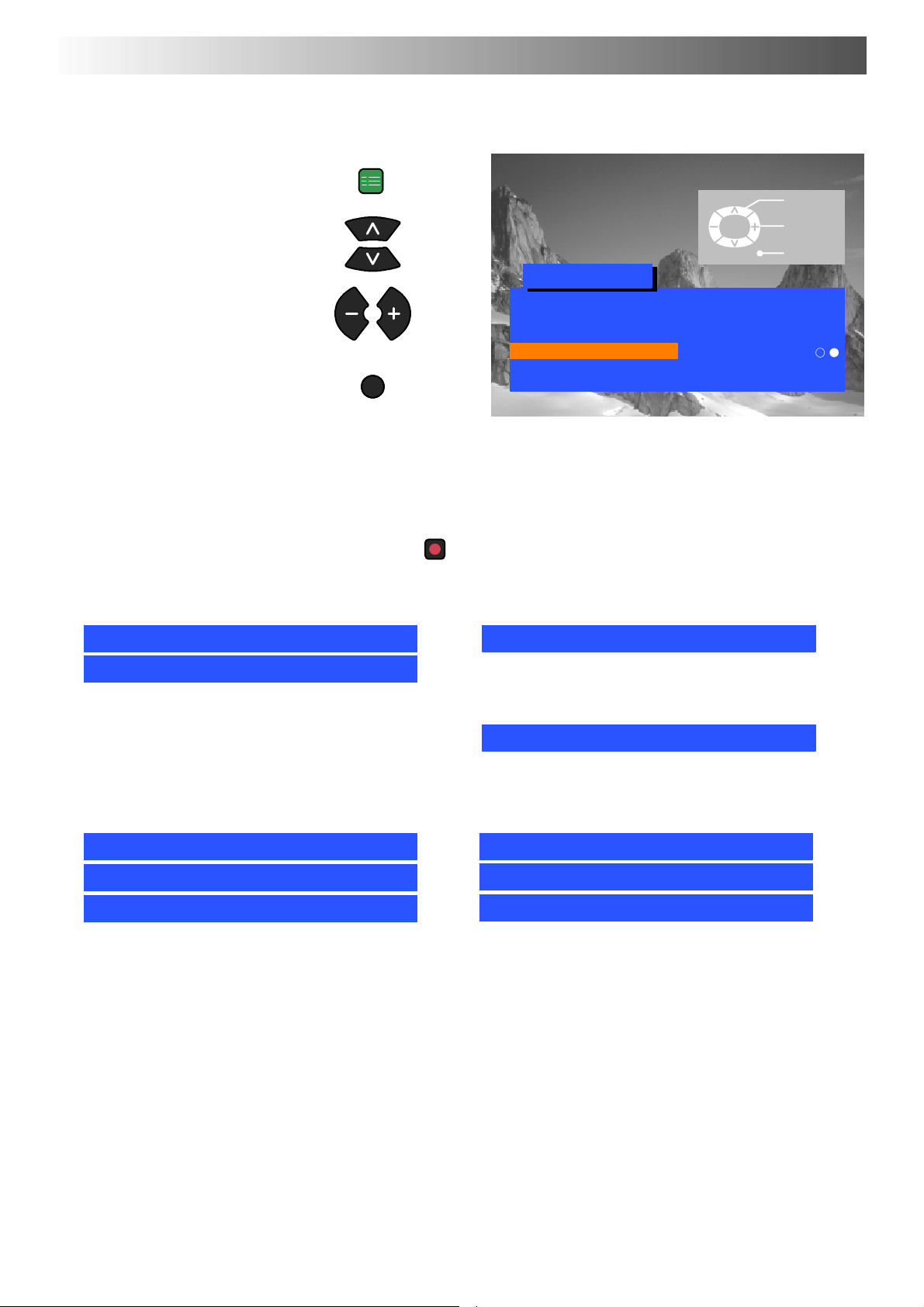

Q-- LINK
Q-- Link allows the television to communicate with your VCR
Open the Setup menu
Move to Q-- Link
SET UP
TV/AV
Select
Change
Exit
Setup menu
Confirm Q-- Link is set to “On”
TV/AV
Press the TV/AV button to exit
The VCR m ust b e conn ected w ith a SCART lead (full function typ e) attached between th e AV 2 socket of the television and the
appropriate socket on your VCR. See theV CR handbook for fu rth er inf ormation. Q-- Link,
the television to instruct a compatible VCR to record the program me that is currently being display ed on screen, regardless of the
programme position set on the VCR, thus simplifying the process of recording programmes.
Teletext FLOF
Off timer Off
Flicker reduction On
Q-- Link On
Tuning menu
OSD language
NEXTVIEWLINK or similar tech nolog y allow s
To record the programme you are currently watching
DIRECT
TV REC
Press the DIRECT TV REC button on the remote control
If the VCR is off, it will automatically switch on when you press the DIRECT TV REC button.
A message, sent from the VCR, will appear on screen showing what is being recorded, or if it is not possible to record:
VCR recording preset prog VCR recording TV source
VCR recording own tuner
VCR is recording the programme signal from its
owntuner.IfyouwishyoucanswitchofftheTV
and leave the VCR recording in the normal way.
Examples of other messages that might be displayed are:
No recording -- NO TAPE
No recording -- VCR IS PLAYING
VCR recording VCR external
VCR is recording the programme signal from the television.
Y ou must not change programme position or switch off the TV: if
you do, the VCR will automatically stop recording and switch off.
No recording -- TAPE IS PROTECTED
The write protection tab on the back of the cassette
has been removed.
No recording -- ALREADY RECORDING
No recording -- TAPE MAY BE DAMAGED
No recording -- NO SOURCE AVAILABLE
To share tuning information
To ensure correct recordings are made, the television and VCR should share tuning information -- seepage17.
D Whenever the Auto setup (ATP) function is used, tuning data will be downloaded to the VCR.
Auto Power functions
With Panasonic Q-- Link VCRs these additional features are available:
D If you inserta tape in yourVCR and press the Play button, the televisionwill automaticallyswitch onand select theAV2 inputso youcan
view the tape.
D If you switch off the television whilst the VCR is in Stop, Fast Forward or Rewind modes, the VCR will switch off automatically.
To tu r n off Q -- Li nk communication
If you do not wish to use the Q-- Link feature, go to the Setup menu and set the Q-- Link option to “Off”. See page 12.
Important Note:
Not all VCRs supportthis type ofdata communicationsystem. Some may support certain features,but not others.See theVCR handbook
for further information.
If Q-- Link is inoperative, first confirm that your SCART lead is a full function type. Ask your dealer for further details.
21
Page 22

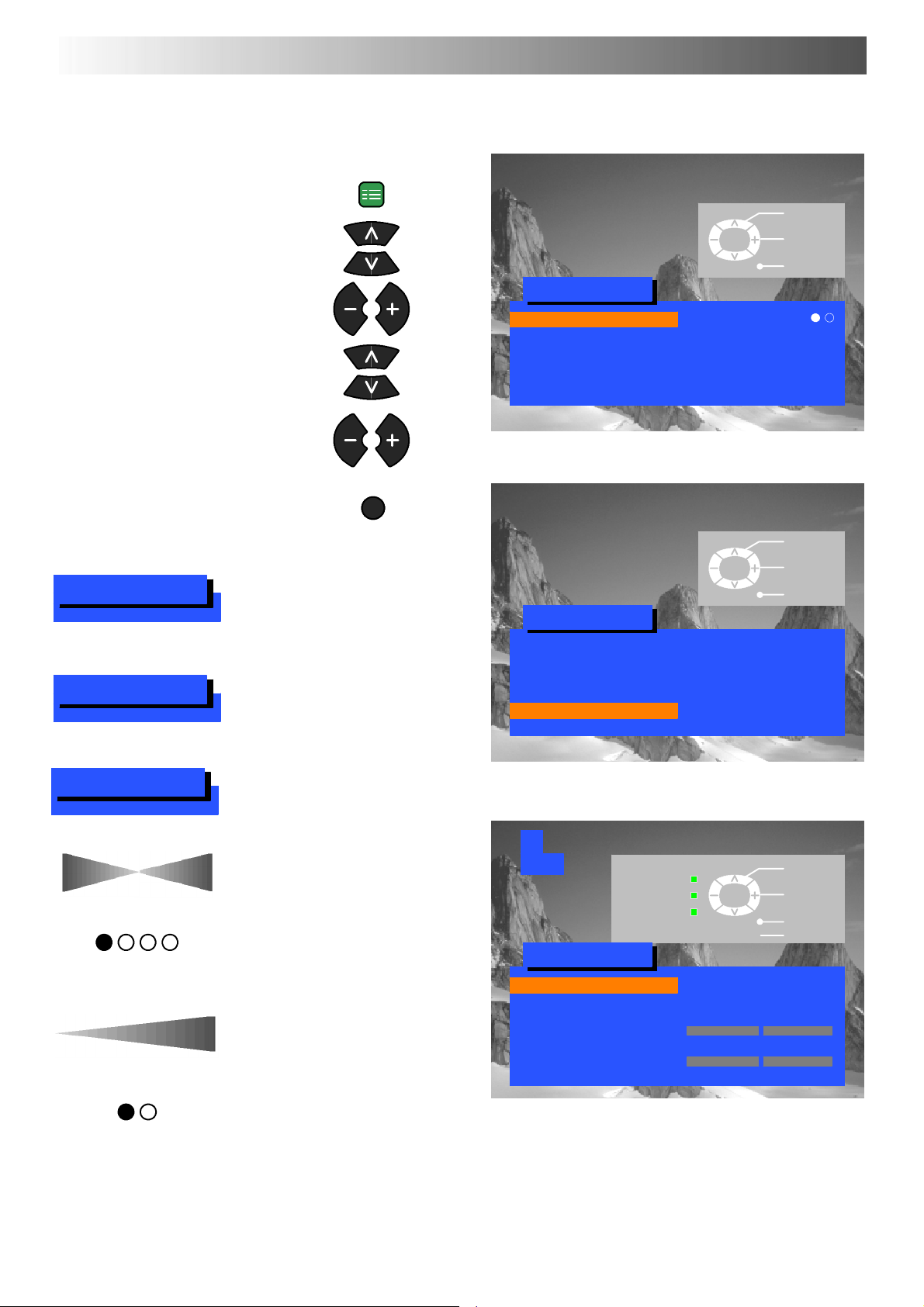

AV SELECT AND SETUP
The AV Select menu will allow you to choose which AV source to view
Press the TV/AV button
Press the appropriate coloured
button of remote control (whilst the
options remain on screen)
The options will disappear
You may wish to make adjustments
to the Setup or Sound menus
Setup menu
Open the Setup menu
Move to your choice
TV/AV
SET UP
AV1
AV1 AV2/S AV3/S
Setup menu
TV/AV
Select
Change
Exit
Access adjustments or options
Press the TV/AV button to exit

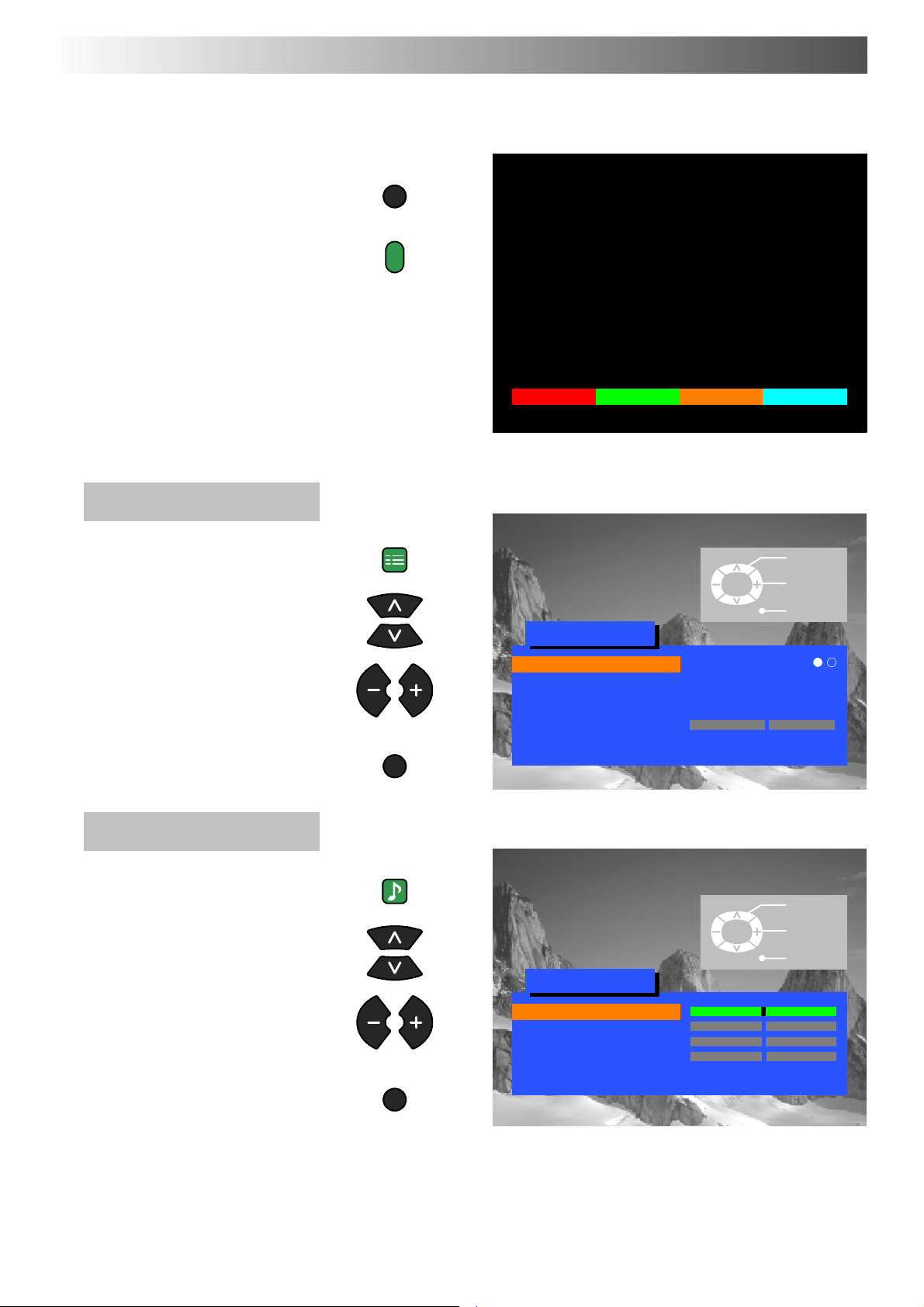

Sound menu
Open the Sound menu
Move to your choice
Access adjustments or options
Press the TV/AV button to exit
TV/AV
SOUND
TV/AV
Teletext FLOF
Off timer Off
Flicker reduction On
Colour system AUTO
Volume correc.
Q-- Link On
OSD language
Sound menu
Volume
Bass
Treble
Balance
Mode Music
Ambience Off
TV/AV
Select
Adjust
Exit
22
Page 23
VCR / DVD OPERATION
The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment.
Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment’s instruction book or
consult your dealer for details.
DVD
VCR
Standby
Press to switch the VCR or DVD to standby mode.
Press again to switch back on.
VCR / DVD switch
Use this switch to select whether controls operate
DVD equipment or your VCR.
Play
Press to playback the tape or DVD.
Stop
Press to stop the tape or DVD.
Skip/FastForward/Cue
VCR: Press to fast forward the tape. In Play mode, press
to view the picture rapidly forward.
DVD: Press once to skip to the next track. In play mode
press and hold to view the picture rapidly forward.
REC
Skip / Rewind / Review
VCR: Press to rewind the tape. In Play mode, press to
view the picture rapidly in reverse.
DVD: Press once to skip to the previous track. In play
mode press and hold to view the picture rapidly in
reverse.
Pause / Still
Press in playback mode, the picture will pause.
Press again to restart play.
Programme Up / Down
Press to increase or decrease the VCR programme
position by one.
Record
Press this button to start recording.
23
Page 24

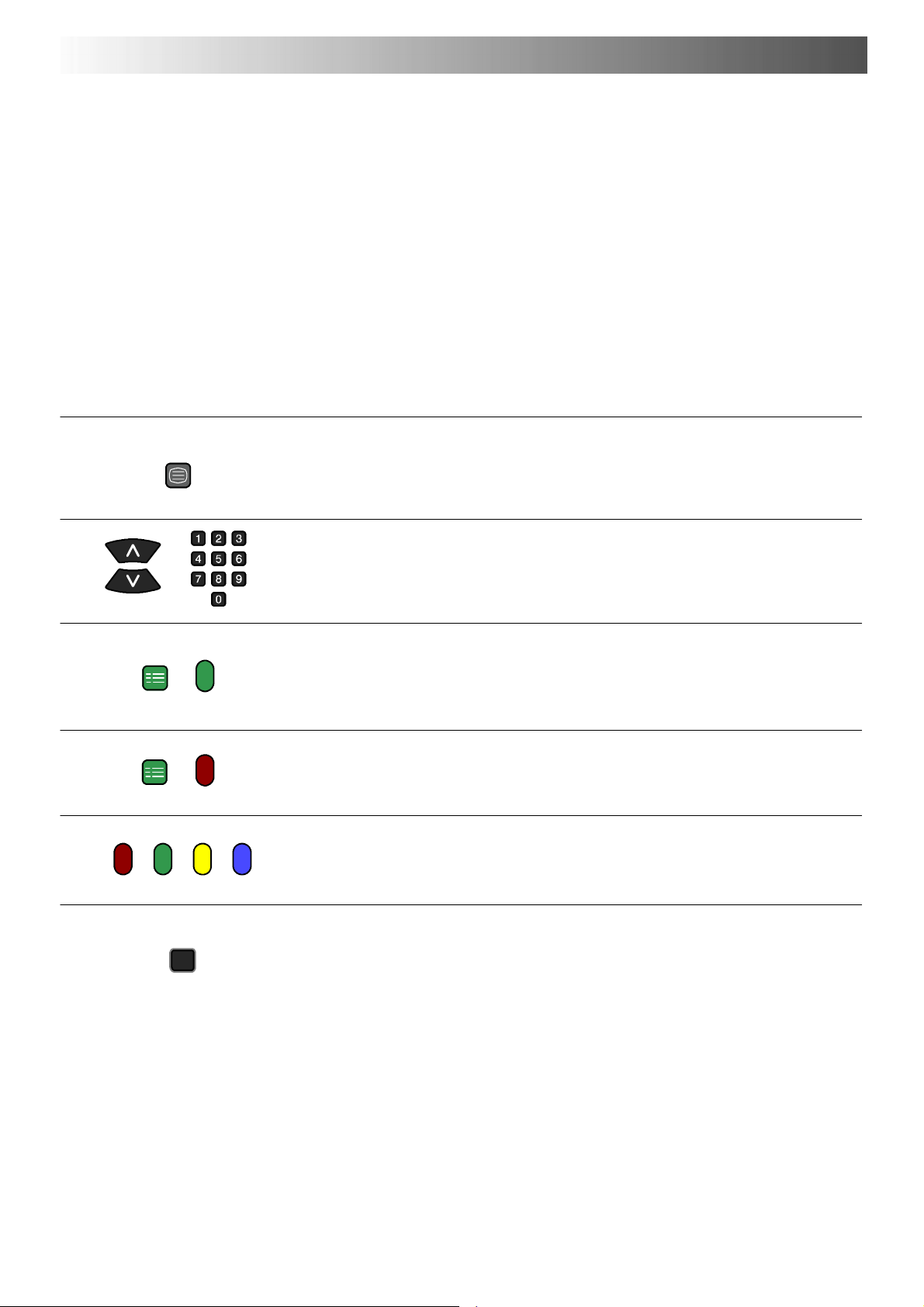

TELETEXT OPERATION
D Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting
Tele te xt.
D Pressing the Picture button whilst in Teletext operation will display the contrast function with a cyan bar,press A"to alter the setting
as required.
Pressing the Setup button whilst in Teletext operation will display special function options at the bottom of the screen.
D When in Teletext mode, the volume may still be altered to the desired listening level.
What is LIST mode?
In LIST mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and
stored in the TV’s memory.
What is FLOF (FASTEXT)?
In F ASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of
these subjects, press the appropriately coloured button. This facility enables fast access to information of the subjects shown.
TV/TEXT
SET UP
SET UP
TV / Teletext mode
Press the TV/TEXT button.
The screen will display the Teletext page.
Press again when you wish to return to TV. mode.
Page Selection
Pages can be selected in two ways :
a. Press the Up / Down buttons to increase or decrease the page number by one.
b. By entering the page number, using 0 -- 9 on the remote control.
Full/Top/Bottom
Press the SET UP button to display special functions, followed by the Green button.
Press the Green button again to expand the BOTTOM half.
Press again to return to normal (FULL) size.
Reveal
Press the SET UP button to display special functions, followed by the Red button to
reveal hidden words e.g. quiz page answers. Press again to hide.
Red / Green / Yellow / Blue buttons
In FASTEXT mode these correspond to the differently coloured subjects.
In LIST mode they correspond to the differently coloured page numbers.
24
STR
List Store
In LIST mode the four page numbers can be altered for channel positions 1 -- 25 only.
To do this, press one of the coloured buttons and enter the new page number.
Press and hold STR, the page numbers will change colour.
Page 25
TELETEXT OPERATION
It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.
HOLD
SET UP
F. P.
Hold
To hold the Teletext page when viewing multi-- page information.
Press again to return to automatic page update.
FavouritePage(F.P.)
Stores a favourite page in memory for instant recall. To store such a page, the TV must
be in LIST mode, and the programme position must be from 1 -- 25. Press the Blue
button, select the page number, then press and hold the STR button. The page number
is now stored.
Press F. P. to recall this page.
Update Display
Press the SET UP button to display special functions, followed by the Yellow button to
view the TV picture whilst searching for a Teletext page.
When found, the screen will display the page number at the top left.
Press the Yellow button to view the page.
Press TV / TEXT again to return to normal TV operation.
News Flash
When a news flash page has been selected, press SET U P, Yellow,toviewtheTV
picture. When an update is received, the page number will be displayed on screen.
Press the Yellow button to display the News Flash
Press TV / TEXT to return to normal TV. operation.
Update
Press SET UP, Yellow to see the update of information on certain pages.
When an update is received, the page number will be displayed at the top left of the
screen.
Press the Yellow button to view the page.
Press TV / TEXT to return to normal TV. operation.
SET UP
INDEX
Sub Coded Page Access
When Teletext information exceeds more than one page, it may take some time for the
automatic changing of the sub pages to reach the sub page you require.
It is possible to enter your required sub page and continue watching the normal
programme until the correct sub page is found.
Select the required page number using buttons 0 -- 9.
Press the SET UP button followed by the Blue button; T**** will be displayed at the top
right of the screen.
Enter desired sub page number before the T**** disappears.
To select page 6 enter 0, 0, 0 and 6.
(If in LIST mode, a ‘T’ will appear in the current box at the bottom).
Press the Yellow button to view a normal TV programme.
(Press SET UP, Y ellow in LIST mode).
Whenthepageisavailable,presstheYellow button to view the page.
To clear the page perform one of the following :
D Press SET UP.
D Select a new page number.
D Press TV/TEXT to return to normal TV operation.
Index
Press INDEX to return to the main index page.
Depending on the way information is transmitted, this may have to be pressed more than
once to return to the main index page.
25
Page 26
A
V
A
A
AUDIO / VIDEO CONNECTIONS
Front
Press and release to open
Output from
Headphone
socket
3.5mm Stereo Plug
3RC
udio /Video and Headphone Sockets
Video input to
S --- V id e o so ck e t
S --- V
Video input to
V socket
RCA
Video
Cable
Audio input to
L/R
sockets
2xRCA
Audio
Cables
STEREO HEADPHONES
with 3.5mm Plug
Note :
Ancillary equipment and cables shown are not supplied with this TV set.
H SCART Terminal Information
AV121pinSCARTterminal
Socket Earth
CVBS out (video)
CVBS earth
Red in
Red earth
Green in
Green earth
Blue in
Blue earth
Audio out (L)
Audio out (R)
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
CVBS in (video)
RGB status earth
Status RGB
Earth
--- ---
--- --Status CVBS
Audio in (L)
Audio earth
Audio in (R)
AV221pinSCARTterminal
Socket Earth
CVBS out (video)
CVBS earth
S.C. -- In
Earth
--- ---
Earth
--- ---
--- --Audio out (L)
Audio out (R)
21
19
17
15
13
11
9
7
5
3
1
CVBS in (video)
20
18
16
--- ---
14
--- ---
12
--- --Q --- L in k d a ta
10
8
Status CVBS
6
Audio in (L)
4
Audio earth
Audio in (R)
2
Earth
CAMCORDER
S --- V i d e o 4 p i n s o c k e t
Chrominance in
Chrominance earth Luminance earth
Luminance in
Suitable inputs for AV1 include RGB
(Red/Green/Blue).
26
AV2 -- Pins 15 and 20 are dependent on
AV2 S-- VHS / VIDEO switching.
Page 27

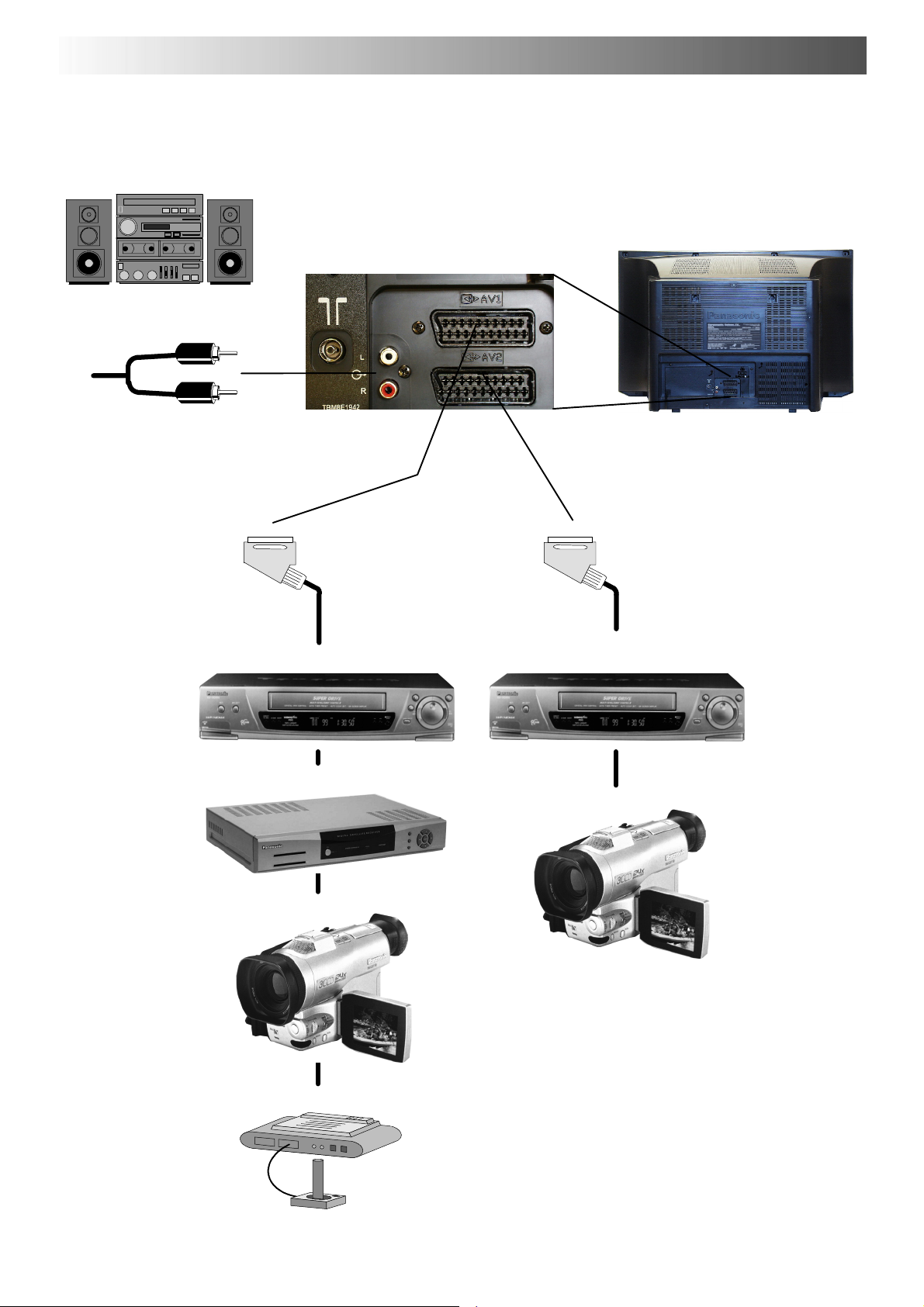

AUDIO / VIDEO CONNECTIONS
Rear AV1/AV2(S) 21 Pin SCART and RCA Audio Out Terminals
HI-- FI SYSTEM
2xRCAAudioCables
Output from
L-- RAUDIOOUT
Sockets
SCART Cable
Input/Output from
AV1 SCAR T Socket
VCR
SATELLITE RECEIVER
CAMCORDER
SCART Cable
Q-- LINK COMPATIBLE VCR
Input/Output from
AV2 SCART Socket
Q-- Link data
VCR
S-- VIDEO VCR
S-- VIDEO CAMCORDER
GAMES CONSOLE / COMPUTER (RGB)
Notes:
Ancillary equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this set.
27
Page 28
Check
s
TROUBLESHOOTING
Symptoms
Picture Sound
Aerial location, direction or connection
Snowy Picture
Multiple Images
Interference
Normal Picture
No Picture
Noisy Sound
Normal Sound
Noisy Sound
No Sound
No Sound
Aerial location, direction or connection
Electrical appliances
Cars / Motorcycles
Fluorescent lights
Switch on P --- NR in Picture menu to reduce picture
noise
Volume level
Sound mute switched on
TV set to AV mode
Not plugged into A.C. outlet
Not switched on
Picture / Sound controls set at minimum levels
Check if in standby mode
No Colour
Poor or Distorted Picture
Coloured Patches
Normal Picture
28
Colour controls set at minimum levels
Normal Sound
Retune Channel(s)
Weak or No Sound
Magnetic Interference from unshielded equipment
Receiver moved while switched ON, switch TV off for
30 minutes.
Normal Sound
Sound reception may have deteriorated.
Switch MPX setting (Sound menu) to Mono until
reception improves.
Weak or distorted sound
Page 29
PALD/
K,SECAMD/
K
FORYOURGUIDANCE
H Service
Before requesting service, please refer to the troubleshooting
guide on previous page to determine the symptoms. To obtain
service please contact your local Panasonic dealer quoting the
model number and serial number (both are located at the rear of
the TV).
H TV Games / Home Computers
Extended use of TV games orhome computerswith any television
set can cause a permanent ‘shadow’ on the screen. This type of
irreversible picture tube damage, can be limited by observing the
following points:
D Reduce the brightness and contrast levels to a minimum
viewing level.
D Do not operate the television set for a continuousperiod of
time while using TV games or home computers.
D This type of picture tube damage, is not an operating
defect, and as such is not covered by the Panasonic
warranty.
SPECIFICATIONS
H Last Position Memory
Certain functions have a last position memory, i.e. the setting at
thetimeofswitch-- off will be the setting used when the receiver is
switched on again:--
Programme Tint
OSD language (M.NTSC / NTSC only)
AV Position Contrast
Volume Sharpness
MPX Aspect
Bass Standby
T reble Artificial Intelligence (AI) --- Picture
Balance Colour
Colour Balance Brightness
Status Ambience
P-- NR Teletext mode
Volume correction Q-- Link
Decoder(AV2) Flickerreduction
H Sleep Feature
If the set isnot switched off when the TV stationstops transmitting ,
it will automatically go to standby mode after 30 minutes. This
function will not operate when the TV is in AV mode.
TX-- 28DK20P
Power Source 220 -- 240V 50Hz A.C.
Power Consumption 170W
Standby Consumption
Picture Tube
Visible Diagonal
Audio Output
Music Power
H
Dimensions
Weight 36 kg
Receiving
Systems/
Band name
Number of programme
positions
W
D
PALB/G,H,SECAMB/G
VHF E2 -- E12 VHF H1 -- H2 (ITALY)
VHF A -- H(ITALY) UHFE21-- E69
CATV (S01 -- S05) CATV S1 -- S10 (M1 -- M10)
CATV S11 -- S20 (U1 -- U10) CATV S21 -- S41 (Hyperband)
VHF R1 -- R2 VHF R3 -- R5
VHF R6 -- R12 UHF E21 -- E69
PAL 525/60 Playback of NTSC tape from some PAL video recorders (VCR)
M.NTSC (AV input only) Playback from NTSC 4,43 MHz Videorecorders (VCR)
NTSC (AV input only) Playback from NTSC Videorecorders (VCR)
2 x 7W RMS (2 x 15W MPO), 8Ω impedance
1,4W
66 cm
514 mm
796 mm
514 mm
99 + VCR
Aerial -- Rear UHF / VHF
Headphones -- Front 3,5mm, 8Ω impedance
AV1 -- 21 pin terminal -- Audio/Videoin/out,RGBin.
AV -- Rear
AV -- Front AV3 -- S ---Video in, 2 x RCA Audio in, 1 x RCA Video in.
Specifications are subject to change without notice. Weight and dimensions shown are approximate.
AV2 -- 21 pin terminal -- Audio / Video in/out, S-- Video in, Q-- Link
2 x RCA Audio Monitor Out.
29
Page 30
NOTES
30
Page 31
NOTES
31
Page 32
2001CX
32
Loading...
