Operating Instructions
LCD Television
Model No.
TX-26LX80F
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Page 2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
2
Page 3
media excitement
Enjoy rich multi-media
Camcorder
Personal
computer
Ampli er with
Speaker system
DVD Recorder
VCR
Set top box
DVD player
Contents
Be Sure to Read
Safety Precautions ······································4
•
(Warning / Caution)
Notes ···························································5
•
Maintenance················································5
•
Quick Start Guide
Accessories / Options ········· 6
•
Identifying Controls ·············· 7
•
Basic Connection ·················· 8
•
Auto Setup ······························ 10
•
Enjoy your TV!
Basic Features
Watching TV ··············································12
•
Viewing Teletext ········································14
•
Watching Videos and DVDs ······················ 16
•
Quick Start Guide
Viewing Advanced FAQs, etc.
Advanced Features
How to Use Menu Functions ·····················18
•
(picture, sound quality, etc.)
Editing Programmes··································22
•
Tuning Programmes ··································24
•
Control Programme Audience ·················· 26
•
Restore Settings ·······································27
•
Displaying PC Screen on TV ·····················28
•
Link Functions ··········································30
•
(Q-Link / VIERA Link)
External Equipment ··································· 36
•
FAQs, etc.
Technical Information ································38
•
FAQs ·························································42
•
Licence ······················································44
•
Speci cations ············································ 45
•
3
Page 4
Safety Precautions
Warning
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause re.)
•
Ensure that the mains plug is easily accessible.
•
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
•
Do not damage the mains lead. (A damaged lead may cause re or electrical shock.)
•
Do not move the TV with the lead plugged in the socket outlet.
•
Do not place a heavy object on the lead or place the lead near a high-temperature object.
•
Do not twist the lead, bend it excessively, or stretch it.
•
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•
Do not use a damaged mains plug or socket outlet.
•
If you nd any
abnormality,
remove the mains plug
immediately!
AC 220-240 V
50 Hz
Power source
This TV is designed to operate on 220-240 V,
•
50 Hz AC.
Do not remove covers
NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock.)
Have the TV checked, adjusted, or repaired at your
•
local Panasonic dealer.
Keep liquids away from the TV
To prevent damage which may result in re or shock hazard,
•
do not expose this appliance to dripping or splashing.
Do not place containers with water ( ower vase, cups,
•
cosmetics, etc.) above the TV. (including on shelves
above, etc.)
Do not expose to direct sunlight
and other sources of heat
Avoid exposing the TV to direct sunlight and other
•
sources of heat. To prevent re never place any type of
candle or naked ame on top or near the TV.
Do not place foreign objects
inside the TV
Do not allow any objects to drop into the TV through
•
the air vents ( re or electrical shock may result).
Do not place the TV on sloped or
unstable surfaces
The TV may fall off or tip over.
•
Use only the dedicated pedestals
/ mounting equipment
Using an unapproved pedestal or other xtures may
•
make the TV unstable, risking injury. Be sure to ask
your local Panasonic dealer to perform setup.
Use approved pedestals / mounts (p. 6).
•
4
Page 5
Notes
Caution
When cleaning the TV, remove the
mains plug
Cleaning an energized TV may cause
•
electrical shock.
When the TV is not going to be used for a
long period of time, remove the mains plug
This TV will still consume some power even in
•
the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Allow suf cient space around the
TV for radiated heat
Minimum distance
10
10
When using the pedestal, keep the space
•
between the bottom of the TV and the oor
surface.
In case of using Wall-hanging bracket, follow
•
the manual of it.
10 10
(cm)
Do not block the rear air vents
Blocked ventilation by newspapers, table cloths,
•
curtains, etc. may cause overheating, re or electrical
shock.
Do not expose your ears to excessive
volume from the headphones
Irreversible damage can be caused.
•
Auto power standby function
If no signal is received and no operation is performed
•
in Analogue TV mode for 30 minutes, the TV will
automatically go to standby mode.
Keep the TV away from these types of equipment
Electronic equipment
•
In particular, do not place video equipment near the TV
(electromagnetic interference may distort images / sound).
Equipment with an infrared sensor
•
This TV also emits infrared rays (this may affect
operation of other equipment).
Transport only in upright position
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent
(1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may be easily damaged.
•
Do not tap or scratch the surface with your ngernail or other hard object.
Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances
•
(this may degrade surface quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.
Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Take care not to subject the TV's surfaces to detergent.
•
(A liquid inside the TV could lead to product failure.)
Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances
•
(this may deteriorate the surface by peeling the paint).
Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.
•
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to re or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories
Remote Control
N2QAYB000223
•
Operating Instructions
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
•
young children accidentally. Keep these parts out of reach of young children.
OK
132
465
798
0
TV
Installing remote’s batteries
1
Hook
2
+
+
-
Check that you have the accessories and items shown
Batteries for the
Remote Control (2)
R6 (UM3)
•
Pan European Guarantee Card
Clamper
Using the clamper
Pull
open
Close
Rear of the TV
To tighten:
Cleaning cloth
To loosen:
6
Note the correct
polarity (+ or -)
Caution
Incorrect installation may cause battery
•
leakage and corrosion, resulting in
damage to the remote control.
Do not mix old and new batteries.
•
Do not mix different battery types (such
•
as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to
excessive heat such as sunshine, re or
the like.
Optional accessories
Wall-hanging bracket
TY-WK32LR2W
•
WARNING!
Failure to use a Panasonic bracket or choosing to mount the unit
•
yourself will be done at the risk of the consumer.
Any damage resulting from not having a professional installer mount
your unit will void your warranty.
Always be sure to ask a quali ed technician to carry out set-up.
•
Incorrect tting may cause equipment to fall, resulting in injury and
product damage.
Do not mount the unit directly below ceiling lights (such as spotlights,
•
oodlights or halogen lights) which typically give off high heat. Doing
so may warp or damage plastic cabinet parts.
Take care when xing wall brackets to the wall. Always ensure that there
•
are no electrical cables or pipes in the wall before hanging bracket.
Do not bundle the RF cable and mains lead together (could cause
•
distorted image).
Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s assembly
•
manual to x cables.
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
Keep
the knob
pressed
How to remove the Pedestal
Remove four screws.
Rear of the TV
Page 7
Identifying Controls
TV
Remote control signal receiver
C.A.T.S. (Contrast Automatic Tracking System) sensor
Senses brightness to adjust picture quality in “Eco” mode
•
Power LED
Standby: red
•
On: green
When using the remote control, indicates the TV has received a command.
•
Mains power On / Off switch
Switch On to turn on the TV or turn the TV to standby mode by the remote control
•
in Picture Menu (p. 20)
Function select
Volume / Contrast / Brightness / Colour / Sharpness /
•
Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 25)
Increases or decreases the programme
position by one. When a function is
already displayed, press to increase or
decrease the selected function. When
in Standby mode, switches TV On.
Remote Control
Standby On / Off switch
Switches TV On or Off standby
•
Aspect (p. 13)
Changes aspect ratio from Aspect Selection list
•
Also possible by pressing this button
•
repeatedly until you reach the desired aspect
OK
Con rms selections and choices
•
Press after selecting programme positions to
•
quickly change programme
Main Menu (p. 18)
Press to access VIERA Link, Picture,
•
Sound and Setup Menus
Surround (p. 20)
Switches Surround On or Off
•
VIERA Link Menu (p. 33)
Press to access VIERA Link Menu directly
•
Programme Information
Displays programme information
•
Programme Up / Down
Selects programme in sequence
•
Teletext (p. 14)
Switches to teletext mode
•
Favourite Page (p. 15)
Calls up the teletext page stored in blue button
•
VCR / DVD Panasonic equipment
operations
(p. 17)
(p. 13)
ASPECT
MENU
132
465
798
TEXT F.P. INDEX HOLD
REC
PROGRAMME
OK
OPTION
0
VCR
INPUT
EXIT
RETURN
DIRECT TV REC
VCR DVD
Headphones
jack (p. 36)
Changes the
input mode
AV3 terminals
(p. 36)
Input mode selection
TV - switches to TV mode (p. 16)
•
AV - switches to AV input mode from Input
•
Selection list (p. 16)
Exit
Returns to the normal viewing screen
•
Cursor buttons
Makes selections and adjustments
•
Return
Returns to the previous menu
•
Coloured buttons
Used for the selection, navigation and
•
operation of various functions
Direct TV Recording (p. 31 and p. 33)
Records programme immediately in
•
DVD Recorder / VCR with Q-Link or
VIERA Link connection
Option Menu (p. 12)
Easy setting for viewing and sound
•
options
Numeric buttons
Changes programme and teletext pages
•
When in Standby mode, switches TV On
•
Sound Mute
Switches sound mute On or Off
•
Volume Up / Down
Hold
Freeze / unfreeze picture (p. 12)
•
Holds the current teletext page (teletext
•
mode) (p. 15)
Index (p. 15)
Returns to the teletext index page
•
(teletext mode)
Quick Start Guide
•
•
Identifying Controls
Accessories / Options
TV
7
Page 8

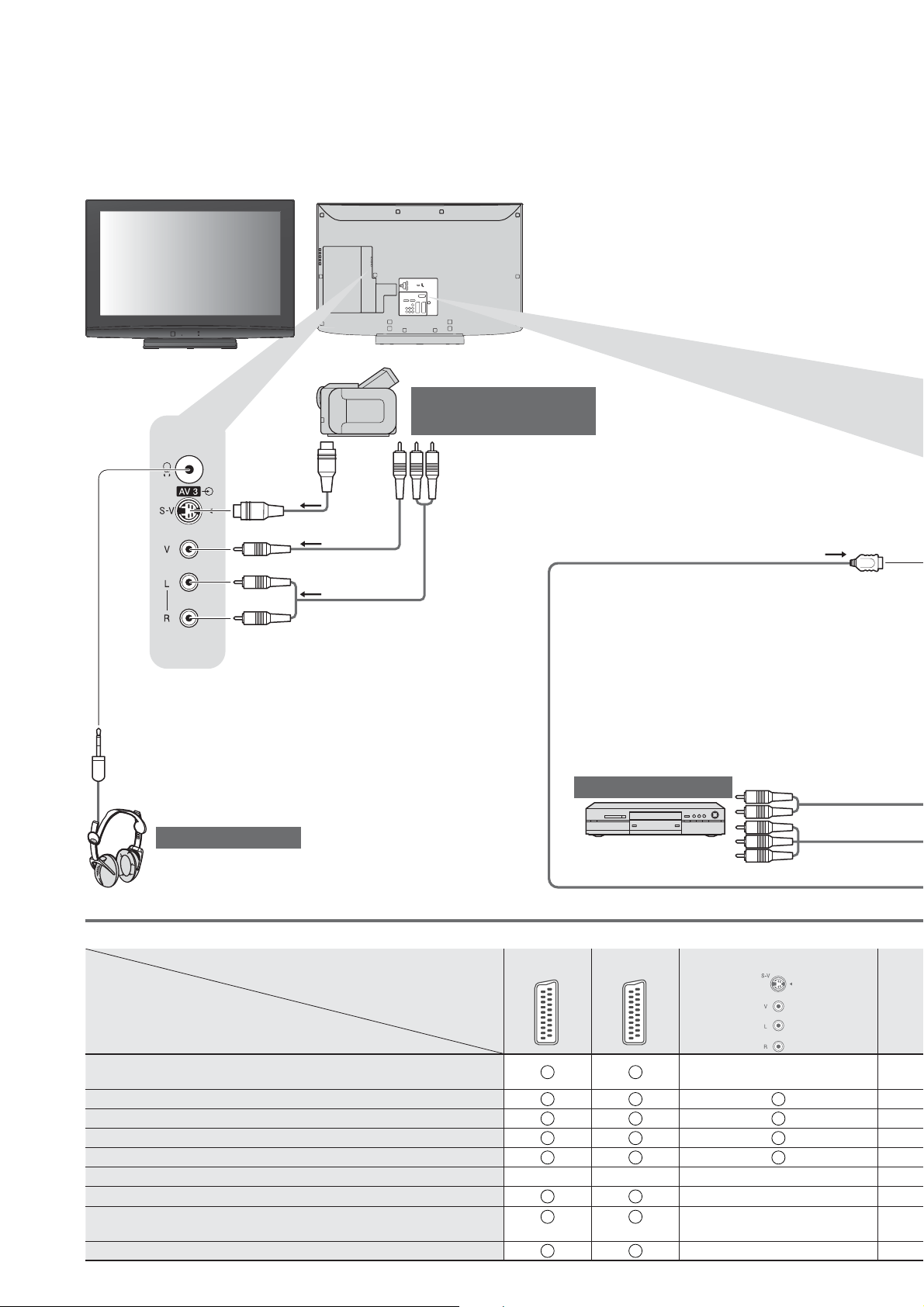

Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Aerial AerialRear of the TV Rear of the TV
AC 220-240 V
50 Hz
AUDIO
OUT
R
COMPONENT
Y
AUDIO
IN
P
B
LRL
P
R
RGB
VIDEO
PC
Mains lead
AV2AV1
RGB
VIDEO
S VIDEO
RF cable
AUDIO
OUT
R
COMPONENT
Y
AUDIO
IN
P
B
LRL
P
R
RGB
VIDEO
PC
Mains lead
AV2AV1
RGB
VIDEO
S VIDEO
AC 220-240 V
50 Hz
8
RF cable
SCART cable
(fully wired)
RF OUT
DVD Recorder or VCR
RF IN
RF cable
Note
Connect to AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 31).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable
•
(p. 36).
Q-Link connection p. 30
•
VIERA Link connection p. 30
•
Read the manual of the equipment too.
•
Page 9
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
Mains lead
COMPONENT
AUDIO
AUDIO
IN
OUT
LRL
R
AC 220-240 V
50 Hz
Aerial
Quick Start Guide
•
Basic Connection
PC
AV2AV1
RGB
VIDEO
RGB
S VIDEO
VIDEO
Y
P
B
P
R
RF cable
Fully wired HDMI
compliant cable
SCART cable
(fully wired)
DVD Recorder
or VCR
SCART cable
(fully wired)
Set top box
RF OUT
RF IN
RF OUT
RF IN
RF IN
RF cable
RF cable
RF cable
9
Page 10
Country
Finland
Sweden
Netherlands
Spain
France
Germany
Switzerland
Belgium
Norway
Denmark
Portugal
Hungary
Poland
Greece
Italy
Austria
Czech
E. Eu
Auto Setup
Search and store TV programmes automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
You can now use the remote
•
control to turn On the TV or turn
the TV to standby mode.
(Power LED: On)
Select the language
Menüsprache
Deutsch
English
Français
Italiano
Еλληνικά
Čeština
Slovenčina
Srpski
Latviešu
Español
Norsk
Dansk
Svenska
Magyar
Български
Slovenščina
eesti keel
Nederlands
Suomi
Türkçe
Português
Hrvatski
Românǎ
Polski
Lietuvių
ASPECT
1
2
INPUT
EXIT
select
store
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
RETURN
DIRECT TV REC
3
4
Select your country
Start Auto Setup
Auto Setup
2
◄ ►
Channel
CH29
EXIT
RETURN
Remote control unavailable
78 21 41
Service Name
CNN
Searching
Sending Preset Data
Please wait!
33%
select
Depending on the selected
•
countries, you may also be
required to select the region.
Auto Setup will start to search for
•
TV programmes and store them.
The sorted programme order
depends upon the TV signal,
the broadcasting system and
reception conditions.
If Q-Link, VIERA Link or similar
•
technology (p. 30), compatible
recorder is connected, programme,
language, country / region settings
are automatically downloaded to
the recorder.
10
5
Select the picture setting
Please select your viewing environment
•
Auto Setup is now complete and your TV is ready for viewing.
Home Shop
“Shop” and “Home” are equal
to “Dynamic” and “Normal”
respectively - “Viewing Mode” in
“Picture Menu” (p. 20)
select
set
To edit programmes
•
“Editing Programmes” (p. 22)
Page 11

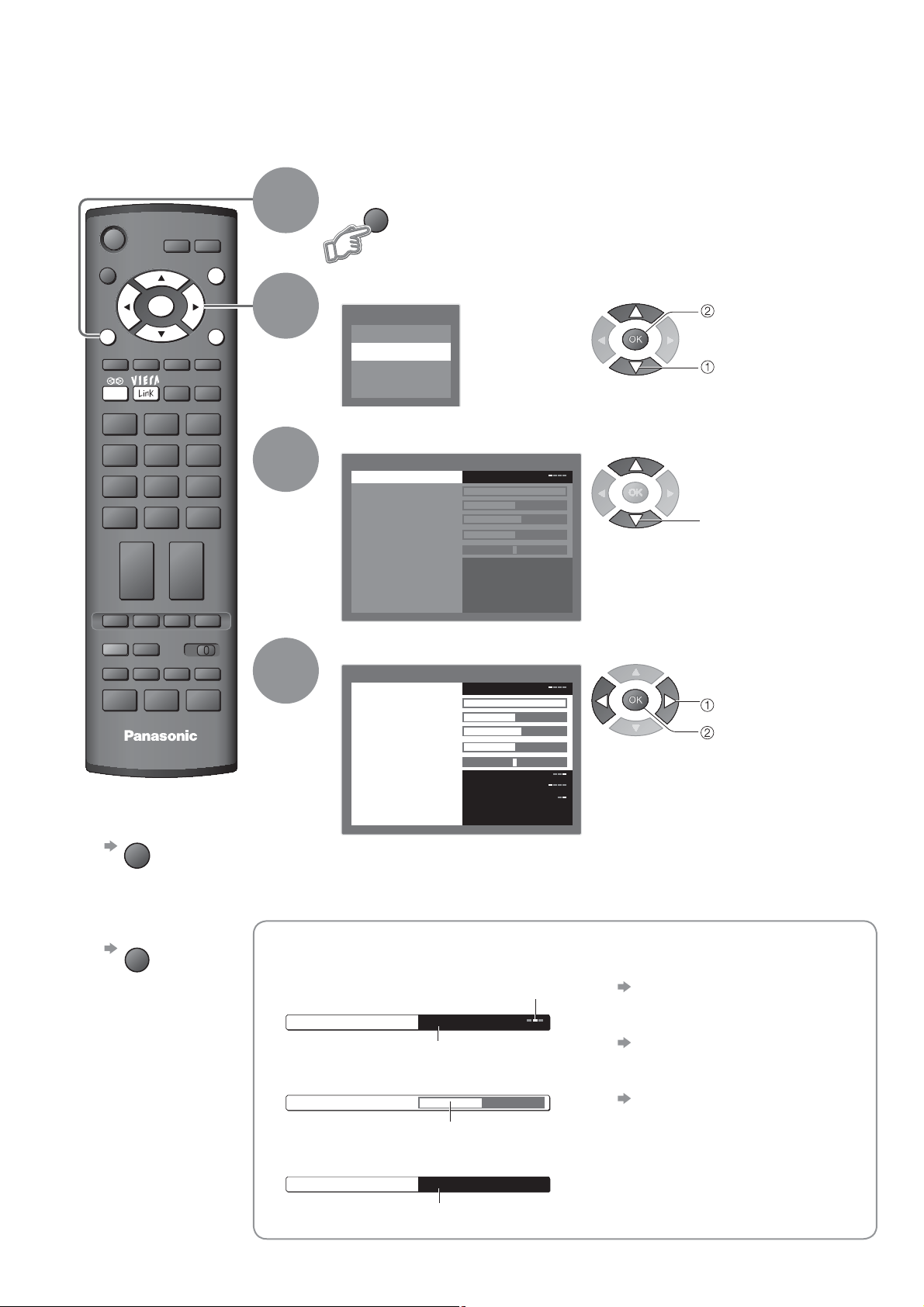

Many features available on this TV can be accessed via the On Screen Display
menu.
How to use remote control
Using the
On Screen
Displays
MENU
RETURN
EXIT
Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options
have been set
Return to the previous menu
Exit the menu system and return to the normal viewing screen
ON SCREEN HELP Instructions box
(example: Sound Menu)
Sound Menu
Mode Music
Bass
Treble
Balance
Surround Off
Volume Correction
MPX Stereo
Reset to Default Set
Select
EXIT
Change
RETURN
Quick Start Guide
•
Auto Setup
On-screen operation guide
will help you.
Note
If tuning has failed “Auto Setup” (p. 25)
•
If downloading has failed “Download” (p. 21)
•
To initialize all settings “Shipping Condition” (p. 27)
•
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
•
with Mains power On / Off switch.
11
Page 12
Watching TV
Turn power on
(Press for about 1 second)
1
Mains power On / Off switch should be On. (p. 7)
•
ASPECT
INPUT
EXIT
OK
MENU
132
465
798
VCR
TEXT F.P. INDEX
REC
PROGRAMME
OPTION
0
TV
RETURN
DIRECT TV REC
HOLD
VCR DVD
Volume
2
Information banner appears
whenever you select a
1
CH05 SC1
programme
For details p. 13
•
Select a programme
or
132
465
798
All Analogue Services
6
7
8
1
2
3
BBCi
4
Select
EXIT
Connect
RETURN
0
VCR
up
down
To select from the Programme List
•
To select the two-digit programme
•
number, e.g. 39
3 9
(in a short time)
select
programme
watch
Select a programme using Information banner (p. 13)
Possible to con rm the programme name before selecting programmes.
Display Information banner
if it is not displayed
While the banner is displayed,
select the programme
select programme
watch
12
Other useful functions
Hold
Display the
selectable
settings for
the current
programme
Off Timer
Freeze / unfreeze picture
Check or change the current
programme status instantly
Teletext Character
Sets the teletext language
Setup Menu (p. 21)
MPX
Sound Menu (p. 20)
Note
Also possible to change the settings in Menu list (p. 20 and p. 21).
•
Turn the TV off automatically after a xed period
Display the
menu
MENU
To cancel Set to “Off” or turn the TV off.
•
To display the remaining time Information banner (p. 13)
•
When the remaining time is within 3 minutes, the remaining time will ash on screen.
•
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
HOLD
OPTION
Volume Correction
Adjusts volume of individual programme or
input mode
Select “Off Timer” and set the time
Setup Menu
Service List Edit
Link Settings
Child Lock
Tuning Menu
Off Timer
OSD Language
Teletext TOP
Teletext Character West
Shipping Condition
To change
•
Off
change
select
set
select
Page 13
Other useful functions
A
A
A
Display Information banner
Also appears when changing a programme
•
Event
Features available / Message meanings
Display
Information
banner
Sound mute On
Stereo, Mono
Audio mode
Example:
1
Coronation Street
CH05 SC1 PAL
Sound System Colour System
Programme
1 - 90
Off Timer remaining time
For settings p. 12
•
45Stereo
Change
aspect
ratio
To con rm another tuned
•
programme name
To watch the programme
•
listed in the banner
To hide
•
EXIT
select programme
Event information is referred to teletext
•
signal.
SPECT
Change the aspect ratio
Enjoy viewing the picture at its optimum size and aspect.
Display Aspect
Selection list
SPECT
To change the mode using the ASPECT button only
•
SPECT
(Press repeatedly until you reach the desired mode)
Auto 16:9
The best ratio is chosen and
the picture expanded to ll the
screen.
For details p. 38
14:9 Just
Displays the image at the
standard “14:9” without
distortion.
4:3 4:3 Full
Displays the image at the
standard “4:3” without
distortion.
Zoom1 Zoom2
Displays a “16:9” letterbox or
“4:3” image without distortion.
While the list is displayed,
select the mode
change
select
Aspect selection
Auto
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select
Change
Aspect
Selection list
Directly displays the image
at “16:9” without distortion
(anamorphic).
Displays a “4:3” image
full-screen.
Stretching is only noticeable
at the left and right edges.
Displays a “4:3” image
enlarged horizontally to t the
screen.
HD signal only
•
Displays a “16:9” letterbox
(anamorphic) image
full-screen without distortion.
EXIT
RETURN
Viewing
•
Watching TV
Zoom3
Displays a “2.35:1” letterbox (anamorphic)
image full-screen without distortion. At “16:9”,
displays the image at its maximum
(with slight enlargement).
Note
Only “16:9” and “4:3” are available in PC mode.
•
Not available in teletext mode.
•
Aspect mode can be memorized separately for SD (Standard de nition), HD (High
•
de nition) signals and PC Input.
13
Page 14
Viewing Teletext
You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is
provided by the broadcasters.
What is FLOF (FASTEXT) mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
Fast overview of the teletext information available
•
Easy to use step-by-step selection of the topical subject
•
Page status information at the bottom of the screen
•
Available page up / down
To select among subject blocks
To select next subject within the subject block
(After the last subject, it moves to the next subject block.)
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 15)
To change mode “Teletext” in Setup Menu (p. 21)
INPUT
ASPECT
EXIT
1
red green
blue
Switch to Teletext
TEXT
Displays Index
•
(content varies
depending on the
broadcasters)
yellow
Current
page
number
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Time / date
OK
OPTION
RETURN
DIRECT TV REC
2
MENU
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
Using teletext conveniently
Reveal
hidden
data
Reveal hidden words e.g. quiz page answers
MENU
Select the page
132
465
798
VCR
or
0
To adjust contrast
To return to TV
Re-hide
red
red
up
down
TEXT
or
MENU
(Press three times)
EXIT
or
Colour bar
yellow
green
red
(Corresponds to the colour bar)
As the blue bar is displayed
blue
14
FULL /
TOP /
BOTTOM
MENU
green
(TOP) (BOTTOM)
(Expand the TOP half)
Normal (FULL)
(Expand the BOTTOM half)
Page 15
HOLD
INDEX
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD
HOLD
To resume
Return to the main index page
INDEX
Call up a
favourite
page
View in
multi
window
Store
frequently
viewed
pages
View a favourite page stored
F. P.
Watch TV and Teletext in two windows at once
MENU
Operations can be made only in Teletext screen.
•
Store frequently viewed pages in the colour bar
As page is
displayed
(Press twice)
To change stored pages
Colour button you
want to change
Call up the page stored in “blue”.
•
Factory setting is “P103”.
•
Corresponding
colour button
Enter new page number
132
465
798
Select Picture and text
•
On or Off
press
and
hold
The number changes to white.
0
VCR
press
and
hold
(List mode only)
Viewing
•
•
Using Programme Guide
Watching TV
View sub
page
Watch
TV while
waiting
for update
View sub page (Only when teletext is more than one page)
Appears at top of
the screen
To view speci c sub page
MENU
blue
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
yellow yellow
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
P108
(You cannot change the programme.)
Enter the
4-digit number
example: P6
0 0 0
6
Appears
when
updating is
completed
View the
updated
page
15
Page 16
Watching Videos and DVDs

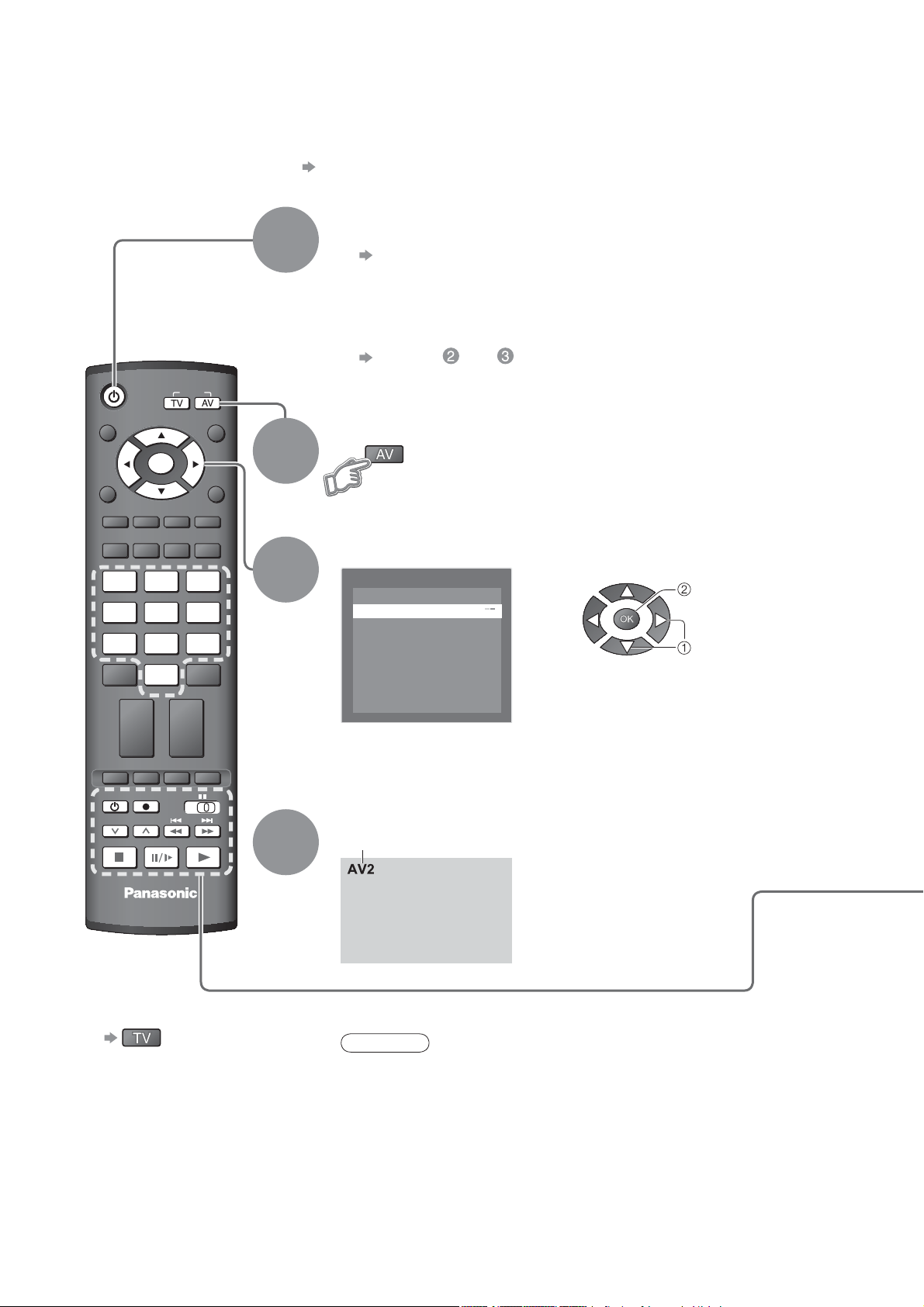

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.
To connect the equipment p. 8 and p. 9
•
The Remote Control is capable of operating some functions of selected Panasonic external equipment.
Turn the TV on
When connecting with SCART as example 2 or 3 (p. 8 and p. 9)
1
INPUT
Receives input signals automatically when playback starts
Input signals are automatically identi ed by the SCART (pin 8)
•
terminal.
This function is also available for HDMI connections (p. 36).
•
If input mode is not switched automatically
Perform and
Dependant on the setup of the equipment
•
ASPECT
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
4

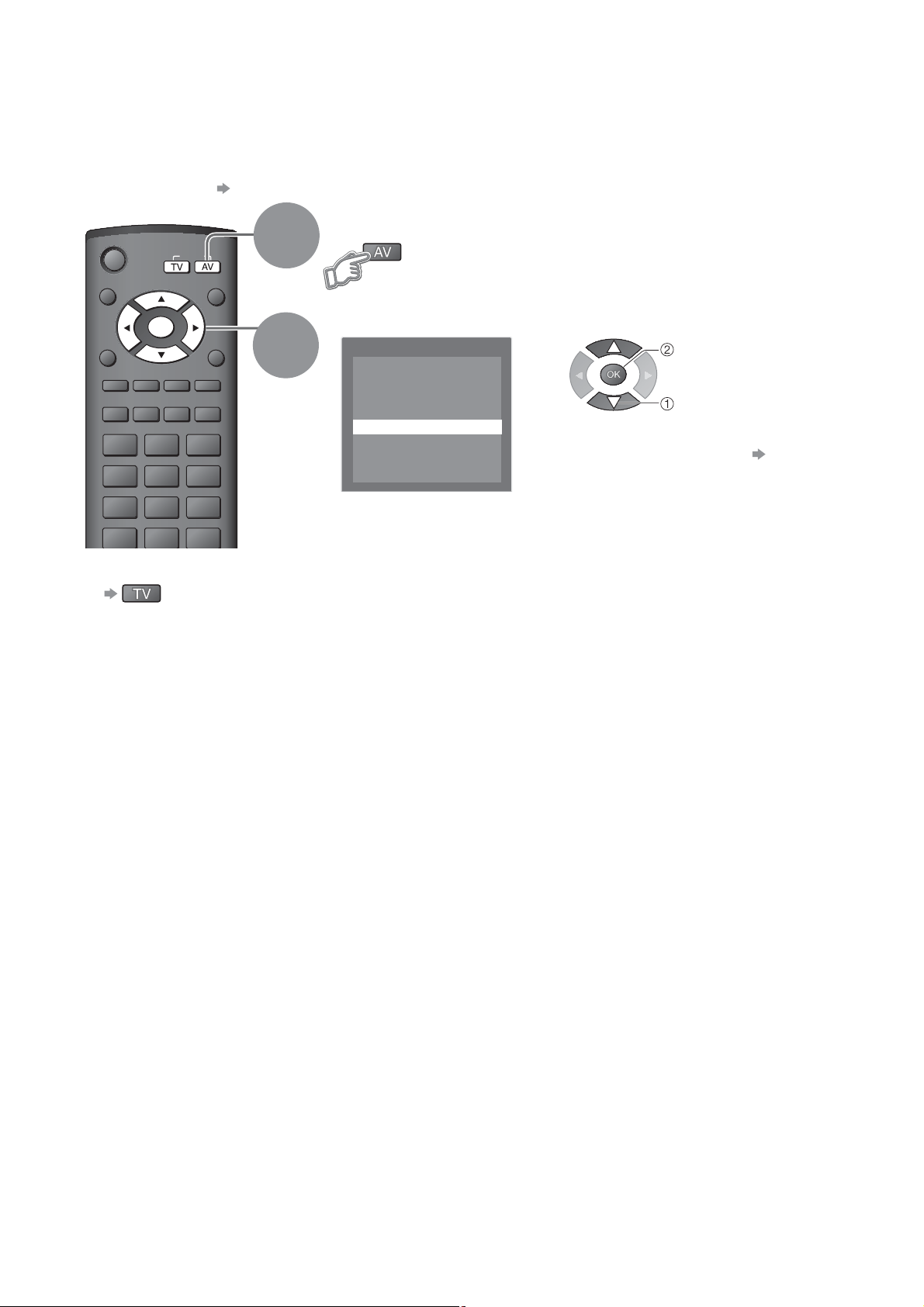

Display the Input select menu
Select the input mode connected to the equipment
Input Selection
AV1
AV2/S
AV3/S
COMPONENT
PC
HDMI1
HDMI2
TV
You can also select the input using the AV button on the remote
•
control or the front panel of the TV.
Press the button repeatedly until the desired input is selected.
View
Displays the selected mode
watch
select
16
TV
To return to TV
Note
If the external equipment has an aspect adjustment function, set to “16:9”.
•
For details, see the manual of the equipment or ask your local dealer.
•
Page 17

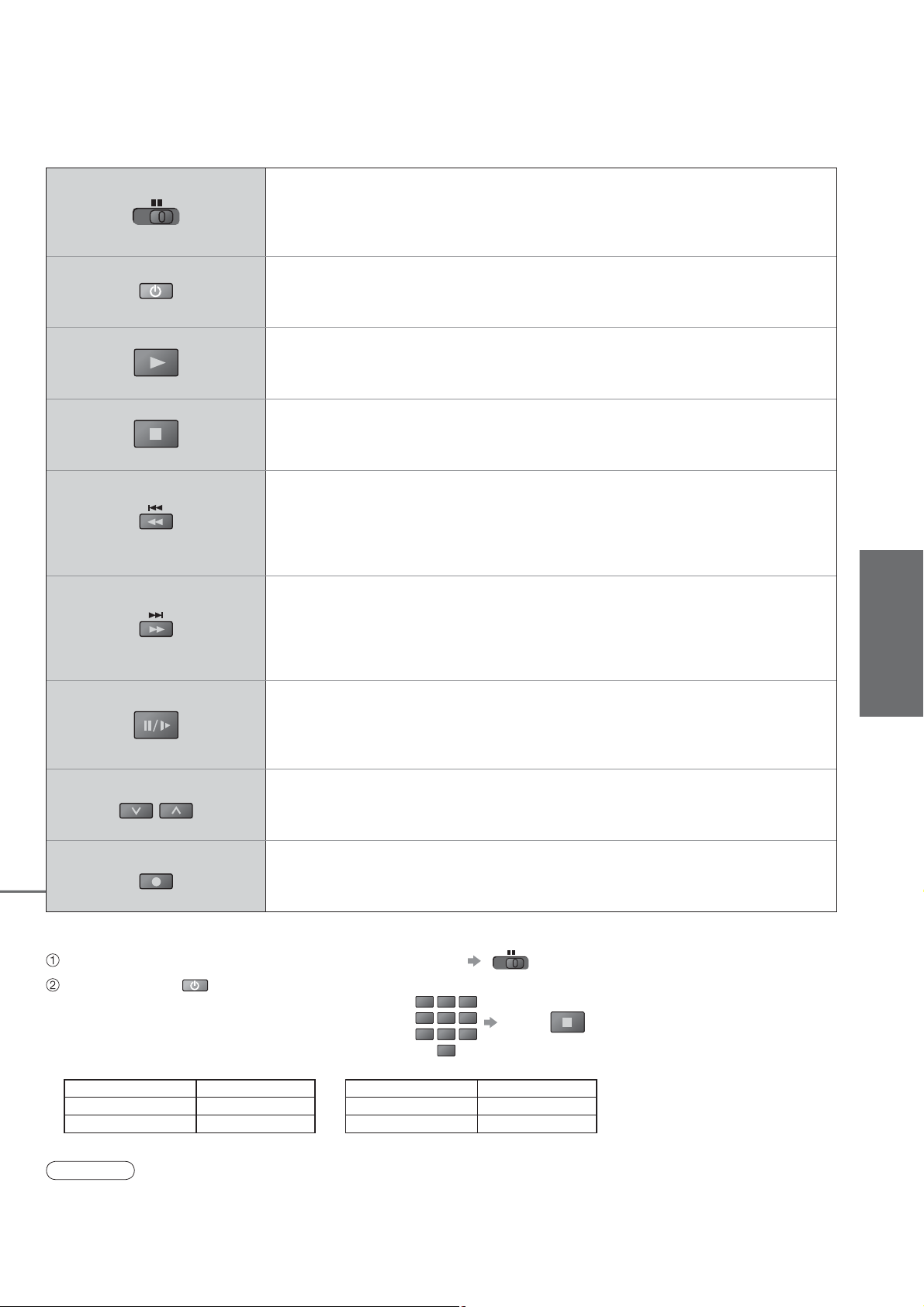

Panasonic equipment connected to the TV can be directly operated with the remote control.
VCR DVD
VCR / DVD switch
Select VCR to operate Panasonic VCR or DVD equipment
Select DVD to operate Panasonic DVD equipment or Player home theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
Viewing
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
PROGRAMME
REC
Setting your remote control to operate Panasonic VCR, DVD, etc.
Set the VCR / DVD switch to the appropriate position
Press and hold during the following operations
Enter the appropriate code for the equipment
to be controlled, see table below
“VCR” position
Equipment Code
VCR 10 (default)
DVD 11
Programme Up / Down
Select programme
Record
Start recording
132
465
798
0
“DVD” position
Equipment Code
DVD 70 (default)
Player home theatre
VCR
VCR DVD
Press
71
•
Watching Videos and DVDs
Note
Con rm if the remote control works correctly after changing the code.
•
The codes will be reset to default values if batteries are replaced.
•
“DVD” means DVD player, DVD recorders and Recorder home theatre.
•
Some operations may not be possible on some equipment models.
•
17
Page 18
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.

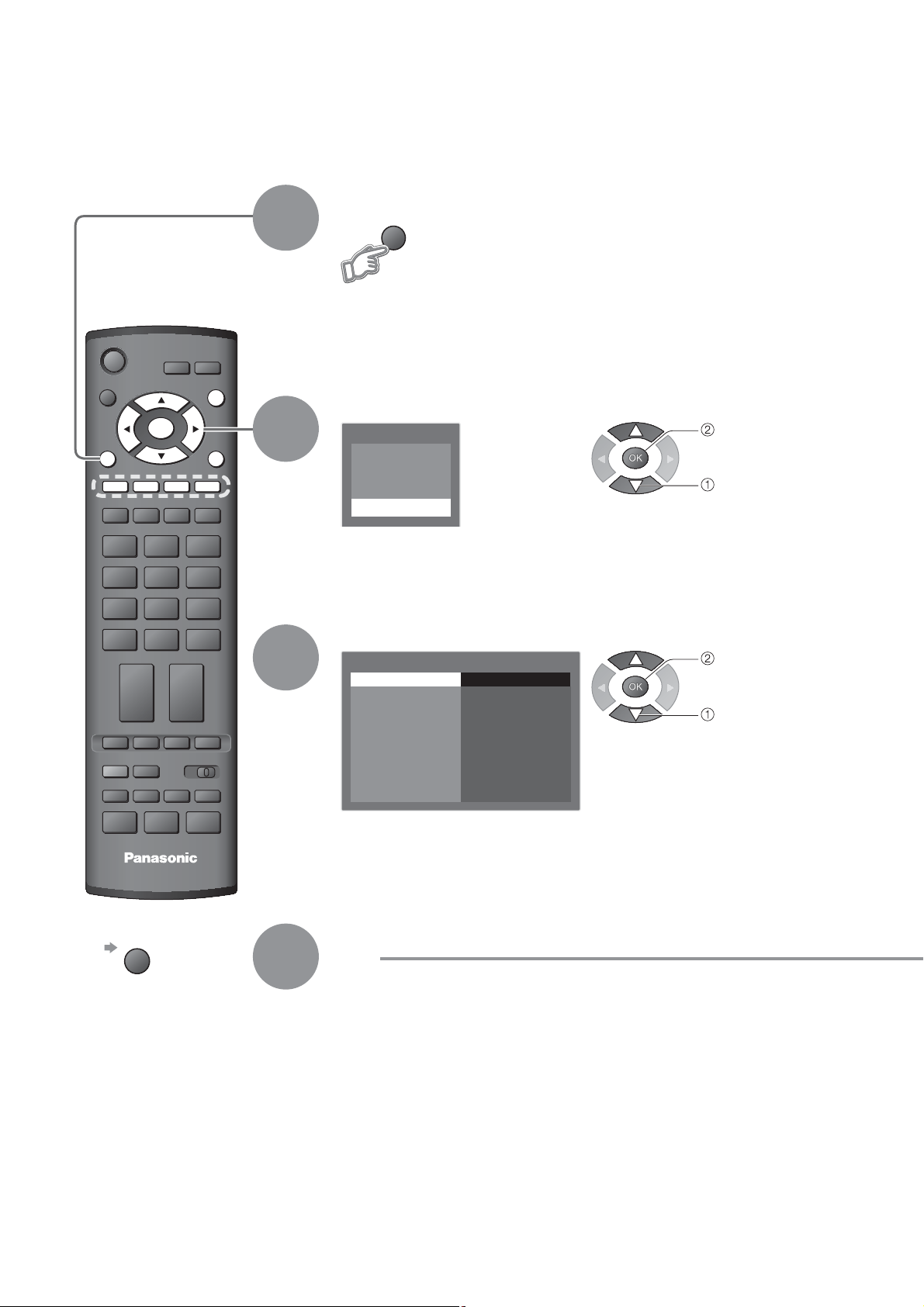

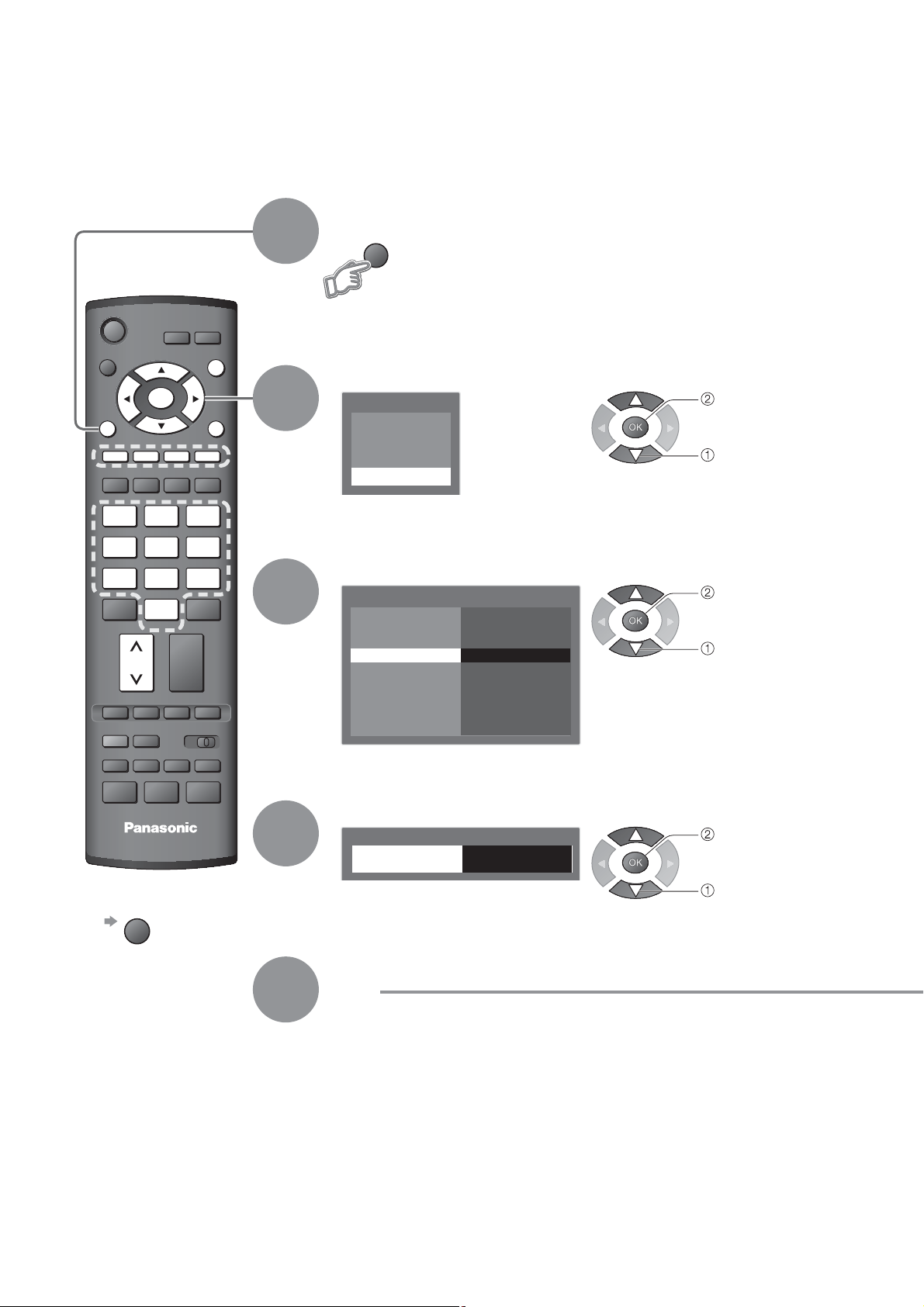

Display the menu
MENU
1
INPUT
Displays the functions that can be set
•
(varies according to the input signal)
ASPECT
OK
MENU
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
To return to TV
at any time
EXIT
2
3
4
Select the menu
Main Menu
VIERA Link
Sound
Setup
(example: Picture Menu)
Select the item
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
P-NR Off
3D-COMB On
Reset to Default Set
Stereo
(example: Picture Menu)
Adjust or select
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
P-NR Off
3D-COMB On
Reset to Default Set
Stereo
(example: Picture Menu)
access
select
select
change
store or access
( Required by
some functions)
18
To return to the
previous screen
RETURN
Choose from among
alternatives
Number and positions of alternatives
Colour Balance Normal
Changed
Adjust using the slide bar
Sharpness
Moved
Go to the next screen

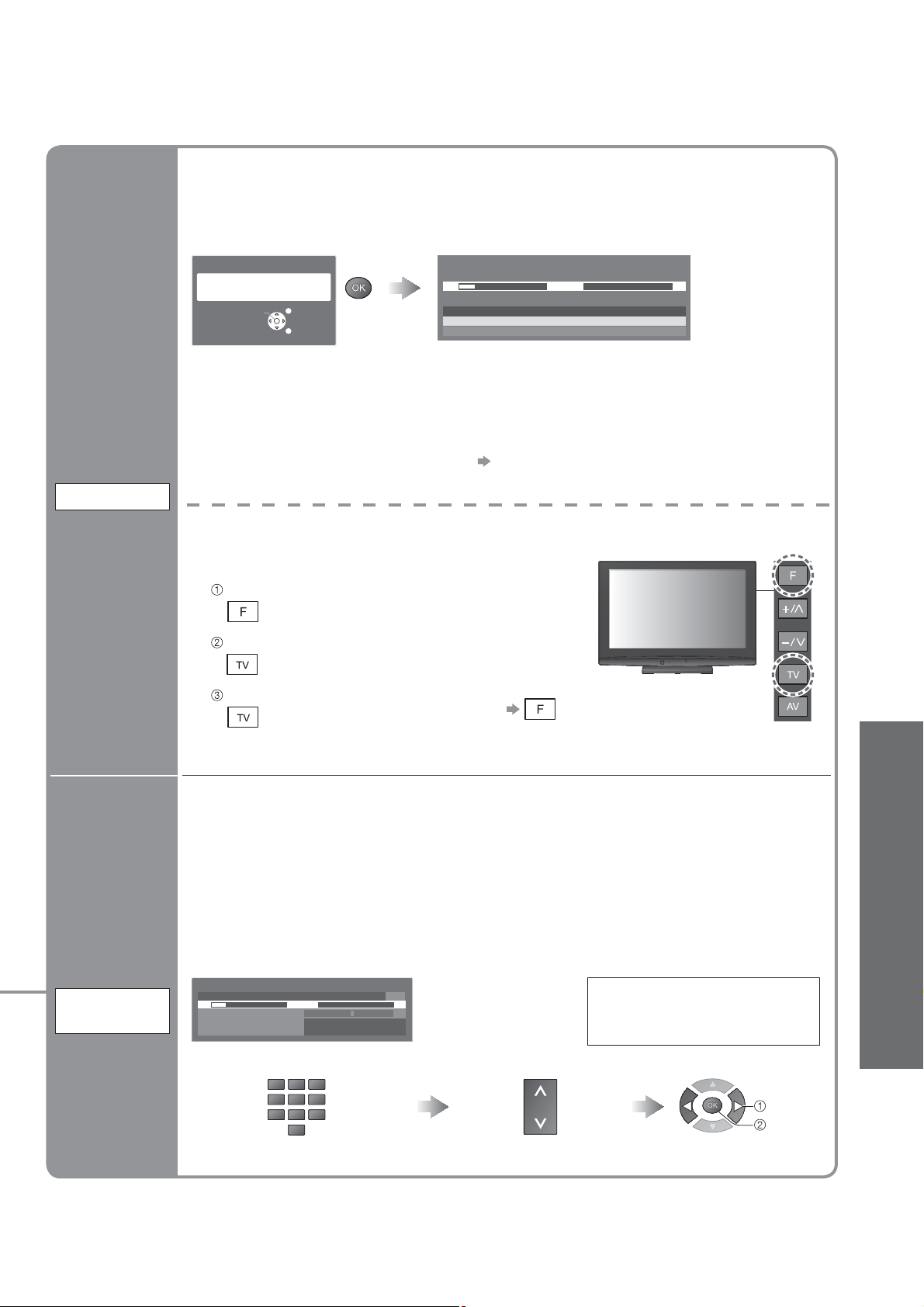

Tuning Menu Access
Displays the next screen
To reset the settings
To reset the picture settings only
•
“Reset to Default”
in Picture Menu (p. 20)
To reset the sound settings only
•
“Reset to Default”
in Sound Menu (p. 20)
To initialize all settings
•
“Shipping Condition”
in Setup Menu (p. 27)
Page 19
Overview
Main Menu
VIERA Link
Sound
Setup
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
P-NR Off
3D-COMB On
Reset to Default Set
Sound Menu
Mode Music
Bass
Treble
Balance
Surround Off
Volume Correction
MPX Stereo
HDMI1 Input Auto
Reset to Default Set
Access
Start
Recorder
Home Cinema
Stereo
(p. 33)
(p. 20)
The menu of the accessed
equipment
•
How to Use Menu Functions
(picture, sound quality, etc.)
Setup Menu
AV Colour System Auto
Service List Edit Access
Link Settings
Child Lock
Tuning Menu
Off Timer Off
OSD Language
Teletext TOP
Teletext Character West
Shipping Condition Access
Access
Access
Access
Access
(p. 20)
(p. 21)
Link Settings
VIERA Link
Q-Link AV2
AV1 out Monitor
AV2 out Monitor
Download Access
Tuning Menu
Auto Setup Access
Manual Tuning
On
Access
Advanced
(p. 21)
(p. 24)
Only available items can be selected.
•
19
Page 20
How to Use Menu Functions
Menu list
Menu Item Adjustments / Configurations (alternatives)
VIERA Link
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Controls the connected equipment with VIERA Link function, and enables various
convenient recording, playback, etc. (p. 33 - 35)
You can also access VIERA Link Menu directly using the VIERA Link button on the
•
remote control.
Basic picture mode (Dynamic / Normal / Cinema / Eco)
Dynamic :
Normal : Recommended for viewing under normal ambient room lighting conditions
Cinema : For watching movies in a darkened room producing a cinema-like picture
Eco :
Set for each input signal
•
Increases or decreases the levels of these options according to your personal preference
Provides enhanced picture contrast and sharpness when viewing in a bright room
Adjusts picture settings automatically dependent on ambient lighting conditions
Tint
Colour Balance
P-NR
3D-COMB
Reset to Default
Mode
Bass
Treble
Balance
Surround
Sound
With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste
For NTSC signal reception only
•
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
Picture Noise Reduction
Automatically reduces unwanted picture noise and icker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
Not valid on PC signal
•
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen
Set to “On” to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
•
Not valid on RGB, S-Video, Component, PC and HDMI
•
Press the OK button to reset the present Picture Mode to the default settings
Basic sound mode (Music / Speech)
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Surround sound settings (Off / On)
Provides a dynamic enhancer to simulate improved spatial effects
Switching is also possible by the Surround button on the remote control (p. 7).
•
20
Volume Correction
MPX
HDMI1 Input
Reset to Default
Adjusts volume of individual programme or input mode
Select stereo / monaural (Mono / Stereo)
Normally: Stereo
•
Stereo signal cannot be received: Mono
•
M1 / M2: Available while mono signal is transmitted
•
Select to t the input signal (Auto / Digital / Analogue) (p. 39)
Auto : Automatic detection of digital or analogue sound source
Digital : HDMI cable connection
Analogue : HDMI-DVI adapter cable connection
HDMI input mode only
•
HDMI2 terminal is for digital signal only
•
No setting for HDMI2 available
•
Press the OK button to reset the present Sound Mode to the default settings
Page 21
Menu list
Menu Item Adjustments / Configurations (alternatives)
AV Colour System
Service List Edit
VIERA Link
Q-Link
Link Settings
AV1 / AV2 out
Download
Setup
Child Lock
Selects optional colour system based on video signals in AV mode
(Auto / PAL / SECAM / M.NTSC / NTSC)
Skips the unwanted programmes or edits programmes (p. 23)
Sets to use VIERA Link functions (Off / On) (p. 32)
Selects which AV terminal is to be used for data communication between this TV
and a compatible recorder (AV1 / AV2) (p. 31)
Select the connected terminal to the recorder even it is not compatible with Q-Link.
•
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
Monitor: Image displayed on screen
•
Component, HDMI signals and PC signal cannot be outputted.
•
No NICAM available while watching HDMI.
•
Downloads programme, language, country / region settings to a Q-Link or VIERA Link
compatible equipment connected to the TV
Locks a programme / AV input to prevent access to it (p. 26)
•
How to Use Menu Functions
(picture, sound quality, etc.)
Tuning Menu
Auto Setup
Manual Tuning
Off Timer
OSD Language
Teletext
Teletext Character
Shipping Condition
Automatically sets the programmes received in the area (p. 25)
Sets the programmes manually (p. 25)
Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Changes language for on-screen displays
Teletext display mode (TOP (FLOF) / List) (p. 14)
Selects teletext language (West / East1 / East2)
West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
•
East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
•
East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.
•
Resets all settings, for example, when moving house (p. 27)
Advanced
Only available items can be selected.
•
21
Page 22
Editing Programmes
You can skip unwanted programmes or edit programmes.
Display the menu
MENU
1
INPUT
ASPECT
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Service List Edit”
Setup Menu
Service List Edit Access
Link Settings
Child Lock
Tuning Menu
Off Timer
OSD Language
Teletext TOP
Teletext Character West
Shipping Condition
Off
access
select
access
select
22
TV
To return to TV
EXIT
4
Set
Page 23
You can hide unwanted services. The deleted services cannot be displayed except in this
function. Use this function to skip unwanted programmes.
Select a service and add / delete
You can change the programme name and programme position.
•
Skip
unwanted
programmes
Edit
programmes
( Change name,
Move)
Service List
Edit
Service List Editor
BBC1
1
*****
2
*****
3
4
5
6
7
To retune each programme (Manual Tuning)
•
red
add / delete
select
(p. 25)
If a VCR is connected only with the RF cable, edit “VCR”.
Select the programme to edit
Service List Editor
1
BBC1
*****
2
*****
3
4
5
6
7
select
Programme position
Name
1 FTP
Coronation Street
CH05 SC1 PAL
Edit
:add
:delete (skip)
•
Editing Programmes
To change the name displayed when selecting programmes
Select
“Rename”
green
Set characters
select
set
Edit Service Name
Name
ABCDEFGHIJKLMNOPQRST
UVWXYZ+-. 0123456789
CNN
(maximum: ve characters)
To move the programme position
Select new position
yellow
select
Store
yellow
Store
RETURN
Advanced
23
Page 24
Tuning Programmes
You can retune all the TV programmes when moving house or search for new services which may have
recently started broadcasting.
Display the menu
1
INPUT
MENU
ASPECT
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Tuning Menu”
Setup Menu
Service List Edit
Link Settings
Child Lock
Tuning Menu
Off Timer Off
OSD Language
Teletext TOP
Teletext Character West
Shipping Condition
Access
access
select
access
select
TV
To return to TV
EXIT
4
5
Select a function
Tuning Menu
Auto Setup Access
Manual Tuning
Access
Set
access
select
24
Page 25
Set all
programmes
automatically
Automatically retune all programmes received in the area.
If a Child Lock PIN number (p. 26) has been set, it must be entered.
•
Start Auto Setup Settings are made automatically
Auto Setup
All current tuning
data will be erased
Start Auto Setup
All the previous tuning settings are erased.
•
The programme, language, country / region settings are downloaded to a Q-Link or
•
VIERA Link compatible equipment connected to the TV.
When the operation is completed, the programme at programme position “1” will be
•
displayed.
If tuning has not been done completely “Manual Tuning”
•
EXIT
RETURN
Auto Setup
2
◄ ►
Channel
CH29
78 21 41
Service Name
CNN
Searching
Auto Setup
Set
programme
manually
Manual
Tuning
For Auto Setup, using the buttons
on the side of the TV (p. 7)
Press repeatedly until “Auto Setup” appears
Access “Auto Setup”
Start “Auto Setup”
To return to TV
•
Fine Tuning
Use to make small adjustments to the tuning of an individual programme (affected by
weather conditions, etc.)
Manual Tuning
Set programme manually after Auto Setup.
Set Sound System and Colour System, and then perform this function.
•
Normally set Colour System “Auto”.
If a VCR is connected only with the RF cable, select programme position “0”.
•
Manual Tuning
5 CH33CNN
2
◄ ►
Fine Tuning
Sound System
Colour System Auto
78: 1 41
SC1
SC1: PAL B, G, H / SECAM B, G
SC2: PAL I
SC3: PAL D, K / SECAM D, K
F: SECAM L / L’
•
Tuning Programmes
Advanced
Select the programme position
132
465
798
0
VCR
Search and storeSelect the programme
search
store
25
Page 26

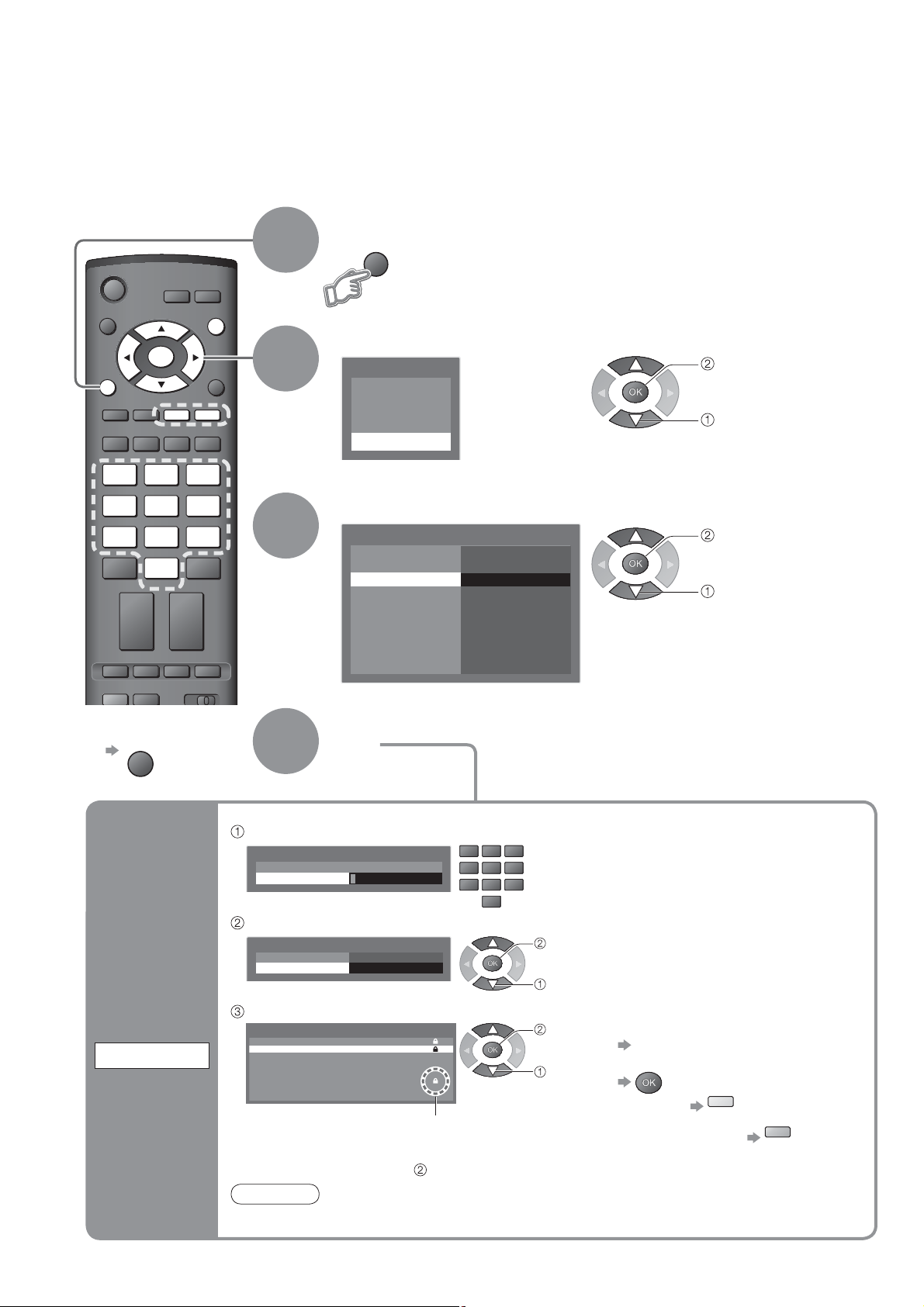

Control Programme Audience
You can lock specific programmes / AV input terminals and control who watches them.
(When the locked programme / input is selected, a message appears; by entering the PIN number, you
can watch it.)
Display the menu
1
INPUT
MENU
GUIDE
OK
MENU
ASPECT
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
To return to TV
EXIT
2
3
4
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Child Lock”
Setup Menu
Service List Edit
Link Settings
Child Lock
Tuning Menu
Off Timer Off
OSD Language
Teletext TOP
Teletext Character West
Shipping Condition
Access
Set
access
select
access
select
26
Control
programme
audience
Child Lock
Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
132
465
798
Enter the PIN number twice at rst
•
setting.
Make a note of the PIN number in
0
VCR
•
case you forget it.
Select “Child Lock List”
Child Lock
Change PIN
Child Lock List
Access
access
select
Select the programme / input to be locked
Child Lock List - Services and AV
VCR
BBC11
*****2
*****3
4
5
AV1
AV2
Appears when the programme / input is locked
To change the PIN number
Select “Change PIN” in and enter a new PIN number twice.
set
select
To cancel
•
Select the locked programme /
input
To lock all
•
To cancel all locks
•
yellow
Note
Setting “Shipping Condition” (p. 27) erases the PIN number and all settings.
•
blue
Page 27

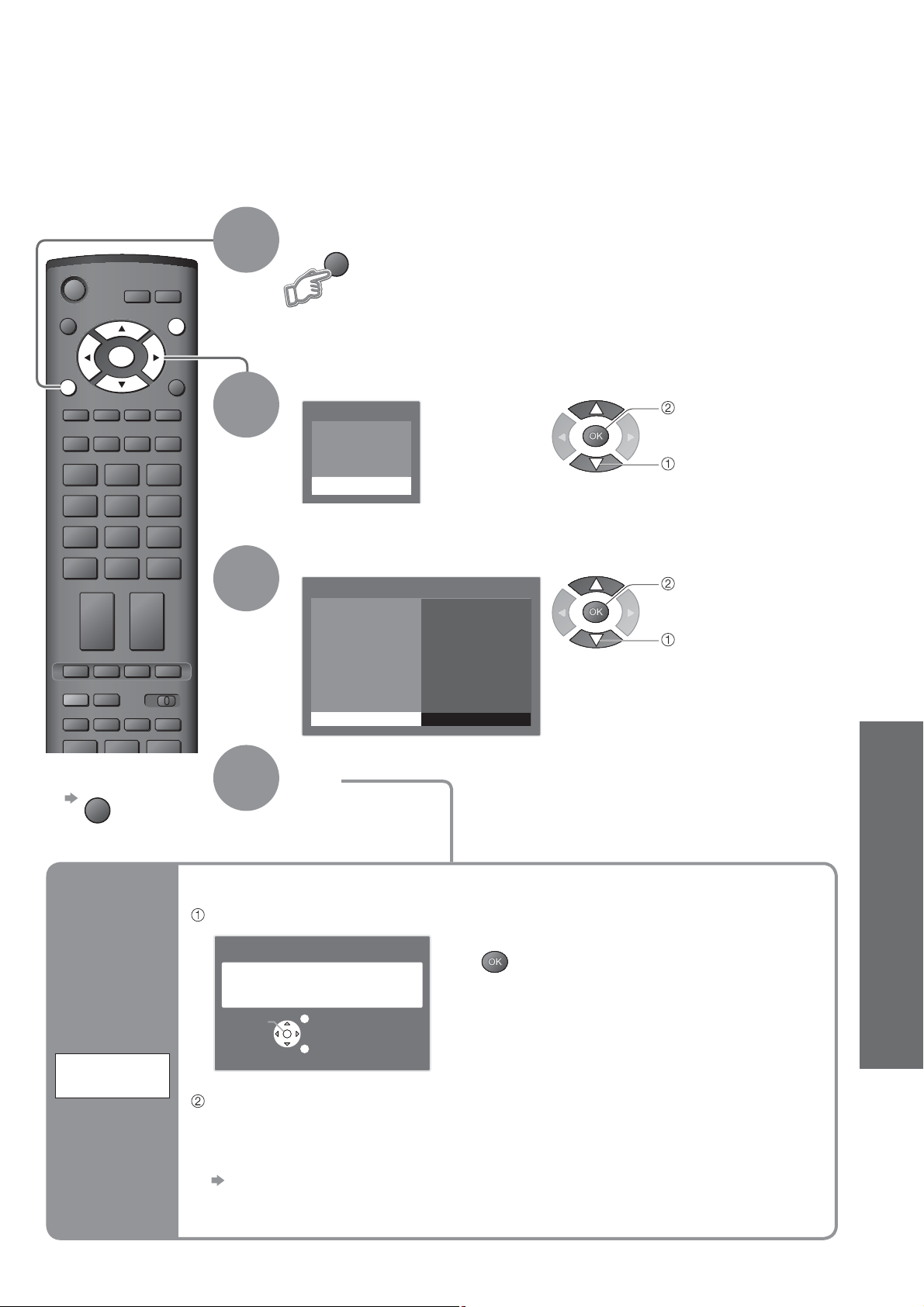

Restore Settings
Resets the TV to its original condition, i.e. no programmes tuned in.
All settings (programmes, picture, sound quality, etc.) are reset.
Display the menu
1
INPUT
MENU
ASPECT
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Shipping Condition”
Setup Menu
Service List Edit
Link Settings
Child Lock
Tuning Menu
Off Timer Off
OSD Language
Teletext TOP
Teletext Character West
Shipping Condition Access
access
•
Control Programme Audience
select
•
Restore Settings
access
select
To return to TV
EXIT
Restore
Settings
Shipping
Condition
4
Check the message and initialise
Shipping Condition
All tuning data will be erased
Confirm
Follow the on-screen instructions
“Auto Setup” will automatically start when Mains power On / Off switch is next
•
turned On. (p. 10)
Set
Are you sure?
Are you sure?
EXIT
RETURN
To retune TV programmes only, e.g. after moving house
“Auto Setup” (p. 25)
Advanced
27
Page 28
Displaying PC Screen on TV
The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.
To connect PC p. 36
•
Select the external input
INPUT
ASPECT
OK
MENU
OPTION
EXIT
RETURN
DIRECT TV REC
To return to TV
1
2
Select “PC”
Výběr vstupu
AV1
AV2/S
AV3/S
COMPONENT
PC
HDMI1
HDMI2
TV
access
select
Corresponding signals p. 41
•
If “H-freq.” or “V-freq.” is shown in red,
•
the signals may not be supported.
28
Page 29

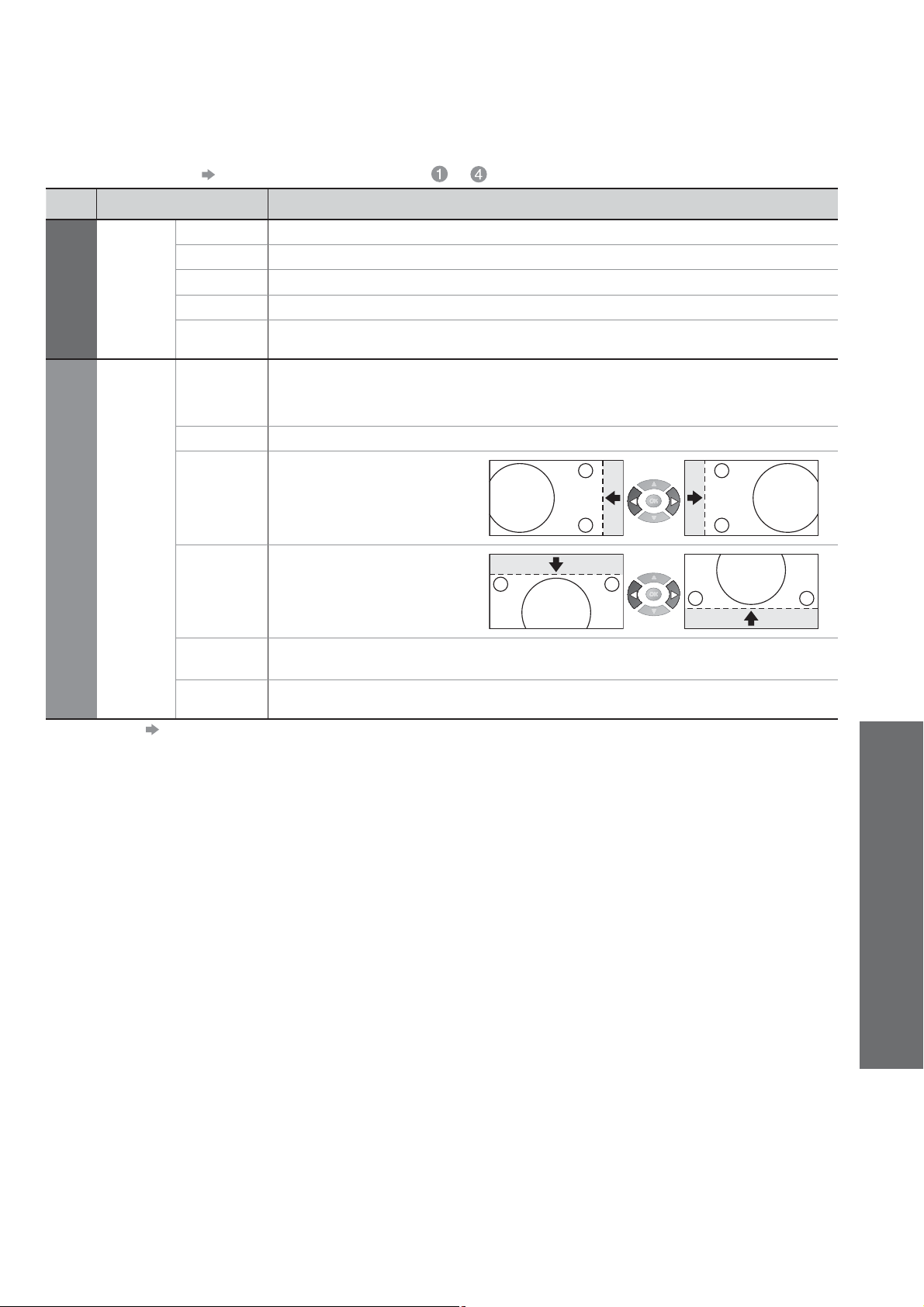

PC menu setting (changed as desired)
To make settings “How to Use Menu Functions” to (p. 18)
•
Menu Item Adjustments / Configurations (options)
R-Gain Adjusts the white balance for red areas
Advanced
PC
Settings
Setup
PC
Setup
Other items p. 20 and p. 21
•
G-Gain Adjusts the white balance for green areas
B-Gain Adjusts the white balance for blue areas
Gamma (2.0 / 2.2 / 2.5)
Reset to
Default
Input
Resolution
Clock Set to the minimum level if noise occurs
H-pos
V-pos
Clock Phase
Reset to
Default
Press the OK button to reset to the default Picture settings
Switches to a wide view
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
•
XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)
Options change depending on signals
•
Adjusts horizontal position
Adjusts vertical position
Eliminates icker and distortion
Adjust after Clock adjustment
•
Press the OK button to reset to the default Setup settings
Set to the minimum level if noise occurs
•
•
Displaying PC Screen on TV
Advanced
29
Page 30

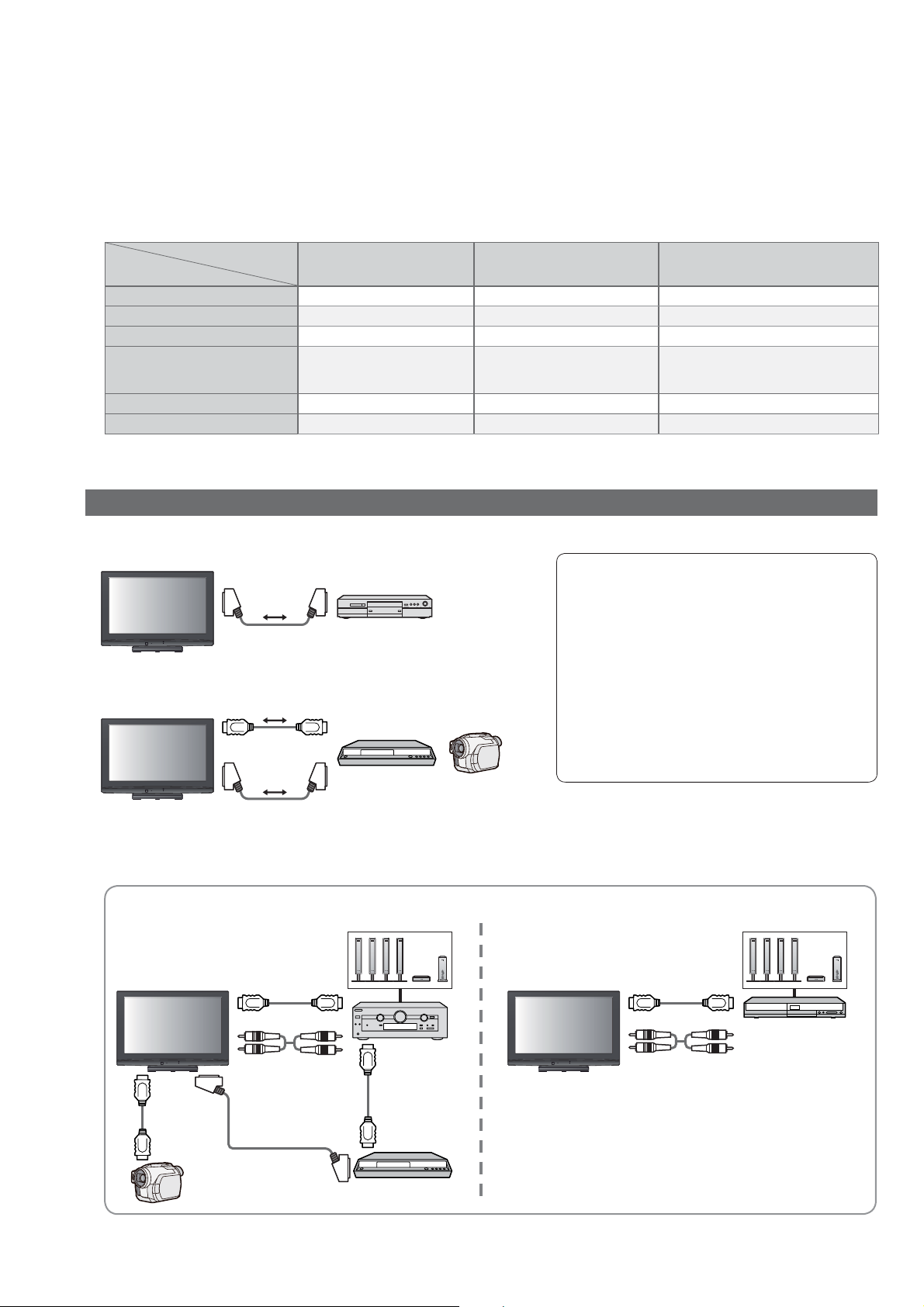

Q-Link
Link Functions
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 31)
VIERA Link (HDAVI ControlTM) connects the TV and the equipment with VIERA Link function, and
enables easy control, convenient recording, playback, etc. (p. 32 - 34)
You can use Q-Link and VIERA Link functions together.
(
VIERA Link
Summary of Q-Link and VIERA Link functions
)
Features
Preset download
Easy playback
Speaker control
Control the menu of the
connected equipment by
VIERA remote control
Direct TV Recording
Pause Live TV programme
:Available with the equipment which has “HDAVI Control 2” or “HDAVI Control 3” function.
:Available with the equipment which has “HDAVI Control 3” function.
Connection
Q-Link
(SCART connection)
O O
OO O
-
-
O
--
VIERA Link
(HDMI connection only)
**
OO
*
O
-
(SCART and HDMI connection)
VIERA Link
O
O
O
O
Connections
Read the manual of the equipment, too.
Q-Link
Connect the DVD Recorder / VCR supporting Q-Link to the
•
TV’s AV1 or AV2 terminal via a fully wired SCART cable.
SCART cable
DVD Recorder / VCR
with Q-Link function
VIERA Link
HDMI cable
DIGA Recorder / HD Video Camera
Connect the equipment supporting VIERA Link to the TV’s AV1, AV2, HDMI1 or HDMI2 terminals via fully
•
wired SCART and HDMI cables together.
Some functions are available only with HDMI cable connection. But use both HDMI and SCART cables to
•
support many features normally.
SCART cable
with VIERA Link function
SCART cable
•
Use fully wired SCART cable.
HDMI cable
•
Use fully wired HDMI compliant cable.
Non-HDMI-compliant cables cannot be
utilized.
Recommended Panasonic’s HDMI cable
part number:
• RP-CDHG10 (1.0 m)
• RP-CDHG15 (1.5 m)
• RP-CDHG20 (2.0 m)
• RP-CDHG30 (3.0 m)
• RP-CDHG50 (5.0 m)
*
**
**
30
For Speaker control (Home Cinema)
To use Ampli er •To use Player theatre
•
HDMI cable
RCA cable
HDMI
cable
SCART cable
HD Video Camera with
VIERA Link function
Speaker system Speaker system
Ampli er with
VIERA Link
function
HDMI
cable
DIGA Recorder with
VIERA Link function
HDMI cable
RCA cable
Player theatre with
VIERA Link function
Page 31

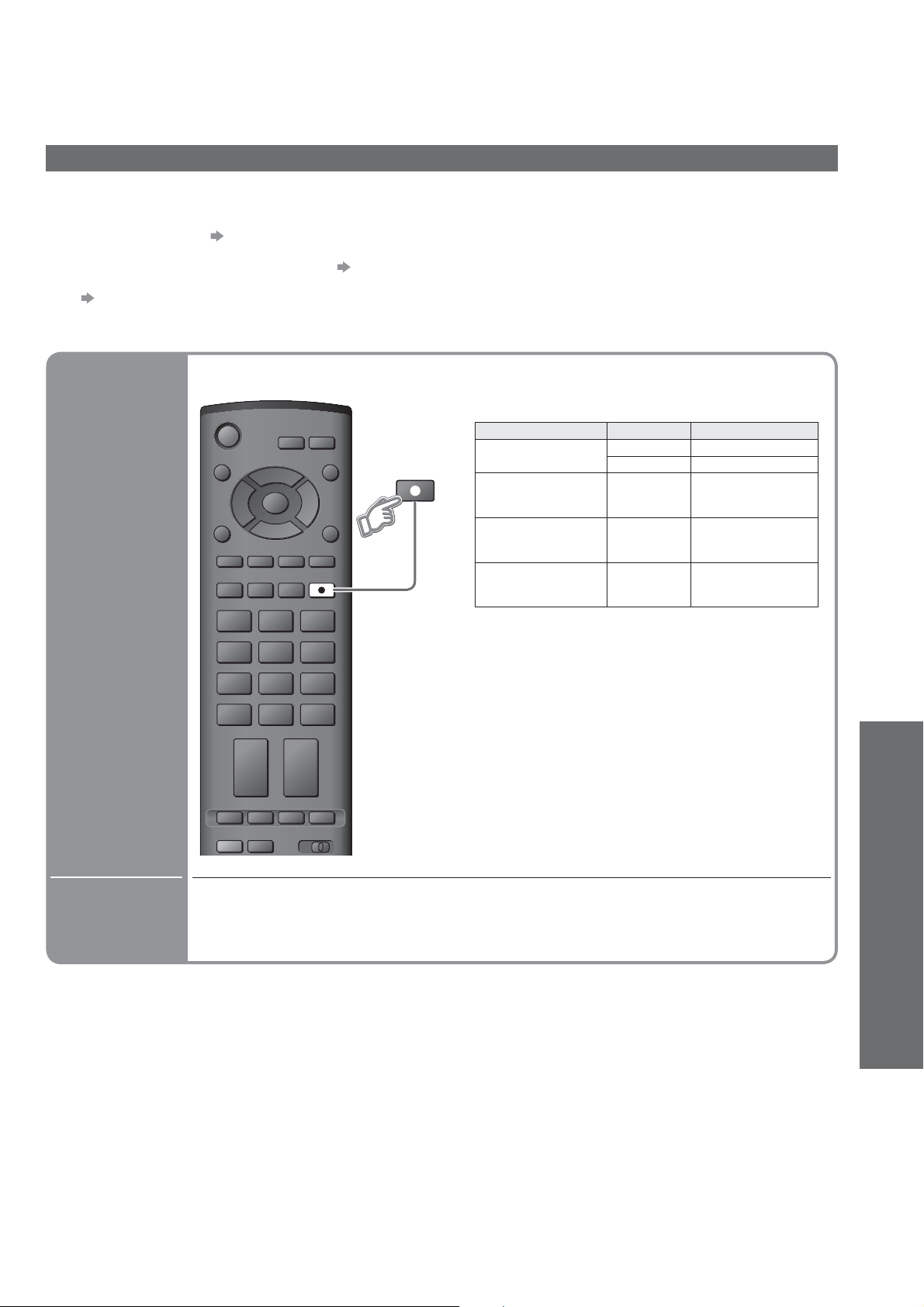

Q-Link
Preparations
Connect the DVD Recorder / VCR with the following logos:
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
Q-Link connection p. 30
•
Set up the DVD Recorder / VCR. Read the manual of the equipment.
•
Q-Link terminal setup in Setup Menu “Q-Link” (p. 21), “AV1 / AV2 out” (p. 21)
•
Download preset - programme, language, country / region setting (Preset download)
•
“Download” (p. 21) or “Auto Setup” (p. 25) or “Auto Setup” - when first using the TV (p. 10)
Features available
Some recorders are not applicable. Read the manual of the recorder.
Recording the current programme in DVD Recorder / VCR immediately.
Available conditions:
•
Current mode Using tuner How to record
TV
AV
( watching recorder’s
tuner)
AV
( watching recorder’s
external input)
AV
( watching TV’s
external input)
When Direct TV Recording is performed, the
•
recorder is automatically turned on if it is in Standby
mode.
Changing programme or turning off the TV is
•
available while the recorder is recording from its
own tuner.
Changing programme is not available while the
•
recorder is recording from the TV tuner.
Turning off the TV will stop the recording if the
•
recording from an AV source connected to the TV.
Direct TV
Recording -
What you see
is What you
record
ASPECT
MENU
132
465
798
OK
OPTION
0
VCR
INPUT
EXIT
DIRECT TV REC
RETURN
DIRECT TV REC
TV TV monitor out
Recorder Recorder’s tuner
Recorder Recorder’s tuner
-
-
Recorder’s
external input
TV monitor out
(Q-Link / VIERA Link)
•
Link Functions
TEXT F.P. INDEX HOLD
REC
VCR DVD
Information
/ Message
• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)
• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)
Recording information or if recording is not possible, a message is displayed.
Advanced
31
Page 32
Link Functions
Q-Link
(
VIERA Link
)
VIERA Link “ ControlTM”
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 3” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically.
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please con rm the
•
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
•
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
About applicable Panasonic equipment, consult your local Panasonic dealer.
Preparations
Connect the equipment supporting VIERA Link.
•
VIERA Link connection p. 30
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder might be required. For details, read the manual of the
•
recorder.
Download preset - programme, language, country / region setting (Preset download)
•
“Download” (p. 21) or “Auto Setup” (p. 25) or “Auto Setup” - when first using the TV (p. 10)
Set VIERA Link On in Setup Menu “VIERA Link” (p. 21)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1 or HDMI2 (p. 16), and make sure that an image is displayed
correctly.
This setup should be done each time when the following conditions occur:
• for the first time
• when adding or reconnecting equipment
• when changing setup
Features available
Easy
playback
Automatic Input switching - When the connected equipment is operated, input mode
is switched automatically. When it is stopped operating, input mode is returned.
32
Page 33

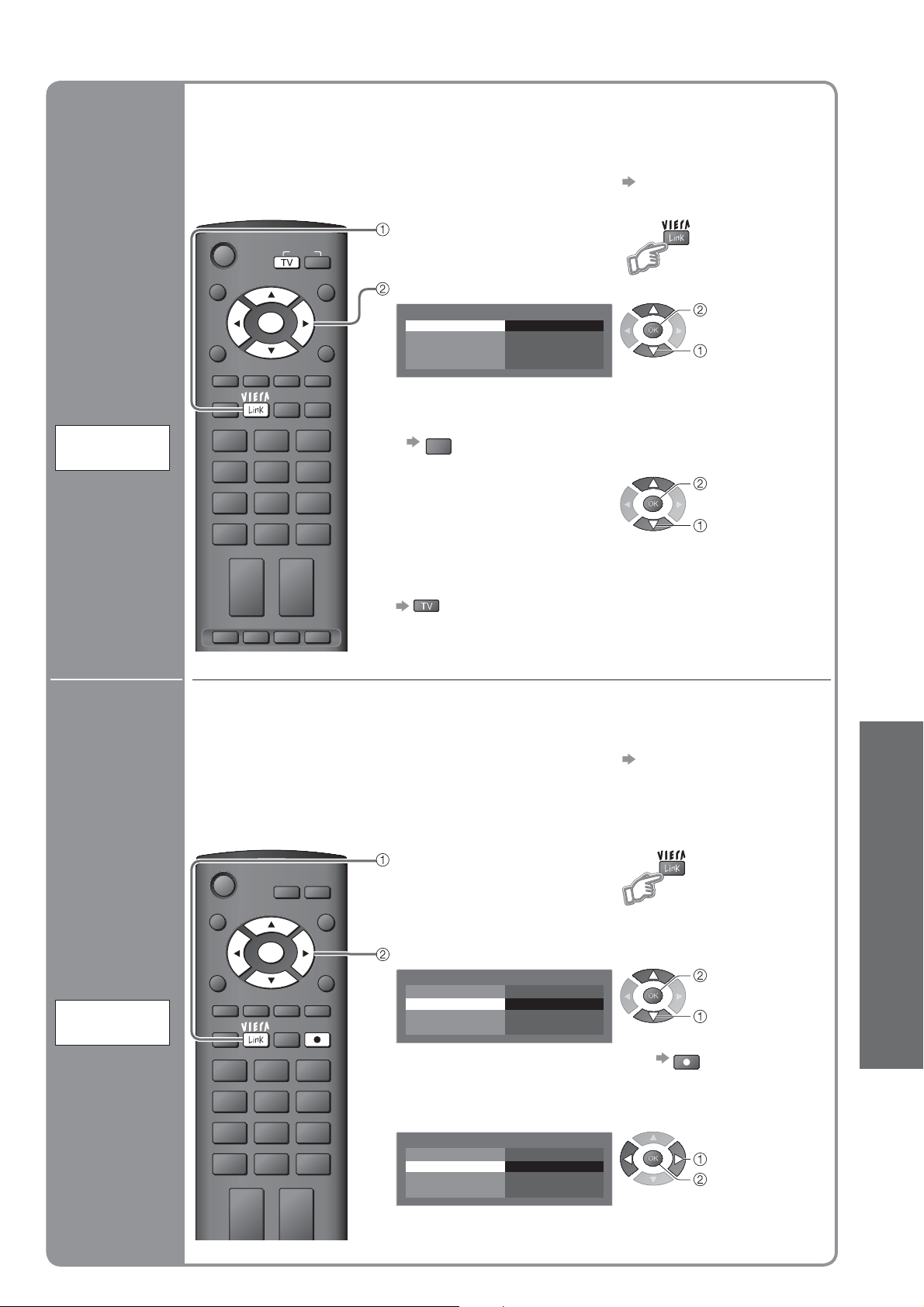

Features available (Using VIERA Link Menu)
O
You can pause the live TV programme and resume later.
This function is available with DIGA Recorder which has HDD and “HDAVI Control 3”
•
function.
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 32)
•
Access and pause the live TV programme
Display “VIERA Link Menu”
INPUT
GUIDE
Pause
Live TV
programme
MENU
HDAVI Control 3
(
and
Recorder with HDD
Pause Live
TV
ASPECT
)
132
465
798
Recording the current programme in DIGA Recorder immediately.
This function is available with DIGA Recorder which has “HDAVI Control 3” function.
•
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 32)
•
Changing programme or turning off the TV is available while the recorder is recording
•
from its own tuner.
Changing programme is not available while the recorder is recording from the TV tuner.
•
Turning off the TV will stop the recording if the recording from an AV source connected to
•
the TV.
Direct TV
Recording -
What you see
is What you
record
(HDAVI Control 3)
Direct TV
Rec
GUIDE EXIT
MENU
ASPECT
132
EXIT
OK
RETURN
OPTION
DIRECT TV REC
0
VCR
STTLTEXT INDEX HOLD
INPUT
OK
RETURN
OPTION
DIRECT TV REC
Select “Pause Live TV” and pause
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Live TV programme is recorded on HDD from where it was
•
paused.
If the paused TV picture disappears after a few minutes
•
PTION
(the paused picture will be restored)
Access
Start
Recorder
Home Cinema
To resume (stop pause)
Select “Pause Live TV”
and access
About the operations after
•
resuming, read the manual of the equipment.
pause
select
resume
select
To return to Live TV
(cancel pause or resumed playback)
(change the input mode)
If you cancel pause or resumed playback, the recorded
•
programme will be deleted from HDD.
Display “VIERA Link Menu”
Select “Direct TV Rec” and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
You can also start recording directly
•
Start
Recorder
Home Cinema
start
select
DIRECT TV REC
(Q-Link / VIERA Link)
•
Link Functions
Advanced
465
798
0
VCR
To stop recording
Select “Stop” in “Direct TV Rec” and access
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Stop
Recorder
Home Cinema
select
stop
33
Page 34

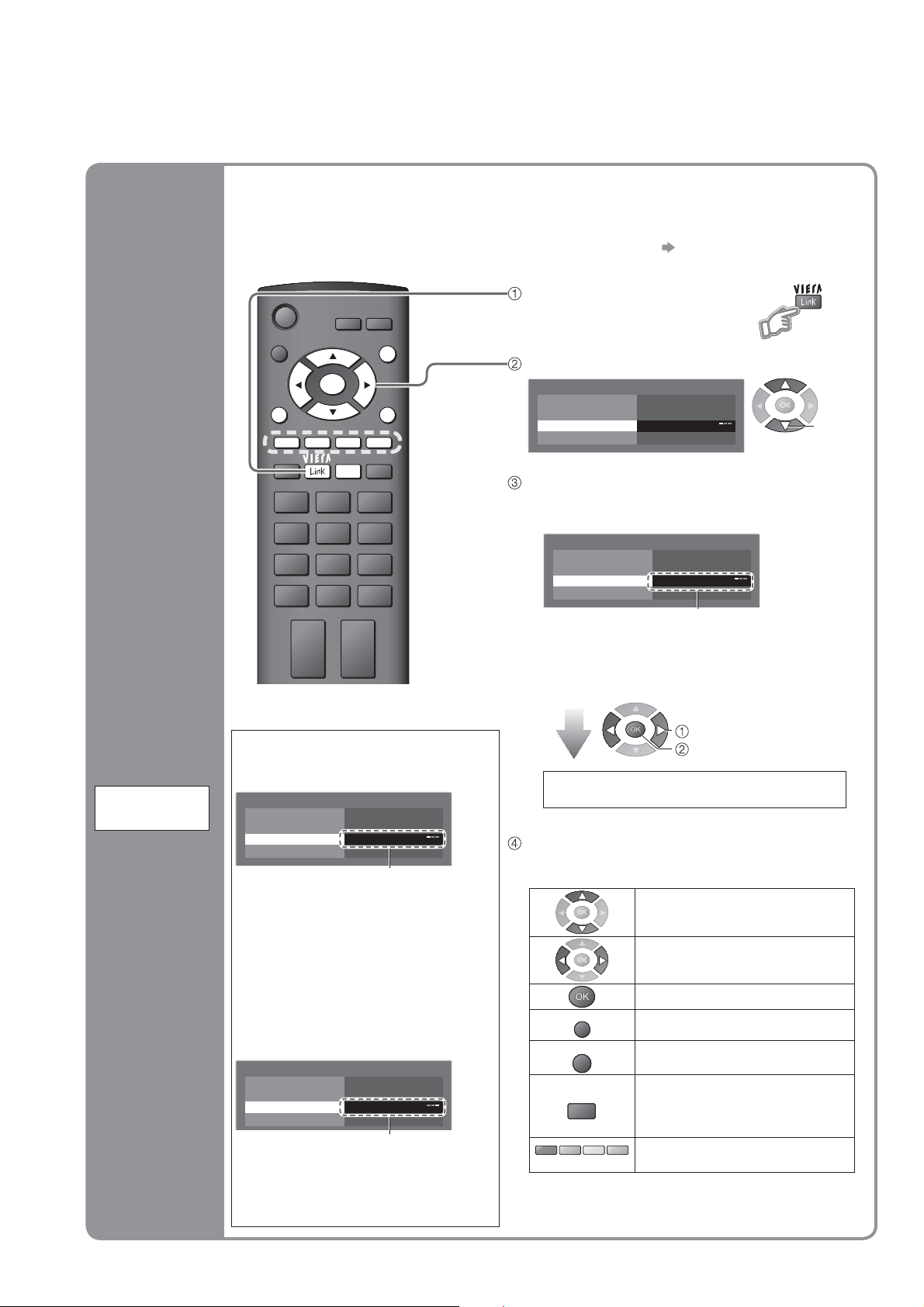

Link Functions
Features available (Using VIERA Link Menu)
You can control some functions of the connected equipment with this TV remote
control (point the remote control at the TV’s signal receiver).
This function is available with the equipment which has “HDAVI Control 2” or
•
“HDAVI Control 3” function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 32)
•
Access and operate the menu of the equipment
Display “VIERA Link Menu”
INPUT
Q-Link
(
VIERA Link
)
Control
the menu
of the
connected
equipment
by VIERA
remote
control
HDAVI Control 2
(
HDAVI Control 3
VIERA Link
Control
)
ASPECT
OK
MENU
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
If you access
the invalid equipment
When the equipment with
“HDAVI Control” function is
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Recorder / Player / Home Cinema /
Video Camera
The type of the connected
equipment is displayed.
But you cannot access it. Use its
own remote control to operate the
equipment.
When the equipment of other
types or manufacturers is
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
“Others” is displayed.
You cannot access it. Use its own
remote control to operate the
equipment.
Start
Recorder
Home Cinema
Start
Others
Home Cinema
Others
Select “VIERA Link Control”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Select the equipment you want to access
“Home Cinema” means Player theatre,
•
Recorder theatre and Ampli er.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Recorder / Player / Home Cinema / Video Camera
Start
Recorder
Home Cinema
Start
Recorder
Home Cinema
select
The type of the connected equipment is
displayed.
Select the type of the equipment and
access.
select
access
The menu of the accessed equipment
(Input mode will be changed automatically)
Operate the menu of the equipment
Available VIERA remote control buttons
•
(depending on the connected equipment):
Move the cursor / select the menu
Move the cursor / access / adjust
Store / set / access
RETURN
EXIT
OPTION
yellow
red green
About the operations for the equipment, read
•
the manual of the equipment.
Return to the previous menu
Exit the menu
Display the operation guide for the
equipment /
The same functions with the
OPTION button of the equipment
Access when the key words are
blue
displayed on colour bar
34
Page 35

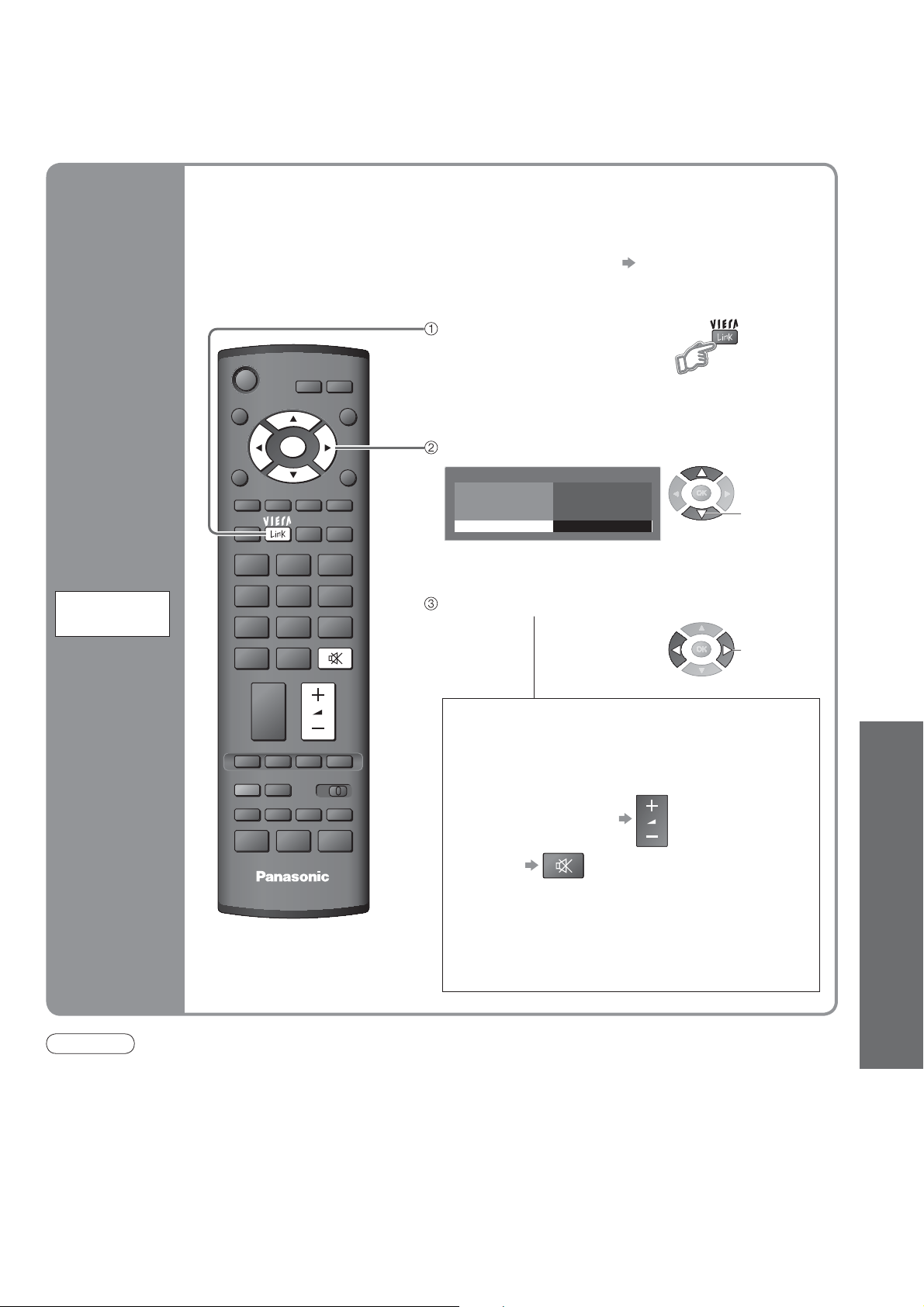

Features available (Using VIERA Link Menu)
You can control the theatre speaker with this TV remote control (point the remote
control at the TV’s signal receiver).
This function is available with the Ampli er or Player theatre which has “HDAVI Control”
•
function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 32)
•
Access and control the speaker volume
INPUT
Display “VIERA Link Menu”
Speaker
control
Speaker
Selection
GUIDE
OK
MENU
ASPECT
132
465
798
TEXT STTL INDEX HOLD
PROGRAMME
REC
OPTION
0
VCR
VCR DVD
EXIT
RETURN
DIRECT TV REC
Select “Speaker Selection”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Set to “Home Cinema” or “TV”
Start
Recorder
Home Cinema
Home Cinema
Amplifier or Player theatre will be
automatically turned on if it is in Standby
mode and the sound is from theatre
speakers connected to the equipment.
Volume up / down
•
select
set
(Q-Link / VIERA Link)
•
Link Functions
Advanced
Mute
•
TV
The sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers
•
will be active.
TV
TV speakers are active.
Note
This function may not work properly depending on the connected equipment.
•
Image or sound may not be available for the rst few seconds when the playback starts.
•
Image or sound may not be available for the rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
Easy playback is also available by using the remote control for Ampli er or Player theatre. Read the manual of
•
the equipment.
About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment.
•
If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA
•
Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case
HDMI1.
“HDAVI Control 3” is the newest standard (current as of December, 2007) for HDAVI Control compatible
•
equipment. This standard is compatible with conventional HDAVI equipment.
35
Page 36
External Equipment
These diagrams show our recommendations for how to connect the TV to your various equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the speci cations (p. 45).
Camcorder /
Game equipment
(S-VIDEO)
or
(VIDEO)
(AUDIO)
( M3 stereo
mini plug)
Headphones
Types of connectable equipment to each terminal
AV1 AV2
Terminal
Recording / Playback
(equipment)
Fully wired HDMI compliant cable
To watch DVDs
DVD player
AV3 (Side of TV)
(Listening)
(Viewing)
36
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use ampli er with speaker system
Q-Link
VIERA Link
Direct TV Recording
(with HDMI) (with HDMI)
Page 37

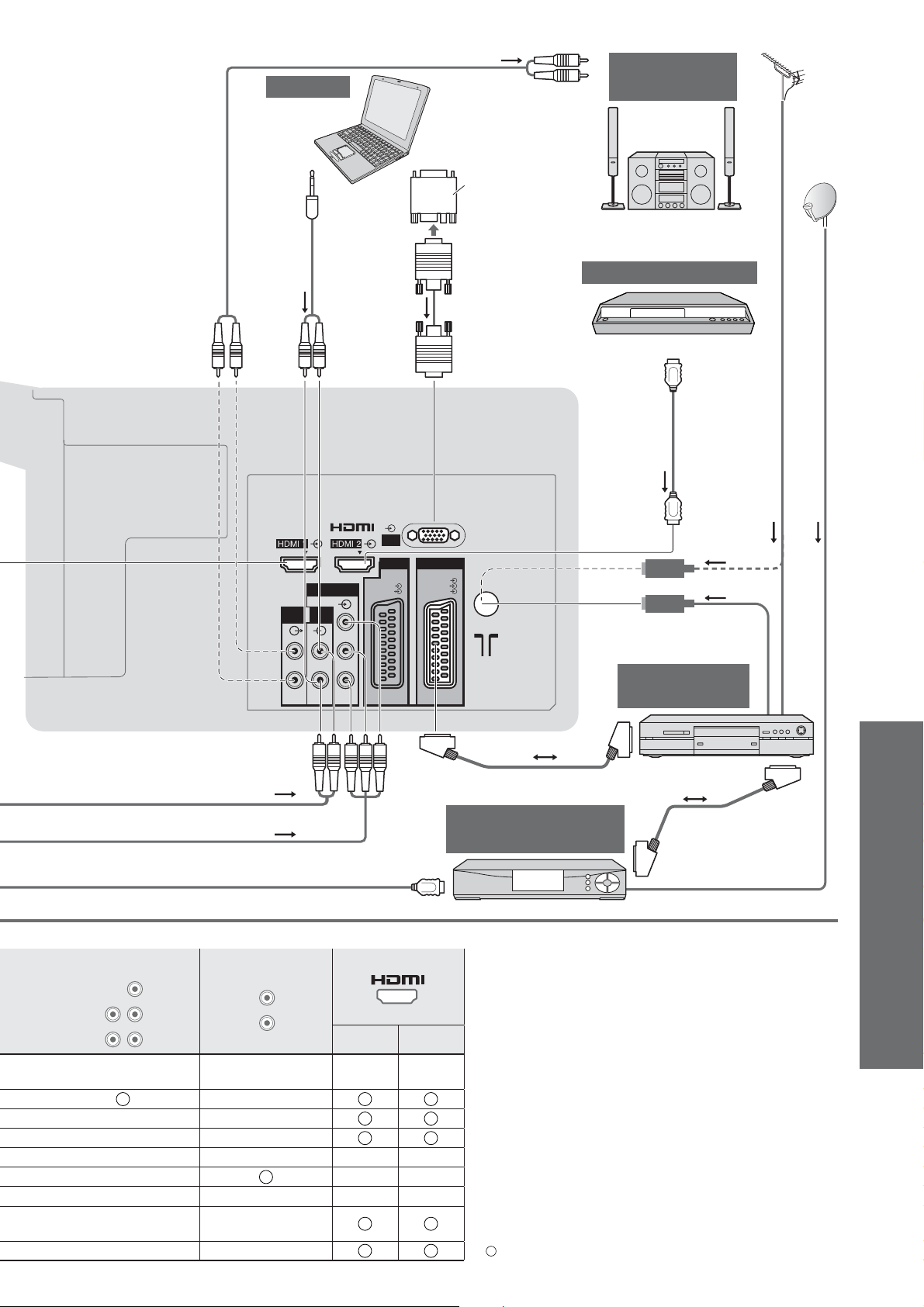

PC
Computer
Conversion
adapter
(if necessary)
(Viewing)(Listening)
To listen with
speakers
Ampli er with
speaker system
HDMI equipment
RCA
cable
AUDIO
OUT
R
COMPONENT
Y
AUDIO
IN
P
B
LRL
P
R
RGB
VIDEO
PC
AV2AV1
RGB
VIDEO
S VIDEO
SCART cable
DVD Recorder
RF cable
Fully wired
HDMI
compliant
cable
•
External Equipment
or
To record /
playback
DVD Recorder /
VCR
COMPONENT
Y
P
B
L
R
P
R
AUDIO OUT
L
R
To watch satellite
Set top box
12
broadcasts
: Recommended Connection
SCART cable
Advanced
37
Page 38
Technical Information
Auto Aspect
The optimum size and aspect can be chosen, and you can enjoy ner images. (p. 13)
Auto
Auto aspect determines the best aspect ratio to use to ll your screen. It does this using a four step process to
determine if the picture being viewed is a widescreen picture.
If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto
aspect does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing
pleasure.
The text shown on the screen indicates how Auto aspect determined which ratio to use:
“WIDE” appears in the top left of the screen if a widescreen identi cation signal (WSS) is found or a signal found
through a SCART or HDMI terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This
function will also work in any aspect mode. “Auto” appears in the top left of the screen if black stripes above and
below the picture are detected. Auto aspect chooses the best ratio and expands the picture to ll the screen.
This process can take several minutes, depending on the darkness of the picture.
Aspect Control Signal
Widescreen signal (WSS)
Control signal through SCART (pin 8) or HDMI
terminal
Signal name
PAL
PAL 525/60
M.NTSC
NTSC (AV input only)
525(480)/60i
525(480)/60p
SD
625(576)/50i
625(576)/50p
750(720)/50p
750(720)/60p
HD
1125(1080)/50i
1125(1080)/60i
Note
The ratio varies depending on the programme, etc. If the ratio is greater than the standard “16:9”, black bands
•
may appear at the top and bottom of the screen.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
•
tracking of the VCR. (See the VCR manual.)
TV AV1 AV2 AV3 COMPONENT AV1 AV2 HDMI1 HDMI2
OOOO O O
----
----
----
-
-
OOO
OOO
-
-
-
-
OO
OO
OO
OO
OO
OO
OO
OO
OO
38
Page 39
HDMI connection
HDMI (high-de nition multimedia interface) allows you to enjoy high-de nition digital images and high-quality sound
by connecting the TV and the equipment.
HDMI-compatible equipment (1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can
be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 36).
Note
HDMI is the world’s rst complete digital consumer AV interface complying with a non-compression standard.
•
If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter
•
cable (2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use
•
COMPONENT-AUDIO terminals).
Audio settings can be made on the “HDMI1 Input” menu screen. (p. 20)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
HDMI2 terminal is for digital audio signal only.
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
•
protection.
An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
•
“S-VIDEO”, or “VIDEO” to receive analogue signals.
The HDMI input terminal can be used with only the following image signals:
•
480i, 480p, 576i, 576p, 720p and 1080i. Match the output setting of the digital equipment.
For details of the applicable HDMI signals, see p. 41.
•
This TV incorporates HDMITM (Version 1.3) technology.
•
(
(
1): The HDMI logo is displayed on HDMI-compliant equipment.
2): Enquire at your local digital equipment retailer shop.
•
Technical Information
FAQs, etc.
39
Page 40
Technical Information

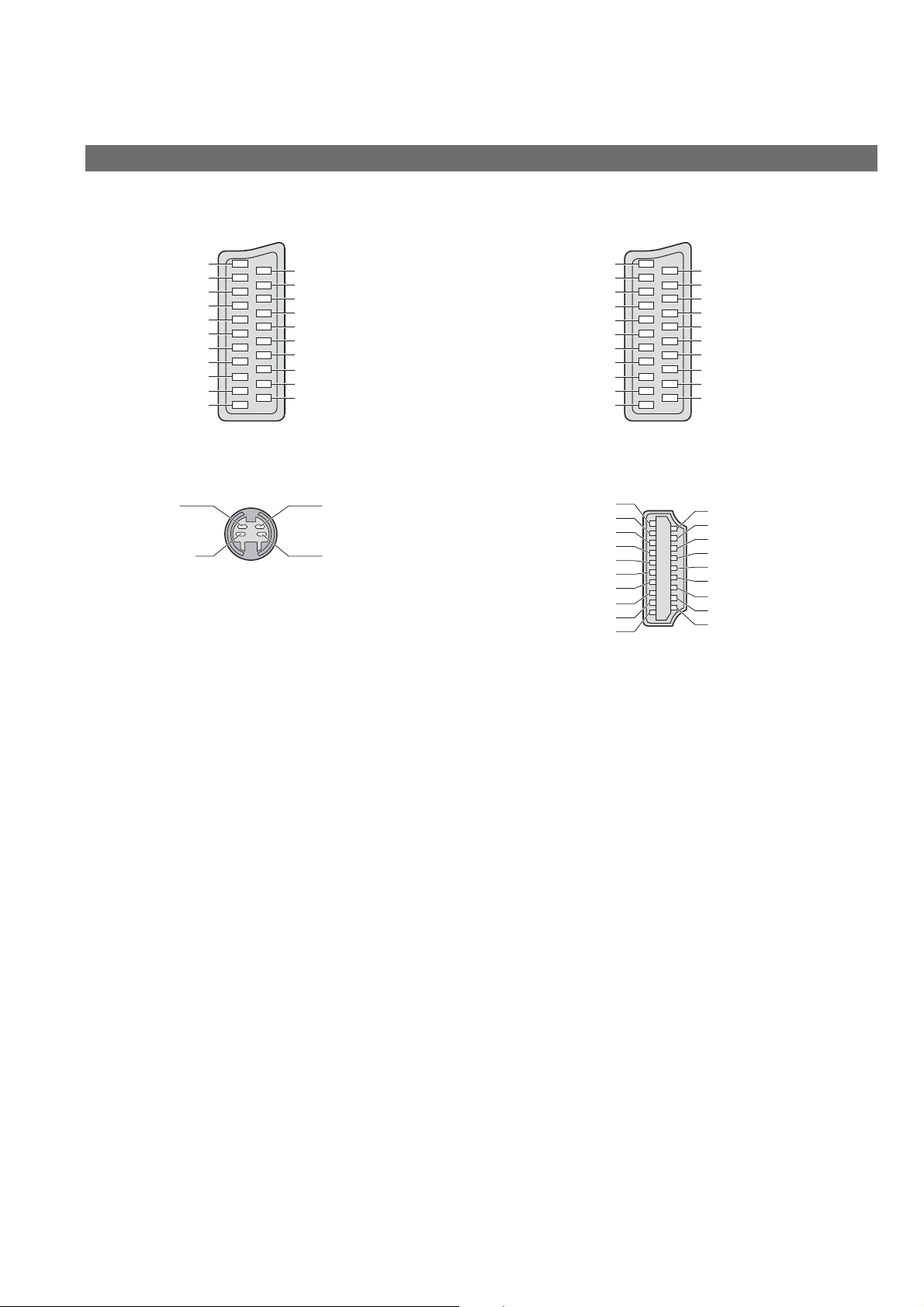

SCART, S-VIDEO and HDMI terminal information
AV1 SCART terminal
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
AV2 SCART terminal
(RGB, VIDEO, S-VIDEO, Q-Link)
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS /
VIDEO switching.
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in, S.C. - in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
AV3 S-VIDEO 4 pin terminal HDMI terminal
Chrominance in Luminance in
Chrominance earth Luminance earth
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield
TMDS Data0 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2 3
TMDS Data2+ 1
11
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
18 +5V Power
16 SDA
Reserved (in cable but N.C. on device)
14
12 TMDS Clock
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1
4 TMDS Data1+
2 TMDS Data2 Shield
40
Page 41

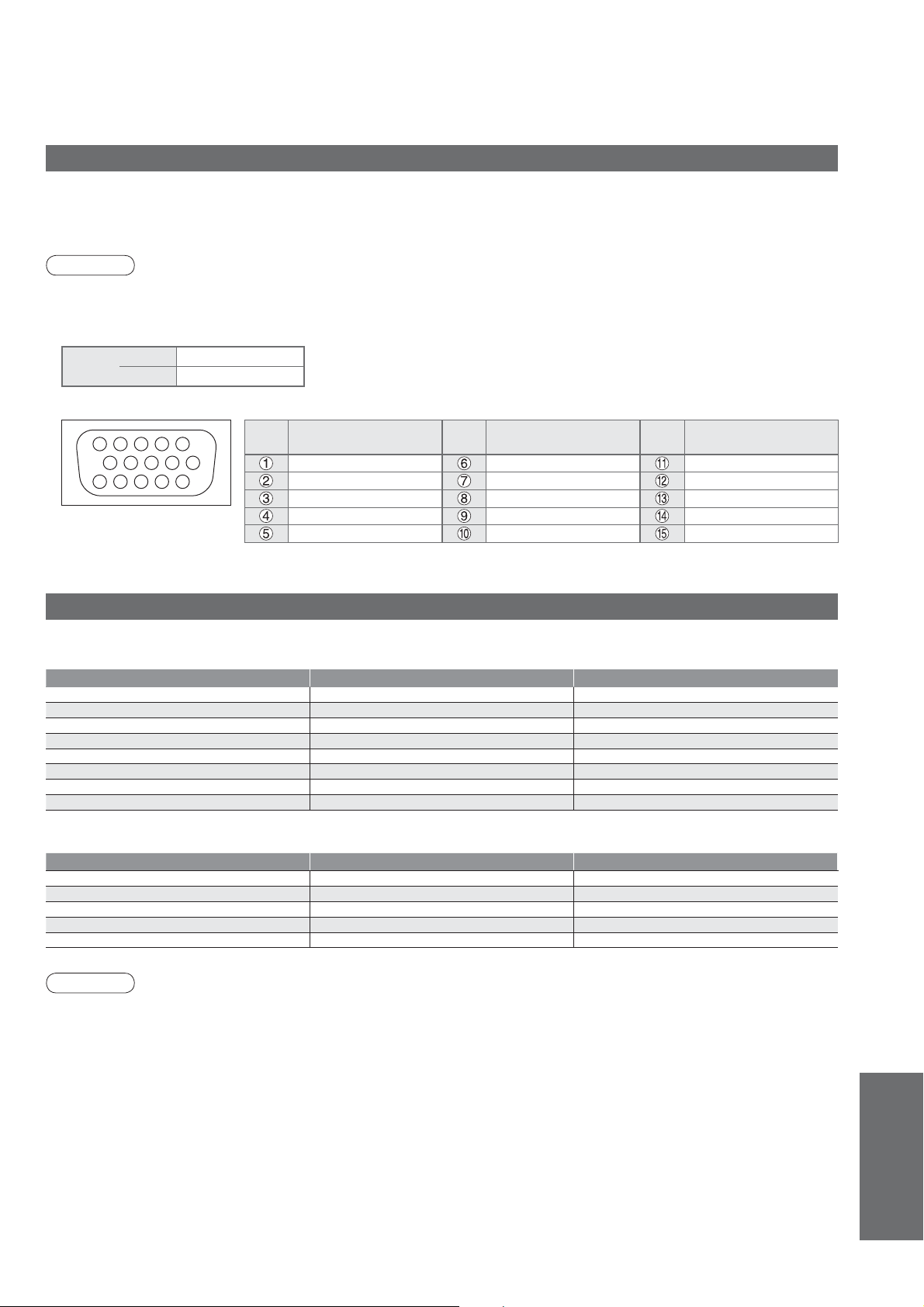

PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
PC signals that can be inputted: Horizontal scanning frequency 31 to 48.5 kHz; vertical scanning frequency
•
60 Hz (more than 768 signal lines could result in incorrect display of the image).
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.
•
Note
Some PC models cannot be connected to this TV.
•
When using PC, set the colour display quality of PC to the highest position.
•
For details of the applicable PC signals, see below.
•
Max. display resolution
•
Aspect
D-sub 15-pin connector signal
•
4:3
16:9
45
10
15 14 13 12 11
1,024 × 768 pixels
1,366 × 768 pixels
1
2
67839
Pin No.
Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
Pin No.
Signal Name
Pin No.
Signal Name
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
PC (D-sub 15P)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 59.94
800 × 600 @60 Hz 37.88 60.32
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,366 × 768 @60 Hz 48.39 60.04
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
Applicable input signal for PC is basically compatible to VESA standard timing.
•
PC signal is magni ed or compressed for display, so that it may not be possible to show ne detail with suf cient
•
clarity.
•
Technical Information
FAQs, etc.
41
Page 42

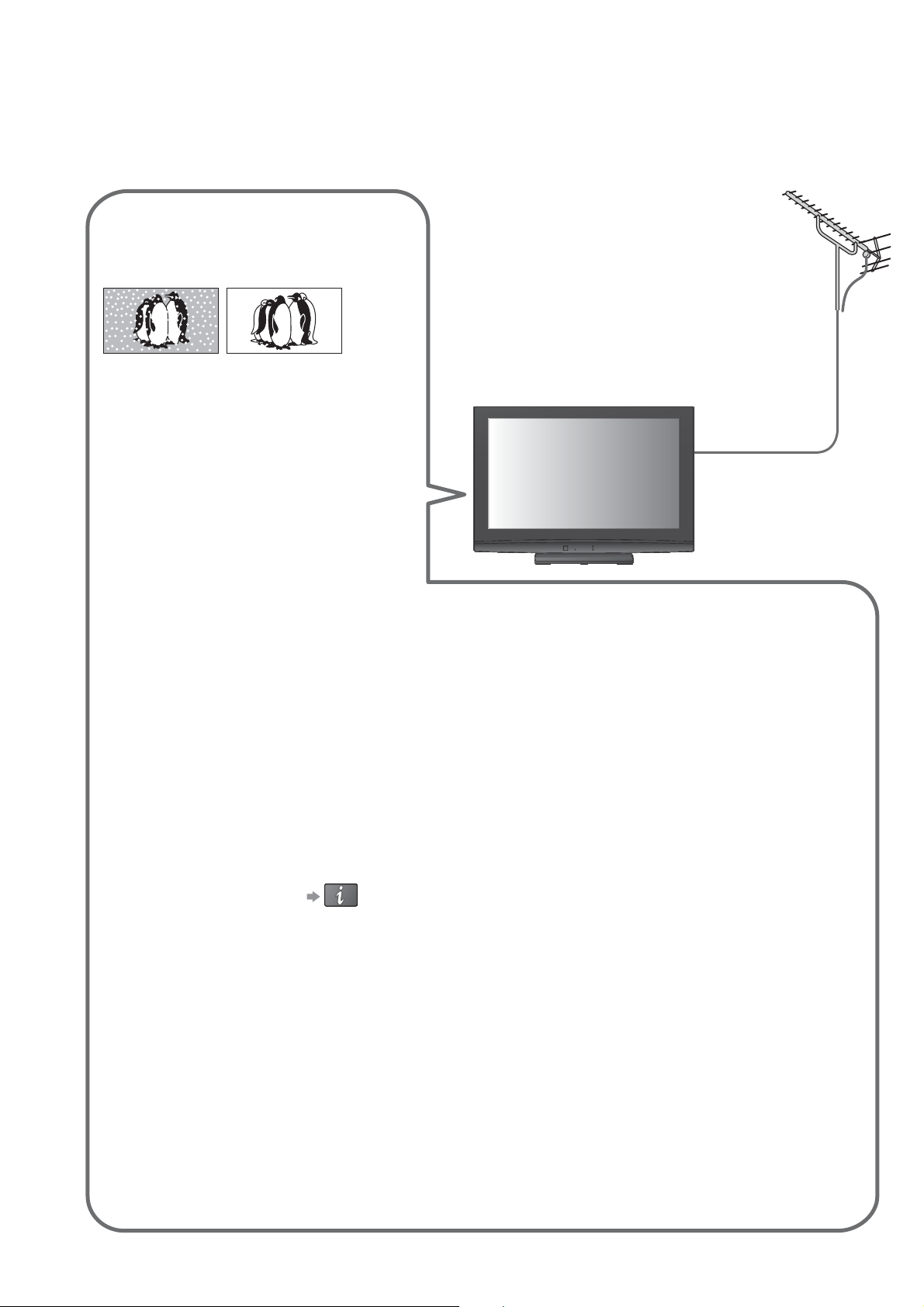

FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow
images (noise)
Check the position, direction, and
•
connection of the aerial.
Neither image nor
sound is produced
Is the TV in “AV mode”?
•
Is the mains lead plugged into the socket
•
outlet?
Is the TV turned On?
•
Check Picture Menu (p. 20) and volume.
•
Check all required SCART cables and
•
connections are rmly in place.
Auto aspect
Auto aspect is designed to provide you
•
with the best aspect ratio to use to ll your
screen. For user control please see p. 38.
S-Video / black and
white picture
Using AV button please con rm your
•
selection is S-Video I.e. AV2/S (p. 16).
On Screen messages
- I.e. EC/AV1
You can simply clear these
•
Press again to redisplay.
An error message
appears
Follow the message’s instructions.
•
If the problem persists, contact the
•
authorized Service Centre.
Q-Link function does
not work
Please con rm SCART cable, connection
•
and Q-Link settings. Also please set
“AV1 / AV2 out” in the Setup Menu (p. 21).
“VIERA Link” function
does not work and an error
message appears
Con rm the connection.
•
Turn the connected equipment on and then switch the TV on.
•
(p. 32)
Recording does not start
immediately
Check the settings of the recorder. For details, read the
•
manual of the recorder.
There may be red spots, blue
spots, green spots and black spots
on the screen
This is a characteristic of liquid crystal panels and is not
•
a problem. The liquid crystal panel is built with very high
precision technology giving you ne picture details.
Occasionally, a few non-active pixels may appear on the
screen as a xed point of red, green, blue or black.
Please note this does not affect the performance of your LCD.
The LCD panel moves slightly
when it is pushed with a finger
Clattered sound might be heard
There are some looseness around the panel to prevent the
•
damage to the panel.
The panel might move slightly when it is pushed with a nger,
and clattered sound might be heard. This is not a malfunction.
42
Page 43
Problem Actions
Chaotic image, noisy
Set “P-NR” in the Picture Menu (to remove noise). (p. 20)
•
Check nearby electrical products
•
(car, motorcycle, uorescent lamp).
No image can be
Screen Sound
displayed
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
No sound is produced
Sound level is low
or sound is distorted
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
•
(p. 20)
Check Colour System. (p. 25)
•
Reset programme. (p. 23)
•
Turn off the TV with Mains power On / Off switch, then turn it On
•
again.
Is “Sound mute” active? (p. 7)
•
Is the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set “MPX” (p. 20) in the Sound Menu to “Mono”.
•
Sound is unusual
HDMI
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
TV goes into
“Standby mode”
Other
The remote control
does not work
Set the sound setting of the connected equipment to
•
“2ch L.PCM”.
Check the “HDMI1 Input” setting in the Sound Menu. (p. 20)
•
If digital sound connection has a problem, select analogue sound
•
connection. (p. 39)
Is the HDMI cable connected properly? (p. 36)
•
Turn Off the TV and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 41)
•
Use an equipment compliant with EIA/CEA-861/861B.
•
Off Timer function is activated.
•
The TV enters “Standby mode” about 30 mins. after analogue
•
broadcasting ends.
Are the batteries installed correctly? (p. 6)
•
Has the TV been switched On?
•
•
Frequently Asked Questions
FAQs, etc.
43
Page 44
Licence
VGA is a trademark of International Business Machines Corporation.
•
S-VGA is a registered trademark of the Video Electronics Standard Association.
•
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
HDMI, the HDMI Logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI
•
Licensing LLC.
HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
•
44
Page 45
Speci cations
TX-26LX80F
Power Source
Consumption
Power
Average use
AC 220-240 V, 50 Hz
92 W
Standby condition
Aspect Ratio
Display
panel
Visible screen size
Number of pixels
Sound
Speaker
Audio Output
Headphones
PC signals
Receiving Systems /
Band name
1 W
16:9
66 cm (diagonal)
575 mm (W) × 323 mm (H)
1,049,088 (1,366 (W) × 768 (H))
189 mm × 42 mm × 2 pcs, 8
20 W (10 W + 10 W), 10% THD
M3 (3.5 mm) stereo mini Jack × 1
VGA, WVGA, SVGA, XGA, WXGA
Horizontal scanning frequency 31 - 48,5 kHz
Vertical scanning frequency 60 Hz
PAL B, G, H, I, SECAM B, G, SECAM L / L’
VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69
PAL 525/60 Playback of NTSC tape from some PAL Video re cord ers (VCR)
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC (AV input only) Playback from NTSC Video recorders (VCR)
:
Aerial - Rear
Operating Conditions
AV1 (Scart terminal)
AV2 (Scart terminal)
Connection Terminals
AV3
COMPONENT
Others
Output
Dimensions ( W × H × D )
Mass
VIDEO
S-VIDEO
AUDIO L - R
VIDEO
AUDIO L - R
HDMI1 / 2
PC
AUDIO L - R
VHF / UHF
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
RCA PIN Type × 1 1.0 V[p-p] (75 :)
Mini DIN 4-pin Y:1.0 V[p-p] (75 :) C:0.286 V[p-p] (75 :)
RCA PIN Type × 2 0.5 V[rms]
Y 1.0 V[p-p] (including synchronization)
P
B, PR ±0.35 V[p-p]
RCA PIN Type × 2 0.5 V[rms]
TYPE A Connectors
HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 :)
HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
RCA PIN Type × 2 0.5 V[rms] (high impedance)
700 mm × 489 mm × 205 mm (With Pedestal)
700 mm × 452 mm × 110 mm (TV only)
12,5 kg Net (With Pedestal)
10,0 kg Net (TV only)
This TV supports “HDAVI Control 3” function.
•
•
Speci cations
•
Licence
FAQs, etc.
Note
Design and Speci cations are subject to change without notice. Mass and Dimensions shown are approximate.
•
This equipment complies with the EMC standards listed below.
•
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.
45
Page 46
46
Page 47
47
Page 48
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic-europe.com
¤ 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Loading...
