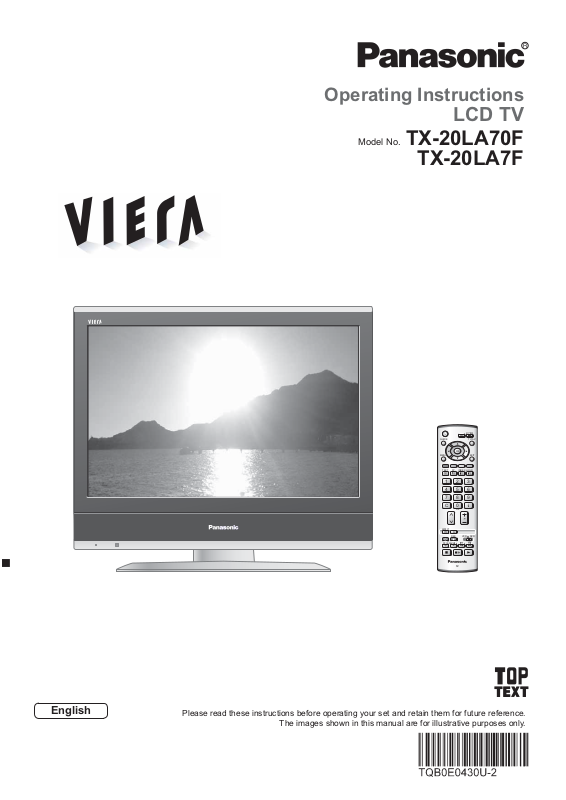

Page 1
Operating Instructions
LCD TV
Model No. TX-20LA70F
TX-20LA7F
OK
MENU
TEXT
F.P. INDEX HOLD
123
456
789
C
0
VCR
ASPECT
N
REC
PROGRAMME
TV
OFF TIMER
VCR DVD
TV/AVGUIDE
EXIT
English
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Page 2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
2
Page 3
media excitement
Enjoy rich multi-media
Contents
Be Sure to Read
Safety Precautions ······································ 4
•
(Warning / Caution)
Notes ··························································· 5
•
Maintenance················································5
•
Quick Start Guide
Amplifi er with
Speaker system
VCR
DVD recorder
Camcorder
Set top box
DVD player
Accessories / Options
Identifying Controls
Connection
Auto Setup

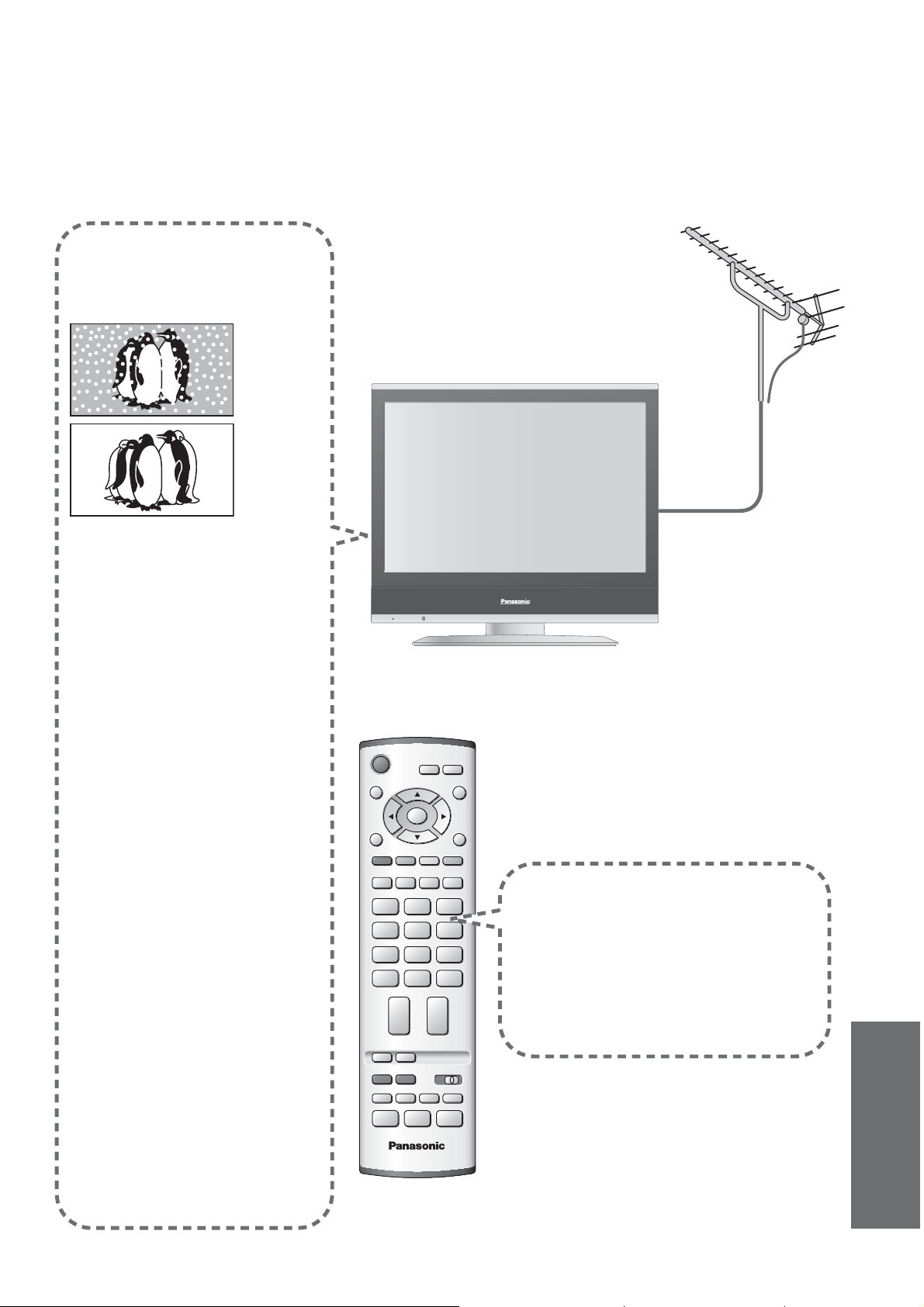

Enjoy your TV!
Basic Features
Watching TV ··············································10
•
Watching Videos and DVDs ······················ 11
•
Viewing Teletext ········································12
································ 8
································· 9
·········· 6
··············· 7
•
Advanced Features

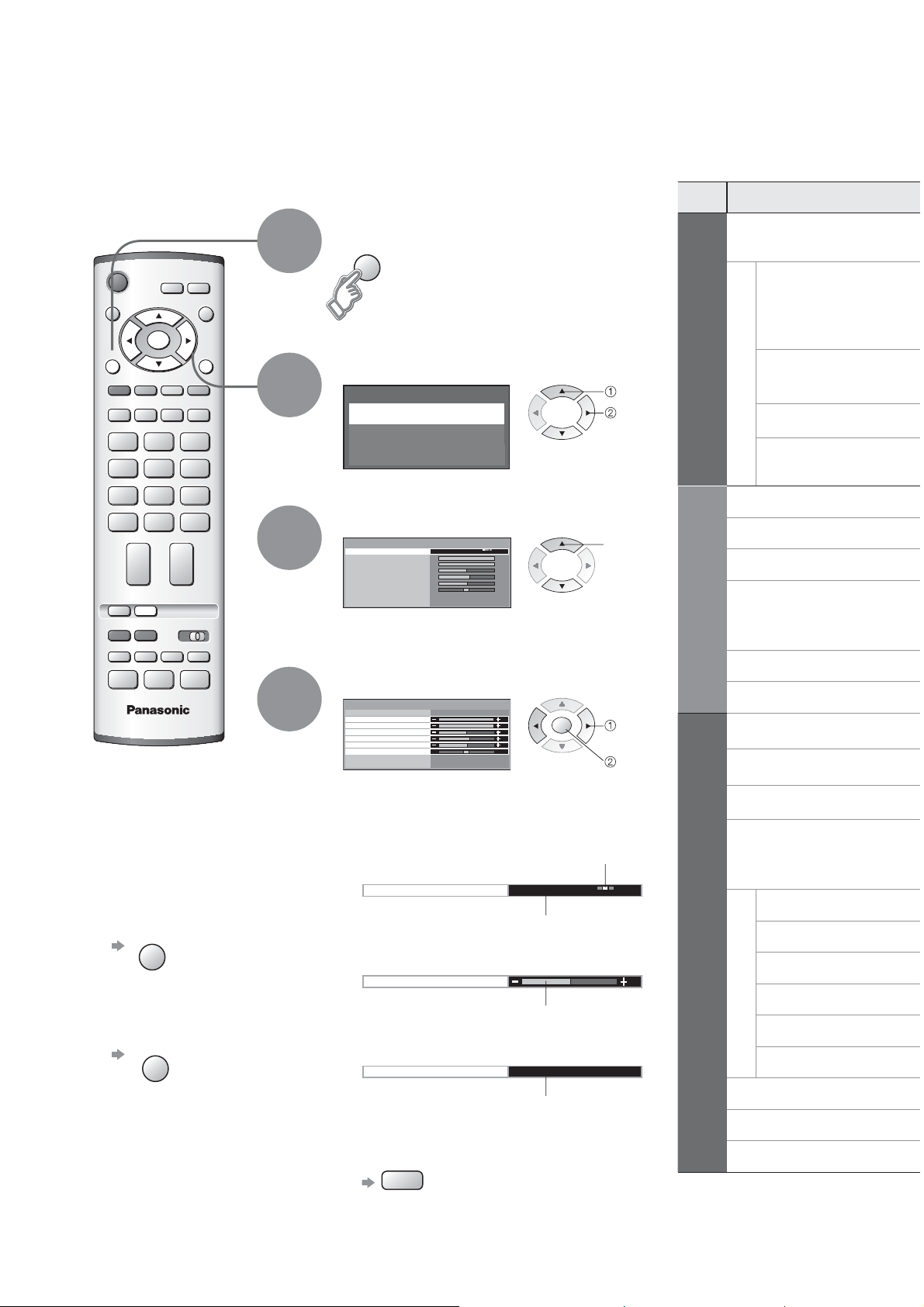

How to Use Menu Functions ·····················14
•
(picture, sound quality, etc.)

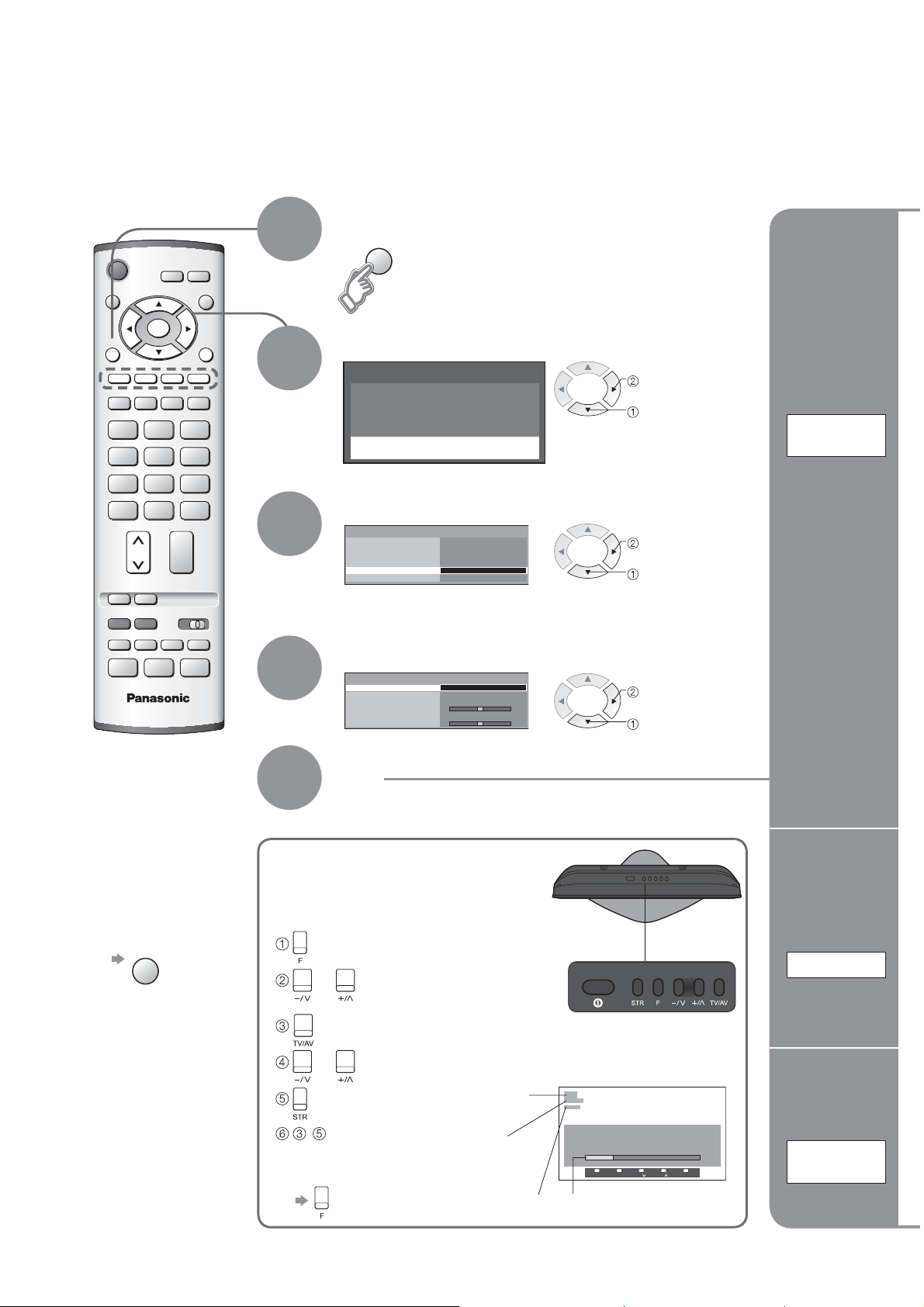

Editing and Setting Channels
•

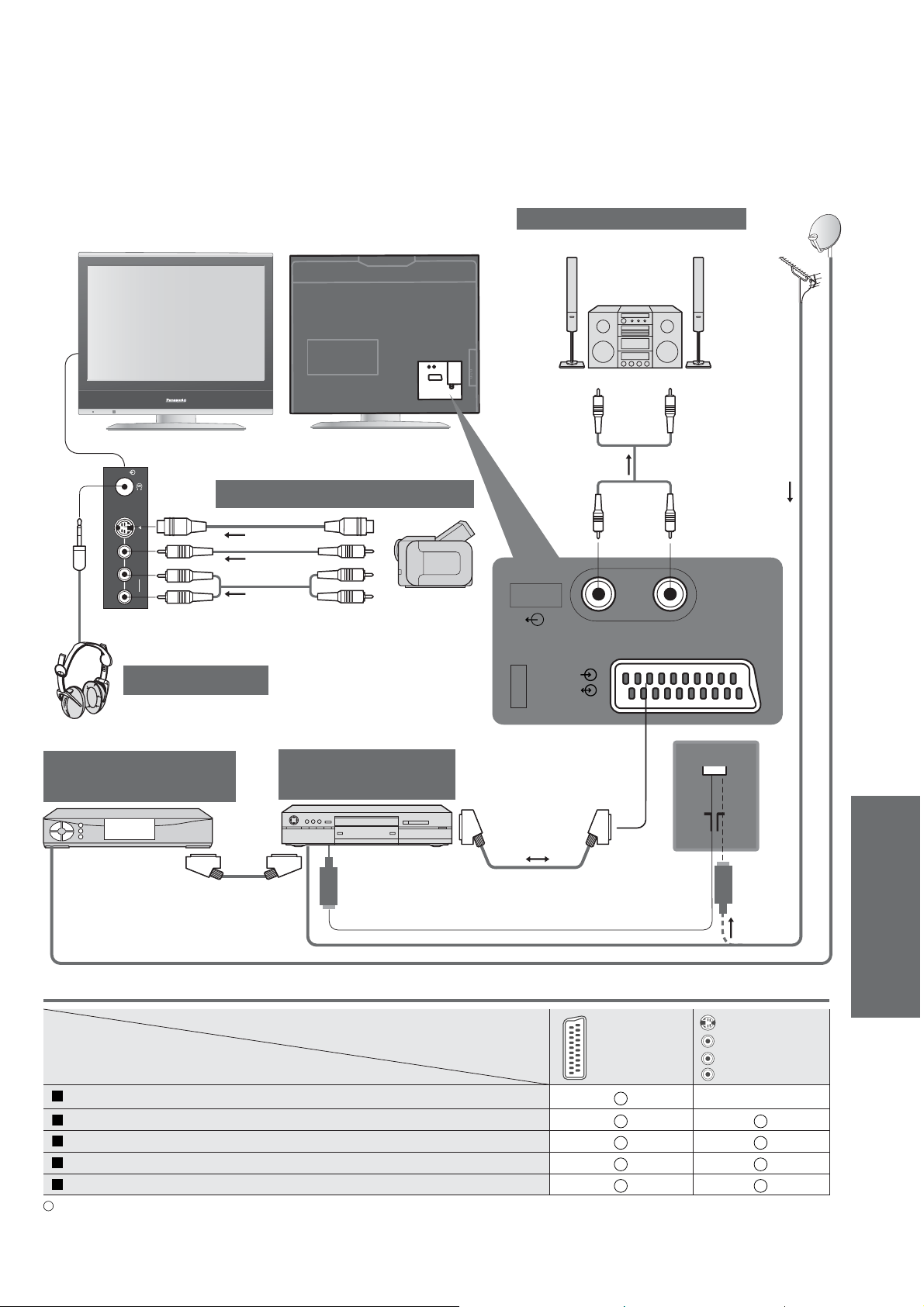

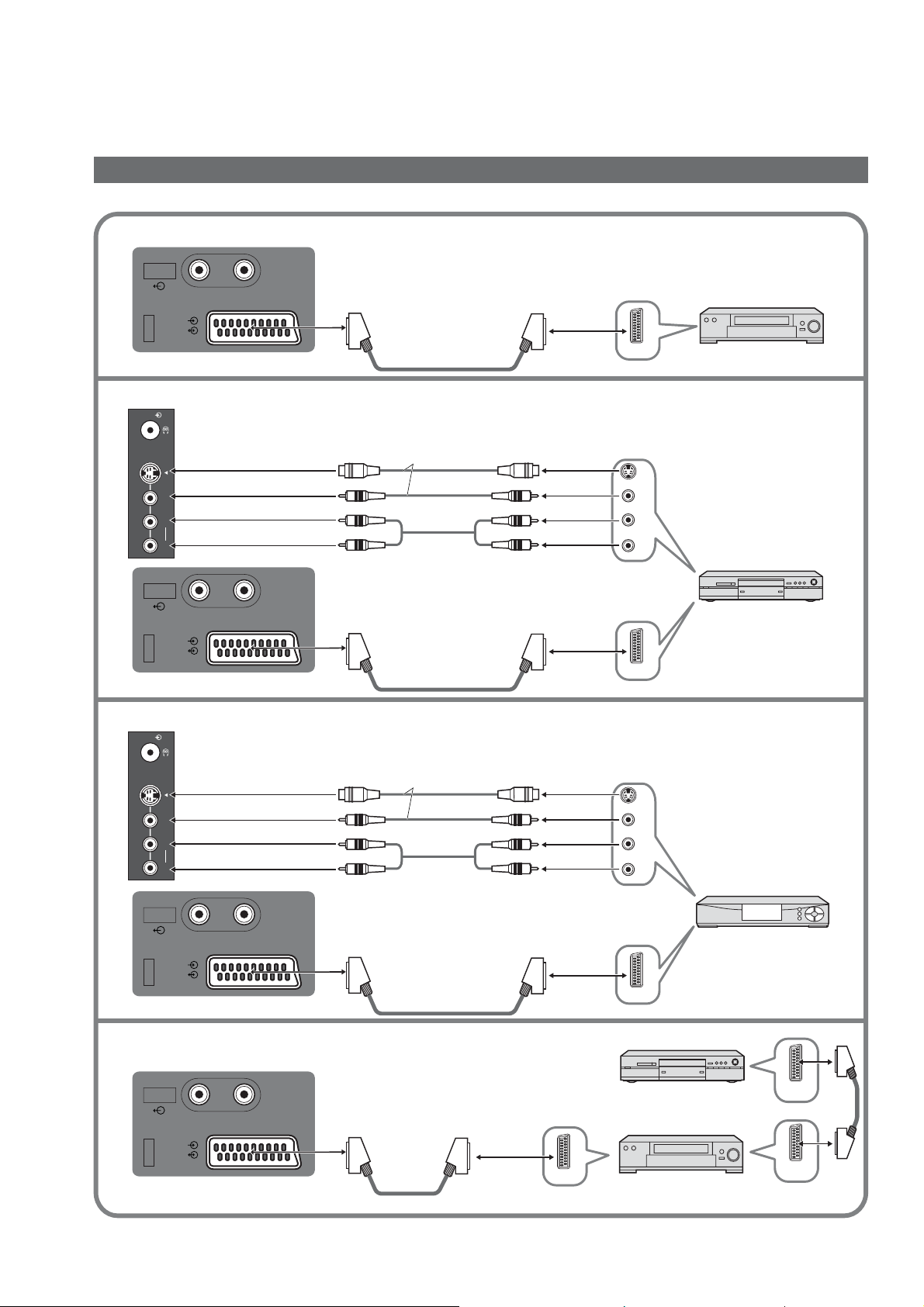

External Equipment ···································18
•
(Connections)
······················ 16
Viewing Advanced FAQs, etc.Quick Start Guide
FAQs, etc.
Technical Information ································20
•
FAQs ·························································21
•
Specifi cations ············································ 23
•
3
Page 4
Safety Precautions
Warnings and Precautions
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.)
Ensure that the mains plug is easily accessible.
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
Do not damage the mains lead. (A damaged lead may cause fi re or electrical shock.)
Do not move the TV with the lead plugged in the socket outlet.
Do not place a heavy object on the lead or place the lead near a high-temperature object.
Do not twist the lead, bend it excessively, or stretch it.
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
Do not use a damaged mains plug or socket outlet.
If you fi nd any
abnormality, remove
the mains plug immediately!
(such as strange smell or smoke)
AC 220-240 V
50 Hz
Do not remove covers
NEVER modify the unit yourself
(High-voltage components may cause serious
electrical shock.)
Have the unit checked, adjusted, or repaired at
your local Panasonic dealer.
Do not place foreign objects
inside the unit
Do not let any objects drop into the unit through the air
vents (fi re or electrical shock may result).
Do not expose to direct sunlight
and other sources of heat
Avoid exposing the TV set to direct sunlight and other
sources of heat. To prevent fi re never place any type
of candle or naked fl ame on top or near the TV set.
Keep liquids away from the TV
To prevent damage which may result in fi re or
shock hazard, do not expose this appliance to
dripping or splashing.
Do not place containers with water (fl ower vase,
cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
Do not expose this TV set to rain or excessive
moisture.
Do not place the TV on an unstable
surface
Use only the dedicated stands /
mounting equipment
Using an unauthorized stand or other fi xtures may
make the unit unstable, risking injury. Be sure to
ask your local Panasonic dealer to perform setup.
Use optional stands / mounts (p. 6).
4
Page 5
Notes
When cleaning the TV unit, remove the
mains plug
(Cleaning an energized unit may cause electrical shock.)
Remove the mains plug from the wall
socket when TV is not in use for
a prolonged period of time. Remove the
mains plug from the wall socket before
connecting or disconnecting any leads.
This TV will still consume some power even in the
Standby mode, as long as the mains plug is still
connected to a live socket outlet. On /Off switch
see page 7.
Allow suffi cient space around
the unit for radiated heat
10
10
10 7
(cm)
Do not block the rear air vents
Ventilation should not be
impeded by covering the
ventilation openings with
items such as newspapers,
tablecloths and curtains.
Keep the TV away from this equipment
Electronic equipment
In particular, do not place video equipment too close
the TV (electromagnetic interference may distort
images / sound).
Equipment with an infrared sensor
Remote Controller of this TV also emits infrared
rays (this may affect operation of other equipment).
Do not expose your ears to excessive
sound pressure from headphones.
Irreversible damage can be caused.
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Daily care: Gently wipe the surface clean of dirt by using a soft cloth.
Detail: Wipe the surface clean using a soft cloth dampened with clean water or water containing a small amount of
neutral detergent. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may be easily damaged.
•
Do not tap or scratch the surface with your fi ngernail or other hard object.
Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances
•
(this may degrade surface quality).
Cabinet
Daily care: Wipe the surface clean using a soft dry cloth.
Detail: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring
the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Use care not to subject the TV unit's surfaces to detergent.
•
(A liquid inside the TV unit could lead to product failure.)
Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances
•
(this may deteriorate the surface by peeling the paint).
Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.
•
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories
Remote Control
Transmitter
EUR765101B
•
1 2 3
4 5 6
7 8 9
C
N
1
Hook
Check that you have the accessories and items shown
Batteries for the Remote
OK
0
TV
Control Transmitter
R6 (UM3)
•
(2)
Operating Instructions
Pan European Guarantee Card
Clamper
Installing remote's batteries
Pull
open
2
+
+
Note the correct
polarity (+ or -)
Close
-
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control unit.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries (see page 24).
•
Optional accessories
Wall-hanging
bracket
TY-WK23LR2W
WARNING!
Failure to use a Panasonic bracket or choosing to mount the unit
•
yourself will be done at the risk of the consumer.
Any damage resulting from not having a professional installer
mount your unit will void your warranty.
Always be sure to ask a qualifi ed technician to carry out set-up.
•
Incorrect fi tting may cause equipment to fall, resulting in injury
and product damage.
Do not mount the unit directly below ceiling lights (such as
•
spotlights, fl oodlights or halogen lights) which typically give off
high heat. Doing so may warp or damage plastic cabinet parts.
Wall type of equipment shall not be grounded by metalic means
•
in the wall.
Take care when fi xing wall brackets to the wall. Always ensure
•
that there are no electrical cables or pipes in the wall before
hanging bracket.
Please contact your nearest Panasonic dealer to purchase the recommended
wall-hanging bracket. For additional details, please refer to the wall-hanging
bracket installation manual.
How to remove the TV Stand
Remove four screws and take
the TV Stand.
Rear of the TV
6
Page 7
Identifying Controls
AV2
Headphones jack (p. 19)
S-V
V
L
AV2 terminals (p. 19)
R
Remote control
signal receiver
Power lamp
standby : red
on : green
()
Switches TV to On or Standby
(On / Off switch in On position)
Programme Guide (p. 10)
Select / OK
MENU
Press to access the Picture, Sound and
()
Setup menus
Teletext (p. 12)
Viewing a favourite teletext channel
(p. 12)
MENU
TEXT
1 2 3
On / Off switch
OK
F.P. INDEX HOLD
Function
select
Store setting
Used to store tuning and
other function settings
()
Increases or decreases the programme position by
one. When a function is already displayed, press to
increase or decrease the selected function.
When in Standby mode, switches TV On.
OFF TIMER
TV/AV GUIDE
EXIT
Volume / Backlight / Contrast / Brightness /
Colour / Sharpness / Tint (NTSC mode) / Bass /
()
Treble / Balance / Tuning mode (p. 16)
(p. 16)
Switches TV/AV
Quick Start Guide
Sound mute On / Off
OFF TIMER (p. 15)
Switches TV/AV
(To watch videos or DVDs) (p. 11)
•
OK button to confi rm selections and
choices. Press after selecting programme
positions to quickly change programme.
EXIT (Returns to TV screen)
Coloured buttons
(used for various functions)
(for example, see p. 12)
Still Picture (p. 10)
•
Identifying Controls
Accessories / Options
Changes programme / channel
(p. 10)
4 5 6
Teletext Index (p. 12)
7 8 9
Direct channel access
During normal TV viewing or when in the
Tuning, Programme edit or Manual tuning
menus, press and then enter channel number
using the numeric buttons
()
Press twice to change to the Cableband mode
Selects programmes in sequence
Normalizes (p. 14)
(Resets settings)
Changes aspect ratio
(p. 10)
C
ASPECT
N
REC
PROGRAMME
0
VCR
VCR DVD
TV
Programme Information (p. 10)
Volume
VCR / DVD operations (p. 11)
7
Page 8
Connection
External equipments and cables shown in this manual are not supplied with this TV.
Please ensure that the unit is disconnected from the mains before attaching or disconnecting any leads.
Rear of the TV
Watching TV
Ŷ
VHF / UHF aerial
Mains lead
(Connect after all the other connections.)
AV1
SCART cable
(fully wired)
To record TV
Ŷ
programmes
Rear terminal portion
(enlarged view)
8
DVD Recorder or VCR
RF OUT
RF cable
RF IN
Page 9
Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed your local dealer.
Turn the TV On with the On / Off switch
OK
123
456
789
0
VCR
1
2
Select your country
select
Manual tune
OSD Language
English
Select country
Select language
Country
Deutschland
Österreich
France
Italia
España
Portugal
Nederland
Danmark
Sverige
Norge
Suomi
Belgium
Schweiz
ELLADA
Polska
Česká republika
Magyarország
E.Eu
Start ATP Exit
Start Auto Setup
You can now use the remote
•
control to turn On the unit or
turn the unit to standby mode.
(Power lamp: On)
For Belgium, Switzerland
•
and E.Eu, select the desired
language
To set manually
•
green
(p. 16)
Quick Start Guide
•
•
Auto Setup
Connection
TV
Need help
with operations?
(example: Sound menu)
Sound menu
Bass
Treble
Balance
MPX
Mode
Ambience
Select
Adjust
Exit
Return
Stereo
Music
Off
3
red
CH12
AUTO SETUP IN PROGRESS
SEARCHING : PLEASE WAIT
02 99:21 41
Exit
Auto Setup is now
complete and your
TV is ready for viewing.
Auto Setup will start to search
•
for TV channels and store them.
To edit channels
•
"Programme edit" (p. 16)
On-screen operation
guide will help you.
9
Page 10
Watching TV
A
Turn power on
GUIDE
OK
123
456
789
C
0
VCR
ASPECT
TV
HOLD
EXIT
Volume
1
2
(for about 1 second)
On / Off switch on unit should be On.
Select a programme number
up
down
To select the two-digit programme number, e.g. 39
Ŷ
ĺ
3
Select from the Programme table
GUIDE
123
456
or
789
(in a short time)
9
0
VCR
select page
Programme Guide
Prog. Name Chan.
VCR :
1 :
2 :
3 :
4 :
5 :
6 :
7 :
8 :
9 :
10 :
:
11
12 :
Das Erste
ZDF
RTL
CH21
CH44
CH51
CH41
CH47
CH23
CH26
CH58
-
-
-
-
-
OK
Prog. Name Chan.
13 :
14 :
15 :
16 :
17 :
18 :
19 :
20 :
21 :
22 :
23 :
24 :
-
-
-
-
-
-
-
-
-
-
-
-
select programme
watch
Other Useful Functions (Operate after )
Ŷ
Freeze / unfreeze picture
Hold
Display
status
information
HOLD
Display / hide status information
Displayed information:
•
Programme number / Programme name / Channel number / MPX mode
(p. 14) / Sound system (p. 14) / Aspect mode
Change the aspect ratio (p. 20)
Each press changes the mode.
•
( Auto aspect / 16:9 / 4:3 )
Change
SPECT
4 : 3
aspect
ratio
While the bar is displayed
green
red
10
Page 11
Watching Videos and DVDs
It is possible to connect a variety of external equipment to the TV unit. Once the equipment is connected,
use the following procedure to view the input. To connect the equipment (p. 18)
OK
123
456
789
0
VCR
REC
VCR DVD
PROGRAMME
TV
To return to TV
Ŷ
TV/AV
TV/AV
With the equipment turned On
(AV mode screen)
Select the external input
1
TV/AV
Select the connector
connected to the equipment
2
red
AV1 AV2/
example: AV1
•
Note
Automatic Input selection - Input mode is automatically switched from TV to AV mode
•
when the equipment connected via SCART terminal is operated.
When the equipment is turned off, the TV is set to TV mode.
If the external equipment has an aspect adjustment function, set to "4:3".
•
For details, see the manual of the equipment or ask your local dealer.
•
Panasonic equipment connected to the TV can be directly operated with the
remote control.
green
S-video
Displays the selected
connector
red
Viewing
•
•
Watching Videos and DVDs
Watching TV
VCR DVD
VCR / DVD switch
Select VCR / DVD
Standby
Set to Standby mode / Turn on
Play
Playback VCR / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, review (during playback)
DVD: Skip to the previous track or title
Press and hold to search backward
PROGRAMME
REC
Fast-forward / Skip / Search
VCR: Fast-forward, cue (during playback)
DVD: Skip to the next track or title
Press and hold to search forward
Pause
Pause / Restart
DVD: Press and hold for slow-motion play
Programme Up / Down
Select programme
Record
Start recording
11
Page 12
Viewing Teletext
You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is
provided by the broadcasters.
What is FLOF mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the display. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is TOP mode?
TOP Teletext makes the task of selecting the desired Teletext pages easier and shorter. In fact page access time is
almost instantaneous, just press the button and the page appears.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. ("Store Frequently viewed pages", p. 13)
To change mode "Teletext" in Setup menu (p. 14)
Ŷ
Sub page number
MENU
OK
TEXT F.P. INDEX HOLD
1
Switch to Teletext
TEXT
Displays Index
•
(content varies
depending on the
broadcasters)
Current
page
number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Colour bar
Time / date
123
456
2
789
0
VCR
To return to TV
Ŷ
TEXT
Using teletext conveniently
Ŷ
Reveal
hidden
data
Reveal hidden words e.g. quiz page answers
MENU
Select the page
123
456
789
To adjust contrast
Ŷ
red
0
VCR
or
Re-hide
•
red
up
down
MENU
or
(Corresponds to the colour bar)
As the blue bar is displayed
red
green
yellow
blue
12
FULL /
TOP /
BOTTOM
MENU
(TOP) (BOTTOM) Normal (FULL)
green
(Expand the BOTTOM half)
Page 13
HOLD
INDEX
If you wish to hold the current page without updating
Stop or resume automatic updating
HOLD
To resume
Ŷ
HOLD
Return to the main index page
INDEX
Call up a
favourite
pages
Store
frequently
viewed
pages
View sub
page
F. P.
Call up the page stored in "blue".
•
Factory setting is "103".
•
Store frequently viewed pages
(only on fi rst 25 channels on Programme Guide)
in the colour bar
As page is
displayed
To change stored pages
Ŷ
Colour button you
want to change
Corresponding
colour button
Enter new page number
hold
OK
down
123
456
789
0
VCR
The number changes to white.
hold
OK
down
View sub page (Only when teletext is more than one page)
To view specifi c sub page
Ŷ
MENU
blue
Enter the
4-digit number
example: P6
0 0 0
6
(List mode only)
Viewing
•
Viewing Teletext
Watch
TV while
waiting
for update
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
View theTV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
yellow yellow
The news page provides a function that indicates arrival of latest news ("News Flash").
•
108
(You cannot change the channel.)
Appears
when
updating is
completed
View the
updated
page
13
Page 14
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound,
and other functions so that you can enjoy watching TV in your own way.
Display menu
MENU
1
OK
EXIT
MENU
Displays the functions that
•
can be set (varies according
to the input signal)
Select the menu
2
Main menu
Picture menu
Sound menu
Setup menu
(example: Picture menu)
Select the item
Picture menu
3
N
V iewing mode
Backlight
Contrast
Brightness
Colour
Sharpness
Tint
Colour balance
P-NR
(example: Picture menu)
Dynamic
Normal
Auto
select
select
next

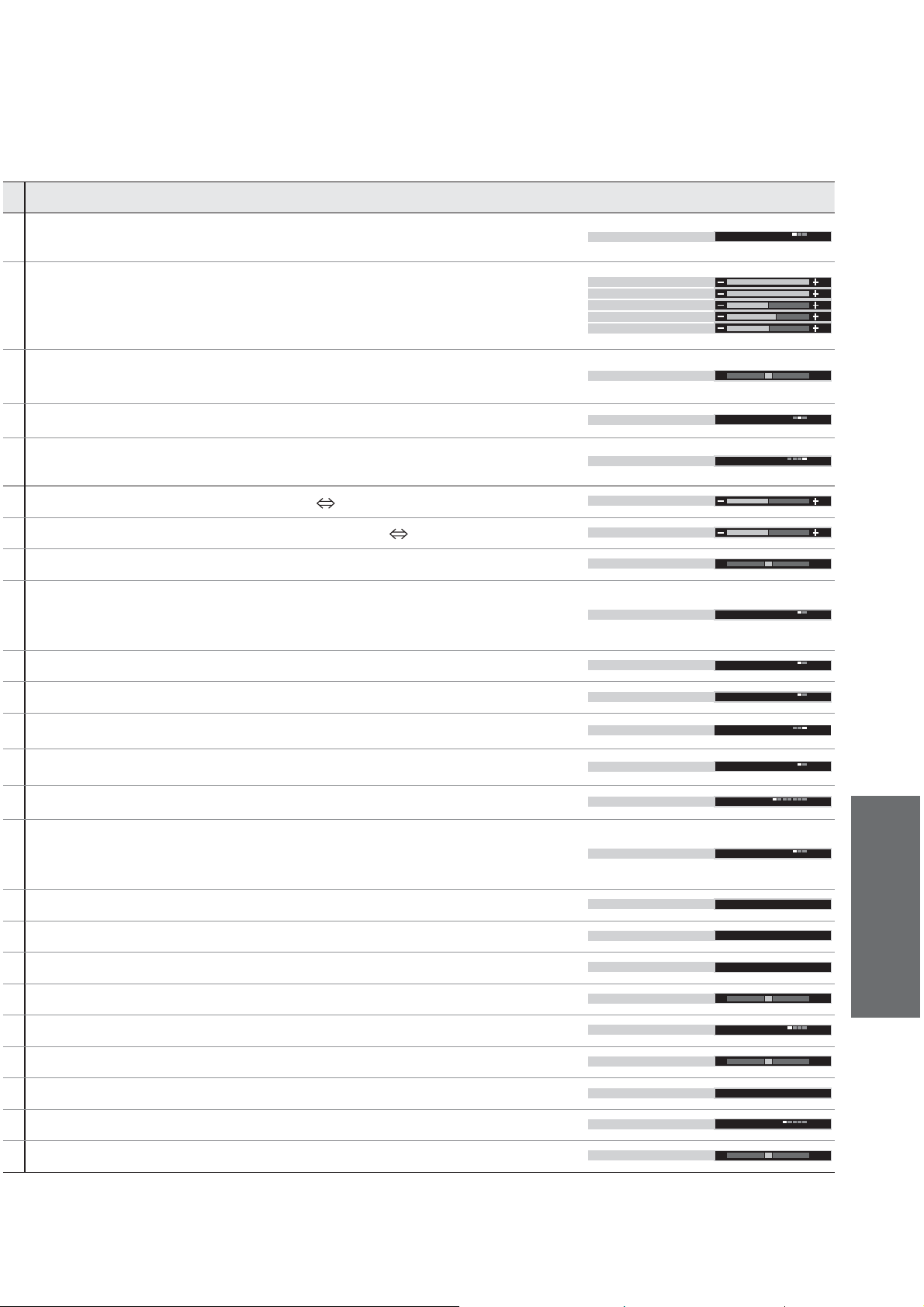

Menu list
Ŷ
Menu Item
Viewing mode
Picture menu
Adjust by each viewing mode
Backlight,
Contrast,
Brightness,Colour,
Sharpness
Tint
Colour balance
P-NR
Bass
Sound menu
Treble
Balance
MPX
TV
To return to TV
Ŷ
EXIT
To return to the
Ŷ
previous screen
MENU
4
Adjust or select
Picture menu
V iewing mode
Backlight
Contrast
Brightness
Colour
Sharpness
Tint
Colour balance Normal
P-NR
(example: Picture menu)
Choose from among alternatives
Ŷ
Colour balance Normal
Adjust using the slide bar
Ŷ
Sharpness
Go to the next screen
Ŷ
Tuning menu
Dynamic
Auto
OK
Number and positions
of alternatives
Changed
Moved
Access
Displays the next
screen
change
store
(Required
by some
functions)
Mode
Ambience
AV1 out
Teletext
Off timer
Text language
Setup menu
Programme edit
Tuning menu
Auto setup
Manual tuning
Fine tuning
Colour system
Volume correction
OSD language
Colour system
14
To reset the setting
Ŷ
N
Volume correction
Page 15
Adjustments / Confi gurations (alternatives)
Basic picture mode (Dynamic / Normal / Cinema)
Set for each input signal
•
Adjusts backlight, colour, brightness, etc. for each picture mode to suit your taste
Adjusts tint of image
For NTSC signal reception only
•
Chooses the colour balance of the entire image (Cool / Normal / Warm)
Automatically reduces unwanted picture noise (Off / Normal / Dynamic / Auto)
Adjusts the output level of deep bass (High Low)
Adjusts the output level of high-pitch, shrill sound (High Low)
Adjusts volume level of right and left speakers
Select stereo / monaural (Mono / Stereo)
Normally: Stereo
•
Stereo signal cannot be received: Mono
•
M1 / M2: Available while mono signal is transmitted
•
Improves sound quality for music and dramas (Music / Speech)
V iewing mode Dynamic
Backlight
Contrast
Brightness
Colour
Sharpness
Tint
Colour balance
P-NR
Bass
Treble
Balance
MPX Stereo
Mode Music
Normal
Auto
•
How to Use Menu Functions
(picture, sound quality, etc.)
Gives a greater spatial effect by using dynamic enhancer (Off / On)
Chooses the signal to be transmitted from the TV to output (TV / AV2 / Monitor)
Monitor: Image displayed on screen
•
Teletext display mode (TOP (FLOF) / List) (p. 12)
Sets the time the unit automatically turns Off. (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Selects teletext language (West / East1 / East2)
West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish
•
East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian
•
East2: Czech, Hungarian, Lettish, Polish, Rumanian
•
Edits channels (p. 16)
Sets channels automatically (p. 16)
Sets channels manually (p. 16)
Fine tuning of channels (during rain, etc.)
Selects optional colour system depending on video signals
Adjusts volume of individual stations
Changes language for on-screen displays
Selects optional colour system based on video signals in AV mode
(Auto / PAL / SECAM / M.NTSC)
Ambience Off
AV1 out Monitor
Teletext TOP
Off timer Off
Text language
Programme edit
Auto setup
Manual tuning
Fine tuning
Colour system
Volume correction
OSD language
Colour system
West
Access
Access
Access
Auto
Access
Auto
Advanced
Adjusts volume for AV mode
In AV mode, the Sound menu and Setup menu give a smaller number of options.
•
Volume correction
15
Page 16

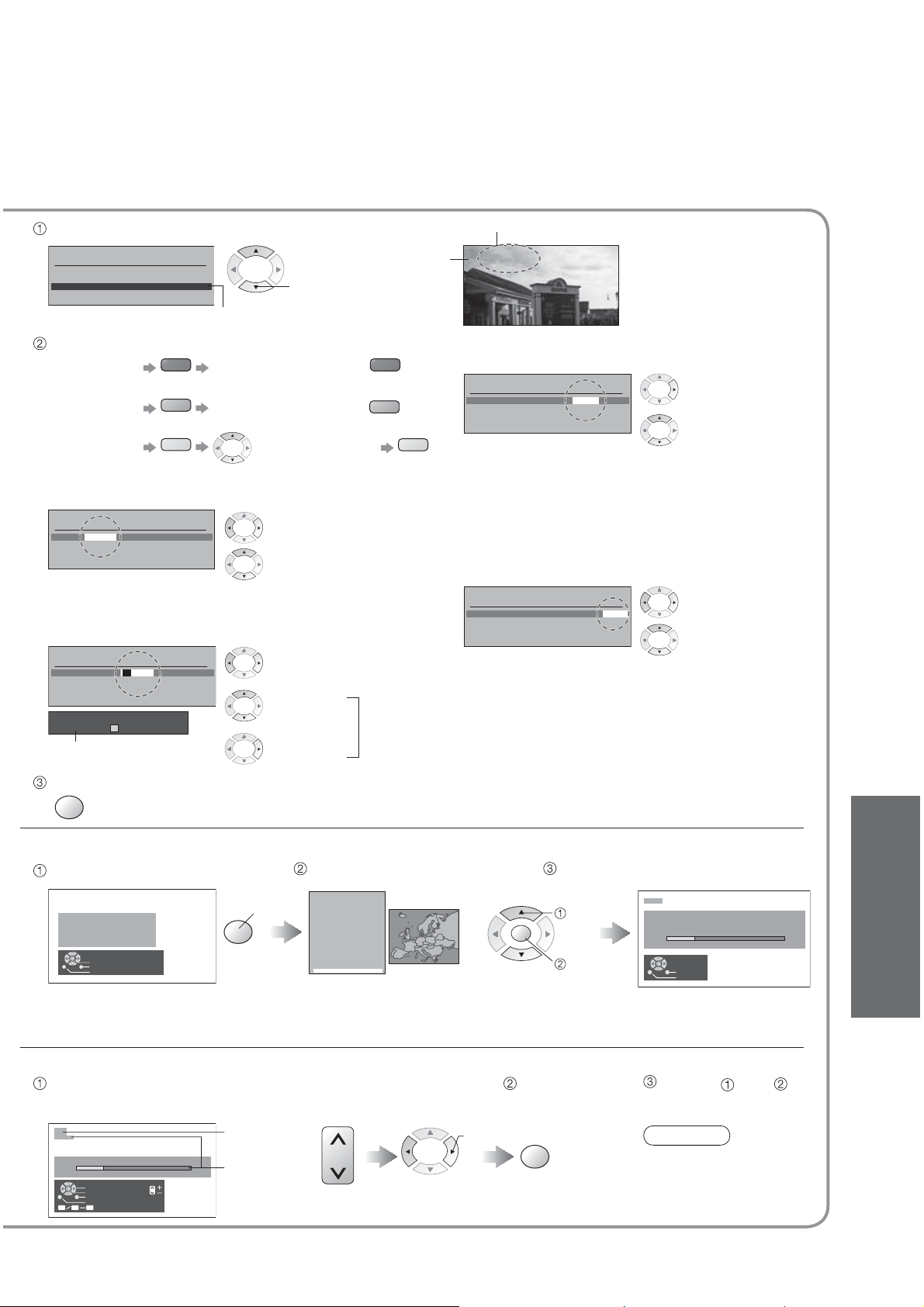

Editing and Setting Channels
The current channel settings can be changed according to your needs and reception conditions.
Display the menu
1
OK
EXITMENU
MENU
Select "Setup menu"
2
3
4
TV
5
Main menu
Picture menu
Sound menu
Setup menu
Select "Tuning menu"
Setup menu
AV1 Out
Teletext
Off timer
Text language
Tuning menu
OSD language
Monitor
TOP
Off
East2
Access
Select the function
Tuning menu
Programme edit
Auto setup
Manual tuning
Fine tuning
Colour system
Volume correction
Access
Auto
Set
next
select
next
select
next
select
Edit
channels
Programme
edit
Delete
Ŷ
Add
Ŷ
Move
Ŷ
Change
Ŷ
channel
number
Change
Ŷ
name
Lock
Ŷ
Change
Ŷ
sound
system
16
To exit
Ŷ
EXIT
No data is stored
•
if an Auto setup
sequence is
interrupted.
For Manual tuning, using
the buttons on the unit
("Tuning mode" on p. 7)
(Press repeatedly until "Tuning mode" appears)
or (Access "Manual tuning")
(Search, Change TV system, Change programme)
or (Change programme or start searching channels)
(Store)
-
(Repeat)
To return to TV
Ŷ
Programme
number (fl ash)
Channel
number
(fl ash)
Sound system
(fl ash)
1
CH12
SC1
Manual tuning
-
, + : Search
TV / AV : Move cursor
STR : To store
F : To exit
02 99:21 41
ST R F - / + / TV / A V
Channel
Set
automatically
Auto setup
Set
manually
Manual
tuning
Page 17
Select the programme number to edit
Programme edit
Prog. Chan. Name Lock Sys
1 :
2 :
3 :
4 :
5 :
CH44
CH51
CH41
CH47
CH37
ABC
XYZ
FTP
123
456
SC1
Off
SC1
Off
SC1
Off
SC1
Off
SC1
Off
select
Cursor
Edit
To delete
Ŷ
To add
Ŷ
To move
Ŷ
To change channel number
Ŷ
Programme edit
Prog. Chan. Name Lock Sys
CH44
1 :
CH51
2 :
CH41
3 :
CH47
4 :
CH37
5 :
To change the name of the broadcaster
Ŷ
ABC
XYZ
FTP
123
456
red
green
yellow
Off
Off
Off
Off
Off
After confi rming, press
After confi rming, press
Select destination
Select the
SC1
SC1
SC1
SC1
SC1
"Chan." fi eld
Change number (can also
be changed with "C" and
number buttons)
displayed when selecting channels
Programme edit
Prog. Chan. Name Lock Sys
1 :
2 :
3 :
4 :
5 :
ABCDEFGHIJKLMNOPQRST
UVWXYZ+
CH44
XYZ
CH51
FTP
CH41
123
CH47
456
CH37
-
. 0123456789
Off
Off
Off
Off
Off
Usable characters
SC1
SC1
SC1
SC1
SC1
Select the
"Name" fi eld
Select the
character
To next
character
Store
OK
Programme
number
red
green
yellow
Repeat
Name
3 FTP
To lock
Ŷ
Programme edit
Prog. Chan. Name Lock Sys
1 :
CH44
ABC
Off
SC1
Off
2 :
CH51
XYZ
CH41
CH47
CH37
CH44
CH51
CH41
CH47
CH37
FTP
123
456
ABC
XYZ
FTP
123
456
3 :
4 :
5 :
You cannot select the channel with number
•
buttons or the "C" button when locked.
To change sound system based on signals
Ŷ
Programme edit
Prog. Chan. Name Lock Sys
1 :
2 :
3 :
4 :
5 :
Off
Off
Off
Off
Off
Off
Off
Off
SC1
SC1
SC1
SC1
SC1
SC1
SC1
SC1
SC1
Select the "Lock"
fi eld
Select "On"
("Off" to unlock)
Select the "Sys" fi eld
Select sound system
SC1 : PAL B, G / SECAM B, G
SC2 : PAL I
SC3 : PAL D, K / SECAM D, K
F : SECAM L / L’
•
Editing and Setting Channels
Automatically set the channels received in the area
Start Auto setup
W ARNIN G
All current tuning
data will be erased
Start ATP
Exit
Return
All previous settings are erased.
•
When the sequence is completed, the broadcast of programme number "1" will appear.
•
set
OK
Select your country
Country
Deutschland
Österreich
France
Italia
España
Portugal
Nederland
Danmark
Sverige
Norge
Suomi
Belgium
Schweiz
ELLADA
Polska
Česká republika
Magyarország
E.Eu
Settings are made automatically
select
OK
start
To freely change settings after Auto setup
Select the programme number
Store
and search through the channel
1
CH12
Manual tuning
02 99:21 41
Search down/up
Store
Exit
Return
C
0 9
Direct entry
Programme
number
Channel
search
OK
The programme
•
number blinks.
CH12
AUTO SETUP IN PROGRESS
SEARCHING : PLEASE WAIT
02 99:21 41
Exit
Return
Repeat and
Note
If a VCR is connected
•
with only the RF cable,
select programme
number "0".
Advanced
17
Page 18
External Equipment
Connections
External equipments and cables shown are not supplied with this TV.
•
Connect VCR / DVD recorder (Recording, Playback)
Ŷ
AUDIO
L
R
RGB
VIDEO
AV1
Rear of the TV
Connect DVD player (Playback)
Ŷ
AV2
Side of the TV
S-V
V
L
R
SCART
Connect the S-VIDEO or VIDEO terminal.
S-V
V
L
R
VCR / DVD recorder
AUDIO
R
RGB
VIDEO
AV1
Rear of the TV
Connect Set top box
Ŷ
AV2
Side of the TV
S-V
V
L
R
AUDIO
R
RGB
VIDEO
AV1
Rear of the TV
L
or
SCART
DVD player
Connect the S-VIDEO or VIDEO terminal.
S-V
V
L
R
or
L
SCART
Set top box
18
Connect DVD recorder and VCR (example)
Ŷ
AUDIO
L
R
RGB
VIDEO
AV1
Rear of the TV
SCART
DVD recorder
VCR
SCART
SCART
Page 19
These diagrams show our recommendations for how to connect the TV unit to your various equipment.
For other connections, consult the instructions of each
equipment, the table below and the specifi cations (p. 23).
To listen with speakers
Amplifi er with speaker system
RF cable
AV2
Camcorder / Game equipment
S-V
V
(M3
plug)
L
R
Headphones
To watch satellite
broadcasts
Set top box
SCART cable
(S-VIDEO)
(VIDEO)
(AUDIO)
To record /
playback / watch
DVD Recorder /
VCR / DVD Player
AUDIO
RGB
VIDEO
AV1
SCART cable
•
External Equipment
R
L
Advanced
or
Types of connectable equipment to each connector
Connector
Recording / Playback (equipment)
To record / playback videocassettes / DVDs (VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
: Recommended Connection
AV1
AV2
19
Page 20
Technical Information
Aspect Ratio
Press the ASPECT button to move through the tree aspect options:
Auto, 4:3 and 16:9
Auto
Selecting AUTO mode of this TV will
automatically cause the TV to display
any incoming picture at its correct
format, i.e. 16:9 or 4:3.
4:3
4:3 will display a 4:3 picture at its
standard 4:3 size and can be selected
if you wish to view in this fornat.
16:9
16:9 will display a 16:9 picture at its
standard 16:9 size and can be selected
if you wish to view in this fornat.
16:9 4:3
Auto
Auto
4:3
4 : 3
16:9
16 : 9
20
SCART, S-video terminals information
AV1 SCART terminal
Ŷ
(RGB, VIDEO)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
Socket Earth
CVBS out (video)
CVBS earth
Red in
Red earth
Green in
Green earth
Blue in
Blue earth
Audio out (L)
Audio out (R)
21
19
17
15
13
11
9
7
5
3
1
20
CVBS in (video)
18
RGB status earth
16
Status RGB
14
Earth
12
--
10
--
8
Status CVBS
6
Audio in (L)
4
Audio earth
2
Audio in (R)
AV2 S-VIDEO 4 pin terminal
Ŷ
Chrominance in Luminance in
Chrominance earth Luminance earth
Page 21
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If problem still persists, please contact your local Panasonic dealer for assistance.
White spots or
shadow images
(noise)
Check the position, direction,
•
and connection of the aerial.
.
There may be red
spots, blue spots,
green spots and
black spots on the
screen
This is a characteristic of liquid
•
crystal panels and is not a problem.
The liquid crystal panel is built with
very high precision technology
giving you fi ne picture details.
Occasionally, a few non-active
pixels may appear on the screen
as a fi xed point of red, green, blue
or black.
Please note this does not affect the
performance of your LCD.
The LCD panel
moves slightly when
it is pushed with a
fi nger
Clattered sound
might be heard
There are some looseness around
•
the panel to prevent the damage to
the panel.
The panel might move slightly
when it is pushed with a fi nger, and
clattered sound might be heard.
This is not a malfunction.
•
Frequently Asked Questions
•
Technical Information
The remote control
does not work
Are the batteries installed correctly?
•
(p. 6)
Has the TV unit been switched On?
•
FAQs, etc.
TV
21
Page 22
FAQs
Problem Actions
Chaotic image, noisy
Set "P-NR" in the Picture menu (to remove noise).
•
(p. 14)
Check nearby electrical products
•
(car, motorcycle, fl uorescent lamp).
No image can be
Screen
displayed
Blurry or
distorted image
(no sound or low volume)
Neither image nor
sound is produced
No sound is produced
Sound
Is "Colour" or "Contrast" in the Picture menu set to the
•
minimum? (p. 14)
Reset channels. (p. 16)
•
Is the unit in "AV mode"?
•
Is the mains lead plugged into the socket outlet?
•
Is the TV unit turned On?
•
Check Picture menu (p. 14) and volume.
•
Is "Sound Mute" active? (p. 7)
•
Is the volume set to the minimum?
•
22
Sound level is low
or sound is distorted
TV unit goes into
"Standby mode"
Other
An error message
appears
Sound signal reception may be deteriorated.
•
Set "MPX" (p. 14) in the Sound menu to "Mono".
•
The sleep function is activated.
•
The TV unit enters "Standby mode" about 30 min.
•
after broadcasting ends.
Follow the message's instructions.
•
If the problem persists, contact the authorized
•
Service Centre.
Page 23
Specifi cations
TX-20LA70F TX-20LA7F
Power Source
Consumption
Power
Average use 52 W
Standby condition 1 W
Display panel
Aspect Ratio 4:3
Visible screen size
Number of pixels 307,200 (640 (W) × 480 (H))
Audio Output
Headphones
Receiving Systems /
Band name
PAL B, G, I, SECAM B, G SECAM L / L’
VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69
PAL 525/60 :Playback of NTSC tape from some PAL Video re corders (VCR).
M.NTSC :Playback from M. NTSC Video recorders (VCR).
NTSC (AV input only) :Playback from NTSC Video recorders (VCR).
2 × 3 W RMS, 8 2 × 1,5 W RMS, 8
AC 220-240 V, 50 Hz
508 mm
M3 (3.5 mm) Jack × 1
Aerial - Rear VHF / UHF
Operating Conditions
Teletext pages 100 50
AV1 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in)
Connection
Terminals
AV2
Output
Dimensions ( W × H × D )
Including TV stand 498 mm × 484 mm × 233 mm
TV set only 498 mm × 443 mm × 98 mm
Weight 7,5 kg Net
Note
Design and Specifi cations are subject to change without notice. Weight and Dimensions shown are approximate.
•
This equipment complies with the EMC standards listed below.
•
EN55013:2001+A1:2003, EN55020:2002+A1:2003+A2:2005, EN61000-3-2:2000+A2:2006, EN61000-3-3:1995+A1:2001,
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 :)
S-VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 :) C:0.286 V[p-p] (75 :)
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance)
Temperature : 5 °C - 35 °C
Humidity : 5 % - 90 % RH (non-condensing)
•
Frequently Asked Questions
•
Specifi cations
FAQs, etc.
23
Page 24
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you
may be able to return your products to your local retailer upon the purchase of an equivalent new
product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative
on
effects
waste handling. Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
human health and the environment which could otherwise arise from inappropriate
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of
disposal.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record
of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
2007CS
Printed in Poland
Loading...
