Panasonic TR-930 User Manual

Op eia ^

In stm cti ons

Black and White

Video Monitor

TR-930/ TR-93 I / TR-932

Panasonic

R«ad th«se imtructiom compittsty, bctoc« opersting this stt.

Dear Panasonic Customer:

Welcome to the Panasonic family of customers. It is our desire that

you have many years of enjoyment from your new black and white video

monitor.

In keeping with the state of the art, we have built quality, reliability,
and performance into your unit. However, for best performance, a video
monitor should be suitably situated in the video system and properly
adjusted. Proper installation practices and adjustments are easy to accom
plish.

As additional automatic circuits are designed into the product, it

becomes beneficial for you to learn how to take advantage of these fea
tures.

This instruction booklet applies, in general, to all Panasonic black and

white video monitor. We hope it will help you get the most out of your
unit, and that you will be pleased with your Panasonic black and white
video monitor.

Customer's Record

The serial number of this product may be found on its back cover.
You should note the model and serial numbers of this unit in the spaces
provided and retain this book as a permanent record of your purchase
to aid in identification in the event of theft.

Model number

Serial number

WARNING ; To prevent damage which may result in fire or shock

^ hazard, do not expose this video monitor to rain or moisture.

- 1 -

______________

j

PRECAUTIONS

1. Do not attempt to disassemble the

monitor.

To prevent electric shock, do not remove
screws or cover. There are no user-serviceable
parts inside. Refer servicing to qualified
service personnel.

2. Do not use the monitor beyond its

temperature, humidity.

(a) Designed for indoor use. Ambient

temperature must not range beyond

32'’F-105T (0“'C—+40‘t).

(b| Avoid using the monitor when humidity

is above 65%.

(c) Do not block the ventilation slots on the

sides and rear panels.

(d) The input power source must be 120V

t10%, AC Mains.

3. Do not snap the grounding pin.

This video monitor is equipped with a three­wire grounding-type plug [a plug having a
third (grounding) pin]. This plug will only fit
into a grounding-type power outlet. This is a
safety feature. If you are unable to insert the
plug into the outlet, contact your electrician.

Do not defeat the safety purpose of the

grounding plug.

_2 -

Do not snap

Use grounding-type power
outlet only.

(OPERATING COMPONENTS

TR-930

[FRONT VIEW]

r

Note:

V-Line, V-Height and

Focus are not operating

controls, they are service
access adjustments.

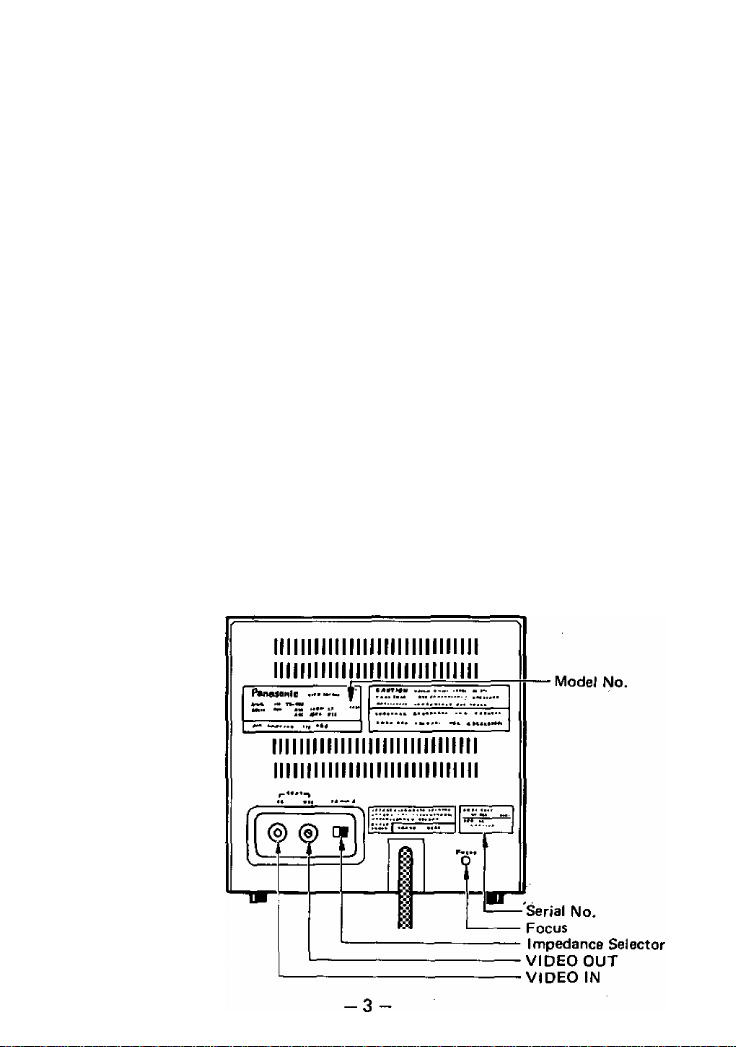

[BACK VIEW]

iJ

mr

■ Contrast
Bright

■V-Hold
H-Ho)d
Power On/Off

• Pilot Lamp

■ V-Lin

■ V-Height

TR-931/TR-932

[FRONT VIEW]

[BACK VIEW]

-4 -

[OPERATING PROCEDURE

1. Set the On/Off Power Switch to "On” position.

wer ^

Power

Off —V On

O

2. Adjust the Bright and Contrast Controls for proper picture.

Bright

Contrast

o O'

3. Adjust the Horizontal Hold until the picture is stabilized, if the picture

slips to either side, or appears as a series of horizontal stripes.

H-Hold

O

4. Adjust the Vertical Hold, if the picture rolls up or down.

V-Hold

O

-5-

CONNECTIONS

[Terminal]

(-VIDEO-,

IN OUT 75 ii-

“HIZ

Te rm i n

O
m

Q

>

[Connector]

Video Input/Output: BNC-type connectors

[Application with other equipment]

Terminal

INPUT

OUTPUT

Signal Equipment Remarks

Input Signal

from other
equipment

Input

Signal

VTR/VCR
VHS VCR

Video

Camera

Monitor

or

VTR

(parallel connected).

[Signal level and Terminal Impedance]

Item

INPUT 1 Vp-p

OUTPUT 1 Vp-p 75fi /HIZ

Input and output connectors are bridged

When this connector is not used, then termi

nation select switch should be set to 75po
sition, When another monitor's input is

connected to this monitor's output connec

tor, the termination select switch should
be set to HIZ position. The last monitor
in the series of monitors should then have
it's switch set to 75ii.

Level

Impedance Remarks

75ii /HIZ

Video Signal
includes
Sync Signal

(Positive)

[75 ii - HIZ Switch]

-6 -

SPECIFICATIONS

(TR-930/931/932)

Power Source:
Power Consumption:
Picture Tube:
Video Input Impedance:
Video Input Level:
Resolution:

Picture Linearity:

Operating Ambient Temperature:
Operating Ambient Humidity:

Dimensions: TR-930

^ 226 mm

Height:

Width;

Depth:

Weight:

(8-15/16 inches) (8-11/16 inches) (8-11/16 inches)
221mm 480 mm 480 mm

(8-11/16 inches) (18-7/8 inches) (18-7/8 inches)
249 mm 272 mm 272 mm

(9-13/16 inches) (10-11/16 inches) (10-11/16 Inches)

5.08 kg 7.80 kg 12.6 kg
(11.2 lbs) (17.2 lbs) (27.8 lbs)

TR-931 TR-932
221 mm 221 mm

120V, 60Hz (AVR 120V±10%)
23 Watts (Average)
230 BRB4, 9 inches, SO^deflection
75 SI or high impedance

1.0 Vp-p (Composite)
Vertical: More than 320
Horizontal: More than 700

(Horizontal at center)

Vertical; Better than 7%
Horizontal; Better than 7%

32“F'-'-105“F (0°C'«+40“C)

Less than 65%

Panasonic Company
Division of Matsushita Electric
Corporation of America
One Panasonic Way, Secaucus,
NJ. 07094

Contents subject to change without notice.

Panasonic Hawaii Inc.
320 Waia Kamilo
Road. Honolulu,
Hawaii 96817

Panasonic Sales Company.
Division of Matsushita Electric
of Puerto Rico, Inc. ("PSC”)
Ave 65 De infanteria, KM 9.7
Victoria Industrial Park
Carolina. Puerto Rico 00630

Printed in Japan TQB810347@
