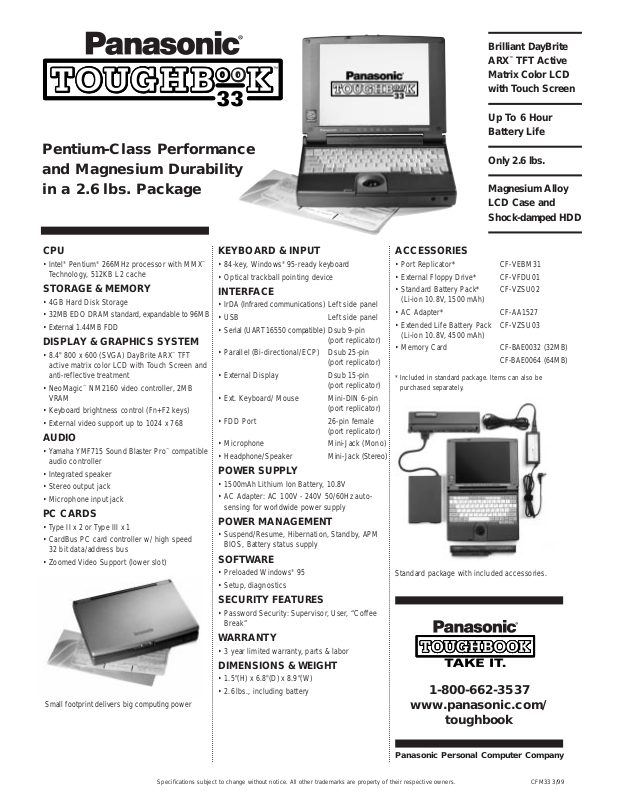

Panasonic Toughbook M33 User Manual

Brilliant DayBrite ARX™TFT Active Matrix Color LCD with Touch Screen

Up To 6 Hour Battery Life

Pentium-Class Performance and Magnesium Durability in a 2.6 lbs. Package

CPU

• Intel®Pentium®266MHz processor with MMX Technology, 512KB L2 cache

STORAGE & MEMORY

• 4GB Hard Disk Storage

• 32MB EDO DRAM standard, expandable to 96MB

• External 1.44MB FDD

DISPLAY & GRAPHICS SYSTEM

• 8.4" 800 x 600 (SVGA) DayBrite ARX™TFT active matrix color LCD with Touch Screen and anti-reflective treatment

• NeoMagic™NM2160 video controller, 2MB VRAM

• Keyboard brightness control (Fn+F2 keys)

• External video support up to 1024 x 768

AUDIO

• Yamaha YMF715 Sound Blaster Pro™compatible audio controller

• Integrated speaker

• Stereo output jack

• Microphone input jack

PC CARDS

• Type II x 2 or Type III x 1

• CardBus PC card controller w/ high speed 32 bit data/address bus

• Zoomed Video Support (lower slot)

Small footprint delivers big computing power

KEYBOARD & INPUT

™

• 84-key, Windows®95-ready keyboard

• Optical trackball pointing device

INTERFACE

• IrDA (Infrared communications) Left side panel

• USB Left side panel

• Serial (UART 16550 compatible) Dsub 9-pin

• Parallel (Bi-directional/ECP) Dsub 25-pin

• External Display Dsub 15-pin

• Ext. Keyboard/ Mouse Mini-DIN 6-pin

• FDD Port 26-pin female

• Microphone Mini-Jack (Mono)

• Headphone/Speaker Mini-Jack (Stereo)

POWER SUPPLY

• 1500mAh Lithium Ion Battery, 10.8V

• AC Adapter: AC 100V - 240V 50/60Hz autosensing for worldwide power supply

POWER MANAGEMENT

• Suspend/Resume, Hibernation, Standby, APM BIOS, Battery status supply

SOFTWARE

• Preloaded Windows®95

• Setup, diagnostics

SECURITY FEATURES

• Password Security: Supervisor, User, “Coffee Break”

WARRANTY

• 3 year limited warranty, parts & labor

DIMENSIONS & WEIGHT

• 1.5"(H) x 6.8"(D) x 8.9"(W)

• 2.6lbs., including battery

(port replicator)

Only 2.6 lbs.

Magnesium Alloy LCD Case and Shock-damped HDD

ACCESSORIES

• Port Replicator* CF-VEBM31

• External Floppy Drive* CF-VFDU01

• Standard Battery Pack* CF-VZSU02 (Li-ion 10.8V, 1500 mAh)

• AC Adapter* CF-AA1527

• Extended Life Battery Pack CF-VZSU03 (Li-ion 10.8V, 4500 mAh)

• Memory Card CF-BAE0032 (32MB)

CF-BAE0064 (64MB)

* Included in standard package. Items can also be

purchased separately.

Standard package with included accessories.

1-800-662-3537

www.panasonic.com/

toughbook

Panasonic Personal Computer Company

Specifications subject to change without notice. All other trademarks are property of their respective owners.

CFM33 3/99
