RoHS Directive compatibility information http://www.mew.co.jp/ac/e/environment/

SLIM POLARIZED RELAY

FEATURES

1. 2 Form C Slim type

14.0(L) × 9.0(W) × 5.0(H) .551(L) ×

.354(W) × .197(H)

Small header area makes higher density mounting possible

2. Nominal operating power: High sensitivity of 140mW (Single side stable type)

By using the highly efﬁcient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 140 mW (minimum operating power of 79 mW) has been achieved.

3. Surge breakdown voltage: 1500 V FCC Part 68

4. Outstanding vibration and shock resistance.

Functional shock resistance: 490 m/s Destructive shock resistance: 980 m/s Functional vibration resistance: 10 to 55 Hz (at double amplitude of 3 mm .118 inch) Destructive vibration resistance: 10 to 55 Hz (at double amplitude of 5 mm .197 inch)

5. High density mounting possible

High-efﬁciency magnetic circuits ensure low magnetic ﬂux leakage. Because characteristics are little changed by proximity mounting, highdensity mounting is possible.

TN RELAYS

6. The use of gold-clad twin crossbar contacts ensures high contact reliability. *We also offer a range of products with AgPd contacts suitable for use in low level load analog circuits (Max. 10V DC 10 mA). *SX relays designed for low level loads are also available.

7. Low thermal electromotive force

As well as low power consumption of 140 mW, use of a structure with separate coil and contact sections has reduced thermal electromotive force to the low level of approximately 5 µV.

8. Latching types also available

9. Self-clinching terminal also

available

10. Sealed construction allows automatic washing.

TYPICAL APPLICATIONS

• Communications

• Measurement equipment

• OA equipment

• Industrial machines

ORDERING INFORMATION

TN 2

Contact arrangement 2: 2 Form C

Operating function Nil:

Single side stable

1 coil latching

L2:

2 coil latching

Terminal shape Nil:H:Standard PC board terminal

Self-clinching terminal

Coil voltage (DC)* 3, 4.5, 5, 6, 9, 12, 24, 48V

Notes: 1. *48 V coil type: Single side stable only

2. In case of 5 V drive circuit, it is recommended to use 4.5 V type relay.

TYPES

1. Standard PC board terminal

Contact

arrangement

2 Form C

Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.

Nominal coil

voltage

3V DC TN2-3V TN2-L-3V TN2-L2-3V

4.5V DC TN2-4.5V TN2-L-4.5V TN2-L2-4.5V

5V DC TN2-5V TN2-L-5V TN2-L2-5V

6V DC TN2-6V TN2-L-6V TN2-L2-6V

9V DC TN2-9V TN2-L-9V TN2-L2-9V

12V DC TN2-12V TN2-L-12V TN2-L2-12V

24V DC TN2-24V TN2-L-24V TN2-L2-24V

48V DC TN2-48V — —

2. Self-clinching terminal

Contact

arrangement

2 Form C

Standard packing: Tube: 50 pcs.; Case: 1,000 pcs. Note: Types (“-3” to the end of part No.) designed to withstand strong vibration caused, for example, by the use of terminal cutters, can also be ordered.

However, please contact us if you need parts for use in low level load and low thermal power.

Nominal coil

voltage

3V DC TN2-H-3V TN2-L-H-3V TN2-L2-H-3V

4.5V DC TN2-H-4.5V TN2-L-H-4.5V TN2-L2-H-4.5V

5V DC TN2-H-5V TN2-L-H-5V TN2-L2-H-5V

6V DC TN2-H-6V TN2-L-H-6V TN2-L2-H-6V

9V DC TN2-H-9V TN2-L-H-9V TN2-L2-H-9V

12V DC TN2-H-12V TN2-L-H-12V TN2-L2-H-12V

24V DC TN2-H-24V TN2-L-H-24V TN2-L2-H-24V

48V DC TN2-H-48V — —

Single side stable 1 coil latching 2 coil latching

Par t No. Part No. Part No.

Single side stable 1 coil latching 2 coil latching

Par t No. Part No. Part No.

RATING

1. Coil data

1) Single side stable

Nominal coil

voltage

3V DC

4.5V DC 31.1mA 145Ω

5V DC 28.1mA 178Ω

6V DC 23.3mA 257Ω

9V DC 15.5mA 579Ω

12V DC 11.7mA 1,028Ω

24V DC 8.3mA 2,880Ω 200mW

48V DC 6.25mA 7,680Ω 300mW

Pick-up voltage

(at 20°C 68°F)

75%V or less of

nominal voltage*

(Initial)

Drop-out voltage

(at 20°C 68°F)

10%V or more of nominal voltage*

(Initial)

2) 1 coil latching

Nominal coil

voltage

3V DC

4.5V DC 22.2mA 202.5Ω

5V DC 20mA 250Ω

6V DC 16.7mA 360Ω

9V DC 11.1mA 810Ω

12V DC 8.3mA 1,440Ω

24V DC 6.3mA 3,840Ω 150mW

Set voltage

(at 20°C 68°F)

75%V or less of

nominal voltage*

(Initial)

Reset voltage

(at 20°C 68°F)

75%V or less of

nominal voltage*

(Initial)

Nominal operating

current

[±10%] (at 20°C 68°F)

46.7mA 64.3Ω

Nominal operating

current

[±10%] (at 20°C 68°F)

33.3mA 90Ω

Coil resistance

[±10%] (at 20°C 68°F)

Coil resistance

[±10%] (at 20°C 68°F)

Nominal operating

power

140mW

power

100mW

Max. allowable voltage

(at 20°C 68°F)

150%V of

nominal voltage

120%V of

nominal voltage

Max. allowable voltage

(at 20°C 68°F)

150%V of

nominal voltage

100

1,000 10,000

100

Ratio against the rated voltage, %V

No. of operations, ×10

Max.

Min.

Pick-up voltage

Drop-out voltage

3) 2 coil latching

Nominal operating

Nominal coil

voltage

Set voltage

(at 20°C 68°F)

Reset voltage

(at 20°C 68°F)

current

[±10%] (at 20°C 68°F)

Set coil Reset coil Set coil Reset coil Set coil Reset coil

3V DC

66.7mA 66.7mA 45Ω 45Ω

4.5V DC 44.4mA 44.4mA 101.2Ω 101.2Ω

5V DC 40mA 40mA 125Ω 125Ω

6V DC 33.3mA 33.3mA 180Ω 180Ω

9V DC 22.2mA 22.2mA 405Ω 405Ω

75%V or less of

nominal voltage*

(Initial)

75%V or less of

nominal voltage*

(Initial)

12V DC 16.7mA 16.7mA 720Ω 720Ω

24V DC 12.5mA 12.5mA 1,920Ω 1,920Ω 300mW 300mW

*Pulse drive (JIS C 5442-1986)

2. Speciﬁcations

Characteristics Item Speciﬁcations

Arrangement 2 Form C

Contact

Rating

Electrical characteristics

Mechanical characteristics

Expected life

Conditions

Unit weight Approx. 1.5 g .053 oz

Notes: *1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the

actual load. (SX relays are available for low level load switching [10V DC, 10mA max. level])

*2 Refer to 6. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT.

Initial contact resistance, max. Max. 60 mΩ (By voltage drop 6 V DC 1A)

Contact material Ag+Au clad

Nominal switching capacity (resistive load) 1 A 30 V DC, 0.5 A 125 V AC

Max. switching power (resistive load) 30 W (DC), 62.5 VA (AC)

Max. switching voltage 110 V DC,125 V AC

Max. switching current 1 A

Min. switching capacity (Reference value)*

Nominal operating power

Single side stable 140 mW (3 to 12 V DC), 200 mW (24 V DC), 300 mW (48 V DC)

1 coil latching 100 mW (3 to 12 V DC), 150 mW (24 V DC)

2 coil latching 200 mW (3 to 12 V DC), 300 mW (24 V DC)

Insulation resistance (Initial)

Breakdown voltage (Initial)

Surge breakdown voltage (Initial)

Between open contacts 750 Vrms for 1 min. (Detection current: 10 mA)

Between contact and coil 1,000 Vrms for 1 min. (Detection current: 10 mA)

Between contact sets 1,000 Vrms for 1 min. (Detection current: 10 mA)

Between open contacts 1,500 V (10×160µs) (FCC Part 68)

Temperature rise (at 20°C 68°F)

10µA 10mV DC

Min. 1,000MΩ (at 500V DC) Measurement at same location as “Initial breakdown voltage” section.

Max. 50°C (By resistive method, nominal voltage applied to the coil; contact carrying current: 1A.)

Operate time [Set time] (at 20°C 68°F) Max. 3 ms [Max. 3 ms] (Nominal voltage applied to the coil, excluding contact bounce time.)

Release time [Reset time] (at 20°C 68°F)

Shock resistance

Vibration resistance

Functional Min. 490 m/s

Destructive Min. 980 m/s2 (Half-wave pulse of sine wave: 6 ms.)

Functional 10 to 55 Hz at double amplitude of 3 mm (Detection time: 10µs.)

Destructive 10 to 55 Hz at double amplitude of 5 mm

Max. 3 ms [Max. 3 ms] (Nominal voltage applied to the coil, excluding contact bounce time.) (without diode)

Mechanical Min. 108 (at 180 cpm)

Electrical Min. 2×105 (1 A 30 V DC resistive), Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)

Ambient temperature: –40°C to 70°C –40°F to 158°F;

Conditions for operation, transport and storage*

Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)

Max. operating speed (at rated load) 20 cpm

Coil resistance

[±10%] (at 20°C 68°F)

Nominal operating

power

Max. allowable voltage

200mW 200mW

(Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)

(at 20°C 68°F)

150%V of

nominal voltage

120%V of

nominal voltage

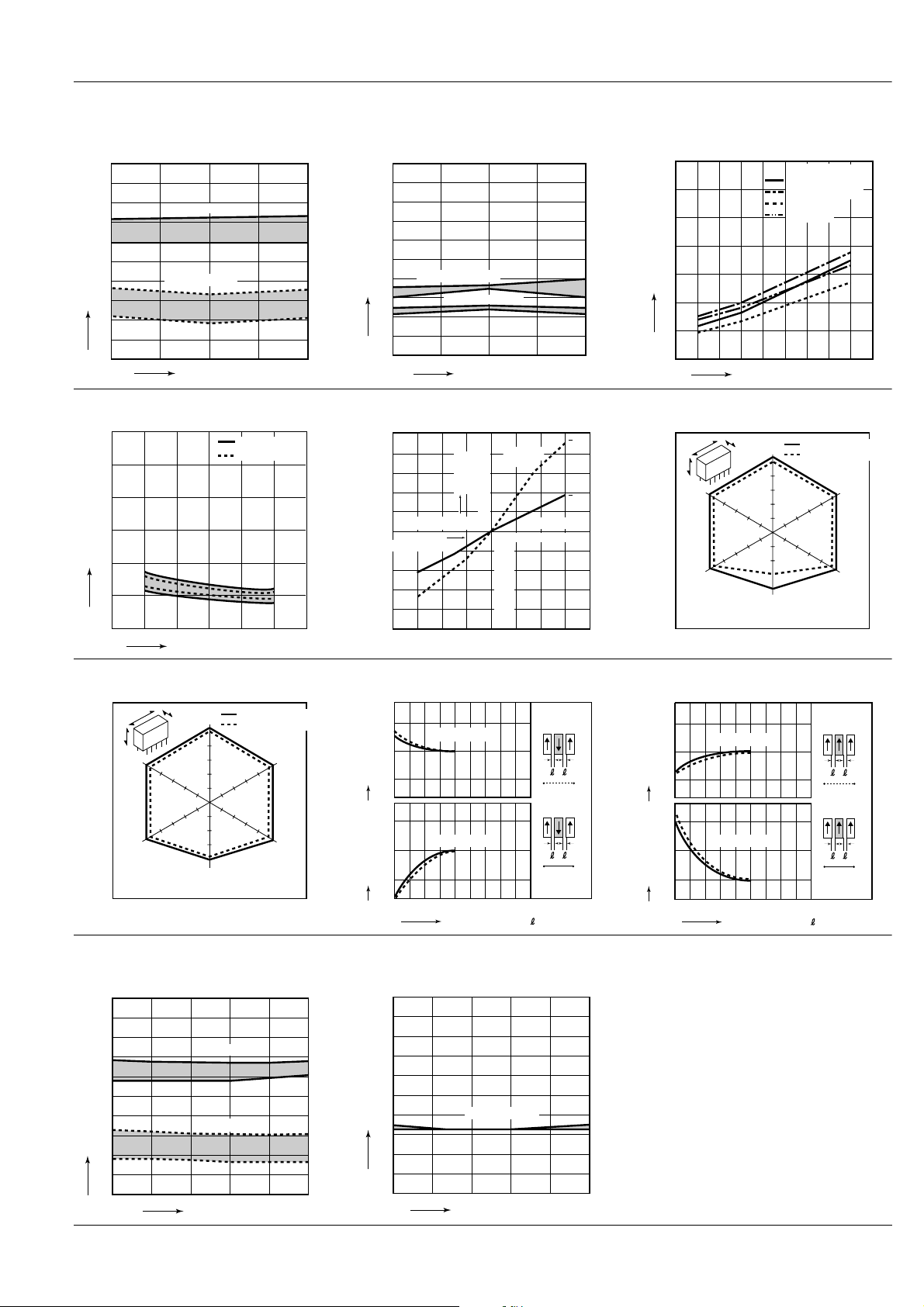

REFERENCE DATA

1. Maximum switching capacity 2. Life curve 3. Mechanical life

1.0

0.5

0.4

Switching current, A

0.3

0.2

Switching voltage,V

DC load (cosϕ=1) AC load (cosϕ=1)

100

200

100

No. of operations, ×10

30 V DC resistive load

125 V AC resistive load

0.5 Switching current, A

1.0

Tested sample: TN2-12V, 10 pcs.

4. Electrical life (DC load)

Coil applied voltage, %V

Temperature rise, °C

80 90 100 110 120 130 140 150

Carrying current 0 A (Room temp.) 1 A (Room temp.) 0 A (70°C) 1 A (70°C)

980m/s

Deenergized condition Energized condition

Tested sample: TN2-12V, 10 pcs. Condition: 1 A 30 V DC resistive load, 20 cpm

Change of pick-up and drop-out voltage Change of contact resistance

100

Pick-up voltage

Ratio against the rated voltage %V

Drop-out voltage

5101520

No. of operations, ×10

Max.

Min.

Max.

Min.

Contact resistance,mΩ

100

Terminal No.2–3–4

Terminal No.7–8–9

5101520

No.of operations, ×10

5. Coil temperature rise

Tested sample: TN2-12V Point measured: Inside the coil Ambient temperature: Room temperature (25° to 26°C), 70°C (77° to 79°F), 158°F

6. Set/reset time characteristics

Tested sample: TN2-L2-12V, 5 pcs.

Set and reset time, ms

80 90 100 110 120

Coil applied voltage, %V

Set time

Reset time

8-(2). Malfunctional shock (latching)

Tested sample: TN2-L2-12V, 6 pcs.

980m/s

Deenergized condition Energized condition

Max. Min.

980m/s

7. Ambient temperature characteristics

Tested sample: TN2-12V, 5 pcs.

Drop-out

voltage

Variation

ratio, %

Pick-up voltage

Ambient

temperature, °C

–10–20–40

40 60 80

–10

8-(1). Malfunctional shock (single side stable)

Tested sample: TN2-12V, 6 pcs.

–20

–30

–40

9-(1). Inﬂuence of adjacent mounting 9-(2). Inﬂuence of adjacent mounting

Pick-up voltage

ONONON

–10

Drop-out voltage

Rate of change, % Rate of change, %

–10

.197

Inter-relay distance , mm inch

OFF

Pick-up voltage

–10

Drop-out voltage

Rate of change, % Rate of change, %

.197

Inter-relay distance , mm inch

ONONON

OFF

10. Actual load test (35 mA 48 V DC wire spring relay load)

Tested sample: TN2-12V, 5 pcs.

Change of pick-up and drop-out voltage Change of contact resistance

100

Ratio against the rated voltage, %V

010

Pick-up voltage

Drop-out voltage

20 30 40 50

No. of operations,×10

100

Max.

Min.

Contact resistance, mΩ

Max.

Min.

Terminal No. 2–3

Max. Min.

010

20 30 40 50

No. of operations, ×10

DIMENSIONS (Unit: mm inch)

External dimensions

Standard PC board terminal

551

9.5

9.8

.374

.386

3.5

.138

2.54 0.5

.100 .020

Self-clinching terminal

551

9.5

9.8

.374

.386

3.5

.138

2.54 0.5

.100 .020

General tolerance: ±0.3 ±.012

NOTES

1. Coil operating power

Pure DC current should be applied to the coil. The wave form should be rectangular. If it includes ripple, the ripple factor should be less than 5%. However, check it with the actual circuit since the characteristics may be slightly different. The nominal operating voltage should be applied to the coil for more than 10 ms to set/reset the latching type relay.

2. Coil connection

When connecting coils, refer to the wiring diagram to prevent mis-operation or malfunction.

3. External magnetic ﬁeld

Since T series relays are highly sensitive polarized relays, their characteristics will be affected by a strong external magnetic ﬁeld. Avoid using the relay under that condition.

4. Packing style

The relay is packed in a tube with the relay orientation mark on the left side, as shown in the ﬁgure below.

Orientation (indicates PIN No.1) stripe

PC board pattern (Bottom view)

5.6

.220

0.25

5.6

.220

.010

2.54

.100

0.25

.010

2.54

.100

Single side stable

1 2 3 4 5

10 9 8 7 6

Direction indication

(Deenergized condition)

1.385

.055

1.385

.055

5. Automatic insertion

To maintain the internal function of the relay, the chucking pressure should not exceed the values below. Chucking pressure in the direction A:

9.8 N {1 kgf} or less Chucking pressure in the direction B:

9.8 N {1 kgf} or less Chucking pressure in the direction C:

4.9 N {500gf} or less

Please chuck the portion. Avoid chucking the center of the relay. In addition, excessive chucking pressure to the pinpoint of the relay should be avoided.

6. Soldering

Preheat according to the following conditions.

Temperature 120°C 248°F or less

Time Within 120 sec

Soldering should be done at 260±5°C

500±41°F within 6 sec.

10.16

.400

2.54

.100

2.54

.100

10-1.0 dia. hole

10-.039 dia. hole

Schematic (Bottom view)

1-coil latching

1 2 3 4 5

10 9 8 7 6

Direction indication

(Reset condition)

Tolerance: ±0.1 ±.004

2-coil latching

1 2 3 4 5

10 9 8 7 6

Direction indication

(Reset condition)

Stopper

(gray)

Stopper (green)

For Cautions for Use, see Relay Technical Information.

Panasonic TN Relay User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
