Panasonic TH-P46S10A, TH-P50S10A, TH-P42S10A User Manual

Page 1

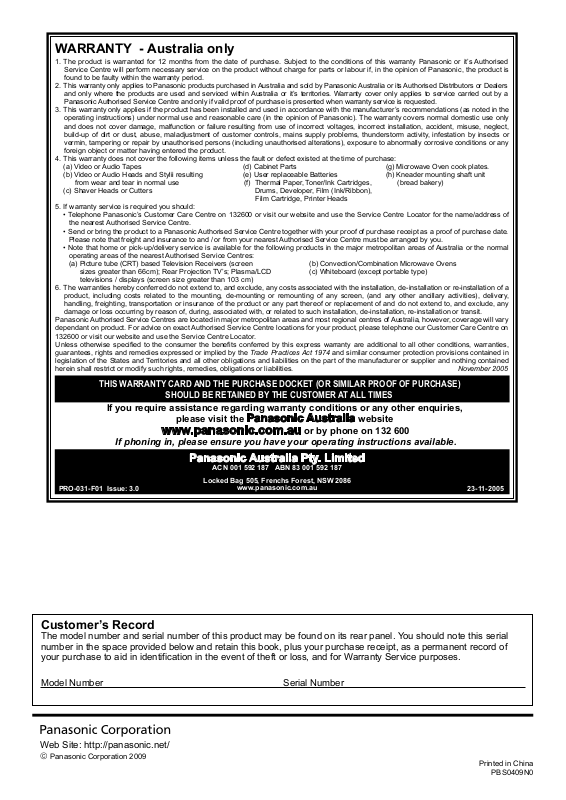

WARRANTY - Australia only

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or it’s Authorised Service Centre will perform necessary service on the product without charge for parts or labour if, in the opinion of Panasonic, the product is found to be faulty within the warranty period.

2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or Dealers and only where the products are used and serviced within Australia or it’s territories. Warranty cover only applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.

3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(a) Video or Audio Tapes (d) Cabinet Parts (g) Microwave Oven cook plates. (b) Video or Audio Heads and Stylii resulting (e) User replaceable Batteries (h) Kneader mounting shaft unit from wear and tear in normal use (f) Thermal Paper, Toner/Ink Cartridges, (bread bakery) (c) Shaver Heads or Cutters Drums, Developer, Film (Ink/Ribbon),

5. If warranty service is required you should:

• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website and use the Service Centre Locator for the name/address of

the nearest Authorised Service Centre.

• Send or bring the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase date.

Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged by you.

• Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the normal

operating areas of the nearest Authorised Service Centres: (a) Picture tube (CRT) based Television Receivers (screen (b) Convection/Combination Microwave Ovens sizes greater than 66cm); Rear Projection TV’s; Plasma/LCD (c) Whiteboard (except portable type) televisions / displays (screen size greater than 103 cm)

6. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or re-installation of a

product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any

damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit. Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator. Unless otherwise specified to the consumer the benefits conferred by this express warranty are additional to all other conditions, warranties, guarantees, rights and remedies expressed or implied by the Trade Practices Act 1974 and similar consumer protection provisions contained in legislation of the States and Territories and all other obligations and liabilities on the part of the manufacturer or supplier and nothing contained herein shall restrict or modify such rights, remedies, obligations or liabilities. November 2005

Film Cartridge, Printer Heads

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

If you require assistance regarding warranty conditions or any other enquiries,

please visit the Panasonic Australia website

www.panasonic.com.au or by phone on 132 600

If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187

PRO-031-F01 Issue: 3.0 23-11-2005

Locked Bag 505, Frenchs Forest, NSW 2086

www.panasonic.com.au

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Web Site: http://panasonic.net/

Printed in China

PBS0409N0

Page 2

Operating Instructions

Plasma Television

Model No. TH-P42S10A

TH-P46S10A TH-P50S10A

Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

English

TQBC2408

Page 3

Turn your own living room into a movie theatre!

Experience an amazing level of multi-

Receive digital terrestrial services using an integrated Digital TV tuner Sharp pictures with HDMI terminal Create home theatre and DVD recorder link-ups with “VIERA Link” without complicated settings!

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) TH-P42S10A Declaration of Conformity No. 6419, 13 January 2009 TH-P46S10A Declaration of Conformity No. 6418, 13 January 2009 TH-P50S10A Declaration of Conformity No. 6417, 13 January 2009

Notice about Digital TV Functions

The MPEG-4 AVC feature was designed to specifications as we know them today. This

●

specification may be subject to future changes beyond our control that may not guarantee the decoding of such services.

February 2009

Page 4

media excitement

Enjoy rich multimedia

SD Card

Camcorder

Contents

Be Sure to Read

Safety Precautions ······································· 4

●

(Warning / Important Installation Notices)

●

Maintenance ················································· 6

●

Licence ························································· 6

Quick Start Guide

Accessories / Options ···································7

●

Identifying Controls ·······································9

●

Amplifier with Speaker System

VCR

DVD Recorder

DVD player

Personal

computer

Set top box

Basic Connection ·······································11

●

Auto Tuning ················································12

●

Basic Features

Watching TV ··············································· 14

●

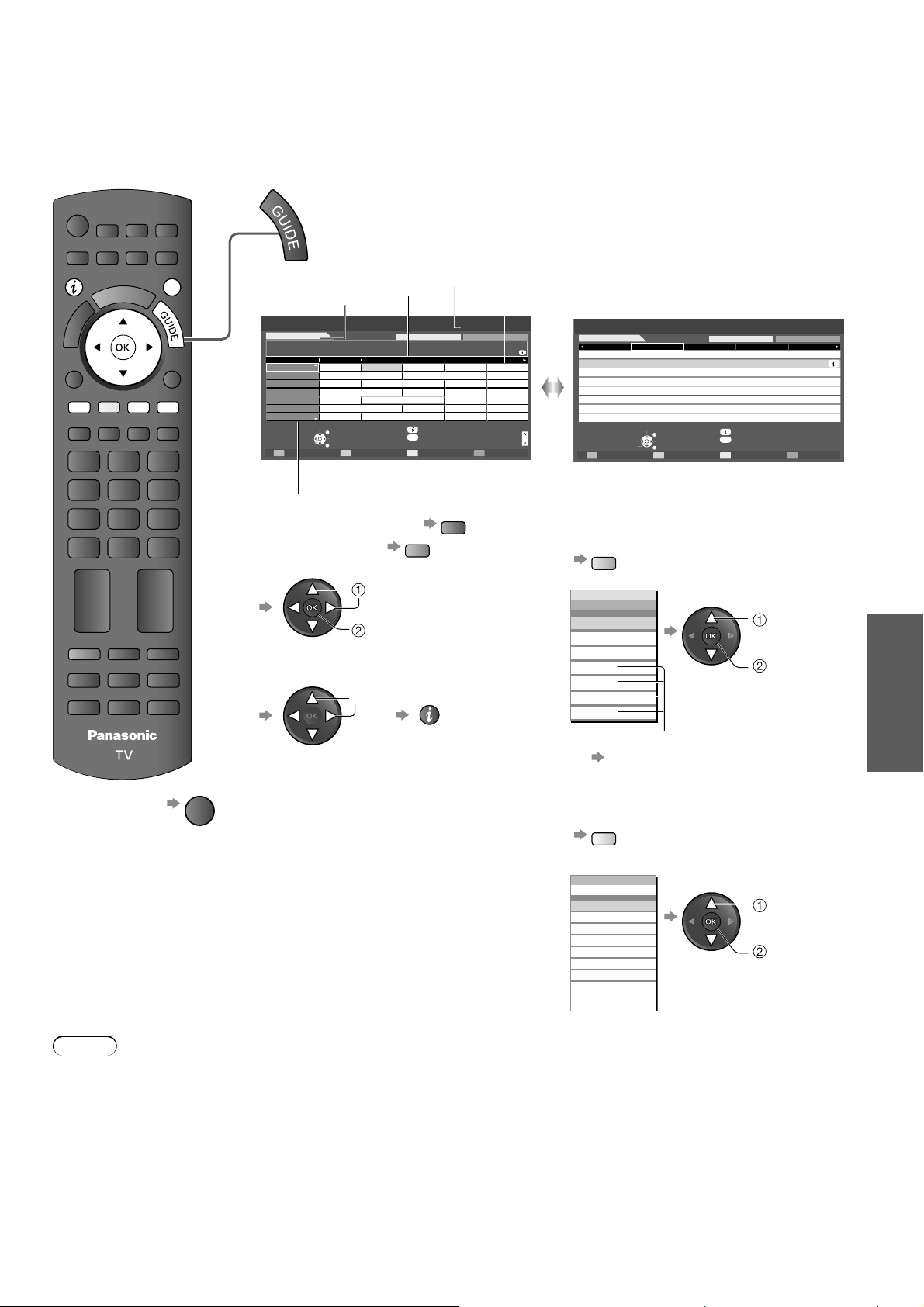

Using TV Guide ·········································· 17

●

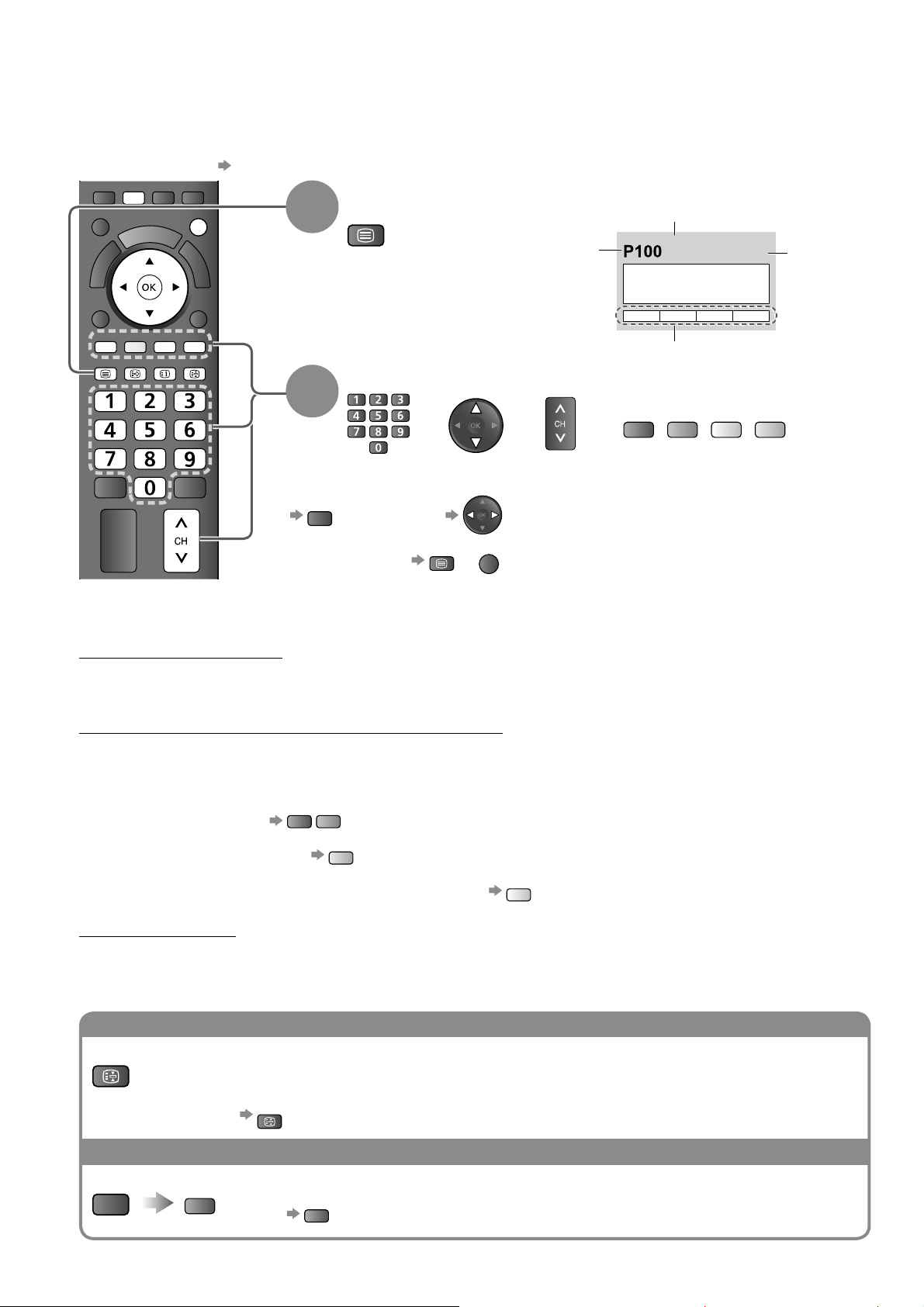

Viewing Teletext ·········································· 18

●

Watching Videos and DVDs ······················· 20

Advanced Features

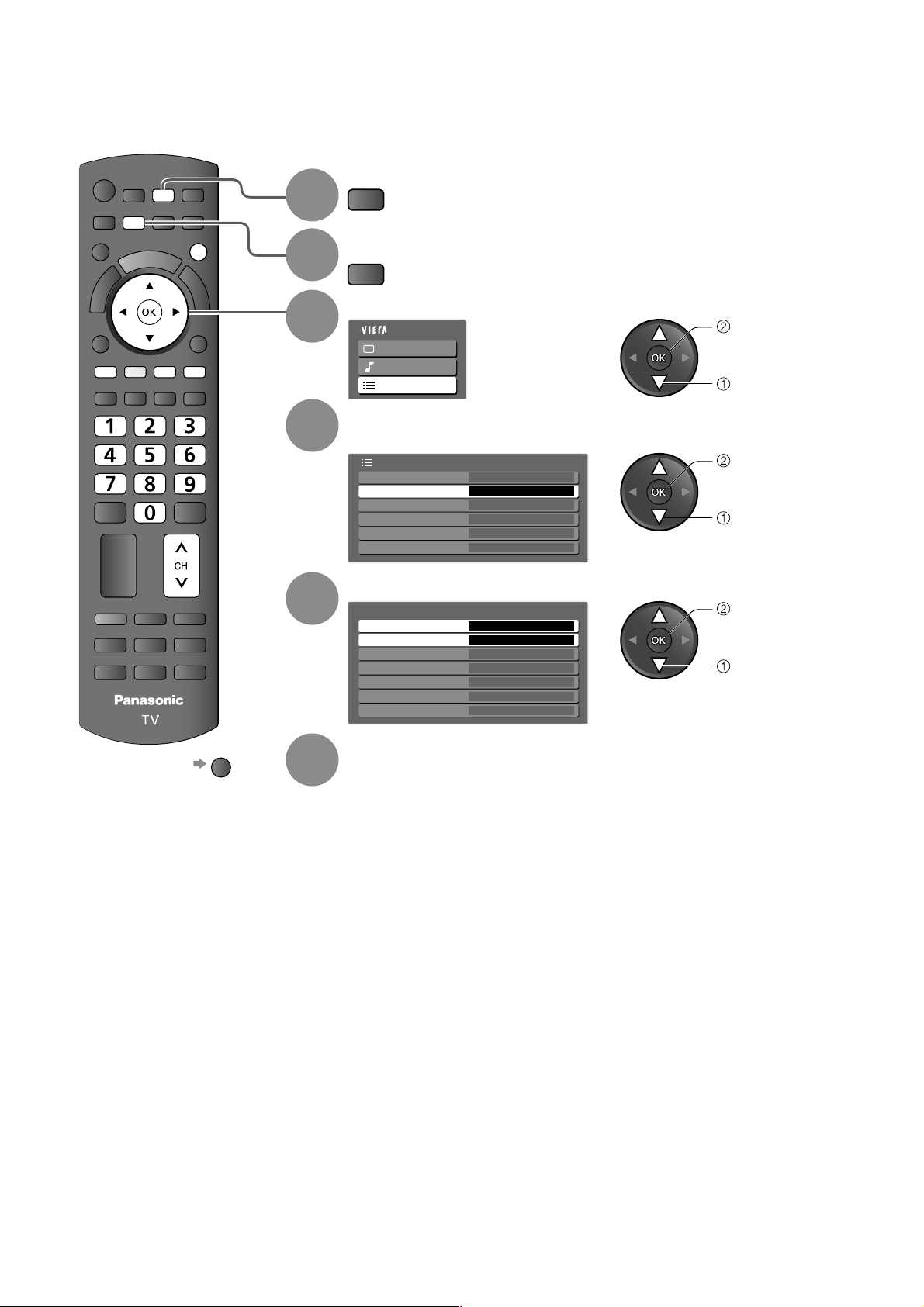

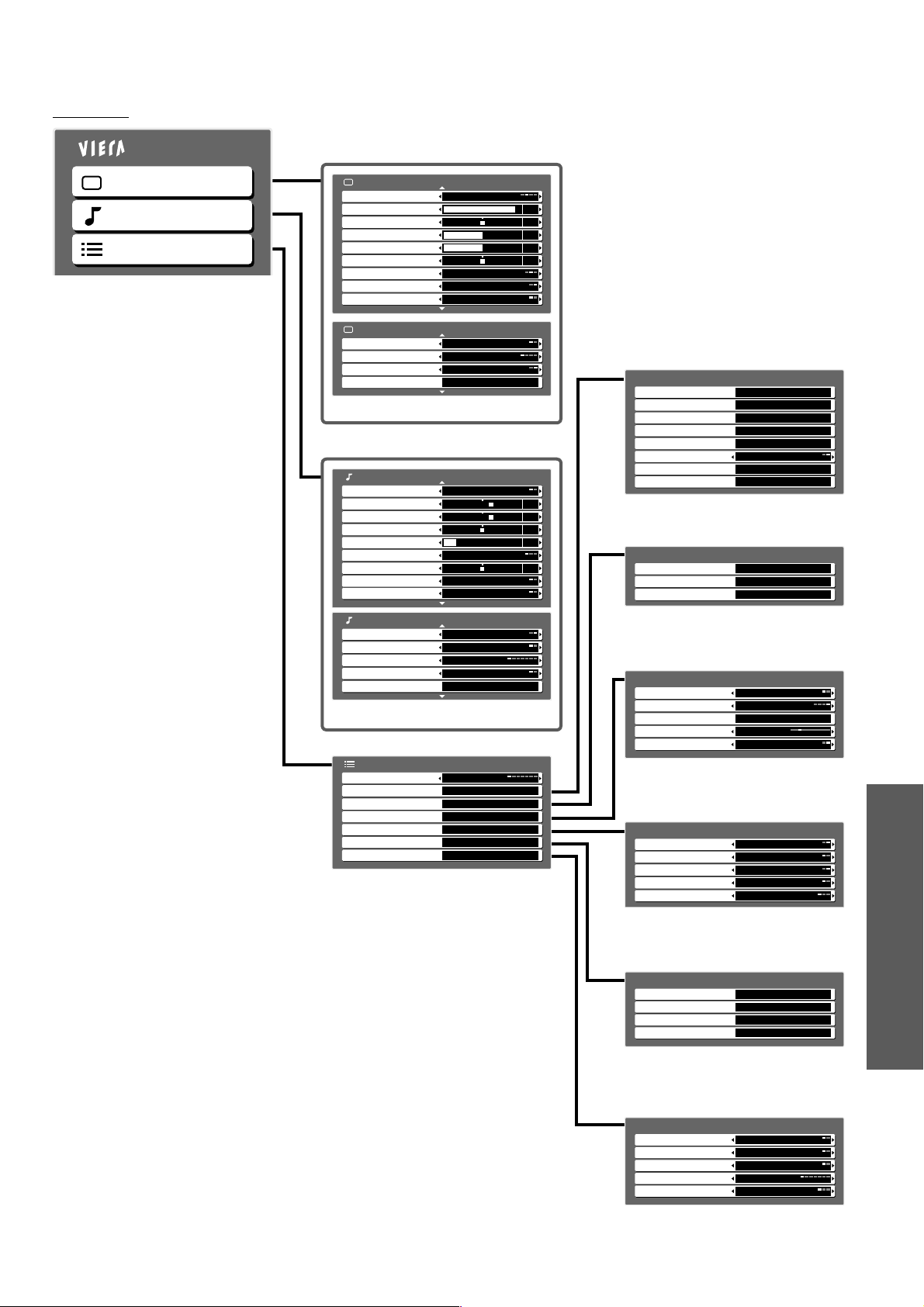

How to Use Menu Functions ······················ 22

●

(picture, sound quality, etc.)

●

Input Labels ················································ 26

●

Digital TV Settings ······································ 27

●

Editing Channels ······································· 28

●

Tuning Channels ········································ 30

●

Restore Settings ········································· 32

●

Displaying PC Screen on TV ······················ 33

●

HDMI Functions ·········································· 34

●

Viewing from SD Card (VIERA IMAGE VIEWER) ··························· 35

●

VIERA Link “HDAVI Control

●

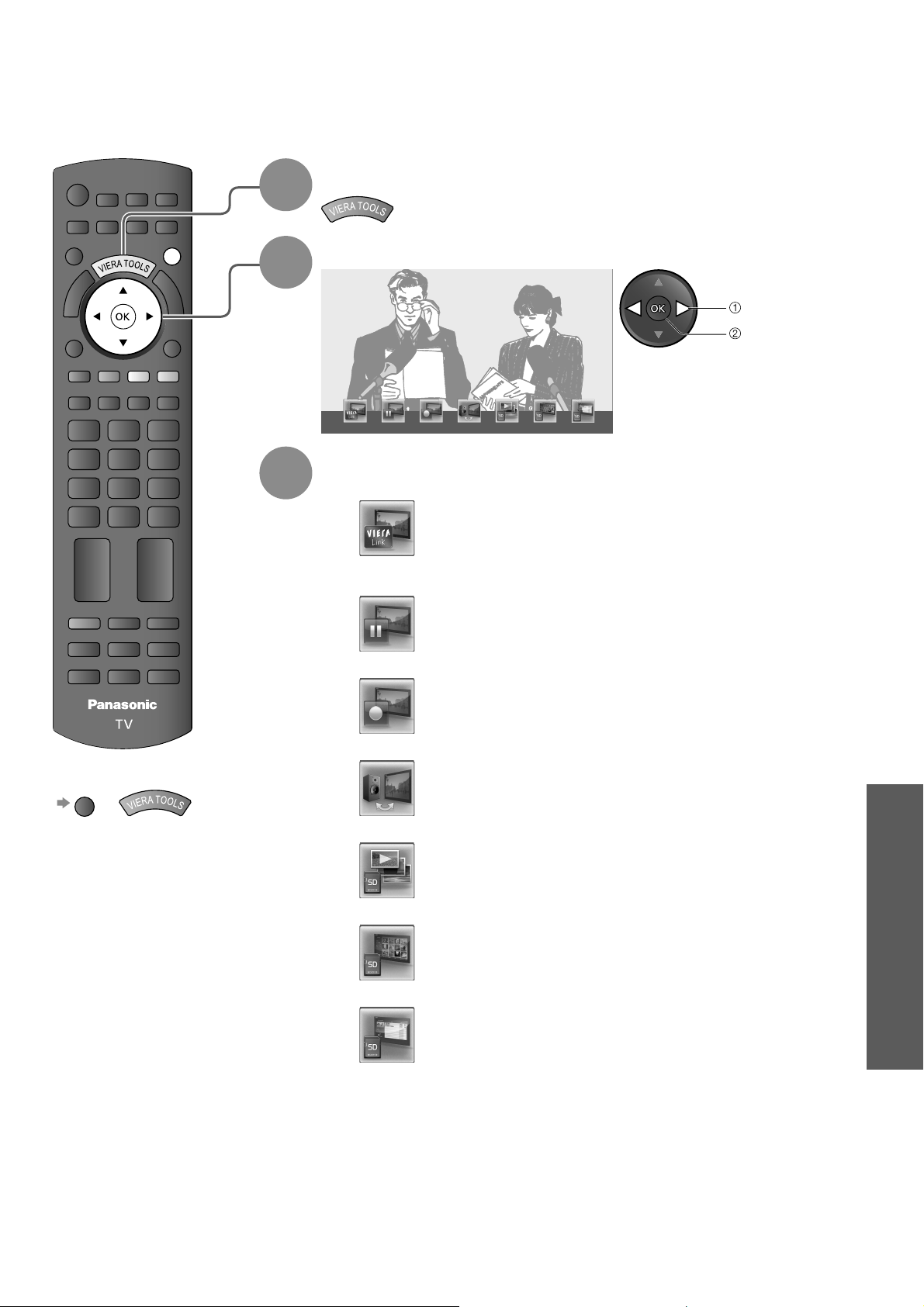

VIERA Tools················································ 43

●

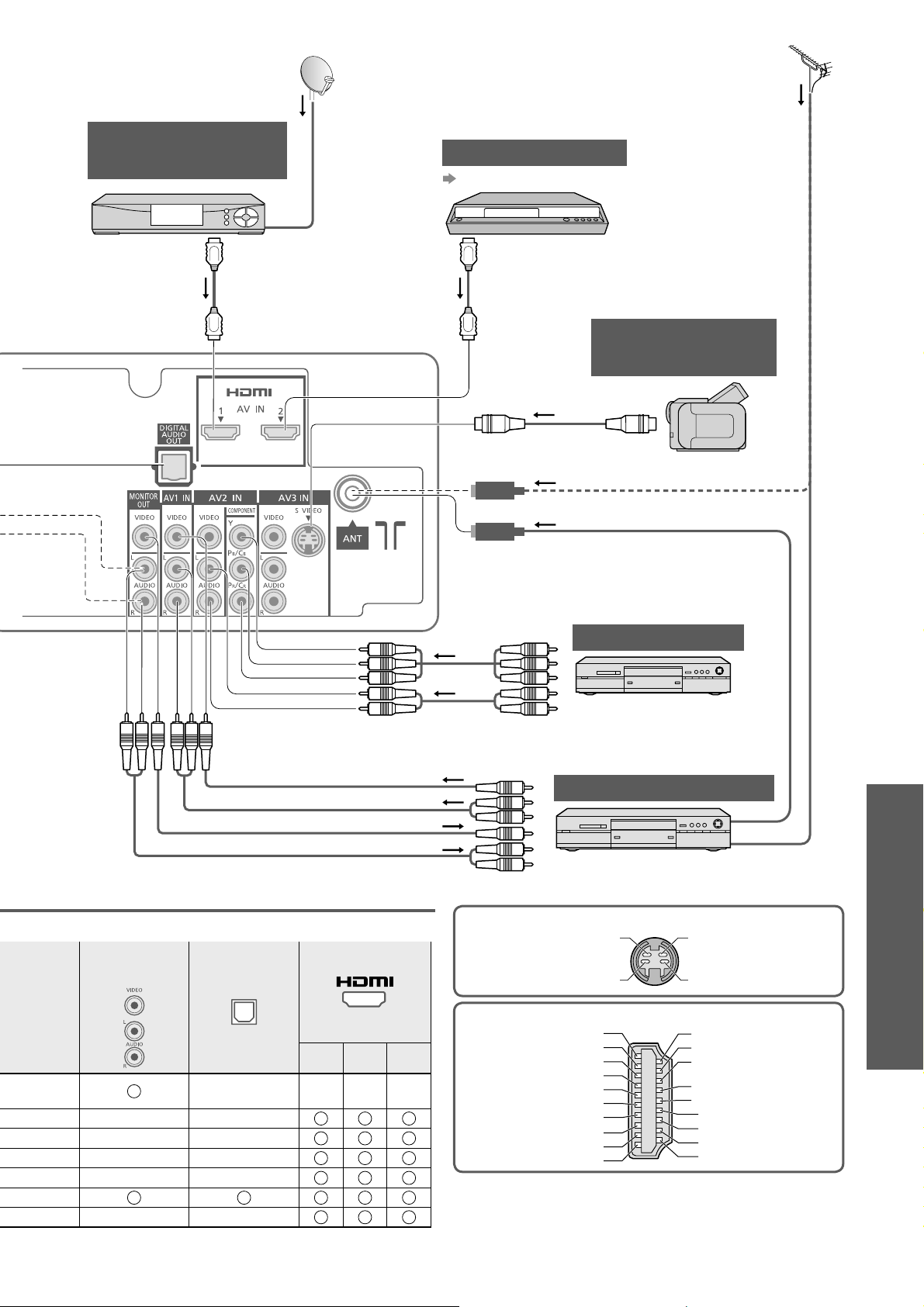

External Equipment ···································· 44

”···················· 38

Guide

Quick Start

BasicAdvancedTechnical

Technical Features

Technical Information ································· 46

●

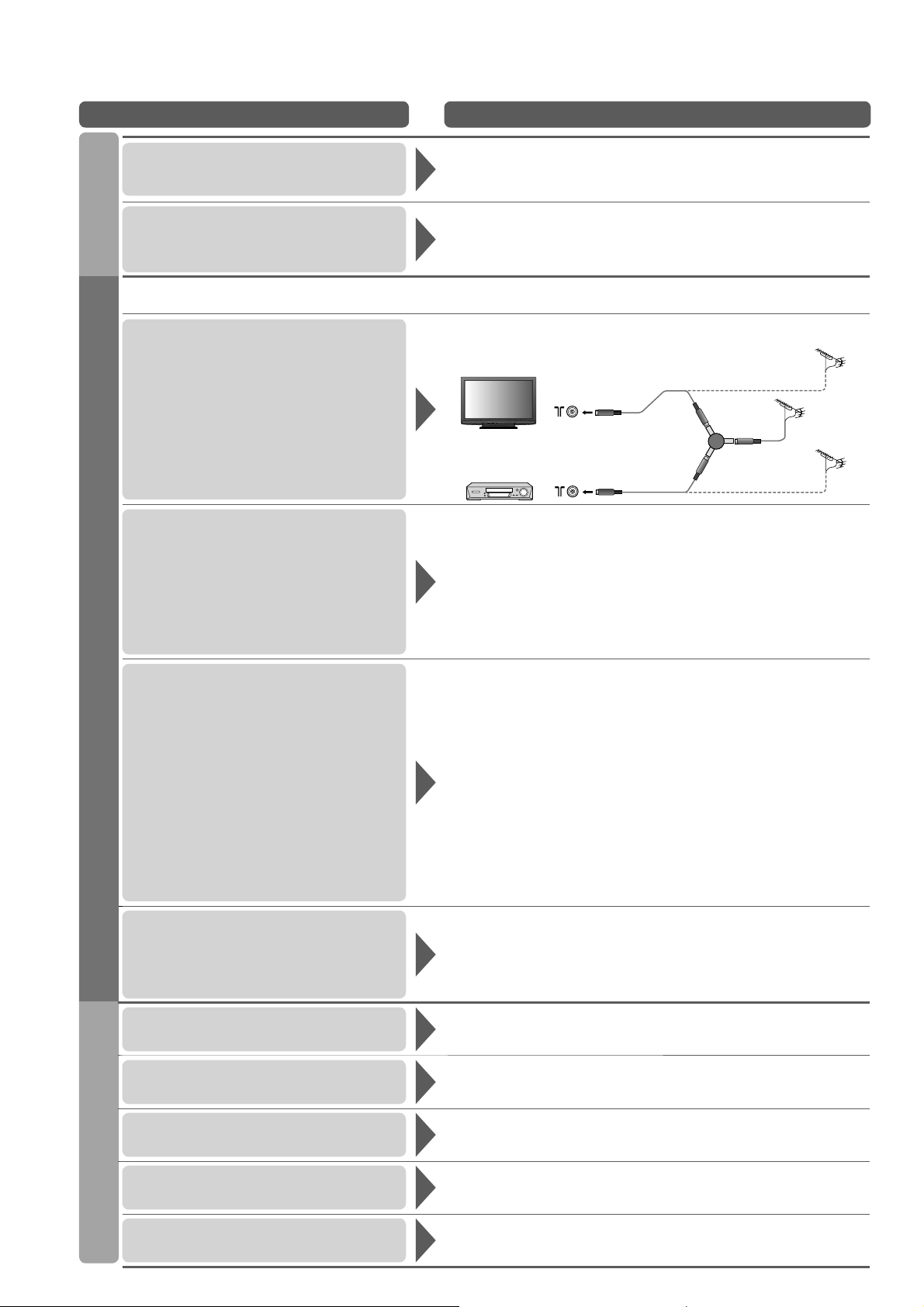

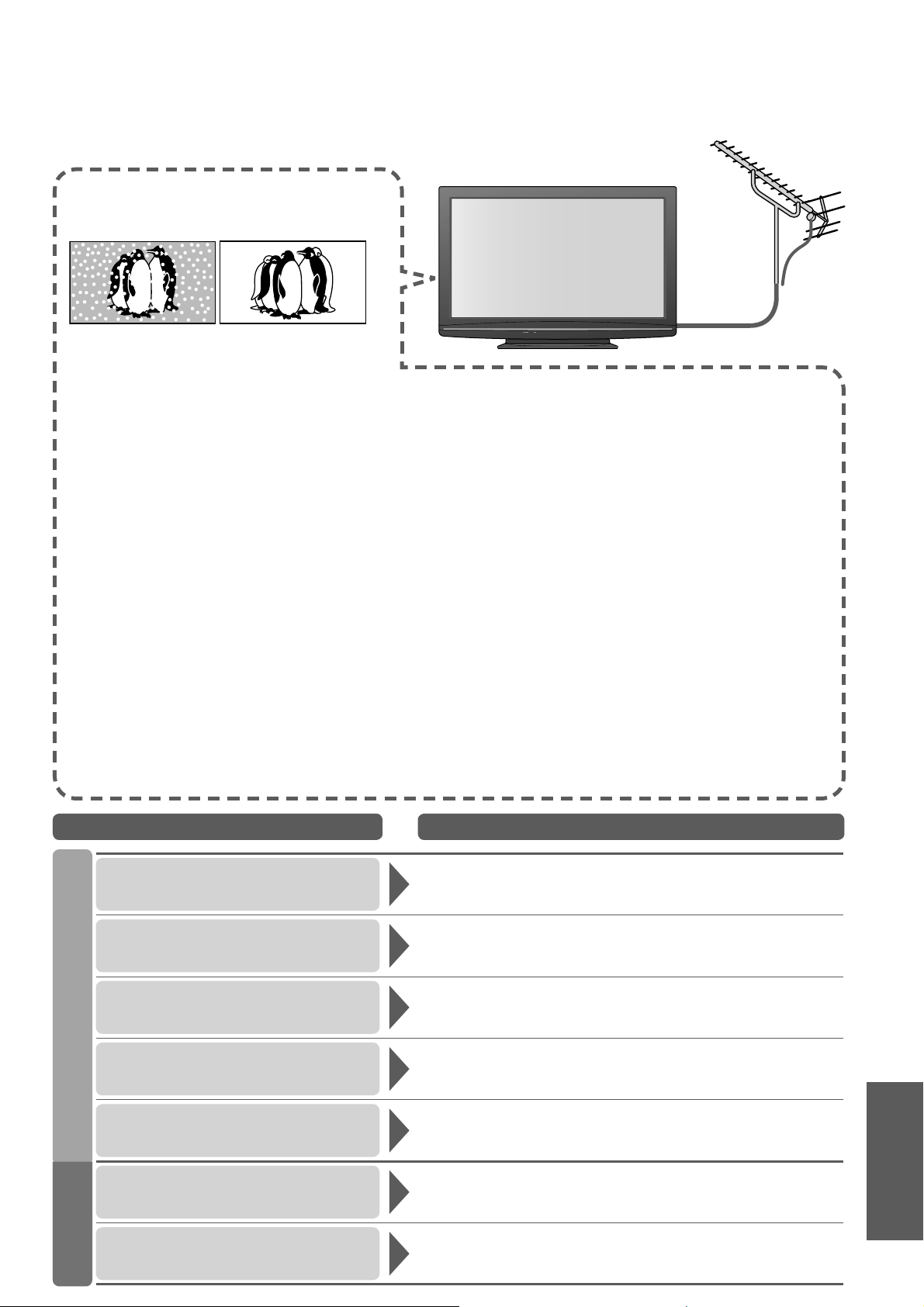

FAQs ·························································· 49

●

Specifications ············································· 51

●

WARRANTY ··············································· 52

Page 5

Safety Precautions

Warning

Handling the mains plug and lead

Insert the mains plug fully into the socket outlet. If the mains plug is loose, it could generate heat and cause fire.

●

Ensure that the mains plug is easily accessible.

●

Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.

●

Do not touch the mains plug with a wet hand. This may cause electrical shock.

●

Do not use any mains lead other than that provided with this TV. This may cause fire or electrical shock.

●

Do not damage the mains lead. A damaged lead may cause fire or electrical shock.

Do not move the TV with the lead plugged in the socket outlet.

●

Do not place a heavy object on the lead or place the lead near a high-temperature object.

●

Do not twist the lead, bend it excessively, or stretch it.

●

Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.

●

Do not use a damaged mains plug or socket outlet.

If you find any abnormality, remove the mains plug immediately!

AC 220 - 240 V 50 / 60 Hz

Power source

This TV is designed to operate on 220 - 240 V,

●

50 / 60 Hz AC.

Do not remove covers NEVER modify the TV yourself

High-voltage components may cause serious electrical shock.

Have the TV checked, adjusted, or repaired at your

●

local Panasonic dealer.

Keep liquids away from the TV

To prevent damage which may result in fire or shock

●

hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (flower vase,

●

cups, cosmetics, etc.) above the TV, including on shelves above, etc.

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other

●

sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

Avoid exposing the TV to high atmospheric moisture (such as tropical rain) or night time dew condensation

This TV is designed and manufactured for indoor

●

use only.

Do not place foreign objects inside the TV

Do not allow any objects to drop into the TV through

●

the air vents. Fire or electrical shock may result.

Do not place the TV on sloped or unstable surfaces

The TV may fall off or tip over.●

Use only the dedicated pedestals / mounting equipment

Using an unapproved pedestal or other fixtures may

●

make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup.

●

Use approved pedestals / mounts (p. 8).

Do not allow children to handle SD Card

As with any small object, SD Cards can be

●

swallowed by young children. Please remove SD Card immediately after use and store out of reach of children.

Page 6

Important Installation Notices

Install TV on a stable surface

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by the manufacturer of the television.

●

Only using furniture that can safely support the television.

●

Ensuring the television is not overhanging the edge of the supporting furniture.

●

Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

●

Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

●

Educating children about the dangers of climbing on furniture to reach the television or its controls.

When cleaning the TV, remove the mains plug

●

Cleaning an energized TV may cause electrical shock.

When the TV is not going to be used for a long period of time, remove the mains plug

●

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Transport only in upright position

●

Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.

Allow sufficient space around the TV for radiated heat

Minimum distance

When using the pedestal, keep the space between the bottom of the

●

TV and the surface where the TV is set.

●

In case of using Wall-hanging bracket, follow the manual of it.

10 7

(cm)

Do not block the rear air vents

●

Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical shock.

Do not expose your ears to excessive volume from the headphones

●

Irreversible damage can be caused.

Display panel is made of glass. Do not apply strong force or impact to the display panel.

This may cause damage resulting in injury.

●

The TV is heavy. Handle the TV by 2 or more people. Support as shown to avoid injury by the TV tipping or falling.

Auto power standby function

●

If no signal is received and no operation is performed in Analogue TV mode for 30 minutes, the TV will automatically go to standby mode.

Keep the TV away from these types of equipment

●

Electronic equipment In particular, do not place video equipment near the TV. Electromagnetic interference may distort images / sound.

●

Equipment with an infrared sensor This TV also emits infrared rays. This may affect operation of other equipment.

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

Programme number and other logos

●

Image displayed in “4:3” mode

●

Video game

●

Computer image To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 49)

Page 7

Maintenance

First, remove the mains plug from the socket outlet.

Display panel

Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Caution

The surface of the display panel has been specially treated and may be easily damaged.

●

Do not tap or scratch the surface with your fingernail or other hard object.

●

Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances. This may degrade surface quality.

Cabinet, Pedestal

Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Caution

●

Take care not to subject the TV's surfaces to detergent. A liquid inside the TV could lead to product failure.

●

Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances. This may deteriorate the surface by peeling the paint.

●

Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Licence

DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).

●

VGA is a trademark of International Business Machines Corporation.

●

S-VGA is a registered trademark of the Video Electronics Standard Association.

●

SDHC Logo is a trademark.

●

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

●

HDAVI ControlTM is a trademark of Panasonic Corporation.

●

“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

●

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

●

Macintosh is a registered trademark of Apple Inc., USA. Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Page 8

Accessories / Options

Standard accessories

Check that you have the accessories and items shown

Remote Control

N2QAYB000352

●

Batteries for the

Remote Control (2)

R6 (AA)●

REC

Pedestal

p. 8

Fall-prevention parts

p. 9

Cleaning cloth

Caution

This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.

Mains Lead

p. 11

Operating Instructions

with Warranty statement

Optional accessories

Wall-hanging bracket

TY-WK4P1RW●

Caution

In order to maintain the unit’s performance and safety, be

●

absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets.

●

Carefully read the instructions accompanying the pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.

●

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

Guide

Quick Start

Accessories / Options

Maintenance Licence

Installing remote’s batteries

Hook

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

●

Do not mix old and new batteries.

●

Do not mix different battery types (such as alkaline and manganese batteries).

●

Do not use rechargeable (Ni-Cd) batteries.

●

Do not burn or breakup batteries.

●

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Pull open

Note the correct polarity (+ or -)

Page 9

Accessories / Options

Attaching the pedestal

Warning

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.●

Caution

Do not use any other TV and displays.

Otherwise the TV may fall over and become damaged, and personal injury may result.

●

Do not use the pedestal if it becomes warped or physically damaged.

●

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.

●

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

●

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

●

If two or more people are not present, the TV may be dropped, and personal injury may result.

Assembly screw (4)

(silver)

XYN5+F18FN●

M5 × 18 M5 × 25

Assembly screw (4)

(black)

THEL064N●

Assembling the pedestal

Use the four assembly screws to fasten the left and right poles to the base securely.

Make sure that the screws are securely tightened.

●

Forcing the assembly screws the wrong way will strip the threads.

●

“L” or “R” mark is stamped on the bottom of the pole.

Pole (2)

L:TBL3DA3008

●

R:TBL3DA3007

Base

TBL3DX0007

●

(TH-P42S10A)

●

TBL3DX0008 (TH-P46S10A / TH-P50S10A)

Front

Securing the TV

Use the assembly screws to fasten securely.

Make sure that the screws are securely tightened.

●

Carry out the work on a horizontal and level surface.

View from the bottom

Hole for pedestal installation

Arrow mark

Page 10

Preventing the TV from falling over

This TV could fall over if it's pushed, pulled or knocked down. We therefore recommend the TV is secured to the base as illustrated.

This measure is designed to reduce the risk of injury from a falling TV. However, it cannot guarantee protection in

●

all cases.

Fall-prevention parts

Band Clamp Screw Wood screw

TKLA4301● TKL3DA0101●

Securing to a base

Fix pedestal and base together with band.

Clamp

Screw

Band

Wood screw

Guide

This image is for illustrative purposes only.

Identifying Controls

SD card slot

HDMI3

terminal

PC terminal

AV4 terminals

Headphone

jack

Remote control signal receiver

Do not place any objects between the TV remote control

●

signal receiver and remote control.

Function Select

Volume / Contrast / Brightness /

●

Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / “Digital TV Auto Tuning” or “Analogue TV Auto Tuning” (p. 24 - 25)

Change the channel up/down. When a function is displayed, press up/down to adjust the setting of the selected function. When in standby mode, switches TV on.

Change the input mode

Quick Start

Identifying Controls

Accessories / Options

Mains power On / Off

Switch On to turn on the TV or turn the TV

●

to standby mode by the remote control

Power LED

Standby: red

●

On: green When using the remote control,

●

indicates the TV has received a command.

C.A.T.S. (Contrast Automatic Tracking System) sensor

Senses brightness to adjust picture quality when “Eco Mode”

●

in the Picture Menu is set to “On” (p. 24)

Page 11

Identifying Controls

Remote Control

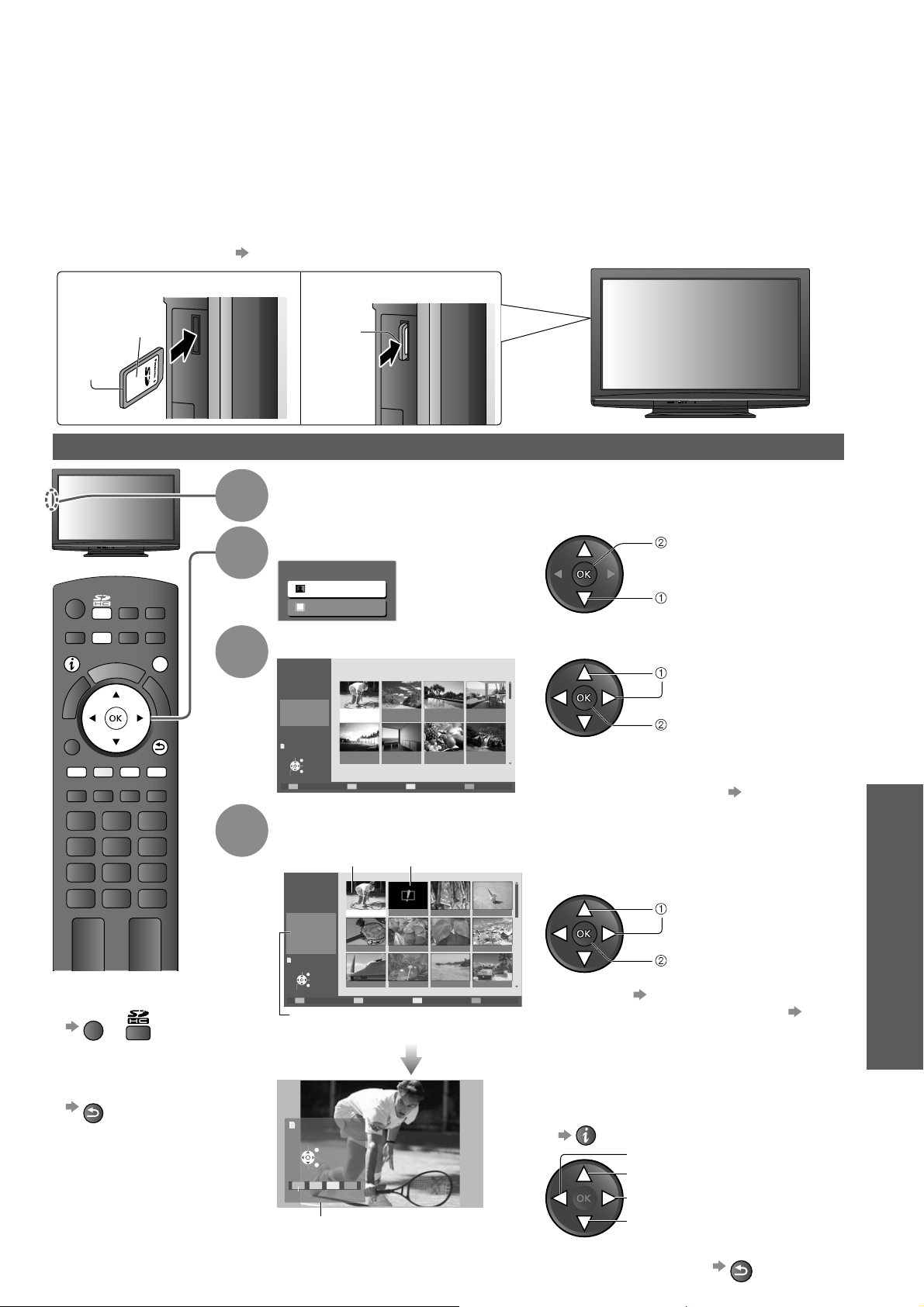

SD Card (p. 35)

Switches to SD Card viewing mode

●

Standby On / Off switch

Switches TV On or Off standby●

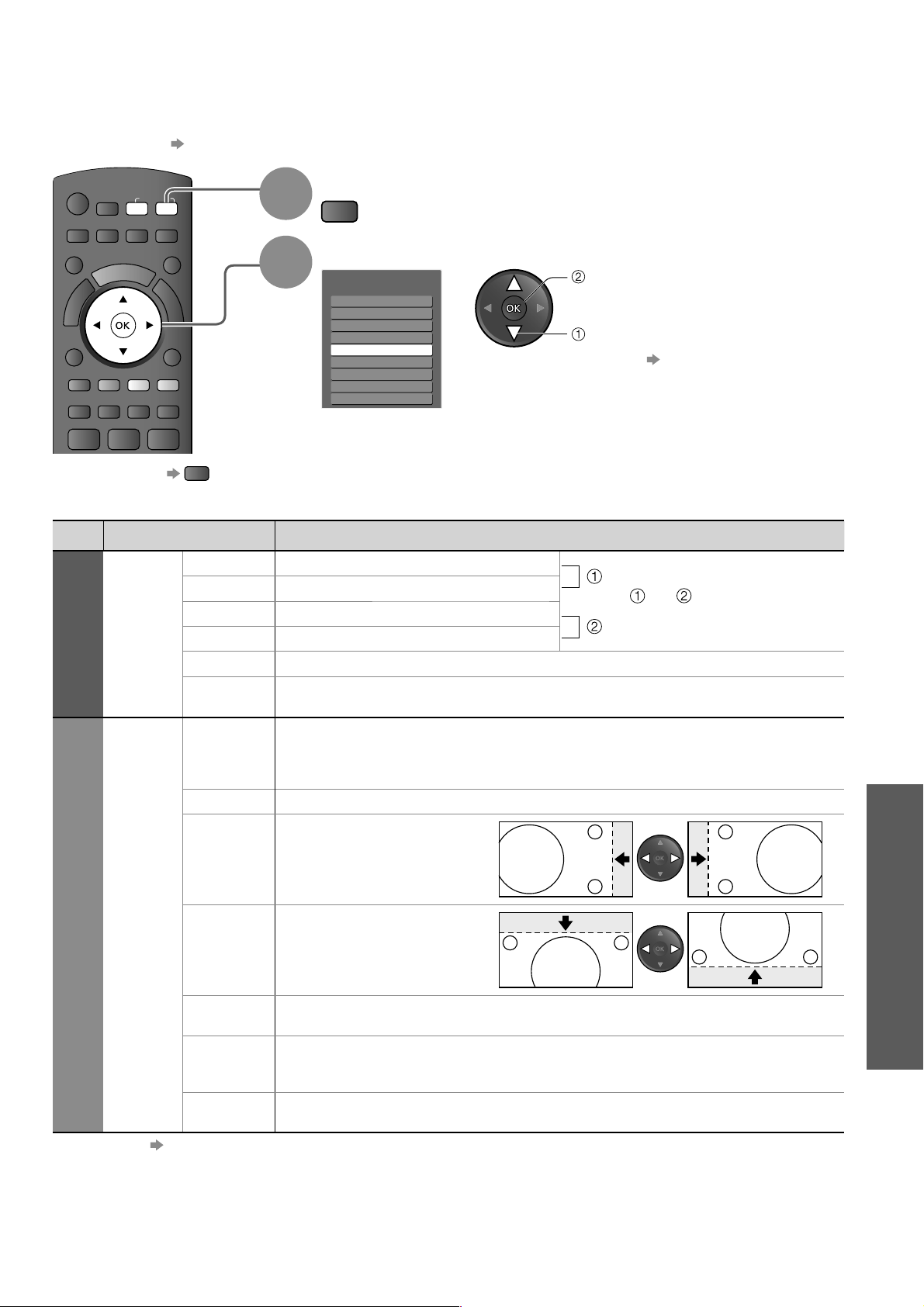

Aspect (p. 16)

Changes aspect ratio from Aspect

●

Selection list Also possible by pressing this button

●

repeatedly until you reach the desired aspect

Main Menu (p. 22)

Press to access Picture, Sound and

●

Setup Menus

Channel / Programme Information

(p. 15)

Displays channel and programme

●

information

VIERA TOOLS (p. 43)

Displays functions of the linked

●

equipment and SD card

VIERA Link (p. 38)

Press to access VIERA Link Menu

●

Confirms selections and choices

●

Press after selecting channel positions to quickly change programme

POWER

ASPECT

OPTION

RGYB

TEXT

STTL

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

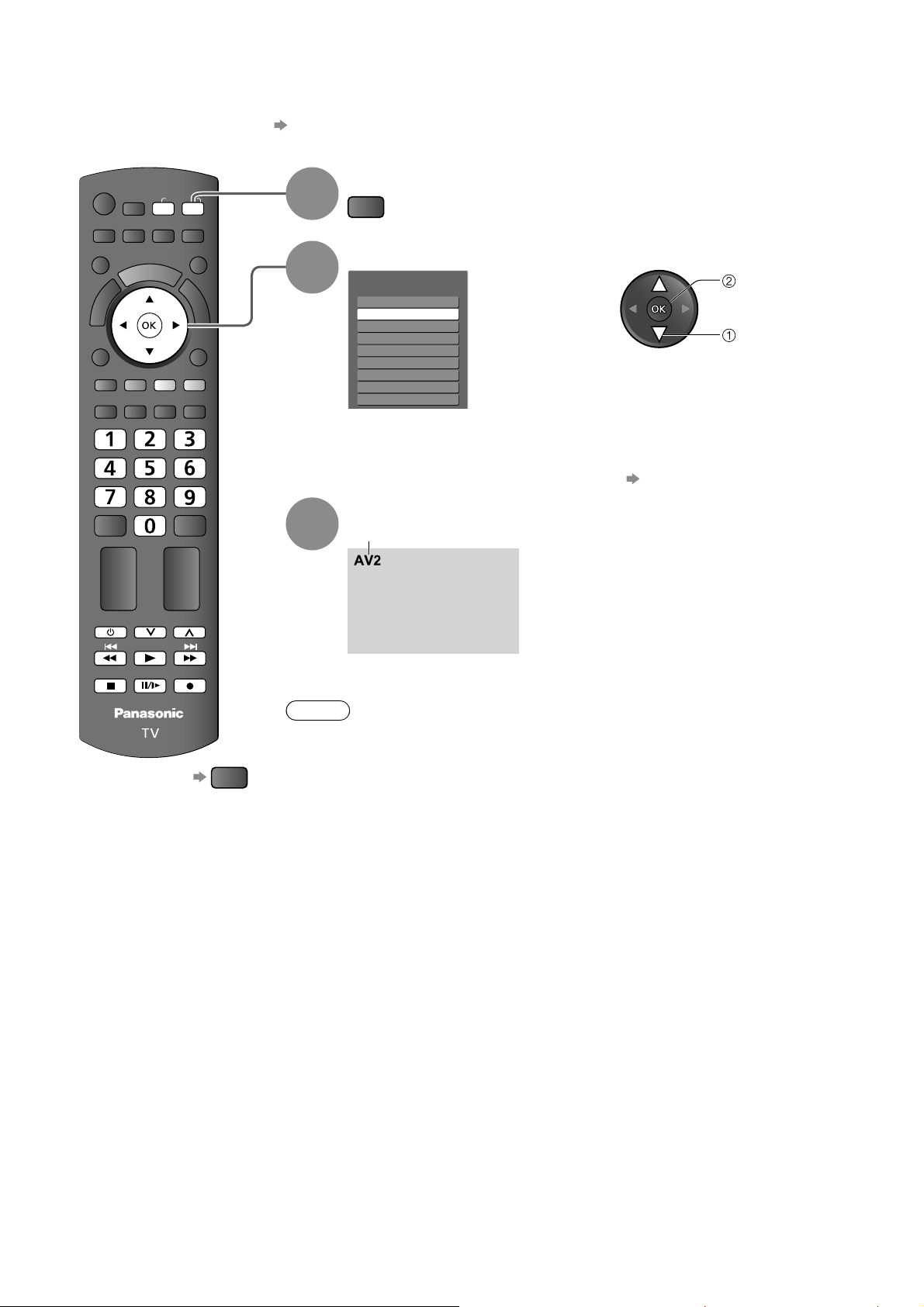

Input mode selection

TV - switches Digital TV / Analogue TV

●

mode (p. 14)

AV - switches to AV input mode from

●

Input Selection list (p. 20)

Off Timer (p. 15)

Turns the TV off automatically after a

●

fixed period of time

Stereo / Bilingual Sound Selection

(p. 46)

Changes the sound track when more

●

than two choices are available (Digital TV mode) (p. 16)

Exit

Returns to the normal viewing screen●

Guide (p. 17)

Displays TV Guide

●

Cursor buttons

Makes selections and adjustments●

Return

Returns to the previous menu●

Coloured buttons

Used for the selection, navigation and

●

operation of various functions

Hold

Freeze / unfreeze picture (p. 14)

●

Holds the current teletext page (teletext mode) (p. 18)

Option Menu (p. 16)

Easy setting for sound options

●

Teletext (p. 18)

Switches to teletext mode

●

Subtitles (p. 14)

Displays subtitles

●

Numeric buttons

Changes channel and teletext pages

●

When in Standby mode, switches TV On

Sound Mute

Switches sound mute On or Off●

Volume Up / Down

MUTE

POWER

SURROUND

PROGRAMME

REC

Index (p. 19)

Returns to the teletext index page

●

(teletext mode)

Surround (p. 24)

Switches surrounding sound setting

●

Channel Up / Down

Selects channel in sequence●

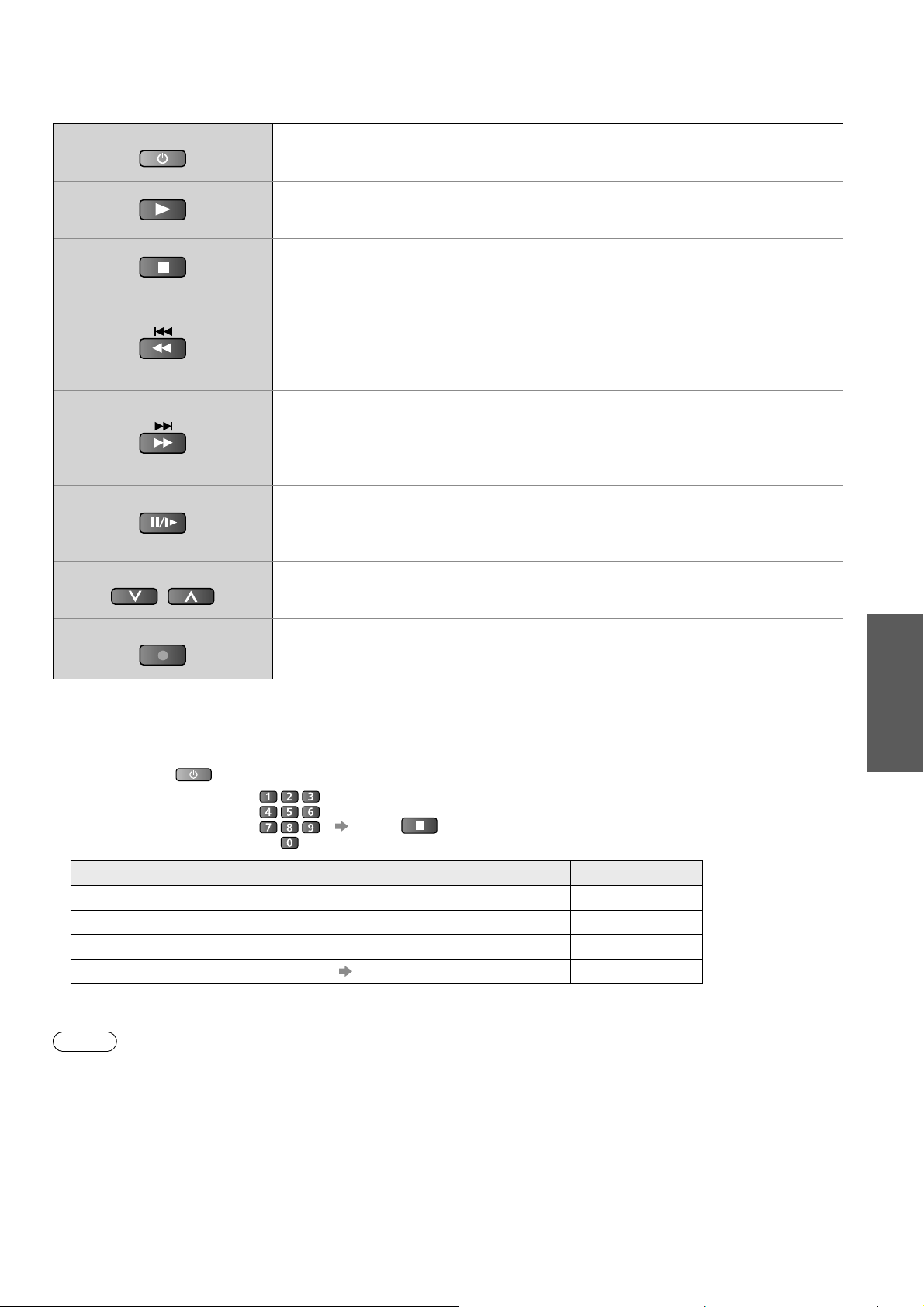

VCR / DVD Panasonic equipment operations (p. 21)

Page 12

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the TV is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Connecting aerial

TV only

Rear of the TV

AC 220 - 240 V, 50 / 60 Hz

Aerial

Mains lead (supplied)

TV, DVD Recorder or VCR

AC 220 - 240 V, 50 / 60 Hz

Mains lead (supplied)

Push until both side tabs click

To remove from the TV:●

tabs

Connecting DVD Recorder / VCR

Rear of the TV

RCA cable

Make sure that the mains lead is securely fixed.

OUT

AUDIO

OUT

VIDEO

Press both tabs and pull on mains connector to release

RF OUT

RF IN

DVD Recorder or VCR

RF cable

Aerial

Guide

Quick Start

Basic Connection

Identifying Controls

Note

Do not put the RF cable close to the mains lead to avoid noise.

●

Do not place the RF cable under the TV.

●

To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ω coaxial) and the correct terminating plug are required.

●

If a communal Aerial system is used, you may require the correct connection cable and plug between the wall Aerial socket and the TV.

●

Your local Television Service Centre or dealer may be able to assist you in obtaining the correct Aerial system for your particular area and the accessories required.

●

Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the Customer.

●

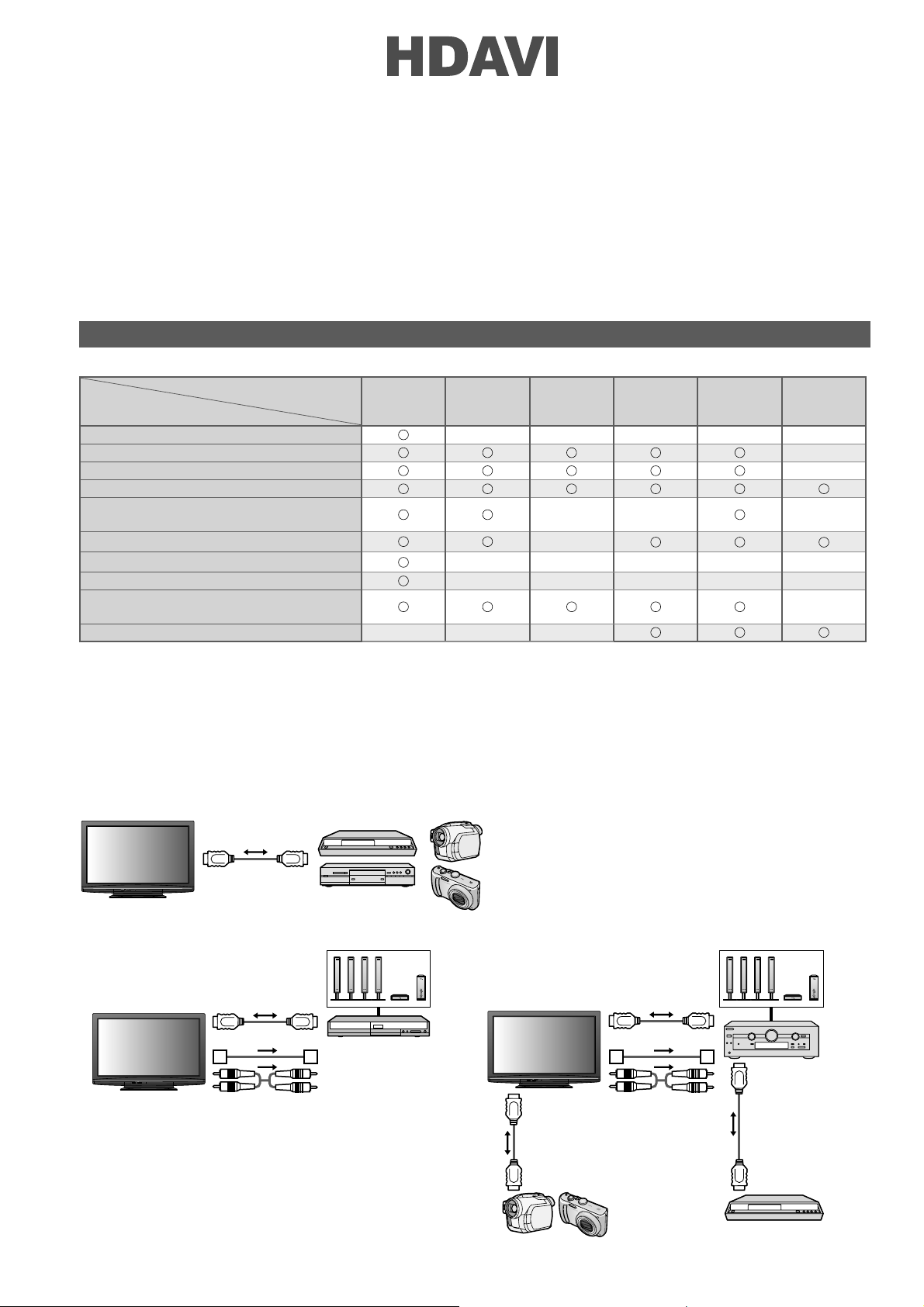

VIERA Link connection p. 38

●

Read the manual of the equipment too.

Page 13

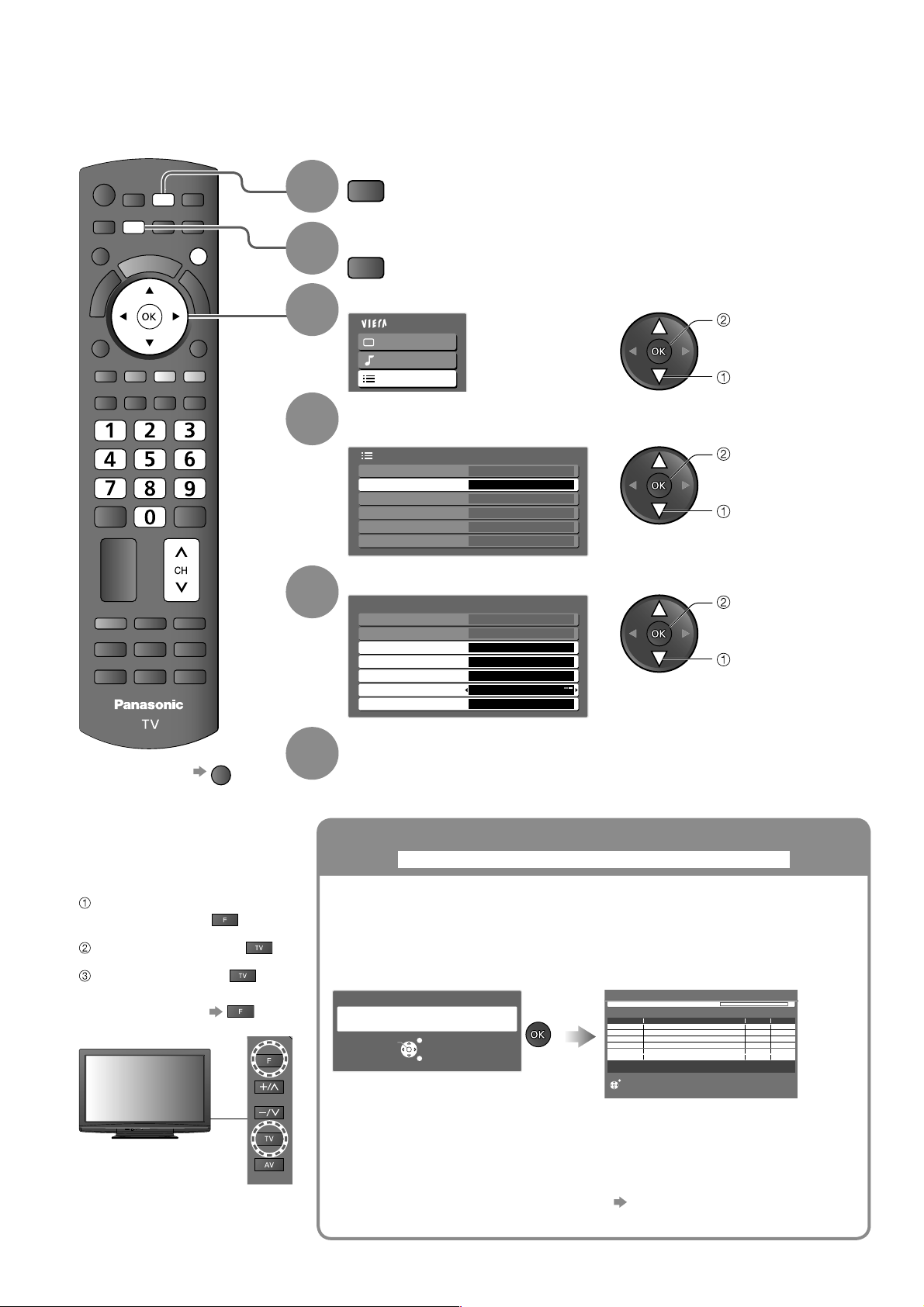

Auto Tuning

Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer.

Plug the TV into mains socket and switch On

You can now use the remote control to turn On the TV

●

or switch the TV to standby mode. (Power LED: On)

POWER

ASPECT

INPUT

OFF TIMER

EXIT

Select your area

Select State / Territory

New South Wales / Australian Capital Territory

Victoria

Queensland

South Australia Western Australia Northern Territory

Tasmania

Select Auto Scan Type

select

set

OPTION

R G Y B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

RETURN

HOLD

SURROUND

REC

Auto Scan Type

All Channels

Digital TV Channels only

Start Auto Tuning

Auto Tuning

Digital TV Scan CH 6 69 Analogue TV Scan CH 0

This will take about 6 minutes.

RF Ch Channel Name Type Quality

CBBC Channel Digital TV 10 62 BBC Radio Wales Digital TV 10 62 E4 Digital TV 10 62 Cartoon Nwk Digital TV 10 29 33

Digital TV: 4 Analogue TV: 2

EXIT

RETURN

Searching

Analogue TV Analogue TV

Auto Tuning will start to search for

●

TV channels and store them. The sorted channel order depends upon the TV signal, the broadcasting system and reception conditions.

Select the viewing environment

Please select your viewing environment.

Home Shop

“Home” is the recommended mode for

●

viewing at home. Select “Home” for optimal picture / power consumption. “Shop” is for in-store display. Home: “Viewing Mode” is set as “Normal”. (p. 24) Shop: “Viewing Mode” is set as “Dynamic”. (p. 24)

Auto Tuning is complete

select

set

If you select “Shop” by mistake

Return to the “Home” or “Shop” Selection menu

Automatic Demo

Off On

Once you press the OK button in this menu,

●

the TV is set to Shop mode. Please reset all settings to set to “Home” mode.

“Shipping Condition” (p. 32)

RETURN

Select “Home”

Please select your viewing environment.

Home Shop

select

set

Auto Tuning is complete

Page 14

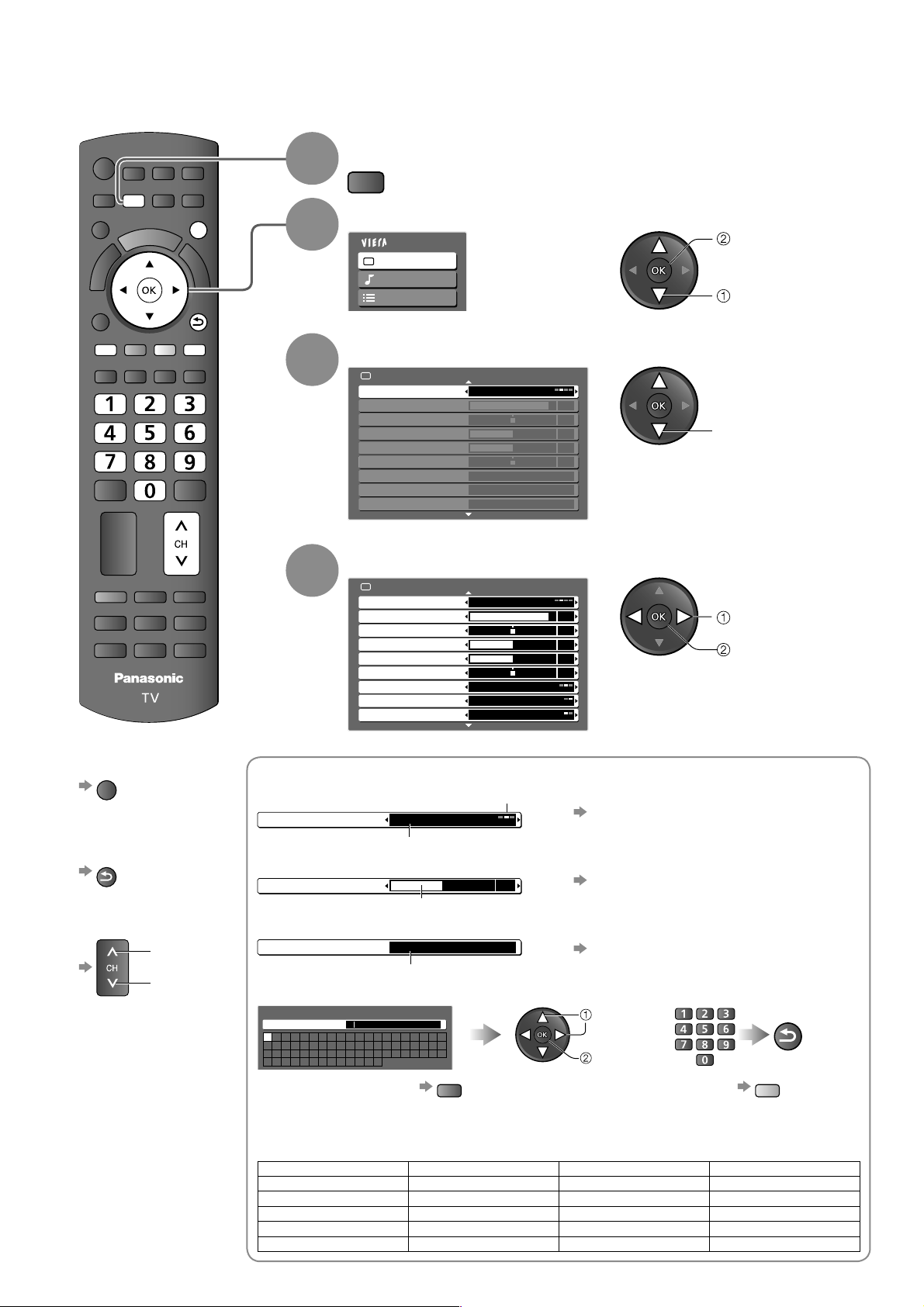

Using the On-Screen Displays

Many features available on this TV can be accessed via the On-Screen Display menu.

ON SCREEN HELP Instructions box

Sound Menu

Mode Music

Bass

Treble

Balance

Headphone Volume

Surround Off

Volume Correction

Speaker Distance to Wall

Reset Sound Defaults

Select

EXIT Change RETURN

Over 30cm

Reset

On-screen operation guide

How to use remote control

Open the Main Menu

Move the cursor / select the menu

(example: Sound Menu)

Guide

Quick Start

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

RETURN

Return to the previous menu

EXIT

Exit the menu system and return to the normal viewing screen

Note

To edit channels “Editing Channels” (p. 28)

●

If tuning has failed “Tuning Channels” (p. 30)

●

To reset all settings

●

If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

“Shipping Condition” (p. 32)

Auto Tuning

Page 15

Watching TV

POWER

ASPECT

OPTION

R G Y

TEXT

MUTE

POWER

STTL

INPUT

OFF TIMER

HOLD

INDEX

SURROUND

PROGRAMME

REC

EXIT

RETURN

Turn power on

POWER

Mains power On / Off switch should be On. (p. 9)●

Select Digital TV or Analogue TV mode

Also possible to select the mode using the TV button

●

on the side panel of the TV. (p. 9)

Information banner appears whenever you select a

1 BBS

CH05 5.5MHz Coronation Street

channel

For details p. 15●

Select a channel

To select the two or three-digit

down

To select from the Channel List

●

All Digital Channels

Cartoon Nwk

BBC Radio Wales

BBC Radio Cymru

BBC ONE Wales

BBC THREE

BBCi

CBBC Channel

Select

EXIT

RETURN

Page down

Page up

View

●

channel number, e.g. 39

(in a short time)

●

If one or two-digit channel number

quickly changes the

channel

select a channel

watch

Note

When the TV is switched

●

to standby, there will be a clicking sound after a short delay. This is normal.

Other useful functions

HOLD

Freeze / unfreeze picture

Select a channel using information banner (p. 15)

Possible to confirm the programme name before selecting channels.

Display information banner if it is not displayed

While the banner is displayed, select a channel

select a channel

Possible to set display

●

timeout in “Banner Display

watch

Timeout” (p. 25).

Select a channel using TV Guide (Digital TV mode) (p. 17)

Possible to confirm the TV Guide (EPG) before selecting channels.

Display TV Guide Select a channel

select a channel

watch

Hold

STTL

Display / hide subtitles

Display subtitles

(if available)

Page 16

Other useful functions

Display information banner

Also appears when changing channels●

Programme name Current time

1 TEN Digital

Coronation Street 9:00 am - 11:00 am

Digital TV: Programme Start / Finish time Analogue TV: Channel status

Features available / Message meanings

Sound mute On Bad signal Poor TV signal quality

Audio mode (p. 46) (Analogue TV mode)

, I,

Channel

Rating: PG

Display information banner

All Digital Channels

Select favourites

Software update

(example)

Bad Signal

Encrypted

10:30am

Now

(Digital TV mode) Scrambled programme

(Digital TV mode)

Teletext service available

Multiple image or audio available (Digital TV mode)

Rating: Rating information

(Digital TV mode) (p. 46)

To confirm another tuned channel name●

To select a favourite list (Digital TV mode)●

Information on the next programme

●

(Digital TV mode)

Subtitle service available (Digital TV mode)

To watch the programme listed in the

●

banner

To hide●

To set display timeout

●

“Banner Display Timeout” (p. 25)

Extra information

●

(press again to hide the banner)

1 - 90 Off Timer remaining time

For settings see below

●

EXIT

(Digital TV mode)

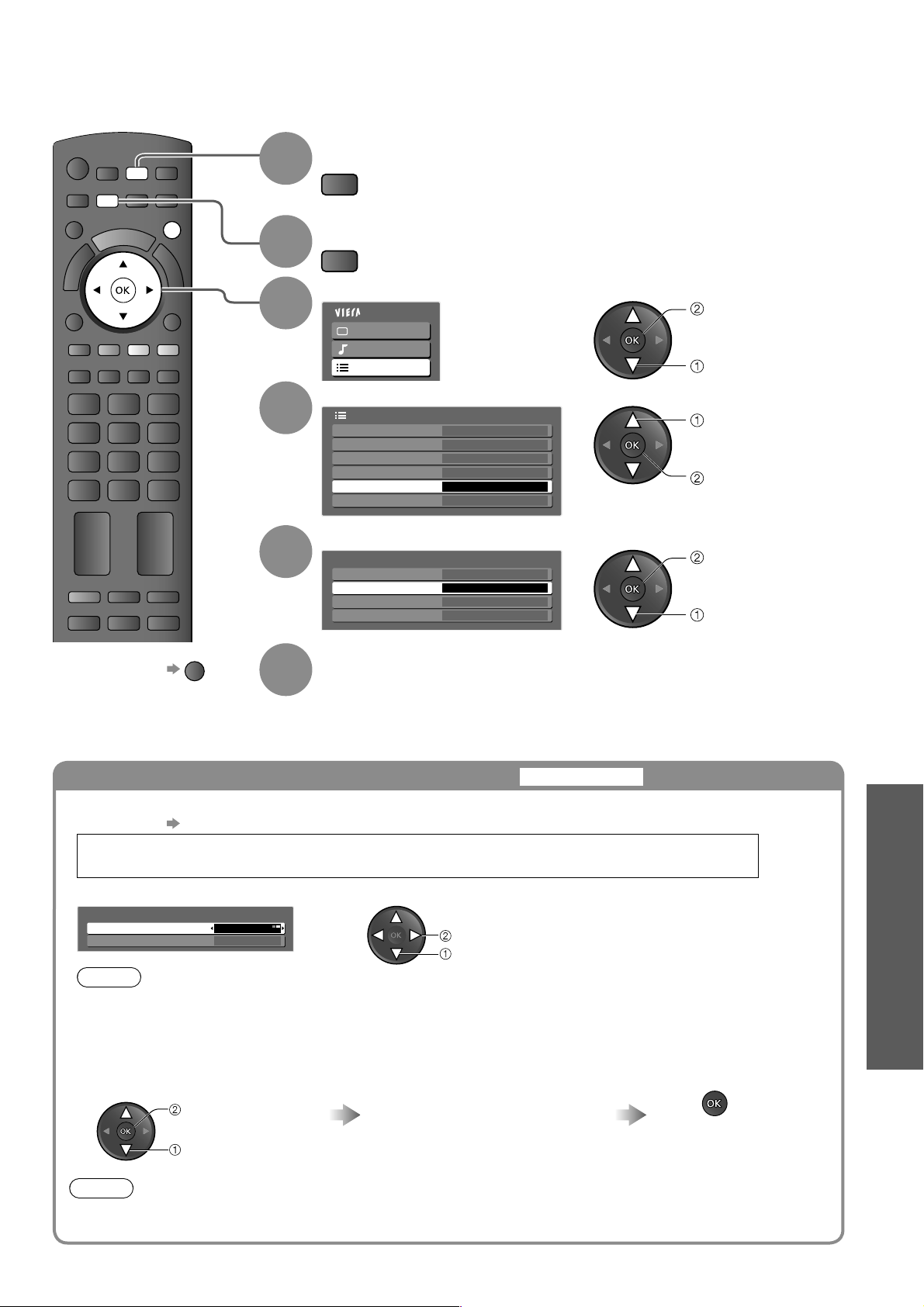

Off Timer

Turn the TV off automatically after a fixed period of time (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Setup Menu

Off Timer

Digital TV Tuning Menu

Display Settings

VIERA Link Settings

System Menu

Other Settings

Off

Select “Off Timer” and set the time

select

OFF TIMER

To cancel Set to 0, set to “Off” or turn the TV off.

●

To display the remaining time Information banner

●

When the remaining time is within 3 minutes, the remaining time will flash on screen.

Press repeatedly to set the time

Watching TV

Basic

Adjust the standard time

Region Select

Select the region where you live to adjust the standard time.

●

The time contained in the broadcast signal is UTC (Universal Time coordinated) formally known as GMT (Greenwich Mean Time).

Region Standard time

NSW / ACT Victoria Queensland +10:00 South Australia Western Australia Northern Territory Tasmania +10:00 +11:00

+10:00 +11:00

+9:30 +10:30 +8:00 +9:00

These items can be set from “Other settings” in Setup Menu. (p. 23, 25)●

Adjust for Summer Time

Daylight Saving Time

Select time offset from the standard time for Summer Time.

●

Normally select “Auto”.

●

If there is a gap between displayed time and actual time, set this function.

Daylight Saving Time: Auto

(During Summer Time)

+9:30

(Based on GMT)

Page 17

Watching TV

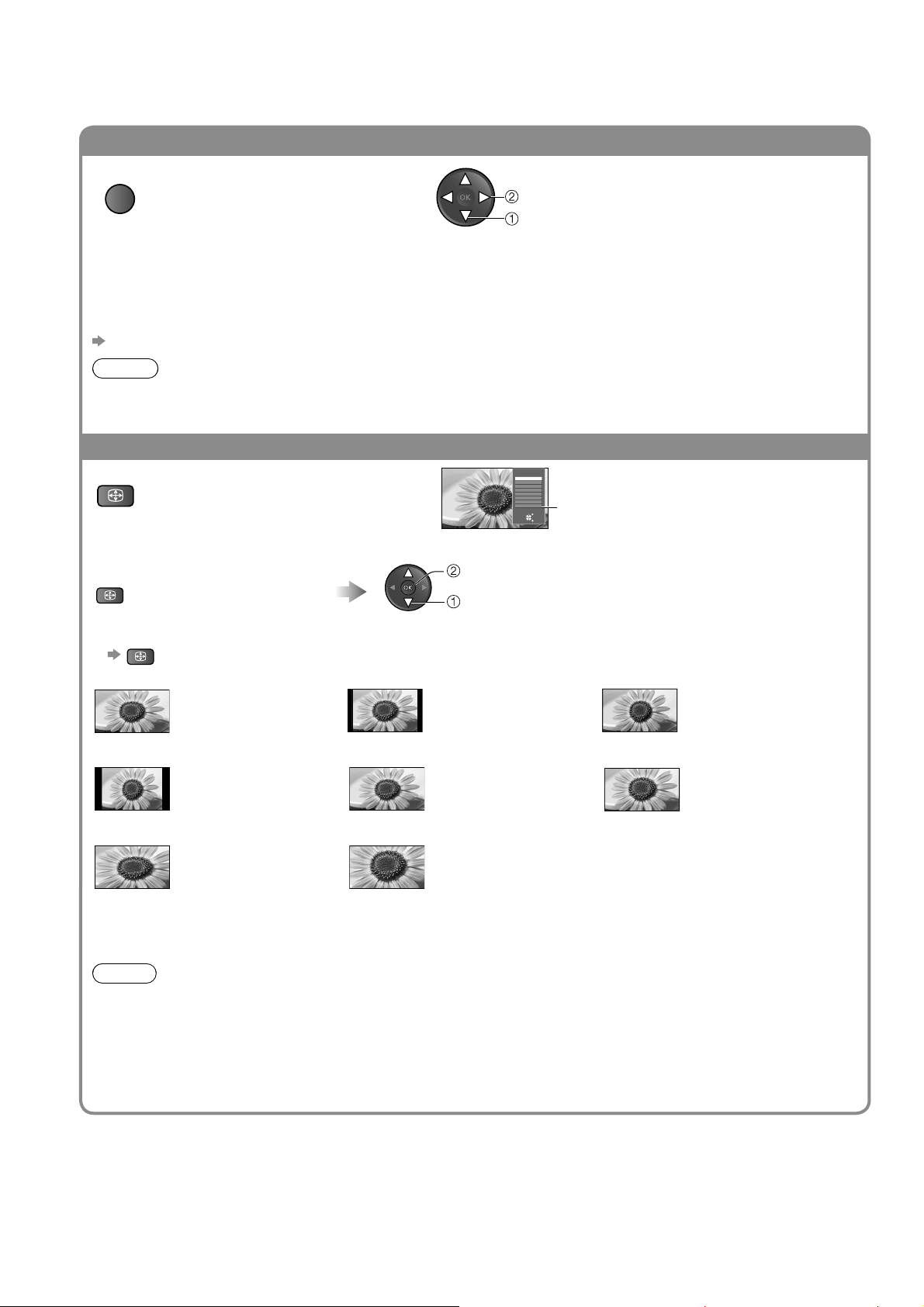

Other useful functions

Display the selectable settings for the current programme

OPTION

Check or change the current programme status instantly

Change the settings

Audio selection (Digital TV mode) Allows you to select between alternative language for sound tracks (if available)

MPX (Analogue TV mode)

Sound Menu (p. 24)

Note

Also possible to change the settings in Menu list (p. 24 and p. 25).●

Change aspect ratio

ASPECT

Change the aspect ratio

Enjoy viewing the picture at its optimum size and aspect.

ASPECT

Display Aspect Selection list

store

select

change

select

Volume Correction

Adjusts volume of individual programme or input mode

Aspect Selection

16:9

14:9 Just 4:3 4:3 Full Zoom1 Zoom2 Zoom3

Select

Aspect

EXIT

Change

RETURN

Selection list

While the list is displayed, select the mode

To change the mode using the ASPECT button only

●

ASPECT

Press repeatedly until you reach the desired mode

16:9 14:9

Directly displays the image at “16:9” without distortion (anamorphic).

Displays the image at the standard “14:9” without distortion.

Just

Displays a “4:3” image full-screen. Stretching is only noticeable at the left and right edges.

4:3

Zoom2

Displays the image at the standard “4:3” without distortion.

Displays a “16:9” letterbox (anamorphic) image fullscreen without distortion.

4:3 Full Zoom1

Displays a “4:3” image enlarged horizontally to fit the screen.

HD signal only

●

Zoom3

Displays a “2.35:1” letterbox (anamorphic) image full-screen without

Displays a “16:9” letterbox or “4:3” image without distortion.

distortion. At “16:9”, displays the image at its maximum (with slight enlargement).

Note

Only “16:9” and “4:3 Full” are available in Digital TV mode.

●

Only “16:9” and “4:3” are available in PC mode.

●

Only “16:9” is available when “Viewing Mode” is set to “Game”.

●

Not available in teletext mode.

●

Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals. (except Digital TV mode)

Page 18

Using TV Guide

Using TV Guide enables you to select programme easily, view programme informations, etc. TV Guide―Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the future broadcasts over the next seven days (depending on the broadcasters).

POWER

ASPECT

OPTION

R G Y

TEXT

MUTE

POWER

STTL

INPUT

OFF TIMER

HOLD

INDEX

SURROUND

PROGRAMME

REC

EXIT

RETURN

View TV Guide

Each time pressed, the layout will be changed. (Landscape / Portrait)

Example:

TV Guide: Landscape

1 TEN Digital 2:54 am - 3:24 am DIY SOS : We open in the Battersbys

D Rugby 15 To 1 The Bill

TV Guide date

Wed, 26.03.2008

3:00 amTime: 3:30 am 4:00 am 4:30 am 5:00 am

TEN Digital Eastender DIY SOS The Bill Red Cap

ABC TV Sydney

Hot Wars Horiday Program

SBS DIGITAL Emmerdal. Coronation Street The Bill

FTV guide 10 O’ clock News BBC Pepsi Char. Good bye

7 Digital Panorama Sex And The City Terminator

BBCi I’m A Celebrity Pop Idol News

105

BBC Radi

719

Select channel

View

TV Guide time

EXIT Select programme RETURN

+24 hours Prog.Type Favourites

Landscape (Displays by channel)

Channel

To the previous day To the next day To watch the programme

select

watch

To view details of the programme

Select the programme

select

Current date and time

Programme name

Wed 26.03.2008 11:27 am

All Types All Channels

Info

GUIDE

Portrait/Landscape

Press again

●

to return to TV Guide.

Sports

Live junction

Drama

NEWS

Hello

News

Japan

Page up

Page down

Example:

TV Guide: Portrait Wed 26.03.2008 11:27 am

Wed, 26.03.2008

D 1 TEN Digital

3:00 am - 3:30 am

3:30 am - 4:00 am

4:00 am - 4:30 am

4:30 am - 5:00 am

5:00 am - 5:30 am

5:30 am - 6:00 am

6:00 am - 6:30 am

2 ABC TV Sydney

Eastender

DIY SOS

The Bill

Red Cap

Live junction

POP 100

Rugby

Select programme

EXIT Select channel

View

RETURN

+24 hours Prog.Type Favourites

All Types All Channels

D 4 FTV guideD 3 SBS DIGITAL D 7 7 Digital

Info

GUIDE

Portrait/Landscape

Portrait (Displays by time)

To view a channel list of the selected favourite list

(favourite list)

Favourites

All Channels

All Digital Channels

All Analogue Channels

Favourites1

Favourites2

Favourites3

Favourites4

select a

favourite list

view

To list favourite channels

p. 29

Watching TV

Using TV Guide

Basic

EXIT

To return to TV

To view a channel list of the selected type

(Type list)

Prog. type

All Types

Movie

News

Entertainment

Sport

Children’s

Music

. . . . .

select type

view

Note

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time

●

before the TV Guide is completely shown.

Page 19

Viewing Teletext

You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is provided by the broadcasters.

To change mode “Teletext” in Setup Menu (p. 25)

ASPECT

OPTION

OFF TIMER

EXIT

RETURN

Switch to Teletext

TEXT

Displays Index

●

(content varies depending on the broadcasters)

Current page number

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Time / date

R G Y B

INDEX

STTL

TEXT

HOLD

Colour bar

Select the page (up to page 899)

To adjust contrast

MUTE

SURROUND

(Press three times) As the blue bar is displayed

To return to TV

TEXT

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting)

TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

Fast overview of the teletext information available

●

Easy to use step-by-step selection of the topical subject

●

Page status information at the bottom of the screen

Available page up / down R

To select among subject blocks

To select next subject within the subject block (After the last subject, it moves to the next subject block.)

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 19)

EXIT

R G Y B

(Corresponds to the colour bar)

Using teletext conveniently

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

To resume

HOLD

Reveal hidden words e.g. quiz page answers

Re-hide

Hold

Reveal hidden data

Page 20

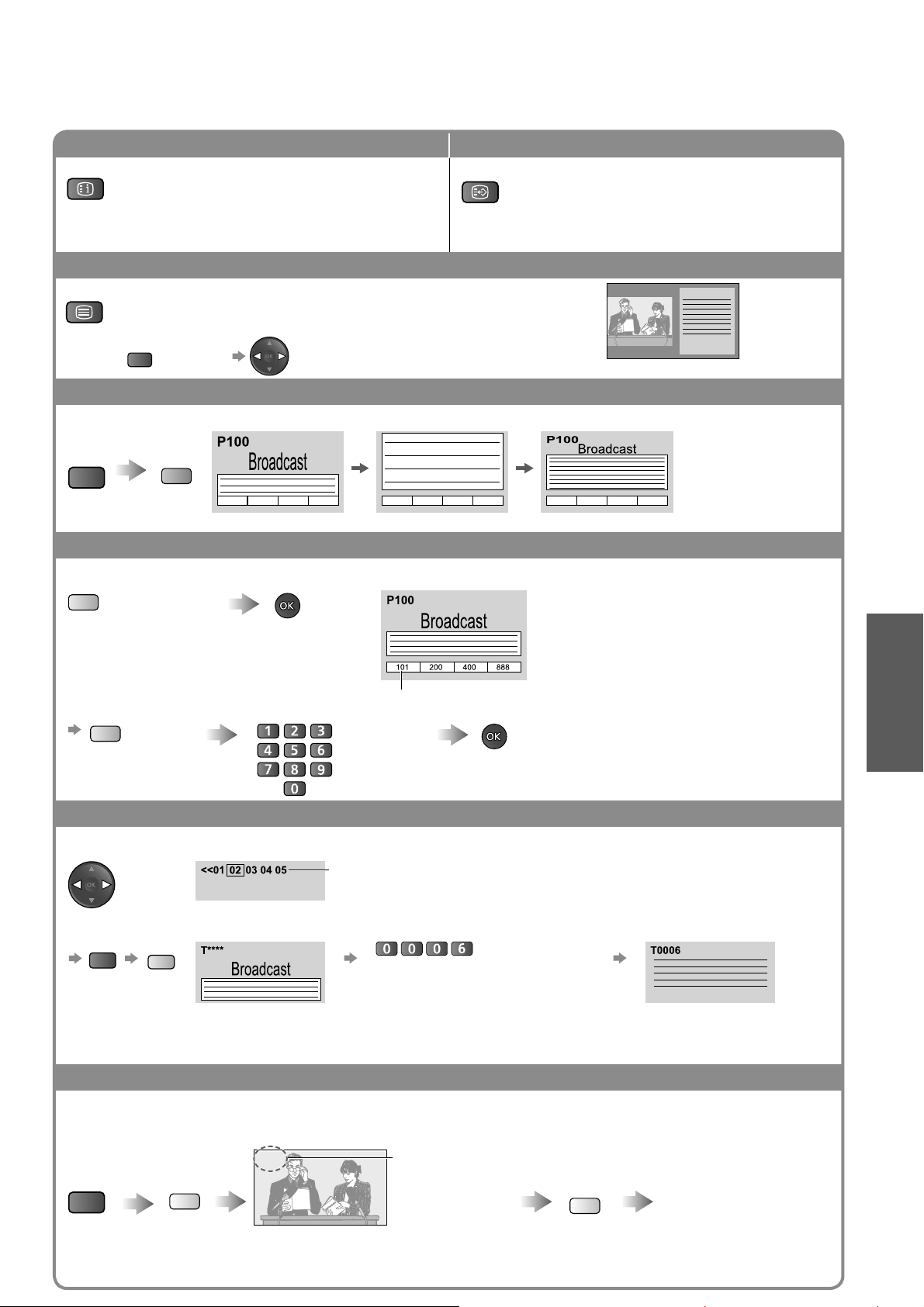

Using teletext conveniently

INDEX Call up Subtitles

INDEX

Return to the main index page Display subtitles

TEXT

Watch TV and Teletext in two windows at once

Operations can be made only in Teletext screen.

●

Select Picture and text On or Off

(Press twice)

STTL

Call up P801 (subtitle page) if available.

●

If you press this button during P801 is displayed, teletext mode will be cancelled and return to TV.

View in multiwindow

FULL / TOP / BOTTOM

(TOP)

(Expand the TOP half)

(Expand the BOTTOM half)

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

Corresponding colour button

(As page is displayed)

To change stored pages

Colour button you want to change

press and hold

Enter new page number

The number changes to white.

press and hold

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of the screen

Normal (FULL)(BOTTOM)

Viewing Teletext

Basic

To view specific sub page

Sub pages:

●

example: P6

Enter the 4-digit number

The number of sub pages varies depending on the broadcasters. It may take some time for searching, during which time you can watch TV.

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Appears when updating is completed

The news page provides a function that indicates arrival of latest news (“News Flash”).●

P108

Changes to TV screen temporarily

(You cannot change the programme.)

View the updated page

Page 21

Watching Videos and DVDs

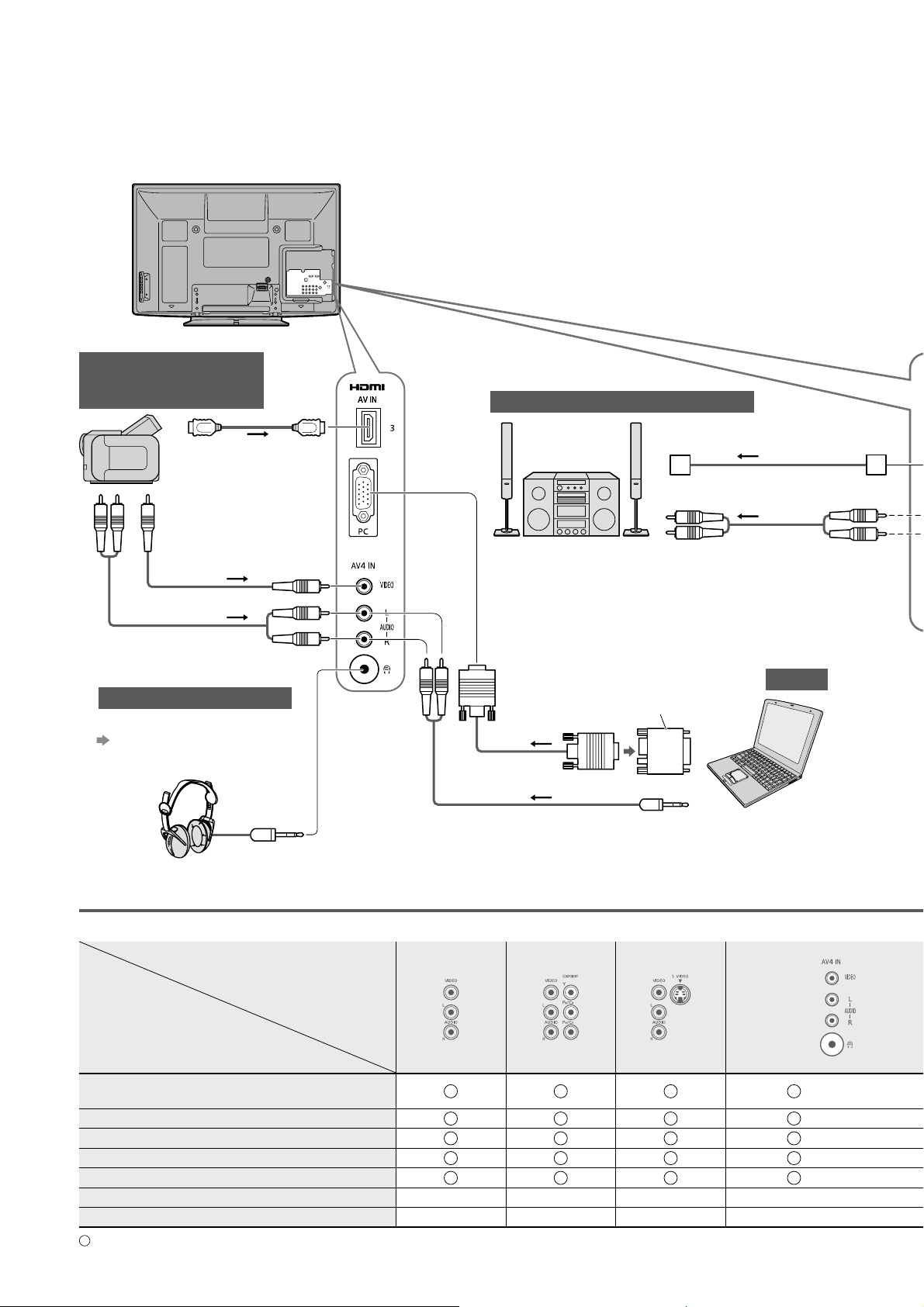

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.

To connect the equipment p. 11

●

You can operate some functions of selected Panasonic external equipment with this remote control.

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

Display the input select menu

Select the input mode of the connected equipment

Input Selection

AV1

AV2

AV3 AV4 PC HDMI1 HDMI2 HDMI3 TV

You can also select the input using the AV button on the remote control or

●

the side panel of the TV. Press the button repeatedly until the desired input is selected.

●

You can label or skip each input mode “Input Labels” (p. 26)

watch

select

View

Displays the selected mode

REC

To return to TV

Note

If the external equipment has an aspect adjustment function, set to “16:9”.

●

For details, see the manual of the equipment or ask your local dealer.

Page 22

Panasonic equipment connected to the TV can be directly operated with the remote control.

POWER

PROGRAMME

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD: Skip to the previous track or title

Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD: Skip to the next track or title

Press and hold to search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

Programme Up / Down

Select programme

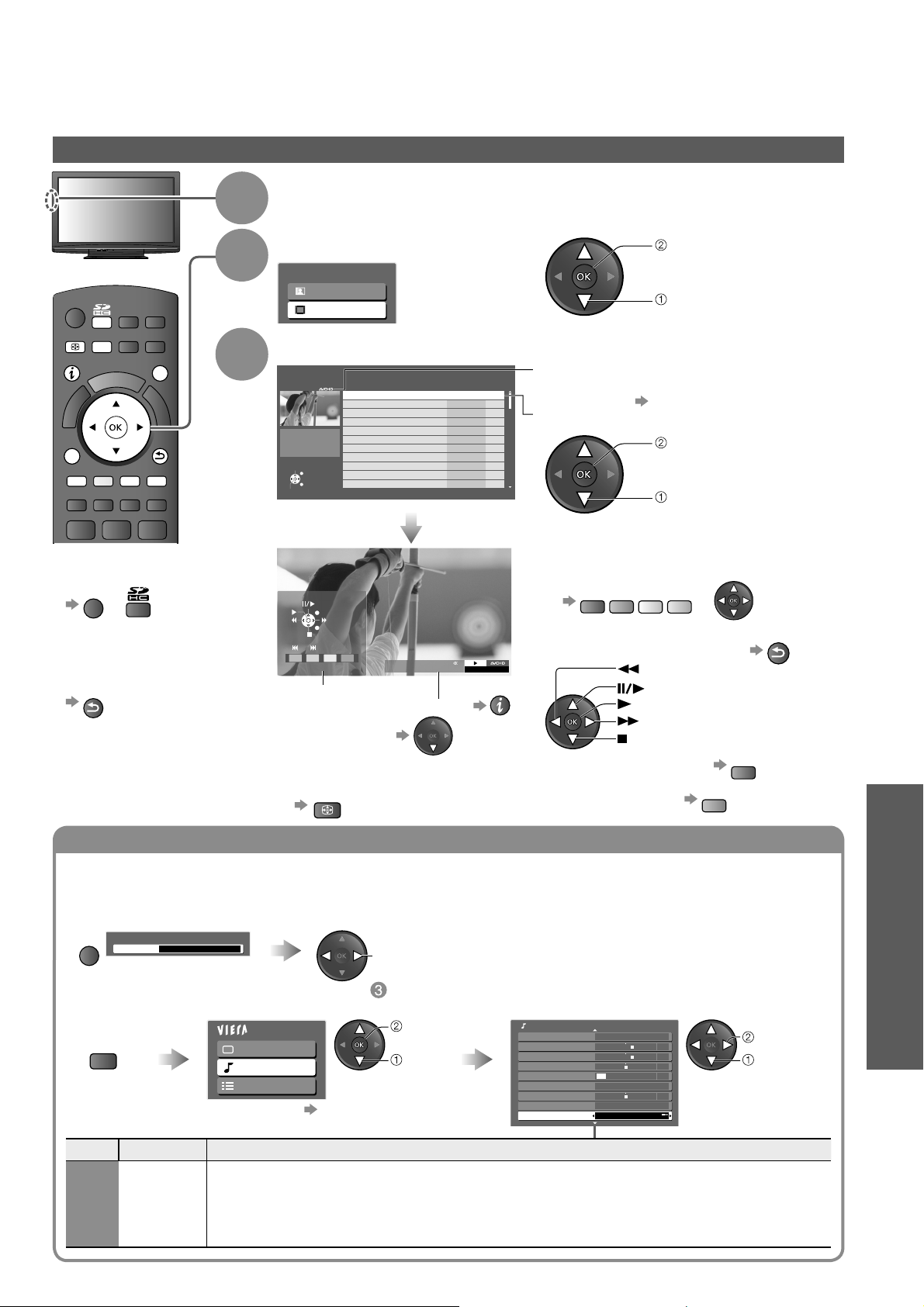

Watching Videos and DVDs

REC

How to change the code for each equipment

Each type of Panasonic equipment has its own remote control code. Please change the code for each equipment you want to operate. Press and hold

Enter the appropriate code See table below

VIERA Link compatible equipments

Note

Confirm if the remote control works correctly after changing the code.

●

The codes will be reset to default values if batteries are replaced.

●

Some operations may not be possible on some equipment models.

POWER

during the following operations

DVD Recorder / DVD Player 70 (default)

Player theatre / Blu-ray Disc theatre 71

Record

Start recording

Press

Type of equipment Code

VCR 72

“VIERA Link Control” (p. 38) 73

Basic

Page 23

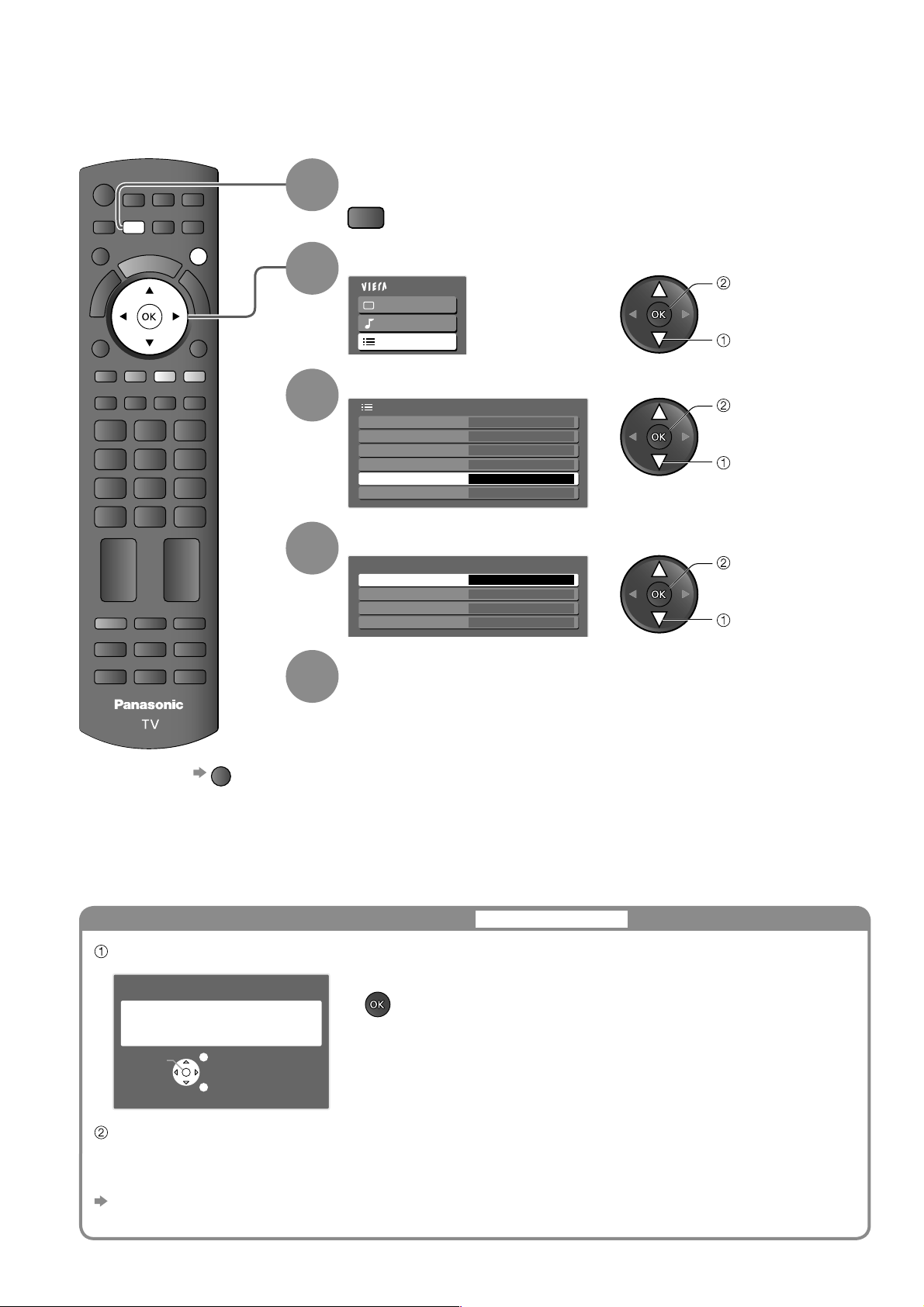

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

POWER

ASPECT

OPTION

R B

STTL INDEX

TEXT

MUTE

POWER

PROGRAMME

INPUT

SURROUND

OFF TIMER

EXIT

RETURN

HOLD

REC

1 2

Display the menu

Displays the functions that can be set (varies according to

●

the input signal)

Select the menu

Main Menu


Sound

Setup

(example)

Select the item

Picture Menu

Viewing Mode

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Normal Colour Management On

x.v.Colour Auto

Normal

Adjust or select

Picture Menu

Viewing Mode

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Normal Colour Management On

x.v.Colour Auto

Normal

1/2

(example)

1/2

access

select

change

store or access

( Required by some

functions)

To return to TV at any time

EXIT

To return to the previous screen

RETURN

To change menu pages

down

(example)

Choose from among alternatives To reset the settings

To reset the picture settings only

Number and positions of alternatives

Colour Balance Normal

●

“Reset Picture Defaults”

in Picture Menu (p. 24)

Changed

To reset the sound settings only

Adjust using the slide bar

Sharpness

Moved

Go to the next screen

Digital TV Tuning Menu Access

Displays the next screen

●

“Reset Sound Defaults”

in Sound Menu (p. 25)

To reset all settings

●

“Shipping Condition” (p. 32)

in Setup Menu

Enter characters by free input menu

User input

Name

A BCDEF G HI JKLMN

VWXYZ 0123456

abcdefghijk lmn

xyz()+- .*_

uvw

To delete a character 

● To delete all characters 

PQRST

89!:#

opqrst

select

set

●

RETURN

Store

Every press changes the character by one. Leave it for a second to set the character, or press OK or any numeric button within a second. See the table below for the corresponding characters for each numeric button.

Numeric buttons Characters Numeric buttons Characters

1 . 1 ! : # + - * _ ( ) 6 m n o 6 M N O 2 a b c 2 A B C 7 p q r s 7 P Q R S 3 d e f 3 D E F 8 t u v 8 T U V 4 g h i 4 G H I 9 w x y z 9 W X Y Z 5 j k l 5 J K L 0 Space 0

Page 24

)

Overview

Main Menu


Sound

Setup

Picture Menu

Viewing Mode

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Normal Colour Management On

x.v.Colour Auto

Eco Mode Off

P-NR Off

3D-COMB On

Reset Picture Defaults Reset

Sound Menu

Mode Music

Bass

Treble

Balance

Headphone Volume

Surround Off

Volume Correction

Speaker Distance to Wall MPX Stereo

Sound Menu

Digital Audio Preference

SPDIF Selection Auto

MPEG Optical Level 0 dB

HDMI1 Input Digital

Reset Sound Defaults Reset

Setup Menu

Off Timer Digital TV Tuning Menu

Analogue TV Tuning Menu Display Settings

VIERA Link Settings

System Menu

Other Settings

Normal

Over 30cm

MPEG

Off Access

Access

1/2

2/2 Picture Menu

(p. 24)

1/2

2/2

(p. 24, 25)

(p. 25)

Digital TV Tuning Menu

Favourites Edit

Channel List

Auto Tuning

Manual Tuning

Update Channel List

New Channel Message On Signal Condition Add MPEG-4 AVC Channels

Analogue TV Tuning Menu

Channel List Access

Auto Tuning

Manual Tuning

Display Settings

Teletext

Side Panel Input Labels

Banner Display Timeout

Playing Time Display

VIERA Link Settings

VIERA Link

Power on Link Off

Power off Link On

Standby Power Save Off

Intelligent Auto Standby

Access

Access Access

Access

TOP

High Access

3 seconds

Access

Off

(p. 30)

. 25

(p. 39)

How to Use Menu Functions (Picture, sound quality, etc.)

System Menu

Shipping Condition

System Update

Software Licence

System Information

Access

Advanced

(p. 25)

Other Settings

Intelligent Frame Creation

Power Save

Picture Overscan

Region Select Daylight Saving Time

Off

NSW / ACT Auto

(p. 25)

Depending on the received signals, available items are varied.●

Page 25

How to Use Menu Functions

Menu list

Menu Item Adjustments / Configurations (alternatives)

Basic picture mode (Dynamic / Normal / Cinema / Game)

Viewing Mode

Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance

Colour Management

x.v.Colour


Eco Mode

P-NR

3D-COMB

Reset Picture Defaults

Mode

Bass Treble Balance Headphone Volume

Surround

Volume Correction

Speaker Distance to Wall

Sound

MPX

Digital Audio Preference

SPDIF Selection

Dynamic : Normal : Recommended for viewing under normal ambient room lighting conditions Cinema : For watching movies in a darkened room producing a cinema-like picture Game

Set for each input signal

●

Increases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

For NTSC or Component / HDMI input signal reception only●

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal

●

Increases the colour gradations (Off / Auto) This is effective when watching HD moving pictures with extended gamut (xvYCC) from external equipment.

HDMI input mode or Movie View Mode (p. 37) only

●

Adjusts picture settings automatically dependent on ambient lighting conditions (Off / On)

Picture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture (Off / Min / Mid / Max)

Not valid on PC signal

●

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen Set to “On” to display sharper and more accurate colours (Off / On)

For PAL or NTSC signal reception only

●

Not valid on S-Video, Component, PC, HDMI and SD Card

Press the OK button to reset the present Picture Menu to the default settings

Basic sound mode (Music / Speech)

Set for each input signal

●

Increases or decreases level to enhance or minimise lower, deeper sound output

Increases or decreases level to enhance or minimise sharper, higher sound output

Adjusts volume level of right and left speakers

Adjusts the volume of the headphones

Surround sound settings (Off / V-Audio / V-Audio Surround) V-Audio: Provides a dynamic enhancer to simulate improved spatial effects V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate improved spatial effects

Switching is also possible by the Surround button on the remote control (p. 10).●

Adjusts volume of individual channel or input mode

Adjusts the low frequency sound (Over 30cm / Up to 30cm)

Over 30cm: Recommended when the back space between the TV and wall is over 30 cm.

●

Up to 30cm: Recommended when the back space between the TV and wall is within 30 cm.

Selects stereo / monaural (Mono / Stereo) (p. 46)

Normally: Stereo

●

Stereo signal cannot be received: Mono

●

M1 / M2: Available while mono signal is transmitted

●

Analogue TV mode only

Selects the initial setting for Audio tracks (Dolby D / MPEG) If programme has both Dolby Digital and MPEG audio tracks, priority is given to what you select Dolby D: A method of coding digital signals developed by Dolby Laboratories. Apart from

MPEG: An audio compression method that compresses audio to small size without any

Digital TV mode only

●

Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal (Auto / PCM) Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM: Dolby Digital is output as PCM. MPEG is output as PCM.

Digital TV mode only

●

Provides enhanced picture contrast and sharpness when viewing in a bright room

: Game playing time is displayed only when connecting a game equipment.

stereo (2ch) audio, these signals can also be multi-channel audio.

considerable loss of audio quality.

Page 26

Menu Item Adjustments / Configurations (alternatives)

You can adjust the audio level of MPEG output from DIGITAL AUDIO OUT terminal as

MPEG Optical Level

HDMI1 / 3 Input

Sound

Reset Sound Defaults Off Timer

Favourites Edit Channel List

Auto Tuning

Manual Tuning Update Channel List New Channel Message

Signal Condition

Tuning Menu

Add MPEG-4 AVC Channels

Teletext

Side Panel

Input Labels Banner Display

Timeout Playing Time

Display Settings

Display

VIERA Link

Power on Link

Setup

Power off Link

Standby Power Save

Intelligent Auto

VIERA Link Settings

Standby Shipping Condition

System Update

Software Licence

System Information

System

Intelligent Frame Creation

Power Save

Picture Overscan

Other Settings

Region Select

Daylight Saving Time

A different menu will be displayed while PC, DVI to HDMI adapter cable or SD Card is used. (p. 33 - 37)

●

Only available items can be selected.

the initial setting

0dB to -12dB in -2dB reductions

●

Digital TV mode only

Select to fit the input signal (Digital / Analogue) (p. 48) Digital: HDMI cable connection Analogue: HDMI-DVI adapter cable connection

HDMI input mode only

●

HDMI2 terminal is for digital signal only

●

No setting for HDMI2 available

Press the OK button to reset the present Sound Menu to the default settings

Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 15)

Creates list of favourite channels (Digital TV mode) (p. 29)

Skips the unwanted channels (p. 29)

Sets all Digital TV or Analogue TV channels automatically (p. 30)

Sets the TV channels manually (p. 31)

Update the channel list (Digital TV mode) (p. 31)

Displays a message when new Digital TV channels are found. (Off / On) (p. 31)

Checks the Digital TV signal condition (p. 31)

Activates the reception of MPEG-2 and MPEG-4 AVC channels

Use this function if MPEG-4 AVC services start in your area.

●

All previous tuning settings are erased.

●

Once activated, this option is removed from the Digital TV Tuning Menu.

Teletext display mode (TOP (FASTEXT) / List) (p. 18)

Increases the brightness of the side panel (Off / Low / Mid / High)

The recommended setting is “High” to prevent panel “image retention”.

●

Labels or skips each input mode (p. 26)

Sets how long the information banner stays on screen from 0 (No display) to 10 sec. in 1-sec. increments

Displays the length of time in every thirty minutes for playing game (Off / On)

When “Viewing Mode” is set to “Game”

●

Sets to use VIERA Link functions (Off / On)

VIERA Link functions become available when “VIERA Link” is set to “On”.

●

Sets to use Power on Link functions (Off / On) (p. 39)

Sets to use Power off Link functions (Off / On) (p. 39)

Controls the power consumption in Standby mode of the connected equipment to reduce the consumption (Off / On) (p. 39)

Makes unwatched or unused connected equipment go into Standby mode to reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 39)

Resets all settings, for example, when moving house (p. 32)

Downloads new software to TV (p. 27)

Displays the software licence information

Displays the system information of this TV

Automatically compensates the picture frame rate to make the image smooth (Off / On)

Set to “Off” if noise is generated on the screen.

●

Reduces brightness of picture to minimise power consumption (Off / On)

Selects the screen area for displaying the image (Off / On) On: Enlarges the image to hide the edge of the image. Off: Displays the image in the original size.

Set to “On” if noise is generated on the edges of the image.

●

This function is available when aspect is set to “16:9”.

●

This function can be memorized separately for SD (Standard Definition) and HD (High Definition) signals.

Selects the region where you live to adjust the standard time (NSW / ACT / Victoria /

Queensland / South Australia / Western Australia / Northern Territory / Tasmania)

Select time offset from the standard time for Summer Time (Auto / Off / +1/2 hour / +1 hour) (p. 15)

Set to “Auto” normally

●

How to Use Menu Functions (Picture, sound quality, etc.)

Advanced

(p. 15)

Page 27

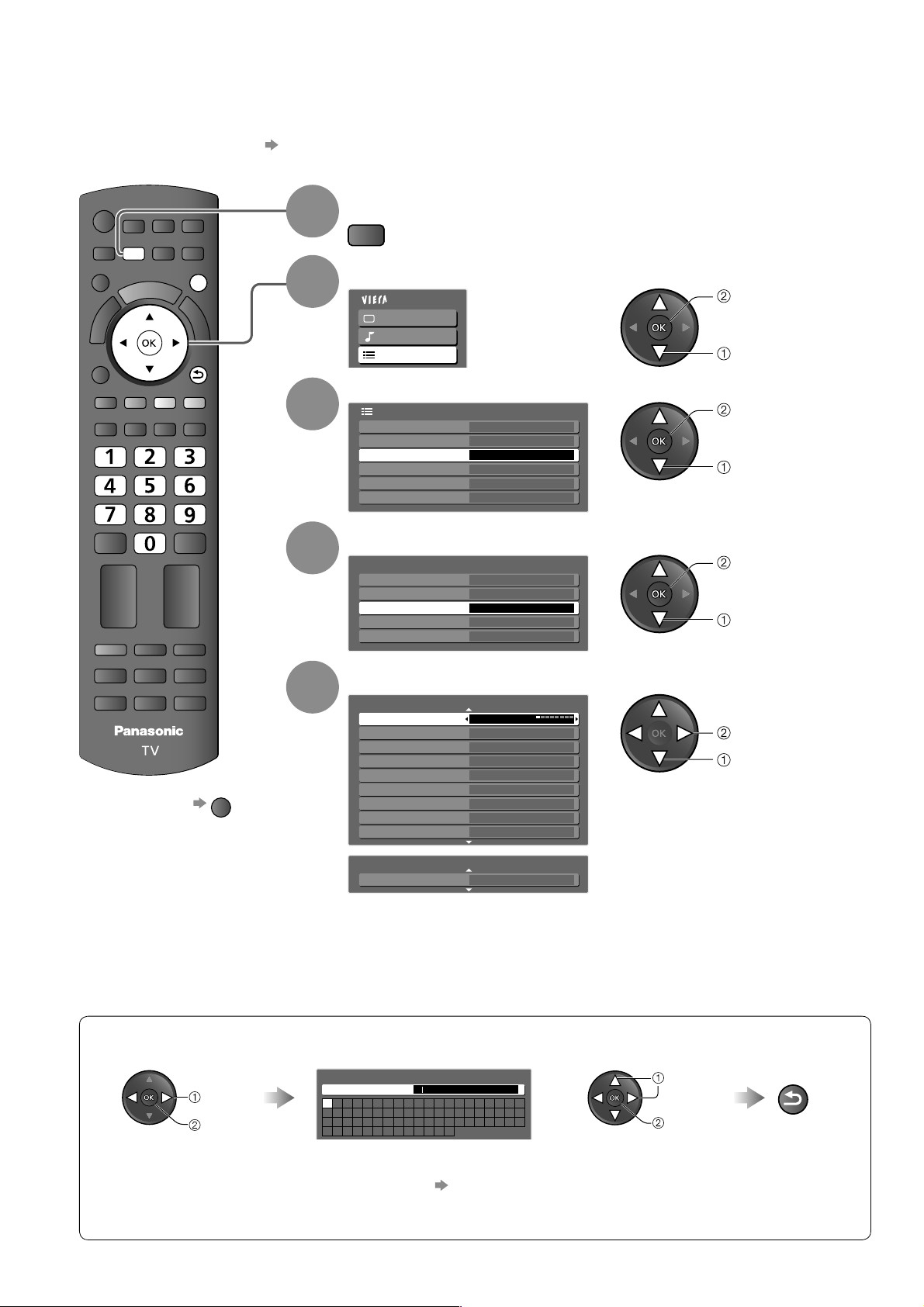

Input Labels

For easier identification and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment.

To select the input mode p. 20●

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Display Settings”

Setup Menu

Off Timer

Digital TV Tuning Menu

Display Settings

VIERA Link Settings

System Menu

Other Settings

Off

Access

Select “Input Labels”

Display Settings

Teletext

Side Panel

Input Labels

Banner Display Timeout

Playing Time Display

TOP

High

Access

3 seconds

access

select

access

select

access

select

REC

EXIT

To return to TV

User input

You can name each input terminals freely.

User input

select

access

Select “User input”

Name

ABCDEFG HIJKLMN UVW

cdefghi j k lmn

ab uvwxyz ()+-. * _

(maximum: ten characters) You can set characters by using numeric buttons. p. 22

Select an input terminal and set

Input Labels

AV1 AV1

AV2 AV2

AV3 AV3

AV4 AV4

PC PC

HDMI1 HDMI1

HDMI2 HDMI2

HDMI3 HDMI3

Digital TV Digital TV

Input Labels

Analogue TV Analogue TV

The labels you set will be displayed in “Input Selection” menu (p. 20) or banner.

If “Skip” is selected, you cannot select the mode.

●

X Y Z 01234 56

OPQ RS T

89!:#

p q r st

1/2

2/2

Set characters

select

set

select

RETURN

Store

Page 28

Digital TV Settings

Digital TV Settings provide access to various advanced features.

POWER

ASPECT

OPTION

R G Y B

TEXT

MUTE

POWER

To return to TV

STTL

INPUT

OFF TIMER

HOLD

INDEX

SURROUND

PROGRAMME

REC

EXIT

RETURN

EXIT

2 3

If in Analogue TV mode

Select Digital TV mode

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Off Timer Digital TV Tuning Menu Display Settings

VIERA Link Settings

System Menu

Other Settings

Off

Access

Select “System Update”

System Menu

Shipping Condition

System Update

Software Licence

System Information

Access

Set

access

select

access

select

Update TV’s software system

Download new software to TV.

For details

●

If System Update is performed, the software will be updated. It may change TV functions. If you do not wish to do so, set “Auto Update Search in Standby” to Off.

Select “Auto Update Search in Standby” and then set “On” or “Off”

System Update

Auto Update Search in Standby

System Update Search Now

p. 46

set select

System Update

On: Automatically performs a search in

●

standby and downloads an update, if any software updates are available

Note

When the TV is switched to standby, there will be a clicking sound after a short delay. Similar clicking sounds

●

will also occur at 3:00 AM and 5:00 AM (p. 46) when “Auto update Search in Standby” is set to “On”. These sounds are normal.

To update immediately

Select “System Update Search Now”

start

select

Searches for an update (for several minutes.) and displays a corresponding message if any

Download

Download may take

●

for about 1 hour.

Note

During downloading, the TV will display a blank screen for 40 to 50 seconds. Do not interrupt the TV during

●

this procedure.

Input Labels

Digital TV Settings

Advanced

Page 29

Editing Channels

You can make your favourite channel lists, skip unwanted channels, etc.

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

REC

1 2

Select Digital TV or Analogue TV

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

Select “Digital TV Tuning Menu” or “Analogue TV Tuning Menu”

Setup Menu

Off Timer

Digital TV Tuning Menu

Display Settings

VIERA Link Settings

System Menu

Other Settings

Off Access

access

select

Select “Favourites Edit” or “Channel List”

Digital TV Tuning Menu

Favourites Edit

Channel List

Auto Tuning

Manual Tuning Update Channel List

New Channel Message On

Signal Condition

Access

access

select

To return to TV

EXIT

Set

Page 30

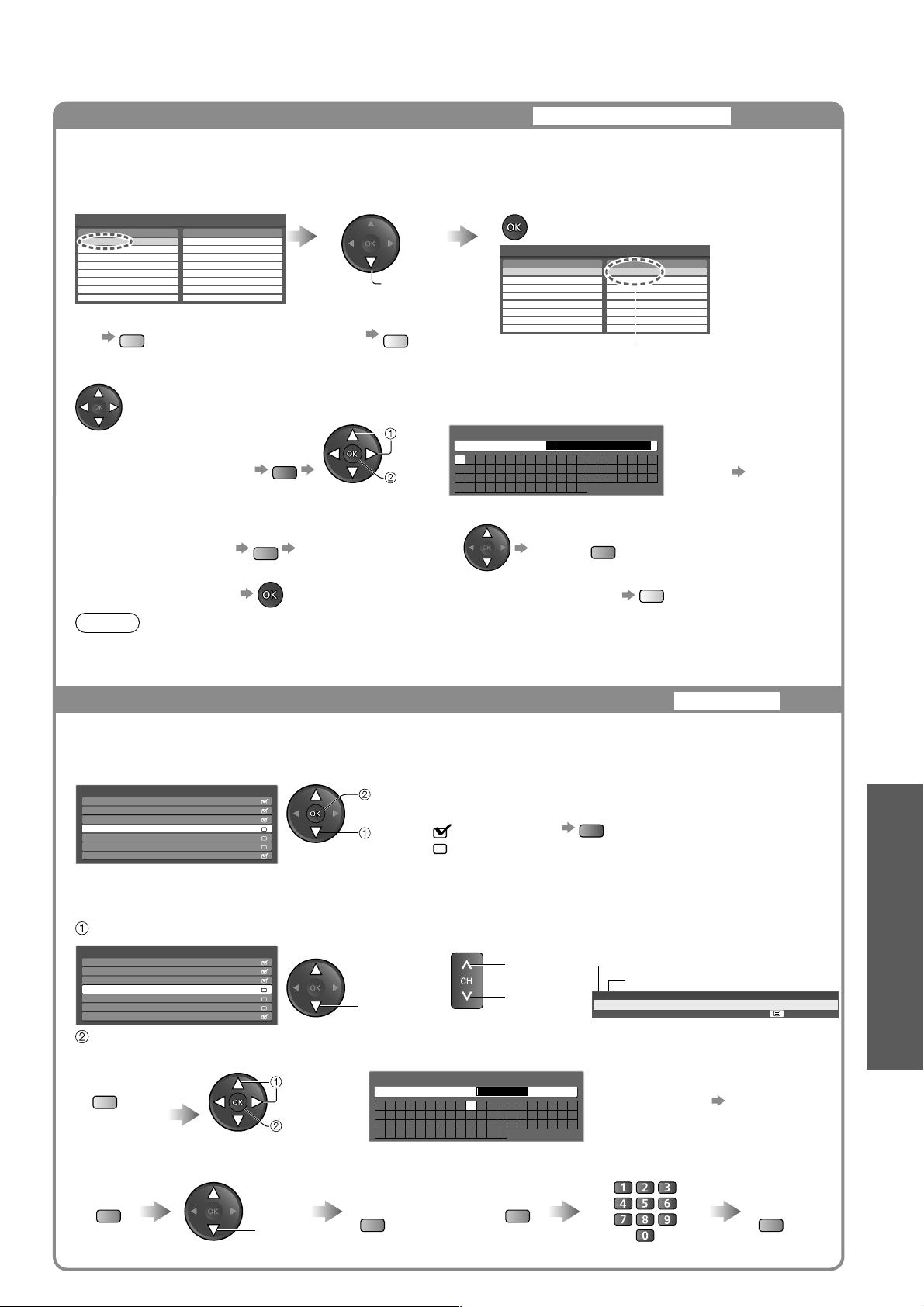

List favourite channels (Digital TV mode)

Digital TV Favourites Edit

Create your favourite channel list (Favourites) from various broadcasters (up to 4: Favourites1 to 4). The list is added to “Favourites” list in TV Guide (p. 17) and information banner (p. 15) and then easily accessed.

Select a channel and add it to the list

Digital TV Favourites Edit

All Digital TV Channels

TEN Digital

ABC TV Sydney2

SBS DIGITAL 13

FTV guide4

7 Digital7

NINE DIGITAL9

7 HD Digital70

7 Guide77

To display another List

Favourites1

select

To add all channels

●

to the list

Digital TV Favourites Edit

All Digital TV Channels

TEN Digital

ABC TV Sydney2

SBS DIGITAL 13

FTV guide4

7 Digital7

NINE DIGITAL9

7 HD Digital70

7 Guide77

Favourites1

TEN Digital1

A channel is added

To edit List

Select the field of List to edit and:

User input

Name

ABC DE FG H I JKLMN U VWXYZ 0123456

c d efghi jklmn

ab uvwxyz ()+-.*_

78 op

QRST 9!:# qrst

You can set characters by using numeric buttons. p. 22

To name the Favourites

select

R ●

set

Set characters

To move the channel G Select the new position Confirm G ●

To delete the channel ●

To delete all channels Y ●

Note

Channel numbers are defined by the broadcaster and cannot be changed.

●

Hidden channels (see below) can be selected but not viewed.

Skip unwanted channels / Edit channels (Change name, Move)

You can hide unwanted channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and add / delete

Digital TV Channel List

CBBC Channel Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales BBC THREE

add / delete

select

:add :delete (skip)

You can edit channels.

If a VCR is connected only with the RF cable, edit “VCR”. (Analogue TV mode)

●

Select a channel to edit

Digital TV Channel List

CBBC Channel

Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

BBC THREE

select

Page up

Page down

Edit

To change the displayed name when selecting channels (Only in Analogue TV mode)

Select “Rename”

select

set

Set characters

Edit channel name

Name

ABCDE F G HIJ K LMN U

VWXYZ 0 1 2 3 456 abcdefgh i jk l m n u

v wxy z ()+-. *_

(maximum: five characters)

To move channel position To swap channels

To retune each channel (Manual

●

Tuning) (p. 31)

Channel position

Name

3 FTP

CH05 Coronation StreetPAL

You can set characters by using

O P QRS T 789 opq

numeric buttons. p. 22

!:# r st

Channel List

Editing Channels

Advanced

Store

select

For Analogue TV Channels For Digital TV channels

Page 31

Tuning Channels

You can retune all the TV channels when moving house or search for new channels which may have recently started broadcasting.

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

REC

1 2 3

Select Digital TV or Analogue TV

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Digital TV Tuning Menu” or “Analogue TV Tuning Menu”

Setup Menu

Off Timer

Digital TV Tuning Menu

Display Settings

VIERA Link Settings

System Menu

Other Settings

Off Access

Select a function

Digital TV Tuning Menu

Favourites Edit

Channel List

Auto Tuning

Manual Tuning

Update Channel List

New Channel Message On

Signal Condition

Access

access

select

access

select

access

select

To return to TV

EXIT

For Auto Tuning, using the buttons on the side panel of the TV (p. 9)

Press repeatedly until “Auto

Tuning” appears

Access “Auto Tuning”

Start “Auto Tuning”

To return to TV ●

Set

Set all Digital TV or Analogue TV channels automatically

Digital TV Auto Tuning or Analogue TV Auto Tuning

Automatically retune all Digital TV or Analogue TV channels received in the area.

Only Digital TV channels are retuned in Digital TV mode.

●

Only Analogue TV channels are retuned in Analogue TV mode.

Start Auto Tuning Settings are made automatically

Digital TV Auto Tuning

All digital TV tuning data will be erased

Start Auto Tuning

●

All the previous tuning settings are erased.

●

When the operation is completed, the channel at channel position “1” will

EXIT

RETURN

be displayed.

●

Search begins in the order from the lower channels to the higher channels. Channels received during this process are added to the list. (p. 31)

●

If tuning has not been done completely “Digital TV Manual Tuning”, “Analogue TV Manual Tuning” (p. 31)

Digital TV Auto Tuning

Scan CH 6 69

This will take about 3 minutes.

RF Ch Channel Name Type Quality

CBBC Channel Digital TV 10 62 BBC Radio Wales Digital TV 10 62 E4 Digital TV 10 62 Cartoon Nwk Digital TV 10

Digital TV: 4

EXIT

Searching

Page 32

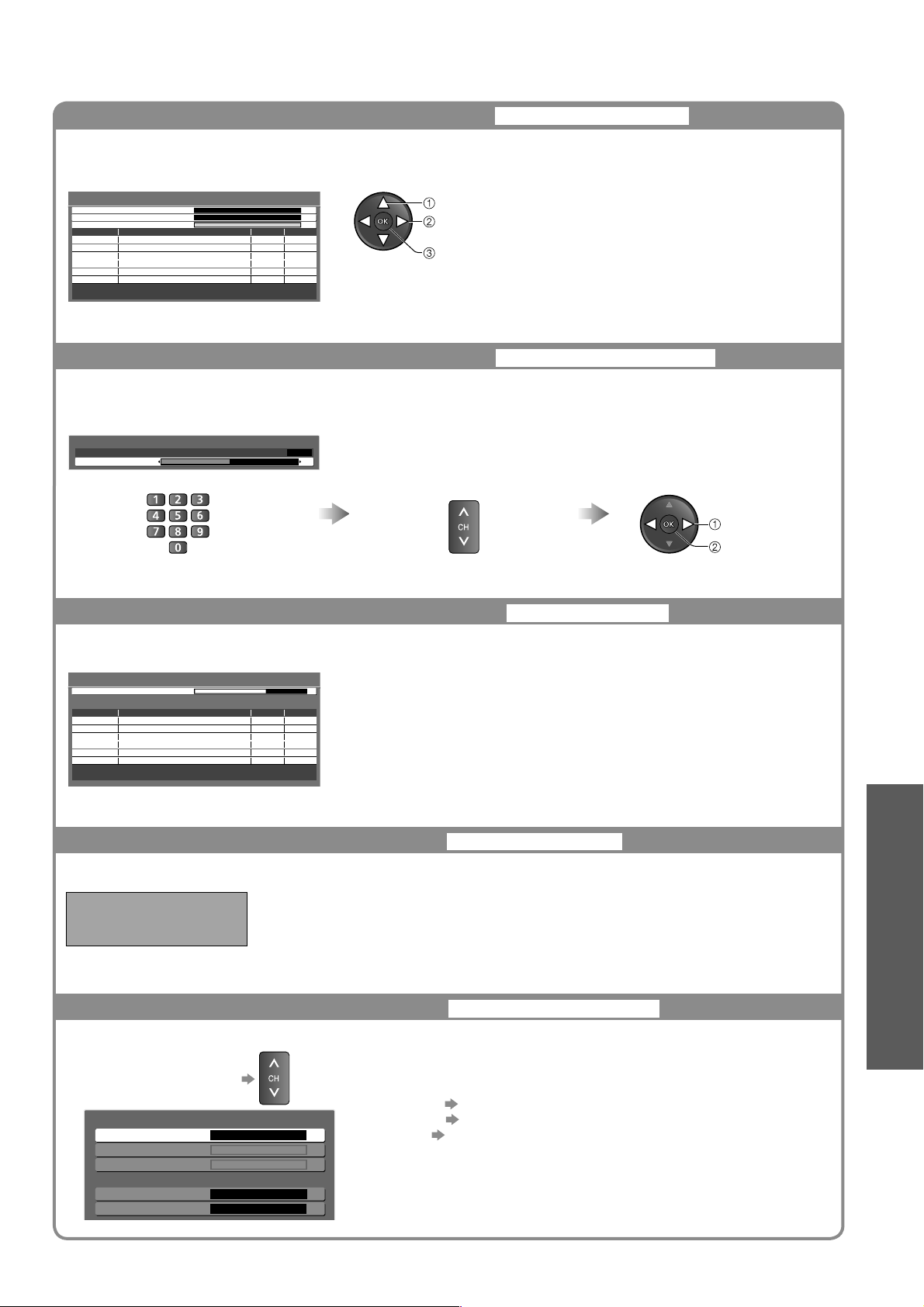

Set Digital TV channel manually

Digital TV Manual Tuning

Normally use “Digital TV Auto Tuning” or “Update Channel List” to update Digital TV channels on your channel list. If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

Digital TV Manual Tuning

Physical Channel Signal Quality 0 10

Analogue Scan 21 68 Signal Strength 0 10

No. Type New

Channel Name

Digital TV: 0

562.00[CH32]

MHz

All channels found will be added to the Digital TV Channel List.●

select physical channel adjust frequency (set where the level of

“Signal Quality” becomes the maximum)

Set Analogue TV channel manually

Analogue TV Manual Tuning

Manual Tuning

Set Analogue TV channel manually after Analogue TV Auto Tuning.

If a VCR is connected only with the RF cable, select channel position “0”.

●

Analogue TV Manual Tuning

1 BBC1

Manual Tuning 0 75

CH33 CH33

Select a channel position Select a channel Search and store

store

Update channels automatically

Update Channel List

You can add new channels, delete duplicated channels, update channel name and position automatically to Channel List.

Digital TV Update Channel List

Scan CH 6 69

Analogue Scan 21 68

This will take about 3 minutes.

Channel Name

RF Ch Type Quality

Digital TV: 0

Searching

The Digital TV Channel List is updated with the current settings

●

saved as they are.

Tuning Channels

Display a message

New Channel Message

Selects whether to give a message when new Digital TV channels are found. (Off / On)

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Check Digital TV signal

Digital TV Signal Condition

Selects a channel and checks the Digital TV signal condition.

A good Signal Strength is not an indication of suitable signal for Digital TV

To change the channel

Digital TV Signal Condition

Channel Name 101 DZFinfokanal

Signal Quality Signal Strength

0246810 Network Name RiksTV RF Parameter [CH32] 562.00MHz

●

reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

●

Yellow bar

●

Red bar

Good

Poor

Bad (Check the aerial)

Advanced

Page 33

Restore Settings

Resets the TV to its original condition, i.e. no channels tuned in. All settings (channels, picture, sound quality, etc.) are reset.

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Off Timer

Digital TV Tuning Menu

Display Settings

VIERA Link Settings

System Menu

Other Settings

Off

Access

Select “Shipping Condition”

System Menu

Shipping Condition

System Update

Software Licence

System Information

Access

access

select

access

select

access

select

REC

EXIT

To return to TV

Check the message and reset

Shipping Condition

All tuning data will be erased

Confirm

Are you sure? Are you sure?

EXIT

RETURN

Set

Restore Settings

Shipping Condition

Follow the on-screen instructions

“Auto Tuning” will automatically start when Mains power On / Off switch is next turned On. (p. 12)

●

To retune TV channels only, e.g. after moving house

“Digital TV Auto Tuning” or “AnalogueTV Auto Tuning” (p. 30)

Page 34

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

To connect PC p. 44●

POWER

ASPECT

OPTION

R G Y B

TEXT

STTL

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

To return to TV

Select the external input

Select “PC”

Input Selection

AV1 AV2 AV3 AV4

HDMI1 HDMI2 HDMI3 TV

Corresponding signals p. 48

●

If “H-freq.” or “V-freq.” is shown in red, the signals may not be supported.

access

select

PC menu setting (changed as desired)

Menu Item Adjustments / Configurations (options)

W/B High R White balance of bright red area

Advanced PC Settings


W/B High B White balance of bright blue area

W/B Low R White balance of dark red area

W/B Low B White balance of dark blue area

Gamma (S Curve / 2.0 / 2.2 / 2.5)

Reset PC Settings

Input Resolution

Clock Set to the minimum level if noise occurs

Press the OK button to reset to the default Picture settings

Switches to a wide view

VGA (640 x 480 / 852 x 480 pixels),

●

XGA (1024 x 768 / 1280 x 768 / 1366 x 768 pixels) Options change depending on signals

●

Adjusts horizontal position

and

repeatedly adjusted

Restore Settings

Displaying PC Screen on TV

Setup

Other items p. 24 and p. 25●

PC Setup

H-pos

V-pos

Clock Phase

Sync

Reset PC Settings

Adjusts vertical position

Eliminates flicker and distortion

Adjust after Clock adjustment

● Set to the minimum level if noise occurs●

PC sync signal type (H & V / SOG)

H & V : Horizontal and Vertical sync from your PC (Most common sync format)

●

SOG : Sync on Green sync from your PC

Press the OK button to reset to the default Setup settings

Advanced

Page 35

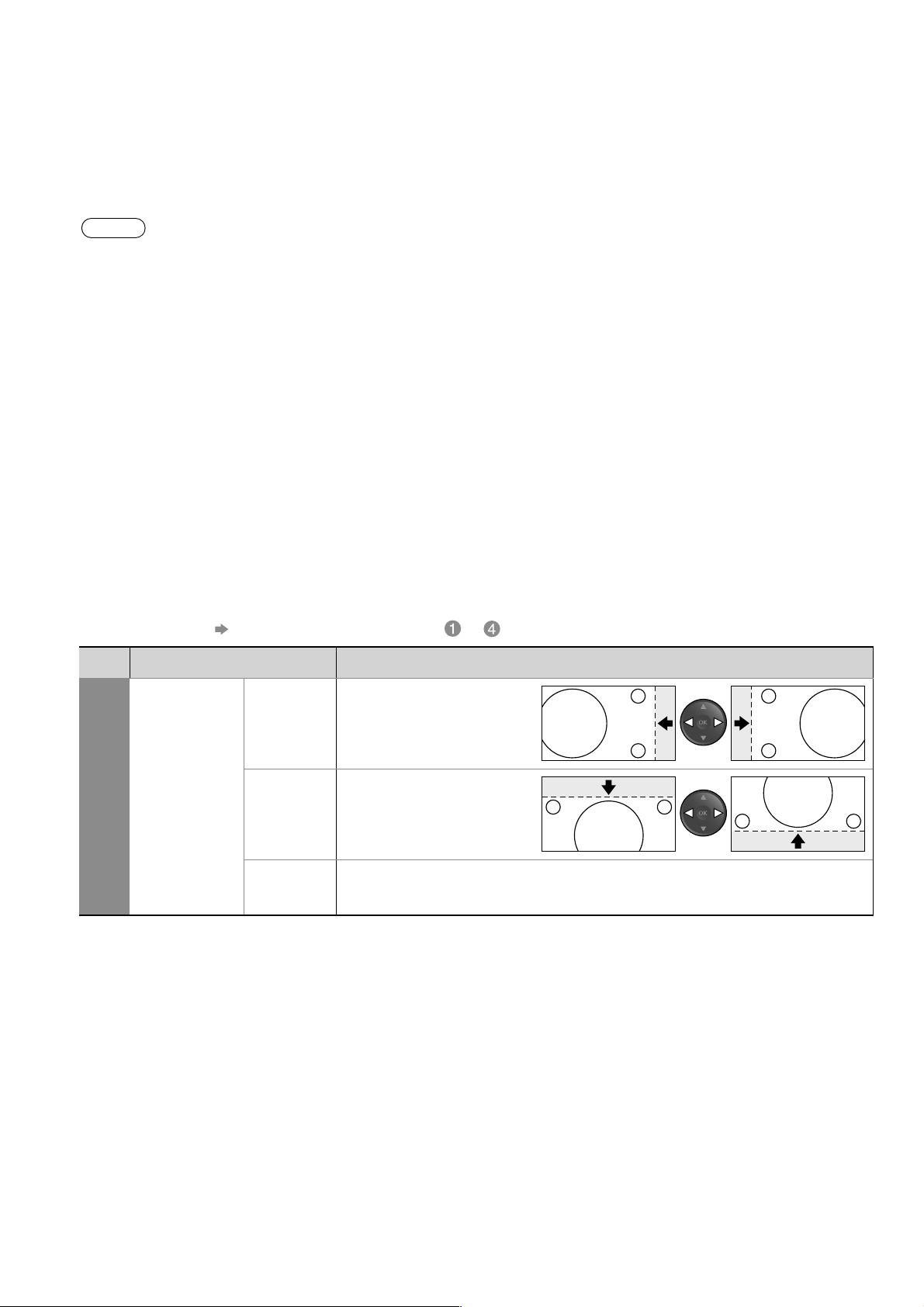

HDMI Functions

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and highquality sound by connecting the TV and the equipment. HDMI-compatible equipment (∗1) with an HDMI or DVI output terminal, such as a set top box, a DVD player or a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see “External Equipment” (p. 44).

Note

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

●

Audio settings can be made on the “HDMI1 / 3 Input” menu screen. (p. 25)

●

Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz

●

HDMI2 terminal is for digital audio signal only.

●

Use with a PC is not guaranteed. Only HDMI video formats in the HDMI table (p. 48) are applicable.

●

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

●

These HDMI connectors are “type A”.

●

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

●

An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S-VIDEO”, or “VIDEO” to receive analogue signals.

●

The HDMI input terminal can be used only with the following image signals: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.

●

For details of the applicable HDMI signals, see p. 48.

DVI connection

If the external equipment has only a DVI output, connect to the HDMI1 / 3 terminal via a DVI to HDMI adapter

●

cable (∗2).

●

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use AV2 IN AUDIO terminals / HDMI3: use AV4 IN AUDIO terminals).

DVI Position Settings

If the picture position is not fit to the screen during the DVI connection, adjust the position on “DVI Position Settings” in Setup Menu. The settings are memorized for each HDMI terminals and input signals.

To make settings “How to Use Menu Functions” to (p. 22)●

Menu Item Adjustments

Adjusts horizontal position

H-pos

DVI Position Settings

Setup

V-pos

Reset DVI Position Settings

Adjusts vertical position

Press the OK button to reset to the default Setup settings

(∗1): The HDMI logo is displayed on HDMI-compliant equipment. (∗2): Enquire at your local digital equipment retailer shop.

Page 36

Viewing from SD Card

(VIERA IMAGE VIEWER)

Photo View: Still images recorded by digital cameras will be displayed. Movie View: Moving pictures recorded by digital video cameras will be played back.

During the operation, no signals are output from any of the AV terminals. But the sound in Movie View can be

●

output from AUDIO OUT and DIGITAL AUDIO OUT terminals.

●

“Date” shows the date on which the recording was made by the digital camera or digital video camera. The file without record of the date is shown “**/**/****”.

●

For details on SD Cards p. 47

To insert SD Card To remove SD Card

Label

surface Push until a click is heard

Press the centre of the card

Photo View

POWER

ASPECT

OPTION

R G Y B

TEXT

MUTE

STTL

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

To return to TV

EXIT

1 2

Insert the SD Card

Select “Photo View”

SD Card

Photo View

Movie View

access

select

Select a folder to display the thumbnail

Photo View Mode

Folder view

Folder name

100_PANA

Number of pictures

38 pictures

Select

EXIT Select RETURN

View

1/23

200_PANA

102_PANA

101_PANA

100_PANA 38 pictures

201_PANA

7 pictures

All pictures

3 pictures

ROOM

1 picture

20 pictures

14 pictures

Nature

Fruit

14 pictures

18 pictures

(Folder view)

The files which are not in a folder will be

●

collected to the folder named “/”.

●

To display all the photos p. 36

select

thumbnail

Select a photo from the thumbnail to be viewed

Selected


Photo View Mode

Folder view 100_PANA

1/38

File name

p1010001

Date

23/10/2008

Pixel

1600 x 1200

Select

EXIT Select RETURN

View

Slideshow Sort by Month Sort by Date

Selected photo information is displayed

Error display (images that could not be loaded, etc.)

p1010004p1010003p1010002p1010001

p1010008p1010007p1010006p1010005

p1010012p1010011p1010010p1010009

(Thumbnail)

Slideshow p. 36

●

To sort by date or month recorded p. 36

select

single view

HDMI Functions

Viewing from SD Card (VIERA IMAGE VIEWER)

Advanced

To return to the previous screen

RETURN

Single view

Rotate

EXIT Select List

Rotate

Slideshow

Operation guide

(Single view)

Displayed one at a time

To display / hide the operation guide

●

To the previous photo

Rotate 90˚ (counter-clockwise)

To the next photo

Rotate 90˚ (clockwise)

To return to thumbnail

●

RETURN

Page 37

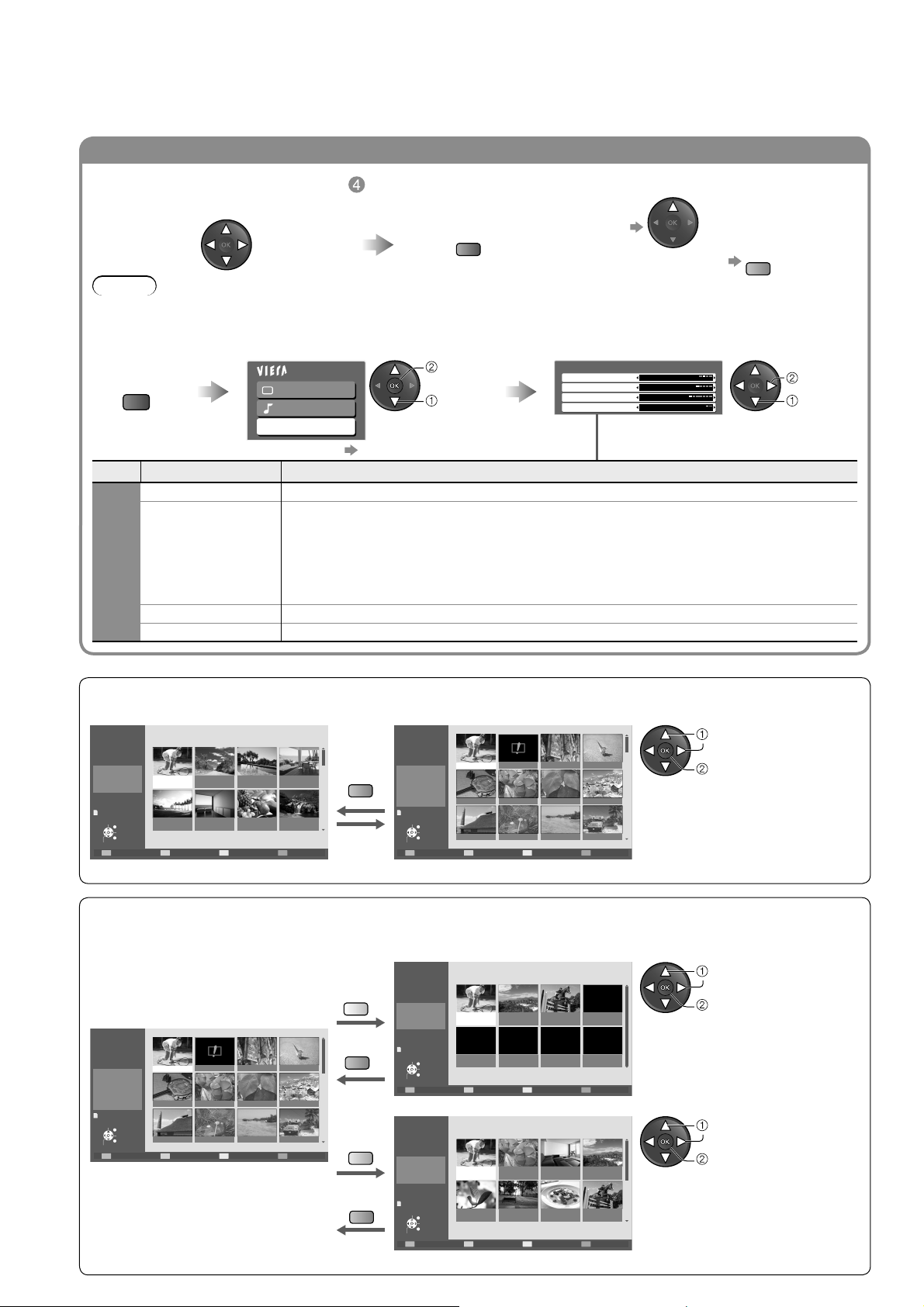

Viewing from SD Card

(VIERA IMAGE VIEWER)

Slideshow

Start Slideshow (operate in step )

Select the photo for the first view Start Slideshow

To pause

Note

Slideshow is done within the thumbnail.●

Slideshow settings (operate in Photo View Mode) Display the

Menu Item Adjustments / Configurations (alternatives)

Back Ground Music

Effect

Interval Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

Viewing Setup

Repeat Slideshow repeat (Off / On)

Select “Viewing Setup” Select the items and set

Main Menu


Sound

Viewing Setup

Other Items p. 24 - 25●

Selects the back ground music during the slideshow (Off / Type1 / Type2 / Type3) Selects the effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Random)

Fade : The next photo fades in gradually Slide : The next photo slides and appears from the left side Dissolve : The photo is replaced by an indefinite block unit Random : Selects each effect at random

access

select

●

To return to Single view

Viewing Setup

Back Ground Music Type1

Effect Off

Interval 5 seconds

Repeat Off

set

select

To display all the photos

Display the thumbnail of all the photos in SD Card.

Photo View Mode

Folder view

Folder name

100_PANA

Number of pictures

38 pictures

Select

EXIT Select RETURN

View

1/23

200_PANA

102_PANA

101_PANA

100_PANA 38 pictures

201_PANA

7 pictures

All pictures

3 pictures

ROOM

1 picture

14 pictures

Fruit

18 pictures

20 pictures

Nature

14 pictures

(Folder view)

Photo View Mode

All pictures

1/175

File name

p1010001

Date

23/10/2008

Pixel

1600 x 1200

Select

EXIT Select RETURN

View

Slideshow Folder view Sort by Month Sort by Date

(Thumbnail - All pictures)

To sort by date or month recorded

Display the list of groups sorted by the same date or the same month.

●

The group of the photos without record of the date is shown as “Unknown”.

Photo View Mode

100_PANA

Sort by Month

Month

Oct 2008

Number of pictures

18 pictures

Select

EXIT Select RETURN

View

Photo View Mode

100_PANA

Sort by Date

Date

23/10/2008

Number of pictures

5 pictures

1/3

Dec 2008

Nov 2008

Oct 2008

18 pictures

All pictures

15 pictures

5 pictures

(Sort by Month)

1/10

26/10/2008

25/10/2008

23/10/2008

5 pictures

8 pictures

5 pictures

Photo View Mode

Folder view 100_PANA

1/38

File name

p1010001

Date

23/10/2008

Pixel

1600 x 1200

Select

EXIT Select RETURN

View

Slideshow Sort by Month Sort by Date

(Thumbnail)

p1010004p1010003p1010002p1010001

p1010008p1010007p1010006p1010005

p1010012p1010011p1010010p1010009

p1010004p1010003p1010002p1010001

p1010008p1010007p1010006p1010005

p1010012p1010011p1010010p1010009

08/11/2008

3 pictures

select

single view

select

thumbnail of the

selected group

select

thumbnail of the

selected group

Select

View

EXIT Select RETURN

10/11/2008

1 picture

All pictures

20/11/2008 10 pictures

25/11/2008

1 picture

02/12/2008

2 pictures

(Sort by Date)

Page 38

Movie View

POWER

ASPECT

OPTION

R G Y B

TEXT

STTL

INDEX

INPUT

OFF TIMER

HOLD

EXIT

RETURN

To return to TV

EXIT

To return to the previous screen

RETURN

1 2

Insert the SD Card

Select “Movie View”

SD Card

Photo View

Movie View

Select the file to be viewed

Movie View Mode

Scene

Japan

Duration

00h03m01s

Select

EXIT

RETURN

Play

EXIT

RETURN

Operation guide

Title Date & Time

Trip1 12/01/2008 10:12

Trip2 12/01/2008 12:20

Trip3 12/01/2008 17:25

Trip4 12/01/2008 22:28

Nature1 09/02/2008 11:10

Nature2 09/02/2008 11:15

Nature3 09/02/2008 11:50

--- 09/02/2008 15:14

--- 09/02/2008 18:16

Date & Time

(Playback)

information banner

To return to list (stop)

●

To change aspect ratio (only for the 4:3 movie content)

ASPECT

(List)

File format

Selected file

access

select

Only AVCHD or MPEG2 is supported.

For details p. 47●

playback

select

Playback will start

To display the operation guide

●

R G Y B or

RETURN

To hide the operation guide

●

Rewind

Pause / Playback

Playback

Fast forward

Stop

To the previous movie

●

To the next movie

●

Viewing from SD Card (VIERA IMAGE VIEWER)

Audio Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal. To confirm or change the current sound status (during playback)

Display the Option menu Change the sound (if the movie has multiple audio signals)

Audio output settings (operate in step ) Display

the menu

Option Menu

OPTION

Audio Selection

Stereo

(Current sound status)

change

It may take several seconds to change the sound.●

Select “Sound” Select “SPDIF Selection” and set

Sound Menu

Mode Music

Bass

Treble

Balance

Headphone Volume

Surround Off

Volume Correction

Speaker Distance to Wall

SPDIF Selection Auto

Over 30cm

Other items p. 24 - 25●

Main Menu


Sound

Setup

access

select

Menu Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format

SPDIF Selection

Sound

Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM

: Digital output signal is fixed to PCM.

1/2

set

select

Advanced

Page 39

VIERA Link “ Control

”

Enjoy additional HDMI interoperability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 4” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI cable allow you to interface them automatically. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the

●

connected equipment’s version of HDAVI Control.

●

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

●

Please refer to individual manuals for the equipments. About applicable Panasonic equipment, consult your local Panasonic dealer.

VIERA Link features and connections

VIERA Link

Features

Channel download

Connected equipment with

VIERA Link function

DIGA

Recorder

∗

DVD Player / Blu-ray Disc

∗

Player

–––––

Easy playback Power on link – Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

∗

–– –––––

∗

–––

∗1: HDMI Connection only ∗2: HDMI and Audio out connections ∗3: available with the equipment which has “HDAVI Control 2 or later” function ∗4: available with the equipment which has “HDAVI Control 3 or later” function ∗5: available with the equipment which has “HDAVI Control 4” function ∗6: available with DIGA Recorder which has HDD ∗7: while playingback a disc ∗8: except for watching a disc

Connection

To use DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera●

HD Video Camera /

LUMIX Camera

––

–

∗

Player

theatre

∗

Blu-ray Disc

theatre

∗

Amplifier

–

∗

–––

∗

–

∗

HDMI cable

To use Player theatre / Blu-ray Disc theatre:● To use Amplifier:●

Speaker system

HDMI cable

Optical digital

audio cable

RCA cable

Player theatre / Blu-ray Disc theatre with VIERA Link function

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

Speaker system

HDMI cable

Amplifier with VIERA Link function

HDMI cable

DIGA Recorder with VIERA Link function

HDMI cable

HD Video Camera / LUMIX Camera with VIERA Link function

Optical digital

audio cable

RCA cable

Page 40

Note

This function may not work properly depending on the connected equipment.

●

For DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA function, connect to HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable.

●

For Player theatre / Blu-ray Disc theatre / Amplifier, connect to HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable and/or either the optical digital audio cable or RCA cable for audio output from the TV.

●

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized. Recommended Panasonic’s HDMI cable part number:

• RP-CDHG10 (1.0 m) • RP-CDHG15 (1.5 m) • RP-CDHG20 (2.0 m) • RP-CDHG30 (3.0 m) • RP-CDHG50 (5.0 m)

Preparations

Connect the equipment supporting VIERA Link.

●

Set up the connected equipment. Read the manual of the equipment.

●

For optimal recording, the settings of the recorder might be required. For details, read the manual of the recorder.

●

Set VIERA Link On in Setup Menu “VIERA Link” (p. 25)

●

Set up the TV After connection, turn the equipment on and then switch the TV on. Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 20), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

• for the first time / • when adding or reconnecting equipment / • when changing setup

Features available

Channel download

Channel setting can be downloaded to the recorder.

”

Easy playback

Automatic input switching - When the connected equipment is operated, input mode is switched automatically.

Power on link

Set Power on Link “On” in Setup Menu to use this function “Power on Link” (p. 25)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link “On” in Setup Menu to use this function “Power off Link” (p. 25)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters standby mode automatically by Off Timer function or auto power

●

standby function.

Reduce unnecessary power consumption in standby

Set Standby Power Save “On” in the Setup Menu to use this function “Standby Power Save” (p. 25)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with the TV On / Off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimized. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time early.

This function is effective if the connected equipment can change the power consumption in Standby mode

●

and is set to higher consumption.

Standby Power Save

VIERA Link “HDAVI Control

Advanced

Auto standby for unnecessary equipment

Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to use this function

When the TV is on, the connected equipments not in use go into Standby mode automatically to reduce the power consumption.

If you select “On (With reminder)”, the on screen message will be displayed to be noticed before working this

●

function.

“Intelligent Auto Standby” (p. 25)

Intelligent Auto Standby

Page 41

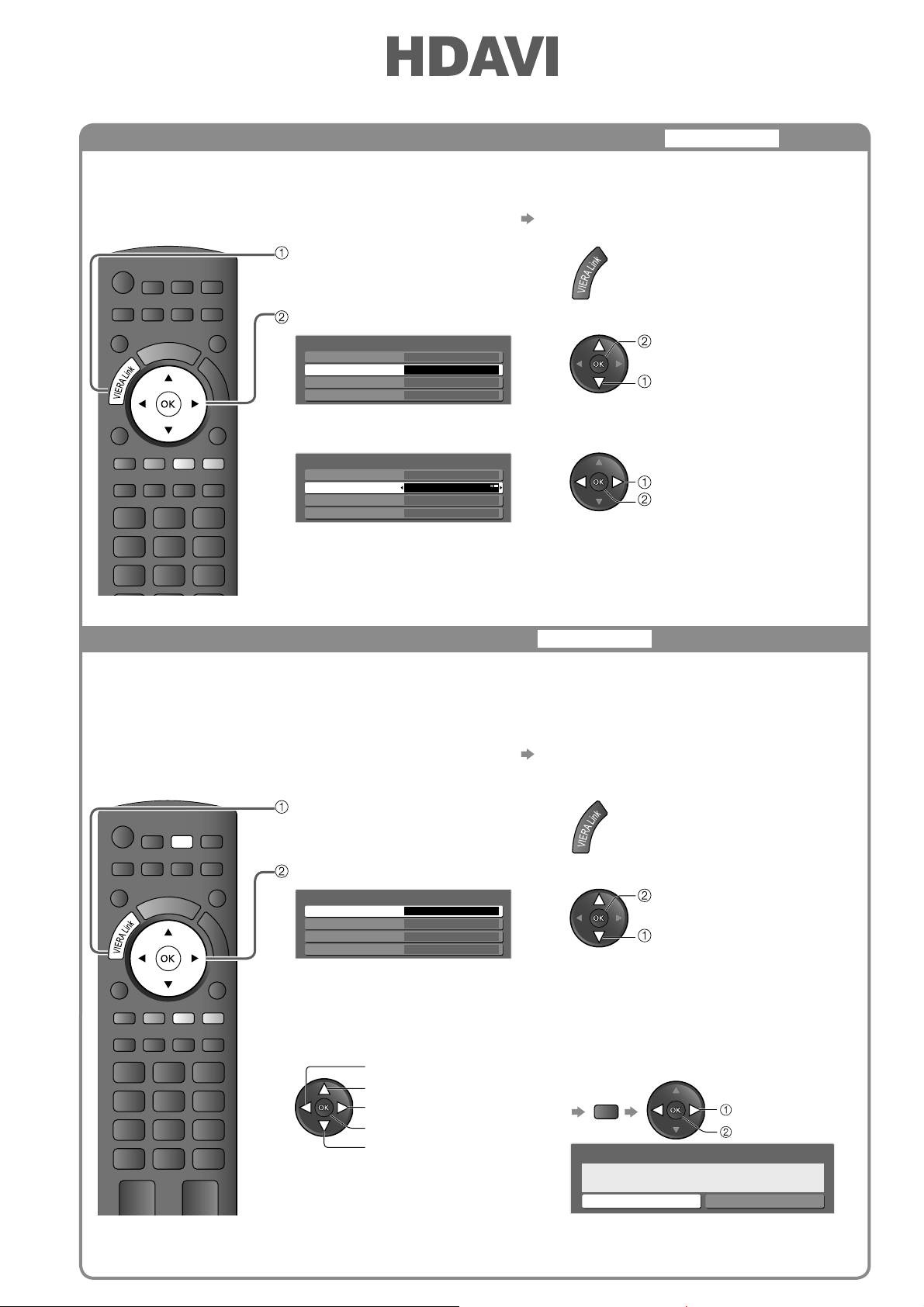

VIERA Link “ Control

Features available (Using VIERA Link Menu)

”

Direct TV Recording - What you see is What you record

Direct TV Rec

Recording the current programme in DIGA Recorder immediately.

If you connect several recorders including other manufacturers’ recorders at the same time, please connect

●

DIGA Recorder to the TV’s lower HDMI terminal number.

●

If you cannot operate, check the settings and the equipment “VIERA Link features and connections” (p. 38)

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

INDEX

INPUT

OFF TIMER

HOLD

EXIT

RETURN

Display “VIERA Link Menu”

Select “Direct TV Rec” and start recording

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

To stop recording

Select “Stop” in “Direct TV Rec” and access

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Recorder

Home Cinema

Start

Stop

Recorder

Home Cinema

start

select

select stop

Pause Live TV programme

Pause Live TV

You can pause the live TV programme and resume later. Live TV programme will be recorded on HDD of the connected DIGA Recorder.

This function is available with DIGA Recorder which has HDD.

●

If you connect several recorders including other manufacturers’ recorders at the same time, please connect DIGA Recorder which has HDD to the TV’s lower HDMI terminal number.

●

If you cannot operate, check the settings and the equipment “VIERA Link features and connections” (p. 38)

Access and pause the live TV programme

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

MUTE

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

Display “VIERA Link Menu”

Select “Pause Live TV” and pause

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Recorder

Home Cinema

TV picture will be paused.

●

Live TV programme is recorded on HDD from where it was paused.

●

Follow the operation guide to operate Pause Live TV function.

To operate Pause Live TV To return to Live TV

(stop playback of Pause Live TV / cancel pause)

search backward pause search forward

playback stop

Pause Live TV

If you stop playback or cancel pause,

●

the recorded programme will be deleted from HDD.

pause

select

Select “Yes”

Stop Pause Live TV?

Yes No

select

stop

Page 42

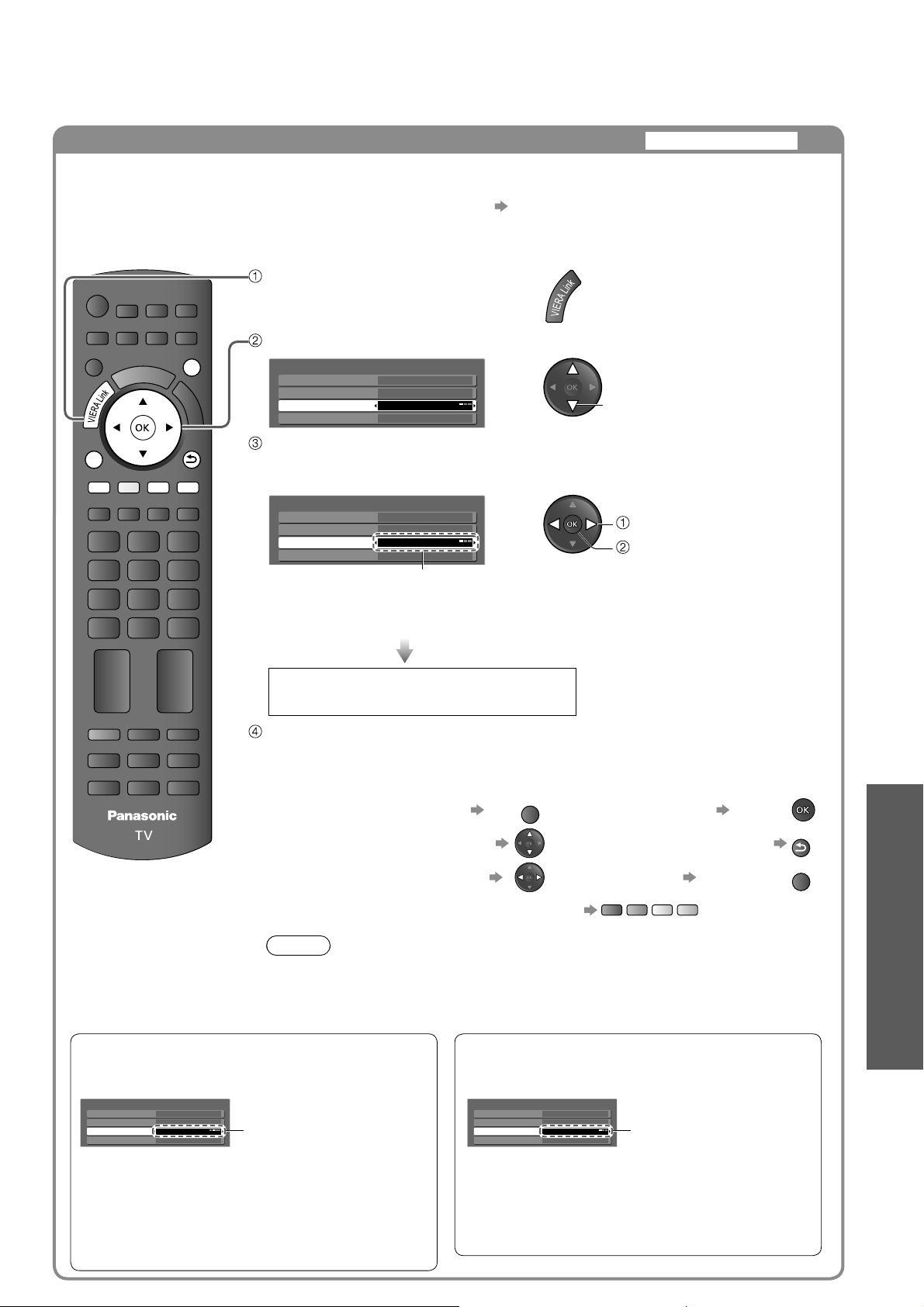

Features available (Using VIERA Link Menu)

Operate the connected equipment with VIERA remote control

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control by pointing at the TV's signal receiver.

If you cannot operate, check the settings and the equipment “VIERA Link features and connections” (p. 38)

●

For details of the operations for the connected equipment, read the manual of the equipment.

Access and operate the menu of the equipment

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

Display “VIERA Link Menu”

Select “VIERA Link Control”

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Select the equipment you want to access

The type of the connected equipment is displayed. Select the type of the equipment and access.

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera / LUMIX / Other

Start

Recorder

Home Cinema

Start

Recorder

Home Cinema

select

access

”

“Home Cinema” means Player theatre, Blu-ray Disc theatre or Recorder theatre.

●

“Other” means Tuner set top box.

MUTE

SURROUND

The menu of the accessed equipment

(Input mode will be changed automatically)

POWER

PROGRAMME

Operate the connected equipment

1. Set the remote control code for TV (p. 21)

REC

2. Follow the operation guide

To display the operation guide

Move the cursor / select the menu Return to the previous menu

Move the cursor / access / adjust Exit the menu

When the key words are displayed on colour bar

Note

Some operations may not be available for some equipment. If so, use its own

●

remote control.

If several recorders or players are connected

You can connect up to three recorders or players at the same time.

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Recorder2

Home Cinema

Recorder1-3 / Player1-3

The number is given from the TV’s lower HDMI terminal connected to the same type of equipment. For example, when two recorders are connected to HDMI2 and HDMI3, one connected to HDMI2 is displayed as Recorder1 and the other as Recorder2.

OPTION

Store / set / access

R G Y B

If you access the invalid equipment

When the equipment with “HDAVI Control” function is connected

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Recorder

Home Cinema

Recorder1-3 / Player1-3

Type of the connected equipment is displayed. You can access the menu of the equipment. But you cannnot operate it. Use its own remote control to operate the equipment.

VIERA Link “HDAVI Control

RETURN

EXIT

Advanced

Page 43

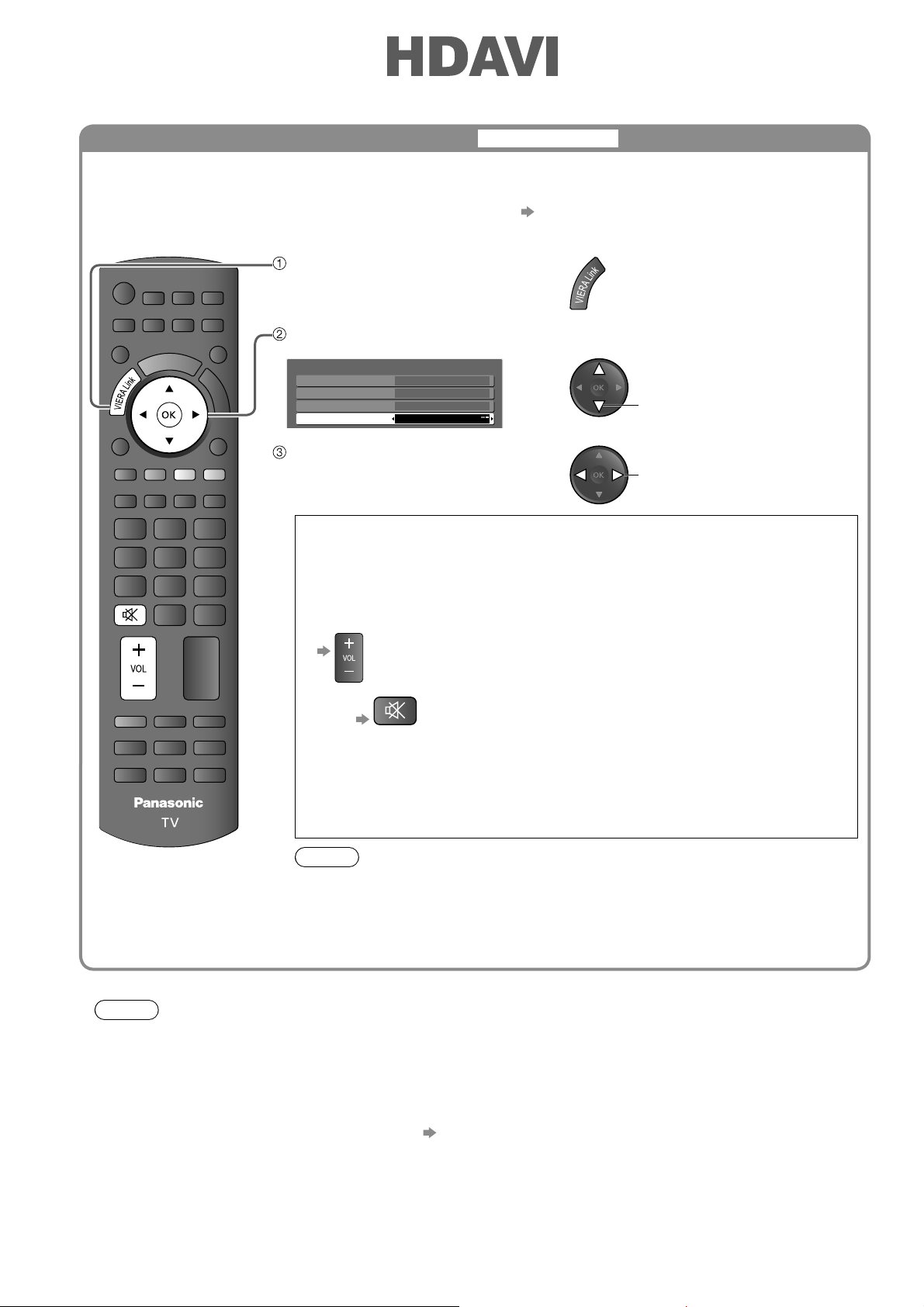

VIERA Link “ Control

Features available (Using VIERA Link Menu)

”

Speaker control

Speaker Selection

You can control the theatre speaker with this TV remote control by pointing at the TV's signal receiver.

If you cannot operate, check the settings and the equipment “VIERA Link features and connections” (p. 38)

●

Access and control the speaker volume

POWER

ASPECT

OPTION

R G Y B

STTL

TEXT

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

Display “VIERA Link Menu”

Select “Speaker Selection”

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Recorder

Home Cinema

Set to “Home Cinema” or “TV”

select

set

Home Cinema

Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode and the sound is from theatre speakers connected to the equipment.

Volume up / down

MUTE

POWER

SURROUND

PROGRAMME

REC

●

Volume slide bar will be displayed when

(

adjusting the volume of the equipment.

Mute

●

The sound of TV speakers is mute.

●

When the equipment is turned off, TV speakers will be active.

MUTE

)

TV speakers are active.

Note

If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an

●

Amplifier, connect with HDMI cable and Optical digital audio cable (p. 38), and then select “Home Cinema”. To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 38).

Note

These functions may not work properly depending on the connected equipment.

●

Image or sound may not be available for the first few seconds when input mode is switched.

●

Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. Read the manual of the equipment.

●

“HDAVI Control 4” is the newest standard (current as of December, 2008) for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.

●

To confirm this TV’s version of HDAVI Control “System Information”

Page 44

VIERA Tools

With VIERA Tools, you can directly access to some of the useful functions of connected equipment or SD card.

POWER

ASPECT

OPTION

RGY B

STTL

TEXT

MUTE

POWER

PROGRAMME

INDEX

INPUT

OFF TIMER

EXIT

RETURN

HOLD

SURROUND

REC

Display VIERA Tools Menu

Select a feature

Follow the operation of each feature

VIERA Link Control (p. 41) The connected device can be operated with the VIERA remote control. When multiple devices are connected, an indicator

VIERA Link Control

Pause Live TV

appears below the icon so that one device can be selected.

Pause Live TV (p. 40) A live TV programme can be paused and resumed later.

select

access

”

To return to TV

EXIT

Direct TV Rec

Speaker Selection

Slideshow

Photos

Movies

Direct TV Rec (p. 40) What is on TV can be recorded immediately.

Speaker Control (p. 42) Theatre speaker can be set.

SD card slideshow (p. 36) Photo slideshow will start.

SD card photo view (p. 35) Photo folders are displayed.

SD card movie view (p. 37) The title list for SD movie image is displayed.

VIERA Tools

VIERA Link “HDAVI Control

Advanced

Page 45

External Equipment

These diagrams show our recommendations for how to connect the TV to your various equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 51).

Camcorder /

Game equipment

To listen with speakers

Fully wired HDMI compliant cable

(VIDEO)

(AUDIO)

Headphones

To adjust volume

“Headphone Volume” in the Sound Menu (p. 24)

( M3 stereo

mini plug)

Amplifier with speaker system

Conversion adapter (if necessary)

(Viewing)

(Listening)

Optical digital audio cable

RCA cable

Computer

Types of connectable equipment to each terminal

AV1 IN AV2 IN AV3 IN AV4 IN

Terminal

Recording / Playback (equipment)

To record / playback videocassettes / DVDs (VCR / DVD recorder)

To watch DVDs (DVD player) To watch camcorder images (Video camera) To watch satellite broadcasts (Set top box) To play games (Game equipment) To use amplifier with speaker system VIERA Link

: Recommended Connection

(Side panel

of TV)

Page 46

Satelite dish

To watch satellite

broadcasts

Set top box

Fully wired HDMI compliant cable

Satelite cable

HDMI equipment

“HDMI Functions” (p. 34)

DVD Recorder

Fully wired HDMI compliant cable

Game equipment

(S VIDEO)

RF cable

Camcorder /

RF cable

MONITOR

OUT

DIGITAL

AUDIO OUT

(Viewing)

(Listening)

123

To watch DVDs

DVD player

To record / playback

DVD Recorder / VCR

S VIDEO 4 pin terminal

Chrominance in

Chrominance earth

HDMI terminal

Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield TMDS Data0− 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2− 3 TMDS Data2+ 1

Connect the S VIDEO or VIDEO terminal when using

●

AV3 / AV4 IN terminal.

●

Connect the COMPONENT or VIDEO terminal when using AV2 IN terminal.

●

Connect the VIDEO terminal when using AV1 IN terminal.

Luminance in

Luminance earth

18 +5V Power 16 SDA 14 Reserved

(in cable but N.C. on device) 12 TMDS Clock− 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1− 4 TMDS Data1+ 2 TMDS Data2 Shield

External Equipment

Advanced

Page 47

Technical Information

Channel Allocation (Analogue TV mode)

CH Display / Receive Channel

CH 0 - CH 5 S 2 - S 10 CH 5A CH 6 - CH 9

CH 9A CH 10 - CH 12 S 11 - S 44 CH 20 - CH 75

Rating (Digital TV mode)

Rating Meaning Rating Meaning

- Not classified M Mature P Pre school MA 15+ Mature Adult 15+ C Children AV 15+ Adult strong Violence 15+

G General R Restricted 18+

PG Parental Guidance recommended

Updating the software system (Digital TV mode)

Update system software to ensure that you have latest version software. If there is an update available, a notification banner is displayed when the channel has the update information.

To download new software, press “OK” Downloading (approx. 1 hour)

●

If you choose not to download, press “EXIT”.

To update automatically

Set “Auto Update Search in Standby” to “On” (p. 27) If there is a new version software being broadcast, the TV will download this automatically.

The automatic updating sequence is carried out at 3:00 AM and 5:00 AM every morning under the following

●

condition. Standby (TV turned Off with the remote control) Recording is not in progress.

To update manually

Perform “System Update Search Now” (p. 27) If there is an update available, a notification banner is displayed.

Note

During downloading, do not turn Off the TV or touch any buttons.

●

(The TV is automatically activated after downloading is completed.)

●

When the TV is switched to standby, there will be a clicking sound after a short delay. Similar clicking sounds will also occur at 3:00 AM and 5:00 AM when “Auto update Search in Standby” (p. 27) is set to “On”. These sounds are normal.

Stereo / Bilingual Sound Selection (Analogue TV mode)

When you receive the stereo / bilingual sound system, sound output modes can be selected by pressing the Stereo / Bilingual Sound Selection button.

Audio Signal STEREO

Mode Indicator

NICAM .......Used in New Zealand, Singapore, Hong Kong etc.

Type of broadcast

Mode Indicator

A2 (German) .......Used in Australia, Malaysia etc.

Type of broadcast

Mode Indicator

If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching

●

occurs, it is recommended you switch from STEREO to MONO.

●

Even when the contents of the receiving signal undergo changes, selection mode is kept intact.

●

When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO position, using the stereo / bilingual sound selection button.

●

DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.

Regular broadcast

(Standard Audio)

No Indicator

Regular broadcast

(Standard Audio)

No Indicator

Regular + NICAM MONO

BILINGUAL or DUAL MONO:

MAIN

I II

(MAIN I )

MAIN I / SUB

NICAM STEREO

SUB

STEREO

MONO

NICAM DUAL MONO

(MAIN I / SUB II )

Page 48

SD Card

Cautions in handling SD Card

Do not remove the card while the TV is accessing data (this can damage card or TV).

●

Do not touch the pins on the back of the card.

●

Do not subject the card to a high pressure or impact.

●

Insert the card in the correct direction (otherwise, card may be damaged).

●

Electrical interference, static electricity, or erroneous operation may damage the data or card.

●

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)

Data format for Card browsing

Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF∗ and EXIF standards

Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0) Max. number of files - 9,999 Image resolution - 160 × 120 to 10,000,000

Movie : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio

format that is either MPEG-1/Layer-2 format or Dolby Digital format (AVCHD files recorded with vertical frequency 50Hz are applicable. A modified data with a PC may not be displayed correctly.)

●

Compliant card type (maximum capacity): SDHC Card (32 GB), SD Card (2 GB) and miniSD Card (2 GB) (requiring miniSD adapter)

●

If miniSD Card is used, insert / remove it together with the adapter.

●

Check the latest information on the card type at the following website. (English only) http://panasonic.co.jp/pavc/global/cs/

∗

DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

Note

●

Format the card with the recording equipment.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

This function cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).

●

A data modified with a PC may not be displayed.

●

Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.

●

Partly degraded files might be displayed at a reduced resolution.

●

All “.JPG” extension datas in the card will be read in Photo View Mode.

●

The folder and file names may be different depending on the digital camera used.

●

Do not use two-byte characters or other special codes.

●

The card may become unusable with this TV if the file or folder names are changed.

On screen messages

Message Meaning / Action

Cannot read file

Please confirm the SD card is OK The inserted SD card has a problem.●

No SD card inserted Insert a SD Card.●

No valid file to play The card has no data.●

Over 9999 pictures found. (max. is 9999)

This operation is not possible Your operation is not available.●

The file is broken or unreadable.

●

The TV does not support the format. (For the applicable formats and data, see above.)

Maximum valid number of photos is 9,999.●

Technical Information

Technical

Page 49

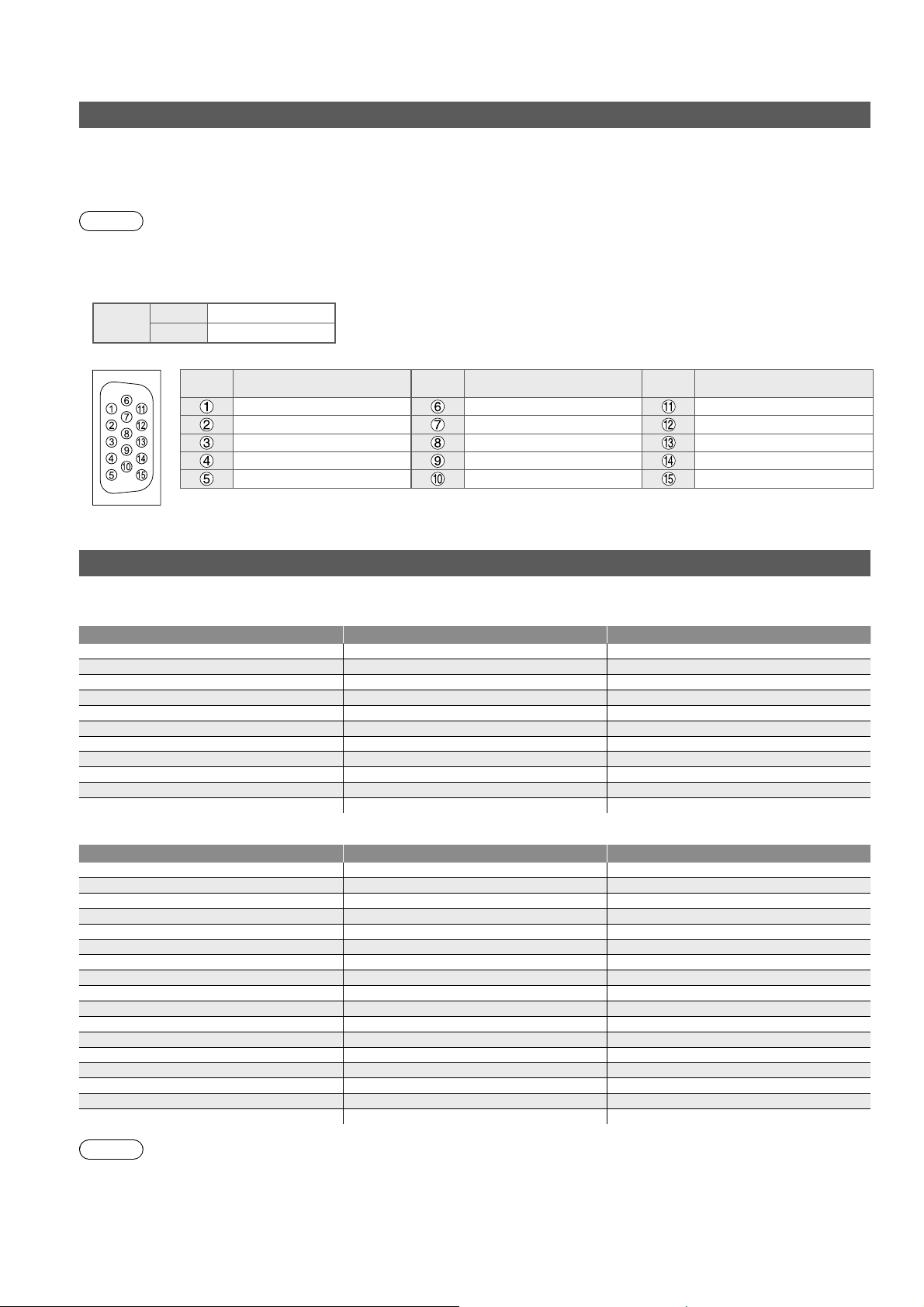

Technical Information

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

●

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).

●

A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.

Note

●

Some PC models cannot be connected to this TV.

●

When using PC, set the colour display quality of PC to the highest position.

●

For details of the applicable PC signals, see below.

●

Max. display resolution

Aspect

D-sub 15-pin connector signal

●

4:3

16:9

1,440 × 1,080 pixels

1,920 × 1,080 pixels

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R GND (Ground) NC (not connected)

G GND (Ground) NC (not connected)

B GND (Ground) HD

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC (not connected)

Input signal that can be displayed

COMPONENT (Y, PB/CB, PR/CR), HDMI

∗

Mark: Applicable input signal

Signal name COMPONENT HDMI

525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p 1,125 (1,080) / 50p 1,125 (1,080) / 24p

PC (D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,280 × 768 @60 Hz 47.70 60.00 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13” (640 × 480) 35.00 66.67 Macintosh16” (832 × 624) 49.73 74.55 Macintosh21” (1,152 × 870) 68.68 75.06

∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗

∗ ∗ ∗

Note

Signals other than above may not be displayed properly.

●

The above signals are reformatted for optimal viewing on your display.

●

Applicable input signal for PC is basically compatible to VESA standard timing.

●

PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

Page 50

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance.

White spots or shadow images (noise)

Check the position, direction, and

●

connection of the aerial.

Neither image nor sound is produced

Is the TV in “AV mode”?

●

Is the mains lead plugged into the socket outlet?

●

Is the TV turned On?

●

Check Picture Menu (p. 24) and volume.

An error message appears

Follow the message’s instructions.

●

If the problem persists, contact the authorized Service Centre.

“VIERA Link” function does not work and an error message appears

Confirm the connection.

●

Turn the connected equipment on and then switch the TV on. (p. 38)

Problem Actions

Contrast is reduced

Contrast is lowered in the following conditions without any

●

user operation for a few minutes:

no signal in DVB or AV mode

• selected invalid programme

• selected radio service

• displayed menu

• Thumbnail or still picture in SD Card mode

•

Pixel Statement

An image on a LCD or Plasma TV screen is created by

●

many small groups of dots known as pixels (which is similar to the image in a newspaper). It also naturally follows that higher panel resolutions contain more pixels. To create a colour image, each pixel consists of three tiny coloured dots (known as sub-pixels), one each of red, green and blue. Each one of these dots is precisely controlled by the electronics of the TV to produce the picture. Whilst Panasonic maintains the highest standards in manufacturing technology and processes in the construction of these panels, there are a number of allowable pixel/subpixel failures that still allow the panel to be defi ned as a good panel. It is not possible to guarantee absolutely no pixel loss.

Chaotic image, noisy

No image can be displayed

Blurry or distorted image

(no sound or low volume)

ScreenSound

Unusual image is displayed

“Shop” appears on screen at switch on

No sound is produced

Sound level is low or sound is distorted

Change the setting of “P-NR” in the Picture Menu (to remove

●

noise). (p. 24) Check nearby electrical products (car, motorcycle, fluorescent lamp).

●

Is “Colour” or “Contrast” in the Picture Menu set to the minimum?

●

(p. 24)

Reset channel. (p. 32)●

Turn off the TV with Mains power On / Off switch, then turn it on

●

again.

“Shop” was selected in “Auto Tuning” (p. 12).

●

Reset settings in “Shipping Condition” (p. 32), then select “Home” in “Auto Tuning” (p. 12).

Is “Sound Mute” active? (p. 10)

●

Is the volume set to the minimum?

Sound signal reception may be deteriorated.

●

Set “MPX” (p. 24) in the Sound Menu to “Mono”.

Technical Information

Frequently Asked Questions

Technical

Page 51

FAQs

Problem Actions

Sound is unusual

Pictures from external equipment

HDMIDigital TVOther

are unusual when the equipment is connected via HDMI

Digital TV reception technology requires high quality, robust DTV signals which in some domestic aerial

●

installations, may be relatively poor despite good analogue reception.

Aerial connection when using DTV and VCR / DVD Recorder

After Digital TV Auto Tuning only some or no services are found

Picture regularly breaks up on some programmes, or “No Signal” message

Picture very infrequently breaks up on some or all programmes

Set the sound setting of the connected equipment to “2ch L.PCM”.

●

Check the “HDMI1 / 3 Input” setting in the Sound Menu. (p. 25)

●

If digital sound connection has a problem, select analogue sound connection. (p. 34)

Is the HDMI cable connected properly? (p. 44)

●

Turn Off the TV and equipment, then turn them On again.

●

Check an input signal from the equipment. (p. 48)

●

Use an equipment compliant with EIA/CEA-861/861B.

To maintain optimum signal quality from TV aerial, use a TV aerial

●

splitter (as illustrated) when connecting two or more equipments to the same aerial.

Aerial Input

VCR

Check to ensure your area is covered by DVB transmissions.

●

Check that the aerial and antenna cable are designed for DVB. For your safety, the aerial and cable should be inspected / installed by a licenced installer that should comply with Australian Standard AS1417.1. Note: If you live within 5-10 Km of DVB transmission towers, a combined VHF / UHF aerial should be adequate. Outside this area, separate VHF and UHF aerials provide superior reception performance. If you live in a unit or apartment, check to ensure the Master Antenna

●

TV (MATV) system is designed for analogue and DVB-T reception. Please consult your body corporate. Check “Signal Condition”. (p. 31) If “Signal Quality” or “Signal

●

Strength” are displayed in red or constantly changing, check aerial. If problem persists consult your local TV aerial installer. Check that the aerial and antenna cable are designed for DVB. For your

●

safety, the aerial and cable should be inspected / installed by a licenced installer that should comply with Australian Standard AS1417.1. Interference (known as impulse noise) from household appliances

●

such as light switches, fridges etc may cause picture break up and / or audio distortion. Use high quality quad shielded coaxial cable fl y lead between TV and antenna wall socket to minimise impulse noise pickup. If problem persists consult your local TV aerial installer. When “No Signal” message is displayed check TV aerial connection.

●

The received signal may be too weak to allow the TV to reliably

●

lock to the desired “No Signal” programme to generate a stable picture. Repeat the tuning procedure (p. 31). If problem persists consult your local TV aerial installer.

Electrical atmospheric interference caused by local or distant

●

lighting storms or heavy rain with wind in “leafy” locations may cause pictures to break up and audio to mute or distort momentarily. Impulse noise interference from an infrequently used electrical appliance,

●

or a passing vehicle or lawn mower with a “noisy” ignition system.

terminal

Aerial Output

(Individual aerial)

Splitter

Aerial Input

(Individual aerial)

TV takes so long to turn on

The programme cannot be changed

The programme cannot be selected

TV goes into “Standby mode”

The remote control does not work

Like your computer, the TV has to run a number of diagnostic and

●

software checks before it can display any programmes.

Is the TV in Teletext mode? (p. 18)●

Is the programme skipped? (p. 29)●

Off Timer function is activated.

●

The TV enters “Standby mode” about 30 mins. after analogue broadcasting ends.

Are the batteries installed correctly? (p. 7)

●

Has the TV been switched On?

Page 52

Specifications

TH-P42S10A TH-P46S10A TH-P50S10A

Power Source AC 220 - 240 V, 50 / 60 Hz

Power rating 350 W 400 W 430 W

Normal (Home) mode 194 W 232 W 269 W

Standby condition 0.4 W 0.4 W 0.4 W

Power Consumption

Aspect Ratio 16:9

Visible screen size

Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [8,100 × 768 dots]

Display

panel

Speaker 160 mm × 40 mm × 2 pcs, 6

Audio Output 20 W (10 W + 10 W ), 10% THD

Headphones M3 (3.5 mm) stereo mini Jack × 1

Sound

PC signals

Receiving Systems / Band name

Aerial - Rear

Operating Conditions

AV1 Input

AV2 Input

AV3 Input

AV4 Input

AUDIO L - R

VIDEO

AUDIO L - R

VIDEO

COMPONENT

AUDIO L - R

VIDEO

S VIDEO

AUDIO L - R

VIDEO

106 cm (diagonal) 921 mm (W) × 518 mm (H)

VGA, SVGA, XGA SXGA ······ (compressed) Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

PAL B/G Reception of Off air broadcasts

Digital TV 7 MHz VHF / UHF (Australia) free-to-air TV broadcast reception

PAL 60 Hz M.NTSC NTSC

Standard Belling & Lee connector

Temperature : 0 °C - 35 °C Humidity : 20 % - 80 % RH (non-condensing)

RCA PIN Type × 2 0.5 V[rms]

RCA PIN Type × 1 1.0 V[p-p] (75 Ω)

RCA PIN Type × 2 0.5 V[rms]

RCA PIN Type × 1 1.0 V[p-p] (75 Ω)

Y P

B/CB, PR/CR

RCA PIN Type × 2 0.5 V[rms]

RCA PIN Type × 1 1.0 V[p-p] (75 Ω)

Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)

RCA PIN Type × 2 0.5 V[rms]

RCA PIN Type × 1 1.0 V[p-p] (75 Ω)

Playback of NTSC tape from some PAL Video recorders (VCR) Playback from M. NTSC Video recorders (VCR) Playback from NTSC Video recorders (VCR)

117 cm (diagonal) 1,019 mm (W) × 573 mm (H)

1.0 V[p-p] (including synchronization) ±0.35 V[p-p]

127 cm (diagonal) 1,105 mm (W) × 622 mm (H)

Monitor

Connection Terminals

Output

Others

Dimensions ( W × H × D )

Mass

AUDIO L - R

VIDEO

HDMI1 - 3 Input

PC Input

DIGITAL AUDIO OUT

Card slot

RCA PIN Type × 2 0.5 V[rms] (high impedance)

RCA PIN Type × 1 1.0 V[p-p] (75 Ω)

TYPE A Connectors This TV supports “HDAVI control 4” function.

HIGH-DENSITY D-SUB 15PIN

PCM / Dolby Digital, Fiber optic

SD Card slot × 1

1,029 mm × 704 mm × 334 mm (With Pedestal) 1,029 mm × 661 mm × 105 mm (TV only)

27.0 k Net (With Pedestal)

25.0 k Net (TV only)

●

R, G, B/0.7 V[p-p] (75 Ω) HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)

1,132 mm × 767 mm × 401 mm (With Pedestal) 1,132 mm × 722 mm × 105 mm (TV only)

31.0 k Net (With Pedestal)

29.0 k Net (TV only)

1,218 mm × 814 mm × 401 mm (With Pedestal) 1,218 mm × 769 mm × 105 mm (TV only)

34.0 k Net (With Pedestal)

32.0 k Net (TV only)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

●

Pedestal: ST-42CF2WG / ST-50CF2WG (For safety approval)

LicenceFrequently Asked Questions

Technical

Specifications
