Panasonic TH-P42UT50D, TH-P42UT50M, TH-P42UT50P, TH-P42UT50S, TH-P42UT50Z Schematic

ORDER NO.PAVCTH1203005CE

Plasma Television

Model No. TH-P42UT50D

TH-P42UT50M TH-P42UT50P TH-P42UT50S TH-P42UT50Z

GPF15D-A Chassis

TABLE OF CONTENTS

PAG E

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals ------------------------------------------7

4 Specifications ------------------------------------------------------8 5 Technical Descriptions---------------------------------------- 10

5.1. Specification of KEY for DTCP-IP, One-to- One, Widevine and Netflix ----------------------------- 10

5.2. USB HDD Recording (Z only) ------------------------- 10

5.3. Panel-Type setting --------------------------------------- 10

6 Service Mode ----------------------------------------------------- 11

6.1. How to enter into Service Mode ---------------------- 11

6.2. Option - Mirror--------------------------------------------- 13

6.3. Service tool mode ---------------------------------------- 13

6.4. DRV Check - USB HDD Check----------------------- 14

6.5. Hotel mode------------------------------------------------- 14

6.6. Data Copy by SD Card --------------------------------- 15

7 Troubleshooting Guide---------------------------------------- 18

7.1. Check of the IIC bus lines------------------------------ 18

7.2. Power LED Blinking timing chart --------------------- 19

7.3. No Power--------------------------------------------------- 20

7.4. No Picture -------------------------------------------------- 21

7.5. Local screen failure -------------------------------------- 22

8 Disassembly and Assembly Instructions --------------- 23

8.1. Disassembly Flow Chart for the Unit ---------------- 23

8.2. Disassembly Procedure for the Unit----------------- 24

9 Measurements and Adjustments -------------------------- 29

9.1. Adjustment ------------------------------------------------- 29

10 Block Diagram --------------------------------------------------- 31

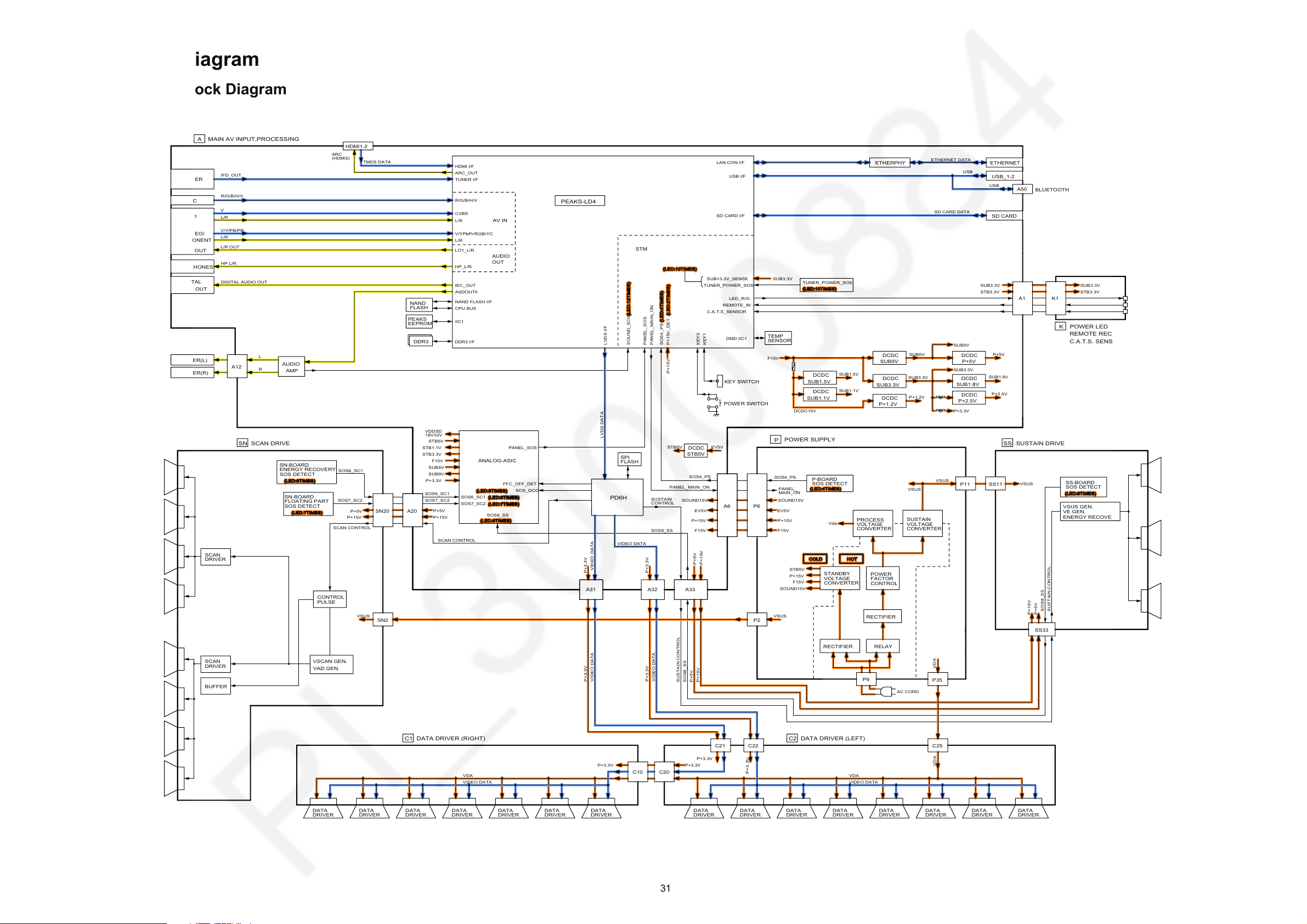

10.1. Main Block Diagram ------------------------------------- 31

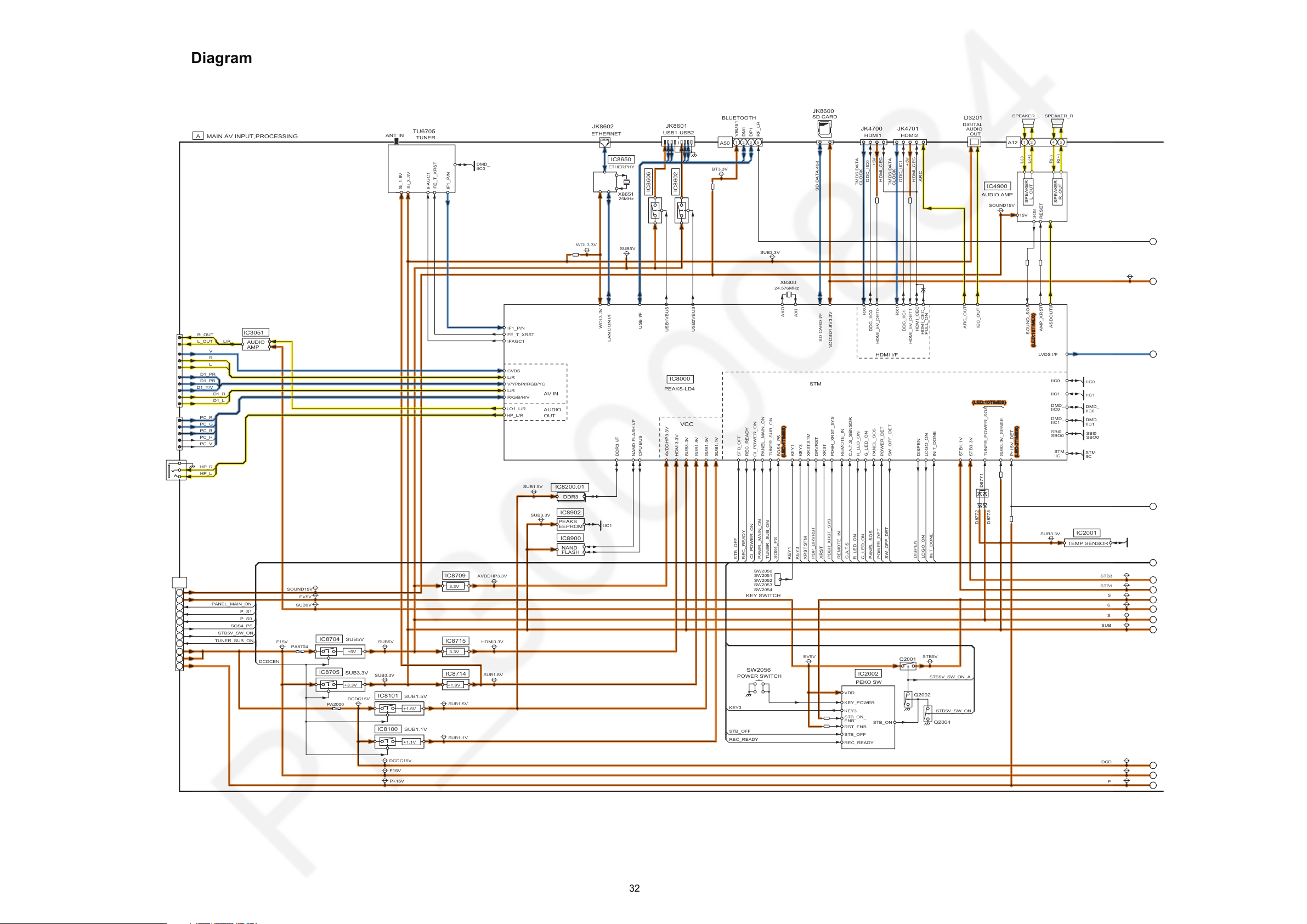

10.2. Block (1/4) Diagram ------------------------------------- 32

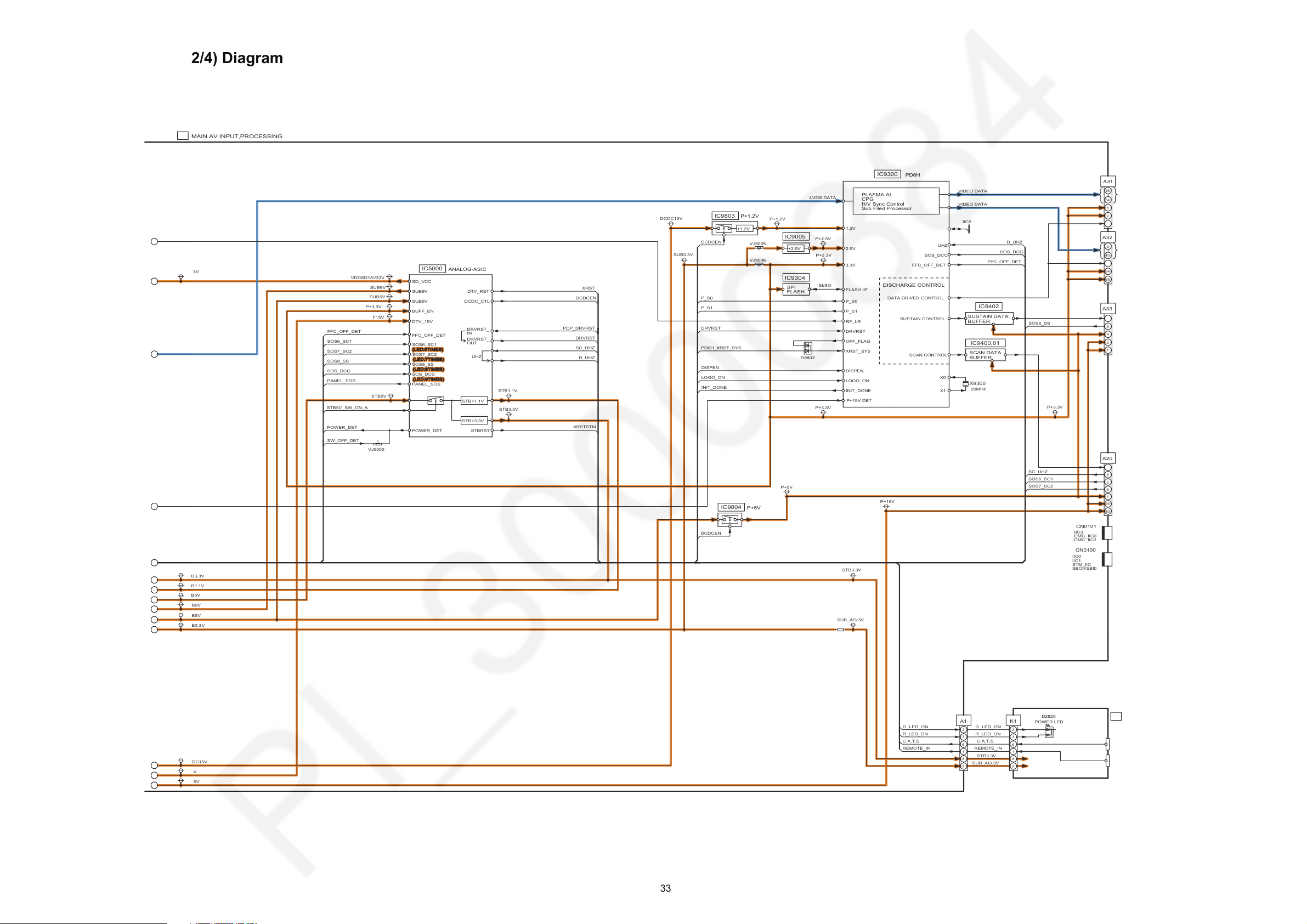

10.3. Block (2/4) Diagram ------------------------------------- 33

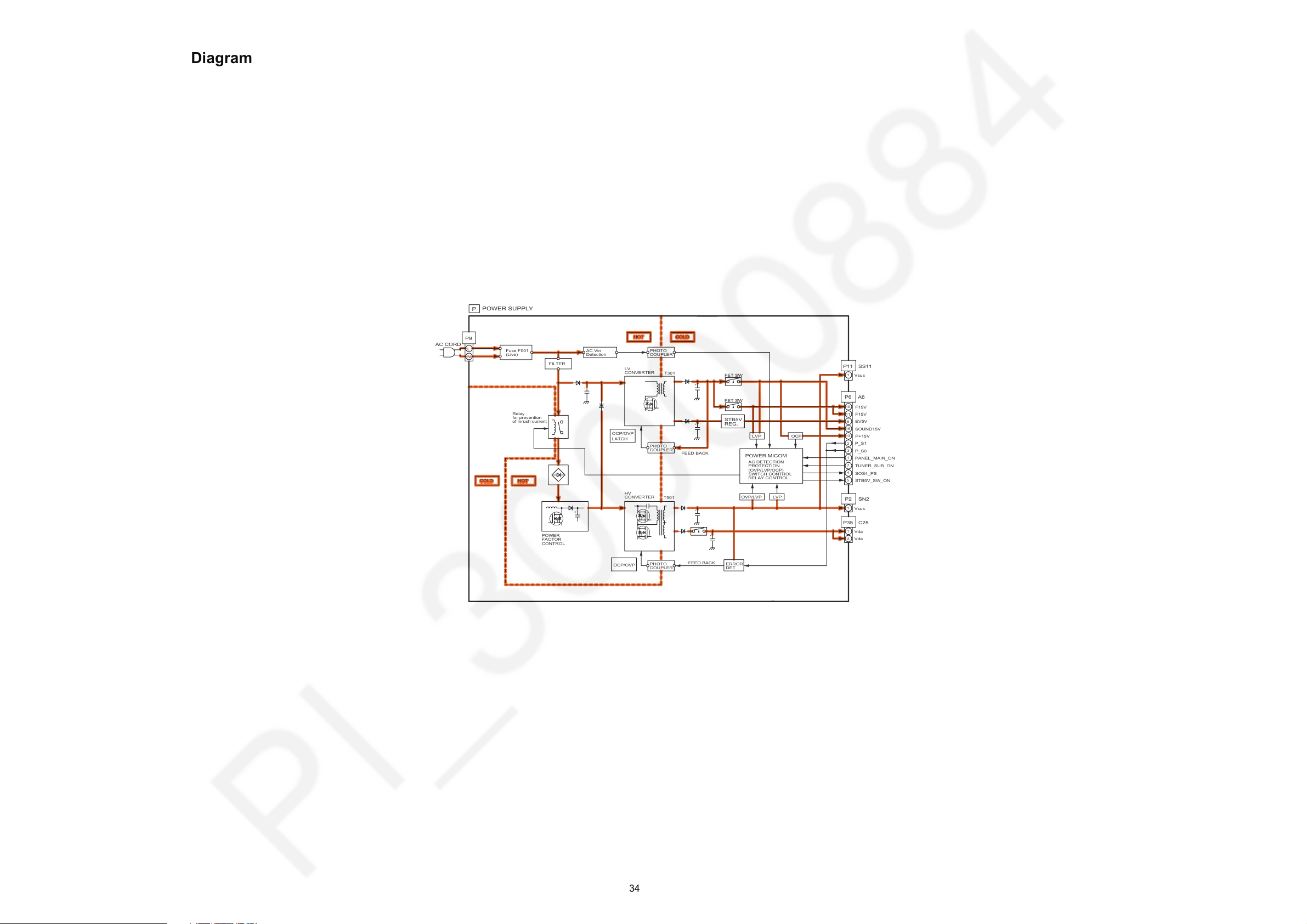

10.4. Block (3/4) Diagram ------------------------------------- 34

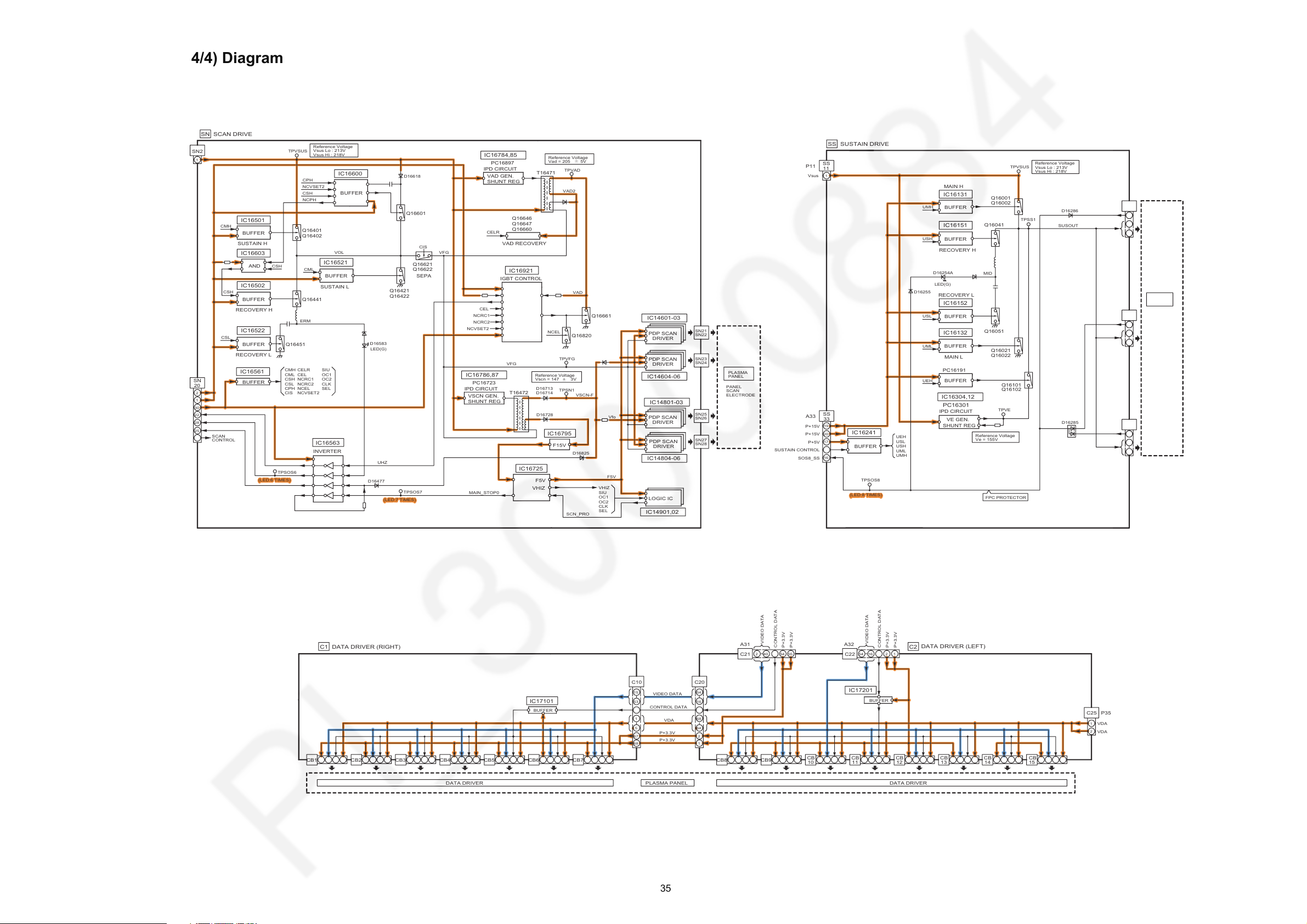

10.5. Block (4/4) Diagram ------------------------------------- 35

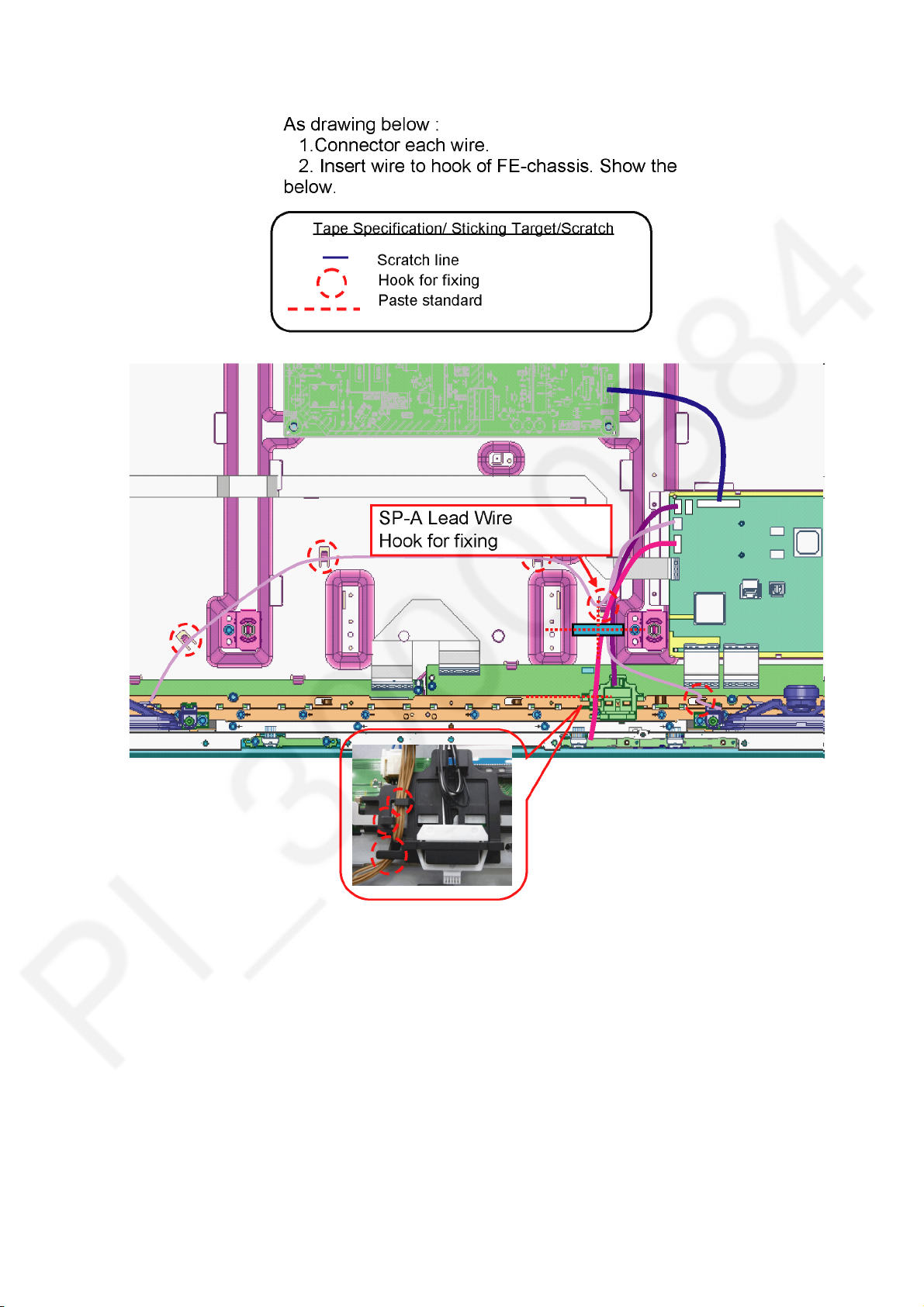

11 Wiring Connection Diagram --------------------------------- 37

11.1. Caution statement.--------------------------------------- 37

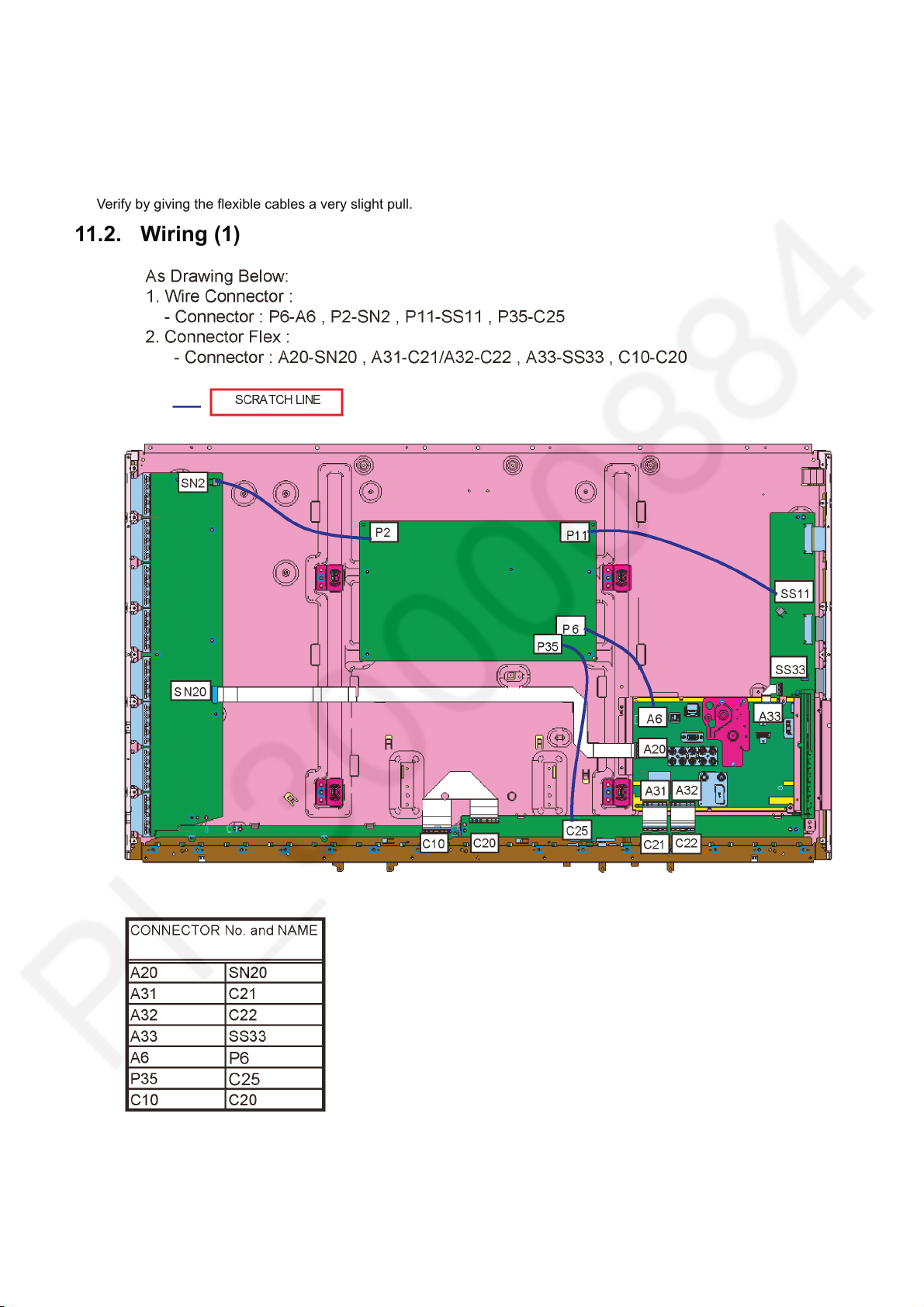

11.2. Wiring (1) --------------------------------------------------- 37

11.3. Wiring (2) --------------------------------------------------- 38

11.4. Wiring (3) --------------------------------------------------- 39

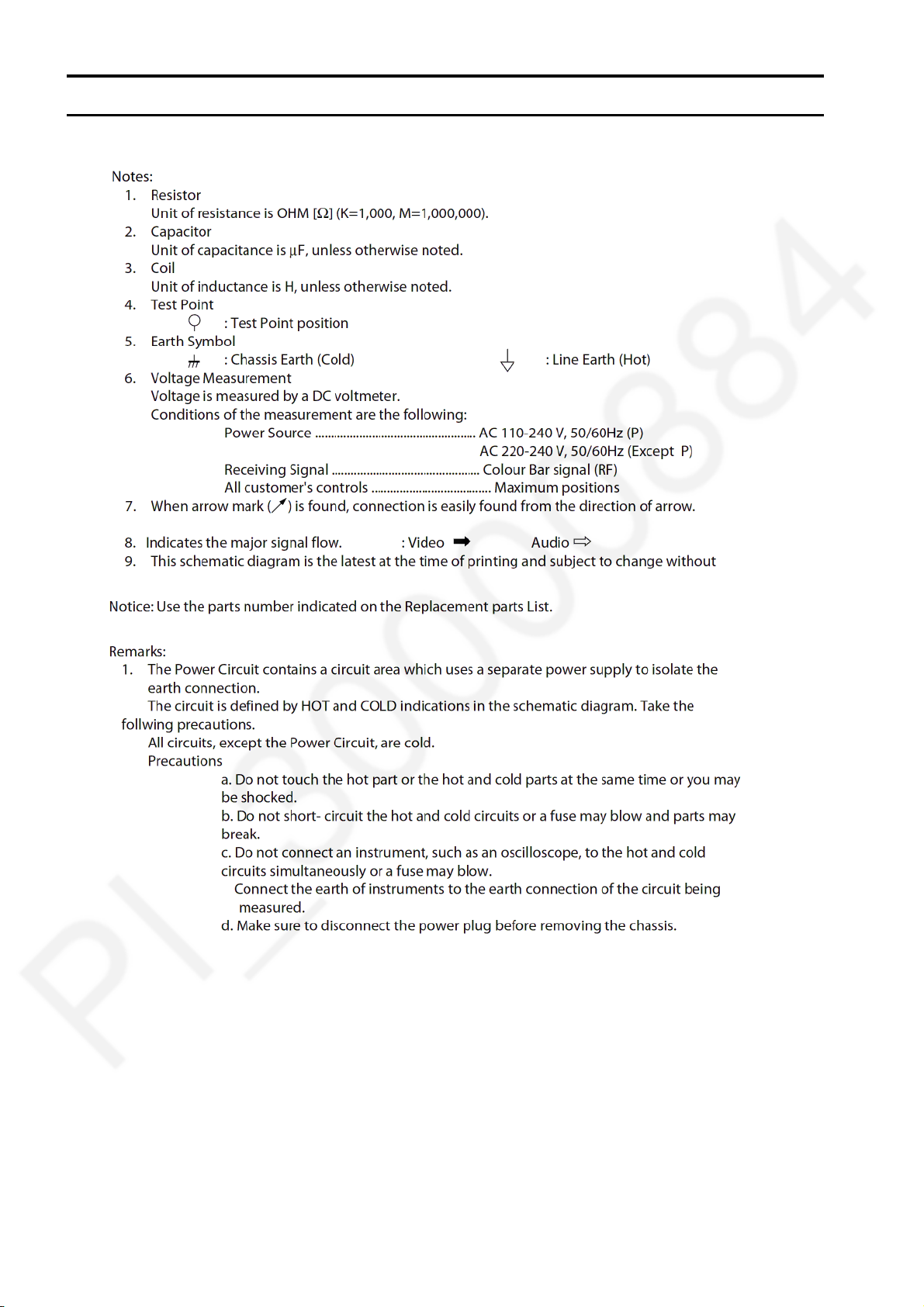

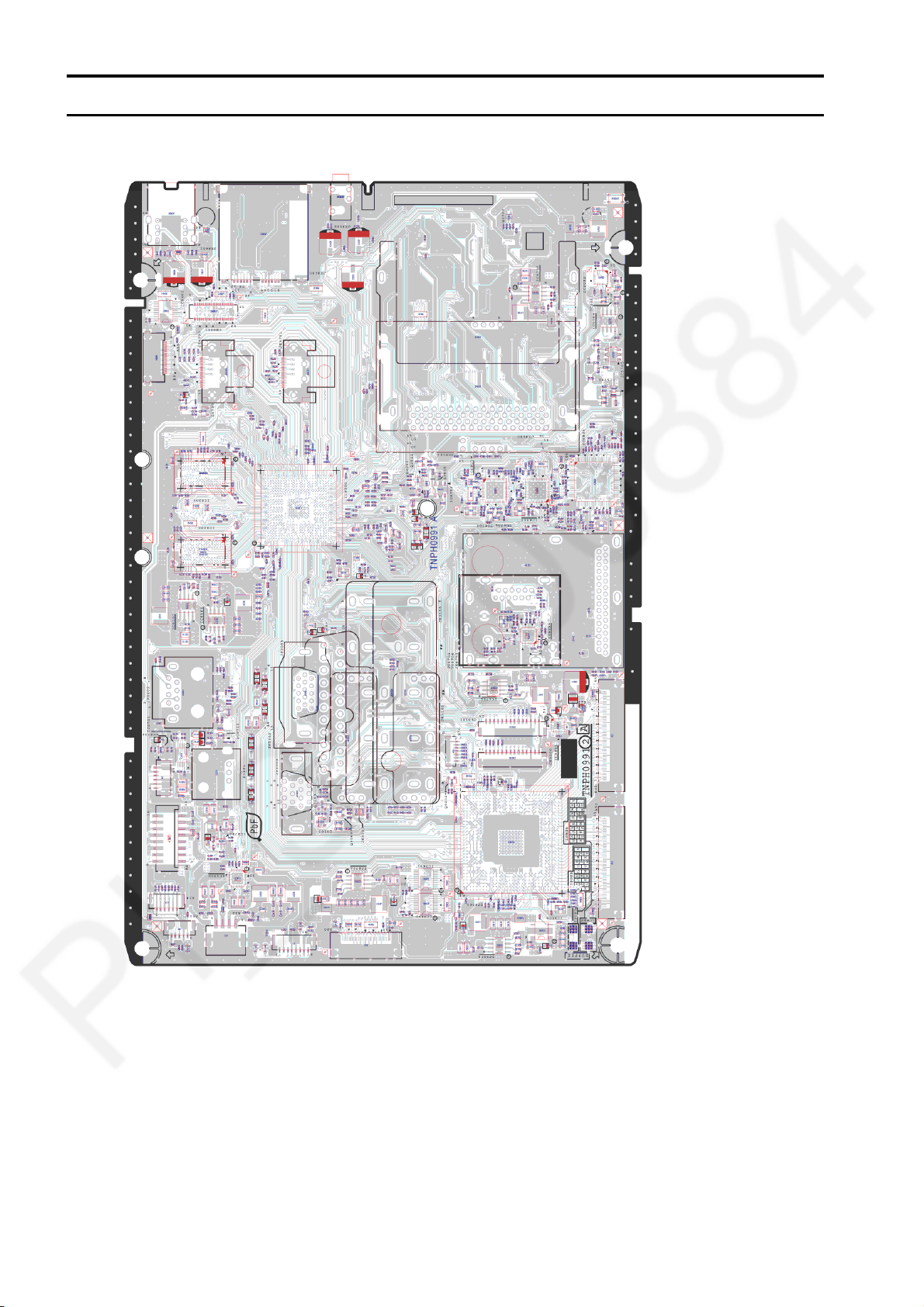

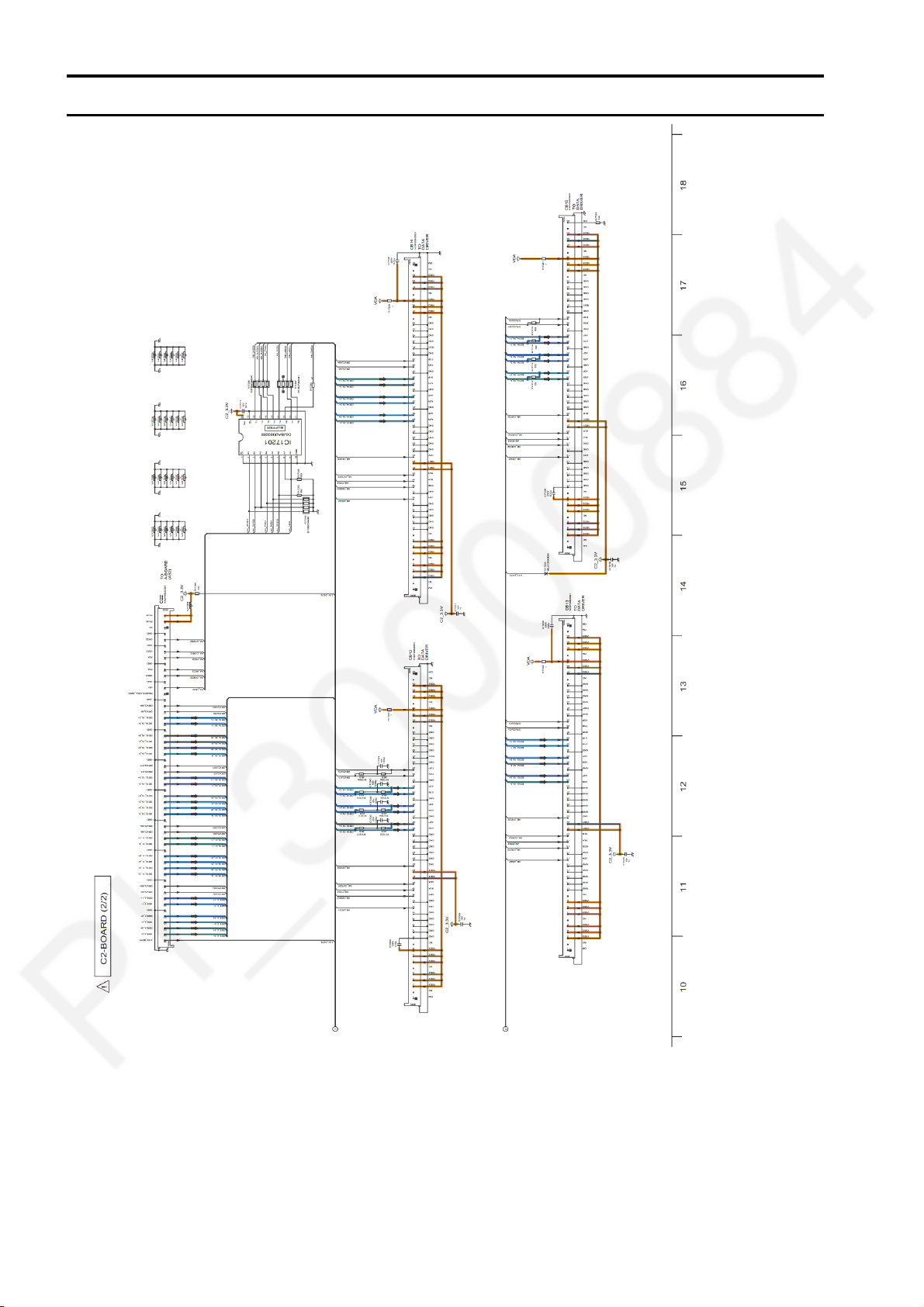

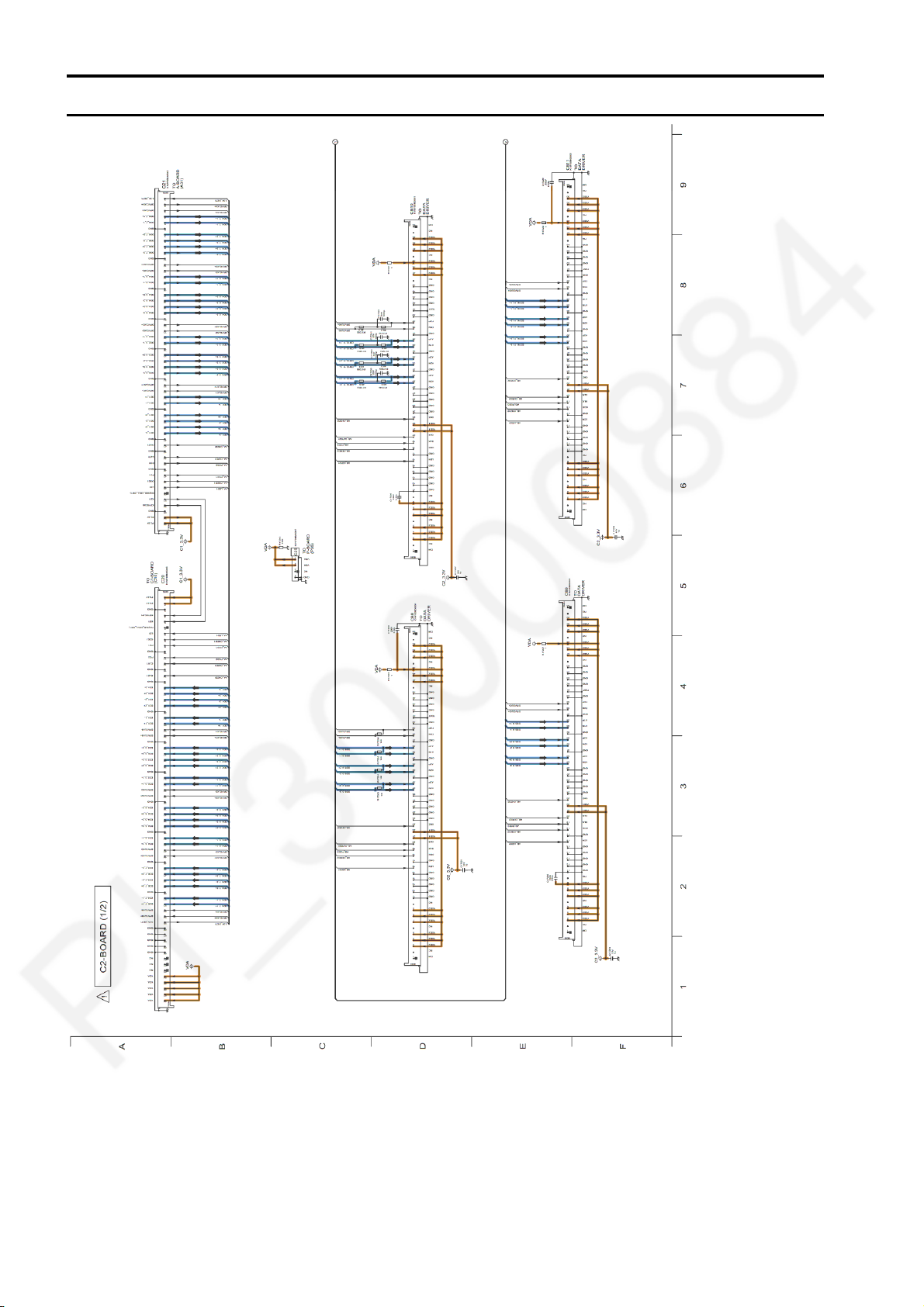

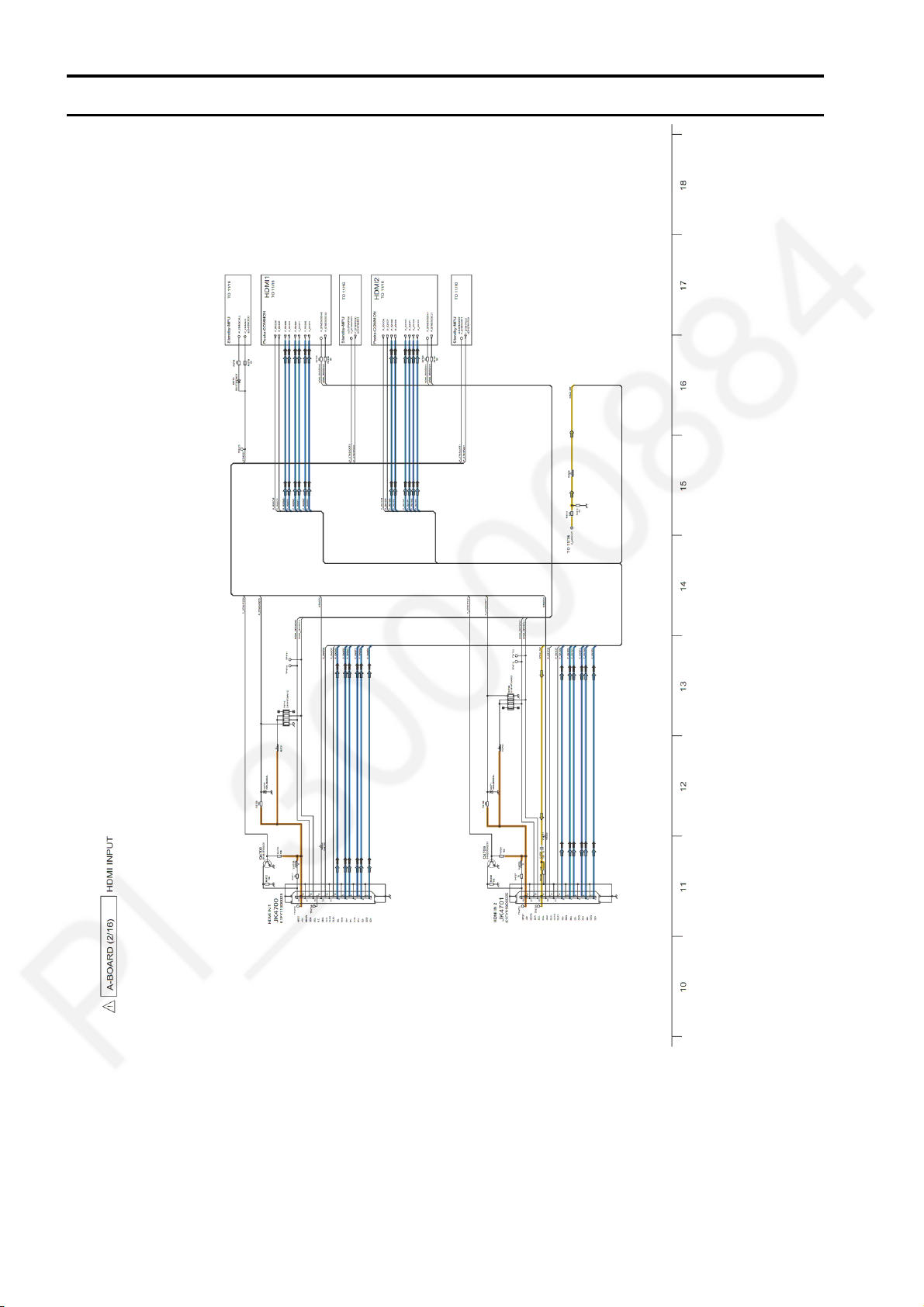

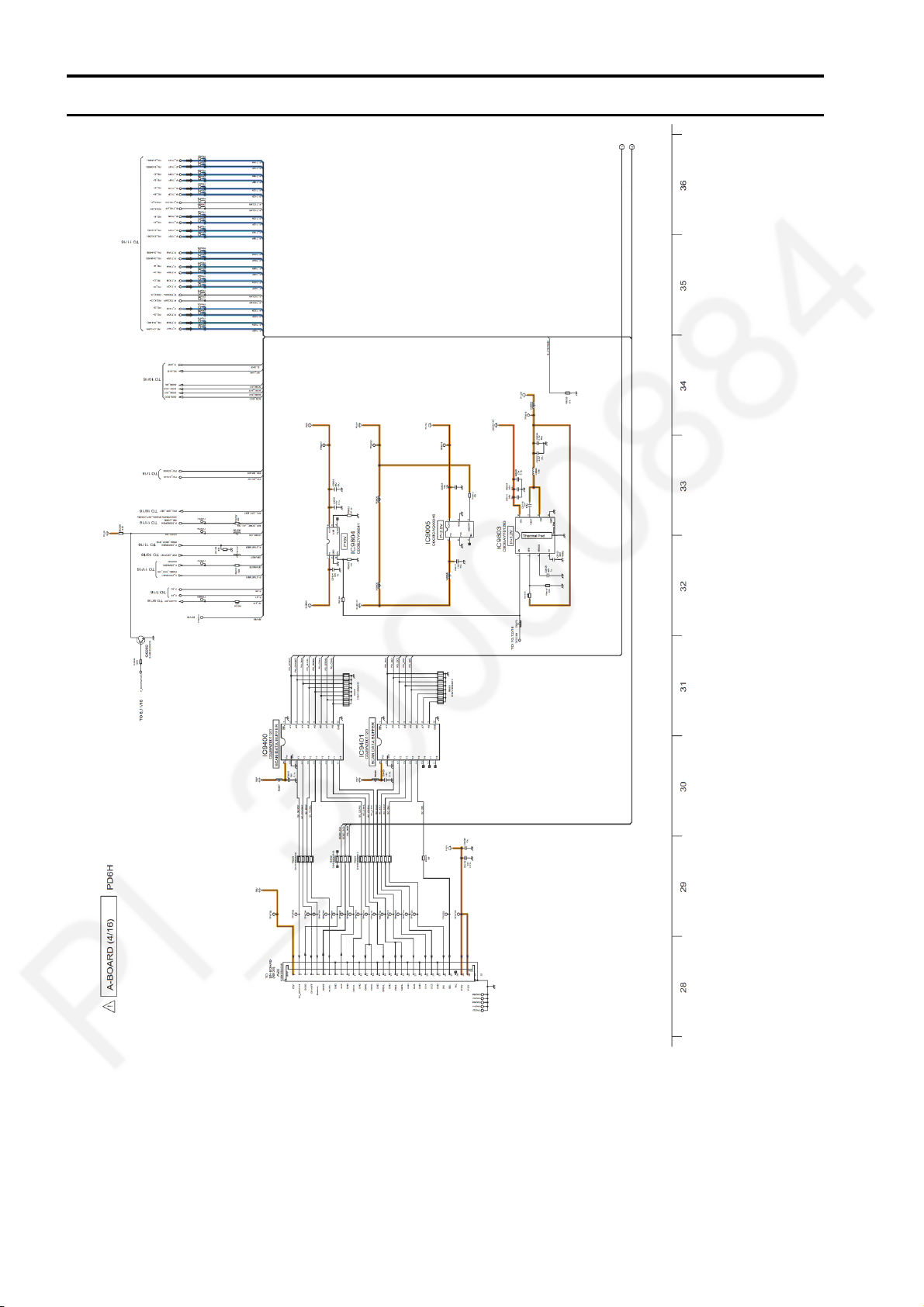

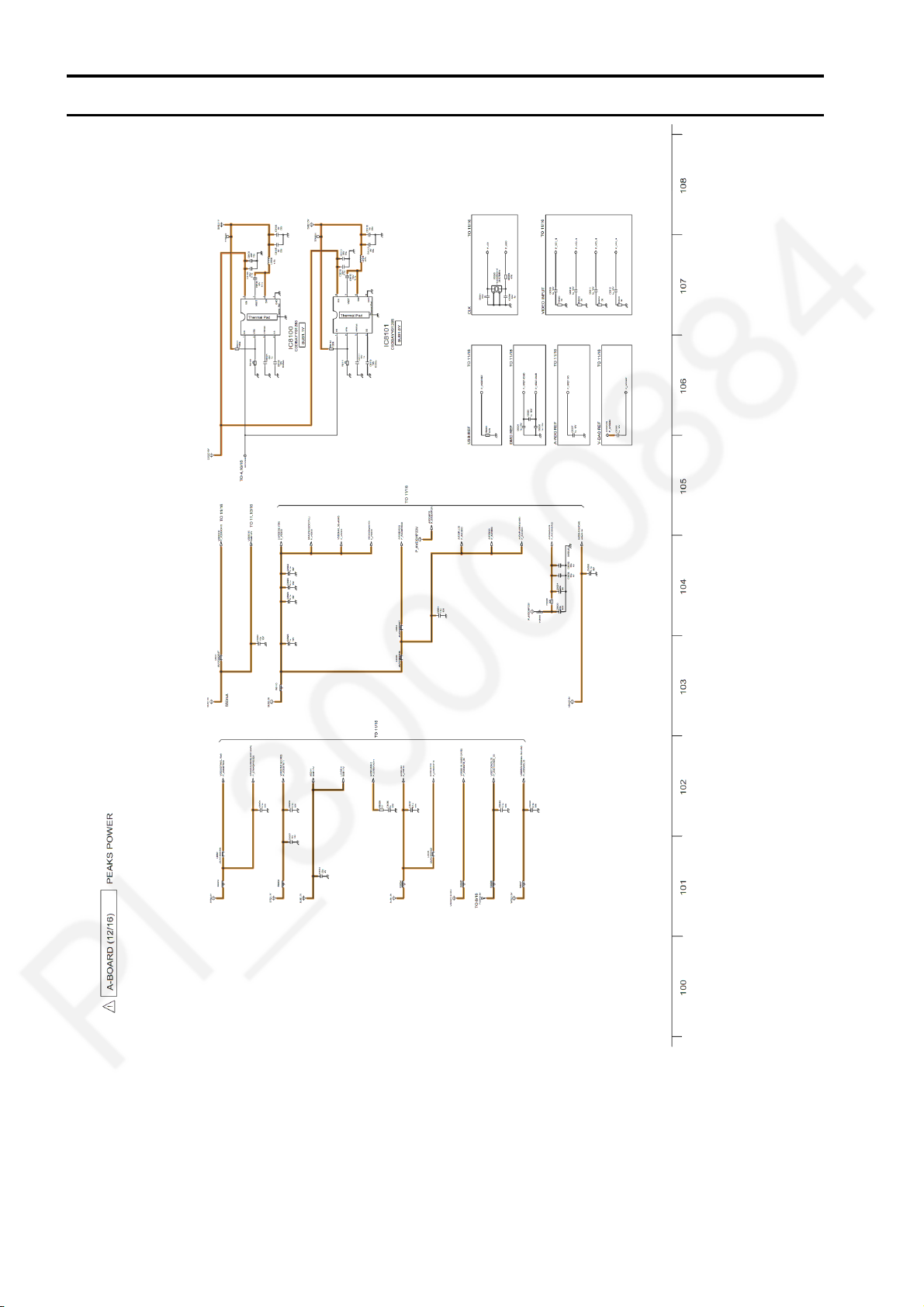

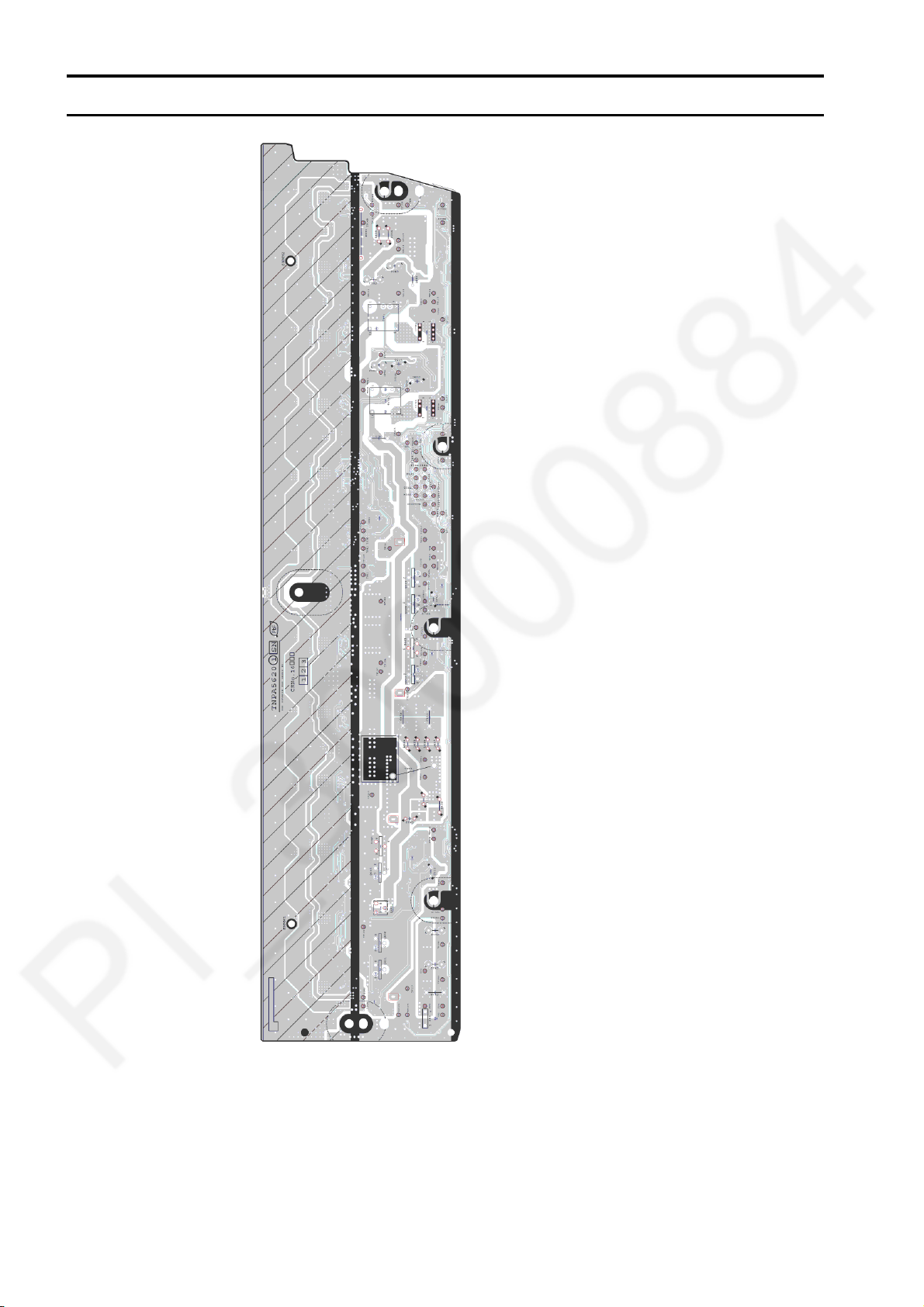

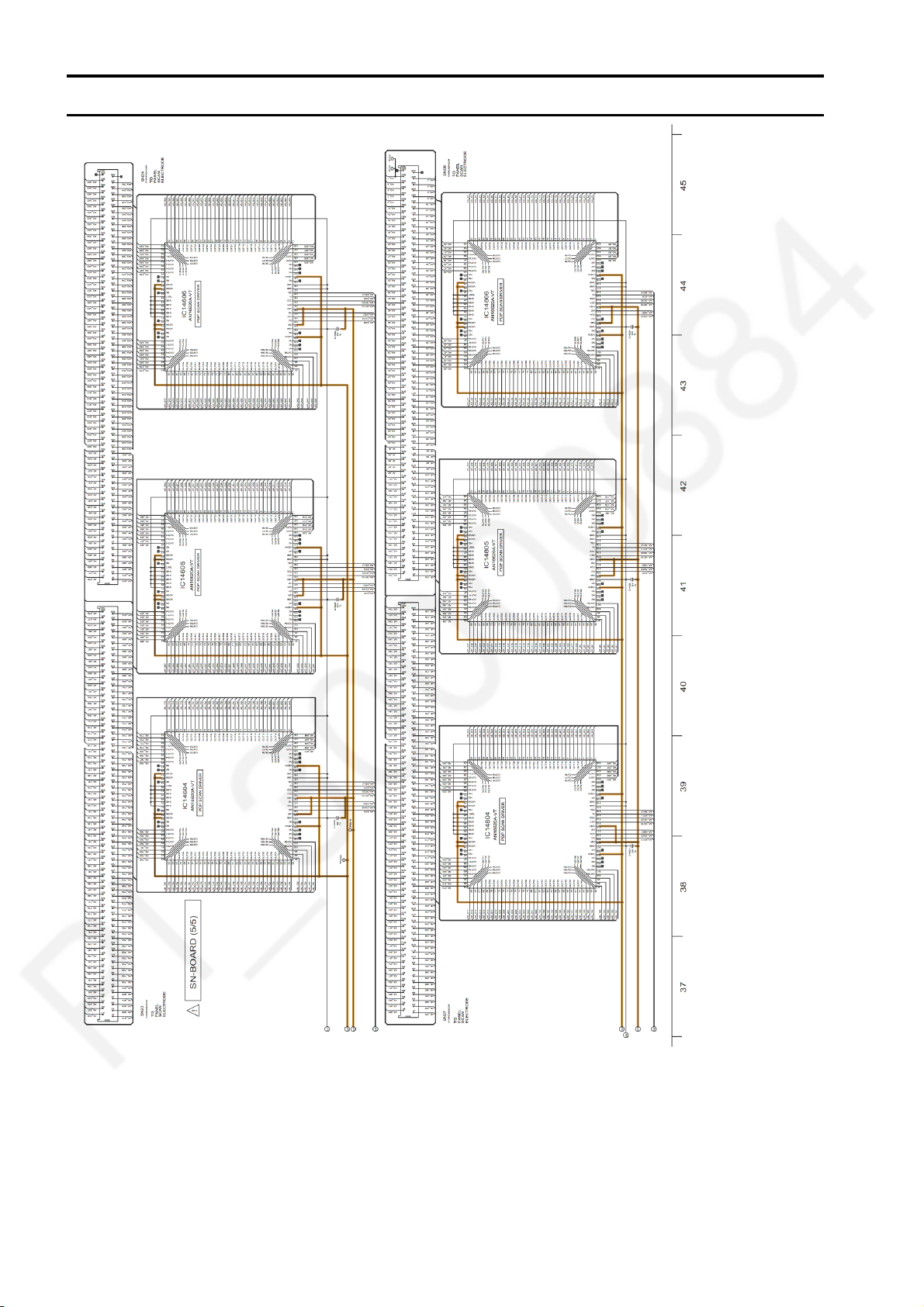

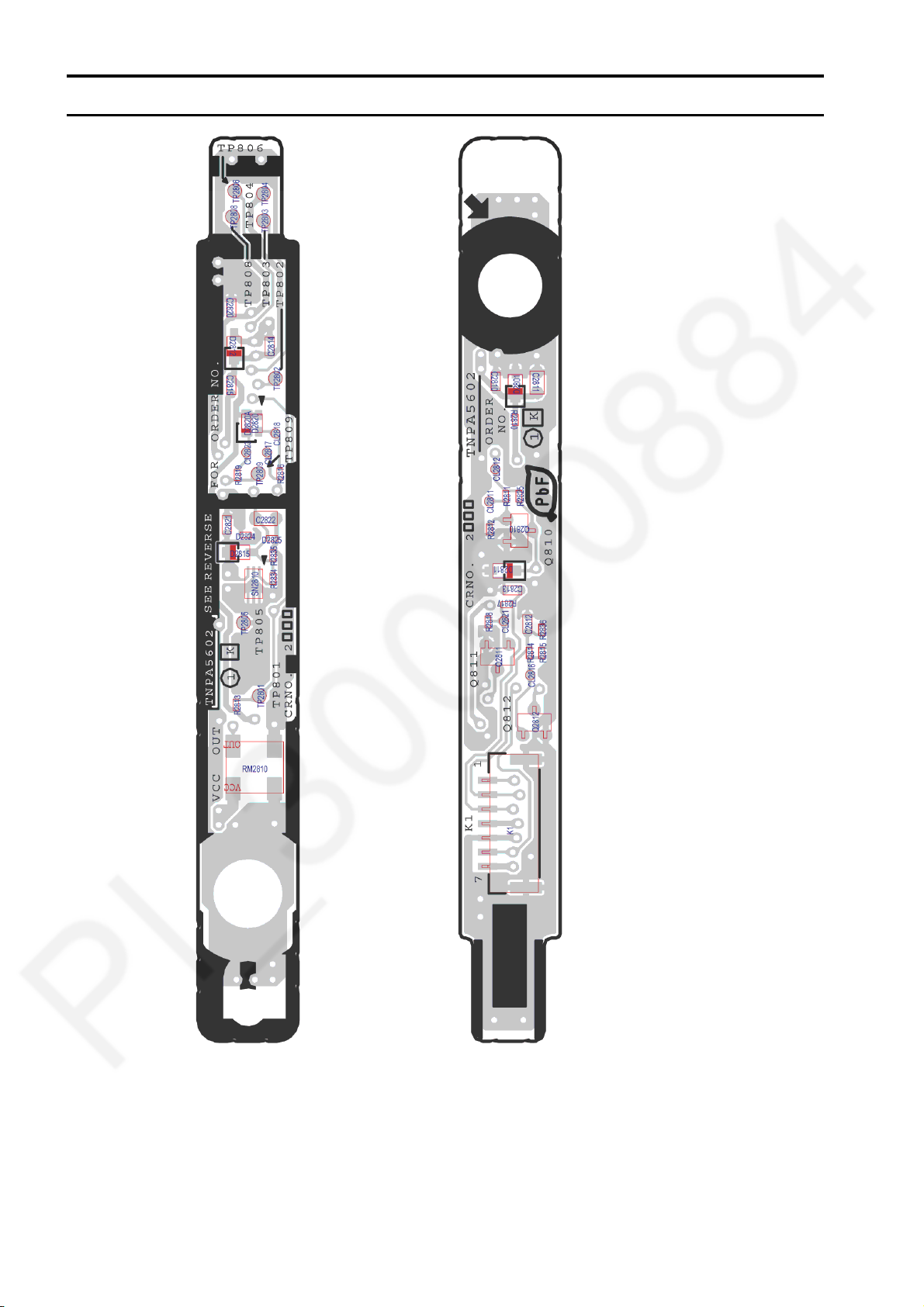

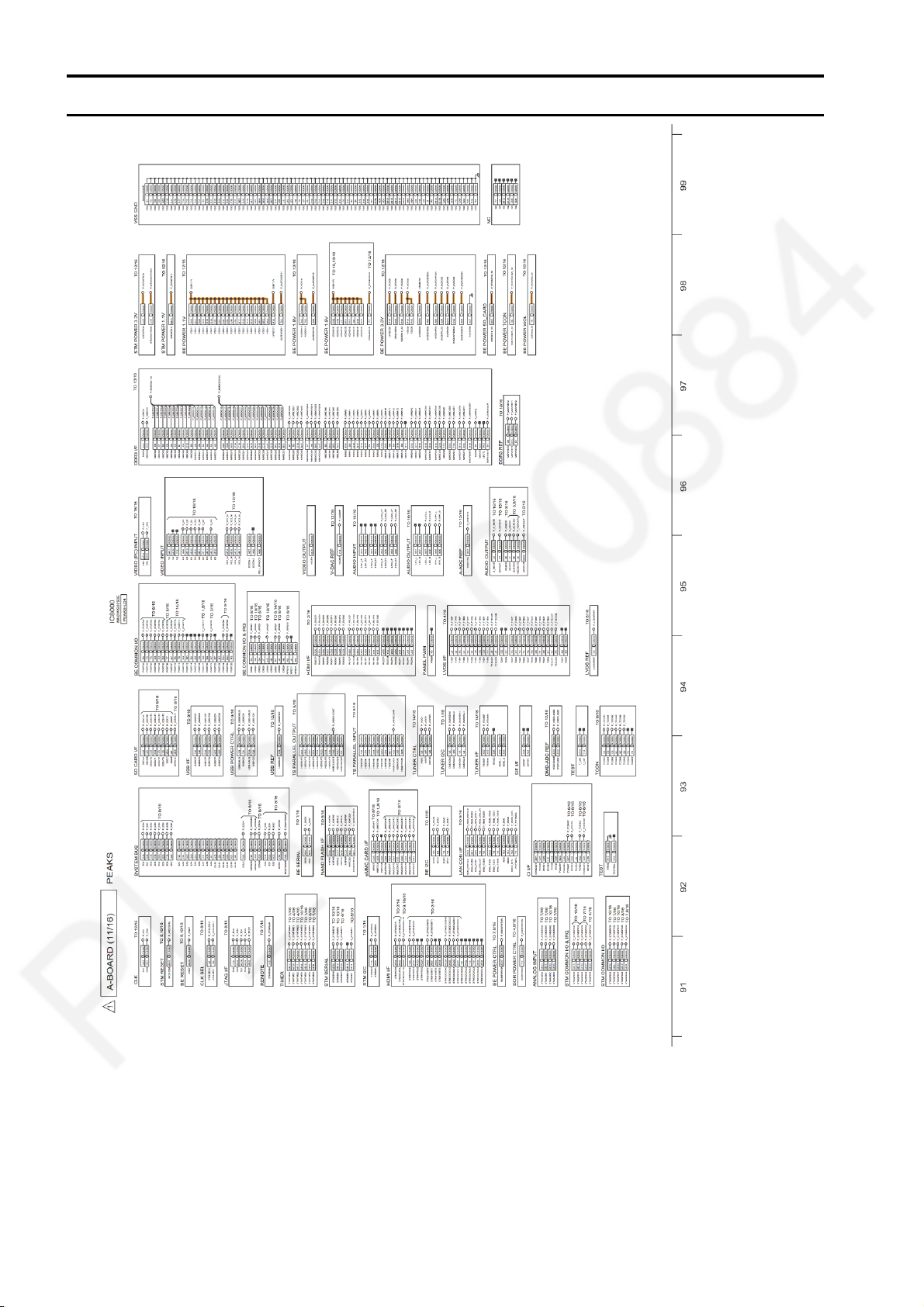

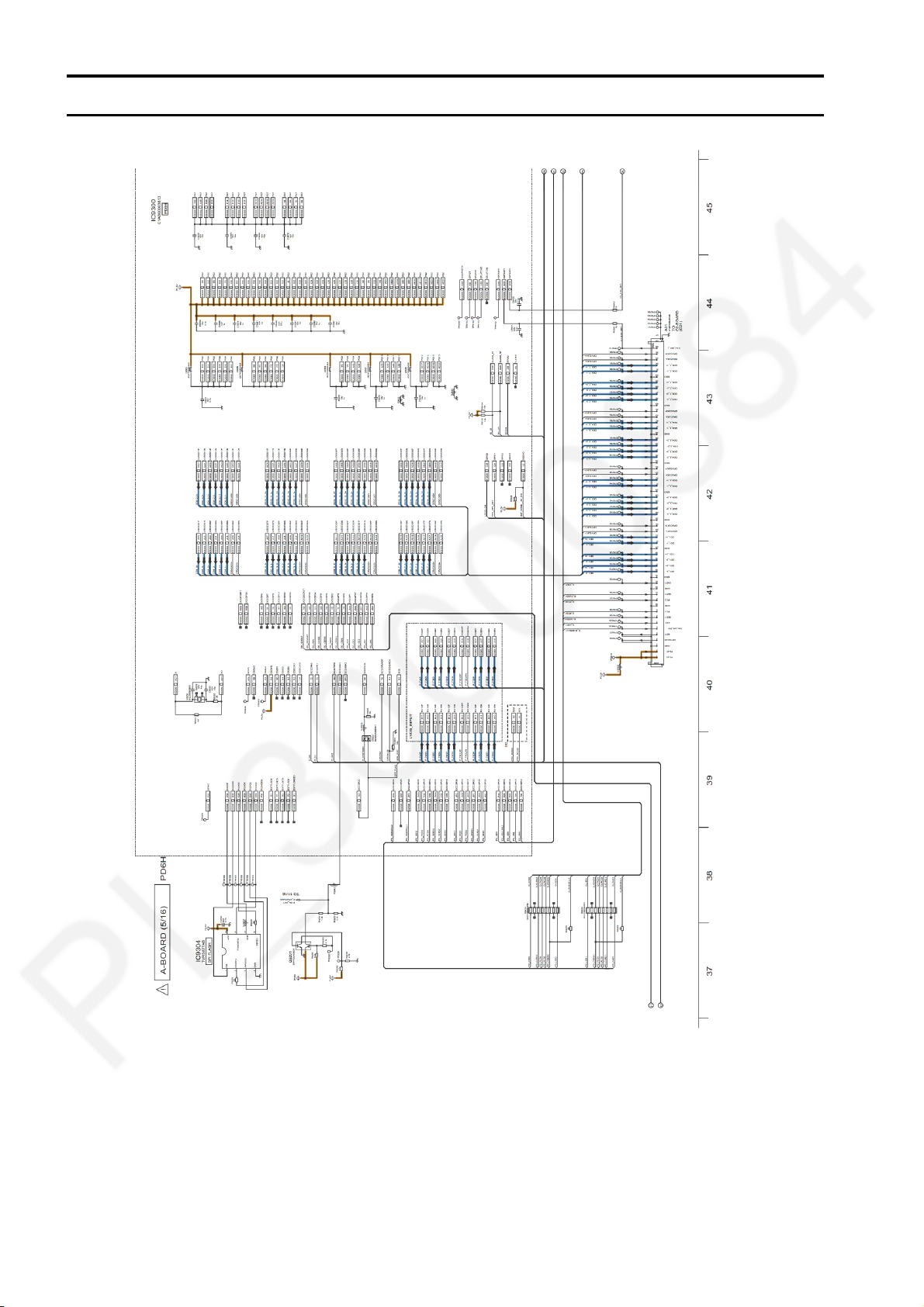

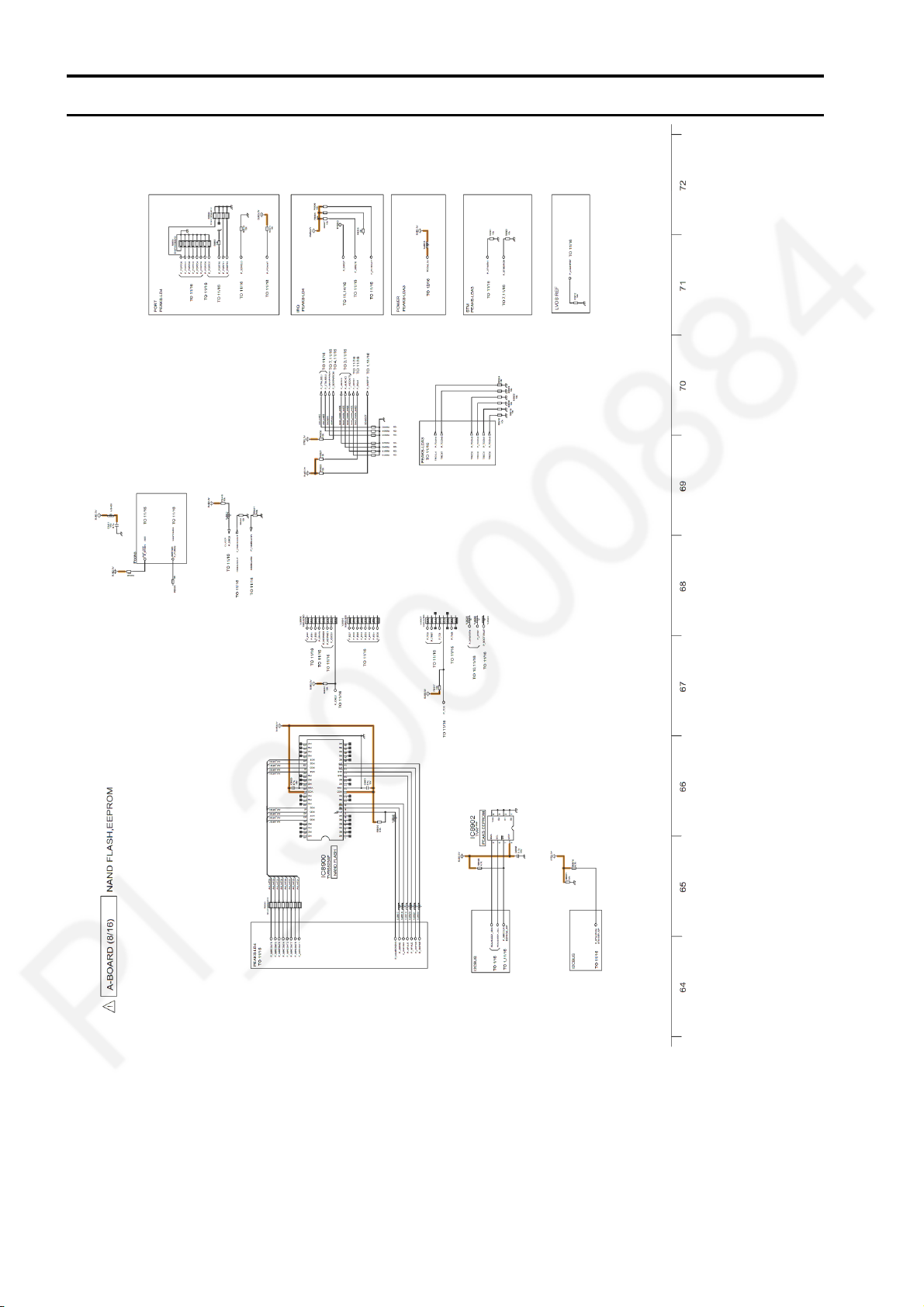

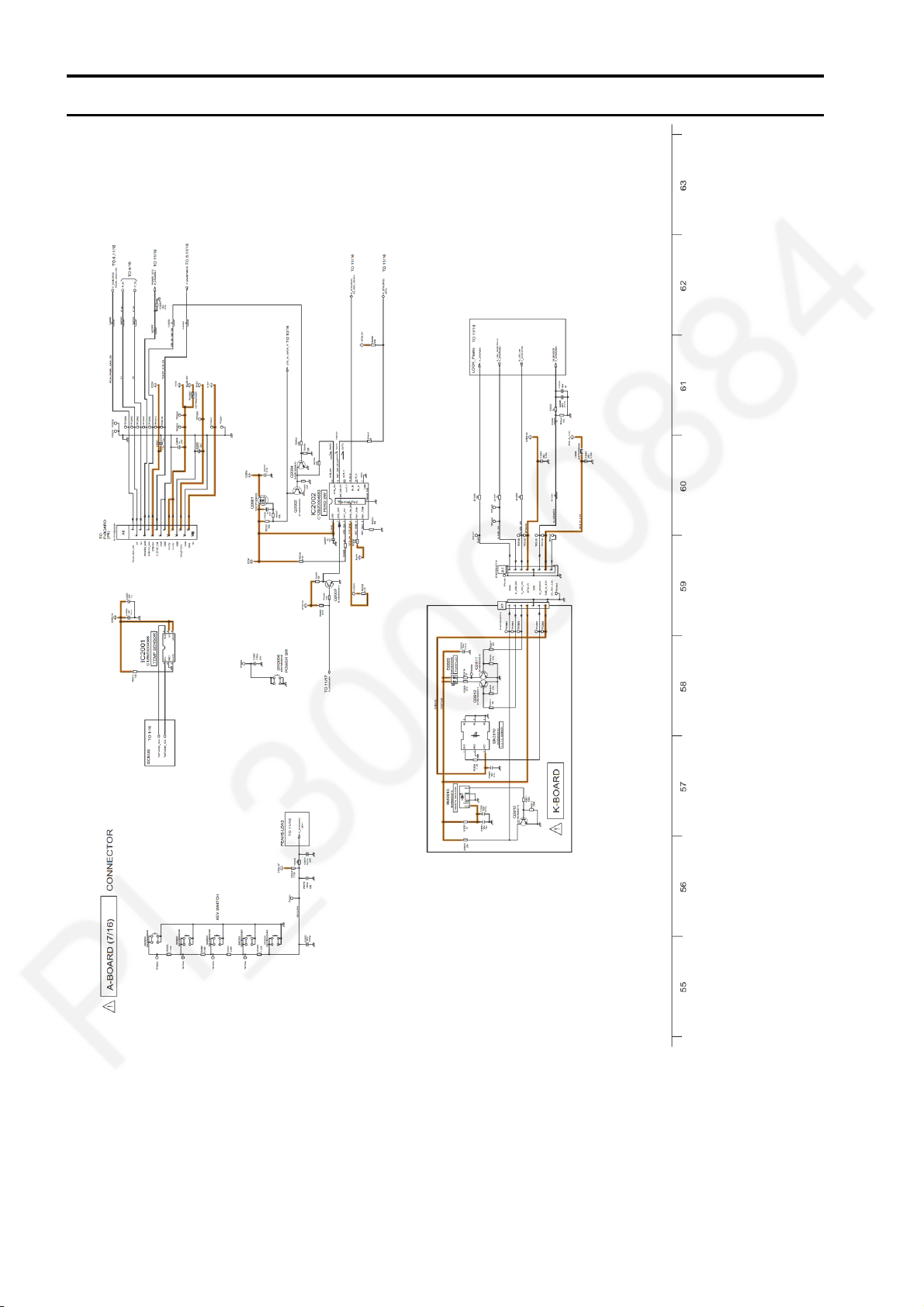

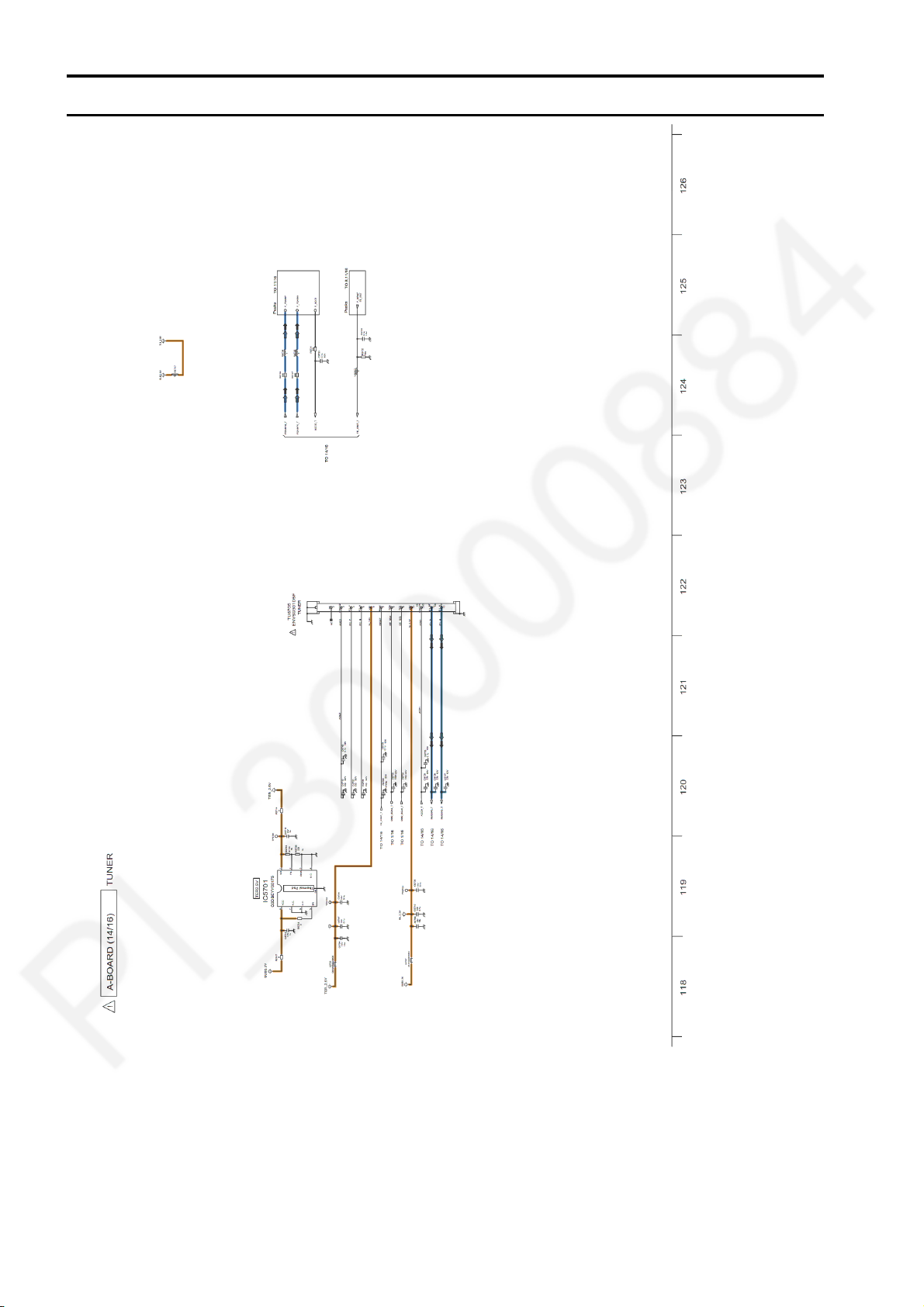

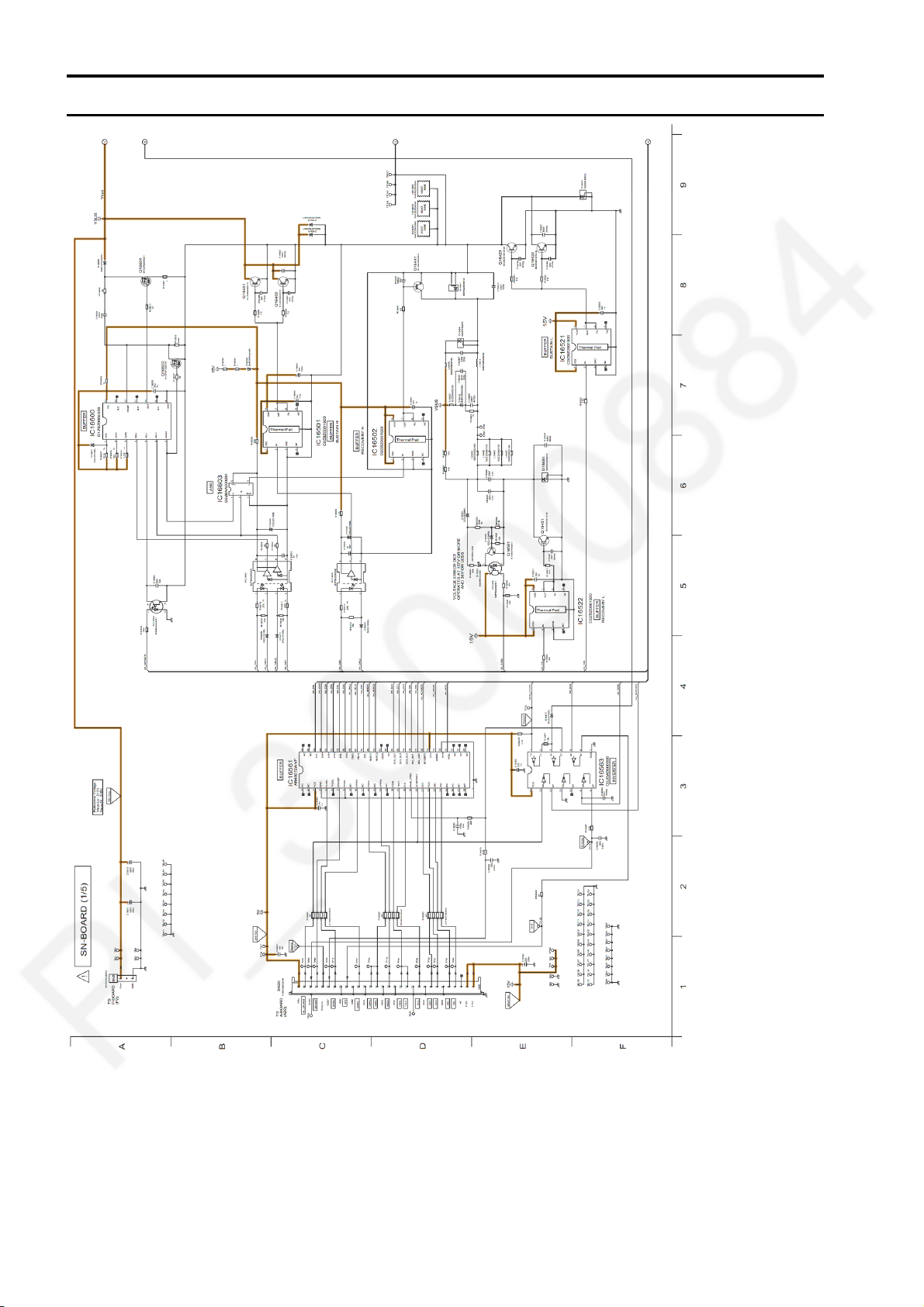

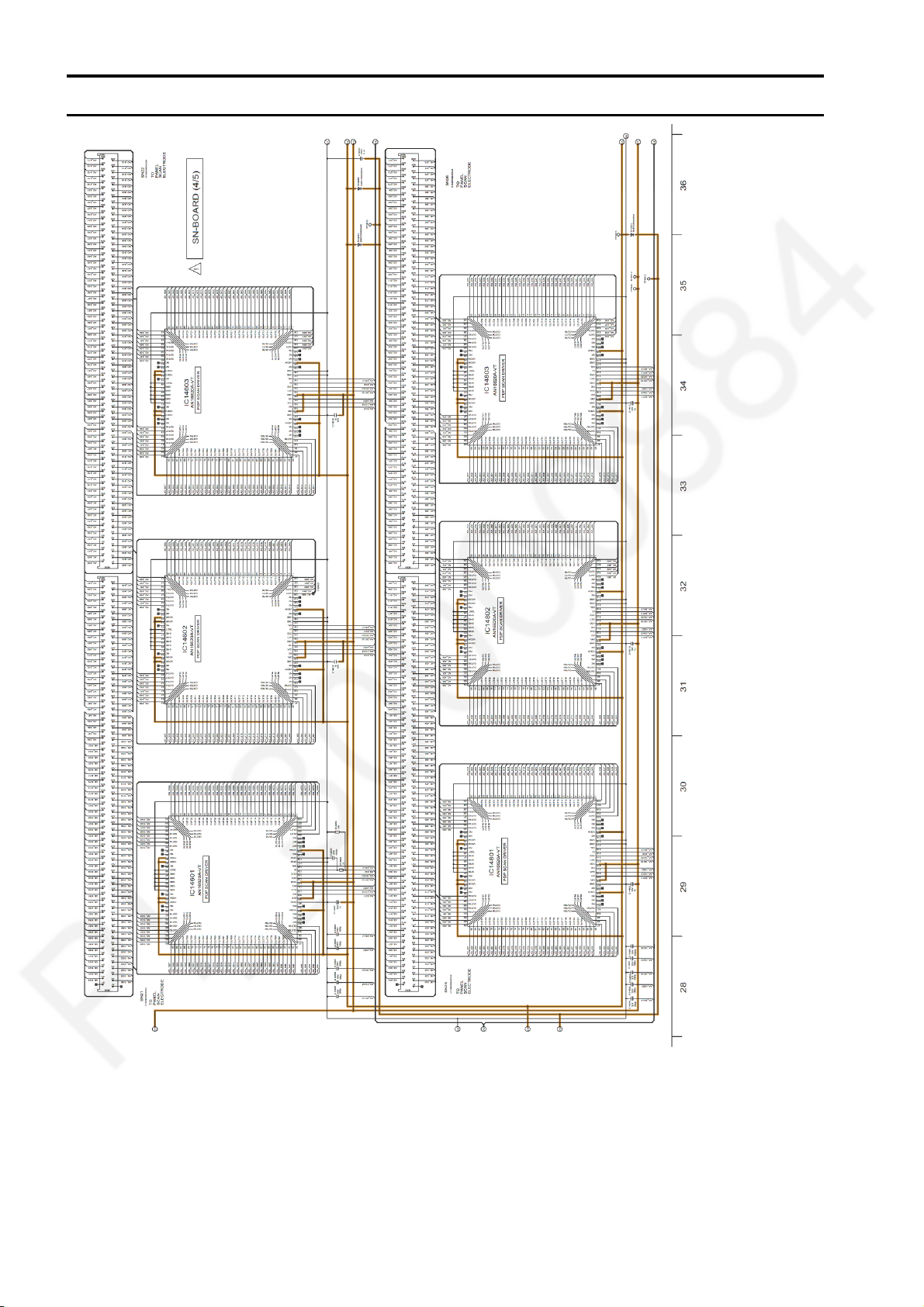

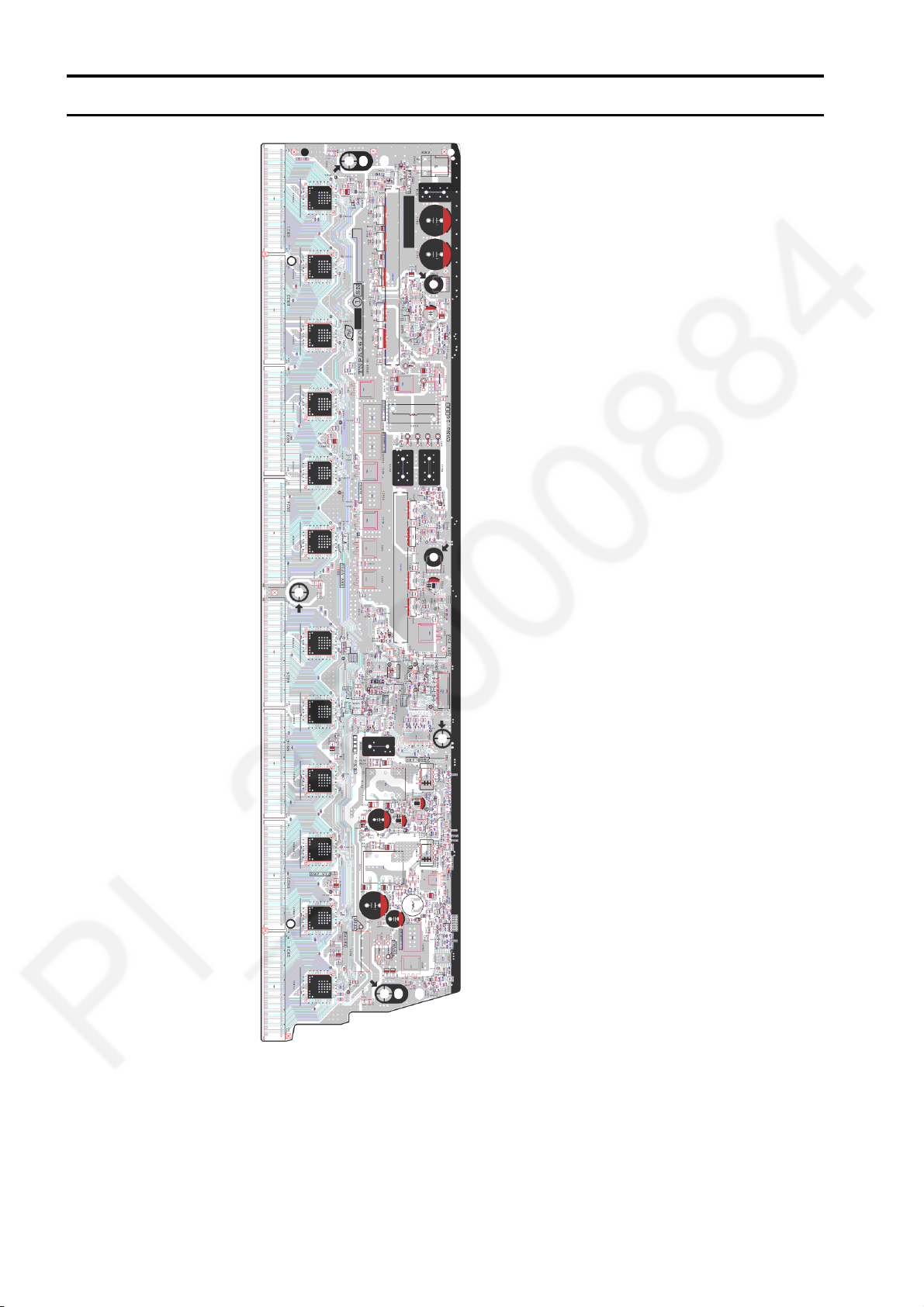

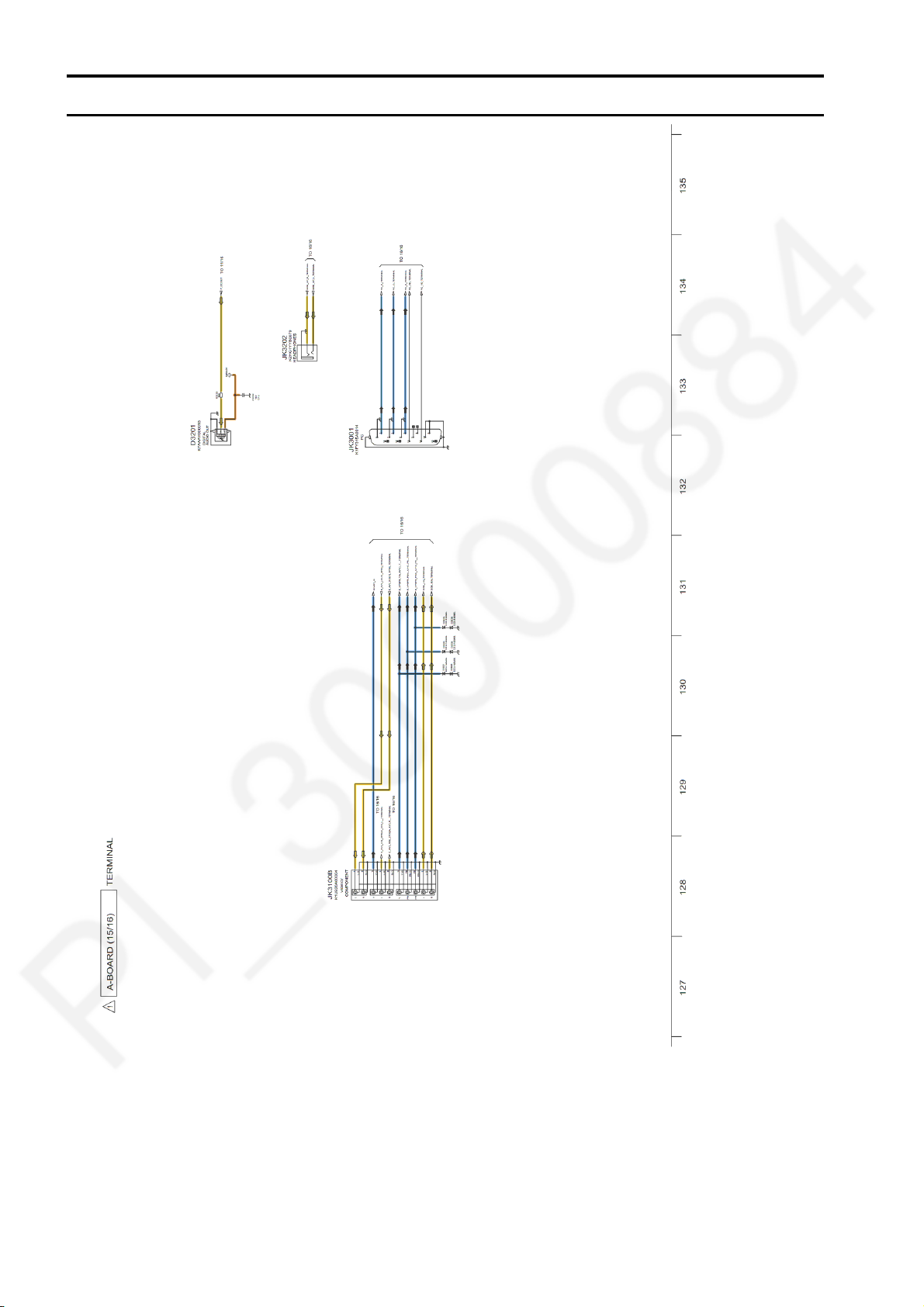

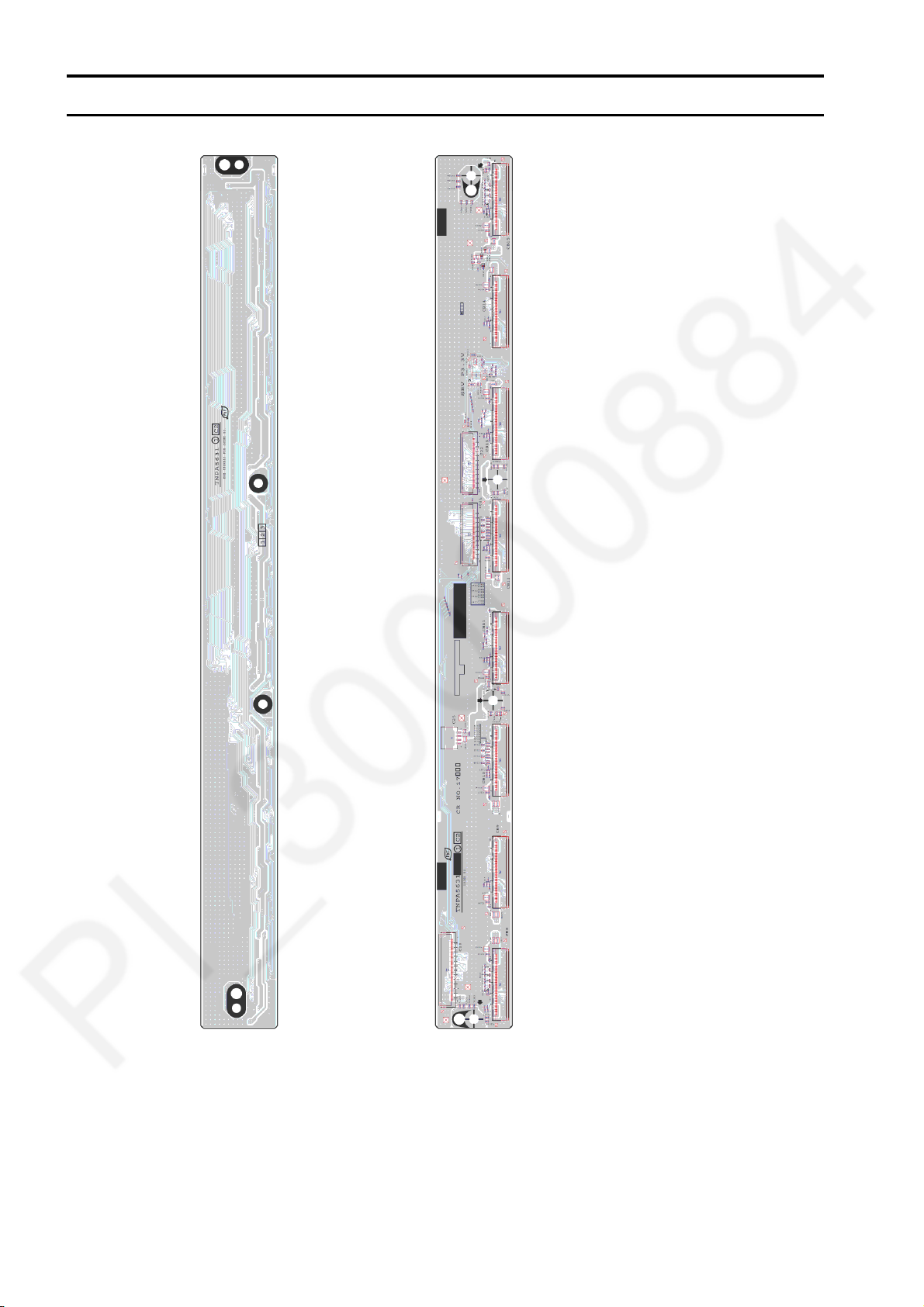

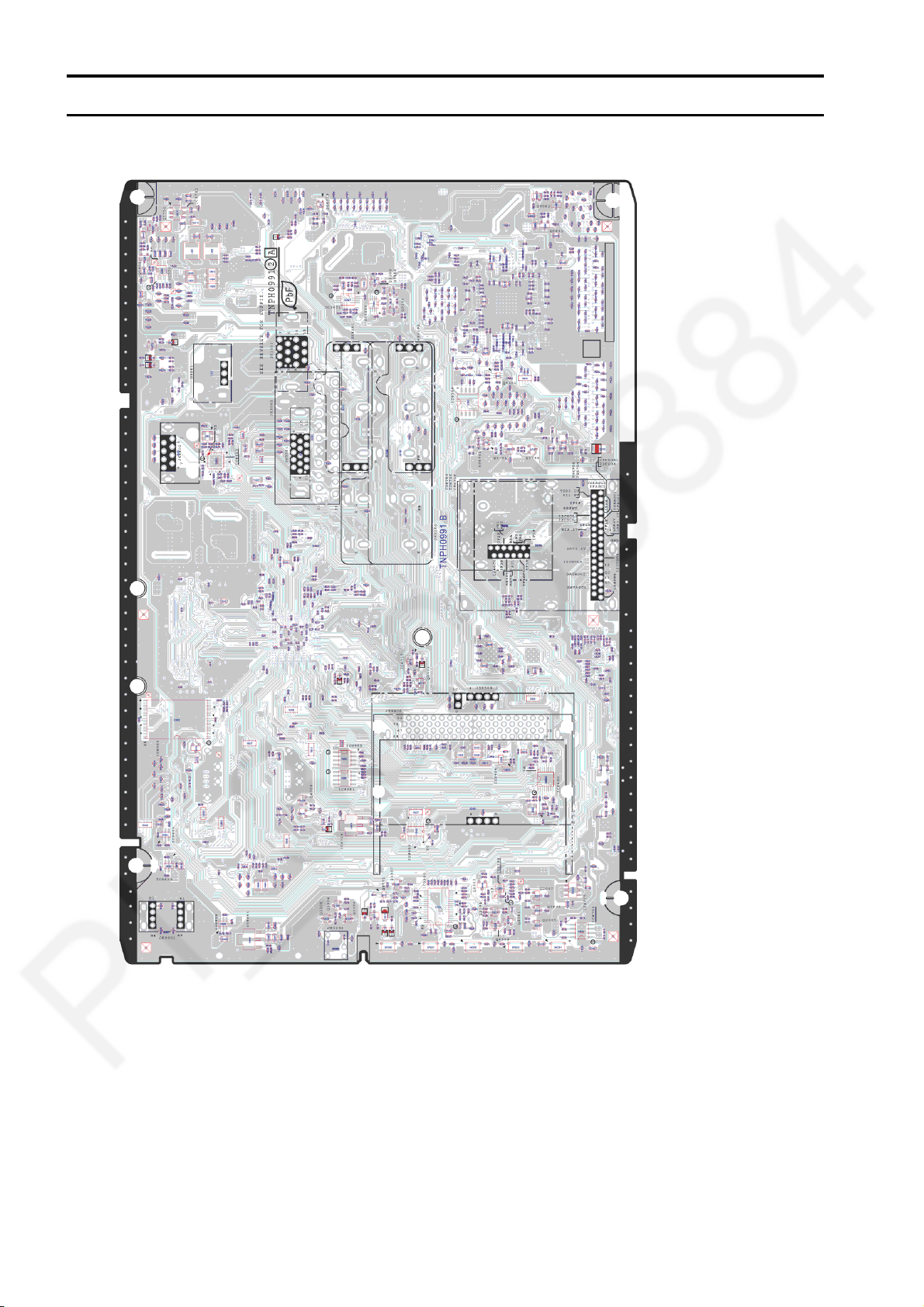

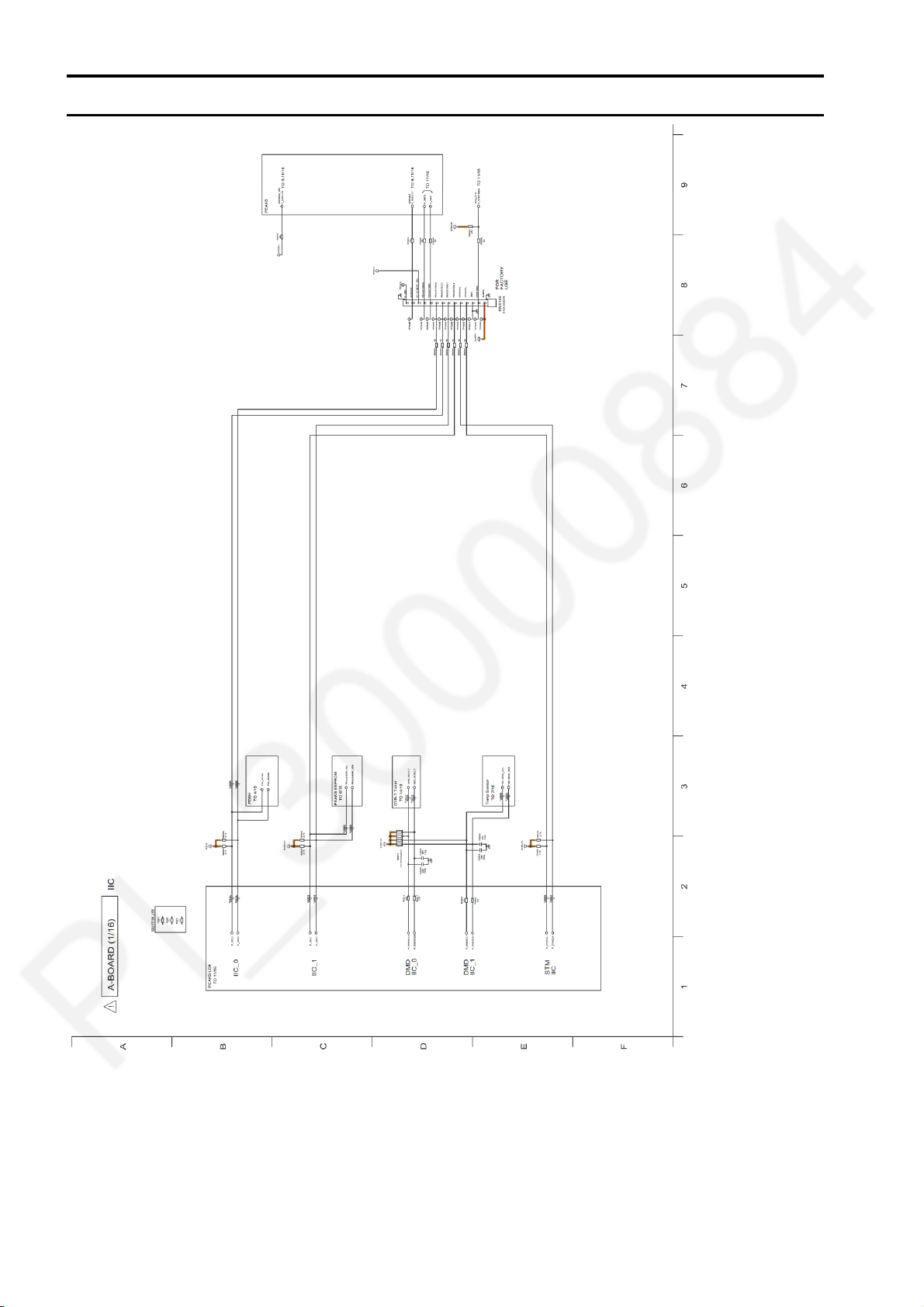

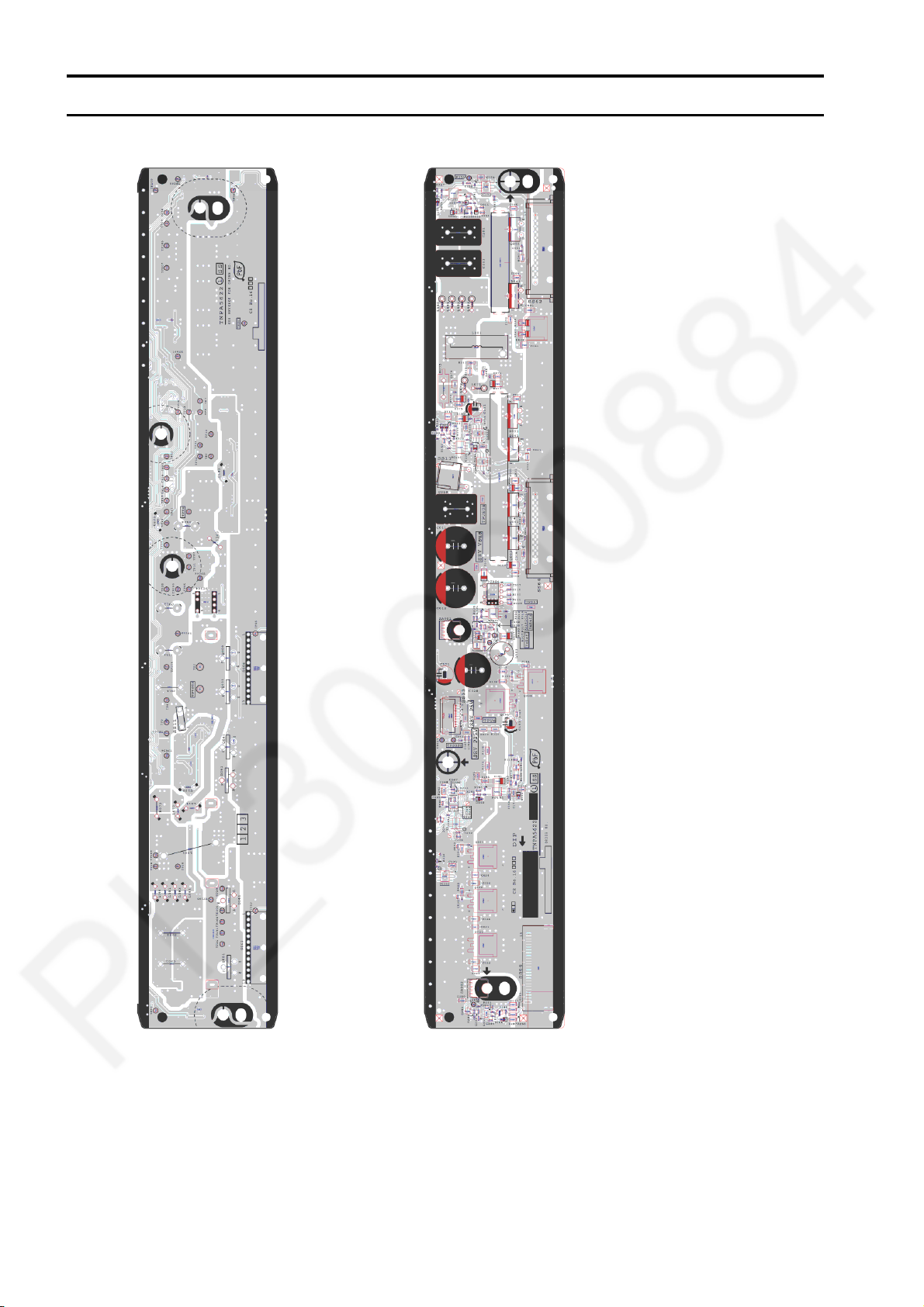

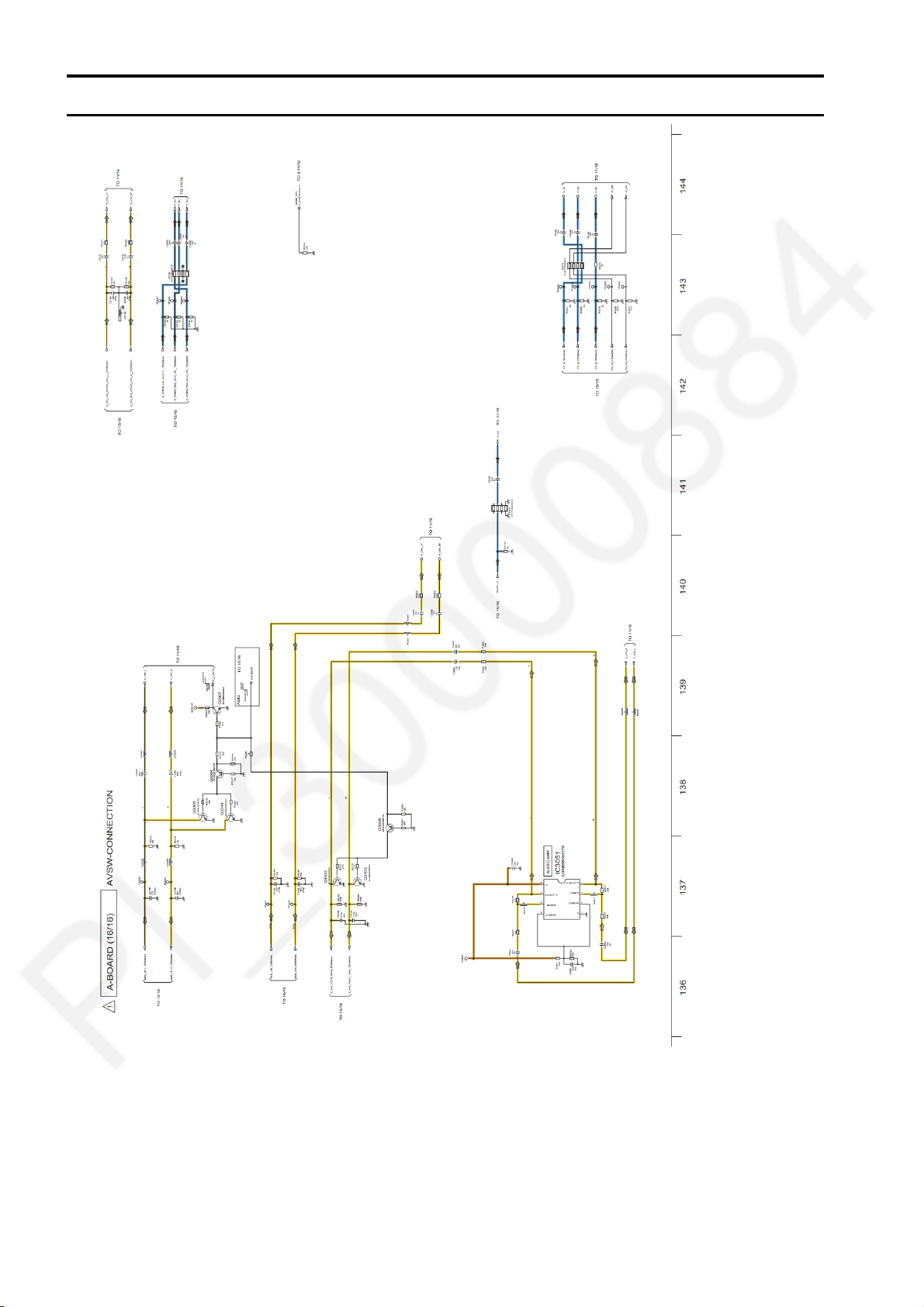

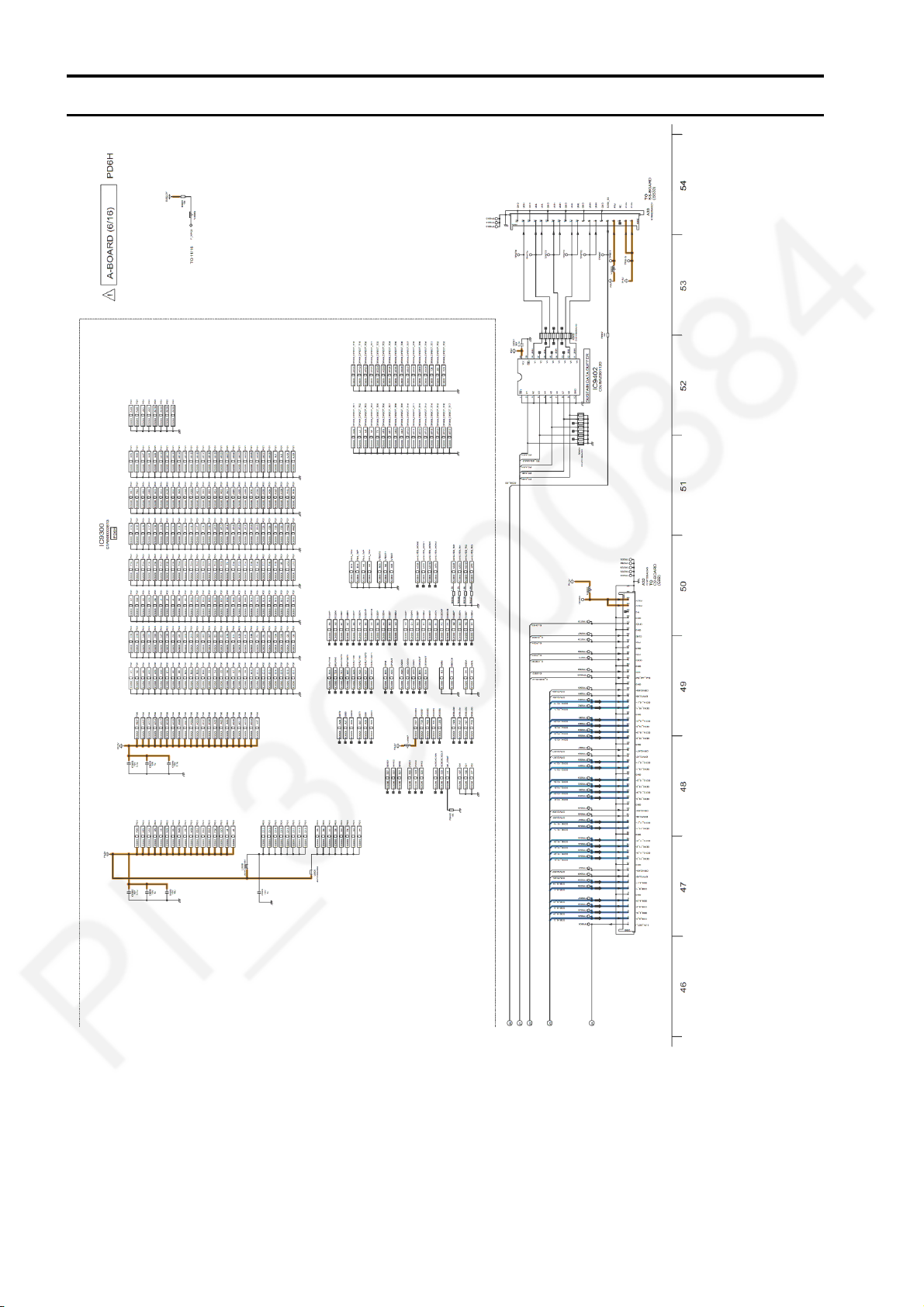

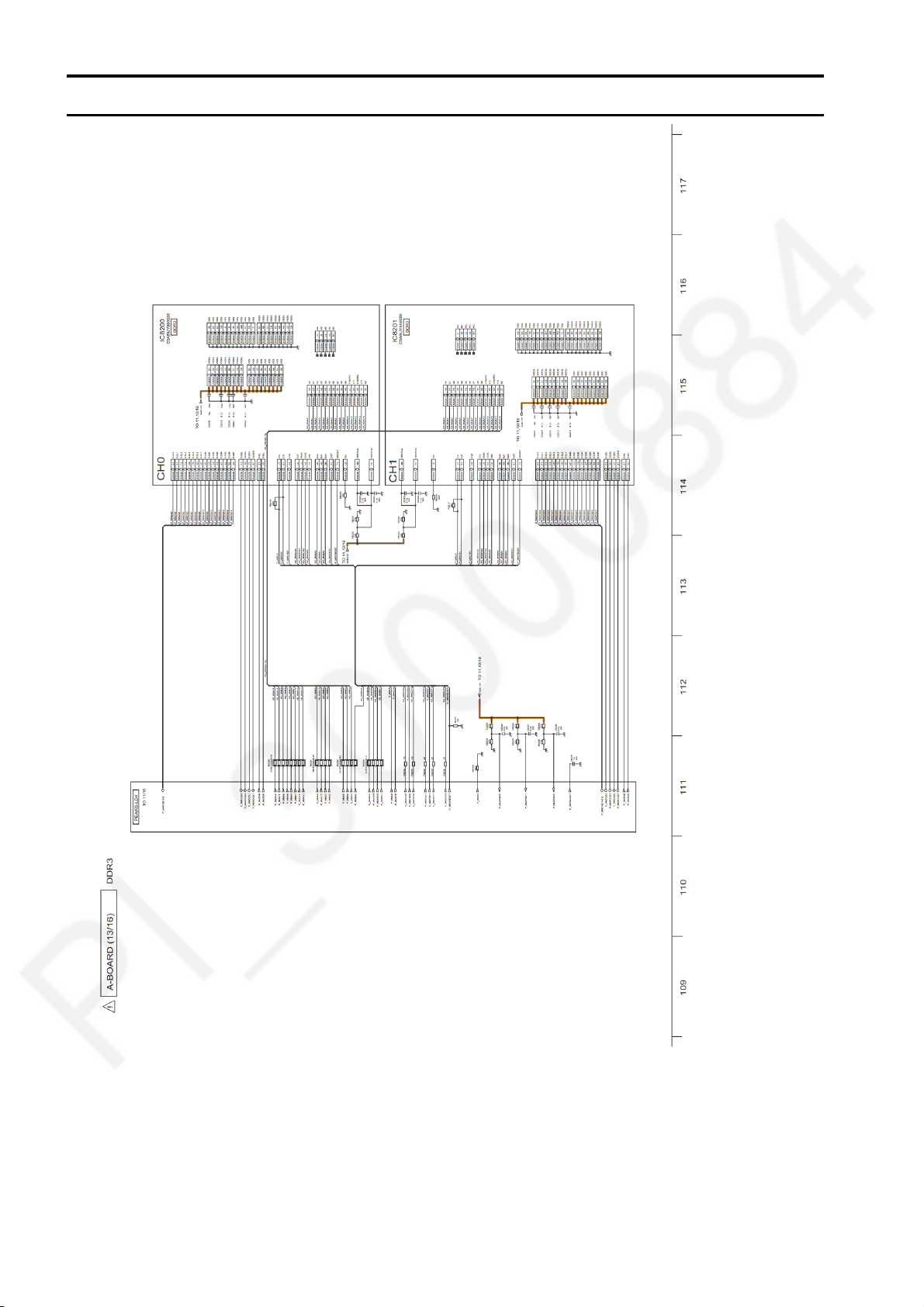

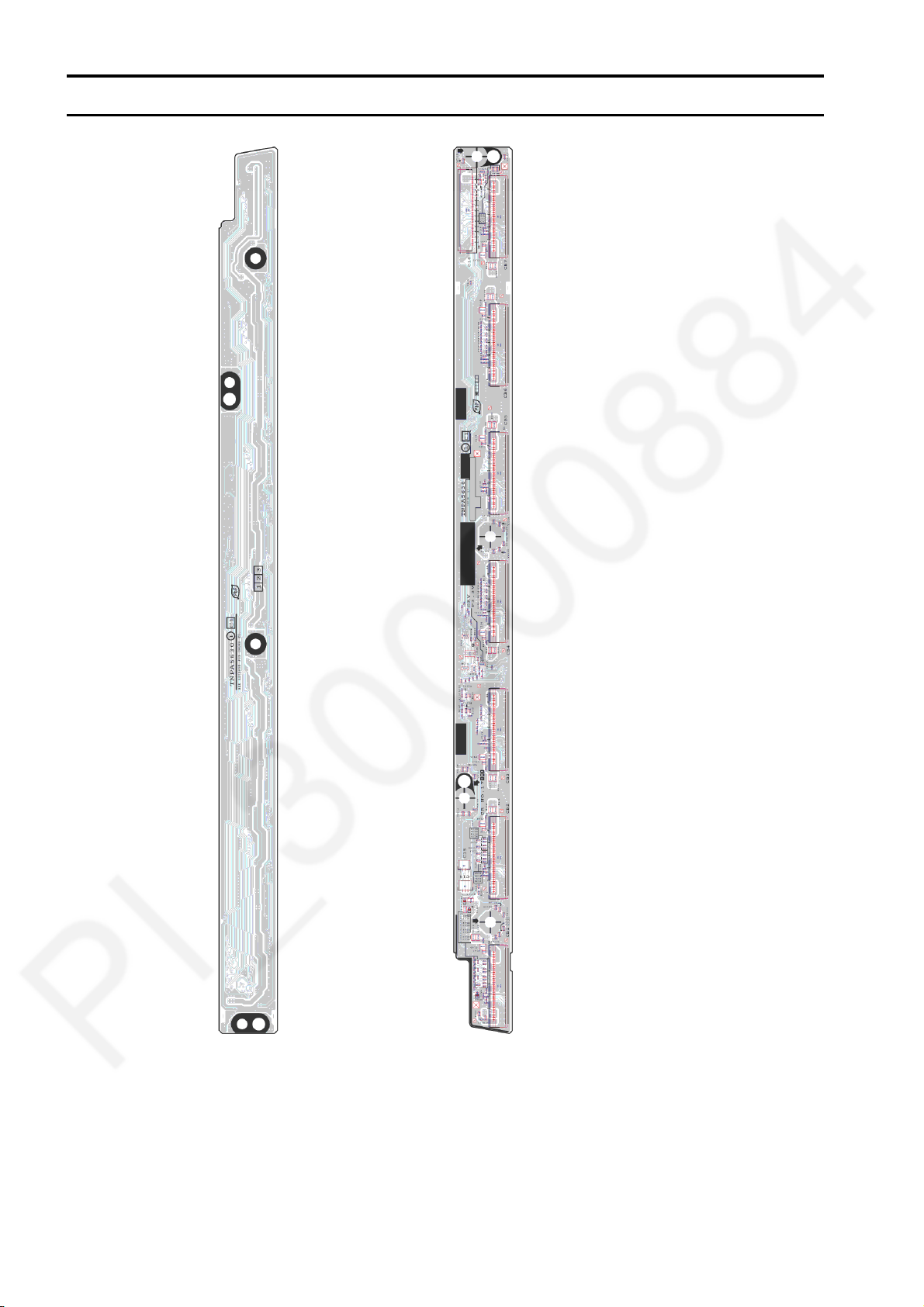

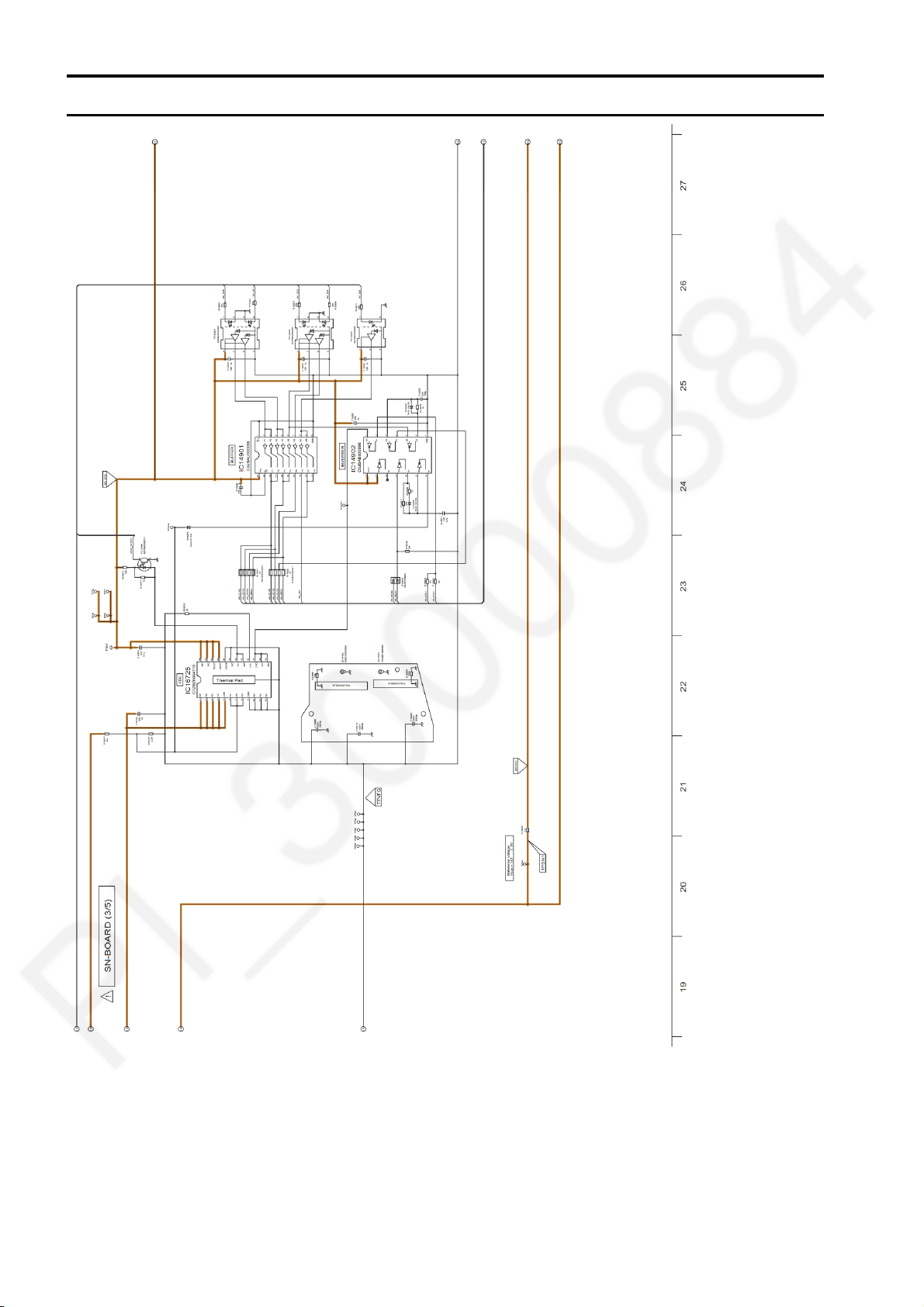

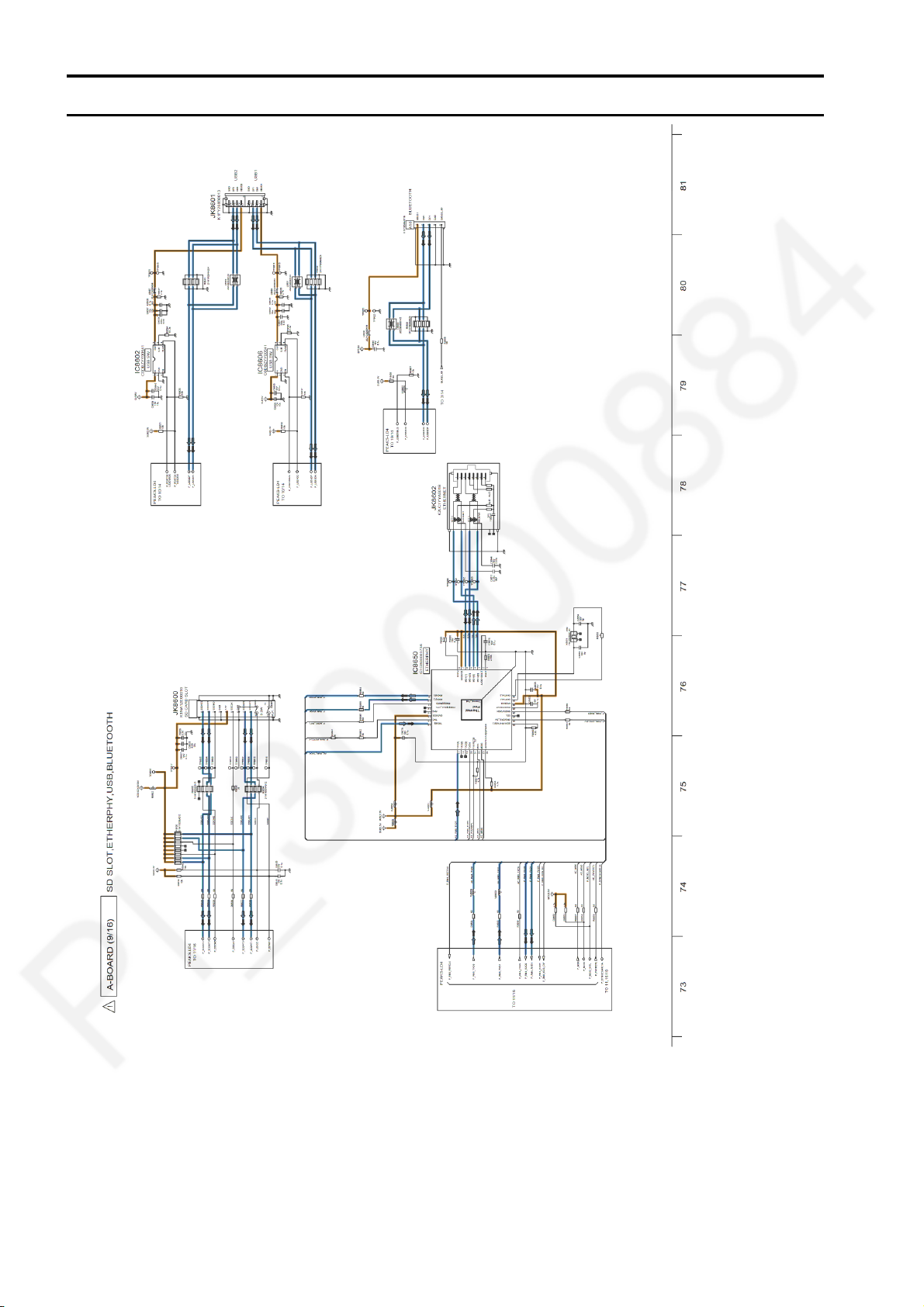

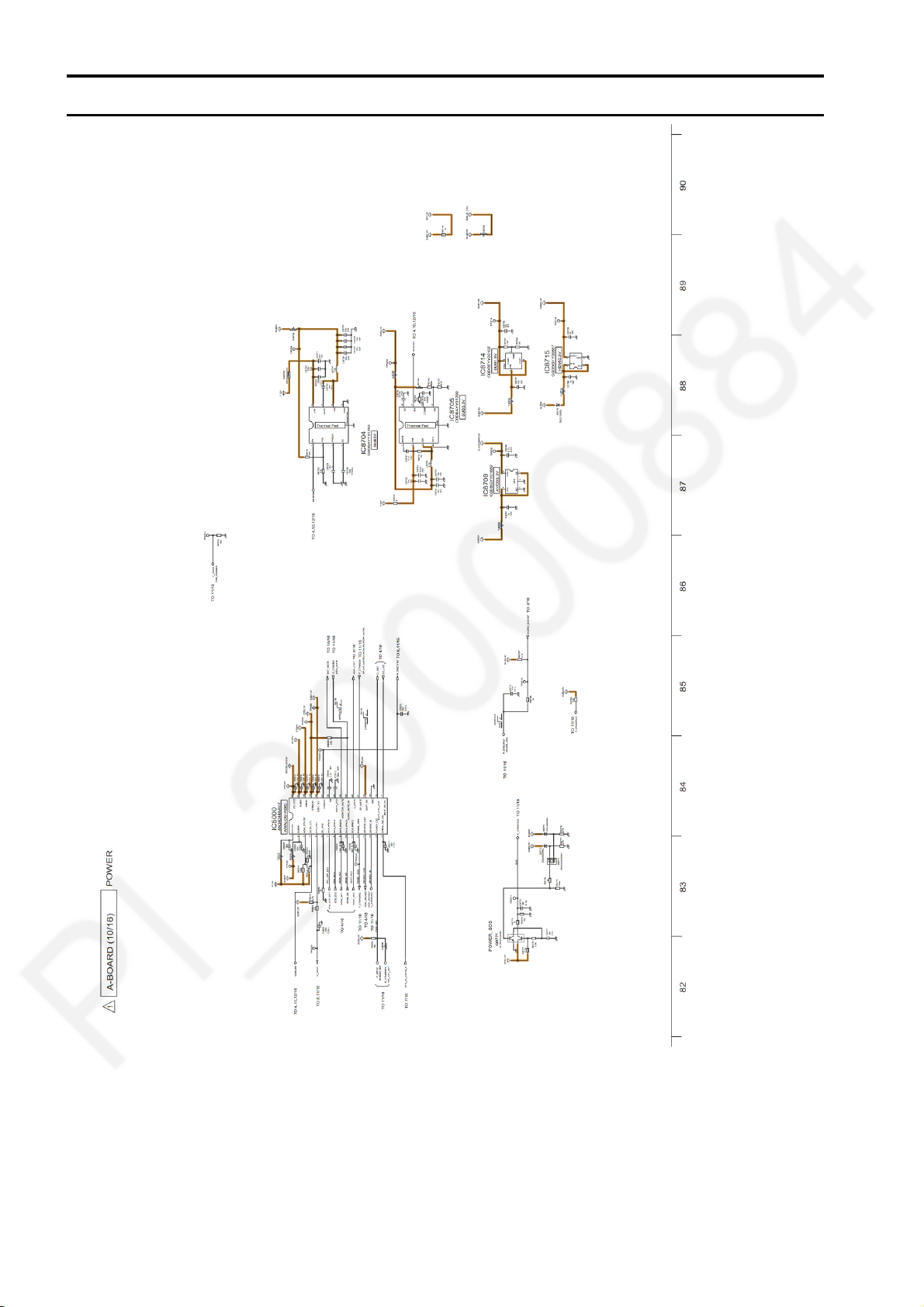

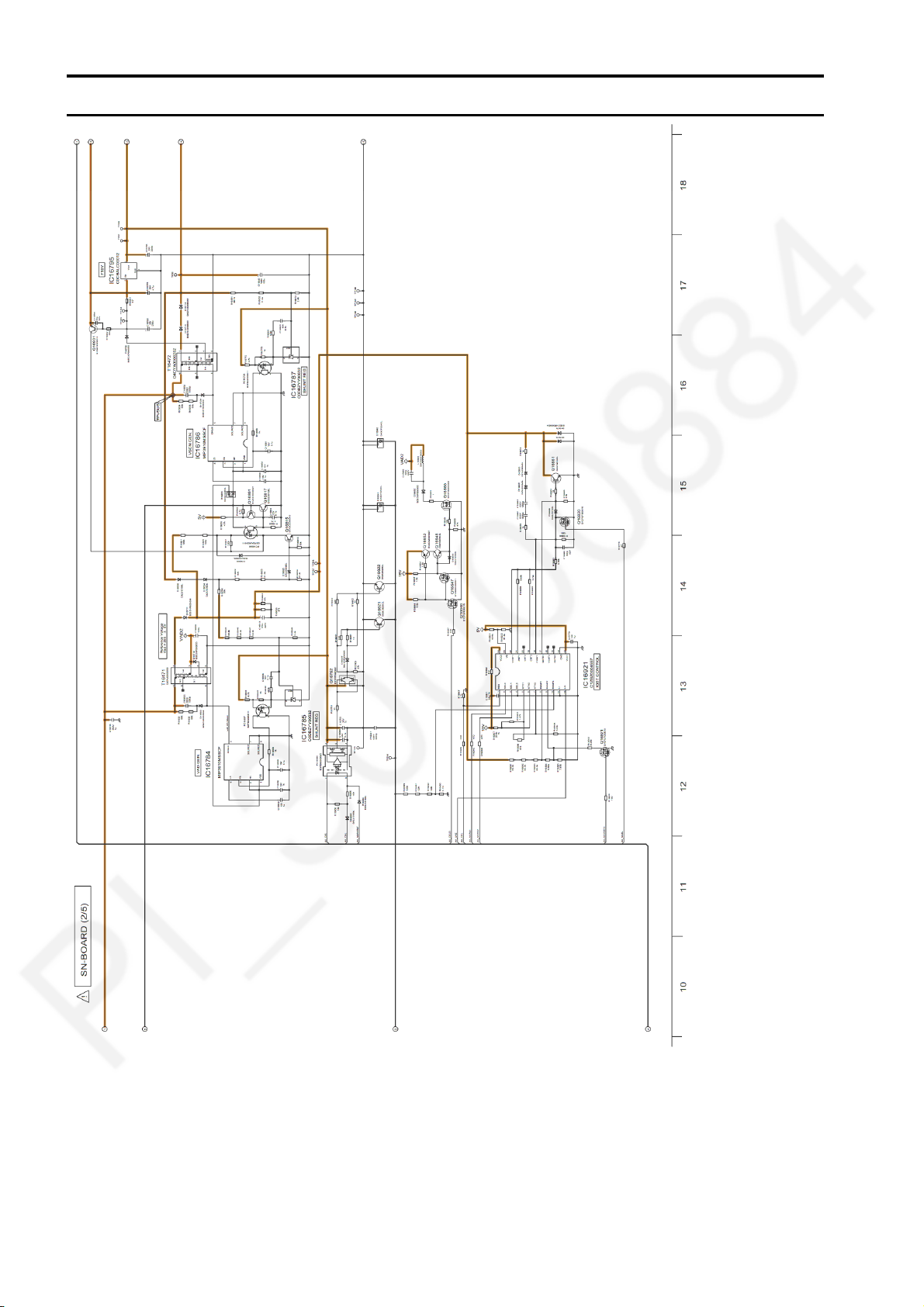

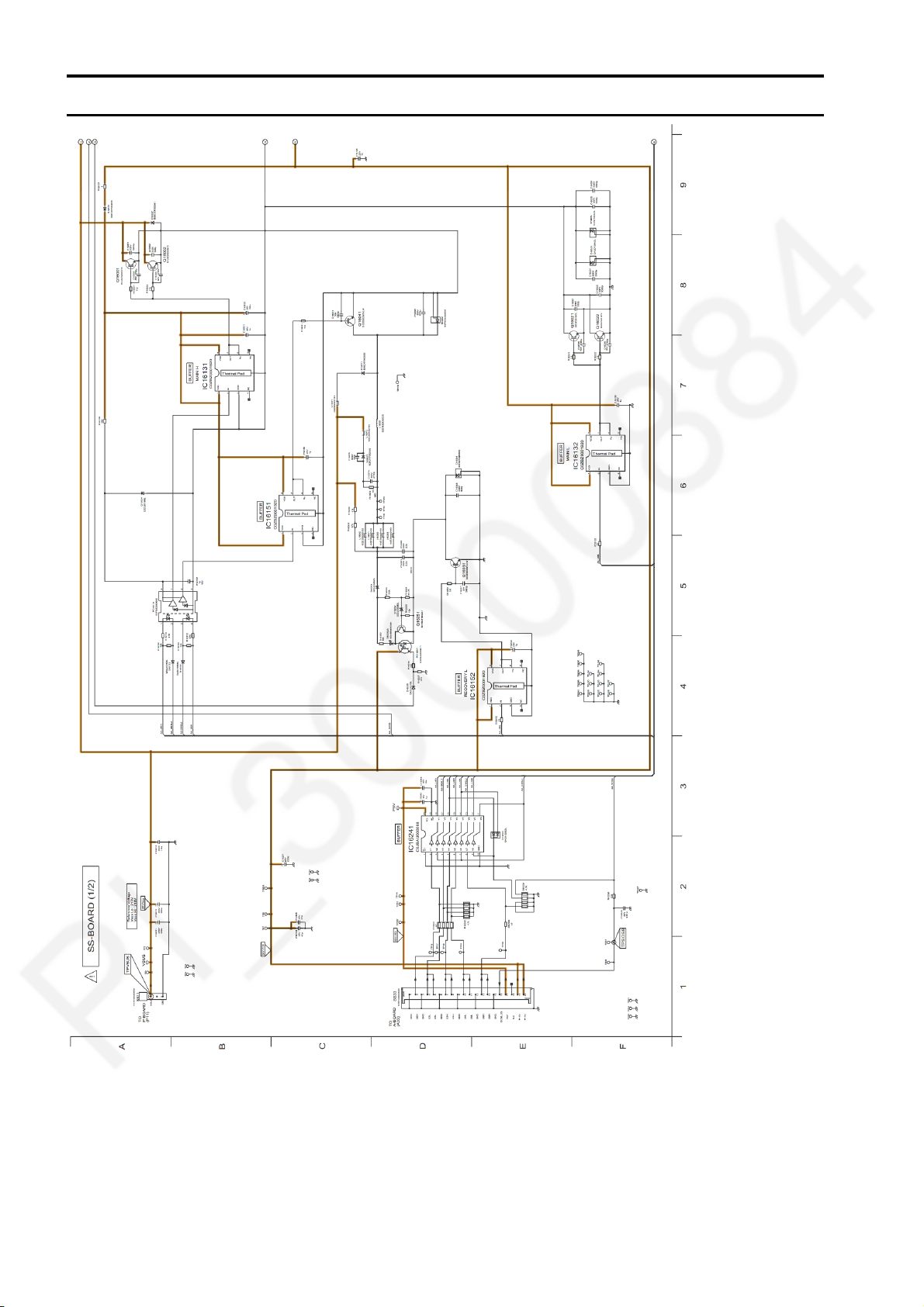

12 Schematic Diagram 13 Printed Circuit Board 14 Exploded View

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c. The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

= 1.0 V,

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

and U2, does not exceed the following values:

Figure 1

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

3 Service Navigation

3.1. PCB Layout

Board Name Function

P Power Supply

A Main AV input, processing

K Remote receiver, Power LED, C.A.T.S sensor C1 Data Driver (Lower Right) C2 Data Driver (Lower Left) SN Scan Drive SS Sustain Drive

Non serviceable. P-Board should be exchanged for service.

3.2. Applicable signals

Q COMPONENT (Y, PB, PR) (from AV2 terminal), HDMI

Signal name COMPONENT HDMI 525 (480) / 60i, 60p * * 625 (576) / 50i, 50p * * 750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p, 50p, 24p *

* Mark: Applicable input signal

Q PC (from D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 59.94 800 × 600 @60 Hz 37.88 60.32 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,280 × 768 @60 Hz 47.70 60.00 1,366 × 768 @60 Hz 48.39 60.04

Applicable input signal for PC is basically compatible to VESA standard timing.

Q PC (from HDMI terminal)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 1,280 × 720 @60 Hz 45.00 60.00 1,920 × 1,080 @60 Hz 67.50 60.00

Applicable input signal for PC is basically compatible to HDMI standard timing.

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not show fine detail with sufficient clarity.

4 Specifications

Sound

Speaker (160 mm × 40 mm) × 2, 8Ω Audio output 20 W ( 10 W + 10 W ) Headphones M3 (3.5 mm) stereo mini Jack × 1

Receiving systems / Band name (Z)

PAL B / G Reception of Off air broadcasts Digital TV 8 MHz UHF (New Zealand) free-to-air TV broadcast reception PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR) M.NTSC Playback from M.NTSC Video recorders (VCR) NTSC Playback from NTSC Video recorders (VCR)

Receiving systems / Band name (Except Z)

Receiving Channels (Except Z)

VHF BAND

2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M Japan) 2-13 (NTSC M USA)

UHF BAND

21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL B AUST.) 13-57 (PAL D, K) 13-62 (NTSC M Japan) 14-69 (NTSC M USA)

CATV

S1-S20 (OSCAR) 1-125 (USA CATV) C13-C49 (JAPAN) S21-S41 (HYPER) Z1-Z37 (CHINA) 5A, 9A (AUST.)

Aerial - Rear VHF/UHF Operating Conditions

Temperature: 0 °C - 40 °C (Except Z) 0 °C - 35 °C (Z) Humidity: 20 % - 80 % RH (non-condensing)

Connection terminals

AV1 I N

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AUDIO OUT

AUDIO L-R RCA PIN Type × 2 0.5 V [rms] (high impedance)

AV2 I N

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] COMPONENT Y 1.0 V [p-p] (including synchronization)

, PR/C

B/CB

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

HDMI 1 / 2 input TYPE A Connectors

• This TV supports "HDAVI control 5" function.

PC HIGH-DENSITY D-SUB 15PIN

R,G, B: 0.7 V [p-p] (75 Ω) HD, VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)

• Applicable input signals: VGA, SVGA, WVGA, XGA

Card slot SD Card slot × 1 ETHERNET 10BASE-T / 100BASE-TX USB 1 / 2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic

Bluetooth wireless technology*

Standard Compliance Bluetooth 3.0 Frequency Range 2.402 GHz - 2.480 GHz

*1: Not all the Bluetooth compatible devices are available with this TV.

± 0.35 V [p-p]

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

Power Consumption (Z)

Power rating AC 220-240 V, 50 / 60 Hz 1.4 A Normal (Home) mode 112 W Standby condition 0.4 W

Power Source (Except Z) AC 220 - 240 V, 50 / 60 Hz (Except P)

AC 110 - 240 V, 50 / 60 Hz (P)

Power Consumption (Except Z)

Power Rating 285 W Standby condition 0.4 W

Display panel

Panel system Plasma panel Visible screen size (diagonal) 107 cm / 42 inches Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)), [5,760 × 1,080 dots]

Dimensions (W × H × D) 1,009 mm × 663 mm × 320 mm (With Pedestal)

Mass 20.5 kg Net (With Pedestal)

Q 3D Eyewear (Z)

Dimensions (W × H × D) 167.7 mm × 42.2 mm × 170.7 mm Mass Approx. 31 g Lens type Liquid Crystal Shutter Usage temperature range 0 °C - 40 °C Battery* Coin-shaped lithium battery CR2025

Viewing range* Within 3.2 m from front surface of the TV Materials Main body: Resin

Communication system 2.4 GHz band FH-SS (Frequency Hopping Spread Spectrum)

* There are differences in the viewing range of the 3D Eyewear among individuals.

• The 3D Eyewear may not operate correctly at the outside of the viewing range.

1,009 mm × 616 mm × 84 mm (TV only)

17.5 kg Net (TV only)

Operation time: Approx. 75 hours in continuous use of the battery made by Panasonic

Lens section: Liquid crystal glass

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

•

5 Technical Descriptions

5.1. Specification of KEY for DTCP-IP, One-to-One, Widevine and Netflix

5.1.1. General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902). Four KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

Model No. Keys

One-to-One

(For USB Rec.) TH-P42UT50D/M/P/S None None Yes Yes TH-P42UT50Z Yes Yes Yes Yes

DTCP-IP Widevine Netflix

5.2. USB HDD Recording (Z only)

5.2.1. General information:

Digital TV programmes can be recorded in USB HDD. A One-to-One key generated in A-board by SELF CHECK binds TV and USB-HDD for communication. That key is only one key for them. If the key is difference, TV can not access USB-HDD.

Caution:

New key will be generated by following SELF CHECK and previous TV programmes recorded in USB HDD will not be viewed. SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

5.3. Panel-Type setting

Panel-Type setting is required after exchange the A-board. A-board for spare parts is common use for different inch size in same series. Go into Service Mode and confirm/select Panel-Type in OPTION to correct inch size.

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds.

Note:

Service Mode can not be entered when 3D signal input. Input 2D signal to enter Service Mode.

6.1.2. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [RED] button...All Sub items Selection in reverse direction [GREEN] button...All Sub items Selection in forward direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 225

COLOR 36 TINT 00 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0

WB-ADJ R-CUT 80

G-CUT 80 B-CUT 80 R-DRV FF G-DRV F6 B-DRV B9 ALL-CUT 80 ALL-DRV FF

OPTION Panel-Type 42FHD Factory Preset

Boot ROM STBY-SET 00 EMERGENCY ON CLK MODE 00 CLOCK 000 Y/C Delay 0 OPT 1 10110000 OPT 2 11100110 OPT 3 00001001 OPT 4 00000000 EDID-CLK MID MIRROR 00 (See Option-Mirror)

AMR-SELECT OFF VSUS LOW See Vsus selection AGING ALL WHITE Built-in test patterns can be

MIDDLE BLUE WITH MAGENTA OUTSIDE FRAME

MIDDLE STEP GREEN

MIDDLE STEP RED

LOW STEP WHITE

ALL BLUE

ALL GREEN

ALL RED

WHITE DIAGONAL STRIPE

RED DIAGONAL STRIPE

GREEN DIAGONAL STRIPE

BLUE DIAGONAL STRIPE

A-ZONE & B-ZONE

1% WINDOW

COLOR BAR

9 POINTS BRIGHT MEASURE

2 DOT OUTSIDE FRAME

DOUBLE FIXED 1% WINDOW

VERTICAL LINE SCROLL

ON/OFF

R/G/B/W ROTATION WITH COUNT DISPLAY

HALF FIXED ALL WHITE

ALL WHITE WITH COUNT DISPLAY SRV-TOOL 00 See Service tool mode DRV CHECK USBHDD CHECK 00 See DRV Check-USBHDD Check

displayed.

6.2. Option - Mirror

Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

6.3. Service tool mode

6.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.3.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory shipment setting].

6.3.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec. Time : Cumulative power on time, indicated hour : minute by decimal Count : Number of ON times by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

6.3.4. Exit

1. Disconnect the AC cord from wall outlet.

6.4. DRV Check - USB HDD Check

1. Select [DRV Check - USBHDD Check] in Service Mode.

2. Press [OK] button on the remote control for more than 3 seconds.

6.5. Hotel mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu: While pressing [VOLUME (-)] button of the main unit, press [AV] button of the remote control three times within 2 seconds.

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function Hotel Mode Select hotel mode On/Off Initial INPUT Select input signal modes.

Set the input, when each time power is switched on. Selection : Off,TV,AV1,AV2,PC,HDMI1,HDMI2

• Off: give priority to a last memory.

Initial POS Select programme number.

Selection : Off/0 to 99

• Off: give priority to a last memory

Initial VOL Level Adjust the volume when each time power is

switched on. Selection/Range : Off/0 to 100

• Off: give priority to a last memory Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock Select remote control key conditions.

Private Information Select private information for VIERA Cast is Keep

Adjust maximum volume. Range : 0 to 100

Selection : Off/SETUP/MENU/ALL

• Off: altogether valid

• SETUP: only F-key is invalid

(Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid

(only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset

• Keep: private information for VIERA Cast is

keep

• Reset: private information for VIERA Cast is

reset

6.6. Data Copy by SD Card

6.6.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.

6.6.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty SD card.

1. Insert a empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd (b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in SD card.

6.6.3. Data copy from TV set to SD Card

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in SD card for data from TV set.

(a) For Board replacement : user_setup (b) For Hotel : hotel

6.6.4. Data copy from SD Card to TV set

1. Turn on the TV set.

2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771 (b) For Hotel : 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy). (b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

7 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

7.1.1.2. Self-check indication and forced to factory shipment setting:

Caution:

New key will be generated and previous TV programmes recorded in USB HDD will not be viewed. (See USB HDD Recording) (Z only)

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

7.1.2. Screen display

7.1.3. Check Point

Confirm the following parts if NG was displayed.

DISPLAY Check Ref. No. Description Check Point TUN TU6705 TUNER A-BOARD STBY IC8000 PEAKS-LD4(STM) A-BOARD MEM1 IC8902 PEAKS EEPROM A-BOARD MEM2 IC8900 NAND FLASH A-BOARD PANEL IC9300 PD6H A-BOARD TEMP IC2001 TEMP SENSOR A-BOARD LAN IC8650 ETHERPHY A-BOARD ID2 A-BOARD BT IC8000, A50 BLUETOOTH A-BOARD/BLUETOOTH

7.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

7.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

Blinking Times Contents Check point

1 Panel information SOS

PD Start SOS

2 P+15V SOS A-Board

3 IROM BOOT PROGRAM SOS A-Board

4 Power SOS P-Board 6 Driver SOS1

(SN Energy recovery circuit) (A-SN FPC DET)

7 Driver SOS2

(SN Connector DET) (SN Scan and Logic IC)

8 Driver SOS3

(SS FPC DET) (SS Energy recovery circuit)

9 Discharge Control SOS A-Board

10 Sub 3.3V SOS

Tuner power SOS BE SOS

12 Sound SOS A-Board

13 Emergency SOS A-Board 20 2nd BOOT PROGRAM SOS

(Watchdog timer over flow)

21 2nd BOOT PROGRAM SOS

(System error)

22 2nd BOOT PROGRAM SOS

(Main system bus freeze)

23 2nd BOOT PROGRAM SOS

(Accidental interrupt signal)

24 2nd BOOT PROGRAM SOS

(NAND Flash memory data transfer error finish)

25 2nd BOOT PROGRAM SOS

(Unsupported NAND Flash memory)

P-Board

SN-Board

A-SN FPC

SN-Board

SS-Board

SS FPC

A-Board SN-Board SS-Board

P-Board

Speaker

Woofer

A-Board

7.3. No Power

First check point There are following 3 states of No Power indication by power LED.

1. No lit

2. Green is lit then turns red blinking a few seconds later. (See Power LED Blinking timing chart)

3. Only red is lit.

7.4. No Picture

7.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

8 Disassembly and Assembly Instructions

8.1. Disassembly Flow Chart for the Unit

This is a disassembly chart. When assembling, perform this chart conversely.

8.2. Disassembly Procedure for the Unit

8.2.1. Remove the Pedestal stand

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Remove the screws (×4 ).

3. Slide the Pedestal stand to the downside and remove the Pedestal stand.

8.2.2. Remove the Stand bracket cover

1. Remove the screws (×4 ) and remove the Stand bracket cover.

8.2.4. Remove the Bluetooth module

1. Remove the screw (×1 ) and remove the Bluetooth module.

8.2.5. Remove the Rear cover

1. Remove the screws (×12 , ×10 , ×2 ).

2. Remove the M8 caps (×4 ).

3. Remove the Rear cover.

8.2.3. Remove the AC cord clamper B

1. Remove the screws (×2 ) and remove the AC cord clamper B.

8.2.6. Remove the AC inlet

Caution:

To remove AC inlet wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connector (P9).

2. Remove the screws (×1 , ×1 ) and remove the AC inlet.

8.2.8. Remove the Tuner unit

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the connectors (A1, A6, A12 and A50).

3. Disconnect the flexible cables (A20, A31, A32 and A33).

4. Remove the screws (×4 ) and remove the Tuner unit.

8.2.7. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the connectors (P2, P6, P11 and P35).

3. Remove the screws (×5 ) and remove the P-Board.

8.2.9. Remove the A-Board

1. Remove the screws (×4 ).

2. Remove the claws (×2 ).

3. Remove the Side terminal cover and the Side shield metal.

4. Remove the A-Board.

8.2.10. Remove the Speakers

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 each) and remove the Speakers (L, R).

8.2.11. Remove the SN-Board

1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the SN-Board.

2. Disconnect the connector (SN2).

3. Disconnect the flexible cable (SN20).

4. Remove the screws (×6 ) and remove the SN-Board.

8.2.13. Remove the BT connector clamper

1. Unlock the cable clampers and the tapes to free the cables.

2. Remove the claws (×2 ) and remove the BT cable.

3. Disconnect the connector (K1) and remove the A1-K1 cable.

4. Remove the claws (×2 ) and remove the BT connector clamper.

8.2.12. Remove the SS-Board

1. Disconnect the connector (SS11).

2. Disconnect the flexible cable (SS33).

3. Disconnect the flexible cables (SS62, SS64 and SS66).

4. Remove the screws (×4 ) and remove the SS-Board.

8.2.14. Remove the Stand bracket plate

1. Remove the Stand bracket fastening screws (×4 , ×2

, ×2 ) and remove the Stand bracket plate.

8.2.15. Remove the M8 nut metals

1. Remove the screw (×1 each) and remove the M8 nut metals.

8.2.16. Remove the K-Board

1. Remove the screw (×1 ).

2. Disconnect the connector (K1) and remove the K-Board from the LED Panel.

8.2.17. Remove the Contact metal bottom B

1. Remove the screws (×6 , ×1 ).

2. Remove the Contact metal bottom B.

3. Remove the Cabinet assy from the Plasma panel section.

8.2.19. Remove the Contact metals

1. Remove the screws (×6 ).

2. Remove the Contact metal side (L, R).

3. Remove the screws (×15 ).

4. Remove the Contact metal bottom A.

8.2.18. Remove the Cabinet assy from the Plasma panel section

1. Place the Cabinet assy on a flat surface of a table (covered by a soft cloth) and a cushion.

2. Remove the screws (×8 ).

8.2.20. Remove the C1-Board

1. Disconnect the flexible cables (CB1, CB2, CB3, CB4, CB5, CB6 and CB7).

2. Disconnect the flexible cable (C10).

3. Remove the screws (×4 ) and remove the C1-Board.

8.2.21. Remove the C2-Board

1. Disconnect the flexible cables (CB8, CB9, CB10, CB11, CB12, CB13, CB14 and CB15).

2. Disconnect the flexible cables (C20, C21 and C22).

3. Disconnect the connector (C25).

4. Remove the screws (×4 ) and remove the C2-Board.

8.2.22. Replace the Plasma panel

Caution:

Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion.

A new Plasma panel itself without Contact metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Contact metals.

1. Place a carton box packed a new Plasma panel on the flat surface of the work bench.

2. Open a box and without taking a new Plasma panel.

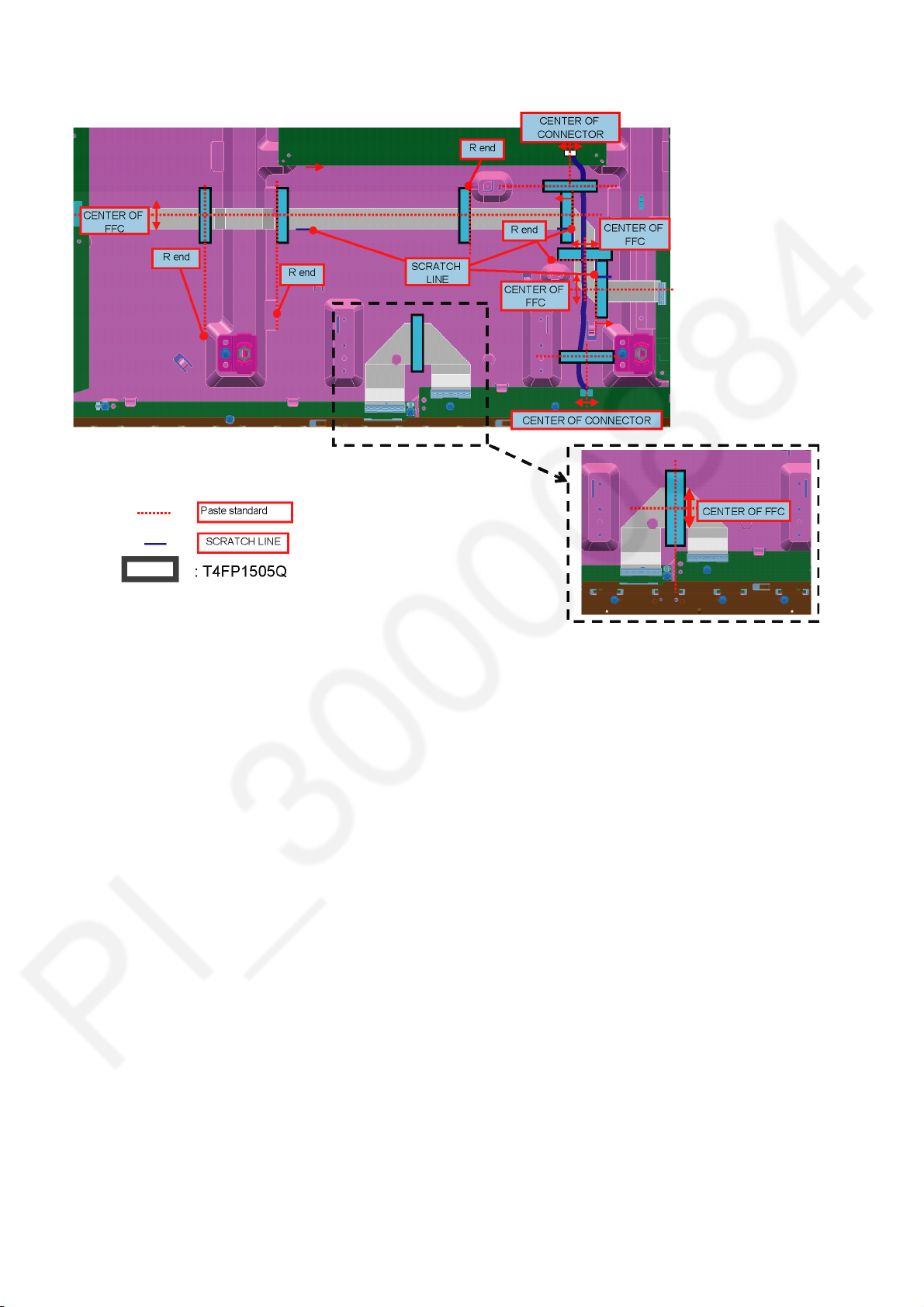

3. Attach the Cabinet assy and each P.C.Board and so on, to the new Plasma panel.

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.

2. Press [OK] button to go to TEST stage. White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On-Screen Display.

3. Press [VOL (-)] button to set to LOW.

4. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage. b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

5. Press [OK] button in CONF stage to store LOW or HIGH.

6. Exit Service Mode by pressing [Power] button.

Notes:

Do not overwrite because data is written in Peaks-EEPROM after executing adjustment of V-SUS Voltage.

9.1.2. White balance adjustment

Name of measuring instrument Remarks

Color analyzer

(Minolta CS-2000 or equivalent)

Procedure Remarks

1. Enter the Service mode.

2. Receive the Analog-RF (except for no signal) or set CVBS/YUV/HDMI (no signal is available).

3. Select [WB-ADJ] by using [1] and [2] key in the remote controller.

4. Check that the colour balance and the viewing mode is the values written in table1 and 2.

5. [INNER PATTERN] is displayed by using [5] key by using [5] key in the remote controller.

6. Select [G-CUTOFF] by using the [3] and [4] key in the remote controller, and set the value to [80] by using the volume [+] and [-] key. Also, [B-CUTOFF] and [R-CUTOFF] set to [80]

7. Set [G-DRIVE] value to the initial data (ex. D0).

8. Set the color analyzer and adjust color point to the values written in table1 by using [B- DRIVE] and [R-DRIVE]

9. Increase RGB-DRIVE value so that the maximum drive value of one of R-DRIVE or G- DRIVE or B-DRIVE should become [FF] ([ALL-DRIVE] set to [FF].)

+ 77 hidden pages
