Page 1

CBW

TQB4GC0861-1

Operating Instructions

LED TV

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

English

TH-L32E5K TH-L32E5T TH-L42E5K TH-L42E5T TH-L47E5K TH-L47E5T TH-L32E5M TH-L42E5M TH-L47E5M

TH-L32_42_47E5KMT_EN.indd 1TH-L32_42_47E5KMT_EN.indd 1 3/19/2012 1:44:56 PM3/19/2012 1:44:56 PM

Page 2

DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

SDXC Logo is a trademark of SD-3C, LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

“AVCHD” and “AVCHD Progressive” are trademarks of Panasonic Corporation and Sony Corporation.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Inc., used under license therefrom.

DivX®, DivX Certified®, DivX Plus® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

VIERA Link™ is a trademark of Panasonic Corporation.

HDAVI Control™ is a trademark of Panasonic Corporation.

VIERA Connect is a trademark of Panasonic Corporation.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

VGA is a trademark of International Business Machines Corporation.

S-VGA is a registered trademark of the Video Electronics Standard Association.

See page 79 for more information.

TH-L32_42_47E5KMT_EN.indd 2TH-L32_42_47E5KMT_EN.indd 2 3/19/2012 1:44:57 PM3/19/2012 1:44:57 PM

Page 3

Contents

Be Sure to Read

Safety Precautions ·······································4

Quick Start Guide

Accessories / Options····································6

Identifying Controls ·······································9

Basic Connection ······································· 11

Auto Tuning··············································· 14

Enjoy your TV!

Basic

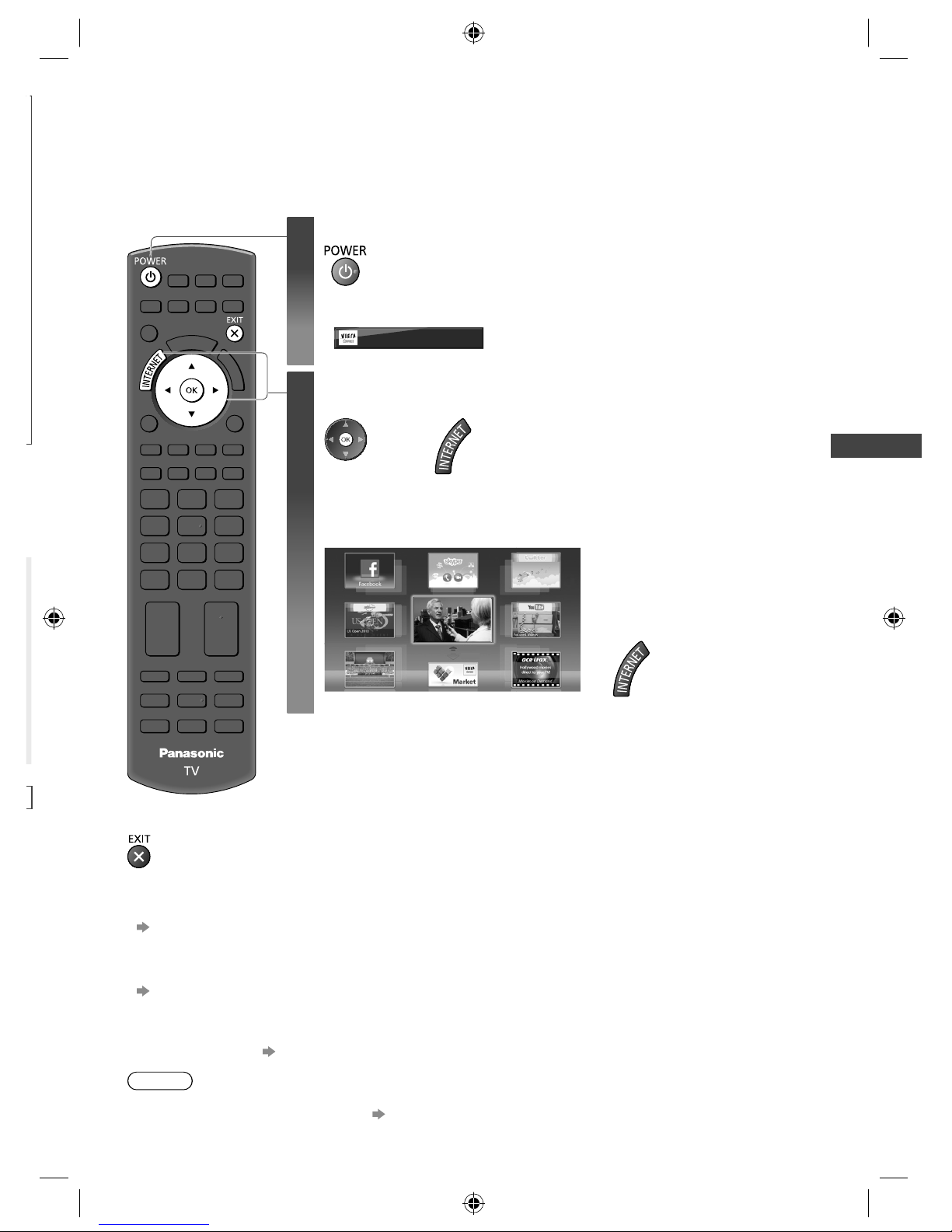

Using “VIERA Connect” ······························· 17

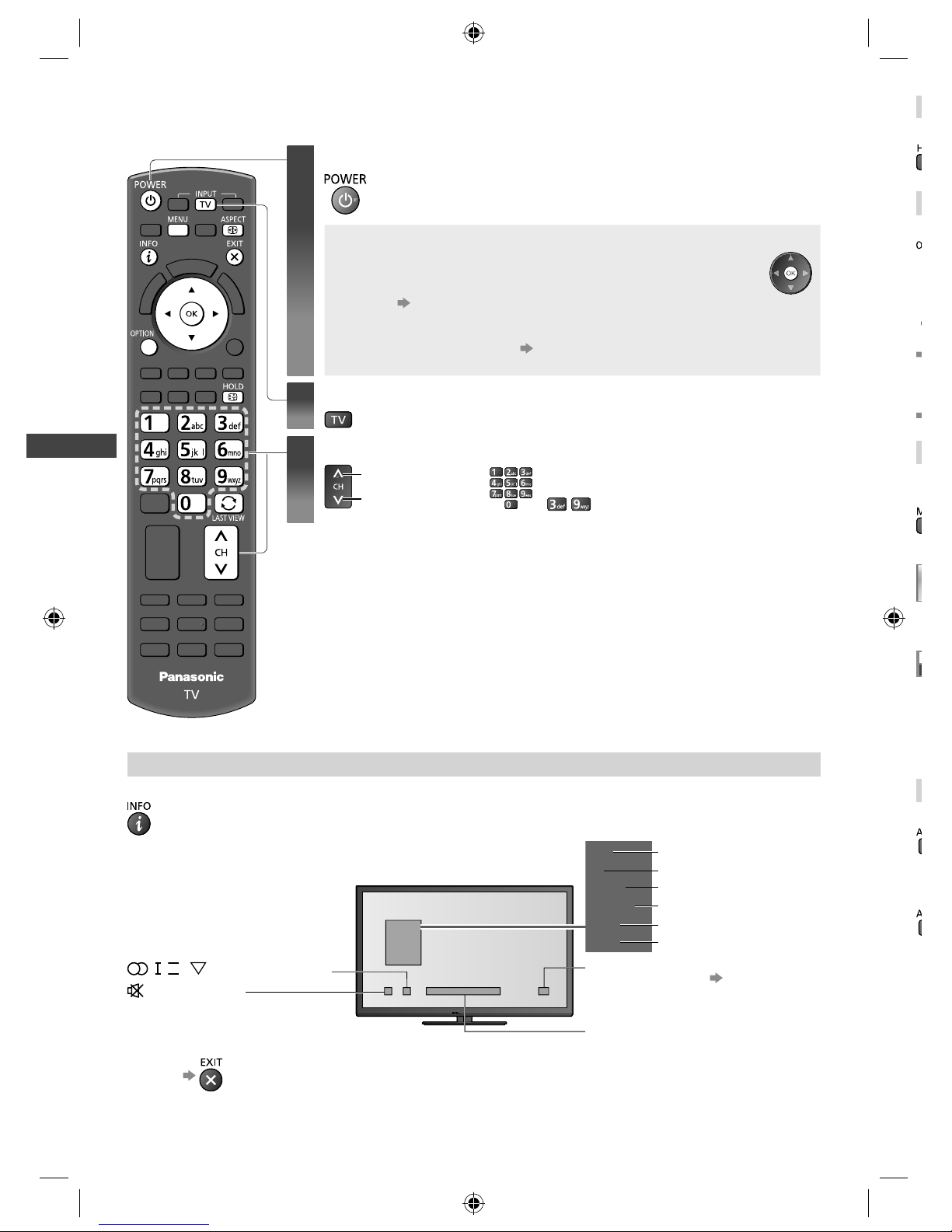

Watching TV·············································· 18

Viewing Teletext ········································· 21

Watching External Inputs ·····························23

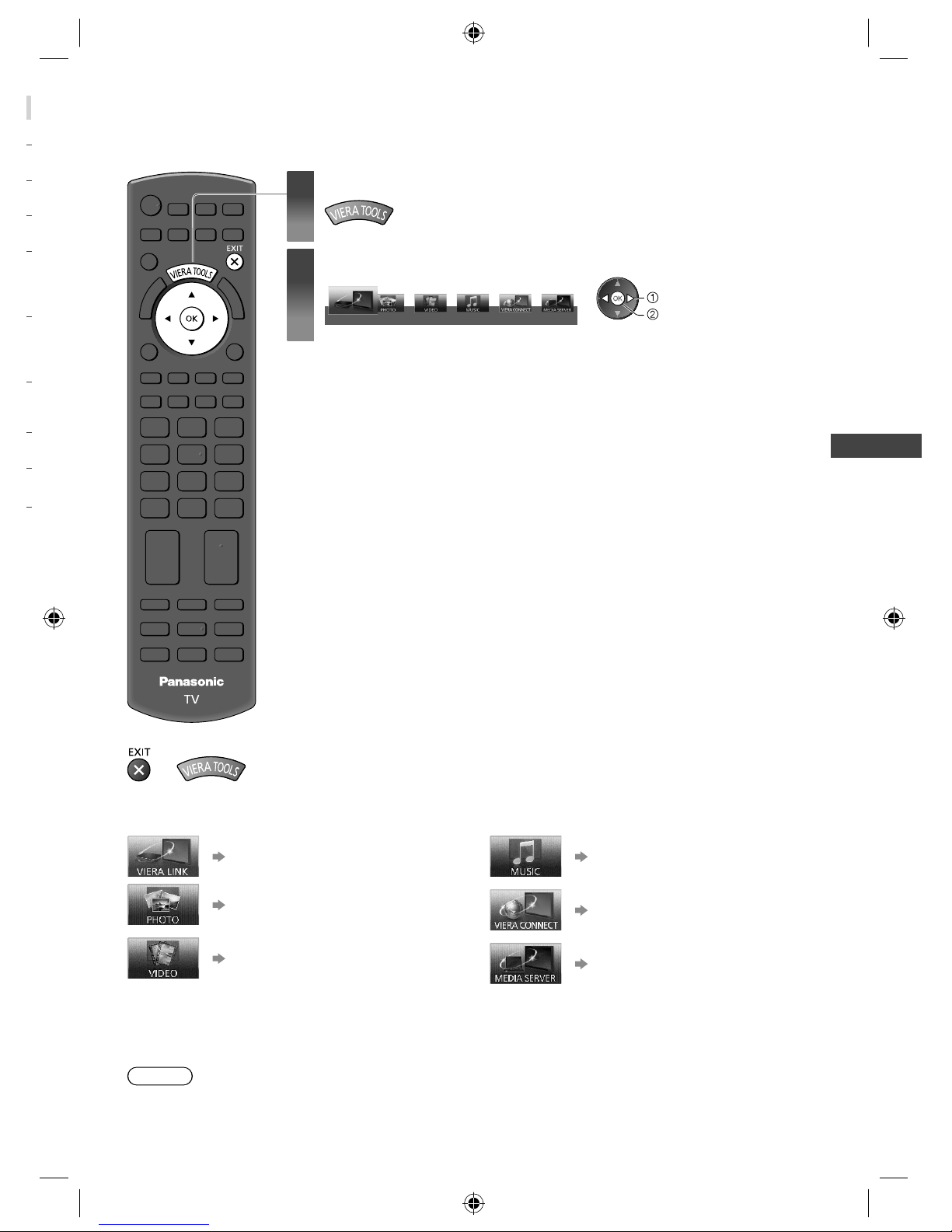

How to Use VIERA TOOLS ·························· 25

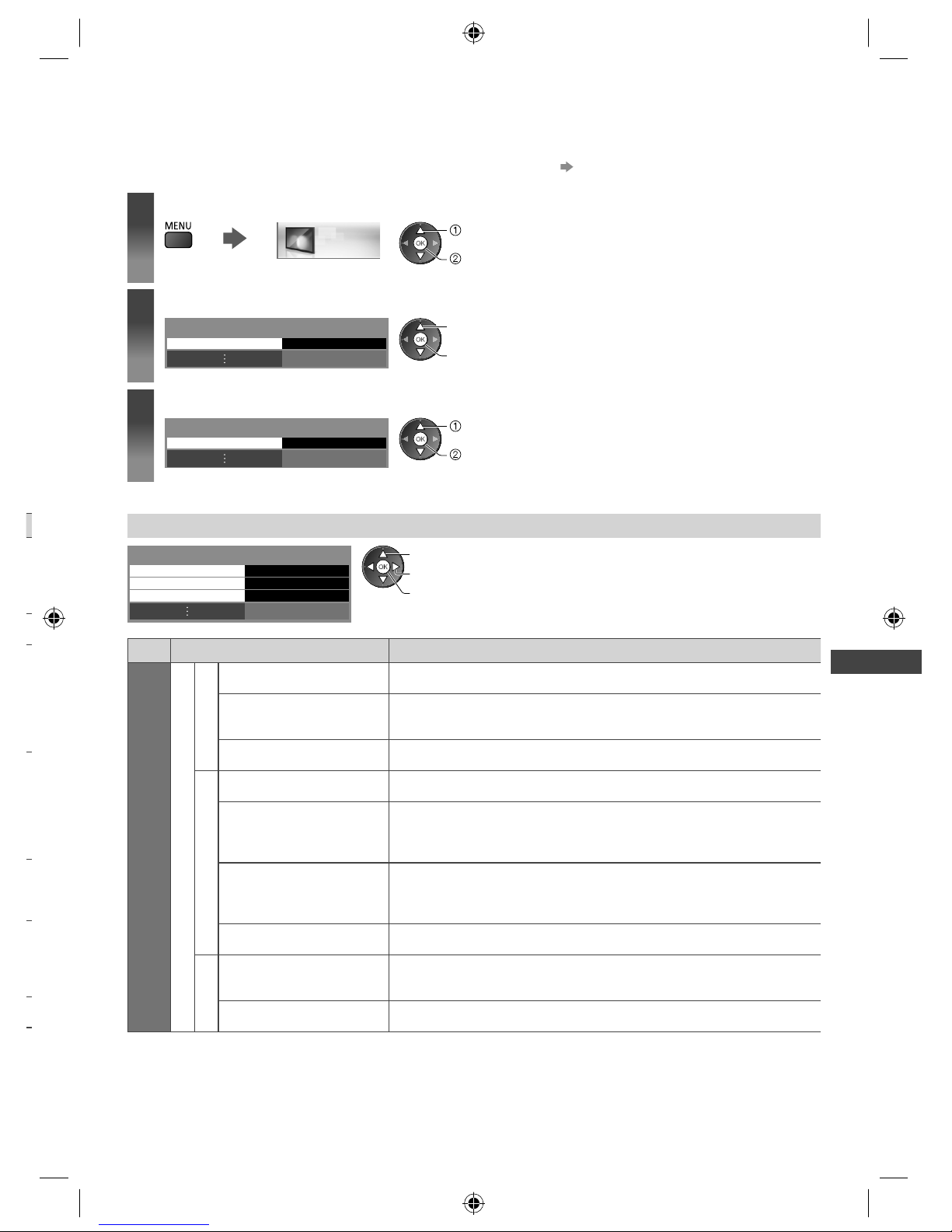

How to Use Menu Functions ························· 26

Advanced

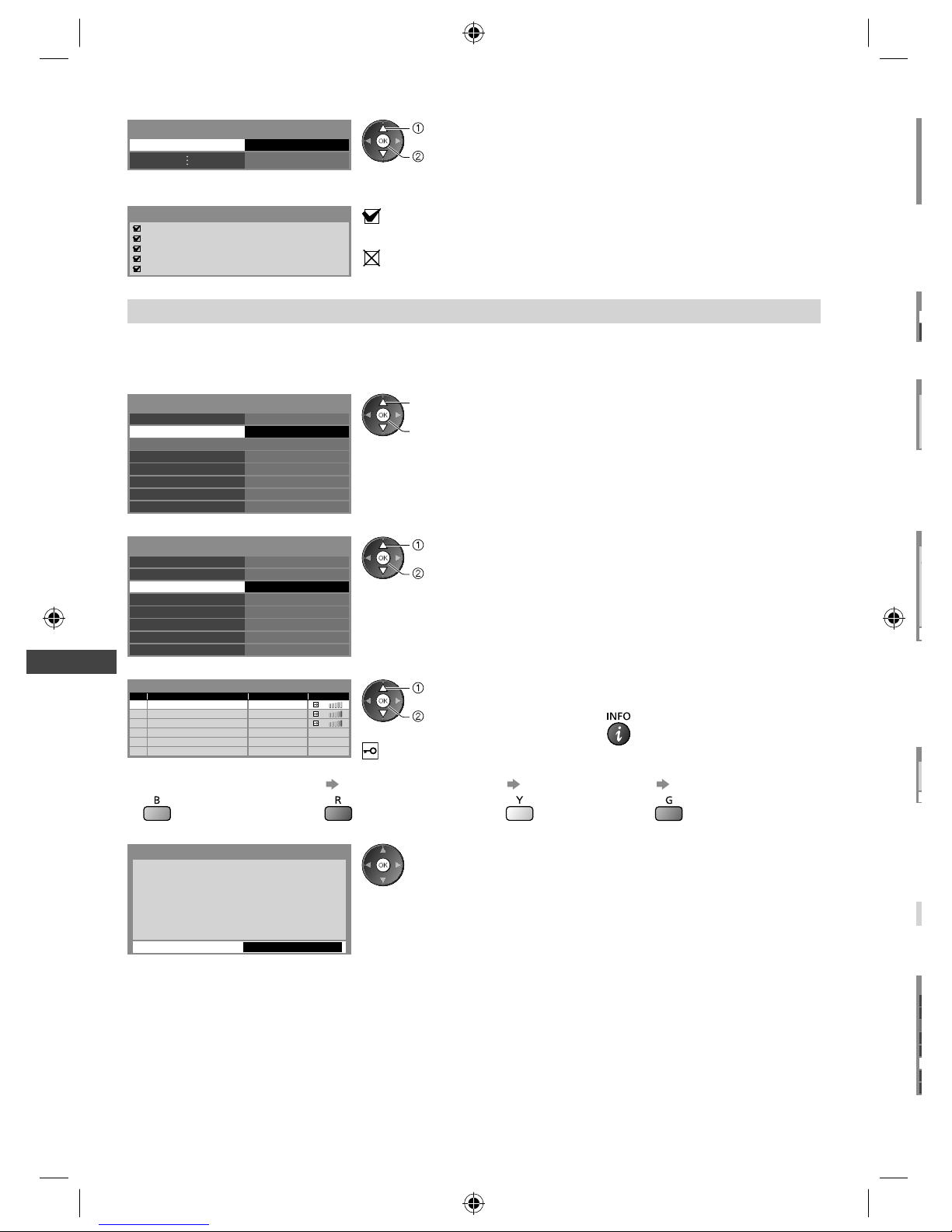

Tuning and Editing Channels ························ 32

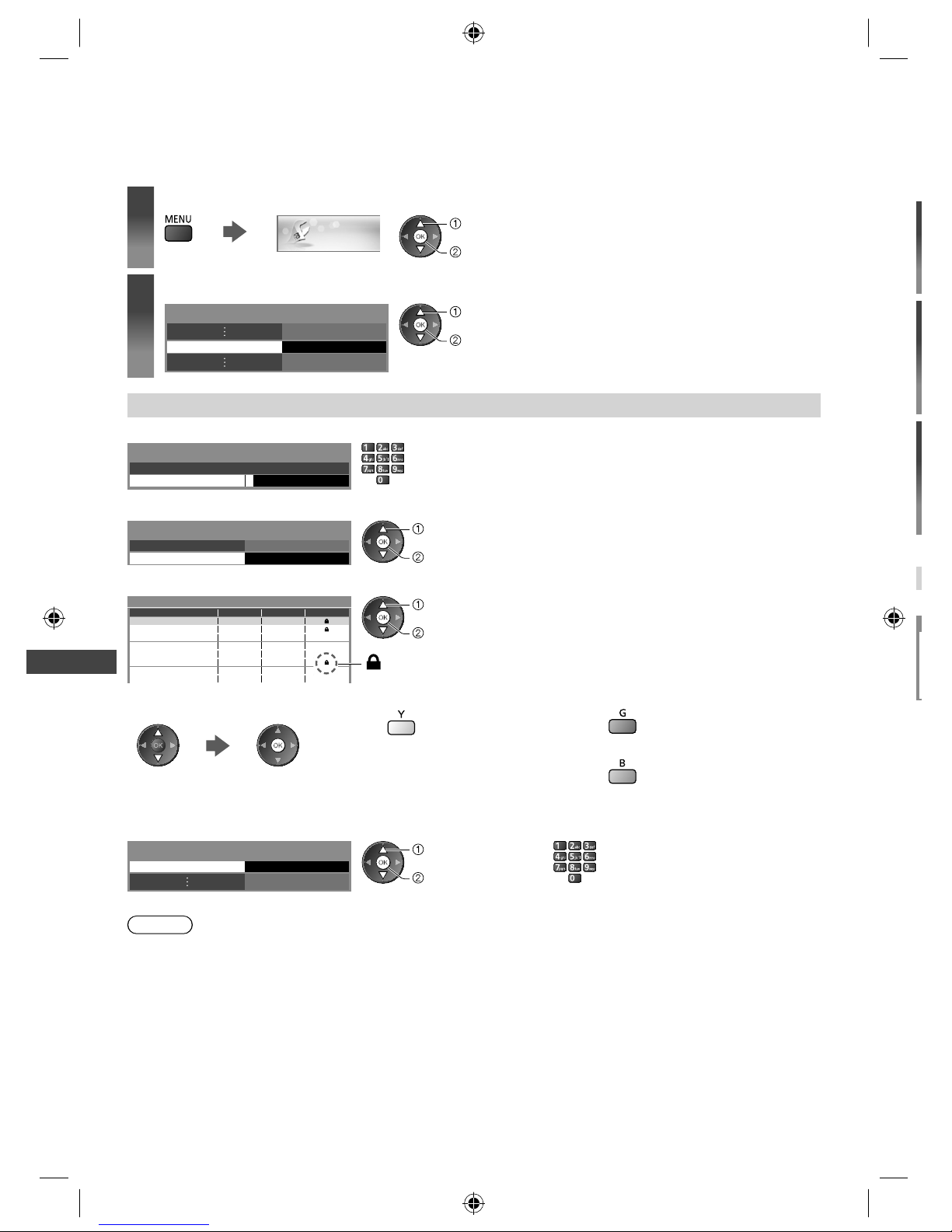

Child Lock················································· 34

Shipping Condition ····································· 35

Displaying PC Screen on TV························· 36

Advanced Picture Settings ··························· 37

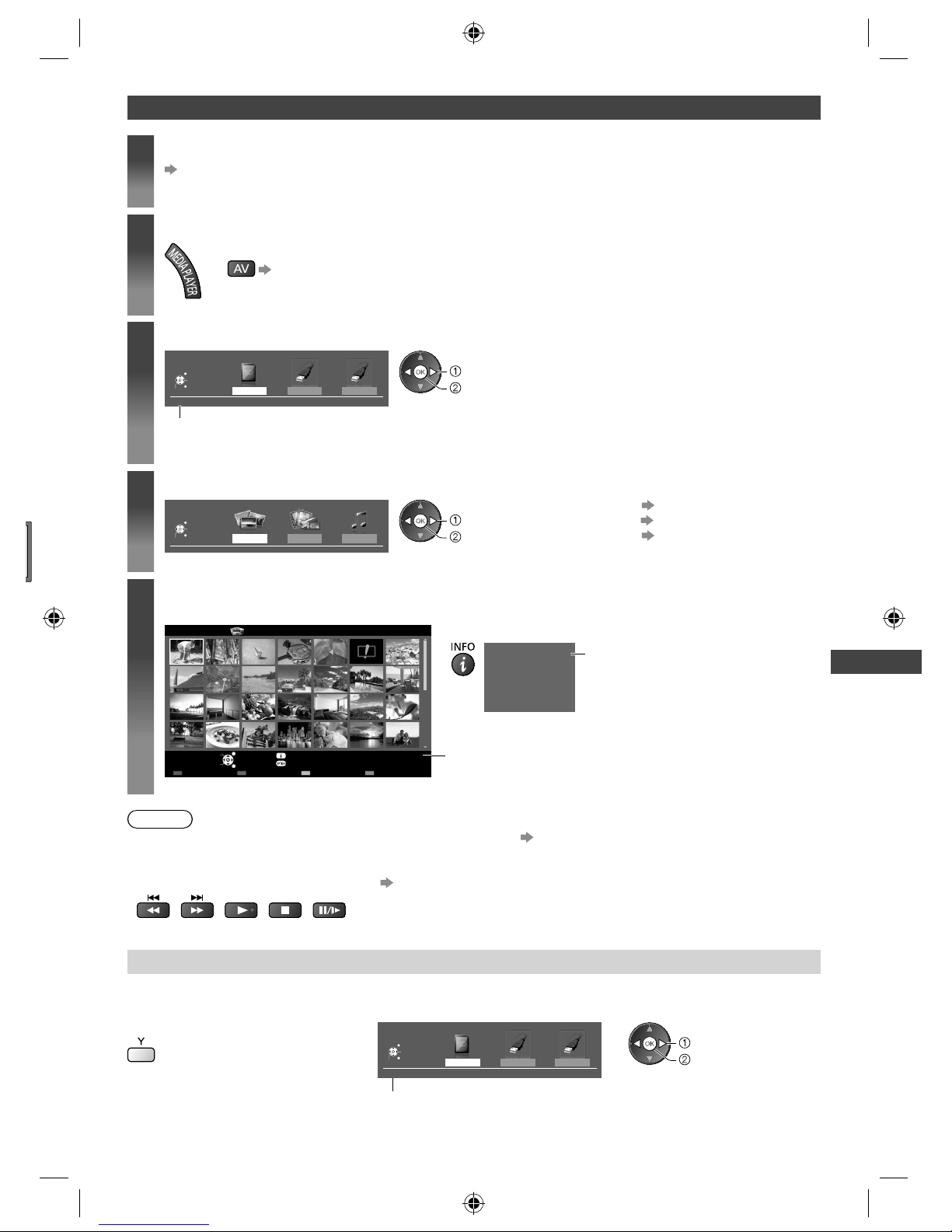

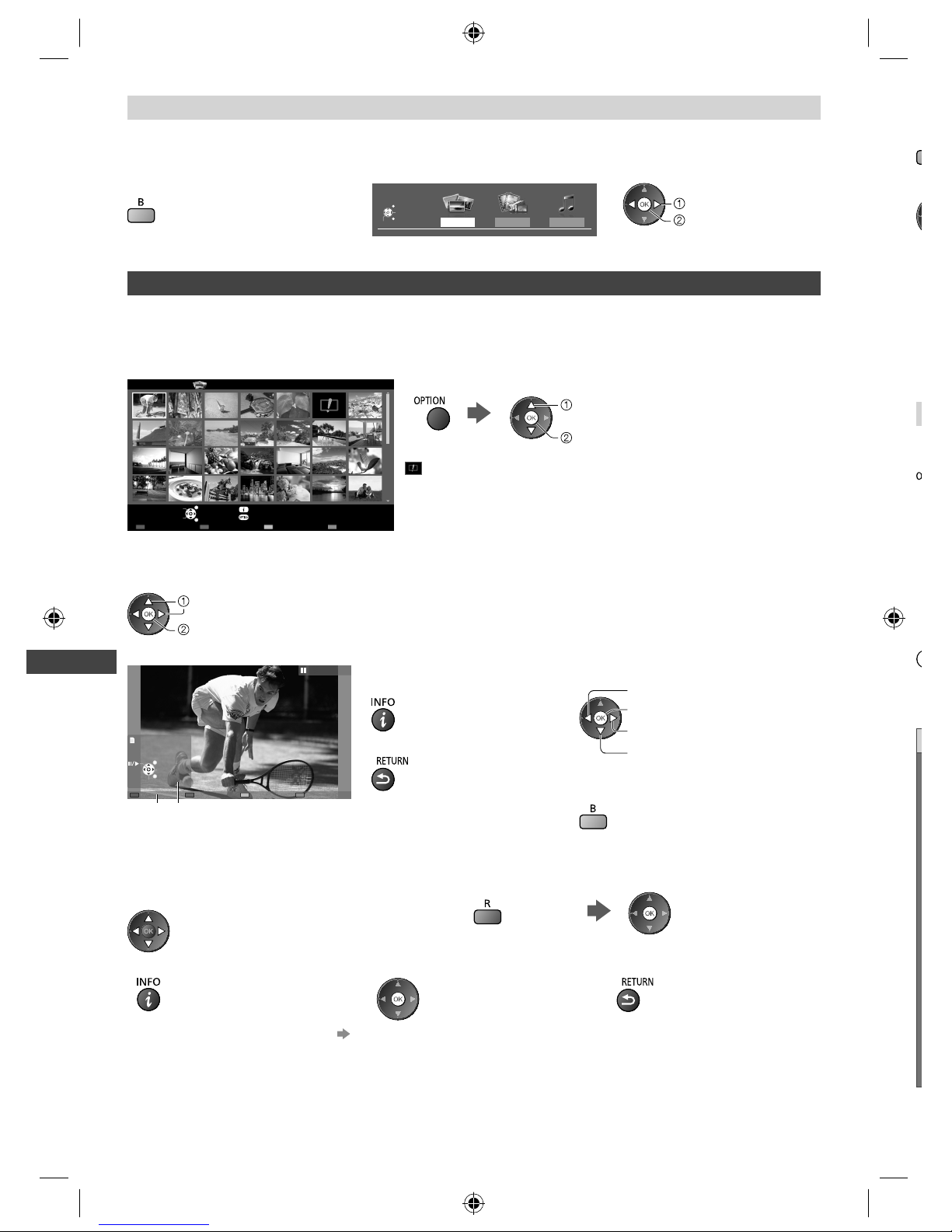

Using Media Player····································· 38

Using Network Services (DLNA / VIERA Connect) ····························· 46

Link Functions (VIERA Link) ························· 56

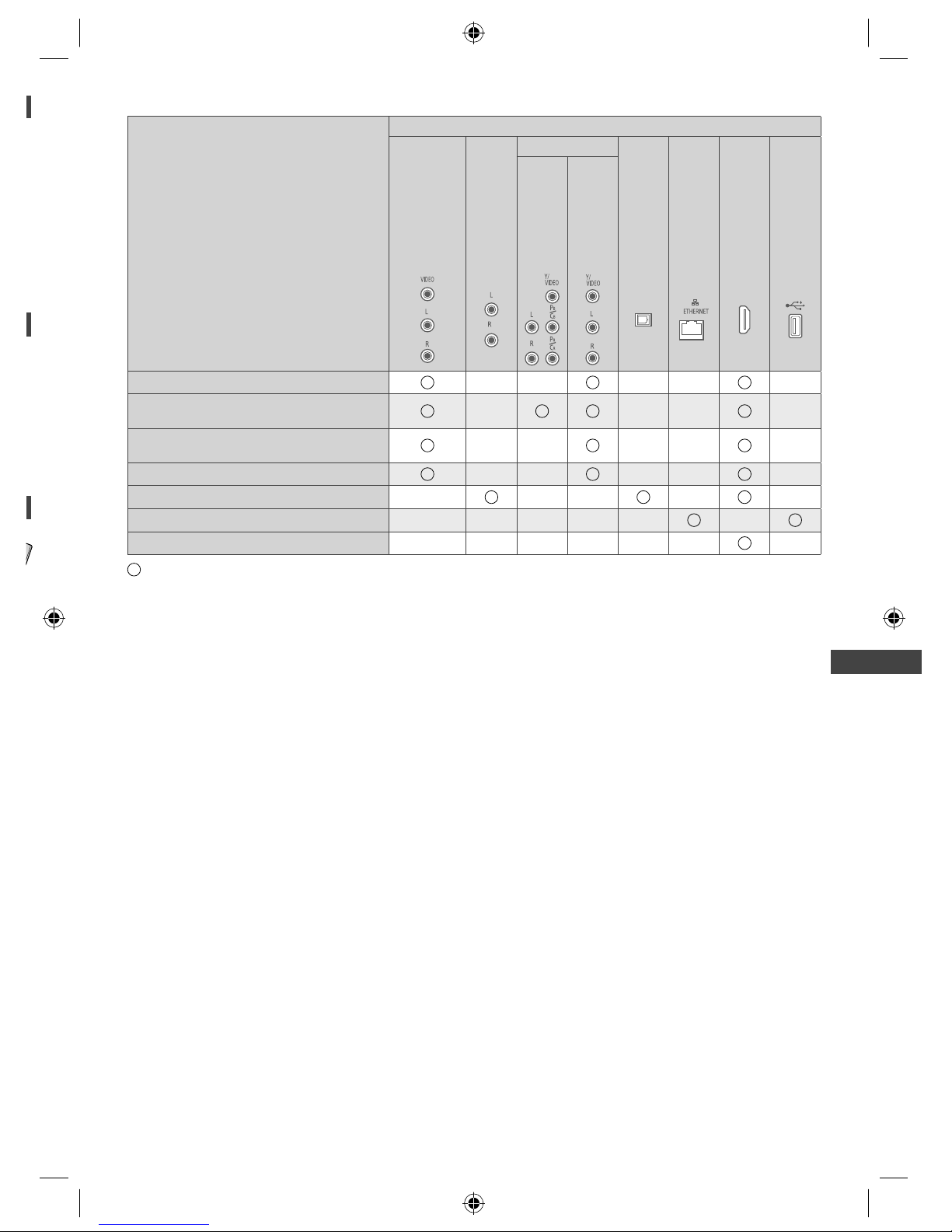

External Equipment ···································· 63

Others

Technical Information ·································· 66

FAQs ······················································· 74

Specifications ············································ 76

Maintenance ············································· 78

Licence ···················································· 79

Transport only in upright position

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral devices.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

TH-L32_42_47E5KMT_EN.indd 3TH-L32_42_47E5KMT_EN.indd 3 3/19/2012 1:44:57 PM3/19/2012 1:44:57 PM

Page 4

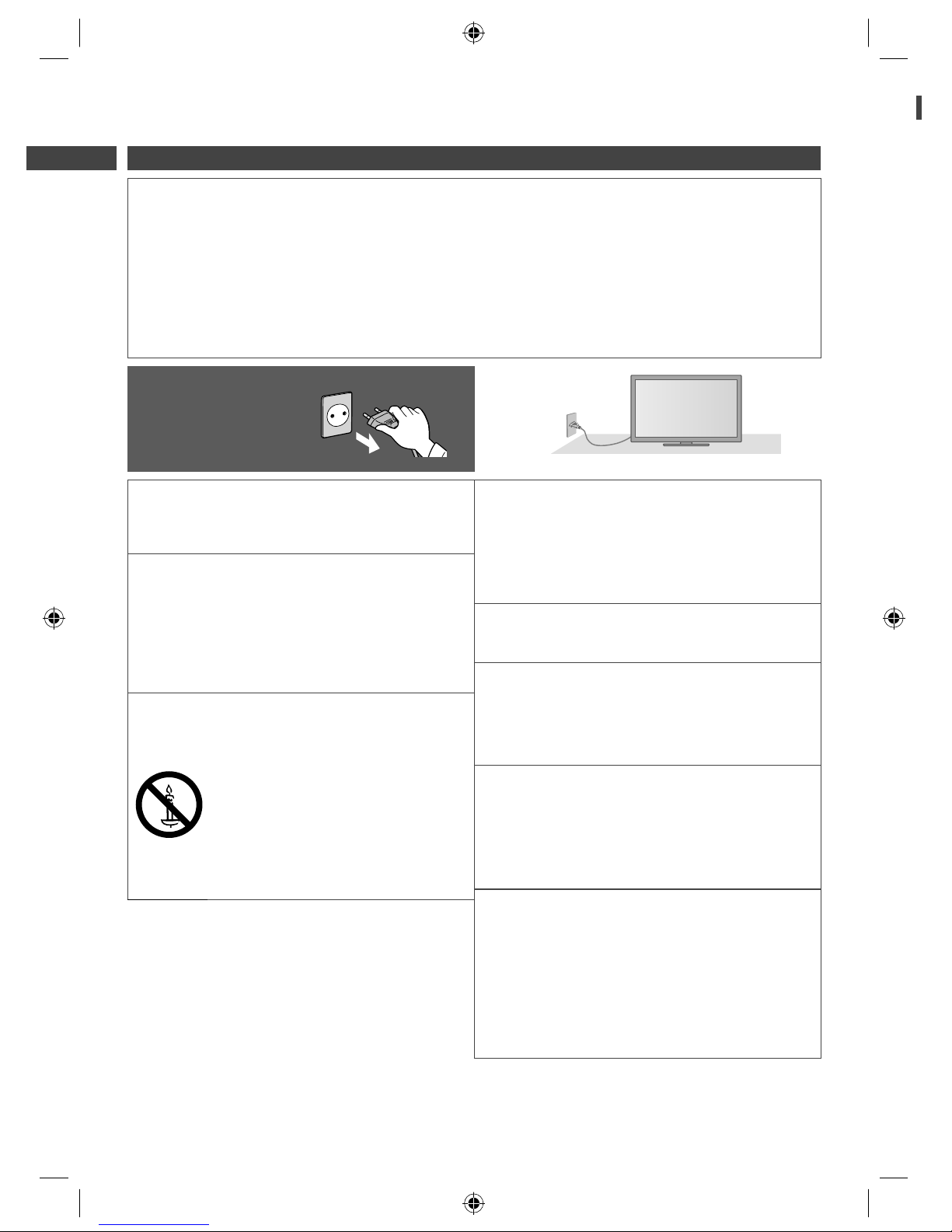

Safety Precautions

Warning

Handling the mains plug and lead

●

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)

●

Ensure that the mains plug is easily accessible.

●

Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

●

Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.)

●

Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)

•

Do not move the TV with the lead plugged in the socket outlet.

•

Do not place a heavy object on the lead or place the lead near a high-temperature object.

•

Do not twist the lead, bend it excessively or stretch it.

•

Do not pull on the lead. Hold onto the mains plug body when disconnecting the lead.

•

Do not use a damaged mains plug or socket outlet.

If you find any abnormality, remove the mains plug immediately!

AC 110-240 V 50 / 60 Hz

●

Mains plug types vary between countries.

Power source

●

This TV is designed to operate on:

•

AC 110-240 V, 50 / 60 Hz

•

Table-top use

Do not remove covers and NEVER modify the TV yourself

●

Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside. (High-voltage components may cause serious electrical shock.)

●

Have the TV checked, adjusted, or repaired at your local Panasonic dealer.

Do not expose to direct sunlight and other sources of heat

●

Avoid exposing the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Do not expose to rain or excessive moisture

●

To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not insert foreign objects into the TV

●

Do not allow any objects to drop into the TV through the air vents. (Fire or electrical shock may result.)

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base

●

The TV may fall off or tip over.

Use only the dedicated pedestals / mounting equipment

●

Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup.

●

Use approved pedestals (p. 7) / wall-hanging brackets (p. 6).

Do not allow children to handle SD Card or dangerous parts

●

As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of children.

●

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.

T t

W p

●

R s p

●

D v

●

TH-L32_42_47E5KMT_EN.indd 4TH-L32_42_47E5KMT_EN.indd 4 3/19/2012 1:44:57 PM3/19/2012 1:44:57 PM

Page 5

Safety Precautions

Caution

This appliance is intended for use in tropical climates

When cleaning the TV, remove the mains plug

●

Cleaning an energised TV may cause electric shock.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time

●

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected.

Do not expose your ears to excessive volume from the headphones

●

Irreversible damage can be caused.

Do not apply strong force or impact to the display panel

●

This may cause damage resulting in injury.

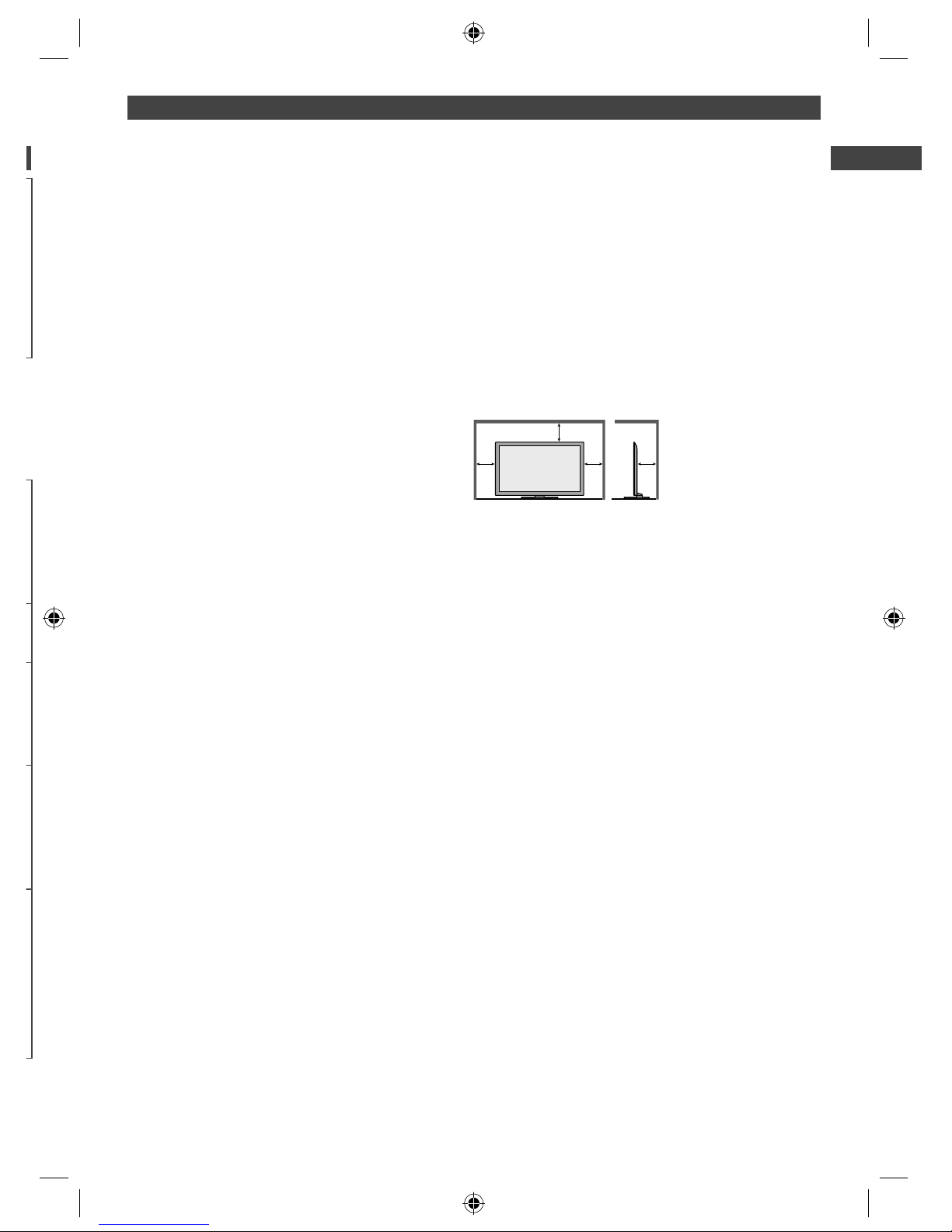

Do not block the rear air vents

●

Adequate ventilation is essential to prevent failure of electronic components.

●

Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths and curtains.

●

We recommend that a gap of at least 10 cm is left all around this TV even when placed inside a cabinet or between shelves.

●

When using the pedestal, keep the space between the bottom of the TV and the surface where the TV is set.

●

If pedestal is not used, ensure the vents in the bottom of the TV are not blocked.

Minimum distance

(cm)

TH-L32_42_47E5KMT_EN.indd 5TH-L32_42_47E5KMT_EN.indd 5 3/19/2012 1:44:57 PM3/19/2012 1:44:57 PM

Page 6

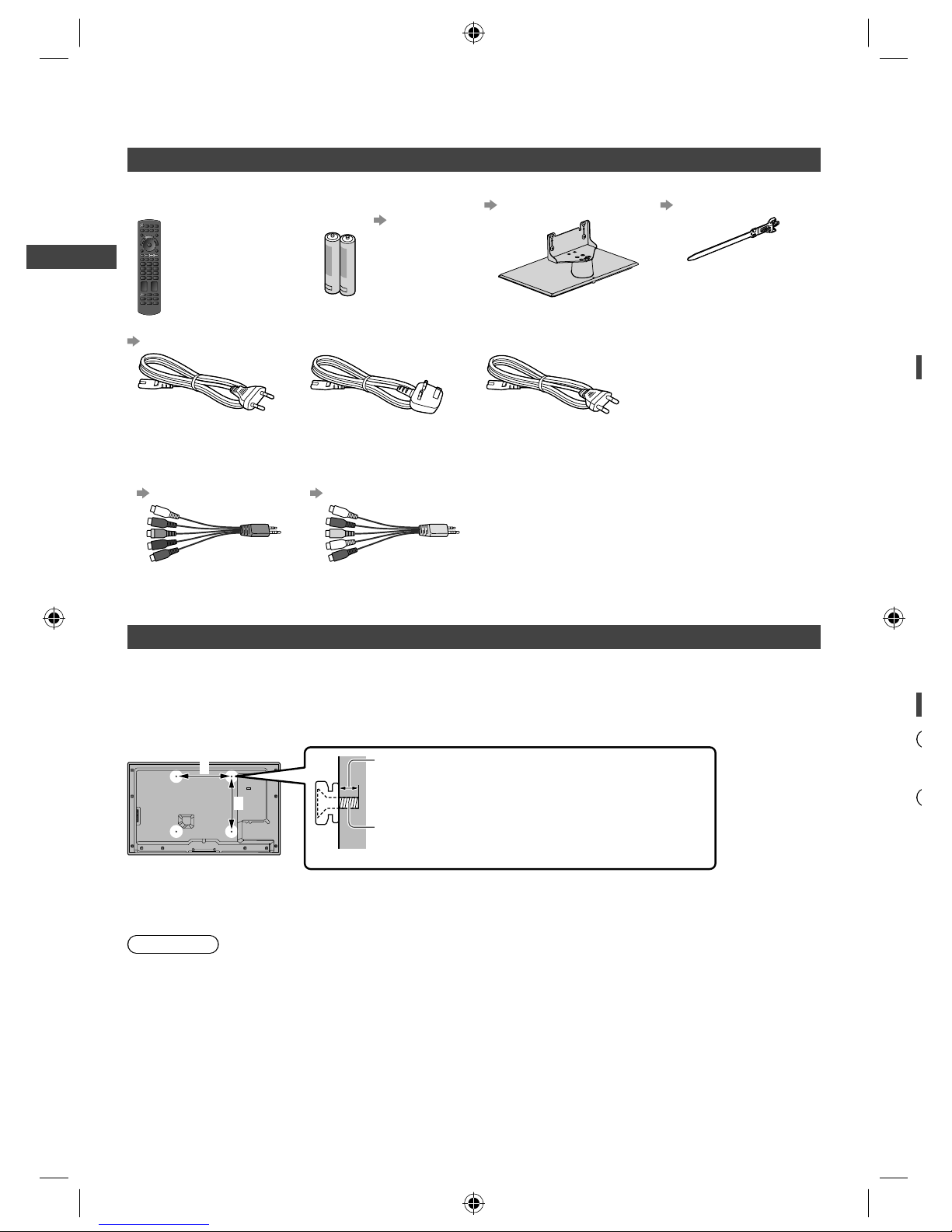

Accessories / Options

Standard accessories

Remote Control

●

N2QAYB000751

Batteries for the Remote Control (2)

●

R6 (AA)

(p. 7)

Pedestal

(p. 7)

Clamper

(p. 13)

Mains lead

(p. 11)

(E5K series) (E5M series) (E5T series)

Terminal adaptors Operating Instructions

●

AV2 IN (COMPONENT / VIDEO) adaptor

(p. 63, 64)

●

AV1 IN / AUDIO OUT adaptor

(p. 63)

●

Accessories may not be placed all together. Take care not to throw them away unintentionally.

●

This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally

. Keep these parts out of reach of young children.

Optional accessories

Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories.

Wall-hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

Rear of the TV

●

Holes for wall-hanging bracket installation

Depth of screw:

minimum 10 mm maximum 14 mm

Diameter: M6

(View from the side)

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

●

32" class

●

42" / 47" class

a : 200 mm

a : 400 mm

b : 200 mm b : 400 mm

Warning

●

Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the consumer. Always be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage.

Any damage resulting from not having a professional installer mount your unit will void

your warranty.

●

When any optional accessories or wall hanging brackets are used, always ensure that the instructions provided are followed fully

●

Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.

●

Take care when fixing wall brackets to the wall. Wall mounted equipment shall not be grounded by metal within the wall.

Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

●

To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

W e

●

W p

●

TH-L32_42_47E5KMT_EN.indd 6TH-L32_42_47E5KMT_EN.indd 6 3/20/2012 6:16:03 PM3/20/2012 6:16:03 PM

Page 7

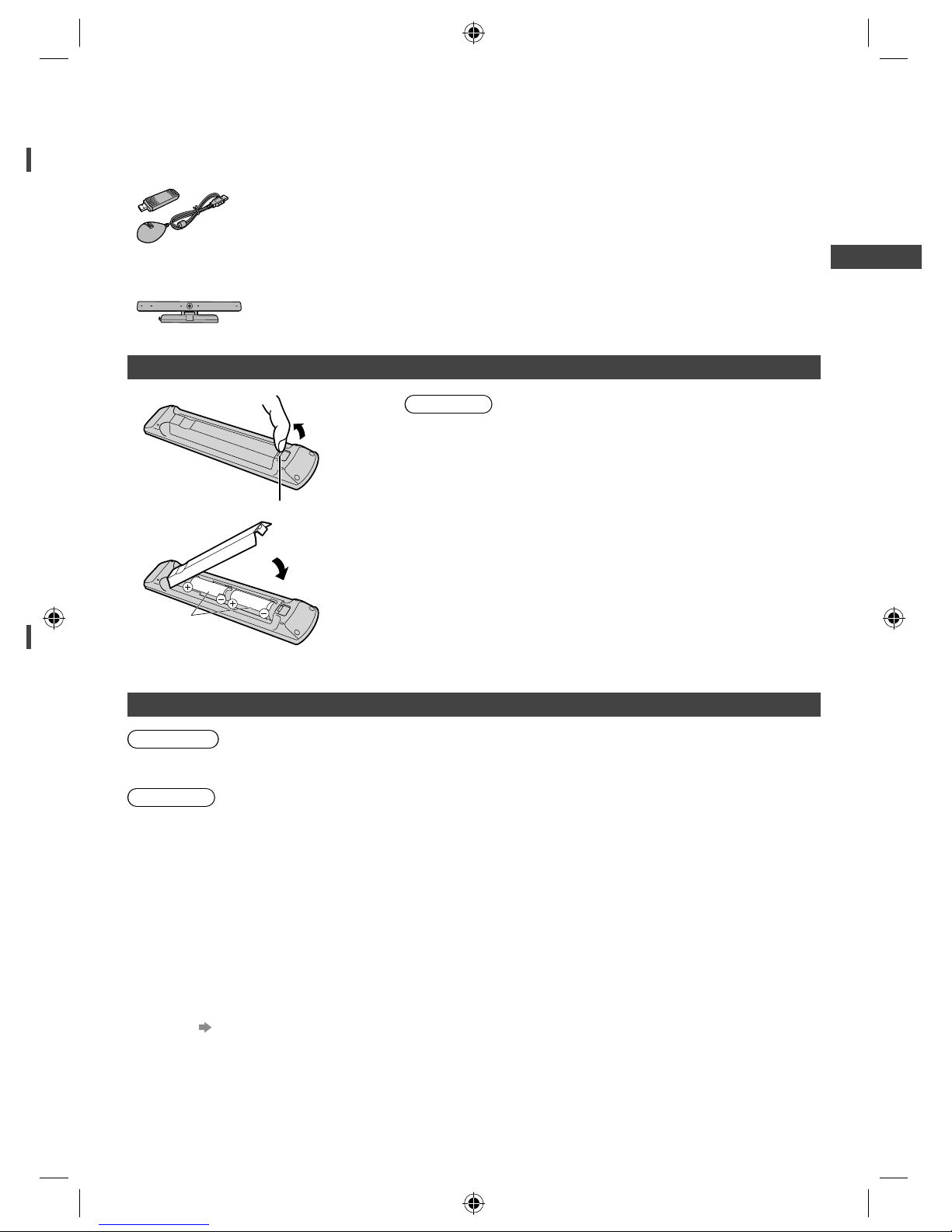

Accessories / Options

Wireless LAN Adaptor and exclusive stand

●

TY-WL20A (E5K series, E5T series)

●

TY-WL20M (E5M series)

●

To use the Wireless LAN Adaptor, an Access Point is needed.

●

It is recommended to use the Wireless LAN Adaptor with the extension cable.

●

To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.

●

Depending on the area, this optional accessory may not be available.

●

Additional information for Wireless LAN Adaptor and access point may be on the following website. http://panasonic.jp/support/global/cs/tv/

Communication Camera

●

TY-CC20W

●

This camera can be used on VIERA Connect (p. 17, 55).

●

Depending on the area, this optional accessory may not be available.

For details, consult your local Panasonic dealer.

Installing / removing remote’s batteries

Pull Open

Hook

Caution

●

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

●

Do not mix old and new batteries.

●

Replace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).

●

Do not use rechargeable (Ni-Cd) batteries.

●

Do not burn or break up batteries.

●

Do not expose batteries to excessive heat such as sunshine, fire or the like.

●

Make sure you dispose of batteries correctly.

●

Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.

●

Do not disassemble or modify the remote control.

Note the correct polarity (+ or -)

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than the one provided with this TV.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

●

If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.

●

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

●

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

●

If two or more people are not present, the TV may be dropped, and personal injury may result.

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure.

(p. 8)

●

Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

TH-L32_42_47E5KMT_EN.indd 7TH-L32_42_47E5KMT_EN.indd 7 3/19/2012 1:44:58 PM3/19/2012 1:44:58 PM

Page 8

Accessories / Options

Assembly screw (4)

M5 × 15

Bracket

●

TBL5ZA32151 (32" class)

●

TBL5ZA3180 (42" / 47" class)

Base

●

TBL5ZX03601 (32" class)

●

TBL5ZX03641 (42" class)

●

TBL5ZX03661 (47" class)

Assembly screw (4)

M4 × 25

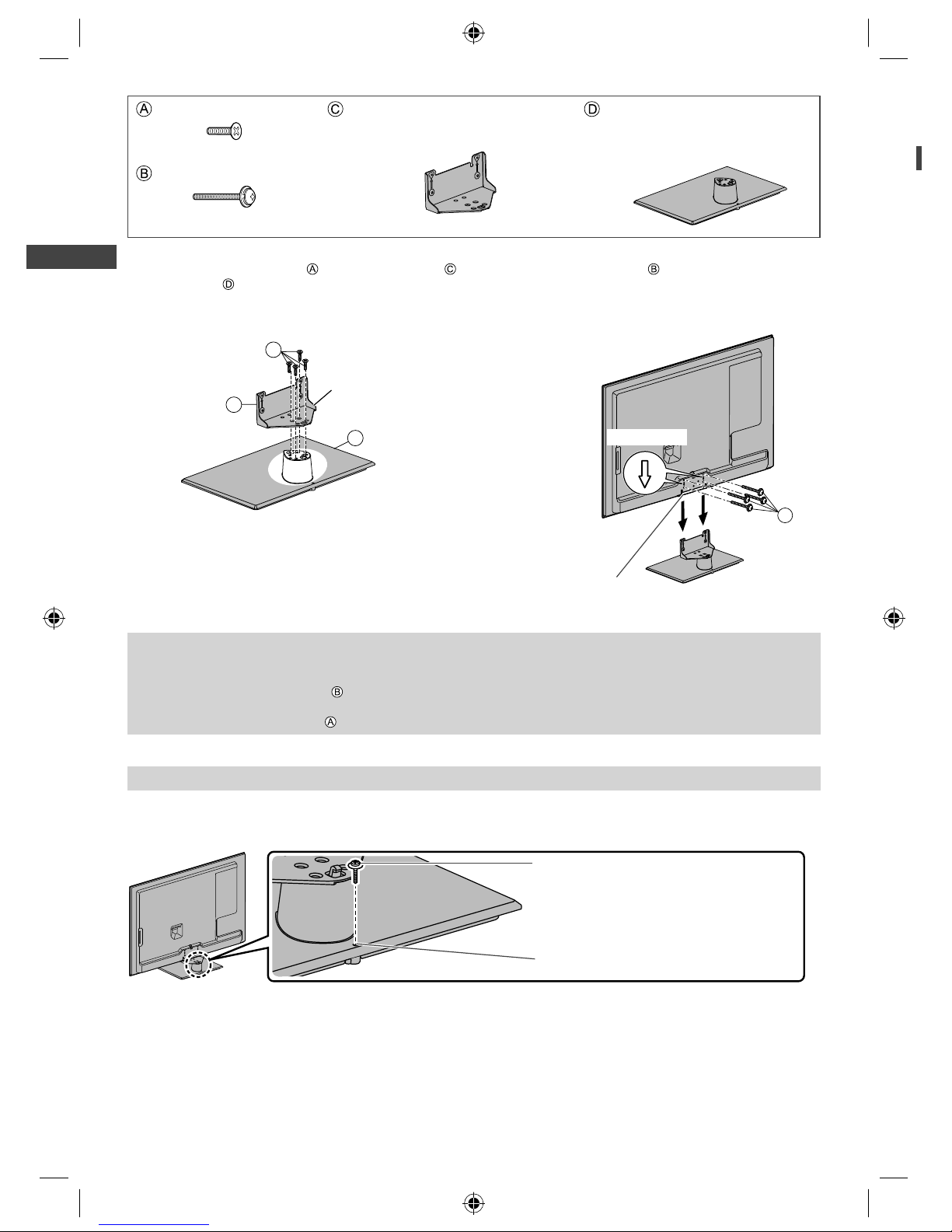

Assembling the pedestal

Use the assembly screws to fasten the bracket to the base securely.

●

Make sure that the screws are securely tightened.

●

Forcing the assembly screws the wrong way will strip the threads.

Securing the TV

Use the assembly screws to fasten securely.

●

Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.

●

Carry out the work on a horizontal and level surface.

Arrow mark

Hole for pedestal installation

Front

Hold the bracket not to fall over

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Remove the assembly screws from the TV. 2 Pull out the pedestal from the TV. 3 Remove the assembly screw from the bracket.

Preventing the TV from falling over

Using the fall-prevent screw hole and a screw (commercially available), securely fix the body of the pedestal to the installation surface.

●

The place where the pedestal is to be fixed should be thick enough and made of hard material.

Screw (not supplied) Diameter: 3 mm Length: 25 - 30 mm

Screw hole

TH-L32_42_47E5KMT_EN.indd 8TH-L32_42_47E5KMT_EN.indd 8 3/19/2012 1:44:58 PM3/19/2012 1:44:58 PM

Page 9

Identifying Controls

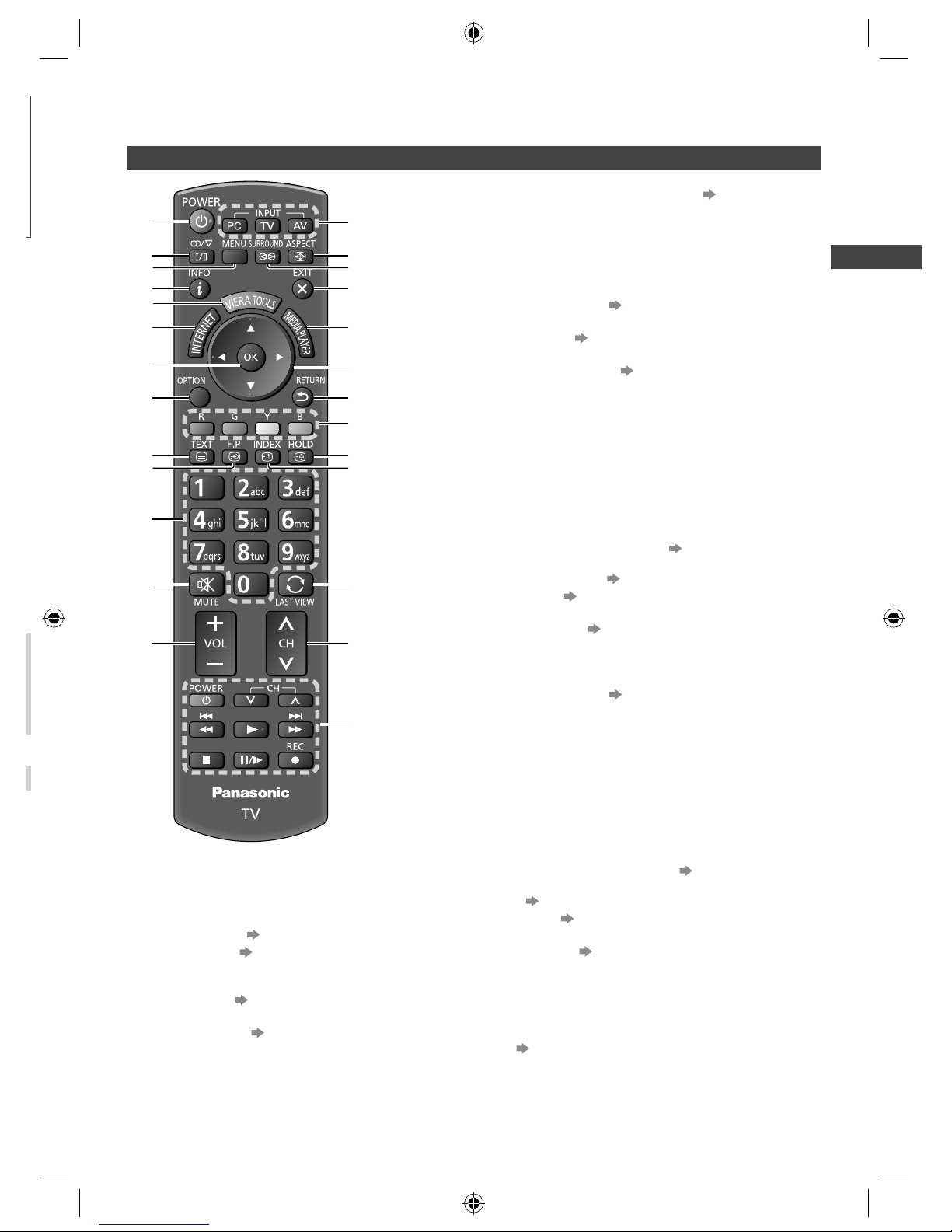

Remote Control

Standby On / Off switch

●

Switches TV on or off standby.

Sound Selection

●

Changes multiplex sound mode in Analogue TV (if available). (p. 67)

[Main Menu] (p. 26)

●

Press to access Picture, Sound, Network, Timer and Setup Menus.

Information (p. 18)

●

Displays channel and programme information.

VIERA TOOLS (p. 25)

●

Displays some special feature icons and accesses easily.

INTERNET ([VIERA Connect]) (p. 17, 55)

●

Displays VIERA Connect home screen.

●

Confirms selections and choices.

●

Press after selecting channel positions to quickly change channel.

●

Displays the Channel List.

[Option Menu] (p. 19)

●

Easy optional setting for viewing, sound, etc.

Teletext (p. 21)

●

Switches to teletext mode.

Favourite Page (p. 21)

●

Calls up the teletext page stored in blue button.

Numeric buttons

●

Changes channel and teletext pages.

●

Sets characters.

●

When in Standby mode, switches TV on.

Sound Mute

●

Switches sound mute on or off.

Volume Up / Down

Input mode selection

●

PC - switches to PC input mode

●

TV - switches TV mode. (p. 18)

●

AV - switches to AV input mode from Input Selection list. (p. 23)

Aspect (p. 19)

●

Changes aspect ratio.

[Surround] (p. 29)

●

Switches surround sound setting.

Exit

●

Returns to the normal viewing screen.

[Media Player] (p. 39)

●

Switches to SD Card and USB device viewing / listening mode.

Cursor buttons

●

Makes selections and adjustments.

Return

●

Returns to the previous menu / page.

Coloured buttons

●

Used for the selection, navigation and operation of various functions.

Hold

●

Freeze / unfreeze picture. (p. 19)

●

Holds the current teletext page (teletext mode)



(p. 21)

Index (p. 21)

●

Returns to the teletext index page (teletext mode).

Last view (p. 20)

●

Switches to previously viewed channel or input mode.

Channel Up / Down

Operations for contents, connected equipment, etc.

(p. 24, 39, 52)



Some countries do not provide a teletext service

TH-L32_42_47E5KMT_EN.indd 9TH-L32_42_47E5KMT_EN.indd 9 3/19/2012 1:44:59 PM3/19/2012 1:44:59 PM

Page 10

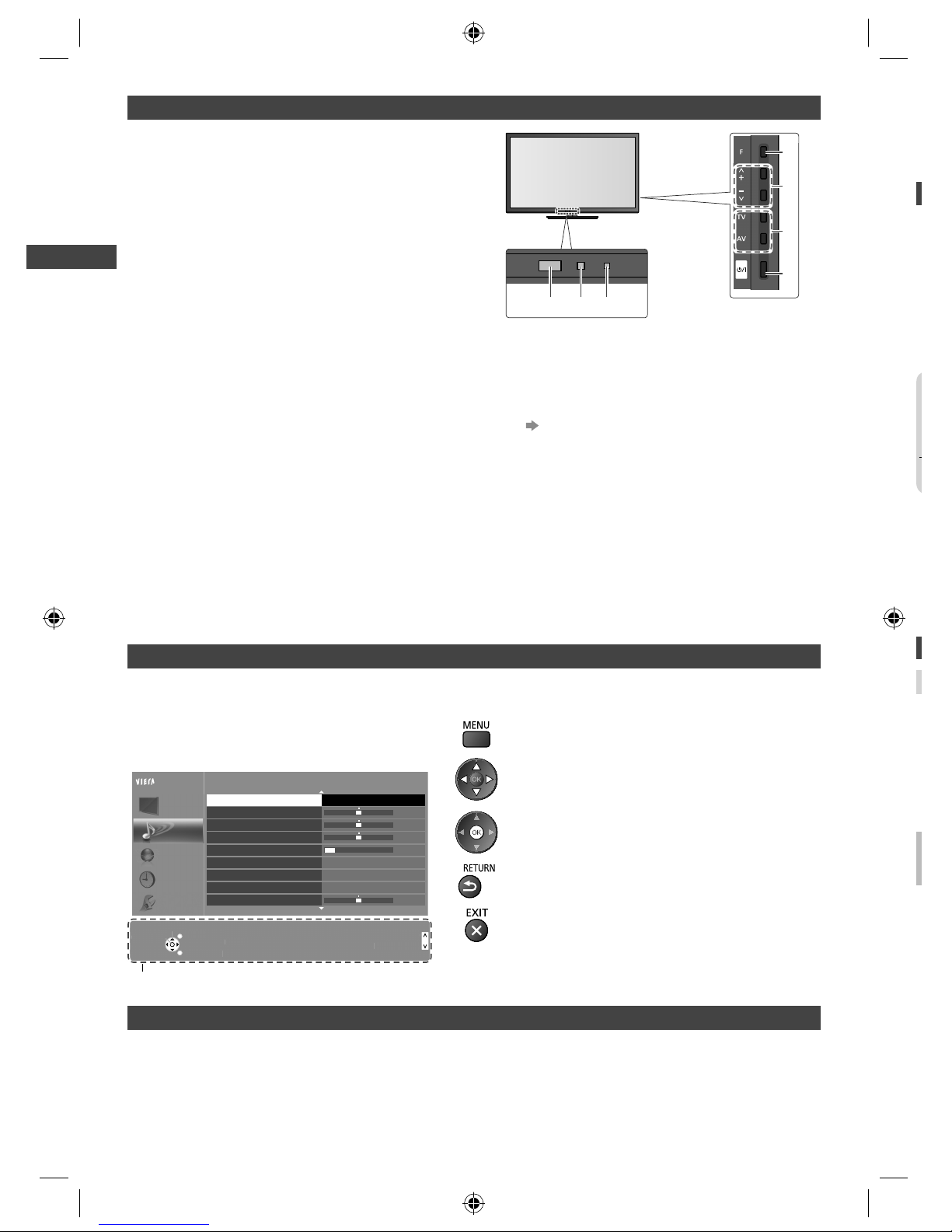

Identifying Controls

567

Rear side of the TV

Indicator / Control panel

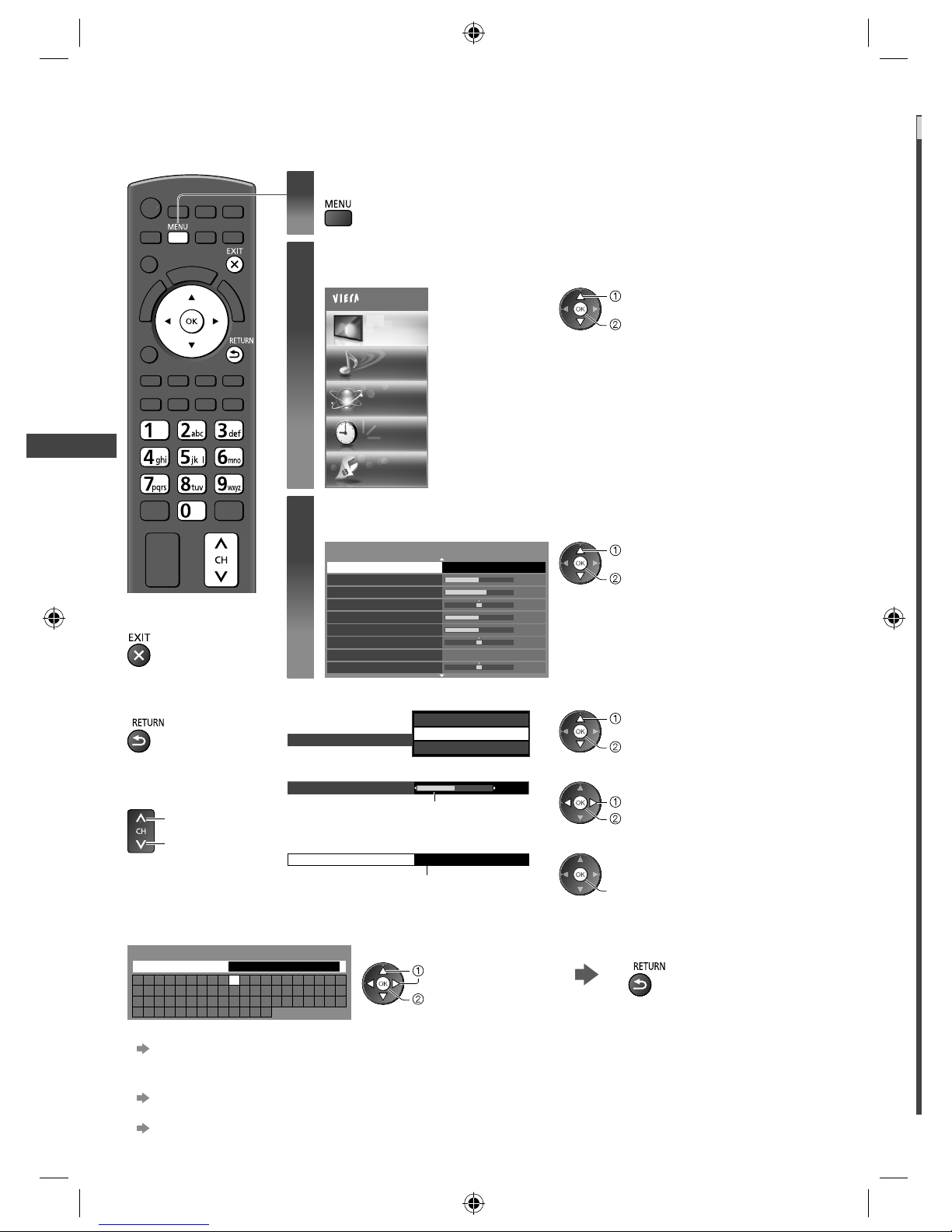

Using the On Screen Displays - Operation guide

Many features available on this TV can be accessed via the On Screen Display menu.

■ Operation guide

Operation guide will help you to operate by using the remote control.

Example: [Sound Menu]

1/2

0 0 0

Mode

Music Bass Treble Balance Headphone Volume Surround Volume Control (VAO) Auto Gain Control Volume Correction

Off

Main Menu


Sound

Network

Timer

Setup

Select

EXIT

Selects your favourite sound mode.

Page up

Change

RETURN

Page down

Operation guide

Sele

EXI

elects your favourite sound

mode

Page u

han

RETURN

Page dow

Off

■ How to use remote control

Open the main menu

Move the cursor / select from a range of options / select the menu item (up and down only) / adjust levels (left and right only)

Access the menu / store settings after adjustments have been made or options have been set

Return to the previous menu

Exit the menu system and return to the normal viewing screen

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:

•

No signal is received and no operation is performed for 30 minutes in TV mode.

•

[Off Timer] is active in the Timer Menu. (p. 19)

•

No operation is performed for the period selected in [Auto Standby] (p. 30).

Function select

●

[Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [Tint] (NTSC signal) / [Bass] / [Treble] / [Balance] / [Auto Tuning]



[Music] or [Speech] mode in the Sound Menu

Channel Up / Down, Value change (when using the F button), Switching the TV on

Changes the input mode

Mains power On / Off switch

●

Use to switch the mains power. If you turned the TV off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV on with Mains power On / Off switch.

●

When pressing the control panel button (1 - 4), the control panel guide appears on the right side of the screen for 3 seconds to highlight the pressed button.

Remote control signal receiver

●

Do not place any objects between the TV remote control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System) sensor

●

Senses brightness to adjust picture quality when [Eco Mode] in the Picture Menu is set to [On].

(p. 27)

Power LED

Red: Standby Green: On

●

The LED blinks when the TV receives a command from the remote control.

E P

A 5

TH-L32_42_47E5KMT_EN.indd 10TH-L32_42_47E5KMT_EN.indd 10 3/19/2012 1:44:59 PM3/19/2012 1:44:59 PM

Page 11

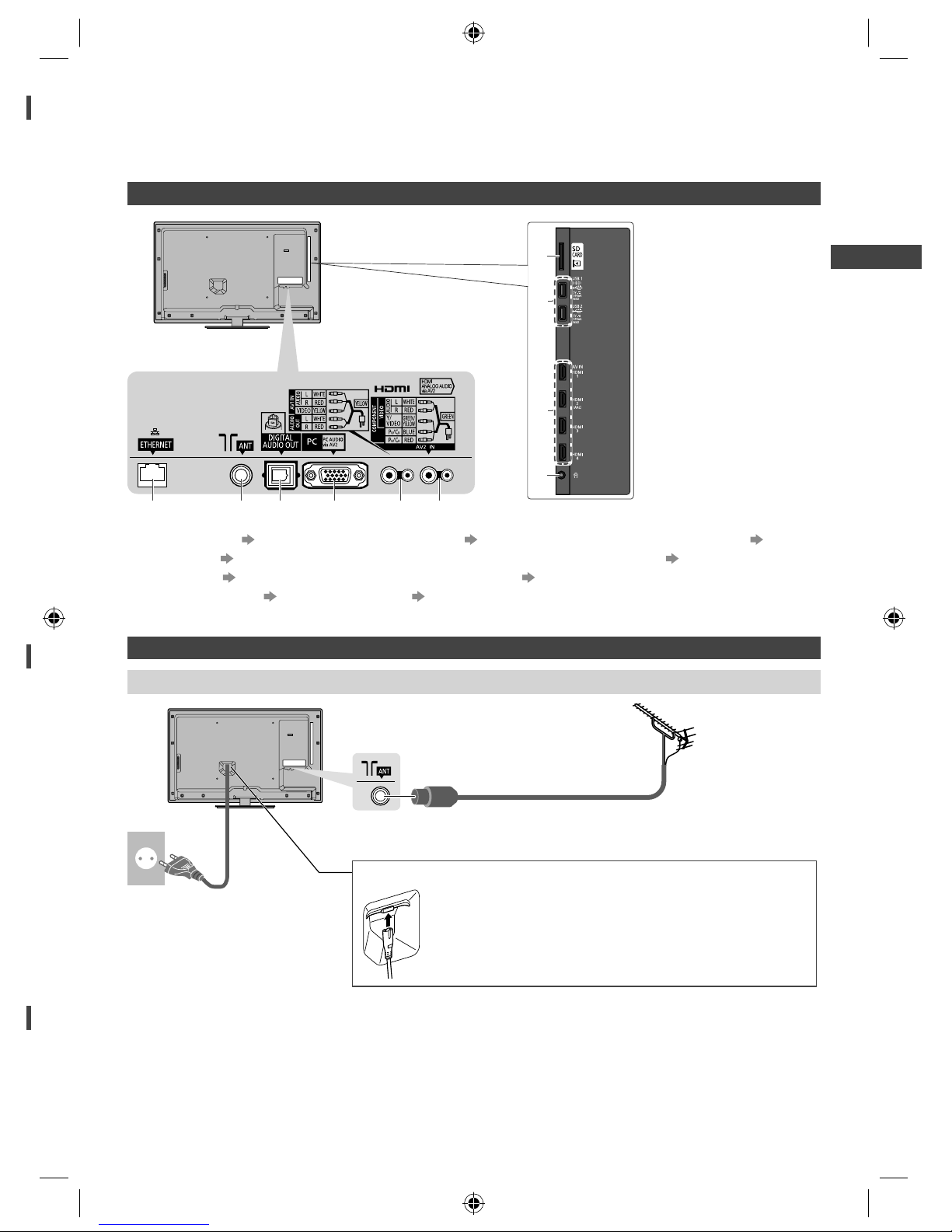

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

Terminals

67 8 9105

SD Card slot (p. 38)

USB 1 - 2 (p. 38, 64)

HDMI1 - 4 (p. 12, 63)

Headphone jack (p. 64)

ETHERNET (p. 13, 47)

Antenna terminal (see below)

DIGITAL AUDIO OUT (p. 63)

PC (p. 64)

AV1 IN / AUDIO OUT (p. 63)

AV2 IN (p. 63, 64)

Connections

Mains lead and aerial

■ TV

AC 110-240 V 50 / 60 Hz

Mains lead

Aerial

RF cable

■ Mains lead

Insert the mains plug (supplied) firmly into place.

●

When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

TH-L32_42_47E5KMT_EN.indd 11TH-L32_42_47E5KMT_EN.indd 11 3/19/2012 1:45:00 PM3/19/2012 1:45:00 PM

Page 12

Basic Connection

Note

●

Keep RF (antenna) cable away from the mains lead to avoid and minimise mains interference pickup.

●

Do not place the RF cable under the TV.

●

To obtain optimum quality picture and sound, an aerial, the correct cable (75  coaxial), and the correct terminating plug are required.

●

If a communal aerial system is used, you may require the correct connection cable and plug between the wall aerial socket and the TV.

●

Your local Television Service Centre or dealer may be able to assist you in obtaining the correct aerial system for your particular area and the accessories required.

●

Any matters regarding aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the Customer.

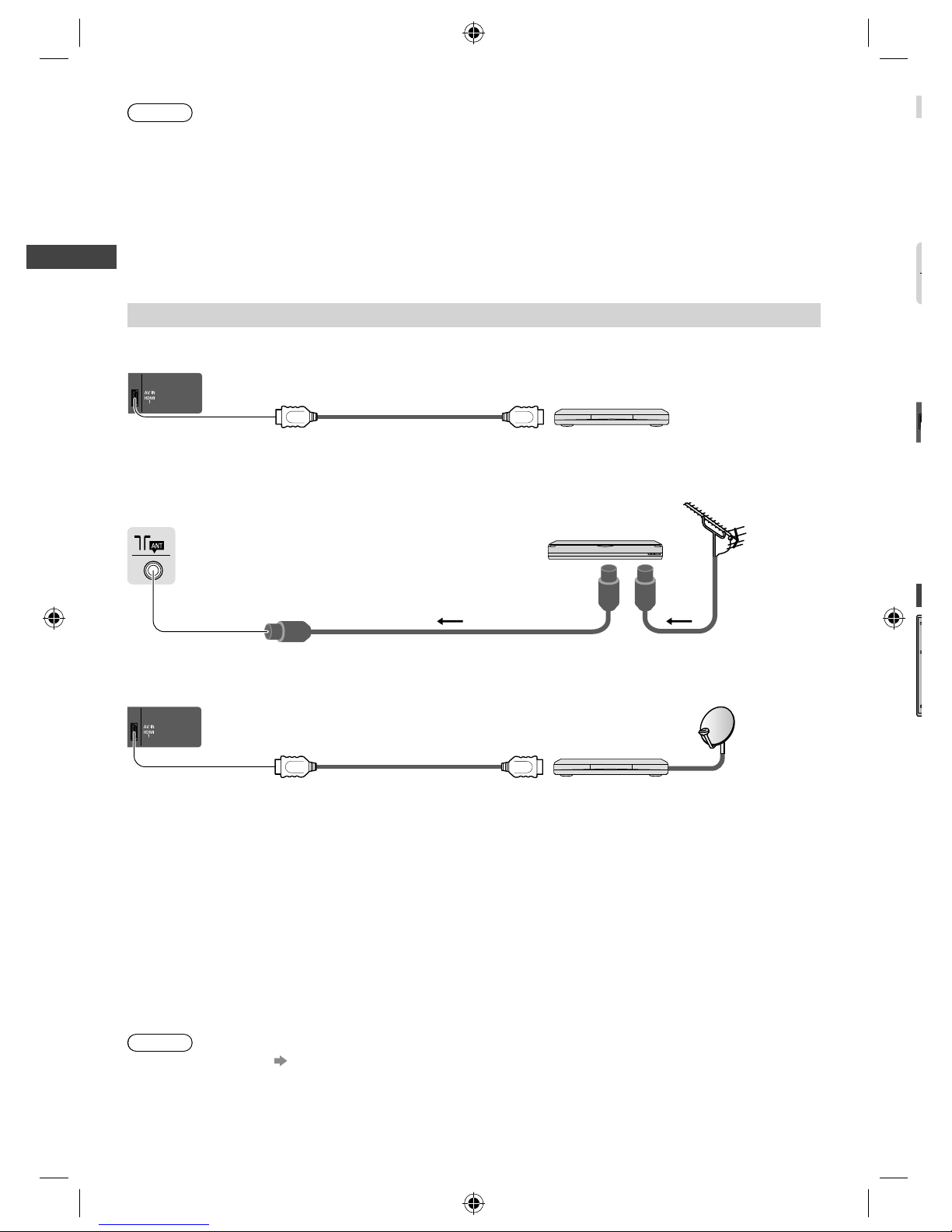

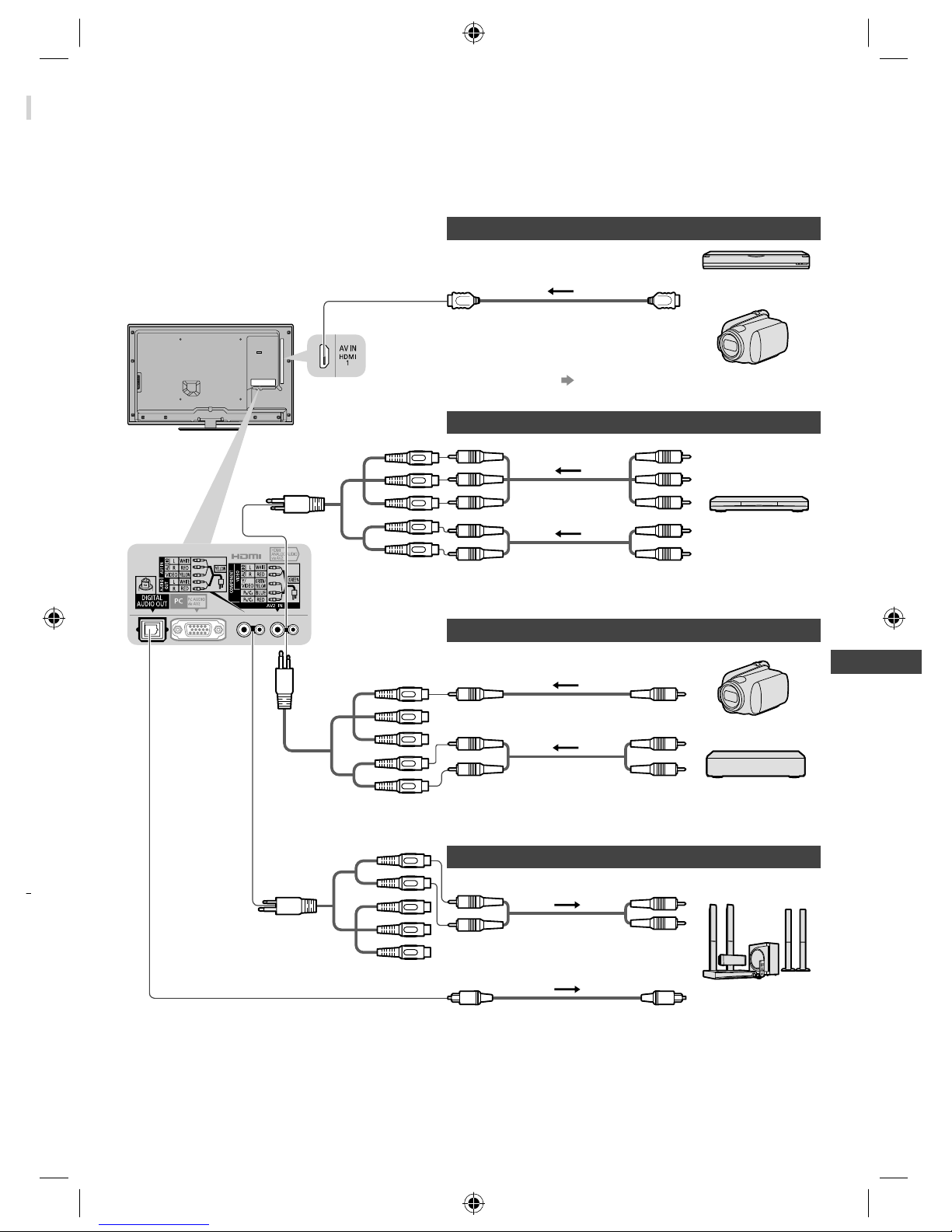

AV devices

■ Player

Player

HDMI cable

■ DVD Recorder / VCR

DVD Recorder / VCR

RF cable

Aerial

RF cable

■ Set top box

Set top box

HDMI cable

Satellite dish

Note

●

VIERA Link connection (p. 56, 57)

●

Please also read the manual of the equipment being connected.

●

Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.

●

When using a HDMI cable, use the fully wired one.

●

Check the type of terminals and cable plugs are correct when connecting.

T e

●

■

●

TH-L32_42_47E5KMT_EN.indd 12TH-L32_42_47E5KMT_EN.indd 12 3/19/2012 1:45:01 PM3/19/2012 1:45:01 PM

Page 13

Basic Connection

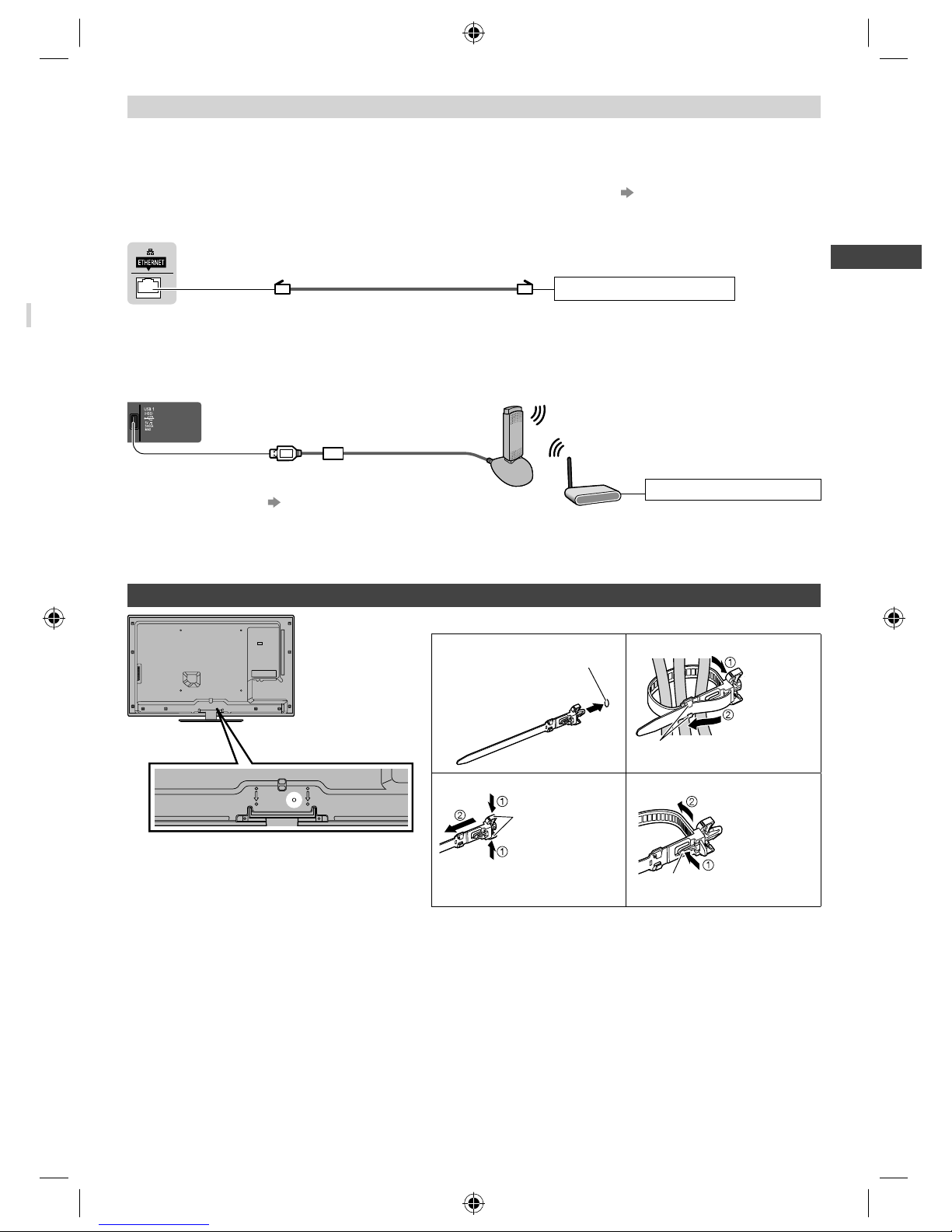

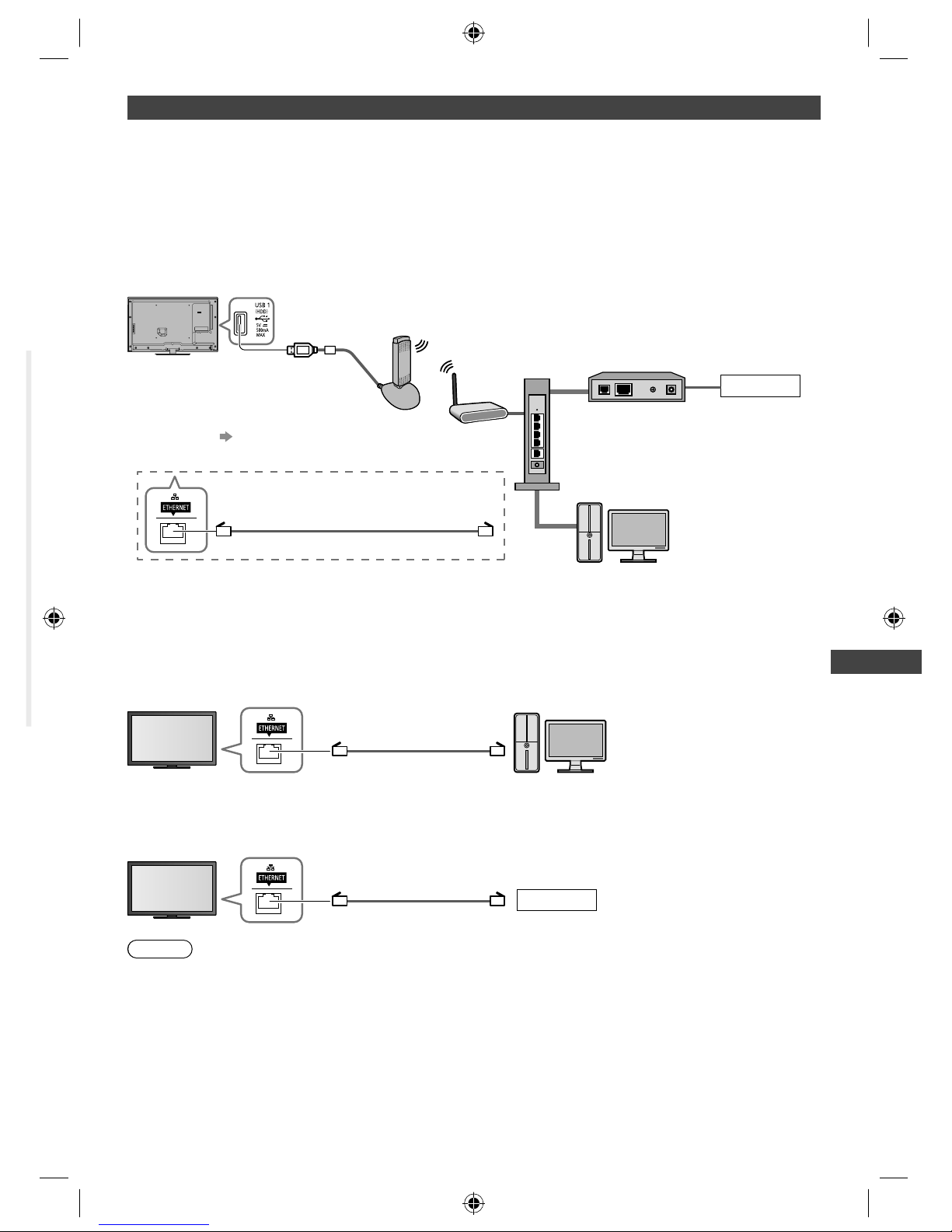

Network

To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

●

If you do not have any broadband network services, please consult your retailer for assistance.

●

Prepare the internet environment for wired connection or wireless connection.

●

Setup of the network connection will start after the tuning (when first using the TV). (p. 14 - 16)

■ Wired connection

Internet environment

LAN cable (Shielded)

●

Use the Shielded Twist Pair (STP) LAN cable.

■ Wireless connection

Wireless LAN Adaptor and exclusive stand

“Optional accessories” (p. 6)

●

Insert the Wireless LAN Adaptor to the stand straightly and completely.

●

Connect to the USB 1 or 2 port.

Internet environment

Using clamper

■ Clamper (Standard accessory)

Attach the clamper Bundle the cables

hole

Insert the clamper in a hole

hooks

Set the tip in the hooks

To remove from the TV: To loosen:

Keep pushing both side snaps

snaps

knob

Keep pushing the knob

●

Do not bundle the RF cable and mains lead together (could cause distorted image).

●

Fix cables with clampers as necessary.

●

When using the optional accessory, follow the option’s assembly manual to fix cables.

TH-L32_42_47E5KMT_EN.indd 13TH-L32_42_47E5KMT_EN.indd 13 3/19/2012 1:45:01 PM3/19/2012 1:45:01 PM

Page 14

Auto Tuning

Search and store TV channels automatically.

●

These steps are not necessary if the setup has been completed by your local dealer.

●

Please complete connections (p. 11 - 13) and settings (if necessary) of the connected equipment before starting Auto Tuning. For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch on

●

Takes a few seconds to be displayed.

●

If the red LED shows on the TV, press the Standby On / Off switch on the remote control.

Select your language

OSD Language

English

select

set

Select your country

Country

Thailand Vietnam

Saudi Arabia

United Arab Emirates

MalaysiaIndia

OthersKuwait

IndonesiaSingapore

select

set

Select your area

Channel Plan

Asia/W.Europe

NZ/Indonesia

China

CIS/E.Europe

TV/Other

Hong Kong

select

access

●

When selecting [CATV/Other], press the OK button, and then select the Channel Plan from Indian CATV, South Africa, American System, American CATV or Japan CATV.

Auto Tuning starts

●

Auto Tuning will start to search for TV channels and store them. The stored channels and sorted channel order vary depending on the area, broadcasting system and conditions of signal reception.

CH 42

1 120

Auto Tuning

Scan

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 17, 46).

●

Please note that this TV does not support wireless public access points.

●

Ensure the network connections (p. 13) and network environment are completed before starting setup.

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Set later

[Wired] “Wired connection” (p. 13) [Wireless]

“Wireless connection”

(p. 13)

select access

●

To setup later on or skip this step

Select [Set later] or

TH-L32_42_47E5KMT_EN.indd 14TH-L32_42_47E5KMT_EN.indd 14 3/20/2012 6:48:01 PM3/20/2012 6:48:01 PM

Page 15

Auto Tuning

■ [Wired]

1. Select [Auto]

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Connection Test

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

Acquire IP Address

Auto Manual

select access

Automatically setup is done and the test of the network connection starts.

●

To set manually, select [Manual] and set each item. For details (p. 49)

2. Go to the next step

(Press twice)

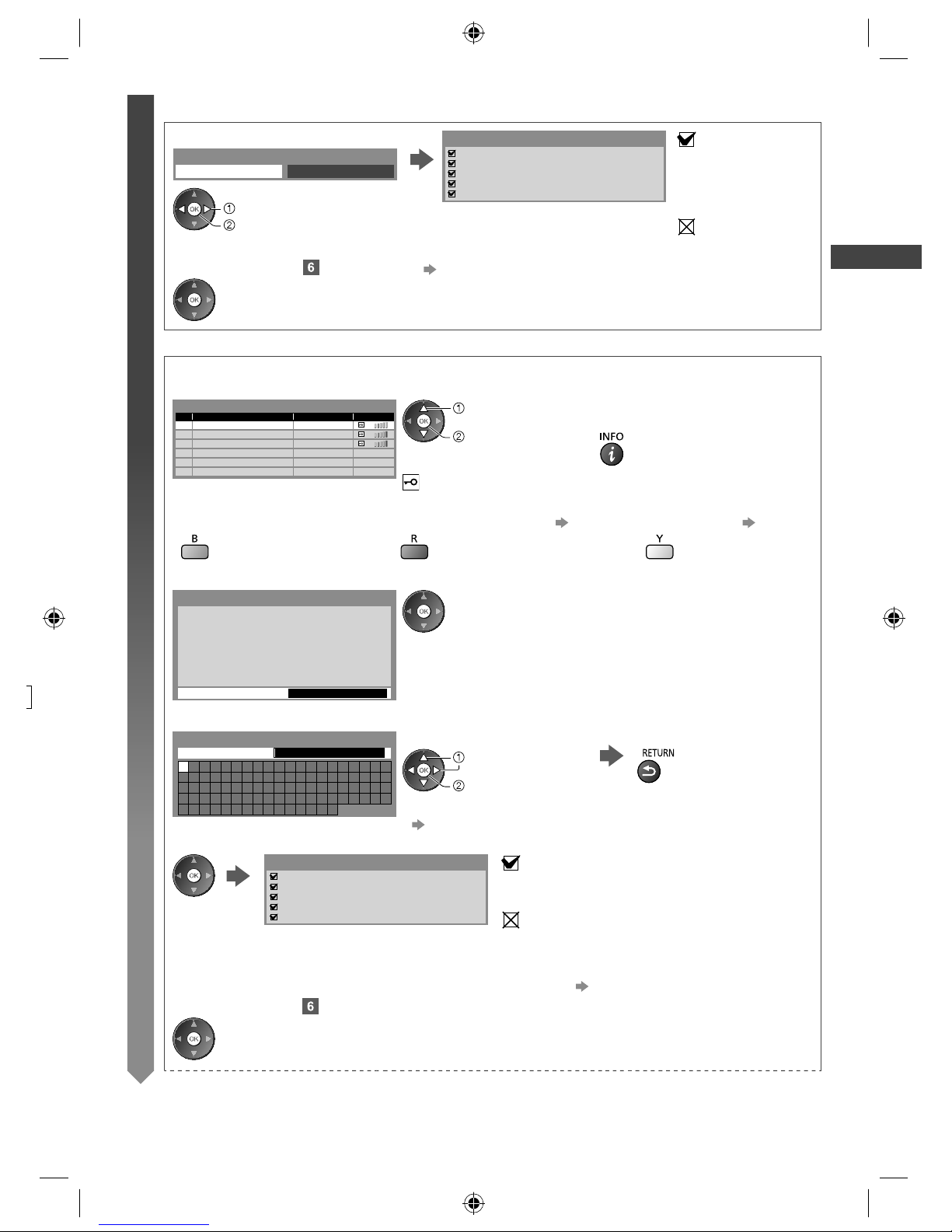

■ [Wireless]

Access points found automatically are listed.

1. Select your desired access point

1 2 3

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

Available Wireless Networks

No. Network Name(SSID)

Access Point A Access Point B Access Point C

StatusWireless type

select

access

●

For the information of the highlighted access point

: Encrypted access point

●

To search access points again

●

To set [WPS(Push button)] (p. 16)

●

To set manually (p. 51)

2. Access the encryption key input mode (English only)

Encryption Key Setting

Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

Connection will be made with the following settings:Network Name(SSID) : Access Point A

●

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

3. Enter the encryption key of the access point (English only)

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

Wireless Network Settings

Encryption key

Set characters Store

select

set

●

You can set characters by using numeric buttons. (English only)

(p. 72)

4. After the access point setting is finished, perform the connection test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Connection Test

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

●

To set manually, select [Manual] and set each item. For details (p. 51)

5. Go to the next step

(Press twice)

TH-L32_42_47E5KMT_EN.indd 15TH-L32_42_47E5KMT_EN.indd 15 3/19/2012 1:45:02 PM3/19/2012 1:45:02 PM

Page 16

Auto Tuning

[WPS(Push button)]

1. Press the WPS button on the access point until the light flashes

2. Connect the TV with the access point

WPS(Push button)

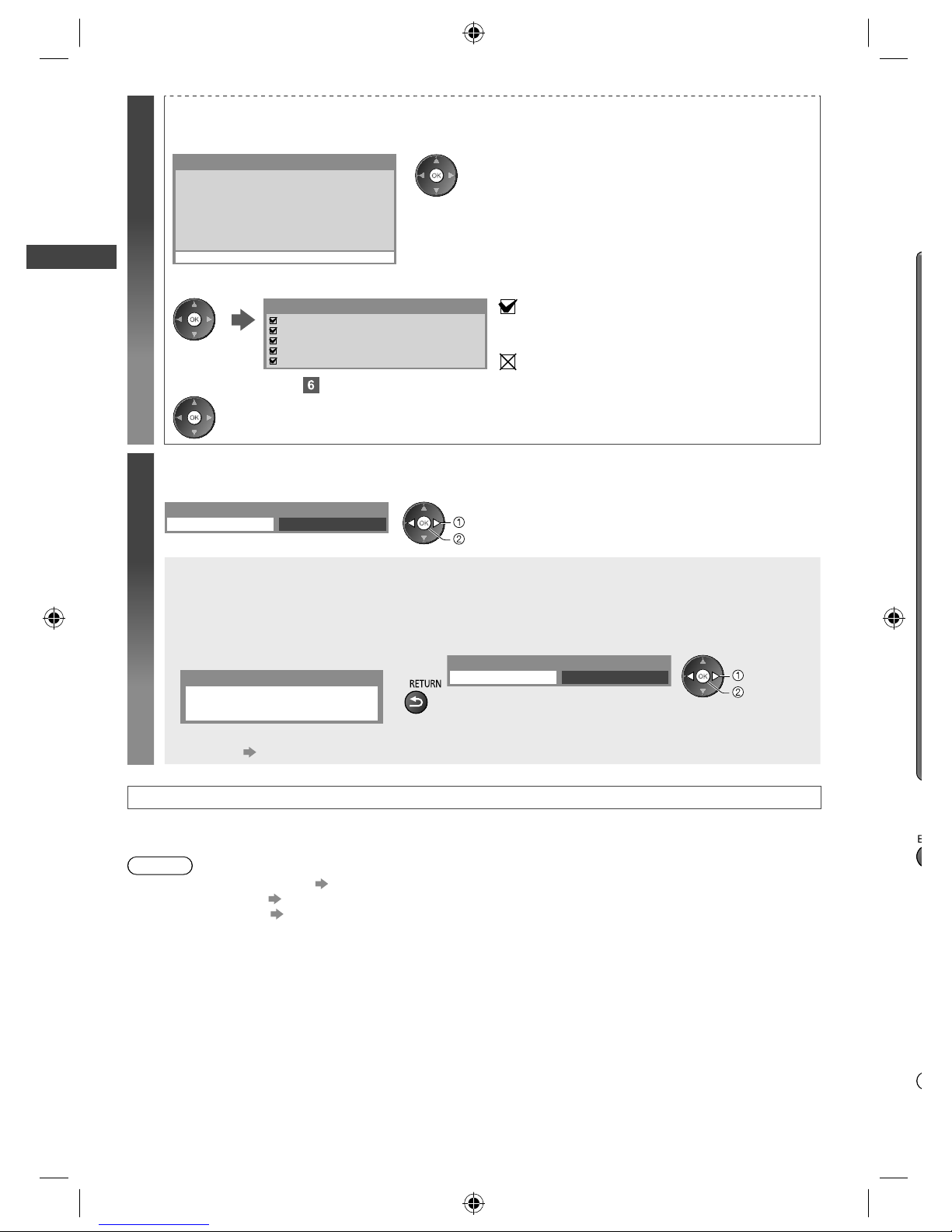

Connect

1) Please press the 'WPS' button on the wireless access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the wireless access point.

●

Ensure that your access point supports WPS for this setup.

●

WPS: Wi-Fi Protected Setup™

●

If the connection has failed, check the settings and positions of your access point. And then, follow the on-screen instructions.

3. After the access point setting is finished, perform the connection test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Connection Test

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

4. Go to the next step

(Press twice)

Select [Home]

Select [Home] viewing environment to use in your home environment.

Please select your viewing environment.

Home Shop

select set

■ [Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

●

You can return to viewing environment selection screen at the stage of Shop confirmation screen.

1 Return to viewing environment

selection screen

2 Select [Home]

Please select your viewing environment.

Home Shop

select set

Shop

You have selected shop mode

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition. [Shipping Condition] (p. 35)

Auto Tuning is now complete and your TV is ready for viewing

If tuning has failed, check the connection of the RF cable, and then, follow the on-screen instructions.

Note

●

To edit or hide (skip) channels “Tuning and Editing Channels” (p. 32 - 33)

●

To retune all channels [Auto Tuning] in “Tuning and Editing Channels” (p. 33)

●

To initialise all settings [Shipping Condition] (p. 35)

V V s

●

■

●

TH-L32_42_47E5KMT_EN.indd 16TH-L32_42_47E5KMT_EN.indd 16 3/19/2012 1:45:04 PM3/19/2012 1:45:04 PM

Page 17

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from VIERA Connect home screen.

●

Some features of the websites may not be available.

Turn power on

●

Mains power On / Off switch should be on. (p. 10)

●

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed

●

Depending on the usage conditions, it may take a while to read all the data.

●

Messages might be displayed before VIERA Connect home screen. Please read these instructions carefully and follow the on-screen instructions.

Example: VIERA Connect home screen

MORE BACK

●

To go to the next level, select [MORE].

●

To back to the previous level, select [BACK].

●

To return to VIERA Connect home screen

■

To exit from VIERA Connect

●

To set the VIERA Connect introduction banner display off

[VIERA Connect

Banner] (p. 30)

●

Video communication requires an exclusive Communication Camera TY-CC20W.

“Optional accessories” (p. 6)

For details, read the manual of the Communication Camera.

●

You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information “USB connection” (p. 72)

Note

●

If you cannot access VIERA Connect, check the network connections (p. 13) and settings (p. 14 - 16).

●

For more information of VIERA Connect (p. 55)

TH-L32_42_47E5KMT_EN.indd 17TH-L32_42_47E5KMT_EN.indd 17 3/19/2012 1:45:04 PM3/19/2012 1:45:04 PM

Page 18

Watching TV

Turn power on

●

Mains power On / Off switch should be on. (p. 10)

■ VIERA Connect introduction banner appears

Every time you turn on the TV, this banner appears at the bottom of the screen. You can access to VIERA Connect easily and enjoy the various contents. (p. 17)

●

To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect).

●

To set this banner display off [VIERA Connect Banner] (p. 30)

●

The banner is subject to change.

Select TV mode

Select a channel

down

●

To select the two-digit channel position number, e.g. 39

Other useful functions

Display Information banner

●

Also appears when changing a channel.

●

To hide

, ,

, Audio mode (p. 67)

Sound mute On

1 - 90 Off Timer remaining time

●

For settings (p. 19)

Teletext

(varies depending on the broadcasters) Teletext service available

CH08

5.5MHz

PAL

16:9

Input mode Channel position Channel number Sound system Colour system Aspect ratio

[

■

TH-L32_42_47E5KMT_EN.indd 18TH-L32_42_47E5KMT_EN.indd 18 3/19/2012 1:45:05 PM3/19/2012 1:45:05 PM

Page 19

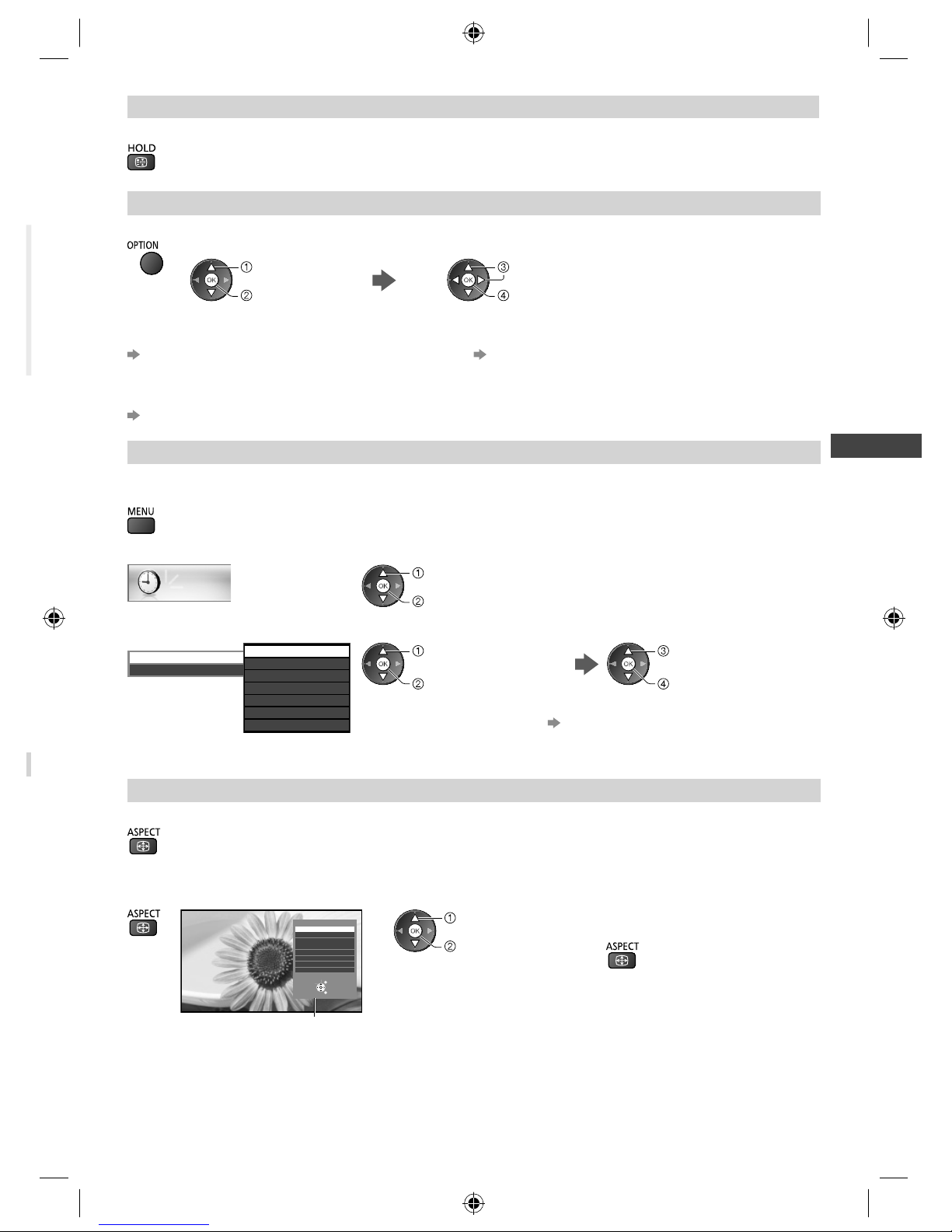

Watching TV

Hold

Freeze / unfreeze picture

Display the selectable settings for the current status

Confirm or change the current status instantly

●

To change

select

access

select / change

store

[Channel Colour Set]

Sets colour density

(p. 27)

[Teletext Character Set]

Sets the teletext language

(p. 30)

[MPX]

Selects multiplex sound mode (if available)

(p. 29)

[Volume Correction]

Adjusts volume of individual channel or input mode

Off Timer

Turn the TV to Standby mode automatically after a fixed period

1 Display the menu

2 Select [Timer]

Timer

select

access

3 Select [Off Timer] and set the time in 15-minute increments

15 30 45 60 75 90

Off

minutes

Off Timer

Auto Standby

minutes minutes minutes minutes minutes

select [Off Timer]

access

select the time

store

●

To cancel, set to [Off] or turn the TV off.

●

To confirm the remaining time “Display Information banner” (p. 18)

●

When the remaining time is within 3 minutes, the remaining time will flash on the screen.

Aspect

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect. (Press repeatedly until you reach the desired mode.)

■ To change the aspect ratio manually (if available)

1 Display Aspect Selection list 2 While the list is displayed, select the mode

Aspect Selection

16:9

14:9 Just 4:3 4:3 Full Zoom1 Zoom2 Zoom3

Select

EXIT

RETURN

Change

Aspect Selection list

select

store

●

You can also change the mode only using the ASPECT button.

TH-L32_42_47E5KMT_EN.indd 19TH-L32_42_47E5KMT_EN.indd 19 3/19/2012 1:45:06 PM3/19/2012 1:45:06 PM

Page 20

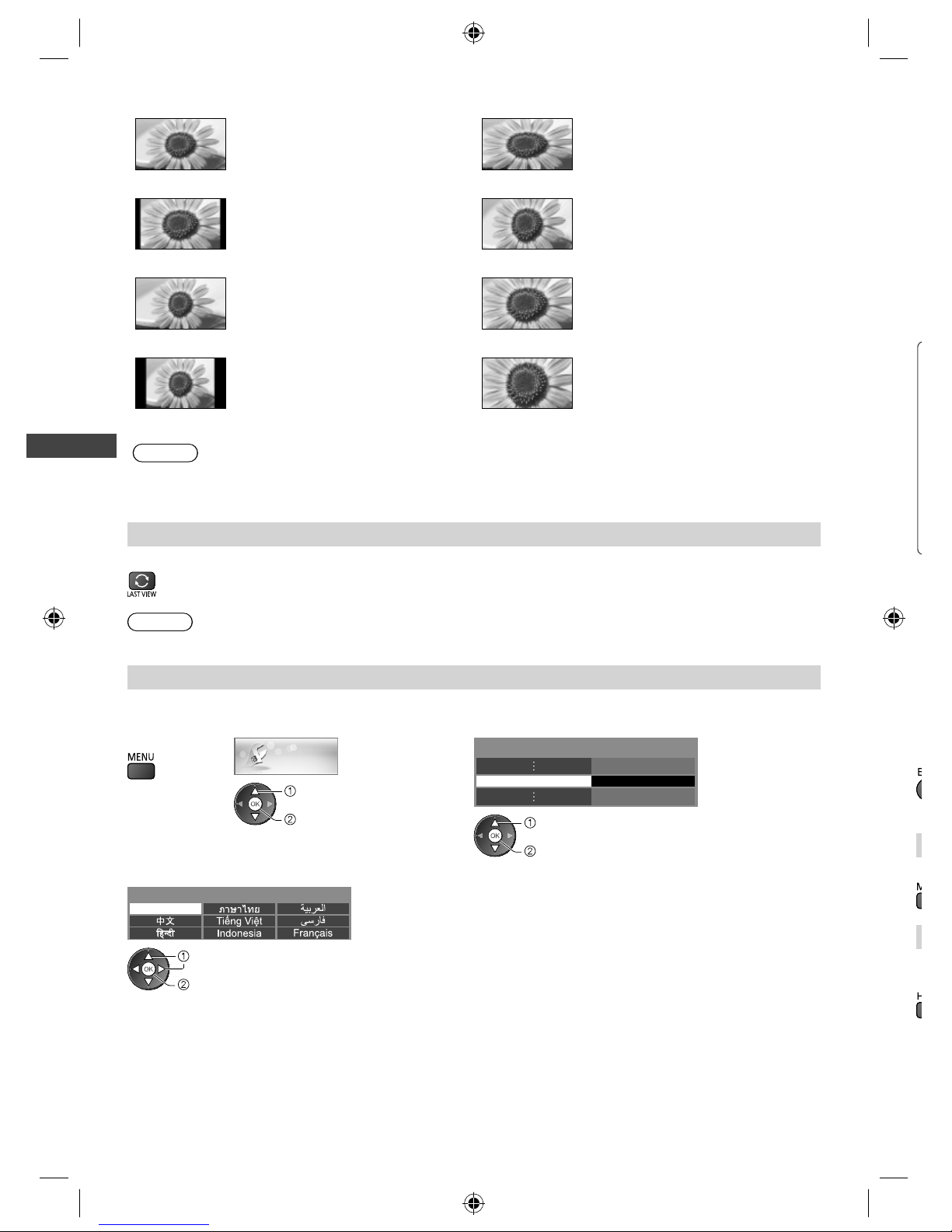

Watching TV

[16:9] [4:3 Full]

Directly displays the image at 16:9 without distortion (anamorphic).

Displays a 4:3 image enlarged horizontally to fit the screen.

●

For HD signal

[14:9] [Zoom1]

Displays the image at the standard 14:9 without distortion.

Displays a 16:9 letterbox or 4:3 image without distortion.

[Just] [Zoom2]

Displays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

[4:3] [Zoom3]

Displays the image at the standard 4:3 without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Note

●

Only [16:9] and [4:3] are available in PC input mode.

●

Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.

Last view

Switch to previously viewed channel or input mode easily

●

Press again to return to the current view.

Note

●

Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

Change OSD language

You can change language for on-screen displays.

1 Display the

2 Select [Setup]

Setup

select

access

3 Select [OSD Language]

OSD Language Access

select

access

4 Select the language and set

OSD Language

English

select

set

T T

■

(

TH-L32_42_47E5KMT_EN.indd 20TH-L32_42_47E5KMT_EN.indd 20 3/19/2012 1:45:07 PM3/19/2012 1:45:07 PM

Page 21

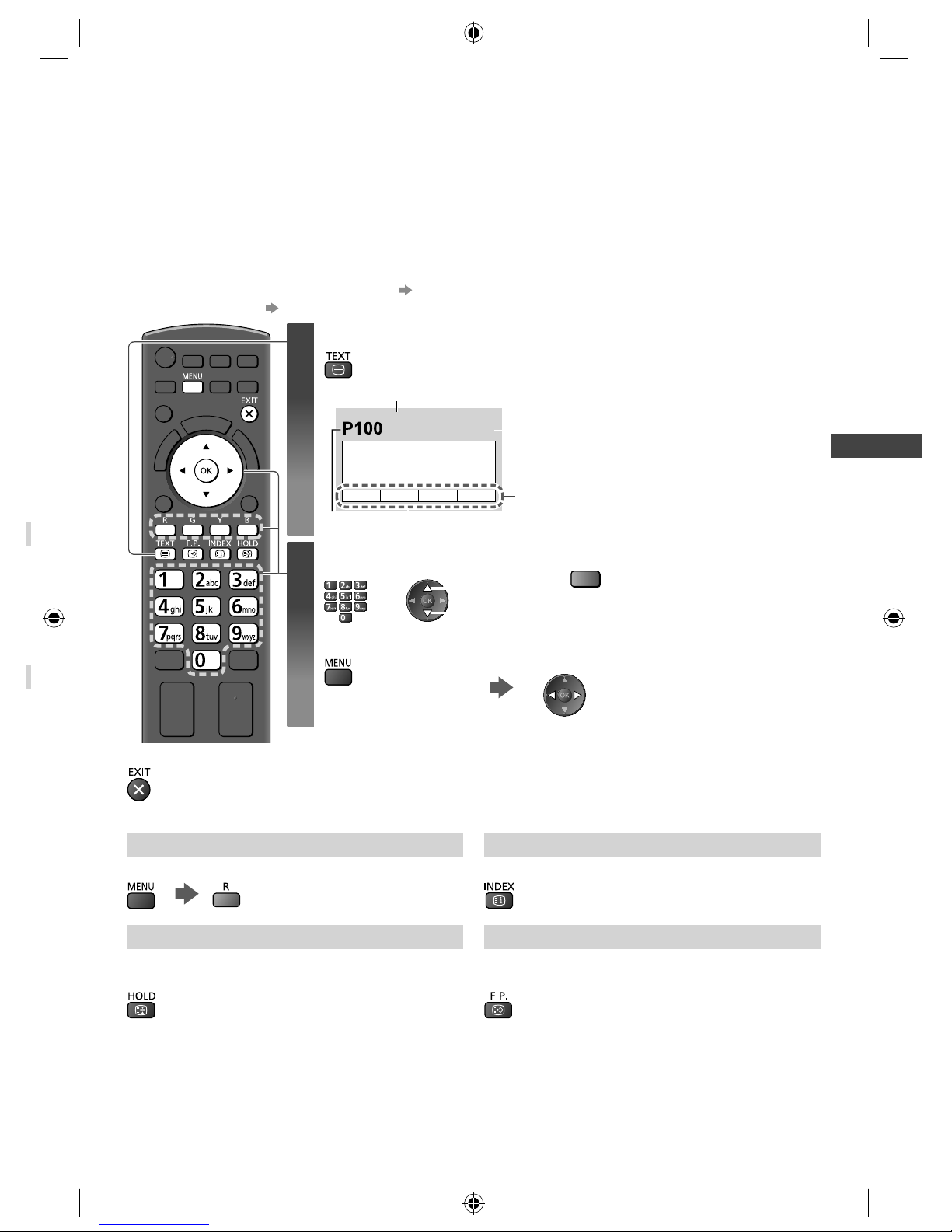

Viewing Teletext

Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

“Store frequently viewed pages” (p. 22)

■ To change mode [Teletext] (p. 30)

Switch to Teletext

●

Displays the index page (content varies depending on the broadcasters).

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

Time / date

Sub page number

Colour bar

Current page number

TELETEXT

INFORMATION

Select the page

down

Coloured button (Corresponds to the colour bar)

■ To adjust contrast

As the blue bar is displayed

(Press three times)

■

To return to TV

Reveal hidden data

Reveal hidden words e.g. quiz page answers

●

Press again to rehide.

INDEX

Return to the main index page

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

●

Press again to resume.

Call up a favourite page

View a favourite page stored

Call up the page stored on the blue button (List mode).

●

Factory setting is “P103”.

TH-L32_42_47E5KMT_EN.indd 21TH-L32_42_47E5KMT_EN.indd 21 3/19/2012 1:45:08 PM3/19/2012 1:45:08 PM

Page 22

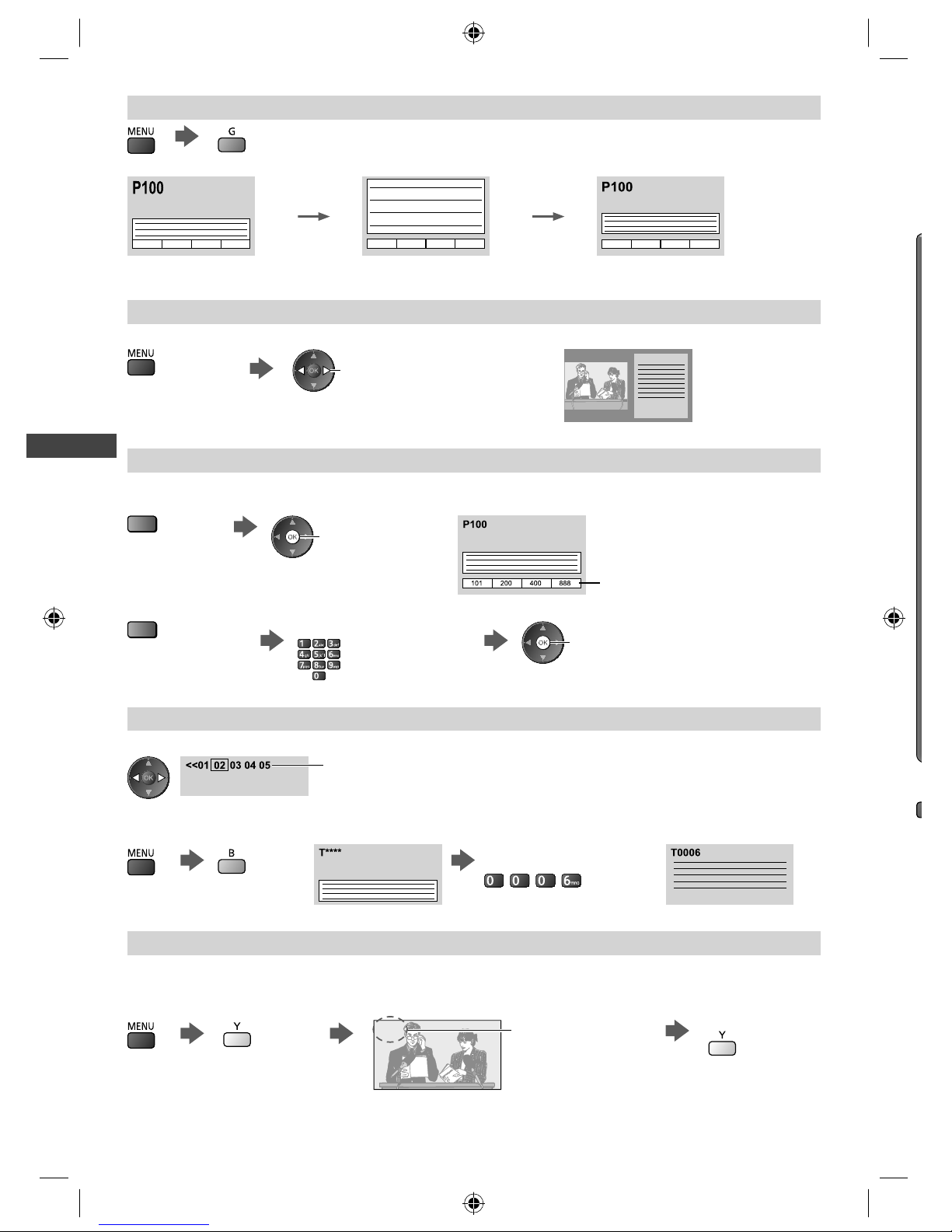

Viewing Teletext

FULL / TOP / BOTTOM

(TOP) (BOTTOM) Normal (FULL)

Broadcast

(Expand the TOP half)

(Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once

Select Picture and text on or off

(Press twice)

●

Operations can be made only in teletext screen.

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

As page is displayed

press and hold

Broadcast

The number changes to white.

(Corresponding coloured button)

■ To change stored pages

Enter new page number

press and hold

Coloured button you want to change

View sub page

View sub page (Only when Teletext is more than one page)

Appears at top of the screen

●

The number of sub pages varies depending on the broadcasters.

●

It may take some time for searching, during which time you can watch TV.

■ To view specific sub page

Broadcast

Enter the 4-digit number Example: P6

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily View the updated

page

P108

Appears when updating is completed

(You cannot change the channel.)

●

The news page provides a function that indicates arrival of the latest news (“News Flash”).

●

■

TH-L32_42_47E5KMT_EN.indd 22TH-L32_42_47E5KMT_EN.indd 22 3/19/2012 1:45:08 PM3/19/2012 1:45:08 PM

Page 23

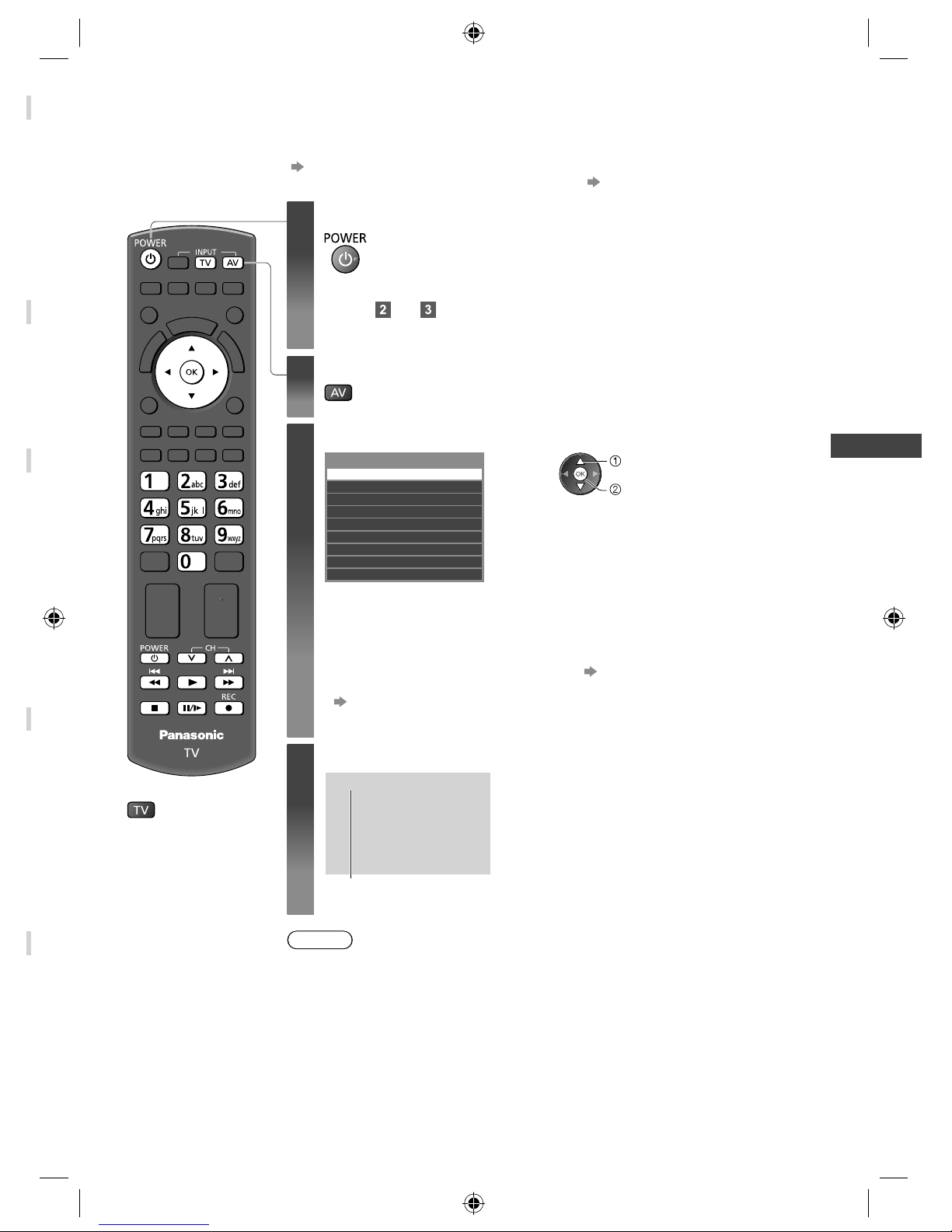

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

●

To connect the equipment (p. 11 - 13, 63 - 65)

The remote control is capable of operating the contents or external equipment. (p. 24)

Turn the TV on

If input mode is not switched automatically

Perform and

●

Check the setup of the equipment.

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV2

AV1

SD Card/USB

HDMI4

HDMI3

HDMI2

HDMI1

select

watch

●

You can also select the input using the AV button on the remote control or the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected.

●

To switch between [COMPONENT] and [VIDEO] in [AV2], move the indicator by pressing left and right cursor button.

●

[SD Card/USB]: Switches to Media Player. “Using Media Player” (p. 38)

●

You can label or skip each input mode (except [SD Card/USB]).

“Input Labels” (p. 30)

Skipped inputs will not be displayed when the AV button is pressed.

View

AV1

Displays the selected mode

Note

●

If the external equipment has an aspect adjustment function, set it to “16:9”.

●

For details, read the manual of the equipment or ask your local dealer.

■

To return to TV

TH-L32_42_47E5KMT_EN.indd 23TH-L32_42_47E5KMT_EN.indd 23 3/19/2012 1:45:10 PM3/19/2012 1:45:10 PM

Page 24

Watching External Inputs

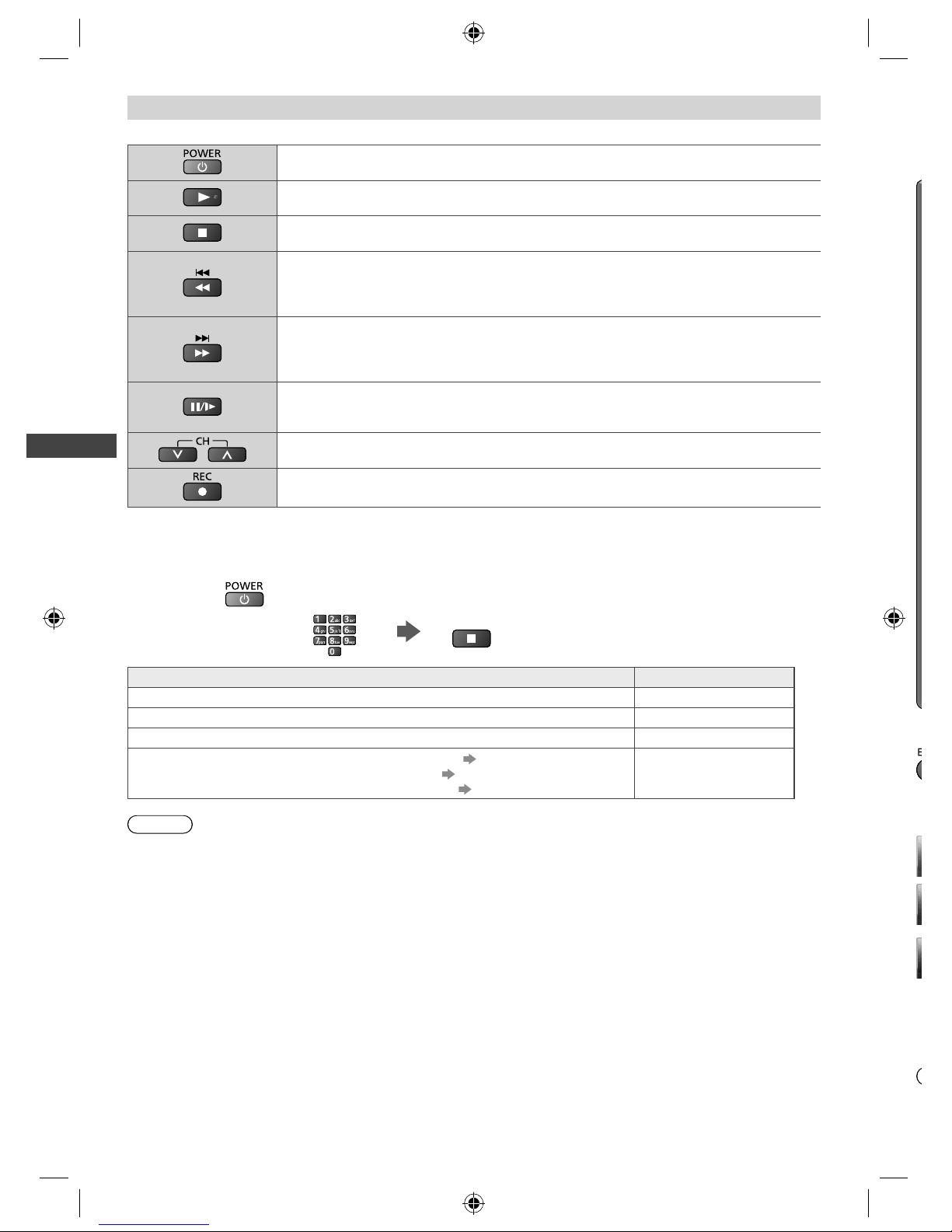

Operating contents or the equipment with the TV remote control

You can operate the contents in Media Player / media servers, recording functions or the connected equipment.

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD / video content: Skip to the previous track, title or chapter

Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD / video content: Skip to the next track, title or chapter

Press and hold to search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

Programme Up / Down

Select programme

Record

Start recording

How to change the code

Each type of the Panasonic equipment has its own remote control code. Change the code according to the equipment you want to operate.

Press and hold

during the following operations

Enter the appropriate code, see table below

Press

Type of the equipment, features Code

DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

Using in Video mode of Media Player

(p. 39)

Using in Video mode of DLNA (p. 52)

The equipment using in VIERA Link (p. 61)

Note

●

Confirm if the remote control works correctly after changing the code.

●

The codes may be reset to default values if batteries are replaced.

●

Some operations may not be possible on some equipment models.

■



●

TH-L32_42_47E5KMT_EN.indd 24TH-L32_42_47E5KMT_EN.indd 24 3/19/2012 1:45:11 PM3/19/2012 1:45:11 PM

Page 25

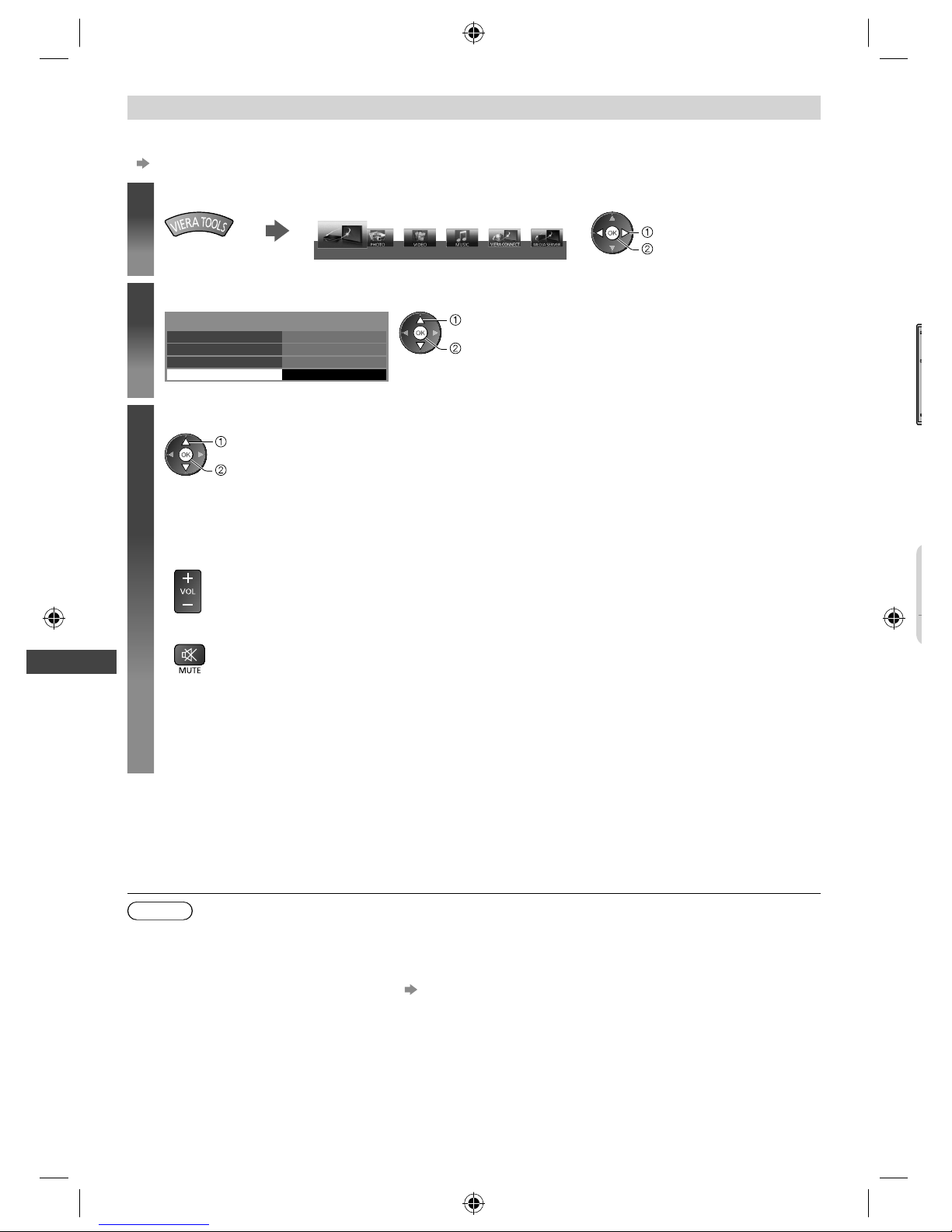

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

Display icons of the feature

Select a feature

VIERA Link

select access

■

To return to TV

■ Follow the operations of each feature

[VIERA Link]

(p. 59 - 62)

[Photo]



(p. 40)

[Video]



(p. 43)

[Music]



(p. 45)

[VIERA Connect]

(p. 17, 55)

[Media Server]



(p. 52)



When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

Note

●

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

TH-L32_42_47E5KMT_EN.indd 25TH-L32_42_47E5KMT_EN.indd 25 3/19/2012 1:45:11 PM3/19/2012 1:45:11 PM

Page 26

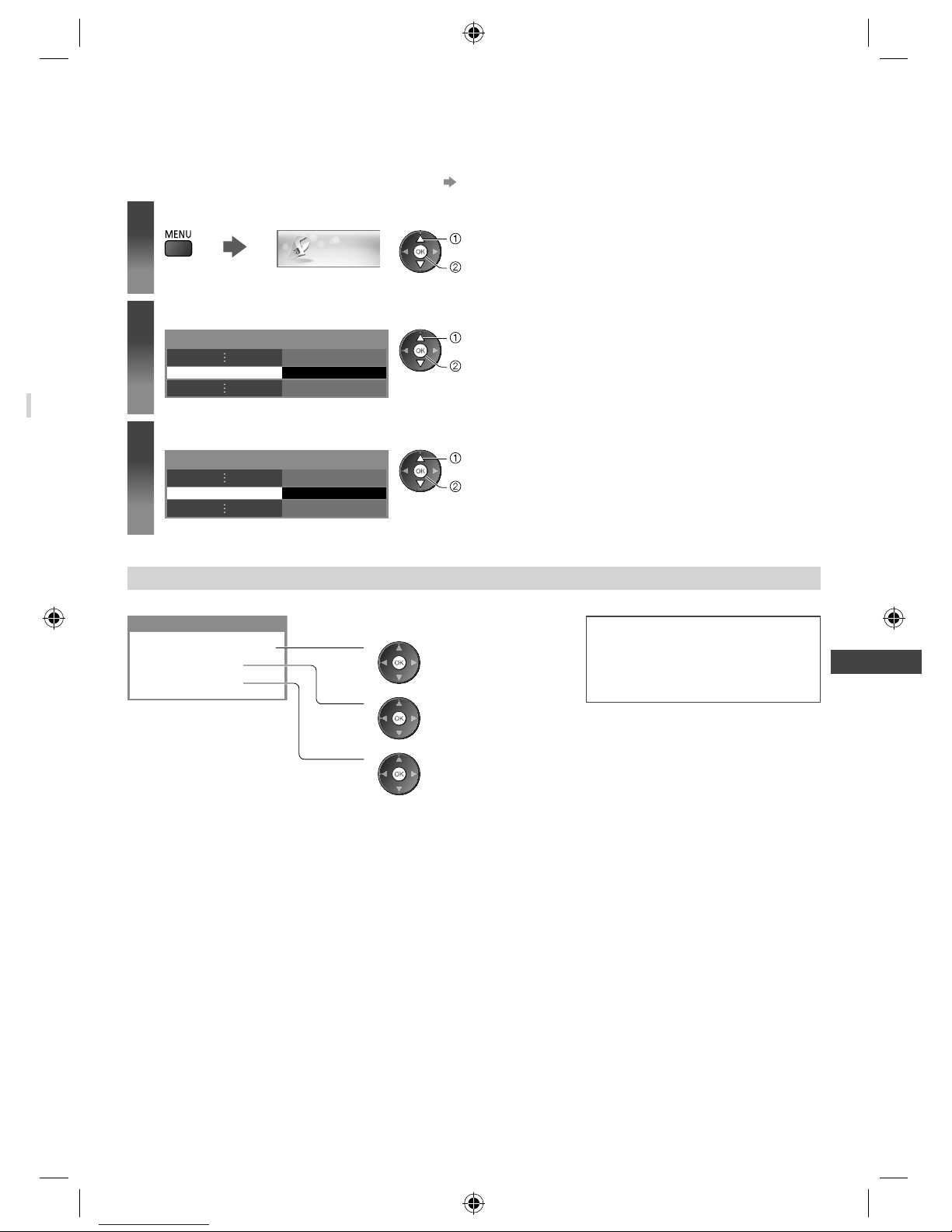

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

●

Displays the functions that can be set (varies according to the input signal).

Select the menu

Example: [Picture Menu]

Main Menu


Sound

Network

Timer

Setup

select

access

Select the item

Example: [Picture Menu]

1/2

50 60

Viewing Mode Dynamic

Brightness Colour Sharpness Tint Colour Balance Channel Colour Set

Warm

Contrast

Backlight

select

access

■ Choose from among alternatives

Colour Balance

Normal

Cool

Warm

select

store

■ Adjust using the slide bar

Sharpness

Moved

change store

■ Go to the next screen

Child Lock Access

Displays the next screen

access

■

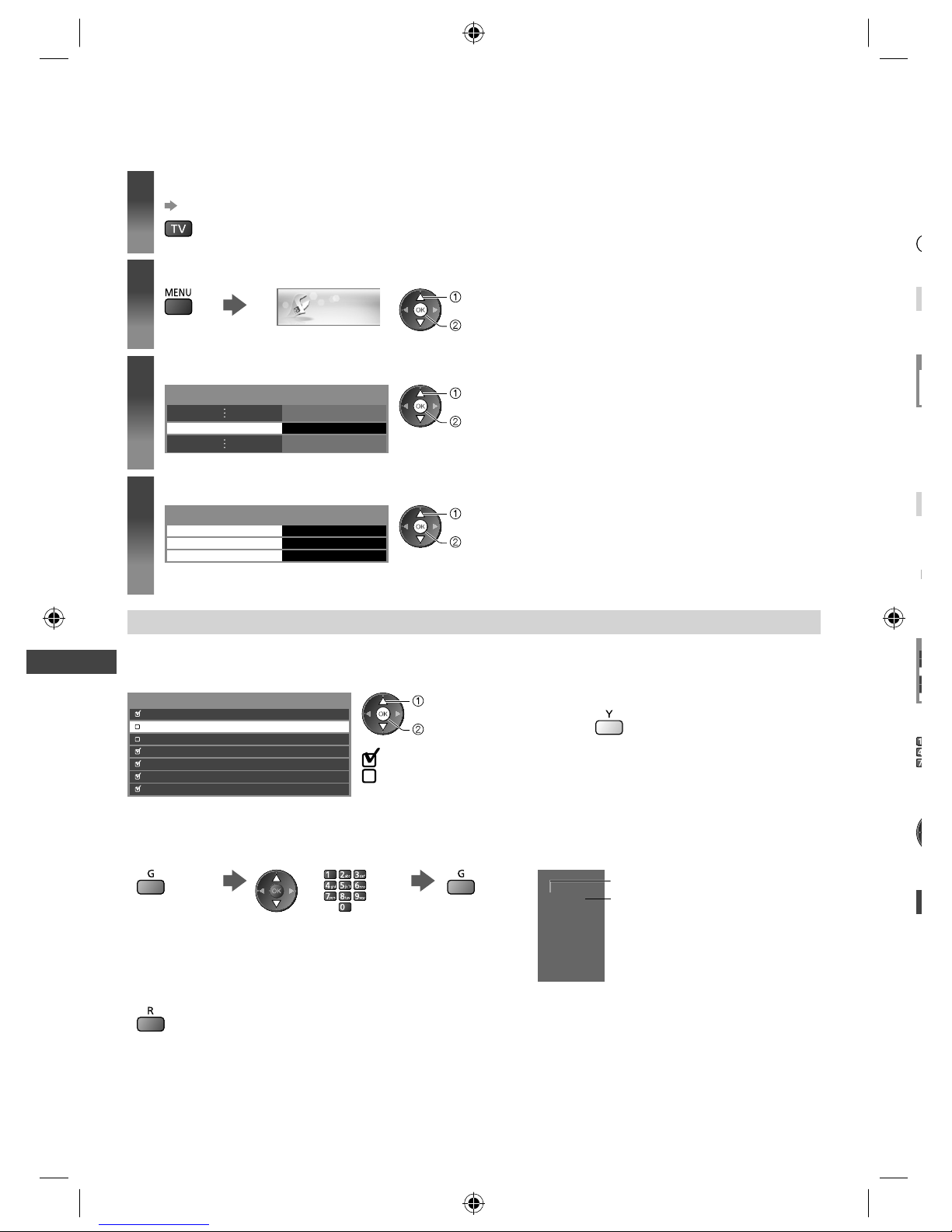

To return to TV at any time

■

To return to the previous screen

■

To change menu pages

down

■ Enter characters by free input menu

You can enter names or numbers freely for some items. (English only)

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

User input

Name

Set characters one by one Store

select

set

●

You can set characters by using numeric buttons. (English only)

“Characters table for numeric buttons” (p. 72)

■ To reset the settings

●

Picture or sound settings only

[Reset to Defaults] in the Picture Menu (p. 28) or Sound Menu (p. 29)

●

To initialise all settings

[Shipping Condition] (p. 35)

TH-L32_42_47E5KMT_EN.indd 26TH-L32_42_47E5KMT_EN.indd 26 3/19/2012 1:45:12 PM3/19/2012 1:45:12 PM

Page 27

How to Use Menu Functions

Menu list

Item Adjustments / Configurations (alternatives)


Viewing Mode

Selects your favourite picture mode for each input [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] [Dynamic]:

Improves contrast and sharpness for viewing in a bright room.

[Normal]:

Normal use for viewing in a normal lighting condition.

[Cinema]:

Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.

[True Cinema]:

Reproduces the original image quality precisely without any revision.

[Game]:

Provides suitable images for fast response signal when playing games.

●

Not valid on TV mode

●

To display a continuous record of time spent using Game mode

[Playing Time Display] (p. 30)

In each Viewing Mode, [Backlight], [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored for each input. Additionally, you can adjust the detailed settings when [Advance] in the Setup Menu is set to [On].

(p. 31)

Backlight, Contrast, Brightness, Colour, Sharpness

Adjusts the levels of these options according to your personal preference

Tint

Adjusts the picture hue to suit your taste

●

For NTSC signal, Component and HDMI input

Colour Balance

Sets the overall colour tone of the picture [Cool] / [Normal] / [Warm]

●

Not valid when [Viewing Mode] is set to [True Cinema]

Channel Colour Set

Adjusts the suitable colour density from 3 levels for each channel

●

Select the channel to adjust and set this function.

Vivid Colour

Automatically adjusts colours to vivid ones [Off] / [On]

●

Not valid on PC mode

Eco Mode

Automatic Brightness Control function Adjusts picture settings automatically depending on ambient lighting conditions

[Off] / [On]

P-NR

Picture Noise Reduction Reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max] / [Auto]

●

Not valid on PC mode or when [Viewing Mode] is set to [Game]

3D-COMB

Makes still or slow moving pictures more vivid [Off] / [On]

●

Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to [On] to display sharper and more accurate colours.

●

For PAL / NTSC signal reception in TV mode or from composite.

Screen Display

Turns the screen off when you select [Off]

[Off] / [On]

●

The sound is active even if the screen turns off.

●

Press any buttons (except Standby) to turn the screen on.

●

This function is effective in reducing power consumption when listening to the sound without watching the TV screen.

TH-L32_42_47E5KMT_EN.indd 27TH-L32_42_47E5KMT_EN.indd 27 3/19/2012 1:45:13 PM3/19/2012 1:45:13 PM

Page 28

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)


Advanced Settings

Film Cadence Detection

Improves vertical resolution for movie images [Off] / [On]

●

This function is available for the interlaced signal (except in the mode of PC, VIERA Connect or when [Viewing Mode] is set to [Game]).

16:9 Overscan

Selects the screen area displaying the image [Off] / [On] [On]:

Enlarges the image to hide the edge of the image.

[Off]:

Displays the image in the original size.

●

Set to [On] if noise is generated on the edge of the screen.

●

This function is available when aspect is set to [16:9].

●

This function can be memorised separately for SD (Standard definition) and HD (High definition) signals.

●

Not valid on PC mode or VIERA Connect

AV Colour System

Selects optional colour system based on video signals in AV mode

[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]

Colour Matrix

Selects the suitable colour parameter for SD (Standard definition) or HD (High definition) signal [SD] / [HD]

●

This function is available with 480p or 576p input signal from COMPONENT or HDMI terminal.

DVI Input Setting

Changes the black level of the image for HDMI input mode with DVI input signal manually [Normal] / [Full]

●

When the DVI input signal from the external equipment (especially from PC) is displayed, the black level may not be suitable. In this case, select [Full].

●

The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal

Reset to Defaults

Press the OK button to reset the current Picture Viewing Mode of the selected input to the default settings

Sound

Mode

Selects your favourite sound mode for each input [Music] / [Speech] / [User] [Music]:

Improves sound quality for watching music videos, etc.

[Speech]:

Improves sound quality for watching news, drama, etc.

●

In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those settings will be stored for each mode.

[User]:

Adjusts the sounds manually by using the equaliser to suit your favourite sound quality.

●

For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and [Treble]. Select [Equaliser] and adjust the frequency.

[Equaliser] (see below)

Bass Adjusts level to enhance or minimise lower, deeper sound output

Treble Adjusts level to enhance or minimise sharper, higher sound output

Equaliser

Adjusts the frequency level to suit your favourite sound quality

●

This function is available when [Mode] is set to [User].

●

Select the frequency and change the frequency level by using the cursor button.

●

To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency.

●

To reset the levels of each frequency to the default settings, select [Reset to Defaults] by using the cursor button, and then press the OK button.

Balance Adjusts volume level of right and left speakers

Headphone Volume Adjusts the volume of the headphones

TH-L32_42_47E5KMT_EN.indd 28TH-L32_42_47E5KMT_EN.indd 28 3/19/2012 1:45:13 PM3/19/2012 1:45:13 PM

Page 29

How to Use Menu Functions

]

Item Adjustments / Configurations (alternatives)

Sound

Surround

Surround sound settings

[Off] / [V-Audio] / [V-Audio Surround] / [V-Audio ProSurround] [V-Audio]:

Provides a dynamic enhancer of width to simulate improved spatial effects.

[V-Audio Surround]:

Provides a dynamic enhancer of width and depth to simulate improved spatial effects.

[V-Audio ProSurround]:

Provides a more progressive enhancer and reverberation to simulate improved spatial effects.

Volume Control (VAO)

Controls the volume level of the sound output from AUDIO OUT terminals with the TV remote control [TV] / [Audio Out (TV Off)] / [TV and Audio Out]

[TV]: Only the volume level of TV speakers is adjustable. [Audio Out (TV Off)]: Only the volume level from AUDIO OUT terminals is

adjustable. (The sound of TV speakers is mute.)

[TV and Audio Out]: Controls both volume levels together.

Auto Gain Control

Automatically regulates large sound level differences between channels and inputs [Off] / [On]

Volume Correction Adjusts the volume of individual channel or input mode

Speaker Distance to Wall

Compensates for the low frequency sound due to the distance between the speakers and the wall [Over 30cm] / [Up to 30cm]

●

If the back space between the TV and wall is over 30 cm, [Over 30cm] is recommended.

●

If the back space between the TV and wall is within 30 cm, [Up to 30cm] is recommended.

MPX

Selects multiplex sound mode (if available)

[Stereo]: Use this normally. [Mono]: When stereo signal cannot be received. [M1] / [M2]: Available while mono signal is transmitted.

HDMI1 / 2 / 3 / 4 Input

Selects to fit the input signal [Digital] / [Analogue] (p. 71) [Digital]: When sound is carried via the HDMI cable connection [Analogue]: When sound is not carried via the HDMI-DVI adaptor cable

connection

●

For HDMI input

Reset to Defaults

Press the OK button to reset the current Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings

Network

Connection Test, Network Connection, Wireless Network Settings, IP/DNS Settings

Sets the network setting to use in your network environment (p. 49, 50)

Network Link Settings Sets to control the TV with the devices connected to the network (p. 48)

Software Update Checks for available software updates from the Panasonic website

New Software Message

Selects whether to give a notification message when new software is found via network [Off] / [On]

Network Status Displays the network status (MAC Address, current network settings, etc.)

TH-L32_42_47E5KMT_EN.indd 29TH-L32_42_47E5KMT_EN.indd 29 3/19/2012 1:45:13 PM3/19/2012 1:45:13 PM

Page 30

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

Timer

Off Timer

Sets the duration of time until the TV automatically goes into Standby mode

[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p. 19)

Auto Standby

Sets the duration of time that the TV will remain on when no operation is performed [Off] / [2] / [4] (hours)

●

Automatic input switching with the connected equipment affects this function and time-count will be reset.

●

The notification message will appear 3 minutes before going into Standby mode.

Setup

Eco Navigation

Automatically sets the TV to the most suitable energy-saving mode

●

If you press the OK button, the following items are set as below: [Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save] [On] [Intelligent Auto Standby] [On (No reminder)] [Auto Standby] [2 hours]

Child Lock Applies access control for channels or inputs to prevent unwanted access (p. 34)

Tuning Menu

Channel List Edit Skips the unwanted channels or edits channels (p. 32)

Auto Tuning Automatically searches for the receivable channels (p. 33)

Manual Tuning Searches for the channels manually (p. 33)

OSD Language Changes language for on-screen displays

Display Settings

Teletext Teletext display mode [FASTEXT] / [List] (p. 21)

Teletext Character Set

Selects teletext language font [English] / [CIS] / [E.Europe] / [Persian]

Input Labels

Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in [Input Selection] (p. 23) or banner

●

To name each input mode freely, select [User input] and set characters (maximum 10 characters).

●

To skip the input mode, select [Skip].

Banner Display Timeout

Sets how long the Information banner stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

VIERA Connect Banner

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 17, 18)

Playing Time Display

Set to [On] to display a continuous record of time spent using Game mode in the top right of the screen every 30 minutes [Off] / [On]

●

This function is available when [Viewing Mode] is set to [Game]. (p. 27)

●

TH-L32_42_47E5KMT_EN.indd 30TH-L32_42_47E5KMT_EN.indd 30 3/19/2012 1:45:13 PM3/19/2012 1:45:13 PM

Page 31

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

Setup

VIERA Link Settings

VIERA Link Sets to use VIERA Link functions [Off] / [On] (p. 58)

HDMI Content Type

Automatically adjusts the picture settings according to the received HDMI content via HDMI cable [Off] / [Auto]

●

This function is available if the connected equipment supports HDMI Content Type.

●

The content type information will be displayed for several seconds when this function works.

Power on Link Sets to use Power on Link functions [Off] / [On] (p. 58)

Power off Link Sets to use Power off Link functions [Off] / [On] (p. 58)

Standby Power Save

Controls the connected equipment to reduce power consumption in Standby [Off] / [On] (p. 59)

●

This function is available when [VIERA Link] is set to [On] and [Power off Link] is set to [On].

Intelligent Auto Standby

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption [Off] / [On (With reminder)] / [On (No reminder)] (p. 59)

●

This function is available when [VIERA Link] is set to [On].

DivX® VOD Displays DivX VOD registration code (p. 70)

Advance

Enables the advanced picture settings [Off] / [On]

●

Set to [On] to display the advanced items in the Picture Menu. (p. 37)

System Menu

Shipping Condition Resets all settings to the original condition (p. 35)

Software Licence Displays the software licence information

System Information Displays the system information of this TV

Device Information Displays the device information of this TV

Other Settings

Power Save

Reduces brightness of the picture to economise on power consumption

[Off] / [On]

●

A different menu will be displayed when [Advance] in the Setup Menu is set to [On] or in the mode of PC input, Media Player or network service operations. (p. 36, 38 - 45, 52 - 55)

●

Only available items can be selected.

TH-L32_42_47E5KMT_EN.indd 31TH-L32_42_47E5KMT_EN.indd 31 3/19/2012 1:45:14 PM3/19/2012 1:45:14 PM

Page 32

Tuning and Editing Channels

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select TV mode

(p. 18)

Display the menu and select [Setup]

Setup

select

access

Select [Tuning Menu]

Tuning Menu Access

select

access

●

The displayed item depends on the selected mode.

Select one of the following functions

Auto Tuning Manual Tuning

Tuning Menu

Access Access

Channel List Edit Access

select

access

Skip unwanted channels, Edit Channels [Channel List Edit]

You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.

Select a channel and reveal / hide

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

Channel List Editor

select

[Reveal] / [Hide]

●

To reveal all channels

: [Reveal] : [Hide] (skip)

■ To edit channels

●

To move the channel position (if available)

Select the new position Store

1 BBC

CH02

5.5MHz

PAL

16:9

Channel name

Channel position

●

To retune each channel ([Manual Tuning] (p. 33))

●

[

●

TH-L32_42_47E5KMT_EN.indd 32TH-L32_42_47E5KMT_EN.indd 32 3/19/2012 1:45:14 PM3/19/2012 1:45:14 PM

Page 33

Tuning and Editing Channels

●

To rename the channel name

Set characters (maximum 5 characters) Store

Edit channel name

Name

select

set

●

To use numeric buttons (English only)

(p. 72)

Note

●

If a VCR is connected only with the RF cable edit [VCR].

Set all channels automatically [Auto Tuning]

Automatically retune all channels received in the area.

1 Start Auto Tuning 2 Settings are made automatically

Auto Tuning

All tuning data will be erased

CH 32

1 120

Auto Tuning

Scan

Automatically retune all channels received in the area.

●

All the previous tuning settings are erased.

●

When the operation is completed, the channel at the lowest position will be displayed.

●

Search begins in the order from the lower channels to the higher channels.

●

If tuning has not been done completely [Manual Tuning] (see below)

Set TV channel manually [Manual Tuning]

[Fine Tuning]:

Use to make small adjustments to the tuning of an individual channel (affected by weather conditions, etc.).

[Manual Tuning]:

Set TV channel manually after Auto Tuning.

●

Set [Sound System] and [Colour System], and then perform this function. Normally set [Colour System] to [Auto].

●

If a VCR is connected only with the RF cable, select channel position [0].

5.5MHz

CH570

1 120

Manual Tuning

Fine Tuning

Manual Tuning

Sound System Colour System

Store

Auto

1 Select the channel position 2 Select the channel

3 Search 4 Select [Store]

select

store

Auto Tuning using the buttons on the TV

For Auto Tuning, using the buttons on the TV (p. 10)

1 Press the F button repeatedly until [Auto Tuning] appears

●

To return to TV

●

Control panel OSD appears when pressing the control panel button.

2 Access [Auto Tuning]

3 Start [Auto Tuning]

TH-L32_42_47E5KMT_EN.indd 33TH-L32_42_47E5KMT_EN.indd 33 3/19/2012 1:45:15 PM3/19/2012 1:45:15 PM

Page 34

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.

Display the menu and select [Setup]

Setup

select

access

Select [Child Lock]

Child Lock Access

select

access

Control channel audience [Child Lock]

1 Enter the PIN number (4 digits)

* * * *

Please enter new PIN

Child Lock-PIN Entry

●

Enter the PIN number twice at first setting.

●

Make a note of the PIN number in case you forget it.

2 Select [Child Lock List]

Change PIN

Child Lock List

Child Lock

Access

select

access

3 Select the channel / input to be locked

2 3

Child Lock List - TV and AV

Name Input

External External External External External

Type Lock

: Appears when the channel / input is locked

External

TV TV

TV TV AV AV AV AV AV AV

AV1 AV2 AV3 PC HDMI1 HDMI2

select

lock

●

To cancel Select the locked channel / input

●

To cancel all locks

●

To lock all

●

To jump to the top of the next input

■ To change the PIN number

1. Select [Change PIN] 2. Enter a new PIN number twice

Change PIN

Child Lock

Access

select

access

Note

●

Setting [Shipping Condition] (p. 35) erases the PIN number and all settings.

R A

●

TH-L32_42_47E5KMT_EN.indd 34TH-L32_42_47E5KMT_EN.indd 34 3/19/2012 1:45:15 PM3/19/2012 1:45:15 PM

Page 35

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in. All settings are reset (channels, picture, sound settings, etc.).

●

To retune TV channels only, e.g. after moving house [Auto Tuning] in “Tuning and Editing Channels” (p. 33)

Display the menu and select [Setup]

Setup

select

access

Select [System Menu]

System Menu Access

select

access

Select [Shipping Condition]

System Menu

Shipping Condition Access

select

access

Restore Settings [Shipping Condition]

1 Check the message and initialise 2 Follow the on-screen instructions

Shipping Condition

All tuning data will be erased

Are you sure ?

(Confirm)

(Start [Shipping Condition])

Reset to Factory Shipping

Condition

Completed.

TV will automatically restart.

Do not turn off

●

[Auto Tuning] will automatically start. (p. 14)

TH-L32_42_47E5KMT_EN.indd 35TH-L32_42_47E5KMT_EN.indd 35 3/19/2012 1:45:16 PM3/19/2012 1:45:16 PM

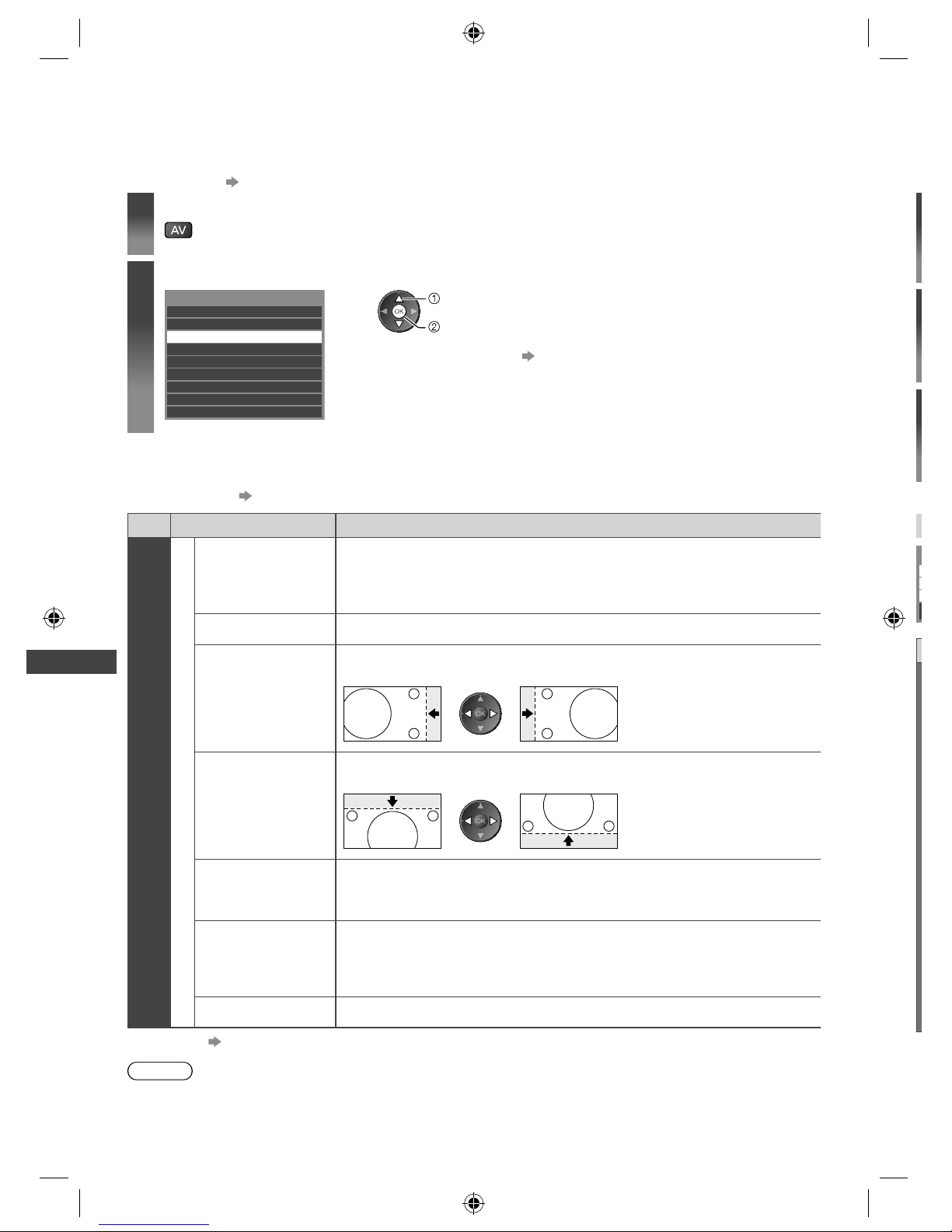

Page 36

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

●

To connect PC (p. 64)

Select the external input

Select [PC]

Input Selection

AV2

AV1

SD Card/USB

HDMI4

HDMI3

HDMI2

HDMI1

select

access

●

Corresponding signals (p. 73)

●

If [H-freq.] or [V-freq.] is shown in red, the signals may not be supported.

PC menu setting

●

To make settings “How to Use Menu Functions” (p. 26)

Item Adjustments / Configurations (alternatives)

Setup

PC Setup

Input Resolution

Switches to a wide view: VGA (640 × 480 pixels) / WVGA (852 × 480 pixels) / XGA (1,024 × 768 pixels) / WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)

●

Options change depending on signals

Clock Set to the minimum level if noise occurs

H-pos

Adjusts horizontal position

V-pos

Adjusts vertical position

Clock Phase

Eliminates flicker and distortion

●

Adjust after Clock adjustment

●

Set to the minimum level if noise occurs

Sync

Chooses another synchronous signal if the image is distorted

[H & V] / [On Green] [H & V]: by the horizontal and vertical signals from your PC [On Green]: by the green signal from your PC (if available)

Reset to Defaults Press the OK button to reset [PC Setup] to the default settings

●

Other items (p. 27 - 31, 37)

Note

●

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p. 71).

●

TH-L32_42_47E5KMT_EN.indd 36TH-L32_42_47E5KMT_EN.indd 36 3/19/2012 1:45:17 PM3/19/2012 1:45:17 PM

Page 37

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each Viewing Mode.

●

To use this function completely set [Advance] to [On] in the Setup Menu. (p. 31)

●

For PC input mode, some functions are available without setting [Advance].

Display the menu and select [Picture]


select

access

Select [Viewing Mode] and set the mode

Viewing Mode Dynamic

select

access / store

Select [Advanced Settings]

Advanced Settings Access

select

access

Adjust the detailed picture settings [Advanced Settings]

White Balance Access

Access Access

Colour Management Gamma

Advanced Settings

select

adjust

access / store

●

[Colour Management] is available when [Viewing Mode] in the Picture Menu is set to [True Cinema].

Item Adjustments / Configurations (alternatives)


Advanced Settings

White Balance

R-Gain, G-Gain, B-Gain Adjusts the white balance of bright red / green / blue area

R-Cutoff, G-Cutoff, B-Cutoff

Adjusts the white balance of dark red / green / blue area

Reset to Defaults Press the OK button to reset to the default White Balance

Colour Management

R-Hue, G-Hue, B-Hue Adjusts the picture hue of red / green / blue area

R-Saturation, G-Saturation, B-Saturation

Adjusts the saturation of red / green / blue area

R-Luminance, G-Luminance, B-Luminance

Adjusts the luminance of red / green / blue area

Reset to Defaults Press the OK button to reset to the default Colour Management

Gamma

Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

●

Please note the numerical values are reference for the adjustment.

Reset to Defaults Press the OK button to reset to the default Gamma

TH-L32_42_47E5KMT_EN.indd 37TH-L32_42_47E5KMT_EN.indd 37 3/19/2012 1:45:17 PM3/19/2012 1:45:17 PM

Page 38

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

Photo mode:

Still pictures recorded by digital cameras will be displayed.

Video mode:

Moving pictures recorded by digital video cameras and digital video data will be played back.

Music mode:

Digital music data will be played back.

●

During the operation, audio signal is output from AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 57) and set to use theatre speakers (p. 62).

●

[Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is shown “****/**/**”.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

Partly degraded files might be displayed at a reduced resolution.

●

Picture setting may not work depending on the conditions.

●

The folder and file names may be different depending on the digital camera or digital video camera used.

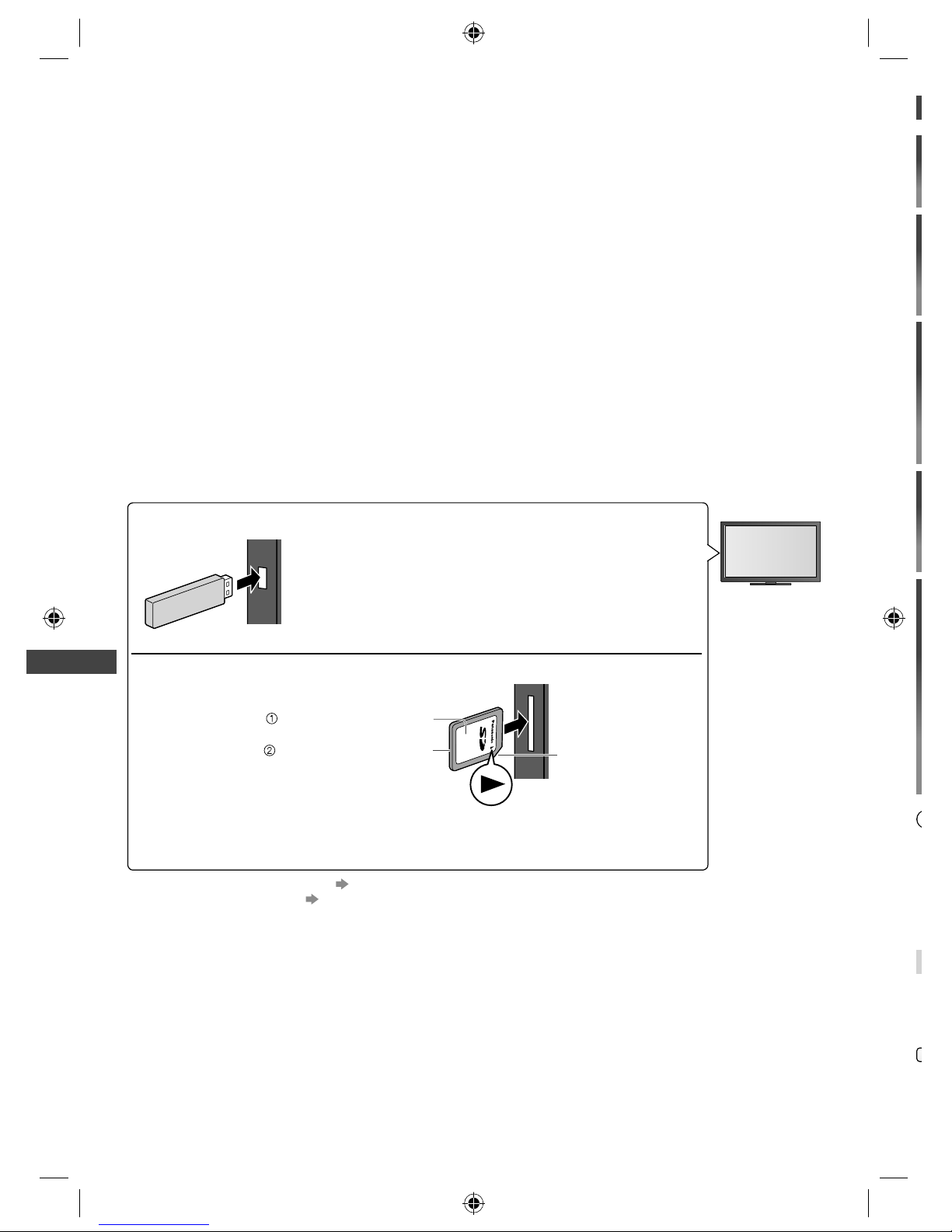

■ To insert or remove the SD Card / USB Flash Memory

USB Flash Memory

●

Insert or remove straightly and completely.

●

Connect the USB Flash Memory to the USB 1 or 2 port.

●

Check the type of terminals and cable plugs are correct when connecting.

SD Card

Gently insert the SD Card

with the label surface facing front.

Cutout

Push until a click is heard.

To remove, push it again.

●

When connecting a USB device to the USB 1 port, there may be a difficulty to insert / remove the SD Card. In this case, confirm a USB device is not active and insert / remove the SD Card carefully.

●

For the information of the devices “Devices for playing back” (p. 67)

●

For the supported file format “Supported file format in Media Player and media servers” (p. 68, 69)

●

TH-L32_42_47E5KMT_EN.indd 38TH-L32_42_47E5KMT_EN.indd 38 3/19/2012 1:45:18 PM3/19/2012 1:45:18 PM

Page 39

Using Media Player

Starting Media Player

Insert the SD Card or USB Flash Memory to the TV

(p. 38)

●

When the SD Card is inserted, switching to Media Player will be done automatically.

Start Media Player

●

You can also start by pressing following button.

“Watching External Inputs” (p. 23)

Select the device to access

USB Drive... USB Flash...

Drive Select

SD Card

EXIT Select RETURN

Access

Selected device name

SD Card

select access

●

If two or more devices are not connected, this step will be skipped.

Select the content


Contents Select

SD Card

EXIT Select RETURN

Access

Video Music

select access

[Photo] (p. 40) [Video] (p. 43) [Music] (p. 45)

Enjoy Media Player

Example: Thumbnail - [All photos]

EXIT

Select

RETURN

Slideshow View Select Drive Select Contents Select

Info

View

Option Menu

SD Card

Media Player Photo All photos

Selected device name

●

To display the information of the highlighted content

1/48


2011/10/23

1600X1200

File name

Date

Pixel

File number / Total file number

Note

●

You can also access each mode directly by using VIERA TOOLS. (p. 25)

●

Select the appropriate device and content for playing back each file.

●

You can use the following buttons during playback. Set the code of the remote control to “73” (p. 24)

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

2 Select the device to access

USB Drive... USB Flash...

Drive Select

SD Card

EXIT Select RETURN

Access

SD Card

select access

Selected device name

TH-L32_42_47E5KMT_EN.indd 39TH-L32_42_47E5KMT_EN.indd 39 3/19/2012 1:45:18 PM3/19/2012 1:45:18 PM

Page 40

Using Media Player

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.

●

The mode can be switched in the current device.

1 While the thumbnail is displayed,

display the contents selection

2 Select the contents


Video Music

Contents Select

SD Card

EXIT Select RETURN

Access

select access

Photo mode

Photo mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory.

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [All photos]

EXIT

Select

RETURN

Slideshow View Select Drive Select Contents Select

Info

View

Option Menu

SD Card

Media Player Photo All photos

●

To change the size of photos on a thumbnail screen

select [Change Size]

change

: Error display

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example:

Single view

Stop

EXIT Select RETURN

Rotate

Operation guide

●

To display / hide the operation guide

●

To return to thumbnail

●

To operate Single view

To the previous photo

Slideshow

Stop (return to thumbnail)

To the next photo

●

To rotate 90°

[Slideshow] - Slideshow completes when all photos are viewed within the current thumbnail.

1 Select the file from the thumbnail of photos

for the first view

2 Start Slideshow

●

To display / hide the operation guide● To pause (return to Single view)

●

To return to thumbnail

●

To change the back ground music “Photo Settings” (p. 41)

■

●

TH-L32_42_47E5KMT_EN.indd 40TH-L32_42_47E5KMT_EN.indd 40 3/19/2012 1:45:19 PM3/19/2012 1:45:19 PM

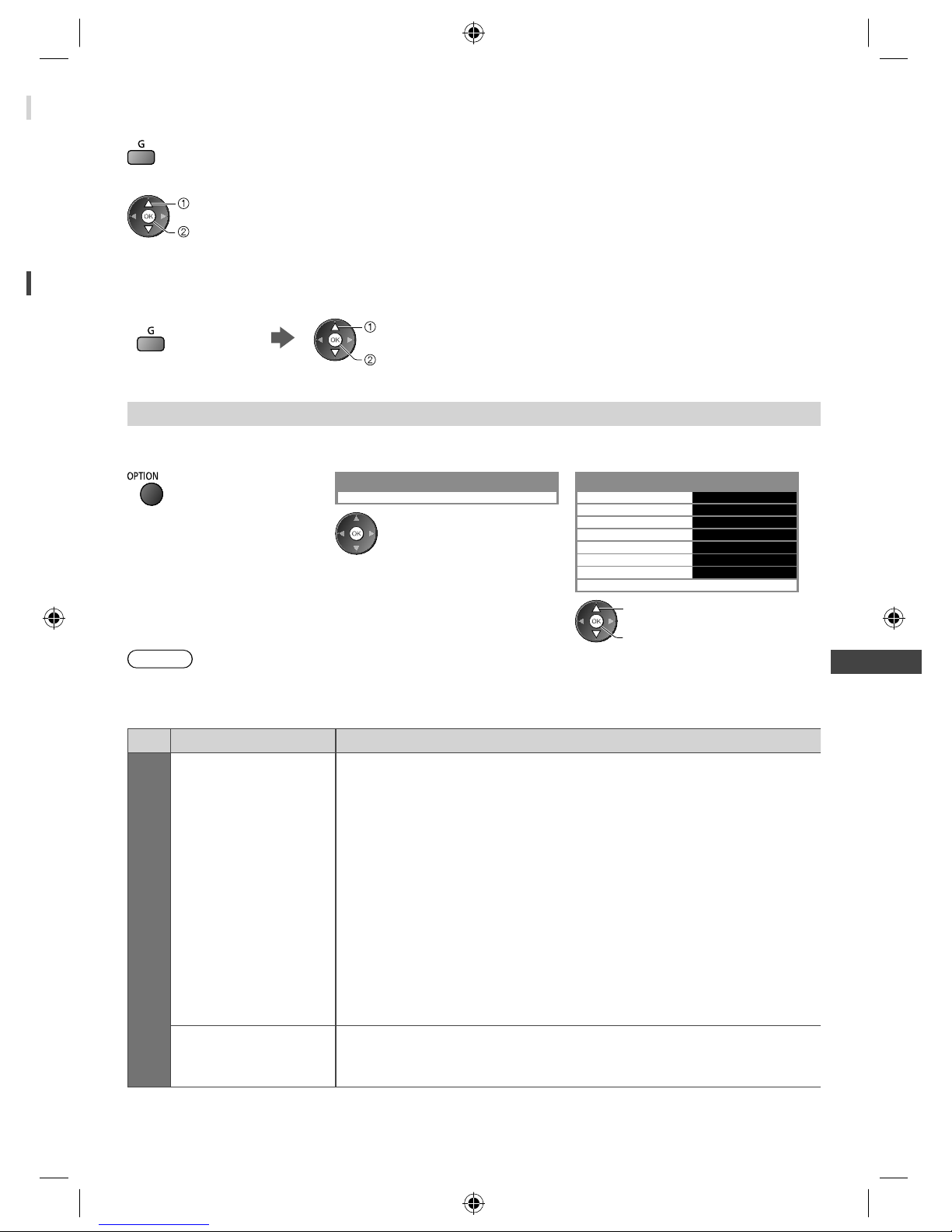

Page 41

Using Media Player

■ To sort by folder, recorded date or recorded month

1 Display the view selection in the thumbnail view

2 Select the sort type

select

access

[Folder view]:

Displays the thumbnail grouped by folder.

●

The files which are not into a folder will be collected to the folder named “/”.

[Sort by Date] / [Sort by Month]:

Displays the thumbnail grouped by the same date or month.

●

The group of the photos without a recorded date is shown as [Unknown].

●

To return to the thumbnail of all photos

select [All photos]

access

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set

Slideshow Settings

Option Menu

Frame Off Colour Effect Transition Effect Screen Mode Burst Playback Interval Repeat Back Ground Music

Slideshow Settings

Off Fade Normal Off 5 seconds On

select

access / store

Note

●

Picture quality may become lower depending on the slideshow settings.

●

Picture setting may not work depending on the slideshow settings.

Item Adjustments / Configurations (alternatives)

Slideshow Settings

Frame

Selects the frame type of the slideshow

[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi]:

9 photos are displayed orderly at once.

[Collage]:

Each photo is displayed at a random position and random scale.

[Drift (+ calendar)] / [Drift]:

Photos are displayed like flow images.

●

You can select to display the calendar or not. The month of calendar is turned by pressing the left or right cursor button.

[Gallery (+ calendar)] / [Gallery]:

The various sizes of photos in the frame are displayed.

●

You can select to display the calendar or not. The month of calendar is turned by pressing the left or right cursor button.

[Cinema]:

Photos are displayed like old films (sepia tone).

Colour Effect

Selects the colour effect of photos on Single view and Slideshow

[Off] / [Sepia] / [Gray scale]

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

TH-L32_42_47E5KMT_EN.indd 41TH-L32_42_47E5KMT_EN.indd 41 3/19/2012 1:45:20 PM3/19/2012 1:45:20 PM

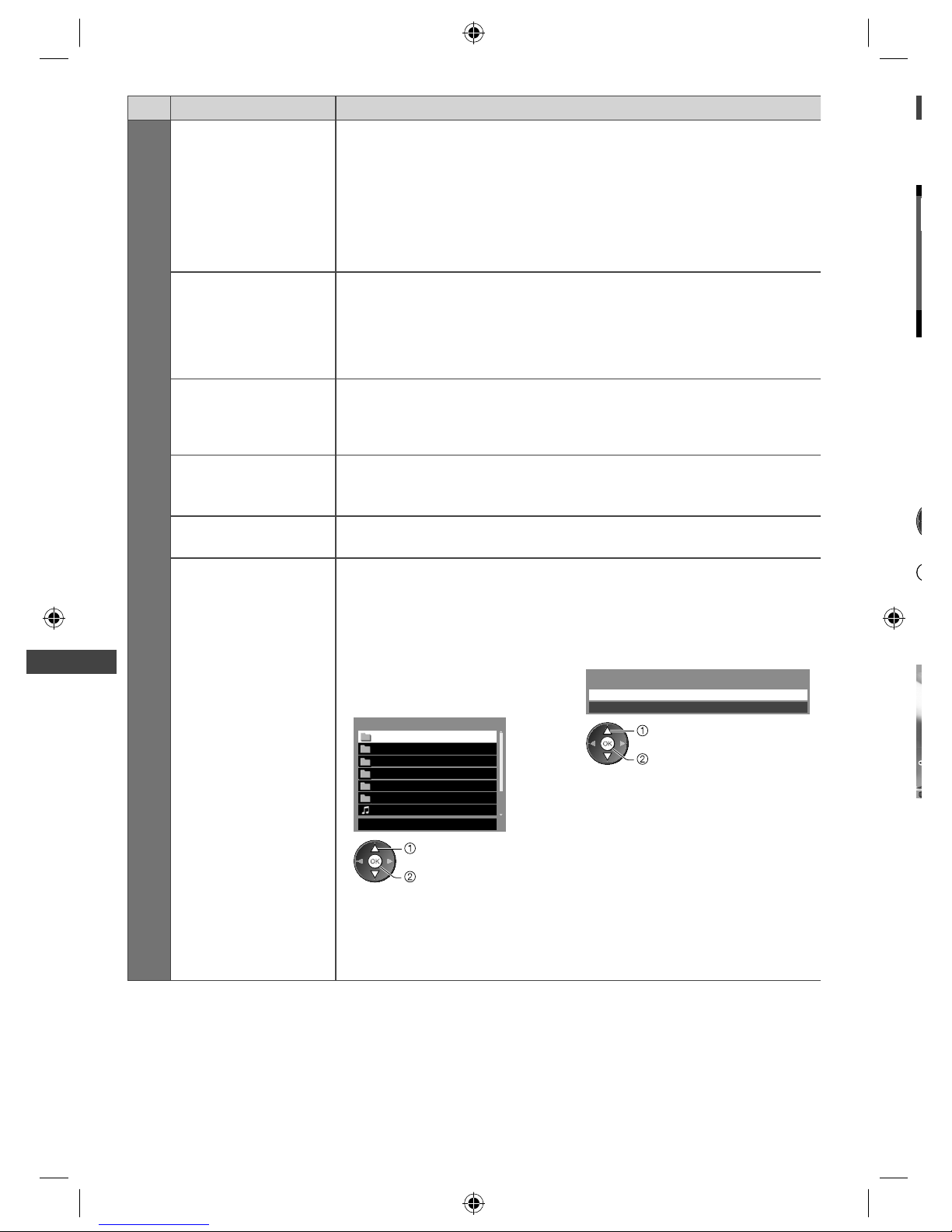

Page 42

Using Media Player

Item Adjustments / Configurations (alternatives)

Slideshow Settings

Transition Effect

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side. [Dissolve]: Each photo is dissolved when switching to the next photo. [Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

up or moving down.

[Random]: Each transition is selected at random.

●

This function is available when [Frame] is set to [Off].

Screen Mode

Selects enlarged or normal viewing on Single view and Slideshow

[Normal] / [Zoom]

●

This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema] or when [Transition Effect] is set to [Motion].

●

Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

Burst Playback

Selects whether to display burst photos in a fast-paced slideshow mode

[Off] / [On]

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [Transition Effect] is set to [Motion].

Interval

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [Transition Effect] is set to [Motion].

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5] / [User] / [Auto]

●

[Type1 - 5] are the fixed music each installed in this TV.

[User]: Music data in the device registered by yourself will be played back.

To register the music

1. Select the music file Depending on the condition of the

device, select folders until you reach the desired music file.

DCIM MISC 001photo 002photo 003music 01 song.mp3

PRIVATE

Back Ground Music

Type1

select

access

2. Select [File] or [Folder]

File

Folder

select

set

[File]: The selected music file will be

registered.

[Folder]: All the music in the folder

which contains the selected music file will be registered.

●

If no music has been registered or the device which has the registered music is removed, no sound will be produced.

[Auto]: Music data stored in the root folder of the current device will be played

back randomly.

●

If there is no available music data, no sound will be produced.

●

T E

■

●

■

●

TH-L32_42_47E5KMT_EN.indd 42TH-L32_42_47E5KMT_EN.indd 42 3/19/2012 1:45:21 PM3/19/2012 1:45:21 PM

Page 43

Using Media Player

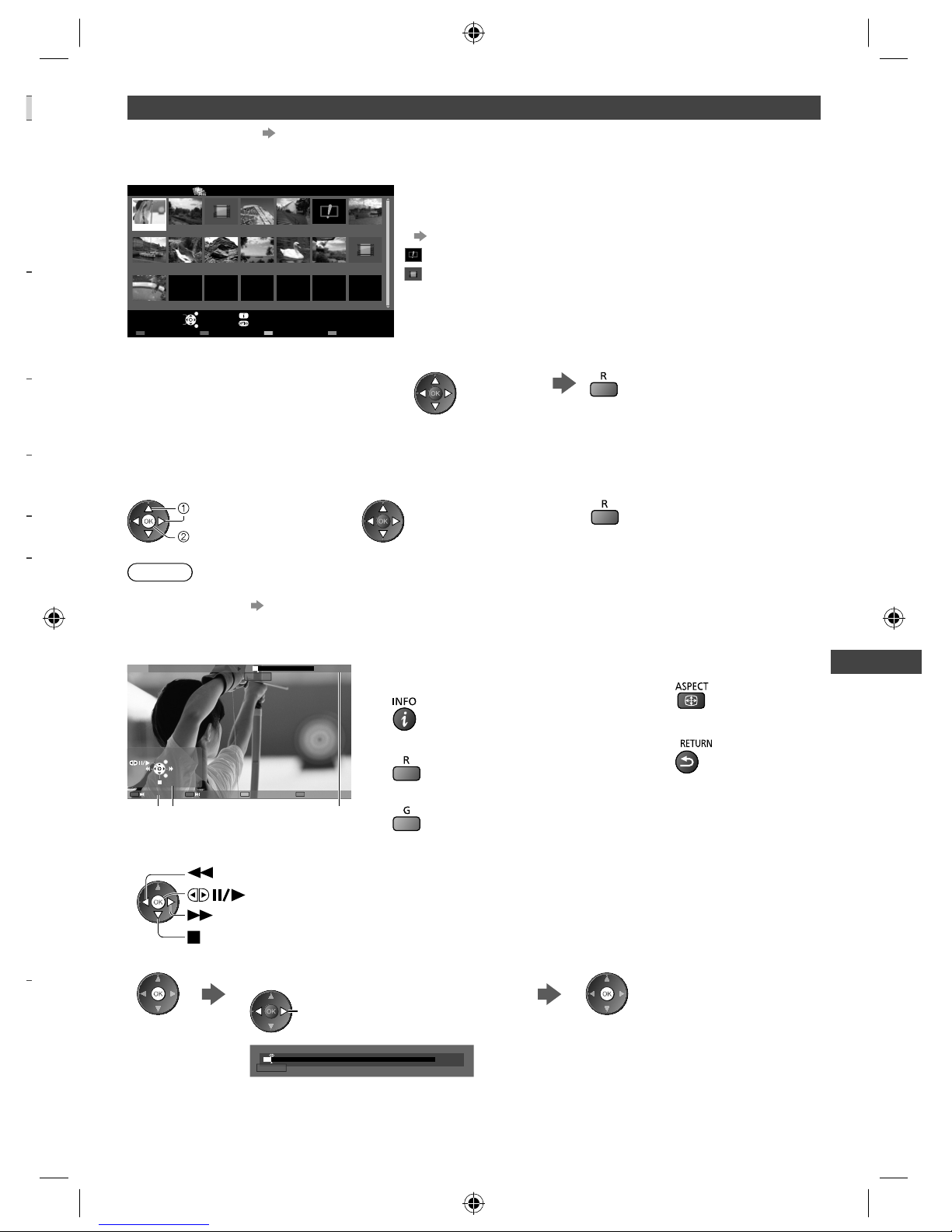

Video mode

●

Supported file format (p. 68, 69)

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Title view]

Trip1 Trip2 Trip3 Trip4 Trip5 Room

2011_4

Nature1

2011_7Nature2 Nature3 Nature4 Nature5 Nature6

2011_9

Media Player Video Title view

SD Card

EXIT

Select

RETURN

Play Contents Select

Info

Access

Option Menu

Drive Select

The preview will start when the title / scene is highlighted if it supports a preview.

●

To turn off the preview

“Video Setup” (p. 44)

: Error display : The file does not support thumbnail view.

●

To play back the selected title If you stopped the last playback on the way, the confirmation screen

is displayed to select whether to start from where you stopped last time or from the beginning.

Select the title Start playback

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback of the selected scene will start to the end of the title.

1 Select the title 2 Select the scene 3 Start playback

select

access

Note

●

The structure of titles and scenes may vary depending on the digital video camera used.

●

To repeat playback “Video Setup” (p. 44)

■ How to operate in the playback

Example: Playback

SD 2011/02/19 11:21 00:15:39

00:02:05

EXIT

RETURN

Operation guide Information banner

●

To display / hide the operation guide and information banner

●

To the previous title / scene

●

To the next title / scene

●

To change aspect

●

To return to thumbnail

●

To operate the playback

Rewind

Pause (displays the time seek bar) / Playback

Stop

Fast forward

●

To jump to the specified time point

While the time seek bar is displayed

Press: Search about 10 seconds Press and hold: Search rapidly

00:15:39

00:02:05

TH-L32_42_47E5KMT_EN.indd 43TH-L32_42_47E5KMT_EN.indd 43 3/19/2012 1:45:21 PM3/19/2012 1:45:21 PM

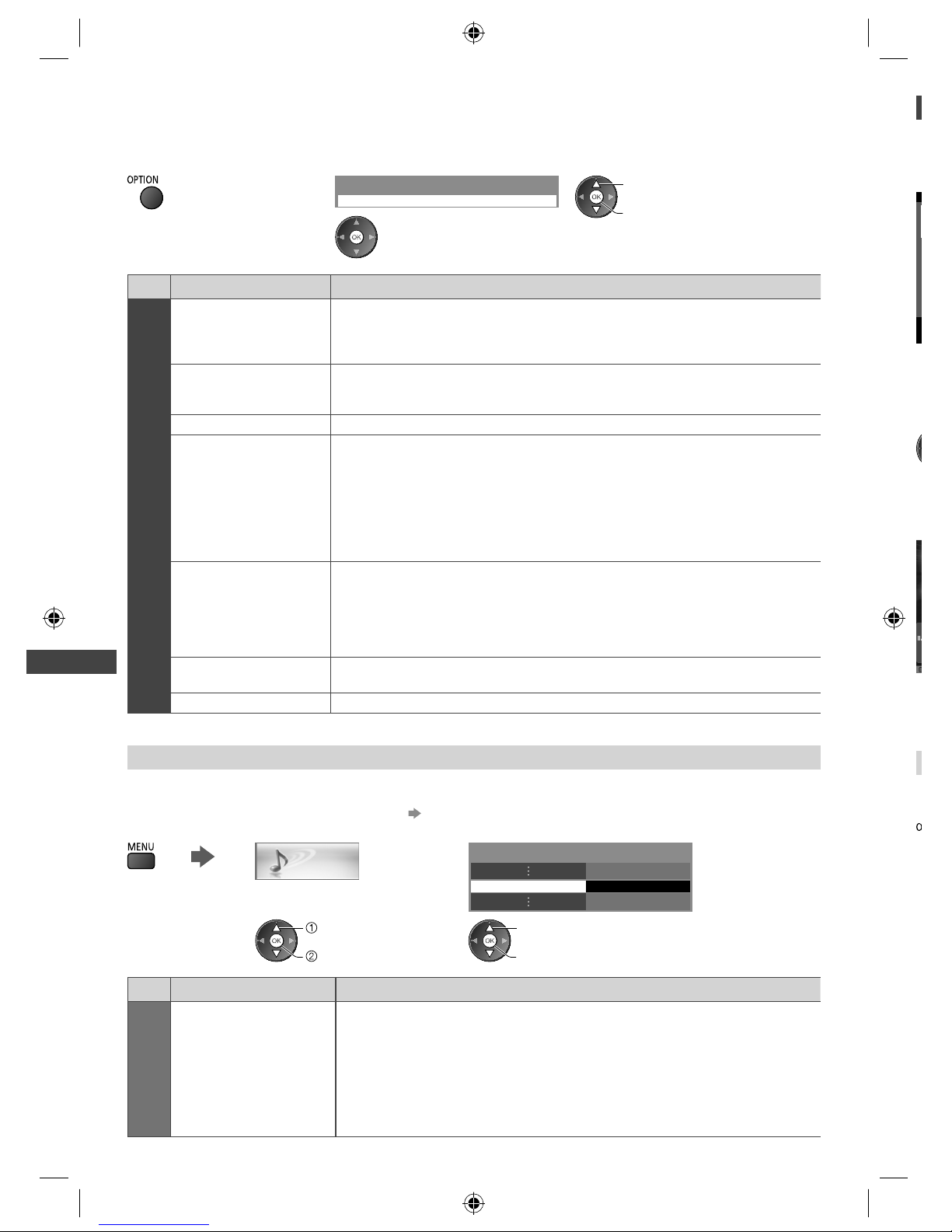

Page 44

Using Media Player

■ Video Setup

Setup the settings for Video mode.

●

Menu items and selectable options vary depending on the content.

1 Display the option menu 2 Select [Video Setup] 3 Select the items and set

Video Setup

Option Menu

select

access / store

Item Adjustments / Configurations (alternatives)

Video Setup

Video Preview

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]

●

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off] to resolve this.

●

Only available in the thumbnail view

Multi Audio, Dual Mono Audio

Selects between selectable sound tracks (if available)

●

It may take several seconds to change the sound.

●

Only available during playback

Subtitle Turns the subtitle On / Off and selects the subtitle file (if available)

Subtitle Text

Selects the font type, if the subtitles text is not displayed correctly.

[Western Europe] (ISO8859-1) / [Western Europe] (CP-1252) / [Central Europe] (ISO8859-2) / [Central Europe] (CP-1250) / [Cyrillic Alphabet] (ISO8859-5) / [Cyrillic Alphabet] (CP-1251) / [Greek] (CP-1253) / [Turkish] (ISO8859-9) / [Turkish] (CP-1254) / [Arabic] (CP-1256) / [Thai] (CP-874) / [Baltic] (CP-1257) / [Vietnam] (CP1258) / [Chinese2] (BIG5) / [Chinese1] (GB18030) / [Unicode] (UTF-8)

●

Some subtitles text may not be displayed correctly.

Aspect Change

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen. [Original]: Displays the content original size.

●

You can also change the aspect using the ASPECT button.

●

Aspect change may not work depending on the content.

●

Only available during playback

Repeat

Playback repeat within the title or selected file (depending on the content)

[Off] / [On]

Title Selects from group of titles (if available)

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

●

To confirm or change the current sound status (see above)

1 Display the menu and Select [Sound] 2 Select [SPDIF Selection] and set

Sound

SPDIF Selection Auto

select

access / store

select

access

Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

SPDIF: A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

●

T E

■

TH-L32_42_47E5KMT_EN.indd 44TH-L32_42_47E5KMT_EN.indd 44 3/19/2012 1:45:22 PM3/19/2012 1:45:22 PM

Page 45

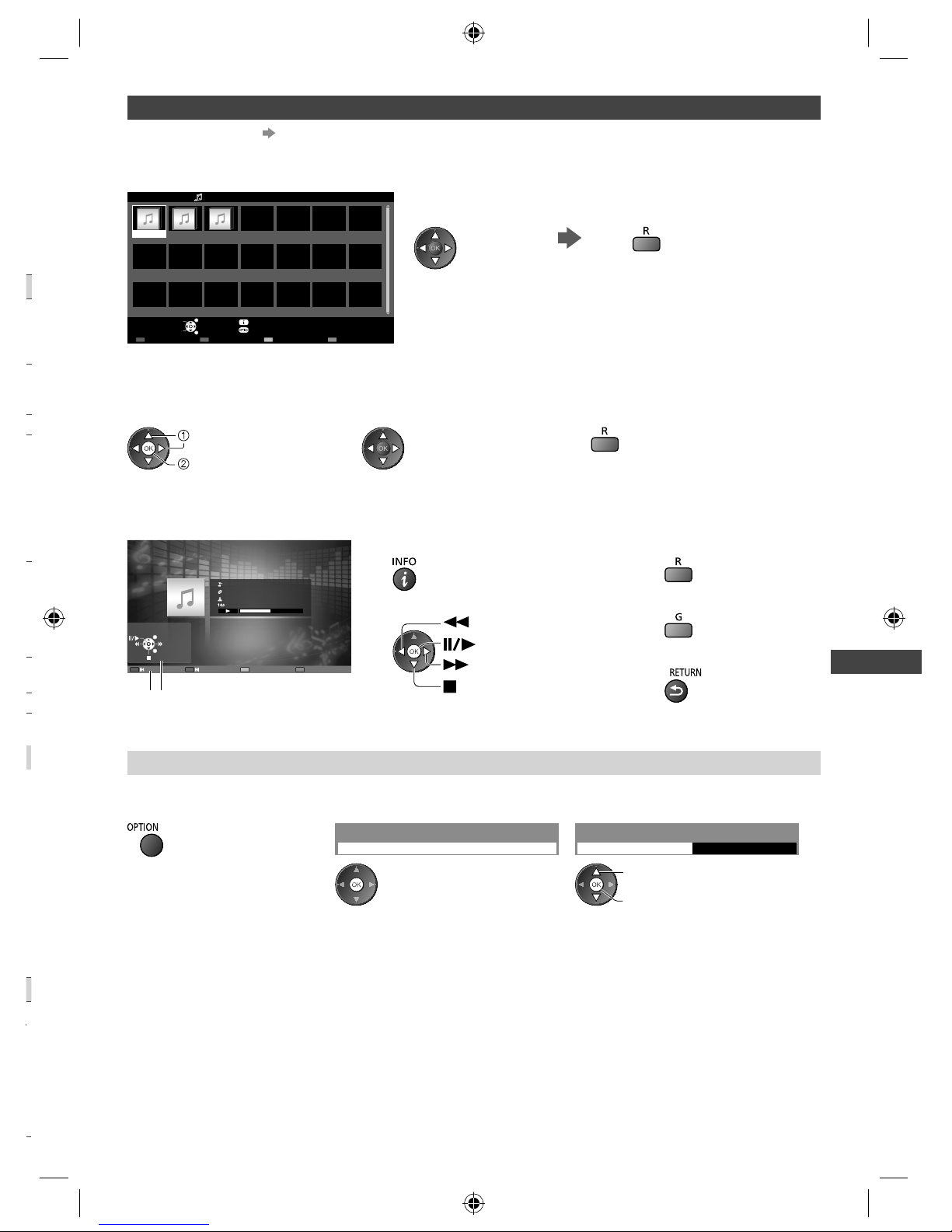

Using Media Player

Music mode

●

Supported file format (p. 69)

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Folder view]

My Music_1 My Music_2 My Music_3

Media Player Music Folder view

SD Card

EXIT

Select

RETURN

Play Folder Contents Select

Info

Access

Option Menu

Drive Select

●

To play back the selected folder Select the folder Start playback

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

select

access

■ How to operate in the playback

Example: Playback

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

EXIT

RETURN

Operation guide

●

To display / hide the operation guide

●

To operate the playback

Rewind

Pause / Playback

Stop

Fast forward

●

To the previous track

●

To the next track

●

To return to thumbnail

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu 2 Select [Music Setup] 3 Set

Music Setup

Option Menu

Repeat One

Music Setup Menu

select

access / store

[Folder]: Playback repeat within the

selected folder

[One]: Playback repeat of the selected

one file

TH-L32_42_47E5KMT_EN.indd 45TH-L32_42_47E5KMT_EN.indd 45 3/19/2012 1:45:23 PM3/19/2012 1:45:23 PM

Page 46

Using Network Services (DLNA / VIERA Connect)

DLNA

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. It allows you to share photos, videos and music stored in the DLNA Certified media server (for example, PC with Windows 7 installed, etc.) connected to your home network, and enjoy the contents on the TV screen. It also allows you to control the TV with the DLNA Certified equipment connected to your home network. (DLNA Remote Control)

●

For the supported file format (p. 68, 69)

●

AVCHD and DivX files are not supported by DLNA functions of this TV, but can be played by Media Player (p. 38).

■ Media server

Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server software that has been tested for compatibility with this TV (as of January, 2011). Any other server software have not been tested with this TV, therefore compatibility and performance cannot be assured.

●

Windows 7 The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.

●

TwonkyMedia server “TwonkyMedia server” is the product of PacketVideo Corporation. To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia. Additional fees may be charged to obtain server software.

Note

●

For more information about the server software, please consult each software company.

●

When server software for the media server is installed on the PC, the data may be at risk of being accessed by other people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router.

■ DLNA Remote Control

You can control the TV with the DLNA Certified equipment.

●

To use this function, set [Network Link Settings]. (p. 48)

●

“Windows 7” is the OS that has been tested for compatibility of this TV (as of January, 2011). For the operations, refer to the help functions of Windows 7.

Network connections

“Example 1”, “Example 2” (p. 47)

Network setup

(p. 48 - 51)

DLNA operations

(p. 52 - 55)

VIERA Connect

●

This TV does not support full web browser function and some features of the websites may not be available.

Network connections

“Example 1”, “Example 3” (p. 47)

Network setup

(p. 48 - 51)

VIERA Connect operations

(p. 17, 55)

T T

●

(

●

(

●

(

●

TH-L32_42_47E5KMT_EN.indd 46TH-L32_42_47E5KMT_EN.indd 46 3/19/2012 1:45:23 PM3/19/2012 1:45:23 PM

Page 47

Using Network Services (DLNA / VIERA Connect)

Network connections

To use only DLNA features, you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment.

●

If you do not have any broadband network services, please consult your retailer for assistance.

●

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on this TV. Read the manual of the equipment.

●

Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Internet

LAN cable (Shielded)

Wired connection

Modem

Hub or Router

DLNA Certified media server (for example, PC, etc.)

Wireless LAN Adaptor and exclusive stand

“Optional accessories” (p. 6)

●

Connect to the USB 1 or 2 port.

Access point

Wireless connection

●

Ensure to use a LAN straight cable for this connection.

●

If your modem has no broadband router functions, use a broadband router.

●

If your modem has broadband router functions but there are no vacant ports, use a hub.

●

Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

●

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

Example 2

(For DLNA)

You can connect the TV and the equipment directly to use DLNA features.

LAN cable (Shielded)

DLNA Certified media server (for example, PC, etc.)

●

Ensure to use a LAN cross cable for this connection.

Example 3

(For VIERA Connect)

You can connect the TV and the telecommunication equipment directly to use VIERA Connect features.

Internet

LAN cable (Shielded)

Note

●

Contact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network equipment.

●

Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.

TH-L32_42_47E5KMT_EN.indd 47TH-L32_42_47E5KMT_EN.indd 47 3/19/2012 1:45:24 PM3/19/2012 1:45:24 PM

Page 48

Using Network Services (DLNA / VIERA Connect)

Network Setup

●

Ensure the connections are completed before starting Network Setup.

“Network connections” (p. 47)

Display the menu and select [Network]

Network

select

access

Network Link settings

Sets the link settings to control this TV from the network equipment via the network.

1 Select [Network Link Settings] 2 Select the items and set

Network Connection Wired

Access

Wireless Network Settings

IP/DNS Settings

Connection Test

Software Update New Software Message

Network Link Settings

Network Status

VIERA

VIERA Name DLNA Remote Control DLNA Remote Volume

Network Link Settings

Network Remote Control

On On On

select

access

select

access / store

Item Adjustments / Configurations (alternatives)

Network Link Settings

VIERA Name

Sets your favourite name for this TV

●

This name will be used as the name of this TV on the screen of the other network equipment.

DLNA Remote Control Enables to control the TV using Windows 7 via the network [Off] / [On]

DLNA Remote Volume

Enables to control the volume of the TV using Windows 7 via the network

[Off] / [On]

Network Remote Control

Enables to control the TV from the network equipment (Smartphone, etc.)

[Off] / [On]

●

Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

●

For more information of this function (English only): http://panasonic.jp/support/global/cs/tv/

■

S S

■

●

■

●

TH-L32_42_47E5KMT_EN.indd 48TH-L32_42_47E5KMT_EN.indd 48 3/19/2012 1:45:24 PM3/19/2012 1:45:24 PM

Page 49

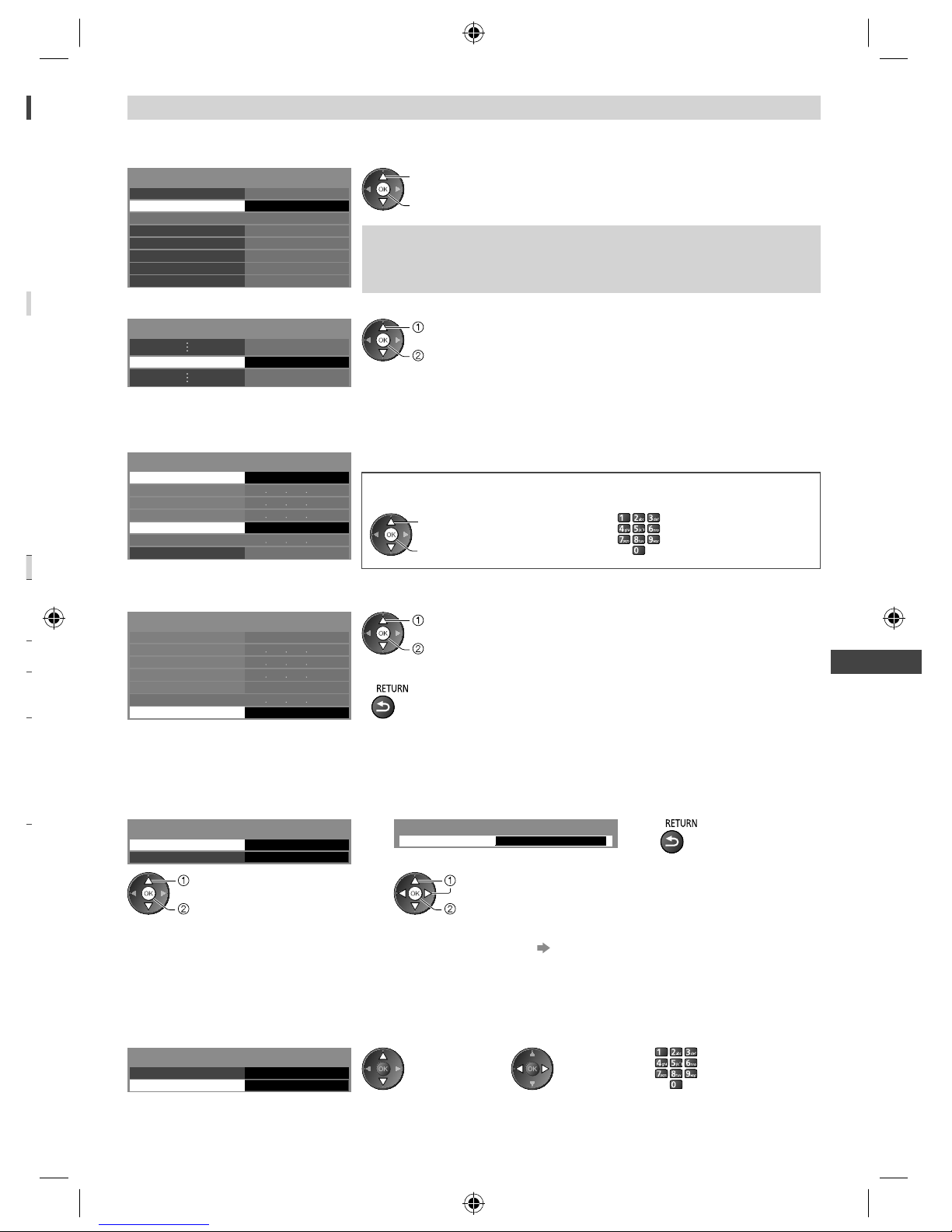

Using Network Services (DLNA / VIERA Connect)

Wired connection settings

This setting is for the network connection by using the LAN cable.

1 Select [Network Connection] and set to [Wired]

Connection Test

Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings Software Update

Wired

New Software Message Network Status

select

access / store

If you make the network connection like “Example 2” (p. 47), you do not have to set [Acquire DNS Address], [Proxy] and [Proxy Port].

2 Select [IP/DNS Settings] and set the items

IP/DNS Settings Access

select

access

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Default Gateway] and [DNS Address]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended).

Acquire IP Address Auto

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

IP/DNS Settings

Auto

●

The available settings are displayed automatically.

Manual settings ([IP Address], [Subnet Mask], [Default Gateway], [DNS Address])

select

access / store

3 Select [Proxy Settings] and set the items

It is not required for normal household use.

Acquire IP Address

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

IP/DNS Settings

Auto

Access

select

access

●

After settings, return to the previous menu.

■ [Proxy]

Sets Proxy address.

●

This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser. Setting is required if specified by the provider.

1. Select [Proxy] 2. Enter the address 3. Store

Proxy

Proxy Port

Proxy Settings

Proxy

Host

select

access

select

set

●

You can set characters by using numeric buttons. (English only) (p. 72)

■ [Proxy Port]

Sets Proxy port number.

●

This number is also specified by the provider with the Proxy address.

1. Select [Proxy Port] 2. Move the cursor and enter the number

Proxy

Proxy Port

Proxy Settings

TH-L32_42_47E5KMT_EN.indd 49TH-L32_42_47E5KMT_EN.indd 49 3/19/2012 1:45:25 PM3/19/2012 1:45:25 PM

Page 50

Using Network Services (DLNA / VIERA Connect)

4 Select [Connection Test] and access to test

Connection Test Access

select

access

●

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Connection Test

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

Wireless connection settings

This setting is for the wireless network connection.

●

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.

1 Select [Network Connection] and set to [Wireless]

Connection Test

Network Connection

Wireless Network Settings IP/DNS Settings Network Link Settings Software Update New Software Message

Wireless

Network Status

select

access / store

2 Select [Wireless Network Settings]

Connection Test Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings Software Update New Software Message

Wireless Access

Network Status

select

access

●

When the access point is already set, [Current Settings] screen will be displayed. To change the settings, select [No] on this screen and go to the next step.

3 Select your desired access point

1 2 3

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

Available Wireless Networks

No. Network Name(SSID)

Access Point A Access Point B Access Point C

StatusWireless type

select

access

●

For the information of the highlighted access point

: Encrypted access point

●

To search access points again

●

To set [WPS(Push button)]

(p. 16)

●

To set manually

(p. 51)

●

To set [WPS(PIN)]

(p. 51)

4 Access the encryption key input mode (English only)

Encryption Key Setting

Authentication type : WPA-PSK Security type : TKIP

Please input the encryption key.

Encryption key

Connection will be made with the following settings:Network Name(SSID) : Access Point A

●

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

■

Y F

●

TH-L32_42_47E5KMT_EN.indd 50TH-L32_42_47E5KMT_EN.indd 50 3/19/2012 1:45:26 PM3/19/2012 1:45:26 PM

Page 51

Using Network Services (DLNA / VIERA Connect)

5 Enter the encryption key of the access point

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

Wireless Network Settings

Encryption key

Set characters

Store

select

set

●

You can set characters by using numeric buttons. (English only) (p. 72)

●

After settings, return to the previous menu.

6 Select [Connection Test] and access to test

Connection Test Access

select

access

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Connection Test

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry]. If you continue to have difficulty, please contact your internet service provider.

■ [WPS(PIN)]

Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Connect

Please register the following PIN codes on the wireless access point.

PIN code : 12345678

Select 'Connect' after entering and saving the settings on the wireless access point.

■ [Manual]

You can setup SSID, security type, encryption type, and encryption key manually. Follow the on-screen instructions and set manually.

●

When you use 11n (5 GHz) for the wireless system between the built-in wireless LAN and access point, select [AES] for the encryption type.

Please input the network name(SSID).

Network Name(SSID) Setting

Network Name(SSID)

XXXXXXX

Security Type Settings

Connection will be made with the following settings:Network Name(SSID) : XXXXXXX

Please select the security type.

WPA2-PSK

WPA-PSK

Shared key

Open

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Select [Software Update]

Connection Test Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings

Software Update

New Software Message

Wired

Access

Network Status

select

access

●

Follow the on-screen instructions.

TH-L32_42_47E5KMT_EN.indd 51TH-L32_42_47E5KMT_EN.indd 51 3/19/2012 1:45:27 PM3/19/2012 1:45:27 PM

Page 52

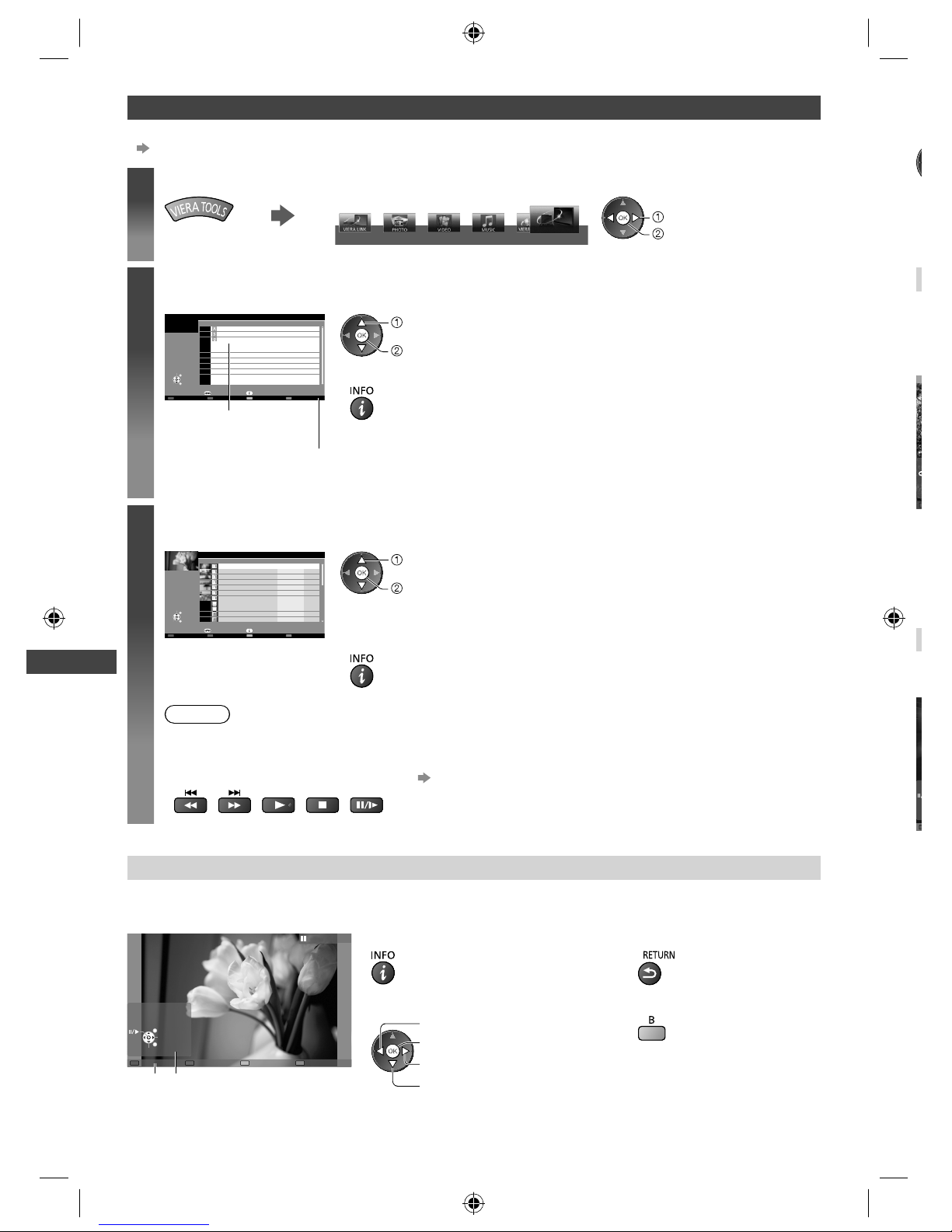

Using Network Services (DLNA / VIERA Connect)

Using DLNA® features

●

Ensure the preparation of the media server, network connections and network settings are completed.

“Media server” (p. 46), “Network connections” (p. 47), “Network Setup” (p. 48 - 51)

Display [VIERA TOOLS] and select [Media Server]

Media Server

select access

Select one of the media servers to access

Example: Media server list

SERVER1 SERVER2 SERVER3

Select

EXIT

RETURN

Access

Media Server

InfoOption Menu

Available media servers

Total listed number

select

access

●

To display the information of the highlighted media server

Select the file

Example: File list

SERVER1

P000102 2011-10-05 09:54

2011-11-20 13:18 2011-12-07 11:31 2011-12-10 15:20 2011-12-19 12:39

2011-12-25 14:06 2012-01-06 13:52 2012-01-12 15:56 2012-01-20 10:08 2012-01-28 14:48 2012-02-09 19:58

P000135 P000180 P000214 P000251 P000276 P000293 V100025 V100042 M10054 M10078

3648x2736

JPEG

Info

Select

Pixel

Media Server

Format

EXIT

RETURN

View

Slideshow

Option Menu

select

access

●

Depending on the condition of the media server, you may need to select the folder before selecting the file.

●

To display the information of the highlighted file

Note

●

Non-playable files are also listed but cannot be selected.

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

●

You can use the following buttons during playback. Set the code of the remote control to “73” (p. 24)

For photo file

[Single view]

- Photos are displayed one at a time.

Example:

Operation guide

Single view

EXIT Select RETURN

Single view

Stop

Rotate

●

To display / hide the operation guide

●

To return to list

●

To operate Single view

●

To rotate 90°

To the previous photo

Slideshow

Stop (return to list)

To the next photo

[

●

y E

TH-L32_42_47E5KMT_EN.indd 52TH-L32_42_47E5KMT_EN.indd 52 3/19/2012 1:45:27 PM3/19/2012 1:45:27 PM

Page 53

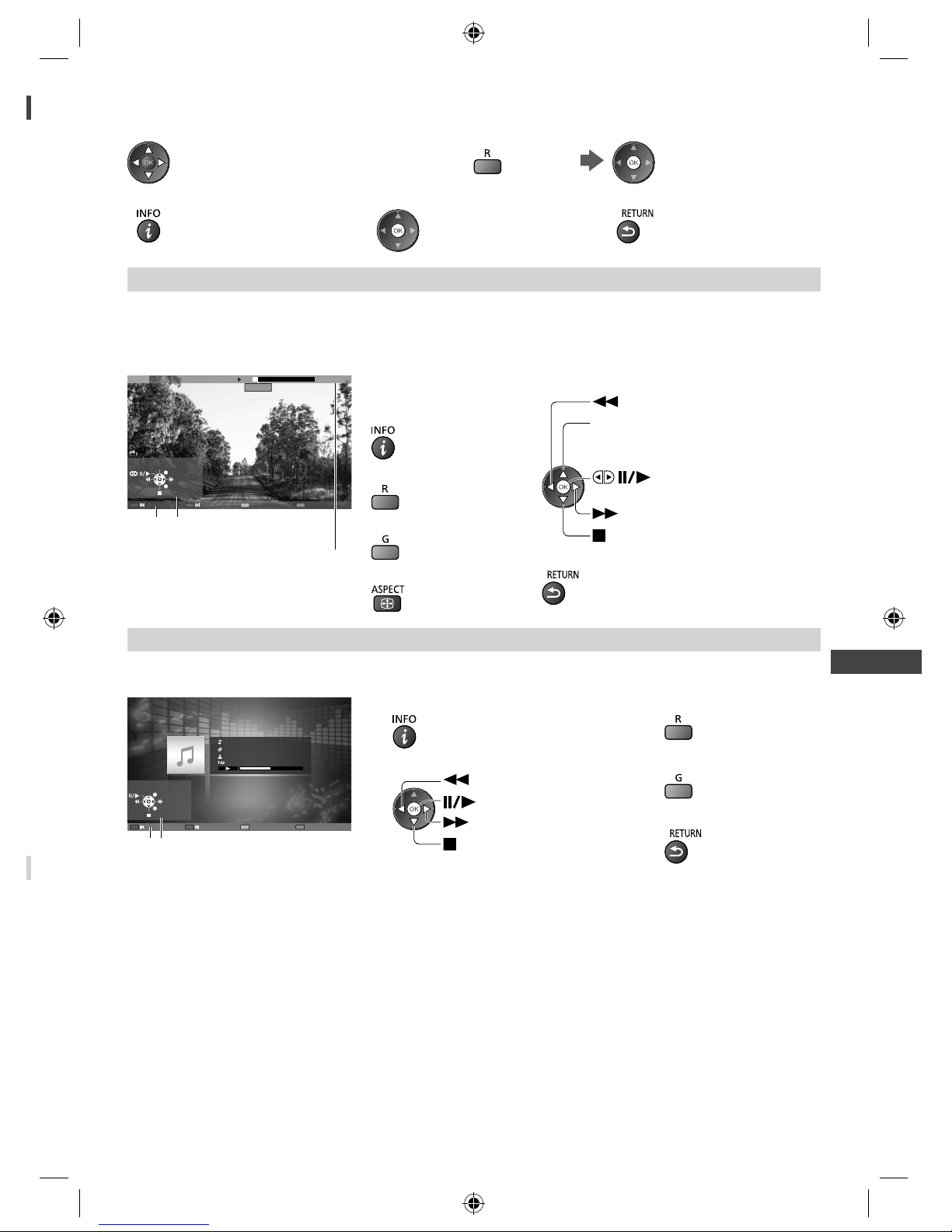

Using Network Services (DLNA / VIERA Connect)

[Slideshow] - Slideshow completes when all photos are viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow

●

To display / hide the operation guide● To pause (return to Single view)

●

To return to list

For video file

Playback

- Playback will start.

If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

Example: Playback

2011/02/19 11:21 00:15:39

00:02:05

MEDIA SERVER

Operation guide

Information banner

EXIT

RETURN

Manual skip

●

To display / hide the operation guide and information banner

●

To the previous content

●

To the next content

●

To change aspect

●

To operate the playback

Rewind

Pause (displays the time

seek bar) / Playback

Stop

Fast forward

[Manual skip]

●

Press to skip forward about 30 seconds.

●

To return to list

For music file

Playback

- Playback will start.

Example: Playback

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

EXIT

RETURN

Operation guide

●

To display / hide the operation guide

●

To the previous track

●

To operate the playback

●

To the next track

Rewind

Pause / Playback

Stop

Fast forward

●

To return to list

TH-L32_42_47E5KMT_EN.indd 53TH-L32_42_47E5KMT_EN.indd 53 3/19/2012 1:45:28 PM3/19/2012 1:45:28 PM

Page 54

Using Network Services (DLNA / VIERA Connect)

Option menu for each content

Setup the settings for Photo, Video and Music file operations.

1 Display the

option menu

2 Select [Slideshow Settings], [Video Setup]

or [Music Setup]

Option Menu

Slideshow Settings Video Setup Music Setup

select

access

3 Select the items and set

select

access / store

Item Adjustments / Configurations (alternatives)

Slideshow Settings

Transition Effect

Selects the transition effect for switching the photo during the slideshow

up or moving down.

[Random]: Each transition is selected at random.

Interval

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

●

This function is not available when [Transition Effect] is set to [Motion].

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5]

Video Setup

Video Preview

Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]

●

Image may not be displayed for an instant in the thumbnail screen. Set the preview [Off] to resolve this.

Multi Audio, Dual Audio, Dual Mono Audio

Selects between selectable sound tracks (if available)

●

It may take several seconds to change the sound.

●

Only available during playback

Subtitle

Subtitles On / Off (if available)

●

Only available during playback

Subtitle Text

Selects the font type to display subtitles correctly (if available)

●

Only available during playback

Aspect Change

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen. [Original]: Displays the content original size.

●

You can also change the aspect using the ASPECT button.

●

Aspect change may not work depending on the content.

●

Only available during playback

Repeat Playback repeat within the selected file [Off] / [On]

Music Setup

Repeat

Playback repeat [Off] / [Folder] / [One] [Folder]: Playback repeat within the selected folder. [One]: Playback repeat of the selected one file.

Y t

●

TH-L32_42_47E5KMT_EN.indd 54TH-L32_42_47E5KMT_EN.indd 54 3/19/2012 1:45:29 PM3/19/2012 1:45:29 PM

Page 55

Using Network Services (DLNA / VIERA Connect)

Audio output settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

●

To confirm or change the current sound status (p. 44)

1 Display the menu and Select [Sound] 2 Select [SPDIF Selection] and set

Sound

SPDIF Selection Auto

select

access / store

select

access

Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

VIERA Connect

You can access VIERA Connect and enjoy various network contents.

●

VIERA Connect requires a broadband internet connection. Dial-up internet connections cannot be used.

●

Ensure the network connections and network settings are completed.

“Network connections” (p. 47), [Network Setup] (p. 48 - 51)

●

For details about VIERA Connect operation (p. 17)

●

Setup menu (Items in [Setup] may change without notice.)

Customize HomeScreen Changes the position of each services on VIERA Connect home screen

My Account

Confirms or removes the account information of the TV you entered on VIERA Connect

Lock Sets to restrict access to some services

Beep Sets beep sound On or Off when operating VIERA Connect

Notices Displays the information of VIERA Connect

Note

●

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use VIERA Connect. You can update the software later manually. [Software Update] in [Network] (p. 51)

●

VIERA Connect home screen is subject to change without notice.

●

The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

●

Some content may be inappropriate for some viewers.

●

Some content may only be available for specific countries and may be presented in specific languages.

●

Depending on the connection environment, the internet connection may be slow or may not be successful.

●

You can restrict access to VIERA Connect. [Child Lock] (p. 34)

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

TH-L32_42_47E5KMT_EN.indd 55TH-L32_42_47E5KMT_EN.indd 55 3/19/2012 1:45:30 PM3/19/2012 1:45:30 PM

Page 56

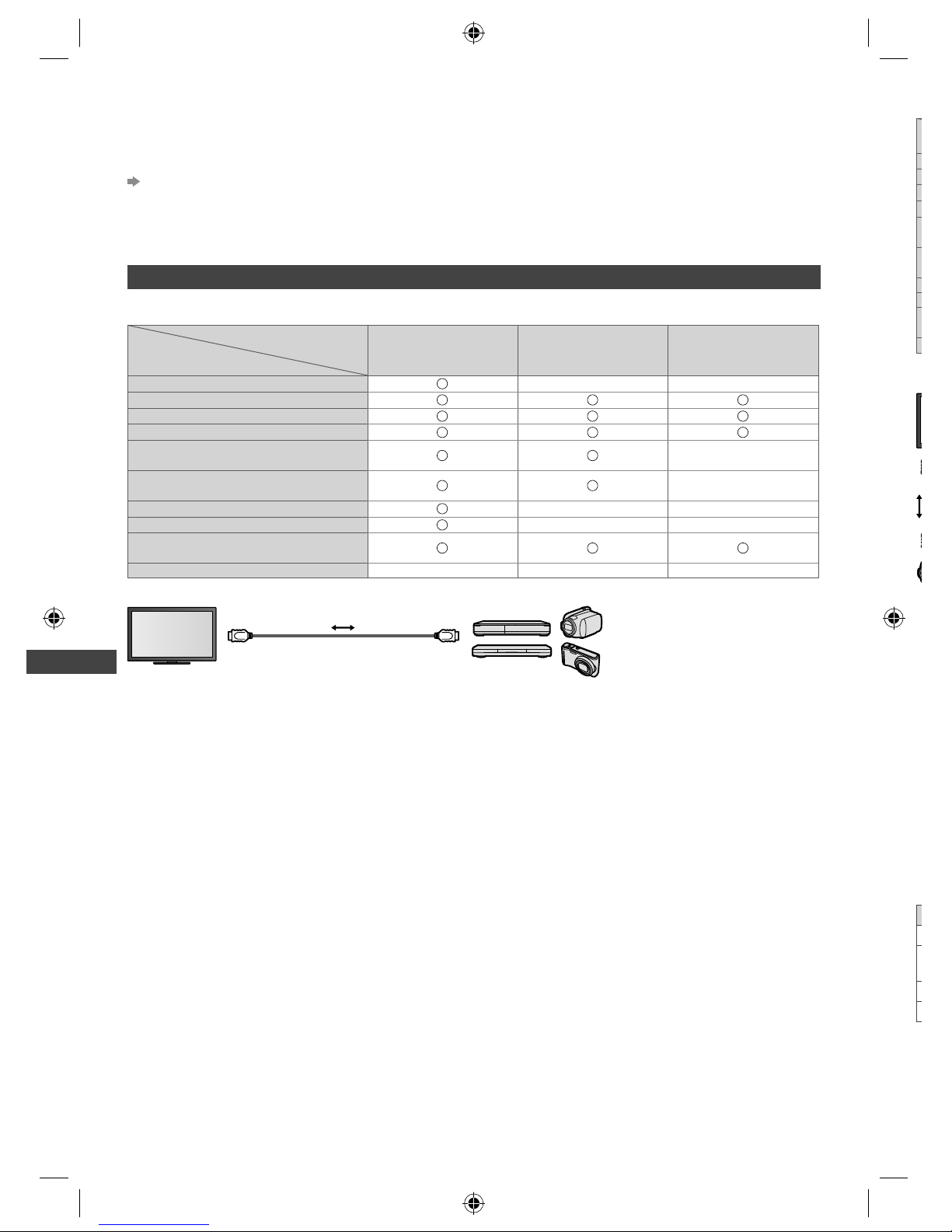

Link Functions (VIERA Link)

VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting.

(p. 58 - 62)

●

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of HDAVI Control. Please read the manual of the equipment to confirm the version.

●

VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.

Summary of features

VIERA Link (HDMI connection)

Connected equipment

Features

DIGA Recorder

DVD Player / Blu-ray

Disc Player

HD Video Camera /

LUMIX Camera

Channel download



–– Easy playback Power on link Power off link Reduce unnecessary power consumption in Standby



–

Auto standby for unnecessary equipment



–

Pause Live TV programme

2 

–– Direct TV Recording



–– Control the menu of the connected equipment by VIERA remote control



Speaker control – – –

Connection

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

HDMI cable

●

Use fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

●



●

TH-L32_42_47E5KMT_EN.indd 56TH-L32_42_47E5KMT_EN.indd 56 3/19/2012 1:45:30 PM3/19/2012 1:45:30 PM

Page 57

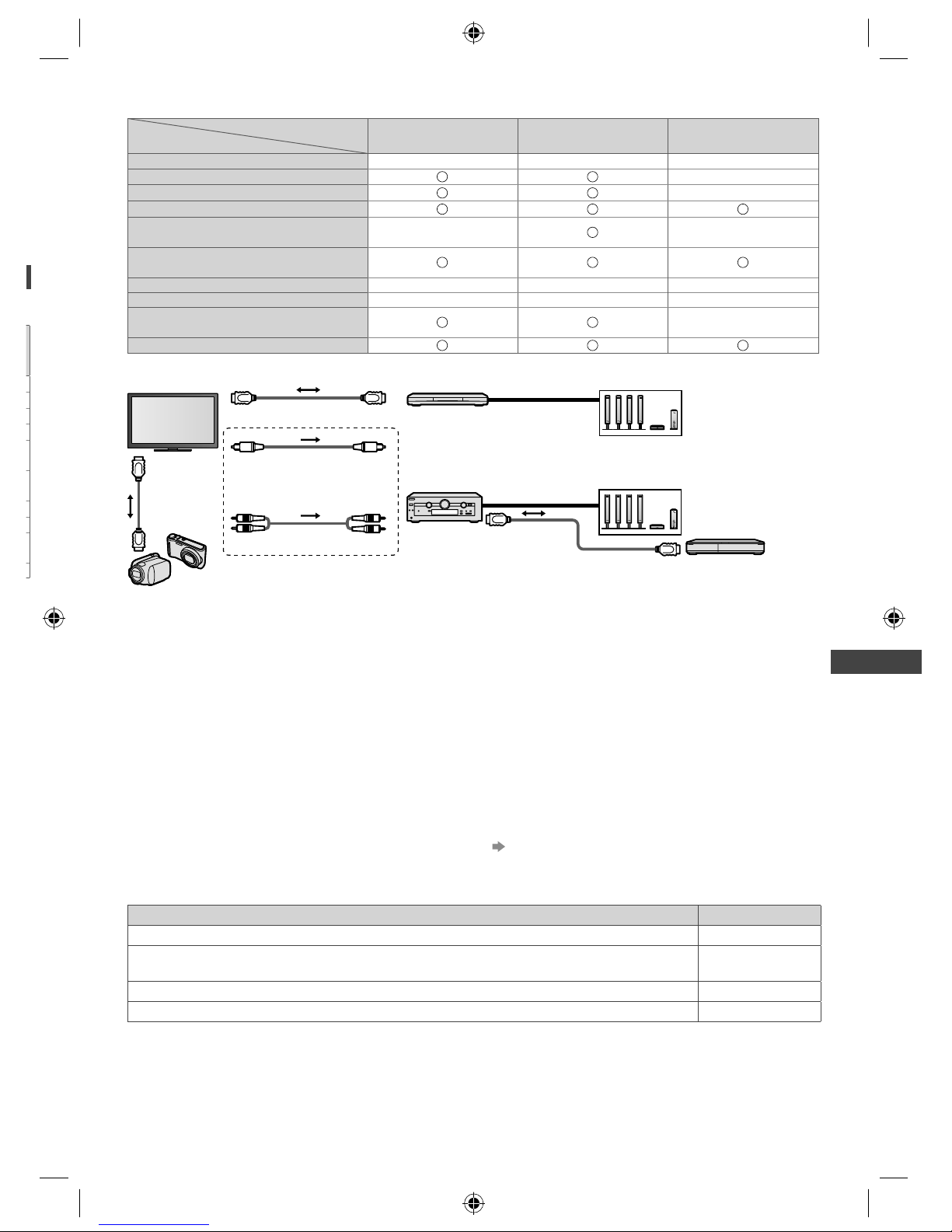

Link Functions (VIERA Link)

VIERA Link (HDMI and Audio out connections)

Connected equipment

Features

Player theatre Blu-ray Disc theatre Amplifier

Channel download – – – Easy playback



–

Power on link

– Power off link Reduce unnecessary power consumption in Standby

–



–

Auto standby for unnecessary equipment

3 



Pause Live TV programme – – – Direct TV Recording – – – Control the menu of the connected equipment by VIERA remote control



–

Speaker control

Connection

●

To use Player theatre / Blu-ray Disc theatre

HDMI cable



Speaker system

Player theatre / Blu-ray Disc theatre with VIERA Link function

Amplifier with VIERA Link function

DIGA Recorder with VIERA Link function

HDMI cable

HD Video Camera / LUMIX Camera with VIERA Link function

●

To use Amplifier

Optical digital

audio cable

RCA cable

●

Use fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

Use the optical digital audio cable, or RCA cable for audio output from the TV.



1: Available with the equipment which has “HDAVI Control 2

or later” function.



2: Available with the equipment which has “HDAVI Control 3

or later” function.



3: Available with the equipment which has “HDAVI Control 4

or later” function.



4: Available with a DIGA Recorder which has HDD.



5: While playing a disc.



6: Except for watching a disc.



7: If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable (Optical digital audio cable or RCA cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

VIERA Link Control of compatible equipment [VIERA Link Control] (p. 60)

●

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number

Recorder (DIGA Recorder, etc.) 3

Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)

Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1

Tuner (Set top box, etc.) 4

TH-L32_42_47E5KMT_EN.indd 57TH-L32_42_47E5KMT_EN.indd 57 3/19/2012 1:45:31 PM3/19/2012 1:45:31 PM

Page 58

Link Functions (VIERA Link)

VIERA Link “ ”





Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 5” function. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

●

Some functions are not available depending on the equipment’s version of HDAVI Control. Confirm the connected equipment’s version of HDAVI Control.

●

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

●

Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

●

About applicable Panasonic equipment, consult your local Panasonic dealer.

Preparations

●

Connect the equipment supporting VIERA Link.

●

VIERA Link connection (p. 56, 57)

●

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised. Recommended Panasonic’s HDMI cable part number:

•

RP-CDHS15 (1.5 m)

•

RP-CDHS30 (3.0 m)

•

RP-CDHS50 (5.0 m)

●

Set up the connected equipment. Read the manual of the equipment.

●

For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.

●

Set [VIERA Link] to [On] in the Setup Menu. [VIERA Link] (p. 31)

●

Set up the TV.

After connection, turn the equipment on and then switch the TV on. Select the input mode from HDMI1, HDMI2, HDMI3 or HDMI4 (p. 23), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

•

for the first time

•

when adding or reconnecting equipment

•

when changing setup

Features available

Channel download

Channel settings can be downloaded to the recorder.

Easy playback

Automatic input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p. 31)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p. 31)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

●

This function will work even if the TV enters Standby mode automatically by auto power standby function.

T w W c W t

●

W t

●

■

TH-L32_42_47E5KMT_EN.indd 58TH-L32_42_47E5KMT_EN.indd 58 3/19/2012 1:45:31 PM3/19/2012 1:45:31 PM

Page 59

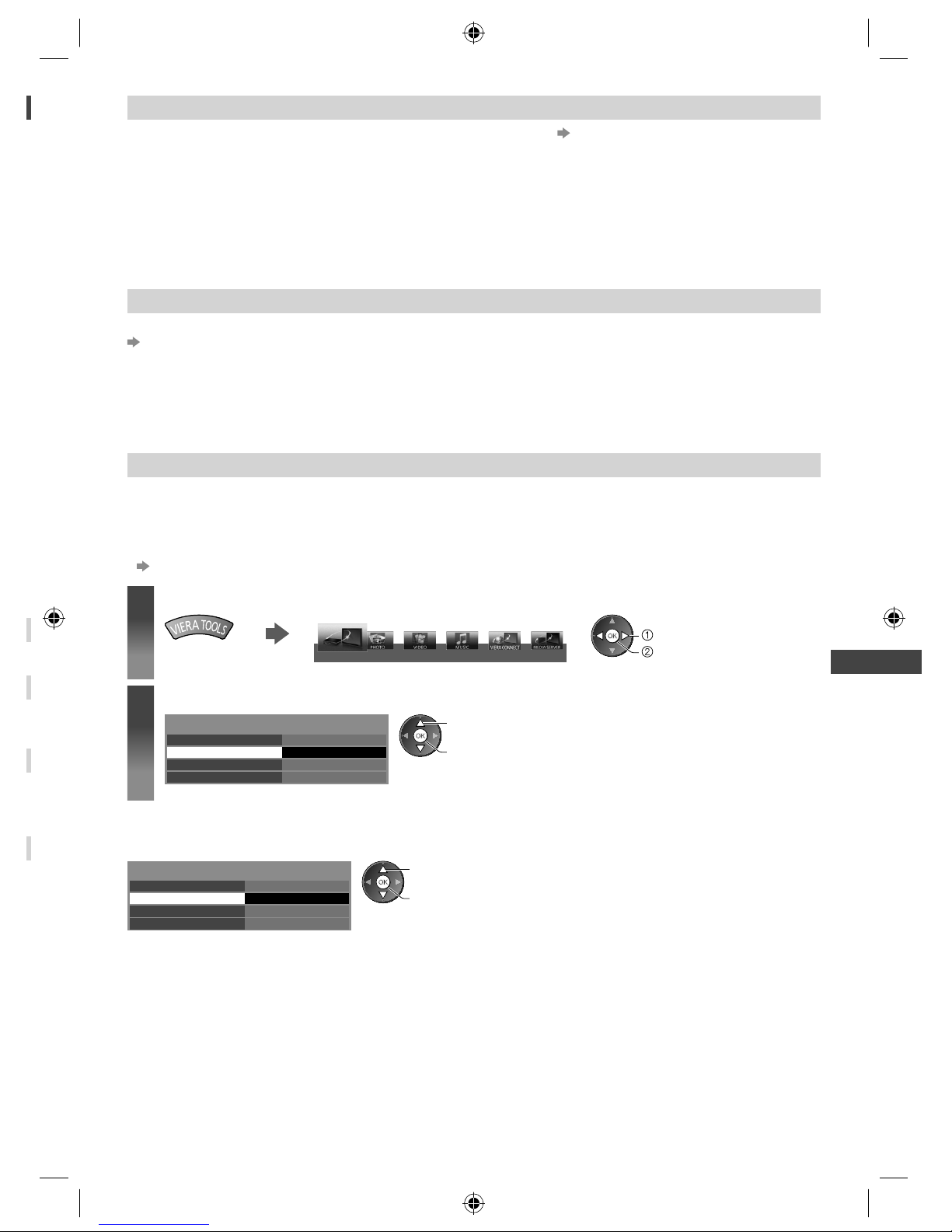

Link Functions (VIERA Link)

Reduce unnecessary power consumption in Standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 31)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronisation with the TV On / Off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption of the connected equipment is automatically minimised. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time fast.

●

This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.

●

This function works when [Power off Link] is set to [On].

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function

[Intelligent Auto Standby] (p. 31)

When the TV is on, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI or when Speaker Selection is changed to [TV] (except for watching a disc).

●

If you select [On (With reminder)], the on-screen message will be displayed before the connected equipment turns to standby.

●

This function may not work properly depending on the connected equipment. If required, set to [Off].

Direct TV Recording - What you see is What you record [Direct TV Rec]

Records the current programme in the DIGA Recorder immediately.

●

If you connect a variety of recorders including other manufacturers’ recorders at the same time, connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1.

●

If you cannot operate, check the settings and the equipment.

“Summary of features” (p. 56, 57), “Preparations” (p. 58)

Display [VIERA TOOLS] and select [VIERA Link]

VIERA Link

select access

Select [Direct TV Rec] and start recording

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

Start

Home Cinema

Recorder

Start

select

access / start

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

Stop

Home Cinema

Recorder

Start

select

access / stop

TH-L32_42_47E5KMT_EN.indd 59TH-L32_42_47E5KMT_EN.indd 59 3/19/2012 1:45:31 PM3/19/2012 1:45:31 PM

Page 60

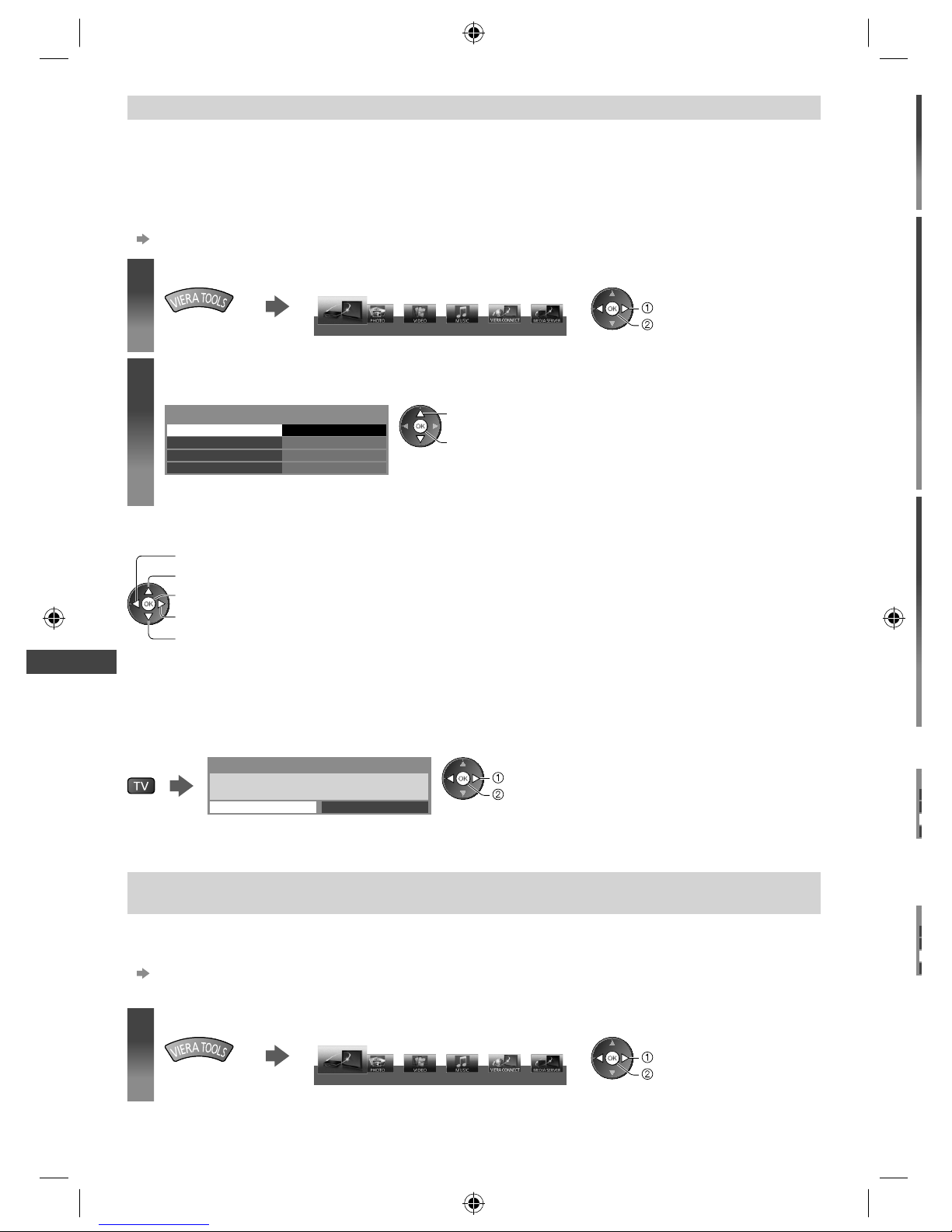

Link Functions (VIERA Link)

Pause Live TV programme [Pause Live TV]

You can pause the current TV programme and resume later. The current TV programme will be recorded on HDD of the connected DIGA Recorder.

●

This function is available with a DIGA Recorder which has HDD.

●

If you connect a variety of recorders including other manufacturers’ recorders at the same time, connect the DIGA Recorder which has an HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1.

●

If you cannot operate, check the settings and the equipment.

“Summary of features” (p. 56, 57), “Preparations” (p. 58)

Display [VIERA TOOLS] and select [VIERA Link]

VIERA Link

select access

Select [Pause Live TV] and pause

The TV picture will be paused.

VIERA Link Menu

Pause Live TV

Direct TV Rec VIERA Link Control Speaker Selection

Start

Home Cinema

Recorder

Start

select

access / pause

●

The current TV programme is recorded on HDD from where it was paused.

●

If the paused TV picture disappears after a few minutes, press OPTION button to restore the pause picture.

●

Follow the operation guide to operate [Pause Live TV] function.

■ To operate [Pause Live TV]

Search backward

Playback

Stop

●

If you stop playback, the recorded programme will be deleted from HDD.

Search forward

Pause

●

Operations may vary depending on the recorder. In this case, follow the operation guide or read the manual of the recorder.

■ To return to current TV (Stop playback of [Pause Live TV] / cancel pause)

Select [Yes]

Pause Live TV

Stop Pause Live TV?

Yes

select stop

●

If you stop playback or cancel pause, the recorded programme will be deleted from HDD.

Control the menu of the connected equipment by VIERA remote control [VIERA Link Control]

You can control some functions of the connected equipment with this TV remote control pointing at the TV’s signal receiver.

●

If you cannot operate, check the settings and the equipment.

“Summary of features” (p. 56, 57), “Preparations” (p. 58)

●

For details of the operations for the connected equipment, read the manual of the equipment.

Display [VIERA TOOLS] and select [VIERA Link]

VIERA Link

select access

■

TH-L32_42_47E5KMT_EN.indd 60TH-L32_42_47E5KMT_EN.indd 60 3/19/2012 1:45:32 PM3/19/2012 1:45:32 PM

Page 61

Link Functions (VIERA Link)

Select [VIERA Link Control]

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Home Cinema

Recorder

Start

select

access

Select the equipment to access

Select the type of the connected equipment and access.

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Home Cinema

Recorder

Start

Reco

rder

select

access

[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [Digital Camera] / [Other]

●

The displayed item may vary depending on the connected equipment.

●

[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.

●

[Other] means Tuner set top box.

The menu of the accessed equipment will be displayed.

(Input mode will be changed automatically)

Operate the menu of the equipment

1 Set the code of the remote control to “73” (p. 24) 2 Follow the operation guide

●

To display the operation guide

If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be displayed.

●

Available VIERA remote control buttons depend on the connected equipment.

Note

●

Some operations may not be available depending on the equipment. In this case use its own remote control to operate the equipment.

■ If multiple recorders or players are connected

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Home Cinema

Recorder2

Start

[Recorder1-3 / Player1-3]

Reco

rder

The number is given from the TV’s lower number of HDMI terminal connected to the same type equipment. For example, two recorders to HDMI2 and HDMI3, the recorder connected to HDMI2 is displayed as [Recorder1], and the recorder connected to HDMI3 is displayed as [Recorder2].

■ If you access non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Start

Home Cinema

Recorder

Start

Recorde

The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it. Use its own remote control to operate the equipment.

TH-L32_42_47E5KMT_EN.indd 61TH-L32_42_47E5KMT_EN.indd 61 3/19/2012 1:45:33 PM3/19/2012 1:45:33 PM

Page 62

Link Functions (VIERA Link)

Speaker control [Speaker Selection]

You can control the theatre speaker with this TV remote control pointing at the TV’s signal receiver.

●

If you cannot operate, check the settings and the equipment.

“Summary of features” (p. 56, 57), “Preparations” (p. 58)

Display [VIERA TOOLS] and select [VIERA Link]

VIERA Link

select access

Select [Speaker Selection]

VIERA Link Menu

Pause Live TV Direct TV Rec VIERA Link Control

Speaker Selection

Start

Home Cinema

Recorder

Start

select

access

Set to [Home Cinema] or [TV]

select

store

[Home Cinema]:

The sound is from theatre speakers. Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.

●

Volume up / down

●

Mute

●

The sound of TV speakers is mute.

●

When the equipment is turned off, TV speakers will be active.

[TV]:

TV speakers are active.

Multi-channel sound

If you want to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect it with HDMI cable and Optical digital audio cable (p. 57), and then select [Home Cinema]. If your Amplifier has “HDAVI Control 5” function, you only need to connect it with HDMI cable to the TV’s HDMI2 terminal. To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 57).

Note

●

These functions may not work properly depending on the connected equipment.

●

Image or sound may not be available for the first few seconds when input mode is switched.

●

“HDAVI Control 5” is the newest standard (as of December, 2011) for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.

●

To confirm this TV’s version of HDAVI Control [System Information] (p. 31)

T F (

●

TH-L32_42_47E5KMT_EN.indd 62TH-L32_42_47E5KMT_EN.indd 62 3/19/2012 1:45:33 PM3/19/2012 1:45:33 PM

Page 63

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the basic connection (p. 11 - 13), the table (p. 65), and the specifications (p. 76, 77).

●

Check the type of terminals and cable plugs are correct when connecting.

Rear of the TV

AV2 IN (COMPONENT /

VIDEO) adaptor

(supplied)

AV2 IN (COMPONENT /

VIDEO) adaptor

(supplied)

AV1 IN / AUDIO OUT adaptor (supplied)

HDMI equipment

Fully wired HDMI

compliant cable

Recorder / Player

Camcorder

●

HDMI connection (p. 71)

To watch DVDs

DVD Player

(Listening)

(Viewing)

Camcorder / Game equipment

(Viewing)

(Listening)

Camcorder

Game equipment

To listen with speakers

Optical digital audio

cable

Amplifier with

speaker system

RCA cable

To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

TH-L32_42_47E5KMT_EN.indd 63TH-L32_42_47E5KMT_EN.indd 63 3/19/2012 1:45:34 PM3/19/2012 1:45:34 PM

Page 64

External Equipment

Rear of the TV

AV2 IN (COMPONENT /

VIDEO) adaptor

(supplied)

Headphones

(M3 stereo mini plug)

●

To adjust volume

[Headphone Volume] (p. 28)

USB devices

Communication

Camera

(Listening)

(Viewing)

Computer

Conversion adaptor (if necessary)

T (

 



TH-L32_42_47E5KMT_EN.indd 64TH-L32_42_47E5KMT_EN.indd 64 3/19/2012 1:45:34 PM3/19/2012 1:45:34 PM

Page 65

External Equipment

Types of connectable equipment to each terminal

Features

Terminal

AV1 IN



AUDIO OUT



AV2 IN



DIGITAL

AUDIO OUT

ETHERNET

HDMI 1 - 4

USB 1 - 2

COMPONENT

VIDEO

To watch satellite broadcasts (Set top box)

To watch videocassettes / DVDs (VCR / DVD player)

To watch camcorder images (Video camera)

To play games (Game equipment)

To use amplifier with speaker system



To use network services



VIERA Link

: Recommended Connection



1: To connect the equipment, the terminal adaptor (supplied) is necessary.



2: Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio

Return Channel) function.



3: Use USB 2 port for connecting the Communication Camera.

TH-L32_42_47E5KMT_EN.indd 65TH-L32_42_47E5KMT_EN.indd 65 3/19/2012 1:45:35 PM3/19/2012 1:45:35 PM

Page 66

Technical Information

Channel Allocation

Channel

Plan

Asia /

W.Europe

CIS /

E.Europe

China Hong Kong

NZ /

Indonesia

Indian CATV

South Africa

American

System

American

CATV

Japan CATV

DISPLAY

Receive channel

0 1 2 3 4 5 6 7

11 12 13 14 15 16 19

– 1 2 3

4 S’1 S’2 S’3

S1 S2 S3 S4

S10

21 22 23 24

57 58 59

62 63

S11

S40 S41

24 25

73 74 75 76 77 78 79 80 81

89 90 91 92 93 94 95 96 97 98 99

100

107

117 118

120

125

– – 2

– – – – – – –

– 1 2

– – – – – – – –

62 63

– –

– S’1 S’2 S’3

–

– –

– S’1 S’2 S’3

–

––

99 C49

100

125

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

– – – – – – – – – –

–

– S’1 S’2 S’3

–

– –

– S’1 S’2 S’3

–

41 S1 S2

S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21

S41

– –

– 1 2

– – – – – – –

62 63

C13

– – –

S’1

– – – –

– S1 S2

S10

S1 S2

S10

S1 S2

S10

51 52

61 62

69 70

– – – – – –

S11 S12 S13 S14 S15 S16 S17 S18 S19 S20

S1 S2

S10

– –

– S14 S15 S16 S17 S18 S19 S20

S21

S41

– –

S21

S41

– –

S21

S41

– –

S21

S41

–

––

– – – – – – – – – – – – – – – – –

1 2

12 13

–

12 13

–

– – 2

13 14

– 1 2

12 13

– – – – – – – – – – – – – – – – –

Z9 Z10 Z11 Z12 Z13 Z14 Z15 Z16 Z17 Z18 Z19 Z20

Z37

– – – – –

●

■

●

■

●

TH-L32_42_47E5KMT_EN.indd 66TH-L32_42_47E5KMT_EN.indd 66 3/19/2012 1:45:35 PM3/19/2012 1:45:35 PM

Page 67

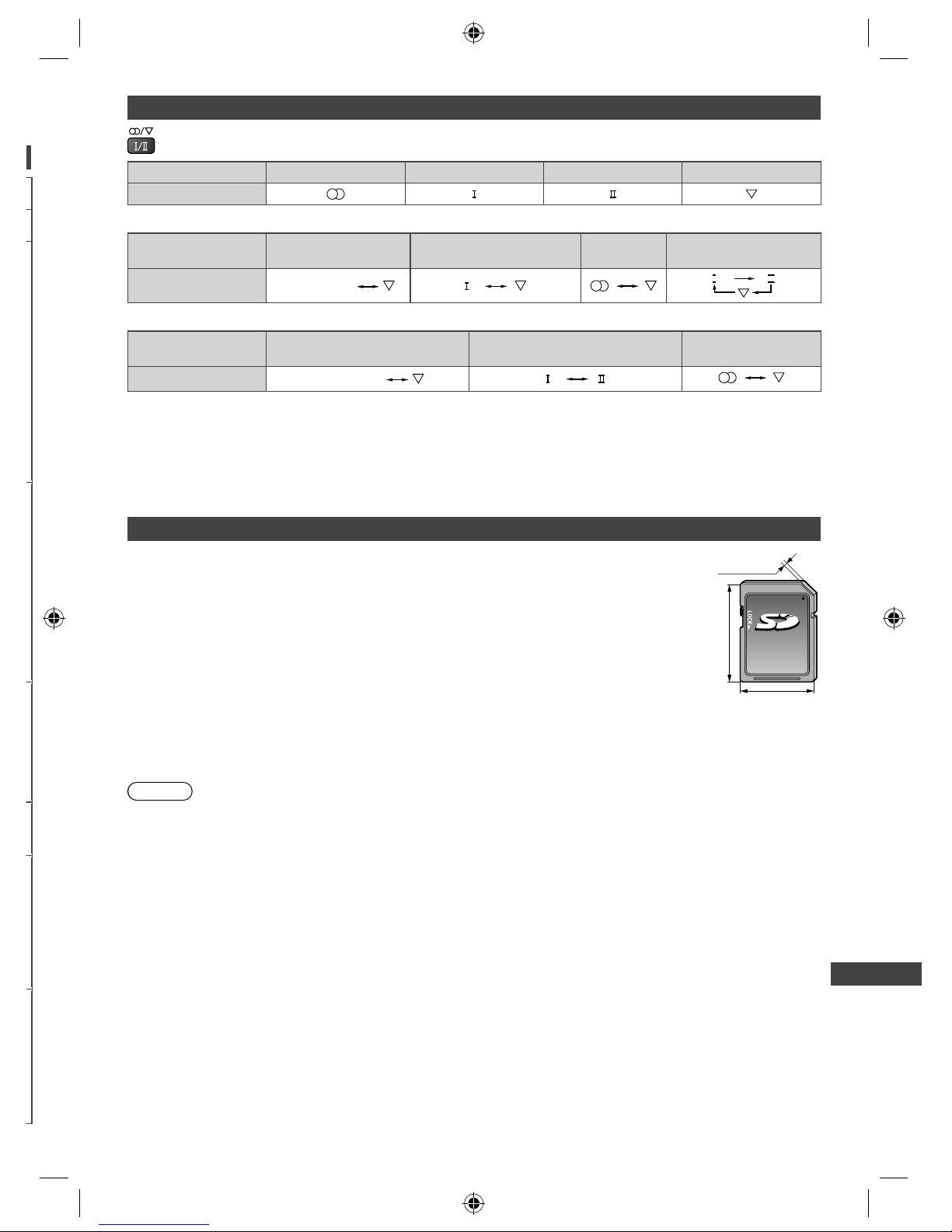

Technical Information

Stereo / Bilingual Sound Selection

When you receive the stereo / bilingual sound system, sound output modes can be selected by pressing the Sound Selection button.

Audio Signal STEREO MAIN I SUB II MONO

Mode Indicator

NICAM .......Used in New Zealand, Singapore, Hong Kong etc.

Type of broadcast

Regular broadcast

(Standard Audio)

Regular + NICAM MONO I

(MAIN I)

NICAM

STEREO

NICAM DUAL MONO

(MAIN I / SUB II)

Mode Indicator

No Indicator

A2 (German) .......Used in Australia, Malaysia etc.

Type of broadcast

Regular broadcast

(Standard Audio)

BILINGUAL or DUAL MONO:

MAIN I / SUB II

STEREO

Mode Indicator

No Indicator

●

If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching occurs, it is recommended you switch from STEREO to MONO.

●

Even when the contents of the receiving signal undergo changes, selection mode is kept intact.

●

When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO position, using the Sound Selection button.

●

DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.

Devices for playing back

■ SD Card

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

24 mm

32 mm

2.1 mm

Card format:

SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity):

SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), miniSD Card (2 GB) (requiring miniSD adaptor)

●

If miniSD Card is used, insert / remove it together with the adaptor.

●

Check the latest information on the card type at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

■ USB Flash Memory

USB Flash Memory format: FAT16, FAT32 or exFAT

Note

●

Data modified with a PC may not be displayed.

●

Do not remove the device while the TV is accessing data. Otherwise this can damage device or TV.

●

Do not touch the pins on the device.

●

Do not subject the device to a high pressure or impact.

●

Insert the device in the correct direction. Otherwise this can damage device or TV.

●

Electrical interference, static electricity, or erroneous operation may damage the data or device.

●

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.

TH-L32_42_47E5KMT_EN.indd 67TH-L32_42_47E5KMT_EN.indd 67 3/19/2012 1:45:36 PM3/19/2012 1:45:36 PM

Page 68

Technical Information

Supported file format in Media Player and media servers

■ Photo

Format File extension

Image resolution

(pixel)

Details / Restrictions

JPEG

.jpg

.jpeg .mpo

8 × 8 to 30,719 × 17,279

DCF and EXIF standards Sub-sampling: 4:4:4, 4:2:2, 4:2:0

●

Progressive JPEG is not supported.

■ Video

Container File extension Video codec Audio codec Details / Restrictions

AVCHD .mts H.264 Dolby Digital

AVCHD Standard Ver. 2.0 (AVCHD Progressive)

●

The data may not be available if a folder structure on the device is modified.

SD-Video .mod

MPEG1 MPEG2

Dolby Digital MPEG Audio

SD-Video Standard Ver. 1.31 (Entertainment Video Profile)

●

The data may not be available if a folder structure on the device is modified.

MOV

.mov .qt

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP Motion JPEG MPEG1 MPEG2 MPEG4 SP/ASP

AAC Dolby Digital Dolby Digital

Plus DTS core HE-AAC LPCM MPEG Audio MP3

●

This TV supports Motion JPEG recorded by Panasonic LUMIX Camera



●

This TV is not available for playing back Motion JPEG with the media server.



1: Some products of before the year

2004 may not be available. The compatibility with future products is not guaranteed.

AVI

.avi .divx

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP MPEG1 MPEG2 MPEG4 SP/ASP VC-1 Windows Media

Video Ver. 9

AAC ADPCM Dolby Digital Dolby Digital

Plus DTS core HE-AAC LPCM MPEG Audio MP3 WMA

●

Certified to play DivX Plus HD video file in Media Player For details of DivX (p. 70)

●

Some subtitles or chapter functions may not be available.

●

WMA Pro and WMA Lossless are not supported.

MKV .mkv

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP MPEG1 MPEG2 MPEG4 SP/ASP

AAC Dolby Digital Dolby Digital

Plus DTS core HE-AAC MPEG Audio MP3

■

●

TH-L32_42_47E5KMT_EN.indd 68TH-L32_42_47E5KMT_EN.indd 68 3/19/2012 1:45:36 PM3/19/2012 1:45:36 PM

Page 69

Technical Information

Container File extension Video codec Audio codec Details / Restrictions

ASF

.asf .wmv

DivX3 DivX4 DivX5 DivX6 MPEG4 SP/ASP VC-1 Windows Media

Video Ver. 9

AAC Dolby Digital Dolby Digital

Plus HE-AAC LPCM MP3 WMA

●

Copy-protected files cannot be played back.

●

WMA Pro and WMA Lossless are not supported.

MP4

.f4v .m4v .mp4

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP MPEG1 MPEG2 MPEG4 SP/ASP

AAC Dolby Digital Dolby Digital

Plus HE-AAC MPEG Audio MP3

●

This TV supports this container recorded by Panasonic products. For details, read the manual of the products.

FLV .flv H.264

AAC MP3

–

3GPP

.3gp .3g2

H.264 MPEG4 SP/ASP

AAC HE-AAC

–

.mpg .mpeg .vob .vro

H.264



MPEG1 MPEG2 VC-1



AAC



Dolby Digital Dolby Digital

Plus



HE-AAC



LPCM MPEG Audio MP3



2: This codec can be played back only in

Media Player.

.m2ts .tp .trp .ts

H.264 MPEG1 MPEG2 VC-1



AAC Dolby Digital Dolby Digital

Plus DTS core



HE-AAC MPEG Audio MP3



3: This codec can be played back only in

Media Player.

■ Music

Codec File extension Restrictions

MP3 .mp3 –

AAC .m4a

●

Copy-protected files cannot be played back.

WMA .wma

●

Copy-protected files cannot be played back.

●

WMA Pro and WMA Lossless are not supported.

FLAC .flac –

Note

●

Some files may not be played back even if they fulfil these conditions.

●

Do not use two-byte characters or other special codes for data.

●

The device may become unusable with this TV if the file or folder names are changed.

TH-L32_42_47E5KMT_EN.indd 69TH-L32_42_47E5KMT_EN.indd 69 3/19/2012 1:45:36 PM3/19/2012 1:45:36 PM

Page 70

Technical Information

DivX

DivX Certified® to play DivX® and DivX Plus® HD (H.264/MKV) video up to 1080p HD including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

■ Subtitle text file of DivX

Subtitles format - MicroDVD, SubRip, TMPlayer

●

The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.

●

If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: “.srt”, “.sub”, “.txt”.

●

To confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option Menu.

●

Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or the subtitles may not be displayed at all.

●

Some subtitles text may not be displayed correctly.

Note

●

Depending on how you make SD Card, USB Flash Memory or the media server, files and folders may not be displayed in the order you numbered.

●

Depending on how you create the files and the structure of folders, the files and folders may not be displayed.

●

When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified

device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more information on how to complete your registration.

■ To show DivX VOD registration code

[DivX® VOD] (p. 31)

●

If you want to generate the new registration code, you have to deregister the current registration code. After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX® VOD] in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be able to play any contents that you purchased using the current registration code. You will obtain the new registration code by pressing the OK button on the deregistration code screen.

●

If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able to play this content. ([Your device is not authorized to play this DivX protected video.] is displayed.)

■ Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. ([This DivX rental has expired.] is displayed.)

●

When playing this content, the number of remaining plays is reduced by one in the following conditions:

•

If you exit the current application.

•

If you play the other content.

•

If you go to the next or previous content.

H n H e H e F

■

●

■

f W (

●

  

●

TH-L32_42_47E5KMT_EN.indd 70TH-L32_42_47E5KMT_EN.indd 70 3/19/2012 1:45:36 PM3/19/2012 1:45:36 PM

Page 71

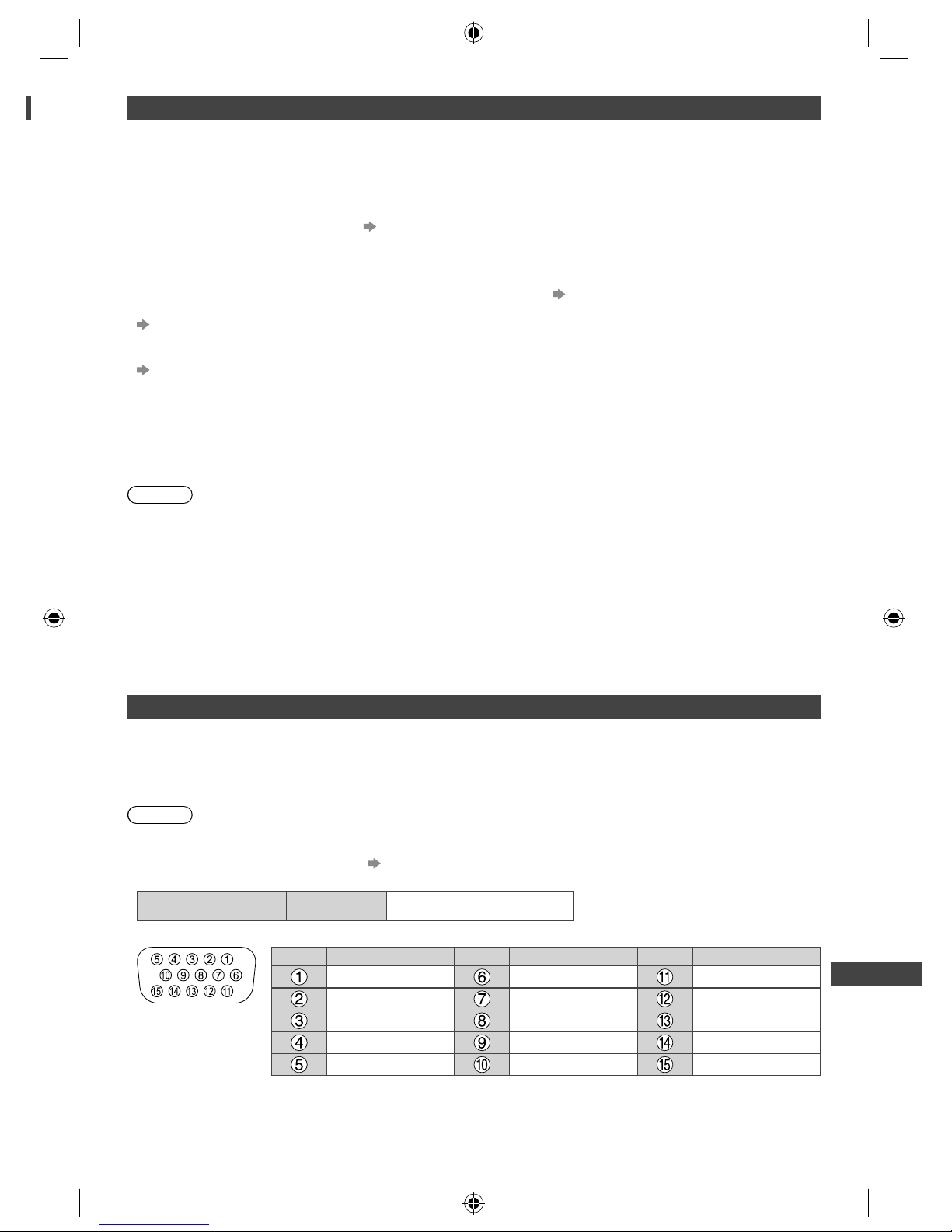

Technical Information

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment



with an HDMI or DVI output terminal, such as a DVD player, a set top box or game

equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. For more information about connections (p. 12, 63)

■ Applicable HDMI features

●

Input audio signal: 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)

●

Input video signal:

“Input signal that can be displayed” (p. 73)

Match the output setting of the digital equipment.

●

Input PC signal:

“Input signal that can be displayed” (p. 73)

Match the output setting of the PC.

●

VIERA Link (HDAVI Control 5)

[VIERA Link] (p. 58)

●

Content Type

●

Audio Return Channel



(HDMI2 terminal only)

■ DVI connection

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable



. When the DVI to HDMI adaptor cable is used, connect the audio cable to AUDIO terminal with the supplied AV2 IN (COMPONENT / VIDEO) adaptor.

Note

●

Audio settings can be made on [HDMI1 / 2 / 3 / 4 Input] in the Sound Menu. (p. 29)

●

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

●

These HDMI connectors are “type A”.

●

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

●

Equipment having no digital output terminal may be connected to the input terminal of component or video to receive analogue signals.

●

This TV incorporates HDMI™ technology.



1: The HDMI logo is displayed on HDMI-compliant equipment.



2: Audio Return Channel (ARC) is a function to send digital sound signals via an HDMI cable.



3: Enquire at your local digital equipment retailer shop.

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

●

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).

●

A PC adaptor is not necessary for the DOS/V-compliant D-sub 15-pin connector.

Note

●

Some PC models cannot be connected to this TV.

●

When using PC, set the colour display quality of PC to the highest position.

●

For details of the applicable PC signals “Input signal that can be displayed” (p. 73)

●

Maximum display resolution

Aspect

4:3 1,440 × 1,080 pixels 16:9 1,920 × 1,080 pixels

●

D-sub 15-pin connector signal

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R GND (Ground) NC (not connected)

G GND (Ground) NC (not connected)

B GND (Ground) HD

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC (not connected)

TH-L32_42_47E5KMT_EN.indd 71TH-L32_42_47E5KMT_EN.indd 71 3/19/2012 1:45:36 PM3/19/2012 1:45:36 PM

Page 72

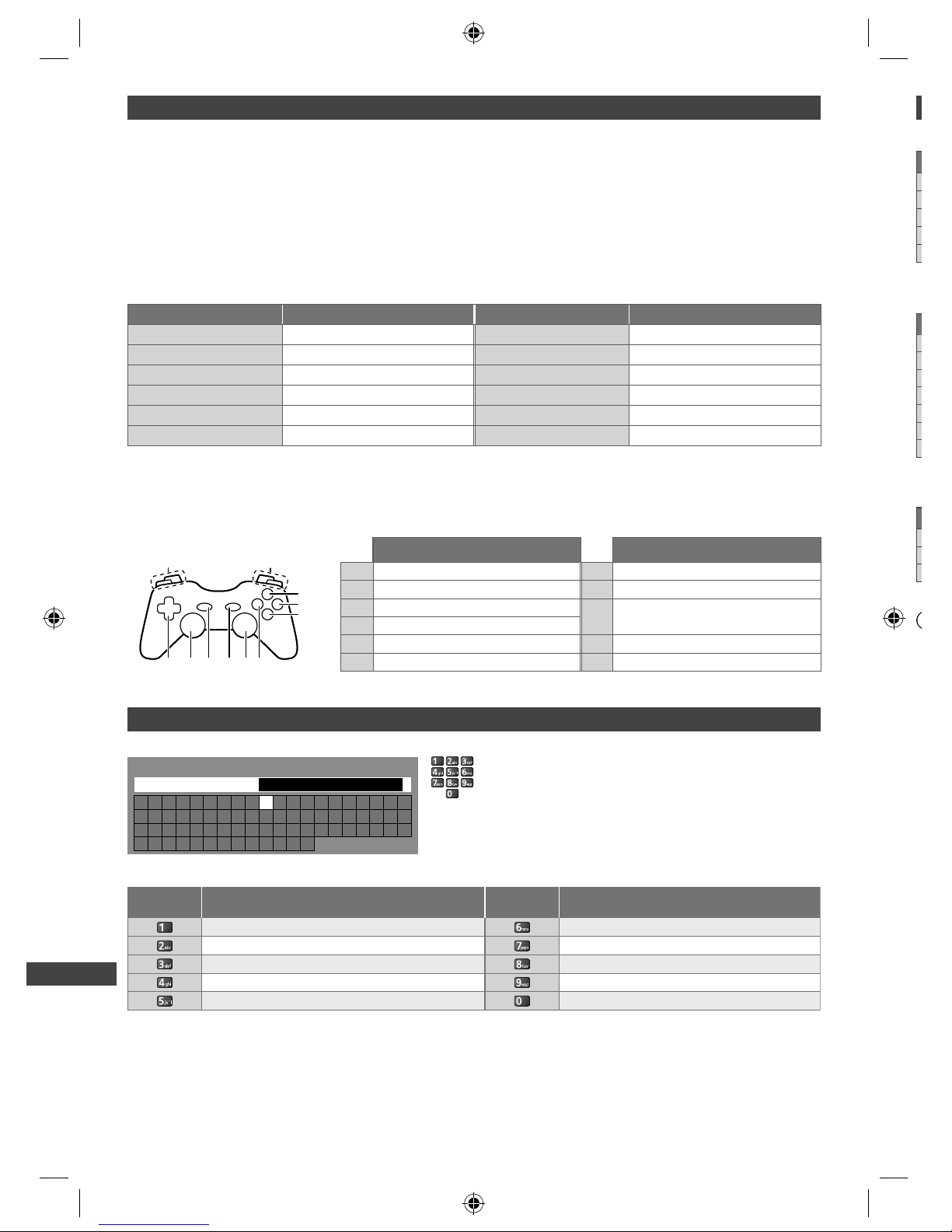

Technical Information

USB connection

●

It is recommended to connect the USB Flash Memory or Communication Camera to the TV’s USB ports directly.

●

Some USB devices or USB HUB may not be used with this TV.

●

You cannot connect any devices by using USB card reader.

●

You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory.

●

Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/

■ USB Keyboard

●

The USB Keyboard requiring its driver is not supported.

●

Characters may not be displayed correctly on the TV screen depending on the connected keyboard.

●

Some of the keys of USB keyboards may correspond to the operation of the remote control.

USB Keyboard Remote Control USB Keyboard Remote Control



Cursor buttons F2 VIERA TOOLS

Enter OK F3 MENU

Backspace BACK/RETURN F4 INPUT (AV)

Esc EXIT F5 / F6 Channel Down / Up

0 - 9 / Character Numeric buttons F7 / F8 Volume Down / Up

F1 - F9 / F10 / F11 / F12 Coloured buttons

■ Gamepad

●

Check the gamepads that have been tested for the performance with this TV at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

●

Some of the keys of gamepads correspond to the operation of the remote control.

Select Start

1011

7 69 8

3 4 5

Example:

Remote Control Remote Control

1 Volume Up / Down 7 VIERA TOOLS 2 Channel Up / Down 8 EXIT 3-

9 INPUT (AV)

4OK 5 BACK/RETURN 10 MENU 6 INTERNET 11 Cursor buttons

Characters table for numeric buttons

You can enter characters by using numeric buttons for free input items. (English only)

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

User input

Name

Press the numeric button repeatedly until you reach the desired character.

●

The character is set automatically if you leave for 1 second.

●

You can also set the character by pressing the OK button or other numeric buttons within 1 second.

●

The characters may vary depending on the input items.

Characters table:

. @ / 1 ! : # + -  _ ( ) “ ‘ % & ? , ; = $ [ ] ~ < > { } | ` ^ \

d e f 3 D E F

g h i 4 G H I

j k l 5 J K L

m n o 6 M N O

p q r s 7 P Q R S

t u v 8 T U V

w x y z 9 W X Y Z

Space 0

a b c 2 A B C

Numeric

buttons

Numeric

buttons

Characters Characters

■

5 6 7 1 1

■

6 8 8 1 1 1 1

■

6 1 1

●

TH-L32_42_47E5KMT_EN.indd 72TH-L32_42_47E5KMT_EN.indd 72 3/19/2012 1:45:37 PM3/19/2012 1:45:37 PM

Page 73

Technical Information

Input signal that can be displayed

■ COMPONENT (Y, PB, PR (from AV2 IN terminal)), HDMI

Signal name COMPONENT HDMI

525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1,125 (1,080) / 60i, 50i 1,125 (1,080) / 60p, 50p, 24p

: Applicable input signal

■ PC (from D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 31.47 59.94 800 × 600 @60 Hz 37.88 60.32 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,280 × 768 @60 Hz 47.70 60.00 1,366 × 768 @60 Hz 48.39 60.04

Applicable input signal for PC is basically compatible to VESA standard timing.

■ PC (from HDMI terminal)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 31.47 60.00 1,280 × 720 @60 Hz 45.00 60.00 1,920 × 1,080 @60 Hz 67.50 60.00

Applicable input signal for PC is basically compatible to HDMI standard timing.

Note

●

Signals other than above may not be displayed properly.

●

The above signals are reformatted for optimal viewing on your display.

●

PC signal is magnified or compressed for display, so that it may not show fine detail with sufficient clarity.

TH-L32_42_47E5KMT_EN.indd 73TH-L32_42_47E5KMT_EN.indd 73 3/19/2012 1:45:37 PM3/19/2012 1:45:37 PM

Page 74

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance.

White spots or shadow images (noise)

●

Check the position, direction, and connection of the aerial.

Neither image nor sound is produced

●

Check the TV is turned on.

●

Check the mains lead is plugged into the TV and the socket outlet.

●

Check the TV is in AV mode.

●

Check the correct input mode is selected.

●

Check the Picture Menu (p. 27, 28) and volume.

●

Check all required cables and connections are firmly in place.

Black and white picture

●

Check that the output of the external equipment matches the input of the TV.

[VIERA Link] function does not work and an error message appears

●

Confirm the connection. (p. 56, 57)

●

Turn the connected equipment on and then switch the TV on. (p. 58)

There may be red spots, blue spots, green spots and black spots on the screen

●

This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue or black. Please note this does not affect the performance of your LCD, and it is not a quality problem.

Problem Causes / Actions

Screen

Chaotic image, noisy

●

Set [P-NR] in the Picture Menu to remove noise. (p. 27)

●

Check nearby electrical products (car, motorcycle, fluorescent lamp).

No image can be displayed

●

Is [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum?

(p. 27)

●

Check the setting of [AV2] ([COMPONENT] / [VIDEO]) in [Input Selection] to match the output of the external equipment. (p. 23)

Blurry or distorted image

(no sound or low volume)

●

Reset channels. (p. 33)

Unusual image is displayed

●

Turn the TV off with Mains power On / Off switch, then turn it on again.

●

If the problem persists, initialise all settings. [Shipping Condition] (p. 35)

Sound

No sound is produced

●

Is “Sound mute” active? (p. 9)

●

Is the volume set to the minimum?

Sound level is low or sound is distorted

●

Sound signal reception may be deteriorated.

●

Set [MPX] (p. 29) in the Sound Menu to [Mono].

HDMI

Sound is unusual

●

Set the sound setting of the connected equipment to “2ch L.PCM”.

●

Check the [HDMI1 / 2 / 3 / 4 Input] setting in the Sound Menu. (p. 29)

●

If digital sound connection has a problem, select analogue sound connection.

(p. 71)

Pictures from external equipment are unusual when the equipment is connected via HDMI

●

Check the HDMI cable is connected properly. (p. 63)

●

Turn the TV and equipment off, then turn them on again.

●

Check an input signal from the equipment. (p. 73)

●

Use equipment compliant with EIA/CEA-861/861D.

TH-L32_42_47E5KMT_EN.indd 74TH-L32_42_47E5KMT_EN.indd 74 3/19/2012 1:45:38 PM3/19/2012 1:45:38 PM

Page 75

FAQs

Problem Causes / Actions

Network

Cannot connect to the network

●

Check the LAN cable or wireless LAN is connected properly. (p. 47)

●

Check the connections and settings. (p. 47 - 51)

●

Check the network equipment and network environment.

●

The router may not be set to issue IP address automatically. If the network administrator prefers to allocate an IP address, set an IP address manually.

(p. 49)

●

The router may be using MAC address filtering (security setting). Confirm the MAC Address of this TV (p. 29) and set the router to use it.

●

If the problem persists, consult your Internet Service Provider or telecommunications company.

Cannot select the file during DLNA operations

●

Is the media server of the connected equipment prepared? (p. 46)

●

Check applicable data format. (p. 68, 69)

Cannot operate VIERA Connect

●

Check the connections and settings. (p. 47 - 51)

●

The server or connected line may be busy now.

Other

The TV does not switch on● Check the mains lead is plugged into the TV and the socket outlet.

The TV goes into Standby mode

●

Auto power standby function is activated. (p. 10)

●

The TV enters Standby mode about 30 minutes after broadcasting ends.

The remote control does not work or is intermittent

●

Are the batteries installed correctly? (p. 7)

●

Has the TV been switched on?

●

The batteries may be running low. Replace them.

●

Point the remote control directly at the TV’s remote control signal receiver (within about 7 m and a 30 degree angle of the signal receiver).

●

Situate the TV away from sunshine or other sources of bright light not to shine on the TV’s remote control signal receiver.

Parts of the TV become hot

●

Even when the temperature of parts of the front, top and rear panels has risen, these temperature rises do not cause any problems in terms of performance or quality.

The LCD panel moves slightly when it is pushed with a finger Clattered sound might be heard

●

There is some flexibility around the panel to prevent damage to the panel.

●

The panel might move slightly when it is pushed with a finger, and clattered sound might be heard. This is not a malfunction.

Overcurrent error message appears

●

The connected USB device might cause this error. Remove the device and turn the TV off with Mains power On / Off switch, then turn it on again.

●

Check foreign objects are not inside the USB port.

An error message appears

●

Follow the message’s instructions.

●

If the problem persists, contact your local Panasonic dealer or the authorised service centre.

TH-L32_42_47E5KMT_EN.indd 75TH-L32_42_47E5KMT_EN.indd 75 3/19/2012 1:45:38 PM3/19/2012 1:45:38 PM

Page 76

Specifications

32" class 42" class 47" class

Model No.

TH-L32E5K TH-L32E5M

TH-L32E5T

TH-L42E5K TH-L42E5M

TH-L42E5T

TH-L47E5K TH-L47E5M

TH-L47E5T

Power Source AC 110-240 V, 50 / 60 Hz

Power

Consumption

Power Rating 68 W 84 W 120 W

Standby condition 0.25 W 0.15 W 0.15 W

Display

panel

Panel system IPS LED backlight Liquid Crystal Display

Visible screen size (diagonal)

80 cm / 32 inches 107 cm / 42 inches 119 cm / 47 inches

Number of pixels 2,073,600 (1,920 (W) × 1,080 (H))

Dimensions (W × H × D)

764 mm × 519 mm × 230 mm (With Pedestal)

997 mm × 650 mm × 247 mm (With Pedestal)

1,107 mm × 712 mm × 268 mm (With Pedestal)

764 mm × 473 mm × 52 mm (TV only)

997 mm × 604 mm × 52 mm (TV only)

1,107 mm × 666 mm × 52 mm (TV only)

Mass

11.0

Net

(With Pedestal)

17.0 Net (With Pedestal)

20.0 Net (With Pedestal)

9.0

Net (TV only) 14.0 Net (TV only) 16.5 Net (TV only)

Sound

Speaker (75 mm × 22 mm) × 2, 8 

Audio output 20 W (10 W + 10 W)

Headphones M3 (3.5 mm) stereo mini Jack × 1

Receiving systems / Band name

17 Systems Function

1 PAL B, G, H

Reception of broadcast transmissions and Playback from Video Cassette Tape Recorders

2 PAL I 3 PAL D, K 4 SECAM B, G 5 SECAM D, K 6 SECAM K1

NTSC M (NTSC 3.58/4.5 MHz)

17 Systems Function

8 NTSC 4.43/5.5 MHz

Playback from Special VCR’s or DVD

9 NTSC 4.43/6.0 MHz 10 NTSC 4.43/6.5 MHz 11 NTSC 3.58/5.5 MHz 12 NTSC 3.58/6.0 MHz 13 NTSC 3.58/6.5 MHz 14 SECAM I 15 PAL 60 Hz/5.5 MHz

Playback from Special Disc Players and Special VCR’s or DVD

16 PAL 60 Hz/6.0 MHz 17 PAL 60 Hz/6.5 MHz

Receiving channels

VHF BAND

2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M Japan) 2-13 (NTSC M USA)

UHF BAND

21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL B AUST.) 13-57 (PAL D, K) 13-62 (NTSC M Japan) 14-69 (NTSC M USA)

CATV

S1-S20 (OSCAR) 1-125 (USA CATV) C13-C49 (JAPAN) S21-S41 (HYPER) Z1-Z37 (CHINA) 5A, 9A (AUST.)

Aerial - Rear VHF / UHF

Operating conditions

Temperature: 0 °C - 40 °C Humidity: 20 % - 80 % RH (non-condensing)

●

TH-L32_42_47E5KMT_EN.indd 76TH-L32_42_47E5KMT_EN.indd 76 3/19/2012 1:45:38 PM3/19/2012 1:45:38 PM

Page 77

Specifications

Connection terminals

AV1 IN

AUDIO L - R RCA PIN Type × 2 0.5 V[rms] VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 )

AUDIO OUT AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance)

AV2 IN

AUDIO L - R RCA PIN Type × 2 0.5 V[rms]

COMPONENT

B/CB, PR/CR

1.0 V[p-p] (including synchronisation) ±0.35 V[p-p]

VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 )

HDMI 1 / 2 / 3 / 4 input

TYPE A Connectors

●

This TV supports “HDAVI Control 5” function.

HIGH-DENSITY D-SUB 15PIN R,G,B: 0.7 V[p-p] (75 ) HD, VD: TTL Level 2.0 – 5.0 V[p-p] (high impedance)

●

Applicable input signals: VGA, SVGA, WVGA, XGA SXGA, WXGA ······ (compressed) Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 60 Hz

Card slot SD Card slot × 1

ETHERNET 10BASE-T / 100BASE-TX

USB 1 / 2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA

DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic

Note

●

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

TH-L32_42_47E5KMT_EN.indd 77TH-L32_42_47E5KMT_EN.indd 77 3/19/2012 1:45:38 PM3/19/2012 1:45:38 PM

Page 78

Maintenance

E r

T ( (

(

T i

m A i

n c C

S b

F o

F (

(

C I

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints.

For stubborn dirt:

First clean the dust on the surface. Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Caution

●

Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.

●

Take care not to subject the TV’s surfaces to water or detergent. Liquid inside the TV could lead to product failure.

●

Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.

●

The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.

●

Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

TH-L32_42_47E5KMT_EN.indd 78TH-L32_42_47E5KMT_EN.indd 78 3/19/2012 1:45:38 PM3/19/2012 1:45:38 PM

Page 79

Licence

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

This product incorporates the following software or technology: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software based in part on the work of the Independent JPEG Group, (4) the software developed by the FreeType Project, (5) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE (LGPL) and/or, (6) open sourced software other than the software licensed under the LGPL. (7) “PlayReady”(digital right management technology) licensed by Microsoft Corporation or its affiliates.

For the software categorized as (5), please refer to the terms and conditions of LGPL, as the case may be at

http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html

In addition, the software categorized as (5) are copyrighted by several individuals. Please refer to the copyright notice of those individuals at

http://www.am-linux.jp/dl/EUIDTV12/

The LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under LGPL. Contact Information

[email protected] Source code covered under LGPL is also freely available to you and any other member of the public via our website below.

http://www.am-linux.jp/dl/EUIDTV12/

For the software categorized as (5) and (6), please refer to the applicable license terms included in the “Setup” menu on product.

Further, for PlayReady categorized as (7), please be aware of the following. (a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this

technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

(b) Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property,

including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/ or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should

not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

TH-L32_42_47E5KMT_EN.indd 79TH-L32_42_47E5KMT_EN.indd 79 3/20/2012 7:03:27 PM3/20/2012 7:03:27 PM

Page 80

Web Site: http://panasonic.net

F0212-0312-2

Printed in Malaysia

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

TH-L32_42_47E5KMT_EN.indd 80TH-L32_42_47E5KMT_EN.indd 80 3/19/2012 1:45:39 PM3/19/2012 1:45:39 PM
