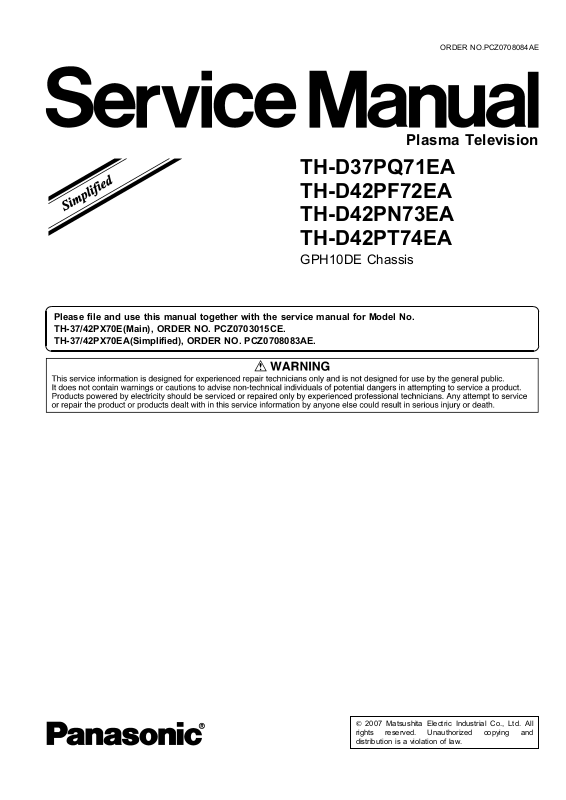

Plasma Television

TH-D37PQ71EA TH-D42PF72EA TH-D42PN73EA TH-D42PT74EA

GPH10DE Chassis

Please file and use this manual together with the service manual for Model No. TH-37/42PX70E(Main), ORDER NO. PCZ0703015CE. TH-37/42PX70EA(Simplified), ORDER NO. PCZ0708083AE.

ORDER NO.PCZ0708084AE

Page 2

TH-D37PQ71EA / TH-D42PF72EA / TH-D42PN73EA / TH-D42PT7 4EA

1 Difference point

1.1. Mechanical Replacement Parts List

TH-D37PQ71EA

Ref. No. Parts No. Parts name & Description Remarks

TH-37PX70EA TH-D37PQ71EA

7 TBX0E82501 TBX0E82503 POWER BUTTON PAVCCZ 11 TKKC5291 TKKC5302 PANEL LIGHT PAVCCZ 12 TKP0E21902 TKP0E21904 DOOR LID PAVCCZ

TKP0E22002 TKP0E22003 BOTTOM COVER PAVCCZ TKP0E22302 TKP0E22304 SHEET HOLDER LEFT PAVCCZ TKP0E22402 TKP0E22404 SHEET HOLDER RIGHT PAVCCZ

28 TQB0E0525A TQB0E0530A INSTRUCTION BOOK(GERMAN) PAVCCZ

TQB0E0525C ----- INSTRUCTION BOOK(ITALIAN) PAVCCZ TQB0E0525D ----- INSTRUCTION BOOK(FRENCH) PAVCCZ TQB0E0525E ----- INSTRUCTION BOOK(SPANISH) PAVCCZ TQB0E0525F ----- INSTRUCTION BOOK(SWEDISH) PAVCCZ TQB0E0525H ----- INSTRUCTION BOOK(FINNISH) PAVCCZ TQB0E0525K ----- INSTRUCTION BOOK(DANISH) PAVCCZ TQB0E0525R ----- INSTRUCTION BOOK(CZECH) PAVCCZ

TQB0E0525U ----- INSTRUCTION BOOK(ENGLISH) PAVCCZ 29 TTU0E0168 TTU0E0186 REAR COVER PAVCCZ 31 TXFKY01HPTD TXFKY01NRTD CABINET ASSY PAVCCZ 54 TXFBL01HNTD TXFBL01NSTD STAND BODY COMPLETE PAVCCZ 56 TXFBL03LPTU TXFBL03GUTJ SUPPORT METAL ASSY PAVCCZ

TH-D42PF72EA

Ref. No. Parts No. Parts name & Description Remarks

TH-42PX70EA TH-D42PF72EA

7 TBX0E82501 TBX0E82503 POWER BUTTON PAVCCZ 11 TKKC5291 TKKC5302 PANEL LIGHT PAVCCZ 12 TKP0E21902 TKP0E21904 DOOR LID PAVCCZ

TKP0E22001 TKP0E22003 BOTTOM COVER PAVCCZ TKP0E22102 TKP0E22104 SHEET HOLDER LEFT PAVCCZ TKP0E22202 TKP0E22204 SHEET HOLDER RIGHT PAVCCZ

28 TQB0E0525A TQB0E0531A INSTRUCTION BOOK(GERMAN) PAVCCZ

TQB0E0525C TQB0E0531C INSTRUCTION BOOK(ITALIAN) PAVCCZ TQB0E0525D TQB0E0531D INSTRUCTION BOOK(FRENCH) PAVCCZ TQB0E0525E ----- INSTRUCTION BOOK(SPANISH) PAVCCZ TQB0E0525F ----- INSTRUCTION BOOK(SWEDISH) PAVCCZ TQB0E0525H ----- INSTRUCTION BOOK(FINNISH) PAVCCZ TQB0E0525K ----- INSTRUCTION BOOK(DANISH) PAVCCZ TQB0E0525R ----- INSTRUCTION BOOK(CZECH) PAVCCZ

TQB0E0525U ----- INSTRUCTION BOOK(ENGLISH) PAVCCZ 29 TTU0E0155 TTU0E0187 REAR COVER PAVCCZ 31 TXFKY01HNTD TXFKY01NSTD CABINET ASSY PAVCCZ 54 TXFBL01HNTD TXFBL01NSTD STAND BODY COMPLETE PAVCCZ 56 TXFBL03LPTU TXFBL03GUTJ SUPPORT METAL ASSY PAVCCZ

Page 3

TH-D37PQ71EA / TH-D42PF72EA / TH-D42PN73EA / TH-D42PT7 4EA

TH-D42PN73EA

Ref. No. Parts No. Parts name & Description Remarks

TH-42PX70EA TH-D42PN73EA

7 TBX0E82501 TBX0E82503 POWER BUTTON PAVCCZ 11 TKKC5291 TKKC5302 PANEL LIGHT PAVCCZ 12 TKP0E21902 TKP0E21904 DOOR LID PAVCCZ

TKP0E22001 TKP0E22003 BOTTOM COVER PAVCCZ TKP0E22102 TKP0E22104 SHEET HOLDER LEFT PAVCCZ TKP0E22202 TKP0E22204 SHEET HOLDER RIGHT PAVCCZ

28 TQB0E0525A TQB0E0532A INSTRUCTION BOOK(GERMAN) PAVCCZ

TQB0E0525U ----- INSTRUCTION BOOK(ENGLISH) PAVCCZ 29 TTU0E0155 TTU0E0188 REAR COVER PAVCCZ 31 TXFY01HNTD TXFKY01NSTD CABINET ASSY PAVCCZ 54 TXFBL01HNTD TXFBL01NSTD STAND BODY COMPLETE PAVCCZ 56 TXFBL03LPTU TXFBL03GUTJ SUPPORT METAL ASSY PAVCCZ

TH-D42PT74EA

Ref. No. Parts No. Parts name & Description Remarks

TH-42PX70EA TH-D42PT74EA

7 TBX0E82501 TBX0E82503 POWER BUTTON PAVCCZ 11 TKKC5291 TKKC5302 PANEL LIGHT PAVCCZ 12 TKP0E21902 TKP0E21904 DOOR LID PAVCCZ

TKP0E22001 TKP0E22003 BOTTOM COVER PAVCCZ TKP0E22102 TKP0E22104 SHEET HOLDER LEFT PAVCCZ TKP0E22202 TKP0E22204 SHEET HOLDER RIGHT PAVCCZ

28 TQB0E0525A TQB0E0533A INSTRUCTION BOOK(GERMAN) PAVCCZ

TQB0E0525U ----- INSTRUCTION BOOK(ENGLISH) PAVCCZ 29 TTU0E0155 TTU0E0189 REAR COVER PAVCCZ 31 TXFKY01HNTD TXFKY01NSTD CABINET ASSY PAVCCZ 54 TXFBL01HNTD TXFBL01NSTD STAND BODY COMPLETE PAVCCZ 56 TXFBL03LPTU TXFBL03GUTJ SUPPORT METAL ASSY PAVCCZ
