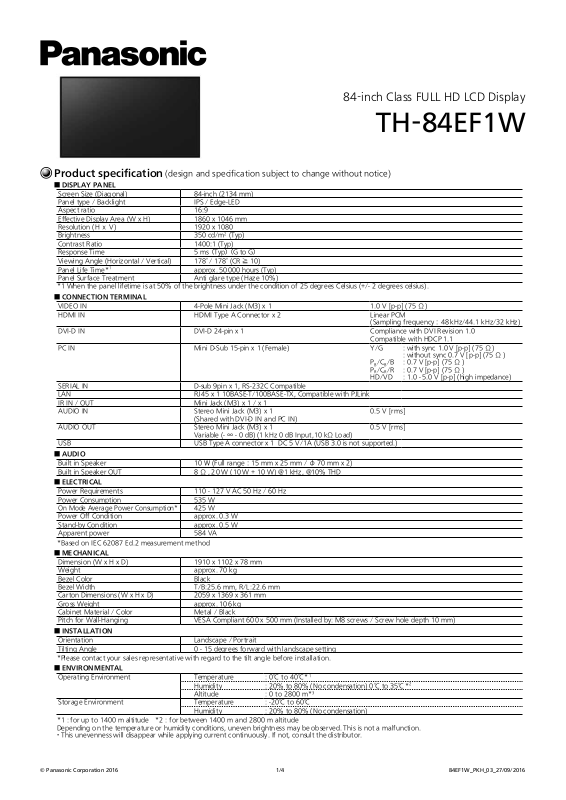

Page 1

84-inch Class FULL HD LCD Display

TH-84EF1W

(design and specification subject to change without notice)

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 84-inch (2134 mm) Panel type / Backlight IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 1860 x 1046 mm Resolution (H ｘ V) 1920 x 1080 Brightness 350 cd/m Contrast Ratio Response Time Viewing Angle (Horizontal / Vertical) Panel Life Time* Panel Surface Treatment Anti glare type (Haze 10%)

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■ CONNECTION TERMINAL

VIDEO IN 4-Pole Mini Jack (M3) x 1 1.0 V [p-p] (75 Ω ) HDMI IN HDMI Type A Connector x 2 Linear PCM

DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0

PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

SERIAL IN D-sub 9pin x 1, RS-232C Compatible LAN RJ45 x 1 10BASE-T/100BASE-TX, Compatible with PJLink　 IR IN / OUT Mini Jack (M3) x 1 / x 1 AUDIO IN Stereo Mini Jack (M3) x 1　

AUDIO OUT Stereo Mini Jack (M3) x 1　

USB USB Type A connector x 1 DC 5 V/1A (USB 3.0 is not supported.)

■ AUDIO

Built in Speaker 10 Ｗ (Full range： 15 mm x 25 mm / φ 70 mm x 2) Built in Speaker OUT 8 Ω , 20 W (10 W + 10 W) @1 kHz, @10% THD

■ ELECTRICAL

Power Requirements 110 - 127 V AC 50 Hz / 60 Hz Power Consumption 535 W On Mode Average Power Consumption* Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W Apparent power 584 VA

*Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimension (W x H x D) 1910 x 1102 x 78 mm Weight approx. 70 kg Bezel Color Black Bezel Width T/B:25.6 mm, R/L:22.6 mm Carton Dimensions (W x H x D) 2059 x 1369 x 361 mm Gross Weight approx. 106 kg Cabinet Material / Color Pitch for Wall-Hanging VESA Compliant 600 x 500 mm (Installed by: M8 screws / Screw hole depth 10 mm)

■ INSTALLATION

Orientation Landscape / Portrait Tilting Angle 0 - 15 degrees forward with landscape setting

*Please contact your sales representative with regard to the tilt angle before installation.

■ ENVIRONMENTAL

Operating Environment Temperature : 0℃ to 40℃*

Storage Environment Temperature : -20℃ to 60℃

*1 : for up to 1400 m altitude　*2 : for between 1400 m and 2800 m altitude Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・This unevenness will disappear while applying current continuously. If not, consult the distributor.

1400:1 (Typ) 5 ms （Typ）（G to G） 178°/ 178° (CR ≧ 10) approx. 50000 hours (Typ)

(Shared with DVI-D IN and PC IN)

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

425 W

Metal / Black

Humidity : 20% to 80% (No condensation) 0℃ to 35℃* Altitude : 0 to 2800 m*

Humidity : 20% to 80% (No condensation)

(Typ)

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Compatible with HDCP 1.1

P P HD/VD

0.5 V [rms]

: with sync 1.0 V [p-p] (75 Ω ) : without sync 0.7 V [p-p] (75 Ω ) : 0.7 V [p-p] (75 Ω )

B/CB

: 0.7 V [p-p] (75 Ω )

R/CR

: 1.0 - 5.0 V [p-p] (high impedance)

Page 2

84-inch Class FULL HD LCD Display

TH-84EF1W

MAIN FEATURE

Digital Zoom Yes Power ON Screen Delay Yes 1:1 Pixel mode Yes Auto setup Yes Screen Saver Yes PC Power Management Yes DVI-D Power Management Yes HDMI Power Management Yes Input Lock Yes Button Lock Yes Remote-control User Level Yes Input Search Yes USB Media Player* Data Cloning Yes Early Warning Software compatible

Multi Monitoring & Control Software compatible

Operating Time

*1 USB input has some restrictions. Please refer to operating

instructions for more information.

*2 In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.

Yes

16h / day

DIMENSIONS

184 184

1542

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS IEC60950-1

RADIATION REGULATIONS EN55032:2012+AC:2013

EU Deviation, BEAB approval, AS/NZS Deviation

(CLASS A) EN55022:2010 Class A EN55024:2010 EN61000-3-2:2014 EN61000-3-3:2013 AS/NZS CISPR32:2013 RCM Mark

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V

Operating distance approx. 7 m* Weight approx. 63 g

Dimemsions (W x H x D) 44 x 105 x 20.5 mm

*When operated directly in front of receptor.

(2 x AAA Size batteries)

including batteries

INCLUDED ACCESSORIES

- AC cord (2.0 m)　- Remote Control　- Batteries (AAA size) x 2

- Clamper x 3　- CD-ROM/User manual　- Operating instruction book

Cautions: This drawing is not a scale

Units : mm

1910

22.6 22.6

25.6 1860

Active area

1102

1046

Active area

25.6

CONNECTION TERMINAL

920

78 35

250

500

M8 Screw hole depth 10mm

600

* Specifications and appearance are subject to change without notice.

Page 3

84-inch Class FULL HD LCD Display

(MHz)

V：VIDEO R：D-sub RGB Y：YC

List of correspondence signals

The picture signal which can indicate a this machine is as it is the following table.

Correspondence signal

NTSC/NTSC4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM 720 x 576i 15.63 50.00 - V

525i (480i) 720 x 480 15.73 59.94 13.50 R/Y 625i (576i) 720 x 576i 15.63 50.00 13.50 R/Y 525i (480i) 720 (1440) x 480

625i (576i) 720 (1440) x 576 525p (480p) 720 x 483 31.47 59.94 27.00 R/Y/D/H 625p (576p) 720 x 576 31.25 50.00 27.00 R/Y/D/H

750 (720) /60p 1280 x 720 45.00 60.00 74.25 R/Y/D/H 750 (720) /50p 1280 x 720 37.50 50.00 74.25 R/Y/D/H

1125 (1080) /60i

1125 (1080) /50i 1920 x 1080i 28.13 50.00 74.25 R/Y/D/H

1125 (1080) /24p 1920 x 1080 27.00 24.00 74.25 R/Y/D/H

1125 (1080) /24PsF 1920 x 1080i 27.00 48.00 74.25 R/Y

1125 (1080) /25p 1920 x 1080 28.13 25.00 74.25 R/Y/D/H 1125 (1080) /30p 1920 x 1080 33.75 30.00 74.25 R/Y/D/H 1125 (1080) /60p 1920 x 1080 67.50 60.00 148.50 R/Y/D/H 1125 (1080) /50p 1920 x 1080 56.25 50.00 148.50 R/Y/D/H

640 x 400

640 x 480

800 x 600

832 x 624 832 x 624 49.72 74.55 57.28 R/Y/D/H 852 x 480 852 x 480 31.47 59.94 34.24 D/H

1024 x 768

1066 x 600 1066 x 600 37.64 59.94 53.00 D/H

1152 x 864

1152 x 870 1152 x 870 68.68 75.06 100.00 R/Y/D/H 1280 x 720 1280 x 720 44.76 60.00 74.48 R/Y/D/H

1280 x 768

1280 x 800

1280 x 960

1280 x1024

1360 x 768

1366 x 768

1400 x 1050

1440 x 900

1600 x 900

1680 x 1050 1680 x 1050 65.29 59.95 146.25 R/Y/D/H 1600 x 1200 1600 x 1200

1920 x 1080

1920 x 1200 1920 x 1200

Resolution

(dot)

720 x 480i 15.73 59.94 - V

i*2

1920 x 1080i 33.75 60.00 74.25 R/Y/D/H

640 x 400 31.47 70.09 25.18 R/Y/D/H 640 x 400 37.86 85.08 31.50 R/Y/D/H 640 x 480 31.47 59.94 25.18 R/Y/D/H 640 x 480 35.00 66.67 30.24 R/Y/D/H 640 x 480 37.86 72.81 31.50 R/Y/D/H 640 x 480 37.50 75.00 31.50 R/Y/D/H 640 x 480 43.27 85.01 36.00 R/Y/D/H 800 x 600 35.16 56.25 36.00 R/Y/D/H 800 x 600 37.88 60.32 40.00 R/Y/D/H 800 x 600 48.08 72.19 50.00 R/Y/D/H 800 x 600 46.88 75.00 49.50 R/Y/D/H 800 x 600 53.67 85.06 56.25 R/Y/D/H

1024 x 768 39.55 50.00 51.89 D/H 1024 x 768 48.36 60.00 65.00 R/Y/D/H 1024 x 768 56.48 70.07 75.00 R/Y/D/H 1024 x 768 60.02 75.03 78.75 R/Y/D/H 1024 x 768 65.55 81.63 86.00 R/Y/D/H 1024 x 768 68.68 85.00 94.50 R/Y/D/H

1152 x 864 53.70 60.00 81.62 D/H 1152 x 864 63.99 70.02 94.20 R/Y/D/H 1152 x 864 67.50 75.00 108.00 R/Y/D/H 1152 x 864 77.09 85.00 119.65 R/Y/D/H

1280 x 768 39.55 49.94 65.18 R/Y/D/H 1280 x 768 47.70 60.00 80.14 R/Y/D/H 1280 x 768 47.78 59.87 79.50 R/Y/D/H 1280 x 800 41.20 50.00 68.56 R/Y/D/H 1280 x 800 49.31 59.91 71.00 R/Y/D/H 1280 x 800 49.70 59.81 83.50 R/Y/D/H 1280 x 960 60.00 60.00 108.00 R/Y/D/H

1280 x 960 85.94 85.00 148.50 R/Y 1280 x 1024 63.98 60.02 108.00 R/Y/D/H 1280 x 1024 79.98 75.02 135.00 R/Y/D/H 1280 x 1024 91.15 85.02 157.50 R/Y/D/H

1360 x 768 47.71 60.02 85.50 D/H

1360 x 768 47.70 60.00 84.72 D/H

1360 x 768 47.72 59.80 84.75 D/H

1366 x 768 39.55 50.00 69.92 D/H

1366 x 768 48.39 60.03 86.71 R/Y/D/H

1366 x 768 48.00 60.00 72.00 R/Y/D/H

1366 x 768 39.56 49.89 69.00 R/Y/D/H

1366 x 768 47.71 59.79 85.50 R/Y/D/H 1400 x 1050 65.22 60.00 122.61 D/H 1400 x 1050 82.20 75.00 155.85 R/Y/D/H

1440 x 900 55.47 59.90 88.75 R/Y/D/H

1440 x 900 55.92 60.00 106.47 R/Y/D/H

1600 x 900 46.30 50.00 97.05 D/H

1600 x 900 60.00 60.00 108.00

1600 x 900 55.99 59.95 118.25 D/H

1600 x 900 55.92 60.00 119.00 D/H

1920 x 1080

1920 x 1080 67.50 60.00 148.50 R/Y/D/H

Horizontal(kHz) Vertical(Hz)

15.73 59.94 27.00 D/H

15.63 50.00 27.00 D/H

75.00 60.00 162.00 R/Y/D/H

66.59 59.93 138.50 R/Y/D/H

74.04 59.95 154.00 R/Y/D/H

Scan rate

Dot clock rate

TH-84EF1W

D：DVI-D

BCR

/YPBP

H：HDMI

Format

D/H

● The signal format distinguished automatically will be sometimes indication different from an actual input signal. *1: When 1125 (1035) /60i signal is input, it is displayed as 1125 (1080) /60i signal. *3: Displayed with image elements thinned out in the image processing circuit. *2: Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *4: Based on VESA CVT-RB (Reduced Blanking) standard

Page 4

84-inch Class FULL HD LCD Display

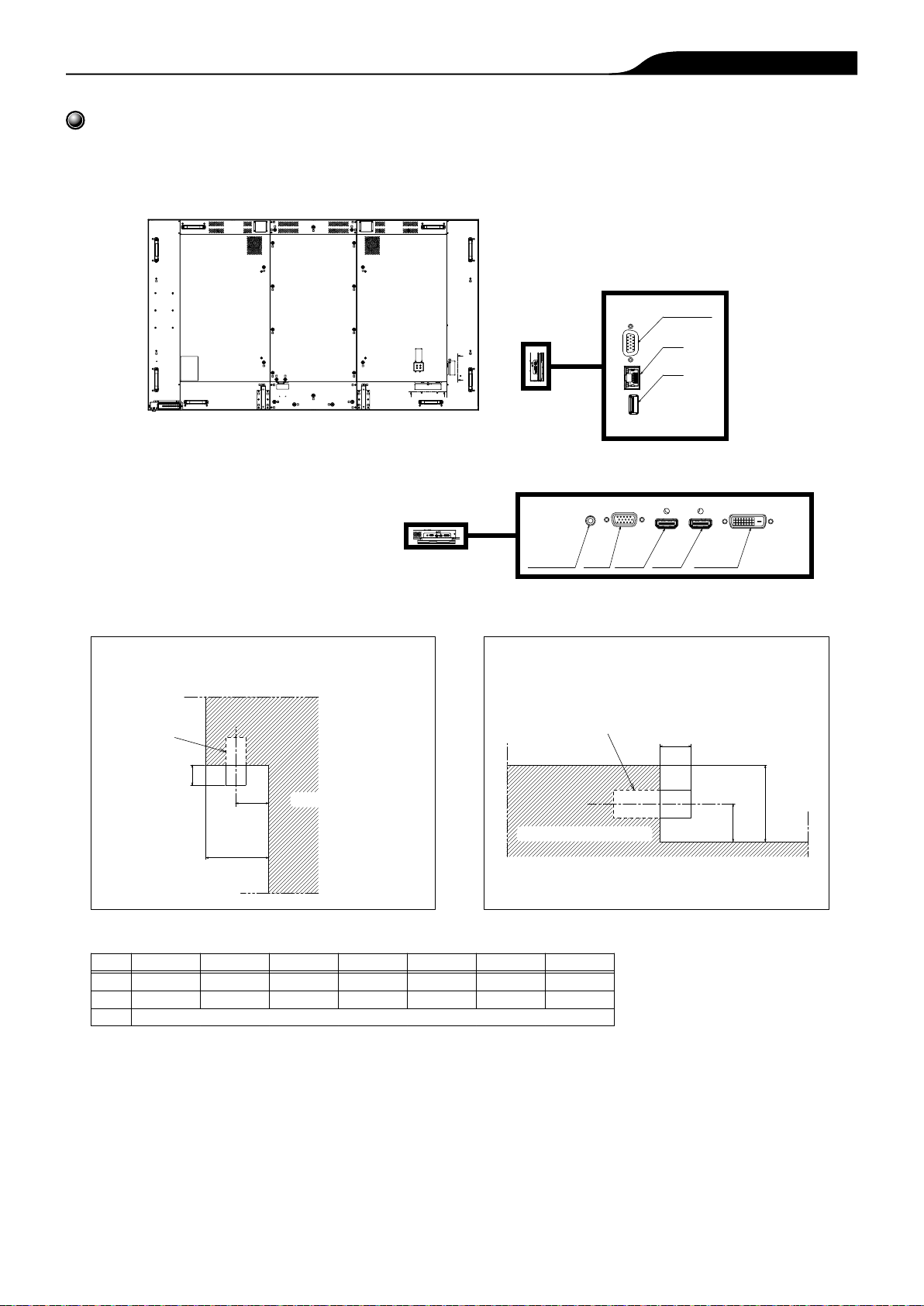

Drawing of terminals

View from back

Sectional view of A-A

A A

Magnified figure

of terminal b Sectional view

of B-B

SERIAL IN

LAN

USB

Magnified figure of terminal a

TH-84EF1W

PC IN

HDMI 1

Terminals

Sectional view of terminal a

（VIDEO IN / PC IN / HDMI / DVI-D IN）

Terminals

(on the product side)

VIDEO AV IN

Sectional view of terminal b

（USB/LAN/SERIAL）

(on the product side)

84EF1

PC INVIDEO AV IN DVI-D INHDMI

13.1 13.8

1.7 5.1

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to use connecting cable or USB memory device after confirmation in this drawing.

10.9 12.5 13.8 12.2 11.6 ｰ 5.6 ｰｰｰ

43.0

Units：mm

USBLANSERIAL IN

HDMI 2

DVI-D IN
