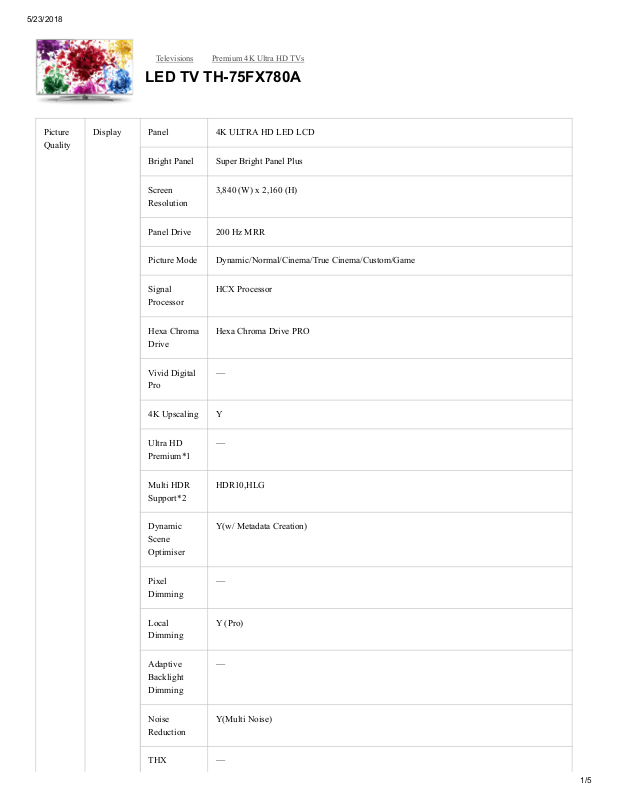

Televisions Premium 4K Ultra HD TVs
LED TV TH-75FX780A
Quality
Display Panel 4K ULTRA HD LED LCD
Bright Panel Super Bright Panel Plus
Screen
Resolution
3,840 (W) x 2,160 (H)
Panel Drive 200 Hz MRR
Picture Mode Dynamic/Normal/Cinema/True Cinema/Custom/Game
Signal
Processor
HCX Processor
Hexa Chroma
Drive
Hexa Chroma Drive PRO
Vivid Digital
Pro
—
4K Upscaling Y
Ultra HD
Premium*1
—
Multi HDR
Support*2
HDR10,HLG
Dynamic
Scene
Optimiser
Y(w/ Metadata Creation)
Pixel
Dimming
—
Local
Dimming
Y (Pro)
Adaptive
Backlight
Dimming
—
Noise
Reduction
Y(Multi Noise)
THX —
1/5
Page 2
5/23/2018
Certified
Display*3
4K Pure
Direct
Y
isf Mode —
Sound
Quality
Surround Cinema Surround
Speakers Box Bottom (Full Range) x 2
Speaker
Output
20 W (10 W x 2)
Sound Mode Standard/Music/Speech/Stadium/User
Smart
Features
Smart TV Y
my Home Screen Y (3.0)
Voice
Interaction
Voice
Interaction
Y
Voice
Guidance
Y
EPG SI, 7 days
On Screen Display Menu
Languages
English / Chinese (Simplified)
Unique Processing Engine Quad-Core Pro
Wireless LAN Built-in Y
Panasonic
Media
Center
(App)
Panasonic
Media Center
(App)
Y
TV
Anytime*4
Y
USB-HDD Recording Y
Panasonic
TV
Remote
Apps
Panasonic TV
Remote Apps
Y
Swipe &
Share
Y
Smart —
2/5
Page 3
5/23/2018
Calibration
Internet
Apps
Internet Apps Y
Web
Browser*5
Y
Hbb TV Y
Mirroring Y (Easy)
DLNA*6 Y (DMP/DMR/DMS)
Bluetooth*7 Y (Keyboard/Mouse/Audio Device)
Bluetooth Audio Link Y
Media
Player
Media Player Y (2.0 *8)
Support
Format
AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA
Pro/FLAC/Apple Lossless/WAV, JPEG
Double USB Sharing Y
Teletext Reception 1500P
Multi Window 2T PAP/PIP/PAT
Hotel Mode Y
VIERA Link Y
Energy Data Visible
Screen Size
(diagonal)
189 cm
Rated Power
Consumption
1.05A
Power Supply AC 220 - 240 V, 50/60 Hz
Ambient
Sensor
Y
Design Design
Concept
Art & Interior Glass
Terminal Twin HD Tuner Y
Digital Tuner Reception DVB-T
Analogue Tuner 4-System (PAL/NTSC/M-NTSC/PAL-60)
3/5
Page 4
5/23/2018
HDMI HDMI*9 2 (side), 2 (rear)
HDMI (4K
60/50p with
HDCP2.2)
4
Support
Feature
Audio Return Channel (Input 2)
USB 3 (1 side, 2 rear; USB 3.0 x 1, USB 2.0 x 2)
LAN Port 1
SD Card —
Component Video Input
shared with Composite
RCA phono type x 1 (rear)
Composite Video Input RCA phono type x 1 (rear)
Digital Audio Output
(Optical)
1 (rear)
Analogue Audio Output —
Headphone Output 1 (side)
GENERAL Included
Accessory*10
TV Remote
Dimensions
(W x H x D)
(w/o stand)
1680 x 966 x 70 mm
Dimensions
(W x H x D)
(with
stand)*11
1680 x 1046 x 413 mm
Weight (w/o
stand)
54.0 kg
Weight (with
stand)
62.5 kg
VESA
Compatible
Y
NOTE *1 Ultra HD PremiumTM logo is a trademark of the UHD Alliance, Inc. *2 All models:
Supporting HDR does not increase the peak brightness capabilities of the TV panel. Full HD &
HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback
device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR. The
4/5
Page 5
5/23/2018
HDMI input on Full HD & HD TV models support HDCP1.4 only; accordingly not all HDR
contents are guaranteed on full HD & HD TV models. *3 THX and the THX logo are
trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a
trademark of THX Ltd. All rights reserved. *4 Due to network conditions or certain broadcaster
restrictions, this function may not be available. *5 The Web Browser cannot display some web
pages correctly. And viewable contents by VIERA Web Browser are subject to the following
conditions; - viewable contents may vary depend on models, - viewable contents may differ
from those for PC, - viewable contents may be limited. *6 DLNA, the DLNA Logo and DLNA
CERTIFIED are trademarks, service marks, or certification marks of the Digital Living
Network Alliance. *7 HID (Human Interface Device Profile) compliant keyboards are
available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by Panasonic Corporation is under license. *8 To playback HDR, a HDR source is
required (H.264 or H.265(ST2084 or HLG format). *9 The terms HDMI and HDMI High-
Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing, LLC in the United States and other countries. *10 Not all the accessories
are listed here. *11 Dimension with recommended pedestal style.
