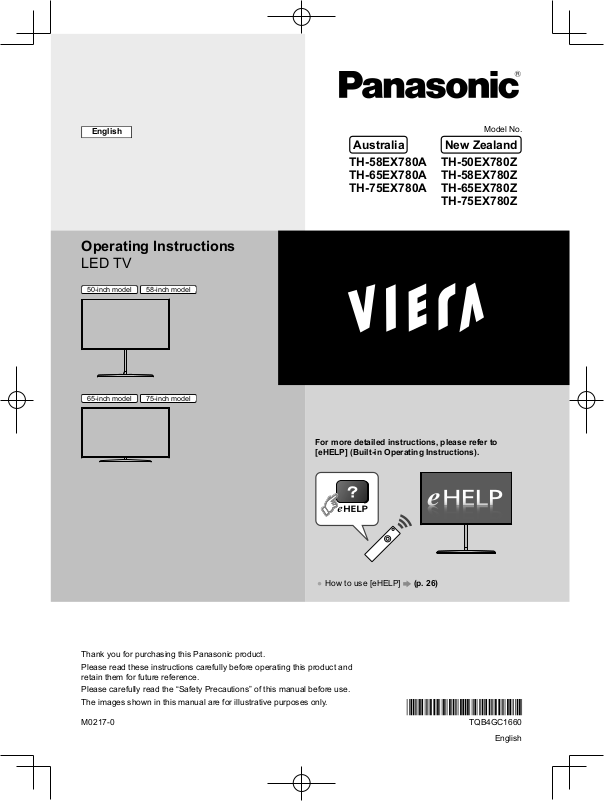

Page 1
English
Operating Instructions
LED TV
50-inch model 58-inch model
65-inch model 75-inch model
Model No.
Australia
New Zealand
TH-58EX780A TH-50EX780Z
TH-65EX780A
TH-58EX780Z
TH-75EX780A TH-65EX780Z
TH-75EX780Z
For more detailed instructions, please refer to
[eHELP] (Built-in Operating Instructions).
●
How to use [eHELP]
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the “Safety Precautions” of this manual before use.
The images shown in this manual are for illustrative purposes only.
M0217-0
(p. 26)
TQB4GC1660
English
Page 2
●
For information about the trademarks, refer to
[eHELP] (Search by Purpose > Read first > Before
use > Licence).
The illustration for TH-58EX780A is used in this
manual unless otherwise mentioned.
Illustrations shown may be different between models
and countries.
Contents
Be Sure to Read
Important Notice··················································· 3
Safety Precautions ··············································· 3
Quick Start Guide
Accessories ························································ 6
Connections ·······················································16

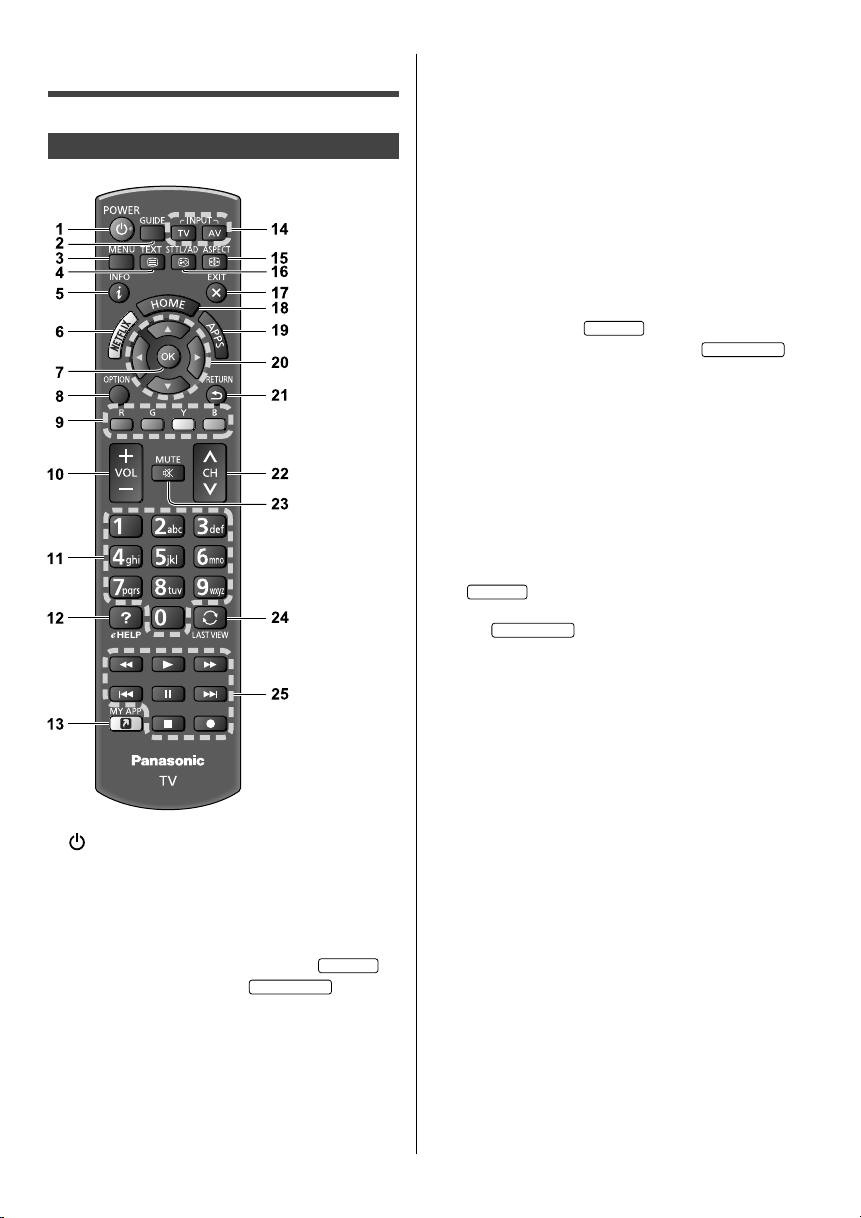

Identifying Controls ··············································23
First time Auto Tuning···········································25
Using your VIERA

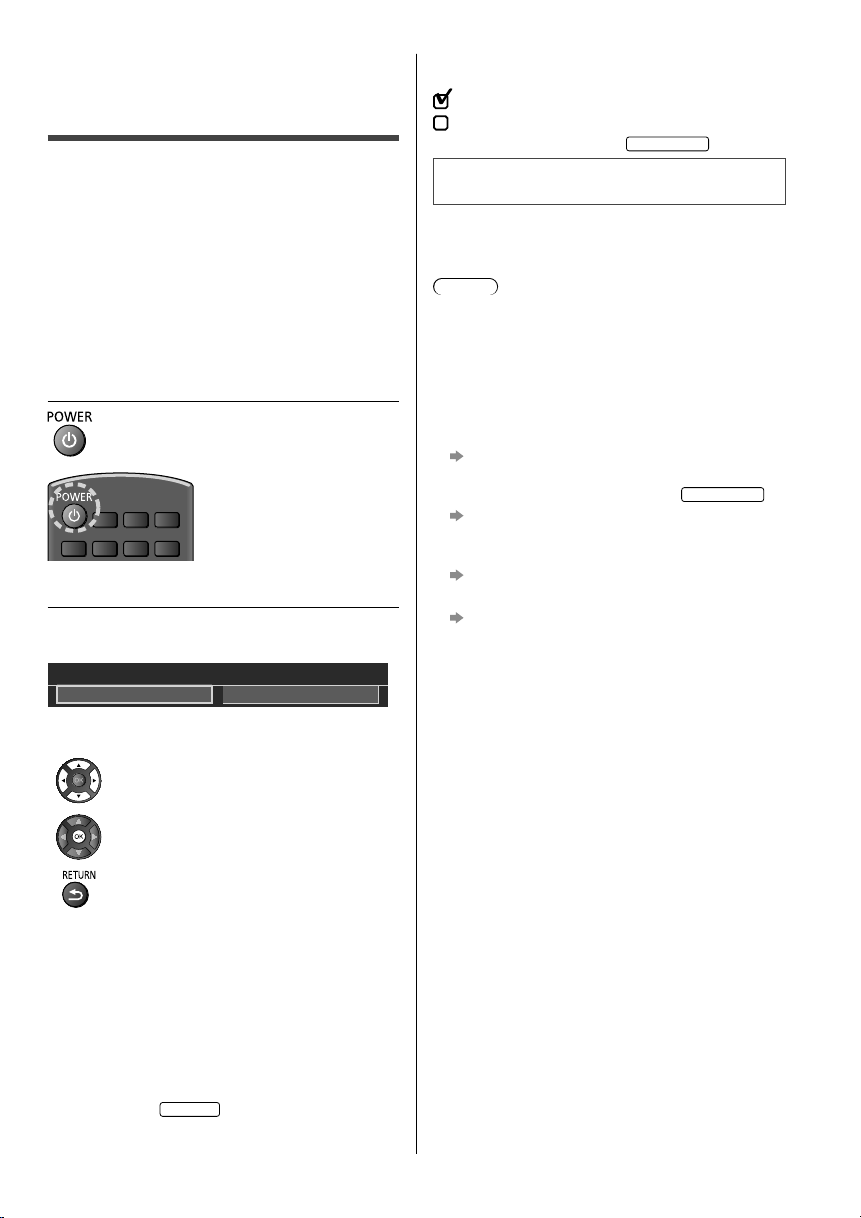

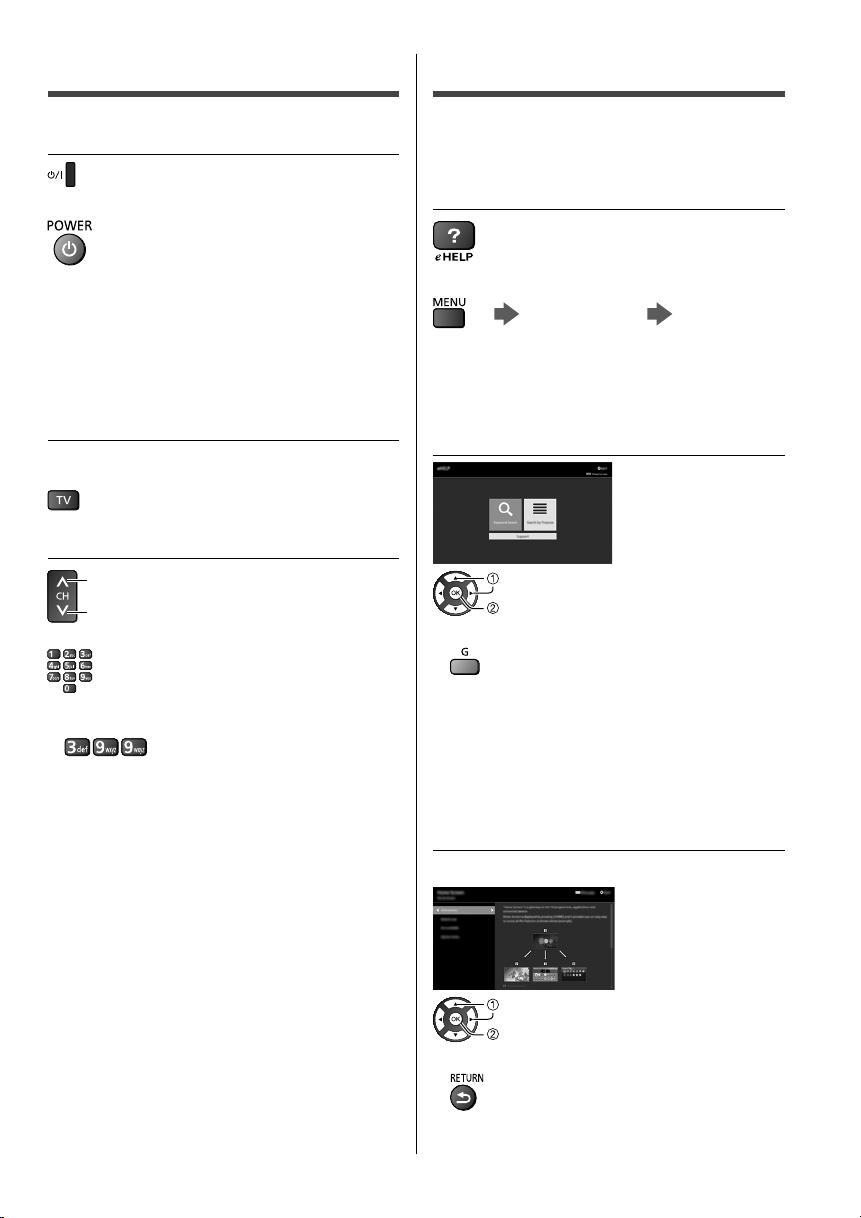

Watching TV·······················································26
How to Use eHELP ··············································26
Viewing 3D images ··············································27
Others
FAQs ································································29
Maintenance ······················································30
Specifications ·····················································30
English
2
Page 3
Important Notice
Safety Precautions
Panasonic does not guarantee operation and
performance of peripheral devices made by other
manufacturers; and we disclaim any liability or damage
arising from operation and/or performance from usage of
such other maker’s peripheral devices.
The recording and playback of content on this or any
other device may require permission from the owner
of the copyright or other such rights in that content.
Panasonic has no authority to and does not grant
you that permission and explicitly disclaims any right,
ability or intention to obtain such permission on your
behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable
copyright legislation in your country. Please refer to that
legislation for more information on the relevant laws and
regulations involved or contact the owner of the rights in
the content you wish to record or playback.
This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the
AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in
a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any
other use.
Additional information may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com.
Panasonic and its affiliates make no representations or
warranties of any kind with respect to the USB devices
and the performance of communication between the
USB devices and the USB port of Panasonic products,
and expressly disclaims any and all warranties, whether
express or implied or otherwise, including without
limitation any implied warranty of fitness for a particular
purpose, any loss of data, and any implied warranties
arising from course of dealing or course of performance
of data communication between the USB devices and
the USB port of Panasonic products.
Transport only in upright position.
To help avoid risk of electrical shock, fire, damage or
injury, please follow the warnings and cautions below:
■ Mains plug and lead
Warning
If you detect anything unusual,
immediately remove the mains
plug.
●
This TV is designed to operate on AC 220-240 V,
50 / 60 Hz.
●
Insert the mains plug fully into the mains socket.
●
To turn Off the apparatus completely, you must pull
the mains plug out of the mains socket. Consequently,
the mains plug should be easily accessible at all
times.
●
Disconnect the mains plug when cleaning the TV.
●
Do not touch the mains plug with wet
hands.
●
Do not damage the mains lead.
Do not place a heavy
•
object on the lead.
Do not place the lead near
•
a high temperature object.
Do not pull on the lead.
•
Hold onto the mains plug
body when disconnecting
the plug.
Do not move the TV with the lead plugged into a
•
mains socket.
Do not twist the lead, bend it excessively or stretch
•
it.
Do not use a damaged mains plug or mains
•
socket.
Ensure the TV does not crush the mains lead.
•
This mark shows that the construction of the product is
double-insulated.
This mark indicates the product operates under AC
voltage.
English
3
Page 4
■ Take care
Warning
●
Do not remove covers and never
modify the TV yourself as live
parts are accessible and risk
of electric shock when they are
removed. There are no user
serviceable parts inside.
●
Do not expose the TV to rain
or excessive moisture. This
TV must not be exposed to
dripping or splashing water
and objects filled with liquid,
such as vases, must not be
placed on top of or above
the TV.
●
Do not insert foreign objects into the TV through the
air vents.
●
If the TV is used in an area where insects may easily
enter the TV.
It is possible for insects to enter the TV, such as small
flies, spiders, ants, etc. which may cause damage to
the TV or become trapped in an area visible on the
TV, e.g. within the screen.
●
Do not use an unapproved pedestal / mounting
equipment. Be sure to ask your local Panasonic
dealer to perform the setup or installation of approved
wall-hanging brackets.
●
Do not apply any strong force or impact to the display
panel.
●
Ensure that children do not climb on the TV.
●
Do not place the TV on sloping
or unstable surfaces, and
ensure that the TV does not
hang over the edge of the
base.
Important information
If the TV is not positioned in a sufficiently stable
location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
Using cabinets or stands recommended by the
•
manufacturer of the TV.
Only using furniture that can safely support the
•
TV.
Ensuring the TV is not overhanging the edge of
•
the supporting furniture.
Not placing the TV on tall furniture (for example,
•
cupboards or bookcases) without anchoring
both the furniture and the TV to a suitable
support.
Not standing the TV on cloth or other materials
•
placed between the TV and supporting furniture.
Educating children about the dangers of
•
climbing on furniture to reach the TV or its
controls.
●
This TV is designed for indoor use.
●
Do not expose the TV to direct
sunlight and other sources of
heat.
To prevent the
spread of fire, keep
candles or other
open flames away
from this product at
all times
■ Suffocation / Choking Hazard
Warning
●
The packaging of this product may cause suffocation,
and some of the parts are small and may present a
choking hazard to young children. Keep these parts
out of reach of young children.

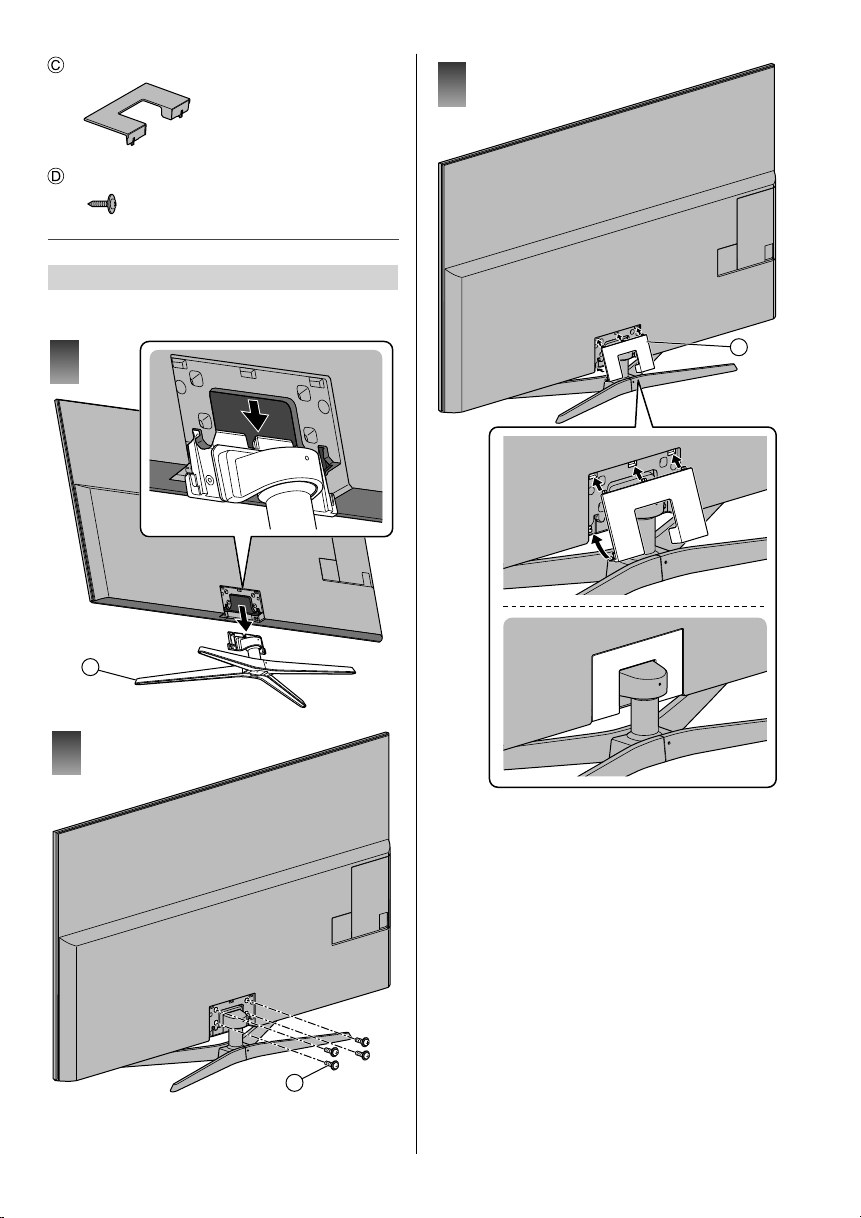

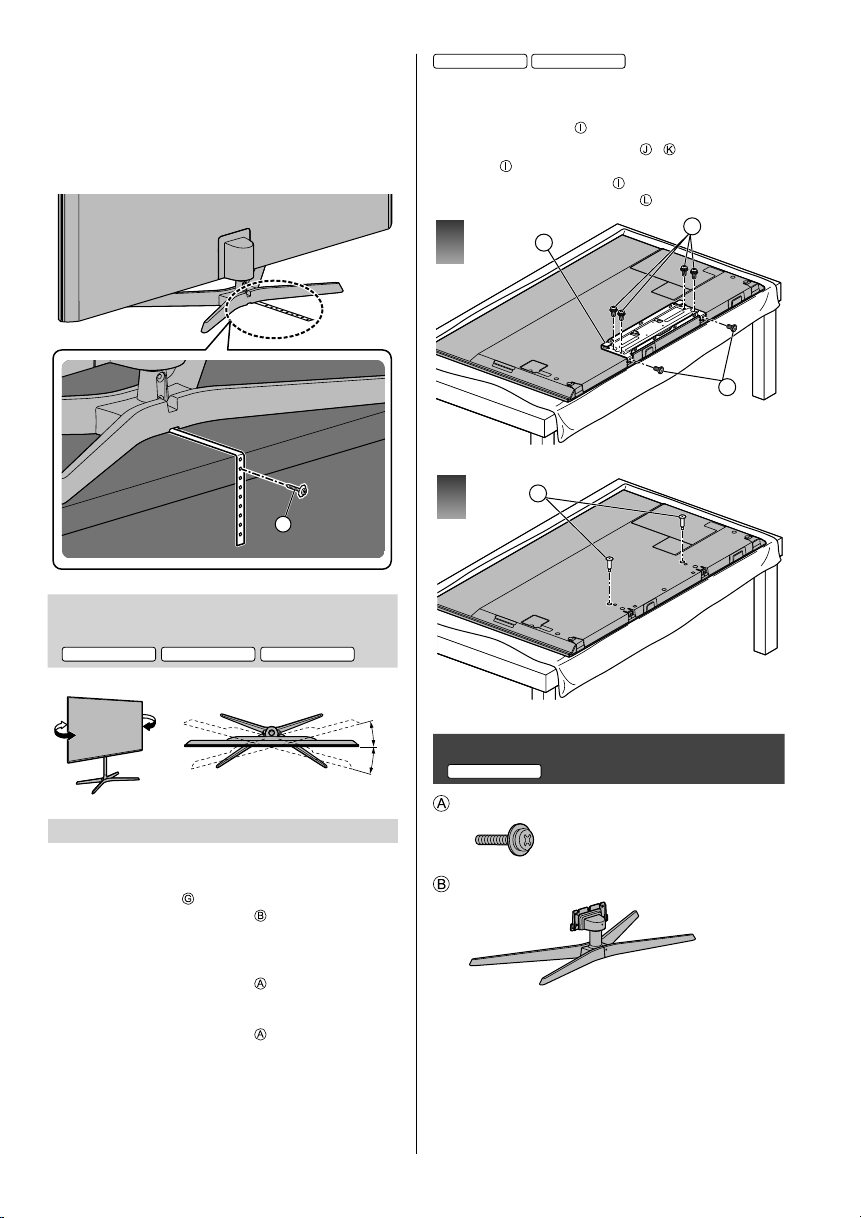

■ Pedestal
Warning
●
Do not disassemble or modify the pedestal.
Caution
●
Do not use any pedestal other than the one provided
with this TV.
●
Do not use the pedestal if it becomes warped or
physically damaged. If this occurs, contact your
nearest Panasonic dealer immediately.
●
During setup, make sure that all screws are securely
tightened.
●
Ensure that the TV does not suffer any impact during
installation of the pedestal.
●
Ensure that children do not climb onto the pedestal.
●
Install or remove the TV from the pedestal with at
least two people.
●
Install or remove the TV according to the specified
procedure.
■ Radio waves
Warning
●
Do not use the TV in any medical institutions or
locations with medical equipment. Radio waves may
interfere with the medical equipment and may cause
accidents due to malfunction.
●
Do not use the TV near any automatic control
equipment such as automatic doors or fire alarms.
Radio waves may interfere with the automatic
control equipment and may cause accidents due to
malfunction.
●
Keep at least 15 cm away from the TV if you have a
cardiac pacemaker. Radio waves may interfere with
the operation of the pacemaker.
●
Do not disassemble or alter the TV in any way.
4
English
Page 5
■ Built-in wireless LAN
Caution
●
Do not use the built-in wireless LAN to connect to any
wireless network (SSID*) for which you do not have
usage rights. Such networks may be listed as a result
of searches. However, using them may be regarded
as illegal access.
* SSID is a name for identifying a particular wireless
network for transmission.
●
Do not subject the built-in wireless LAN to high
temperatures, direct sunlight or moisture.
●
Data transmitted and received over radio waves may
be intercepted and monitored.
●
The built-in wireless LAN uses 2.4 GHz and 5 GHz
frequency bands. To avoid malfunctions or slow
response caused by radio wave interference when
using the built-in wireless LAN, keep the TV away
from other devices that use 2.4 GHz and 5 GHz
signals such as other wireless LAN devices,
microwave ovens, and mobile phones.
●
When problems occur due to static electricity, etc., the
TV might stop operating to protect itself. In this case,
turn the TV off at the Mains power On / Off switch,
then turn it back on.
■ Bluetooth
Caution
●
The TV uses the 2.4 GHz radio frequency ISM band
(Bluetooth®). To avoid malfunctions or slow response
caused by radio wave interference, keep the TV away
from the devices such as other wireless LAN devices,
other Bluetooth devices, microwaves, mobile phones
and the devices that use 2.4 GHz signal.
®
wireless technology
■ Ventilation
Caution
Allow sufficient space (at least 10 cm) around the TV in
order to help prevent excessive heat, which could lead
to early failure of some electronic components.
10
10
●
Ventilation should not be
impeded by covering the
ventilation openings with
items such as newspapers,
tablecloths and curtains.
●
Whether you are using a pedestal or not, always
ensure the vents at the bottom of the TV are not
blocked and there is sufficient space to enable
adequate ventilation.
10
10
(cm)
■ Moving the TV
Caution
Before moving the TV, disconnect all cables.
●
At least two people are required to move the TV.
Support the TV as shown below to prevent injury that
may be caused by the tipping or falling of TV.
■ When not in use for a long time
Caution
This TV will still consume some power even in the Off
mode, as long as the mains plug is still connected to a
live mains socket.
●
Remove the mains plug from the wall socket when
the TV is not in use for a prolonged period of time.
■ Excessive volume
Caution
●
Do not expose your ears to
excessive volume from the
headphones. Irreversible
damage can be caused.
●
If you hear a drumming noise in your ears, turn down
the volume or temporarily stop using the headphones.
■ Battery for the Remote Control
Caution
●
Incorrect installation may cause battery leakage,
corrosion and explosion.
●
Replace only with the same or equivalent type.
●
Do not mix old and new batteries.
●
Do not mix different battery types (such as alkaline
and manganese batteries).
●
Do not use rechargeable batteries (Ni-Cd, etc.).
●
Do not burn or break up batteries.
●
Do not expose batteries to excessive heat such as
sunshine, fire or the like.
●
Make sure you dispose of batteries correctly.
●
Remove the battery from the unit when not using for
a prolonged period of time to prevent battery leakage,
corrosion and explosion.
English
5
Page 6
■ Viewing 3D Images
Caution
●
Pay special attention when children are viewing 3D
images. 3D images should not be viewed by children
younger than about 6 years old, as a guideline.
All children must be fully supervised by parents or
guardians who must ensure their safety and health
while they are viewing 3D images.
●
Stop viewing 3D images immediately if you feel tired,
feel unwell, experience any other uncomfortable
sensation or clearly see double images. Take an
appropriate break before continuing to view. When
you set the 3D effect by using [3D Adjustment], take
into account that the vision of 3D images varies
among different individuals.
●
Do not view 3D images if you have a history of
oversensitivity to light, heart problems or any other
medical conditions.
●
When viewing 3D images, your sense of distance
may be tricked or go wrong. Be careful not to hit the
TV screen or other people unintentionally. Ensure
there are no breakable objects around you to avoid
any accidental damage or injury.
●
The recommended viewing distance is at least
3 times of the image height. Do not view 3D images
from a distance shorter than recommended.
Accessories
Standard accessories
Remote Control
(p. 23)
●
N2QAYB001119
or N2QAYB001133
Pedestal
50-inch model 58-inch model 65-inch model
(p. 7)
75-inch model
(p. 14)

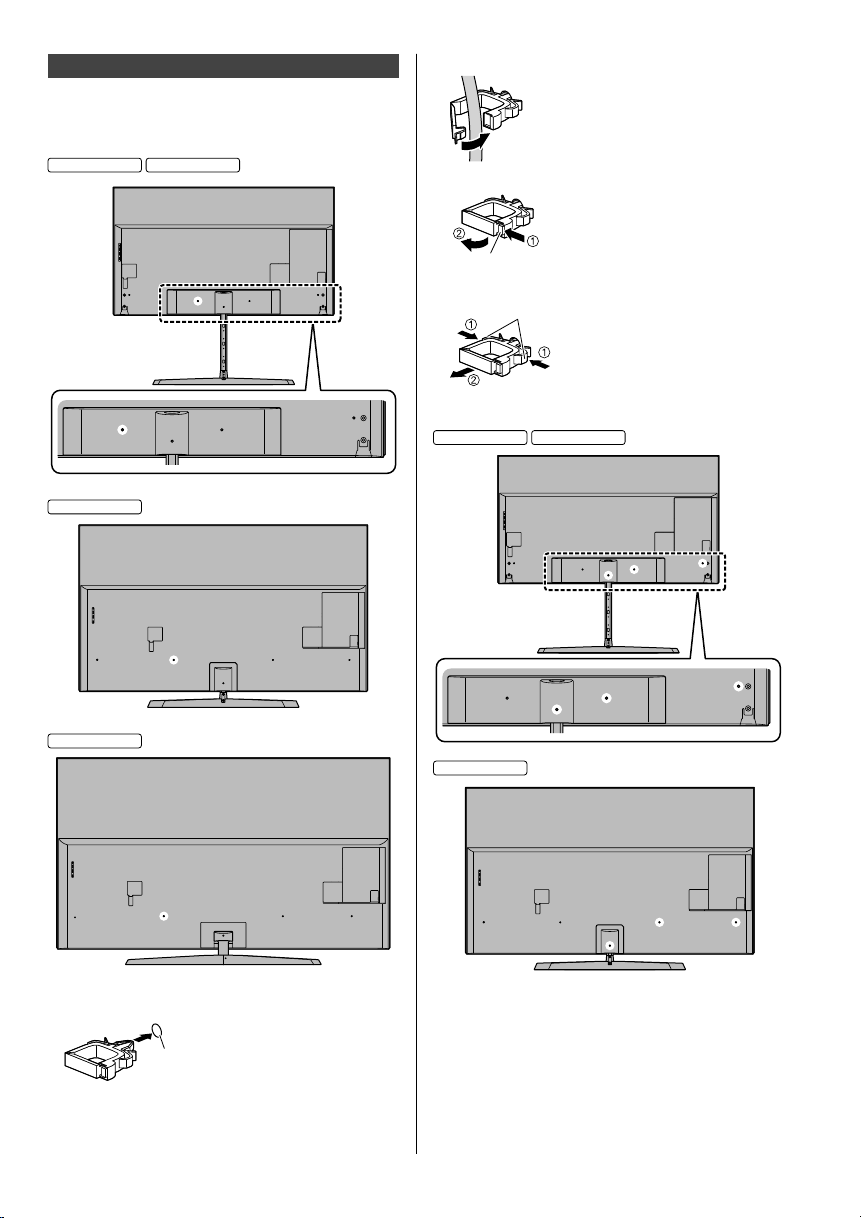

Cable clamp
(p. 20)
50-inch model 58-inch model 65-inch model

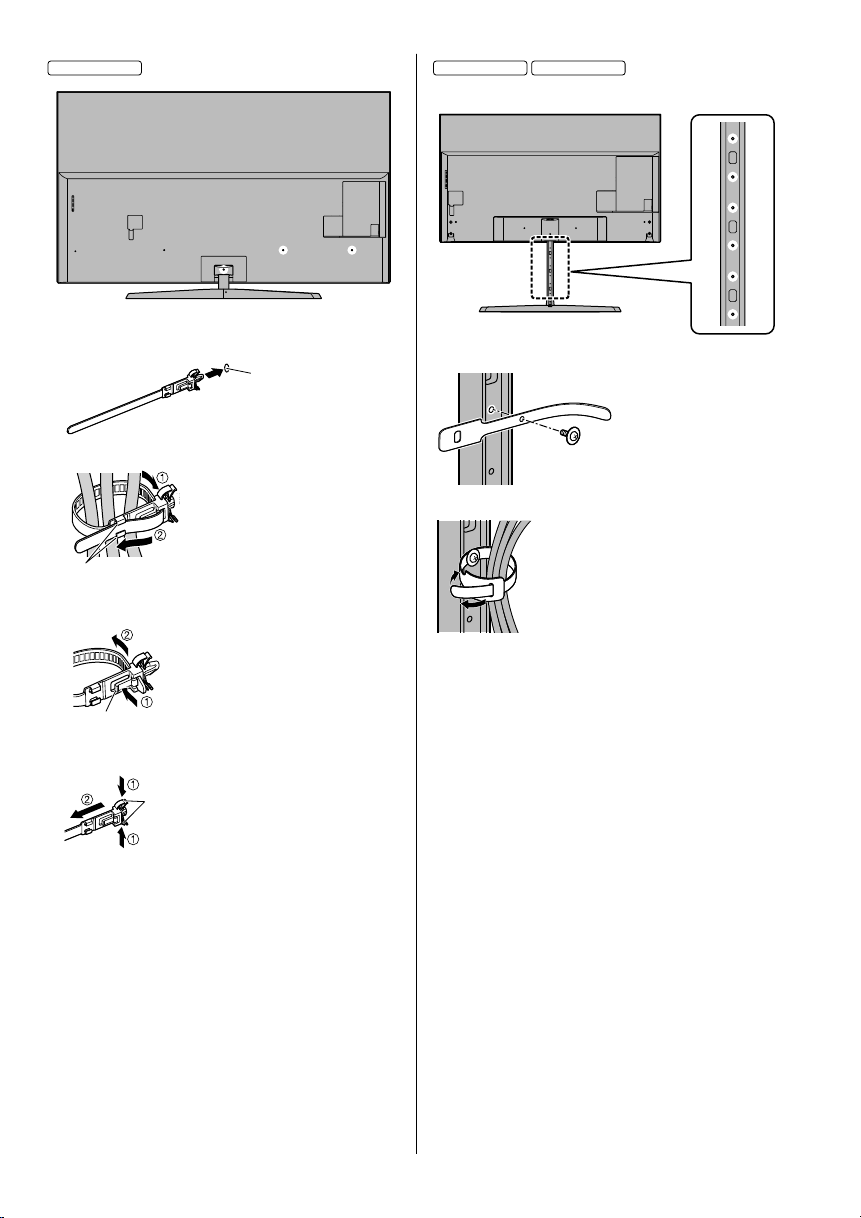

Cable tie (3)
(p. 20)
75-inch model
Cable tie (4)
(p. 20)
50-inch model 58-inch model
Cable band (2)
(p. 21)
Assembly screw (2)
M4 × 5.5

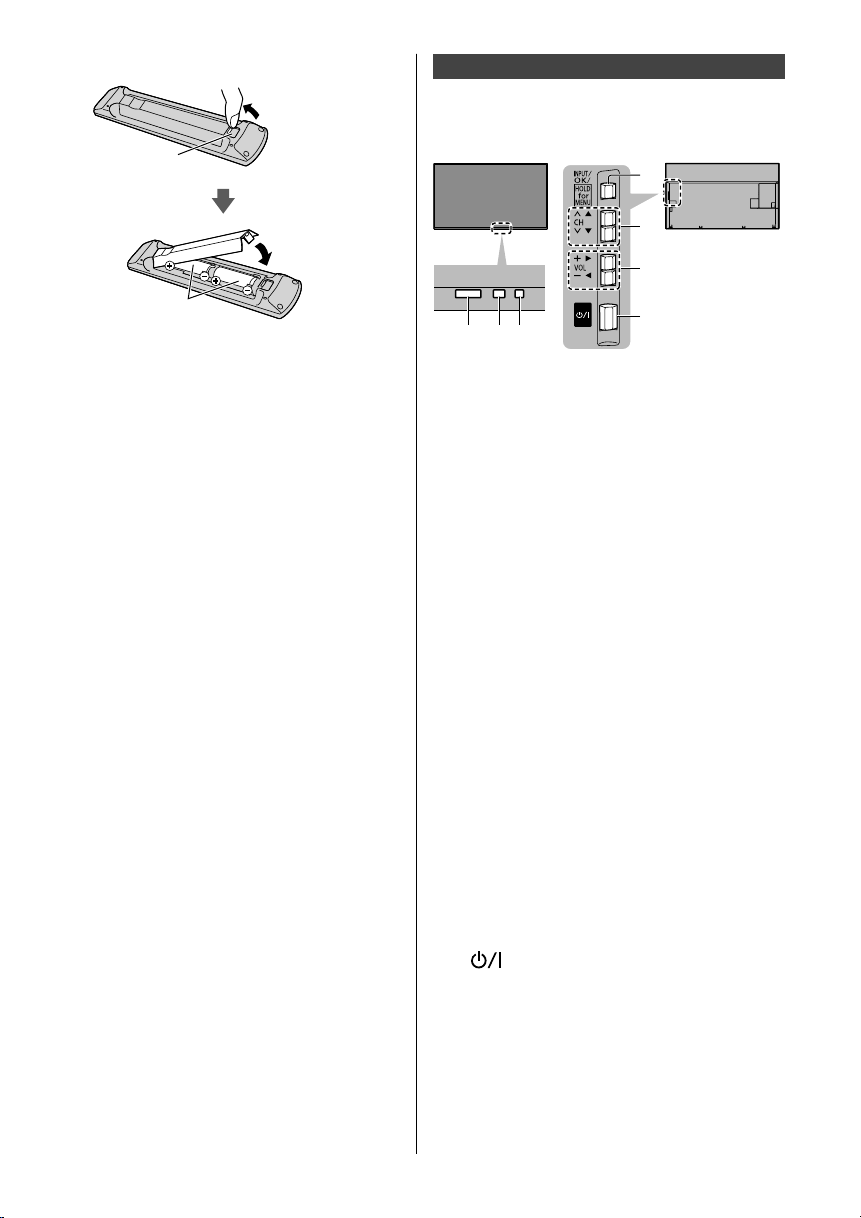

Batteries (2)
●
R6
(p. 24)
Operating Instructions with
Warranty statement
6
English
Page 7
Fall-prevention parts
50-inch model 58-inch model
(p. 11)
65-inch model
(p. 14)
75-inch model
(p. 16)
●
The fall-prevention band is fixed to the pedestal with
tapes.
●
Accessories may not be placed all together. Take care
not to throw them away unintentionally.
Optional accessories
3D Eyewear
●
If you need 3D Eyewear, please purchase Panasonic
optional accessories.
●
Use Panasonic 3D Eyewear supporting Bluetooth
wireless technology for active shutter 3D.
●
For information about 3D Eyewear:
http://panasonic.jp/support/global/cs/tv/
Support bracket
Base
Cover
50-inch model 58-inch model
65-inch model
Assembling / Removing the pedestal
50-inch model 58-inch model 65-inch model
Assembly screw (10)
Assembly screw (2)
Main bracket
Pole
50-inch model 58-inch model
65-inch model
M4 × 12 (mm)
M5 × 15 (mm)
Wood screw
English
7
Page 8
About the pedestal height
50-inch model 58-inch model
●
Select a pedestal height from the following 4 types.
●
The pedestal height can be changed according to
step 2 in “Assembling the pedestal”. (p. 9)
●
For each dimension, refer to “Specifications”. (p. 30)
High
Preparations
Take out the pedestal and the TV from the packing case
and put the TV onto a work table with the screen panel
down on the clean and soft cloth (blanket, etc.)
●
Use a flat and firm table bigger than the TV.
●
Do not hold the screen panel part.
●
Make sure not to scratch or break the TV.

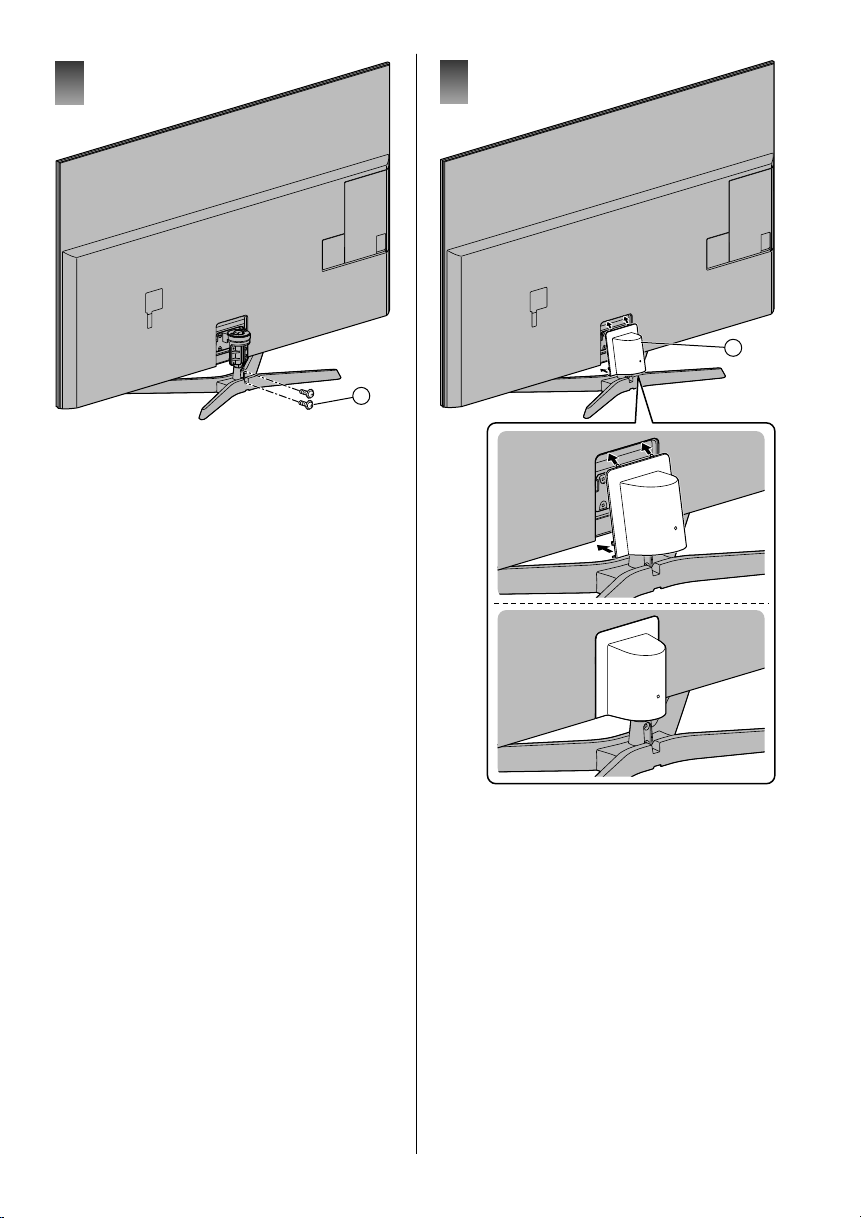

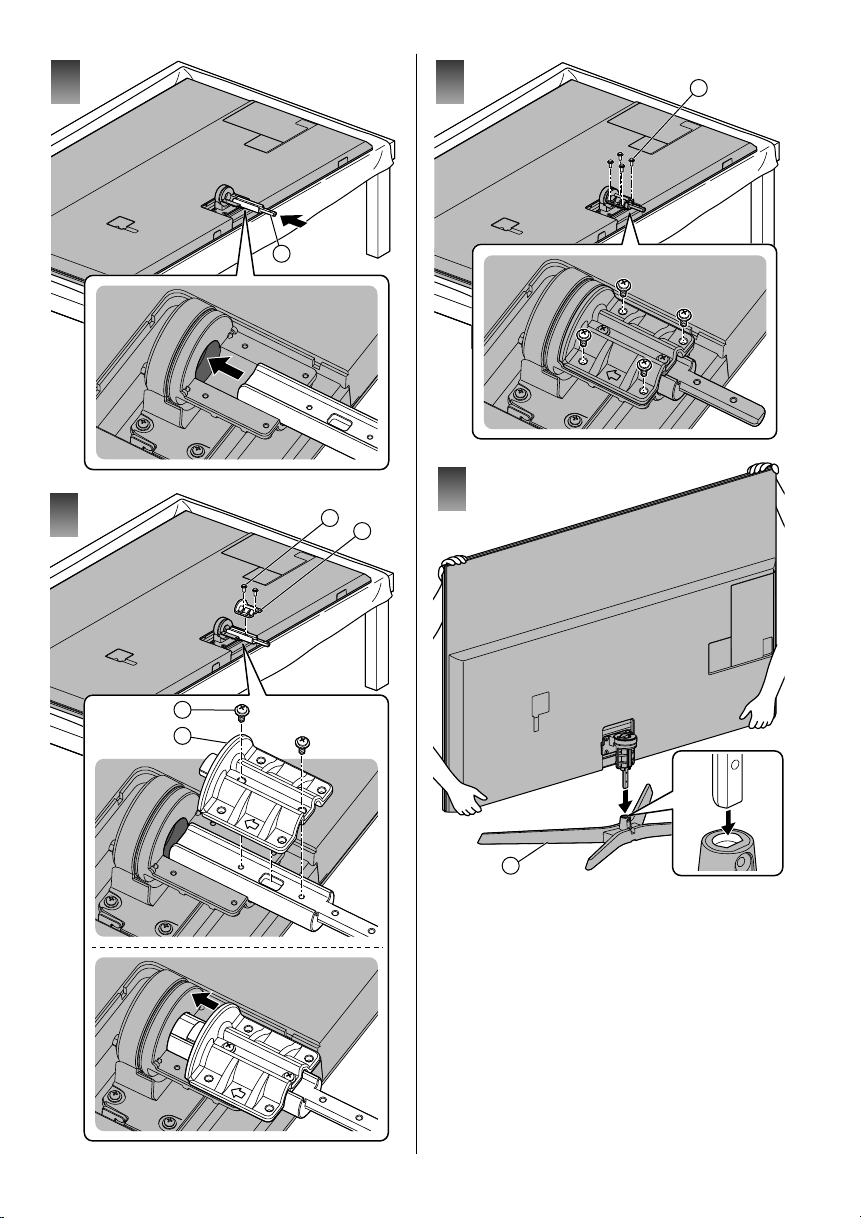

Assembling the pedestal
50-inch model 58-inch model
●
Do not remove the tapes fixing the fall-prevention
band until the installation is completed.
1
A
C
8
Low
English
Page 9
2
3
A
E
High
D
4
A
E
D
A
Low
English
9
Page 10
5
F
7
G
6
10
English
B
Page 11
■ To change the height
Be sure to perform the following procedures when you
change the height after assembling the pedestal.
1
Remove the cover
2
Remove the assembly screws from the base.
3 Lift the TV and pull out the pole from the base.
4 Put the TV onto a work table with the screen panel
down on the clean and soft cloth.
5
Remove the assembly screws
bracket.
6 Pull out the pole from the main bracket.
7 Remove the support bracket.
8 Change the height. (p. 9)
9
Use the assembly screws
bracket
10 Assemble the pedestal according to steps 2 to 5 in
“Assembling the pedestal”. (p. 8)
to the pole securely.
.
from the support
to fasten the support

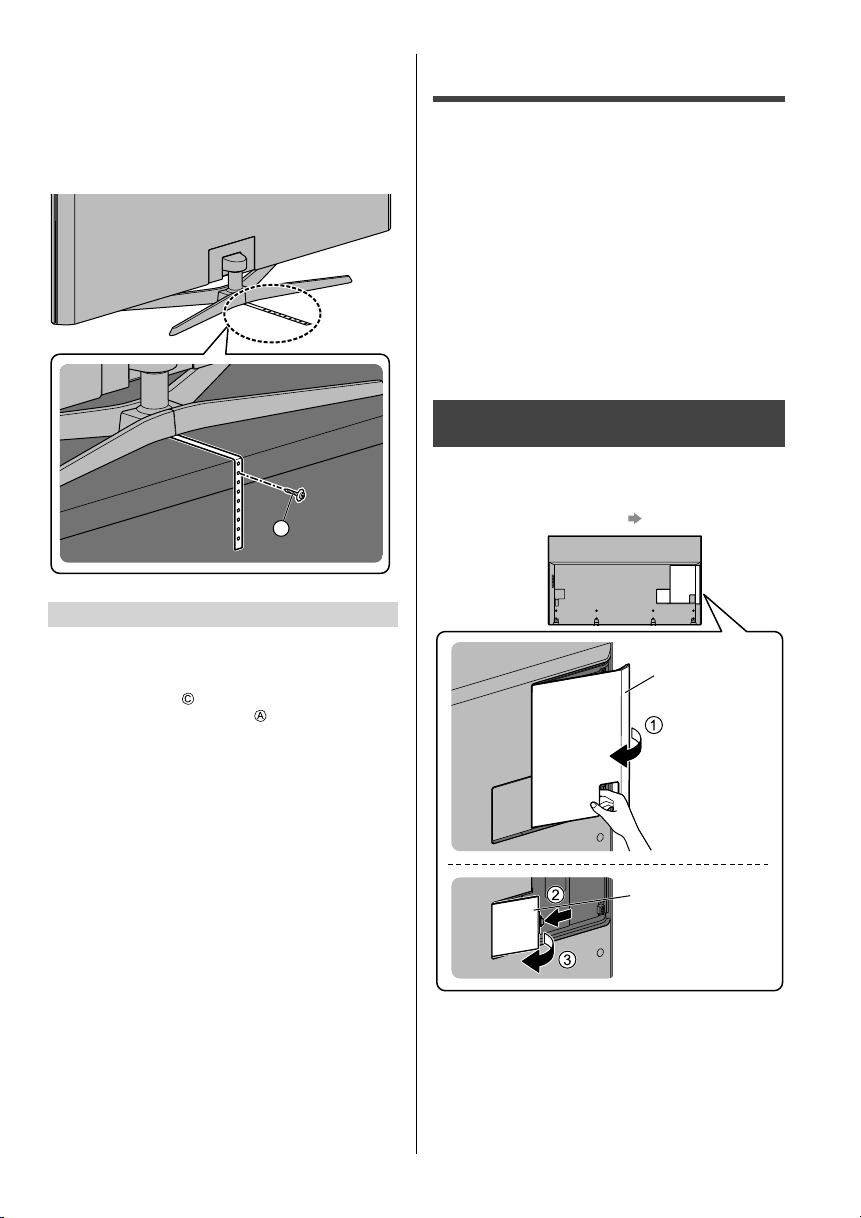

■ Preventing the TV from falling over
It is recommended to secure the pedestal to a furniture
as shown to prevent the TV from falling over.
●
This information is designed to reduce the risk of
injuries caused by the TV falling over. However, no
measure can guarantee protection in all cases.
Remove the tapes fixing the fall-prevention bands.
Assembling the pedestal
65-inch model
●
Do not remove the tapes fixing the fall-prevention
band until the installation is completed.
1
A
C
H
English
11
Page 12
2
D
4
A
5
3
A
E
12
English
A
E
F
Page 13
6
B
7
G
English
13
Page 14
■ Preventing the TV from falling over
It is recommended to secure the pedestal to a furniture
as shown to prevent the TV from falling over.
●
This information is designed to reduce the risk of
injuries caused by the TV falling over. However, no
measure can guarantee protection in all cases.
Remove the tapes fixing the fall-prevention bands.
50-inch model 58-inch model

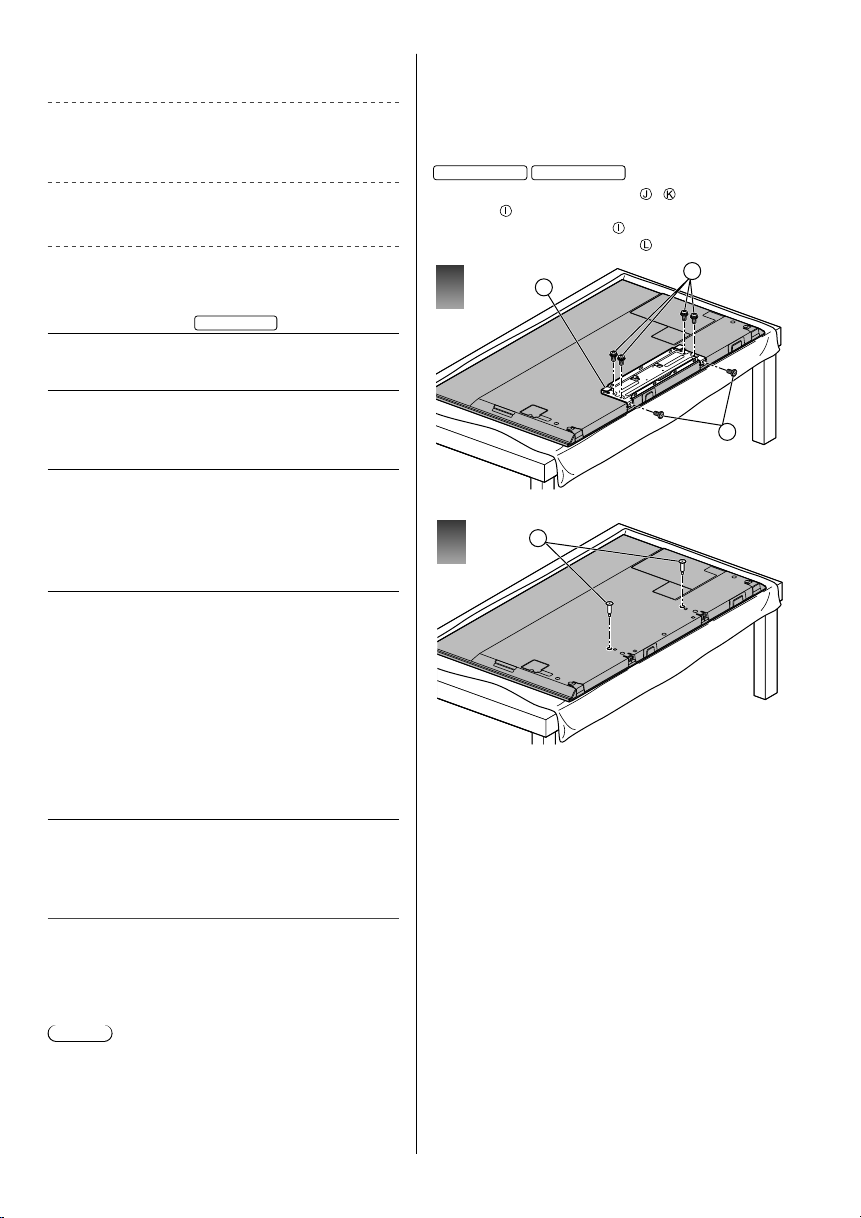

■ When using the wall-hanging bracket
In addition to removing the pedestal, removing the
following back bracket
9
Remove the assembly screws
bracket .
10
Remove the back bracket .
11
Remove the assembly screws .
1
is needed.
/ from the back
J
I
K
H
Adjusting the panel to your desired
angle
50-inch model 58-inch model 65-inch model
●
Do not place any objects within the full rotation range.
(View from the top)
Removing the pedestal
Be sure to remove the pedestal in the following
procedures when you repack the TV.
1
Remove the cover
2
Remove the assembly screws
3 Lift the TV and pull out the pole from the base.
4 Put the TV onto a work table with the screen panel
down on the clean and soft cloth.
5
Remove the assembly screws
bracket.
6 Pull out the pole from the main bracket.
7
Remove the assembly screws
bracket.
8 Remove the main bracket.
.
from the base.
from the support
from the main
2
15°
15°
Assembling / Removing the pedestal
Assembly screw (4)
Pedestal
75-inch model
L
M4 × 14 (mm)
14
English
Page 15
Cover
Wood screw
Assembling the pedestal
●
Do not remove the tapes fixing the fall-prevention
band until the installation is completed.
1
3
C
B
2
A
English
15
Page 16
■ Preventing the TV from falling over
It is recommended to secure the pedestal to a furniture
as shown to prevent the TV from falling over.
●
This information is designed to reduce the risk of
injuries caused by the TV falling over. However, no
measure can guarantee protection in all cases.
Remove the tapes fixing the fall-prevention bands.
D
Removing the pedestal
Be sure to remove the pedestal in the following
procedures when you use the wall-hanging bracket or
repack the TV.
1
Remove the cover
2
Remove the assembly screws from the pedestal.
3 Pull out the pedestal from the TV.
.
Connections
●
External equipment and cables shown are not
supplied with this TV.
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.

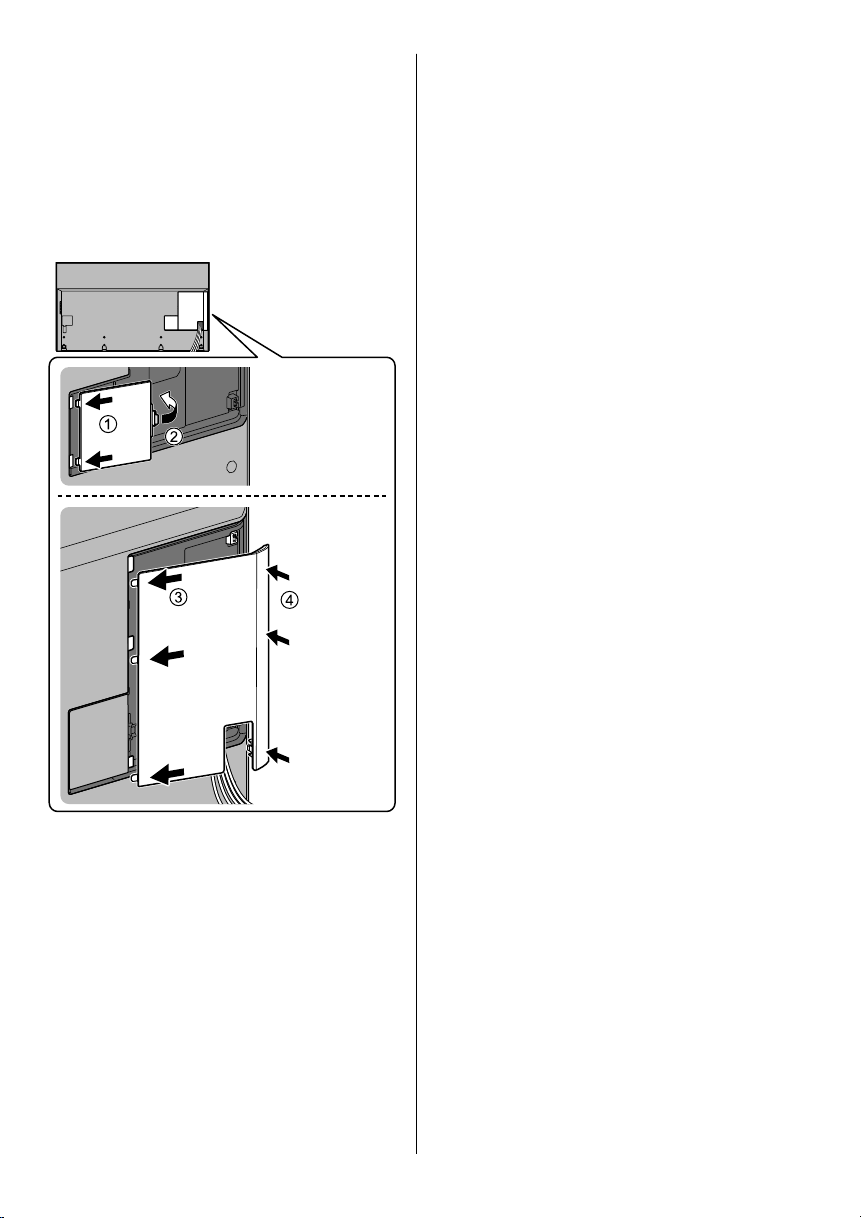

Removing the cable cover /
terminal cover from the TV
●
Be sure to remove the cable cover / terminal cover
before connecting or disconnecting cables.
●
When the connections are completed, attach the
cable cover / terminal cover.
(p. 22)
Cable cover
16
Terminal cover
English
Page 17

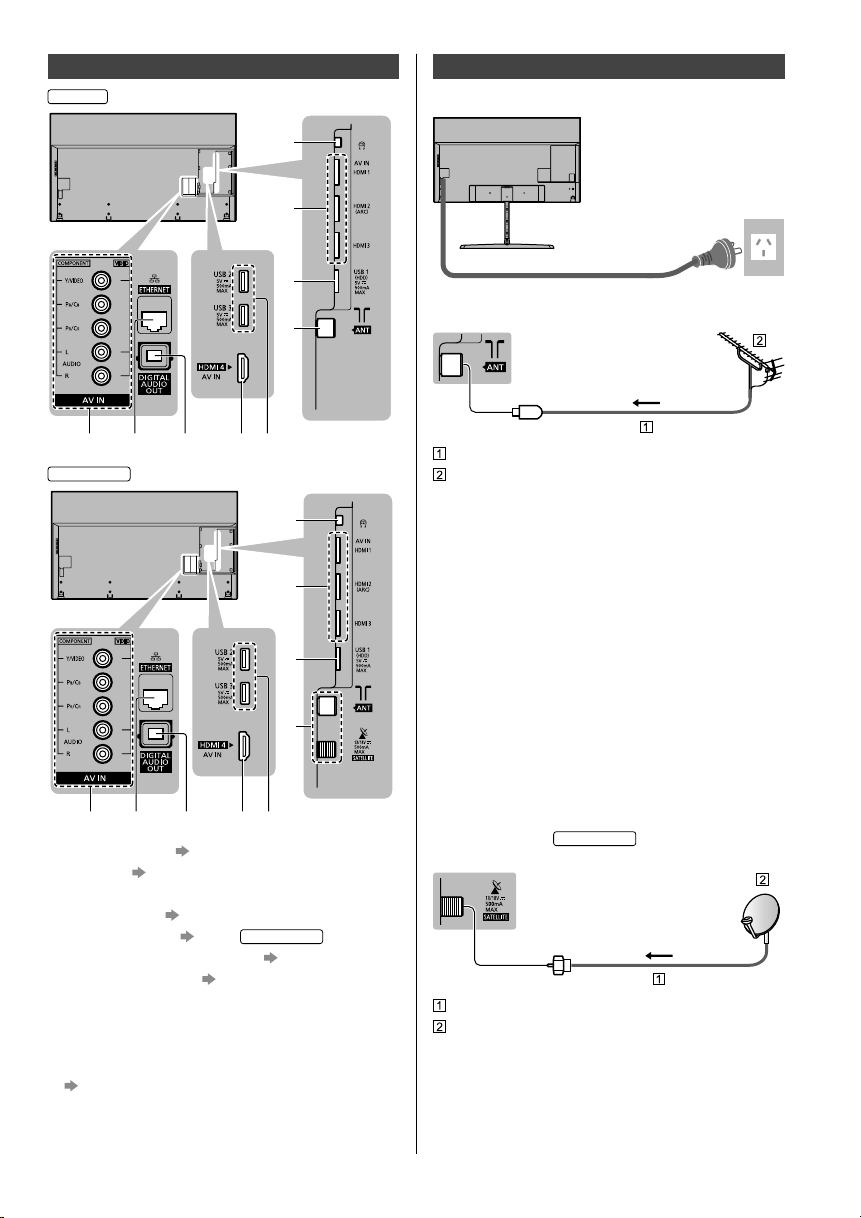

Terminals
Australia
Basic connections
■ Mains lead
1
AC 220-240 V
2
Mains lead
3
4
■ Aerial
TV
50 / 60 Hz
5 6 7 98
New Zealand
1
2
3
4
5 6 7 98
1 Headphone jack (p. 19)
2 HDMI1 - 3
3 USB 1 port
4 Aerial terminal
Satellite terminal
5 AV IN (COMPONENT / VIDEO) (p. 19)
6 ETHERNET terminal
7 DIGITAL AUDIO OUT
8 HDMI4
9 USB 2 - 3 port
●
To watch content in 4K format, use HDMI terminal.
(p. 18)
(p. 18, 19)
(p. 17)
(p. 17)
New Zealand
(p. 18)
RF cable
Aerial
●
For Digital TV, Analogue TV
●
Keep RF (aerial) cable away from the mains lead to
avoid and minimise mains interference pickup.
●
Do not place the RF cable under the TV.
●
An aerial, correct cable (75 coaxial) and correct
terminating plug are required to obtain optimum
quality picture and sound.
●
If a communal aerial system is used, you may require
the correct connection cable and plug between the
wall aerial socket and the TV.
●
Your local Television Service Centre or dealer may
be able to assist you in obtaining the correct aerial
system for your particular area and the accessories
required.
●
Any matters regarding aerial installation, upgrading
of existing systems or accessories required, and
the costs incurred, are the responsibility of you, the
customer.
■ Satellite dish
TV
Satellite cable
Satellite dish
●
For Satellite TV
●
To ensure your satellite dish is correctly installed,
please consult your local dealer. Also consult the
received satellite broadcasting companies for details.
New Zealand
English
17
Page 18

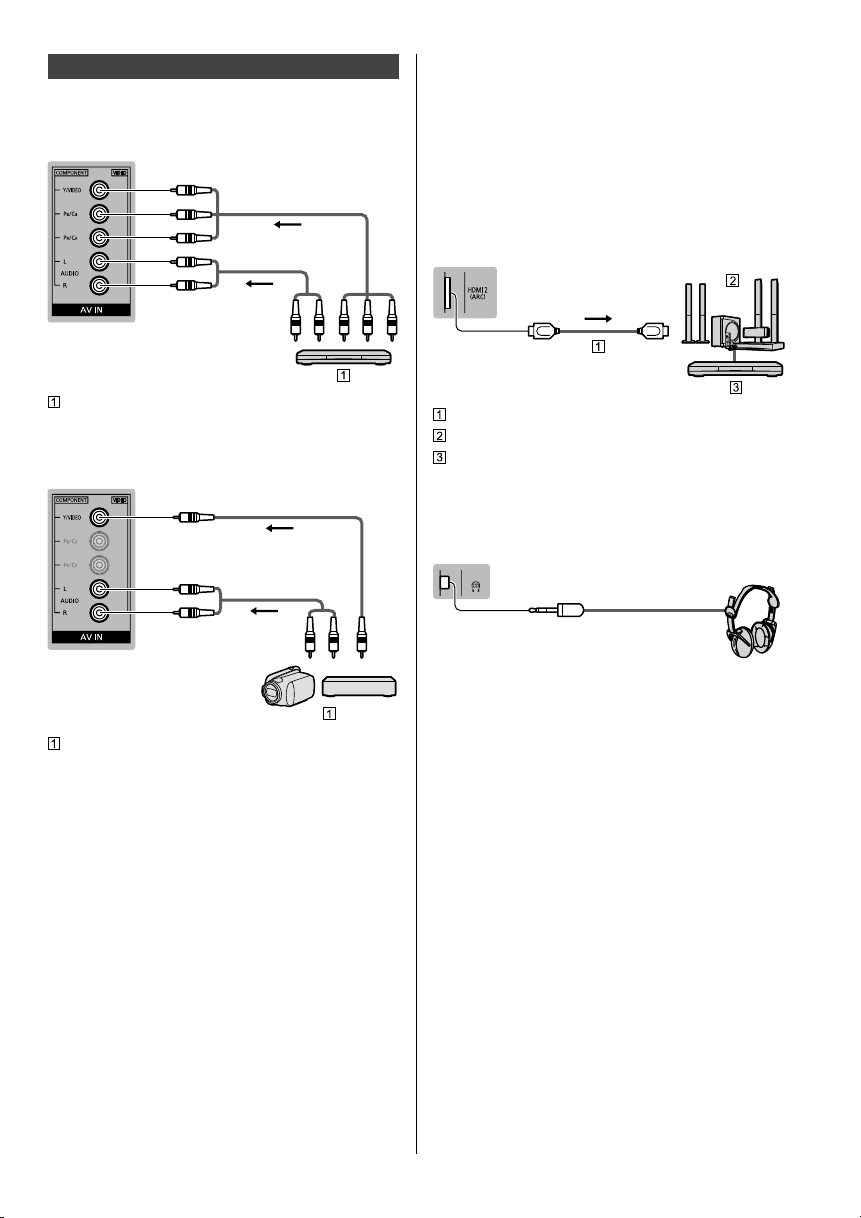

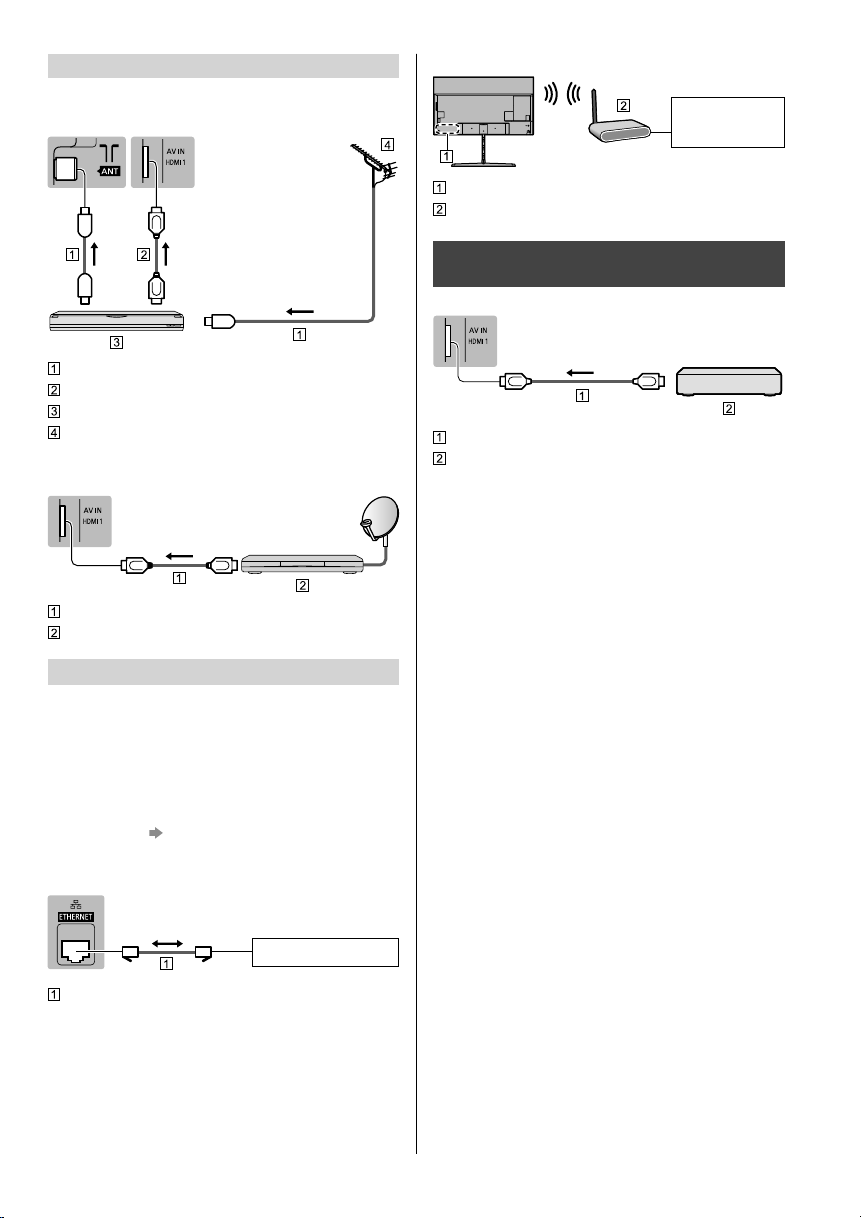

AV devices
■ Wireless connection
■ DVD Recorder / Blu-ray Recorder, etc.
TV
RF cable
HDMI cable
DVD Recorder / Blu-ray Recorder, etc.
Aerial
■ Set top box
TV
HDMI cable
Set top box
Network
A broadband network environment is required to be able
to use internet services.
●
If you do not have any broadband network services,
please consult your retailer for assistance.
●
Prepare the internet environment for wired connection
or wireless connection.
●
Setup of the network connection will start when first
using the TV. (p. 25)
■ Wired connection
TV
Internet environment
LAN cable (Shielded)
●
Use Shielded Twist Pair (STP) LAN cable.
Internet
environment
Built-in wireless LAN
Access point
Connections for 4K compatible
equipment
TV
HDMI cable
4K compatible equipment
●
To watch high-definition 4K more accurately or HDR
content, connect the 4K compatible equipment to
HDMI1 or 2 terminal.
●
Connect the 4K compatible equipment to HDMI
terminal using a 4K compatible cable and you can
watch content in 4K format.
■ [HDMI Auto Setting] (Setup Menu)
Reproduces the image more precisely with the
expanded colour gamut when connecting the 4K
compatible equipment. Select the mode depending on
the equipment.
[Mode1]:
For better compatibility. Set to [Mode1] when the
image or sound in HDMI input is not played properly.
[Mode2]:
For the 4K compatible equipment that has the
function to output the image precisely with the
expanded colour gamut
●
To change the mode
1. Select the HDMI input mode connected to the
equipment.
2. Display the menu and select [HDMI Auto Setting]
(Setup Menu).
●
For information about the valid format, refer to
[eHELP] (Search by Purpose > Watching > 4K
resolution > HDMI Auto Setting).
18
English
Page 19
Other connections
■ DVD Player
(COMPONENT equipment)
TV
(Viewing)
(Listening)
■ Amplifier (listening with external speakers)
●
Use HDMI2 to connect the TV to an amplifier which
has ARC (Audio Return Channel) function.
If connecting to an amplifier without ARC function,
use DIGITAL AUDIO OUT.
●
To enjoy multi-channel sound from external
equipment (e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier. For information about the
connections, read the manuals of the equipment and
amplifier.
TV
DVD Player
■ Camcorder / Game equipment
(VIDEO equipment)
TV
Camcorder / Game equipment
(Viewing)
(Listening)
HDMI cable
Amplifier with speaker system
External equipment (DVD Player, etc.)
■ Headphones
●
For information about the volume settings, refer to
[eHELP] (Search by Purpose > Settings > Sound).
TV
(M3 stereo mini plug)
■ USB HDD (for recording)
●
Use USB 1 port for connecting the USB HDD.
●
For details, refer to [eHELP] (Search by Purpose >
Recording).
■ VIERA Link
●
Use HDMI1 - 4 for VIERA Link connection.
●
For details, refer to [eHELP] (Search by Purpose >
Functions > VIERA Link “HDAVI Control™”).
English
19
Page 20
Cable arrangement
Fix the cables using the cable clamp, cable tie, etc. and
then attach the cable cover / terminal cover to the TV.
■ Fixing the mains lead using the cable clamp
50-inch model 58-inch model
65-inch model
Bundle the cable
Set
To release:
Keep pushing the tab
Ta b
To remove from the TV:
Snaps
Keep pushing both side snaps
■ Fixing the cables using the cable tie
50-inch model 58-inch model
75-inch model
Attach the cable clamp
Insert the cable clamp in a hole
Hole
English
20
65-inch model
Page 21
75-inch model
Attach the cable tie
Insert the cable tie in a hole
Bundle the cables
Set the tip in the hooks
Hooks
To loosen:
Knob
To remove from the TV:
Keep pushing the knob
Hole
50-inch model 58-inch model
■ Fixing the cables using the cable band
Attach the cable band
Bundle the cables
●
Fix cables as necessary.
●
When using the optional accessory, follow the option’s
assembly manual to fix cables.
Snaps
Keep pushing both side snaps
English
21
Page 22
■ Attaching the cable cover / terminal cover
●
Do not apply load to the cable cover / terminal cover.
●
Be careful not to nip the cables between the TV and
the cable cover / terminal cover.
●
When using USB 2 port, USB 3 port or HDMI4
terminal, you cannot attach the cable cover. Keep the
removed cable cover for future use.
●
When using AV terminal, ETHERNET terminal or
DIGITAL AUDIO, you cannot attach the terminal
cover. Keep the removed terminal cover for future
use.
22
English
Page 23
Identifying Controls
Remote Control
1 [ ]: Standby On / Off switch
2 TV Guide
3 [Main Menu]
●
Press to access Picture, Sound, Network, Timer,
Setup and Help Menus, etc.
4 Teletext button
●
This button is not used for this model.
●
Switches to teletext mode.
5 Information
●
Displays channel and programme information.
6 Netflix
●
Accesses NETFLIX service directly.
●
A broadband network environment is required in
order to fully use this function.
●
This service may be stopped or changed without
notice.
New Zealand
Australia
7 OK
●
Confirms selections and choices.
●
Press after selecting channel positions to quickly
change channel.
●
Displays channel list.
8 [Option Menu]
●
Easy optional setting for viewing, sound, etc.
9 Coloured buttons
(red-green-yellow-blue)
●
Used for the selection, navigation and operation of
various functions.
10
Volume Up / Down
11
Numeric buttons
●
Changes channel.
●
Changes channel and teletext pages.
●
Sets characters.
●
When in Standby mode, switches TV on.
12
[eHELP]
●
Displays [eHELP] (Built-in Operating Instructions).
13
[My App]
●
Assigns a favourite application. After setting, starts
the application easily by pressing this button.
●
For details, refer to [eHELP] (Search by Purpose >
Home Screen > Apps > My App)
14
Input mode selection
●
TV - switches to Digital TV / Analogue TV.
Australia
●
TV - switches to Satellite TV / Digital TV / Analogue
TV.
New Zealand
●
AV - switches to AV input mode from Input
Selection list.
15
Aspect
●
Changes aspect ratio.
16
Subtitle / Audio Description
●
Displays [Audio Description / Subtitle Menu].
17
Exit
●
Returns to the normal viewing screen.
18
HOME
●
Displays [Home Screen].
●
For details, refer to [eHELP] (Search by Purpose >
Read first > Features).
19
APPS
●
Displays [Apps] (applications list).
20
Cursor buttons
●
Makes selections and adjustments.
21
Return
●
Returns to the previous menu / page.
22
Channel Up / Down
23
Sound Mute On / Off
24
Last view
●
Switches to previously viewed channel or input
mode.
25
Operations for contents, connected equipment,
etc.
Australia
New Zealand
English
23
Page 24
■ Installing / Removing batteries
Hook
Pull open
Close
Indicator / Control panel
●
When pressing 4, 5, 6 buttons, the control panel
guide appears on the right side of the screen for
3 seconds to highlight which button has been
pressed.
4
5
6
Note the correct
polarity (+ or -)
123
7
1 Remote control signal receiver
●
Do not place any objects between the TV remote
control signal receiver and remote control.
2 Ambient sensor
●
Senses brightness to adjust picture quality when
[Ambient Sensor] in the Picture Menu is set to
[On].
3 Power LED
Red: Standby
Green: On
Orange: Standby with some functions (recording,
●
The LED blinks when the TV receives a command
from the remote control.
4 Input mode selection
●
Press repeatedly until you reach the desired mode.
[Main Menu]
●
Press and hold for about 3 seconds to display main
menu.
OK (when in the menu system)
5 Channel Up / Down
●
Cursor Up / Down (when in the menu system)
6 Volume Up / Down
●
Cursor Left / Right (when in the menu system)
7 Mains power On / Off switch
●
Use to switch the mains power.
●
To turn Off the apparatus completely, you must pull
the mains plug out of the mains socket.
●
[ ]: Standby / On
Rear side of the TV
etc.) active
24
English
Page 25
First time Auto
Tuning
When the TV is turned on for the first time, it will
automatically search for available TV channels and give
options to set up the TV.
●
These steps are not necessary if the setup has been
completed by your local dealer.
●
Please complete connections (p. 16 - 22) and
settings (if necessary) of the connected equipment
before starting Auto Tuning. For information about
the settings for the connected equipment, read the
manual of the equipment.
1 Plug the TV into a live mains socket
and turn the power on
●
Takes a few seconds to be displayed.
2 Select the following items
Set up each item by following the on-screen instructions.
Example:
Please select your viewing environment.
Home Shop
Tick the TV signal mode to tune, and then select
[Start Auto Tuning]
: tune (search for the available channels)
: skip tuning
Select your region (Satellite)
New Zealand
Auto Tuning is now complete and the
TV is ready for viewing.
If tuning has failed check the Satellite cable, RF cable,
and the network connection, and then follow the onscreen instructions.
Note
●
The TV goes into Standby mode when no operation
is performed for 4 hours if [Auto Standby] in the Timer
Menu is set to [On].
●
The TV goes into Standby mode when no signal is
received and no operation is performed for
10 minutes if [No signal Power off] in the Timer Menu
is set to [On].
●
To retune all channels
[Auto Tuning] in [Tuning Menu] (Setup Menu)
●
If no satellite channel is found, set [LNB Band
Frequency] to suit your environment.
[LNB Configuration] in [Satellite TV Tuning
Menu] (Setup Menu)
●
To add the available TV signal mode later
[Add TV Signal] in [Tuning Menu] (Setup Menu)
●
To initialise all settings
[Shipping Condition] in [System Menu] (Setup
Menu)
New Zealand
■ How to use the remote control
Select the language
Select [Home]
Select [Home] for use in a home viewing environment.
●
●
Set up the network connection
Select your area
Move the cursor
Access the item / store the setting
Return to the previous item (if available)
[Shop] is for shop display.
To change the viewing environment later on, the set
will need to have all settings initialised by accessing
Shipping Condition.
Australia
English
25
Page 26
Watching TV
1 Turn power on
(TV)
or

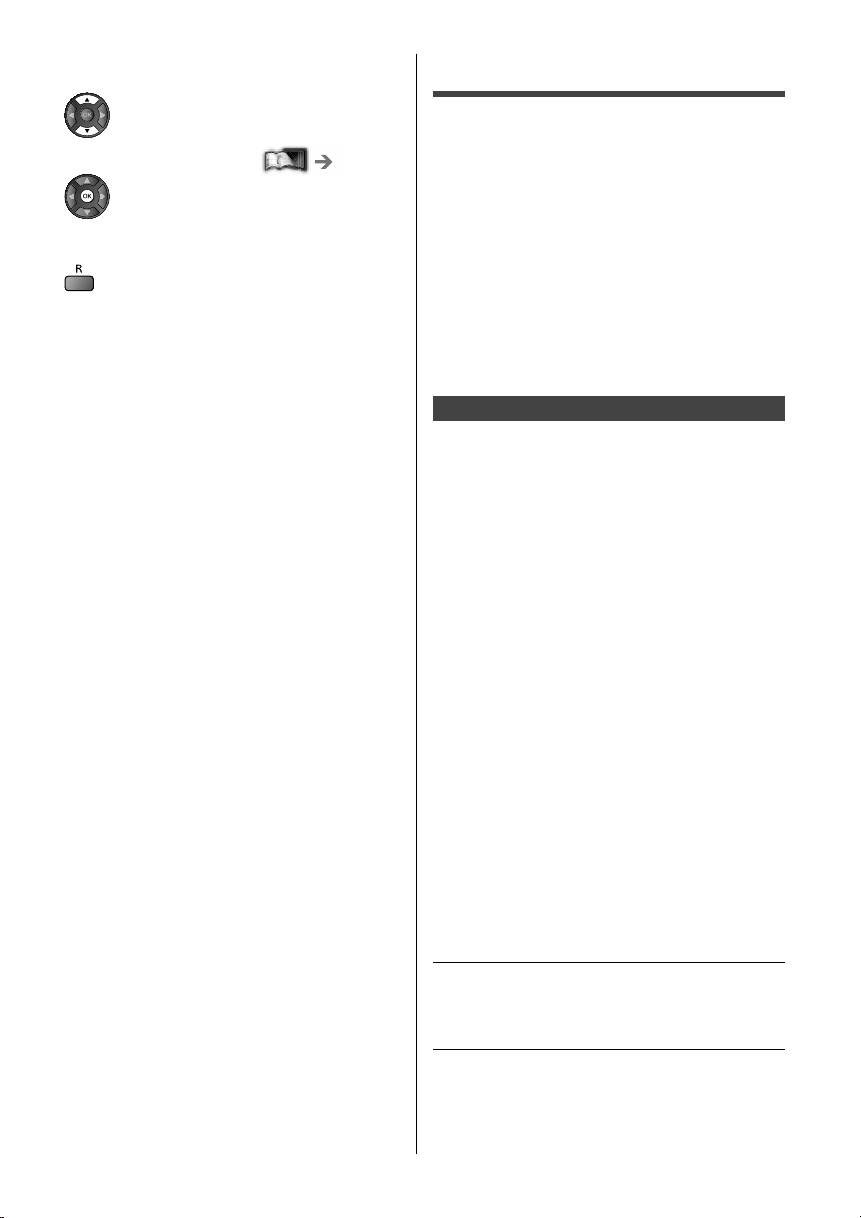

How to Use eHELP
[eHELP] is the detailed operating instructions built into
the TV, and gives a more detailed explanation for a
better understanding of the operation of each feature.
1 Display [eHELP]
(Remote Control)
●
Mains power On / Off switch should be on.
Displays information bar on the edge of screen for
several seconds.
●
(p. 24)
For information about the operation and settings,
refer to [eHELP]. (Search by Purpose > Read first >
Features)
2 Select the mode
●
Selectable modes vary depending on the stored
channels.
3 Select a channel
up
down
or
●
To select a channel position with 2 or more-digit, e.g.
399
or
●
If the [eHELP] has been accessed previously since
the TV was turned on, the confirmation screen is
displayed to select whether to go to the [First page] or
to the [Last viewed page].
[Help]
[eHELP]
2 Select the menu
select
access
●
To access [How to use]
(green)
[Keyword Search]:
Search the content of eHELP in the keyword.
[Search by Purpose]:
Search the content of eHELP for each item.
[Support]:
Access the support information (FAQs, etc.).
26
English
3 Select the item
Example:
select
●
access
To return to the previous screen / field
Page 27
●
To scroll the description (if more than 1 page)
While the description is highlighted
Viewing 3D images
●
To open the reference screen ( )
●
To display the menu related to the description (only
for some descriptions)
(red)
●
To check the features of this TV
Search by Purpose > Read first > Features
You can enjoy viewing 3D images of content or
programmes supporting 3D effects by wearing the 3D
Eyewear (optional).
●
The 3D Eyewear must be worn to view 3D images.
●
When using the 3D Eyewear, please also read the
manual of the 3D Eyewear.
●
This TV supports [Frame Sequential]*, [Side by Side]
and [Top and Bottom] 3D formats. (3D content in 4K
format is not supported.)
●
For details, refer to [eHELP] (Search by Purpose >
Watching > 3D).
*
: Frame Sequential is the 3D format that the images for
right and left eyes are recorded with high definition
quality and alternately played back.
To view the 3D images
●
Use Panasonic 3D Eyewear supporting Bluetooth
wireless technology for active shutter 3D.
■ Playing back 3D-compatible Blu-ray disc
(Frame Sequential format)
●
Connect the 3D-compatible player via a fully
wired HDMI compliant cable. (If you use the non
3D-compatible player, the images will be displayed in
2D mode.)
●
If the input mode is not switched automatically, select
the input mode connected to the player using the AV
button.
■ 3D-supported broadcast
●
Please consult the suppliers of content or
programmes for availability of this service.
■ 3D photos and 3D videos taken by
3D-compatible Panasonic products
●
Available in Media Player and Network services.
■ 2D images converted to 3D
●
Set to [2D→3D] mode in [3D Mode Selection]
([Picture] > [3D Settings] > [3D Mode]). (Content in 4K
format cannot be converted to 3D mode.)
Ensure that the registration of the 3D Eyewear has
been completed. For details, read the manual of the 3D
Eyewear.
1 Turn the 3D Eyewear on and put it on
Connection status and battery status are displayed on
the bottom right of the screen.
2 View the 3D images
Safety precautions will be displayed when you first
watch the 3D image. Select [Yes] or [No] to continue to
view 3D images.
English
27
Page 28
Note
●
Turn off the 3D Eyewear after using it.
●
Use the 3D Eyewear within approximately 3.2 m from
the TV. You cannot view the 3D images with the 3D
Eyewear too far from the TV, because of the difficulty
of receiving radio waves from the TV.
●
The range may be shortened depending on the
obstacles between the TV and the 3D Eyewear, or the
surrounding environment.
●
When viewing 3D images, make sure your eyes are
in a horizontal position where double vision does not
occur.
●
If the room is lit by fluorescent lights (50 Hz) and light
appears to flicker when using the 3D Eyewear, switch
off the fluorescent light.
●
There are differences in the viewing range of the 3D
Eyewear among individuals.
28
English
Page 29
FAQs
Before requesting service or assistance, please follow
these simple guides to solve the problem.
●
For details, refer to [eHELP] (Support > FAQs).
The TV does not switch on
●
Check the mains lead is plugged into the TV and the
mains socket.
The TV goes into Standby mode
●
Auto power standby function is activated.
The remote control does not work or is intermittent
●
Are the batteries installed correctly? (p. 24)
●
Has the TV been switched on?
●
The batteries may be running low. Replace them with
new ones.
●
Point the remote control directly at the TV’s remote
control signal receiver (within about 7 m and a
30 degree angle of the signal receiver).
●
Situate the TV away from sunshine or other sources
of bright light so they do not shine on the TV’s remote
control signal receiver.
No image is displayed
●
Check the TV is turned on.
●
Check the mains lead is plugged into the TV and the
mains socket.
●
Check the correct input mode is selected.
●
Check the setting of [AV] ([COMPONENT] / [VIDEO])
in [Input Selection] to match the signal being output
by the external equipment.
●
Is [Backlight], [Contrast], [Brightness] or [Colour] in
the Picture Menu set to the minimum?
●
Check all required cables and connections are firmly
in place.
An unusual image is displayed
●
This TV has a built-in Self Test. Makes a diagnosis of
picture or sound problems.
[TV Self Test] (Help Menu)
●
Turn the TV off with Mains power On / Off switch,
then turn it on again.
●
If the problem persists, initialise all settings.
[Shipping Condition] in [System Menu] (Setup
Menu)
The image or sound from external equipment are
unusual when the equipment is connected via HDMI
●
Set [HDMI Auto Setting] (Setup Menu) to [Mode1]
(p. 18)
Parts of the TV become hot
●
Parts of the TV may become hot. These temperature
rises do not pose any problems in terms of
performance or quality.
When pushed with a finger, the display panel moves
slightly and makes a noise
●
There is a little gap around the panel to prevent
damage to the panel. This is not a malfunction.
English
29
Page 30
Maintenance
Specifications
First, remove the mains plug from the
mains socket.
Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to remove dirt or
fingerprints.
For stubborn dirt:
(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted
neutral detergent (1 part detergent to 100 parts
water).
(3) Wring out the cloth firmly. (Please note, do not let
liquid enter the TV inside as it may lead to product
failure.)
(4) Carefully wipe moisten and wipe away the stubborn
dirt.
(5) Finally, wipe away all the moisture.
Caution
●
Do not use a hard cloth or rub the surface too hard,
otherwise this may cause scratches on the surface.
●
Take care not to subject the surfaces to insect
repellent, solvent, thinner or other volatile substances.
This may degrade surface quality or cause peeling of
the paint.
●
The surface of the display panel is specially treated
and may be easily damaged. Take care not to tap or
scratch the surface with your fingernail or other hard
objects.
●
Do not allow the cabinet and pedestal to make
contact with a rubber or PVC substance for a long
time. This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals.
Moisture and dust may cause fire or electrical shock.
■ TV
Model No.
50-inch model
58-inch model
65-inch model
75-inch model
Dimensions (W × H × D)
50-inch model
With Pedestal
(listed in order of height)
1 115 mm × 997 mm × 348 mm
1 115 mm × 907 mm × 348 mm
1 115 mm × 817 mm × 348 mm
1 115 mm × 727 mm × 348 mm
TV only
1 115 mm × 647 mm × 40 mm
58-inch model
With Pedestal
(listed in order of height)
1 290 mm × 1 103 mm × 446 mm
1 290 mm × 1 013 mm × 446 mm
1 290 mm × 923 mm × 446 mm
1 290 mm × 833 mm × 446 mm
TV only
1 290 mm × 753 mm × 41 mm
65-inch model
With Pedestal
1 457 mm × 921 mm × 446 mm
TV only
1 457 mm × 841 mm × 52 mm
75-inch model
With Pedestal
1 680 mm × 1 046 mm × 413 mm
TV only
1 680 mm × 966 mm × 70 mm
Mass
50-inch model
22.5 Net (With Pedestal)
16.0
58-inch model
30.5 Net (With Pedestal)
24.0
65-inch model
43.5 Net (With Pedestal)
39.0
:
TH-50EX780Z
:
TH-58EX780A, TH-58EX780Z
:
TH-65EX780A, TH-65EX780Z
:
TH-75EX780A, TH-75EX780Z
Net (TV only)
Net (TV only)
Net (TV only)
30
English
Page 31
75-inch model
62.5 Net (With Pedestal)
Net (TV only)
54.0
Power Rating
Australia
58-inch model
AC 220-240 V, 50 / 60 Hz 0.84 A
65-inch model
AC 220-240 V, 50 / 60 Hz 0.89 A
75-inch model
AC 220-240 V, 50 / 60 Hz 1.05 A
New Zealand
50-inch model
AC 220-240 V, 50 / 60 Hz 0.75 A
58-inch model
AC 220-240 V, 50 / 60 Hz 0.89 A
65-inch model
AC 220-240 V, 50 / 60 Hz 0.94 A
75-inch model
AC 220-240 V, 50 / 60 Hz 1.10 A
Normal (Home) mode
50-inch model
78 W
58-inch model
95 W
65-inch model
93 W
75-inch model
131 W
Standby power consumption
0.50 W
Visible screen size (diagonal)
50-inch model
126 cm
58-inch model
146 cm
65-inch model
164 cm
75-inch model
189 cm
Display resolution
3 840 (W) × 2 160 (H)
Panel
LED backlight Liquid Crystal Display
Sound
Speaker output
20 W (10 W + 10 W)
Headphones
M3 (3.5 mm) stereo mini Jack × 1
Connection terminals
AV IN (COMPONENT / VIDEO)
VIDEO
RCA PIN Type × 1
1.0 V[p-p] (75 )
AUDIO L - R
RCA PIN Type × 2
0.5 V[rms]
Y
1.0 V[p-p] (including synchronisation)
B/CB, PR/CR
P
±0.35 V[p-p]
HDMI 1 / 2 / 3 / 4 input
TYPE A Connectors
HDMI1 / 3 / 4: 4K, 3D (3D content of 4K format is
not supported.), Content Type, Deep
Colour, x.v.Colour™
HDMI2: 4K, 3D (3D content of 4K format is not
supported.), Content Type, Audio Return
Channel, Deep Colour, x.v.Colour™
●
This TV supports “HDAVI Control 5” function.
ETHERNET
10BASE-T / 100BASE-TX
USB 1 / 2 / 3
USB1: DC
5 V, Max. 900 mA [SuperSpeed
USB (USB 3.0)]
USB2 / 3: DC
5 V, Max. 500 mA [Hi-Speed USB
(USB 2.0)]
DIGITAL AUDIO OUT
PCM / Dolby Digital, Fibre optic
Receiving systems / Band name
Satellite TV
Digital satellite services
Receiver frequency range - 950 MHz to 2150 MHz
DiSEqC - Version 1.0
Digital TV
Australia
7 MHz VHF / UHF (Australia) free-to-air TV
broadcast reception
New Zealand
8 MHz VHF / UHF (New Zealand) free-to-air TV
broadcast reception
New Zealand
English
31
Page 32
PAL B / G
Reception of Off air broadcast
PAL 60 Hz
Playback of NTSC tape from some PAL Video
recorders (VCR)
M.NTSC
Playback from M.NTSC Video recorders (VCR)
NTSC
Playback from NTSC Video recorders (VCR)
Satellite dish input
Female F-type 75
New Zealand
Aerial input
Standard Belling & Lee connector
VHF / UHF
Operating conditions
Temperature
0 °C - 35 °C
Humidity
20 % - 80 % RH (non-condensing)
Built-in wireless LAN
Standard compliance and Frequency range
IEEE802.11a/n
5.15 GHz - 5.35 GHz, 5.47 GHz - 5.85 GHz
IEEE802.11b/g/n
2.400 GHz - 2.4835 GHz
Security
WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES)
WEP (64 bit/128 bit)
2
Bluetooth wireless technology
Standard Compliance
Bluetooth 3.0
Frequency Range
2.402 GHz - 2.480 GHz
*1: The frequency and channel differ depending on the
country.
*2: Not all the Bluetooth compatible devices are
available with this TV. Up to 5 devices can be used
simultaneously (except the 3D Eyewear).
Note
●
Design and Specifications are subject to change
without notice. Mass and Dimensions shown are
approximate.
●
For information about the open source software, refer
to [eHELP] (Search by Purpose > Read first > Before
use > Licence).
English
32
*
■ When using the wall-hanging bracket
Choosing to wall mount the TV shall be done at the
owner’s risk. Always use a qualified installer to perform
a TV wall bracket installation. Incorrect fitting may cause
equipment to fall, resulting in injury and product damage.
Any such damage will void your warranty.
50-inch model 58-inch model
1
Remove the assembly screws / from the back
bracket .
2
Remove the back bracket
3
Remove the assembly screws
1
2
1
*
I
L
.
.
J
K
Page 33
●

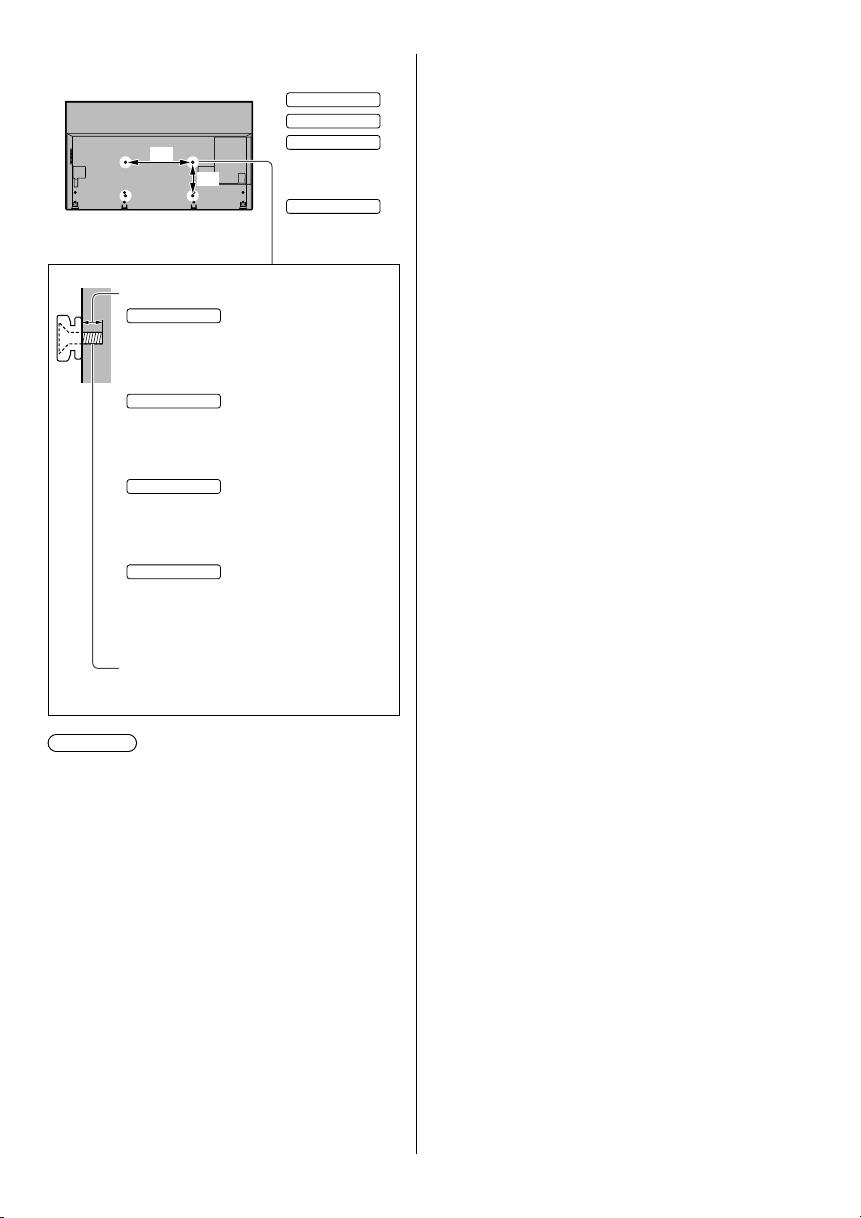

Holes for wall-hanging bracket installation
Rear of the TV
a
b
(View from the side)
Depth of screw
50-inch model
minimum: 10 mm
maximum: 15 mm
Type of screw: M6
58-inch model
minimum: 10 mm
maximum: 17 mm
Type of screw: M6
65-inch model
minimum: 9 mm
maximum: 30 mm
Type of screw: M6
75-inch model
minimum: 11 mm
maximum: 30 mm
Type of screw: M8
Screw for fixing the TV onto the
wall-hanging bracket (not supplied with
the TV)
50-inch model
58-inch model
65-inch model
a: 400 mm
b: 200 mm
75-inch model
a: 600 mm
b: 300 mm
Warning
●
When optional accessories such as wall brackets, etc.
are used, always read and follow the manufactures
installation and usage instructions.
●
Do not mount the unit directly below ceiling lights
(such as spotlights or halogen lights) which typically
give off high heat. Doing so may warp or damage
plastic cabinet parts.
●
When installing wall brackets you must ensure the
wall bracket is not electrically grounded to metal wall
studs. Always ensure that there are no electrical
cables, pipes, etc. in the wall before you begin the
wall bracket installation.
English
33
Page 34
Page 35
Australia
Panasonic
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2.
This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or
Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only applies to service carried
out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as noted
in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic
use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident,
misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity,
infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, exposure to abnormally
corrosive conditions or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s) (e) DVD, Blu-ray, or Recordable Discs
(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual; and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
6. To claim warranty service, when required, you should:
• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre Locator
for the name/address of the nearest Authorised Service Centre.
• Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase
date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged by you.
• Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
- Plasma/LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary
activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not
extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage
will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer
Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the
product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled
to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting
the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the
product and will do so in a reasonable period of time from receiving notice from you.
Warranty
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
PRO-031-F11 Issue: 4.0 01-01-2011
1 Innovation Road, Macquarie Park NSW 2113
Page 36
New Zealand
WARRANTY - New Zealand only
NEW ZEALAND
Distributed in New Zealand by Panasonic New Zealand Limited
18 Sir Woolf Fisher Drive, Highbrook, East Tamaki, Private Bag 14911, Panmure, Auckland
Tel. 09 272 0100
Email: [email protected]
Customer Care Center
www.panasonic.co.nz
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this product,
please contact your local authorities or dealer and ask for the correct method of disposal.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Web Site: http://www.panasonic.com
© Panasonic Corporation 2017
Printed in Malaysia
English
Loading...
