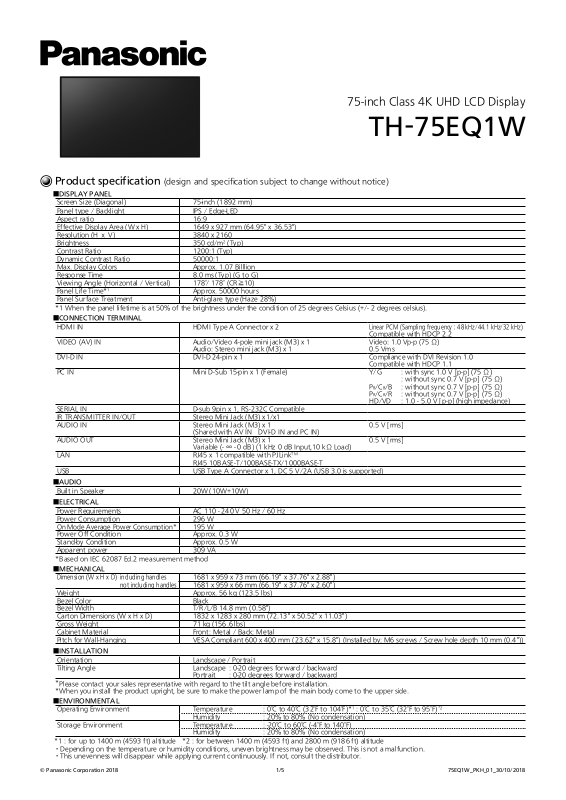

Panasonic TH-75EQ1W Specifications

Page 1

75-inch Class 4K UHD LCD Display

TH-75EQ1W

Product specification

■DISPLAY PANEL

Screen Size (Diagonal) 75-inch (1892 mm) Panel type / Backlight IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 1649 x 927 mm (64.95" x 36.53") Resolution (H ｘ V) 3840 x 2160 Brightness 350 cd/m Contrast Ratio 1200:1 (Typ) Dynamic Contrast Ratio 50000:1 Max. Display Colors Approx. 1.07 Billlion Response Time 8.0 ms (Typ) (G to G)

Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR≧10)

Panel Life Time Panel Surface Treatment Anti-glare type (Haze 28%)

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2

VIDEO (AV) IN Audio/Video 4-pole mini jack (M3) x 1

DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0

PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

SERIAL IN D-sub 9pin x 1, RS-232C Compatible

IR TRANSMITTER IN/OUT Stereo Mini Jack (M3) x1/x1 AUDIO IN Stereo Mini Jack (M3) x 1　

AUDIO OUT Stereo Mini Jack (M3) x 1　

LAN RJ45 x 1 compatible with PJLink

USB USB Type A Connector x 1, DC 5 V/2A (USB 3.0 is supported)

■AUDIO

Built in Speaker 20W (10W+10W)

■ELECTRICAL

Power Requirements AC 110 - 240 V 50 Hz / 60 Hz Power Consumption 296 W

On Mode Average Power Consumption*195 W Power Off Condition Approx. 0.3 W

Stand-by Condition Approx. 0.5 W Apparent power 309 VA

*Based on IEC 62087 Ed.2 measurement method

■MECHANICAL

Dimension (W x H x D) including handles not including handles Weight Approx. 56 kg (123.5 lbs) Bezel Color Black Bezel Width T/R/L/B 14.8 mm (0.58") Carton Dimensions (W x H x D) 1832 x 1283 x 280 mm (72.13" x 50.52" x 11.03") Gross Weight 71 kg (156.6 lbs) Cabinet Material Front: Metal / Back: Metal Pitch for Wall-Hanging VESA Compliant 600 x 400 mm (23.62" x 15.8") (Installed by: M6 screws / Screw hole depth 10 mm (0.4"))

■INSTALLATION

Orientation Landscape / Portrait Tilting Angle Landscape : 0-20 degrees forward / backward

Please contact your sales representative with regard to the tilt angle before installation.

*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.

■ENVIRONMENTAL

Operating Environment Temperature : 0℃ to 40℃ (32°F to 104°F)

Storage Environment Temperature : -20℃ to 60℃ (-4°F to 140°F)

1 : for up to 1400 m (4593 ft) altitude　*2 : for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude ・Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction. ・This unevenness will disappear while applying current continuously. If not, consult the distributor.

(design and specification subject to change without notice)

(Typ)

Approx. 50000 hours

Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Compatible with HDCP 2.2

Audio: Stereo mini jack (M3) x 1

(Shared with AV IN　DVI-D IN and PC IN)

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

RJ45 10BASE-T/100BASE-TX/1000BASE-T

1681 x 959 x 73 mm (66.19" x 37.76" x 2.88") 1681 x 959 x 66 mm (66.19" x 37.76" x 2.60")

Portrait : 0-20 degrees forward / backward

Humidity : 20% to 80% (No condensation)

Video: 1.0 Vp-p (75 Ω)

0.5 Vms

Compatible with HDCP 1.1

B/CB

R/CR

HD/VD

0.5 V [rms]

: 0℃ to 35℃ (32°F to 95°F)

: with sync 1.0 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω) : 1.0 - 5.0 V [p-p] (high impedance)

Page 2

75-inch Class

4K UHD

LCD Display

TH-75EQ1W

MAIN FEATURE

USB Media Player Yes Failover/Failback Yes Data Cloning Yes Digital Zoom Yes Multi display settings Power ON Screen Delay Yes 1:1 Pixel mode Yes Screen Saver Yes Power Management HDMI/PC/DVI-D Power save Yes Button Lock Yes Controller user level Yes Input search / Input detection 6-segment color management Picture mode Yes Dynamic contrast Yes Color enhancement Yes Refine enhancer Yes Gradation smoother Dynamic backlight control Frame Creation Set up timer Yes AMX D.D. Yes Crestron Connected WEB Browser control Yes PJLink Image settings HDMI CEC Compatible Yes Memory Viewer Yes Playlist Editing Function Yes Local Dimming Yes

Operating Time

*1 In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.

Yes

Yes Yes

Yes Yes Yes

Yes

Yes Yes

24h / day

DIMENSIONS (TENTATIVE)

1681(66.2)

14.8(0.6)

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS UL60950-1, 2nd Edition,2014-10-14

RADIATION REGULATIONS

CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10

Mexico: NOM-019-SCFI-1998 IEC60950-1

EU:EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 BEAB approval

AS/NZS　Deviation

FCC 47 CFR, Part 15, Subpart B Class A

ANSI C63.4-2014　ICES-003

EN55032:2012+AC:2013 (CLASS A) EN55024:2010, EN61000-3-2:2014, EN61000-3-3:2013 AS/NZS CISPR32:2013 RCM Mark

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (2 x AAA Size batteries) Operating distance approx. 7 m (23 ft)

Weight approx. 63 g (2.2 oz) including batteries Dimemsions (W x H x D) 48 x 134 x 20 mm (1.9" x5.3" x 0.8")

*When operated directly in front of receptor.

INCLUDED ACCESSORIES

- Remote Control　- Batteries (AAA size) x 2

- 4-pole mini plug conversion cable　- AC cord (approx. 2.0 m (79"))

- Clamper x 3　- USB Memory cover x 1

- CD-ROM / User Manual　- Operating Instruction Book

COMPATIBLE SOFTWARE

Multi Monitoring & Control Software Ver.2.1 or later CMS Content Management Software Ver 3.2 or later

Video Wall Manager

Ver1.9 or later

OPTIONAL ACCESSORIES

Wall-Hanging Bracket Pedestal TY - ST75PE9 Early Warning Software

Basic license / 3-year license

* Multi-Monitoring Control Software Ver 2.0 or later is required.

73(2.9) 66(2.6) 34(1.4)

550(21.7)

TY-WK98PV1

ET-SWA100 / 105series

(Depending on the license type, the symbol at the end of the part number is different.)

Cautions: This drawing is not a scale

600(23.7)

550(21.7)

Units : ｍｍ (inch)

Active Area 1649(64.95)

14.8(0.6)

959(37.8)

14.8(0.6)

CONNECTION TERMINAL

927(36.53)

Active Area

16(0.7) 77(3.1)

206

(8.2)

400(15.8)

347(13.7)

(0.1)

* Specifications and appearance are subject to change without notice.

450(17.8)

M6 Screw hole depth 10

206

(8.2)

Page 3

75-inch Class

4K UHD

LCD Display

TH-75EQ1W

List of correspondence signals

The picture signal which can indicate this machine is as it is the following table.

● Specific HDMI signals inside the plug and play compatible signal table are as it follows.

1 : 4K/60p, 2 : 4K/30p, 3 : 2K

Correspondence

signal

NTSC/NTSC4.43/

PAL‑M/PAL60

PAL/PAL‑N/SECAM 720 x 576i 15.63 50.00 ‑ V

480/60i 720 x 480i 15.73 59.94 13.50 Y 576/50i 720 x 576i 15.63 50.00 13.50 Y 480/60i 720 (1440) x 480i

576/50i 720 (1440) x 576i 480/60p 720 x 483 31.47 59.94 27.00 Y/D/H 576/50p 720 x 576 31.25 50.00 27.00 Y/D/H 720/60p 1280 x 720 45.00 60.00 74.25 Y/D/H 720/50p 1280 x 720 37.50 50.00 74.25 Y/D/H

1080/60i 1920 x 1080i 33.75 60.00 74.25 Y/D/H 1080/50i 1920 x 1080i 28.13 50.00 74.25 Y/D/H

1080/24p 1920 x 1080 27.00 24.00 74.25 Y/D/H

1080/24PsF 1920 x 1080i 27.00 48.00 74.25 Y/D/H

1080/25p 1920 x 1080 28.13 25.00 74.25 Y/D/H 1080/30p 1920 x 1080 33.75 30.00 74.25 Y/D/H 1080/60p 1920 x 1080 67.50 60.00 148.50 Y/D/H 1080/50p 1920 x 1080 56.25 50.00 148.50 Y/D/H

2K/24p 2048 x 1080 27.00 24.00 74.25 D/H

2K/25p 2048 x 1080 28.13 25.00 74.25 D/H

2K/30p 2048 x 1080 33.75 30.00 74.25 D/H

2K/48p 2048 x 1080 54.00 48.00 148.50 D/H

2K/60p 2048 x 1080 67.50 60.00 148.50 D/H

2K/50p 2048 x 1080 56.25 50.00 148.50 D/H

3840 x 2160/24p 3840 x 2160 54.00 24.00 297.00 H 3840 x 2160/25p 3840 x 2160 56.25 25.00 297.00 H 3840 x 2160/30p 3840 x 2160 67.50 30.00 297.00 H 3840 x 2160/60p 3840 x 2160 135.00 60.00 594.00 H 3840 x 2160/50p 3840 x 2160 112.50 50.00 594.00 H 4096 x 2160/24p 4096 x 2160 54.00 24.00 297.00 H 4096 x 2160/25p 4096 x 2160 56.25 25.00 297.00 H 4096 x 2160/30p 4096 x 2160 67.50 30.00 297.00 H 4096 x 2160/60p 4096 x 2160 135.00 60.00 594.00 H 4096 x 2160/50p 4096 x 2160 112.50 50.00 594.00 H

640 x 400/70 640 x 400 31.47 70.09 25.18 R/D/H ‑ ‑ ‑ ‑ 640 x 400/85 640 x 400 37.86 85.08 31.50 R/D/H ‑ ‑ ‑ ‑ 640 x 480/60 640 x 480 31.47 59.94 25.18 R/D/H 640 x 480/67 640 x 480 35.00 66.67 640 x 480/73 640 x 480 37.86 72.81 31.50 R/D/H ‑ ‑ ‑ ‑ 640 x 480/75 640 x 480 37.50 75.00 31.50 R/D/H ‑ ‑ ‑ ‑ 640 x 480/85 640 x 480 43.27 85.01 36.00 R/D/H ‑ ‑ ‑ ‑ 800 x 600/56 800 x 600 35.16 56.25 36.00 R/D/H ‑ ‑ ‑ ‑ 800 x 600/60 800 x 600 37.88 60.32 40.00 R/D/H 800 x 600/72 800 x 600 48.08 72.19 50.00 R/D/H ‑ ‑ ‑ ‑ 800 x 600/75 800 x 600 46.88 75.00 49.50 R/D/H ‑ ‑ ‑ ‑ 800 x 600/85 800 x 600 53.67 85.06 56.25 R/D/H ‑ ‑ ‑ ‑ 832 x 624/75 832 x 624 49.72 74.55 57.28 R/D/H ‑ ‑ ‑ ‑

852 x 480/60 852 x 480 31.47 59.94 34.24 D/H ‑ ‑ ‑ ‑ 1024 x 768/50 1024 x 768 39.55 50.00 51.89 D/H ‑ ‑ ‑ ‑ 1024 x 768/60 1024 x 768 48.36 60.00 65.00 R/D/H 1024 x 768/70 1024 x 768 56.48 70.07 75.00 R/D/H ‑ ‑ ‑ ‑ 1024 x 768/75 1024 x 768 60.02 75.03 78.75 R/D/H ‑ ‑ ‑ ‑ 1024 x 768/82 1024 x 768 65.55 81.63 86.00 R/D/H ‑ ‑ ‑ ‑ 1024 x 768/85 1024 x 768 68.68 85.00 94.50 R/D/H ‑ ‑ ‑ ‑ 1066 x 600/60 1066 x 600 37.64 59.94 53.00 D/H ‑ ‑ ‑ ‑ 1152 x 864/60 1152 x 864 53.70 60.00 81.62 D/H ‑ ‑ ‑ 1152 x 864/70 1152 x 864 63.99 70.02 94.20 R/D/H ‑ ‑ ‑ ‑ 1152 x 864/75 1152 x 864 67.50 75.00 108.00 R/D/H ‑ ‑ ‑ ‑ 1152 x 864/85 1152 x 864 77.09 85.00 119.65 R/D/H ‑ ‑ ‑ ‑ 1152 x 870/75 1152 x 870 68.68 75.06 100.00 R/D/H ‑ ‑ ‑ ‑ 1280 x 720/60 1280 x 720 44.76 60.00 74.48 R/D/H ‑ ‑ ‑ 1280 x 768/50 1280 x 768 39.55 49.94 65.18 R/D/H ‑ ‑ ‑ ‑ 1280 x 768/60 1280 x 768 47.70 60.00 80.14 R/D/H ‑ ‑ ‑ ‑ 1280 x 768/60 1280 x 768 47.78 59.87 79.50 R/D/H ‑ ‑ ‑ ‑ 1280 x 800/50 1280 x 800 41.20 50.00 68.56 R/D/H ‑ ‑ ‑ ‑ 1280 x 800/60 1280 x 800 49.31 59.91 71.00 R/D/H ‑ ‑ ‑ ‑ 1280 x 800/60 1280 x 800 49.70 59.81 83.50 R/D/H ‑ ‑ ‑ 1280 x 960/60 1280 x 960 60.00 60.00 108.00 R/D/H ‑ ‑ ‑ ‑ 1280 x 960/85 1280 x 960 85.94 85.00 148.50 R ‑ ‑ ‑ ‑

1280 x 1024/60 1280 x 1024 63.98 60.02 108.00 R/D/H 1280 x 1024/75 1280 x 1024 79.98 75.02 135.00 R/D/H ‑ ‑ ‑ ‑ 1280 x 1024/85 1280 x 1024 91.15 85.02 157.50 R/D/H ‑ ‑ ‑ ‑

1360 x 768/60 1360 x 768 47.71 60.02 85.50 D/H ‑ ‑ ‑ ‑ 1360 x 768/60 1360 x 768 47.70 60.00 84.72 D/H ‑ ‑ ‑ ‑ 1360 x 768/60 1360 x 768 47.72 59.80 84.75 D/H ‑ ‑ ‑ ‑

Resolution

(dot)

720 x 480i 15.73 59.94 ‑ V

Scan rate

Horizontal

(kHz)

15.73 59.94 27.00 D/H

15.63 50.00 27.00 D/H

Vertical

(Hz)

Dot clock rate

(MHz)

30.24 R/D/H ‑ ‑ ‑ ‑

Format

Plug and play compatible signal

HDMI

1 2 3

‑ ‑ ‑ ‑

‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑

✓ ✓ ✓

‑ ‑ ‑ ‑

✓ ✓ ✓

‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑

✓ ✓

✓

✓ ✓

✓

✓ ✓ ✓ ✓

‑ ‑ ‑ ‑ ‑ ‑

DVI-D/PC

‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑ ‑

‑ ‑ ‑ ‑

✓

Page 4

75-inch Class

Correspondence

signal

1366 x 768/50 1366 x 768 39.55 50.00 69.92 D/H ‑ ‑ ‑ ‑ 1366 x 768/60 1366 x 768 48.39 60.03 86.71 R/D/H ‑ ‑ ‑ ‑ 1366 x 768/60 1366 x 768 48.00 60.00 72.00 R/D/H ‑ ‑ ‑ ‑ 1366 x 768/50 1366 x 768 39.56 49.89 69.00 R/D/H ‑ ‑ ‑ ‑ 1366 x 768/60 1366 x 768 47.71 59.79 85.50 R/D/H ‑ ‑ ‑ ‑

1400 x 1050/60 1400 x 1050 65.22 60.00 122.61 D/H ‑ ‑ ‑ ‑ 1400 x 1050/75 1400 x 1050 82.20 75.00 155.85 R/D/H ‑ ‑ ‑ ‑

1440 x 900/60 1440 x 900 55.47 59.90 88.75 R/D/H ‑ ‑ ‑ ‑ 1440 x 900/60 1440 x 900 55.92 60.00 106.47 R/D/H ‑ ‑ ‑ ‑ 1600 x 900/50 1600 x 900 46.30 50.00 97.05 D/H ‑ ‑ ‑ ‑ 1600 x 900/60 1600 x 900 60.00 60.00 108.00 D/H ‑ ‑ ‑ ‑ 1600 x 900/60 1600 x 900 55.99 59.95 118.25 D/H ‑ ‑ ‑ ‑ 1600 x 900/60 1600 x 900 55.92 60.00 119.00 D/H ‑ ‑ ‑

1600 x 1200/60 1600 x 1200 75.00 60.00 162.00 R/D/H ‑ ‑ ‑ ‑ 1680 x 1050/60 1680 x 1050 65.29 59.95 146.25 R/D/H ‑ ‑ ‑ ‑ 1920 x 1080/60 1920 x 1080 1920 x 1080/60 1920 x 1080 67.50 60.00 148.50 R/D/H 1920 x 1200/60 1920 x 1200 74.04 59.95 154.00 R/D/H 1920 x 2160/60 1920 x 2160 133.29 59.99 277.25 H ‑ ‑ ‑ ‑ 1920 x 2160/60 1920 x 2160 135.00 60.00 297.00 H ‑ ‑ ‑ ‑ 2560 x 1440/60 2560 x 1440 88.79 59.95 241.50 H ‑ 2560 x 1600/50 2560 x 1600 82.37 49.95 286.00 H ‑ ‑ ‑ ‑ 2560 x 1600/60 2560 x 1600 98.71 59.97 268.50 H ‑ ‑ ‑ ‑ 3840 x 1080/60 3840 x 1080 66.63 59.97 266.50 H ‑ ‑ ‑ ‑

*1：Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *2：Alphabets inside the Format column represent as it follows.

V：CVS（AV IN） R：D-sub RGB（PC IN） Y：YCBCR/YPBPR（PC IN） D：DVI-D（DVI-D IN）

H：HDMI（HDMI 1、HDMI 2） *3：Based on VESA CVT-RB (Reduced Blanking) standard *4： Signals with ● in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the display. For the signals

without ● in the plug and play compatible signal column, the resolution may not be selected on the computer even if the display is supporting it.

Note

● The signal format distinguished automatically will be sometimes indication different from an actual input signal.

● When 1080/30PsF signal and 1080/25PsF signal are input, they are processed as 1080/60i signal and 1080/50i signal, and then displayed.

4K UHD

Resolution

LCD Display

(dot)

Scan rate

Horizontal

(kHz)

66.59 59.93 138.50 R/D/H ‑ ‑ ‑ ‑

Vertical

(Hz)

Dot clock rate

(MHz)

Format

Plug and play compatible signal

1 2 3

✓ ✓ ✓ ✓

TH-75EQ1W

HDMI

✓

DVI-D/PC

✓

‑ ‑

Page 5

75-inch Class

View from back

(on the product side)

4K UHD

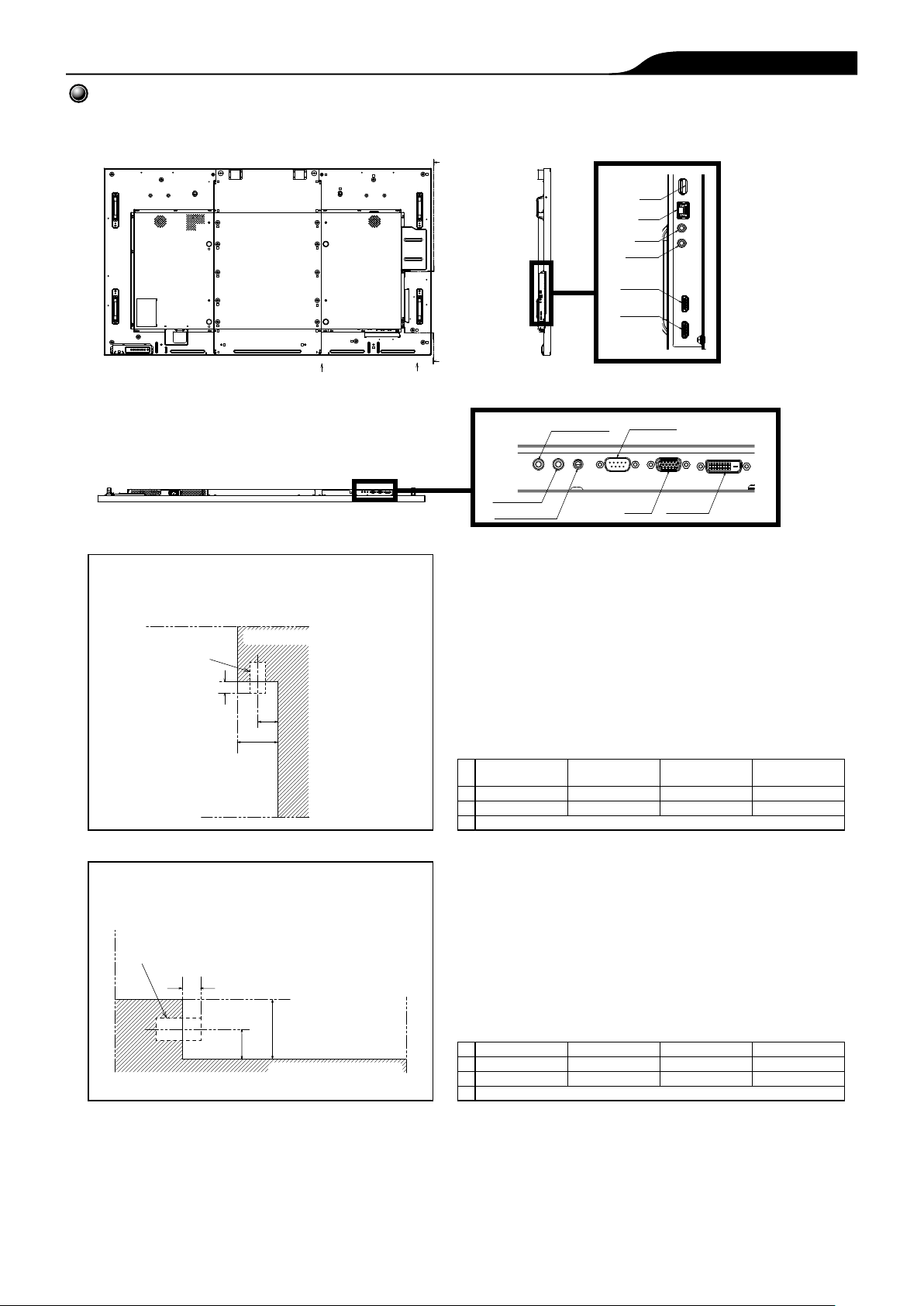

Drawing of terminals

LCD Display

TH-75EQ1W

Magnified figure

of terminal b

USB

LAN

IR IN

IR OUT

HDMI 1

HDMI 2

SECTION A-A

Sectional view of terminal a

（AUDIO OUT / AUDIO IN / VIDEO AV IN / SERIAL IN /

PC IN / DVI-D IN）

Terminals

SECTION B-B

Magnified figure of terminal a

AUDIO OUT

AUDIO IN

VIDEO AV IN

Terminal a 75EQ1W Terminal (Bottom)

AUDIO IN/OUT

VIDEO AV IN A 18.9 (0.74) 19.6 (0.77) 19.6 (0.77) 16.4 (0.68) B

1.7 (0.06) 5.3 (0.2) 5.3 (0.2) 5.6 (0.22)

C 32.2 (1.27)

SERIAL IN PC IN DVI-D IN

SERIAL IN

PC IN DVI-D IN

Units : mm (inch)

Sectional view of terminal b

（USB / LAN / IR IN / IR OUT / HDMI 1 / HDMI 2）

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to use connecting cable or USB memory device after confirmation in this drawing.

Terminals

Terminal b

75EQ1W Terminal (Side)

A 17.7 (0.7) 16.9 (0.67) 18.0 (0.71) 15.6 (0.62) B －－ C 32.2 (1.27)

USB LAN IR IN/OUT

1.7 (0.06)

Units : mm (inch)

HDMI

－
