Panasonic Th75EF1W, Th85EF1W, Th75EF1U, Th84EF1U operating instructions

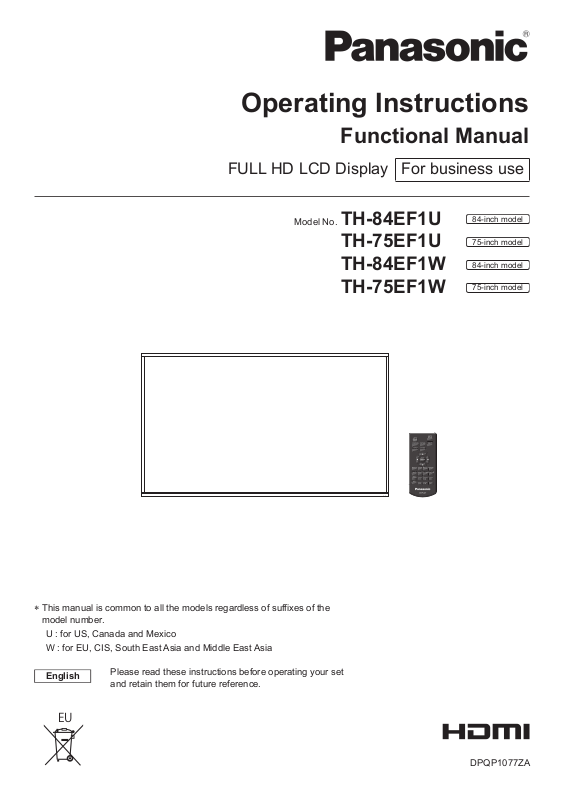

Operating Instructions

84-inch model

75-inch model

84-inch model

75-inch model

EU

Functional Manual

FULL HD LCD Display For business use

Model No. TH-84EF1U

TH-75EF1U
TH-84EF1W
TH-75EF1W

This manual is common to all the models regardless of suffixes of the

*

model number.

U : for US, Canada and Mexico

W : for EU, CIS, South East Asia and Middle East Asia

English

Please read these instructions before operating your set
and retain them for future reference.

DPQP1077ZA

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that
you will have many years of enjoyment from your new LCD
Display.

To obtain maximum benefit from your set, please read these
Instructions before making any adjustments, and retain them
for future reference.

Retain your purchase receipt also, and note down the model
number and serial number of your set in the space provided
on the rear cover of these instructions.

Visit our Panasonic Web Site http://panasonic.com

Table of Contents

Before use

●

Illustrations and screens in this Operating Instructions
are images for illustration purposes, and may be
different from the actual ones.

●

Descriptive illustrations in this Operating Instructions
are created mainly based on the 84-inch model.

Important Safety Instructions ..........................4

FCC STATEMENT ..............................................5

Important Safety Notice ................................... 6

Safety Precautions ........................................... 8

Precautions for use ........................................ 10

Accessories ....................................................12

Accessories Supply ·········································· 12

Remote Control Batteries ·································· 13

Cautions when moving .................................. 13

Eyebolt.............................................................14

Connections .................................................... 15

AC cord connection and fixing ···························· 15

Cable fixing ···················································· 15

Video equipment connection ······························ 16

Before connecting ············································ 17

HDMI 1 and HDMI 2 terminals connection ············· 17

DVI-D IN terminal connection ····························· 18

PC IN terminal connection ································· 19

VIDEO terminal connection ································ 20

SERIAL terminal connection ······························· 21

IR IN/IR OUT terminal connection ······················· 22

AUDIO OUT terminal connection ························· 23

USB terminal connection ··································· 23

Identifying Controls ........................................25

Main unit ························································ 25

Remote Control Transmitter ······························· 26

Basic Controls ................................................ 27

Selecting the input signal ··································· 29

RECALL·························································29

Volume Adjustment ··········································30

English

2

Sound mute On / Off ········································· 30

OFF TIMER ···················································· 30

ASPECT Controls ........................................... 31

Digital ZOOM ................................................... 32

On-Screen Menu Displays ............................. 33

Adjusting Position .......................................... 35

Auto setup ······················································ 35

Sound Adjustment .......................................... 37

Picture Adjustments ....................................... 38

Picture Profiles ............................................... 40

Saving profiles ················································ 41

Loading profiles ··············································· 41

Editing profiles ················································ 42

Setup menu ..................................................... 43

Signal ···························································· 43

Screensaver (For preventing image retention)········ 46

Input label ······················································ 47

Power management settings ······························ 47

Image settings ················································· 49

Wobbling ························································ 50

No activity power off ········································· 50

OSD language ················································ 50

Multi display settings ········································ 51

Set up timer ···················································· 52

Date and time ················································· 52

Network settings ·············································· 53

USB media player settings ································· 54

Function button settings ···································· 55

Display orientation ··········································· 56

OSD position ·················································· 56

Menu display duration ······································· 56

Menu transparency ·········································· 56

Options Adjustments .....................................57

Using Network Function ................................ 64

Necessary environment for computers to be
connected ····················································64

Example of network connection ·························· 64

Command control ············································ 64

Control Command via LAN ································ 65

PJLink protocol ················································ 68

Early Warning Software ····································· 69

Multi Monitoring & Control Software ····················· 69

Video Wall Manager ·········································69

Connecting with LAN ..................................... 70

Computer operation ·········································· 70

Using Web Browser Control .......................... 70

Before Using Web Browser Control ····················· 70

Access from Web Browser ································· 71

Operating with Web Browser ······························ 72

Using Web Browser Control ······························· 76

USB media player ........................................... 78

Function description ········································· 78

Preparation ····················································· 78

Playing back the files ········································ 80

Network environment (Multi Media Player only) ······ 83

Starting / ending Media Player ···························· 84

Resume Play function ······································· 84

Data Cloning ...................................................85

Copying the display data to the USB memory ········ 85

Copying the USB memory data to the display ········ 86

ID Remote Control Function .......................... 87

Setting the remote control’s ID number ················· 87

Cancelling the setting of remote control’s ID number
(ID “0”) ··························································· 87

Entering characters ........................................ 88

Preset Signals ................................................. 89

Shipping condition ......................................... 91

Troubleshooting .............................................92

Specifications ................................................. 95

Software License ............................................ 97

English

3

WARNING: RISK OF ELECTRIC SHOCK

DO NOT OPEN

Important Safety

WARNING

WARNING: To reduce the risk of electric shock,
do not remove cover or back.

No user-serviceable parts inside. Refer servicing
to qualified service personnel.

The lightning flash with arrow-head within a
triangle is intended to tell the user that parts
inside the product are a risk of electric shock
to persons.

The exclamation point within a triangle
is intended to tell the user that important
operating and servicing instructions are in the
papers with the appliance.

WARNING :

To prevent damage which may result in fire or
shock hazard, do not expose this apparatus to
rain or moisture.

Do not place containers with water (flower vase,
cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING :

1) To prevent electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to
qualified service personnel.

2) Do not remove the grounding pin on the power
plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fit
a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the
outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.

11) Only use attachments / accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart / apparatus combination
to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or
when unused for long periods of time.

14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin
on the AC cord power plug is securely connected.

English

4

FCC STATEMENT

This equipment has been tested and found to comply
with the limits for a class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.

FCC CAUTION:

To assure continued compliance, follow the attached
installation instructions and use only the provided
power supply cord. Any changes or modifications
not expressly approved by Panasonic Corp. of North
America could void the user’s authority to operate
this device.

Declaration of Verification

Model No.

TH-84EF1U, TH-75EF1U

Responsible Party:

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, New Jersey

07102-5490

Contact Source:

Panasonic System Communications Company of
North America

1-877-655-2357

General Contact:

http://shop.panasonic.com/support

This device complies with Part 15 of the FCC Rules and
all applicable IC RSS standards. Operation is subject
to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.

English

5

CANADIAN NOTICE:

This Class A digital apparatus complies with
Canadian ICES-003.

WARNING:

Not for use in a computer room as defined in the

•

Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.

For permanently connected equipment, a readily

•

accessible disconnect device shall be incorporated
in the building installation wiring.

For pluggable equipment, the socket-outlet shall

•

be installed near the equipment and shall be easily
accessible.

Note:

Image retention may occur. If you display a still
picture for an extended period, the image might
remain on the screen. However, it will disappear when
a general moving picture is displayed for a while.

Trademark Credits

Microsoft, Windows and Internet Explorer are the

•

registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other
countries.

Macintosh, Mac, Mac OS, OS X and Safari are the

•

trademarks of Apple Inc. registered in the United
States and other countries.

PJLink is a registered or pending trademark in Japan,

•

the United States, and other countries and regions.

HDMI, the HDMI Logo, and High-Definition

•

Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.

JavaScript is a registered trademark or a trademark of

•

Oracle Corporation and its subsidiary and associated
companies in the United States and/or other
countries.

RoomView, Crestron RoomView and Fusion RV are

•

registered trademarks of Crestron Electronics, Inc.

Crestron Connected is the trademark of Crestron
Electronics, Inc.

Even if no special notation has been made of company
or product trademarks, these trademarks have been fully
respected.

Important Safety Notice

WARNING

1) To prevent damage which may result in fire or
shock hazard, do not expose this appliance to
dripping or splashing.

Do not place containers with water (flower vase,
cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)

No naked flame sources, such as lighted candles,
should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to
qualified service personnel.

3) Do not remove the earthing pin on the power
plug. This apparatus is equipped with a three pin
earthing-type power plug. This plug will only fit an
earthing-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact an electrician.

Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin
on the AC cord power plug is securely connected.

CAUTION

This appliance is intended for use in environments
which are relatively free of electromagnetic fields.

Using this appliance near sources of strong
electromagnetic fields or where electrical noise may
overlap with the input signals could cause the picture
and sound to wobble or cause interference such as
noise to appear.

To avoid the possibility of harm to this appliance, keep
it away from sources of strong electromagnetic fields.

WARNING:

This equipment is compliant with Class A of CISPR32.

In a residential environment this equipment may
cause radio interference.

English

6

IMPORTANT INFORMATION

If a display is not positioned in a sufficiently stable
location, it can be potentially hazardous due to falling.
Many injuries, particularly to children, can be avoided
by taking simple precautions such as:

Using cabinets or stands recommended by the

•

manufacturer of the display.

Only using furniture that can safely support the

•

display.

Ensuring the display is not overhanging the edge

•

of the supporting furniture.

Not placing the display on tall furniture (for

•

example, cupboards or bookcases) without
anchoring both the furniture and the display to a
suitable support.

Not standing the displays on cloth or other

•

materials placed between the display and
supporting furniture.

Educating children about the dangers of climbing

•

on furniture to reach the display or its controls.

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE
FOLLOWING TEXT CAREFULLY.

This display is supplied with a moulded three pin
mains plug for your safety and convenience. A 10
amp fuse is fitted in this plug. Shall the fuse need to
be replaced, please ensure that the replacement fuse
has a rating of 10 amps and that it is approved by
ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark on

the body of the fuse.

If the plug contains a removable fuse cover, you must
ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.

A replacement fuse cover can be purchased from
your local Panasonic dealer.
Do not cut off the mains plug.

Do not use any other type of mains lead except the
one supplied with this display.
The supplied mains lead and moulded plug are
designed to be used with this display to avoid
interference and for your safety.

If the socket outlet in your home is not suitable, get it
changed by a qualified electrician.

If the plug or mains lead becomes damaged,
purchase a replacement from an authorized dealer.

WARNING : — THIS DISPLAY MUST BE EARTHED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and
replace the fuse.

English

7

Safety Precautions

84-inch model

84-inch model

75-inch model

WARNING

■ Setup

Optional accessory

Early Warning Software

•

ET-SWA100 series

: Suffix of the part number may differ depending on the

*

license type.

Note

●

The part number of the optional accessories are
subject to change without notice.

*

When installing the Display vertically;

(

When installing the Display vertically, be sure that
the Power Indicator comes to the downside. Heat is
generated and it may cause fire or damage to the
Display.

Power indicator

only)

Small parts can present choking hazard if accidentally
swallowed. Keep small parts away from young children.
Discard unneeded small parts and other objects,
including packaging materials and plastic bags/sheets to
prevent them from being played with by young children,
creating the potential risk of suffocation.

Do not place the Display on sloped or unstable
surfaces, and ensure that the Display does not hang
over the edge of the base.

The Display may fall off or tip over.

•

Install this unit at a location with minimal vibration
and which can support the weight of the unit.

Dropping or falling of the unit may cause injury or

•

malfunction.

Do not place any objects on top of the Display.

If foreign objects or water get inside the Display, a

•

short-circuit may occur which could result in fire or
electric shock. If any foreign objects get inside the
Display, please consult your local Panasonic dealer.

Transport only in upright position!

Transporting the unit with its liquid crystal panel

•

facing upright or downward may cause damage to the
internal circuitry.

Ventilation should not be impeded by covering
the ventilation openings with items such as
newspapers, table cloths and curtains.

For sufficient ventilation, see page 10.

Caution - For use only with UL Listed Wall Mount
Bracket with minimum weight/load 70 (154 lbs).

Cautions for Wall Installation

The installation should be performed by an installation

•

professional. Installing the Display incorrectly may
lead to an accident that results in death or serious
injury.

When installing on a wall, a wall hanging bracket that

•

conforms to VESA standards must be used.

(see page 10)

Before installation, be sure to check if the mounting

•

location has enough strength to support the weight
of the LCD display and the wall hanging bracket for
anti drop.

If you terminate the use of the Display on the Wall,

•

ask a professional to remove the Display as soon as
possible.

When mounting the Display on the wall, prevent the

•

mounting screws and power cable from contacting
metal objects inside the wall. An electric shock may
occur if they contact metal objects inside the wall.

Do not place the display where it may be affected by
salt or corrosive gas.

Doing so may cause the display to fall due to

•

corrosion. Also, the unit may malfunction.

Do not install the product to a place where the
product is exposed to direct sunlight.

If the screen is exposed to direct sunlight, the liquid

•

crystal panel may have adverse effect.

: VESA 600 × 500

: VESA 600 × 400

■ When using the LCD Display

The Display is designed to operate on 110 - 127 or
220 - 240 V AC, 50/60 Hz.

Do not cover the ventilation holes.

Doing so may cause the Display to overheat, which

•

can cause fire or damage to the Display.

Do not stick any foreign objects into the Display.

Do not insert any metal or flammable objects into the

•

ventilations holes or drop them onto the Display, as

English

8

doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

High voltages which can cause severe electric shocks

•

are present inside the Display. For any inspection,
adjustment and repair work, please contact your local
Panasonic dealer.

Ensure that the mains plug is easily accessible.

The mains plug shall be connected to a mains
socket outlet with a protective earthing connection.

Do not use any power supply cord other than that
provided with this unit.

Doing so may cause short-circuit, generates heat,

•

etc., which could cause electric shock or fire.

Do not use the supplied power supply cord with any
other devices.

Doing so could cause electric shock or fire.

•

Securely insert the power supply plug as far as it
will go.

If the plug is not fully inserted, heat may be generated

•

which could cause fire. If the plug is damaged or the
wall socket is loose, they shall not be used.

Do not handle the power supply plug with wet
hands.

Doing so may cause electric shocks.

•

Do not do anything that may damage the power
cable. When disconnecting the power cable, pull on
the plug body, not the cable.

Do not damage the cable, make any modifications

•

to it, place heavy objects on top of it, heat it, place it
near any hot objects, twist it, bend it excessively or
pull it. To do so may cause fire and electric shock. If
the power cable is damaged, have it repaired at your
local Panasonic dealer.

Do not touch the power supply cord or the plug
directly by hand when they are damaged.

Electric shock could occur.

•

Do not remove covers and NEVER modify the
Display yourself

Do not remove the rear cover as live parts are

•

accessible when it is removed. There are no user
serviceable parts inside. (High-voltage components
may cause serious electrical shock.)

Have the Display checked, adjusted, or repaired at

•

your local Panasonic dealer.

Keep the AAA/R03/UM4 batteries (supplied) out of
reach of children. If accidentally swallowed, it will be
harmful to the body.

Please contact a doctor immediately in case you

•

doubt that the child may have swallowed it.

If the Display is not going to be used for any
prolonged length of time, unplug the power supply
plug from the wall outlet.

Picture noise may occur if you connect / disconnect
the cables connected to the input terminals you
are currently not watching, or if you turn the power
of the video equipment on / off, but it is not a
malfunction.

To prevent the spread of fire, keep
candles or other open flames away from
this product at all times.

English

9

CAUTION

If problems or malfunction occur, stop using
immediately.

■ If problems occur, unplug the power supply

plug.

Smoke or an abnormal odour come out from the unit.

•

No picture appears or no sound is heard,

•

occasionally.

Liquid such as water or foreign objects got inside the

•

unit.

The unit has deformed or broken parts.

•

If you continue to use the unit in this condition, it
could result in fire or electric shock.

Turn the power off immediately, unplug the power

•

supply plug from the wall outlet, and then contact the
dealer for repairs.

To cut off the power supply to this Display completely,

•

you need to unplug the power supply plug from the
wall outlet.

Repairing the unit yourself is dangerous, and shall

•

never be done.

To enable to unplug the power supply plug

•

immediately, use the wall outlet which you can reach
easily.

■ Do not touch the unit directly by hand when

it is damaged.

Electric shock could occur.

■ When using the LCD Display

Do not bring your hands, face or objects close to the
ventilation holes of the Display.

Heated air comes out from the ventilation holes at the

•

top of Display will be hot. Do not bring your hands or
face, or objects which cannot withstand heat, close to
this port, otherwise burns or deformation could result.

At least 4 people are required to carry or unpack
this unit.

If this is not observed, the unit may drop, resulting in

•

injury.

Be sure to disconnect all cables before moving the
Display.

If the Display is moved while some of the cables are

•

still connected, the cables may become damaged,
and fire or electric shock could result.

Disconnect the power supply plug from the wall
socket as a safety precaution before carrying out
any cleaning.

Electric shocks can result if this is not done.

•

Clean the power cable regularly to prevent it
becoming dusty.

If dust built up on the power cord plug, the resultant

•

humidity can damage the insulation, which could
result in fire. Pull the power cord plug out from the
wall outlet and wipe the mains lead with a dry cloth.

Do not step on, or hang from the display.

They might tip over, or might be broken and it may

•

result in injury. Pay special attention to the children.

Do not reverse the polarity (+ and -) of the battery
when inserting.

Mishandling the battery may cause its explosion

•

or leakage, resulting in fire, injury or damage to
surrounding properties.

Insert the battery correctly as instructed. (see page

•

13)

Remove the batteries from the remote control
transmitter when not using for a long period of time.

The battery may leak, heat, ignite or burst, resulting in

•

fire or damage to surrounding properties.

Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such

•

as sunshine, fire or the like.

Do not turn the Display upside down.

Do not position the unit with its liquid crystal panel
facing upright.

10

English

Precautions for use

Cautions when installing

Do not set up the Display outdoors.

The Display is designed for indoor use.

•

Install this unit at a location which can support the
weight of the unit.

Use the installation bracket that conforms to VESA

•

standards

Environmental temperature to use this unit

When using the unit where it is below 1 400 m (4 593

•

ft) above sea level: 0 °C to 40 °C (32 °F to 104 °F)

When using the unit at high altitudes (1 400 m (4 593

•

ft) and higher and below 2 800 m (9 186 ft) above sea
level): 0 °C to 35 °C (32 °F to 95 °F)

Do not install the unit where it is 2 800 m (9 186 ft)
and higher above sea level.

Failure to do so may shorten the life of the internal

•

parts and result in malfunctions.

We are not responsible for any product damage, etc.
caused by failures in the installation environment
even during the warranty period.

Do not place the display where it may be affected by
salt or corrosive gas.

Failure to do so may shorten the life of the internal

•

parts and result in malfunctions due to corrosion.

Required space for ventilation

For the outermost periphery of the display, leave a

•

space of 10 cm (3.94”) or more at the top, bottom, left
and right.

At the rear, leave a space of 5 cm (1.97”) or more.

About the screws used when using a wall hanging
bracket that conforms to VESA standards

Inch

model

Be careful of the movable structure of the power
indicator and remote control sensor.

As factory default, the power indicator and remote

•

control sensor are stored in the main unit. For normal
use, pull out the remote control sensor from the edge
side of the main unit by operating the lever on the
rear panel. Depending on the setup condition such as
when using the multi display, store the remote control
sensor in the main unit. (see page 25)

Do not grab the liquid crystal panel.

Do not forcibly press the liquid crystal panel, or push

•

it with a pointed object. Applying a strong force to

Screw pitch for

installation

84 600 mm × 500 mm 10 mm M8 (4)

75 600 mm × 400 mm 10 mm M8 (4)

Depth of

screw

hole

Screw

(quantity)

the liquid crystal panel will cause unevenness of the
screen display, resulting in malfunction.

Depending on the temperature or humidity
conditions, uneven brightness may be observed.
This is not a malfunction.

This unevenness will disappear while applying current

•

continuously. If not, consult the distributor.

Request Regarding Security

When using this product, take safety measures
against the following incidents.

Personal information being leaked via this product

•

Unauthorized operation of this product by a malicious

•

third party

Interfering or stopping of this product by a malicious

•

third party

Take sufficient security measures. (see page 71, 73)

Set a password for the LAN control and restrict the

•

users who can log in.

Make your password difficult to guess as much as

•

possible.

Change your password periodically.

•

Panasonic Corporation or its affiliate companies will

•

never ask for your password directly. Do not divulge
your password in case you receive such inquiries.

The connecting network must be secured by a

•

firewall, etc.

When disposing the product, initialize the data before

•

disposing. [Shipping] (see page 91)

Notes on Using Wired LAN

When setting up the Display at a place, where
electric statistic occurs often, take a sufficient
antistatic measure before start using.

When the Display is used at a location, where static

•

electricity occurs often, such as on a carpet, a wired
LAN communication is disconnected more often.
In that case, remove static electricity and the noise
source that may cause problems with an antistatic
mat, and re-connect the wired LAN.

In rare cases, the LAN connection is disabled due

•

to static electricity or noise. In that case, turn off the
power of the Display and the connected devices once
and then re-turn on the power.

The Display may not work properly due to strong
radio wave from the broadcast station or the radio.

If there is any facility or equipment, which outputs

•

strong radio wave, near the installation location, set
up the Display at a location sufficiently far from the
source of the radio wave. Or, wrap the LAN cable
connected to the LAN terminal by using a piece of
metal foil or a metal pipe, of which is grounded at
both ends.

Cleaning and maintenance

The front of the liquid crystal panel has been

English

11

specially treated. Wipe the surface of the liquid
crystal panel gently using only a cleaning cloth or a
soft, lint-free cloth.

If the surface is particularly dirty, wipe with a soft,

•

lint-free cloth which has been soaked in pure water or
water in which neutral detergent has been diluted 100
times, and then wipe it evenly with a dry cloth of the
same type until the surface is dry.

Do not scratch or hit the surface of the panel with

•

fingernails or other hard objects, otherwise the
surface may become damaged. Furthermore, avoid
contact with volatile substances such as insect
sprays, solvents and thinner, otherwise the quality of
the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry
cloth.

If the cabinet is particularly dirty, soak the cloth in

•

water to which a small amount of neutral detergent
has been added and then wring the cloth dry. Use this
cloth to wipe the cabinet, and then wipe it dry with a
dry cloth.

Do not allow any detergent to come into direct contact

•

with the surface of the Display. If water droplets get
inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect

•

sprays, solvents and thinner, otherwise the quality of
the cabinet surface may be adversely affected or the
coating may peel off. Furthermore, do not leave it for
long periods in contact with articles made from rubber
or PVC.

Usage of a chemical cloth

Do not use a chemical cloth for the panel surface.

•

Follow the instructions for the chemical cloth to use it

•

for the cabinet.

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instructions
(CD-ROM × 1)

Remote Control Transmitter
× 1

●

N2QAYA000099

Batteries for the Remote
Control Transmitter × 2

(AAA/R03/UM4 type)

Clamper × 3

●

TZZ00000694A

Disposal

When disposing the product, ask your local
authority or dealer about the correct methods of
disposal.

English

12

Power supply cord

(Approx. 2 m)

TH-84EF1U

TH-75EF1U

●

1JP155AF1U

TH-84EF1W

TH-75EF1W

●

1JP155AF1W

●

2JP155AF1W

●

3JP155AF1W

Attention

●

Store small parts in an appropriate manner, and keep
them away from young children.

●

The part numbers of accessories are subject to
change without notice. (The actual part number may
differ from the ones shown above.)

●

In case you lost accessories, please purchase them
from your dealer. (Available from the customer
service)

●

Dispose the packaging materials appropriately after
taking out the items.

Remote Control Batteries

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity (+ and -).

AAA/R03/UM4 type

3. Replace the cover.

Helpful Hint

●

For frequent remote control users, replace old
batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation of the batteries can cause battery
leakage and corrosion that will damage the remote
control transmitter.

Disposal of batteries should be in an environment­friendly manner.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always
use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with
“Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble,
heat or burn used batteries.

5. Battery replacement is necessary when remote
control acts sporadically or stops operating the
Display set.

6. Do not burn or breakup batteries.

7. Batteries must not be exposed to excessive heat such
as sunshine, fire or the like.

English

13

Cautions when

Eyebolt

moving

The display has handles for carrying. Hold them when
moving.

Handle



Note

●

Do not hold parts other than the handles.

●

At least 4 people are required to carry this unit.
If this is not observed, the unit may drop, resulting in
injury.

●

When carrying the unit, keep the liquid crystal panel
upright.

Carrying the unit with the surface of the liquid crystal
panel facing up or down may cause deformation of
the panel, or internal damage.

●

Do not hold the upper, lower, right and left frames or
the corners of the unit. Do not hold the front surface
of the liquid crystal panel. Also, do not hit such parts.

Doing so may damage the liquid crystal panel.

Also, the panel may crack, resulting in injury.

The display has holes for attaching eyebolts (M10).
When installing, use them to suspend the display.

Use the eyebolt only for temporary hanging or
movement.

Eyebolt (commercially available) mounting positions



Note

●

Suspension and installation should be performed by
an installation professional.

●

Do not install the Display using only 1 eyebolt.

●

Use the eyebolt of size M10, which fulfils the load
condition of the mass of the product.

●

After installation, remove the eyebolts, and close the
holes using the eyebolt caps removed when attaching
the eyebolts.

14

English

Connections

84-inch model

AC cord connection and fixing

Back of the unit



AC cord fixing

AC cord (supplied)

Plug the connector into the display unit.

Plug the connector until it clicks.

Note

●

Make sure that the connector is locked on both the
left and right sides.

Unplug the AC cord

Cable fixing

Note

●

3 clampers are supplied with this unit. Fix the cables
at 3 locations using the holes for clampers as shown
below.

If you need more clampers, purchase them from your
dealer. (Available from the customer service)

●

The positions of the holes are the same for 75-inch
model.

1. Attach the clamper

hole

Insert the clamper in a
hole.

To remove from
the unit:

snaps

Keep pushing both side
snaps and pull out the
clamper.

Unplug the connector pressing the two knobs.

Note

●

When disconnecting the AC cord, be absolutely sure
to disconnect the AC cord plug at the socket outlet
first.

●

The supplied AC cord is for this unit exclusive use. Do
not use this for other purposes.

2. Bundle the cables

hooks

To loosen:

knob

Set the tip in the hooks
and tighten.

Keep pushing the knob
and pull out the tip.

English

15

Video equipment connection

1 AV IN (VIDEO): Composite Video / Audio Input

2 PC IN: PC Input Terminal

3 AV IN

(HDMI 1,
HDMI 2):

4 DVI-D IN: DVI-D Input Terminal

5 SERIAL IN: SERIAL Input Terminal

6 LAN: LAN Terminal

Terminal

Connect to video equipment with
Composite signal output.

(see page 20)

Connect to video terminal of PC,
video equipment with “YP
YCBCR” or “RGB” output.

(see page 19)

HDMI Input Terminal

Connect to video equipment such
as VCR or DVD player, etc.

(see page 17)

Connect to video equipment with
DVI-D output.

(see page 18)

Control the Display by connecting
to PC.

(see page 21)

Control the Display by connecting
to Network.

(see page 64)

BPR /

7 USB: USB Terminal

Connect the USB memory to use
[USB media player]. Also, this
can be used to supply power of
up to 5V/1A to an external device
when the picture is displayed.

(see page 23)

8 IR IN, IR OUT: Infrared Signal Input / Output

Terminal

Use this when operating more
than one display with one remote
control.

(see page 22)

9 AUDIO IN: Audio input terminal shared

with DVI-D IN and PC IN

(see page 18, 19)

10 AUDIO OUT: Analogue Audio Output

Terminal

Connect to audio equipment with
analogue audio input terminal.

(see page 23)

16

English

Before connecting

●

Before connecting cables, carefully read the operating
instructions for the external device to be connected.

●

Turn off the power of all devices before connecting
cables.

●

Take note of the following points before connecting
the cables. Failure to do so may result in
malfunctions.

When connecting a cable to the unit or a device

•

connected to the unit itself, touch any nearby
metallic objects to eliminate static electricity from
your body before performing work.

Do not use unnecessarily long cables to connect

•

a device to the unit or to the unit body. The
longer the cable, the more susceptible to noise it
becomes. Since using a cable while it is wound
makes it act like an antenna, it is more susceptible
to noise.

When connecting cables, connect GND first, then

•

insert the connecting terminal of the connecting
device in a straight manner.

●

Acquire any cable necessary to connect the external
device to the system that is neither supplied with the
device nor available as an option.

●

If the outer shape of the plug of a connection cable is
large, it may come in contact with the periphery such
as a back cover or the plug of an adjacent connection
cable. Use a connection cable with the suitable plug
size for the terminal alignment.

●

If video signals from video equipment contain too
much jitter, the images on the screen may wobble.
In this case, a time base corrector (TBC) must be
connected.

●

When the sync signals output from PC or video
equipment are disturbed, for example, when changing
settings of video output, the colour of the video may
be disturbed temporarily.

●

The unit accepts Composite video signals, YC
YPBPR signals (PC IN), analogue RGB signals (PC
IN) and digital signals.

●

Some PC models are not compatible with the unit.

●

Use cable compensator when you connect devices to
the unit using long cables. Otherwise the image may
not display properly.

●

Refer to “Preset Signals” (see page 89) for the types
of video signals that can be displayed with the unit.

BCR/

HDMI 1 and HDMI 2 terminals connection

Note

●

Video equipment and HDMI cable shown are not
supplied with this unit.

●

Some HDMI equipment may not be able to display
picture.

HDMI cable (commercially available)

Video Cassette Recorder

DVD Player

PC

English

17

Pin assignments and signal names for HDMI
Terminal

Pin No. Signal name

T.M.D.S Data2+

T.M.D.S Data2 Shield

T.M.D.S Data2-

T.M.D.S Data1+

T.M.D.S Data1 Shield

T.M.D.S Data1-

T.M.D.S Data0+

T.M.D.S Data0 Shield

T.M.D.S Data0-

T.M.D.S Clock+

T.M.D.S Clock Shield

T.M.D.S Clock-

CEC

SCL

SDA

DDC/CEC Ground

+5V DC

Hot Plug Detect

DVI-D IN terminal connection

Note

●

Video equipment and cables shown are not supplied
with this unit.

●

Use the DVI-D cable complying with the DVI
standard. Image deterioration may occur depending
on the length or the quality of the cable.

●

DVI-D IN terminal is for Single Link only.

Shared with PC IN.

DVI-D video cable (Within 5 m) (commercially

available)

Stereo mini plug (M3) cable (commercially available)

PC with DVI-D video out

18

English

Pin assignments and signal names for DVI-D
Input

PC IN terminal connection

Shared with DVI-D IN.

(Female)

Pin No. Signal Name

T.M.D.S. data 2-

T.M.D.S. data 2+

T.M.D.S. data 2 shield

DDC clock

DDC data

T.M.D.S. data 1-

T.M.D.S. data 1+

T.M.D.S. data 1 shield

+5 V DC

GND (Ground)

Hot plug detect

T.M.D.S. data 0-

T.M.D.S. data 0+

T.M.D.S. data 0 shield

T.M.D.S. clock shield

T.M.D.S. clock+

T.M.D.S. clock-

(Male)

Connect a cable
which matches
the audio output
terminal on the
computer.

(commercially
available)

Mini D-sub 15p cable (commercially available)

Conversion adapter (if necessary) (commercially

available)

Stereo mini plug (M3) cable (commercially available)

PC

The type of computer signal that can be connected

●

With regard to the typical PC input signals that
are described in “Preset Signals” (see page 89),
adjustment values such as for the standard picture
positions and sizes have already been stored in this
unit.

(Computer signals which can be input are those with
a horizontal scanning frequency of 30 to 110 kHz and
vertical scanning frequency of 48 to 120 Hz.)

●

The display resolution is a maximum of 1 440 × 1 080
dots when the aspect mode is set to [4:3], and 1 920
× 1 080 dots when the aspect mode is set to [16:9].
If the display resolution exceeds these maximums, it
may not be possible to show fine detail with sufficient
clarity.

●

In [ENGLISH(US)] OSD language, [16:9] is displayed
as [FULL].

Note

●

The PC IN terminal is DDC2B-compatible. If the
computer being connected is not DDC2B-compatible,
you will need to make setting changes to the
computer at the time of connection.

●

There is no need to use an adapter for computers
with DOS/V compatible Mini D-sub 15P terminal.

English

19

●

The computer shown in the illustration is for example
purposes only.

●

Additional computer, cables and conversion adapter
shown are not supplied with this set.

●

Do not set the horizontal and vertical scanning
frequencies for PC signals which are above or below
the specified frequency range.

●

Component Input is possible with the pin 1, 2, 3 of the
Mini D-sub 15P Connector.

●

Change the [Component/RGB-in select] setting in
the [Signal] menu to [Component] (when Component
signal connection) or [RGB] (when RGB signal
connection). (see page 43)

Pin assignments and signal names for PC Input
Terminal (Mini D-sub 15P)

45

10

15 14 13 12 11

Pin No. Signal Name

R (PR/CR)

G (Y)

B (PB/CB)

NC (not connected)

GND (Ground)

GND (Ground)

GND (Ground)

GND (Ground)

+5 V DC

GND (Ground)

NC (not connected)

SDA

HD/SYNC

VD

SCL

1

2

67839

VIDEO terminal connection

Note

●

Video equipment, connection cables and conversion
plugs are not supplied with this unit.

Yellow

White

Red

4-pole mini plug conversion cable (commercially

available)

Audio video pin cable (commercially available)
Video Cassette Recorder
DVD Player

Wiring specifications for 4-pole mini plug

Note

●

Use a 4-pole mini plug (M3) with the following wiring
specifications for the VIDEO terminal of this unit. If
the wiring of a plug is different, audio and video are
not correctly input.

1
2
3
4

Audio L (White)
Video (Yellow)
GND (Ground)

Audio R (Red)

20

English

SERIAL terminal connection

The SERIAL terminal conforms to the RS-232C interface
specification, so that the Display can be controlled by a
computer which is connected to this terminal.

(Male)

(Female)

D-sub 9p

RS-232C Straight cable (commercially available)

PC

Note

●

Use the RS-232C straight cable to connect the
computer to the Display.

●

Additional computer and cables shown are not
supplied with this set.

Pin assignments and signal names for SERIAL
Terminal

1 3 4 52

6 7 8 9

Pin No. Signal Name

NC (not connected)

RXD

TXD

Non use

GND (Ground)

Non use

RTS

CTS

NC (not connected)

These signal names are those of computer
specifications.

Communication parameters

Signal level: RS-232C compliant

Synchronization method: Asynchronous

Baud rate: 9600 bps

Parity: None

Character length: 8 bits

Stop bit: 1 bit

Flow control: None

Shorted in this set

English

21

Basic format for control data

The transmission of control data from the computer
starts with a STX signal, followed by the command, the
parameters, and lastly an ETX signal in that order. If
there are no parameters, then the parameter signal does
not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start

(02h)

3-character command
(3 bytes)

Command

Command Parameter Control details

PON None Power ON
POF None Power OFF

AVL *** Volume000‒100

AMT

IMS None Input select (toggle)

DAM

Note

●

If multiple commands are transmitted, be sure to
wait for the response for the first command to come
from this unit before sending the next command.
When sending a command which does not require
parameter, a colon (:) is not needed.

●

If an incorrect command is sent by mistake, this
unit will send an “ER401” command back to the
computer.

●

In Standby condition (power OFF with remote
control), the unit responds to PON command only.

●

Consult your local Panasonic dealer for detail
instructions on command usage.

For more details, visit the following web site.

http://panasonic.net/prodisplays/

Colon

Parameter(s)

0 Audio MUTE OFF
1 Audio MUTE ON

HM1

HM2

DV1

PC1 PC IN input (PC)

VD1

UD1 USB input (USB)

None

ZOOM Zoom1

FULL 16:9
NORM 4:3
ZOM2 Zoom2

HDMI 1 input
(HDMI1)
HDMI 2 input
(HDMI2)
DVI-D IN input
(DVI-D)

VIDEO input
(VIDEO)

Screen mode select
(toggle)

(03h)

End

IR IN/IR OUT terminal connection

Connect the mini plug (M3) cable from the IR OUT
terminal of the first display to the IR IN terminal of the
second display.

The infrared signal of the first display is sent to the
second display.

In this case, the IR (infrared ray reception on the remote
control sensor) on the second display does not operate.

Repeating the above connections enables the daisy
chain connection.

Note

●

Connection cables are not supplied with this unit.

●

Daisy chain connection is possible only between the
displays of the same series.

Stereo mini plug (M3) cable (commercially available)

First display

Second display

Third display

22

English

AUDIO OUT terminal connection

1 3 42

Stereo mini
plug (M3)

line-in

Stereo audio cable (commercially available)

Audio equipment

Note

●

Audio equipment and the cable shown are not
supplied with this set.

●

To output sound from AUDIO OUT terminal of the
unit, be sure to set [Output select] in the [Sound]
menu to [AUDIO OUT]. (see page 37)

USB terminal connection

Connect the USB memory (commercially available) to
use [USB media player]. (see page 78)

Also, power is supplied when a separately sold stick PC,
etc. are connected.

Note

●

A stick PC and connection cables are not supplied
with this unit.

Stick PC

USB cable (commercially available)

HDMI extension cable (commercially available)

Pin assignments and signal names for USB Terminal

Pin No. Signal name

+5 V DC

DATA -

DATA +

GND (Ground)

English

23

Power of up to 5V/1A can be supplied to an external
device when the picture is displayed.

●

If the electric current exceeding the power supplying
capability is applied, the output is blocked, and the
following message is displayed.

[USB DC5V OUT overload. Please remove cable or
equipment, then turn the display off/on.]

In this case, remove the equipment and then turn the
power off/on using the remote control, etc.

Note

●

If the direct connection to this unit is not possible due
to the size of a stick PC, etc. use a commercially sold
extension cable.

●

Depending on the type of a USB memory device,
it may come in contact with the periphery such
as a back cover, and cannot be attached. Use a
commercially sold extension cable, or use a small
type of a USB memory device connectable to this
unit.

●

Depending on the USB memory, the access lamp
may remain blinking even when it is not being
accessed. In this case, remove the device after
switching to the input other than USB.

Also, when reading the user image, remove the
device after the menu screen display finishes (see
page 43). When performing the data cloning, remove
the device after the completion screen is displayed.
(see page 85)

24

English

Identifying Controls

Main unit

●

To take out/store the power indicator and remote
control sensor, operate the lever on the rear panel.

It is also possible to press the remote control
sensor directly to store.

Note

●

For normal use, pull out the power indicator and
remote control sensor from the edge side of the
main unit by operating the lever on the rear panel.
Depending on the setup condition such as when
using the multi display, store them in the main unit.

1 Power Indicator / Remote control sensor

The Power Indicator will light.

When the power of the unit is ON (Main Power On
/ Off button: ON)

●

Picture is displayed: Green

●

Power OFF (standby) with remote control:

When [Network control] is set to [Off]: Red

•

When [Network control] is set to [On]: Orange

•

(Red/Green)

About [Network control] settings, see page 53.

●

Power OFF with “Power management” function:
Orange (Red/Green)
About “Power management” function, see page 47.

When the power of the unit is OFF (Main Power
On / Off button: OFF): No light

Note

●

Even if the display unit is turned off with the power
indicator off, some of the circuits are in power-on
status.

●

When the power indicator is orange, power
consumption during standby is generally larger than
that of when the power indicator is red.

88

MENU ENTERINPUT

-

+

1 External Input Terminal

Connects to video equipment, PC, etc. (see page 16)

2 <Main Power On / Off button>

Turns the power On / Off.

3 <INPUT (Unit)>

Selects the connected device. (see page 29)

4 <MENU (Unit)>

Displays the menu screen. (see page 33)

5 <+ (Unit)> / <- (Unit)>

Adjusts the volume. (see page 30)

On the main screen, switches settings or adjusts
settings level. (see page 33)

(Unit)> / < (Unit)>

6 <

Selects the setting item on menu screen. (see page

33)

7 <ENTER (Unit)>

Configures the item on menu screen. (see page 33)

Switches aspect mode. (see page 31)

8 Built-in speakers

Sound is output backward and upward.

Note

●

To output sound from the built-in speakers of the
unit, be sure to set [Output select] in the [Sound]
menu to [SPEAKERS]. (see page 37)

English

25

Remote Control Transmitter

1 Standby (ON/OFF) button ( / )

●

Turns the power on or off when the Display is
turned on at the <Main Power On / Off button>.
(see page 27)

2 POSITION

(see page 35)

3 SETUP

(see page 43)

4 ENTER / Cursor buttons (

●

Used to operate the menu screens. (see page 33)

5 ZOOM

Enters the digital zoom mode. (see page 32)

6 DEFAULT

●

Resets the settings of picture, sound, etc., to
defaults. (see page 35, 37, 38)

7 MUTE

●

Sound mute on / off. (see page 30)

8 ASPECT

●

Adjusts the aspect. (see page 31)

9 VOL + / VOL -

●

Adjusts sound volume level. (see page 30)

10 AUTO SETUP

●

Automatically adjusts the position/size of the
screen. (see page 35)

11 INPUT

●

Switches input to display on the screen. (see page

29)

12 PICTURE

(see page 38)

13 SOUND

(see page 37)

)

14 RECALL

●

Displays the current setting status of Input mode,
Aspect mode, etc. (see page 29)

15 RETURN

●

Used to return to the previous menu. (see page 33)

16 FUNCTION

●

Displays [Function button guide].

(see page 55)

17 OFF TIMER

●

Switches to stand-by after a fixed period. (see
page 30)

18 Numeric buttons (1 - 6)

●

Used as shortcut buttons by assigning frequently
used operations. (see page 56)

19 Signal emission

Note

●

In this manual, buttons of the remote control and the
unit are indicated as < >.

(Example: <INPUT>.)

The operation is mainly explained indicating the
remote control buttons but you can also operate with
the buttons on the unit when there are the same
buttons.

26

English

Basic Controls

MUTE

AC socket outlet

AC cord (supplied)

Main Power On / Off button

(Back of the unit)

Operate pointing the remote control directly at
the unit’s Remote Control Sensor.

Note

●

For normal use, pull out the remote control sensor
from the edge side of the main unit by operating the
lever on the rear panel. (see page 25)

●

Do not put an obstacle between the remote control
sensor of the main unit and the remote control.

●

Operate the remote control in front of the remote
control sensor or from the area where the sensor can
be seen.

●

When directly aiming the remote control at the remote
control sensor of the main unit, the distance from
the front of remote control sensor should be approx.
7 m or less. Depending on the angle, the operation
distance may be shorter.

●

Do not subject the remote control sensor of the main
unit to the direct sunlight or strong fluorescent light.

Remote Control Sensor /
Power Indicator

Connect the AC cord plug to the

1

Display.

(see page 15)

Connect the plug to the socket outlet.

2

Note

●

Main plug types vary between countries. The
power plug shown at left may, therefore, not be the
type fitted to your set.

●

When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet first.

●

The settings may not be saved if the power plug is
disconnected immediately after changing settings
with on-screen menu. Disconnect the power plug
after a enough period of time. Or, disconnect the
power plug after turning the power off with the
remote control, RS-232C control or LAN control.

Press the <Main Power On / Off

3

button> on the unit to turn the set on:
Power-On.

●

Power Indicator: Green (Picture is displayed.)

●

When the power of the unit is ON, remote control
operation is possible.

■ To turn the power ON/OFF with the remote

control

Press the <Standby (ON/OFF) button> to turn the
Display on.

●

Power Indicator: Green (Picture is displayed.)

Press the <Standby (ON/OFF) button> to turn the
Display off.

●

Power Indicator: Red (standby)

Press the <Main Power On / Off button> on the unit to
turn the unit off, when the power of the unit is turned
on or in standby mode.

Note

●

During operation of the “Power management” function
(see page 47), the power indicator turns orange in the
power off state.

●

After the power plug is disconnected, the power
indicator may remain lit for a while. This is not a
malfunction.

English

27

■ When the Unit is turned on for the first time

84-inch model

Following screen will be displayed.

Select the language with and

1

press <ENTER>.

OSD language

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

For vertical installation, select

2

[Portrait] with and press
<ENTER>.

(

Display orientation

Note

●

Once the items are set, the screens won’t be
displayed when switching on the unit next time.

Each item can be reset in the following menus.

[OSD language] (see page 50)

[Display orientation] (see page 56)

only)

Landscape

Portrait

■ Power ON message

The following message may be displayed when turning
the unit power ON:

No activity power off Precautions

'No activity power off' is enabled.

When [No activity power off] in the [Setup] menu is set to
[Enable], a warning message is displayed every time the
power is turned ON. (see page 50)

“Power management” Information

Last turn off due to 'Power management'.

When “Power management” is functioned, an
information message is displayed every time the power
is turned ON. (see page 47)

These message displays can be set with the following
menu:

●

[Options] menu

Power on message(No activity power off)
(see page 62)

Power on message(Power management)
(see page 62)

English

28

Selecting the input signal

Select the signals input to the unit.

Press <INPUT> or <INPUT (Unit)>.

Unit

MENU ENTERINPUT

-

+

Switches input every time the buttons are pressed.

PC

16:9

Note

●

Displays the signal name as set in [Input label]. (see
page 47)

●

Input will not be switched unless [Input lock] is set to
[Off]. (see page 59)

●

Image retention (image lag) may occur on the LCD
liquid crystal panel when a still picture is kept on
the panel for an extended period. To prevent such
a problem, using the screensaver and wobbling is
recommended. (see page 46, 50)

RECALL

It is possible to check the setting status of input label,
picture mode, etc.

Press <RECALL>.

Current setting status will be displayed.

PC

16:9

Memory name: MEMORY2

1
2

3

[HDMI1] → [HDMI2] → [DVI-D] → [PC] → [VIDEO] →
[USB]

[HDMI1]:

HDMI 1 terminal, HDMI input

[HDMI2]:

HDMI 2 terminal, HDMI input

[DVI-D]:

DVI-D IN terminal, DVI-D input

[PC]:

PC IN terminal, PC input

[VIDEO]:

VIDEO terminal, composite video input

[USB]:

USB terminal, USB input

10:00

Off timer

90 min

1 Input label

2 Aspect mode (see page 31)

3 Profile name (see page 42)

4 Off timer remaining time (see page 30)

5 Clock / Mute (see page 30, 62)

●

When there is no video signal to the selected input,
[No signal] is displayed for about 30 seconds at the
end.

●

When a USB memory is not connected to the USB
terminal at the time of using the USB input, [No
external media] is displayed for about 30 seconds.

Even when a USB memory is connected, if it does not
contain any playable file, [No play file] is displayed at
all times.

●

When [No signal image settings] - [Display setting] is
set to [On] (see page 49), the message [No signal] /
[No external media] / [No play file] are not displayed.
Instead, the image set in [No signal image settings]
will be displayed.

●

To display the clock, set [Date and time] and then set
[Clock display] to [On]. (see page 52, 62)

English

4

5

29

Volume Adjustment

Press <VOL +> <VOL -> or <+ (Unit)> <- (Unit)> to
adjust volume.

Unit

MENU ENTERINPUT

-

+

Volume (SPEAKERS)

●

The current sound volume level is memorised even if
the power is turned off.

●

When [Maximum VOL level] is set to [On], the volume
can only be adjusted to the maximum point you set,
and the displayed value turns red when it reached its
maximum. (see page 59)

●

When [Initial VOL level] is set to [On], the volume will
be at the set level when the display is turned on. (see
page 59)

20

Sound mute On / Off

It is useful when you want to mute the sound temporarily,
for example, when answering the phone or door.

Press <MUTE>.

●

appears on the screen and the sound is muted.

Press again to reactivate the sound.

●

It is also reactivated when the power is turned on / off
or the volume level is changed.

●

While MUTE is active,
after operation.

●

When the image set in [No signal image settings]
(see page 49) is displayed,
operation.

●

In [ENGLISH(US)] OSD language,
[MUTE].

is displayed as a reminder

is not displayed after

is displayed as

OFF TIMER

The Display can be preset to switch to stand-by after a
fixed period. (30 min, 60 min, 90 min)

The setting switches each time <OFF TIMER> is
pressed.

●

[0 min]→[30 min]→[60 min]→[90 min]
→[0 min] (Cancel)

30

English

●

When three minutes remain, the remaining time will
flash (Red). After that, it switches to stand-by.

●

To see the Off timer remaining time, press <OFF
TIMER>.

●

The Off timer is cancelled if a power interruption
occurs. When the power is turned on later on, it will
be in stand-by condition.

●

When the image set in [No signal image settings] (see
page 49) is displayed, remaining time is not displayed
even when the timer expires in 3 minutes. Instead,
the image is displayed until the power is turned off.

Press <OFF TIMER> to check the remaining time.

ASPECT Controls

Press <ASPECT> or <ENTER (Unit)> repeatedly to
move through the aspect options:

Aspect mode Description

Zoom1

Letterbox pictures with a 16:9 aspect
ratio are enlarged vertically to fill the
screen. The top and bottom edges of
the pictures are cut off.

Unit

MENU ENTERINPUT

-

+

[4:3]→[Zoom1]→[Zoom2]→[16:9]

Note

●

The aspect mode is memorised separately for each
input terminal.

●

When input from USB, the aspect mode is fixed to
[16:9].

■ List of Aspect Modes

Aspect mode Description

Enlarged

screen

16:9

4:3


Pictures are displayed filling the
screen.

Pictures are displayed in the 4:3
area. Pictures with a 4:3 aspect ratio
are displayed as is. PC signals are
enlarged or reduced to be displayed
in the 4:3 area. Side panels are
displayed both at the right and left
edges of the screen.

Zoom2

Note

●

Do not allow the picture to be displayed in 4:3
mode for an extended period, as this can cause a
permanent image retention to remain on the liquid
crystal panel.

●

Be aware that if you put the display in a public place
for commercial purposes or a public showing and
then use the aspect mode select function to shrink
or expand the picture, you may be violating the
copyright under copyright law. It is prohibited to show
or alter the copyrighted materials of other people for
commercial purposes without the prior permission of
the copyright holder.

●

In [ENGLISH(US)] OSD language, [16:9] is displayed
as [FULL].

Letterbox pictures with a 16:9 aspect
ratio are enlarged vertically and
horizontally to fill the screen. The top
and bottom edges as well as the left
and right edges of the pictures are
cut off.

Pictures with a 4:3 aspect ratio in
16:9 signals are displayed with their
original aspect ratio. The left and right
edges of the pictures are masked by
side panels.

English

31

Digital ZOOM

Select the screen areas (25 areas) to zoom in, and
zoom in the selected image areas ×2, ×3 or ×4.

(Use the remote control. The main unit’s buttons cannot
be used for operation.)

Enter

Select

Exit
Digital Zoom

Set the digital zoom mode.

1

Press <ZOOM>.

Exit

RETURN

×1

ENTER

The screen aspect is set to [16:9], and the digital
zoom operation guide is displayed.

Select the image areas to zoom in.

2

Select pressing .

RETURN

ENTER

Digital Zoom operation guide

Exit

×1

Switch the zoom ratio for the screen

3

areas.

Switches every time <ENTER> is pressed.

Exit

×1

×1 ×2 ×3 ×4

●

If no operation is performed for approx. 60
seconds when the zoom ratio for the screen is
“×1”, the unit exits the zoom mode.

●

If no operation is performed for approx. 3 seconds

when the zoom ratio for the screen is “×2”,
“×3” or “×4”, the digital zoom operation guide

display disappears. Pressing any of the

buttons displays the guide again.

Exit the digital zoom mode.

4

Press <RETURN> to exit the mode.

The screen returns to the previous state just before
entering the digital zoom mode, and the digital zoom
operation guide display disappears.

●

Press any of the following buttons to exit the
mode. Then, the operation of the pressed button
is performed.

Remote Control:

<AUTO SETUP> <POSITION> <PICTURE>
<INPUT> <SETUP> <SOUND>
<DEFAULT> <RECALL> <MUTE>
<ASPECT> <OFF TIMER> <FUNCTION>
<VOL +> <VOL -><1>‒<6>

Unit:

<INPUT (Unit)> <MENU (Unit)> <+ (Unit)>
<- (Unit)>

●

When the screen saver timer starts up, the digital
zoom mode finishes.

●

When the power is turned OFF, a force-quit is
performed.

When the power is turned OFF by pressing the

•

<Standby (ON/OFF) button>.

When the display is turned OFF at the <Main

•

Power On / Off button>

When the power is turned OFF by the off-timer

•

When the power is turned OFF by [No signal

•

power off] or [Power management].

Exit

×2

<ENTER (Unit)>

Exit

×3

Exit

×4

32

English

Note

●

In the following cases, the digital zoom mode is not
available.

When [Multi display setting] is [On]

•

When the screen saver is in operation

•

When USB input is selected.

•

●

The zoomed image is rougher than the original
image.

●

For multi display use, use the functions in [Multi
display settings]. (see page 51)

On-Screen Menu

ENTER

-

ENTER

-

Displays

Display the menu screen.

1

Remote Control

Set.

3

Press to select.

Unit

INPUT

MENU

Press for several times.

+

Each time the button is pressed, the menu screen
will switch.

NormalViewing→[Picture]→[Setup]→[Position]
→[Sound]

Select the item.

2

Press to select.

Press.

ENTER

(Example: [Picture] menu)


Default Default

Picture mode Normal

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma

Colour temperature

Dynamic contrast

Colour enhancement

Memory save

Memory load

Memory edit

50

50

50

50

50

50

2.2

6500K

5

Off

Submenu

Press <ENTER> to display the submenu.

-

+

Press to select.

Exit from the menu.

4

ENTER

Press.

Press.

Press <RETURN> to return to the previous screen.

MENU

INPUT

+

Press for several times.

Note

●

When changing the settings of the display, picture or
sound disturbance may occur temporarily. This is not
a malfunction.

English

33

Menu display list

●

Menu that cannot be adjusted is greyed out.
Adjustable menu changes depending on signal, input
and menu setting.

[Position] menu

(see page 35‒36)

Position

Default Default

Auto setup

H-position

H-size

V-position

V-size

Clock phase

Dot clock

1:1 pixel mode

0

0

0

0

15

0

Off

[Sound] menu

(see page 37)

Sound

Default Default

Output select SPEAKERS

Sound mode

Bass

Treble

Balance

Surround

Normal

0

0

0

Off

[Picture] menu

(see page 38‒42)


Default

Default

Picture mode Normal

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma

Colour temperature

Dynamic contrast

Colour enhancement

Memory save

Memory load

Memory edit

50

50

50

50

50

50

2.2

6500K

5

Off

[Setup] menu

(see page 43‒56)

Off

Disable

Right

60 sec

1/2

2/2

Setup

Signal

Screensaver

Input label

Power management settings

Image settings

Wobbling

No activity power off

OSD language

Setup

Multi display settings

Set up timer

Date and time

Network settings

USB media player settings

Function button settings

Display orientation

OSD position

Menu display duration

Menu transparency

English(UK)

Landscape

20

Note

●

[Display orientation] is a function for 84-inch models.
This function is not available for 75-inch models.

34

English

Adjusting Position

Press <POSITION> to display the

1

[Position] menu.

Position

Default Default

Auto setup

H-position

H-size

V-position

V-size

Clock phase

Dot clock

1:1 pixel mode

Select the item to adjust with .

2

●

Unadjustable items are greyed out.

Adjustable items differ depending on the signal,
input and the display mode.

Adjust with .

3

Press <POSITION> to exit from adjust

4

mode.

■ To return to the previous screen

Press <RETURN>.

■ To reset to defaults

When [Default] is selected, pressing <ENTER> resets
the adjustment values of all the displayed menus to
default.

When adjusting each item, pressing <DEFAULT>
resets the adjustment value of the item to default.

Note

●

Settings for [Position] are memorised separately for
each input signal.

●

With USB input, each item in the [Position] menu
cannot be adjusted.

Setting [Position] when the display is installed
vertically

84-inch model

(

When adjusting, please note that even when the
display is installed vertically, setting directions of
position / size are the same as that of horizontal
installation.

only)

0

0

0

0

15

0

Off

Auto setup

When inputting a PC signal, [H-position] / [V-position],
[H-size] / [V-size], [Clock phase] and [Dot clock] are
automatically corrected.

This setting is enabled under the following
condition:

●

When inputting an analogue signal (PC).

While displaying the picture of the corresponding
signal, select [Auto setup] and press <ENTER>.

Using Remote Control

Press <AUTO SETUP>.

When Auto Setup does not work, [Invalid] is
displayed.

Auto mode

When the [PC auto setting] is set to [On] in the [Options]
menu (see page 60), automatic position adjustment
starts under the following conditions:

●

When the display power is turned ON.

●

When the input signal is switched.

Note

●

When the dot clock frequency of a PC signal is 162
MHz or higher, [Clock phase] and [Dot clock] cannot
be automatically corrected.

●

Auto Setup may not work when a cropped or dark
image is input. In such case, switch to a bright image
with borders and other objects are clearly shown, and
then try auto setup again.

●

Depending on the signal, out of alignment may occur
after Auto Setup. Carry out fine tuning for the position/
size as required.

●

If Auto Setup cannot set properly for XGA signal
(1024×768, 1280×768, 1366×768), pre-selecting the
individual signal in [XGA mode] (see page 44) may
results in correct Auto Setup.

●

Accurate auto setup is not possible when a signal
such as additional information is superimposed out
of valid image period or when intervals between
synchronizing signal and image signal are short.
Also, accurate auto setup is not possible when image
signals with tri level synchronizing signal added, or
when some SYNC ON G signals are input.

●

If Auto Setup does not work well, select [Default],
press <ENTER>, and then adjust the position/size
manually.

English

35

[H-position] Adjust the horizontal position with .

[H-size] Adjust the horizontal size with

[V-position] Adjust the vertical position with .

[V-size] Adjust the vertical size with .

.

Note

●

In some cases, noise appears outside the area
picture is displayed, but it is not a malfunction.

[Clock
phase]

[Dot clock] (For PC IN input)

[Over scan] Turn image over scan On/Off.

[1:1 pixel
mode]

(For PC IN input)

In some cases, frame of the screen
appears blurred or smudged, when PC
signal is input.

Periodic striped pattern interference
(noise) may occur when a striped pattern
is displayed. If this happens, adjust so
that any such noise is minimized.

Applicable input signal:

525i, 525p, 625i, 625p, 750/60p, 750/50p
(Component Video, RGB, DVI-D, HDMI)

[On] [Off]

Note

●

When [Off] is set, [H-size] and [V-size]
cannot be adjusted.

Adjusts the display size when 1125i or
1125p signal is input.

[Off] [On]

Applicable input signal:

1125 / 50i, 60i, 24PsF, 24p, 25p, 30p,
50p, 60p

Note

●

Select [Off] when flickering is shown
around the image.

●

[H-size] and [V-size] cannot be
adjusted when [On] is selected.

36

English

Sound Adjustment

Press <SOUND> to display the

1

[Sound] menu.

Sound

Default Default

Output select SPEAKERS

Sound mode

Bass

Treble

Balance

Surround

Select the item to adjust with .

2

●

Menu that cannot be adjusted is greyed out.

Adjust with .

3

Press <SOUND> to exit from adjust

4

mode.

■ To return to the previous screen

Press <RETURN>.

■ To reset to defaults

Press <DEFAULT> while the menu is displayed, or
press <ENTER> when [Default] is selected, then the
adjustment values of all the displayed menus are
reset to default.

Normal

0

0

0

Off

[Output select] Select the audio output.

[SPEAKERS]:

Internal speakers

[AUDIO OUT]:

AUDIO OUT terminal output

●

When [AUDIO OUT] is selected,
the other menus are greyed out
and cannot be selected.

●

Audio volume setting is
memorized separately for each
output.

[Sound mode] Select for best audio.

[Normal]:

Emits the original sound.

[Dynamic]:

Accentuates sharp sound.

[Clear]:

Attenuates human voice.

●

In [ENGLISH(US)] OSD language, [Sound mode]
and [Normal] are displayed as [AUDIO MENU] and
[STANDARD].

[Bass] Adjusts low pitch sounds.

[Treble] Adjusts high pitch sounds.

[Balance] Adjusts left and right volumes.

[Surround] [Off]:

Normal sound

[On]:

Surround sound

Note

●

[Bass], [Treble] and [Surround] settings are
memorised separately for [Normal], [Dynamic] and
[Clear] in [Sound mode].

English

37

Picture Adjustments

Press <PICTURE> to display the

1

[Picture] menu.


Default Default

Picture mode Normal

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Colour temperature

Dynamic contrast

Colour enhancement

Memory save

Memory load

Memory edit

Select the item to adjust with .

2

●

Menu that cannot be adjusted is greyed out.

Adjust with .

3

Press <PICTURE> to exit from adjust

4

mode.

■ To return to the previous screen

Press <RETURN>.

■ To reset to defaults

When [Default] is selected, pressing <ENTER> resets
the adjustment values of all the displayed menus to
default.

When adjusting each item, pressing <DEFAULT>
resets the adjustment value of the item to default.

Note

●

During PC IN input, the following settings cannot be
made.

[Colour], [Hue], [Dynamic contrast], [Colour
enhancement]

●

When displaying still picture with USB input (USB
media player), only the following settings have an
effect on the picture.

[Backlight], [Gamma], [Colour temperature],
[Sharpness]

50

50

50

50

50

50

2.2Gamma

6500K

5

Off

[Picture mode] This menu switches to easy-to-

●

In [ENGLISH(US)] OSD language, [Normal] is
displayed as [STANDARD].

●

In [ENGLISH(US)] OSD language, the [Picture mode]
is displayed as [PICTURE MENU].

[Backlight] Adjusts luminance of the back light.

[Contrast] Selects the proper brightness and

●

In [ENGLISH(US)] OSD language, [Contrast] is
displayed as [PICTURE].

[Brightness] Adjusts for easier viewing of dark

[Colour] Adjusts colour saturation.

[Hue] Adjusts hue of skin colour.

●

In [ENGLISH(US)] OSD language, [Hue] is displayed
as [TINT].

[Sharpness] Adjusts picture sharpness.

[Gamma] Adjusts gamma.

[Colour
temperature]

Note

●

Emphasizes red when the numerical value of
[Colour temperature] is small, and emphasizes
blue when it is big.

●

[Native] is a colour tone of the panel element.

When this is selected, [Gamma] is fixed to 2.2 or
equivalent and it cannot be adjusted.

see pictures suitable to the picture
source or environment where this
unit is used.

[Normal]

For viewing in standard (evening
lighting) environments.

[Dynamic]

For viewing in brighter
environments.

[Cinema]

For use in viewing tone-focused
pictures with brightness reduced.

●

The settings are memorised
separately for each input
terminal.

Darker ↔ Brighter

density for the room.

Less ↔ More

pictures.

Darker ↔ Brighter

Less ↔ More

Reddish ↔ Greenish

Less ↔ More

[2.0], [2.2], [2.4], [2.6]:

Small tilt - Large tilt

Adjusts colour tone.

[3200K], [4000K], [5000K],
[6500K], [7500K], [9300K],
[10700K], [Native], [USER1],
[USER2]

38

English

User setting of [Colour
temperature]

2 kinds of detailed [Colour
temperature] settings ([USER1]
and [USER2]) can be stored.

1 Press <ENTER> while setting

[Colour temperature].

Gamma

Colour temperature

2.2

6500K

Example:

When [Colour temperature] is
[6500K], it is possible to reflect
the set point, [6500K], to the set
point of [USER1] and [USER2].

2 Select the user to memorise

settings with

and press

<ENTER>.

Adjust colour temperature

Change to 6500K

USER1

USER2

[R gain]

Adjusts the white balance for light
red areas.

0 ‒ 255

[G gain]

Adjusts the white balance for light
green areas.

0 ‒ 255

[B gain]

Adjusts the white balance for light
blue areas.

0 ‒ 255

[R bias]

Adjusts the white balance for dark
red areas.

-127 ‒ 128

[G bias]

Adjusts the white balance for dark
green areas.

-127 ‒ 128

[B bias]

Adjusts the white balance for dark

3 Select [Ye s] with and press

<ENTER>.

Adjust colour temperature

Overwrite colour temperature “USER1”?

Yes No

4 Set each item on detail settings

screen.

Adjust colour temperature

USER1

R gain

G gain

B gain

R bias

G bias

B bias

255

150

64

0
0
0

●

In [ENGLISH(US)] OSD language, [Hue] is
displayed as [TINT].

[Dynamic
contrast]

[Colour
enhancement]

blue areas.

-127 ‒ 128

The settings are saved for the user.

When you return to [Picture] menu,
the user you have set is selected for
[Colour temperature].

Gamma

Colour temperature

2.2

USER1

Automatically adjusts the contrast by
determining the changes in the use
of colours for images that constantly
change, such as motion pictures.

No effect ↔ Large effect

While set to [On], displays images
by emphasising colours.

English

39

Picture Profiles

Up to 6 combinations of picture adjustment values (in
the [Picture] menu) can be stored in the display memory
as profiles and applied as needed, for a convenient way
to enjoy your preferred picture settings.


Default Default

Picture mode Normal

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma

Colour temperature

Dynamic contrast

Colour enhancement

Memory save

Memory load

Memory edit

[Memory save]

(see page 41)

[Memory load]

(see page 41)

[Memory edit]

(see page 42)

50

50

50

50

50

50

5

2.2

6500K

Off

1. [ ]

2. [ ]

3. [ ]

4. [ ] MEMORY4

5. [ ] MEMORY5

6. [ ] MEMORY6

MEMORY1

MEMORY2

MEMORY3

Overview of Picture Profiles

Original picture

Custom picture

Original picture

Custom picture

Adjust picture.

(see page 38‒39)

Example:

Save the picture adjustment
values in the [MEMORY1]
profile.

[Memory save]

Example:

Load [MEMORY1].

[Memory load]

40

English

[Memory edit] screen

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

MY PICTURE

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

Example:

Change the memory name
to [MY PICTURE].

[Memory edit]

Saving profiles

Follow these steps to save picture adjustment values as
profiles.

Specify the picture quality in the

1

[Picture] menu.

(see page 38‒39)

In the [Picture] menu, select [Memory

2

save] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select a profile name for saving the

3

picture adjustment values with
and press <ENTER>.

Memory save

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

4. [ ] MEMORY4

5. [ ] MEMORY5

6. [ ] MEMORY6

●

] appears for a profile in which the picture

[

*

adjustments have already been saved.

Select [Ok] with and press

4

<ENTER>.

Memory save

Save the adjusted value in “MEMORY1”

Ok Cancel

Enter a profile name with .

5

●

Entering characters (see page 88)

█

MEMORY1

1 2 3 4 5 6 7 8 9

a

b c d e f g h i j

k l m

u v w x y z

n o p q r s t

a/A/@

0

–

_.

OkCancelAll deleteDelete

When you finished entering the profile

6

name, select [Ok] with and
press <ENTER>.

MY MEMORY1

u v w x y z

●

To cancel saving the profile, select [Cancel].

█

1 2 3 4 5 6 7 8 9

a b c d e f g h i j

k l m

n o p q r s t

–

_.

a/A/@

OkCancelAll deleteDelete

0

Loading profiles

Load profiles and apply the picture adjustment values to
the display as follows.

In the [Picture] menu, select [Memory

1

load] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select the profile to load with and

2

press <ENTER>.

Memory load

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

Loading profiles using numeric buttons on the
remote control.

Eachnumericbutton<1>‒<6>isallocatedfor

loading [MEMORY1] to [MEMORY6].

[Function button settings] (see page 55)

Press any of <1> ‒ <6>.

1

Select [Ok] with and press

2

<ENTER>.

Memory load

Load from “MEMORY2”

Ok Cancel

English

41

When profile is being loaded, profile name is
displayed.

PC

16:9

Memory name: MEMORY2

Note

●

Loaded profiles are stored in memory according
to the selected input terminal.

Editing profiles

Delete or rename profiles as follows.

■ Deleting profiles

In the [Picture] menu, select [Memory

1

edit] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select [Memory delete] with and

2

press <ENTER>.

Memory edit

Memory delete

Memory name change

Select the profile to delete with

3

and press <ENTER>.

Memory delete

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

All delete

●

To delete all profiles, select [All delete].

Select [Ok] with and press

4

<ENTER>.

Memory delete

■ Renaming profiles

In the [Picture] menu, select [Memory

1

edit] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select [Memory name change] with

2

and press <ENTER>.

Memory edit

Memory delete

Memory name change

Select the profile to rename with

3

and press <ENTER>.

Memory name change

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

Enter a name for the profile with

4

.

●

Entering characters (see page 88)

█

MEMORY1

1 2 3 4 5 6 7 8 9

a b c d e f g h i j

k l m

u v w x y z

When you finished entering the profile

5

name, select [Ok] with and
press <ENTER>.

●

To cancel renaming the profile, select [Cancel].

n o p q r s t

–

_.

a/A/@

a/A/@

OkCancelAll deleteDelete

OkCancelAll deleteDelete

0

42

Delete the “MEMORY1” data

Ok Cancel

English

Setup menu

Press <SETUP> to display the [Setup]

1

menu.

Off

Disable

1/2

Setup

Signal

Screensaver

Input label

Power management settings

Image settings

Wobbling

No activity power off

OSD language

English(UK)

Signal

Examples of [Signal] submenu screen

When HDMI / DVI is selected

Signal

YUV/RGB-in select

Cinema reality

Noise reduction

MPEG noise reduction

Signal range
Frame creation

H-freq.

V-freq.

Dot clock freq.

Signal format

YUV

Off

Auto

Off

Full(0-255)

Off

33.72 kHz

60.00 Hz

74.18 MHz

1125(1080)/60i

Right

60 sec

2/2

Setup

Multi display settings

Set up timer

Date and time

Network settings

USB media player settings

Function button settings

Display orientation

OSD position

Menu display duration

Menu transparency

Landscape

20

Note

●

[Display orientation] is a function for 84-inch
models. This function is not available for 75-inch
models.

Select the item to set with .

2

●

Menu that cannot be adjusted is greyed out.
Adjustable menu changes depending on signal,
input and menu setting.

Set with .

3

Press <SETUP> to exit from adjust

4

mode.

■ To return to the previous screen

Press <RETURN>.

When PC is selected

Signal

Component/RGB-in select

Sync

Cinema reality

XGA mode

Input level

Frame creation

Dot clock freq.

Signal format

H-freq.

V-freq.

0

33.72 kHz

60.00 Hz

74.18 MHz

1125(1080)/60i

When VIDEO is selected

Signal

3D Y/C filter

Colour system

Cinema reality

Noise reduction

MPEG noise reduction

Input level

Frame creation Off

Dot clock freq.

Signal format

H-freq.

V-freq.

0

15.73 kHz

59.94 Hz

-- MHz

NTSC

When USB is selected

Signal

Noise reduction

MPEG noise reduction

Frame creation Off

RGB

Auto

Off

Auto

Off

Off

Auto

Off

Auto

Off

Auto

Off

Note

●

[Signal] setup menu displays a different setting
condition for each input signal.

●

Menu that cannot be adjusted is greyed out.

●

[Frame creation] is a function for 84-inch models. This
function is not available for 75-inch models.

English

43

■ [Component/RGB-in select]

This menu is displayed at PC signal input.

Select to match the signals from the source
connected to PC IN terminal.

[Component] YP

[RGB] RGB signals

BPR/YCBCR signals

■ [YUV/RGB-in select]

This menu is displayed at HDMI 1, HDMI 2 and DVI-D
IN inputs.

Select to match the signals from the source
connected to each terminal.

[YUV] YUV signals

[RGB] RGB signals

Note

●

Set for each input terminal (HDMI 1, HDMI 2,
DVI-D IN).

■ [Sync]

This menu is displayed at PC IN input.

Setting RGB/PC sync signal

[Auto]:

The H and V sync or synchronized signal is
automatically selected. When both of them have
sync signal, H and V sync will be selected.

When displaying CS signal, connect to HD input
terminal.

[on G]:

Uses a synchronized signal on the Video G
signal, which is input from the G connector.

[HV sync]:

Uses a synchronized signal on the Video HD/VD
signal, which is input from the HD/VD connector.

Setting Component sync signal

[Auto]:

The H and V sync or synchronized signal is
automatically selected. When both of them have
sync signal, H and V sync will be selected.

When displaying CS signal, connect to HD input
terminal.

[on Y]:

Uses a synchronized signal on the Video Y
signal, which is input from the Y connector.

[HV sync]:

Uses a synchronized signal on the Video HD/VD
signal, which is input from the HD/VD connector.

■ [Cinema reality]

Faithfully reproduces videos shot with cinema films.
Set this to [Off] normally.

Note

●

In [ENGLISH(US)] OSD language, [Cinema reality]
is displayed as [3:2 PULLDOWN].

●

If [Cinema reality] is set to [On], videos including
movies shot at 24 frames per second are
reproduced more naturally.

●

If the video is unnatural with [On] set, set it to [Off].

■ [Noise reduction]

Reduces picture noise.

[Off]:

Disables Noise Reduction.

[Min], [Mid], [Max]:

Sets strength of Noise Reduction.

[Auto]:

Noise reduction will be automatically selected from
[Min], [Mid] or [Max].

Note

●

This menu is not displayed during PC IN input.

■ [MPEG noise reduction]

Reduces block noise and mosquito noise on MPEG
videos.

[Off]:

Disables Noise Reduction.

[Min], [Mid], [Max]:

Sets strength of Noise Reduction.

Note

●

This menu is not displayed during PC IN input.

■ [XGA mode]

This menu is displayed at PC IN input.

This unit supports XGA signals (1024 × 768, 1280 ×
768, 1366 × 768) having different aspect ratios and
sampling rates.

[Auto]:

Automatically detects the signal.

Switch the setting to suit the input signal for better
display depends on the angle of view or display
resolution condition.

Note

●

After making this setting, be sure to make each
adjustment (such as [Auto setup]) on the [Position]
menu as necessary. (see page 35)

44

English

■ [Signal range]

84-inch model

This menu is displayed at HDMI1, HDMI2 and DVI-D
IN inputs. Switches the dynamic range to match the
signals from the source connected to each terminal.

[Video(16-235)]:

If the input signal is the video range

Example: HDMI terminal output for DVD player

[Full(0-255)]:

If the input signal is full range

Example: HDMI terminal output for personal
computer

[Auto]:

Switches the dynamic range automatically between
[Video(16-235)] and [Full(0-255)] according to the
input signal.

Note

●

[Auto] can be selected when the HDMI signal input.

■ [Input level]

This menu is displayed at PC IN and VIDEO inputs.

Adjustment of parts which are extremely bright and
hard to see.

-16 ‒ +16:

(Levellow)‒(Levelhigh)

■ [3D Y/C filter]

Set this if the video looks unnatural at VIDEO input.
Set this to [On] normally.

Note

●

Depending on the signalling system, this setting
may be less effective or may not be effective at all.

■ [Colour system]

Sets the colour system according to the signal
method at VIDEO input. Set this to [Auto] normally.
This automatically detects the input signal format.

[Auto], [PAL ], [SECAM], [NTSC], [NTSC 4.43], [PAL
M], [PAL N]:

Set this to [Auto] when viewing PAL-60 videos.

When images are unstable

When the system is set to [Auto], images become
unstable in rare case under the condition that the
input signals are at low level or have many noises.
In this case, set the system so it conforms with the
input signal format.

■ [Frame creation]

(

Improves motion picture quality. Select [Off] when the
motion picture looks unnatural.

[Off]:

[Frame creation] is disabled.

[On]:

[Frame creation] is enabled.

Note

●

[Frame creation] is a function for 84-inch models.
This function is not available for 75-inch models.

only)

■ Input signal display

Displays the frequency and the type of the current
input signal.

33.72 kHz

H-freq.

60.00 Hz

V-freq.

Dot clock freq.

Signal format

Display range:

Horizontal(15kHz‒135kHz)

Vertical(24Hz‒120Hz)

The dot clock frequency is displayed when Digital and
PC signal are input.

74.18 MHz

1125(1080)/60i

English

45

Screensaver (For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for
any length of time.

If the display must remain on, a Screensaver should be
used.

[Screensaver] - submenu screen

Screensaver

10:00

Start

Mode Off

2016/01/01

FRIDAY

■ Screensaver settings

Screensaver operation

When the Screensaver is operating, the following 5
patterns are displayed full screen for 5 seconds each,
and it will be repeated.

Black → Dark grey → Grey → Light grey → White →
Light grey → Grey → Dark grey

To start Screensaver now

Select [On] in [Mode].

Select [Start] and press <ENTER>.

●

The Screensaver will be activated.

Screensaver

10:00

Start

Mode On

2016/01/01

Note

●

If the following buttons are pressed while the
screen saver is operating, the screen saver is
cancelled.

Remote control: <RETURN>

Main unit: <MENU (Unit)> <INPUT (Unit)>

<+ (Unit)> <- (Unit)>
<ENTER (Unit)>

●

When the display is turned off, the Screensaver will
be deactivated.

To set interval of Screensaver

Select [Interval] in [Mode].

Set [Periodic time].

●

●

to change the time by 15 minutes.

Press
In [ENGLISH(US)] OSD language, [Periodic

time] is displayed as [SHOW DURATION].

Set [Operating time].

●

once to change the time by 1 minute.

Press
Keep pressing down to change the time by 15
minutes.

●

In [ENGLISH(US)] OSD language, [Operating
time] is displayed as [SAVER DURATION].

FRIDAY

Screensaver

Start

Mode Interval

Periodic time

Operating time

2016/01/01 10:00

FRIDAY

0:00

0:00

Periodic time

Deactivated. Operating time

Note

●

It is not possible to set the duration of [Operating
time] longer than that of [Periodic time].

To set start and finish time of Screensaver

Select [Time designation] in [Mode].

Set [Start time] and [Finish time].

●

once to change the time by 1 minute.

Press
Keep pressing down to change the time by 15
minutes.

●

In [ENGLISH(US)] OSD language, [Time
designation] is displayed as [TIME OF DAY].

Screensaver

10:00

Start

Mode Time designation

Start time

Finish time

2016/01/01

FRIDAY

0:00

0:00

Note

●

When the current time is displayed as [- -], set
[Date and time] before setting [Start time] and
[Finish time]. (see page 52)

To turn the power off after Screensaver

Select [Standby after SCR saver] in [Mode].

Set [Screensaver duration].

●

once to change the time by 1 minute.

Press
Keep pressing down to change the time by 15
minutes.

Select [Start] and press <ENTER>.

●

Screensaver will be activated and the power will
be turned off (standby) at the time set.

Screensaver

10:00

Start

Mode

Screensaver duration 0:00

2016/01/01

FRIDAY

Standby after SCR saver

Note

●

[Screensaver duration] can be set from 0:00 to
23:59.

When this is set to [0:00], [Standby after SCR
saver] will not be activated.

46

English

Input label

This function can change the label of the Input signal to
be displayed.

[Input label] - submenu screen

Input label

HDMI1

HDMI2

DVI-D

PC

VIDEO

[HDMI1] [HDMI1] / [DVD1] / [DVD2] /

[HDMI2] [HDMI2] / [DVD1] / [DVD2] /

[DVI-D] [DVI-D] / [DVD1] / [DVD2] /

[PC] [PC] / [DVD1] / [DVD2] /

[VIDEO] [VIDEO] / [DVD1] / [DVD2] /

(Skip): When <INPUT> is pressed, the input will be

skipped.

HDMI1

HDMI2

DVI-D

PC

VIDEO

[DVD3] / [Blu-ray1] / [Blu-ray2] /
[Blu-ray3] / [CATV] / [VCR] /
[STB] / (Skip)

[DVD3] / [Blu-ray1] / [Blu-ray2] /
[Blu-ray3] / [CATV] / [VCR] /
[STB] / (Skip)

[DVD3] / [Blu-ray1] / [Blu-ray2] /
[Blu-ray3] / [CATV] / [VCR] /
[STB] / (Skip)

[DVD3] / [Blu-ray1] / [Blu-ray2] /
[Blu-ray3] / [CATV] / [VCR] /
[STB] / (Skip)

[DVD3] / [Blu-ray1] / [Blu-ray2] /
[Blu-ray3] / [CATV] / [VCR] /
[STB] / (Skip)

Power management settings

Set each item to reduce power consumption.

This function works only for the input terminal that is
currently selected.
[Power management settings] - submenu screen

Power management settings

Power management mode

No signal power off

HDMI1 power management

HDMI2 power management

DVI-D power management

PC power management

Power save

Custom

Disable

Off

Off

Off

Off

Off

■ [Power management mode]: [On]

The following fixed values are set to the menu of
power consumption reduction. Individual setting is not
available.

[No signal power off]: [Enable]

[HDMI1 power management]: [On]

[HDMI2 power management]: [On]

[DVI-D power management]: [On]

[PC power management]: [On]

[Power save]: [On]

■ [Power management mode]: [Custom]

The menu of the power consumption reduction is
individually set. This setting is enabled when [Power
management mode] is set to [Custom].

[No signal power off]

When this is set to [Enable], the power supply of the
unit goes off automatically (standby) when there is no
operation or sync signal for about 10 minutes.

Note

●

With the USB input, the unit determines no signal is
present when the USB memory is not connected to
the USB terminal, or the connected USB memory
does not contain any playable file.

●

This function operates regardless of the [On] / [Off]
settings of [No signal image settings].

●

This function may not operate depending on the video
output devices.

[HDMI1 power management]

When this function is set to [On], it operates under
the following conditions to turn the power on or off
automatically.

When no pictures (sync signal) are detected for
60 seconds or so at HDMI1 input:

Power is turned off; the power indicator lights up
orange.

When pictures (sync signal) are subsequently
detected at HDMI1 input:

Power is turned on; the power indicator lights up
green.

English

47

Note

●

This function may not operate depending on the
video output devices.

[HDMI2 power management]

When this function is set to [On], it operates under the
following conditions to turn the power on or off automatically.

When no pictures (sync signal) are detected for
60 seconds or so at HDMI2 input:

Power is turned off; the power indicator lights up
orange.

When pictures (sync signal) are subsequently
detected at HDMI2 input:

Power is turned on; the power indicator lights up
green.

Note

●

This function may not operate depending on the
video output devices.

[DVI-D power management]

When this function is set to [On], it operates under
the following conditions to turn the power on or off
automatically.

When no pictures (sync signal) are detected for
60 seconds or so at DVI-D input:

Power is turned off ; the power indicator lights up
orange.

When pictures (sync signal) are subsequently
detected at DVI-D input:

Power is turned on; the power indicator lights up
green.

Note

●

This function may not operate depending on the video
output devices.

[PC power management] (DPMS function)

When this function is set to [On], it operates under
the following conditions to turn the power on or off
automatically.

When no pictures (HD/VD sync signals) are
detected for 60 seconds or so at PC input:

Power is turned off; the power indicator lights up
orange.

When pictures (HD/VD sync signals) are
subsequently detected at PC input:

Power is turned on; the power indicator lights up
green.

Note

●

This function is effective when [Sync] in [Signal] is set
to [Auto] or [HV sync] and [Component/RGB-in select]
are set to [RGB]. (see page 43)

●

This function may not operate depending on the video
output devices.

[Power save]

This function adjusts the brightness of the backlight to
reduce power consumption.

[Off]:

This function does not operate.

[On]:

Backlight brightness is reduced.

Note

●

If [Input search] is set to items other than [Off], the
[Input search] function is prioritised. (The “Power
management” function does not operate for each
terminal.) (For details of [Input search] function, see
page 58.)

48

English

Image settings

84-inch model

Sets the image displayed on the screen when the
power is turned on or no signal is input.

[Image settings] - submenu screen

Image settings

Startup image settings

No signal image settings

[Startup image settings]:

Sets the image displayed when the power is turned on.

[No signal image settings]:

Sets the image displayed when there is no signal at
the selected input terminal.

Conditions of the image that can be set in [Read
user image]

Image size: 1920 × 1080 only

•

jpg files / bmp files (except for the ones that cannot

•

be played back with USB media player (see page

79))

jpg files (Applies only to a no-signal image of

•

3.5 MB or less in file size.)

File and folder names are displayed on the file list with
conditions as below.

‒Ifafileorfolderisplaceddirectlyundertheroot

directory of the USB device.

Up to 246 characters of file name (including the

•

extension) are properly displayed.

Note that the file list may disappear due to the
display time of the on-screen menu before the
entire display of file names completely appears.

Up to 244 characters of folder name are properly

•

displayed.

* If the folder is placed hierarchically, the number of

characters displayed decreases by the number of
characters for the file path (folder information).

‒OnlythefileswithfilenamesdescribedwithASCII

characters excluding control code are displayed.

Note

●

[Picture] cannot be adjusted when setting the startup
image.

●

Only [Backlight] and [Colour temperature] can be
adjusted when setting the no-signal image.

●

Images displayed for the startup image and no-signal
image may slightly differ from images confirmed on
the computer.

■ [Startup image settings] /

[No signal image settings]

Operate [No signal image settings] in the same way
as [Startup image settings].

[Startup image settings] - submenu screen

Startup image settings

Display setting

Image select

Read user image

Clear user image

On

User image

[Display setting]

Sets the image display when the power is turned on.

[Off]: The function does not operate.

[On]: Enables the function.

Note

●

When no-signal image is displayed, the screen
position moves at certain intervals and images are
displayed to alleviate burn-in on the LCD panel.

●

Shifts the display position regardless of the setting
of [Wobbling] (see page 50).

●

When this function is operating, part of the screen
may appear to be missing.

[Image select]

Select the image to display.

[Default image]: Panasonic logo (blue background)

[User image]: Image registered by the user

Note

●

Only when [Default image] is displayed, the logo
automatically rotates when displayed, according
to the [Display orientation] (see page 56) setting
([Landscape] / [Portrait]).

84-inch model

(

●

When [User image] is selected, the image does not

only)

rotate according to the [Display orientation] setting.
Prepare an image of 1920 × 1080 aspect ratio
compatible with the installation direction.

(

●

[Default image] of [No signal image settings] is the

only)

Panasonic logo (black background).

[Read user image]

Register the image read from a USB memory device.

[Read user image] - submenu screen

Read user image

Select a no signal image.

usb/picture/

..

0_folder_sample
g_sample

z_sample







English

49

Note

●

Set the input to something other than USB, and
read the image.

●

One user image can be registered for [Startup
image settings] and [No signal image settings]
respectively.

●

Do not turn the power off while reading the user
image.

●

The selected image is previewed on the [Read user
image] submenu screen.

●

While the [Read user image] submenu screen
is being displayed, the USB media player stops
playback.

●

When USB memory device is not connected to the
USB terminal, [Read user image] is greyed out and
cannot be selected.

●

If starting to read the image while creating the
preview image, an access error will occur, and the
image may not be recognized as a image file.

Confirm the preview image display, and then start
reading process.

●

The displayed file names are restricted as follows.

Applicable extension: jpg, jpe, jpeg or bmp

•

The file name is not “.jpg”, “.jpe”, “.jpeg”, or

•

“.bmp” which start with dot (.).

●

Depending on the OS setting, folders or files in the
USB memory invisible on your computer may be
displayed on this unit.

[Clear user image]

Clears the image registered in [Read user image].

[Startup image settings] - submenu screen

Startup image settings

Display setting

Image select

Read user image

Clear user image

On

User image

Note

●

When there is no [User image] that have been read,
[Clear user image] is greyed out and cannot be
selected.

●

When [Image select] is set to [User image],
performing [Clear user image] will change the
setting of [Image select] to [Default image].

Wobbling

Automatically shifts the display image (therefore
unnoticeable to the eye) to prevent image retention of
sharper contour of image.

Setting this to [On] moves the screen position at certain
intervals and displays the images.

Note

●

If [Multi display setting] is set to [On], this function
does not operate. (see page 51)

●

When this function is operating, part of the screen
may appear to be missing.

No activity power off

When this function is set to [Enable], the power is turned
off (standby) automatically when there is no operation of
the Display for 4 hours.

Starting from 3 minutes before the turn off, the
remaining time will be displayed.

Press any key to abort.

No activity power off

3 min

When the power is turned off due to this function, a
message [Last turn off due to ‘No activity power off’.]
is displayed next time the power is turned on.

When the image set in [No signal image settings] (see
page 49) is displayed, remaining time is not displayed
even when the power is going to be turned off in 3
minutes. Instead, the image is displayed until the
power is turned off.

Note

●

While the screensaver is running, this function is
disabled.

OSD language

Select your preferred language.

Selectable languages

English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)

中文
日本語

Русский : Russian

: Chinese
: Japanese

50

English

Multi display settings

1 to 5 displays can be aligned in horizontal direction and
vertical direction respectively, and those displays are
regarded as one group. The enlarged image is shown on
the combined display.

[Multi display settings]- submenu screen

Multi display settings

Multi display setting

Horizontal scale

Vertical scale

Bezel H adjustment

Bezel V adjustment

Location

Note

●

The settings are memorised separately for each
input terminal.

●

When the multi display is set to [Off], adjust to the
same angle of view for [Position] (see page 35).
Then, set the multi display to [On]. Again, make
fine adjustment of the angle of view for [Position].

●

The [Position] menu can be adjusted in the multi
display status.

●

The multi display mode is not available with USB
input.

Off

2

2

0

0

A1

■ [Multi display setting]

[Off]:

The display is not divided when enlarged.

[On]:

The display is divided when enlarged.

When [On] is set, the display aspect is [16:9].

■ [Horizontal scale]

Set the horizontal scale in the multi display.

1 ‒ 5

■ [Vertical scale]

Set the vertical scale in the multi display.

1 ‒ 5

Example:

[Horizontal scale] [5] and [Vertical scale] [5] is set in
the multi display

■ [Bezel H adjustment] / [Bezel V adjustment]

Adjust the area of image hidden in the joint
horizontally and vertically respectively.

0 ‒ 100

Display example

Setting value: 0

Displays the entire image including the joint area.
(Suitable when displaying character information
on PC.)

Setting value: 100

Does not display the image of the joint area.
(Suitable when displaying motion pictures.)

■ [Location]

Assign the multi display position.

Example:

[Horizontal scale] [5], [Vertical scale] [5]

A1 A2 A3
B1 B2 B3
C1 C2 C3
D1 D2 D3 D4
E1 E2 E3 E4

Select from A1 to A5, B1 to B5, C1 to C5, D1 to D5,
E1 to E5.

●

The displayed content for setting changes
according to the settings for the [Horizontal scale]
and [Vertical scale].

●

By setting [Multi display setting] to [Off], it is
possible to check the location on the screen while
the setting menu is displayed.

A4
B4
C4

A5
B5
C5
D5
E5

English

51

Set up timer

Sets the program to turn the power on with the specified
time and video input, or to turn the power off at the
specified time. Up to 20 programmes can be set.

Note

●

When the current time is displayed as [- -], set [Date
and time] before setting [Set up timer]. (see page 52)

●

When multiple programs are set at the same time,
the program with the smallest program number is
enabled.

●

If [Power mode] is set to [Power on], executing the
program at power-on will switch to the input set for
[Input].

[Set up timer] - submenu screen

Setting Example

Program 1, Every Monday, 12:00,

Power On, Input: HDMI1

Set up timer

10:00

Program

Timer function

Day

Power mode

Time

Input

Set the program number.

1

To execute the program, set to [On].

2

The program is disabled when [Off] is set.
Set the day.

3

2016/01/01

The program is executed every day when
[Everyday] is set.
Set the power On/Off.

4

Set the time.

5

Pressing

once changes time 1 minute.

Pressing continuously changes time by 15
minutes.
Set the input.

6

FRIDAY

1

On

MONDAY

Power on

12:00

HDMI1

1
2
3
4
5
6

Date and time

Set date and time. ([- -] shows no programme is set.)

[Date and time] - submenu screen

Date and time

2016/01/01

Set

Year 2016

Month

Day

Hour

Minute

FRIDAY

1

1

10

0

10:00

■ Set date and time

Select [Year / Month / Day / Hour / Minute].

Set the selected item.

Date and time

2016/01/01

Set

Year 2016

Month

Day

Hour

Minute

Select [Set] and press <ENTER>.

Date and time

2016/02/05

Set

Year 2016

Month

Day

Hour

Minute

Note

●

If the present date and time are not set, the time
settings for [Set up timer], [Screensaver], etc. cannot
be made.

●

The present date and time setting is reset in the
following case.

When the main unit is left unattended for 7 days or
longer after the main unit is turned off with the <Main
power switch>, the power plug is removed, or power
failure has occurred, etc.

●

Date and time cannot be set when [Year / Month /
Day / Hour / Minute] are set to [- -].

FRIDAY

1

1

10

0

FRIDAY

2

5

18

0

10:00

18:00

99:992015/01/01

52

English

Network settings

Set when networking with a computer.

[Network settings] submenu will be displayed.

Network settings

Network control

Display name

LAN setup

Network status

AMX D. D.

Crestron Connected™

Reset

Off

EF1-00

Off

Off

■ [Network control]

Set when controlling with the unit’s LAN terminal.

[On]:

Controls via LAN using the LAN terminal of the
Display. The power indicator lights orange when
the power is turned off with the remote control
(standby).

[Off]:

Invalidates control with LAN terminal.

(In this case, the power consumption of Standby
condition (when the power is turned off with the
remote control) will be slightly reduced.)

Note

●

When using the LAN control function for “Using
Network Function” (see page 64‒77), set this
function to [On].

■ [Display name]

The name of the Display that is shown on the network
can be changed.

■ [LAN setup]

Detailed network settings for the LAN established via
the LAN terminal of the Display can be configured.

Select [LAN setup] with

LAN setup

Save

DHCP Off

IP address

Subnet mask

Gateway

Port

and press <ENTER>.

192.168. 0. 8

255.255.255. 0

192.168. 0. 1

1024

[DHCP], [IP address], [Subnet mask], [Gateway]

Press to set [On] / [Off] of [DHCP] and press

<ENTER>.

When [Off] is selected, IP address and other settings
can be set manually.

[DHCP]:

(DHCP client function)

[On]:

Obtains an IP address automatically when a
DHCP server exists in the network the Display is
going to be connected.

[Off]:

When a DHCP server does not exist in the
network the Display is going to be connected,
set [IP address], [Subnet mask] and [Gateway]
manually.

[IP address]:

(IP address display and setting)

Enter an IP address when DHCP server is not
used.

[Subnet mask]:

(Subnet mask display and setting)

Enter a Subnet mask when DHCP server is not
used.

[Gateway]:

(Gateway address display and setting)

Enter a gateway address when DHCP server is not
used.

Note

●

When [DHCP] is set to [On], the IP address, etc. will
be displayed in grey.

Entering numbers

IP address

192.168. 0. 8

I

1. Select the address and press <ENTER>.

2. Select digits with

3. Change numbers with

.

.

4. Press <ENTER>.

You can cancel the change by pressing
<RETURN>.

English

53

Select [Save] and press <ENTER>.

Save the current network Setup.

Note

●

To use a DHCP server, make sure the DHCP
server is started.

●

Contact your network administrator for details on
[IP address], [Subnet mask] and [Gateway].

●

Shipping condition

[DHCP]: Off

[IP address]: 192.168.0.8

[Subnet mask]: 255.255.255.0

[Gateway]: 192.168.0.1

[Port]

Set the port number used for command control.

Select [Port] and press <ENTER> to set the number.

●

Theavailablesettingrangeis1024‒65535.

●

Entering numbers (see page 53)

Note

●

When the PJLink protocol is used, the port setting is
not necessary.

[Crestron Connected™] is a function to connect to
a system developed by Crestron Electronics, Inc.
which manages and controls multiple system devices
connected to the network.

●

For details of “Crestron Connected™”, refer to the
Crestron Electronics, Inc. web site (Provided only in
English).

http://www.crestron.com/

®

For the download of “RoomView

Express”, refer to
the Crestron Electronics, Inc. web site (Provided only
in English).

http://www.crestron.com/getroomview

■ [Reset]

You can reset the network setting to the factory default
of the Display.

Select [Yes ] with

Network settings

and press <ENTER>.

Reset

Yes No

■ [Network status]

Checks the current Network settings status.

Network status

DHCP

IP address

Subnet mask

Gateway

MAC address

Off

192. 168. 0. 8

255. 255. 255. 0

192. 168. 0. 1

12:34:56:78:9A:BC

■ [AMX D. D.]

Set whether to allow the Display to be detected by AMX
Device Discovery.

[On]:

Enables detection by AMX Device Discovery.

[Off]:

Disables detection by AMX Device Discovery.

●

For more details, visit the following web site.

http://www.amx.com/

■ [Crestron Connected™]

When this function is set to [On], the Display can
be monitored or controlled via the network using
equipment and application software of Crestron
Electronics, Inc.

This Display supports the following application software
from Crestron Electronics, Inc.

RoomView® Express

•

Fusion RV

•

RoomView® Server Edition

•

®

USB media player settings

Set for USB media player function.

[USB media player settings] - submenu screen

USB media player settings

USB media player

Video playback mode Standard

Resume play

Scenario file check

No scenario file

Slide show duration

Enable

On

10 sec

■ [USB media player]

Set to enable or disable the USB media player
function.

■ [Video playback mode]

Sets the video playback mode.

If image disturbance occurs at the switching timing of
motion picture files during playback in the Standard
mode, switch to the Adjust mode.

[Standard]: Plays without a black image at the joint

[Adjust]: Plays with a black image (approx. 2

Note

●

The mode switching is enabled only when using the
single media player.

●

The display may be disturbed at the switching timing
of files during playback in the Standard mode.

between video files.

seconds) inserted at the joint between
video files.

54

English

■ [Resume play]

Set resume play off/on.

■ [Scenario file check]

Execute the contents check of the USB memory
which is connected to the USB terminal. If any error
is detected, the error code and file name will be
displayed.

For details of the error codes, refer to “USB memory
contents check”. (see page 82)

Select [Scenario file check] with
<ENTER>.

Scenario file check

Available

and press

■ [Slide show duration]

Select the displaying duration for still images.

[10 sec] ‒ [600 sec]

Function button settings

Assigns specific functions to the numeric buttons (<1>
to <6>). The buttons can be used as shortcut keys by
assigning frequently used operations.

Switch [Function group] with .

1

[Function button settings] - submenu screen

Function button settings

Function group

Function button 1

Function button 2

Function button 3

Function button 4

Function button 5

Function button 6

Function button guide

Select the numeric button with

2

HDMI1

HDMI2

DVI-D

PC

VIDEO

USB

Input

On

Input

↓

Memory load

↓

Shortcut

and set the function to assign with

.

■ Functions assignable to the numeric

buttons

[Input] (Direct input select)

Input can be selected with single-touch operation.

[HDMI1] / [HDMI2] / [DVI-D] / [PC] / [VIDEO] /
[USB]

[Memory load]

Memory can be loaded with single-touch operation.

Memory load (see page 41)

[MEMORY1] to [MEMORY6]

●

[MEMORY1] to [MEMORY6] load functions are
already assigned to <1> to <6> respectively.
These settings cannot be changed.

[Shortcut]

[Signal], [Screensaver], [Set up timer], [Power
management settings], [Network settings]

●

Pressing the numeric button displays the menu
screen. Pressing the button again exits the
menu screen.

[AV mute]

●

Pressing the numeric button mutes the audio
and pictures.

To cancel, press any button on the remote
control except the <Standby (ON/OFF) button>.

Shipping condition

The following functions are assigned to the numeric
buttons as factory default.

[Input]

1 HDMI1 MEMORY1 [Signal]

2 HDMI2 MEMORY2 [Screensaver]

3 DVI-D MEMORY3 [Set up timer]

4 PC MEMORY4

5 VIDEO MEMORY5

6 USB MEMORY6 AV mute

[Memory

load]

■ [Function button guide]

Sets the function display when numeric buttons are
pressed. Set this for each function group.

[On]:

Displays the function list for the numeric buttons.

[Off]:

Does not display the function list. Operation starts
when numeric buttons are pressed.

Note

●

When <FUNCTION> is pressed, [Function button
guide] will be displayed regardless of the [On] / [Off]
settings.

[Shortcut]

[Power
management
settings]

[Network
settings]

English

55

■ To use shortcut (numeric buttons)

Press <FUNCTION> or <1> ‒ <6>.

1

[Function button guide] will be displayed.

[Function button guide]: When [Off] is set, pressing
the numeric button starts operation.

Example: Input

Input

HDMI1

1.

HDMI2

2.

DVI-D

3.

PC

4.

VIDEO

5.

USB

6.

Press <FUNCTION> to switch function

2

group.

Example: Memory load

Memory load

MEMORY1

1.

MEMORY2

2.

MEMORY3

3.

MEMORY4

4.

MEMORY5

5.

MEMORY6

6.

Press <1> ‒ <6>.

3

The function for the pressed button starts to operate.

Example: When <2> is pressed.

Memory load

Load from “MEMORY2”

Ok Cancel

Display orientation

Sets the on-screen display orientation in the portrait
setting.

[Landscape]:

On-screen display angle is for horizontal
installation.

[Portrait]:

The on-screen display rotates anticlockwise by 90
degrees for easy view in the portrait setting.

Note

●

In the portrait setting, the power indicator shall come
to the downside.

●

[Display orientation] is a function for 84-inch models.
This function is not available for 75-inch models.

OSD position

Sets the display position of the on-screen menu.

Each time

or is pressed, the display position of the

on-screen menu changes.

Display example:

18:00

Left

18:00

Centre

Menu display duration

Sets the display duration time for the on-screen menu.

[5 sec] ‒ [180 sec]

Menu transparency

Sets the transparency rate of the on-screen display
background.

0 ‒ 100

56

18:00

Power indicator

English

Options Adjustments

This unit offers special functions conveniently used
according to the installation location and application.

■ Remote control

Press <SETUP>.

1

[Setup] menu screen will be displayed.

Select [OSD language] with

2

and press <ENTER> for more than 3
seconds.

Following screen will be displayed.

Options

Display software information

Software licenses

USB data cloning

Shipping

Select [Options] with and press

3

<ENTER>.

[Options] menu screen will be displayed.

On

Off

Off

0

Off

0

Off

Off

Off

Off

Enable

Last memory

0

Off

Off

1/3

2/3

Options

Input search

Onscreen display

Initial input

Initial VOL level

Maximum VOL level

Input lock

Button lock

Controller user level

PC auto setting

Options

Off-timer function

Initial startup

Display ID

Controller ID function

Serial ID function

LAN control protocol Protocol 1

Information timing

Set with .

5

Press <SETUP> to exit from [Options]

6

menu.

■ Unit

Press <MENU (Unit)> for several times

1

and display the [Setup] menu.

Select [OSD language] with ,

2

and then press and hold <ENTER
(Unit)> for more than 5 seconds.

Select [Options] with and press

3

<ENTER (Unit)>.

[Options] menu screen will be displayed.

Select the item to set with .

4

For [Input search] and [Information timing], the
submenu screen will be displayed when you press
<ENTER>.

(see page 58, 61)

Set with <- (Unit)> or <+ (Unit)>.

5

Press <MENU (Unit)> for several

6

times to exit from [Options] menu.

Note

●

The remote control is necessary to operate [Initial
VOL level] and [Maximum VOL level] in the [Options]
menu.

●

Press <RETURN> to return to the previous menu.

●

The serial number and the software version of this
unit are displayed when [Display software information]
is selected in step 3.

●

The software License is displayed when [Software
licenses] is selected in step 3.

Options

Power on screen delay

Clock display

Power on message(No activity power off)

Power on message(Power management)

POWER button lock Off

Note

●

[POWER button lock] function is only for
TH-84EF1U and TH-75EF1U.

Select the item to set with .

4

For [Input search] and [Information timing], the
submenu screen will be displayed when you press
<ENTER>.

(see page 58, 61)

3/3

Off

Off

On

On

English

57

Input search

When a signal is not detected, another input with a
signal is automatically selected.

Select the item with .

Select the set point with

Input search

PC

16:9

Custom

(None)

(None)

Input search

1st search input

2nd search input

[Input search]

[Off]:

When there is no signal, the input is not switched
automatically.

[All inputs]:

Searches all inputs and switches to an input with
a signal.

Input search is executed in the following order.

(Example) When the current input is [HDMI1]

[HDMI2]→[DVI-D]→[PC]→[VIDEO]→[USB]
→[HDMI1]

Note

●

The inputs set to [(Skip)] in [Input label] (see page

47) are skipped when searching.

[Custom]:

Repeatedly searches [Current input], [1st search
input] and [2nd search input] in order, and switches
to an input with a signal.

[Input detection]:

Switches to the input where a signal is present by
monitoring the PC input and digital input.

Note

●

Set one of the following for the digital input for
[Detect digital input].

[HDMI1], [HDMI2], [DVI-D]

Searching...

[Searching...] is displayed during the input search.

Note

●

When [Input detection] is set, [Input detection] is
displayed while monitoring the input.

.

[1st search input], [2nd search input]

Set the input to search when [Custom] is selected.

[HDMI1] / [HDMI2] / [DVI-D] / [PC] / [VIDEO] /
[USB] / (None)

[Detect digital input]

Sets the digital input to monitor during [Input
detection].

[HDMI1] / [HDMI2] / [DVI-D]

[Changing delay]

Sets the delay time until the input is switched during
[Input detection].

[Off]:

Switches the input if a signal is interrupted even for
a very short period.

1 ‒ 10:

Sets the delay time (sec.).

Switches the input when the set time has elapsed
after detecting no signal is present.

However, if the detection period during which no
signal is present is shorter than the set delay time,
the input is not switched.

Note

●

With the USB input, the unit determines no signal
is present when the USB memory is not connected
to the USB terminal.

In addition, even when a USB memory is
connected, if there is no playable file, the unit
determines no signal is present.

●

This menu will be greyed out and cannot be set
under the following conditions.

[Input lock] is not set to [Off]. (see page 59)

•

When [Setup] - [Image settings] - [No signal

•

image settings] - [Display setting] is set to [On].
(see page 49)

●

If the input is changed by this function, the last
input is selected when the power is turned on next
time.

If you wish to retain the original input when the
power is turned on, set [Initial input] to the original
input. (see page 59)

●

[Input detection] is the function that automatically
switches the input as below by monitoring the
presence of PC input signal and digital input signal.

This function is enabled when the displayed

•

input is the PC input or digital input set for
[Detect digital input].

Switches to the other input if no signal is

•

detected for the displayed input.

Also switches to the other input if no signal is
present for the displayed input when the power
is turned on or when the input is switched.

If a video signal is input to the input that is not

•

displayed (The status has changed from signal
absent to signal present.), the input is selected
and switched.

58

English

●

[Changing delay] is the function to prevent the
accidental input switch during a short period,
such as when the signal is interrupted due to the
frequency change for the input signal while [Input
detection] is operating.

If a signal is detected again within the set period
(sec.), the input is not switched.

Onscreen display

Set to display / hide the following Onscreen display.

●

Power on display

●

Input signal switch display

●

No signal display

●

No external media display (at USB input)

●

MUTE display after displaying the menu screen

●

MUTE and off timer remaining time display after
<RECALL> is pressed

●

Off timer remaining time display when 3 minutes
remaining

[On]:

Displays the Onscreen display.

[Off]:

Hides the Onscreen display.

Initial input

Adjusts the input signal when the unit is turned on.

[Off] / [HDMI1] / [HDMI2] / [DVI-D] / [PC] / [VIDEO]
/ [USB]

Note

This menu is available only when [Input lock] is [Off].
(see page 59)

Maximum VOL level

Adjusts the maximum volume.

[Off]:

The sound volume level can be set up to 100
(maximum).

[On]:

The sound volume level will not exceed the set
point.

●

Outputs with the set volume when [Maximum VOL
level] in [On] state is selected on the menu.

■ To adjust sound volume level

Press <VOL +> <VOL ->.

Note

●

When the [Maximum VOL level] is switched from
[Off] to [On], if the [Maximum VOL level] is set lower
than the [Initial VOL level], the [Initial VOL level]
automatically becomes the same as the [Maximum
VOL level].

Input lock

Locks the input switch operation.

[Off] / [HDMI1] / [HDMI2] / [DVI-D] / [PC] / [VIDEO]
/ [USB]

Note

●

Input switch can be used when this is set to [Off].

Initial VOL level

Adjusts the sound volume level when the unit is turned
on.

[Off]:

It will be the sound volume level which had been
set before the power of the unit was turned off.

[On]:

Sets your preferred volume.

●

Outputs with the set volume when [Initial VOL level] in
[On] state is selected on the menu.

■ To adjust sound volume level

Press <VOL +> <VOL ->.

Note

●

When [Maximum VOL level] is [On], the volume
cannot be set to the level higher than the level set for
[Maximum VOL level].

English

59

Button lock

Limits operation of the buttons on the unit.

[Off]:

All the buttons on main unit can be used.

[On]:

All button operations except for the <Main Power
On / Off button> are disabled.

[MENU & ENTER]:

Locks <MENU (Unit)> and <ENTER (Unit)>
buttons.

■ To set [Button lock]

Set with the buttons on the unit.

[Off]:

Press <+ (Unit)> for 4 times.

Press <INPUT (Unit)> for 4 times.

Press <- (Unit)> for 4 times.

Press <ENTER (Unit)>.

[On]:

Press <- (Unit)> for 4 times.

Press <ENTER (Unit)> for 4 times.

Press <+ (Unit)> for 4 times.

Press <ENTER (Unit)>.

[MENU & ENTER]:

Press <ENTER (Unit)> for 4 times.

Press <+ (Unit)> for 4 times.

Press <INPUT (Unit)> for 4 times.

Press <ENTER (Unit)>.

Note

●

About how to reset the settings to defaults:
“Initialization” (see page 63)

Controller user level

Limits operation of the buttons on the remote control.

[Off]:

You can use all of the buttons on the remote control.

[User1]:

You can only use <Standby (ON/OFF) button>,
<INPUT>, <RECALL>, <MUTE>, <VOL +> and
<VOL -> buttons on the remote control.

[User2]:

You can only use <Standby (ON/OFF) button> on
the remote control.

[User3]:

Locks all the buttons on the remote control.

Note

●

About how to reset the settings to defaults:
“Initialization” (see page 63)

PC auto setting

Sets the operational mode of the automatic position
adjustment in the [Position] menu.

[Off]:

Automatic position adjustment starts when <AUTO
SETUP> is pressed on the remote control or
automatic position adjustment is executed from the
[Position] menu.

[On]:

Other than remote control or menu operation,
automatic position adjustment starts:

When the display power is turned ON.

•

When the input signal is switched.

•

Off-timer function

Enables / disables Off timer function.

[Enable]:

Enables the [Off-timer function].

[Disable]:

Disables the [Off-timer function].

Note

●

When [Disable] is set, the Off-timer is cancelled.

Initial startup

Sets the power mode of the unit for when the power
recovers from failure or after plugging off and in again.

[Last memory]:

Power returns in as the same state as before the
power interruption.

[On]:

Power returns in power On.

(Power Indicator: green)

[Standby]:

Power returns in standby mode.

(Power Indicator: red/orange)

Note

●

When using multiple displays, [Standby] is preferred
to be set in order to reduce a power load.

Display ID

Sets ID number when controlling the Display with
[Controller ID function] and [Serial ID function].

0 ‒ 100 (Standard value: 0)

60

English

Controller ID function

Enables/Disables the ID remote control function.

To operate this function, please purchase ID remote
controller sold separately. (see page 87)

[Off]:

Disables the ID remote control function. (Can be
operated as normal remote control.)

[On]:

Enables the ID remote control function.

Effective on switching to [On].

Note

●

To use the ID remote control function, setting ID
numbers both for the remote control and for the
display unit is required.

For ID number setting for the remote control
and display unit, see page 87 and [Display ID]
respectively.

●

About how to reset the settings to defaults:
“Initialization” (see page 63)

Serial ID function

Set to control external control with the PC connected to
SERIAL terminal according to the Display’s ID number
(Panel ID).

[Off]:

Disables external control by the ID.

[On]:

Enables the external control by the ID.

LAN control protocol

Select the LAN control protocol.

[Protocol 1]:

Control with the Panasonic Display sequence.

[Protocol 2]:

Control with the sequence that is compatible with
Panasonic Projector.

Note

●

For PJLink and WEB browser control, the operation is
possible regardless of the setting.

●

When operating the “Early Warning Software” or
“Multi Monitoring & Control Software”, select [Protocol
2].

Information timing

Set up the informing manner for no signal.

During RS-232C controls:

Warning or error message sent from the display
automatically.

During LAN controls:

Acquire the warning or error message from the
display.

Select the item with .

1

Select the set point with

Information timing

No signal warning

No signal warning timing

No signal error

No signal error timing

[No signal warning]

When set to [On], the display sends out the no signal
warning.

[No signal warning timing]

Set up the detecting time for no signal warning.

(Range:01‒60,Interval:1minute)

[No signal error]

When set to [On], the display sends out the no signal
error.

[No signal error timing]

Set up the detecting time for no signal error.

(Range:01‒90,Interval:1minute)

●

The warning of [No signal warning] and the error
of [No signal error] are not sent when the no signal
state is detected through any of the following
functions:

[No signal power off], [HDMI1 power management],
[HDMI2 power management], [DVI-D power
management], [PC power management] (see page

47)

Setting Example:

●

If there is no signal when [PC IN] is input, [PC
power management] is activated first and the
Display enters the standby mode.

[No signal warning timing]: 5 minutes

[No signal error timing]: 10 minutes

[PC power management]: [On] (60 seconds)

Note

●

The [No signal error timing] cannot be set shorter
than [No signal warning timing].

●

With the USB input, the unit determines no signal
is present when the file is not playable.

On

5min

On

10min

.

English

61

Power on screen delay

You can set the power-on delay time of the displays to
reduce the power load, when you press <Main Power
On / Off button> to turn on the multiple displays that are
set together.

Set each display’s setting individually.

[Off]:

The display will be turned on at the same time as
<Main Power On / Off button> is pressed.

[Auto]:

Sets the delay time automatically according to the
number set for [Display ID].

The delay time is determined by multiplying
[Display ID] × 0.3 seconds.

Example:

When [Display ID]is3→0.9seconds

1 ‒ 30:

Set the power-on delay time (second).

After pressing <Main Power On / Off button>,
the display will be powered on with time delay
depending on this setting.

Note

●

While this function is working, the power indicator is
blinking green.

●

This function also works when the power recovers
from failure or after plugging off and in again the
power cord.

Clock display

Sets to display / hide the clock.

[Off]:

Hides the clock.

[On]:

Displays the clock.

Note

●

The clock is displayed at the lower left of the screen
when <RECALL> button is pressed.

Display duration is approx. 5 seconds.

●

When current date and time is not set, the clock is
not displayed even when [Clock display] is [On]. (see
page 52)

Power on message(No activity power
off)

Sets to show/hide [No activity power off] precautions
when the power is turned on.

[On]:

The warning precautions are shown when the
power is turned on.

[Off]:

The warning precautions are not shown when the
power is turned on.

Note

●

This setting is enabled only when [No activity power
off] is [Enable] (see page 50).

Power on message(Power
management)

Sets to show/hide an information message that tells
the power has been turned off by “Power management”
function when the power is turned on.

[On]:

The information is shown when the power is turned
on.

[Off]:

The information is not shown when the power is
turned on.

Note

●

This setting is enabled only when “Power
management” function is [On] (see page 47).

POWER button lock

Sets the lock setting for the display <Main Power On /
Off button>.

[On]:

<Main Power On / Off button> operation is
disabled.

[Off]:

<Main Power On / Off button> operation is
enabled.

Note

●

This function is only for TH-84EF1U and TH-75EF1U.

62

English

Initialization

When both main unit buttons and remote control buttons
are disabled due to the [Button lock], [Controller user
level] and [Controller ID function] settings, set all the
values [Off] so that all the buttons are enabled again.

Press <- (Unit)> together with <RETURN>
and hold for more than 5 seconds.

[Shipping] is displayed and the lock is released when
it disappears.

Shipping

YES NO

●

Settings for [Button lock], [Controller user level]
and [Controller ID function] will be back to [Off].

English

63

Using Network Function

This unit has a network function and you can control the
Display connected to the network using your computer.

Necessary environment for computers to be connected

First of all, confirm your computer whether it has a wired
LAN.

Before connecting the Display to the computer, be sure
to check the following settings.

Check 1: About LAN cable

●

Connect the cable properly.

●

Use LAN cable that is compatible with category 5 or
above.

Check 2: Wired LAN settings

Computer with a built-in wired LAN function

●

Switch on the wired LAN.

Computer without a built-in wired LAN function

●

Check that your wired LAN adapter is recognized
properly and it is switched on.

●

Install the wired LAN adapter driver beforehand.

For details on how to install the driver, refer to the
instructions accompanying the wired LAN adapter.

■ About Web Browser

Web Browser is necessary to use WEB control.

●

Compatible OS:

Windows, Mac OS

●

Compatible Web Browser:

Internet Explorer 7.0 / 8.0 / 9.0 / 10.0 / 11.0
(Windows)

Safari 4.x / 5.x / 6.x (Mac OS)

Example of network connection

Note

●

To use the network function, set each item in
[Network settings] and make sure to set [Network
control] to [On].

(see page 53)

When it is set to [On], power indicator lights orange
under the condition of power “Off” with remote control
(stand-by state).

■ LAN Terminal connection

Display (Back of the unit)

PC

LAN Terminal

LAN cable (commercially available)

Hub or broadband router

Note

●

For LAN cable, use shielded cable, otherwise picture
noise may be caused.

●

Make sure the broadband router or hub supports
10BASE-T/100BASE-TX.

●

Touching the LAN Terminal with a statically charged
hand (body) may cause damage to the device due to
its discharge.

Do not touch the LAN Terminal or the metal part of
the LAN cable.

●

For instructions on connection, consult your network
administrator.

64

Command control

Network function of the unit can control the unit in the
same way as serial control from a network.

Supported commands

Commands used in the serial control are supported.
(see page 22)

English

Control Command via LAN

The communication differs whether [Options] - [LAN
control protocol] is set to [Protocol 1] or [Protocol 2].

1. When [LAN control protocol] is set
to [Protocol 1].

Communicates using the display-specific protocol.

■ When the WEB control administrator

privileges password has been set (Protect
mode)

Connection method

Obtain the display’s IP address and the port number

1

(Default is 1024), and request connection to the
display.

The IP address and the port number can be obtained
from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or
[Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 53.

The display responds.

2

Response data

[ ]

0x20

Random

number

[zzzzzzzz]

(ASCII
code hex
number)

Data part Space Mode Space

[PDPCONTROL]

(ASCII

character

string)

10 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte

Mode: 1 = Protect mode

Hash the following data with the MD5 algorithm, and

3

generate a 32-byte hash value.
[zzzzzzzzyyyyy]

zzzzzzzz :

8-byte random number obtained in step 2

yyyyy :

Password of the WEB control administrator
privileges user

●

[ ]

[1]

0x20

0x31

Default user name and password are as follows:

User name: admin1

Password: panasonic

part

Last

terminal

symbol

(CR)

0x0d

Command transmission method

Transmit in the following command format

Transmitted data

Header

Hash value

“Connection

method”)

32 bytes 1 byte Undefined 1 byte 1 byte

Received data

Control
symbol

(STX)

1 byte Undefined 1 byte 1 byte

Error response

Error message

“PDPCONTROL

4 bytes or 15 bytes 1 byte

Control
symbol

(see

0x02

“ERR1” : Undefined control

“ERR2” : Out of parameter

“ERR3” : Busy status or

“ERR4” : Timeout or reception

“ERR5” : Wrong data length

ERRA”

(STX)

0x02

Data part

Control

command

(ASCII

character

string)

Data part

Control

command

(ASCII

character

string)

command

range

reception invalid
period

invalid period

: Mismatching of

password

Control
symbol

(ETX)

Control
symbol

(ETX)

0x03

terminal

symbol

0x03

Last

terminal

symbol

(CR)

0x0d

terminal

symbol

Last

(CR)

0x0d

Last

(CR)

0x0d

English

65

■ When the WEB control administrator

privileges password has not been set (Non­protect mode)

Connection method

Obtain the display’s IP address and the port number

1

(Default is 1024), and request connection to the
display.

The IP address and the port number can be obtained
from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or
[Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 53.

The display responds.

2

Response data

Data part Space Mode

[PDPCONTROL]

(ASCII

character

string)

10 bytes 1 byte 1 byte 1 byte

Mode: 0 = Non-protect mode

Command transmission method

Transmit in the following command format

Transmitted data

Control
symbol

(STX)

0x02

1 byte Undefined 1 byte 1 byte

Received data

Control
symbol

(STX)

0x02

1 byte Undefined 1 byte 1 byte

[ ]

0x20

Data part

Control

command

(ASCII

character

string)

Data part

Control

command

(ASCII

character

string)

[0]

0x30

Control
symbol

(ETX)

0x03

Control
symbol

(ETX)

0x03

Last

terminal

symbol

(CR)

0x0d

Last

terminal

symbol

(CR)

0x0d

Last

terminal

symbol

(CR)

0x0d

Error response

Error message

“ERR1” : Undefined control

command

“ERR2” : Out of parameter

range

“ERR3” : Busy status or

reception invalid
period

“ERR4” : Timeout or reception

invalid period

“ERR5” : Wrong data length

4 bytes 1 byte

terminal

symbol

2. When [LAN control protocol] is set
to [Protocol 2].

Communicates with the same protocol as that of a
Panasonic projector

■ When the WEB control administrator

privileges password has been set (Protect
mode)

Connection method

Obtain the display’s IP address and the port number

1

(Default is 1024), and request connection to the
display.

The IP address and the port number can be obtained
from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or
[Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 53.

The display responds.

2

Response data

[ ]

0x20

Random

number

part

[zzzzzzzz]

(ASCII

code

hex

number)

terminal

symbol

Data part Space Mode Space

[NTCONTROL]

(ASCII

character

string)

9 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte

Mode: 1 = Protect mode

[ ]

0x20

[1]

0x31

Last

(CR)

0x0d

Last

(CR)

0x0d

66

English

Hash the following data with the MD5 algorithm, and

3

generate a 32-byte hash value.

[xxxxxx:yyyyy:zzzzzzzz]

xxxxxx :

WEB control administrator privileges user name

yyyyy :

Above administrator privileges user password

●

Default user name and password are as
follows:

User name: admin1

Password: panasonic

zzzzzzzz :

8-byte random number obtained in step 2

Command transmission method

Transmit in the following command format

Transmitted data

Header Data part

Hash value

(see

“Connection

method”)

32 bytes 1 byte 1 byte Undefined 1 byte

Received data

‘0’

0x30

1 byte 1 byte Undefined 1 byte

‘0’

0x30

Header Data part

0x30

‘0’

0x30

‘0’

Control

command

(ASCII

character

string)

Control

command

(ASCII

character

terminal

string)

terminal

symbol

Last

symbol

(CR)

0x0d

Last

(CR)

0x0d

Error response

Error message

“ERR1” : Undefined control

command

“ERR2” : Out of parameter range

“ERR3” : Busy status or

reception invalid period

“ERR4” : Timeout or reception

invalid period

“ERR5” : Wrong data length

“ERRA” : Mismatching of

password

4 bytes 1 byte

terminal

symbol

■ When the WEB control administrator

privileges password has not been set (Non­protect mode)

Connection method

Obtain the display’s IP address and the port number

1

(Default is 1024), and request connection to the
display.

The IP address and the port number can be obtained
from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or
[Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 53.

The display responds.

2

Response data

Data part Space Mode

[NTCONTROL]

(ASCII

character

string)

9 bytes 1 byte 1 byte 1 byte

Mode: 0 = Non-protect mode

[ ]

0x20

[0]

0x30

Last

terminal

symbol

(CR)

0x0d

Last

(CR)

0x0d

English

67

Command transmission method

Transmit in the following command format

Transmitted data

Header Data part

Control

‘0’

0x30

1 byte 1 byte Undefined 1 byte

Received data

‘0’

0x30

1 byte 1 byte Undefined 1 byte

Error response

Error message

“ERR1” : Undefined control

“ERR2” : Out of parameter

“ERR3” : Busy status or

“ERR4” : Timeout or reception

“ERR5” : Wrong data length

4 bytes 1 byte

Note

●

With some of the commands, a part of character
string of the transmitted data may not be included in
the received data.

●

Consult your local Panasonic dealer for detail
instructions on command usage.

For more details, visit the following web site.

http://panasonic.net/prodisplays/

‘0’

0x30

Header Data part

‘0’

0x30

command

(ASCII

character

string)

Control

command

(ASCII

character

string)

command

range

reception invalid
period

invalid period

terminal

symbol

terminal

symbol

Last

(CR)

0x0d

Last

(CR)

0x0d

Last

terminal

symbol

(CR)

0x0d

PJLink protocol

The unit’s Network function is compatible with PJLink
Class 1. The following operations can be performed from
a computer when PJLink protocol is used.

●

Setting the Display

●

Querying the Display status

Supported commands

The commands to control the unit with PJLink protocol
are as follows.

Command Control

POWR Power control

0: Standby

1: Power On

POWR? Power status query

0: Standby

1: Power On

INPT Input switch

11: PC IN input (PC)

21: VIDEO input (VIDEO)

31: HDMI 1 input (HDMI1)

32: HDMI 2 input (HDMI2)

33: DVI-D IN input (DVI-D)

41: USB input (USB)

INPT? Input switch query

11: PC IN input (PC)

21: VIDEO input (VIDEO)

31: HDMI 1 input (HDMI1)

32: HDMI 2 input (HDMI2)

33: DVI-D IN input (DVI-D)

41: USB input (USB)

AVMT Shutter control

10: Picture On

(picture mute deactivated)

11: Picture Off

(picture on mute)

20: Audio On

(audio mute deactivated)

21: Audio Off

(audio on mute)

30: Shutter mode Off

(picture and audio mute
deactivated)

31: Shutter mode On

(picture and audio on mute)

AVMT? Shutter control query

11: Picture Off (picture on mute)

21: Audio Off (audio on mute)

30: Shutter mode Off

(picture and audio mute
deactivated)

31: Shutter mode On

(picture and audio on mute)

68

English

Command Control

ERST? Error status query

First byte: 0

Second byte: 0

Third byte: 0

Fourth byte: 0

Fifth byte: 0

Sixth byte: Other error. 0 or 2.

●

Meaning of 0, 2.

0: Error is not detected,

2: Error

LAMP? Lamp status query

Not supported

INST? Input switch list query

11: PC IN input (PC)

21: VIDEO input (VIDEO)

31: HDMI 1 input (HDMI1)

32: HDMI 2 input (HDMI2)

33: DVI-D IN input (DVI-D)

41: USB input (USB)

NAME? Display name query

The name selected in [Display name]
is returned.

INF1? Manufacturer name query

Returns “Panasonic”.

INF2? Model name query

Returns “84EF1U” / “84EF1W”.

(Example: 84-inch EF1U / EF1W
model)

INFO? Other information query

Returns version number.

CLSS? Class information query

Returns “1”.

Early Warning Software

This unit supports “Early Warning Software” which
monitors the statuses of devices (projectors or flat-panel
displays) connected to an intranet, reports failures of
devices and gives advance warning by detecting a
predicted abnormality.

The maximum number of devices that can be registered
to monitor differs according to the type of license. Up
to 2048 devices can be registered and used for free for
a maximum of 90 days after the installation to PC has
completed.

●

For more details, visit the following web site.

http://panasonic.net/prodisplays/products/et-swa100/index.html

Multi Monitoring & Control Software

This unit supports “Multi Monitoring & Control Software”
which monitors and controls devices (projectors or flat­panel displays) connected to an intranet.

For details, see the following website.

http://panasonic.net/prodisplays/download/software/index.html

Video Wall Manager

This unit supports the “Video Wall Manager” software
which adjusts multiple displays simultaneously or
separately on one computer without rearranging cables.

For more details, visit the following web site.

http://panasonic.net/prodisplays/download/software/index.html

Note

●

This unit does not support Auto Display Adjustment
Upgrade Kit (TY-VUK10).

PJLink security authentication

The password used for PJLink is the same as the
password set for the WEB control. (see page 71)

When using PJLink without security authorization, set
use without the password for administrator privileges
and the password for user privileges of Web browser
control.

●

Concerning the specification of PJLink, see the web
site of Japan Business Machine and Information
System Industries Association (JBMIA) below:

http://pjlink.jbmia.or.jp/english/index.html

English

69

Connecting with

Using Web Browser

LAN

Note

●

To use the network function, set each item in
[Network settings] and be sure to set [Network
control] to [On]. (see page 53)

Computer operation

Turn on the computer.

1

Make the network setting according

2

to your system administrator.

When the Display settings are the default settings
(see page 54), the computer can be used with the
following network settings.

IP address 192.168.0.9

Subnet mask 255.255.255.0

Gateway 192.168.0.1

Control

You can use a Web browser to control the unit and set
up a network and password.

Before Using Web Browser Control

To use the Web browser control, the unit and computer
set ups are required.

■ About Web Browser

Set each item in [Network settings] and be sure to
set [Network control] to [On]. (see page 53)

■ Computer Setup

Disable the proxy server settings and enable
JavaScript.

●

The setting procedure differs depending on the
software version.

Please refer to description in HELP, etc. of the
software.

(Windows)

Windows 7 is used as an example.

Disable proxy server settings

1 Display [Internet Properties] window.

Click [Start] - [Control Panel] -
[Network and Internet] - [Internet Options].

●

If the on screen display looks different, please set
[View by:] to [Category].

2 Click the [Connections] tab and then [LAN Settings].

3 Deselect the [Use automatic configuration script] and

[Use a proxy server for your LAN] boxes.

4 Click [OK].

Enable JavaScript

1 Display [Internet Properties] window.

Click [Start] - [Control Panel] -
[Network and Internet] - [Internet Options].

●

If the on screen display looks different, please set
[View by:] to [Category].

2 Set the security level on the [Security] tab to [Default

Level]. Alternatively enable [Active scripting] from the
[Custom Level] button.

70

English

(Macintosh)

Disable proxy server settings

1 From the [Safari] menu, click [Preferences].

General screen is displayed.

2 From the [Advanced] tab, click the [Change

Settings…] button next to [Proxies].

Click [Proxies] and set up a proxy server.

3 Deselect the [Web Proxy] and [Automatic Proxy

Configuration] boxes.

4 Click [Apply Now].

Enable JavaScript

1 Display [Security] of Safari.

2 Select [Enable JavaScript] under [Web content].

Access from Web Browser

Access to the TOP screen of the Web browser control
using a Web browser.

Start your Web browser.

1

Enter the IP address set with the

2

[LAN setup] of the unit.

(see page 53)

Enter the user name and password

3

when the Authentication screen is
displayed.

Click [OK].

4

After logged in, the TOP screen of the Web Browser
Control is displayed.

Note

●

The password used here is the same password
used for command control and the PJLink security
authentication.

●

Default user name and password are as follows:

User name: user1 (user rights), admin1 (administrator
rights)

Password: panasonic

Change password first.

●

The password can be changed on the Password
Setup screen after logging in (see page 73). Log in
with administer privileges to change this.

●

When using “Crestron Connected™” (see page 76),
log in with the administrator rights.

●

Under no circumstances, Panasonic Corporation or
its associated companies will ask customers their
password directly.

Even if you are asked directly, please do not reveal
your password.

English

71

Operating with Web Browser

■ Description of each section

Network status page

Click [Status], then [Network Status] to display the
Status information page.

Displays the current configuration information of the
network.

Page tab

Click these to switch pages.

[Status]

Click this item, and the status of the Display is
displayed.

[Display control]

Click this item to display the Display control page.

[Detailed set up]

Click this item to display the advanced settings
page.

[Change password]

[Crestron Connected™]

Click this item to display the Crestron Connected™
operation page.

[Browser Remote Control]

Click this item to display the Browser Remote
Control on the WEB browser, which is the same as
the supplied remote control.

Display status page

Click [Status], then [Display status] to display the Status
information page.

This page displays the Display statuses established for
the items shown below.

Displays the configuration details of wired LAN.

Basic control page

To move from another page, click [Display control], then
[Basic control].

Power On/Off control

Use these to select the input signals

AUDIO mute

Switches aspect mode

Detail control page

Click [Display control], then [Advanced control] to
display the Detail control page.

Displays the type of Display.

Displays the firmware version of the Display main
unit.

English

72

Enter a command. Use the same command used for
the serial control.

Response from the unit is displayed.

Command is sent and run.

Note

●

After the settings are changed, it may take a while till
the display status is displayed.

Change Password page

1

2

1
2
3

4
5

6

1
2
3
4

1
2
3
4

Click [Change password].

■ User mode

A user can change password only.

Administrator

User

■ Administrator mode

Account

Current user name input field

Current password input field

New user name input field

New password input field

New password input field (re-enter for confirmation)

Button for executing password change

■ User account

Current password input field

New password input field

New password input field (re-enter for confirmation)

Button for executing password change

Note

●

Up to 16 alphanumeric characters can be used for a
password.

●

When changing the administrator account, both
“Current user name” and “Current password” are
required.

Network config page

When connecting by logging in with administer
privileges, you can make detailed settings for network
related to display.

Account

New user name input field

New password input field

New password input field (re-enter for confirmation)

Button for executing password change

English

73

■ LAN settings

Click [Detailed set up] in the menu.

1

Click [Next].

2

The settings window appears, showing the current
settings.

To change the LAN settings, click [Change].

•

To return to the previous window, click [Back].

•

Complete the detailed settings and

3

click [Next].

Setting contents here are the same as the address
information contents set for the [LAN setup] menu of
the Display.

After all required items have been entered, click
[Next]. Then, a confirmation window appears.

Note

●

Changing the setting of LAN while connected with
LAN might disconnect the connection.

Adjust clock page

Click [Detailed set up], then [Adjust clock] to display the
Adjust clock page.

New date field

New time field

Button to update time and date settings

Note

●

Date and time is displayed as [- -] when they are
not set.

●

When [Network control] is set to [On] and it is in
standby mode, date and time display will be blank
and they cannot be set.

●

If the time becomes incorrect immediately after
setting the correct time, contact the dealer where
you bought the Display.

Ping test page

This page makes it possible to check whether the
network is connected to the DNS server, etc.

Click [Detailed set up], then [Ping test] to display the
Ping test page.

Click [Submit].

4

The settings will be registered.

English

74

Enter the IP address of the server to be tested.

Button for conducting the test

Display which appears when the connection was
successful.

Display which appears when the connection failed.

Command port set up page

Set the port number to be used with command control.

Click [Detailed set up], then [Command port set up] to
display the Command port set up page.

Input the port number to be used with command
control.

Setting update button.

[Browser Remote Control]

It is possible to operate the display with the operation
buttons displayed on the WEB browser.

Click [Browser Remote Control].

The [Browser Remote Control] screen is displayed.

Browser Remote Control

The Browser Remote Control can be operated in the
same way as the supplied remote control.

For allocation / function of each button, see page 26.

To finish the Browser Remote Control, click

[Display Control Window] or exit the browser.

English

75

Note

●

To use this function, set [Network control] to [On].
(see page 53)

●

The Browser Remote Control can also be displayed
by entering “http://xxx.xxx.xxx.xxx/remote/” in the
WEB browser URL entry field.

xxx.xxx.xxx.xxx is the IP address set for this

•

display.

●

The button long press operation is invalid.

●

[Options] menu (see page 60) cannot be displayed.

●

The restriction for the remote control button
operation set for [Options] - [Controller user level]
(see page 60) does not apply.

●

Avoid operating the multiple Browser Remote
Control simultaneously.

●

The same operations are applicable to both
administrator privileges and user privileges.

●

If the Browser Remote Control screen is not
displayed, consult your network administrator.

●

The screen may turn white for a moment when
updating the Browser Remote Control screen, but it
is not a malfunction.

●

While operating the Browser Remote Control, do
not operate the unit by other methods such as WEB
control screen, remote control and external control
command.

●

If the “Back” or “Forward” functions on the WEB
browser is used, the screen display may be
abnormal. In this case, the subsequent operations
are not guaranteed. Update the WEB browser.

Using Web Browser Control

Crestron Connected™
(Crestron Connected™ operation screen)

You can monitor or control the Display using “Crestron
Connected™”.

If Adobe Flash Player is not installed in your computer,
or if the browser does not support Flash, this page does
not appear. In this case, return to the previous page by
clicking [Back] in the operation page.

●

Operation page

[Tools], [Info], [Help]

Switches the pages for tools, information, help using
the tab.

[POWER]

Switches between on and off of the power.

[VOL DOWN], [AV MUTE], [VOL UP]

Sets the volume, AV mute.

When the power of the Display is turned off, these
operations are not available.

[Input Select]

Sets the input selection.

When the power of the Display is turned off, this
operation is not available.

Operation buttons on the menu screen

Operates on the menu screen.

Image quality adjustments

Operate items related to image quality.

[Back]

Returns to the previous page.

76

English

●

[Tools] page

Click [Tools] on the operation page.

●

[Info] page

Click [Info] on the operation page.

[Control System]

Sets the information required for the communication
with the controller that is connected to the Display.

[User Password]

Sets the password for the user rights in the
operation page of “Crestron Connected™”.

[Admin Password]

Sets the password for the administrator rights in the
operation page of “Crestron Connected™”.

[Network Status]

Displays the setting of LAN.

[DHCP]

•

[IpAddress]

•

[SubnetMask]

•

[DefaultGateway]

•

Displays the value in the current setting.

[Exit]

Returns to the operation page.

Note

●

When you monitor or control the Display using
“Crestron Connected™”, set [Crestron Connected™]
to [On] in the [Network settings] menu.

[Display Name]

Displays the name of the Display.

[Mac Address]

Displays the MAC address.

[Resolution]

Displays the resolution of the Display.

[Power Status]

Displays the status of the power.

[Source]

Displays the selected video input.

[Exit]

Returns to the operation page.

●

[Help] page

Click [Help] on the operation page.

The [Help Desk] screen is displayed.

[Help Desk]

Sends or receives messages to the administrator
who uses “Crestron Connected™”.

English

77

USB media player

Function description

The USB media player displays still pictures and
motion pictures saved in a USB memory by inserting
the USB memory device into the display unit.

Note

●

To use this function, set [USB media player] to
[Enable] in [Setup] - [USB media player settings]. (see
page 54)

●

When using the “Single Media Player”, the unit
prevents a black screen from appearing at the
switching timing of still pictures or motion pictures.
Note the following restrictions.

(1) A black screen appears when switching a motion

picture codec.

(2) A black screen may appear or images may be

disturbed when switching to motion pictures of a
different frame rate or aspect ratio.

If an angle of view for something other than for

16:9 is used, images may be disturbed near the
end of playback.

Inserting a black screen (approx. 2 sec.) at the
switching timing for all the motion pictures can avoid
image disturbance in above (2).

([USB media player settings] (see page 54))

●

Using the content list delivery function of the Multi
Monitoring & Control Software (see page 69), content
(still/motion pictures) played back on a USB media
player and the playback list can be delivered.

(Still pictures that can be delivered are only jpg files.)

For details, refer to the manual of Multi Monitoring &
Control Software.

●

The multi display mode is not available with USB
input.

Single Media Player

Files are played by a single unit.

USB
memory

Multi Media Player

Connecting more than one unit using LAN cables plays
back files in the USB memory simultaneously.

One of the multiple units becomes the parent, and the
others are children. The two-unit configuration example
is shown below.

For LAN connection, see “Network environment (Multi
Media Player only)” (see page 83).

Parent Child

USB
memory

Hub or broadband router

Note

●

For Multi Media Player, one USB memory device is
required for one unit.

●

For Multi Media Player, the parent requires both
“scenario.dat” and “filelist.dat”, and the child requires
“filelist.dat” only.

●

Describe “GroupID:G01” without changing
characters other than numbers (2-digit description
required). Without description, the Multi Media Player
does not function.

●

When motion pictures are played on the multi media
player, a black screen may be displayed for a certain
period of time at the switching timing of motion
pictures.

USB

memory

Preparation

■ Supported device

●

Commercially available USB memory devices are
supported. (Those with security functions are not
supported. Operation is not guaranteed.)

●

USB memory devices other than those formatted in
FAT16 or FAT32 cannot be used.

●

Up to 32 GB of USB memory in size are supported.

●

Only single partition configuration is supported.

■ Preparation

Prepare the following files in the USB memory for the
media player.

●

Play file

●

Scenario (as necessary)

●

File list (as necessary)

Note

●

Delete files irrelevant to playback from the USB
memory device.

78

English

●

Up to 999 files can be played back. If more than the
maximum number of files are present, some files are
not played back.

An error is displayed by the scenario file check (see
page 54).

●

Up to 999 lines of Scenario files are valid.

■ Play file

The unit’s Media Player supports the formats below.

Still pictures

Extension Format Limitation

jpg/

jpeg/

jpe

bmp Windows

Motion pictures

Extension Codec

avi MPEG4 AVC/

mkv MPEG4 AVC/

asf/wmv MPEG4 AVC/

ts/mts MPEG4 AVC/

mp4 MPEG4 AVC/

JPEG Maximum number of pixels:

Bitmap

Video Audio

H.264

MPEG-4
Visual

H.264

MPEG-4
Visual

H.264

MPEG-4
Visual

VC-1
Advanced

VC-1

Simple&Main

H.264

MPEG-4
Visual

H.264

MPEG-4
Visual

4096 × 4096

(supports baseline only)

YUV format: supports
YUV444, YUV442 and
YUV440

Colour mode:

supports RGB only
Maximum number of pixels:
4096 × 4096

(1 bit, 4 bits, 8 bits, 24 bits)

Following formats are not
supported:

Run-length encoding, bit
field, top-down, transparent
data

MPEG-1/2 Audio Layer­3(MP3)

Linear PCM

MPEG-1/2 Audio Layer-3

Linear PCM

AAC

HE-AAC
MPEG-1/2 Audio Layer-3

WMA Standard

WMA9/10Pro

MPEG-1/2 Audio Layer-3

HE-AAC

MPEG-1/2 Audio Layer-3

AAC

HE-AAC

3gp MPEG4 AVC/

H.264

MPEG-4

mov MPEG4 AVC/

flv/f4v MPEG4 AVC/

Limitation
Video
Codec

MPEG-4
AVC/

H.264

High Profile

MPEG-4
Visual

Simple
Profile and
Advanced
Simple
Profile

VC-1

Simple
Profile and
Main Profile

VC-1

Advanced
Profile

Audio
Codec Sampling

MP3 8/10.025/12/16/
WMA
Standard
WMA 9 32 – 384
WMA 10 Pro 32 – 384
LPCM 64 – 1536

AAC 8 – 1440
HE-AAC 8 – 256

Visual

H.264

MPEG-4
Visual

H.264

Maximum resolution: 1920 × 1080

Maximum frame rate: 30fps
(progressive)

Maximum bit rate: 30Mbps

•

•

Maximum resolution: 1920 × 1080

Maximum frame rate:

30fps (progressive)

Maximum bit rate: 30Mbps

•

•

Maximum resolution: 1920 × 1080

Maximum frame rate: 30fps
(progressive)

Maximum bit rate: 20Mbps
Maximum resolution: 1920 × 1080

Maximum frame rate:

24fps (progressive), 30fps (interlace)

Maximum bit rate: 30Mbps

•

frequency (kHz)

22.05/24/32/44.1/

48

AAC

HE-AAC

MPEG-1/2 Audio Layer-3

Linear PCM

AAC

HE-AAC
MPEG-1/2 Audio Layer-3

AAC

Linear PCM

Level 4.2 or less

MVC (Multi-view Video Coding)
unsupported

Only 1 warp-point GMC supported

Data Partitioning is not supported.

Level: L3 or less supported

Bit rate (kbps)

8 – 320
32 – 384

Supported
quantization bit:
8/16/24/32

English

79

Note

●

Maximum size per one file is 2 GB.

●

Some files may not be played back even if their
formats are supported as described here.

●

Files protected by Digital Rights Management (DRM)
cannot be played back.

●

Make sure that both audio codec and video codec
are supported. If the audio codec of motion picture
file is incompatible in format, the pictures may not be
correctly displayed. In addition, files which contain
only audio cannot be played back.

●

Playback is not possible if the maximum bit rate
specified in the codec Profile or Level is exceeded.
Also, depending on the USB memory device,
playback may be impossible even if the bit rate is less
than the indicated maximum bit rate.

●

A part of information of still pictures/motion pictures
can be confirmed on the computer accessible to the
target files.

●

Example of an operation

(Windows)

1. Right-click the file, and then click [Properties].

2. Click the [Details] tab.

(Macintosh)

1. Control-click the file, and then click [Get Info].

2. Click [Details].

■ Scenario

The play order and time can be specified for a play file.

Save under the name (one-byte alphabetical characters)
“scenario.dat” immediately below root in USB memory.

●

Save files as UTF-8N format.

●

1 to 999 lines can be specified for Scenario.

■ File list

It is a list of play files.

Save under the name (one-byte alphabetical characters)
“filelist.dat” immediately below root in USB memory.

●

Save files as UTF-8N format.

■ Scenario- / File list-associated terms

File name

It is the name of a play file.

A file name needs to include its extension.
Example:

Contents_Video01.wmv

●

Enter the extension of a file name using one-byte
alphanumeric characters.

File definition

It is a file definition that is shared among scenarios and
files.

PHOTO_xxx: still image file definition
VIDEO_xxx: moving image file definition

●

The “xxx” portion can be set from 001 to 999.

●

Enter a file definition using one-byte alphanumeric
characters.

Play time

It is the play time of a file.

Play time can be specified from 3 seconds to 24 hours.
(Unit: second)

Example:

10: 10 seconds
86400: 24 hours

10.5: 10.5 seconds

It can be set down to one-tenth (1/10) of a
second using a decimal point (full stop).

Play time is omissible.

For still images, a file will be played for the period of time
that you selected in [USB media player settings] - [Slide
show duration]. (see page 54)

For moving images: a file will be played for the duration
of the play time of the file.

●

Enter play time using one-byte numeric characters.

●

When playing back large sized files, if you set the
playing back duration short, it may not be played back
properly, for example, noise appears on the screen.

In that case, set the playing back duration longer (10
seconds or longer).

Group ID (for Multi Media Player)

It is an ID used for grouping on a network during Multi
Media Player conditions.

GroupID:Gxx : Group xx

●

The “xx” portion can be set from 01 to 10.

●

Enter a group ID using one-byte alphanumeric
characters.

Note

●

“UTF-8N”: UTF-8 encoding without BOM. Notepad for
windows doesn’t support this encoding.

Please use another editor supported UTF-8 encoding
without BOM.

Playing back the files

■ Example of setting in each mode

Single Media Player (Type 1)

Files will be played in the order in which their names
appear in USB memory.

Scenario and file list

Scenario:

Unnecessary

File list:

Unnecessary

80

English

Setting example

USB memory contents

001_Contents_Video1.wmv

002_Contents_Video2.wmv

003_Contents_Video3.wmv

Play contents

For the above setting example, the following contents
will be played on repeat (loop).

1. 000_Introduction.jpg (*1)

2. 001_Contents_Video1.wmv (*2)

3. 002_Contents_Video2.wmv (*2)

4. 003_Contents_Video3.wmv (*2)

1: Played for the duration set in [Slide show

*

duration].

2: Played for the duration of the play time of the file.

*

Single Media Player (Type 2)

Files will be played in the order they were listed in a
scenario.

Scenario and file list

Scenario:

Enter [File name: Play time].

File list:

Unnecessary

Setting example

USB memory contents

scenario.dat

Contents_Video1.wmv

Contents_Video2.wmv

Contents_Video3.wmv

scenario.dat (scenario)

Introduction.jpg:10
Contents_Video1.wmv:10
Contents_Video2.wmv:20
Contents_Video3.wmv:

Play contents

For the above setting example, the following contents
will be played on repeat (loop).

1. Introduction.jpg (10 seconds)

2. Contents_Video1.wmv (10 seconds)

3. Contents_Video2.wmv (20 seconds)

4. Contents_Video3.wmv (Played for the
duration of the play
time of the file)

Single Media Player (Type 3)

Files will be played in the order they were listed in a
scenario.

Scenario and file list

Scenario:

Enter [File definition: Play time].

File list:

Enter [File definition: File name].

Setting example

USB memory contents

filelist.dat
scenario.dat


Contents_Video1.wmv

Contents_Video2.wmv

Contents_Video3.wmv

scenario.dat (scenario)

PHOTO_001:10
VIDEO_001:10
VIDEO_002:20
VIDEO_003:

filelist.dat (file list)

VIDEO_001:Contents_Video1.wmv
VIDEO_002:Contents_Video2.wmv
VIDEO_003:Contents_Video3.wmv

Play contents

For the above setting example, the following contents
will be played on repeat (loop).

1. Introduction.jpg (10 seconds)

2. Contents_Video1.wmv (10 seconds)

3. Contents_Video2.wmv (20 seconds)

4. Contents_Video3.wmv (Played for the

Multi Media Player

Files will be played in the order they were listed in the
scenario for Parent.

Scenario and file list

Parent side

Scenario:

Enter [File definition: Play time].

File list - The first line:

Enter [Group ID].

File list - The second and subsequent lines:

Enter [File definition: File name].

duration of the play
time of the file)

English

81

Child side

Scenario:

Unnecessary

File list - The first line:

Enter [Group ID].

File list - The second and subsequent lines:

Enter [File definition: File name].

Setting example

Parent side

USB memory contents

filelist.dat

scenario.dat


L_Contents_Video1.wmv

L_Contents_Video2.wmv

L_Contents_Video3.wmv

scenario.dat (scenario)

PHOTO_001:10
VIDEO_001:10
VIDEO_002:20
VIDEO_003:

filelist.dat (file list)

GroupID:G01
VIDEO_001:L_Contents_Video1.wmv
VIDEO_002:L_Contents_Video2.wmv
VIDEO_003:L_Contents_Video3.wmv

Child side

USB memory contents

filelist.dat


R_Contents_Video1.wmv

R_Contents_Video2.wmv

R_Contents_Video3.wmv

filelist.dat (file list)

GroupID:G01
VIDEO_001:R_Contents_Video1.wmv
VIDEO_002:R_Contents_Video2.wmv
VIDEO_003:R_Contents_Video3.wmv

Play contents

For the above setting example, the following contents
will be played on repeat (loop).

Parent side

1. L_Introduction.jpg (10 seconds)

2. L_Contents_Video1.wmv (10 seconds)

3. L_Contents_Video2.wmv (20 seconds)

4. L_Contents_Video3.wmv (*1)

Child side

1. R_Introduction.jpg (10 seconds)

2. R_Contents_Video1.wmv (10 seconds)

3. R_Contents_Video2.wmv (20 seconds)

4. R_Contents_Video3.wmv (*1)

1: Played for the duration of the play time of L_

*

Contents_Video3.wmv (Parent side).

Note

●

While the menu screen is not displayed, you can
skip to the next playback file with
playback file with , or play back again from the
beginning of the file with (Remote control operation
only).

When this operation is performed, a black screen is
inserted before playback.

, to the previous

■ USB memory contents check

You can run a USB memory contents check in [USB
media player settings] - [Scenario file check]. (see page

54)

If an error is present, the information is given with the
following details.

A(B): C

D

A: Name of the file with an error

B: Row with an error

C: Error code

D: Detail of the error

82

English

Note

●

Shows leading error codes.

Details of the detected errors are as follows.

Error
code

1. No USB memory is inserted.

2. scenario.dat/filelist.dat cannot be opened.
There is an error in the contents of

3.
scenario.dat/filelist.dat.

4. The play file format is not supported.

5. No play file exists.

The necessary group ID for Multi Media

6.
Player has not been specified.

7. There are several identical file definitions.

8. The scenario’s play time is over the limit.
The file definition listed in the scenario is

9.
not in the file list.

The scenario contains 0 or over 1000 play

10.
files.

There are 0 or over 1000 play files.

11.
(Single Media Player (Type 1) only)

Only the group ID is listed on the file list.

12.
(Multi Media Player only)

For error code 1 and 11, only the error code and

•

the detail of the error are displayed as shown
below.

1

No USB memory is inserted.

Supplementary note

The USB memory contents check does not determine
whether or not a play file is playable.

If a file cannot be played while Media Player is active,
an error message will be displayed.

When performing the synchronized playback on the
Multi Media Player, check in the menu [USB media
player settings] - [Scenario file check] that the file is
playable.

Detail of the error

Network environment (Multi Media Player only)

■ Example of setting up LAN connection and

IP address / Subnet mask

As mentioned below, connect several units together with
LAN cables and set up IP addresses / Subnet masks so
that all the displays exist on the same network.

Parent

Child

Child

Child

Note

●

Set [Network control] of all displays to [On]. (see
page 53)

●

Depending on the network environment,
synchronization may be largely lost.

●

Do not connect other devices to prevent network
traffic jam.

●

With a router put in between, you cannot set up
connection. Use them within the same subnet.

●

Do not use wireless LAN for connection since
playback may not be performed normally.

IP address:

Subnet mask:

IP address:

Subnet mask:

IP address:

Subnet mask:

IP address:

Subnet mask:

192.168.10.1

255.255.255.0

192.168.10.2

255.255.255.0

192.168.10.3

255.255.255.0

192.168.10.4

255.255.255.0

English

83

Starting / ending Media Player

■ For Single Media Player

Start

1. Insert USB memory for Media Player.

Note

●

Depending on the type of a USB memory device,
it may come in contact with the periphery such
as a back cover, and cannot be attached. Use a
commercially sold extension cable, or use a small
type of a USB memory device connectable to this
unit.

Resume Play function

After Media Player ends, the file to be played back next
time varies depending on the setting of [USB media
player settings] - [Resume play].

When set to [On]:

The file played prior to the end of Media Player starts
playing from the beginning.

When set to [Off]:

Play starts from the beginning of the first file of the
scenario.

Note

●

The resume play function is retained until the unit is
turned off or the USB memory device is taken out.

USB

terminal

2. Run a USB memory contents check.

3. Change INPUT to [USB].

Ending

Change INPUT to other than [USB].

USB

memory

■ For Multi Media Player

Start

1. Connect several units with LAN cables.

(See “Example of setting up LAN connection and IP
address / Subnet mask in the previous section.)

2. Insert USB memory for Media Player into each
Display.

3. Executes USB memory contents check on each
Display.

4. Change INPUT for Child to [USB].

5. Change INPUT for Parent to [USB].

Ending

Change INPUT for Parent to other than [USB].

84

English

Data Cloning

Menu settings and adjusted values set on a single
display can be copied to multiple displays using a USB
memory.

■ Data that can be copied

Settings and set values of [Picture], [Sound], [Setup],
[Position] and [Options] menus

User image registered in [Setup] - [Image settings]

●

The following data cannot be copied. Setting is
required for each display.

[Date and time]

Setting for [Network settings] - [LAN setup]

Display ID in [Options]-[Display ID]

■ Supported device

●

Commercially available USB memory devices are
supported. (Those with security functions are not
supported. Operation is not guaranteed.)

●

USB memory devices other than those formatted in
FAT16 or FAT32 cannot be used.

●

Up to 32 GB of USB memory in size are supported.

●

Only single partition configuration is supported.

Note

●

If the sizes of the displays are different, the cloning
function does not operate. Use the common sized
displays.

●

Set the input to something other than [USB], and
perform the data cloning.

●

[USB data cloning] menu can also be displayed using
the main unit buttons.

Operate in the same way as described in “Options
Adjustments” - “Unit” (see page 57).

Copying the display data to the USB memory

Insert the USB memory device to the

1

USB terminal of the display of data
copy source.

After the [Select Copy Type] screen is displayed, go
to the step 5.

USB

terminal

Note

●

If the USB memory containing the data for cloning
is connected in power-on state, the [Select Copy
Type] message in step 5 is displayed.

●

Depending on the type of a USB memory device,
it may come in contact with the periphery such
as a back cover, and cannot be attached. Use a
commercially sold extension cable, or use a small
type of a USB memory device connectable to this
unit.

●

Failure to save in or read from the USB memory
displays an error message.

Display [Setup] menu pressing

2

memory

<SETUP>.

Select [OSD language] with and

3

press <ENTER> for over 3 seconds.

The following display appears.

Options

Display software information

Software licenses

USB data cloning

Shipping

USB

Select [USB data cloning] with

4

and press <ENTER>.

Select [Display → USB Memory] with

5

and press <ENTER>.

Select Copy Type

Display→USBMemory

USBMemory→Display

English

85

Select [YES] with and press

6

<ENTER>.

Data copy to the USB memory starts.

Data to USB Memory

The data will be overwritten when any data exists originally.

Are you OK to write the data?

YES NO

Select [YES] with and press

6

<ENTER>.

Data copy to the display starts.

Data from USB Memory

Do you copy the data?

YES NO

When data copy starts, a message to show the data
is being copied is displayed.

The following message is displayed after data copy
has finished.

Data copy finished.

After data copy has finished, remove

7

the USB memory device from the USB
terminal.

Copying the USB memory data to the display

Insert the USB memory device with

1

copied data to the USB terminal of
the display of data copy destination
(same as the step 1 on page 85).

After the [Select Copy Type] screen is displayed, go
to the step 5.

Note

●

If the USB memory containing the data for cloning
is connected in power-on state, the [Select Copy
Type] message in step 5 is displayed.

Display [Setup] menu pressing

2

<SETUP>.

Select [OSD language] with and

3

press <ENTER> for over 3 seconds.

The following display appears.

Options

Display software information

Software licenses

USB data cloning

Shipping

When data copy starts, a message to show the data
is being copied is displayed.

The following message is displayed after data copy
has finished.

Cloning finished.

Please turn off the power.

After data copy has finished, remove

7

the USB memory device from the USB
terminal.

Press the <Main Power On / Off

8

button> to turn the power OFF, and
turn the power ON again.

The copied content is applied to the display.

●

If the <Main Power On / Off button> is locked,
please disconnect the AC cord plug from the wall
outlet.

●

When USB memory is not removed in the step
7, the message [Select Copy Type] is displayed
when the display is turned on again.

Note

●

If the data is copied with [POWER button lock] set to
[On], this function operates after turning the power
off, and the <Main Power On / Off button> cannot be
used to turn the power on. In this case, remove the
power plug, wait sufficient time, and then connect the
power plug again to turn the power on.

●

[POWER button lock] function is only for TH-84EF1U
and TH-75EF1U.

Select [USB data cloning] with

4

and press <ENTER>.

Select [USB Memory → Display] with

5

and press <ENTER>.

Select Copy Type

Display→USBMemory

USBMemory→Display

English

86

ID Remote Control Function

You can set the remote control ID when you want to use
this remote control on one of several different displays.
In that case, you need to set the remote control’s ID
number to match the Display’s ID number you have set
in [Options]-[Display ID] following the steps below.

Note

●

To operate this function, please purchase
ID remote controller sold separately.

Object model: N2QAYA000093

Setting the remote control’s ID number

Set [Controller ID function] to [On].

1

(see page 61)

●

While displaying [Options] menu, you can operate
even if the ID does not match.

Set the remote control’s <ID MODE>

2

switch to <ON>.
Pointing the remote control at the

3

Display you want to control, press <ID
SET>.

ID set

Display ID

Controller ID

Press one of <0> ‒ <9>.

4

Sets the tens digit.

Press one of <0> ‒ <9>.

5

Sets the units digit.

●

The steps from 3 to 5 need to be done within 5
seconds.

●

AdjustableIDnumberrangeis0‒100.

Example:

To set the ID to “1”: After step 3, press <0> and

•

then <1>.

To set the ID to “12”: After step 3, press <1>

•

and then <2>.

To set the ID to “100”: After step 3, press <1>

•

<0> <0>.

0

?

Cancelling the setting of remote control’s ID number (ID “0”)

You can operate even if the ID does not match the ID set
in [Options]-[Display ID].

Press <ID SET> for more then 3 seconds.

This has the same effect as pressing <ID SET> <0>
<0>.

Note

●

The ID remote control cannot be used when
[Options]-[Display ID] is set to anything other than
“0”, and the remote control ID is not the same as the
[Options]-[Display ID] number. (see page 61)

English

87

Entering characters

a/A/@

0

1 2 3 4 5 6 7 8 9

a

b c d e f g h i j

k l m

n o p q r s t

u v w x y z

–

_.

Some settings require to enter characters.

To enter text, select characters in the on-screen
keyboard.

Example: Entering profile names ([Memory save])

█

MEMORY1

1 2 3 4 5 6 7 8 9

a

b c d e f g h i j

k l m

u v w x y z

n o p q r s t

a/A/@

The default profile name is [MEMORY1], here, we are
changing it to [MY PICTURE] as an example.

Select [All delete] with , and

1

press <ENTER>.

MEMORY1

All text is deleted.

To delete individual characters, select [Delete].

Select [a / A / @] with , and

2

█

press <ENTER>.

a/A/@

0

–

_.

OkCancelAll deleteDelete

OkCancelAll deleteDelete

Select Space key with , and

4

press <ENTER>.

█

MY

1 2 3 4 5 6 7 8 9

a

b c d e f g h i j

k l m

u v w x y z

n o p q r s t

–

_.

a/A/@

OkCancelAll deleteDelete

Space key

As shown in step 3, select the characters to enter
[PICTURE].

When you finished entering the profile

5

name, select [Ok] with

and

press <ENTER>.

MY PICTURE

●

█

1 2 3 4 5 6 7 8 9

a

b c d e f g h i j

k l m

u v w x y z

n o p q r s t

–

_.

a/A/@

OkCancelAll deleteDelete

To cancel saving the profile, select [Cancel].

0

0

Switches the keyboard to the upper case alphabet.

Each time <ENTER> is pressed, the keyboard is
switched in the order of lower case, upper case and
symbols.

Select [M] with , and press

3

<ENTER>.

█

M

Repeat this process to enter the next character.

88

English

Preset Signals

This unit can display the video signals shown in the table below.

■ Video signal

Corresponding signal Resolution (Dot)

NTSC/NTSC4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM 720 × 576i 15.63 50.00 - V
525i(480i) 720 × 480i 15.73 59.94 13.50 R/Y
625i(576i) 720 × 576i 15.63 50.00 13.50 R/Y
525i(480i) 720(1440) × 480i
625i(576i) 720(1440) × 576i
525p(480p) 720 × 480 31.47 59.94 27.00 R/Y/D/H
625p(576p) 720 × 576 31.25 50.00 27.00 R/Y/D/H
750(720)/60p 1 280 × 720 45.00 60.00 74.25 R/Y/D/H
750(720)/50p 1 280 × 720 37.50 50.00 74.25 R/Y/D/H
1 125(1 080)/60i
1 125(1 080)/50i 1 920 × 1 080i 28.13 50.00 74.25 R/Y/D/H
1 125(1 080)/24p 1 920 × 1 080 27.00 24.00 74.25 R/Y/D/H
1 125(1 080)/24PsF 1 920 × 1 080i 27.00 48.00 74.25 R/Y
1 125(1 080)/25p 1 920 × 1 080 28.13 25.00 74.25 R/Y/D/H
1 125(1 080)/30p 1 920 × 1 080 33.75 30.00 74.25 R/Y/D/H
1 125(1 080)/60p 1 920 × 1 080 67.50 60.00 148.50 R/Y/D/H
1 125(1 080)/50p 1 920 × 1 080 56.25 50.00 148.50 R/Y/D/H

720 × 480i 15.73 59.94 - V

2

*

2

*

1

*

1 920 × 1 080i 33.75 60.00 74.25 R/Y/D/H

■ PC signal

Corresponding signal Resolution (Dot)

640 × 400

640 × 480

800 × 600

832 × 624 832 × 624 49.72 74.55 57.28 R/Y/D/H
852 × 480 852 × 480 31.47 59.94 34.24 D/H

1 024 × 768

1 066 × 600 1

1 152 × 864

1 152 × 870 1
1 280 × 720 1

1 280 × 768

1 280 × 800

640 × 400 31.47 70.09 25.18 R/Y/D/H
640 × 400 37.86 85.08 31.50 R/Y/D/H
640 × 480 31.47 59.94 25.18 R/Y/D/H
640 × 480 35.00 66.67 30.24 R/Y/D/H
640 × 480 37.86 72.81 31.50 R/Y/D/H
640 × 480 37.50 75.00 31.50 R/Y/D/H
640 × 480 43.27 85.01 36.00 R/Y/D/H
800 × 600 35.16 56.25 36.00 R/Y/D/H
800 × 600 37.88 60.32 40.00 R/Y/D/H
800 × 600 48.08 72.19 50.00 R/Y/D/H
800 × 600 46.88 75.00 49.50 R/Y/D/H
800 × 600 53.67 85.06 56.25 R/Y/D/H

024

×

768 39.55 50.00 51.89 D/H

1

024

×

768 48.36 60.00 65.00 R/Y/D/H

1

024

×

768 56.48 70.07 75.00 R/Y/D/H

1

024

×

768 60.02 75.03 78.75 R/Y/D/H

1

024

×

768 65.55 81.63 86.00 R/Y/D/H

1

024

×

768 68.68 85.00 94.50 R/Y/D/H

1

066 × 600 37.64 59.94 53.00 D/H
152

×

864 53.70 60.00 81.62 R/Y/D/H

1

152

×

864 63.99 70.02 94.20 R/Y/D/H

1

152

×

864 67.50 75.00 108.00 R/Y/D/H

1

152

×

864 77.09 85.00 119.65 R/Y/D/H

1

152 × 870 68.68 75.06 100.00 R/Y/D/H
280 × 720 44.76 60.00 74.48 R/Y/D/H
280 × 768 39.55 49.94 65.18 R/Y/D/H

1

280 × 768 47.70 60.00 80.14 R/Y/D/H

1

280 × 768 47.78 59.87 79.50 R/Y/D/H

1

280 × 800 41.20 50.00 68.56 R/Y/D/H

1

280 × 800 49.31 59.91 71.00 R/Y/D/H

1

280 × 800 49.70 59.81 83.50 R/Y/D/H

1

Scanning frequency Dot clock

Horizontal (kHz) Vertical (Hz)

15.73 59.94 27.00 D/H

15.63 50.00 27.00 D/H

Scanning frequency Dot clock

Horizontal (kHz) Vertical (Hz)

frequency

(MHz)

frequency

(MHz)

Format

Format

3

*

3

*

English

89

Corresponding signal Resolution (Dot)

280 × 960 60.00 60.00 108.00 R/Y/D/H

1 280 × 960

1 280 × 1 024

1 360 × 768

1 366 × 768

1 400 × 1 050

1 440 × 900

1 600 × 900

1 680 × 1 050 1
1 600 × 1 200 1

1 920 × 1 080

1 920 × 1 200 1

1: When 1 125(1 035)/60i signal is input, it is displayed as 1 125(1 080)/60i signal.

*

2: Pixel-Repetition signal (dot clock frequency 27.0 MHz) only

*

3: Signals to represent formats are as follows.

*

1

280 × 960 85.94 85.00 148.50 R/Y

1

280 × 1 024 63.98 60.02 108.00 R/Y/D/H

1

280 × 1 024 79.98 75.02 135.00 R/Y/D/H

1

280 × 1 024 91.15 85.02 157.50 R/Y/D/H

1

360 × 768 47.71 60.02 85.50 D/H

1

360 × 768 47.70 60.00 84.72 D/H

1

360 × 768 47.72 59.80 84.75 D/H

1

366 × 768 39.55 50.00 69.92 D/H

1

366 × 768 48.39 60.03 86.71 R/Y/D/H

1

366 × 768 48.00 60.00 72.00 R/Y/D/H

1

366 × 768 39.56 49.89 69.00 R/Y/D/H

1

366 × 768 47.71 59.79 85.50 R/Y/D/H

1

400

× 1

050 65.22 60.00 122.61 D/H

1

400

× 1

050 82.20 75.00 155.85 R/Y/D/H

1

440

×

900 55.47 59.90 88.75 R/Y/D/H

1

440

×

900 55.92 60.00 106.47 R/Y/D/H

1

600

×

900 46.30 50.00 97.05 D/H

1

600

×

900 60.00 60.00 108.00 D/H

1

600

×

900 55.99 59.95 118.25 D/H

1

600

×

900 55.92 60.00 119.00 D/H

1

680 × 1 050 65.29 59.95 146.25 R/Y/D/H
600 × 1 200
920 × 1 080

1

920 × 1 080 67.50 60.00 148.50 R/Y/D/H

1

920 × 1 200

Horizontal (kHz) Vertical (Hz)

4

*

5

*

4

*

75.00 60.00 162.00 R/Y/D/H

66.59 59.93 138.50 R/Y/D/H

74.04 59.95 154.00 R/Y/D/H

frequency

(MHz)

Format

V : Composite Video (VIDEO IN)

R : D-sub RGB (PC IN)

Scanning frequency Dot clock

BCR/YPBPR (PC IN)

Y : YC

D : DVI-D (DVI-D IN)

H : HDMI (HDMI 1, HDMI 2)

The analogue input supports onG and onY.

4: Displayed with image elements thinned out in the image processing circuit.

*

5: Based on VESA CVT-RB (Reduced Blanking) standard

*

Note

●

An auto detected signal format may be differently displayed from the actual input signal.

●

[ i ] shown after the number of dots of resolution means the interlace signal.

●

When 1 125(1 080)/30PsF signal and 1 125(1 080)/25PsF signal are input, they are processed as 1 125(1 080)/60i
signal and 1 125(1 080)/50i signal, and then displayed.

3

*

90

English

Shipping condition

It is possible to reset the following data to the factory
settings.

Settings and set values of [Picture], [Sound], [Setup],
[Position] and [Options] menus

User image registered in [Setup] - [Image settings]

■ Remote control

Press <SETUP> to display the [Setup]

1

menu.

Select [OSD language] with

2

and press <ENTER> for more than 3
seconds.

The following screen will be displayed.

Select [Shipping] with and press

3

<ENTER>.

Select [YES] with and press

4

<ENTER>.

The message [Shipping ( Wait a moment )] will be
displayed.

After the message [Please turn off

5

the power] is displayed, turn the
power off pressing <Main Power On /
Off button>.

●

Options

Display software information

Software licenses

USB data cloning

Shipping

Shipping

YES NO

If the <Main Power On / Off button> is locked,
please disconnect the AC cord plug from the wall
outlet.

■ Unit

Press <MENU (Unit)> for several

1

times and display the [Setup] menu.

Select [Menu display duration] with

2

, and then press and hold <ENTER

(Unit)> for more than 5 seconds.

Select [YES] with <- (Unit)> or

3

<+ (Unit)> and press <ENTER (Unit)>.

The message [Shipping ( Wait a moment )] will be
displayed.

After the message [Please turn off

4

the power] is displayed, turn the
power off pressing <Main Power On /
Off button>.

●

If the <Main Power On / Off button> is locked,
please disconnect the AC cord plug from the wall
outlet.

English

91

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms Check

Picture Sound

Interference Noisy Sound

Normal

No Picture No Sound

No Picture Normal Sound

No Sound

Electrical Appliances

Cars / Motorcycles

Fluorescent light

Volume

(Check whether the mute function has been activated on the
remote control.)

Not plugged into AC outlet

Not switched on

Picture and Brightness/Volume setting

(Check by pressing the <Main Power On / Off button> or the
<Standby (ON/OFF) button>.)

If a signal with a non-applicable colour system format,
or frequency is input, only the input terminal indication is
displayed.

No Colour Normal Sound

A display error such as “no picture” occurs, or remote
control operation is suddenly disabled.

Power automatically turns off unexpectedly.

Power indicator is blinking in red.

No remote control operations can be performed.

Colour controls set at minimum level (see page 38, 39)

This unit incorporates highly-advanced software. If you
notice an abnormal operation such as “Remote control
cannot be operated” or “Display is disturbed”, remove the
power plug from the socket outlet, and inset it again after 5
seconds or more to turn the power on. (see page 27)

Check the settings of [No signal power off], [HDMI1 power
management], [HDMI2 power management], [DVI-D power
management], [PC power management] and [No activity
power off]. Any of them may be set to [On (Enable)]. (see
page 47)

There is possibility of malfunction. Please contact an
Authorized Service Centre.

Check whether the batteries have discharged completely
and, if they have not, whether they were inserted properly.

Check whether the remote control sensor is exposed to an
outdoor light or a strong fluorescent light.

Check whether any obstacle is present between the remote
control sensor and the remote control.

If the installation condition is normal, pull out the remote
control sensor from the edge side of the main unit when
using.

Check whether the remote control designed specifically
for use with the unit is being used. (The unit cannot be
operated by any other remote control.)

Check whether the option other than [Off] is selected in
[Controller user level] in the [Options] menu. (see page 60)

Check whether [Controller ID function] in [Options] menu is
set to [On]. (see page 61)

Check whether <ID MODE> switch is set to <ON>. (When
using ID remote controller) (see page 87)

92

English

Symptoms Check

[Controller ID function] function cannot be used.

(When using ID remote controller)

The top or bottom of the picture on the screen is
cut off.

There are areas at the top and bottom of the
screen where picture is not displayed.

Parts of the unit become hot.

There is no picture displayed or sound output
sometimes.

The RS-232C is uncontrollable.

The LAN is uncontrollable.

Check whether [Controller ID function] is set to [On], or <ID
MODE> switch is set to <ON>. (see page 61)

(When [Controller ID function] is set to [On], you need to set
<ID MODE> switch to <ON> and set the ID number.)

The image position has been adjusted in the [Position]
menu.

Adjust the position of the picture on the screen.

(see page 35, 36)

When using a video software program (such as a cinema
size program) with a screen wider than one in the 16:9
mode, blank areas separate from the images are formed at
the top and bottom of the screen.

Even when the temperature of parts of the front, top and
rear panels has risen, these temperature rises will not pose
any problems in terms of performance or quality.

When HDMI or DVI signals are input to the Display using a
selector or distributor, sound or images may not be output in
the normal fashion depending on the selector or distributor
used.

The symptoms may be improved by turning the power off
and on again, or by replacing the selector or distributor.

Check whether the connection has been made properly.
(see page 21)

Check that the connection has been made properly.

(see page 64)

To control with WEB browser control or command control,
check that [Network control] is set to [On].

(see page 53)

Check that [LAN setup] is set properly.

(see page 53)

When connecting to a device of AMX or Crestron
Electronics, Inc. set [AMX D. D.] or [Crestron Connected™]
according to the device to use.

(see page 54)

English

93

LCD Display panel

Symptoms Check

The screen will darken slightly when photos, still images of

The screen darkens slightly when bright pictures
with minimal movements are shown.

It takes a while for the picture to appear.

The edges of the images flicker.

There may be red spots, blue spots, green spots
and black spots on the screen.

Image retention appears

This LCD Display uses special image processing. Hence a slight time lag may occur between image and audio,
depending on the type of input signal. However, this is not a malfunction.

a computer or other pictures with minimal movements are
shown for an extended period. This is done to reduce image
retention on the screen and the shortening of the screen’s
service life: It is normal and not indicative of malfunctioning.

The unit digitally processes the various signals in order
to reproduce esthetically pleasing images. As such, it
sometimes takes a few moments for the picture to appear
when the power has been turned on, when the input has
been switched.

Due to the characteristics of the system used to drive the
liquid crystal panel, the edges may appear to flicker in the
fast-moving parts of the images: This is normal and not
indicative of malfunctioning.

This is a characteristic of liquid crystal panels and is
not a problem. The liquid crystal panel is built with very
high precision technology giving you fine picture details.
Occasionally, a few non-active pixels may appear on the
screen as fixed points of red, blue, green, or black. Please
note this does not affect the performance of your LCD.

Image retention may occur. If you display a still picture for
an extended period, the image might remain on the screen.
However, it will disappear when a general moving picture is
displayed for a while. This is not considered as malfunction.

94

English

Specifications

84-inch model

75-inch model

75-inch model

84-inch model

84-inch model

75-inch model

84-inch model

84-inch model

75-inch model

Model No.

:

TH-84EF1U

:

TH-75EF1U

84-inch model

Power Consumption

535 W

75-inch model

285 W

Power off condition

0.3 W

Stand-by condition

0.5 W

LCD Display panel

84-inch IPS panel (Edge LED backlight), 16:9 aspect
ratio

75-inch IPS panel (
ratio

Screen size

84-inch model

1 860 mm (W) × 1 046 mm (H) × 2 134 mm (diagonal) /

73.3” (W) × 41.2” (H) × 84.0” (diagonal)

75-inch model

1 649 mm (W) × 927 mm (H) × 1 892 mm (diagonal) /

64.9” (W) × 36.4” (H) × 74.4” (diagonal)

Resolution

1 920 (Horizontal) × 1 080 (Vertical)

Dimensions (W × H × D)

1 910 mm × 1 102 mm × 78 mm / 75.2” × 43.4” × 3.1”

75-inch model

1 681 mm × 959 mm × 77 mm / 66.2” × 37.8” × 3.0”

Mass

approx. 70 / 154 lbs net

approx. 55 / 121 lbs net

:

TH-84EF1W

:

TH-75EF1W

Edge LED

backlight), 16:9 aspect

Power source

TH-84EF1U, TH-75EF1U:

110‒127V~(110‒127Valternatingcurrent),

50/60Hz

TH-84EF1W, TH-75EF1W:

220‒240V~(220‒240Valternatingcurrent),

50/60Hz

Operating condition

Temperature

0°C‒40°C(32°F‒104°F)

Humidity

20%‒80%(nocondensation)

1

*

Storing condition

Temperature

-20°C‒60°C(-4°F‒140°F)

Humidity

20%‒80%(nocondensation)

Connection terminals

HDMI 1

HDMI 2

TYPE A Connector

Audio signal:

Linear PCM (sampling frequencies - 48 kHz,

44.1 kHz, 32 kHz)

DVI-D IN

DVI-D 24 Pin × 1:

Compliance with DVI Revision 1.0

Content Protection:

Compatible with HDCP 1.1

VIDEO

Audio/Video 4-pole mini jack (M3) × 1
(see page 20)

Video: 1.0 Vp-p (75 Ω)

Audio: 0.5 Vrms

PC IN

Mini D-sub 15 Pin (Compatible with DDC2B) × 1

Y/G:

1.0 Vp-p (75 Ω) (with sync signal)

0.7 Vp-p (75 Ω) (without sync signal)

B/CB/B:

P

0.7 Vp-p (75 Ω) (without sync signal)

R/CR/R:

P

0.7 Vp-p (75 Ω) (without sync signal)

HD/VD:

1.0‒5.0Vp-p(highimpedance)

2

*

× 2

English

95

AUDIO IN

Stereo mini jack (M3) × 1, 0.5 Vrms

Shared with DVI-D IN and PC IN

AUDIO OUT

Stereo mini jack (M3) × 1, 0.5 Vrms

Output:Variable(-∞‒0dB)
(1 kHz 0 dB input, 10 kΩ load)

SERIAL IN

External Control Terminal

D-sub 9 Pin × 1:

RS-232C compatible

LAN

RJ45 × 1:

For RJ45 network connections, compatible with
PJLink

Communication method:

RJ45 10BASE-T/100BASE-TX

IR IN

Stereo mini jack (M3) × 1

IR OUT

Stereo mini jack (M3) × 1

USB

TYPE A USB connector × 1

DC 5V / 1A (USB 3.0 is not supported.)

Sound

Speakers

15mm×25mm/φ70mm×2

Audio Output

20 W [10 W + 10 W] (10 % THD)

Remote Control Transmitter

Power source

DC 3 V (battery (AAA/R03/UM4 type) × 2)

Operating range

Approx. 7 m (22.9 ft)

(when operated directly in front of remote control
sensor)

Mass

Approx. 63

Dimensions (W × H × D)

44 mm × 105 mm × 20.5 mm /

1.74” × 4.14” × 0.81”

/ 2.22 oz (including batteries)

1: Environmental temperature to use this unit at high

*

altitudes (1 400 m (4 593 ft) and higher and below
2 800 m (9 186 ft) above sea level): 0 °C to 35 °C
(32 °F to 95 °F)

2: VIERA LINK is not supported.

*

Note

●

Design and specifications are subject to change
without notice. Mass and dimensions shown are
approximate.

96

English

Software License

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,

(2) the software owned by third party and licensed to Panasonic Corporation,

(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),

(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or

(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY,
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. For details,
see the license conditions displayed by selecting [Software licenses], following the specified operation from the
[Settings] menu of this product.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at
the contact information provided below, for a charge no more than our cost of physically performing source code
distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL
V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information:

[e-mail]

Notice about AVC/VC-1/MPEG-4

This product is licensed under the AVC Patent Portfolio License, VC-1 Patent Portfolio License and MPEG-4 Visual
Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration
to (i) encode video in compliance with the AVC Standard, VC-1 Standard and MPEG-4 Visual Standard (“AVC/
VC-1/MPEG-4 Video”) and/or (ii) decode AVC/VC-1/MPEG-4 Video that was encoded by a consumer engaged in
a personal activity and/or was obtained from a video provider licensed to provide AVC/VC-1/MPEG-4 Video. No
license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA,
LLC. See http://www.mpegla.com.

English

97

Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take
them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

EU

This symbol might be used in combination with a chemical symbol. In this case it complies with
the requirement set by the Directive for the chemical involved.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union.
If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of
disposal.

Notice (U.S.A. only)

Disposal may be regulated in your community due to environmental considerations. For disposal or
recycling information, please visit Panasonic website:
http://www.panasonic.com/environmental
or call 1-888-769-0149.

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

For TH-84EF1U and TH-75EF1U

Panasonic System Communications Company of North America

Unit of Panasonic Corporation of North America

Executive Office :

Two Riverfront Plaza, Newark, New Jersey 07102-5490

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

For TH-84EF1W and TH-75EF1W

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

Web Site: http://panasonic.com

© Panasonic Corporation 2016

English

TP0816TS0 -PB
